30634 Rev_D
QUICK START GUIDE
u-line.com
2
WELCOME TO U-LINE
making, refrigeration, and wine preservation experience. U-Line creates products focused on functionality, style, and inspired
innovations — paying close attention to even the smallest details. Applications include residential, outdoor, ADA height
compliant, marine, and commercial. Complete product categories include Beverage Centers, Wine Refrigerators, Ice Machines,
Refrigerators, Freezers, and Dispensers.
®
clean integrated look allow you
PRODUCT INFORMATION
PROPERTY DAMAGE / INJURY CONCERNS
In the unlikely event property damage or personal injury is suspected related to a U-Line product, please take the following
steps:
GENERAL INQUIRIES
U-Line Corporation
Email: sales@u-line.com
u-line.com
CONNECT WITH US
SERVICE & PARTS ASSISTANCE
Parts Email: onlineparts@u-line.com
QUICK START GUIDE
u-line.com
This Quick Start Guide covers the basics of installation and general use of your product.
For more details, see the complete User Guide & Service Manual on u-line.com.
This product is eligible for an additional one-year warranty at no charge when you register your product on u-line.com.
See complete warranty for details.
CONTENTS
Safety and Warning 4
Environmental Requirements 5
Electrical 5
Water Hookup 6
Drain 12

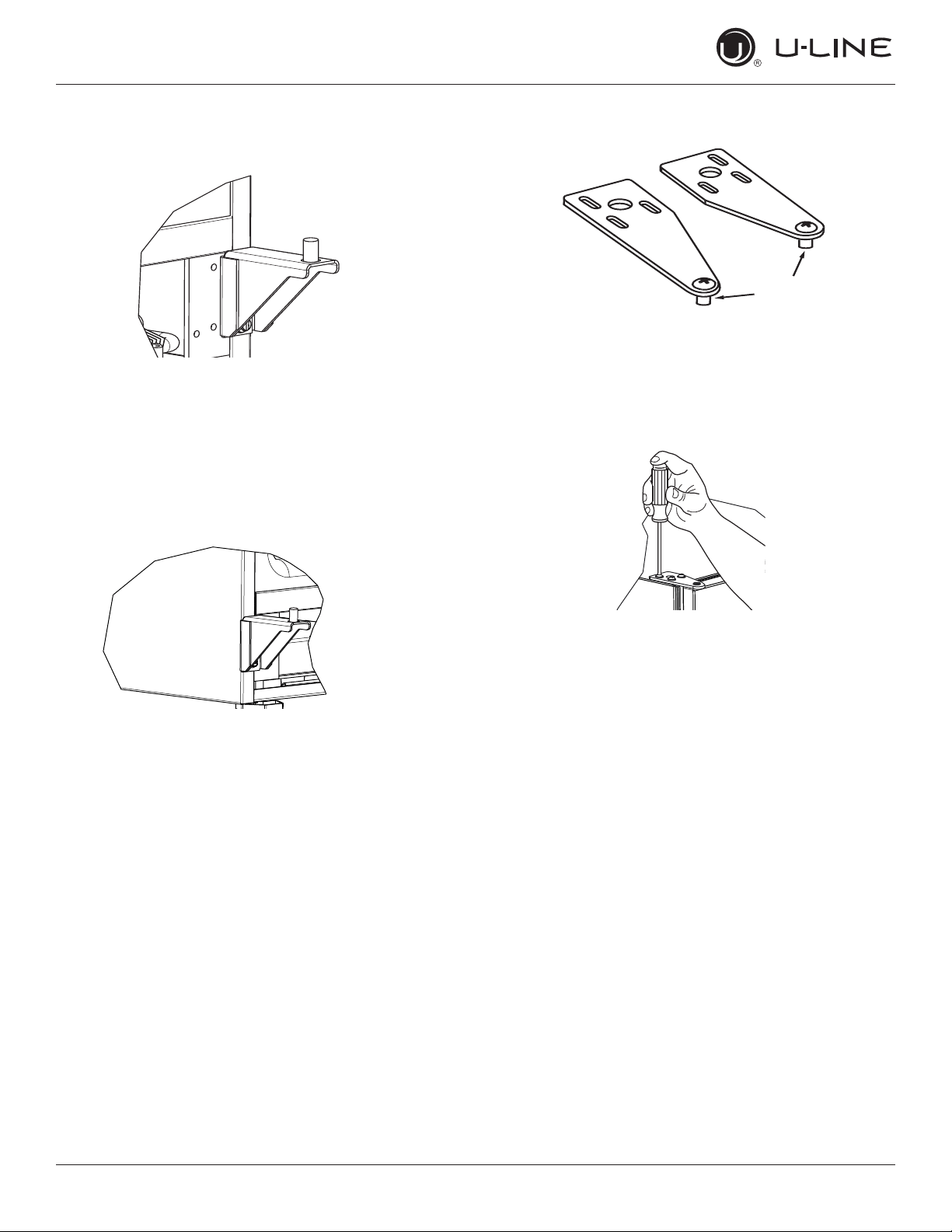

Door Swing 13
Door Adjustments 18
General Installation 20

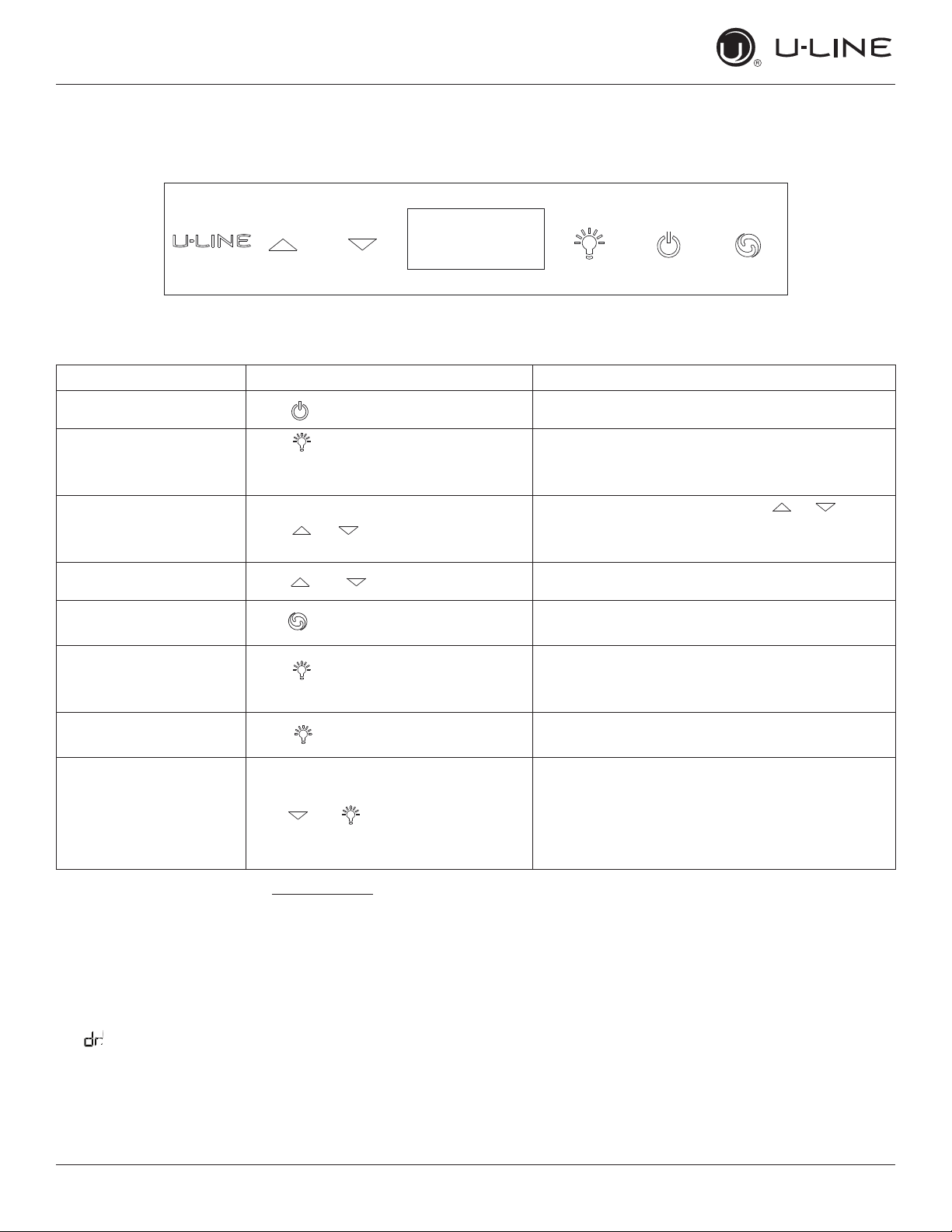

Control Operation 21
First Use 25
Ice 26
Cleaning 29
Warranty 34
D
e
s
i
g
n
e
d
,
e
n
g
i
n
e
e
r
e
d
,
a
n
d
a
s
s
e
m
b
l
e
d
i
n
M
i
l
w
a
u
k
e
e
,
W
I
,
U
S
A
t
o
b
e
r
e
m
o
v
e
d
b
y
e
n
d
c
o
n
s
u
m
e
r
o
n
l
y
2
*
v
i
s
i
t
u
-
l
i
n
e
.
c
o
m
f
o
r
d
e
t
a
i
l
s
1 year + 1 with registration
*
3
QUICK START GUIDE
u-line.com
Safety and Warning
NOTICE
Please read all instructions before installing,
operating, or servicing the appliance.
Use this appliance for its intended purpose only and follow
these general precautions with those listed throughout this
guide:
SAFETY ALERT DEFINITIONS
Throughout this guide are safety items labeled with a
Danger, Warning, or Caution based on the risk type:
Danger means that failure to follow this safety
statement will result in severe personal injury or
death.
Warning means that failure to follow this safety
statement could result in serious personal injury
or death.
Caution means that failure to follow this safety
statement may result in minor or moderate
personal injury, property, or equipment damage.
Your product may contain R600a (Isobutane)
which is a ammable hydrocarbon. To conrm,
check serial tag inside of unit. It is safe for
regular use. Do not use sharp objects to expedite
defrosting. Do not service without consulting the
“R600a specications” section included in the
User Guide. Do not damage the refrigerant
circuit.
Service must be done by factory authorized
service personnel. Any parts shall be replaced
with like components. Failure to comply could
increase the risk of possible ignition due to
incorrect parts or improper service.
CALIFORNIA PROPOSITION 65
This product contains chemicals known to the
state of California to cause cancer and birth
defects or other reproductive harm.
www.P65warnings.CA.gov
DANGER
!
DANGER
!
WARNING
!
CAUTION
!
WARNING
!
4
QUICK START GUIDE
u-line.com
Environmental Requirements
This model is intended for indoor/interior applications only
and is not to be used in installations that are open/
exposed to natural elements.
This unit is designed to operate between 50°F (10°C) and
100°F (38°C). Higher ambient temperatures may reduce
the unit’s ability to reach low temperatures and/or reduce
ice production on applicable models.
For best performance, keep the unit out of direct sunlight
and away from heat generating equipment.
In climates where high humidity and dew points are
present, condensation may appear on outside surfaces.
This is considered normal. The condensation will
evaporate when the humidity drops.
Damages caused by ambient temperatures of
40°F (4°C) or below are not covered by the
warranty.
Electrical
SHOCK HAZARD — Electrical Grounding
Required. Never attempt to repair or perform
maintenance on the unit until the electricity has
been disconnected.
Never remove the round grounding prong from
the plug and never use a two-prong grounding
adapter.
Altering, cutting or removing power cord,
removing power plug, or direct wiring can cause
serious injury, re, loss of property and/or life,
and will void the warranty.
Never use an extension cord to connect power to
the unit.
Always keep your working area dry.
NOTICE
Electrical installation must observe all state and
local codes. This unit requires connection to a
grounded (three-prong), polarized receptacle
that has been placed by a qualied electrician.
The unit requires a grounded and polarized 115 VAC,
60 Hz, 15A power supply (normal household current). An
individual, properly grounded branch circuit or circuit
breaker is recommended. A GFCI (ground fault circuit
appliances and is not recommended for your unit because
it could be prone to nuisance tripping. However, be sure
to consult your local codes.
CAUTION
!
5
QUICK START GUIDE
u-line.com
6

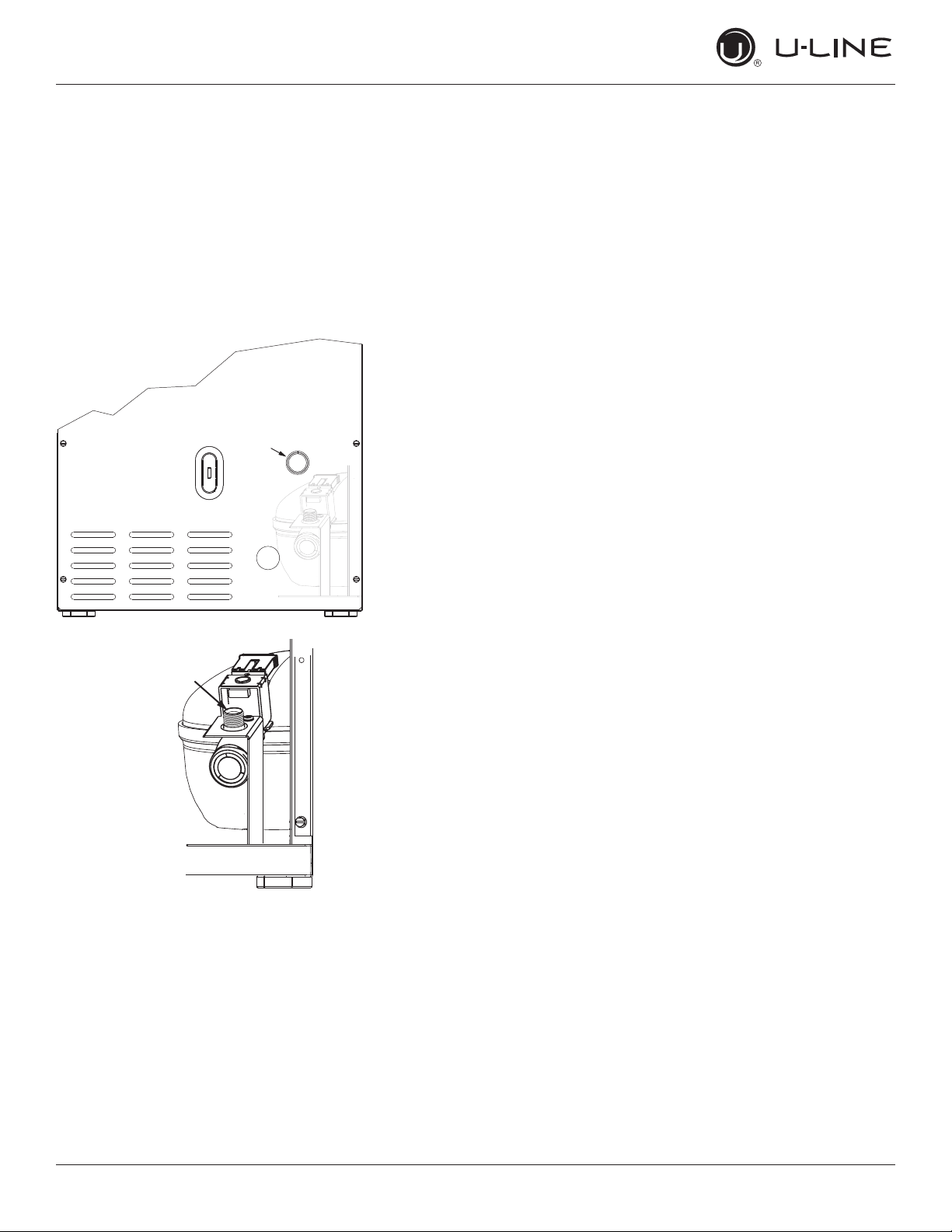

PREPARE PLUMBING
The water valve uses a standard 1/4” (6.35 mm)
Plumbing installation must observe all state
and local codes. All water and drain connections
MUST BE made by a licensed/qualied plumbing
contractor. Failure to follow recommendations
and instructions may result in damage and/or
harm.
Water Supply Connection
•
• The water pressure should be between 20 and 120 psi
•
•
•
softer ice than desired.
•
• The water line should be looped into 2 coils. This
Do not use any plastic water supply line. The line
is under pressure at all times. Plastic may crack
or rupture with age and cause damage to your
Do not use tape or joint compound when
attaching a braided exible water supply line
that includes a rubber gasket. The gasket
provides an adequate seal – other materials
could cause blockage of the valve.
ooding or void the product warranty.
Turn o water supply and disconnect electrical
supply to unit prior to installation.
Use caution when handling back panel. The edges
could be sharp.
CAUTION
!
MUST BE made by a licensed/qualied plumbing
Water Supply Connection
Do not use any plastic water supply line. The line
is under pressure at all times. Plastic may crack
or rupture with age and cause damage to your
home.
Do not use tape or joint compound when
attaching a braided exible water supply line
that includes a rubber gasket. The gasket
provides an adequate seal – other materials
could cause blockage of the valve.
Failure to follow recommendations and
instructions may result in damage and/or harm,
ooding or void the product warranty.
Use new hose set. Do not reuse old hose set.
Turn o water supply and disconnect electrical
supply to unit prior to installation.
Use caution when handling back panel. The edges
could be sharp.
CAUTION
!
CAUTION
!
Water Hookup

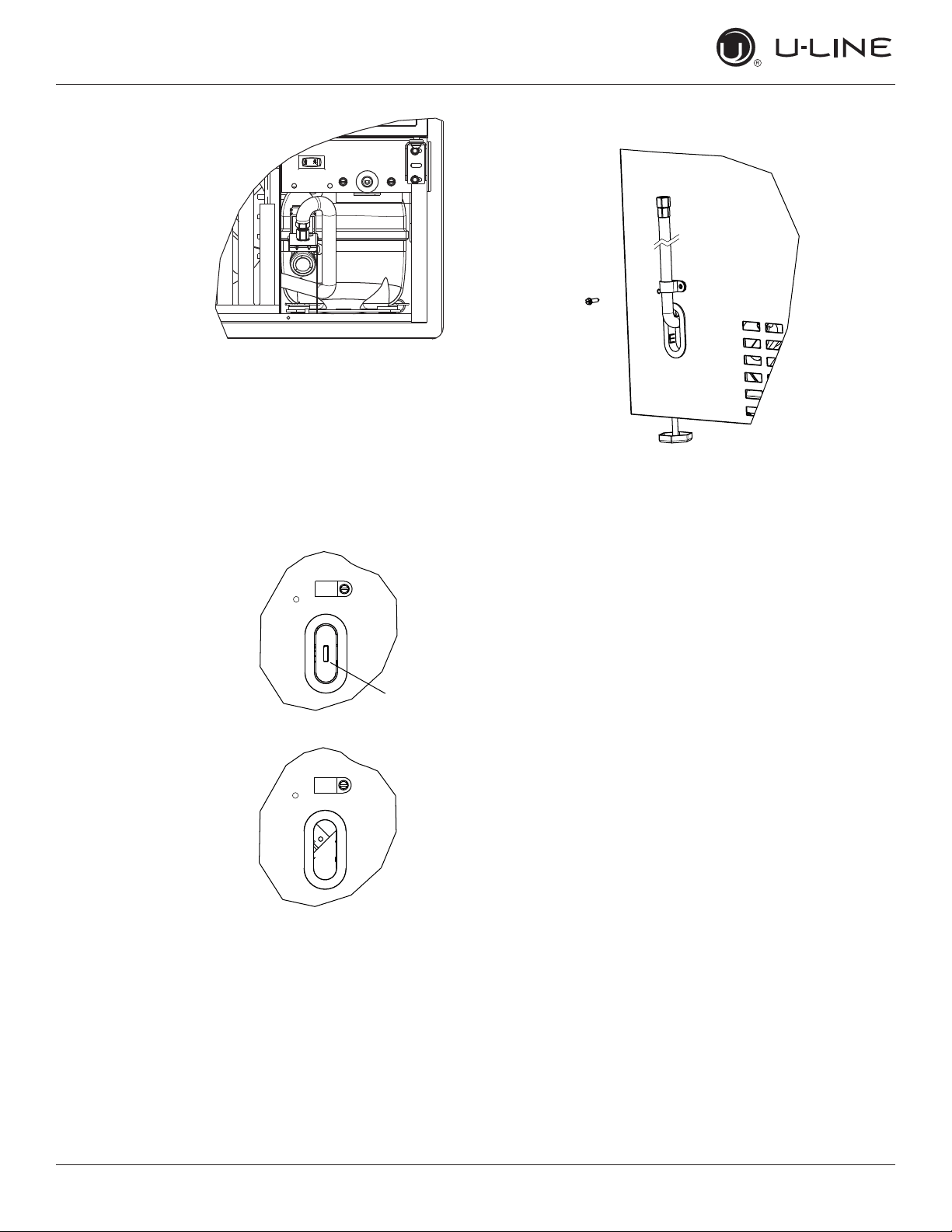

Crescent Ice Makers
QUICK START GUIDE
u-line.com
7
u-line.com

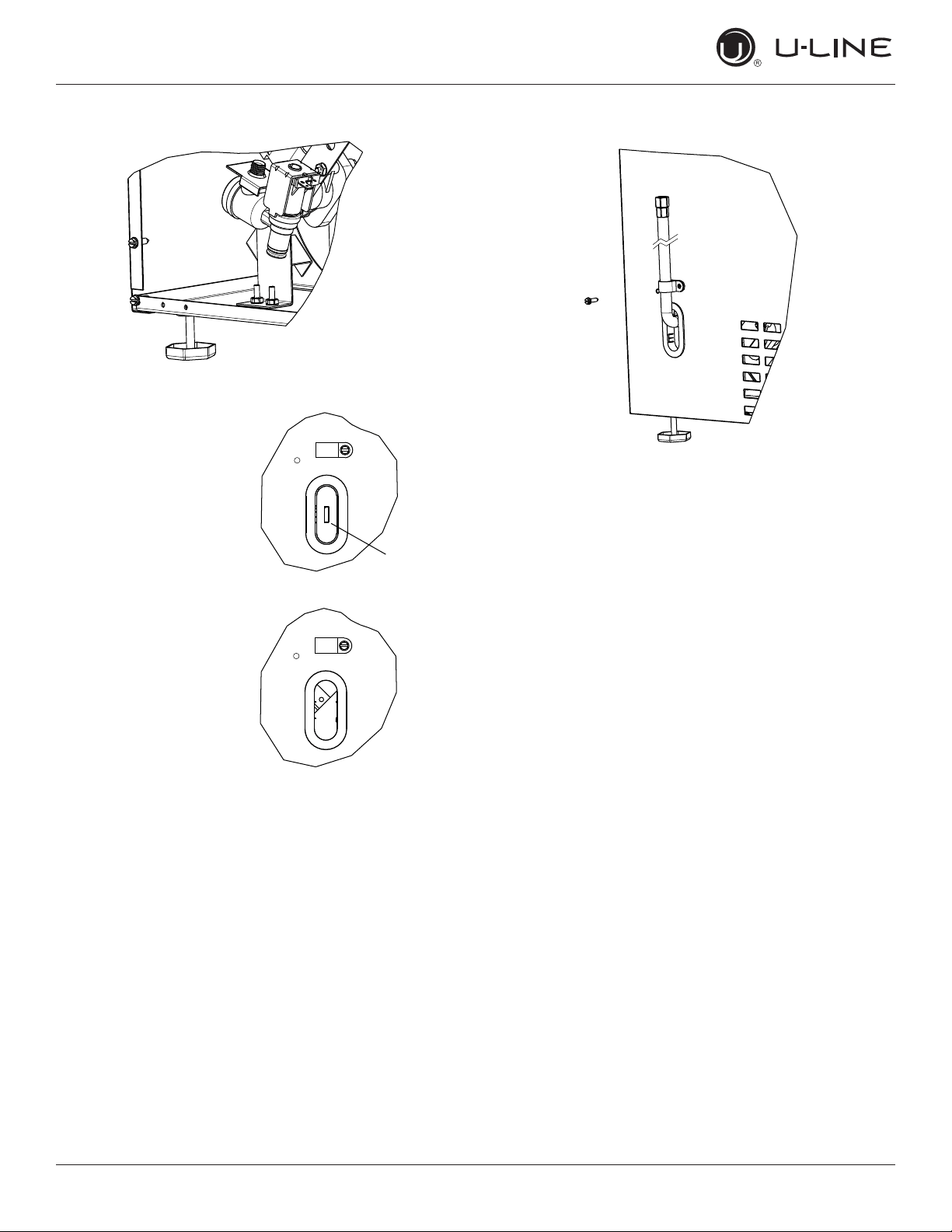

Remove
ZLWKɠDW
screwdriver
QUICK START GUIDE
u-line.com
8
MUST BE made by a licensed/qualied plumbing
Water Supply Connection
Do not use any plastic water supply line. The line
is under pressure at all times. Plastic may crack
or rupture with age and cause damage to your
home.
Do not use tape or joint compound when
attaching a braided exible water supply line
that includes a rubber gasket. The gasket
provides an adequate seal – other materials
could cause blockage of the valve.
Failure to follow recommendations and
instructions may result in damage and/or harm,
ooding or void the product warranty.
Use new hose set. Do not reuse old hose set.
Turn o water supply and disconnect electrical
supply to unit prior to installation.
Use caution when handling back panel. The edges
could be sharp.
CAUTION
!
CAUTION
!
Water Hookup
Clear Ice Machines
PREPARE PLUMBING
The water valve uses a standard 1/4” (6.35 mm)
Plumbing installation must observe all state
and local codes. All water and drain connections
MUST BE made by a licensed/qualied plumbing
contractor. Failure to follow recommendations
and instructions may result in damage and/or
harm.
Water Supply Connection
•
• The water pressure should be between 20 and 120 psi
•
•
•
softer ice than desired.
•
• The water line should be looped into 2 coils. This
Do not use any plastic water supply line. The line
is under pressure at all times. Plastic may crack
or rupture with age and cause damage to your
Do not use tape or joint compound when
attaching a braided exible water supply line
that includes a rubber gasket. The gasket
provides an adequate seal – other materials
could cause blockage of the valve.
ooding or void the product warranty.
Turn o water supply and disconnect electrical
supply to unit prior to installation.
Use caution when handling back panel. The edges
could be sharp.
CAUTION
!
QUICK START GUIDE
u-line.com
u-line.com
NOTICE
Route the water
supply line
through the unit so it does not come into contact
with any internal components other than the
solenoid valve. Normal operation creates some
vibration. A water supply line contacting an
internal component or cabinet wall can cause
excessive noise during operation or damage to
the line.
Remove
ZLWKɠDW
screwdriver
9
QUICK START GUIDE
u-line.com
MUST BE made by a licensed/qualied plumbing
Water Supply Connection
Do not use any plastic water supply line. The line
is under pressure at all times. Plastic may crack
or rupture with age and cause damage to your
home.
Do not use tape or joint compound when
attaching a braided exible water supply line
that includes a rubber gasket. The gasket
provides an adequate seal – other materials
could cause blockage of the valve.
Failure to follow recommendations and
instructions may result in damage and/or harm,
ooding or void the product warranty.
Use new hose set. Do not reuse old hose set.
Turn o water supply and disconnect electrical
supply to unit prior to installation.
Use caution when handling back panel. The edges
could be sharp.
CAUTION
!
CAUTION
!
Water Hookup
Nugget Ice Machines
PREPARE PLUMBING
The water valve uses a standard 1/4” (6.35 mm)
Plumbing installation must observe all state
and local codes. All water and drain connections
MUST BE made by a licensed/qualied plumbing
contractor. Failure to follow recommendations
and instructions may result in damage and/or
harm.
Water Supply Connection
•
• The water pressure should be between 20 and 120 psi
•
•
•
softer ice than desired.
•
• The water line should be looped into 2 coils. This
Do not use any plastic water supply line. The line
is under pressure at all times. Plastic may crack
or rupture with age and cause damage to your
Do not use tape or joint compound when
attaching a braided exible water supply line
that includes a rubber gasket. The gasket
provides an adequate seal – other materials
could cause blockage of the valve.
ooding or void the product warranty.
Turn o water supply and disconnect electrical
supply to unit prior to installation.
Use caution when handling back panel. The edges
could be sharp.
CAUTION
!
10
QUICK START GUIDE
u-line.com
1.
2. Remove the back panel.
3.
4.
5.
6. Reinstall back panel.
3
4
11
QUICK START GUIDE
u-line.com
u-line.com
Drain
DRAIN CONNECTION
CAUTION
!
If your U-Line unit did not come with a factory
installed drain pump you must use a gravity
style drain connection. For assistance in
determining if your unit has a pump please
contact U-Line. The floor drain must be large
enough to accommodate drainage from all
attached drains. Follow these guidelines when
installing drain lines to prevent water from
flowing back into the ice maker storage bin and/
or potentially flowing onto the floor, which may
result in personal injury or property damage.
Drain can NOT be located directly below the unit.
Unit has a solid base that will not allow the unit
to drain below itself.
There is a possibility that hose connections may
have loosened during shipment.
Verify all connections and fittings are free from
leaks.
GRAVITY DRAIN
A gravity drain may be used if:
CAUTION
!
Failure to connect water supply or drain line
connections properly can result in personal
injury and property damage. Gravity drain
connections must be routed downward from the
rest of the unit at the rate of 1/4" per foot (1 cm
per 50 cm).
Normal
Proper Drain
With Trap
Poor Drainage, Water Will Back Up
With Trap and Vent
Proper Drain
8
12
QUICK START GUIDE
u-line.com
u-line.com

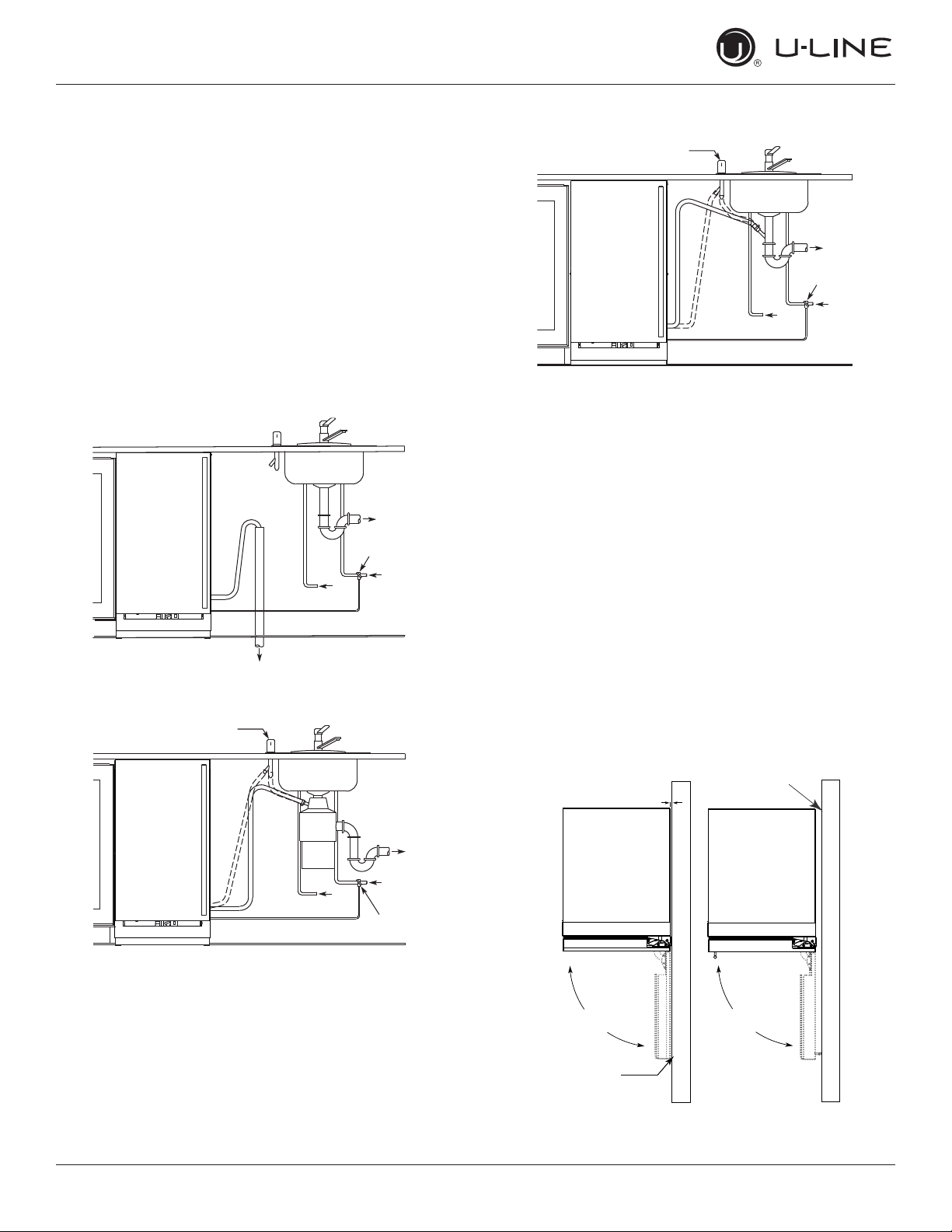

FACTORY INSTALLED DRAIN PUMP
The maximum lift for the P60 drain pump is
10 feet. This must be done as close to the rear of
the unit as possible.
Door Swing
-
Cold
Water
Hot
Water
Waste
Waste
6KXW2ɞ
Valve
Stand Pipe
P60 Pump Required
Air Gap
(Optional Hook-Up)
Cold
Water
Hot
Water
Waste
6KXW2ɞ
Valve
Disposal Assembly
P60 Pump Required
Waste
Cold
Water
6KXW2ɞ
Valve
Hot
Water
Air Gap
(Optional Hook-Up)
Y-Branch Tailpiece
P60 Pump Required
9
Wall
Wall
90°
Door Swing
90°
Door Swing
Space Required
For any Knobs or Pulls
2-1/4" MIN
(57 mm MIN)
Integrated
Stainless
1/2" (13 mm)
13
QUICK START GUIDE
u-line.com
14
u-line.com
Door Adjustments
CRESCENT ICE MAKERS
HINGE COVER
To install hinge cover:
DOOR ALIGNMENT AND ADJUSTMENT
Properly aligned, the door’s gasket should be
firmly in contact with the cabinet all the way
around the door (no gaps). Carefully examine
the door’s gasket to ensure that it is firmly in
contact with the cabinet. Also make sure the
door gasket is not pinched on the hinge side of
the door.
To align and adjust the door:

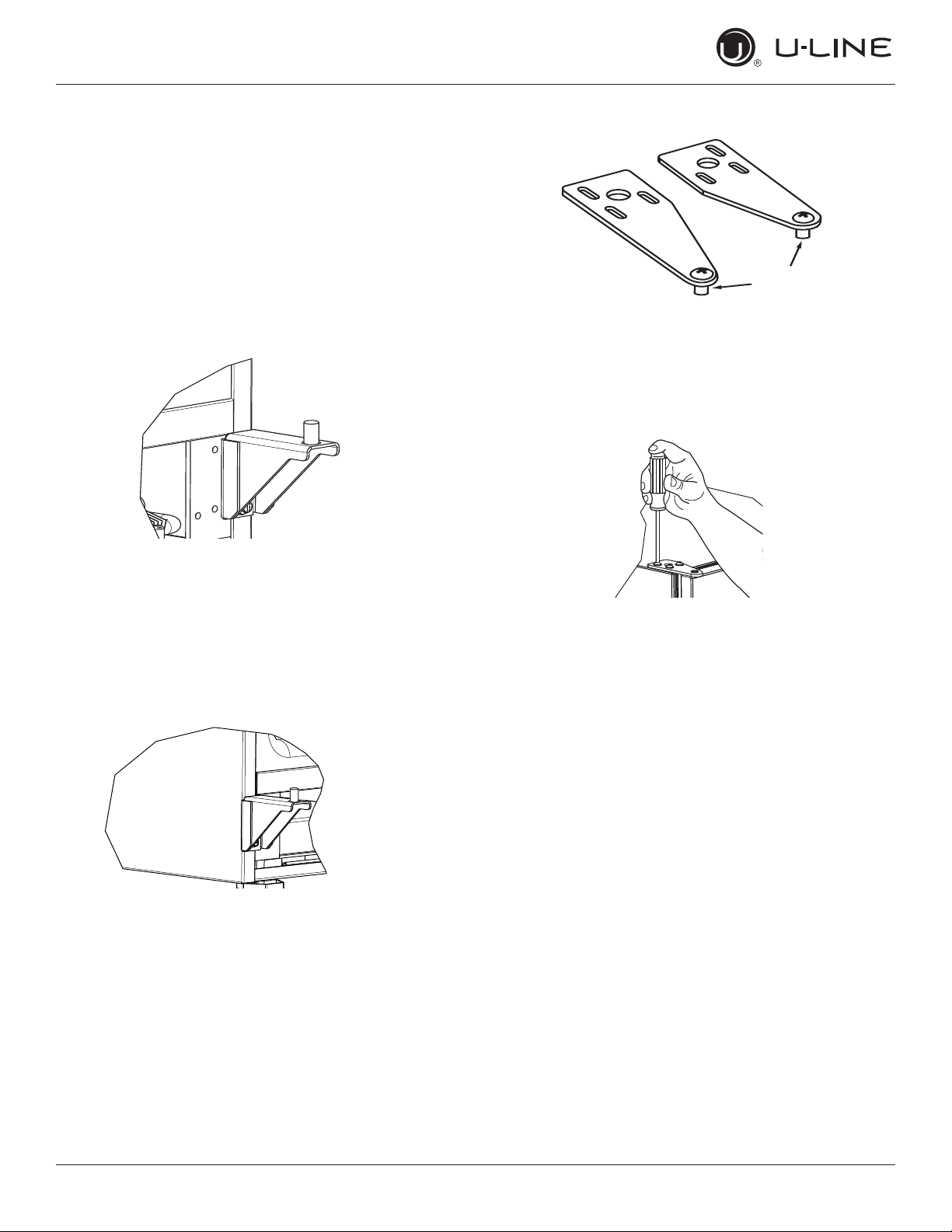

REVERSING THE DOOR
TO REVERSE THE DOOR
Remove top hinge and door:
Hinge Cover
11
QUICK START GUIDE
u-line.com
15
u-line.com

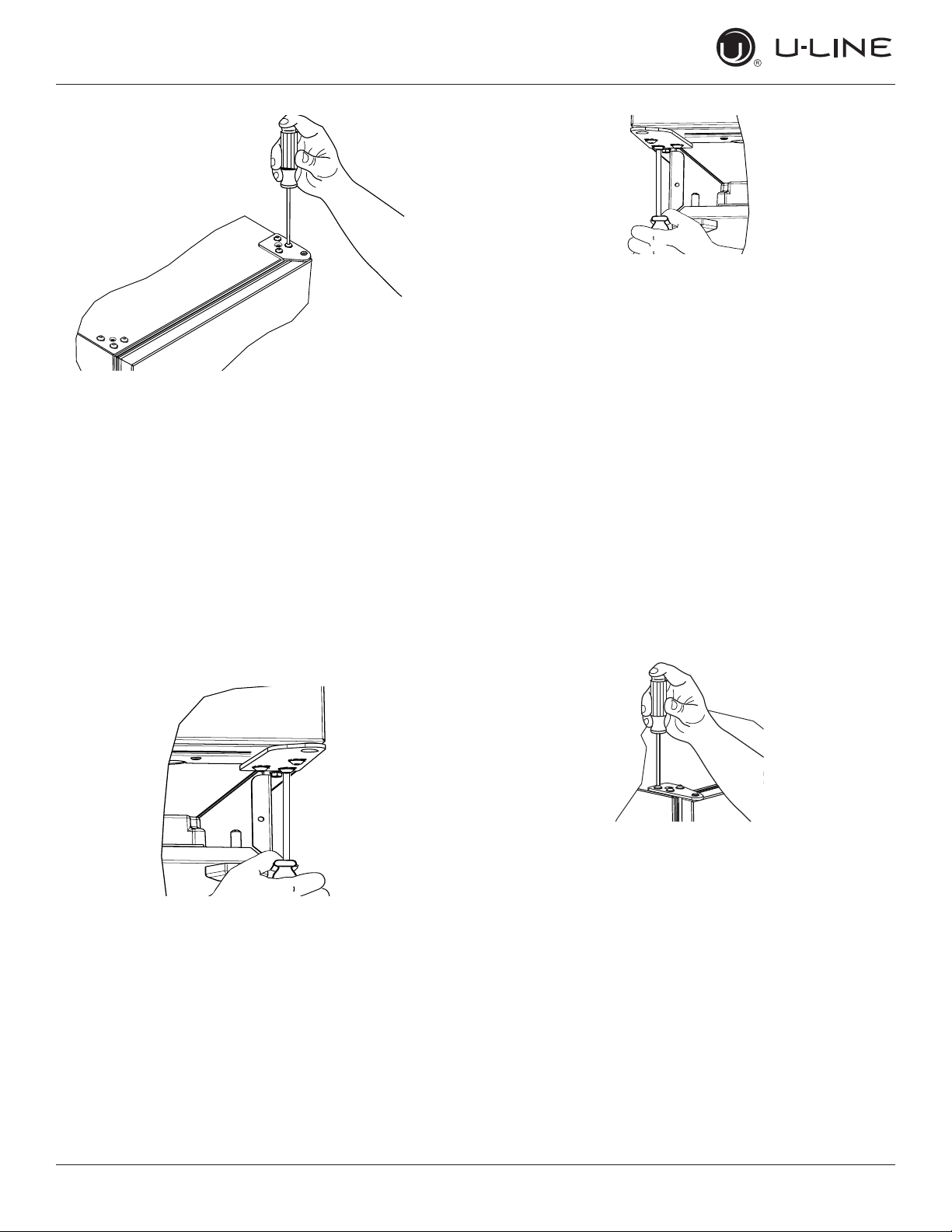

Remove bottom hinge:
Install bottom hinge:
Prepare door for reinstallation:
Install top hinge and door:
Align and adjust the door:
Top Hinge
Right Side
Top Hinge
Left Side
Pivot
Screw
12
QUICK START GUIDE
u-line.com
16
u-line.com
Door Adjustments
15” REFRIGERATORS AND CLEAR ICE MACHINES
HINGE COVER
To install hinge cover:
DOOR ALIGNMENT AND ADJUSTMENT
Properly aligned, the door’s gasket should be
firmly in contact with the cabinet all the way
around the door (no gaps). Carefully examine
the door’s gasket to ensure that it is firmly in
contact with the cabinet. Also make sure the
door gasket is not pinched on the hinge side of
the door.
To align and adjust the door:
REVERSING THE DOOR
TO REVERSE THE DOOR
Remove top hinge and door:
Hinge Cover
13
QUICK START GUIDE
u-line.com
17
u-line.com
Remove bottom hinge:
Install bottom hinge:
Prepare door for reinstallation:
Install top hinge and door:
Align and adjust the door:
Top Hinge
Right Side
Top Hinge
Left Side
Pivot
Screw
14
QUICK START GUIDE
u-line.com
18
u-line.com
Door Adjustments
24” MODELS AND NUGGET ICE MACHINES
HINGE COVER
To install hinge cover:
DOOR ALIGNMENT AND ADJUSTMENT
Properly aligned, the door’s gasket should be
firmly in contact with the cabinet all the way
around the door (no gaps). Carefully examine
the door’s gasket to ensure that it is firmly in
contact with the cabinet. Also make sure the
door gasket is not pinched on the hinge side of
the door.
To align and adjust the door:
REVERSING THE DOOR
TO REVERSE THE DOOR
Remove grille:
Remove top hinge and door:
Hinge Cover
15
QUICK START GUIDE
u-line.com
u-line.com
Remove bottom hinge:
Install bottom hinge:
Prepare door for reinstallation:
Install top hinge and door:
Align and adjust the door:
Install grille and top covers
16
19
QUICK START GUIDE
u-line.com
u-line.com
General Installation

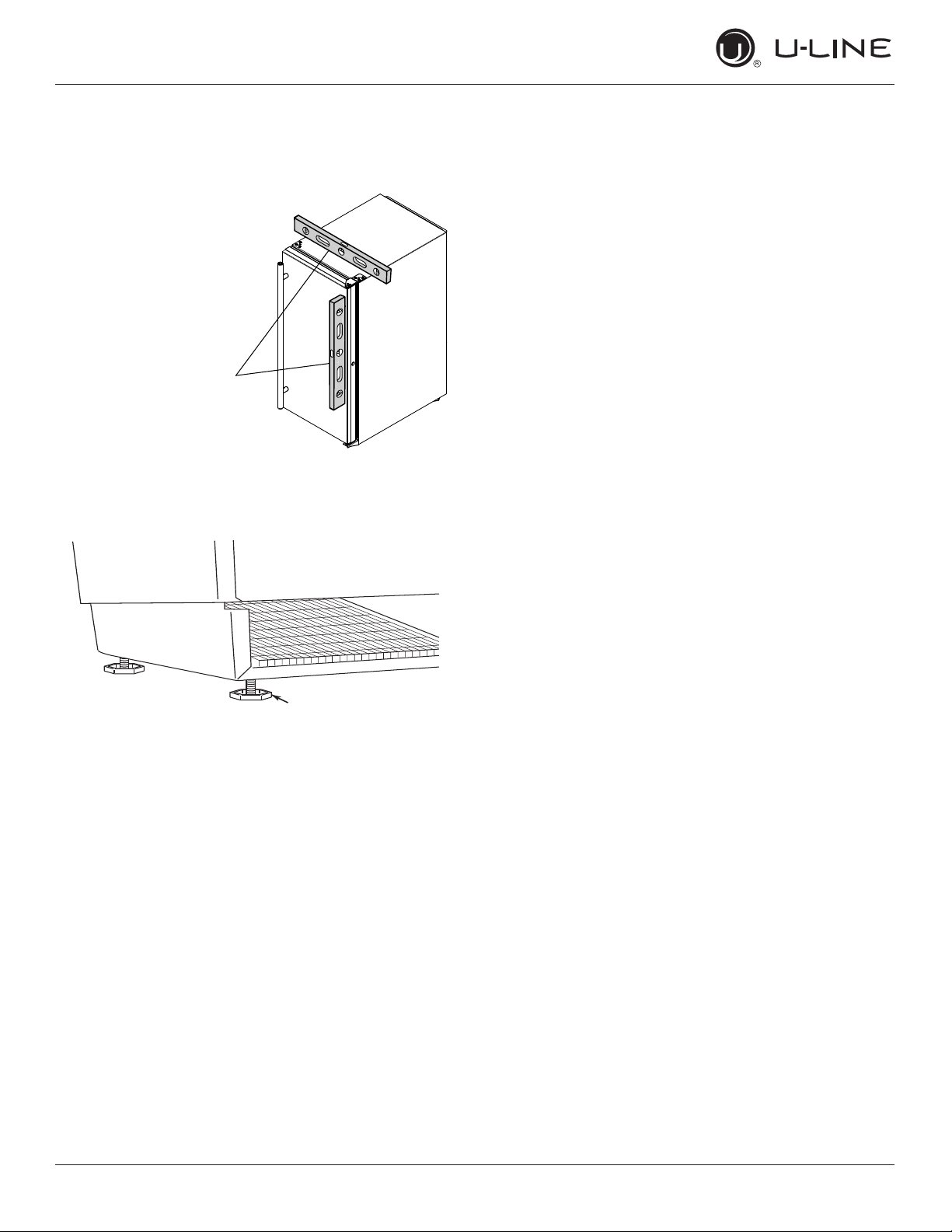

LEVELING INFORMATION
INSTALLATION TIP
INSTALLATION
1
Turn to Adjust
17
20
QUICK START GUIDE
u-line.com
u-line.com
Control Operation
DOOR ALERT NOTIFICATION
REFRIGERATORS
CONTROL FUNCTION GUIDE
FUNCTION COMMAND NOTES
18
21
CONTROL FUNCTION GUIDE
FUNCTION COMMAND NOTES
ON/OFF Press and release Unit will turn On or OFF
Leave interior light on
Press and release to leave interior
light on for 3 hours; press again to
deactivate
After 3 hours, factory default is restored; light will
turn on when door is open
Adjust Temperature Press or and release
adjust the set point temperature. Note: temperature
displayed is the actual temperature inside unit
Toggle between
º
F /
º
C Hold and for 5 seconds The display will change units
Enable Sabbath Mode
Press and hold for 5 seconds and
release
The
o
F /
o
Interior light and display will go dark and remain so
until user resets mode - unit continues to operate
Disable Sabbath Mode Press and release Display and interior light return to normal operation
Showroom Mode Hold and for 5 seconds
Display will show SH for 2 seconds. Interior light and
display will function normally, but the compressor
and fans will not energize.
Repeat command to return to normal operation.
Display will show EH for 2 seconds.
www.star-k.org for more details.
DOOR ALERT NOTIFICATION
When the door is left open for more than 5 minutes:
•
will appear in display
Close door to silence alert and reset
QUICK START GUIDE
u-line.com
u-line.com
Control Operation
CLEAR ICE MACHINES
CONTROL FUNCTION GUIDE
FUNCTION COMMAND NOTES
3H2H 1H
19
22
CONTROL FUNCTION GUIDE
FUNCTION COMMAND NOTES
ON/OFF Press and release Unit will immediately turn On or OFF
Adjust ice thickness See “Ice” section
Enable Sabbath Mode
Press and hold for 5 seconds and
release
The
o
F /
o
Interior light and display will go dark and remain so
until user resets mode - unit continues to operate
Disable Sabbath Mode Press and release Display and interior light return to normal operation
Silent Mode (ice
production suspended for
3 hours)
Hold and
Display will countdown the hours: 3H, 2H, 1H
Clean Mode See “Cleaning” section
Showroom Mode Hold and for 5 seconds
The
º
F /
º
interior light will function. Unit will not cool. Repeat
command to return to normal operation
www.star-k.org for more details.
QUICK START GUIDE
u-line.com
23
CONTROL FUNCTION GUIDE
FUNCTION COMMAND NOTES
ON/OFF Press and release Unit will immediately turn On or OFF
Leave interior light on
Press and release to leave interior
light on for 12 hours; press again to
deactivate
After 12 hours, factory default is restored; light will
turn on when door is open
Adjust Temperature Press or and release
adjust the set point temperature. Note: temperature
displayed is the actual temperature inside unit
Toggle between
º
F /
º
C Hold and for 5 seconds The display will change units
Toggle between Freezer/
Refrigerator
Hold for 5 seconds
Unit will “beep” and display will show the default set
point for Refrigerator/Freezer
Enable Sabbath Mode
Press and hold for 5 seconds and
release
The
o
F /
o
Interior light and display will go dark and remain so
until user resets mode - unit continues to operate
Disable Sabbath Mode Press and release Display and interior light return to normal operation
Showroom Mode Hold and for 5 seconds
Display will show SH for 2 seconds. Interior light and
display will function normally, but the compressor
and fans will not energize.
Repeat command to return to normal operation.
Display will show EH for 2 seconds.
www.star-k.org for more details.
DOOR ALERT NOTIFICATION
When the door is left open for more than 5 minutes:
• A tone will sound for several seconds every minute
•
will appear in display
Close door to silence alert and reset
Control Operation
CONVERTIBLE FREEZER
QUICK START GUIDE
u-line.com
24
Control Operation
NUGGET ICE MACHINES
CONTROL FUNCTION GUIDE
FUNCTION COMMAND NOTES
ON/OFF Press and release Unit will immediately turn On or OFF
Adjust ice density See “Ice” section
Enable Sabbath Mode
Press and hold for 5 seconds and
release
The
o
F /
o
Interior light and display will go dark and remain so
until user resets mode - unit continues to operate
Disable Sabbath Mode Press and release Display and interior light return to normal operation
Clean Mode See “Cleaning” section
Showroom Mode Hold and for 5 seconds
The
º
F /
º
interior light will function. Unit will not cool. Repeat
command to return to normal operation
www.star-k.org for more details.
DOOR ALERT NOTIFICATION
When the door is left open for more than 30 minutes:
• Ice production will cease
• A tone will sound for several seconds every minute
•
will appear in display
QUICK START GUIDE
u-line.com
25
First Use

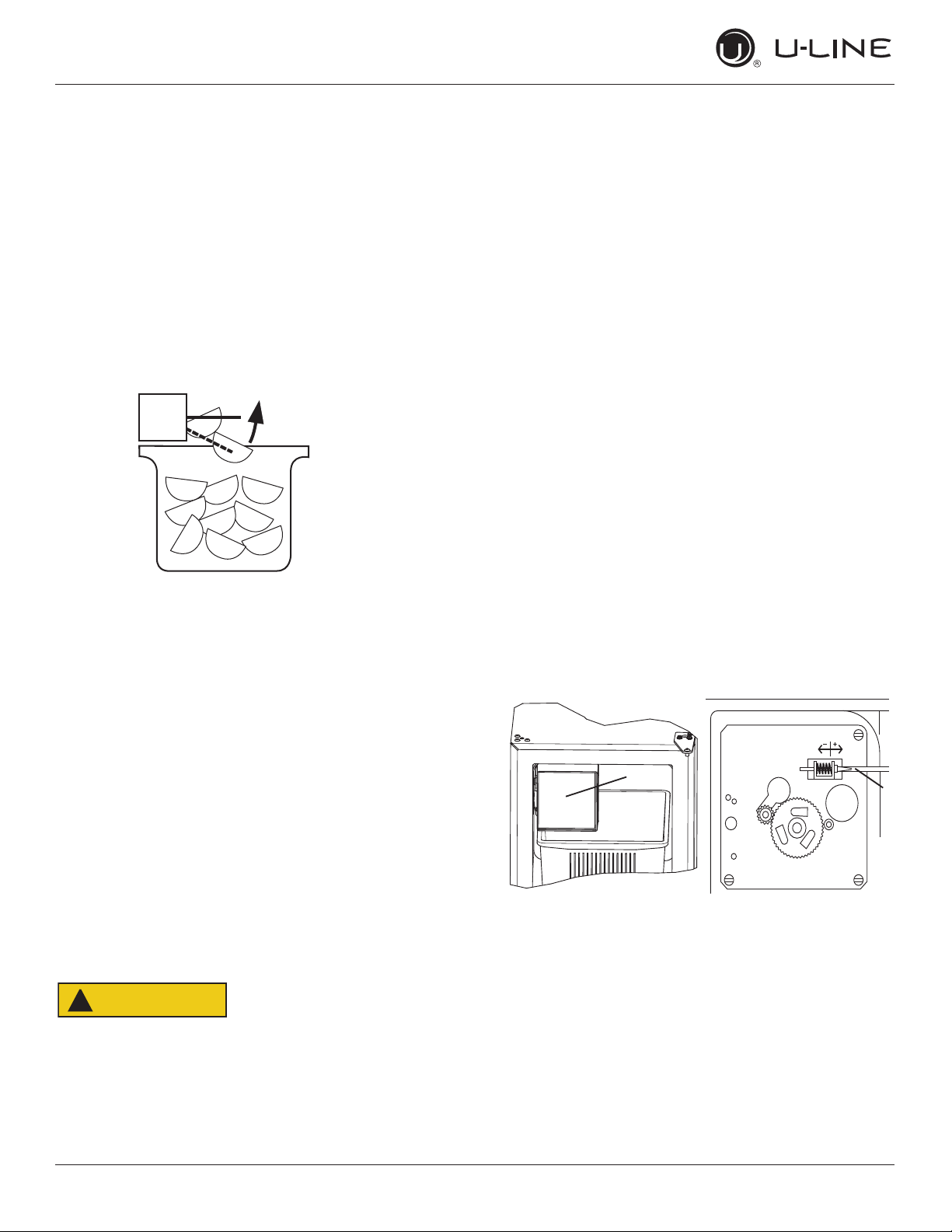

CRESCENT ICE MAKERS
Initial startup requires no adjustments.
U-Line recommends discarding the ice produced during the
or scale that may dislodge from the water line.
To turn the unit on or o:
Press the rocker switch located inside the door on the front
panel, or behind the grille.
REFRIGERATORS
Initial startup requires no adjustments. If the unit was
See “Control Operation” section for more details.
Temperature displayed reects actual
temperature inside unit.
unit is progressing towards the selected temperature. Time
to reach set point varies based upon ambient temperature,
temperature of product loaded, door openings, etc. U-Line
recommends allowing the unit to reach set point before
loading.
CONVERTIBLE FREEEZER
Initial startup requires no adjustments. If the unit was
OPERATION section for more details.
Temperature displayed reects actual
temperature inside unit.
unit is progressing towards the selected temperature. Time
to reach set point varies based upon ambient temperature,
temperature of product loaded, door openings, etc. U-Line
recommends allowing the unit to reach set point before
loading.
Approximate time required (empty unit) when converting
between refrigerator and freezer:
• 30ºF to 0ºF - 1 hour
• 0ºF to 38ºF - 4 hours
CLEAR ICE AND NUGGET ICE MACHINES
Initial startup requires no adjustments. See CONTROL
OPERATION section for more details.
U-Line recommends discarding the ice produced
during the rst two to three hours of operation
to avoid possible dirt or scale that may dislodge
from the water line.
When plugged in, the unit will begin operating under the
installation, simply press and the unit will immediately
Defrost
This unit requires manual defrost, periodically.
Inspect the interior walls for frost build up every 3 - 4
on the interior walls. Frost will build up faster in humid
environments and when the door is opened frequently.
open, and allow frost/ice to melt naturally. Do not use
tools to chip or scrape the frost as it may damage your
unit. Use a towel to absorb melting frost/ice. Before
turning the unit back on, make sure all the frost is gone
and the unit is dry.
QUICK START GUIDE
u-line.com
u-line.com
Ice
CRESCENT ICE MAKERS
ICE MAKER OPERATION
Do not place cans or bottles in the ice
compartment because they will freeze.
To turn off ice production:
If not intending to use the ice maker, turn the
water supply valve off. It is also important to
raise the bin arm of the ice maker (see above).
Failure to raise the bin arm may result in damage
to the water valve.
CAUTION
!
NEVER use an ice pick, knife or other sharp
instrument to separate cubes. Shake the ice
bucket instead.
ICE MAKER ADJUSTMENT
Ice Cube Thickness Adjustment
Interval - As Required
1
2
23
OFF
ON
26
QUICK START GUIDE
u-line.com
u-line.com
CAUTION
!
Too large of an adjustment to the screw can
cause the water to overflow the ice maker and
can cause property damage.
ADJUSTING ICE HARVEST
CLEAR ICE MACHINES

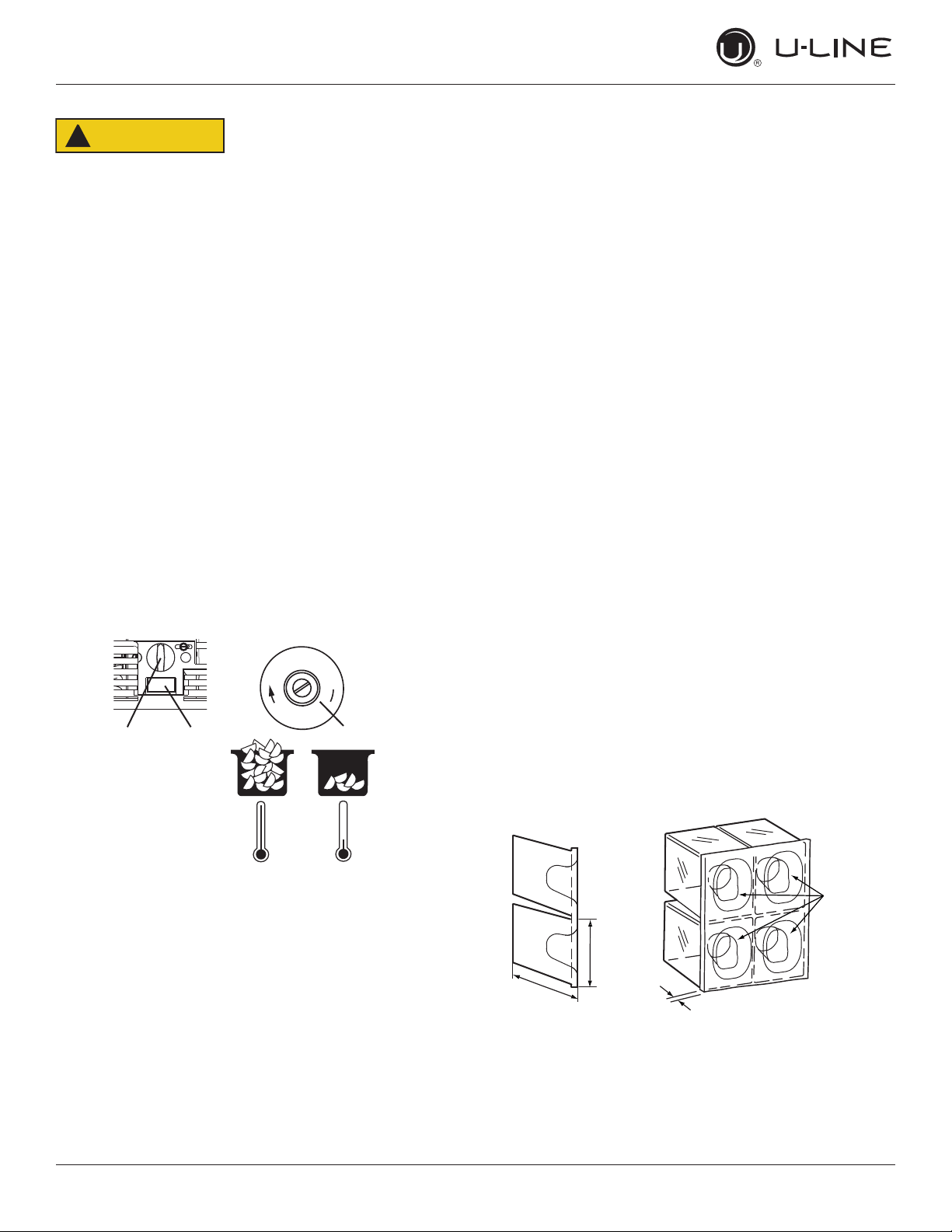

ICE CUBE THICKNESS ADJUSTMENT
Ice thickness adjustment should only be made
one increment at a time. Allow ice maker
production to stabilize for 24 hours before
rechecking ice thickness.
C
O
L
D
E
R
Warmer Colder
3
1
2
DIMPLES
ICE BRIDGE
7/8"
(22 mm)
7/8"
(22 mm)
24
27
QUICK START GUIDE
u-line.com
u-line.com
NUGGET ICE MACHINES
THINNER BRIDGE
THICKER BRIDGE
DEEPER DIMPLE
SHALLOWER DIMPLE
1/4" TO 1/2"
(6.4 mm to 12.7 mm)
DIMPLE
1/16" TO 1/8"
(1.6 mm to 3.2 mm)
ICE BRIDGE
Cube Details
Factory Default Setting - 0
< 0
SETTING
> 0
SETTING
25
28
u-line.com
Ice
Ice
NUGGET ICE MACHINES
QUICK START GUIDE
u-line.com
29
u-line.com
Cleaning
EXTERIOR CLEANING
Vinyl Clad (Black or White) Models
Stainless Models
Do not clean with steel wool pads.
Do not use stainless steel cleaners or polishes on
any glass surfaces.
Do not use cleaners not specifically intended for
stainless steel on stainless surfaces (this
includes glass, tile and counter cleaners).
Using abrasive pads such as ScotchBrite™ will
cause the graining in the stainless steel to
become blurred.
Rust not cleaned up promptly can penetrate the
surface of the stainless steel and complete
removal of the rust may not be possible.
Integrated Models
INTERIOR CLEANING
Do not use any solvent-based or abrasive
cleaners.
CLEAR ICE MACHINE CLEANING CYCLE
CAUTION
!
Wear rubber gloves and safety goggles and/or
face shield when handling Ice Machine Cleaner.
QUICK START GUIDE
u-line.com
30
u-line.com
NOTICE
Use only U-Line Ice Machine Cleaner (Part No.
80-54081-00), available from your dealer or
direct from your local parts distributor. To locate
a parts distributor near you, visit u-line.com. It
is a violation of federal law to use this solution in
a manner inconsistent with its labeling. Use of
any other cleaner can ruin the finish of the
evaporator and will void the warranty. Read and
understand all labels printed on the package
before use.
CAUTION
!
Never use anything
to force ice from the
evaporator. Damage
may result.

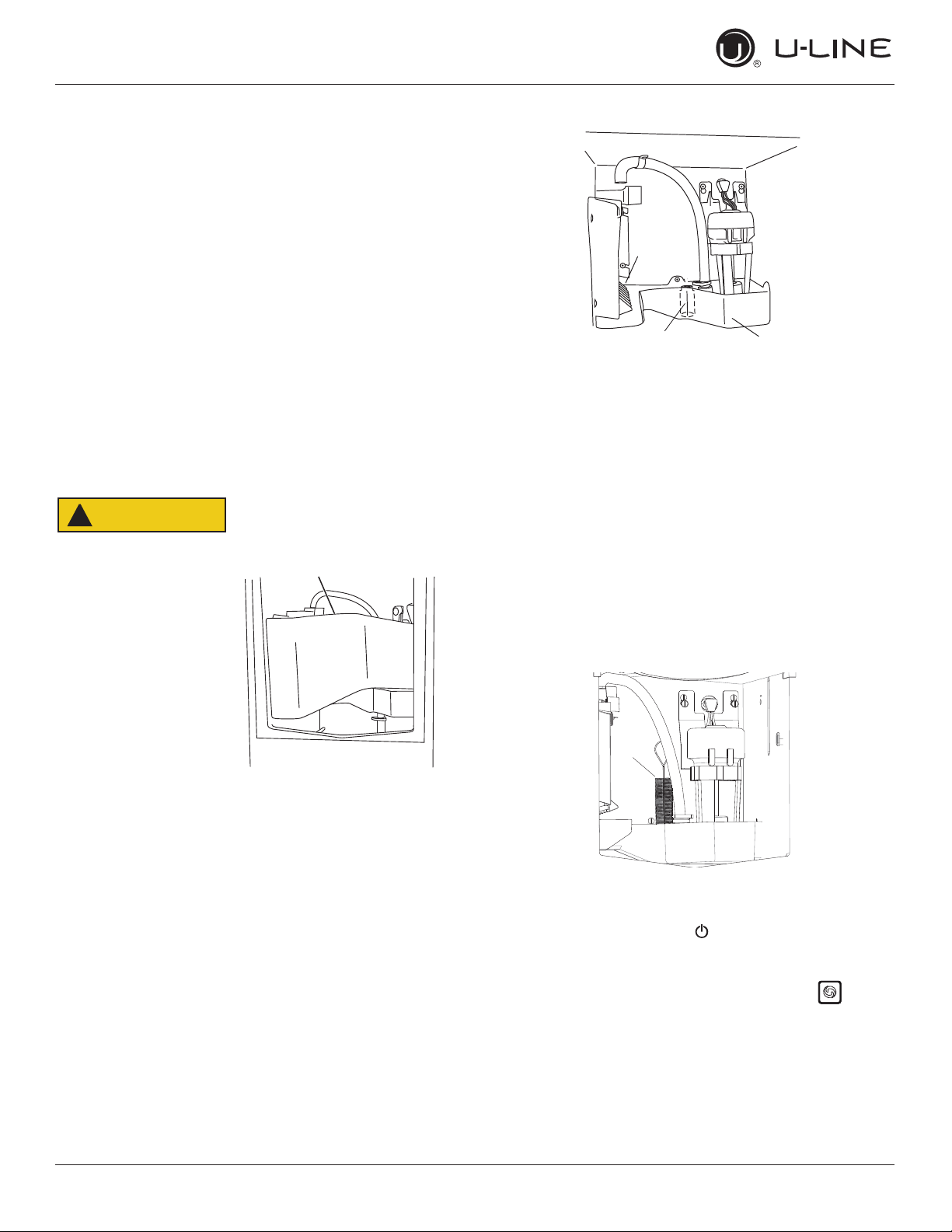

Evaporator cover
Standpipe
Evaporator
Water trough
Brush
QUICK START GUIDE
u-line.com
31
NUGGET ICE MACHINE CLEANING CYCLE
This ice machine has an automatic clean alert function.
The control will indicate
CL in the display, approximately
every six months with normal use, reminding you to
clean your unit. When
CL is displayed, ice production will
continue. Depending on water conditions, more frequent
cleaning may be necessary: see chart below. Cleaning
removes lime scale, other mineral deposits, and sanitizes
the machine. Poor ice quality and reduced ice output are
signs that cleaning is necessary.
Do not use cleaners not specically intended for
TDS (Total Dissolved Solids)
Level mg/L (ppm)
Cleaning Interval
5 - 150 6 months
150 - 250 4 months
250 - 400 3 months (or sooner)
Hardness Level mg/L (ppm) Cleaning Interval
0 - 66 6 months
67 - 133 4 months
134 - 200 3 months (or sooner)
Under normal conditions cleaning should be done
when the display shows
CL. You may initiate
a cleaning cycle at any time by pressing and
holding the clean button for 10 seconds.
0 1 will
appear in the display indicating the start of the
cleaning process.
You may override
CL in the display without cleaning by
pressing and holding the up, down, & light button for 10
seconds.
ICE will scroll in the display and the cleaning
reminder (
CL
) will be reset for another approximate six
month cycle. Failure to clean may reduce the quality
and quantity of ice produced. Once the clean cycle
begins, it can be canceled by pressing three times.
Press once more to start making ice. The clean cycle
will automatically cancel if user fails to activate control at
steps 2, 3b, and 5b within 2 hours.
other cleaner may damage the nish of the
Select models include a water lter. The lter
the machine. The lter is designed to lter out
well as reduce chlorine and other o tastes
lter (Part No. ULANUGGETFILTER) when you
clean your machine. The lter is available at
The unit will resume operation approximately 15 minutes
after the automated cleaning process is completed. The
uneven sized cubes or water to spill into the ice storage bin.
This is a normal situation that will correct itself within the
NOTICE
Discard all ice produced in the rst harvest.
Should power to the unit be interrupted during
the self-clean cycle, it will be necessary to repeat
the complete cleaning cycle after the power is
restored.
REFRESH KIT
Due to variations in water quality or inadequate
maintenance, your unit may become excessively coated in
kit which replaces man interior components and will return
your unit to like-new condition. Refresh kits may be ordered
from your local distributor and installed by your local
service company. For information on your local distributor
or service company please visit www.u-line.com.
(approximately 3 minutes), pour 1 packet of CLR
cleaner into the water trough. The cleaning process will
last approximately 45 minutes.
Dilute 1 tablespoon bleach in 1 gallon of warm water.
Apply this solution to the entire inside of the storage
area. Then rinse thoroughly with water.
9.
10.
QUICK START GUIDE
u-line.com
32
other cleaner may damage the nish of the
Select models include a water lter. The lter
the machine. The lter is designed to lter out
well as reduce chlorine and other o tastes
lter (Part No. ULANUGGETFILTER) when you
clean your machine. The lter is available at
1. Press and Hold for 10 seconds
a.
0 1 will appear in the display
b. Remove access shield
c. Remove all ice in bin
d. Remove any ice protruding from the ice dispenser
tube.
2. Insert the end of the cleaning tube into the ice
dispenser; slowly pour in approximately 1 quart of
hot (min. 100º F) potable water. This will melt ice
inside the dispenser tube. It is normal for some water
vent tube while pouring. Omit this step if no ice is in
the ice dispenser tube.
3. Press and release
a.
02 will appear in the display
b. Mix 4 ounces of SafeCLEAN Plus™ with 2 quarts of
potable water.
4. Wait until
03 appears in the display
a. Using the funnel and cleaning tube, slowly pour
of the cleaning solution into the dispenser
tube. Air and some water will exit the vent tube.
Remove cleaning tube. (Optional - for deeper
cleaning, allow solution to soak for 60 minutes)
b. Press and release
5
. 04 will appear in the display
a. The machine will circulate the solution, cleaning
and sanitizing the internal components, for
approximately 20 minutes.
b. While the machine is circulating the cleaning
solution, use of the remaining cleaning solution
and a sponge to wipe down the inside of the ice bin
and scoop. Rinse with clean potable water.
Cl

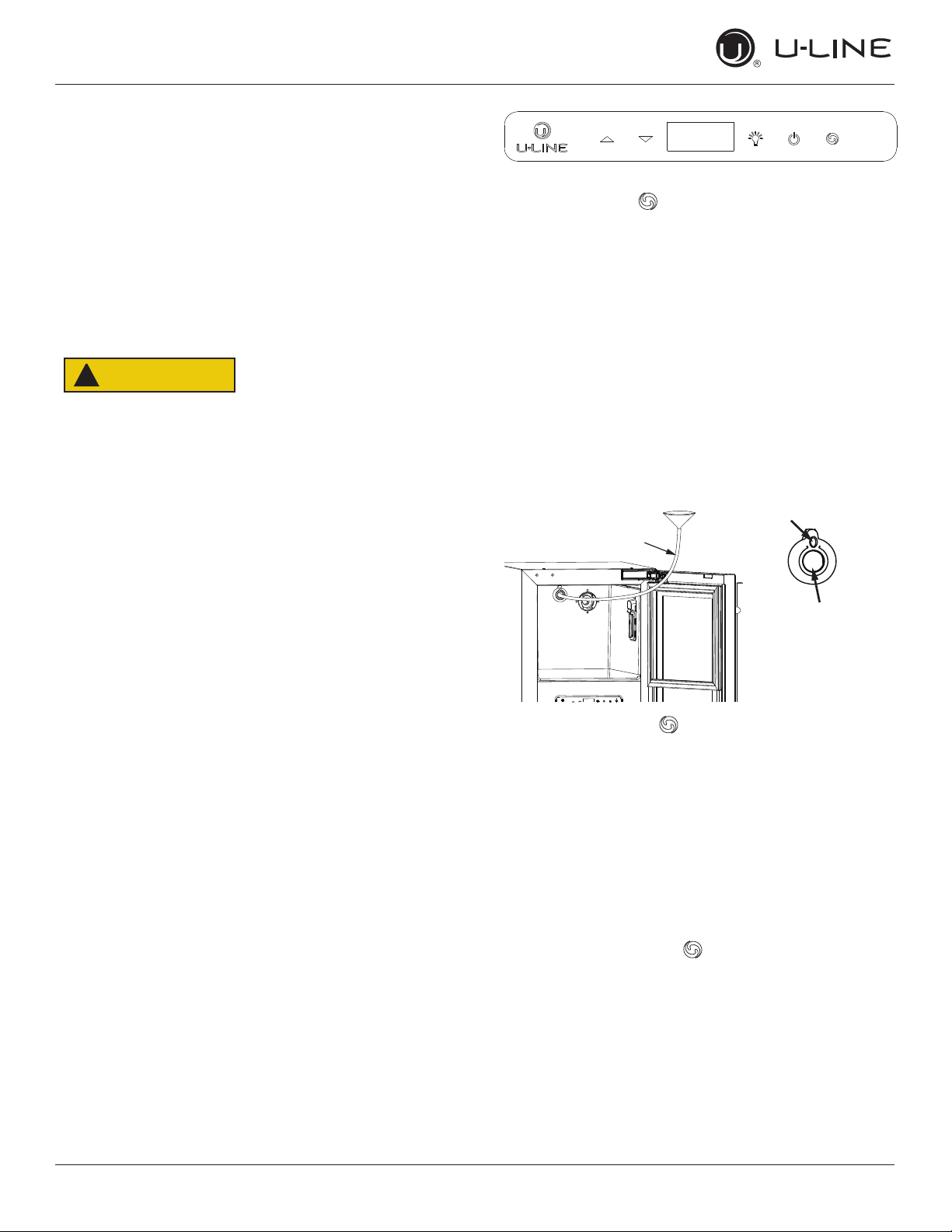

Cleaning Tube
and Funnel
Ice
Dispenser
Tube
Vent Tube
Required for cleaning:
• Hose and funnel - provided with unit
• Bucket and cleaning sponge
• Clean potable water
• SafeCLEAN Plus™ Cleaner
(Part No. ULANUGGETCLEAN) 1-8oz. bottle
included with unit
•
Need more cleaner? Visit u-line.com
CAUTION
!
Use only SafeCLEAN Plus™ Cleaner. Use of any
other cleaner may damage the nish of the
evaporator and will void the warranty.
Follow safety and handling instructions printed
on the SafeCLEAN Plus™ bottle.
Notice:
Select models include a water lter. The lter
must remain in place when using and cleaning
the machine. The lter is designed to lter out
scale, sediment, particles and cloudiness as
well as reduce chlorine and other o tastes
and odors. U-Line recommends replacing the
lter (Part No. ULANUGGETFILTER) when you
clean your machine. The lter is available at
u-line.com.
QUICK START GUIDE
u-line.com
33
6. When 05 appears in the display, 3 soft tones will
sound, indicating the cleaning phase is complete
rotating turn counterclockwise.
b. Use the remaining cleaning solution to wipe the
manifold and surrounding area. Rinse with clean
potable water.
c. Using the hose and funnel, slowly pour 1.5 quarts
(48 oz.) of clean potable water into the ice
dispenser tube. Air and some water will exit the
vent tube.
turn
clockwise
e. Press and release
7.
06 will appear in the display
a. Reinstall shield and close door.
b. The machine will circulate water and perform
minutes.
c. The unit will resume making ice - indicated by 3
soft tones and
ICE scrolling in the display.

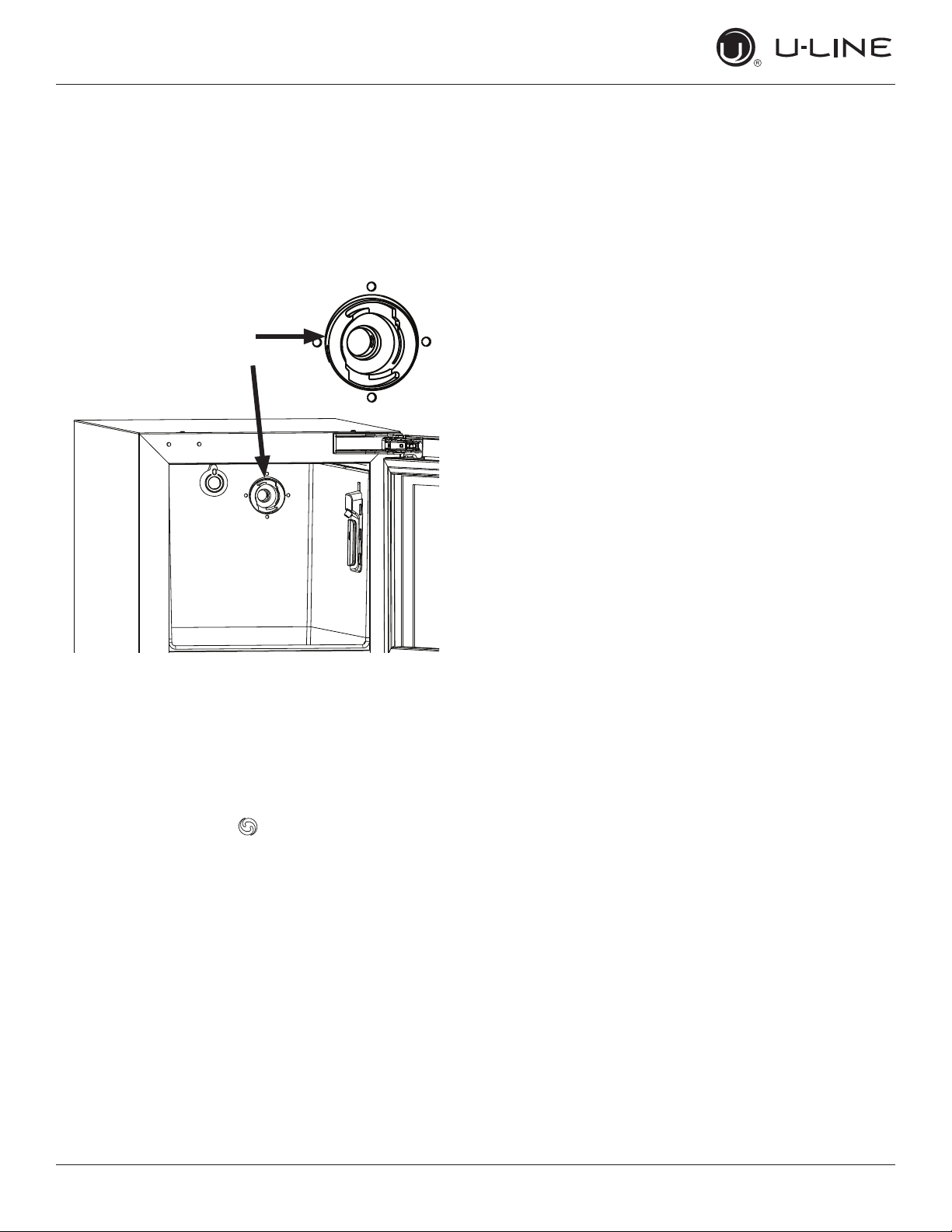

Manifold
(Filter Models Only)
Copyright © 20 U-Line Corporation. All Rights Reserved. | Publication Number 30379 | /20 Rev.
U-Line Corporation (U-Line) Limited Warranty
One Year Limited Warranty
For one year from the date of original purchase, this warranty covers all parts and labor to repair or replace any part of the product that
proves to be defective in materials or workmanship. For products installed and used for normal residential use, material cosmetic defects
are included in this warranty, with coverage limited to 60 days from the date of original purchase. All service provided by U-Line under the
above warranty must be performed by a U-Line factory authorized servicer, unless otherwise specified by U-Line. Service provided during
normal business hours.
Two Year Limited Warranty (5 Class Product)
For two years from the date of original purchase, this warranty covers all parts and labor to repair or replace any part of the product that
proves to be defective in materials or workmanship. For products installed and used for normal residential use, material cosmetic defects
are included in this warranty, with coverage limited to 60 days from the date of original purchase. All service provided by U-Line under the
above warranty must be performed by a U-Line factory authorized servicer, unless otherwise specified by U-Line. Service provided during
normal business hours.
Available Second & Third Year Limited Warranty
In addition to the standard one and two year warranties outlined above, U-Line offers a one year extension of the warranties from the date
of purchase, free of charge. To take advantage of this extension, you must register your product with U-Line within 60 days from the date
of purchase at u-line.com and provide proof of purchase.
Five Year Sealed System Limited Warranty
For five years from the date of original purchase, U-Line will repair or replace the following parts, labor not included, that prove to be
defective in materials or workmanship: compressor, condenser, evaporator, drier, and all connecting tubing. All service provided by U-Line
under the above warranty must be performed by a U-Line factory authorized servicer, unless otherwise specified by U-Line. Service
provided during normal business hours.
Terms
These warranties apply only to products installed in any one of the fifty states of the United States, the District of Columbia, or the ten
provinces of Canada. The warranties do not cover any parts or labor to correct any defect caused by negligence, accident or improper use,
maintenance, installation, service, repair, acts of God, fire, flood or other natural disasters. The product must be installed, operated, and
maintained in accordance with your product’s User Guide.
The remedies described above for each warranty are the only ones that U-Line will provide, either under these warranties or under any
warranty arising by operation of law. U-Line will not be responsible for any consequential or incidental damages arising from the breach of
these warranties or any other warranty, whether express, implied, or statutory. Some states do not allow the exclusion or limitation of
incidental or consequential damages, so the above limitation or exclusion may not apply to you. These warranties give you specific legal
rights, and you may also have other rights which vary from state to state.
Any warranty that may be implied in connection with your purchase or use of the product, including any warranty of merchantability or any
warranty fit for a particular purpose is limited to the duration of these warranties, and only extends to five years in duration for the parts
described in the section related to the five year limited warranty above. Some states do not allow limitations on how long an implied warranty
lasts, so the above limitations may not apply to you.
• The warranties only apply to the original purchaser and are non-transferable.
• The second, third, and five year warranties cover products installed and used for normal residential or designated marine use only.
• The warranties apply to units operated outside only if designed for outdoor use by model and serial number.
• U-Line Commercial products are covered by the one year and 5 year limited warranties and are not eligible for the second and
third year limited warranties.
• Replacement water filters, light bulbs, and other consumable parts are not covered by these warranties.
• The start of U-Line’s obligation is limited to four years after the shipment date from U-Line.
• In-home instruction on how to use your product is not covered by these warranties.
• Food, beverage, and medicine loss are not covered by these warranties.
• If the product is located in an area where U-Line factory authorized service is not available, you may be responsible for a trip
charge or you may be required to bring the product to a U-Line factory authorized service location at your own cost and expense.
• Units purchased after use as floor displays, and/or certified reconditioned units, are covered by the limited one year warranty only
and no coverage is provided for cosmetic defects.
• Signal issues related to Wi-Fi connectivity are not covered by these warranties.
For parts and service assistance, or to find U-Line factory authorized service near you, contact U-Line:
8900 N. 55
th
Street, Milwaukee, WI 53223 • u-line.com • onlineservice@u-line.com • +1.414.354.0300
34
