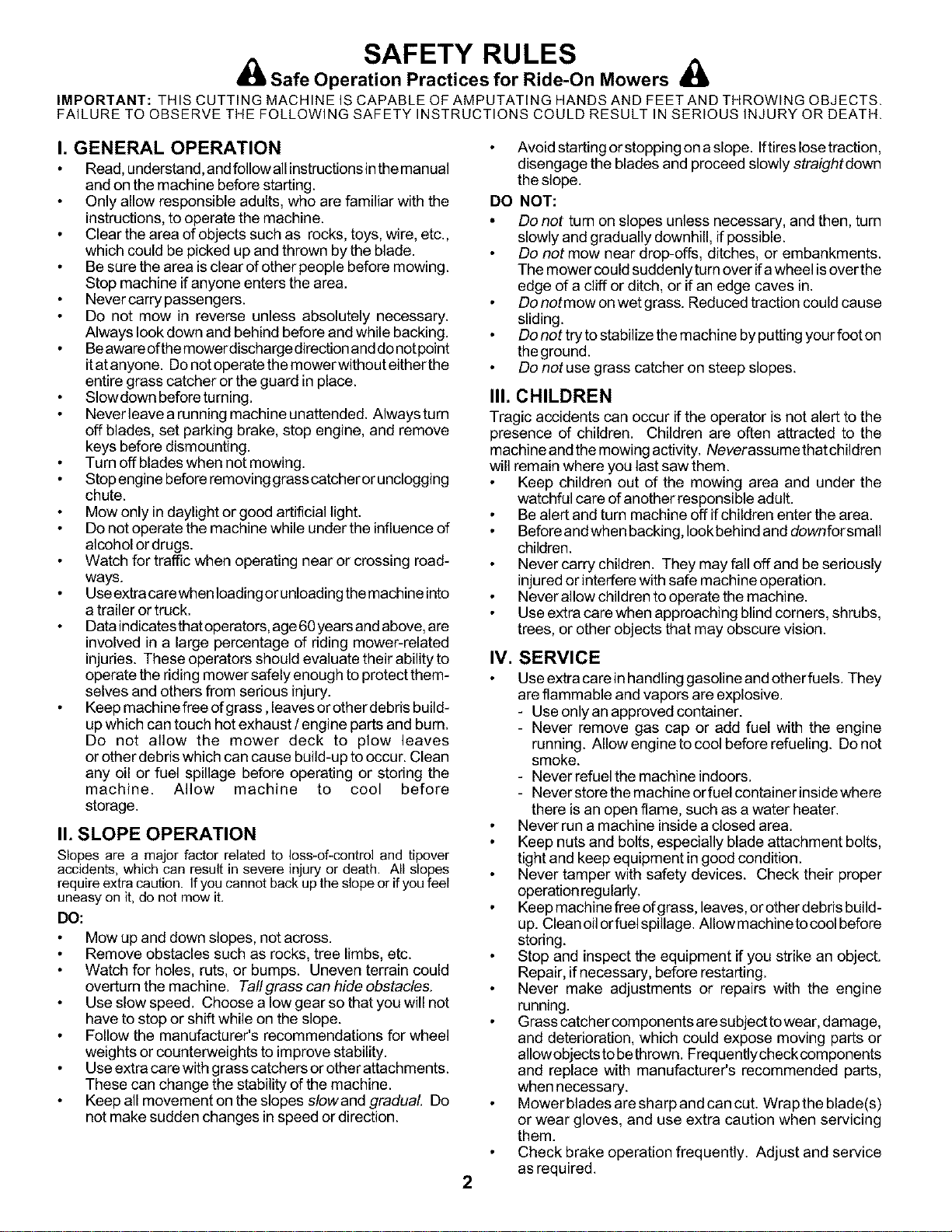

SAFETY RULES

& :Safe Operation Practices for Ride-On Mowers &

IMPORTANT: THIS CUTTING MACHINE IS CAPABLE OF AMPUTATING HANDS AND FEET AND THROWING OBJECTS.

FAILURE TO OBSERVE THE FOLLOWING SAFETY INSTRUCTIONS COULD RESULT IN SERIOUS INJURY OR DEATH.

I. GENERAL OPERATION

Read, understand, andfollow allinstructions in themanual

and onthe machine before starting.

Only allow responsible adults, who are familiar with the

instructions, to operate the machine.

Clear the area of objects such as rocks, toys, wire, etc.,

which could be picked up and thrown by the blade.

Be sure the area is clear of other people before mowing.

Stop machine ifanyone enters the area.

Never carry passengers.

Do not mow in reverse unless absolutely necessary.

Always look down and behind before and while backing.

Beaware ofthemowerdischarge direction and do notpoint

itat anyone. Donot operate the mower without either the

entire grass catcher or the guard in place.

Slow down before turning.

Never leave a running machine unattended. Always turn

off blades, set parking brake, stop engine, and remove

keys before dismounting.

Turn off blades when not mowing.

Stopengine before removing grass catcher or unclogging

chute.

Mow only in daylight or good artificial light.

Do not operate the machine while under the influence of

alcohol or drugs.

Watch for traffic when operating near or crossing road-

ways.

Use extra carewhen loading or unloading themachine into

a trailer or truck.

Data indicates that operators, age 60 years and above, are

involved in a large percentage of riding mower-related

injuries. These operators should evaluate their ability to

operate the riding mower safely enough to protect them-

selves and others from serious injury.

Keep machine free of grass, leaves or other debris build-

up which can touch hot exhaust / engine parts and burn.

Do not allow the mower deck to plow leaves

or other debris which can cause build-up to occur. Clean

any oil or fuel spillage before operating or storing the

machine. Allow machine to cool before

storage.

I1.SLOPE OPERATION

Slopes are a major factor related to Ioss_of-control and tipover

accidents, which can result in severe injury or death. All slopes

require extra caution. Ifyou cannot back up the slope or if you feel

uneasy on it, do not mow it.

DO:

Mow up and down slopes, not across.

Remove obstacles such as rocks, tree limbs, etc.

Watch for holes, ruts, or bumps. Uneven terrain could

overturn the machine. Tall grass can hide obstacles.

Use slow speed. Choose a low gear so that you will not

have to stop or shift while on the slope.

Follow the manufacturer's recommendations for wheel

weights or counterweights to improve stability.

Use extra care with grass catchers or other attachments.

These can change the stability of the machine.

Keep all movement on the slopes slowand gradual Do

not make sudden changes in speed or direction.

Avoid starting orstopping on a slope. Iftires lose traction,

disengage the blades and proceed slowly straightdown

the slope.

DO NOT:

Do not turn on slopes unless necessary, and then, turn

slowly and gradually downhill, if possible.

Do not mow near drop-offs, ditches, or embankments.

The mower could suddenly turn over ifa wheel is overthe

edge of a cliff or ditch, or if an edge caves in.

Do notmow on wet grass. Reduced traction could cause

sliding.

Do not try to stabilize the machine by putting your foot on

theground.

Do notuse grass catcher on steep slopes.

III. CHILDREN

Tragic accidents can occur if the operator is not alert to the

presence of children. Children are often attracted to the

machine and themowing activity. Neverassumethatchildren

will remain where you last saw them.

Keep children out of the mowing area and under the

watchful care of another responsible adult.

Be alert and turn machine off ifchildren enter the area.

Before and when backing, look behind and downforsmall

children.

Never carry children. They may fall off and be seriously

injured or interfere with safe machine operation.

Never allow children to operate the machine.

Use extra care when approaching blind corners, shrubs,

trees, or other objects that may obscure vision.

IV. SERVICE

Use extra care in handling gasoline and otherfuels. They

are flammable and vapors are explosive.

- Use only an approved container.

- Never remove gas cap or add fuel with the engine

running. Allow engine to cool before refueling. Do not

smoke.

- Never refuel the machine indoors.

- Never store the machine or fuel container inside where

there is an open flame, such as a water heater.

Never run a machine inside a closed area.

Keep nuts and bolts, especially blade attachment bolts,

tight and keep equipment in good condition.

Never tamper with safety devices. Check their proper

operation regularly.

Keep machine free ofgrass, leaves, or other debris build-

up. Clean oilor fuel spillage. Allow machine tocool before

storing.

Stop and inspect the equipment if you strike an object.

Repair, ifnecessary, before restarting.

Never make adjustments or repairs with the engine

running.

Grass catchercomponents are subjectto wear, damage,

and deterioration, which could expose moving parts or

allowobjects tobethrown. Frequently check components

and replace with manufacturer's recommended parts,

when necessary.

Mower blades are sharp and can cut. Wrap the blade(s)

or wear gloves, and use extra caution when servicing

them.

Check brake operation frequently. Adjust and service

asrequired.

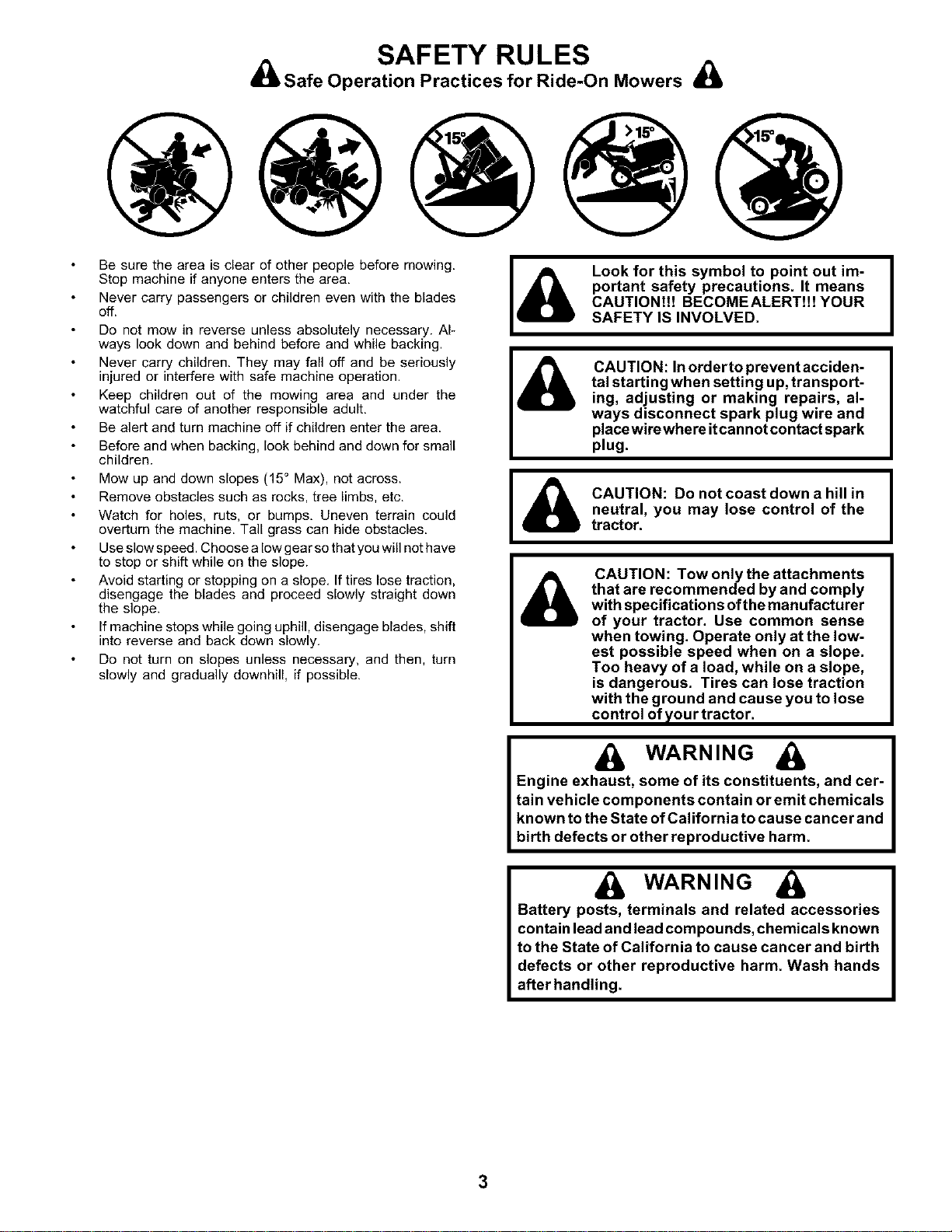

SAFETY RULES

& Safe Operation Practices for Ride-On Mowers &

Be sure the area is clear of other people before mowing.

Stop machine if anyone enters the area,

Never carry passengers or children even with the blades

off.

Do not mow in reverse unless absolutely necessary. Al-

ways look down and behind before and while backing.

Never carry children. They may fall off and be seriously

injured or interfere with safe machine operation.

Keep children out of the mowing area and under the

watchful care of another responsible adult,

Be alert and turn machine off if children enter the area.

Before and when backing, look behind and down for small

children.

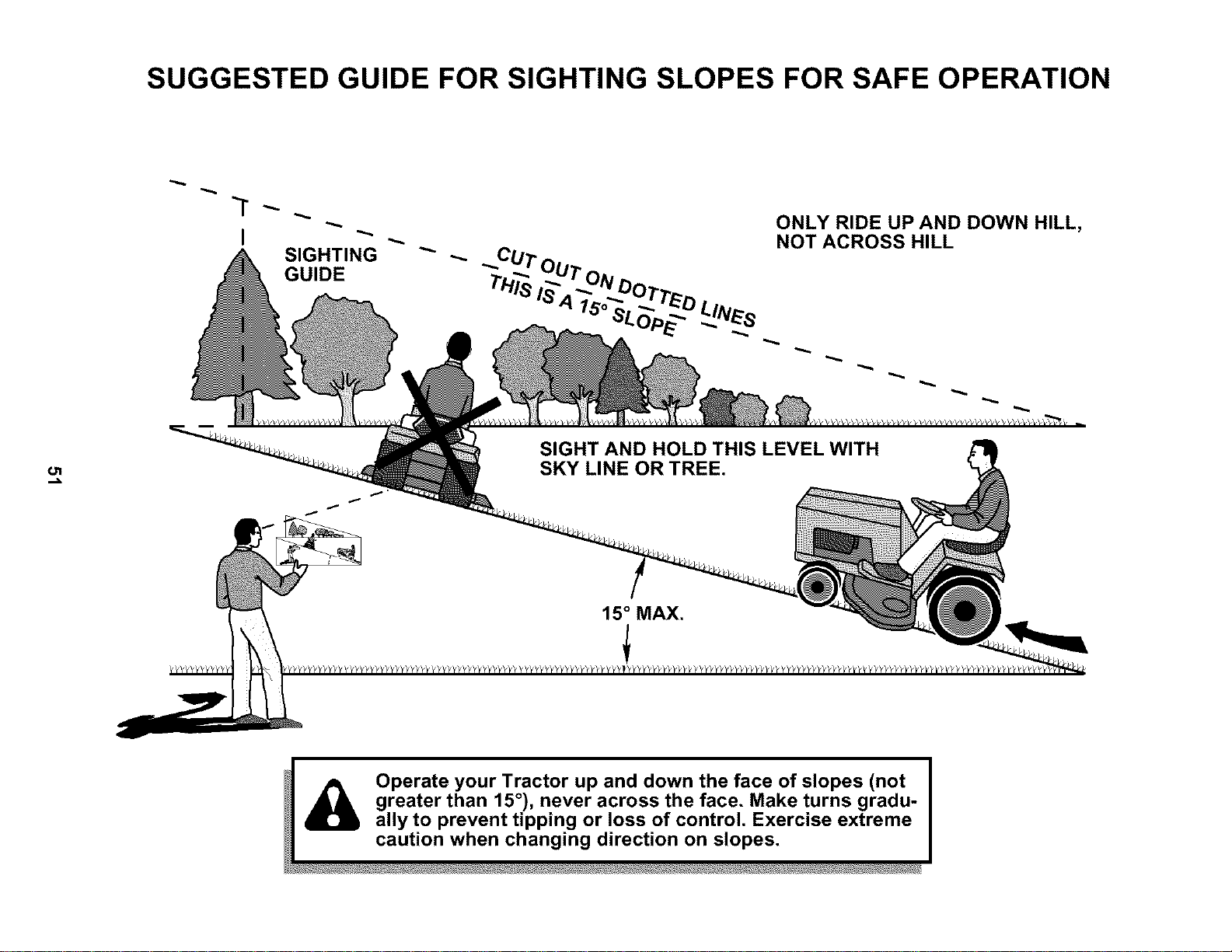

Mow up and down slopes (15° Max), not across.

Remove obstacles such as rocks, tree limbs, etc.

Watch for holes, ruts, or bumps. Uneven terrain could

overturn the machine. Tall grass can hide obstacles.

Use slow speed. Choose a low gear so that you will not have

to stop or shift while on the slope.

Avoid starting or stopping on a slope. If tires lose traction,

disengage the blades and proceed slowly straight down

the slope.

Ifmachine stops while going uphill, disengage blades, shift

into reverse and back down slowly.

Do not turn on slopes unless necessary, and then, turn

slowly and gradually downhill, if possible.

Look for this symbol to point out im-

portant safety precautions. It means

CAUTION!!! BECOMEALERT!!! YOUR

SAFETY IS INVOLVED.

CAUTION: In orderto prevent acciden-

tal starting when setting up, transport-

ing, adjusting or making repairs, al-

ways disconnect spark plug wire and

placewirewhere itcannot contact spark

plug.

CAUTION: Do not coast down a hill in

neutral, you may lose control of the

tractor.

CAUTION: Tow only the attachments

that are recommended by and comply

with specifications ofthe manufacturer

of your tractor. Use common sense

when towing. Operate only at the low-

est possible speed when on a slope.

Too heavy of a load, while on a slope,

is dangerous. Tires can lose traction

with the ground and cause you to lose

control of your tractor.

WARNING

Engine exhaust, some of its constituents, and cer-

tain vehicle components contain or emit chemicals

known to the State of California to cause cancer and

birth defects or other reproductive harm.

WARNING

Battery posts, terminals and related accessories

contain lead and lead compounds, chemicals known

to the State of California to cause cancer and birth

defects or other reproductive harm. Wash hands

after handling.

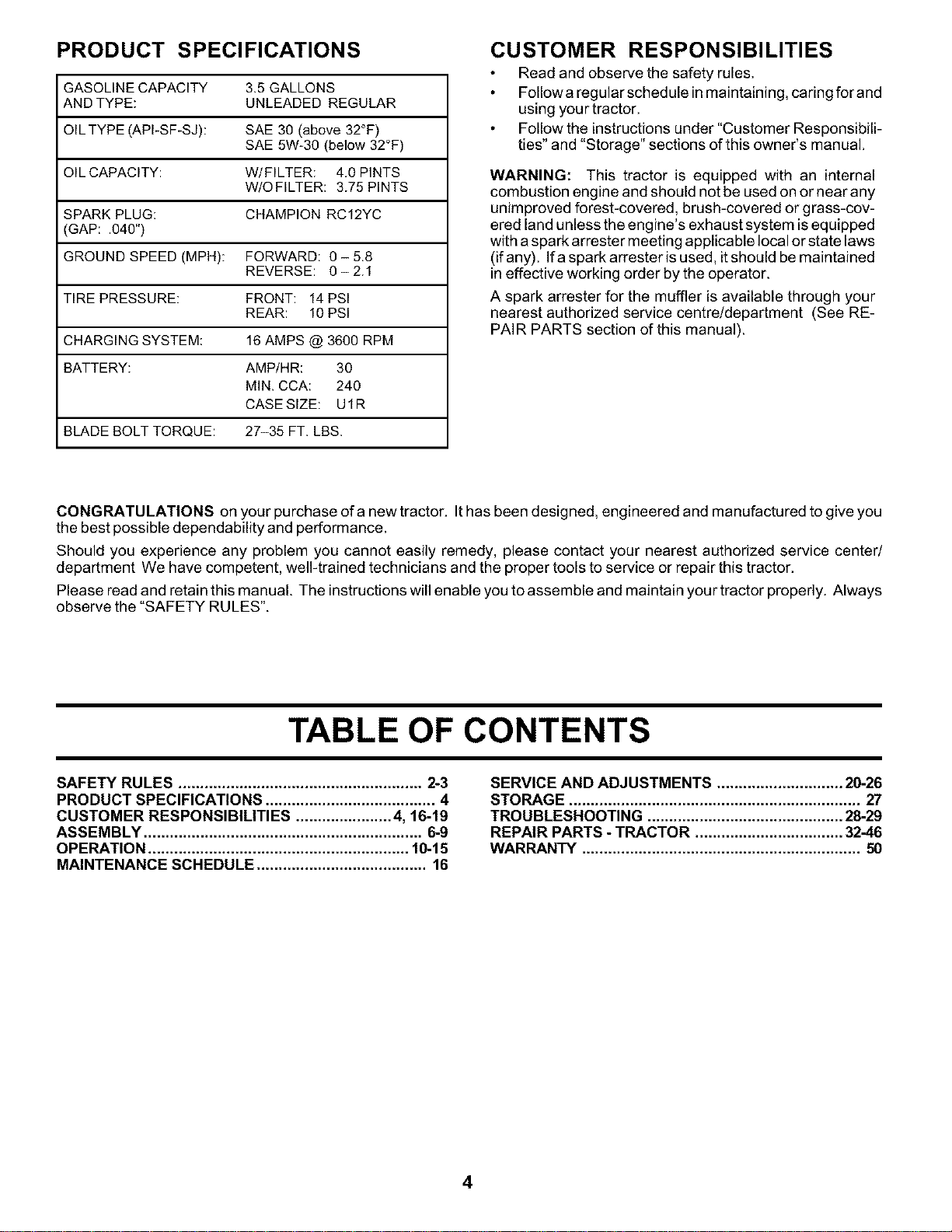

PRODUCT SPECIFICATIONS

GASOLINE CAPACITY 3.5 GALLONS

AND TYPE: UNLEADED REGULAR

OILTYPE (API_SF_SJ): SAE 30 (above 32°F)

SAE 5W-30 (below 32°F)

OIL CAPACITY: W/FILTER: 4.0 PINTS

W/OFILTER: 3.75 PINTS

SPARK PLUG: CHAMPION RC12YC

GAP: .040")

GROUND SPEED (MPH): FORWARD: 0 - 5,8

REVERSE: 0-2.1

TIRE PRESSURE: FRONT: 14 PSI

REAR: 10 PSI

CHARGING SYSTEM: 16 AMPS @ 3600 RPM

BATTERY: AMP/HR: 30

MIN. CCA: 240

CASE SIZE: U1R

BLADE BOLT TORQUE: 27-35 FT. LBS.

CUSTOMER RESPONSIBILITIES

Read and observe the safety rules.

Follow a regular schedule in maintaining, caring for and

using your tractor.

Follow the instructions under "Customer Responsibili-

ties" and "Storage" sections of this owner's manual.

WARNING: This tractor is equipped with an internal

combustion engine and should not be used on or near any

unimproved forest-covered, brush-covered or grass-cov-

ered land unless the engine's exhaust system isequipped

with a spark arrester meeting applicable local orstate laws

(if any). If a spark arrester is used, itshould be maintained

in effective working order by the operator.

A spark arrester for the muffler is available through your

nearest authorized service centre/department (See RE-

PAIR PARTS section of this manual).

CONGRATULATIONS on your purchase of a new tractor. It has been designed, engineered and manufactured to give you

the best possible dependability and performance.

Should you experience any problem you cannot easily remedy, please contact your nearest authorized service center/

department We have competent, well-trained technicians and the proper tools to service or repair this tractor.

Please read and retain this manual. The instructions will enable you to assemble and maintain you rtractor properly. Always

observe the "SAFETY RULES".

TABLE OF CONTENTS

SAFETY RULES ........................................................ 2-3

PRODUCT SPECIFICATIONS ....................................... 4

CUSTOMER RESPONSIBILITIES ...................... 4, 16-19

ASSEMBLY ................................................................ 6-9

OPERATION ............................................................ 10-15

MAINTENANCE SCHEDULE ....................................... 16

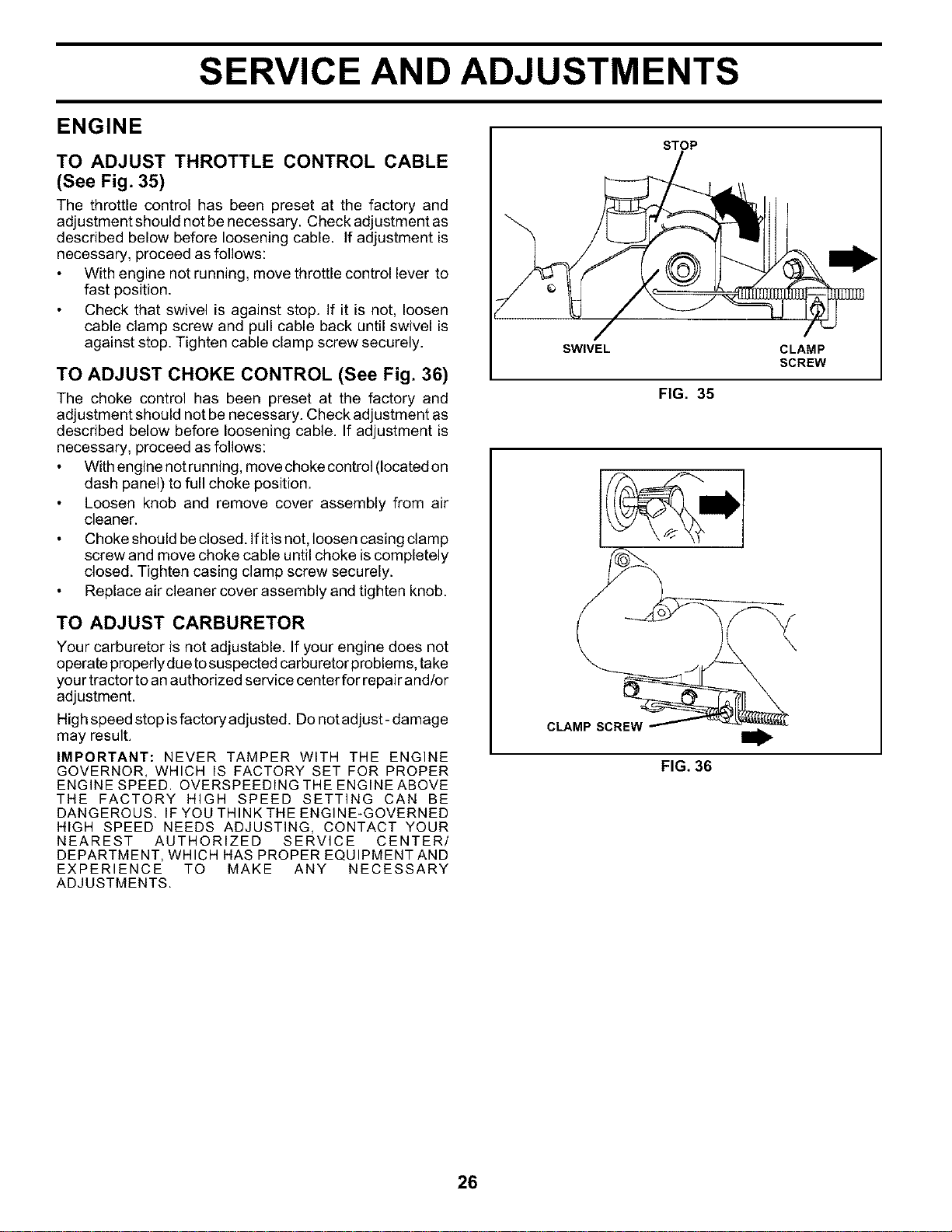

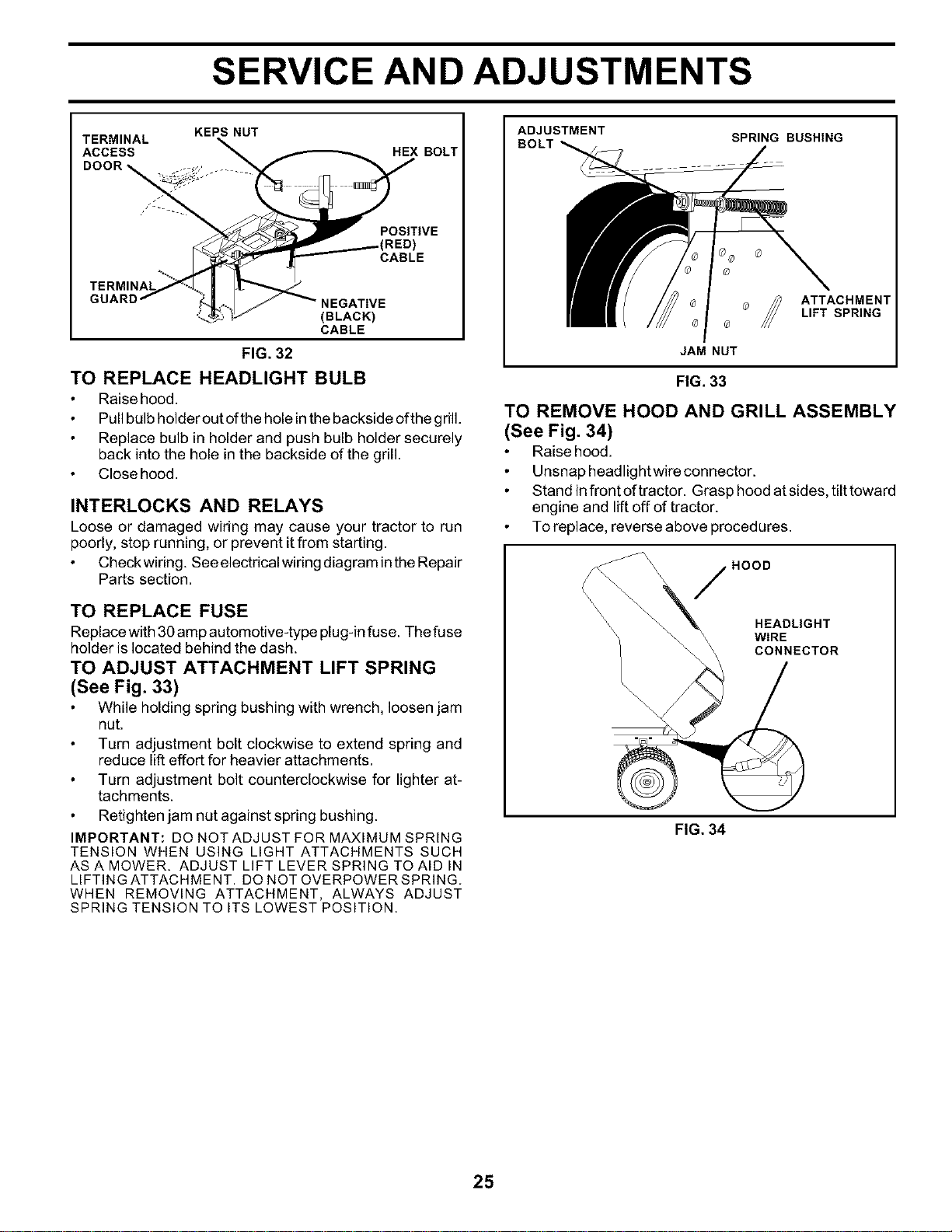

SERVICE AND ADJUSTMENTS ............................. 20-26

STORAGE ................................................................... 27

TROUBLESHOOTING ............................................. 28-29

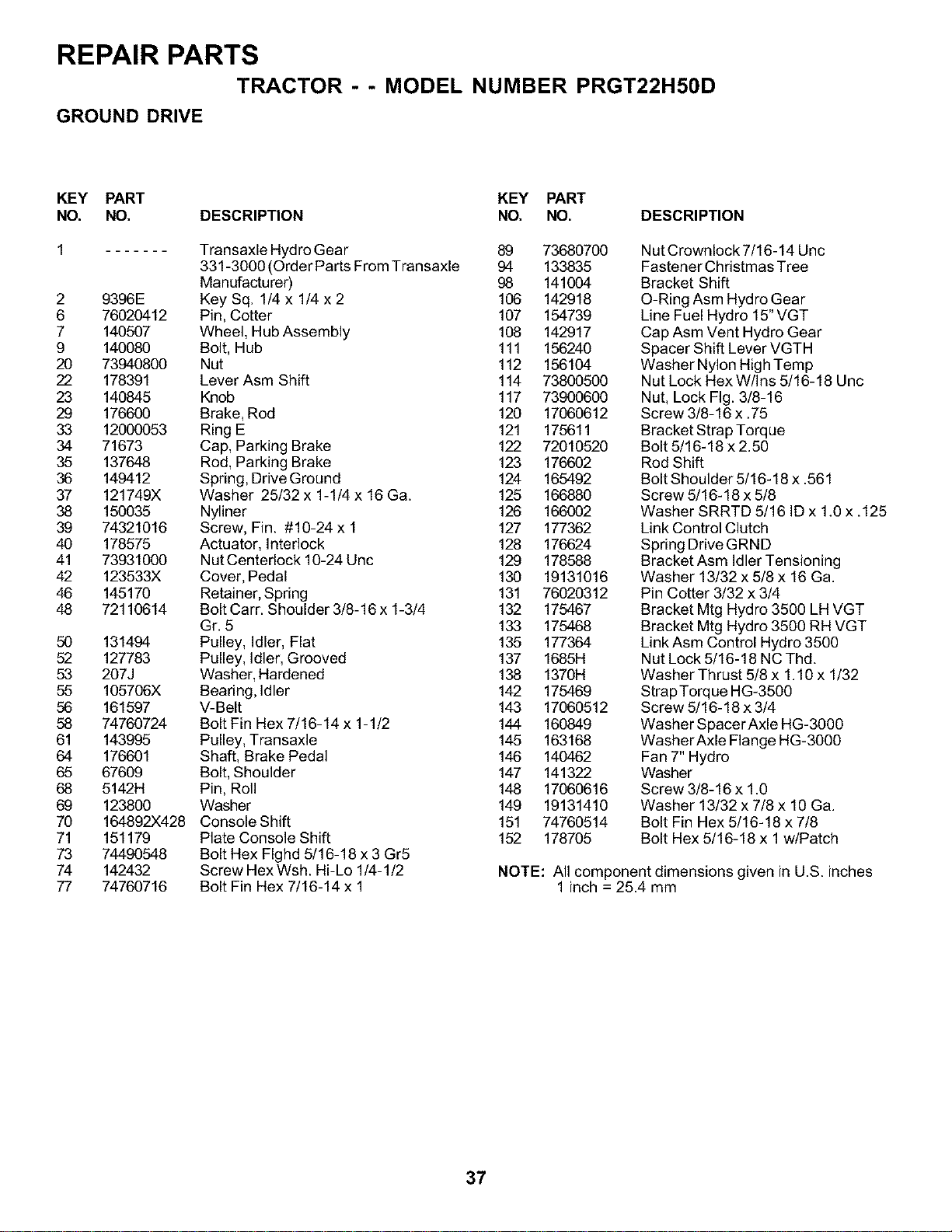

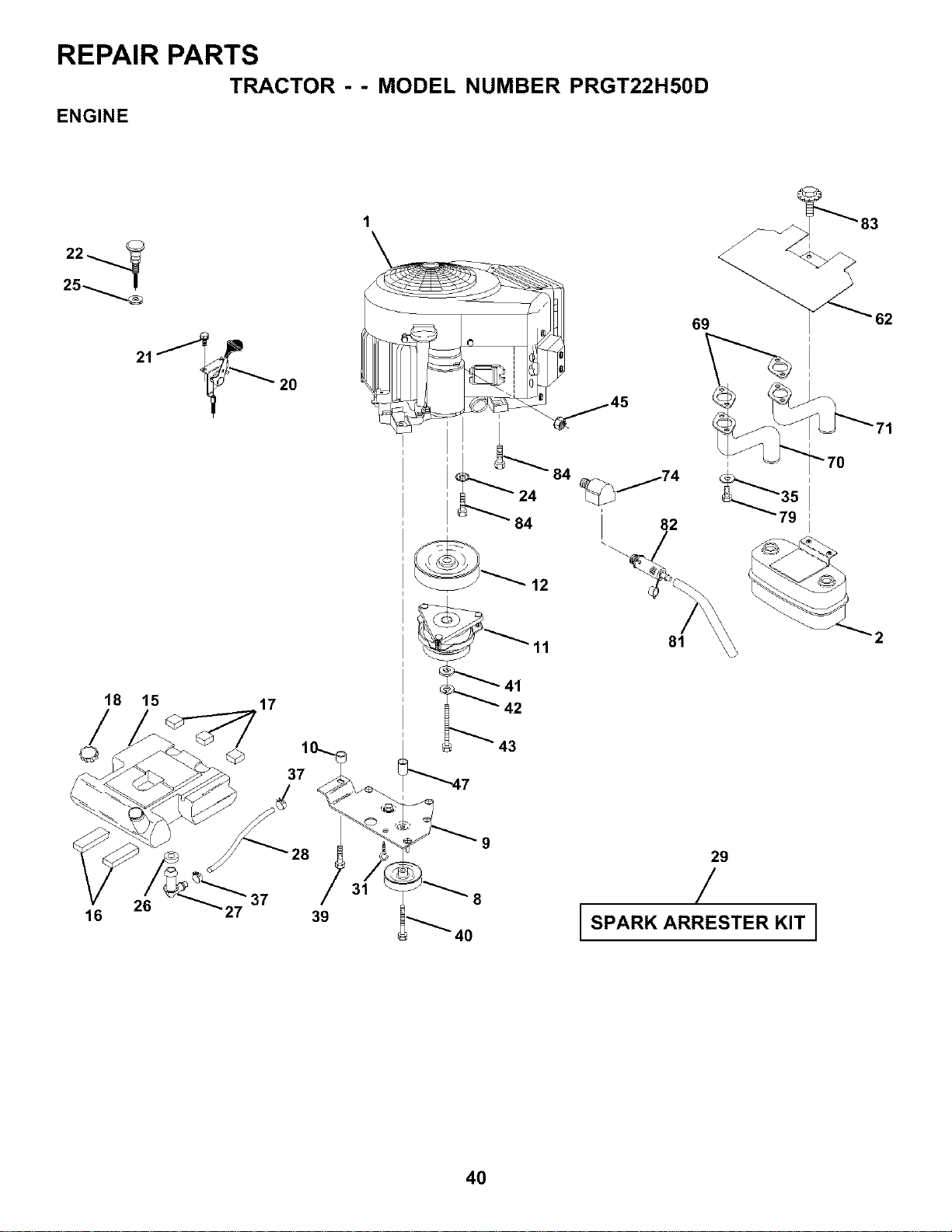

REPAIR PARTS - TRACTOR .................................. 32-46

WARRANTY ................................................................ 50

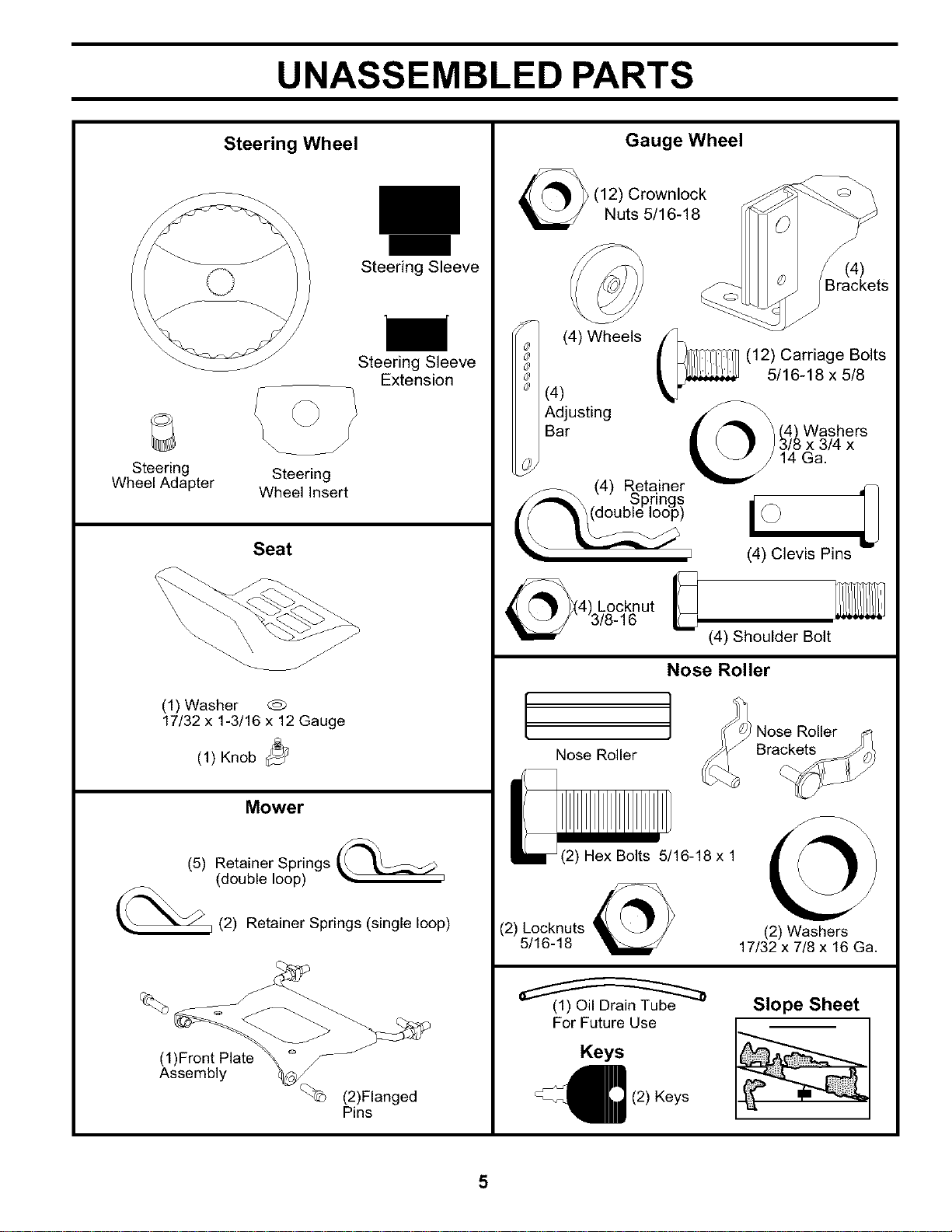

UNASSEMBLED PARTS

Steering Wheel

Steering Sleeve

Extension

Steering Steering

Wheel Adapter Wheel Insert

Seat

(1) Washer @

17/32 x 1-3/16 x 12 Gauge

(1) Knob

Mower

(5) Retainer Springs (_'_sp

(double loop)

Retainer Springs (single loop)

(1)Front Plate \ /_

Assembly

_-_ (2)Flanged

Pins

Gauge Wheel

(12) Crownlock

Nuts 5/16-18

(4)

;rackets

(4) Wheels

(4)

Adjusting

Bar

(4) Retainer

springs

(12) Carriage Bolts

5/16-18 x 5/8

_ 4_7_2ers

14 Ga.

(4) Clevis Pins

(4) Shoulder Bolt

Nose Roller

(2) Locknuts

5/16-18

For Future Use

Keys

(2) Washers

17/32 x 7/8 x 16 Ga.

Slope Sheet

(2) Keys

ASSEMBLY

Your new tractor has been assembled atthe factory with exception of those parts left unassembled for shipping purposes. To

ensure safe and proper operation of your tractor all parts and hardware you assemble must be tightened securely. Use the

correct tools as necessary to insure proper tightness.

TOOLS REQUIRED FOR ASSEMBLY

A socket wrench set will make assembly easier. Standard

wrench sizes are listed.

(1) Pliers (1) Tire pressure gauge

(2) 9/16"wrench (1) Utility knife

(1) 1!2"wrench (1) 3/4" socketw/drive ratchet

When right orleft hand is mentioned in this manual, itmeans

when you are in the operating position (seated behind the

steering wheel).

TO REMOVE TRACTOR FROM CARTON

UNPACK CARTON

Remove all accessible loose parts and parts cartons

from carton.

Cut, from top to bottom, along lines on all four corners

of carton, and lay panels flat.

Remove mower and packing materials.

Check for any additional loose parts or cartons and

remove.

BEFORE REMOVING TRACTOR FROM

SKID

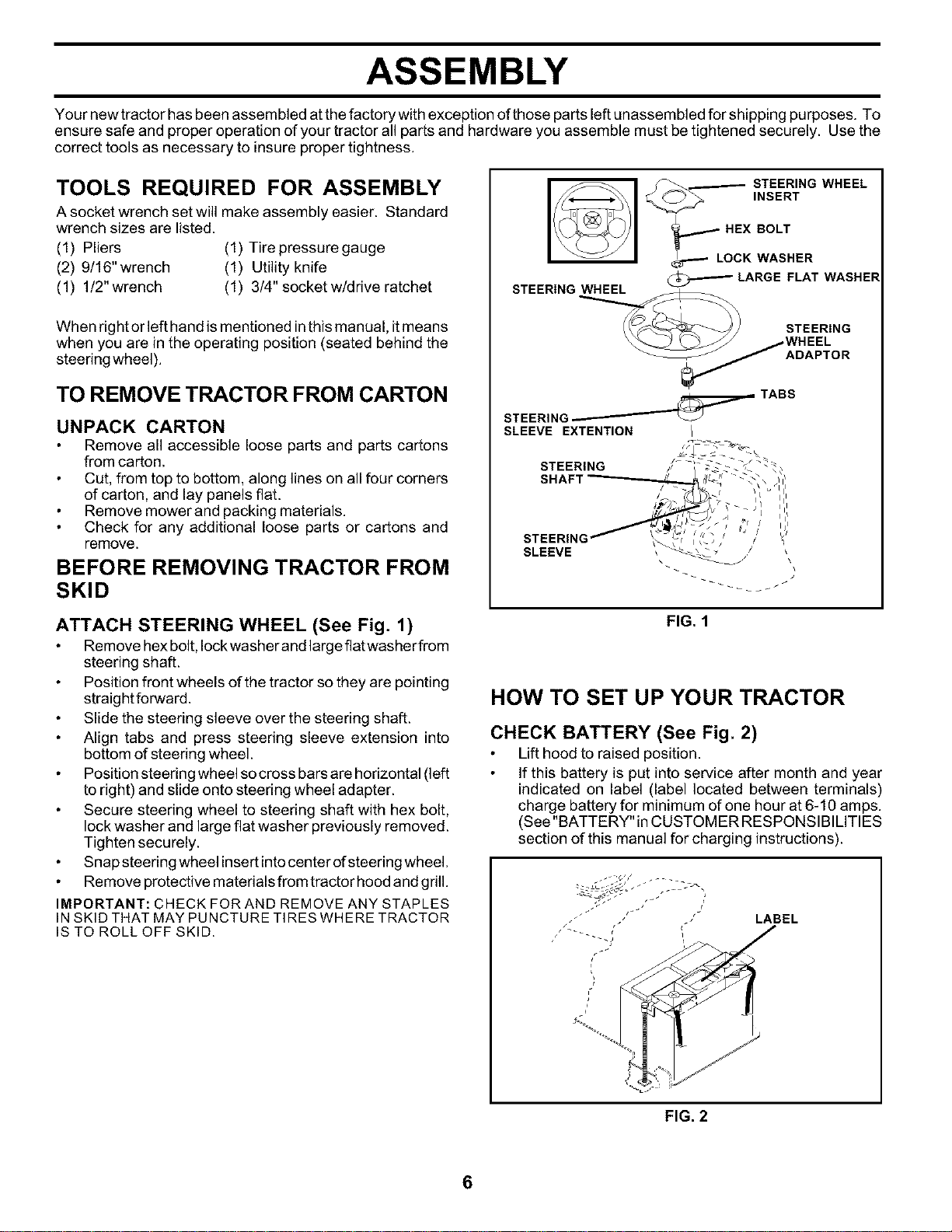

ATTACH STEERING WHEEL (See Fig. 1)

Remove hex bolt, Iockwasherand large flatwasher from

steering shaft.

Position front wheels of the tractor so they are pointing

straightforward.

Slide the steering sleeve over the steering shaft.

Align tabs and press steering sleeve extension into

bottom of steering wheel.

Position steering wheel so cross bars are horizontal (left

to right) and slide onto steering wheel adapter.

Secure steering wheel to steering shaft with hex bolt,

lock washer and large flat washer previously removed.

Tighten securely.

Snap steering wheel insert into center ofsteering wheel.

Remove protective materials from tractor hood and grill.

IMPORTANT: CHECK FOR AND REMOVE ANY STAPLES

IN SKID THAT MAY PUNCTURE TIRESWHERE TRACTOR

IS TO ROLL OFF SKID.

STEERING WHEEL

INSERT

___---_LHEX BOLT

OCK WASHER

(_---_LARGE FLAT WASHER

SLEEVE EXTENTION

STEERING /J

SHAFT

STEERING'

SLEEVE _ ,/ _\

FIG. 1

HOW TO SET UP YOUR TRACTOR

CHECK BATTERY (See Fig. 2)

Lift hood to raised position.

If this battery is put into service after month and year

indicated on label (label located between terminals)

charge battery for minimum of one hour at 6-10 amps.

(See "BATTERY" in CUSTOMER RESPONSIBILITIES

section of this manual for charging instructions).

LABEL

FIG. 2

ASSEMBLY

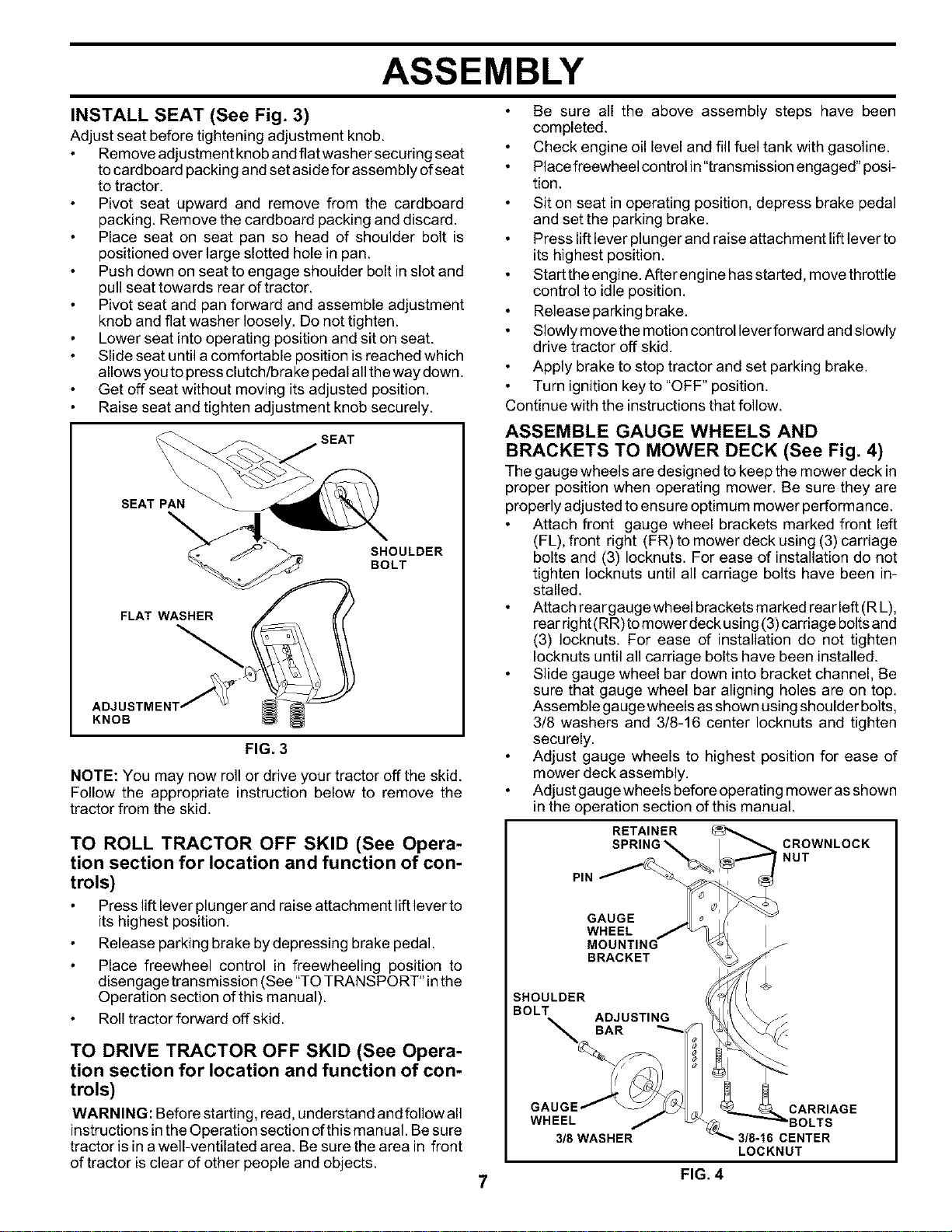

INSTALL SEAT (See Fig. 3)

Adjust seat before tightening adjustment knob.

Remove adjustment knob and flat washer securing seat

to cardboard packing and setasidefor assembly ofseat

to tractor.

Pivot seat upward and remove from the cardboard

packing. Remove the cardboard packing and discard.

Place seat on seat pan so head of shoulder bolt is

positioned over large slotted hole in pan.

Push down on seat to engage shoulder bolt in slot and

pull seat towards rear of tractor.

Pivot seat and pan forward and assemble adjustment

knob and flat washer loosely. Do not tighten.

Lower seat into operating position and sit on seat.

Slide seat until a comfortable position is reached which

allows you to press clutch/brake pedal all the way down.

Get off seat without moving its adjusted position.

Raise seat and tighten adjustment knob securely.

SEAT

SEAT PAN

SHOULDER

BOLT

FLAT WASHER

KNOB

FIG. 3

NOTE: You may now roll or drive your tractor off the skid.

Follow the appropriate instruction below to remove the

tractor from the skid.

TO ROLL TRACTOR OFF SKID (See Opera-

tion section for location and function of con-

trols)

Press lift lever plunger and raise attachment lift lever to

its highest position.

Release parking brake by depressing brake pedal.

Place freewheel control in freewheeling position to

disengage transmission (See "TO TRANSPORT" inthe

Operation section of this manual).

Roll tractor forward off skid.

TO DRIVE TRACTOR OFF SKID (See Opera-

tion section for location and function of con-

trols)

WARNING: Before starting, read, understand and follow all

instructions in the Operation section ofthis manual. Be sure

tractor is in a well-ventilated area. Be sure the area in front

of tractor is clear of other people and objects.

Be sure all the above assembly steps have been

completed.

Check engine oil level and fill fuel tank with gasoline.

Place freewheel control in "transmission engaged" posi-

tion.

Sit on seat in operating position, depress brake pedal

and set the parking brake.

Press lift lever plunger and raise attachment lift lever to

its highest position.

Startthe engine. Afterengine has started, move throttle

control to idle position.

Release parking brake.

Slowly movethe motion control lever forward and slowly

drive tractor off skid.

Apply brake to stop tractor and set parking brake.

Turn ignition key to "OFF" position.

Continue with the instructions that follow.

ASSEMBLE GAUGE WHEELS AND

BRACKETS TO MOWER DECK (See Fig. 4)

The gauge wheels are designed to keep the mower deck in

proper position when operating mower. Be sure they are

properly adjusted to ensu re optimum mower performance.

Attach front gauge wheel brackets marked front left

(FL), front right (FR) to mower deck using (3) carriage

bolts and (3) Iocknuts. For ease of installation do not

tighten Iocknuts until all carriage bolts have been in-

stalled.

Attach reargauge wheel brackets marked rear left (RL),

rear right (RR) to mower deck using (3) carriage bolts and

(3) Iocknuts. For ease of installation do not tighten

Iocknuts until all carriage bolts have been installed.

Slide gauge wheel bar down into bracket channel, Be

sure that gauge wheel bar aligning holes are on top.

Assemble gauge wheels asshown using shoulder bolts,

3!8 washers and 3!8-16 center Iocknuts and tighten

securely.

Adjust gauge wheels to highest position for ease of

mower deck assembly.

Adjust gauge wheels before operating mower as shown

in the operation section of this manual.

RETAINER

CROWNLOCK

FNUT

GAUGE

WHEEL

BRACKET

SHOULDER

BOLT

ADJUSTING

BAR

GAUGE

WHEEL

_8 WASHER

CARRIAGE

"_'_3/8-16 CENTER

LOCKNUT

7 FIG. 4

ASSEMBLY

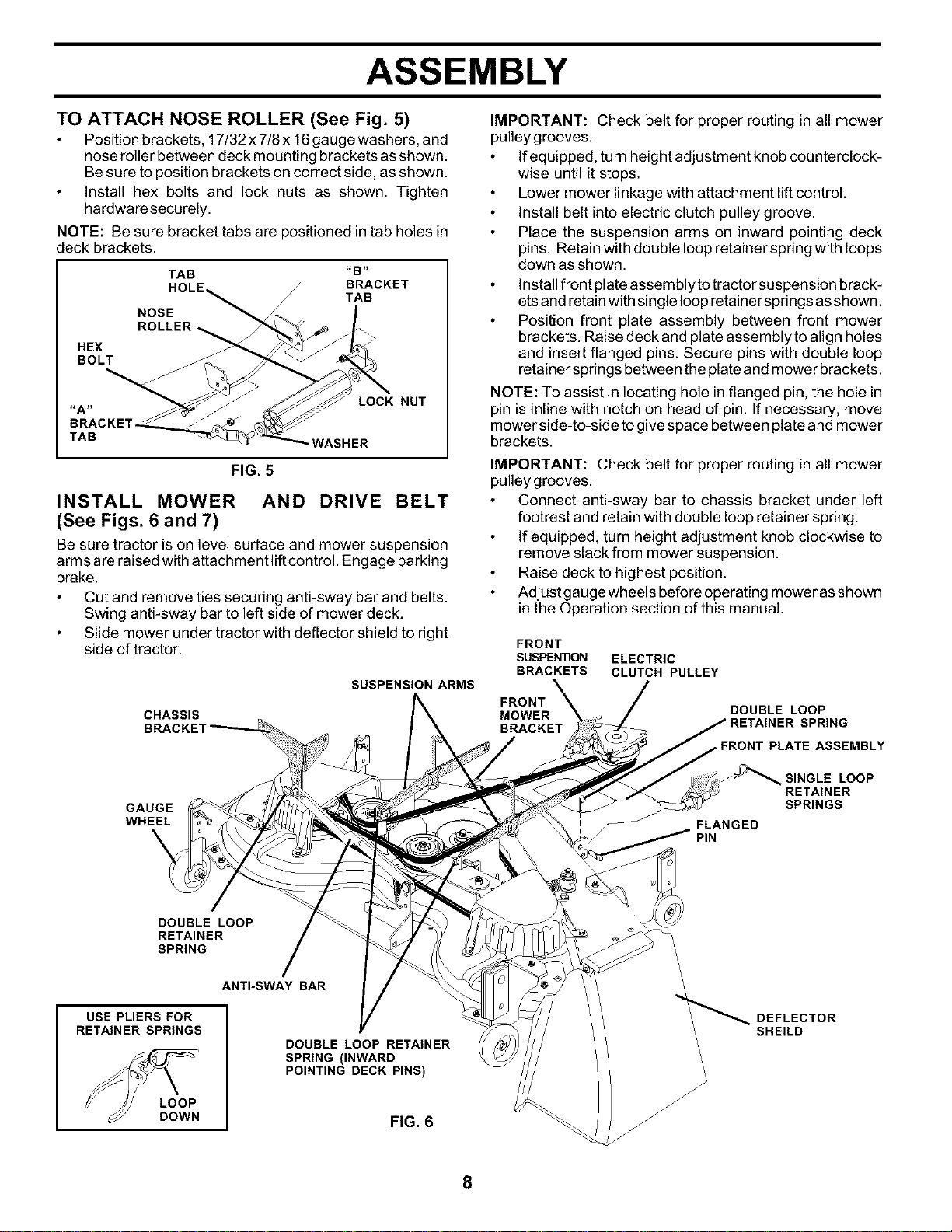

TO ATTACH NOSE ROLLER (See Fig. 5)

Position brackets, 17/32 x 7/8 x 16gauge washers, and

nose roller between deck mounting brackets as shown.

Be sure to position brackets on correct side, as shown.

Install hex bolts and lock nuts as shown. Tighten

hardware securely.

NOTE: Be sure bracket tabs are positioned in tab holes in

deck brackets.

TAB "B"

HOLE BRACKET

TAB

NOSE

ROLLER_

HEX

BOLT

_A _,

LOCK NUT

TAB

VVASHER

FIG. 5

INSTALL MOWER AND DRIVE BELT

(See Figs. 6 and 7)

Be sure tractor is on level surface and mower suspension

arms are raised with attachment lift control. Engage parking

brake.

Cut and remove ties securing anti-sway bar and belts.

Swing anti-sway bar to left side of mower deck.

Slide mower under tractor with deflector shield to right

side of tractor.

SUSPENSION ARMS

CHASSIS

GAUGE

WHEEL

IMPORTANT: Check belt for proper routing in all mower

pulley grooves.

If equipped, turn height adjustment knob counterclock-

wise until it stops.

Lower mower linkage with attachment lift control.

Install belt into electric clutch pulley groove.

Place the suspension arms on inward pointing deck

pins. Retain with double loop retainer spring with loops

down as shown.

Install front plate assemblyto tractor suspension brack-

ets and retain with single loop retainer springs as shown.

Position front plate assembly between front mower

brackets. Raise deck and plate assembly to align holes

and insert flanged pins. Secure pins with double loop

retainer springs between the plate and mower brackets.

NOTE: To assist in locating hole in flanged pin, the hole in

pin is inline with notch on head of pin. If necessary, move

mower side-to-side to give space between plate and mower

brackets.

IMPORTANT: Check belt for proper routing in all mower

pulley grooves.

Connect anti-sway bar to chassis bracket under left

footrest and retain with double loop retainer spring.

If equipped, turn height adjustment knob clockwise to

remove slack from mower suspension.

Raise deck to highest position.

Adjust gauge wheels before operating mower as shown

in the Operation section of this manual.

FRONT

SUSPENllON ELECTRIC

BRACKETS CLUTCH PULLEY

FRONT

DOUBLE LOOP

RETAINER SPRING

FRONT PLATE ASSEMBLY

J_ SINGLE LOOP

RETAINER

SPRINGS

FLANGED

DOUBLE LOOP

RETAINER

SPRING

USE PLIERS FOR

RETAINER SPRINGS

LOOP

DOWN

ANTI-SWAY BAR

DOUBLE LOOP RETAINER

SPRING (INWARD

POINTING DECK PINS)

FIG. 6

DEFLECTOR

SHEILD

ASSEMBLY

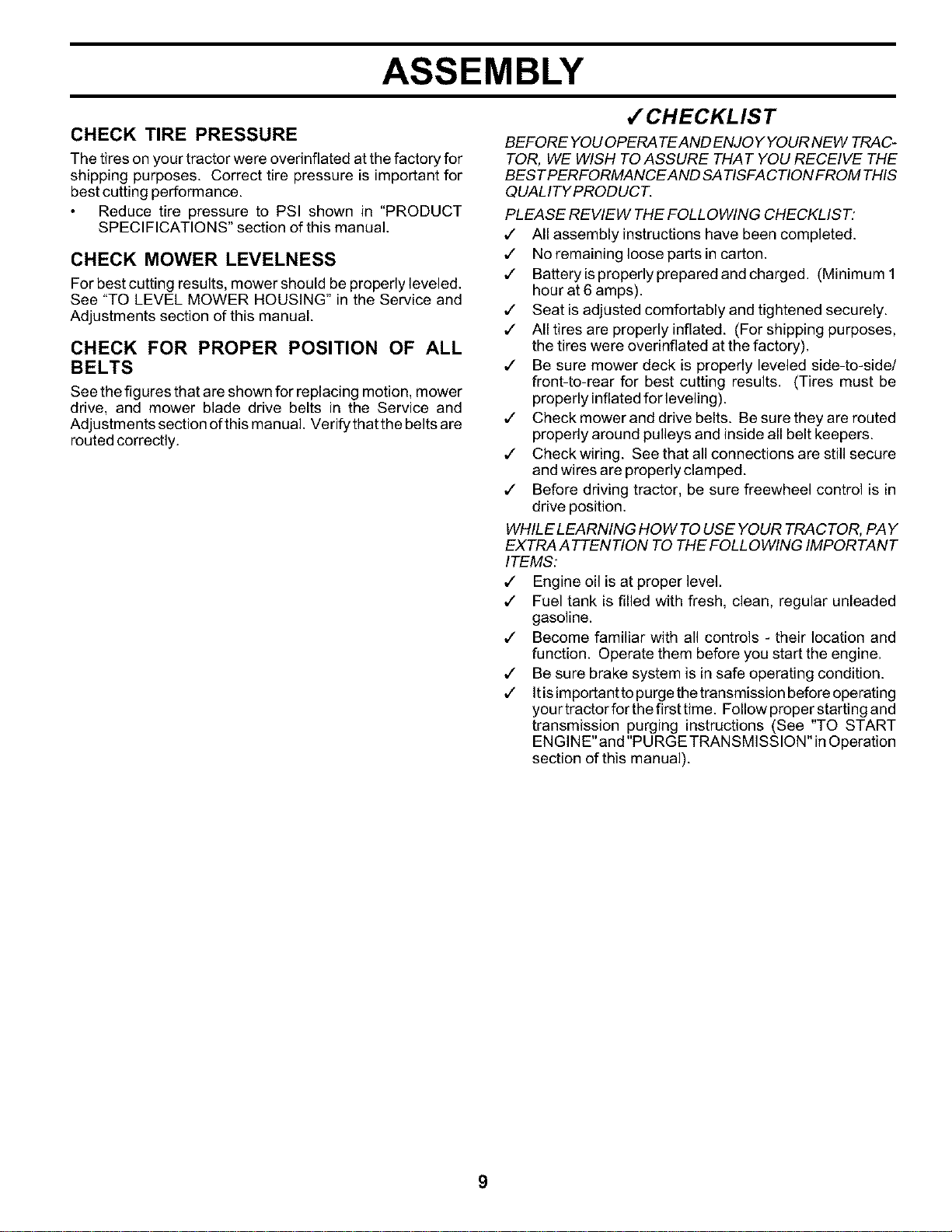

CHECK TIRE PRESSURE

The tires on your tractor were overinflated at the factory for

shipping purposes. Correct tire pressure is important for

best cutting performance.

Reduce tire pressure to PSI shown in "PRODUCT

SPECIFICATIONS" section of this manual.

CHECK MOWER LEVELNESS

For best cutting results, mower should be properly leveled.

See "TO LEVEL MOWER HOUSING" in the Service and

Adjustments section of this manual.

CHECK FOR PROPER POSITION OF ALL

BELTS

See the fig ures that are shown for replacing motion, mower

drive, and mower blade drive belts in the Service and

Adjustments section of this manual. Verify that the belts are

routed correctly.

,,/CHECKLIST

BEFORE YOU OPERA TEAND ENJOY YOUR NEW TRAC-

TOR, WE WISH TO ASSURE THAT YOU RECEIVE THE

BEST PERFORMANCEAND SA TISFACTION FROM THIS

QUALITYPRODUCT.

PLEASE REVIEW THE FOLL OWING CHECKLIST."

,/ All assembly instructions have been completed.

,/ No remaining loose parts in carton.

,/ Batteryis properly prepared and charged. (Minimum 1

hour at 6 amps).

,/ Seat is adjusted comfortably and tightened securely.

,/ All tires are properly inflated. (For shipping purposes,

the tires were overinflated at the factory).

,/ Be sure mower deck is properly leveled side-to-side/

front-to-rear for best cutting results. (Tires must be

properly inflated for leveling).

,/ Check mower and drive belts. Be sure they are routed

properly around pulleys and inside all belt keepers.

,/ Check wiring. See that all connections are still secure

and wires are properly clamped.

,/ Before driving tractor, be sure freewheel control is in

drive position.

WHILE LEARNING HOW TO USE YOUR TRACTOR, PAY

EXTRA ATTENTION TO THE FOLL OWING IMPORTANT

ITEMS:

,/ Engine oil is at proper level.

,/ Fuel tank is filled with fresh, clean, regular unleaded

gasoline.

,/ Become familiar with all controls - their location and

function. Operate them before you start the engine.

,/ Be sure brake system is in safe operating condition.

,/ It isimportant topurge the transmission before operating

your tractor for the first time. Follow proper starting and

transmission purging instructions (See "TO START

ENGINE"and"PURGE TRANSMISSION" inOperation

section of this manual).

OPERATION

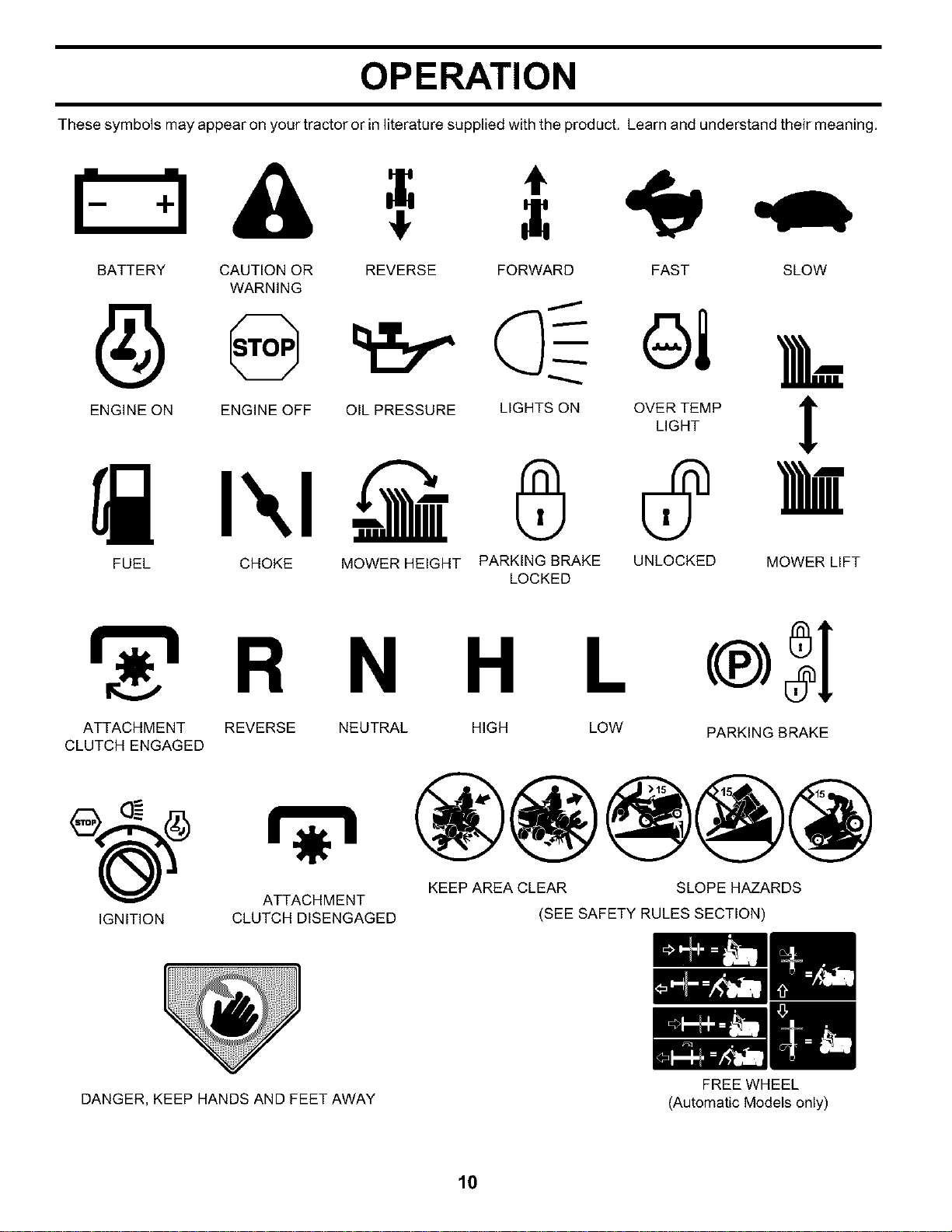

These symbols may appear on your tractor or in literature supplied with the product. Learn and understand their meaning.

I-

BATTERY CAUTION OR REVERSE FORWARD FAST SLOW

WARNING

L,GHTSO.OVI,_TEMPt

ENGINE ON ENGINE OFF OIL PRESSURE

I J

FUEL CHOKE MOWER HEIGHT PARKING BRAKE UNLOCKED MOWER LIFT

LOCKED

R N H L

ATTACHMENT REVERSE

CLUTCH ENGAGED

NEUTRAL HIGH LOW

PARKING BRAKE

@@@@@

KEEP AREA CLEAR SLOPE HAZARDS

ATTACHMENT

IGNITION CLUTCH DISENGAGED (SEE SAFETY RULES SECTION)

DANGER, KEEP HANDS AND FEET AWAY

FREE WHEEL

(Automatic Models only)

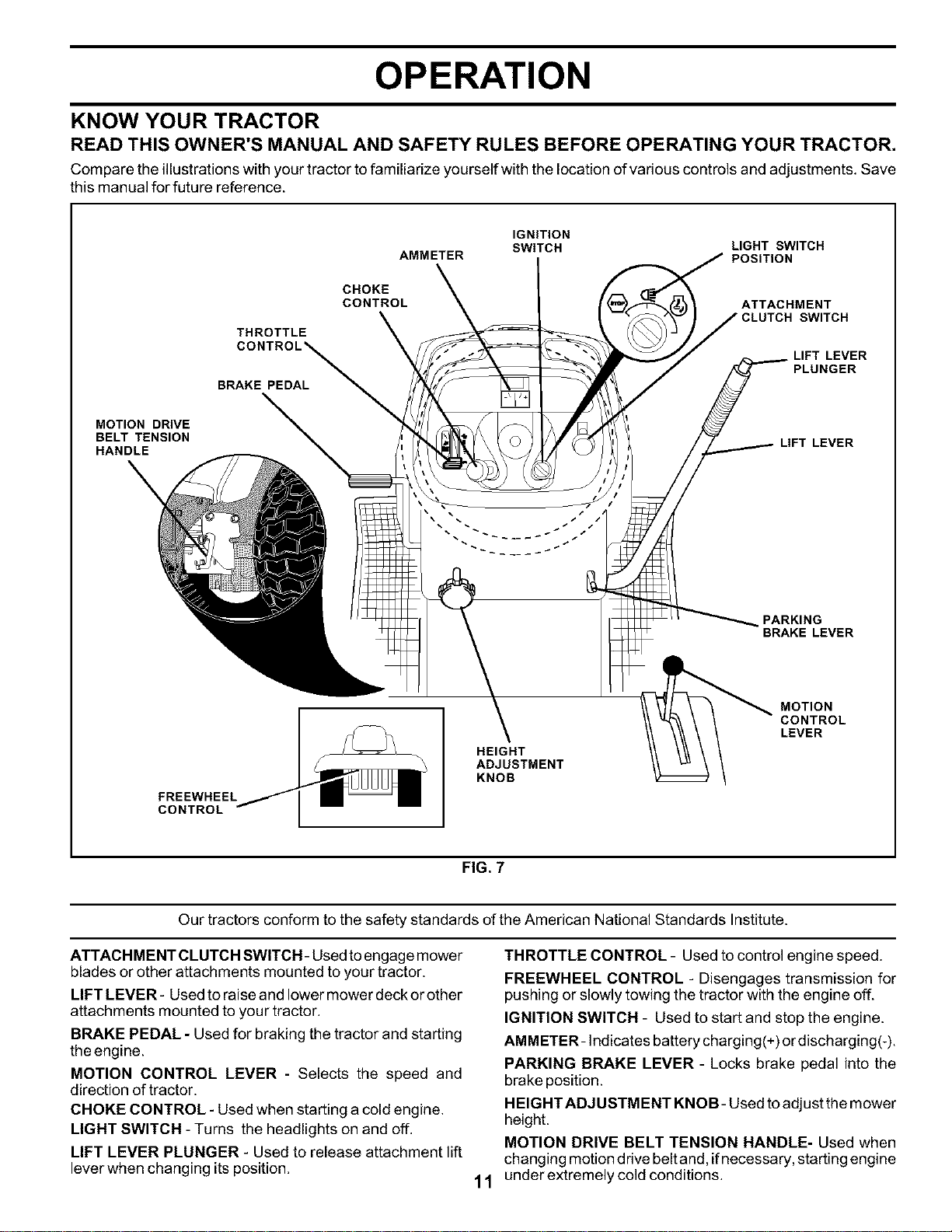

OPERATION

KNOW YOUR TRACTOR

READ THIS OWNER'S MANUAL AND SAFETY RULES BEFORE OPERATING YOUR TRACTOR.

Compare the illustrations with your tractor to familiarize yourself with the location of various controls and adjustments. Save

this manual for future reference.

IGNITION

SWITCH LIGHT SWITCH

AMMETER POSITION

CHOKE

CONTROL ATTACHMENT

THROTTLE _ SWITCH

LIFT LEVER

PLUNGER

BRAKE PEDAL

MOTION DRIVE

BELT TENSION

HANDLE

FREEWHEEL

CONTROL

HEIGHT

ADJUSTMENT

KNOB

LIFT LEVER

PARKING

BRAKE LEVER

MOTION

CONTROL

LEVER

FIG. 7

Our tractors conform to the safety standards of the American National Standards Institute.

ATTACH MENT CLUTCH SWITCH- Used to engage mower

blades or other attachments mounted to your tractor.

LIFT LEVER- Used to raise and lower mower deck or other

attachments mounted to your tractor.

BRAKE PEDAL - Used for braking the tractor and starting

the engine.

MOTION CONTROL LEVER - Selects the speed and

direction of tractor.

CHOKE CONTROL - Used when starting a cold engine.

LIGHT SWITCH - Turns the headlights on and off.

LIFT LEVER PLUNGER - Used to release attachment lift

lever when changing its position.

THROTTLE CONTROL - Used to control engine speed.

FREEWHEEL CONTROL - Disengages transmission for

pushing or slowly towing the tractor with the engine off.

IGNITION SWITCH - Used to start and stop the engine.

AMMETER- Indicates battery charging(+) or discharging(-),

PARKING BRAKE LEVER - Locks brake pedal into the

brake position.

HEIGHT ADJUSTMENT KNOB- Used toadjust the mower

height.

MOTION DRIVE BELT TENSION HANDLE- Used when

changing motion drive beltand, if necessary, starting engine

under extremely cold conditions.

OPERATION

The operation of any tractor can result inforeign objects thrown into the eyes, which can

result in severe eye damage. Always wear safety glasses or eye shields while operating

your tractor or performing any adjustments or repairs. We recommend a wide vision

safety mask over spectacles or standard safety glasses.

HOW TO USE YOUR TRACTOR

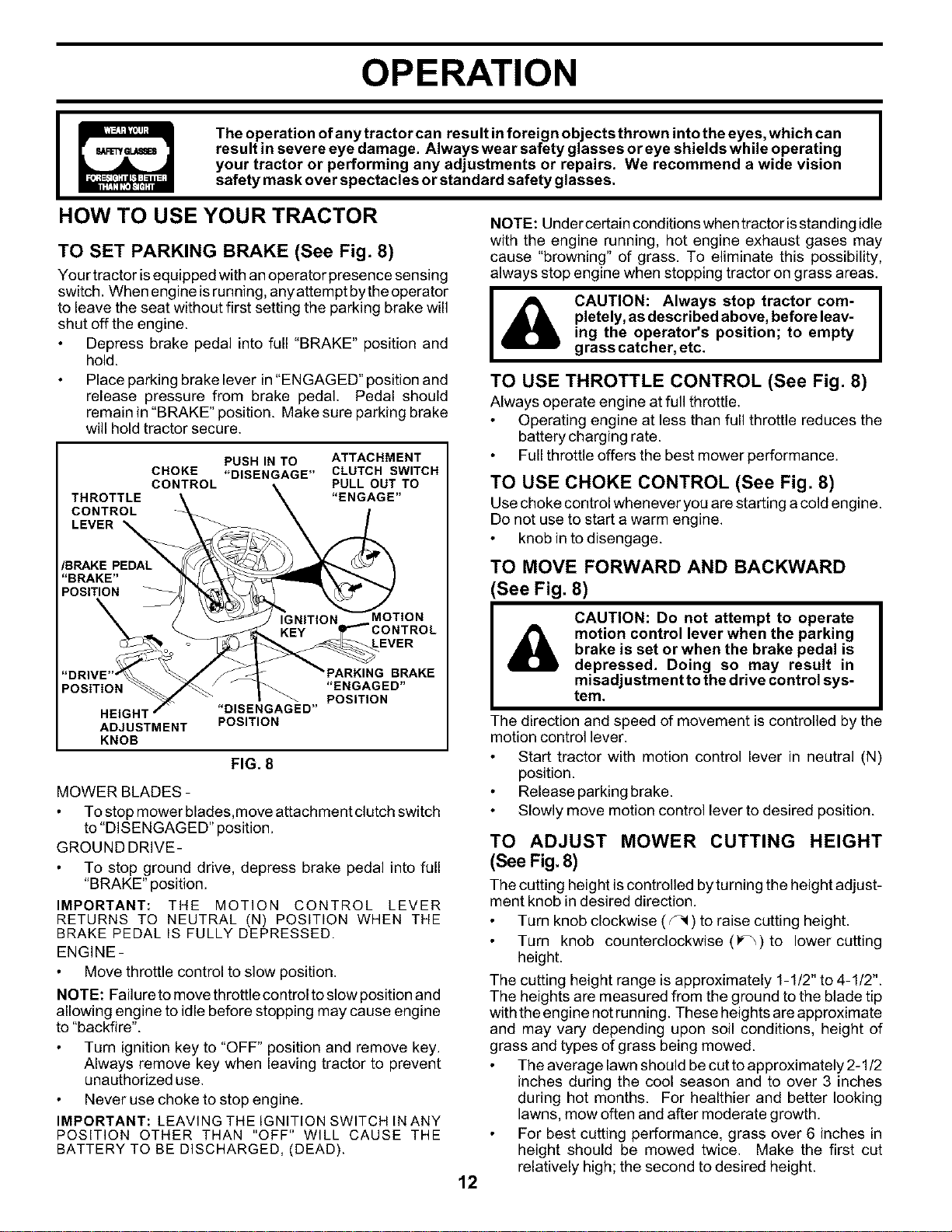

TO SET PARKING BRAKE (See Fig. 8)

Your tractor isequipped with an operator presence sensing

switch. When engine isrunning, any attempt bythe operator

to leave the seat without first setting the parking brake will

shut off the engine.

Depress brake pedal into full "BRAKE" position and

hold.

NOTE: Under certain conditions when tractor isstanding idle

with the engine running, hot engine exhaust gases may

cause "browning" of grass. To eliminate this possibility,

always stop engine when stopping tractor on grass areas.

pletely, as described above, before leav-

ing the operator's position; to empty

grass catcher, etc.

Place parking brake lever in "ENGAGED" position and

release pressure from brake pedal. Pedal should

remain in "BRAKE" position. Make sure parking brake

will hold tractor secure.

PUSH IN TO ATTACHMENT

CHOKE "DISENGAGE" CLUTCH SWITCH

CONTROL \ PULL OUT TO

/BRAKECONTROI_THROTTLELEVERP "ENGAGE"

"BRAKE" _T

POSITION

ION

KEY

LEVER

HEIGHT

AD3USTMENT

KNOB

"DISENGAGED"

POSITION

PARKING BRAKE

"ENGAGED"

POSITION

FIG. 8

MOWER BLADES -

To stop mower blades, move attachment clutch switch

to "DISENGAGED" position.

GROUND DRIVE-

To stop ground drive, depress brake pedal into full

"BRAKE" position.

IMPORTANT: THE MOTION CONTROL LEVER

RETURNS TO NEUTRAL (N) POSITION WHEN THE

BRAKE PEDAL IS FULLY DEPRESSED.

ENGINE-

Move throttle control to slow position.

NOTE: Failure to move throttle control toslow position and

allowing engine to idle before stopping may cause engine

to "backfire".

Turn ignition key to "OFF" position and remove key.

Always remove key when leaving tractor to prevent

unauthorized use.

Never use choke to stop engine.

IMPORTANT: LEAVING THE IGNITION SWITCH IN ANY

POSITION OTHER THAN "OFF" WILL CAUSE THE

BATTERY TO BE DISCHARGED, (DEAD).

TO USE THROTTLE CONTROL (See Fig. 8)

Always operate engine at full throttle.

Operating engine at less than full throttle reduces the

battery charging rate.

Full throttle offers the best mower performance.

TO USE CHOKE CONTROL (See Fig. 8}

Use choke control whenever you are starting a cold engine.

Do not use to start a warm engine.

knob in to disengage.

TO MOVE FORWARD AND BACKWARD

(See Fig. 8)

CAUTION: Do not attempt to operate

motion control lever when the parking

brake is set or when the brake pedal is

depressed. Doing so may result in

misadjustmentto the drive control sys-

tem.

The direction and speed of movement is controlled by the

motion control lever.

Start tractor with motion control lever in neutral (N)

position.

Release parking brake.

Slowly move motion control lever to desired position.

TO ADJUST MOWER CUTTING HEIGHT

(See Fig. 8)

The cutting height iscontrolled by turning the height adjust-

ment knob in desired direction.

Turn knob clockwise ( s_ ) to raise cutting height.

Turn knob counterclockwise (_%) to lower cutting

height.

The cutting height range is approximately 1-1/2" to 4-1/2".

The heights are measured from the ground to the blade tip

with the engine not running. These heights are approximate

and may vary depending upon soil conditions, height of

grass and types of grass being mowed.

The average lawn should be cut to approximately 2-1/2

inches during the cool season and to over 3 inches

during hot months. For healthier and better looking

lawns, mow often and after moderate growth.

For best cutting performance, grass over 6 inches in

height should be mowed twice. Make the first cut

relatively high; the second to desired height.

OPERATION

TO OPERATE ON HILLS

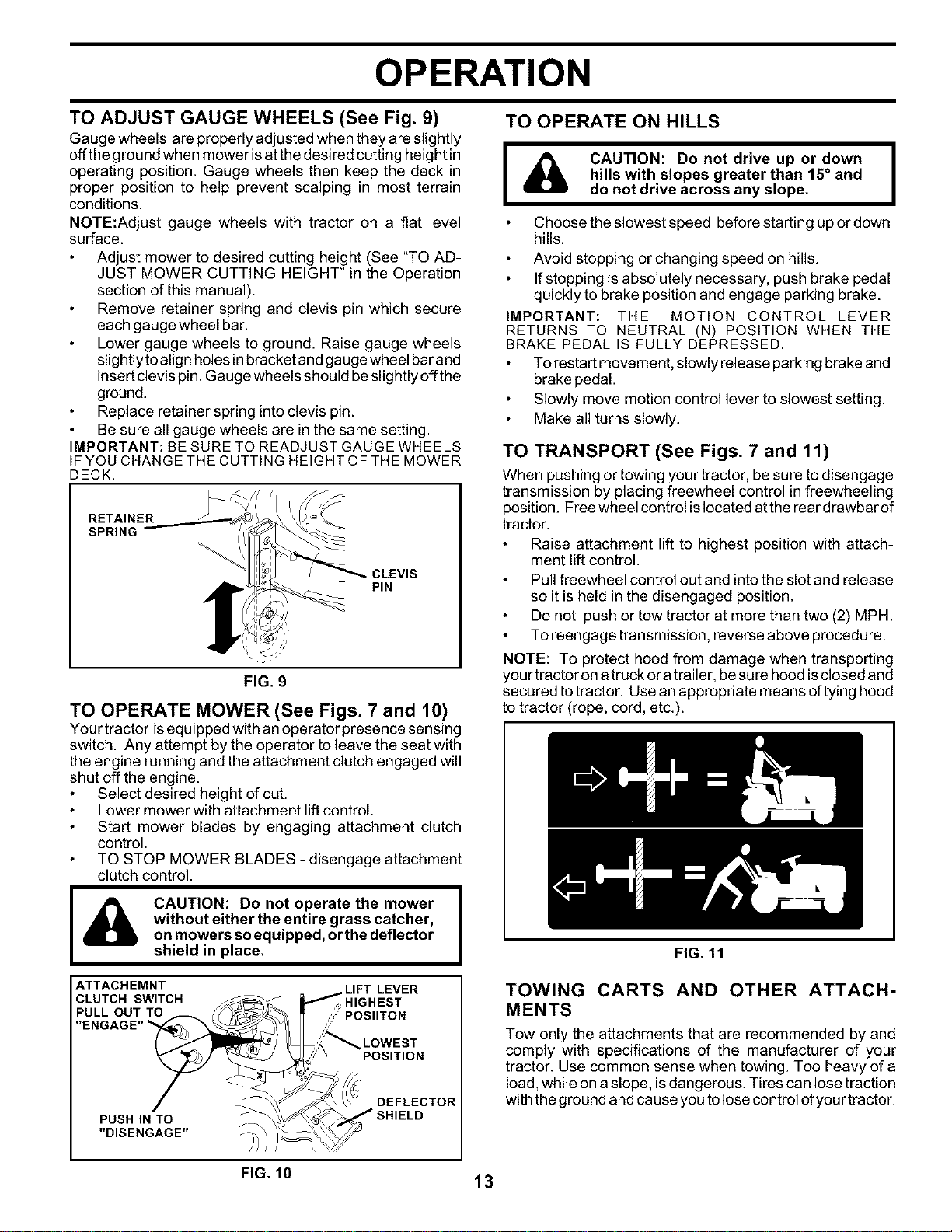

TO ADJUST GAUGE WHEELS (See Fig. 9)

Gauge wheels are properly adjusted when they are slightly

offthe ground when mower is atthe desired cutting height in

operating position. Gauge wheels then keep the deck in

proper position to help prevent scalping in most terrain

conditions.

NOTE:Adjust gauge wheels with tractor on a flat level

surface.

Adjust mower to desired cutting height (See "TO AD-

JUST MOWER CUTTING HEIGHT" in the Operation

section of this manual).

Remove retainer spring and clevis pin which secure

each gauge wheel bar.

Lower gauge wheels to ground. Raise gauge wheels

slightly toalign holes in bracket and gauge wheel bar and

insert clevis pin. Gauge wheels should be slightly offthe

ground.

Replace retainer spring into clevis pin.

Be sure all gauge wheels are in the same setting.

IMPORTANT: BE SURE TO READJUST GAUGE WHEELS

IFYOU CHANGE THE CUTTING HEIGHT OF THE MOWER

DECK.

RETAINER

SPRING

CLEVIS

FIG. 9

TO OPERATE MOWER (See Figs. 7 and 10)

Your tractor is equipped with an operator presence sensing

switch. Any attempt by the operator to leave the seat with

the engine running and the attachment clutch engaged will

shut off the engine.

Select desired height of cut,

Lower mower with attachment lift control.

Start mower blades by engaging attachment clutch

control.

TO STOP MOWER BLADES - disengage attachment

clutch control.

CAUTION: Do not operate the mower

without either the entire grass catcher,

on mowers so equipped, orthe deflector

shield in place.

ATTACHEMNT

CLUTCH SWITCH

PULL OUT TO

"ENGAGE"

LIFT LEVER

HIGHEST

POSIITON

LOWEST

POSITION

PUSH IN TO

"DISENGAGE"

DEFLECTOR

I _ CAUTION: Do not drive up or down

hills with slopes greater than 15° and

do not drive across any slope.

Choose the slowest speed before starting up or down

hills.

Avoid stopping or changing speed on hills.

If stopping is absolutely necessary, push brake pedal

quickly to brake position and engage parking brake.

IMPORTANT: THE MOTION CONTROL LEVER

RETURNS TO NEUTRAL (N) POSITION WHEN THE

BRAKE PEDAL IS FULLY DEPRESSED.

To restart movement, slowly release parking brake and

brake pedal.

Slowly move motion control lever to slowest setting.

Make all turns slowly.

TO TRANSPORT (See Figs. 7 and 11)

When pushing or towing your tractor, be sure to disengage

transmission by placing freewheel control in freewheeling

position. Free wheel control islocated atthe reardrawbarof

tractor.

Raise attachment lift to highest position with attach-

ment lift control.

Pull freewheel control out and into the slot and release

so it is held in the disengaged position.

Do not push or tow tractor at more than two (2) MPH.

To reengage transmission, reverse above procedu re.

NOTE: To protect hood from damage when transporting

your tractor on atruck or a trailer, be sure hood isclosed and

secured to tractor. Use an appropriate means of tying hood

to tractor (rope, cord, etc.).

FIG. 11

TOWING CARTS AND OTHER ATTACH-

MENTS

Tow only the attachments that are recommended by and

comply with specifications of the manufacturer of your

tractor. Use common sense when towing. Too heavy of a

load, while on a slope, is dangerous. Tires can lose traction

with the ground and cause you to lose control ofyou rtractor.

FIG. 10 13

OPERATION

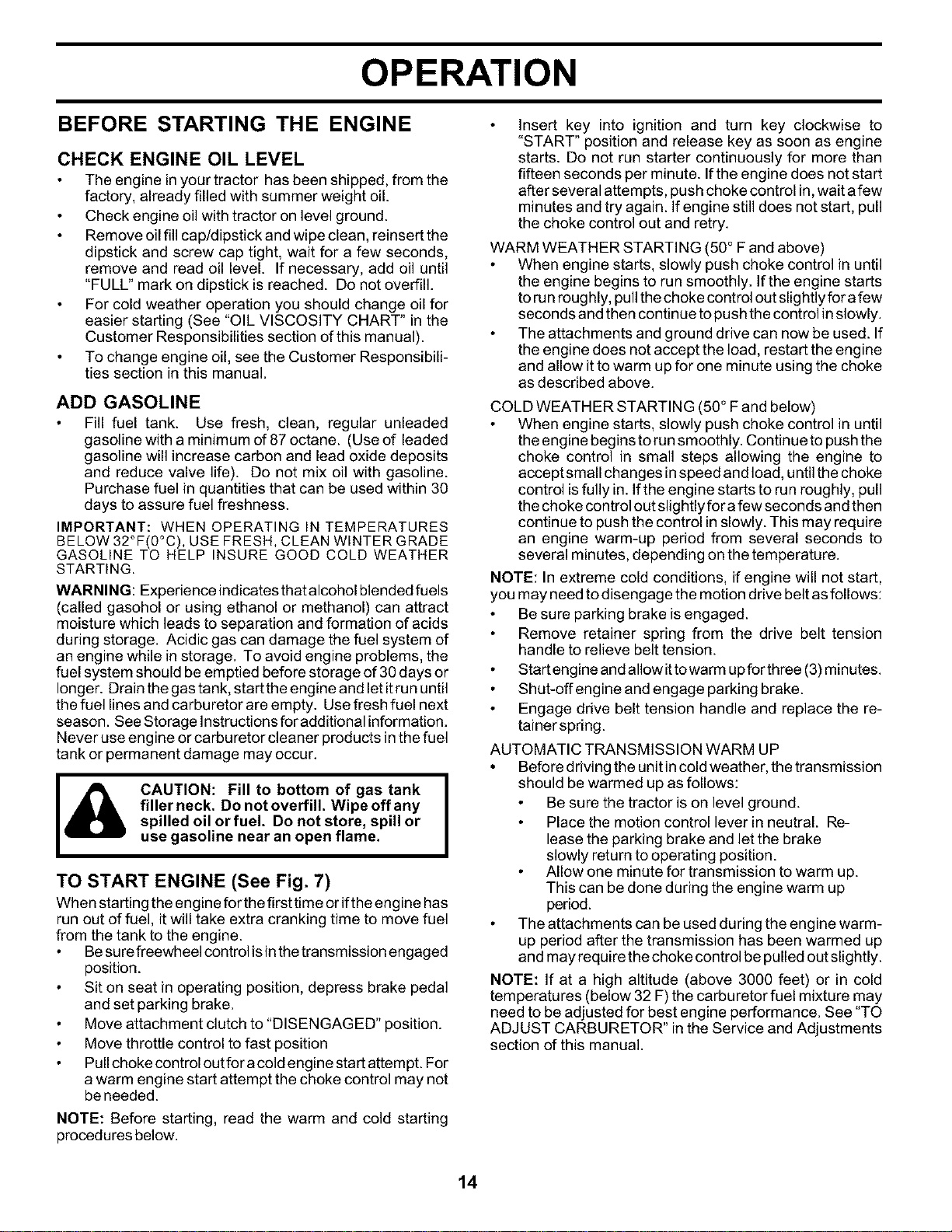

BEFORE STARTING THE ENGINE

CHECK ENGINE OIL LEVEL

The engine in your tractor has been shipped, from the

factory, already filled with summer weight oil.

Check engine oil with tractor on level ground.

Remove oil fill cap/dipstick and wipe clean, reinsert the

dipstick and screw cap tight, wait for a few seconds,

remove and read oil level. If necessary, add oil until

"FULL" mark on dipstick is reached. Do not overfill.

For cold weather operation you should change oil for

easier starting (See "OIL VISCOSITY CHART" in the

Customer Responsibilities section of this manual).

To change engine oil, see the Customer Responsibili-

ties section in this manual.

ADD GASOLINE

Fill fuel tank. Use fresh, clean, regular unleaded

gasoline with a minimum of 87 octane. (Use of leaded

gasoline will increase carbon and lead oxide deposits

and reduce valve life). Do not mix oil with gasoline.

Purchase fuel in quantities that can be used within 30

days to assure fuel freshness.

IMPORTANT: WHEN OPERATING IN TEMPERATURES

BELOW 32°F(0°C), USE FRESH, CLEAN WINTER GRADE

GASOLINE TO HELP INSURE GOOD COLD WEATHER

STARTING.

WARNING: Experience indicates that alcohol blended fuels

(called gasohol or using ethanol or methanol) can attract

moisture which leads to separation and formation of acids

during storage. Acidic gas can damage the fuel system of

an engine while in storage. To avoid engine problems, the

fuel system should be emptied before storage of 30 days or

longer. Drain the gas tank, start the engine and let itrun until

the fuel lines and carburetor are empty. Use fresh fuel next

season. See Storage Instructions foradditional information.

Never use engine or carburetor cleaner products in the fuel

tank or permanent damage may occur.

CAUTION: Fill to bottom of gas tank

filler neck. Do not overfill. Wipe off any

spilled oil or fuel. Do not store, spill or

use gasoline near an open flame.

TO START ENGINE (See Fig. 7)

When starting the engine forthe first time or ifthe engine has

run out of fuel, it will take extra cranking time to move fuel

from the tank to the engine.

Be sure freewheel control isinthe transmission engaged

position.

Sit on seat in operating position, depress brake pedal

and set parking brake.

Move attachment clutch to "DISENGAGED" position.

Move throttle control to fast position

Pull choke control out for a cold engine start attempt. For

a warm engine start attempt the choke control may not

be needed.

NOTE: Before starting, read the warm and cold starting

procedures below.

Insert key into ignition and turn key clockwise to

"START" position and release key as soon as engine

starts. Do not run starter continuously for more than

fifteen seconds per minute. If the engine does not start

after several attempts, push choke control in,wait a few

minutes and try again. If engine still does not start, pull

the choke control out and retry.

WARM WEATHER STARTING (50 °F and above)

When engine starts, slowly push choke control in until

the engine begins to run smoothly. Ifthe engine starts

to run roughly, pull the choke control out slightly for afew

seconds and then continue to push the control in slowly.

The attachments and ground drive can now be used. If

the engine does not accept the load, restart the engine

and allow itto warm up for one minute using the choke

as described above.

COLD WEATHER STARTING (50 ° Fand below)

When engine starts, slowly push choke control in until

the engine beg ins to run smoothly. Continue to push the

choke control in small steps allowing the engine to

accept small changes in speed and load, until the choke

control is fully in. If the engine starts to run roughly, pull

the choke control out slightly for a few seconds and then

continue to push the control in slowly. This may require

an engine warm-up period from several seconds to

several minutes, depending on the temperature.

NOTE: In extreme cold conditions, if engine will not start,

you may need to disengage the motion drive belt asfollows:

Be sure parking brake is engaged.

Remove retainer spring from the drive belt tension

handle to relieve belt tension.

Start engine and allowit towarm up for three (3) minutes.

Shut-off engine and engage parking brake.

Engage drive belt tension handle and replace the re-

tainerspring.

AUTOMATIC TRANSMISSION WARM UP

Before d riving the unit in cold weather, the transmission

should be warmed up as follows:

Be sure the tractor is on level ground.

Place the motion control lever in neutral. Re-

lease the parking brake and let the brake

slowly return to operating position.

Allow one minute for transmission to warm up.

This can be done during the engine warm up

period.

The attachments can be used during the engine warm-

up period after the transmission has been warmed up

and may require the choke control be pulled out slightly.

NOTE: If at a high altitude (above 3000 feet) or in cold

temperatures (below 32 F) the carburetor fuel mixture may

need to be adjusted for best engine performance. See "TO

ADJUST CARBURETOR" in the Service and Adjustments

section of this manual.

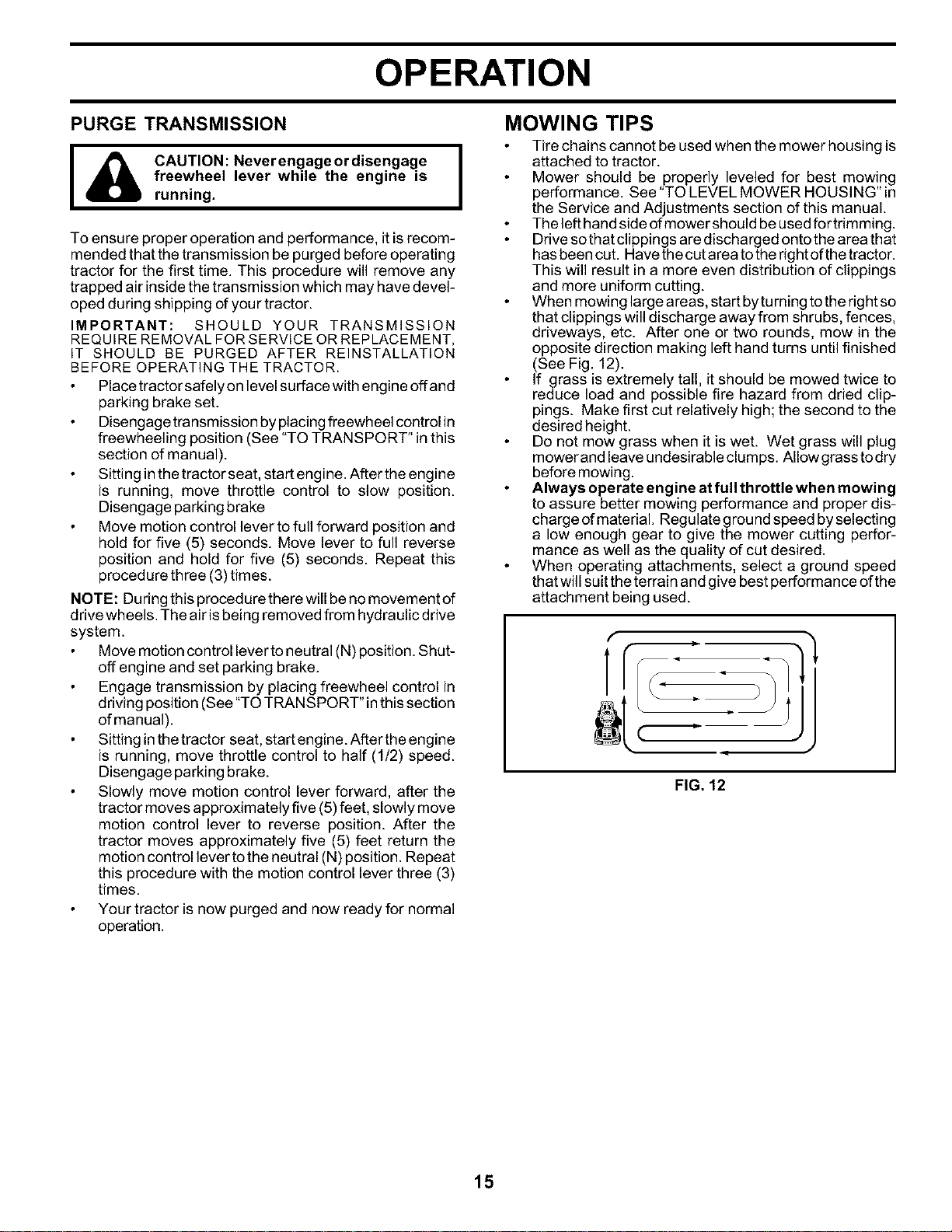

OPERATION

PURGE TRANSMISSION MOWING TIPS

I _ CAUTION:Neverengageordisengage I

freewheel lever while the engine is

running.

To ensure proper operation and performance, it is recom-

mended that the transmission be purged before operating

tractor for the first time. This procedure will remove any

trapped air inside the transmission which may have devel-

oped during shipping of your tractor.

IMPORTANT: SHOULD YOUR TRANSMISSION

REQUIRE REMOVAL FOR SERVICE OR REPLACEMENT,

IT SHOULD BE PURGED AFTER REINSTALLATION

BEFORE OPERATING THE TRACTOR.

Place tractor safely on level surface with engine offand

parking brake set.

Disengage transmission byplacing freewheel control in

freewheeling position (See "TO TRANSPORT" in this

section of manual).

Sitting in the tractor seat, startengine. After the engine

is running, move throttle control to slow position.

Disengage parking brake

Move motion control lever to full forward position and

hold for five (5) seconds. Move lever to full reverse

position and hold for five (5) seconds. Repeat this

procedure three (3) times.

NOTE: Duringthis procedure there willbe no movement of

drive wheels. The air isbeing removed from hydra ulic drive

system.

Move motion control lever to neutral (N) position. Shut-

off engine and set parking brake.

Engage transmission by placing freewheel control in

driving position (See "TO TRANSPORT" in this section

of manual).

Sitting in the tractor seat, start engine. After the engine

is running, move throttle control to half (1/2) speed.

Disengage parking brake.

Slowly move motion control lever forward, after the

tractor moves approximately five (5) feet, slowly move

motion control lever to reverse position. After the

tractor moves approximately five (5) feet return the

motion control lever tothe neutral (N) position. Repeat

this procedure with the motion control lever three (3)

times.

Your tractor is now purged and now ready for normal

operation.

Tire chains cannot be used when the mower housing is

attached to tractor.

Mower should be properly leveled for best mowing

performance. See "TO LEVEL MOWER HOUSING" in

the Service and Adjustments section of this manual.

The left hand side ofmower should be used for trimming.

Drive so that clippings are discharged onto the area that

has been cut. Have the cut area to the fight ofthe tractor.

This will result in a more even distribution of clippings

and more uniform cutting.

When mowing large areas, start byturuing tothe right so

that clippings will discharge away from shrubs, fences,

driveways, etc. After one or two rounds, mow in the

opposite direction making left hand turns until finished

(See Fig. 12).

If grass is extremely tall, it should be mowed twice to

reduce load and possible fire hazard from dried clip-

pings. Make first cut relatively high; the second to the

desired height.

Do not mow grass when it is wet. Wet grass will plug

mowerand leave undesirable clumps. Allow grass to dry

before mowing.

Always operate engine at full throttle when mowing

to assure better mowing performance and proper dis-

charge ofmaterial. Regulate ground speed by selecting

a low enough gear to give the mower cutting perfor-

mance as well as the quality of cut desired.

When operating attachments, select a ground speed

that will suit the terrain and give best performance of the

attachment being used.

FIG. 12

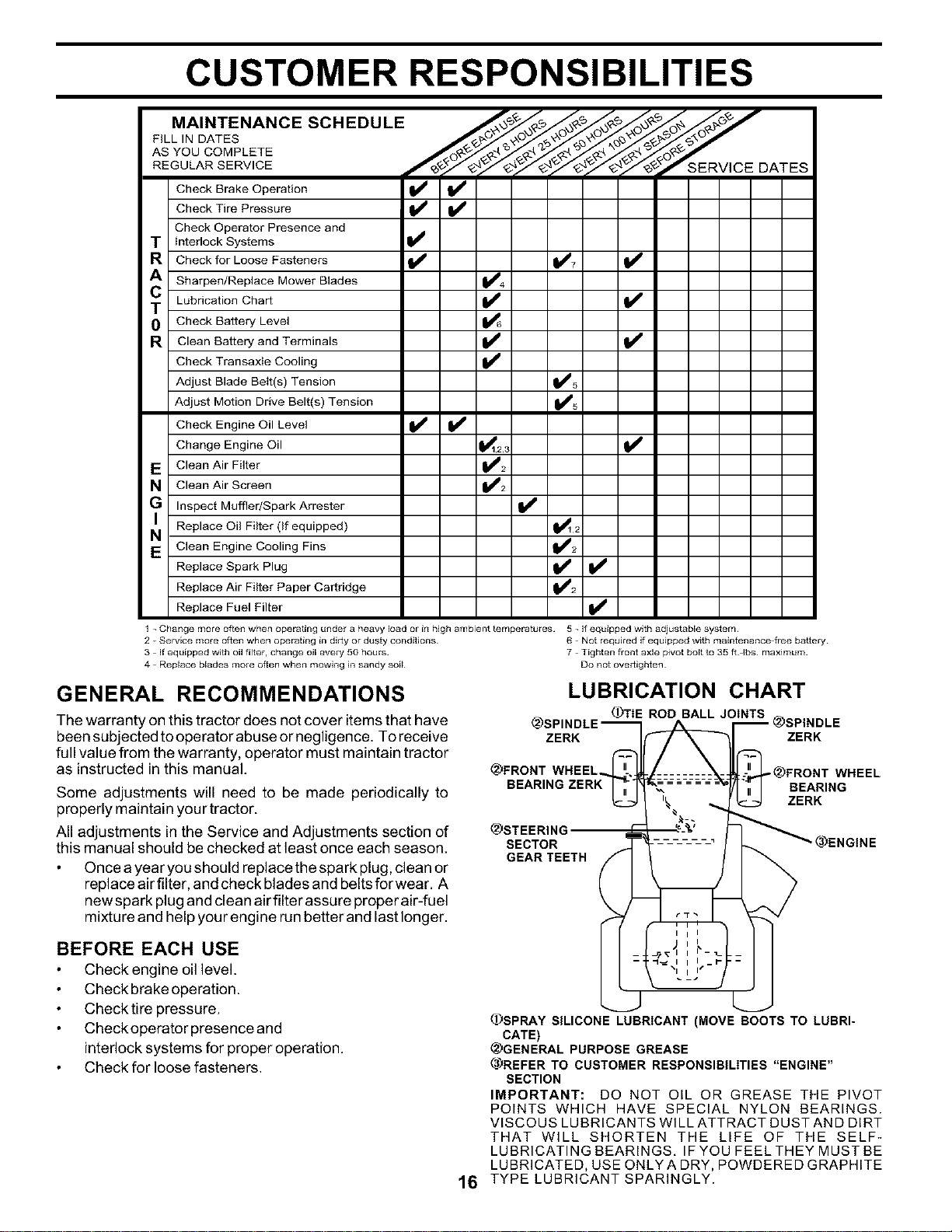

CUSTOMER RESPONSIBILITIES

DATES '

AS YOU COMPLETE

REGULAR SERVICE d_'_b£'_._ £.__';/_ .."/_q._/" _q_(';'/_£'_" SERVICE DATES

Check Brake Operation _,

Check Tire Pressure

Check Operator Presence and

T interlock Systems I1_

R Check for Loose Fasteners _ _7

A Sharpen/Replace Mower Blades I_.

C Lubdcation Chart

0 Check Battery Level

R Clean Battery and Terminals

Check TransaxIe Cooling

Adjust Blade Beit(s) Tension _5

Adjust Motion Drive Belt(s) Tension _5

Check Engine Oil Level _ I_

Change Engine Oil 1_123

Clean Air Filter

N Clean Air Screen

G Inspect Muffler/Spark Arrester V'

Replace Oil Filter (If equipped) _:

N Clean Engine Cooling Fins 11_2

Replace Spark Plug _

Replace Air Filter Paper Cartridge _2

Replace Fuel Filter

1 - Change more often when operating under a heavy load or in high ambient temperatures 5 - If equipped with adjustable system

2 - Service more often when operating in dirty or dusty conditions 6 Not required if equipped with maintenance free battery

3 gequippedwithoilfilter, changeoilevery50hours 7 Tightenfrontaxlepivotboltto35ff Ibs maximum

4 Replace blades more often when mowing in sandy soil Do not overtighten

GENERAL RECOMMENDATIONS

The warranty on this tractor does not cover items that have

been subjected to operator abuse or negligence. To receive

full value from the warranty, operator must maintain tractor

as instructed in this manual.

LUBRICATION CHART

(])TIE ROD BALL JOINTS

ZERK ZERK

_FRONT WHEEL,

Some adjustments will need to be made periodically to

properly maintain your tractor.

All adjustments in the Service and Adjustments section of

this manual should be checked at least once each season.

Once a year you should replace the spark plug, clean or

replace air filter, and check blades and belts for wear. A

newspark plug and clean airfilterassure proper air-fuel

mixture and help yourengine run betterand last longer.

WHEEL

BEARING

ZERK

SECTOR "_)ENGINE

GEAR TEETH

BEFORE EACH USE

Check engine oil level.

Check brake operation.

Check tire pressure.

Check operator presence and

interlock systems for proper operation.

Check for loose fasteners.

(])SPRAY SILICONE LUBRICANT (MOVE BOOTS TO LUBRI-

CATE)

_GENERAL PURPOSE GREASE

_)REFER TO CUSTOMER RESPONSIBILITIES "ENGINE"

SECTION

IMPORTANT: DO NOT OIL OR GREASE THE PIVOT

POINTS WHICH HAVE SPECIAL NYLON BEARINGS.

VISCOUS LUBRICANTS Wl LL ATTRACT DUST AND DIRT

THAT WILL SHORTEN THE LIFE OF THE SELF-

LUBRICATING BEARINGS, IFYOU FEELTHEY MUST BE

LUBRICATED, USE ONLYA DRY, POWDERED GRAPHITE

TYPE LUBRICANT SPARINGLY.

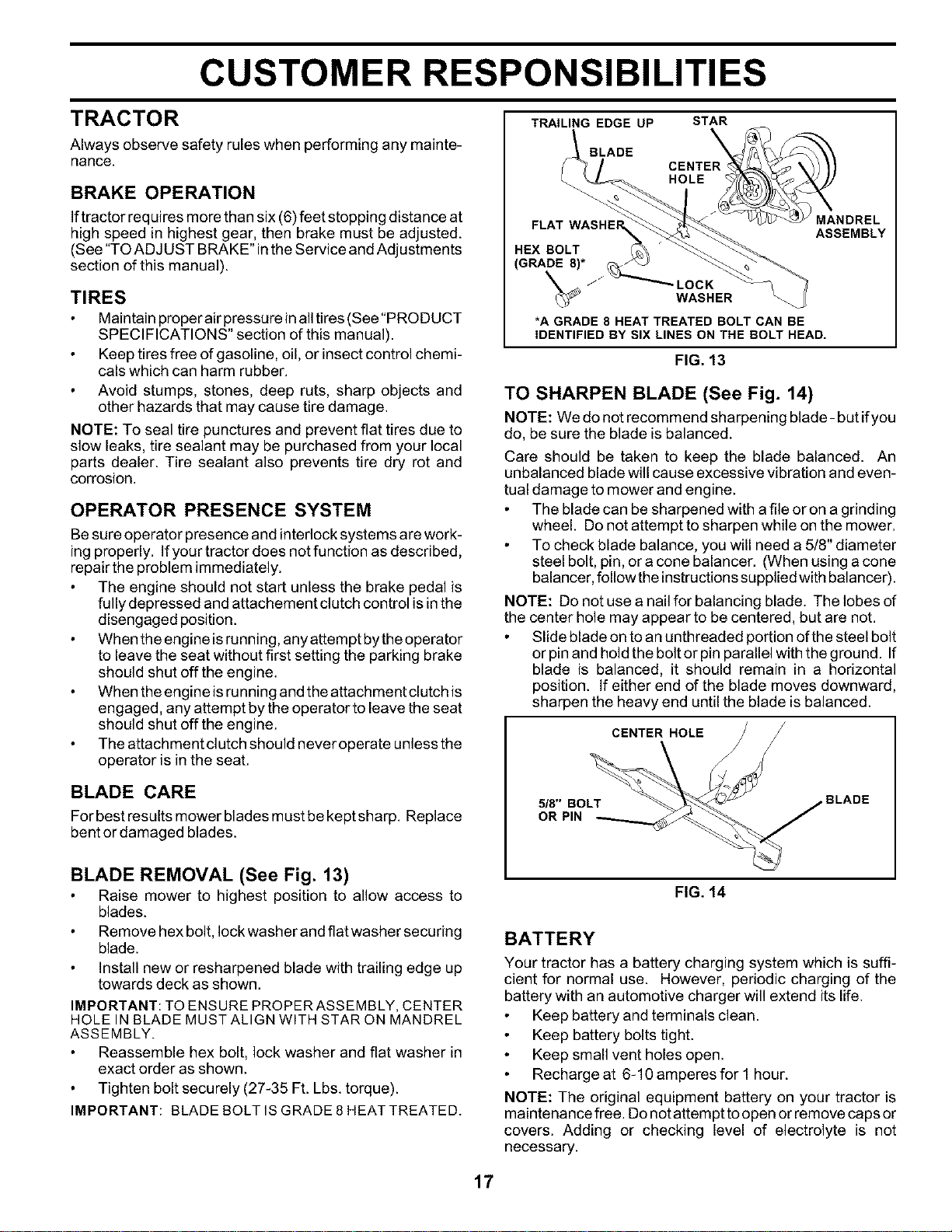

CUSTOMER RESPONSIBILITIES

TRACTOR

Always observe safety rules when performing any mainte-

nance.

BRAKE OPERATION

If tractor requires more than six (6)feet stopping distance at

high speed in highest gear, then brake must be adjusted.

(See "TO ADJUST BRAKE" in the Service and Adjustments

section of this manual).

TIRES

Maintain proper air pressure in all tires (See "PRODUCT

SPECIFICATIONS" section of this manual).

Keep tires free of gasoline, oil, or insect control chemi-

cals which can harm rubber.

Avoid stumps, stones, deep ruts, sharp objects and

other hazards that may cause tire damage.

NOTE: To seal tire punctures and prevent flat tires due to

slow leaks, tire sealant may be purchased from your local

parts dealer. Tire sealant also prevents tire dry rot and

corrosion.

OPERATOR PRESENCE SYSTEM

Be sure operator presence and interlock systems are work-

ing properly. If your tractor does not function as described,

repair the problem immediately.

The engine should not start unless the brake pedal is

fully depressed and attachement clutch control is in the

disengaged position.

When the engine is running, any attempt by the operator

to leave the seat without first setting the parking brake

should shut off the engine.

When the engine is running and the attachment clutch is

engaged, any attempt by the operator to leave the seat

should shut off the engine.

The attachment clutch should never operate unless the

operator is in the seat.

BLADE CARE

For best results mower blades must be kept sharp. Replace

bent or damaged blades.

BLADE REMOVAL (See Fig. 13)

Raise mower to highest position to allow access to

blades.

Remove hex bolt, lock washer and fiat washer securing

blade.

Install new or resharpened blade with trailing edge up

towards deck as shown.

IMPORTANT: TOENSURE PROPER ASSEMBLY, CENTER

HOLE IN BLADE MUST ALIGN WITH STAR ON MANDREL

ASSEMBLY.

Reassemble hex bolt, lock washer and flat washer in

exact order as shown.

Tighten bolt securely (27-35 Ft. Lbs. torque).

IMPORTANT: BLADE BOLT IS GRADE 8 HEAT TREATED.

TRAILING EDGE UP STAR

BLADE

FLAT WASHER_

HEX BOLT

(GRADE 8)* _,_

/_ _'_LOCK

WASHER

MANDREL

ASSEMBLY

*A GRADE 8 HEAT TREATED BOLT CAN BE

IDENTIFIED BY SiX LINES ON THE BOLT HEAD.

FIG. 13

TO SHARPEN BLADE (See Fig. 14)

NOTE: We do not recommend sharpening blade- but ifyou

do, be sure the blade is balanced.

Care should be taken to keep the blade balanced. An

unbalanced blade will cause excessive vibration and even-

tual damage to mower and engine.

The blade can be sharpened with a file or on a grinding

wheel. Do not attempt to sharpen while on the mower.

To check blade balance, you will need a 5/8" diameter

steel bolt, pin, or a cone balancer. (When using a cone

balancer, follow the instructions supplied with balancer).

NOTE: Do not use a nail for balancing blade. The lobes of

the center hole may appear to be centered, but are not.

Slide blade on to an unthreaded portion of the steel bolt

or pin and hold the bolt or pin parallel with the ground. If

blade is balanced, it should remain in a horizontal

position. If either end of the blade moves downward,

sharpen the heavy end until the blade is balanced.

CENTER HOLE

_8"BOLT

OR PIN

FIG. 14

BATTERY

Your tractor has a battery charging system which is suffi-

cient for normal use. However, periodic charging of the

battery with an automotive charger will extend its life.

Keep battery and terminals clean.

Keep battery bolts tight.

Keep small vent holes open.

Recharge at 6-10 amperes for 1 hour.

NOTE: The original equipment battery on your tractor is

maintenance free. Do not attempt to open or remove caps or

covers. Adding or checking level of electrolyte is not

necessary.

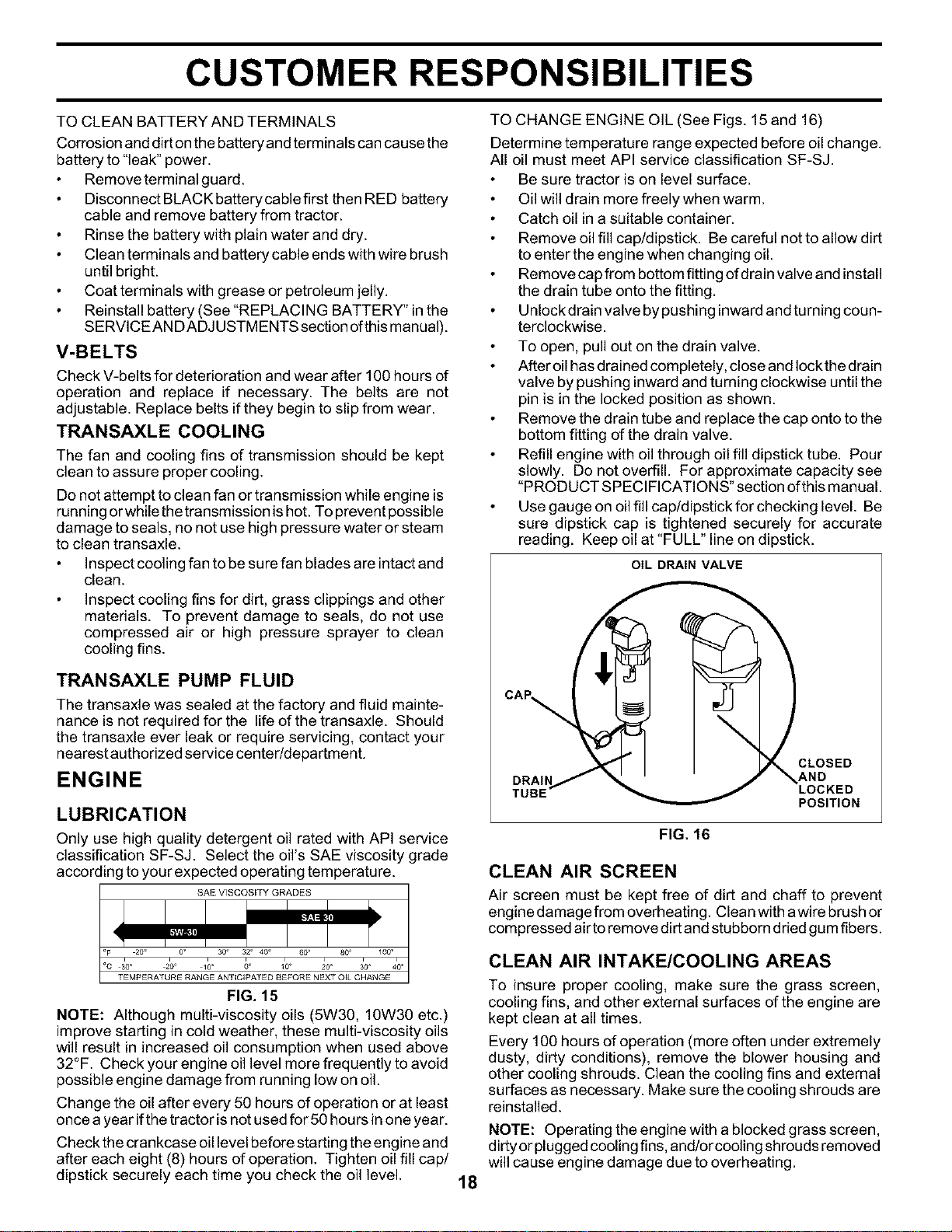

CUSTOMER RESPONSIBILITIES

TO CLEAN BATTERY AND TERMINALS TO CHANGE ENGINE OIL (See Figs. 15 and 16)

Corrosion and dirt on the battery and terminals cancause the

battery to "leak" power.

Remove terminal guard.

Disconnect BLACK battery cable first then RED battery

cable and remove battery from tractor.

Rinse the battery with plain water and dry.

Clean terminals and battery cable ends with wire brush

until bright.

Coat terminals with grease or petroleum jelly.

Reinstall battery (See "REPLACING BATTERY" in the

SERVICEANDADJUSTMENTS section ofthis manual).

V-BELTS

Check V-belts for deterioration and wear after 100 hours of

operation and replace if necessary. The belts are not

adjustable. Replace belts if they begin to slip from wear.

TRANS.aO(LE COOLING

The fan and cooling fins of transmission should be kept

clean to assure proper cooling.

Do not attempt to clean fan or transmission while engine is

running orwhilethe transmission ishot. To prevent possible

damage to seals, no not use high pressure water or steam

to clean transaxle.

Inspect cooling fan to be sure fan blades are intact and

clean.

Inspect cooling fins for dirt, grass clippings and other

materials. To prevent damage to seals, do not use

compressed air or high pressure sprayer to clean

cooling fins.

TRANSAXLE PUMP FLUID

The transaxle was sealed at the factory and fluid mainte-

nance is not required for the life of the transaxle. Should

the transaxle ever leak or require servicing, contact your

nearest authorized service center/department.

ENGINE

LUBRICATION

Only use high quality detergent oil rated with API service

classification SF-SJ. Select the oil's SAE viscosity grade

according to your expected operating temperatu re.

SAE VISCOSITY GRADES

30_ 2o° 10_ 0_ 2o_ 30_ 40_

TEMPERATURE RANGE ANTICIPATED BEFORE NEXT OIL CHANGE

FIG. 15

NOTE: Although multi-viscosity oils (5W30, 10W30 etc.)

improve starting in cold weather, these multi-viscosity oils

will result in increased oil consumption when used above

32°F. Check your engine oil level more frequently to avoid

possible engine damage from running low on oil.

Change the oil after every 50 hours of operation or at least

once a year ifthe tractor isnot used for 50 hours in one year.

Check the crankcase oil level before starting the engine and

after each eight (8) hours of operation. Tighten oil fill cap/

dipstick securely each time you check the oil level.

Determine temperature range expected before oil change.

All oil must meet API service classification SF-SJ.

Be sure tractor is on level surface.

Oil willdrain more freely when warm.

Catch oil in a suitable container.

Remove oil fill cap/dipstick. Be careful not to allow dirt

to enter the engine when changing oil.

Remove cap from bottom fitting of drain valve and install

the drain tube onto the fitting.

Unlock drain valve by pushing inward and turning coun-

terclockwise.

To open, pull out on the drain valve.

After oil has drained completely, close and Iockthe drain

valve by pushing inward and turning clockwise until the

pin is in the locked position as shown.

Remove the drain tube and replace the cap onto to the

bottom fitting of the drain valve.

Refill engine with oil through oil fill dipstick tube. Pour

slowly. Do not overfill. For approximate capacity see

"PRODUCT SPECIFICATIONS" section ofthis manual.

Use gauge on oil fill cap/dipstick for checking level. Be

sure dipstick cap is tightened securely for accurate

reading. Keep oil at "FULL" line on dipstick.

OIL DRAIN VALVE

CLOSED

AND

LOCKED

POSITION

FIG. 16

CLEAN AIR SCREEN

Air screen must be kept free of dirt and chaff to prevent

engine damage from overheating. Clean with awire brush or

compressed airto remove dirt and stubborn dried gum fibers.

CLEAN AIR INTAKE/COOLING AREAS

To insure proper cooling, make sure the grass screen,

cooling fins, and other external surfaces of the engine are

kept clean at all times.

Every 100 hours of operation (more often under extremely

dusty, dirty conditions), remove the blower housing and

other cooling shrouds. Clean the cooling fins and external

surfaces as necessary. Make sure the cooling shrouds are

reinstalled.

NOTE: Operating the engine with a blocked grass screen,

dirty or plugged cooling fins, and!orcooling shrouds removed

will cause engine damage due to overheating.

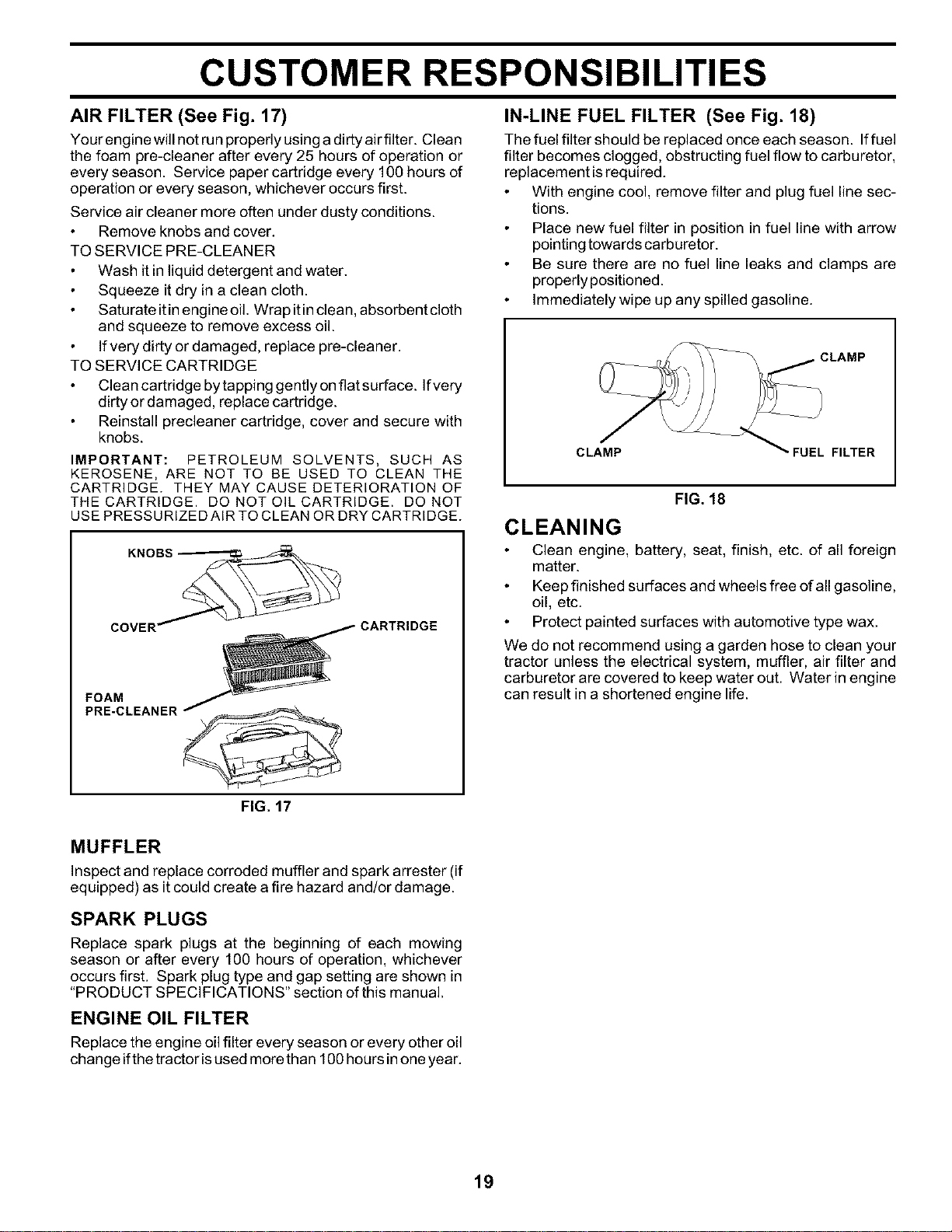

CUSTOMER RESPONSIBILITIES

AIR FILTER (See Fig. 17)

Your engine will not run properly using a dirty air filter. Clean

the foam pre-cleaner after every 25 hours of operation or

every season. Service paper cartridge every 100 hours of

operation or every season, whichever occurs first.

Service air cleaner more often under dusty conditions.

Remove knobs and cover.

TO SERVICE PRE-CLEANER

Wash it in liquid detergent and water.

Squeeze it dry in a clean cloth.

Saturate itin engine oil. Wrap itinclean, absorbent cloth

and squeeze to remove excess oil.

If very dirty or damaged, replace pre-cleaner.

TO SERVICE CARTRIDGE

Clean cartridge bytapping gently on flat surface. Ifvery

dirty or damaged, replace cartridge.

Reinstall precleaner cartridge, cover and secure with

knobs.

IMPORTANT: PETROLEUM SOLVENTS, SUCH AS

KEROSENE, ARE NOT TO BE USED TO CLEAN THE

CARTRIDGE. THEY MAY CAUSE DETERIORATION OF

THE CARTRIDGE. DO NOT OIL CARTRIDGE. DO NOT

USE PRESSURIZED AIR TO CLEAN OR DRY CARTRIDGE.

IN-LINE FUEL FILTER (See Fig. 18)

The fuel filter should be replaced once each season. Iffuel

filter becomes clogged, obstructing fuel flow to carburetor,

replacement is required.

With engine cool, remove filter and plug fuel line sec-

tions.

Place new fuel filter in position in fuel line with arrow

pointing towards carburetor.

Be sure there are no fuel line leaks and clamps are

properly positioned.

Immediately wipe up any spilled gasoline.

CLAMP

CLAMP FUEL FILTER

FIG. 18

CLEANING

Clean engine, battery, seat, finish, etc. of all foreign

matter.

Keep finished surfaces and wheels free of all gasoline,

oil, etc.

Protect painted surfaces with automotive type wax.

We do not recommend using a garden hose to clean your

tractor unless the electrical system, muffler, air filter and

carburetor are covered to keep water out. Water in engine

can result in a shortened engine life.

MUFFLER

Inspect and replace corroded muffler and spark arrester (if

equipped) as it could create a fire hazard and!or damage.

SPARK PLUGS

Replace spark plugs at the beginning of each mowing

season or after every 100 hours of operation, whichever

occurs first. Spark plug type and gap setting are shown in

"PRODUCT SPECIFICATIONS" section of this manual.

ENGINE OIL FILTER

Replace the engine oil filter every season or every other oil

change ifthe tractor isused more than 100 hours in one year.

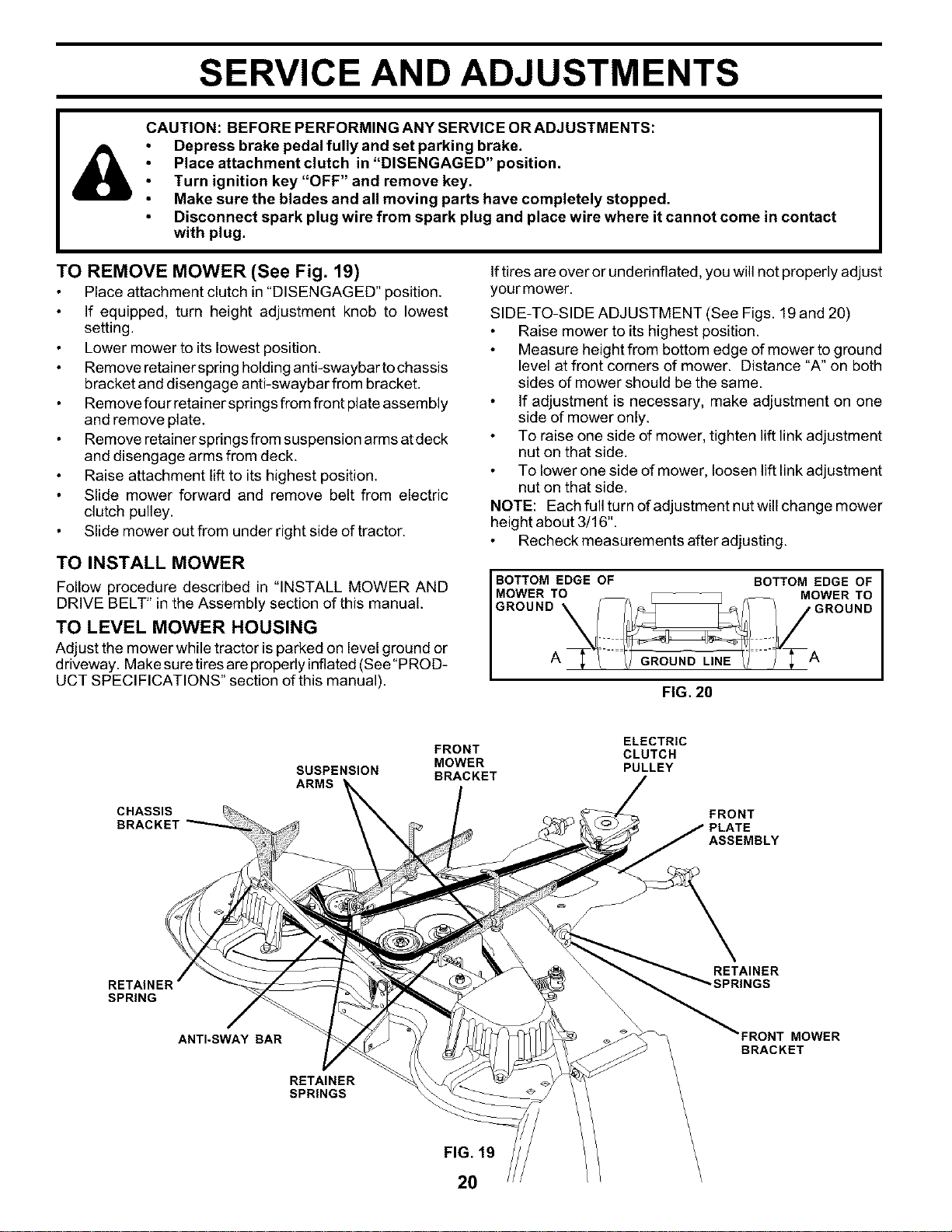

SERVICE AND ADJUSTMENTS

CAUTION: BEFORE PERFORMING ANY SERVICE OR ADJUSTMENTS:

Depress brake pedal fully and set parking brake.

Place attachment clutch in "DISENGAGED" position.

Turn ignition key '=OFF" and remove key.

Make sure the blades and all moving parts have completely stopped.

Disconnect spark plug wire from spark plug and place wire where it cannot come in contact

with plug.

TO REMOVE MOWER (See Fig. 19)

Place attachment clutch in "DISENGAGED" position.

If equipped, turn height adjustment knob to lowest

setting.

Lower mower to its lowest position.

Remove retainerspring holding anti-swaybar to chassis

bracket and disengage anti-swaybar from bracket.

Remove four retainer springs from front plate assembly

and remove plate.

Remove retainer springs from suspension arms atdeck

and disengage arms from deck.

Raise attachment lift to its highest position.

Slide mower forward and remove belt from electric

clutch pulley.

Slide mower out from under right side of tractor.

TO INSTALL MOWER

Follow procedure described in "INSTALL MOWER AND

DRIVE BELT" in the Assembly section of this manual.

TO LEVEL MOWER HOUSING

Adjust the mower while tractor is parked on level ground or

driveway. Make sure tires are properly inflated (See"PROD-

UCT SPECIFICATIONS" section of this manual).

If tires are over or underinflated, you will not properly adjust

yourmower.

SIDE-TO-SIDE ADJUSTMENT (See Figs. 19 and 20)

Raise mower to its highest position.

Measure height from bottom edge of mower to ground

level at front corners of mower. Distance "A" on both

sides of mower should be the same.

If adjustment is necessary, make adjustment on one

side of mower only.

To raise one side of mower, tighten lift link adjustment

nut on that side.

To lower one side of mower, loosen lift link adjustment

nut on that side.

NOTE: Each full turn of adjustment nut will change mower

height about 3!16".

Recheck measurements after adjusting.

BOTTOM EDGE OF BOTTOM EDGE OF

MOWER TO MOWER TO

FIG. 20

CHASSIS

BRACKET

SUSPENSION

ARMS

FRONT

MOWER

BRACKET

ELECTRIC

CLUTCH

PULLEY

FRONT

PLATE

ASSEMBLY

RETAINER

SPRING

RETAINER

ANTI-SWAY BAR

RETAINER

SPRINGS

MOWER

BRACKET

FIG. 19

20 \

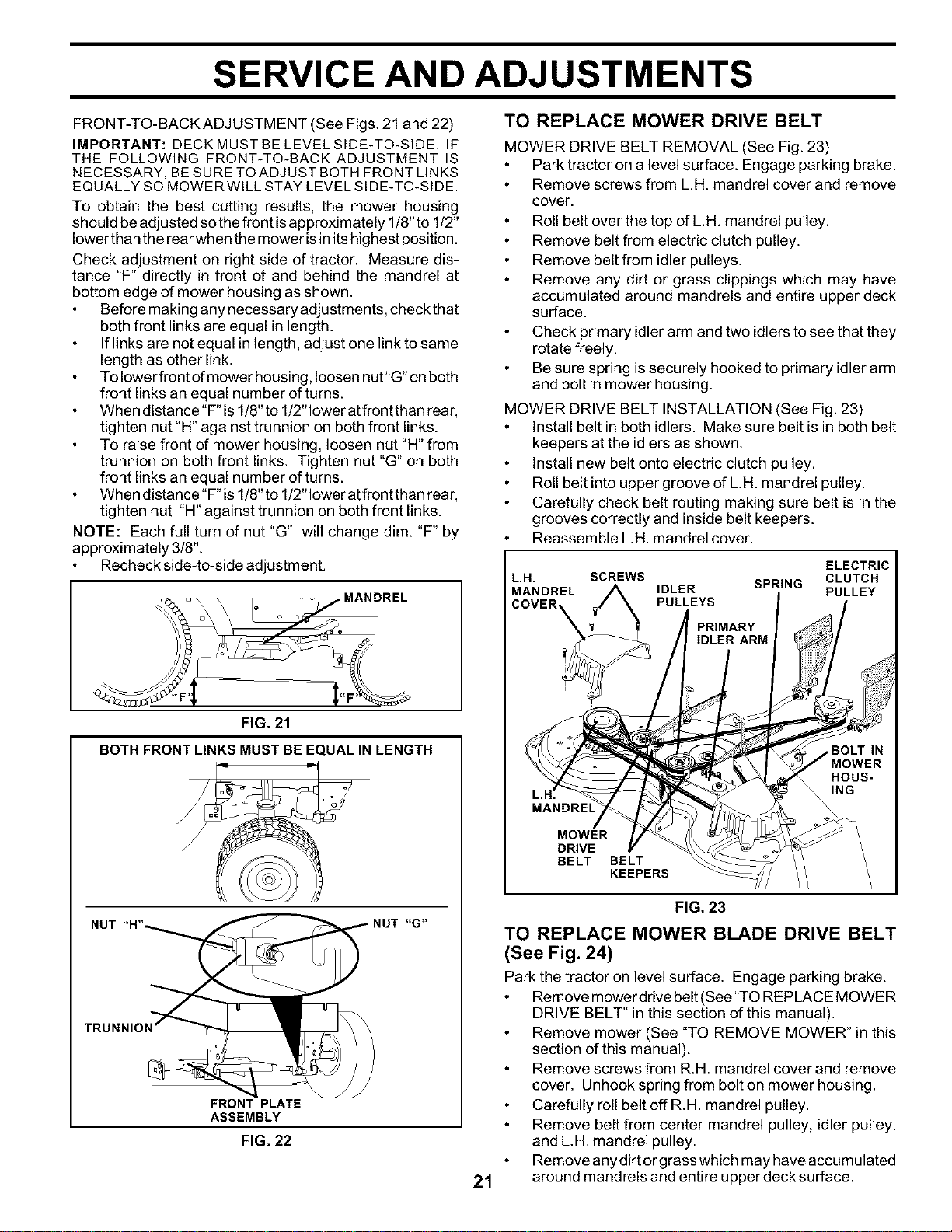

SERVICE AND ADJUSTMENTS

TO REPLACE MOWER DRIVE BELT

FRONT-TO-BACK ADJUSTMENT (See Figs. 21 and 22)

IMPORTANT: DECK MUST BE LEVEL SlDE-TO_SlDE. IF

THE FOLLOWING FRONT_TO_BACK ADJUSTMENT IS

NECESSARY, BE SU RE TO ADJUST BOTH FRONT LINKS

EQUALLY SO MOWERWlLL STAY LEVEL SIDE-TO-SIDE.

To obtain the best cutting results, the mower housing

should be adjusted so the front isapproximately 1/8"to 1/2"

lower than the rearwhen the mower is in its highest position.

Check adjustment on right side of tractor. Measure dis-

tance "F" directly in front of and behind the mandrel at

bottom edge of mower housing as shown.

Before making any necessary adjustments, check that

both front links are equal in length.

If links are not equal in length, adjust one link to same

length as other link.

To Iowerfront of mower housing, loosen nut "G" on both

front links an equal number of turns.

When distance "F" is 1/8"to 1/2"lower atfront than rear,

tighten nut "H" against trunnion on both front links.

To raise front of mower housing, loosen nut "H" from

trunnion on both front links. Tighten nut "G" on both

front links an equal number of turns.

When distance "F" is 1/8"to 1/2"lower atfrontthan rear,

tighten nut "H" against trunnion on both front links.

NOTE: Each full turn of nut "G" will change dim. "F" by

approximately 3/8".

Recheck side-to-side adjustment.

FIG. 21

BOTH FRONT LINKS MUST BEEQUAL IN LENGTH

NUT NUT "G"

FRONT PLATE

ASSEMBLY

FIG. 22

MOWER DRIVE BELT REMOVAL (See Fig. 23)

Park tractor on a level surface. Engage parking brake.

Remove screws from L.H. mandrel cover and remove

cover.

Roll belt over the top of LH. mandrel pulley.

Remove belt from electric clutch pulley.

Remove belt from idler pulleys.

Remove any dirt or grass clippings which may have

accumulated around mandrels and entire upper deck

surface.

Check primary idler arm and two idlers to see that they

rotate freely.

Be sure spring is securely hooked to primary idler arm

and bolt in mower housing.

MOWER DRIVE BELT INSTALLATION (See Fig. 23)

Install belt in both idlers. Make sure belt is in both belt

keepers at the idlers as shown.

Install new belt onto electric clutch pulley.

Roll belt into upper groove of L.H. mandrel pulley.

Carefully check belt routing making sure belt is in the

grooves correctly and inside belt keepers.

Reassemble L.H. mandrel cover.

ELECTRIC

L.H. SCREWS CLUTCH

MANDREL IDLER SPRING PULLEY

PULLEYS

PRIMARY

IDLER ARM

MANDRE

MOWER

DRIVE

BELT BELT

KEEPERS

FIG. 23

ING

TO REPLACE MOWER BLADE DRIVE BELT

(See Fig. 24)

Park the tractor on level surface. Engage parking brake.

Remove mower drive belt (See "TO REPLACE MOWER

DRIVE BELT" in this section of this manual).

Remove mower (See "TO REMOVE MOWER" in this

section of this manual).

Remove screws from R.H. mandrel cover and remove

cover. Unhook spring from bolt on mower housing.

Carefully roll belt off R.H. mandrel pulley.

Remove belt from center mandrel pulley, idler pulley,

and LH. mandrel pulley.

Remove any dirt or grass which may have accumulated

around mandrels and entire upper deck surface.

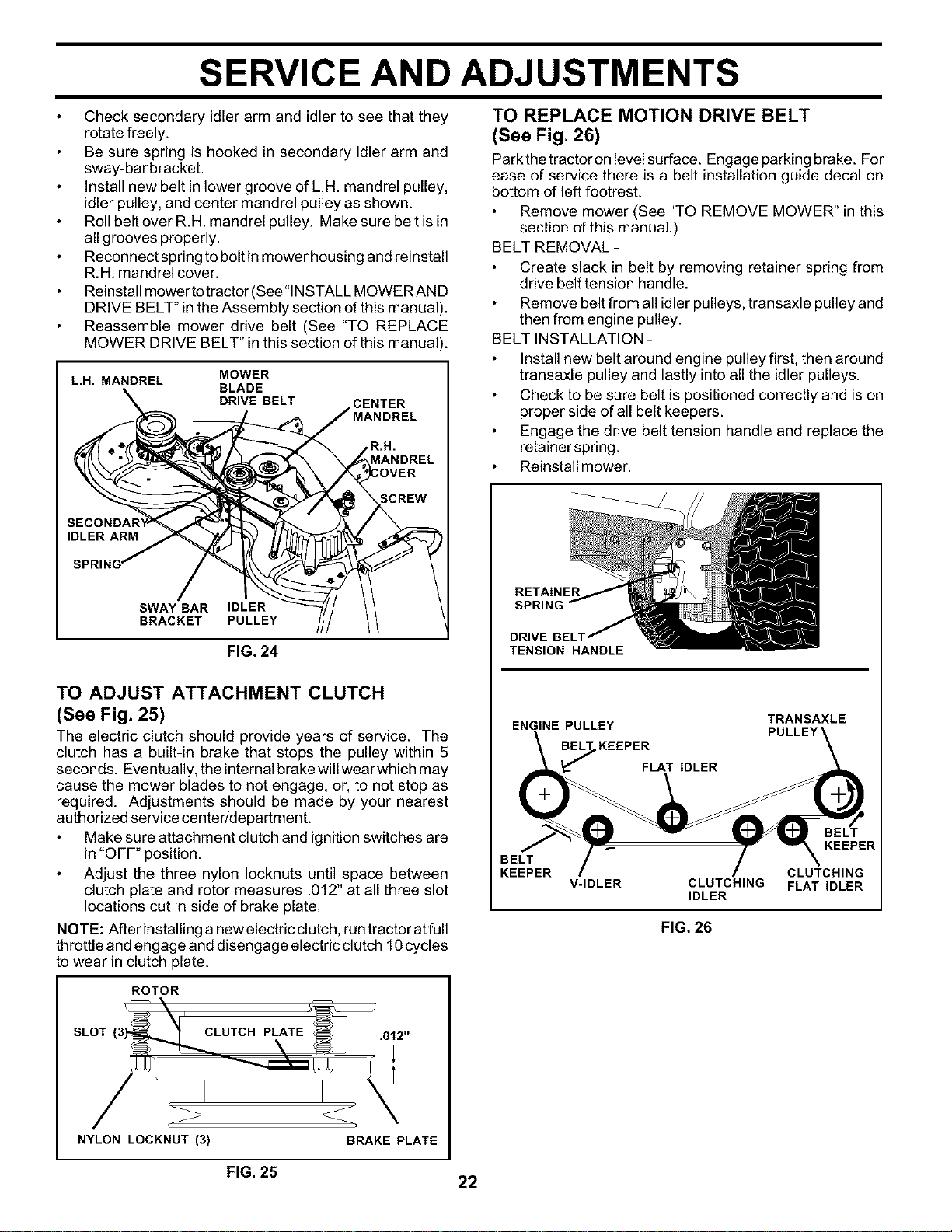

SERVICE AND ADJUSTMENTS

Check secondary idler arm and idler to see that they

rotate freely.

Be sure spring is hooked in secondary idler arm and

sway-bar bracket.

Install new belt in lower groove of L.H. mandrel pulley,

idler pulley, and center mandrel pulley as shown.

Roll belt over R.H. mandrel pulley. Make sure belt is in

all grooves properly.

Reconnect spring to bolt in mower housing and reinstall

R.H. mandrel cover.

Reinstall mower totractor(See"lNSTALL MOWERAND

DRIVE BELT" in the Assembly section of this manual).

Reassemble mower drive belt (See "TO REPLACE

MOWER DRIVE BELT" in this section of this manual).

L.H. MANDREL

MOWER

BLADE

DRIVE BELT

CENTER

IDLER ARM

SWAY BAR IDLER

BRACKET PULLEY

FIG. 24

TO ADJUST ATTACHMENT CLUTCH

(See Fig. 25)

The electric clutch should provide years of service. The

clutch has a built-in brake that stops the pulley within 5

seconds. Eventually, the internal brake will wearwhich may

cause the mower blades to not engage, or, to not stop as

required. Adjustments should be made by your nearest

authorized service center/department.

Make sure attachment clutch and ignition switches are

in "OFF" position.

Adjust the three nylon Iocknuts until space between

clutch plate and rotor measures .012" at all three slot

locations cut in side of brake plate.

NOTE: After installing a new electric clutch, run tractor atfull

throttle and engage and disengage electric clutch 10 cycles

to wear in clutch plate.

TO REPLACE MOTION DRIVE BELT

(See Fig. 26)

Parkthe tractor on level surface. Engage parking brake. For

ease of service there is a belt installation guide decal on

bottom of left footrest.

Remove mower (See "TO REMOVE MOWER" in this

section of this manual.)

BELT REMOVAL -

Create slack in belt by removing retainer spring from

drive belt tension handle.

Remove belt from all idler pulleys, transaxle pulley and

then from engine pulley.

BELT INSTALLATION -

Install new belt around engine pulley first, then around

transaxle pulley and lastly into all the idler pulleys.

Check to be sure belt is positioned correctly and is on

proper side of all belt keepers.

Engage the drive belt tension handle and replace the

retainer spring.

Reinstall mower.

RETAINER

SPRING

DRIVE BELl

TENSION HANDLE

ENGINE PULLEY

KEEPER

FLAT IDLER

TRANSAXLE

BELT

KEEPER

V-IDLER

CLUTCHING

IDLER

BELT

KEEPER

CLUTCHING

FLAT IDLER

FIG. 26

ROTOR

SLOT CLUTCH PLATE

NYLON LOCKNUT (3) BRAKE PLATE

FIG. 25

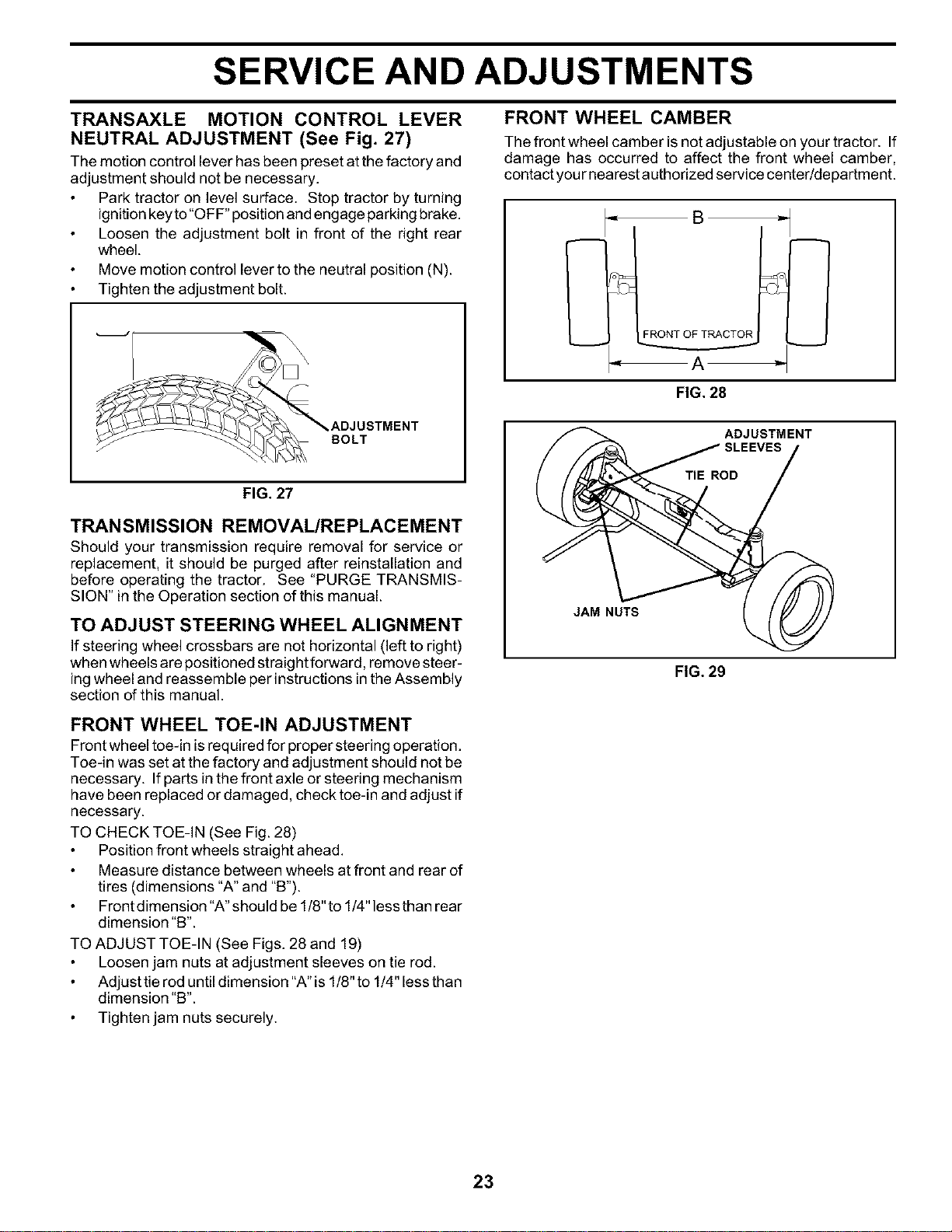

SERVICE AND ADJUSTMENTS

FRONT WHEEL CAMBER

TRANSAXLE MOTION CONTROL LEVER

NEUTRAL ADJUSTMENT (See Fig. 27)

The motion control lever has been preset at the factory and

adjustment should not be necessary.

Park tractor on level surface. Stop tractor by turning

ignition keyto"OFF" position and engage parking brake.

Loosen the adjustment bolt in front of the right rear

wheel.

Move motion control lever to the neutral position (N).

Tighten the adjustment bolt.

ADJUSTMENT

BOLT

FIG. 27

TRANSMISSION REMOVAL/REPLACEMENT

Should your transmission require removal for service or

replacement, it should be purged after reinstallation and

before operating the tractor. See "PURGE TRANSMIS-

SION" in the Operation section of this manual.

TO ADJUST STEERING WHEEL ALIGNMENT

If steering wheel crossbars are not horizontal (left to right)

when wheels are positioned straight forward, remove steer-

ing wheel and reassemble per instructions inthe Assembly

section of this manual.

The front wheel camber is not adjustable on your tractor. If

damage has occurred to affect the front wheel camber,

contact you rnearest authorized service center/department.

FRONT OF TRACTOR (_l/

4"--"

FIG. 28

ADJUSTMENT

JAM NUTS

FIG. 29

FRONT WHEEL TOE-IN ADJUSTMENT

Front wheel toe-in is required for proper steering operation.

Toe-in was set at the factory and adjustment should not be

necessary. If parts in the front axle or steering mechanism

have been replaced or damaged, check toe-in and adjust if

necessary.

TO CHECK TOE-IN (See Fig. 28)

Position front wheels straight ahead.

Measure distance between wheels at front and rear of

tires (dimensions "A" and "B').

Front dimension "A"should be 1/8"to 1/4" less than rear

dimension "B'.

TO ADJUST TOE-IN (See Figs. 28 and 19)

Loosen jam nuts at adjustment sleeves on tie rod.

Adjust tie rod until dimension "A" is 1/8" to 1/4" less than

dimension "B'.

Tighten jam nuts securely.

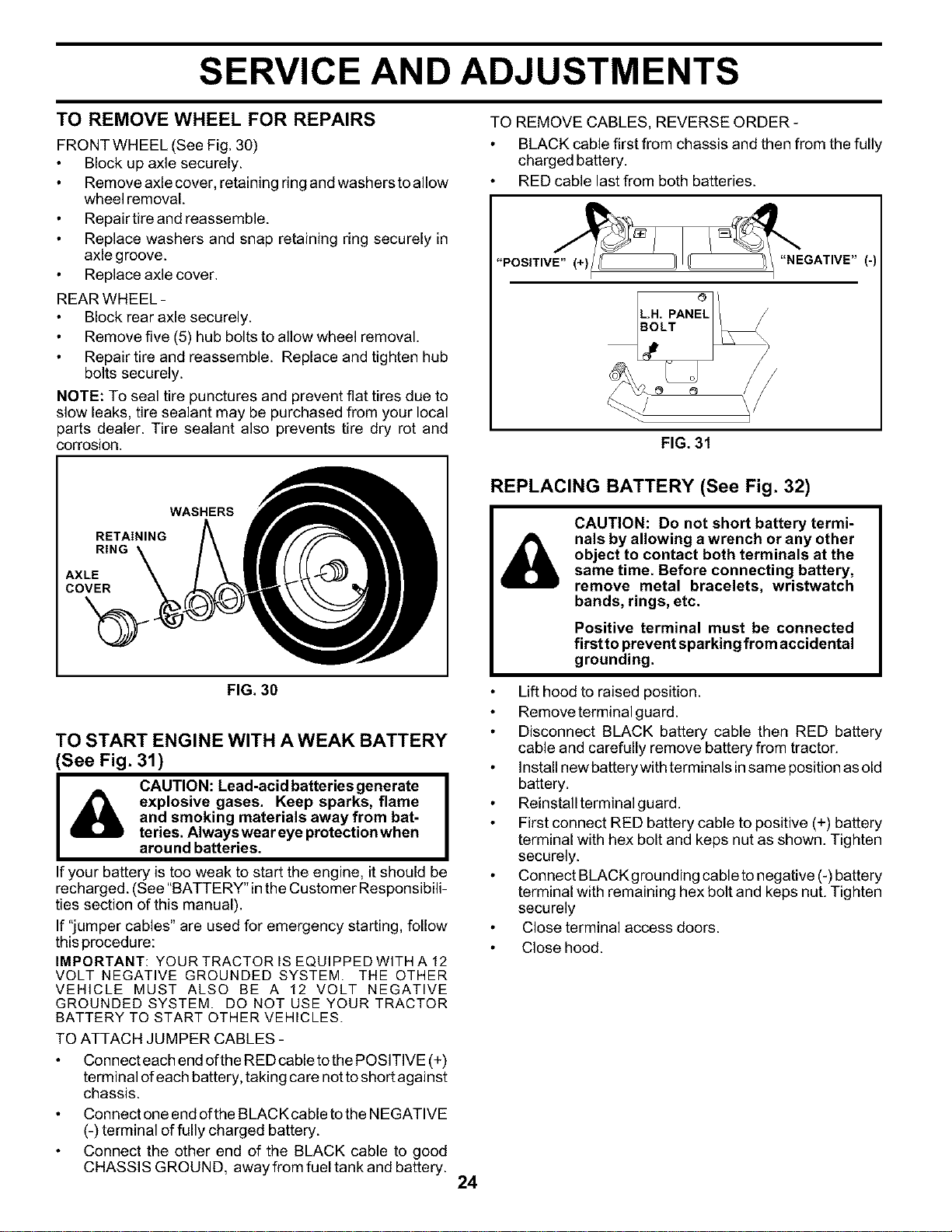

SERVICE AND ADJUSTMENTS

TO REMOVE WHEEL FOR REPAIRS

FRONT WHEEL (See Fig. 30)

Block up axle securely.

Remove axle cover, retaining ring and washers to allow

wheel removal.

Repair tire and reassemble.

Replace washers and snap retaining ring securely in

axle groove.

Replace axle cover.

REAR WHEEL -

Block rear axle securely.

Remove five (5) hub bolts to allow wheel removal.

Repair tire and reassemble. Replace and tighten hub

bolts securely.

NOTE: To seal tire punctures and prevent flat tires due to

slow leaks, tire sealant may be purchased from your local

parts dealer. Tire sealant also prevents tire dry rot and

corrosion.

TO REMOVE CABLES, REVERSE ORDER -

BLACK cable first from chassis and then from the fully

charged battery.

RED cable last from both batteries.

1"NEGATIVE"(-)

FIG. 31

WASHERS

RETAINING

RING

AXLE

COVER

REPLACING BATTERY (See Fig. 32)

FIG. 30

TO START ENGINE WITH A WEAK BATTERY

(See Fig. 31)

I CAUT'°":Le°d'acidb°tteriesge"er°teI

explosive gases. Keep sparks, flame

and smoking materials away from bat-

teries. Always wear eye protection when

around batteries.

If your battery is too weak to start the engine, it should be

recharged. (See "BATTERY" in the Customer Responsibili-

ties section of this manual).

If "jumper cables" are used for emergency starting, follow

this procedure:

IMPORTANT: YOUR TRACTOR IS EQUIPPED WITH A 12

VOLT NEGATIVE GROUNDED SYSTEM. THE OTHER

VEHICLE MUST ALSO BE A 12 VOLT NEGATIVE

GROUNDED SYSTEM. DO NOT USE YOUR TRACTOR

BATTERY TO START OTHER VEHICLES.

TO ATTACH JUMPER CABLES -

Connect each end ofthe RED cable to the POSITIVE (+)

terminal of each battery, taking care not toshort against

chassis.

Connect one end ofthe BLACK cable tothe NEGATIVE

(-) terminal of fully charged battery.

Connect the other end of the BLACK cable to good

CHASSIS GROUND, away from fuel tank and battery.

Lift hood to raised position.

Remove terminal guard.

Disconnect BLACK battery cable then RED battery

cable and carefully remove battery from tractor.

Install new battery with terminals insame position as old

battery.

Reinstall terminal guard.

First connect RED battery cable to positive (+) battery

terminal with hex bolt and keps nut as shown. Tighten

securely.

Connect BLACKgrounding cable to negative (-) battery

terminal with remaining hex bolt and keps nut. Tighten

securely

Close terminal access doors.

Close hood.

SERVICE AND ADJUSTMENTS

KEPS NUT SPRING BUSHING

TERMINAL

ACCESS

DOOR

HEX BOLT

POSITIVE

CABLE

TERMINAl

GUARE

(BLACK)

CABLE

FIG. 32

TO REPLACE HEADLIGHT BULB

Raise hood.

Pull bulb holder out ofthe hole inthe backside ofthe gdll.

Replace bulb in holder and push bulb holder securely

back intothe hole inthe backside of the grill.

Close hood.

INTERLOCKS AND RELAYS

Loose or damaged wiring may cause your tractor to ran

poorly, stop running, or prevent itfrom starting.

Check wiring. See electrical wiring diagram inthe Repair

Parts section.

TO REPLACE FUSE

Replace with 30 amp automotive-type plug-in fuse. The fuse

holder islocated behind the dash.

TO ADJUST ATTACHMENT LIFT SPRING

(See Fig. 33)

While holding spring bushing with wrench, loosen jam

nut.

Turn adjustment bolt clockwise to extend spring and

reduce lift effort for heavier attachments.

Turn adjustment bolt counterclockwise for lighter at-

tachments.

Retighten jam nat against spring bushing.

IMPORTANT: DO NOTADJUST FOR MAXIMUM SPRING

TENSION WHEN USING LIGHT ATTACHMENTS SUCH

AS A MOWER, ADJUST LIFT LEVER SPRING TO AID IN

LIFTING ATTACHMENT. DO NOT OVERPOWER SPRING.

WHEN REMOVING ATTACHMENT, ALWAYS ADJUST

SPRING TENSION TO ITS LOWEST POSITION.

ADJUSTMENT

BOLT

JAM NUT

FIG. 33

ATTACHMENT

LIFT SPRING

TO REMOVE HOOD AND GRILL ASSEMBLY

(See Fig. 34)

Raise hood.

Unsnap headlight wire connector.

Stand infront of tractor. Grasp hood at sides, tilt toward

engine and lift off of tractor.

To replace, reverse above procedures.

HOOD

HEADLIGHT

WIRE

CONNECTOR

FIG. 34

SERVICE AND ADJUSTMENTS

ENGINE

TO ADJUST THROTTLE CONTROL CABLE

(See Fig. 35)

The throttle control has been preset at the factory and

adjustment should not be necessary. Check adjustment as

described below before loosening cable. If adjustment is

necessary, proceed as follows:

With engine not running, move throttle control lever to

fast position.

Check that swivel is against stop. If it is not, loosen

cable clamp screw and pull cable back until swivel is

against stop. Tighten cable clamp screw securely.

TO ADJUST CHOKE CONTROL (See Fig. 36)

The choke control has been preset at the factory and

adjustment should not be necessary. Check adjustment as

described below before loosening cable. If adjustment is

necessary, proceed as follows:

With engine not running, move choke control (located on

dash panel) to full choke position.

Loosen knob and remove cover assembly from air

cleaner.

Choke should be closed. If itisnot, loosen casing clamp

screw and move choke cable until choke iscompletely

closed. Tighten casing clamp screw securely.

Replace air cleaner cover assembly and tighten knob.

TO ADJUST CARBURETOR

Your carburetor is not adjustable. If your engine does not

operate properly due to suspected carburetor problems, take

your tractor to an authorized service center for repair and/or

adjustment.

High speed stop is factory adjusted. Do not adjust- damage

may result.

IMPORTANT: NEVER TAMPER WITH THE ENGINE

GOVERNOR, WHICH IS FACTORY SET FOR PROPER

ENGINE SPEED. OVERSPEEDING THE ENGINE ABOVE

THE FACTORY HIGH SPEED SETTING CAN BE

DANGEROUS. IF YOU THINK THE ENGINE-GOVERNED

HIGH SPEED NEEDS ADJUSTING, CONTACT YOUR

NEAREST AUTHORIZED SERVICE CENTER/

DEPARTMENT, WHICH HAS PROPER EQUIPMENT AND

EXPERIENCE TO MAKE ANY NECESSARY

ADJUSTMENTS.

STOP

SWIVEL CLAMP

SCREW

FIG. 35

CLAMP SCREW

FIG. 36

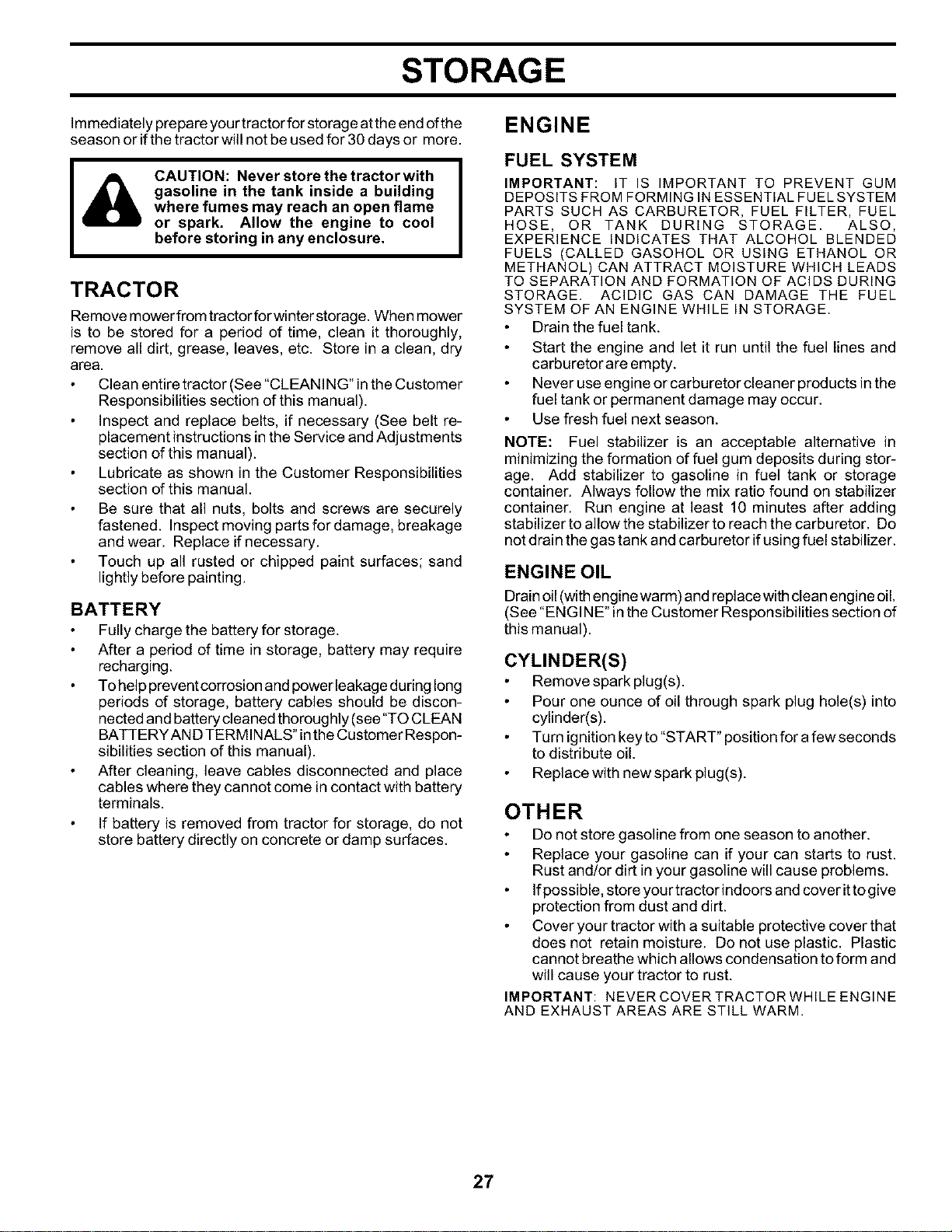

STORAGE

ENGINEImmediately prepare your tractor for storage atthe end of the

season or ifthe tractor will not be used for 30 days or more.

CAUTION: Never store the tractor with

gasoline in the tank inside a building

where fumes may reach an open flame

or spark, Allow the engine to cool

before storing in any enclosure.

TRACTOR

Remove mower from tractor forwinter storage. When mower

is to be stored for a period of time, clean it thoroughly,

remove all dirt, grease, leaves, etc. Store in a clean, dry

area.

Clean entire tractor (See "CLEAN ING" in the Customer

Responsibilities section of this manual).

Inspect and replace belts, if necessary (See belt re-

placement instructions inthe Service and Adjustments

section of this manual).

Lubricate as shown in the Customer Responsibilities

section of this manual.

Be sure that all nuts, bolts and screws are securely

fastened. Inspect moving partsfordamage, breakage

and wear. Replace if necessary.

Touch up all rusted or chipped paint surfaces; sand

lightly before painting.

BATTERY

Fully charge the battery for storage.

After a period of time in storage, battery may require

recharging.

Tohelp prevent corrosion and power leakage during long

periods of storage, battery cables should be discon-

nected and battery cleaned thoroughly (see "TO CLEAN

BATTERYAND TERMINALS"in the Customer Respon-

sibilities section of this manual).

After cleaning, leave cables disconnected and place

cables where they cannot come in contact with battery

terminals.

If battery is removed from tractor for storage, do not

store battery directly on concrete or damp surfaces.

FUEL SYSTEM

IMPORTANT: IT IS IMPORTANT TO PREVENT GUM

DEPOSITS FROM FORMING IN ESSENTIAL FUEL SYSTEM

PARTS SUCH AS CARBURETOR, FUEL FILTER, FUEL

HOSE, OR TANK DURING STORAGE. ALSO,

EXPERIENCE INDICATES THAT ALCOHOL BLENDED

FUELS (CALLED GASOHOL OR USING ETHANOL OR

METHANOL) CAN ATTRACT MOISTURE WHICH LEADS

TO SEPARATION AND FORMATION OF ACIDS DURING

STORAGE. ACIDIC GAS CAN DAMAGE THE FUEL

SYSTEM OF AN ENGINE WHILE IN STORAGE.

Drain the fuel tank.

Start the engine and let it ran until the fuel lines and

carburetorare empty.

Never use engine or carburetor cleaner prod acts in the

fuel tank or permanent damage may occur.

Use fresh fuel next season.

NOTE: Fuel stabilizer is an acceptable alternative in

minimizing the formation of fuel gum deposits during stor-

age. Add stabilizer to gasoline in fuel tank or storage

container. Always follow the mix ratio found on stabilizer

container. Run engine at least 10 minutes after adding

stabilizertoallowthestabilizertoreachthecarburetor. Do

not drain the gas tank and carburetor if using fuel stabilizer.

ENGINE OIL

Drain oil (with engine warm) and replace with clean engine oil.

(See "ENGIN E" in the Customer Responsibilities section of

this manual).

CYLINDER(S)

Remove spark plug(s).

Pour one ounce of oil through spark plug hole(s) into

cylinder(s).

Turn ignition key to "START" position for a few seconds

to distribute oil.

Replace with new spark plug(s).

OTHER

Do not store gasoline from one season to another.

Replace your gasoline can if your can starts to rust.

Rust and/or dirt in your gasoline will cause problems.

If possible, store your tractor indoors and cover itto give

protection from dust and dirt.

Cover your tractor with a suitable protective cover that

does not retain moisture. Do not use plastic. Plastic

cannot breathe which allows condensation to form and

will cause your tractor to rust.

IMPORTANT: NEVERCOVERTRACTORWHILE ENGINE

AND EXHAUST AREAS ARE STILL WARM.

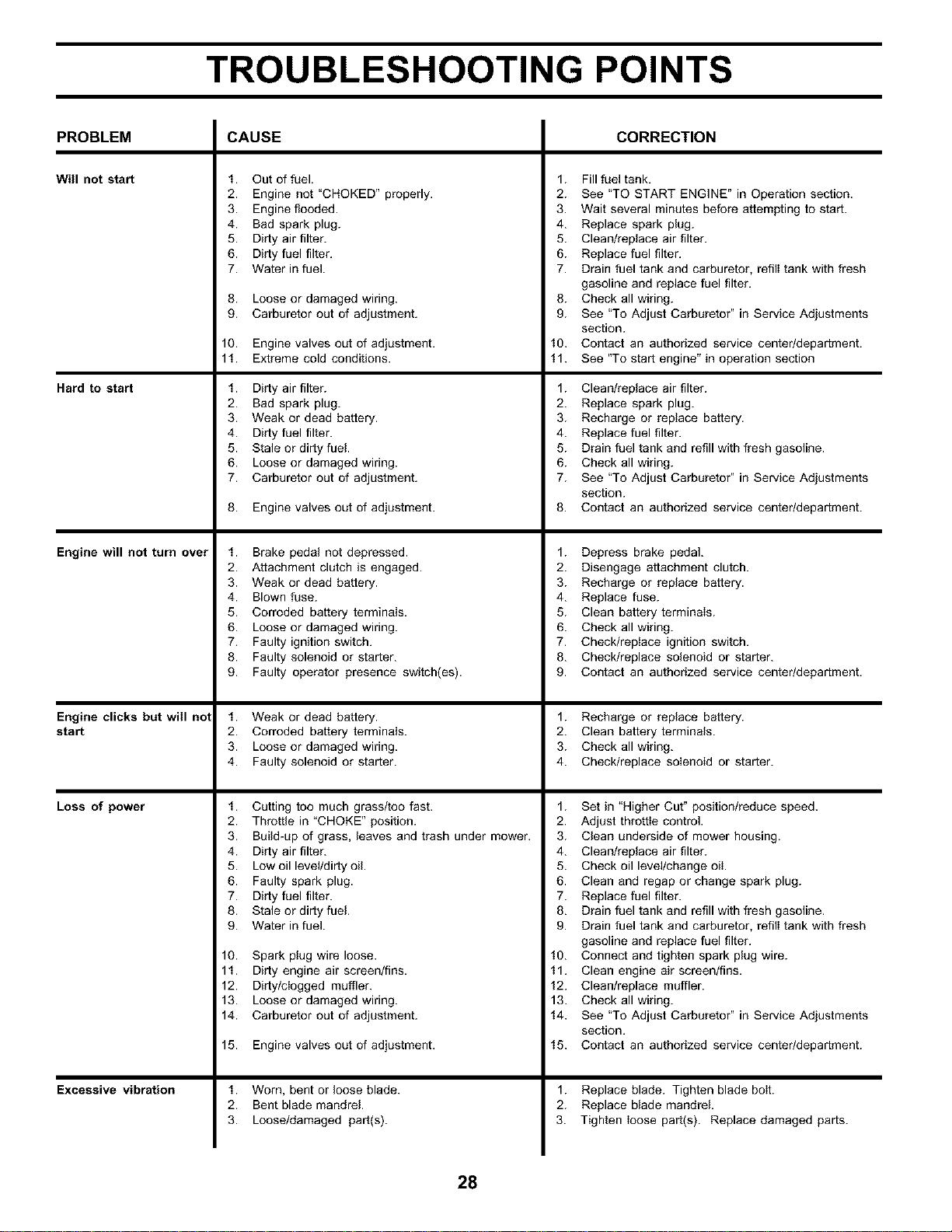

TROUBLESHOOTING POINTS

PROBLEM

Will not start

Hard to start

Engine will not turn over

Engine clicks but will not

start

Loss of power

Excessive vibration

CAUSE

1. Out of fuel.

2. Engine not "CHOKED" properly.

3. Engine flooded.

4. Bad spark plug.

5. Dirty air filter.

6. Dirty fuel filter.

7. Water in fuel.

8. Loose or damaged wiring.

9. Carburetor out of adjustment.

10. Engine valves out of adjustment.

11. Extreme cold conditions.

1. Dirty air filter.

2. Bad spark plug.

3. Weak or dead battery.

4. Dirty fuel filter.

5. Stale or dirty fuel.

6. Loose or damaged wiring.

7. Carburetor out of adjustment.

8. Engine valves out of adjustment.

1. Brake pedal not depressed.

2. Attachment clutch is engaged.

3. Weak or dead battery.

4. Blown fuse.

5. Corroded battery terminals.

6. Loose or damaged wiring.

7. Faulty ignition switch.

8. Faulty solenoid or starter.

9. Faulty operator presence switch(es).

1. Weak or dead battery.

2. Corroded battery terminals.

3. Loose or damaged wiring.

4. Faulty solenoid or starter.

1. Cutting too much grass/too fast.

2. Throttle in "CHOKE" position.

3. Build-up of grass, leaves and trash under mower.

4. Dirty air filter.

5. Low oil level/dirty oil.

6. Faulty spark plug.

7. Dirty fuel filter.

8. Stale or dirty fuel.

9. Water in fuel.

10. Spark plug wire loose.

11. Dirty engine air screen/fins.

12. Dirty/clogged muffler.

13. Loose or damaged wiring.

14. Carburetor out of adjustment.

15. Engine valves out of adjustment.

1. Worn, bent or loose blade.

2. Bent blade mandrel.

3. Loose/damaged part(s).

CORRECTION

1. Fill fuel tank.

2. See "TO START ENGINE" in Operation section.

3. Wait several minutes before attempting to start.

4. Replace spark plug.

5. Clean/replace air filter.

6. Replace fuel filter.

7. Drain fuel tank and carburetor, refili tank with fresh

gasoline and replace fuel filter.

8. Check all wiring.

9. See "To Adjust Carburetor" in Service Adjustments

section.

10. Contact an authorized service center/department.

11. See "To start engine" in operation section

1. Clean/replace air filter.

2. Replace spark plug.

3. Recharge or replace battery.

4. Replace fuel filter.

5. Drain fuel tank and refill with fresh gasoline.

6. Check all wiring.

7. See "To Adjust Carburetor" in Service Adjustments

section.

8. Contact an authorized service center/department.

1. Depress brake pedal.

2. Disengage attachment clutch.

3. Recharge or replace battery.

4. Replace fuse.

5. Clean battery terminals.

6. Check all wiring.

7. Check/replace ignition switch.

8. Checldreplace solenoid or starter.

9. Contact an authorized service center/department.

1. Recharge or replace battery.

2. Clean battery terminals.

3. Check all wiring.

4. Check/replace solenoid or starter.

1. Set in "Higher Cut" position/reduce speed.

2. Adjust throttle control.

3. Clean underside of mower housing.

4. Clean/replace air filter.

5. Check oil level/change oiI.

6. Clean and regap or change spark plug.

7. Replace fuel filter.

8. Drain fuel tank and refill with fresh gasoline.

9. Drain fuel tank and carburetor, refili tank with fresh

gasoline and replace fuel filter.

10. Connect and tighten spark plug wire.

11. Clean engine air screen/fins.

12. Clean/replace muffler.

13. Check all wiring.

14. See "To Adjust Carburetor" in Service Adjustments

section.

15. Contact an authorized service center/department.

1. Replace blade. Tighten blade bolt.

2. Replace blade mandrel.

3. Tighten loose part(s). Replace damaged parts.

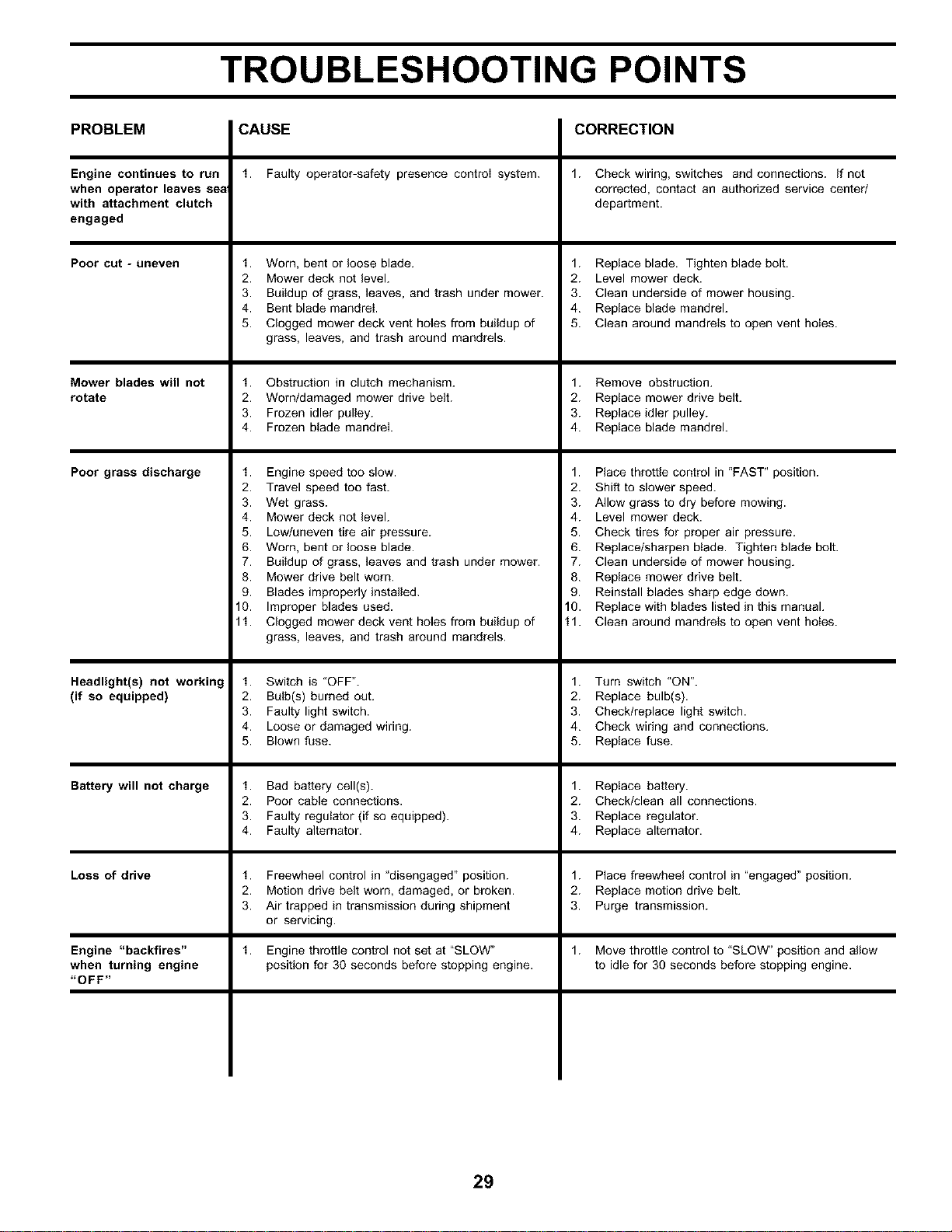

TROUBLESHOOTING POINTS

PROBLEM CAUSE CORRECTION

Engine continues to run

when operator leaves seal

with attachment clutch

engaged

Poor cut - uneven

Mower blades will not

rotate

Poor grass discharge

Headlight(s) not working

(if so equipped)

Battery will not charge

Loss of drive

Engine "backfires"

when turning engine

"OFF"

1. Faulty operator-safety presence control system.

1. Worn, bent or loose blade.

2. Mower deck not level.

3. Buildup of grass, leaves, and trash under mower.

4. Bent blade mandrel.

5. Clogged mower deck vent holes from buildup of

grass, leaves, and trash around mandrels.

1. Obstruction in clutch mechanism.

2. Worn/damaged mower drive belt.

3. Frozen idler pulley.

4. Frozen blade mandrel.

1. Engine speed too slow.

2. Travel speed too fast.

3. Wet grass.

4. Mower deck not level.

5. Low/uneven tire air pressure.

6. Worn, bent or loose blade.

7. Buildup of grass, leaves and trash under mower.

8. Mower drive belt worn.

9. Blades improperly installed.

10. Improper blades used.

11. Clogged mower deck vent holes from buildup of

grass, leaves, and trash around mandrels.

1. Switch is "OFF".

2. Bulb(s) burned out.

3. Faulty light switch.

4. Loose or damaged wiring.

5. Blown fuse.

1. Bad battery cell(s).

2. Poor cable connections.

3. Faulty regulator (if so equipped).

4. Faulty alternator.

1. Freewheel control in "disengaged" position.

2. Motion drive belt worn, damaged, or broken.

3. Air trapped in transmission during shipment

or servicing.

Engine throttle control not set at "SLOW"

position for 30 seconds before stopping engine.

1. Check wiring, switches and connections. If not

corrected, contact an authorized service center/

department.

1. Replace blade. Tighten blade bolt.

2. Level mower deck.

3. Clean underside of mower housing.

4. Replace blade mandrel.

5. Clean around mandreis to open vent holes.

1. Remove obstruction.

2. Replace mower drive belt.

3. Replace idler pulley.

4. Replace blade mandrel.

1. Place throttle control in "FAST" position.

2. Shift to slower speed.

3. Allow grass to dry before mowing.

4. Level mower deck.

5. Check tires for proper air pressure.

6. Replace/sharpen blade. Tighten blade bolt.

7. Clean underside of mower housing.

8. Replace mower drive belt.

9. Reinstall blades sharp edge down.

10. Replace with blades listed in this manual.

11. Clean around mandreis to open vent holes.

1. Turn switch "ON".

2. Replace bulb(s).

3. Check/replace light switch.

4. Check wiring and connections.

5. Replace fuse.

1. Replace battery.

2. Check/clean all connections.

3. Replace regulator.

4. Replace alternator.

1. Place freewheel control in "engaged" position.

2. Replace motion drive belt.

3. Purge transmission.

1. Move throttle control to "SLOW" position and allow

to idle for 30 seconds before stopping engine.

SERVICE NOTES

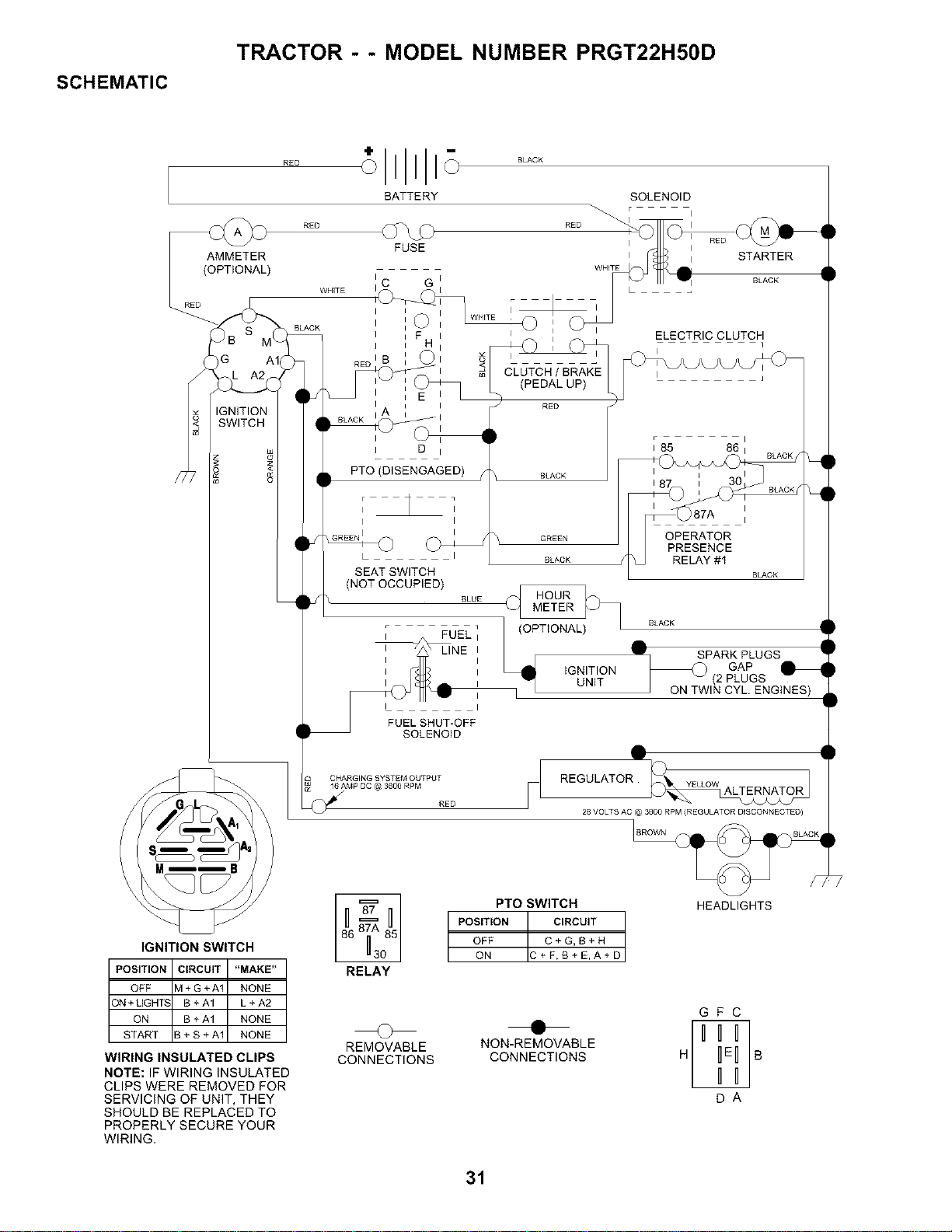

SCHEMATIC

TRACTOR - - MODEL NUMBER PRGT22H50D

RED

BATTERY

BLACK

SOLENOID

BLUE

BLACK

SPARK PLUGS

_ GAP

(2 PLUGS

ON TWIN CYL. ENGINES)

SOLENOID

CHARGING SYSTEM OUTPUT

f16 AMP DC @ 3600 RPM

RED

REG LATO2

28 VOLTS AC @ 3600 RPM (REGULATOR D_SCONNECTED)

IGNITION SWITCH

POSITION CIRCUIT "MAKE"

OFF M+G+A1 NONE

ON+LIGHTS B+A1 L+A2

ON B + A1 NONE

START B + S + A1 NONE

WIRING INSULATED CLIPS

NOTE: IF WIRING INSULATED

CLIPS WERE REMOVED FOR

SERVICING OF UNIT, THEY

SHOULD BE REPLACED TO

PROPERLY SECURE YOUR

WIRING.

RELAY

REMOVABLE

CONNECTIONS

PTO SWITCH

L POSITION CIRCUIT

t OFF C+G,B+H

ON C+F,B+E,A+D

NON-REMOVABLE

CONNECTIONS

HEADLIGHTS

GFC

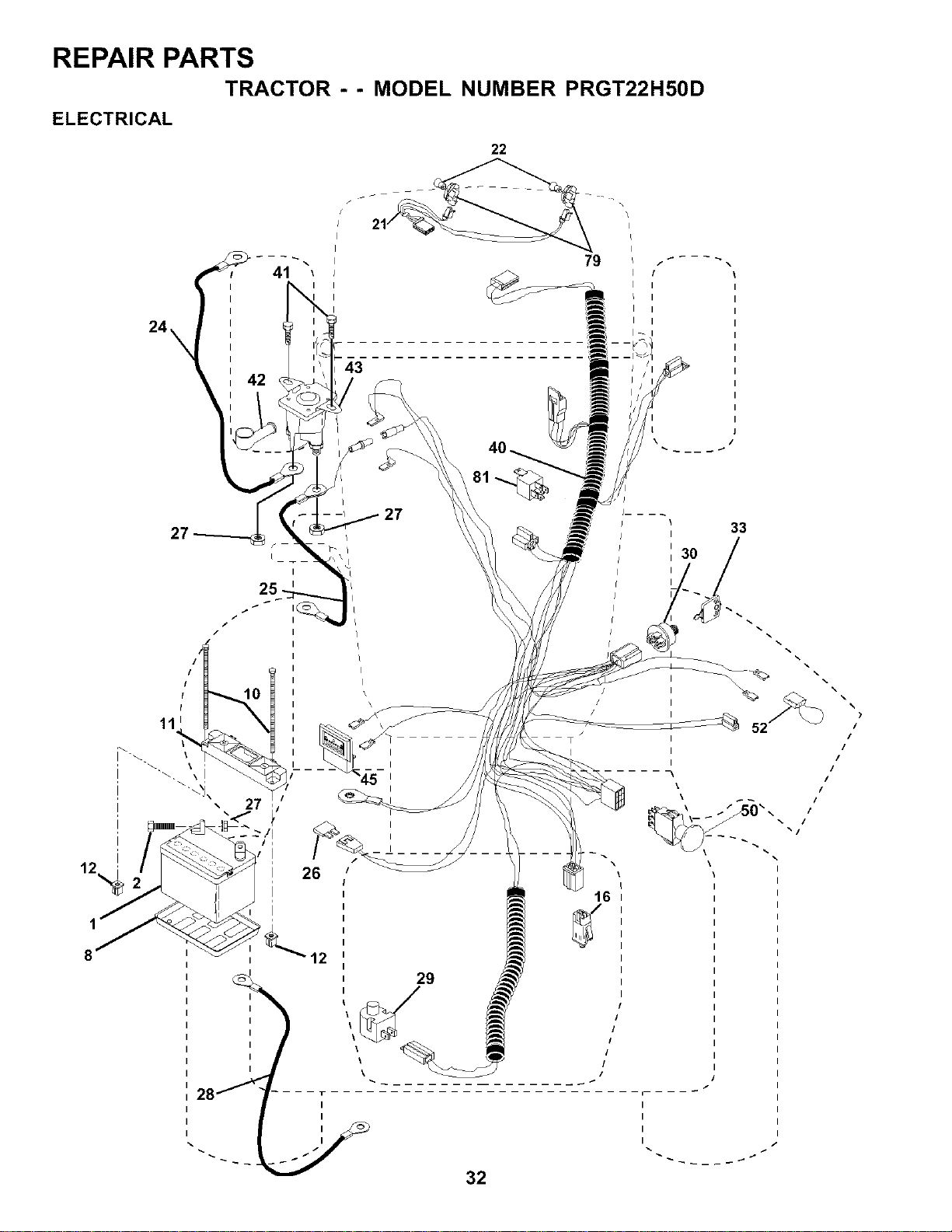

REPAIR PARTS

TRACTOR - - MODEL NUMBER PRGT22H50D

ELECTRICAL

41 ,

/ ,

I 26

I I

I !

I \

28 ---

i....

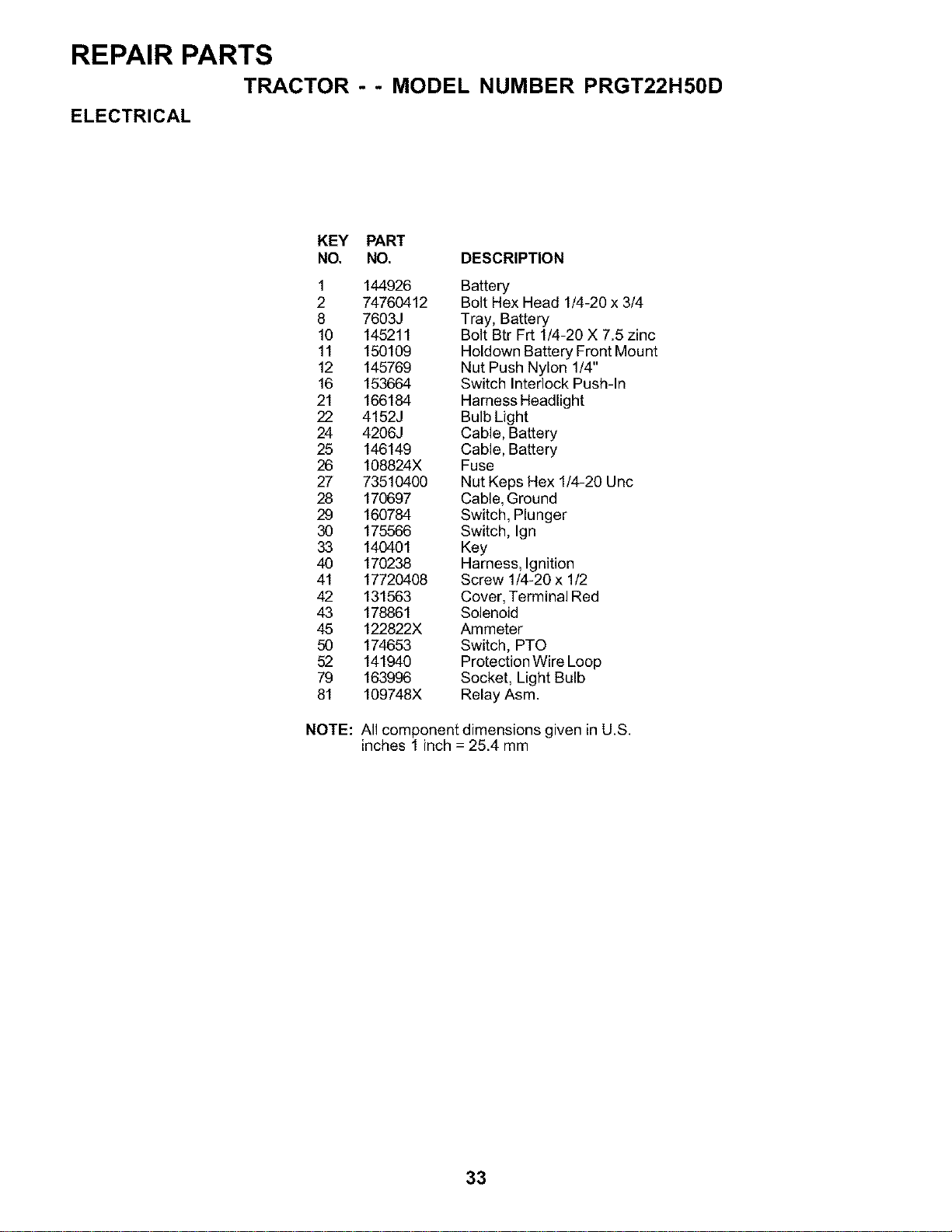

REPAIR PARTS

TRACTOR - - MODEL NUMBER PRGT22H5OD

ELECTRICAL

KEY PART

NO. NO. DESCRIPTION

1 144926 Battery

2 74760412 Bolt Hex Head 1/4-20 x 3/4

8 7603J Tray, Battery

10 145211 Bolt Btr Frt 1/4-20 X 7.5 zinc

11 150109 Holdown Battery Front Mount

12 145769 Nut Push Nylon 1/4"

16 153664 Switch Interlock Push-In

21 166184 Harness Headlight

22 4152J Bulb Light

24 4206J Cable, Battery

25 146149 Cable, Battery

26 108824X Fuse

27 73510400 Nut Keps Hex 1/4-20 Unc

28 170697 Cable, Ground

29 160784 Switch, Plunger

30 175566 Switch, Ign

33 140401 Key

40 170238 Harness, Ignition

41 17720408 Screw 1/4-20 x 1/2

42 131563 Cover, Terminal Red

43 178861 Solenoid

45 122822X Ammeter

50 174653 Switch, PTO

52 141940 Protection Wire Loop

79 163996 Socket, Light Bulb

81 109748X Relay Asm.

NOTE:

All component dimensions given in U.S.

inches 1 inch = 25.4 mm

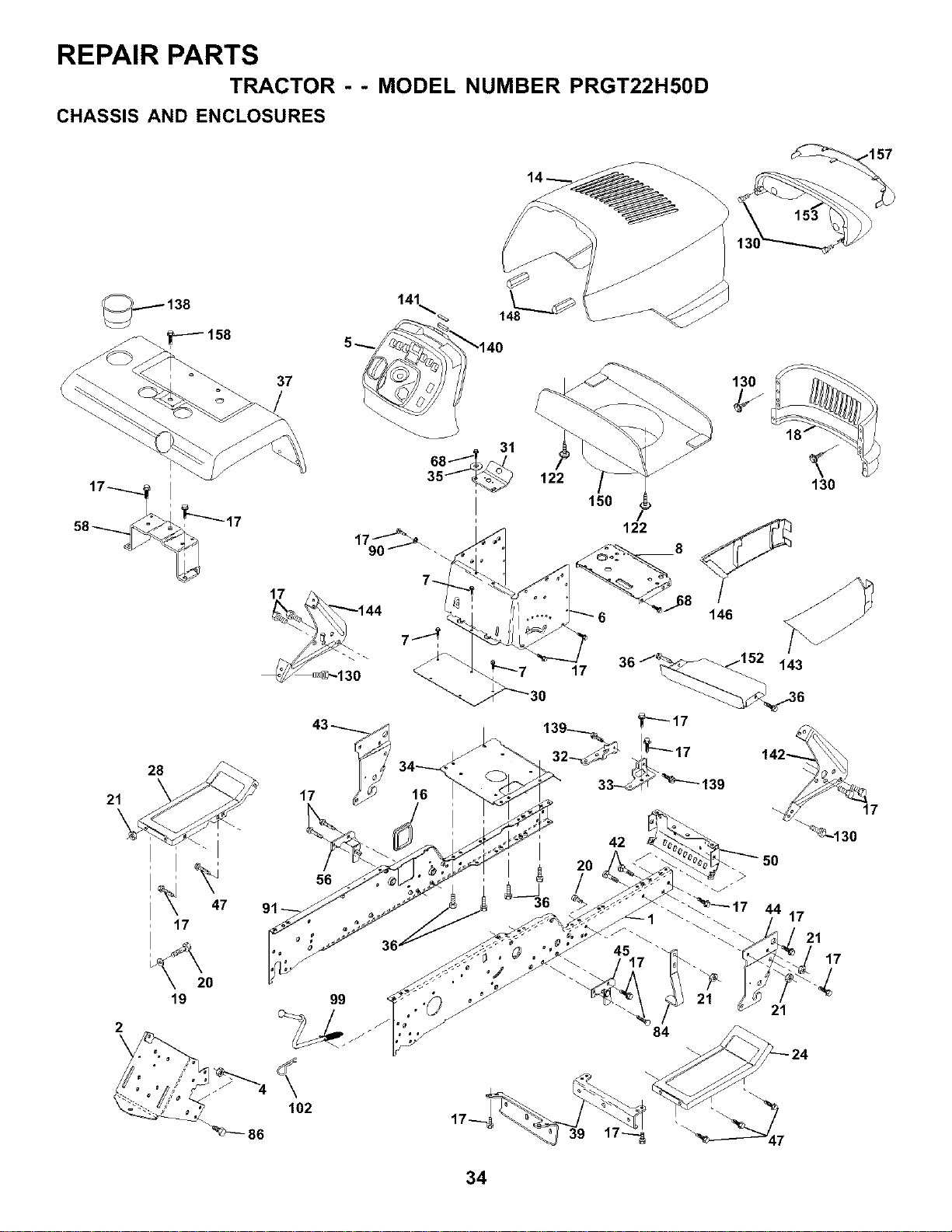

REPAIR PARTS

TRACTOR - - MODEL NUMBER PRGT22H50D

CHASSIS AND ENCLOSURES

..,.,.,.,-_138 141

p--- 158

122

150

122

146

_-130

44 17

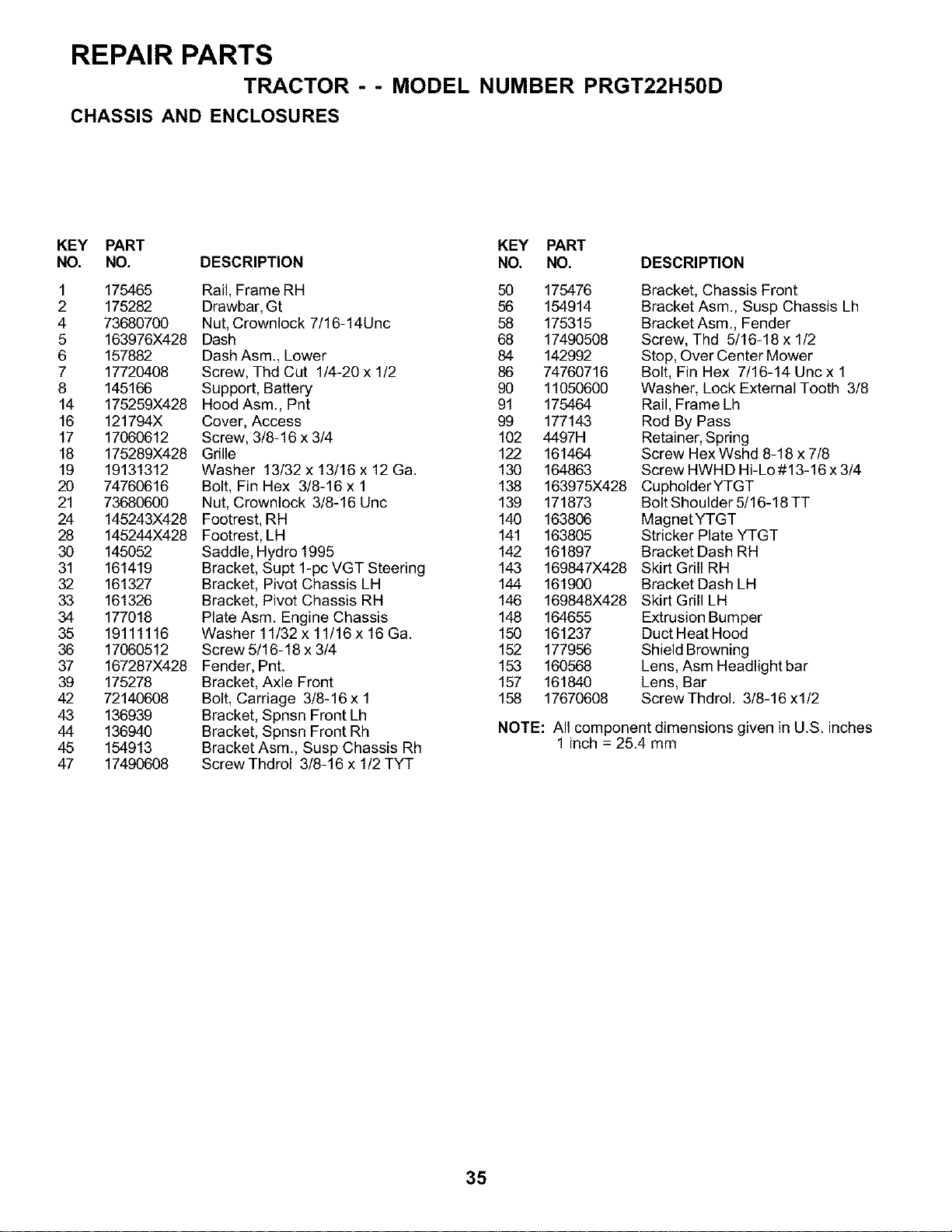

REPAIR PARTS

TRACTOR - - MODEL NUMBER PRGT22H50D

CHASSIS AND ENCLOSURES

KEY PART KEY PART

NO. NO. DESCRIPTION NO. NO. DESCRIPTION

175465 Rail, Frame RH 50 175476

175282 Drawbar, Gt 56 154914

73680700 Nut, Crownlock 7/16-14Unc 58 175315

163976X428 Dash 68 17490508

157882 Dash Asm., Lower 84 142992

17720408 Screw, Thd Cut 1/4-20 x 1/2 86 74760716

145166 Support, Battery 90 11050600

175259X428 Hood Asm., Pnt 91 175464

121794X Cover, Access 99 177143

17060612 Screw, 3/8-16x3/4 102 4497H

175289X428 Grille 122 161464

19131312 Washer 13/32 x 13/16 x 12 Ga. 130 164863

74760616 Bolt, Fin Hex 3/8-16 x 1 138 163975X428

73680600 Nut, Crownlock 3/8-16 Unc 139 171873

145243X428 Footrest, RH 140 163806

145244X428 Footrest, LH 141 163805

145052 Saddle, Hydro 1995 142 161897

161419 Bracket, Supt 1-pc VGT Steering 143 169847X428

161327 Bracket, Pivot Chassis LH 144 161900

161326 Bracket, Pivot Chassis RH 146 169848X428

177018 Plate Asm. Engine Chassis 148 164655

19111116 Washer 11/32 x 11/16 x 16 Ga. 150 161237

17060512 Screw 5/16-18 x 3/4 152 177956

167287X428 Fender, Pnt. 153 160568

175278 Bracket, Axle Front 157 161840

72140608 Bolt, Carriage 3/8-16 x 1 158 17670608

136939 Bracket, Spnsn Front Lh

136940 Bracket, Spnsn Front Rh

154913 Bracket Asm., Susp Chassis Rh

17490608 Screw Thdrol 3/8-16 x 1/2 TYT

Bracket, Chassis Front

Bracket Asm., Susp Chassis Lh

Bracket Asm., Fender

Screw, Thd 5/16-18 x 1/2

Stop, Over Center Mower

Bolt, Fin Hex 7/16-14 Uncx 1

Washer, Lock External Tooth 3/8

Rail, Frame Lh

Rod By Pass

Retainer, Spring

Screw Hex Wshd 8-18 x7/8

Screw HWHD Hi-Lo #13-16 x 3/4

CupholderYTGT

Bolt Shoulder 5/16-18 TT

MagnetYTGT

Stricker Plate YTGT

Bracket Dash RH

Skirt Grill RH

Bracket Dash LH

Skirt Grill LH

Extrusion Bumper

Duct Heat Hood

Shield Browning

Lens, Asm Headlight bar

Lens, Bar

Screw Thdrol. 3/8-16 x 1/2

NOTE: All component dimensions given in U.S. inches

1 inch = 25.4 mm

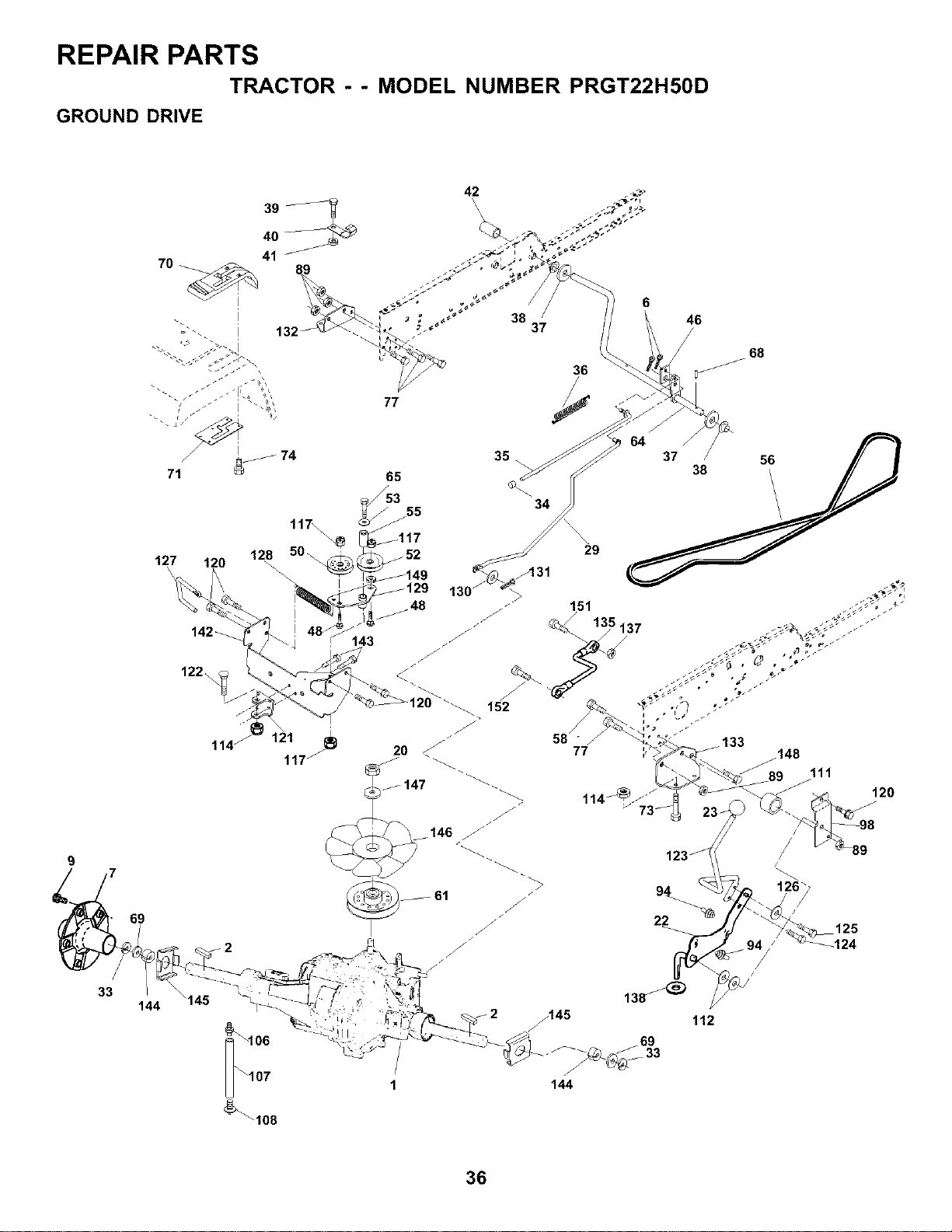

REPAIR PARTS

TRACTOR - - MODEL NUMBER PRGT22H50D

GROUND DRIVE

127 120

142_

122

-2

117\ _55

j117

50 _'_

128\ _I _52

_149

_131

°'"

37 / 56

144 _145

_108

j145 112

144

REPAIR PARTS

TRACTOR - - MODEL NUMBER PRGT22H5OD

GROUND DRIVE

KEY PART KEY PART

NO. NO. DESCRIPTION NO. NO. DESCRIPTION

1 Transaxle Hydro Gear 89 73680700

331-3000 (Order Parts From Transaxle 94 133835

Manufacturer) 98 141004

2 9396E Key Sq. 1/4 x 1/4 x 2 106 142918

6 76020412 Pin, Cotter 107 154739

7 140507 Wheel, Hub Assembly 108 142917

9 140080 Bolt, Hub 111 156240

20 73940800 Nut 112 156104

22 178391 Lever Asm Shift 114 73800500

23 140845 Knob 117 73900600

29 176600 Brake, Rod 120 17060612

33 12000053 Ring E 121 175611

34 71673 Cap, Parking Brake 122 72010520

35 137648 Rod, Parking Brake 123 176602

36 149412 Spring, Drive Ground 124 165492

37 121749X Washer 25/32 x 1-1/4 x 16 Ga. 125 166880

38 150035 Nyliner 126 166002

39 74321016 Screw, Fin. #10-24 x 1 127 177362

40 178575 Actuator, Interlock 128 176624

41 73931000 Nut Centerlock 10-24 Unc 129 178588

42 123533X Cover, Pedal 130 19131016

46 145170 Retainer, Spring 131 76020312

48 72110614 Bolt Cam Shoulder 3/8-16 x 1-3/4 132 175467

Gr. 5 133 175468

50 131494 Pulley, Idler, Flat 135 177364

52 127783 Pulley, Idler, Grooved 137 1685H

53 207J Washer, Hardened 138 1370H

55 105706X Bearing, Idler 142 175469

56 161597 V-Belt 143 17060512

58 74760724 Bolt Fin Hex 7/16-14 x 1-1/2 144 160849

61 143995 Pulley, Transaxle 145 163168

64 176601 Shaft, Brake Pedal 146 140462

65 67609 Bolt, Shoulder 147 141322

68 5142H Pin, Roll 148 17060616

69 123800 Washer 149 19131410

70 164892X428 Console Shift 151 74760514

71 151179 Plate Console Shift 152 178705

73 74490548 Bolt Hex Flghd 5/16-18 x 3 Gr5

74 142432 Screw HexWsh. Hi-Lo 1/4-1/2

77 74760716 Bolt Fin Hex 7/16-14 x 1

Nut Crownlock7/16-14 Unc

Fastener Christmas Tree

Bracket Shift

O-Ring Asm Hydro Gear

Line Fuel Hydro 15" VGT

Cap Asm Vent Hydro Gear

Spacer Shift Lever VGTH

Washer Nylon High Temp

Nut Lock Hex W/Ins 5/16-18 Unc

Nut, Lock Fig. 3/8-16

Screw 3/8-16 x .75

Bracket Strap Torque

Bolt 5/16-18 x 2.50

Rod Shift

Bolt Shoulder 5/16-18 x .561

Screw 5/16-18 x 5/8

Washer SRRTD 5/16 ID x 1.0 x .125

Link Control Clutch

Spring Drive GRND

Bracket Asm Idler Tensioning

Washer 13/32 x 5/8 x 16 Ga.

Pin Cotter 3/32 x 3/4

Bracket Mtg Hydro 3500 LH VGT

Bracket Mtg Hydro 3500 RH VGT

Link Asm Control Hydro 3500

Nut Lock 5/16-18 NC Thd.

Washer Thrust 5/8 x 1.10 x 1/32

StrapTorque HG-3500

Screw 5/16-18 x 3/4

Washer Spacer Axle HG-3000

WasherAxle Flange HG-3000

Fan 7" Hydro

Washer

Screw 3/8-16 x 1.0

Washer 13/32 x 7/8 x 10 Ga.

Bolt Fin Hex 5/16-18 x 7/8

Bolt Hex 5/16-18 x 1 w/Patch

NOTE: All component dimensions given in U.S. inches

1 inch = 25.4 mm

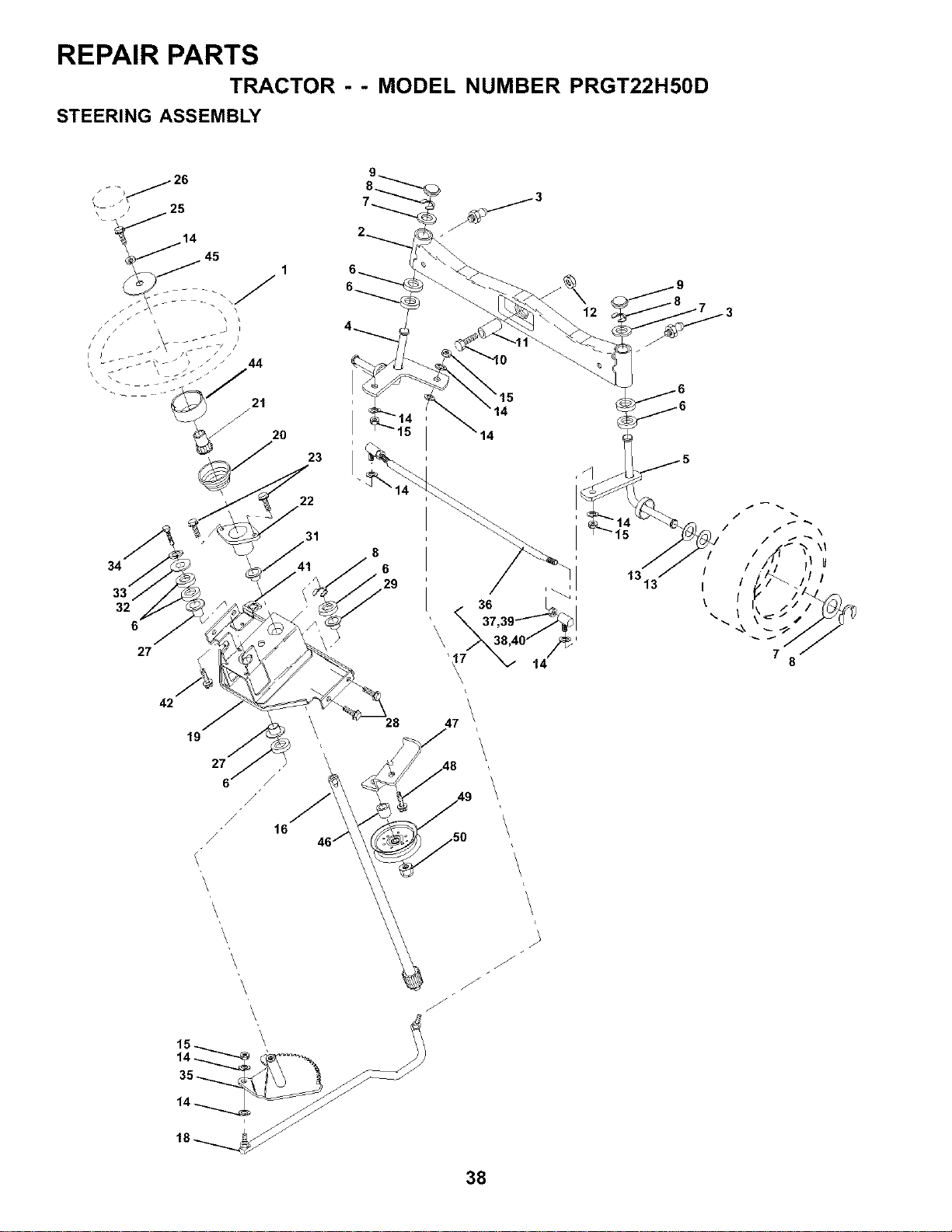

REPAIR PARTS

TRACTOR - - MODEL NUMBER PRGT22H50D

STEERING ASSEMBLY

.- _/26

//_

" J 25

_- _'_/14 45

' ' .\ --Si /

33"

47 \

t313 /

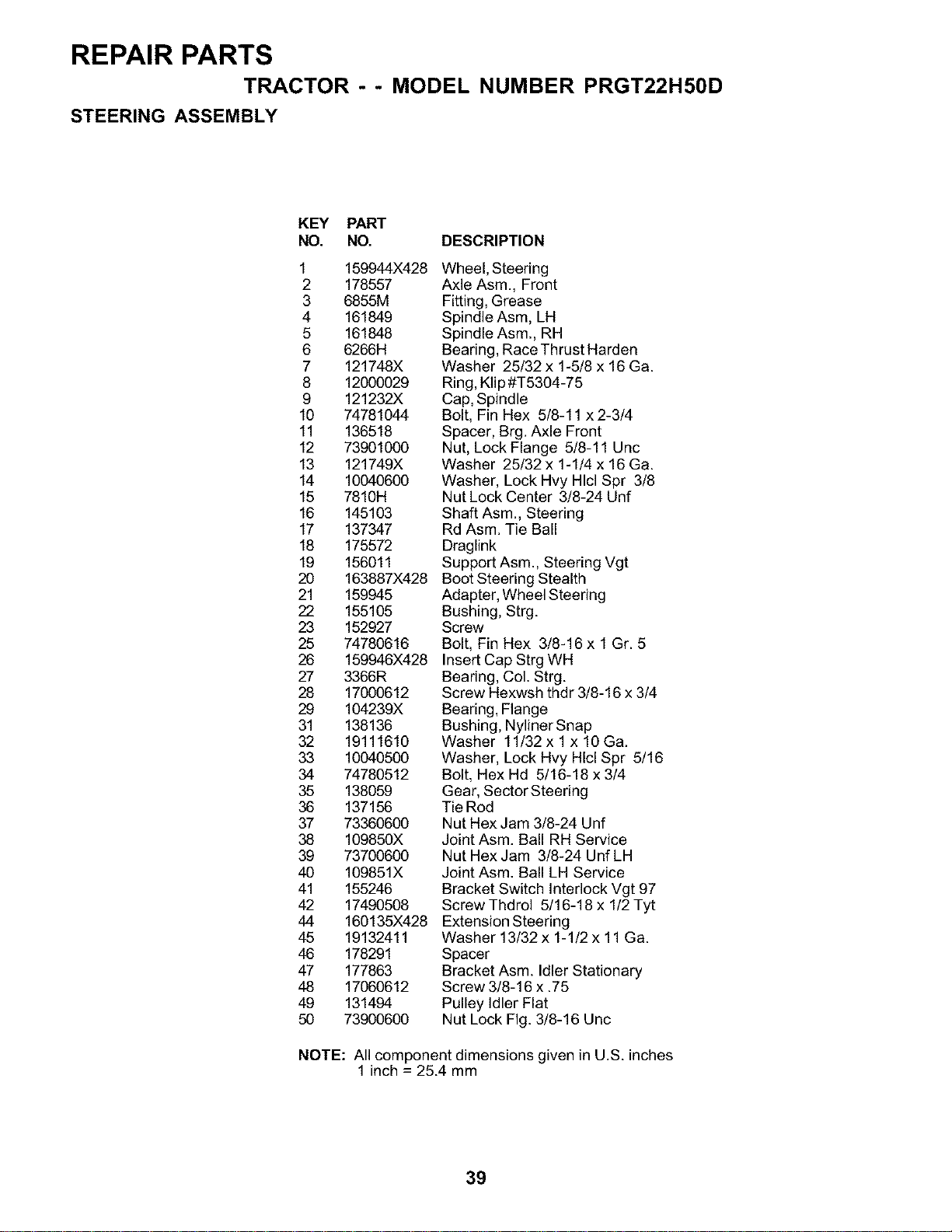

REPAIR PARTS

TRACTOR - - MODEL NUMBER PRGT22H50D

STEERING ASSEMBLY

KEY PART

NO. NO. DESCRIPTION

1 159944X428

2 178557

3 6855M

4 161849

5 161848

6 6266H

7 121748X

8 12000029

9 121232X

10 74781044

11 136518

12 73901000

13 121749X

14 10040600

15 7810H

16 145103

17 137347

18 175572

19 156011

20 163887X428

21 159945

22 155105

23 152927

25 74780616

26 159946X428

27 3366R

28 17000612

29 104239X

31 138136

32 19111619

33 10040500

34 74780512

35 138059

36 137156

37 73360600

38 109850X

39 73700600

40 109851X

41 155246

42 17490508

44 160135X428

45 19132411

46 178291

47 177863

48 17060612

49 131494

50 73900600

Wheel, Steering

Axle Asm., Front

Fitting, Grease

Spindle Asm, LH

Spindle Asm., RH

Bearing, Race Thrust Harden

Washer 25/32 x 1-5/8 x 16 Ga.

Ring, Klip #T5304-75

Cap, Spindle

Bolt, Fin Hex 5/8-11 x 2-3/4

Spacer, Brg. Axle Front

Nut, Lock Flange 5/8-11 Unc

Washer 25/32 x 1-1/4 x 16 Ga.

Washer, Lock Hvy Hlcl Spr 3/8

Nut Lock Center 3/8-24 Unf

Shaft Asm., Steering

Rd Asm. Tie Ball

Draglink

Support Asm., Steering Vgt

Boot Steering Stealth

Adapter, Wheel Steering

Bushing, Strg.

Screw

Bolt, Fin Hex 3/8-16 x 1 Gr. 5

Insert Cap Strg WH

Bearing, Cal. Strg.

Screw Hexwsh thdr 3/8-16 x 3/4

Bearing, Flange

Bushing, Nyliner Snap

Washer 11/32 x 1 x 10Ga.

Washer, Lock Hvy Hlcl Spr 5/16

Bolt, Hex Hd 5/16-18 x 3/4

Gear, Sector Steering

Tie Rod

Nut Hex Jam 3/8-24 Unf

Joint Asm. Ball RH Service

Nut Hex Jam 3/8-24 Unf LH

Joint Asm. Ball LH Service

Bracket Switch Interlock Vgt 97

Screw Thdrol 5/16-18 x 1/2 Tyt

Extension Steering

Washer 13/32 x 1-1/2 x 11 Ga.

Spacer

Bracket Asm. Idler Stationary

Screw 3/8-16 x .75

Pulley Idler Flat

Nut Lock Fig. 3/8-16 Unc

NOTE: All component dimensions given in U.S. inches

1 inch = 25.4 mm

REPAIR PARTS

TRACTOR - - MODEL NUMBER PRGT22H50D

ENGINE

69 _ 62

18 15

11 81

26 27

SPARK ARRESTER KIT

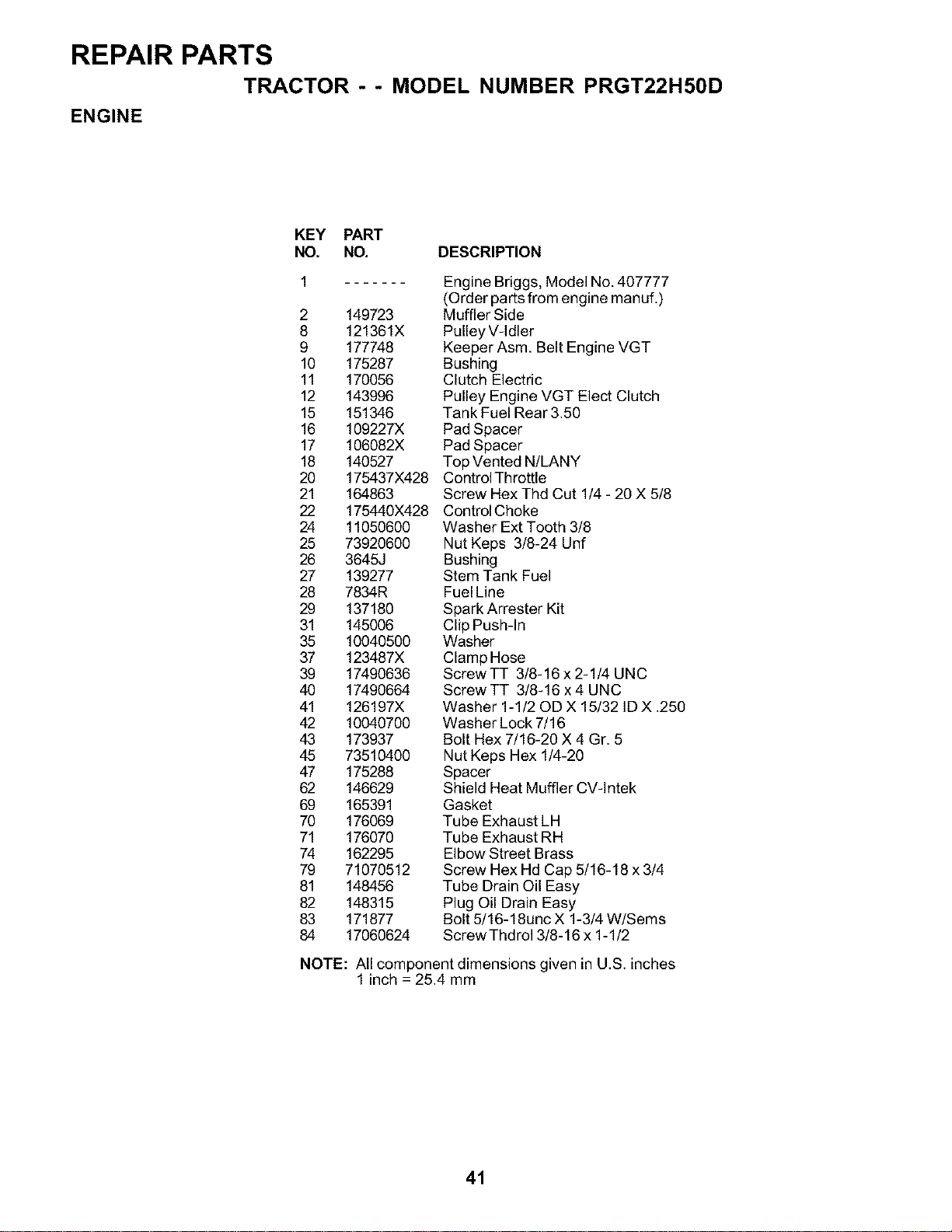

REPAIR PARTS

TRACTOR - - MODEL NUMBER PRGT22H50D

ENGINE

KEY PART

NO. NO. DESCRIPTION

2 149723

8 121361X

9 177748

10 175287

11 170056

12 143996

15 151346

16 109227X

17 106082X

18 140527

20 175437X428

21 164863

22 175440X428

24 11050600

25 73920600

26 3645J

27 139277

28 7834R

29 137180

31 145006

35 10040500

37 123487X

39 17490636

40 17490664

41 126197X

42 10040700

43 173937

45 73510400

47 175288

62 146629

69 165391

70 176069

71 176070

74 162295

79 71070512

81 148456

82 148315

83 171877

84 17060624

Engine Briggs, Model No. 407777

(Order parts from engine manuf.)

Muffler Side

Pulley V-Idler

Keeper Asm. Belt Engine VGT

Bushing

Clutch Electric

Pulley Engine VGT Elect Clutch

Tank Fuel Rear 3.50

Pad Spacer

Top Vented N/LANY

Control Throttle

Screw Hex Thd Cut 1/4 - 20 X 5/8

Control Choke

Washer Ext Tooth 3/8

Nut Keps 3!8-24 Unf

Bushing

Stem Tank Fuel

Fuel Line

Spark Arrester Kit

Clip Push-In

Washer

Clamp Hose

ScrewTT 3!8-16 x 2-1/4 UNC

Screw TT 3!8-16 x 4 UNC

Washer 1-1/20D X 15!32 ID X .250

Washer Lock 7/16

Bolt Hex 7!16-20 X 4 Gr. 5

Nut Keps Hex 1/4-20

Spacer

Shield Heat Muffler CV-lntek

Gasket

Tube Exhaust LH

Tube Exhaust RH

Elbow Street Brass

Screw Hex Hd Cap 5/16-18 x 3/4

Tube Drain Oil Easy

Plug Oil Drain Easy

Bolt 5!16-18unc X 1-3/4 W/Sems

Screw Thdrol 3!8-16 x 1-1/2

NOTE: All component dimensions given in U.S. inches

1 inch = 25.4 mm

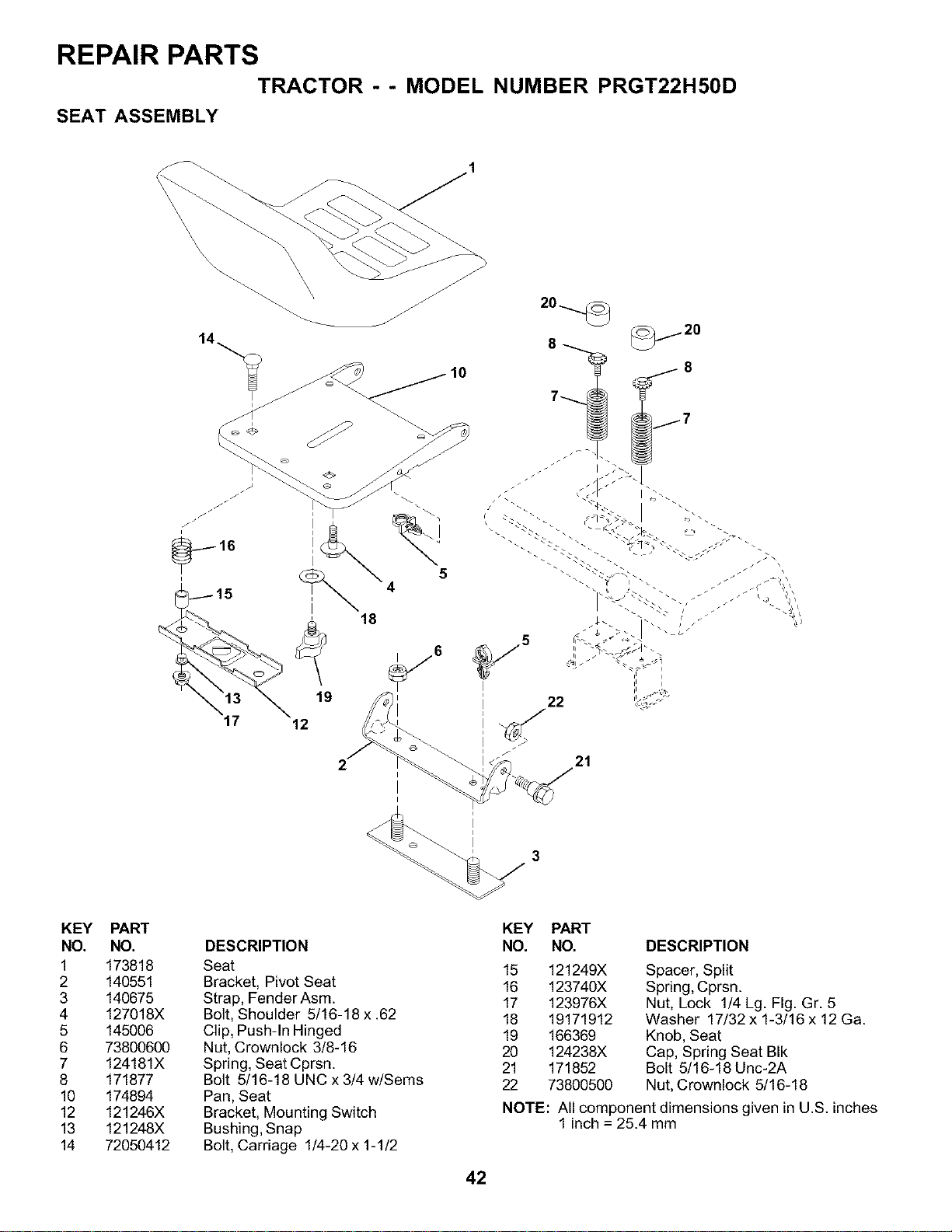

REPAIR PARTS

TRACTOR - - MODEL NUMBER PRGT22H50D

SEAT ASSEMBLY

8 _ _20

17 12

KEY

NO.

PART

NO.

173818

140551

140675

127018X

145006

73800600

124181X

171877

174894

121246X

121248X

72050412

DESCRIPTION

Seat

Bracket, Pivot Seat

Strap, Fender Asm.

Bolt, Shoulder 5/16-18 x .62

Clip, Push-In Hinged

Nut, Crownlock 3/8-16

Spring, Seat Cprsn.

Bolt 5/16-18 UNC x 3/4 w/Sems

Pan, Seat

Bracket, Mounting Switch

Bushing, Snap

Bolt, Carriage 1/4-20 x 1-1/2

KEY PART

NO. NO. DESCRIPTION

15 121249X

16 123740X

17 123976X

18 19171912

19 166369

20 124238X

21 171852

22 73800500

Spacer, Split

Spring, Cprsn.

Nut, Lock 1/4 Lg. Fig. Gr. 5

Washer 17/32 x 1-3/16 x 12 Ga.

Knob, Seat

Cap, Spring Seat BIk

Bolt 5/16-18 Unc-2A

Nut, Crownlock 5/16-18

NOTE: All component dimensions given in U.S. inches

1 inch = 25.4 mm

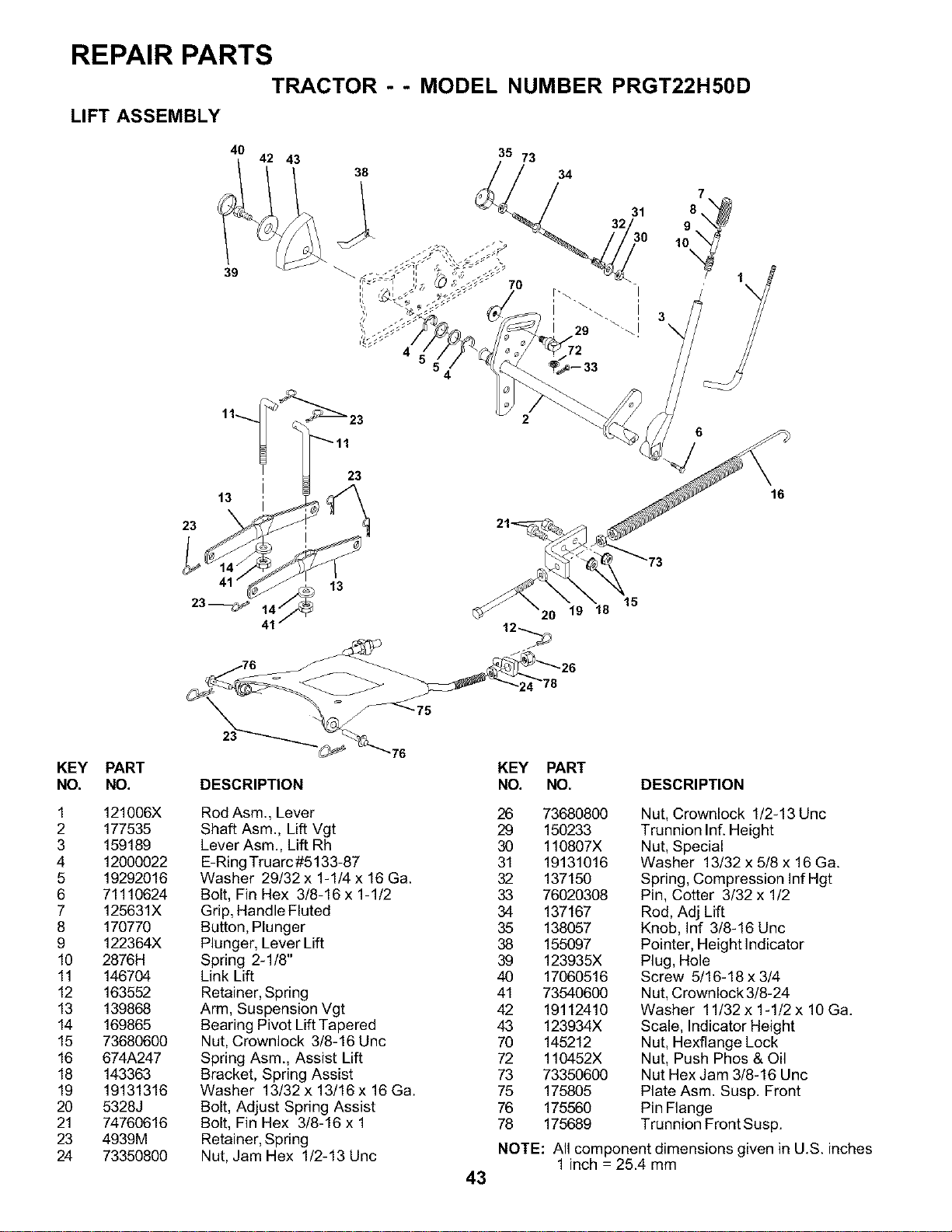

REPAIR PARTS

TRACTOR - - MODEL NUMBER PRGT22H50D

LIFT ASSEMBLY

40 42 43 35 73

38 34

70 -I

29 \_1

KEY PART

NO. NO.

1 121006X

2 177535

3 159189

4 12000022

5 19292016

6 71110624

7 125631X

8 170770

9 122364X

10 2876H

11 146704

12 163552

13 139868

14 169865

15 73680600

16 674A247

18 143363

19 19131316

20 5328J

21 74760616

23 4939M

24 73350800

'20 19

4t t2',-,,.,_

-_'_24_

75 24 78

KEY PART

DESCRIPTION NO. NO.

DESCRIPTION

Rod Asm., Lever

Shaft Asm., Lift Vgt

Lever Asm., Lift Rh

E-Ring Truarc#5133-87

Washer 29/32 x 1-1/4 x 16 Ga.

Bolt, Fin Hex 3/8-16 x 1-1/2

Grip, Handle Fluted

Button, Plunger

Plunger, Lever Lift

Spring 2-1/8"

Link Lift

Retainer, Spring

Arm, Suspension Vgt

Bearing Pivot Lift Tapered

Nut, Crownlock 3/8-16 Unc

Spring Asm., Assist Lift

Bracket, Spring Assist

Washer 13/32 x 13/16 x 16 Ga.

Bolt, Adjust Spring Assist

Bolt, Fin Hex 3/8-16 x 1

Retainer, Spring

Nut, Jam Hex 1/2-13 Unc

26 73680800

29 150233

30 110807X

31 19131016

32 137150

33 76020308

34 137167

35 138057

38 155097

39 123935X

40 17060516

41 73540600

42 19112410

43 123934X

70 145212

72 110452X

73 73350600

75 175805

76 175560

78 175689

Nut, Crownlock 1/2-13 Unc

Trunnion Inf. Height

Nut, Special

Washer 13/32 x 5/8 x 16 Ga.

Spring, Compression Inf Hgt

Pin, Cotter 3/32 x 1!2

Rod, Adj Lift

Knob, Inf 3/8-16 Unc

Pointer, Height Indicator

Plug, Hole

Screw 5/16-18 x 3/4

Nut, Crownlock 3!8-24

Washer 11/32 x 1-1/2 x 10 Ga.

Scale, Indicator Height

Nut, Hexflange Lock

Nut, Push Phos & Oil

Nut Hex Jam 3/8-16 Unc

Plate Asm. Susp. Front

Pin Flange

Trunnion Front Susp.

NOTE: All component dimensions given in U.S. inches

1 inch = 25.4 mm

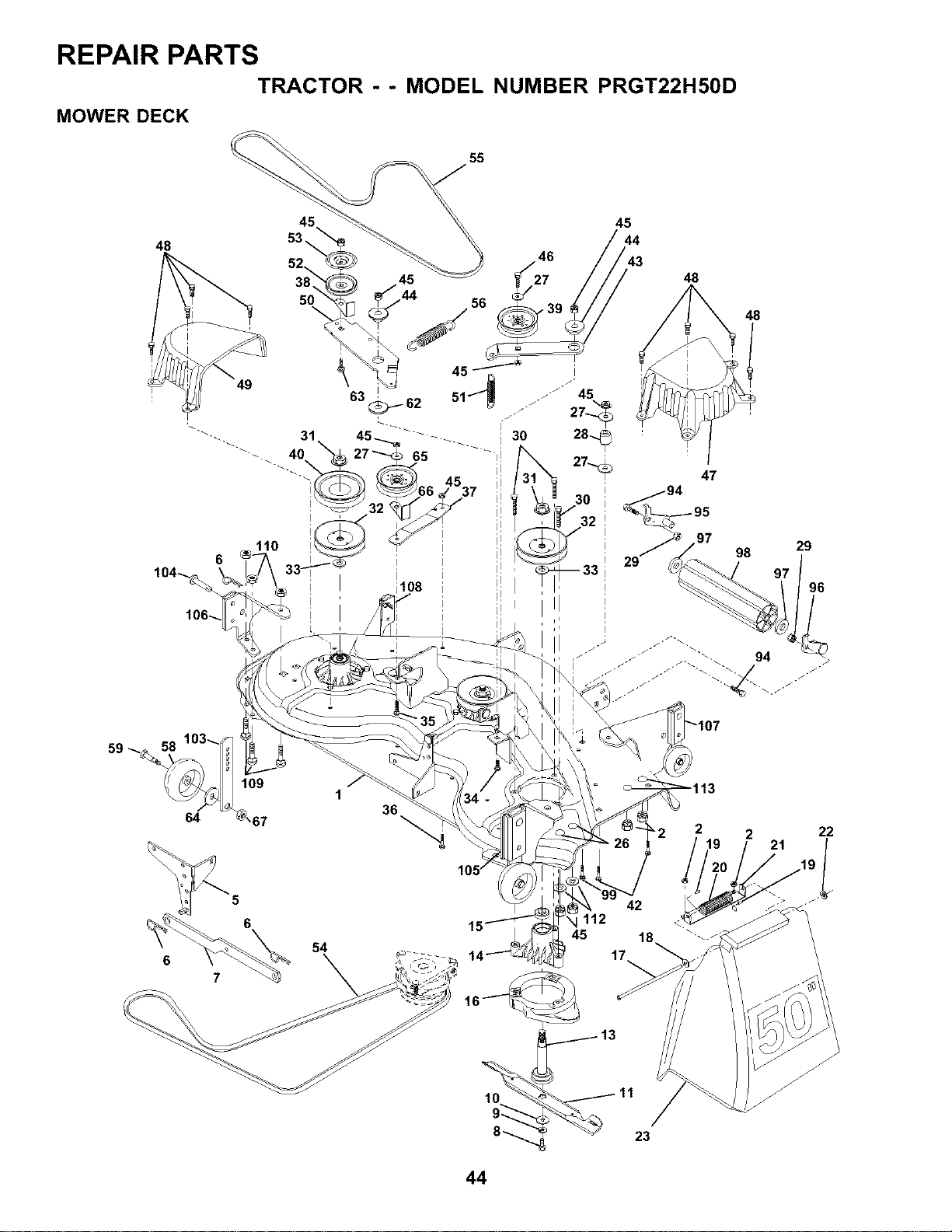

REPAIR PARTS

TRACTOR - - MODEL NUMBER PRGT22H50D

MOWER DECK

112

2 2 22

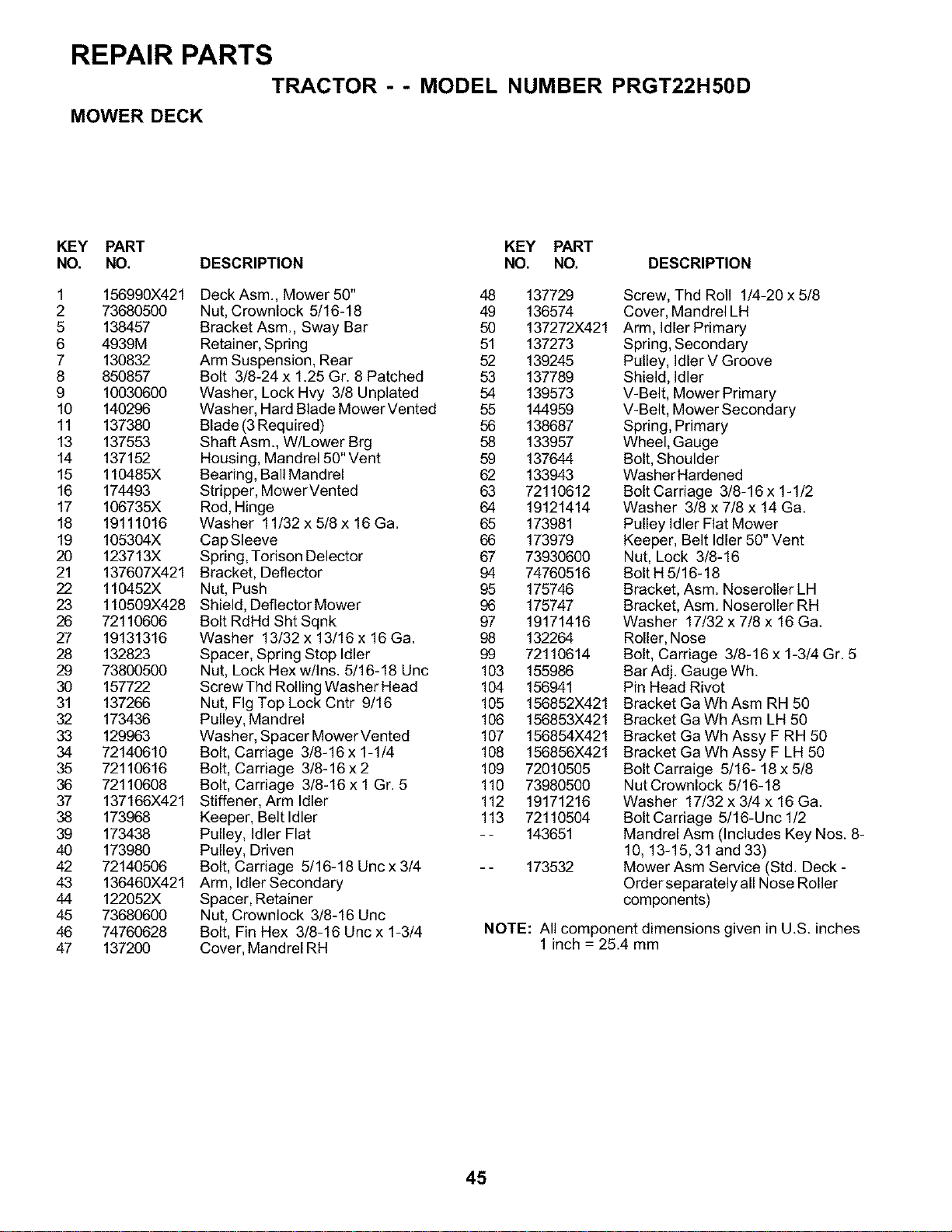

REPAIR PARTS

TRACTOR - - MODEL NUMBER PRGT22H5OD

MOWER DECK

KEY PART KEY PART

NO. NO. DESCRIPTION NO. NO. DESCRIPTION

1 156990X421

2 73680500

5 138457

6 4939M

7 130832

8 850857

9 10030600

10 140296

11 137380

13 137553

14 137152

15 110485X

16 174493

17 106735X

18 19111016

19 105304X

20 123713X

21 137607X421

22 110452X

23 110509X428

26 72110606

27 19131316

28 132823

29 73800500

30 157722

31 137266

32 173436

33 129963

34 72140610

35 72110616

36 72110608

37 137166X421

38 173968

39 173438

40 173980

42 72140506

43 136460X421

44 122052X

45 73680600

46 74760628

47 137200

Deck Asm., Mower 50" 48 137729

Nut, Crownlock 5/16-18 49 136574

Bracket Asm., Sway Bar 50 137272X421

Retainer, Spring 51 137273

Arm Suspension, Rear 52 139245

Bolt 3/8-24 x 1.25 Gr. 8 Patched 53 137789

Washer, Lock Hvy 3/8 Unplated 54 139573

Washer, Hard Blade MowerVented 55 144959

Blade (3 Required) 56 138687

Shaft Asm., W/Lower Brg 58 133957

Housing, Mandrel 50" Vent 59 137644

Bearing, Ball Mandrel 62 133943

Stripper, MowerVented 63 72110612

Rod, Hinge 64 19121414

Washer 11/32 x 5/8 x 16 Ga. 65 173981

CapSleeve 66 173979

Spring, Torison Delector 67 73930600

Bracket, Deflector 94 74760516

Nut, Push 95 175746

Shield, Deflector Mower 96 175747

Bolt RdHd Sht Sqnk 97 19171416

Washer 13/32 x 13/16 x 16 Ga. 98 132264

Spacer, Spring Stop Idler 99 72110614

Nut, Lock Hex w/Ins. 5/16-18 Unc 103 155986

Screw Thd Rolling Washer Head 104 156941

Nut, Fig Top Lock Cntr 9/16 105 156852X421

Pulley, Mandrel 106 156853X421

Washer, Spacer Mower Vented 107 156854X421

Bolt, Carriage 3/8-16 x 1-1/4 108 156856X421

Bolt, Carriage 3/8-16x2 109 72010505

Bolt, Carriage 3/8-16 x 1 Gr. 5 110 73980500

Stiffener, Arm Idler 112 19171216

Keeper, Belt Idler 113 72110504

Pulley, Idler Flat - - 143651

Pulley, Driven

Bolt, Carriage 5/16-18 Unc x 3/4 - - 173532

Arm, Idler Secondary

Spacer, Retainer

Nut, Crownlock 3/8-16 Unc

Bolt, Fin Hex 3/8-16 Uric x 1-3/4

Cover, Mandrel RH

Screw, Thd Roll 1/4-20 x 5/8

Cover, Mandrel LH

Arm, Idler Primary

Spring, Secondary

Pulley, Idler V Groove

Shield, Idler

V-Belt, Mower Primary

V-Belt, Mower Secondary

Spring, Primary

Wheel, Gauge

Bolt, Shoulder

Washer Hardened

Bolt Carriage 3/8-16 x 1-1/2

Washer 3/8 x 7/8 x 14 Ga.

Pulley Idler Flat Mower

Keeper, Belt Idler 50" Vent

Nut, Lock 3/8-16

Bolt H 5/16-18

Bracket, Asm. Noseroller LH

Bracket, Asm. Noseroller RH

Washer 17/32 x 7/8 x 16 Ga.

Roller, Nose

Bolt, Carriage 3/8-16 x 1-3/4 Gr. 5

Bar Adj. Gauge Wh.

Pin Head Rivot

Bracket Ga Wh Asm RH 50

Bracket Ga Wh Asm LH 50

Bracket Ga Wh Assy F RH 50

Bracket Ga Wh Assy F LH 50

Bolt Carraige 5/16- 18 x 5/8

Nut Crownlock 5/16-18

Washer 17/32 x 3/4 x 16 Ga.

Bolt Carriage 5/16-Unc 1/2

Mandrel Asm (Includes Key Nos. 8-

10, 13-15, 31 and 33)

Mower Asm Service (Std. Deck -

Order separately all Nose Roller

components)

NOTE: All component dimensions given in U.S. inches

1 inch = 25.4 mm

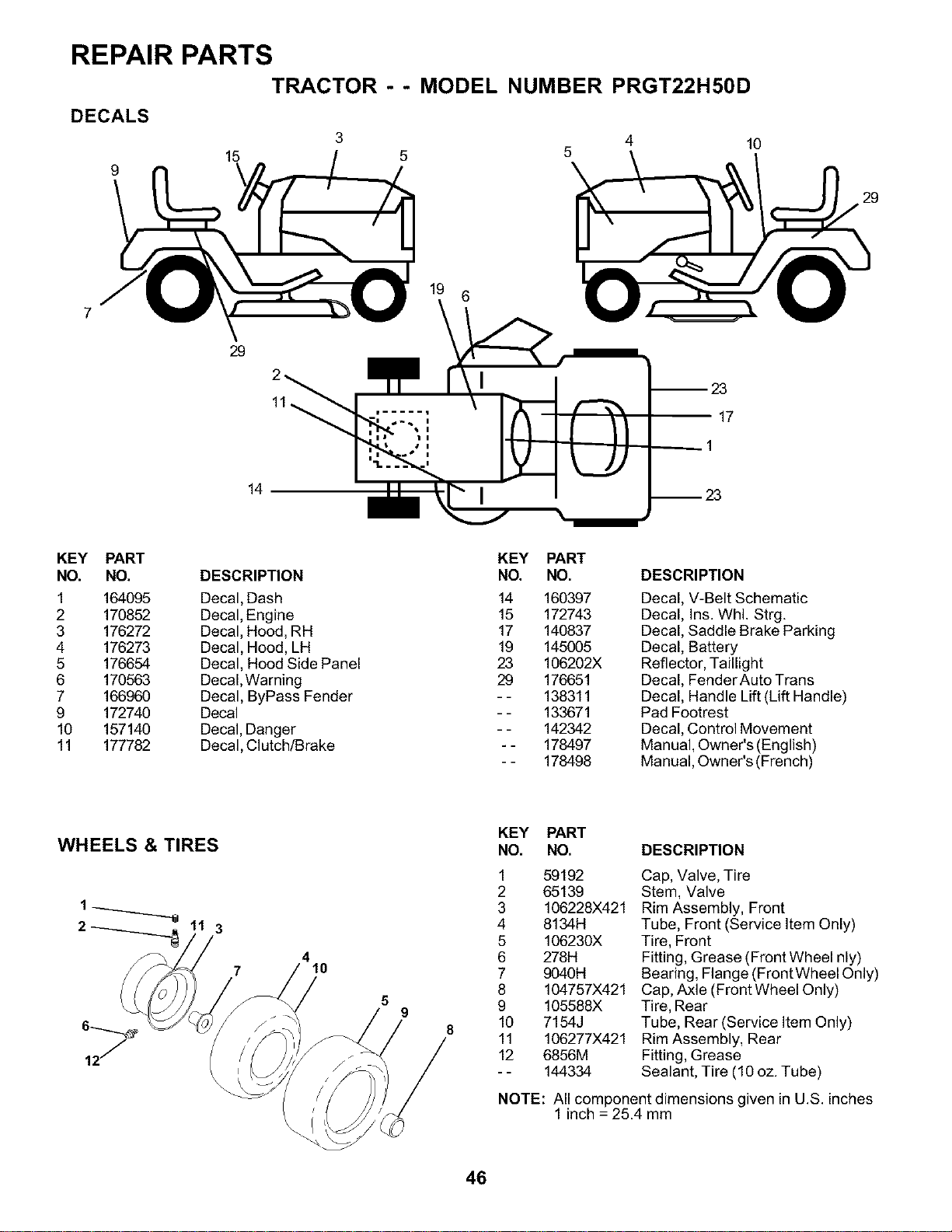

REPAIR PARTS

TRACTOR - - MODEL NUMBER PRGT22H5OD

DECALS

KEY PART

NO. NO.

1 164095

2 170852

3 176272

4 176273

5 176654

6 170563

7 166960

9 172740

10 157140

11 177782

DESCRIPTION

Decal, Dash

Decal, Engine

Decal, Hood, RH

Decal, Hood, LH

Decal, Hood Side Panel

Decal, Warning

Decal, ByPass Fender

Decal

Decal, Danger

Decal, Clutch/Brake

KEY PART

NO. NO.

14 160397

15 172743

17 140837

19 145005

23 106202X

29 176651

- - 138311

- - 133671

- - 142342

- - 178497

- - 178498

DESCRIPTION

Decal, V-Belt Schematic

Decal, Ins. Whl. Strg.

Decal, Saddle Brake Parking

Decal, Battery

Reflector, Taillight

Decal, Fender Auto Trans

Decal, Handle Lift(Lift Hand_e)

Pad Footrest

Decal, Control Movement

Manual, Owner's (English)

Manual, Owner's (French)

WHEELS & TIRES

KEY PART

NO. NO.

DESCRIPTION

1 59192

2 65139

3 106228X421

4 8134H

5 106230X

6 278H

7 9040H

8 104757X421

9 105588X

10 7154J

11 106277X421

12 6856M

-- 144334

Cap, Valve, Tire

Stem, Valve

Rim Assembly, Front

Tube, Front (Service Item OnLy)

Tire, Front

Fitting, Grease (Front Wheel nly)

Bearing, Flange (Front Wheel Only)

Cap, Axle (Front Wheel Only)

Tire, Rear

Tube, Rear (Service Item Only)

Rim Assembly, Rear

Fitting, Grease

Sealant, Tire (10 oz. Tube)

NOTE: All component dimensions given in U.S. inches

1 inch = 25.4 mm

SERVICE NOTES

LIMITED WARRANTY

The Manufacturer warrants to the original consumer purchaser that this product as manufactured is free from defects in

materials and workmanship. For a period of two (2) years from date of purchase by the original consumer purchaser, we will

repair or replace, at our option, without charge for parts or labor incurred in replacing parts, any part which we find to be

defective due to materials or workmanship. This Warranty is subject to the following limitations and exclusions.

1. This warranty does not apply to the engine, other than EHP manufactured transaxle/transmission components,

battery (except as noted below) or components parts thereof. Please refer to the applicable manufacturer's

warranty on these items.

2. Transportation charges for the movement of any power equipment unit or attachment are the responsibility of

the purchaser. Transportation charges for any parts submitted for replacement under this warranty must be

paid by the purchaser unless such return is requested by Electrolux Home Products.

3. Battery Warranty: On products equipped with a Battery, we will replace, without charge to you, any battery

which we find to be defective in manufacture, during the first ninety (90) days of ownership. After ninety (90)

days, we will exchange the Battery, charging you 1/12 of the price of a new Battery for each full month from the

date of the original sale. Battery must be maintained in accordance with the instructions furnished.

4. The Warranty period for any products used for rental or commercial purposes is limited to 90 days from the date

of original purchase.

5. This Warranty applies only to products which have been properly assembled, adjusted, operated, and main-

tained in accordance with the instructions furnished. This Warranty does not apply to any product which has

been subjected to alteration, misuse, abuse, improper assembly or installation, delivery damage, or to normal

wear of the product.

6. Exclusions: Excluded from this Warranty are belts, blades, blade adapters, normal wear, normal adjustments,

standard hardware and normal maintenance.

7. In the event you have a claim under this Warranty, you must return the product to an authorized service dealer.

Should you have any unanswered questions concerning this Warranty, please contact:

Electrolux Home Products

a division of WCI Outdoor Products, Inc.

Outdoor Products Customer Service Dept.

250 Bobby Jones Expressway

Augusta, GA 30909 USA

In Canada contact:

Electrolux Home Products

a division of WCI Outdoor Products, Inc.

7075 Ordan Drive

Mississauga, Ontario

L5T 1K6

giving the model number, serial number and date of purchase of your product and the name and address of the authorized

dealer from whom it was purchased.

THIS WARRANTY DOES NOT APPLY TO INCIDENTAL OR CONSEQUENTIAL DAMAGES AND ANY IMPLIED WARRAN_

TIES ARE LIMITED TO THE SAME TIME PERIODS STATED HEREIN FOR OUR EXPRESSED WARRANTIES. Some areas

do not allow the limitation of consequential damages or limitations of how long an implied Warranty may last, so the above

limitations or exclusions may not apply to you. This Warranty gives you specific legal rights, and you may have other rights

which vary from locale to locale.

This is a limited Warranty within the meaning of that term as defined in the Magnuson-Moss Act of 1975.

SUGGESTED GUIDE FOR SIGHTING SLOPES FOR SAFE OPERATION

I ""

SIGHTING

IIDE

ONLY RIDE UP AND DOWN HILL,

NOT ACROSS HILL

SIGHT AND HOLD THIS LEVEL WITH

SKY LINE OR TREE.

15° MAX.

Operate your Tractor up and down the face of slopes (not

greater than 15°), never across the face. Make turns gradu-

ally to prevent tipping or loss of control. Exercise extreme

caution when changing direction on slopes.

PARTS AND SERVICE

Your POULAN PRO product has been expertly engineered and carefully manufactured to rigid

quality standards. As with all mechanical products, some adjustments or part replacement may be

necessary during the life of your unit.

FOR SERVICE OR REPLACEMENT PARTS:

1. Consult your dealer/place of purchase.

2. Consult the yellow pages of your phone directory for the name of the nearest service dealer

(under "saws" for Chain Saws or under "lawn mowers" for Trimmers, Brushcutters, and

Blowers).

3. For replacement parts, have available the following information:

a. ModelNumberfManufacturer's I.D. Number

b. Description of part.

NOTE:

Electrolux Home Products provides parts and service through its authorized distribu-

tors and dealers; therefore, all requests for parts and service should be directed to your

local dealer(s). The philosophy of Electrolux Home Products is to continually improve

all of its products. If the operating characteristics or the appearance of your product

differs from those described in this Manual, please contact your local dealer for updated

information and assistance.

Poulan Pro PRGT22H50D Poulan lawn tractor

Product's Documents

User Manual

Specifications

Poulan Pro PRGT22H50D Questions and Answers
