1. Install the length of rod
that is required by threading
wire through the rod and
screwing it to the fixture.
Install swivel to the rod,
ensuring that the sleeve is at
the swivel.
2. Tighten the hex nut and
washer to the stem on the
canopy.
3. Attach nipple to
mounting bracket. Adjust so
it will clear hole in back of
fixture and then lock nipple
in place with star washer and
hex nut. Attach mounting
bracket to electrical box with
electrical box screws (not
included).
ICH1065A04XXX30
10/20
CHANDELIER
Tel: (613) 342-5424, Fax: (800) 263-4598
Phillips
Screwdriver
Wire Cutters
Pliers Wrench
!
INSTRUCTIONS PERTAINING TO RISK OF FIRE OR INJURY TO PERSONS
READ ALL INSTRUCTIONS
IMPORTANT SAFETY
INSTRUCTIONS
SAVE THESE INSTRUCTIONS
Wiring supplies
as required by
local electrical
code
1. TURN OFF ELECTRICAL POWER BEFORE STARTING INSTALLATION OF LIGHT FIXTURE.
2. THIS PRODUCT MUST BE INSTALLED IN ACCORDANCE WITH THE APPLICABLE INSTALLATION CODE
BY A PERSON FAMILIAR WITH THE CONSTRUCTION AND OPERATION OF THE PRODUCT AND THE
HAZARDS INVOLVED.
3. CONNECT THE GROUND WIRES (BARE COPPER OR GREEN) FROM YOUR FIXTURE TO THE GROUND
WIRE (BARE COPPER OR GREEN) OR GROUND SCREW IN THE ELECTRICAL BOX.
4. TO CLEAN THE FIXTURE, TURN OFF THE POWER, WAIT FOR IT TO COOL, AND WIPE THE FIXTURE WITH A
CLEAN, SOFT CLOTH.
NOTE: Product may not look exactly as shown in figures.
4. Connect the ground
wires (bare copper or green)
from your fixture to the
ground wire (bare copper or
green) or ground screw in
the electrical box. Connect
the black wire from the
fixture to the black wire in
the electrical box and
connect the white wire from
the fixture to the white wire
in the electrical box.
5. Once connections of
wires are completed, carefully
tuck wires and wire nuts into
the electrical box making
sure no bare wire (on the
black and white) is visible at
the wire nuts.
6. Secure the pan to the
nipple tightening by star
washer and hex nut. Screw
the finial to the nipple.
7. Install specified bulb
type and wattage (not
included).
Mounting
Bracket
Electrical
Box
Nipple
Hex nut
Electrical Box Screws
(not included)
White
Black
House
supply
Ground wire
Fixture
Ground
wire
Nipple
Hex Nut
Finial
Pan
Star
Washer

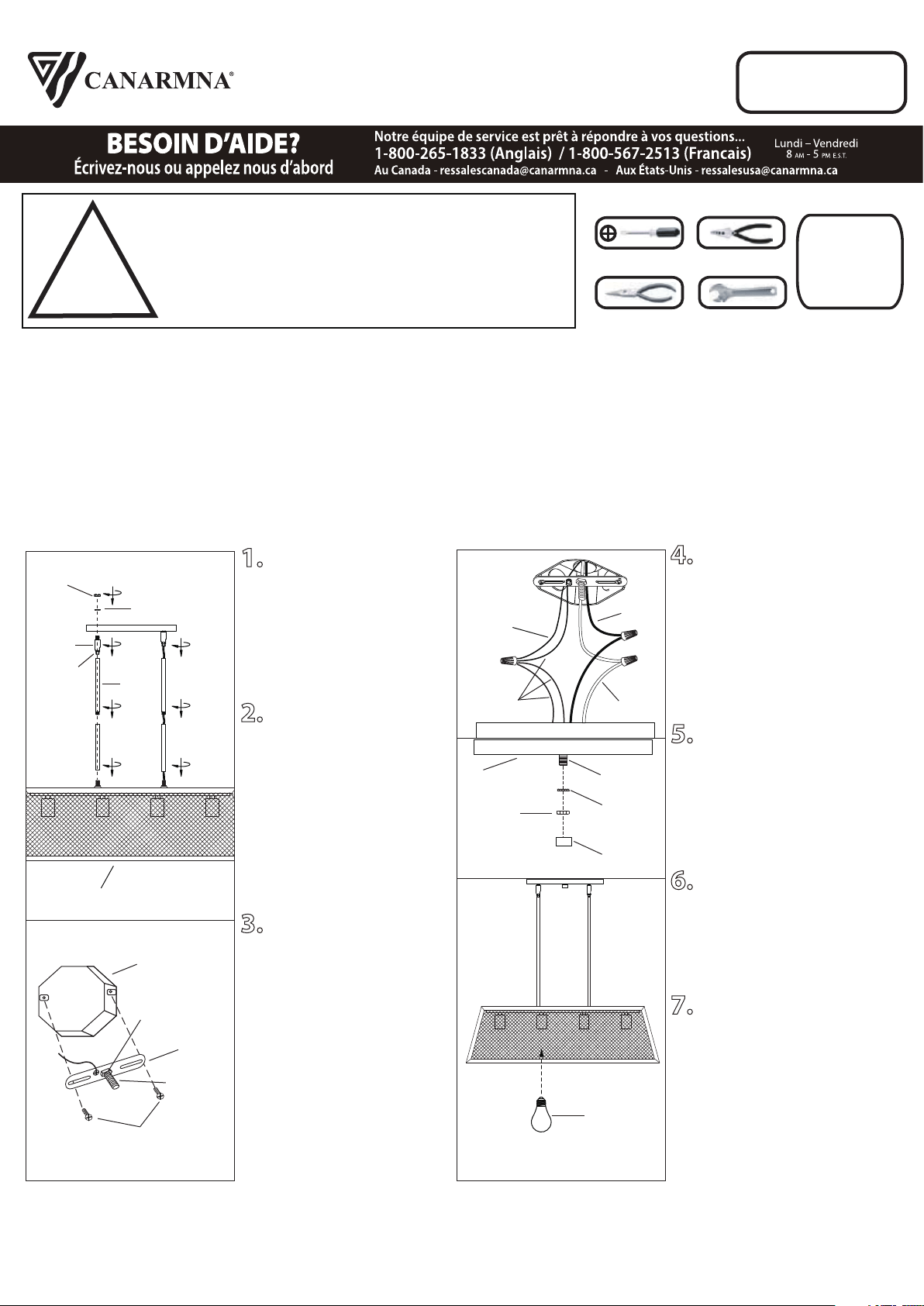

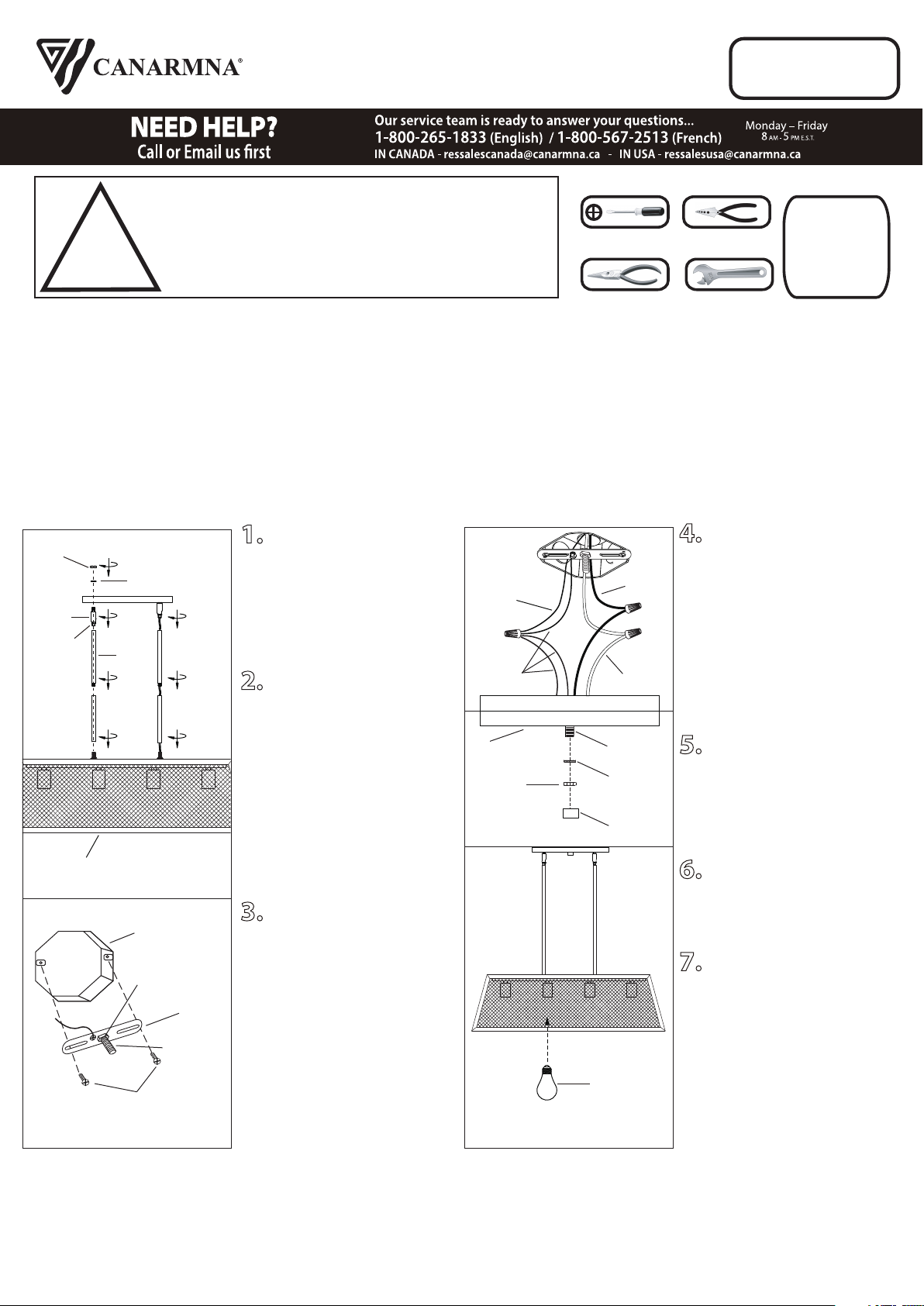

INSTALLATION:
SAFETY PRECAUTIONS:
TOOLS AND MATERIALS REQUIRED:
Fixture
Hex
Nut
Star
Washer
Rod
Sleeve
Swivel
Bulb
