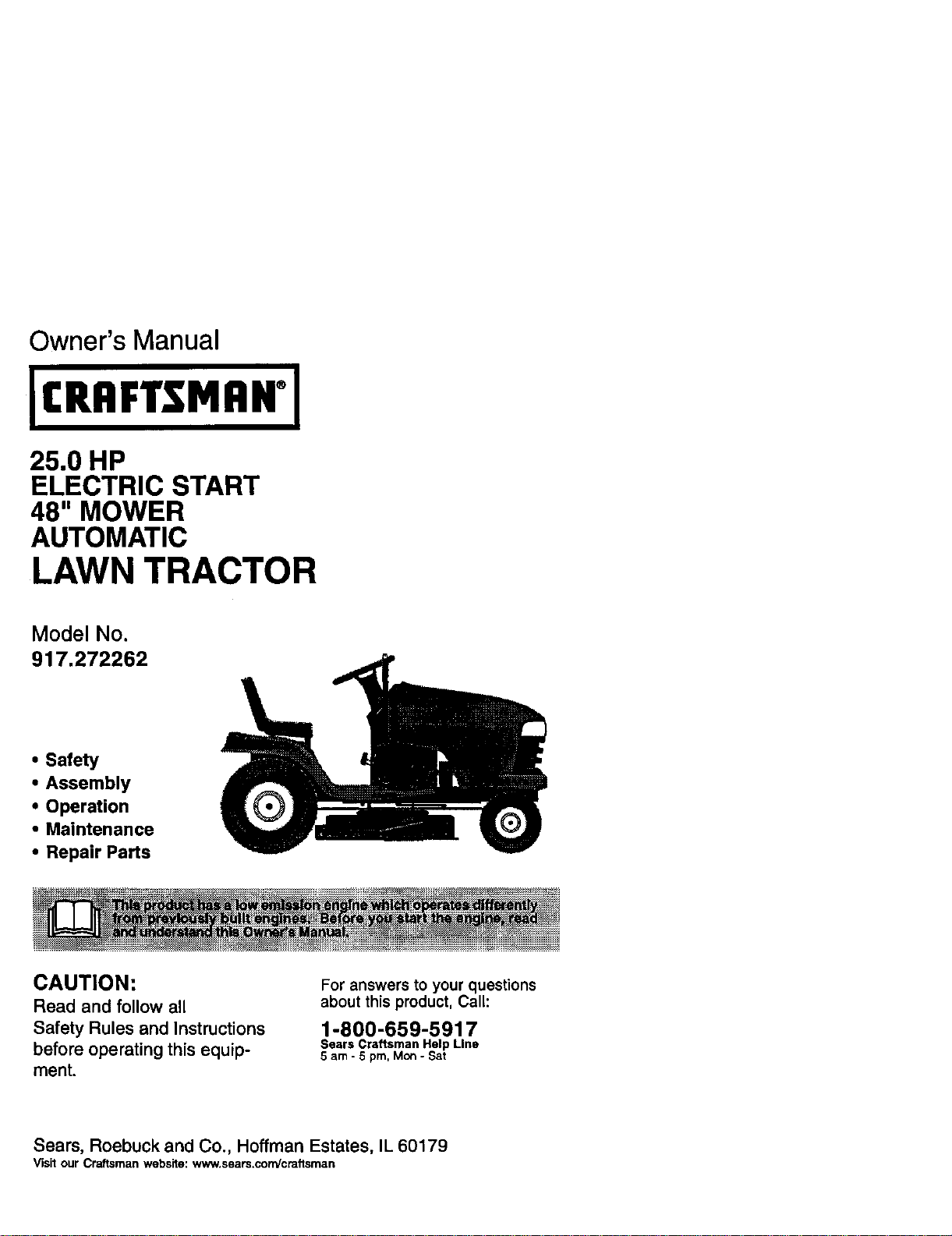

Craftsman 917272262 lawn tractor User Manual

Owner's Manual

JCRRFTSMRN°J

25.0 HP

ELECTRIC START

48" MOWER

AUTOMATIC

LAWN TRACTOR

Model No.

917.272262

• Safety

• Assembly

• Operation

• Maintenance

• Repair Parts

CAUTION:

Read and follow all

Safety Rules and Instructions

before operating this equip-

ment.

For answers to your questions

about this product, Call:

1-800-659-5917

Sears Craftsman Help Line

5 am- 5 pm, Mort- Sat

Sears, Roebuck and Co., Hoffman Estates, IL 60179

Visit our Craftsman website: www.sears.com/craftsman

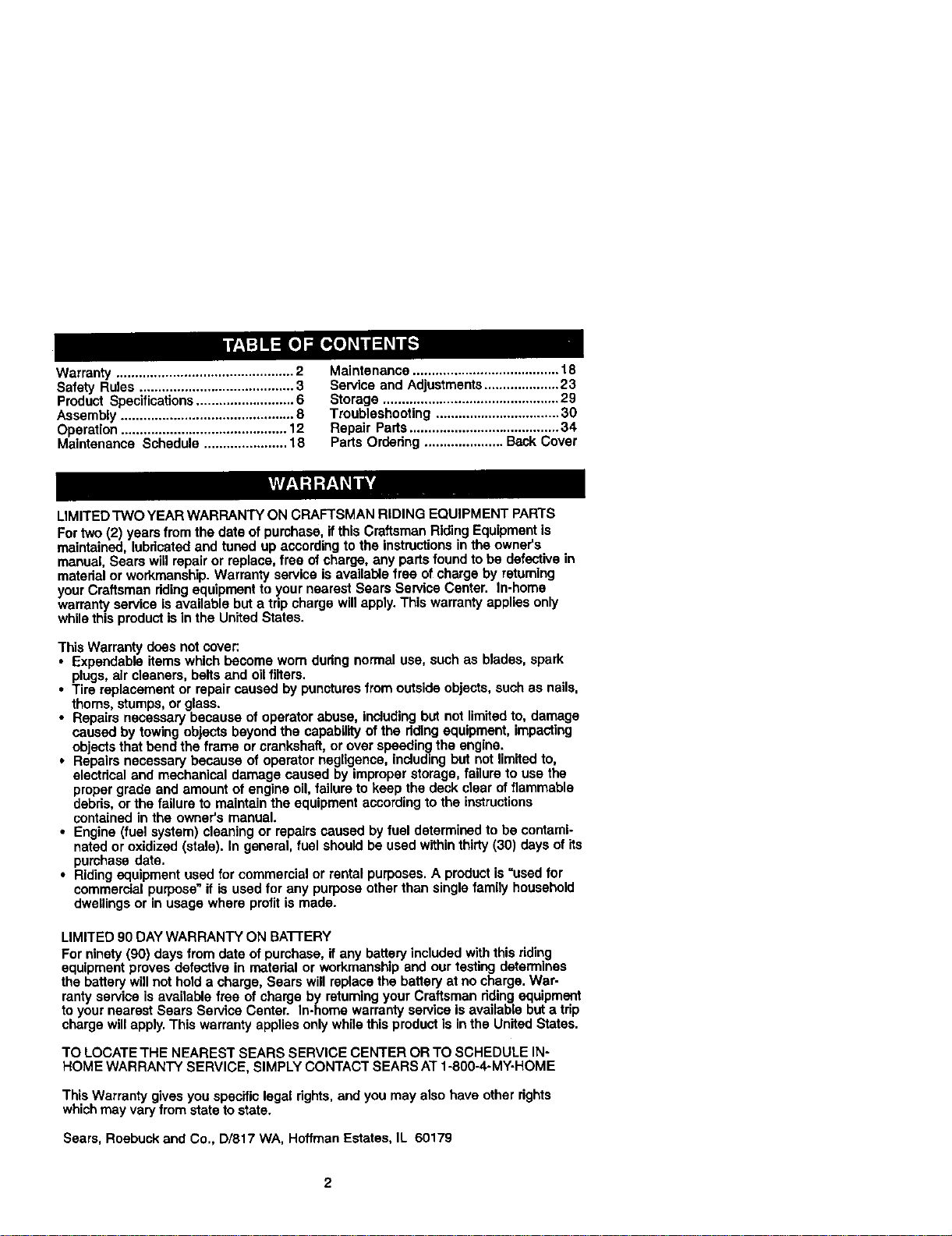

Warranty ............................................... 2

Safety Rules ......................................... 3

Product Specifications .......................... 6

Assembly .............................................. 8

Operation ............................................ 12

Maintenance Schedule ...................... 18

Maintenance ....................................... 18

Service and Adjustments .................... 23

Storage ............................................... 29

Troubleshooting ................................. 30

Repair Parts........................................ 34

Parts Ordaring ..................... Back Cover

LIMITED TWO YEAR WARRANTY ON CRAFTSMAN RIDING EQUIPMENT PARTS

For two (2) years from the date of purchase, ifthis Craftsman Riding Equipment is

maintained, lubricated and tuned up according to the instructions in the owner's

manual, Sears will repair or replace, free of charge, any parts found to be defective in

matedal or workmanship. Warranty service is available free of charge by returning

your Craftsman dding equipment to your nearest Sears Service Center. In-home

warranty service is available but a tdp charge will apply. This warranty applies only

while thisproduct isin the United States.

This Warranty does not cover:.

• Expendable items which become worn dudng normal use, such as blades, spark

plugs, air cleaners, belts and oil filters.

• Tire replacement or repair caused by punctures from outside objects, such as nails,

thorns, stumps, or glass.

• Repairs necessary because of operator abuse, including but not limitedto, damage

caused by towing objects beyond the capability of the ddlng equipment, impacting

ob ects that bend the frame or crankshaft, or over speeding the engine.

• Repa rs necessary because of operator negligence, including but not limited to,

electdcal and mechanical damage caused by improper storage, failure to use the

proper grade and amount of engine oil,failure to keep the deck clear of flammable

debds, or the failure to maintain the equipment according to the instructions

contained in the owner's manual.

• Engine (fuel system) cleaning or repairs caused by fuel determined to be contami-

nated or oxidized (stale). In general, fuel should be used within thirty (30) days of its

purchase date.

• Riding equipment used for commercial or rental purposes. A productis =used for

commercial purpose" it is used for any purpose other than single family household

dwellings or in usage where profit is made.

LIMITED 90 DAY WARRANTY ON BA'R'ERY

For ninety (90) days from date of purchase, if any battery included with this dding

equipment proves defective in matedal or workmanship end our testing determines

the battery willnot hold a charge, Sears will replace the battery at no charge. War-

ranty service is available free of charge by retuming your Craftsman dding equipment

to your nearest Sears Service Center. In-home warranty service Is available but a tdp

charge will apply. This warranty applies only while this product is in the United States.

TO LOCATE THE NEAREST SEARS SERVICE CENTER OR TO SCHEDULE IN-

HOME WARRANTY SERVICE, SIMPLY CONTACT SEARS AT1-800-4-MY-HOME

This Warranty givesyou specific legal dghts, and you may also have other dghts

whichmay vary from stateto state.

Sears, Roebuck and Co., D/617 WA, Hoffman Estates, IL 60179

IMPORTANT: This cutting machine is capable of amputating hands and feet and

throwingobjects. Failure to observe the following safety instructionscould result in

serious injury or death.

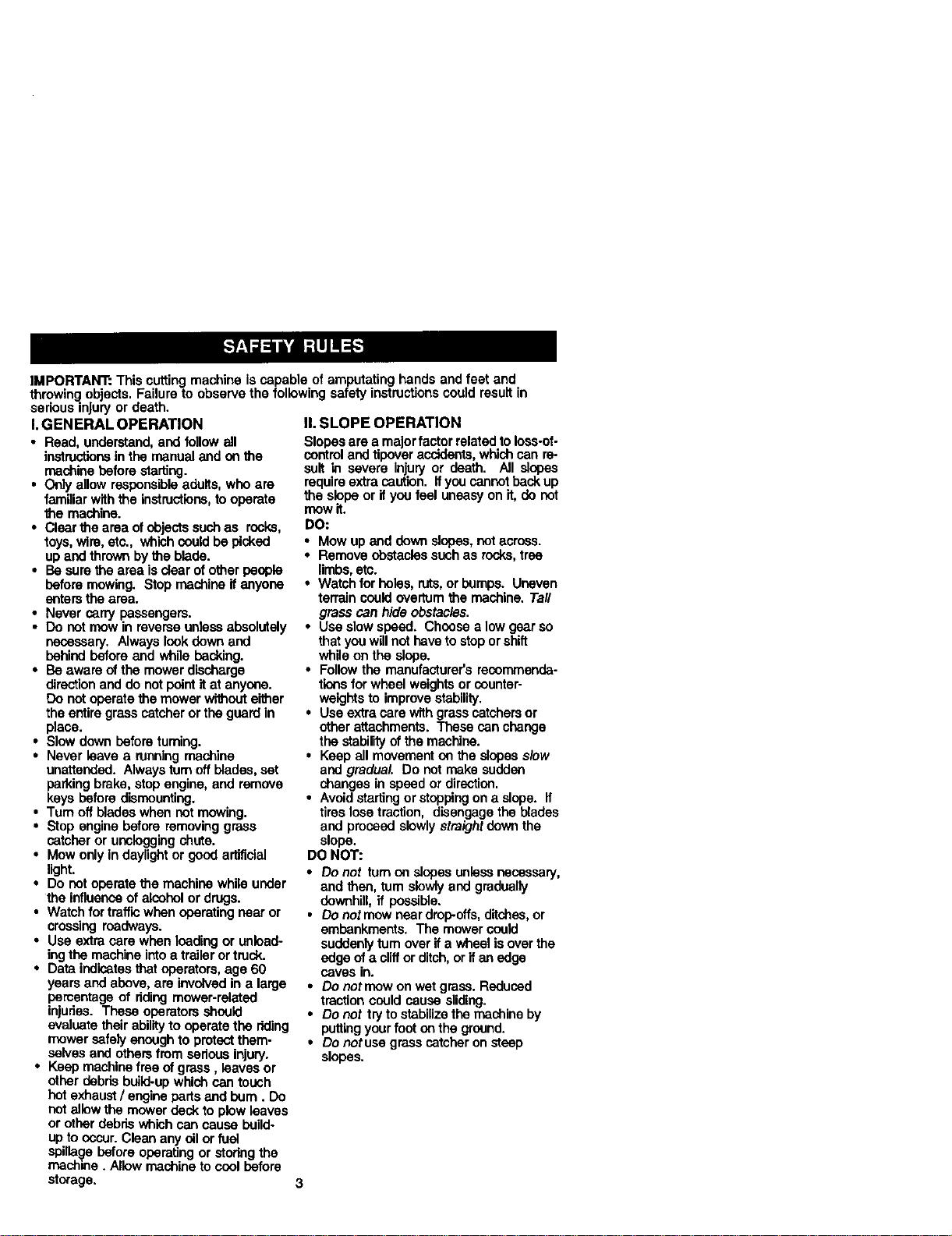

I.GENERAL OPERATION

• Read, understand,and follow all

instructions in the manual and on the

machine before starting.

• Only allow responsible adults,who are

familiarwiththe instructions,to operate

the machine.

• Clear the area of objectssuchas rooks,

toys,wire, etc., whichcouldbe picked

up and thrownby the blade.

• Be surethe area is clear ofother people

before mowing. Stop machine if anyone

entersthe area.

• Never carry passengers.

• Do notmow in reverse unless absolutely

necessary. Always look down and

behind before and while backing.

• Be aware of the mower discharge

direction and do not point it at anyone.

Do not operate the mower withouteither

the entire grass catcher or the guard in

place.

• Slow down before tuming.

• Never leave a runningmachine

unattended. Always fum off blades, set

parking brake, stop engine, and remove

keys before dismounting.

• Turn off blades when net mowing.

• Stop engine before removing grass

catcher or uncloggingchute.

• Mow only in daylightor good artificial

light.

• Do not operate the machine while under

the influenceof alcohol or drugs.

• Watch for traffic when operating near or

crossing roadways.

• Use extra care when loading or unload-

ingthe machine intoa trailer or truck.

• Data indicatesthat operators, age 60

years and above, are involvedin a large

pementage of ridingmower-related

injudas. These operators should

evaluate their abilityto operate the riding

mower safelyenough to protectthem-

selves and othersfrom serious injury.

• Keep machine free of grass, leaves or

other debris build-upwhich can touch

hot exhaust/ engineparts end bum. Do

not allow the mower deck to plow leaves

or other debriswhich can cause build-

upto occur. Clean any oil or fuel

spillage before operating or storing the

machine. Allow machine to cool before

storage.

II. SLOPE OPERATION

Slopes are a majorfactor related toloss-of-

control and tipoveraccidents,whichcan re-

suit in severe injuryor death. All slopes

requireextra caution. Ifyou cannotbeck up

the slope or ifyou feel uneasyon it, do not

mow it.

DO:

• Mow upend down slopes, notacross.

• Remove obstaclessuch as rocks,tree

limbs,etc.

Watch for holes, ruts,or bumps. Uneven

terrain couldoverturnthe machine. Tall

grass can hide obstacles.

Use slowspeed. Choosea low gear so

that youwillnot have tostop orshift

while on the slope.

Followthe manufacturer's rscommenda.

tions for wheel weights or counter-

weights to improve stability.

Use extra care with grasscatchersor

other attachments. These can change

the stabirdyof the machine.

Keep all movement on the slopes slow

and gradual. Do not make sudden

changes in speed or direction.

Avoidstarting or stopping on a slope. If

tireslose traction, disengage the blades

and pmcaed slowlystraightdownthe

slope.

DO NOT:

• Do not fum on slopes unlessnecessary,

and then, turn slowlyand gradually

downhill,if possible.

• Do notmow near drop-offs,ditches,or

embankments. The mower could

suddenlyturn over if a wheal is over the

edge of a cliffor ditch,or If an edge

caves in.

• Do notmow on wet grass. Reduosd

traction could cause sliding.

• Do not try to stabilizethe machine by

putting your foot on the ground.

• Do netuse grass catcher on steep

slopes.

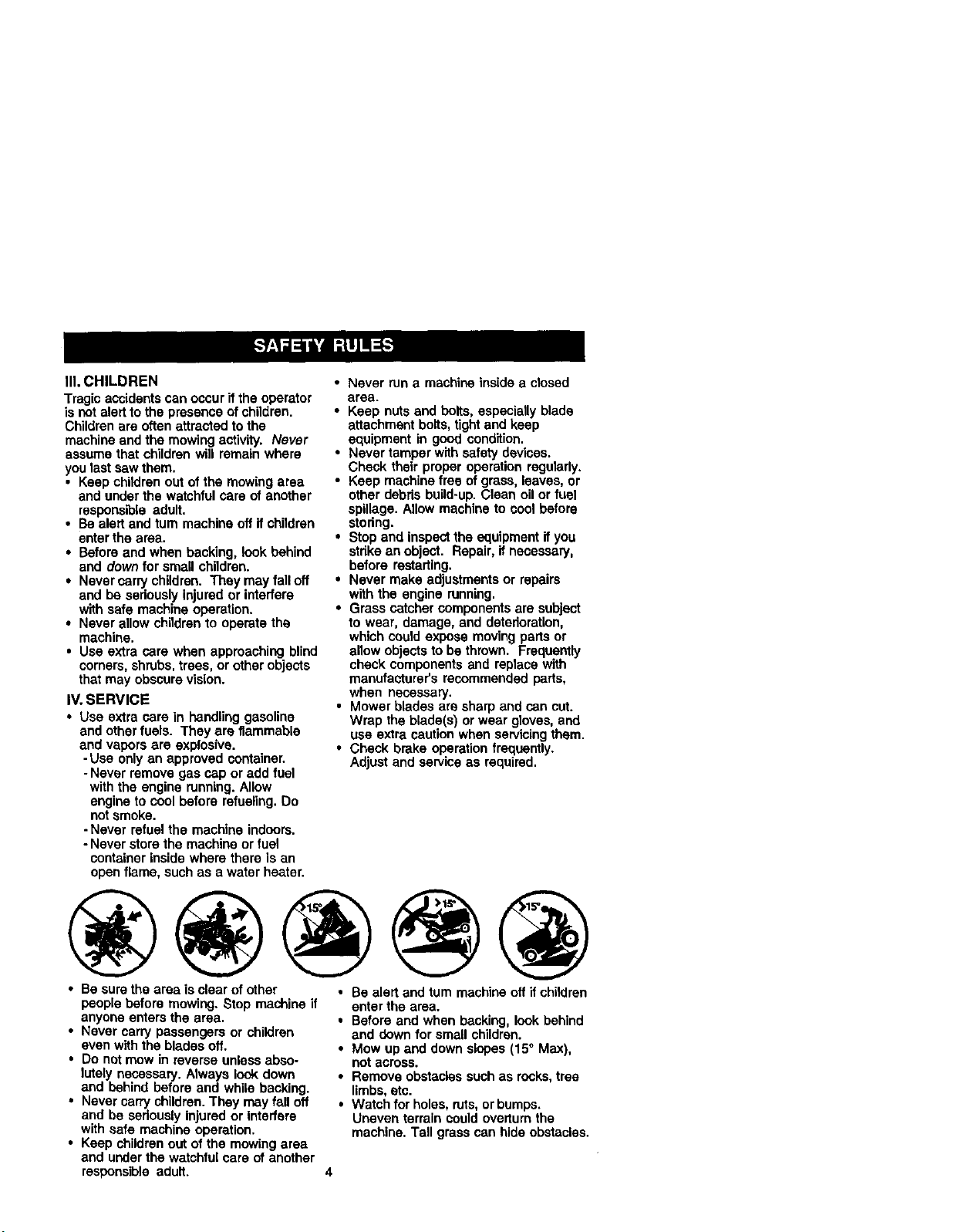

IlL CHILDREN

Tragic accidentscan occur if the operator

is not alertto the presenca of children.

Childrenare often attracted to the

machine and the mowing activity. Never

assume that children wiif remain where

you last saw them.

• Keep children out of the mowing area

and under the watchful care of another

responsible adult.

• Be alert and turn machine off if children

enter the area.

• Before and when backing, look behind

and down for small children.

• Never carry children. They may fall off

and be seriously injured or interfere

with safe machine operation.

• Never allow children to operate the

machine.

• Use extra care when approaching blind

comers, shrubs,trees, or other objects

that may obscure vision.

IV. SERVICE

• Use extra care in handling gasoline

and other fuels. They are flammable

and vapors are explosive.

-Usa only an approved container.

-Never remove gas cap or add fuel

with the engine running. Allow

engine to cool before refueling. Do

not smoke.

-Never refuel the machine indoors.

-Never store the machine or fuel

container inside where there is an

open flame, such as a water heater.

• Never run a machine inside a closed

area.

• Keep nuts and bolts, especially blade

attachment bolts, tight and keep

equipment in good condition.

• Never tamper with safety devices.

Check their proper operation regularly.

• Keep machine free of grass, leaves, or

other debds build-up. Clean oil or fuel

spillage. Allow machine to cool before

storing.

• Stop and inspectthe equipment it you

stdke an object. Repair, if necessary,

before restarting.

• Never make adjustments or repairs

with the engine running.

• Grass catcher components are subject

to wear, damage, and deterioration,

which could expose movingparts or

allow objects to be thrown. Frequently

check components and replace with

manufacturer's recommended parts,

when necessary.

• Mower blades are sharp and can cut.

Wrap the blade(s) or wear gloves, and

use extra caution when servicingthem.

• Check brake operation frequently.

Adjust and service as required.

• Be sure the area is clear of other

people before mowing. Stop machine if

anyone enters the area.

• Never carry passengers or children

even with the blades off.

• Do not mow in reverse unless abso-

lutely necessary. Always look down

and behind before and while backing.

• Never carry children. They may fall off

and be seriously injured or interfere

with safe machine operation.

• Keep children out of the mowing area

and under the watchful care of another

responsible adult.

• Be alert and turn machine off if children

enter the area.

• Before and when backing, look behind

and down for small children.

• Mow up and down slopes (15° Max),

not across.

• Remove obstacles suchas rocks, tree

limbs, etc.

• Watch for holes, ruts, or bumps.

Uneven terrain could overturn the

machine. Tall grass can hide obstacles.

• Use slow speed. Choose a low gear so

that you willnot have to stopor shift

while on the slope.

• Avoid startingor stoppingon a slope. If

tires lose traction, disengage the

blades and proceed slowly straight

down the slope.

• If machine stops while going uphill,

disengage blades, shift into reverse

and back down slowly.

• Do notturn on slopes unless neces-

sary, and then, turn slowly and gradu-

ally downhill, if possible.

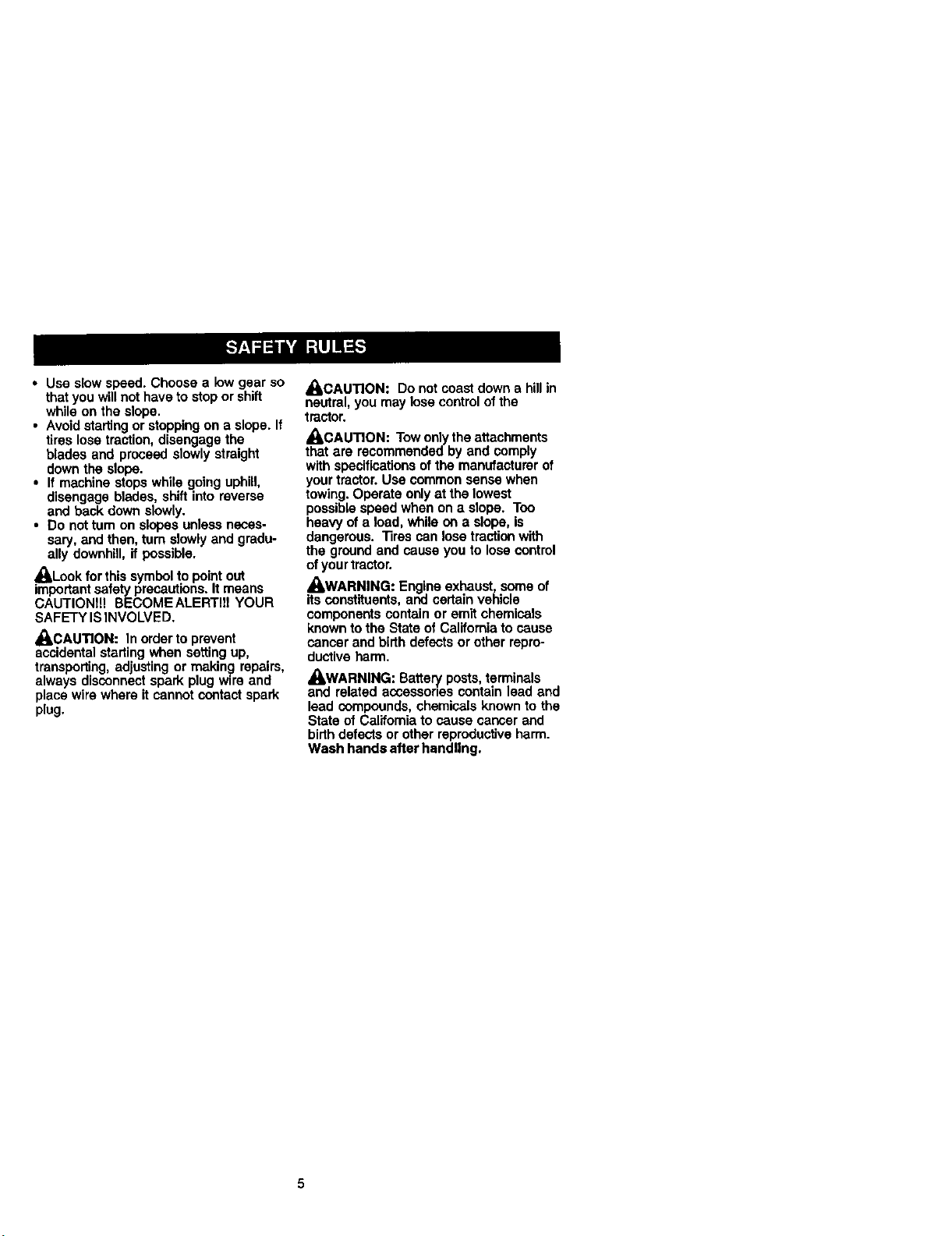

_!l=Look for this symbol to point out

importantsafety precautions. It means

CAUTIONI!! BECOMEALERTlil YOUR

SAFETY ISINVOLVED.

_,CAUTION: In order to prevent

accidental starting when setting up,

transporting, adjusting or making repairs,

always disconnect spark plug wire and

place wire where it cannot contact spark

plug.

_CAUTION: Do not coast down a hill in

neutral, you may lose control of the

tractor.

_CAUTION: Tow onlythe attachments

that are recommended by and comply

with specificationsof the manufacturer of

your tractor. Use common sense when

towing. Operate only at the lowest

possiblespeed when on a slope. Too

heavy of a load, while on a slope, is

dangerous. Tires can lose traction with

the ground and cause you to lose control

ofyour tractor.

_WARNING: Engine exhaust, soma of

its constituents, and certain vehicle

components contain or emit chemicals

known to the State of California to cause

cancer and birthdefects or other repro-

ductive harm.

_IbWARNING: Battery posts,terminals

and related accessories contain lead and

lead compounds, chemicals known to the

State of California to cause cancer and

birth defects or other reproductiveharm.

Wash hands after handitng.

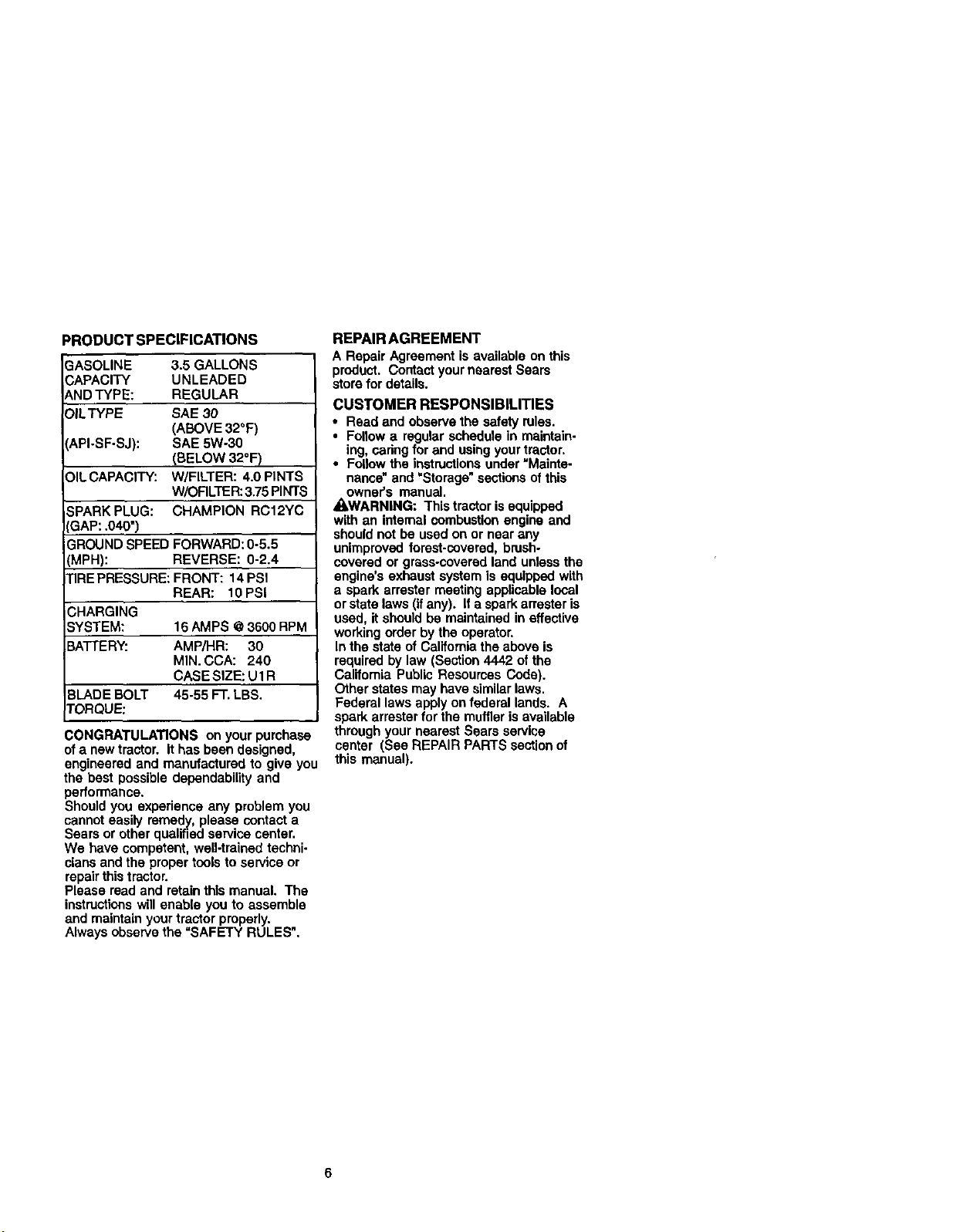

PRODUCTSPECIFICATIONS

;ASOLINE 3.5GALLONS

;APACITY UNLEADED

_NDTYPE: REGULAR

:_ILTYPE SAE 30

(ABOVE 32°F)

I_API-SF-SJ): SAE 5W-30

(BELOW 32°F)

OILCAPACITY: W/FILTER: 4.0 PINTS

W/ORLTER: 3.75 PINTS

SPARKPLUG: CHAMPION RC12YC

SAP: .040")

GROUND SPEED FORWARD: 0-5.5

(MPH): REVERSE: 0-2.4

TIRE PRESSURE: FRONT: 14PSI

REAR: 10 PSI

CHARGING

SYSTEM: 16 AMPS @3600 RPM

BATTERY: AMP/HR: 30

MIN. CCA: 240

CASE SIZE: Ul R

BLADE BOLT 45-55 FT. LBS.

TORQUE:

CONGRATULATIONS on your purchase

of a new tractor. It has been designed,

engineered and manufactured to give you

the best possible dependability and

performance.

Should you experience any problem you

cannot easily remedy/,please contact a

Sears or other qualifrsd service center.

We have competent, well-trained techni-

ciansand the proper tools to service or

repair this tractor.

Please read and retain this manual. The

instructionswill enable you to assemble

and maintain your tractor properly. .

Always observe the SAFETY RULES.

REPAIR AGREEMENT

A Repair Agreement is available on this

product. Contact your nearest Sears

store for details.

CUSTOMER RESPONSIBILITIES

• Read and observe the safety rules.

• Follow a regular schedule in maintain-

ing, caring for and using your tractor.

• Follow the instructionsunder =Mainte-

nance" and =Storage" sections of this

owner's manual.

A,WARNING: This tractor is equipped

with an internal combustionengine and

should not be used on or near any

unimproved forest-covered, brush.

covered or grass-covered land unless the

engine's exhaust system is equipped with

a spark arrester meeting applicable local

or state laws (ifany). If e spark arrester is

used, it should be maintained in effective

working order by the operator.

In the state of California the above is

required by law (Section 4442 of the

Califomia Public Resources Code).

Other states may have similarlaws.

Federal laws apply on federal lands. A

spark arrester for the muffler is available

through your nearest Sears service

center (See REPAIR PARTS sectionof

this manual).

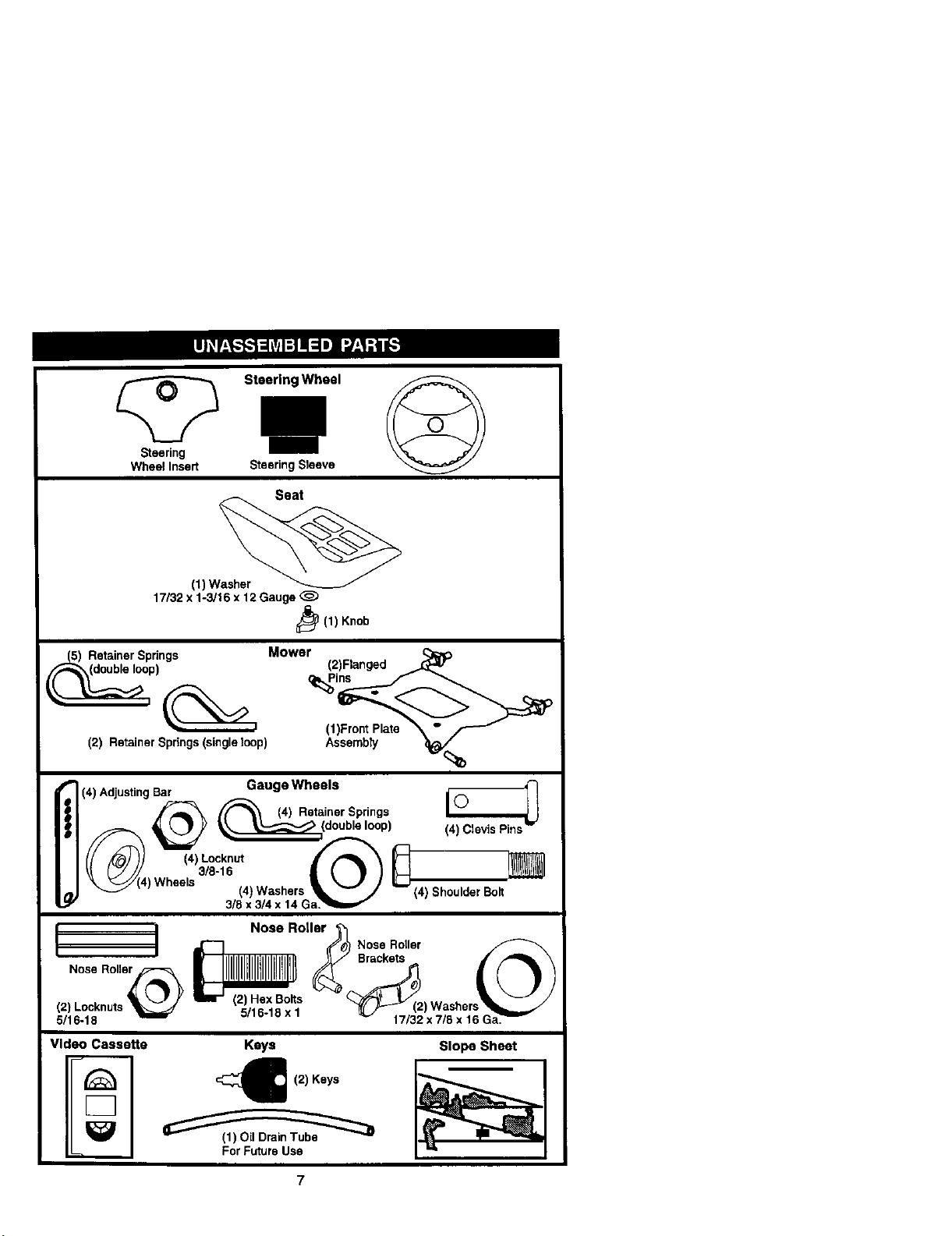

Steering Wheel

Steering

Wheel Insert Steering Sleeve

Seat

(1)w_

17/32x 1-3/16x 12Gauge

_(1) Knob

Mower

Retainer Springs

)

(2) Retainer Springs (single loop)

(2)Flanged j_O

(1)FrontPlate _"

(4) Adjusting Bar Gauge Wheels

_ (4)Retainer Springs _,---_ I

_ _ ); __(double loop) (4) Clevis Pins w

(4)gc ;ut

'_/(4)Wheels (4)Washers _."_"/_/ _-J'(4) ShoulderBo'_"

3/8 x 3/4 x 14 Ga:'_=, _

I m Nose Roller '_1

I _0) Nose Rotler

Nose Rolle_ _(2

(2) Hex Bolts

(2) Locknuts =;/tR tRv 1 ) Washer

.... "..... 17/32 x 7/8 x 16 GaY5/16-18

Video Cassette Keys

_ (2) Keys

(;JrOFlluDrlai_j:ube

Slope Sheet

Yournewtractorhas been assembled at the factory with exception of those parts left

unassembled for shipping purposes. To ensure Safe and proper operation ofyour

tractor all partsand hardware you assemble must be tightened securely. Use the

correct tools as necessary to insure proper tightness. Review the video cassette before

you begin.

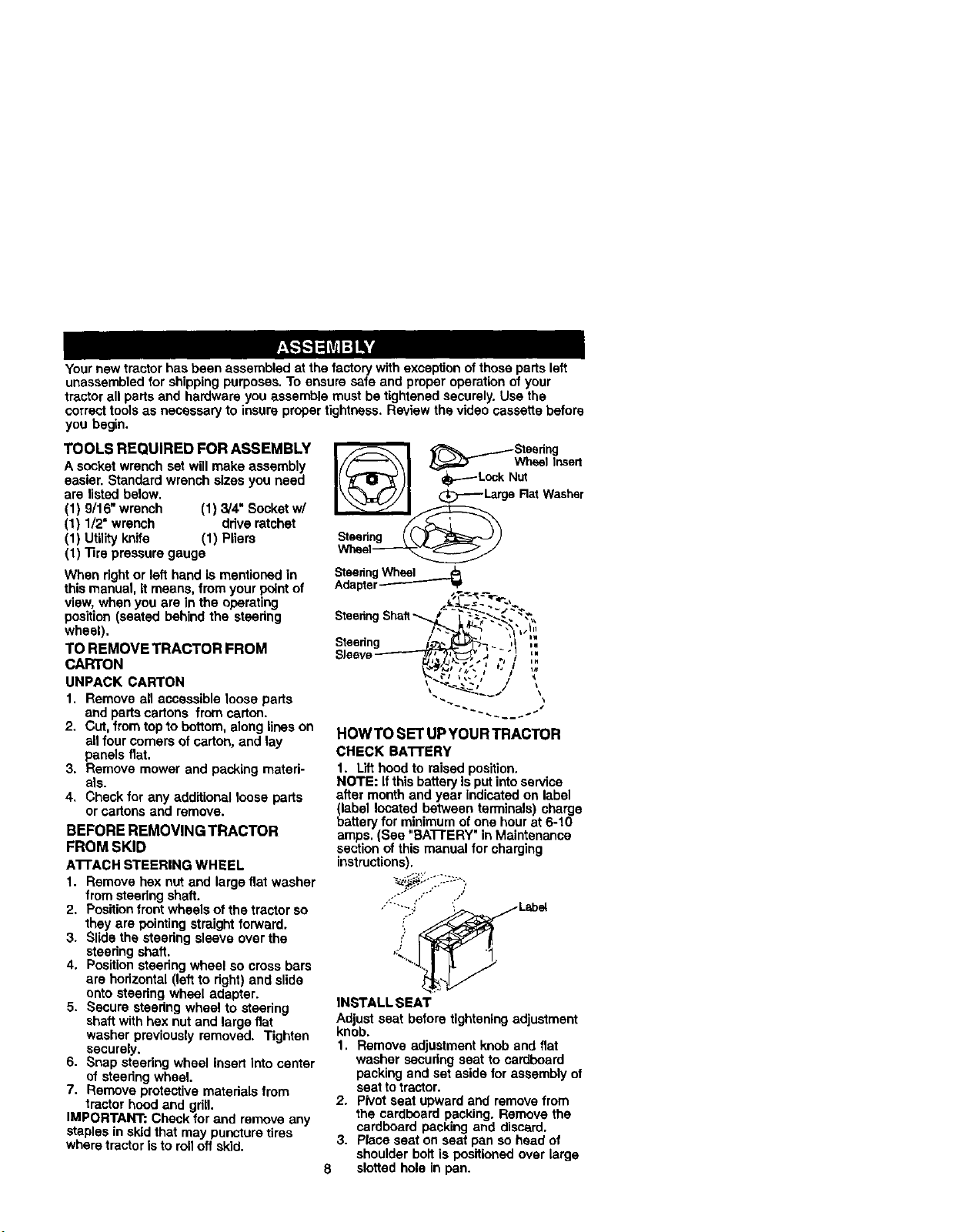

TOOLS REQUIRED FOR ASSEMBLY

A socket wrench set will make assembly

easier. Standard wrench sizes you need

are listed below.

(1) 9/16" wrench (1) 3/4" Socket w/

(1) 1/2=wrench ddve ratchet

(1) Utility knife (1) Pliers

(1) "[]repressure gauge

When rightor left hand is mentioned in

this manual, it means, from your point of

view, when you are in the operating

position (seated behind the steedng

wheel).

TO REMOVE TRACTOR FROM

CARTON

UNPACK CARTON

1, Remove all accessible loose parts

and partscartons from carton.

2. Cut, from top to bottom, along lines on

ell four comers of carton, and lay

panels flat.

3. Remove mower and packing materi-

als.

4, Check for any additional loose parts

or cartons and remove.

BEFORE REMOVING TRACTOR

FROM SKID

ATrACH STEERING WHEEL

1. Remove hax nut and large flat washer

from steedng shaft.

2. Positionfront wheels of the tractor so

they are pointingstraight forward.

3. Slide the steering sleeve over the

steering shaft.

4. Position steering wheel so cross bars

are horizontal (left to right) and slide

onto steering wheel adapter.

5, Secure steedng wheel to steering

shaft with hex nut and large flat

washer previously removed. Tighten

securely.

6. Snap steering wheel insert into center

of steering wheel.

7. Remove protective materials from

tractor hood and grill.

IMPORTANT: Check for end remove any

staples in skid that may puncture tires

where tractor is to roll off skid.

_ _...__.._Steedng

wheelIr ort

II i.l<.

Stesdng (tJ _J )

Wheel_

StsedngWheel _._

Adapter/ _1_

SteeringShaft_ #" ~'_'-_-'_._'.",,

• /!__ (_'1[_ji: i ill

Sleeve---------'7_,,,._='_:_,v J ,'J 1.

../ I IH

HOW TO SET UP YOUR TRACTOR

CHECK BA'I'rERY

1. Lift hood to raised position.

NOTE: Ifthis batteryisput intoservice

after month and year indicated on label

(label located between terminals) charge

battery for minimum of one hourat 6-10

amps. (See "BA'I-I'ERY" in Maintenance

section ofthis manual for charging

instructions),

--._;.-]....- ----:,

INSTALL SEAT

Adjust seat before tightening adjustment

knob.

1, Remove adjustment knob and flat

washer securing seat to cardboard

packing and set aside for assembly of

seat totractor.

2. Pivot seat upward and remove from

the cardboard packing. Remove the

cardboard packing and discard.

3. Place seat on seat pan so head of

shoulder bolt is positioned over large

8 slotted hole in pan.

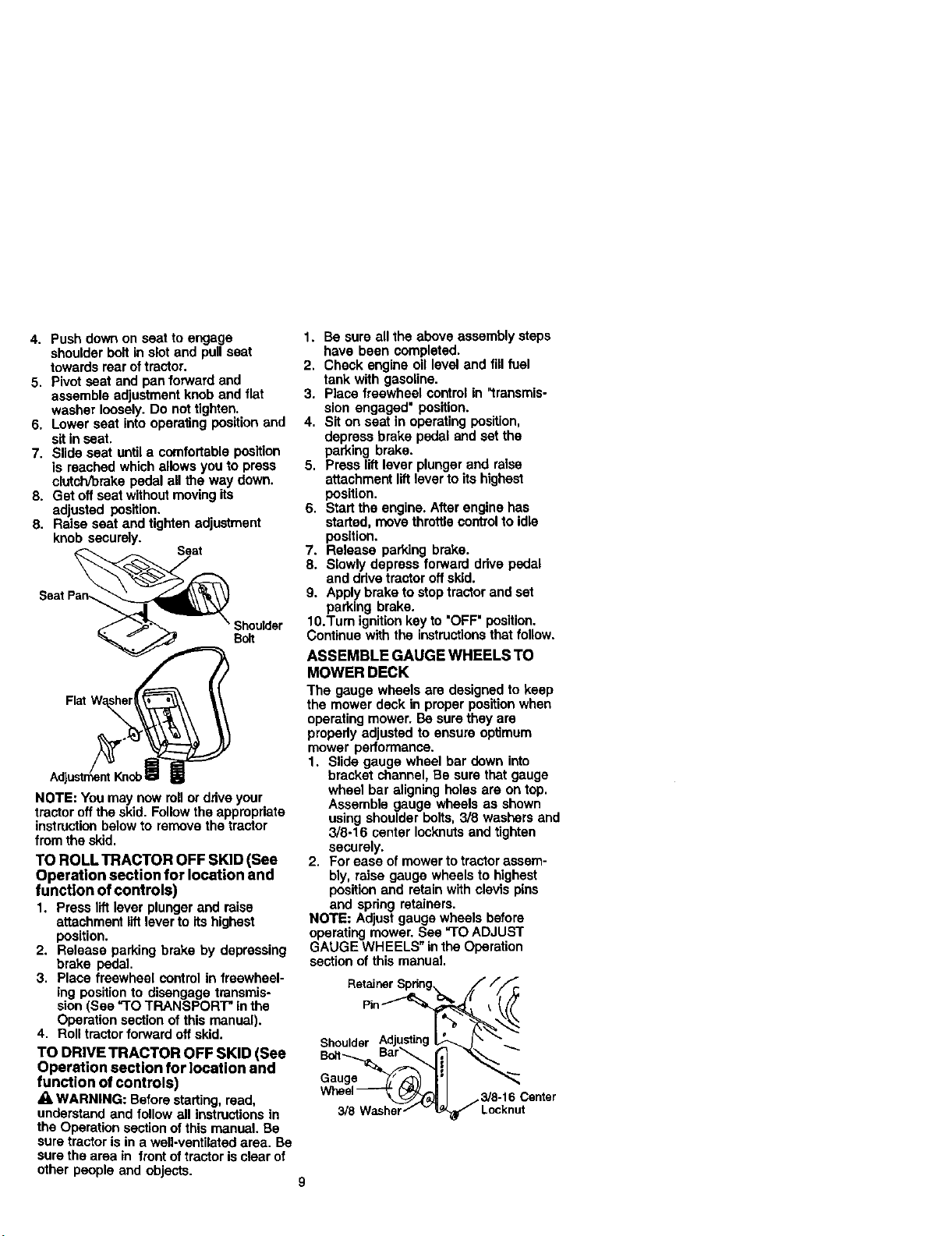

4. Pushdownonseattoengage

shoulderboltinslotandpullseat

towardsrearoftractor.

5. Pivotseatandpanforwardand

assembleadjustmentknobandflat

washerloosely.Donottighten.

6. Lowerseatinto operating position and

sit in seat.

7. Slide seat untila comfortable position

is reached which allows you to press

clutcWorake pedal all the way down.

8. Get off seat withoutmoving its

adjusted position.

8. Raise seat and tighten adjustment

knob securely.

Shoulder

Bolt

Flat

NOTE: You may now roll or drive your

tractor off the skid. Follow the appropriate

instruction below to remove the tractor

from the skid.

TO ROLLTRACTOR OFF SKID (See

Operation section for location and

function of controls)

1. Press liftlever plunger and raise

attachment liftlever to its highest

position.

2. Release parking brake by depressing

brake pedal.

3. Place freewheel control in freewheel-

ing positionto disengage transmis-

sion (See '1"O TRANSPORT' in the

Operation section of this manual).

4. Roll tractorforward off skid.

TO DRIVE TRACTOR OFF SKID (See

Operation section for location and

function of controls)

WARNING: Before starting,read,

understand and follow all instructionsin

the Operation section ofthis manual. Be

sure tractoris in a well-ventilated area. Be

sure the area in front of tractor is clear of

other people and objects.

1. Be sure all the above assembly steps

have been completed.

2. Check engine oil level and fill fuel

tank with gasoline.

3. Place freewheel control in 'lransmis-

sion engaged" position.

4. Sit on seat in operating position,

depress brake pedal and set the

parking brake.

5. Press liftlever plunger and raise

attachment liftlever to its highest

position.

6. Start the engine. After engine has

started, move throttle controlto idle

position.

7. Release parking brake.

8. Slowly depress forward drive pedal

and ddve tractor offskid.

9. Apply brake to stop tractor and set

parking brake.

10.Turn ignitionkey to "OFF"position.

Continue with the instructionsthat follow.

ASSEMBLE GAUGE WHEELS TO

MOWER DECK

The gauge wheels are designed to keep

the mower deck in proper position when

operating mower. Be sure they are

propedy adjusted to ensure optimum

mower performance.

1. Slide gauge wheel bar down into

bracket channel, Be sure that gauge

wheel bar aligning holes are on top.

Assemble gauge wheels as shown

using shoulder bolts. 3/8 washers and

3/8-16 center Iocknutsand tighten

securely.

2. For ease ofmower to tractor assem-

bly, raise gauge wheels to highest

position and retain with clevis pins

and spdng retainers.

NOTE: Adjust gauge wheels before

operating mower. See "TO ADJUST

GAUGE WHEELS" inthe Operation

section of this manual.

RetainerSpring__ / F/._C

ou,°or

Gauge _' I<T_ I'1

Wheel_ I /3/8-16 Center

3/8 Washer-/" v _ Locknut

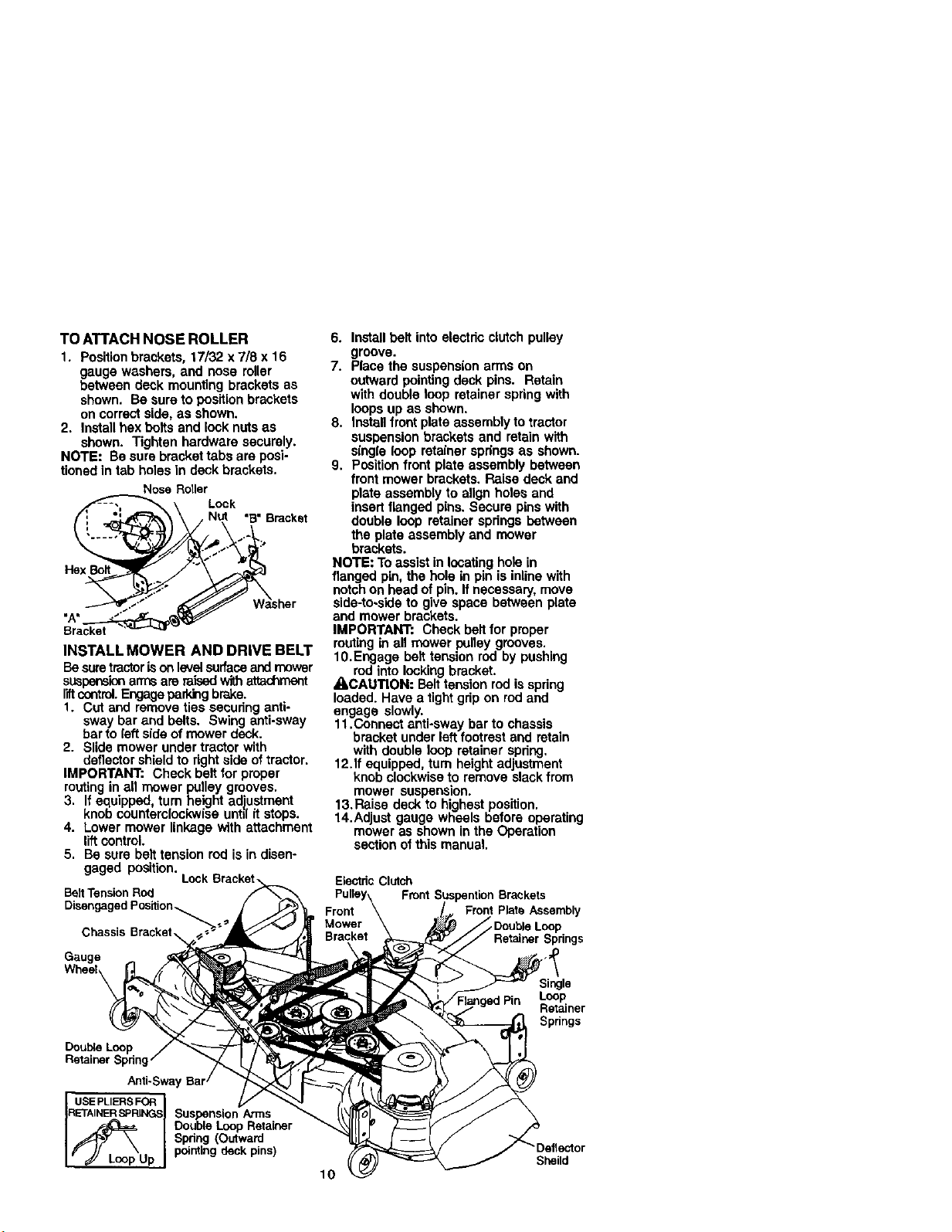

TOATTACHNOSEROLLER

1. Positionbrackets,17/32x7/8x16

gaugewashers,and nose roller

between deck mounting brackets as

shown. Be sure to position brackets

on correct side, as shown.

2. Install hax bolls and lock nuts as

shown. Tighten hardware securely.

NOTE: Be sure bracket tabs are posi-

tioned in tab holes in deck brackets.

Nose Roller

_\ Lock

Nut • "B"Bracket

INSTALL MOWER AND DRIVE BELT

Besuretractorison levelsurface andmower

suspensionarms are raised withattachment

liftcontrol.Engageparkingbrake.

1. Cut and remove ties securing anti-

sway bar and bells. Swing anti-sway

bar to [eft side of mower deck.

2. Slide mower under tractor with

deflectorshield to right side of tractor.

IMPORTANT: Check bell for proper

routingin all mower pulley grooves.

3. If equipped, turn height adjustment

knob counterclockwise untilit stops.

4. Lower mower linkage with attachment

lift control.

5. Be sure bell tension rod is in disen-

gaged position.

Be_tTension Rod

Chassis Bracket

Gauge

Wheet

Double Loop

Retainer Spring,

Anti-Swa_

USEPLIERSFOR I

RETAINERSPR[NGS Suspension Arms

I/_L_p Double Loop Retainer

Spring (Outward

Up pointing deck pins)

6. Install bell into electric clutch pulley

groove.

7. Place the suspension arms on

outward pointing deck pins. Retain

with double loop retainer spring with

loops up as shown.

8. Install front plate assembly to tractor

suspension brackets and retain with

single loop retainer springs as shown.

9. Position front plate assembly between

front mower brackets. Raise deck and

plate assembly to align holes and

insert flanged pins. Secure pins with

double loop retainer springs between

the plate assembly and mower

brackets.

NOTE: Toassist in locating holein

flanged pin, the hole in pin is inlina with

notch on head of pin. If necessary, move

side-to-side to give space between plate

and mower brackets.

IMPORTANT: Check belt for proper

routingin all mower pulley grooves.

10.Engage bell tension rod by pushing

rod into lockingbracket.

_kCAUTION: Bell tension rod isspring

loaded. Have a tight grip on rodand

engage slowly.

11.Connect anti-sway bar to chassis

bracket under left footrest and retain

with double loop retainer spring.

12.If equipped, turn height adjustment

knob clockwiseto remove slack from

mower suspension.

13.Raise deck to highest position.

14.Adjust gauge wheels before operating

mower as shown in the Operation

section ofthis manual.

Electdc Clutch

Pulley\ Front Suspention Brackets

Front Front Plate Assembly

Mower \ _Double Loop

Bracket Retainer Springs

Single

Loop

Retainer

Springs

Sheild

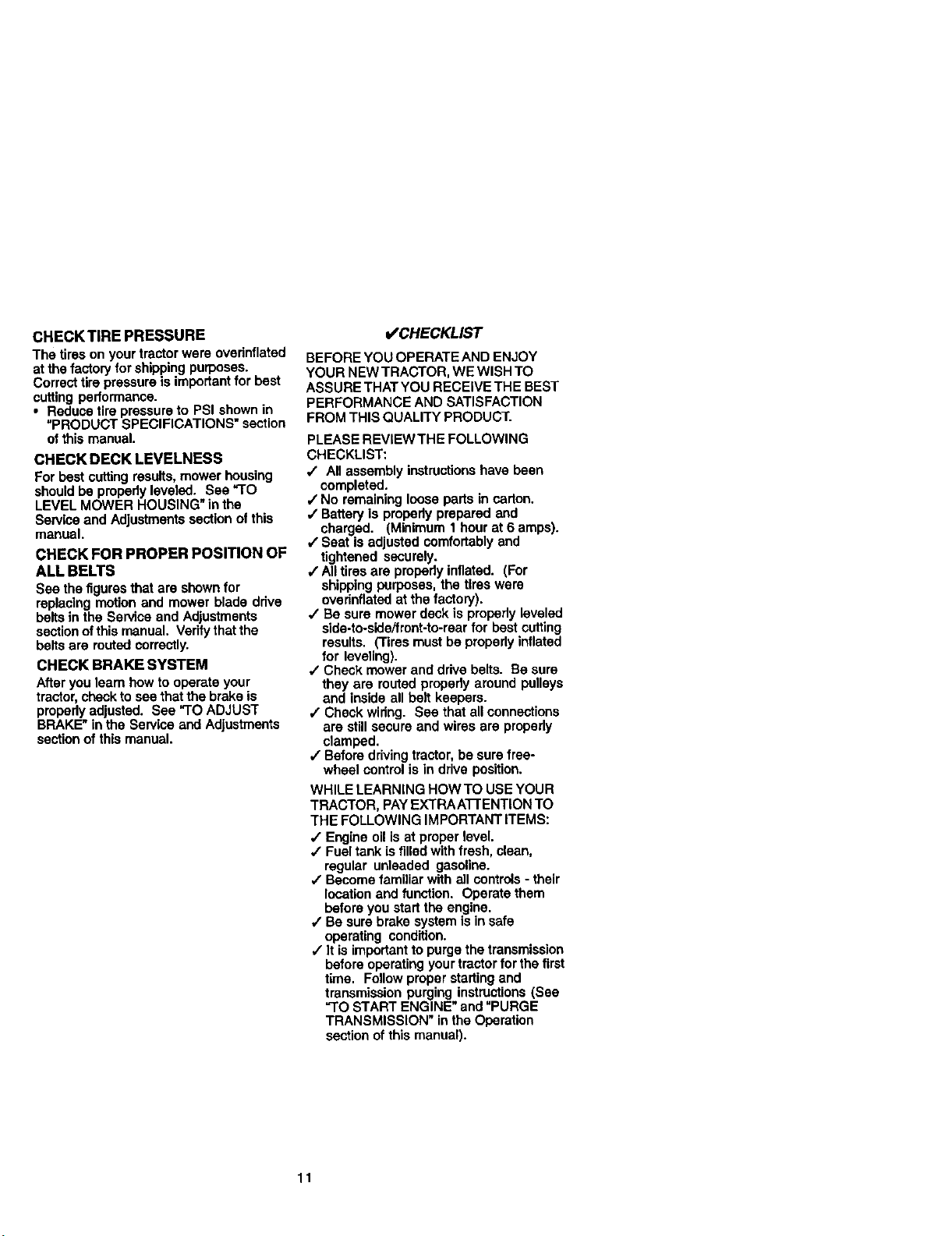

CHECKTIRE PRESSURE

The tires on your tractor were ovednflated

at the factoryfor shipping purposes.

Correcttire pressure is important for hast

cutting performance.

• Reduce tire pressure to PSI shown in

"PRODUCT SPECIFICATIONS" section

ofthis manual.

CHECK DECK LEVELNESS

For best cutting results, mower housing

should be propedy leveled. See "TO

LEVEL MOWER HOUSING" in the

Service and Adjustments section of this

manual.

CHECK FOR PROPER POSITION OF

ALL BELTS

See the figuresthat are shown for

replacing motion and mower blade ddve

beltsin the Service and Adjustments

sectionofthis manual. Verifythat the

beltsare routed correctly.

CHECK BRAKE SYSTEM

After you learn how to operate your

tractor,checkto see that the brake is

propedy adjusted. See TO ADJUST

BRAKE" in the Service and Adjustments

section of this manual.

_CHECKLIST

BEFORE YOU OPERATE AND ENJOY

YOUR NEW TRACTOR, WE WISH TO

ASSURE THAT YOU RECEIVE THE BEST

PERFORMANCE AND SATISFACTION

FROM THIS QUALITY PRODUCT.

PLEASE REVIEWTHE FOLLOWING

CHECKLIST:

4' All assembly instructionshave been

completed.

•/ No remaining loose parts in carton.

4' Battery is propody prepared and

charged. (Minimum 1 hour at 6 amps).

/ Seat is adjusted comfortably and

tightened securely.

/ All tires are propodyinflated. (For

shipping purposes, the tires were

ovednflated at the factory).

,/Be sure mower deck is propedy leveled

side-to-side/front-to-rear for best cutting

results. (Tires must be propady inflated

for leveling).

•/ Check mower and drive belts. Be sure

they are routed propedy around pulleys

and inside all belt keepers.

J Check widng. See that all connections

are still secure and wires are propody

clamped.

,/"Before drivingtractor,be sure free-

wheel control is in drive position.

WHILE LEARNING HOW TO USE YOUR

TRACTOR, PAY EXTRA A'l-rENTION TO

THE FOLLOWING IMPORTANT ITEMS:

,/Engine oil is at proper level.

,/Fuel tank is filled with fresh, clean,

regular unleaded gasoline.

4" Become familiar wRh all controls- their

locationand function. Operate them

before you start the engine.

/ Be sure brake system is in safe

operating condRion.

4" It is importantto purge the transmission

before operating your tractor for the first

time. Follow proper starting and

transmission purging instructions(See

"TO START ENGINE" and "PURGE

TRANSMISSION" in the Operation

section of this manual).

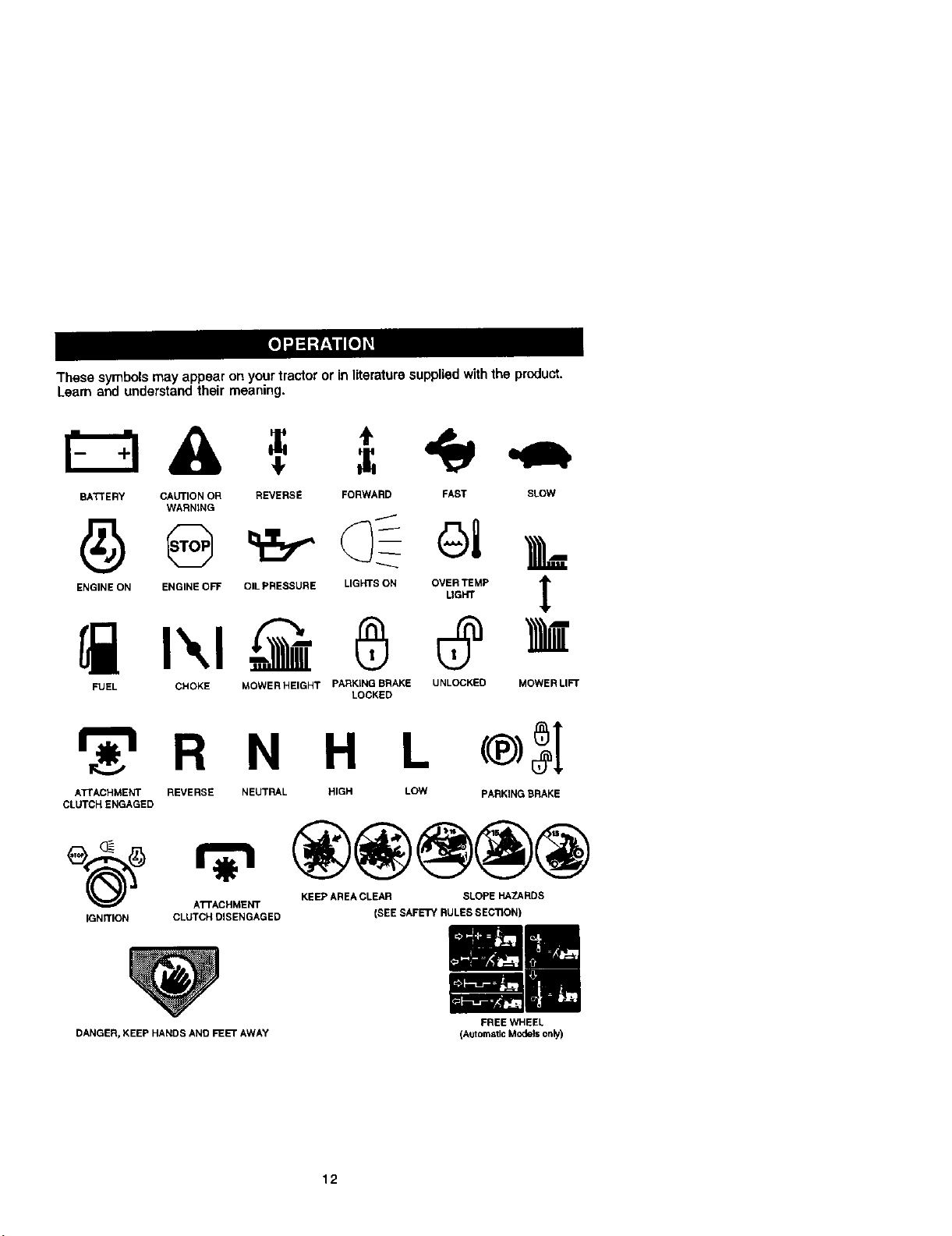

Thesesymbolsmayappearonyourtractororinliteraturesuppliedwiththeproduct.

Learn and understand their meaning.

BATTERY CAUTION OR REVERSE FORWARD FAST SLOW

WARNING

ENGINE ON ENGINE OFF OIL PRESSURE LIGHTS ON OVER TEMP

LIGHT

FUEL CHOKE MOWERHEIGHT PARKING BRAKE UNLOCKED

LACKED

MOWERLI_

r_'l R N H L

ATfACHMENT REVERSE NEUTRAL HIGH LOW PARKING BRAKE

CLUTCH ENGAGED

IGNITION

KEEP AREA CLEAR SLOPE HAZARDS

ATTACHMENT

CLUTCH DISENGAGED (SEE SAFETY RULES SECTION)

DANGER, KEEP HANDS AND FEET AWAY

FREE WHEEL

(AUtomatlcModelsonly)

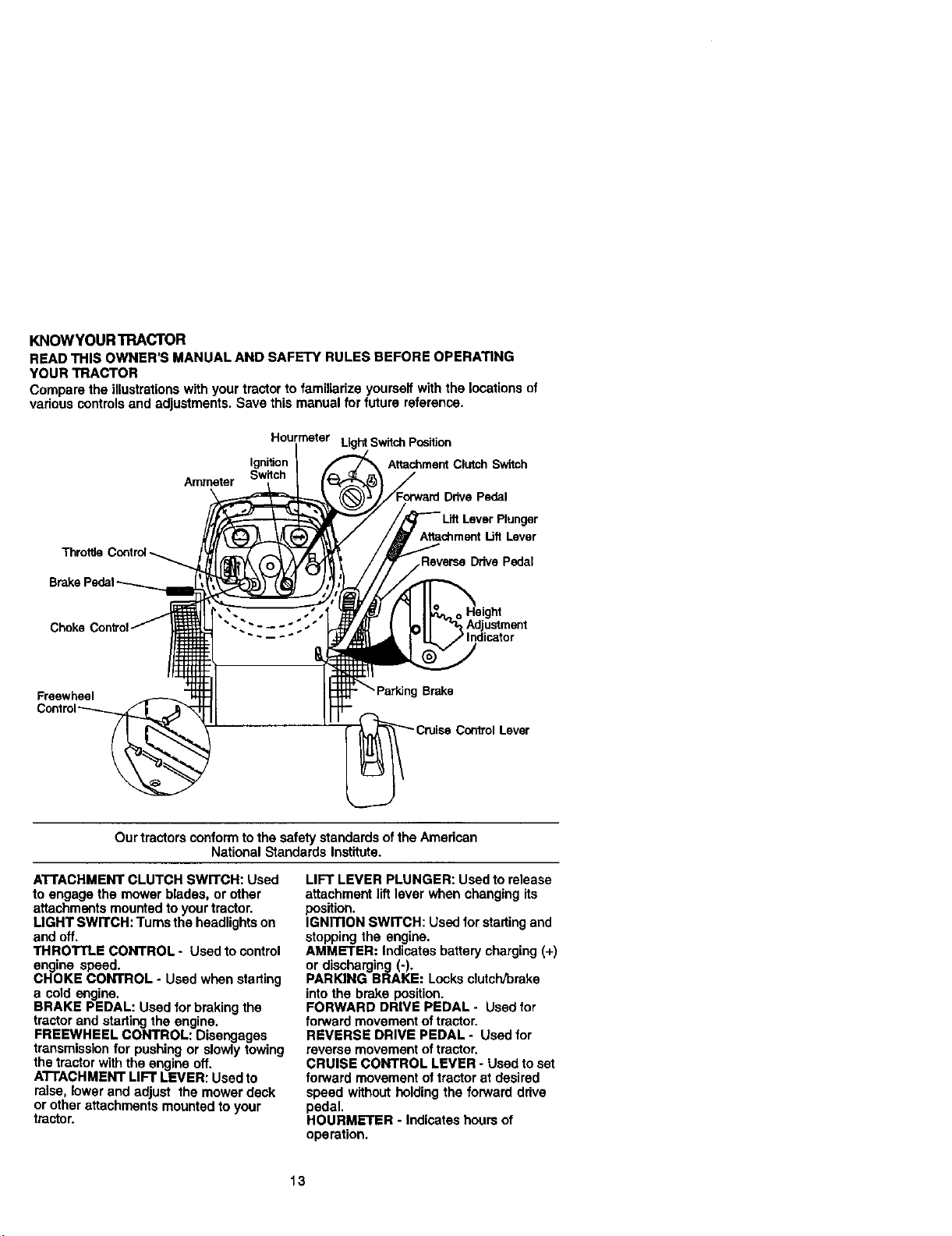

KNOWYOURTRACTOR

READTHISOWNER'SMANUALANDSAFETYRULESBEFOREOPERATING

YOURTRACTOR

Comparetheillustrationswithyourtractortofamiliadzeyourselfwiththelocationsof

variouscontrolsandadjustments.Savethismanualforfuturereference.

Throttle

Ammeter

Hourmeter Light Switch position

Ignition Attachment Clutch Switch

Switch

DrivePedal

Lever Plunger

Attachment Lift Lever

.Reverse Drive Pedal

Choke . . Adjustment

Freewheel

Brake

3ontrol Lever

Our tractors conform tothe safety standards ofthe American

National Standards Institute.

ATTACHMENT CLUTCH SWITCH: Used

to engage the mower blades, or other

attachments mounted to your tractor.

LIGHT SWITCH: Turnsthe headlights on

and off.

THROTTLE CONTROL - Used to control

engine speed.

CHOKE CONTROL - Used when starting

a cold engine.

BRAKE PEDAL: Used for braking the

tractor and starting the engine.

FREEWHEEL CONTROL: Disengages

transmissionfor pushing or slowlytowing

the tractorwiththe engine off.

ATTACHMENT LIFT LEVER: Usedto

raise, lower and adjust the mower deck

or other attachments mounted to your

tractor.

LIFT LEVER PLUNGER: Used to release

attachment lift lever when changing its

position.

IGNITION SWITCH: Used forstartingand

stopping the engine.

AMMETER: indicates battery charging (+)

or discharging(-).

PARKING BRAKE: Locksclutch/brake

intothe brake position.

FORWARD DRIVE PEDAL - Used for

forward movement oftractor.

REVERSE DRIVE PEDAL- Used for

reverse movement oftractor.

CRUISE CONTROL LEVER - Used to set

forward movement of tractor at desired

speed without holding the forward drive

pedal.

HOURMETER - indicates hours of

operation.

Theoperationofany tractor can result in foreign objectsthrown intothe

eyes which con result in severe eye damage• Alwayswear safety glasses

or eye shields while operating your tractor or performng any adjustments

or repairs. We recommend a wide vision safety mask over spectacles, or

standard safety glasses.

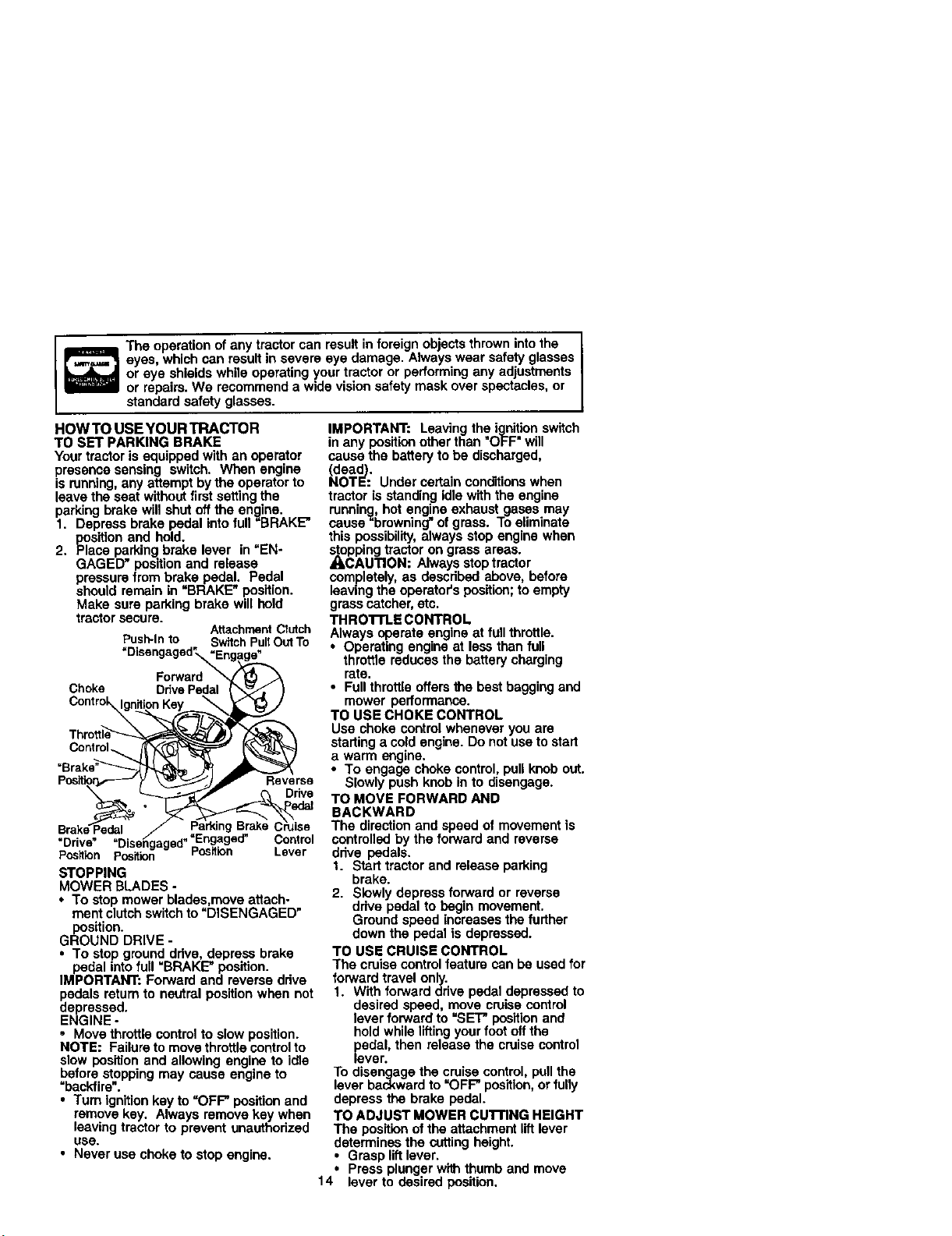

HOWTO USEYOURTRACTOR

TO SET PARKING BRAKE

Your tractor is equipped with an operator

presence sensing switch. When engine

is running,any attempt by the operator to

leave the seat withoutfirstsetting the

parking brake willshut off the engine.

1. Depress brake pedal into full=BRAKE"

position and hold.

2. Place parking brake lever in =EN-

GAGED positionand release

pressure from brake pedal. Pedal

should remain in =BRAKE"position.

Make sure parking brake will hold

tractor secure.

AttachmentOutch

Push-Into SwitchPullOutTo

"Disengaged_._ngag_

Forward _-I _

Choke DrfvePedal (_'_._. )

ThrottIe'_,_<_'_,_,) _

Contro,_ (PF,_ L_L_

Positio Reverse

Drive

• Disengage ..

Position Position Position Lever

STOPPING

MOWER BLADES -

• To stop mower blades,move attach-

ment clutch switchto =DISENGAGED"

position.

GROUND DRIVE -

• To stop ground ddve, depress brake

pedal into full =BRAKE" position.

IMPORTANT: Forward and reverse ddve

pedals return to neutral positionwhen not

depressed.

ENGINE -

• Move throttle controlto slow position.

NOTE: Failure to move throttlecontrolto

slow position and allowing engine to idle

before stopping may cause engine to

=backfire".

• Turn ignitionkey to =OFF" position and

remove key. Always remove key when

leaving tractor to prevent unauthodzed

use.

• Never use choke to stop engine.

IMPORTANT: Leaving the ignitionswitch

in any positionother than "OFF" will

cause the battery to be discharged,

Ndead).

OTE: Under certain conditionswhen

tractor is standing idle with the engine

running, hot engine exhaust gases may

couse=browning " of grass. To eliminate

this possibility,always stop engine when

_topping tractor on grass areas.

CAUTION: Always stoptractor

completely, as described above, before

leawng the operator's position; to empty

grass catcher,etc.

THRO'rrLE CONTROL

Always operate engine at full throttle.

• Operating engine at less than full

throttle reduces the battery charging

rate.

• Full throttleoffers the best bagging and

mower performance.

TO USE CHOKE CONTROL

Use choke controlwhenever you are

starting a cold engine. Do notuse to start

a warm engine.

• To engage choke control,pull knob out.

Slowly push knob in to disengage.

TO MOVE FORWARD AND

BACKWARD

The direction and speed of movement is

controlled by the forward and reverse

ddve pedals.

1. Start tractor and release parking

brake.

2. Slowly depress forward or reverse

drive pedal to begin movement.

Ground speed increases the further

down the pedal is depressed.

TO USE CRUISE CONTROL

The cruise controlfeature con be used for

forward travel only.

1. With forward ddve pedal depressed to

desired speed, move cruise control

lever forward to =SET" positionand

holdwhile liftingyour foot off the

pedal, then release the cruise control

lever.

To disengage the cruise control, pull the

lever backward to "OFF" position,or fully

depress the brake pedal.

TO ADJUST MOWER CU'I'FING HEIGHT

The position ofthe attachment liftlever

determines the cuttingheight,

• Grasp liftlever.

Press plunger with thumb and move

14' laver to desired position,

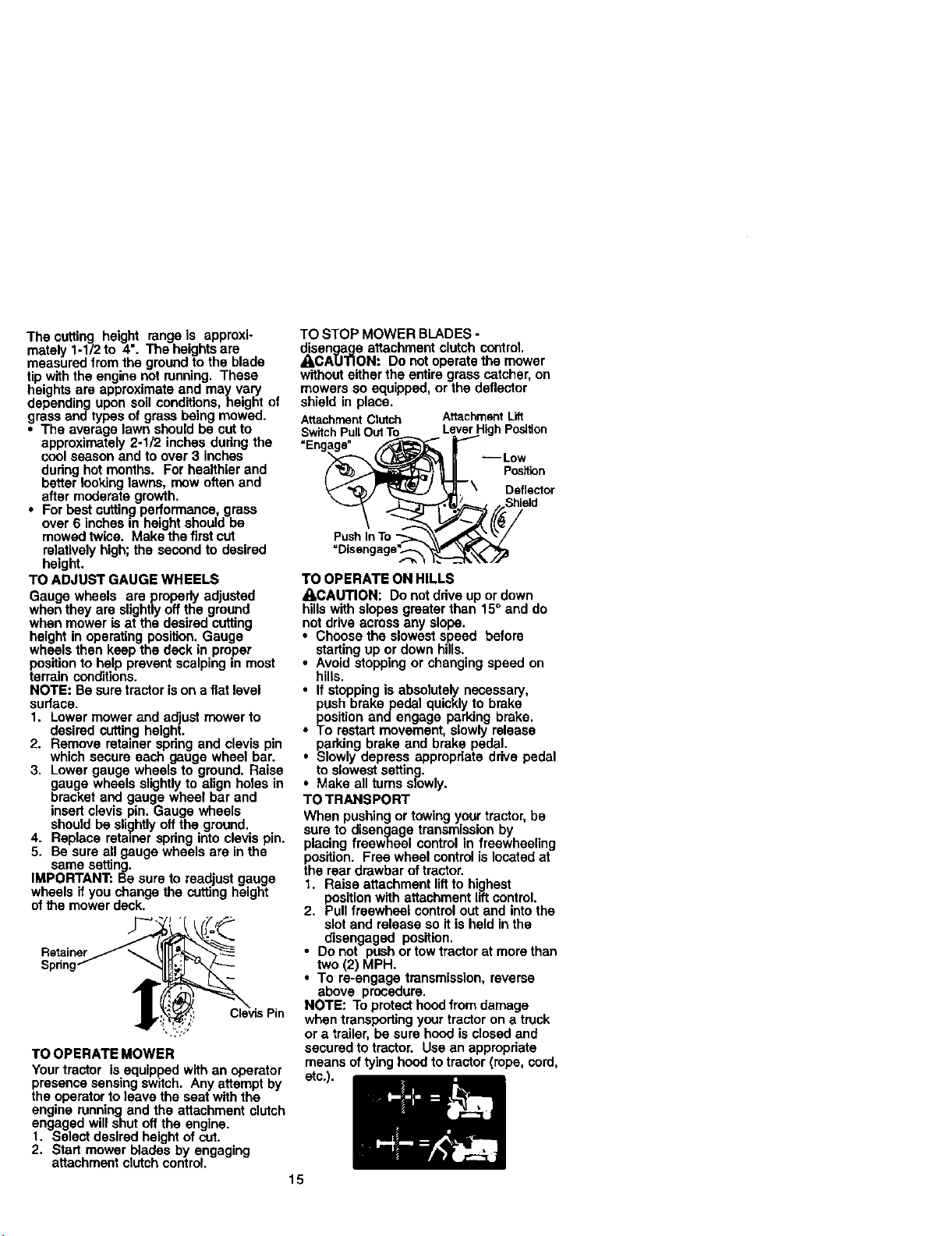

The cutting height range is approxi-

mately 1-1/2 to 4". The heights are

measured from the ground to the blade

tip withthe engine not running. These

heights are approximate and may vary

depending upon soil conditions,height of

grass andtypes of grass being mowed.

• The average lawn should be cut to

approximately 2-1/2 inches during the

cool season and to over 3 inches

during hot months. For healthier and

better looking lawns, mow often and

after moderate growth.

• For best cutting performance, grass

over 6 inches in height should be

mowed twice. Make the firstcut

relatively high;the second to desired

height.

TO ADJUST GAUGE WHEELS

Gauge wheels are properly adjusted

when they are slightlyoff the ground

when mower isat the desired cutting

height in operating position. Gauge

wheels then keep the deck in proper

positionto help prevent scalping in most

terrain ccnditions.

NOTE: Be sure tractor ison a flat level

surface.

1. Lower mower and adjust mower to

desired cuttingheight.

2. Remove retainer spdng and clevis pin

which secure each gauge wheel bar.

3. Lower gauge wheels to ground. Raise

gauge wheels slightlyto align holes in

bracket and gauge wheel bar and

insert clevis pin. Gauge wheels

should be slightlyoff the ground.

4. Replace retainer spdng into clevis pin.

5. Be sure all gauge wheels are in the

same setting.

IMPORTANT: Be sure to readjust gauge

wheels if you change the cutting height

ofthe mower deck.

Retainer

TO OPERATE MOWER

Your tractor is equipped with an operator

presence sensing switch. Any attempt by

the operator to leave the seat with the

engine running and the attachment clutch

engaged will shut offthe engine.

1. Select desired height of cut.

2. Start mower blades by engaging

attachment clutch control.

TO STOP MOWER BLADES -

disenqaqe attachment clutch control.

_CA[J'I'ION: Do notoperate the mower

withouteither the entire grass catcher, on

mowers so equipped, or the deflector

shield in place.

AttachmentClutch AttachmentLift

SwitchPullOutTo LeverHighPosition

_Low

Position

Deflector

Push In To

=Disengage"_--_

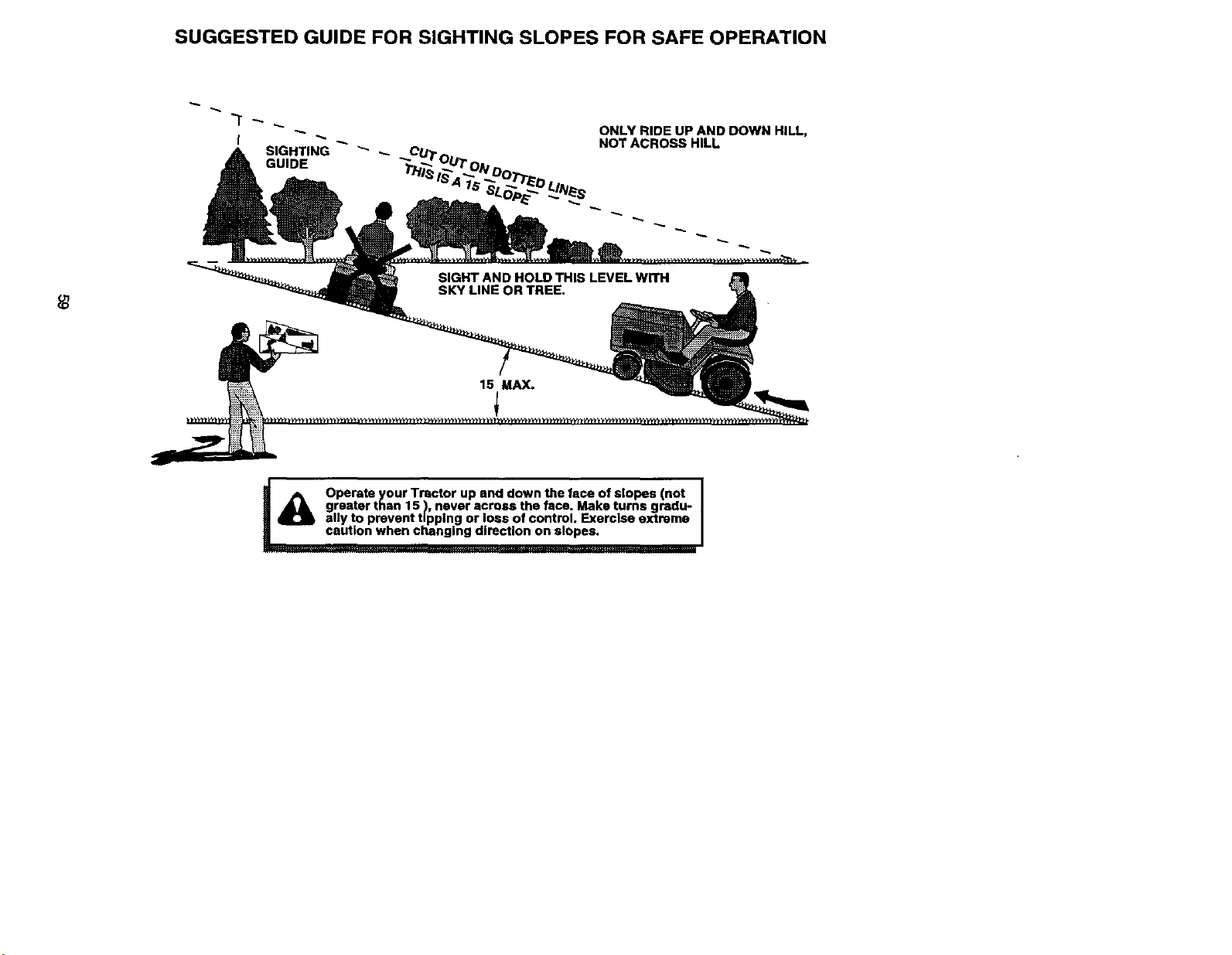

TO OPERATE ON HILLS

_,CAUTION: Do not drive up or down

hillswith slopes greater than 15° and do

notdrive across any slope.

• Choose the slowest speed before

starting up or down hills.

• Avoid stopping or changing speed on

hills.

ll stopping is absolutely necessary,

push brakepedal quickly to brake

position andengage parking brake.

To restart movement, slowly release

parking brake and brake pedal.

Slowly depress appropdate drive pedal

to slowestsetting.

• Make all tums slowly.

TO TRANSPORT

When pushing or towing your tractor, be

sure to disengage transmission by

placing freewheel control in freewheeling

position. Free wheel controlis located at

the rear drawbar of tractor.

1. Raise attachment liftto highest

positionwith attachment lift control.

2. Pull freewheel controlout and intothe

slot and release so it is held in the

disengaged position.

• Do not push or tow tractorat more than

two (2) MPH.

• To re-engage transmission, reverse

above procedure.

NOTE: Toprotect hood from damage

when transporting your tractor on a truck

or a trailer, be sure hood isclosed and

secured to tractor. Use an appropriate

means oftying hoed to tractor (rope, cord,

etc.).

TOWINGCARTSANDOTHERA'rrACH-

MENTS

Towonlytheattachmentsthatare

recommended by and comply with

specifications of the manufacturer of your

tractor.Use common sense when towing.

Too heavy of a load, while on a slope, IS

dangerous. Tires can lose tractionwith

the ground and cause you to lose control

ofyour tractor.

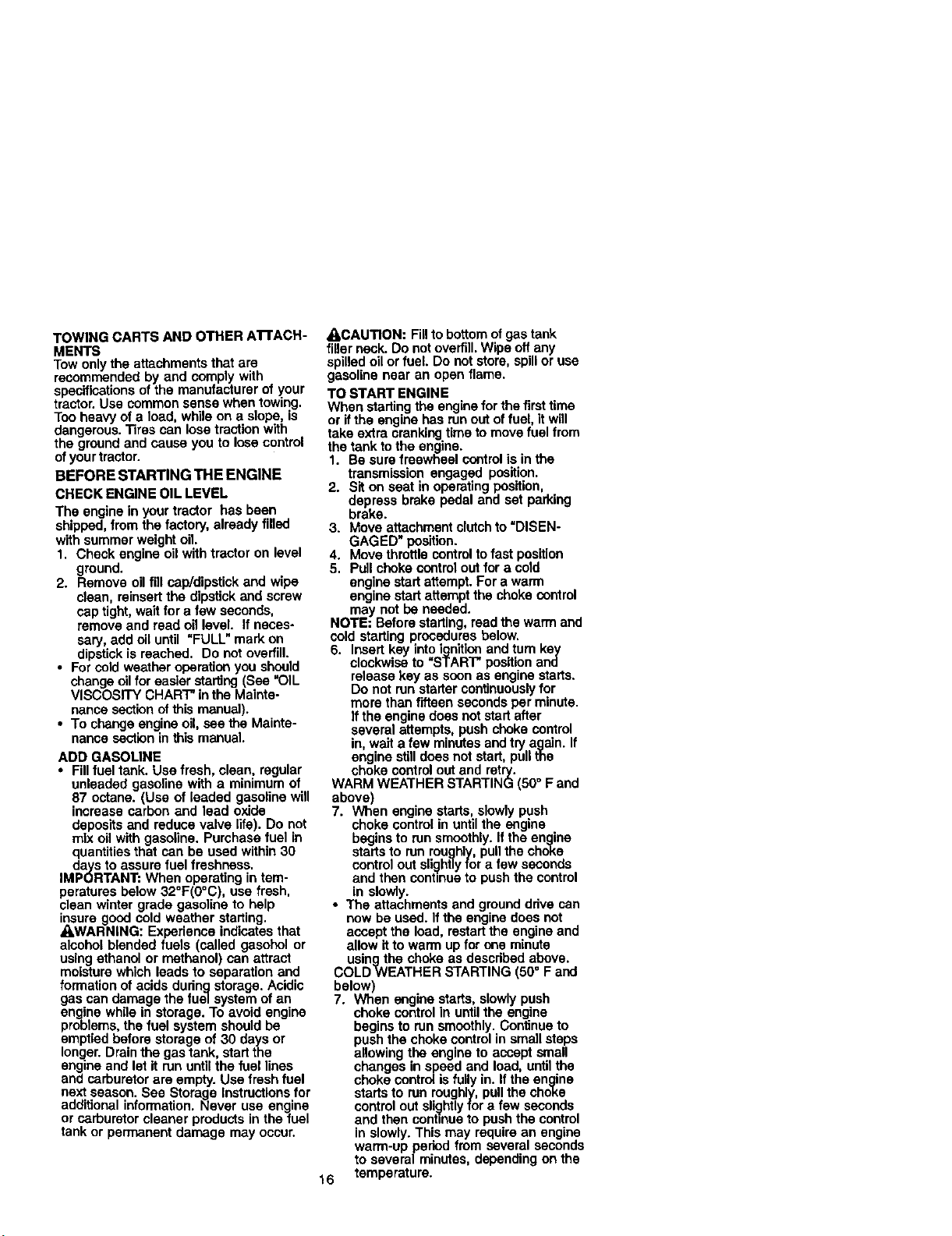

BEFORE STARTING THE ENGINE

CHECK ENGINE OIL LEVEL

The engine in your tractor has been

shipped, from the factory, already filled

with summer weight oil.

1. Check engine oil with tractor on level

ground.

2. Remove oil fill cap/dipstick and wipe

clean, reinsert the dipstick end screw

cap tight, wait for a few seconds,

remove and read oil level. If neces-

sary, add oil until "FULL" mark on

dipstick is reached. Do not overfill.

• For cold weather operation you should

change oilfor easier starting (See "OIL

VISCOSITY CHART" inthe Mainte-

nance section ofthis menual).

• To change engine oil, see the Mainte-

nance sectionin this manual.

ADD GASOLINE

• Fill fuel tank. Use fresh, clean, regular

unleaded gasoline with a minimum of

87 octane. (Use of leaded gasoline will

increase carbon and lead oxide

deposits end reduce valve life). Do not

mix oil with gasoline. Purchase fuel in

quantitiesthat can be used within 30

days to assure fuel freshness.

IMPORTANT: When operating in tem-

peratures below 32°F(0°C), use fresh,

clean winter grade gasoline to help

insure good cold weather starting.

_,WARNING: Experience indicatesthat

alcohol blended fuels (called gasohol or

using ethanol or methanol) can attract

moisture which leads to separation and

formation of acids during storage. Acidic

gas can damage the fuel system of an

engine while in storage. To avoid engine

problems, the fuel system should be

emptied before storage of 30 days or

longer.Drain the gas tank, start the

engine and let it run untilthe fuel lines

and carburetorare empty. Use fresh fuel

next season. See Storage Instructionsfor

additional information. Never use engine

or carburetor cleaner products in the fuel

tank or permanent damage may occur.

_,CAUTION: Fillto bottom ofgas tank

filler neck. Do not overfill. Wipe off any

spilled oil or fuel. Do notstore, spill or use

gasoline near an open flame.

TO START ENGINE

When starting the engine for the first time

or it the engine has runout of fuel, it will

take extra crankingtime to move fuel from

the tank to the engine.

1. Be sure freewheel control is in the

transmission engaged position.

2. Sit on seat in operating position,

depress brake pedal and set parking

brake.

3. Move attachment clutchto =DISEN-

GAGED" position.

4. Move throttle control to fast position

5. Pull choke controlout for a cold

engine start attempt. For a warm

engine start attempt the choke control

may not be needed.

NOTE: Before starting, read the warm and

cold starting procedures below.

6. Insert key intoignitionand turn key

clockwise to "START" position and

release key as soon as engine starts.

Do not run starter continuouslyfor

more than fifteen seconds per minute.

If the engine does not start after

several attempts, push choke control

in wait a few minutesand try again. If

engine stilldoes not start, pu the

choke controlout and retry, o

WARM WEATHER STARTING (50 Fend

above)

7. When engine starts, slowly push

choke controlin untilthe engine

beginsto run smoothly.If the engine

startsto run rougNy, pullthe choke

controlout slightlyfor a few seconds

and then continue to push the control

in slowly.

• The attachments and grounddrive can

now be used. If the engine does not

accept the load, restartthe engine and

allow it to warm up for one minute

using the choke as described ab_=ve.

COLDWEATHER STARTING (50 F and

below)

7. When engine starts, slowly push

choke controlin untilthe engine

begins to run smoothly. Continue to

push the choke controlin small steps

allowing the engine to accept small

changes in speed and load, untilthe

choke control is fully in. If the engine

startsto run roughly,pull the choke

control out slightlyfor a few seconds

and then continue to push the control

in slowly. This may require an engine

warm-up period from several seconds

to several minutes, depending on the

16 temperature.

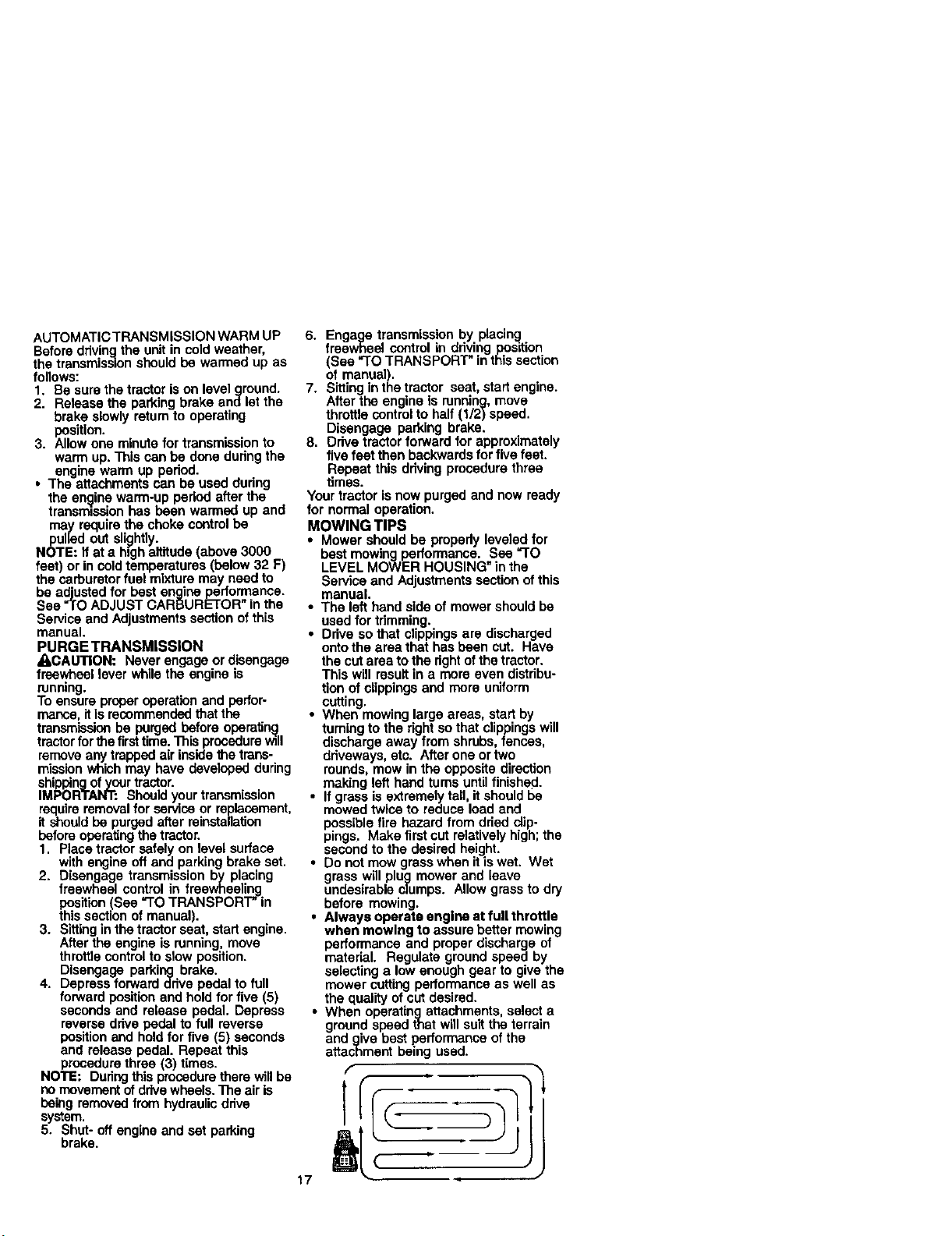

AUTOMATIC TRANS MISSION WARM UP

Before ddvinq the unit in cold weather,

the transmission should be warmed up as

follows:

1. Be sure the tractor is on level ground.

2. Release the parking brake and let the

brake slowly returnto operating

position.

3. Allow one minute for transmissionto

warm up. This can be done during the

engine warm up period.

• The attachments can be used during

the en_linewarm-up period after the

transmission has been warmed up and

may require the choke control be

pulled out slightly.

NOTE: If at a high altitude(above 3000

feet) or in cold temperatures (below 32 F)

the carburetor fuel mixture may need to

be adjusted for best engine pedormance.

See "TO ADJUST CARSURETOR" in the

Service and Adjustments section of this

manual.

PURGE TRANSMISSION

ACAUTION: Never engage or disengage

freewheel lever while the engine Is

running.

To ensure proper operation and perfor-

manca, itIs recommendedthatthe

transmissionbe purged before operatJn_

tractorforthe first time. This procedurevail

remove any trapped air insidethe trans-

mission which may have developed during

shipping of your tractor.

IMPORTAN'E Shouldyour transmission

require removal for serviceor replacement,

it shouldbe purged after reinstallation

before operating the tractor.

1. Place tractor safely on level surface

with engine off and parking brake set.

2. Disengage transmissionby placing

freewheel control in freewheeling

position (See "1"OTRANSPORT" in

this section of manual).

3. Sittingin the tractor seat, start engine.

After the engine is running, move

throttlecontrolto slow position.

Disengage parking brake.

4. Depress forward drive pedal to full

forward position and hold for five (5)

seconds and release pedal. Depress

reverse drive pedal to full reverse

position and hold for five (5) seconds

and release pedal. Repeat this

procedure three (3) times.

NOTE: Duringthis procedurethere willbe

nomovement ofdrive wheels.The air is

being removedfrom hydraulicdrive

system.

5. Shut- off engine and set parking

brake.

6. Engage transmission by placing

freewheel control in driving position

(See "TO TRANSPORT" in this section

of manual).

7, Sitting in the tractor seat, start engine.

After the engine Is running, move

throttle controlto half (1/2) speed.

Disengage parking brake.

8. Drive tractor forward for approximately

five feet then backwards for five feet.

Repeat this driving procedure three

times.

Your tractor is now purged and now ready

for normal operation.

MOWING TIPS

• Mower should be propedy leveled for

best mowing performance. See "TO

LEVEL MOWER HOUSING" in the

Service and Adjustments section of this

manual.

• The left hand side of mower should be

used for trimming.

• Drive so that clippings are discharged

onto the area that has been cut. Have

the cutarea tothe right of the tractor.

This will resultin a more even distribu-

tion of clippings and more uniform

cutting.

• When mowing large areas, start by

tuming to the dghtso that clippingswill

discharge away from shrubs, fences,

driveways, etc. After one ortwo

rounds, mow in the opposite direction

making left hand turns untilfinished.

• If grass is extremely tall, it should be

mowed twice to reduce load and

possible fire hazard from dried dip-

pings. Make first cut relativelyhigh; the

second to the desired height.

• Do not mow grass when it is wet. Wet

grass will plug mower and leave

undesirable clumps. Allow grass to dry

before mowing.

• Always operate engine at full throttle

when mowing to assure better mowing

performance and proper discharge of

material. Regulate ground speed by

selecting a low enough gear to give the

mower cutting performance as well as

the quality of cut desired.

• When operatingattachments, select a

ground speed that will suit the terrain

and give best perfom',ance ofthe

attachment being used.

1 . C_ar_ e mc_l ot_m ,*_eh _lrlUllg un#_r i hell_ k:ed or I_ h_h iml:_nt _m+Murls. 5 • H 1_41d WllhW:_SlII_I systll_.

2.5w-.k: j _ oitm _ of_m[_g in _y o_dusk/cand_ns+ 6 * Not re_ired if **_lr, F_ Wl_ ma,_ntJm=n_c-ftee b_aty.

3. ff t:_lpped w_ _1 _l_r, char_l d m4s¢/50 h_r_

4. R*_I_* Mid*4 n'_o o_n wh*,_ rnowl_ in smr_dys,_l.

GENERAL RECOMMENDATIONS

The warrantyon this tractordoes not cover

itemsthat have been subjected to operator

abuse or negligence. To receivefullvalue

from the warranty,operator must maintain

tractoras Instructed in this manual.

Some adjustments will need to be made

periodically to properly maintain your

tractor.

All adjustme_s in the Service and

Adjustments sectionof this manual should

be checked at least once each season.

• Once a year you should replace the

spark plug, clean or replace air filter, and

check blades and belts for wear. A new

spark plug and clean air filter assure

proper air-fuel mixture and help your

engine run better and last longer.

BEFORE EACH USE

1. Check engine oil level.

2. Chock brake operation.

3. Check tire pressure.

4. Check operator presence and

interlock systems for proper operation.

5. Check for loose fasteners.

?. 11_ tto_t Rle pied. bolZto 38 _t..f_s m=imur_.

DO _ot e,v_ht_.

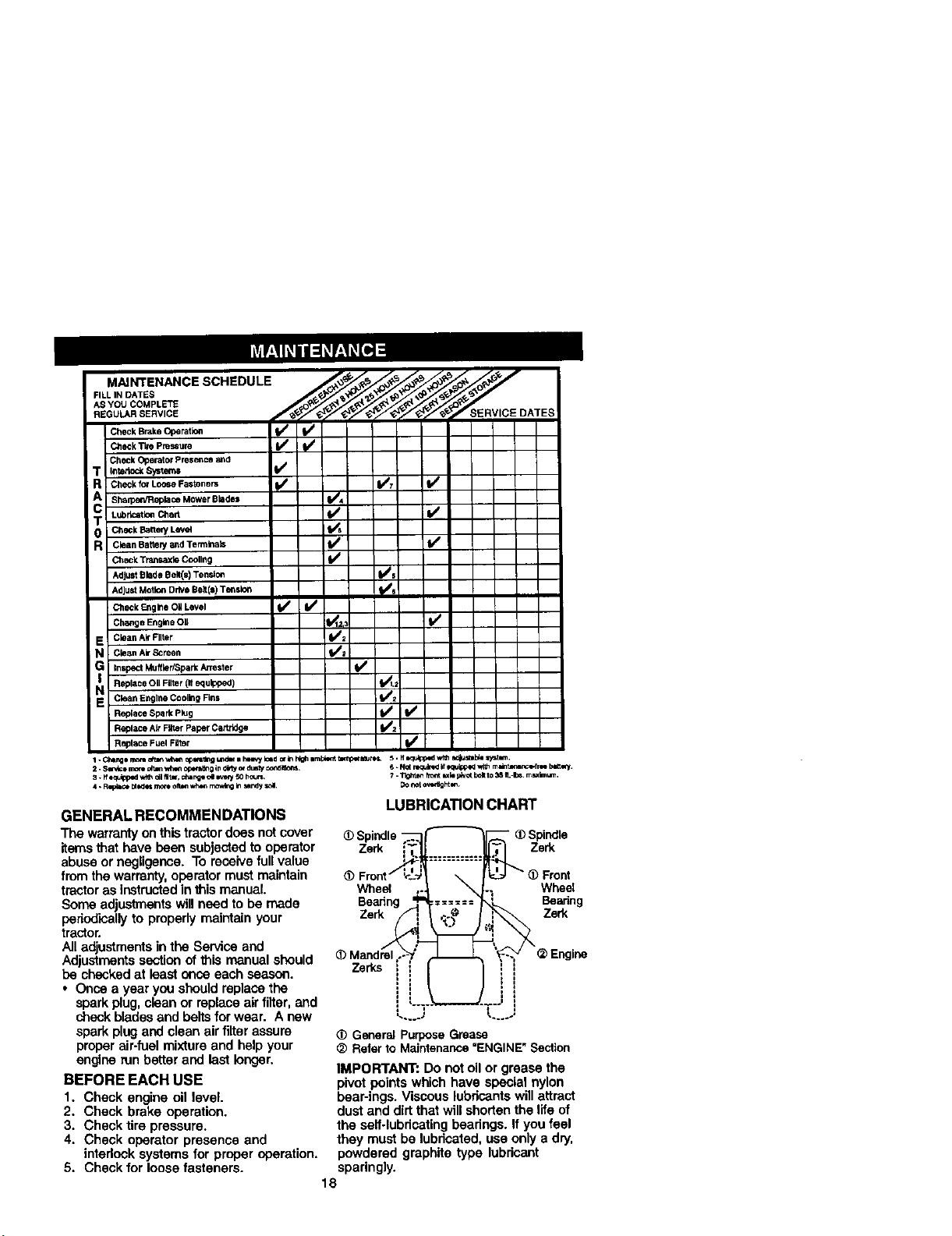

LUBRICATION CHART

_)Spindle

Zerk Zerk

Wheel Wheel

Bearing Bearing

Zerk Zerk

...... " l....J

(_ GeneraJ Purpose Grease

_) Refer to Maintenance "ENGINE" Section

IMPORTANT: Do notoil or grease the

pivot points which have special nylon

bear-ings. Viscous lubricants willattract

dust and dirtthat willshorten the llfe of

the selt-lubdcatingbearings. If you feel

they must be lubricated, use only a dry,

powdered graphite type lubricant

sparingly.

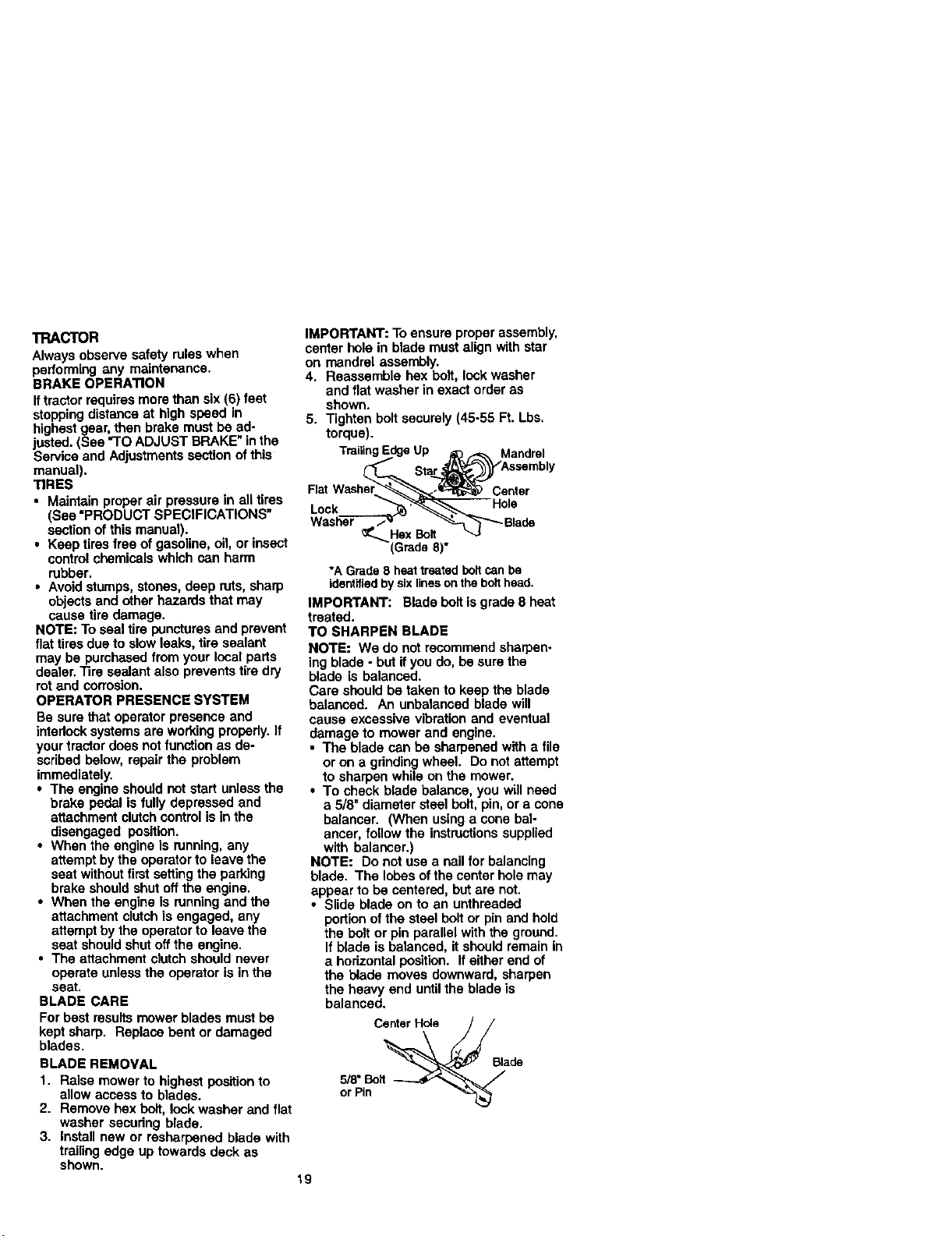

TRACTOR

Always observe safety rules when

performing any maintenance.

BRAKE OPERATION

Iftractor requiresmore than six (6) feet

stoppingdistance at high speed in

highestgear, then brake must be ad-

justed. (See ='1"OADJUST BRAKE" in the

Service and Adjustmentssection of this

manual).

TIRES

• Maintain proper air pressure in all tires

(See "PRODUCT SPECIFICATIONS"

section of this manual).

• Keep tires free of gasoline, oil, or insect

control chemicals which can harm

rubber.

• Avoid stumps, stones, deep ruts, sharp

objects and other hazards that may

cause tire damage.

NOTE: To seal tire punctures and prevent

fiat tires due to slow leaks, tire sealant

may be pumhased from your local parts

dealer. Tire sealant also prevents tire dry

rot and corrosion.

OPERATOR PRESENCE SYSTEM

Be sure that operator presence and

intedocksystems are working propedy. If

your tractor does notfunction as de-

scribed below, repair the problem

immediately.

• The engine should not start unless the

brake pedal is fully depressed and

attachment clutchcontrol is in the

disengaged position.

• When the engine is running, any

attempt by the operatorto leave the

seat withoutfirst setting the parking

brake should shut off the engine.

• When the engine is running and the

attachment clutch is engaged, any

attempt by the operatorto leave the

seat should shut off the engine.

• The attachment clutch should never

operate unless the operator is in the

seat.

BLADE CARE

For best resultsmower blades must be

kept sharp. Replace bent or damaged

blades.

BLADE REMOVAL

1. Raise mower to highest positionto

allow access to blades.

2. Remove hex b_t, lock washer and flat

washer sacudng blade.

3. Install new or reaharpened blade with

trailingedge up towards deck as

shown.

IMPORTANT: To ensure proper assembly,

center hole in blade must align with star

on mandrel assembly.

4. Reassemble box bolt, lock washer

and flat washer in exact order as

shown.

5. Tighten boltsecurely (45-55 Ft. Lbs.

torque).

Mandrel

Flat Center

Lock

3lade

*A Grade8 heattreatedboltcanbe

identifiedbysixlinesonthebolthead.

IMPORTANT: Blade bolt isgrade 8 heat

treated.

TO SHARPEN BLADE

NOTE: We do notrecommend sharpen-

ing blade - but ifyou do, be sure the

blade is balanced.

Care should be taken to keep the blade

balanced. An unbalanced blade will

cause excessive vibration and eventual

damage to mower and engine.

• The blade can be sharpened with a file

or on a gdnding wheel. Do not attempt

to sharpen while on the mower.

• To check blade balance, you will need

a 5/8" diameter steel bolt, pin, or a cone

balancer. (When using a cone bal-

ancer, follow the instructionssupplied

with balancer.)

NOTE: Do not usa a nail for balancing

blade. The lobes of the center hole may

appear to be centered, butare not.

• Slide blade on to an unthreaded

portionof the steel boltor pin and hold

the bolt or pin parallel with the ground.

If blade is balanced, it should remain in

a horizontal position. Ifeither end of

the blade moves downward, sharpen

the heavy end untilthe blade is

balanced.

orPin

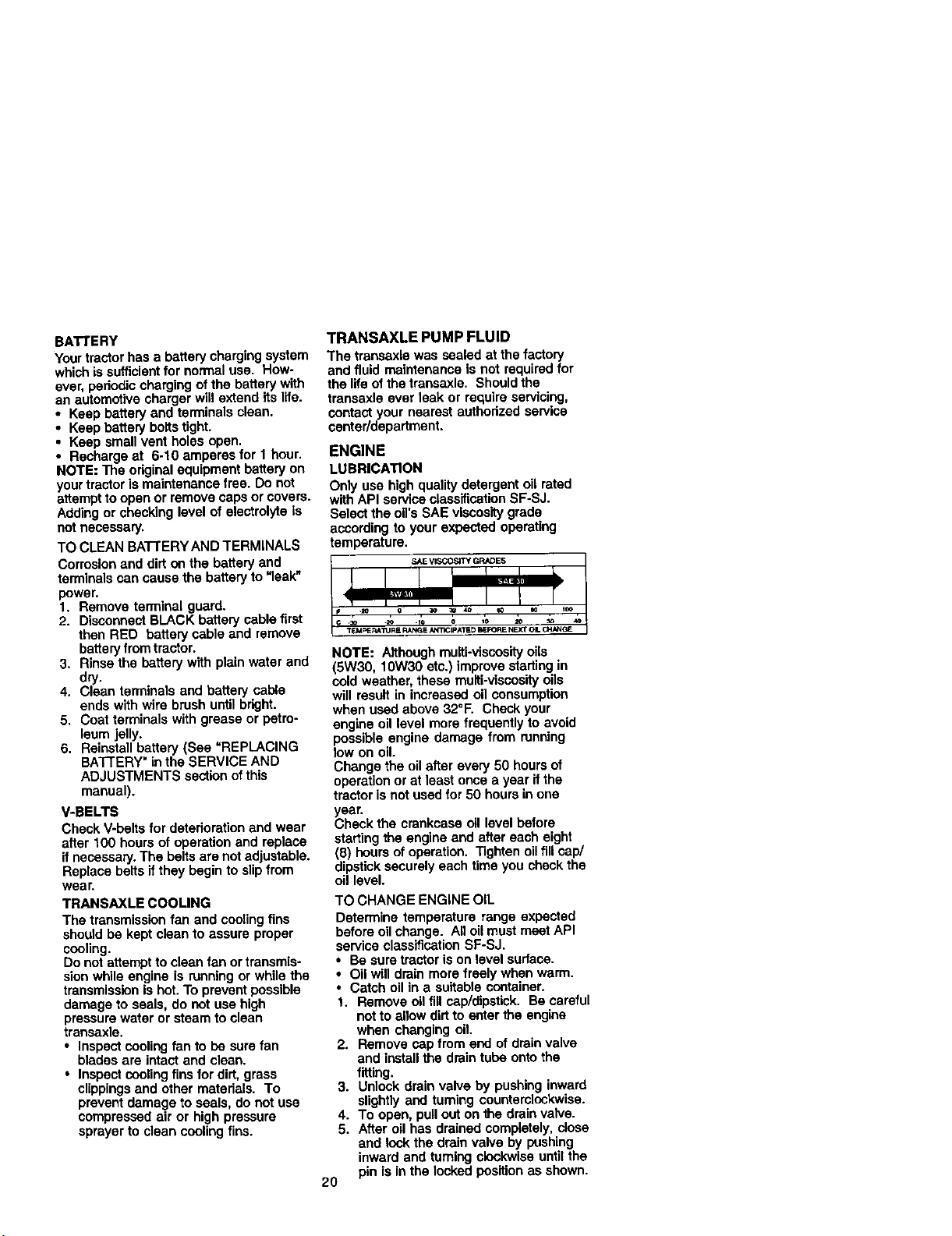

BATTERY

Yourtractorhasabatterychargingsystem

whichissufficientfornormaluse.How-

ever,periodiochargingofthebatterywith

anautomotivechargerwillextendits life.

• Keep battery and terminals clean.

• Keep battery boltstight.

• Keep smell vent holes open.

• Recharge at 6-10 amperes for 1 hour,

NOTE: The original equipment battery on

your tractor is maintenance free. Do not

attempt to open or remove caps or covers.

Adding or checking level of electrolyte Is

not necessary_

TO CLEAN BA'I-I'ERYAND TERMINALS

Corrosion and dirt on the battery and

terminalscan cause the batteryto "leak"

power.

1. Remove terminal guard.

2. Disconnect BLACK battery cable first

then RED battery cable and remove

batteryfromtractor.

3. Rinse the batterywith plain water and

dry.

4. Clean terminals and battery cable

ends with wire brush untilbright.

5, Coat terminals with grease or petro-

leum Jelly.

6. Reinstall battery (See "REPLACING

BATTERY" inthe SERVICE AND

ADJUSTMENTS section ofthis

manual).

V-BELTS

Check V-baits for deterioration and wear

after 100 hours of operation and replace

if necessary.The beltsare not adjustable.

Replace belts ifthey begin to slipfrom

wear.

TRANSAXLE COOLING

The transmission fan and cooling tins

should be kept clean to assure proper

cooling.

Do not attempt to clean fan or transmis-

sion while engine is running or while the

transmissionis hot. To prevent possible

damage to seals, do not use high

pressure water or steam to clean

transaxle.

• Inspect coolingfan to be sure fan

blades are intact and clean.

• Inspect coolingfins for dirt, grass

clippingsand other materials. To

prevent damage to seals, do not usa

compressed air or high pressure

sprayer to clean cooling fins.

TRANSAXLE PUMP FLUID

The transaxle was sealed at the factory

and fluid maintenance is not required for

the life of the transaxle. Should the

transaxle ever leak or require servicing,

contact your nearest authorized service

canter/department.

ENGINE

LUBRICATION

Only use high qualitydetergent oil rated

with API service classificationSF-SJ.

Select the oirs SAE viscos'rtygrade

according to your expected operating

temperature.

SAlE VI_ GPJ_DES

NOTE: Althoughmulti-viscosityoils

(5W30, 10W30 etc.) improve startingin

coldweather, these multi-viscosity oils

will result in increased oil consumption

when used above 32©1=.Check your

engine oil level more frequently to avoid

possible engine damage from running

low on oil.

Change the oil after every 50 hours of

operationor at least once a year if the

tractor is not used for 50 hours in one

year.

Check the crankcase oil level before

starting the engine and after each eight

(8) hours of operation. Tighten oil fill cap/

dipstick securely each time you check the

oil level.

TO CHANGE ENGINE OIL

Determine temperature range expected

before oil change. All oilmust meet API

service classification SF-SJ.

• Be sure tractor ison level surface.

• Oil will drain more freely when warm.

• Catch oil in a suitable container.

1. Remove oil fill cap/dipstick. Be careful

not to allow dirt to enter the engine

when changing oil.

2. Remove cap from end of drainvalve

and install the draintube onto the

fitting.

3. Unlock drain valve by pushing inward

slightly and turning counterclockwise.

4. To open, pullout on the drain valve.

5. After oil has drained completely, close

and lock the drain valve by pushing

inward and turning clockwise until the

pin is in the looked position as shown.

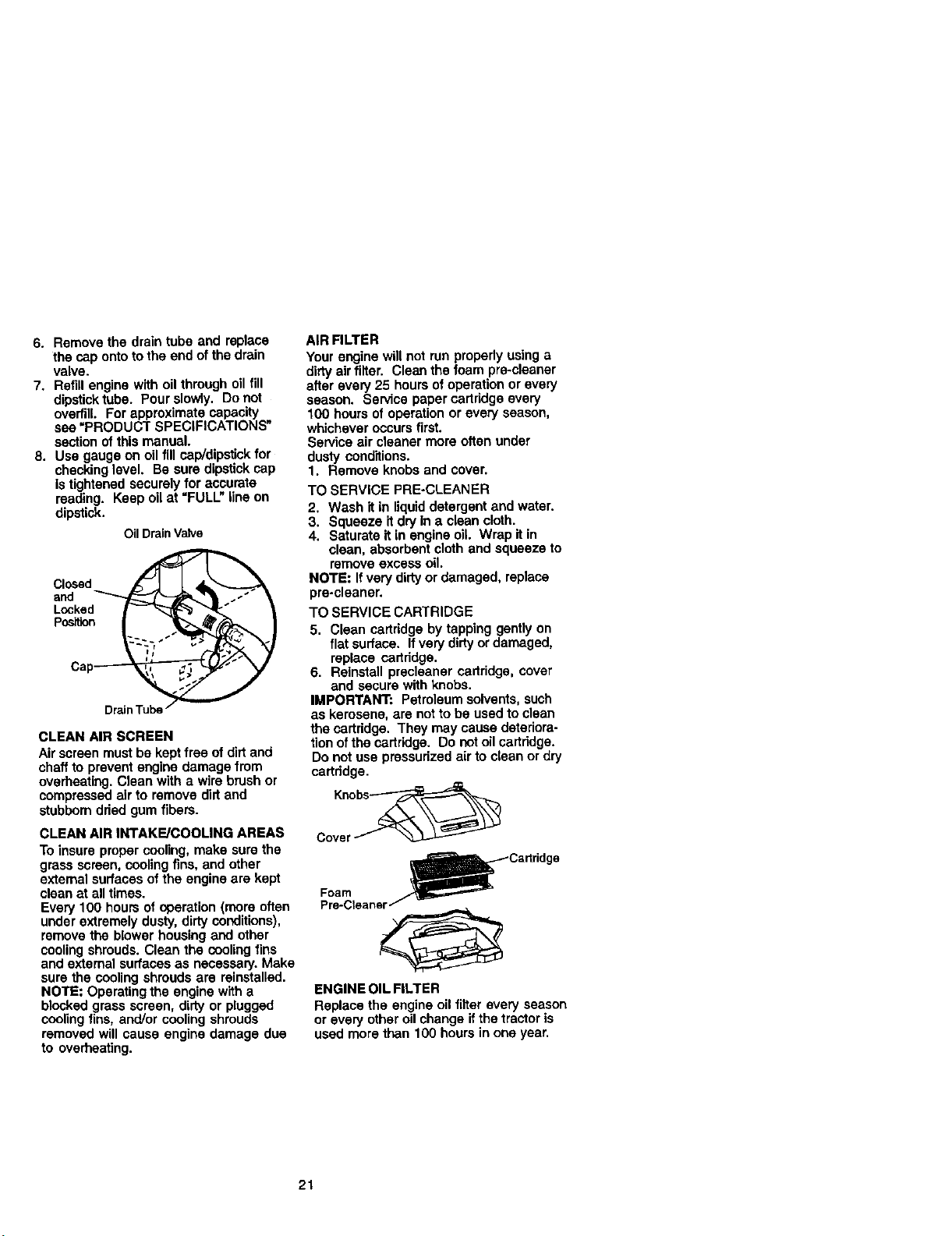

6. Removethedraintubeand replace

the cap ontotothe end of the drain

valve.

7, Refill engine with oil through oil fill

dipsticktube. Pour slowly. Donot

overfill For approximate capacity

see "PRODUCT SPECIFICATIONS"

section ofthis manual.

8. Use gauge on oil fill cap/dipstick for

checking level. Be sure dipstickcap

is tightened securely for accurate

reading. Keep oil at "FULL"line on

dipstick.

OilDrainValve

Cap_

DrainTube

CLEAN AIR SCREEN

Air screen must be kept free of dirt and

chaff to prevent engine damage from

overheating. Clean with a wire brush or

compressed air to remove dirt and

stubborndried gum fibers.

CLEAN AIR INTAKE/COOLING AREAS

To insure propercooling, make sure the

grass screen, coolingfins, and other

external surfaces of the engine are kept

clean at all times.

Every 100 hours of operation (more often

under extremely dusty,dirty conditions),

remove the blower housing and other

coolingshrouds. Clean the coolingfins

and external surfaces as necessary. Make

sure the cooling shrouds are reinstalled.

NOTE: Operating the engine with a

blocked grass screen, dirty or plugged

coolingfins, and/or cooling shrouds

removed will cause engine damage due

to overheating.

AIR FILTER

Your engine will not run properly usinga

dirty air filter. Clean the foam pre-cleaner

after every 25 hours ofoperation or every

season. Service paper cartridge every

100 hours of operation or every season,

whichever occurs first.

Service air cleaner more often under

dusty conditions.

1. Remove knobs and cover.

TO SERVICE PRE-CLEANER

2. Wash it in liquid detergent and water.

3. Squeeze it dry in a clean cloth.

4. Saturate it in engine oil Wrap it in

clean, absorbent cloth and squeeze to

remove excess oil,

NOTE: Ifvery dirty or damaged, replace

pre-cleaner.

TO SERVICE CARTRIDGE

5. Clean cartridge by tapping gently on

flat surface. If very dirty or damaged,

replace cartridge.

6. Reinstall precleaner cartridge, cover

and secure with knobs.

IMPORTANT: Petroleum solvents, such

as kerosene, are notto be used to clean

the cartridge. They may cause deteriora-

tion ofthe cartridge. Do not oil cartridge.

Do not use pressurized air to clean or dry

cartridge.

co:

Fr°ea-_teaner_Cartddge

ENGINE OIL FILTER

Replace the engine oil filter every season

or eve_/other oilchange if the tractor is

used more than 100 hours in one year.

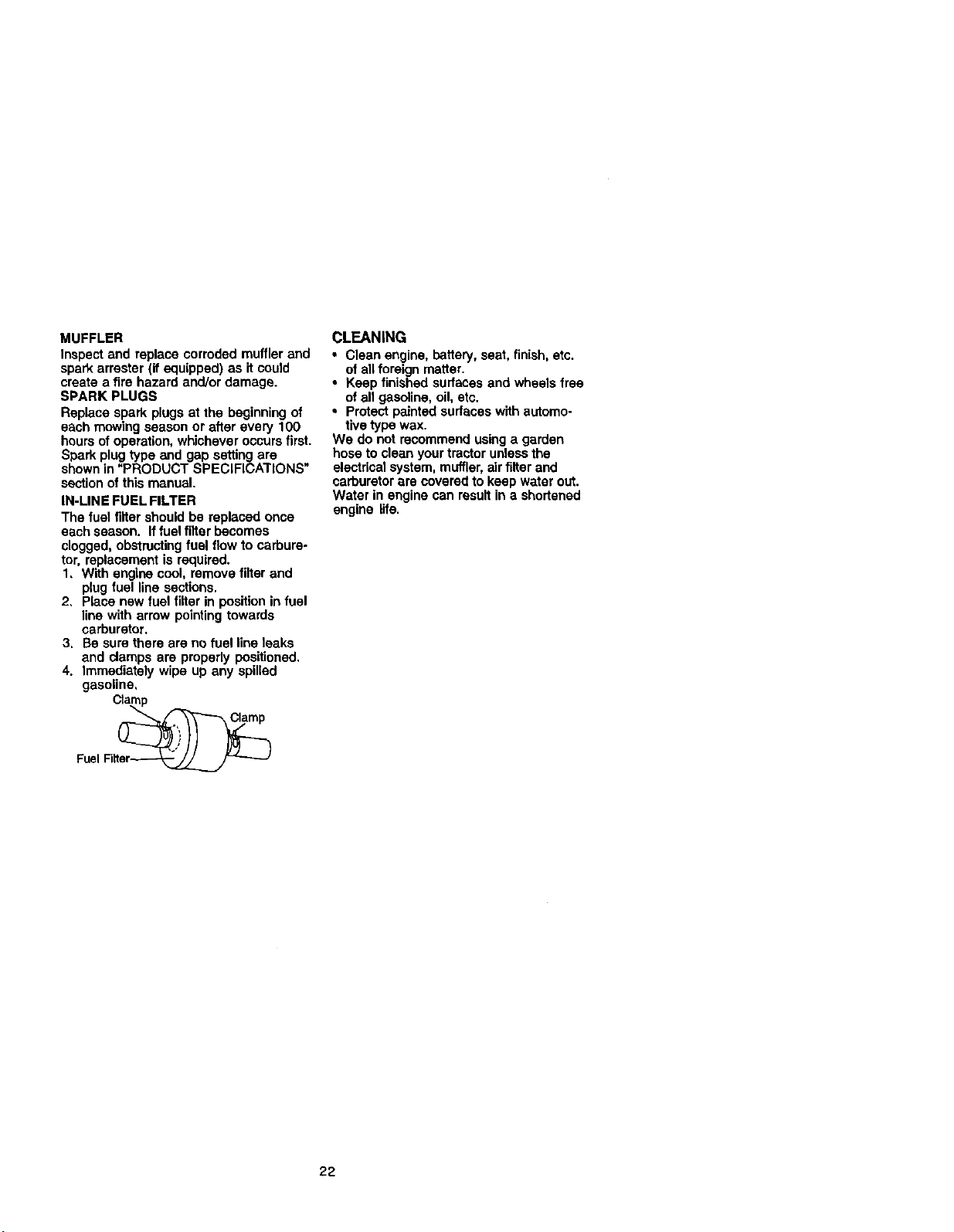

MUFFLER

Inspectandreplacecorrodedmufflerand

sparkarrester(ifequipped)asitcould

createafire hazard and/or damage.

SPARK PLUGS

Replace spark plugs at the beginning of

each mowing season or after every 100

hours of operation, whichever occurs first.

Spark plug type and gap setting are

shown in =PRODUCT SPECIFICATIONS"

section of this manual.

IN-LINE FUEL FILTER

The fuel filtershould be replaced once

each season. Iffuel filter becomes

clogged, obstructingfuel flow to carbure-

tor, replacement is required.

1, With engine cool, remove filter and

plug fuel line sections.

2, Place new fuel filter in position in fuel

line with arrow pointingtowards

carburetor.

3. Be sure there are no fuel line leaks

and clamps are propedy positioned.

4. Immediately wipe up any spilled

gasoline,

Clamp

Fuel Filter__ _J

CLEANING

• Clean engine, battery, seat, finish, etc.

of all foreign matter.

• Keep finished surfaces and wheels free

of all gasoline, oil,etc.

• Protect painted surfaces with automo-

tive type wax.

We do not recommend using a garden

hose to clean your tractor unless the

electrical system, muffler, airfilter and

carburetor are covered to keep water out.

Water in engine can result in a shortened

engine life.

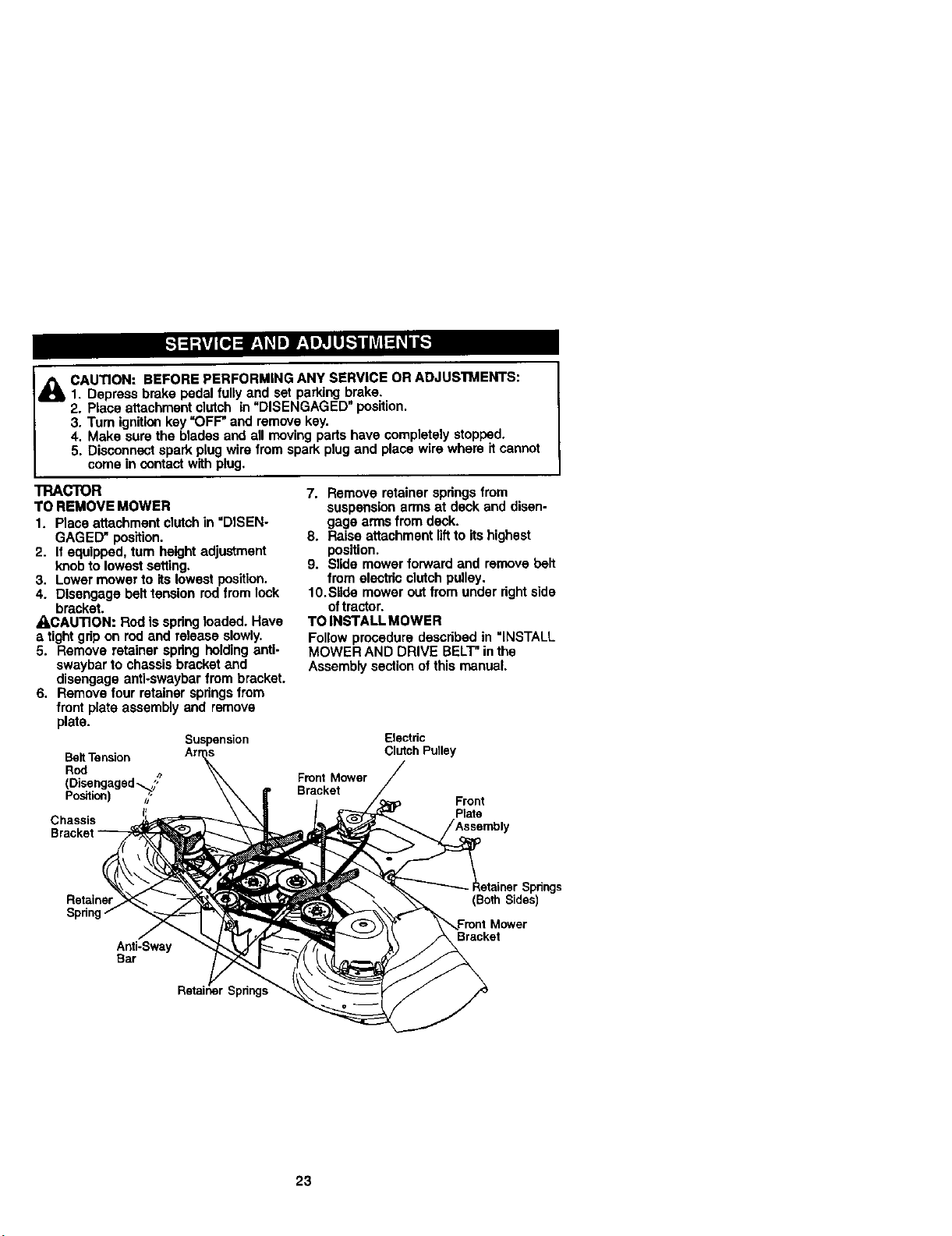

CAUTION:BEFOREPERFORMINGANYSERVICEORADJUSTMENTS:

1.Depressbrakepedalfullyandsetparkingbrake.

2.Raceattachmentclutchin"DISENGAGED" position.

3. Tum ignitionkey "OFF" and remove key.

4. Make sure the blades and all moving parts have completely stopped.

5. Disconnect spark plug wire from spark plug and place wire where it cannot

come in contact with plug,

TRACTOR

TO REMOVE MOWER

1. Place attachment clutchin "DISEN-

GAGED" position.

2. If equipped, turn height adjustment

knob to lowest setting.

3. Lower mower to its lowest position.

4. Disengage belt tension rod from lock

bracket.

_CAUTION: Rod is spring loaded. Have

a tight grip on rod and release slowly.

5. Remove retainer spring holding anti-

swaybar to chassis bracket and

disengage anti-swaybar from bracket.

6. Remove four retainer springsfrom

front plate assembly and remove

plate.

Suspension

BeltTension

Rod

• O

(Disengaged-,_',

Position) /_'

Chassis

7. Remove retainer springs from

suspension arms at deck and disen-

gage arms from deck.

8. Raise attachment liftto its highest

position.

9. Slide mower forward and remove belt

from electric clutch pulley.

10.Slide mower outfrom under rightside

oftractor.

TO INSTALL MOWER

Follow procedure described in =INSTALL

MOWER AND DRIVE BELT"in the

Assemblysection ofthis manual.

Electdc

Clutch Pulley

Front Mower

Bracket

Front

Rate

Retainer

Anti-Sway

Bar

RetainerSpdngs

(Both Sides)

Mower

Bracket

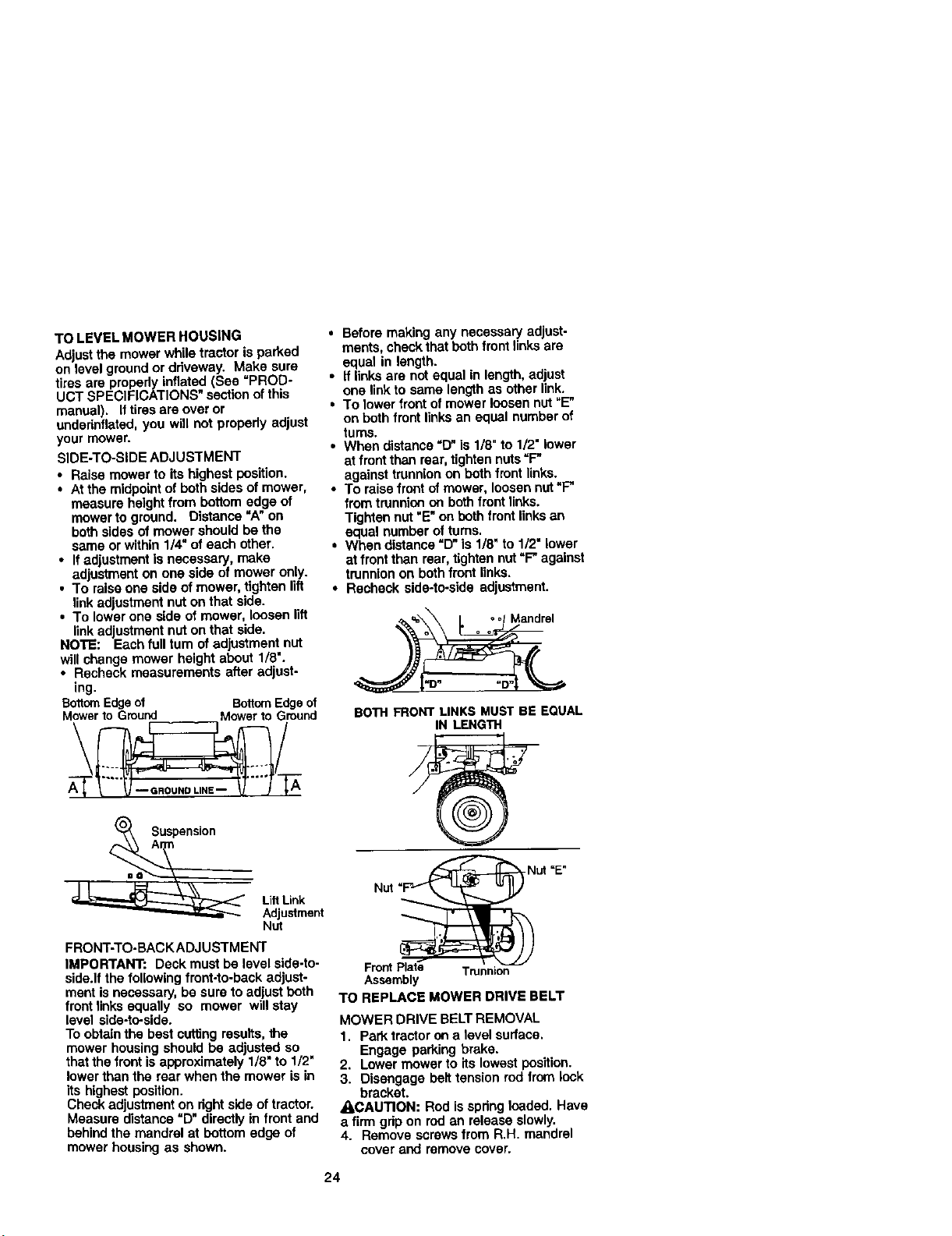

TO LEVEL MOWER HOUSING

Adjustthe mower while tractor is parked

on level groundor driveway. Make sure

tires are propedy inflated (See =PROD-

UCT SPECIFICATIONS" section ofthis

manual). If tiresare over or

undednflated, you will not propedy adjust

your mower.

SIDE-TO-SIDE ADJUSTMENT

• Raise mower to itshighest position.

• At the midpointof both sides of mower,

measure height from bottom edge of

mowerto ground. Distance "A" on

both sides of mower should be the

same or within 1/4" of each other.

• If adjustment is necessary, make

adjustment on one side of mower only.

• To raise one side of mower, tighten lift

link adjustment nut onthat side.

• To lower one side of mower, loosen lift

linkadjustment nut on that side.

NOTE: Each full turn of adjustment nut

will change mower height about 1/8".

• Recheck measurements after adjust-

ing.

BottomEdgeof BottomEdgeof

Mowerto Ground Mowerto Ground

Suspension

Lift Link

Adjustment

Nut

FRONT-TO-BACK ADJUSTM ENT

IMPORTANT: Deck must be level side-to-

side.If the following front-to-back adjust-

ment is necessary, be sure to adjust both

front links equally so mower will stay

level side-to-side.

To obtainthe best cutting results,the

mower housing should be adjusted so

that the front is approximately 1/8" to 1/2"

lower than the rear when the mower is in

its highest position.

Check adjustment on dght side of tractor.

Measure distance =D" directly in front and

behind the mandrel at bottom edge of

mower housing as shown.

• Before making any necessary adjust-

ments, checkthat both front links are

equal in length.

• If links are not equal in length, adjust

one linkto same length as other link.

• To lower front ofmower loosen nut "E"

on both front links an equal number of

turns.

• When distance =D"is 1/8" to 1/2" lower

at front than rear, tightennuts=F_

against trunnionon both front links.

• To raisefront of mower, loosen nut"F"

fromtrunnion an both front links.

Tighten nut =E"on beth front linksan

equal number of turns.

• When distance "D" is 1/8" to 1/2" lower

at front than rear, tighten nut "F" against

trunnionon both front links.

• Recheck side-to-side adjustment.

<_==_ / oo/Mandrel

o o o

BOTH FRONTLINKS MUST BE EQUAL

IN LENGTH

Nut =E"

Front Plate Trunnion

Assembly

TO REPLACE MOWER DRIVE BELT

MOWER DRIVE BELTREMOVAL

1. Park tractor an a level surface.

Engage parking brake.

2. Lower mower to its lowest position.

3. Disengage belt tension rod from look

bracket.

_LCAUTION: Rod Is spdng leaded. Have

a firm grip on rod an release slowly.

4. Remove screws from R.H. mandrel

cover and remove Cover.

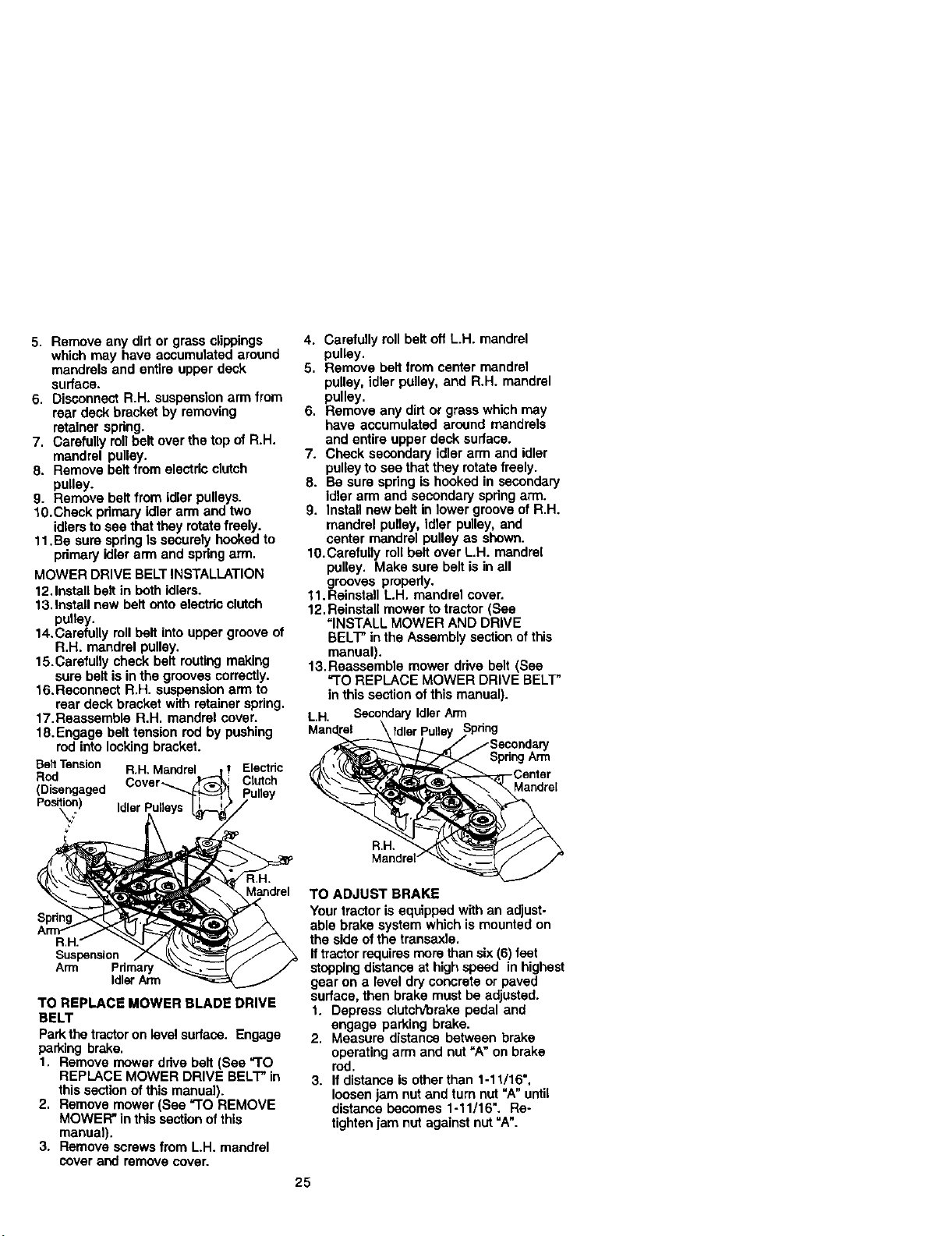

5. Removeanydirtorgrassclippings

whichmayhaveaccumulatedaround

mandrels and entire upper deck

surface.

6. Disconnect R.H. suspensionarm from

rear deck bracket by removing

retainer spring.

7. Carefully rollbelt over the top of R.H.

mandrel pulley.

8. Remove belt from electric clutch

pulley.

9. Remove belt from idler pulleys.

10.Check pdrnary idler arm and two

idlers tosee that they rotate freely.

11.Be sure spdng Is securely hookedto

primary idler arm and springarm.

MOWER DRIVE BELT INSTALLATION

12,Install belt in both idlers,

13.Install new belt onto electric clutch

pulley.

14.Carefully roll belt into upper groove of

R.H. mandrel pulley.

15.Carefully check belt routing making

sure belt is in the grooves correctly.

16.Reconnect R.H. suspension arm to

rear dockbracket with retainer spring.

17.Reassemble R.H. mandrel cover.

18. Engage belt tension rod by pushing

rod into locking bracket.

BeltTension R.H.Mandrel Electric

Rod

(Disengaged Cover_ Clutch

Posit_on,)

4. Carefully rollbolt off L.H. mandrel

pulley.

5. Remove belt from center mandrel

pulley, idler pulley, and R,H. mandrel

pulley.

6. Remove any dirt or grass which may

have accumulated around mandrels

and entire upper deck surface.

7. Check secondary idler arm and idler

pulleyto see that they rotate freely.

8. Be sure spring is hooked in secondary

idler arm and secondary spring arm.

9, Install now bolt in lower groove of R.H.

mandrel pulley, idler pulley, and

center mandrel pulley as shown.

10.Carafully roll belt over L.H. mandrel

pulley. Make sure belt is in all

grooves pmpedy.

t 1.Reinstall L.H. mandrel cover.

12. Reinstall mower to tractor (See

=INSTALL MOWER AND DRIVE

BELT" in the Assembly section ofthis

manual).

13.Reassemble mower dave belt (See

"TO REPLACE MOWER DRIVE BELT"

in this section of this manual).

LH. SecondaryIdlerArm

Spring Arm

Mandret

R.H,

Spnng

R.H,

Mandrel

Suspension

Arm Pdmary

Idler Ann

TO REPLACE MOWER BLADE DRIVE

BELT

Parkthe tractoron levelsurface. Engage

parking brake.

1, Remove mower drive belt (See "TO

REPLACE MOWER DRIVE BELT* in

this sectionof this manual).

2. Remove mower (See "TO REMOVE

MOWER' in this section ofthis

manual).

3. Remove screws from L.H. mandrel

cover and remove cover.

TO ADJUST BRAKE

Your tractor is equipped with an adjust-

able brake system which is mounted on

the side ofthe transaxlo.

Iftractor requires more than six (6) feet

stoppingdistance at high speed in highest

gear on a level dry concrete or paved

surface, then brake must be adjusted.

1. Depress clutcl'v'orakepedal and

engage parking brake.

2. Measure distance between brake

operating arm and nut =A" on brake

rod.

3. If distance is other than 1-11/16",

loosenjam nutand turn nut "A" until

distance becomes 1-11/16". Re-

tighten jam nut against nut "A".

4. Road test tractor for proper stopping

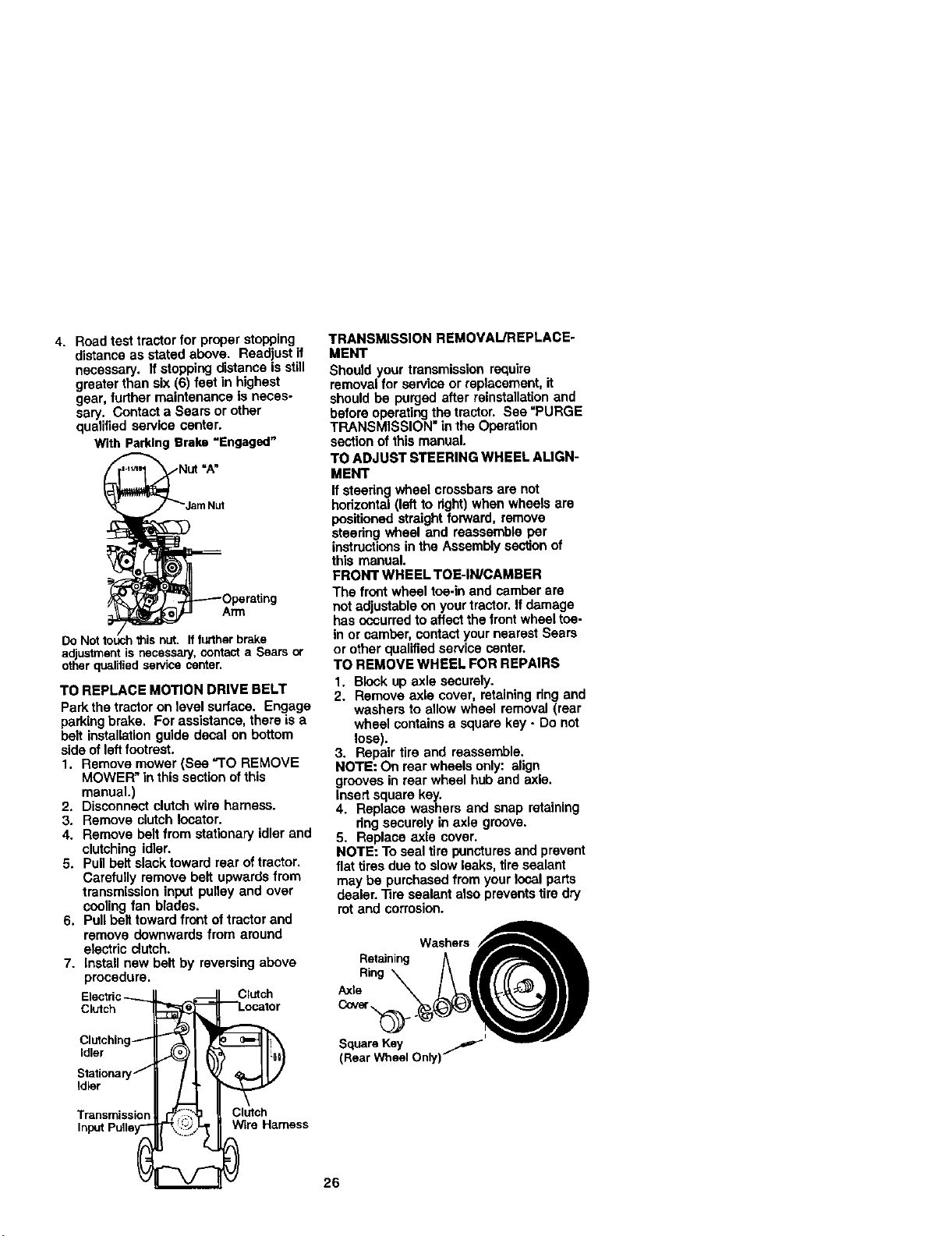

distance as stated above. Readjust if

necessary. If stopping distance is still

greater than six (6) feet in highest

gear, further maintenance Is neces-

sary. Contact a Sears or other

qualified service center.

With Parking Brake "Engaged"

AITn

Do h this nut. If fu_her brake

adjustment is necessary, contact a Sears or

other qualified service center.

TO REPLACE MOTION DRIVE BELT

Park the tractor on level surface. Engage

parkingbrake. For assistance, there is a

belt installationguide decal on bottom

side ofleft footrest.

1. Remove mower (See "tO REMOVE

MOWER" in this section ofthis

manual.)

2. Disconnect clutch wire harness.

3. Remove clutchiocator.

4. Remove belt from stationary idler and

clutching idler.

5. Pull belt slack toward rear of tractor.

Carefully remove belt upwards from

transmission input pulley and over

coolingfan blades.

6. Pullbelt toward front of tractor and

remove downwards from around

electric clutch.

7. Install new belt by reversing above

procedure.

Electdc_ _1 Clutch

Clutch e Locator

Clutching/ _Idler 't_

Stationary/

Idler

I'_F_-7_';1 _ Clutch

TransmissiOnlnputPulley'- H'_.!i_ l._ I Wire Harness

TRANSMISSION REMOVAL/REPLACE-

MENT

Should your transmission require

removal for service or replacement, it

should be purged after reinstallation and

before operating the tractor. See "PURGE

TRANSMISSION" in the Operation

sectionof this manual.

TO ADJUST STEERING WHEEL ALIGN-

MENT

If steering wheel crossbarsare not

horizontal (left to right) when wheels are

positioned straight forward, remove

steedng wheel and reassemble per

instructionsin the Assembly section of

this manual.

FRONT WHEEL TOE-IN/CAMBER

The front wheel toe-in and camber are

notadjustable an your tractor. If damage

has occurred to affect the front wheel toe-

in or camber, contact your nearest Sears

or other qualified service center.

TO REMOVE WHEEL FOR REPAIRS

1. Block up axle securely.

2. Remove axle cover, retaining dng and

washers to allow wheel removal (rear

wheel contains a square key - Do not

lose).

3. Repair tire and reassemble.

NOTE: On rear wheels only: align

grooves in rear wheel huband axle.

Insert square key.

4. Replace washers and snap retaining

dng securely in axle groove.

5. Replace axle cover.

NOTE: To seal tire punctures and prevent

flat tires due to slow leaks, tire sealant

may be purchased from your local parts

dealer. Tire sealant also prevents tire dry

rot and corrosion.

Washers_

, 12i°'\

SquareKey

(RearWheelOnly)

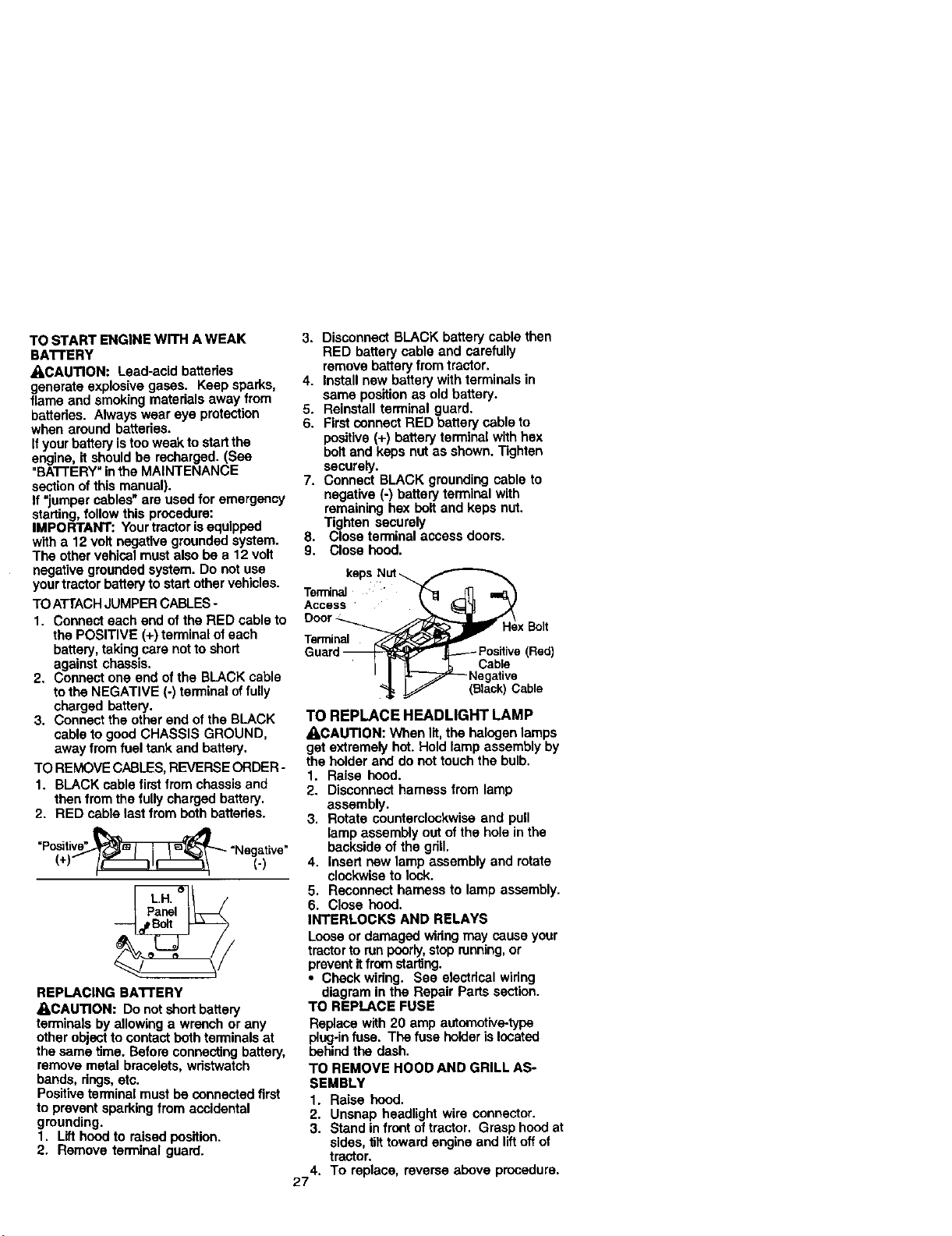

TO START ENGINE WITH A WEAK

BA'n'ERY

_,CAUTION: Lead-acid batteries

generate explosive gases. Keep sparks,

flame and smoking materials away from

batteries. Always wear eye protection

when around batteries.

If your batteryistoo weak to start the

engine, it should be recharged. (See

"BA'I-rERY" inthe MAINTENANCE

section of this manual).

If =jumper cables"are used for emergency

starting,follow this procedure:

IMPORTANT: Your tractor isequipped

with a 12 volt negative grounded system.

The other vehical must also be a 12 volt

negative grounded system. Do not use

your tractor battery to start othervehicles.

TO ATTACHJUMPER CABLES-

1. Connect each end of the RED cable to

the POSITIVE (+) terminal of each

battery, taking care notto short

against chassis.

2. Connect one end of the BLACK cable

to the NEGATIVE (-) terminal of fully

charged battery.

3. Connect the other end of the BLACK

cable to good CHASSIS GROUND,

away from fuel tank and battery.

TO REMOVE CABLES, REVERSE ORDER-

1. BLACK cable first from chassis and

then from the fully charged battery.

2. RED cable last from beth batteries.

"Positiv_ =Negative"

REPLACING BATTERY

ACAUTION: Do not short battery

terminals by allowing a wrench or any

other objectto contact both terminals at

the same time. Before connecting battery,

remove metal bracelets, wristwatch

bands, dngs, etc.

Positiveterminal must be connected first

to prevent sparking from accidental

grounding.

1. L_ hood to raised position.

2. Remove terminal guard.

3. Disconnect BLACK battery cable then

RED battery cable and carefully

remove batteryfrom tractor.

4. Install new battery with terminals in

same positionas old battery.

5. Reinstall terminal guard.

6. First connect RED battery cable to

positive (+) battery terminal with hex

bolt and keps nut as shown. Tighten

securely.

7. Connect BLACK gmundiog cable to

negative (-) battery terminal with

remaining hex boltand keps nut.

Tighten securely

8. Close terminal access doom.

9. Close hood.

keps Nut

Teminal " t

Access

Guard

_e x Bolt

(Red)

(Black) Cable

TO REPLACE HEADLIGHT LAMP

_,CAUTION: When lit,the halogen lamps

get extremely hot. Hold lamp assembly by

the holder and do not touch the bulb.

1. Raise hood.

2. Disconnect hamess from lamp

assembly.

3. Rotate counterclockwise and pull

lamp assembly out of the hole in the

backside of the grill.

4. Insert new lamp assembly and rotate

clockwiseto lock.

5. Reconnect harness to lamp assembly.

6. Close hood.

INTERLOCKS AND RELAYS

Looseor damaged wiring may cause your

tractorto run poorly,stop running,or

preventit fromstarting.

• Check widng. See electrical wiring

diagram in the Repair Parts section.

TO REPLACE FUSE

Replace with 20 amp automotive-type

plug-in fuse. The fuse holder islocated

behind the dash.

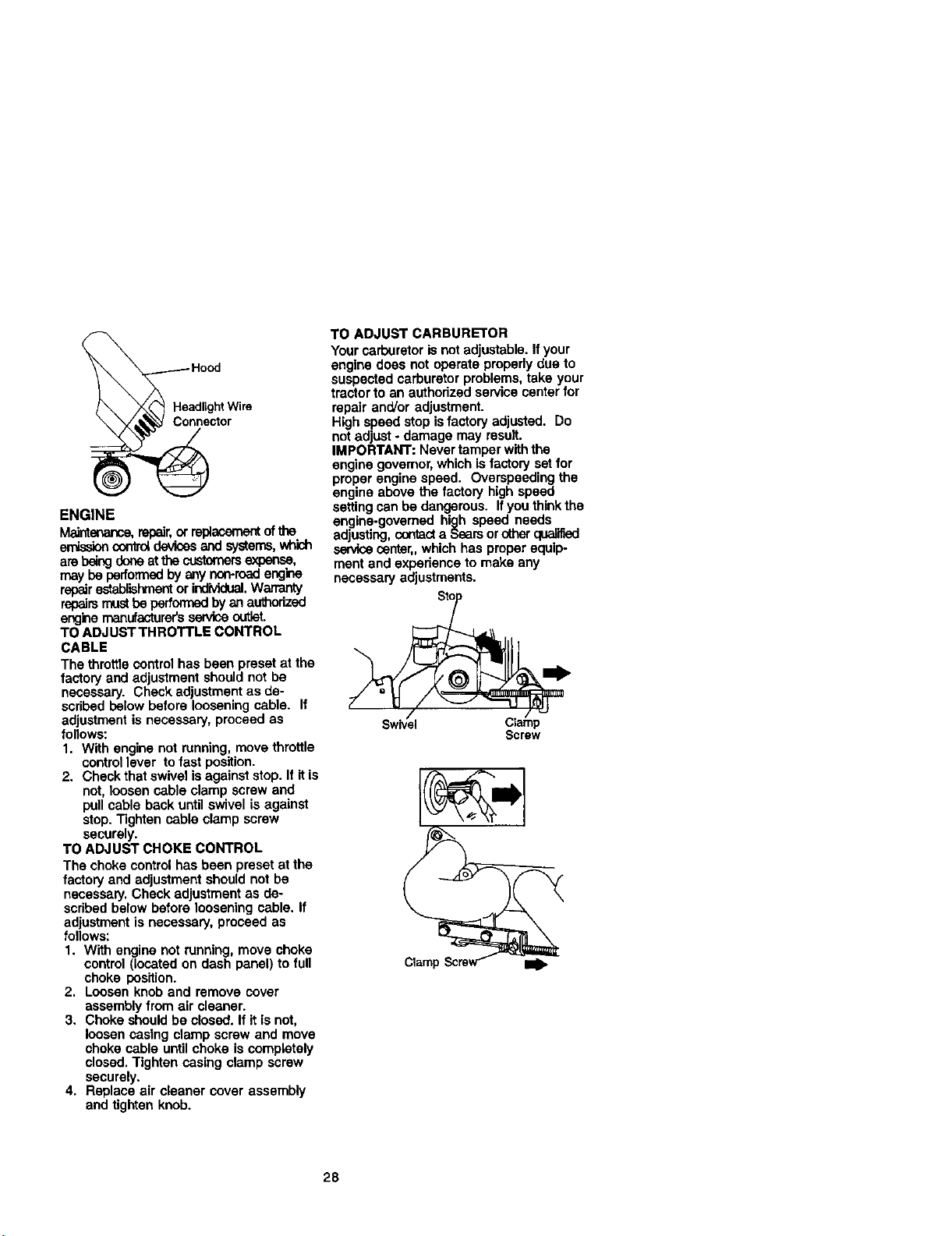

TO REMOVE HOOD AND GRILL AS-

SEMBLY

1. Raise hood.

2. Unsnap headlight wire connector.

3. Stand in front oftractor. Grasp hoodat

sides, tilt toward engine and liftoff of

tractor.

4. To replace, reverse above procedure.

ctor

ENGINE

Maintenance,repair,orreplacement ofthe

oea_o_devicesand sy_ema, which

are beingdoneat the customersexpense,

may be perfon'nedby any non-roedengine

repairestablishment or indMdual. W_L_mty

repairsrnustbe performedby an authorized

engine manufacturer'sserviceoutlet

TO ADJUSTTHROTTLE CONTROL

CABLE

The throttle control has been preset at the

factory and adjustment should not be

necessary. Check adjustment as de-

scribed below before loosening cable. If

adjustment is necessary, proceed as

follows:

1. With engine not running, move throttle

control lever to fast position.

2. Check that swivel is against stop. If it is

not, loosen cable clamp screw and

pull cable back until swivel is against

stop. Tighten cable clamp screw

securely.

TO ADJUST CHOKE CONTROL

The choke control has been preset at the

factory and adjustment should not be

necessary. Check adjustment as de-

scribedbelow before loosening cable. If

adjustment is necessary, proceed as

follows:

1. With engine not running, move choke

control (located on dash panel) to full

choke position.

2. Loosen knob and remove cover

assembly from air cleaner.

3. Choke should be closed. If it is not,

loosen casing clamp screw and move

choke cable until choke is completely

closed. Tighten casing clamp screw

securely.

4. Replace air cleaner cover assembly

and tighten knob.

TO ADJUST CARBURETOR

Your carburetor isnot adjustable. If your

engine does not operate properly due to

suspected carburetor problems, take your

tractor to an authorized service center for

repair and/or adjustment.

High speed stop isfactory adjusted. Do

notadjust - damage may result.

IMPORTANT: Nevertamper withthe

engine governor, which isfactory set for

proper engine speed. Overspeeding the

engine above the factory high speed

setting can be dangerous. If you think the

engine-govemed high speed needs

adjusting, contacta Sears orothercpJalified

servicecenter,,which has proper equip-

ment and experience to make any

necessary adjustments.

Sto

Swivel Clamp

Screw

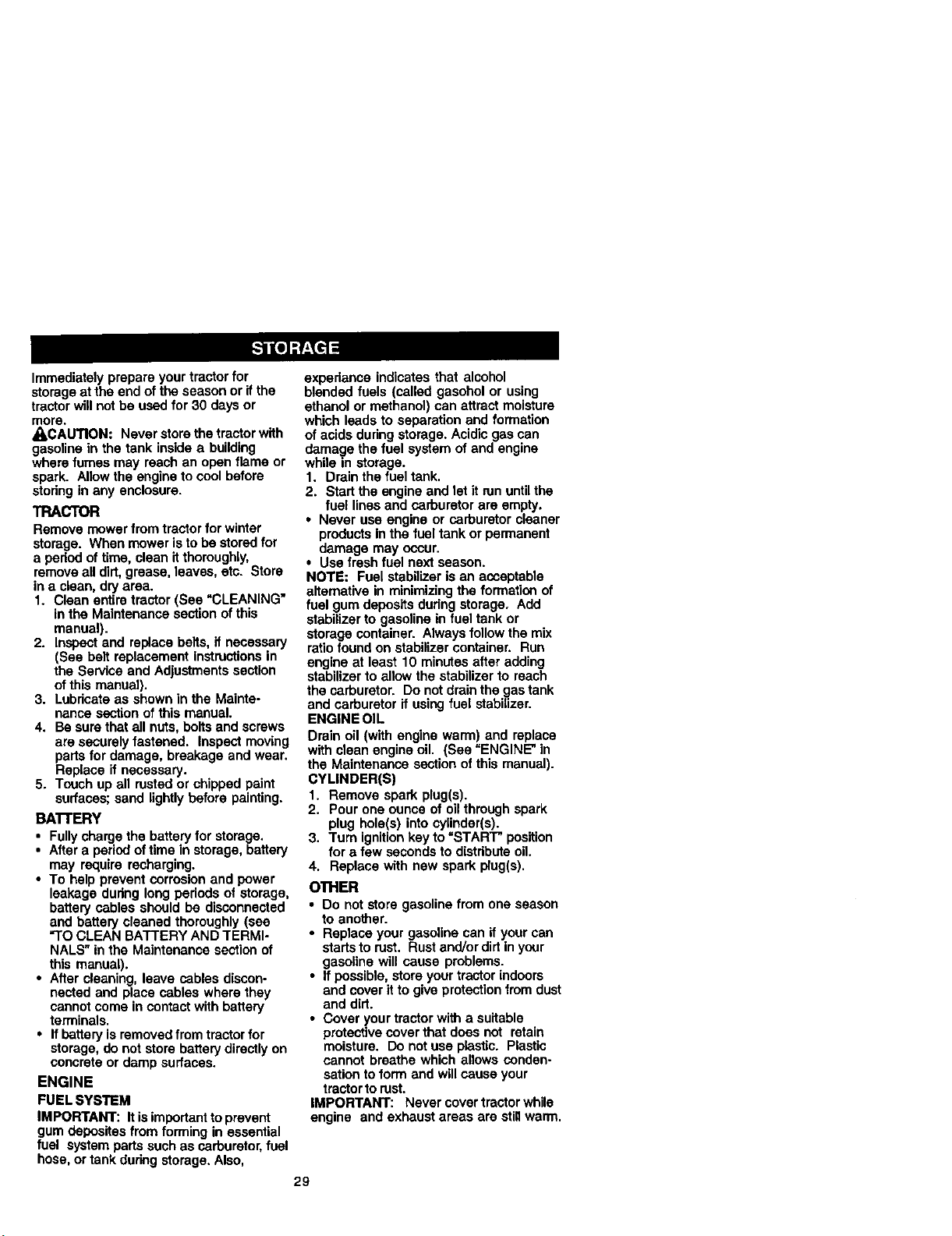

Immediatelyprepareyourtractorfor

storageattheendoftheseasonorifthe

tractorwillnotbeusedfor 30 days or

more.

_CAUTION: Never store the trectorwith

gasoline in the tank inside a building

where fumes may reach an open flame or

spark. Allow the engine to cool before

stodng in any enclosure.

TRACTOR

Remove mower from tractor for winter

storage. When mower is to be stored for

a period of time, clean it thoroughly,

remove all dirt, grease, leaves, etc. Store

in a clean, dryarea.

1. Clean entire tractor (See =CLEANING"

in the Maintenance section of this

manual).

2. Inspect and replace belts, if necessary

(See belt replacement Instructionsin

the Service and Adjustments section

of this manual).

3. Lubricate as shown in the Mainte-

nance section of this manual.

4. Be sure that all nuts, bolts and screws

are securelyfastened. Inspect moving

parts for damage, breakage and wear.

Replace if necessary.

5. Touch up all rusted or chipped paint

surfaces; sand lightlybefore painting.

BATI'ERY

• Fullycharge the batteryfor storage.

• After a period oftime in storage, battery

may require recharging.

• To help prevent corrosion and power

leakage during long periods of storage,

battery cables should be disconnected

and battery cleaned thoroughly (see

=TOCLEAN BATTERY AND TERMI-

NALSwin the Maintenance section of

this manual).

• After cleaning, leave cables discon-

nected and place cables where they

cannot come in contact with battery

terminals.

• If battery is removed from tractor for

storage, do not store battery directlyon

concrete or damp surfaces.

ENGINE

FUEL SYSTEM

IMPORTANT: It isimportant toprevent

gum deposites from forming in essential

fuel system parts such as carburetor, fuel

hose, or tank during storage. Also,

expedanca indicates that alcohol

blended fuels (called gasohol or using

ethanol or methanol) can attract moisture

which leads to separation and formation

of acids during storage. Acidic gas can

damage the fuel system of and engine

while in storage.

1. Drain the fuel tank.

2. Start the engine and let it run untilthe

fuel lines and carburetor are empty.

• Never use engine or carburetor cleaner

products In the fuel tank or permanent

damage may occur.

• Use fresh fuel next season.

NOTE: Fuel stabilizer is an acceptable

alternative in minimizing the formation of

fuel gum deposits during storage, Add

stabilizer to gasoline in fuel tank or

storage container. Alwaysfollow the mix

ratio found on stabilizer container. Run

engine at least 10 minutes after adding

stabilizer to allow the stabilizer to reach

the carburetor. Do notdrainthe gas tank

and carburetor if using fuel stabilizer.

ENOINEOIL

Drain oil (with engine warm) and replace

with clean engine oil. (See =ENGINE" in

the Maintenance section of this manual).

CYLINDER(S)

1. Remove spark plug(s).

2. Pour one ounce of oil through spark

plug hole(s) into cylinder(s).

3. Turn ignitionkey to =START' position

for a few seconds to distribute oil.

4. Replace with new spark plug(s).

OTHER

• Do notstore gasoline from one season

to another.

• Replace your gasoline can if your can

startsto rust. Rustand/or dirt in your

gasoline will cause problems.

• If possible, store your tractor indoors

and cover it to give protection fromdust

and dirt.

• Cover your tractor with a suitable

protective cover that does nut retain

moisture. Do notuse plastic. Plastic

cannot breathe which allows conden-

sation to form and will cause your

tractor torust.

IMPORTANT: Never cover tractor while

engine and exhaust areas are stillwarm.

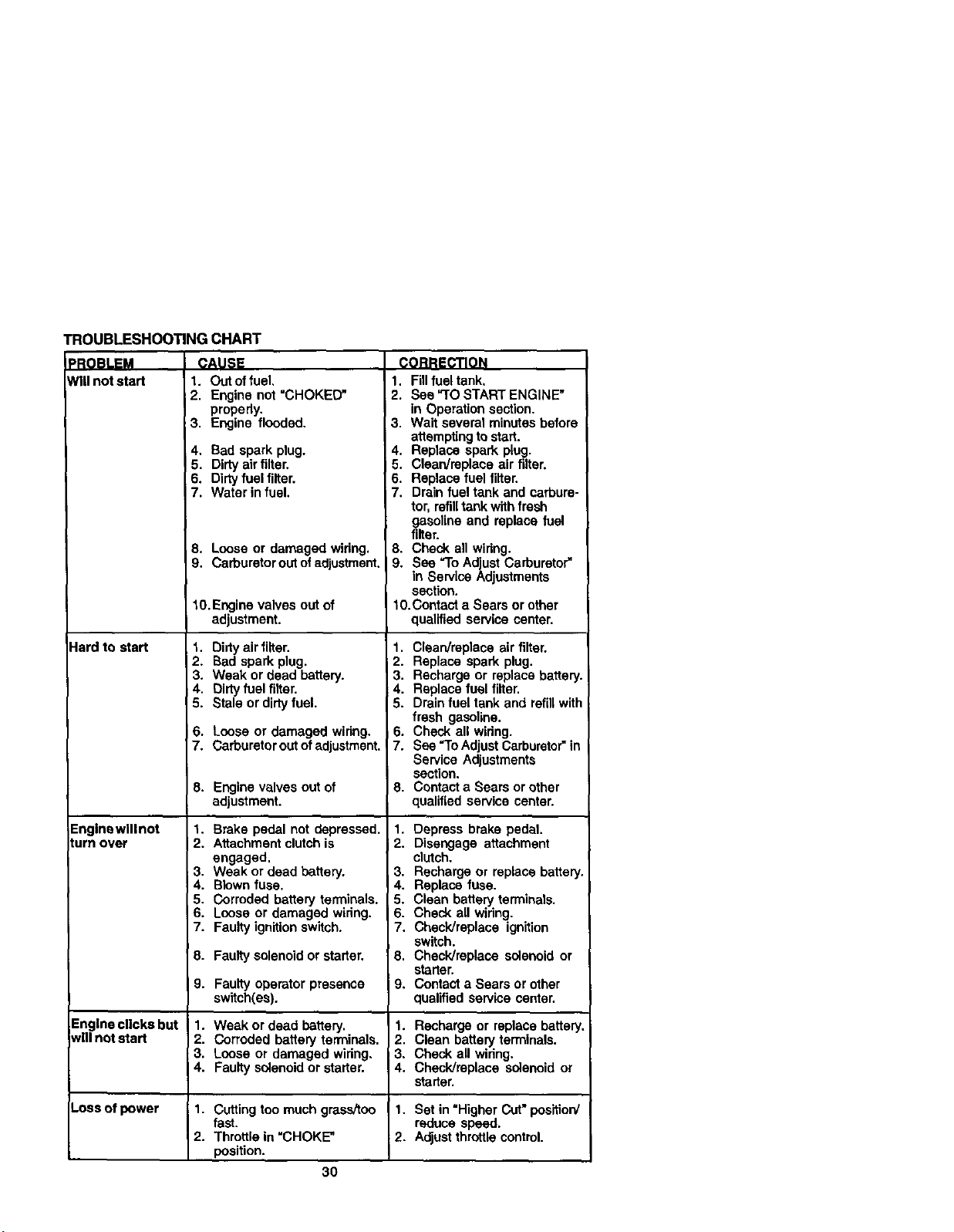

TROUBLESHOOTING CHART

_ROBLEM CAUSE

Will not start 1. Out offuel,

Hard to start

Englnewlllnot

turn over

2. Engine not "CHOKED"

properly.

3. Engine flooded.

4, Bad spark plug.

5. Dirty airfilter.

6. Dirtyfuel filter.

7. Water in fuel.

8. Loose or damaged widng.

9. Carburetor out of adjustment.

10.Engine valves out of

adjustment.

1. Dirty air filter.

2. Bad spark plug.

3. Weak or dead battery.

4. Dirty fuel filter.

5. Stale or dirtyfuel.

6. Loose or damaged wiring.

7. Carburetor out of adjustment.

8. Engine valves out of

adjustment.

1. Brake pedal not depressed.

2. Attachment clutchis

engaged.

3. Weak or dead battery.

4. Blown fuse.

5. Corroded battery terminals.

6. Loose or damaged wiring.

7. Faulty ignition switch.

8. Faulty solenoid or starter.

9. Faulty operator presence

swltch(es).

1. Weak or dead battery.

2. Corroded battery terminals.

3. Loose or damaged wiring,

4. Faulty solenoid or starter.

1. Cutting too much grass/too

fast.

2. Throttle in "CHOKE"

position.

CORRECTION

I. Fillfuel tank,

2. See "TOSTART ENGINE"

in Operation section.

3. Wait several minutes before

attemptingto start.

4. Replace spark plug.

5. Clean/replace air filter.

6. Replace fuel filter.

7. Drain fuel tank and carbure-

tor, refilltank withfresh

gasoline and replace fuel

filter.

8. Check all wiring.

9. See "To Adjust Carburetor"

in Service Adjustments

section.

10.Contact a Sears or other

qualified service center.

1. Clean/replace air filter.

2. Replace spark plug.

3. Recharge or replace battery.

4. Replace fuel filter.

5. Drain fuel tank and refillwith

fresh gasoline.

6. Check all widng.

7. See "ToAdjustCarburetor"in

Service Adjustments

section.

8. Contact a Sears or other

qualified service center.

1. Depress brake pedal.

2. Disengage attachment

clutch.

3. Recharge or replace battery,

4. Replace fuse.

5. Clean batteryterminals.

6. Check all wiring.

7. Check/replace ignition

switch.

8. Check/replace solenoid or

starter.

9. Contact a Sears or other

qualified service center,

Engine clicks but 1. Recharge or replace battery,

wlllnotstart 2. Clean battery terminals,

3. Check all wiring.

4. Check/replace solenoid or

starter.

Loss of power 1. Set in "Higher Cut" position/

reduce speed.

2. Adjustthrottlecontrol.

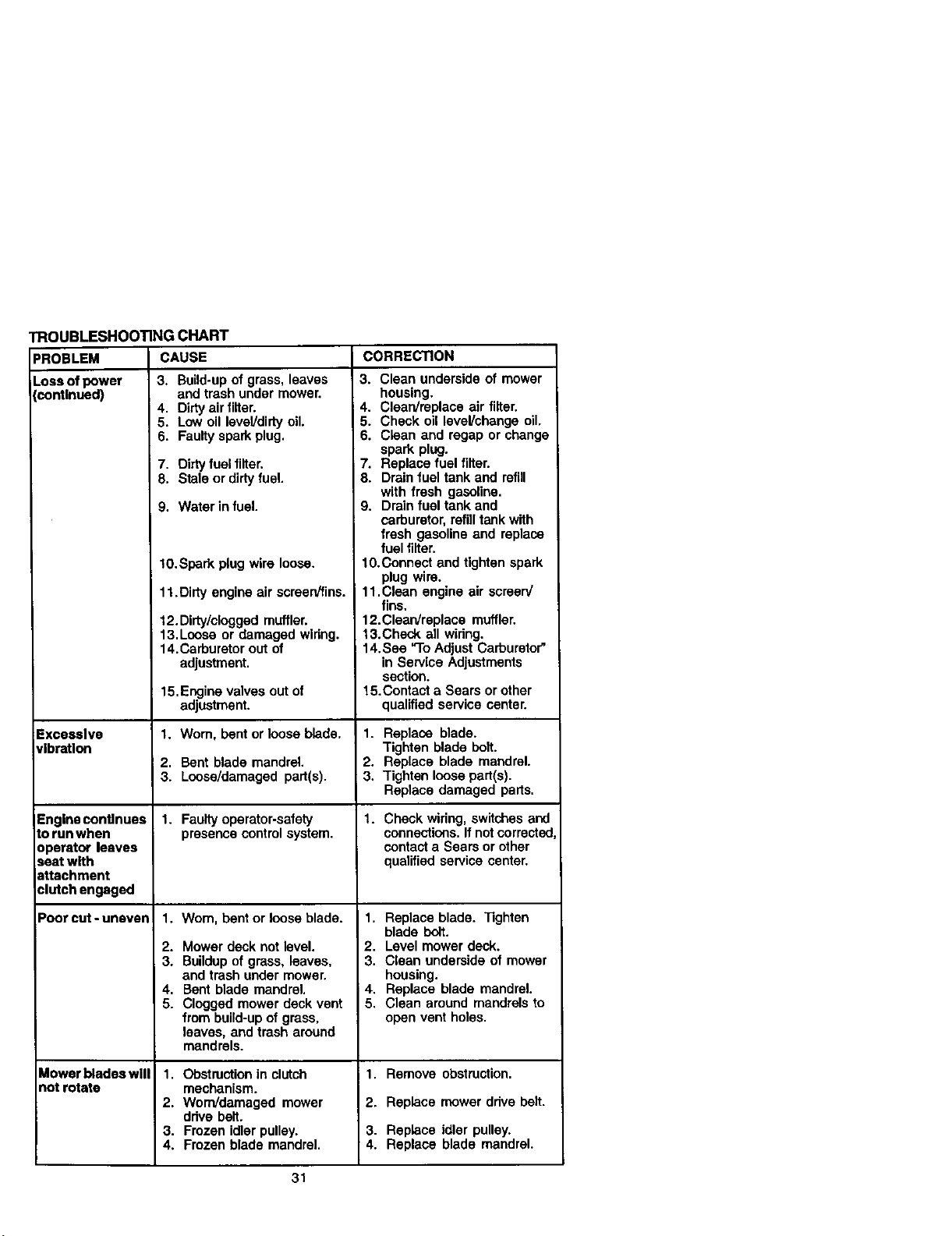

ROUBLESHOOTING CHART

PROBLEM

Loss of power

(continued)

Excessive

vibration

Engine congnuea

to run when

operator leaves

seat with

attachment

clutch engaged

Poor cut - unsvel

Mower blades will

r_otrotate

CAUSE

3. Build-up of grass, leaves

and trash under mower.

4. Dirtyair filter.

5. Low oil level/dirty oil.

6. Faulty spark plug.

7. Dirtyfuel filter.

8. Stale or dirtyfuel.

9. Water in fuel.

10.Spark plug wire loose.

11.Dirty engine air screen/fins.

12. Dirty/clogged muffler.

13.Lcose or damaged wiring.

14.Carburetor out of

adjustment.

15.Engine valves out of

adjustment.

1. Wom, bent or loose blade,

I 2. Bent blade mandrel.

3. Loose/damaged part(s).

1. Faulty operator-safety

presence control system.

1. Wom, bent or loose blade.

2. Mower deck not level.

3. Buildupof grass, leaves,

and trash under mower.

4. Bent blade mandrel.

5. Clogged mower deck vent

from build-upof gross,

leaves, and trash around

mandrels.

1. Obstruction in clutch

mechanism.

2. Worn/damaged mower

drive belt.

3. Frozen idler pulley.

4. Frozen blade mandrel.

CORRECTION

3. Clean underside of mower

housing.

4. Clean/replace air filter.

5. Check oil level/change oil.

6. Clean and regap or change

spark plug.

7. Replace fuel filter.

8. Drain fuel tank and refill

with fresh gasoline.

9. Drain fuel tank and

carburetor, refilltank with

fresh gasoline and replace

fuel filter.

10.Connect and tighten spark

plug wire.

i 11. Clean engine air screen/

fins.

12.Clean/replace muffler.

13.Check all widng.

14.See "ToAdjust Carburetor"

in Service Adjustments

section.

15.Contact a Sears or other

qualified service center.

1. Replace blade.

Tighten blade bolt.

2. Replace blade mandrel.

3. Tighten loose part(s).

Replace damaged parts.

1. Check widng, switches and

connections. If notcorrected

contacta Sears or other

qualified service center.

1. Replace blade. "Tighten

blade bolt.

2. Level mower deck.

3. Clean underside of mower

housing.

4. Replace blade mandrel.

5. Clean around mandrels to

open vent holes.

1. Remove obstruction.

2. Replace mower ddve belt.

3. Replace idler pulley.

4. Replace blade mandrel.

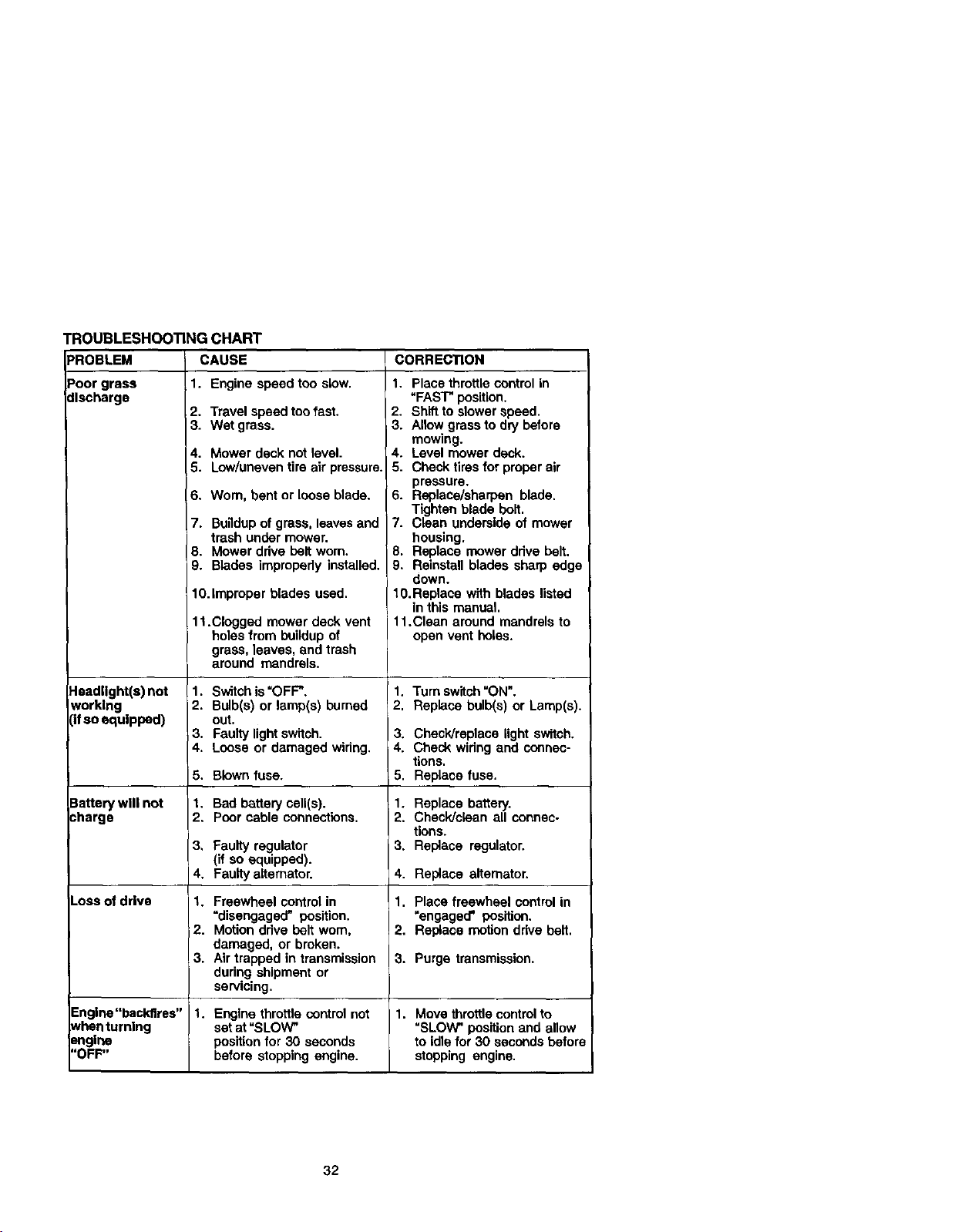

TROUBLESHOOTING CHART

CAUSEPROBLEM

Poor grass

discharge

-leadllght(s) not

working

'_lfso equipped)

Battery will not

:harge

Loss of drive

1. Engine speed too slow.

2. Travel speed too fast.

3. Wet grass.

4. Mower deck not level.

5. Low/uneven tire air pressure.

6. Worn, bent or loose blade.

7. Buildupof grass, leavesand

trash under mower.

8. Mower drive belt wom.

9. Blades improperly installed.

;10.Improper blades used.

11.Clogged mower deck vent

holes from buildup of

grass, leaves, and trash

around mandrels.

1. Switch is"OFF_.

2. Bulb(s) or lamp(s) burned

out.

3. Faulty lightswitch.

4. Loose or damaged widng.

5. Blown fuse.

1. Bad battery cell(s).

2, Poor cable connections.

3, Faulty regulator

(ff so equipped).

4, Faulty alternator.

1. Freewheel control in

=disengaged" position.

2. Motion ddve belt wom,

damaged, or broken.

3. Air trapped in transmission

dudng shipment or

servicing.

CORRECTION

1. Place throttle control in

=FAST" position.

2. Shift to slower speed.

3. Allow grass to dry before

mowing.

4. Level mower deck.

5. Check tiresfor proper air

pressure.

6. Replace/sharpen blade.

Tighten blade bolt.

7. Clean underside of mower

housing.

i 8. Replace mower ddve belt.

9. Reinstall blades sharp edge

down.

10.Replace with blades listed

in this manual.

11.Clean around mandrels to

open vent holes.

1. Turn switch"ON".

2. Replace bulb(s) or Lamp(s).

3. Check/replace light switch.

4. Check widng and connec-

tions.

5. Replace fuse.

1. Replace battery.

2. Check/claan all connec-

tions.

3. Replace regulator.

4. Replace alternator.

1. Place freewheel control in

=engaged" position.

2. Replace motion drive belt.

3. Purge transmission.

Engine"backfires" 1. Engine throttle control not 1. Move throttlecontrolto

whenturnlng set at "SLOW" "SLOW _ position and allow

engine position for 30 seconds to idlefor 30 seconds before

"OFF" before stopping engine, stopping engine.

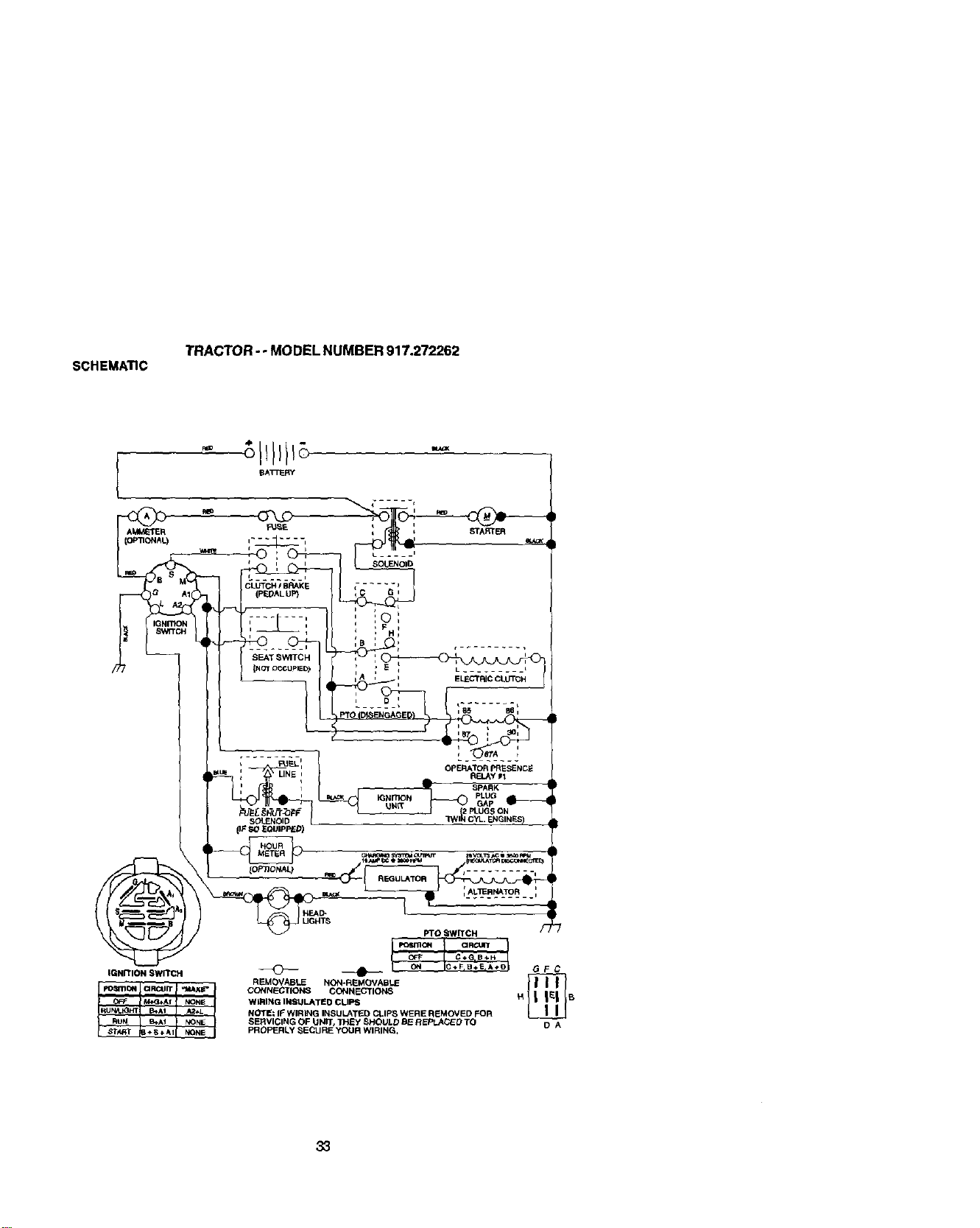

SCHEMATIC

TRACTOR -- MODEL NUMBER 917.272262

BATTERY

HEAD-

UGHTS

PTO _;WITCH

P°smc_ I aRcwr , I

OFt" _ ÷G_B-;l-I

0 _ _ cN z c÷_,.+_,,,...o G FC

REMOVABLE NON-REMOVABLE

CONNECTIONS CONNECTION8 H g

WIRING INSULATEO CLIPS

NOTI_I IF WIRING INSUL&TED CLIP8 WERE REMOVED FOR

SERVICING OF UNIT, THEY _HOULD BE F_EPLAOEG TO O A

PROPERLY _ECU RE YOUR WIRING.

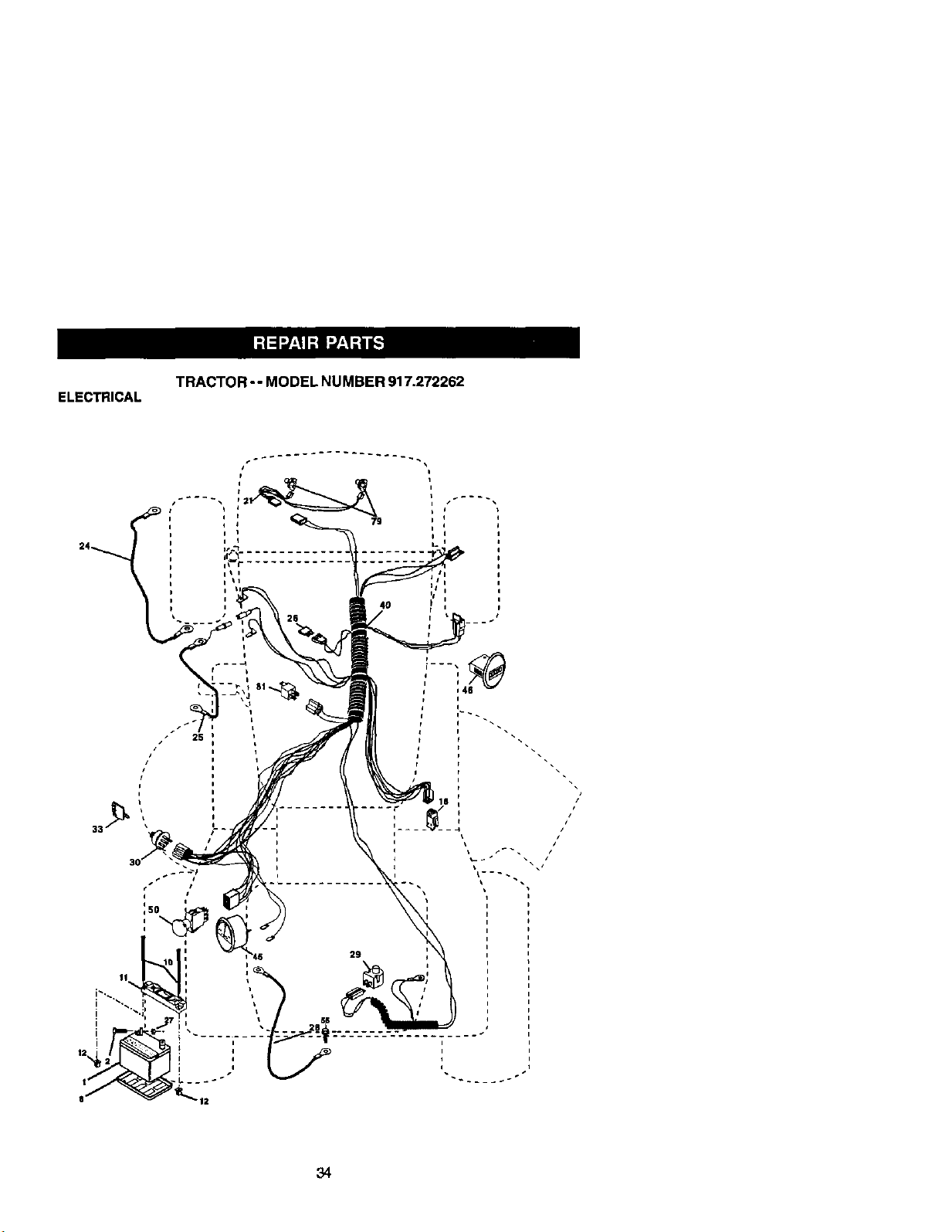

ELECTRICAL

TRACTOR -- MODEL NUMBER 917.272262

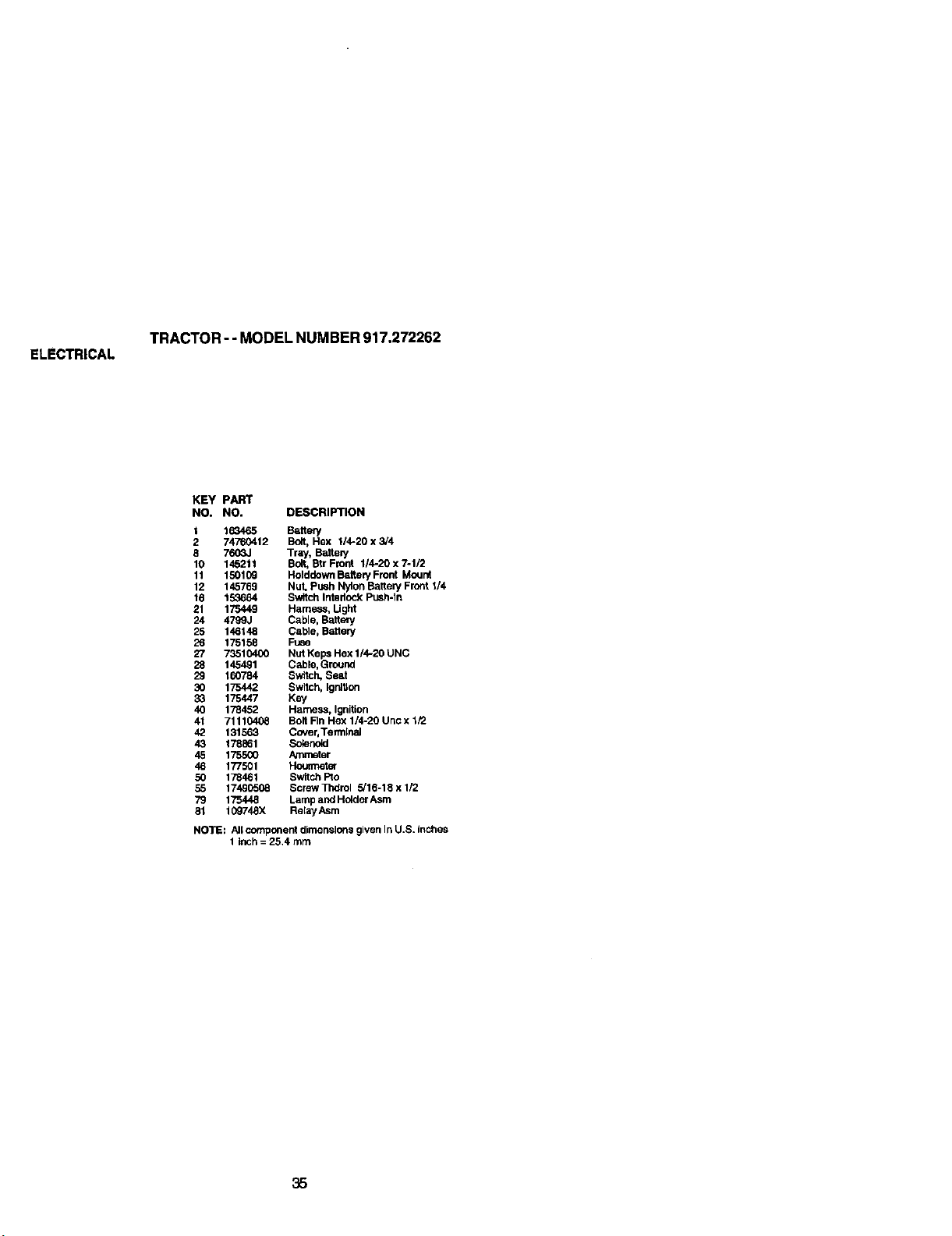

ELECTRICAL

TRACTOR - - MODEL NUMBER 917.272262

KEY pART

NO. NO. DESCRIPTION

163465 Be,ttery

74760412 Boit, Hex I/4-20 x 3/4

7603J Tray, Battery

145211 Boh, Btr Fmr_ 1/4-20 x 7-1/2

150109 Holddown Battery Front Mount

145769 Nut, Pu6h Nylon Battery FrOnt 1/4

153664 Switch Intedc_l<Push-in

175449 Harness, Light

4799J Cable, Battery

146148 Cable, Battery

175158 Fuse

73510400 NutKeps Hex 1/4-20 UNC

1454Ol Cable, Ground

160784 Switch, Seat

175442 Switch, Ignliton

175447 Key

178452 Harness, Ignition

71110408 Boit Fin Hex 1/4-20 Unc x 1/2

131563 Cover, Terrnmal

178861 Solenoid

175500 Ammeter

177501 Ho_meter

178461 Switch Pro

174905(38 Screw Thdrol 5/16-18 x 1/2

175448 Larnp and Holder Asm

10974OX RelayAsrn

NO'I_: All component dimensions given In U.S. inches

1 Inch= 25.4 mm

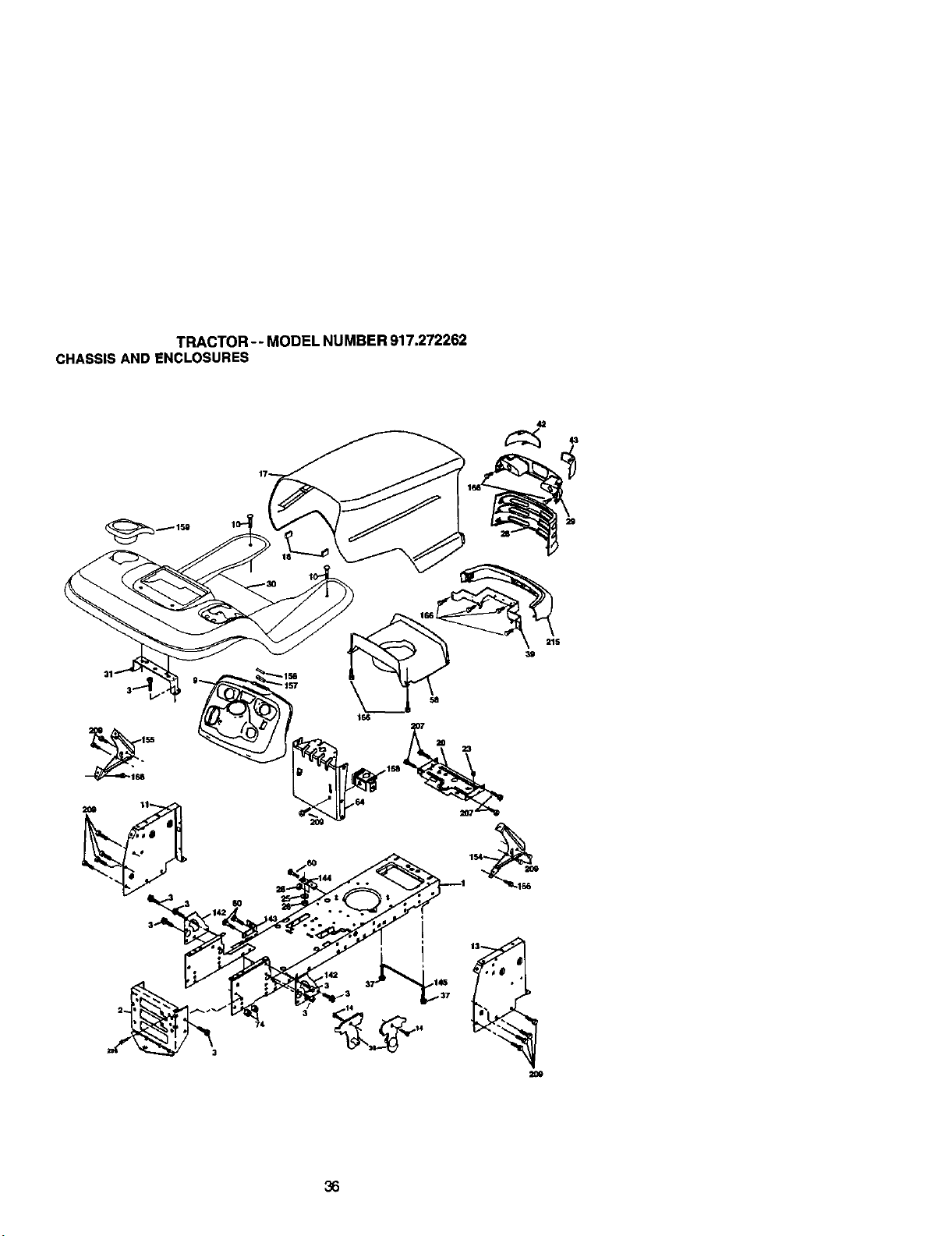

TRACTOR-- MODEL NUMBER 917.272262

CHASSISAND ENCLOSURES

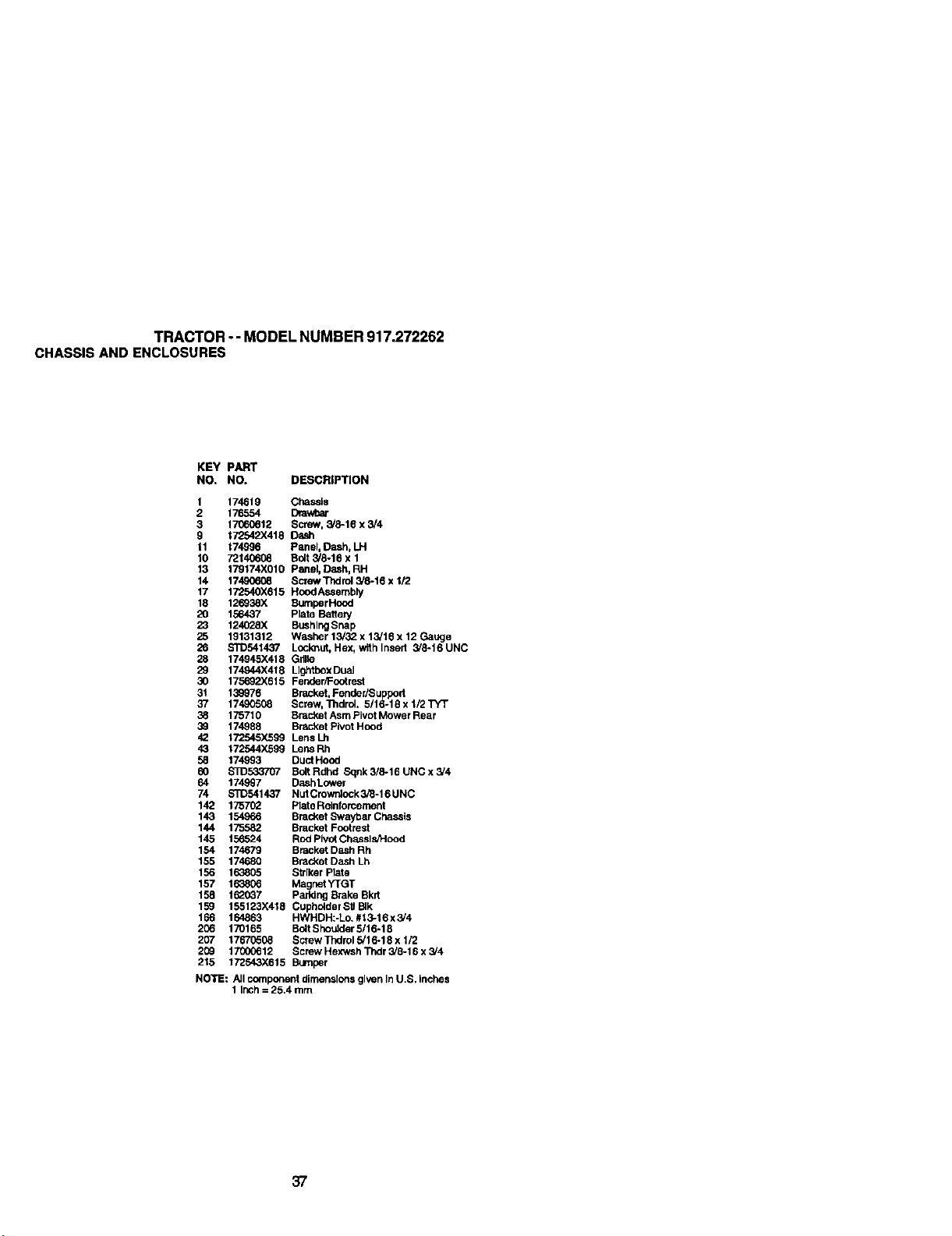

TRACTOR -- MODEL NUMBER 917.272262

CHASSISAND ENCLOSURES

KEY PART

NO. NO. DESCRIPTION

1 174619 Chassis

2 176554 Dmwhar

3 17060612 Screw, 318-16 x 3/4

9 172542X418 Dash

11 t74996 Panel, Dash, LH

10 72140608 Bolt 3/8-16 x 1

13 179174X010 Panel, Dash, RH

14 174906(_ Screw Thdrol 3/8-16 x 1/2

17 172540X615 Hood Assembly

18 12693_X BumperHood

20 156437 Plate BatteW

23 124028X BushingSnap

25 19131312 Washer 13/32 x 13/16 x 12 Gange

26 STD541437 Locknut, Hex, with Insed 3/8-16 UNC

28 174945X418 Grille

29 174_44X418 L]ghtboxDual

30 175692X615 Fender/Footrest

31 139976 Bracket, FendedSuppod

37 17490508 Screw, ThdroL 5/16-18 x 1/2 TYT

38 175710 Bracket Asm Pivot Mower Rear

3_ 174988 Bracket Pivot Hood

42 172549X599 Lens Lh

43 172544X599 Lens Rh

58 174993 Duct Hood

60 S]O533707 BoltRdhd Sqnk3/8-16UNCx3/4

64 174997 DashLower

74 STD541437 NutCrownleck 3/8-16 UNC

142 17570_ Plate Releforcement

143 154,966 Bracket Swaybar Chassis

144 175582 Bracket Footrest

145 156524 Rcd pivnt Chassis/Hood

154 174679 Bracket Dash Rh

155 174680 Brad<et Dash Lh

156 163805 S_lker Ptate

157 163806 Magnnt YTGT

158 1_037 Parking _ake Bkrt

159 155123X418 Cuphc_derStl BIk

166 164863 HWHDH:-Lo. #13-16 x3/4

206 170165 Bo_tShoulder 5/16-18

207 17670508 Screw Thdml 5/16-18 x 1/2

2(_ 17000612 Screw Hexwsh T_dr 3/8-16 x 3/4

215 172543X615 Bumper

NOTE: All component dimensions given In U.S. inches

1 inch = 25.4 mm

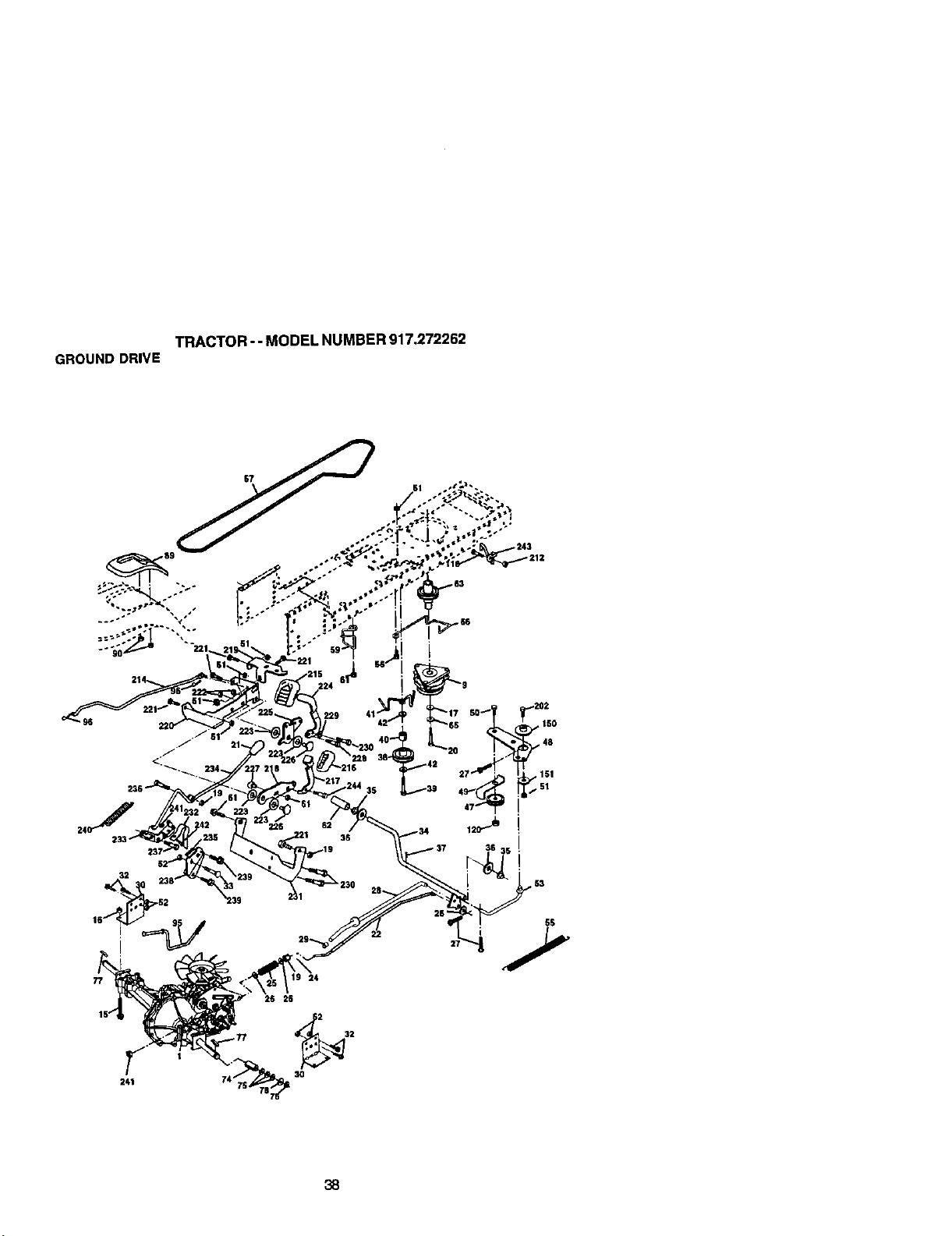

TRACTOR-- MODEL NUMBER 917.272262

GROUNDDRIVE

26 26

1 ,._._32

241 745 3O

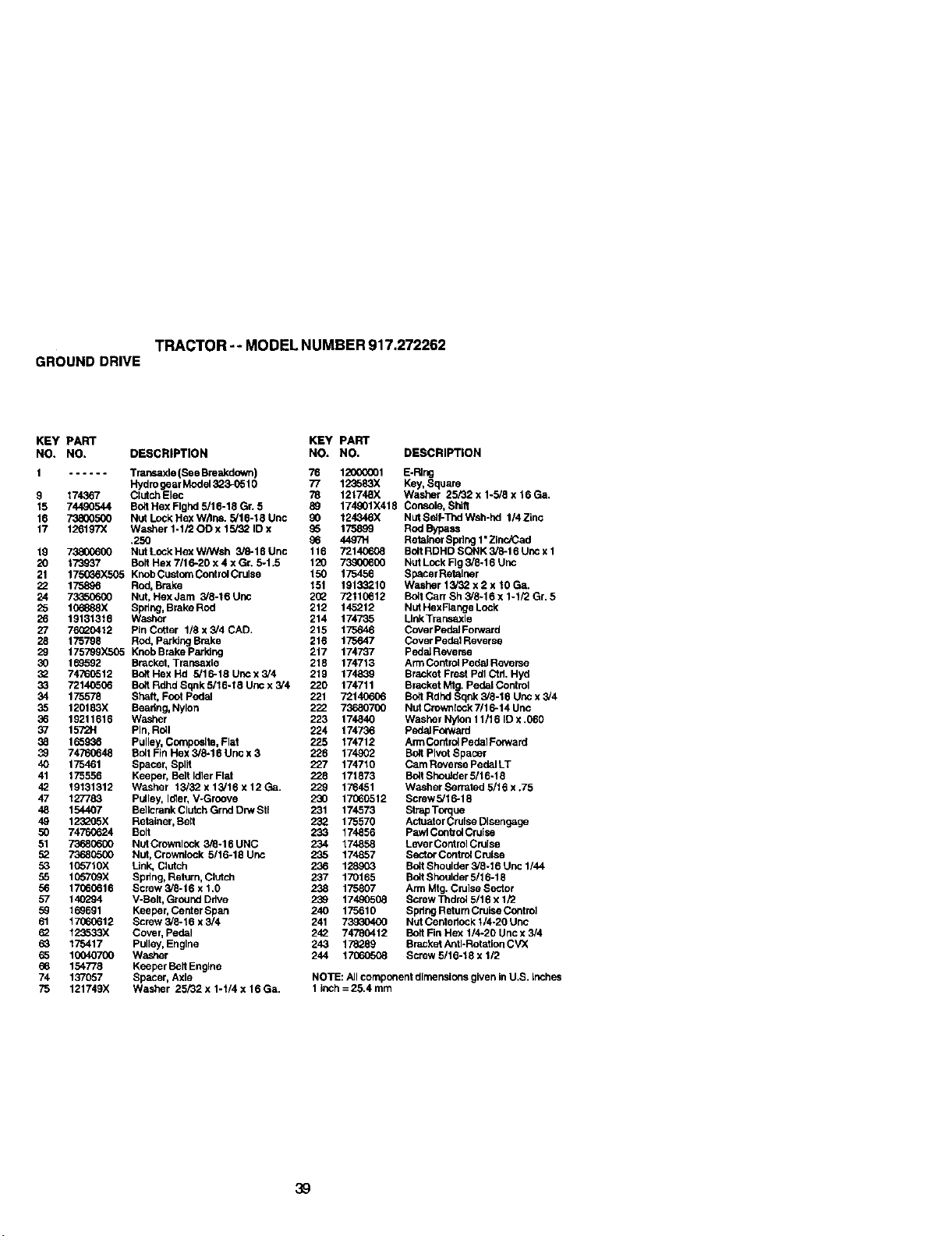

TRACTOR -- MODEL NUMBER 917.272262

GROUNDDRIVE

KEY PART KEY PART

NO. NO. DESCRIPTION NO. NO. DESCRIPTION

...... Trar-,_axle(See Breakdown) 76 12000001 E-PJng

Hydro gear Model 323-0510 77 12O583X Key, Square

174367 Clutch Elec 78 121748X Washer 25/32 x 1-5/8 x 16 Ga.

744_0544 Bo;t Hex Flghd 5/16-18 Gr. 5 89 174901X418 Console, Shllt

Nut Lock Hex W/Ins. 5/16-18 Unc 90 124346X Nut Salf-Tnd Wsh-hd 1/4 Zinc

126197X Wacher 1-1/20D x 15/32 ID x 95 175899 Rod Bydas_

.25O 96 4497H Retainer Spdng 1•Zinc/Cod

73800600 NutLockHexW/Wch 5/8-18Unc 118 7214O6_ BOltRDHDSQNK3i6-18UnCx1

1_7 Bolt Hex 7/16-20 x 4 x Gr. 5-1.5 120 73900600 Nut Lock Fig 3/6-16 Unc

175(_6X5O5 KnobCustomControlCrulse 150 175458 SpacerRetalner

1_ Rod, Brake 151 19133210 Washer 13i32 x 2 x 10 Ga.

73350600 Nut, Hex Jam 3/8-16 Unc 2_2 72110612 B_t Cart Sh 3/8-16 x 1-1/2 Gr. 5

106888X Spring, Brake Rod 212 145212 Nut HexFlange Lock

19131318 Washer 214 174735 LinkTransaxle

76CQ0412 Pin Cutter 1/8 x 3/4 CAD. 215 175846 CoverPedalForward

175798 ROd, parldng Broke 216 175647 Cover Pedal Reverse

175799XSa5 KnobBrakeParking 217 174737 PedalReverse

15O592 Bracket, Transaxle 218 174713 Arm Control Pedal Reverse

74760512 Bolt Hex Hd 5/16-18 Unc x 3/4 219 174839 Bracket Frest Pdl Ctd. Hyd

7214O506 BORRdhd Sqnk 5/16-18 Uric x 3/4 220 174711 Bracket Mtg. Pedal Control

175578 Sdaft, Foot Pedal 221 72140606 Bolt Rdhd Sqr_ 3/8-18 Unc x 3/4

120183X Beadng, Nylon 222 735O0700 Nut Crownlock 7/16-14 Unc

19211616 Washer 223 174840 Washer Nylon 11/16 ID x .060

1572H Pin, Roll 224 174736 podalForward

165936 Pulley, Composite, Flat 225 174712 Arm CoutrolPedal Fc_ward

74760648 Bc41Fin Hex 5/8-16 Unc x 3 226 174902 Bolt Pivot Spacer

175461 Spacer, Split 227 174710 Cam Reverse PedalLT

175556 Keeper, Be9 Idler Flat 228 171873 Bait Shoutder 5/16-18

19131312 Washer 13/32 x 13/18 x 12 Ca. 229 176451 Washer Serrated 5/16 x .75

127783 Pulley, laler, V-Groove 230 17060512 Screw5/16-18

154407 Bellcrank Clutch Grnd Drw $9 231 174573 StrapTorque

123205X Retainer, Salt 232 175570 Actuator Cralse Disengage

74760624 Bolt 233 174856 Paw1Conb'ulCruise

73680600 NUt Crowalock 3/6-16 UNC 234 174858 Lever Control Cruise

73680500 Nut, Crownlock 5/16-18 Unc 235 174857 Sector Contral Cruise

105710X Link, Clutch 236 128903 BUltShoulder 3/6-16 Unc 1/44

1(_'709X Spdng, Return, Clutch 237 170165 Bait Sheulder 5/16-18

17(;60616 Screw 3/8-16 x 1.0 238 175807 Arm Mtg. Cruise Sector

140294 V-Selt, Grouhe Ddve 239 17490508 Screw Thdrol 5/16 x 1/2

169691 Keeper, Conter Span 240 175610 Spring Return Cruise Control

171_60612 Screw 3/8-16 x 5/4 241 73930400 Nut Centerlock I/4-20 Unc

123533)( Cover, Pedal 242 74780412 Bolt Fin Hex 1/4-20 Unc x 3/4

175417 Pulley, Engine 243 178289 Bracket Anti*Rotation CVX

10040700 Washer 244 I_ Screw 5/18-18 x 1/2

154778 Keeper Belt Engine

137057 Spacer, Axle NOTE: All component dimensions given in U.S. inches

121749X Washer 25/_2 x 1-t/4 x 16 Ga. 1 inch = 25.4 mm

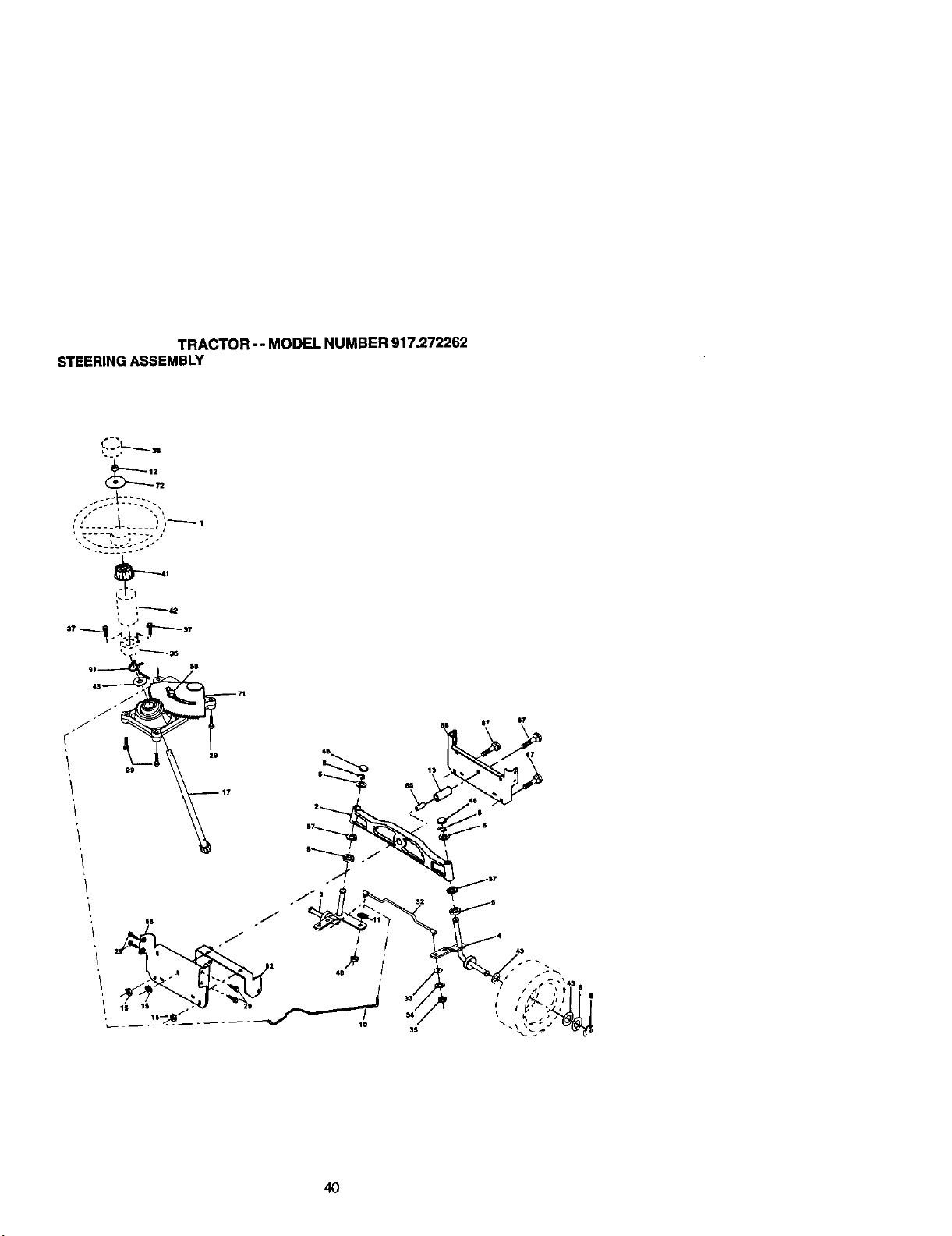

TRACTOR-. MODEL NUMBER 917.272262

STEERINGASSEMBLY

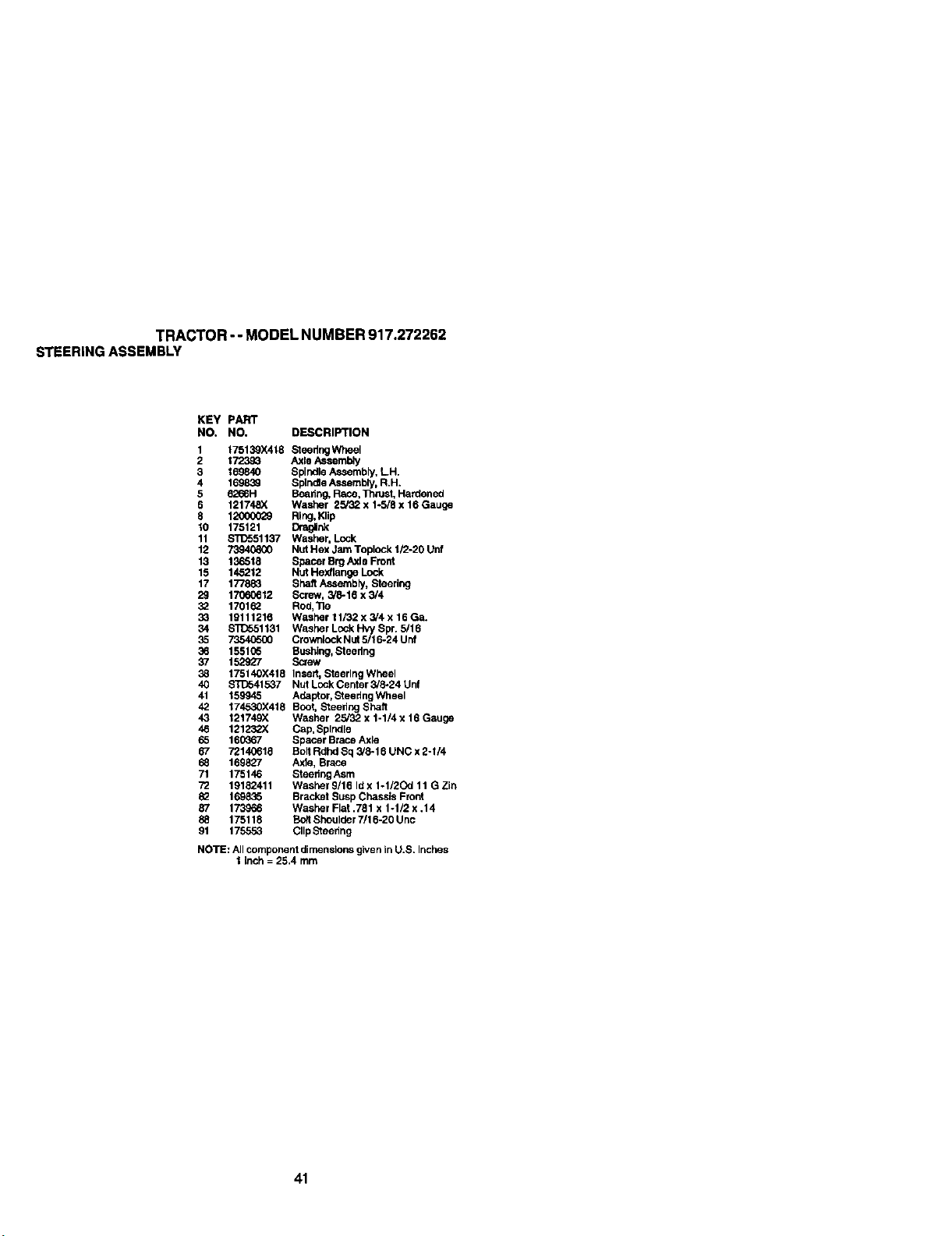

TRACTOR-- MODEL NUMBER 917.272262

STEERINGASSEMBLY

KEY PART

NO. NO. DESCRIPTION

1 175139X418 Steedng Wheel

2 17239G Axle Assembly

3 169840 Spindle Assembly, LH.

4 169839 Spindle Assembly, R.H.

5 6266H Beadng, Rime, T_rust, Hardened

6 121748X Washer 25/3_ x 1+5/8 x 16 Gauge

8 12000829 RIng, Klip

10 175121 Dra_ink

11 S'1_551137 Washer, Lock

12 7394_800 Nut Hex Jam Toplock 1/2-20 Unt

13 136518 Spacer Brg Axle Front

15 145212 Nut Hexflange Lock

17 177883 Shaft Assembly, Steering

29 17060612 Screw, 3/8-16 x 3/4

32 170182 Red,'Re

33 19111216 Washer 11/32 x 3/4 x 16 Ga.

34 S'i1_551131 Washer Lock Hvy Spr. 5/16

35 73540500 Crownlock NUt5/16-24 Unf

36 155105 Bushing, Steering

37 152927 Screw

38 175140X418 Inse_t,Steering Wheel

40 BTD541537 NUt Lock Center 3/8-24 Unf

41 159945 Adaptor, $teedng Wheel

42 174530X418 Boot, Steedng Shaft

43 121749X Washer 25/32 x 1-1/4 x 16 Gauge

46 121232X Cap, Spindle

65 160_67 Spacer Brace Axle

67 72140618 Bolt Rdnd Sq 3/8-16 UNC x 2-1/4

68 169827 Axle, Brace

71 175146 Steedng Asm

72 19182411 Washer 9/16 Idx 1-1/20d 11 G Zin

82 169835 Bracket 8usp Chassis Front

87 173S_6 Washer Flat .781 x 1-1/2 x .14

88 175118 Bo_tShoulder 7/16-20 Unc

91 175553 Clip $teedng

NOTE: All component dimensions given in U.S. Inches

1 inch = 25.4 rnm

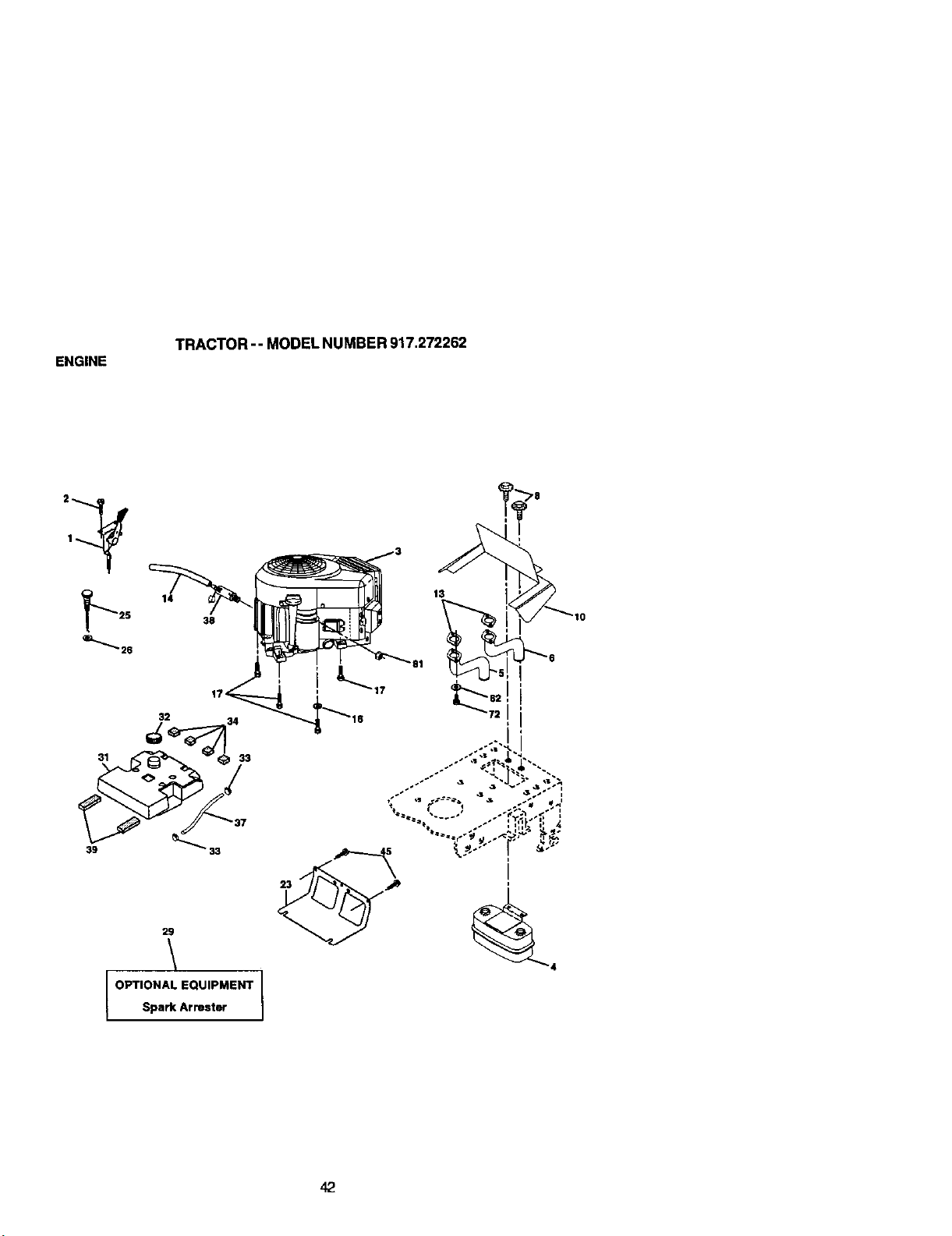

ENGINE

TRACTOR -- MODEL NUMBER 917.272262

OPTIONAL EQUIPMENT

Spark Armster

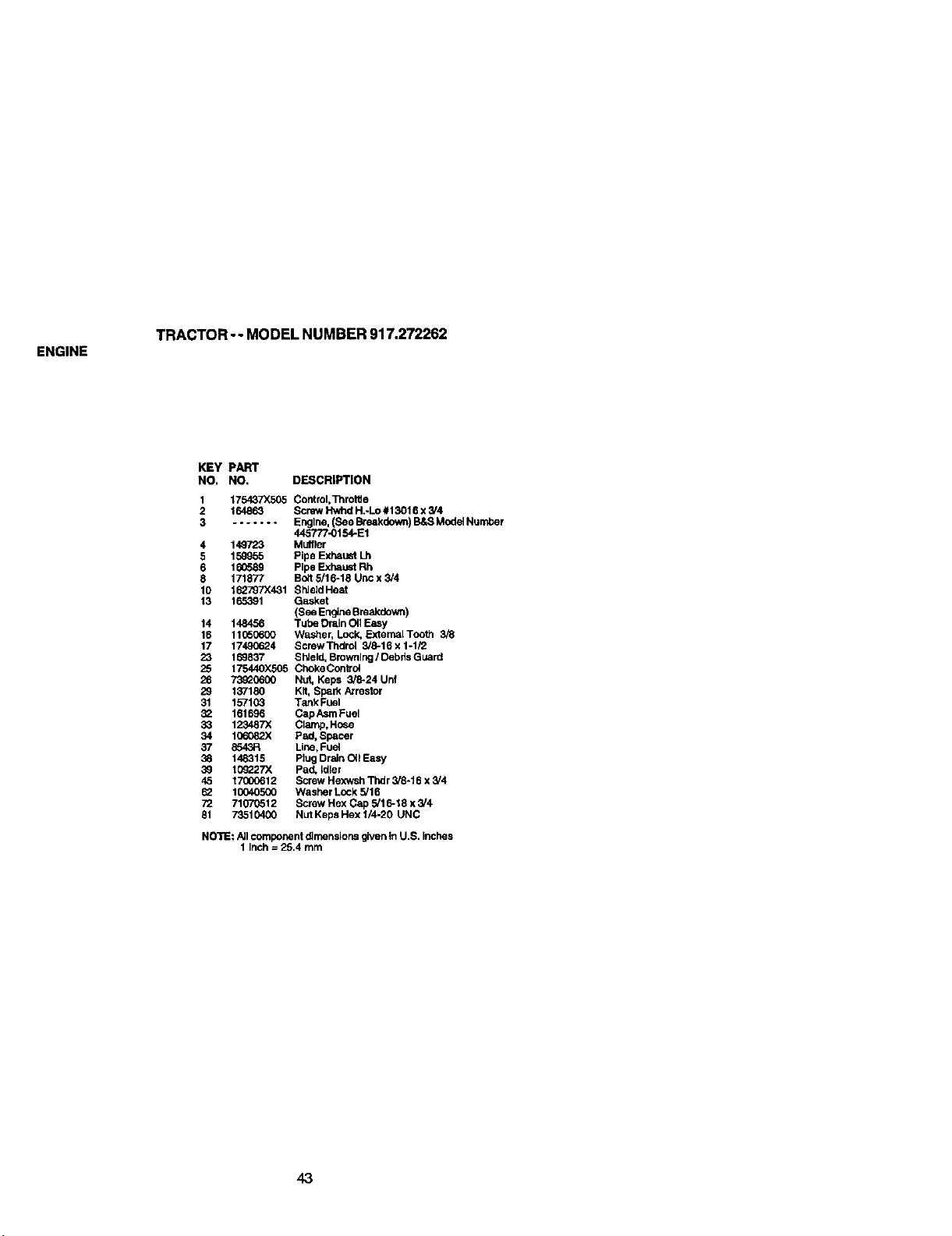

ENGINE

TRACTOR -- MODEL NUMBER 917.272262

KEY PART

NO. NO. DESCRIPTION

1 175437X505 Control, Tilroffie

2 164863 Screw Hwhd H.-Lo #13015 x 3/4

3 ....... Engine, (See Breakdown) B&S Model Number

445777-0154-E1

149723

159955

160589

171877

162797X431

165.391

Muffler

Pipe Exhaust Lh

Pipe Exhaust Rh

Bolt 5/16-18 Uric x 3/4

Shield Heat

Gasket

(See Englne Breakdown)

14 148456 Tube Drain O11Easy

16 11(_0600 Washer, Lock, External Too_ 3/8

17 17490624 ScrewThdrol 3/8-16 x 1-1/2

23 169837 ShJstd,Browning /Debds Guard

25 17544OX505 Choke Corltrol

26 73_0600 Nut, Kepa 3/8-24 Unf

29 137180 Kit, Spark Arrestor

31 157103 Tank FUSt

32 161696 CapAsm Fuel

33 123487X Clamp, Hose

34 106082X Pad, Spacer

37 8543R Line, Fuai

38 148315 Plug Drain Oil Easy

39 109227X Pad, Idler

45 17000612 Screw Hexwsh Thdr 3/8-15 x 3/4

10040500 Washer Lock 5/16

72 7107(_12 Screw Hex Cap 5/16-18 x 3/4

81 73510400 Nut Kepa Hex 1/4-20 UNC

NOTE: All component d_menslonsgiven in U.S. inches

1 Inch = 25.4 mm

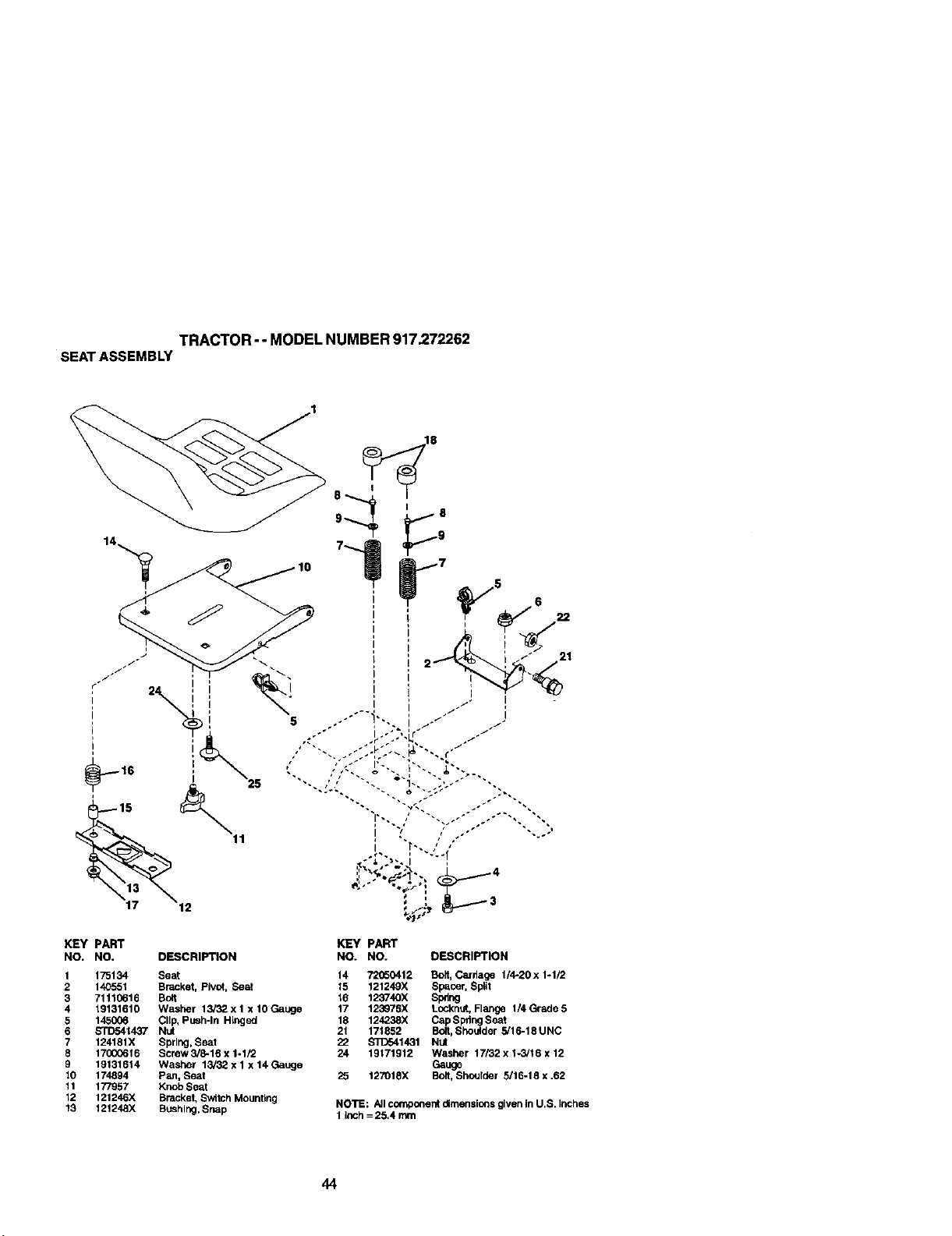

TRACTOR--MODELNUMBER917,272262

SEATASSEMBLY

KEY PART KEY PART

NO. NO, DESCRIPTION NO. NO. DESCRIPTION

1 175134 Seat 14 72_412 Botl, Cardage 11420 x 1.1/2

2 140551 Bracket, Pivo(, Seat 15 121249X Spacer, Split

3 71110616 Bolt 16 123740X Spring

4 19131610 Washer 13/32 x I x 10 Gauge 17 123978X Locknut, Flange 114Grade 5

5 145006 Clip, Push-In Hinged 18 124238X Cap Spdng Seat

6 ST[To41437 NUt 21 171852 Bon,Shoulder 5/16-18 U NC

7 124181X Spring, Seat 22 $113541431 Nut

8 170(X)616 Screw 3/8-16 x 1-1/2 24 19171912 Washer 17/32 x I-3/16 x 12

9 19131614 Washer 13/:32x 1 x 14Gauge Gauge

10 174894 Pan, Seat 25 127019X Bolt. Shoulder 5/16-18 x .62

11 177957 Knob Seat

12 121246X Bracket. Switch Mounting

13 121248X Bushing, Snap NOTE: All componetll dlmansic_s given In U,S. Inches

1 inch = 25.4 mm

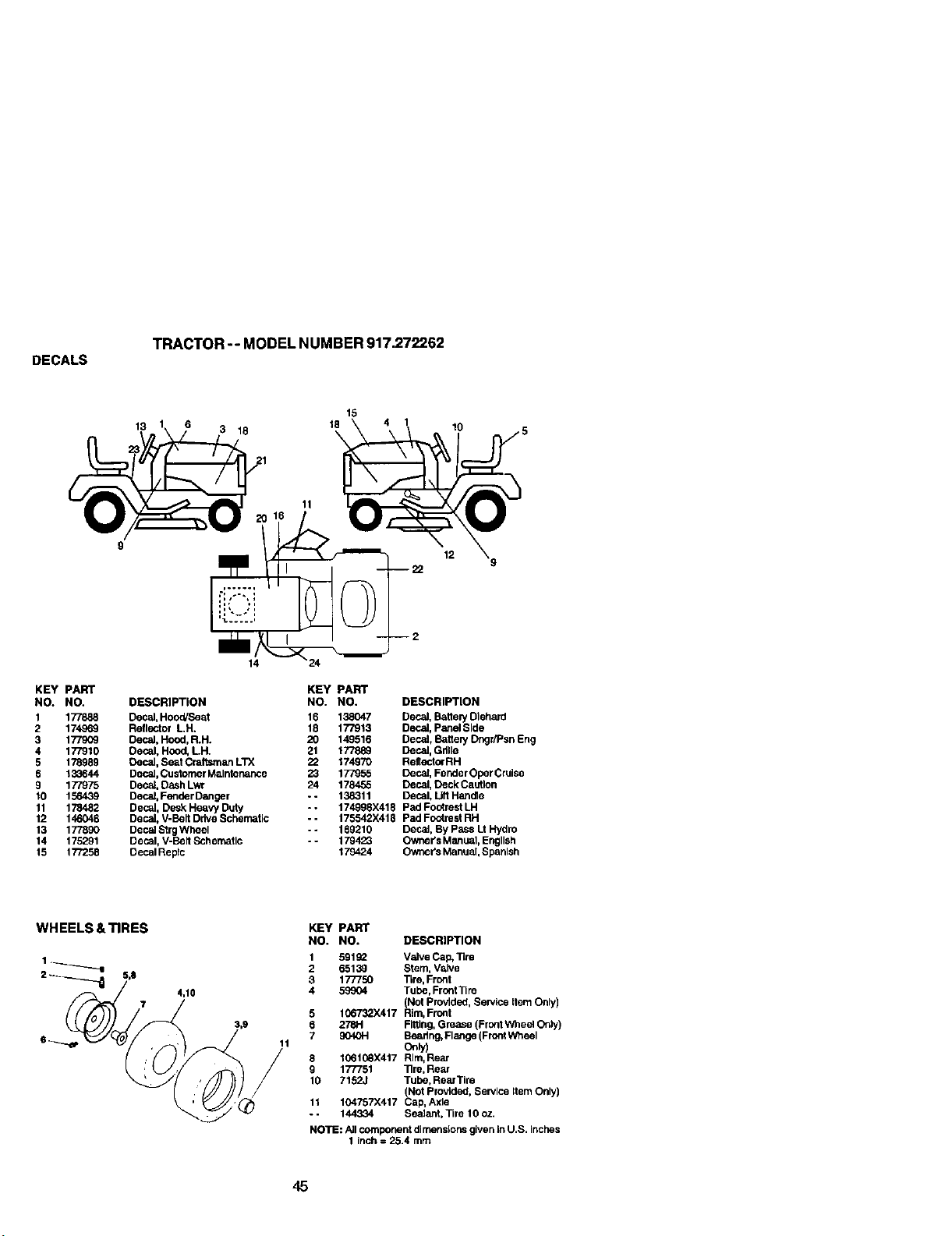

DECALS

TRACTOR -- MODEL NUMBER 917.272262

KEY PART

NO. NO.

1 177888

2 174969

3 1779O9

4 177910

5 178989

6 1_644

9 177975

10 156439

11 178482

12 146046

13 177890

14 175291

15 177258

KEY PART

DESCRIPTION NO. NO.

Decal, Hoo_scat 16 138047

Reflector LH. 18 177913

Decal, Hood, R.H. 20 149516

Decal, Hood, LH+ 21 177889

Decal, Seat Craftsman LTX 22 174970

Decal, Customer Maintenance 23 177955

DeCal, Dash Lwr 24 178455

Decal, Fender Danger -- 138311

Decal, Desk HeaW Duty - - 174998X418

Decal, V-Belt Drive Schematic - - 175542X418

Decal Strg Wheel -- 169210

Decal, V-Belt Schematic - - 179423

OecalReplc 179424

18 4 1 10

DESCRIPTION

Decal, Bagel/Diehard

Decal, Panel Side

Decal, Battely DngdPsn Eng

Decal, Gdlle

Relector RH

Decal, Fender Oper Cruise

Decal, Deck Caution

Decal, LiftHandle

Pad Footrest LH

Pad Footrest RH

DecaJ, By Pass Lt Hydro

Owner's Manual, English

Owner's Manual, Spanish

WH EELS & TIRES

5,8

4,10

KEY PART

NO. NO. DESCRIPTION

1 591_ Valve Cap, Tire

2 65139 Stem, Valve

3 177750 Tire, Front

4 59°_4 Tube, FrontTire

(Not Provided, Service item Only)

5 10673_X417 Rim,Front

6 278H Fitting, Gma_e (Front Wheel Deiy)

7 9040t"1 Beadng, Flange (FrontWheel

8 1061(_X417 Rim,Rear

9 177751 Tire, Rear

10 7152J Tube, RearTire

(Not Provided, Sen/ice Item Only)

11 104757X417 Cap, Axle

- - 144334 Sealant, Tire 10 oz.

NOTE: All component dirnenslonsgiven in U.S. inches

1 inch = 25.4 rnm

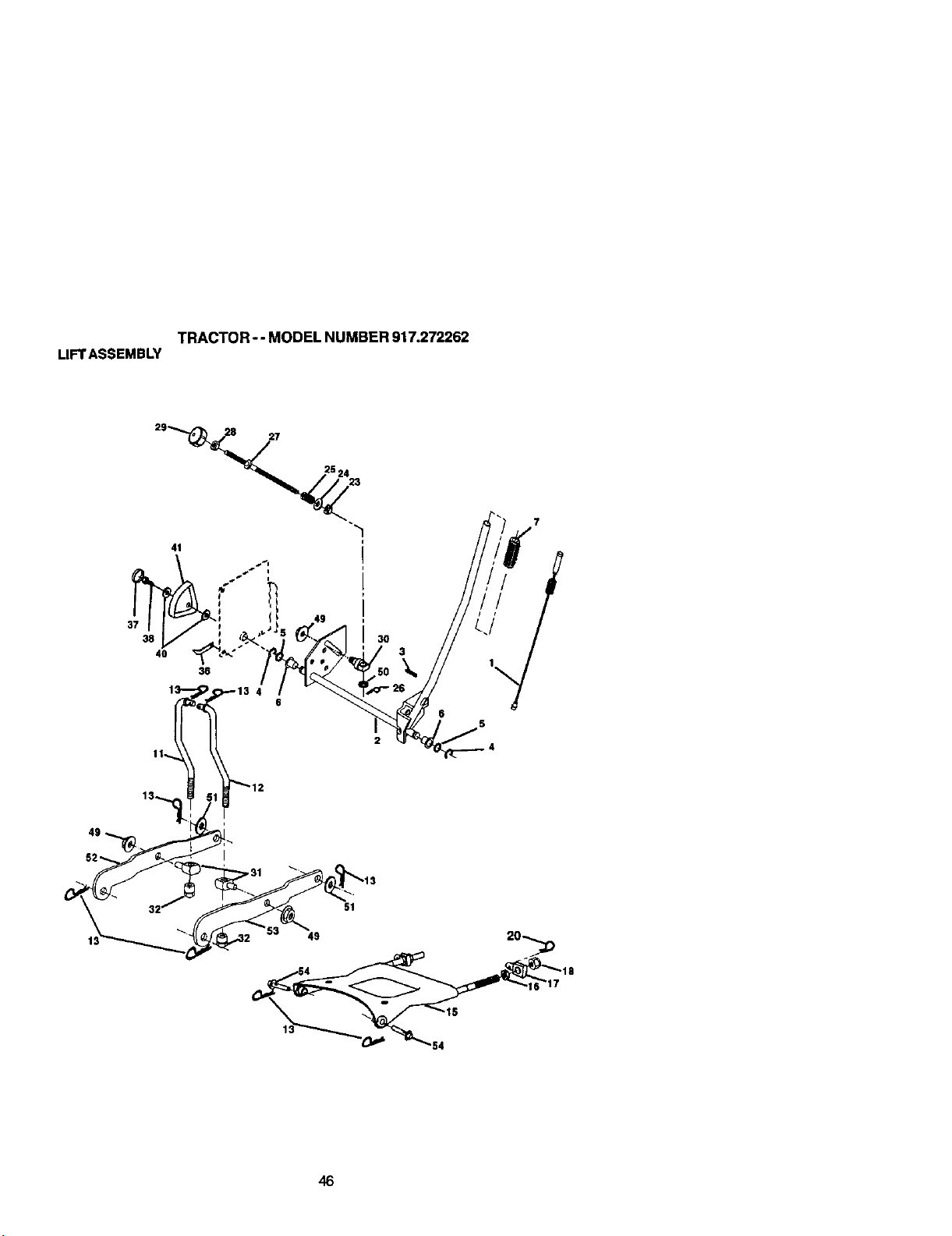

TRACTOR-- MODEL NUMBER 917.272262

LIFTASSEMBLY

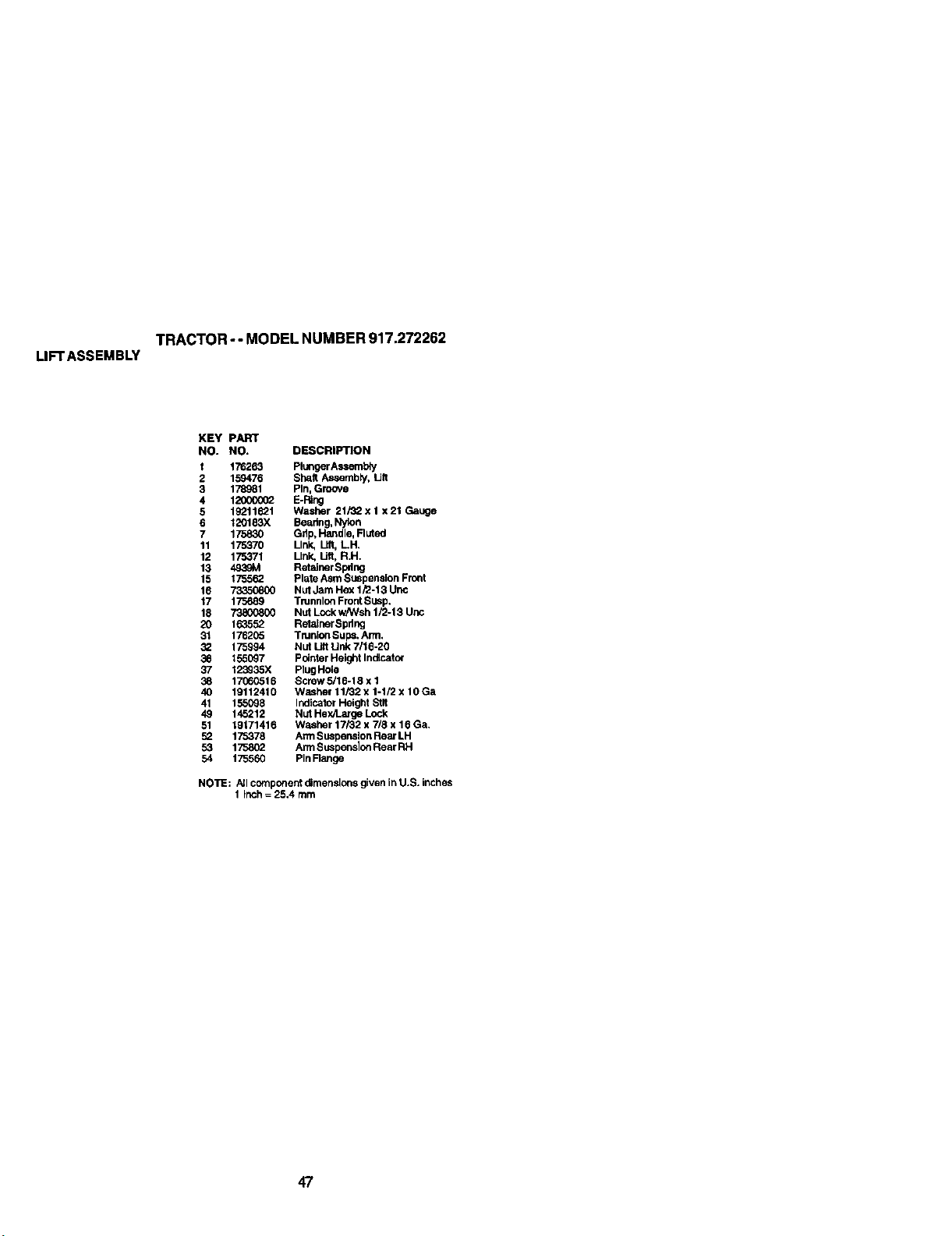

TRACTOR -- MODEL NUMBER 917.272262

LIFTASSEMBLY

KEY PART

NO. NO. DESCRIPTION

1 176263 Plunger As_mmbly

2 159476 She# Assembly, Lift

3 178981 Pin, Groove

4 1L:_0000_ E-PJUg

5 192111_1 Washer 21/32 x 1 x 21 Gauge

6 t 20183x Beadng, Nylon

7 175830 Gdp, Handle, Fluted

11 175370 Link, Lift, LH.

12 175371 Link, Lift, R.H.

13 4939M Reteiner Spring

15 175562 Plate Asm Suspension Front

16 73350800 Nut Jam Hex 1/2-13 Unc

17 1_ Trunnion Front Susp.

18 _ Nut Lockw/Wsh 1/2-13 Unc

20 163552 RetainerSpdng

31 176205 Trunion Sups. Arm.

175994 Nut Lift Unk 7/16-20

36 155097 Peinter Height Indlcato(

37 123935X PlugHole

38 17060516 Screw5/16-18 x 1

40 19112410 Washm 11/32 x 1-1/2 x 10 Ga

41 155098 Indicator Height SUt

49 145212 NUt Hex_l_argeLock

51 19171416 Washer 17/32 x 7/8 x 16 Ga.

52 175378 Arm Suspeneion Rear LH

53 1758(_ Arm Suspanslon Rear RH

54 175560 Pin Flange

NOTE: A_Icomponent _menslons given inU.S. inches

1 inch= 25.4 mm

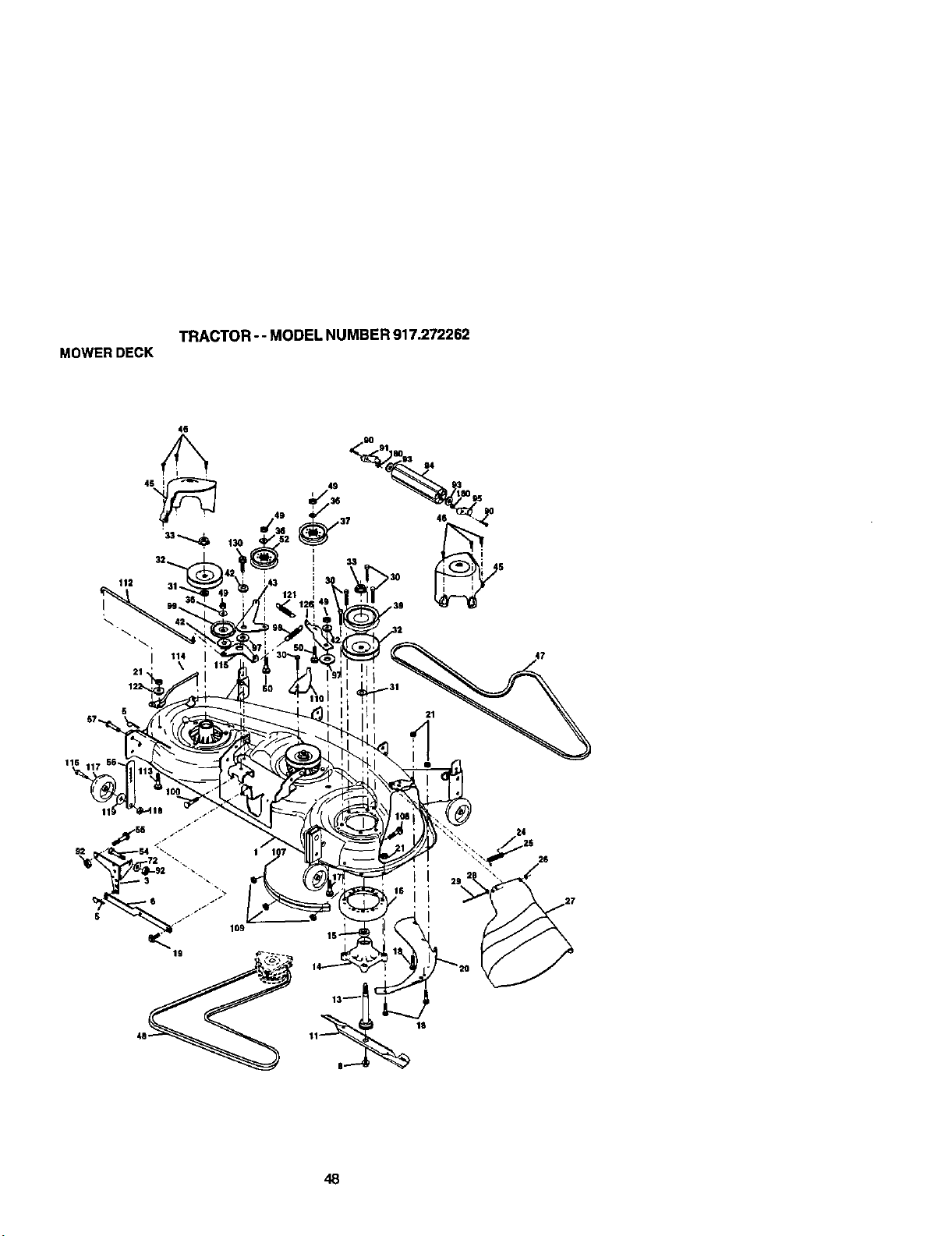

TRACTOR-- MODEL NUMBER 917.272262

MOWERDECK

45_ 49

116

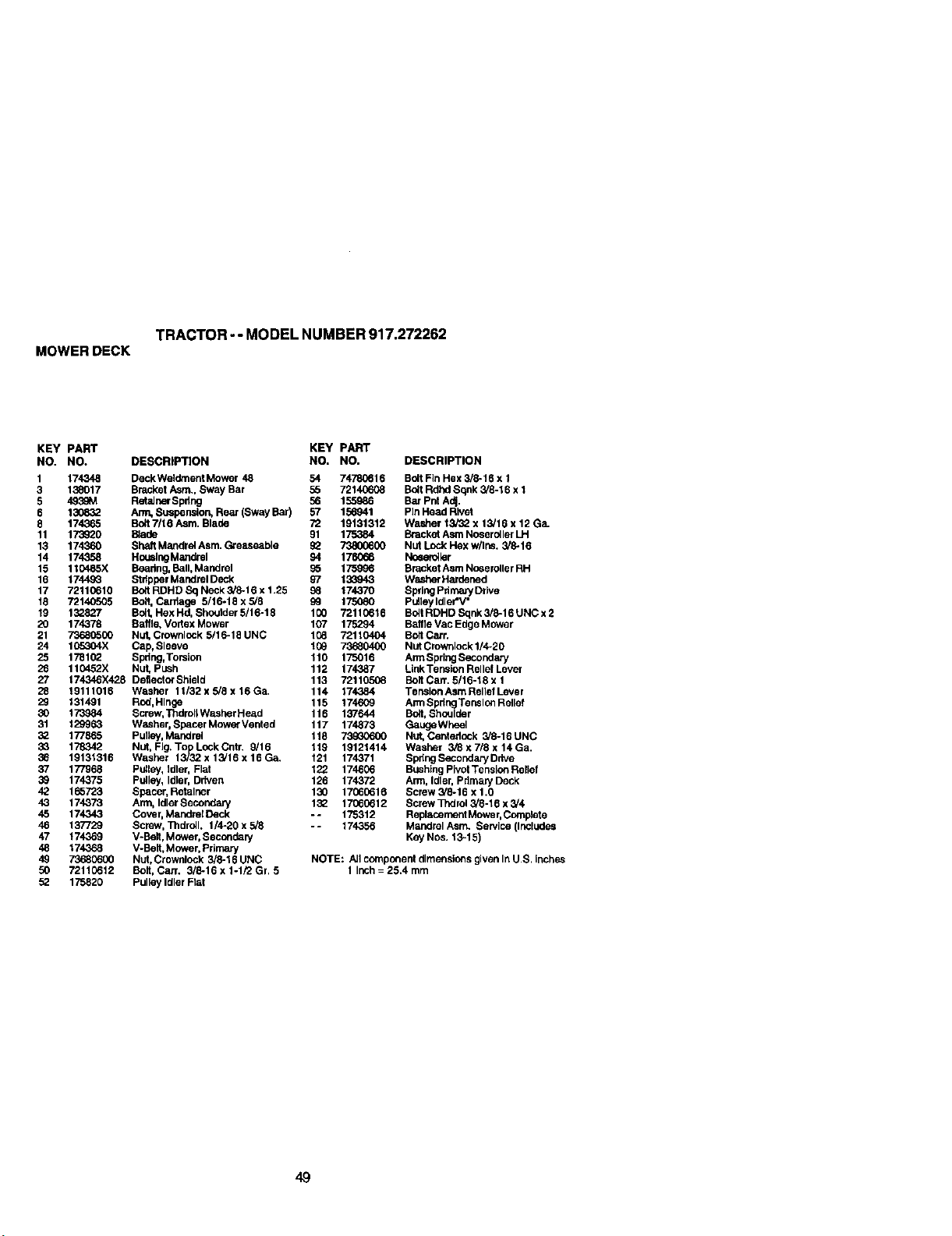

TRACTOR -- MODEL NUMBER 917.272262

MOWERDECK

KEY PART

NO. NO. DESCRIPTION

1 174348 Deck Weldment Mower 48 54 74780616

3 138017 Bracket Asm., Sway Bar 55 72140608

5 493gM RetaJnmSpdng 56 155986

6 130832 Arm, Su_pendlon, Rear (Swey Bar) 57 156941

6 174365 Bdlt 7/16 Asm. Blade 72 19131312

11 173920 Blade 91 175384

13 174360 Shaft Mandrul Asm. Gte_seable 92 73800600

14 174358 HousingMandrdl 94 1760_6

15 110485X Beadng, Ball, Mandrel 95 175996

16 174493 Stdpper Mandrel Deck 97 13_943

17 72110610 Bolt RDHD Sq Neck 9/8-16 x 1.25 96 174370

18 7214&5_5 Bolt, Cardage 5/16-16 x 5/8 99 175080

19 13_827 Bdlt_Hex Hd, Shoulder 5/16-18 100 72110616

20 174378 Baffle, Vortex Mower 107 175294

21 73680500 Nut, Crownlock 5/16-18 UNC 1(_ 72110404

24 105304X Cap, Sleeve 109 73680400

25 178122 Spring,Torsion 110 175016

26 110452X Nut, Push 112 174387

27 174346X428 DeltectorShield 113 72110508

28 19111016 Washer 11i32xS/6x16Ga_ 114 174384

29 131491 Rod, Hinge 115 174609

30 173984 Screw, Thdroll Washer Head 116 137644

31 129963 W_sher, Spacer Mower Vented 117 174873

177865 Pdlley, Mandrel 118 739_)600

33 178342 Nut, Fig, ToOpLLockCntr. 9/16 119 19121414

36 19131316 Washer 13/32 x13/16 x16 Ca. 121 174371

37 177968 Pulley, Idler, Flat 122 174606

39 174375 Pulley, Idler, Ddven 126 174372

42 165723 Spacer, Retainer 130 17060616

43 174373 Arm, Idler Secondly 122 17060612

45 174343 Cover, Mandret Deck -- 175312

46 137729 Screw, Thdrull. 1/4-20 x 5}8 -- 174356

47 174369 V-Bdlt, Mower, Secondery

48 174368 V-Belt, Mower, Pdmary

49 73680600 Nut, Crownlock 3/8-16 UNC

50 72110612 Bolt, Can. 3/8-16 x 1-1/2 Gr. 5

52 175820 Pulley Idler Flat

KEY PART

NO, NO. DESCRIPTION

Bolt Fin Hex 3/8-16 x 1

Bdlt Rdhd Sqnk 3/6-16 x 1

Bar Pnt Adj.

Pin Head Rivet

Washer 13/32 x 13/16 x 12 Ga.

Bracket Asm Noseroder LH

Nut _ Hex w/Ins. 3/8-16

Noeerdller

Bracket Asm Noseroller RH

Washer Hardened

Spring Pdma_ Drive

Pulley Idler'V"

Bolt RDHD Sqnk 9/8-16 UNC x 2

Baffle Vac Edge Mower

Bolt Carr.

Nut Crownlock 1/4-20

Arm Spring Secondary

Link Tension Relief Lever

Bolt Cart. 5/16-18 x t

Tension Asm Rellet Lever

Ann SpringTension Relief

Bolt, Shoulder

GaugeWheel

NUt,Centedock 3/8-16 UNC

Washer 3/8 x 7/6 x 14 Ga.

Spdng Second,u,/Drive

Bushing Pivot Tension Relbet

Arm, Idler, Pdmaty Deck

Screw 3/6-16 x 1.0

Screw Tndrol 3/6-16 x 3/4

Replacement Mower, Complete

Mandrel Asm. Service (Includes

Key Nos. 13-15)

NOTE: All component dimensions given In U.S, Inches

1 Inch = 25.4 mm

.124

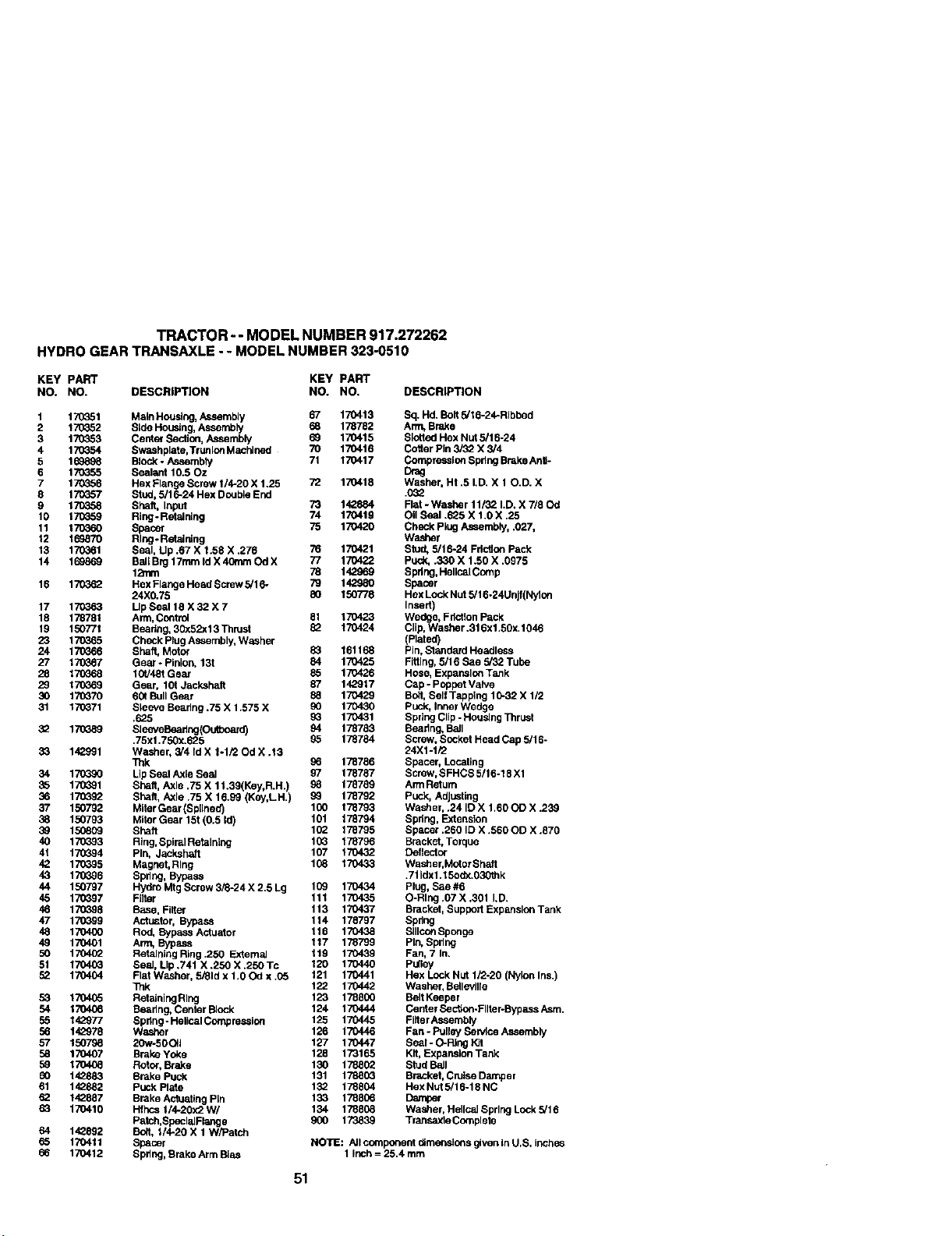

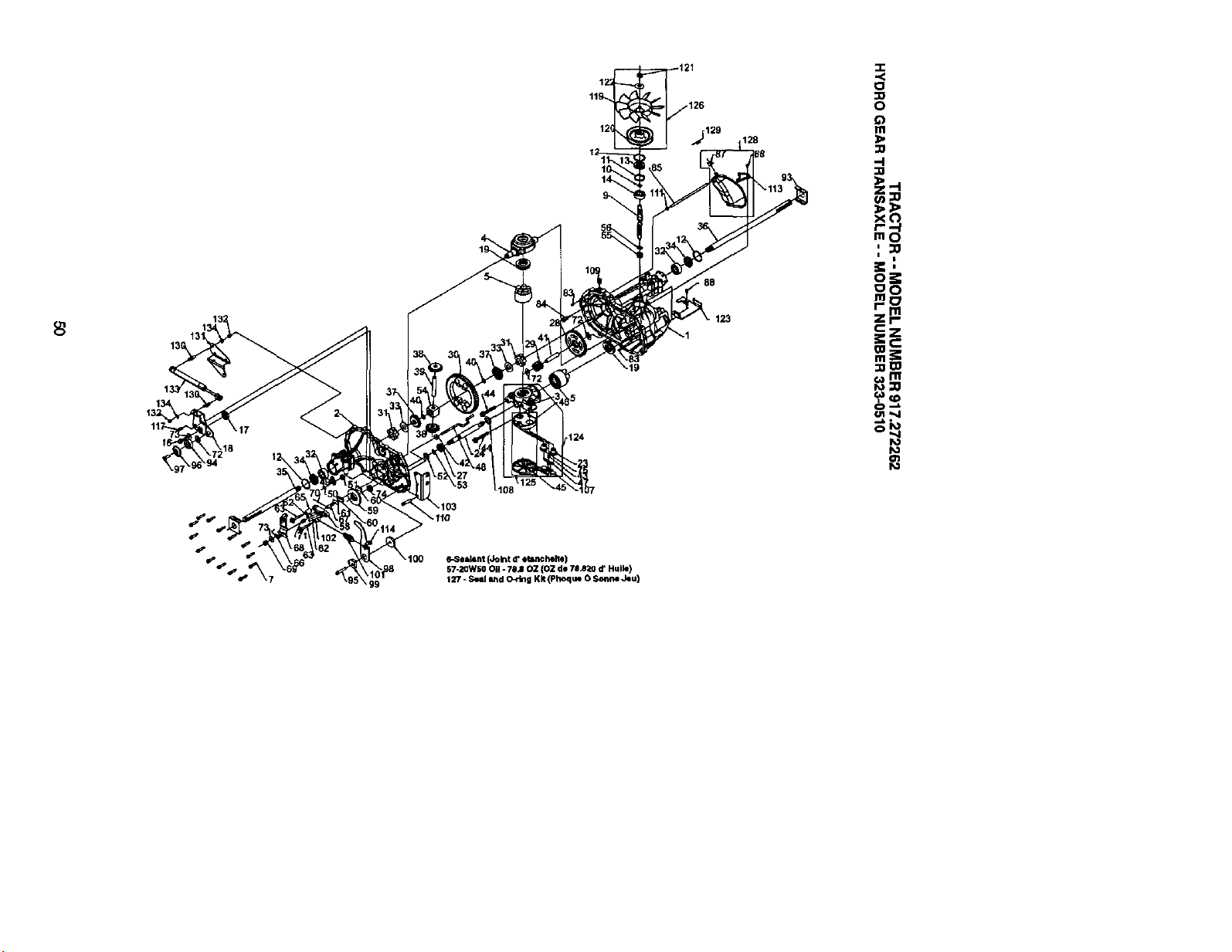

TRACTOR -- MODEL NUMBER 917.272262

HYDROGEARTRANSAXLE- - MODELNUMBER323-0510

KEY PART KEY PART

NO. NO. DESCRIPTION NO. NO. DESCRIPTION

1 170351 Main Housing, Assembly 67 17{)413 Sq. Hd. Bolt 5/15-24-Ribbed

2 170_52 Slad Housing, Assembly 68 178782 Arm, Brake

3 170353 Cente_ Sectior_,Assembly 69 170415 Slottad Hex Nut 5/16-24

4 170354 Swashplate, TrunionM8chJnad 70 170416 Cofter Pin 5/32 X 3/4

5 169898 Block. Assembly 71 170417 Compression Spdng BrokeAnlt-

6 170355 Sealant 10.50z Drag

7 17G_55 Hex Range Screw 1/4-20 X 1.25 72 170418 Washer, Ht ,5 I,D, X 10,D. X

8 17OG57 Stud, 5/16-24 Hex Double End .032

9 170358 Shaft, Input 73 142884 Flat - Washer 11/32 I.D. X 7/80d

10 170_5g Ring. Ret,_lnlng 74 170419 Oil Seet .325 X 1.0 X .25

11 170360 Spacer 75 170420 Check plug Assembly, .027,

12 169870 Ring -Retaining Washer

13 170361 Seal, Up .67 X t.58 X .276 76 170421 Stud, 5/16-24 Fdctlon Pack

14 169869 Bail Brg 17ram Id X 4OmmOd X 77 170422 Punk, .330 X 1.50 X .0975

1_1m 78 142969 Spring, HellcalComp

16 170332 Hex Flange Head Screw 5/1 6- 79 142980 Spacer

24XO.75 80 150778 Hex Lock NUt 5/16-24Unjf(Nylon

17 170363 UpSea118 X 32 X 7 Insert)

18 178781 Arm, Cootret 81 170423 Wedge, FdcSon Pack

19 150771 Beadng, 30x52x13 Thruet 32 170424 Clip, Washer .316x1.50x. 1046

23 170365 Check Plug Assembly, Washer (Plated}

24 170G66 Shaft, Motor 83 161168 Pin, St_ndan_ Headless

27 170_67 Gear. Pinion, 13t 84 170425 Fitting, 5/16 Sae 5/32 Tube

28 170_68 101/481Gear 85 170426 Hose, Expanslo_ Tank

29 170_6g Gear, 101Jackshaft 87 142917 Cap-PoppatValve

30 170370 601 Bull Gear 88 170429 Bolt, Self Tapping 16-32 X 1/2

31 170_71 Sleeve Beadng .75 X 1.575 X 90 170430 Puck, Inner Wedge

.625 9_ 170431 Spring Clip - Housing Thrust

3_ 170389 SleeveBeadng(Ou_board) 94 178783 Beating, BaJI

.75xl .750x.325 95 178784 Screw, Socket Head Cap 5/16-

33 142991 Washer, 5/4 Id X 1-1/20d X .13 24X1-1/2

Thk 96 178786 Spacer, Locatlog

34 170390 LipSeat Aaie Seal 97 178787 Screw,SFHCS 5/16-18 X1

35 171_91 Shaft, Axle ,75 X 1t.39(Key, R.H.) 98 178759 Arm Return

36 170392 Shaft, Axle .75 X 16.99 (Key, LH.) 99 178792 Puck, Adjusting

37 150792 MiterGear(Sp[Ined) 100 178793 Washer, ,24 ID X 1.60 _ X .239

38 150793 Miter Gear 15t (0.5 Id) 101 178794 Spdng, Extension

39 150809 Shaft 102 178795 Spacer .260 ID X .560 OD X .870

40 170393 Ring.Sgiml Retaining 103 178796 Bracket, Torque

41 170394 Pin, Jackshaft 107 170432 Detloctcr

42 170395 Magnet, Ring 108 170433 Washer.Metor Shett

43 170396 Spring, Bypass .711dx1.15odx.030thk

44 150797 Hydro Mtg Screw 3/8-24 X 2.5 Lg 109 170434 Plug, Sae #6

45 170397 FIRst 111 170435 O-Rlng.07X,301 I.D.

46 1"/O398 Base, Filter 113 170437 Bracket, Support Expanslor_Tank

47 170399 ActLmtor, Bypass 114 178797 Spdng

48 170400 Rod, Bypass Actuator 115 170438 SIIIconSponge

49 170401 Arm, Bypass 117 178799 Plrk Spring

50 170402 Retaining Ring .250 External 119 1704.39 Fan, 7 In.

51 170403 Sea], Lip .741 X .250 X ,250 TC 120 170440 Pulley

52 170404 Flat Washer, 5/81d x 1.0 Cd x .O5 121 170441 Hex Lock Nut 1/2-20 (Nylon Ins.)

Tnk 122 170442 Washar, Bellevllle

53 170405 Retaining Ring 123 178800 Belt Keeper

54 170406 Beadng, Center Block 124 170444 Center Se ct[on-FIIter-Bypa=ssASm.

55 142977 Spring- Hetical Compression 125 170445 Filter Assembly

56 142978 W_er 126 170446 Fan - Putley Service Assembly

57 150798 20w-50Ofl 127 170447 Seal - O-Ring 1<11

58 170407 Broke Yoke 128 173165 Kit, Expansion Tank

59 170408 Rotor, Brake 130 17880_ Stud Ball

60 142883 Brake Puck 131 178803 Bracket, Cruise Damper

61 142882 Puck Plate 132 178804 HexNut 5/16-18 NC

32 142887 Brake Actuating Pin 133 178806 Dampest

63 170410 Hfhcs 1/4-20)<2 W/ 134 178808 Washer, Helical Spring Lock 5/16

Patch,SpeclaiFlange 900 1_ Transaxle Complete

64 142892 Bott, 1/4-20 X 1 W/Patch

65 170411 Spacer NOTE: All component dlm_:ls]otts given InU,S, inchss

66 170412 Spdng, Broke Arm Bias 1 Inch = 25.4 mm

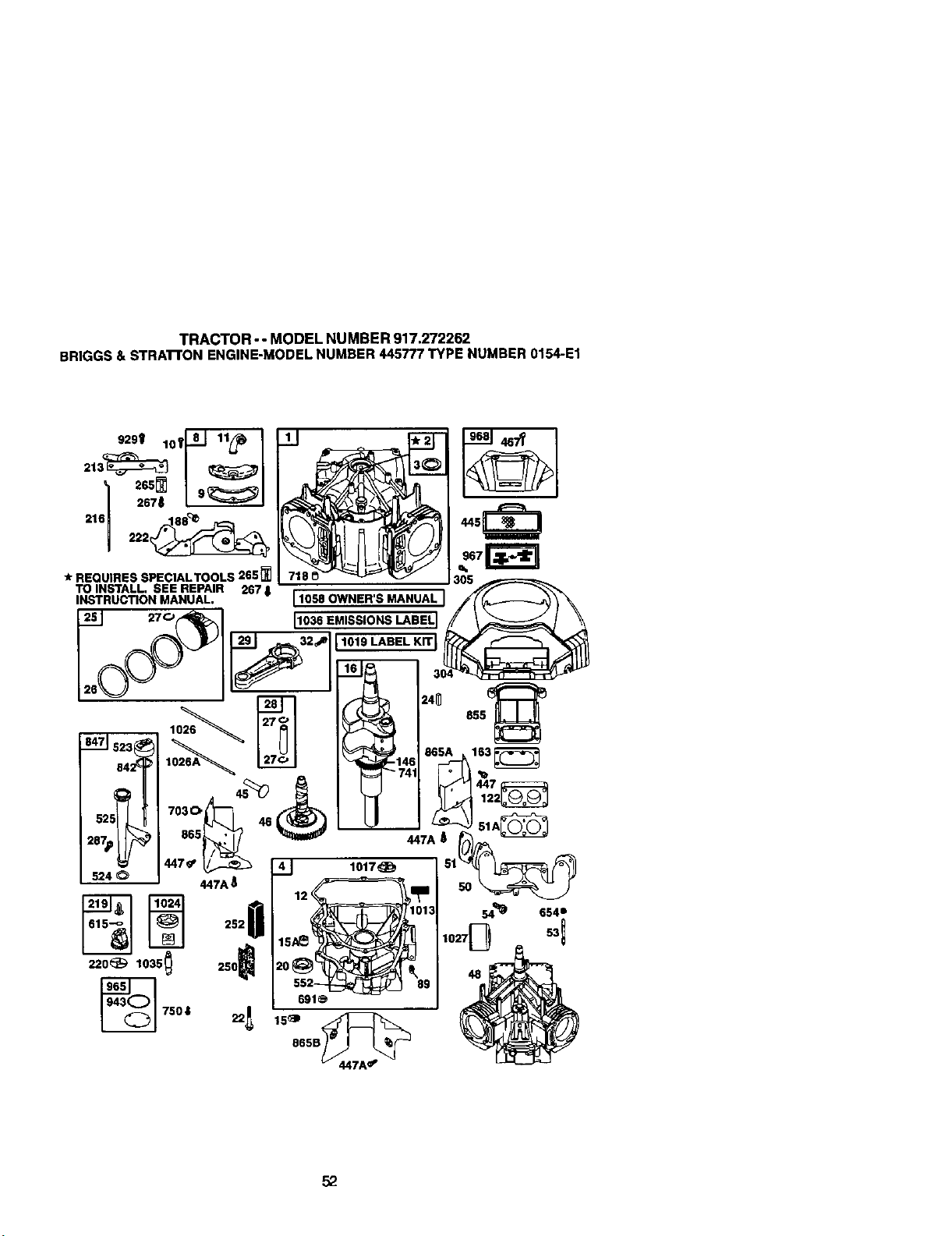

TRACTOR--MODELNUMBER917.272262

BRIGGS&STRATrONENGINE-MODELNUMBER445777TYPENUMBER0154-E1

51A_

54_ 654 m

1027_ 531

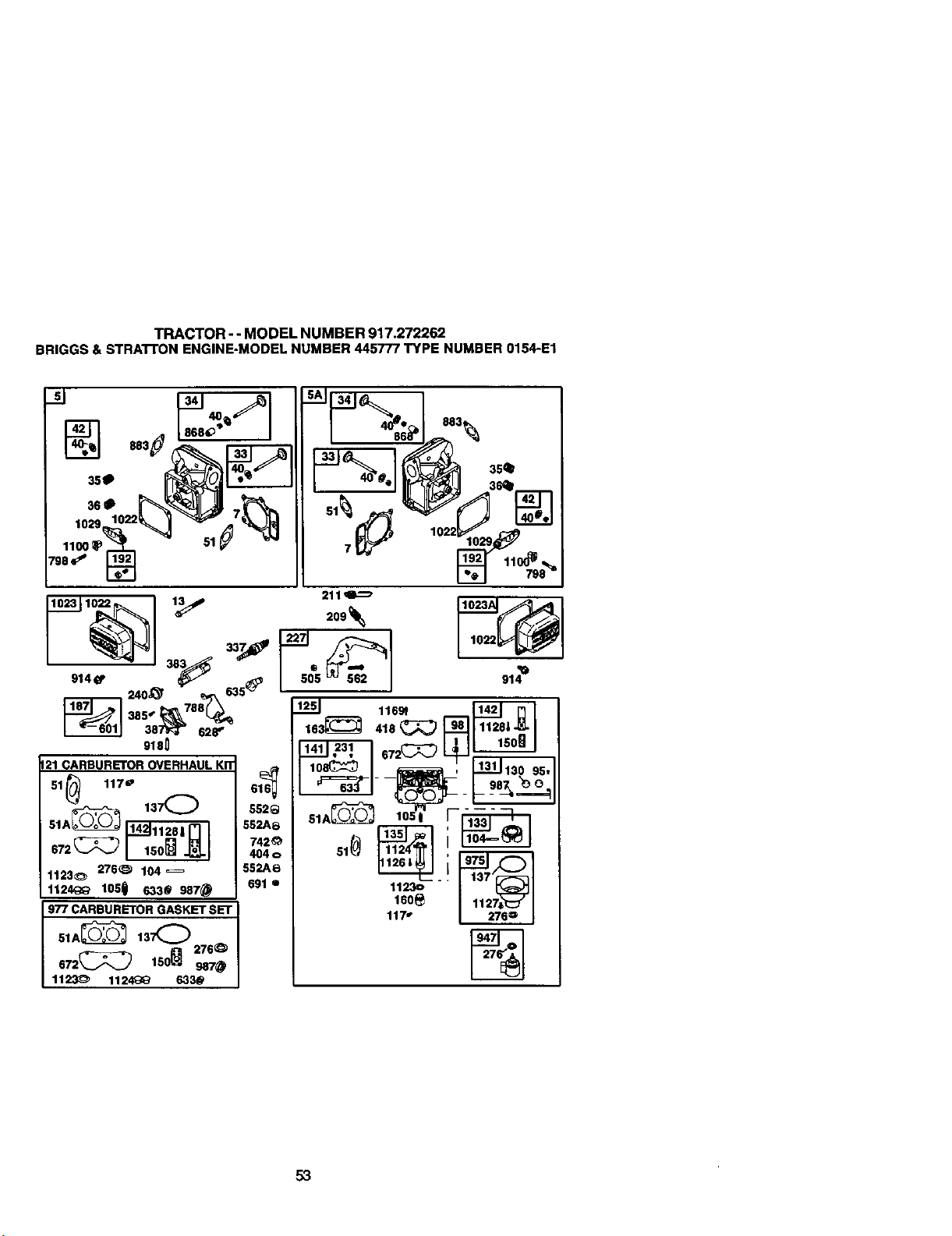

TRACTOR-- MODEL NUMBER 917.272262

BRIGGS& STRA'I'I'ONENGINE-MODELNUMBER445777TYPE NUMBER0154-E1

211_

41_J_ I 383_ 337_ 22_50 _62 l

91 240J_r _ 635_ _5 -- 914_

389.. _788 _.% 1251 11691

1"--6011 387_1_'- 628" 163_ 419 _ _ l_S¢ln_'g I

9180

,21 CARBURETOR OVERHAUL KFF:1__ 552G91 117- 552A@742--816LJ'_ _---i0 i_ _ 151@ _ '

1123_, 276_ 184 _ 552A8

1124_ 105Q 6330 987@ 691 e 112.3o

977 CARBURETOR GASKET SET

51A_ 137_

_ 276_

672_,.J'_,_ 15ol_J 987_)

1123_:_ 1124_ 6330

160_ 1127t'_3

117.' 276 @

g471

5,3

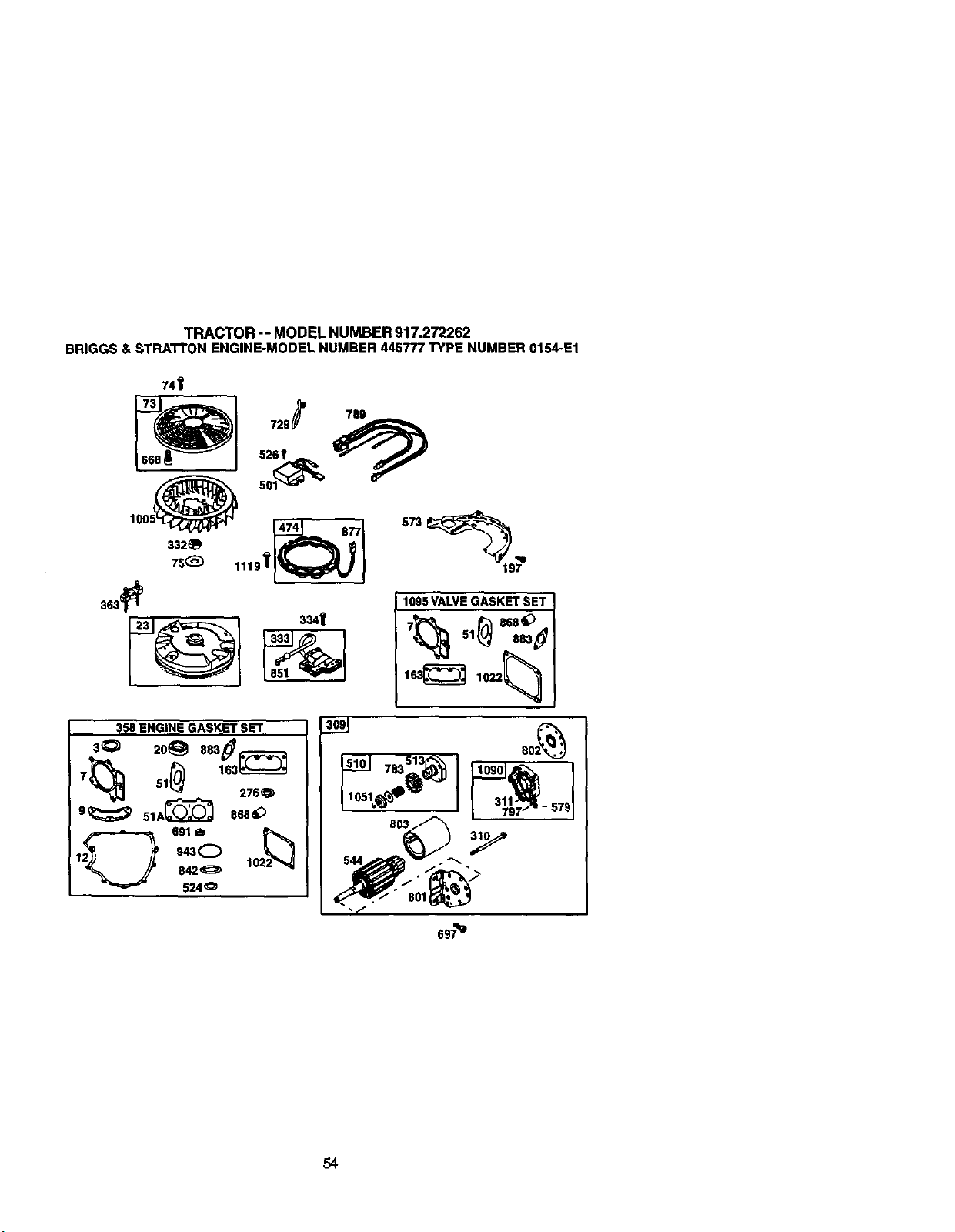

TRACTOR -- MODEL NUMBER 917.272262

BRIGGS&STRATI"ONENGINE-MODELNUMBER445777TYPENUMBER0154-E1

74|

_! 729 _

363 _ 1095 VALVE GASKET SET

851

358 ENGINE GASKET SET

so 20_ 8._--

276_I_

9_ slA_-'_ eBe_

2_ 691 6 22_

1 9_1_

8420 10

5240

78351_

eg_

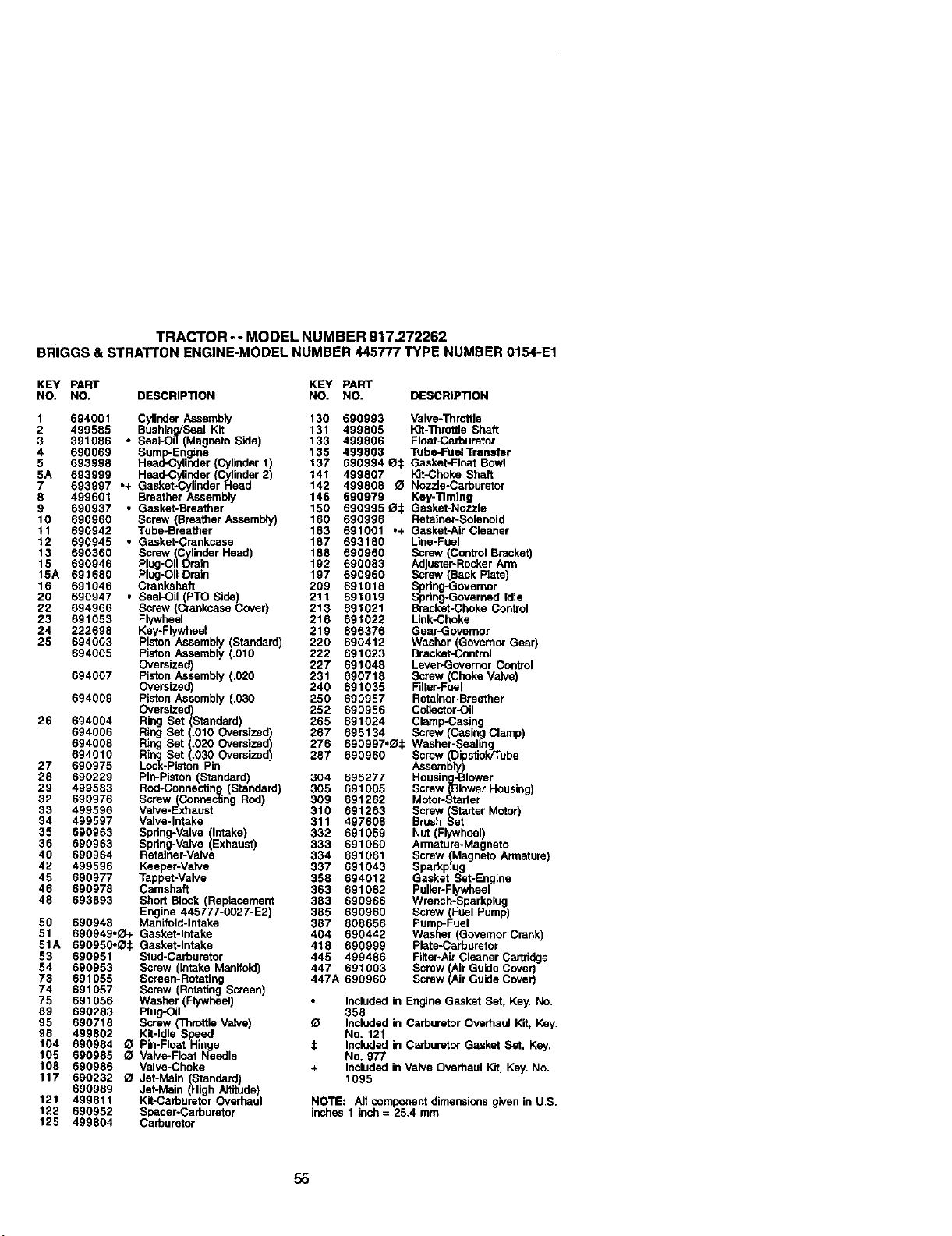

TRACTOR- oMODEL NUMBER 917.272262

BRIGGS&STRATI'ONENGINE-MODELNUMBER445777 TYPENUMBER0154-E1

KEY PART KEY PART

NO. NO. DESCRIPTION NO. NO, DESCRIPTION

1 694001 CylinderAssembly 130 690993 Valve-Throttle

2 499585 Bushino,/SealKit 131 499805 Kit-Throffie Shaft

3 391086 • SeaJ-Ol_l(Magneto Side) 133 499806 Float-Carburetor

4 690069 Sum_p-tEngine 138 499803 TublvFuet Transfer

5 693998 Head-Cylinder (Cylinder1) 137 690994 O1 Gashet-Roat Bowl

5A 893999 • Head-Cylinder (C_linder2) 141 499807 K'rt-ChokeShaft

7 693997 + Gasket-Cylinder Head 142 499808 O Nozzle-Carburetor

8 499601 Breather Assembly 146 690979 Key-Timing

9 690937 • Gasket-Breather 150 690995 _._ Gasket-Nozzle

10 690960 Screw (Breather Assembly) 160 690996 Retalner-Solenoid

11 690942 Tube-Breather 163 691001 ,+ Gasket-AirCleaner

12 690945 ° Gasket-Crankcase 187 693180 Line-Fuel

13 690360 Screw (CylinderHead) 188 690960 Screw (Control Bracket)

15 690946 Plug-Oil Drain 192 690083 Ad ustar-RockerArm

15A 691680 Plug-Oil Drain 197 690960 Screw (Back Pate

Crankshaft

16 691046 209 691018 Spring-Governor

20 690947 , Seal-Oil (PrO Side) 211 691019 Spring-Governed Idle

22 694966 Screw (Crankcase Cover) 213 691021 Bracket-Choke Control

23 691053 Flywheel 216 691022 Link-Choke

24 222698 Key-Flywheel 219 696376 Gear-Governor

25 694003 Piston Assembly(Standard) 220 690412 Washar (=GovernorGear)

694005 PistonAssembly (.010 222 691023 Bracket-Control

Oversized) 227 691048 Lever-Governor Control

694007 PistonAssembly (.020 231 690718 Screw Choke Valve)

Oversized) 246 691035 F ker-Fue

694009 Piston Assembly (.030 256 690957 Retainer-Breather

Oversized) 252 690956 Callactor-Oil

26 694004 Ring Set(Standard) 265 691024 Clamp-Casing

694006 Ring Set (.010 Oversized) 267 695134 Screw (Casing Clamp)

694008 I: I

Ring Bet .020 Oversized 276 690997,_1:1: Washer-Sealing

694010 RingSet 030 Oversized 287 690960 Screw (Dipstick/Tube

27 690975 Lock-Pistan Pin Assembly)

28 690229 Pin-Piston(Standard) 304 695277 Housing-Blower

29 499583 Rod-Connecting (Standard) 305 691005 Screw (BlowerHousing)

32 690976 Screw (ConneotJngRed) 309 691262 Motor-Starter

33 499596 Valve-Exhaust 310 691263 Screw (Starter Motor)

34 499597 Valve-Intake 311 497608 Brush Bet

39 690963 Spdng-Valve (Intake) 332 691059 Nut (Flywheel)

36 690963 Spdng-Valve (Exhaust) 333 691060 Armature-Magneto

40 690964 Retainer-Valve 334 691061 Screw (Magneto Armature)

42 499596 Keepor-Valve 337 691043 Sparkplug

45 690977 Tappet-Valve 358 694012 Gasket Set-Engine

46 690978 Camshaft 363 691062

Puller-Flywheel

48 693893 Short Block(Replacement 383 690966 Wrench-Sparkplug

Engine 445777-0027-E2 385 690960 Screw (Fuel Pump)

50 690948 Manifold-Intake 387 808656 PumP-Fuel

51 690949,_+ Gasket-Intake 404 590442 Washer Governor Crank)

418 690999 Pate-Carburetor

445 499486 Filter*AirCleaner Ca_ridge

447 691003 Screw lair Guide Cover/

447A 690960 Screw Air Guide Cover

51A 690950"_: Gasket-Intake

53 690951 Stud-Carburetor

64 690953 Screw (Intake Manifold)

73 691055 Screen-Rotating

74 691057 Screw Rotaitng Bcreen)

75 691056 Washer Flywheel)

89 690283 Plug-Oil

95 690718 Screw ('lllrottlo Valve)

98 499802 Kit-Idle Speed

104 690984 _l Pin-Float Hinn(]_e

105 690985 _l Valve-Float Needle

108 690986 Valve-Choke

117 690232 _ Jet-Main (Standard)

690989 Jet-Main (High AYdtude)

121 499811 Kit-Carburetor Overhaul

122 690952 Spacer-Carburetor

125 499804 Carburetor

Included in Engine Gasket Bet, Key, No,

358

O Included in Carburetor Overhaul Kit, Key

No, 121

:_ Included in Carburetor Gasket Set, Key,

No. 977

+ Included in Valve Overhaul Kit, Key, No.

1095

NOTE: All componentdimenalonsgiven in US.

inches 1 inch = 25.4 mm

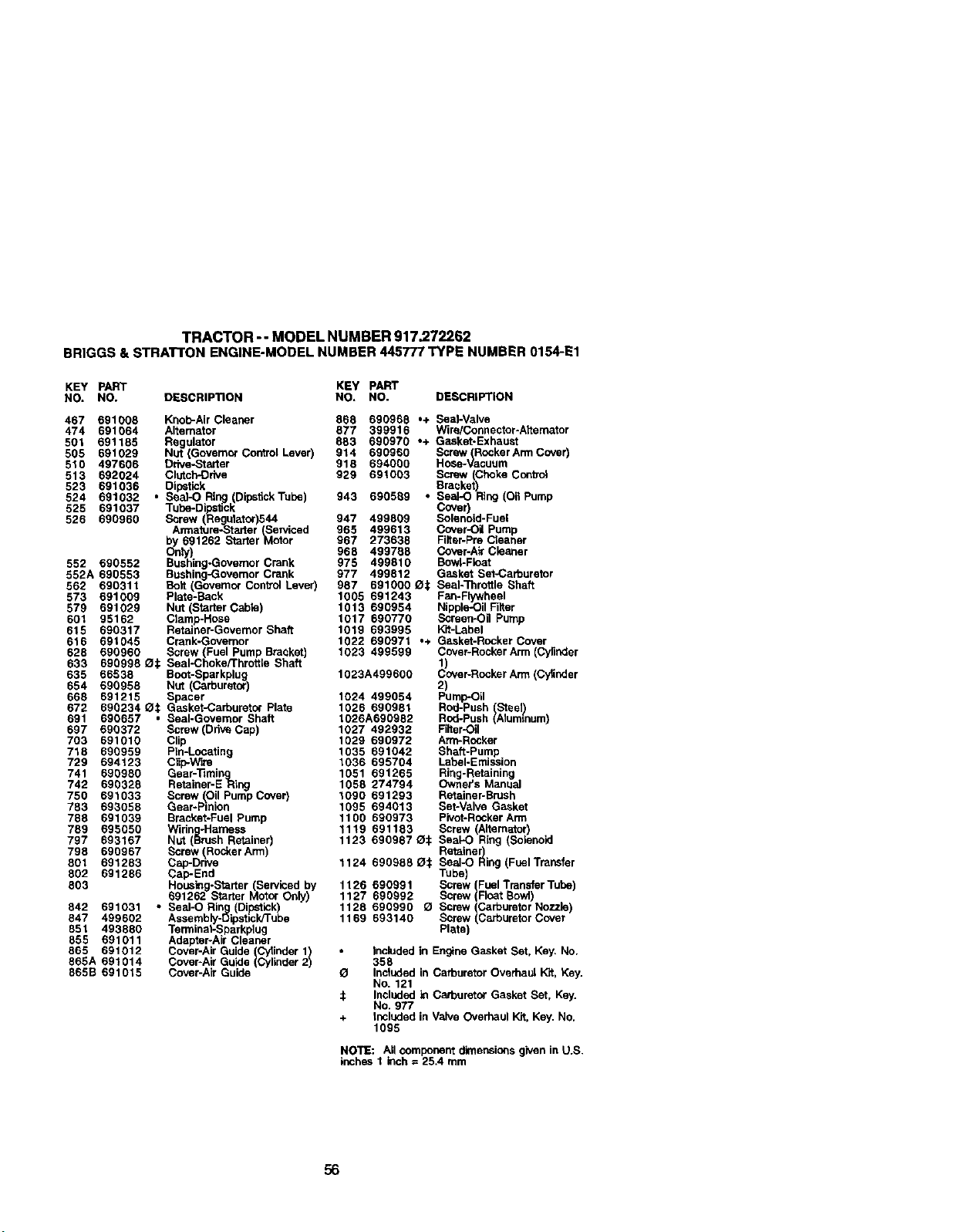

TRACTOR--MODELNUMBER917.272262

BRIGGS&STRATFONENGINE-MODELNUMBER445777TYPENUMBER0154-E1

KEY PART KEY pART

NO. NO, DESCRIPTION NO. NO. DESCRIPTION

467 691008 Knob-Air Cleaner 868 690968 .+ Seal-Vaive

474 691064 Altemator 877 399916 Wire/Connector-Attemator

501 691185 Regulator 863 690970 .+ Gasket-Exhaust

505 691029 Nut (Govemor Control Lever) 914 690960 Screw(Rocker Ann Cover)

510 497606 Drive-Steer 918 694000 Hose-Vacuum

513 692024 Clutch-Drive 929 691003 Sorew (ChokeCOUtTOI

523 691036 Dipstick Bracket)

524 691032 • SeaJ-O Ril_ (DipstickTube) 943 690589 • Seal-O Ring (Oil Pump

525 691037 Tube-Dipstick Cover)

526 690960 Screw (Regulator)544 947 499809 Solenoid-Fuel

AtmaIum-Starter (SerServiced 965 499613 Cover-Oil Pump

by 691262 Starter Metor 967 273638 Filter-Pre Cieaner

Only) 968 499786 Cover-AirCleaner

552 690552 Bushing*GovernorCrank 975 499810 BowI-FIoet

552A 690553 Bushing-GovernorCrank 977 499812 GaSket Set-Carburetor

562 690311 Bolt (Governor ControlLever) 987 691000 _: Seal-'rllrottle Shaft

573 691009 Plate-Back 1005 691243 Fan.Flywheel

679 691029 Nut (Starter Cal_le) 1013 690954 Nipple-OilFilter

601 95162 Cramp-Hose 1017 690770 Screen=Oil Pump

615 690317 Retainer-Governor Shaft 1019 693996 Kit-Label

616 691045 Crank-Governor 1022 690971 .+ Ga.sket-RockerCover

628 690960 Screw (Fuel Pump Bracket) 1023 499599 Cover-RockerAnn (Cylinder

633 690998 2_: SeaI-Choke/rh;,ot6e Shaft 1)

835 66538 Boot-Sparkplug 1023A499600 Cover-RockerArm(Cylinder

654 690958 Nut (Carburetor) 2)

668 691215 Spacer 1024 499054 Pump-Oil

672 690234 _: Gasket-Carburetor Plate 1026 690981 Rod-Push (Steel)

691 690657 • Seal-Governor Shaft 1026A690982 Rod-Push (Alemlnum)

697 690372 Screw (Drive Cap) 1027 492932 Filter-Oil

703 691010 Clip 1029 690972 Arm-Rocker

718 690959 Pin-Locating 1035 691042 Shaft-Pump

Label-Emission

729 694123 Clip-Wire 1036 695704

741 690980 Gear-'Rming 1051 691265 Ring-Retaining

742 690328 Retainer-ERing 1058 274794 Owner's Manual

750 691033 Screw _Oil PumpCover) 1090 691293 Retainer-Brush

783 693058 Gear-Pinion 1095 694013 Set-Valve Gasket

788 691039 Bracket-Fuel pump 1100 690973 Pivot-RockerArm

769 695050 Wiring-Harness 1119 691183 Screw Altemator)

797 693167 NUt (Brush Retainer) 1123 690987 _:_ SeabO Rng (So enoid

798 690967 Screw (RockerArm) Retainer)

801 691283 Cap-Drive 1124 690988_.t Seal-O Ring (FuelTransfer

802 691266 Cap-End Tube)

803 Housing-Starter(Serviced by 1126 690991 Screw (FuelTransferTube)

691262 Starter Motor Only) 1127 690992 Screw (Float Bowl)

842 691031 • SeaI-O Ring (Dipstick) 1126 690990 _i Screw (CorbumtorNozzle)

947 499602 Assembly-Dipstick/Tube 1169 693140 Screw (carburetor Cover

951 493880 Terminat-Sparkplug Plato)

855 691011 Adapter-Air Cleaner

865 691012 Cover-AirGuide Cytinder 1) Includedin Engine Gasket Set, Key. No.

866A 691014 Cover-AirGukJe Cy nder 2) 358

865B 691015 Cover-Air Guide a Included in CarburetorOverhaul Kit, Key.

No. 121

:_ Includedle Carburetor Gasket Set, Key.

No. 977

+ tocleded in Valve Overhaul Kit, Key.No.

1095

NOTE: Allcomponentdimensionsgiven in U.S.

inches 1 inch = 25.4 mm

SUGGESTED GUIDE FOR SIGHTING SLOPES FOR SAFE OPERATION

GUIDE

ONLY RIDE UP AND DOWN HILL,

NOT ACROSS HILL

_ /_ Operate your Tractor up end down the face of slopes (not I

Ai, Jk greater than 15 ), never across the face. Make turns gradu- I

ally to prevent tipping or loss of control. Exercise extreme

caution when changing direction on slopes.

Forrepairofcan'y-inproductslikevacuums,lawnequipment,and

electronics,callforthenearestSearsPartsand RepairCenter.

1-800-488-1222 ,_'ne, dayorrighqU.SAor_

tM_w._ears.com

Forthereplacementparts,accassodesandowner'smanuals

thatyouneedtodo-it-yourself,callSearsPartsDirectS'!

1-800-366-PART 6&m.- 11p.m., 7daysaweek

(1.8oe-366-7278) (u.s_ _ly)

__tect

To purchaseor inquireabouta SearsService Agreement

orSearsMaintenanceAgreement:

1-800-827-6655 (u.s.A.) 1-800-361-6665 (Canada)

7a.m.- 5p.m.,CST,Mort.- Sat. 9a.m.- 8p.m.EST, M- F,4 p.m.S_

Parapedrserviciode re_ a Au Canadapourserviceenfran_s:

dornk:_o,ypara ordenarpiezas: 1.800.L_.FOYERMC

1-sea-su-PIOG__ ('1_0o_3_

(1-888-784-6427) ,,_w.seam.ca

©Sea_ _andCo.

® Registered Trademark / TM Trademark / suService Mark of Sears, Roebuck and Co.

® Marca Reglstrada / _MMarca de Fdbdca / se Marca de Servtclo de Sears, Roebuck and Co.

McMarque de commerce / MoMarque d_posde de Seam, Roebuck and Co.

179423 04.23.01 RH Printedin U.S.A.

Craftsman 917272262 lawn tractor

Product's Documents

User Manual

Specifications

Craftsman 917272262 Questions and Answers
