Owner's Manual
6.5 HORSEPOWER
21" MULTI-CUT
POWER PROPELLED
ROTARY LAWN MOWER
Model No.
917.377801
• Safety
° Assembly
• Operation
• Maintenance
• Espa_ol
• Repair Parts
CAUTION:
Read and follow all
Safety Rules and Instructions
before operating this equipment
Sears, Roebuck and Co., Hoffman Estates, IL 60179
Visit our Craftsman website: www.sears,com/craftsman

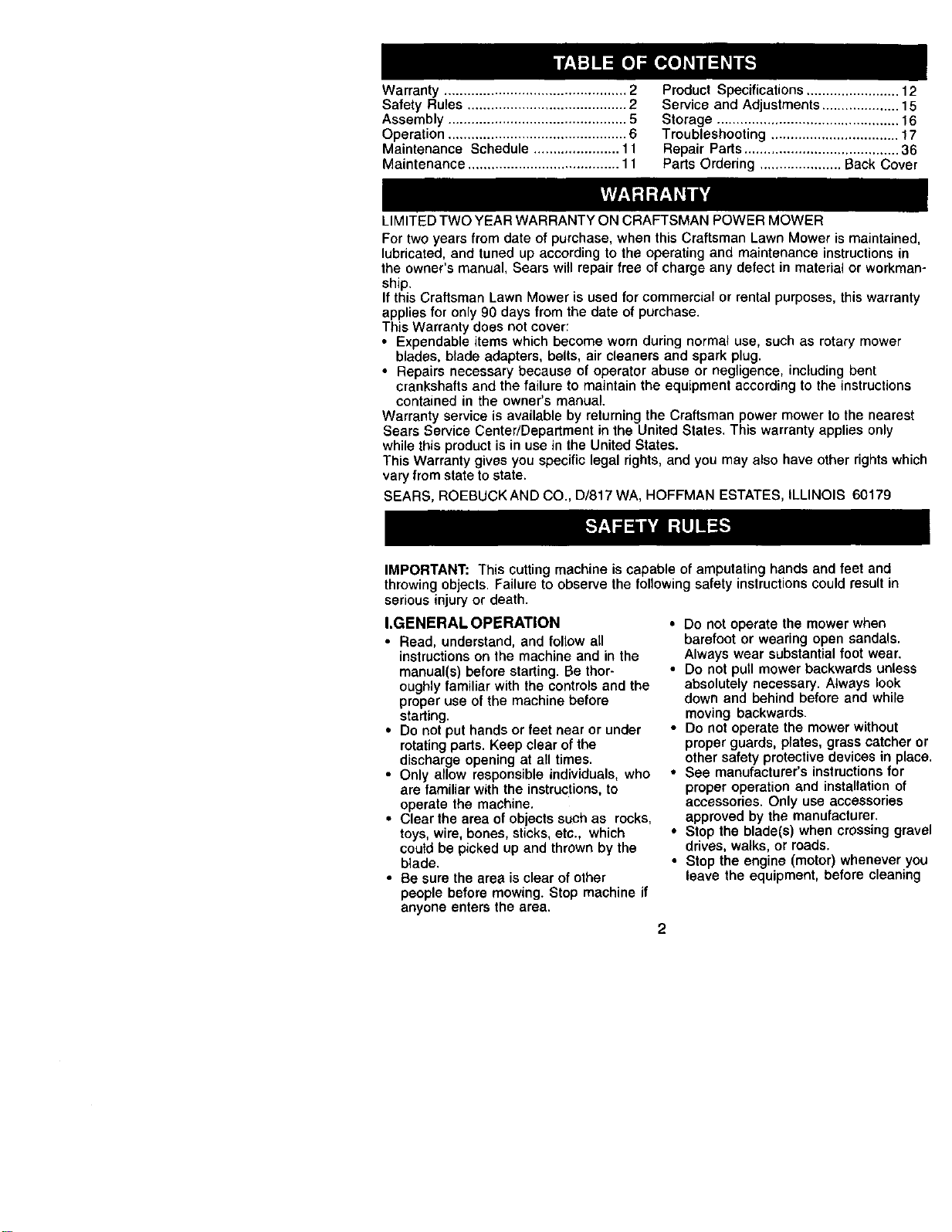

Warranty ............................................... 2
Safety Rules ......................................... 2
Assembly .............................................. 5
Operation .............................................. 6

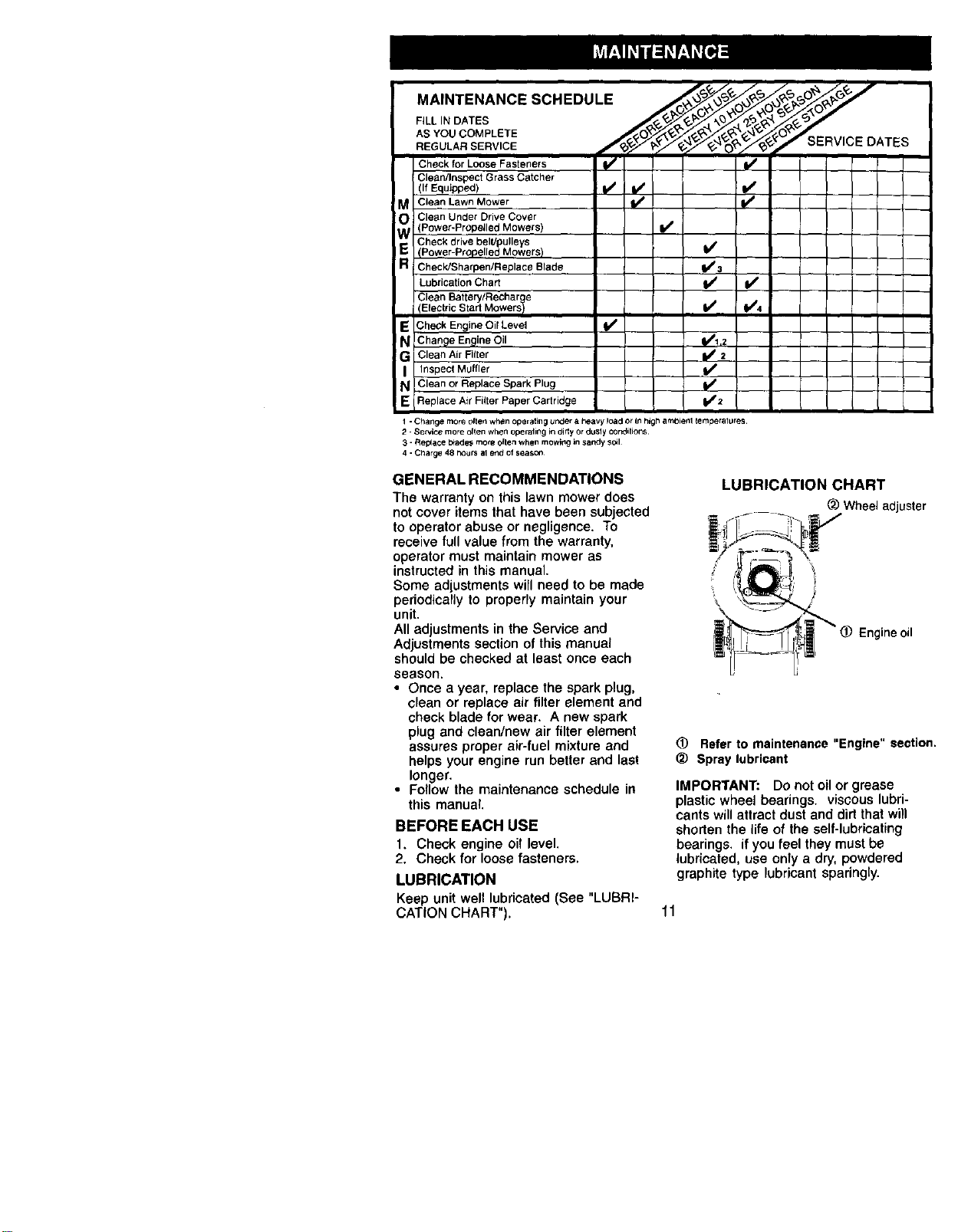

Maintenance Schedule ...................... 11
Maintenance ....................................... 11
Product Specifications ........................ 12
Sen/ice and Adjustments .................... 15
Storage ............................................... t 6
Troubleshooting ................................. 17

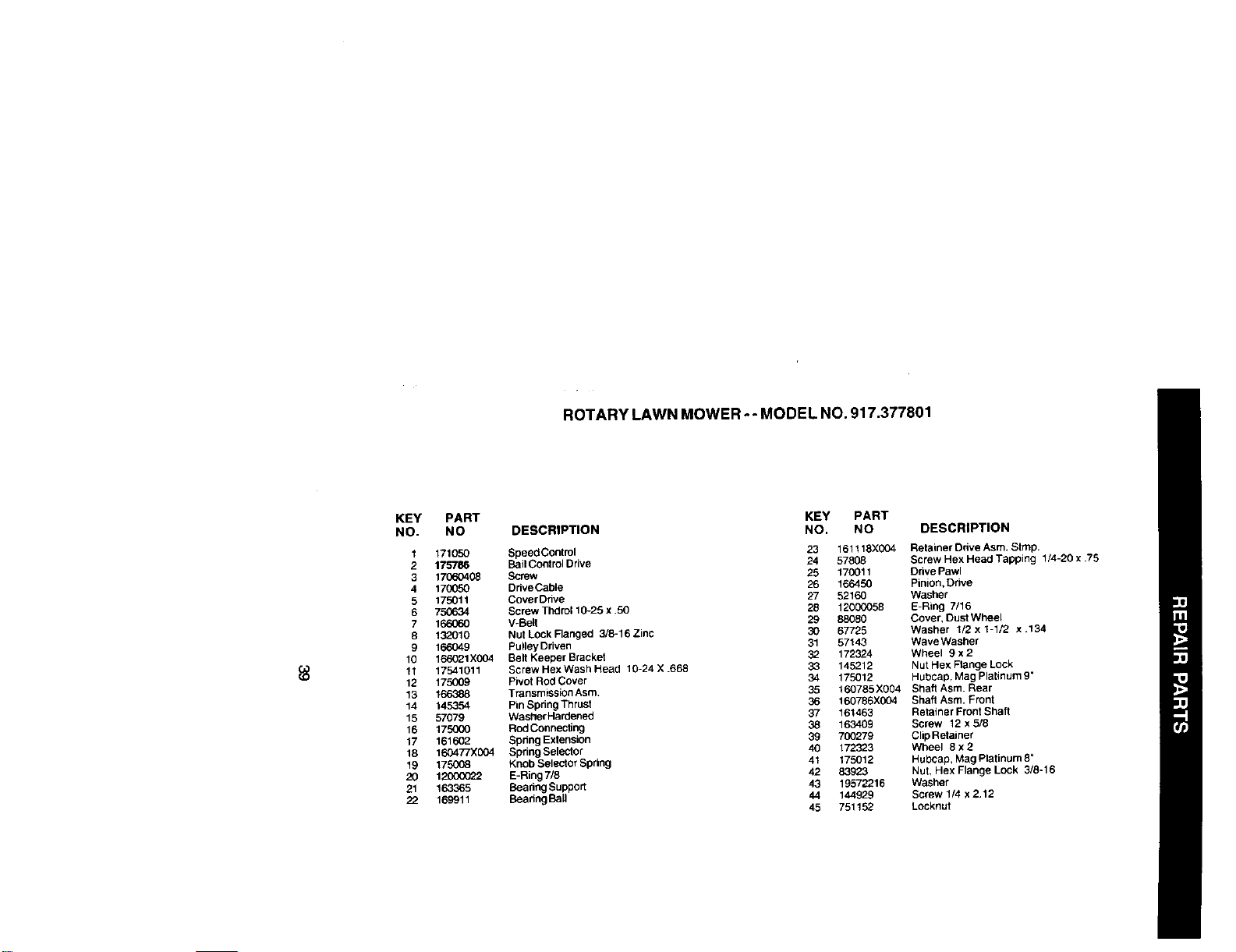

Repair Parts ........................................ 36
Parts Ordering ..................... Sack Cover
LIMITED TWO YEAR WARRANTY ON CRAFTSMAN POWER MOWER
For two years from date of purchase, when this Craftsman Lawn Mower is maintained,
lubricated, and tuned up according to the operating and maintenance instructions in
the owner's manual, Sears will repair free of charge any defect in material or workman-
ship.
If this Craftsman Lawn Mower is used for commercial or rental purposes, this warranty
applies for only 90 days from the date of purchase.
This Warranty does not cover:
• Expendable items which become worn during normal use, such as rotary mower
blades, blade adapters, belts, air cleaners and spark plug.
• Repairs necessary because of operator abuse or negligence, including bent
crankshafts and the failure to maintain the equipment according to the instructions
contained in the owner's manual.
Warranty service is available by returning the Craftsman power mower to the nearest
Sears Service Center/Department in the United States. This warranty applies only
while this product is in use in the United States.
This Warranty gives you specific legal rights, and you may also have other rights which
vary from state to state.
SEARS, ROEBUCK AND CO., D/817 WA, HOFFMAN ESTATES, ILLINOIS 60179
IMPORTANT: This cutting machine is capable of amputating hands and feet and
throwing objects. Failure to observe the following safety instructions could result in
serious injury or death.
I.GENERAL OPERATION •
• Read, understand, and follow all
instructions on the machine and in the
manual(s) before starting. Be thor- •
oughly familiar with the controls and the
proper use of the machine before
starting.
• Do not put hands or feet near or under °
rotating pads. Keep clear of the
discharge opening at all times.
• Only allow responsible individuals, who •
are familiar with the instructions, to
operate the machine.
• Clear the area of objects such as rocks,
toys, wire, bones, sticks, etc., which •
could be picked up and thrown by the
blade. •
• Be sure the area is clear of other
people before mowing. Stop machine if
anyone enters the area.
Do not operate the mower when
barefoot or wearing open sandals.
Always wear substantial foot wear.
Do not pull mower backwards unless
absolutely necessary. Always look
down and behind before and while
moving backwards.
Do not operate the mower without
proper guards, plates, grass catcher or
other safety protective devices in place,
See manufacturer's instructions for
proper operation and installation of
accessories. Only use accessories
approved by the manufacturer.
Stop the blade(s) when crossing gravel
drives, walks, or roads.
Stop the engine (motor) whenever you
leave the equipment, before cleaning

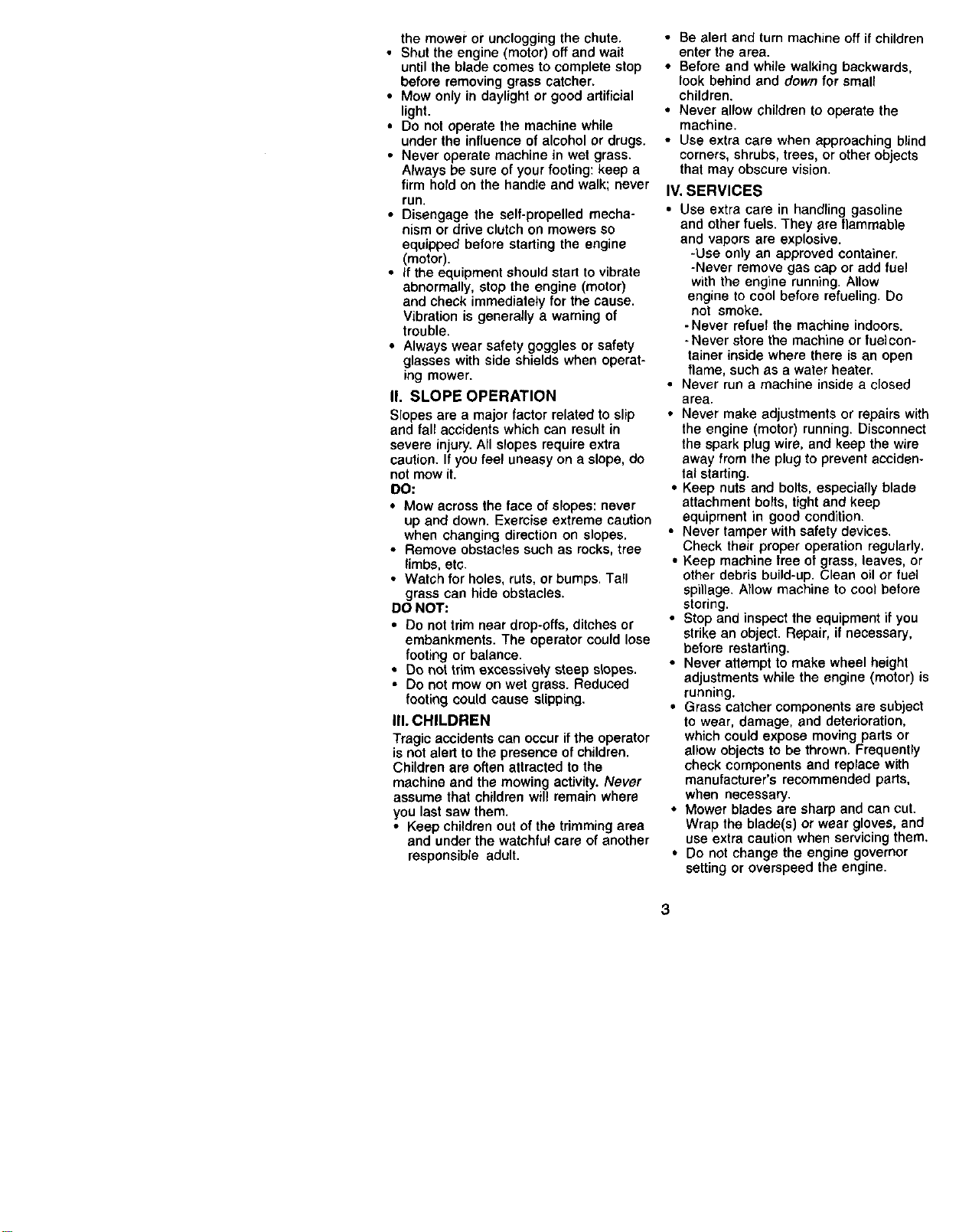

themoweroruncloggingthechute,
• Shuttheengine(motor)offandwait
untilthebladecomestocompletestop
beforeremovinggrasscatcher.
• Mowonlyindaylightor good artificial
light.
• Do not operate the machine while
under the influence of alcohol or drugs.
• Never operate machine in wet grass.
Always be sure of your footing: keep a
firm hold on the handle and walk; never
run.
• Disengage the self-propelled mecha-
nism or drive clutch on mowers so
equipped before starting the engine
(motor).
• If the equipment should start to vibrate
abnormally, stop the engine (motor)
and check immediately for the cause.
Vibration is generally a warning of
trouble.
• Always wear safety goggles or safety
glasses with side shields when operat-
ing mower.
II. SLOPE OPERATION
Slopes are a major factor related to slip
and fall accidents which can result in
severe injury. All slopes require extra
caution. If you feel uneasy on a slope, do
not mow it.
DO:
• Mow across the face of slopes: never
up and down. Exercise extreme caution
when changing direction on slopes.
• Remove obstacles such as rocks, tree
limbs, etc.
• Watch for holes, ruts, or bumps. Tall
grass can hide obstacles.
DO NOT:
• Do not trim near drop-offs, ditches or
embankments, The operator could lose
footing or balance,
• Do not trim excessively steep slopes.
• Do not mow on wet grass. Reduced
footing could cause slipping.
In. CHILDREN
Tragic accidents can occur if the operator
is not alert to the presence of children.
Children are often attracted to the
machine and the mowing activity. Never
assume that children wil! remain where
you last saw them.
• Keep children out of the trimming area
and under the watchful care of another
responsible adult.
• Be alert and turn machine off if children
enter the area.
• Before and while walking backwards,
look behind and down for small
children.
• Never allow children to operate the
machine.
• Use extra care when approaching blind
corners, shrubs, trees, or other objects
that may obscure vision.
IV. SERVICES
• Use extra care in handling gasoline
and other fuels. They are flammable
and vapors are explosive.
-Use only an approved container.
-Never remove gas cap or add fuel
with the engine running. Allow
engine to cool before refueling. Do
not smoke.
-Never refuel the machine indoors.
-Never store the machine or fuelcon-
tainer inside where there is an open
flame, such as a water heater.
• Never run a machine inside a closed
area.
• Never make adjustments or repairs with
the engine (motor) running. Disconnect
the spark plug wire, and keep the wire
away from the plug to prevent acciden-
tal starting.
• Keep nuts and bolts, especially blade
attachment bolts, tight and keep
equipment in good condition.
• Never tamper with safety devices.
Check their proper operation regularly.
• Keep machine free of grass, leaves, or
other debris build-up. Clean oil or fuel
spillage. Allow machine to cool before
storing.
• Stop and inspect the equipment if you
strike an object. Repair, if necessary,
before restarting.
• Never attempt to make wheel height
adjustments while the engine (motor) is
running.
• Grass catcher components are subject
to wear, damage, and deterioration,
which could expose moving parts or
allow objects to be thrown. Frequently
check components and replace with
manufacturer's recommended parts,
when necessary.
• Mower blades are sharp and can cut.
Wrap the blade(s) or wear gloves, and
use extra caution when servicing them.
• Do not change the engine governor
setting or overspeed the engine.
3
_l,Look for this symbol to point out
important safety precautions. It means
CAUTION!!! BECOMEALERT!!! YOUR
SAFETY IS INVOLVED.
CAUTION: In order to prevent
accidental starting when setting up,
transporting, adjusting or making repairs,
always disconnect spark plug wire and
place wire where it cannot contact spark
plug.
_WARNING: Engine exhaust, some of its
constituents, and certain vehicle compo-
nents contain or emit chemicals known to
the State of California to cause cancer
and birth defects or other reproductive
harm.
_,WARNING: Battery posts, terminals and
related accessories contain lead and
lead compounds, chemicals known to the
State of California to cause cancer and
birth defects or other reproductive harm.
Wash hands after handling.
hese accessories were ava
shipped with your mower. They are also available at most Sears retail outlets and
service centers. Most Sears stores can also order repair parts for you, when you
provide the model number of your lawn mower. Some of these accessories may not
apply to your lawn mower.

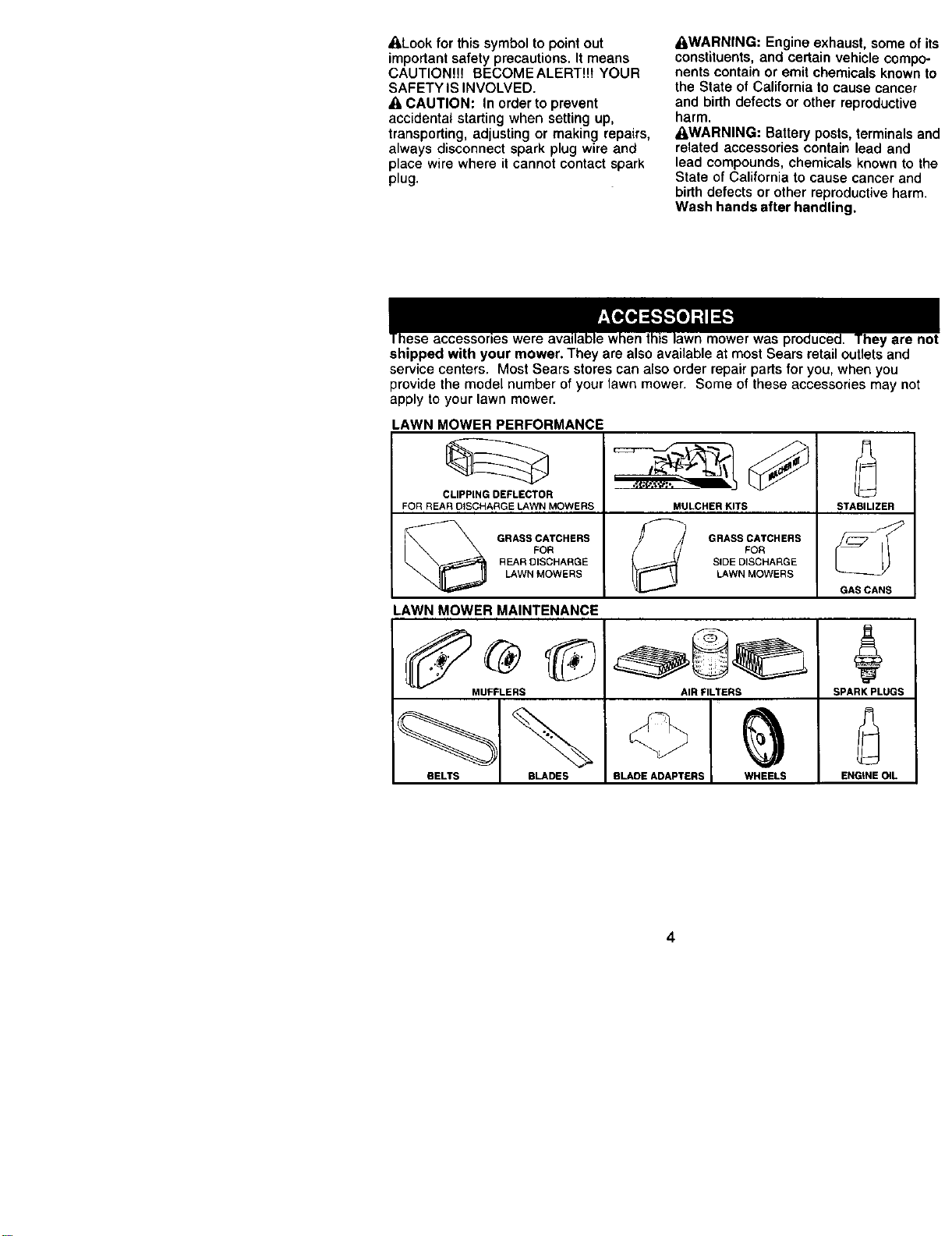

LAWN MOWER PERFORMANCE
FOR REAR DISCHARGE LAWN MOWERS MULCHER KITS STABILIZER
GRASS CATCHERS _ GRASS CATCHERS
FOR FOR
REAR DISCHARGE SIDE DISCHARGE
LAWN MOWERS LAWN MOWERS
GAS CANS
LAWN MOWER MAINTENANCE
MUFFLERS AIR FILTERS SPARK PLUGS
BELTS BLADES BLADE ADAPTERS WHEELS ENGINE OIL
4
Read these instructions and this manual
in its entirety before you attempt to
assemble or operate your new lawn
mower.
IMPORTANT: This lawn mower is shipped
WITHOUT OIL OR GASOLINE in the
engine.
Your new lawn mower has beer as-
sembled at the factory with the exception
of those parts lefl unassembled for
shipping purposes. All parts such as nuts,
washers, bolts, etc., necessary to com-
plete the assembly have been placed in
the parts bag. To ensure safe and proper
operation of your lawn mower, all parts
and hardware you assemble must be
tightened securely. Use the correct tools
as necessary to ensure proper tightness.
TO REMOVE LAWN MOWER FROM
CARTON
1. Remove loose parts included with
mower.
2. Cut do_'n two end corners of carton
and lay end panel down flat.
3. Remove all packing materials except
padding between upper and lower
handle and padding holding operator
presence control bar to upper handle.
4. Roll lawn mower out of carton and
check carton thorougly for additional
loose parts.

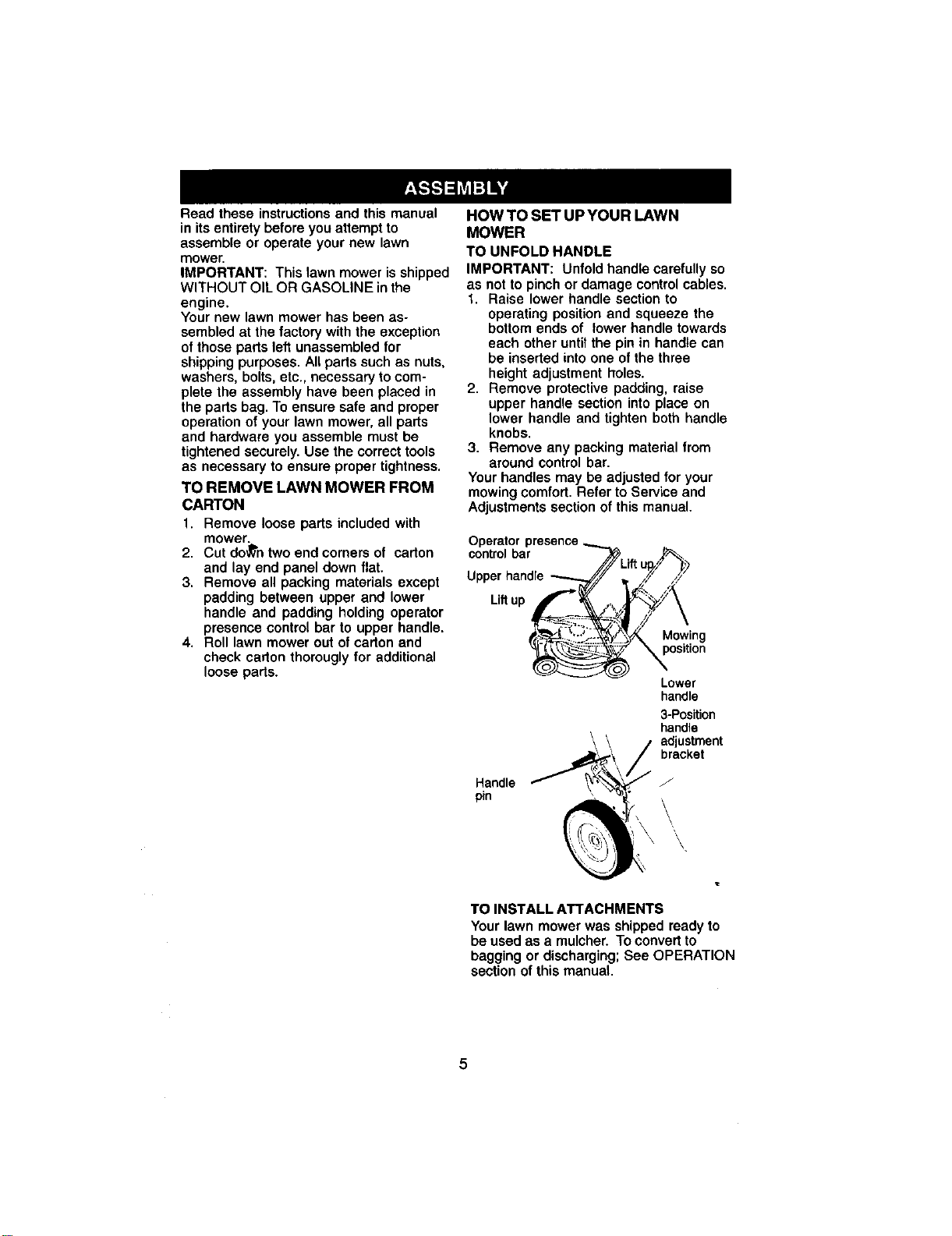

HOW TO SET UP YOUR LAWN
MOWER
TO UNFOLD HANDLE
IMPORTANT: Unfold handle carefully so
as not to pinch or damage control cables.
1. Raise lower handle section to
operating position and squeeze the
bottom ends of lower handle towards
each other until the pin in handle can
be inserted into one of the three
height adjustment holes.
2. Remove protective padding, raise
upper handle section into place on
lower handle and tighten both handle
knobs.
3. Remove any packing material from
around control bar.
Your handles may be adjusted for your
mowing comfort. Refer to Service and
Adjustments section of this manual.
Operator presence
controlbar _ ,,P_A,_
f//Lift u_y _
Upper handle _ tZ// /f ,_"
_:tf_ Mowing
\ s,t,on
Lower
handle
Handle
pin
3-Position
handle
adjustment
bracket
J
TO INSTALL ATTACHMENTS
Your lawn mower was shipped ready to
be used as a mulcher. To convert to
bagging or discharging; See OPERATION
section of this manual.

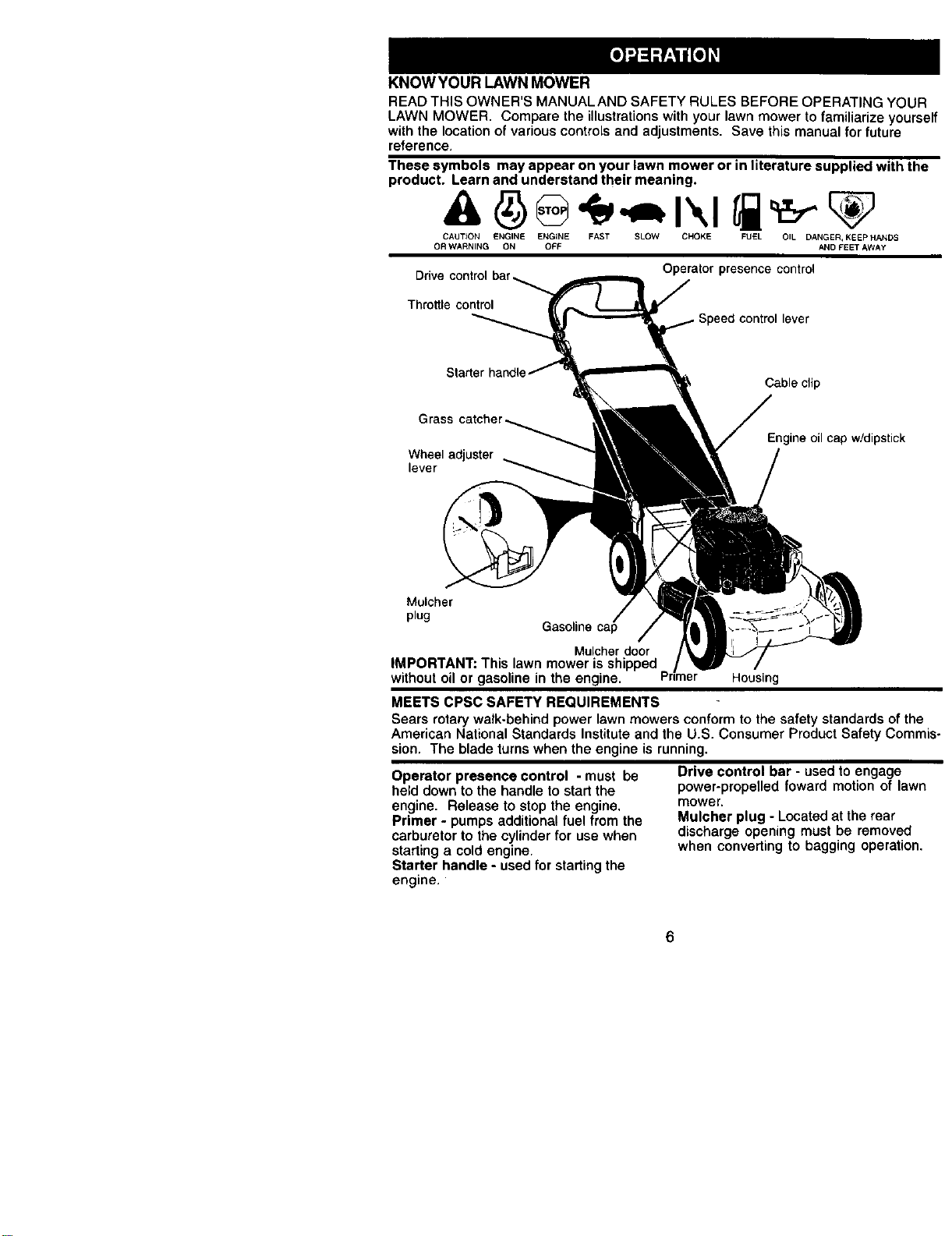

KNOWYOURLAWNMOWER
READTHISOWNER'SMANUALANDSAFETYRULESBEFOREOPERATINGYOUR
LAWNMOWER.Comparetheillustrationswithyourlawnmowertofamiliarizeyourself
withthelocationofvariouscontrolsandadjustments,Savethismanualforfuture
reference,
Thesesymbolsmayappearonyourlawnmowerorinliteraturesuppliedwiththe
product.Learnandunderstandtheirmeaning.
CAUTtON ENGINE ENGINE FAST SLOW CHOKE FUEL OIL DANGER, KEEP HANDS
OR WARNING ON OFF AND FEET AWAY
Ddve control bar
Operator presence control
Throttle control
lever
Grass
Wheel adjuster
lever
Cable clip
Engineoil cap w/dipstick
Mulcher
plug
Gasoline cap
Mulcherdoor
IMPORTANT: This lawn mower is shipped
without oil or gasoline in the engine. Housing
MEETS CPSC SAFETY REQUIREMENTS
Sears rotary walk-behind power lawn mowers conform to the safety standards of the
American National Standards Institute and the U.S. Consumer Product Safety Commis-
sion. The blade turns when the engine is running.
Operator presence control - must be
held down to the handle to stad the
engine, Release to stop the engine,
Primer - pumps additional fuel from the
carburetor to the cylinder for use when
starting a cold engine.
Starter handle - used for starting the
engine.
Drive control bar - used to engage
power-propelled foward motion of lawn
mower.
Mulcher plug - Located at the rear
discharge opening must be removed
when converting to bagging operation,
Theoperationofany lawn
mower can result in foreign
objects thrown into the
eyes, which can result in
severe eye damage.
Always wear safety glasses or eye
shields while operating your lawn mower
or performing any adjustments or repairs.
We recommend a wide vision safety mask
over spectacles or standard safety
glasses.
HOW TO USE YOUR LAWN MOWER
ENGINE SPEED
The engine speed is controlled by a
throttle located on the side of the upper
handle. Fast position is for starting,
normal cutting, trimming and better grass
bagging. Slow position is for light cutting,
trimming and fuel economy.
"T_ Slow
Fast ,"" "_,
_ 'j! 2.
,, r
J
ENGINE ZONE CONTROL
_CAUTION: Federal regulations require
an engine control to be installed on this
lawn mower in order to minimize the risk
of blade contact injury. Do not under any
circumstances attempt to defeat the
function of the operator control. The blade
turns when the engine is running.
• Your lawn mower is equipped with an
operator presence control bar which
requires the operator to be positioned
behind the lawn mower handle to start
and operate the lawn mower.
TO ADJUST CUTTING HEIGHT
All four wheels are adjusted by a single
lever.
• Pull adjuster lever toward wheel. To
raise mower, move lever forward to
desired position. To lower mower,
move the lever toward the rear.
LowerWheels \
for HighCut \
Wheel _i_/ -
adjuster __'_i
lever _\ \ \
Raise Wheels _ _' ,J
for LowCut
GROUND DRIVE SPEEDS
Your lawn mower provides multiple
speeds to let you select the speed that
suits you best..
• Lower speeds are for, heavy/thick
grass cutting or trimming.
• Medium speeds are for normal grass
cutting or trimming.
• High is for light cutting and for ground
transport.
NOTE: Do not move speed control lever
unless the engine is running
TO OPERATE DRIVE SYSTEM
• With engine running select ground
speed by moving speed control lever to
desired position.
• To start forward motion, pull drive
control bar back against handle.
• To stop forward motion, release drive
control bar.
IMPORTANT: Always keep drive control
fully engaged against handle when in
use.
Speed control
lever
Drive control
engaged
disengaged
Operator presence
controlbar
COMBI-CUT MOWERS TO CONVERT
MOWER
Yourlawnmowerwas shippedready to
be usedas a mulcher. Toconvertto
bagging or discharging:
REAR BAGGING
• Open rear door and remove mulcher
plug. Store mulcher plugina safe
place.
• You can nowinstallgrasscatcher.
• To convertto mulchingor discharging
operation,installmulcherplug intorear
dischargeopeningof mower.
SIDE DISCHARGING
• Mulcher plug mustbe installedinto rear
dischargeopeningof mower.
• Open dischargeguard and install
dischargedeflectorunderguard as
shown.
• Mower isnow ready for discharging
operation.
• To convertto mulching or bagging
operation,dischargedeflectormustbe
removedand dischargeguard mustbe
clo_ed.
SIMPLE STEPS TO REMEMBERWHEN
CONVERTING YOUR LAWN MOWER
FOR MULCHING -
1. Rear mulcher plug installed.
2. Side discharge guard closed.
FOR REAR BAGGING -
1. Rear mulcher plug removed.
2. Grass catcher installed.
3. Side discharge guard closed.
FOR SIDE DISCHARGING *
1. Rear mulcher plug installed.
2. Side discharge deflector installed.
ACAUTION: Do notrunyour lawn
mower without rear mulcher plug in place
or approvedgrass catcher in place.
Neverattempttooperatethe lawn mower
with the reardoor removedor propped
open. _.
Mutcherplug_
--_ Mulcherdoor
Open
mulcherdoor
Discharge deflector
TO ATTACH GRASS CATCHER
1. Liftthe rear doorofthe lawnmower
and placethe grasscatcherframe
sidehooksintothe slotsofthe roar
door.
2. The grasscatcherissecuredto the
lawn mowerhousing when the roar
dooris loweredontothegrasscatcher
frame.
Reardoor Grass
catcher
Catcher frame'
hook
AI_CAUTION:Do not run your lawn mower
withoutclippingdeflectoror approved
grasscatcherin place.Never attemptto
operatethe lawn mowerwiththe rear
doorremovedor proppedopen.
TO EMPTY GRASS CATCHER
1. Liftup on grasscatcherusingthe
frame handle.
2. Removegrass catcherwithclippings
from under lawnmower handle.
3. Emptyclippingsfrom bag usingboth
frame handle and bag handle.
NOTE: Do notdragthebag when
emptying; itwillcauseunnecessarywear.
handle
8
catcher
handle

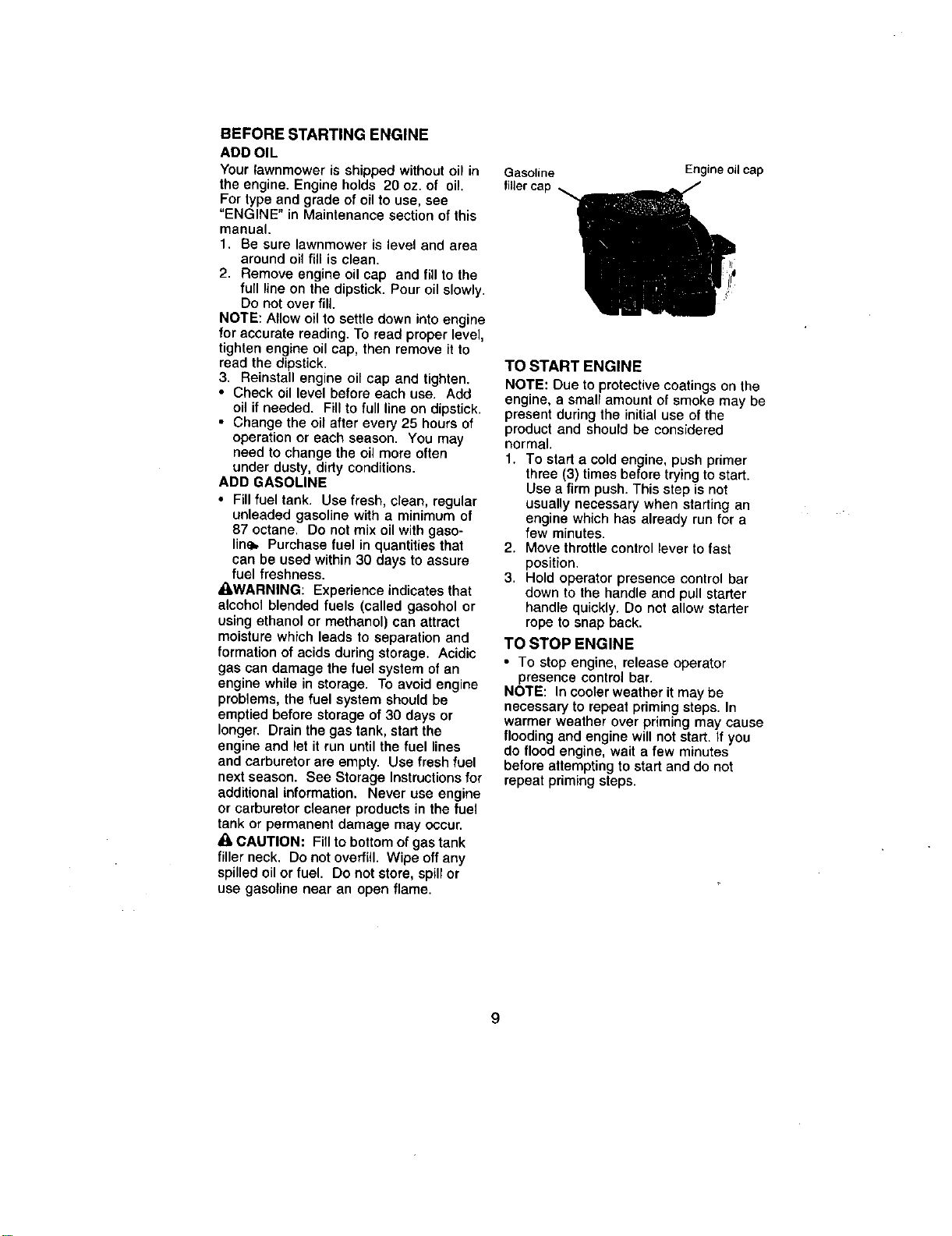

BEFORESTARTINGENGINE
ADDOIL
Yourlawnmower is shipped without oil in
the engine. Engine holds 20 oz. of oil.
For type and grade of oil to use, see
"ENGINE" in Maintenance section ofthis
manual.
1. Be sure lawnmower is level and area
around oil fill is clean.
2. Remove engine oil cap and fill to the
full line on the dipstick. Pour oil slowly.
Do not over fill.
NOTE: A_tow oil to settle down into engine
for accurate reading. To read proper level,
tighten engine oil cap, then remove it to
read the dipstick.
3. Reinstall engine oil cap and tighten.
• Check oil level before each use. Add
oil if needed. Fill to full line on dipstick.
• Change the oil after every 25 hours of
operation or each season. You may
need to change the oil more often
under dusty, dirty conditions.
ADD GASOLINE
• Fill fuel tank. Use fresh, clean, regular
unleaded gasoline with a minimum of
87 octane, Do not mix oil with gaso-
line, Purchase fuel in quantities that
can be used within 30 days to assure
fuel freshness.
_,WARNING: Experience indicates that
alcohol blended fuels (called gasohol or
using ethanol or methanol) can attract
moisture which leads to separation and
formation of acids during storage. Acidic
gas can damage the fuel system of an
engine whi_e in storage. To avoid engine
problems, the fuel system should be
emptied before storage of 30 days or
longer. Drain the gas tank, start the
engine and let it run until the fuel lines
and carburetor are empty. Use fresh fuel
next season. See Storage Instructions for
additional information. Never use engine
or carburetor cleaner products in the fuel
tank or permanent damage may occur.
CAUTION: Fill to bottom of gas tank
filler neck. Do not overfill. Wipe off any
spilled oil or fuel. Do not store, spill or
use gasotine near an open flame.
Gasoline
filler cap
Engine oil cap
TO START ENGINE
NOTE: Due to protective coatings on the
engine, a small amount of smoke may be
present during the initial use of the
product and should be considered
normal.
1. To start a cold engine, push primer
three (3) times before trying to start.
Use a firm push. This step is not
usually necessary when starting an
engine which has already run for a
few minutes.
2. Move throttle control lever to fast
position.
3. Hold operator presence control bar
down to the handle and pull starter
handle quickly. Do not allow starter
rope to snap back.
TO STOP ENGINE
• To stop engine, release operator
presence control bar.
NOTE: In cooler weather it may be
necessary to repeat priming steps. In
warmer weather over priming may cause
flooding and engine will not start. If you
do flood engine, wait a few minutes
before attempting to start and do not
repeat priming steps.
9

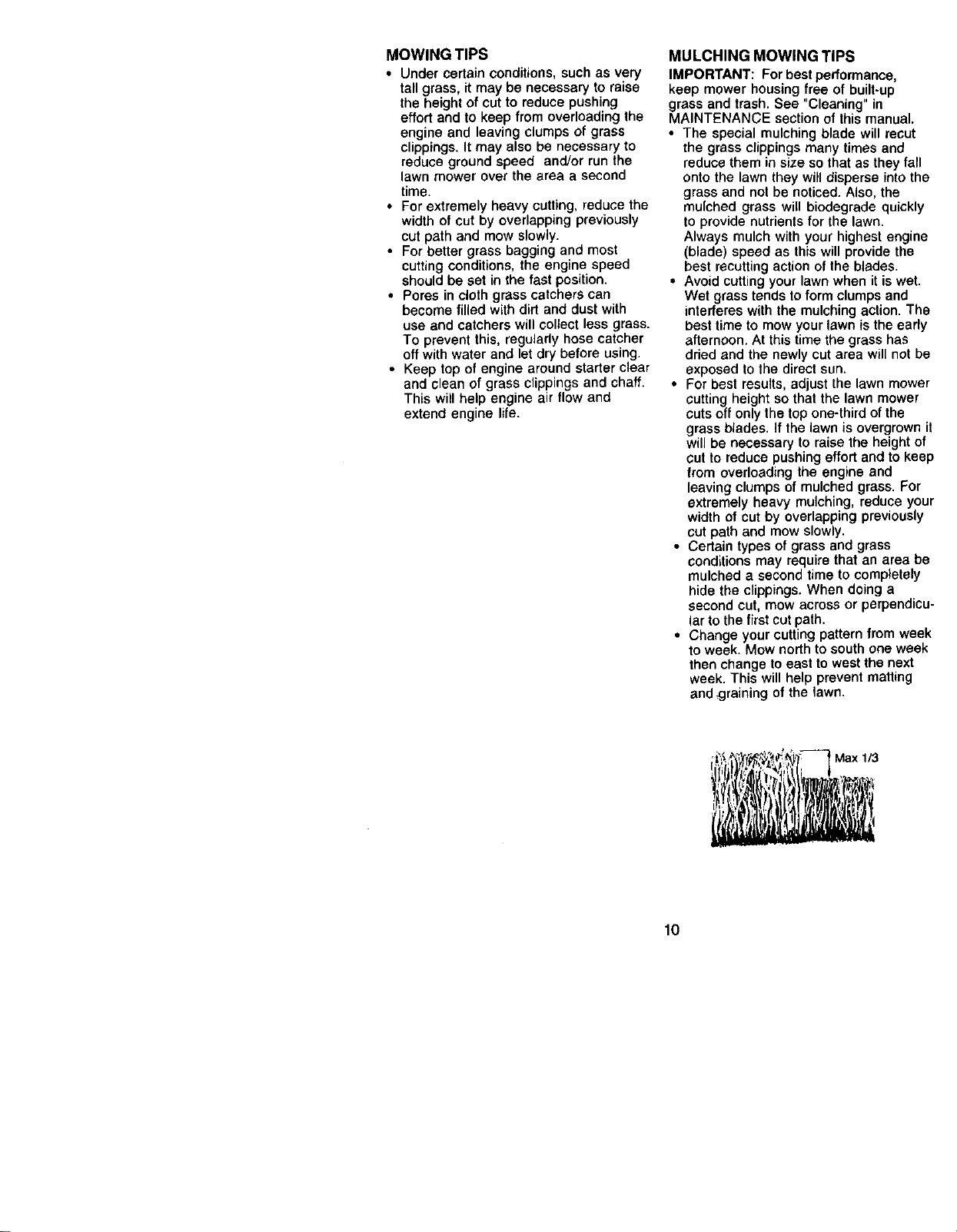

MOWING TIPS
• Under certain conditions, such as very
tall grass, it may be necessary to raise
the height of cut to reduce pushing
effort and to keep from overloading the
engine and leaving clumps of grass
clippings. It may also be necessary to
reduce ground speed and/or run the
lawn mower over the area a second
time.
• For extremely heavy cutting, reduce the
width of cut by overlapping previously
cut path and mow slowly.
• For better grass bagging and most
cutting conditions, the engine speed
should be set in the fast position.
• Pores in cloth grass catchers can
become filled with dirt and dust with
use and catchers will collect less grass.
To prevent this, regularly hose catcher
off with water and let dry before using.
• Keep top of engine around starter clear
and clean of grass clippings and chaff.
This will help engine air flow and
extend engine life.
MULCHING MOWING TIPS
IMPORTANT: For best performance,
keep mower housing free of built-up
grass and trash. See "Cleaning" in
MAINTENANCE section of this manual.
• The special mulching blade will recur
the grass clippings many times and
reduce them in size so that as they fall
onto the lawn they will disperse into the
grass and not be noticed. Also, the
mulched grass will biodegrade quickly
to provide nutrients for the lawn.
Always mulch with your highest engine
(blade) speed as this will provide the
best recutting action of the blades.
• Avoid cutting your lawn when it is wet.
Wet grass tends to form clumps and
interferes with the mulching action. The
best time to mow your lawn is the early
afternoon. At this time the grass has
dried and the newly cut area will not be
exposed to the direct sun.
• For best results, adjust the lawn mower
cutting height so that the lawn mower
cuts off only the top one-third of the
grass blades. If the lawn is overgrown it
will be necessary to raise the height of
cut to reduce pushing effort and to keep
from overloading the engine and
leaving clumps of mulched grass. For
extremely heavy mulching, reduce your
width of cut by overlapping previously
cut path and mow slowly.
• Cedain types of grass and grass
conditions may require that an area be
mulched a second time to completely
hide the clippings. When doing a
second cut, mow across or perpendicu-
lar to the first cut path.
• Change your cutting pattern from week
to week. Mow north to south one week
then change to east to west the next
week. This will help prevent matting
and ,graining of the lawn.
Max 1/3
10
MA,NTE.A.CESO.EDULE
FILL'NDATES
REGULARSERVICE J__O,_,_//._,'_._ I" SERVICE DATES
Check for Loose Fasteners V/ li/
Clean/Inspect Grass Catcher
(If Equipped) I1/ I/
M Clean Lawn Mower If I_
O Clean Under Drive Cover
(Power-Propelled Mowers) I/
Check drive bell/pulleys
(Power-Propelled Mowers) II/
Check/Sharpen/Replace Blade I/3
Lubrication Chart I/ If
Clean Battery/Rechar e
tElectric Start Mowers! I/ I/4
E Check Engine Oil Level
N Change Engine Oil I_l,z
G Clean Air Filter Ip# 2
I Inspect Muffler t/ --
N Clean or Replace Spark Plug i/ --
E ReplaceAirFilterPaperCartridge 1#/2
1 - Change more oftenwhen operaling under a h_avy load or in higll anlbienl (emperatures
2 - Service more often when operaling in d_rtyOrdusly conditions¸
3 - Rel_ace I_ade_ mote olten when mowing in sandy scd
4 - Charge 48 t',ours al end of seasc_
GENERAL RECOMMENDATIONS
The warranty on this lawn mower does
not cover items that have been subjected
to operator abuse or negligence, To
receive full value from the warranty,
operator must maintain mower as
instructed in this manual,
Some adjustments will need to be made
periodicarly to properly maintain your
unit,
All adjustments in the Service and
Adjustments section of this manual
should be checked at least once each
season.
• Once a year, replace the spark plug,
clean or replace air filter element and
check blade for wear. A new spark
plug and clean/new air filter element
assures proper air-fuel mixture and
helps your engine run better and last
longer.
• Follow the maintenance schedule in
this manual
BEFORE EACH USE
1. Check engine oil level.
2. Check for loose fasteners.
LUBRICATION
Keep unitwell lubricated(See "LUBRI-
CATION CHART").
LUBRICATION CHART
Wheeladjuster
Engine oil
(!) Refer to maintenance "Engine" section.
(_ Spray lubricant
IMPORTANT: Do not oil or grease
plastic wheel bearings, viscous lubri-
cants will attract dust and dirt that will
shorten the life of the self-lubricating
bearings, if you feel they must be
lubricated, use only a dry, powdered
graphite type lubricant sparingly.
11

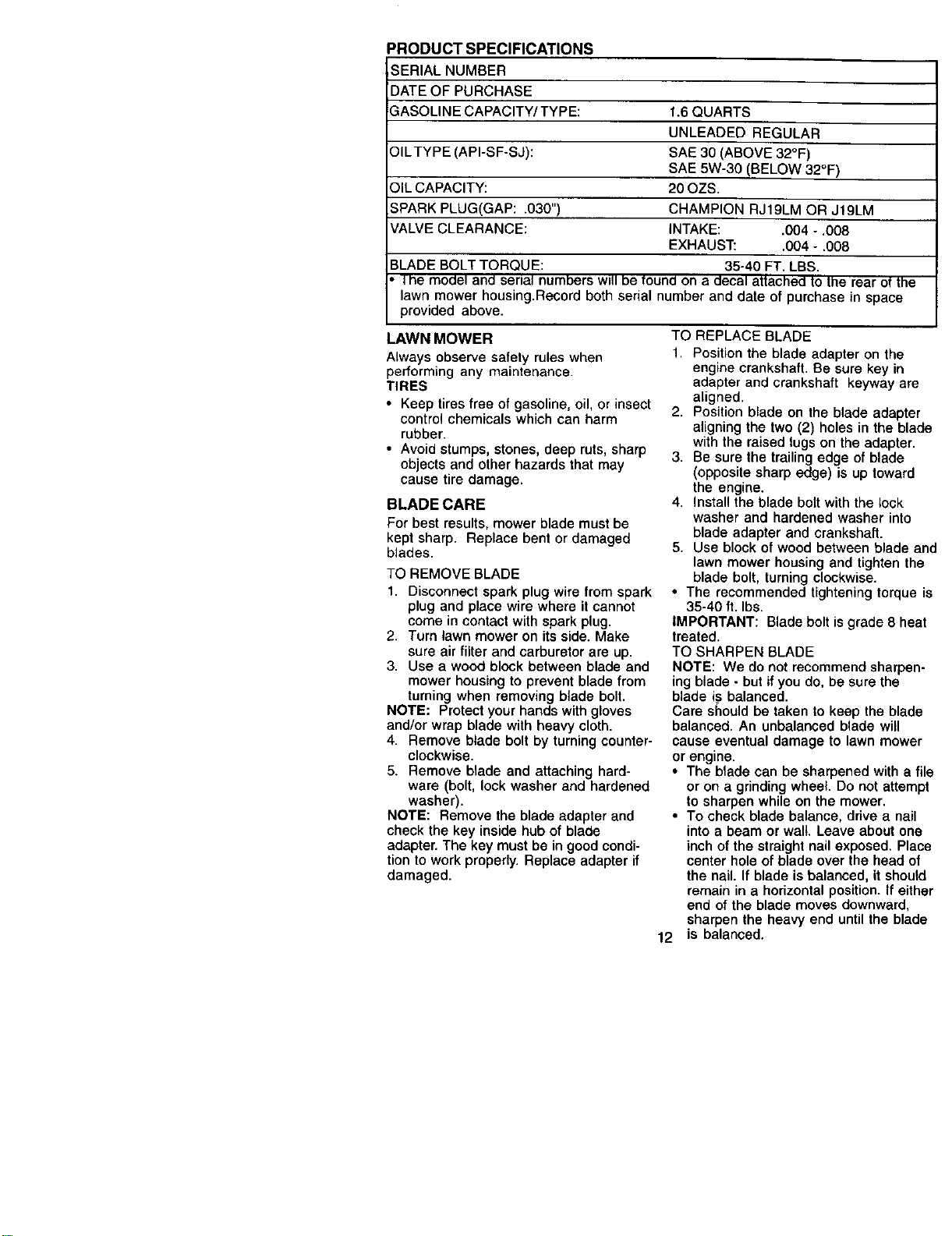

PRODUCT SPECIFICATIONS
SERIAL NUMBER
DATE OF PURCHASE
GASOLINE CAPACITY/TYPE: 1.6 QUARTS
UNLEADED REGULAR
OILTYPE (API-SF-SJ): SAE 30 (ABOVE 32°F)
SAE 5W-30 (BELOW 32°F)
OIL CAPACITY: 20 OZS.
SPARK PLUG(GAP: .030") CHAMPION RJ19LM OR J19LM
VALVE CLEARANCE: INTAKE: .004 - .008
EXHAUST: .004 - .008
BLADE BOLT TORQUE: 35-40 FT. LBS.
, I he model and serial numbers will be found on a decal attached to the rear ot the
lawn mower housing.Record both serial number and date of purchase in space
provided above.
LAWN MOWER
Always observe safety rules when
performing any maintenance.
TIRES
• Keep tires free of gasoline, oil, or insect
control chemicals which can harm
rubber.
• Avoid stumps, stones, deep ruts, sharp
objects and other hazards that may
cause tire damage.
BLADE CARE
For best results, mower blade must be
kept sharp. Replace bent or damaged
blades.
TO REMOVE BLADE
1. Disconnect spark plug wire from spark
plug and place wire where it cannot
come in contact with spark plug.
2. Turn lawn mower on its side. Make
sure air filter and carburetor are up.
3. Use a wood block between blade and
mower housing to prevent blade from
turning when removing blade bolt.
NOTE: Protect your hands with gloves
and/or wrap blade with heavy cloth.
4. Remove blade bolt by turning counter-
clockwise.
5. Remove blade and attaching hard-
ware (bolt, lock washer and hardened
washer).
NOTE: Remove the blade adapter and
check the key inside hub of blade
adapter. The key must be in good condi-
tion to work properly. Replace adapter if
damaged.
TO REPLACE BLADE
1. Position the blade adapter on the
engine crankshaft. Be sure key in
adapter and crankshaft keyway are
aligned.
2. Position blade on the blade adapter
aligning the two (2) holes in the blade
with the raised lugs on the adapter.
3. Be sure the trailing edge of blade
(opposite sharp edge) is up toward
the engine.
4. Install the blade bolt with the lock
washer and hardened washer into
blade adapter and crankshaft.
5. Use block of wood between blade and
lawn mower housing and tighten the
blade bolt, turning clockwise.
• The recommended tightening torque is
35-40 ft. Ibs.
IMPORTANT: Blade bolt is grade 8 heat
treated.
TO SHARPEN BLADE
NOTE: We do not recommend sharpen-
ing blade - but if you do, be sure the
blade is balanced.
Care should be taken to keep the blade
balanced. An unbalanced blade will
cause eventual damage to lawn mower
or engine.
• The blade can be sharpened with a file
or on a grinding wheel. Do not attempt
to sharpen while on the mower.
• To check blade balance, drive a nail
into a beam or wall Leave about one
inch of the straight nail exposed. Place
center hole of blade over the head of
the nail. If blade is balanced, it should
remain in a horizontal position. If either
end of the blade moves downward,
sharpen the heavy end until the blade
is balanced.
12
Blade Crank- Correct
adapler ._ _ shaft
Blade Blade _P"b..._S_, / I_
Hardenbd" ' / " \ s\ _/,._,=,,.,,-.-
washer / \ an
Trailing Bladekeyway
edge adapter
GRASS CATCHER
• The grass catcher may be hosed with
water, but must be dry when used,
• Check your grass catcher often for
damage or deterioration. Through
normal use it will wear. If catcher
needs replacing, replace only with a
manufacturer approved replacement
catcher. Give the lawn mower model
number when ordering.
DRIVE WHEELS
Check rear drive wheels each time you
mow to be sure they move freely. The
wheels not turning freely means trash,
grass cuttings, etc., may be inside the
drive wheel and dust cover area and
must be cleaned out to free drive wheels.
If necessary to clean the drive wheels,
check both rear wheels.
1. Remove hubcaps and Iocknuts.
2. Remove wheels from wheel adjuster
axles.
3. Remove any trash or grass cuttings
from inside the dust cover, pinion and/
or drive wheel gear teeth.
4. If you remove the drive pinions, wipe
clean with dry cloth. Reassemble dry.
Do not lubricate. Do not use oil or
grease.
NOTE: The pinion gear, on both sides of
the mower, are the same, however, they
must be installed correctly. If installed
incorrectly, the drive system will not work.
5. There are arrows embossed on both
sides of the pinion gear. With the
arrow at the top of the pinion, the
arrow must point towards front of
mower. If the arrow points to the rear,
turn the pinion around and assemble
to mower.
6. Place wheels back on adjuster axles.
7. Replace Iocknuts and hubcaps.
Incorrect
Wave
Hasher
\
Oustcover
Washer
"Hubcap
ENGINE
LUBRICATION
Use only high quality detergent oil rated
with API service classification SF-SJ.
Select the oil's SAE viscosity grade
according to your expected operating
temperature.
NOTE: Although multi-viscosity oils
(5W30, 10W30 etc.) improve starting in
cold weather, these multi-viscosity oils
will result in increased oil consumption
when used above 32°F. Check your
engine oil level more frequently to avoid
possible engine damage from running
low on oil.
Change the oil after every 25 hours of
operation or at least once a year if the
lawn mower is not used for 25 hours in
one year.
Check the crankcase oil level before
starting the engine and after each five (5)
hours of continuous use. Tighten oil plug : ; ::: "
securely each time you check the oil
level.
13

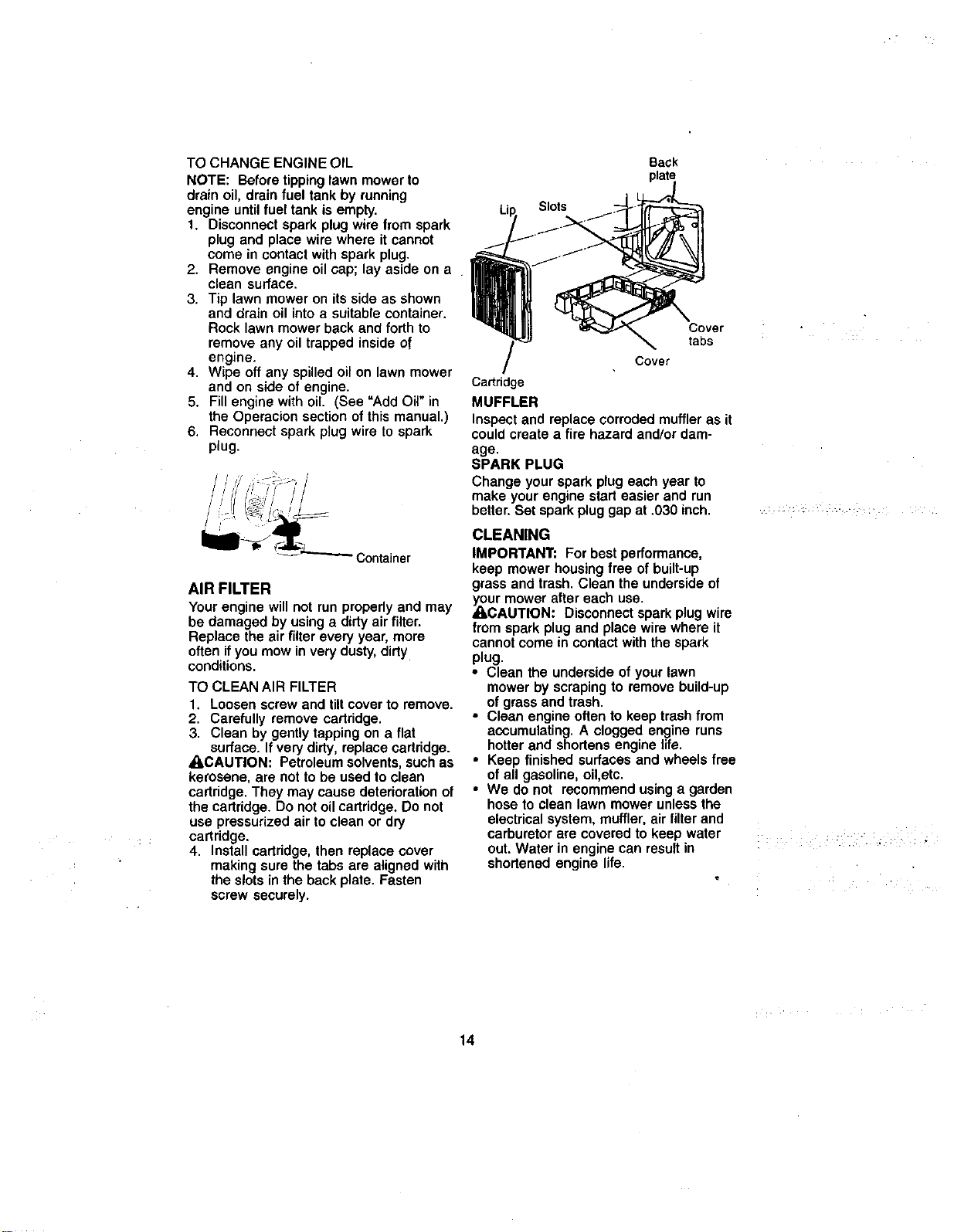

TO CHANGE ENGINE OIL
NOTE: Before tipping lawn mower to
drain oil, drain fuel tank by running
engine until fuel tank is empty.
1. Disconnect spark plug wire from spark
plug and place wire where it cannot
come in contact with spark plug.
2. Remove engine oil cap; lay aside on a
clean surface.
3. Tip lawn mower on its side as shown
and drain oil into a suitable container.
Rock lawn mower back and forth to
remove any oil trapped inside of
engine.
4. Wipe off any spilled oil on lawn mower
and on side of engine.
5. Fill engine with oil (See "Add Oil" in
the Operacion section of this manual.)
6. Reconnect spark plug wire to spark
plug.
--"------'Container
AIR FILTER
Your engine will not run properly and may
be damaged by using a didy air filter.
Replace the air filter every year, more
often ifyou mow in very dusty, dirty
conditions.
TO CLEAN AIR FILTER
1. Loosen screw and tilt cover to remove.
2. Carefully remove cartridge.
3. Clean by gently tapping on a flat
surface. If very dirty, replace cartridge.
_I=CAUTION: Petroleum solvents, such as
kerosene, are not to be used to clean
cartridge. They may cause deterioration of
the cartridge. Do not oil cartridge. Do not
use pressurized air to clean or dry
cartridge.
4. Install cartridge, then replace cover
making sure the tabs are aligned with
the slots in the back plate. Fasten
screw securely.
Back
Slots
Cover
tabs
Cover
Cartridge
MUFFLER
Inspect and replace corroded muffler as it
could create a fire hazard and/or dam-
age.
SPARK PLUG
Change your spark plug each year to
make your engine start easier and run
better. Set spark plug gap at .030 inch.
i
CLEANING
IMPORTANT: For best performance,
keep mower housing free of built-up
grass and trash. Clean the underside of
your mower after each use.
_I,CAUTION: Disconnect spark plug wire
from spark plug and place wire where it
cannot come in contact with the spark
plug.
• Clean the underside of your lawn
mower by scraping to remove build-up
of grass and trash.
• Clean engine often to keep trash from
accumulating. A clogged engine runs
hotter and shortens engine life.
• Keep finished surfaces and wheels free
of all gasoline, oil,etc,
• We do not recommend using a garden
hose to clean lawn mower unless the
electrical system, muffler, air filter and
carburetor are covered to keep water
out. Water in engine can result in _ : _ ;
shortened engine life.
14
d_,CAUTION: Before performing any
service or adjustments:
1. Release control bar and stop engine.
2. Make sure the blade and all moving
parts have completely stopped.
3. Disconnect spark plug wire from spark
plug and place where it cannot come
in contact with plug.

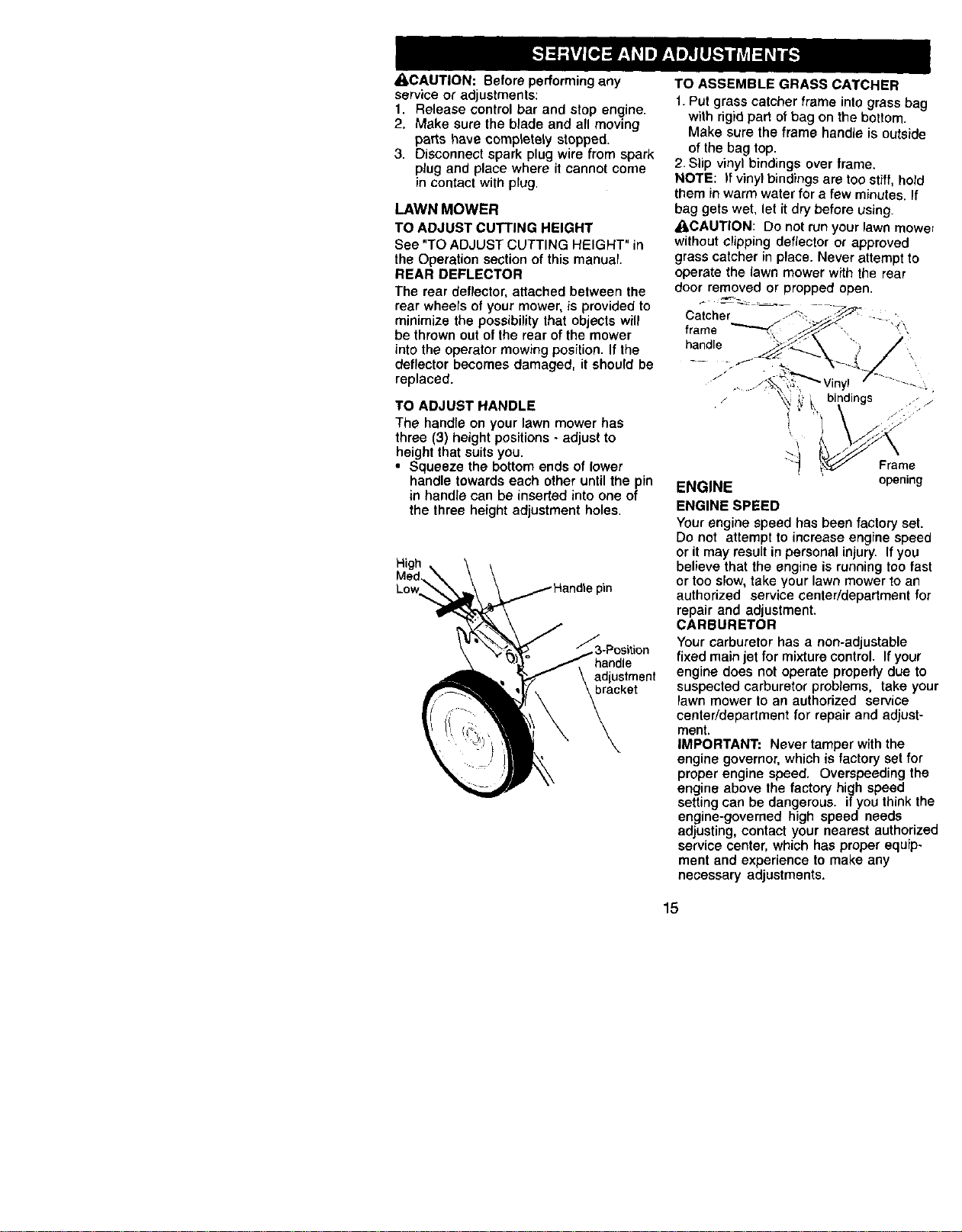

LAWN MOWER
TO ADJUST CUTTING HEIGHT
See "TO ADJUST CUTTING HEIGHT" in
the Operation section of this manual.
REAR DEFLECTOR
The rear deflector, attached between the
rear wheels of your mower, is provided to
minimize the possibility that objects will
be thrown out of the rear of the mower
into the operator mowing position. If the
deflector becomes damaged, it should be
replaced.
TO ADJUST HANDLE
The handle on your lawn mower has
three (3) height positions - adjust to
height that suits you.
• Squeeze the bottom ends of lower
handle towards each other until the pin
in handle can be inserted into one of
the three height adjustment holes.
High
Med.
Low.
handle
adjustment
racket
TO ASSEMBLE GRASS CATCHER
1. Put grass catcher frame into grass bag
with rigid part of bag on the bottom.
Make sure the frame handle is outside
of the bag top.
2. Slip vinyl bindings over frame.
NOTE: tf viny}bindings are too stiff, hold
them in warm water for a few minutes. If
bag gets wet, let it dry before using.
_CAUTION: Do not run your lawn mowe=
without clipping deflector or approved
grass catcher in place. Never attempt to
operate the lawn mower with the rear
door removed or propped open.
Catcher .-/>.,
fran'te
handle
• 4.
/ . _ _ Vinyl ,
! / ;,
\
-_i Frame
ENGINE opening
ENGINE SPEED
Your engine speed has been factory set.
Do not attempt to increase engine speed
or it may result in personal injury. If you
believe that the engine is running too fast
or too slow, take your lawn mower to an
authorized service center/department for
repair and adjustment.
CARBURETOR
Your carburetor has a non-adjustable
fixed main jet for mixture control. If your
engine does not operate properly due to
suspected carburetor problems, take your
lawn mower to an authorized service
center/department for repair and adjust-
ment.
IMPORTANT: Never tamper with the
engine governor, which is factory set for
proper engine speed. Overspeeding the
engine above the factory high speed
setting can be dangerous, if you think the
engine-governed high speed needs
adjusting, contact your nearest authorized
service center, which has proper equip-
ment and experience to make any
necessary adjustments.
15

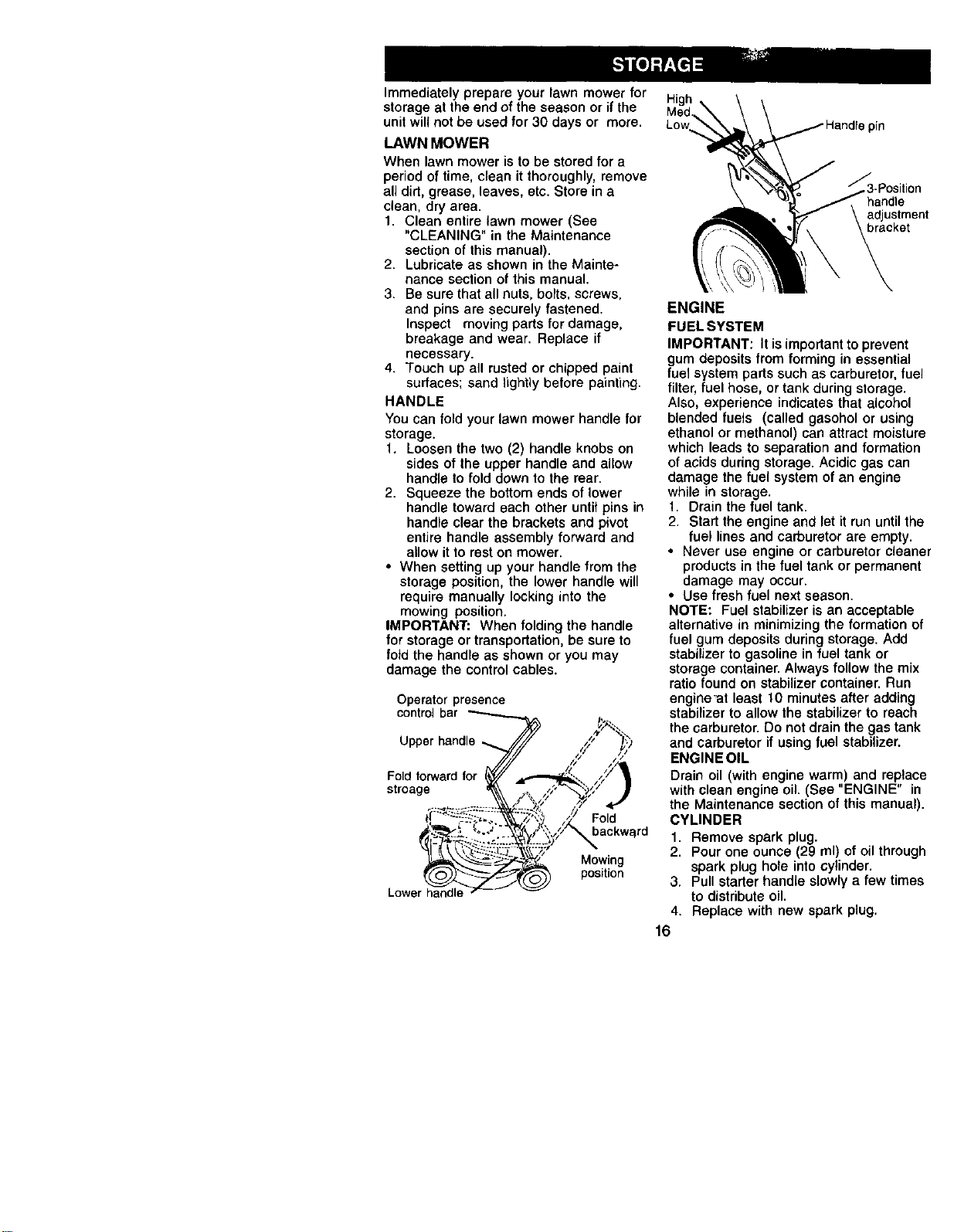

Immediately prepare your lawn mower for
storage at the end of the season or if the
unit will not be used for 30 days or more.
LAWN MOWER
When lawn mower is to be stored for a
period of time, clean it thoroughly, remove
all did, grease, leaves, etc. Store in a
clean, dry area.
1. Clean entire lawn mower (See
"CLEANING" in the Maintenance
section of this manual).
2. Lubricate as shown in the Mainte-
nance section of this manual.
3. Be sure that all nuts, bolts, screws,
and pins are securely fastened.
Inspect moving parts for damage,
breakage and wear. Replace if
necessary.
4. Touch up all rusted or chipped paint
surfaces; sand lightly before painting.
HANDLE
You can fold your lawn mower handle for
storage.
1. Loosen the two (2) handle knobs on
sides of the upper handle and allow
handle to fold down to the rear.
2. Squeeze the bottom ends of lower
handle toward each other until pins in
handle clear the brackets and pivot
entire handle assembly forward and
allow it to rest on mower.
• When setting up your handle from the
storage position, the lower handle will
require manually locking into the
mowing position.
IMPORTANT: When folding the handle
for storage or transportation, be sure to
fotd the handle as shown or you may
damage the control cables.
Operator presence
control bar
Upper handle
Fold forward for
stroage
Lower handle
Fold
backward
Mowing
position
High
Med
Lo_
pin
adjustment
bracket
ENGINE
FUEL SYSTEM
IMPORTANT: It is important to prevent
gum deposits from forming in essential
fuel system parts such as carburetor, fuel
filter, fuel hose, or tank during storage.
Also, experience indicates that alcohol
blended fuels (called gasohol or using
ethanol or methanol) can attract moisture
which leads to separation and formation
of acids during storage. Acidic gas can
damage the fuel system of an engine
while in storage.
1. Drain the fuel tank.
2. Start the engine and let it run until the
fuel lines and carburetor are empty.
• Never use engine or carburetor cleaner
products in the fuel tank or permanent
damage may occur.
• Use fresh fuel next season.
NOTE: Fuel stabilizer is an acceptable
alternative in minimizing the formation of
fuel gum deposits during storage. Add
stabilizer to gasoline in fuel tank or
storage container. Always follow the mix
ratio found on stabilizer container. Run
engine'at least 10 minutes after adding
stabilizer to allow the stabilizer to reach
the carburetor. Do not drain the gas tank
and carburetor if using fuel stabilizer.
ENGINEOIL
Drain oil (with engine warm) and replace
with clean engine oil, (See "ENGINE" in
the Maintenance section of this manual),
CYLINDER
1, Remove spark plug,
2, Pour one ounce (29 ml) of oil through
spark plug hole into cylinder.
3. Pull starter handle slowly a few times
to distribute oil,
4, Replace with new spark plug.
16
OTHER
• Do not store gasoline from one season
to another.
• Replace your gasoline can if your can
starts to rust. Rust and/or dirt in your
gasoline will cause problems,
• If possible, store your unit indoors and
cover it to give protection from dust and
dirt.
• Cover your unit with a suitable pmtec.
tire cover that does not retain mois-
ture. Do not use plastic. Plastic cannot
breathe which allows condensation to
form and will cause your unit to rust.
IMPORTANT: Never cover mower while
engone and exhaust areas are still warm,
CAUTION:Never store the lawn mower
with gasoline in the tank inside a building
where fumes may reach an open flame o_
spark, Allow the engine to cool before
storing in any enclosure.

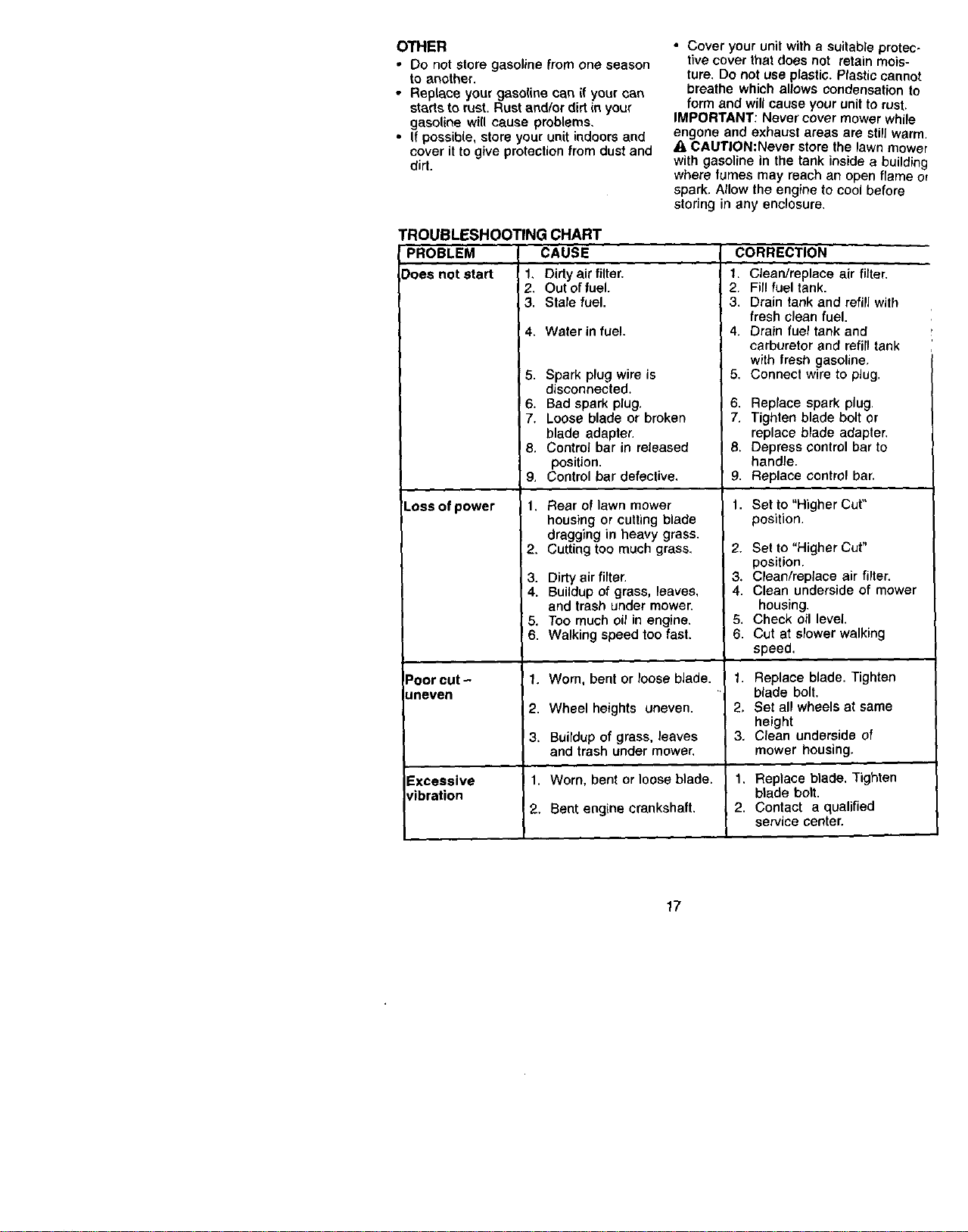

TROUBLESHOOTING CHART
PROBLEM CAUSE
Does not start 1, Dirty air filter.
2. Out of fuel.
3. Stale fuel.
Loss of power
Poorcut-
uneven
Excessive
ribration
4. Water in fuel.
5. Spark plug wire is
disconnected.
6. Bad spark plug.
7. Loose blade or broken
blade adapter.
8. Control bar in released
position.
9. Control bar defective.
1. Rear of lawn mower
housing or cutting blade
dragging in heavy grass.
2. Cutting too much grass.
3. Dirty air filter.
4. Buildup of grass, leaves.
and trash under mower.
5. Too much oil in engine.
6. Walking speed too fast.
1. Worn. bent or loose blade.
2. Wheel heights uneven.
I 3. Buildup of grass, leaves
and trash under mower.
1. Worn. bent or loose blade.
2. Bent engine crankshaft.
CORRECTION
1. Clean/replace air filter.
2. Fill fuel tank.
3. Drain tank and refill with
fresh clean fuel.
4. Drain fuel tank and
carburetor and refill tank
with fresh gasoline.
5. Connect wire to plug.
6. Replace spark plug.
7. Tighten blade bolt or
replace blade adapter,
8. Depress control bar to
handle.
9. Replace control bar.
1. Set to "Higher Cut"
position.
2. Set to "Higher Cut"
position.
3. Clean/replace air filter.
4. Clean underside of mower
housing,
5. Check oil level
6. Cut at slower walking
speed.
1. Replace blade. Tighten
blade bolt.
2, Set all wheels at same
height
3, Clean underside of
mower housing.
1. Replace blade. Tighten
blade bolt.
2. Contact a qualified
sentice center.
17

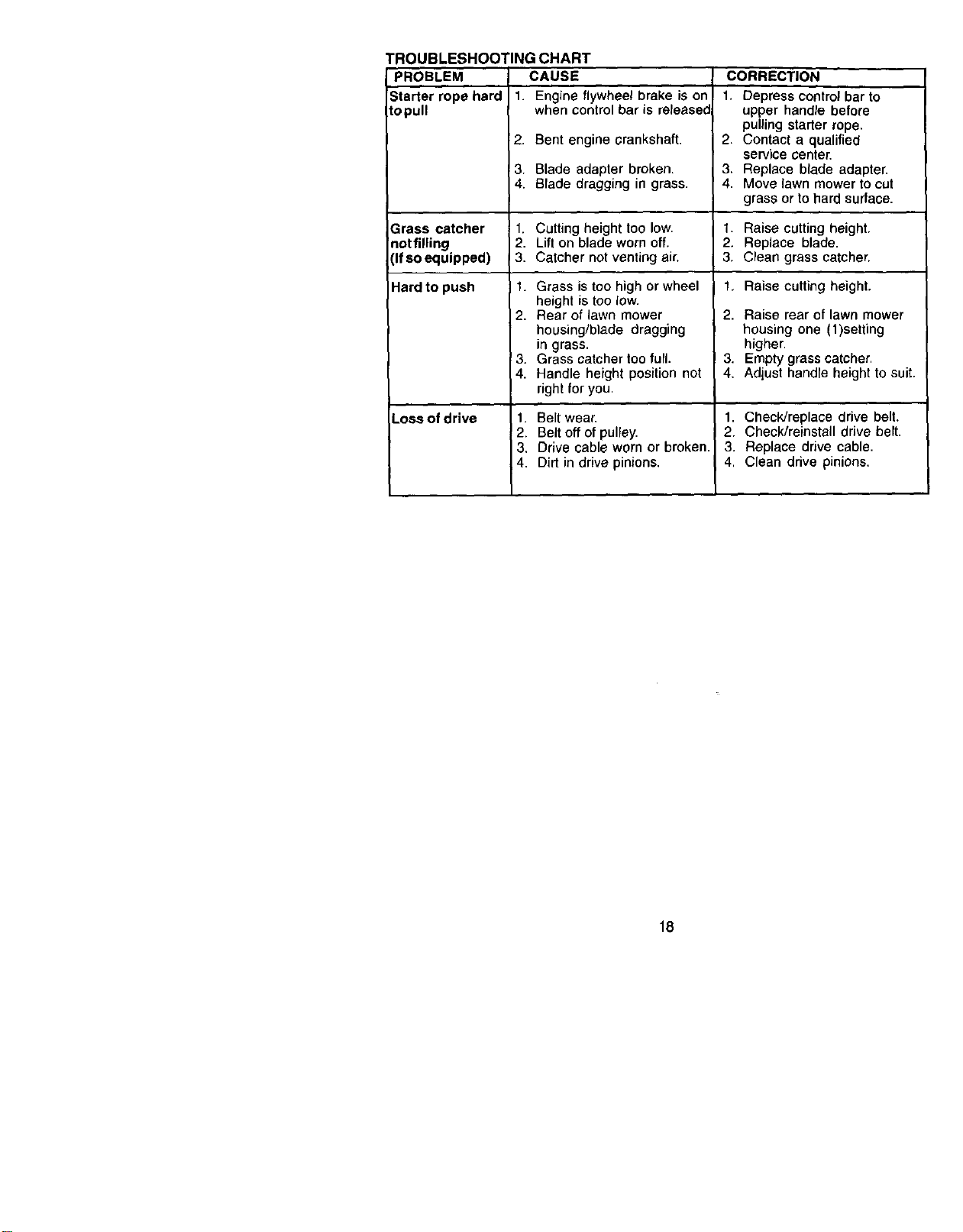

PROBLEM
'Starter rope hard
topull
TROUBLESHOOTINGCHART
CAUSE
1. Engineflywheelbmkeison
whencontmlbaris ralease¢
2. Bent engine crankshaft,
3. Blade adapter broken.
4. Brade dragging in grass.
CORRECTION
1. Depress control bar to
upper handle before
pulling starter rope.
2. Contact a qualified
service center,
3. Replace blade adapter,
4. Move lawn mower to cut
grass or to bard surface.
Grass catcher 1. Cutting height too low. 1. Raise cutting height.
notfilling 2. Lift on blade worn off. 2. Replace blade.
[Ifsoequipped) 3. Catcher not venting air. 3. Crean grass catcher.
Hard to push Raise cutting height.
I 1. Grass is too high or wheel
height is too low.
2. Rear of lawn mower
housing/blade dragging
in grass.
3. Grass catcher too furl.
4. Handle height position not
right for you.
1.
2.
3,
4,
Loss of drive 1. Belt wear,
2. Belt off of pulley.
3. Drive cable worn or broken.
4, Dirt in drive pinions,
Raise rear of lawn mower
housing one (1)setting
higher.
Empty grass catcher.
Adjust handre height to suit.
1. Check/replace drive belt,
2. Check/reinstall drive bert.
3. Replace drive cable.
4, Clean drive pinions.
18

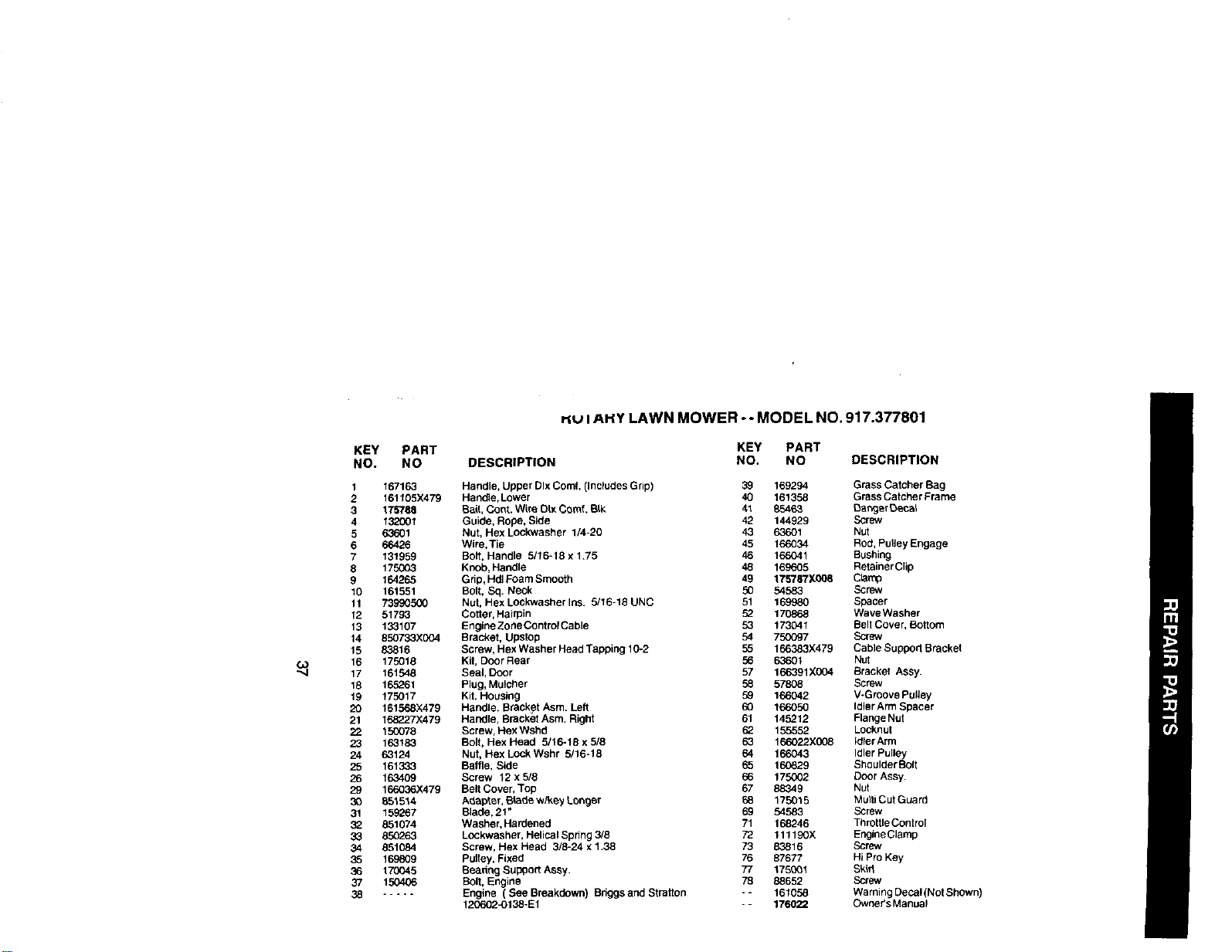

ROTARY LAWN MOWER - - MODEL NO. 917.377801
8_
78
10 12
¢
32
PiUIAHY LAWN MOWER -- MODEL NO. 917.377801
KEY PART
NO. NO
1 167163
2 161105X479
3 175788
4 132001
5 63601
6 66426
7 131959
8 175003
9 164265
10 161551
11 73990500
12 51793
13 133107
14 850733X004
15 83816
16 175018
17 161548
18 16.5261
19 175017
20 161568){479
21 168227X479
22 150078
23 163183
24 63124
25 1613,33
26 163409
29 166036)(479
30 851514
31 159267
3_ 851074
33 850263
34 851084
35 169809
36 176045
3"Z 15O4O6
38 .....
KEY PART
DESCRIPTION NO, NO DESCRIPTION
Handle, Upper DIx Coral. (Includes Grip) 39 169294 Grass Catcher Bag
Handle, Lower 40 161358 Grass Catcher Frame
Bail Cont. Wire Ctx Corot. BLk 41 85463 Dam:jetDeca_
Guide, Rope, Side 42 144929 Screw
Nut, Hex Lockwasher 1/4-20 43 63601 Nut
Wire,Tie 45 166034 Rod, Pulley Engage
Bolt, Handle 5/16-18 x 1.75 46 165041 Bushing
Knob, Handle 48 16£605 RetainerClip
Gdp, Hall Foam Smooth 49 175787X008 CLamp
Bolt, Sq. Neck 50 54583 Screw
Nut, Hex Lockwasher Ins. 5/16-18 UNC 51 169980 Spacer
Cotter, Hairpin 52 170868 WaveWasber
Engine Zone Control Cable 53 173041 Belt Cover, Bottom
Bracket, Upstop 54 750097 Screw
Screw, Hex Washer Head Tapping 10-2 55 166383)(479 Cable Support Bracket
Kit, Door Rear 56 63601 Nut
Seal, Door 57 166391X004 Bracket Assy.
Plug, Mulcher 58 57808 Screw
Kit, Housing 59 166042 V-Groove Pulley
Handle, Bracket Asm. Left 60 166050 Idler Arm Spacer
Handle, Bracket Asm. Right 61 145212 Flange Nut
Screw, Hex Wshd 62 155552 Locknut
Bolt, Hex Head 5/16-18 x 5/8 63 166022X008 idler Arm
Nut, Hex Lock Wshr 5/16-18 64 166043 Idler Pulley
Baffle, Side 65 160829 Shoulder Bolt
Screw 12 x 5/8 66 175002 Door Assy.
Belt Cover, Top 67 88349 Nut
Adapter, _4ade w/key Longer 68 175015 Multi Cut Guard
Blade,21" 69 54583 Screw
Washer, Hardened 71 168246 Throttle Control
Lockwasher, Helical Spdng 3/8 72 111190X EngineClamp
Screw, Hex Head 3/8-24 x 1.38 73 83816 Screw
PuJley. Fixed 76 87677 Hi Pro Key
Bearing Support Assy. 77 175001 Skitt
Bolt, Engine 78 88652 Screw
Engine ( See Breakdown) Briggsand Stratton -- 161058 WamingDecal(NotShown)
120602-0138-B1 - - 176022 Owner's Manual

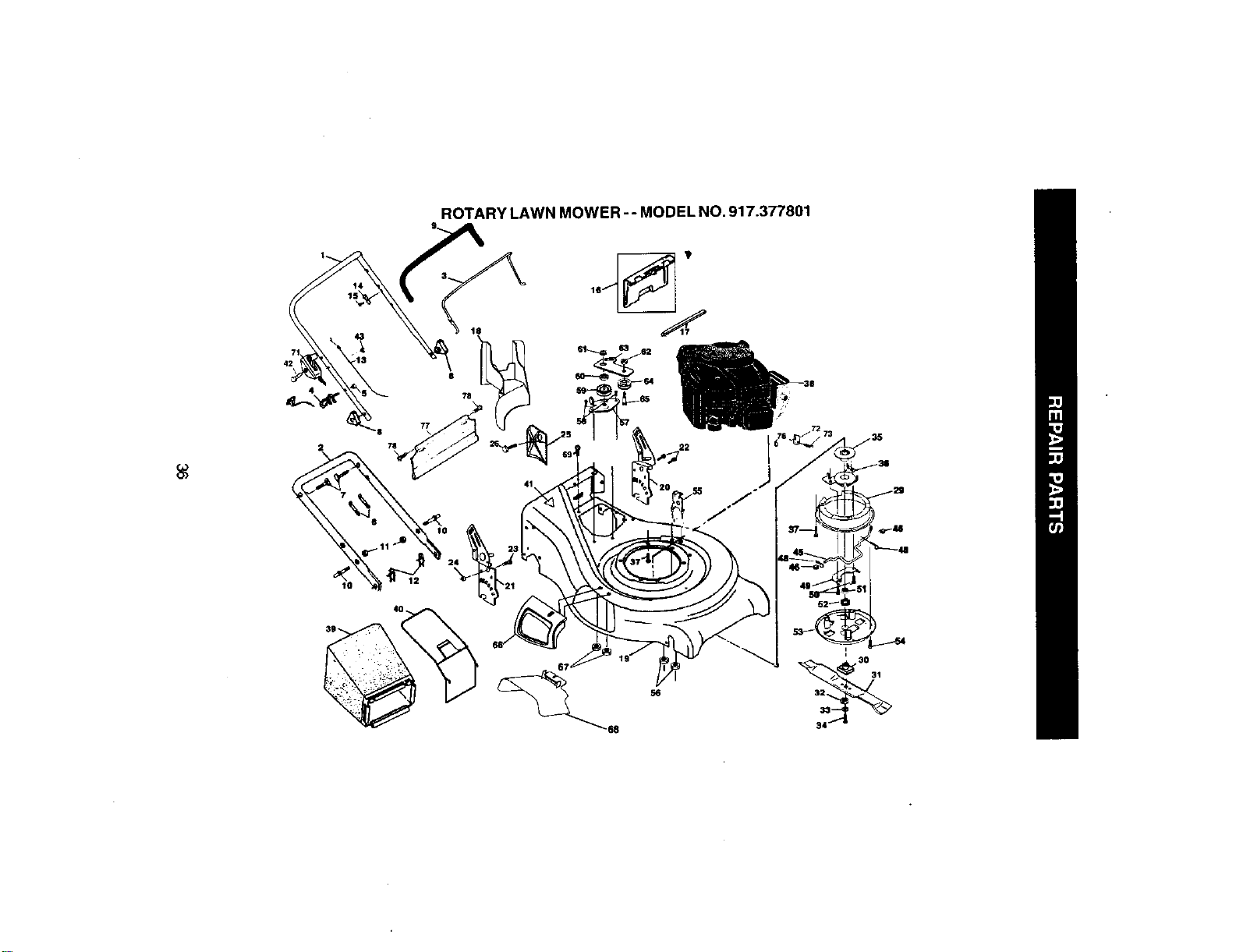

ROTARY LAWN MOWER - - MODEL NO. 917.377801
i
31
3O
43.
23
3_
34 42

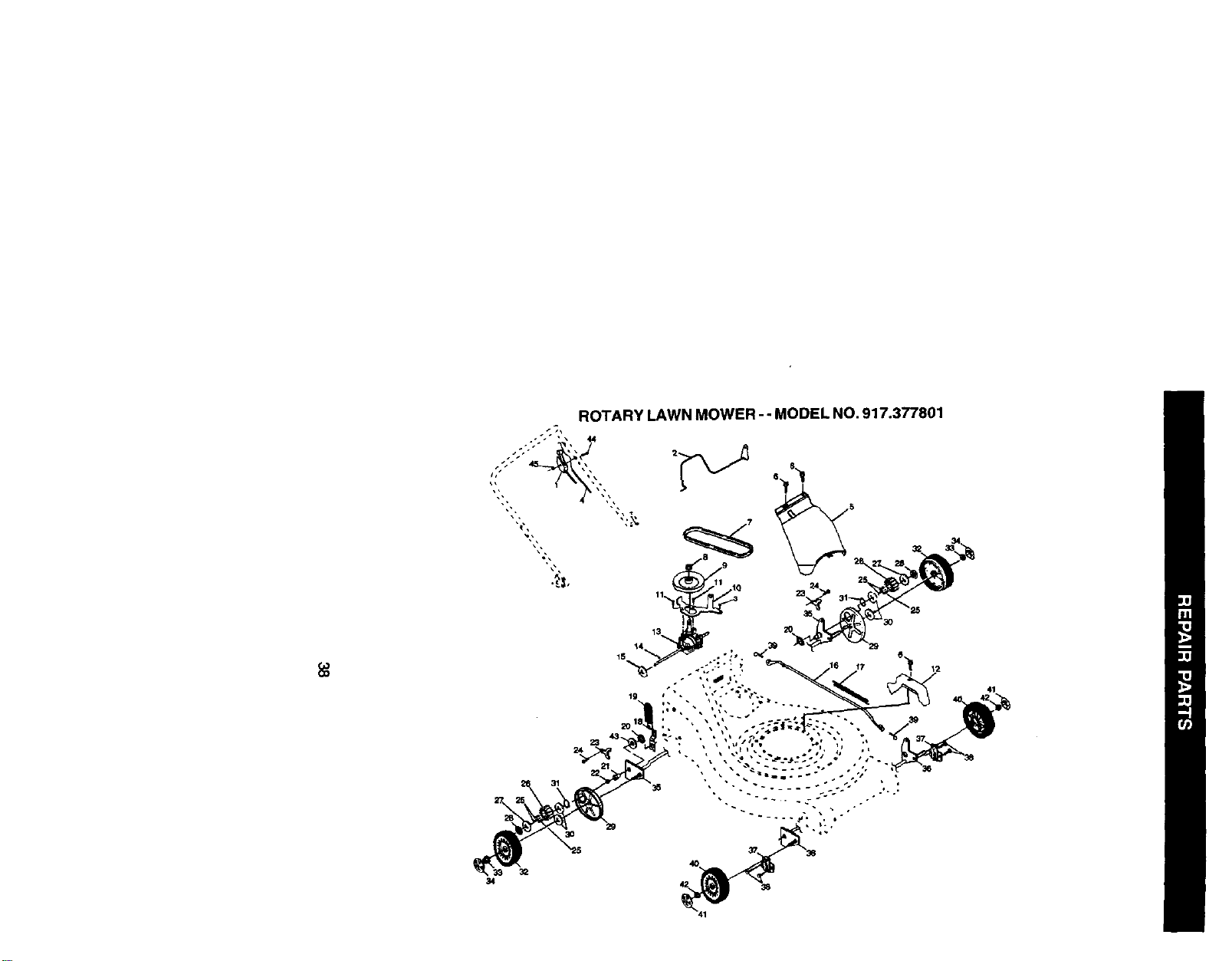

ROTARY LAWN MOWER-- MODEL NO. 917.377801
KEY PART
NO. NO
1 171050
2 175786
3 17060408
4 170050
5 175011
6 75(3634
7 166060
8 132010
9 166049
10 166021X004
11 17541011
12 175009
13 166388
14 145354
15 57079
16 175(300
17 161602
18 16B477XO04
19 175008
20 12OO0(;22
21 163365
22 169911
DESCRIPTION
SpeedContml
Bail Control Drive
Screw
DriveCable
Cover Dnve
Screw Thdrol 10-25 x .50
V-Belt
Nut Lock Flanged 3/8-16 Zinc
Pulley Driven
Belt Keeper Bracket
Screw Hex Wash Head 10-24 X .668
Pivot Rod Cover
Transmission Asrn.
Pin Spdng Thrust
Washer Hardened
Rod Connecting
Spnng Extension
Spring Selector
Knob Selector Spring
E-Ring 7/8
Bearing Suppod
Beahng Ball
KEY PART
NO. NO
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
161118X004
57808
170011
166450
52183
12000058
88O80
67725
57143
172324
145212
175012
16O785 X004
160786X004
161463
163409
700279
172323
175012
83923
19572216
144929
751152
DESCRIPTION
Retainer Drive Asm. Strnp.
Screw Hex Head Tapping 1/4-20 x .75
Drive Pawl
Pinion, Drive
Washer
E-Ring 7/16
Cover, Dust Wheel
Washer 1/2 x 1-1/2 x .134
WaveWasher
Wheel 9 x 2
Nut Hex Flange Lock
Hubcap, Mag Platinum 9"
Shaft Asrn. Rear
Shaft Asrn. Front
Retainer Front Shaft
Screw 12 x 5/8
Clip Retainer
Wheel 8 x 2
Hubcap, Mag Platinum 8"
Nut, Hex Flange Lock 3/8-16
Washer
Screw 1/4 x 2.12
Locknut

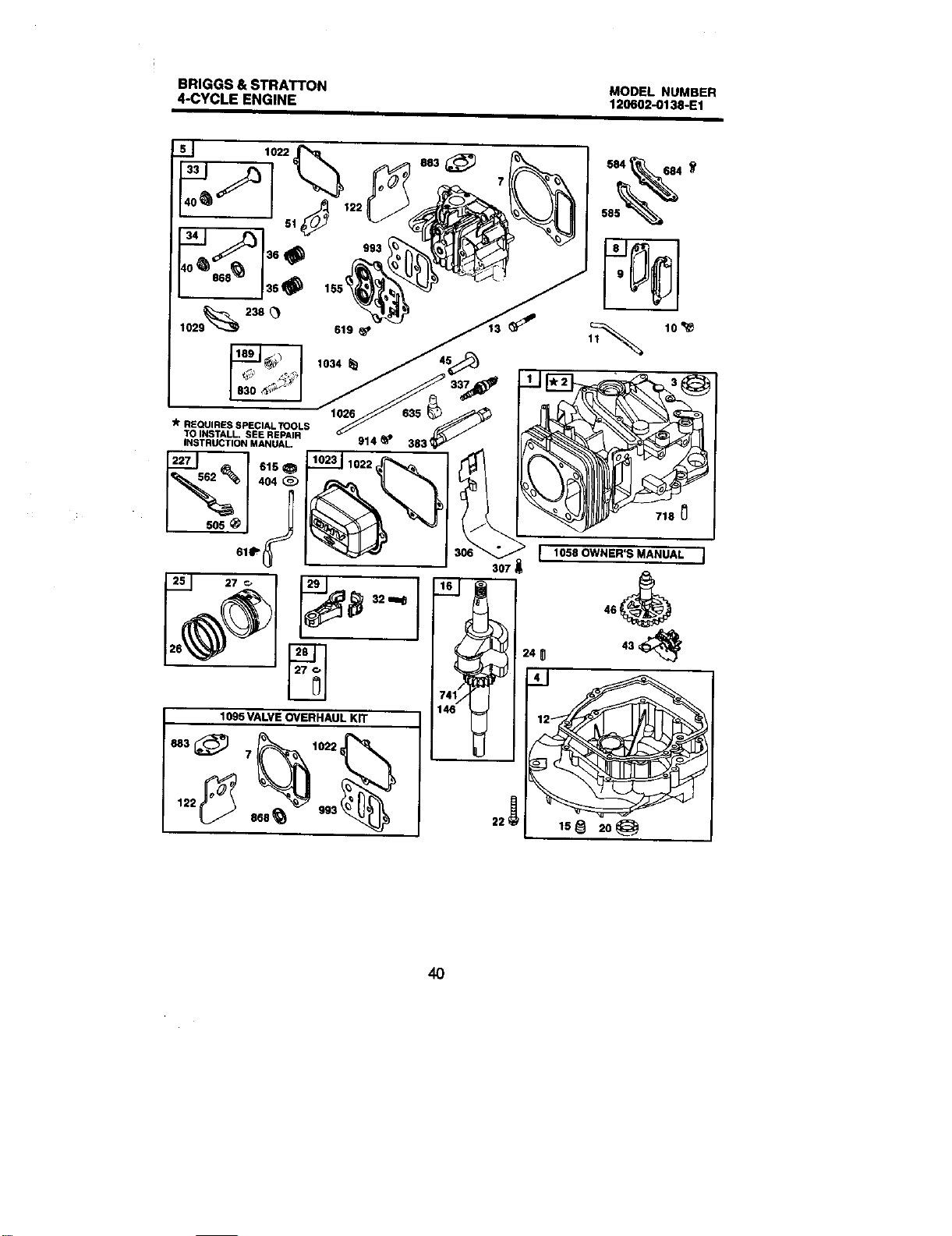

BRIGGS& STRATTON MODELNUMBER
4-CYCLE ENGINE 120602-0138-E1
5__ I022
883 _J
4o_ oi
_30 _ 003
1029_ 238 0
619
1_ 1034
REQUIRESSPECIAL TOOLS
TO INSTALL. SEE REPAIR
INSTRUCTION MANUAL 914 _ 383
615
404
6liP;
33..,
1005 VALVE OVERHAUL KIT
10231 1022 )'_
306"_ > I 1058 OWNER'S MANUAL I
307
24 _ 43
10_ 2o_
4O

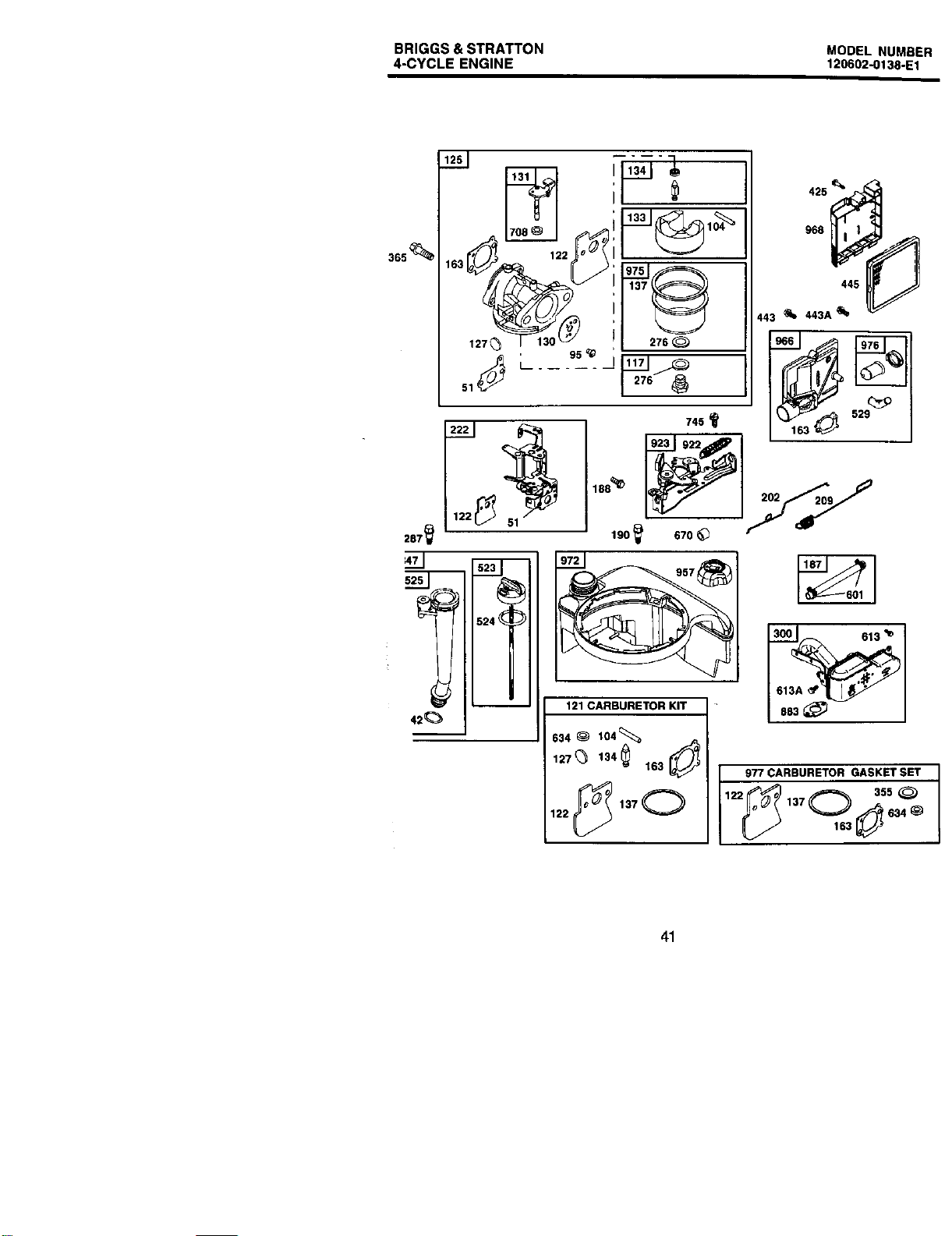

BRIGGS& STRATTON MODELNUMBER
4-CYCLE ENGINE 120602-0138-E1
365
122{_ 51
287_
524
42q:_
121 CARBURETOR KIT
634 _ 104_
883
41

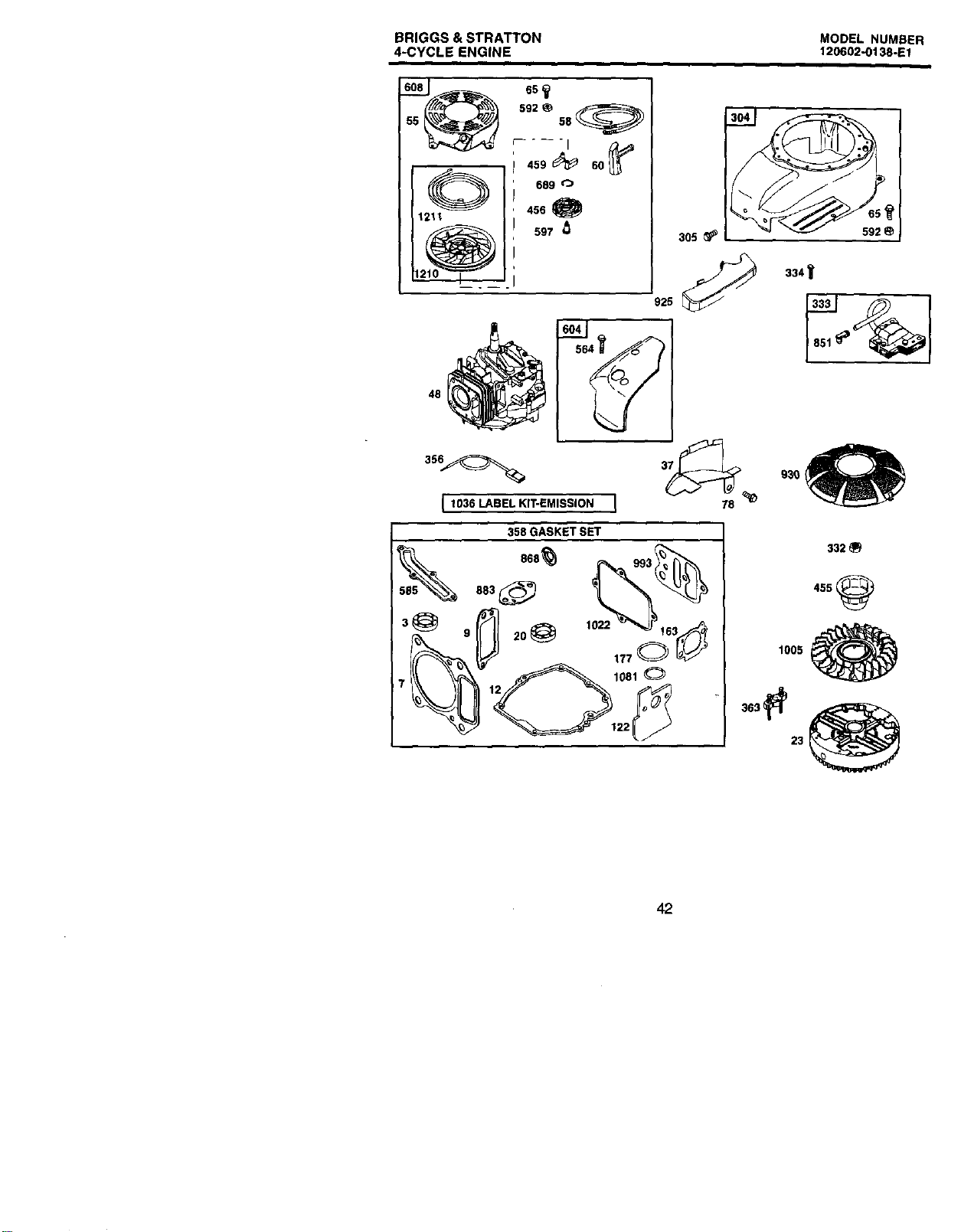

BRIGGS & STRATTON MODEL NUMBER
4-CYCLE ENGINE 120602-0138-E1
48
925
305 _P
355
1036 LABEL KIT-EMISSION
334 _'
78
t005
363 _
23
358 GASKET SET
_ 122_
332
455
42

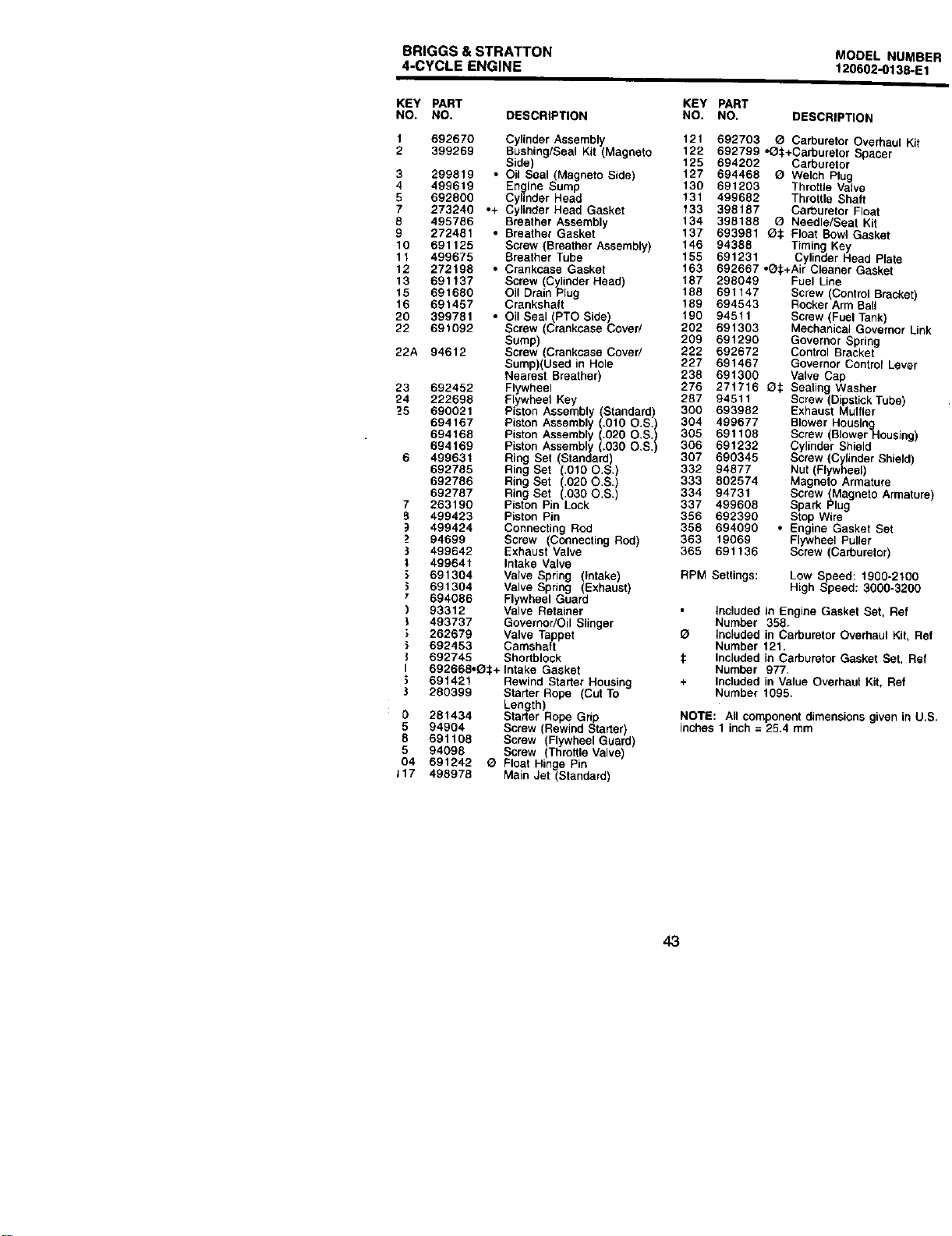

BR|GGS & STRATTON MODEL NUI
4-CYCLE ENGINE 120602-013a
KEY PART
NO. NO. DESCRIPTION
1 692670 Cylinder Assembly
2 399269 Bushing/Seat Kit (Magneto
Side)
3 299819 • Oil Seal (Magneto Side)
4 499619 Engine Sump
5 692800 Cylinder Head
7 273246 °+ Cylinder Head Gasket
8 495786 Breather Assembly
9 272481 • Breather Gasket
10 691125 Screw (Breather ASsembly)
11 499675 Breather Tube
12 272198 • Crankcase Gasket
13 691137 Screw (Cylinder Head)
15 691680 Oil Drain P_ug
16 691457 Crankshaft
20 399781 * Oil Seal (PTO Side)
22 691092 Screw (Crankcase Cover/
Sump)
22A 94612 Screw (Crankcase Cover/
Sump)(Usod in Hole
Nearest Breather)
23 692452 Flywheel
24 222698 Flywheel Key
__5 690021 Piston Assembly Standard)
694167 Piston Assembly (.010 O.S.)
694166 Piston Assembly (.O2OO.S.)
694169 Piston Assembly (.030 O.S.)
6 499631 Ring Set (Standard)
692785 Ring Set (.010 O.S.)
692786 Ring Set (.020 O.S.)
692787 Ring Set (.030 O.S.)
7 263190 Piston Pin Lock
499423 Piston Pin
499424 Connecting Rod
__ 94699 Screw (Connecting Rod)
3 499642 Exhaust Valve
t 499641 Intake Valve
691304 Valve Spring (intake)
691304 Valve Spring Exhaust)
Y 694086 Flywheel Guard
) 93312 Valve Retainer
3 493737 Governor/Oil Slinger
262679 Valve Tappet
692453 Camshaft
I 692745 Shortblock
I 692668,O:_+ Intake Gasket
3 691421 Rewind Starter Housing
3 280399 Starter Rope (Cut To
Length)
O 281434 Starter Rope Gdp
5 94904 Screw Rewind Starter)
8 691108 Screw Flywhee Guard)
5 94098 Screw (Throttle Valve)
04 691242 _ Float Hinge Pin
117 498978 Main Jet (Standard)
KE_" PART
NO. NO. DESCRIPTION
121 692703 O Carburetor Overhaul I
122 692799 ,,O:_+Carburelor Spacer
125 694202 Carburetor
127 694468 Q Welch Plug
130 691203 Throttle Valve
131 499682 Throttle Shall
133 398187 Carburetor Float
134 398188 O Needle/Seat Kit
137 693981 O:_ Float Bowl Gasket
146 94368 Timing Key
155 691231 ° Cylinder Head Plate
163 692667 O_;+Air Cleaner Gasket
187 298049 Fuel Line
188 691147 Screw (Control Bracke
189 694543 Rocker Arm Bali
190 94511 Screw (Fuel Tank)
202 691303 Mechanical Governor
209 691290 Governor Spring
222 692672 Control Bracket
227 691467 Governor Control Lev{
238 691300 Valve Cap
276 271716 Ot Sealing Washer
287 94511 Screw (Dipstick Tube)
300 693982 Exhaust Muffler
304 499677 Blower Housinq
305 691108 Screw (Blower"Housin!
306 691232 Cylinder Shield
307 690345 Screw (Cylinder Shiel¢
332 94877 Nut (Flywheel)
333 802574 Magneto Armature
334 94731 Screw (Magneto Arm_
337 499608 Spark Plug
356 692390 Stop Wire
358 694090 • Engine Gasket Set
363 19069 Flywheel Puller
368 691136 Screw (Carburetor)
RPM Settings: Low Speed: 1900-211
High Speed: 3000-32I
Included in Engine Gasket Set, Ref
Number 358.
O included in Carburetor Overhaul Kit,
Number 121.
:_ Included in Carburetor Gasket Set, I
Number 977.
+ Included in Value Overhaul _tt, Rot
Number 1095.
NOTE: All component dimensions given in
inches 1 inch = 25.4 mm
43

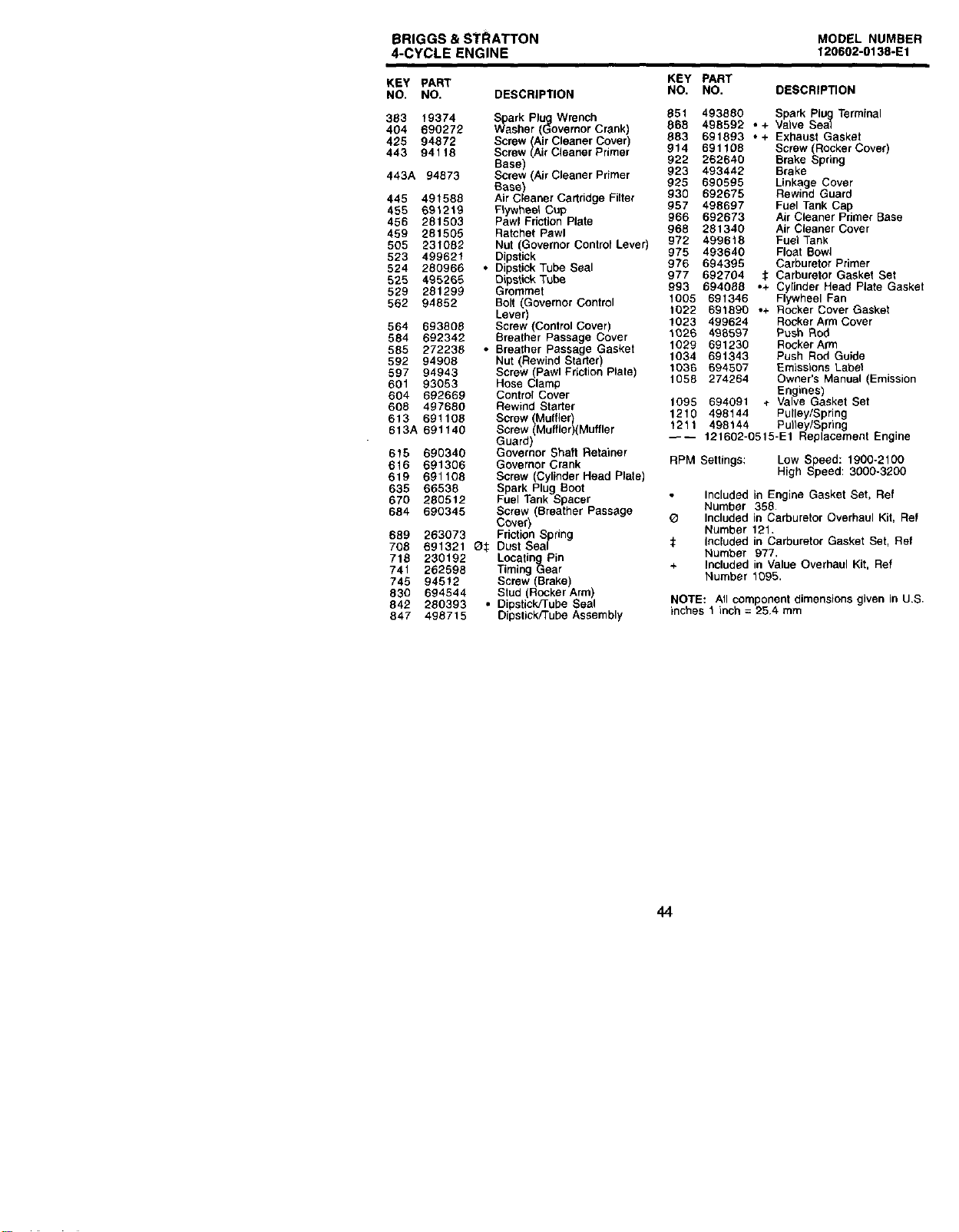

BRIGGS & STI_ATTON MODEL NUMBER
4-CYCLE ENGINE 120602-0138-E1
KEY PART
NO. NO. DESCRIPTION
KEY PART
NO, NO, DESCRIPTION
383 19374 Spark Plu_A'Vrench 851 493880
404 690272 Washer (uuvemor Crank) 868 498592
883 691893
425 94872 Screw Air Cleaner Cover)
443 94118 Screw (Air C eaner Primer 914 691108
922 262640
Base)
443A 94873 Screw (Air Cleaner Primer 923 493442
925 690595
Base)
445 491588 Air Cleaner Cartridge Filter 930 692675
957 498697
458 691219 Ftywhee_Cup
456 281503 Pawl FrictionPlate 966 692673
459 281505 Ratchet Pawl 968 281340
505 231082 Nut (Governor Control Lever) 972 499618
975 493640
523 499621 Dipstick
524 280966 • Dipstick Tube Seal 976 694395
977 692704
625 495269 Dipstick Tube
529 281299 Grommet 993 894058
562 94852 Bolt (Governor Control 1005 691346
Lever) 1022 691890
564 693808 Screw (Control Cover) 1023 499624
584 692342 Breather Passage Cover 1026 498597
585 272238 • Breather Passage Gasket 1029 691230
592 94908 Nut (Rewind Stader) 1034 691343
597 94943 Screw (Pawl Friction Plate) 1038 894507
601 93053 Hose Clamp 1058 274264
604 692669 Control Cover
608 497680 Rewind Stader 1095 694091
613 691108 Screw (Muffler 1210 498144
613A 691140 Screw(Muffler)(Muffler 1211 498144
Guard
615 690340 Governor Sha t Retainer
616 691306 Governor Crank
619 691108 Screw (Cylinder Head Plate)
635 66538 Spark Plug Boot
670 280512 Fuel Tank Spacer
684 690345 Screw (Breather Passage
Cover)
689 263073 FrictionSpring
708 691321 _:_ Dust Seal
718 230192 Locating Pin
741 262598 Timing_3ear
745 94512 Screw (Brake)
830 694544 Stud (Rocker Arm)
842 280393 • Dipstick/Tube Seal
847 498715 Dipstick/Tube Assembly
Spark PluJgTerminal
• + Valve Seal
• + Exhaust Gasket
Screw (Rocker Cover)
Brake Spring
Brake
Linkage Cover
Rewind Guard
Fuel Tank Cap
Air Cleaner Primer Base
Air Cleaner Cover
Fuel Tank
Float Bowl
Carburetor Primer
:_ Carburetor Gasket Set
,+ Cylinder Head Plate Gasket
Flywheel Fan
•+ Rocker Cover Gasket
Rocker Arm Cover
Push Rod
Rocker Arm
Push Rod Guide
Emissions Label
Owner's Manual (Emission
Engines)
+ Valve Gasket Set
Pulley/Spring
Pulley/Spring
---- 121602-0515-E1 Replacement Engine
RPM Settings: Low Speed: 1900-2100
High Speed: 3000-3200
Included in Engine Gasket Set, Ref
Number 358.
O Included in Carburetor Overhaul Kit, Ref
Number 121.
:_ Included in Carburetor Gasket Set, Ref
Number 977.
+ Included in Value Overhaul Kit, Ref
Number 1095.
NOTE: All component dimensions given in U.S.
inches 1 inch = 25.4 mm
44
SERVICE NOTES
45
SERVICE NOTES
46
SERVICE NOTES
47
Get it fixed, at your home or ours!
For repair of major brand appliances in your own home...
no matter who made it, no matter who sold it!
1-800"4"MY'HO MEs" Anytime,dayornight
(1.800-469-4663)
www.sears.com
To bring in products such as vacuums,
lawn equipment and electronics for repair, call for
the location of your nearest Sears Parts & Repair Center.
1"800-488"1222 A.ytime,day or night
www.sears.corn
For the replacement parts, accessories and owner's manuals
that you need to do-it-yourself, call Sears PartsDirectSM!
1-800-366-PART sam-. pmCST,
(1-800-366-7278) 7 days a week
www.sears.com/pa rtsdirect
To purchase or inquire about a Sears Service Agreement:
1-800-827-6655
7 a.rn.- 5 p.m.CST,Mon.- Sat.
Para pedirserviciode reparaciSna domicilio,
y para ordenarpie;as conentrega a domicilio:
1-888-SU-HOGAR s.
(1-888-784-6427)
AUCanada pourservice an franqais:
1-877-LE-FOYER _
(1-877-533-6937)
SEARS
H°meCentral s ]
© Sears, Roebuckand Co
TM
® Regislered Trademark / Trademark of Sears, Roebuck and Co.
rM
® Marca Registrada / Marca de F_briea de Sears, RoebUck and CO
176022 09.19,00 VB Printedin U.S.A.
