B NuTo ne
MODELS 2730 & 2736 ECLIPSE
DOWNDRAFT BLOWER SYSTEM
INTENDED FOR DOMESTIC COOKING ONLY
WARNING
WARNING
TO REDUCETHE RISK OF FIRE, ELECTRIC SHOCK, OR INJURY
TO PERSONS, OBSERVE THE FOLLOWING:
1. Use this unit only in the manner intended by the manufacturer.
If you have questions, contact the manufacturer at the address
or telephone number in the warranty.
2. Before servicing orcleaning unit, switch power off atservice panel
and lock the service disconnecting means to prevent power from
being switched on accidentally. When the service disconnecting
means cannot be locked, securely fasten a prominent warning
device, such as a tag, to the service panel.
3. Installation work and electrical wiring must be done by a qualified
person(s) in accordance with all applicable codes and standards,
including fire-rated construction codes and standards.
4. Sufficient air is needed for proper combustion and exhausting
of gases through the flue (chimney) of fuel burning equipment
to prevent backdrafting. Follow the heating equipment manufac-
turer's guideline and safety standards such as those published
by the National Fire Protection Association (NFPA), and the
American Society for Heating, Refrigeration andAir Conditioning
Engineers (ASHRAE), and the local code authorities.
5. When cutting or drilling into wall or ceiling, do not damage electri-
cal wiring and other hidden utilities.
6. Do not use this range hood with an additional speed control
device.
7. Ducted fans must always be vented to the outdoors.
8. To reduce the risk of fire, use only metal ductwork.
9. Do not install this productwith the activating switch directly behind
a burner or element. Minimum distance between the switch and
the edge of the burner should be 4 inches.
10. Loose-fitting or hanging clothing should never be worn when
operating this appliance. They may be ignited by burners/ele-
ments on cooktop.
11. Children should not be left alone or unattended in the area where
this appliance is in use.
12.This unit must be grounded.
TO REDUCE THE RISK OF A RANGE TOP GREASE FIRE:
1. Never leave surface units unattended at high settings. Boilovers
cause smoking and greasy spillovers that may ignite. Heat oils
slowly on low or medium settings.
2. Always turn hood ON when cooking at high heat or when cooking
flaming foods.
3. Clean ventilating fans frequently. Grease should not be allowed
to accumulate on fan or filter.
4. Use proper pan size. Always use cookware appropriate for the
size of the surface element.
2. NEVER PICK UPA FLAMING PAN -You may be burned.
3. DO NOT USE WATER, including wet dishcloths or towels -a
violent steam explosion will result.
4. Use an extinguisher ONLY if:
A. You know you have a Class ABC extinguisher, and you
already know how to operate it.
B. The fire is small and contained in the area where it
started.
C. The fire department is being called.
D. You can fight the fire with your back to an exit.
a Based on "Kitchen Firesafety Tips" published by NFPA.
CAUTION ,A
1. For indoor use only.
2. For general ventilating use only. Do not use to exhaust hazard-
ous or explosive materials and vapors.
3. To avoid motor bearing damage and noisy and/or unbalanced
impellers, keep drywall spray,construction dust, etc.off power unit.
4. Clean filters and grease-laden surfaces frequently.
5. Do not repair or replace any part of this appliance unless
specifically recommended in this manual. All other servicing
should be done by a qualified technician.
6. Please read specification label on product for further informa-
tion and requirements.
GROUNDING INSTRUCTIONS
WARNING -This appliance must be grounded. Inthe event of an
electrical short-circuit, grounding reduces the risk of the electric
shock by providing an escape wire for the electric current. This
appliance is equipped with a cord having a grounding wire with
a grounding plug. The plug must be plugged into an outlet that
is properly installed and grounded.
WARNING -Improper grounding can result in arisk ofelectric shock.
Consult a qualified electrician if the grounding instructions are
not completely understood, or if doubt exists as to whether the
appliance is properly grounded.
Do not use an extension cord. Ifthe powersupplycord istoo short,
have a qualified electrician install an outlet near the appliance.
TO REDUCETHE RISK OF INJURYTO PERSONS INTHE EVENT
OFA RANGETOP GREASE FIRE, OBSERVETHE FOLLOWINGa:
1.SMOTHER FLAMES with a close-fitting lid, cookie sheet,
or metal tray, then turn off the burner. BE CAREFUL TO
PREVENT BURNS. If the flames do not go out immediately,
EVACUATE AND CALL THE FIRE DEPARTMENT.
I Register your product online at: www.broan.com/register
INSTALLER: Save this manual for Electrical Inspector and Homeowner to use.

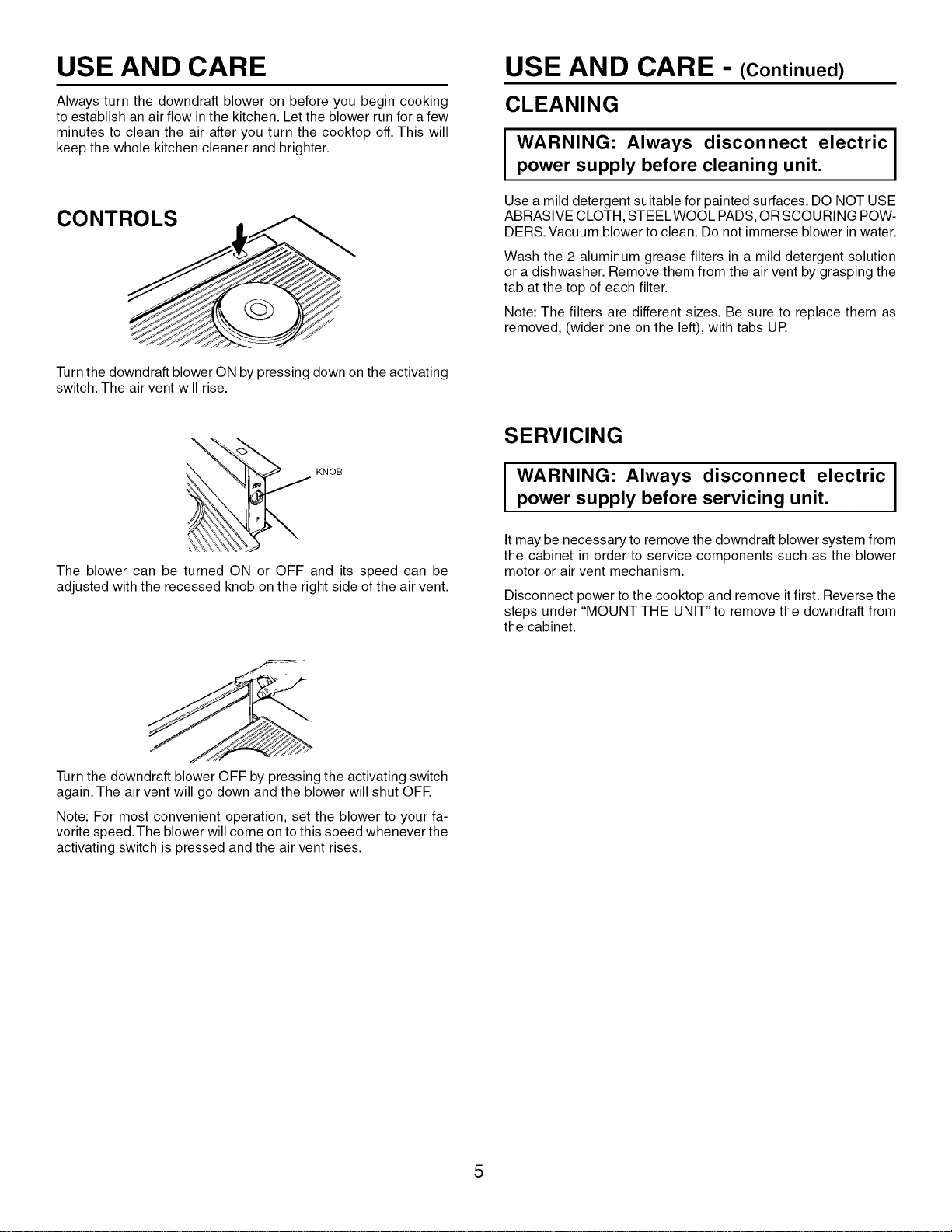

HOMEOWNER" Use and Care Information on Page 5.
1
