Owner's Manual
ICRIIFTSMRN"J
6.5 HORSEPOWER
21" MULTI-CUT
POWER PROPELLED
ROTARY LAWN MOWER
Model No.
917.377800
• Safety
• Assembly
• Operation
• Maintenance
• Espa_ol
• Repair Parts
CAUTION:
Read and follow all
Safety Rules and InstructiSB_eived.
before operating this equil_t_r/
Sears, Roebuck and Co., Hoffman Estates, IL60_
Visit our Craftsman website: www.sears.com/craftsman

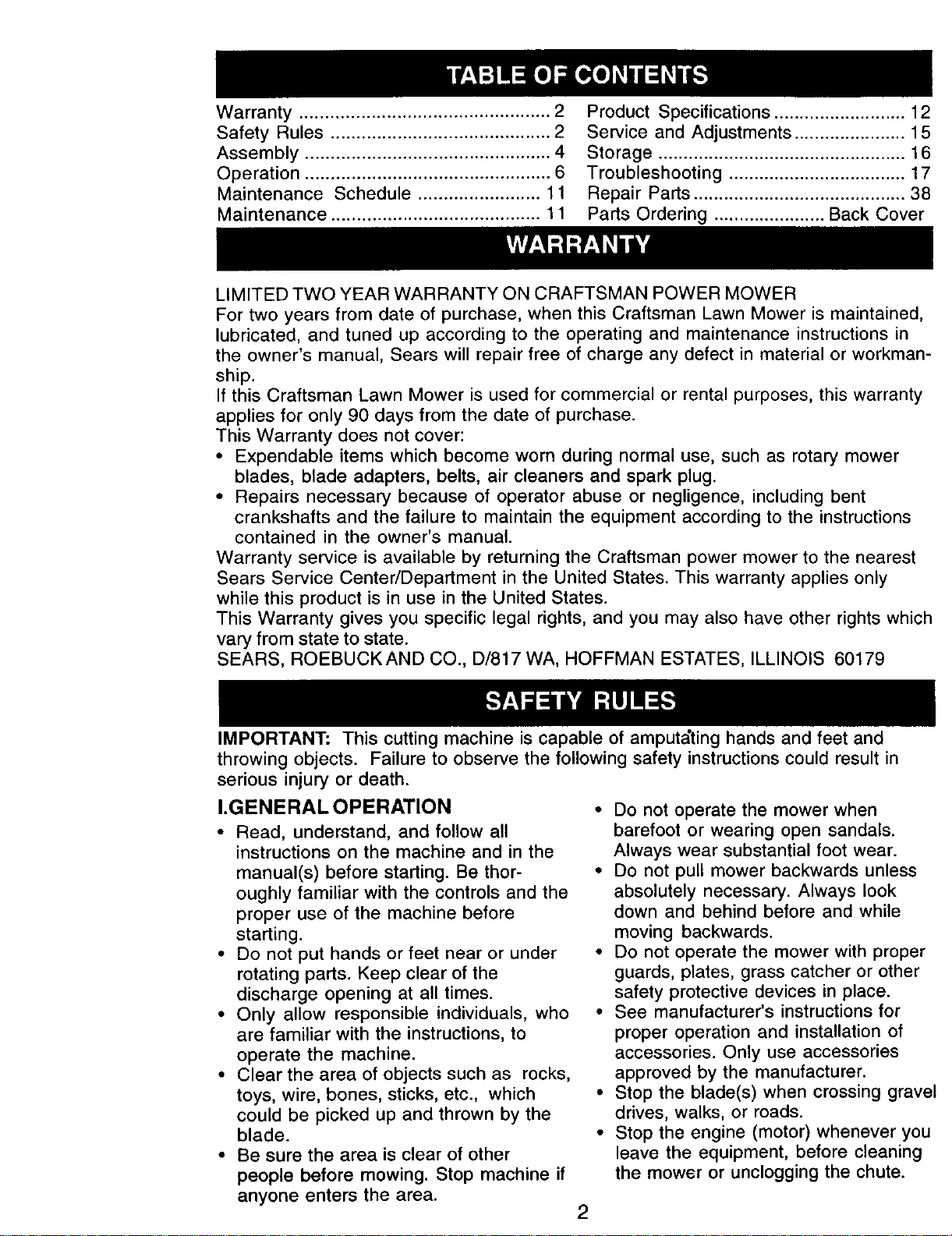

Warranty ................................................. 2
Safety Rules ........................................... 2
Assembly ................................................ 4
Operation ................................................ 6
Maintenance Schedule ........................ 11
Maintenance ......................................... 11
Product Specifications .......................... 12
Service and Adjustments ...................... 15
Storage ................................................. 16
Troubleshooting ................................... 17

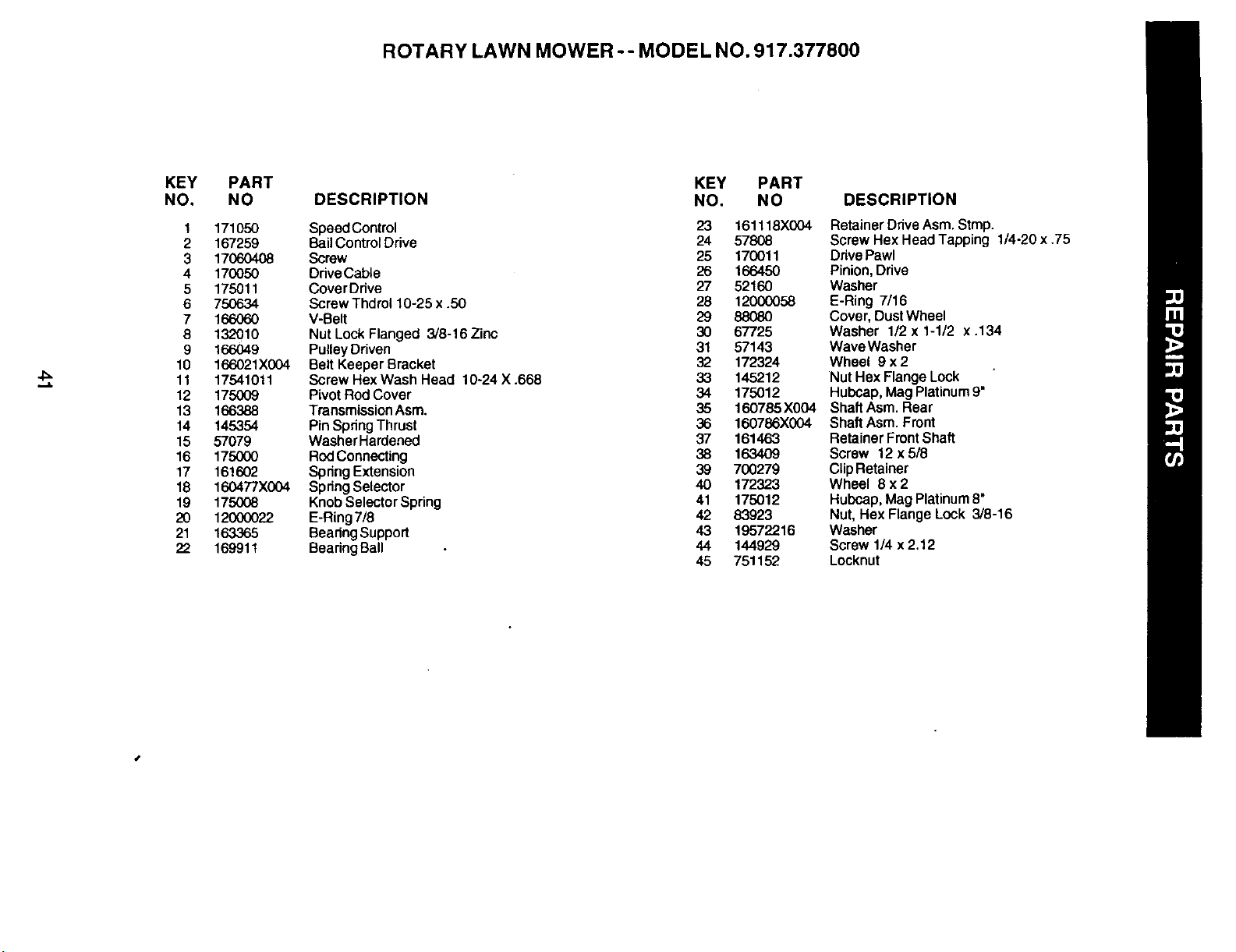

Repair Parts .......................................... 38
Parts Ordering ...................... Back Cover
LIMITED TWO YEAR WARRANTY ON CRAFTSMAN POWER MOWER
For two years from date of purchase, when this Craftsman Lawn Mower is maintained,
lubricated, and tuned up according to the operating and maintenance instructions in
the owner's manual, Sears will repair free of charge any defect in material or workman-
ship.
If this Craftsman Lawn Mower is used for commercial or rental purposes, this warranty
applies for only 90 days from the date of purchase.
This Warranty does not cover:
• Expendable items which become worn during normal use, such as rotary mower
blades, blade adapters, belts, air cleaners and spark plug.
• Repairs necessary because of operator abuse or negligence, including bent
crankshafts and the failure to maintain the equipment according to the instructions
contained in the owner's manual.
Warranty service is available by returning the Craftsman power mower to the nearest
Sears Service Center/Department in the United States. This warranty applies only
while this product is in use in the United States.
This Warranty gives you specific legal rights, and you may also have other rights which
vary from state to state.
SEARS, ROEBUCKAND CO., D/817 WA, HOFFMAN ESTATES, ILLINOIS 60179
IMPORTANT: This cutting machine is capable of amputating hands and feet and
throwing objects. Failure to observe the following safety instructions could result in
serious injury or death.
I.GENERAL OPERATION
• Read, understand, and follow all
instructions on the machine and in the
manual(s) before starting. Be thor-
oughly familiar with the controls and the
proper use of the machine before
starting.
• Do not put hands or feet near or under
rotating parts. Keep clear of the
discharge opening at all times.
• Only allow responsible individuals, who
are familiar with the instructions, to
operate the machine.
• Clear the area of objects such as rocks,
toys, wire, bones, sticks, etc., which
could be picked up and thrown by the
blade.
• Be sure the area is clear of other
people before mowing. Stop machine if
anyone enters the area.
• Do not operate the mower when
barefoot or wearing open sandals.
Always wear substantial foot wear.
• Do not pull mower backwards unless
absolutely necessary. Always look
down and behind before and while
moving backwards.
• Do not operate the mower with proper
guards, plates, grass catcher or other
safety protective devices in place.
• See manufacturer's instructions for
proper operation and installation of
accessories. Only use accessories
approved by the manufacturer.
• Stop the blade(s) when crossing gravel
drives, walks, or roads.
• Stop the engine (motor) whenever you
leave the equipment, before cleaning
the mower or unclogging the chute.
2
• Shut the engine (motor) off and wait
until the blade comes to complete stop
before removing grass catcher.
• Mow only in daylight or good artificial
light.
• Do not operate the machine while
under the influence of alcohol or drugs.
• Never operate machine in wet grass.
Always be sure of your footing: keep a
firm hold on the handle and walk; never
run.
• Disengage the self-propelled mecha-
nism or drive clutch on mowers so
equipped before starting the engine
(motor).
• If the equipment should start to vibrate
abnormally, stop the engine (motor)
and check immediately for the cause.
Vibration is generally a warning of
trouble.
• Always wear safety goggles or safety
glasses with side shields when operat-
ing mower.

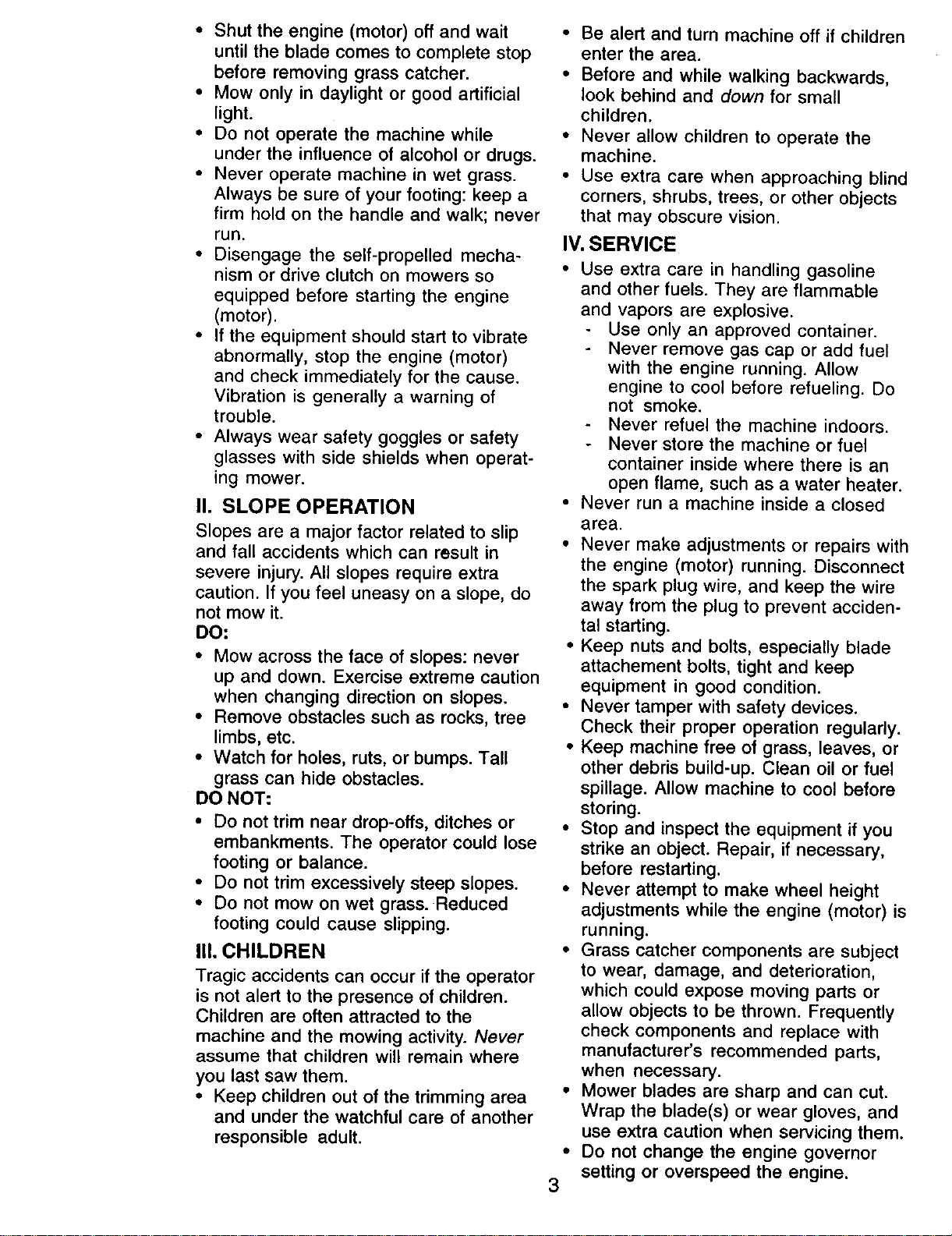

II. SLOPE OPERATION
Slopes are a major factor related to slip
and fall accidents which can result in
severe injury. All slopes require extra
caution. If you feel uneasy on a slope, do
not mow it.
DO:
• Mow across the face of slopes: never
up and down. Exercise extreme caution
when changing direction on slopes.
• Remove obstacles such as rocks, tree
limbs, etc.
• Watch for holes, ruts, or bumps. Tall
grass can hide obstacles.
DO NOT:
• Do not trim near drop-offs, ditches or
embankments. The operator could lose
footing or balance.
• Do not trim excessively steep slopes.
• Do not mow on wet grass. Reduced
footing could cause slipping.
III. CHILDREN
Tragic accidents can occur if the operator
is not alert to the presence of children.
Children are often attracted to the
machine and the mowing activity. Never
assume that children will remain where
you last saw them.
• Keep children out of the trimming area
and under the watchful care of another
responsible adult.
• Be alert and turn machine off if children
enter the area.
• Before and while walking backwards,
look behind and down for small
children.
• Never allow children to operate the
machine.
• Use extra care when approaching blind
corners, shrubs, trees, or other objects
that may obscure vision.
IV. SERVICE
• Use extra care in handling gasoline
and other fuels. They are flammable
and vapors are explosive.
Use only an approved container.
Never remove gas cap or add fuel
with the engine running. Allow
engine to cool before refueling. Do
not smoke.
Never refuel the machine indoors.
Never store the machine or fuel
container inside where there is an
open flame, such as a water heater.
• Never run a machine inside a closed
area.
• Never make adjustments or repairs with
the engine (motor) running. Disconnect
the spark plug wire, and keep the wire
away from the plug to prevent acciden-
tal starting.
• Keep nuts and bolts, especially blade
attachement bolts, tight and keep
equipment in good condition.
• Never tamper with safety devices.
Check their proper operation regularly.
• Keep machine free of grass, leaves, or
other debris build-up. Clean oil or fuel
spillage. Allow machine to cool before
storing.
• Stop and inspect the equipment if you
strike an object. Repair, if necessary,
before restarting.
• Never attempt to make wheel height
adjustments while the engine (motor) is
running.
• Grass catcher components are subject
to wear, damage, and deterioration,
which could expose moving parts or
allow objects to be thrown. Frequently
check components and replace with
manufacturer's recommended parts,
when necessary.
• Mower blades are sharp and can cut.
Wrap the blade(s) or wear gloves, and
use extra caution when servicing them.
• Do not change the engine governor
setting or overspeed the engine.
3
_l_Look for this symbol to point out
important safety precautions. It means
CAUTION!!! BECOMEALERT!!! YOUR
SAFETY IS INVOLVED.
A CAUTION: In order to prevent
accidental starting when setting up,
transporting, adjusting or making repairs,
always disconnect spark plug wire and
place wire where it cannot contact spark
plug.
_I_WARNING: Engine exhaust, some of its
constituents, and certain vehicle
components contain or emit chemicals
known to the State of California to cause
cancer and birth defects or other
reproductive harm.
A:I,WARNING: Battery posts, terminals and
related accessories contain lead and
lead compounds, chemicals known to the
State of California to cause cancer and
birth defects or other reproductive harm.
Wash hands after handling.

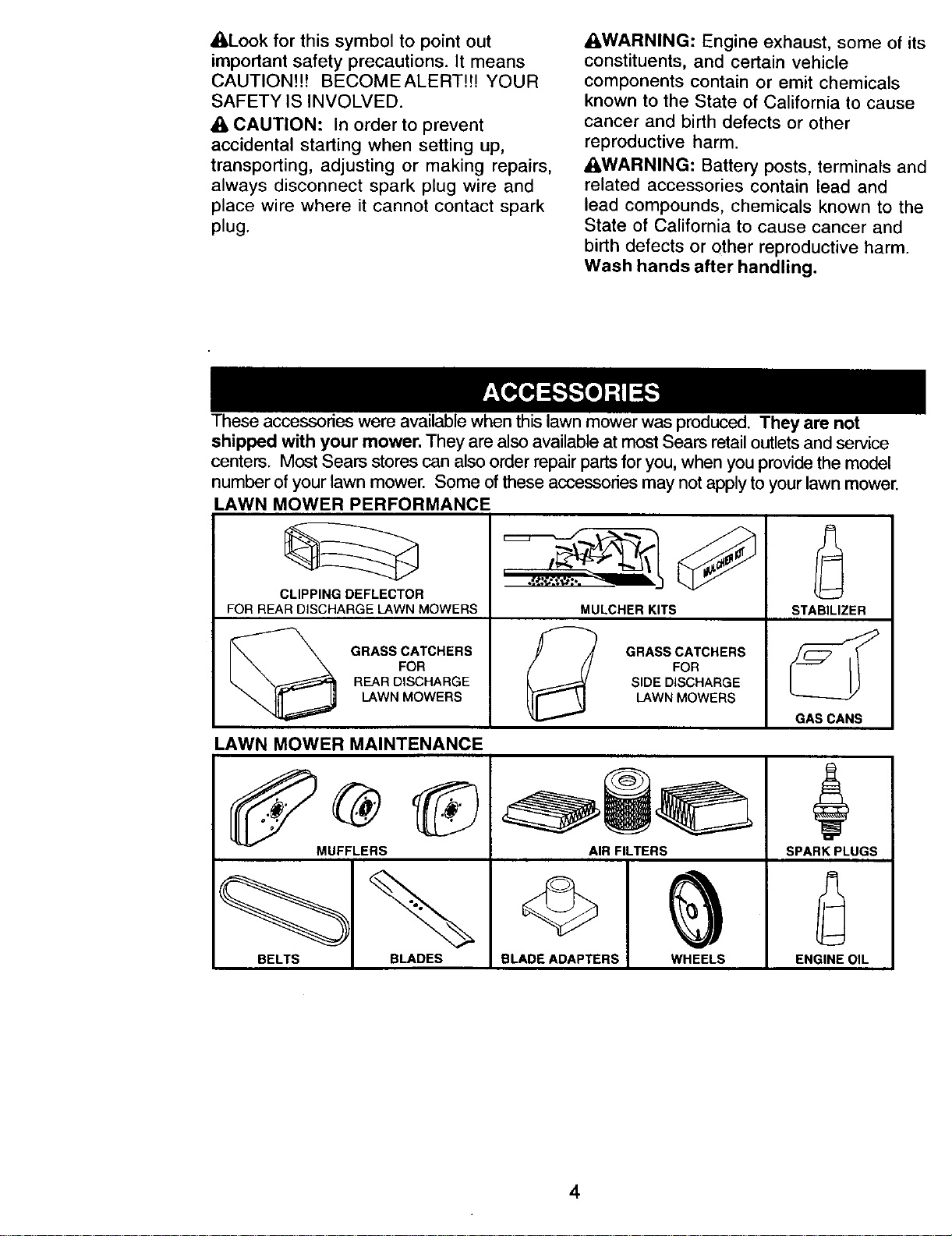

These accessories were available when this lawn mower was produced. They are not
shipped with your mower. They are also available at most Sears retail outlets and service
centers. Most Sears stores can also order repair parts for you, when you provide the model
number of your lawn mower. Some of these accessories may not apply to your lawn mower.
LAWN MOWER PERFORMANCE
CLIPPING DEFLECTOR
FOR REAR DISCHARGE LAWN MOWERS
GRASS CATCHERS
FOR
REAR DISCHARGE
LAWN MOWERS
MULCHER KITS
GRASSCATCHERS
FOR
STABILIZER
GAS CANS
SIDE DISCHARGE
LAWN MOWERS
LAWN MOWER MAINTENANCE
MUFFLERS AIR FILTERS SPARK PLUGS
BELTS BLADES BLADE ADAPTERS WHEELS ENGINE OIL
4

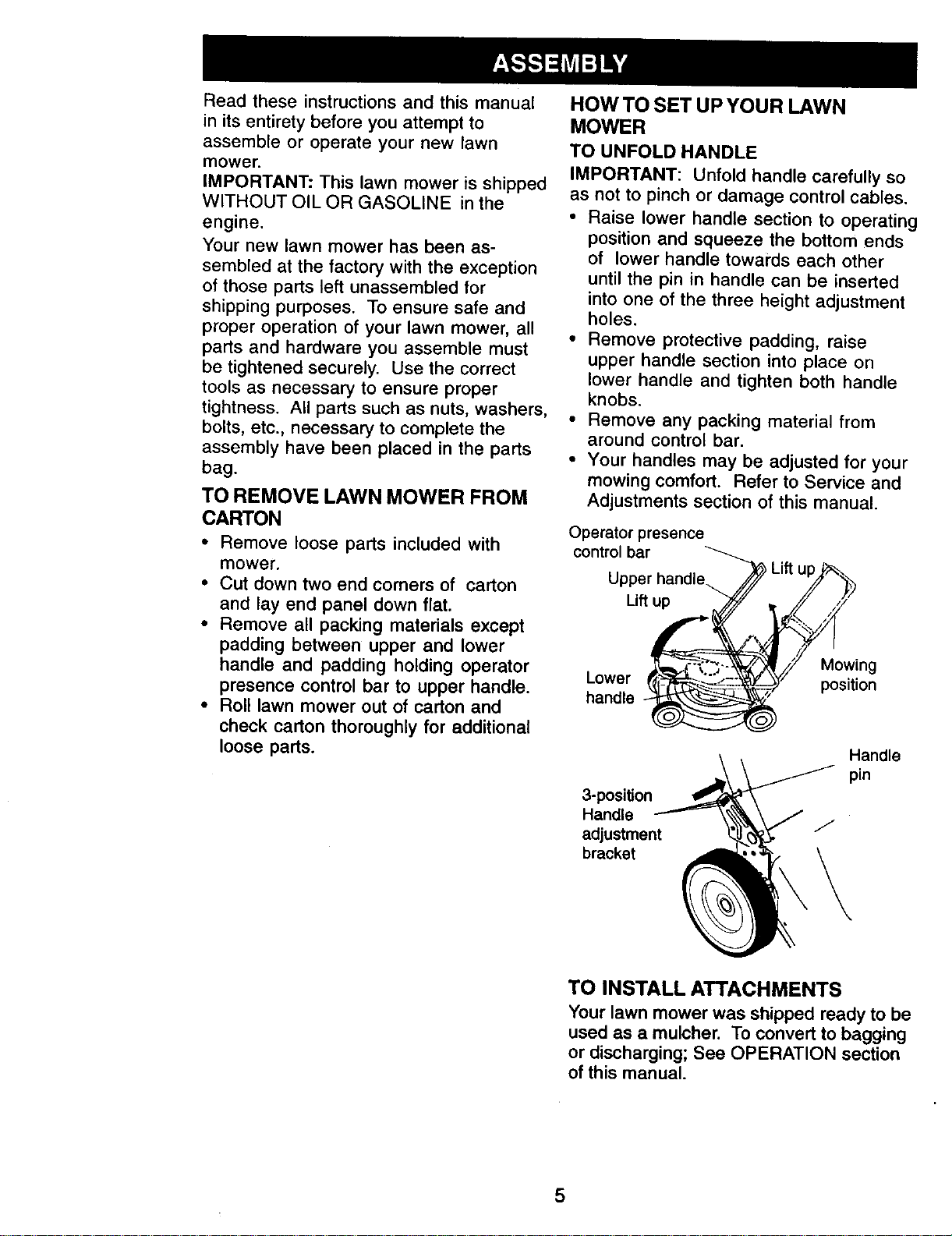

Read these instructions and this manual
in its entirety before you attempt to
assemble or operate your new lawn
mower.
IMPORTANT." This lawn mower is shipped
WITHOUT OIL OR GASOLINE in the
engine.
Your new lawn mower has been as-
sembled at the factory with the exception
of those parts left unassembled for
shipping purposes. To ensure safe and
proper operation of your lawn mower, all
parts and hardware you assemble must
be tightened securely. Use the correct
tools as necessary to ensure proper
tightness. All parts such as nuts, washers,
bolts, etc., necessary to complete the
assembly have been placed in the parts
bag.
TO REMOVE LAWN MOWER FROM
CARTON
• Remove loose parts included with
mower.
• Cut down two end corners of carton
and lay end panel down flat.
• Remove all packing materials except
padding between upper and lower
handle and padding holding operator
presence control bar to upper handle.
• Roll lawn mower out of carton and
check carton thoroughly for additional
loose parts.
HOW TO SET UP YOUR LAWN
MOWER
TO UNFOLD HANDLE
IMPORTANT: Unfold handle carefully so
as not to pinch or damage control cables.
• Raise lower handle section to operating
position and squeeze the bottom ends
of lower handle towards each other
until the pin in handle can be inserted
into one of the three height adjustment
holes.
• Remove protective padding, raise
upper handle section into place on
lower handle and tighten both handle
knobs.
• Remove any packing material from
around control bar.
• Your handles may be adjusted for your
mowing comfort. Refer to Service and
Adjustments section of this manual.
Operator presence
controlbar
Upper handle.
Lift_--'_-k3_uP
Lower _"" "
handle _
_wing
position
Handle
pin
3-position
Handle
adjustment
bracket
TO INSTALL ATTACHMENTS
Your lawn mower was shipped ready to be
used as a mulcher. To convert to bagging
or discharging; See OPERATION section
of this manual.
5

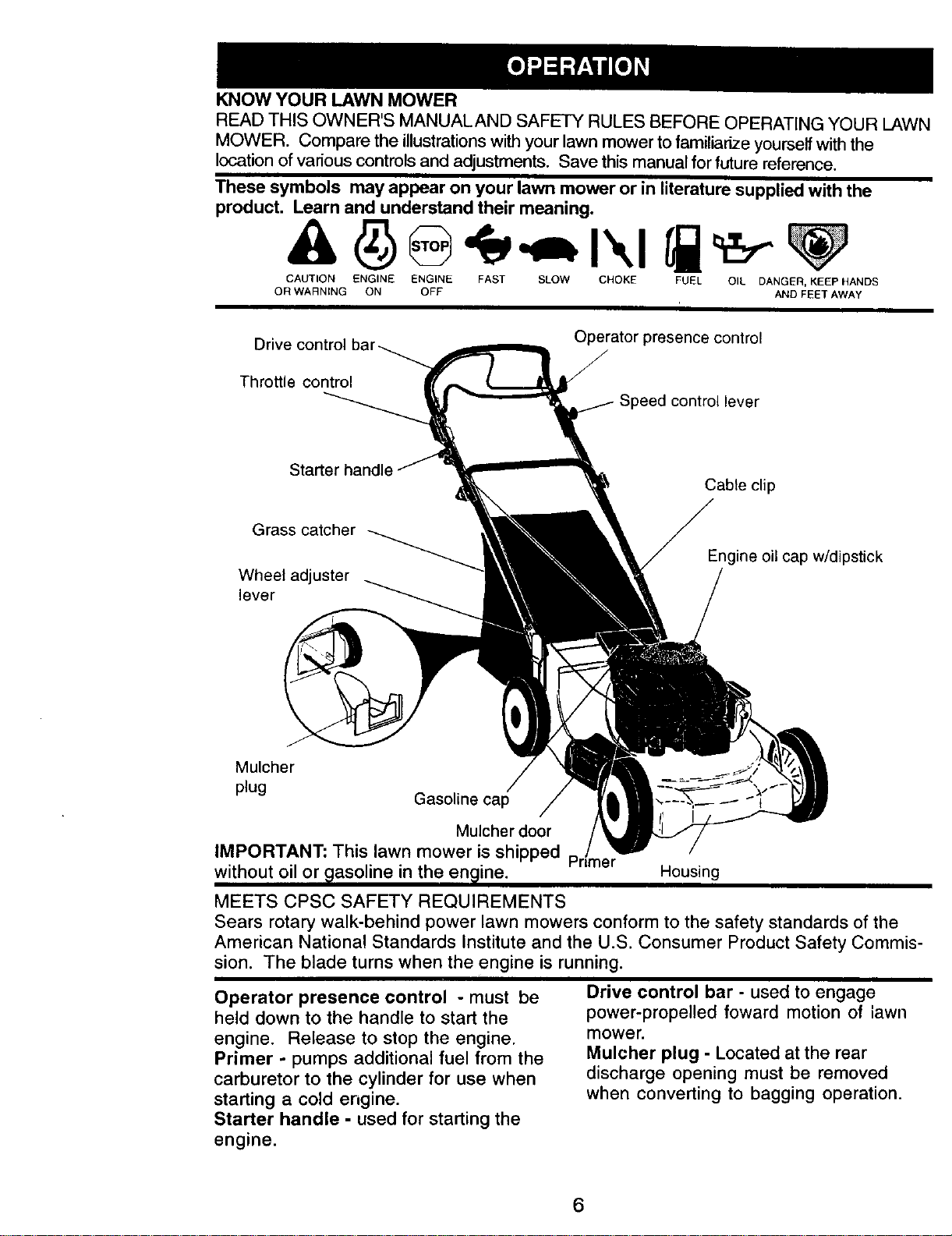

KNOW YOUR LAWN MOWER
READ THIS OWNER'S MANUALAND SAFETY RULES BEFORE OPERATING YOUR LAWN
MOWER. Compare the illustrations with your lawn mower to familiarize yourself with the
location of various controls and adjustments. Save this manual for future reference.
These symbols may appear on your lawn mower or in literature supplied with the
product. Learn and understand their meaning.
CAUTION ENGINE ENGINE FAST SLOW CHOKE FUEL OIL DANGER, KEEP HANDS
OR WARNING ON OFF AND FEET AWAY
Drive control
Throttle control
Operator presence control
Speed control lever
Starter handle
Cable clip
Grass catcher
Wheel adjuster
lever
Engine oil cap w/dipstick
Mulcher
plug
Gasoline cap
Mulcher door
IMPORTANT: This lawn mower is shipped Primer
without oil or gasoline in the en_line. Housing
MEETS CPSC SAFETY REQUIREMENTS
Sears rotary walk-behind power lawn mowers conform to the safety standards of the
American National Standards Institute and the U.S. Consumer Product Safety Commis-
sion. The blade turns when the engine is running.
Operator presence control - must be
held down to the handle to start the
engine. Release to stop the engine.
Primer - pumps additional fuel from the
carburetor to the cylinder for use when
starting a cold engine.
Starter handle - used for starting the
engine.
Drive control bar - used to engage
power-propelled foward motion of lawn
mower.
Mulcher plug - Located at the rear
discharge opening must be removed
when converting to bagging operation.
6
The operation of any lawn mower
can result in foreign objects
thrown into the eyes, which can
result in severe eye damage. Always wear
safety glasses or eye shields while operating
your lawn mower or performing any adjust-
ments or repairs. We recommend a wide
vision safety mask over spectacles or
standard safety glasses.

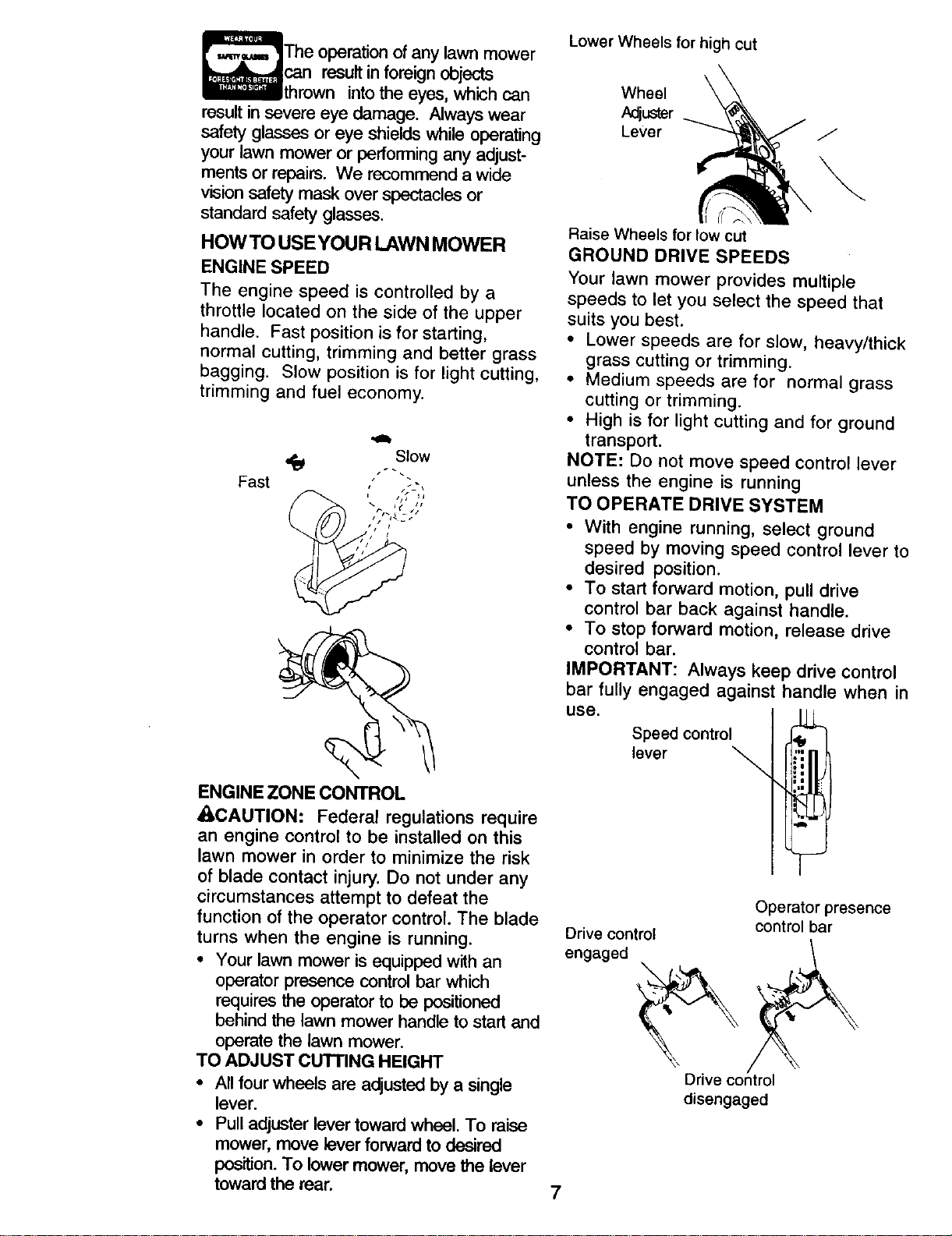

HOWTO USEYOUR LAWN MOWER
ENGINE SPEED
The engine speed is controlled by a
throttle located on the side of the upper
handle. Fast position is for starting,
normal cutting, trimming and better grass
bagging. Slow position is for light cutting,
trimming and fuel economy.
Slow
Fast
i
Lower Wheels for high cut
Wheel \
Adjuster
Lever
J
Raise Wheels for low cut
GROUND DRIVE SPEEDS
Your lawn mower provides multiple
speeds to let you select the speed that
suits you best,
• Lower speeds are for slow, heavy/thick
grass cutting or trimming.
• Medium speeds are for normal grass
cutting or trimming.
• High is for light cutting and for ground
transport.
NOTE: Do not move speed control lever
unless the engine is running
TO OPERATE DRIVE SYSTEM
• With engine running, select ground
speed by moving speed control lever to
desired position.
• To start forward motion, pull drive
control bar back against handle.
• To stop forward motion, release drive
control bar.
IMPORTANT: Always keep drive control
bar fully engaged against handle when in
use.
Speed control
lever
ENGINE ZONE CONTROL
ACAUTION: Federal regulations require
an engine control to be installed on this
lawn mower in order to minimize the risk
of blade contact injury. Do not under any
circumstances attempt to defeat the
function of the operator control. The blade
turns when the engine is running.
• Your lawn mower isequipped with an
operator presence control bar which
requires the operator to be positioned
behind the {awn mower handle to start and
operate the lawn mower.
TO ADJUST CUTTING HEIGHT
• All four wheels are adjusted by a single
lever.
• Pull adjuster lever toward wheel. To raise
mower, move lever forward to desired
position. To lower mower, move the lever
toward the rear.
Drive control
engaged
7
Operator presence
control bar
Drive control
disengaged

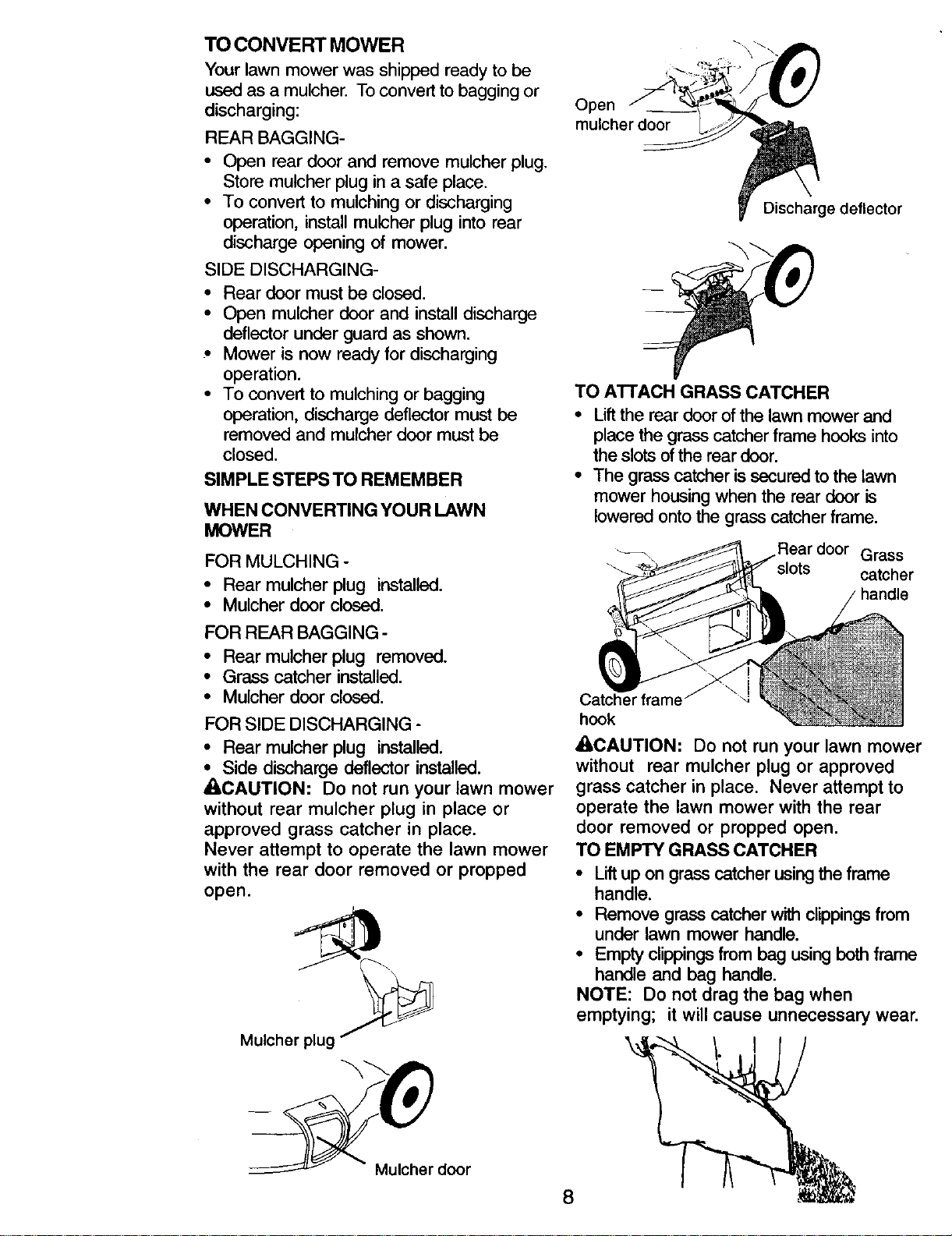

TO CONVERT MOWER
Your lawn mower was shipped ready to be
used as a mulcher. To convert to bagging or
discharging:
REAR BAGGING-
- Open rear door and remove mulcher plug.
Store mulcher plug in a safe place,
• To convert to mulching or discharging
operation, install mulcher plug into rear
discharge opening of mower.
SIDE DISCHARGING-
. Rear door must be closed.
• Open mutcher door and install discharge
deflector under guard as shown.
Mower is now ready for discharging
operation.
• To convert to mulching or bagging
operation, discharge deflector must be
removed and mulcher door must be
closed.
SIMPLE STEPSTO REMEMBER
WHEN CONVERTING YOUR LAWN
MOWER
FOR MULCHING -
• Rear mulcher plug installed.
• Mulcher door closed.
FOR REAR BAGGING -
• Rear mulcher plug removed.
• Grass catcher installed.
• Mulcher door closed.
FOR SIDE DISCHARGING -
• Rear mulcher plug installed.
• Side discharge deflector installed.
,II_CAUTION: Do not run your lawn mower
without rear mulcher plug in place or
approved grass catcher in place.
Never attempt to operate the lawn mower
with the rear door removed or propped
open.
Mulcher plug
Mulcher door
Open
mulcher door
Discharge deflector
TO A'n'ACH GRASS CATCHER
• Lift the rear door of the lawn mower and
place the grass catcher frame hooks into
the slots of the rear door.
• The grass catcher is secured to the lawn
mower housing when the rear door is
lowered onto the grass catcher frame.
Rear door Grass
catcher
handle
Catcher frame
hook
ACAUTION: Do not run your lawn mower
without rear mulcher plug or approved
grass catcher in place, Never attempt to
operate the lawn mower with the rear
door removed or propped open.
TO EMPTY GRASS CATCHER
• Lift up on grass catcher using the frame
handle.
• Remove grass catcher with clippings from
under lawn mower handle.
• Empty clippings from bag using both frame
handle and bag handle.
NOTE: Do not drag the bag when
emptying; it will cause unnecessary wear.
/
8

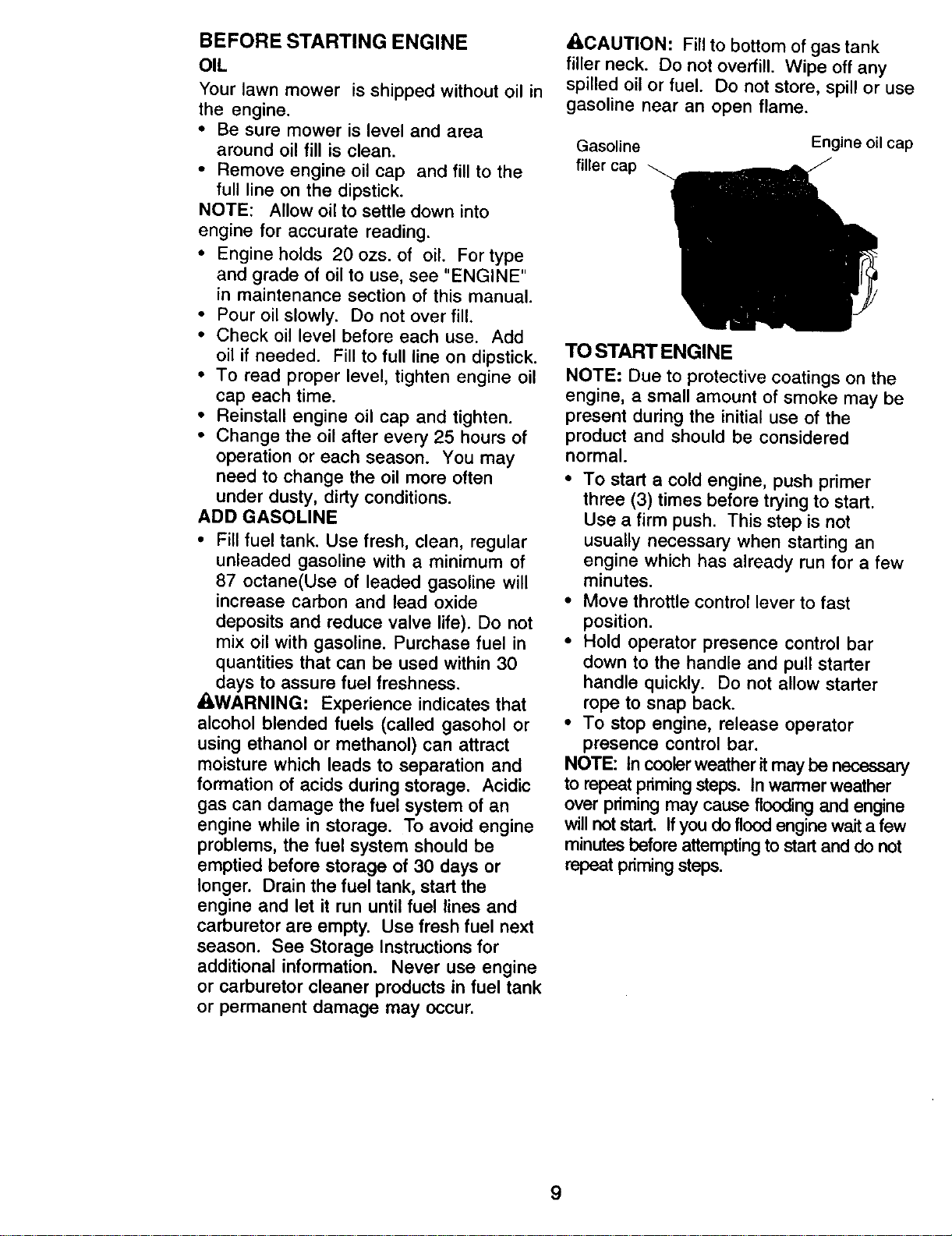

BEFORE STARTING ENGINE
OIL
Your lawn mower is shipped without oil in
the engine.
• Be sure mower is level and area
around oil fill is clean.
• Remove engine oil cap and fill to the
full line on the dipstick.
NOTE: Allow oil to settle down into
engine for accurate reading.
• Engine holds 20 ozs. of oil. For type
and grade of oil to use, see "ENGINE"
in maintenance section of this manual.
• Pour oil slowly. Do not over fill.
• Check oil level before each use. Add
oil if needed. Fill to full line on dipstick.
• To read proper level, tighten engine oil
cap each time.
• Reinstall engine oil cap and tighten.
• Change the oil after every 25 hours of
operation or each season. You may
need to change the oil more often
under dusty, dirty conditions.
ADD GASOLINE
• Fill fuel tank. Use fresh, clean, regular
unleaded gasoline with a minimum of
87 octane(Use of leaded gasoline wilt
increase carbon and lead oxide
deposits and reduce valve life). Do not
mix oil with gasoline. Purchase fuel in
quantities that can be used within 30
days to assure fuel freshness.
_I,WARNING: Experience indicates that
alcohol blended fuels (called gasohol or
using ethanol or methanol) can attract
moisture which leads to separation and
formation of acids during storage. Acidic
gas can damage the fuel system of an
engine while in storage. To avoid engine
problems, the fuel system should be
emptied before storage of 30 days or
longer. Drain the fuel tank, start the
engine and let it run until fuel lines and
carburetor are empty. Use fresh fuel next
season. See Storage Instructions for
additional information. Never use engine
or carburetor cleaner products in fuel tank
or permanent damage may occur.
_,CAUTION: Fill to bottom of gas tank
filler neck. Do not overfill. Wipe off any
spilled oil or fuel. Do not store, spill or use
gasoline near an open flame.
Gasoline
filler cap
Engine oil cap
TO START ENGINE
NOTE: Due to protective coatings on the
engine, a small amount of smoke may be
present during the initial use of the
product and should be considered
normal.
• To start a cold engine, push primer
three (3) times before trying to start.
Use a firm push. This step is not
usually necessary when starting an
engine which has already run for a few
minutes.
• Move throttle control lever to fast
position.
• Hold operator presence control bar
down to the handle and pull starter
handle quickly. Do not allow starter
rope to snap back.
° To stop engine, release operator
presence control bar.
NOTE: tn cooler weather it may be necessary
to repeat priming steps. In warmer weather
over priming may cause flooding and engine
will not start. If you do flood engine wait a few
minutes before attempting to start and do not
repeat priming steps.
9

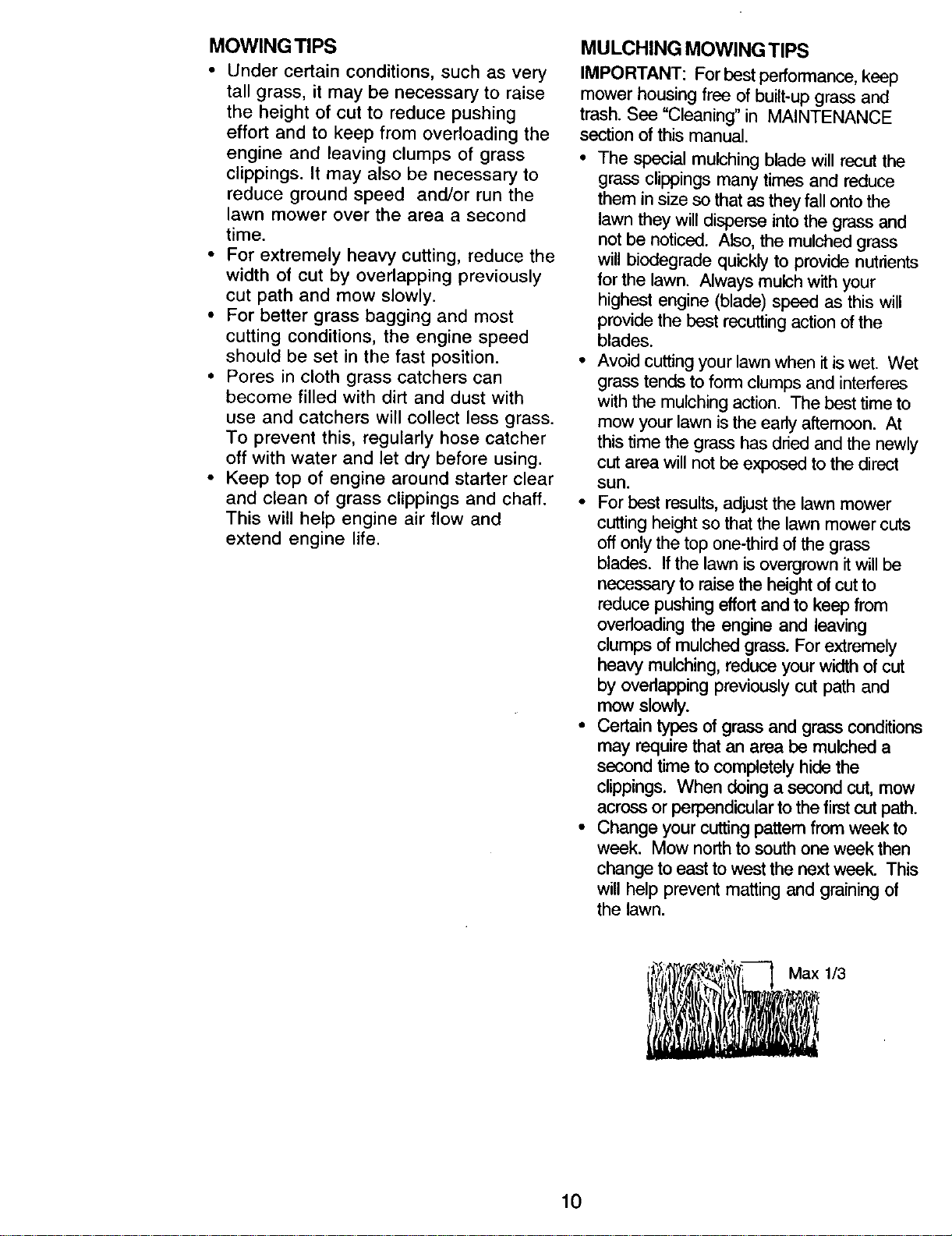

MOWING TIPS
• Under certain conditions, such as very
tall grass, it may be necessary to raise
the height of cut to reduce pushing
effort and to keep from overloading the
engine and leaving clumps of grass
clippings. It may also be necessary to
reduce ground speed and/or run the
lawn mower over the area a second
time.
• For extremely heavy cutting, reduce the
width of cut by overlapping previously
cut path and mow slowly.
• For better grass bagging and most
cutting conditions, the engine speed
should be set in the fast position.
• Pores in cloth grass catchers can
become filled with dirt and dust with
use and catchers will collect less grass.
To prevent this, regularly hose catcher
off with water and let dry before using.
• Keep top of engine around starter clear
and clean of grass clippings and chaff.
This will help engine air flow and
extend engine life.
MULCHING MOWING TIPS
IMPORTANT: For best performance, keep
mower housing free of built-up grass and
trash. See "Cleaning" in MAINTENANCE
section of this manual.
• The special mulching blade will recut the
grass clippings many times and reduce
them in size so that as they fall onto the
lawn they will disperse into the grass and
not be noticed. Also, the mulched grass
will biodegrade quickly to provide nutrients
for the lawn. Always mulch with your
highest engine (blade) speed as this will
provide the best recutting action of the
blades.
• Avoid cutting your lawn when itis wet. Wet
grass tends to form clumps and interferes
with the mulching action. The best time to
mow your lawn is the early aftemoon. At
this time the grass has dried and the newly
cut area will not be exposed to the direct
sun.
• For best results, adjust the lawn mower
cutting height so that the lawn mower cuts
off only the top one-third of the grass
blades. If the lawn is overgrown itwill be
necessary to raise the height of cut to
reduce pushing effort and to keep from
overloading the engine and leaving
clumps of mulched grass. For extremely
heavy mulching, reduce your width of cut
by overlapping previously cut path and
mow slowly.
• Certain types of grass and grass conditions
may require that an area be mulched a
second time to completely hide the
clippings. When doing a second cut, mow
across or perpendicular to the first cut path.
• Change your cutting pattem from week to
week. Mow north to south one week then
change to east to west the next week. This
will help prevent matting and graining of
the lawn.
Max 1/3
10

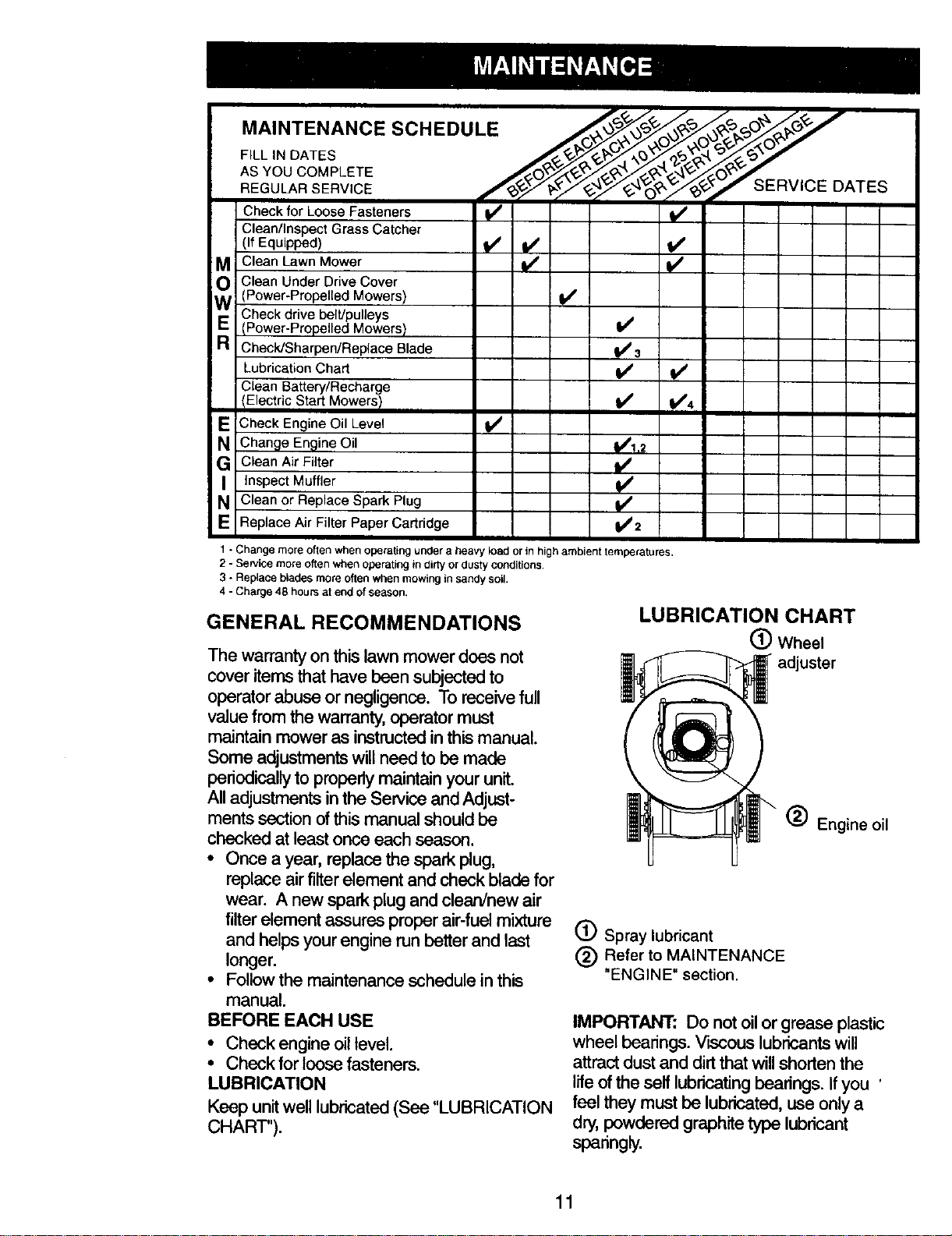

F,LL,NOATES
AS YOU COMPLETE O (€2 _, _x _
REGU LAR SERV,CE _'___"_O_
Check for Loose Fasteners t,/ i,/
Clean/Inspect Grass Catcher
(,,Equ,pped) ,,,
:i Clean Lawn Mower
O Clean Under Drive Cover
(Power-Propelled Mowers) t,/
Check drive belt/pulleys
E (Power-Propelled Mowers) I_
Check/Sharpen/Replace Blade I,/ 3
Lubrication Chart I_ If
Clean Battery/Recharge
IElectric Start Mowers / I_ I/'4
lE Check Engine Oil Level It/
GN Change Engine Oil I,/1.2
Clean Air Filter I/
;/
I inspect Muffler
N Clean or Replace Spark Plug i,/
E Replace Air Filter Paper Cartridge ik/ 2
_VICE D,
_/" SERVICE DATES
1+Change more often when operatingunder a heavy load or in high ambient temperatures.
2 - Service more often when operating in dirty or dusty conditions.
3 - Replace blades more often when mowing in sandy soil.
4 - Cha_ge48 hours at end of season.
GENERAL RECOMMENDATIONS
The warranty on this lawn mower does not
cover items that have been subjected to
operator abuse or negligence. To receive full
value from the warranty, operator must
maintain mower as instructed in this manual.
Some adjustments will need to be made
periodically to properly maintainyour unit.
All adjustments in the Service and Adjust-
ments section of this manual should be
checked at least once each season.
• Once a year, replace the spark plug,
replace air filter element and check blade for
wear. A new spark plug and clean/new air
filter element assures proper air-fuel mixture
and helps your engine runbetter and last
longer.
• Follow the maintenance schedule in this
manual.
BEFORE EACH USE
• Check engine oillevel.
• Check for loose fasteners.
LUBRICATION
Keep unitwell lubricated(See "LUBRICATION
CHART").
LUBRICATION CHART
(_ Wheel
adjuster
(_) Engine oil
(_) Spray lubricant
(_ Refer to MAINTENANCE
"ENGINE" section.
IMPORTANT: Do not oilor grease plastic
wheel bearings. Viscous lubricantswill
attract dust and dirt that will shorten the
life of the self lubricating bearings. Ifyou '
feel they must be lubricated, use only a
dry, powdered graphite type lubricant
sparingly.
11

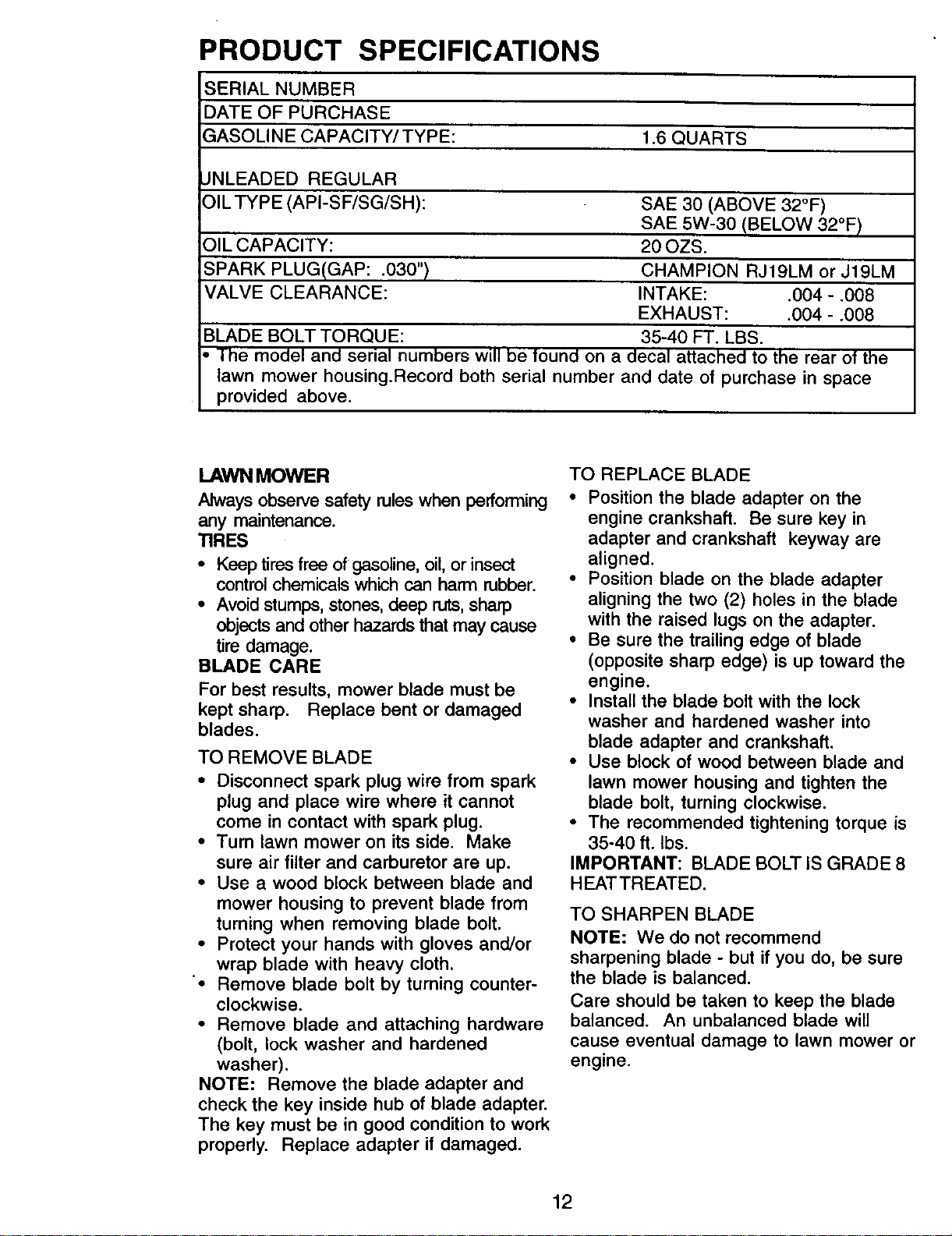

PRODUCT SPECIFICATIONS
SERIAL NUMBER
DATE OF PURCHASE
GASOLINE CAPACITY/TYPE:
1.6 QUARTS
JNLEADED REGULAR
OIL TYPE (API-SF/SG/SH):
OIL CAPACITY:
SPARK PLUG(GAP: .030")
VALVE CLEARANCE:
BLADE BOLT TORQUE:
SAE 30 (ABOVE 32°F)
SAE 5W-30 (BELOW 32°F)
20 OZS.
CHAMPION RJ19LM or J19LM
INTAKE: .004 - .008
EXHAUST: .004 - .008
35-40 FT. LBS.
• The model and serial numbers will be found on a decal attached to the rear of the
lawn mower housing.Record both serial number and date of purchase in space
provided above.
LAWN MOWER
Always observe safety rules when performing
any maintenance.
TIRES
• Keep tires free of gasoline, oil, or insect
control chemicals which can harm rubber.
• Avoid stumps, stones, deep ruts,sharp
objects and other hazards that may cause
tire damage.
BLADE CARE
For best results, mower blade must be
kept sharp. Replace bent or damaged
blades.
TO REMOVE BLADE
• Disconnect spark plug wire from spark
plug and place wire where it cannot
come in contact with spark plug.
• Turn lawn mower on its side. Make
sure air filter and carburetor are up.
• Use a wood block between blade and
mower housing to prevent blade from
turning when removing blade bolt.
• Protect your hands with gloves and/or
wrap blade with heavy cloth.
"• Remove blade bolt by turning counter-
clockwise.
• Remove blade and attaching hardware
(bolt, lock washer and hardened
washer).
NOTE: Remove the blade adapter and
check the key inside hub of blade adapter.
The key must be in good condition to work
properly. Replace adapter if damaged.
TO REPLACE BLADE
• Position the blade adapter on the
engine crankshaft. Be sure key in
adapter and crankshaft keyway are
aligned.
• Position blade on the blade adapter
aligning the two (2) holes in the blade
with the raised lugs on the adapter.
• Be sure the trailing edge of blade
(opposite sharp edge) is up toward the
engine.
• Install the blade bolt with the lock
washer and hardened washer into
blade adapter and crankshaft.
• Use block of wood between blade and
lawn mower housing and tighten the
blade bolt, turning clockwise.
• The recommended tightening torque is
35-40 ft. Ibs.
IMPORTANT: BLADE BOLT IS GRADE 8
HEATTREATED.
TO SHARPEN BLADE
NOTE: We do not recommend
sharpening blade - but if you do, be sure
the blade is balanced.
Care should be taken to keep the blade
balanced. An unbalanced blade will
cause eventual damage to lawn mower or
engine.
12

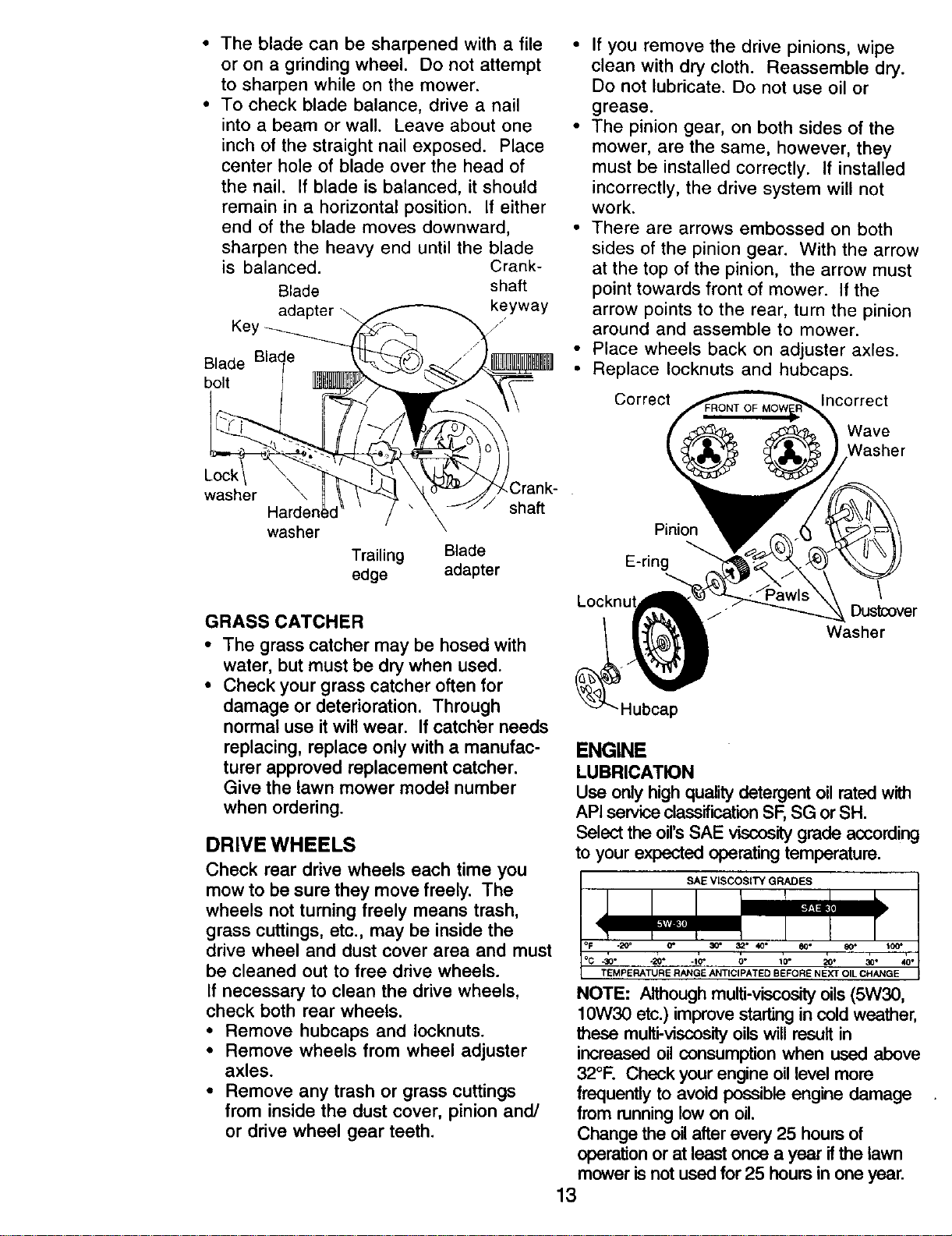

• The blade can be sharpened with a file
or on a grinding wheel. Do not attempt
to sharpen while on the mower.
• To check blade balance, drive a nail
into a beam or wall. Leave about one
inch of the straight nail exposed. Place
center hole of blade over the head of
the nail. If blade is balanced, it should
remain in a horizontal position. If either
end of the blade moves downward,
sharpen the heavy end until the blade
is balanced. Crank-
Blade shaft
keyway
adapter "_ /
boltBladeBlale
If you remove the drive pinions, wipe
clean with dry cloth. Reassemble dry.
Do not lubricate. Do not use oil or
grease.
• The pinion gear, on both sides of the
mower, are the same, however, they
must be installed correctly. If installed
incorrectly, the drive system will not
work.
• There are arrows embossed on both
sides of the pinion gear. With the arrow
at the top of the pinion, the arrow must
point towards front of mower. If the
arrow points to the rear, turn the pinion
around and assemble to mower.
• Place wheels back on adjuster axles.
• Replace Iocknuts and hubcaps.
Correct Incorrect
Wave
Washer
Lock Crank-
washer
sha_
washer
\
Trailing Blade
edge adapter
GRASS CATCHER
• The grass catcher may be hosed with
water, but must be dry when used.
• Check your grass catcher often for
damage or deterioration. Through
normal use it will wear. If catchbr needs
replacing, replace only with a manufac-
turer approved replacement catcher.
Give the lawn mower model number
when ordering.
DRIVE WHEELS
Check rear drive wheels each time you
mow to be sure they move freely. The
wheels not turning freely means trash,
grass cuttings, etc., may be inside the
drive wheel and dust cover area and must
be cleaned out to free drive wheels.
If necessary to clean the drive wheels,
check both rear wheets.
• Remove hubcaps and Iocknuts.
• Remove wheels from wheel adjuster
axles.
• Remove any trash or grass cuttings
from inside the dust cover, pinion and/
or drive wheel gear teeth.
Pinion
E-ring
_Hubcap
Dustcover
Washer
ENGINE
LUBRICATION
Use only high qualitydetergent oil rated with
API serviceclassificationSF, SG or SH.
Select the oil'sSAE viscositygrade according
to your expected operating temperature.
SAE visCOsITY GRADES
-2O" O"
_0" -20" -t0* O" 10" 20" 30"
TEMP_FLATURE RANGE ANTICIPATED BEFORE NEXT OIL CHANGE
NOTE: Although multi-viscosityoils(5W30,
10W30 etc.) improve sta_ng in cold weather,
these multi-viscosityoils will resultin
increased oil consumption when used above
32°F. Check your engine oillevel more
frequently to avoid possible engine damage
from running low on oil.
Change the oil after every 25 hours of
operation or at least once a year if the lawn
mower is not used for 25 hours in one year.
13

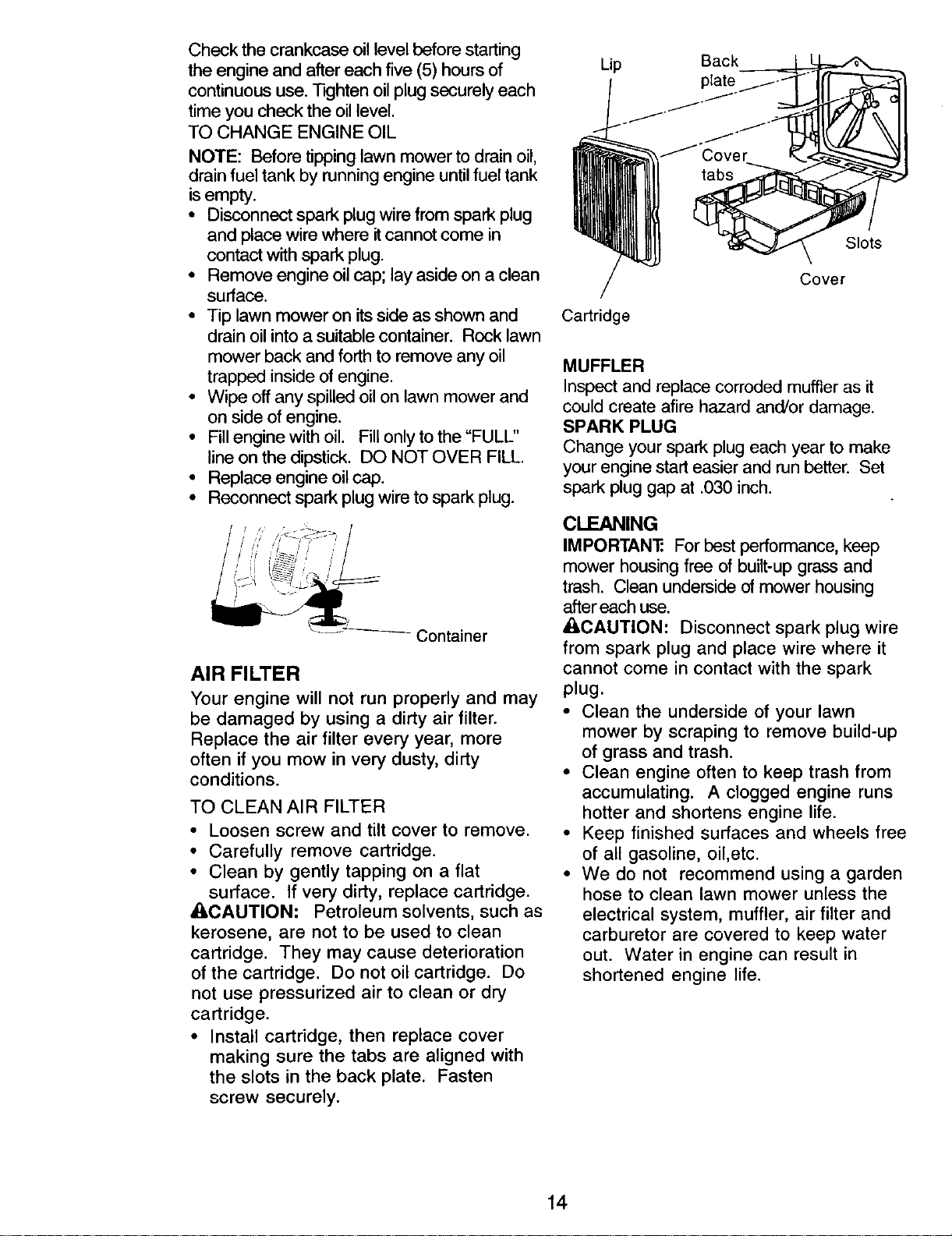

Check the crankcase oil levelbefore starting
the engine and after each five (5) hours of
continuous use. TEjhten oil plug securely each
time you check the oil level.
TO CHANGE ENGINE OIL
NOTE: Before tipping lawn mower to drain oil,
drain fuel tank by runningengine until fuel tank
is empty.
• Disconnect spark plug wire from spark plug
and place wire where itcannot come in
contact with spark plug.
• Remove engine oil cap; lay aside on a clean
surface.
• Tip lawn mower on its side as shown and
drain oil into a suitable container. Rock lawn
mower back and forth to remove any oil
trapped inside of engine.
• Wipe off any spilled oil on lawn mower and
on side of engine.
• Fill engine with oil. Fill only to the "FULL"
line on the dipstick. DO NOT OVER FILL.
• Replace engine oil cap.
• Reconnect spark plug wire to spark plug.
_---_--_--- Container
AIR FILTER
Your engine will not run properly and may
be damaged by using a dirty air filter.
Replace the air filter every year, more
often if you mow in very dusty, dirty
conditions.
TO CLEAN AIR FILTER
• Loosen screw and tilt cover to remove.
• Carefully remove cartridge.
• Clean by gently tapping on a flat
surface. If very dirty, replace cartridge.
ACAUTION: Petroleum solvents, such as
kerosene, are not to be used to clean
cartridge. They may cause deterioration
of the cartridge. Do not oil cartridge. Do
not use pressurized air to clean or dry
cartridge.
• Install cartridge, then replace cover
making sure the tabs are aligned with
the slots in the back plate. Fasten
screw securely.
Cover
Cartridge
MUFFLER
Inspect and replace corroded muffler as it
could create afire hazard and/or damage.
SPARK PLUG
Change your spark plug each year to make
your engine start easier and run better. Set
spark plug gap at .030 inch.
CLEANING
IMPORTAN'E. For best performance, keep
mower housing free of built-up grass and
trash. Clean underside of mower housing
after each use.
ACAUTION: Disconnect spark plug wire
from spark plug and place wire where it
cannot come in contact with the spark
plug.
• Clean the underside of your lawn
mower by scraping to remove build-up
of grass and trash.
• Clean engine often to keep trash from
accumulating. A clogged engine runs
hotter and shortens engine life.
• Keep finished surfaces and wheels free
of all gasoline, oil,etc.
• We do not recommend using a garden
hose to clean lawn mower unless the
electrical system, muffler, air filter and
carburetor are covered to keep water
out. Water in engine can result in
shortened engine life.
14
_I=CAUTION: Before performing any sewice
or adjustments:
• Release control bar and stop engine.
• Make sure the blade and all moving
parts have completely stopped.
• Disconnect spark plug wire from
spark plug and place where itcannot
come in contact with plug.

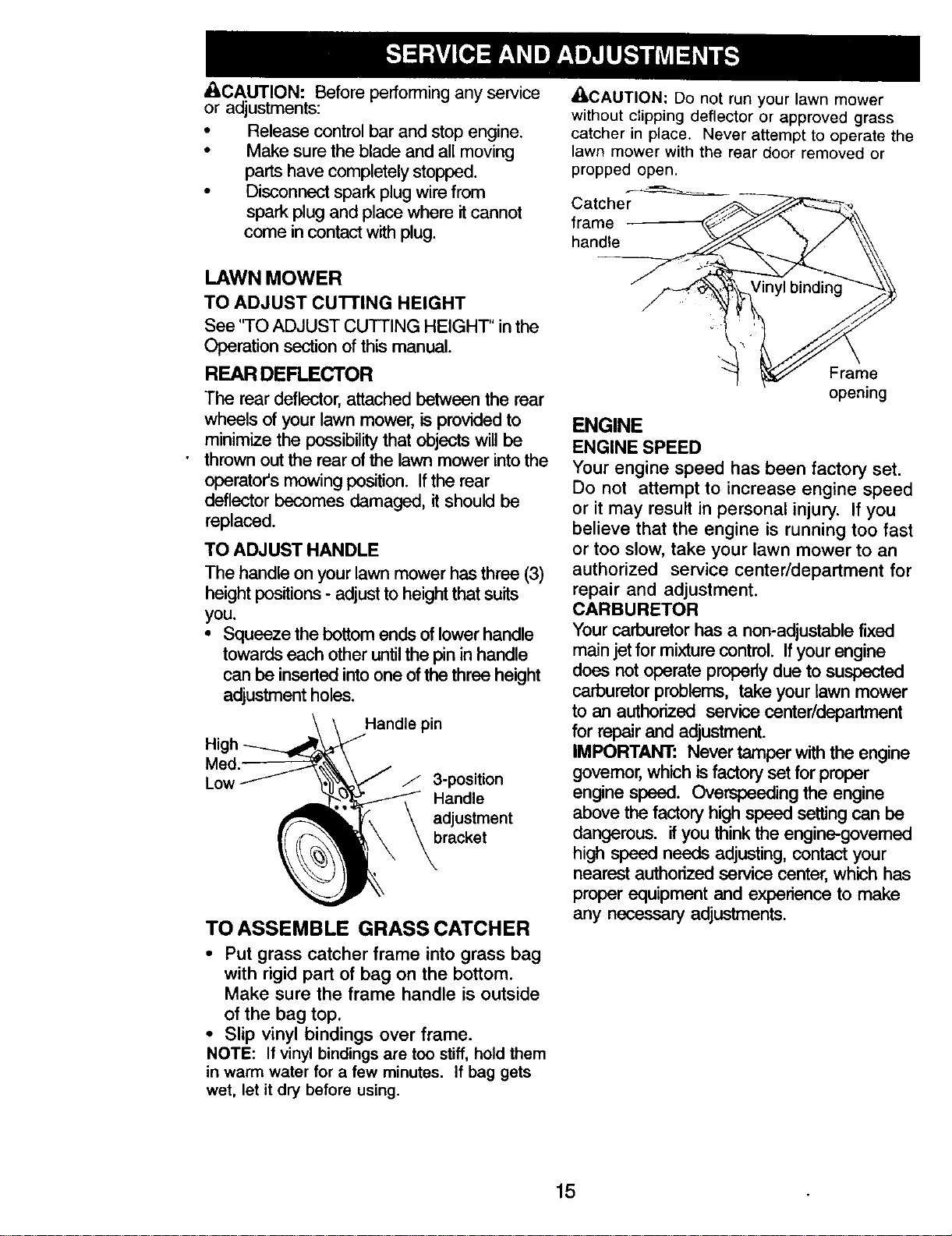

LAWN MOWER
TO ADJUST CU'I-rING HEIGHT
See "TO ADJUST CUTTING HEIGHT" in the
Operation section of this manual.
REAR DEFLECTOR
The rear defk_ctor, attached between the rear
wheels of your lawn mower, is provided to
minimize the possibility that objects will be
• thrown out the rear of the lawn mower into the
operator's mowing position. If the rear
deflector becomes damaged, it should be
replaced.
TO ADJUST HANDLE
The handle on your lawn mower has three (3)
height positions- adjustto heightthat suits
you.
• Squeeze the bottom ends oflower handle
towards each other untilthe pin in handle
can be inserted intoone ofthe three height
adjustment holes.
Handle pin
High
Med.
Low .// 3-position
Handle
adjustment
bracket
TO ASSEMBLE GRASS CATCHER
• Put grass catcher frame into grass bag
with rigid part of bag on the bottom.
Make sure the frame handle is outside
of the bag top.
• Slip vinyl bindings over frame.
NOTE: If vinyl bindings are too stiff, hold them
in warm water for a few minutes. If bag gets
wet, let it dry before using.
_kCAUTION: Do not run your lawn mower
without clipping deflector or approved grass
catcher in place. Never attempt to operate the
lawn mower with the rear door removed or
propped open,
Catcher
frame
handle
Frame
opening
ENGINE
ENGINE SPEED
Your engine speed has been factory set.
Do not attempt to increase engine speed
or it may result in personal injury. If you
believe that the engine is running too fast
or too slow, take your lawn mower to an
authorized service center/department for
repair and adjustment.
CARBURETOR
Your carburetor has a non-adjustable fixed
main jet for mixture control. If your engine
does not operate propedy due to suspected
carburetor problems, take your lawn mower
to an authorized service center/department
for repair and adjustment.
IMPORTANT: Never tamper withthe engine
governor,which is factory set for proper
engine speed. Overspeeding the engine
above the factory highspeed setting can be
dangerous, ifyou think the engine-governed
high speed needs adjusting, contact your
nearest authorized service center, which has
proper equipment and experience to make
any necessary adjustments.
15

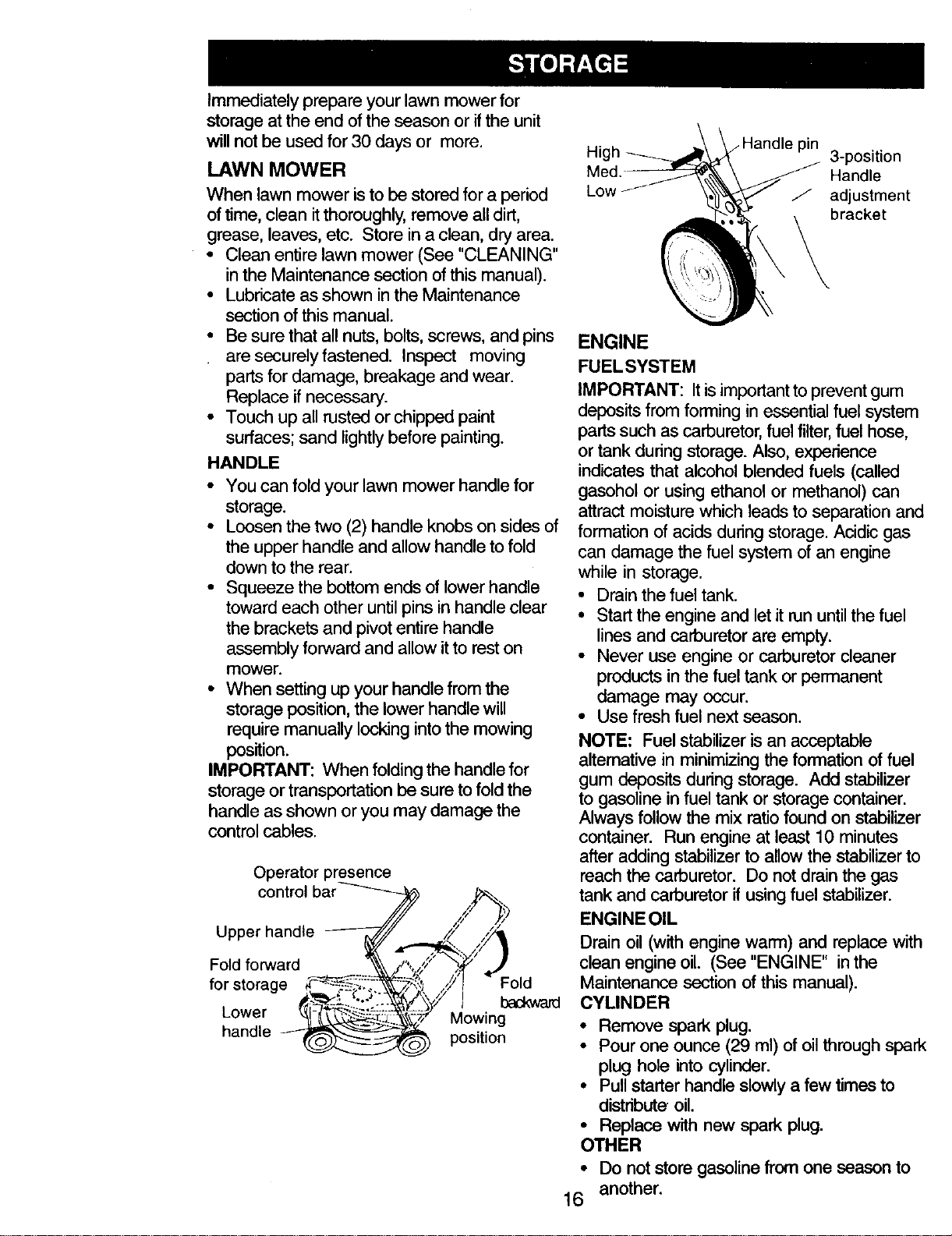

Immediately prepare your lawn mower for
storage at the end of the season or if the unit
will not be used for 30 days or more.
LAWN MOWER
When lawn mower isto be stored for a period
of time, clean itthoroughly,remove all dirt,
grease, leaves, etc. Store in a clean, dry area.
• Clean entire lawn mower (See "CLEANING"
inthe Maintenance section ofthis manual).
• Lubricate as shown inthe Maintenance
section of this manual.
• Be sure that allnuts, bolts, screws, and pins
are securely fastened. Inspect moving
partsfor damage, breakage and wear.
Replace ifnecessary.
• Touch up all rusted orchipped paint
surfaces; sand lightlybefore painting.
HANDLE
• You can fold your lawn mower handle for
storage.
• Loosen the two (2) handle knobs on sides of
the upper handle and allow handle to fold
down to the rear.
• Squeeze the bottom ends of lower handle
toward each other until pins in handle clear
the brackets and pivot entire handle
assembly forward and allow it to rest on
mower.
• When setting up your handle from the
storage position, the lower handle will
require manually locking into the mowing
position.
IMPORTANT: When folding the handle for
storage or transportation be sure to fold the
handle as shown or you may damage the
control cables.
Operator presence
control bar
Upper handle
Fold forward
for storage Fold
backward
Lower Mowing
handle position
/ Handle pin
High _ 3-position
Med. Handle
J adjustment
bracket
ENGINE
FUELSYSTEM
IMPORTANT: Itis important to prevent gum
deposits fromforming in essential fuel system
parts such as carburetor, fuel filter, fuel hose,
or tank during storage. Also, experience
indicatesthat alcohol blended fuels (called
gasohol or using ethanol or methanol) can
attract moisturewhich leads to separation and
formation of acids during storage. Acidic gas
can damage the fuel system of an engine
while in storage.
• Drain the fuel tank.
• Start the engine and let itrun untilthe fuel
lines and carburetor are empty.
• Never use engine or carburetor cleaner
products inthe fuel tank or permanent
damage may occur.
• Use fresh fuel next season.
NOTE: Fuel stabilizer is an acceptable
alternative in minimizing the formation of fuel
gum deposits during storage. Add stabilizer
to gasoline in fuel tank or storage container.
Always follow the mix ratiofound on stabilizer
container. Run engine at least 10 minutes
after adding stabilizerto allow the stabilizerto
reach the carburetor. Do not drain the gas
tank and carburetor ifusingfuel stabilizer.
ENGINEOIL
Drain oil (with engine warm) and replace with
clean engine oil. (See "ENGINE" in the
Maintenance section of this manual).
CYLINDER
• Remove spark plug.
• Pour one ounce (29 ml) of oil through spark
plug hole into cylinder.
• Pull starter handle slowlya few times to
distribute oil.
• Replace with new spark plug.
OTHER
• Do not store gasoline from one season to
another.
16
• Replace your gasoline can if your can
starts to rust. Rust and/or dirt in your
gasoline will cause problems.
• If possible, store your unit indoors and
cover it to give protection from dust and dirt.
• Cover your unit with a suitable protective
cover that does not retain moisture. Do not
use plastic. Plastic cannot breathe which
allows condensation to form and will cause
your unit to rust.
IMPORTANT: Never cover mower while
engine and exhaust areas are still warm.
ACAUTION: Never store the lawn mower
with gasoline in the tank inside a building
where fumes may reach an open flame or
spark. Allow the engine to cool before
storing in any enclosure.

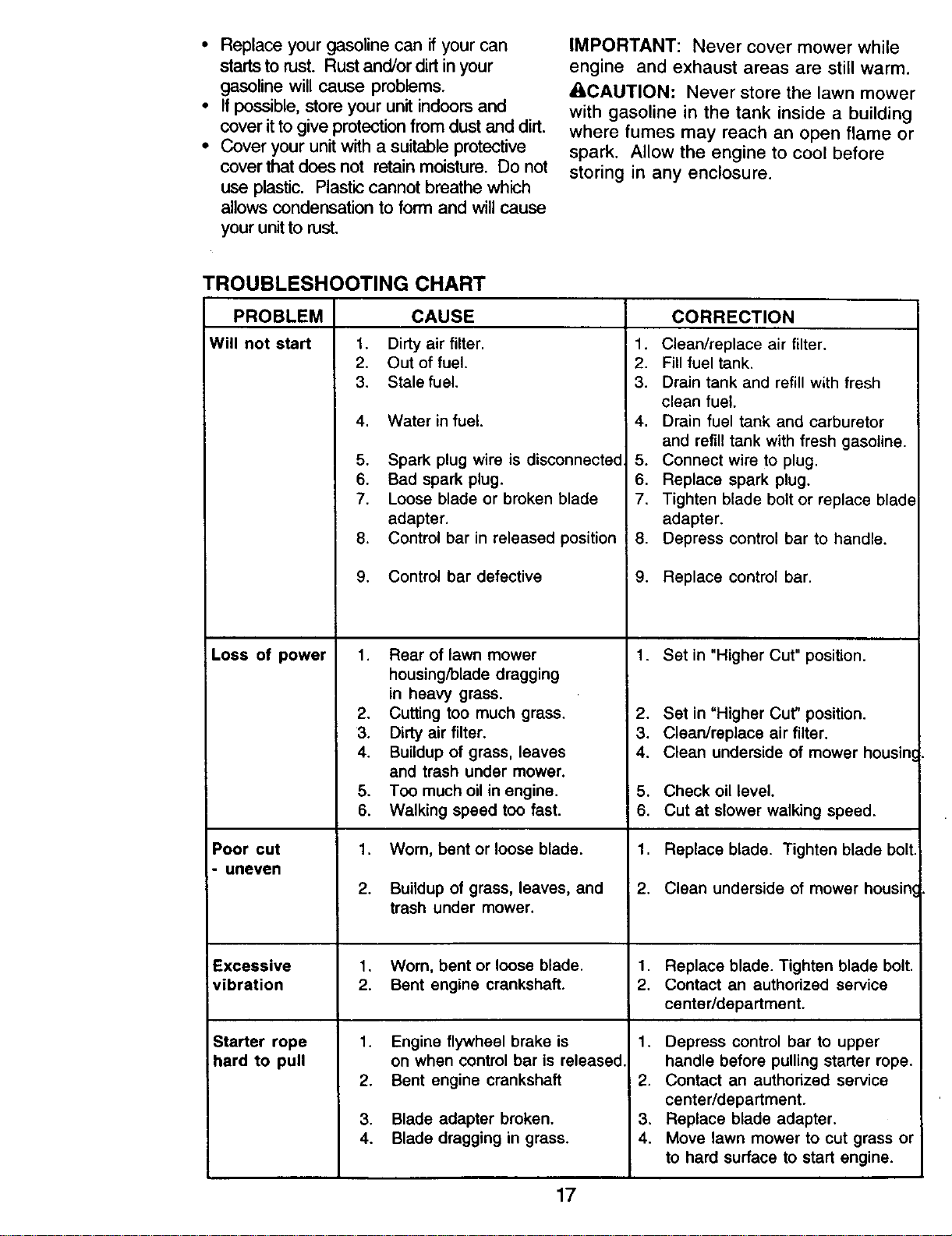

TROUBLESHOOTING CHART
PROBLEM CORRECTION
Will not start
Loss of power
Poor cut
- uneven
CAUSE
1. Dirty air filter,
2. Out of fuel.
3. Stale fuel.
4. Water in fuel.
5. Spark plug wire is disconnected
6. Bad spark plug.
7. Loose blade or broken blade
adapter.
8. Control bar in released position
9. Control bar defective
1. Rear of lawn mower
housing/blade dragging
in heavy grass.
2. Cutting too much grass.
3. Dirty air filter.
4. Buildup of grass, leaves
and trash under mower.
5. Too much oil in engine.
6. Walking speed too fast.
1. Wom, bent or loose blade.
.
Buildup of grass, leaves, and
trash under mower.
1. Clean/replace air filter.
2. Fill fuel tank.
3. Drain tank and refill with fresh
clean fuel.
4. Drain fuel tank and carburetor
and refill tank with fresh gasoline.
5. Connect wire to plug.
6. Replace spark plug.
7. Tighten blade bolt or replace blade
adapter.
8. Depress control bar to handle.
9. Replace control bar.
Engine flywheel brake is
on when control bar is released
Bent engine crankshaft
1. Set in "Higher Cut" position.
2. Set in "Higher Cut" position.
3. Clean/replace air filter.
4. Clean underside of mower housin
5. Check oil level.
6. Cut at slower walking speed.
1. Replace blade. Tighten blade bolt.
2. Clean underside of mower housin
Excessive 1. Worn, bent or loose blade. 1. Replace blade. Tighten blade bolt.
vibration 2. Bent engine crankshaft. 2. Contact an authorized service
center/department.
Starter rope
hard to pull
1.
2.
3.
4.
Blade adapter broken.
Blade dragging in grass.
1. Depress control bar to upper
handle before pulling starter rope.
2. Contact an authodzed service
center/department.
3. Replace blade adapter.
4. Move lawn mower to cut grass or
to hard surface to start engine.
17

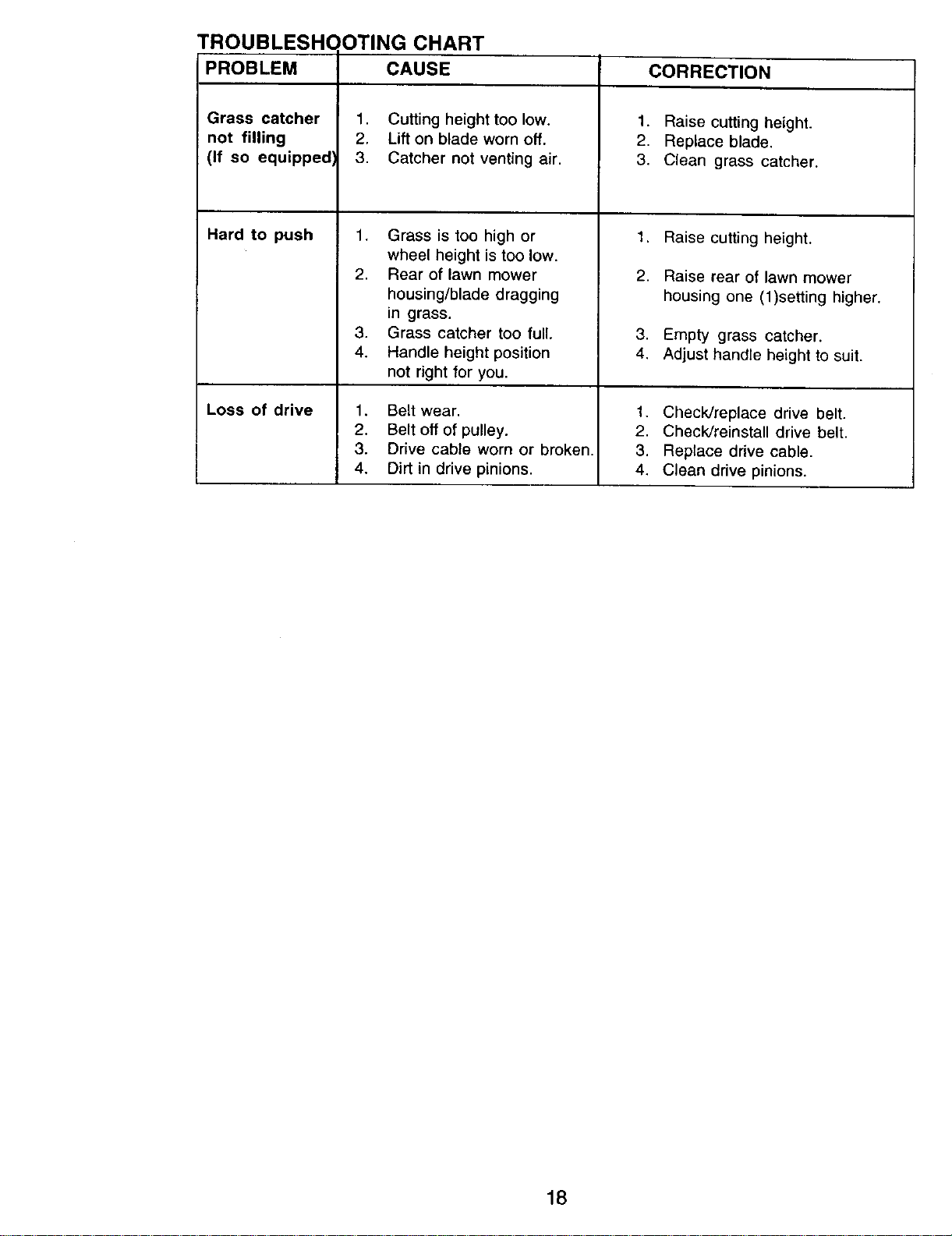

TROUBLESHCOTING CHART
PROBLEM CAUSE CORRECTION
Grass catcher
not filling
(If so equipped
Hard to push
Loss of drive
1. Cutting height too low.
2. Lift on blade worn off.
3. Catcher not venting air.
1, Grass is too high or
wheel height is too low.
2. Rear of lawn mower
housing/blade dragging
in grass.
3. Grass catcher too full.
4. Handle height position
not right for you.
1. Belt wear.
2. Belt off of pulley.
3. Drive cable worn or broken.
4. Dirt in drive pinions.
1. Raise cutting height.
2. Replace blade,
3. Clean grass catcher.
1. Raise cutting height.
2. Raise rear of lawn mower
housing one (1)setting higher.
3. Empty grass catcher.
4. Adjust handle height to suit.
1. Check/replace drive belt.
2. Check/reinstall drive belt.
3. Replace drive cable.
4, Clean drive pinions.
18
SERVICENOTES
37

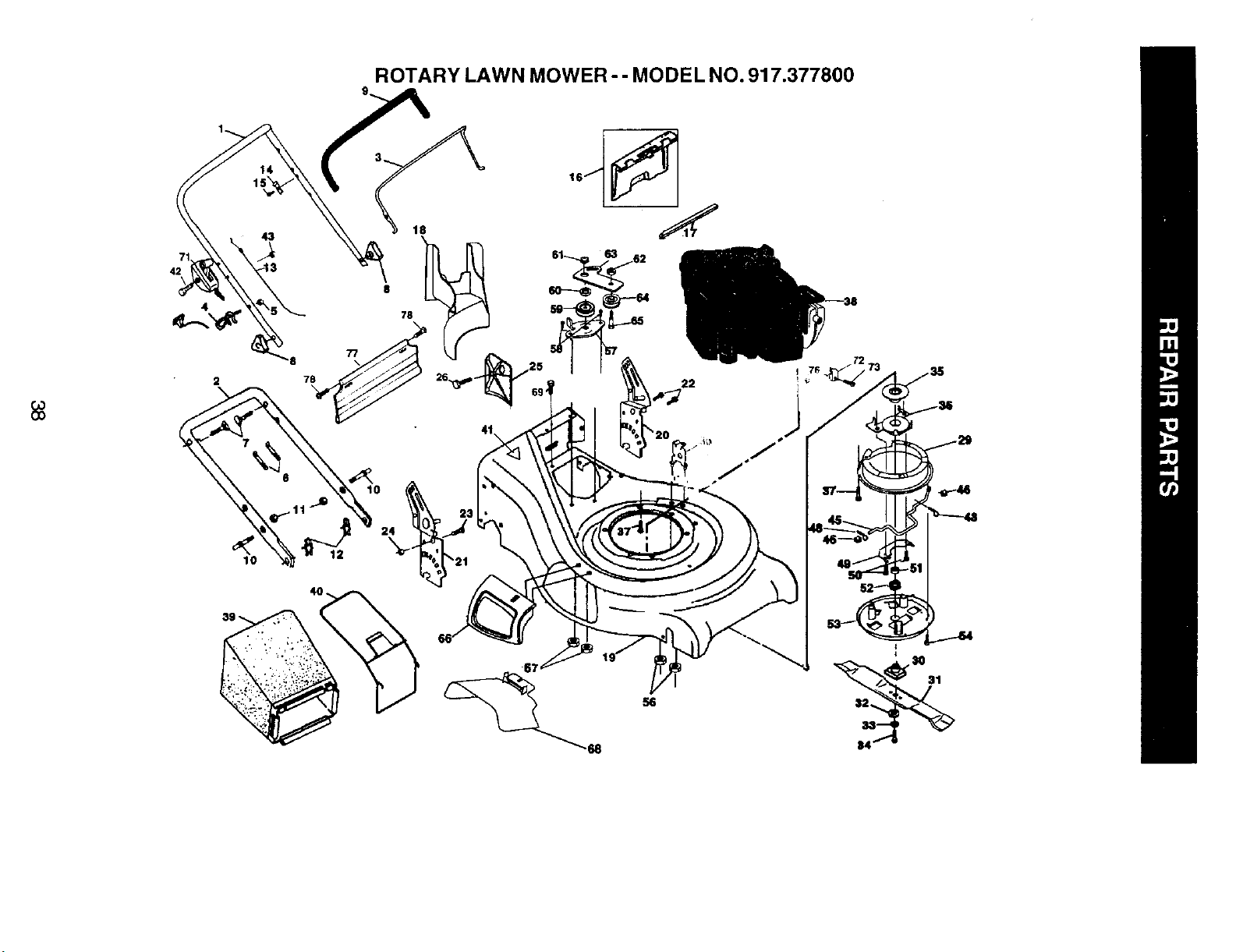

ROTARY LAWN MOWER-- MODEL NO. 917.377800
71
42
lO
78
18
8
78
24
41
22
56

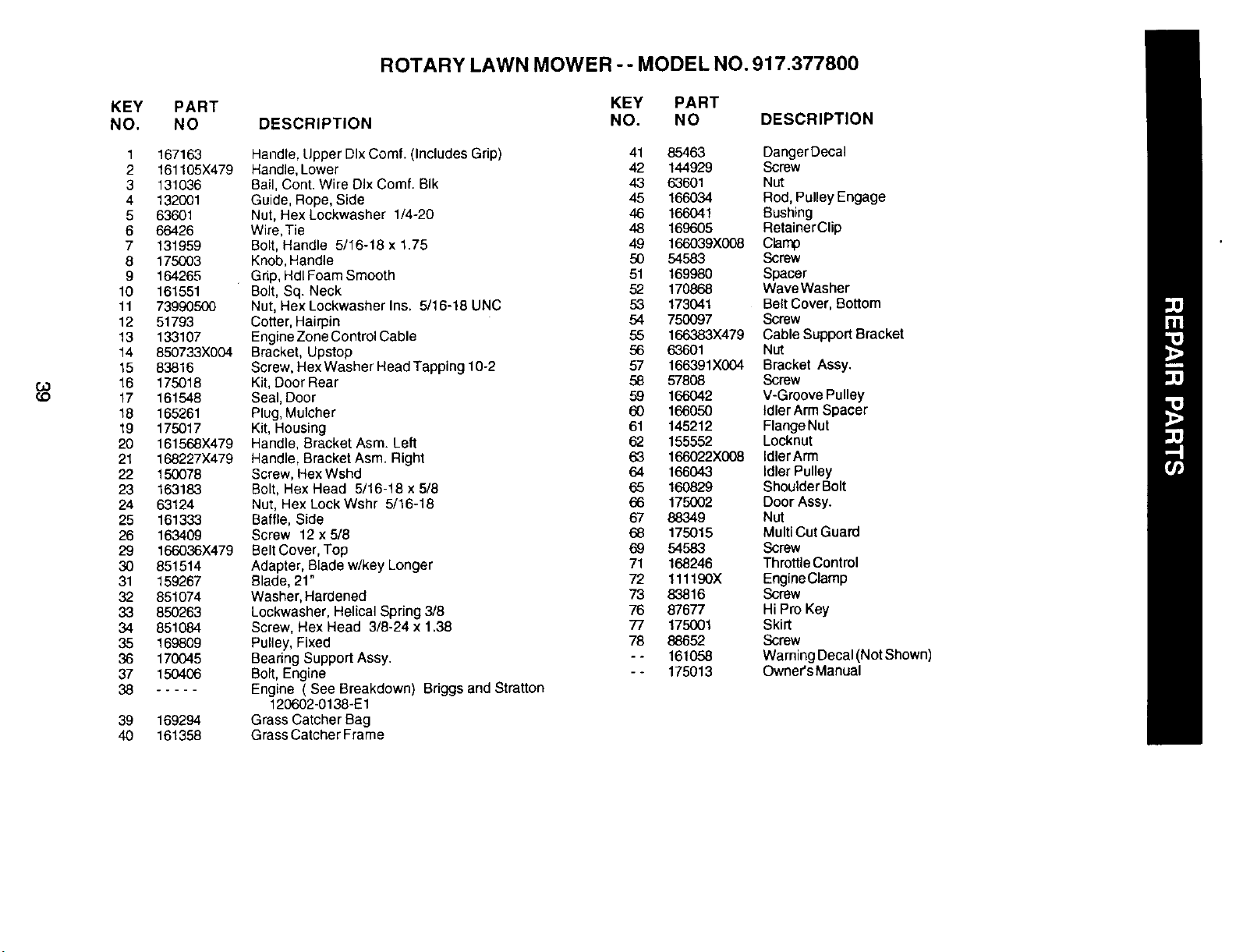

ROTARY LAWN MOWER-- MODEL NO. 917.377800
KEY
NO.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
29
3O
31
32
33
34
35
36
37
38
39
4O
PART
NO
167163
161105X479
131036
132001
63601
66426
131959
175QO3
164265
161551
73990500
51793
133107
856733X004
83816
175018
161548
165261
175017
161568X479
168227X479
150078
163183
63124
161333
163409
166036X479
851514
159267
851074
850263
851084
169809
170045
150406
169294
161358
DESCRIPTION
Handle, Upper DIx Coral. (includes Grip)
Handle, Lower
Bail, Cont. Wire DIx Comf. BIk
Guide, Rope, Side
Nut, Hex Lockwasher 1/4-20
Wire, Tie
Bolt, Handle 5/16-18 x 1.75
Knob, Handle
Grip, Hdl Foam Smooth
Bolt, Sq. Neck
Nut, Hex Lockwasher Ins. 5/16-18 UNC
Cotter, Hairpin
Engine Zone Control Cable
Bracket, Upstop
Screw, Hex Washer Head Tapping 10-2
Kit, Door Rear
Seal, Door
Plug, Mulcher
Kit, Housing
Handle, Bracket Asm. Left
Handle, Bracket Asm. Right
Screw, Hex Wshd
Bolt, Hex Head 5/16-18 x 5/8
Nut, Hex LockWshr 5/16-18
Baffle, Side
Screw 12 x 5/8
Belt Cover, Top
Adapter, Blade w/key Longer
Blade, 21"
Washer, Hardened
Lockwasher, Helical Spring 3/8
Screw, Hex Head 3/8-24 x 1.38
Pulley, Fixed
Bearing Support Assy.
Bolt, Engine
Engine ( See Breakdown) Briggs and Stratton
120602-0138-E1
Grass Catcher Bag
Grass Catcher Frame
KEY PART
NO. NO DESCRIPTION
41 85463 DangerDecal
42 144929 Screw
43 63601 Nut
45 166034 Rod, Pulley Engage
46 166041 Bushing
48 169605 RetainerClip
49 166039X008 Clamp
50 54583 Screw
51 169980 Spacer
52 170868 WaveWasher
53 173041 Belt Cover, Bottom
54 750097 Screw
55 166383X479 Cable Support Bracket
56 63601 Nut
57 166391X004 Bracket Assy.
58 57808 Screw
59 166042 V-Groove Pulley
60 166050 Idler Arm Spacer
61 145212 FlangeNut
62 155552 Locknut
63 166022X008 Idler Arm
64 166043 Idler Pulley
65 160829 Shoulder Bolt
66 175002 Door Assy.
67 88349 Nut
68 175015 MultiCut Guard
69 54583 Screw
71 168246 Throttle Control
72 111190X Engine Clamp
73 83816 Screw
76 87677 Hi Pro Key
77 175001 Skirt
78 88652 Screw
- - 161058 Warning Decal (Not Shown)
- - 175013 Owner'sManual

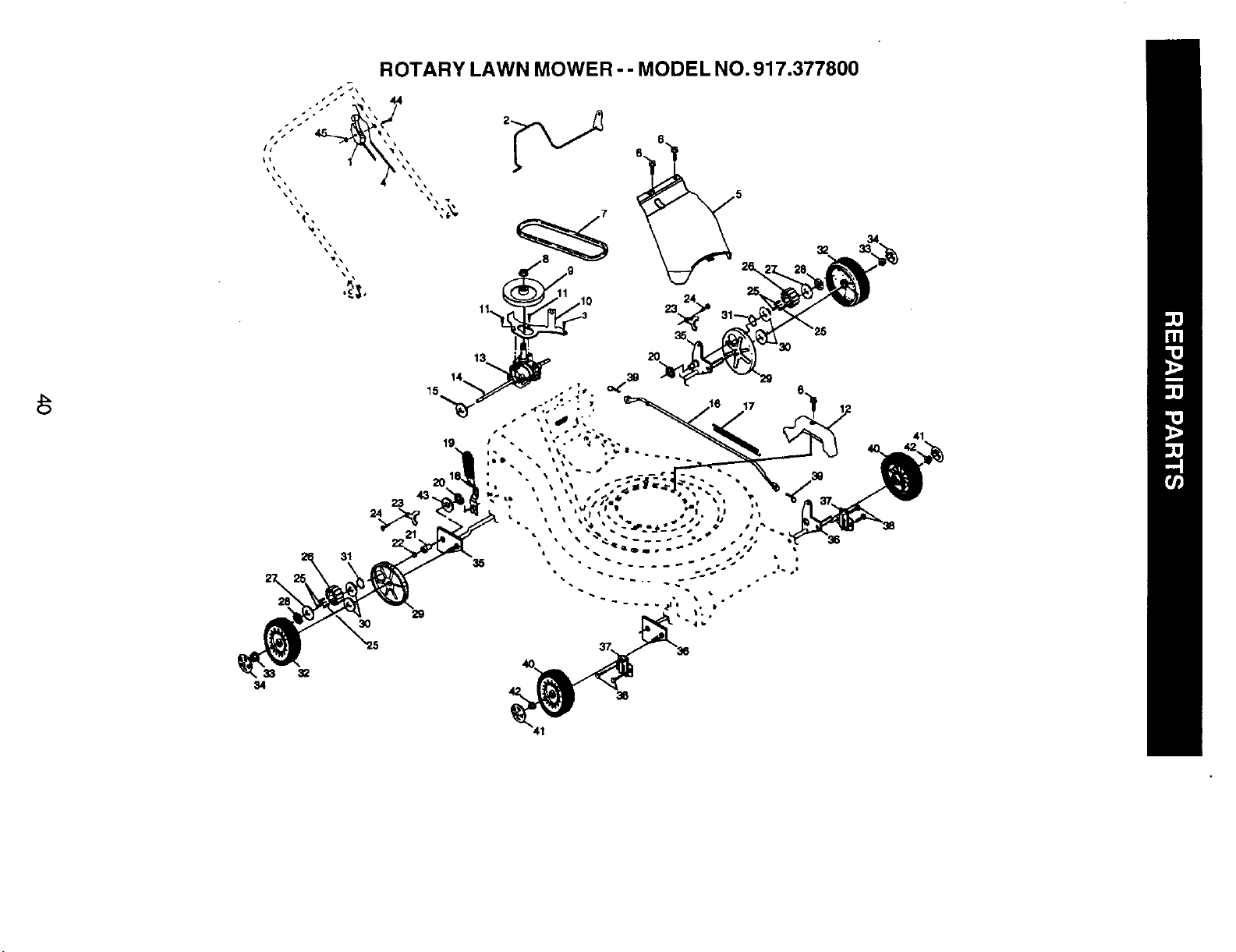

ROTARY LAWN MOWER - - MODEL NO. 917.377800
31
23
2A
14
15
20
13
19
3O
2O
ROTARY LAWN MOWER -- MODEL NO. 917.377800
4:=
KEY
NO.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
2O
21
22
PART
NO
1710£_)
167259
17060408
170050
175011
750634
166060
132010
166049
166021X004
17541011
175009
166388
145354
57O79
175000
161602
160477X004
175008
12000022
163365
169911
DESCRIPTION
SpeedControl
BailControl Drive
Screw
DriveCabie
CoverDrive
Screw Thdre110-25x .50
V-Belt
NutLockFlanged 3/8-16 Zinc
PulleyDriven
Belt KeeperBracket
Screw HexWash Head 10-24 X .668
PivotRodCover
TransmissionAsm.
PinSpringThrust
WasherHardened
RodConnecting
SpnngExtension
SpringSelector
KnobSelectorSpring
E-Ring7/8
BearingSupport
BearingBall
KEY PART
NO. NO
23 161118X004
24 57808
25 170011
26 166450
27 52160
28 120OOO58
29 88080
30 67725
31 57143
32 172324
33 145212
34 175012
35 160785 X004
36 160786X004
37 161463
38 163409
39 700279
40 172323
41 175012
42 83923
43 19572216
44 144929
45 751152
DESCRIPTION
RetainerDriveAsm.Stmp.
Screw Hex HeadTapping 1/4-20x .75
DrivePawl
Pinion,Drive
Washer
E-Ring 7/16
Cover, DustWheel
Washer 1/2x 1-1/2 x .134
WaveWasher
Wheel 9 x 2
NutHexFlangeLock
Hubcap,MagPlatinum9"
ShaftAsm.Rear
ShaftAsm.Front
RetainerFrontShaft
Screw 12 x 5/8
ClipRetainer
Wheel 8 x 2
Hubcap,MagPlatinum8"
Nut,Hex Flange Lock 3/8-16
Washer
Screw 1/4 x 2.12
Locknut

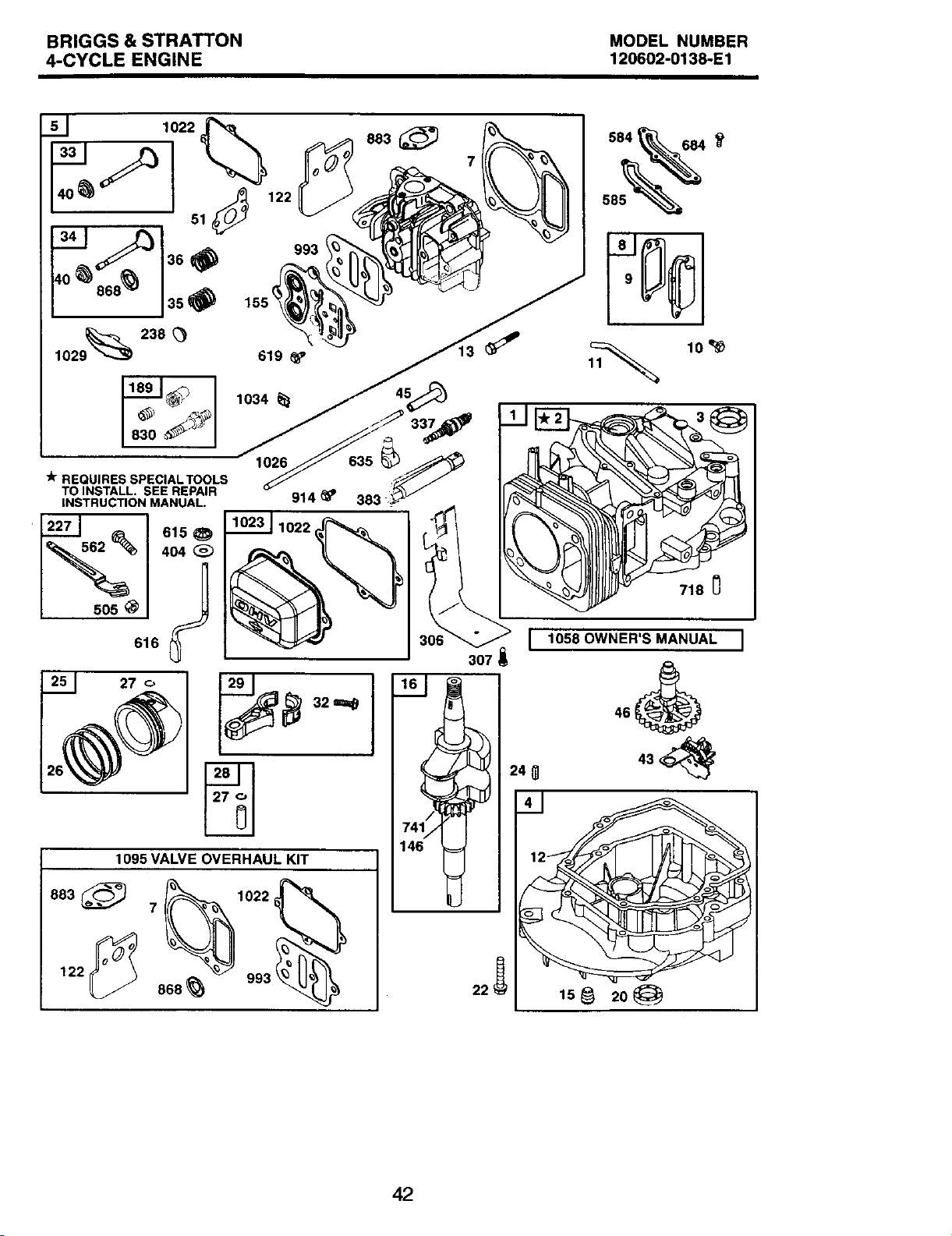

BRIGGS & STRATTON MODEL NUMBER
4-CYCLE ENGINE 120602-0138-E1
51 1022
619
lOq_
REQUIRES SPECIALTOOLS
TO INSTALL. SEE REPAIR
INSTRUCTION MANUAL.
1227 J 615
4o4]
/ 6o6
616
1026
914_
1022
2_o 1261 _ 32=_J
122
7180
I 1058 OWNER'S MANUAL I
307 46
4
12
22 15_ 2o_;_
42

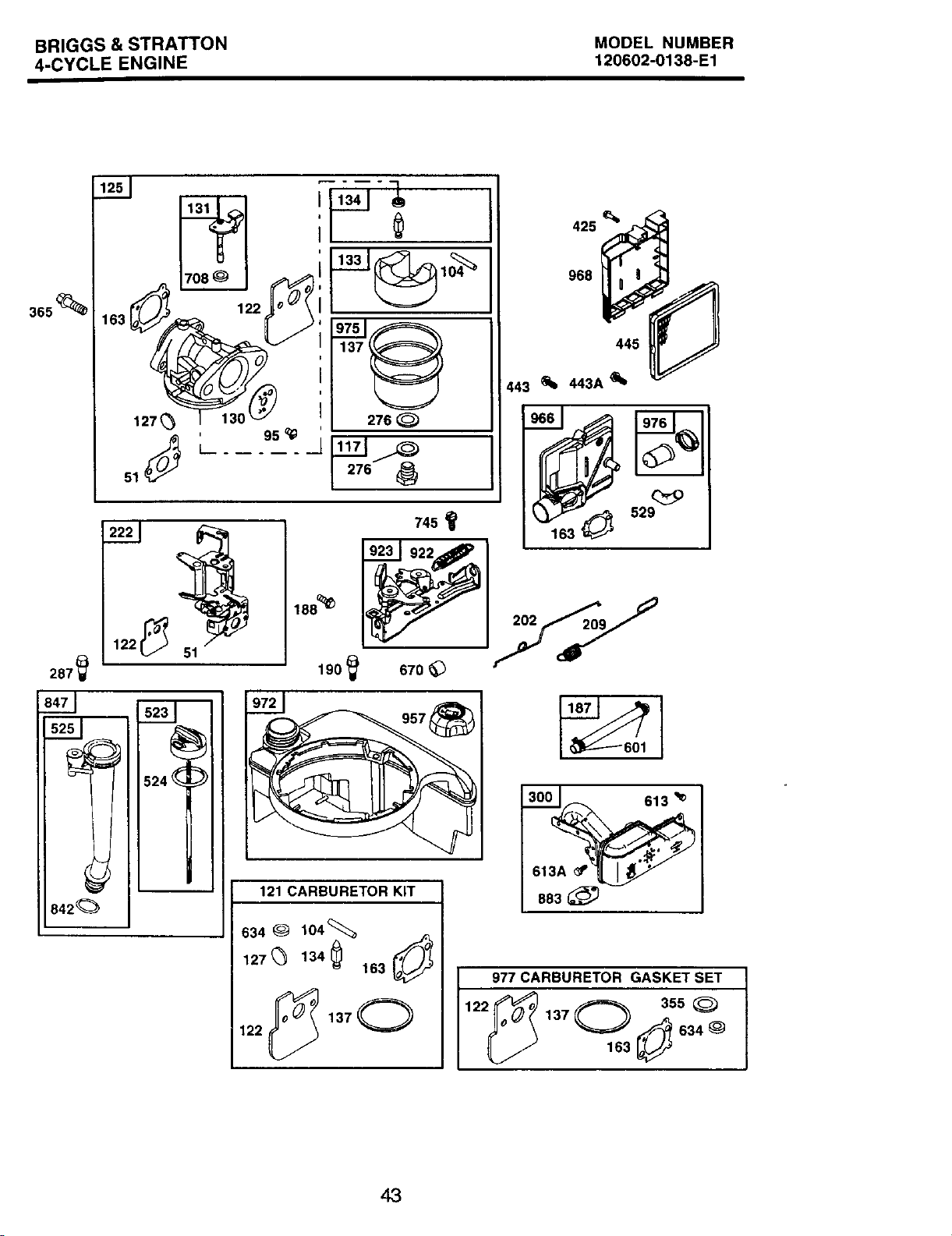

BRIGGS & STRATTON MODEL NUMBER
4-CYCLE ENGINE 120602-0138-E1
365_,
127(_
95
l
276_)
276
122(_ 51
188 _
190
745
670
425
968
445
529
1 3
287_
842_
121 CARBURETOR KIT
634 Q 104_
I _lf-------'- 601
883 _
977 CARBURETOR GASKET SET
122_ 137_ 3ss
©
43

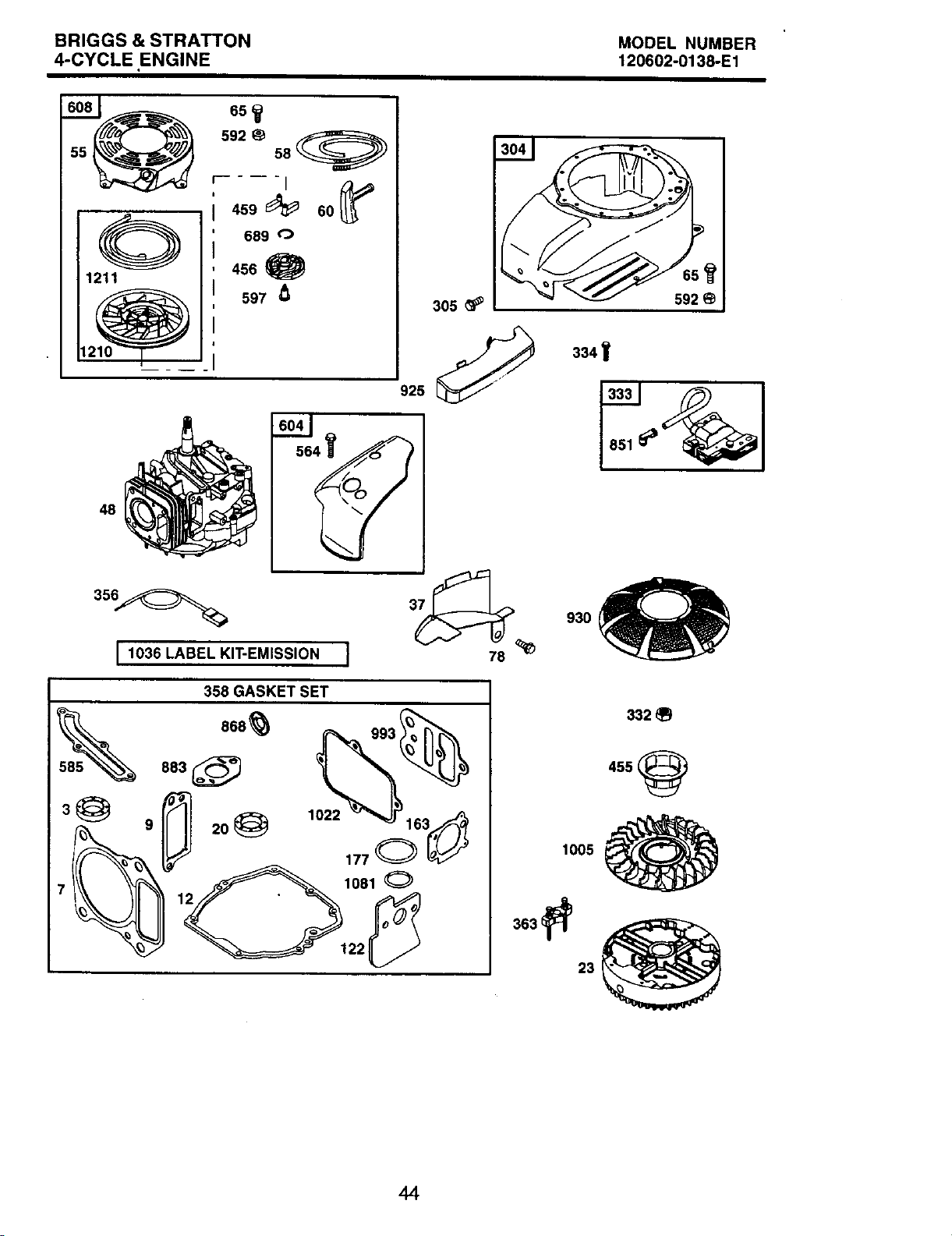

BRIGGS & STRATTON MODEL NUMBER
4-CYCLE ENGINE 120602-0138-E1
O
1211
5st,
592 @ 58
I
689 0
456
597
305 _P'
925
334
tt
592
48
3_5_
1036 LABEL KIT-EMISSION
_78
358 GASKET SET
3_ 0_ 20@ 1°22_'_153_
332_
455(_
1005
44

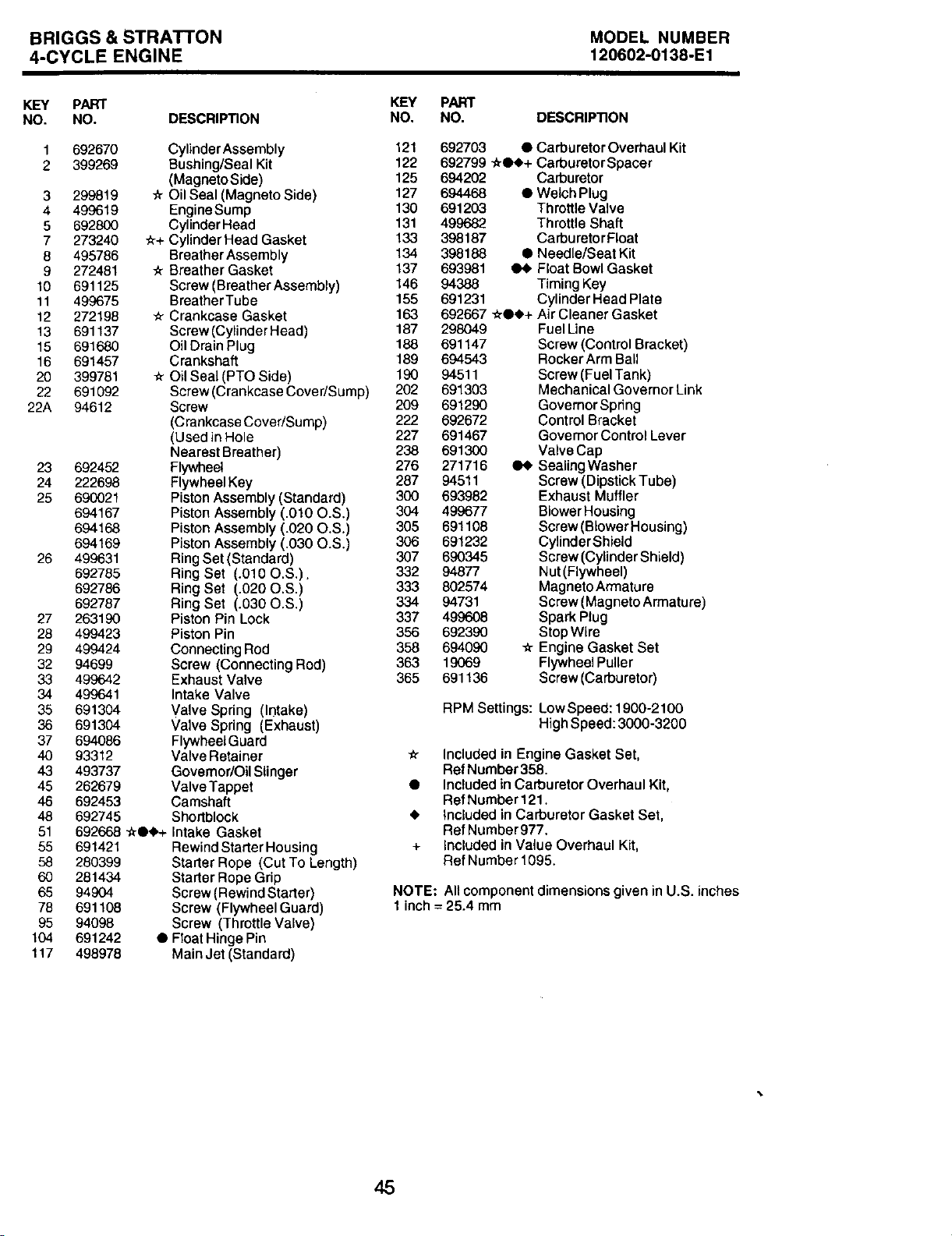

BRIGGS & STRATTON MODEL NUMBER
4-CYCLE ENGINE 120602-0138-E1
KEY PART
NO. NO. DESCRIPTION
KEY PART
NO. NO. DESCRIPTION
1 692670 Cylinder Assembly
2 399269 Bushing/Seal Kit
(MagnetoSide)
3 299819 Cr Oil Seal (Magneto Side)
4 499619 EngineSump
5 692800 Cylinder Head
7 273240 Yr+ Cylinder Head Gasket
8 495786 Breather Assembly
9 272481 # Breather Gasket 137
10 691125 Screw (Breather Assembly) 146
11 499675 BreatherTube 155
12 272198 _ Crankcase Gasket 163
13 691137 Screw (Cylinder Head) 187
15 691680 Oil Drain Plug 188
16 691457 Crankshaft 189
20 399781 # Oil Seal (PTO Side) 190
22 691092 Screw (Crankcase Cover/Sump) 202
22A 94612 Screw 209
(Crankcase Cover/Sump) 222
(Used in Hole 227
Nearest Breather) 238
23 692452 Flywheel 276
24 222698 Flywheel Key 287
25 690021 Piston Assembly (Standard) 300
694167 Piston Assembly (.010 O.S.) 304
694168 Piston Assembly (.020 O.S.) 305
694169 Piston Assembly (.030 O.S.) 306
26 499631 Ring Set (Standard) 307
692785 Ring Set (.010 O.S.). 332
692786 Ring Set (.020 O.S.) 333
692787 Ring Set (.030 O.S,) 334
27 263190 Piston Pin Lock 337
28 499423 Piston Pin 356
29 499424 Connecting Rod 358
32 94699 Screw (Connecting Rod) 363
33 499642 Exhaust Valve 365
34 499641 Intake Valve
35 691304 Valve Spring (Intake)
36 691304 Valve Spring (Exhaust)
37 694086 FlywheelGuard
40 93312 Valve Retainer
43 493737 Governor/Oil Slinger
45 262679 Valve Tappet
46 692453 Camshaft
48 692745 Shortblock
51 692668 _lH_._- Intake Gasket
55 691421 Rewind Starter Housing
58 280399 Starter Rope (Cut To Length)
60 281434 Starter Rope Grip
65 94904 Screw (Rewind Starter)
78 691108 Screw (Flywheel Guard)
95 94098 Screw (Throttle Valve)
104 691242 • Float Hinge Pin
117 498978 Main Jet (Standard)
121 692703 • Carburetor Overhaul Kit
122 692799 -_••+ Carburetor Spacer
125 694202 Carburetor
127 694468 • Welch Plug
130 691203 Throttle Valve
131 499682 Throttle Shaft
133 398187 Carburetor Float
134 398188 • Needle/Seat Kit
693981 t• Float Bowl Gasket
94388 Timing Key
691231 Cylinder Head Plate
692667 #••+ Air Cleaner Gasket
298049 Fuel Line
691147 Screw (Control Bracket)
694543 Rocker Arm Ball
94511 Screw (Fuel Tank)
691303 Mechanical Governor Link
691290 Governor Spdng
692672 Control Bracket
691467 Governor Control Lever
691300 Valve Cap
271716 I• Sealing Washer
94511 Screw (Dipstick Tube)
693982 Exhaust Muffler
499677 Blower Housing
691108 Screw (Blower Housing)
691232 Cylinder Shield
690345 Screw (Cylinder Shield)
94877 Nut (Flywheel)
802574 MagnetoArmature
94731 Screw (Magneto Armature)
499608 Spark Plug
692390 Stop Wire
694090 _ Engine Gasket Set
19069 Flywheel Puller
691136 Screw (Carburetor)
RPM Settings: LowSpeed: 1900-2100
High Speed: 3000-3200
-# Included in Engine Gasket Set,
Rel Number 358.
• Included in Carburetor Overhaul Kit,
Ref Number 121.
• Included in Carburetor Gasket Set,
Ref Number977.
+ Included in Value Overhaul Kit,
Ref Number 1095.
NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 mm
45

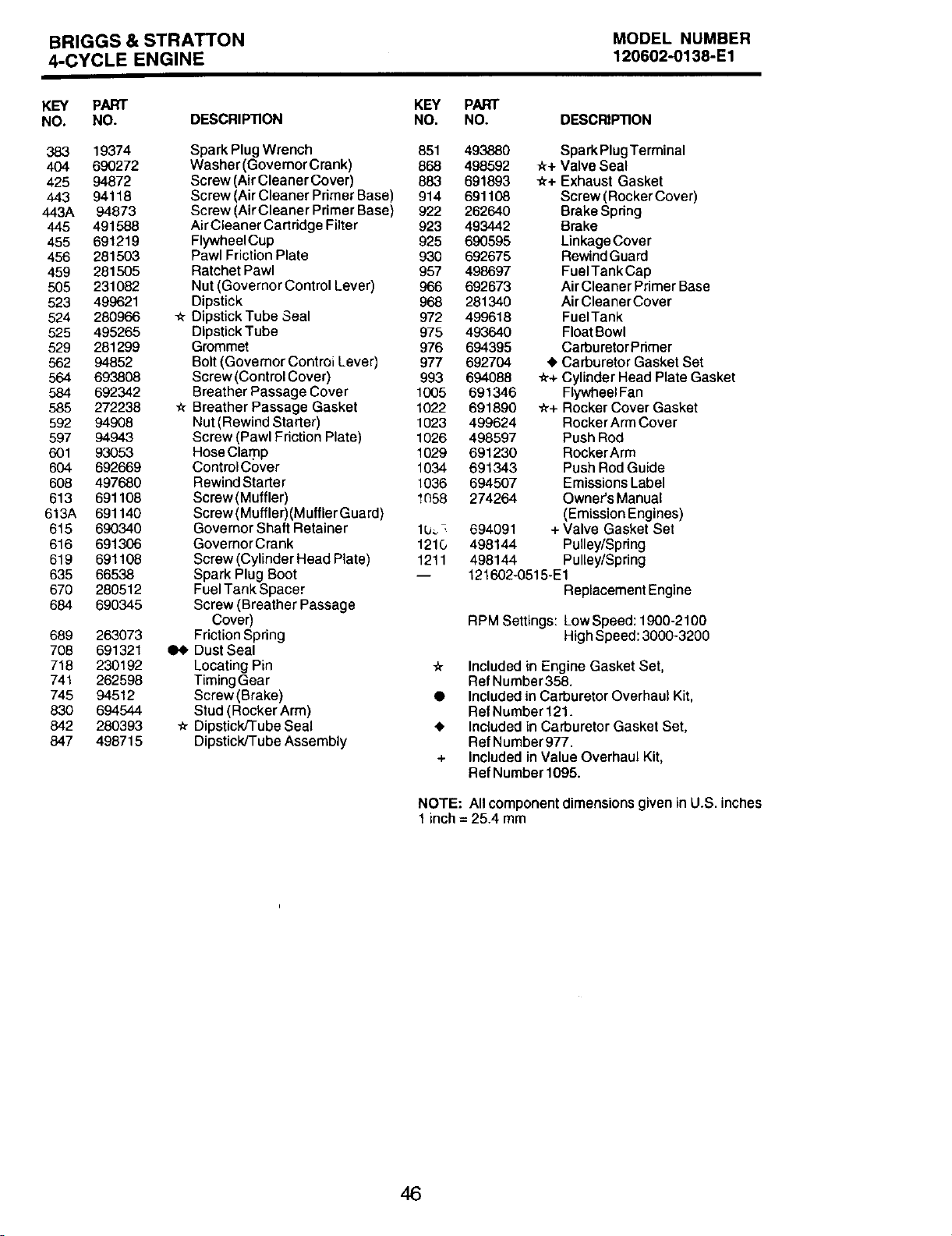

BRIGGS & STRATTON MODEL NUMBER
4-CYCLE ENGINE 120602-0138-E1
KEY PART
NO. NO. DESCRIPTION
383 19374
404 690272
425 94872
443 94118
443A 94873
445 491588
455 691219
456 281503
459 281505
505 231082
523 499621
524 280966
525 495265
529 281299
562 94852
564 693808
584 692342
585 272238
592 94908
597 94943
601 93053
604 692669
608 497680
613 691108
613A 691140
615 690340
616 691306
619 691108
635 66538
670 280512
684 690345
689 263073
708 691321
718 230192
741 262598
745 94512
830 694544
842 280393
847 498715
KEY PARr
NO. NO. DESCRIPTION
Spark Plug Wrench 851 493880
Washer (Governor Crank) 868 498592
Screw (Air Cleaner Cover) 883 691893
Screw (Air Cleaner Primer Base) 914 691108
Screw (Air Cleaner Primer Base) 922 262640
Air Cleaner Cart ridge Filter 923 493442
Flywheel Cup 925 690595
Pawl Friction Plate 930 692675
Ratchet Pawl 957 498697
Nut (Governor Control Lever) g66 692673
Dipstick 968 281340
Dipstick Tube Seal 972 499618
Dipstick Tube 975 493640
Grommet 976 694395
Bolt (Governor Controi Lever) 977 692704
Screw (Control Cover) 993 694088
Breather Passage Cover 1005 691346
-_ Breather Passage Gasket 1022 691890
Nut (Rewind Starter) 1023 499624
Screw (Pawl Friction Plate) 1026 498597
HoseClamp 1029 691230
ControlCover 1034 691343
Rewind Starter 1036 694507
Screw(Muffler) ln58 274264
Screw (Muffler)(Muffler Guard)
Governor Shaft Retainer 1L,_- 694091
GovemorCrank 121(, 498144
Screw (Cylinder Head Plate) 1211 498144
Spark Plug Boot
Fuel Tank Spacer
Screw (Breather Passage
Cover)
Friction Spring
Dust Seal
Locating Pin
Timing Gear
Screw (Brake)
Stud (Rocker Arm)
Dipstick/1-ube Seal
Dipstick/Tube Assembly
SparkPlugTerminal
_r+Valve Seal
_+ Exhaust Gasket
Screw (RockerCover)
BrakeSpring
Brake
LinkageCover
RewindGuard
FuelTank Cap
AirCleaner PrimerBase
AirCleanerCover
FuelTank
FloatBowl
CarburetorPrimer
• Carburetor Gasket Set
_+ Cylinder Head Plate Gasket
FlywheelFan
_r+ Rocker Cover Gasket
RockerArm Cover
PushRod
RockerArm
Push RodGuide
Emissions Label
Owner'sManual
(EmissionEngines)
+ Valve Gasket Set
Pulley/Spring
Pulley/Spring
121602-0515-E1
Replacement Engine
RPM Settings: LowSpeed: 1900-2100
High Speed: 3000-3200
Included in Engine Gasket Set,
Ref Number358.
• Included in Carburetor Overhaul Kit,
Ref Number 121.
• Included in Carburetor Gasket Set,
Ref Number977.
+ Included in Value Overhaul Kit,
Ref Number 1095.
NOTE: All component dimensions given in U.S. inches
t inch = 25.4 mm
46
SERVICENOTES
47
Get it fixed, at your home or ours!
For repair of major brand appliances in your own home...
no matter who made it, no matter who sold it!
1-800-4-MY-HOME sMAnytime, day or night
(1-800-468-4663)
www.sears.com
To bring in products such as vacuums,
lawn equipment and electronics for repair, call for
the location of your nearest Sears Parts & Repair Center.
1-800-488-1222 Anytime, day or night
1-800-366-PART 6 a.m.- 11 p.m. CST,
(1-800-366-7278) 7 days a week
www.sears.com
For the rep acement parts, accessories and owner's, manuals
that you need to do-it-yourself, call Sears PartsDirectSi!
}
www.sears.com/partsdirect
To purchase or inquire about a Sears Service Agreement:
1 800 827 6655 ....
== . ==
7 a.m. - 5 p.m. CST, Men. - Sat.
Para pedir servicio de reparaci6n a domicilio, Au Canada pour service en fran_ais:
y para erdenar piezas con entrega a domicilio: 1.877.LE.FOYER -_
1-888-SU-HOGAR s, (1-877-533-6937)
(1-888-784-6427)
] i!iiii!i!ii!
© Sears, Roebuck and Co.
® Registered Trademark / _" Trademark of Sears, Roebuck and Co,
® Marca Registrada / T. Marca de Fdbdca de Sears, Roebuck and Co.
175013 06.16.00 VB/RH Printed in U.S.A.
