Craftsman 917272190 lawn tractor User Manual

Owner's Manual

CRAFTSMAN°

25.0 HP

ELECTRIC START

46" MOWER

6 SPEED TRANSAXLE

LAWN TRACTOR

Model No.

917.272190

• Safety

• Assembly

• Operation

• Maintenance

• Repair Parts

CAUTION:

Read and follow all

Safety Rules and Instructions

before operating this equip-

ment.

For answers to your questions

about this product, Call:

1-800-659-5917

Sears Craftsman Help Line

5 am - 5 pm, Mort - Sat

Sears, Roebuck and Co., Hoffman Estates, IL 60179

Visit our Craftsman website: www.sears.condcraftsman

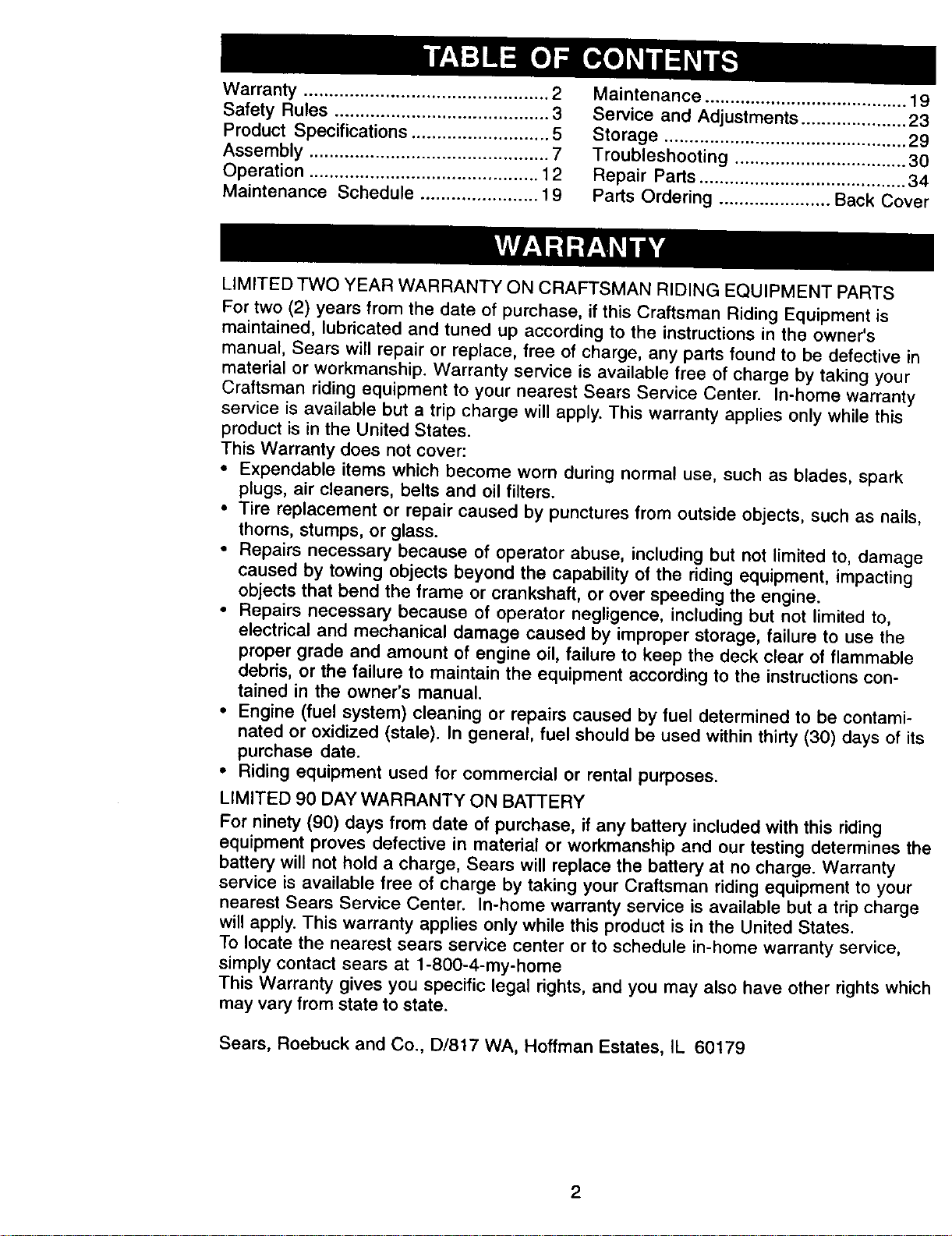

Warranty ................................................ 2

Safety Rules .......................................... 3

Product Specifications ........................... 5

Assembly ............................................... 7

Operation ............................................. 12

Maintenance Schedule ....................... 19

Maintenance ........................................ 1

Service and Adjustments ..................... 2_

Storage ................................................ 29

Troubleshooting .................................. 30

Repair Parts ......................................... 34

Parts Ordering ...................... Back Cover

LIMITED TWO YEAR WARRANTY ON CRAFTSMAN RIDING EQUIPMENT PARTS

For two (2) years from the date of purchase, if this Craftsman Riding Equipment is

maintained, lubricated and tuned up according to the instructions in the owner's

manual, Sears will repair or replace, free of charge, any parts found to be defective in

material or workmanship. Warranty service is available free of charge by taking your

Craftsman riding equipment to your nearest Sears Service Center. In-home warranty

service is available but a trip charge will apply. This warranty applies only while this

product is in the United States.

This Warranty does not cover:

• Expendable items which become worn during normal use, such as blades, spark

plugs, air cleaners, belts and oil filters.

• Tire replacement or repair caused by punctures from outside objects, such as nails,

thorns, stumps, or glass.

• Repairs necessary because of operator abuse, including but not limited to, damage

caused by towing objects beyond the capability of the riding equipment, impacting

objects that bend the frame or crankshaft, or over speeding the engine.

• Repairs necessary because of operator negligence, including but not limited to,

electrical and mechanical damage caused by improper storage, failure to use the

proper grade and amount of engine oil, failure to keep the deck clear of flammable

debris, or the failure to maintain the equipment according to the instructions con-

tained in the owner's manual.

• Engine (fuel system) cleaning or repairs caused by fuel determined to be contami-

nated or oxidized (stale). In general, fuel should be used within thirty (30) days of its

purchase date.

• Riding equipment used for commercial or rental purposes.

LIMITED 90 DAY WARRANTY ON BATTERY

For ninety (90) days from date of purchase, if any battery included with this riding

equipment proves defective in material or workmanship and our testing determines th_

battery will not hold a charge, Sears will replace the battery at no charge. Warranty

service is available free of charge by taking your Craftsman riding equipment to your

nearest Sears Service Center. In-home warranty service is available but a trip charge

will apply. This warranty applies only while this product is in the United States.

To locate the nearest sears service center or to schedule in-home warranty service,

simply contact sears at 1-800-4-my-home

This Warranty gives you specific legal rights, and you may also have other rights whicP

may vary from state to state.

Sears, Roebuck and Co., D/817 WA, Hoffman Estates, IL 60179

IMPORTANT: This cutting machine is

capable of amputating hands and feet

and throwing objects. Failure to observe

the following safety instructions could

result in serious injury or death.

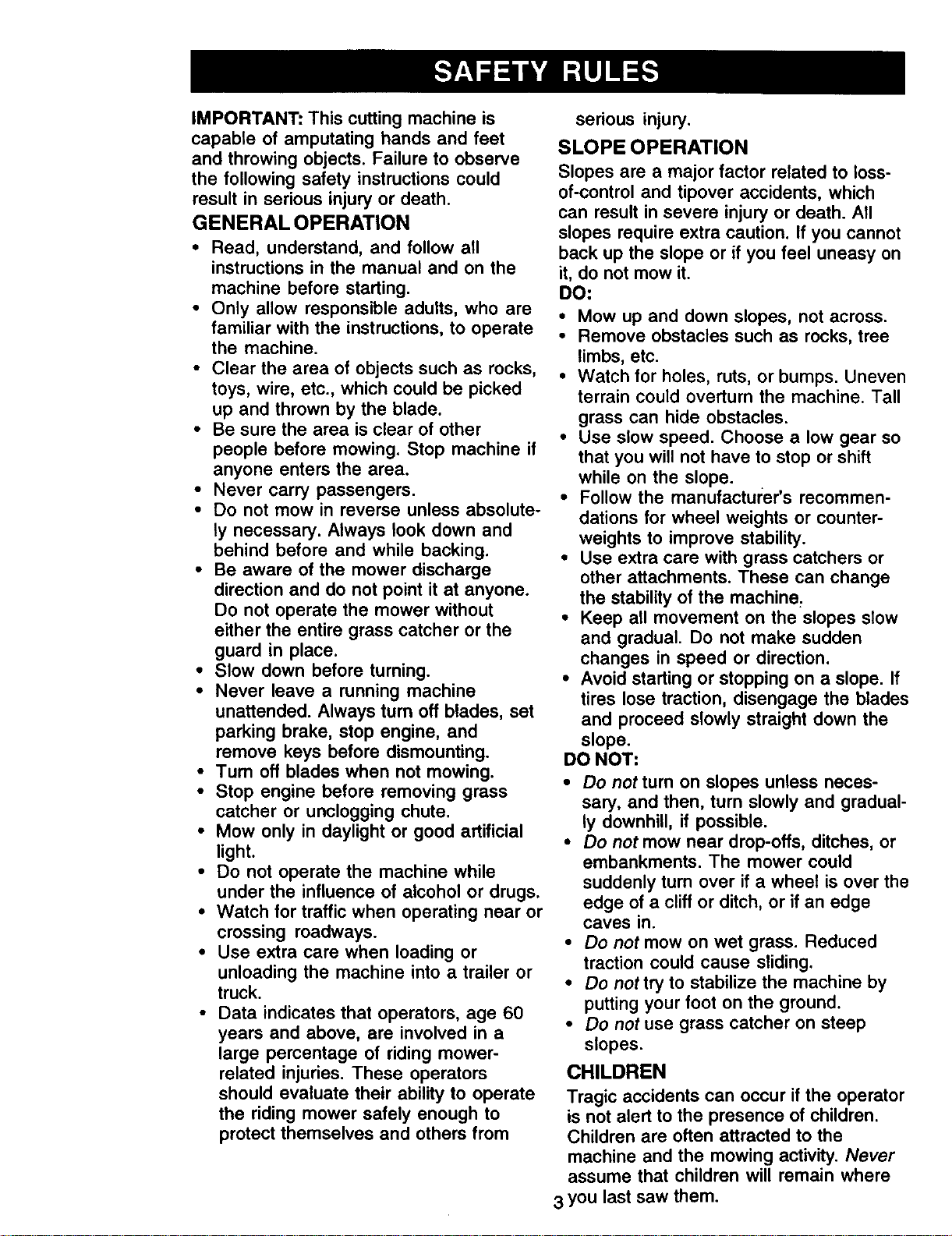

GENERAL OPERATION

• Read, understand, and follow all

instructions in the manual and on the

machine before starting.

• Only allow responsible adults, who are

familiar with the instructions, to operate

the machine.

• Clear the area of objects such as rocks,

toys, wire, etc., which could be picked

up and thrown by the blade.

• Be sure the area is clear of other

people before mowing. Stop machine if

anyone enters the area.

• Never carry passengers.

• Do not mow in reverse unless absolute-

ly necessary. Always look down and

behind before and while backing.

• Be aware of the mower discharge

direction and do not point it at anyone.

Do not operate the mower without

either the entire grass catcher or the

guard in place.

• Slow down before turning.

• Never leave a running machine

unattended. Always turn off blades, set

parking brake, stop engine, and

remove keys before dismounting.

• Turn off blades when not mowing.

• Stop engine before removing grass

catcher or unclogging chute.

• Mow only in daylight or good artificial

light.

• Do not operate the machine while

under the influence of alcohol or drugs.

• Watch for traffic when operating near or

crossing roadways.

• Use extra care when loading or

unloading the machine into a trailer or

truck.

• Data indicates that operators, age 60

years and above, are involved in a

large percentage of riding mower-

related injuries. These operators

should evaluate their ability to operate

the riding mower safely enough to

protect themselves and others from

serious injury.

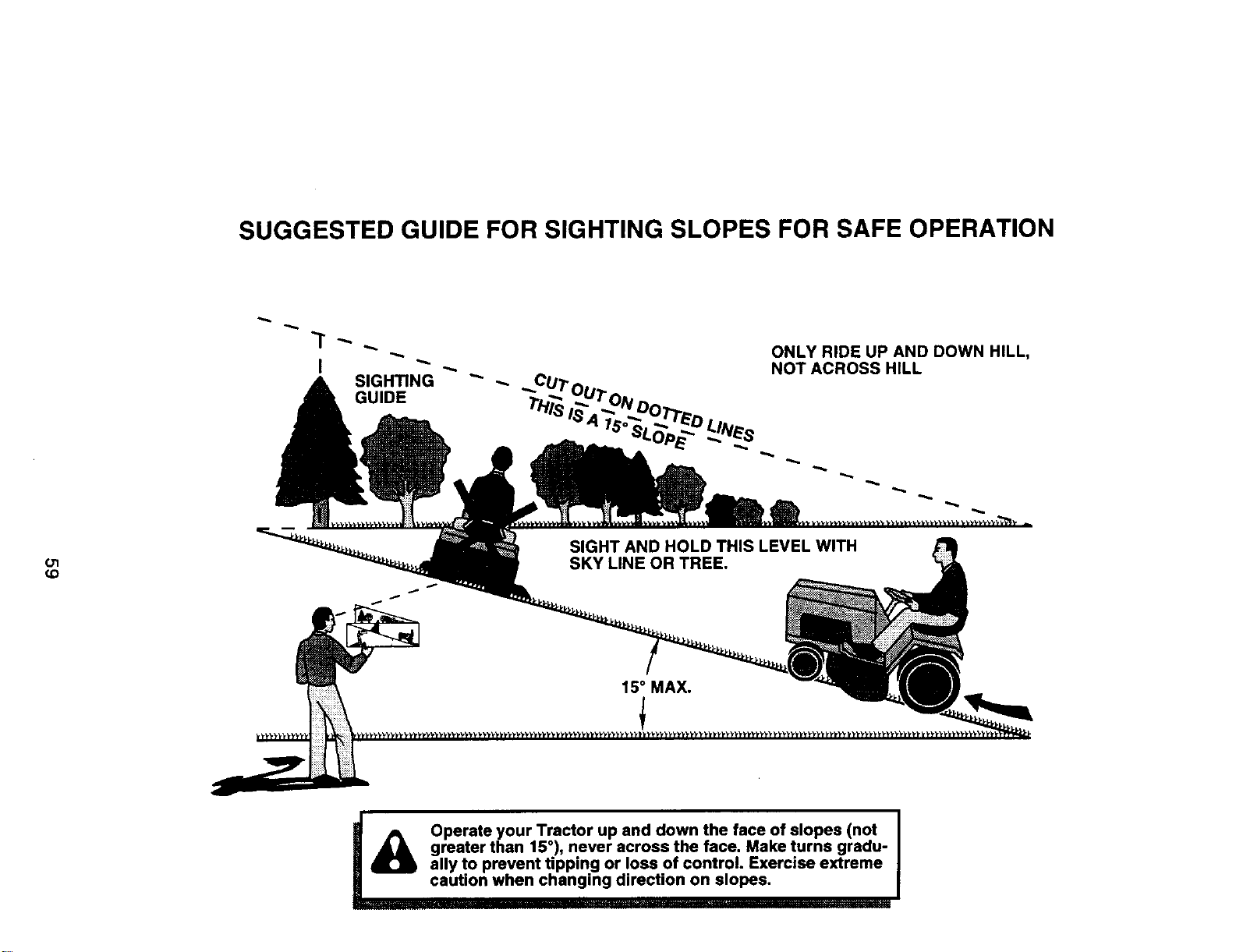

SLOPE OPERATION

Slopes are a major factor related to loss-

of-control and tipover accidents, which

can result in severe injury or death. All

slopes require extra caution. If you cannot

back up the slope or if you feel uneasy on

it, do not mow it.

DO:

• Mow up and down slopes, not across.

• Remove obstacles such as rocks, tree

limbs, etc.

• Watch for holes, ruts, or bumps. Uneven

terrain could overturn the machine. Tall

grass can hide obstacles.

• Use slow speed. Choose a low gear so

that you will not have to stop or shift

while on the slope.

• Follow the manufactuier's recommen-

dations for wheel weights or counter-

weights to improve stability.

• Use extra care with grass catchers or

other attachments. These can change

the stability of the machine,

• Keep all movement on the slopes slow

and gradual. Do not make sudden

changes in speed or direction.

• Avoid starting or stopping on a slope. If

tires lose traction, disengage the blades

and proceed slowly straight down the

slope.

DO NOT:

• Do not turn on slopes unless neces-

sary, and then, turn slowly and gradual-

ly downhill, if possible.

• Do not mow near drop-offs, ditches, or

embankments. The mower could

suddenly turn over if a wheel is over the

edge of a cliff or ditch, or if an edge

caves in.

• Do not mow on wet grass. Reduced

traction could cause sliding.

• Do not try to stabilize the machine by

putting your foot on the ground.

• Do not use grass catcher on steep

slopes.

CHILDREN

Tragic accidents can occur if the operator

is not alert to the presence of children.

Children are often attracted to the

machine and the mowing activity. Never

assume that children will remain where

3 you last saw them.

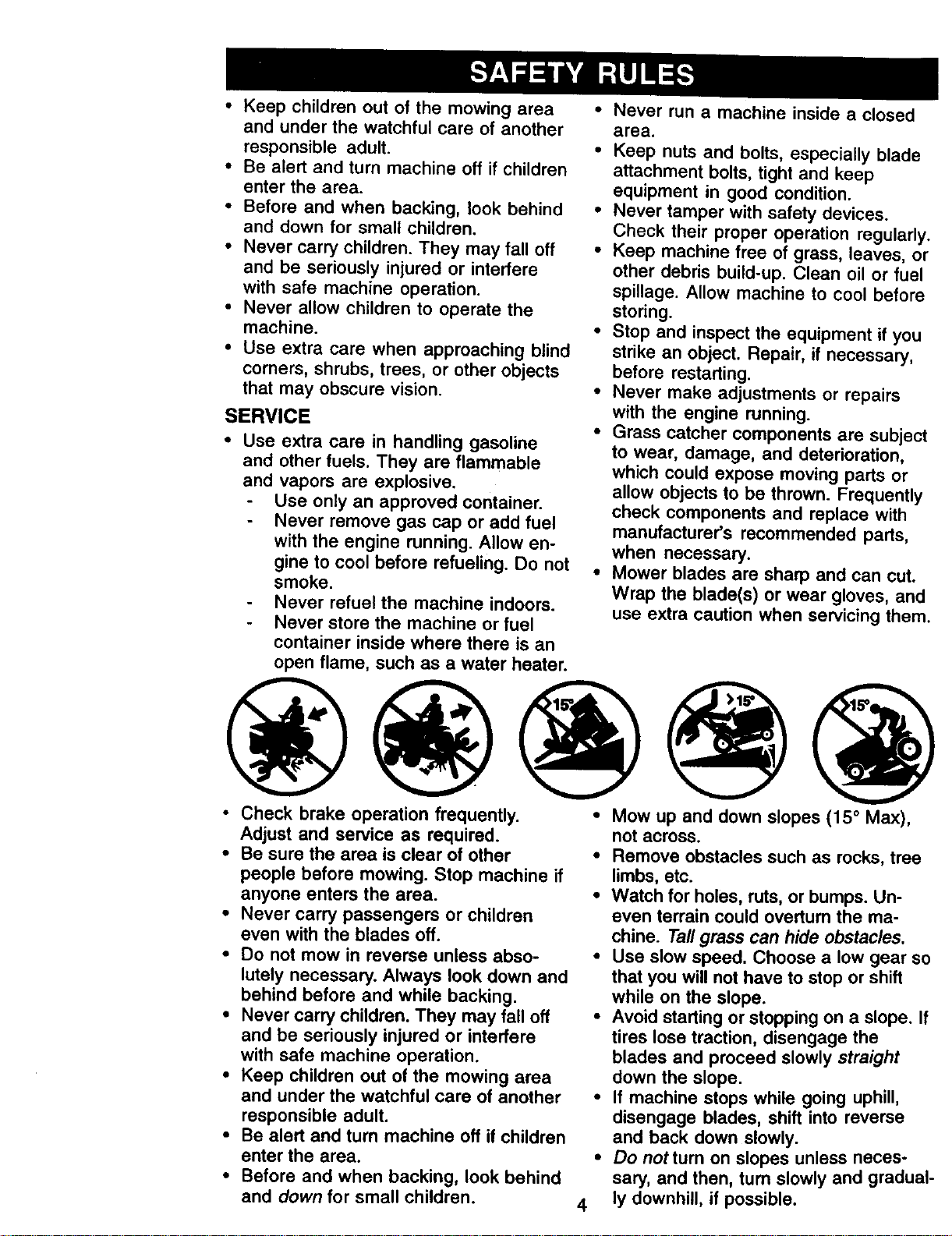

• Keep children out of the mowing area

and under the watchful care of another

responsible adult. •

• Be alert and turn machine off if children

enter the area.

• Before and when backing, look behind •

and down for small children.

• Never carry children. They may fall off •

and be seriously injured or interfere

with safe machine operation.

• Never allow children to operate the

machine. •

• Use extra care when approaching blind

corners, shrubs, trees, or other objects

that may obscure vision.

SERVICE

• Use extra care in handling gasoline

and other fuels. They are flammable

and vapors are explosive.

Use only an approved container.

Never remove gas cap or add fuel

with the engine running. Allow en-

gine to cool before refueling. Do not

smoke.

Never refuel the machine indoors.

Never store the machine or fuel

container inside where there is an

open flame, such as a water heater.

• Never run a machine inside a closed

area.

Keep nuts and bolts, especially blade

attachment bolts, tight and keep

equipment in good condition.

Never tamper with safety devices.

Check their proper operation regularly.

Keep machine free of grass, leaves, or

other debris build-up. Clean oil or fuel

spillage. Allow machine to cool before

storing.

Stop and inspect the equipment if you

strike an object. Repair, if necessary,

before restarting.

Never make adjustments or repairs

with the engine running.

Grass catcher components are subject

to wear, damage, and deterioration,

which could expose moving parts or

allow objects to be thrown. Frequently

check components and replace with

manufacturer's recommended parts,

when necessary.

Mower blades are sharp and can cut.

Wrap the blade(s) or wear gloves, and

use extra caution when servicing them.

• Check brake operation frequently. • Mow up and down slopes (15 ° Max),

Adjust and service as required.

• Be sure the area is clear of other

people before mowing. Stop machine if

anyone enters the area.

• Never carry passengers or children

even with the blades off.

• Do not mow in reverse unless abso-

lutely necessary. Always look down and

behind before and while backing.

• Never carry children. They may fall off

and be seriously injured or interfere

with safe machine operation.

• Keep children out of the mowing area

and under the watchful care of another

responsible adult.

• Be alert and turn machine off if children

enter the area.

• Before and when backing, look behind

and down for small children.

not across.

• Remove obstacles such as rocks, tree

limbs, etc.

• Watch for holes, ruts, or bumps. Un-

even terrain could overturn the ma-

chine. Tallgrass can hide obstacles.

• Use slow speed. Choose a low gear so

that you will not have to stop or shift

while on the slope.

• Avoid starting or stopping on a slope. If

tires lose traction, disengage the

blades and proceed slowly straight

down the slope.

• If machine stops while going uphill,

disengage blades, shift into reverse

and back down slowly.

• Do not turn on slopes unless neces-

sary, and then, turn slowly and gradual-

4 ly downhill, if possible.

bLook for this symbol to point out

important safety precautions. It means

CAUTION!!! BECOMEAWARE!!! YOUR

SAFETY iS INVOLVED.

_CAUTION." In order to prevent acciden-

tal starting when setting up, transporting,

adjusting or making repairs always

disconnect spark plug wire and place wire

where it cannot contact spark plug.

A, CAUTION- Do not coast down a hill in

neutral, you may lose control of the tractor.

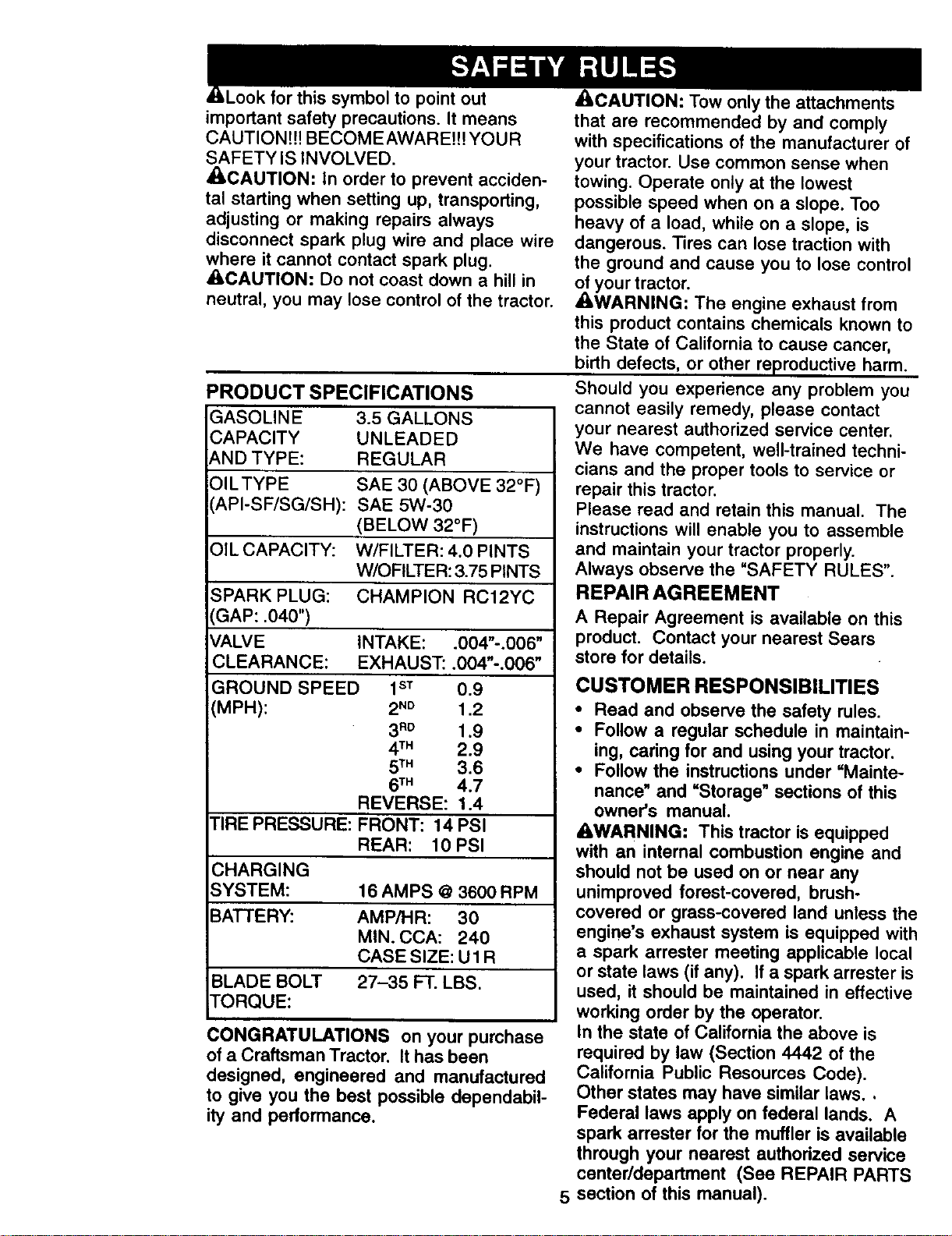

PRODUCT SPECIFICATIONS

GASOLINE 3.5 GALLONS

CAPACITY UNLEADED

AND TYPE: REGULAR

OlLTYPE SAE 30 (ABOVE 32°F)

API-SF/SG/SH): SAE 5W-30

(BELOW 32°F)

OiL CAPACITY: W/FILTER: 4.0 PINTS

W/OFtLTER: 3.75 PINTS

SPARK PLUG: CHAMPION RC12YC

ACAUTION- Tow only the attachments

that are recommended by and comply

with specifications of the manufacturer of

your tractor. Use common sense when

towing. Operate only at the lowest

possible speed when on a slope. Too

heavy of a load, while on a slope, is

dangerous. Tires can lose traction with

the ground and cause you to lose control

of your tractor.

_WARNING: The engine exhaust from

this product contains chemicals known to

the State of California to cause cancer,

birth defects, or other reproductive harm.

Should you experience any problem you

cannot easily remedy, please contact

your nearest authorized service center.

We have competent, well-trained techni-

cians and the proper tools to service or

repair this tractor.

Please read and retain this manual. The

instructions will enable you to assemble

and maintain your tractor properly.

Always observe the "SAFETY RULES".

REPAIR AGREEMENT

GAP: .040")

VALVE INTAKE:

CLEARANCE: EXHAUST:

GROUND SPEED 1sT

(MPH): 2"D

3RO

4TM 2.9

5TM 3.6

6TM 4.7

REVERSE: 1.4

TIRE PRESSURE: FRONT: 14 PSI

REAR: 10PSI

CHARGING

.004"-.006"

0.9

1.2

1.9

A Repair Agreement is available on this

product. Contact your nearest Sears

store for details.

CUSTOMER RESPONSIBILITIES

• Read and observe the safety rules.

• Follow a regular schedule in maintain-

ing, caring for and using your tractor.

• Follow the instructions under =Mainte-

nance" and =Storage" sections of this

owner's manual.

AWARNING: This tractor is equipped

with an internal combustion engine and

should not be used on or near any

SYSTEM: 16 AMPS @ 3600 RPM

BATTERY: AMP/HR: 30

MIN. CCA: 240

CASE SIZE: U1R

BLADE BOLT 27-35 FT. LBS.

TORQUE:

CONGRATULATIONS on your purchase

of a Craftsman Tractor. It has been

designed, engineered and manufactured

to give you the best possible dependabil-

ity and performance.

unimproved forest-covered, brush-

covered or grass-covered land unless the

engine's exhaust system is equipped with

a spark arrester meeting applicable local

or state laws (if any). If a spark arrester is

used, it should be maintained in effective

working order by the operator.

In the state of Califomia the above is

required by law (Section 4442 of the

California Public Resources Code).

Other states may have similar laws.,

Federal laws apply on federal lands. A

spark arrester for the muffler is available

through your nearest authorized service

center/department (See REPAIR PARTS

section of this manual).

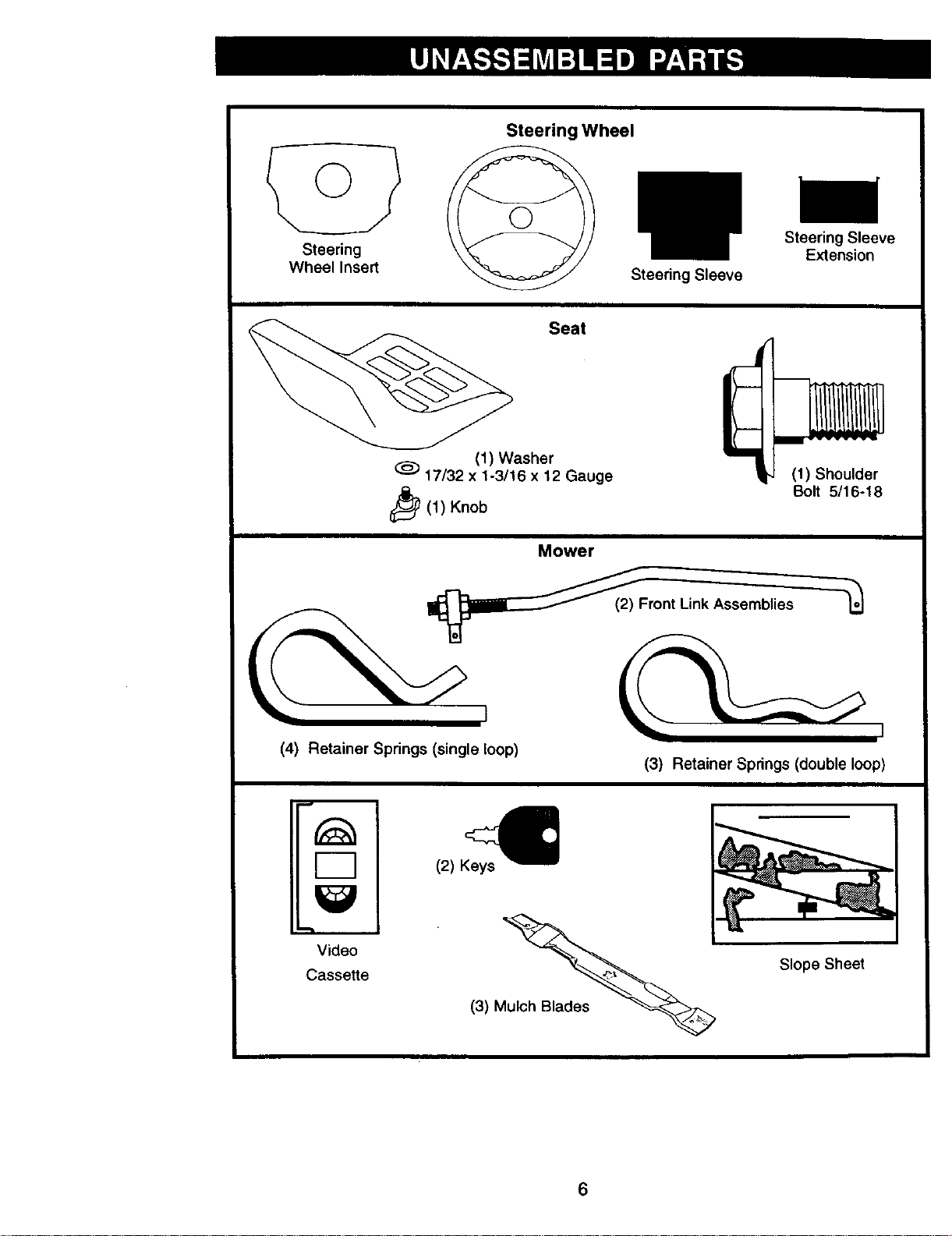

Steering

Wheel Insert

Steering Wheel

Steering Sleeve

Extension

Seat

(1) Washer

17/32 x 1-3/16 x 12 Gauge

_(1) Knob

(1) Shoulder

Bolt 5/16-18

Mower

(4) Retainer Springs (single loop)

(3) Retainer Springs (double loop)

€

(2) Keys

Video M_

Cassette Slope Sheet

(3)

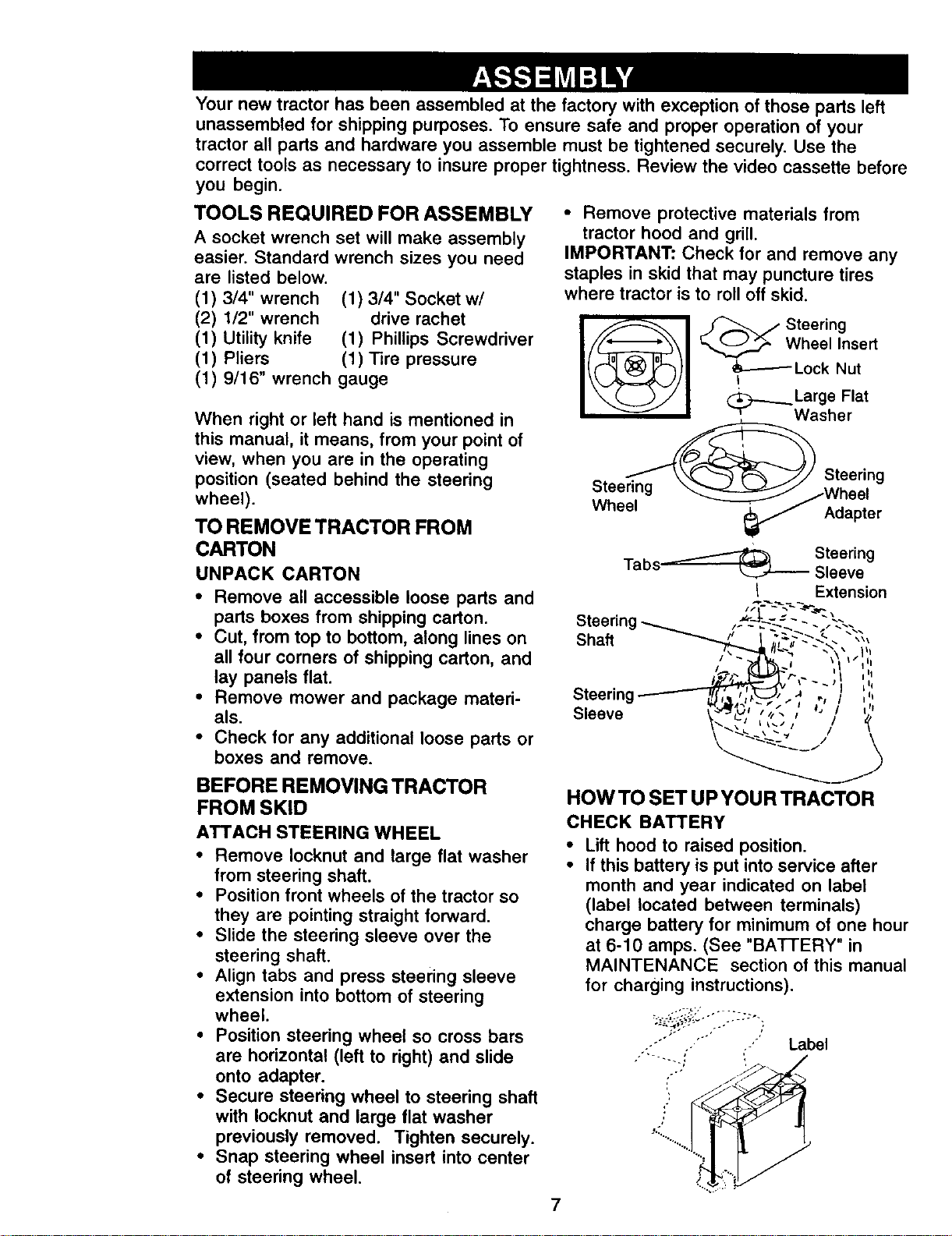

Your new tractor has been assembled at the factory with exception of those parts left

unassembled for shipping purposes. To ensure safe and proper operation of your

tractor all parts and hardware you assemble must be tightened securely. Use the

correct tools as necessary to insure proper tightness. Review the video cassette before

you begin.

TOOLS REQUIRED FOR ASSEMBLY

A socket wrench set will make assembly

easier. Standard wrench sizes you need

are listed below.

(1) 3/4" wrench

(2) 1/2" wrench

(1) Utility knife

(1) Pliers

(1) 3/4" Socket w/

drive rachet

(1) Phillips Screwdriver

(1) Tire pressure

(1) 9/16" wrench gauge

When right or left hand is mentioned in

this manual, it means, from your point of

view, when you are in the operating

position (seated behind the steering

wheel).

TO REMOVE TRACTOR FROM

CARTON

UNPACK CARTON

• Remove all accessible loose parts and

parts boxes from shipping carton.

• Cut, from top to bottom, along lines on

all four corners of shipping carton, and

lay panels flat.

• Remove mower and package materi-

als.

• Check for any additional loose parts or

boxes and remove.

BEFORE REMOVING TRACTOR

FROM SKID

ATTACH STEERING WHEEL

• Remove Iocknut and large flat washer

from steering shaft.

• Position front wheels of the tractor so

they are pointing straight forward.

• Slide the steering sleeve over the

steering shaft.

• Align tabs and press steering sleeve

extension into bottom of steering

wheel.

• Position steering wheel so cross bars

are horizontal (left to right) and slide

onto adapter.

• Secure steering wheel to steering shaft

with Iocknut and large flat washer

previously removed. Tighten securely.

• Snap steering wheel insert into center

of steering wheel.

• Remove protective materials from

tractor hood and grill.

IMPORTANT: Check for and remove any

staples in skid that may puncture tires

where tractor is to roll off skid.

I_1 _ Steering

Wheel Insert

_--- Lock Nut

_)___ Large Flat

_, Washer

_ Steering

wneel _1.f Adapter

Steering

Tabs _ Sleeve

I Extension

Shaft _,,

HOW TO SET UP YOUR TRACTOR

CHECK BATTERY

Lift hood to raised position.

If this battery is put into service after

month and year indicated on label

(label located between terminals)

charge battery for minimum of one hour

at 6-10 amps. (See "BATTERY" in

MAINTENANCE section of this manual

for charging instructions).

Label

",%%

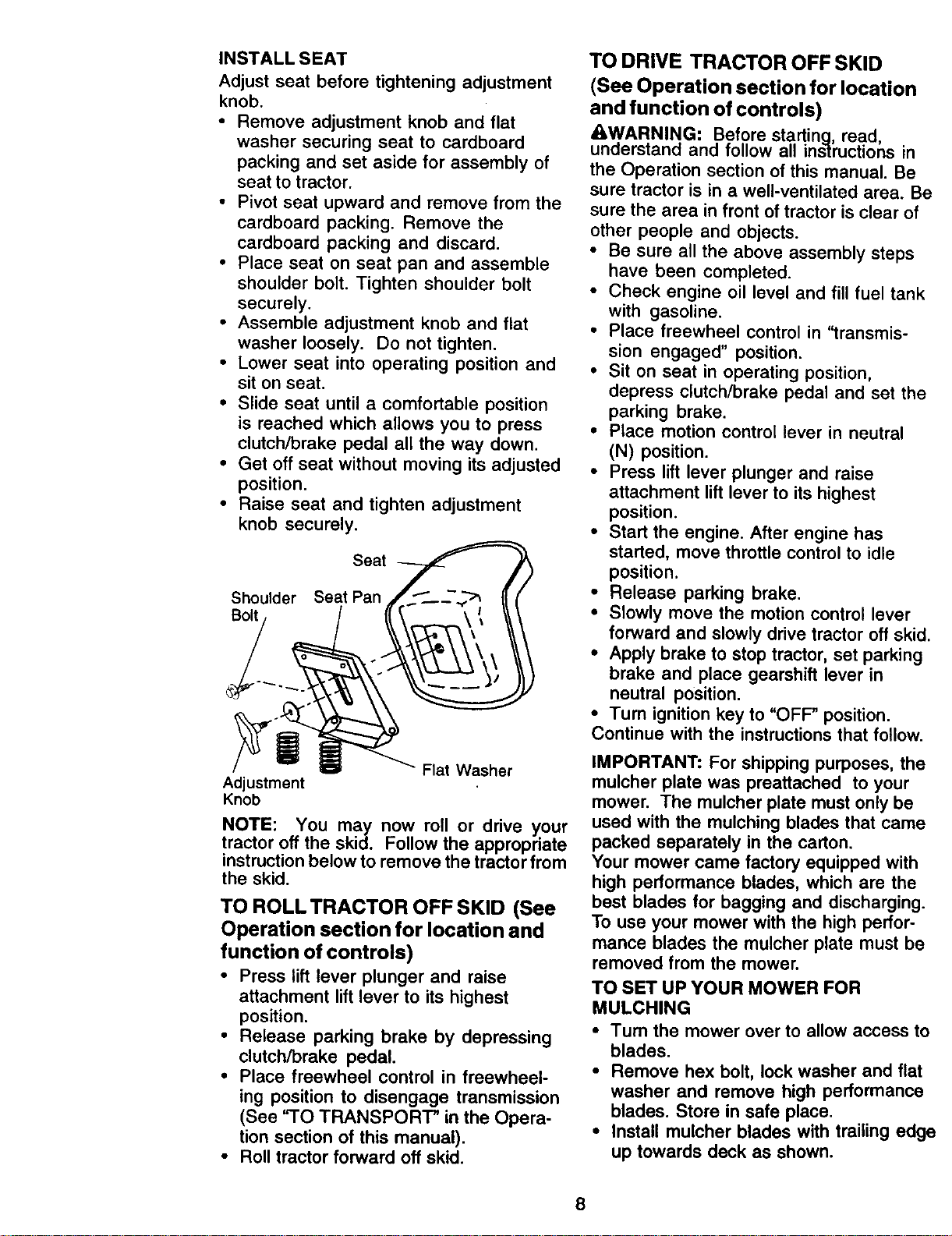

INSTALL SEAT

Adjust seat before tightening adjustment

knob.

• Remove adjustment knob and flat

washer securing seat to cardboard

packing and set aside for assembly of

seat to tractor.

• Pivot seat upward and remove from the

cardboard packing. Remove the

cardboard packing and discard.

• Place seat on seat pan and assemble

shoulder bolt. Tighten shoulder bolt

securely.

• Assemble adjustment knob and flat

washer loosely. Do not tighten.

• Lower seat into operating position and

sit on seat.

• Slide seat until a comfortable position

is reached which allows you to press

clutch/brake pedal all the way down.

• Get off seat without moving its adjusted

position.

• Raise seat and tighten adjustment

knob securely.

Seat

Shoulder Seat Pan

Bolt

Flat Washer

Adjustment

Knob

NOTE: You may now roll or drive your

tractor off the skid. Follow the appropriate

instruction below to remove the tractor from

the skid.

TO ROLL TRACTOR OFF SKID (See

Operation section for location and

function of controls)

• Press lift lever plunger and raise

attachment lift lever to its highest

position,

• Release parking brake by depressing

clutch/brake pedal.

• Place freewheel control in freewheel-

ing position to disengage transmission

(See "TO TRANSPORT" in the Opera-

tion section of this manual).

• Roll tractor forward off skid.

TO DRIVE TRACTOR OFF SKID

(See Operation section for location

and function of controls)

AWARNING: Before startinq read,

understand and fol ow all instruct ons in

the Operation section of this manual. Be

sure tractor is in a well-ventilated area. B_

sure the area in front of tractor is clear of

other people and objects.

• Be sure all the above assembly steps

have been completed.

• Check engine oil level and fill fuel tank

with gasoline.

• Place freewheel control in 'lransmis-

sion engaged" position.

• Sit on seat in operating position,

depress clutch/brake pedal and set the

parking brake.

• Place motion control lever in neutral

(N) position.

• Press lift lever plunger and raise

attachment lift lever to its highest

position.

• Start the engine. After engine has

started, move throttle control to idle

position.

• Release parking brake.

• Slowly move the motion control lever

forward and slowly drive tractor off skid

• Apply brake to stop tractor, set parking

brake and place gearshift lever in

neutral position.

• Turn ignition key to "OFF" position.

Continue with the instructions that follow.

IMPORTANT: For shipping purposes, the

mulcher plate was preattached to your

mower. The mulcher plate must only be

used with the mulching blades that came

packed separately in the carton.

Your mower came factory equipped with

high performance blades, which are the

best blades for bagging and discharging.

To use your mower with the high perfor-

mance blades the mulcher plate must be

removed from the mower.

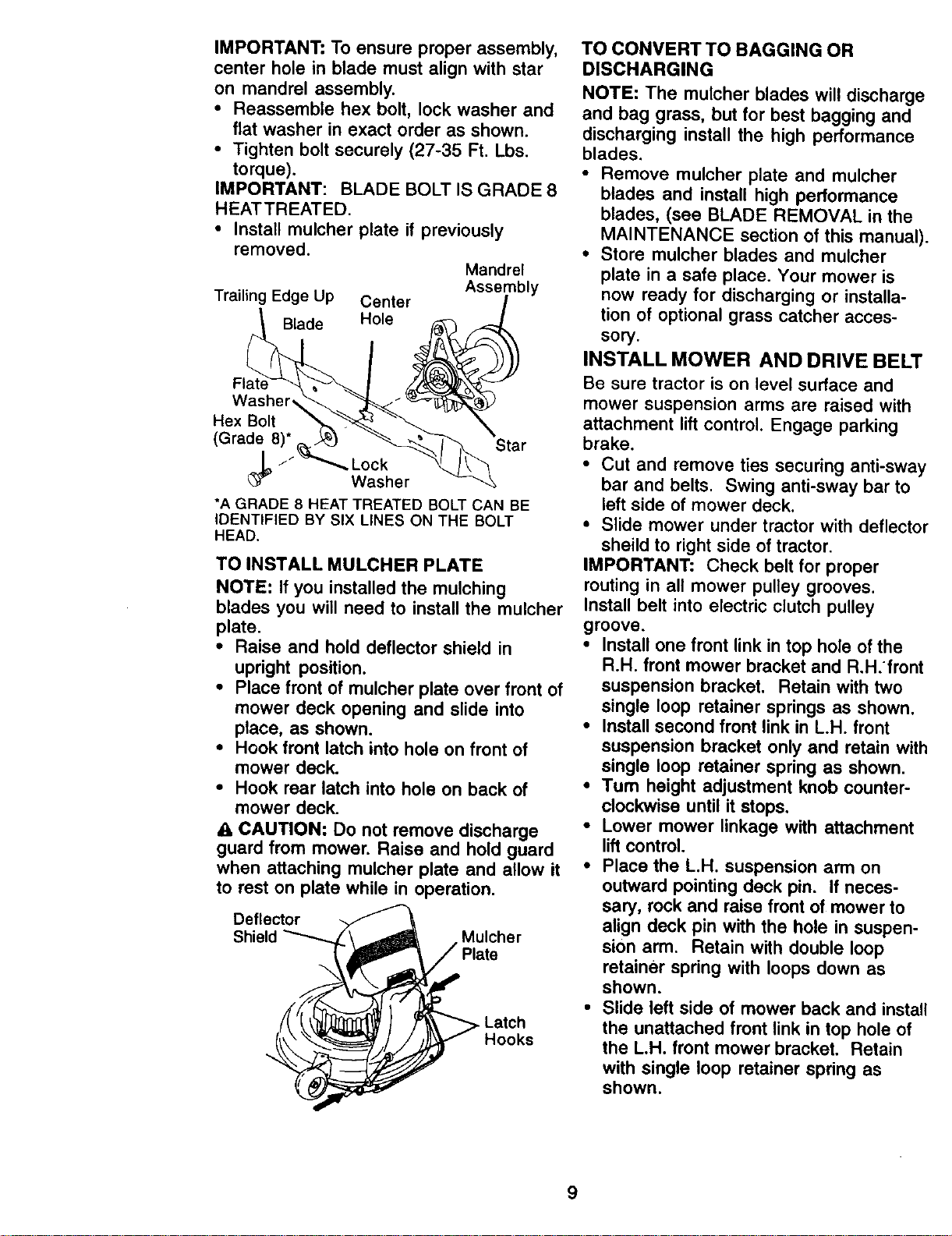

TO SET UP YOUR MOWER FOR

MULCHING

• Turn the mower over to allow access tc

blades.

• Remove hex bolt, lock washer and flat

washer and remove high performance

blades. Store in safe place.

• Install mulcher blades with trailing edg

up towards deck as shown.

IMPORTANT:Toensure proper assembly,

center hole in blademust align with star

on mandrel assembly.

• Reassemble hex bolt, lock washer and

flat washer in exact order as shown.

• Tighten bolt securely (27-35 Ft. Lbs.

torque).

IMPORTANT: BLADE BOLT IS GRADE 8

HEATTREATED.

• Install mulcher plate if previously

removed.

Mandrel

Assembly

TrailingEdge Up Center

Blade Hole

Washer%

Hex Bolt

(Grade 8)* Star

_;_ .Lock

Washer

*A GRADE 8 HEAT TREATED BOLT CAN BE

IDENTIFIED BY SIX LINES ON THE BOLT

HEAD.

TO INSTALL MULCHER PLATE

NOTE: If you installed the mulching

blades you will need to install the mulcher

plate.

• Raise and hold deflector shield in

upright position.

• Place front of mulcher plate over front of

mower deck opening and slide into

place, as shown.

• Hook front latch into hole on front of

mower deck.

• Hook rear latch into hole on back of

mower deck.

& CAUTION: Do not remove discharge

guard from mower. Raise and hold guard

when attaching mulcher plate and allow it

to rest on plate while in operation.

Deflector

Shield

Mulcher

Plate

Latch

Hooks

TO CONVERT TO BAGGING OR

DISCHARGING

NOTE: The mulcher blades will discharge

and bag grass, but for best bagging and

discharging install the high performance

blades.

• Remove mulcher plate and mulcher

blades and install high performance

blades, (see BLADE REMOVAL in the

MAINTENANCE section of this manual).

• Store mulcher blades and mulcher

plate in a safe place. Your mower is

now ready for discharging or installa-

tion of optional grass catcher acces-

sory.

INSTALL MOWER AND DRIVE BELT

Be sure tractor is on level surface and

mower suspension arms are raised with

attachment lift control. Engage parking

brake.

• Cut and remove ties securing anti-sway

bar and belts. Swing anti-sway bar to

left side of mower deck.

• Slide mower under tractor with deflector

sheild to right side of tractor.

IMPORTANT: Check belt for proper

routing in all mower pulley grooves.

Install belt into electric clutch pulley

groove.

• Install one front link in top hole of the

R.H. front mower bracket and R.H.front

suspension bracket. Retain with two

single loop retainer springs as shown.

• Install second front link in L.H. front

suspension bracket only and retain with

single loop retainer spring as shown.

• Tum height adjustment knob counter-

clockwise until it stops.

• Lower mower linkage with attachment

lift control.

• Place the L.H. suspension arm on

outward pointing deck pin. If neces-

sary, rock and raise front of mower to

align deck pin with the hole in suspen-

sion arm. Retain with double loop

retainer spring with loops down as

shown.

• Slide left side of mower back and install

the unattached front link in top hole of

the L.H. front mower bracket. Retain

with single loop retainer spring as

shown.

• Place the R.H. suspension arm on

outward pointing deck pin. If neces-

sary, rock and raise front of mower to

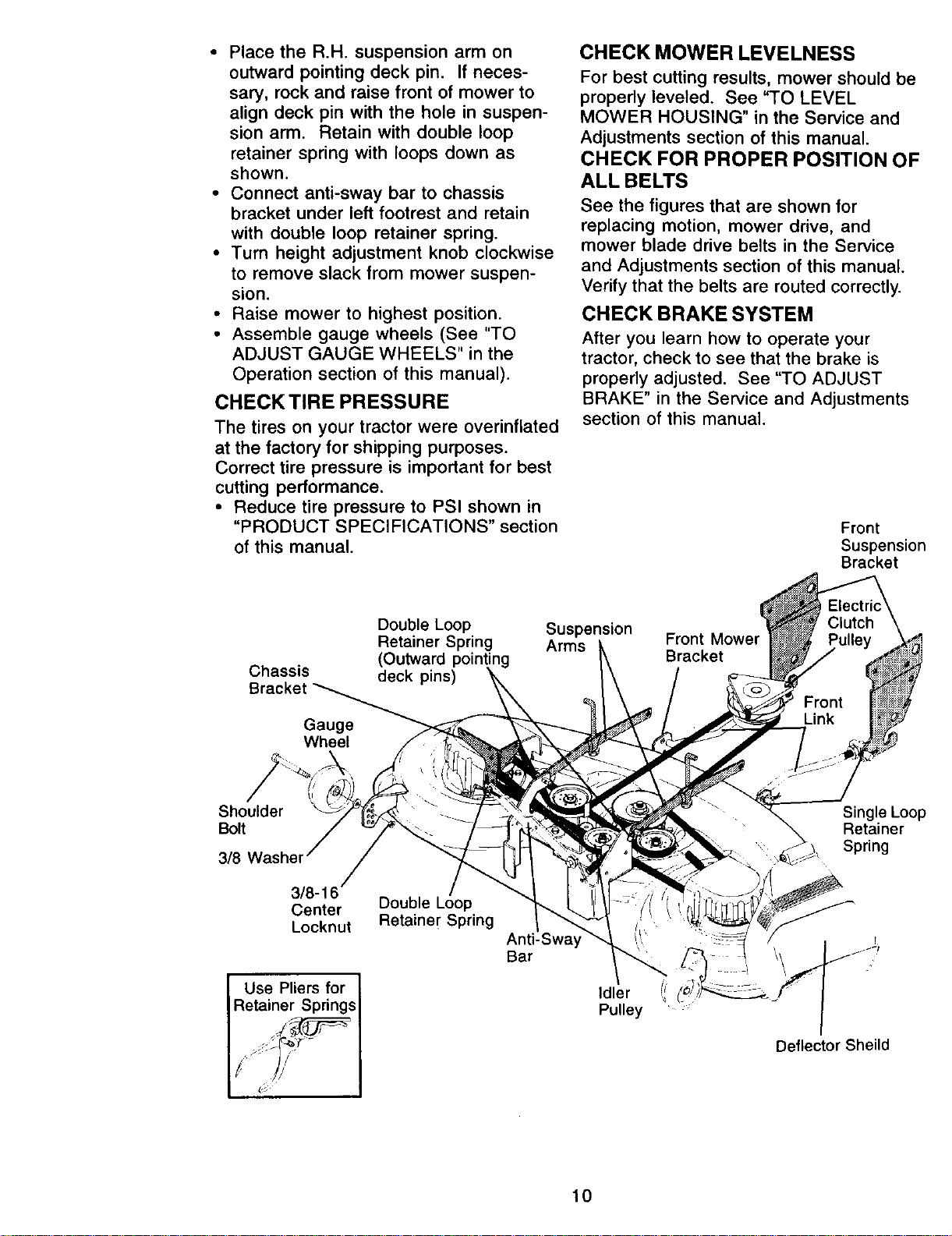

align deck pin with the hole in suspen-

sion arm. Retain with double loop

retainer spring with loops down as

shown.

• Connect anti-sway bar to chassis

bracket under left footrest and retain

with double loop retainer spring.

• Turn height adjustment knob clockwise

to remove slack from mower suspen-

sion.

• Raise mower to highest position.

• Assemble gauge wheels (See "TO

ADJUST GAUGE WHEELS" in the

Operation section of this manual).

CHECKTIREPRESSURE

The tires on your tractor were overinflated

at the factory for shipping purposes.

Correct tire pressure is important for best

cutting performance.

• Reduce tire pressure to PSI shown in

"PRODUCT SPECIFICATIONS" section

of this manual.

CHECK MOWER LEVELNESS

For best cutting results, mower should be

properly leveled. See "TO LEVEL

MOWER HOUSING" in the Service and

Adjustments section of this manual.

CHECK FOR PROPER POSITION OF

ALL BELTS

See the figures that are shown for

replacing motion, mower drive, and

mower blade drive belts in the Service

and Adjustments section of this manual.

Verify that the belts are routed correctly.

CHECK BRAKE SYSTEM

After you learn how to operate your

tractor, check to see that the brake is

properly adjusted. See "TO ADJUST

BRAKE" in the Service and Adjustments

section of this manual.

Front

Suspension

Bracket

Double Loop

Retainer Spring

(Outward _g

Chassis deck pins)

Bracket _

Gauge

Wheel

Suspension

Arms

Bracket

Shoulder

Bolt

3/8 Was

3/8-16

Center Double Loop

Locknut Retainer Spring

Use Pliers for

Retainer Springs

f: _Iy

Bar

Idler

Pulley

Single Loop

Retainer

. _, Spring

Deflector Sheild

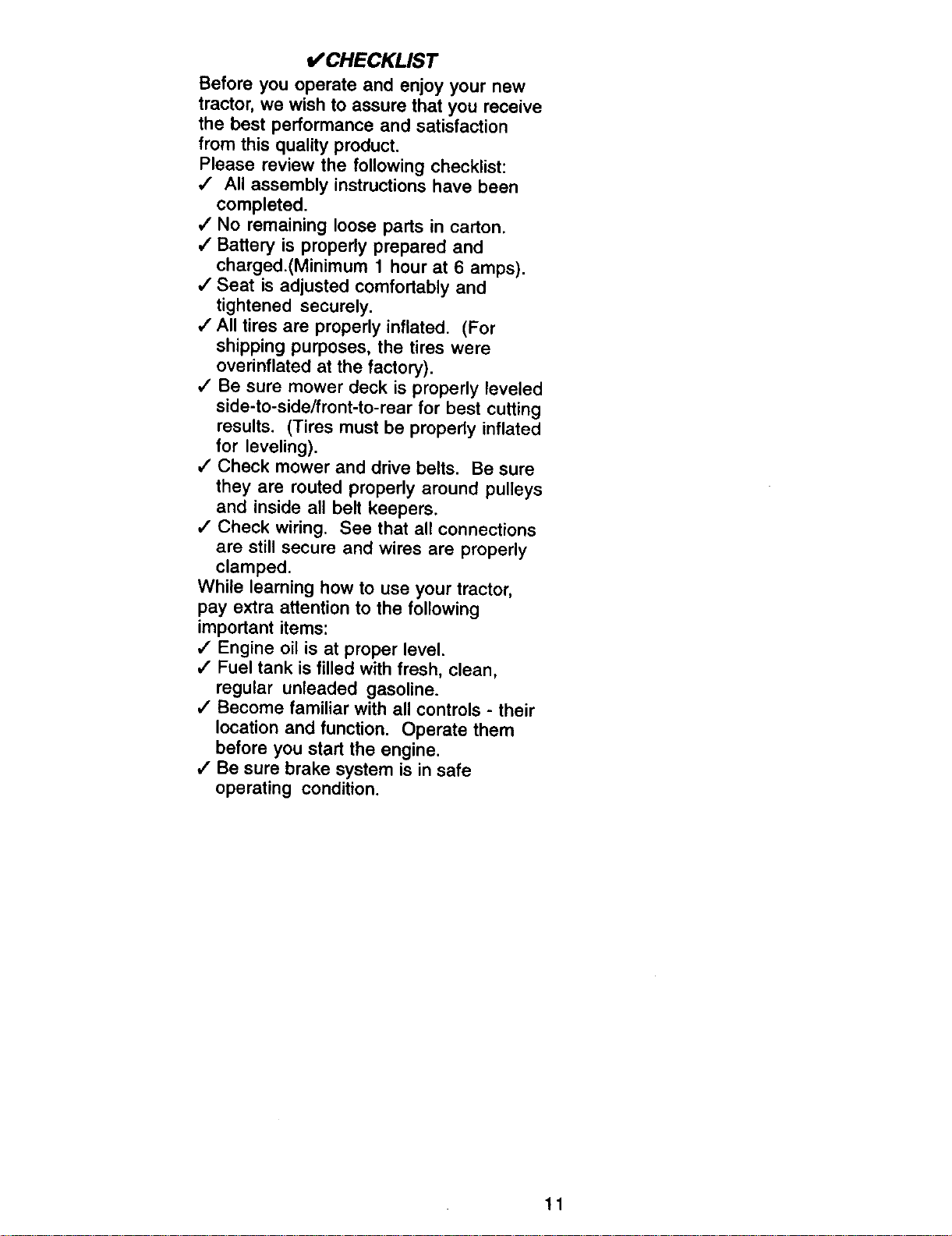

CHECKLIST

Before you operate and enjoy your new

tractor, we wish to assure that you receive

the best performance and satisfaction

from this quality product.

Please review the following checklist:

,I All assembly instructions have been

completed.

#" No remaining loose parts in carton.

,/Battery is properly prepared and

charged.(Minimum 1 hour at 6 amps).

,/Seat is adjusted comfortably and

tightened securely.

,/"All tires are properly inflated. (For

shipping purposes, the tires were

overinflated at the factory).

,/Be sure mower deck is properly leveled

side-to-side/front-to-rear for best cutting

results. (Tires must be properly inflated

for leveling).

,/Check mower and drive belts. Be sure

they are routed properly around pulleys

and inside all belt keepers.

#" Check wiring. See that all connections

are still secure and wires are properly

clamped.

While learning how to use your tractor,

pay extra attention to the following

important items:

,/Engine oil is at proper level.

•/ Fuel tank is filled with fresh, clean,

regular unleaded gasoline.

,/Become familiar with all controls - their

location and function. Operate them

before you start the engine,

/ Be sure brake system is in safe

operating condition.

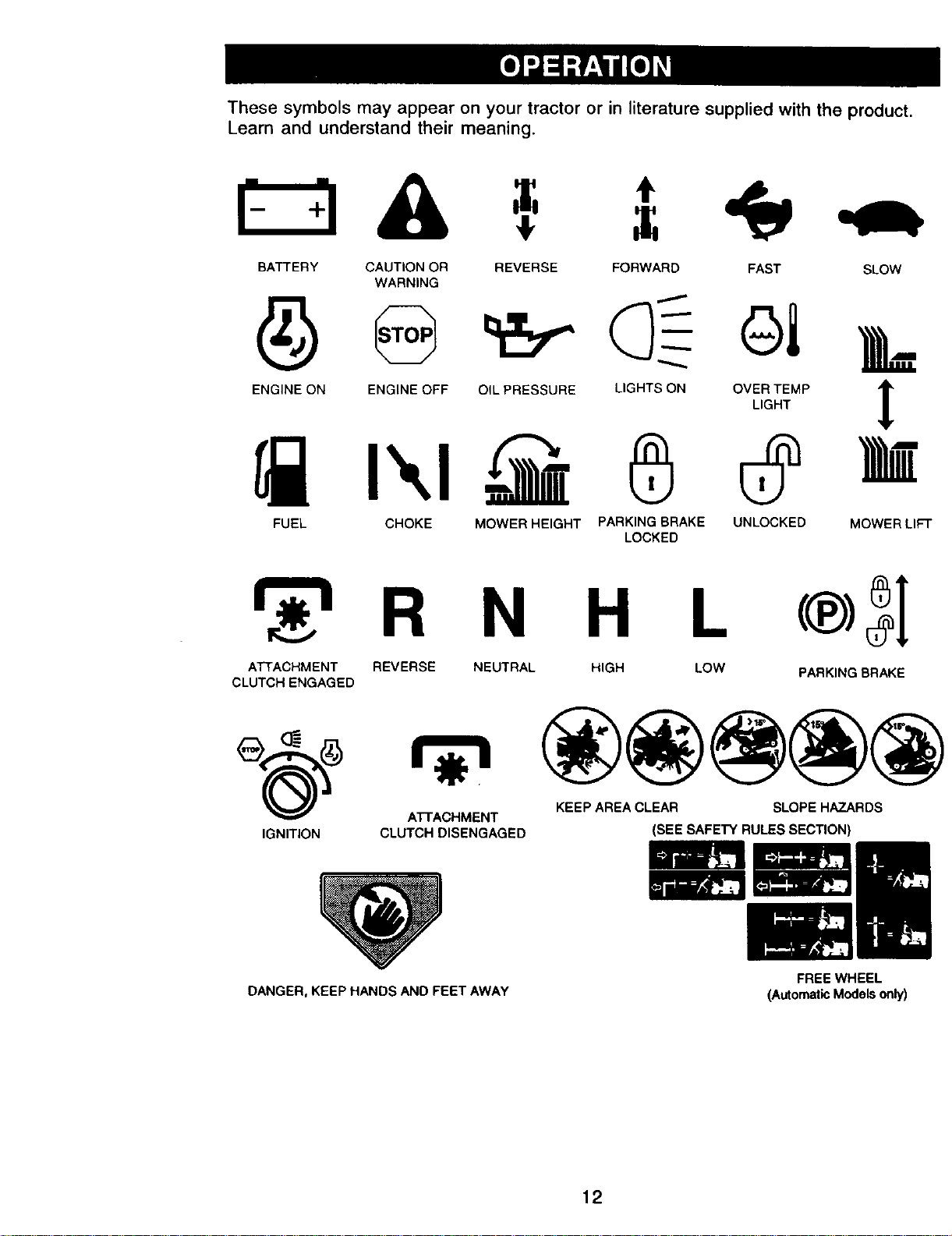

These symbols may appear on your tractor or in literature supplied with the product.

Learn and understand their meaning.

r -aA =,

BATTERY CAUTION OR

WARNING

ENGINE ON ENGINE OFF

REVERSE FORWARD FAST

OIL PRESSURE LIGHTS ON OVER TEMP

LIGHT

FUEL CHOKE MOWER HEIGHT PARKING BRAKE UNLOCKED

LOCKED

SLOW

MOWER LIFT

r 'l R N H L

ATTACHMENT REVERSE NEUTRAL HIGH LOW

CLUTCH ENGAGED

PARKING BRAKE

ATTACHMENT KEEP AREA CLEAR SLOPE HAZARDS

IGNITION CLUTCH DISENGAGED (SEE SAFETY RULES SECTION)

DANGER, KEEP HANDS AND FEET AWAY

FREE WHEEL

(Automatic Modelsonly)

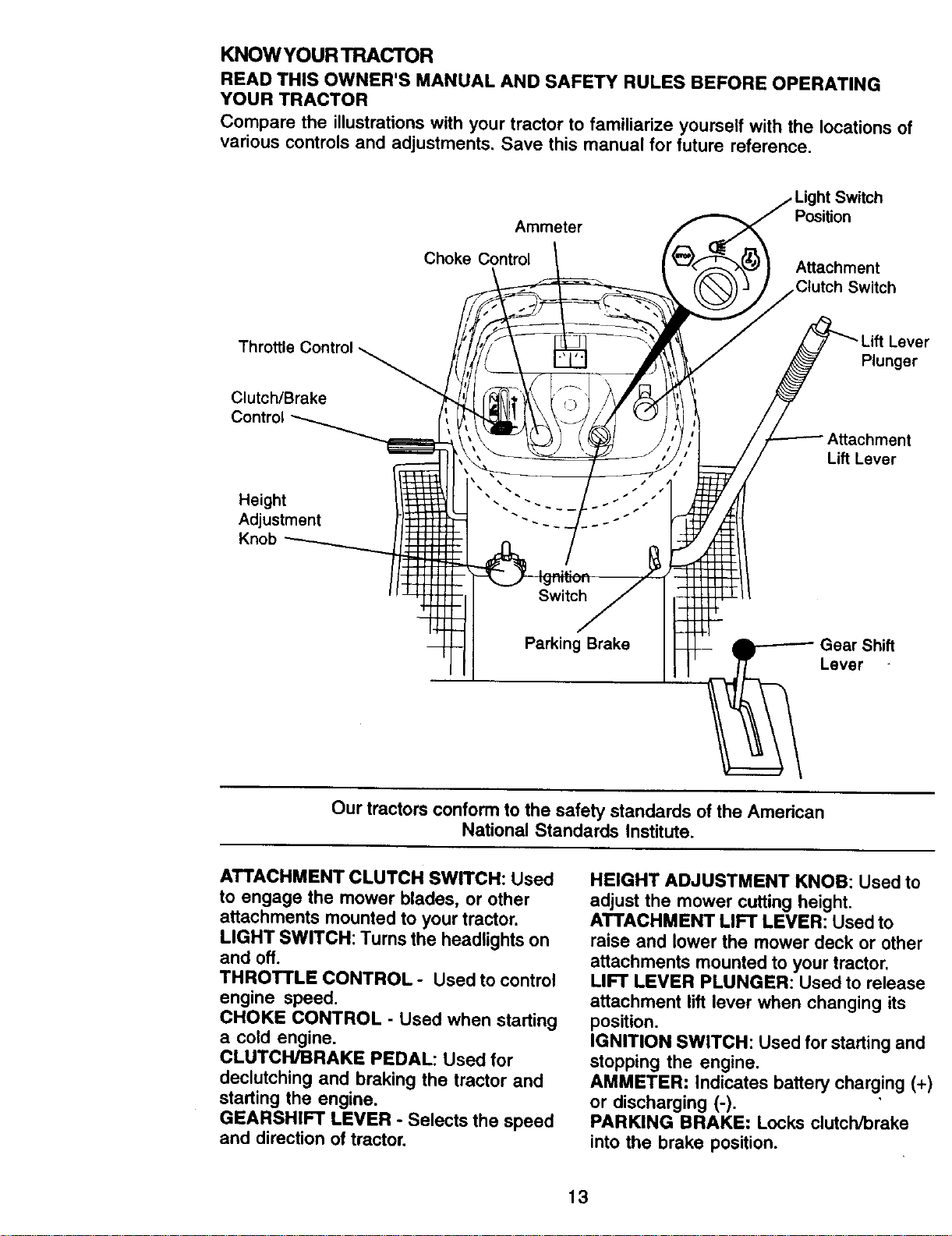

KNOW YOUR TRACTOR

READ THIS OWNER'S MANUAL AND SAFETY RULES BEFORE OPERATING

YOUR TRACTOR

Compare the illustrations with your tractor to familiarize yourself with the locations of

various controls and adjustments. Save this manual for future reference,

Ammeter

Choke Control

Throttle Control _ t

Switcy

Parking Brake

J LCgos_ttioS:itch

Attachment

Ctutch Switch

Lift Lever

Our tractors conform to the safety standards of the American

National Standards Institute.

Leve

Plunger

ATTACHMENT CLUTCH SWITCH: Used

to engage the mower blades, or other

attachments mounted to your tractor.

LIGHT SWITCH: Turns the headlights on

and off.

THROTTLE CONTROL - Used to control

engine speed,

CHOKE CONTROL - Used when starting

a cold engine.

CLUTCH/BRAKE PEDAL: Used for

declutching and braking the tractor and

starting the engine.

GEARSHIFT LEVER - Selects the speed

and direction of tractor,

HEIGHT ADJUSTMENT KNOB: Used to

adjust the mower cutting height,

ATTACHMENT LIFT LEVER: Used to

raise and lower the mower deck or other

attachments mounted to your tractor.

LIFT LEVER PLUNGER: Used to release

attachment lift lever when changing its

position.

IGNITION SWITCH: Used for starting anc

stopping the engine.

AMMETER: Indicates battery charging (_

or discharging (-),

PARKING BRAKE: Locks clutch/brake

into the brake position.

The operation of any tractor can result in foreign objects thrown into the

eyes, which can result in severe eye damage. Always wear safety glasses

or eye shields while operating your tractor or performing any adjustments

or repairs. We recommend a wide vision safety mask over spectacles, or

standard safety glasses.

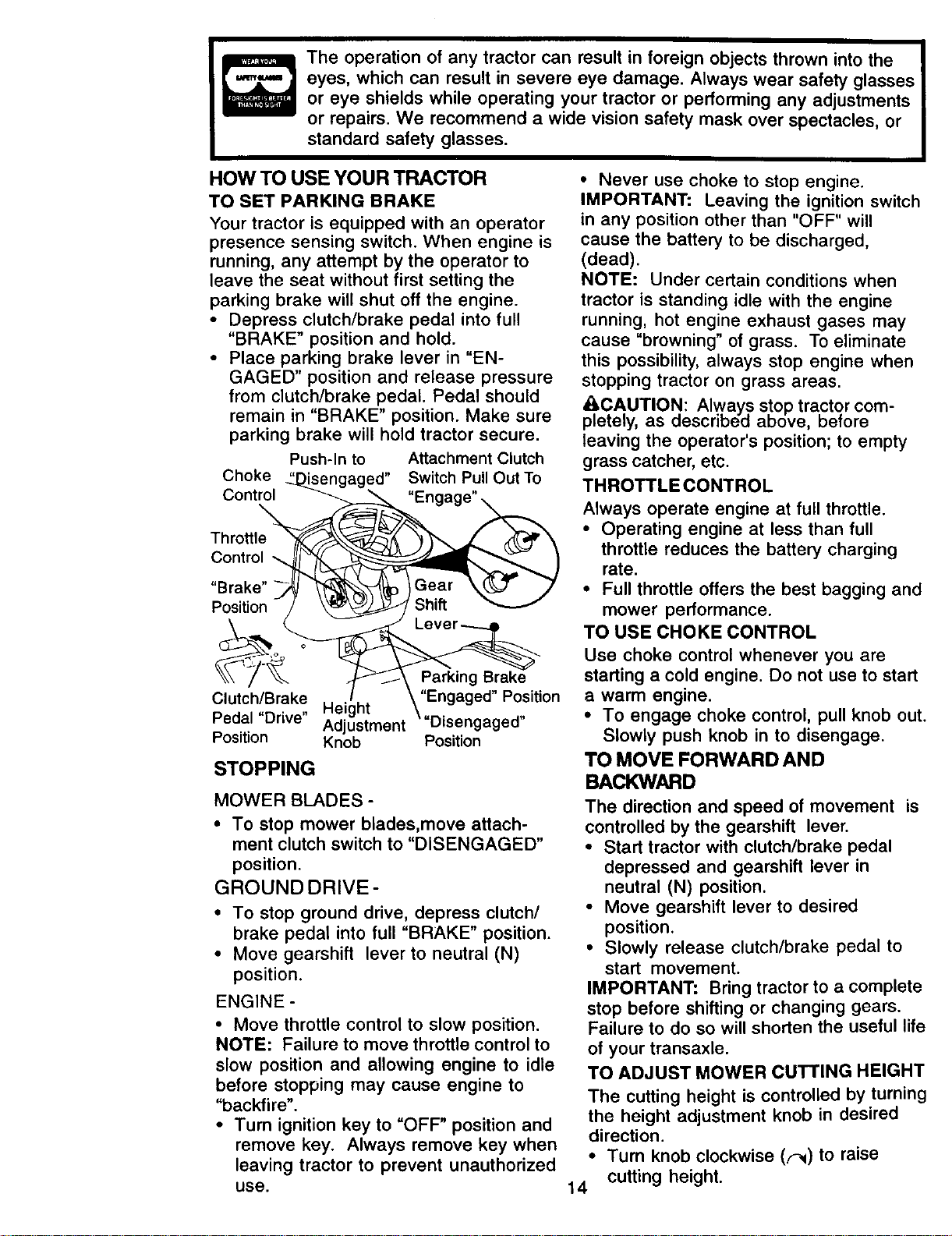

HOW TO USE YOUR TRACTOR

TO SET PARKING BRAKE

Your tractor is equipped with an operator

presence sensing switch. When engine is

running, any attempt by the operator to

leave the seat without first setting the

parking brake will shut off the engine.

• Depress clutch/brake pedal into full

"BRAKE" position and hold.

• Place parking brake lever in "EN-

GAGED" position and release pressure

from clutch/brake pedal. Pedal should

remain in "BRAKE" position. Make sure

parking brake will hold tractor secure.

Push-In to Attachment Clutch

Choke _engaged" SwitchPullOutTo

Control

Throttle

Control --,

Position

Clutch/Brake

Height

Pedal "Drive" Adjustment

Position Knob

STOPPING

Parking Brake

"Engaged" Position

=Disengaged"

Position

MOWER BLADES -

• To stop mower blades,move attach-

ment clutch switch to "DISENGAGED"

position.

GROUND DRIVE-

• To stop ground drive, depress clutch/

brake pedal into full "BRAKE" position.

• Move gearshift lever to neutral (N)

position.

ENGINE -

• Move throttle control to slow position.

NOTE: Failure to move throttle control to

slow position and allowing engine to idle

before stopping may cause engine to

"backfire".

• Turn ignition key to "OFF" position and

remove key. Always remove key when

leaving tractor to prevent unauthorized

use.

• Never use choke to stop engine.

IMPORTANT: Leaving the ignition switch

in any position other than "OFF" will

cause the battery to be discharged,

(dead).

NOTE: Under certain conditions when

tractor is standing idle with the engine

running, hot engine exhaust gases may

cause "browning" of grass. To eliminate

this possibility, always stop engine when

stopping tractor on grass areas.

_CA.UTION: Always stop tractor com-

pletely, as described above, before

leaving the operator's position; to empty

grass catcher, etc.

THROTTLE CONTROL

Always operate engine at full throttle.

• Operating engine at less than full

throttle reduces the battery charging

rate.

• Full throttle offers the best bagging and

mower performance.

TO USE CHOKE CONTROL

Use choke control whenever you are

starting a cold engine. Do not use to start

a warm engine.

• To engage choke control, pull knob out.

Slowly push knob in to disengage.

TO MOVE FORWARD AND

BACKWARD

The direction and speed of movement is

controlled by the gearshift lever.

• Start tractor with clutch/brake pedal

depressed and gearshift lever in

neutral (N) position.

• Move gearshift lever to desired

position.

• Slowly release clutch/brake pedal to

start movement.

IMPORTANT: Bring tractor to a complete

stop before shifting or changing gears.

Failure to do so will shorten the useful life

of your transaxle.

TO ADJUST MOWER CUTTING HEIGHT

The cutting height is controlled by turning

the height adjustment knob in desired

direction.

• Turn knob clockwise (F_) to raise

14 cutting height.

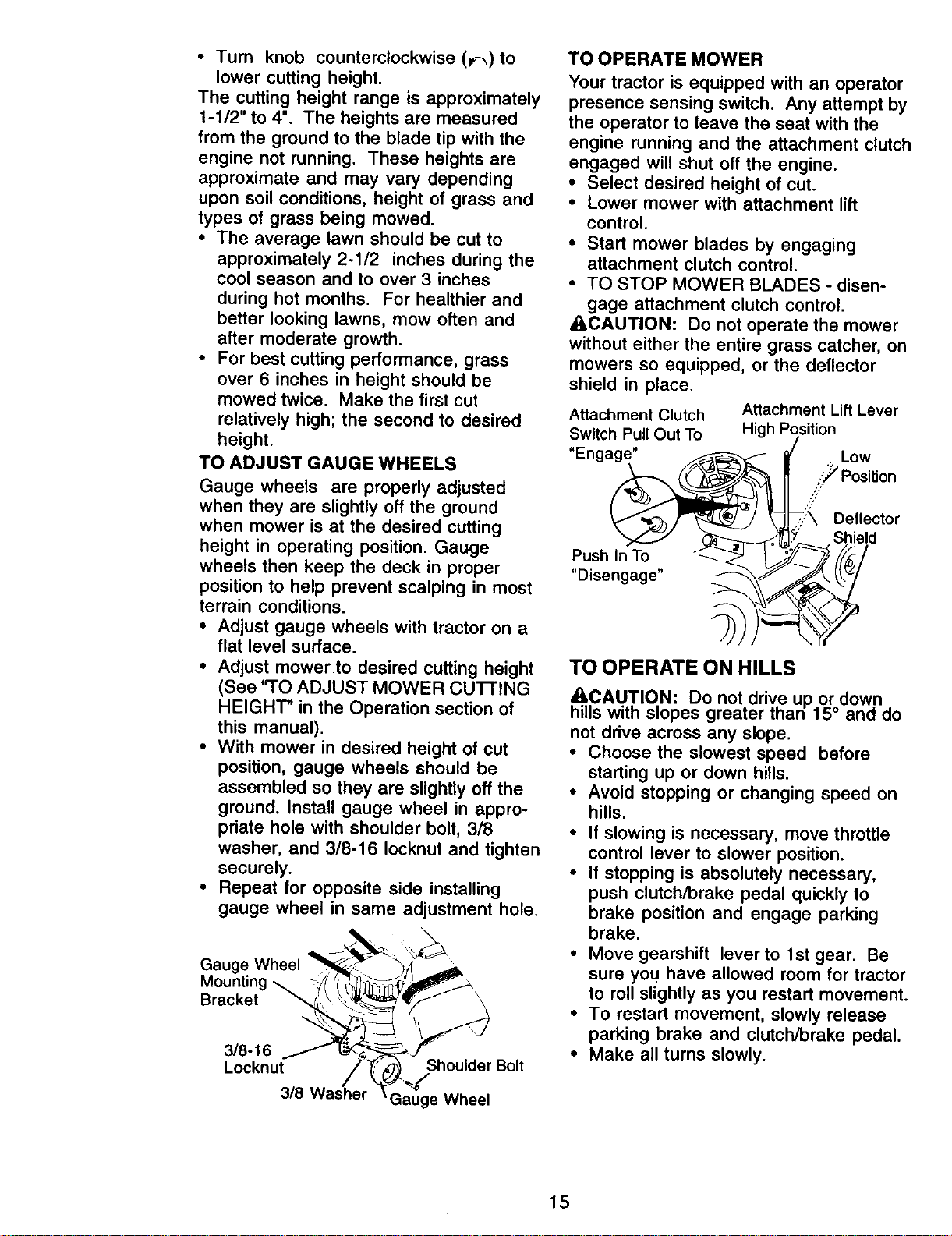

• Turn knob counterclockwise (_-_)to

lower cutting height.

The cutting height range is approximately

1-1/2" to 4". The heights are measured

from the ground to the blade tip with the

engine not running. These heights are

approximate and may vary depending

upon soil conditions, height of grass and

types of grass being mowed.

• The average lawn should be cut to

approximately 2-1/2 inches during the

cool season and to over 3 inches

during hot months. For healthier and

better looking lawns, mow often and

after moderate growth.

• For best cutting performance, grass

over 6 inches in height should be

mowed twice. Make the first cut

relatively high; the second to desired

height.

TO ADJUST GAUGE WHEELS

Gauge wheels are properly adjusted

when they are slightly off the ground

when mower is at the desired cutting

height in operating position. Gauge

wheels then keep the deck in proper

position to help prevent scalping in most

terrain conditions.

• Adjust gauge wheels with tractor on a

flat level surface.

• Adjust mower to desired cutting height

(See 'q'O ADJUST MOWER CUTTING

HEIGHT" in the Operation section of

this manual).

• With mower in desired height of cut

position, gauge wheels should be

assembled so they are slightly off the

ground. Install gauge wheel in appro-

priate hole with shoulder bolt, 3/8

washer, and 3/8-16 Iocknut and tighten

securely.

• Repeat for opposite side installing

gauge wheel in same adjustment hole.

Gauge Wheel

Mounting

Bracket

3/8-16

Locknut

Shoulder Bolt

Gauge Wheel

TO OPERATE MOWER

Your tractor is equipped with an operator

presence sensing switch. Any attempt by

the operator to leave the seat with the

engine running and the attachment clutch

engaged will shut off the engine.

• Select desired height of cut.

• Lower mower with attachment lift

control.

• Start mower blades by engaging

attachment clutch control.

• TO STOP MOWER BLADES - disen-

gage attachment clutch control.

_CAUTION: Do not operate the mower

without either the entire grass catcher, on

mowers so equipped, or the deflector

shield in place.

Attachment Clutch Attachment LiftLever

Switch Pull Out To High Position

" n0a ( ,ow

: ,,.;_ Position

- _.'\ Deflector

"Disengage" _ _

TO OPERATE ON HILLS

&CAUTION: Do not drive up or down

hills with slopes greater than 15° and do

not drive across any slope.

• Choose the slowest speed before

starting up or down hills.

• Avoid stopping or changing speed on

hills.

• If slowing is necessary, move throttle

control lever to slower position.

• II stopping is absolutely necessary,

push clutch/brake pedal quickly to

brake position and engage parking

brake.

• Move gearshift lever to 1st gear. Be

sure you have allowed room for tractor

to roll slightly as you restart movement.

• To restart movement, slowly release

parking brake and clutch/brake pedal.

° Make all turns slowly.

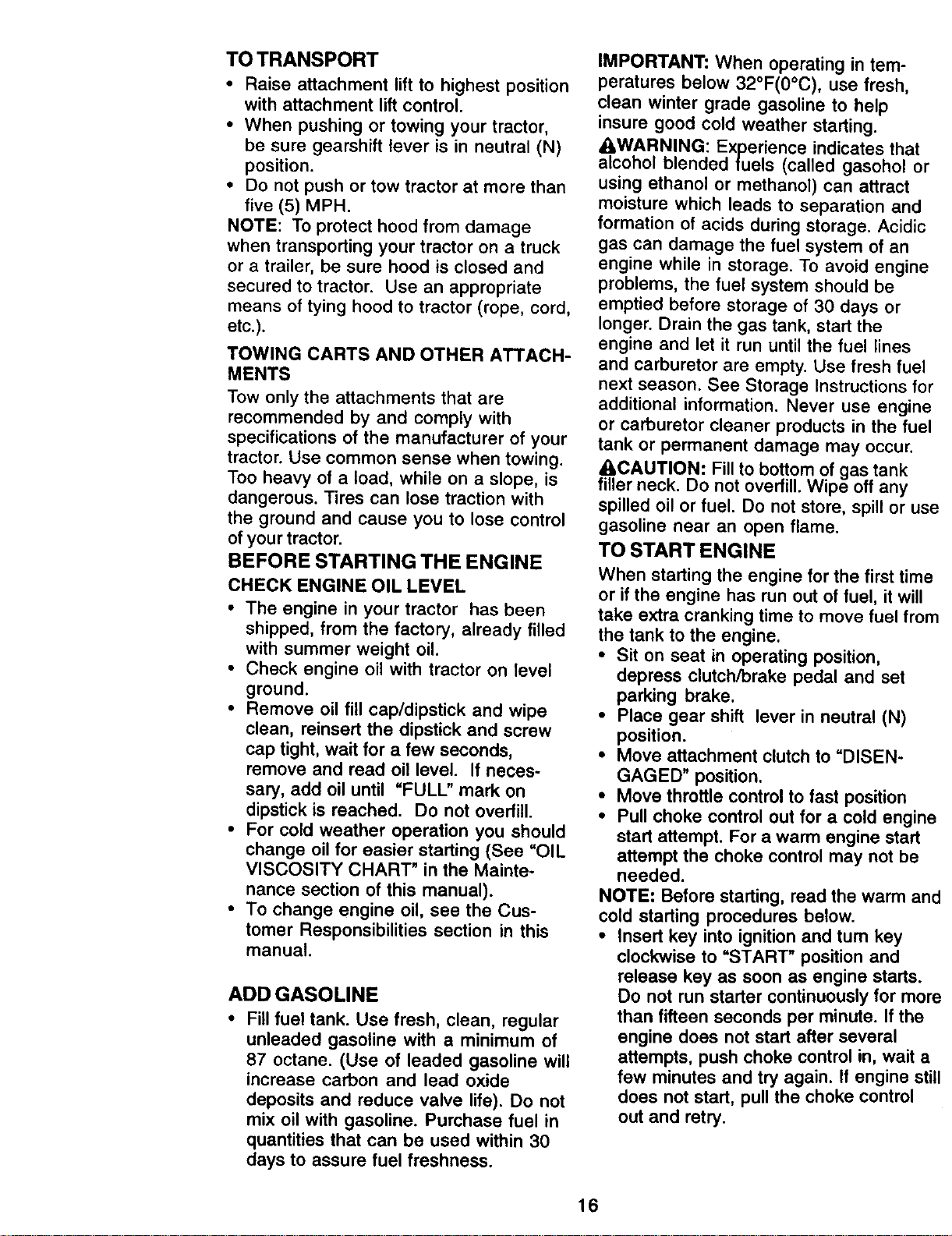

TOTRANSPORT

• Raise attachment lift to highest position

with attachment lift control.

• When pushing or towing your tractor,

be sure gearshift lever is in neutral (N)

position.

• Do not push or tow tractor at more than

five (5) MPH.

NOTE: To protect hood from damage

when transporting your tractor on a truck

or a trailer, be sure hood is closed and

secured to tractor. Use an appropriate

means of tying hood to tractor (rope, cord,

etc.).

TOWING CARTS AND OTHER ATTACH-

MENTS

Tow only the attachments that are

recommended by and comply with

specifications of the manufacturer of your

tractor. Use common sense when towing.

Too heavy of a load, while on a slope, is

dangerous. Tires can lose traction with

the ground and cause you to lose control

of your tractor.

BEFORE STARTING THE ENGINE

CHECK ENGINE OIL LEVEL

• The engine in your tractor has been

shipped, from the factory, already filled

with summer weight oil.

• Check engine oil with tractor on level

ground.

• Remove oil fill cap/dipstick and wipe

clean, reinsert the dipstick and screw

cap tight, wait for a few seconds,

remove and read oil level. If neces-

sary, add oil until "FULL" mark on

dipstick is reached. Do not overfill.

• For cold weather operation you should

change oil for easier starting (See "OIL

VISCOSITY CHART" in the Mainte-

nance section of this manual).

• To change engine oil, see the Cus-

tomer Responsibilities section in this

manual.

ADD GASOLINE

• Fill fuel tank. Use fresh, clean, regular

unleaded gasoline with a minimum of

87 octane. (Use of leaded gasoline will

increase carbon and lead oxide

deposits and reduce valve life). Do not

mix oil with gasoline. Purchase fuel in

quantities that can be used within 30

days to assure fuel freshness.

IMPORTANT: When operating in tem-

peratures below 32°F(0°C), use fresh,

clean winter grade gasoline to help

insure good cold weather starting.

AWARNING: Experience indicates that

alcohol blended fuels (called gasohol or

using ethanol or methanol) can attract

moisture which leads to separation and

formation of acids during storage. Acidic

gas can damage the fuel system of an

engine while in storage. To avoid engine

problems, the fuel system should be

emptied before storage of 30 days or

longer. Drain the gas tank, start the

engine and let it run until the fuel lines

and carburetor are empty. Use fresh fuel

next season. See Storage Instructions for

additional information. Never use engine

or carburetor cleaner products in the fuel

tank or permanent damage may occur.

f.A,,CAUTION: Fill to bottom of gas tank

iller neck. Do not overfill. Wipe off any

spilled oil or fuel. Do not store, spill or use

gasoline near an open flame.

TO START ENGINE

When starting the engine for the first time

or ifthe engine has run out of fuel, it will

take extra cranking time to move fuel from

the tank to the engine.

• Sit on seat in operating position,

depress clutch/brake pedal and set

parking brake.

• Place gear shift lever in neutral (N)

position.

• Move attachment clutch to "DISEN-

GAGED" position.

• Move throttle control to fast position

• Pull choke control out for a cold engine

start attempt. For a warm engine start

attempt the choke control may not be

needed.

NOTE: Before starting, read the warm and

cold starting procedures below.

• Insert key into ignition and turn key

clockwise to "START" position and

release key as soon as engine starts.

Do not run starter continuously for more

than fifteen seconds per minute. If the

engine does not start after several

attempts, push choke control in, wait a

few minutes and try again. If engine still

does not start, pull the choke control

out and retry.

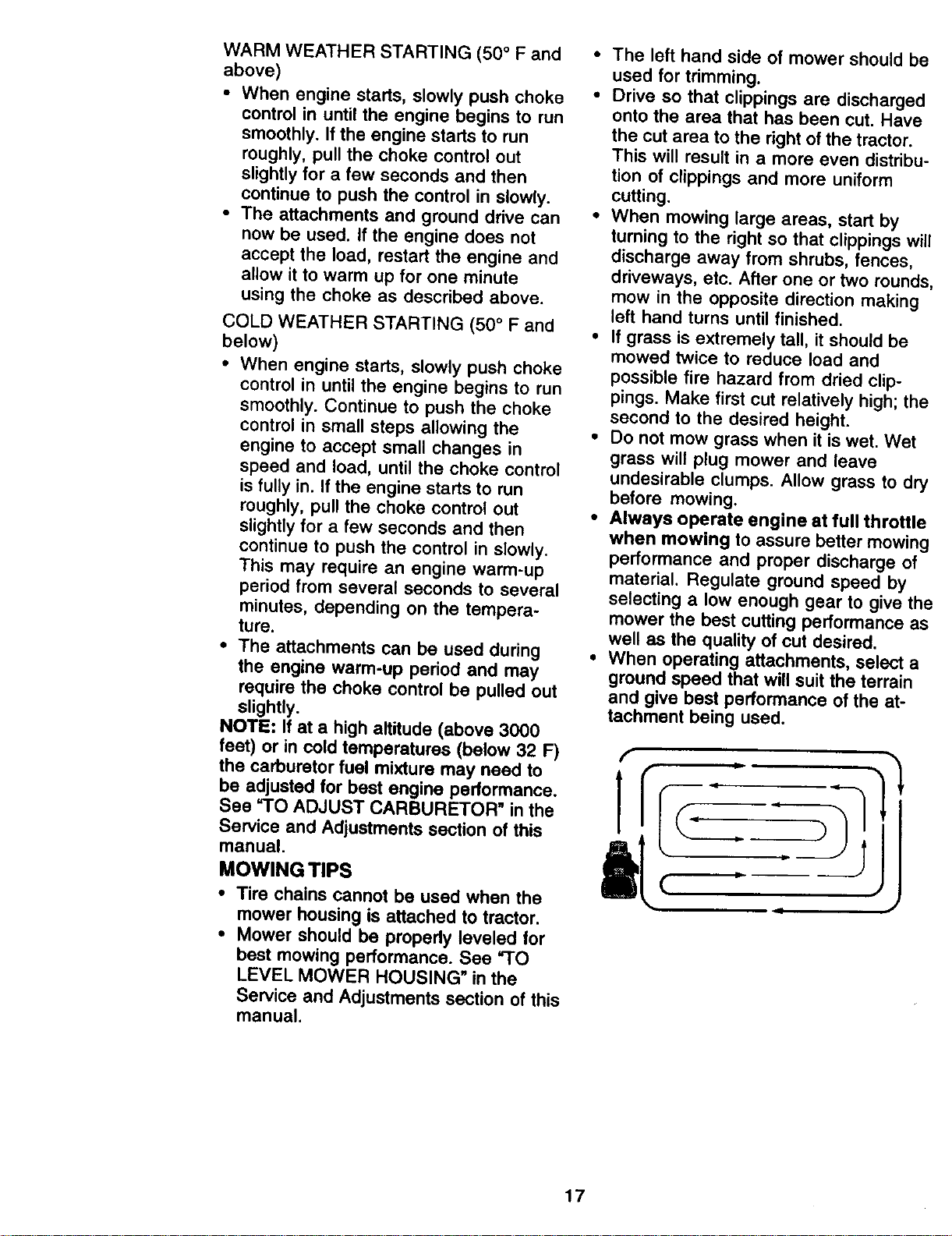

WARMWEATHERSTARTING(50° F and

above)

• When engine starts, slowly push choke

control in until the engine begins to run

smoothly. If the engine starts to run

roughly, pull the choke control out

slightly for a few seconds and then

continue to push the control in slowly.

• The attachments and ground drive can

now be used. If the engine does not

accept the load, restart the engine and

allow it to warm up for one minute

using the choke as described above.

COLD WEATHER STARTING (50 ° F and

below)

• When engine starts, slowly push choke

control in until the engine begins to run

smoothly. Continue to push the choke

control in small steps allowing the

engine to accept small changes in

speed and load, until the choke control

is fully in. If the engine starts to run

roughly, pull the choke contro_ out

slightly for a few seconds and then

continue to push the control in slowly.

This may require an engine warm-up

period from several seconds to several

minutes, depending on the tempera-

ture.

• The attachmenLs can be used during

the engine warm-up period and may

require the choke control be pulled out

slightly.

NOTE: If at a high altitude (above 3000

feet) or in cold temperatures (below 32 F)

the carburetor fuel mixture may need to

be adjusted for best engine performance.

See "TO ADJUST CARBURETOR" in the

Service and Adjustments section of this

manual.

MOWING TIPS

• Tire chains cannot be used when the

mower housing is attached to tractor.

• Mower should be propedy leveled for

best mowing performance. See "TO

LEVEL MOWER HOUSING" in the

Service and Adjustments section of this

manual.

• The left hand side of mower should bq

used for trimming.

• Drive so that clippings are discharge¢

onto the area that has been cut. Have

the cut area to the right of the tractor.

This will result in a more even distribu

tion of clippings and more uniform

cutting.

• When mowing large areas, start by

turning to the right so that clippings wi

discharge away from shrubs, fences,

driveways, etc. After one or two round,'

mow in the opposite direction making

left hand turns until finished.

• If grass is extremely tall, it should be

mowed twice to reduce load and

possible fire hazard from dried clip-

pings. Make first cut relatively high; th_

second to the desired height.

• Do not mow grass when it is wet. Wet

grass will plug mower and leave

undesirable clumps. Allow grass to dr_

before mowing.

• Always operate engine at full throttle

when mowing to assure better mowin(,

performance and proper discharge of

material. Regulate ground speed by

selecting a low enough gear to give th

mower the best cutting performance a=

well as the quality of cut desired.

• When operating attachments, select a

ground speed that will suit the terrain

and give best performance of the at-

tachment being used.

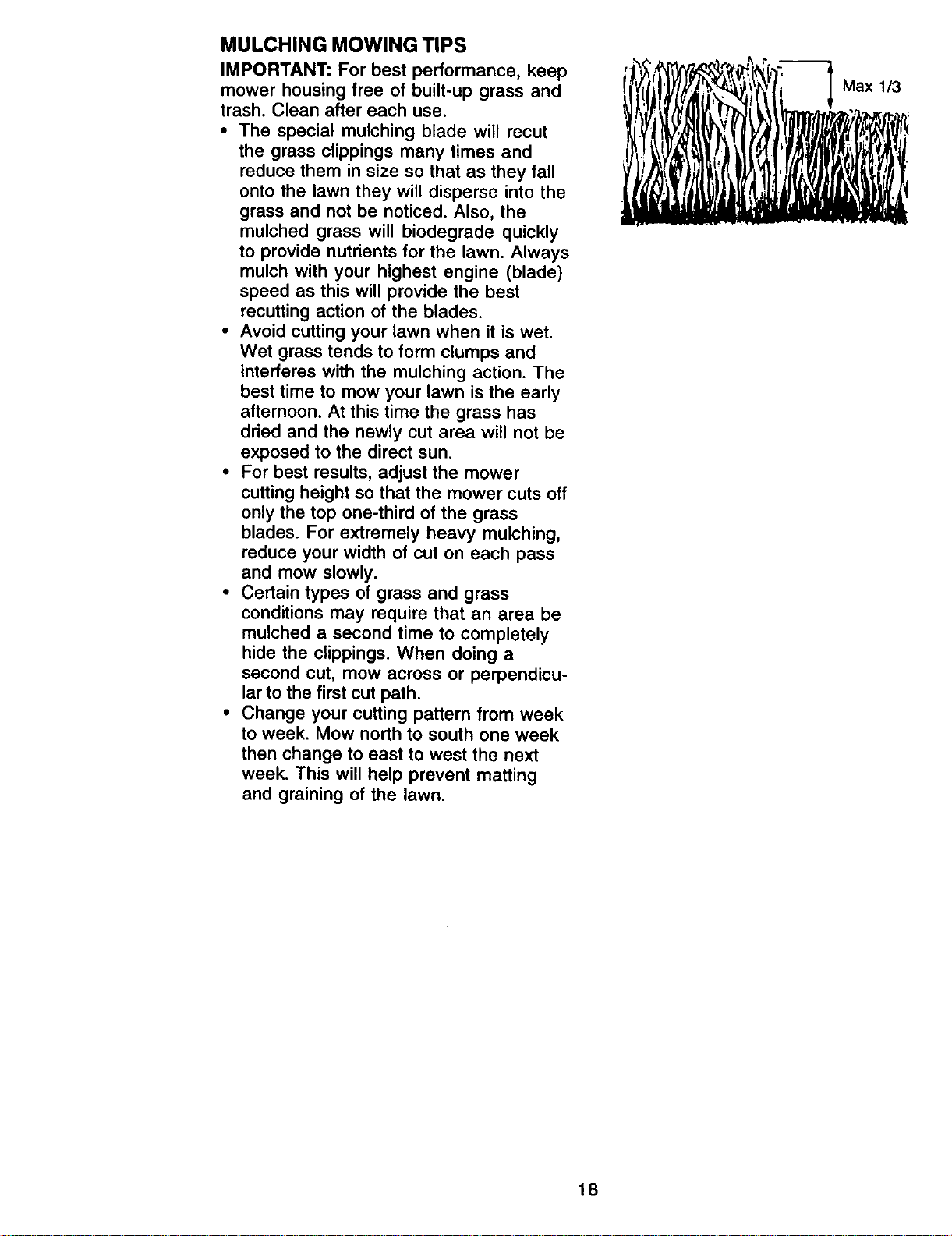

MULCHING MOWING TIPS

IMPORTANT: For best performance, keep

mower housing free of built-up grass and

trash. Clean after each use.

• The special mulching blade will recut

the grass clippings many times and

reduce them in size so that as they fall

onto the lawn they will disperse into the

grass and not be noticed. Also, the

mulched grass will biodegrade quickly

to provide nutrients for the lawn. Always

mulch with your highest engine (blade)

speed as this will provide the best

recutting action of the blades.

• Avoid cutting your lawn when it is wet.

Wet grass tends to form clumps and

interferes with the mulching action. The

best time to mow your lawn is the early

afternoon. At this time the grass has

dried and the newly cut area will not be

exposed to the direct sun.

• For best results, adjust the mower

cutting height so that the mower cuts off

only the top one-third of the grass

blades. For extremely heavy mulching,

reduce your width of cut on each pass

and mow slowly.

• Certain types of grass and grass

conditions may require that an area be

mulched a second time to completely

hide the clippings. When doing a

second cut, mow across or perpendicu-

lar to the first cut path.

• Change your cutting pattern from week

to week. Mow north to south one week

then change to east to west the next

week. This will help prevent matting

and graining of the lawn.

Max 1/3

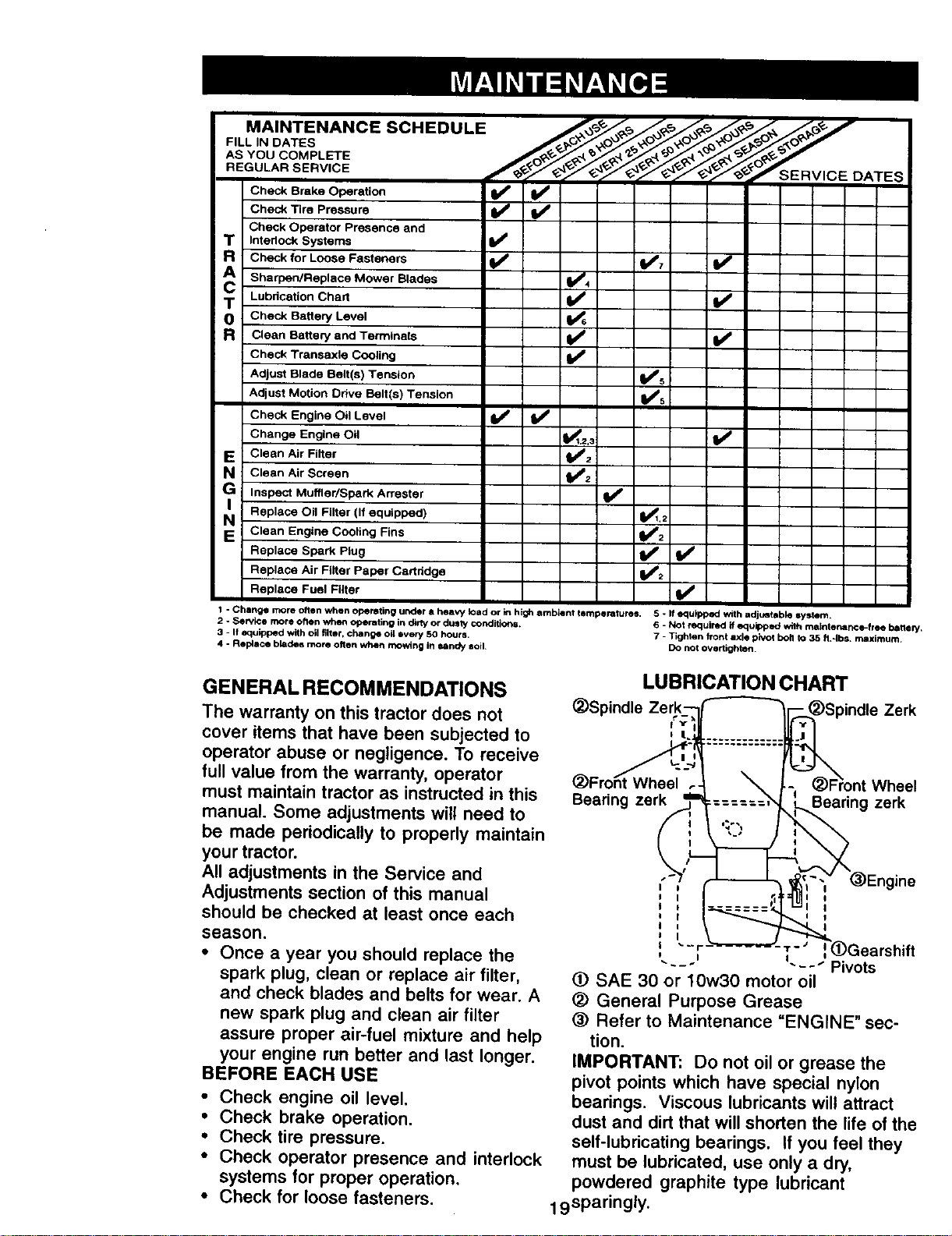

MAINTENANCE SCHEDULE ___ ._.,f _..,'_._1./___/'_o_/_/_ ..,_Y

F,LL,"OATES

AS YOU COMPLETE O_._ _ _-_. _-4. _._ _._ O_

R EGU LAR SERVICE J__O.,_S E RMI C E DATES

Check Brake Operation _

Check Tire Pressure

Check Operator Presence and

T Interlock Systems I_

R Check for Loose Fasteners V' I_'7

A Sharpen/Replace Mower Blades _s 4

T Lubrication Chart V*

0 Check Battery Level

R Clean Battery and Terminals I_

Check Transaxle Cooling V'

Adjust Blade Belt(s) Tension 1_5

Adjust Motion Drive Belt(s) Tension V'5

Check Engine Oil Level _

Change Engine Oil _1,2,3

E Clean Air Filter _2

N Clean Air Screen _2

G Inspect Muffler/Spark Arrester I_

Replace Oil Filter (If equipped) I_t

Clean Engine Cooling Fins V'2

Replace Spark Plug _2 I_/

Replace Air Filter Paper Certndge

Replace Fuel Filter V m

1 - Change more often when Operating under a heavy loador m high ambient temperatures. 5 - If equipped with adjuetable system+

2 - Service more often wham operating in dirtyor dulty conditions. 6 - Not required if equipped withmalnter_nce-frae batteP/.

3 - If equipped with oil fllter_change o_ every 50 hours. 7 - T_lhle n fro_t axle pivot boltto 3.5_-Ib_, _um

4 - Replace bledes more often when mowing in sandy soil, Do not overtighten.

GENERAL RECOMMENDATIONS

The warranty on this tractor does not

cover items that have been subjected to

operator abuse or negligence. To receive

full value from the warranty, operator

must maintain tractor as instructed in this

manual. Some adjustments wilt need to

be made periodically to properly maintain

your tractor.

All adjustments in the Service and

Adjustments section of this manual

should be checked at least once each

season.

• Once a year you should replace the

spark plug, clean or replace air filter,

and check blades and belts for wear. A

new spark plug and clean air filter

assure proper air-fuel mixture and help

your engine run better and last longer.

BEFORE EACH USE

• Check engine oil level.

• Check brake operation.

• Check tire pressure.

• Check operator presence and interlock

systems for proper operation.

• Check for loose fasteners.

LUBRICATION CHART

_)Spindle

Zerk

(_)Fro_-t Wheel Wheel

Bearing zerk Bearing zerk

• ine

I I

' = L " Pivots

SAE 30 or 10w30 motor oil

(_ General Purpose Grease

Refer to Maintenance =ENGINE" sec-

tion.

IMPORTANT: Do not oil or grease the

pivot points which have special nylon

bearings. Viscous lubricants will attract

dust and dirt that will shorten the life of the

self-lubricating bearings. If you feel they

must be lubricated, use only a dry,

powdered graphite type lubricant

19sparingly'

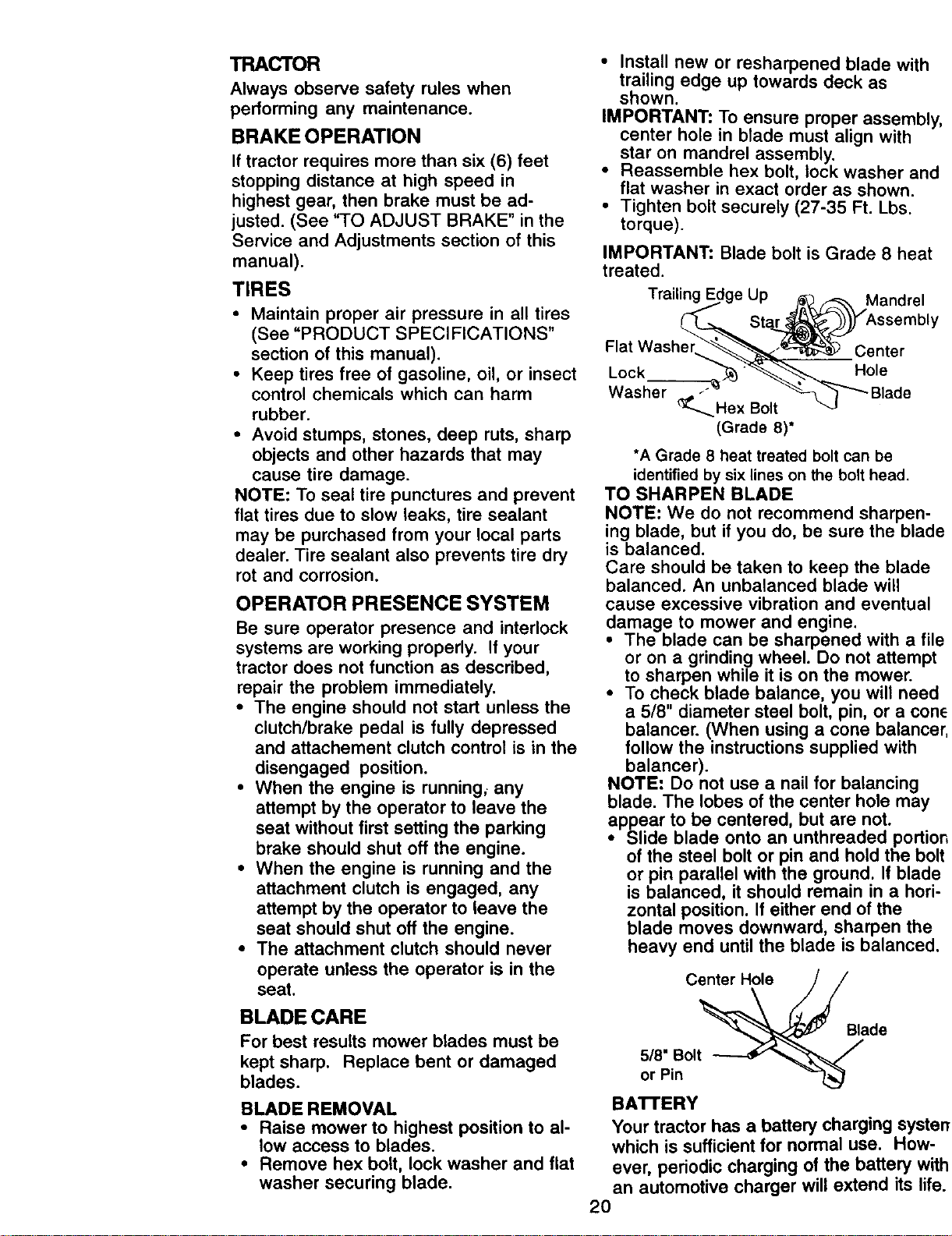

TRACTOR

Always observe safety rules when

performing any maintenance.

BRAKE OPERATION

If tractor requires more than six (6) feet

stopping distance at high speed in

highest gear, then brake must be ad-

justed. (See '%0 ADJUST BRAKE" in the

Service and Adjustments section of this

manual).

TIRES

• Maintain proper air pressure in all tires

(See "PRODUCT SPECIFICATIONS"

section of this manual).

• Keep tires free of gasoline, oil, or insect

control chemicals which can harm

rubber.

• Avoid stumps, stones, deep ruts, sharp

objects and other hazards that may

cause tire damage.

NOTE: To seal tire punctures and prevent

flat tires due to slow leaks, tire sealant

may be purchased from your local parts

dealer. Tire sealant also prevents tire dry

rot and corrosion.

OPERATOR PRESENCE SYSTEM

Be sure operator presence and interlock

systems are working properly. If your

tractor does not function as described,

repair the problem immediately.

• The engine should not start unless the

clutch/brake pedal is fully depressed

and attachement clutch control is in the

disengaged position.

• When the engine is running,, any

attempt by the operator to leave the

seat without first setting the parking

brake should shut off the engine.

• When the engine is running and the

attachment clutch is engaged, any

attempt by the operator to leave the

seat should shut off the engine.

• The attachment clutch should never

operate unless the operator is in the

seat.

BLADE CARE

For best results mower blades must be

kept sharp. Replace bent or damaged

blades.

BLADE REMOVAL

• Raise mower to highest position to al-

low access to blades.

• Remove hex bolt, lock washer and flat

washer securing blade.

• Install new or resharpened blade with

trailing edge up towards deck as

shown.

IMPORTANT: To ensure proper assembly,

center hole in blade must align with

star on mandrel assembly.

• Reassemble hex bolt, lock washer and

flat washer in exact order as shown.

• Tighten bolt securely (27-35 Ft. Lbs.

torque).

IMPORTANT: Blade bolt is Grade 8 heat

treated.

Trailing Mandrel

Flat Center

Lock Hole

Washer _'_

_.._ Hex Bolt

(Grade 8)*

*A Grade 8 heat treated bolt can be

identified by six lines on the bolt head.

TO SHARPEN BLADE

NOTE: We do not recommend sharpen-

ing blade, but if you do, be sure the blade

is balanced.

Care should be taken to keep the blade

balanced. An unbalanced blade will

cause excessive vibration and eventual

damage to mower and engine.

• The blade can be sharpened with a file

or on a grinding wheel. Do not attempt

to sharpen while it is on the mower.

• To check blade balance, you will need

a 5/8" diameter steel bolt, pin, or a cone

balancer. (When using a cone balancer,

follow the instructions supplied with

balancer).

NOTE: Do not use a nail for balancing

blade. The lobes of the center hole may

appear to be centered, but are not.

• Slide blade onto an unthreaded portion

of the steel bolt or pin and hold the bolt

or pin parallel with the ground. If blade

is balanced, it should remain in a hori-

zontal position. If either end of the

blade moves downward, sharpen the

heavy end until the blade is balanced.

Center Hole

Blade

5/8" Bolt

or Pin

BATTERY

Your tractor has a battery charging systen

which is sufficient for normal use. How-

ever, periodic charging of the battery with

an automotive charger will extend its life.

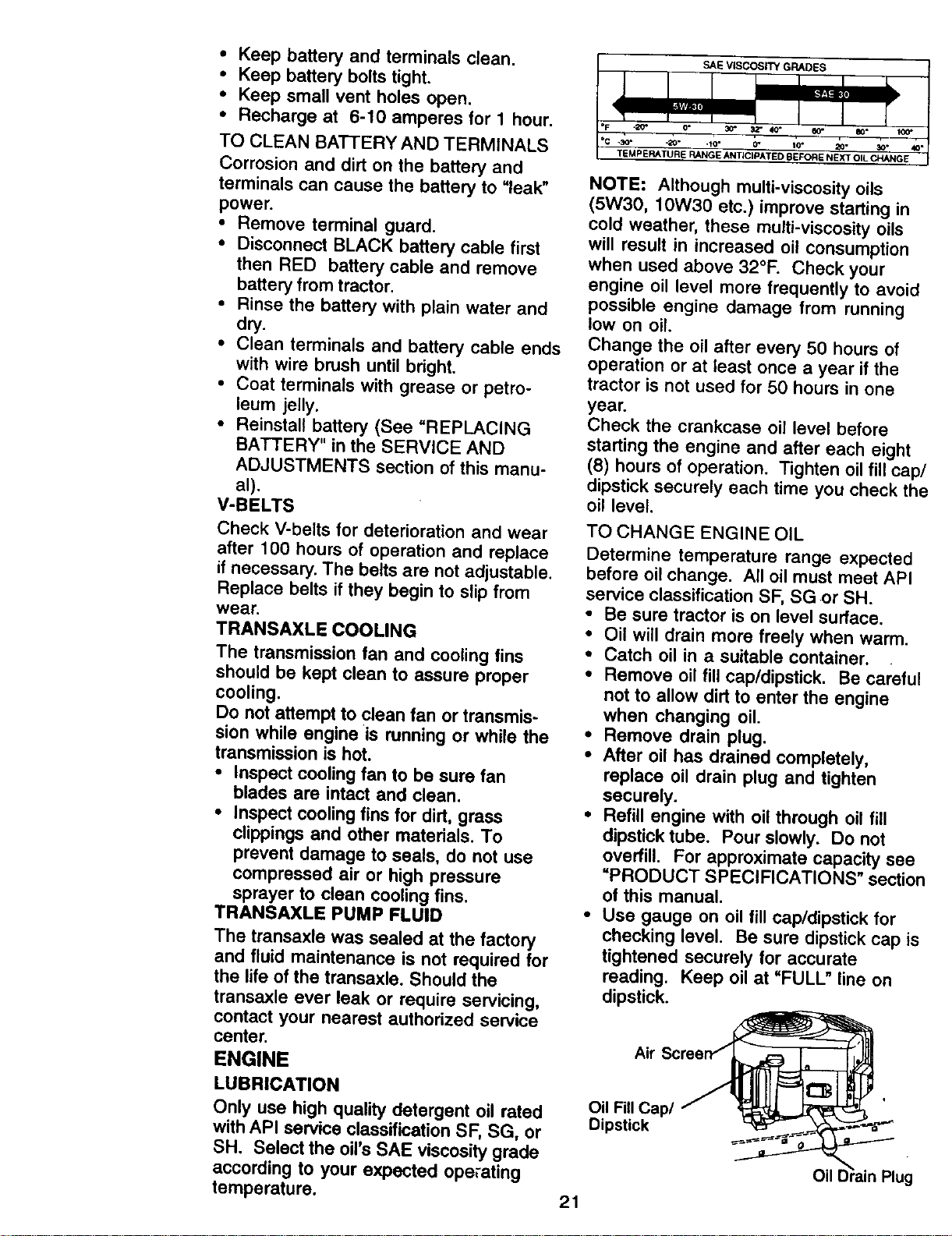

• Keep battery and terminals clean.

• Keep battery bolts tight.

• Keep small vent holes open.

• Recharge at 6-10 amperes for 1 hour.

TO CLEAN BATTERY AND TERMINALS

Corrosion and dirt on the battery and

terminals can cause the battery to "leak"

power.

• Remove terminal guard.

• Disconnect BLACK battery cable first

then RED battery cable and remove

battery from tractor.

• Rinse the battery with plain water and

dry.

• Clean terminals and battery cable ends

with wire brush until bdght.

• Coat terminals with grease or petro-

leum jelly.

• Reinstall battery (See "REPLACING

BATTERY" in the SERVICE AND

ADJUSTMENTS section of this manu-

al).

V-BELTS

Check V-belts for deterioration and wear

after 100 hours of operation and replace

if necessary. The belts are not adjustable.

Replace belts if they begin to slip from

wear.

TRANSAXLE COOLING

The transmission fan and cooling fins

should be kept clean to assure proper

cooling.

Do not attempt to clean fan or transmis-

sion while engine is running or while the

transmission is hot.

• Inspect cooling fan to be sure fan

blades are intact and clean.

• Inspect cooling fins for dirt, grass

clippings and other materials. To

prevent damage to seals, do not use

compressed air or high pressure

sprayer to clean cooling fins.

TRANSAXLE PUMP FLUID

The transaxle was sealed at the factory

and fluid maintenance is not required for

the life of the transaxle. Should the

transaxle ever leak or require servicing,

contact your nearest authorized service

center.

ENGINE

LUBRICATION

Only use high quality detergent oil rated

with API service classification SF, SG, or

SH. Select the oil's SAE viscosity grade

according to your expected operating

temperature.

SAE VtSCOStTY GRADES

_ 40" 60" e0" 100_

TEMPERATURE RANGE ANTICIPATED BEFORE NEXT OIL CHANGE

NOTE: Although multi-viscosity oils

(5W30, 10W30 etc.) improve starting in

cold weather, these multi-viscosity oils

will result in increased oil consumption

when used above 32°F. Check your

engine oil level more frequently to avoid

possible engine damage from running

low on oil.

Change the oil after every 50 hours of

operation or at least once a year if the

tractor is not used for 50 hours in one

year.

Check the crankcase oil level before

starting the engine and after each eight

(8) hours of operation. "13ghtenoil fill cap/

dipstick securely each time you check the

oil level.

TO CHANGE ENGINE OIL

Determine temperature range expected

before oil change. All oil must meet API

service classification SF, SG or SH.

• Be sure tractor is on level surface.

• Oil will drain more freely when warm.

• Catch oil in a suitable container.

• Remove oil fill cap/dipstick. Be careful

not to allow dirt to enter the engine

when changing oil.

• Remove drain plug.

• After oil has drained completely,

replace oil drain plug and tighten

securely.

• Refill engine with oil through oil fill

dipstick tube. Pour slowly. Do not

overfill. For approximate capacity see

=PRODUCT SPECIFICATIONS" section

of this manual.

• Use gauge on oil fill cap/dipstick for

checking level. Be sure dipstick cap is

tightened securely for accurate

reading. Keep oil at "FULL" line on

dipstick.

Air

Dipstick

Oil Drain Plug

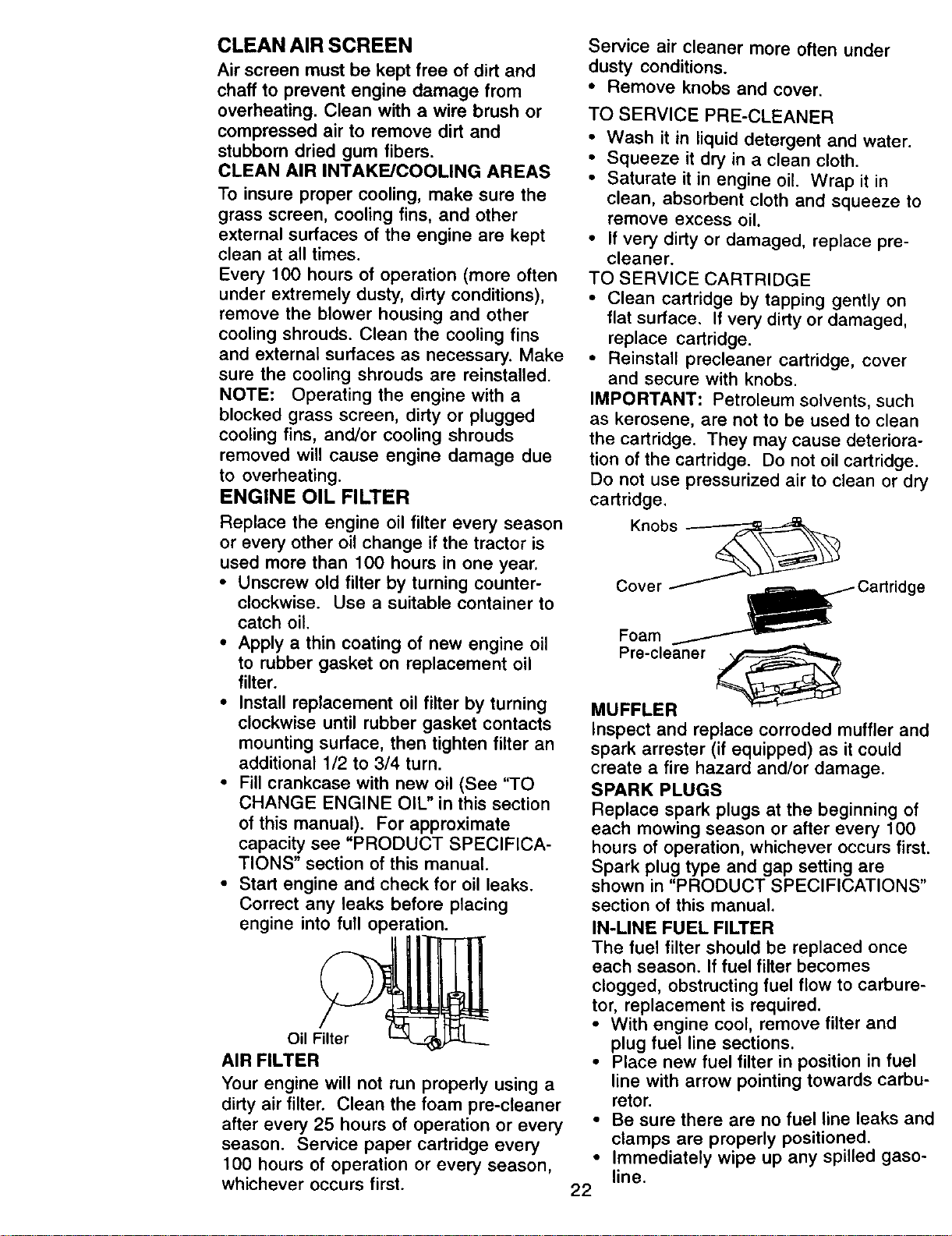

CLEAN AIR SCREEN

Air screen must be kept free of dirt and

chaff to prevent engine damage from

overheating. Clean with a wire brush or

compressed air to remove dirt and

stubborn dried gum fibers.

CLEAN AIR INTAKE/COOLING AREAS

To insure proper cooling, make sure the

grass screen, cooling fins, and other

external surfaces of the engine are kept

clean at all times.

Every 100 hours of operation (more often

under extremely dusty, dirty conditions),

remove the blower housing and other

cooling shrouds. Clean the cooling fins

and external surfaces as necessary. Make

sure the cooling shrouds are reinstalled.

NOTE: Operating the engine with a

blocked grass screen, dirty or plugged

cooling fins, and/or cooling shrouds

removed will cause engine damage due

to overheating.

ENGINE OIL FILTER

Replace the engine oil filter every season

or every other oil change ifthe tractor is

used more than 100 hours in one year.

• Unscrew old filter by turning counter-

clockwise. Use a suitable container to

catch oil.

• Apply a thin coating of new engine oil

to rubber gasket on replacement oil

filter.

• Install replacement oil filter by turning

clockwise until rubber gasket contacts

mounting surface, then tighten filter an

additional 1/2 to 3/4 turn.

• Fill crankcase with new oil (See "TO

CHANGE ENGINE OIL" in this section

of this manual). For approximate

capacity see "PRODUCT SPECIFICA-

TIONS" section of this manual.

• Start engine and check for oil leaks.

Correct any leaks before placing

engine into full operation.

Oil Filter

AIR FILTER

Your engine will not run properly using a

dirty air filter. Clean the foam pre-cleaner

after every 25 hours of operation or every °

season. Service paper cartridge every

100 hours of operation or every season,

whichever occurs first. 22

Service air cleaner more often under

dusty conditions.

• Remove knobs and cover.

TO SERVICE PRE-CLEANER

• Wash it in liquid detergent and water.

• Squeeze it dry in a clean cloth.

• Saturate it in engine oil. Wrap it in

clean, absorbent cloth and squeeze to

remove excess oil.

• If very dirty or damaged, replace pre-

cleaner.

TO SERVICE CARTRIDGE

• Clean cartridge by tapping gently on

flat surface. If very dirty or damaged,

replace cartridge.

• Reinstall precleaner cartridge, cover

and secure with knobs.

IMPORTANT: Petroleum solvents, such

as kerosene, are not to be used to clean

the cartridge. They may cause deteriora-

tion of the cartridge. Do not oil cartridge.

Do not use pressurized air to clean or dry

cartridge.

Knobs _

Cover

Foam

Pre-cleaner @

MUFFLER

Inspect and replace corroded muffler and

spark arrester (if equipped) as it could

create a fire hazard and/or damage.

SPARK PLUGS

Replace spark plugs at the beginning of

each mowing season or after every 100

hours of operation, whichever occurs first.

Spark plug type and gap setting are

shown in "PRODUCT SPECIFICATIONS"

section of this manual.

IN-LINE FUEL FILTER

The fuel filter should be replaced once

each season. If fuel filter becomes

clogged, obstructing fuel flow to carbure-

tor, replacement is required.

• With engine cool, remove filter and

plug fuel line sections.

• Place new fuel filter in position in fuel

line with arrow pointing towards carbu-

retor.

Be sure there are no fuel line leaks and

clamps are properly positioned.

Immediately wipe up any spilled gaso-

line.

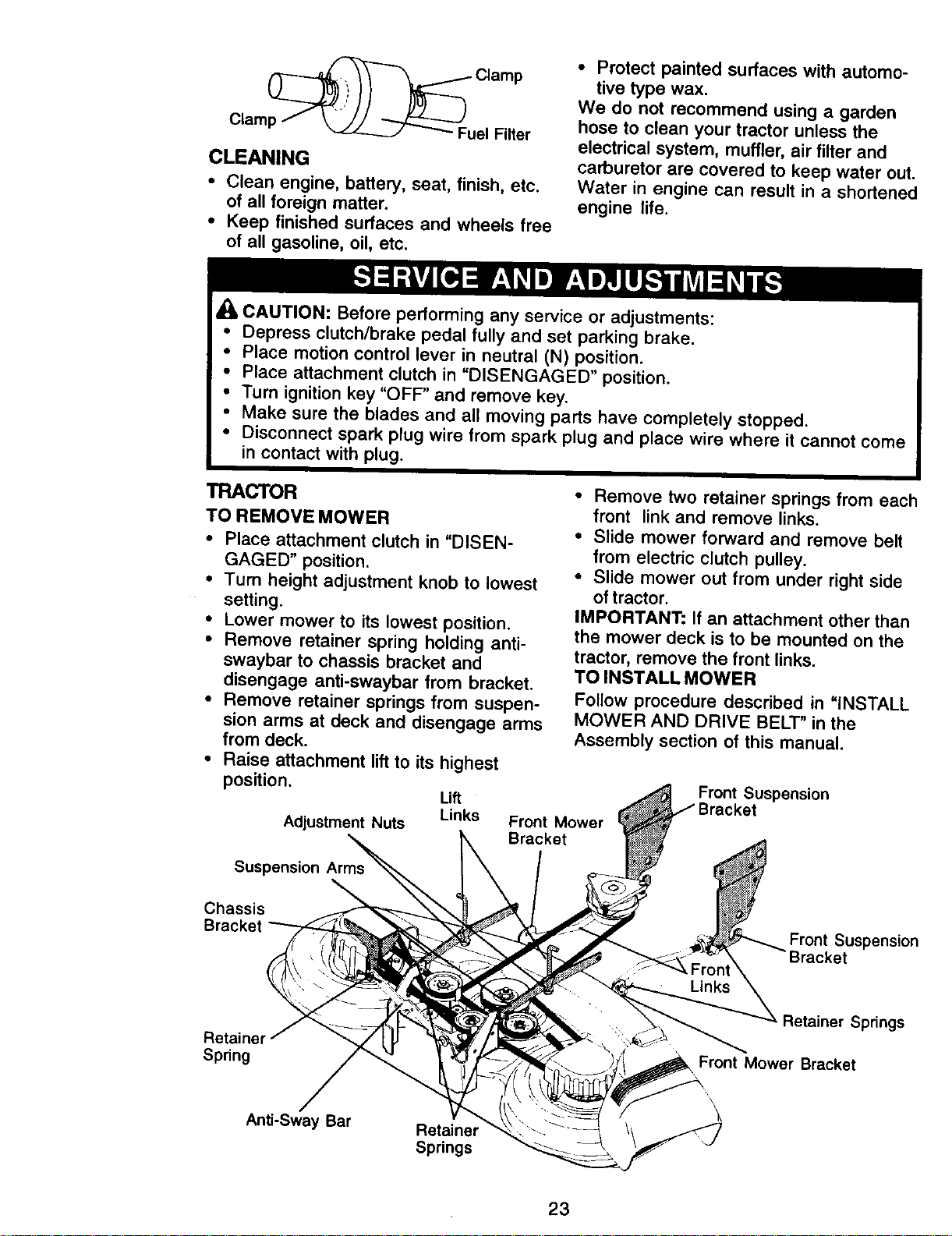

_ Clamp

Clamp .I _Fuel Filter

CLEANING

• Clean engine, battery, seat, finish, etc.

of all foreign matter.

• Keep finished surfaces and wheels free

of all gasoline, oil, etc.

• Protect painted surfaces with automo-

tive type wax.

We do not recommend using a garden

hose to clean your tractor unless the

electrical system, muffler, air filter and

carburetor are covered to keep water out.

Water in engine can result in a shortened

engine life.

CAUTION: Before pedorming any service or adjustments:

• Depress clutch/brake pedal fully and set parking brake.

• Place motion control lever in neutral (N) position.

• Place attachment clutch in "DISENGAGED" position.

• Turn ignition key "OFF" and remove key.

• Make sure the blades and all moving parts have completely stopped.

• Disconnect spark plug wire from spark plug and place wire where it cannot come

in contact with plug.

TRACTOR

TO REMOVE MOWER

• Place attachment clutch in "DISEN-

GAGED" position.

• Turn height adjustment knob to lowest

setting.

• Lower mower to its lowest position.

• Remove retainer spring holding anti-

swaybar to chassis bracket and

disengage anti-swaybar from bracket.

• Remove retainer springs from suspen-

sion arms at deck and disengage arms

from deck.

• Raise attachment lift to its highest

position.

Lift

Adjustment Nuts Links

• Remove two retainer springs from each

front link and remove links.

• Slide mower forward and remove belt

from electric clutch pulley.

• Slide mower out from under right side

of tractor.

IMPORTANT: If an attachment other than

the mower deck is to be mounted on the

tractor, remove the front links.

TO INSTALL MOWER

Follow procedure described in "INSTALL

MOWER AND DRIVE BELT" in the

Assembly section of this manual.

Front Mower

Bracket

Front Suspension

Suspension Arms

Chassis

Bracket

Front Suspension

acket

Retainer

Spring

"_ Retainer Springs

Front Mower Bracket

Anti-Sway Bar

Retainer

Springs

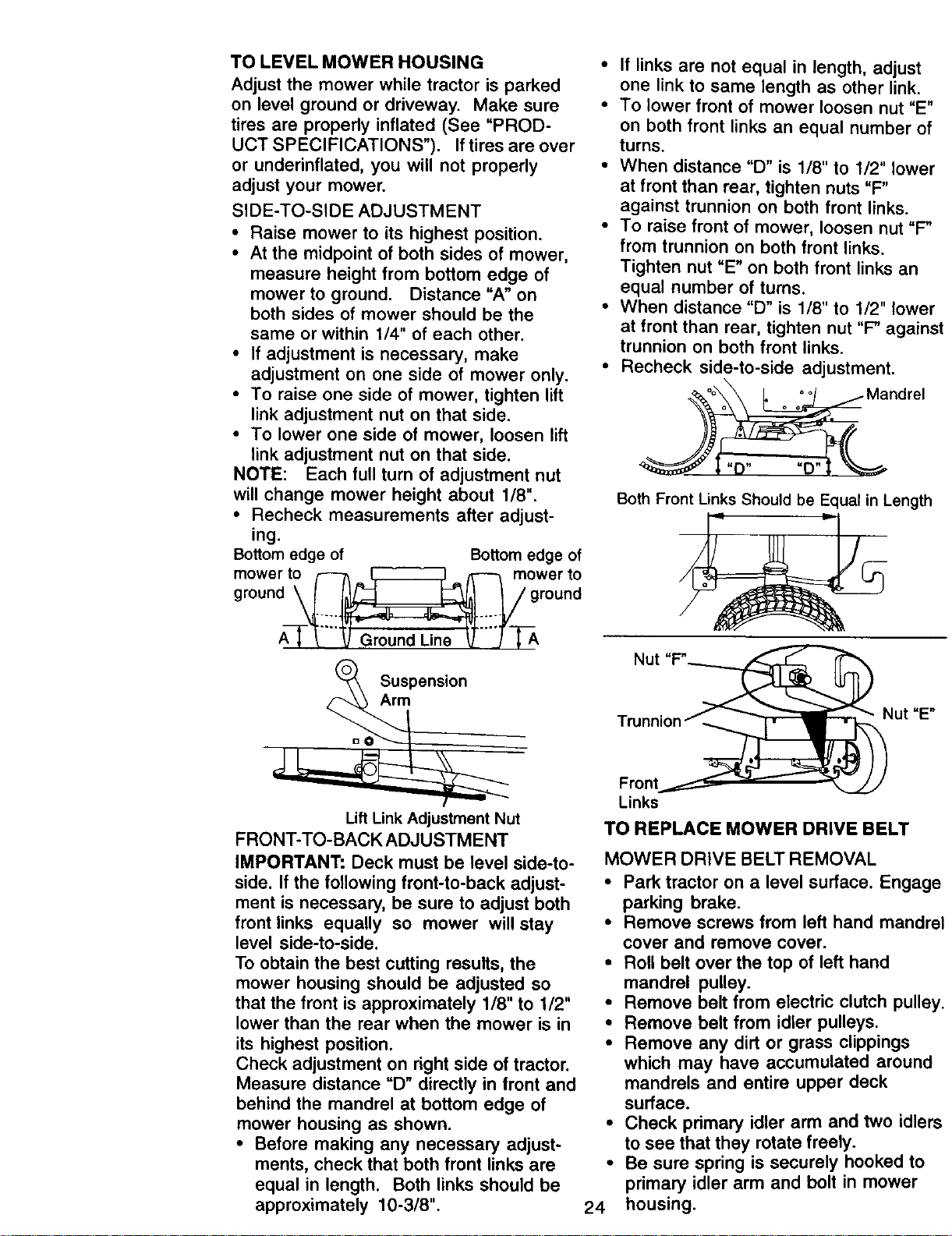

TO LEVEL MOWERHOUSING

Adjust the mower while tractor is parked

on level ground or driveway. Make sure

tires are properly inflated (See "PROD-

UCT SPECIFICATIONS"). If tires are over

or underinflated, you will not properly

adjust your mower.

SIDE-TO-SIDE ADJUSTMENT

• Raise mower to its highest position.

• At the midpoint of both sides of mower,

measure height from bottom edge of

mower to ground. Distance "A" on

both sides of mower should be the

same or within 1/4" of each other.

• If adjustment is necessary, make

adjustment on one side of mower only.

• To raise one side of mower, tighten lift

link adjustment nut on that side.

• To lower one side of mower, loosen lift

link adjustment nut on that side.

NOTE: Each full turn of adjustment nut

will change mower height about 1/8".

• Recheck measurements after adjust-

ing.

Bottom edge of

mower to

ground k_.___.l_

Bottom edge of

. _ ,. _ mower to

'__t ;_;_-_T ground

Ground Line LT-"J -_

Suspension

Arm

LiftLinkAdjustmentNut

FRONT-TO-BACK ADJUSTMENT

IMPORTANT: Deck must be level side-to-

side. If the following front-to-back adjust-

ment is necessary, be sure to adjust both

front links equally so mower will stay

level side-to-side.

To obtain the best cutting results, the

mower housing should be adjusted so

that the front is approximately 1/8" to 1/2"

lower than the rear when the mower is in

its highest position.

Check adjustment on right side of tractor.

Measure distance "D" directly in front and

behind the mandrel at bottom edge of

mower housing as shown.

• Before making any necessary adjust-

ments, check that both front links are

equal in length. Both links should be

approximately 10-3/8".

• If links are not equal in length, adjust

one link to same length as other link.

• To lower front of mower loosen nut "E"

on both front links an equal number of

turns.

• When distance "D" is 1/8" to 1/2" lower

at front than rear, tighten nuts "F"

against trunnion on both front links.

• To raise front of mower, loosen nut "F"

from trunnion on both front links.

Tighten nut "E" on both front links an

equal number of turns.

• When distance "D" is 1/8" to 1/2" lower

at front than rear, tighten nut "P against

trunnion on both front links.

• Recheck side-to-side adjustment.

Both Front Links Should be Equal in Length

Nut

Trunnion

Front

Links

TO REPLACE MOWER DRIVE BELT

MOWER DRIVE BELT REMOVAL

Park tractor on a level surface. Engage

parking brake.

Remove screws from left hand mandrel

cover and remove cover.

Roll belt over the top of left hand

mandrel pulley.

Remove belt from electric clutch pulley.

Remove belt from idler pulleys.

Remove any dirt or grass clippings

which may have accumulated around

mandrels and entire upper deck

surface.

Check primary idler arm and two idlers

to see that they rotate freely.

Be sure spring is securely hooked to

primary idler arm and bolt in mower

housing.

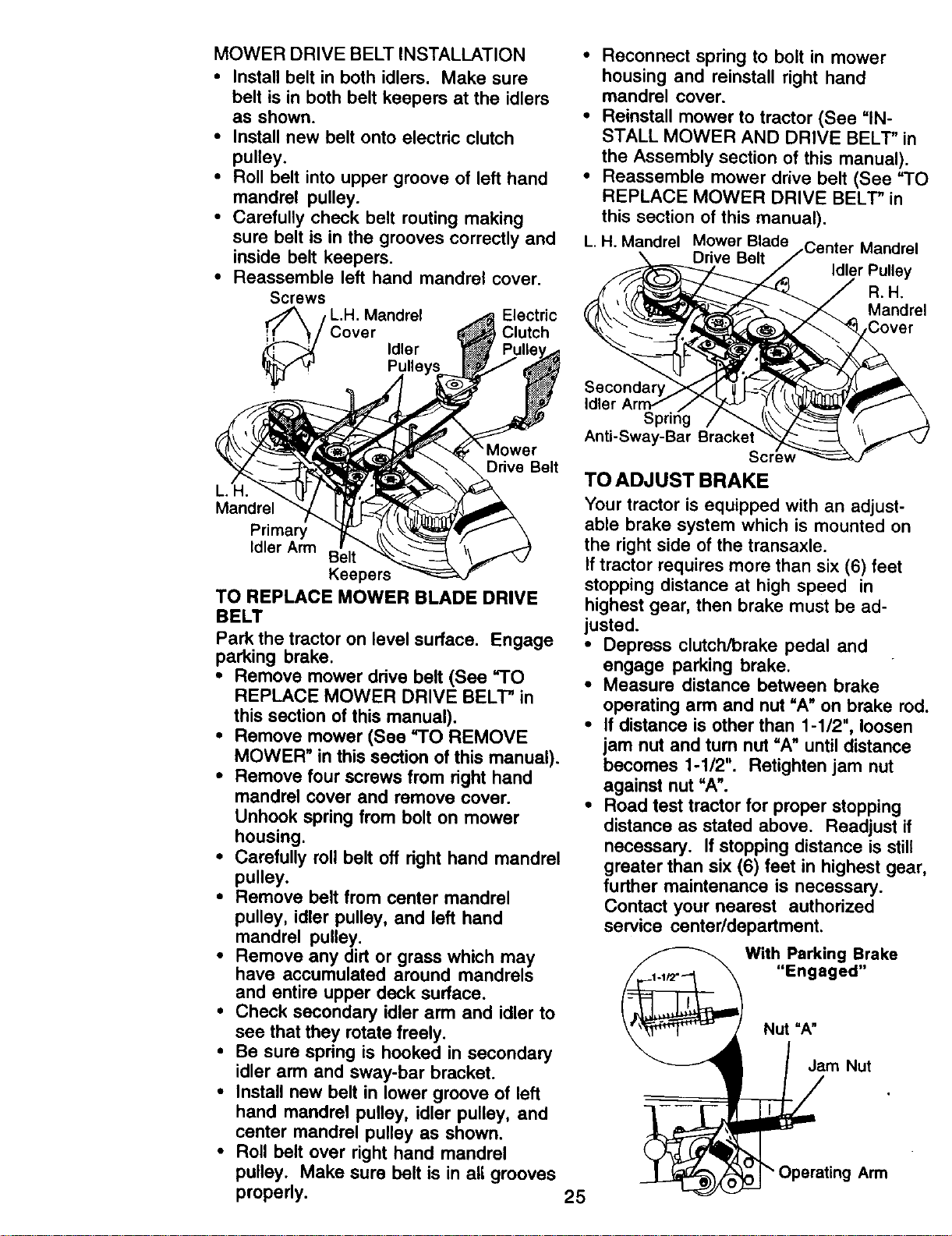

MOWER DRIVE BELT INSTALLATION

• Install belt in both idlers. Make sure

belt is in both belt keepers at the idlers

as shown.

• Install new belt onto electric clutch

pulley.

• Roll belt into upper groove of left hand

mandrel pulley.

• Carefully check belt routing making

sure belt is in the grooves correctly and

inside belt keepers.

• Reassemble left hand mandrel cover.

Screws

L.H. Mandrel Electric

Clutch

Idler

• Reconnect spring to bolt in mower

housing and reinstall right hand

mandrel cover.

• Reinstall mower to tractor (See "IN-

STALL MOWER AND DRIVE BELT" in

the Assembly section of this manual).

• Reassemble mower drive belt (See "1-(_

REPLACE MOWER DRIVE BELT" in

this section of this manual).

L. H. Mandrel Mower Blade

Ddve Belt

Mandrel

Idler Pulley

R.H,

Mandrel

,Cover

L.F

Mandrel

Primary

Idler Arm

Keepers

TO REPLACE MOWER BLADE DRIVE

BELT

Park the tractor on level surface. Engage

parking brake.

• Remove mower drive belt (See "TO

REPLACE MOWER DRIVE BELT" in

this section of this manual).

• Remove mower (See "TO REMOVE

MOWER" in this section of this manual).

• Remove four screws from right hand

mandrel cover and remove cover.

Unhook spring from bolt on mower

housing.

• Carefully roll belt off right hand mandrel

pulley.

• Remove belt from center mandrel

pulley, idler pulley, and left hand

mandrel pulley.

• Remove any dirt or grass which may

have accumulated around mandrels

and entire upper deck surface.

• Check secondary idler arm and idler to

see that they rotate freely.

• Be sure spring is hooked in secondary

idler arm and sway-bar bracket.

• Install new belt in lower groove of left

hand mandrel pulley, idler pulley, and

center mandrel pulley as shown.

• Roll belt over right hand mandrel

pulley. Make sure belt is in all grooves

properly.

idler

Sprit

Anti-Sway-Bar Brackel

Scr

TO ADJUST BRAKE

Your tractor is equipped with an adjust-

able brake system which is mounted on

the right side of the transaxle.

If tractor requires more than six (6) feet

stopping distance at high speed in

highest gear, then brake must be ad-

justed.

• Depress clutch/brake pedal and

engage parking brake.

• Measure distance between brake

operating arm and nut =A" on brake red

• If distance is other than 1-1/2", loosen

jam nut and turn nut =A" until distance

becomes 1-1/2". Retighten jam nut

against nut "A".

• Road test tractor for proper stopping

distance as stated above, Readjust if

necessary. If stopping distance is still

greater than six (6) feet in highest gear

further maintenance is necessary.

Contact your nearest authorized

service center/department.

With Parking Brake

"Engaged"

Nut "A"

Jam Nut

Operating Arm

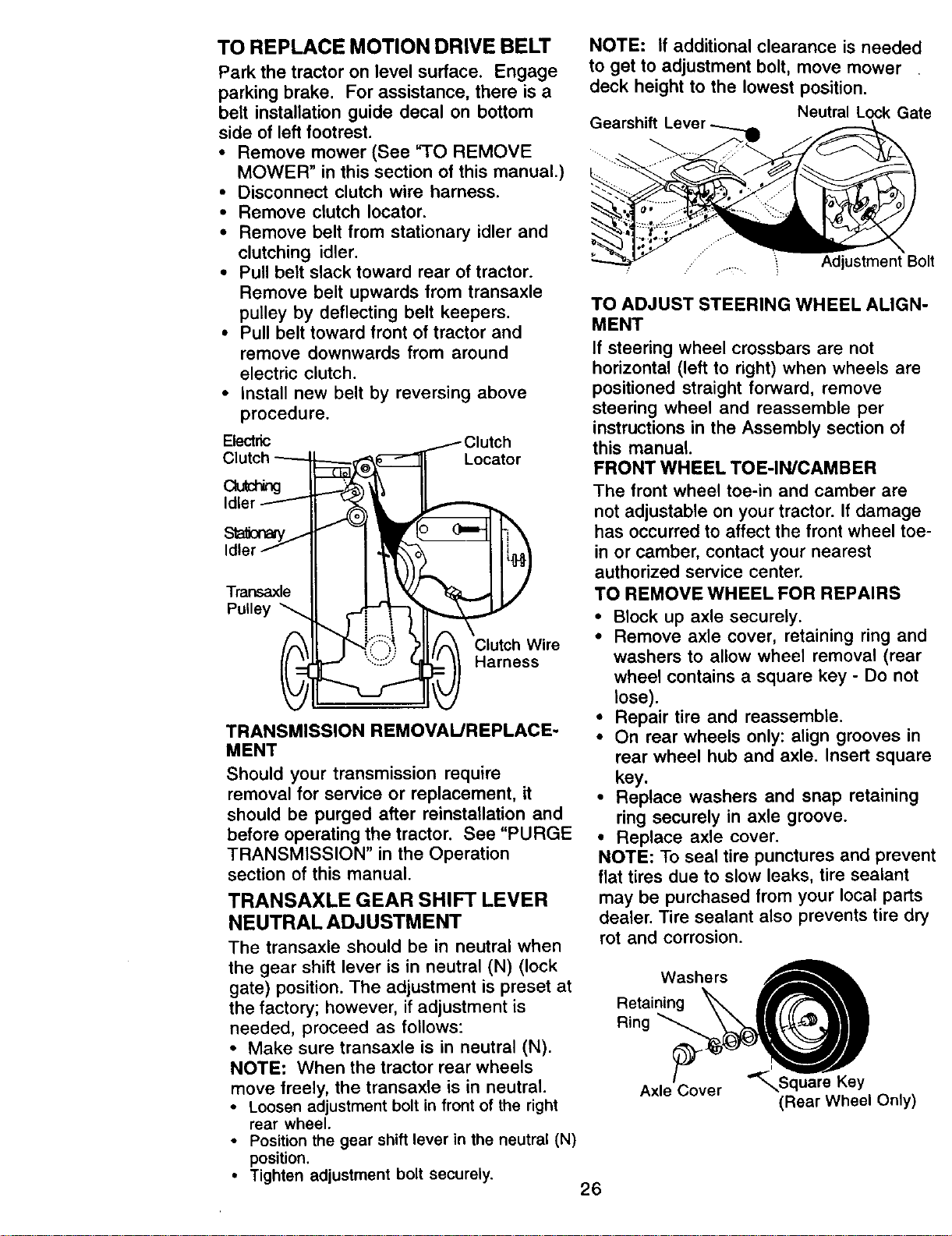

TO REPLACE MOTION DRIVE BELT

Park the tractor on level surface. Engage

parking brake. For assistance, there is a

belt installation guide decal on bottom

side of left footrest.

• Remove mower (See "TO REMOVE

MOWER" in this section of this manual.)

• Disconnect clutch wire harness.

• Remove clutch Iocator.

• Remove belt from stationary idler and

clutching idler.

• Pull belt slack toward rear of tractor.

Remove belt upwards from transaxle

pulley by deflecting belt keepers.

• Pull belt toward front of tractor and

remove downwards from around

electric clutch.

• Install new belt by reversing above

procedure.

Electric

Clutch

sl_onay

Idler

Transaxle

Pulley

J _"_.._iii:_ ClutchH_3.rness Wire

TRANSMISSION REMOVAL/REPLACE-

MENT

Should your transmission require

removal for service or replacement, it

should be purged after reinstallation and

before operating the tractor. See "PURGE

TRANSMISSION" in the Operation

section of this manual.

TRANSAXLE GEAR SHIFT LEVER

NEUTRAL ADJUSTMENT

The transaxle should be in neutral when

the gear shift lever is in neutral (N) (lock

gate) position. The adjustment is preset at

the factory; however, if adjustment is

needed, proceed as follows:

• Make sure transaxle is in neutral (N).

NOTE: When the tractor rear wheels

move freely, the transaxle is in neutral.

• Loosen adjustment bolt in front of the right

rear wheel.

• Position the gear shift lever in the neutral (N)

position.

• Tighten adjustment bolt securely.

NOTE: If additional clearance is needed

to get to adjustment bolt, move mower

deck height to the lowest position.

Neutral Lock Gate

Gearshift

Adjustment Bolt

TO ADJUST STEERING WHEEL ALIGN-

MENT

If steering wheel crossbars are not

horizontal (left to right) when wheels are

positioned straight forward, remove

steering wheel and reassemble per

instructions in the Assembly section of

this manual.

FRONT WHEEL TOE-IN/CAMBER

The front wheel toe-in and camber are

not adjustable on your tractor. If damage

has occurred to affect the front wheel toe-

in or camber, contact your nearest

authorized service center.

TO REMOVE WHEEL FOR REPAIRS

• Block up axle securely.

• Remove axle cover, retaining ring and

washers to allow wheel removal (rear

wheel contains a square key - Do not

lose).

• Repair tire and reassemble.

• On rear wheels only: align grooves in

rear wheel hub and axle. Insert square

key.

• Replace washers and snap retaining

ring securely in axle groove.

• Replace axle cover.

NOTE: To seal tire punctures and prevent

flat tires due to slow leaks, tire sealant

may be purchased from your local parts

dealer. Tire sealant also prevents tire dry

rot and corrosion.

Washers

Retaining _ fE/Fi'_k_

Ring

Axlelcover _Square Key

(Rear Wheel

Only)

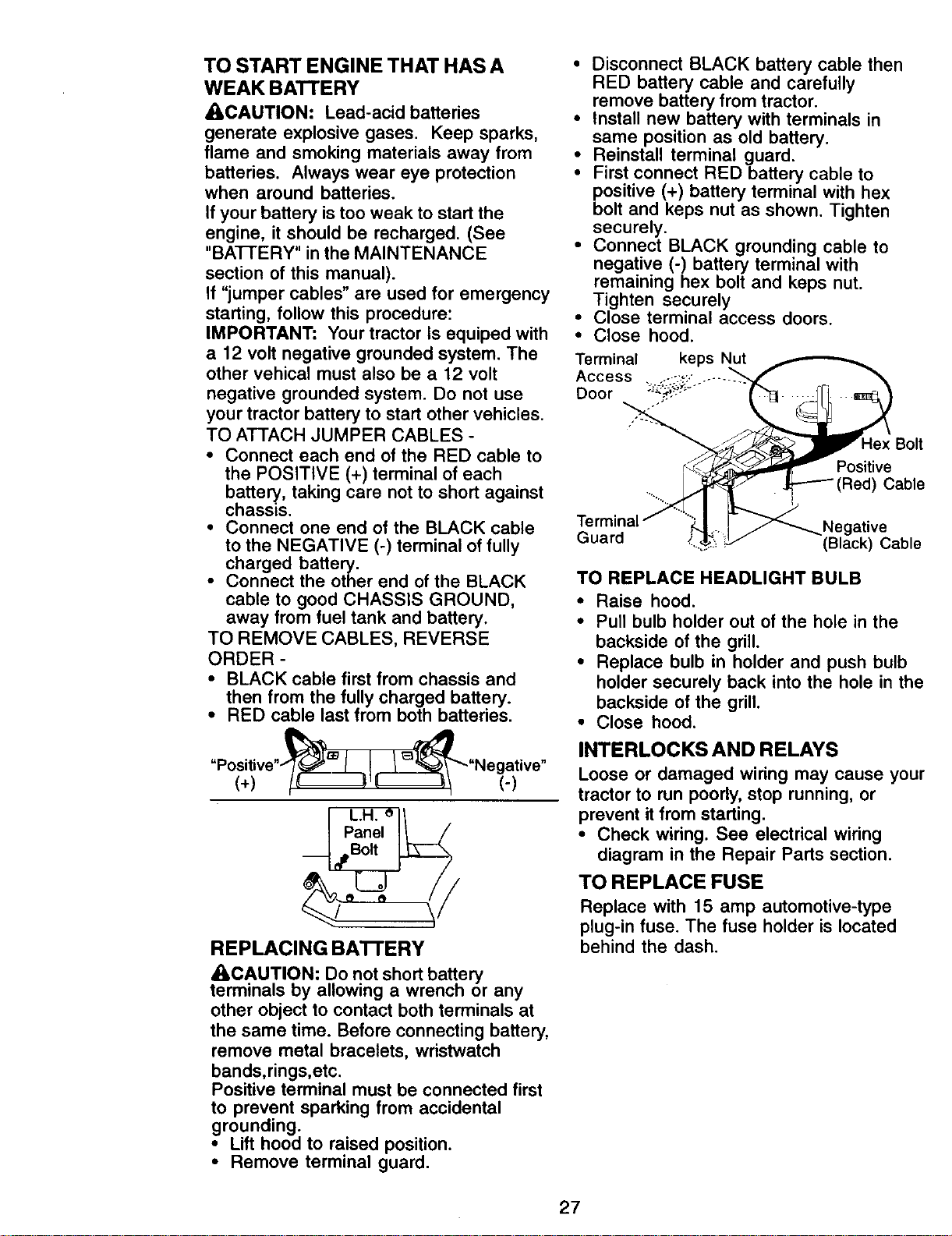

TO START ENGINE THAT HASA

WEAK BATTERY

_kCAUTION: Lead-acid batteries

generate explosive gases. Keep sparks,

flame and smoking materials away from

batteries. Always wear eye protection

when around batteries.

If your battery is too weak to start the

engine, it should be recharged. (See

"BAI-rERY" in the MAINTENANCE

section of this manual).

If "jumper cables" are used for emergency

starting, follow this procedure:

IMPORTANT: Your tractor Is equiped with

a 12 volt negative grounded system. The

other vehical must also be a 12 volt

negative grounded system. Do not use

your tractor battery to start other vehicles.

TO ATTACH JUMPER CABLES -

• Connect each end of the RED cable to

the POSiTiVE (+) terminal of each

battery, taking care not to short against

chassis.

• Connect one end of the BLACK cable

to the NEGATIVE (-) terminal of fully

charged battery.

• Connect the other end of the BLACK

cable to good CHASSIS GROUND,

away from fuel tank and battery.

TO REMOVE CABLES, REVERSE

ORDER -

• BLACK cable first from chassis and

then from the fully charged battery.

• RED cable last from both batteries.

"Poeitive"_"Negative"

REPLACING BATTERY

ACAUTION: Do not short battery

terminals by allowing a wrench or any

other object to contact both terminals at

the same time. Before connecting battery,

remove metal bracelets, wristwatch

bands,rings,etc.

Positive terminal must be connected first

to prevent sparking from accidental

grounding.

• Lift hood to raised position.

• Remove terminal guard.

• Disconnect BLACK battery cable then

RED battery cable and carefully

remove battery from tractor.

• Install new battery with terminals in

same position as old battery.

• Reinstall terminal guard.

• First connect RED battery cable to

positive (+) battery terminal with hex

bolt and keps nut as shown. Tighten

securely.

• Connect BLACK grounding cable to

negative (-) battery terminal with

remaining hex bolt and keps nut.

Tighten securely

• Close terminal access doors.

• Close hood.

Terminal keps Nut

Access ......,'

Door ;":;'_-_°_'°

Hex Boll

Positive

Cable

Negative

Guard (Black) Cable

TO REPLACE HEADLIGHT BULB

• Raise hood.

• Pull bulb holder out of the hole in the

backside of the grill.

• Replace bulb in holder and push bulb

holder securely back into the hole in the

backside of the grill.

• Close hood.

INTERLOCKS AND RELAYS

Loose or damaged wiring may cause youl

tractor to run poorty, stop running, or

prevent it from starting.

• Check wiring. See electrical wiring

diagram in the Repair Parts section.

TO REPLACE FUSE

Replace with 15 amp automotive-type

plug-in fuse. The fuse holder is located

behind the dash.

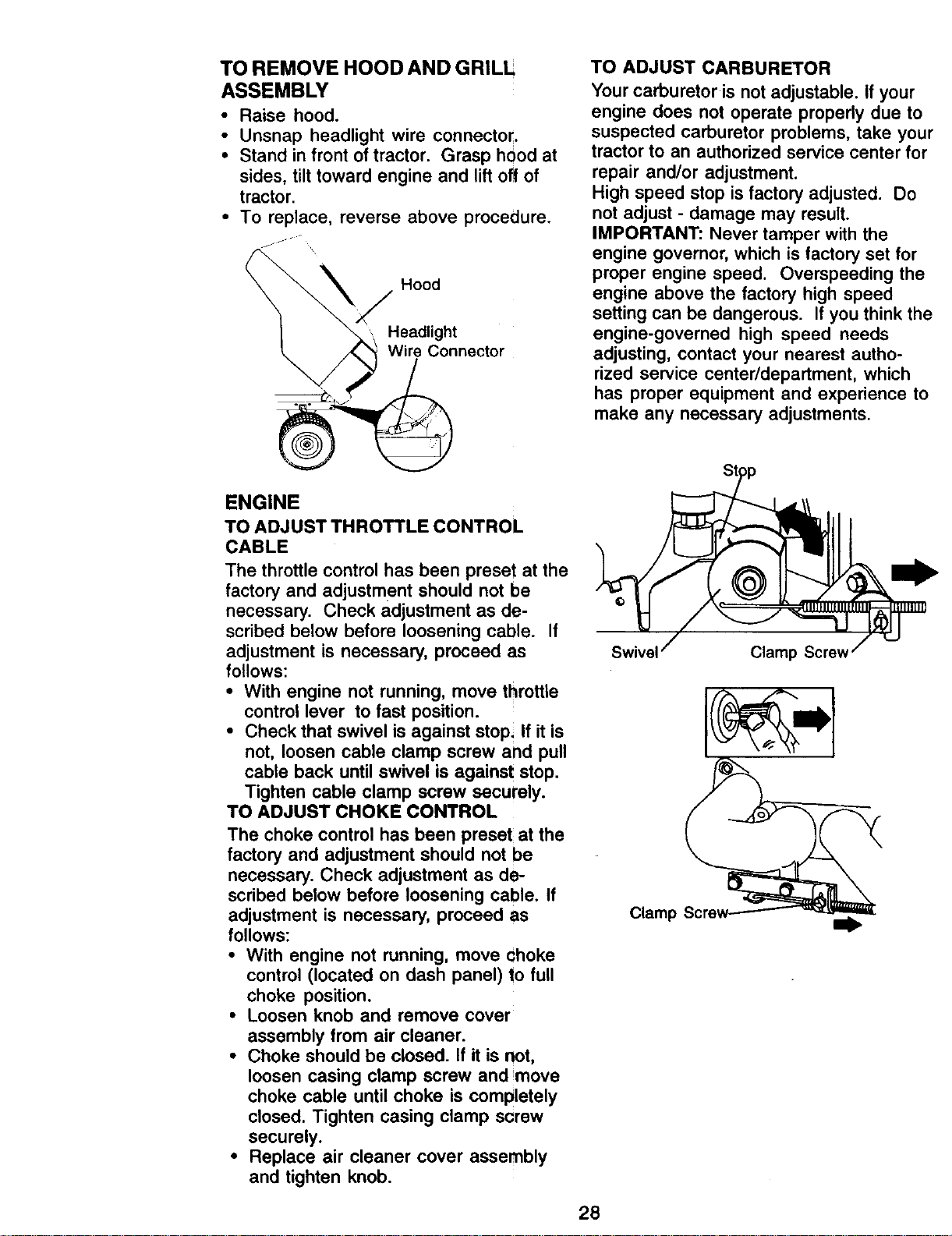

TO REMOVE HOOD AND GRILL

ASSEMBLY

• Raise hood.

• Unsnap headlight wire connector.

• Stand in front of tractor. Grasp hood at

sides, tilt toward engine and lift off of

tractor.

• To replace, reverse above procedure.

Hood

Headlight

Wire Connector

TO ADJUST CARBURETOR

Your carburetor is not adjustable. If your

engine does not operate propedy due to

suspected carburetor problems, take your

tractor to an authorized service center for

repair and/or adjustment.

High speed stop is factory adjusted. Do

not adjust - damage may result.

IMPORTANT: Never tamper with the

engine governor, which is factory set for

proper engine speed. Overspeeding the

engine above the factory high speed

setting can be dangerous. If you think the

engine-governed high speed needs

adjusting, contact your nearest autho-

rized service center/department, which

has proper equipment and experience to

make any necessary adjustments.

ENGINE

TO ADJUST THROTTLE CONTROL

CABLE

The throttle control has been preset at the

factory and adjustment should not be

necessary. Check adjustment as de-

scribed below before loosening cable. If

adjustment is necessary, proceed as

follows:

• With engine not running, move throttle

control lever to fast position.

• Check that swivel is against stop! If it is

not, loosen cable clamp screw and pull

cable back until swivel is against stop.

Tighten cable clamp screw securely.

TO ADJUST CHOKE CONTROL

The choke control has been preset; at the

factory and adjustment should not be

necessary. Check adjustment as de-

scribed below before loosening cable. If

adjustment is necessary, proceed as

follows:

• With engine not running, move Choke

control (located on dash panel) to full

choke position.

• Loosen knob and remove cover

assembly from air cleaner.

• Choke should be closed. If it is not,

loosen casing clamp screw and move

choke cable until choke is completely

closed. Tighten casing clamp screw

securely.

• Replace air cleaner cover assembly

and tighten knob.

Clamp

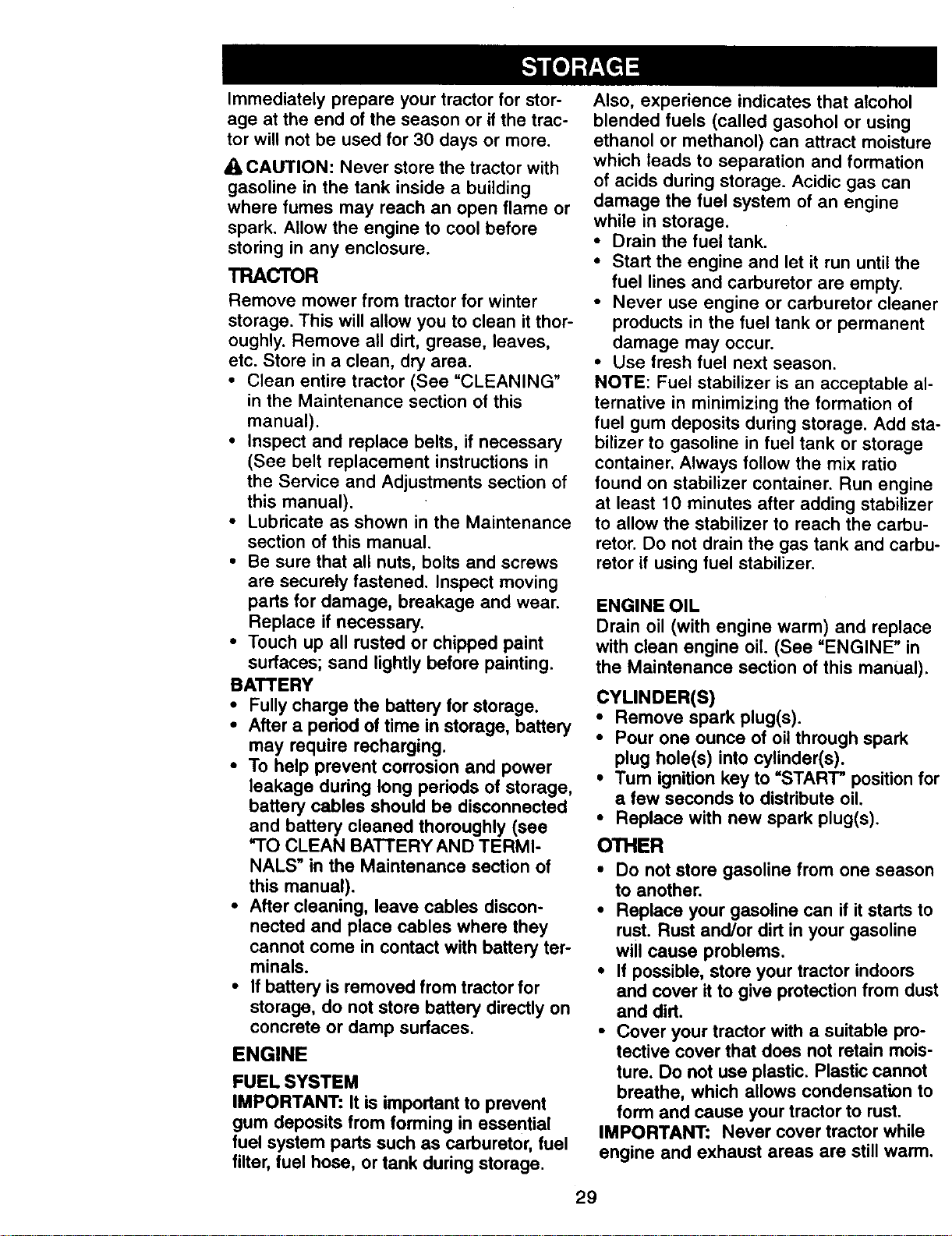

Immediately prepare your tractor for stor-

age at the end of the season or if the trac-

tor will not be used for 30 days or more.

_1_CAUTION: Never store the tractor with

gasoline in the tank inside a building

where fumes may reach an open flame or

spark. Allow the engine to cool before

storing in any enclosure.

TRACTOR

Remove mower from tractor for winter

storage. This will allow you to clean it thor-

oughly. Remove all dirt, grease, leaves,

etc. Store in a clean, dry area.

• Clean entire tractor (See "CLEANING"

in the Maintenance section of this

manual).

• Inspect and replace belts, if necessary

(See belt replacement instructions in

the Service and Adjustments section of

this manual).

• Lubricate as shown in the Maintenance

section of this manual.

• Be sure that all nuts, bolts and screws

are securely fastened. Inspect moving

parts for damage, breakage and wear.

Replace if necessary.

• Touch up all rusted or chipped paint

surfaces; sand lightly before painting.

BATTERY

• Fully charge the battery for storage.

• After a period of time in storage, battery

may require recharging.

• To help prevent corrosion and power

leakage during long periods of storage,

battery cables should be disconnected

and battery cleaned thoroughly (see

"TO CLEAN BATTERY AND TERMI-

NALS" in the Maintenance section of

this manual).

• After cleaning, leave cables discon-

nected and place cables where they

cannot come in contact with battery ter-

minals.

• If battery is removed from tractor for

storage, do not store battery directly on

concrete or damp surfaces.

ENGINE

FUEL SYSTEM

IMPORTANT: It is important to prevent

gum deposits from forming in essential

fuel system parts such as carburetor, fuel

filter, fuel hose, or tank during storage.

Also, experience indicates that alcohol

blended fuels (called gasohol or using

ethanol or methanol) can attract moisture

which leads to separation and formation

of acids during storage. Acidic gas can

damage the fuel system of an engine

while in storage.

• Drain the fuel tank.

• Start the engine and let it run until the

fuel lines and carburetor are empty.

• Never use engine or carburetor cleaner

products in the fuel tank or permanent

damage may occur.

• Use fresh fuel next season.

NOTE: Fuel stabilizer is an acceptable al-

ternative in minimizing the formation of

fuel gum deposits during storage. Add sta-

bilizer to gasoline in fuel tank or storage

container. Always follow the mix ratio

found on stabilizer container. Run engine

at least 10 minutes after adding stabilizer

to allow the stabilizer to reach the carbu-

retor. Do not drain the gas tank and carbu-

retor if using fuel stabilizer.

ENGINE OIL

Drain oil (with engine warm) and replace

with clean engine oil (See "ENGINE" in

the Maintenance section of this manual).

CYLINDER(S)

• Remove spark plug(s).

• Pour one ounce of oil through spark

plug hole(s) into cylinder(s).

• Turn ignition key to "START" position for

a few seconds to distribute oil.

• Replace with new spark plug(s).

OTHER

• Do not store gasoline from one season

to another.

• Replace your gasoline can if it starts to

rust. Rust and/or dirt in your gasoline

will cause problems.

• If possible, store your tractor indoors

and cover it to give protection from dust

and dirt.

• Cover your tractor with a suitable pro-

tective cover that does not retain mois-

ture. Do not use plastic. Plastic cannot

breathe, which allows condensation to

form and cause your tractor to rust.

IMPORTANT: Never cover tractor while

engine and exhaust areas are still warm.

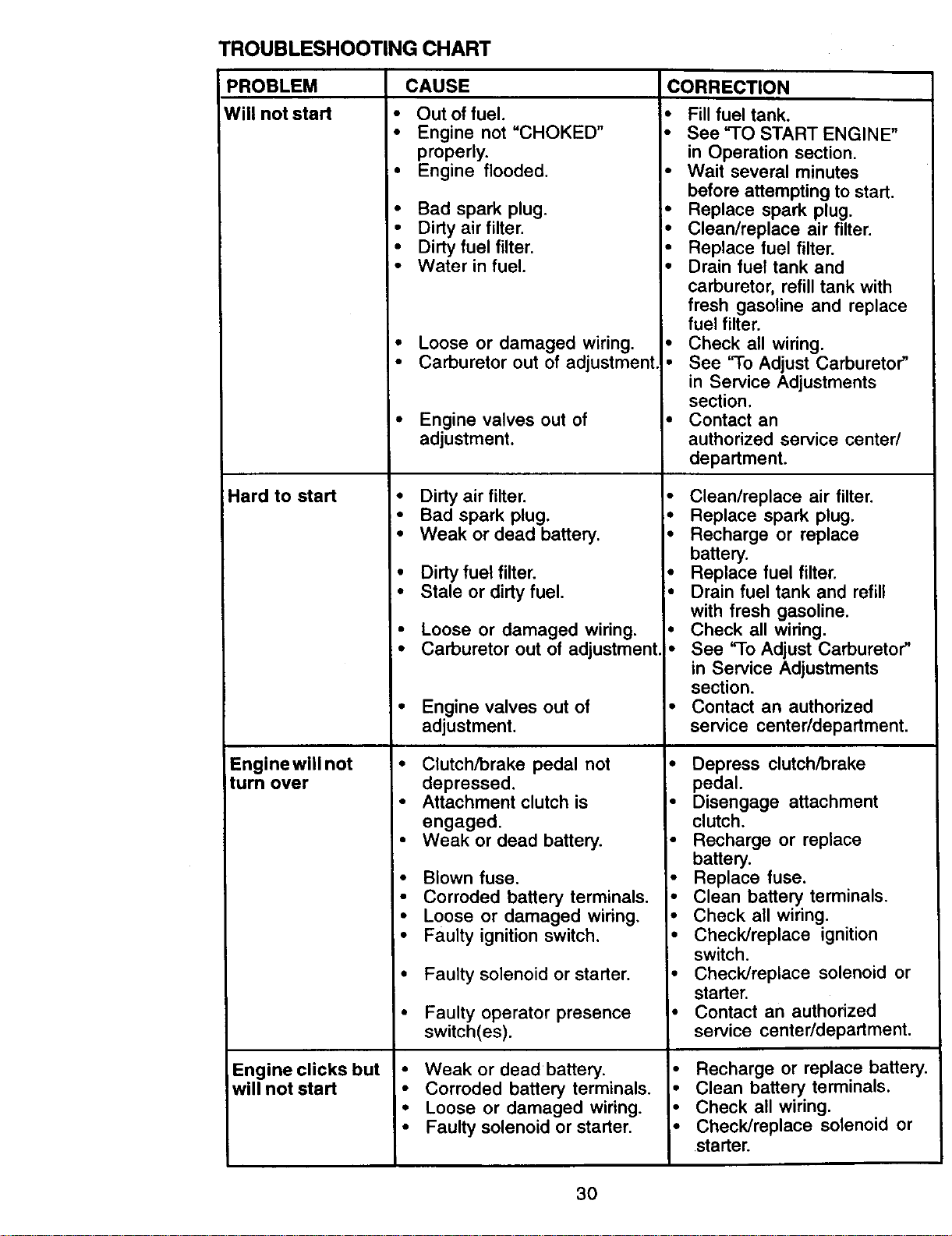

TROUBLESHOOTING CHART

PROBLEM

Will not start

CAUSE

• Out of fuel.

• Engine not "CHOKED"

properly.

• Engine flooded.

• Bad spark plug.

• Dirty air filter.

• Dirty fuel filter.

• Water in fuel.

• Loose or damaged wiring.

• Carburetor out of adjustment.

• Engine valves out of

adjustment.

Hard to start

Engine will not

turn over

Engine clicks but

will not start

• Dirty air filter. •

• Bad spark plug. •

• Weak or dead battery. •

• Dirty fuel filter.

• Stale or dirty fuel.

• Loose or damaged wiring. •

• Carburetor out of adjustment.i.

• Engine valves out of

adjustment.

• Clutch/brake pedal not

depressed.

• Attachment clutch is

engaged.

• Weak or dead battery.

CORRECTION

• Fill fuel tank.

• See"TO START ENGINE"

in Operation section.

• Wait several minutes

before attempting to start.

• Replace spark plug.

• Clean/replace air filter.

• Replace fuel filter.

• Drain fuel tank and

carburetor, refill tank with

fresh gasoline and replace

fuel filter.

• Check all wiring.

• See 'q'o Adjust Carburetor"

in Service Adjustments

section.

• Contact an

authorized service center/

department.

Clean/replace air filter.

Replace spark plug.

Recharge or replace

battery.

Replace fuel filter.

Drain fuel tank and refill

with fresh gasoline.

Check all wiring.

See "To Adjust Carburetor"

in Service Adjustments

section.

Contact an authorized

service center/department.

• Depress clutch/brake

• Blown fuse.

• Corroded battery terminals.

• Loose or damaged wiring,

• Faulty ignition switch.

pedal.

• Disengage attachment

clutch.

• Recharge or replace

battery.

• Replace fuse.

Faulty solenoid or starter.

Faulty operator presence

switch(es).

• Weak or dead battery.

• Corroded battery terminals.

• Loose or damaged wiring.

• Faulty solenoid or starter.

• Clean battery terminals.

• Check all wiring.

• Check/replace ignition

switch.

• Check/replace solenoid or

starter.

• Contact an authorized

service center/department.

• Recharge or replace battery.

• Clean battery terminals.

• Check all wiring.

• Check/replace solenoid or

starter.

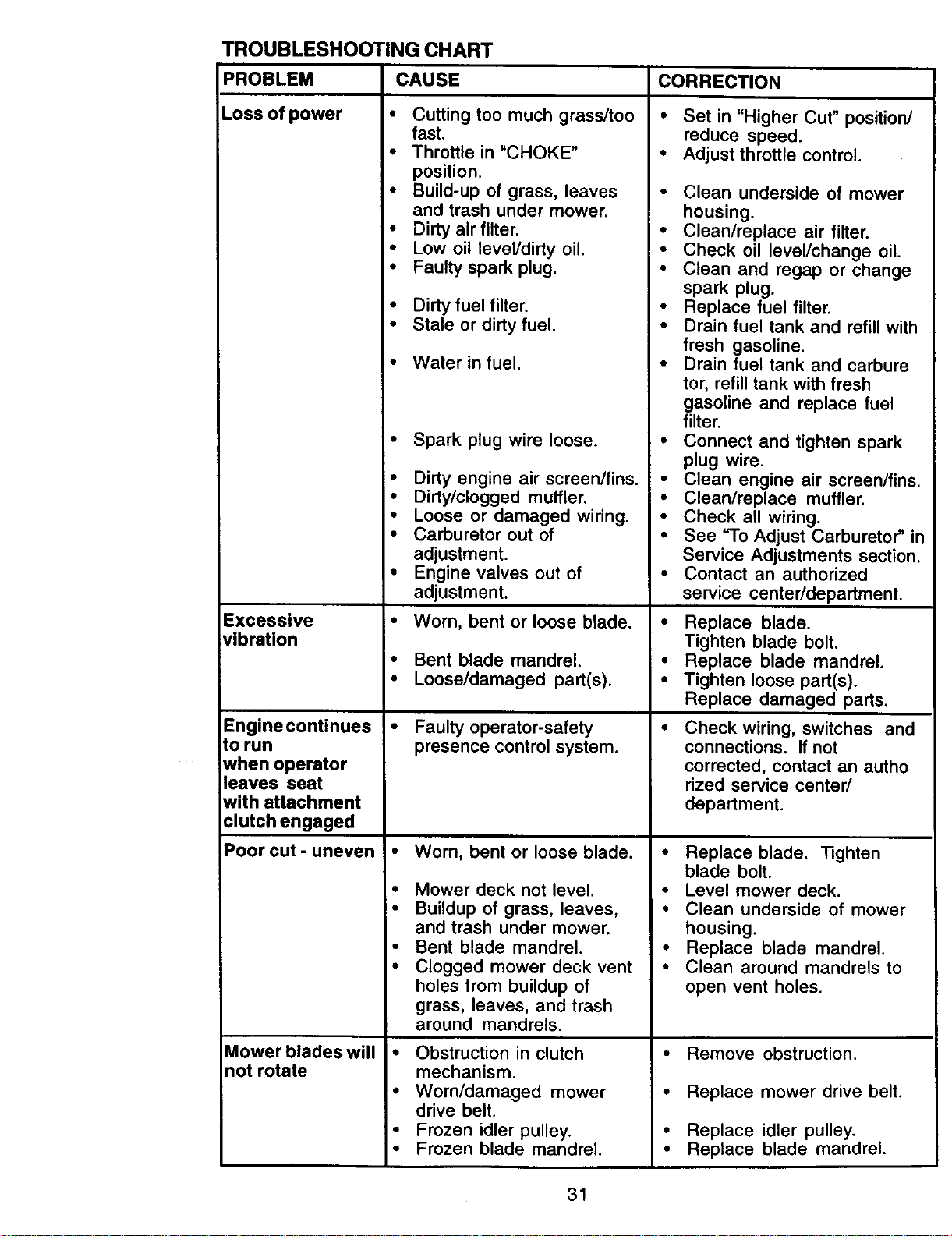

TROUBLESHOOTING CHART

PROBLEM CAUSE

LOSSof power •

Cutting too much grass/too

fast.

Throttle in "CHOKE"

position.

Build-up of grass, leaves

and trash under mower.

• Dirty air filter.

• Low oil level/dirty oil.

• Faulty spark plug.

• Dirty fuel filter.

• Stale or dirty fuel.

• Water in fuel.

• Spark plug wire loose.

Excessive

;vibration

Enginecontinues •

to run

when operator

leaves seat

with attachment

clutch engaged

Poor cut- uneven •

Mower blades will •

not rotate

Dirty engine air screen/fins.

Dirty/clogged muffler.

Loose or damaged wiring.

Carburetor out of

adjustment.

Engine valves out of

adjustment.

CORRECTION

• Set in "Higher Cut" position/

reduce speed.

• Adjust throttle control.

Worn, bent or loose blade. • Replace blade.

Tighten blade bolt.

Bent blade mandrel. • Replace blade mandrel.

Loose/damaged part(s). • Tighten loose part(s).

Replace damaged parts.

Faulty operator-safety • Check wiring, switches and

presence control system, connections. If not

corrected, contact an autho

rized service center/

department.

Worn, bent or loose blade.

Mower deck not level.

Buildup of grass, leaves,

and trash under mower.

Bent blade mandrel.

Clogged mower deck vent

holes from buildup of

grass, leaves, and trash

around mandrels.

Obstruction in clutch

mechanism.

Worn/damaged mower

drive belt.

Frozen idler pulley.

Frozen blade mandrel.

• Clean underside of mower

housing.

• Clean/replace air filter.

• Check oil level/change oil.

• Clean and regap or change

spark plug.

• Replace fuel filter.

• Drain fuel tank and refill with

fresh gasoline.

• Drain fuel tank and carbure

tor, refill tank with fresh

gasoline and replace fuel

filter.

• Connect and tighten spark

plug wire.

• Clean engine air screen/fins.

• Clean/replace muffler.

• Check all wiring.

• See "To Adjust Carburetor" in

Service Adjustments section.

Contact an authorized

service center/department.

• Replace blade. Tighten

blade bolt.

• Level mower deck.

• Clean underside of mower

housing.

• Replace blade mandrel.

• Clean around mandrels to

open vent holes.

• Remove obstruction.

• Replace mower drive belt.

• Replace idler pulley.

• Replace blade mandrel.

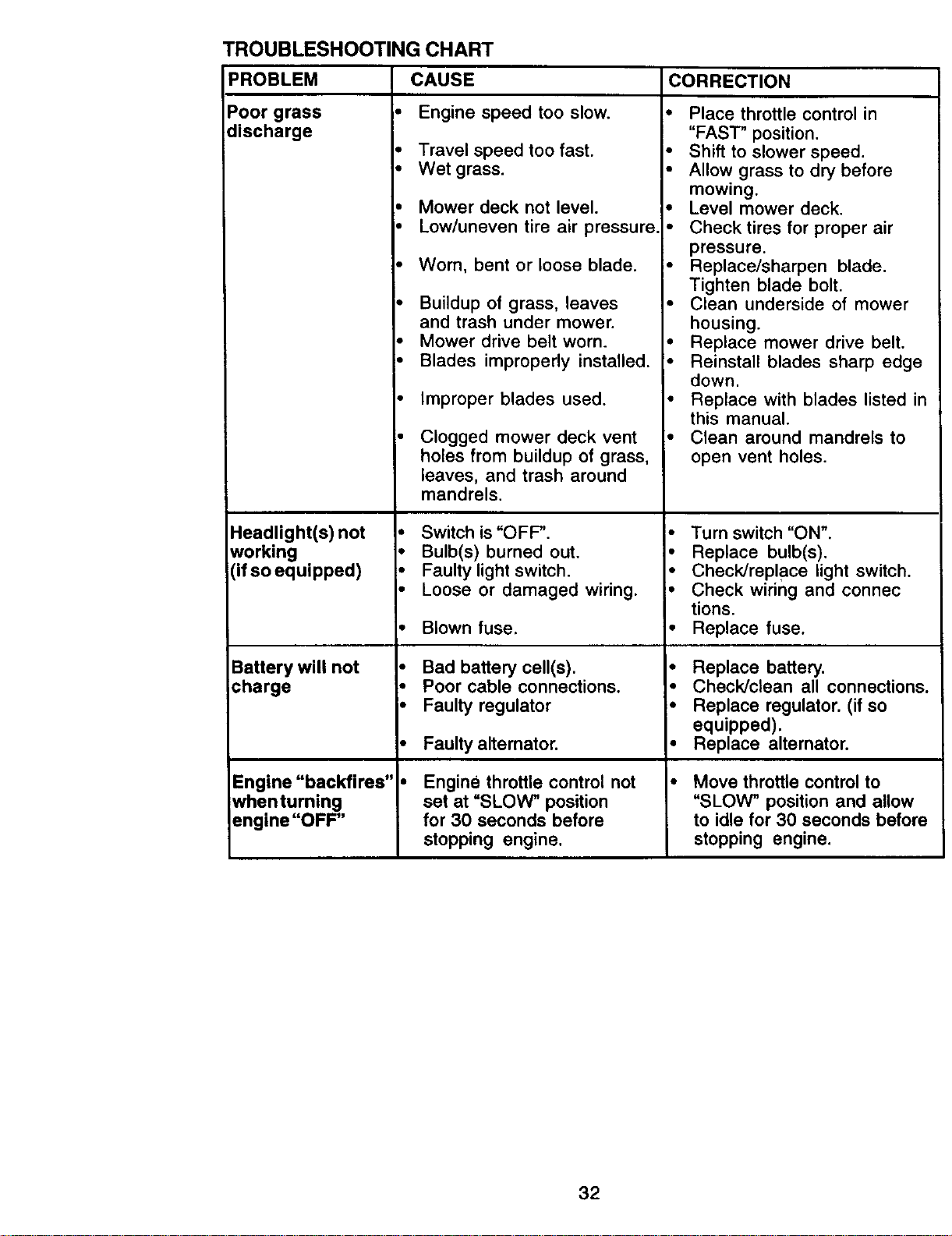

TROUBLESHOOTINGCHART

PROBLEM

Poor grass •

discharge

Headlight(s) not

working

(if so equipped)

Battery will not

charge

Engine "backfires" •

whenturning

engine "OFF"

CAUSE

Engine speed too slow.

Travel speed too fast.

Wet grass.

Mower deck not level.

Low/uneven tire air pressure.

Worn, bent or loose blade.

Buildup of grass, leaves

and trash under mower.

Mower drive belt worn.

Blades improperly installed.

Improper blades used.

Clogged mower deck vent

holes from buildup of grass,

leaves, and trash around

mandrels.

Switch is "OFF'.

Bulb(s) burned out.

Faulty light switch.

Loose or damaged wiring.

• Blown fuse.

• Bad battery cell(s).

• Poor cable connections.

• Faulty regulator

• Faulty alternator.

Engine throttle control not

set at =SLOW" position

for 30 seconds before

stopping engine.

CORRECTION

• Place throttle control in

"FAST" position.

• Shift to slower speed.

• Allow grass to dry before

mowing.

• Level mower deck.

• Check tires for proper air

pressure.

• Replace/sharpen blade.

Tighten blade bolt.

• Clean underside of mower

housing.

• Replace mower drive belt.

• Reinstall blades sharp edge

down,

• Replace with blades listed in

this manual.

• Clean around mandrels to

open vent holes.

• Turn switch "ON".

• Replace bulb(s).

• Check/replace light switch.

• Check widng and connec

tions.

• Replace fuse.

• Replace battery.

• Check/clean all connections.

• Replace regulator. (if so

equipped).

• Replace alternator.

Move throttle control to

"SLOW" position and allow

to idle for 30 seconds before

stopping engine.

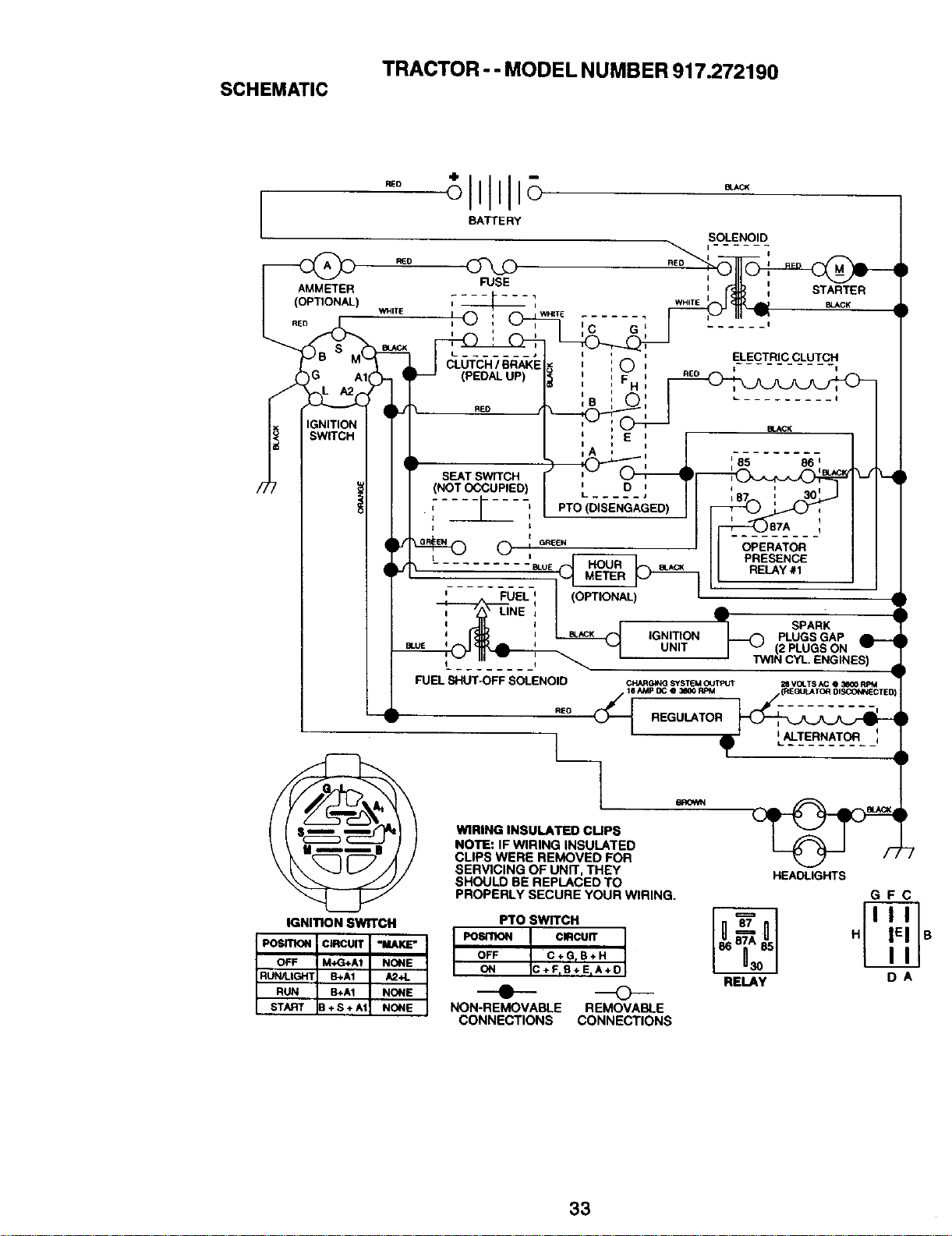

TRACTOR - - MODEL NUMBER 917.272190

SCHEMATIC

AMMETER

(OPTIONAL)

RED

RIEO

BATTERY

SOLENOID

i ......

WHITE

...... I

STARTER

BLACK

[

CLUTCH / BRAKE

(PEDAL UP)

RED

SEAT SWITCH

(NOT OCCUPIED) D

...... J

. _ "l PTO (DISENGAGED)

i I

t GREE N

' * FUEL-: I_

: LINE,,_--L-LI , IGNITION

FUEL SHUT-OFF SOLENOID

ELECTRIC CLUTCH

1.-_

BLACK

IGNITION SWITCH

i-°,---i

OFF M'_÷A1 NONE

RUN4.1GHT B+AI A2+I.

RL_I _-A1 NONE

START B+S+At NONE

REO

OPERATOR

PRESENCE

RELAY#1

SPARK

PLUGS GAP

(2PLUGS ON '_ •

TWIN CYLENGINES)

CHARGR4G SYSTEM OUTFUT 26 V_LTS AC O _ RP'M

lip LA_--TERNATOR :

WIRING INSULATED CUPS

NOTE: IF WIRING INSULATED

CLIPS WERE REMOVED FOR

SERVICING OF UNIT, THEY

SHOULD BE REPLACED TO

PROPERLY SECURE YOUR WIRING.

HEADLIGHTS

PTO SWITCH

PO'_I_ON CIRCUIT I

OFF C+G,B+H

ON C+FIB+ErA+O

NON-REMOVABLE REMOVABLE

CONNECTIONS CONNECTIONS

RELAY

GFC

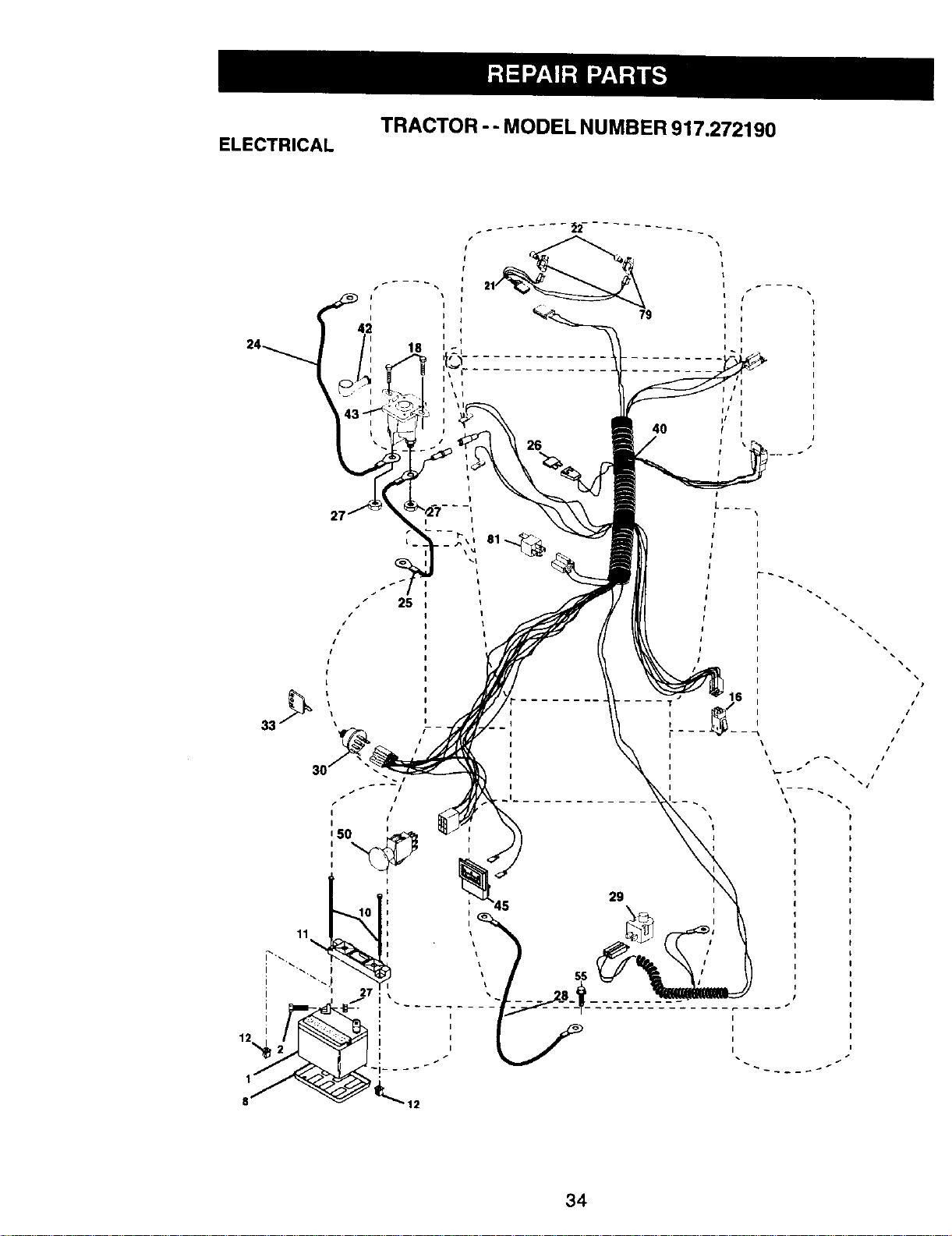

TRACTOR - - MODEL NUMBER 917.272190

ELECTRICAL

i . • • • + +"

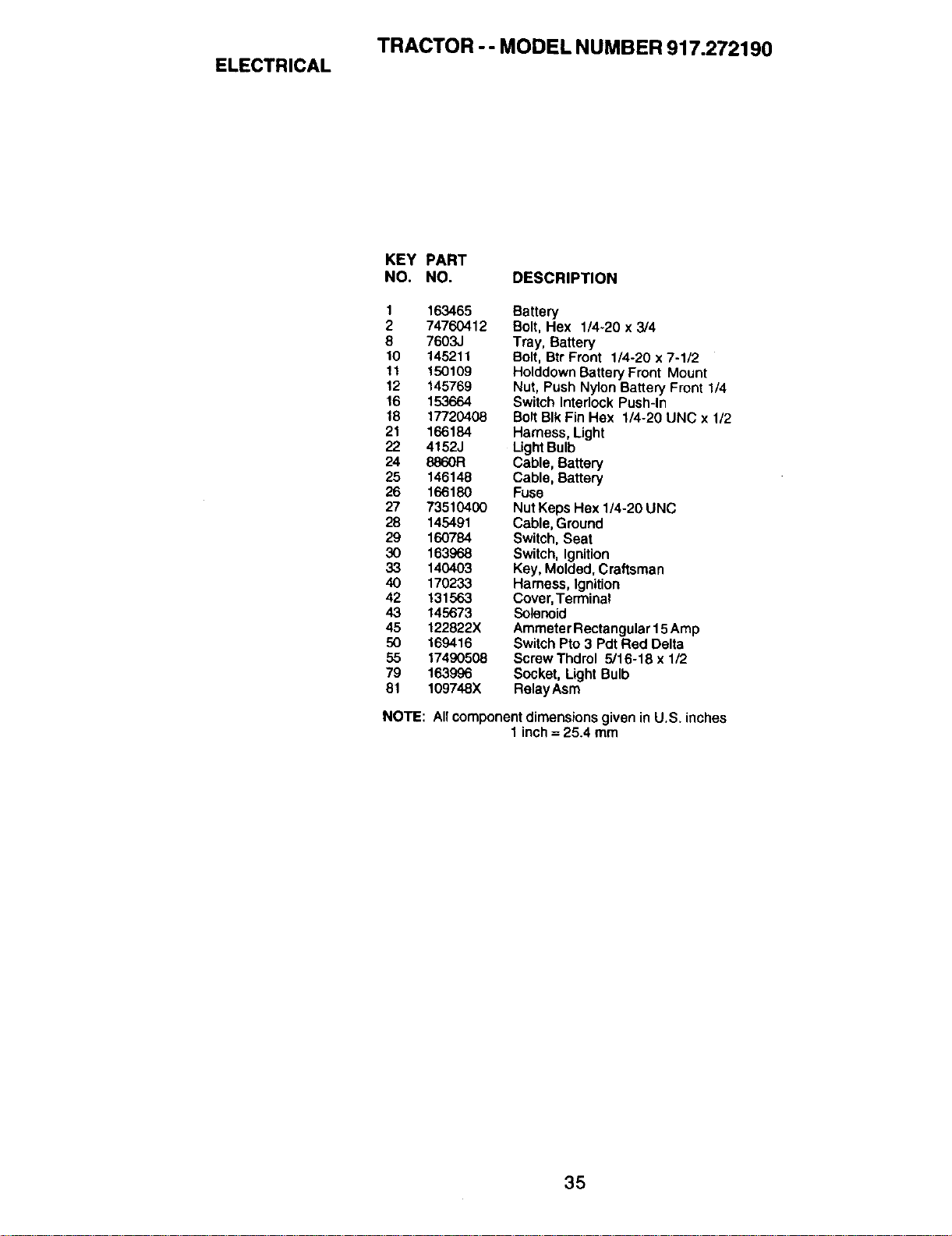

TRACTOR - - MODEL NUMBER 917.272190

ELECTRICAL

KEY PART

NO. NO. DESCRIPTION

1 163465 Battery

2 74760412 Bolt, Hex 1/4-20 x 3/4

8 7603J Tray, Battery

10 145211 Bolt, Btr Front 1/4-20 x 7-1/2

11 150109 Holddown Battery Front Mount

12 145769 Nut, Push Nylon Battery Front 1/4

16 153664 Switch Interlock Push-In

18 17720408 Bolt BIk Fin Hex 1/4-20 UNC x 1/2

21 166184 Harness, Light

22 4152J Light Bulb

24 8860R Cable, Battery

25 146148 Cable, Battery

26 166180 Fuse

27 73510400 Nut Keps Hex 1/4-20 UNC

28 145491 Cable, Ground

29 160784 Switch, Seat

30 163968 Switch, Ignition

33 140403 Key, Molded, Craftsman

40 170233 Harness, Ignition

42 131563 Cover, Terminal

43 145673 Solenoid

45 122822X Ammeter Rectangular 15Amp

50 169416 Switch Pto 3 Pdt Red Delta

55 17490508 ScrewThdrol 5/16-18 x 1/2

79 163996 Socket, Light Bulb

61 109748X RelayAsm

NOTE: All component dimensions given in U.S. inches

1 inch = 25.4 mm

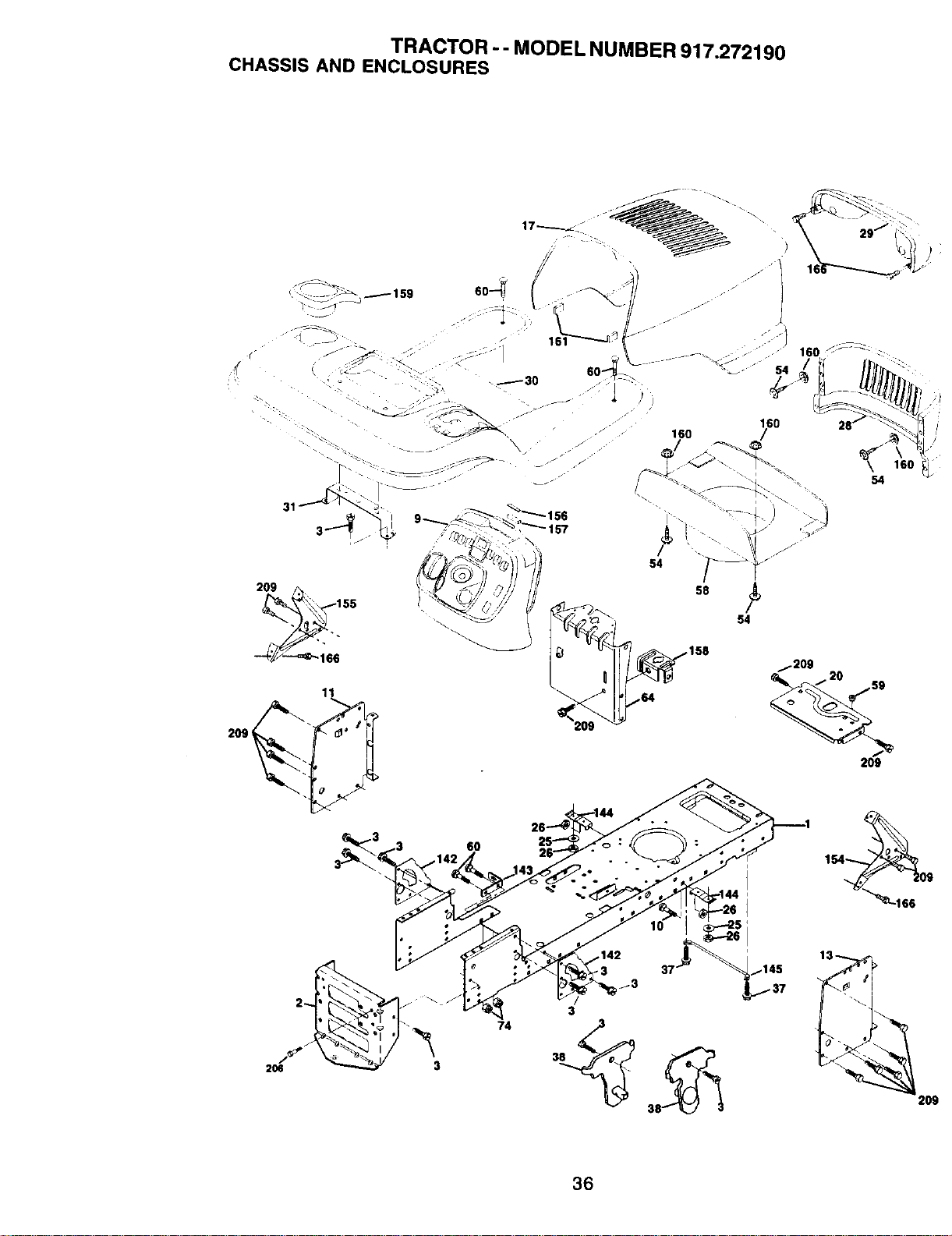

TRACTOR - - MODE L NUMB ER 917.272190

CHASSIS AND ENCLOSURES

_30

160

158

/209

2O9

3 37

209

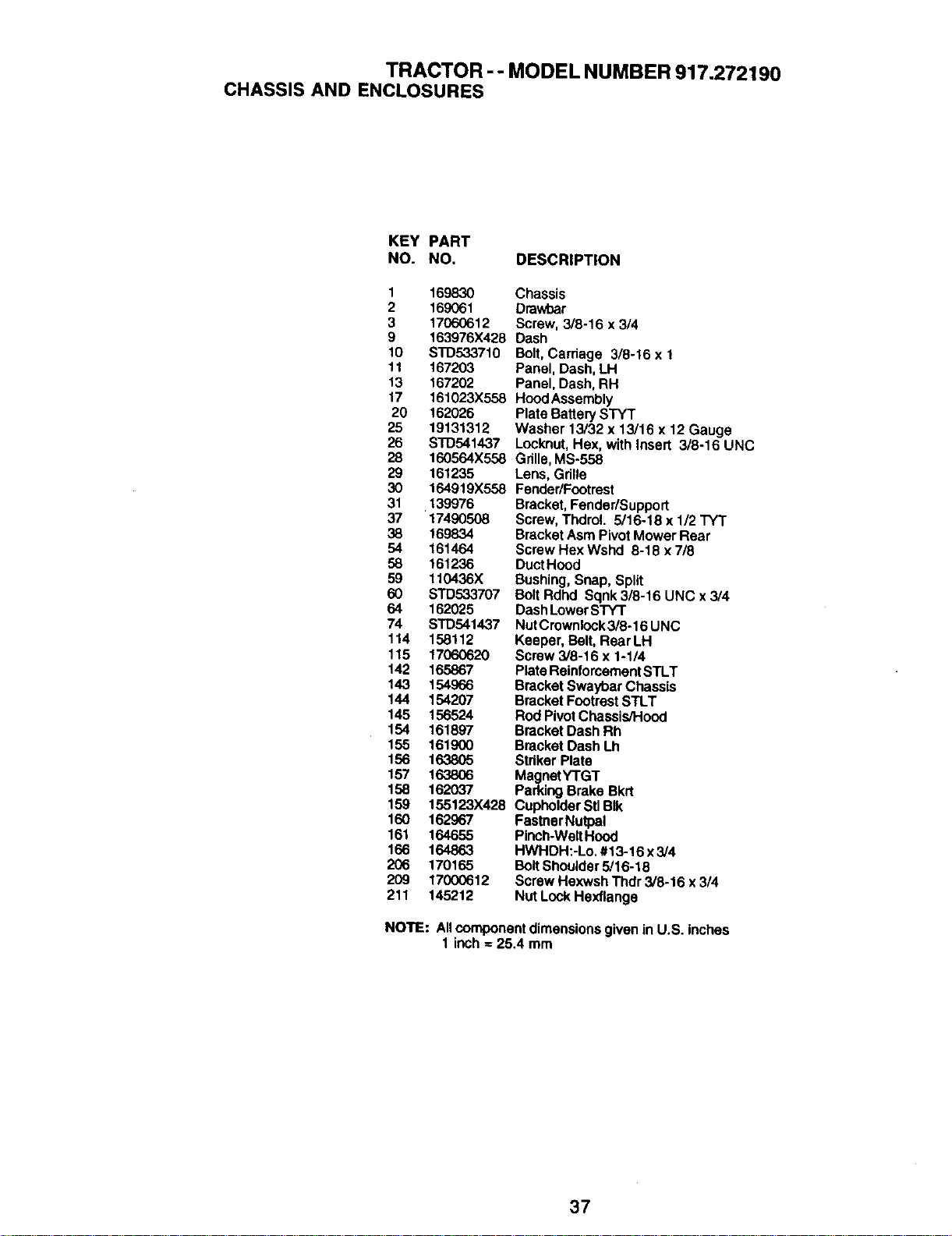

TRACTOR - - MODEL NUMBER 917.272190

CHASSIS AND ENCLOSURES

KEY PART

NO. NO. DESCRIPTION

1 169830 Chassis

2 169061 Drawbar

3 17060612 Screw, 3/8-16 x 3/4

9 163976X426 Dash

10 S'rD533710 Bolt, Carriage 3/8-16 x 1

1t 167203 Panel, Dash, LH

!3 167202 Panel, Dash, RH

17 161023X558 Hood Assembly

20 162026 Plate Battery STYT

25 19131312 Washer 13/32 x 13116 x 12 Gauge

26 S'rD541437 Locknut, Hex, with Insert 3/8-16 UNC

28 160564X558 Grille, MS-558

29 161235 Lens, Grille

30 164919X558 Feoder/Footrest

31 139976 Bracket, Fender/Support

37 17490508 Screw, ThdroL 5/16o18 x 1/2 TYT

38 169834 Bracket Asm Pivot Mower Rear

54 161464 Screw Hex Wshd 8-18 x 7/8

58 161236 Duct Hood

59 110436X Bushing, Snap, Split

60 STD533707 Bolt Rdhd Sqnk 3/8-16 UNC x 3/4

64 162025 Dash Lower s'rYT

74 STD541437 NutCrownlock 3/8-16 UNC

1"14 158112 Keeper, BOlt, Rear LH

115 17060620 Screw 3/8-16 x 1-1/4

142 165867 Plate Reinforcement STLT

143 154966 Bracket Sway'oar Chassis

144 154207 Bracket Footrest STLT

145 156524 Rod Pivot Chassis/Hood

154 161897 Bracket Dash Rh

155 161900 Bracket Dash Lh

156 163805 Striker Plate

157 163806 Magnet YTGT

158 162037 Parking Brake Bkrt

159 155123)(428 Cupholder Stl BIk

160 162967 Fastner Nutpal

161 164655 Pinch-Welt Hood

166 164863 HWHDH:-Lo. #13-16 x3/4

206 170165 BoltShoulder 5/16-1,8

209 17000612 Screw Hexwsh Thdr 3/8-16 x 3/4

211 145212 Nut Lock Hexflange

NOTE: All component dimensions given in U.S. inches

1 inch = 25.4 mm

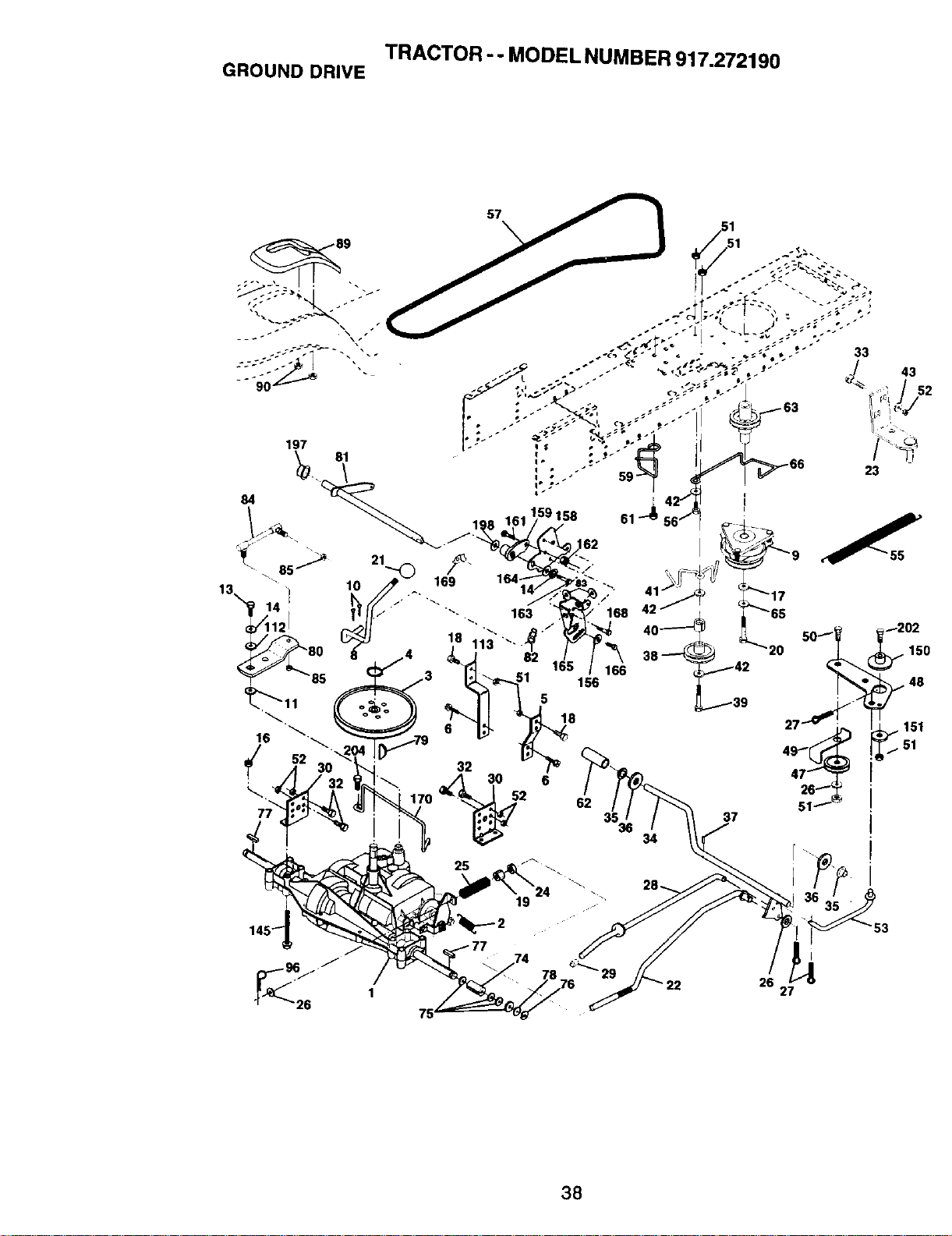

TRACTOR -- MODEL NUMBER 917.272190

GROUND DRIVE

170 2 62

35 37

t 15q

., 48

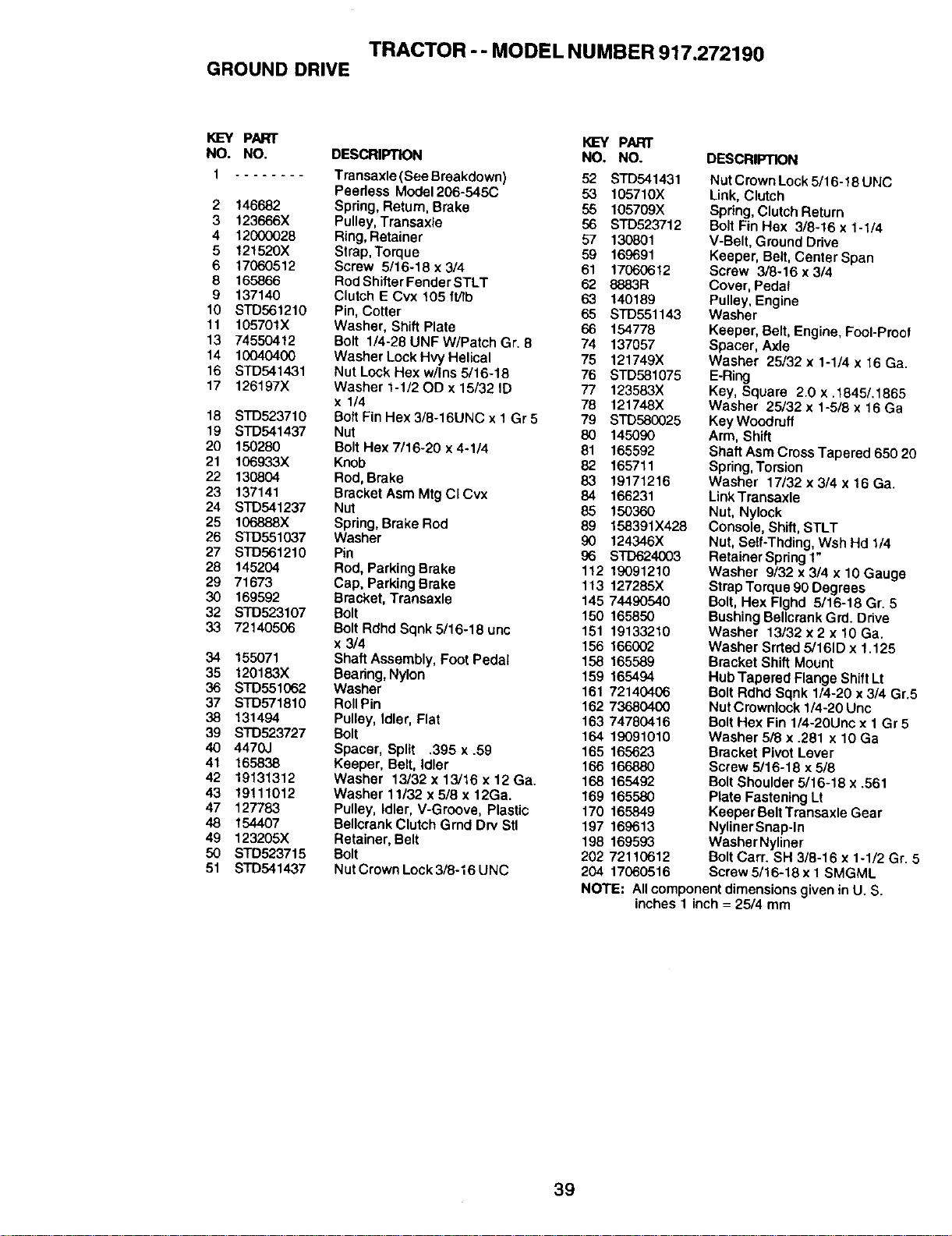

TRACTOR - - MODEL NUMBER 917.272190

GROUND DRIVE

K]EY PART KEY PART

NO. NO. DESCRIPTION NO. NO. DESCRIPTION

1 ........ Transaxle (See Breakdown) 52 STD541431

Peedess Mode1206-545C 53 105716X

2 146682 Spring, Retum, Brake 55 105709X

3 123666X Pulley, Transaxle 56 STD523712

4 12000028 Ring, Retainer 57 130801

5 121520X Strap, Torque 59 169691

6 17060512 Screw 5/16-18 x 3/4 61 17060612

8 165866 RodShifterFenderSTLT 62 8883R

9 137140 Clutch E Cvx 105 ft/lb 63 140189

10 S'T'D561210 Pin, Cotter 65 STD551143

11 105701X Washer, Shift Plate 66 154776

13 74550412 Bolt 1/4-28 UNF W/Patch Gr. 8 74 137057

14 10040400 Washer Lock Hvy Helical 75 121749X

16 STD541431 Nut Lock Hex w/Ins 5/16-18 76 STD581075

17 126197X Washer 1-1/20D x 15/32 _D 77 123583X

x 1/4 78 121748X

18 STD523710 BoltFinHex3/8-16UNCx1Gr5 79 STD580025

19 STD541437 Nut 80 145090

20 150280 Bolt Hex 7/16-20 x 4-1/4 81 165592

21 106933X Knob 82 165711

22 130804 Rod, Brake 83 19171216

23 137141 Bracket Asm Mtg ClCvx 84 166231

24 STD541237 Nut 85 150360

25 106888X Spring, Brake Rod 89 158391X428

26 STD551037 Washer 90 124346X

27 STD561210 Pin 96 STD624003

28 145204 Rod, Parking Brake 112 19091210

29 71673 Cap, Parking Brake 113 127285X

30 169592 Bracket, Transaxle 145 74490540

32 STD523107 Bolt 150 165850

33 72140506 BoltRdhdSqnk5/16-18unc 151 19133210

x 3/4 156 166002

34 155071 Shaft Assembly, Foot Pedal 158 165589

35 120183X Bearing, Nylon 159 165494

36 STD551062 Washer 161 72140406

37 STD571810 Roll Pin 162 73680400

38 131494 Pulley, Idler, Plat 163 74780416

39 STD523727 Bolt 164 19091010

40 4470J Spacer, Split .395 x .59 165 165623

41 165838 Keeper, Belt, Idler 166 166880

42 19131312 Washer 13/32 x 13/16 x 12 Ga. 168 165492

43 19111012 Washer 1t/32 x 5/8 x 12Ga. 169 165580

47 127783 Pulley, Idler, V-Groove, Plastic 170 165849

48 154407 Bellcrank Clutch Gmd Dry Stl 197 169613

49 123205X Retainer, Belt 198 169593

50 STD523715 Bolt 202 72110612

51 s'rD541437 NutCrewnLock3/8-16UNC 204 17060516

Nut Crown Lock 5/16-18 UNC

Link, Clutch

Spring, Clutch Return

Bolt Fin Hex 3/8-16 x 1-1/4

V-Belt, Ground Drive

Keeper, Belt, Center Span

Screw 3/8-16 x 3/4

Cover, Pedal

Pulley, Engine

Washer

Keeper, Belt, Engine, Fool-Proof

Spacer, Axle

Washer 25/32 x 1-1/4 x 16 Ga.

E-Ring

Key, Square 2.0 x .1845/.1865

Washer 25/32 x 1-5/8 x 16 Ga

Key Woodruff

Arm, Shift

Shaft Asm Cross Tapered 650 20

Spring, Torsion

Washer 17/32 x 3/4 x 16 Ga.

Link Transaxle

Nut, Nylock

Console, Shift, STLT

Nut, Self-Thding, Wsh Hd 1/4

Retainer Spring 1"

Washer 9/32 x 3/4 x 10 Gauge

Strap Torque 90 Degrees

Bolt, Hex Flghd 5/16-18 Gr. 5

Bushing Bellcrank Grd. Drive

Washer 13/32 x 2 x 10 Ga.

Washer Srrted 5/161D x 1.125

Bracket Shift Mount

Hub Tapered Flange Shift Lt

Bolt Rdhd Sqnk 1/4-20 x 3/4 Gr.5

Nut Crownlock 1/4-20 Uric

Bolt Hex Fin 1/4-20Unc x 1 Gr 5

Washer 518 x .281 x 10 Ga

Bracket Pivot Lever

Screw 5/16-18 x 5/8

Bolt Shoulder 5/16-18 x .561

Plate Fastening Lt

Keeper Belt Transaxle Gear

Nyliner Snap-In

Washer Nyliner

Bolt Carr. SH 3/8-16 x 1-1/2 Gr. 5

Screw 5/16-18 x 1 SMGML

NOTE: All component dimensions given in U. S.

inches 1 inch = 25/4 mm

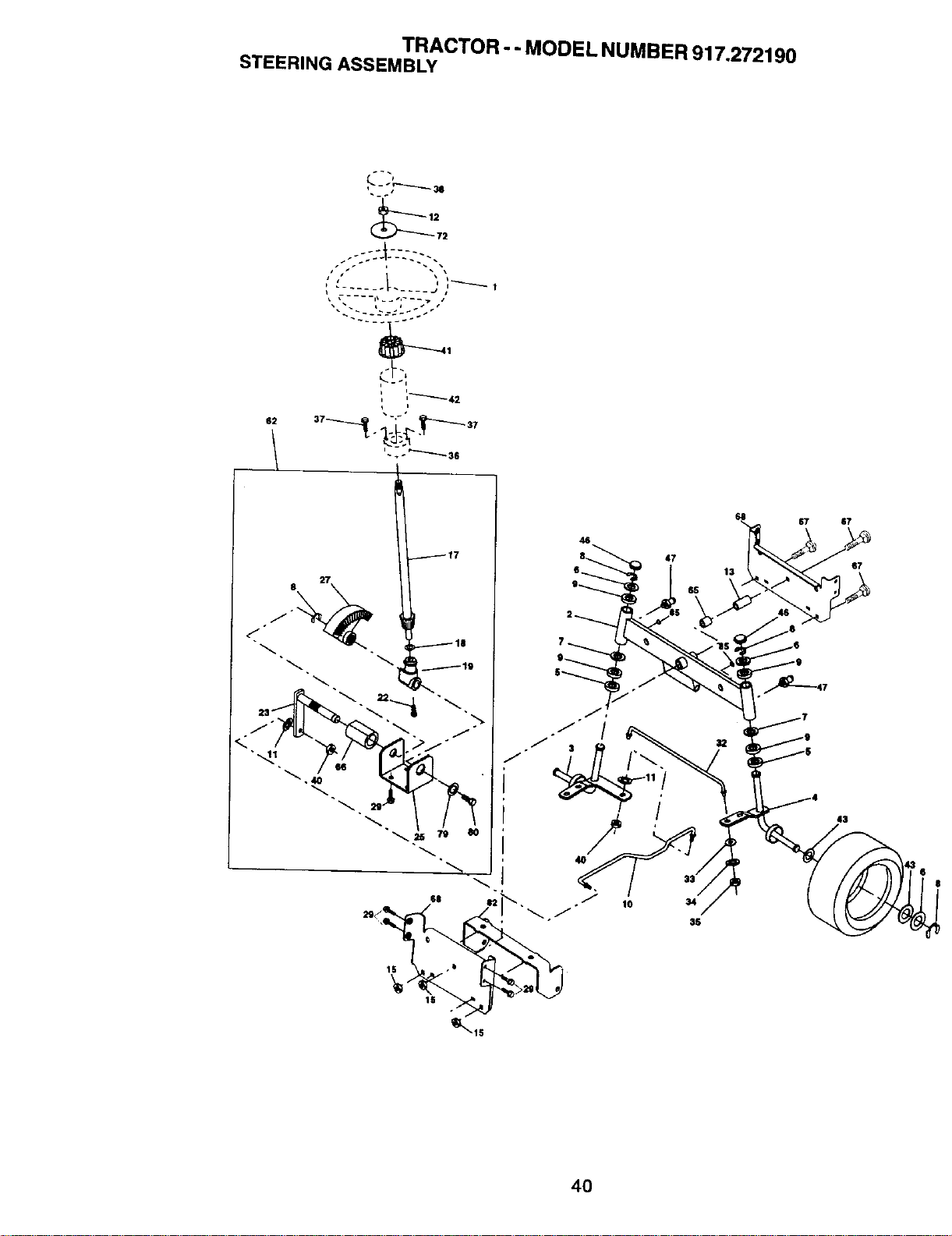

TRACTOR - - MODEL NUMBER 917.272190

STEERING ASSEMBLY

t -. _l

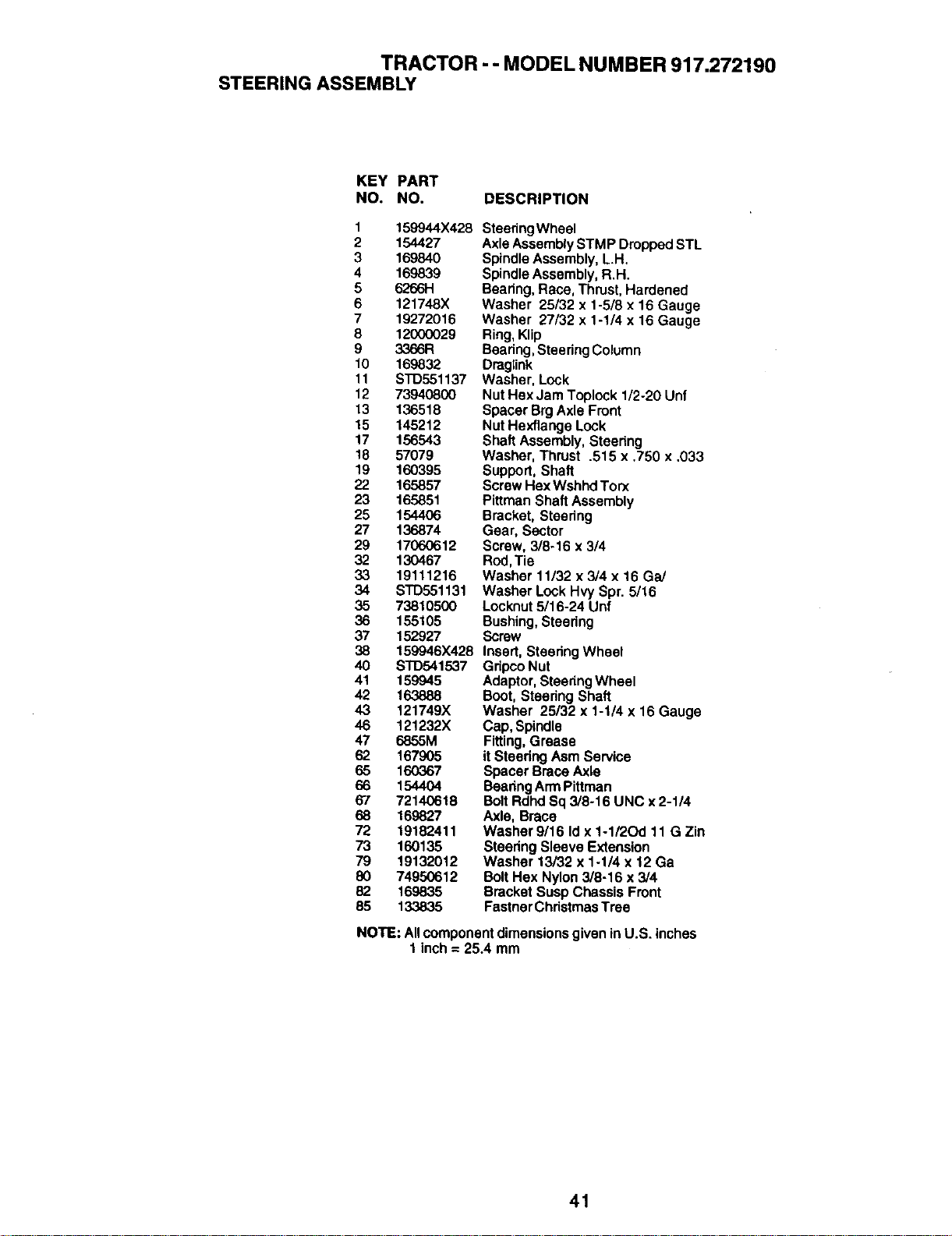

TRACTOR - - MODEL NUMBER 917.272190

STEERING ASSEMBLY

KEY PART

NO. NO. DESCRIPTION

1 159944X428

2 154427

3 169840

4 169839

5 6266H

6 121748X

7 19272016

8 12000029

9 3366R

10 169832

11 STD551137

12 73940800

13 136518

15 145212

17 156543

18 57079

19 160395

22 165857

23 165851

25 1544O6

27 136874

29 17060612

32 130467

33 19111216

34 STD551131

35 73810500

36 155105

37 152927

38 _59946X428

40 STD541537

41 159945

42 163888

43 121749X

46 121232X

47 6855M

62 167905

65 160367

66 154404

67 72140618

68 169827

72 19182411

73 160135

79 19132012

80 74950612

82 169835

85 133835

SteefingWheel

Axle Assembly STMP Dropped STL

Spindle Assembly, L.H.

Spindle Assembly, R.H.

Bearing, Race, Thrust, Hardened

Washer 25/32 x 1-5/8 x 16 Gauge

Washer 27/32 x 1-1/4 x 16 Gauge

Ring, Klip

Beadng, Steering Column

Draglink

Washer, Lock

Nut Hex Jam Toplock 1/2-20 Unf

Spacer Brg Axle Front

Nut Hexflange Lock

Shaft Assembly, Steering

Washer, Thrust .515 x .750 x .033

Support, Shaft

Screw Hex Wshhd Torx

Pittman Shaft Assembly

Bracket, Steering

Gear, Sector

Screw, 3/8-16 x 3/4

Rod,Tie

Washer 11/32 x 3/4 x 16 Ga/

Washer Lock Hvy Spr. 5/16

Locknut 5/16-24 Unf

Bushing, Steering

Screw

Insert, Steering Whee_

Gripoo Nut

Adaptor, Steedng Wheel

Boot, Steering Shaft

Washer 25/32 x 1-1/4 x 16 Gauge

Cap, Spindle

Fitting, Grease

it Steedng Asm Service

Spacer Brace Axle

Bearing Arm Pittman

Bolt Rdhd Sq 3/8-16 UNC x2-1/4

Axle, Brace

Washer 9/16 Id x 1-1/2Od 11 G Zin

Steedng Sleeve Extension

Washer 13132 x 1-1/4 x 12 Ga

Bolt Hex Nylon 3/8-16 x 3/4

Bracket Susp Chassis Front

FastnerChristmas Tree

NOTE: Allcomponentdimensionsgivenin U.S. inches

1 inch= 25.4 mm

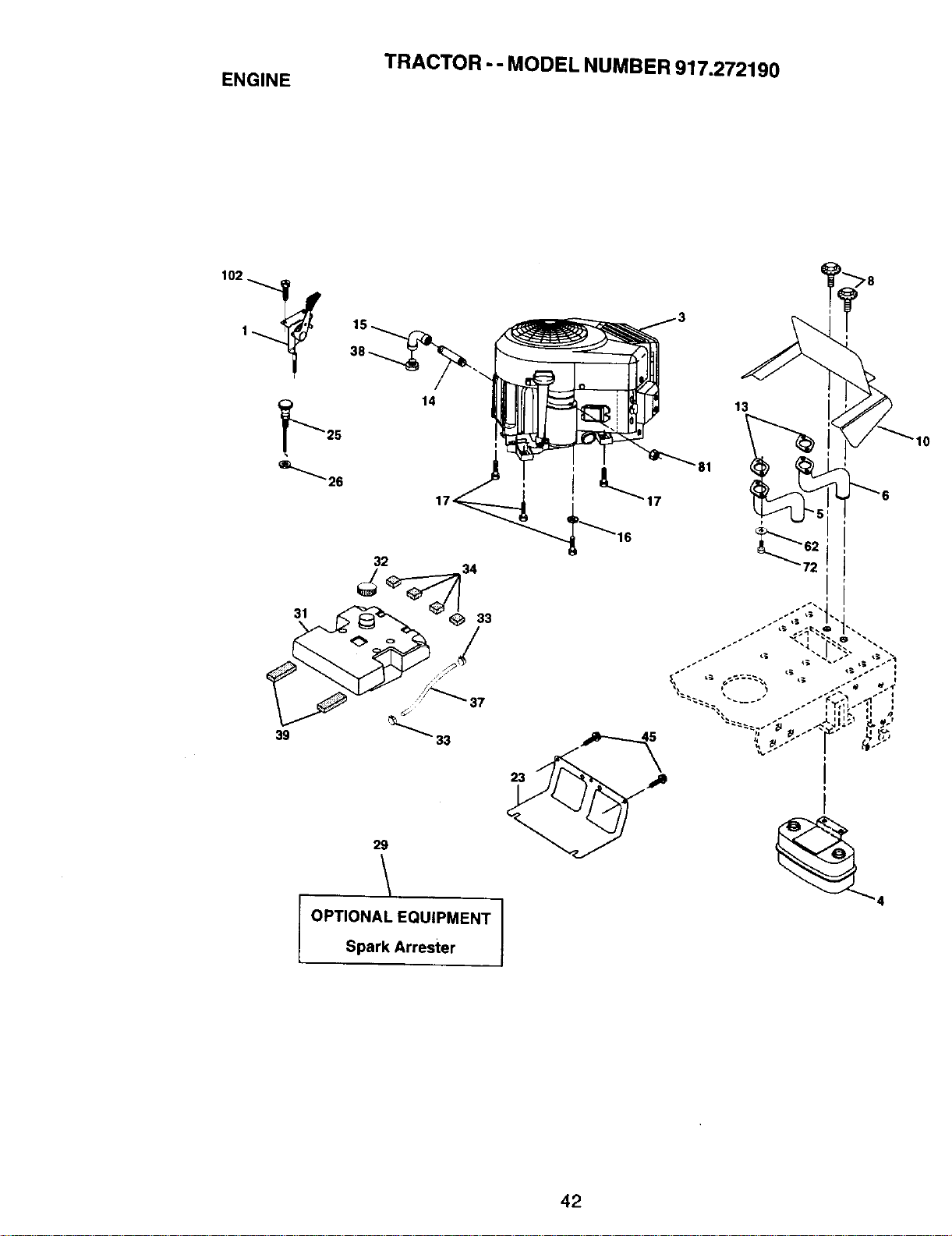

TRACTOR -- MODEL NUMBER 917.272190

ENGINE

102

31 33

39 _ 33

OPTIONAL EQUIPMENT 1

Spark Arrester

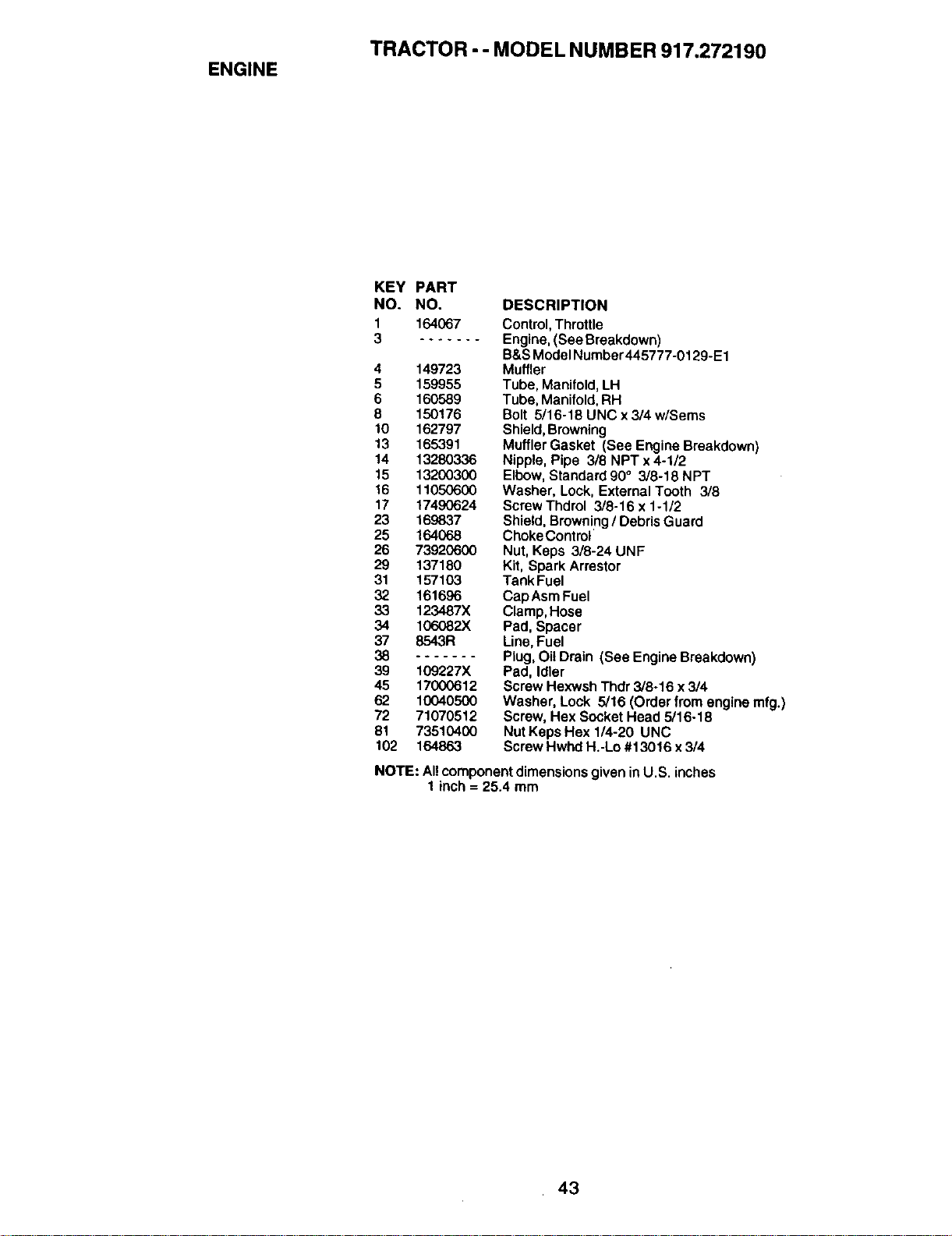

TRACTOR - - MODEL NUMBER 917.272190

ENGINE

KEY PART

NO. NO. DESCRIPTION

1 164067 Control,Throttle

3 ....... Engine,(See Breakdown)

B&SModelNumber445777-0129-E1

4 149723

5 159955

6 160589

8 150176

10 162797

13 165391

14 1328O336

15 13200300

16 11050600

17 17490624

23 169837

25 164068

26 73920600

29 137180

31 157103

32 161696

33 123487X

34 106082X

37 8543R

Muffler

Tube, Manifold, LH

Tube, Manifold, RH

Bolt 5/16-18 UNC x 3/4 w/Sems

Shield, Browning

Muffler Gasket (See Engine Breakdown)

Nipple, Pipe 3/8 NPT x 4-1/2

Elbow, Standard 90° 3/8-18 NPT

Washer, Lock, External Tooth 3/8

Screw Thdrol 3/8-16 x 1-1/2

Shield, Browning / Debris Guard

Choke Control

Nut, Keps 3/8-24 UNF

Kit, Spark Arrestor

Tank Fuel

Cap Asm Fuel

Clamp, Hose

Pad, Spacer

Line, Fuel

38 .......

39 109227X

45 17000612

62 10040500

72 71070512

81 73510400

102 164863

Plug, Oil Drain (See Engine Breakdown)

Pad, Idler

Screw Hexwsh Thdr 3/8-16 x 3/4

Washer, Lock 5/16 (Order from engine mfg.)

Screw, Hex Socket Head 5/16-18

Nut Keps Hex 1/4-20 UNC

Screw Hwhd H.-Lo #13016 x 3/4

NOTE; Al!component dimensions given in U.S. inches

1 inch = 25.4 mm

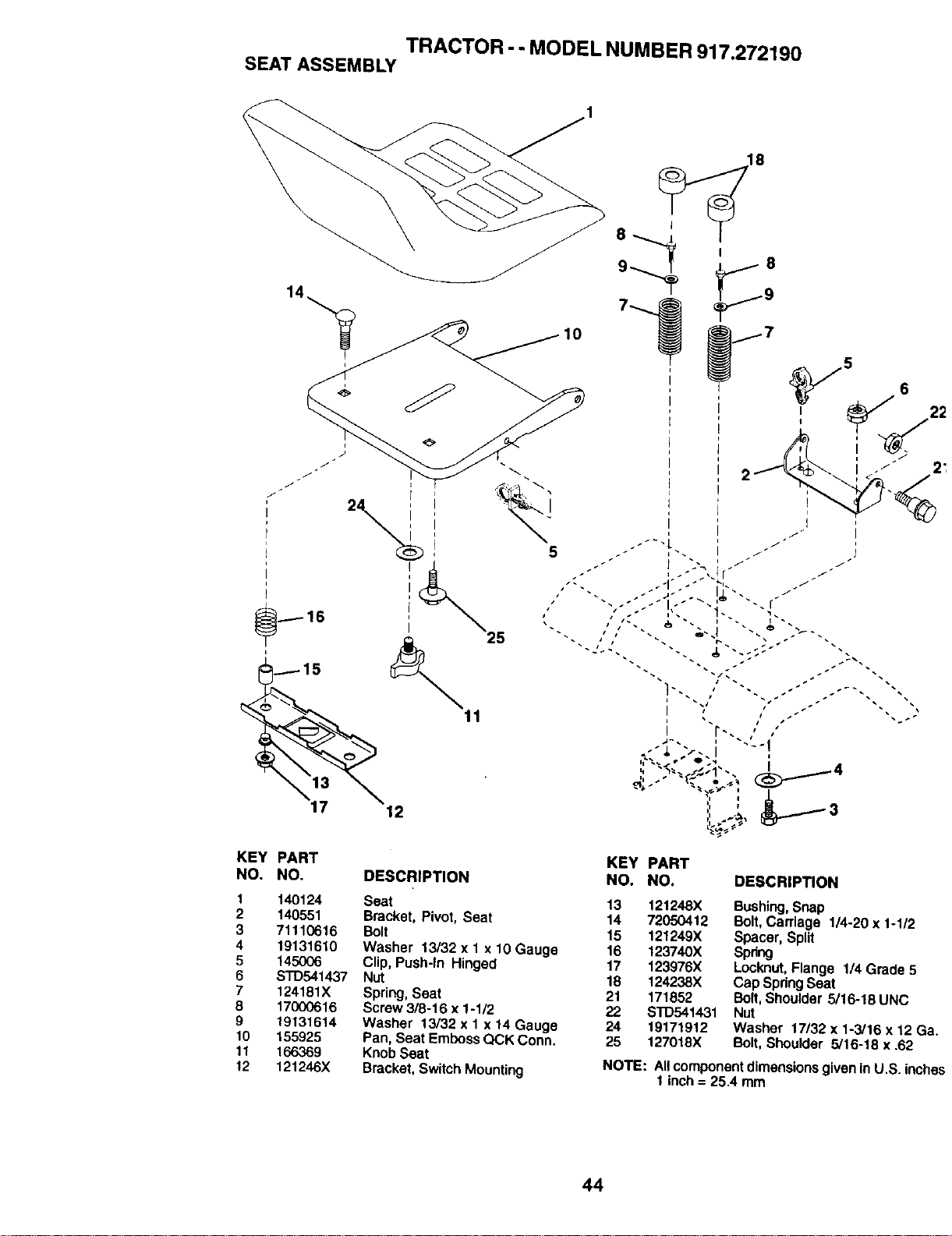

TRACTOR - - MODEL NUMBER 917.272190

SEAT ASSEMBLY

_'_ 11

KEY PART

NO. NO. DESCRIPTION

1 140124 Seat

2 140551 Bracket, Pivot, Seat

3 71110616 Bolt

4 19131610 Washer 13/32 x 1 x 10 Gauge

5 145006 Clip, Push-In Hinged

6 STD541437 Nut

7 124181X Spring, Seat

8 17000616 Screw 3/8-16 x 1-1/2

9 19131614 Washer 13/32 x 1 x 14 Gauge

10 155925 Pan, Seat Emboss QCK Conn.

11 166369 Knob Seat

12 121246X Bracket, Switch Mounting

KEY PART

NO, NO. DESCRIPTION

13 121248X Bushing, Snap

14 72050412 Bolt, Carriage 1/4-20 x 1-1/2

15 121249X Spacer, Split

16 123740X Spdng

17 123976X Locknut. Flange 1/4 Grade 5

18 124238X Cap Spdng Seal

21 171852 Bolt, Shoulder 5/16-18 UNC

22 STD541431 Nut

24 19171912 Washer 17/32 x 1-3/16 x 12 G

25 127018X Bolt, Shoulder 5/16-18 x .62

NOTE:

All component dimensions given in U,S. inch

1inch = 25.4 mm

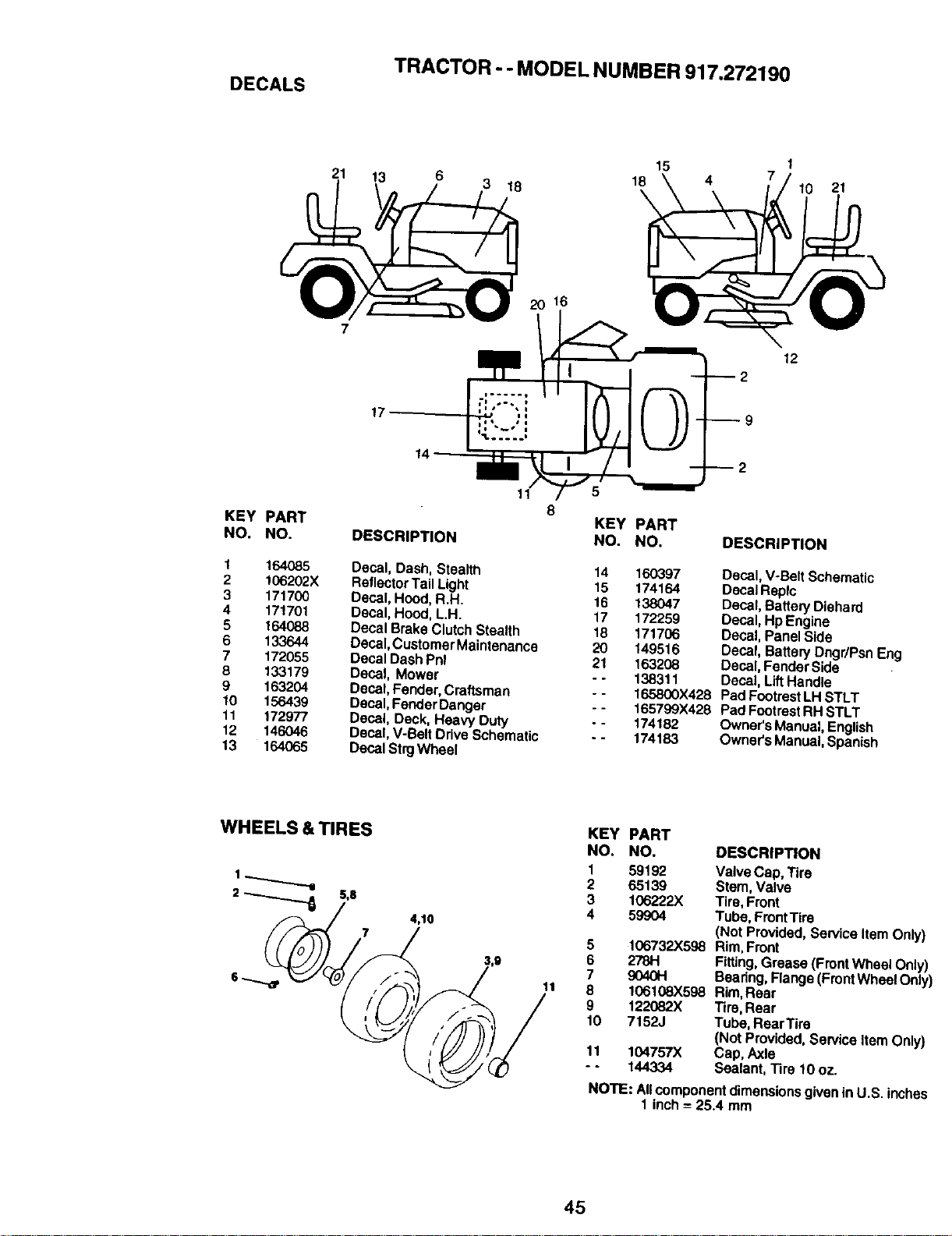

TRACTOR - - MODEL NUMBER 917.272190

DECALS

21 13 6 3 18

15 1

18 4 7

KEY PART

NO. NO.

1 164085

2 106202X

3 171700

4 171701

5 164088

6 133644

7 172055

8 133179

9 163204

10 156439

11 172977

12 146046

13 164065

DESCRIPTION

Decal. Dash.Stealth

ReflectorTail Light

Decal,Hood,R.H.

Decal,Hood, L.H.

Decal Brake Clutch Stealth

Decal,CustomerMaintenance

DecalDash Pnl

Decal, Mower

Decal,Fender,Craftsman

Decal,FenderDanger

Decal,Deck, Heavy Duty

Decal,V-Belt DriveSchematic

DecalStrgWheel

KEY

NO.

° .

PART

NO.

160397

174164

138047

172259

171706

149516

163208

138311

165800X428

165799X428

174182

174183

DESCRIPTION

Decal, V-Belt Schematic

Decal Reptc

Decal, Batten/Diehard

Decal, Hp Engine

Decal, Panel Side

Decal, Salted/Dngr/Psn Eng

Decal, Fender Side

Decal, Lift Handle

Pad Footrest LH STLT

Pad Footrest RH STLT

Owner's Manual, English

Owner's Manual, Spanish

WHEELS & TIRES

2 _ 5,8

4,10

KEY PART

NO. NO. DESCRIPTION

1 59192 Valve Cap, Tire

2 65139 Stem, Valve

3 106222)( Tire, Front

4 59904 Tube, Front Tire

(Not Provided, Service Item Only)

5 106732X598 Rim, Front

6 278H Fiffing, Grease (Front Wheel Only]

7 90401-1 Bearing, Flange (Front Wheel Onl_

8 106108X598 Rim, Rear

9 122082X Tire,Rear

10 7152J Tube, RearTire

(Not Provided, Service Item Only)

11 104757X Cap, Axle

- - 144334 Sealant, Tire 10 oz.

NOTE: All component dimensions given in U.S. inches

1 inch = 25.4 mm

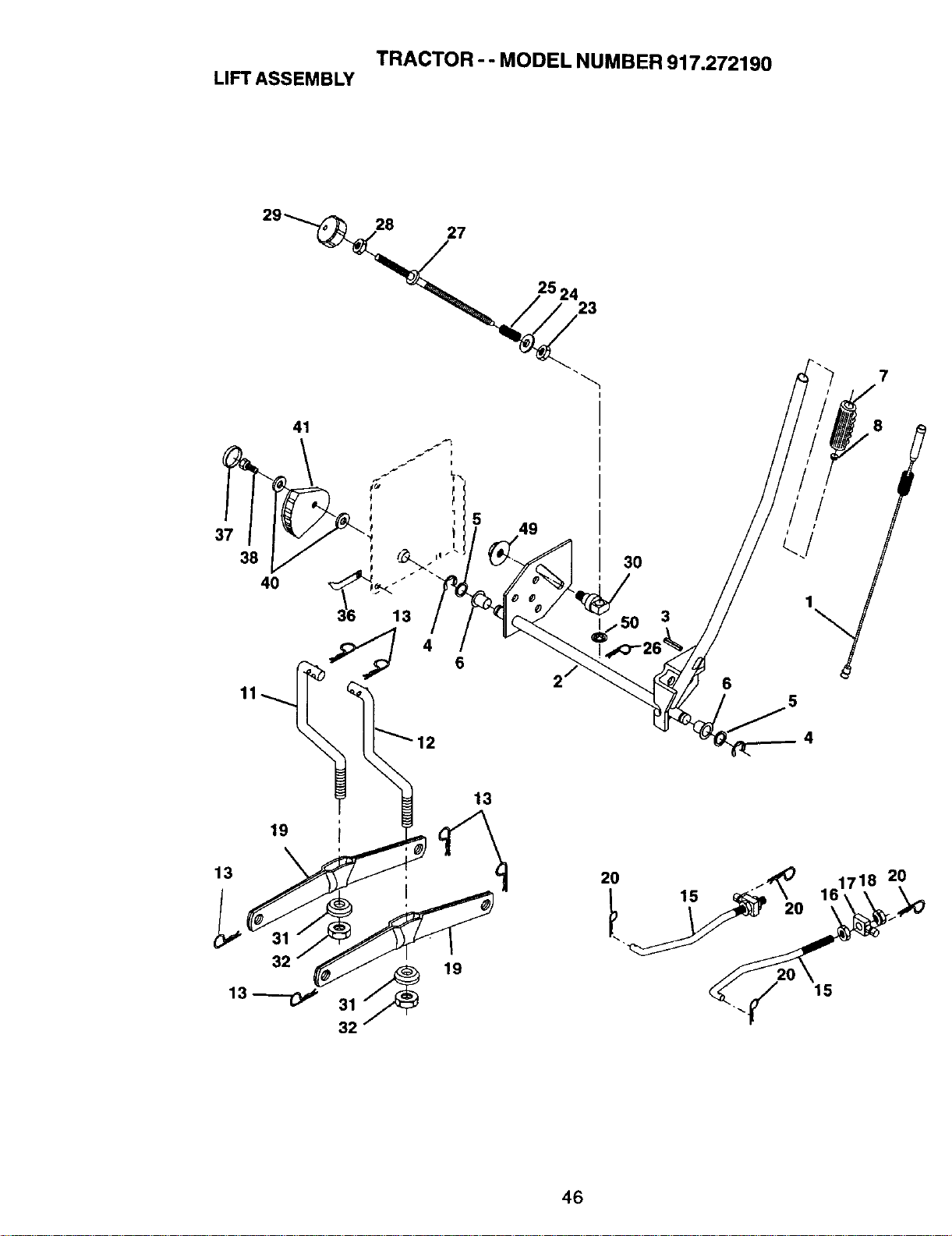

TRACTOR - - MODEL NUMBER 917.272190

LIFT ASSEMBLY

25 24

11_" _ 4 6

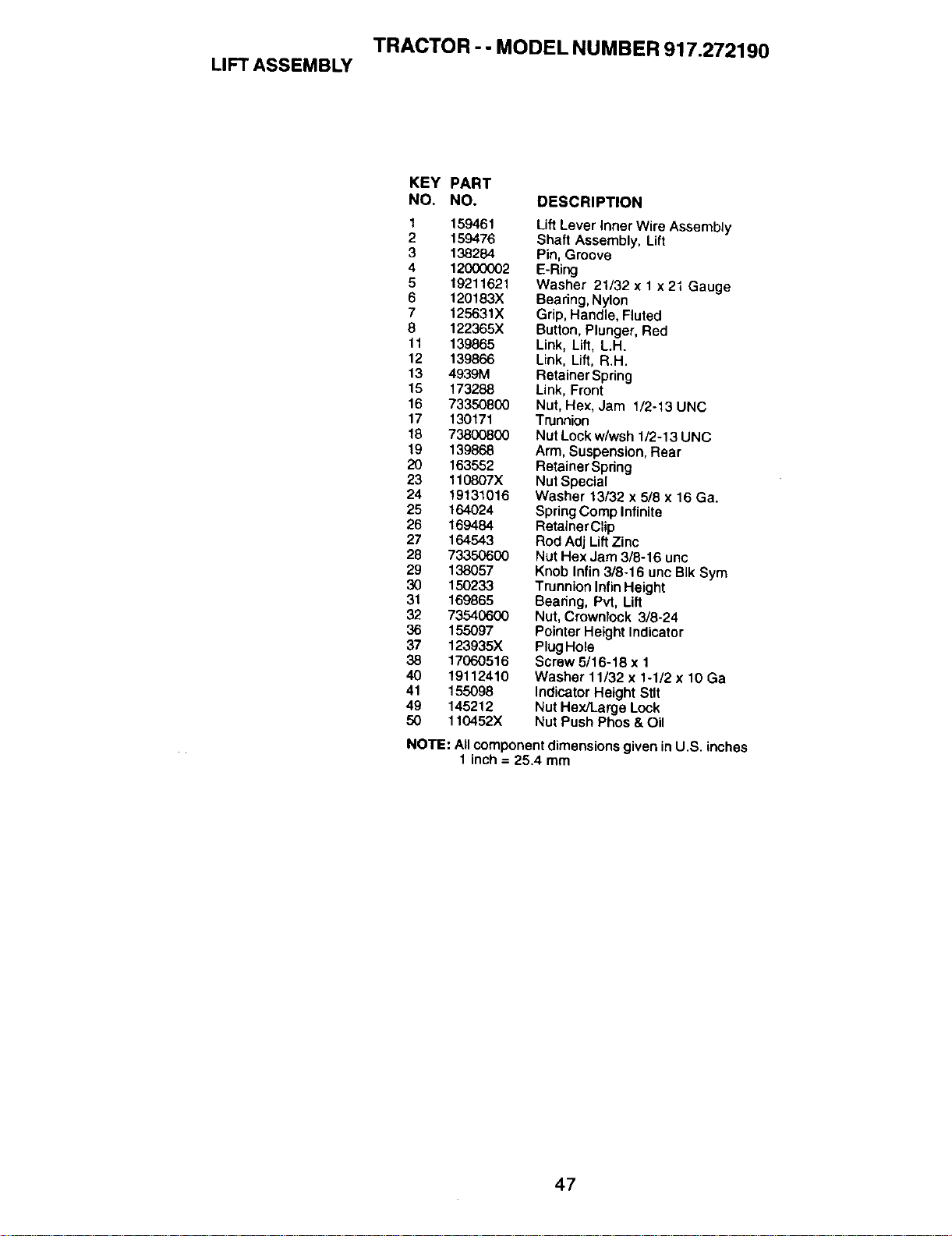

TRACTOR - - MODEL NUMBER 917.272190

LIFT ASSEMBLY

KEY PART

NO. NO. DESCRIPTION

1 159461 Lift Lever Inner Wire AssembLy

2 159476 Shaft Assembly, Lift

3 138284 Pin, Groove

4 1_2 E-Ring

5 19211621 Washer 21/32 x 1 x 21 Gauge

6 120183X Bearing, Nylon

7 125631X Gr{p, Handle, Fluted

8 122365X Button, Plunger, Red

11 139865 Link, Lift, L.H.

12 139866 Link, Lift, R.H.

13 4939M Retainer Spring

15 173288 Link, Front

16 73350800 Nut, Hex, Jam 1/2-13 UNC

17 130171 Trunnion

18 73800800 Nut Lock w/wsh 1/2-13 UNC

19 139868 Arm, Suspension, Rear

20 163552 Retainer Spdng

23 110807X Nut Special

24 19131018 Washer 13132 x 5/8 x 16 Ga.

25 164024 Spring Comp Infinite

26 169484 RetainerClip

27 164543 Rod Adj Lift Zinc

28 73350600 NUt Hex Jam 3/8-16 unc

29 138057 Knob Infin 3/8-18 unc Blk Sym

30 150233 Trunnion InfinHeight

31 169865 Beadng, Pvt, Lift

32 73540600 Nut, Crownlock 3/8-24

36 155097 Pointer Height Indicator

37 123935X Plug Hole

38 17060516 Screw 5/16-18 x 1

40 19112410 Washer 11/32 x 1-1/2 x 10 Ga

41 155098 Indicator Height Stlt

49 145212 Nut HexiLarge Lock

50 110452X Nut Push Phos & Oil

NOTE: All component dimensions given in U.S. inches

1 inch = 25.4 mm

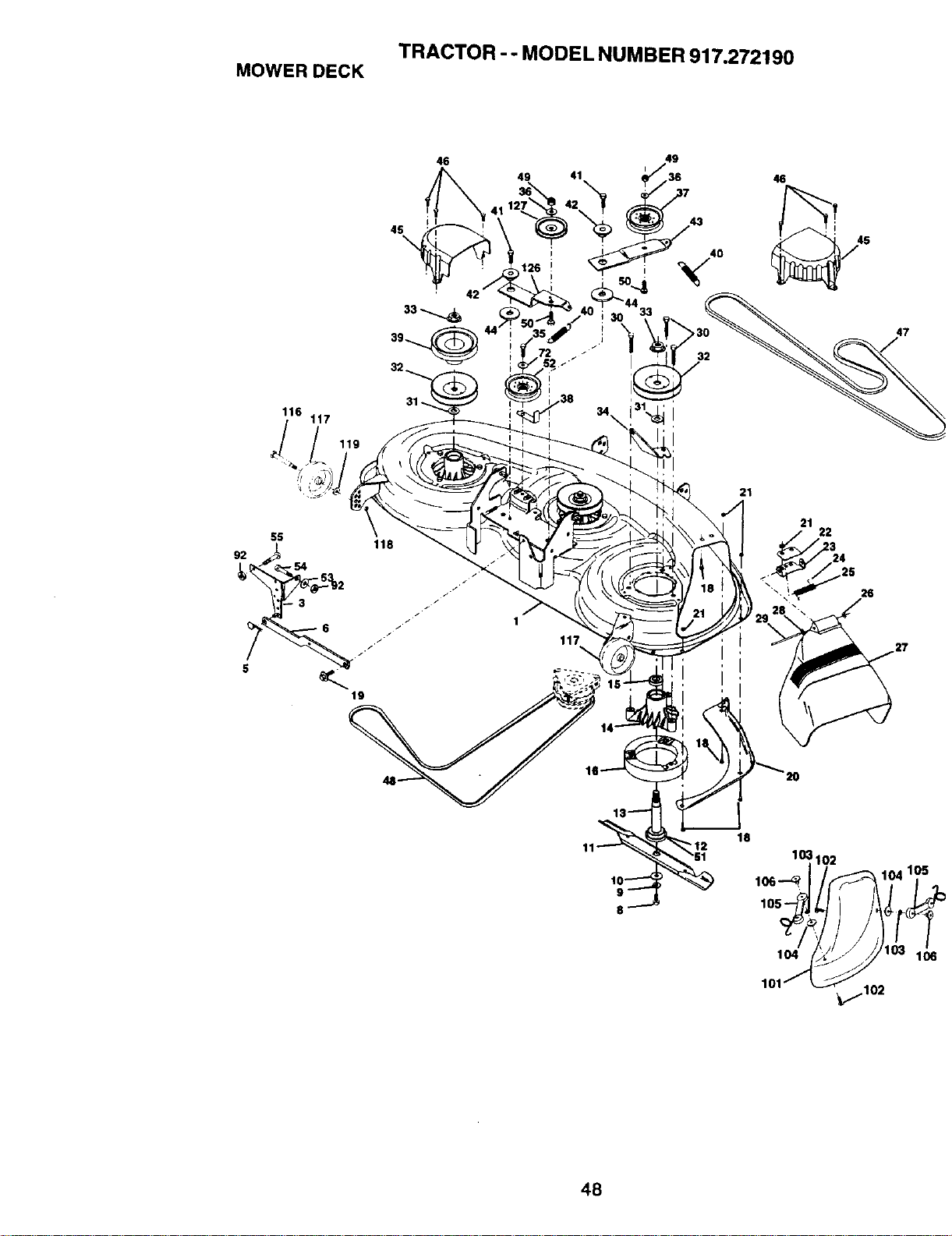

TRACTOR - - MODEL NUMBER 917.272190

MOWER DECK

116

117

119

118

103102

101_ 103 106

_v.1Io2

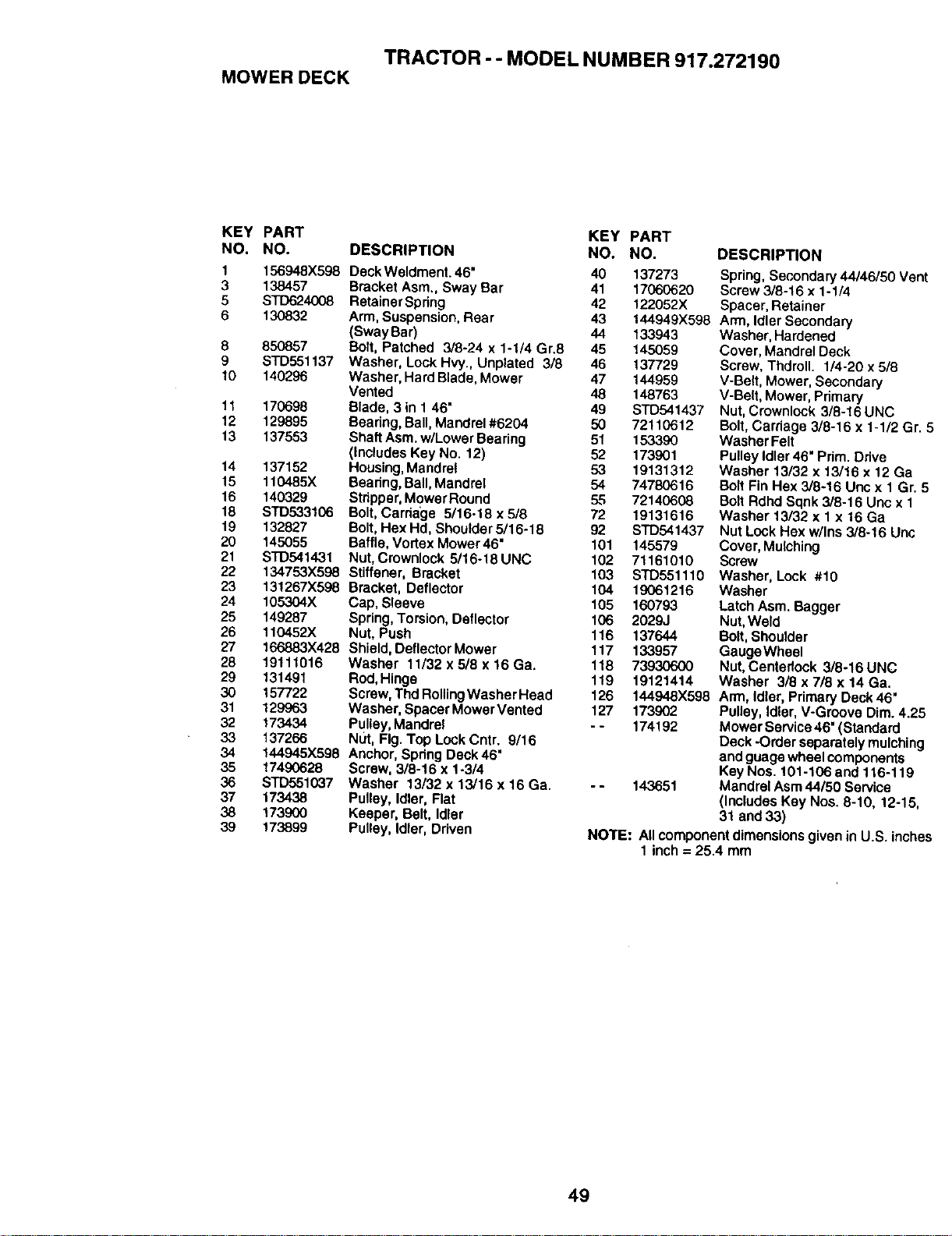

TRACTOR - - MODEL NUMBER 917.272190

MOWER DECK

KEY PART

NO. NO.

1 156948X598

3 138457

5 STD624008

6 130832

8 850857

9 STD551137

10 140296

11 170698

12 129895

13 137553

14 137152

15 110485X

16 14O329

18 STD533106

19 132827

20 145055

21 S'1"D541431

22 134753X598

23 13!267X598

24 105304X

25 149287

26 110452)(

27 166883X428

28 19111016

29 131491

30 157722

31 129963

32 173434

33 137266

34 144945X598

35 17490628

36 STD551037

37 173438

38 173900

39 173899

KEY PART

DESCRIPTION NO. NO. DESCRIPTION

Deck Weldment. 46" 40

Bracket Asm., Sway Bar 41

Retainer Spring 42

Arm, Suspension, Rear 43

(SwayBer) 44

Bolt, Patched 3/8-24 x 1-1/4 Gr.8 45

Washer, Lock Hvy., Unplated 3/8 46

Washer, Hard Blade, Mower 47

Vented 48

Blade, 3 in 1 46" 49

Bearing, Ball, Mandrel #6204 50

Shaft Asm. w/Lower Bearing 51

(Includes Key No. 12) 52

Housing, Mandre! 53

Bearing, Ball, Mandrel 54

Stripper, Mower Round 5.=;

Bolt, Cardage 5/16-18 x 5/8 72

Bolt, Hex Hd, Shoulder 5/16-18 92

Baffle, Vortex Mower 46" 101

Nut, Crownlock 5/16-18 UNC 102

Stiffener, Bracket 103

Bracket, Deflector 104

Cap, Sleeve 105

Spring, Torsion, Deflector 106

Nut, Push 116

Shield, Deflector Mower 117

Washer 11132 x 5/8 x 16 Ga. 118

Rod, Hinge 119

Screw, Thd Rol|ing Washer Head 126

Washer, Spacer Mower Vented 127

Pulley, Mandrel - -

NUt, Fig. Top Lock Cntr. 9/16

Anchor, Spring Deck 46"

Screw, 3/8-16 x 1-3/4

Washer 13/32 x 13/16 x 16 Ga. - -

Pulley, Idler, Flat

Keeper, Belt, Idler

Pulley, Idler, Driven

137273

17060620

122052X

144949X598

133943

145059

137729

144959

148763

STD541437

72110612

153390

173901

19131312

74780616

72140608

19131616

STD541437

145579

71161010

STD551110

19061216

160793

2029J

137644

133957

73930600

19121414

144948X598

173902

174192

143651

Spring, Secondary 44/46/50 Vent

Screw 3/8-16 x 1-1/4

Spacer, Retainer

Arm, Idler Secondary

Washer, Hardened

Cover, Mandre_ Deck

Screw, Thdroll. 1/4-20 x 5/8

V-Belt, Mower, Secondary

V-Belt, Mower, Primary

Nut, Crowntock 3/8-16 UNC

Bolt, Carriage 3/8-16 x 1-1/2 Gr.

Washer Felt

Pulley Idler 46" Prim. Drive

Washer 13/32 x 13/16 x 12 Ga

Bolt Fin Hex 3/8-16 Unc x 1 Gr.

Bolt Rdhd Sqnk 3/8-16 Unc x 1

Washer 13132 x 1 x 16 Ga

Nut Lock Hex w/Ins 3/8-16 Unc

Cover, Mulching

Screw

Washer, Lock #10

Washer

Latch Asm. Bagger

Nut, Weld

Bolt, Shoulder

GaugeWheel

Nut, Centerlock 3/8-16 UNC

Washer 3/8 x 7/8 x 14 Ga.

Arm, |d_er, Prim_,ry Deck 46"

Pulley, Idler, V-Groove Dim. 4.25

Mower Service 46" (Standard

Deck -Order separately mulching

and guage wheel components

Key Nos. 101-106 and 116-119

Mandrel Asm 44150 Service

(Includes Key Nos. 8-10, 12-15,

31 and 33)

NOTE: Allcomponentdimensions givenin U.S.inche=

1 inch= 25.4 mm

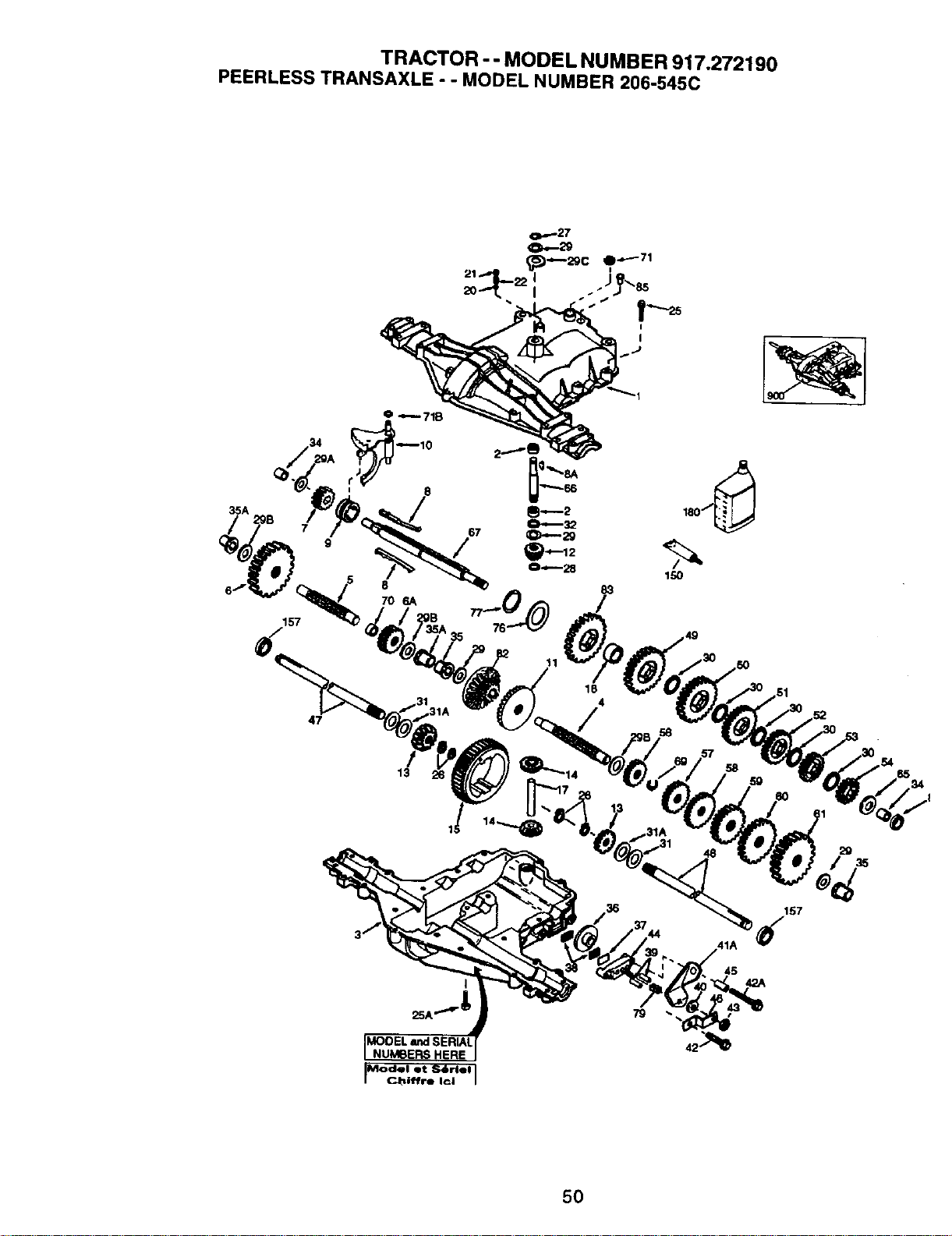

TRACTOR - - MODEL NUMBER 917.272190

PEERLESS TRANSAXLE - - MODEL NUMBER 206-545C

157

O..-27

0,,,--29

706A

150

157

Model et S6riel

I Chiffre I.I I

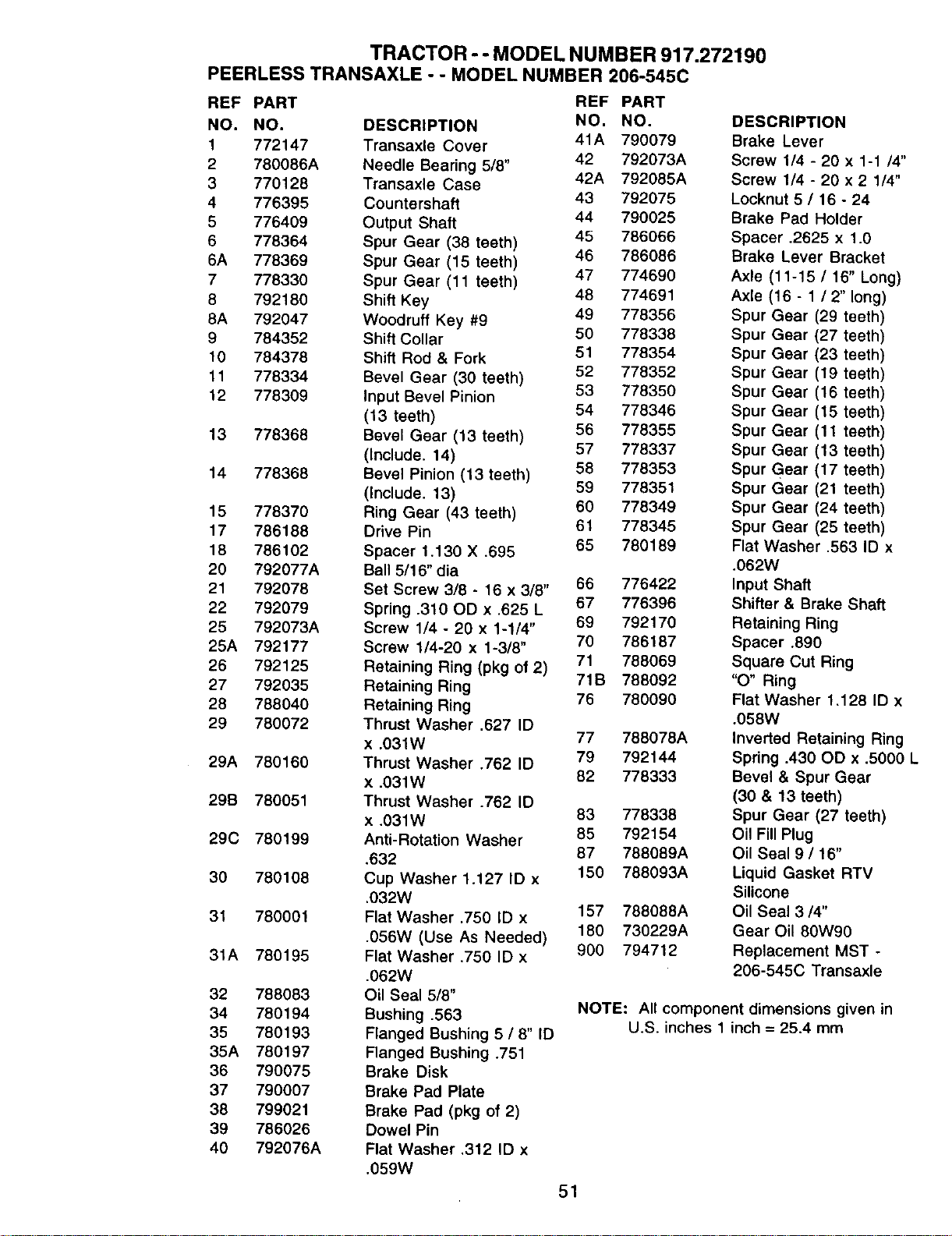

TRACTOR - - MODEL NUMBER 917.272190

PEERLESS TRANSAXLE - - MODEL NUMBER 206-545C

REF PART REF PART

NO. NO. DESCRIPTION NO. NO.

1 772147 Transaxle Cover 41A 790079

2 780086A Needle Bearing 5/8" 42 792073A

3 770128 Transaxle Case 42A 792085A

4 776395 Countershaft 43 792075

5 776409 Output Shaft 44 790025

6 778364 Spur Gear (38 teeth) 45 786066

6A 778369 Spur Gear (15 teeth) 46 786086

7 778330 Spur Gear (11 teeth) 47 774690

8 792180 Shift Key 48 774691

8A 792047 Woodruff Key #9 49 778356

9 784352 Shift Collar 50 778338

10 784378 Shift Rod & Fork 51 778354

11 778334 Bevel Gear (30 teeth) 52 778352

12 778309 Input Bevel Pinion 53 778350

(13 teeth) 54 778346

13 778368 Bevel Gear (13 teeth) 56 778355

(Include. 14) 57 778337

14 778368 Bevel Pinion (13 teeth) 58 778353

(Include. 13) 59 778351

15 778370 Ring Gear (43 teeth) 60 778349

17 786188 Drive Pin 61 778345

18 786102 Spacer 1.130 X .695 65 780189

20 792077A Ball 5/16" dia

21 792078 Set Screw 3/8 - 16 x 3/8" 66 776422

22 792079 Spring .310 OD x .625 L 67 776396

25 792073A Screw 1/4 - 20 x 1-1/4" 69 792170

25A 792177 Screw 1/4-20 x 1-3/8" 70 786187

26 792125 Retaining Ring (pkg of 2) 71 788069

27 792035 Retaining Ring 71B 788092

28 788040 Retaining Ring 76 780090

29 780072 Thrust Washer .627 ID

x .031W 77 788078A

29A 780160 Thrust Washer .762 ID 79 792144

x .031W 82 778333

29B 780051 Thrust Washer .762 ID

x .031W 83 778338

29C 780199 Anti-Rotation Washer 85 792154

.632 87 788089A

30 780108 Cup Washer 1.127 ID x 150 788093A

.032W

157 788088A

31 780001 Flat Washer .750 ID x

.056W (Use As Needed) 180 730229A

31A 780195 Flat Washer .750 ID x 900 794712

.062W

32 788083 Oil Seal 5/8"

34 780194 Bushing .563

35 780193 Flanged Bushing 5 / 8" ID

35A 780197 Flanged Bushing .751

36 790075 Brake Disk

37 790007 Brake Pad Plate

38 799021 Brake Pad (pkg of 2)

39 786026 Dowel Pin

40 792076A Flat Washer .312 ID x

.059W

DESCRIPTION

Brake Lever

Screw 1/4 - 20 x 1-1 /4"

Screw 1/4 - 20 x 2 1/4"

Locknut 5 / 16 - 24

Brake Pad Holder

Spacer .2625 x 1.0

Brake Lever Bracket

Axle (11-15 / 16" Long)

Axle (16 - 1 / 2" long)

Spur Gear (29 teeth

Spur Gear (27 teeth

Spur Gear (23 teeth

Spur Gear (19 teeth

Spur Gear (16 teeth

Spur Gear (15 teeth

Spur Gear (11 teeth

Spur Gear (13 teeth

Spur Gear (17 teeth

Spur Gear (21 teeth

Spur Gear (24 teeth

Spur Gear (25 teeth

Flat Washer .563 ID

.062W

Input Shaft

Shifter & Brake Shaft

Retaining Ring

Spacer .890

Square Cut Ring

"O" Ring

Flat Washer 1,128 ID x

.058W

Inverted Retaining Ring

Spring .430 OD x .5000 L

Bevel & Spur Gear

(30 & 13 teeth)

Spur Gear (27 teeth)

Oil Fill Plug

Oil Seal 9 / 16"

Liquid Gasket RTV

Silicone

Oil Seal 3/4"

Gear Oil 80W90

Replacement MST -

206-545C Transaxle

NOTE: All component dimensions given in

U.S. inches 1 inch = 25.4 mm

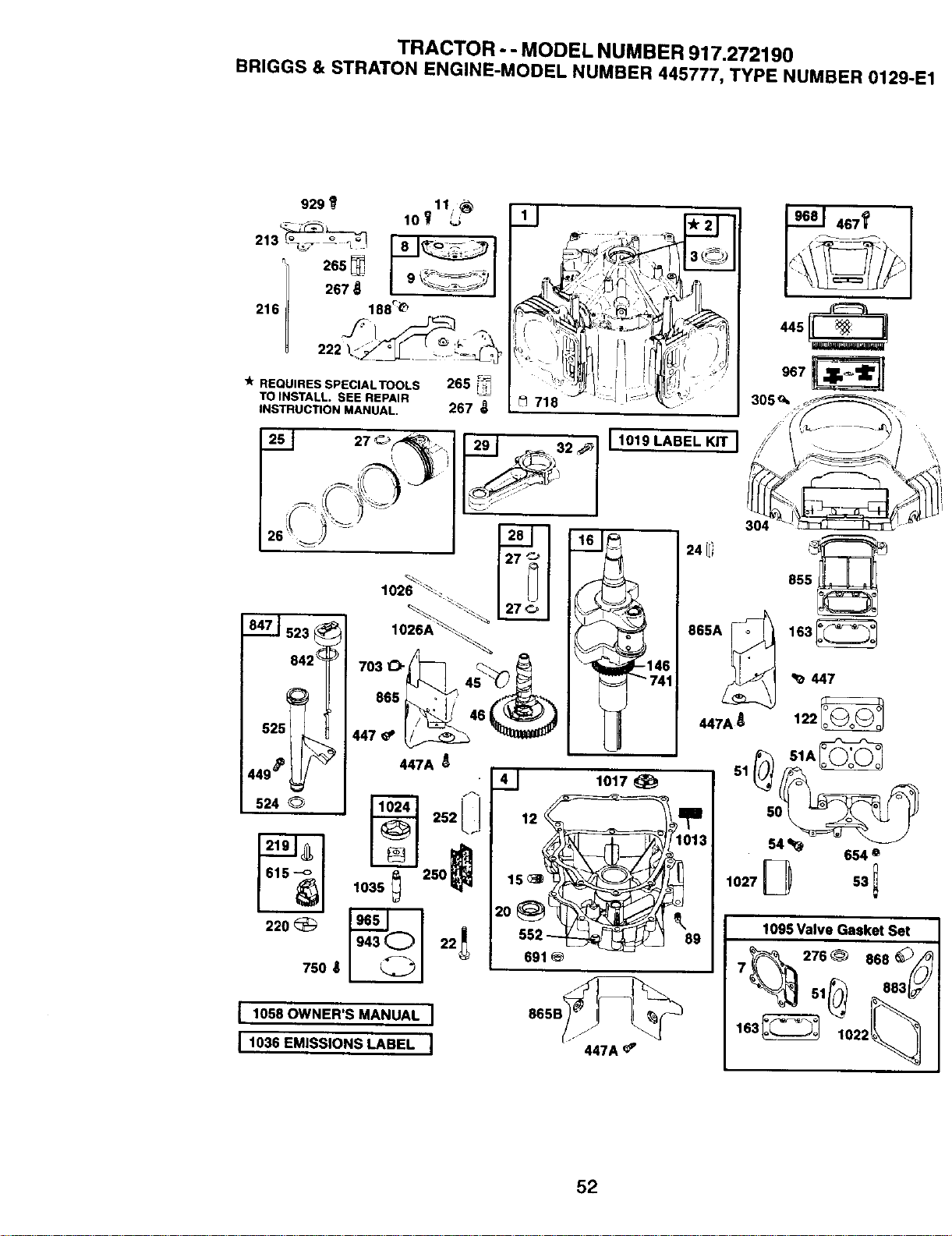

TRACTOR - - MODEL NUMBER 917.272190

BRIGGS & STRATON ENGINE-MODEL NUMBER 445777, TYPE NUMBER 0129-E

_k REQUIRES SPECIAL TOOLS 265 L++_

TO INSTALL, SEE REPAIR

INSTRUCTION MANUAL, 267

_ 718

524 Q

2_o

750

I 1058 OWNER'S MANUAL I

I 1036 EMISSIONS LABEL I

1017

6918

865B_

147A _'

1095 Valve Gasket Set

276 _ 868

%\_L4

163_

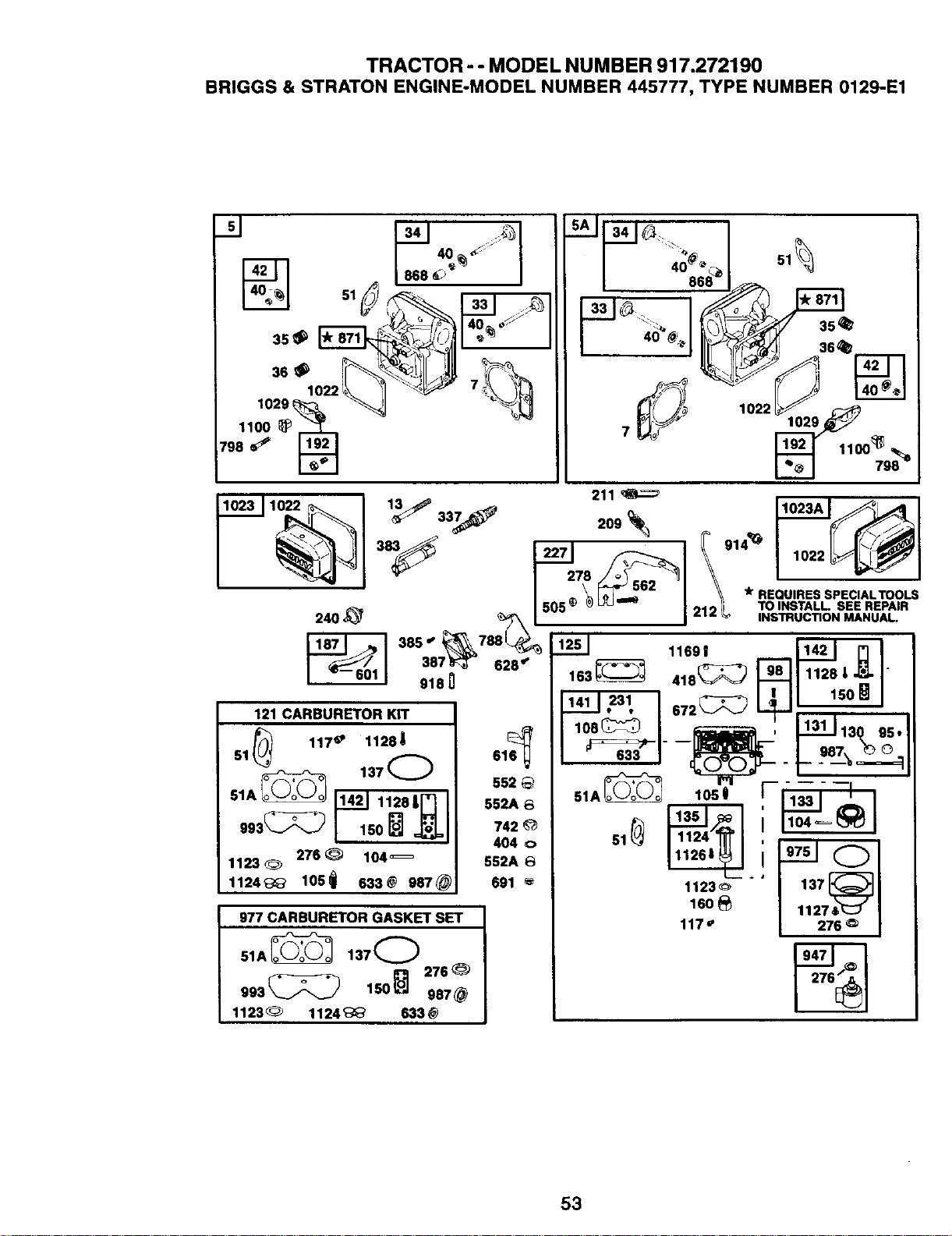

TRACTOR - - MODEL NUMBER 917.272190

BRIGGS & STRATON ENGINE-MODEL NUMBER 445777, TYPE NUMBER 0129-E1

_ _1

/ 40_ ,_" I

lO_ _ _ _/_

lO28_ _

11oo_ ___._

798,_

_-_1 _33_ 208_ I_-_J_z_

383 227 914'_1_ 1022

o4 o II TOINSTALL SEE REPAIR

88_ "_"_ _ INSTRUCTIONMANUAL

388-_ _ 11.1

- ouIj 918_ 163_ 418_ "

231 8,2_ I_11_--I

,_l_,..u._o._r i1o_1 _- _1j__113o,5.I

51 137Q 81 t _'-_ I--_-1---'_._-_1

582÷ _ _ _ "_

51A_ _ 1128|m I 552A_ 51A_ 105t

404 o

276@ 104= _ 'SJ C1123 _ 552A _

1124_ I05_ 633@ 987@ 691 _ 1123_ " ,o,_

160 _ 1127_

977 CARBURETOR GASKET SET

_I 276

993_ 150 5_1 987_

1123_ 1124_;' 633@

117"* 276

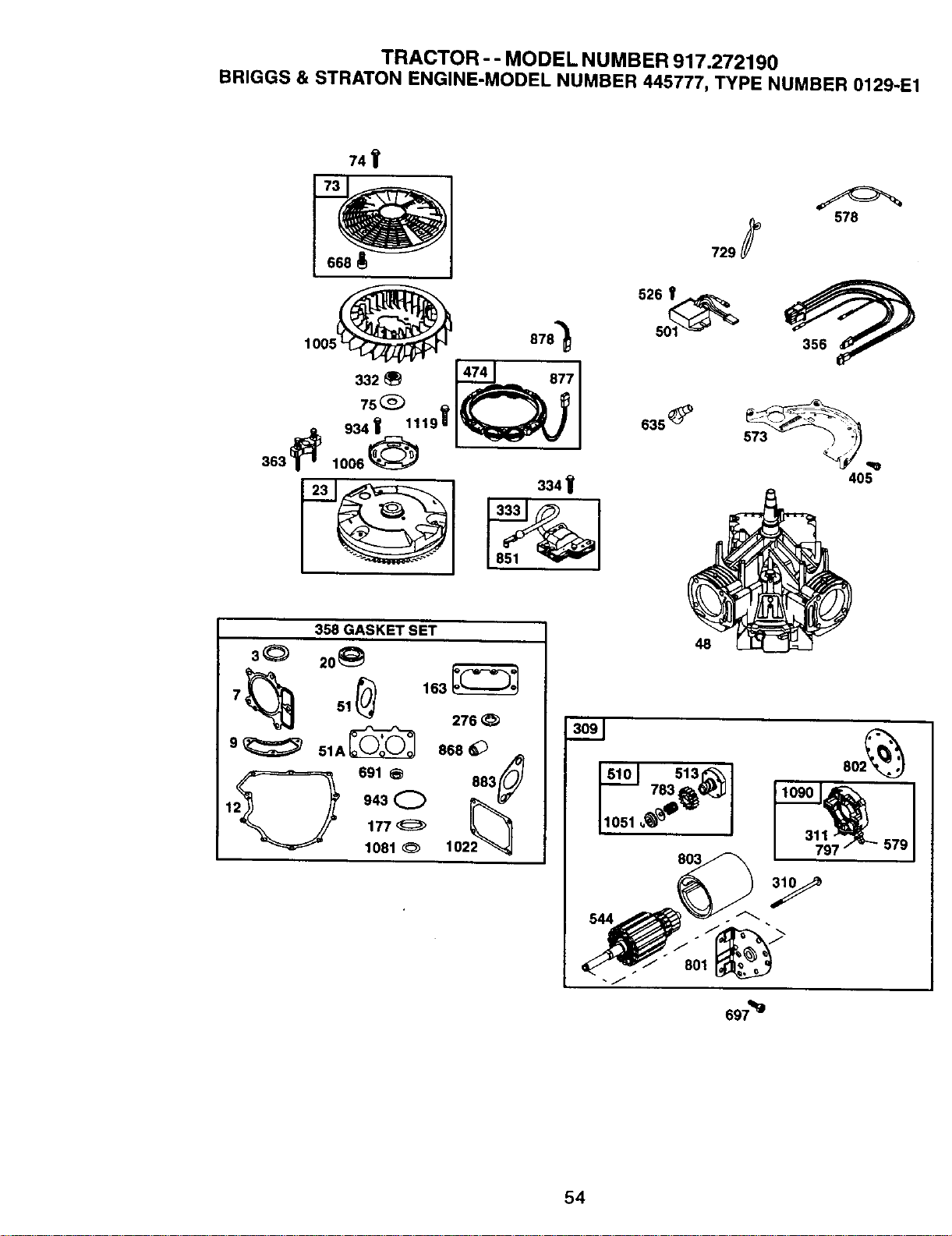

TRACTOR-- MODEL NUMBER 917.272190

BRIGGS & STRATON ENGINE-MODEL NUMBER 445777, TYPE NUMBER 0129-E1

741t

363 f

334 lJ'

358 GASKET SET

30 2o_

276

86e

9_ 51A_

2_ 691_ 882_

1081 _ 102

578

63s_

573

405

783 {_ _J.J I

579 J

69_

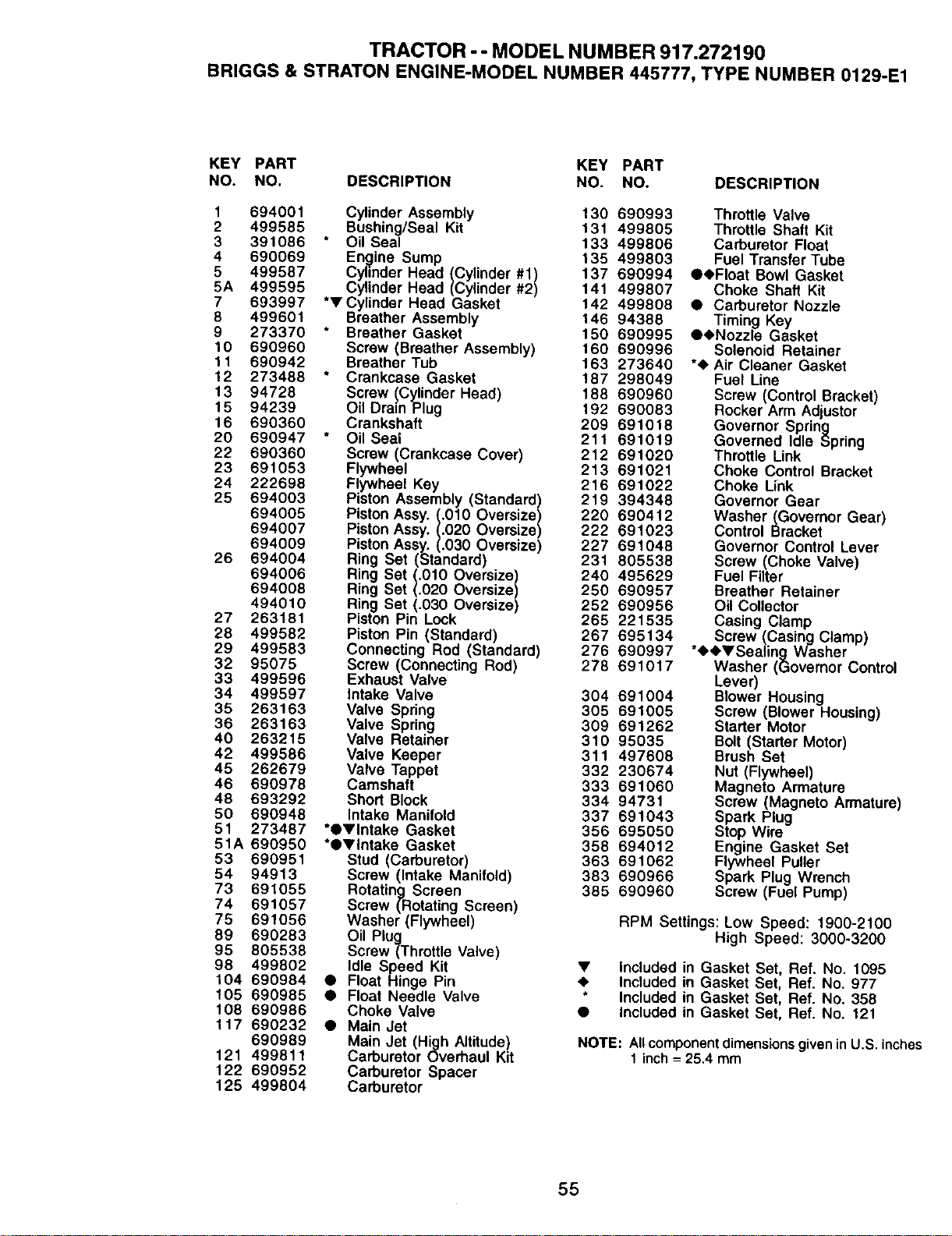

TRACTOR - - MODEL NUMBER 917.272190

BRIGGS & STRATON ENGINE-MODEL NUMBER 445777, TYPE NUMBER 0129-E1

KEY PART KEY PART

NO. NO. DESCRIPTION NO. NO. DESCRIPTION

1 694001 Cylinder Assembly 130 690993 Throttle Valve

2 499585 Bushing/Seal Kit 131 499805 Throttle Shaft Kit

3 391086 Oil Seal 133 499806 Carburetor Float

4 690069 E_. ine Sump 135 499803 Fuel Transfer Tube

5 499587 Cylinder Head (Cylinder #1) 137 690994 •eFIoat Bowl Gasket

5A 499595 Cylinder Head (Cylinder #2) 141 499807 Choke Shaft Kit

7 693997 *VCylinder Head Gasket 142 499808 • Carburetor Nozzle

8 499601 Breather Assembly 146 94388 Timing Key

9 273370 * Breather Gasket 150 690995 •_Nozzle Gasket

10 690960 Screw (Breather Assembly) 160 690996 Solenoid Retainer

11 690942 Breather Tub 163 273640 *4' Air Cleaner Gasket

12 273488 Crankcase Gasket 187 298049 Fuel Line

13 94728 Screw (Cylinder Head) 188 690960 Screw (Control Bracket)

15 94239 Oil Drain Plug 192 690083 Rocker Arm Adjustor

16 690360 Crankshaft 209 691018 Governor Spring

20 690947 Oil Seal 211 691019 Governed Idle Spring

22 690360 Screw (Crankcase Cover) 212 691020 Throttle Link

23 691053 Flywheel 213 691021 Choke Control Bracket

24 222698 Flywheel Key 216 691022 Choke Link

25 694003 Piston Assembly (Standard) 219 394348 Governor Gear

694005 Piston Assy. (.010 Oversize) 220 690412 Washer (Governor Gear)

694007 PistonAssy. (.020 Oversize) 222 691023 Control Bracket

694009 Piston Assy. (.030 Oversize) 227 691048 Governor Control Lever

26 694004 Ring Set (Standard) 231 805538 Screw (Choke Valve)

694006 Ring Set (.010 Oversize) 240 495629 Fuel Filter

694008 Ring Set (.020 Oversize) 250 690957 Breather Retainer

494010 Ring Set (.030 Oversize) 252 690956 Oil Collector

27 263181 Piston Pin Lock 265 221535 Casing Clamp

28 499582 Piston Pin (Standard) 267 695134 Screw (Casing Clamp)

29 499583 Connecting Rod (Standard) 276 690997 *4H)•SealingWasher

32 95075 Screw (Connecting Rod) 278 691017 Washer (Governor Control

33 499596 Exhaust Valve Lever)

34 499597 Intake Valve 304 691004 Blower Housing

35 263163 Valve Spring 305 691005 Screw (Blower Housing)

36 263163 Valve Spring 309 691262 Starter Motor

40 263215 Valve Retainer 310 95035 Bolt (Starter Motor)

42 499586 Valve Keeper 311 497608 Brush Set

45 262679 Valve Tappet 332 230674 Nut (Flywheel)

46 690978 Camshaft 333 691060 Magneto Armature

48 693292 Short Block 334 94731 Screw (Magneto Armature)

50 690948 Intake Manifold 337 691043 Spark Plug

51 273487 *QVlntake Gasket 356 695050 Stop Wire

51A 690950 *¢Vlntake Gasket 358 694012 Engine Gasket Set

53 690951 Stud (Carburetor) 363 691062 Flywheel Puller

54 94913 Screw (Intake Manifold) 383 690966 Spark Plug Wrench

73 691055 Rotating Screen 385 690960 Screw (Fuel Pump)

74 691057 Screw (Rotating Screen)

75 691056 Washer (Flywheel) RPM Settings: Low Speed: 1900-2100

89 690283 Oil Plug High Speed: 3000-3200

95 805538 Screw (Throttle Valve)

98 499802 Idle Speed Kit • Included in Gasket Set, Ref. No. 1095

104 690984 • Float Hinge Pin • Included in Gasket Set, Ref. No. 977

105 690985 • Float Needle Valve Included in Gasket Set, Ref. No. 358

108 690986 Choke Valve • Included in Gasket Set, Ref. No. 121

117 690232 • Main Jet

690989 Main Jet (High Altitude) NOTE: All component dimensions given in U.S. inches

121 499811 Carburetor Overhaul Kit 1 inch = 25.4 mm

122 690952 Carburetor Spacer

125 499804 Carburetor

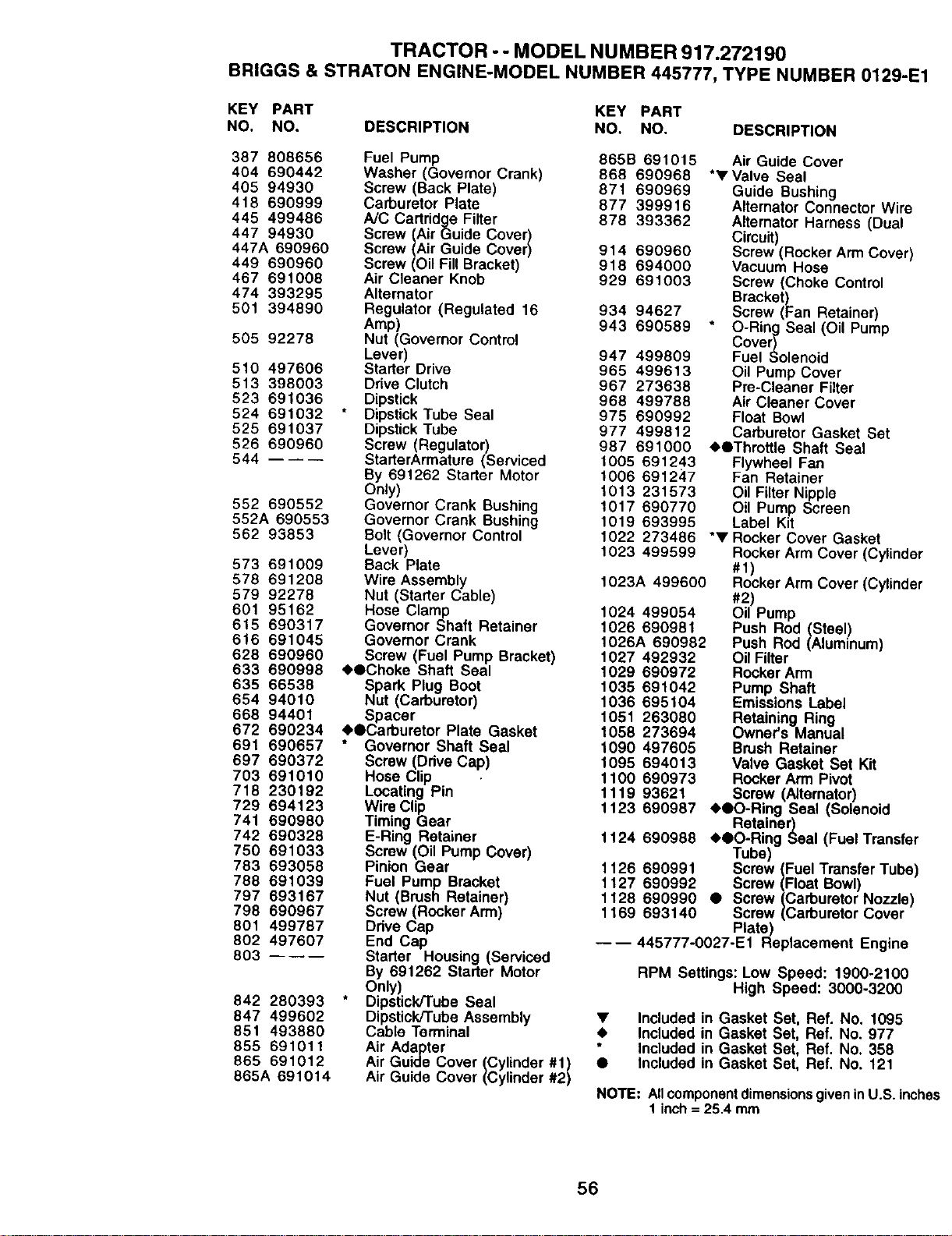

TRACTOR - - MODEL NUMBER 917.272190

BRIGGS & STRATON ENGINE-MODEL NUMBER 445777, TYPE NUMBER 0129-E1

KEY PART KEY PART

NO. NO. DESCRIPTION NO. NO. DESCRIPTION

387 808656

404 690442

405 94930

418 690999

445 499486

447 94930

447A 690960

449 690960

467 691008

474 393295

501 394890

505 92278

510 497606

513 398003

523 691036

524 691032

525 691037

526 690960

544

552 690552

552A 690553

562 93853

573 691009

578 691208

579 92278

601 95162

615 690317

6t6 691045

628 690960

633 690998

635 66538

654 94010

668 94401

672 690234

691 690657

697 690372

703 691010

718 230192

729 694123

741 690980

742 690328

750 691033

783 693058

788 691039

797 693167

798 690967

801 499787

802 497607

803

842 280393

847 499602

851 493880

855 691011

865 691012

865A 691014

Fuel Pump

Washer (Governor Crank)

Screw (Back Plate)

Carburetor Plate

A/C Cartridge Filter

Screw (Air Guide Cover)

Screw (Oil Fill Bracket)

Air Cleaner Knob

Alternator

Regulator (Regulated 16

Amp)

Nut (Governor Control

Lever)

Starter Drive

Drive Clutch

Dipstick

Dipstick Tube Seal

Dipstick Tube

Screw (Regulator)

StarterArmature (Serviced

By 691262 Starter Motor

Only)

Governor Crank Bushing

Bolt (Governor Control

Lever)

Back Plate

Wire Assembly

Nut (Starter Cable)

Hose Clamp

Governor Shaft Retainer

Governor Crank

Screw (Fuel Pump Bracket)

• OChoke Shaft Seal

Spark Plug Boot

Nut (Carburetor)

Spacer

• OCarburetor Plate Gasket

* Governor Shaft Seal

Screw (Drive Cap)

Hose Clip

Locating Pin

Wire Clip

Timing Gear

E-Ring Retainer

Screw (Oil Pump Cover)

Pinion Gear

Fuel Pump Bracket

Nut (Brush Retainer)

Screw (Rocker Arm)

Drive Cap

End Cap

Starter Housing (Serviced

By 691262 Starter Motor

Only)

Dipstick/Tube Seal

Dipstick/Tube Assembly

Cable Terminal

Air Adapter

Air Guide Cover (Cylinder #1)

Air Guide Cover (Cylinder #2)

865B 691015 Air Guide Cover

868 690968 *Waive Seal

871 690969 Guide Bushing

877 399916 Alternator Connector Wire

678 393362 Alternator Harness (Dual

Circuit)

914 690960 Screw (Rocker Arm Cover)

918 694000 Vacuum Hose

929 691003 Screw (Choke Control

Bracket)

934 94627 Screw (Fan Retainer)

943 690589 O-Ring Seal (Oil Pump

Cover)

947 499809 Fuel Solenoid

965 499613 Oil Pump Cover

967 273638 Pre-Cleaner Filter

968 499788 Air Cleaner Cover

975 690992 Float Bowl

977 499812 Carburetor Gasket Set

987 691000 •OThrottle Shaft Seal

1005 691243 Flywheel Fan

1006 691247 Fan Reta(ner

1013 231573 Oil Filter Nipple

1017 690770 Oil Pump Screen

1019 693995 Label Kit

1022 273486 *• Rocker Cover Gasket

t023 499599 Rocker Arm Cover (Cylinder

#1)

1023A 499600 Rocker Arm Cover (Cylinder

#2)

1024 499054 Oil Pump

1026 690981 Push Rod (Steel)

1026A 690982 Push Rod (Aluminum)

1027 492932 Oil Filter

1029 690972 Rocker Arm

1035 691042 Pump Shaft

1036 695104 Emissions Label

1051 263080 Retaining Ring

1058 273694 Owner's Manual

1090 497605 Brush Retainer

1095 694013 Valve Gasket Set Kit

1100 690973 Rocker Arm Pivot

1119 93621 Screw (Alternator)

1123 690987 •OO-Ring Seal (Solenoid

Retainer)

1124 690988 ••O-Ring Seal (Fuel Transfer

Tube)

1126 690991 Screw (Fuel Transfer Tube)

1127 690992 Screw (Float Bowl)

1128 690990 • Screw (Carburetor Nozzle)

1169 693140 Screw (Carburetor Cover

Plate)

---- 445777-0027-E1 Replacement Engine

RPM Settings: Low Speed: 1900-2100

High Speed: 3000-3200

• Included in Gasket Set, Ref. No. 1095

• Included in Gasket Set, Ref. No. 977

* Included in Gasket Set, Ref. No, 358

• Included in Gasket Set, Ref. No. 121

NOTE: All component dimensions given in U.S. inch

1 inch = 25.4 mm

SUGGESTED GUIDE FOR SIGHTING SLOPES FOR SAFE OPERATION

_r _

ONLY RIDE UP AND DOWN HILL,

NOT ACROSS HILL

15 ° MAX.

Operate your Tractor up and down the face of slopes (not I

greater than 15°), never across the face. Make turns gradu-

ally to prevent tipping or loss of control. Exercise extreme

caution when changing direction on slopes.

iiii!iii!!i!ii!!!!

_xxox<

For repair of major brand appliances in your own home...

no matter who made it, no matter who sold it!

iilii!i]!iLi!il i_iiii_iii!i

_:iiiiiiiiiiiiiiii [_]_ii_ii

To purchase or inquire about a Sears Service Agreement:

iiiii_iiiii!iiii! _i/!!!ili!i

1 800 827 6655

i i!!iiiiiiiiiii! m m _

i[? : ::} :r:

7 a.m. - 5 p.m. CST, Mon.- Sat.

Para pedir serviciode reparacJ6na domicilio, Au Canada pourservice en fran_,ais: _:_:::

y para ordenar piezas con entrega a domicilio: 1-877-LE-FOYER _

1-888-SU-HOGAR _"

(1-888-784-6427)

(1-877-533-6937)

@ Seam, Roebuck and Co.

® Registered Trademark / T. Trademark of Seam, Roebuck and Co.

® Mama Registrada / _M Mama de Fdbnca de Seam, Roebuck and Co.

174182 3.8.00 TR Printed in U.S.A.

Craftsman 917272190 lawn tractor

Product's Documents

User Manual

Specifications

Craftsman 917272190 Questions and Answers
