background

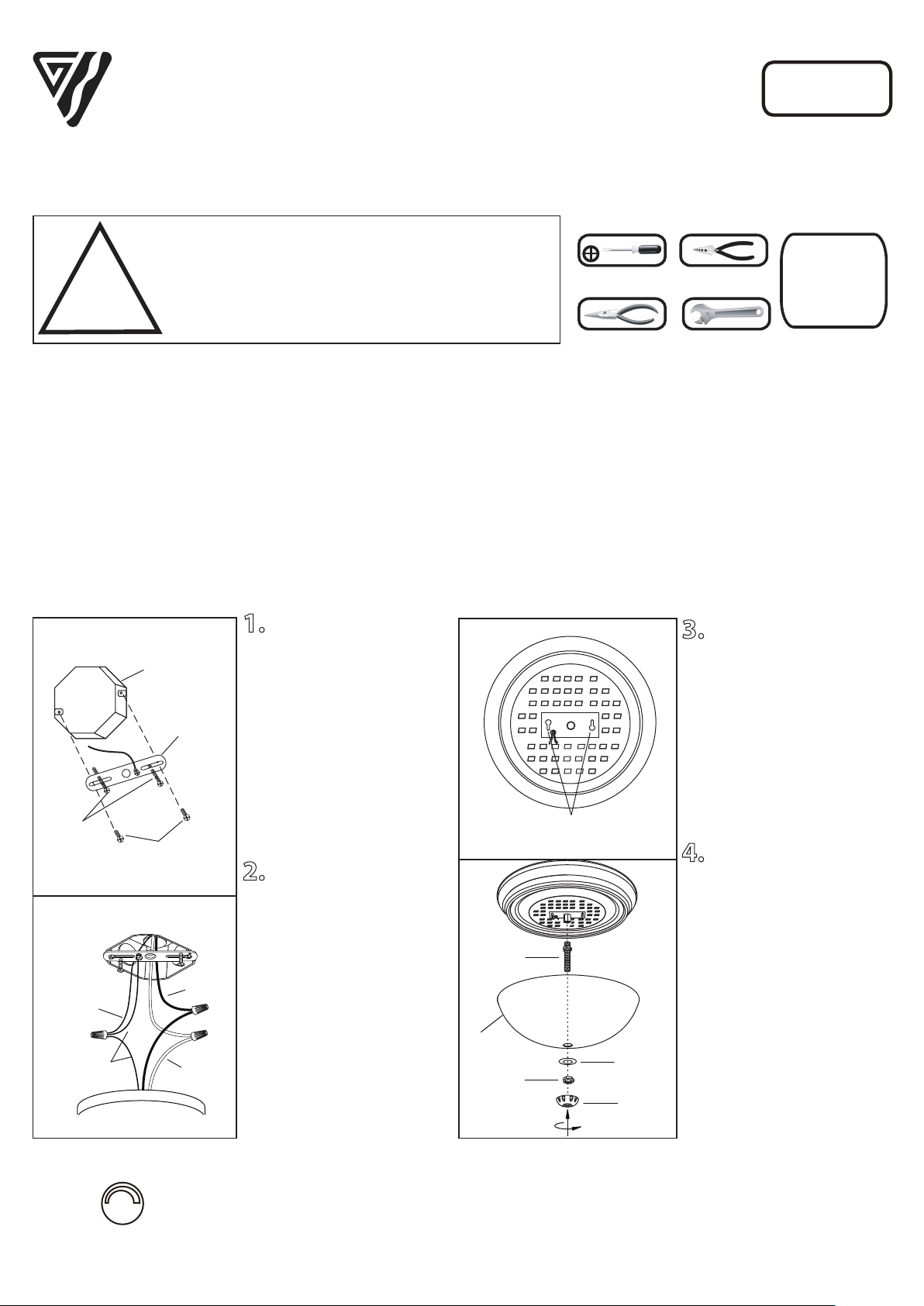

1. Install the mounting
bracket to the electrical box
using two electrical box screws
(not included). (Note: Do not
adjust the two support screws
at this time.)
2. Connect the ground wires
(bare copper or green) from
your fixture to the ground wire
(bare copper or green) or
ground screw in the electrical
box. Connect the black wire (or
wire with marking) from the
fixture to the black wire in the
electrical box and connect the
white wire from the fixture to
the white wire in the electrical
box.
NOTE: Do not disconnect any
pre-wired connections.
3. Tuck the electrical wires
into the electrical box and
position the “key slots” over the
support screws. Turn and lock
the support screws into the
“key slots”. Tighten the support
screws into place.
4. Attach the stem to the
fixture. Secure the glass in
place using the fiber washer,
hex nut and finial.
Electrical
Box
INSTALLATION:
LFM160A13
09/18
TOOLS AND MATERIALS REQUIRED:
Phillips
Screwdriver
Wire Cutters
Pliers Wrench
LED FLUSH
MOUNT
!
INSTRUCTIONS PERTAINING TO RISK OF FIRE OR INJURY TO PERSONS
READ ALL INSTRUCTIONS
IMPORTANT SAFETY
INSTRUCTIONS
SAVE THESE INSTRUCTIONS
Electrical Box Screws
(not included)
House supply
Ground wire
Fixture
Ground
wire
White
Black
QUESTIONS OR CONCERNS CONTACT AT:
1-800-267-4427 (English) / 1-800-567-2513 (French)
Monday through Friday 8:00 AM to 5:00 PM E.S.T.
SAFETY PRECAUTIONS:
1. TURN OFF ELECTRICAL POWER BEFORE STARTING INSTALLATION OF LIGHT FIXTURE.
2. THIS PRODUCT MUST BE INSTALLED IN ACCORDANCE WITH THE APPLICABLE INSTALLATION CODE
BY A PERSON FAMILIAR WITH THE CONSTRUCTION AND OPERATION OF THE PRODUCT AND THE
HAZARDS INVOLVED.
3. CAUTION – RISK OF FIRE. CONSULT A QUALIFIED ELECTRICIAN TO ENSURE CORRECT BRANCH
CIRCUIT CONDUCTOR.
4. CONNECT THE GROUND WIRES (BARE COPPER OR GREEN) FROM YOUR FIXTURE TO THE GROUND
WIRE (BARE COPPER OR GREEN) OR GROUND SCREW IN THE ELECTRICAL BOX.
5. TO CLEAN THE FIXTURE, TURN OFF THE POWER, WAIT FOR IT TO COOL, AND WIPE THE FIXTURE WITH A
CLEAN, SOFT CLOTH.
NOTE: Product may not look exactly as shown in figures.
Tel: (613) 342-5424, Fax: (800) 263-4598
Support
Screw
Mounting
Bracket
Wiring supplies
as required by
local electrical
code
Key Slots
Glass
Hex
Nut
Finial
Fiber
washer
Stem
dimmable
This LED light is suitable to be dimmed by
LEVITON# 742-6672-HLW, 722-6674-PDW MAX 150 W, Lutron # SCL-153PH-WH MAX 150 W.
The MAX rated wattage of this model is 17 W
background
LFM160A13
09/18

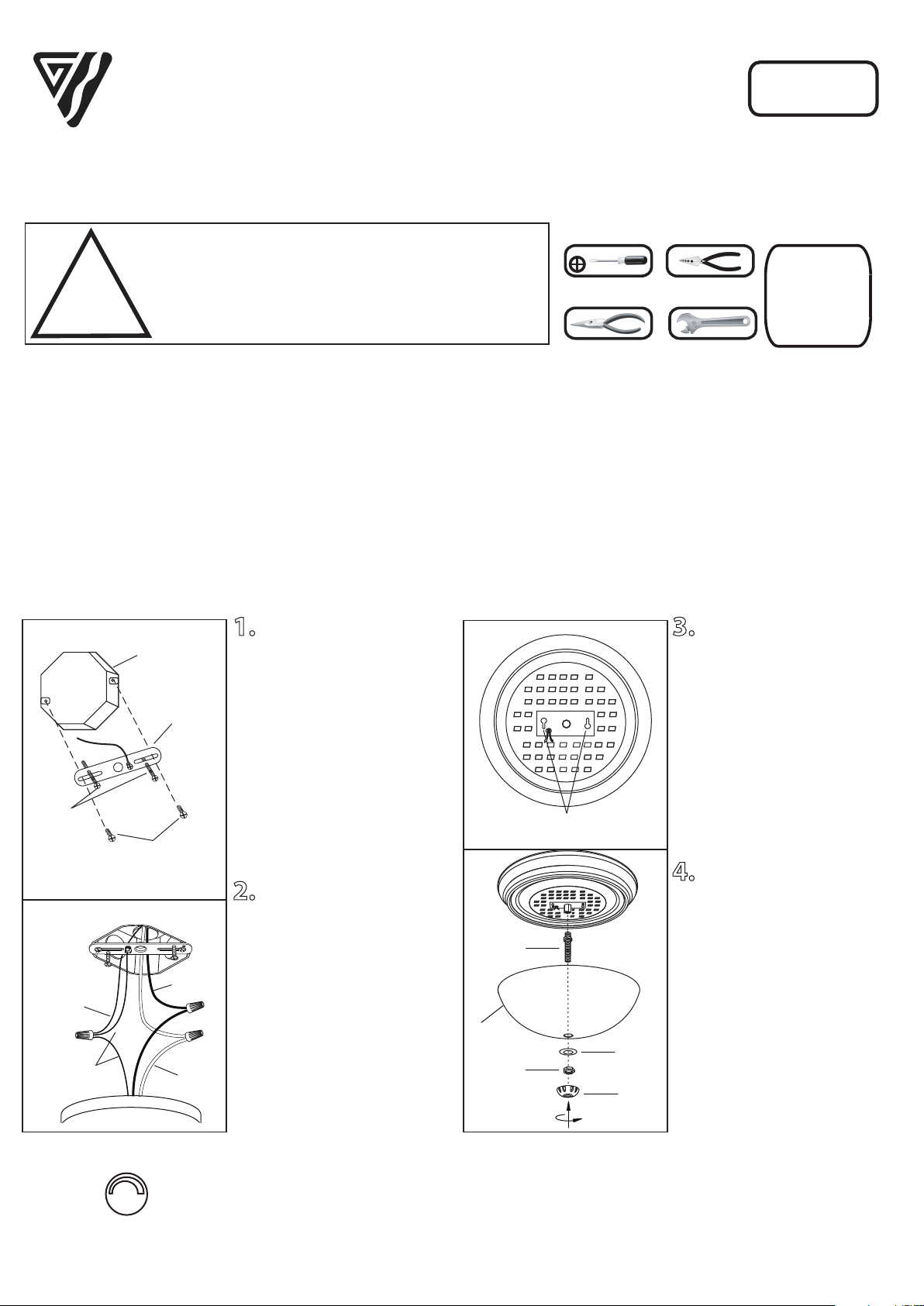

INSTALLATION:
OUTILS ET MATERIAUX REQUIS:
Tournevis
à Philips
Coupeur
de Fils
Pinces Clef
MISE EN GARDE:
1. FERMEZ LE COURANT AU DISJONCTEUR AVANT DE DEBUTER L’INSTALLATION DE LA FIXTURE.
2. CE PRODUIT DOIT ÊTRE INSTALLÉ SELON LE CODE D’INSTALLATION PERTINENT, PAR UNE PERSONNE
QUI CONNAIT BIEN LE PRODUIT ET SON FONCTIONNEMENT AINSI QUE LES RISQUES INHÉRENTS.
3. ATTENTION – RISQUE D’INCENDIE. CONSULTER UN ÉLECTRICIAN QUALIFIÉ POUR VOUS ASSURER
QUE LES CONDUCTEURS DE LA DÉRIVATION SOND ADÉQUATS.
4. BRANCHEZ LES FILS DE LA MISE A TERRE (CUIVRE NU OU VERT) DE VOTRE MONTAGE AU FIL DE LA
MISE A TERRE (CUIVRE NU OU VERT) OU VIS DE LA MISE A TERRE DANS LA BOITE ELECTRIQUE.
5.
POUR NETTOYER LE LUMINAIRE, ÉTEIGNEZ-LE, ATTENDEZ QU’IL SOIT FROID, PUIS NETTOYEZ-LE
AVEC LINGE PROPRE ET DOUX.
N.B.: Peut différer de illustration.
!
INSTRUCTIONS CONCERNANT LE RISQUE
D’INCENDIES OU LES DOMMAGES
CORPORELS
LISEZ TOUTES LES INSTRUCTIONS
INSTRUCTIONS DE SÛRETÉ
IMPORTANTES
GARDEZ CES INSTRUCTIONS
PH: (450) 665-2535, FX: (450) 665-0910
1. Posez la ferrure de
montage à la boite Èlectrique
à l'aide des deux vis pourvues
à cet effet.
(N.B.: N'ajustez pas les deux
vis de soutien tout de suite.)
2. Branchez les fils de la
mise a terre (cuivre nu ou
vert) de votre montage au fil
de la mise a terre (cuivre nu
ou vert) ou vis de la mise a
terre dans la boite lectrique.
Posez le fil noir (ou fil ayant un
écriteau) de la fixture au fil
noir dans la boite électrique
et posez le fil blanc de la
fixture au fil blanc dans la
boite.
N.B.; Ne pas défaire les
connexions déjà existantes.
3. Poussez soigneusement
les fils dans la boite électrique
et positionnez les ''ouvertures
en forme de clé'' sur les vis de
soutien. Tournez et barrez les
vis de soutien en place dans
ces ouvertures.Serrez alors les
vis en place.
4. Posez la tige au luminaire.
Serrez la vitre en place à l’aide
d’une rondelle de fibre, d’un
écrou hexagonal et d’un
fleuron.
Vis de
Soutien
Boite
Electrique
Vis De La
Boite Electrique
en sus)
Ferrure De
Montage
Blanc
Noir
Fil de mise
à terre de
la maison
Fil de
terre sur le
luminaire
Ouvertures
enforme de clé
PLAFONNIER
AU DEL
Fournitures
électriques telles
que prescrites
par les normes
locales
QUESTIONS OU INFORMATION COMMUNIQUE AVEC AU:
1-800-265-1833 (Anglais) / 1-800-567-2513 (Français)
Du lundi au vendredi entre 8:00H et 17:00H H.N.E.
Fleuron
Vitre
Tige
Rondelle
de Fibre
Écrou
Hexagonal
variable
Cette luminaire DEL est compatible avec les variateurs d’intensité suivant :
LEVITON# 742-6672-HLW , 722-6674-PDW MAX 150 W, Lutron # SCL-153PH-WH MAX 150 W.
Le maximum de wattage permis avec ce modèle est de 17 W
