INSTALLATION:
LED
FLUSH MOUNT
SAFETY PRECAUTIONS:
TOOLS AND MATERIALS REQUIRED:
Phillips
Screwdriver
Wire Cutters
Pliers Wrench
1. TURN OFF ELECTRICAL POWER BEFORE STARTING INSTALLATION OF LIGHT FIXTURE.
2. WIRING SUPPLIES AS REQUIRED BY LOCAL ELECTRICAL CODE.
2. THIS PRODUCT MUST BE INSTALLED IN ACCORDANCE WITH THE APPLICABLE INSTALLATION CODE
BY A PERSON FAMILIAR WITH THE CONSTRUCTION AND OPERATION OF THE PRODUCT AND THE
HAZARDS INVOLVED.
3. CONNECT THE GROUND WIRES (BARE COPPER OR GREEN) FROM YOUR FIXTURE TO THE GROUND
WIRE (BARE COPPER OR GREEN) OR GROUND SCREW IN THE ELECTRICAL BOX.
4. TO CLEAN THE FIXTURE, TURN OFF THE POWER, WAIT FOR IT TO COOL, AND WIPE THE FIXTURE WITH
A CLEAN, SOFT CLOTH.
NOTE: Product may not look exactly as shown in figures.
LFM165A08
11/18
QUESTIONS OR CONCERNS CONTACT AT:
1-800-265-1833 (English) / 1-800-567-2513 (French)
Monday through Friday 8:00 AM to 5:00 PM E.S.T.
Tel: (613) 342-5424, Fax: (800) 263-4598

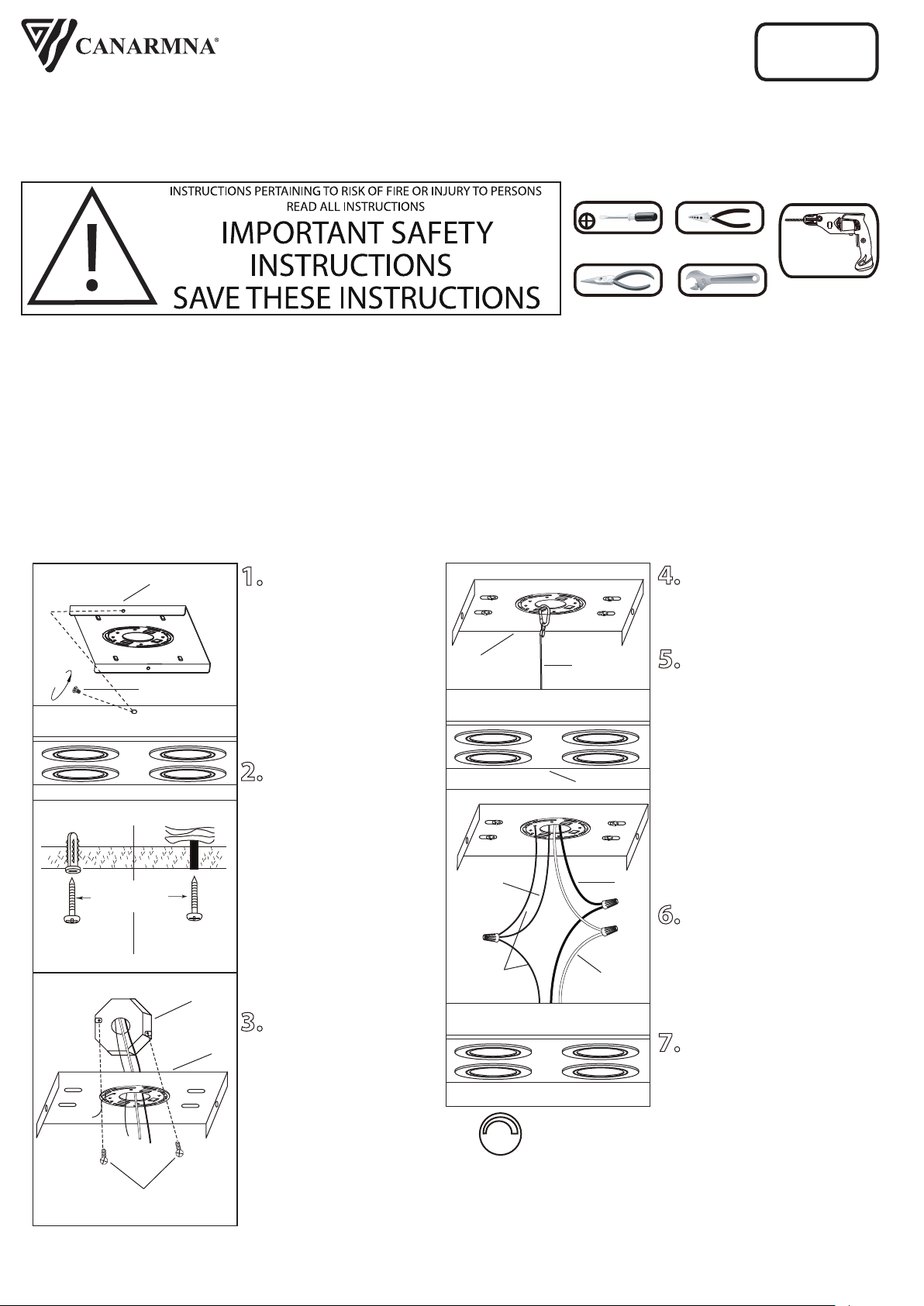

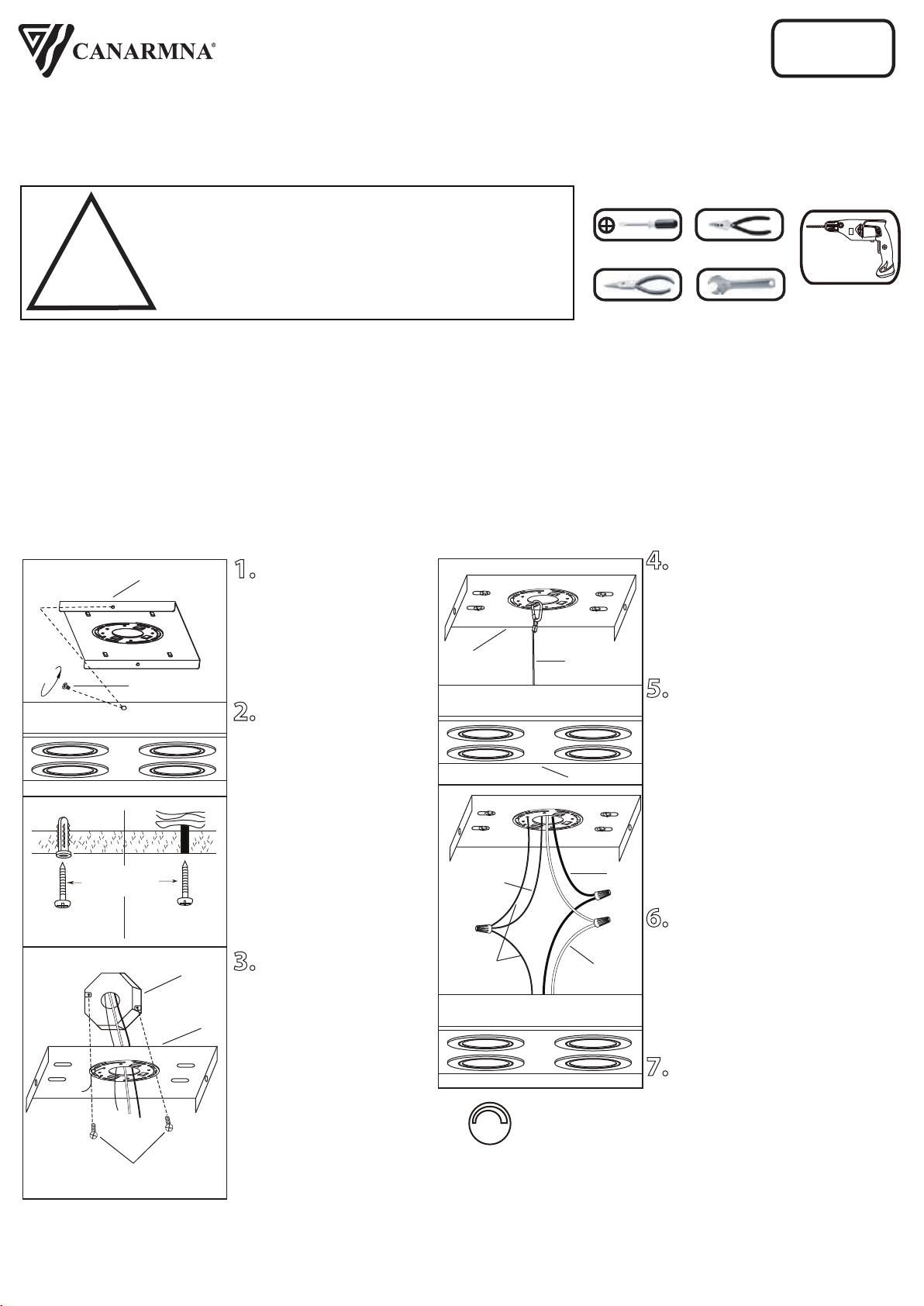

1. Remove the back cover
from the fixture by
unscrewing the 2 screws.
2. Position the back cover
on the ceiling with the
center hole over the electri-
cal box. Mark the ceiling for
the pilot hole locations
through the small holes on
either end. Drill pilot holes
at each location. Determine
the appropriate way (wood
screws for the wooden studs
or plastic wall anchor and
wood screws for dry wall) of
fastening the fixture to the
ceiling.
3. Feed power cords from
the electrical box through
the centre hole of the back
cover. Align holes of back
cover over electrical box and
secure with electrical box
screws (not included).
Position the fixture and add
wood screws (one on each
side) for the wooden studs
or plastic wall anchor and
wood screws for dry wall.
Screw
4. Use the suspended wire to
hang the fixture as shown for
wiring connection.
5. Connect the ground wires
(bare copper or green) from your
fixture to the ground wire (bare
copper or green) or ground screw
in the electrical box. Attach the
black wire from the light fixture to
the black wire in the electrical
box. Attach the white wire from
the light fixture to the white wire
in the electrical box.
NOTE: Do not disconnect any
pre-wired connections.
6. Once connections of wires
are completed, carefully tuck
wires and wire nuts into the
electrical box making sure no
bare wire (on the black and white)
is visible at the wire nuts.
7. Re-tighten the two screws to
install the fixture.
White
House
supply
Ground
wire
Fixture
Ground
wire
Black
Electrical Box Screws
(not included)
Electrical
box
Wood screw
dimmable
This LED light is suitable to be dimmed by
LEVITON# 742-6672-HLW, 722-6674-PDW MAX 150 W,
Lutron # SCL-153PH-WH MAX 150 W.
The MAX rated wattage of this model is 42 W
Back Cover
Back
Cover
Back
Cover
Suspended
Wire
Fixture
Drill
