Refrigerator
Top Mount
Use & Care Guide
Refrigerador
Congelador Superior
Gufa para su uso y cuidado
R_frig_rateur
Compartiments Superposes
Guide d'utilisation et d'entretien
Sears, Roebuck and Co., Hoffman Estates, IL 60179 U.S.A.
Sears Canada, Inc., Toronto, Ontario, Canada M5B 2B8
www, sea rs.com
241703200 (0601 )
2
Z
m

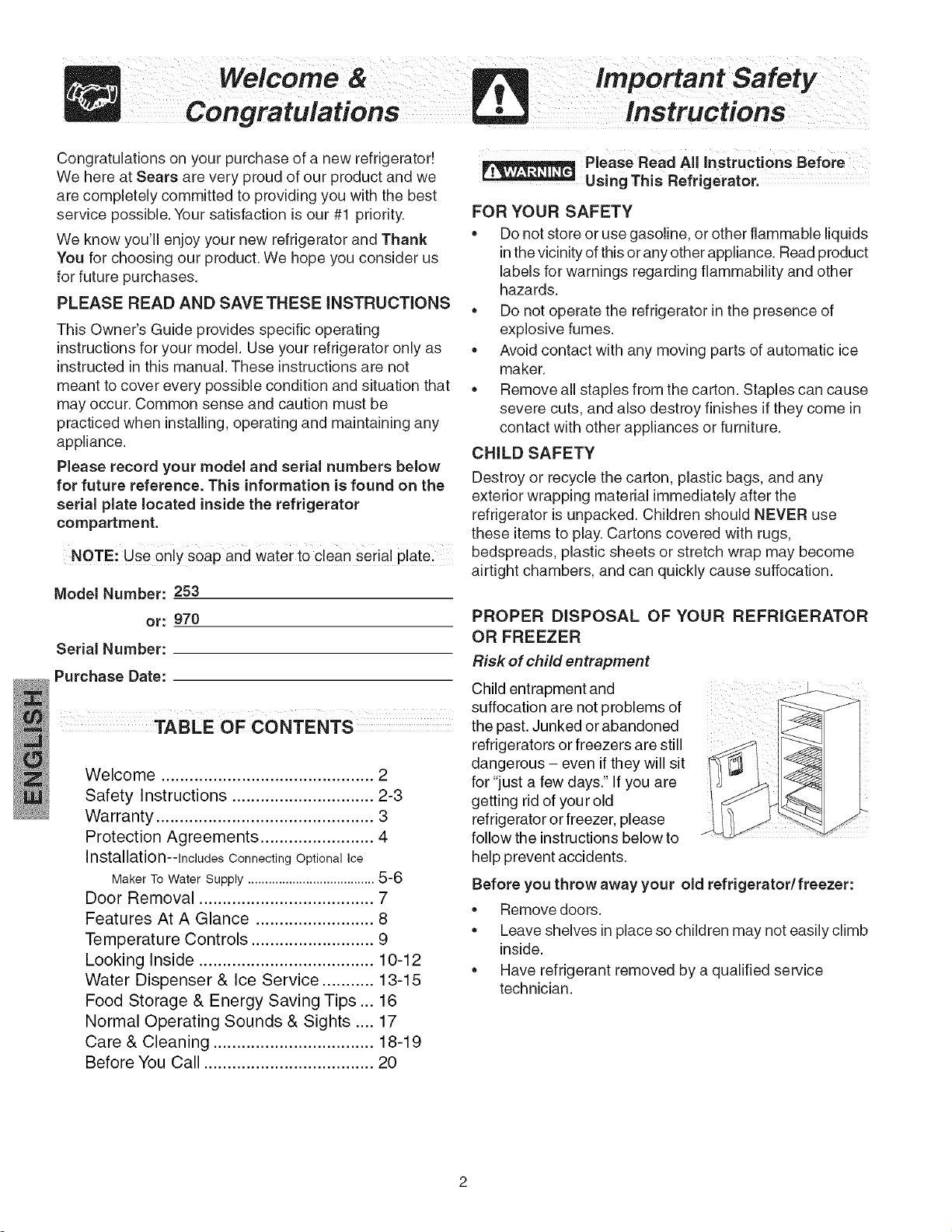

Congratulations
important Safety
Instructions
Congratulations on your purchase of a new refrigerator!
We here at Sears are very proud of our product and we
are completely committed to providing you with the best
service possible. Your satisfaction is our #1 priority.
We know you'll enjoy your new refrigerator and Thank
You for choosing our product. We hope you consider us
for future purchases.
PLEASE READ AND SAVE THESE INSTRUCTIONS
This Owner's Guide provides specific operating
instructions for your model. Use your refrigerator only as
instructed in this manual. These instructions are not
meant to cover every possible condition and situation that
may occur. Common sense and caution must be
practiced when installing, operating and maintaining any
appliance.
Please record your model and serial numbers below
for future reference. This information is found on the
serial plate located inside the refrigerator
compartment.
Please Read All instructions Before
Using This Refrigerator.
FOR YOUR SAFETY
• Do not store or use gasoline, or other flammable liquids
inthe vicinity of this or any other appliance. Read product
labels for warnings regarding flammability and other
hazards.
• Do not operate the refrigerator in the presence of
explosive fumes.
Avoid contact with any moving parts of automatic ice
maker.
Remove all staples from the carton. Staples can cause
severe cuts, and also destroy finishes if they come in
contact with other appliances or furniture.
CHILD SAFETY
Destroy or recycle the carton, plastic bags, and any
exterior wrapping material immediately after the
refrigerator is unpacked. Children should NEVER use
these items to play. Cartons covered with rugs,
NOTE: use only soap and water to clean Serial platel bedspreads, plastic sheets or stretch wrap may become
airtight chambers, and can quickly cause suffocation.
Model Number: 253
or: 970
Serial Number:
Purchase Date:
PROPER DISPOSAL OF YOUR REFRIGERATOR
OR FREEZER
Risk of child entrapment
Child entrapment and
suffocation are not problems of
TABLE OF CONTENTS the past. Junked or abandoned
refrigerators or freezers are still
Welcome ............................................. 2
Safety Instructions .............................. 2-3
Warranty .............................................. 3
Protection Agreements ........................ 4

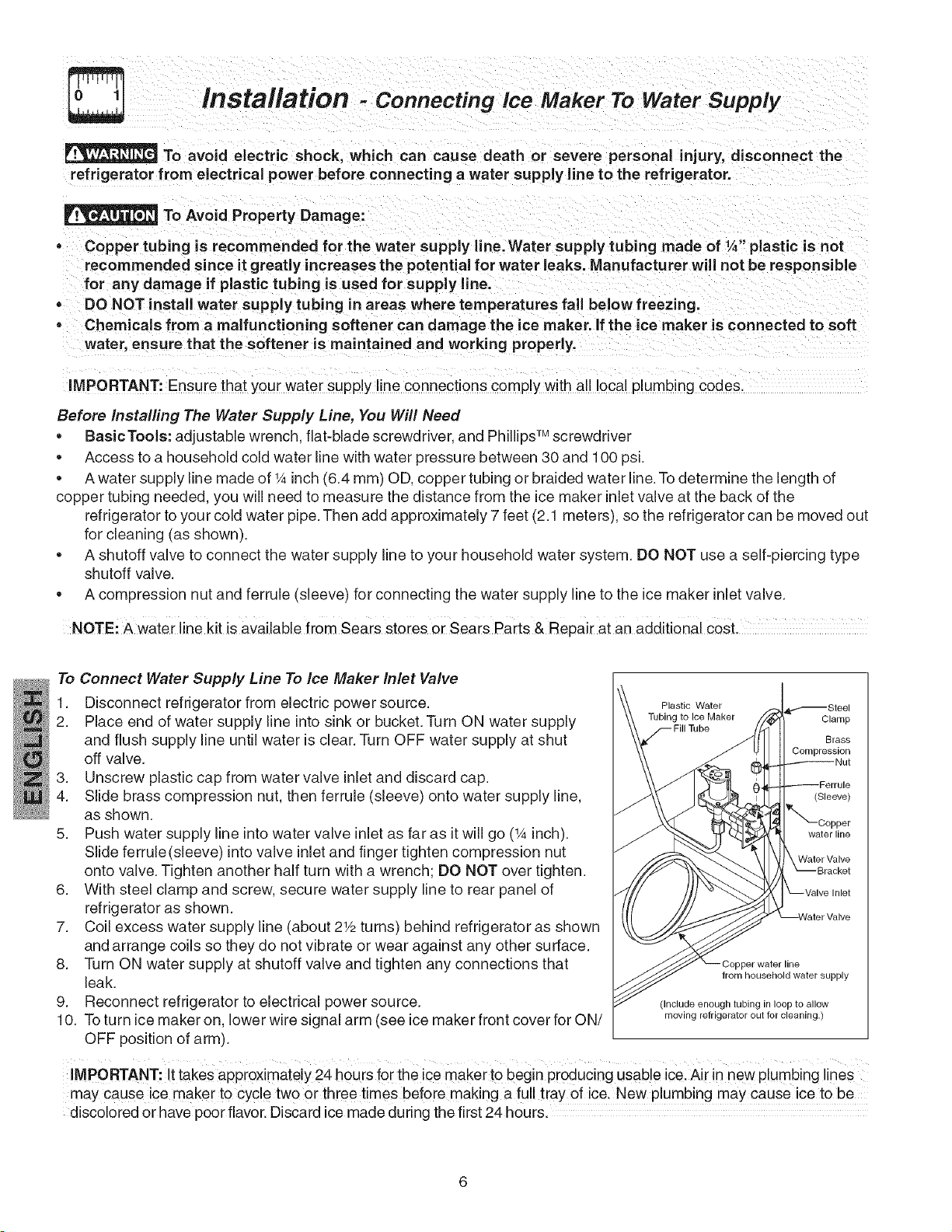

Installation--Includes Connecting Optional Ice
Maker To Water Supply ..................................... 5-6

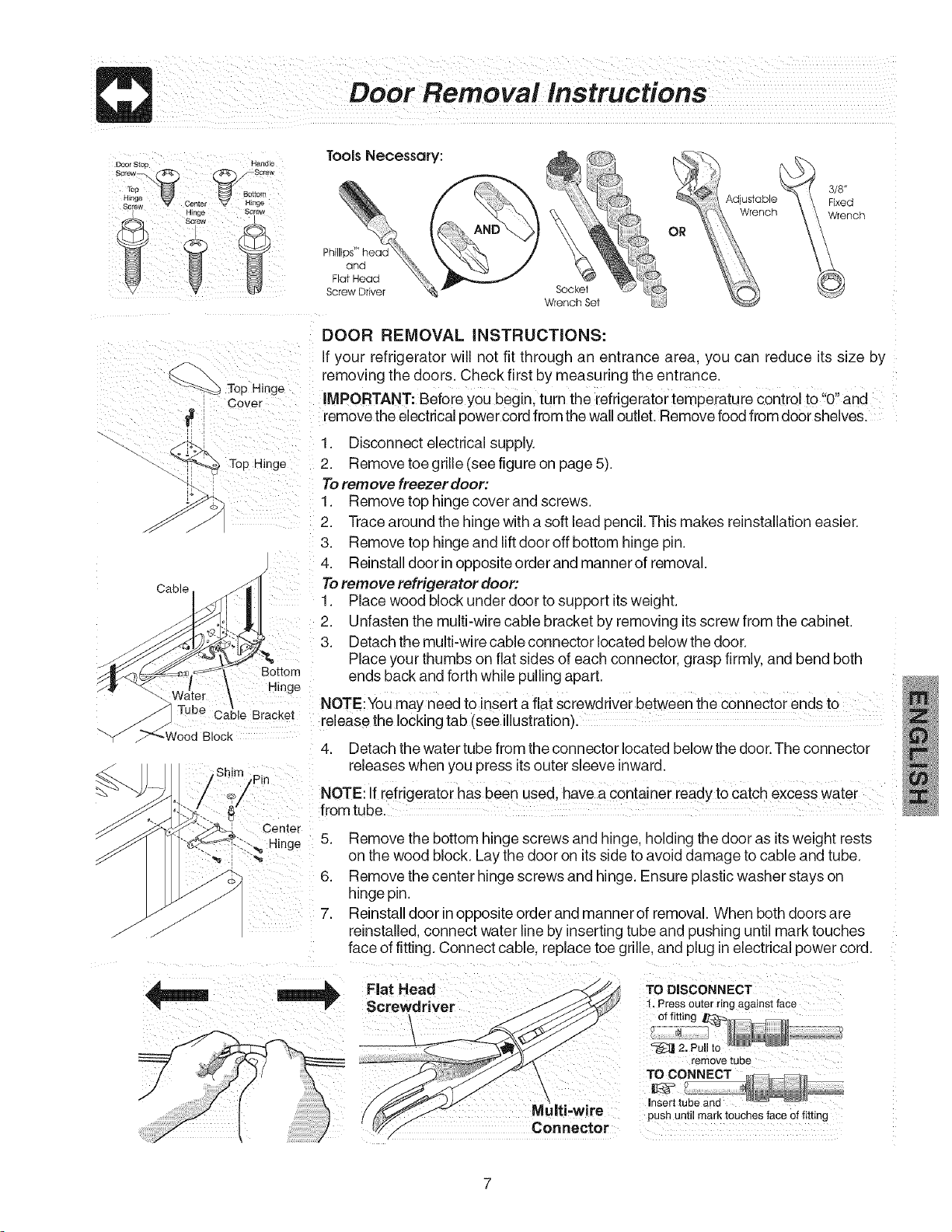

Door Removal ..................................... 7

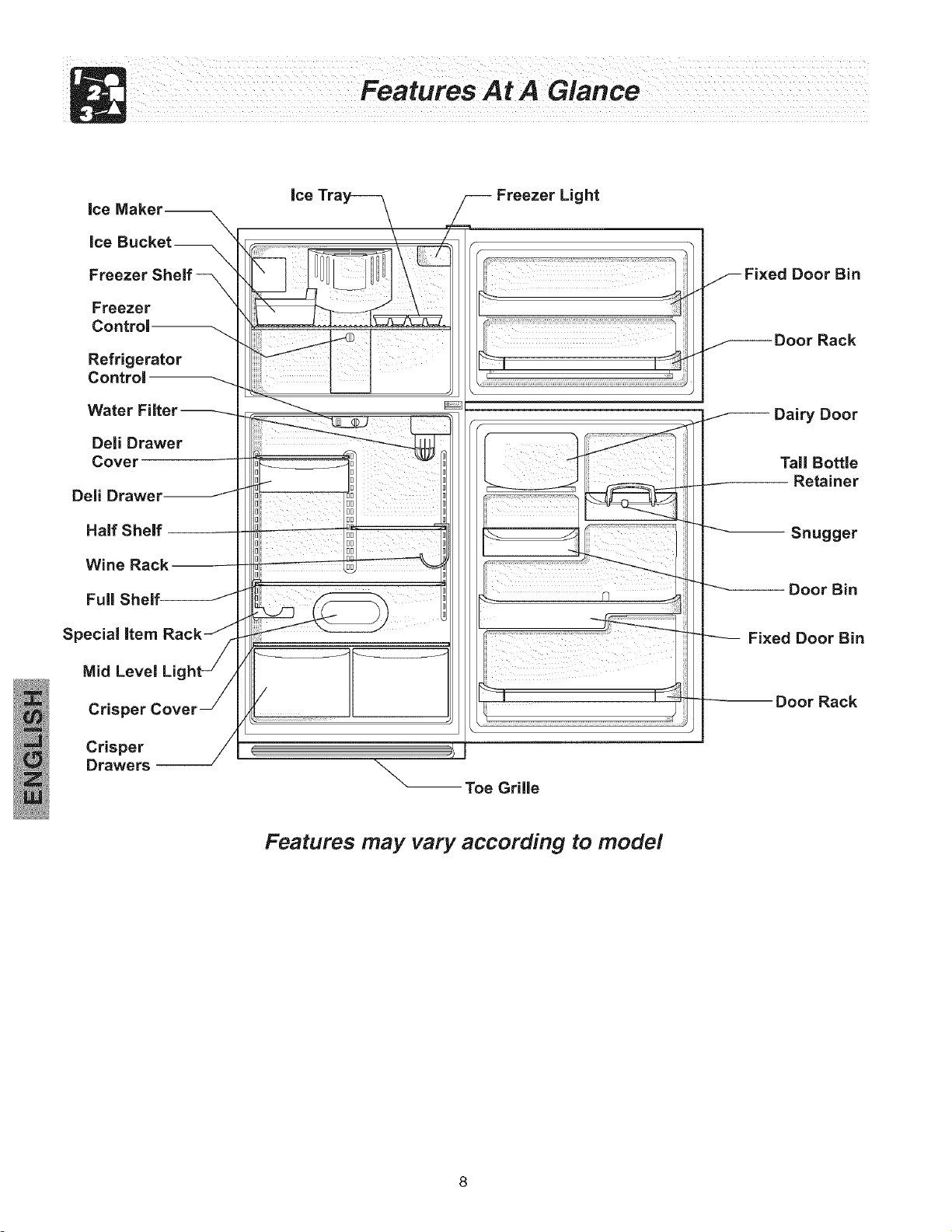

Features At A Glance ......................... 8

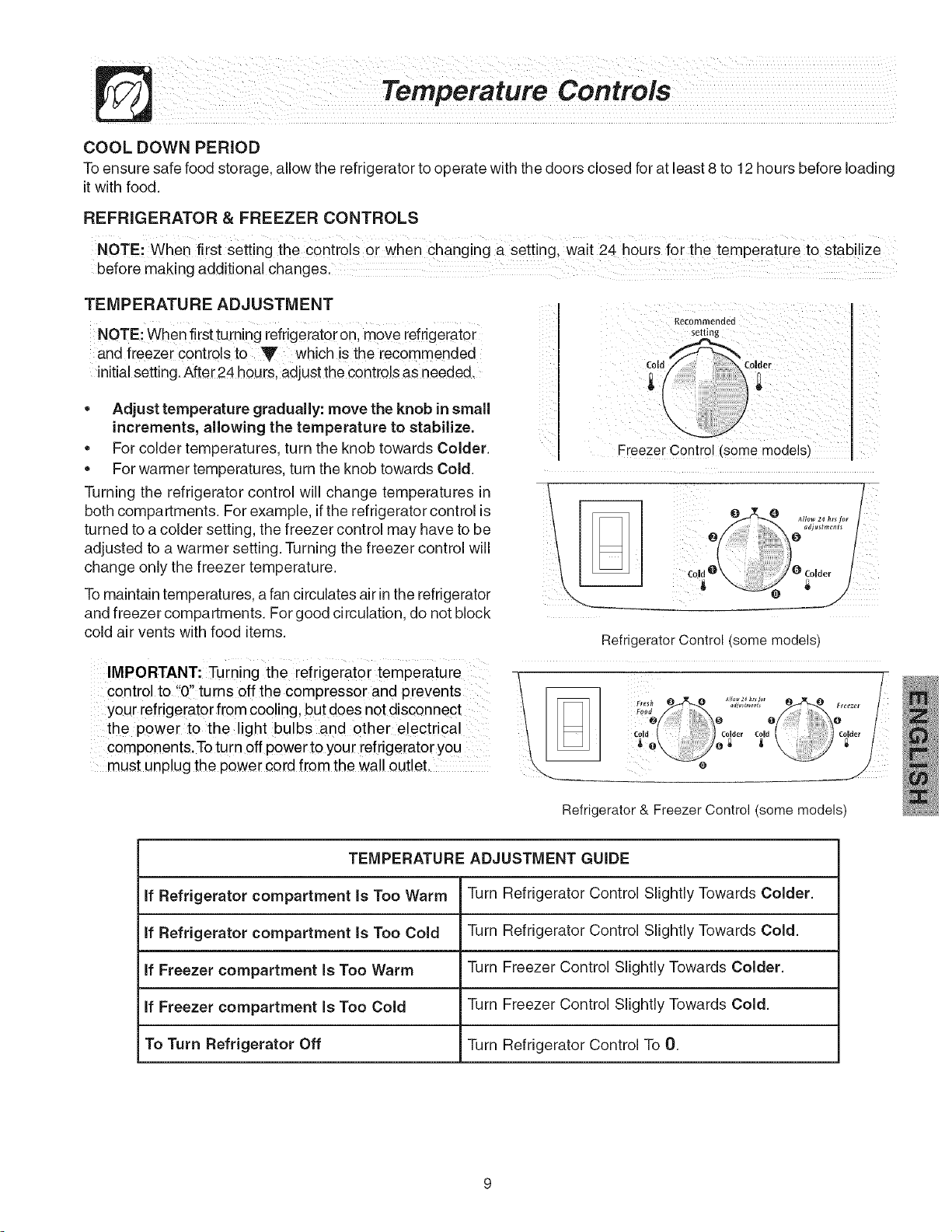

Temperature Controls .......................... 9

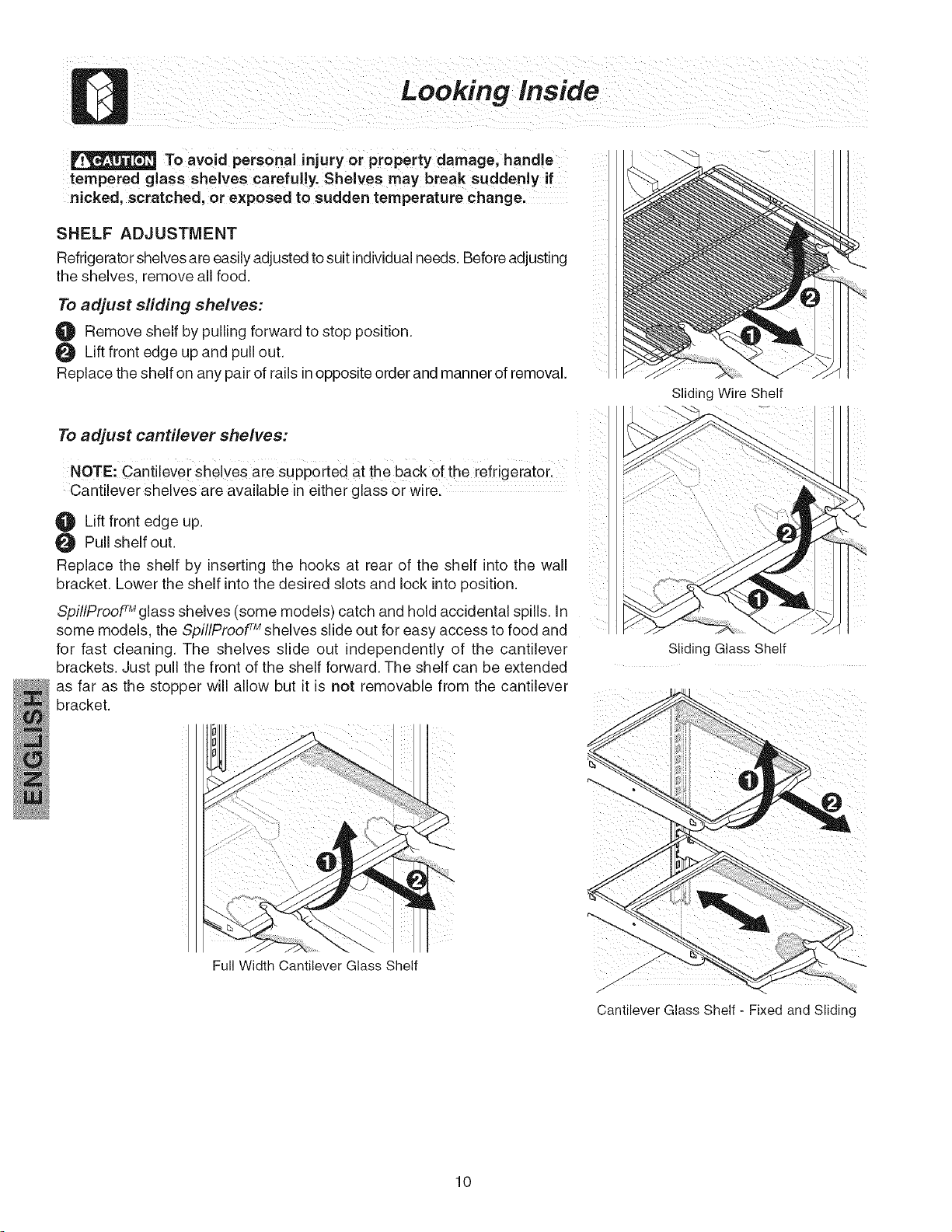

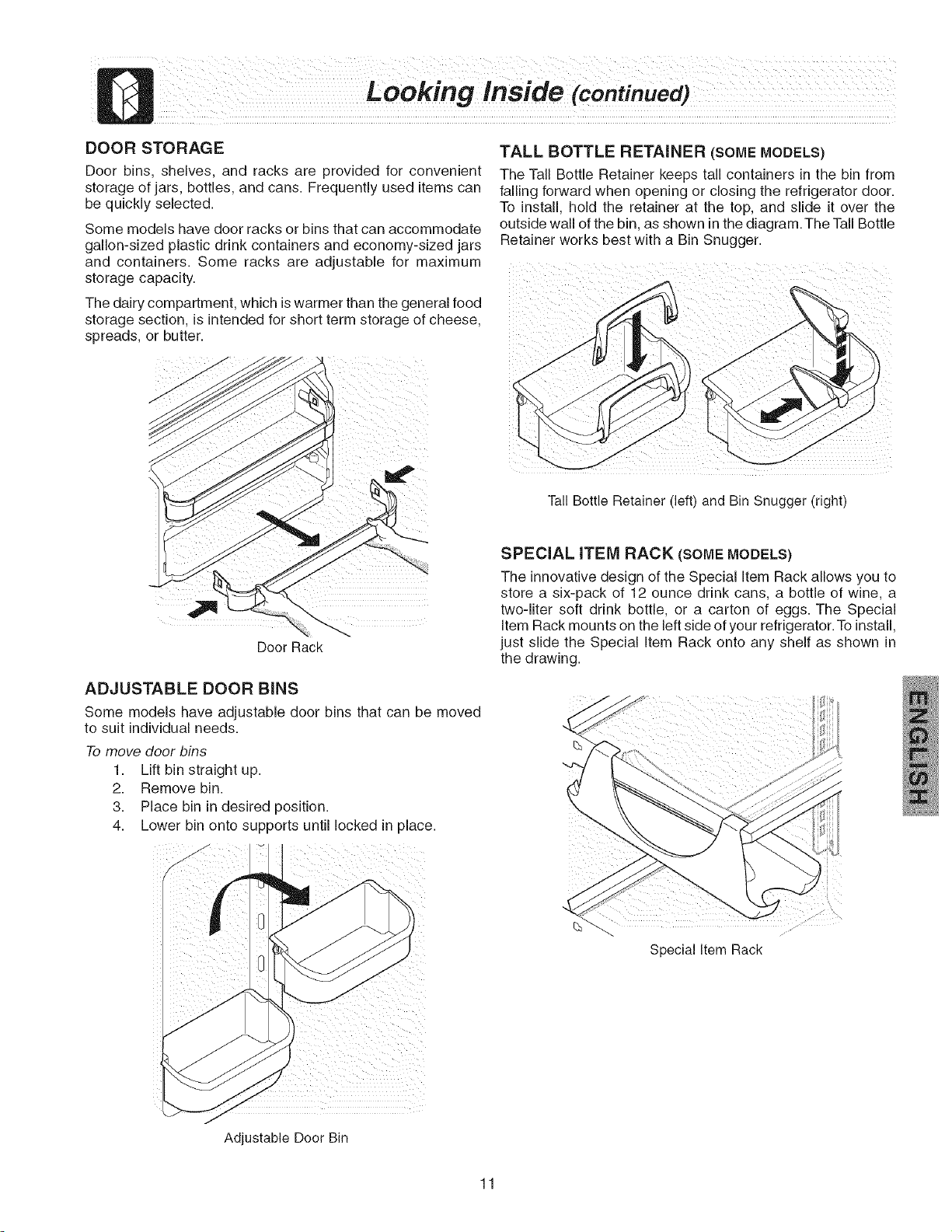

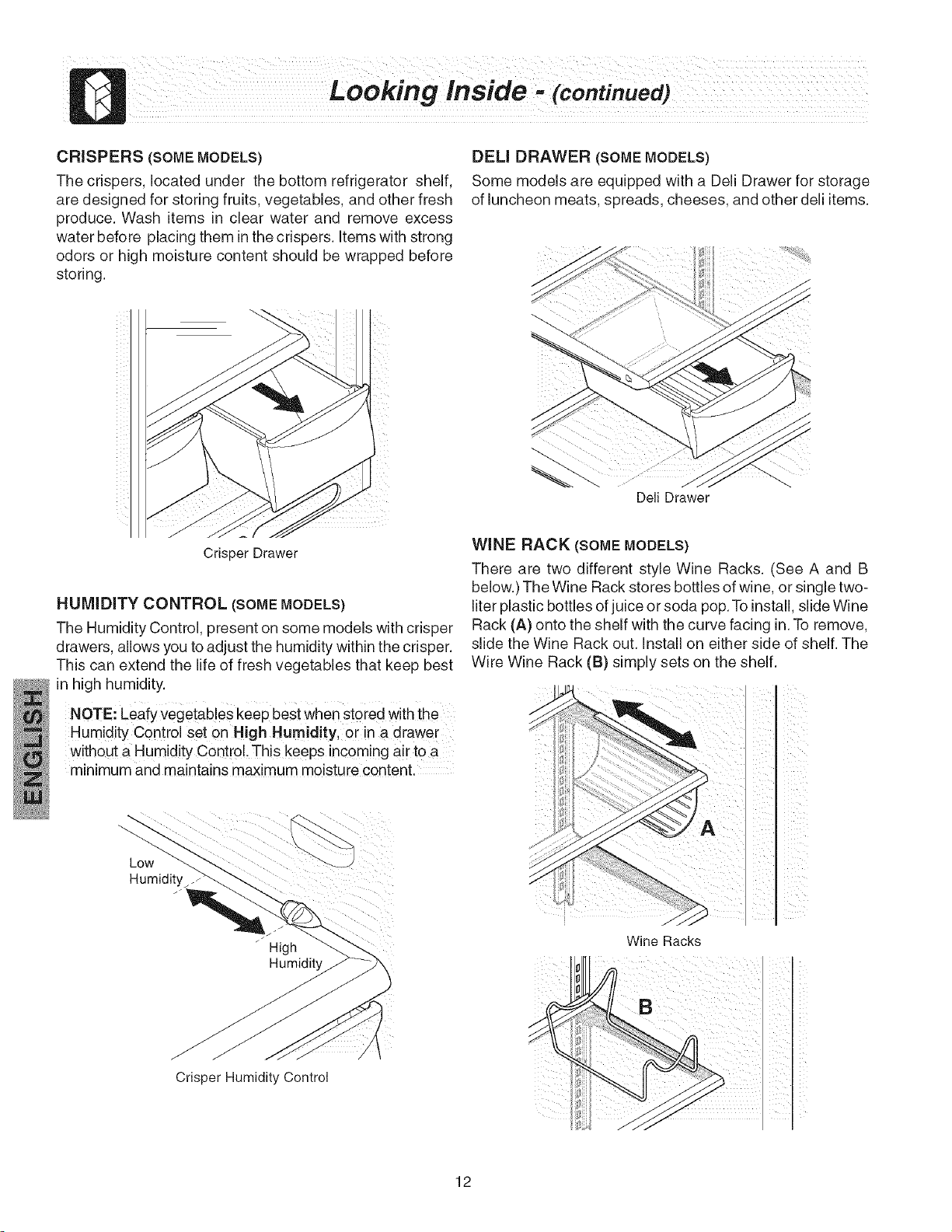

Looking Inside ..................................... 10-12

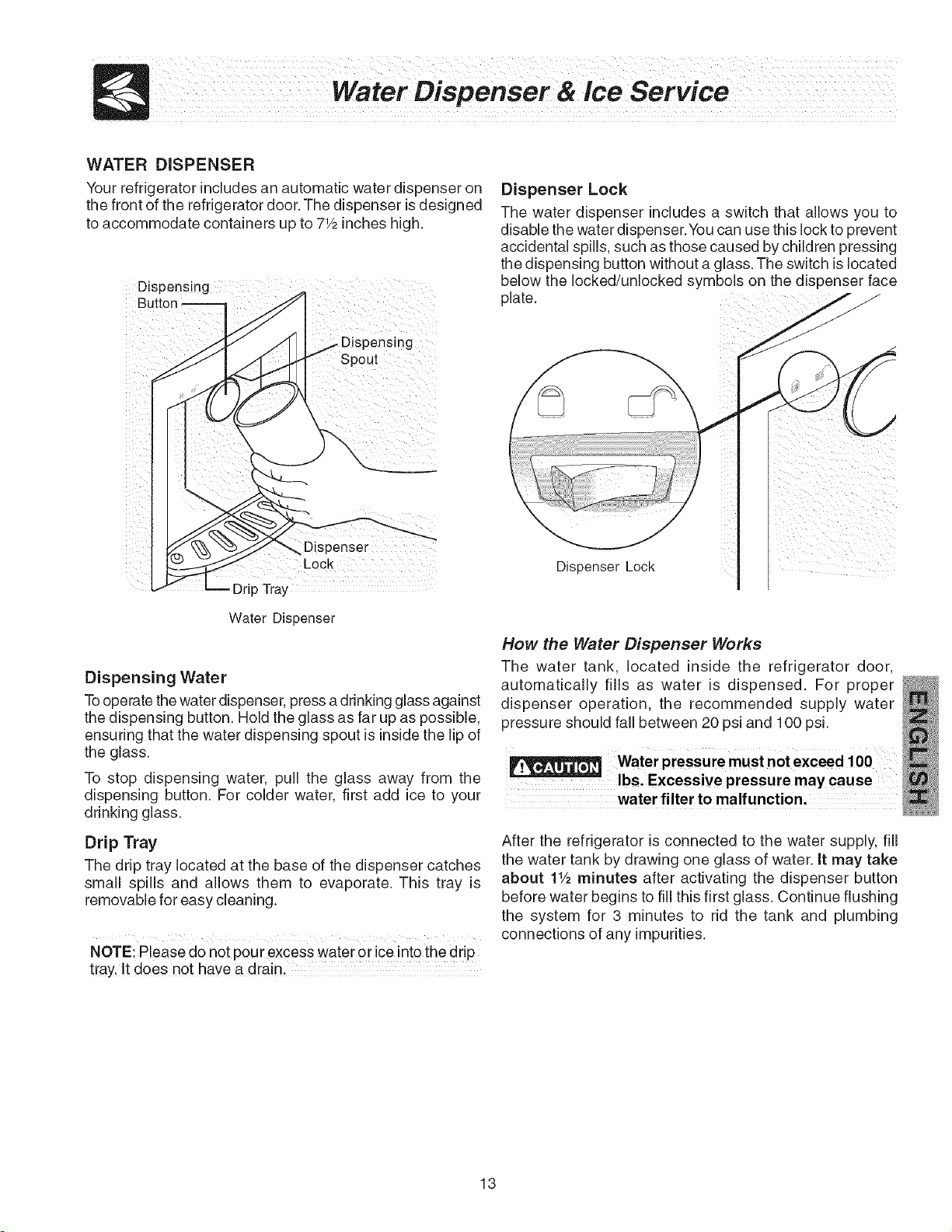

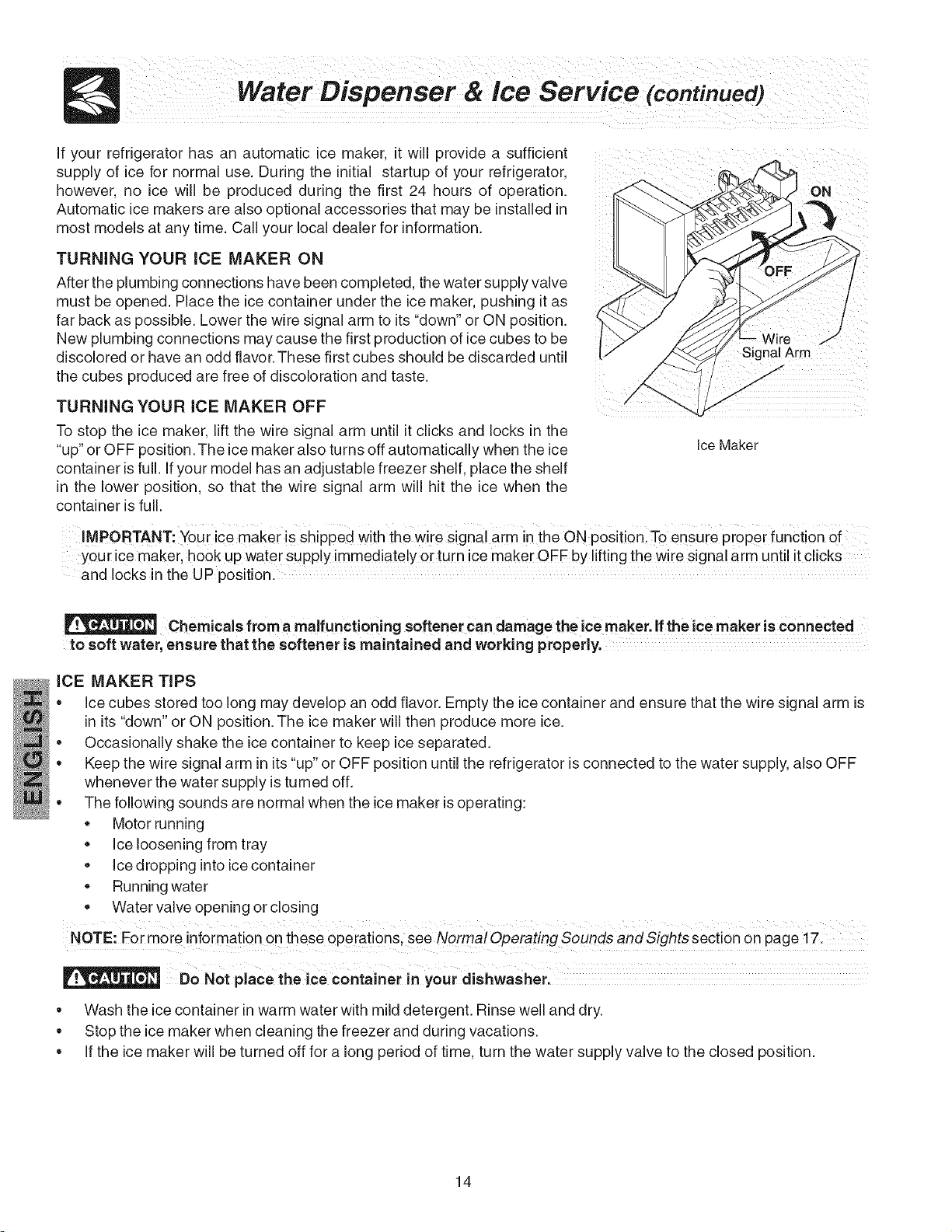

Water Dispenser & Ice Service ........... 13-15

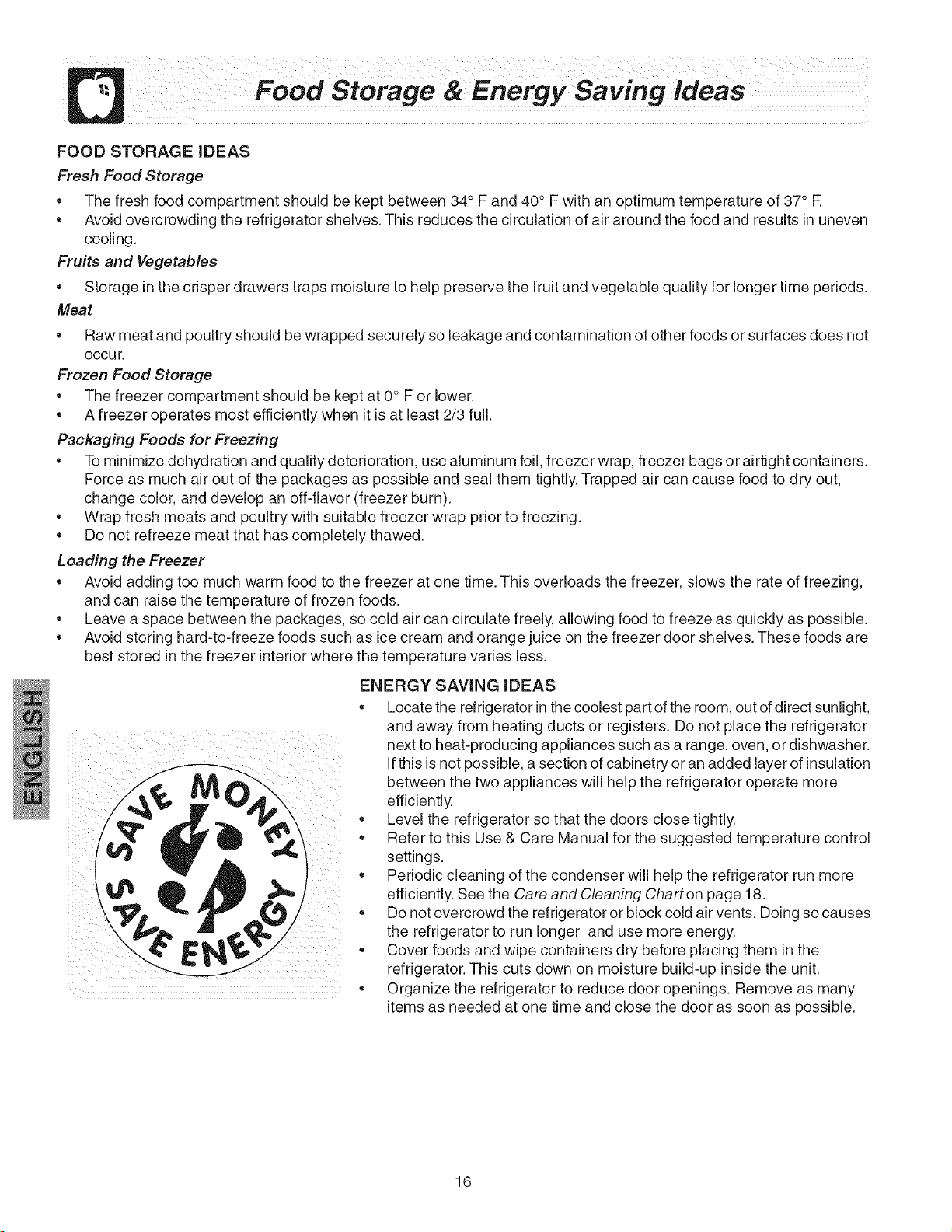

Food Storage & Energy Saving Tips ... 16

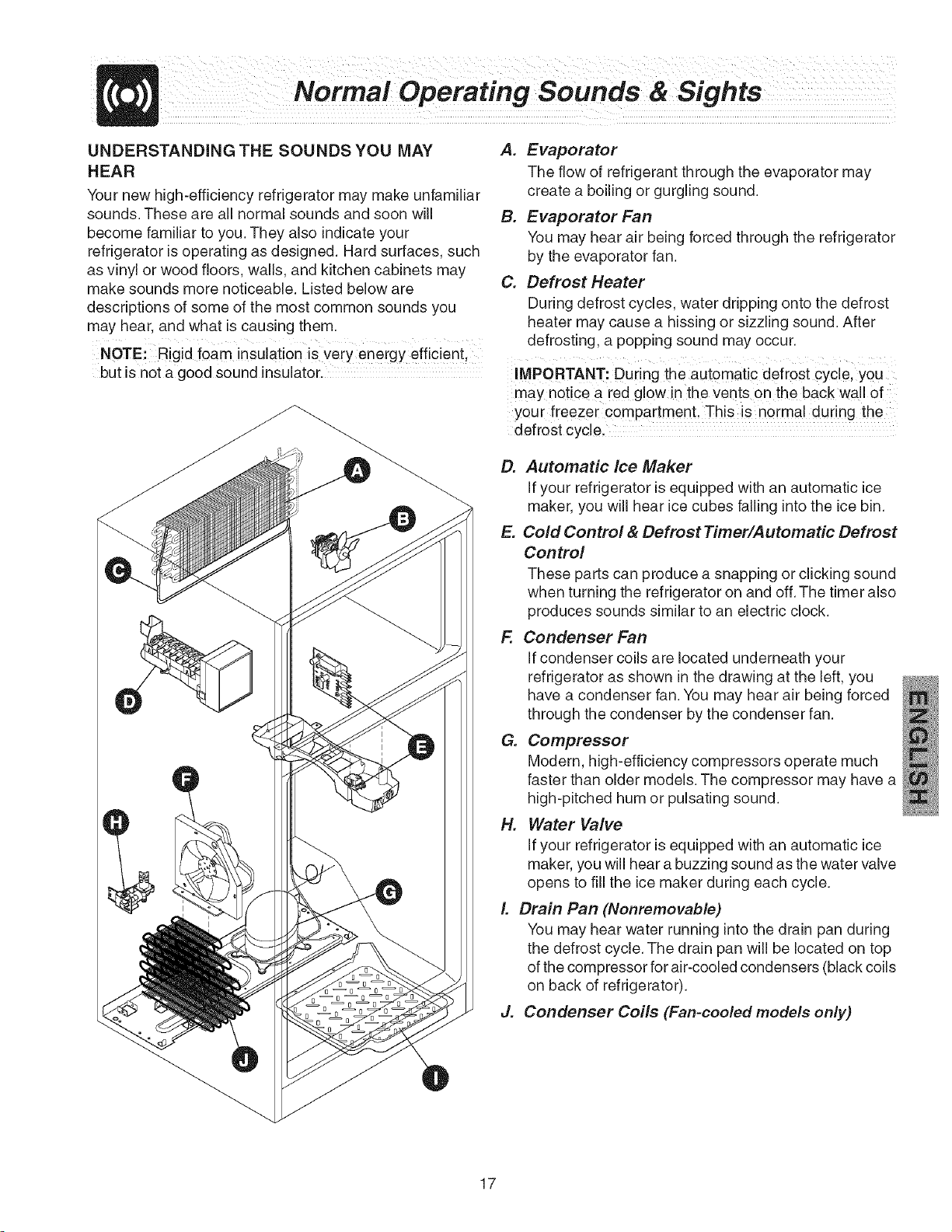

Normal Operating Sounds & Sights .... 17

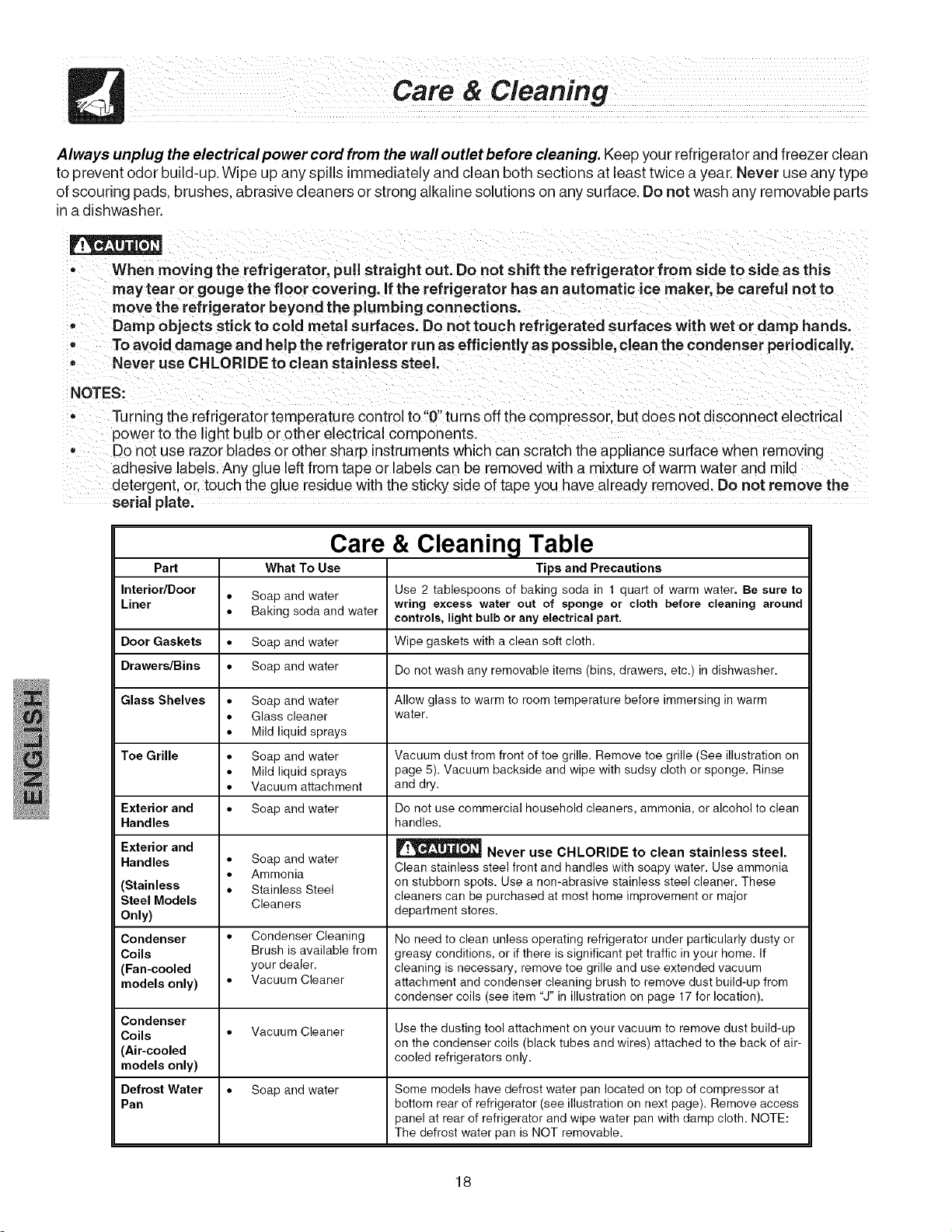

Care & Cleaning .................................. 18-19

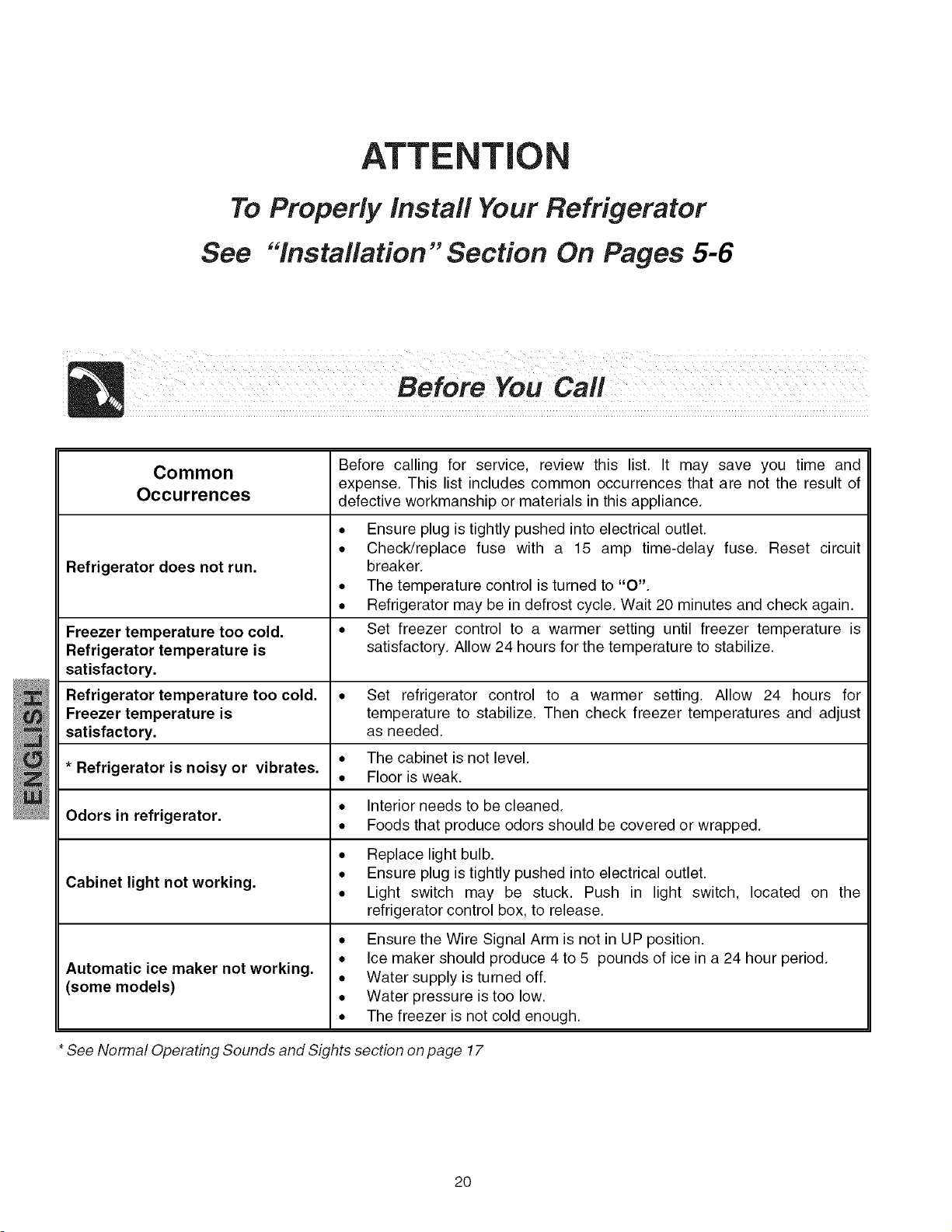

Before You Call .................................... 20
dangerous - even if they will sit
for "just a few days." If you are
getting rid of your old
refrigerator or freezer, please
follow the instructions below to
help prevent accidents.
Before you throw away your old refrigerator/freezer:
• Remove doors.
• Leave shelves in place so children may not easily climb
inside.
• Have refrigerant removed by a qualified service
technician.

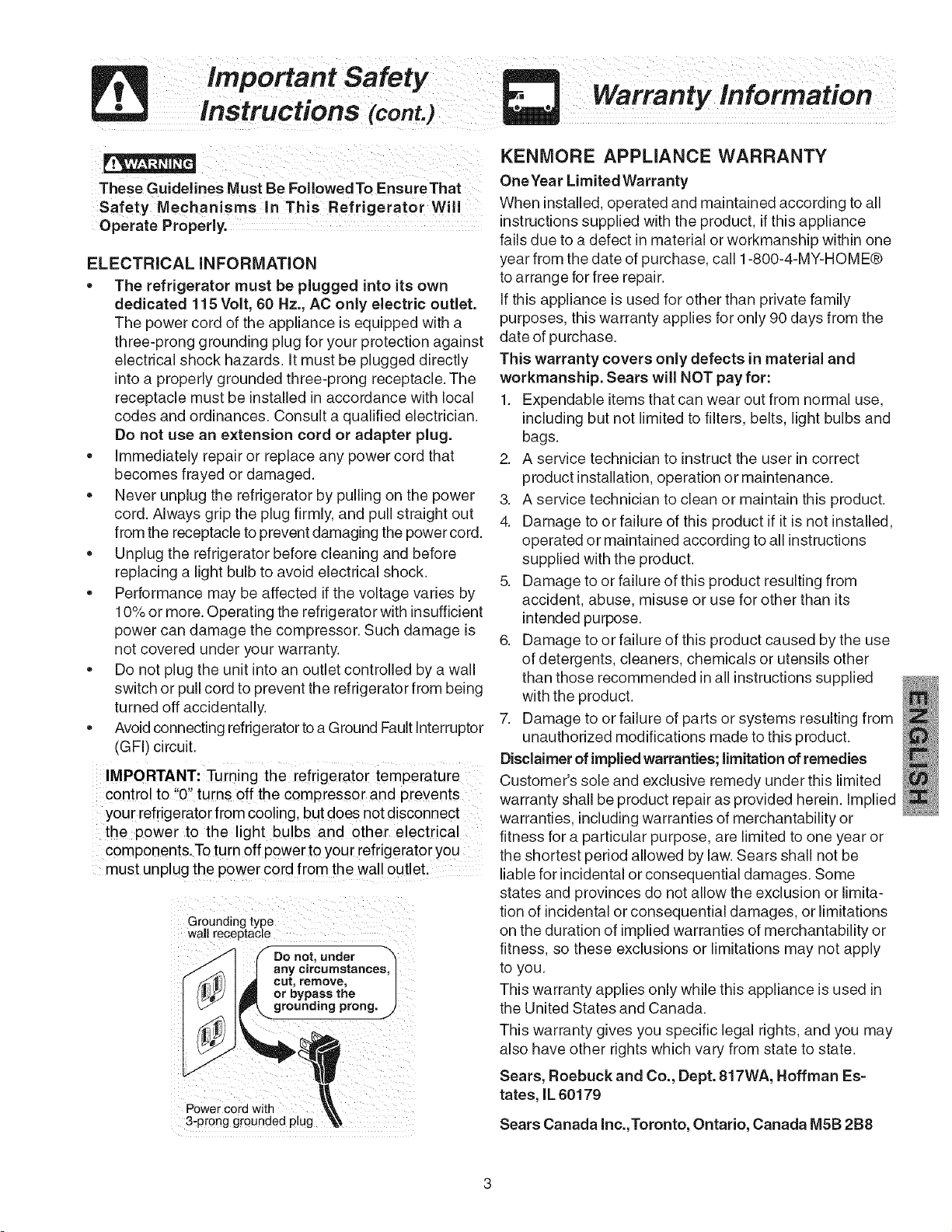

These Guidelines Must Be FollowedTo EnsureThat
Safety Mechanisms in This Refrigerator Will
operate Properiy.
ELECTRICAL iNFORMATiON
• The refrigerator must be plugged into its own
dedicated 115 Volt, 60 Hz., AC only electric outlet.
The power cord of the appliance is equipped with a
three-prong grounding plug for your protection against
electrical shock hazards, it must be plugged directly
intoa properly grounded three-prong receptacle. The
receptacle must be installed in accordance with local
codes and ordinances. Consult a qualified electrician.
Do not use an extension cord or adapter plug.
• immediately repair or replace any power cord that
becomes frayed or damaged.
• Never unplug the refrigerator by pulling on the power
cord. Always grip the plug firmly, and pull straight out
from the receptacle to prevent damaging the power cord.
• Unplug the refrigerator before cleaning and before
replacing a light bulb to avoid electrical shock.
• Performance may be affected ifthe voltage varies by
10% or more. Operating the refrigerator with insufficient
power can damage the compressor. Such damage is
not covered under your warranty.
• Do not plug the unit into an outlet controlled by a wall
switch or pull cord to prevent the refrigerator from being
turned off accidentally.
• Avoid connecting refrigerator toa Ground Fault Interrupter
(GFI) circuit.
IMPORT A,NT: Turuing the refrigerat0i temPeratUre
control to 0 turns off the compressor and prevents
your refrigerator from Cooling, but does not disconnect
the power to the light bu!bs and other electrica!
components.To turn off power to your refrigerator you
must unplug the power cord from the wa Ioutlet.
f" Donot,,. der
I or bypass the /
grounding prong. _)
KENIVIORE APPLIANCE WARRANTY
OneYear Limited Warranty
When installed, operated and maintained according to all
instructionssupplied with the product, ifthis appliance
fails due to a defect in material or workmanship within one
year from the date of purchase, call 1-800-4-MY-HOME®
to arrange for free repair.
if this appliance is used for other than private family
purposes, this warranty applies for only 90 days from the
date of purchase.
This warranty covers only defects in material and
workmanship. Sears will NOT pay for:
1. Expendable items that can wear out from normal use,
including but not limited to filters, belts, light bulbs and
bags.
2. A service technician to instruct the user in correct
product installation, operation or maintenance.
3. A service technician to clean or maintain this product.
4. Damage to or failure of this product if it is not installed,
operated or maintained according to all instructions
supplied with the product.
5. Damage to or failure of this product resulting from
accident, abuse, misuse or use for other than its
intended purpose.
6. Damage to or failure of this product caused by the use
of detergents, cleaners, chemicals or utensils other
than those recommended in all instructions supplied
with the product.
7. Damage to or failure of parts or systems resulting from
unauthorized modifications made to this product.
Disclaimer of impliedwarranties; limitation ofremedies
Customer's sole and exclusive remedy under this limited
warranty shall be product repair as provided herein, implied
warranties, including warranties of merchantability or
fitness for a particular purpose, are limited to one year or
the shortest period allowed by law. Sears shall not be
liable for incidental or consequential damages. Some
states and provinces do not allow the exclusion or limita-
tion of incidental or consequential damages, or limitations
on the duration of implied warranties of merchantability or
fitness, so these exclusions or limitations may not apply
to you.
This warranty applies only while this appliance is used in
the United States and Canada.
This warranty gives you specific legal rights, and you may
also have other rights which vary from state to state.
Sears, Roebuck and Co., Dept. 817WA, Hoffman Es-
tates, IL 60179
Sears Canada Inc.,Toronto, Ontario, Canada M5B 2B8
In the U.S.A.

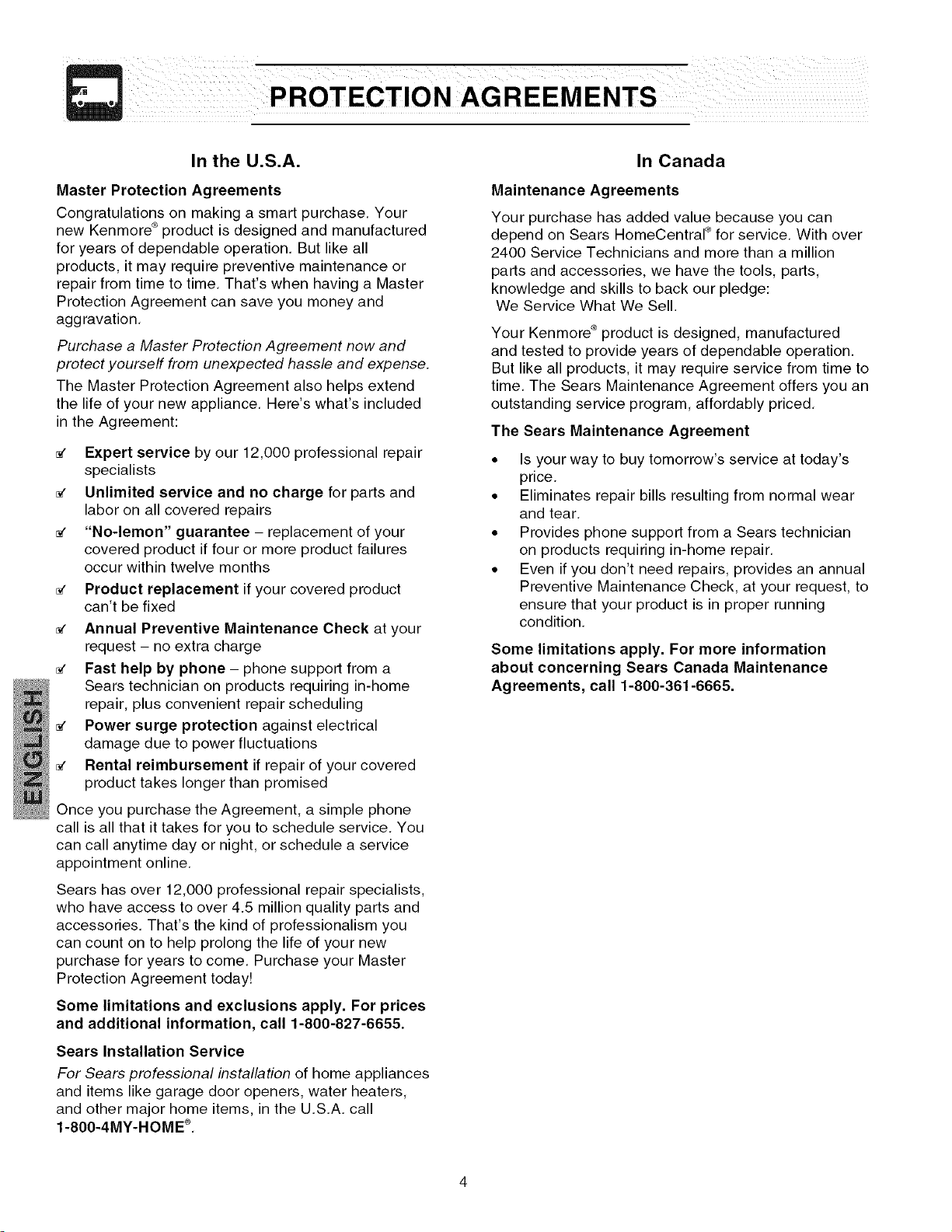

Master Protection Agreements
Congratulations on making a smart purchase. Your
new Kenmore ®product is designed and manufactured
for years of dependable operation, But like all
products, it may require preventive maintenance or
repair from time to time, That's when having a Master
Protection Agreement can save you money and
aggravation,
Purchase a Master Protection Agreement now and
protect yourseff from unexpected hassle and expense.
The Master Protection Agreement also helps extend
the life of your new appliance. Here's what's included
in the Agreement:
Expert service by our 12,000 professional repair
specialists
Unlimited service and no charge for parts and
labor on all covered repairs
"No-lemon" guarantee - replacement of your
covered product if four or more product failures
occur within twelve months
Product replacement if your covered product
can't be fixed
Annual Preventive Maintenance Check at your
request - no extra charge
_' Fast help by phone - phone support from a
Sears technician on products requiring in-home
repair, plus convenient repair scheduling
Power surge protection against electrical
damage due to power fluctuations
_' Rental reimbursement if repair of your covered
product takes longer than promised
Once you purchase the Agreement, a simple phone
call is all that it takes for you to schedule service. You
can call anytime day or night, or schedule a service
appointment online.
Sears has over 12,000 professional repair specialists,
who have access to over 4.5 million quality parts and
accessories. That's the kind of professionalism you
can count on to help prolong the life of your new
purchase for years to come. Purchase your Master
Protection Agreement today!
Some limitations and exclusions apply. For prices
and additional information, call 1-800-827-6655.
Sears Installation Service
For Sears professional installation of home appliances
and items like garage door openers, water heaters,
and other major home items, in the U.S.A. call
1-800-4MY-HOME ®.
In Canada
Maintenance Agreements
Your purchase has added value because you can
depend on Sears HomeCentral ®for service, With over
2400 Service Technicians and more than a million
parts and accessories, we have the tools, parts,
knowledge and skills to back our pledge:
We Service What We Sell.
Your Kenmore ®product is designed, manufactured
and tested to provide years of dependable operation.
But like all products, it may require service from time to
time. The Sears Maintenance Agreement offers you an
outstanding service program, affordably priced,
The Sears Maintenance Agreement
• Is your way to buy tomorrow's service at today's
price.
• Eliminates repair bills resulting from normal wear
and tear,
• Provides phone support from a Sears technician
on products requiring in-home repair.
• Even if you don't need repairs, provides an annual
Preventive Maintenance Check, at your request, to
ensure that your product is in proper running
condition,
Some limitations apply. For more information
about concerning Sears Canada Maintenance
Agreements, call 1-800-361-6665.

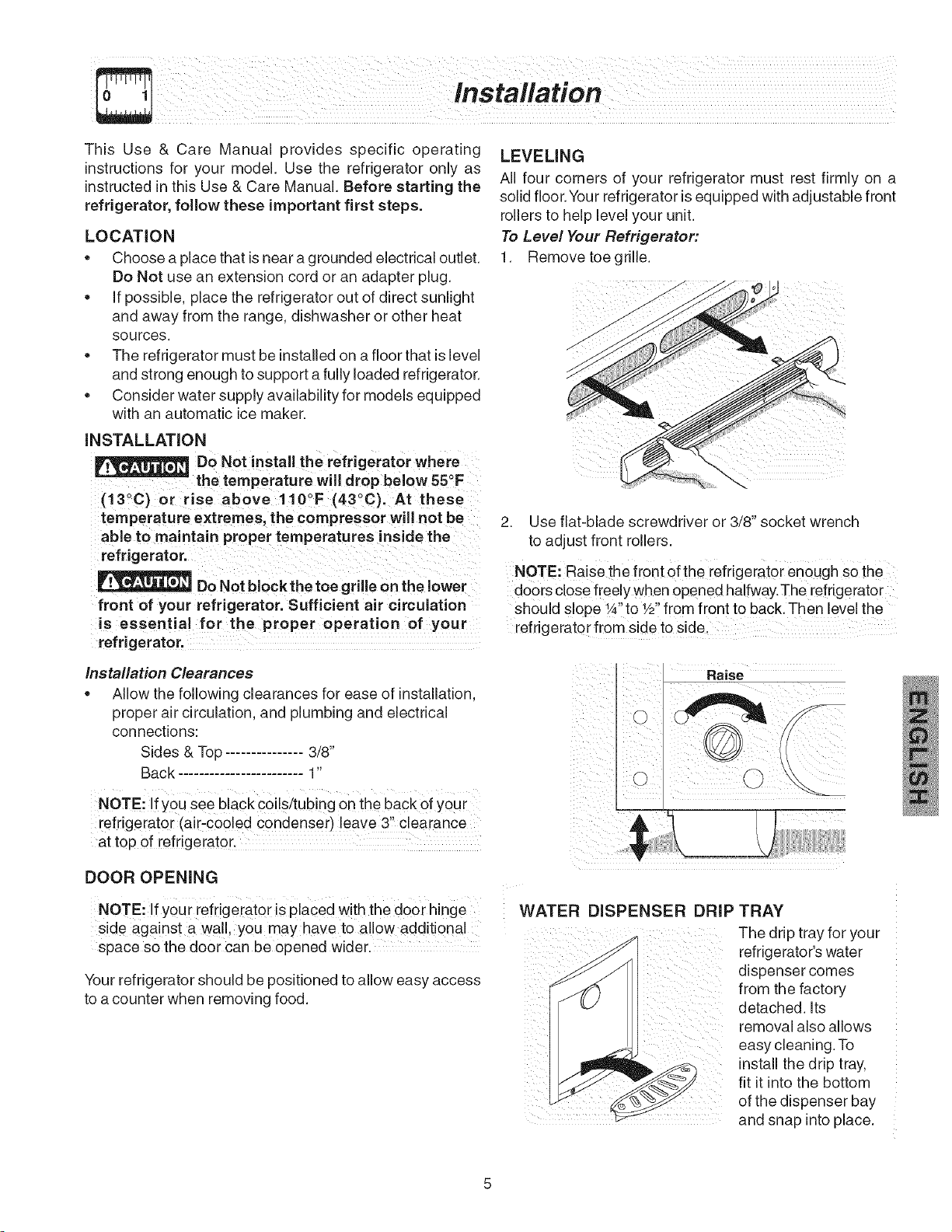

This Use & Care Manual provides specific operating
instructions for your model. Use the refrigerator only as
instructed in this Use & Care Manual. Before starting the
refrigerator, follow these important first steps.
LOCATION
• Choose a place that is near a grounded electrical outlet.
Do Not use an extension cord or an adapter plug.
• If possible, place the refrigerator out of direct sunlight
and away from the range, dishwasher or other heat
sources
The refrigerator must be installed on a floor that is level
and strong enough to support a fully loaded refrigerator.
Consider water supply availability for models equipped
with an automatic ice maker,
INSTALLATION
Do Not install the refrigerator where
the temperature will drop below 55°F
(13°C) or rise above 110°F (43°C). At these
temperature extremes, the compressor will not be
able to maintain proper temperatures inside the
refrigerator.
Do Not block the toe grille on the lower
front of your refrigerator. Sufficient air circulation
is essential for the proper operation of your
refrigerator.
Installation Clearances
• Allow the following clearances for ease of installation.
proper air circulation, and plumbing and electrical
connections:
Sides & Top 3/8"
Back 1"
NOTE: Ifyou see blackcoilsitubing on the back of your
refrigerator (air-cooled condenser) leave 3" clearance
at top of refrigerator.
DOOR OPENING
NOTE: If your refrigerator is placed with the door hinge
side against a wall, you may have to allow additional
space so the door can be opened wider.
Your refrigerator should be positioned to allow easy access
to a counter when removing food.
LEVELING
All four corners of your refrigerator must rest firmly on a
solid floor. Your refrigerator isequipped with adjustable front
rollers to help level your unit.
To Level Your Refrigerator:
t. Remove toegrille.
2. Use flat-blade screwdriver or 3/8" socket wrench
to adjust front rollers
NOTE: Raise the front ofthe refrigerator enough SOthe
doors close freely when opened halfway.The refrigerator
should slope W'to W' from front to back.Then level the
refrigerator from side to side.
Raise
C
WATER DISPENSER DRiP TRAY
The drip tray for your
refrigerator's water
dispenser comes
from the factory
detached. Its
removal also allows
easy cleaning. To
install the drip tray,
fit it into the bottom
of the dispenser bay
and snap into place.
hlstalIBtiorl - Connecting ice Maker To Water Supply
To avoid electric shock, which can cause death or severe personal injury, disconnect the
refrigerator from electrical power before connecting a water supply line to the refrigerator.
To Avoid Property Damage:
* Copper tubing is recommended for the water supply line.Water supply tubing made of 1/4"plastic is not
recommended since it greatly increases the potential for water leaks. Manufacturer will not be responsible
for anydamage if plastic tubing is used forsupply line.
= DO NOT instaJl water supply tubing in areas where temperatures fall below freezing.
, Chemicals from a malfunctioning softener can damage the ice maker. If the ice maker is connected to soft
water, ensure that the softener is maintained and working properly.
iMPORTANT: Ensure that your water supply line connections comply with all local plumbing codes.
Before Instalfing The Water Supply Line, You Will Need
• BasicTools: adjustable wrench, fiat-blade screwdriver, and Phillips TM screwdriver
• Access to a household cold water line with water pressure between 30 and 100 psi.
• Awatersuppiylinemade_ft/4inch(6_4mm)_D_c_ppertubing_rbraidedwaterline_T_determinethelength_f
copper tubing needed, you will need to measure the distance from the ice maker inlet valve at the back of the
refrigerator to your cold water pipe. Then add approximately 7 feet (2.1 meters), so the refrigerator can be moved out
for cleaning (as shown).
• A shutoff valve to connect the water supply line to your household water system. DO NOT use a self-piercing type
shutoff valve.
• A compression nut and ferrule (sleeve) for connecting the water supply line to the ice maker inlet valve.
NOTE: A watei line kit is available from sears stores or Sears Parts & Repair at an additional cost.
To Connect Water Supply Line To Ice Maker Inlet Valve
1. Disconnect refrigerator from electric power source.
2. Place end of water supply line intosink or bucket. Turn ON water supply
and flush supply line until water is clear. Turn OFF water supply at shut
off valve.
3. Unscrew plastic cap from water valve inletand discard cap.
4. Slide brass compression nut, then ferrule (sleeve) onto water supply line,
as shown.
5. Push water supply line into water valve inlet as far as itwill go (tA inch).
Slide ferrule(sleeve) into valve inletand finger tighten compression nut
onto valve. Tighten another half turn with a wrench; DO NOT over tighten.
6. With steel clamp and screw, secure water supply line to rear panel of
refrigerator as shown.
7. Coil excess water supply line (about 2t/2turns) behind refrigerator as shown
and arrange coils so they do not vibrate or wear against any other surface.
8. Turn ON water supply at shutoff valve and tighten any connections that
leak.
9. Reconnect refrigerator to electrical power source.
10. Toturn ice maker on, lower wire signal arm (see ice maker front cover for ON/
OFF position of arm).
Plastic Water
Tubing to Ice Maker
Clamp
Brass
Compression
(Sleeve)
water line
Water Valve
line
from household water supply
(Include enough tubing in loop to allow
moving refrigerator out for cleaning.)
IMPORTANT: It takes approximately 24 hours for the ice maker to begin producing usable ice.Air in new plumbing lines
may cause ice maker to cycle two or three times before making a fu!l tray of ice. New plumbing may cause ice to be
discolored or have poor flavor. Discard ice made during the first 24 hours.
Door Removal instructions
H_nge
Screw
_Top Hinge
Cover
Q Top Hinge
Cable
_ff""/_ Block
Bottom
Hinge
Center
Hinge
Tools Necessary:
_nc]
-lat Head
Screw Driver
Sockel
Wrench Sel
3/8"
Fixed
w[encP
DOOR REMOVAL iNSTRUCTIONS:
If your refrigerator will not fit through an entrance area. you can reduce its size by
removing the doors. Check first by measuring the entrance.
IMPORTANT: Before you begin, turn the refrigerator temperature control to "0" and
remove the electrical power cord from the wall outlet. Remove food from door shelves.
1. Disconnect electrical supply.
2. Remove toe grille (see figure on page 5).
Toremove freezer door:
1. Remove top hinge cover and screws.
2. Trace around the hinge with a soft lead pencil. This makes reinstallation easier
3. Remove top hinge and lift door off bottom hinge pin.
4. Reinstall door in opposite order and mannerof removal.
Toremove refrigerator door:
1. Place wood block under door to support itsweight.
2. Unfasten the multi-wire cable bracket by removing its screw from the cabinet.
3. Detach the multi-wire cable connector located below the door.
Place your thumbs on flat sides of each connector grasp firmly, and bend both
ends back and forth while pulling apart.
NOTE:You may need to insert a flat screwd fiver between the connector ends to
release the locking tab (see illustration)
4. Detach the water tube from the connector located below the door.The connector
releases when you press its outer sleeve inward.
NOTE: If refrigerator has been used. have a container ready to catch excess water
from tube.
5. Remove the bottom hinge screws and hinge, holding the door as its weight rests
on the wood block. Lay the door on its side to avoid damage to cable and tube.
6. Remove the center hinge screws and hinge. Ensure plastic washer stays on
hinge pin
7. Reinstall door in opposite order and manner of removal. When both doors are
reinstalled, connect water line by inserting tube and pushing until mark touches
face of fitting. Connect cable, replace toe grille, and plug in electrical power cord.
\
Connector
_)usnuntil mark touches face of fitting
Features At A Glance
ice Maker_
ice Bucket_
Freezer Shelf--_
Freezer
Control
Refrigerator
Control
Water Filter _-
Deli Drawer
Cover
Dell Drawer _
Half Shelf
Wine Rack
Full
Special item
Mid Level Lie
Crisper
Crisper
Drawers
_- Freezer Light
i i
i¸¸
Toe Grille
Fixed Door Bin
_------Door Rack
Dairy Door
Tall Bottle
Retainer
Snugger
Door Bin
Fixed Door Bin
Door Rack
Features may vary according to model
COOL DOWN PERIOD
To ensure safe food storage, allow the refrigerator to operate with the doors closed for at least 8 to t2 hours before loading
it with food.
REFRIGERATOR & FREEZER CONTROLS
NOTE: When first setting the controls or when changing a setting, wait 24 hours for the temperature to stabilize
before making additiona! changes
TEMPERATURE ADJUSTMENT
NOTE: when first ruining refrigerator onl move refrigeiatoi
and freezer controls to y which is the recommended
initial setting. After 24 hours, adjust the controls as needed,
• Adjust temperature gradually: move the knob in small
increments, allowing the temperature to stabilize.
• For colder temperatures, turn the knob towards Colder.
• For warmer temperatures, turn the knob towards Cold.
Turning the refrigerator control will change temperatures in
both compartments. For example, ifthe refrigerator control is
turned to a colder setting, the freezer control may have to be
adjusted to a warmer setting. Turning the freezer control will
change only the freezer temperature.
Recommended
setting
i o,do,
Freezer ControI(some models)
_ O
Col O
; I01C°Ider
Tomaintain temperatures, a fan circulates air in the refrigerator
and freezer compartments. For good circulation, do not block
cold air vents with food items.
IMPORTANT: Turning the refrigerator temperature
COntroltoO turns off the compressor and prevents
Your refrigerator from cooling, but does not disconnect
the POWer to the light bulbs and other electrical
components.To turn off power to your refrigerator you
must unplug the power cord from the wa!l outlet.
RefrigeratorControl (some models)
Refrigerator & Freezer Control (some models)
TEMPERATURE ADJUSTMENT GUIDE
If Refrigerator compartment Is Too Warm Turn Refrigerator Control Slightly Towards Colder.
If Refrigerator compartment Is Too Cold Turn Refrigerator Control Slightly Towards Cold.
If Freezer compartment Is Too Warm Turn Freezer Control Slightly Towards Colder.
If Freezer compartment Is Too Cold Turn Freezer Control Slightly Towards Cold.
To Turn Refrigerator Off Turn Refrigerator Control To 0.
Toavo!dpereo.a injuryorpropertydamage,handle
tempered glass shelves carefui!y. Shelves may break suddenly if
nicked, scratched, or exposed to sudden temperature change.
SHELF ADJUSTMENT
Refrigerator shelves are easily adjusted tosuit individualneeds. Before adjusting
the shelves, remove all food.
To adjust sliding shelves:
O Remove shelf by pulling forward to stop position.
Lift front edge up and pull out.
Replace the shelf on any pair of rails in opposite order and manner of removal.
Sliding Wire Shelf
To adjust cantilever shelves:
NOTE: cantilever shelves are Supported at the back of the refrigeratoi
Cantilever shelves are available in either glass or wire.
Lift front edge up.
Pull shelf out.
Replace the shelf by inserting the hooks at rear of the shelf into the wall
bracket. Lower the shelf into the desired slots and lock into position.
M
SpillProoF glass shelves (some models) catch and hold accidental spills. In
M
some models, the SpillProoF shelves slide out for easy access to food and
for fast cleaning. The shelves slide out independently of the cantilever
brackets. Just pull the front of the shelf forward. The shelf can be extended
as far as the stopper will allow but it is not removable from the cantilever
bracket.
Full Width Cantilever Glass Shelf
Sliding Glass Shelf
Cantilever Glass Shelf - Fixed and Sliding
10
LoOki g mside (continued)
DOOR STORAGE
Door bins, shelves, and racks are provided for convenient
storage of jars, bottles, and cans. Frequently used items can
be quickly selected.
Some models have door racks or bins that can accommodate
gallon-sized plastic drink containers and economy-sized jars
TALL BOTTLE RETAINER (SOME MODELS)
The Tall Bottle Retainer keeps tall containers in the bin from
falling forward when opening or closing the refrigerator door.
To install, hold the retainer at the top, and slide it over the
outside wall ofthe bin, as shown in the diagram. The TallBottle
Retainer works best with a Bin Snugger.
and containers. Some racks are adjustable for maximum
storage capacity.
The dairy compartment, which is warmer than the general food
storage section, is intended for short term storage of cheese,
spreads, or butter.
Door Rack
ADJUSTABLE DOOR BINS
Some models have adjustable door bins that can be moved
to suit individual needs.
To move door bins
1. Lift bin straight up.
2. Remove bin.
3. Place bin in desired position.
4. Lower bin onto supports until locked in place.
Tall Bottle Retainer (left) and Bin Snugger (right)
SPECIAL ITEM RACK (SOME MODELS)
The innovative design of the Special item Rack allows you to
store a six-pack of 12 ounce drink cans, a bottle of wine, a
two-liter soft drink bottle, or a carton of eggs. The Special
Item Rack mounts on the left side of your refrigerator. To install,
just slide the Special Item Rack onto any shelf as shown in
the drawing.
Special Item Rack
Adjustable Door Bin
11
CRISPERS(SOME MODELS)
The crispers, located under the bottom refrigerator shelf,
are designed for storing fruits, vegetables, and other fresh
produce. Wash items in clear water and remove excess
water before placing them in the crispers, itemswith strong
odors or high moisture content should be wrapped before
storing.
DELl DRAWER (SOME MODELS)
Some models are equipped with a Deli Drawer for storage
of luncheon meats, spreads, cheeses and other deli items.
Crisper Drawer
HUMIDITY CONTROL (SOMEMODELS)
The Humidity Control, present on some models with crisper
drawers, allows you to adjust the humidity within the crisper.
This can extend the life of fresh vegetables that keep best
in high humidity.
NOTE: Leafy vegetables keep best when stored with the
Humidity Control set on High Humidity, or ina drawer
without a Humidity Control. This keeps incoming air to a
minimum and maintains maximum moisture content.
Low
Humidity
WINE RACK (SOME MODELS)
There are two different style Wine Racks. (See A and B
below.) The Wine Rack stores bottles of wine, or single two-
liter plastic bottles ofjuice or soda pop.To install, slide Wine
Rack (A) onto the shelf with the curve facing in. To remove,
slide the Wine Rack out. Install on either side of shelf. The
Wire Wine Rack (B) simply sets on the shelf.
Humidit
Wine Racks
Crisper Humidity Control
12
WATERDISPENSER
Your refrigerator includes an automatic water dispenser on
the front of the refrigerator door. The dispenser is designed
to accommodate containers up to 71/2inches high.
Dispensing _'_
Dispenser Lock
The water dispenser includes a switch that allows you to
disable the water dispenser.You can use this lock to prevent
accidental spills, such as those caused by children pressing
the dispensing button without a glass. The switch is located
below the locked/unlocked symbols on the dispenser face
plate, j
ensing
Spout
Dispenser
Lock
Drip Tray
Water Dispenser
Dispensing Water
Tooperate the water dispenser, press adrinking glass against
the dispensing button. Hold the glass as far up as possible,
ensuring that the water dispensing spout is inside the lip of
the glass.
To stop dispensing water, pull the glass away from the
dispensing button. For colder water, first add ice to your
drinking glass.
Drip Tray
The drip tray located at the base of the dispenser catches
small spills and allows them to evaporate. This tray is
removable for easy cleaning.
NOTE: Please do not pour excess water or ice into the drip
tray. It does not have a drain.
\\ //"
Dispenser Lock
How the Water Dispenser Works
The water tank, located inside the refrigerator door,
automatically fills as water is dispensed. For proper
dispenser operation, the recommended supply water
pressure should fall between 20 psi and 1O0 psi.
Water pressure must not exceed 100
water filter to malfunction.
After the refrigerator is connected to the water supply, fill
the water tank by drawing one glass of water. It may take
about 11/2minutes after activating the dispenser button
before water begins to fill this first glass. Continue flushing
the system for 3 minutes to rid the tank and plumbing
connections of any impurities.
13
Water Dispenser & ice Service (continued)
If your refrigerator has an automatic ice maker, it will provide a sufficient
supply of ice for normal use. During the initial startup of your refrigerator.
however no ice will be produced during the first 24 hours of operation.
Automatic ice makers are also optional accessories that may be installed in
most models at any time. Call your local dealer for information
ON
TURNING YOUR ICE MAKER ON
After the plumbing connections have been completed, the water supply valve
must be opened. Place the ice container under the ice maker, pushing it as
far back as possible Lower the wire signal arm to its "down" or ON position.
New plumbing connections may cause the first production of ice cubes to be
discolored or have an odd flavor. These first cubes should be discarded until
the cubes produced are free of discoloration and taste
TURNING YOUR iCE MAKER OFF
To stop the ice maker, lift the wire signal arm until it clicks and locks in the
"up" or OFF position. The ice maker also turns off automatically when the ice Ice Maker
container is full. If your model has an adjustable freezer shelf, place the shelf
in the lower position, so that the wire signal arm will hit the ice when the
container is full.
iMPORTANT: Your ice maker is shipped with the wire signal arm inthe ON position. To ensure proper function of
you r ice maker, hook up water supply immediately or turn ice maker OFF by lifting the wire signal arm until it clicks
and locks in the UP position.
Chemicals from a malfunctioning softener Candamage the ice maker, If the ice maker is€onnected
to soft water, ensure that the softener is maintained and working properly.
ICE MAKER TiPS
, icecubes stored too long may develop an odd flavor. Empty the ice container and ensure that the wire signal arm is
in its"down" or ON position. The ice maker will then produce more ice.
, Occasionally shake the ice container to keep ice separated.
, Keep the wire signal arm in its"up" or OFF position until the refrigerator isconnected to the water supply, also OFF
whenever the water supply is turned off.
• The following sounds are normal when the ice maker isoperating:
• Motor running
• Ice loosening from tray
• Ice dropping into ice container
. Running water
Water valve opening or closing
NOTE: For more nformatien on these operations, see Norma!Operating Sounds and Sights section on page !7,
DO
• Wash the ice container in warm water with mild detergent. Rinse well and dry.
• Stop the ice maker when cleaning the freezer and during vacations.
• If the ice maker will be turned off for a long period of time, turn the water supply valve to the closed position.
14

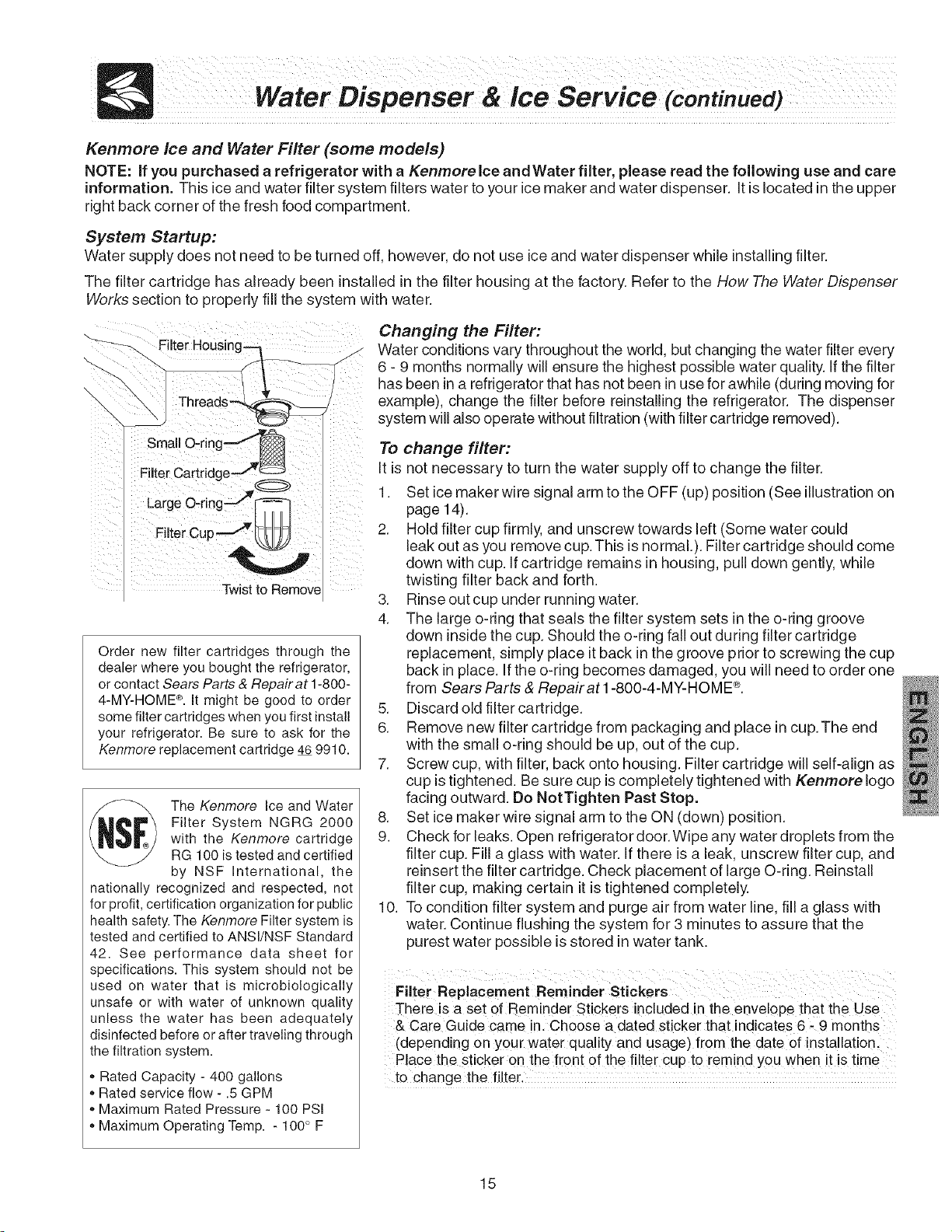

Kenmore Ice and Water Filter (some models)
NOTE: If you purchased a refrigerator with a Kenmore Ice and Water filter, please read the following use and care
information. This ice and water filter system filters water to your ice maker and water dispenser. It is located in the upper
right back corner of the fresh food compartment.
System Startup:
Water supply does not need to be turned off, however, do not use ice and water dispenser while installing filter.
The filter cartridge has already been installed in the filter housing at the factory. Refer to the How The Water Dispenser
Works section to properly fill the system with water.
\
Filter Housinc
SmallO-nr
F!!te_Cartrid g_
La[ge O,[ng
Filter cUp_ _
iiill
Order new filter cartridges through the
dealer where you bought the refrigerator,
or contact Sears Parts & Repair at 1-800-
4-MY-HOME ®. It might be good to order
some filter cartridges when you first install
your refrigerator. Be sure to ask for the
Kenmore replacement cartridge 46 9910.
The Kenmore Ice and Water
Filter System NGRG 2000
with the Kenmore cartridge
RG 100 is tested and certified
by NSF International, the
nationally recognized and respected, not
for profit, certification organization for public
health safety. The Kenmore Filter system is
tested and certified to ANSl/NSF Standard
42. See performance data sheet for
specifications. This system should not be
used on water that is microbiologically
unsafe or with water of unknown quality
unless the water has been adequately
disinfected before or after traveling through
the filtration system.
,, Rated Capacity - 400 gallons
,,Rated service flow - .5 GPM
,,Maximum Rated Pressure - 100 PSI
,,Maximum Operating Temp. - 100 ° F
Changing the Filter:
Water conditions vary throughout the world, but changing the water filter every
6 - 9 months normally will ensure the highest possible water quality. If the filter
has been in a refrigerator that has not been in use for awhile (during moving for
example), change the filter before reinstalling the refrigerator. The dispenser
system will also operate without filtration (with filter cartridge removed).
To change filter:
It is not necessary to turn the water supply off to change the filter.
1. Set ice maker wire signal arm to the OFF (up) position (See illustration on
page 14).
2. Hold filter cup firmly, and unscrew towards left (Some water could
leak out as you remove cup. This is normal.). Filter cartridge should come
down with cup. If cartridge remains in housing, pull down gently, while
twisting filter back and forth.
3. Rinse out cup under running water.
4. The large o-ring that seals the filter system sets in the o-ring groove
down inside the cup. Should the o-ring fall out during filter cartridge
replacement, simply place it back in the groove prior to screwing the cup
back in place. If the o-ring becomes damaged, you will need to order one
from Sears Parts & Repair at1-800-4-MY-HOME ®.
5. Discard old filter cartridge.
6. Remove new filter cartridge from packaging and place in cup. The end
with the small o-ring should be up, out of the cup.
7. Screw cup, with filter, back onto housing. Filter cartridge will self-align as
cup is tightened. Be sure cup is completely tightened with Kenmore logo
facing outward. Do NotTighten Past Stop.
8. Set ice maker wire signal arm to the ON (down) position.
9. Check for leaks. Open refrigerator door. Wipe any water droplets from the
filter cup. Fill a glass with water. If there is a leak, unscrew filter cup, and
reinsert the filter cartridge. Check placement of large O-ring. Reinstall
filter cup, making certain it is tightened completely.
10. To condition filter system and purge air from water line, fill a glass with
water. Continue flushing the system for 3 minutes to assure that the
purest water possible is stored in water tank.
Filter RePlacement Reminder stickers
There is a set of Reminder Stickers included in the envelope that the Use
& Care Guide came in. Choose a dated sticker that indicates 6 - 9 months
(depending on Your water quality and usage) from the date of installation.
Place the sticker Onthe fr0nt of the filter cup to remind you when it is time
to change the filter,
15
FOODSTORAGEIDEAS
Fresh Food Storage
• The fresh food compartment should be kept between 34° F and 40° F with an optimum temperature of 37 ° E
• Avoid overcrowding the refrigerator shelves. This reduces the circulation of air around the food and results in uneven
cooling.
Fruits and Vegetables
• Storage in the crisper drawers traps moisture to help preserve the fruit and vegetable quality for longer time periods.
Meat
Raw meat and poultry should be wrapped securely so leakage and contamination of other foods or surfaces does not
occur.
Frozen Food Storage
• The freezer compartment should be kept at 0° F or lower.
• A freezer operates most efficiently when it is at least 2/3 full.
Packaging Foods for Freezing
• To minimize dehydration and quality deterioration, use aluminum foil, freezer wrap, freezer bags or airtight containers.
Force as much air out of the packages as possible and seal them tightly. Trapped air can cause food to dry out,
change color, and develop an off-flavor (freezer burn).
• Wrap fresh meats and poultry with suitable freezer wrap prior to freezing.
• Do not refreeze meat that has completely thawed.
Loading the Freezer
• Avoid adding too much warm food to the freezer at one time. This overloads the freezer, slows the rate of freezing,
and can raise the temperature of frozen foods.
Leave a space between the packages, so cold air can circulate freely, allowing food to freeze as quickly as possible.
• Avoid storing hard-to-freeze foods such as ice cream and orange juice on the freezer door shelves. These foods are
best stored in the freezer interior where the temperature varies less.
\ /
\ /
ENERGY SAVING IDEAS
• Locate the refrigerator in the coolest part of the room, out of direct sunlight,
and away from heating ducts or registers. Do not place the refrigerator
next to heat-producing appliances such as a range, oven or dishwasher.
If this is not possible, a section of cabinetry or an added layer of insulation
between the two appliances will help the refrigerator operate more
efficiently.
• Level the refrigerator so that the doors close tightly.
• Refer to this Use & Care Manual for the suggested temperature control
settings.
- Periodic cleaning of the condenser will help the refrigerator run more
efficiently. See the Care and Cleaning Charton page 18
- Do not overcrowd the refrigerator or block cold air vents. Doing so causes
the refrigerator to run longer and use more energy.
- Cover foods and wipe containers dry before placing them in the
refrigerator. This cuts down on moisture build-up inside the unit.
- Organize the refrigerator to reduce door openings. Remove as many
items as needed at one time and close the door as soon as possible.
16
UNDERSTANDINGTHE SOUNDS YOU MAY
HEAR
Your new high-efficiency refrigerator may make unfamiliar
sounds. These are all normal sounds and soon will
become familiar to you. They also indicate your
refrigerator is operating as designed. Hard surfaces, such
as vinyl or wood floors, walls, and kitchen cabinets may
make sounds more noticeable. Listed below are
descriptions of some of the most common sounds you
may hear, and what is causing them.
NOTE: Rigid foam insulation is very energy efficient,
but is not a good sound insulator.
A. Evaporator
The flow of refrigerant through the evaporator may
create a boiling or gurgling sound.
B. Evaporator Fan
You may hear air being forced through the refrigerator
by the evaporator fan.
C. Defrost Heater
During defrost cycles, water dripping onto the defrost
heater may cause a hissing or sizzling sound. After
defrosting, a popping sound may occur.
iMPORTANT: During the automatic defrost cycle, you
may notice a red g!ow in the vents on the back wa!l of
your freezer compartment, This is normal during the
defrost cycle,
D. Automatic Ice Maker
If your refrigerator isequipped with an automatic ice
maker, you will hear ice cubes falling into the ice bin.
E. Cold Control & Defrost Timer/Automatic Defrost
Control
These parts can produce a snapping or clicking sound
when turning the refrigerator on and off. The timer also
produces sounds similar to an electric clock.
F. Condenser Fan
if condenser coils are located underneath your
refrigerator as shown in the drawing at the left, you
have a condenser fan. You may hear air being forced
through the condenser by the condenser fan.
G. Compressor
Modern, high-efficiency compressors operate much
faster than older models. The compressor may have a
high-pitched hum or pulsating sound.
H. Water Valve
if your refrigerator isequipped with an automatic ice
maker, you will hear a buzzing sound as the water valve
opens to fill the ice maker during each cycle.
L Drain Pan (Nonremovable)
You may hear water running into the drain pan during
the defrost cycle. The drain pan will be located on top
of the compressor for air-cooled condensers (black coils
on back of refrigerator).
J. Condenser Coils (Fan-cooled models only)
17
Care & Cleaning
Always unplug the electrical power cord from the wall outlet before cleaning. Keep your refrigerator and freezer clean
to prevent odor build-up. Wipe up any spills immediately and clean both sections at least twice a year. Never use any type
of scouring pads, brushes, abrasive cleaners or strong alkaline solutions on any surface. Do not wash any removable parts
ina dishwasher.
- When moving the refrigerator, pull straight out. Do not shift the refrigerator from side to side as this
may tear or gouge the floor covering, ifthe refrigerator has an automatic ice maker, be careful not to
move the refrigerator beyond the plumbing connections.
• Damp objects stick to cold metal surfaces. Do not touch refrigerated surfaces with wet or damp hands.
= To avoid damage and help the refrigerator run as efficiently as possible, clean the condenser periodically.
• Never use CHLORIDE to clean stainless steel.
NOTES:
Turning the refrigerator temperature control to "0" turns off the compressor, but does not disconnect electrical
power to the light bulb or other electrical components.
Do not use razor blades or other sharp instruments which can scratch the appliance surface when removing
adhesive labels. Any glue left from tape or labels can be removed with a mixture of warm water and mild
detergent, or. touch the glue residue with the sticky side of tape you have already removed. Do not remove the
serial plate.
Care
& Cleaning Table
Part What To Use Tips and Precautions
Interior/Door • Soap and water Use 2 tablespoons of baking soda in 1 quart of warm water. Be sure to
wring excess water out of sponge or cloth before cleaning around
Liner • Baking soda and water controls, light bulb or any electrical part.
Door Gaskets • Soap and water Wipe gaskets with a clean soft cloth.
Drawers/Bins • Soap and water Do not wash any removable items (bins, drawers, etc.) in dishwasher.
Glass Shelves • Soap and water Allow glass to warm to room temperature before immersing in warm
• Glass cleaner water.
• Mild liquid sprays
Toe Grille • Soap and water Vacuum dust from front of toe grille. Remove toe grille (See illustration on
• Mild liquid sprays page 5). Vacuum backside and wipe with sudsy cloth or sponge. Rinse
• Vacuum attachment and dry.
Exterior and • Soap and water Do not use commercial household cleaners, ammonia, or alcohol to clean
Handles handles.
Never use CHLORIDE to clean stainless steel.
Exterior and
Handles • Soap and water
Clean stainless steel front and handles with soapy water. Use ammonia
• Ammonia
on stubborn spots. Use a non-abrasive stainless steel cleaner. These
(Stainless • Stainless Steel cleaners can be purchased at most home improvement or major
Steel Models Cleaners
Only) department stores.
Condenser • Condenser Cleaning No need to clean unless operating refrigerator under particularly dusty or
Coils Brush is available from greasy conditions, or if there is significant pet traffic in your home. If
(Fan-cooled your dealer, cleaning is necessary, remove toe grille and use extended vacuum
models only) • Vacuum Cleaner attachment and condenser cleaning brush to remove dust build-up from
condenser coils (see item "J" in illustration on page 17 for location).
Condenser
Coils • Vacuum Cleaner Use the dusting tool attachment on your vacuum to remove dust build-up
on the condenser coils (black tubes and wires) attached to the back of air-
(Air-cooled
models only) cooled refrigerators only.
Defrost Water • Soap and water Some models have defrost water pan located on top of compressor at
Pan bottom rear of refrigerator (see illustration on next page). Remove access
panel at rear of refrigerator and wipe water pan with damp cloth. NOTE:
The defrost water pan is NOT removable.
18

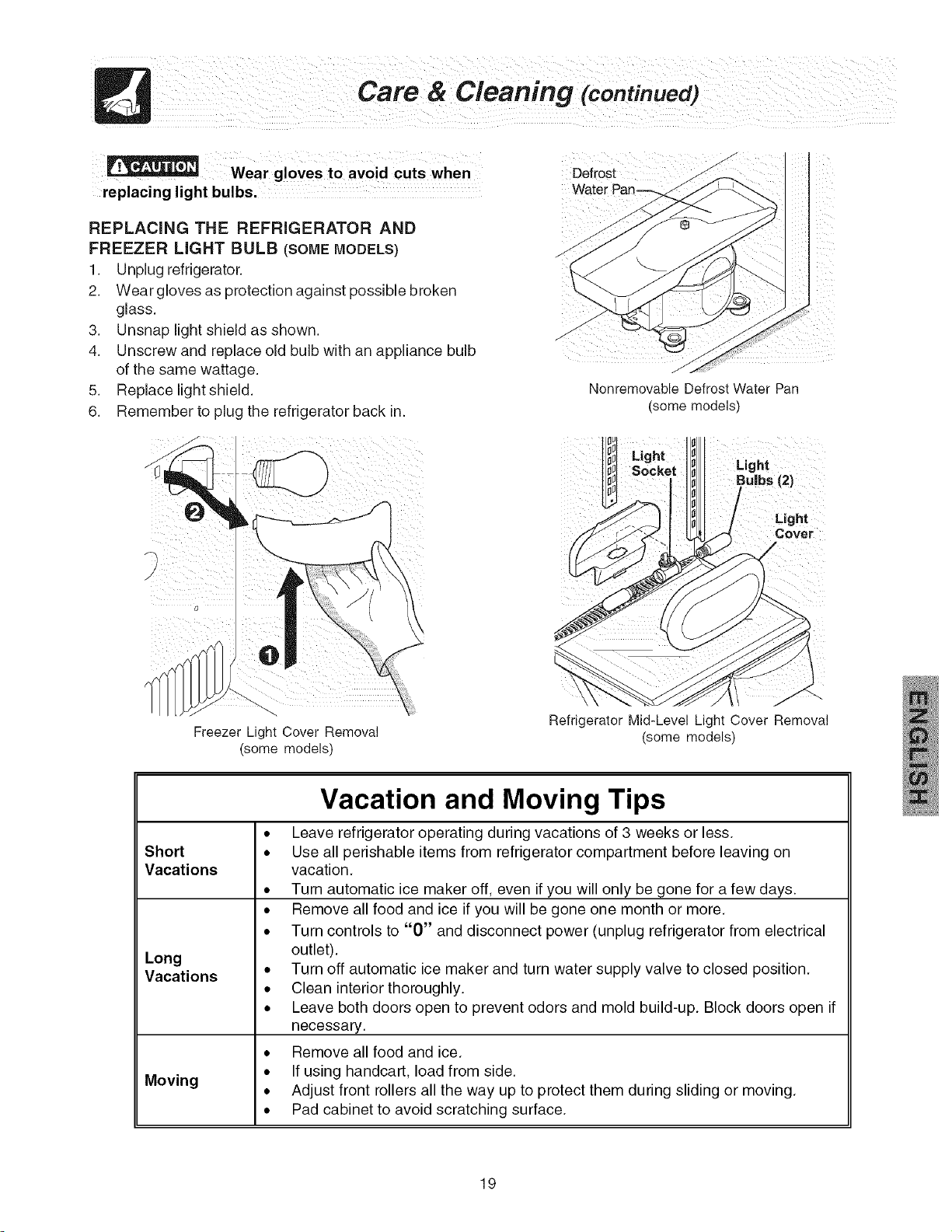

wear gloves tO aV0id cuts when
REPLACING THE REFRIGERATOR AND
FREEZER LIGHT BULB (SOME MODELS)
1. Unplug refrigerator.
2. Wear gloves as protection against possible broken
glass.
3. Unsnap light shield as shown.
4. Unscrew and replace old bulb with an appliance bulb
of the same wattage.
5. Replace light shield.
6. Remember to plug the refrigerator back in.
o
Freezer Light Cover Removal
(some models)
Defrost
Watel
Nonremovable Defrost Water Pan
(some models)
Light
Socket Light
Light
Covet'
Refrigerator Mid-Level Light Cover Removal
(some models)
Vacation and Moving Tips
Short •
Vacations
Long
Vacations
Moving
Leave refrigerator operating during vacations of 3 weeks or less.
Use all perishable items from refrigerator compartment before leaving on
vacation.
Turn automatic ice maker off, even if you will only be gone for a few days.
Remove all food and ice if you will be gone one month or more.
Turn controls to "0" and disconnect power (unplug refrigerator from electrical
outlet).
Turn off automatic ice maker and turn water supply valve to closed position.
Clean interior thoroughly.
Leave both doors open to prevent odors and mold build-up. Block doors open if
necessary.
Remove all food and ice.
If using handcart, load from side.
Adjust front rollers all the way up to protect them during sliding or moving.
Pad cabinet to avoid scratching surface.
19
ATTENTI
To Properly Install Your Refrigerator
See "'Installation" Section On Pages 5-6
Befo ¸You
Common
Occurrences
Refrigerator does not run.
Before calling for service, review this list. It may save you time and
expense. This list includes common occurrences that are not the result of
defective workmanship or materials in this appliance.
• Ensure plug is tightly pushed into electrical outlet.
• Check/replace fuse with a 15 amp time-delay fuse. Reset circuit
breaker.
• The temperature control is turned to "O".
• Refrigerator may be in defrost cycle. Wait 20 minutes and check again.
• Set freezer control to a warmer setting until freezer temperature is
satisfactory. Allow 24 hours for the temperature to stabilize.
Freezer temperature too cold.
Refrigerator temperature is
satisfactory.
Refrigerator temperature too cold. • Set refrigerator control to a warmer setting. Allow 24 hours for
Freezer temperature is temperature to stabilize. Then check freezer temperatures and adjust
satisfactory, as needed.
• The cabinet is not level.
* Refrigerator is noisy or vibrates.
• Floor is weak.
• Interior needs to be cleaned.
Odors in refrigerator.
• Foods that produce odors should be covered or wrapped.
• Replace light bulb.
• Ensure plug is tightly pushed into electrical outlet.
Cabinet light not working.
• Light switch may be stuck. Push in light switch, located on the
refrigerator control box, to release.
• Ensure the Wire Signal Arm is not in UP position.
Automatic ice maker not working.
(some models)
• Ice maker should produce 4 to 5 pounds of ice in a 24 hour period.
• Water supply is turned off.
• Water pressure istoo low.
• The freezer is not cold enough.
*See Normal Operating Sounds and Sights section on page 17
2O
