Conversion
Instructions
Converting to LP (Propane) Gas or Converting
Back to Natural Gas from LP
30" Standard Twin Burner Gas Range with Pilot Ignition
Beforeyoubegin- Readtheseinstructionscompletelyandcarefully.
IMPORTANT- Savetheseinstructionsfor localinspectorOuse.
IMPORTANT- OBSERVEALLGOVERNINGCODESANDORDINANCES.
NotetoInstaller - Besureto leavetheseinstructions,orificesand
screwswith the Consumer.
Notetoconsumer- Keeptheseinstructionswith yourOwnerO
Manualforfuture reference.
THISRANGEISFACTORYSETFORUSEWITHNATURALGAS.USE
THESEINSTRUCTIONSWHENCONVERTINGTOLP(PROPANE)GAS
ANDWHENCONVERTINGBACKTONATURALGAS.
WARNING
This conversion kit must be installed by a
qualified service agency in accordance with the
manufacturer's instructions and all applicable codes
and requirements of the authority having jurisdiction.
If the information in these instructions is not followed
exactly, a fire, explosion or production of carbon
monoxide may result, causing property damage,
personal injury or loss of life. The qualified service
agency is responsible for the proper installation of this
kit. The installation is not proper and complete until the
operation of the converted appliance is checked as
specified in the manufacturer's instructions supplied
with the kit.
BURNER SPECIFICATIONS
Top Burner Orifice Drill Size
Natural Gas #53 (.0590 Dia.)
LP (Propane) #66 (.0330 Dia.)
LPGAS NATURALGAS
SpudisSilver SpudisBrass
Color
Brass
Silver
OR
Tools Required
Adjustable wrench
1/2" open-end wrench
Pliers
Phillips head screwdriver
Flat-blade screwdriver
(blade width approximately
3/32"across)
Nut driver (5/16"or small
adjustable wrench)
STEP 11 PREPARE RANGE FOR
CONVERSION
• Disconnect main gas supply to the range.
• Disconnect the electrical power to the range.
- If range has not been connected to the gas supply,
or if a flexible connection was made, the range
may be pulled out from the wall to make conversion
easier.
CAUTION
If the gas supply to the range is discon-
nected for any reason, see the installation instruc-
tions for proper connection and safety precautions.
STEP 21 CONVERT THE PRESSURE
REG U LATOR
WARNING
Do not remove the pressure regulator
from the range.
•Raisethe cooktop and locate the pressure regulator
at the right rear of the range.
j_...
/
/-
/
/
/ \
GasRow \
IntoRange \
Regulatorpicturedmaydiffer fromyour model

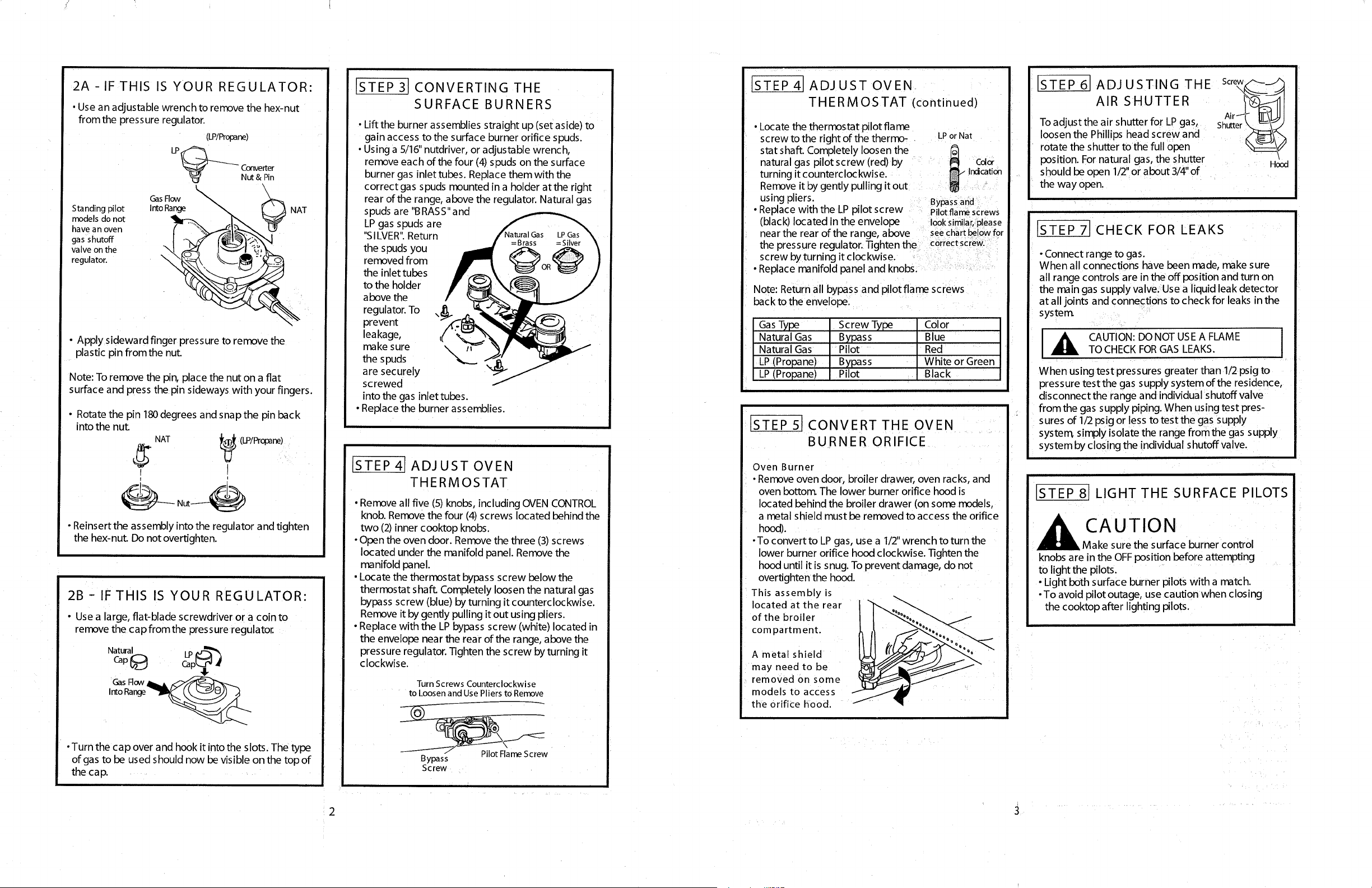

• Follow the direction in 2-A or 2-B depending on the
regulator type.
