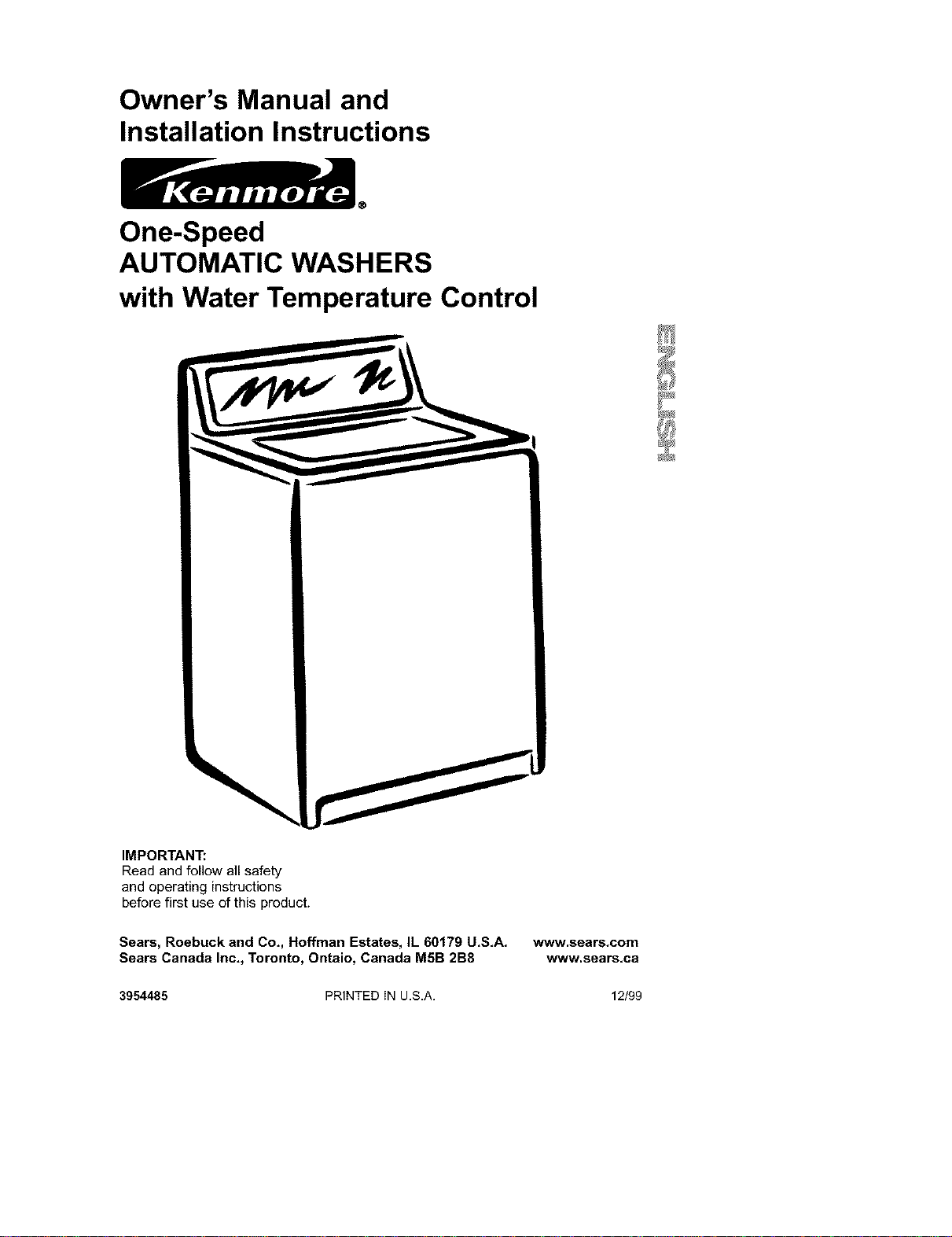

Owner's Manual and
Installation Instructions
One-Speed
AUTOMATIC WASHERS
with Water Temperature Control
IMPORTANT:
Read and follow all safety
and operating instructions
before first use of this product.
Sears, Roebuck and Co., Hoffman Estates, IL 60179 U.S.A. www.sears.com
Sears Canada Inc., Toronto, Ontaio, Canada MSB 2B8 www.sears.ca
3954485 PRINTED IN U.S.A. 12/99

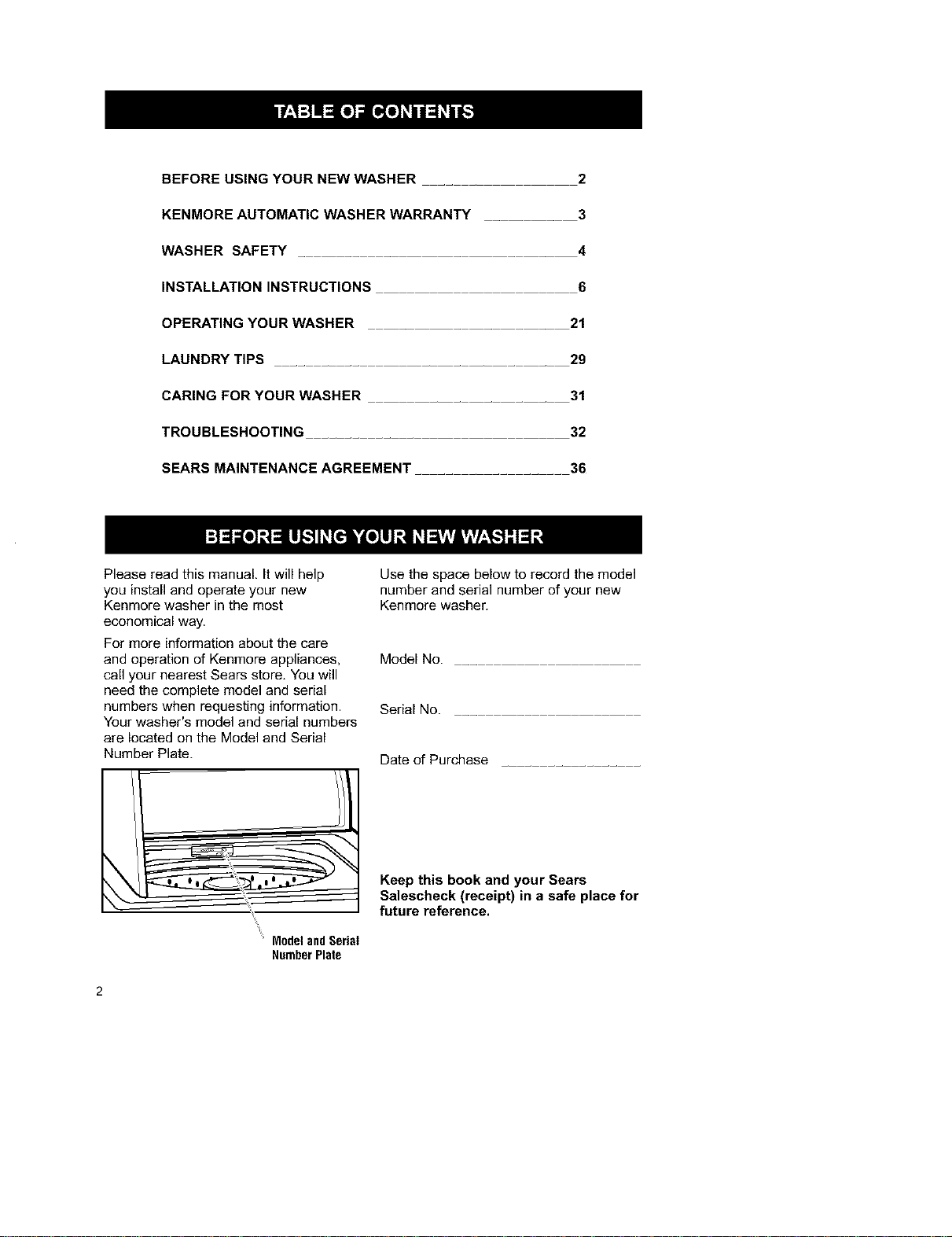

BEFORE USING YOUR NEW WASHER __ _ 2
KENMORE AUTOMATIC WASHER WARRANTY 3
WASHER SAFETY ............ 4
INSTALLATION INSTRUCTIONS 6

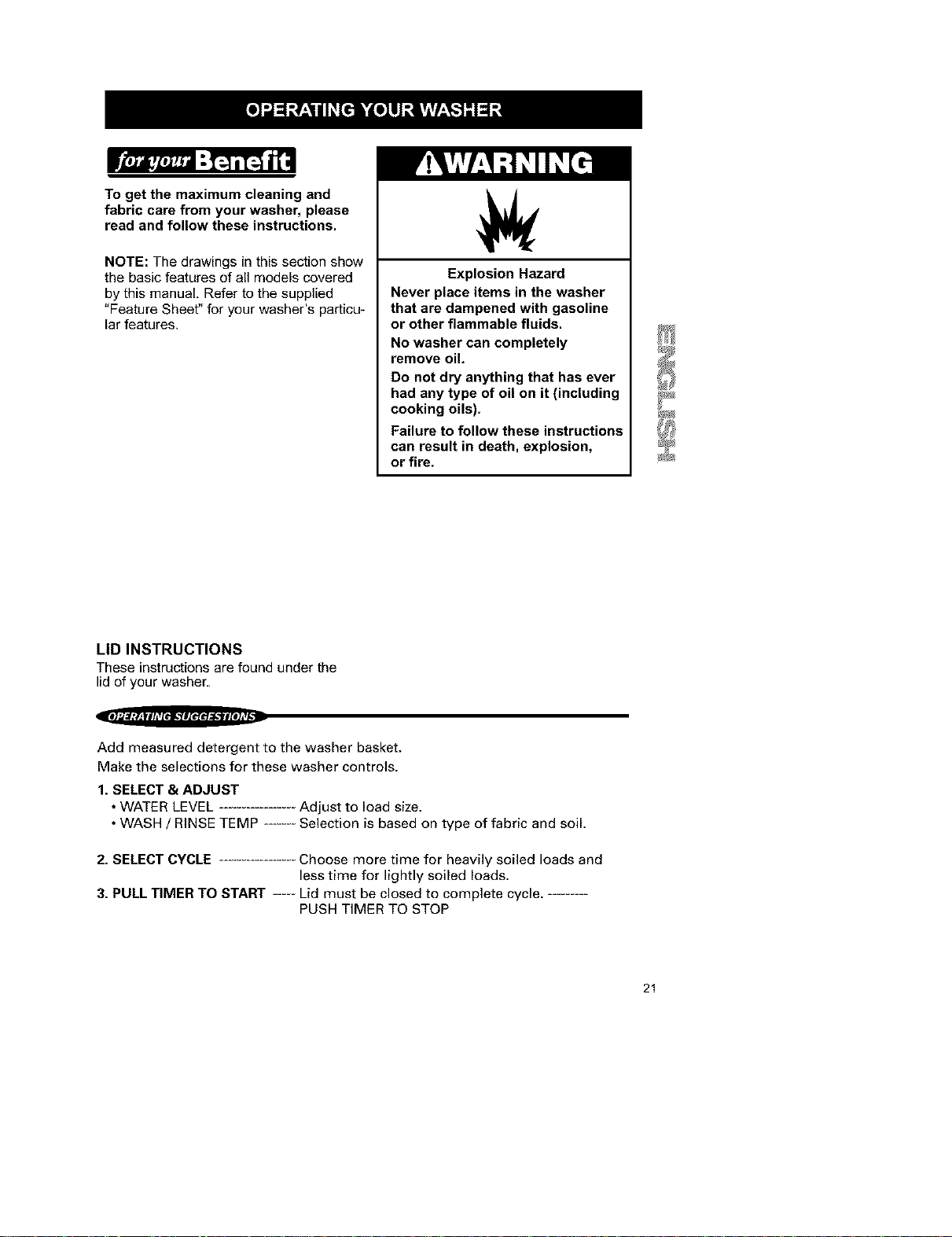

OPERATING YOUR WASHER 21

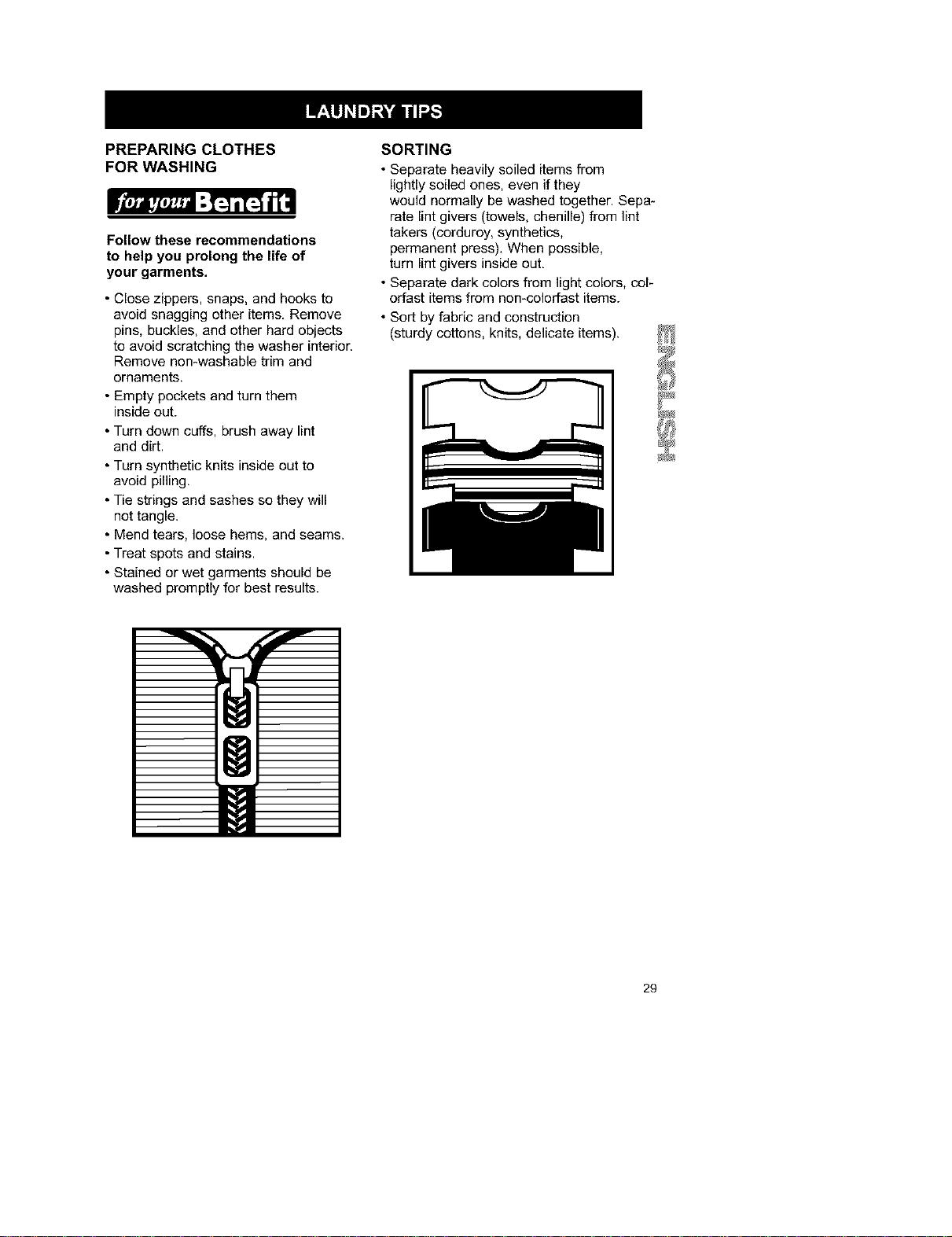

LAUNDRY TIPS .......... 29

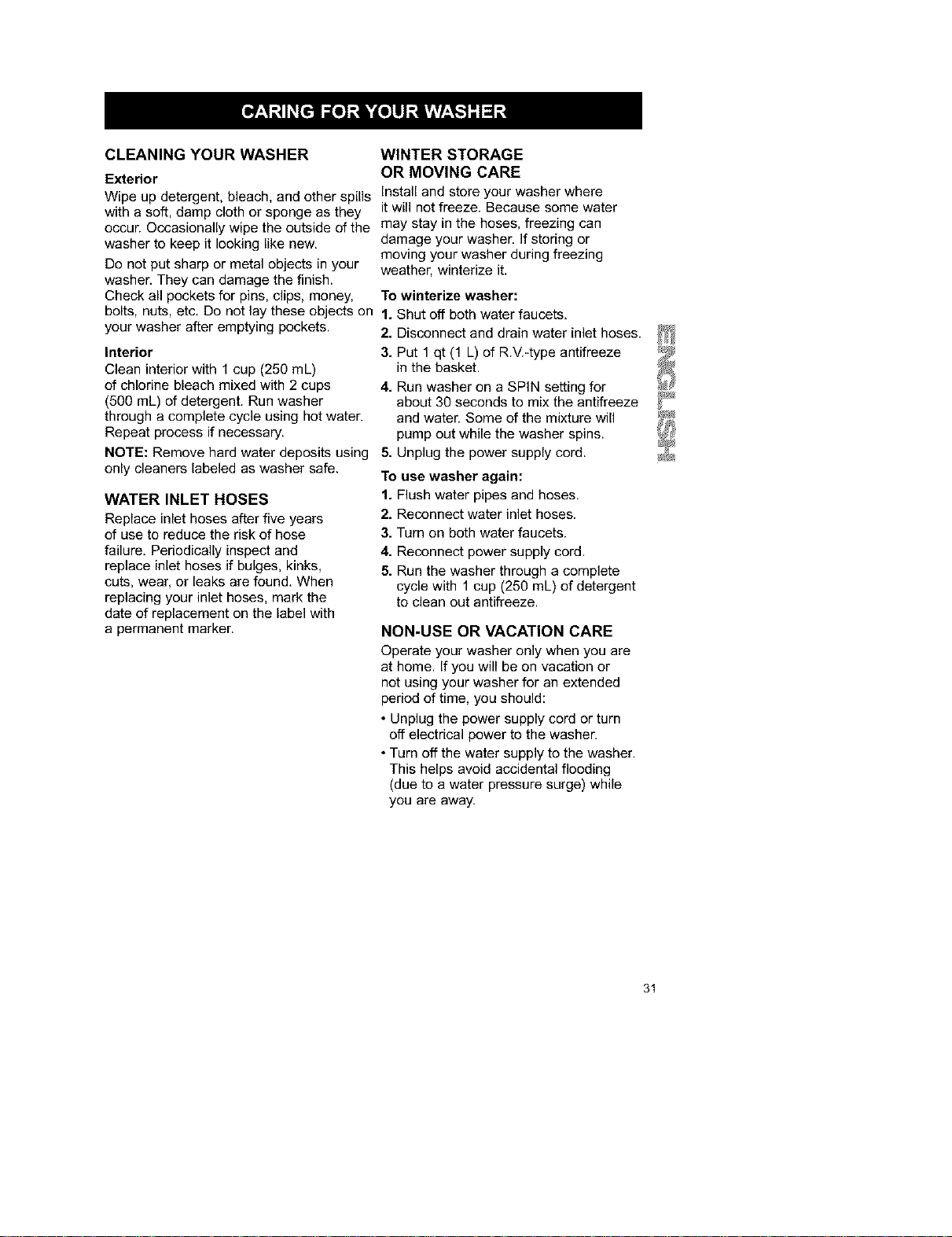

CARING FOR YOUR WASHER 31

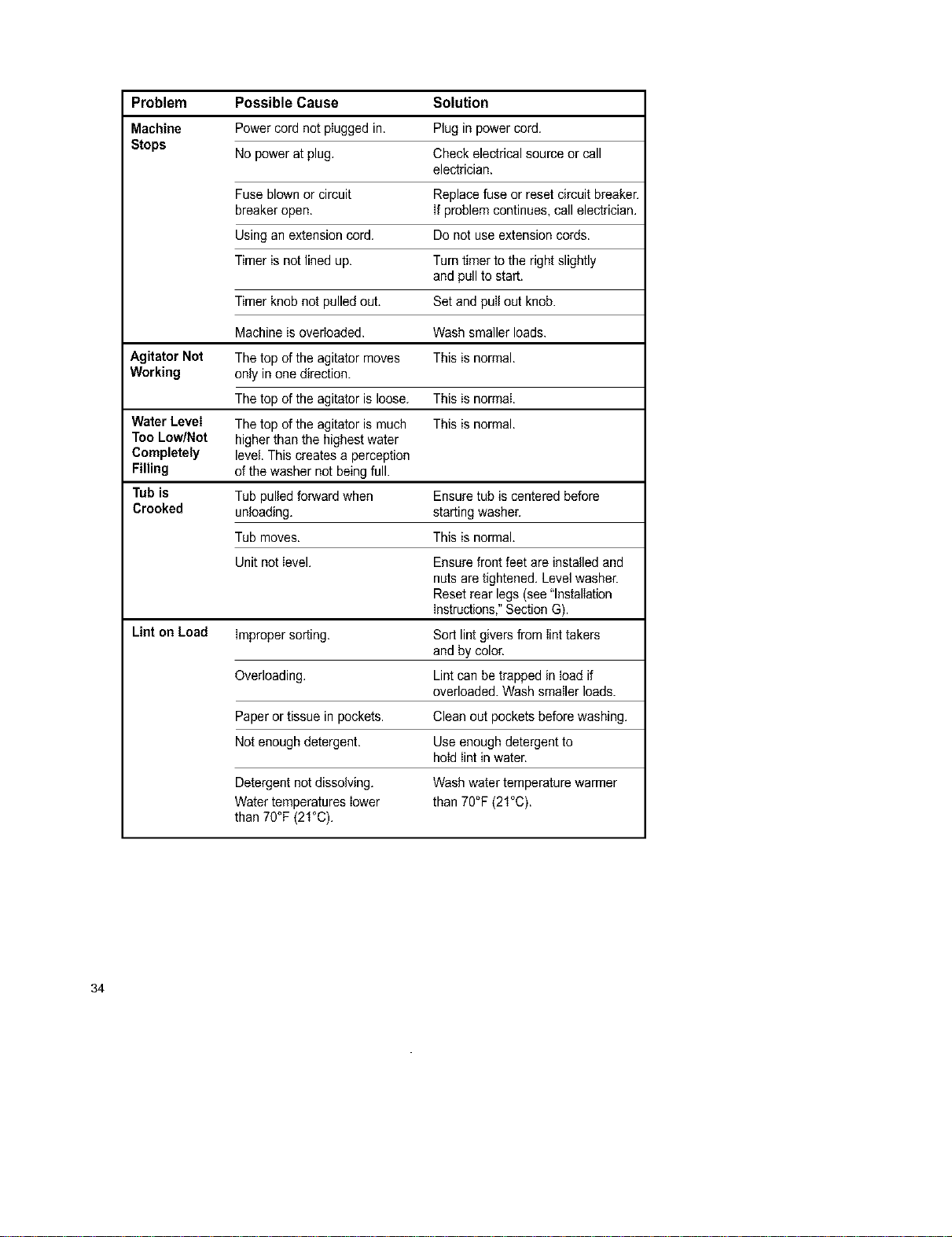

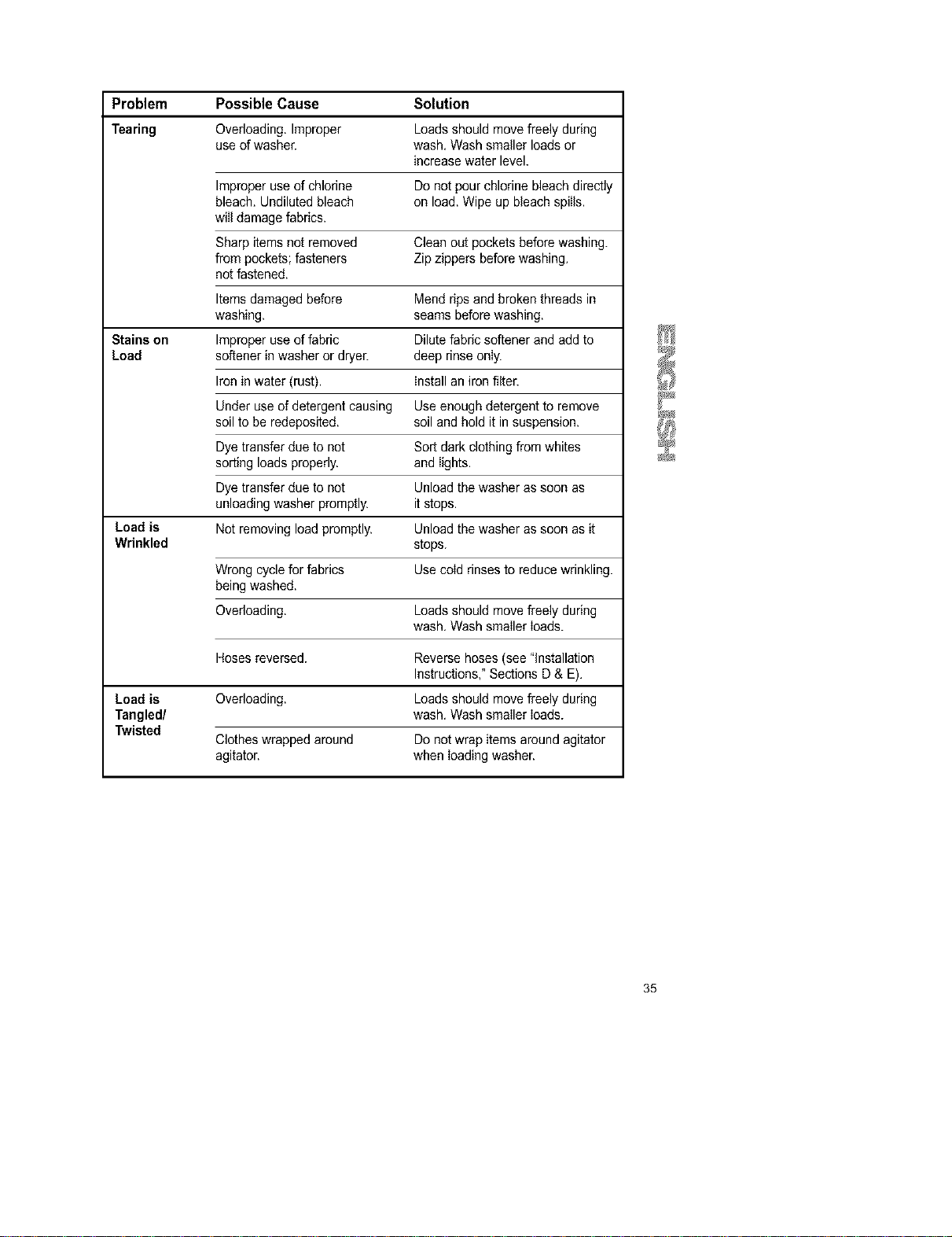

TROUBLESHOOTING ....... 32

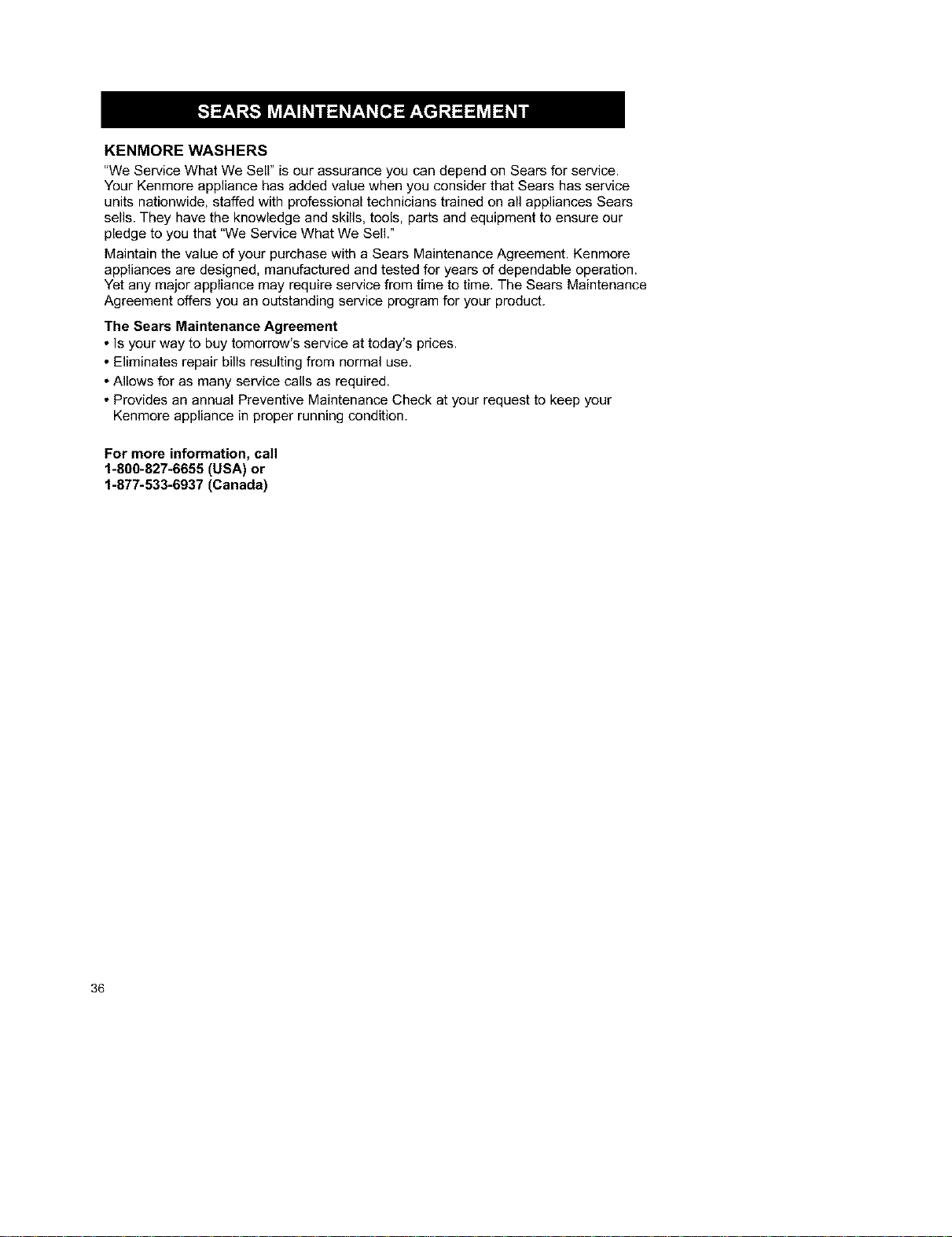

SEARS MAINTENANCE AGREEMENT 36
Please read this manual. It will help
you install and operate your new
Kenmore washer in the most
economical way.
For more information about the care
and operation of Kenmore appliances,
call your nearest Sears store, You will
need the complete model and serial
numbers when requesting information.
Your washer's model and serial numbers
are located on the Model and Serial
Number Plate.
Use the space below to record the model
number and serial number of your new
Kenmore washer.
Model No.
Serial No.
Date of Purchase
ModelandSerial
NumberPlate
Keep this book and your Sears
Salescheck (receipt) in a safe place for
future reference.

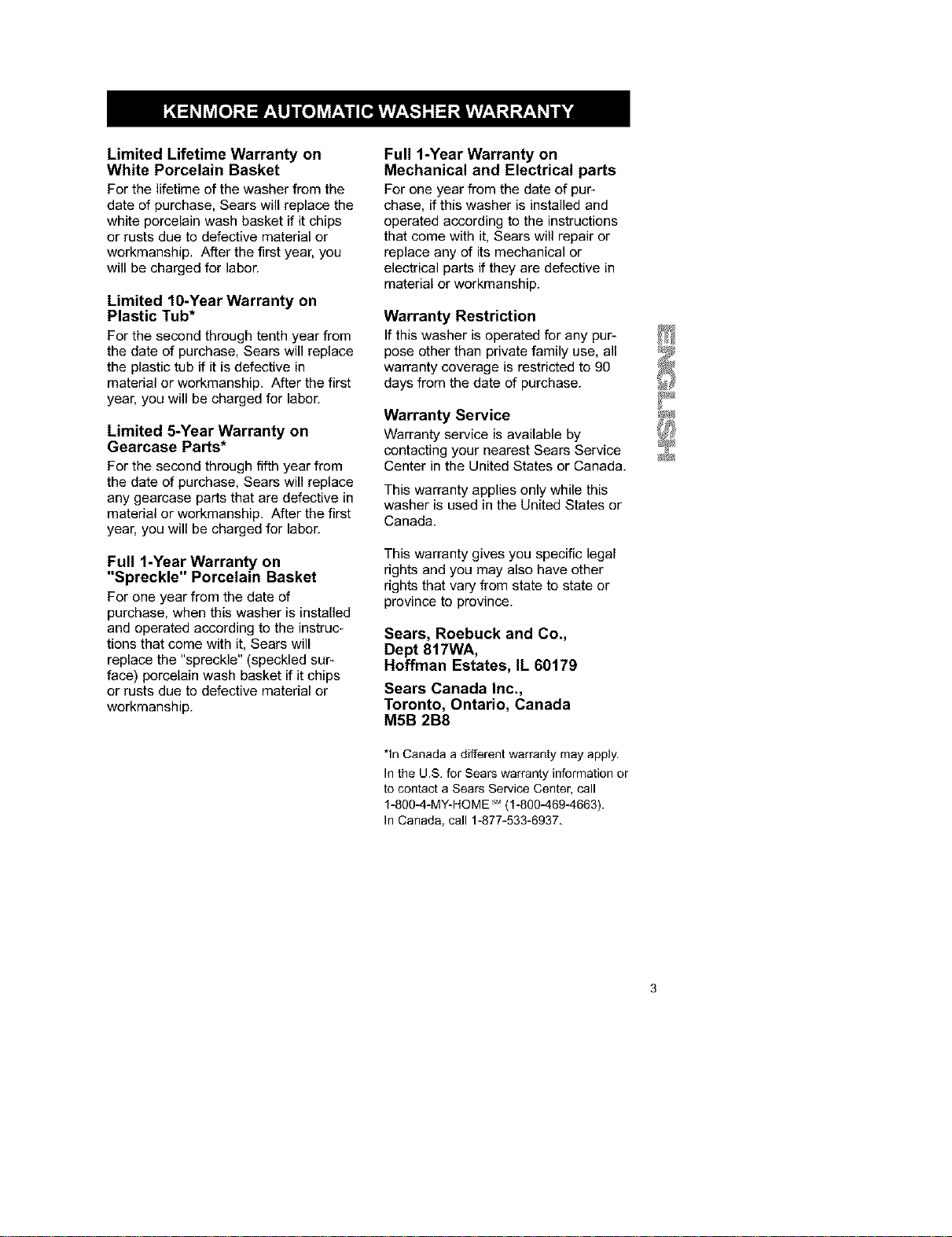

Limited Lifetime Warranty on
White Porcelain Basket
For the lifetime of the washer from the
date of purchase, Sears will replace the
white porcelain wash basket if it chips
or rusts due to defective material or
workmanship, After the first year, you
will be charged for labon
Limited 10-Year Warranty on
Plastic Tub*
For the second through tenth year from
the date of purchase, Sears will replace
the plastic tub if it is defective in
material or workmanship. After the first
year, you will be charged for labon
Limited 5-Year Warranty on
Gearcase Parts*
For the second through fifth year from
the date of purchase, Sears will replace
any gearcase parts that are defective in
material or workmanship. After the first
year, you will be charged for labon
Full 1-Year Warranty on
"Spreckle" Porcelain Basket
For one year from the date of
purchase, when this washer is installed
and operated according to the instruc-
tions that come with it, Sears will
replace the "spreckle" (speckled sur-
face) porcelain wash basket if it chips
or rusts due to defective material or
workmanship.
Full 1-Year Warranty on
Mechanical and Electrical parts
For one year from the date of pur-
chase, if this washer is installed and
operated according to the instructions
that come with it, Sears will repair or
replace any of its mechanical or
electrical parts if they are defective in
material or workmanship.
Warranty Restriction
If this washer is operated for any pur-
pose other than private family use, all
warranty coverage is restricted to 90
days from the date of purchase.
Warranty Service
Warranty service is available by
contacting your nearest Sears Service
Center in the United States or Canada.
This warranty applies only while this
washer is used in the United States or
Canada.
This warranty gives you specific legal
rights and you may also have other
rights that vary from state to state or
province to province.
Sears, Roebuck and Co.,
Dept 817WA,
Hoffman Estates, IL 60179
Sears Canada Inc.,
Toronto, Ontario, Canada
M5B 2B8
*In Canada a different warranty may apply.
In the U.S. for Sears warranty information or
to contact a Sears Service Center, call
1-800-4-MY-HOME ,,M(1-800-469-4663).
In Canada, call 1-877-533-6937.

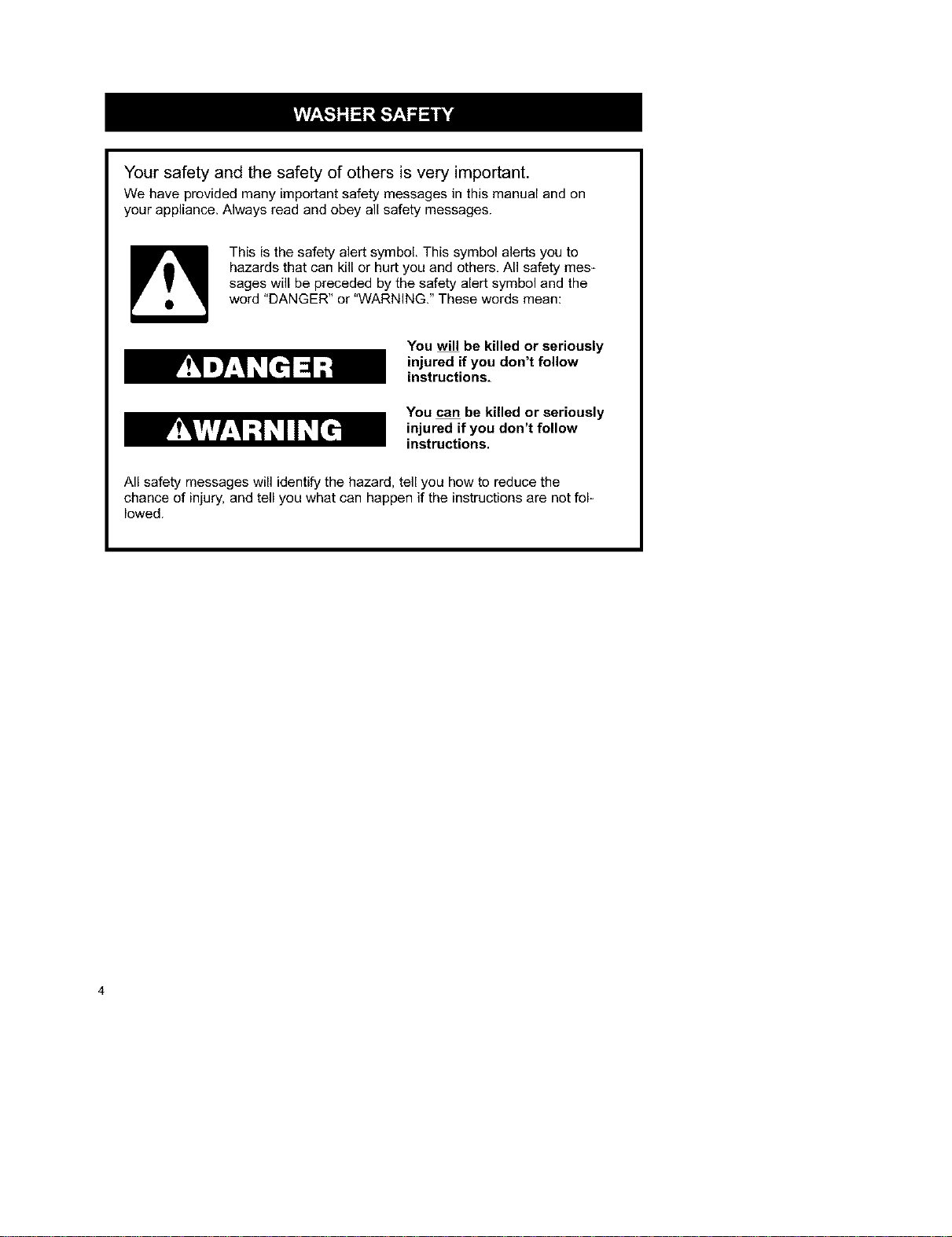

Your safety and the safety of others is very important.
We have providedmany importantsafety messages in this manualand on
your appliance.Always read and obey all safety messages.
This is the safety alert symbol. This symbol alerts you to
hazards that can kill or hurt you and others, All safety mes-
sages will be preceded by the safety alert symbol and the
word "DANGER" or "WARNING." These words mean:
You will be killed or seriously
injured if you don't follow
instructions,
You can be killed or seriously
injured if you don't follow
instructions.
All safety messages will identify the hazard, tell you how to reduce the
chance of injury, and tell you what can happen if the instructions are not fol-
lowed.

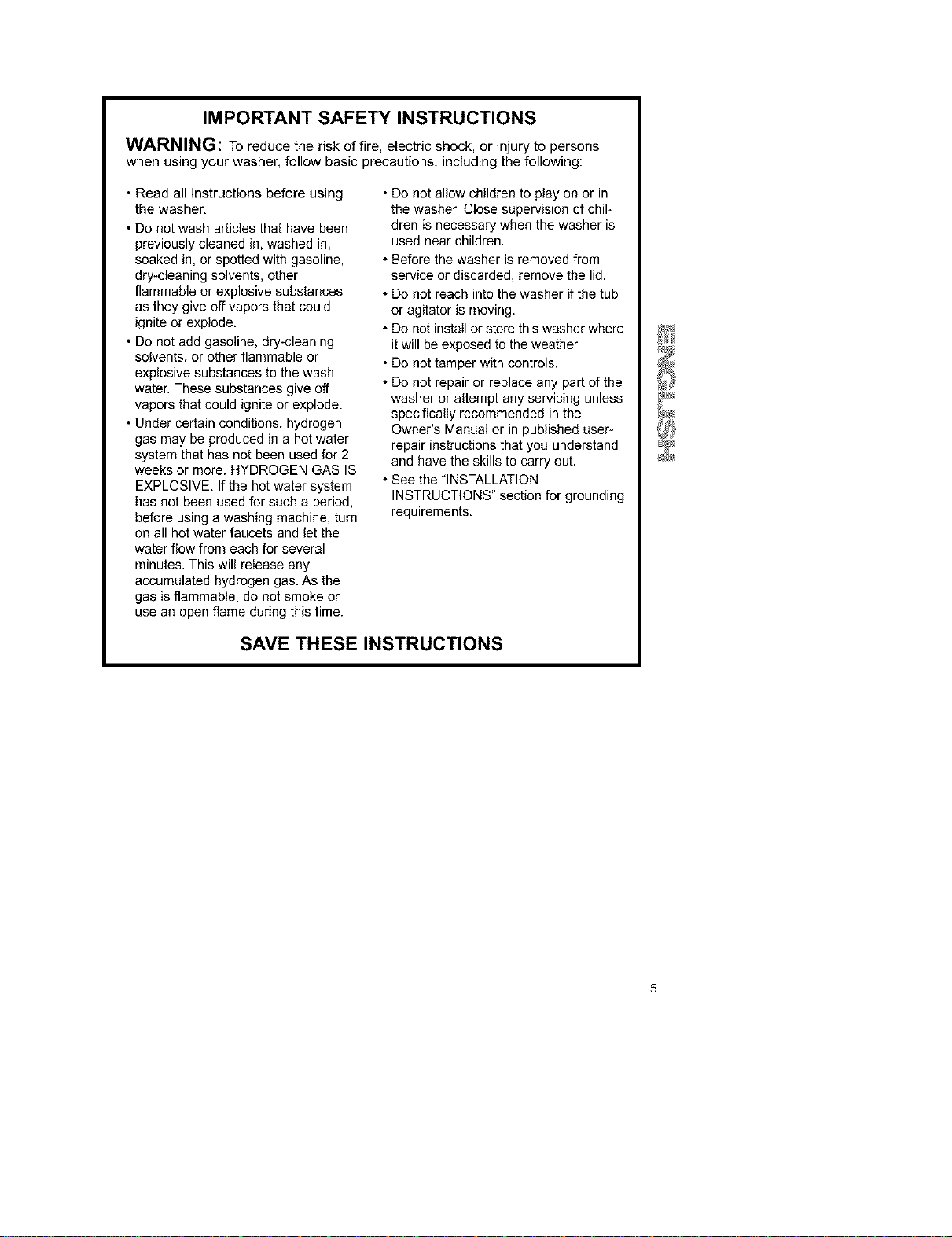

IMPORTANT SAFETY INSTRUCTIONS
WARNING: To reduce the risk of fire, electric shock, or injury to persons
when using your washer, follow basic precautions, including the following:
• Read all instructions before using
the washer,
• Do not wash articles that have been
previously cleaned in, washed in,
soaked in, or spotted with gasoline,
dry-cleaning solvents, other
flammable or explosive substances
as they give off vapors that could
ignite or explode,
• Do not add gasoline, dry-cleaning
solvents, or other flammable or
explosive substances to the wash
water These substances give off
vapors that could ignite or explode
• Under certain conditions, hydrogen
gas may be produced in a hot water
system that has not been used for 2
weeks or more HYDROGEN GAS IS
EXPLOSIVE, If the hot water system
has not been used for such a period,
before using a washing machine, turn
on all hot water faucets and let the
water flow from each for several
minutes, This will release any
accumulated hydrogen gas, As the
gas is flammable, do not smoke or
use an open flame during this time
• Do not allow children to play on or in
the washer Close supervision of chil-
dren is necessary when the washer is
used near children
• Before the washer is removed from
service or discarded, remove the lid
• Do not reach into the washer if the tub
or agitator is moving
• Do not install or store this washer where
it will be exposed to the weather
• Do not tamper with controls
• Do not repair or replace any part of the
washer or attempt any servicing unless
specifically recommended in the
Owner's Manual or in published user-
repair instructions that you understand
and have the skills to carry out
• See the "INSTALLATION
INSTRUCTIONS" section for grounding
requirements
SAVE THESEINSTRUCTIONS

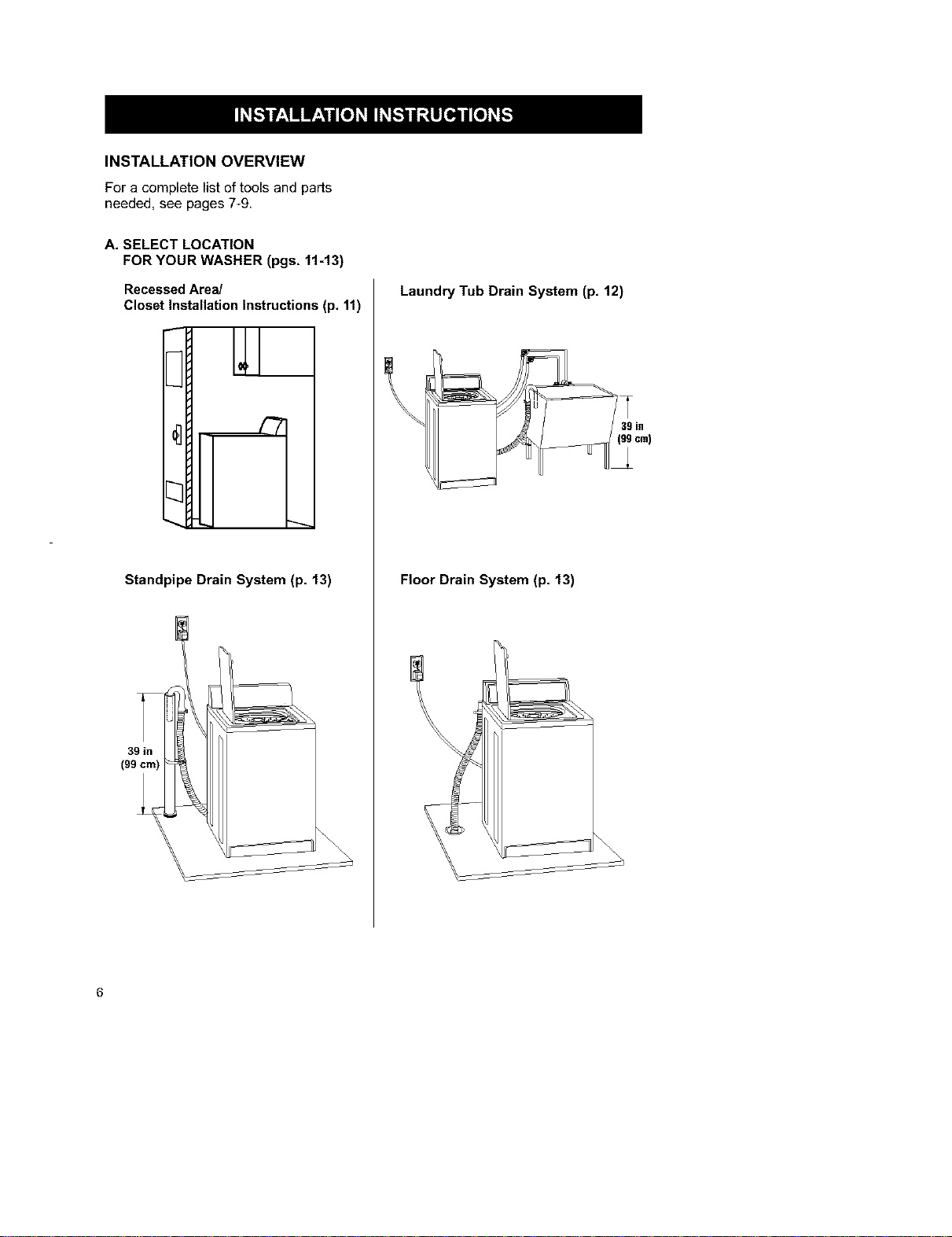

INSTALLATION OVERVIEW
For a complete list of tools and parts
needed, see pages 7-9.
A. SELECT LOCATION
FOR YOUR WASHER (pgs, 11-13)
Recessed Area/
Closet Installation Instructions (p. 11)
Standpipe Drain System (p, 13)
39 in
(99 cm)
Laundry Tub Drain System (p, 12)
(99 cm)
Floor Drain System (p, 13)

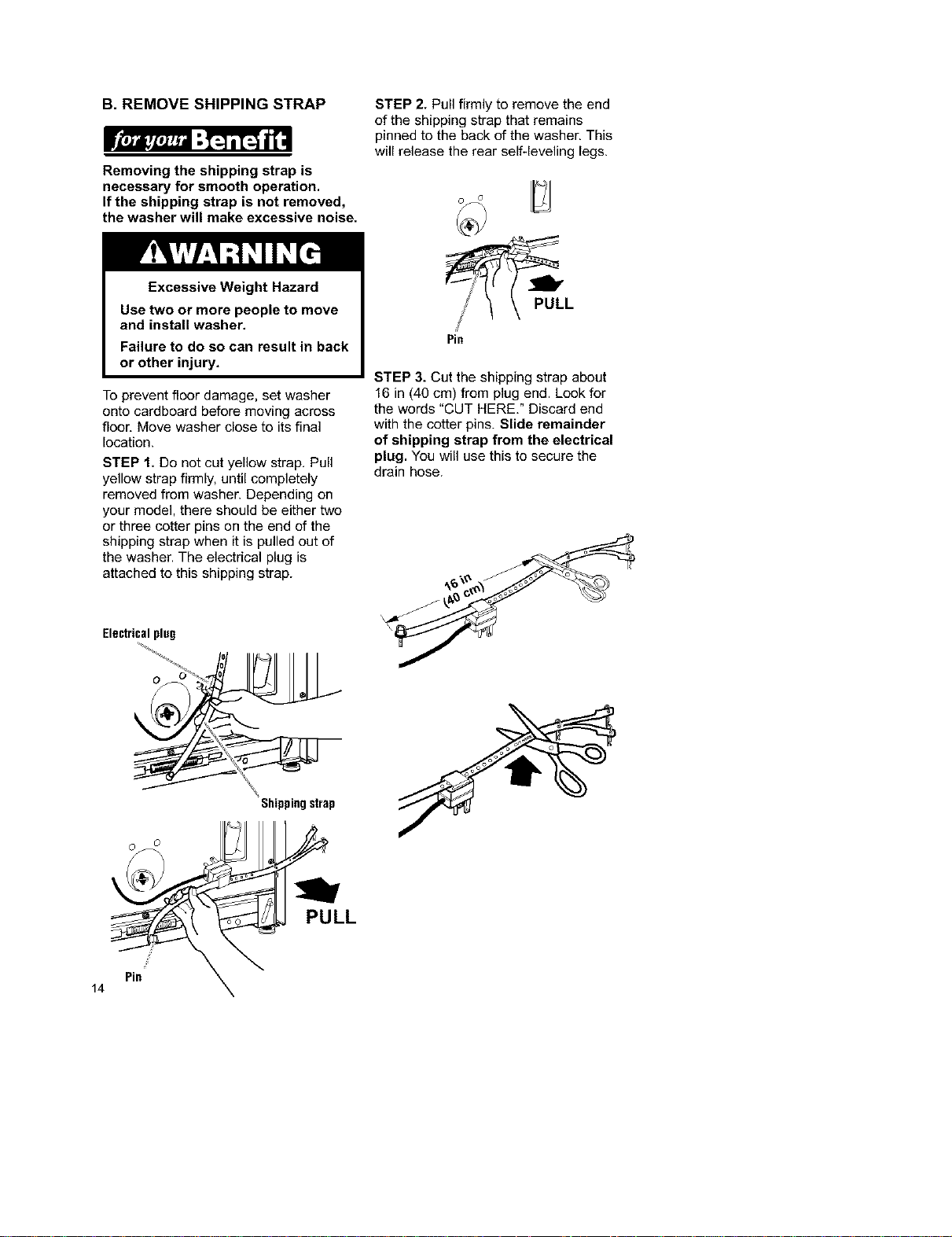

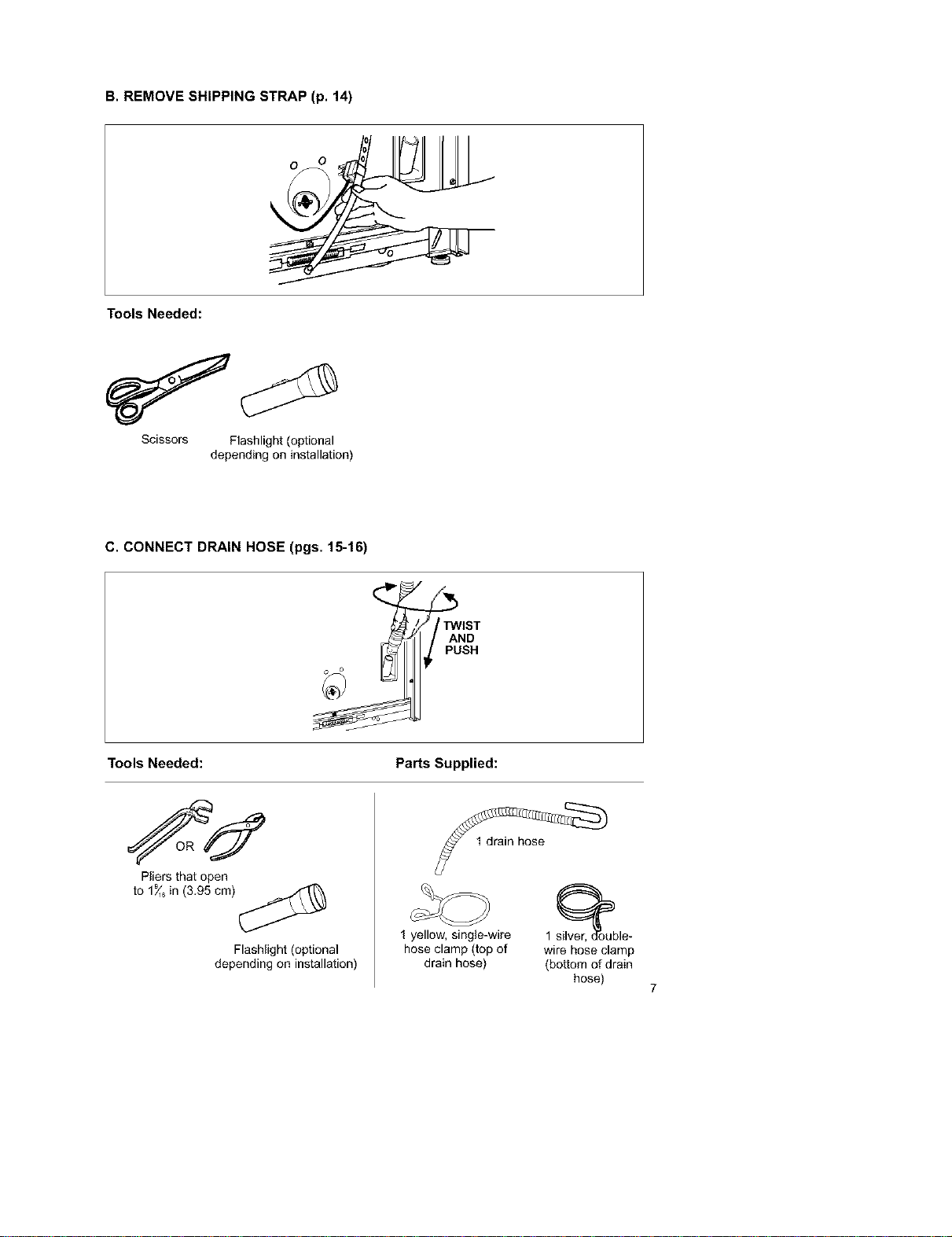

B.REMOVESHIPPINGSTRAP (p. 14)
Tools Needed:
Scissors Flashlight (optional
depending on installation)

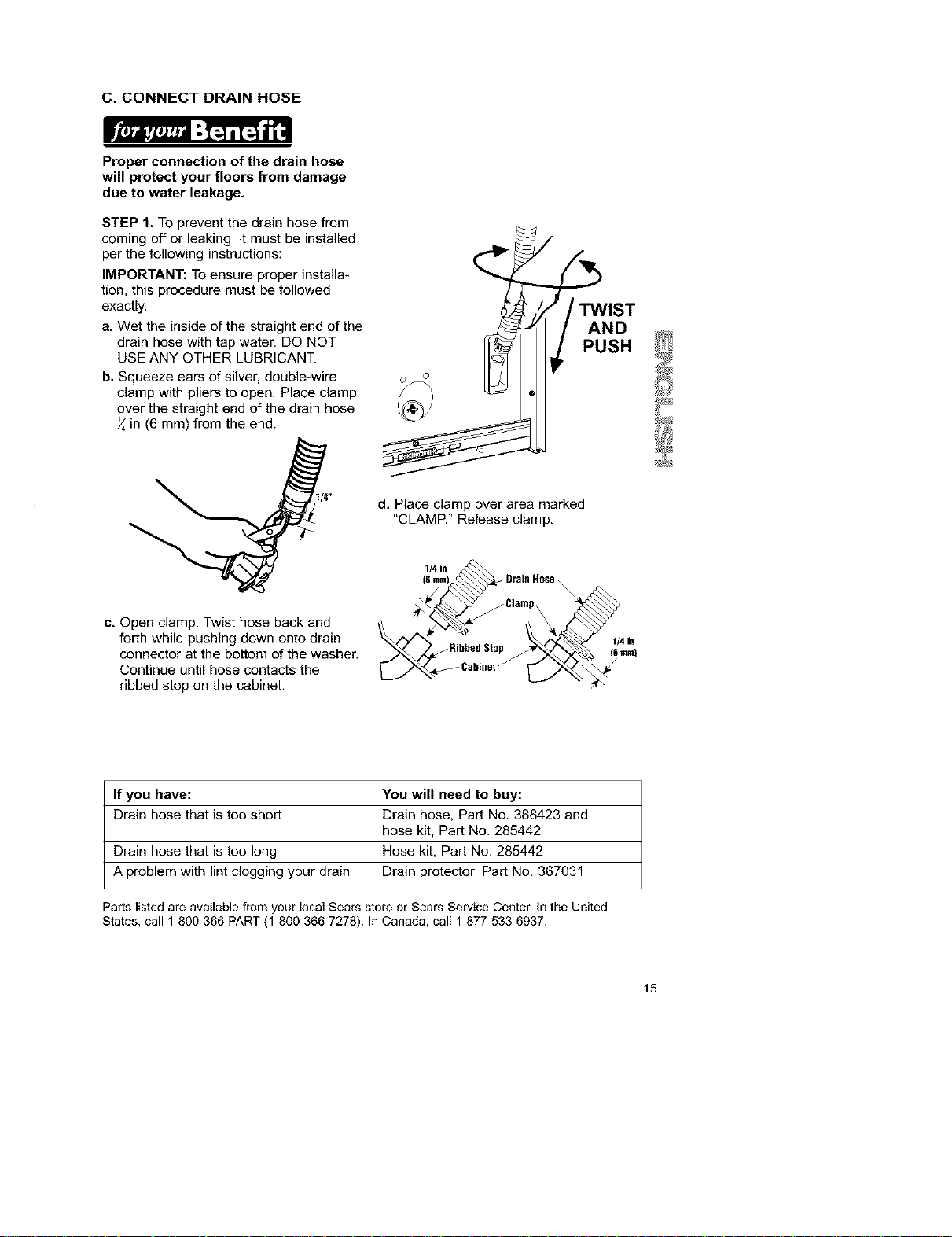

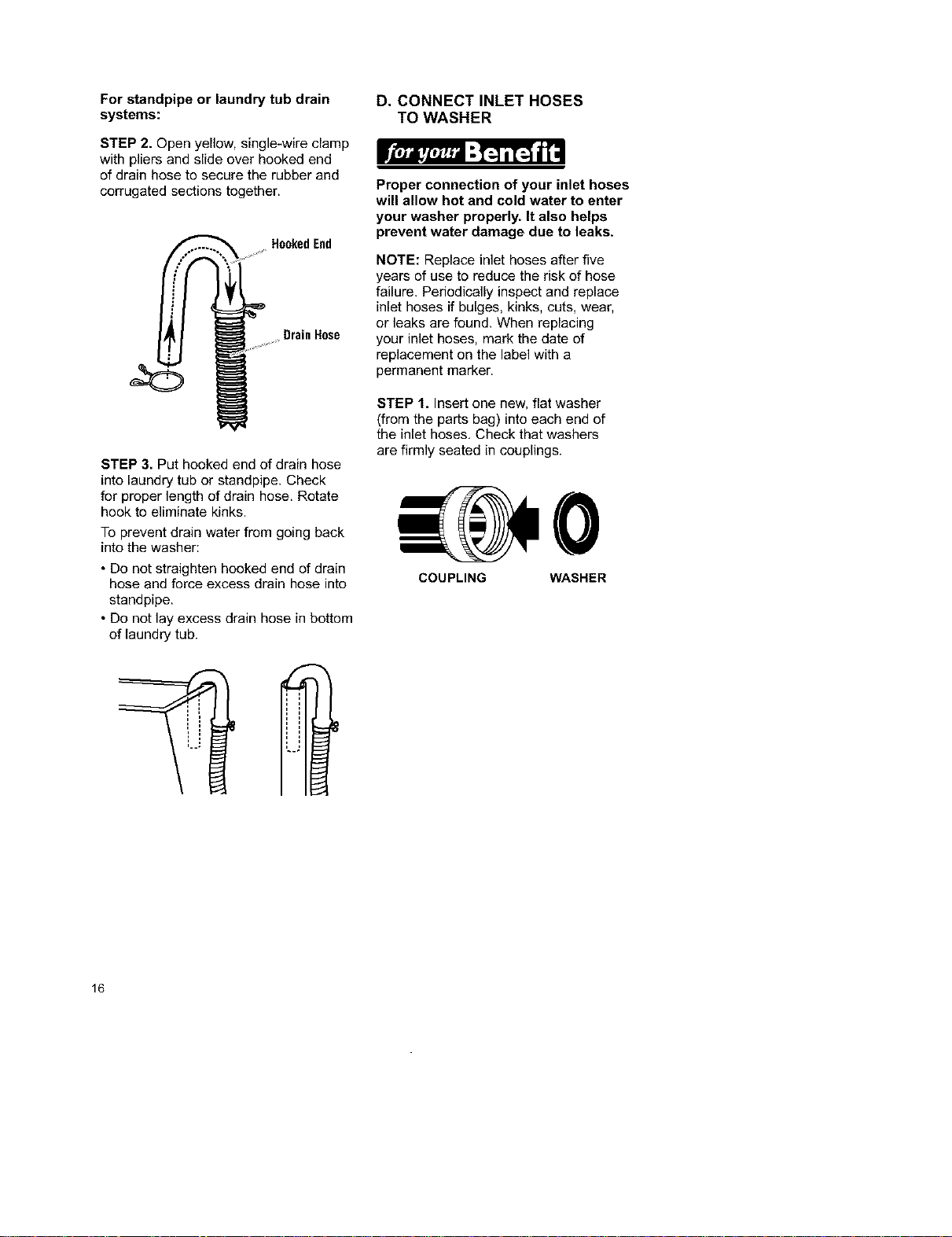

C. CONNECT DRAIN HOSE (pgs. 15-16)
NsDHIST
Tools Needed: Parts Supplied:
Pliers that open
to 1%ein (3.95 cm)
Flashlight (optional
depending on installation)
1 yellow, single-wire
hose clamp (top of
drain hose)
1 _ble-
wire hose clamp
(bottom of drain
hose)

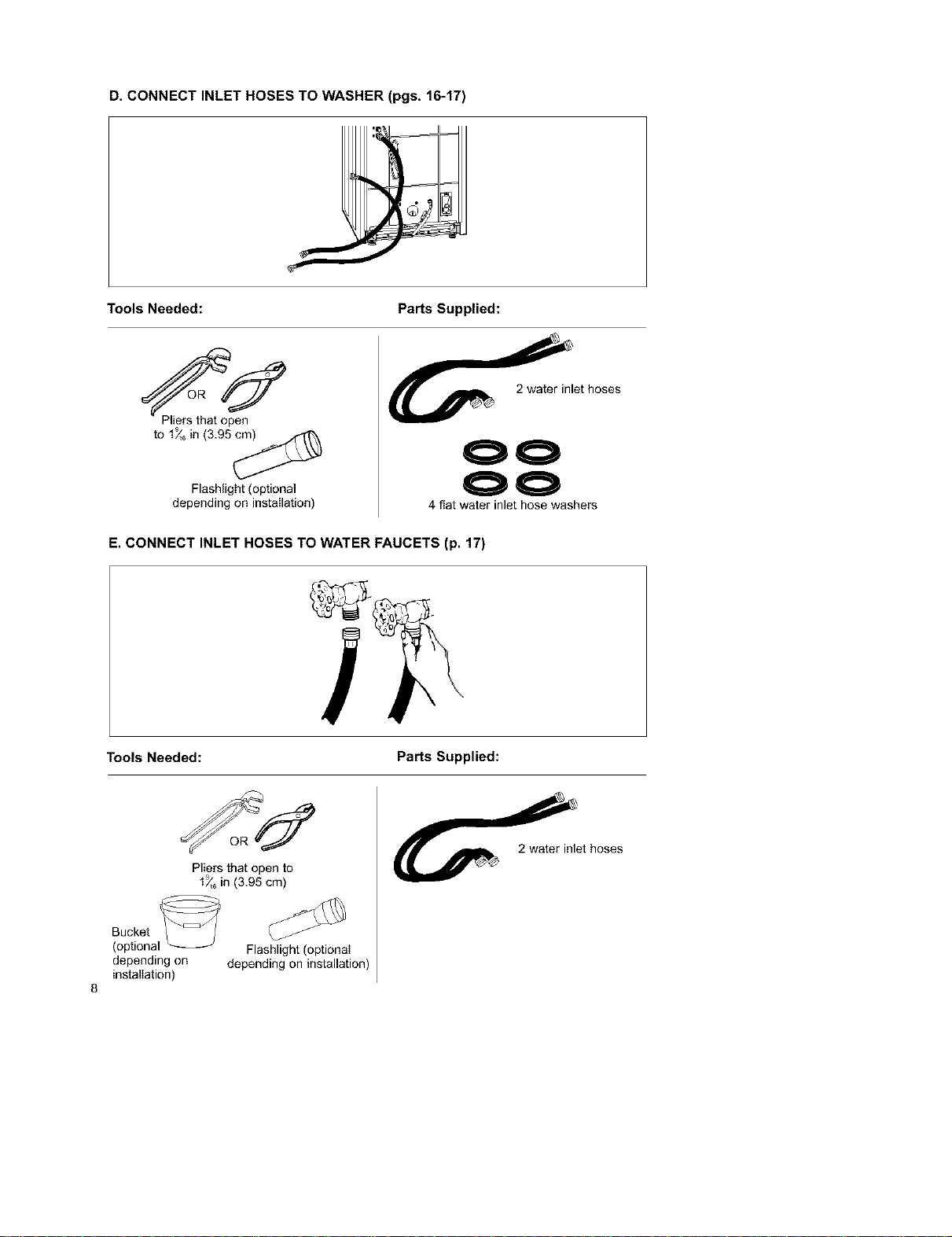

D, CONNECT INLET HOSES TO WASHER (pgs, 16-17)
Tools Needed: Parts Supplied:
Pliers that open
to 1_6in (3.95 _..i _
Flashlight (optional
depending on installation)
2 water inlet hoses
4 fiat water inlet hose washers

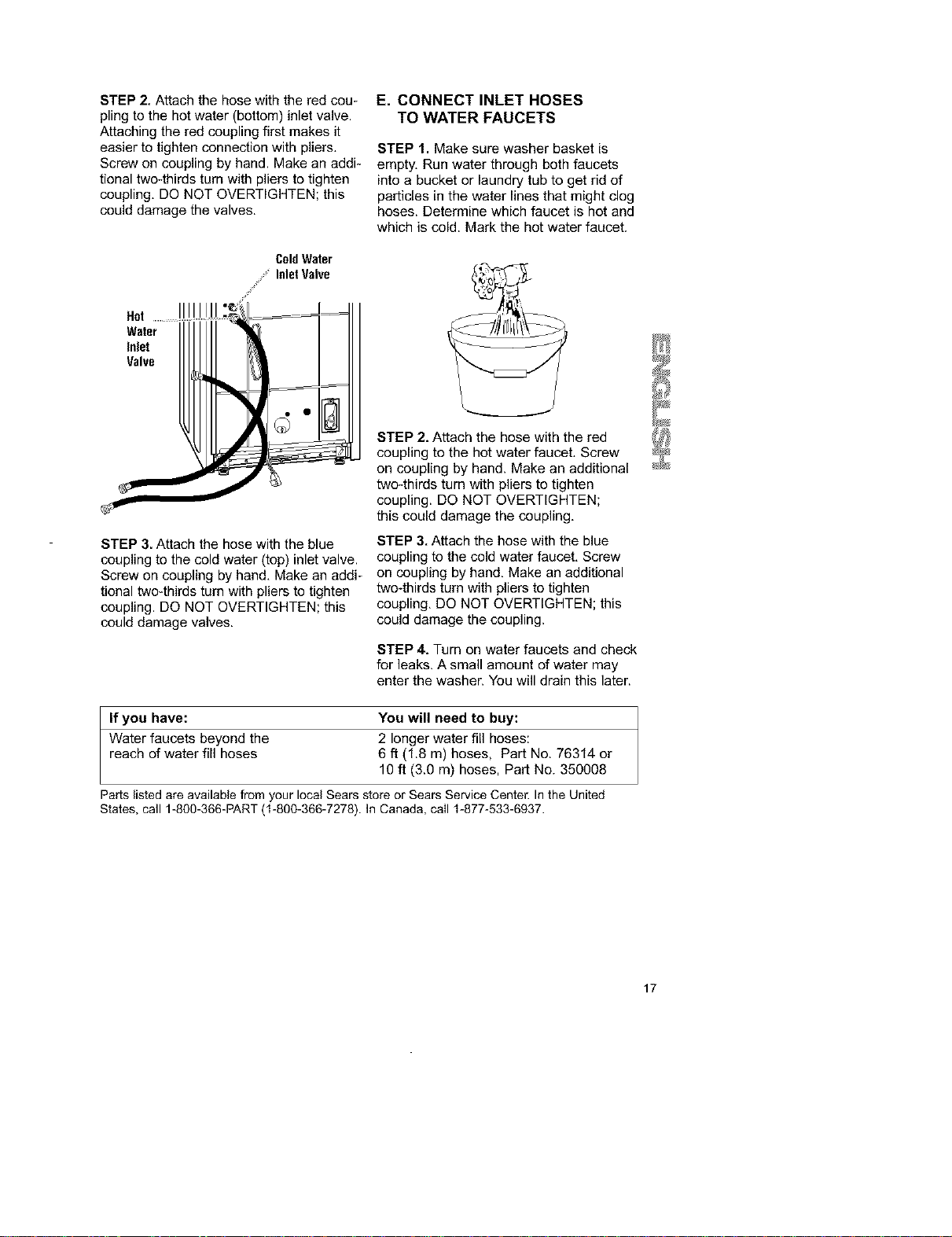

E. CONNECT INLET HOSES TO WATER FAUCETS (p. 17)
i
Tools Needed: Parts Supplied:
Pliers that open to
I_G in (3.95 cm)
Bucket _
(optional Flashlight (optional
depending on depending on installation)
installation)
2 water inlet hoses

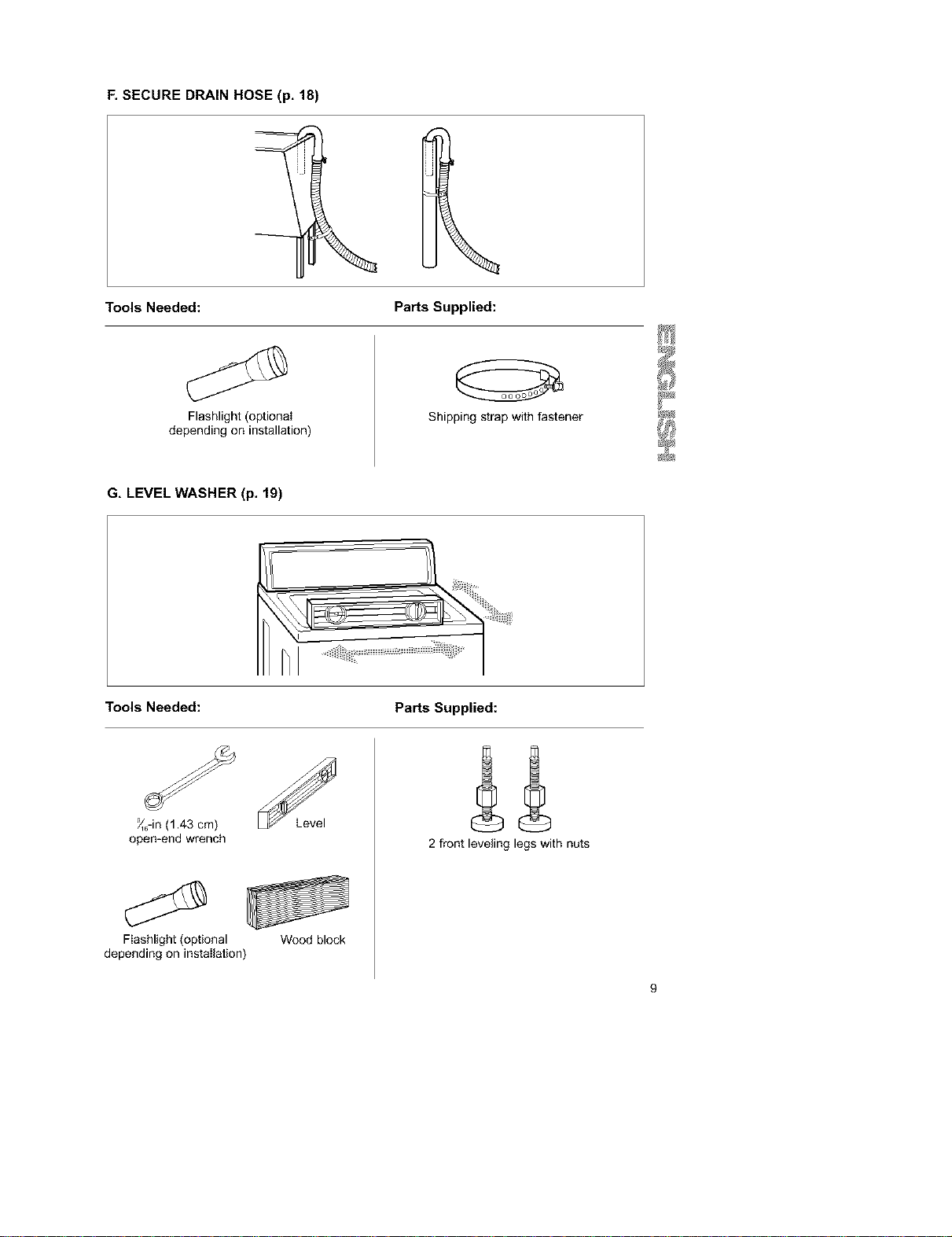

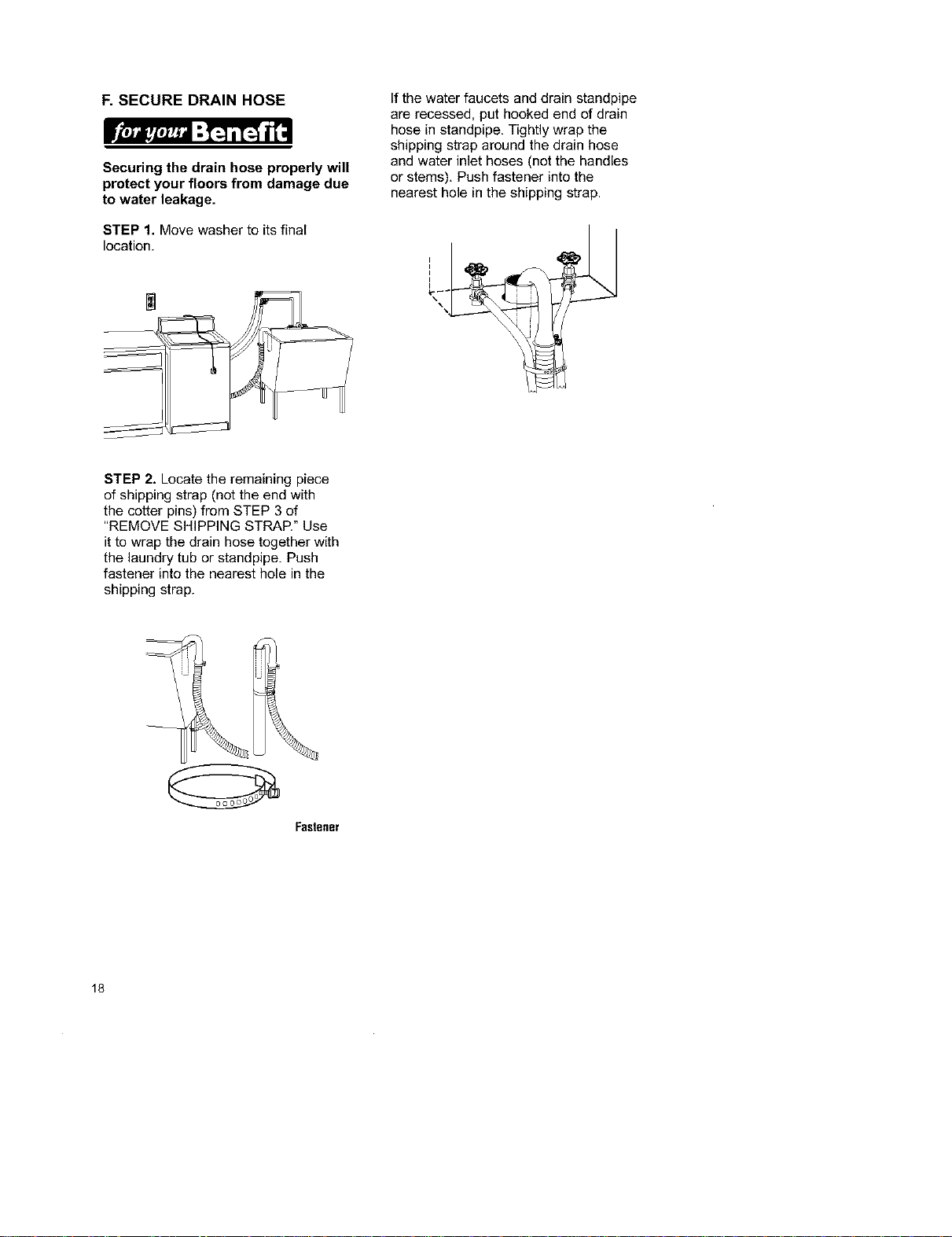

F. SECURE DRAIN HOSE (p. 18)
Tools Needed: Parts Supplied:
Flashlight (optionaI
depending on installation)
Shipping strap with fastener

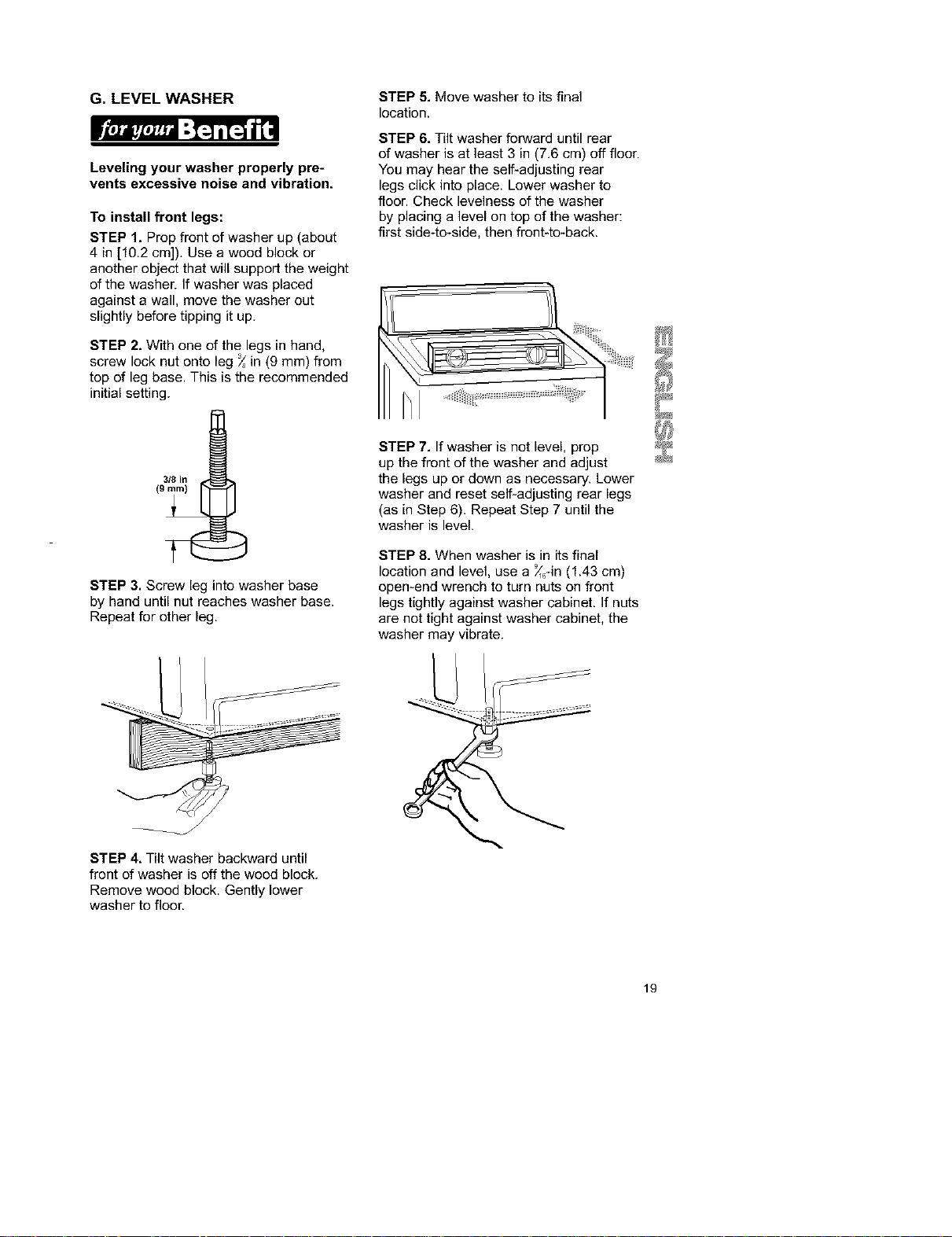

G. LEVEL WASHER (p. 19)
Tools Needed: Parts Supplied:
%6-in(1.43 cm)
open-end wrench
FIashlight (optional Wood block
depending on installation)
2 front leveling legs with nuts

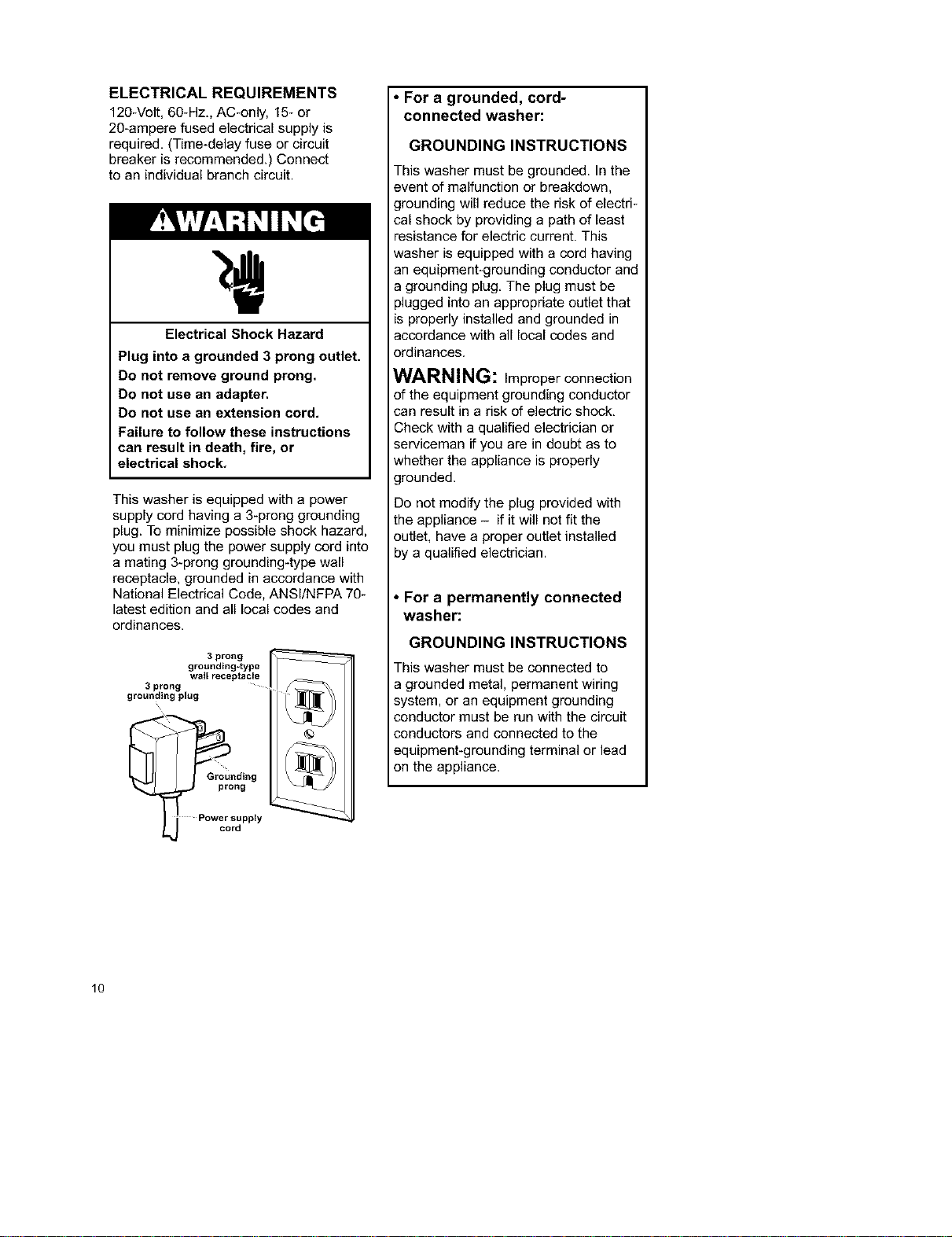

ELECTRICAL REQUIREMENTS
120-Volt, 60-Hz,, AC-only, 15- or
20-ampere fused electrical supply is
required, (Time-delay fuse or circuit
breaker is recommended.) Connect
to an individual branch circuit.
Electrical Shock Hazard
Plug into a grounded 3 prong outlet.
Do not remove ground prong.
Do not use an adapter.
Do not use an extension cord.
Failure to follow these instructions
can result in death, fire, or
electrical shock.
This washer is equipped with a power
supply cord having a 3-prong grounding
plug. To minimize possible shock hazard,
you must plug the power supply cord into
a mating 3-prong grounding-type wall
receptacle, grounded in accordance with
National Electrical Code, ANSI/NFPA 70-
latest edition and all local codes and
ordinances.
3 prong
grounding*type
wall receptacle
3 prong
grounding plug
Grounding
ng
Power supply
cord
, For a grounded, cord-
connected washer:
GROUNDING INSTRUCTIONS
This washer must be grounded. In the
event of malfunction or breakdown,
grounding will reduce the risk of electri-
cal shock by providing a path of least
resistance for electric current. This
washer is equipped with a cord having
an equipment-grounding conductor and
a grounding plug. The plug must be
plugged into an appropriate outlet that
is properly installed and grounded in
accordance with all local codes and
ordinances.
WARNING: Improper connection
of the equipment grounding conductor
can result in a risk of electric shock,
Check with a qualified electrician or
serviceman if you are in doubt as to
whether the appliance is properly
grounded.
Do not modify the plug provided with
the appliance - if it will not fit the
outlet, have a proper outlet installed
by a qualified electrician.
, For a permanently connected
washer:
GROUNDING INSTRUCTIONS
This washer must be connected to
a grounded metal, permanent wiring
system, or an equipment grounding
conductor must be run with the circuit
conductors and connected to the
equipment-grounding terminal or lead
on the appliance.
10

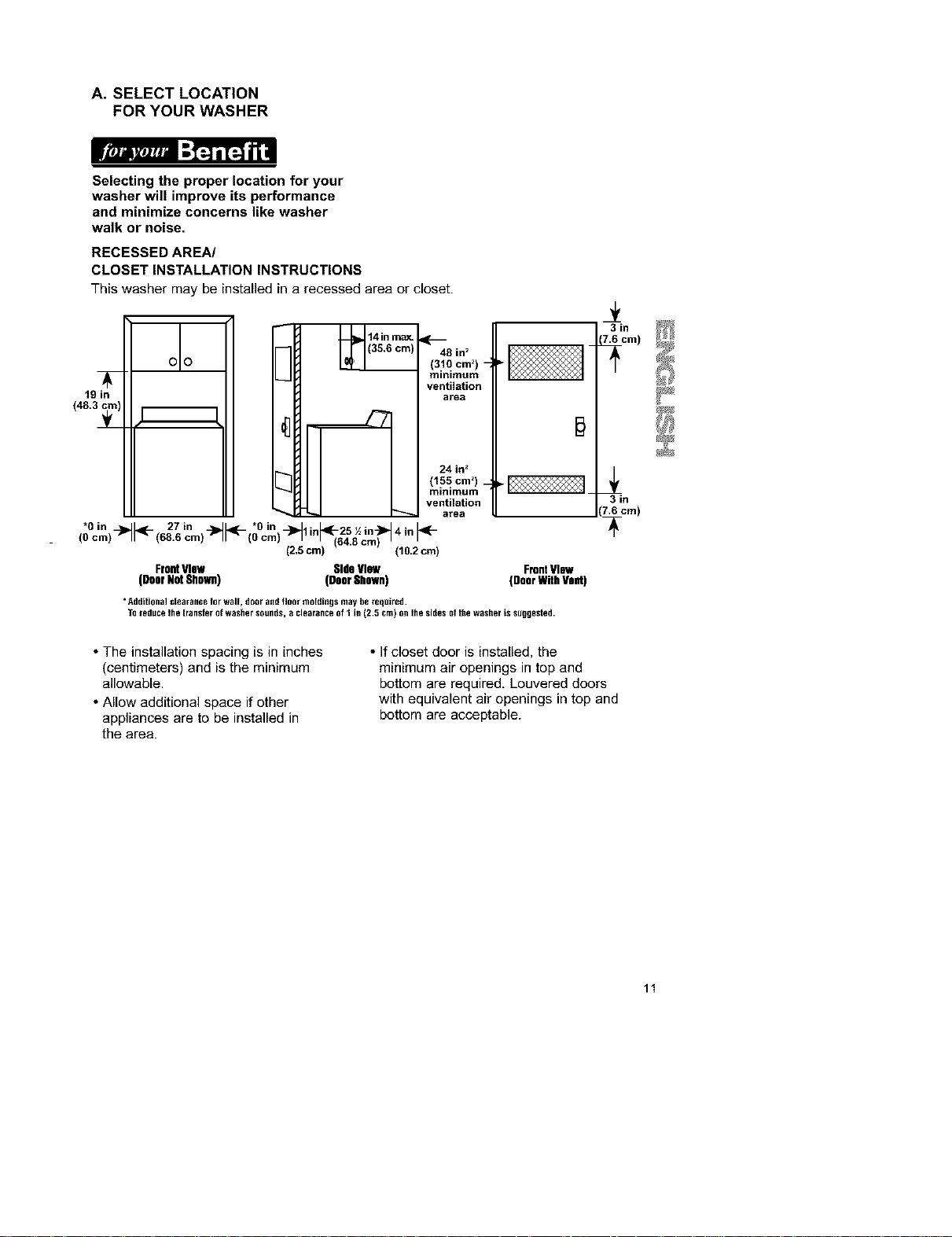

A. SELECT LOCATION
FOR YOUR WASHER
Selecting the proper location for your
washer will improve its performance
and minimize concerns like washer
walk or noise.
RECESSED AREA/
CLOSET INSTALLATION INSTRUCTIONS
This washer may be installed in a recessed area or closet.
oo
qc
19 in
*0in 27in *0in 1in 25_in 4in
(2.5 cm) " " '" (10.2 cm)
FromView SideView
(DoorNotShown) (DoorShown)
48 in2
(310 crn2) -
minimum
ventilation
area
24 in 2
(t 55 cm _) _
minimum
ventilation
area
FrontView
(DoorWithVent)
* Additional clearance for wall, door and floor moldings may de required.
Toreduce the transfer ol washer sounds, _ clearance of 1 in (2.5 cm) on the sides ol the washer is suggested.
3 in
(__cm)
• The installation spacing is in inches
(centimeters) and is the minimum
allowable.
• Allow additional space if other
appliances are to be installed in
the area.
• If closet door is installed, the
minimum air openings in top and
bottom are required, Louvered doors
with equivalent air openings in top and
bottom are acceptable.
11

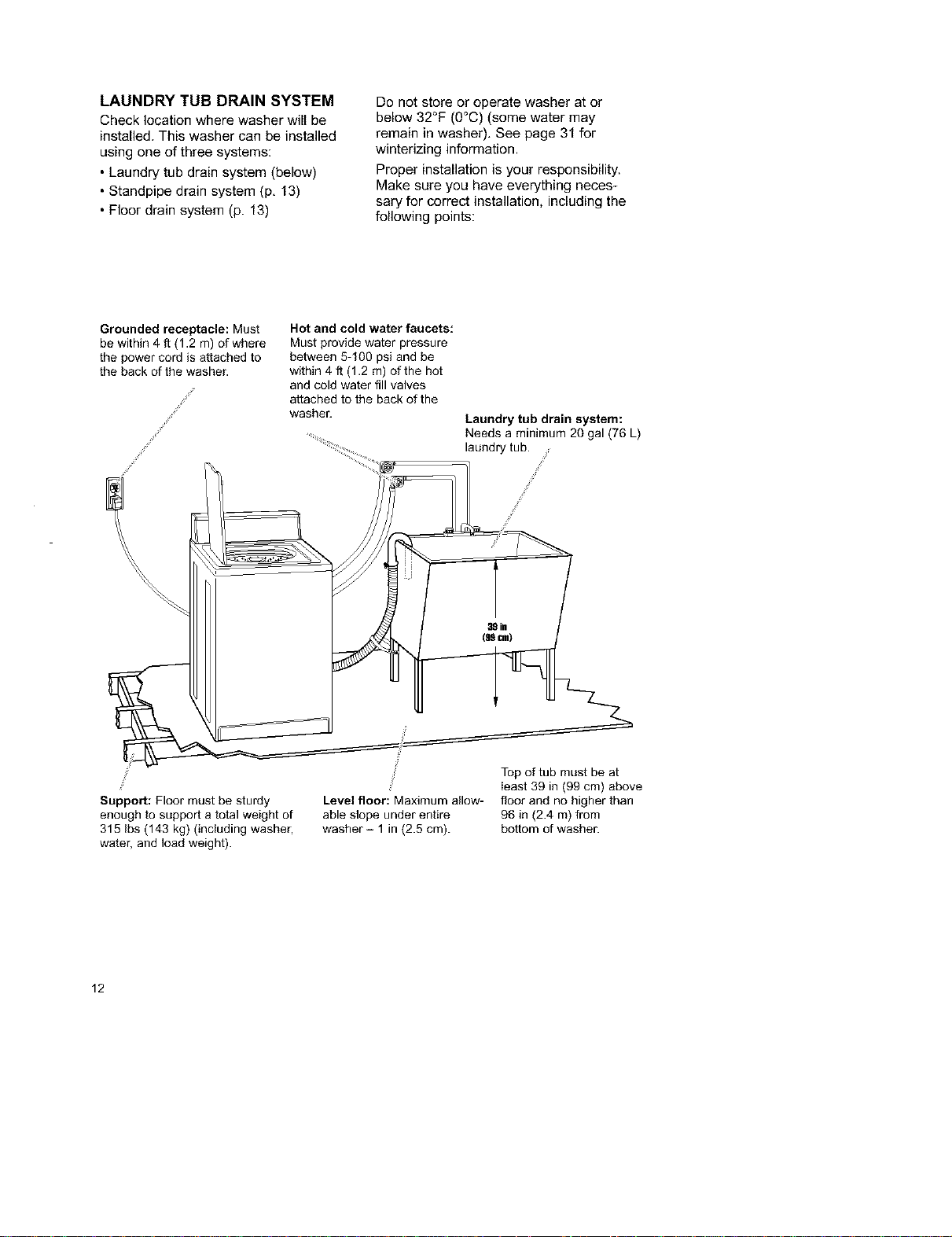

LAUNDRY TUB DRAIN SYSTEM
Check location where washer will be
installed. This washer can be installed
using one of three systems:
• Laundry tub drain system (below)
• Standpipe drain system (p. 13)
• Floor drain system (p. 13)
Do not store or operate washer at or
below 32°F (0°C) (some water may
remain in washer). See page 31 for
winterizing information.
Proper installation is your responsibility.
Make sure you have everything neces-
sary for correct installation, including the
following points:
Grounded receptacle: Must
be within 4 ft (1.2 m) of where
the power cord is attached to
the back of the washer.
Hot and cold water faucets:
Must provide water pressure
between 5-100 psi and be
within 4 ft (1.2 m) of the hot
and cold water fill valves
attached to the back of the
washeE
Laundry tub drain system:
Needs a minimum 20 gal (76 L)
J
Support: Floor must be sturdy
enough to support a total weight of
315 Ibs (143 kg) (including washer,
water, and load weight).
Level floor: Maximum allow-
able slope under entire
washer - 1 in (2.5 cm).
Top of tub must be at
least 39 in (99 cm) above
loot and no higher than
96 in (2.4 m) from
bottom of washer.
12

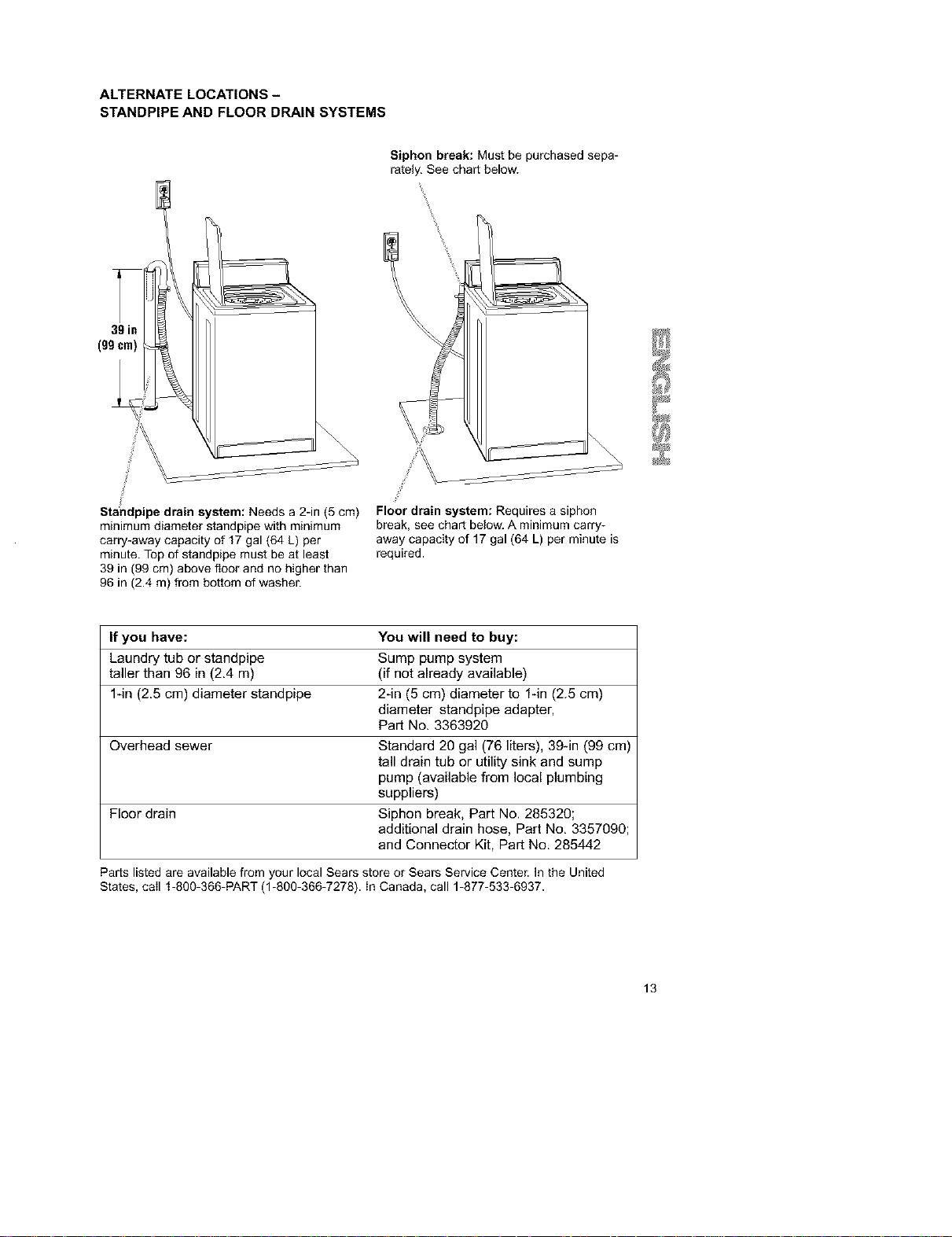

ALTERNATE LOCATIONS -
STANDPIPE AND FLOOR DRAIN SYSTEMS
Siphon break: Must be purchased sepa-
rately. See chart below.
39 in
(99 cm)
Standpipe drain system: Needs a 24n (5 cm)
minimum diameter standpipe with minimum
carry-away capacity of 17 gal (64 L) per
minute. Top of standpipe must be at least
39 in (99 cm) above Boor and no higher than
96 in (2.4 m) from bottom of washer'.
Floor drain system: Requires a siphon
break, see chart below. A minimum carry-
away capacity of 17 gal (64 L) per minute is
required.
If you have: You will need to buy:
Laundry tub or standpipe Sump pump system
taller than 96 in (2,4 m) (if not already available)
1-in (2,5 cm) diameter standpipe 2-in (5 cm) diameter to 1-in (2.5 cm)
diameter standpipe adapter,
Part No, 3363920
Overhead sewer Standard 20 gal (76 liters), 39-in (99 cm)
tall drain tub or utility sink and sump
pump (available from local plumbing
suppliers)
Floor drain Siphon break, Part No, 285320;
additional drain hose, Part No, 3357090;
and Connector Kit, Part No, 285442
Parts listed are available from your local Sears store or Sears Service Cente[ In the United
States, call 1-800-366-PART (1-800-366-7278). In Canada, call 1-877-533-6937.
13
B. REMOVE SHIPPING STRAP
Removing the shipping strap is
necessary for smooth operation.
If the shipping strap is not removed,
the washer will make excessive noise.
STEP 2. Pull firmly to remove the end
of the shipping strap that remains
pinned to the back of the washer. This
will release the rear self-leveling legs.
Pin
To prevent floor damage, set washer
onto cardboard before moving across
floor, Move washer close to its final
location.
STEP 1. Do not cut yellow strap, Pull
yellow strap firmly, until completely
removed from washer. Depending on
your model, there should be either two
or three cotter pins on the end of the
shipping strap when it is pulled out of
the washer. The electrical plug is
attached to this shipping strap.
Electricalplug
Shippingstrap
© ©
STEP 3. Cut the shipping strap about
16 in (40 cm) from plug end. Look for
the words "CUT HERE," Discard end
with the cotter pins. Slide remainder
of shipping strap from the electrical
plug. You will use this to secure the
drain hose.
PULL
Pin
14
C. CONNECTORAINHOSE
Proper connection of the drain hose
will protect your floors from damage
due to water leakage,
STEP 1. To prevent the drain hose from
coming off or leaking, it must be installed
per the following instructions:
IMPORTANT: To ensure proper installa-
tion, this procedure must be followed
exactly.
a. Wet the inside of the straight end of the
drain hose with tap water. DO NOT
USE ANY OTHER LUBRICANT.
b. Squeeze ears of silver, double-wire
clamp with pliers to open. Place clamp
over the straight end of the drain hose
Y_in (6 mm) from the end.
c, Open clamp. Twist hose back and
forth while pushing down onto drain
connector at the bottom of the washer.
Continue until hose contacts the
ribbed stop on the cabinet.
ITWIST
AND
PUSH
d. Place clamp over area marked
"CLAMP." Release clamp.
1/4 in
_ Clal,qi_lj(6 ram) Drain Hose
If you have: You will need to buy:
Drain hose that is too short Drain hose, Part No. 388423 and
hose kit, Part No. 285442
Drain hose that is too long Hose kit, Part No. 285442
A problem with lint clogging your drain Drain protector, Part No. 367031
Parts listed are available from your local Sears store or Sears Service Center. In the United
States, call 1-800-366-PART (1-800-366-7278). In Canada, calI 1-877-533-6937.
15
For standpipe or laundry tub drain
systems:
STEP 2. Open yellow, single-wire clamp
with pliers and slide over hooked end
of drain hose to secure the rubber and
corrugated sections together.
HookedEnd
DrainHose
STEP 3. Put hooked end of drain hose
into laundry tub or standpipe. Check
for proper length of drain hose. Rotate
hook to eliminate kinks.
To prevent drain water from going back
into the washer:
• Do not straighten hooked end of drain
hose and force excess drain hose into
standpipe.
• Do not lay excess drain hose in bottom
of laundry tub.
D. CONNECTINLETHOSES
TO WASHER
Proper connection of your inlet hoses
will allow hot and cold water to enter
your washer properly. It also helps
prevent water damage due to leaks,
NOTE: Replace inlet hoses after five
years of use to reduce the risk of hose
failure. Periodically inspect and replace
inlet hoses if bulges, kinks, cuts, wear,
or leaks are found. When replacing
your inlet hoses, mark the date of
replacement on the label with a
permanent marker.
STEP 1. Insert one new, flat washer
(from the parts bag) into each end of
the inlet hoses. Check that washers
are firmly seated in couplings.
0
COUPLING WASHER
16
STEP 2. Attach the hose with the red cou-
pling to the hot water (bottom) inlet valve.
Attaching the red coupling first makes it
easier to tighten connection with pliers.
Screw on coupling by hand. Make an addF
tional two4hirds turn with pliers to tighten
coupling, DO NOT OVERTIGHTEN; this
could damage the valves.
ColdWater
Inlet Valve
E. CONNECTINLETHOSES
TO WATER FAUCETS
STEP 1. Make sure washer basket is
empty, Run water through both faucets
into a bucket or laundry tub to get rid of
particles in the water lines that might clog
hoses. Determine which faucet is hot and
which is cold. Mark the hot water faucet.
Hot
Water
Inlet
Valve
STEP 3. Attach the hose with the blue
coupling to the cold water (top) inlet valve.
Screw on coupling by hand, Make an addi-
tional two4hirds turn with pliers to tighten
coupling. DO NOT OVERTIGHTEN; this
could damage valves.
STEP 2. Attach the hose with the red
coupling to the hot water faucet, Screw
on coupling by hand. Make an additional
two-thirds turn with pliers to tighten
coupling. DO NOT OVERTIGHTEN;
this could damage the coupling,
STEP 3. Attach the hose with the blue
coupling to the cold water faucet, Screw
on coupling by hand, Make an additional
two4hirds turn with pliers to tighten
coupling, DO NOT OVERTIGHTEN; this
could damage the coupling.
STEP 4. Turn on water faucets and check
for leaks. A small amount of water may
enter the washer. You will drain this later.
If you have: You will need to buy:
Water faucets beyond the 2 longer water fill hoses:
reach of water fill hoses 6 ft (1,8 m) hoses, Part No, 76314 or
10 ft (3,0 m) hoses, Part No. 350008
Parts listed are available from your local Sears store or Sears Service Center. In the United
States, call 1-800-366-PART (1-800-366-7278). In Canada, call 1-877-533-6937.
17
F. SECURE DRAIN HOSE
_l'toJ.-,teJ_,_l"I_] I[=) _"
Securing the drain hose properly will
protect your floors from damage due
to water leakage.
STEP 1. Move washer to its final
location.
If the water faucets and drain standpipe
are recessed, put hooked end of drain
hose in standpipe, Tightly wrap the
shipping strap around the drain hose
and water inlet hoses (not the handles
or stems), Push fastener into the
nearest hole in the shipping strap.
i i
" i
STEP 2. Locate the remaining piece
of shipping strap (not the end with
the cotter pins) from STEP 3 of
"REMOVE SHIPPING STRAP." Use
it to wrap the drain hose together with
the laundry tub or standpipe. Push
fastener into the nearest hole in the
shipping strap.
Fastener
18
G. LEVEL WASHER
Leveling your washer properly pre-
vents excessive noise and vibration,
To install front legs:
STEP 1. Prop front ofwasher up (about
4 in [10.2 cm]), Use a wood block or
another object that will support the weight
of the washer. If washer was placed
against a wall, move the washer out
slightly before tipping it up.
STEP 2. With one of the legs in hand,
screw lock nut onto leg %in (9 ram) from
top of leg base. This is the recommended
initial setting.
STEP 5. Move washer to its final
location,
STEP 6. Tilt washer forward until rear
of washer is at least 3 in (7,6 cm) off floor.
You may hear the self-adjusting rear
legs click into place. Lower washer to
floor. Check levelness of the washer
by placing a level on top of the washer:
first side4o-side, then front4o-back.
318 in
(9 ram)
STEP 3. Screw leg into washer base
by hand until nut reaches washer base.
Repeat for other leg.
STEP 7. If washer is not level, prop
up the front of the washer and adjust
the legs up or down as necessary. Lower
washer and reset self-adjusting rear legs
(as in Step 6). Repeat Step 7 until the
washer is level.
STEP 8. When washer is in its final
location and level, use a %_-in(1.43 cm)
open-end wrench to turn nuts on front
legs tightly against washer cabinet. If nuts
are not tight against washer cabinet, the
washer may vibrate.
STEP 4. Tilt washer backward until
front of washer is off the wood block.
Remove wood block. Gently lower
washer to floor.
19

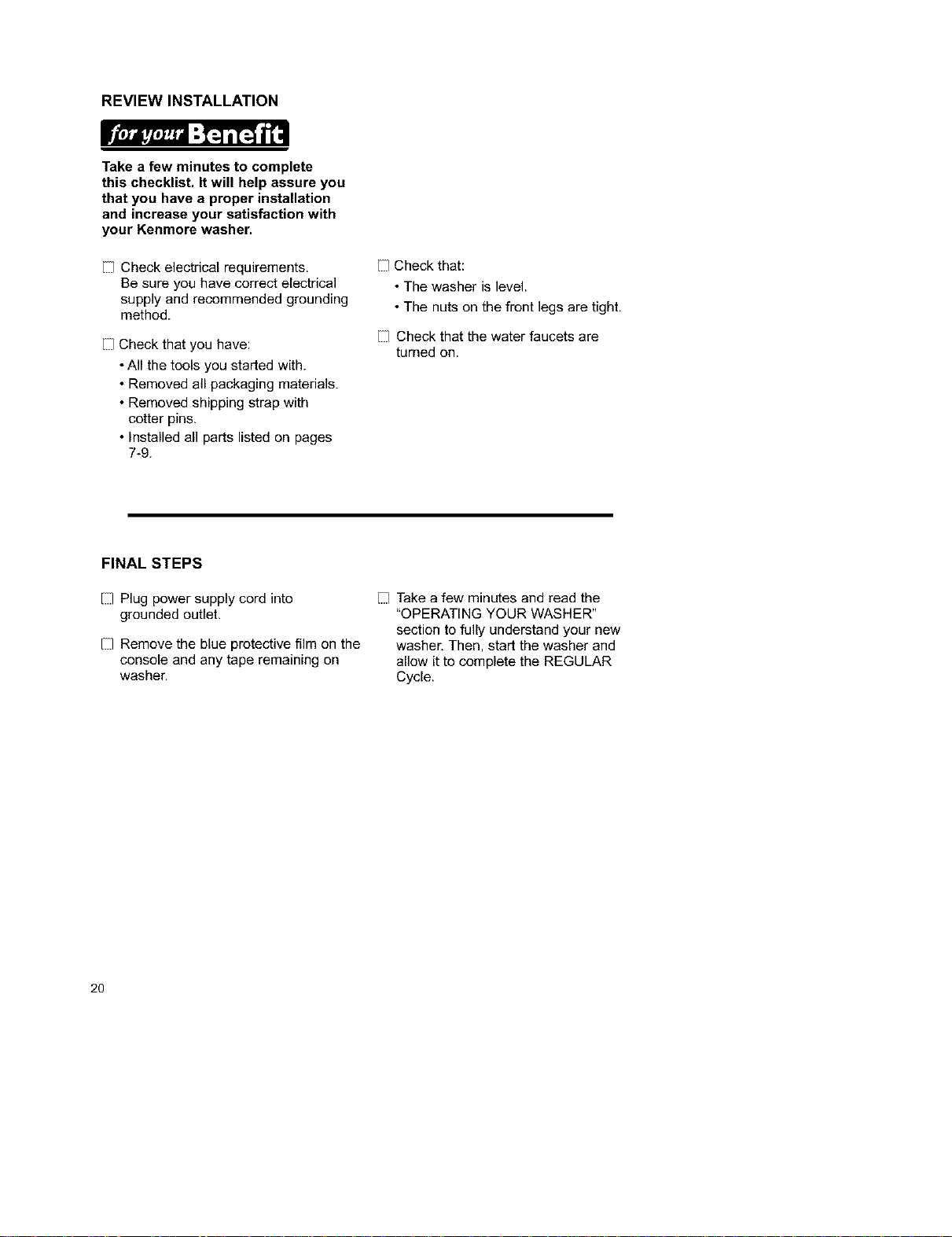

REVIEW INSTALLATION
Take a few minutes to complete
this checklist, it will help assure you
that you have a proper installation
and increase your satisfaction with
your Kenmore washer.
f Check electrical requirements.
Be sure you have correct electrical
supply and recommended grounding
method.
f Check that you have:
• All the tools you started with.
• Removed all packaging materials.
• Removed shipping strap with
cotter pins.
• Installed all parts listed on pages
7-9.
f Check that:
• The washer is level.
• The nuts on the front legs are tight.
f Check that the water faucets are
turned on.
FINAL STEPS
[ Plug power supply cord into
grounded outlet.
[ Remove the blue protective film on the
console and any tape remaining on
washer.
Take a few minutes and read the
"OPERATING YOUR WASHER"
section to fully understand your new
washer, Then, start the washer and
allow it to complete the REGULAR
Cycle.
20
To get the maximum cleaning and
fabric care from your washer, please
read and follow these instructions.
NOTE: The drawings in this section show
the basic features of all models covered
by this manual, Refer to the supplied
"Feature Sheet" for your washer's particu-
lar features.
Explosion Hazard
Never place items in the washer
that are dampened with gasoline
or other flammable fluids.
No washer can completely
remove oil.
Do not dry anything that has ever
had any type of oil on it (including
cooking oils).
Failure to follow these instructions
can result in death, explosion,
or fire.
LID INSTRUCTIONS
These instructions are found under the
lid of your washer.
Add measured detergent to the washer basket.
Make the selections for these washer controls.
1. SELECT & ADJUST
• WATER LEVEL Adjust to load size.
• WASH / RINSE TEMP ....... Selection is based on type of fabric and soil.
2. SELECT CYCLE Choose more time for heavily soiled loads and
less time for lightly soiled loads.
3. PULL TIMER TO START ..... Lid must be closed to complete cycle. -........
PUSH TIMER TO STOP
21

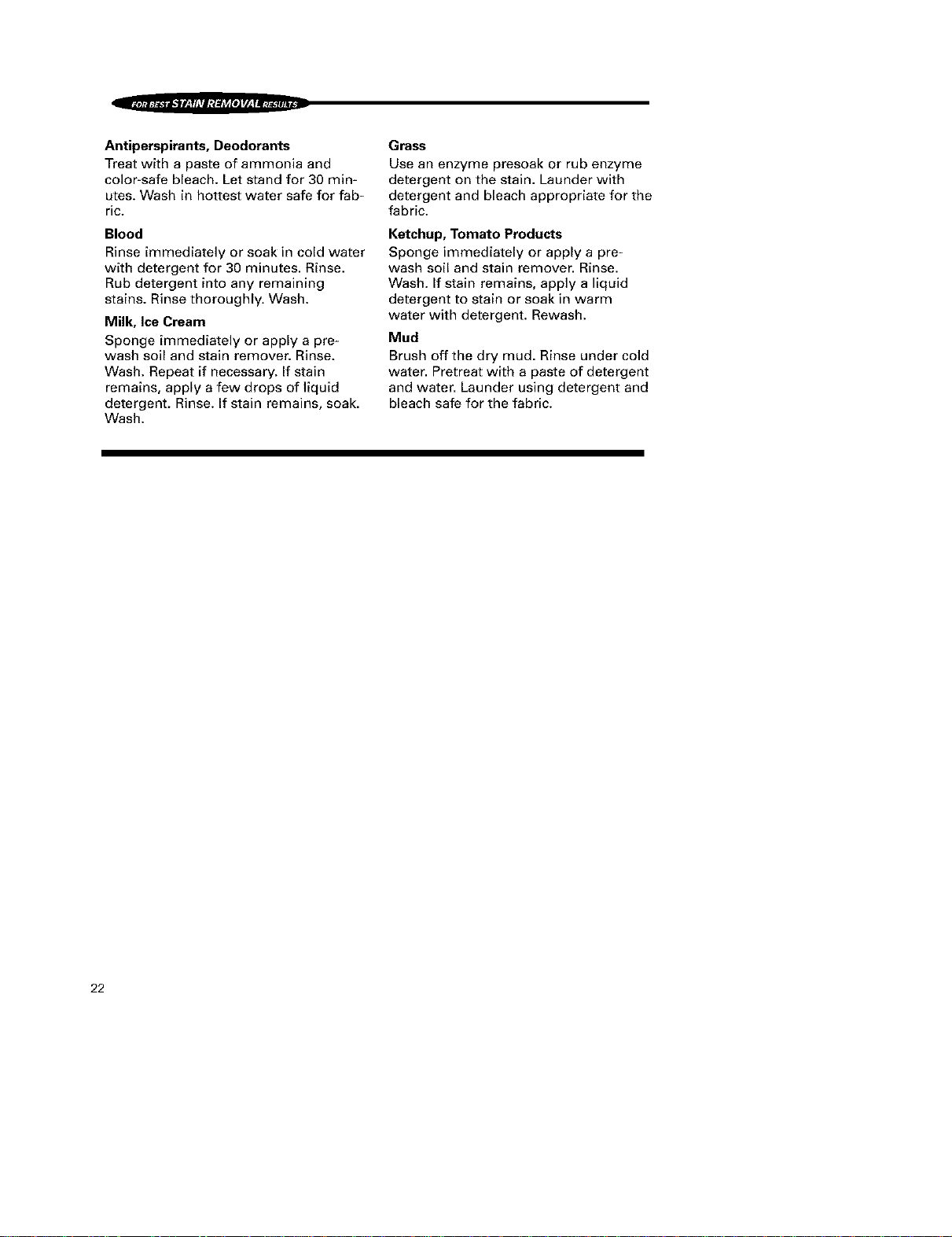

Antiperspirants, Deodorants
Treat with a paste of ammonia and
color safe bleach. Let stand for 30 min-
utes. Wash in hottest water safe for fab-
ric.
Blood
Rinse immediately or soak in cold water
with detergent for 30 minutes. Rinse.
Rub detergent into any remaining
stains. Rinse thoroughly. Wash.
Milk, Ice Cream
Sponge immediately or apply a pre-
wash soil and stain remover. Rinse.
Wash. Repeat if necessary. If stain
remains, apply a few drops of liquid
detergent. Rinse. If stain remains, soak.
Wash.
Grass
Use an enzyme presoak or rub enzyme
detergent on the stain. Launder with
detergent and bleach appropriate for the
fabric.
Ketchup, Tomato Products
Sponge immediately or apply a pre-
wash soil and stain remover. Rinse.
Wash. If stain remains, apply a liquid
detergent to stain or soak in warm
water with detergent. Rewash.
Mud
Brush off the dry mud. Rinse under cold
water. Pretreat with a paste of detergent
and water. Launder using detergent and
bleach safe for the fabric.
22

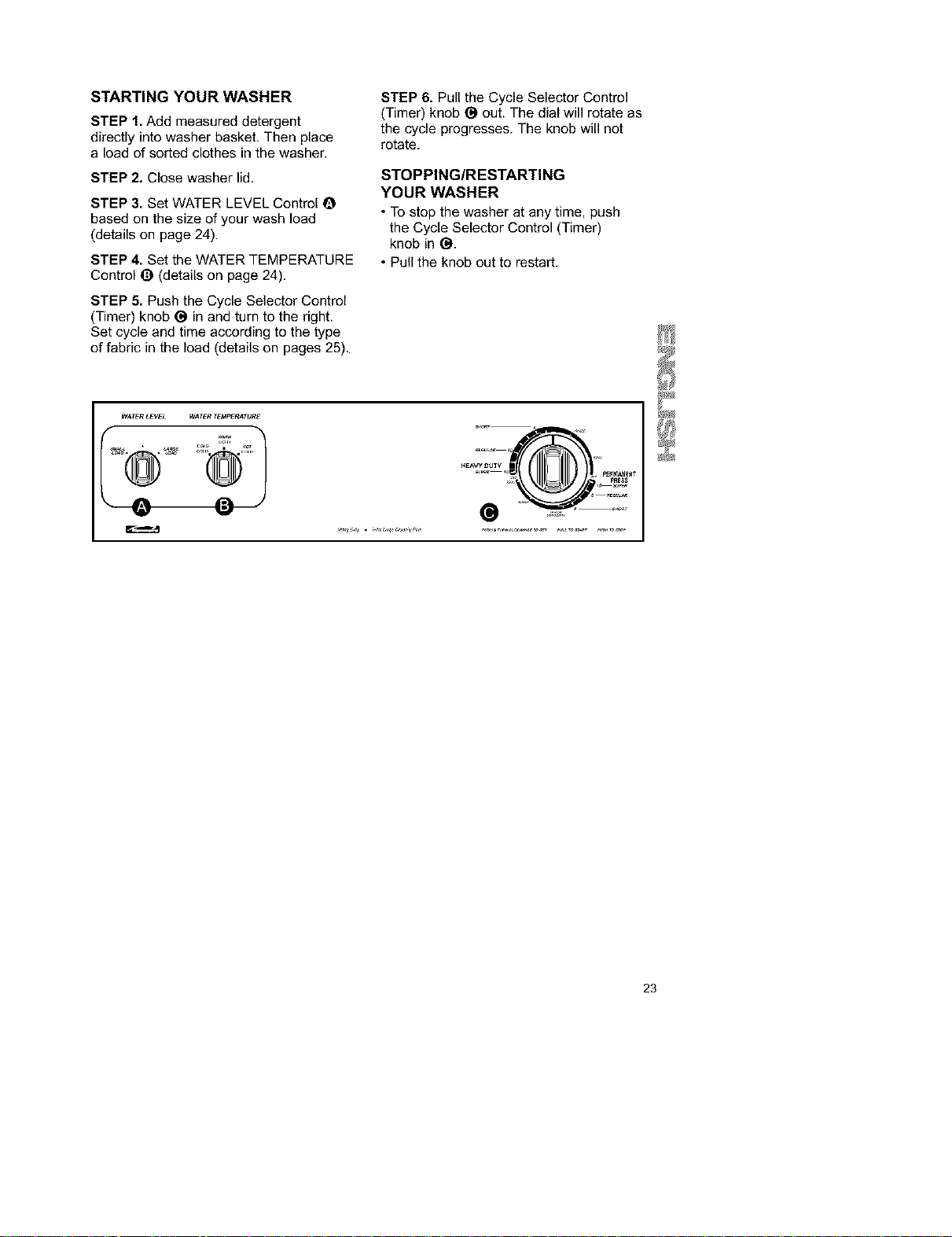

STARTING YOUR WASHER
STEP 1. Add measured detergent
directly into washer basket. Then place
a load of sorted clothes in the washer.
STEP 2. Close washer lid.
STEP 3. Set WATER LEVEL Control
based on the size of your wash load
(details on page 24).
STEP 4. Set the WATER TEMPERATURE
Control O (details on page 24).
STEP 5. Push the Cycle Selector Control
(Timer) knob (_ in and turn to the right.
Set cycle and time according to the type
of fabric in the load (details on pages 25).
STEP 6. Pull the Cycle Selector Control
(Timer) knob _1 out. The dial will rotate as
the cycle progresses. The knob will not
rotate.
STOPPING/RESTARTING
YOUR WASHER
• To stop the washer at any time, push
the Cycle Selector Control (Timer)
knob in (_.
• Pull the knob out to restart.
®
23

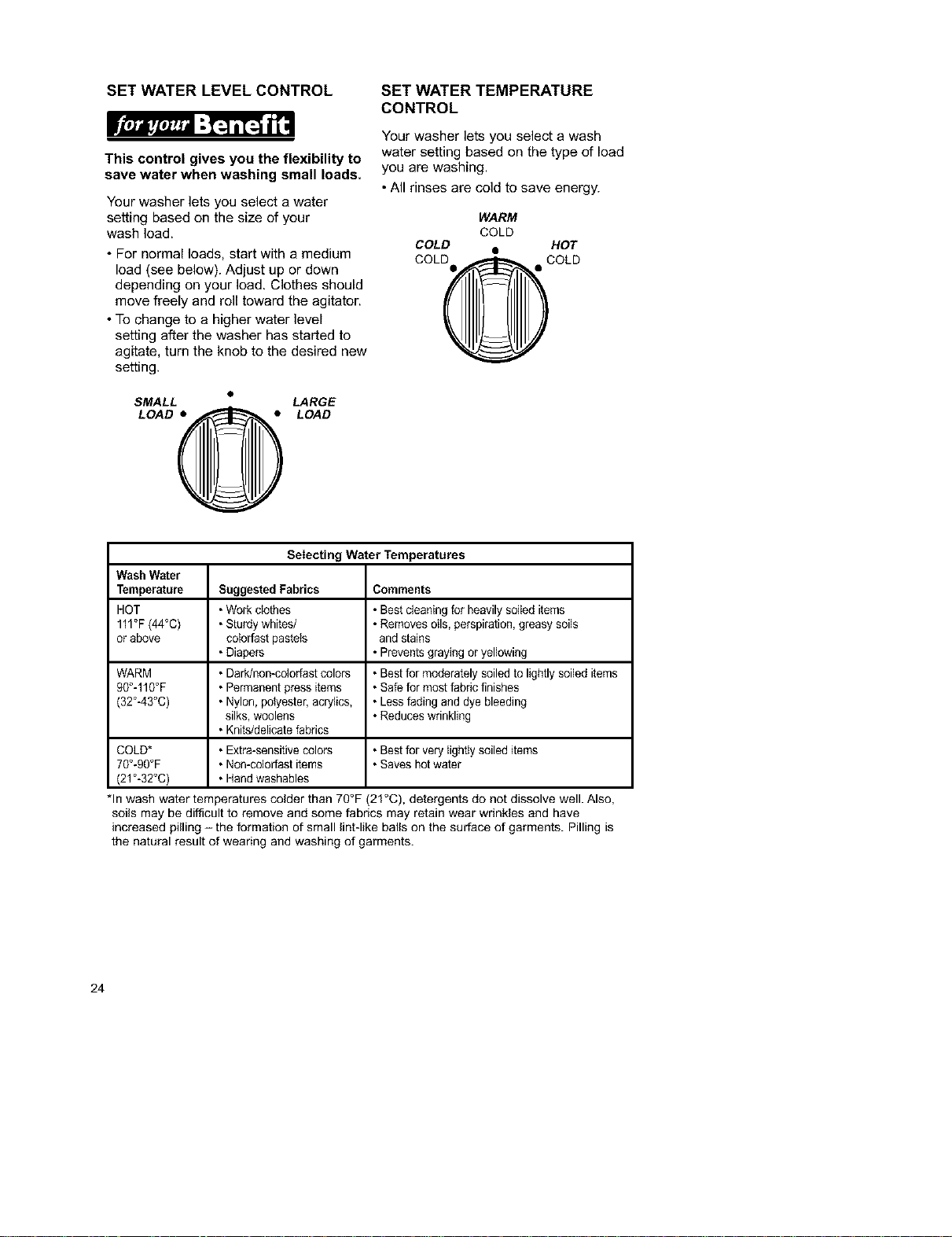

SET WATER LEVEL CONTROL
This control gives you the flexibility to
save water when washing small loads.
Your washer lets you select a water
setting based on the size of your
wash load.
• For normal loads, start with a medium
load (see below). Adjust up or down
depending on your load. Clothes should
move freely and roll toward the agitator.
• To change to a higher water level
setting after the washer has started to
agitate, turn the knob to the desired new
setting.
SMALL LARGE
LOAD e_ LOAD
SET WATER TEMPERATURE
CONTROL
Your washer lets you select a wash
water setting based on the type of load
you are washing.
• All rinses are cold to save energy.
WARM
COLD
COLD • HOT
COL@ e_OLD
Selecting Water Temperatures
Wash Water
Temperature Suggested Fabrics Comments
HOT • Work clothes • Best cleaning for heavily seiIed items
111°F (44°C) •Sturdy whites/ • Removes oils, perspiration,greasy soils
or above cotorfast paste_s and stains
• Diapers • Prevents graying or yellowing
WARM • Dark/non-colorfast colors • Best for moderately soiled to lightly soiled items
90°-110°F • Permanent pressitems • Safe for most fabric finishes
(32°-43°C) • Nylon,polyester, acrylics, •Less fading and dye bleeding
silks, woolens • Reduces wrinkling
• Knits/delicate fabrics
COLD* • Extra-sensitive colors • Best for very lighfiy soiled items
70°-90°F • Non-colorfast items • Saves hot water
(21°-32°C) • Handwashables
*In wash water temperatures colder than 70°F (21°C), detergents do not dissolve well. Also,
soils may be difficult to remove and some fabdcs may retain wear wdnkles and have
increased pilling - the formation of small lint-lrke balls on the surface of garments. Pilling is
the natural result of wearing and washing of garments.
24

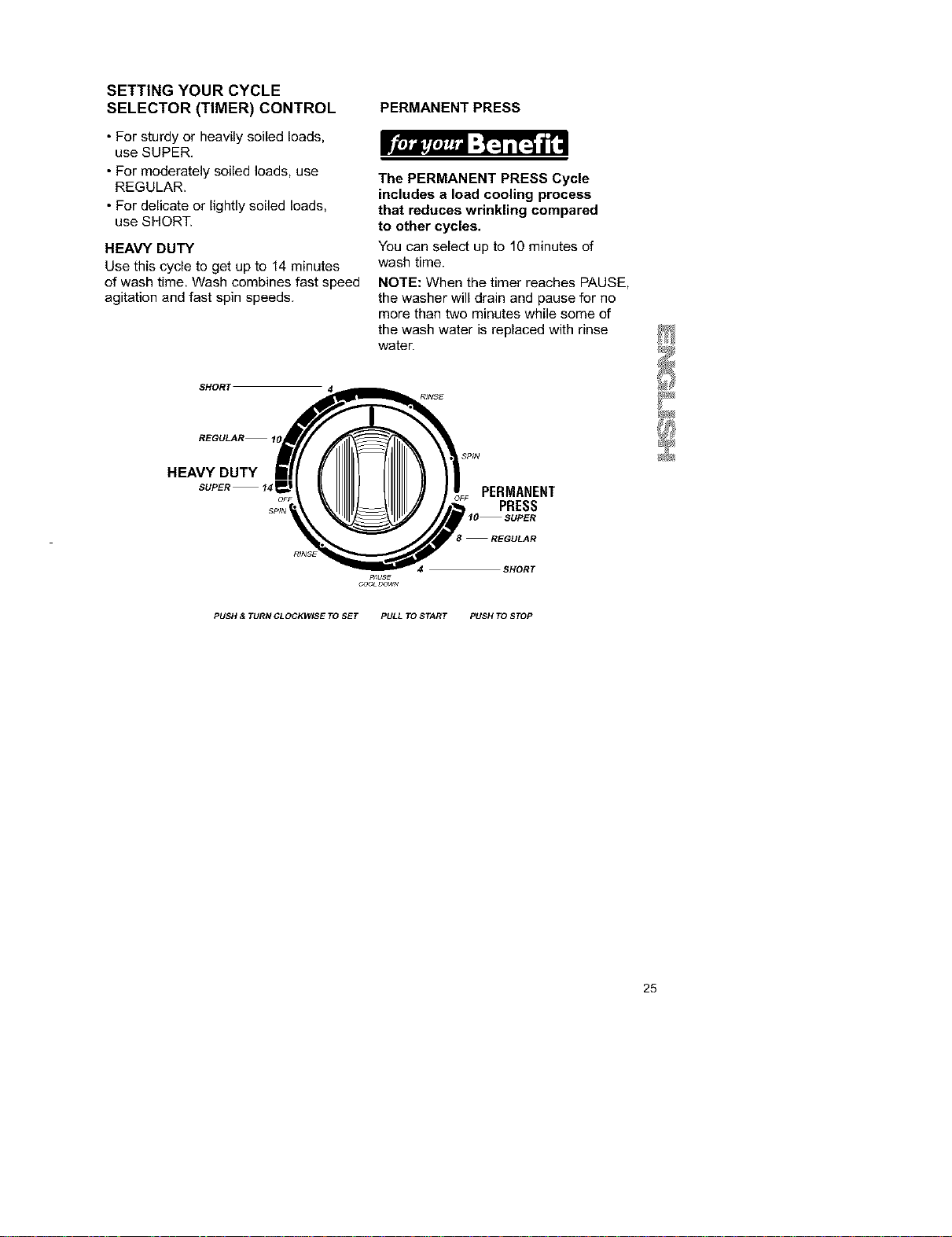

SETTING YOUR CYCLE
SELECTOR (TIMER) CONTROL PERMANENT PRESS
• For sturdy or heavily soiled loads,
use SUPER,
• For moderately soiled loads, use
REGULAR.
• For delicate or lightly soiled loads,
use SHORT.
HEAVY DUTY
Use this cycle to get up to 14 minutes
of wash time. Wash combines fast speed
agitation and fast spin speeds.
The PERMANENT PRESS Cycle
includes a load cooling process
that reduces wrinkling compared
to other cycles.
You can select up to 10 minutes of
wash time.
NOTE: When the timer reaches PAUSE,
the washer will drain and pause for no
more than two minutes while some of
the wash water is replaced with rinse
waten
SHORT
REGULAR
HEAVY DUTY
SUPER 14_1
PAUSE
COOLDO_W
PERMANENT
PRESS
_0 SUPER
REGULAR
SHORT
PUSH & TURN CLOCKWISE TO SET PULL TO START PUSH TO STOP
25

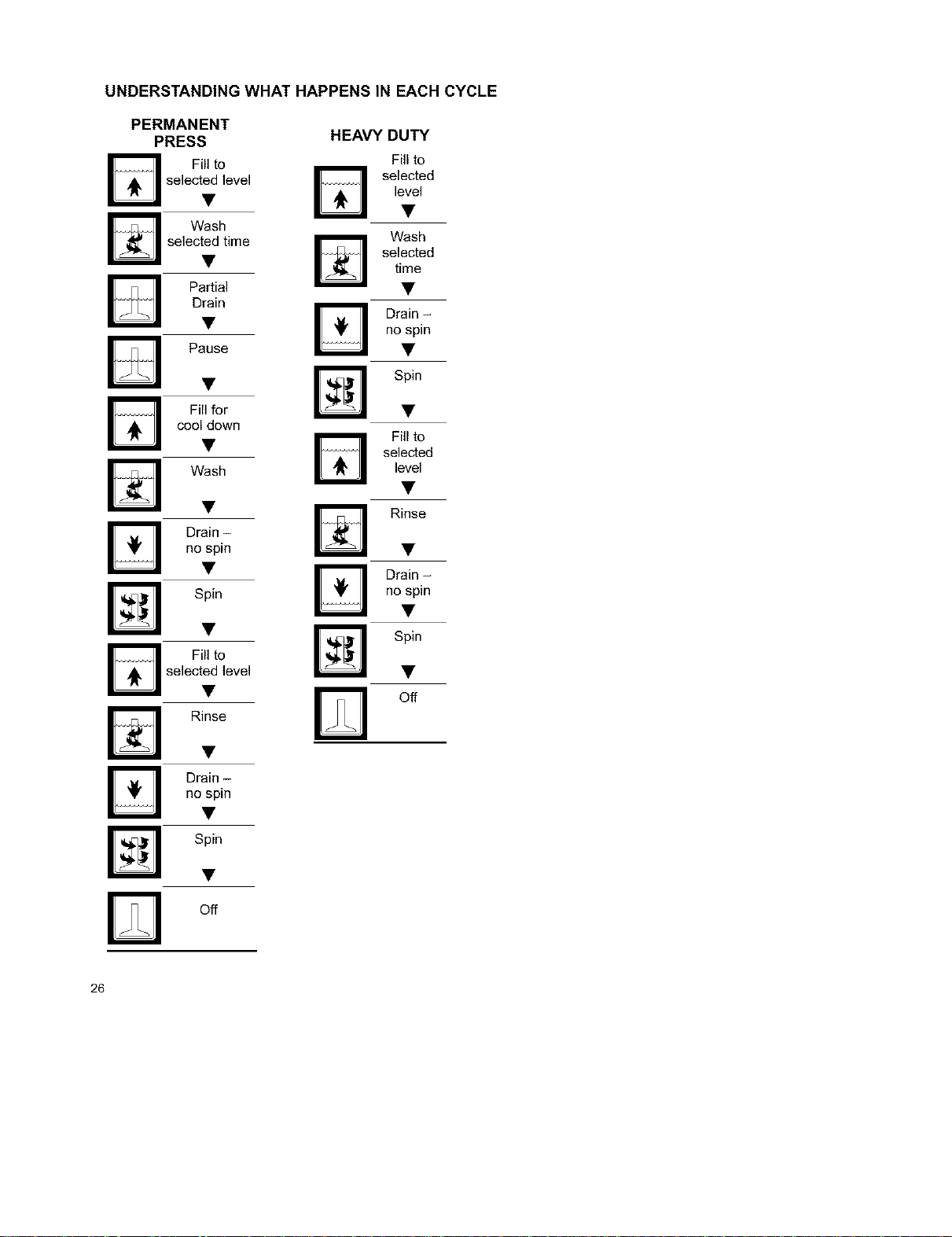

UNDERSTANDING WHAT HAPPENS IN EACH CYCLE
PERMANENT
PRESS HEAVY DUTY
Fill to Fill to
selected level _ selected
• W level
Wash
selected time Wash
selected
• time
Partial •
Drain _ Drain-
• W no spin
Pause •
• Spin
Fill for •
cool down Fill to
• _ selectedWash level
Drain -
no spin
Spin
Fill to
selected level
Rinse
Rinse
Drain -
no spin
Spin
Off
IZI
no spin
___w_. •
Spin
Off
26

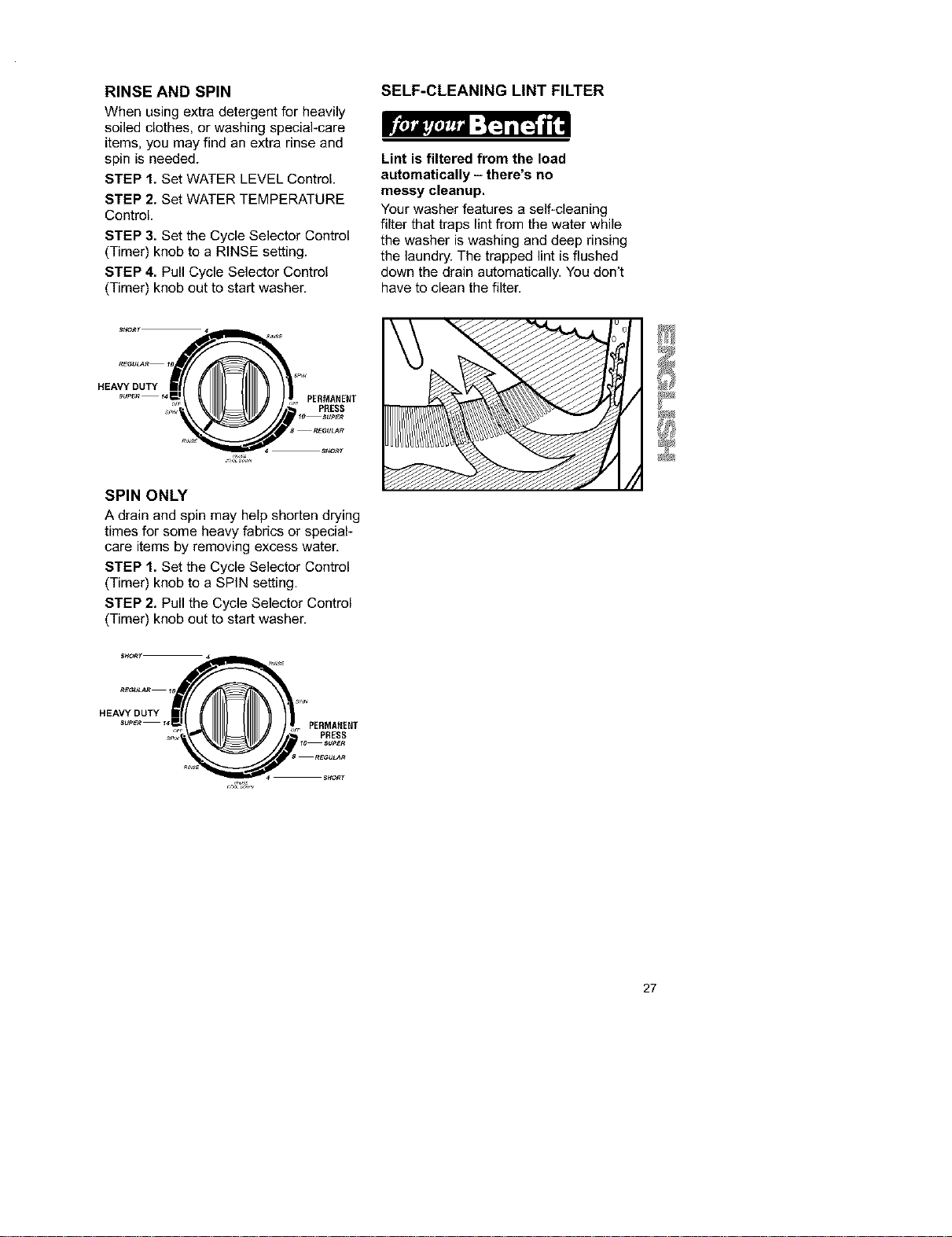

RINSE AND SPIN
When using extra detergent for heavily
soiled clothes, or washing special-care
items, you may find an extra rinse and
spin is needed.
STEP 1. Set WATER LEVEL Control.
STEP 2. Set WATER TEMPERATURE
Control.
STEP 3. Set the Cycle Selector Control
(Timer) knob to a RINSE setting.
STEP 4. Pull Cycle Selector Control
(Timer) knob out to start washer.
SELF-CLEANING LINT FILTER
Lint is filtered from the load
automatically - there's no
messy cleanup.
Your washer features a self-cleaning
filter that traps lint from the water while
the washer is washing and deep rinsing
the laundry. The trapped lint is flushed
down the drain automatically. You don't
have to clean the filter.
REGULAR 1G
SPJ_
HEAVY DUTY
super _4_ _ PEBMANENT
_,_ PBESS
1o super
8 REGULAR
S_ORT
SPIN ONLY
A drain and spin may help shorten drying
times for some heavy fabrics or special-
care items by removing excess water,
STEP 1. Set the Cycle Selector Control
(Timer) knob to a SPIN setting.
STEP 2. Pull the Cycle Selector Control
(Timer) knob out to start washer.
SHOR_
P,EGUL/_R 10
HEAVY DUTY
suP_'R 14_, F
ws_
27

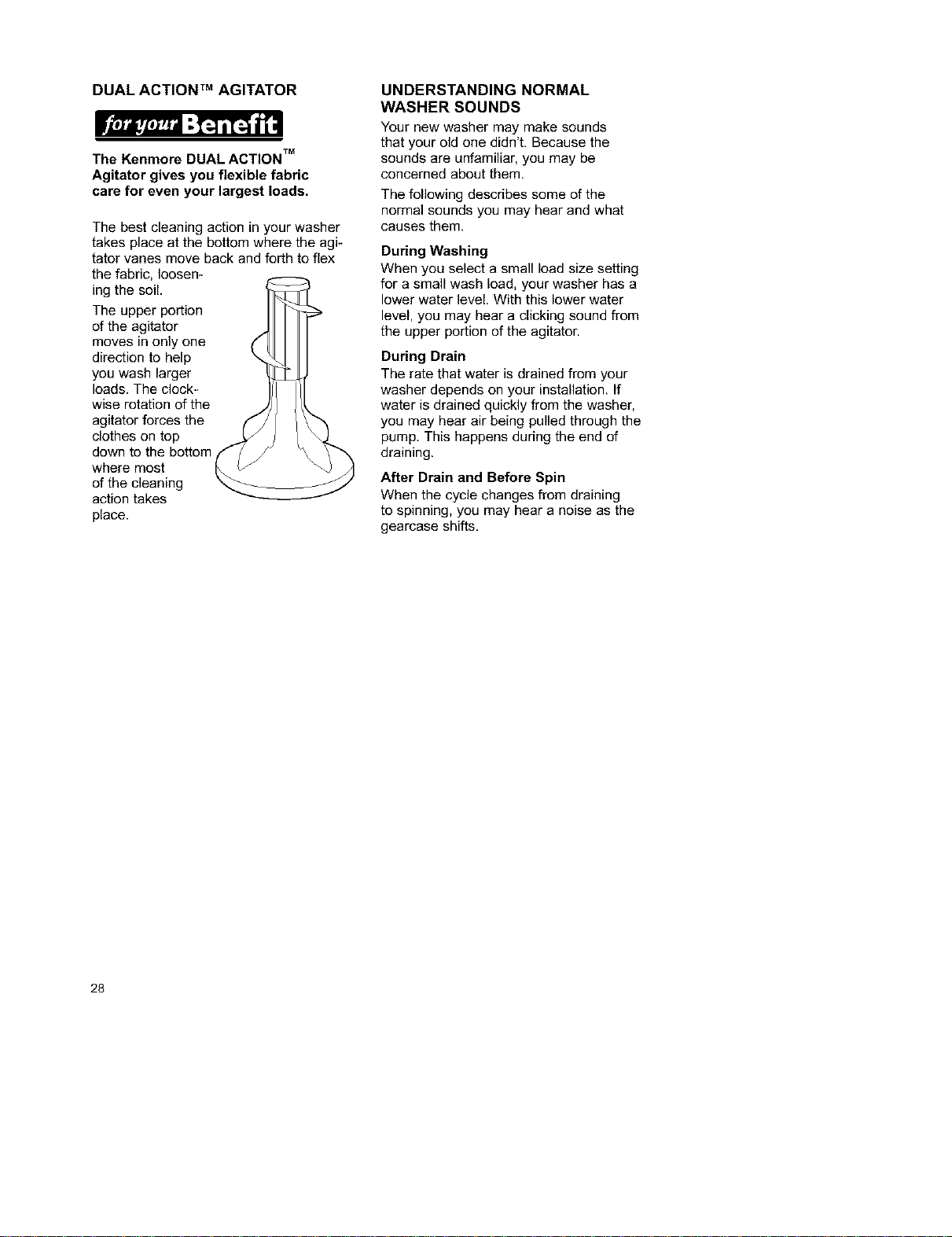

DUAL ACTION TM AGITATOR
The Kenmore DUAL ACTION TM
Agitator gives you flexible fabric
care for even your largest loads,
The best cleaning action in your washer
takes place at the bottom where the agi-
tator vanes move back and forth to flex
the fabric, loosen-
ing the soil.
The upper portion
of the agitator
moves in only one
direction to help
you wash larger
loads. The clock*
wise rotation of the
agitator forces the
clothes on top
down to the bottom
where most
of the cleaning
action takes
place.
UNDERSTANDING NORMAL
WASHERSOUNDS
Your new washer may make sounds
that your old one didn't. Because the
sounds are unfamiliar, you may be
concerned about them,
The following describes some of the
normal sounds you may hear and what
causes them.
During Washing
When you select a small load size setting
for a small wash load, your washer has a
lower water level. With this lower water
level, you may hear a clicking sound from
the upper portion of the agitator.
During Drain
The rate that water is drained from your
washer depends on your installation. If
water is drained quickly from the washer,
you may hear air being pulled through the
pump. This happens during the end of
draining.
After Drain and Before Spin
When the cycle changes from draining
to spinning, you may hear a noise as the
gearcase shifts.
28
PREPARING CLOTHES
FOR WASHING
Follow these recommendations
to help you prolong the life of
your garments.
• Close zippers, snaps, and hooks to
avoid snagging other items, Remove
pins, buckles, and other hard objects
to avoid scratching the washer interior.
Remove non-washable trim and
ornaments.
• Empty pockets and turn them
inside out.
• Turn down cuffs, brush away lint
and dirt.
• Turn synthetic knits inside out to
avoid pilling,
• Tie strings and sashes so they will
not tangle.
• Mend tears, loose hems, and seams.
• Treat spots and stains.
• Stained or wet garments should be
washed promptly for best results.
SORTING
• Separate heavily soiled items from
lightly soiled ones, even if they
would normally be washed together. Sepa-
rate lint givers (towels, chenille) from lint
takers (corduroy, synthetics,
permanent press), When possible,
turn lint givers inside out,
• Separate dark colors from light colors, col-
orfast items from non-colorfast items.
• Sort by fabric and construction
(sturdy cottons, knits, delicate items).
29

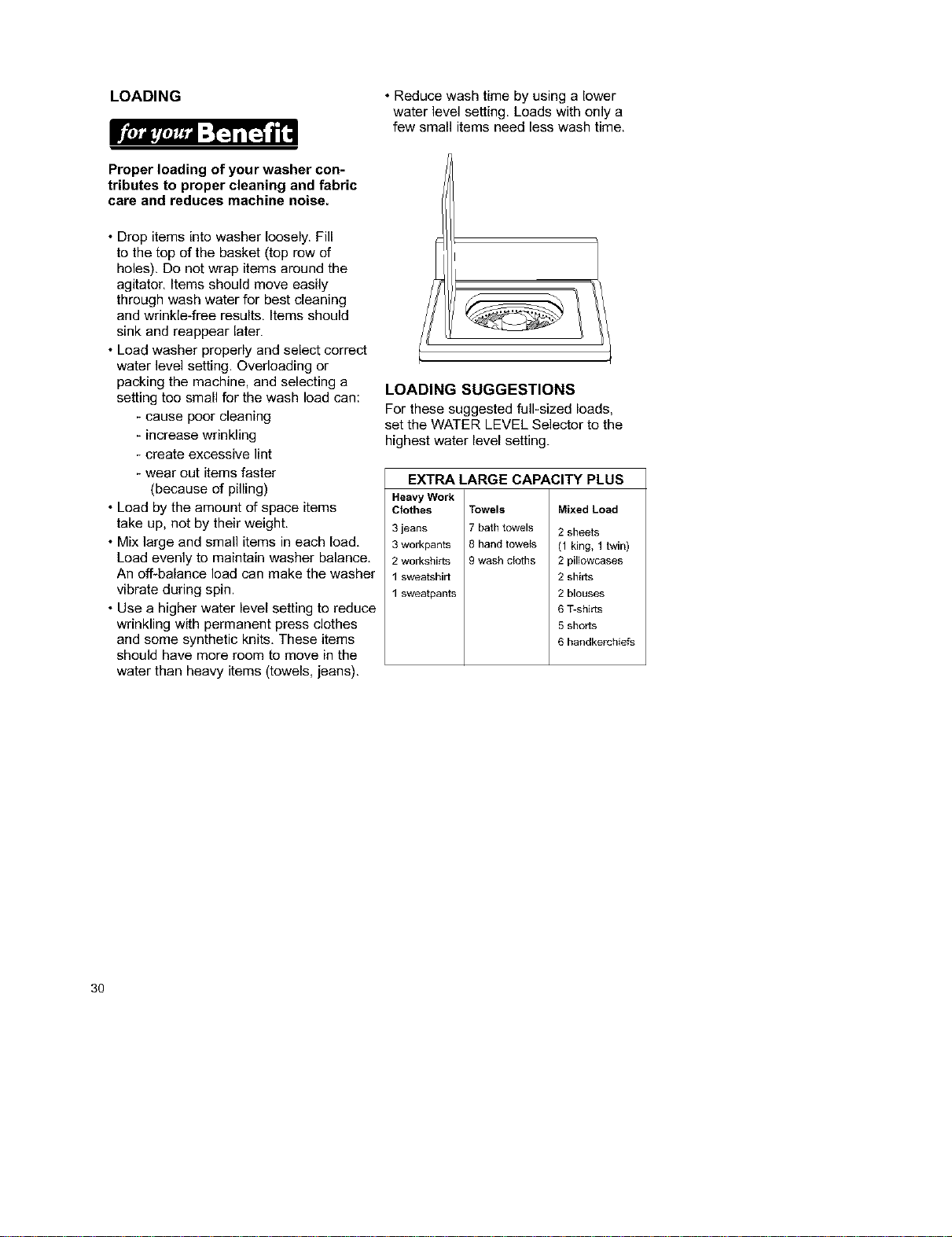

LOADING • Reduce wash time by using a lower
water level setting. Loads with only a
few small items need less wash time.
Proper loading of your washer con-
tributes to proper cleaning and fabric
care and reduces machine noise.
• Drop items into washer loosely. Fill
to the top of the basket (top row of
holes). Do not wrap items around the
agitator, Items should move easily
through wash water for best cleaning
and wrinkle-free results, Items should
sink and reappear later.
• Load washer properly and select correct
water level setting. Overloading or
packing the machine, and selecting a
setting too small for the wash load can:
- cause poor cleaning
- increase wrinkling
- create excessive lint
- wear out items faster
(because of pilling)
• Load by the amount of space items
take up, not by their weight.
• Mix large and small items in each load,
Load evenly to maintain washer balance,
An off-balance load can make the washer
vibrate during spin.
• Use a higher water level setting to reduce
wrinkling with permanent press clothes
and some synthetic knits, These items
should have more room to move in the
water than heavy items (towels, jeans).
LOADING SUGGESTIONS
For these suggested full-sized loads,
set the WATER LEVEL Selector to the
highest water level setting.
EXTRA LARGE CAPACITY PLUS
Heavy Work
Clothes
3 jeans
3 workpants
2 workshirts
1 sweatshirt
1 sweatpants
Towels Mixed Load
7 bath towels 2 sheets
8 hand toweis (1 king, 1 twin)
9 wash cloths 2 pillowcases
2 shirts
2 blouses
6 T-shirts
5 shorts
6 handkerchiefs
30
CLEANING YOUR WASHER
Exterior
Wipe up detergent, bleach, and other spills
with a soft, damp cloth or sponge as they
occur. Occasionally wipe the outside of the
washer to keep it looking like new.
Do not put sharp or metal objects in your
washer. They can damage the finish.
Check all pockets for pins, clips, money,
bolts, nuts, etc. Do not lay these objects on
your washer after emptying pockets.
Interior
Clean interior with 1 cup (250 mL)
of chlorine bleach mixed with 2 cups
(500 mL) of detergent. Run washer
through a complete cycle using hot water.
Repeat process if necessary.
NOTE: Remove hard water deposits using
only cleaners labeled as washer safe.
WATER INLET HOSES
Replace inlet hoses after five years
of use to reduce the risk of hose
failure. Periodically inspect and
replace inlet hoses if bulges, kinks,
cuts, wear, or leaks are found. When
replacing your inlet hoses, mark the
date of replacement on the label with
a permanent marker.
WINTER STORAGE
OR MOVING CARE
Install and store your washer where
it will not freeze. Because some water
may stay in the hoses, freezing can
damage your washer. If storing or
moving your washer during freezing
weather, winterize it.
To winterize washer:
1. Shut off both water faucets.
2. Disconnect and drain water inlet hoses.
3. Put 1 qt (1 L) of R.V.-type antifreeze
in the basket.
4. Run washer on a SPIN setting for
about 30 seconds to mix the antifreeze
and water. Some of the mixture will
pump out while the washer spins.
5. Unplug the power supply cord.
To use washer again:
1. Flush water pipes and hoses.
2. Reconnect water inlet hoses.
3. Turn on both water faucets.
4. Reconnect power supply cord.
5. Run the washer through a complete
cycle with 1cup (250 mL) of detergent
to clean out antifreeze.
NON-USE OR VACATION CARE
Operate your washer only when you are
at home. If you will be on vacation or
not using your washer for an extended
period of time, you should:
• Unplug the power supply cord or turn
off electrical power to the washer.
• Turn off the water supply to the washer.
This helps avoid accidental flooding
(due to a water pressure surge) while
you are away.
31

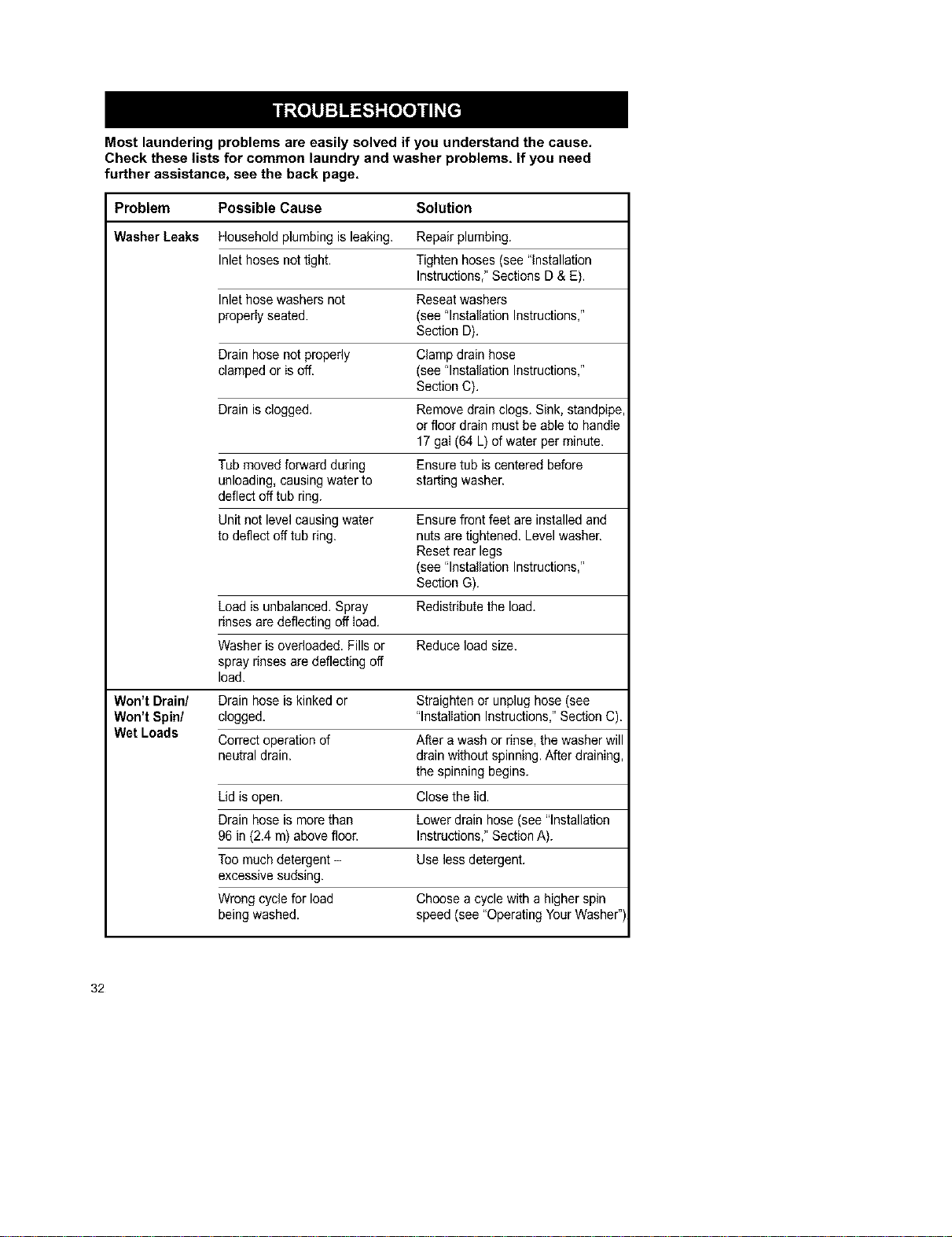

Most laundering problems are easily solved if you understand the cause.
Check these lists for common laundry and washer problems, If you need
further assistance, see the back page,
Problem Possible Cause Solution
Washer Leaks Household plumbing is leaking. Repair plumbing.
Inlet hoses not tight. Tighten hoses (see "Installation
Instructions,"Sections D & E).
Inlet hose washers not Reseat washers
properly seated. (see "Installation Instructions,"
Section D),
Drain hose not propedy Clamp drain hose
clamped or is off. (see "Installation Instructions,"
Section C),
Drain is clogged, Remove drain clogs. Sink, standpipe,
or floor drain must be able to handle
17 gaI (64 L) of water perminute.
Tub moved forward during Ensure tub is centered before
unloading, causingwater to starting washer.
deflect off tub ring.
Unit not levelcausing water Ensure front feet are installed and
to deflect off tub ring. nuts are tightened. Level washer.
Reset rear legs
(see "Installation Instructions,"
Section G).
Load is unbalanced. Spray Redistribute the load.
rinses are deflecting off load,
Washer is overloaded. Fills or Reduce load size.
spray rinses are deflecting off
load.
Won't Drain/ Drain hose is kinked or Straighten or unplug hose (see
Won't Spin/ clogged. "Installation Instructions," Section C).
Wet Loads
Correct operation of After awash or rinse, the washer will
neutral drain, drain without spinning. After draining,
the spinning begins.
Lid is open. Close the lid.
Drain hose is more than Lower drain hose (see "Installation
96 in (2,4 m) above floor. Instructions,"Section A).
Too much detergent - Use less detergent.
excessive sudsing.
Wrong cycle for load
being washed.
Choose a cycle with ahigher spin
speed (see "Operating YourWasher")
32

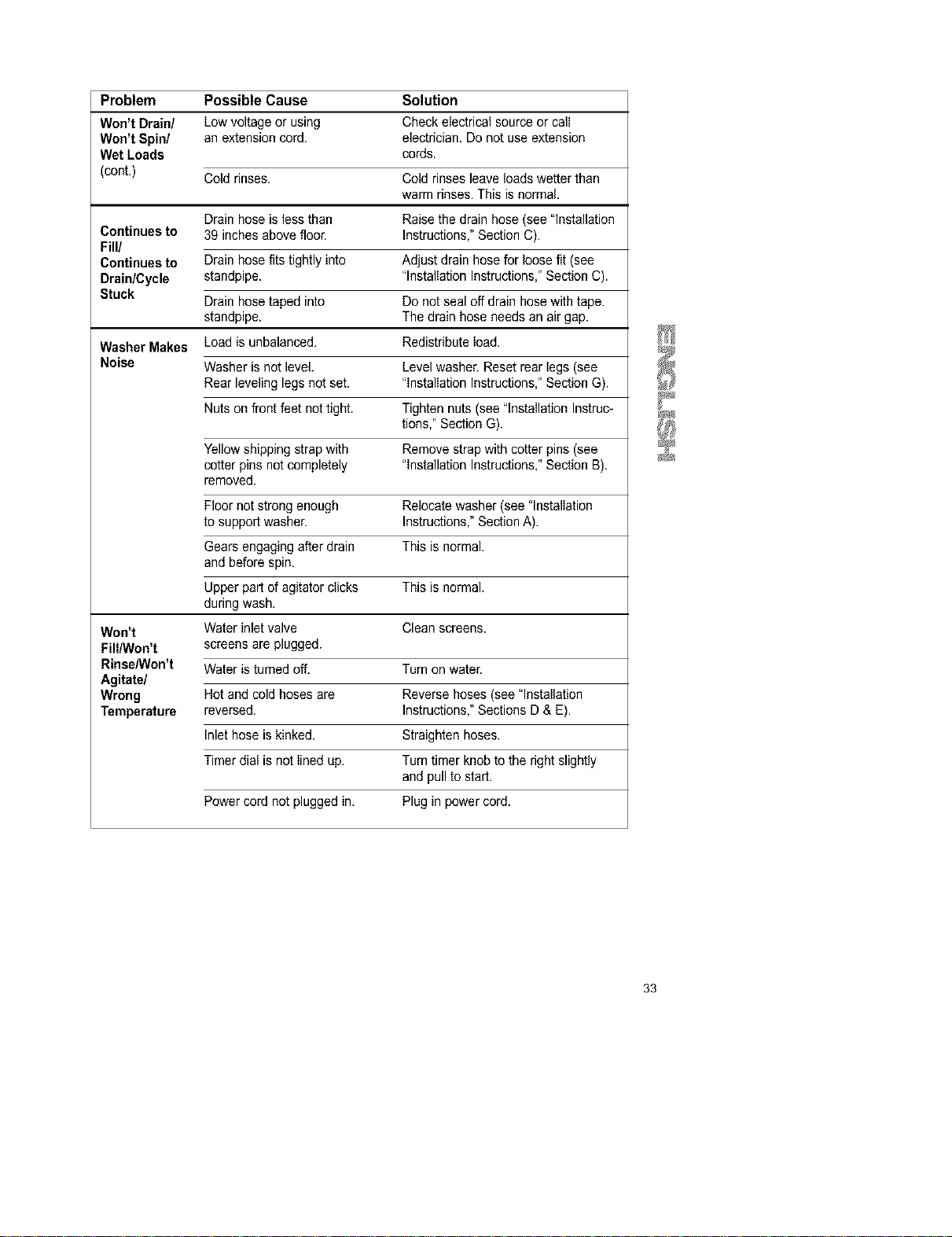

Problem Possible Cause Solution
Won't Drain/ Low voltage or using Check electrical source or call
Won't Spin/ an extension cord. electrician. Do not use extension
Wet Loads cords.
(cont.) Cold rinses. Cold rinses leave loads wetter than
warm rinses. This is normal.
Drain hose is less than Raise the drain hose (see "Installation
Continues to 39 inches above floor. Instructions,"Section C).
Fill/
Continues to Drain hose fits tightly into Adjust drain hose for loose fit (see
Drain/Cycle standpipe. "Installation Instructions," Section C).
Stuck
Drain hose taped into Do not seal off drain hosewith tape.
standpipe. The drain hose needs an air gap.
Washer Makes Load is unbalanced. Redistribute load.
Noise Washer is not level. Level washer. Reset rear legs (see
Rear leveling legs not set. "Installation Instructions," Section G).
Nuts on front feet not tight. Tighten nuts (see "Installation Instruc-
tions," Section G).
Yellowshipping strap with Remove strap with cotter pins (see
cotter pins not completely "installation Instructions," Section B).
removed.
Floor not strong enough Relocate washer (see "Installation
to support washer. Instructions,"Section A).
Gears engaging after drain This is normal.
and before spin.
Upper part of agitator clicks This is normal.
during wash,
Won't Water inlet valve Clean screens.
Fill/Won't screens are plugged.
Rinse/Won't Water is turned off. Tam on water.
Agitate/
Wrong Hot and cold hoses are Reverse hoses (see"Installation
Temperature reversed, Instructions,"Sections D & E).
Inlet hose is kinked. Straighten hoses.
Timer dial is not lined up. Turn timer knob to the rightslightly
and pull to start.
Power cord not plugged in. Plug inpower cord.
33
Problem Possible Cause Solution
Machine Power cord not pIugged in. Plug in power cord.
Stops No power at plug, Check electrical source or call
electrician.
Fuse blown or circuit Replace fuse or reset circuit breaker.
breaker open. If problem continues, call electrician,
Using an extension cord. Do not use extensioncords.
Timer is not lined up. Turntimer to the right slightly
and pull to start.
Timer knob not pulled out. Set and puil out knob.
Machine is overloaded. Wash smaller loads.
Agitator Not The top ofthe agitator moves This is normal.
Working only in one direction.
The top ofthe agitator is loose. This is normal.
Water Level The top ofthe agitator is much This is normal.
Too Low/Not higher than the highest water
Completely level. This creates a perception
Filling of the washer not beingfull.
Tub is Tub pulled forward when Ensure tub is centered before
Crooked unloading, starting washer.
Tub moves. This is normal.
Unit not Ievel. Ensure front feet are installed and
nuts aretightened. Level washer.
Reset rear legs (see"lnstaliation
instructions,"Section G).
Lint on Load Improper sorting. Sort lint givers from lint takers
and by color.
Overloading, Lint can be trapped in load if
overloaded. Wash smailer loads.
Paper or tissue in pockets. Clean out pockets before washing.
Not enough detergent. Use enough detergent to
hold lint inwater.
Detergent not dissolving. Washwater temperature warmer
Watertemperatures lower than 70°F (21°C).
than 70°F (21°C).
34
Problem Possible Cause Solution
Tearing Overloading. Improper Loads should move freely during
use of washer, wash, Washsmaller loads or
increasewater level.
Improper use of chlorine Do not pour chlorine bleach directly
bleach. Undiluted bleach on load. Wipe up bleach spilis.
wilI damage fabdcs.
Sharpitems not removed Clean out pockets beforewashing.
from pockets; fasteners Zip zippers before washing.
not fastened.
Items damaged before Mend rips and broken threads in
washing, seams beforewashing.
Stains on Improper use of fabric Dilute fabric softener and add to
Load softener inwasher or dryer, deep rinse only.
Iron in water (rust). install an iron filter.
Under use of detergent causing Use enough detergent to remove
soil to be redeposited, soil and hold it insuspension.
Dye transfer dueto not Sort dark clothingfrom whites
sorting loads properly, and lights.
Dye transfer dueto not Unload the washer as soon as
unloadingwasher promptly, it stops.
Load is Not removing load promptly. Unloadthe washer as soon as it
Wrinkled stops.
Wrong cycle for fabrics Use cold rinsesto reducewrinkling.
beingwashed.
Overloading. Loads should move freely during
wash, Washsmaller loads.
Hoses reversed. Reverse hoses (see "Installation
Instructions," Sections D & E).
Load is Overloading. Loads should move freely during
Tangled/ wash, Washsmaller loads.
Twisted
Clothes wrapped around Do not wrap itemsaround agitator
agitator, when loading washer.
35
KENMORE WASHERS
"We Service What We Sell" is our assurance you can depend on Sears for service.
Your Kenmore appliance has added value when you consider that Sears has service
units nationwide, staffed with professional technicians trained on all appliances Sears
sells. They have the knowledge and skills, tools, parts and equipment to ensure our
pledge to you that "We Service What We Sell."
Maintain the value of your purchase with a Sears Maintenance Agreement. Kenmore
appliances are designed, manufactured and tested for years of dependable operation.
Yet any major appliance may require service from time to time, The Sears Maintenance
Agreement offers you an outstanding service program for your product.
The Sears Maintenance Agreement
• Is your way to buy tomorrow's service at today's prices.
• Eliminates repair bills resulting from normal use.
• Allows for as many service calls as required.
• Provides an annual Preventive Maintenance Check at your request to keep your
Kenmore appliance in proper running condition.
For more information, call
1-800-827-6655 (USA) or
1-877-533-6937 (Canada)
36
37
38

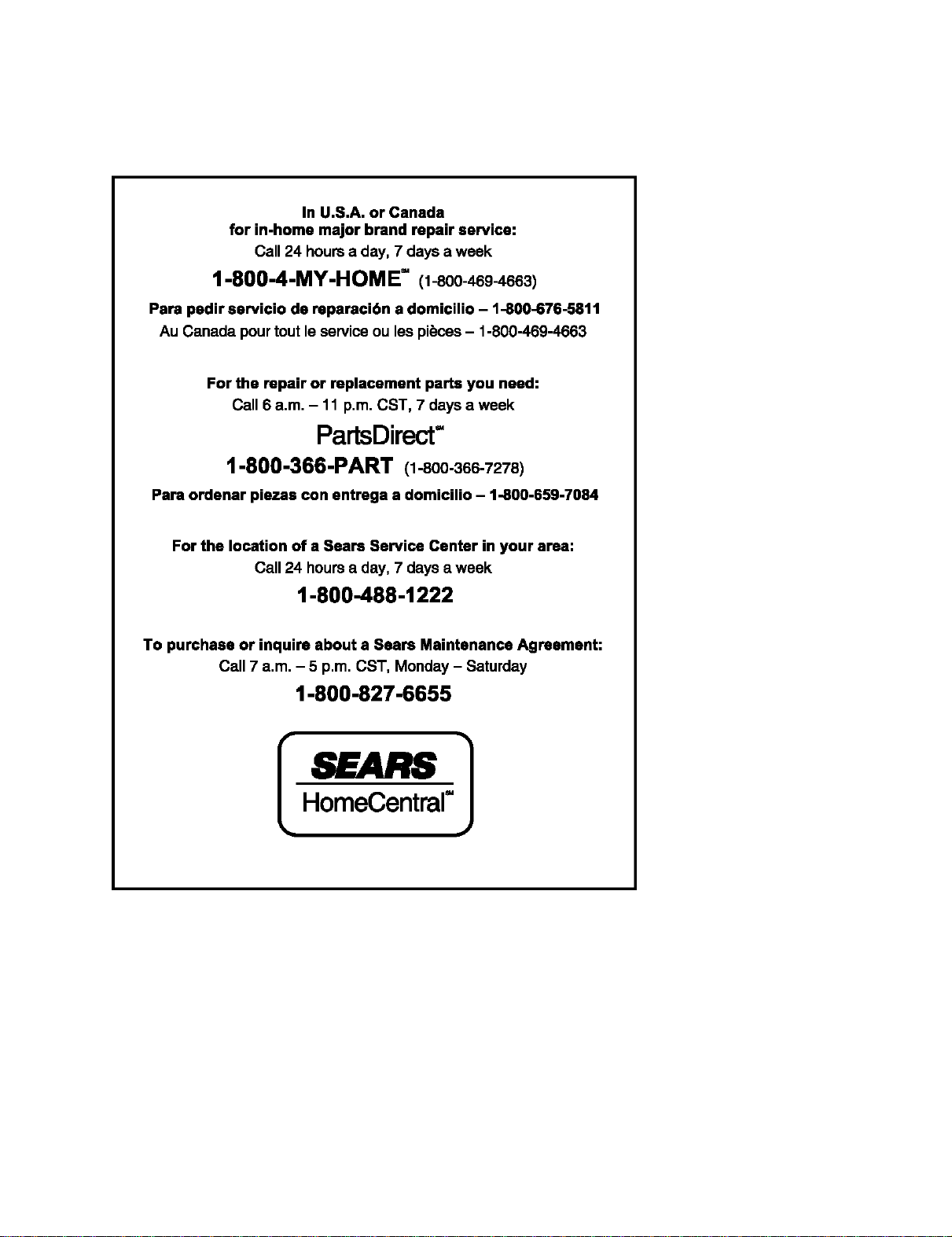

In U.S.A. or Canada
for in-home major brand repair service:
Call 24 hours a day, 7 days a week
1-800-4-MY-HOME = (1-800-469-4663)
Para pedir servicio de reparaci6n a domicilio - t-800-676-5811
Au Canada pour tout le service ou les pi_ces - 1.800-469-4663
For the repair or replacement parts you need:
Call 6 a.m. - 11 p.m. CST, 7 days a week
PartsDirect"
1-800-366-PART (1-800-366-7278)
Pare ordenar plazas con entrega a domicilio - 1-800-659-7084
For the location of a Sears Service Center in your area:
Call 24 hoursa day, 7 days a week
1-800-488-1222
To purchase or inquire about a Sears Maintenance Agreement:
Call 7 a.m. - 5 p.m. CST, Monday - Saturday
1-800-827-6655
