Smeg LSIA147 Built-in washer dryer User Manual

LAVASCIUGA

WASHER-DRYER

LAVE-LINGE SÉCHANT

VOLLWASCHTROCKNER

LAVADORA-SECADORA

LIBRETTO ISTRUZIONI

INSTRUCTION MANUAL

MANUEL D'INSTRUCTIONS

GEBRAUCHSANLEITUNG

MANUAL DE INSTRUCCIONES

Contents

1. PRECAUTIONS FOR SAFETY AND USE ................................................................................... 2

2. INSTALLATION INSTRUCTIONS ............................................................................................... 7

3. DESCRIPTION OF CONTROLS ................................................................................................. 12

4. USING THE APPLIANCE FOR WASHING ............................................................................... 13

5. USING THE APPLIANCE FOR DRYING .................................................................................. 21

6. CLEANING AND MAINTENANCE ........................................................................................... 23

7. TROUBLESHOOTING ................................................................................................................. 25

8. INFORMATION FOR THE USER ........................................................................................... 27

This appliance is tagged in accordance with European Directive 2012/19/EU on

Waste Electrical and Electronic Equipment - WEEE.

This directive contains the regulations governing the collection and recycling of de-

commissioned appliances throughout the European Union.

The symbol of the rubbish bin with a line through it on the appliance or its packaging

indicates that the product must be disposed of separately from other waste at the end

of its life cycle. The user is thus obliged to consign scrapped appliances to the special

electronic and electrotechnical waste disposal centres, or return them to the dealer

on purchase of a similar new appliance, on a one-to-one basis.

Consignment to the appropriate facility for environmentally responsible recycling,

treatment and disposal helps to prevent any negative effects on the environment and

health, and encourages the reuse and/or recycling of the appliance’s component ma-

terials.

Illegal dumping of the appliance by the user will be subject to prosecution under the

relevant law.

READ THE INSTRUCTIONS

Attention!

You are advised to read all the instructions in this manual carefully; it will inform you

about the right conditions for the proper, safe use of your washer-dryer

It is very important to keep this instruction manual with the appliance for future ref-

erence.

In the event of sale or transfer, ensure that the manual always accompanies the

appliance, to provide the necessary information about its use.

1. PRECAUTIONS FOR SAFETY AND USE

Attention!

These precautions are detailed for reasons of safety.

This section must be read carefully before installation and use.

Disposing of packaging

 Never leave packaging residues unattended in the home. Separate waste

packaging materials by type and consign them to the nearest recycling cen-

tre.

 Packaging materials (plastic bags, polystyrene, etc.) must not be left within

reach of children.

Disposing of old appliances

 Once no longer in use, appliances must be rendered unusable: perma-

nently disarm the lock on the door (this will prevent children risking

their lives by locking themselves inside during play) and cut the power

supply lead after removing the plug from the socket.

The appliance must be delivered to a recycling facility.

Environmental protection

 Use the whole of the maximum recommended capacity. Never exceed the

maximum permitted load.

 Do not use the prewash function for lightly or normally soiled items.

 Follow the manufacturer's recommendations on detergent usage.

 Use the highest spin speed permitted for the fabric type. Fast spins reduce

the drying time and thus energy consumption.

 Programs that work with lower temperatures are the most efficient in terms of

energy consumption. We therefore recommend that you to make a note of

the information on the labels on the items to be washed and provided by the

manufacturer. This will mean that the temperatures and detergent doses will

be optimized to avoid excessive energy consumption

 It is recommended to follow the instructions provided in the manual, and those

provided by the manufacturers of the detergents, softeners and additives (sol-

vents, degreasers, stain remover additives…) for their correct use and dos-

age. Failure to comply with the recommendations provided may damage the

appliance.

 WARNING: the higher the spin speed, the higher will be the noise and the

lower the remaining moisture content. The lower the amount of residual

moisture at the end of the wash, the lower the energy consumption will be

during drying.

 Information on household detergents, additives and cleaning agents can be

found on the following website www.cleanright.eu .

Safety instructions

 This appliance is intended for domestic use and similar applications such as

staff kitchen area in shops, offices and other working environments, farm

houses, and for the use by clients in hotels, motels, bed and breakfast type

environments, and other residential facilities and is compliant with Directives

2014/35/EU and 2014/30/EU currently in force.

 Read all the instructions in this manual carefully before installation and use.

 Check that the drum assembly has been released before use (see instruc-

tions). Failure to release the drum assembly may cause damage to the

washer-dryer and the surrounding furniture or appliances during the spin cy-

cle.

 This Instruction Manual is an integral part of the appliance: it must always be

kept intact with the appliance. Installation must be carried out by qualified

staff in compliance with the relevant regulations. The appliance is built to pro-

vide the following functions: washing and drying of clothes or fabrics stated

to be suitable for machine washing by the producer on the relevant label. All

other uses are to be considered improper. The manufacturer declines all

liability for uses other than those stated above.

 The nameplate with the technical data, serial number and mark is in a visible

position in the part in view after the door has been opened. The nameplate

must never be removed.

 The electrical and plumbing works required to install the appliance

must only be carried out by skilled staff.

 The appliance must be connected to earth in compliance with electrical sys-

tem safety regulations. The manufacturer declines all liability for direct

or indirect injury or damage deriving from a non-existent or defective

earth connection.

 In the event that the appliance is not connected by means of a plug, an om-

nipolar circuit-breaker device with contact gap of at least 3 mm must be pro-

vided.

 The plug to be connected to the power supply lead and the relative socket

must be of the same type and comply with the relevant regulations. Check

that the mains voltage and frequency are the same as the values marked on

the nameplate. The use of adapters or junctions is not recommended. Never

disconnect the plug by pulling on the power supply lead.

 The appliance is only disconnected from the electricity supply if the

plug has been removed from the socket or the electrical system master

switch has been turned off. The power plug must be accessible after

the appliance has been installed.

 WARNING: The appliance must not be supplied through an external switch-

ing device, such as a timer, or connected to a circuit that is regularly switched

on and off by a utility.

 The appliance must be installed using new sets of hoses (supplied with the

appliance). Old hose sets should not be reused.

 Take care that the appliance is not standing on the power supply cable.

 The washer-dryer must never be used on vehicles, on board ships or planes,

or in environments with hazards, such as explosive or corrosive environ-

ments (powders, vapours and gases) or explosive and/or corrosive liquids,

 Do not install the washer-dryer in places with a risk of frost. Frozen pipes may

burst under the pressure.

 Make sure that the drain hose connected to the sink is securely fastened

and cannot move.

 If it is not fixed in place, the repulsive force of the water might thrust it away

from the sink, causing the risk of flooding.

 When connecting the hose to a sink also check that the water drains from

it quickly, as otherwise the sink may overflow.

 Do not overload the appliance.

 Never use detergents which contain solvents or chemicals for washing in the

washer-dryer. They might damage the appliance and form poisonous va-

pours. These fumes might also catch fire and explode.

 Garments soaked in petroleum products must not be washed in the washing

machine. Before washing, check that garments do not contain inflammable

devices (e.g. cigarette-lighters, matches, etc.)

 If volatile cleaning fluids are used, ensure that these substances have been

removed from the garments before they are placed in the appliance.

 Before loading garments for washing, check that the pockets are empty, but-

tons secure and zips fastened.

 Do not wash frayed or torn garments.

 During washing at high temperatures, the glass in the door will become very

hot.

 Check that all water has been drained from the appliance before open-

ing the door.

 If there is water inside, pump it out before opening the door. If in doubt, read

the instruction manual.

 The water in the appliance is not suitable for drinking!

 Swallowing washing machine detergents may injure the mouth and throat.

 Before removing the garments from the washer-dryer check that the drum

is at a standstill.

 Switch the appliance off after each use to avoid wasting electricity.

 Leave the door ajar between washes to keep the gasket in good condition.

 In the event of a malfunction never attempt to repair the appliance your-

self. Disconnect the appliance from the electricity supply and turn off the wa-

ter tap. Then contact a qualified engineer. Repairs must only be carried

out by qualified staff.

 The appliance is intended for use by adults. Do not allow children to tam-

per with the washer-dryer's controls or play with it and do not keep children

in the vicinity while the programme is in progress.

 Young animals or small children might climb into the washer-dryer .

 Always check the inside of the drum before use and do not allow children

to play with the appliance.

 Keep children away from the appliance when the door or the detergent

drawer is open; the appliance might contain detergent residues which may

cause permanent injury to the eyes, mouth and throat, or even cause death

by suffocation.

 This washing machine / washer dryer, must be used by adults. Use of the

appliance by children aged from eight years and a person with reduced phys-

ical sensory or mental capabilities or lack of experience and knowledge is

only permitted under the supervision of a person responsible for their safety.

 The appliance is not intended for use by persons (including children) with

reduced physical, sensory or mental capabilities, or lack of experience and

knowledge, unless they have been given supervision or instruction concern-

ing use of the appliance by a person responsible for their safety.

 That the tumble dryer is not to be used if industrial chemicals have been used

for cleaning

 That lint must not be allowed to accumulate around the tumble dryer

 Do not dry unwashed items in the tumble dryer

 Items that have been soiled with substances such as cooking oil, acetone,

petrol, kerosene, spot removers, turpentine, waxes and wax removers should

be washed in hot water with an extra amount of detergent before being dried

in the tumble dryer

 Items such as foam rubber (latex foam), shower caps, waterproof textiles,

rubber backed articles and clothes or pillows fitted with foam rubber pads

should not be dried in the tumble dryer

 Fabric softeners, or similar products, should be used as specified by the fab-

ric softener instructions.

 The final part of a tumble dryer cycle occurs without heat (cool down cycle)

to ensure that the items are left at a temperature that ensures that the items

will not be changed

 Never stop a tumble drier before the end of the drying cycle unless all items

are quickly removed and spread out so that the heat is dissipated

 Do not store flammable fluids near the appliance.

Lengthy periods out of use.

 If the appliance is not to be used for a lengthy period it should be discon-

nected from the electricity and water supplies and the door should be left ajar

to prevent unpleasant smells from building up inside.

Important!

This appliance is easy to use.

However, for the best results it is important to read this manual carefully and

follow all the instructions before putting it into operation.

The manual provides the correct instructions for installation, use and mainte-

nance, as well as giving useful advice.

For Great Britain only

Warning: this appliance must be earthed.

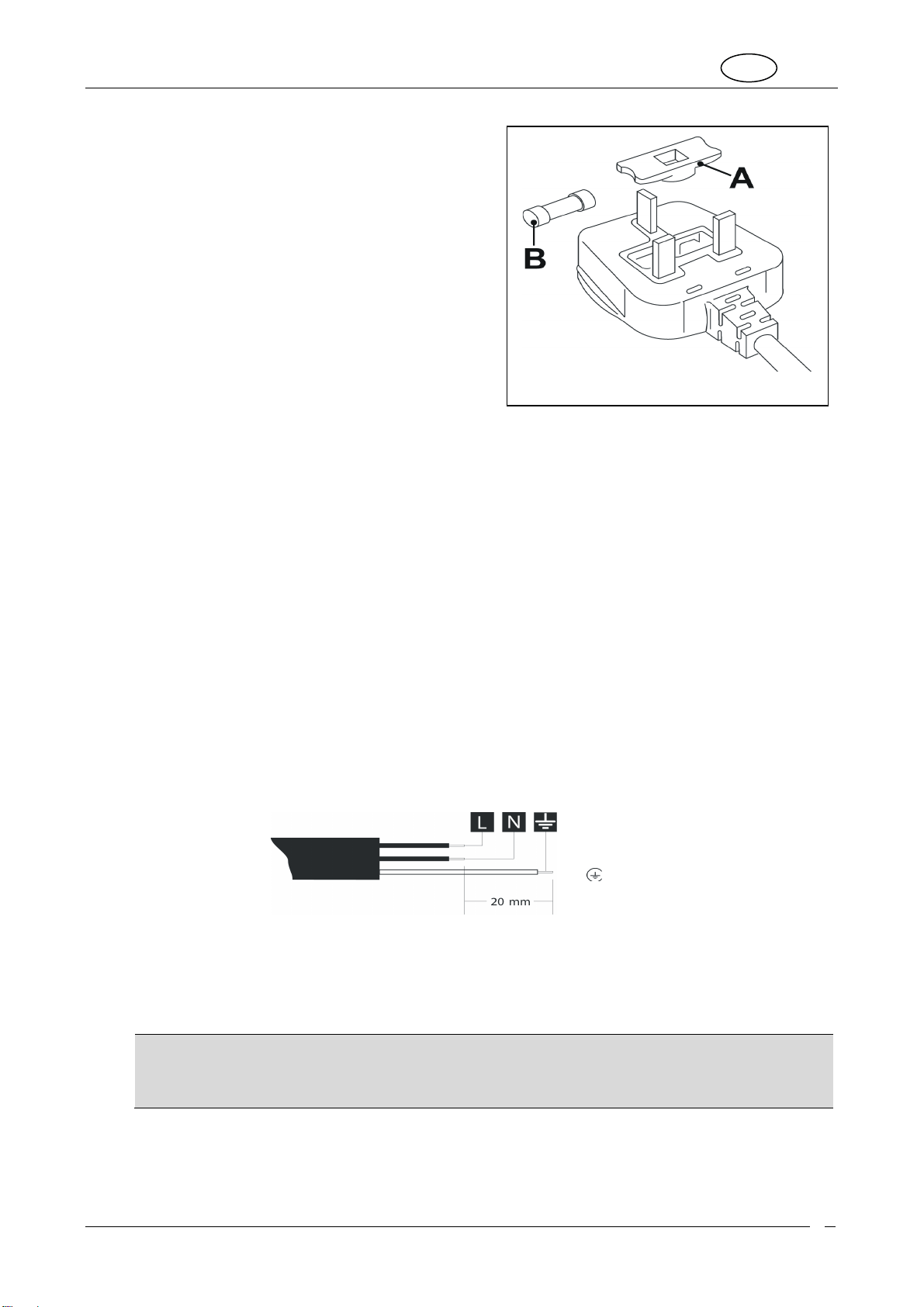

Fuse replacement

If the mains lead of this appliance is fit-

ted with a BS 1363A 13amp fused plug,

to change a fuse in this type of plug use

an A.S.T.A. approved fuse to BS 1362

type and proceed as follows:

1. Remove the fuse cover (A) and

fuse (B)

2. Fit replacement 13A fuse into

fuse cover

3. Refit both into plug

Important:

The fuse cover must be refitted when

changing a fuse and if the fuse cover is

lost the plug must not be used until a

correct replacement is fitted.

Correct replacement are identified by

the colour insert or the colour em-

bossed in words on the base of the

plug.

Replacement fuse covers are available

from your local electrical store.

If the appliance is provided with a plugless supply cord:

 It is necessary to install in the fixed wiring an all-pole disconnection device

having a gap between contacts of at least 3,5mm. After installation the

disconnection device has to be easy to reach.

 The connection to the mains must be carried out by a qualified technician

in accordance to the scheme shown below and the regulations in force

= brown

= blue

= yellow-green

 In the event of damage to the supply cord, it has to be replaced by the

manufacturer or an authorized technical service center in order to avoid

any risk.

The manufacturer declines all responsibility for injury or damage caused

by failure to comply with the above regulations or deriving from tampering with

even just one part of the appliance and the use of non-original spare parts.

2. INSTALLATION INSTRUCTIONS

Important!

The appliance must be installed by a qualified engineer in compliance with

the relevant regulations.

The washer-dryer is heavy. Take care when lifting it.

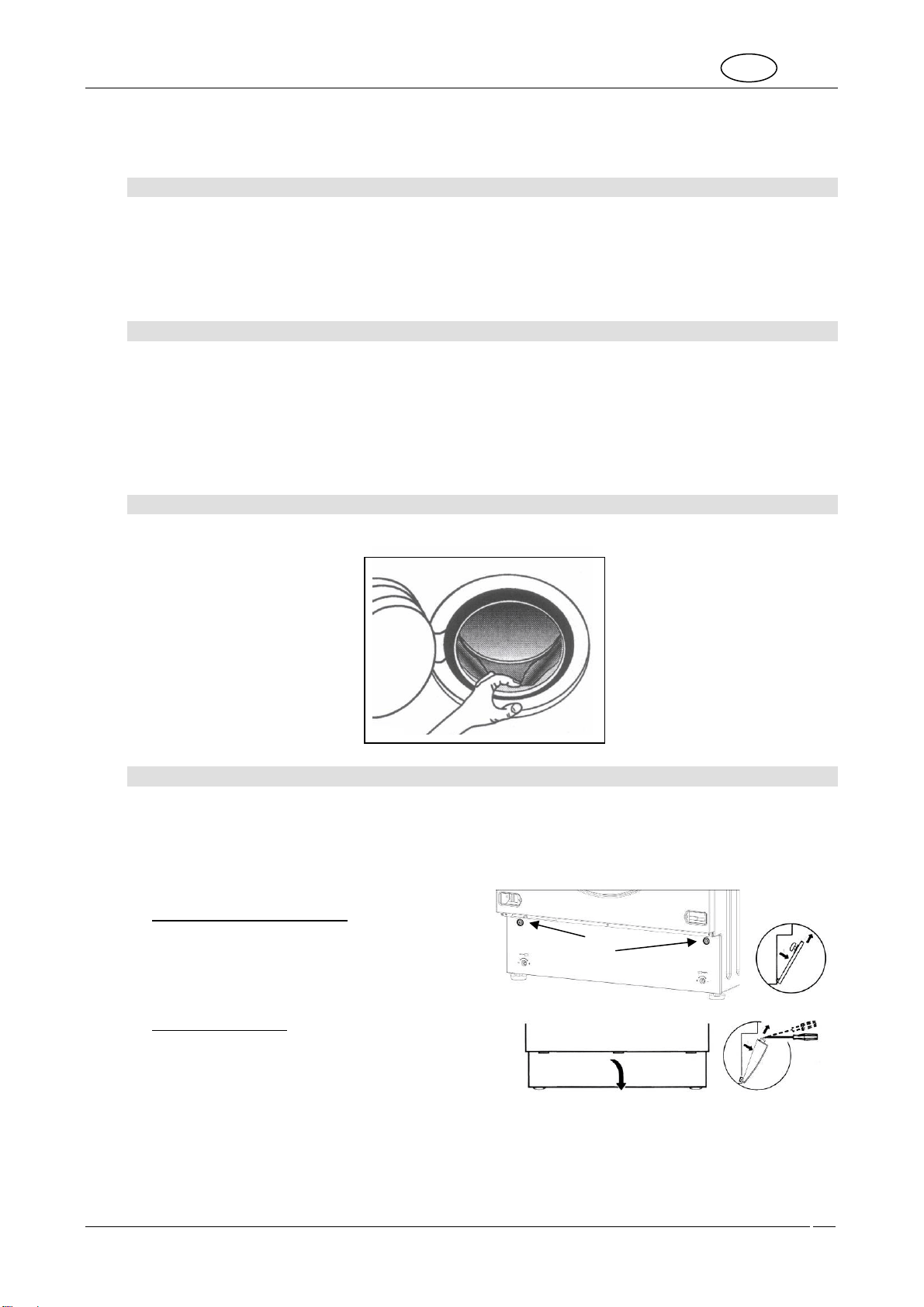

2.1 UNPACKING

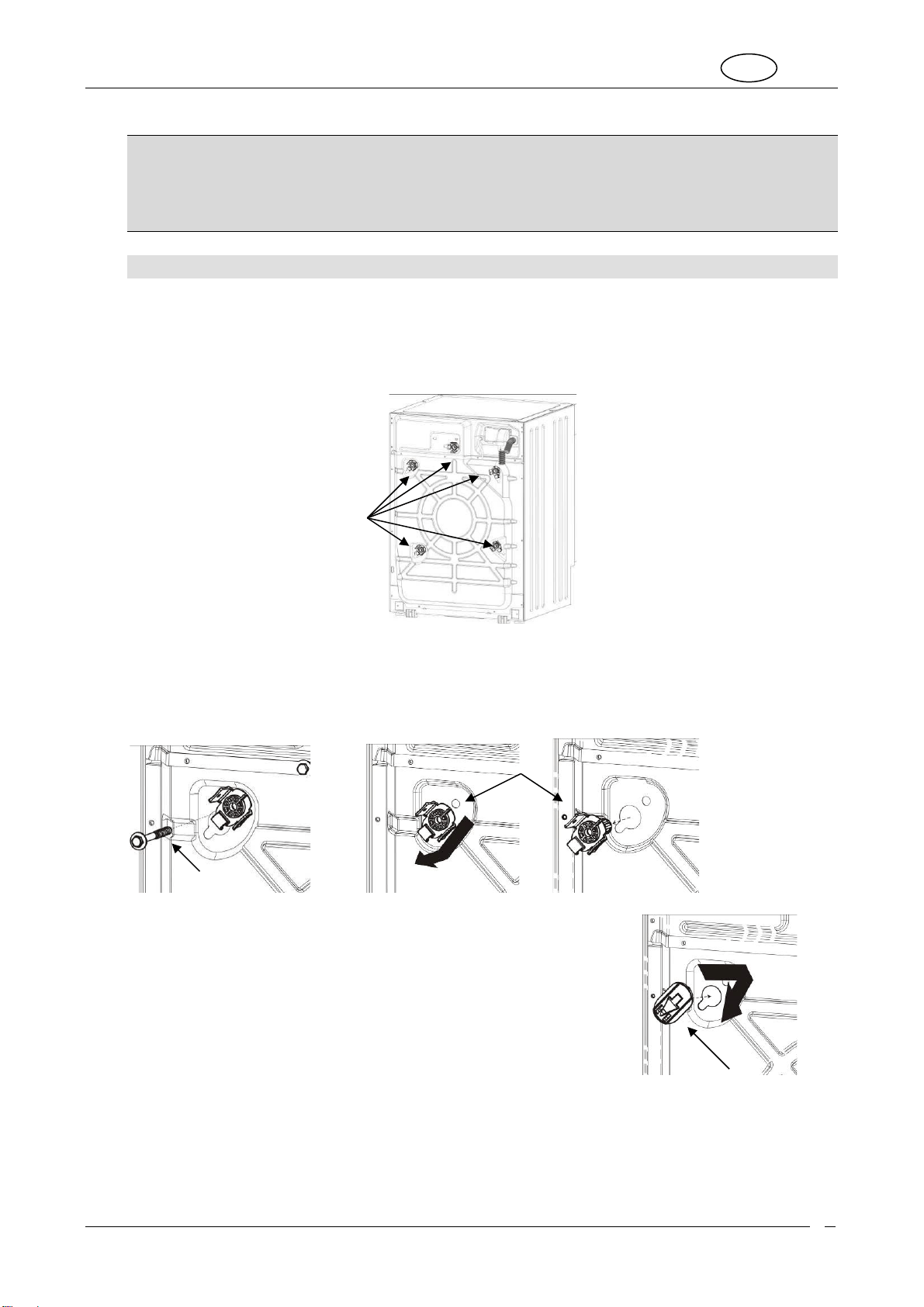

The unit on flexible mounts is fixed in place for transport using the screws (A)

on the rear of the washer-dryer, with the relative plastic spacers (B). Once the

screws have been removed, the power supply lead can be used.

1. Undo all the screws with a 10 mm spanner

2. Remove all the screws (A) from the rear

3. Remove all the plastic spacers (B)

WARNING: It is absolutely necessary to fit all (nr.5)

the supplied plastic plugs (C) in order to avoid

splashes or water penetrating the machine or to

avoid contact with live parts.

Warning!

 Do not turn the appliance upside-down or place it on its sides.

 All the transport retainer fittings should be kept in a safe place; they must be

fitted again if the appliance has to be moved around in the future.

A+B

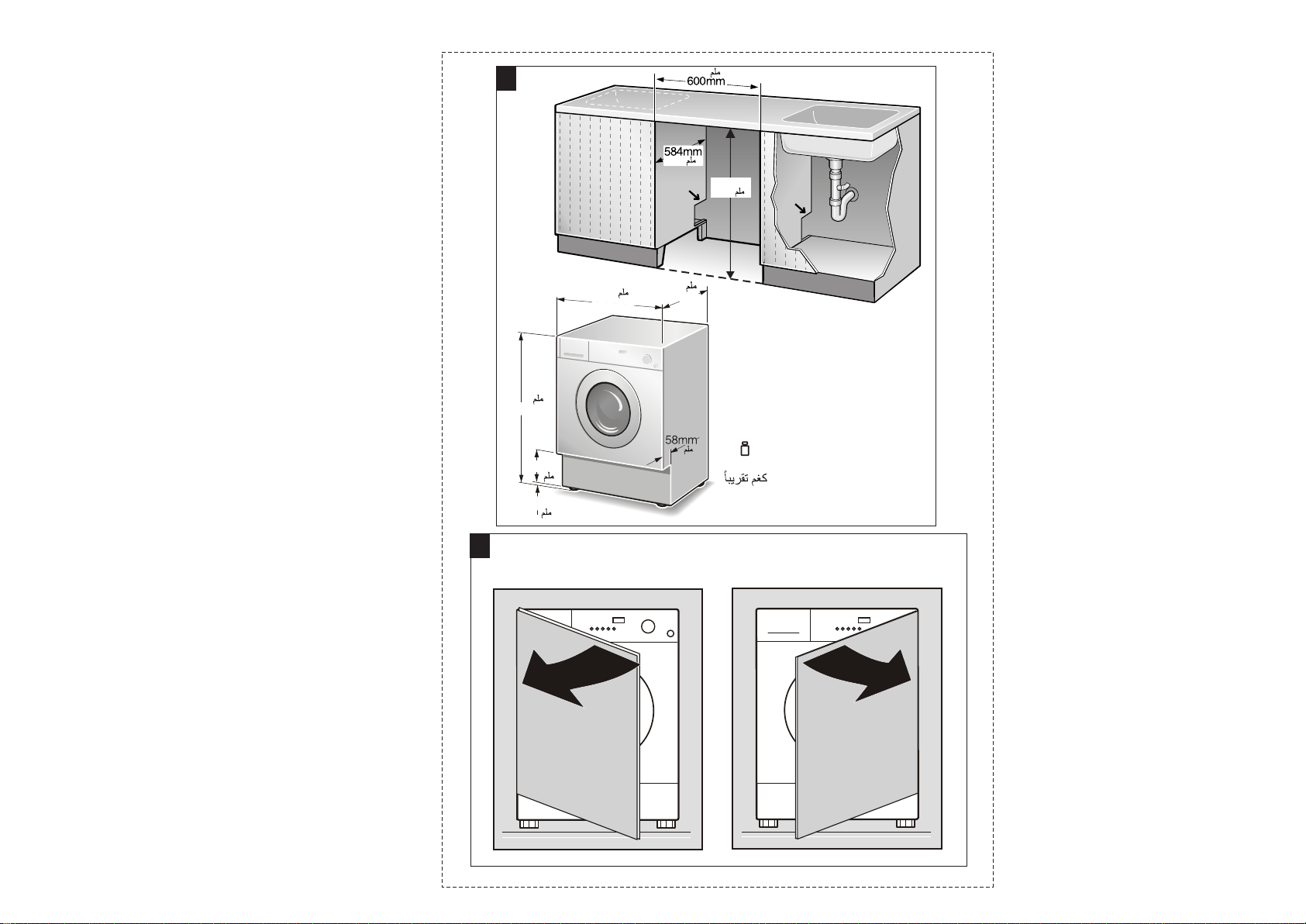

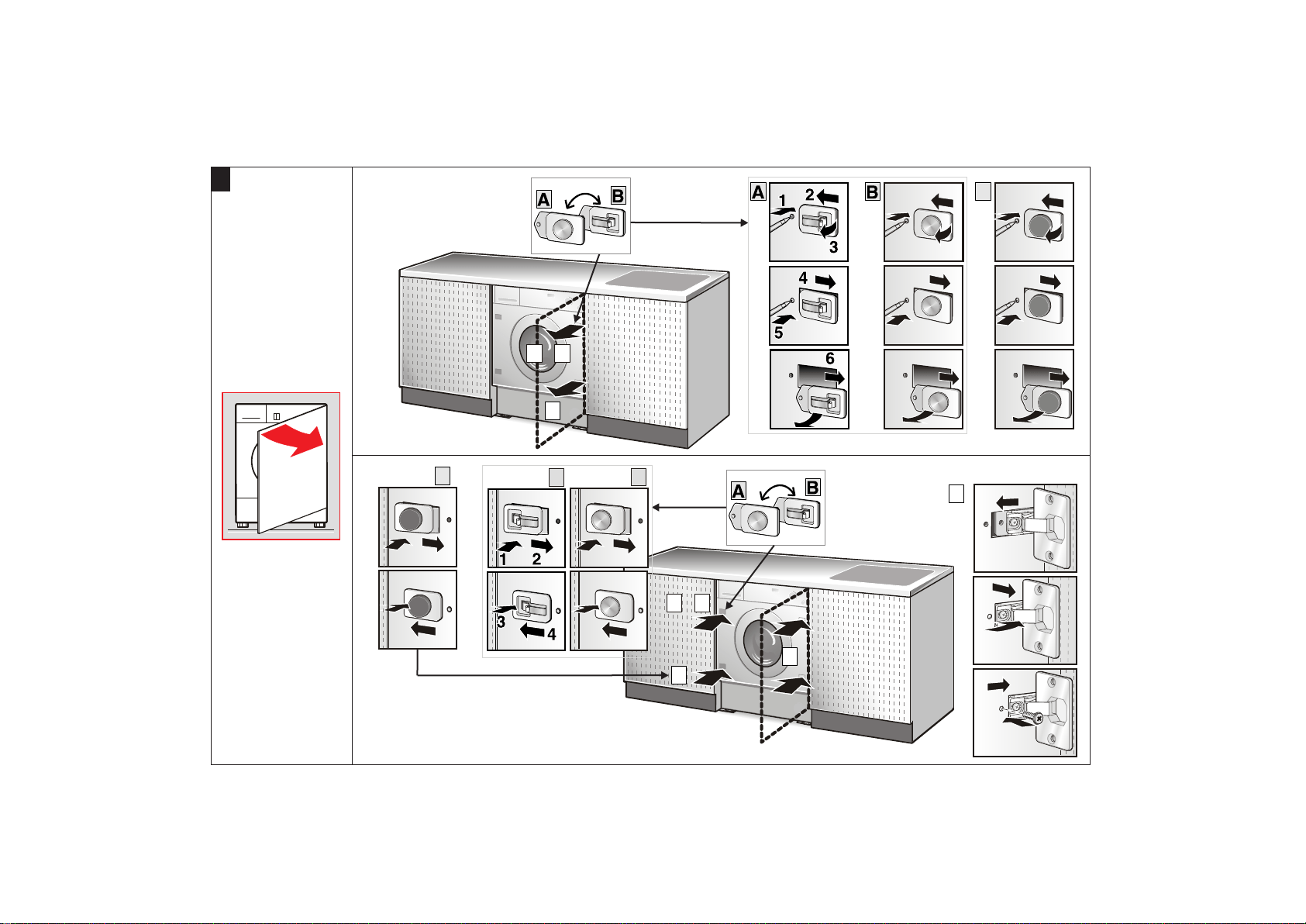

2.2 POSITIONING AND LEVELLING

1. Place the appli-

ance in the chosen

position.

2. Level the appli-

ance carefully in all

directions with the

aid of a spirit level,

adjusting the height

of the feet if neces-

sary. Once done, fix

the feet in place with the locknuts provided.

3. On appliances with adjustable rear feet, note that the rear of the appliance

rests on skids and not on the feet. Before inserting the appliance into its place

between the kitchen units, check that the rear feet are screwed fully in to pre-

vent damage as the appliance is shifted into position.

Once the appliance is in position in the kitchen, the height of the rear feet has

to be increased so that the appliance no longer stands on the skids. After

adjusting the rear feet, level the appliance and fix the front feet at the height

required.

The water intake and drain hoses can be fitted pointing to the left or right for

effective installation.

Warning!

 This operation must be carried out with care to prevent the washer-

dryer from vibrating, moving or generating excessive noise during use.

 If the appliance is installed on a carpeted floor, take care to ensure

that the openings in the bottom of the washer-dryer are not obstructed.

 Also check that during operation the washer-dryer is not resting against

walls, kitchen units, etc.

 The appliance must not be installed behind a door with lock, a sliding door, or

a door with hinge on the opposite side.

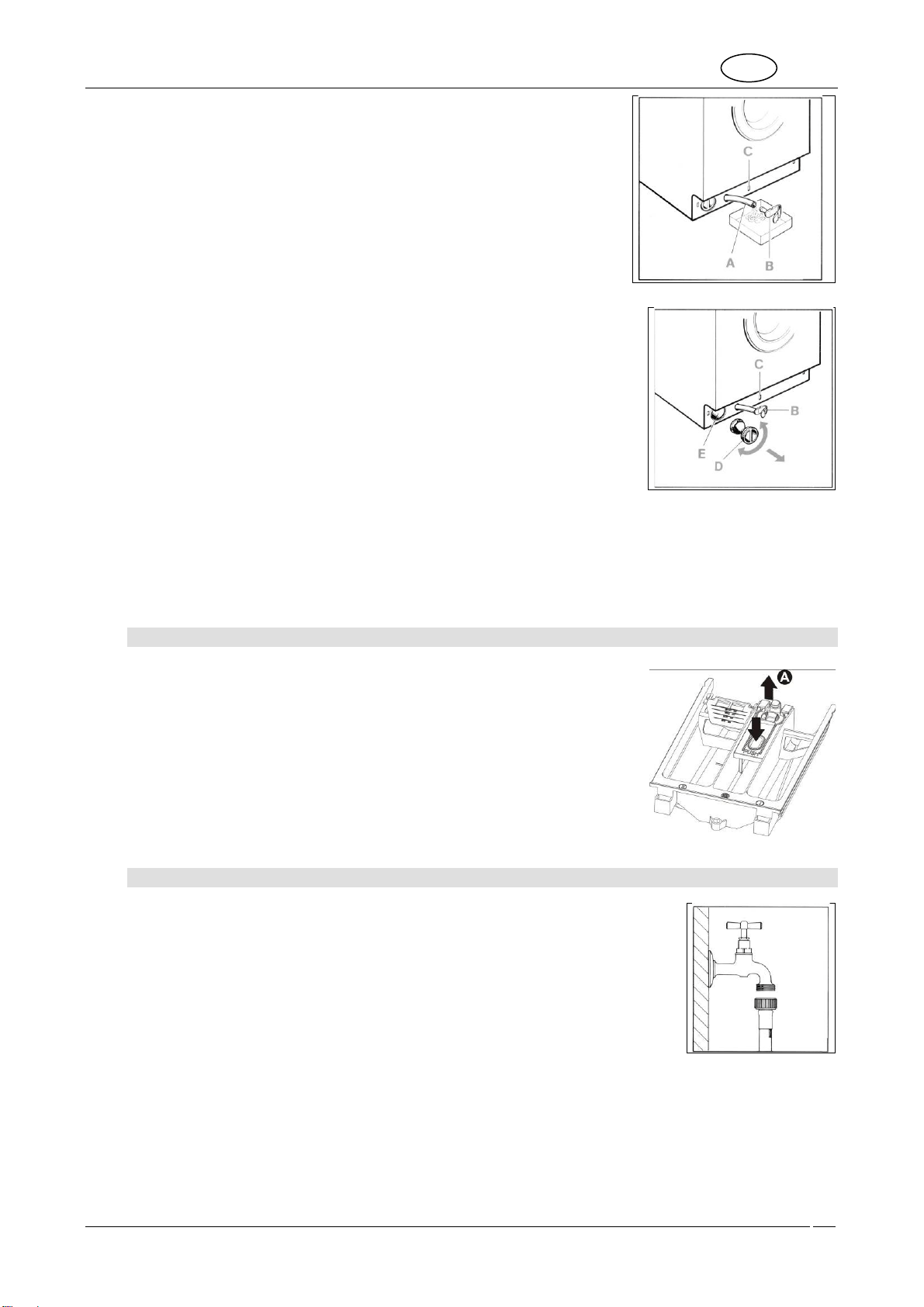

2.3 CONNECTING TO THE WATER SUPPLY

1. Check that the water supply pressure is in the follow-

ing range: 0,05-0,9MPa. With higher pressures, use a

pressure reducer.

2. Connect the cold water supply hose (blue screw

collar) to the cold water tap with ¾ gas threaded con-

nector, taking care to tighten firmly to prevent leaks.

The water supply hose must not be kinked or crushed

and must not be changed or cut. Threaded connections

must only be tightened by hand.

3. When appliances are supplied with hot water, the intake water temperature

must not exceed 60°C and the hose with red screw collar must be connected

to the hot water supply tap.

Warning!

 If the connection is made to new pipelines, or lines which have been out

of use for a long time, allow a considerable amount of water to flow out be-

fore connecting the intake hose. This prevents any sand or other dirt from

fouling the filters installed in the appliance to protect the water intake valves.

 The new intake hose supplied with the appliance must be used, and the old

water supply hose must not be used.

Supplementary note regarding the water connection for the German mar-

ket.

Before connecting the product to the water supply, make sure that the water

system has been fitted with a safety device to protect drinking water against

contamination due to backflow (according to DIN EN 1717). The water valves

and/or taps are fitted with these safety devices if the water system of the house

has been properly implemented.

2.4 CONNECTING TO THE DRAIN

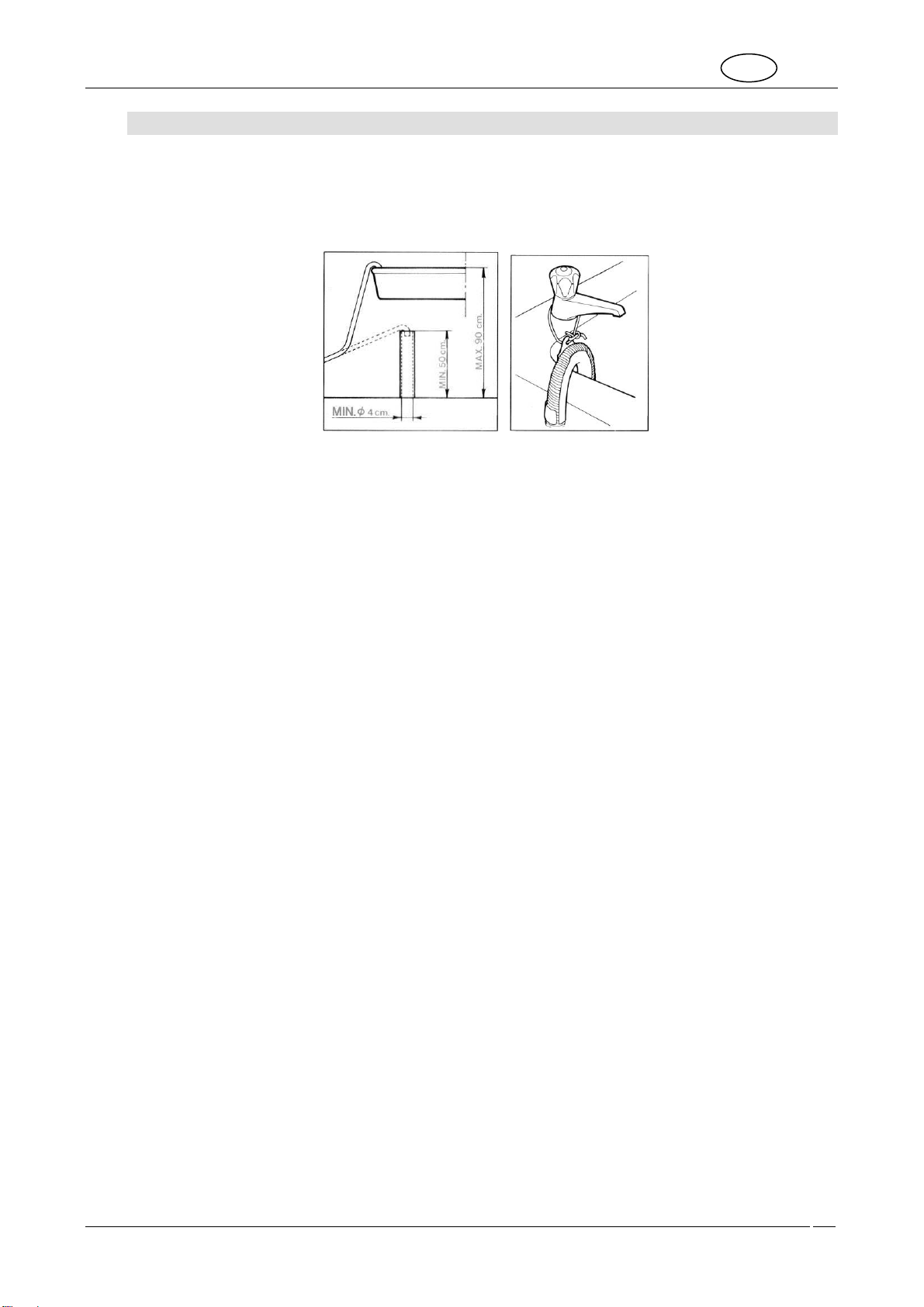

1. Insert the end of the drain hose into a drain pipe having inside diameter of

at least 4 cm, at least 50 to 90 cm above floor level, or connect it securely

(using the plastic fitting on the elbow in the hose) to a sink or bathtub.

2. In all cases, check that the end of the drain hose is securely fixed to prevent

the repulsive force of the water from pushing it out of place.

Warning!

 Avoid kinks or restrictions to ensure effective drainage.

 Any drain hose extensions must be no more than 1 metre long, must be of

the same diameter and must be free from restrictions of all kinds.

 The end of the drain hose must never be submerged in water.

2.5 ELECTRICAL CONNECTION

Before connecting the plug to the power socket ensure that:

1. The electrical system voltage is the same as that stated on the nameplate

on the front of the appliance, in the zone visible when the door is open.

The rated power supply and the fuses required are specified on the name-

plate.

2. The meter, safety breakers, power supply line and power socket are rated

to withstand the maximum load required, stated on the nameplate.

3. The power supply socket and the plug fitted to the appliance are compat-

ible without the use of reductions, multiple sockets, adapters and exten-

sion leads which might cause overheating or scorching.

If the power supply socket is not compatible with the plug supplied, re-

place the socket with one of the appropriate type.

Warning

 The power plug must be accessible after the appliance has been installed.

 It is absolutely essential to connect the appliance to earth. Connect

the plug to a socket with an earth connection in good working order.

The manufacturer declines all liability for direct or indirect injury or dam-

age deriving from a non-existent or defective earth connection. Correct

electrical connection guarantees conditions of maximum safety.

 This appliance is compliant with the requirements of EEC directive 89/336

of 3.5.89 (including the amendment directive 92/31/EEC) concerning the

elimination of radio-frequency disturbance.

 If the power supply lead is damaged, it must only be replaced with an orig-

inal spare, available from the After-Sales Service.

 Do not connection/disconnect the power supply plug from the socket

with wet hands

 Only disconnect the power supply plug from the socket by taking

hold of the plug itself, never by pulling on the lead.

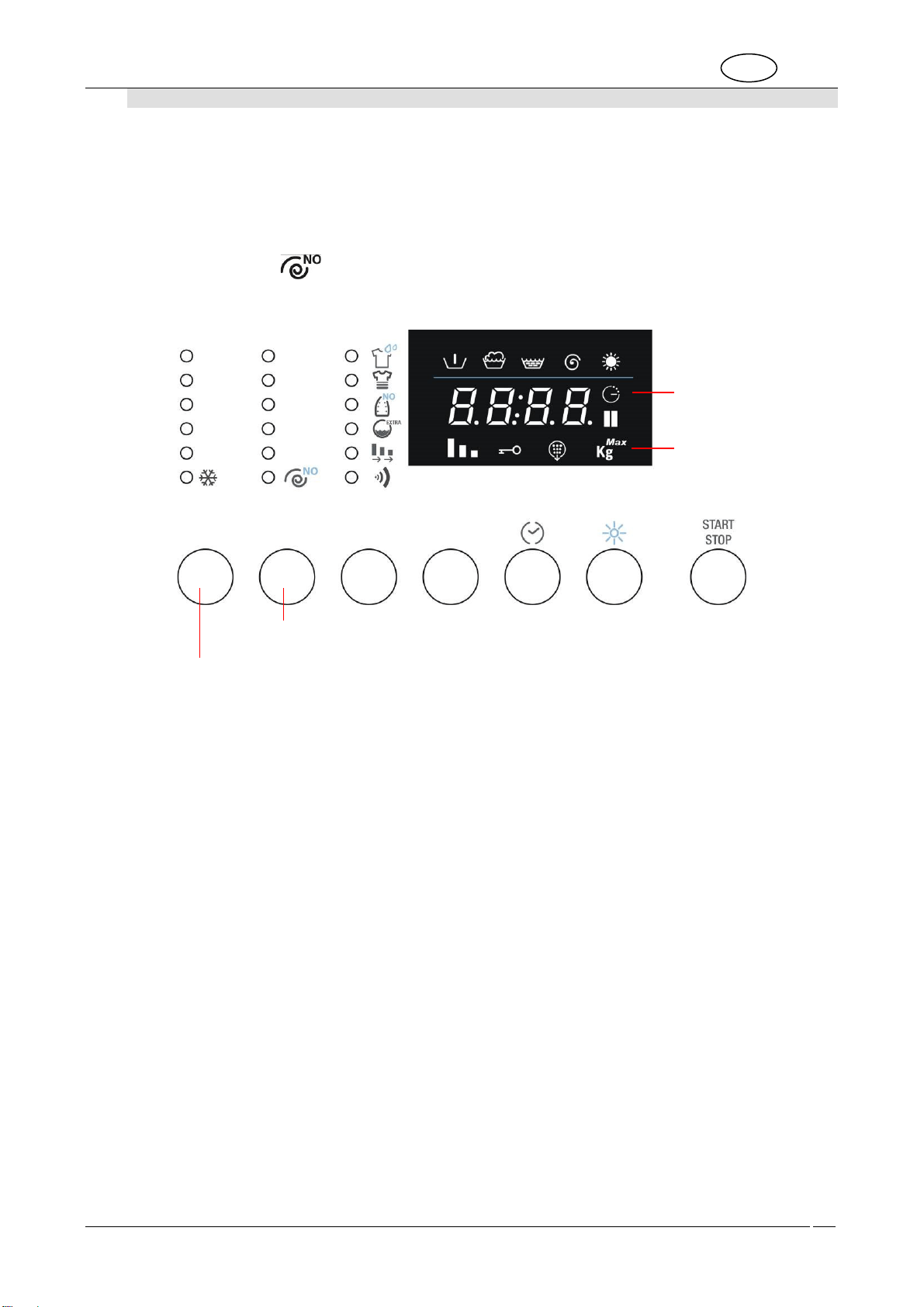

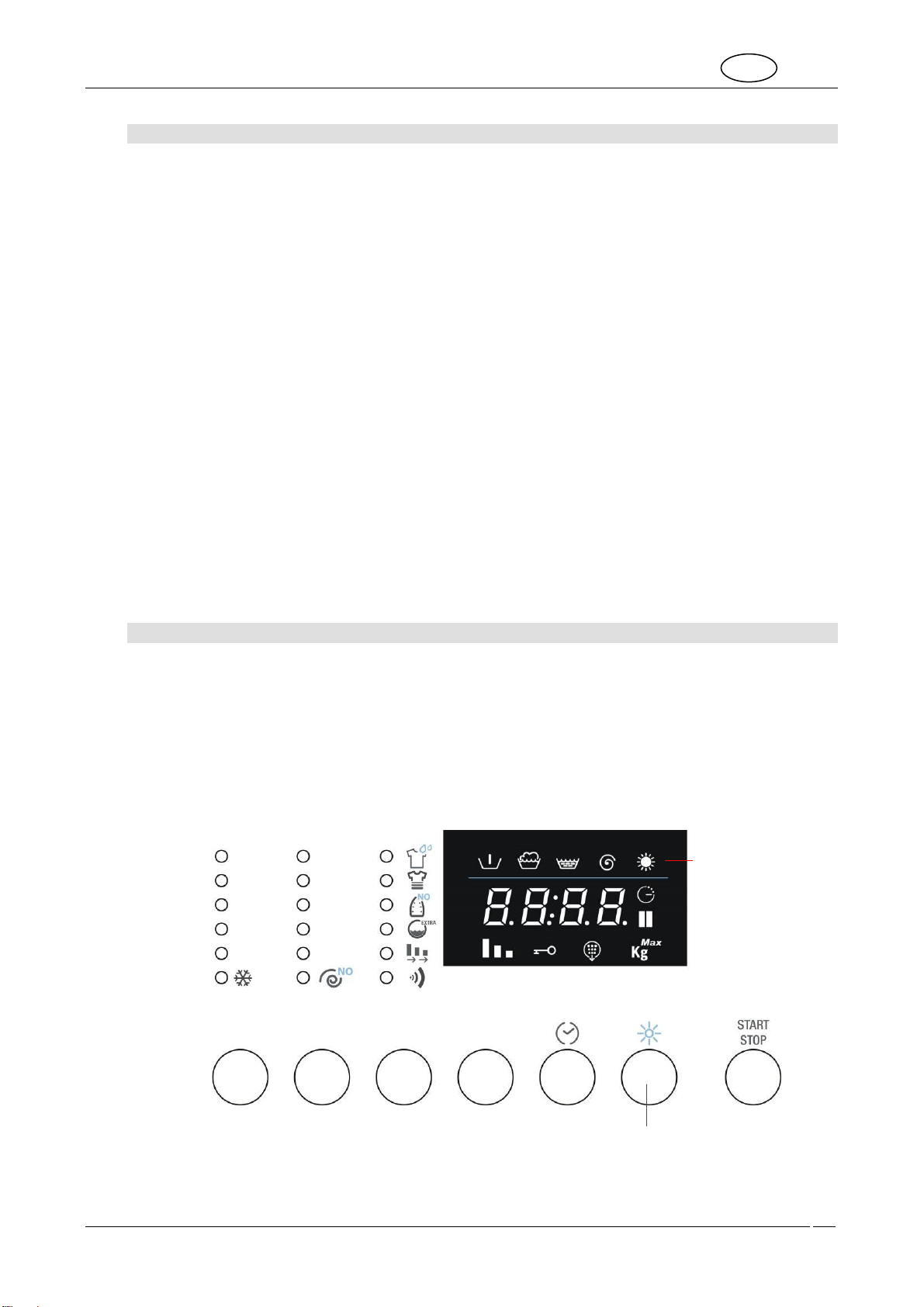

3. DESCRIPTION OF CONTROLS

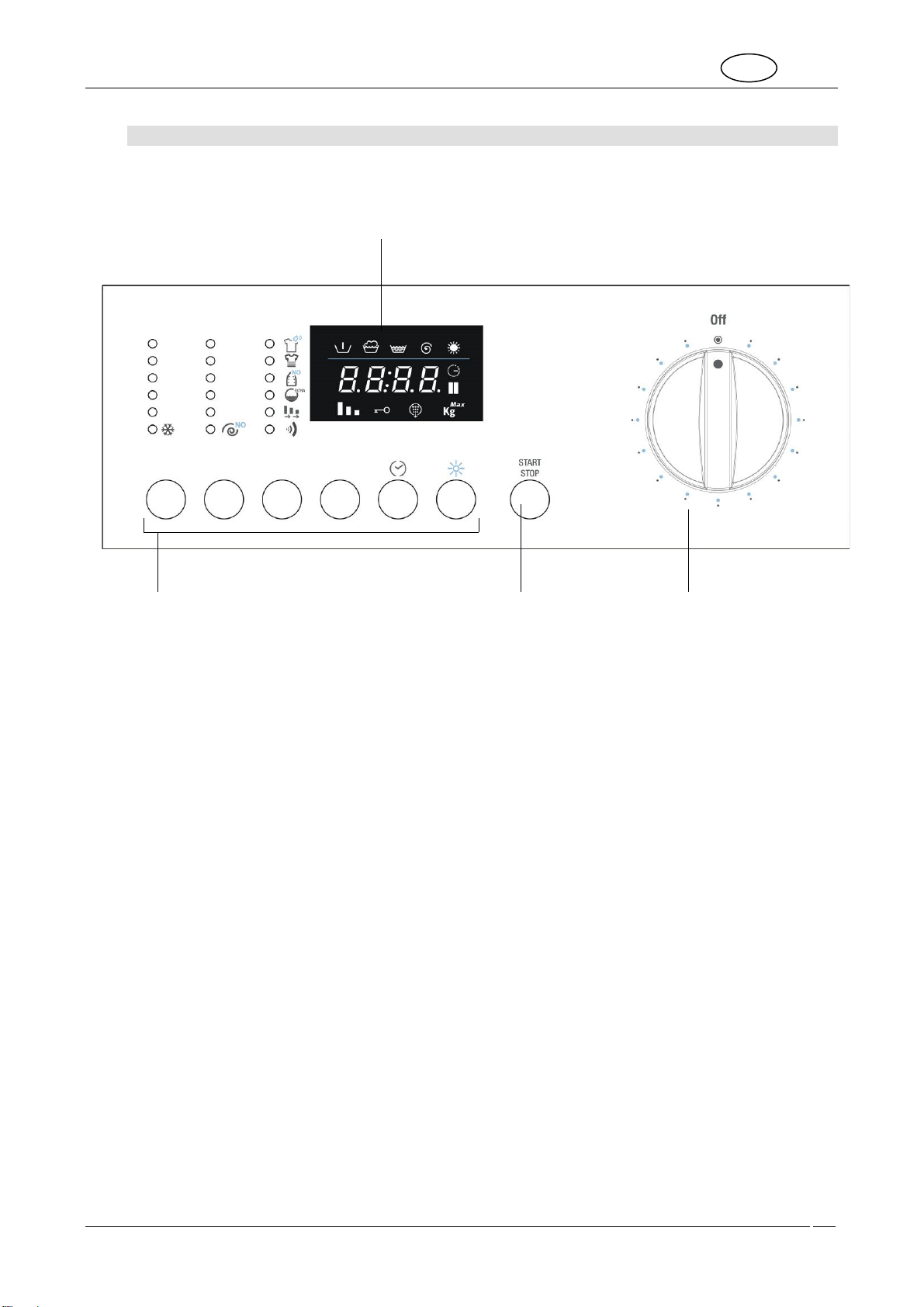

3.1 CONTROL PANEL

All the appliance's control and monitoring devices are placed together on the front panel.

Programme Selector

For switching the washer-dryer

on and off and selecting pro-

grammes. Can be turned in ei-

ther direction. Does not turn

while programmes are in pro-

gress.

Start/Pause button:

For starting and stopping

working cycles.

Display: shows the settings (spin speed, cycle status, flexi time, maximum recommended weight,

drying levels, child lock, clean programme). The settings can be modified using the buttons under-

neath.

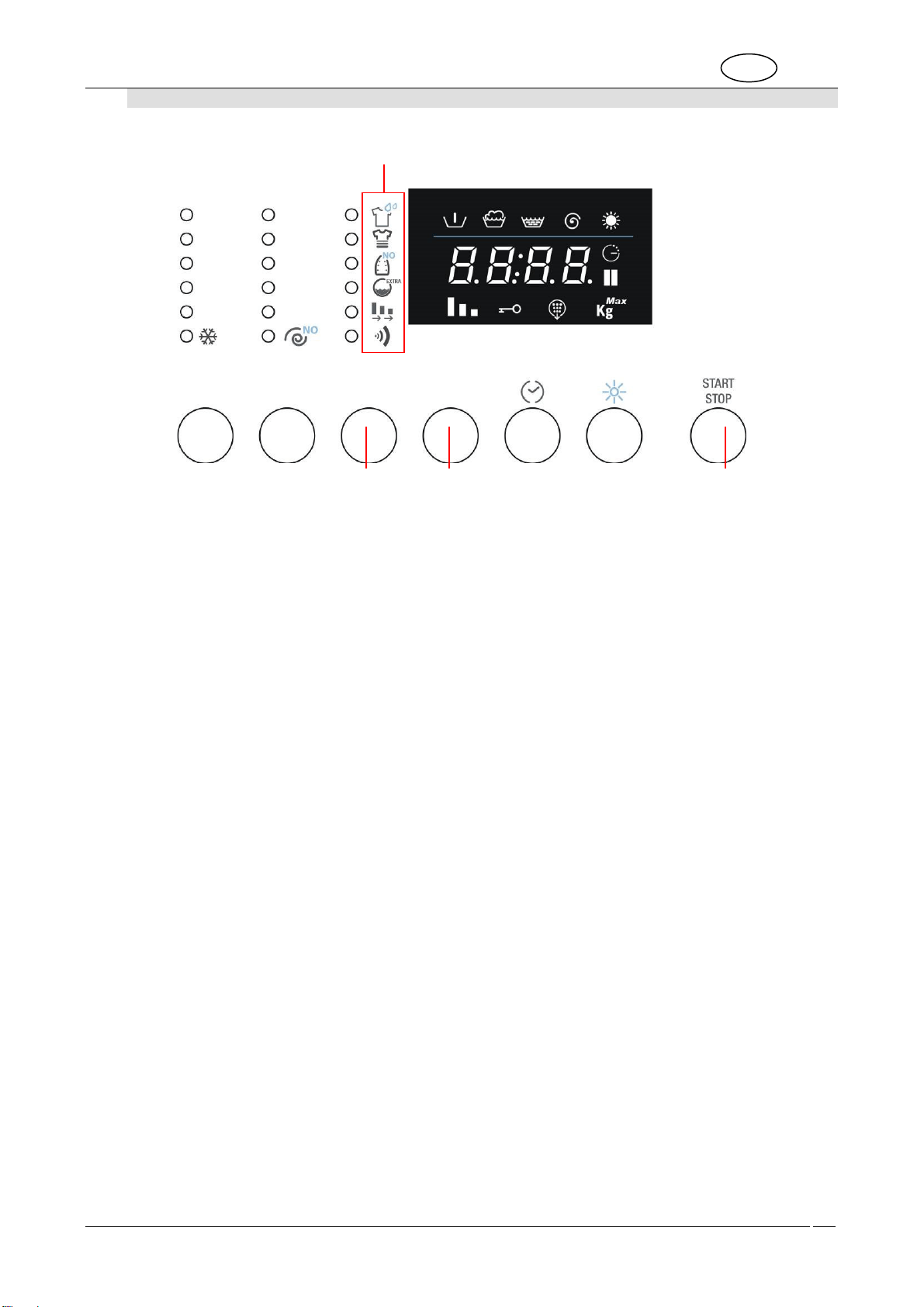

Buttons (from left to right):

Washing Temperature selection

Spin speed selection

Option selection

Confirm option

Time to end

Drying

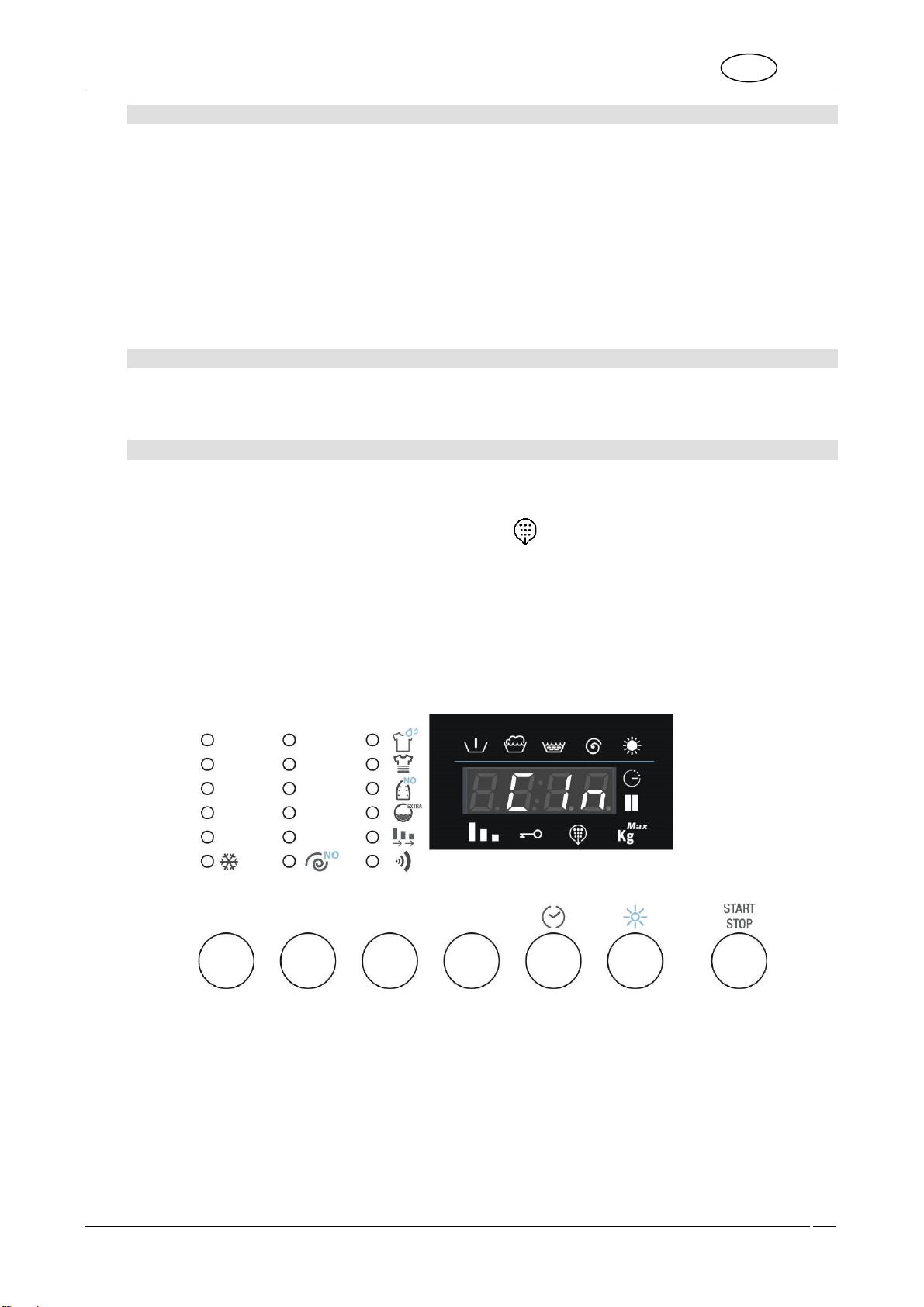

4. USING THE APPLIANCE FOR WASHING

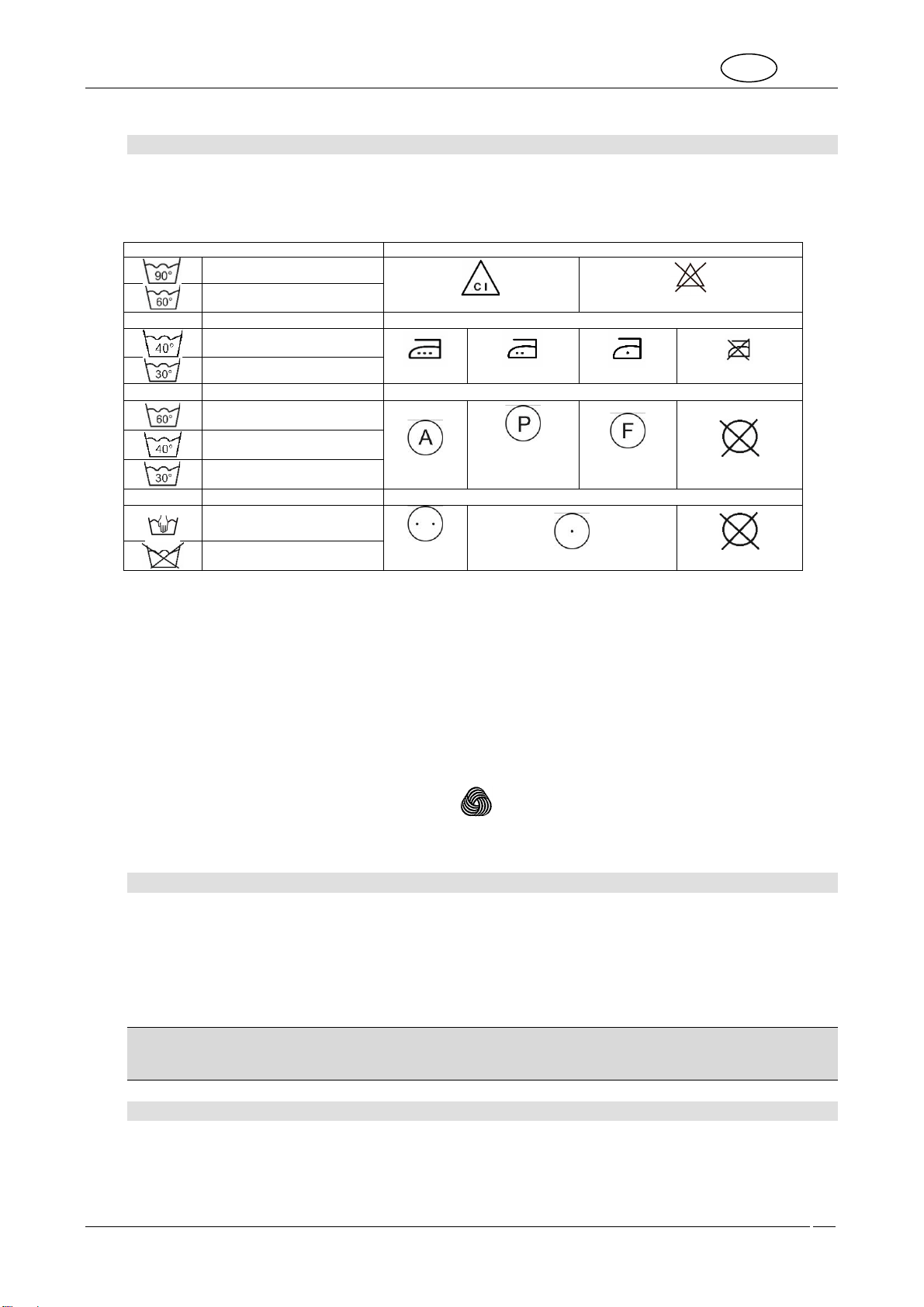

4.1 PREPARING THE ITEMS FOR WASHING

1. Subdivide the items for washing by fabric type and colour fastness.

2. Wash white and coloured items separately. New coloured items should be washed separately the first time.

Normally, items carry labels with washing instructions. The following is a short description of the symbols used

on these labels.

WASHING BLEACHING

Machine wash at max. 90°C

Bleaching allowed

Do not bleach

Machine wash at max. 60°C

IRONING

Machine wash at max. 40°C

Hot iron

Warm iron

Cool iron

Do not iron

Machine wash at max. 30°C

DRY CLEANING

Machine wash, delicate cycle

at max. 60°C

Any solvent

Any solvent ex-

cept trichloroe-

thylene

Petroleum sol-

vent and R113

Do not dry clean

Machine wash, delicate cycle

at max. 40°C

Machine wash, delicate cycle

at max. 30°C

DRYING

Hand wash

High tem-

perature

Less than 60°C

Do not tumble dry

Do not wash

Warning!

 Do not wash unhemmed or torn items as they may fray.

 Unrelated items in the wash may damage the garments or parts of the washer-dryer. So: empty pockets and

turn them inside-out, and remove wheels from curtains or wrap them in a mesh bag.

 Wash very small items (belts, handkerchiefs, socks, padded bras, etc.) in a white canvas bag. Fasten press-

studs and zips and sew on loose buttons.

 The use of modern detergents and the correct washing temperature is generally sufficient to remove stains

from fabrics. However, some difficult stains such as grass, fruit, egg, blood, rust, ballpoint pen, etc. should be

dealt with before washing. Depending on the type of fabric, there are a large number of commercial stain

removers on the market. In all cases, stains should be cleaned or diluted at once, since the older they

are, the harder they are to remove.

 Failure to comply with washing guidance symbols may result in damage to the items washed.

Wool – Only wool marked as pure new wool, with the mark, or labelled "shrink-proof, machine-washable" can

be washed in a washing machine on the specific programme; other types of wool should be hand-washed or dry-

cleaned.

4.2 OPENING THE DOOR

The appliance is fitted with a safety device which prevents the door from being opened while the programme is in

progress.

1. Check that all the water has been drained from the tank and the drum is at a standstill.

Warning!

 If the washing programme is interrupted, it will be from 3 to 15 minutes before the door can be opened,

depending on the temperature reached inside the appliance.

Warning!

The water may still be boiling hot if the wash was at high temperature.

Do not open the door if there is still water in the drum!

4.3 LOADS OF WASHING

As far as possible, to save electricity, it is more economical to wash complete loads of the various types of

fabric. Shake out the laundry before loading, and alternate large and small items. It is best to weight the load the

first few times, after which you will be able to rely on your experience.

4.4 LOADING THE ITEMS FOR WASHING

1. Open the door and load the laundry, distributing it evenly over the drum, with items opened out and not

bundled together; if possible, large and small items should be well mixed.

2. The washing machine covered by this manual can be loaded with up to 7kg of laundry for each wash. If

this weight is exceeded, the washing results will be poor and the appliance may malfunction.

3. To save energy it is more economical to wash full loads of the various types of fabric, following the

guidance on quantities provided in the "Programmes Table" supplied in this manual.

4. Close the door by pressing against the frame until you hear it click shut. Take care not to trap items of

laundry between the door and the rubber gasket.

Warning!

 If the door is not properly closed, a safety device prevents the washer-dryer from starting.

 Do not exceed the maximum load: overloading adversely affects washing results.

4.5 ADDING DETERGENT AND ADDITIVE

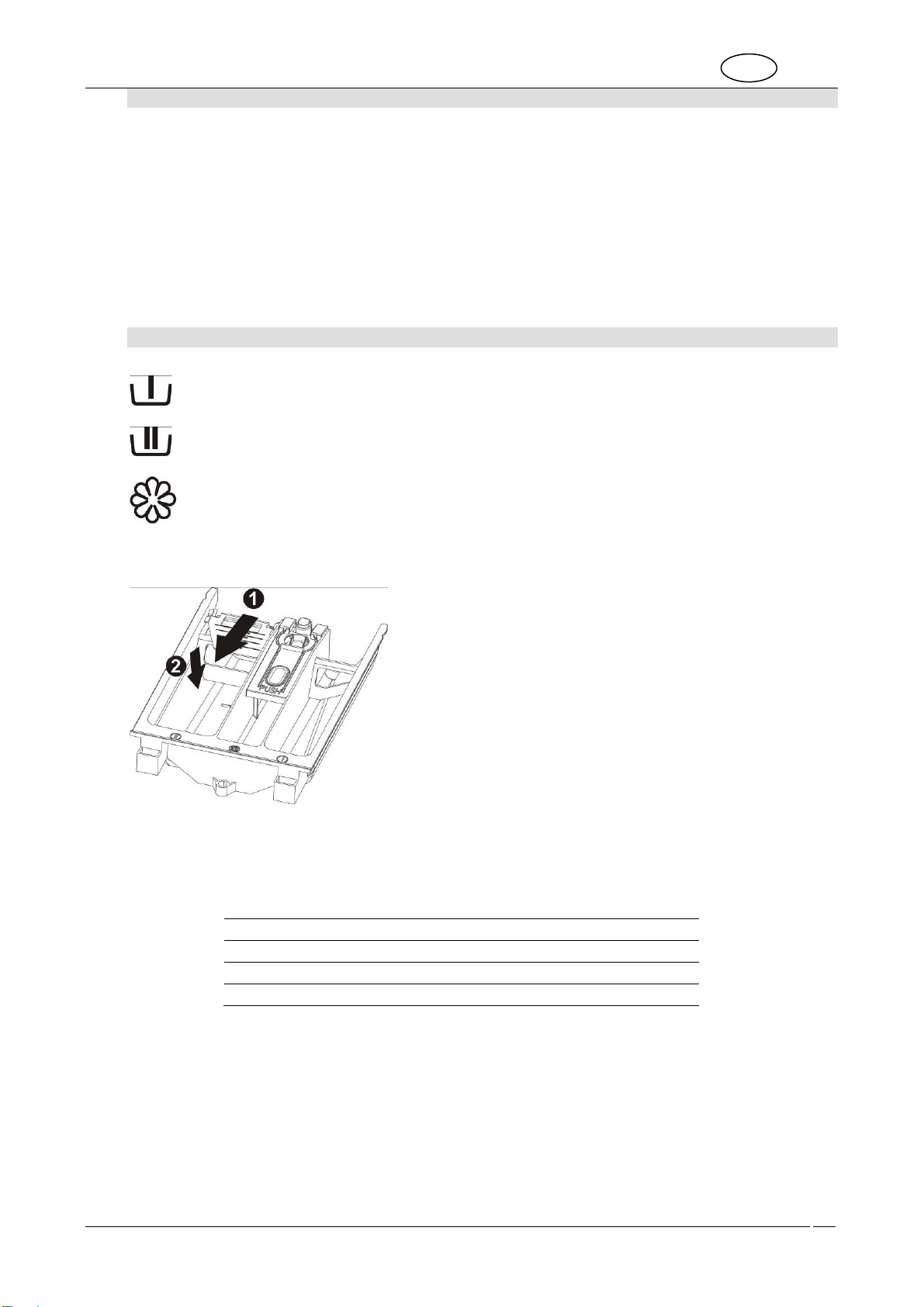

The internal tray comprises three compartments, marked with the symbols

prewash detergent

main wash detergent

for fabric conditioner, starch, additives, etc. (e.g. treatment products).

The additives are added to

the washing tank automatically during the final rinse.

The main wash detergent compartment has a tang allowing the use of liquid detergent. To insert it, pull it towards

the front and then lower it.

Following the recommendations in the "Programmes Table"

supplied with this manual, place the detergent and any addi-

tives in the drawer before the start of the programme.

Never fill with liquids above the maximum level marked; otherwise

the trays will empty too quickly.

Before pouring dense additives into the container, dilute with a little

water to ensure they do not clog the outlet.

Use only low-foam detergents suitable for use in a washer-dryer.

The amount of detergent must be decided in relation of the hard-

ness of the water, the type and quantity of items loaded, and their

degree of dirt.

This will provide the desired effect with optimal detergent consumption.

On detergent packs the recommended dose is indicated for 4 levels of water hardness and for loads of 4-5 kg of

laundry with average dirt levels.

Request information about the water's hardness from your water supply company.

Water hardness

Level of hardness French degrees fH German degrees dH

Soft Up to 15° Up to 8°

Medium 15° - 25° 8° - 14°

Hard 25° - 40° 14° - 22°

Very hard More than 40° More than 22°

4.6 POWDER DETERGENT DOSES

Laundry with normal dirt

1. Choose a programme without prewash.

2. Pour the total amount of detergent shown on the pack into the main wash compartment of the detergent

drawer.

Very dirty laundry

1. Choose a programme with prewash.

2. Place ¼ of the recommended amount of detergent in the prewash compartment of the detergent drawer and

¾ of the detergent in the wash compartment.

Warning!

 If no recommended doses are provided, for delicate items in synthetic fibre use from ½ to 2/3 of the recom-

mended dose for washing tough cotton fabrics.

 Only neutral detergents recommended for wool should be used on the wool programme.

 Use the doses recommended by the detergent producer.

4.7 LIQUID DETERGENT DOSES

1. Pour the dose required into the measuring cap supplied with the bottle of liquid detergent and place it in the

drum, or use the main wash compartment of the detergent drawer, fitting the insert provided.

2. The scale on the red insert is intended as an aid when deciding the dose of liquid detergent.

Warning!

 Liquid detergents can be used, at the doses recommended by the producer, only for the main wash, i.e. in

all programmes without prewash.

4.8 DESCALERS

Descalers can be added to the prewash and main wash compartments as recommended by their producers.

Place the detergent in the compartments first, followed by the descaler.

4.9 PROGRAMMES AND FUNCTIONS

For advice on selecting programmes in relation to the type of fabric, refer to the "Programmes Table", sup-

plied with this manual.

4.10 SWITCHING ON THE APPLIANCE AND SELECTING THE WASHING PROGRAMME

To switch on the appliance and select the programme, proceed as follows:

1. Turn the programmes knob in either direction. This switches on the washer-dryer.

2. Select the washing programme. The time left to the end of the programme and the maximum recommended

weight for the selected programme alternate on the display. The symbols on the display light up to identify the

information shown.

3. The default spin speed and temperatures values are shown. The initial settings can be modified using the

button underneath the sequence of spin speeds and temperatures.

4. If spin speed is set, there will be no spin cycle and the appliance will stop with the tank full. If this

value is set the appliance does not perform the final spin and the washing programme ends with water in the

tank.

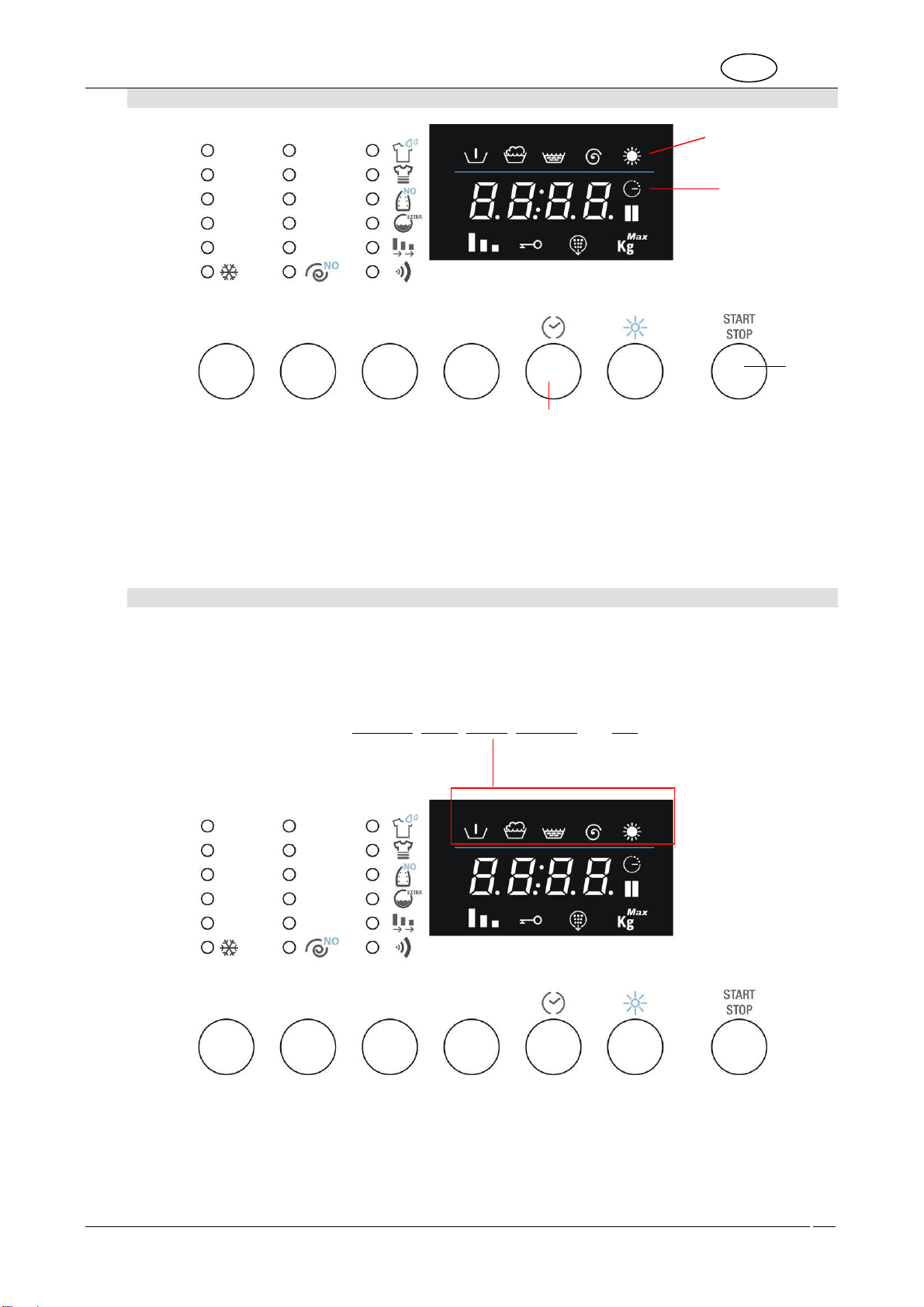

Time to end

Max recommended wei

Spin Speed selection

Washing Temperature selection

4.11 SELECTING AND CONFIRMING OPTIONS

1. The Option Selection button can be used to select the following options in sequence (from the top down):

Prewash: adds a stage before the main wash, lasting about 20 minutes at a temperature of 35°C. Suitable

for loads of particularly dirty items.

Intensive: the max. temperature is changed to 60°C and the washing stage is extended to increase the

effectiveness of the enzymes in the detergents. Suitable for delicate but dirty items.

Easy iron: produces items which are less creased and easy to iron.

Water plus: Increases the amount of water used for washing and rinses.

In alternative Extra rinse: this option adds a rinse to the selected washing programme.

Flexi Time: reduces the duration of the cycle. The symbol is completely illuminated with the initial duration

of the selected programme. Once the option has been selected the cycle duration can be further reduced

to an intermediate setting and a minimum setting and then returned to the initial duration by repeated

pressing of the Set button

In alternative Rapid: reduces the duration of the washing cycle. Suitable for small amounts of laundry with

only light dirt.

Buzzer: sets whether or not the buzzer will sound at the end of the cycle. The appliance comes with the

buzzer function "on".

2. To confirm the selected option, simply press the Confirm options button and the LED of the option remains

on.

3. To delete an option selection, simply return to the option with the Selection button and press the Confirm

options button. To annul all the options previously selected in a single operation, simply hold down the

Confirm options button for 4 seconds.

4. The Buzzer option retains its "on" or "off" status for subsequent cycles. It is only automatically switched to

"off" if the Night Wash programme is chosen.

tion selection

Confirm option

Options

Start Pause

4.12 TIME TO END

1. The Time to End key can be pressed repeatedly to select the time after which the washing programme will

end. The time to end of cycle function calculates the initial duration of the washing/drying cycle, the settings

made (temperature, spin speed and options) which may shorten or lengthen the cycle's initial duration, and

the delay time the user wishes to add before the cycle starts.

2. After the time to end has been set, the symbol on the display remains on.

3. To annul the Time to End function, keep pressing the key repeatedly until the display shows 0.

4. The Start Pause symbol flashes on and off until the cycle starts. After the cycle starts, the symbol remains

constantly lit.

4.13 STARTING THE WASHING PROGRAMME

1. To start the washing programme after making your personal settings, press the Start Pause button.

2. Once the cycle has started, the display shows the time remaining before the end of the cycle and the Start

Pause symbol on the display is constantly on.

3. During performance of the washing/drying programme, the symbols which identify the various phases light

up:

Time to end button

Time to end symbol

Start Pause

Start pause symbol

Cycle phase symbols: Prewash, wash, rinses, final spin and dry.

4.14 INTERRUPTING OR CHANGING THE WASHING PROGRAMME

The washing programme in progress can be interrupted at any moment:

1. press the “Start/Pause” button for about 3 seconds: the display shows the word PAUS (for 1 second)

alternating with the time remaining until the end of the cycle (for 1 second). The Start/Pause light flashes

on and off.

Programmes can also be interrupted by turning the programme/temperature setting knob while the cycle

is in progress.

2. To change the washing programme, simply turn the programme knob to select the new programme; there

is no need to set the appliance in pause status. The new cycle will be carried out completely, beginning

from the start. If the tank had already been filled with water during the previous cycle, the water intake

phase will be omitted from the new programme.

3. To restart the cycle, press the Start-Pause button again.

4.15 PROGRAMME END

Washing/drying programmes are completed automatically. The word END appears on the display and the "Time

remaining" light goes out.

1. Switch the appliance off by turning the programmes knob to OFF

2. Unload the laundry from the drum.

3. Leave the door ajar to allow the interior of the washer-dryer to dry out.

4. Turn off the water intake tap.

If during the initial spin speed setting stage, the "no spin" mode with stop with tank full (spin speed set as 0)

was selected, at the end of the washing programme the word STOP appears on the display, alternating with ----

(spin speed of 0) and the spin light is on.

To proceed with the pump-out and spin, press the spin selection button twice. The appliance restarts the cycle with

the pump-out and spin. To select the spin speed required, press the button until the chosen speed is displayed. To

pump out the water from the tank without performing the spin, press the spin selection button until the display

indicates speed of 0: the pump-out will be run without spin.

4.16 CHILD LOCK

1. When this function is activated, the modification of options, temperatures, spin speed and the washing/dry-

ing cycle is not possible while the cycle is in progress.

2. To activate the Child Lock, press the Confirm option button (1) and hold it down. Also press the Option

selection button (2) within 3 seconds.

3. The Child Lock symbol lights up to show that the function has been activated.

4. Repeat the same procedure to deactivate the function.

4.17 OPENING THE APPLIANCE IN AN EMERGENCY

In the event of a power failure, the door is opened using the

mechanical release device activated by means of the lever in

the bottom of the appliance:

 Turn the knob to Off and disconnect the power

supply plug from the socket.

 Drain off the water (see point 6.4)

 Pull the lever down and open the door.

Warning, scolding hazard: before opening the door, check

that the appliance does not contain boiling hot water and deter-

gent which may pour out and cause injury when the door is

opened.

Warning: do not open the door using the emergency release

lever while the drum is turning.

Child Lock Symbol

5. USING THE APPLIANCE FOR DRYING

5.1 GENERAL

During drying cycles, the water tap must be turned on and the drain hose correctly positioned.

This appliance can be set to perform wash only, dry only and wash-and-dry programmes.

In the wash-and-dry programme, the appliance switches from washing to drying automatically, with no need to use

the controls (at the end of the wash) to obtain the complete cycle.

Attention

 Only dry laundry or garments washed in an aqueous solution and suitable for tumble drying.

 Do not dry fabrics which have been dry cleaned or had stains removed with chemical solvents, wool or

wool blend fabrics which will be shrunk by the heat, very delicate fabrics such as silk and synthetic curtains,

fabrics which may easily lose threads such as woollen yarn, padding and loose-pile mats, or articles which

contain foam rubber or similar elastomers.

 Loads of laundry placed in the washer-dryer for drying must not exceed 4 Kg in weight. The washer-

dryer is constructed to give the best results with loads which do not exceed 4 kg of dry weight of laundry.

 When washing programmes for resistant fabrics are set, drying automatically takes place at 90°C (normal

drying).

 In washing programmes for delicate fabrics, drying automatically takes place at 60°C (gentle drying).

Therefore, in automatic wash-and-dry programmes, the drying programme will depend on the washing

programme selected.

 In drying only programmes, the laundry must first have been washed and spun-dried.

 After drying particularly fluffy items such as new terry towels, the "Rinse" program should be carried out

to ensure that any deposits left by the fabric are removed, and are not deposited on the clothes in the

next wash.

Important – Do not dry delicate fabrics that will not withstand a temperature of 60°C or any fabrics which will not

withstand the selected temperature.

5.1.1 EXTRA DRYING

If the laundry is still too damp at the end of the programme, set a short timed drying programme.

Warning!: do not over-dry as this may cause creases or shrinkage of garments.

5.2 WASH-AND-DRY PROGRAMME

Automatic washing and drying can be carried out in the tough fabrics (cotton and colours) and synthetic/delicate

fabrics programmes. If the wool wash programmes are selected, automatic drying after the wash cannot be set.

For automatic washing and drying, the load of laundry must not exceed 4 kg of cotton or 2 kg of synthetic

fabrics.

Therefore, if the load for washing and drying exceeds the quantities stated above, a wash+dry programme is not

recommended; the load will have to be halved after washing and dried in two lots.

To set a wash-and-dry programme proceed as follows:

1. Select the washing programme and make any changes to the default parameters;

2. Press the dry button to set the drying time required. The display initially shows the maximum time which can

be set (2h:40’), which is then gradually reduced to 0h:00’

Whether drying will be at the normal temperature (90°C) or the delicate fabrics temperature (60°C) depends on

the washing programme set previously.

Once a drying time has been set, the symbol on the display flashes; it remains constantly on once the cycle

enters the drying stage.

Drying symbol

Drying button

5.3 DRY ONLY PROGRAMME

1. Turn the appliance off by turning the washing/drying programmes selector knob to OFF.

2. Turn the knob to the drying programme required: Intensive drying: for normal drying (90°C), or Gentle drying:

for delicate fabrics (60°C). To find out which symbol identifies each drying programme, refer to the programmes

table supplied with the appliance.

3. Press the Dry button repeatedly to set the drying time required (see previous point).

4. Press the "Start-Pause” button to start the drying programme. The display shows the time remaining and the

drying symbol LED lights up.

Attention

 Since no washing programme has been set previously, there are no constraints on selection of the drying

programme (normal or gentle). Remember that normal drying is recommended for cotton and coloureds, and

gentle drying for synthetic and delicate items.

 For good drying results, the load of laundry must not exceed 4kg of cotton or 2kg of synthetic fabrics.

5.4 INTERRUPTING OR CHANGING THE DRYING PROGRAMME

1. The drying programme can be interrupted by the same procedures as the washing programme.

2. To end the programme and remove the laundry, it is best first to cool the load. Use the selector button to set

a drying time of 20 minutes. Restart the appliance as described above and the laundry will be ready for removal.

5.5 CLEAN PROGRAMME

To keep the appliance operating at peak efficiency over time, it has a CLEAN programme for regular cleaning of the

drying circuit to remove any fluff deposits.

1. After a given number of drying cycles, the CLEAN symbol lights up and the text Cln appears on the display

to warn that this programme needs to be run. The warning light remains on until the CLEAN programme is

carried out. The light goes out at the end of the programme.

2. To perform the CLEAN programme, proceed as follows:

a. Make sure that the drum is completely empty and close the door.

b. Turn the knob to the CLEAN programme (see programmes table for the exact position on the knob)

c. Press the START/PAUSE button

The CLEAN programme can also be carried out even if the light on the display is not on.

6. CLEANING AND MAINTENANCE

Important – Before carrying out any cleaning or maintenance procedure, the plug must be disconnected

from the power supply socket.

6.1 CLEANING THE OUTSIDE OF THE APPLIANCE

 Regular, thorough cleaning will keep your appliance looking good.

 Clean the exterior of the appliance with soap and water only, then dry thoroughly with a soft cloth.

 The plastic parts should just be wiped with a damp cloth.

 Do not scrape with pointed objects, or use solvents or products containing abrasive substances because

they damage the surfaces.

 For reasons of safety, never spray the washer-dryer with jets of water.

6.2 CLEANING THE DRUM

 Remove any rust marks from the drum using a stainless steel cleaner, or very fine sandpaper for particu-

larly stubborn cases.

 For descaling the washer-dryer use only brand-name descalers which contain an anti-corrosion agent for

washing machines.

 Always follow the producer's instructions with regard to use and dosages.

 After descaling or removing rust from the drum, carry out a few rinse cycles to remove all acid

residues which might damage the appliance. Never use cleaners which contain solvents. There is

the risk of the formation of vapours which might catch fire and explode.

6.3 CLEANING THE DOOR GASKET

Check regularly that there are no brooches, buttons, nails or pins in the folds of the door gasket.

6.4 CLEANING THE DRAIN PUMP

The drain pump only needs cleaning if it has been blocked by buttons, brooches or similar objects and the water is

not being pumped out.

In this case, proceed as described below.

1. Remove the mains plug to disconnect the appliance from the electricity supply.

2. Depending on the model, proceed as follows:

Built-in/totally concealed model – use a small screw-

driver as a lever to remove the plugs shown here, turn

the plinth downwards and access the pump.

Free-Standing Model – Insert a small screwdriver

through the slits in the front of the plinth, then apply

upward leverage with the screwdriver to release the

top of the plinth from the cabinet.

Tilt the plinth forward slightly and pull it upward to re-

move it completely.

3. Extract the drain hose ”A”.

Warning: if the hose is hot, the water is hot or boiling hot.

Place a shallow container on the floor and remove the plug

“B” to drain off the water.

Depending on the amount of water in the appliance, the

container may have to be emptied several times.

When no more water is coming out, close the hose again

by pushing the plug “B” firmly back into place.

4. Unscrew the cover of the pump “D” by turning it to the left.

Clean the pump and remove any foreign bodies.

Also check the inside “E”, making sure that the impeller

turns freely; any foreign bodies stuck in it must be removed.

5. Screw the cover back on the pump.

Secure the drain house by snapping the plug back into place "C".

Depending on the model, replace the plinth as follows:

Built-in/completely concealed model – Fit the bottom of the plinth first. Push it towards the cabinet and put the

plugs back into place.

Free-standing model – Fit the bottom of the plinth first and then push it towards the cabinet until it snaps into

place.

6.5 CLEANING THE DETERGENT DRAWER

The detergent drawer should be kept clean, removing all solid deposits.

To simplify this operation, completely remove the detergent drawer (pull the

drawer fully out, press in the zone marked PUSH and then remove completely).

Remove the siphon "A" and clean all parts with hot water.

Fully re-insert the siphon and remove any detergent deposits before putting the

drawer back in position.

6.6 CLEANING THE WATER INTAKE FILTERS

The machine is fitted with a filter which protects the water intake valves.

The filter is in the fitting on the intake hose which is connected to the tap

The filter must be cleaned if the washer-dryer is not taking in water or the amount of water

is insufficient.

To clean, proceed as follows:

 Remove the mains plug to disconnect the appliance from the electricity

supply.

 Turn off the water tap.

 Unscrew the intake hose fitting from the tap.

 Remove the intake hose fitting filter.

 Clean the filter with water, with the aid of a small brush.

 When screwing the intake hose fitting back into place, check that the filter is positioned correctly.

7. TROUBLESHOOTING

This produce complies with the relevant regulations governing the safety of electrical equipment. For safety reasons,

any technical inspections or repairs must be performed by qualified staff, to prevent all hazards for the user.

If the appliance does not work, before calling the After-Sales Service, to avoid unnecessary expense, check yourself

that the operations listed in this troubleshooting table have been carried out.

1 Appliance does not start

Check that:

- plug is properly connected to socket

- door is securely closed

- “Start/Pause” button has been pressed.

2 No water filling

Check that:

- plug is properly connected to socket

- door is securely closed

- water tap is turned on

- water intake hose filters not fouled.

- water intake hose not trapped or kinked.

No water visible in washing

drum

No malfunction.

The water level is below the level of the glass in the door because new

appliances use very little water to achieve the same washing and rinsing

results.

4 Water not pumped out

Check that:

- drain hose is not kinked

- drain pump not fouled.

Water not pumped out after

last rinse in delicate fabrics

and wool wash pro-

grammes

It is not a malfunction: pause programmed into washing programme to pre-

vent creasing of fabrics.

To pump out water, proceed as described in "Programme End" point.

Water takes in and pumps

out water continually

Check that end of drain hose is not too low down.

Strong vibrations during

spins

Check that:

- Appliance is properly levelled

- washer-dryer not too close to walls or kitchen units

- internal unit on flexible mounts locked in position.

Too much foam formed in

tank and flowing out of

drawer

Check that:

- detergent used is recommended for automatic washing machines and

not for hand washing

- quantity used is as stated in manual and no more.

9 Water on floor

Check that:

- water intake hose fittings not loose

- end of drain hose still correctly positioned.

Not all fabric conditioner

used or too much water left

in compartment

Check that detergent drawer siphons are correctly fitted and not fouled.

11 Appliance does not spin

Anti-imbalance safety device tripped because laundry not evenly distrib-

uted in drum. If laundry is still wet at end of cycle, rearrange it in the drum

by hand and repeat spin programme only.

12 Emptying water from drum

In the event of a power blackout or appliance failure, the water can be re-

moved from the drum using the emergency procedure.

13 Laundry not properly spun

Large items screwed up and not evenly distributed within drum. Always

wash a mix of large and small items.

Traces of detergent on laun-

dry

Many phosphate-free detergents contain substances with low water solu-

bility.

Select Rinse programme or brush the laundry.

15 Laundry not dried Check that:

- water tap is turned on

- load of laundry is not excessive

- drying time is long enough

- appropriate drying time selected.

If the appliance still does not dry the laundry, call the Service Centre to

have the fan and drying ducts cleaned to remove any fluff deposits.

Washing results unsatisfac-

tory

- Probably too little detergent or unsuitable detergent used

- Difficult stains not dealt with before washing

- Correct temperature not set

- Basket overloaded.

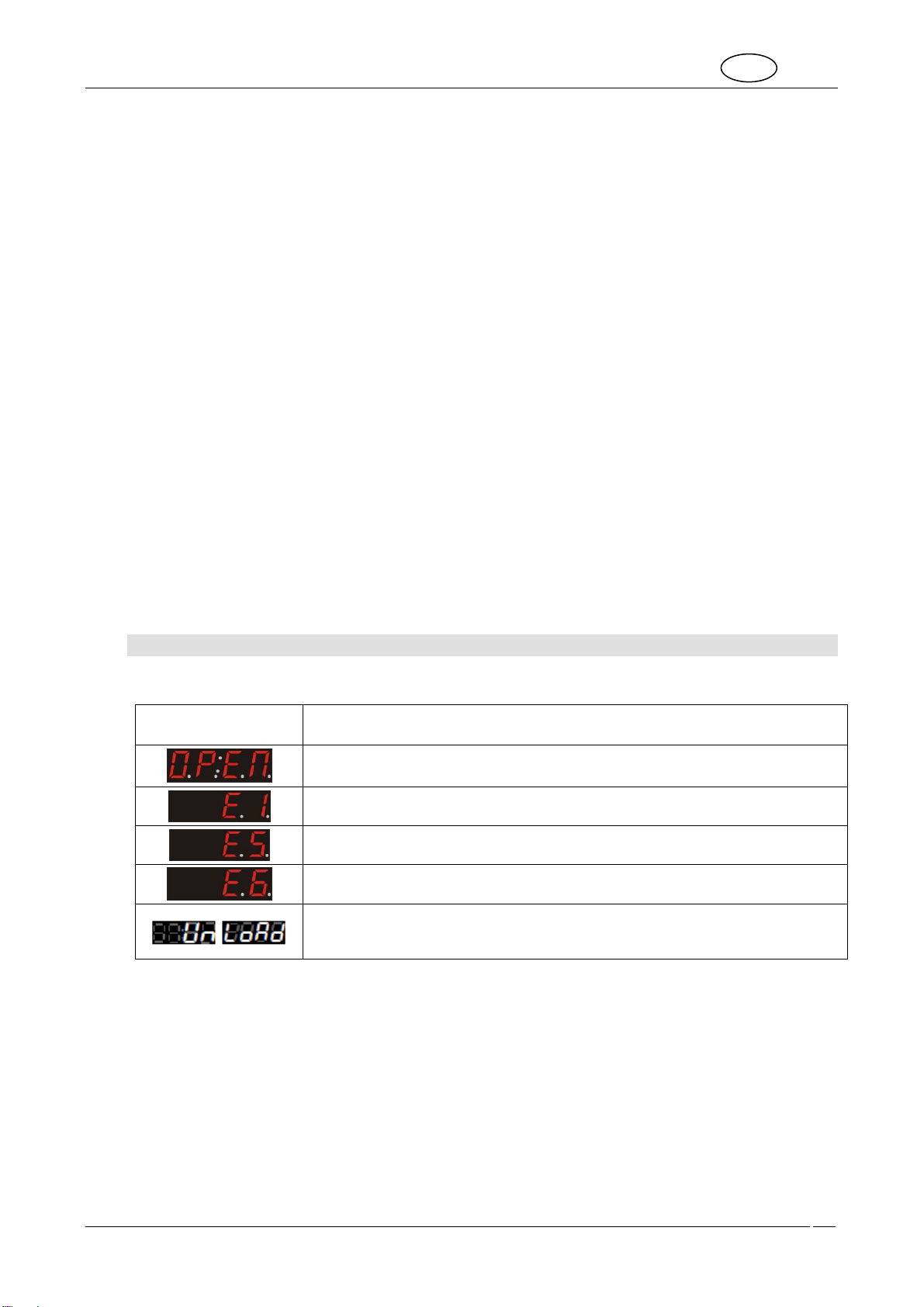

ERROR DISPLAY

In case of a malfunction, the appliance will identify the problem by showing an error code on the display.

Error code Key to problem

Door not properly closed. Try reclosing.

Aqua stop device tripped. Cut off power supply, turn off water tap and contact nearest

service centre.

Water not taken in for washing. See point 2 in troubleshooting table.

Water not pumped out. See point 4 in troubleshooting table.

No error! The unbalanced load detection system has detected an imbalance caused

by the laundry items. Cannot start "Flusen Spulen (lint removal)" program. Remove

laundry.

For all the other error codes displayed, cut off the electricity supply, turn off the water tap and contact your nearest

Service Centre.

8. INFORMATION FOR THE USER

The following information is provided in accordance with the European Ecodesign regulation (EU)

2019/2023

The values indicated for programmes other than Eco 40-60 are indicative only.

Automatic and timed dry washer-dryer

Pro-

gramme

Rated

capacity

(kg)

Energy con-

sumption

(kWh/

cycle) *

Water consu-

mption

(l/cycle) *

Programme

duration

(h:min)*

Temperature

Max.

(°C)

5 min (*)(***)

Spin

speed

(rpm) *

Residual

moisture

content

(%) *

Detergent

Eco 40-

60**

7 1.02 49 2:50 46 1400

(1200)

(55)

Washing

powder or

liquid de-

tergent for

colours,

without

bleach or

optical

brighteners

For white

and light

coloured

laundry,

use a

Standard

detergent

with whit-

eners.

(from cold

wash up to

90°C) .

Refer to

the pro-

grams ta-

ble

Eco 40-

60**

3.5 0.70 43 02:40 36 1400

(1200)

(56)

Eco 40-

60**

2 0.50 39 02:30 32 1400

(1200)

(60)

Eco 40-

60+ Nor-

mal

drying cy-

cle

(Washing

and dry-

ing) **

4 3.08

(3.29)

75 05:30 36 1400

(1200)

2 2.04 58 04:10 32 1400

(1200)

Cotton

20°C

7 0.24 62 01:51 20 1400

(1200)

(57)

Cotton

40°C

7 0.38 62 01:51 40 1400

(1200)

(57)

Cotton

40°C +

Pre-wash

7 1.02 78 02:18 40 1400

(1200)

(57)

Cotton

60°C

7 1.11 62 01:51 55 1400

(1200)

(57)

Easy care

40°C

3.5 0.62 50 01:43 40 1000 30 Detergent

for colours

delicates

without op-

tical bright-

eners

Mixed load

40°C

3 0.40 36 00:50 40 1200 57 Standard

detergent

without

whiteners

Wool 30°C 2 0.20 49 00:47 30 600 55 Detergent

for wool-

lens

* The actual values may differ from those indicated due to the pressure, hardness and temperature of the inlet water,

the ambient temperature, the type, amount and soiling of laundry, the type of detergent, fluctuations in the mains

power supply and any additional functions that have been activated.

** Test programme compliant with European Ecodesign regulation (EU 2019/2023) and the European regulation on

energy labelling using cold water (15°C) (EU 2019/2014)

*** Maximum temperature reached for a minimum of 5 minutes inside the laundry being treated.

IMPORTANT NOTICE FOR TESTING INSTITUTES!

Models intended to be built into a cabinet must be tested in an approved test cabinet with the front panel mounted in

accordance with the manufacturer's installation instructions.

** Eco 40-60 program

Test programme compliant with European Ecodesign regulation (EU 2019/2023) and the European

regulation on energy labelling using cold water (15°C) (EU 2019/2014).

Washing program that is able to clean normally soiled cotton laundry declared to be washable at

40°C or 60°C together in the same washing cycle.

The wash and dry cycle is able to clean normally soiled cotton laundry, washable at 40°C or 60°C

together in the same washing cycle and to dry it in such a way that it can be immediately stored in

a cupboard.

Customer care services

Original spare parts will be available for a minimum of 10 years from the appliance being placed on

the market.

Contact the customer cares service in your country or refer to the website and register the product

with the required codes. Faults can also be resolved independently before requesting assistance,

by referring to the relative section in the manual.

Information on the performance of your washing machine or washer-dryer can be found in the EU

EPREL database. The website can be accessed quickly using the QR code on the washing ma-

chine or washer-dryer energy label or via the following link https://eprel.ec.europa.eu. In this case,

you have to enter the name of the model indicated on the data plate on the side of the door. For

detailed information on the energy label see: www.theenergylabel.eu.

If the malfunction persists, contact your authorised Service Centre giving the fault code. The con-

tact details of the technical assistance department can be found on the guarantee certificate and

the website.

Periodic cleaning

Carry out periodic cleaning to keep the appliance in good working order (see CLEANING AND

MAINTENANCE section) to prevent the build-up of limescale, unpleasant odours and mould.

A descaler can be used, following the instructions supplied with the descaler. Clean the dispenser

drawer at least once or twice a month to avoid the build-up of detergent.

Periodically check the water supply filters. See the procedure outlined in the manual.

ISTRUZIONI DI MONTAGGIO DELLE

LAVATRICI INTEGRABILI

ASSEMBLY INSTRUCTIONS FOR BUILT-IN WASHING

MACHINES

MONTAGEANLEITUNG FÜR EINBAUBAREWASCH-

MASCHINEN

INSTRUCTIONS DE MONTAGE DES LAVE-LINGE

INTÉGRABLES

INSTRUCCIONES DE INSTALACIÓN DE LAS LAVA-

DORAS INTEGRABLES

INSTRUÇÕES DE MONTAGEM DAS MÁQUINAS DE

LAVAR ROUPA INTEGRÁVEIS

MONTAGEINSTRUCTIES VAN INTEGREERBARE

WASMACHINES

MONTERINGSANVISNING FOR INTEGRERBARE

VASKEMASKINER

MONTERINGSANVISNINGAR FÖR INBYGGNADSBA-

RA TVÄTTMASKINER

ANKASTRE ÇAMAŞIR MAKİNELERİ

İÇİN MONTAJ TALİMATLARI

ИНСТРУКЦИИ ПО МОНТАЖУ

ВСТРОЕННЫХ СТИРАЛЬНЫХ МАШИН

INSTRUKCJA MONTAŻU

PRALEK DO ZABUDOWY

 

 

INSTRUKCJA MONTAŻU PRALEK DO ZABUDOWY

WAŻNE - Urządzenie spełnia przepisy bezpieczeństwa obowiązujące w

zakresie sprzętu elektrycznego i musi być zainstalowane przez

wykwalifikowanego technika, zgodnie z obowiązującymi przepisami, aby

zapobiec zagrożeniom dla użytkownika.

Wymiary do

zabudowy

Wymiary wnęki do zabudowy muszą być następujące:

minimalna wysokość 820mm, minimalna szerokość 600mm i

minimalna głębokość 584mm (rys. 1).

Informacje

techniczne

dotyczące

założenia panelu

Panel może być zamocowany z lewej lub prawej strony pralki

(rys. 2)

Dostarczone urządzenie jest przystosowane do zamontowania

panelu z lewej strony; po prawej stronie znajduje się bowiem

mechanizm zamykający push-pull (w części górnej) i gumowa

podkładka (w części dolnej).

Jeśli zamiast mechanizmu push-pull chcemy używać

magnetycznego mechanizmu zamykającego, należy usunąć

istniejący uchwyt i zamontować dostarczony uchwyt

mechanizmu magnetycznego.

Ważne! Podczas czynności związanych z zakładaniem

panelu (usunięcie z części przedniej wszystkich elementów

zawiasów i zamykania) pralka musi być bezwzględnie

wyłączona z sieci zasilającej.

Ostrzeżenie - Aby zamocować panel po prawej stronie

(kierunek przeciwny do kierunku otwierania drzwiczek pralki),

należy wymontować z przedniej części urządzenia mechanizm

typu push-pull (lub magnetyczny) oraz element gumowy (rys. 3-

A) i założyć je po przeciwległej stronie (rys. 3-B).

Wszystkie elementy z przedniej części pralki muszą być

zamocowane prawidłowo (żaden otwór nie może pozostać

pusty), aby zapobiec stykaniu się części pod napięciem

wewnątrz urządzenia.

Firma nasza nie ponosi żadnej odpowiedzialności za

nieprzestrzeganie powyższych norm bezpieczeństwa.

Korzystanie z

szablonu

1) Ustalić wysokość listwy kuchni: wysokość drewnianego

panelu uzyskuje się przez uprzednie ustalenie wysokości

listwy kuchni.

Przykład: listwie 100mm odpowiada maksymalna wysokość

panelu równa 720 mm. Jeżeli wysokość listwy musi być

zwiększona, należy zredukować wysokość drewnianego

panelu

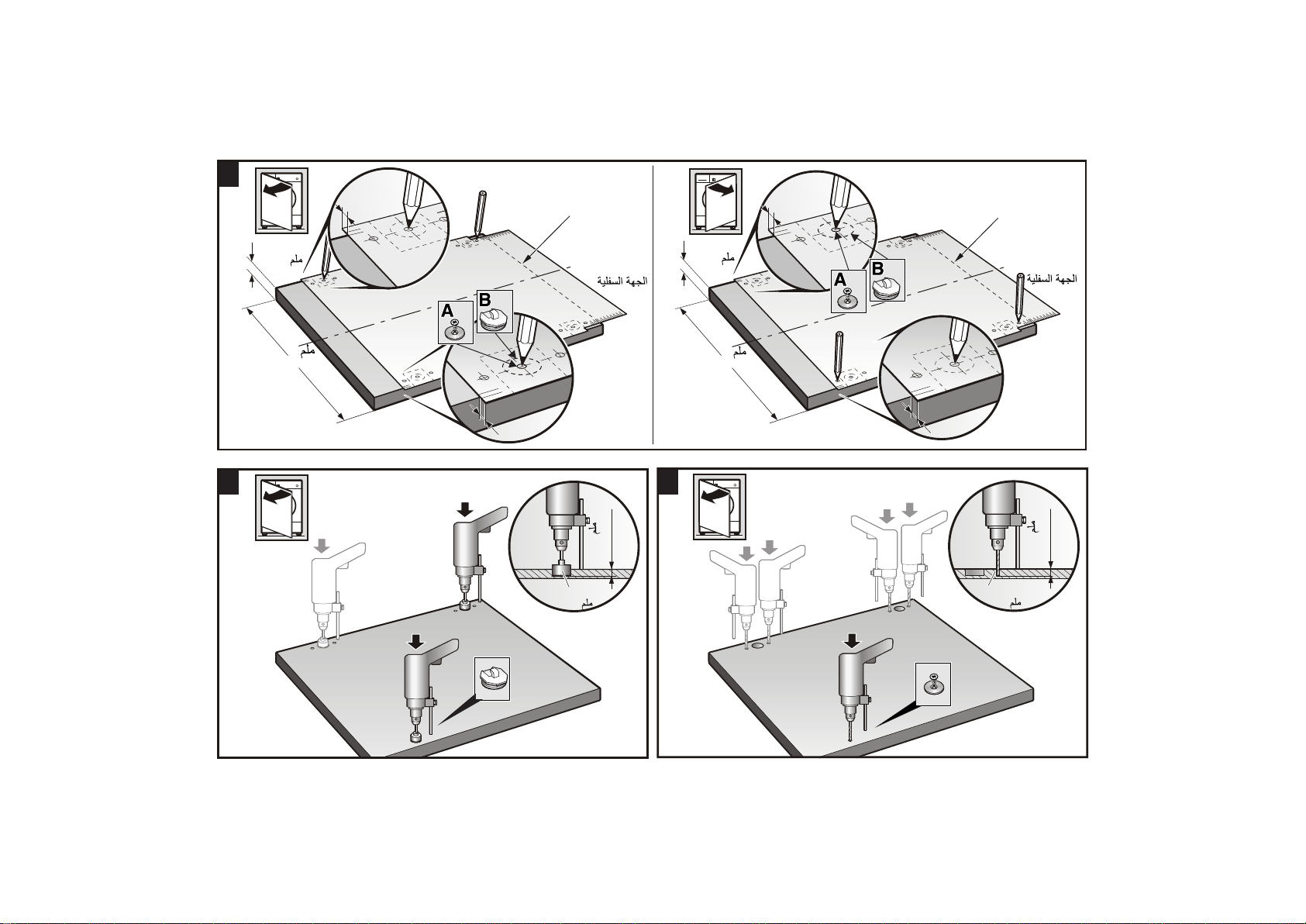

2) Umieścić szablon na wewnętrznej stronie panelu i przy

pomocy podziałki dopasować ustaloną wysokość listwy do

dolnej części tegoż panelu (rys. 4). Szablon musi być

wypośrodkowany również w kierunku poziomym w oparciu o

linie pionowe zaznaczone na końcach.

3) Po umieszczeniu szablonu w prawidłowym położeniu

wyznaczyć położenie następujących otworów, wsuwając w

nie końcówkę ołówka:

 otwory do zawiasów i do śrub mocujących zawiasy (rys.

 otwór na płytkę metalową (jeśli chcemy używać

magnetyczny mechanizm zamykania) lub zaczep do

mechanizmu push pull (rys. 4, A - B)

Zamocowanie

detali na panelu

i zamocowanie

panelu

1) Wywiercić na panelu otwory do założenia zawiasów (rys. 5),

zaczepu mechanizmu push pull (rys. 5) lub metalowej płytki,

jeśli chcemy używać mechanizmu zamykania

magnetycznego, (rys. 6) oraz otwory do mocowania

zawiasów (rys. 6).

2) Głębokość 13 mm i średnica 2mm otworów do mocowania

zawiasów i płytki metalowej na magnes obowiązują dla

panelu z litego drewna. W przypadku płyty wiórowej

wywiercić tylko górną okładzinę (rys. 6).

3) Przykręcić do panelu dwa zawiasy (rys. 7)

4) Zamocować po stronie przeciwnej zaczep dla mechanizmu

zamykania push pull lub metalową płytkę dla magnesu (rys.

5) Zamocować panel do pralki zgodnie z instrukcjami (rys. 8).

Regulacja

zawiasów

Jeśli po przymocowaniu do pralki panel byłby lekko przechylony

lub przesunięty względem przedniej części, można to poprawić,

regulując ruchomą część zawiasów (rys. 9).

Pozycjonowanie

w miejscu

zabudowy

Umieścić pralkę we wnęce dla niej przeznaczonej, obrócić

nóżki, aby ją wypoziomować i zamocować je odnośnymi

nakrętkami. W przypadku regulowanych nóżek tylnych

skonsultować instrukcję obsługi i konserwacji.

Żeby zapobiec przekazywaniu wibracji pralki do mebli, między

którymi została zainstalowana, należy uniemożliwić, aby boki i

górna powierzchnia stykały się z tymiż meblami, upewniając

się, że pozostanie prześwit rzędu co najmniej 2mm.

Również tylna część urządzenia nie może dotykać tylnej ściany.

Jeśli wnęka ma wysokość 870 mm, musi zostać

zastosowany zestaw podwyższający pralkę, który można

nabyć za pośrednictwem Ośrodka Serwisowego.

W celu spełnienia norm bezpieczeństwa należy w każdym razie

całkowicie zamknąć otwory, które mogłyby powstać między

podłogą i dolną częścią listwy oraz po bokach urządzenia, jeżeli

pralka została umieszczone na końcu danego ciągu mebli.

Osłona musi bezwzględnie zapobiegać stykaniu części

instalacji elektrycznej pod napięciem i musi wymagać

użycia narzędzi do jej usunięcia.

Firma nasza nie ponosi żadnej odpowiedzialności za

nieprzestrzeganie powyższych norm bezpieczeństwa.

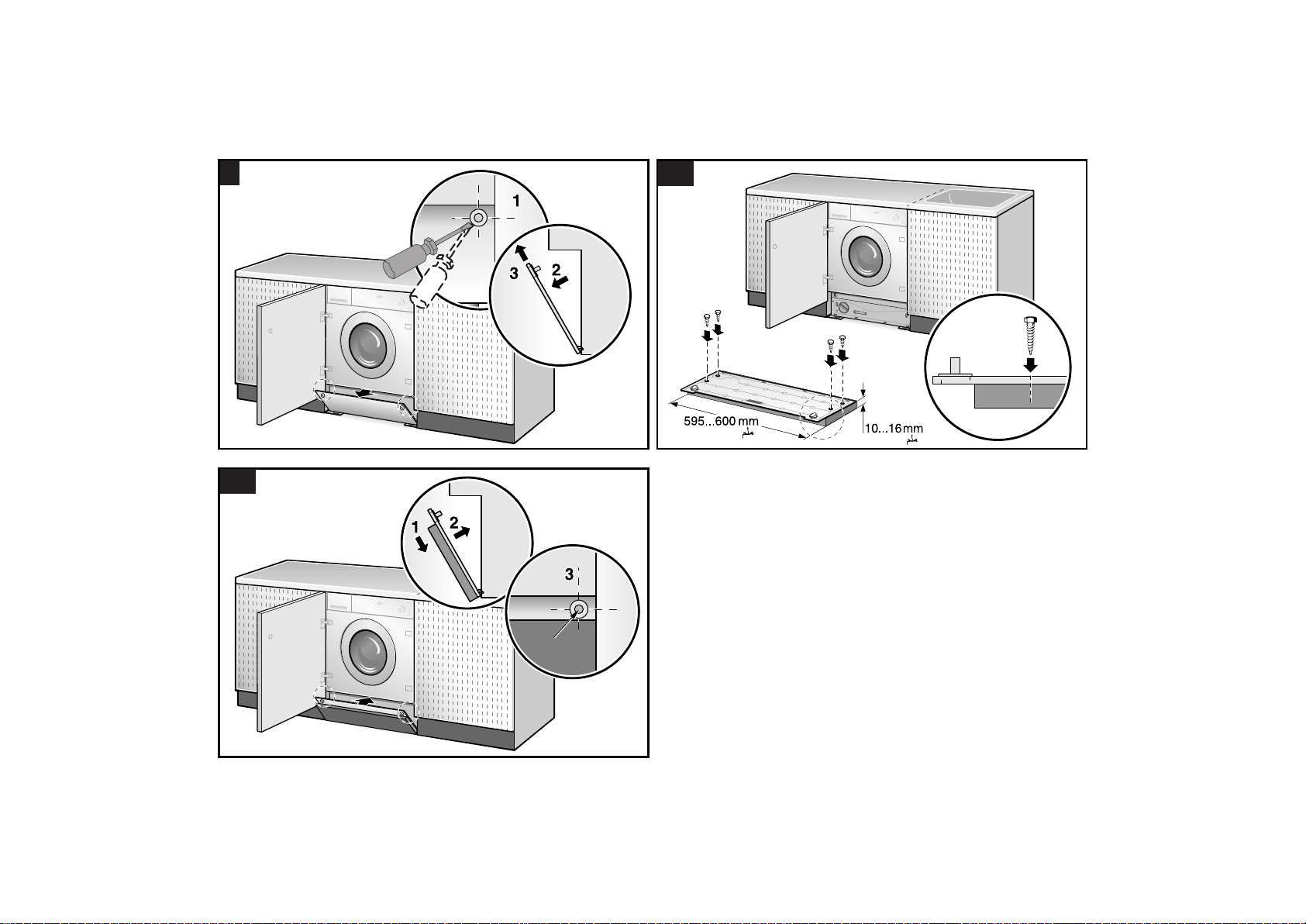

Zakładanie

listwy

Ciągła listwa zestawu mebli kuchennych musi być wyjmowana

w celu umożliwienia ewentualnego czyszczenia pompy

spustowej.

W niektórych przypadkach listwa zestawu mebli kuchennych

nie jest ciągła, lecz jest po prostu ograniczona do szerokości

pralki. W przypadku takim listwa mebla może być zamocowana

do listwy pralki 4 śrubami, przestrzegając 4 punktów

odniesienia na niej umieszczonych (patrz rys. 9-10-11).

Założenie listwy mebli nie musi przewidywać eliminacji lub

modyfikacji listwy pralki, lecz ta ostatnia ze względów

bezpieczeństwa nie może zostać usunięta oraz musi

pozostać nienaruszona i zamocowana do pralki.

ca. 82kg

820mm

16mm

560mm

596mm

150mm

58mm

820mm

A B

222

333

1212

111111

777

101010

888

999

222

111

333

444

666

111

666

555

777

888

A B

222

111

333

444

3 - A

3 - B

Ø 2mmØ 2mmØ 2mm

13mm13mm13mm

16...21mm

Ø 35mmØ 35mmØ 35mm

13mm13mm13mm

592...595mm

16...21mm

592...595mm

eee

Unterkante

Lower edge

Côté inférieur

Lato inferiore

Lado inferior

Onderkant

Unterkante

Lower edge

Côté inférieur

Lato inferiore

Lado inferior

Onderkant

Нижний край Нижний край

Strona dolna

111

222

333

111

222

333

111

GUIDA PROGRAMMI

Programmi

Temp.

(°C)

Max

Centrifuga

(giri/m')

Max.

carico

lavaggio

(kg)

Max. carico x

asciugatura

(kg)

Prelavaggio Lavaggio Ammorbid. Prelav.

Intensivo Stira Meno

Risciacquo

aggiuntivo

Flexi

time

Asciugatura

dopo lavaggio

se selezionata

Descrizione programma lavaggio

Cotone e

colorati

Delicati colorati poco sporchi / 20° Max 7 4         Normale

Lavaggio freddo o a 20°C, risciacqui e centrifuga finale alla

velocità selezionata

Delicati colorati normalmente sporchi

30° / 40° Max

7 4        

Normale

Lavaggio a 30°C / 40°C, risciacqui e centrifuga finale alla velocità

selezionata

Capi in cotone normalmente sporchi lavabili

insieme a 40° C / 60° C

Eco 40-60 Max

7 4     -   

Normale

Lavaggio , risciacqui e centrifuga finale alla velocità selezionata

Colorati resistenti normalmente sporchi 60° Max 7 4         Normale

Lavaggio a 60°C, risciacqui e centrifuga finale alla velocità

selezionata

Colorati resistenti molto sporchi 90° Max 7 4         Normale

Lavaggio a 90°C, risciacqui e centrifuga finale alla velocità

selezionata

Sintetici Capi da rinfrescare / 20° 1000 3,5 3,5      -   Delicata

Lavaggio freddo o a 20°C, risciacqui e centrifuga finale alla

velocità selezionata

Capi poco sporchi 30° / 40° 1000 3,5 3,5      -   Delicata

Lavaggio a 30°C o 40°C, risciacqui e centrifuga finale alla

velocità selezionata

Capi normalmente sporchi 60° 1000 3,5 3,5      -   Delicata

Lavaggio a 60°C, risciacqui e centrifuga finale alla velocità

selezionata

Delicati / Seta Capi da rinfrescare / 20° 600 2 - -   -  -  - -

Lavaggio freddo o a 20°C, risciacqui e centrifuga finale alla

velocità selezionata

Capi poco sporchi 30° / 40° 600 2 - -   -  -  - -

Lavaggio a 30°C o 40°C, risciacqui e centrifuga finale alla

velocità selezionata

Lana Capi da rinfrescare / 20° 800 2 - -   - - - - - -

Lavaggio freddo o a 20°C, risciacqui e centrifuga finale alla

velocità selezionata

Capi poco sporchi 30° / 40° 800 2 - -   - - - - - -

Lavaggio a 30°C o 40°C, risciacqui e centrifuga finale alla

velocità selezionata

Risciacquo e

centrifuga

- Max 7 - - -  - -  -  -

Risciacquo e solo scarico, o scarico e centrifuga finale alla

velocità selezionata

Scarico e

centrifuga

Max

7 - - - - - -  -  - Solo scarico, o scarico e centrifuga finale alla velocità selezionata

Rapido Cotone leggero o delicati da rinfrescare / 20°/30° 800 2 - -   - - - - - -

Lavaggio a freddo o 20°C / 30°C, risciacqui e centrifuga finale

alla velocità selezionata

Ciclo notturno

Capi molto delicati poco sporchi

/ 20° 1000

3 3       - 

Normale

Lavaggio silenzioso a freddo o a 20 °C (avvisatore acustico

disattivato), risciacqui e centrifuga finale alla velocità selezionata

Capi poco sporchi

30° / 40° 1000

3 3       - 

Normale

Lavaggio silenzioso a 30°C / 40 °C (avvisatore acustico

disattivato), risciacqui e centrifuga finale alla velocità selezionata

Capi normalmente sporchi 60° 1000 3 3       -  Normale

Lavaggio silenzioso a 60 °C (avvisatore acustico disattivato),

risciacqui e centrifuga finale alla velocità selezionata

Sport Capi da rinfrescare / 20° 800 2 2 -   -  -   Delicata

Lavaggio freddo o a 20°C, risciacqui e centrifuga finale alla

velocità selezionata

Capi poco sporchi

30° / 40° 800

2 2 -   -  -  

Delicata

Lavaggio a 30° o 40°C, risciacqui e centrifuga finale alla velocità

selezionata

Camicie /

Lavoro

Capi da rinfrescare / 20° 800 2 2 -   -  -   Delicata

Lavaggio freddo o a 20°C, risciacqui e centrifuga finale alla

velocità selezionata

Capi poco sporchi 30° / 40° 800 2 2 -   -  -   Delicata

Lavaggio a 30° o 40°C, risciacqui e centrifuga finale alla velocità

selezionata

Misti Cotone e sintetici da rinfrescare / 20° 1200 3 3         Delicata

Lavaggio freddo o a 20°C, risciacqui e centrifuga finale alla

velocità selezionata

Cotone e sintetici poco sporchi 30° / 40° 1200 3 3         Delicata

Lavaggio a 30° o 40°C, risciacqui e centrifuga finale alla velocità

selezionata

Asciugatura

Delicata

60° Max

- 3 - - - - - - - - - Asciugatura delicata per capi sintetici e delicati

Normale

90° Max

- 4 - - - - - - - - - Asciugatura normale per capi in cotone

Pulizia asciugatora - - - - - - - - - - - - - Ciclo di pulizia circuito asciugatura

: Opzione disponibile

: Opzioni non selezionabili contemporaneamente

Opzioni

Scomparti cassetto detersivi

Code 19392029300

PROGRAM GUIDE

Programs

Temp.

(°C)

Max. Spin

(rpm)

Max.

washing

load (kg)

Max. drying

load (kg)

Prewash Wash Softner

Prewash

Intensive Easy Iron Extra rinse

Flexi

time

Drying after

wash if

selected

Wash program description

Cotton and

coloureds

Delicate coloureds with light dirt / 20° Max 7 4         Normal Cold wash or at 20°C, rinses and final spin at the selected speed

Delicate coloureds with normal dirt 30° / 40° Max 7 4         Normal Wash at 30° or 40°C, rinses and final spin at the selected speed

Normally soiled cotton laundry declared

washable at 60°C or 40°C together

Eco 40-60 Max 7 4     -    Normal Wash, rinses and final spin at the selected speed

Tough coloureds with normal dirt

60° Max

7 4        

Normal

Wash at 60°C, rinses and final spin at the selected

Tough coloureds with heavy dirt 90° Max 7 4         Normal Wash at 90°C, rinses and final spin at the selected speed

Synthetics Items for refreshing / 20° 1000 3,5 3,5      -   Delicate Cold wash or at 20°C, rinses and final spin at the selected speed

Items with light dirt 30° / 40° 1000 3,5 3,5      -   Delicate Wash at 30° or 40°C, rinses and final spin at the selected speed

Items with normal dirt 60° 1000 3,5 3,5      -   Delicate Wash at 60°C, rinses and final spin at the selected speed

Delicate/Silk Items for refreshing / 20° 600 2 - -   -  -

 - - Cold wash or at 20°C, rinses and final spin at the selected speed

Items with light dirt 30° / 40° 600 2 - -   -  -  - - Wash at 30° or 40°C, rinses and final spin at the selected speed

Wool Items for refreshing / 20° 800 2 - -   - - - - - - Cold wash or at 20°C, rinses and final spin at the selected speed

Items with light dirt 30° / 40° 800 2 - -   - - - - - - Wash at 30° or 40°C, rinses and final spin at the selected speed

Rinse and spin - Max 7 - - -  - -  -  -

Rinse and pump-out only, or pump-out and final spin at the

selected speed

Pump-out and

spin

- Max 7 - - - - - -  -  - Pump-out only, or pump-out and final spin at the selected speed

Rapid Light cotton or delicate fabrics for refreshing / 20°/30° 800 2 - -   - - - - - -

Cold wash or at 20°C / 30°C, rinses and final spin at the selected

speed

Night Wash Very delicates items with light dirt / 20° 1000 3 3       -  Normal

Silent cold wash or at 20°C (buzzer off), rinses and final spin at

the selected speed

Items with light dirt 30° / 40° 1000 3 3       -  Normal

Silent wash at 30°C / 40°C (buzzer off), rinses and final spin at

the selected speed

Items with normal dirt

60° 1000

3 3       - 

Normal

Silent wash at 60°C (buzzer off), rinses and final spin at the

selected speed

Sport Items for refreshing / 20° 800 2 2 -   -  -   Delicate Cold wash or at 20°C, rinses and final spin at the selected speed

Items with light dirt 30° / 40° 800 2 2 -   -  -   Delicate Wash at 30° or 40°C, rinses and final spin at the selected speed

Shirt/Work Items for refreshing / 20° 800 2 2 -   -  -   Delicate Cold wash or at 20°C, rinses and final spin at the selected speed

Items with light dirt 30° / 40° 800 2 2 -   -  -   Delicate Wash at 30° or 40°C, rinses and final spin at the selected speed

Mixed Cotton and synthetics for refreshing / 20° 1200 3 3         Delicate Cold wash or at 20°C, rinses and final spin at the selected speed

Cotton and synthetics with light dirt 30° / 40° 1200 3 3         Delicate Wash at 30° or 40°C, rinses and final spin at the selected speed

Drying

Delicate

60° Max

- 3 - - - - - - - - - Delicate drying for synthetic and delicate items

Normal

90° Max

- 4 - - - - - - - - - Normal drying for cotton items

Clean - - - - - - - - -

- - - - Drying circuit cleaning cycle

: Option available

: Options which cannot be selected simultaneously

Options

Detergent drawer compartments

Code 19392029300

GUIDE DES PROGRAMMES

Programmes

Temp.

(°C)

Max

Essorage

(trs/mn)

Charge

maxi.

lavage

(kg)

Charge

maxi. pour

séchage

(kg)

Prélavage Lavage Adoucissant Prélavage

Intensif

Anti-

froissement

Rinçage

plus

Flexi

time

Séchage

après lavage

sélectionné

Description programme de lavage

Coton et

couleurs

Linge de couleur délicat peu sale

/ 20° Max

7 4        

Normal

Lavage à froid ou 20°C, rinçages et essorage final à la vitesse

sélectionnée

Linge de couleur délicat normalement sale 30° / 40° Max 7 4         Normal

Lavage à 30° ou 40°C

rinçages et essorage final à la vitesse

sélectionnée

Linge en coton normalement sale déclaré

lavable à 60°C ou à 40°C ensemble

Eco 40-60 Max

7 4     -   

Normal

Lavage, rinçages et essorage final à la vitesse sélectionnée

Linge de couleur résistant normalement sale 60° Max 7 4         Normal

Lavage à 60°C, rinçages et essorage final à la vitesse

sélectionnée

Linge de couleur résistant très sale

90° Max

7 4        

Normal

Lavage à 90°C, rinçages et essorage final à la vitesse

sélectionnée

Synthétiques

Vêtements à rafraîchir

/ 20° 1000

3,5 3,5      -  

Délicat

Lavage à froid ou 20°C, rinçages et essorage final à la vitesse

sélectionnée

Vêtements peu sales

30° / 40° 1000

3,5 3,5      -  

Délicat

Lavage à 30° ou 40°C, rinçages et essorage final à la vitesse

sélectionnée

Vêtements normalement sales

60° 1000

3,5 3,5      -  

Délicat

Lavage à 60°C, rinçages et essorage final à la vitesse

sélectionnée

Délicats/Soie

Vêtements à rafraîchir

/ 20° 600

2 - -   -  -  - -

Lavage à froid ou 20°C, rinçages et essorage final à la vitesse

sélectionnée

Vêtements peu sales

30° / 40° 600

2 - -   -  -  - -

Lavage à 30° ou 40°C, rinçages et essorage final à la vitesse

sélectionnée

Laine

Vêtements à rafraîchir

/ 20° 800

2 - -   - - - - - -

Lavage à froid ou 20°C, rinçages et essorage final à la vitesse

sélectionnée

Vêtements peu sales

30° / 40° 800

2 - -   - - - - - -

Lavage à 30° ou 40°C, rinçages et essorage final à la vitesse

sélectionnée

Rinçage et

essorage

- Max 7 - - -  - -  -  -

Rinçage et vidange uniquement, ou vidange et essorage final à la

vitesse sélectionnée

Vidange et

essorage

- Max 7 - - - - - -  -  -

Vidange uniquement, ou vidange et essorage final à la vitesse

sélectionnée

Rapide

Coton léger ou tissus délicats à rafraîchir

/ 20°/30° 800

2 - -   - - - - - -

Lavage à froid ou 20° C / 30°C, rinçages et essorage final à la

vitesse sélectionnée

Purge nocturne

Vêtements à rafraîchir

/ 20° 1000

3 3       - 

Normal

Lavage à froid ou à 20°C silencieux (buzzer désactivé), rinçage et

essorage final à la vitesse sélectionnée

Vêtements peu sales 30° / 40° 1000 3 3       -  Normal

Lavage à 30° ou 40°C silencieux (vibreur désactivé), rinçage et

essorage final à la vitesse sélectionnée

Vêtements normalement sales

60° 1000

3 3       - 

Normal

Lavage à 60°C silencieux (vibreur désactivé), rinçage et essorage

final à la vitesse sélectionnée

Sport

Vêtements à rafraîchir

/ 20° 800

2 2 -   -  -  

Délicat

Lavage à froid ou 20°C, rinçages et essorage final à la vitesse

sélectionnée

Vêtements peu sales

30° / 40° 800

2 2 -   -  -  

Délicat

Lavage à 30° ou 40°C, rinçages et essorage final à la vitesse

sélectionnée

Chemises /

Travail

Vêtements à rafraîchir

/ 20° 800

2 2 -   -  -  

Délicat

Lavage à froid ou 20°C, rinçages et essorage final à la vitesse

sélectionnée

Vêtements peu sales

30° / 40° 800

2 2 -   -  -  

Délicat

Lavage à 30° ou 40°C, rinçages et essorage final à la vitesse

sélectionnée

Tissus mixtes Coton et synthétiques à rafraîchir / 20° 1200 3 3         Délicat

Lavage à froid ou 20°C, rinçages et essorage final à la vitesse

sélectionnée

Coton et synthétiques peu sales 30° / 40° 1200 3 3         Délicat

Lavage à 30° ou 40°C, rinçages et essorage final à la vitesse

sélectionnée

Séchage

Délicat

60° Max

- 3 - - - - - - - - - Séchage délicat pour tissus synthétiques et délicats

Normal

90° Max

- 4 - - - - - - - - - Séchage normal pour vêtements en coton

Clean - - - - - - - - - - - - - Cycle de nettoyage circuit séchage



Option disponible

: Options non sélectionnables simultanément

Options

Compartiments bac à détergents

Code 19392029300

PROGRAMM-LEITFADEN

Programme

Temp.

(°C)

Max.

Schleuder-

drehzahl

(U/min)

Max.

Beladung

Waschen

(kg)

Max.

Beladung

Trocknen

(kg)

Vorwäsche Hauptwäsche Weichspüler Vorwäsche

Intensiv Bügelleicht

Sonder-

spülgang

Flexi

time

Trocknen

nach dem

Waschen,

falls gewählt

Descrizione programma lavaggio

Baumwoll- und

Buntwäsche

Gering verschmutzte nicht farbechte Buntwäsche

/ 20° Max.

7 4        

Normal

Kaltwäsche oder Hauptwäsche 20°C, Spülen und Endschleudern

mit der eingestellten Drehzahl

Normal verschmutzte nicht farbechte Buntwäsche 30° / 40° Max. 7 4         Normal

Hauptwäsche 30°C oder 40°C, Spülen und Endschleudern mit

der eingestellten Drehzahl

Roupas de algodão com sujidade normal que

podem ser lavadas juntas a 60 °C ou 40 °C

Eco 40-60 Max. 7 4     -    Normal

Lavagem, enxaguamentos e centrifugação final na velocidade

selecionada

Normal verschmutzte farbechte Buntwäsche 60° Max. 7 4         Normal

Hauptwäsche 60°C, Spülen und Endschleudern mit der

eingestellten Drehzahl

Stark verschmutzte farbechte Buntwäsche 90° Max. 7 4         Normal

Hauptwäsche 90°C, Spülen und Endschleudern mit der

eingestellten Drehzahl

Synthetik Wäsche, die aufgefrischt werden soll / 20° 1000 3,5 3,5      -   Schonend

Kaltwäsche oder Hauptwäsche 20°C, Spülen und Endschleudern

mit der eingestellten Drehzahl

Gering verschmutzte Wäsche 30° / 40° 1000 3,5 3,5      -   Schonend

Hauptwäsche 30°C oder 40°C, Spülen und Endschleudern mit

der eingestellten Drehzahl

Normal verschmutzte Wäsche 60° 1000 3,5 3,5      -   Schonend

Hauptwäsche 60°C, Spülen und Endschleudern mit der

eingestellten Drehzahl

Empfindliche

Wäsche/Seide

Wäsche, die aufgefrischt werden soll / 20° 600 2 - -   -  -  - -

Kaltwäsche oder Hauptwäsche 20°C, Spülen und Endschleudern

mit der eingestellten Drehzahl

Gering verschmutzte Wäsche 30° / 40° 600 2 - -   -  -  - -

Hauptwäsche 30°C / 40° C, Spülen und Endschleudern mit der

eingestellten Drehzahl

Wolle Wäsche, die aufgefrischt werden soll / 20° 800 2 - -   - - - - - -

Kaltwäsche oder Hauptwäsche 20°C, Spülen und Endschleudern

mit der eingestellten Drehzahl

Gering verschmutzte Wäsche 30° / 40° 800 2 - -   - - - - - -

Hauptwäsche 30°C oder 40°C, Spülen und Endschleudern mit

der eingestellten Drehzahl

- Max. 7 - - -  - -  -  -

Nachspülung- und Schleuderphase mit ausgewählte

Schleuderdrehzahl

- Max. 7 - - - - - -  -  -

Nur Abpumpen oder Abpumpen und Schleuderphase mit

ausgewählte Schleuderdrehzahl

Schnell

Leichte Baumwollstoffe oder empfindliche

Textilien, die aufgefrischt werden sollen

/ 20°/30° 800 2 - -   - - - - - -

Kaltwäsche oder Hauptwäsche 20° C /30°C, Spülen und

Endschleudern mit der eingestellten Drehzahl

Nachtbetrieb Gering verschmutzte sehr empfindliche Wäsche / 20° 1000 3 3       -  Normal

Kaltwäsche, Spülen und Endschleudern mit der eingestellten

Drehzahl

Gering verschmutzte Wäsche 30° / 40° 1000 3 3       -  Normal

Hauptwäsche 30°C oder 40°C, Spülen und Endschleudern mit

der eingestellten Drehzahl

Normal verschmutzte Wäsche

60° 1000

3 3       - 

Normal

Hauptwäsche 60°C, Spülen und Endschleudern mit der

eingestellten Drehzahl

Sport Wäsche, die aufgefrischt werden soll / 20° 800 2 2 -   -  -   Schonend

Nachtprogramm Kaltwäsche bei 20°C (Summer AUS), Spülen

und Endschleudern mit der eingestellten Drehzahl

Gering verschmutzte Wäsche 30° / 40° 800 2 2 -   -  -   Schonend

Nachtprogramm bei 30 C ° oder 40 ° C (Summer AUS), Spülen

und Endschleudern mit der eingestellten Drehzahl

Hemden /

Arbeitskleidung

Wäsche, die aufgefrischt werden soll / 20° 800 2 2 -   -  -   Schonend

Kaltwäsche oder Hauptwäsche 20°C, Spülen und Endschleudern

mit der eingestellten Drehzahl

Gering verschmutzte Wäsche 30° / 40° 800 2 2 -   -  -   Schonend

Hauptwäsche 30°C oder 40°C, Spülen und Endschleudern mit

der eingestellten Drehzahl

Gemischte

Wäsche

Baumwolle und Synthetik, die aufgefrischt werden

soll

/ 20° 1200 3 3         Schonend

Kaltwäsche oder Hauptwäsche 20°C, zusätzliches Spülen und

Endschleudern mit der eingestellten Drehzahl

Gering verschmutzte Baumwolle und Synthetik 30° / 40° 1200 3 3         Schonend

Hauptwäsche 30°C oder 40°C, zusätzliches Spülen und

Endschleudern mit der eingestellten Drehzahl

Trocknen

Schonend

60° Max.

- 3 - - - - - - - - - Schonendes Trocknen für synthetische und empfindliche Wäsche

Normal

90° Max.

- 4 - - - - - - - - - Normales Trocknen für Baumwollwäsche

Clean - - - - - - - - - - - - - Programm zum Reinigen des Trocknungskreislaufs



Option verfügbar

: Diese Optionen können nicht gleichzeitig gewählt werden.

Optionen

Kammern der Waschmittelschublade

Spülen und Schleudern

Abpumpen und Schleudern

Code 19392029300

GUÍA PROGRAMAS

Programas

Temp.

(°C)

Máx.

Centrífuga

(r.p.m.)

Carga

máx.

lavado

(kg)

Carga máx.

para secado

(kg)

Prelavado Lavado Suavizante Prelavado

Intensivo

Planchar

menos

Enjuague

adicional

Flexi

time

Secado

después de

lavado si es

seleccionado

Descripción programa lavado

Algodón y

coloreados

Delicadas coloreadas poco sucias / 20° Máx. 7 4         Normal

Lavado en frío o de 20°C, enjuagues y centrifugado final a la

velocidad seleccionada

Delicadas coloreadas normalmente sucias 30° / 40° Máx. 7 4         Normal

Lavado a 30 º ou de 40°C, enjuagues y centrifugado final a la

velocidad seleccionada

Prendas de algodón de suciedad normal, que se

pueden lavar conjuntamente a 60°C o 40°C

Eco 40-60 Máx. 7 4     -    Normal

Lavado enjuagues y centrifugado final a la velocidad

seleccionada

Coloreadas resistentes normalmente sucias 60° Máx. 7 4         Normal

Lavado a 60 °C, enjuagues y centrifugado final a la velocidad

seleccionada

Coloreadas resistentes muy sucias

90° Máx.

7 4        

Normal

Lavado a 90 ºC, enjuagues y centrifugado final a la velocidad

seleccionada

Sintéticas Prendas a refrescar / 20° 1000 3,5 3,5      -   Delicado

Lavado en frío o de 20°C, enjuagues y centrifugado final a la

velocidad seleccionada

Prendas poco sucias 30° / 40° 1000 3,5 3,5      -   Delicado

Lavado a 30 º ou de 40°C, enjuagues y centrifugado final a la

velocidad seleccionada

Prendas normalmente sucias 60° 1000 3,5 3,5      -   Delicado

Lavado a 60 ºC, enjuagues y centrifugado final a la velocidad

seleccionada

Delicadas/Seda Prendas a refrescar / 20° 600 2 - -   -  -  - -

Lavado en frío o de 20°C, enjuagues y centrifugado final a la

velocidad seleccionada

Prendas poco sucias 30° / 40° 600 2 - -   -  -  - -

Lavado a 30 º ou de 40°C, enjuagues y centrifugado final a la

velocidad seleccionada

Lana Prendas a refrescar / 20° 800 2 - -   - - - - - -

Lavado en frío o de 20°C, enjuagues y centrifugado final a la

velocidad seleccionada

Prendas poco sucias 30° / 40° 800 2 - -   - - - - - -

Lavado a 30 º ou de 40°C, enjuagues y centrifugado final a la

velocidad seleccionada

Enjuague y

centrifugado

- Máx. 7 - - -  - -  -  -

Enjuague y sólo descarga o descarga y centrifugado final a la

velocidad seleccionada

Descarga y

centrifugado

Máx.

7 - - - - - -  -  -

Sólo descarga o descarga y centrifugado final a la velocidad

seleccionada

Rápido

Algodón ligero o delicadas a refrescar

/ 20°/30°

800

2 - -   - - - - - -

Lavado en frío o de 20° C / 30° C, enjuagues y centrifugado final

a la velocidad seleccionada

Noche de purga

Prendas a refrescar

/ 20° 1000

3 3       - 

Normal

Lavado tranquilo en frío o de 20° (cuerno off), enjuagues y

centrifugado final a la velocidad seleccionada

Prendas poco sucias 30° / 40° 1000 3 3       -  Normal

Lavado tranquilo a 30°C / 40 ºC (cuerno off), enjuagues y

centrifugado final a la velocidad seleccionada

Prendas normalmente sucias

60° 1000

3 3       - 

Normal

Lavado tranquilo a 60 °C (cuerno off), enjuagues y centrifugado

final a la velocidad seleccionada

Sport Prendas a refrescar / 20° 800 2 2 -   -  -   Delicado

Lavado en frío o de 20°C, enjuagues y centrifugado final a la

velocidad seleccionada

Prendas poco sucias 30° / 40° 800 2 2 -   -  -   Delicado

Lavado a 30 º ou de 40°C, enjuagues y centrifugado final a la

velocidad seleccionada

Camisas /

Trabajo

Prendas a refrescar / 20° 800 2 2 -   -  -   Delicado

Lavado en frío o de 20°, enjuagues y centrifugado final a la

velocidad seleccionada

Prendas poco sucias 30° / 40° 800 2 2 -   -  -   Delicado

Lavado a 30 º ou de 40°C, enjuagues y centrifugado final a la

velocidad seleccionada

Mixtas Algodón y sintéticas a refrescar / 20° 1200 3 3         Delicado

Lavado en frío o de 20°C, enjuagues y centrifugado final a la

velocidad seleccionada

Algodón y sintéticas poco sucias 30° / 40° 1200 3 3         Delicado

Lavado a 30 º ou de 40°C, enjuagues y centrifugado final a la

velocidad seleccionada

Secado

Delicada

60° Máx.

- 3 - - - - - - - - - Secado delicado para prendas sintéticas y delicadas

Normal

90° Máx.

- 4 - - - - - - - - - Secado normal para prendas de algodón

Clean - - - - - - - - - - - - - Ciclo de limpieza circuito de secado



Opción disponible

: Opciones no seleccionables simultáneamente

Opciones

Compartimentos cajón detergentes

Code 19392029300

LEIDRAAD PROGRAMMA'S

Programma's

Temp.

(°C)

Max.

Centrifuge

(toeren/min.)

Max.

vulgewicht

(kg)

Max.

vulgewicht

voor drogen

(kg)

Voorwas Hoofdwas

Wasverzachter

Voorwas

Intensief

Minder

strijken

Extra

spoelbeurt

Flexi

time

Drogen na

wassen

wanneer

geselecteerd

Beschrijving wasprogramma

Katoen en

bonte was

Delicate, bonte, weinig vieze was / 20° Max 7 4         Normaal

Koud of op 20°C wassen, spoelen en eindcentrifuge bij

geselecteerde snelheid

Delicate bonte, normaal vieze was 30° / 40° Max 7 4         Normaal

Wassen op 30° of 40°C, spoelen en eindcentrifuge bij

geselecteerde snelheid

Katoenen was, normaal vervuild wasbaar op

60°C of 40°C samen

Eco 40-60 Max

7 4     -   

Normaal

Wassen, spoelen en centrifugeren op het geselecteerde toerental

Kleurvaste bonte, normaal vieze was

60° Max

7 4        

Normaal

Wassen op 60°C, spoelen en eindcentrifuge bij geselecteerde

snelheid

Kleurvaste bonte, bijzonder vieze was

90° Max

7 4        

Normaal

Wassen op 90°C, spoelen en eindcentrifuge bij geselecteerde

snelheid

Synthetische

was

Op te frissen was / 20° 1000 3,5 3,5      -   Delicate was

Koud of op 20°C wassen, spoelen en eindcentrifuge bij

geselecteerde snelheid

Weinig vieze was 30° / 40° 1000 3,5 3,5      -   Delicate was

Wassen op 30° of 40°C, spoelen en eindcentrifuge bij

geselecteerde snelheid

Normaal vieze was 60° 1000 3,5 3,5      -   Delicate was

Wassen op 60°C, spoelen en eindcentrifuge bij geselecteerde

snelheid

Delicate was /

zijde

Op te frissen was / 20° 600 2 - -   -  -  - -

Koud of op 20°C wassen, spoelen en eindcentrifuge bij

geselecteerde snelheid

Weinig vieze was 30° / 40° 600 2 - -   -  -  - -

Wassen op 30° of 40°C, spoelen en eindcentrifuge bij

geselecteerde snelheid

Wol Op te frissen was / 20° 800 2 - -   - - - - - -

Koud of op 20°C wassen, spoelen en eindcentrifuge bij

geselecteerde snelheid

Weinig vieze was 30° / 40° 800 2 - -   - - - - - -

Wassen op 30° of 40°C, spoelen en eindcentrifuge bij

geselecteerde snelheid

Max

7 - - -  - -  -  -

Spoelen en alleen leegpompen, of leegpompen en eindcentrifuge

bij geselecteerde snelheid

- Max 7 - - - - - -  -  -

Alleen leegpompen, of leegpompen en eindcentrifuge bij

geselecteerde snelheid

Snel Op te frissen lichte katoenen of delicate was

/ 20°/30°

800 2 - -   - - - - - -

Koud of op 20° C /30°C wassen, spoelen en eindcentrifuge bij

geselecteerde snelheid

Nachtwas Bijzonder delicate, weinig vieze was / 20° 1000 3 3       -  Normaal

Stil wassen, koud of op 20°C (zoemer uit), spoelen en

eindcentrifuge bij geselecteerde snelheid

Weinig vieze was 30° / 40° 1000 3 3       -  Normaal

Stil wassen op 30° C / 40°C (zoemer uit), spoelen en

eindcentrifuge bij geselecteerde snelheid

Normaal vieze was

60° 1000

3 3       - 

Normaal

Stil wassen op 60°C (zoemer uit), spoelen en eindcentrifuge bij

geselecteerde snelheid

Sport Op te frissen was / 20° 800 2 2 -   -  -   Delicate was

Koud of op 20°C wassen, spoelen en eindcentrifuge bij

geselecteerde snelheid

Weinig vieze was 30° / 40° 800 2 2 -   -  -   Delicate was

Wassen op 30° of 40°C, spoelen en eindcentrifuge bij

geselecteerde snelheid

Overhemden /

Werk

Op te frissen was / 20° 800 2 2 -   -  -   Delicate was

Koud of op 20°C wassen, spoelen en eindcentrifuge bij

geselecteerde snelheid

Weinig vieze was 30° / 40° 800 2 2 -   -  -   Delicate was

Wassen op 30° of 40°C, spoelen en eindcentrifuge bij

geselecteerde snelheid

Gemengd Op te frissen katoenen en synthetische was / 20° 1200 3 3         Delicate was

Koud of op 20°C wassen, spoelen en eindcentrifuge bij

geselecteerde snelheid

Weinig vieze katoenen en synthetische was 30° / 40° 1200 3 3         Delicate was

Wassen op 30° of 40°C, spoelen en eindcentrifuge bij

geselecteerde snelheid

Drogen

Delicate was

60° Max

- 3 - - - - - - - - - Delicaat drogen voor synthetische en delicate was

Normaal

90° Max

- 4 - - - - - - - - - Normaal drogen voor katoenen was

Clean - - - - - - - - - - - - - Reinigingscyclus droogcircuit



Beschikbare optie

: niet gelijktijdig selecteerbare opties

Opties

Vakjes wasmiddellade

Spoelen en centrifugeren

Leegpompen en centrifugeren

Code 19392029300

GUIA DE PROGRAMAS

Programas

Temp.

(°C)

Centrifuga

ção máx.

(rpm)

Carga

máx. de

lavagem

(kg)

Carga máx.

para

secagem

(kg)

Pré-lavagem Lavagem Amaciador

Pré-

lavagem

Intensiva

Engomar

fácil

Enxagua-

mento

adicional

Flexi

time

Secagem após

a lavagem, se

seleccionada

Descrição do programa de lavagem

Roupas delicadas coloridas pouco sujas

/ 20° Máx.

7 4        

Normal

Lavagem com água fria ou a 20°C, enxaguamentos e

centrifugação final à velocidade seleccionada

Roupas delicadas coloridas normalmente sujas 30° / 40° Máx. 7 4         Normal

Lavagem a 30° ou a 40°C, enxaguamentos e centrifugação final

à velocidade seleccionada

Roupas de algodão com sujidade normal que

podem ser lavadas juntas a 60 °C ou 40 °C

Eco 40-60 Máx. 7 4     -    Normal

Lavagem, enxaguamentos e centrifugação final na velocidade

selecionada

Roupas coloridas resistentes normalmente sujas 60° Máx. 7 4         Normal

Lavagem a 60°C, enxaguamentos e centrifugação final à

velocidade seleccionada

Roupas coloridas resistentes muito sujas

90° Máx.

7 4        

Normal

Lavagem a 90°C, enxaguamentos e centrifugação final à

velocidade seleccionada

Roupas

sintéticas

Roupas a refrescar / 20° 1000 3,5 3,5      -   Delicada

Lavagem com água fria ou a 20°C , enxaguamentos e

centrifugação final à velocidade seleccionada

Roupas pouco sujas 30° / 40° 1000 3,5 3,5      -   Delicada

Lavagem a 30° ou a 40°C, enxaguamentos e centrifugação final

à velocidade seleccionada

Roupas normalmente sujas 60° 1000 3,5 3,5      -   Delicada

Lavagem a 60°C, enxaguamentos e centrifugação final à

velocidade seleccionada

Roupas

delicadas/Silk

Roupas a refrescar / 20° 600 2 - -   -  -  - -

Lavagem com água fria ou a 20°C, enxaguamentos e

centrifugação final à velocidade seleccionada

Roupas pouco sujas 30° / 40° 600 2 - -   -  -  - -

Lavagem a 30° ou a 40°C, enxaguamentos e centrifugação final

à velocidade seleccionada

Lã Roupas a refrescar / 20° 800 2 - -   - - - - - -

Lavagem com água fria ou a 20°C, enxaguamentos e

centrifugação final à velocidade seleccionada

Roupas pouco sujas 30° / 40° 800 2 - -   - - - - - -

Lavagem a 30° ou a 40°C, enxaguamentos e centrifugação final

à velocidade seleccionada

- Máx. 7 - - -  - -  -  -

Enxaguamento e apenas descarga, ou descarga e centrifugação

final à velocidade seleccionada

- Máx. 7 - - - - - -  -  -

Apenas descarga ou descarga e centrifugação final à velocidade

seleccionada

Rápida

Roupas de algodão leve ou delicadas a

refrescar

/ 20°/30°

800

2 - -   - - - - - -

Lavagem com água fria ou a 20° C /30°C, enxaguamentos e

centrifugação final à velocidade seleccionada

Noite expurgo

Roupas a refrescar

/ 20° 1000

3 3       - 

Normal

Lavagem sossegado com água fria ou a 20°C (buzina off),

enxaguamentos e centrifugação final à velocidade seleccionada

Roupas pouco sujas

30° / 40° 1000

3 3       - 

Normal

Lavagem sossegado a 30° C / 40°C (buzina off), enxaguamentos

e centrifugação final à velocidade seleccionada

Roupas normalmente sujas

60° 1000

3 3       - 

Normal

Lavagem sossegado a 60°C (buzina off), enxaguamentos e

centrifugação final à velocidade seleccionada

Sport Roupas a refrescar / 20° 800 2 2 -   -  -   Delicada

Lavagem com água fria ou a 20°C, enxaguamentos e

centrifugação final à velocidade seleccionada

Roupas pouco sujas 30° / 40° 800 2 2 -   -  -   Delicada

Lavagem a 30° ou a 40°C, enxaguamentos e centrifugação final

à velocidade seleccionada

Camisas /

Trabalho

Roupas a refrescar / 20° 800 2 2 -   -  -   Delicada

Lavagem com água fria ou a 20°C, enxaguamentos e

centrifugação final à velocidade seleccionada

Roupas pouco sujas 30° / 40° 800 2 2 -   -  -   Delicada

Lavagem a 30° ou a 40°C, enxaguamentos e centrifugação final

à velocidade seleccionada

Tecidos mistos Roupas de algodão e sintéticas a refrescar / 20° 1200 3 3         Delicada

Lavagem com água fria ou a 20°C, enxaguamentos e

centrifugação final à velocidade seleccionada

Roupas de algodão e sintéticas pouco sujas 30° / 40° 1200 3 3         Delicada

Lavagem a 30° ou a 40°C, enxaguamentos e centrifugação final

à velocidade seleccionada

Secagem

Delicada

60° Máx.

- 3 - - - - - - - - - Secagem delicada para roupas sintéticas e delicadas

Normal

90° Máx.

- 4 - - - - - - - - - Secagem normal para roupas de algodão

Clean - - - - - - - - - - - - - Ciclo de limpeza do circuito de secagem



Opção disponível

: Opções que não podem ser seleccionadas simultaneamente

Opções

Compartimentos da gaveta para detergentes

Enxaguamento e centrifugação

Descarga e centrifugação

Roupas de

algodão e

coloridas

Code 19392029300

PROGRAMTABELL

Program

Temp.

(°C)

Max.

centrifu-

gering

(varv/minu

Max.

tvättmängd

(kg)

Max. tork-

tumlings-

mängd (kg)

Förtvätt Huvud-tvätt Sköljmedel Förtvätt

Intensiv

Skrynkel-

fritt

Extra-

sköljning

Flexi

time

Torktumling

efter

tvättning

(tillval)

Beskrivning av tvättprogram

Vittvätt och

kulörtvätt

Lätt smutsad fintvätt/kulörtvätt / 20° Max. 7 4         Normal

Kalltvätt eller tvättning på 20 °C, sköljning och slutcentrifugering

på valt centrifugeringsvarvtal

Normalt smutsad fintvätt/kulörtvätt 30° / 40° Max. 7 4         Normal

Tvättning på 30° eller 40 °C, sköljning och slutcentrifugering på

valt centrifugeringsvarvtal

Normalt smutsig bomullstvätt, förklarad tvättbar

vid 60°C eller 40°C tillsammans

Eco 40-60 Max

7 4     -   

Normal

Tvättar, sköljer och centrifugerar vid vald hastighet

Normalt smutsad slitstark kulörtvätt

60° Max.

7 4        

Normal

Tvättning på 60 °C, sköljning och slutcentrifugering på valt

centrifugeringsvarvtal (normal tvätt med val av endast funktionen

intensiv)

Hårt smutsad slitstark kulörtvätt 90° Max. 7 4         Normal

Tvättning på 90 °C, sköljning och slutcentrifugering på valt

centrifugeringsvarvtal

Syntettvätt Uppfräschning av plagg / 20° 1000 3,5 3,5      -   Skonsam

Kalltvätt eller tvättning på 20 °C, sköljning och slutcentrifugering

på valt centrifugeringsvarvtal

Lätt smutsade plagg 30° / 40° 1000 3,5 3,5      -   Skonsam

Tvättning på 30° eller 40 °C, sköljning och slutcentrifugering på

valt centrifugeringsvarvtal

Normalt smutsade plagg 60° 1000 3,5 3,5      -   Skonsam

Tvättning på 60 °C, sköljning och slutcentrifugering på valt

centrifugeringsvarvtal

Fintvätt och

silke

Uppfräschning av plagg / 20° 600 2 - -   -  -  - -

Kalltvätt eller tvättning på 20 °C, sköljning och slutcentrifugering

på valt centrifugeringsvarvtal

Lätt smutsade plagg 30° / 40° 600 2 - -   -  -  - -

Tvättning på 30° eller 40 °C, sköljning och slutcentrifugering på

valt centrifugeringsvarvtal

Ylle Uppfräschning av plagg / 20° 800 2 - -   - - - - - -

Kalltvätt eller tvättning på 20 °C, sköljning och slutcentrifugering

på valt centrifugeringsvarvtal

Lätt smutsade plagg 30° / 40° 800 2 - -   - - - - - -

Tvättning på 30° eller 40 °C, sköljning och slutcentrifugering på

valt centrifugeringsvarvtal

Sköljning och

centrifugering

Max.

7 - - -  - -  -  -

Sköljning och endast tömning, eller tömning och slutcentrifugering

på valt centrifugeringsvarvtal

Tömning och

centrifugering

- Max. 7 - - - - - -  -  -

Endast tömning, eller tömning och slutcentrifugering på valt

centrifugeringsvarvtal

Snabb

Uppfräschning av lätt smutsad vittvätt eller

fintvätt

/ 20°/30°

800 2 - -   - - - - - -

Kalltvätt eller tvättning på 20°C /30° °C, sköljning och

slutcentrifugering på valt centrifugeringsvarvtal

Nattprogram

Lätt smutsad ömtålig fintvätt

/ 20° 1000

3 3       - 

Normal

Tyst kalltvätt eller tvättning på 20 °C (ingen ljudsignal), sköljning

och slutcentrifugering på valt centrifugeringsvarvtal

Lätt smutsade plagg 30° / 40° 1000 3 3       -  Normal

Tyst tvättning på 30° / 40 °C (ingen ljudsignal), sköljning och

slutcentrifugering på valt centrifugeringsvarvtal

Normalt smutsade plagg

60° 1000

3 3       - 

Normal

Tyst tvättning på 60 °C (ingen ljudsignal), sköljning och

slutcentrifugering på valt centrifugeringsvarvtal

Sport Uppfräschning av plagg / 20° 800 2 2 -   -  -   Skonsam

Kalltvätt eller tvättning på 20 °C, sköljning och slutcentrifugering

på valt centrifugeringsvarvtal

Lätt smutsade plagg 30° / 40° 800 2 2 -   -  -   Skonsam

Tvättning på 30° eller 40 °C, sköljning och slutcentrifugering på

valt centrifugeringsvarvtal

Skjortor /

Arbetskläder

Uppfräschning av plagg / 20° 800 2 2 -   -  -   Skonsam

Kalltvätt eller tvättning på 20 °C, sköljning och slutcentrifugering

på valt centrifugeringsvarvtal

Lätt smutsade plagg 30° / 40° 800 2 2 -   -  -   Skonsam

Tvättning på 30° eller 40 °C, sköljning och slutcentrifugering på

valt centrifugeringsvarvtal

Blandad

tvätt

Uppfräschning av vittvätt/syntettvätt / 20° 1200 3 3         Skonsam

Kalltvätt eller tvättning på 20 °C, sköljning och slutcentrifugering

på valt centrifugeringsvarvtal

Lätt smutsad vittvätt/syntettvätt 30° / 40° 1200 3 3         Skonsam

Tvättning på 30° eller 40 °C, sköljning och slutcentrifugering på

valt centrifugeringsvarvtal

Torktumling

Skonsam

60° Max.

- 3 - - - - - - - - - Skonsam torktumling för syntettvätt och fintvätt

Normal

90° Max.

- 4 - - - - - - - - - Normal torktumling för vittvätt

Clean - - - - - - - - - - - - - Rengöringsprogram för torktumlingssystem



Funktionen går att välja

: Funktioner som inte kan väljas samtidigt

Funktioner

Tvättmedelslådans fack

Code 19392029300

ВЫБОР ПРОГРАММ

Программы

Темп.

(°C)

Макс.

отжим

(об/мин)

Макс.

загрузка

для

стирки

(кг)

Макс.

загрузка

для сушки

(кг)

Предварите-

льная стирка

Стирка Смягчитель

Предвари-

тельная

стирка

Интенсивная

Гладьте

меньше

Дополни-

тельное

полоскание

Flexi

time

Сушка после

стирки, если

выбрана

Описание программы стирки

Хлопок и цветное

белье

Цветные тонкие ткани с небольшим

загрязнением

/ 20° Макс. 7 4         Обычная

Холодная стирка при 20°C, полоскания и конечный отжим на

выбранной скорости

Цветные тонкие ткани с обычным

загрязнением

30° / 40° Макс. 7 4         Обычная

Стирка при 30° или 40°C, полоскания и конечный отжим на

выбранной скорости

Белье из хлопка средней степени

загрязнения можно стирать вместе при

температуре 60°C или 40°C

Ecо 40-60 Макс. 7 4     -    Обычная Стирка, полоскание и окончательный отжим на выбранной

скорости

Стойкое цветное белье с обычным

загрязнением

60° Макс. 7 4         Обычная

Стирка при 60°C, полоскания и конечный отжим на

выбранной скорости

Стойкое цветное белье с сильным

загрязнением

90° Макс. 7 4         Обычная

Стирка при 90°C, полоскания и конечный отжим на

выбранной скорости

Синтетика Освежение одежды / 20° 1000 3,5 3,5      -   Бережная

Холодная стирка при 20°C, полоскания и конечный отжим на

выбранной скорости

Белье с небольшим загрязнением 30° / 40° 1000 3,5 3,5      -   Бережная

Стирка при 30° или 40°C, полоскания и конечный отжим на

выбранной скорости

Белье с обычным загрязнением 60° 1000 3,5 3,5      -   Бережная

Стирка при 60°C, полоскания и конечный отжим на

выбранной скорости

Тонкие ткани /

шелк

Освежение одежды / 20° 600 2 - -   -  -  - -

Холодная стирка при 20°C, полоскания и конечный отжим на

выбранной скорости

Белье с небольшим загрязнением 30° / 40° 600 2 - -   -  -  - -

Стирка при 30° или 40°C, полоскания и конечный отжим на

выбранной скорости

Шерсть Освежение одежды / 20° 800 2 - -   - - - - - -

Холодная стирка при 20°C, полоскания и конечный отжим на

выбранной скорости

Белье с небольшим загрязнением 30° / 40° 800 2 - -   - - - - - -

Стирка при 30° или 40°C, полоскания и конечный отжим на

выбранной скорости

Полоскание и

отжим

- Макс. 7 - - -  - -  -  -

Полоскание и только слив или слив и конечный отжим на

выбранной скорости

Слив и отжим

Макс.

7 - - - - - -  -  -

Только слив или слив и конечный отжим на выбранной

скорости

Быстрая

Освежение легкого хлопка или тонких тканей

/ 20°/30° 800

2 - -   - - - - - -

Холодная стирка при 20°/ 30°C, полоскания и конечный

отжим на выбранной скорости

Ночная стирка

Очень тонкие ткани с небольшим

загрязнением

/ 20° 1000

3 3       - 

Обычная

Бесшумная холодная стирка при 20°C (звуковой сигнал

выкл.), полоскания и конечный отжим на выбранной скорости

Ткани с небольшим загрязнением

30° / 40° 1000

3 3       - 

Обычная

Бесшумная стирка при 30° / 40°C (звуковой сигнал выкл.),

полоскания и конечный отжим на выбранной скорости

Ткани с обычным загрязнением 60° 1000 3 3       -  Обычная

Бесшумная стирка при 60°C (звуковой сигнал выкл.),

полоскания и конечный отжим на выбранной скорости

Sport Освежение одежды / 20° 800 2 2 -   -  -   Бережная

Бесшумная холодная стирка при 20°C полоскания и конечный

отжим на выбранной скорости

Белье с небольшим загрязнением 30° / 40° 800 2 2 -   -  -   Бережная

Стирка при 30° или 40°C, полоскания и конечный отжим на

выбранной скорости

Освежение одежды / 20° 800 2 2 -   -  -   Бережная

Бесшумная холодная стирка при 20°C, полоскания и

конечный отжим на выбранной скорости

Белье с небольшим загрязнением 30° / 40° 800 2 2 -   -  -   Бережная

Стирка при 30° или 40°C, полоскания и конечный отжим на

выбранной скорости

Освежение Хлопок и синтетика / 20° 1200 3 3         Бережная

Бесшумная холодная стирка при 20°C, полоскания и

конечный отжим на выбранной скорости

Хлопок и синтетика с небольшим

загрязнением

30° / 40° 1200 3 3         Бережная

Стирка при 30° или 40°C, полоскания и конечный отжим на

выбранной скорости

Сушка

Бережная

60° Макс.

- 3 - - - - - - - - - Бережная сушка для синтетического и тонкого белья

Обычная

90° Макс.

- 4 - - - - - - - - - Обычная сушка для хлопкового белья

Clean - - - - - - - - - - - - - Цикл очистки сушильной системы

:

Доступная дополнительная функция

: Функции, которые нельзя выбрать одновременно

Дополнительные функции

Отсеки дозатора для моющих средств

Сорочки / Рабочая

одежда

Ткани из

смешанных

волокон

Code 19392029300

PROGRAMTABEL

Programmer

Temp.

(°C)

Maks.

centrif.

hast.

(o/min)

Maks.

mængde

v. vask

(kg)

Maks.

mængde v.

tørring (kg)

Forvask Hovedvask Skyllemiddel Forvask

Intensiv Strygefri

Ekstra

skylning

Flexi

time

Tørring efter

vask (hvis

valgt)

Beskrivelse af vaskeprogram

Bomuld og

farvet tøj

Let snavset, sart, farvet tøj

/ 20° Maks.

7 4        

Normalt

Kold vask eller ved 20 °C, skylning og afsluttende centrifugering

ved den valgte hastighed

Normalt snavset, sart, farvet tøj

30° / 40° Maks.

7 4        

Normalt

Vask ved 30°C eller 40 °C, skylning og afsluttende centrifugering

ved den valgte hastighed

Normalt snavset bomuldsvasketøj deklareret

vaskbart ved 60 °C eller 40°C sammen

Eco 40-60 Maks. 7 4     -    Normalt Vask, skyl og afsluttende centrifuge ved den valgte hastighed

Normalt snavset, modstandsdygtigt, farvet tøj 60° Maks. 7 4         Normalt

Vask ved 60 °C, skylning og afsluttende centrifugering ved den

valgte hastighed

Meget snavset, modstandsdygtigt, farvet tøj 90° Maks. 7 4         Normalt

Vask ved 90 °C, skylning og afsluttende centrifugering ved den

valgte hastighed

Syntetisk tøj

Tøj, der skal opfriskes

/ 20° 1000

3,5 3,5      -  

Sart

Kold vask eller ved 20 °C, skylning og afsluttende centrifugering

ved den valgte hastighed

Let snavset tøj

30° / 40° 1000

3,5 3,5      -  

Sart

Vask ved 30°C eller 40 °C, skylning og afsluttende centrifugering

ved den valgte hastighed

Normalt snavset tøj

60° 1000

3,5 3,5      -  

Sart

Vask ved 60 °C, skylning og afsluttende centrifugering ved den

valgte hastighed

Sart tøj/silke

Tøj, der skal opfriskes

/ 20° 600

2 - -   -  -  - -

Kold vask eller ved 20 °C, skylning og afsluttende centrifugering

ved den valgte hastighed

Let snavset tøj

30° / 40° 600

2 - -   -  -  - -

Vask ved 30°C eller 40 °C, skylning og afsluttende centrifugering

ved den valgte hastighed

Uld

Tøj, der skal opfriskes

/ 20° 800

2 - -   - - - - - -

Kold vask eller ved 20 °C, skylning og afsluttende centrifugering

ved den valgte hastighed

Let snavset tøj 30° / 40° 800 2 - -   - - - - - -

Vask ved 30°C eller 40 °C, skylning og afsluttende centrifugering

ved den valgte hastighed

Skylning og

centrifugering

Maks.

7 - - -  - -  -  -

Skylning og kun tømning eller tømning og afsluttende

centrifugering ved den valgte hastighed

Tømning og

centrifugering

- Maks. 7 - - - - - -  -  -

Kun tømning eller tømning og afsluttende centrifugering ved den

valgte hastighed

Hurtig Let bomuld eller sart tøj, der skal opfriskes

/ 20°/30°

800 2 - -   - - - - - -

Kold vask eller ved 20°C /30 °C, skylning og afsluttende

centrifugering ved den valgte hastighed

Natprogram

Let snavset, meget sart tøj

/ 20° 1000

3 3       - 

Normalt

Støjsvag kold vask eller ved 20 °C (lydsignal frakoblet), skylning

og afsluttende centrifugering ved den valgte hastighed

Let snavset tøj

30° / 40° 1000

3 3       - 

Normalt

Støjsvag vask ved 30°C /40 °C (lydsignal frakoblet), skylning og

afsluttende centrifugering ved den valgte hastighed

Normalt snavset tøj 60° 1000 3 3       -  Normalt

Støjsvag vask ved 60 °C (lydsignal frakoblet), skylning og

afsluttende centrifugering ved den valgte hastighed

Sportstøj

Tøj, der skal opfriskes

/ 20° 800

2 2 -   -  -  

Sart

Kold vask eller ved 20 °C, skylning og afsluttende centrifugering

ved den valgte hastighed

Let snavset tøj 30° / 40° 800 2 2 -   -  -   Sart

Vask ved 30°C eller 40 °C, skylning og afsluttende centrifugering

ved den valgte hastighed

Skjorter/

arbejdstøj

Tøj, der skal opfriskes

/ 20° 800

2 2 -   -  -  

Sart

Kold vask eller ved 20 °C, skylning og afsluttende centrifugering

ved den valgte hastighed

Let snavset tøj 30° / 40° 800 2 2 -   -  -   Sart

Vask ved 30°C eller 40 °C, skylning og afsluttende centrifugering

ved den valgte hastighed

Blandet

Bomuld og syntetisk tøj, der skal opfriskes

/ 20° 1200

3 3        

Sart

Kold vask eller ved 20 °C, skylning og afsluttende centrifugering

ved den valgte hastighed

Let snavset bomuld og syntetisk tøj 30° / 40° 1200 3 3         Sart

Vask ved 30°C eller 40 °C, skylning og afsluttende centrifugering

ved den valgte hastighed

Tørring

Sart

60° Maks.

- 3 - - - - - - - - - Skånsom tørring til syntetisk og sart tøj

Normalt

90° Maks.

- 4 - - - - - - - - - Normal tørring til bomuld

Rengøring af tørresystem - - - - - - - - - - - - - Automatisk rengøringsprogram for tørresystem

: Mulig funktion

: Funktioner, der ikke kan vælges samtidigt

Funktioner

Rum i sæbeskuffe

Code 19392029300

TABELA PROGRAMÓW

Programy

Temp.

(°C)

Maks.

prędkość

wirowania

(obr/min)

Maks.

ciężar

wsadu

(kg)

Maks.

ciężar

wsadu do

suszenia

(k )

Pranie

wstępne

Pranie

Zmiękcz.

Pranie

wst.

Pranie

intensywne

Bez

prasowania

Dodatkowe

płukanie

Flexi

Time

Suszenie po praniu,

jeśli wybrane

Opis programu prania

Bawełna i tkaniny

kolorowe

Delikatne tkaniny kolorowe lekko zabrudzone / 20° Maks. 7 4

       

Normalne

Pranie w zimnej wodzie lub o temp. 20°C, cykle płukania i

odwirowanie końcowe z wybraną prędkością

Delikatne tkaniny kolorowe zabrudzone

normalnie

30° / 40° Maks. 7 4

       

Normalne

Pranie w temp. 30° C / 40°C, cykle płukania i odwirowanie

końcowe z wybraną prędkością

Normalnie zabrudzone ubrania bawełniane,

przeznaczone do prania razem w 60°C lub

40°C

Eco 40-60 Maks. 7 4

   

  

Normalne Pranie, płukania i końcowe wirowanie z wybraną prędkością

Tkaniny kolorowe zabrudzone normalnie 60° Maks. 7 4

       

Normalne

Pranie w temp. 60°C, cykle płukania i odwirowanie końcowe z

wybraną prędkością

Tkaniny kolorowe zabrudzone normalnie 90° Maks. 7 4

       

Normalne

Pranie w temp. 90°C, cykle płukania i odwirowanie końcowe z

wybraną prędkością

Syntetyki Odświeżanie / 20° 1000 3,5 3,5

    

 

Tkaniny delikatne

Pranie w zimnej wodzie lub o temp. 20°C,, cykle płukania i

odwirowanie końcowe z wybraną prędkością

Tkaniny zabrudzone lekko 30° / 40° 1000 3,5 3,5

    

 

Tkaniny delikatne

Pranie w temp. 30 °C lub 40°C, cykle płukania i odwirowanie

końcowe z wybraną prędkością

Tkaniny zabrudzone normalnie 60° 1000 3,5 3,5

    

 

Tkaniny delikatne

Pranie w temp. 60°C, cykle płukania i odwirowanie końcowe z

wybraną prędkością

Tkaniny delikatne /

Jedwab

Odświeżanie / 20° 600 2 - -

 



- -

Pranie w zimnej wodzie lub o temp. 20°C, cykle płukania i

odwirowanie końcowe z wybraną prędkością

Tkaniny zabrudzone lekko 30° / 40° 600 2 - -

 



- -

Pranie w temp. 30°C lub 40°C, cykle płukania i odwirowanie

końcowe z wybraną prędkością

Wełna Odświeżanie / 20° 800 2 - -

 

- - - - - -

Pranie w zimnej wodzie lub o temp. 20°C, cykle płukania i

odwirowanie końcowe z wybraną prędkością

Tkaniny zabrudzone lekko 30° / 40° 800 2 - -

 

- - - - - -

Pranie w temp. 30°C lub 40°C, cykle płukania i odwirowanie

końcowe z wybraną prędkością

Płukanie i wirowanie - Maks. 7 - - -



- -



Płukanie i samo spuszczenie wody, lub spuszczenie wody i

odwirowanie końcowe z wybraną prędkością

Spuszczenie wody i

odwirowanie

- Maks. 7 - - - - - -



Tylko spuszczenie wody, lub spuszczenie wody i odwirowanie

końcowe z wybraną prędkością

Pranie szybkie Bawełna lub tkaniny delikatne do odświeżenia

/ 20°/30°

800 2 - -

 

- - - - - -

Pranie w zimnej wodzie lub o temp. 20°C / 30°C, cykle

płukania i odwirowanie końcowe z wybraną prędkością

Pranie nocne Tkaniny bardzo delikatne lekko zabrudzone / 20° 1000 3 3

     

- - Normalne

Pranie ciche w wodzie zimnej lub o temp. 20 °C (wyłączony

sygnalizator akustyczny), cykle płukania i odwirowanie

końcowe z wybraną prędkością

Tkaniny zabrudzone lekko 30° / 40° 1000 3 3

     

- - Normalne

Pranie ciche w temp. 30° C / 40°C (wyłączony sygnalizator

akustyczny), cykle płukania i odwirowanie końcowe z wybraną

prędkością

Tkaniny zabrudzone normalnie 60° 1000 3 3

     

- - Normalne

Pranie ciche w temp. 60 °C (wyłączony sygnalizator

akustyczny), cykle płukania i odwirowanie końcowe z wybraną

prędkością

Sport Odświeżanie / 20° 800 2 2 -

 



 

Tkaniny delikatne

Pranie w zimnej wodzie lub o temp. 20°C, cykle płukania i

odwirowanie końcowe z wybraną prędkością

Tkaniny zabrudzone lekko 30° / 40° 800 2 2 -

 



 

Tkaniny delikatne

Pranie w temp. 30° lub 40°C, cykle płukania i odwirowanie

końcowe z wybraną prędkością

Koszule / Odzież

robocza

Odświeżanie / 20° 800 2 2 -

 



 

Tkaniny delikatne

Pranie w zimnej wodzie lub o temp. 20°C, cykle płukania i

odwirowanie końcowe z wybraną prędkością

Tkaniny zabrudzone lekko 30° / 40° 800 2 2 -

 



 

Tkaniny delikatne

Pranie w temp. 30° lub 40°C, cykle płukania i odwirowanie

końcowe z wybraną prędkością

Tkaniny mieszane Bawełna i syntetyki do odświeżenia / 20° 1200 3 3

       

Tkaniny delikatne

Pranie w zimnej wodzie lub o temp. 20°C, cykle płukania i

odwirowanie końcowe z wybraną prędkością

Bawełna i syntetyki zabrudzone lekko 30° / 40° 1200 3 3

       

Tkaniny delikatne

Pranie w temp. 30° lub 40°C, cykle płukania i odwirowanie

końcowe z wybraną prędkością

Suszenie Tkaniny delikatne 60° Maks. - 3 - - - - - - - - - Suszenie delikatne dla syntetyków i tkanin delikatnych

Normalne 90° Maks. - 4 - - - - - - - - - Suszenie normalne dla bawełny

Czyszczenie suszarki - - - - - - - - - - - - - Cykl czyszczenia obwodu suszenia

: Opcja dostępna

: Opcje niemogące być wybrane jednocześnie

Przegródki pojemnika na detergenty

Opcje

19392029300

Smeg LSIA147 Built-in washer dryer

Product's Documents

User Manual

Specifications

Smeg LSIA147 Questions and Answers

Related Products

Smeg LSTA147 Built-in Washer-Dryer

Smeg WDI14C7-2 Built-in washer dryer

Smeg WDI147D-2 Built-in washer dryer

Smeg LSTA147 Built-in Washer-Dryer

Smeg WDI14C7-2 Built-in washer dryer

Smeg WDI147D-2 Built-in washer dryer
