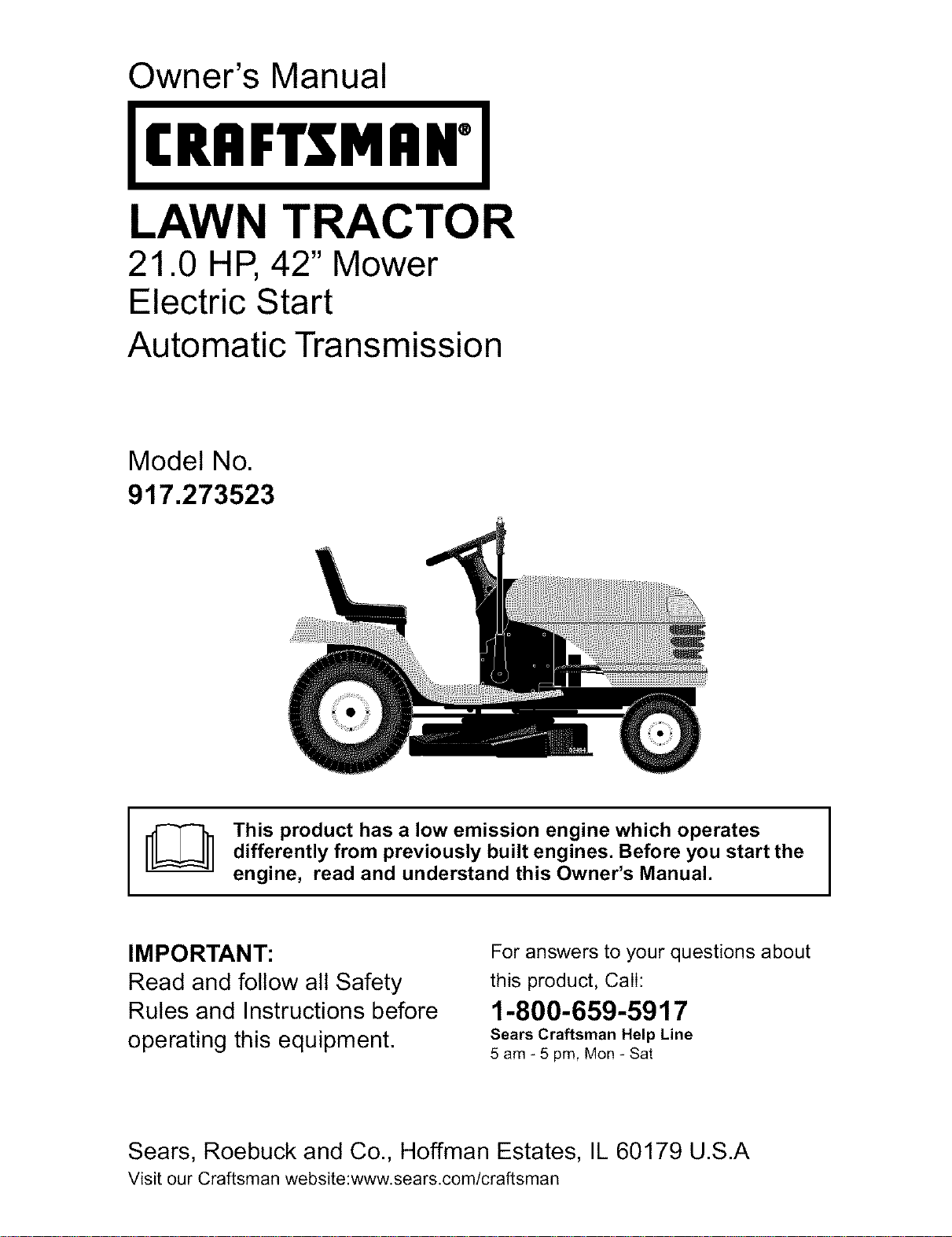

Craftsman 917273523 lawn tractor User Manual

Owner's Manual

JCRIIFTSMIIN°J

LAWN TRACTOR

21.0 HP, 42" Mower

Electric Start

Automatic Transmission

Model No.

917.273523

_]]] his product has a low emission engine which operates I

differently from previously built engines. Before you start the

engine, read and understand this Owner's Manual.

IMPORTANT:

Read and follow all Safety

Rules and Instructions before

operating this equipment.

For answers to your questions about

this product, Call:

1-800-659-5917

Sears Craftsman Help Line

5 am- 5 pm, Mon- Sat

Sears, Roebuck and Co., Hoffman Estates, IL 60179 U.S.A

Visit our Craftsman website:www.sears.com/craftsman

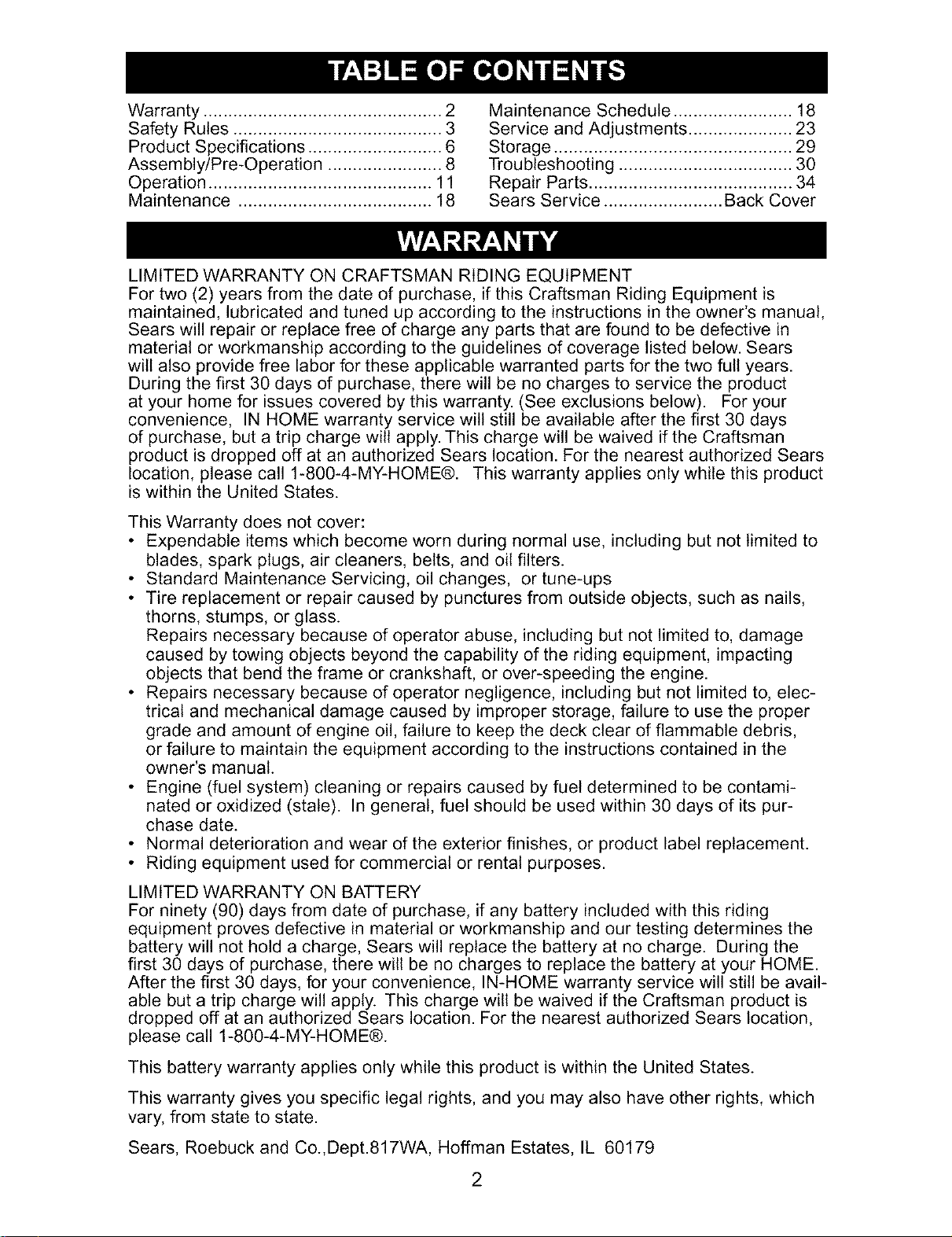

Warranty ................................................ 2

Safety Rules .......................................... 3

Product Specifications ........................... 6

Assembly/Pre-Operation ....................... 8

Operation ............................................. 11

Maintenance ....................................... 18

Maintenance Schedule ........................ 18

Service and Adjustments ..................... 23

Storage ................................................ 29

Troubleshooting ................................... 30

Repair Parts ......................................... 34

Sears Service ........................ Back Cover

LIMITED WARRANTY ON CRAFTSMAN RIDING EQUIPMENT

For two (2) years from the date of purchase, if this Craftsman Riding Equipment is

maintained, lubricated and tuned up according to the instructions in the owner's manual,

Sears will repair or replace free of charge any parts that are found to be defective in

material or workmanship according to the guidelines of coverage listed below. Sears

will also provide free labor for these applicable warranted parts for the two full years.

During the first 30 days of purchase, there will be no charges to service the product

at your home for issues covered by this warranty. (See exclusions below). For your

convenience, IN HOME warranty service will still be available after the first 30 days

of purchase, but a trip charge wilt apply. This charge will be waived if the Craftsman

product is dropped off at an authorized Sears location. For the nearest authorized Sears

location, please call 1-800-4-MY-HOME®. This warranty applies only while this product

is within the United States.

This Warranty does not cover:

• Expendable items which become worn during normal use, including but not limited to

blades, spark plugs, air cleaners, belts, and oil filters.

• Standard Maintenance Servicing, oil changes, or tune-ups

• Tire replacement or repair caused by punctures from outside objects, such as nails,

thorns, stumps, or glass.

Repairs necessary because of operator abuse, including but not limited to, damage

caused by towing objects beyond the capability of the riding equipment, impacting

objects that bend the frame or crankshaft, or over-speeding the engine.

• Repairs necessary because of operator negligence, including but not limited to, elec-

trical and mechanical damage caused by improper storage, failure to use the proper

grade and amount of engine oil, failure to keep the deck clear of flammable debris,

or failure to maintain the equipment according to the instructions contained in the

owner's manual.

• Engine (fuel system) cleaning or repairs caused by fuel determined to be contami-

nated or oxidized (stale). In general, fuel should be used within 30 days of its pur-

chase date.

• Normal deterioration and wear of the exterior finishes, or product label replacement.

• Riding equipment used for commercial or rental purposes.

LIMITED WARRANTY ON BATTERY

For ninety (90) days from date of purchase, if any battery included with this riding

equipment proves defective in material or workmanship and our testing determines the

battery will not hold a charge, Sears will replace the battery at no charge. During the

first 30 days of purchase, there will be no charges to replace the battery at your HOME.

After the first 30 days, for your convenience, IN-HOME warranty service will still be avail-

able but a trip charge will apply. This charge will be waived if the Craftsman product is

dropped off at an authorized Sears location. For the nearest authorized Sears location,

please call 1-800-4-MY-HOME®.

This battery warranty applies only while this product is within the United States.

This warranty gives you specific legal rights, and you may also have other rights, which

vary, from state to state.

Sears, Roebuck and Co.,Dept.817WA, Hoffman Estates, IL 60179

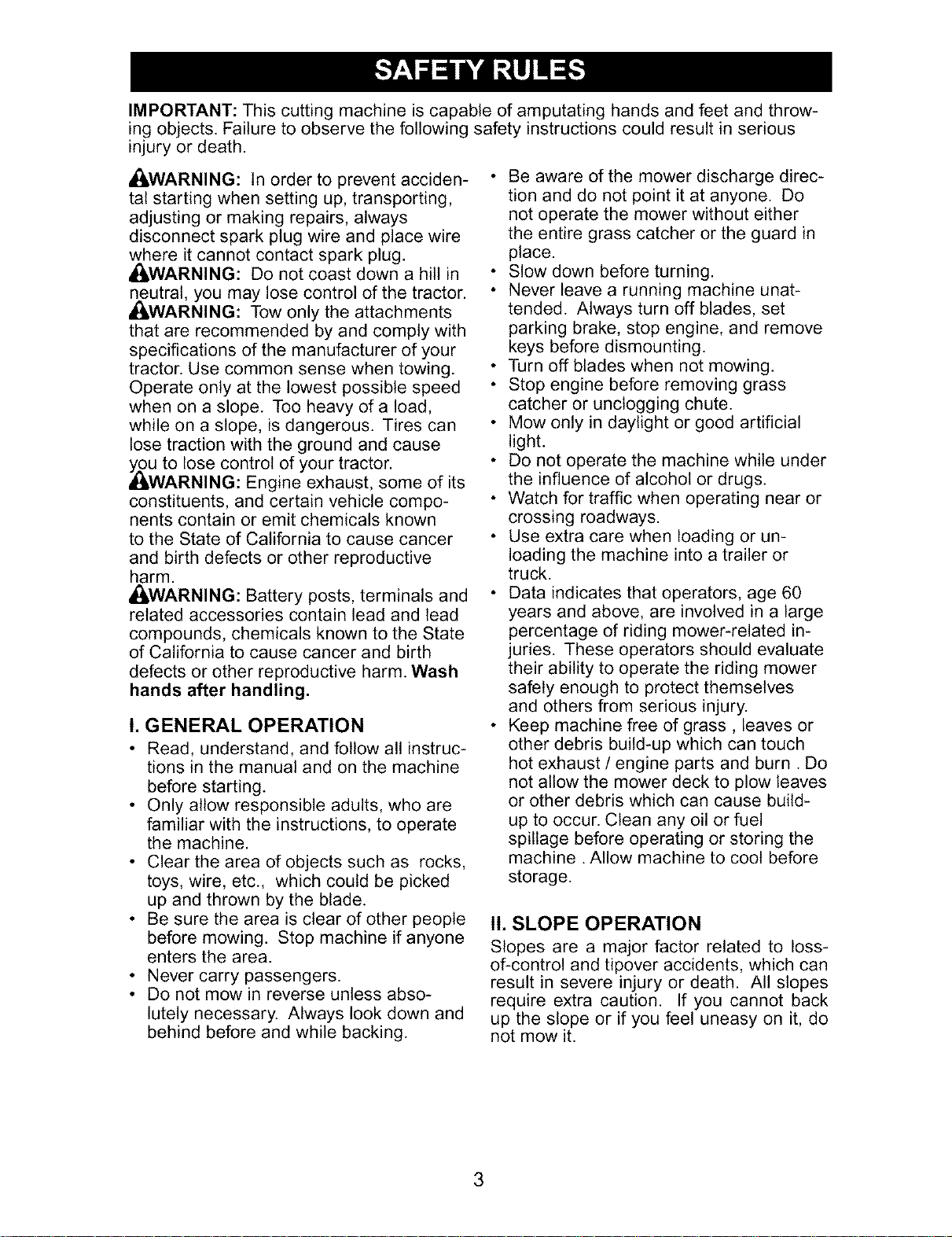

IMPORTANT: This cutting machine is capable of amputating hands and feet and throw-

ing objects. Failure to observe the following safety instructions could result in serious

injury or death.

_iLWARNING: In order to prevent acciden-

tal starting when setting up, transporting,

adjusting or making repairs, always

disconnect spark plug wire and place wire

where it cannot contact spark plug.

_iLWARNING: Do not coast down a hill in

neutral, you may lose control of the tractor.

ACiLWARNING: Tow only the attachments

that are recommended by and comply with

specifications of the manufacturer of your

tractor. Use common sense when towing.

Operate only at the lowest possible speed

when on a slope. Too heavy of a load,

while on a slope, is dangerous. Tires can

lose traction with the ground and cause

_I,WAuto lose control of your tractor.

RNING: Engine exhaust, some of its

constituents, and certain vehicle compo-

nents contain or emit chemicals known

to the State of California to cause cancer

and birth defects or other reproductive

harm.

_WARNING: Battery posts, terminals and

related accessories contain lead and lead

compounds, chemicals known to the State

of California to cause cancer and birth

defects or other reproductive harm. Wash

hands after handling.

1.GENERAL OPERATION

• Read, understand, and follow all instruc-

tions in the manual and on the machine

before starting.

• Only allow responsible adults, who are

familiar with the instructions, to operate

the machine.

• Clear the area of objects such as rocks,

toys, wire, etc., which could be picked

up and thrown by the blade.

• Be sure the area is clear of other people

before mowing. Stop machine if anyone

enters the area.

• Never carry passengers.

• Do not mow in reverse unless abso-

lutely necessary. Always look down and

behind before and while backing.

• Be aware of the mower discharge direc-

tion and do not point it at anyone. Do

not operate the mower without either

the entire grass catcher or the guard in

place.

• Slow down before turning.

• Never leave a running machine unat-

tended. Always turn off blades, set

parking brake, stop engine, and remove

keys before dismounting.

• Turn off blades when not mowing.

• Stop engine before removing grass

catcher or unclogging chute.

• Mow only in daylight or good artificial

light.

• Do not operate the machine while under

the influence of alcohol or drugs.

• Watch for traffic when operating near or

crossing roadways.

• Use extra care when loading or un-

loading the machine into a trailer or

truck.

• Data indicates that operators, age 60

years and above, are involved in a large

percentage of riding mower-related in-

juries. These operators should evaluate

their ability to operate the riding mower

safely enough to protect themselves

and others from serious injury.

• Keep machine free of grass, leaves or

other debris build-up which can touch

hot exhaust / engine parts and burn. Do

not allow the mower deck to plow leaves

or other debris which can cause build-

up to occur. Clean any oil or fuel

spillage before operating or storing the

machine. Allow machine to coot before

storage.

11.SLOPE OPERATION

Slopes are a major factor related to loss-

of-control and tipover accidents, which can

result in severe injury or death. All slopes

require extra caution. If you cannot back

up the slope or if you feel uneasy on it, do

not mow it.

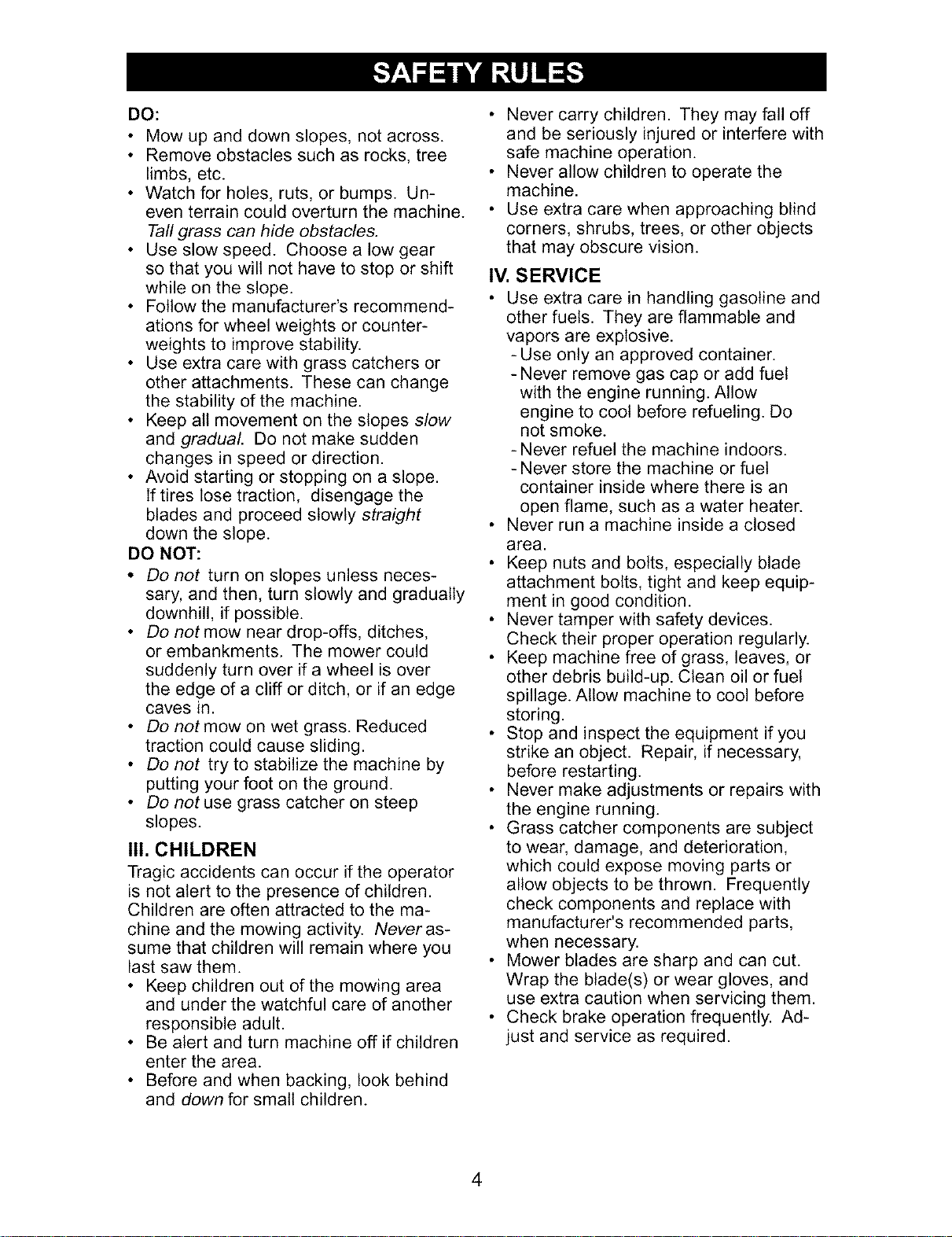

DO:

• Mow up and down slopes, not across.

• Remove obstacles such as rocks, tree

limbs, etc.

Watch for holes, ruts, or bumps. Un-

even terrain could overturn the machine.

Tall grass can hide obstacles.

Use slow speed. Choose a low gear

so that you will not have to stop or shift

while on the slope.

Follow the manufacturer's recommend-

ations for wheel weights or counter-

weights to improve stability.

Use extra care with grass catchers or

other attachments. These can change

the stability of the machine.

Keep all movement on the slopes slow

and gradual. Do not make sudden

changes in speed or direction.

Avoid starting or stopping on a slope.

If tires lose traction, disengage the

blades and proceed slowly straight

down the slope.

DO NOT:

• Do not turn on slopes unless neces-

sary, and then, turn slowly and gradually

downhill, if possible.

• Do not mow near drop-offs, ditches,

or embankments. The mower could

suddenly turn over if a wheel is over

the edge of a cliff or ditch, or if an edge

caves in.

• Do not mow on wet grass. Reduced

traction could cause sliding.

• Do not try to stabilize the machine by

putting your foot on the ground.

• Do not use grass catcher on steep

slopes.

111.CHILDREN

Tragic accidents can occur if the operator

is not alert to the presence of children.

Children are often attracted to the ma-

chine and the mowing activity. Neveras-

sume that children will remain where you

last saw them.

• Keep children out of the mowing area

and under the watchful care of another

responsible adult.

• Be alert and turn machine off if children

enter the area.

• Before and when backing, look behind

and down for small children.

Never carry children. They may fall off

and be seriously injured or interfere with

safe machine operation.

Never allow children to operate the

machine.

Use extra care when approaching blind

corners, shrubs, trees, or other objects

that may obscure vision.

IV. SERVICE

Use extra care in handling gasoline and

other fuels. They are flammable and

vapors are explosive.

- Use only an approved container.

- Never remove gas cap or add fuel

with the engine running. Allow

engine to coot before refueling. Do

not smoke.

- Never refuel the machine indoors.

- Never store the machine or fuel

container inside where there is an

open flame, such as a water heater.

Never run a machine inside a closed

area.

Keep nuts and bolts, especially blade

attachment bolts, tight and keep equip-

ment in good condition.

Never tamper with safety devices.

Check their proper operation regularly.

Keep machine free of grass, leaves, or

other debris build-up. Clean oil or fuel

spillage. Allow machine to cool before

storing.

Stop and inspect the equipment if you

strike an object. Repair, if necessary,

before restarting.

Never make adjustments or repairs with

the engine running.

Grass catcher components are subject

to wear, damage, and deterioration,

which could expose moving parts or

allow objects to be thrown. Frequently

check components and replace with

manufacturer's recommended parts,

when necessary.

Mower blades are sharp and can cut.

Wrap the blade(s) or wear gloves, and

use extra caution when servicing them.

Check brake operation frequently. Ad-

just and service as required.

• Be sure the area is clear of other people

before mowing. Stop machine if anyone

enters the area.

• Never carry passengers or children

even with the blades off.

• Do not mow in reverse unless abso-

lutely necessary. Always look down and

behind before and while backing.

• Never carry children. They may fall off

and be seriously injured or interfere with

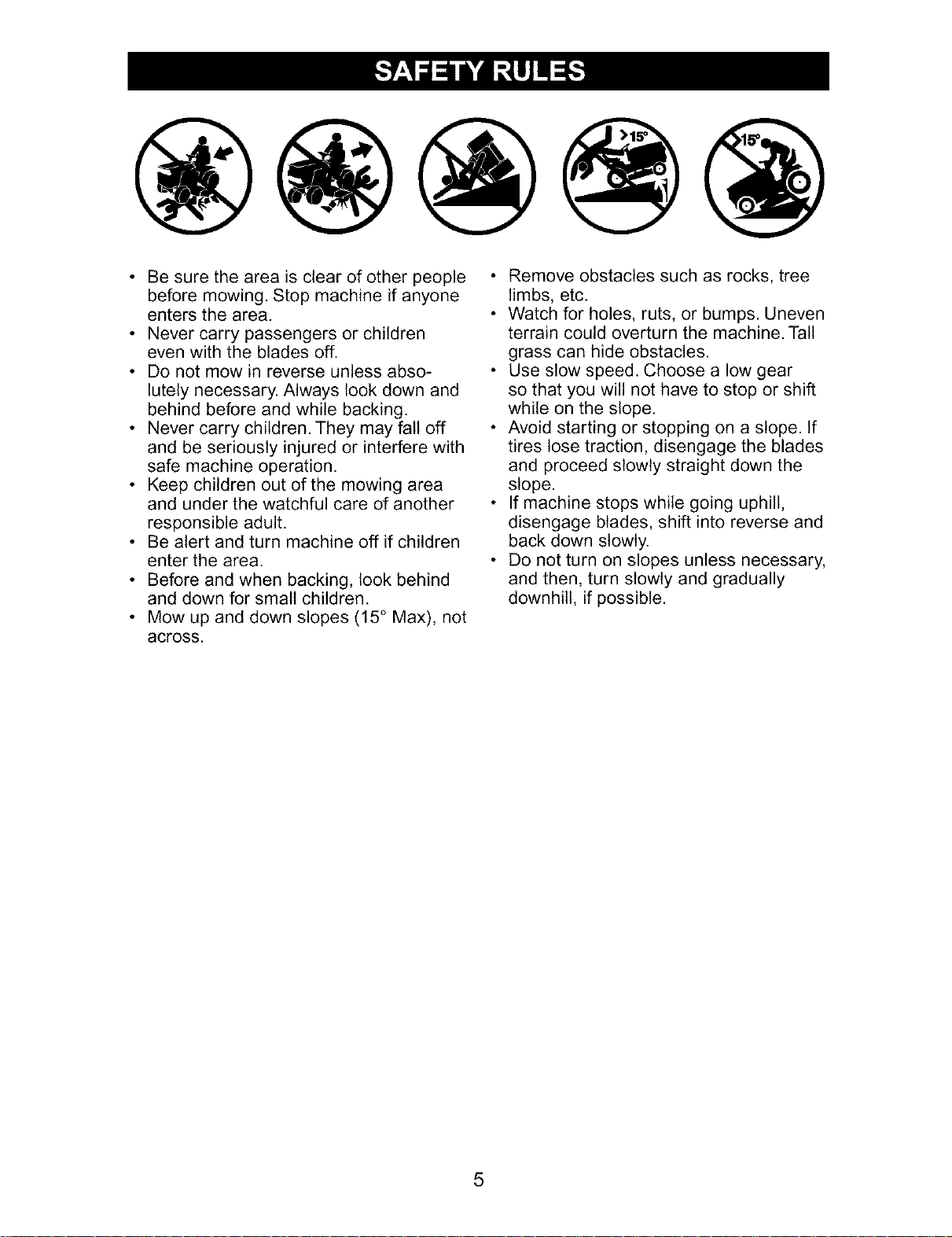

safe machine operation.

• Keep children out of the mowing area

and under the watchful care of another

responsible adult.

• Be alert and turn machine off if children

enter the area.

• Before and when backing, look behind

and down for small children.

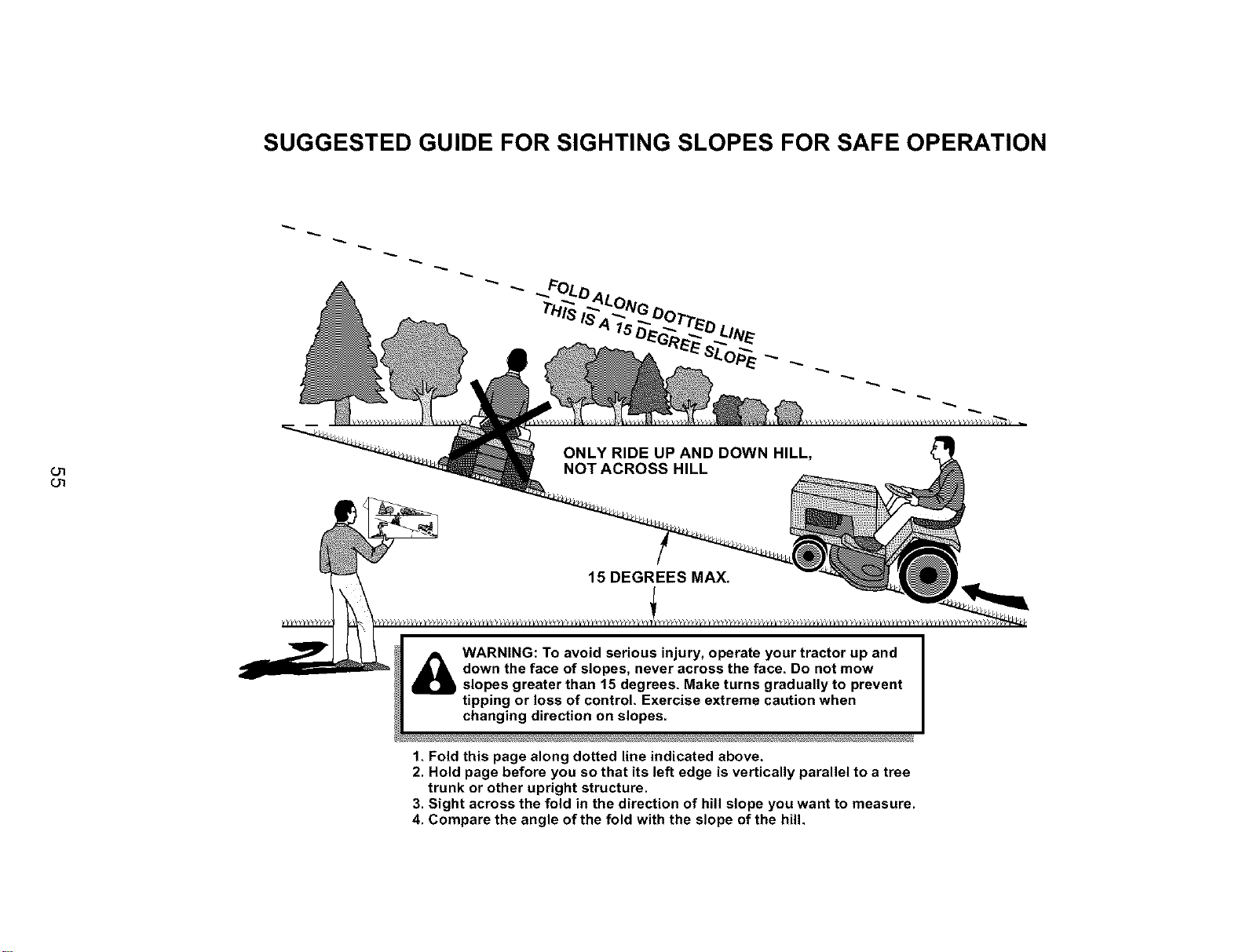

• Mow up and down slopes (15° Max), not

across.

• Remove obstacles such as rocks, tree

limbs, etc.

• Watch for holes, ruts, or bumps. Uneven

terrain could overturn the machine. Tall

grass can hide obstacles.

• Use slow speed. Choose a low gear

so that you will not have to stop or shift

while on the slope.

• Avoid starting or stopping on a slope. If

tires lose traction, disengage the blades

and proceed slowly straight down the

slope.

• If machine stops while going uphill,

disengage blades, shift into reverse and

back down slowly.

• Do not turn on slopes unless necessary,

and then, turn slowly and gradually

downhill, if possible.

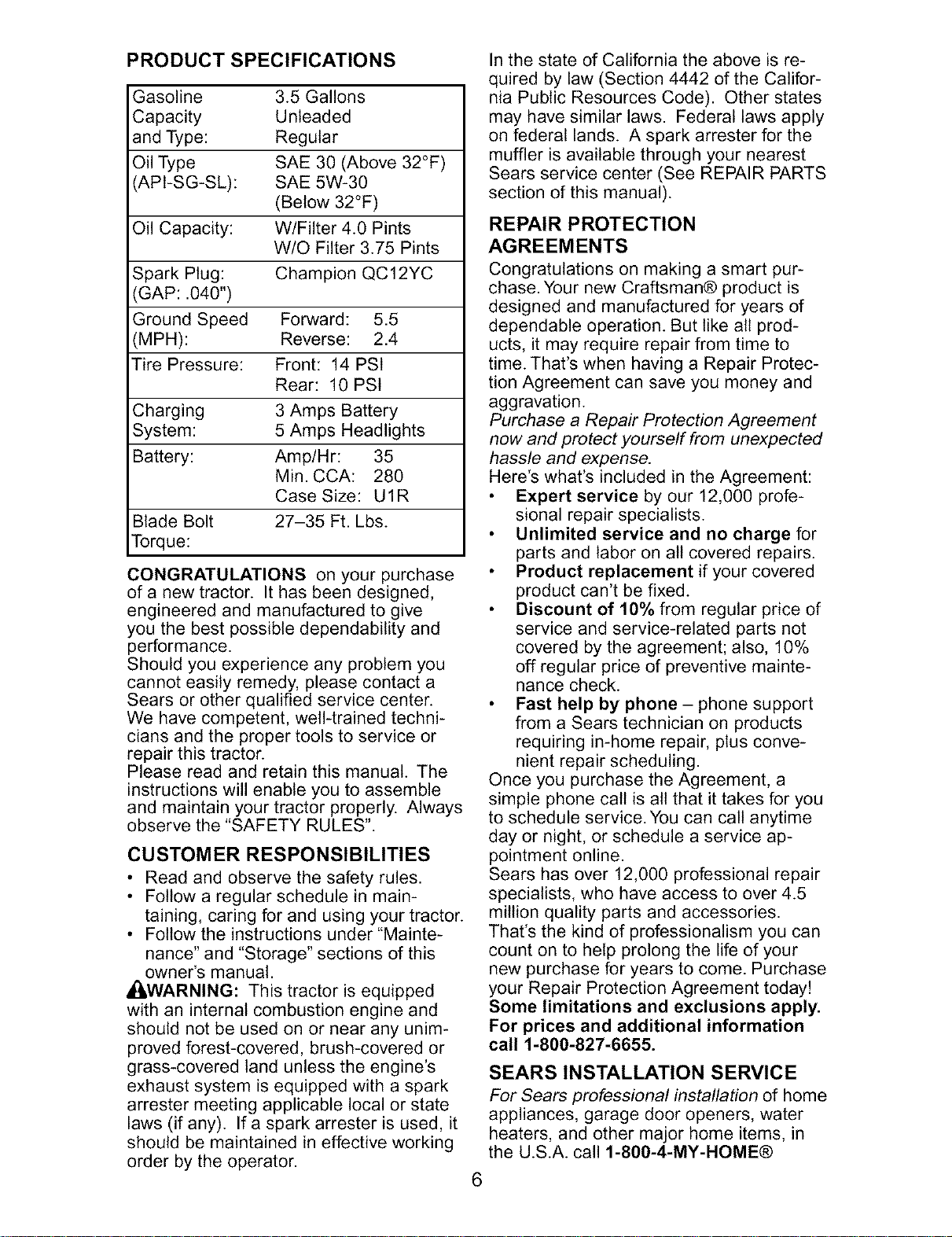

PRODUCT SPECIFICATIONS

Gasoline 3.5 Gallons

Capacity Unleaded

and Type: Regular

Oil Type SAE 30 (Above 32°F)

API-SG-SL): SAE 5W-30

(Below 32°F)

Oil Capacity: W/Filter 4.0 Pints

W/O Filter 3.75 Pints

Spark Plug: Champion QC12YC

GAP: .040")

Ground Speed Forward: 5.5

(MPH): Reverse: 2.4

Tire Pressure: Front: 14 PSt

Rear: 10 PSt

Charging 3 Amps Battery

System: 5 Amps Headlights

Battery: Amp/Hr: 35

Min. CCA: 280

Case Size: U1R

Blade Bolt 27-35 Ft. Lbs.

Torque:

CONGRATULATIONS on your purchase

of a new tractor. It has been designed,

engineered and manufactured to give

you the best possible dependability and

performance.

Should you experience any problem you

cannot easily remedy, please contact a

Sears or other qualified service center.

We have competent, well-trained techni-

cians and the proper tools to service or

repair this tractor.

Please read and retain this manual. The

instructions will enable you to assemble

and maintain your tractor properly. Always

observe the "SAFETY RULES".

CUSTOMER RESPONSIBILITIES

• Read and observe the safety rules.

• Follow a regular schedule in main-

taining, caring for and using your tractor.

• Follow the instructions under"Mainte-

nance" and "Storage" sections of this

owner's manual.

_WARNING: This tractor is equipped

with an internal combustion engine and

should not be used on or near any unim-

proved forest-covered, brush-covered or

grass-covered land unless the engine's

exhaust system is equipped with a spark

arrester meeting applicable local or state

laws (if any). If a spark arrester is used, it

should be maintained in effective working

order by the operator.

In the state of California the above is re-

quired by law (Section 4442 of the Califor-

nia Public Resources Code). Other states

may have similar laws. Federal laws apply

on federal lands. A spark arrester for the

muffler is available through your nearest

Sears service center (See REPAIR PARTS

section of this manual).

REPAIR PROTECTION

AGREEMENTS

Congratulations on making a smart pur-

chase. Your new Craftsman® product is

designed and manufactured for years of

dependable operation. But like all prod-

ucts, it may require repair from time to

time. That's when having a Repair Protec-

tion Agreement can save you money and

aggravation.

Purchase a Repair Protection Agreement

now and protect yourself from unexpected

hassle and expense.

Here's what's included in the Agreement:

Expert service by our 12,000 profe-

sional repair specialists.

Unlimited service and no charge for

parts and labor on all covered repairs.

Product replacement if your covered

product can't be fixed.

Discount of 10% from regular price of

service and service-related parts not

covered by the agreement; also, 10%

off regular price of preventive mainte-

nance check.

Fast help by phone - phone support

from a Sears technician on products

requiring in-home repair, plus conve-

nient repair scheduling.

Once you purchase the Agreement, a

simple phone call is all that it takes for you

to schedule service.You can call anytime

day or night, or schedule a service ap-

pointment online.

Sears has over 12,000 professional repair

specialists, who have access to over 4.5

million quality parts and accessories.

That's the kind of professionalism you can

count on to help prolong the life of your

new purchase for years to come. Purchase

your Repair Protection Agreement today!

Some limitations and exclusions apply.

For prices and additional information

call 1-800-827-6655.

SEARS INSTALLATION SERVICE

For Sears professional installation of home

appliances, garage door openers, water

heaters, and other major home items, in

the U.S.A. call 1-800-4-MY-HOME®

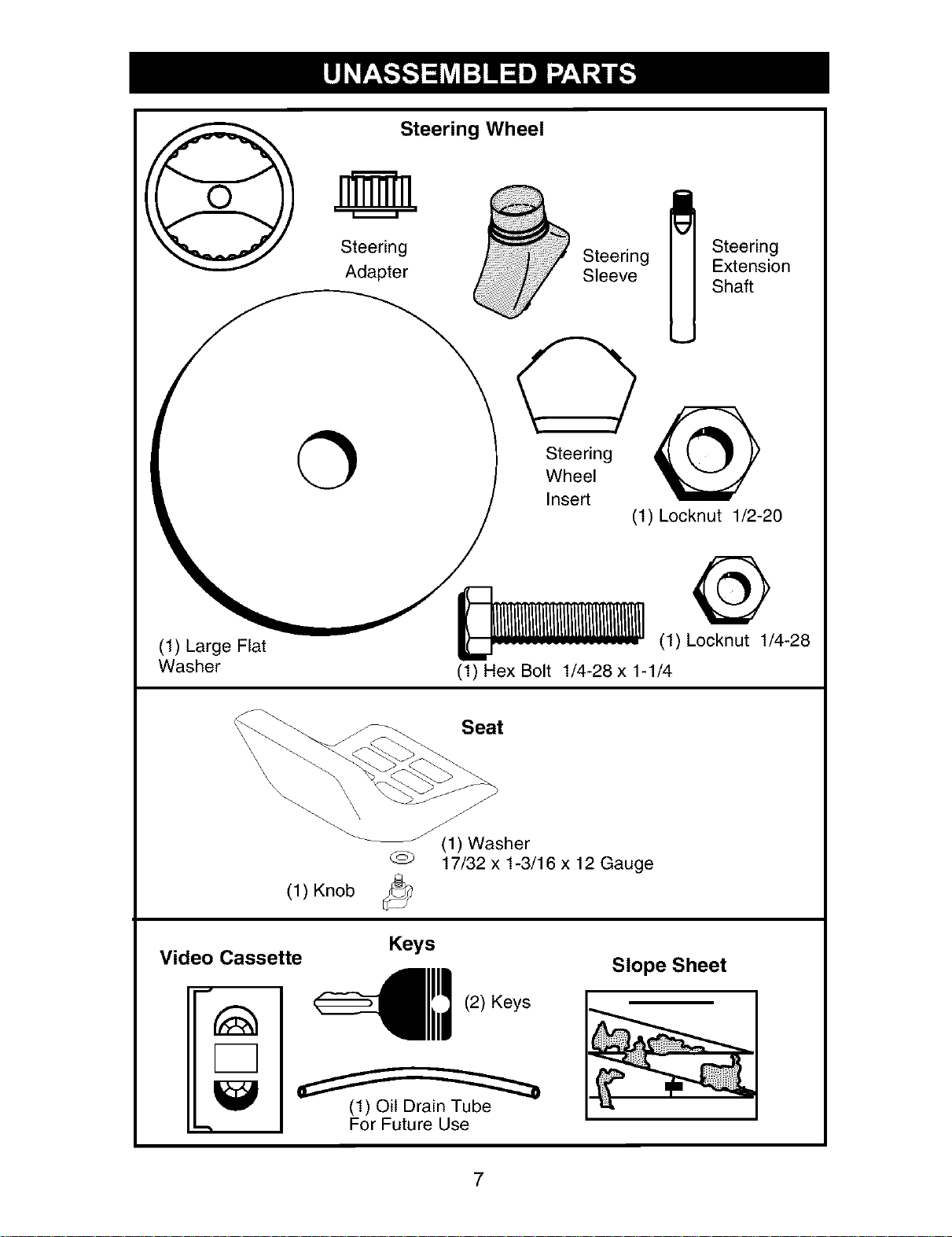

Steering Wheel

Steering

Adapter

Steering

Sleeve

Steering

Extension

Shaft

Steering

Wheel

Insert

(1) Locknut 1/2-20

(1) Large Flat

Washer

(1) Locknut 1/4-28

(1) Hex Bolt 1/4-28 x 1-1/4

Seat

(1) Washer

17/32 x 1-3/16 x 12 Gauge

(1) Knob

Video Cassette

Keys

(1) Oil Drain Tube

For Future Use

Slope Sheet

Your new tractor has been assembled at the factory with the exception of those parts left

unassembled for shipping purposes. To ensure safe and proper operation of your tractor

all parts and hardware you assemble must be tightened securely. Use the correct tools

as necessary to insure proper tightness. Review the video cassette before you begin.

TOOLS REQUIRED FOR ASSEMBLY

A socket wrench set will make assembly

easier. Standard wrench sizes you need

are listed below.

(1) 3/4"wrench (1) Pliers

(2) 7/16" wrench (1) Utility knife

(1) Tire pressure gauge

When right or left hand is mentioned in

this manual, it means, from your point of

view, when you are in the operating posi-

tion (seated behind the steering wheel).

TO REMOVE TRACTOR FROM

CARTON

UNPACK CARTON

1. Remove all accessible loose parts and

parts boxes from carton.

2. Cut along dotted lines on all four pan-

els of carton. Remove end panels and

lay side panels flat.

3. Check for any additional loose parts or

cartons and remove.

BEFORE REMOVING TRACTOR

FROM SKID

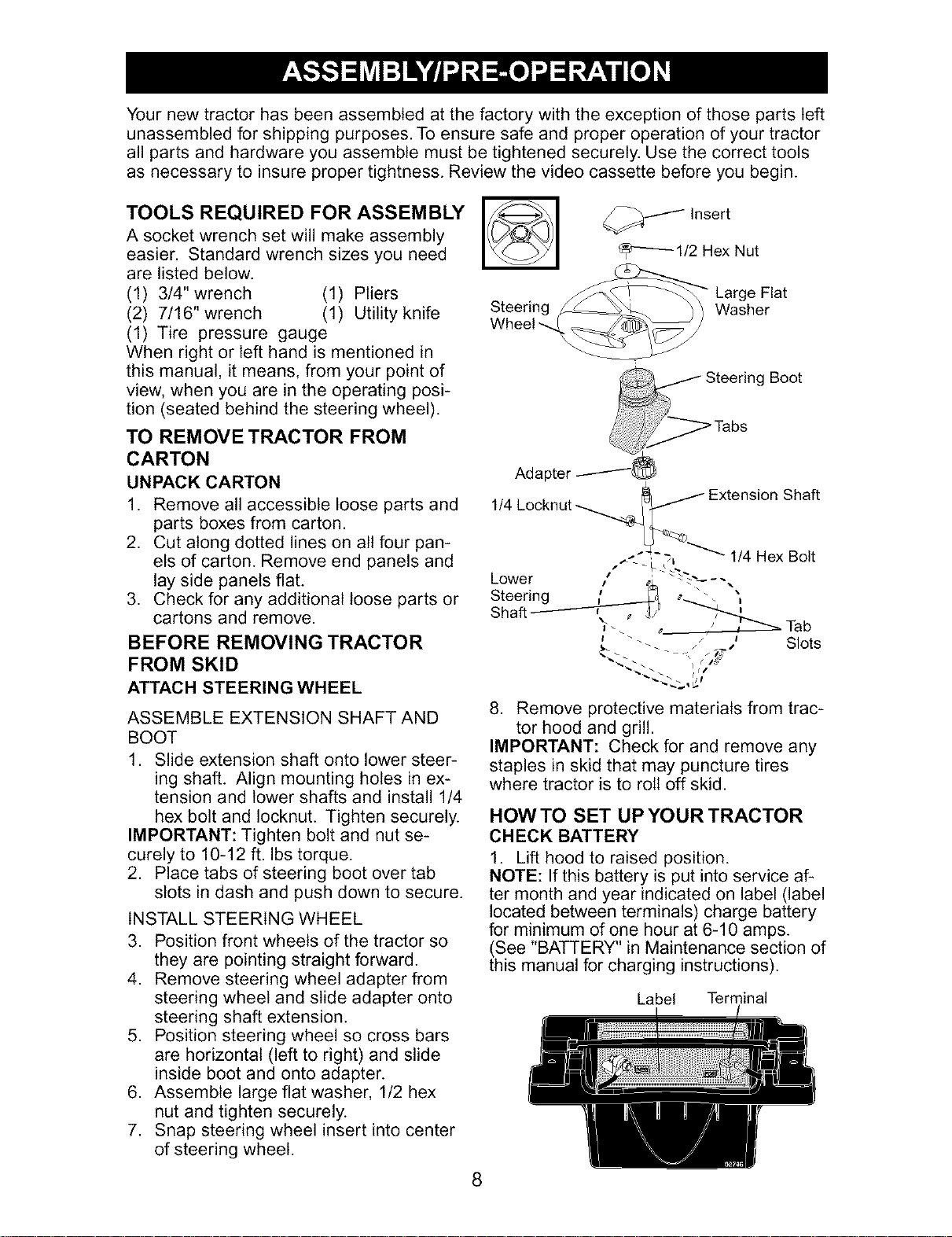

ATTACH STEERING WHEEL

ASSEMBLE EXTENSION SHAFT AND

BOOT

1. Slide extension shaft onto lower steer-

ing shaft. Align mounting holes in ex-

tension and lower shafts and install 1/4

hex bolt and Iocknut. Tighten securely.

IMPORTANT: Tighten bolt and nut se-

curely to 10-12 ft. Ibs torque.

2. Place tabs of steering boot over tab

slots in dash and push down to secure.

INSTALL STEERING WHEEL

3. Position front wheels of the tractor so

they are pointing straight forward.

4. Remove steering wheel adapter from

steering wheel and slide adapter onto

steering shaft extension.

5. Position steering wheel so cross bars

are horizontal (left to right) and slide

inside boot and onto adapter.

6. Assemble large flat washer, 1/2 hex

nut and tighten securely.

7. Snap steering wheel insert into center

of steering wheel.

_/Insert

_'_----- 1/2 Hex Nut

j_ Large Flat

Steering _ _ / Washer

Wheel_ _

_ Steering

Tabs

Adapter _I

1/4

Boot

8. Remove protective materials from trac-

tor hood and grill.

IMPORTANT: Check for and remove any

staples in skid that may puncture tires

where tractor is to roll off skid.

HOW TO SET UP YOUR TRACTOR

CHECK BATTERY

1. Lift hood to raised position.

NOTE: If this battery is put into service af-

ter month and year indicated on label (label

located between terminals) charge battery

for minimum of one hour at 6-10 amps.

(See "BATTERY" in Maintenance section of

this manual for charging instructions).

Label Terminal

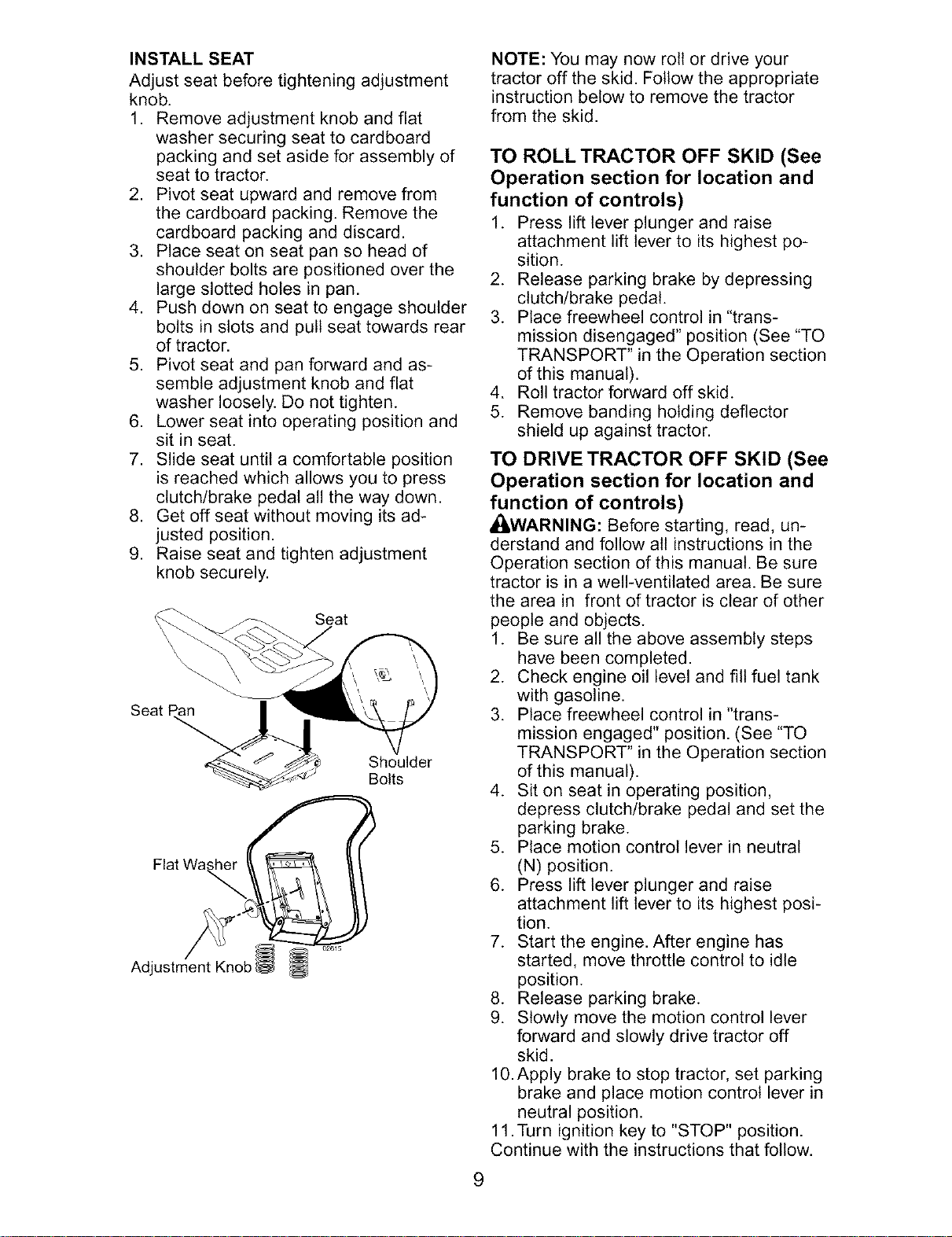

INSTALL SEAT

Adjust seat before tightening adjustment

knob.

1. Remove adjustment knob and flat

washer securing seat to cardboard

packing and set aside for assembly of

seat to tractor.

2. Pivot seat upward and remove from

the cardboard packing. Remove the

cardboard packing and discard.

3. Place seat on seat pan so head of

shoulder bolts are positioned over the

large slotted holes in pan.

4. Push down on seat to engage shoulder

bolts in slots and pull seat towards rear

of tractor.

5. Pivot seat and pan forward and as-

semble adjustment knob and flat

washer loosely. Do not tighten.

6. Lower seat into operating position and

sit in seat.

7. Slide seat until a comfortable position

is reached which allows you to press

clutch/brake pedal all the way down.

8. Get off seat without moving its ad-

justed position.

9. Raise seat and tighten adjustment

knob securely.

Seat

Seat _n

Shoulder

Bolts

Flat Wa

Adj

NOTE: You may now roll or drive your

tractor off the skid. Follow the appropriate

instruction below to remove the tractor

from the skid.

TO ROLL TRACTOR OFF SKID (See

Operation section for location and

function of controls)

1. Press lift lever plunger and raise

attachment lift lever to its highest po-

sition.

2. Release parking brake by depressing

clutch/brake pedal.

3. Place freewheel control in "trans-

mission disengaged" position (See "TO

TRANSPORT" in the Operation section

of this manual).

4. Roll tractor forward off skid.

5. Remove banding holding deflector

shield up against tractor.

TO DRIVE TRACTOR OFF SKID (See

Operation section for location and

function of controls)

_I_WARNING: Before starting, read, un-

derstand and follow all instructions in the

Operation section of this manual. Be sure

tractor is in a well-ventilated area. Be sure

the area in front of tractor is clear of other

people and objects.

1. Be sure all the above assembly steps

have been completed.

2. Check engine oil level and fill fuel tank

with gasoline.

3. Place freewheel control in "trans-

mission engaged" position. (See "TO

TRANSPORT" in the Operation section

of this manual).

4. Sit on seat in operating position,

depress clutch/brake pedal and set the

parking brake.

5. Place motion control lever in neutral

(N) position.

6. Press lift lever plunger and raise

attachment lift lever to its highest posi-

tion.

7. Start the engine. After engine has

started, move throttle control to idle

position.

8. Release parking brake.

9. Slowly move the motion control lever

forward and slowly drive tractor off

skid.

10.Apply brake to stop tractor, set parking

brake and place motion control lever in

neutral position.

11.Turn ignition key to "STOP" position.

Continue with the instructions that follow.

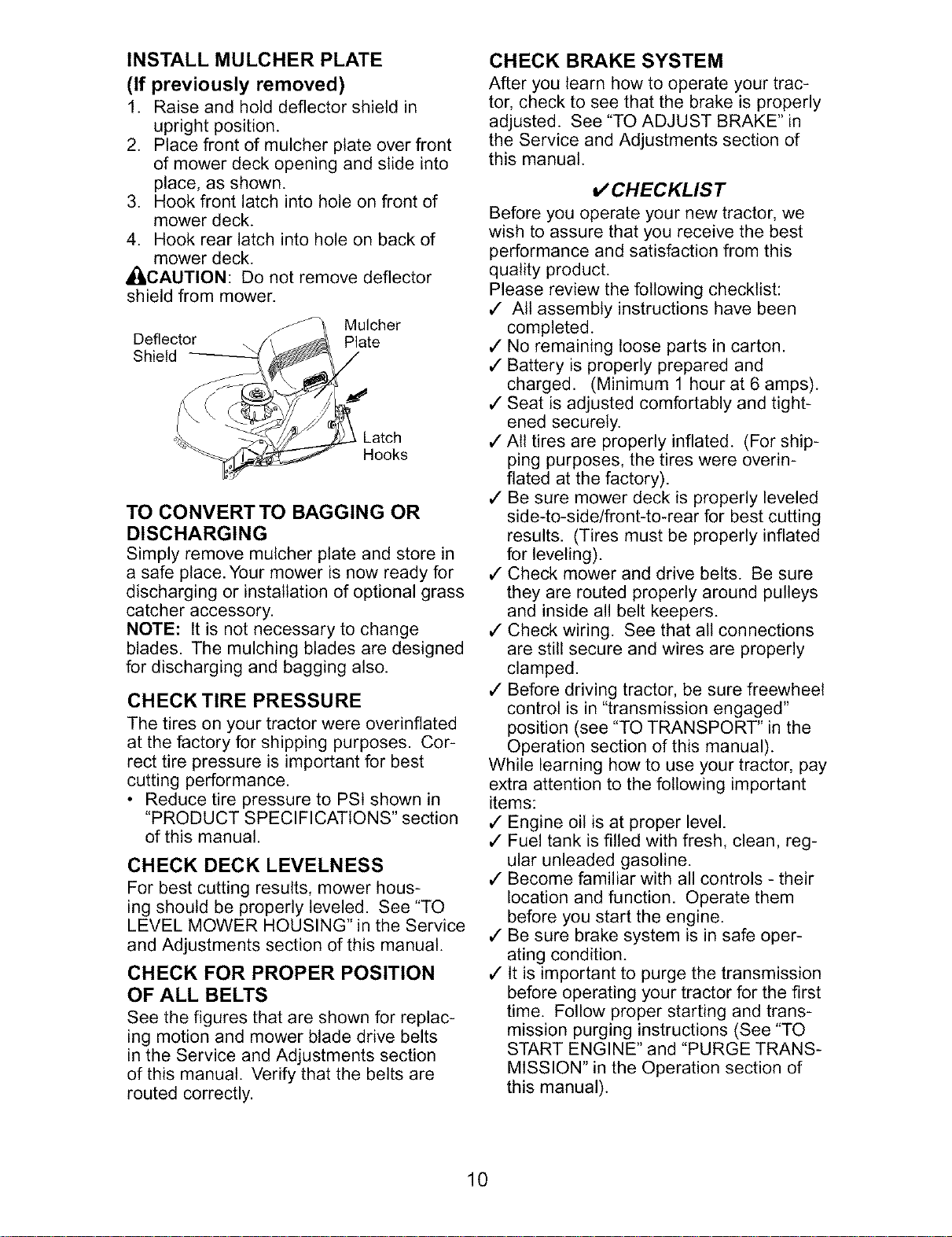

INSTALL MULCHER PLATE

(If previously removed)

1. Raise and hold deflector shield in

upright position.

2. Place front of mulcher plate over front

of mower deck opening and slide into

place, as shown.

3. Hook front latch into hole on front of

mower deck.

4. Hook rear latch into hole on back of

mower deck.

_I_CAUTION: Do not remove deflector

shield from mower.

Deflector

Shield

Mulcher

Plate

Latch

Hooks

TO CONVERTTO BAGGING OR

DISCHARGING

Simply remove mulcher plate and store in

a safe place. Your mower is now ready for

discharging or installation of optional grass

catcher accessory.

NOTE: It is not necessary to change

blades. The mulching blades are designed

for discharging and bagging also.

CHECK TIRE PRESSURE

The tires on your tractor were overinflated

at the factory for shipping purposes. Cor-

rect tire pressure is important for best

cutting performance.

• Reduce tire pressure to PSI shown in

"PRODUCT SPECIFICATIONS" section

of this manual.

CHECK DECK LEVELNESS

For best cutting results, mower hous-

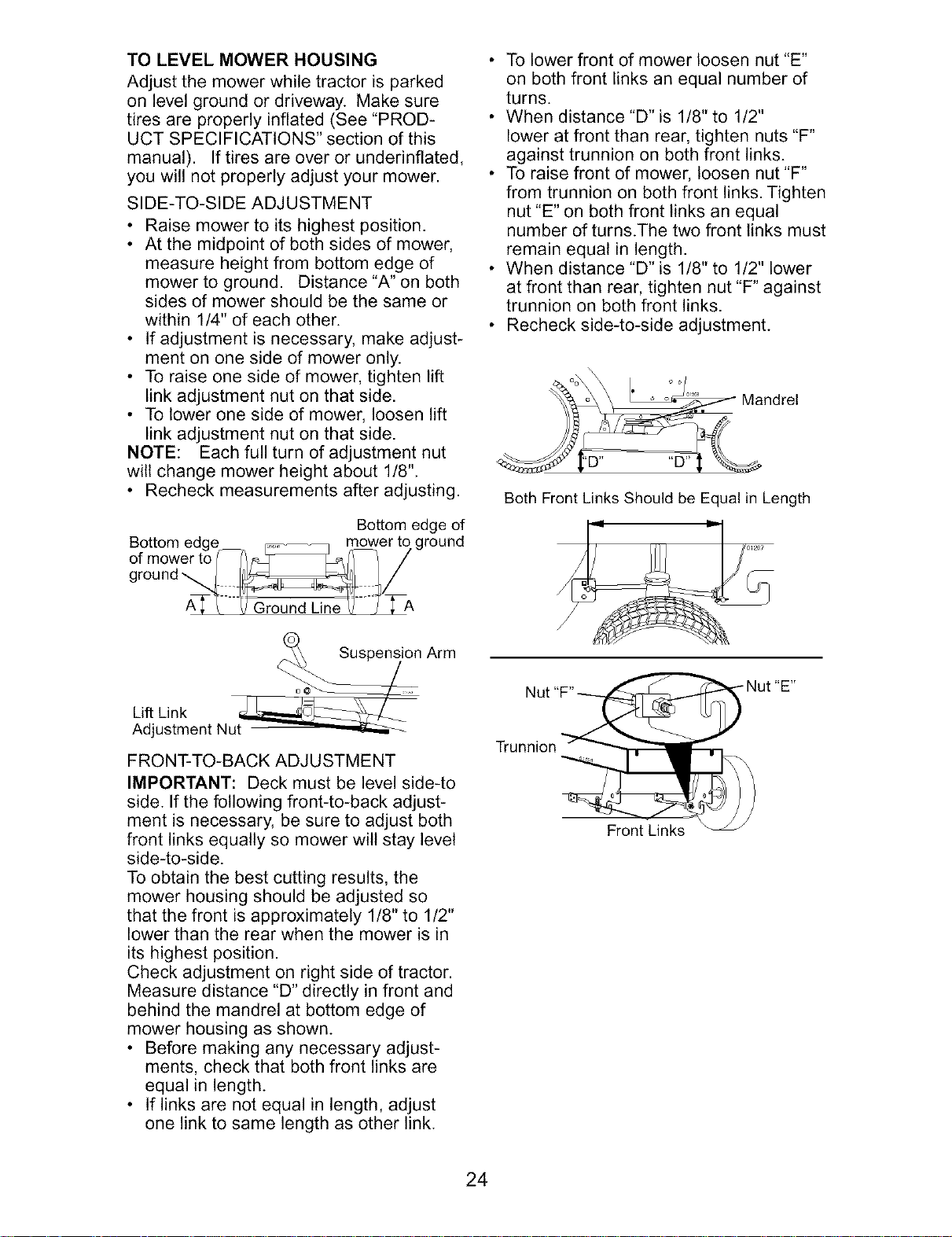

ing should be properly leveled. See "TO

LEVEL MOWER HOUSING" in the Service

and Adjustments section of this manual.

CHECK FOR PROPER POSITION

OF ALL BELTS

See the figures that are shown for replac-

ing motion and mower blade drive belts

in the Service and Adjustments section

of this manual. Verify that the belts are

routed correctly.

CHECK BRAKE SYSTEM

After you learn how to operate your trac-

tor, check to see that the brake is properly

adjusted. See "TO ADJUST BRAKE" in

the Service and Adjustments section of

this manual.

v_CHECKLIST

Before you operate your new tractor, we

wish to assure that you receive the best

performance and satisfaction from this

quality product.

Please review the following checklist:

,/ All assembly instructions have been

completed.

,/No remaining loose parts in carton.

,/Battery is properly prepared and

charged. (Minimum 1 hour at 6 amps).

,/Seat is adjusted comfortably and tight-

ened securely.

,/All tires are properly inflated. (For ship-

ping purposes, the tires were overin-

flated at the factory).

,/Be sure mower deck is properly leveled

side-to-side/front-to-rear for best cutting

results. (Tires must be properly inflated

for leveling).

,/Check mower and drive belts. Be sure

they are routed properly around pulleys

and inside all belt keepers.

,/Check wiring. See that all connections

are still secure and wires are properly

clamped.

,/Before driving tractor, be sure freewheel

control is in "transmission engaged"

position (see "TO TRANSPORT" in the

Operation section of this manual).

While learning how to use your tractor, pay

extra attention to the following important

items:

,/Engine oil is at proper level.

,/Fuel tank is filled with fresh, clean, reg-

ular unleaded gasoline.

,/Become familiar with all controls - their

location and function. Operate them

before you start the engine.

,/Be sure brake system is in safe oper-

ating condition.

,/It is important to purge the transmission

before operating your tractor for the first

time. Follow proper starting and trans-

mission purging instructions (See "TO

START ENGINE" and "PURGE TRANS-

MISSION" in the Operation section of

this manual).

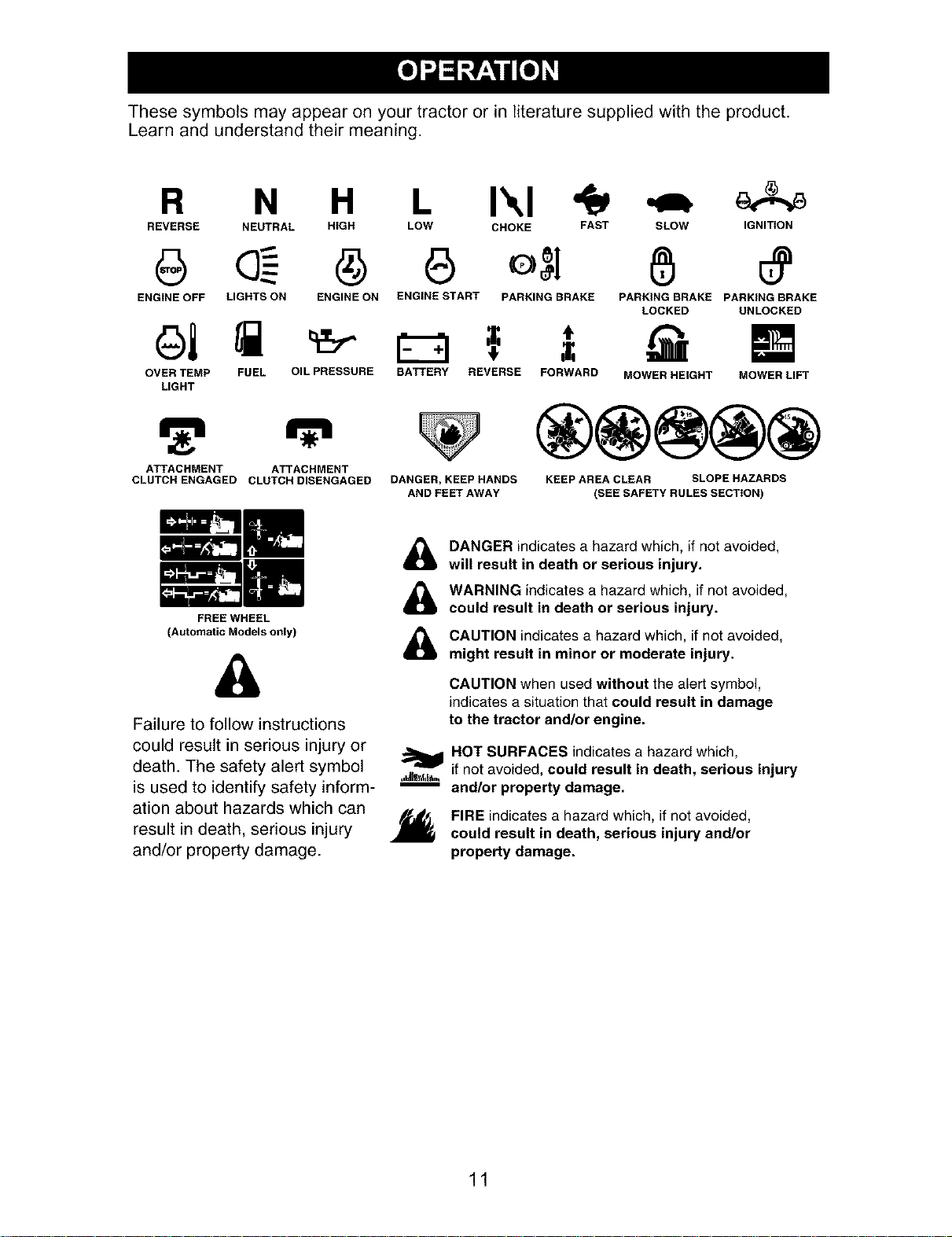

These symbols may appear on your tractor or in literature supplied with the product.

Learn and understand their meaning.

R N H L I'.,I

REVERSE NEUTRAL HIGH LOW CHOKE FAST SLOW IGNITION

ENGINE OFF LIGHTS ON ENGINE ON ENGINE START PARKING BRAKE PARKING BRAKE PARKING BRAKE

LOCKED UNLOCKED

OVER TEMP FUEL OIL PRESSURE BATTERY REVERSE FORWARD

LIGHT

ATTACHMENT ATTACHMENT

CLUTCH ENGAGED CLUTCH DISENGAGED

===E

FREE WHEEL

(Automatic Models only)

Failure to follow instructions

could result in serious injury or

death. The safety alert symbol

is used to identify safety inform-

ation about hazards which can

result in death, serious injury

and/or property damage.

MOWER HEIGHT MOWER LIFT

DANGER, KEEP HANDS

AND FEET AWAY

KEEP AREA CLEAR SLOPE HAZARDS

(SEE SAFETY RULES SECTION)

DANGER indicates a hazard which, if not avoided,

will result in death or serious injury.

WARNING indicates a hazard which, if not avoided,

could result in death or serious injury.

CAUTION indicates a hazard which, if not avoided,

might result in minor or moderate injury.

CAUTION when used without the alert symbol,

indicates a situation that could result in damage

to the tractor and/or engine.

HOT SURFACES indicates a hazard which,

,._v.lr_ if not avoided, could result in death, serious injury

i and/or property damage.

,_ FIRE indicates a hazard which, if not avoided,

could result in death, serious injury and/or

property damage.

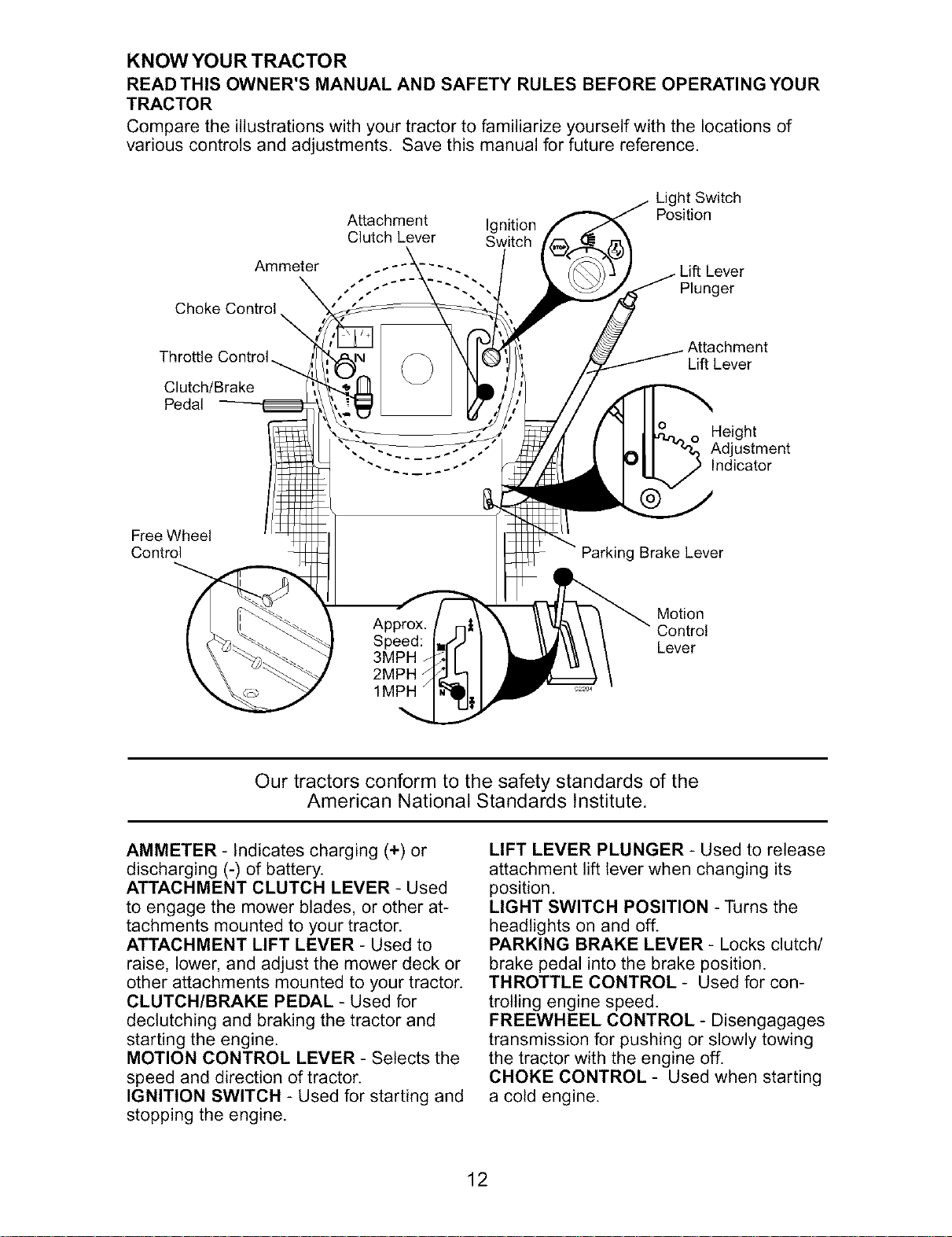

KNOW YOUR TRACTOR

READ THIS OWNER'S MANUAL AND SAFETY RULES BEFORE OPERATING YOUR

TRACTOR

Compare the illustrations with your tractor to familiarize yourself with the locations of

various controls and adjustments. Save this manual for future reference,

Attachment Ignition

Clutch Lever Switch

Light Switch

Position

Ammeter ""'--. Lift Lever

"-. "', Plunger

Choke Control

Throttle Control

ClutchlBrake

Pedal

Lift Lever

Height

Adjustment

Indicator

Free Wheel

Control

Parking Brake Lever

Motion

Contro!

Lever

Our tractors conform to the safety standards of the

American National Standards Institute.

AMMETER - Indicates charging (+) or

discharging (-) of battery.

ATTACHMENT CLUTCH LEVER - Used

to engage the mower blades, or other at-

tachments mounted to your tractor.

ATTACHMENT LIFT LEVER - Used to

raise, lower, and adjust the mower deck or

other attachments mounted to your tractor.

CLUTCH/BRAKE PEDAL - Used for

declutching and braking the tractor and

starting the engine.

MOTION CONTROL LEVER - Selects the

speed and direction of tractor.

IGNITION SWITCH - Used for starting and

stopping the engine.

LIFT LEVER PLUNGER - Used to release

attachment lift lever when changing its

position.

LIGHT SWITCH POSITION - Turns the

headlights on and off.

PARKING BRAKE LEVER - Locks clutch/

brake pedal into the brake position.

THROTTLE CONTROL - Used for con-

trolling engine speed.

FREEWHEEL CONTROL - Disengagages

transmission for pushing or slowly towing

the tractor with the engine off.

CHOKE CONTROL - Used when starting

a cold engine.

The operation of any tractor can result in foreign objects thrown into the I

eyes, which can result in severe eye damage. Always wear safety glasses I

or eye shields while operating your tractor or performing any adjustments I

or repairs. We recommend standard safety glasses or a wide vision safety

mask worn over spectac es.

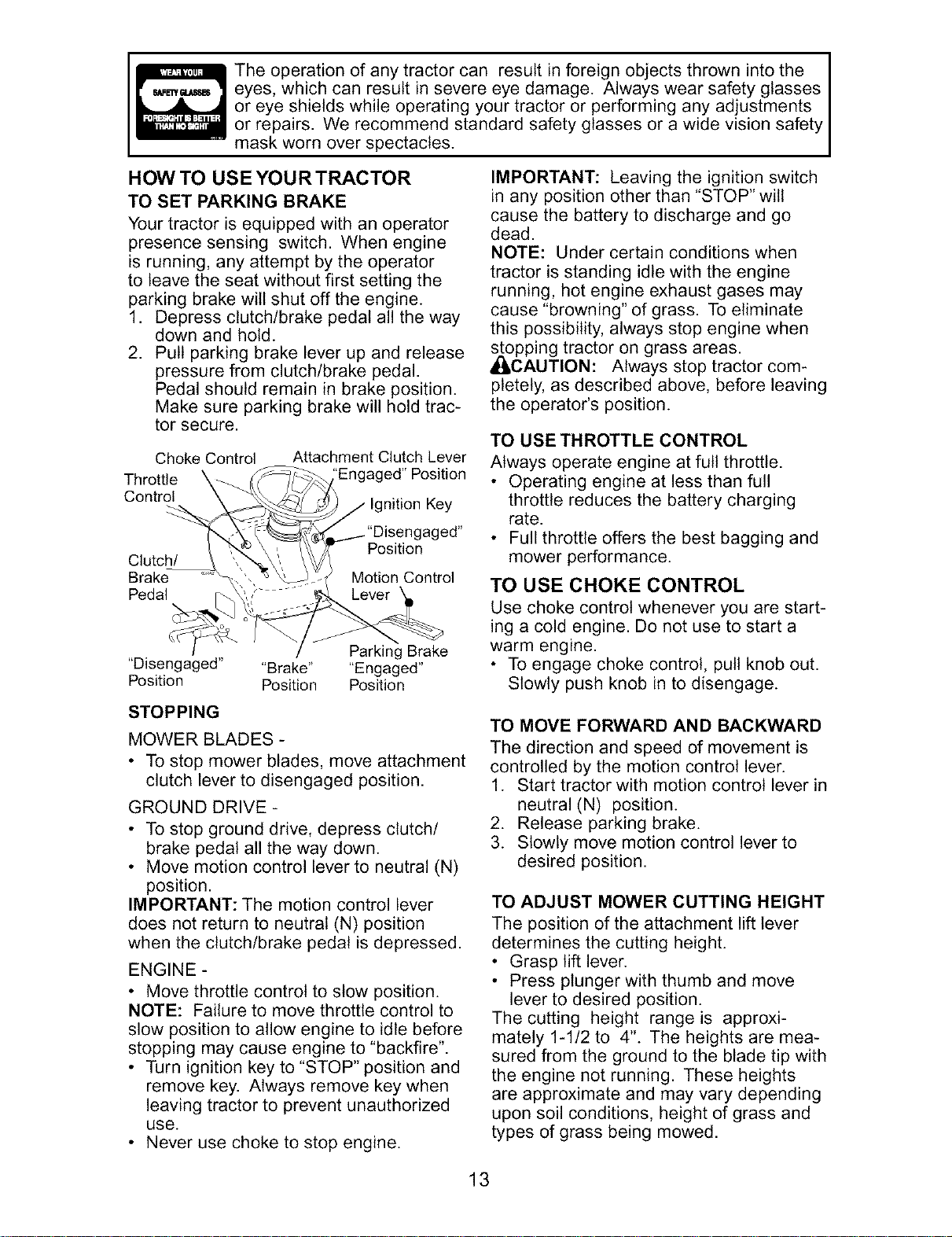

HOW TO USE YOUR TRACTOR

TO SET PARKING BRAKE

Your tractor is equipped with an operator

presence sensing switch. When engine

is running, any attempt by the operator

to leave the seat without first setting the

parking brake wilt shut off the engine.

1. Depress clutch/brake pedal all the way

down and hold.

2. Pull parking brake lever up and release

pressure from clutch/brake pedal.

Pedal should remain in brake position.

Make sure parking brake will hold trac-

tor secure.

Choke Control Attachment Clutch Lever

Throttle 'Engaged" Position

Control inition Key

gaged"

Position

Clutch/

Brake Motion Control

Pedal

Parking Brake

"Disengaged" "Brake .... Engaged"

Position Position Position

STOPPING

MOWER BLADES -

• To stop mower blades, move attachment

clutch lever to disengaged position.

GROUND DRIVE -

• To stop ground drive, depress clutch/

brake pedal all the way down.

• Move motion control lever to neutral (N)

position.

IMPORTANT: The motion control lever

does not return to neutral (N) position

when the clutch/brake pedal is depressed.

ENGINE -

• Move throttle control to slow position.

NOTE: Failure to move throttle control to

slow position to allow engine to idle before

stopping may cause engine to "backfire".

• Turn ignition key to "STOP" position and

remove key. Always remove key when

leaving tractor to prevent unauthorized

use.

• Never use choke to stop engine.

IMPORTANT: Leaving the ignition switch

in any position other than "STOP" will

cause the battery to discharge and go

dead.

NOTE: Under certain conditions when

tractor is standing idle with the engine

running, hot engine exhaust gases may

cause "browning" of grass. To eliminate

this possibility, always stop engine when

_lepping tractor on grass areas.

CAUTION: Always stop tractor com-

pletely, as described above, before leaving

the operator's position.

TO USE THROTTLE CONTROL

Always operate engine at full throttle.

• Operating engine at less than full

throttle reduces the battery charging

rate.

• Full throttle offers the best bagging and

mower performance.

TO USE CHOKE CONTROL

Use choke control whenever you are start-

ing a cold engine. Do not use to start a

warm engine.

• To engage choke control, pull knob out.

Slowly push knob in to disengage.

TO MOVE FORWARD AND BACKWARD

The direction and speed of movement is

controlled by the motion control lever.

1. Start tractor with motion control lever in

neutral (N) position.

2. Release parking brake.

3. Slowly move motion control lever to

desired position.

TO ADJUST MOWER CUTTING HEIGHT

The position of the attachment lift lever

determines the cutting height.

• Grasp lift lever.

• Press plunger with thumb and move

lever to desired position.

The cutting height range is approxi-

mately 1-1/2 to 4". The heights are mea-

sured from the ground to the blade tip with

the engine not running. These heights

are approximate and may vary depending

upon soil conditions, height of grass and

types of grass being mowed.

• The average lawn should be cut to ap-

proximately 2-1/2 inches during the coot

season and to over 3 inches during hot

months. For healthier and better looking

lawns, mow often and after moderate

growth.

• For best cutting performance, grass

over 6 inches in height should be

mowed twice. Make the first cut rela-

tively high; the second to desired height.

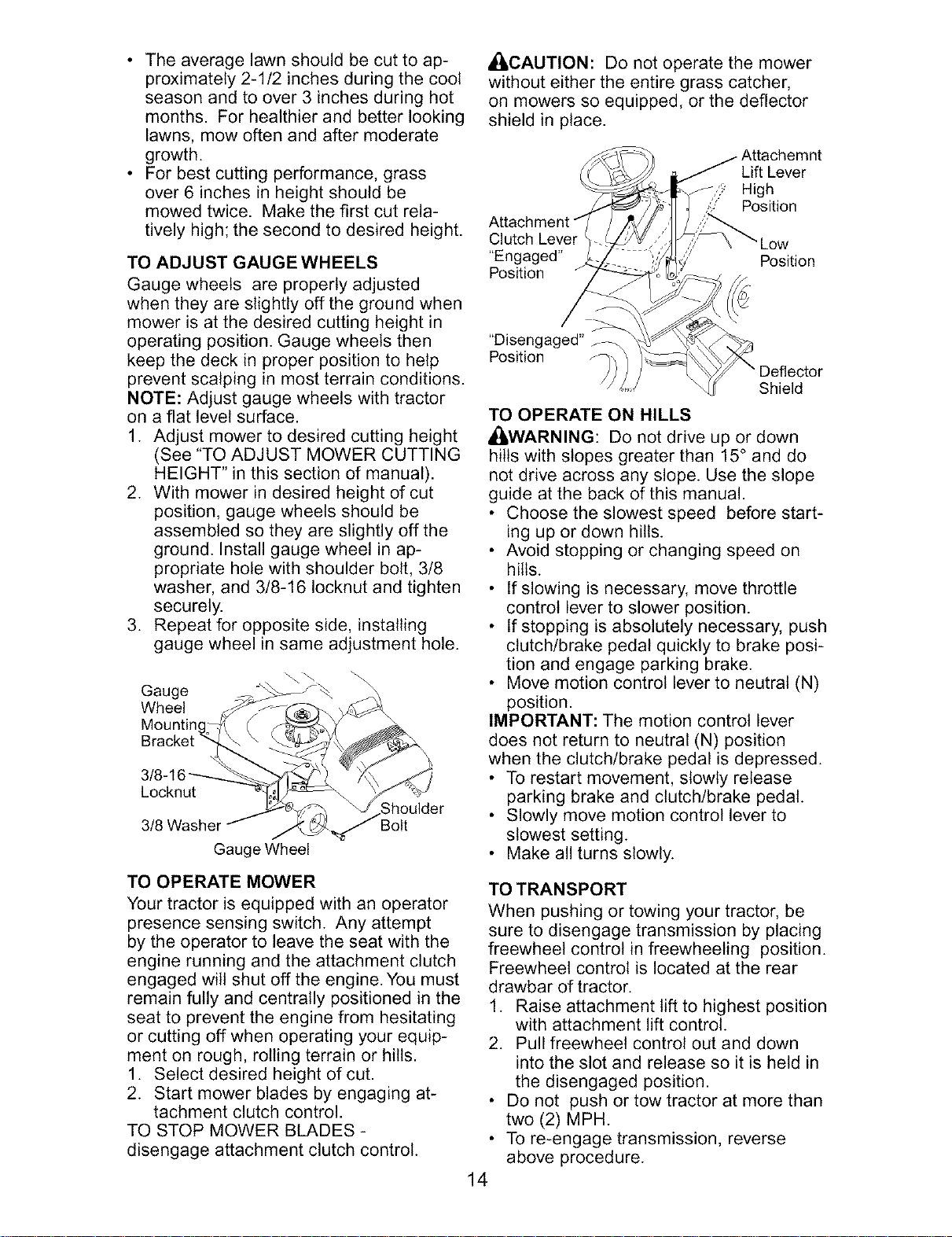

TO ADJUST GAUGE WHEELS

Gauge wheels are properly adjusted

when they are slightly off the ground when

mower is at the desired cutting height in

operating position. Gauge wheels then

keep the deck in proper position to help

prevent scalping in most terrain conditions.

NOTE: Adjust gauge wheels with tractor

on a flat level surface.

1. Adjust mower to desired cutting height

(See "TO ADJUST MOWER CUTTING

HEIGHT" in this section of manual).

2. With mower in desired height of cut

position, gauge wheels should be

assembled so they are slightly off the

ground. Install gauge wheel in ap-

propriate hole with shoulder bolt, 3/8

washer, and 3/8-16 Iocknut and tighten

securely.

3. Repeat for opposite side, installing

gauge wheel in same adjustment hole.

Gauge

Wheel

Mountinc

Locknut

houlder

3/8 Washer Bolt

Gauge Wheel

TO OPERATE MOWER

Your tractor is equipped with an operator

presence sensing switch. Any attempt

by the operator to leave the seat with the

engine running and the attachment clutch

engaged will shut off the engine. You must

remain fully and centrally positioned in the

seat to prevent the engine from hesitating

or cutting off when operating your equip-

ment on rough, rolling terrain or hills.

1. Select desired height of cut.

2. Start mower blades by engaging at-

tachment clutch control.

TO STOP MOWER BLADES -

disengage attachment clutch control.

_CAUTION: Do not operate the mower

without either the entire grass catcher,

on mowers so equipped, or the deflector

shield in place.

_chemnt

Lift Lever

High

Position

Clutch Lever Low

"Engaged" Position

Position

Shield

TO OPERATE ON HILLS

_I_WARNING: Do not drive up or down

hills with slopes greater than 15° and do

not drive across any slope. Use the slope

guide at the back of this manual.

• Choose the slowest speed before start-

ing up or down hills.

• Avoid stopping or changing speed on

hills.

If slowing is necessary, move throttle

control lever to slower position.

If stopping is absolutely necessary, push

clutch/brake pedal quickly to brake posi-

tion and engage parking brake.

Move motion control lever to neutral (N)

position.

IMPORTANT: The motion control lever

does not return to neutral (N) position

when the clutch/brake pedal is depressed.

• To restart movement, slowly release

parking brake and clutch/brake pedal.

• Slowly move motion control lever to

slowest setting.

Make all turns slowly.

TO TRANSPORT

When pushing or towing your tractor, be

sure to disengage transmission by placing

freewheel control in freewheeling position.

Freewheel control is located at the rear

drawbar of tractor.

1. Raise attachment lift to highest position

with attachment lift control.

2. Pull freewheel control out and down

into the slot and release so it is held in

the disengaged position.

Do not push or tow tractor at more than

two (2) MPH.

• To re-engage transmission, reverse

above procedure.

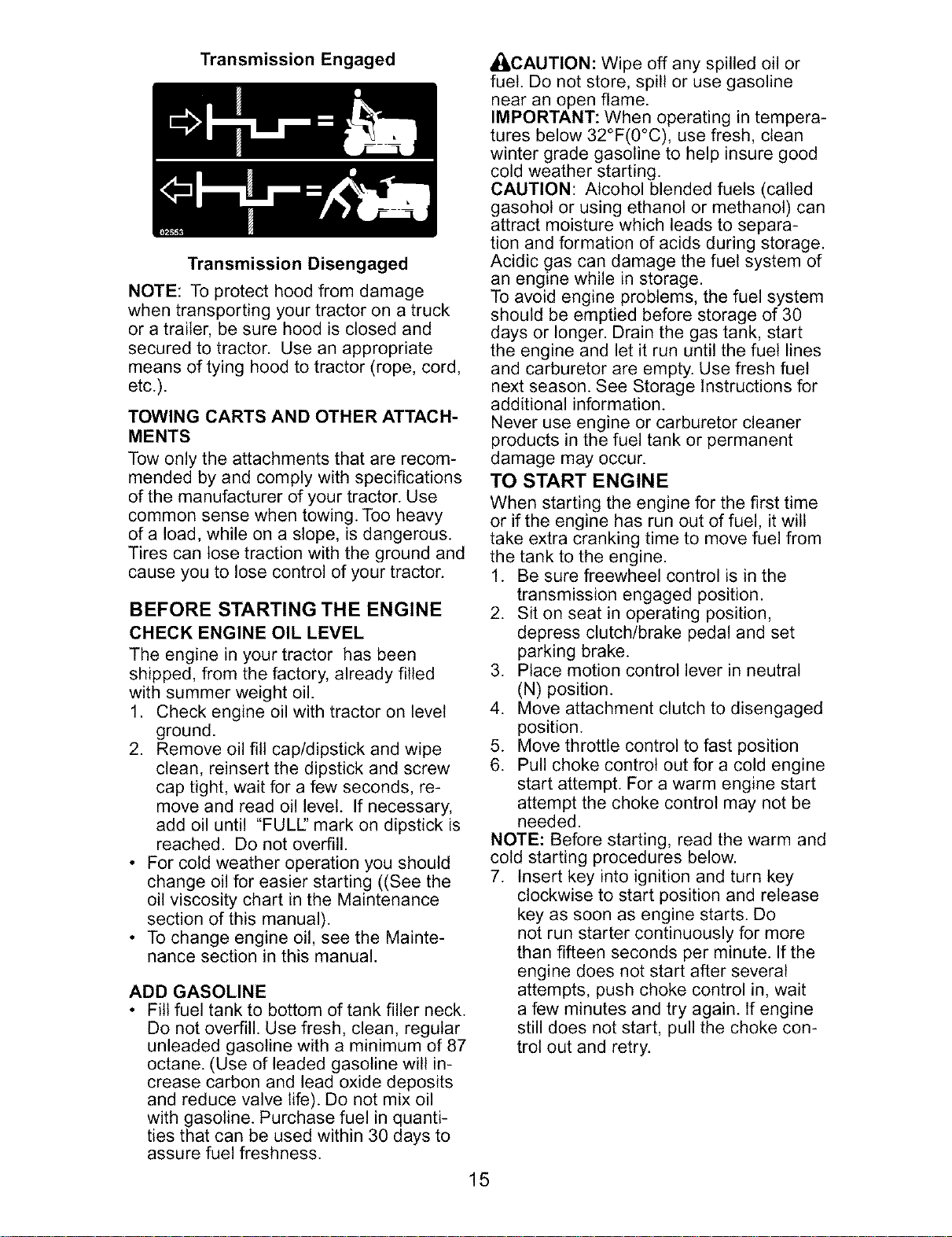

Transmission Engaged

Transmission Disengaged

NOTE: To protect hood from damage

when transporting your tractor on a truck

or a trailer, be sure hood is closed and

secured to tractor. Use an appropriate

means of tying hood to tractor (rope, cord,

etc.).

TOWING CARTS AND OTHER ATTACH-

MENTS

Tow only the attachments that are recom-

mended by and comply with specifications

of the manufacturer of your tractor. Use

common sense when towing. Too heavy

of a load, while on a slope, is dangerous.

Tires can lose traction with the ground and

cause you to lose control of your tractor.

BEFORE STARTING THE ENGINE

CHECK ENGINE OIL LEVEL

The engine in your tractor has been

shipped, from the factory, already filled

with summer weight oil.

1. Check engine oil with tractor on level

ground.

2. Remove oil fill cap/dipstick and wipe

clean, reinsert the dipstick and screw

cap tight, wait for a few seconds, re-

move and read oil level. If necessary,

add oil until "FULL' mark on dipstick is

reached. Do not overfill.

• For cold weather operation you should

change oil for easier starting ((See the

oil viscosity chart in the Maintenance

section of this manual).

• To change engine oil, see the Mainte-

nance section in this manual.

ADD GASOLINE

• Fill fuel tank to bottom of tank filler neck.

Do not overfill. Use fresh, clean, regular

unleaded gasoline with a minimum of 87

octane. (Use of leaded gasoline will in-

crease carbon and lead oxide deposits

and reduce valve life). Do not mix oil

with gasoline. Purchase fuel in quanti-

ties that can be used within 30 days to

assure fuel freshness.

_CAUTION: Wipe off any spilled oil or

fuel. Do not store, spill or use gasoline

near an open flame.

IMPORTANT: When operating in tempera-

tures below 32°F(0°C), use fresh, clean

winter grade gasoline to help insure good

cold weather starting.

CAUTION: Alcohol blended fuels (called

gasohot or using ethanol or methanol) can

attract moisture which leads to separa-

tion and formation of acids during storage.

Acidic gas can damage the fuel system of

an engine while in storage.

To avoid engine problems, the fuel system

should be emptied before storage of 30

days or longer. Drain the gas tank, start

the engine and let it run until the fuel lines

and carburetor are empty. Use fresh fuel

next season. See Storage Instructions for

additional information.

Never use engine or carburetor cleaner

products in the fuel tank or permanent

damage may occur.

TO START ENGINE

When starting the engine for the first time

or if the engine has run out of fuel, it will

take extra cranking time to move fuel from

the tank to the engine.

1. Be sure freewheel control is in the

transmission engaged position.

2. Sit on seat in operating position,

depress clutch/brake pedal and set

parking brake.

3. Place motion control lever in neutral

(N) position.

4. Move attachment clutch to disengaged

position.

5. Move throttle control to fast position

6. Pull choke control out for a cold engine

start attempt. For a warm engine start

attempt the choke control may not be

needed.

NOTE: Before starting, read the warm and

cold starting procedures below.

7. Insert key into ignition and turn key

clockwise to start position and release

key as soon as engine starts. Do

not run starter continuously for more

than fifteen seconds per minute. If the

engine does not start after several

attempts, push choke control in, wait

a few minutes and try again. If engine

still does not start, pull the choke con-

trol out and retry.

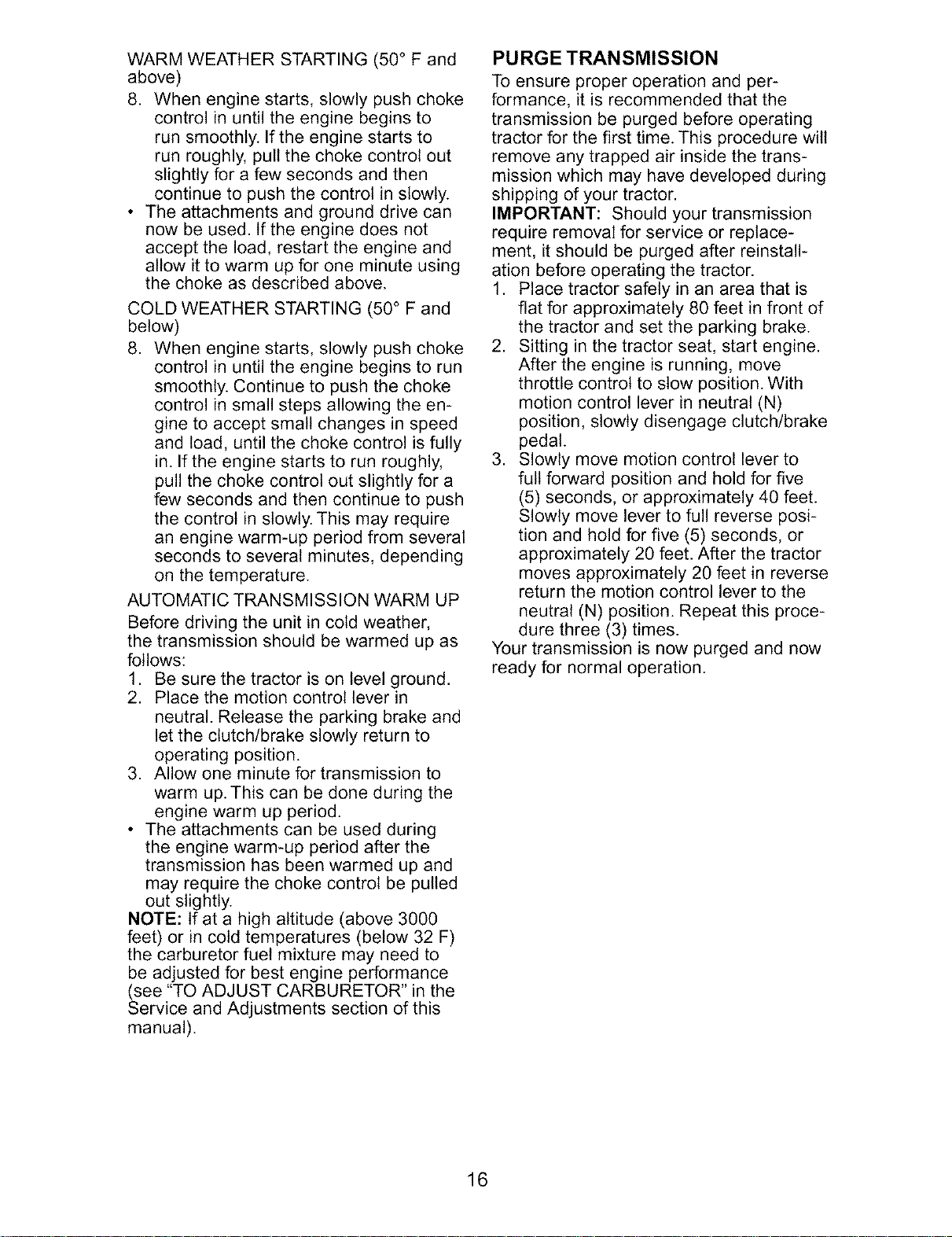

WARM WEATHER STARTING (50 ° F and

above)

8. When engine starts, slowly push choke

control in until the engine begins to

run smoothly. If the engine starts to

run roughly, pull the choke control out

slightly for a few seconds and then

continue to push the control in slowly.

• The attachments and ground drive can

now be used. If the engine does not

accept the load, restart the engine and

allow it to warm up for one minute using

the choke as described above.

COLD WEATHER STARTING (50 ° F and

below)

8. When engine starts, slowly push choke

control in until the engine begins to run

smoothly. Continue to push the choke

control in small steps allowing the en-

gine to accept small changes in speed

and load, until the choke control is fully

in. If the engine starts to run roughly,

pull the choke control out slightly for a

few seconds and then continue to push

the control in slowly. This may require

an engine warm-up period from several

seconds to several minutes, depending

on the temperature.

AUTOMATIC TRANSMISSION WARM UP

Before driving the unit in cold weather,

the transmission should be warmed up as

follows:

1. Be sure the tractor is on level ground.

2. Place the motion control lever in

neutral. Release the parking brake and

let the clutch/brake slowly return to

operating position.

3. Allow one minute for transmission to

warm up.This can be done during the

engine warm up period.

• The attachments can be used during

the engine warm-up period after the

transmission has been warmed up and

may require the choke control be pulled

out slightly.

NOTE: If at a high altitude (above 3000

feet) or in cold temperatures (below 32 F)

the carburetor fuel mixture may need to

be adjusted for best engine performance

(see "TO ADJUST CARBURETOR" in the

Service and Adjustments section of this

manual).

PURGE TRANSMISSION

To ensure proper operation and per-

formance, it is recommended that the

transmission be purged before operating

tractor for the first time. This procedure will

remove any trapped air inside the trans-

mission which may have developed during

shipping of your tractor.

IMPORTANT: Should your transmission

require removal for service or replace-

ment, it should be purged after reinstall-

ation before operating the tractor.

1. Place tractor safely in an area that is

flat for approximately 80 feet in front of

the tractor and set the parking brake.

2. Sitting in the tractor seat, start engine.

After the engine is running, move

throttle control to stow position. With

motion control lever in neutral (N)

position, slowly disengage clutch/brake

pedal.

3. Slowly move motion control lever to

full forward position and hold for five

(5) seconds, or approximately 40 feet.

Slowly move lever to full reverse posi-

tion and hold for five (5) seconds, or

approximately 20 feet. After the tractor

moves approximately 20 feet in reverse

return the motion control lever to the

neutral (N) position. Repeat this proce-

dure three (3) times.

Your transmission is now purged and now

ready for normal operation.

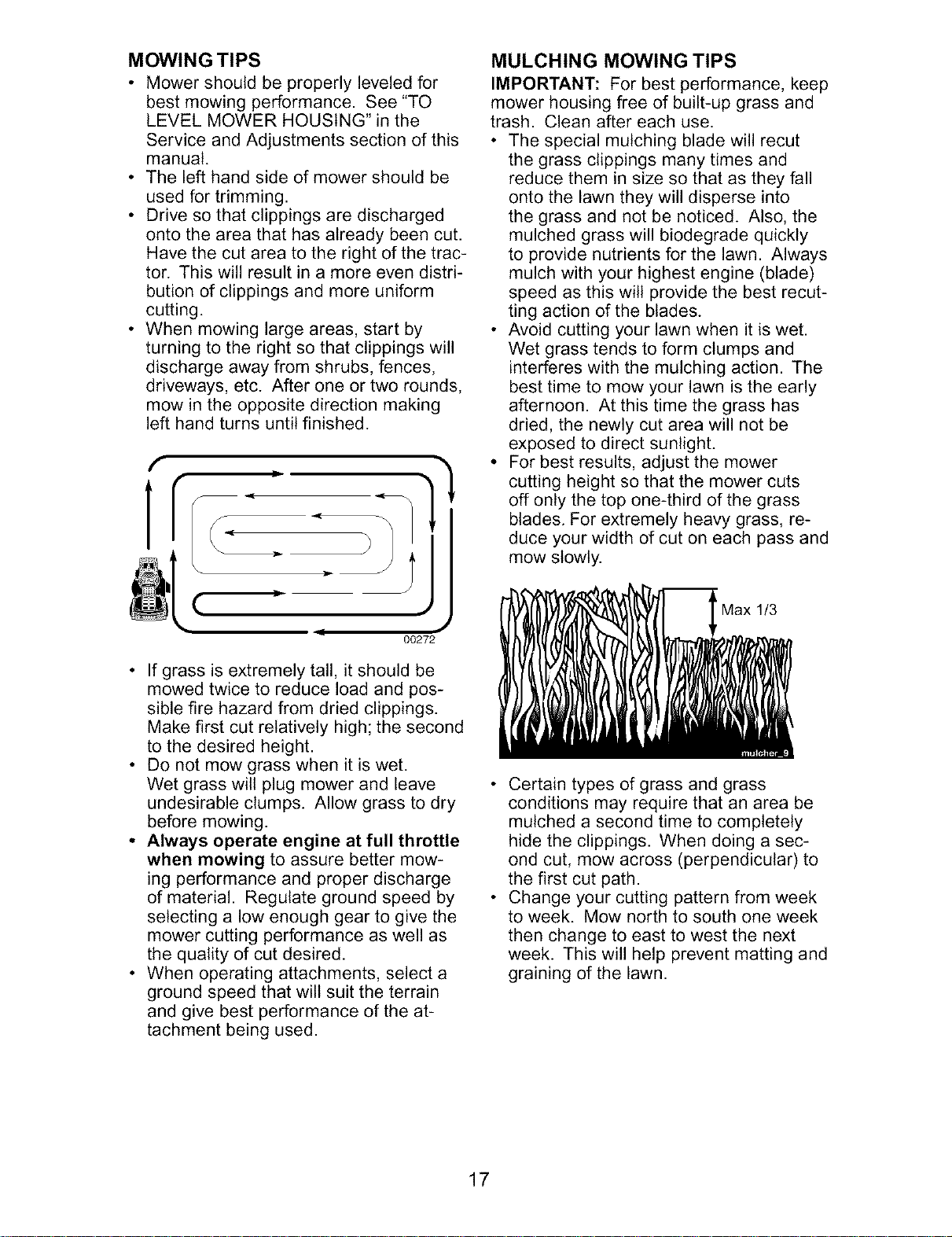

MOWING TIPS

• Mower should be properly leveled for

best mowing performance. See "TO

LEVEL MOWER HOUSING" in the

Service and Adjustments section of this

manual.

• The left hand side of mower should be

used for trimming•

• Drive so that clippings are discharged

onto the area that has already been cut.

Have the cut area to the right of the trac-

tor. This will result in a more even distri-

bution of clippings and more uniform

cutting.

• When mowing large areas, start by

turning to the right so that clippings will

discharge away from shrubs, fences,

driveways, etc. After one or two rounds,

mow in the opposite direction making

left hand turns until finished.

MULCHING MOWING TIPS

f 1 "

• If grass is extremely tall, it should be

mowed twice to reduce load and pos-

sible fire hazard from dried clippings.

Make first cut relatively high; the second

to the desired height.

• Do not mow grass when it is wet.

Wet grass will plug mower and leave

undesirable clumps. Allow grass to dry

before mowing.

• Always operate engine at full throttle

when mowing to assure better mow-

ing performance and proper discharge

of material. Regulate ground speed by

selecting a low enough gear to give the

mower cutting performance as well as

the quality of cut desired•

• When operating attachments, select a

ground speed that will suit the terrain

and give best performance of the at-

tachment being used.

IMPORTANT: For best performance, keep

mower housing free of built-up grass and

trash• Clean after each use.

• The special mulching blade will recut

the grass clippings many times and

reduce them in size so that as they fall

onto the lawn they will disperse into

the grass and not be noticed. Also, the

mulched grass will biodegrade quickly

to provide nutrients for the lawn. Always

mulch with your highest engine (blade)

speed as this will provide the best recut-

ting action of the blades.

• Avoid cutting your lawn when it is wet.

Wet grass tends to form clumps and

interferes with the mulching action• The

best time to mow your lawn is the early

afternoon. At this time the grass has

dried, the newly cut area will not be

exposed to direct sunlight.

For best results, adjust the mower

cutting height so that the mower cuts

off only the top one-third of the grass

blades. For extremely heavy grass, re-

duce your width of cut on each pass and

mow slowly•

' Max 1/3

• Certain types of grass and grass

conditions may require that an area be

mulched a second time to completely

hide the clippings• When doing a sec-

ond cut, mow across (perpendicular) to

the first cut path.

• Change your cutting pattern from week

to week. Mow north to south one week

then change to east to west the next

week. This will help prevent matting and

graining of the lawn.

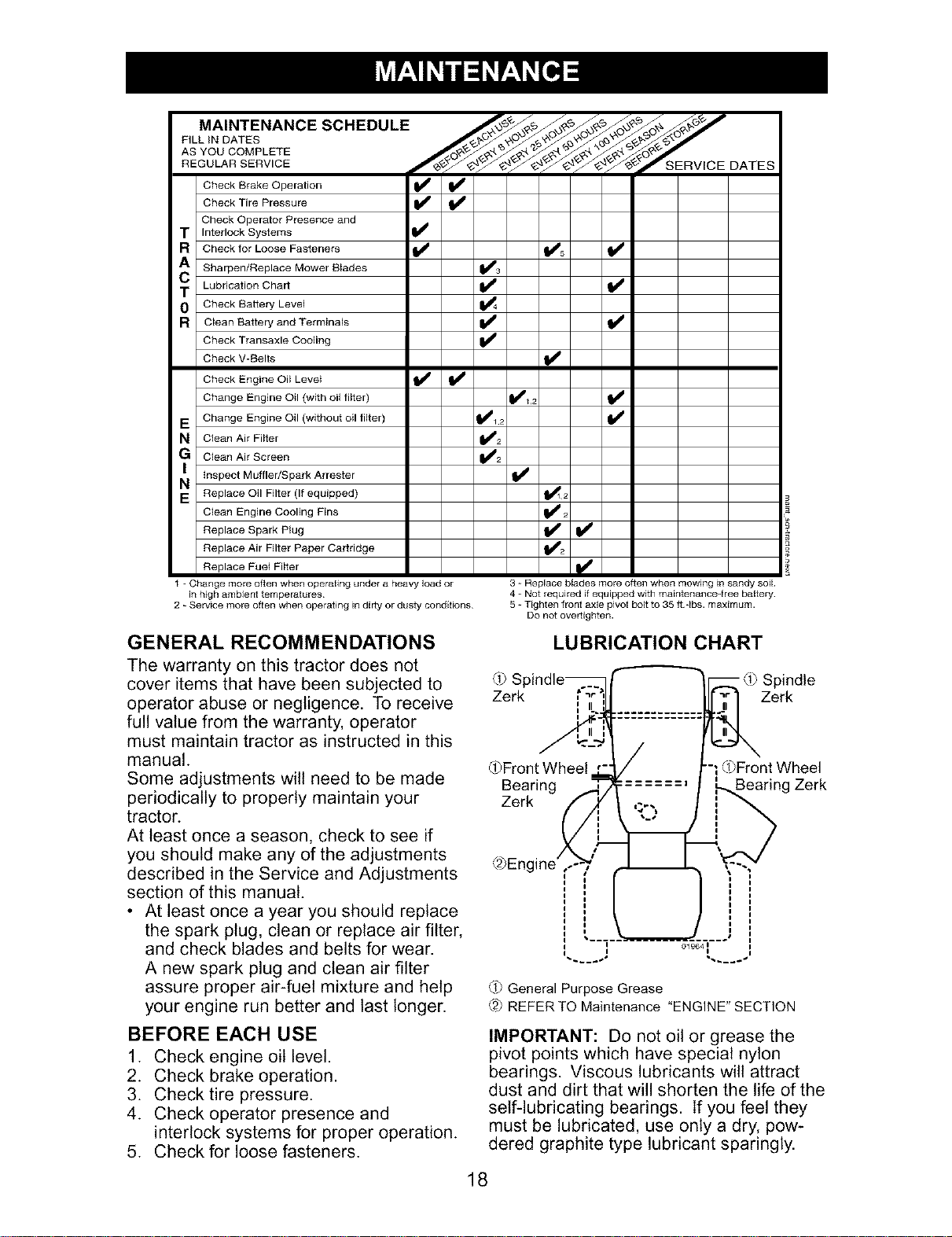

MAINTENANCE SCHEDULE ..___'__

PILL IN DATES _./O _kO_ _k_O #_O _q_3_ _' _40

ASvooCOMPLETE _,_ _._ _£__.÷_e_÷__ _÷_

REGULAR SERVICE --__ _HVlOE DATES

n n

cC_:;: TB:raek;reOsPe:::i°n _

Check Operator Presence and

T Interlock Systems

R Check for Loose Fasteners _ 1_5 ql_

Sharpen/Replace Mower Blades i3

T Lubrication Chart

0 Check Battery Level

R Clean Battery and Terminals

Check Transaxle Cooling

Check V-Belts

Check Engine Oil Level _

Change Engine Oil (with oil filter) II_l;

E Change Engine Oil (without oil filter) _1_

N Clean Air Filter

G Clean Air Screen

N_ Inspect Muffler/Spark Arrester

E Replace Oil Filter (If equipped) _

Ctean Engine Cooling Fins _

Replace Spark Plug _

Replace Air Filter Paper Cartridge t_2

Replace Fue_ Filter I_

I - Change more often when operating under a heavy load or

in high ambient temperatures

2 - Service more often when operating in dirty or dusty conditions

3 - Replace blades more often when mowing in sandy soil

4 - Not required if equipped with maintenance-free battery

5 - Tighten front axle pivot bolt to 35 tt qbs. maximum.

Do not over_ighten.

GENERAL RECOMMENDATIONS

The warranty on this tractor does not

cover items that have been subjected to

operator abuse or negligence. To receive

full value from the warranty, operator

must maintain tractor as instructed in this

manual.

Some adjustments will need to be made

periodically to properly maintain your

tractor.

At least once a season, check to see if

you should make any of the adjustments

described in the Service and Adjustments

section of this manual.

• At least once a year you should replace

the spark plug, clean or replace air filter,

and check blades and belts for wear.

A new spark plug and clean air filter

assure proper air-fuel mixture and help

your engine run better and last longer.

BEFORE EACH USE

1. Check engine oil level.

2. Check brake operation.

3. Check tire pressure.

4. Check operator presence and

interlock systems for proper operation.

5. Check for loose fasteners.

LUBRICATION CHART

0_ Spindle--

Zerk t';_"

I L.

@Front Wheel _I_

Bearing _4 /

Zerk / ,v

@Engine

g • ....

g_ _o

-I 0_Front Wheel

....... i I ,

....... _u_earlng Zerk

I 1

-' 1

019641 u

_} General Purpose Grease

(_ REFER TO Maintenance "ENGINE" SECTION

IMPORTANT: Do not oil or grease the

pivot points which have special nylon

bearings. Viscous lubricants will attract

dust and dirt that will shorten the life of the

self-lubricating bearings. If you feel they

must be lubricated, use only a dry, pow-

dered graphite type lubricant sparingly.

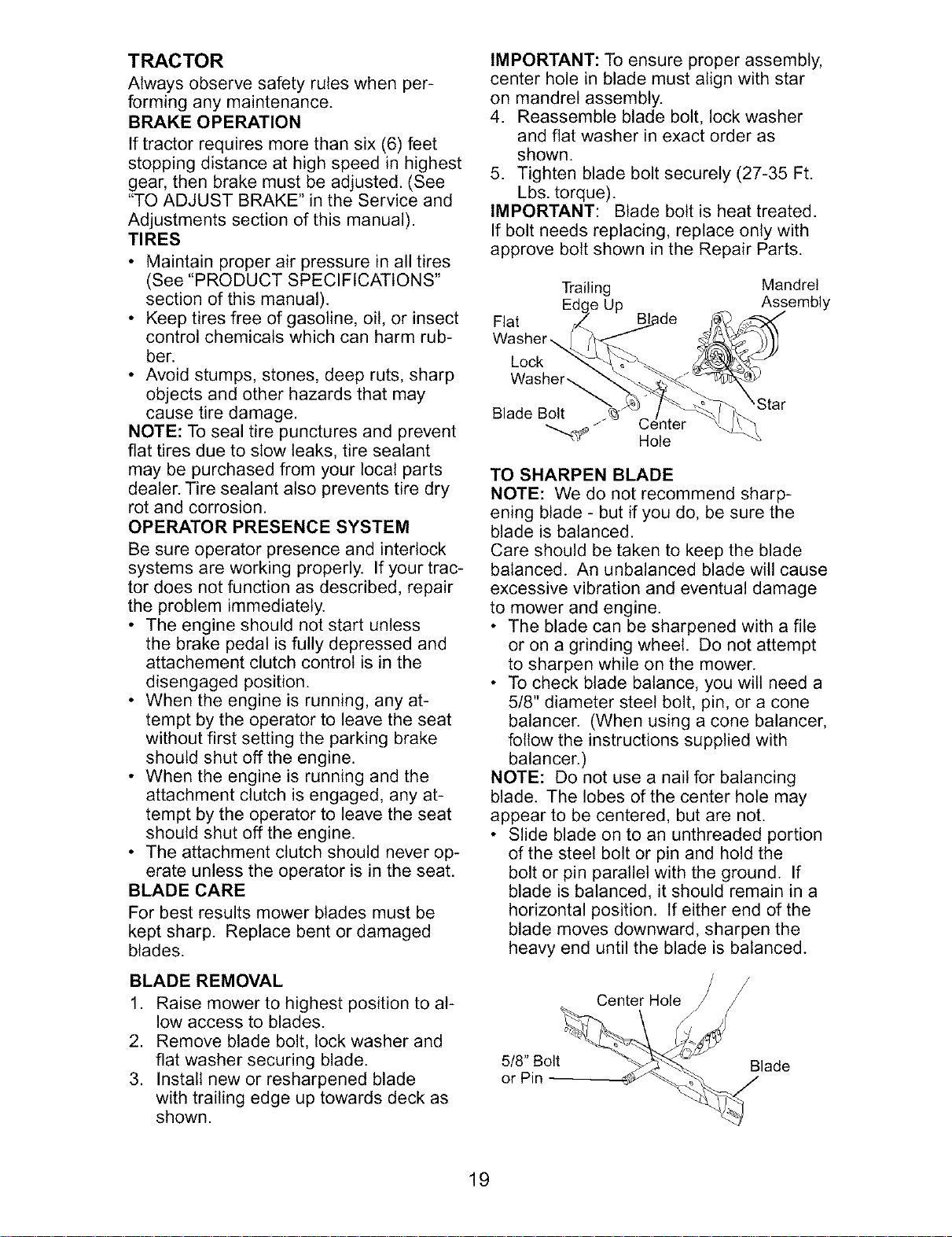

TRACTOR

Always observe safety rules when per-

forming any maintenance.

BRAKE OPERATION

If tractor requires more than six (6) feet

stopping distance at high speed in highest

gear, then brake must be adjusted, (See

"TO ADJUST BRAKE" in the Service and

Adjustments section of this manual).

TIRES

• Maintain proper air pressure in all tires

(See "PRODUCT SPECIFICATIONS"

section of this manual).

• Keep tires free of gasoline, oil, or insect

control chemicals which can harm rub-

ber.

• Avoid stumps, stones, deep ruts, sharp

objects and other hazards that may

cause tire damage.

NOTE: To seal tire punctures and prevent

flat tires due to slow leaks, tire sealant

may be purchased from your local parts

dealer. Tire sealant also prevents tire dry

rot and corrosion.

OPERATOR PRESENCE SYSTEM

Be sure operator presence and interlock

systems are working properly. If your trac-

tor does not function as described, repair

the problem immediately.

• The engine should not start unless

the brake pedal is fully depressed and

attachement clutch control is in the

disengaged position.

• When the engine is running, any at-

tempt by the operator to leave the seat

without first setting the parking brake

should shut off the engine.

• When the engine is running and the

attachment clutch is engaged, any at-

tempt by the operator to leave the seat

should shut off the engine.

• The attachment clutch should never op-

erate unless the operator is in the seat.

BLADE CARE

For best results mower blades must be

kept sharp. Replace bent or damaged

blades.

BLADE REMOVAL

1. Raise mower to highest position to at-

low access to blades.

2. Remove blade bolt, lock washer and

flat washer securing blade.

3. Install new or resharpened blade

with trailing edge up towards deck as

shown.

IMPORTANT: To ensure proper assembly,

center hole in blade must align with star

on mandrel assembly.

4. Reassemble blade bolt, lock washer

and flat washer in exact order as

shown.

5. Tighten blade bolt securely (27-35 Ft.

Lbs. torque).

IMPORTANT: Blade bolt is heat treated.

If bolt needs replacing, replace only with

approve bolt shown in the Repair Parts.

Trailing Mandrel

Up Assembly

Flat

Washer

Lock

Blade Bolt

" Hole

TO SHARPEN BLADE

NOTE: We do not recommend sharp-

ening blade - but if you do, be sure the

blade is balanced.

Care should be taken to keep the blade

balanced. An unbalanced blade will cause

excessive vibration and eventual damage

to mower and engine.

• The blade can be sharpened with a file

or on a grinding wheel. Do not attempt

to sharpen while on the mower.

• To check blade balance, you will need a

5/8" diameter steel bolt, pin, or a cone

balancer. (When using a cone balancer,

follow the instructions supplied with

balancer.)

NOTE: Do not use a nail for balancing

blade. The lobes of the center hole may

appear to be centered, but are not.

• Slide blade on to an unthreaded portion

of the steel bolt or pin and hold the

bolt or pin parallel with the ground. If

blade is balanced, it should remain in a

horizontal position. If either end of the

blade moves downward, sharpen the

heavy end until the blade is balanced.

Center Hole

5/8" Bolt Blade

or Pin

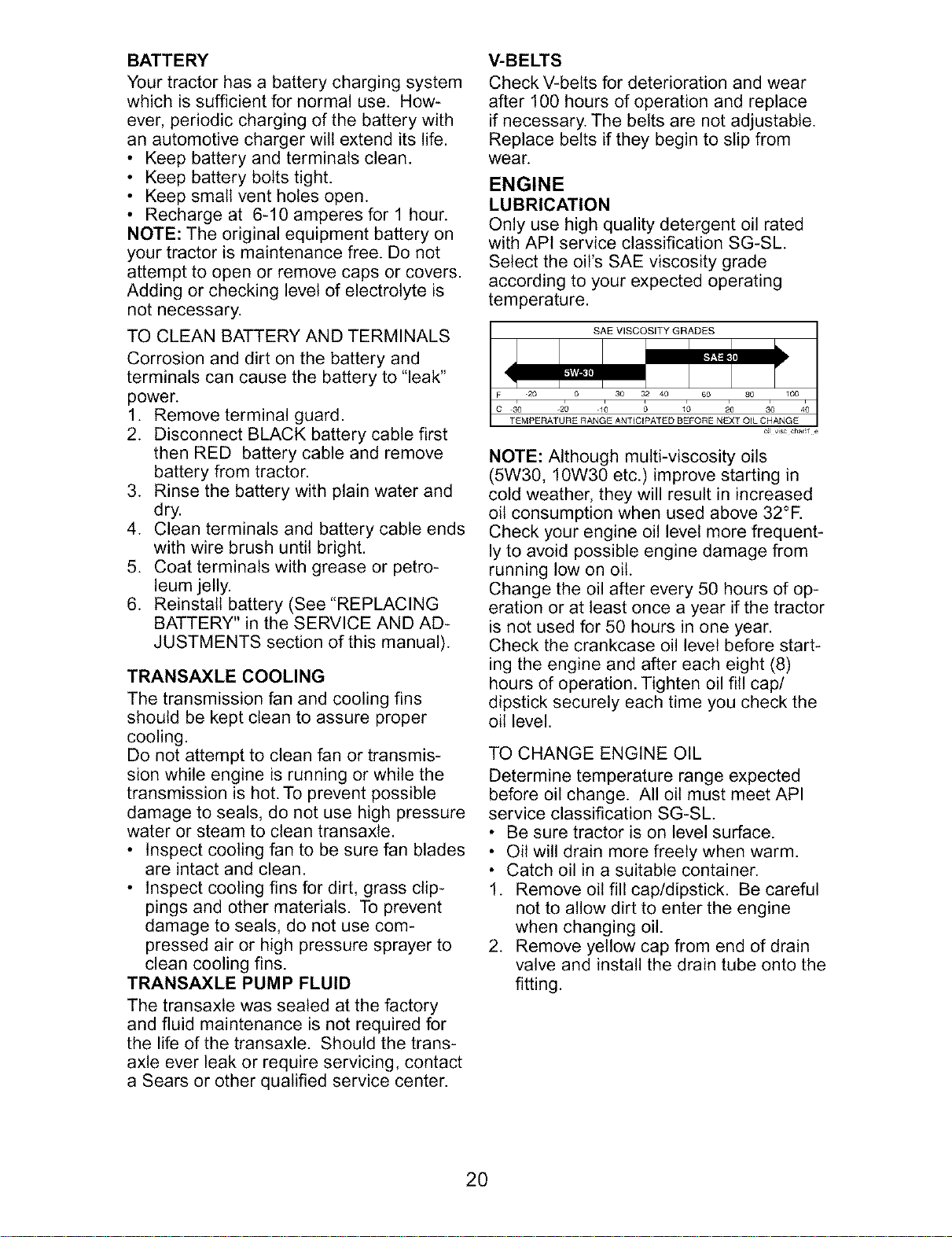

BATTERY

Your tractor has a battery charging system

which is sufficient for normal use. How-

ever, periodic charging of the battery with

an automotive charger will extend its life.

• Keep battery and terminals clean.

• Keep battery bolts tight.

• Keep small vent holes open.

• Recharge at 6-10 amperes for 1 hour.

NOTE: The original equipment battery on

your tractor is maintenance free. Do not

attempt to open or remove caps or covers.

Adding or checking level of electrolyte is

not necessary.

TO CLEAN BATTERY AND TERMINALS

Corrosion and dirt on the battery and

terminals can cause the battery to "leak"

power.

1. Remove terminal guard.

2. Disconnect BLACK battery cable first

then RED battery cable and remove

battery from tractor.

3. Rinse the battery with plain water and

dry.

4. Clean terminals and battery cable ends

with wire brush until bright.

5. Coat terminals with grease or petro-

leum jelly.

6. Reinstall battery (See "REPLACING

BATTERY" in the SERVICE AND AD-

JUSTMENTS section of this manual).

TRANSAXLE COOLING

The transmission fan and cooling fins

should be kept clean to assure proper

cooling.

Do not attempt to clean fan or transmis-

sion while engine is running or while the

transmission is hot. To prevent possible

damage to seals, do not use high pressure

water or steam to clean transaxle.

• Inspect cooling fan to be sure fan blades

are intact and clean.

• Inspect cooling fins for dirt, grass clip-

pings and other materials. To prevent

damage to seals, do not use com-

pressed air or high pressure sprayer to

clean cooling fins.

TRANSAXLE PUMP FLUID

The transaxle was sealed at the factory

and fluid maintenance is not required for

the life of the transaxle. Should the trans-

axle ever leak or require servicing, contact

a Sears or other qualified service center.

V-BELTS

Check V-belts for deterioration and wear

after 100 hours of operation and replace

if necessary. The belts are not adjustable.

Replace belts if they begin to slip from

wear.

ENGINE

LUBRICATION

Only use high quality detergent oil rated

with API service classification SG-SL

Select the oil's SAE viscosity grade

according to your expected operating

temperature.

NOTE: Although multi-viscosity oils

(5W30, 10W30 etc.) improve starting in

cold weather, they will result in increased

oil consumption when used above 32°R

Check your engine oil level more frequent-

ly to avoid possible engine damage from

running low on oil.

Change the oil after every 50 hours of op-

eration or at least once a year if the tractor

is not used for 50 hours in one year.

Check the crankcase oil level before start-

ing the engine and after each eight (8)

hours of operation. Tighten oil fill cap/

dipstick securely each time you check the

oil level.

TO CHANGE ENGINE OIL

Determine temperature range expected

before oil change. All oil must meet API

service classification SG-SL

Be sure tractor is on level surface.

• Oil will drain more freely when warm.

• Catch oil in a suitable container.

1. Remove oil fill cap/dipstick. Be careful

not to allow dirt to enter the engine

when changing oil.

2. Remove yellow cap from end of drain

valve and install the drain tube onto the

fitting.

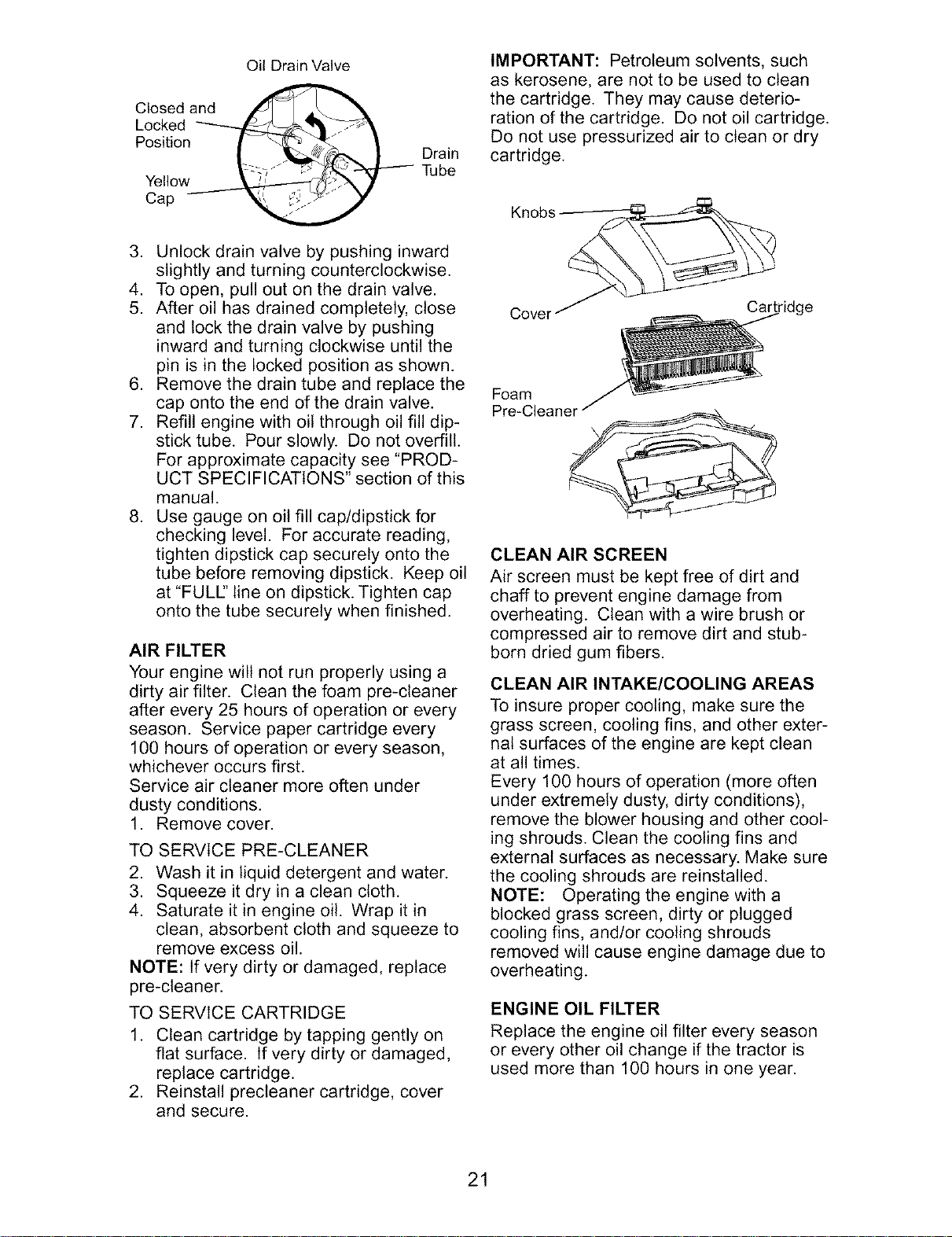

Oi! Drain Valve

Closed and

Locked "--------

Position

_L__ rain

Tube

3. Unlock drain valve by pushing inward

slightly and turning counterclockwise.

4. To open, pull out on the drain valve.

5. After oil has drained completely, close

and lock the drain valve by pushing

inward and turning clockwise until the

pin is in the locked position as shown.

6. Remove the drain tube and replace the

cap onto the end of the drain valve.

7. Refill engine with oil through oil fill dip-

stick tube. Pour slowly. Do not overfill.

For approximate capacity see "PROD-

UCT SPECIFICATIONS" section of this

manual.

8. Use gauge on oil fill cap/dipstick for

checking level. For accurate reading,

tighten dipstick cap securely onto the

tube before removing dipstick. Keep oil

at "FULl" line on dipstick. Tighten cap

onto the tube securely when finished.

AIR FILTER

Your engine will not run properly using a

dirty air filter. Clean the foam pre-cteaner

after every 25 hours of operation or every

season. Service paper cartridge every

100 hours of operation or every season,

whichever occurs first.

Service air cleaner more often under

dusty conditions.

1. Remove cover.

TO SERVICE PRE-CLEANER

2. Wash it in liquid detergent and water.

3. Squeeze it dry in a clean cloth.

4. Saturate it in engine oil. Wrap it in

clean, absorbent cloth and squeeze to

remove excess oil.

NOTE: If very dirty or damaged, replace

pre-cleaner.

TO SERVICE CARTRIDGE

1. Clean cartridge by tapping gently on

flat surface. If very dirty or damaged,

replace cartridge.

2. Reinstall precleaner cartridge, cover

and secure.

IMPORTANT: Petroleum solvents, such

as kerosene, are not to be used to clean

the cartridge. They may cause deterio-

ration of the cartridge. Do not oil cartridge.

Do not use pressurized air to clean or dry

cartridge.

Cove1 Cartridge

Foam

Pre-Cleaner

CLEAN AIR SCREEN

Air screen must be kept free of dirt and

chaff to prevent engine damage from

overheating. Clean with a wire brush or

compressed air to remove dirt and stub-

born dried gum fibers.

CLEAN AIR INTAKE/COOLING AREAS

To insure proper cooling, make sure the

grass screen, cooling fins, and other exter-

nal surfaces of the engine are kept clean

at all times.

Every 100 hours of operation (more often

under extremely dusty, dirty conditions),

remove the blower housing and other cool-

ing shrouds. Clean the cooling fins and

external surfaces as necessary. Make sure

the cooling shrouds are reinstalled.

NOTE: Operating the engine with a

blocked grass screen, dirty or plugged

cooling fins, and/or cooling shrouds

removed will cause engine damage due to

overheating.

ENGINE OIL FILTER

Replace the engine oil filter every season

or every other oil change if the tractor is

used more than 100 hours in one year.

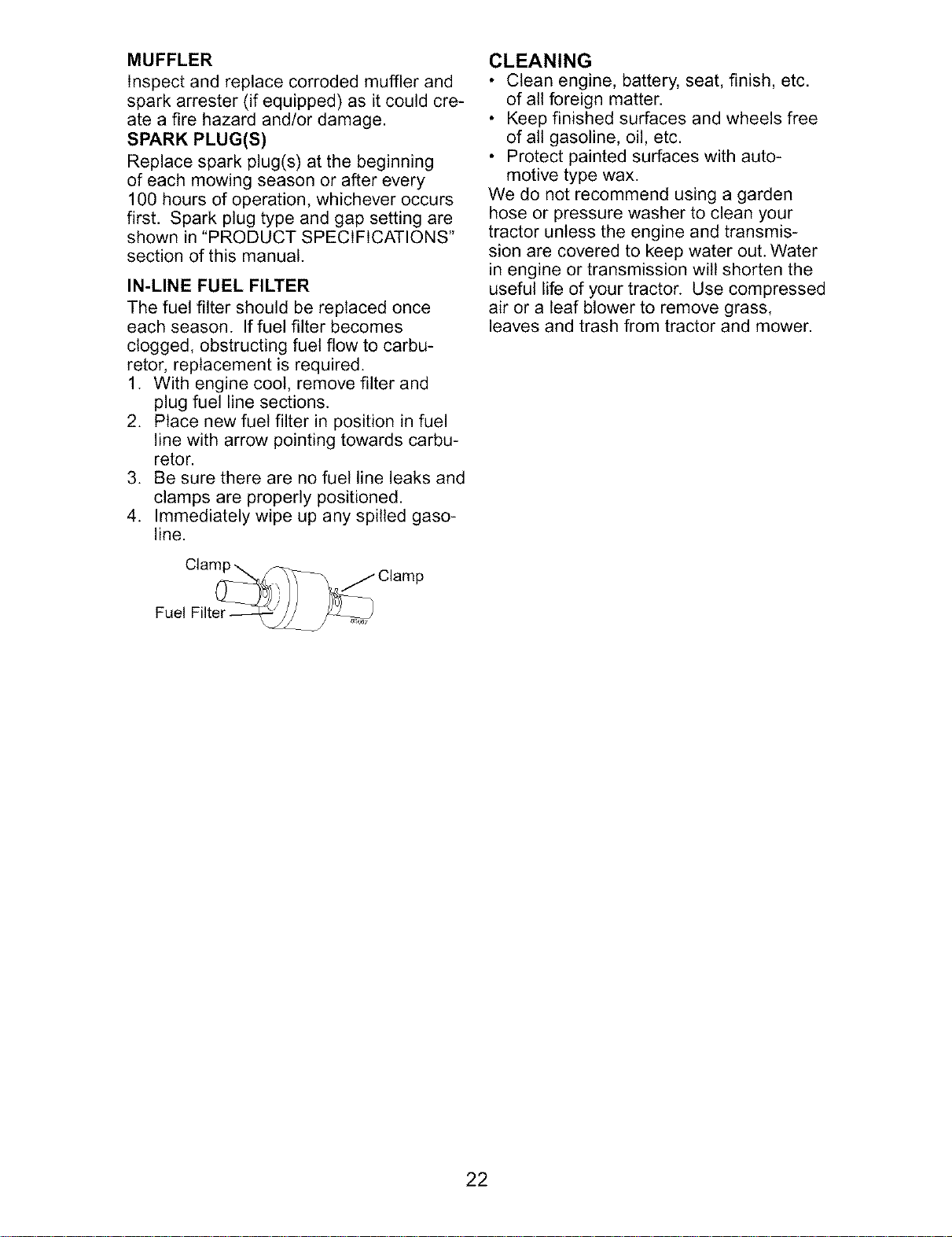

MUFFLER

Inspect and replace corroded muffler and

spark arrester (if equipped) as it could cre-

ate a fire hazard and/or damage.

SPARK PLUG(S)

Replace spark plug(s) at the beginning

of each mowing season or after every

100 hours of operation, whichever occurs

first. Spark plug type and gap setting are

shown in "PRODUCT SPECIFICATIONS"

section of this manual.

IN-LINE FUEL FILTER

The fuel filter should be replaced once

each season. If fuel filter becomes

clogged, obstructing fuel flow to carbu-

retor, replacement is required.

1. With engine coot, remove filter and

plug fuel line sections.

2. Place new fuel filter in position in fuel

line with arrow pointing towards carbu-

retor.

3. Be sure there are no fuel line leaks and

clamps are properly positioned.

4. Immediately wipe up any spilled gaso-

line.

Clam

CLEANING

• Clean engine, battery, seat, finish, etc.

of all foreign matter.

Keep finished surfaces and wheels free

of all gasoline, oil, etc.

Protect painted surfaces with auto-

motive type wax.

We do not recommend using a garden

hose or pressure washer to clean your

tractor unless the engine and transmis-

sion are covered to keep water out. Water

in engine or transmission will shorten the

useful life of your tractor. Use compressed

air or a leaf blower to remove grass,

leaves and trash from tractor and mower.

Fuel

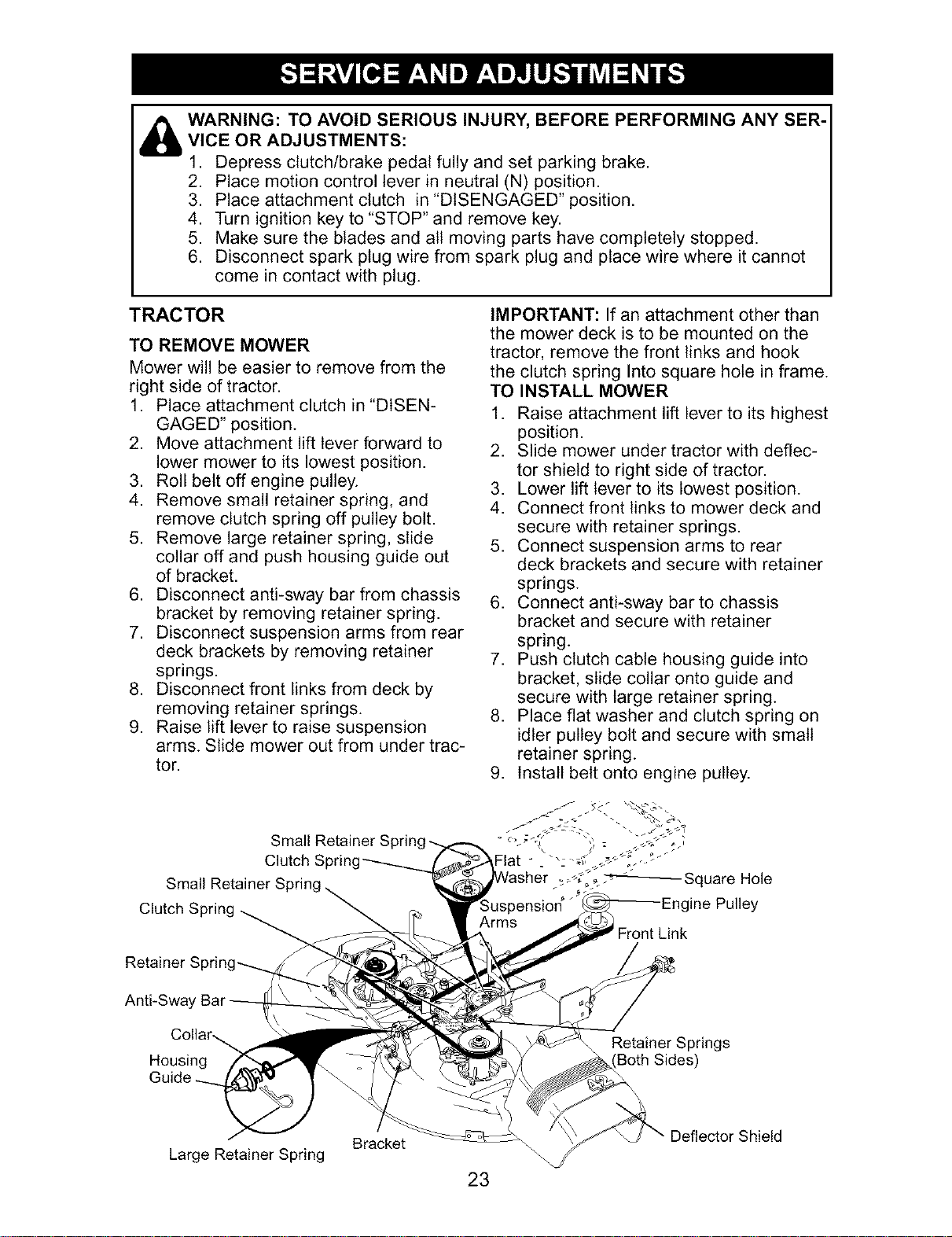

WARNING: TO AVOID SERIOUS INJURY, BEFORE PERFORMING ANY SER-

VICE OR ADJUSTMENTS:

1. Depress clutch/brake pedal fully and set parking brake.

2. Place motion control lever in neutral (N) position.

3. Place attachment clutch in "DISENGAGED" position.

4. Turn ignition key to "STOP" and remove key.

5. Make sure the blades and all moving parts have completely stopped.

6. Disconnect spark plug wire from spark plug and place wire where it cannot

come in contact with plug.

TRACTOR

TO REMOVE MOWER

Mower will be easier to remove from the

right side of tractor.

1. Place attachment clutch in "DISEN-

GAGED" position.

2. Move attachment lift lever forward to

lower mower to its lowest position.

3. Roll belt off engine pulley.

4. Remove small retainer spring, and

remove clutch spring off pulley bolt.

5. Remove large retainer spring, slide

collar off and push housing guide out

of bracket.

6. Disconnect anti-sway bar from chassis

bracket by removing retainer spring.

7. Disconnect suspension arms from rear

deck brackets by removing retainer

springs.

8. Disconnect front links from deck by

removing retainer springs.

9. Raise lift lever to raise suspension

arms. Slide mower out from under trac-

tor.

IMPORTANT: If an attachment other than

the mower deck is to be mounted on the

tractor, remove the front links and hook

the clutch spring Into square hole in frame.

TO INSTALL MOWER

1. Raise attachment lift lever to its highest

position.

2. Slide mower under tractor with deflec-

tor shield to right side of tractor.

3. Lower lift lever to its lowest position.

4. Connect front links to mower deck and

secure with retainer springs.

5. Connect suspension arms to rear

deck brackets and secure with retainer

springs.

6. Connect anti-sway bar to chassis

bracket and secure with retainer

spring.

7. Push clutch cable housing guide into

bracket, slide collar onto guide and

secure with large retainer spring.

8. Place fiat washer and clutch spring on

idler pulley bolt and secure with small

retainer spring.

9. Install belt onto engine pulley.

Small Retainer S

Clutch Spring

Retainer

Housing

Retainer Springs

Sides)

Bracket

Large Retainer Spring

Deflector Shield

TO LEVEL MOWER HOUSING

Adjust the mower while tractor is parked

on level ground or driveway. Make sure

tires are properly inflated (See "PROD-

UCT SPECIFICATIONS" section of this

manual). If tires are over or underinflated

you will not properly adjust your mower.

SIDE-TO-SIDE ADJUSTMENT

• Raise mower to its highest position.

• At the midpoint of both sides of mower

measure height from bottom edge of

mower to ground. Distance "A" on both

sides of mower should be the same or

within 1/4" of each other.

• If adjustment is necessary, make adjust-

ment on one side of mower only.

• To raise one side of mower, tighten lift

link adjustment nut on that side.

• To lower one side of mower, loosen lift

link adjustment nut on that side.

NOTE: Each full turn of adjustment nut

will change mower height about 1/8".

• Recheck measurements after adjusting.

Bottom edge of

Bottom edge F_-_ mower to ground

of mower to ___ /

ground...4._ l-L/

A_ ? -_Ground Line_ -_ _A

nArm

Lift Link

Adjustment Nut --

FRON%TO-BACK ADJUSTMENT

IMPORTANT: Deck must be level side-to

side. If the following front-to-back adjust-

ment is necessary, be sure to adjust both

front links equally so mower will stay level

side-to-side.

To obtain the best cutting results, the

mower housing should be adjusted so

that the front is approximately 1/8" to 1/2"

lower than the rear when the mower is in

its highest position.

Check adjustment on right side of tractor.

Measure distance "D" directly in front and

behind the mandrel at bottom edge of

mower housing as shown.

• Before making any necessary adjust-

ments, check that both front links are

equal in length.

• If links are not equal in length, adjust

one link to same length as other link.

To lower front of mower loosen nut "E"

on both front links an equal number of

turns.

When distance "D" is 1/8" to 1/2"

lower at front than rear, tighten nuts "F"

against trunnion on both front links.

To raise front of mower, loosen nut "F"

from trunnion on both front links. Tighten

nut "E" on both front links an equal

number of turns.The two front links must

remain equal in length.

When distance "D" is 1/8" to 1/2" lower

at front than rear, tighten nut "F" against

trunnion on both front links.

Recheck side-to-side adjustment.

'D.... D"

Both Front Links Should be Equal in Length

_E _

Trunnion

Front Links

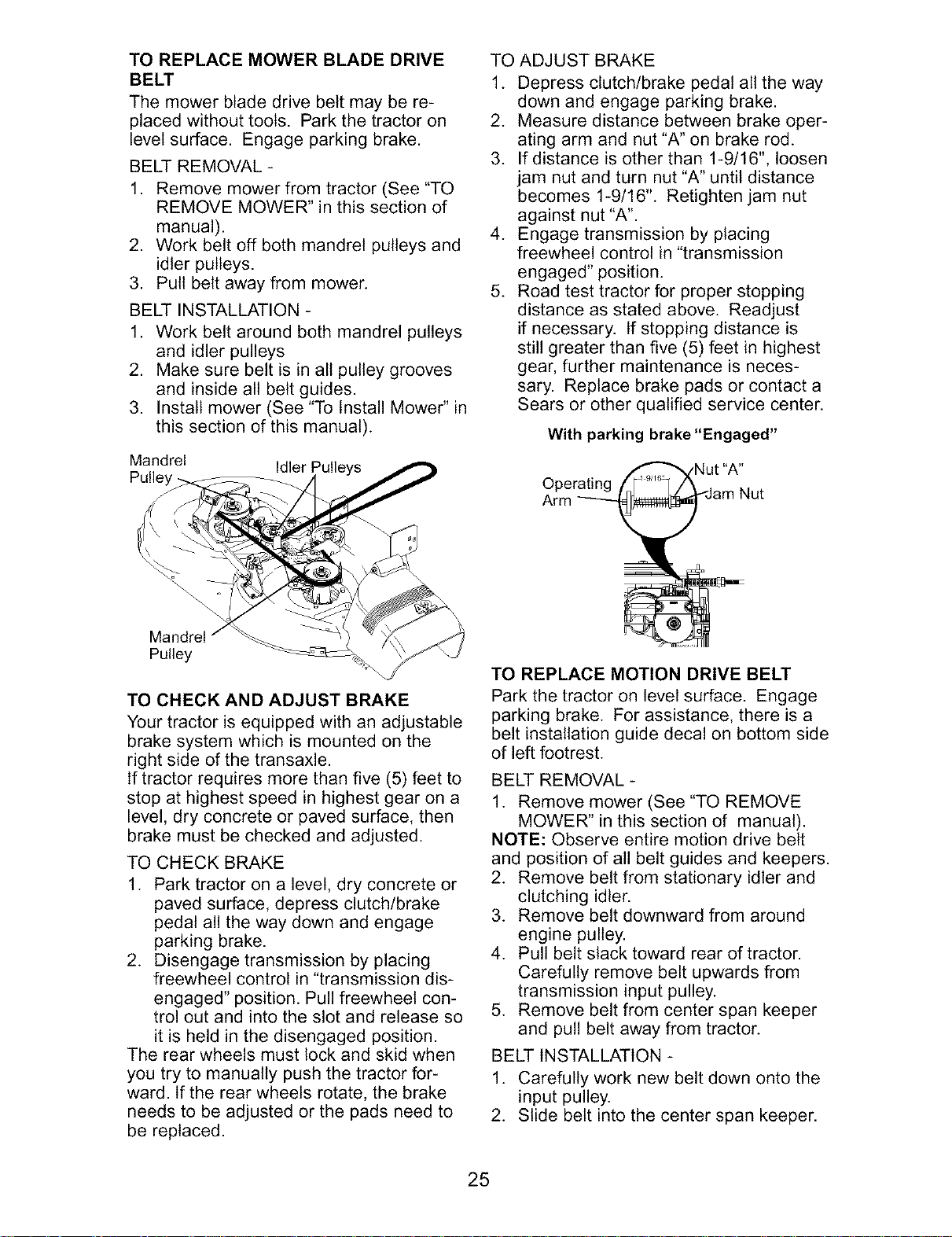

TO REPLACE MOWER BLADE DRIVE

BELT

The mower blade drive belt may be re-

placed without toots. Park the tractor on

level surface. Engage parking brake.

BELT REMOVAL -

1. Remove mower from tractor (See "TO

REMOVE MOWER" in this section of

manual).

2. Work belt off both mandrel pulleys and

idler pulleys.

3. Pull belt away from mower.

BELT INSTALLATION -

1. Work belt around both mandrel pulleys

and idler pulleys

2. Make sure belt is in all pulley grooves

and inside all belt guides.

3. Install mower (See "To Install Mower" in

this section of this manual).

Mandrel Idler Pulleys

Pulley

Pu!ley

TO CHECK AND ADJUST BRAKE

Your tractor is equipped with an adjustable

brake system which is mounted on the

right side of the transaxle.

If tractor requires more than five (5) feet to

stop at highest speed in highest gear on a

level, dry concrete or paved surface, then

brake must be checked and adjusted.

TO CHECK BRAKE

1. Park tractor on a level, dry concrete or

paved surface, depress clutch/brake

pedal all the way down and engage

parking brake.

2. Disengage transmission by placing

freewheel control in "transmission dis-

engaged" position. Pull freewheel con-

trol out and into the slot and release so

it is held in the disengaged position.

The rear wheels must lock and skid when

you try to manually push the tractor for-

ward. If the rear wheels rotate, the brake

needs to be adjusted or the pads need to

be replaced.

TO ADJUST BRAKE

1. Depress clutch/brake pedal all the way

down and engage parking brake.

2. Measure distance between brake oper-

ating arm and nut "A" on brake rod.

3. If distance is other than 1-9/16", loosen

jam nut and turn nut "A" until distance

becomes 1-9/16". Retighten jam nut

against nut "A".

4. Engage transmission by placing

freewheel control in "transmission

engaged" position.

5. Road test tractor for proper stopping

distance as stated above. Readjust

if necessary. If stopping distance is

still greater than five (5) feet in highest

gear, further maintenance is neces-

sary. Replace brake pads or contact a

Sears or other qualified service center.

With parking brake "Engaged"

_Nut "A"

Operating z _ /,,

Arm _Nut

TO REPLACE MOTION DRIVE BELT

Park the tractor on level surface. Engage

parking brake. For assistance, there is a

belt installation guide decal on bottom side

of left footrest.

BELT REMOVAL -

1. Remove mower (See "TO REMOVE

MOWER" in this section of manual).

NOTE: Observe entire motion drive belt

and position of all belt guides and keepers.

2. Remove belt from stationary idler and

clutching idler.

3. Remove belt downward from around

engine pulley.

4. Pull belt slack toward rear of tractor.

Carefully remove belt upwards from

transmission input pulley.

5. Remove belt from center span keeper

and pull belt away from tractor.

BELT INSTALLATION -

1. Carefully work new belt down onto the

input pulley.

2. Slide belt into the center span keeper.

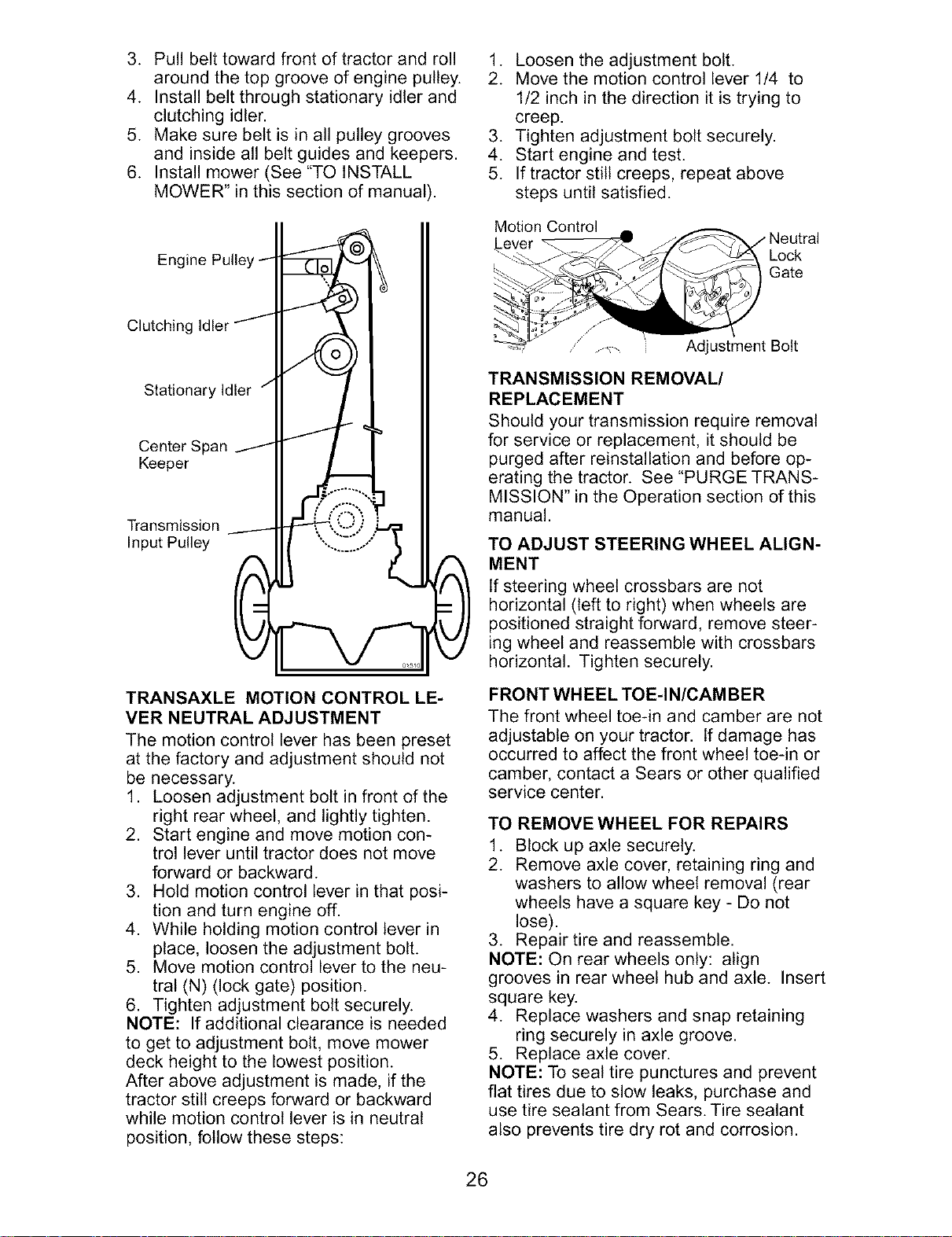

3. Pull belt toward front of tractor and roll

around the top groove of engine pulley.

4. Install belt through stationary idler and

clutching idler.

5. Make sure belt is in all pulley grooves

and inside all belt guides and keepers.

6. Install mower (See "TO INSTALL

MOWER" in this section of manual).

Engine Pulley

1. Loosen the adjustment bolt.

2. Move the motion control lever 1/4 to

1/2 inch in the direction it is trying to

creep.

3. Tighten adjustment bolt securely.

4. Start engine and test.

5. If tractor still creeps, repeat above

steps until satisfied.

Motion Control

Lock

Gate

Clutching

Stationary Idler

Center Span

Keeper

Transmission

Input Pulley

TRANSAXLE MOTION CONTROL LE-

VER NEUTRAL ADJUSTMENT

The motion control lever has been preset

at the factory and adjustment should not

be necessary.

1. Loosen adjustment bolt in front of the

right rear wheel, and lightly tighten.

2. Start engine and move motion con-

trol lever until tractor does not move

forward or backward.

3. Hold motion control lever in that posi-

tion and turn engine off.

4. While holding motion control lever in

place, loosen the adjustment bolt.

5. Move motion control lever to the neu-

tral (N) (lock gate) position.

6. Tighten adjustment bolt securely.

NOTE: If additional clearance is needed

to get to adjustment bolt, move mower

deck height to the lowest position.

After above adjustment is made, if the

tractor still creeps forward or backward

while motion control lever is in neutral

position, follow these steps:

,, Adjustment Bolt

TRANSMISSION REMOVAL/

REPLACEMENT

Should your transmission require removal

for service or replacement, it should be

purged after reinstallation and before op-

erating the tractor. See "PURGE TRANS-

MISSION" in the Operation section of this

manual.

TO ADJUST STEERING WHEEL ALIGN-

MENT

If steering wheel crossbars are not

horizontal (left to right) when wheels are

positioned straight forward, remove steer-

ing wheel and reassemble with crossbars

horizontal. Tighten securely.

FRONT WHEEL TOE-IN/CAM BER

The front wheel toe-in and camber are not

adjustable on your tractor. If damage has

occurred to affect the front wheel toe-in or

camber, contact a Sears or other qualified

service center.

TO REMOVE WHEEL FOR REPAIRS

1. Block up axle securely.

2. Remove axle cover, retaining ring and

washers to allow wheel removal (rear

wheels have a square key - Do not

lose).

3. Repair tire and reassemble.

NOTE: On rear wheels only: align

grooves in rear wheel hub and axle. Insert

square key.

4. Replace washers and snap retaining

ring securely in axle groove.

5. Replace axle cover.

NOTE: To seal tire punctures and prevent

flat tires due to slow leaks, purchase and

use tire sealant from Sears. Tire sealant

also prevents tire dry rot and corrosion.

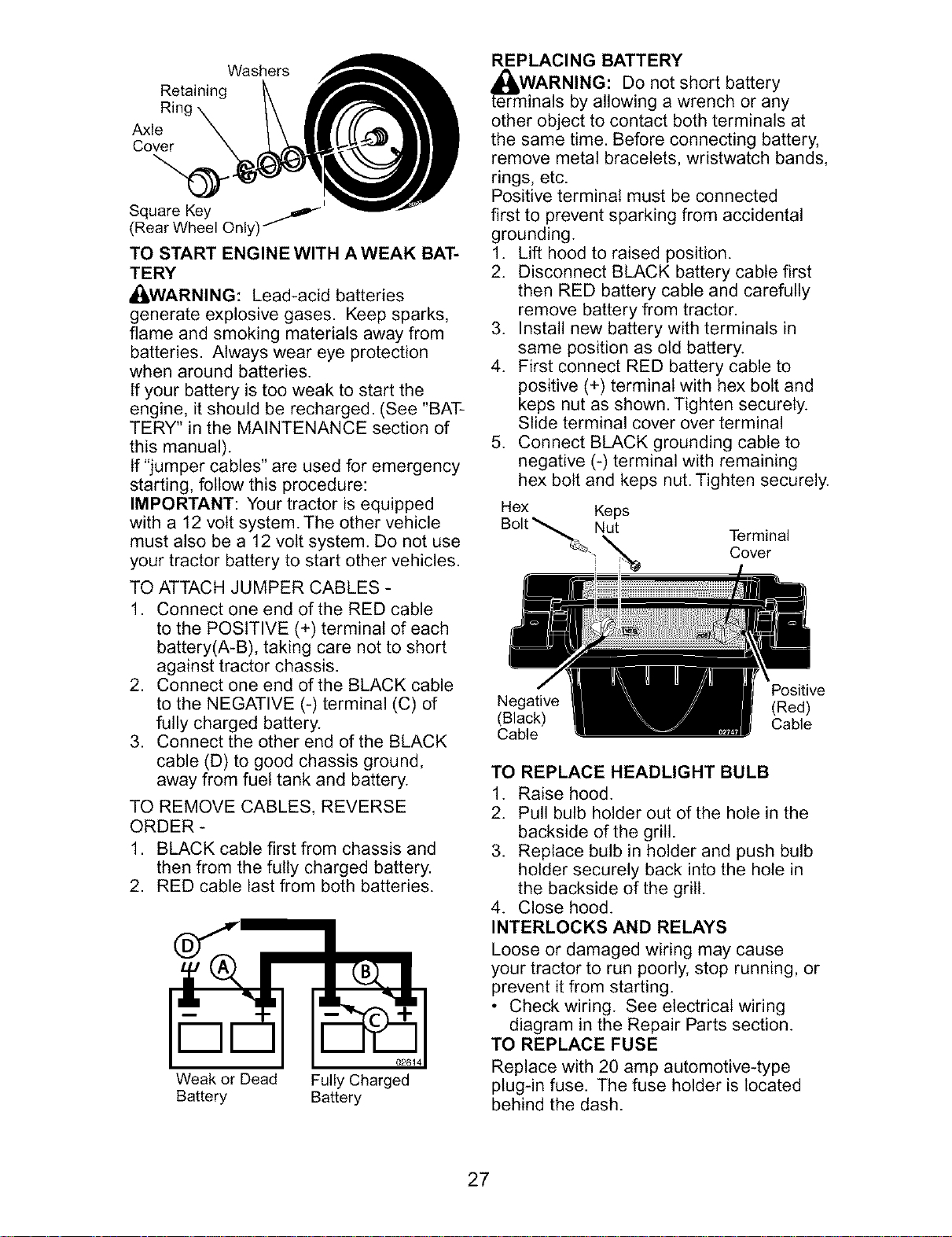

Washers

Retaining

Rin_

Axle

Cover

Square Key

(Rear Wheel Only)

TO START ENGINE WITH A WEAK BAT-

TERY

_WARNING: Lead-acid batteries

generate explosive gases. Keep sparks,

flame and smoking materials away from

batteries. Always wear eye protection

when around batteries.

If your battery is too weak to start the

engine, it should be recharged. (See "BAT-

TERY" in the MAINTENANCE section of

this manual).

If "jumper cables" are used for emergency

starting, follow this procedure:

IMPORTANT: Your tractor is equipped

with a 12 volt system. The other vehicle

must also be a 12 volt system. Do not use

your tractor battery to start other vehicles.

TO ATTACH JUMPER CABLES -

1. Connect one end of the RED cable

to the POSITIVE (+) terminal of each

battery(A-B), taking care not to short

against tractor chassis.

2. Connect one end of the BLACK cable

to the NEGATIVE (-) terminal (C) of

fully charged battery.

3. Connect the other end of the BLACK

cable (D) to good chassis ground,

away from fuel tank and battery.

TO REMOVE CABLES, REVERSE

ORDER-

1. BLACK cable first from chassis and

then from the fully charged battery.

2. RED cable last from both batteries.

02614

Weak or Dead Fully Charged

Battery Battery

REPLACING BATTERY

e_rmWARNING: Do not short battery

inals by allowing a wrench or any

other object to contact both terminals at

the same time. Before connecting battery,

remove metal bracelets, wristwatch bands,

rings, etc.

Positive terminal must be connected

first to prevent sparking from accidental

grounding.

1. Lift hood to raised position.

2. Disconnect BLACK battery cable first

then RED battery cable and carefully

remove battery from tractor.

3. Install new battery with terminals in

same position as old battery.

4. First connect RED battery cable to

positive (+) terminal with hex bolt and

keps nut as shown. Tighten securely.

Slide terminal cover over terminal

5. Connect BLACK grounding cable to

negative (-) terminal with remaining

hex bolt and keps nut. Tighten securely.

Hex Keps

Bolt _. Nut

Terminal

Cover

Positive

Negative (Red)

(Black) Cable

Cable

TO REPLACE HEADLIGHT BULB

1. Raise hood.

2. Pull bulb holder out of the hole in the

backside of the grill.

3. Replace bulb in holder and push bulb

holder securely back into the hole in

the backside of the grill.

4. Close hood.

INTERLOCKS AND RELAYS

Loose or damaged wiring may cause

your tractor to run poorly, stop running, or

prevent it from starting.

• Check wiring. See electrical wiring

diagram in the Repair Parts section.

TO REPLACE FUSE

Replace with 20 amp automotive-type

plug-in fuse. The fuse holder is located

behind the dash.

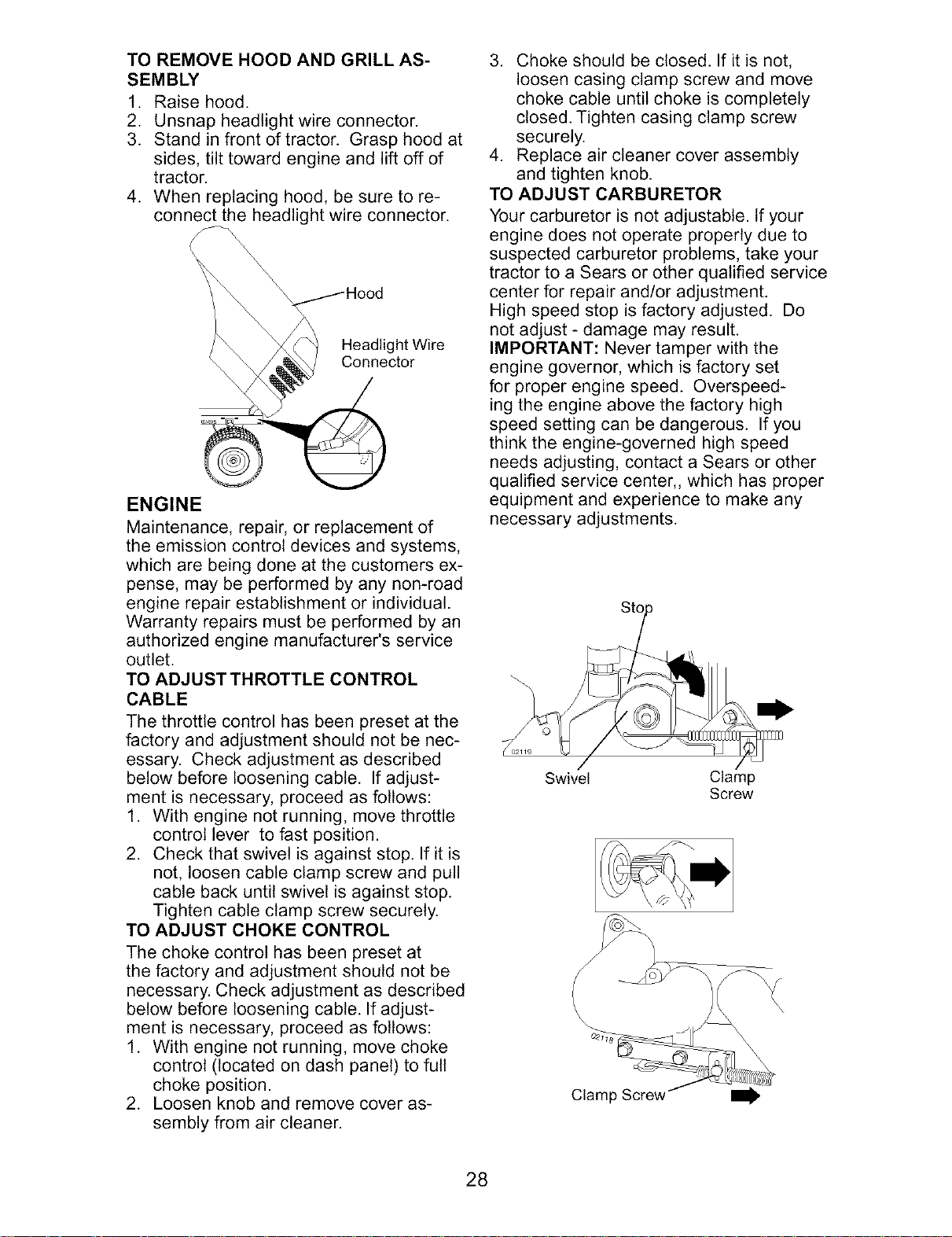

TO REMOVE HOOD AND GRILL AS-

SEMBLY

1. Raise hood.

2. Unsnap headlight wire connector.

3. Stand in front of tractor. Grasp hood at

sides, tilt toward engine and lift off of

tractor.

4. When replacing hood, be sure to re-

connect the headlight wire connector.

Headlight Wire

Connector

ENGINE

Maintenance, repair, or replacement of

the emission control devices and systems,

which are being done at the customers ex-

pense, may be performed by any non-road

engine repair establishment or individual.

Warranty repairs must be performed by an

authorized engine manufacturer's service

outlet.

TO ADJUST THROTTLE CONTROL

CABLE

The throttle control has been preset at the

factory and adjustment should not be nec-

essary. Check adjustment as described

below before loosening cable. If adjust-

ment is necessary, proceed as follows:

1. With engine not running, move throttle

control lever to fast position.

2. Check that swivel is against stop. If it is

not, loosen cable clamp screw and pull

cable back until swivel is against stop.

Tighten cable clamp screw securely.

TO ADJUST CHOKE CONTROL

The choke control has been preset at

the factory and adjustment should not be

necessary. Check adjustment as described

below before loosening cable. If adjust-

ment is necessary, proceed as follows:

1. With engine not running, move choke

control (located on dash panel) to full

choke position.

2. Loosen knob and remove cover as-

sembly from air cleaner.

3. Choke should be closed. If it is not,

loosen casing clamp screw and move

choke cable until choke is completely

closed. Tighten casing clamp screw

securely.

4. Replace air cleaner cover assembly

and tighten knob.

TO ADJUST CARBURETOR

Your carburetor is not adjustable. If your

engine does not operate properly due to

suspected carburetor problems, take your

tractor to a Sears or other qualified service

center for repair and/or adjustment.

High speed stop is factory adjusted. Do

not adjust - damage may result.

IMPORTANT: Never tamper with the

engine governor, which is factory set

for proper engine speed. Overspeed-

ing the engine above the factory high

speed setting can be dangerous. If you

think the engine-governed high speed

needs adjusting, contact a Sears or other

qualified service center,, which has proper

equipment and experience to make any

necessary adjustments.

Swivel Clamp

Screw

\\\

Clam t

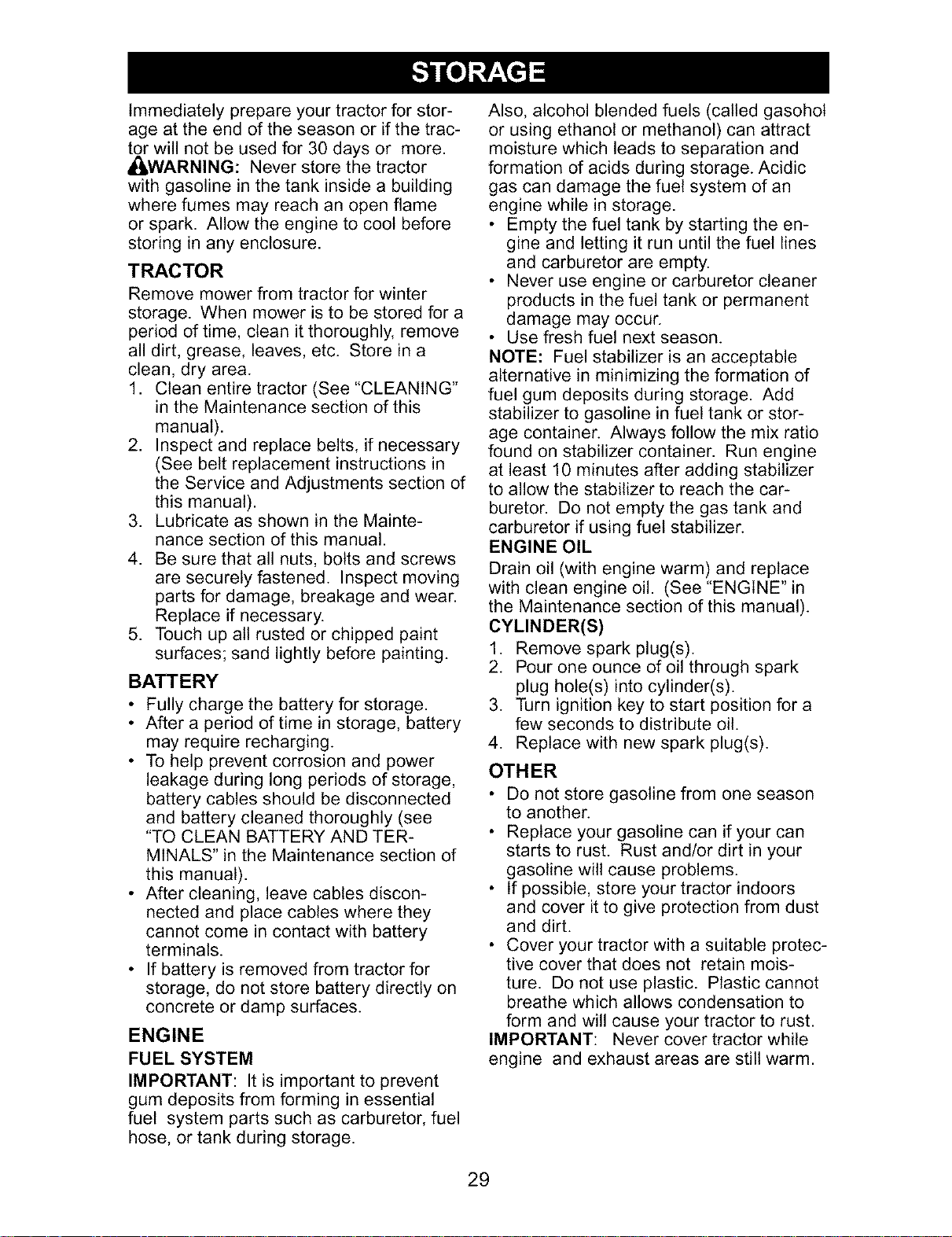

Immediately prepare your tractor for stor-

age at the end of the season or if the trac-

tor will not be used for 30 days or more.

• ILWARNING: Never store the tractor

with gasoline in the tank inside a building

where fumes may reach an open flame

or spark. Allow the engine to coot before

storing in any enclosure.

TRACTOR

Remove mower from tractor for winter

storage. When mower is to be stored for a

period of time, clean it thoroughly, remove

all dirt, grease, leaves, etc. Store in a

clean, dry area.

1. Clean entire tractor (See "CLEANING"

in the Maintenance section of this

manual).

2. Inspect and replace belts, if necessary

(See belt replacement instructions in

the Service and Adjustments section of

this manual).

3. Lubricate as shown in the Mainte-

nance section of this manual.

4. Be sure that all nuts, bolts and screws

are securely fastened. Inspect moving

parts for damage, breakage and wear.

Replace if necessary.

5. Touch up all rusted or chipped paint

surfaces; sand lightly before painting.

BATTERY

• Fully charge the battery for storage.

• After a period of time in storage, battery

may require recharging.

• To help prevent corrosion and power

leakage during long periods of storage,

battery cables should be disconnected

and battery cleaned thoroughly (see

"TO CLEAN BATTERY AND TER-

MINALS" in the Maintenance section of

this manual).

• After cleaning, leave cables discon-

nected and place cables where they

cannot come in contact with battery

terminals.

• If battery is removed from tractor for

storage, do not store battery directly on

concrete or damp surfaces.

ENGINE

FUEL SYSTEM

IMPORTANT: It is important to prevent

gum deposits from forming in essential

fuel system parts such as carburetor, fuel

hose, or tank during storage.

Also, alcohol blended fuels (called gasohot

or using ethanol or methanol) can attract

moisture which leads to separation and

formation of acids during storage. Acidic

gas can damage the fuel system of an

engine while in storage.

Empty the fuel tank by starting the en-

gine and letting it run until the fuel lines

and carburetor are empty.

Never use engine or carburetor cleaner

products in the fuel tank or permanent

damage may occur.

Use fresh fuel next season.

NOTE: Fuel stabilizer is an acceptable

alternative in minimizing the formation of

fuel gum deposits during storage. Add

stabilizer to gasoline in fuel tank or stor-

age container. Always follow the mix ratio

found on stabilizer container. Run engine

at least 10 minutes after adding stabilizer

to allow the stabilizer to reach the car-

buretor. Do not empty the gas tank and

carburetor if using fuel stabilizer.

ENGINE OIL

Drain oil (with engine warm) and replace

with clean engine oil. (See "ENGINE" in

the Maintenance section of this manual).

CYLINDER(S)

1. Remove spark plug(s).

2. Pour one ounce of oil through spark

plug hole(s) into cylinder(s).

3. Turn ignition key to start position for a

few seconds to distribute oil

4. Replace with new spark plug(s).

OTHER

Do not store gasoline from one season

to another.

Replace your gasoline can if your can

starts to rust. Rust and/or dirt in your

gasoline will cause problems.

If possible, store your tractor indoors

and cover it to give protection from dust

and dirt.

• Cover your tractor with a suitable protec-

tive cover that does not retain mois-

ture. Do not use plastic. Plastic cannot

breathe which allows condensation to

form and will cause your tractor to rust.

IMPORTANT: Never cover tractor while

engine and exhaust areas are still warm.

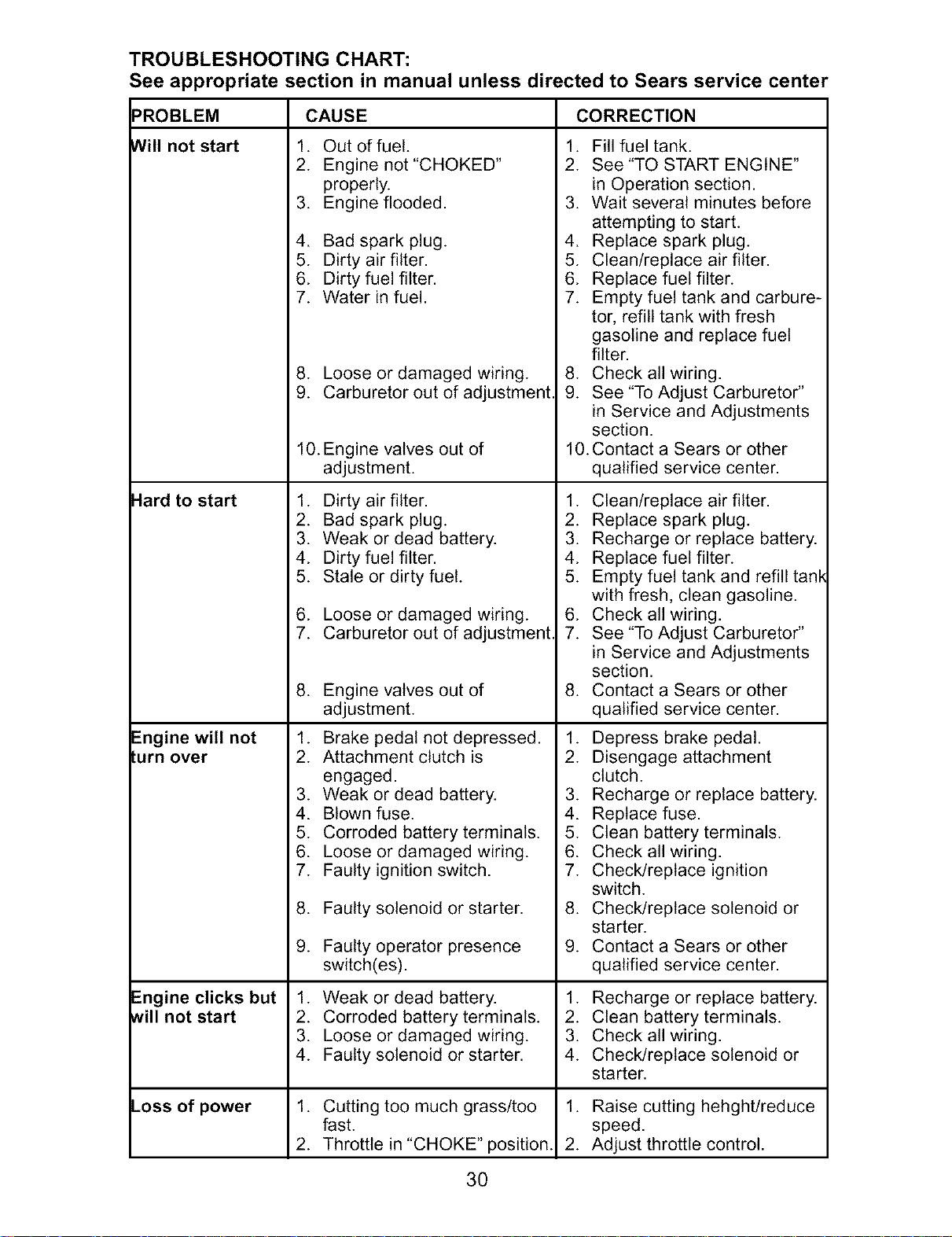

TROUBLESHOOTING CHART:

See appropriate section in manual unless directed to Sears service center

PROBLEM

Will not start

Hard to start

Engine will not

turn over

Engine clicks but

will not start

CAUSE CORRECTION

1. Out of fuel.

2. Engine not "CHOKED"

properly.

3. Engine flooded.

1. Fill fuel tank.

2. See "TO START ENGINE"

in Operation section.

3. Wait several minutes before

attempting to start.

Replace spark plug.

Clean/replace air filter.

Replace fuel filter.

Empty fuel tank and carbure-

tor, refill tank with fresh

gasoline and replace fuel

filter.

8. Check all wiring.

9. See "To Adjust Carburetor"

in Service and Adjustments

section.

10. Contact a Sears or other

qualified service center.

Bad spark plug. 4.

Dirty air filter. 5.

Dirty fuel filter. 6.

Water in fuel. 7.

8. Loose or damaged wiring.

9. Carburetor out of adjustment

10.Engine valves out of

adjustment.

1. Dirty air filter.

2. Bad spark plug.

3. Weak or dead battery.

4. Dirty fuel filter.

5. Stale or dirty fuel.

Loose or damaged wiring. 6.

Carburetor out of adjustment 7.

8. Engine valves out of

adjustment.

1. Brake pedal not depressed.

2. Attachment clutch is

engaged.

3. Weak or dead battery.

4. Blown fuse.

5. Corroded battery terminals.

6. Loose or damaged wiring.

7. Faulty ignition switch.

8. Faulty solenoid or starter.

Faulty operator presence

switch(es).

1. Weak or dead battery.

2. Corroded battery terminals.

3. Loose or damaged wiring.

4. Faulty solenoid or starter.

1. Clean/replace air filter.

2. Replace spark plug.

3. Recharge or replace battery.

4. Replace fuel filter.

5. Empty fuel tank and refill tank

with fresh, clean gasoline.

Check all wiring.

See "To Adjust Carburetor"

in Service and Adjustments

section.

8. Contact a Sears or other

qualified service center.

1. Depress brake pedal.

2. Disengage attachment

clutch.

3. Recharge or replace battery.

4. Replace fuse.

5. Clean battery terminals.

6. Check all wiring.

7. Check/replace ignition

switch.

8. Check/replace solenoid or

starter.

9. Contact a Sears or other

qualified service center.

1. Recharge or replace battery.

2. Clean battery terminals.

3. Check all wiring.

4. Check/replace solenoid or

starter.

Loss of power 1. Cutting too much grass/too 1. Raise cutting hehght/reduce

fast. speed.

2. Throttle in "CHOKE" position. 2. Adjust throttle control.

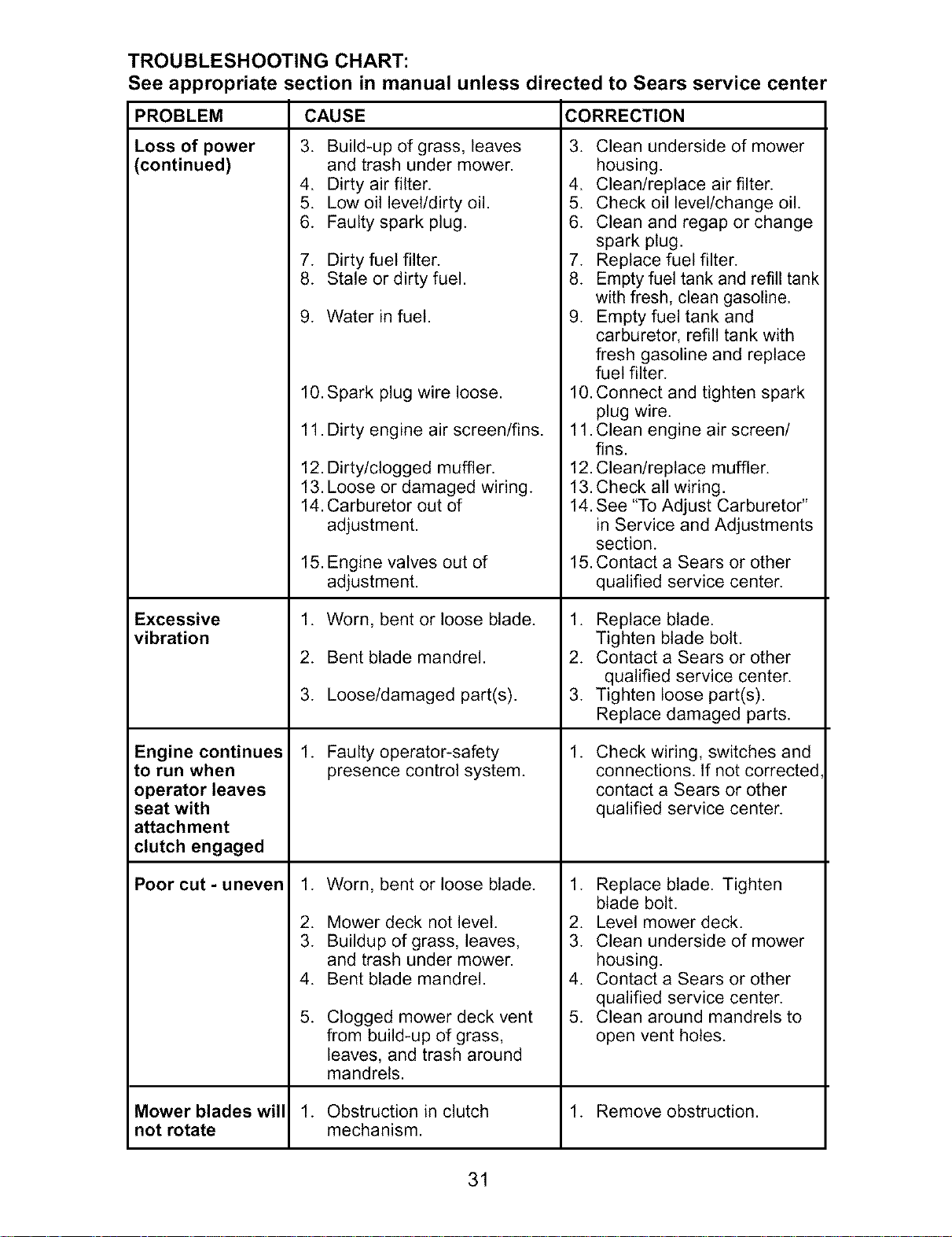

TROUBLESHOOTING CHART:

See appropriate section in manual unless directed to Sears service center

PROBLEM

Loss of power

(continued)

CAUSE

3. Build-up of grass, leaves

and trash under mower.

4. Dirty air filter.

5. Low oil level/dirty oil.

6. Faulty spark plug.

7. Dirty fuel filter.

8. Stale or dirty fuel.

CORRECTION

Excessive

vibration

Engine continues

to run when

operator leaves

seat with

attachment

clutch engaged

Poorcut-uneven

9. Water in fuel.

10. Spark plug wire loose.

11. Dirty engine air screen/fins.

12. Dirty/clogged muffler.

13. Loose or damaged wiring.

14. Carburetor out of

adjustment.

15. Engine valves out of

adjustment.

1. Worn, bent or loose blade.

2. Bent blade mandrel.

3. Loose/damaged part(s).

1. Faulty operator-safety

presence control system.

1. Worn, bent or loose blade.

2. Mower deck not level.

3. Buildup of grass, leaves,

and trash under mower.

4. Bent blade mandrel.

Clogged mower deck vent

from build-up of grass,

leaves, and trash around

mandrels.

3. Clean underside of mower

housing.

4. Clean/replace air filter.

5. Check oil level/change oil.

6. Clean and regap or change

spark plug.

7. Replace fuel filter.

8. Empty fuel tank and refill tank

with fresh, clean gasoline.

9. Empty fuel tank and

carburetor, refill tank with

fresh gasoline and replace

fuel filter.

10. Connect and tighten spark

plug wire.

11. Clean engine air screen/

fins.

12. Clean/replace muffler.

13. Check all wiring.

14. See "To Adjust Carburetor"

in Service and Adjustments

section.

15. Contact a Sears or other

qualified service center.

1. Replace blade.

Tighten blade bolt.

2. Contact a Sears or other

qualified service center.

3. Tighten loose part(s).

Replace damaged parts.

Check wiring, switches and

connections. If not corrected

contact a Sears or other

qualified service center.

1. Replace blade. Tighten

blade bolt.

2. Level mower deck.

3. Clean underside of mower

housing.

4. Contact a Sears or other

qualified service center.

5. Clean around mandrels to

open vent holes.

Mower blades will 1. Obstruction in clutch 1. Remove obstruction.

not rotate mechanism.

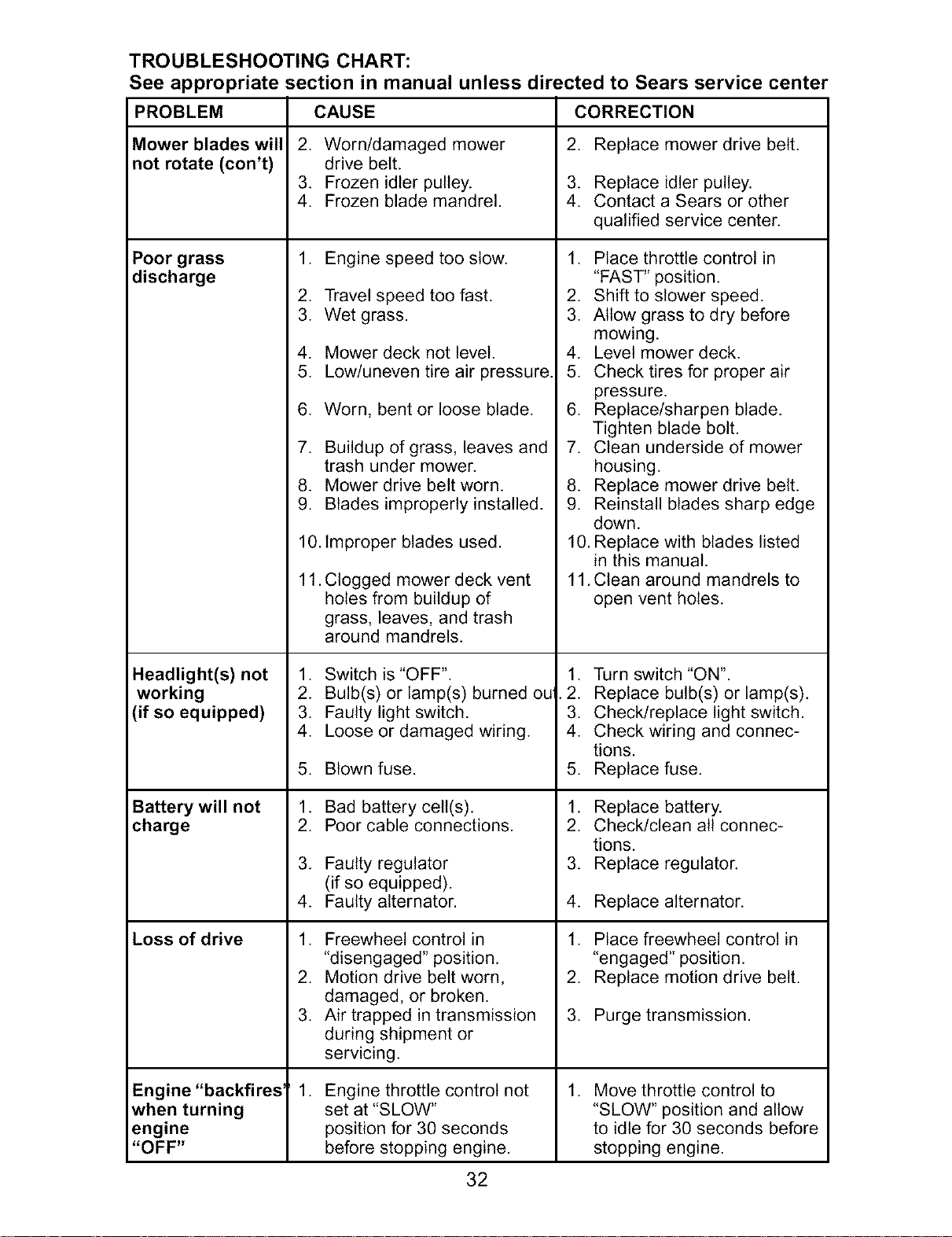

TROUBLESHOOTING CHART:

See appropriate section in manual unless directed to Sears service center

PROBLEM CAUSE CORRECTION

Mower blades will 2. Worn/damaged mower 2. Replace mower drive belt.

not rotate (con't) drive belt.

3. Frozen idler pulley. 3. Replace idler pulley.

4. Frozen blade mandrel. 4. Contact a Sears or other

qualified service center.

Poor grass 1. Engine speed too slow.

discharge

2. Travel speed too fast.

3. Wet grass.

4. Mower deck not level.

5. Low/uneven tire air pressure.

6. Worn, bent or loose blade.

7. Buildup of grass, leaves and

trash under mower.

8. Mower drive belt worn.

9. Blades improperly installed.

10. Improper blades used.

11.Clogged mower deck vent

holes from buildup of

grass, leaves, and trash

around mandrels.

Headlight(s) not 1.

working 2.

(if so equipped) 3.

Battery will not 1.

charge 2.

Loss of drive 1.

Engine "backfires'

when turning

engine

"OFF"

Switch is "OFF".

Bulb(s) or lamp(s) burned ou

Faulty light switch.

Loose or damaged wiring.

Blown fuse.

Bad battery cell(s).

Poor cable connections.

Faulty regulator

(if so equipped).

Faulty alternator.

Freewheel control in

"disengaged" position.

Motion drive belt worn,

damaged, or broken.

Air trapped in transmission

during shipment or

servicing.

Engine throttle control not

set at "SLOW"

position for 30 seconds

before stopping engine.

1. Place throttle control in

"FAST" position.

2. Shift to slower speed.

3. Allow grass to dry before

mowing.

4. Level mower deck.

5. Check tires for proper air

pressure.

6. Replace/sharpen blade.

Tighten blade bolt.

7. Clean underside of mower

housing.

8. Replace mower drive belt.

9. Reinstall blades sharp edge

down.

10. Replace with blades listed

in this manual.

11. Clean around mandrels to

open vent holes.

1. Turn switch "ON".

2. Replace bulb(s) or lamp(s).

3. Check/replace light switch.

4. Check wiring and connec-

tions.

5. Replace fuse.

1. Replace battery.

2. Check/clean all connec-

tions.

3. Replace regulator.

4. Replace alternator.

1. Place freewheel control in

"engaged" position.

2. Replace motion drive belt.

3. Purge transmission.

. Move throttle control to

"SLOW" position and allow

to idle for 30 seconds before

stopping engine.

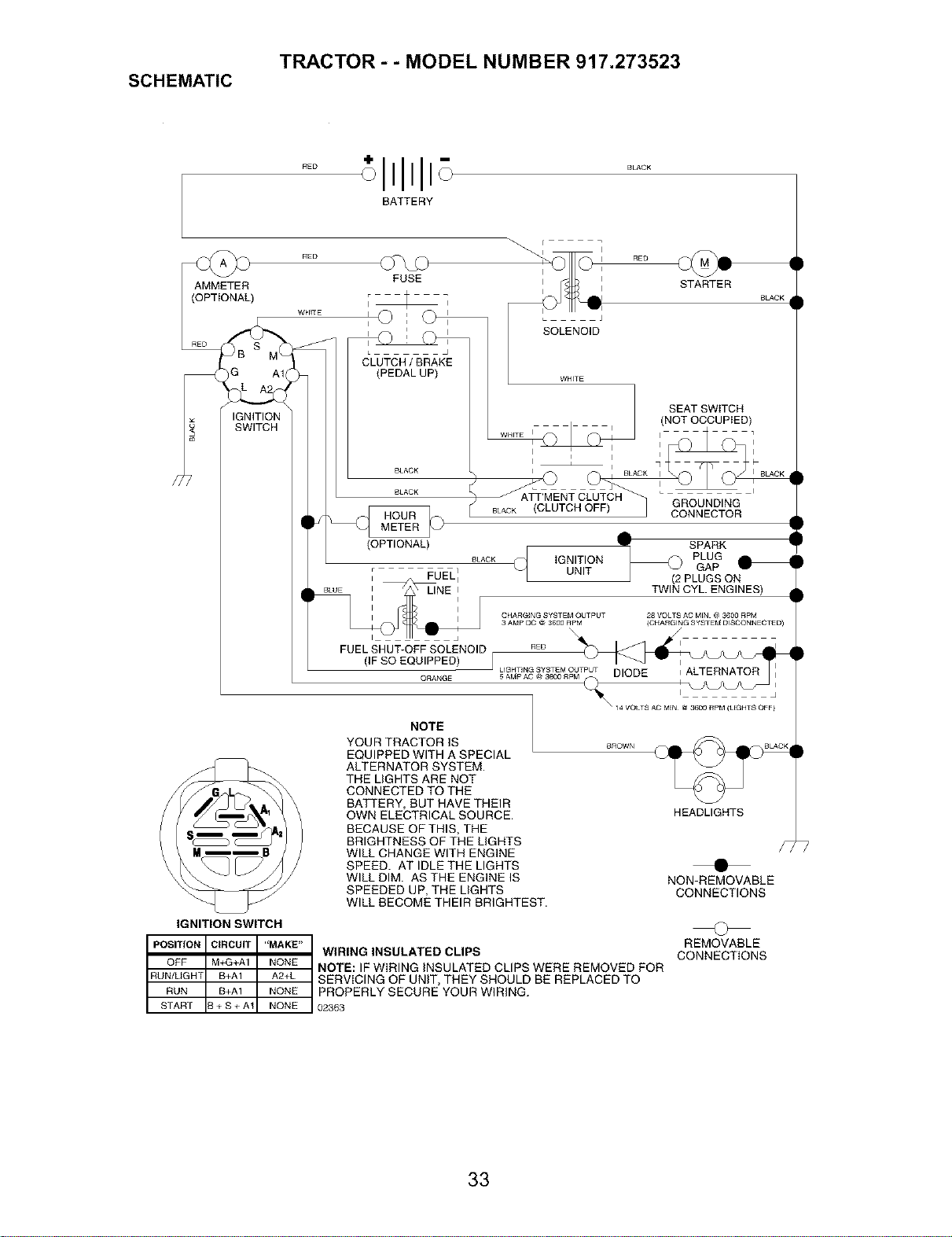

TRACTOR - - MODEL NUMBER 917.273523

SCHEMATIC

BATTERY

BLACK

RED

AMMETER

(OPTIONAL) WFI]TE

IGNITION

SWITCH

IGNITION SWITCH

FUSE

i I

SOLENOID

CLUTCH / BRAKJE

(PEDAL UP)

BLACK

WHITE

RED

STARTER

BLACK

BLACK (CLUTCH OFF)

SEAT SWITCH

klOT OCCUPIED)

(OPTIONAL)

8LACK

LINE i

IGNITION

UNIT

GROUNDING

CONNECTOR

FUELSHUT-OFF SOLENOID

OAANGE

v SPARK

PLUG

GAP

(2 PLUGS ON

TWIN CYL. ENGINES)

CHARGING SYSTEM OUTPUT 28 VOLTS AC M_N @ 3600 RpM

3 AMP DC @ 36OO RPM fCHARGING SYSTEM DISCONNECTED)

RED I i

LG TNGSYSTEMOUTPUT IALTERNATOR I

5 AMp AC @ 3600 RpM DIODE I

\ 14 VOLTS AC MEN @ 360O RpM (UGHTS OFF)

BROWN

HEADLIGHTS

NON-REMOVABLE

CONNECTIONS

NOTE

YOUR TRACTOR IS

EQUIPPED WITH A SPECIAL

ALTERNATOR SYSTEM.

THE LIGHTS ARE NOT

CONNECTED TO THE

BATTERY, BUT HAVE THEIR

OWN ELECTRICAL SOURCE.

BECAUSE OF THIS, THE

BRIGHTNESS OF THE LIGHTS

WILL CHANGE WITH ENGINE

SPEED. AT IDLE THE LIGHTS

WILL DIM. AS THE ENGINE IS

SPEEDED UP, THE LIGHTS

WILL BECOME THEIR BRIGHTEST.

POSITION CIRCUIT "MAKE *_

OFF M+G+A1 NONE

RUN/LIGHT B+A1 A2+L

RUN B+A1 NONE

START 3 + S + A1 NONE

WIRING INSULATED CLIPS

NOTE: IF WIRING INSULATED CLIPS WERE REMOVED FOR

SERVICING OF UNIT, THEY SHOULD BE REPLACED TO

PROPERLY SECURE YOUR WIRING.

02363

REMOVABLE

CONNECTIONS

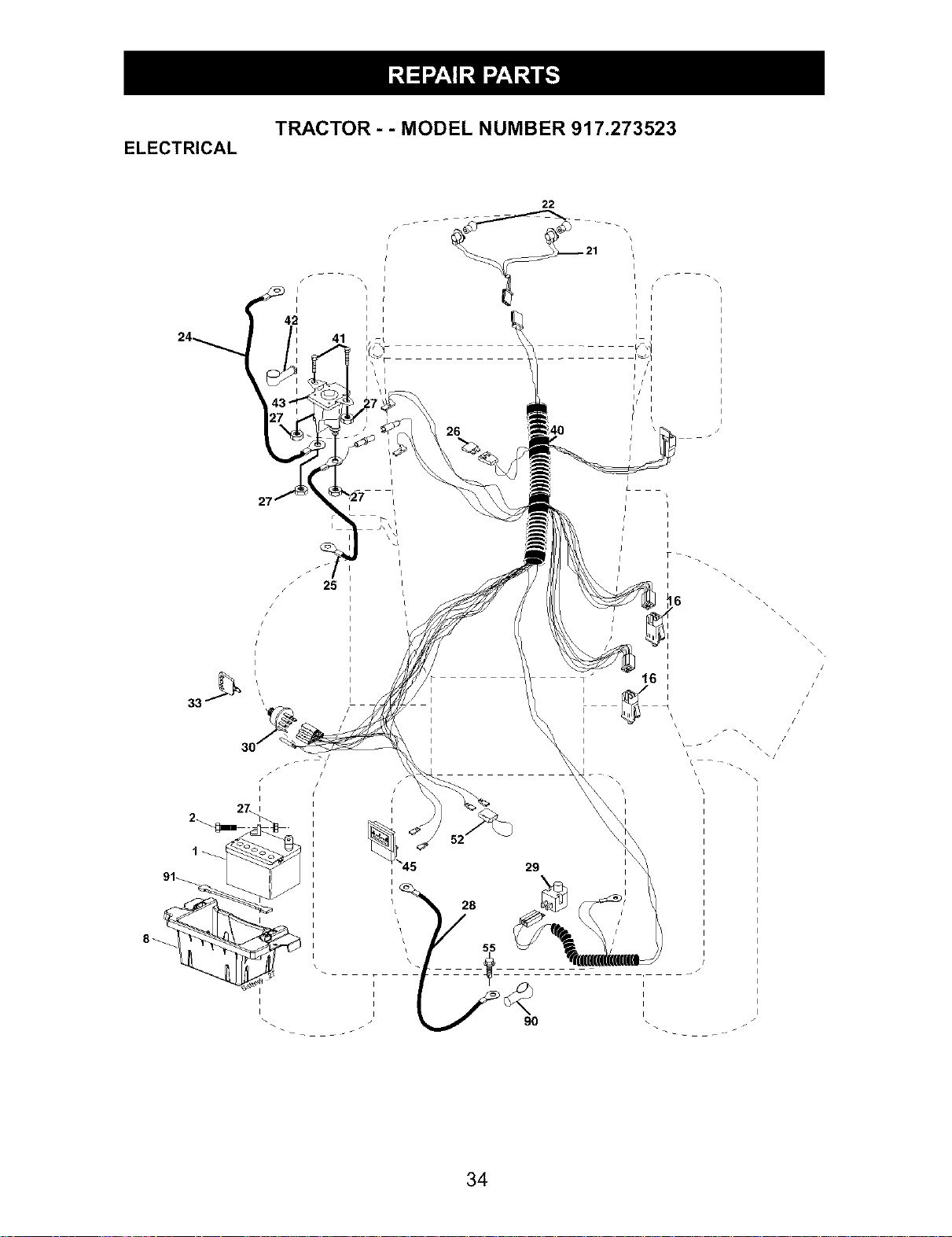

TRACTOR - - MODEL NUMBER 917.273523

ELECTRICAL

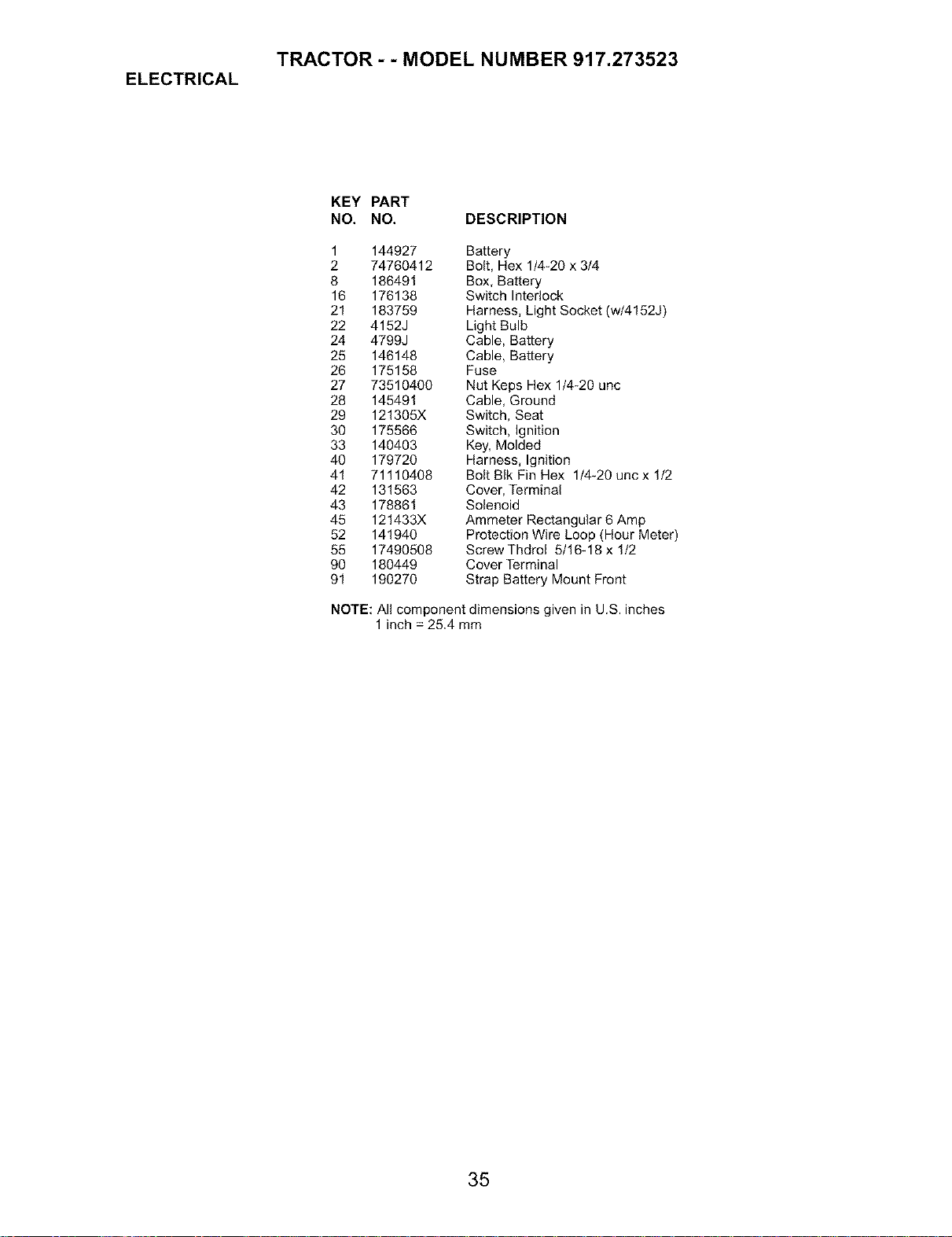

TRACTOR - - MODEL NUMBER 917.273523

ELECTRICAL

KEY PART

NO. NO. DESCRIPTION

1 144927 Battery

2 74760412 Bolt, Hex 1/4_20 x 3/4

8 186491 Box, Battery

16 176138 Switch Interlock

21 183759 Harness, Light Socket (w/4152J)

22 4152J Light Bulb

24 4799J Cable, Battery

25 146148 Cable, Battery

26 175158 Fuse

27 73510400 Nut Keps Hex 1/4_20 uric

28 145491 Cable, Ground

29 121305X Switch, Seat

30 175566 Switch, Ignition

33 140403 Key, Molded

40 179720 Harness Ignition

41 71110408 Bolt BIk Fin Hex 1/4-20 uric x 1/2

42 131563 Cover, Terminal

43 178861 Solenoid

45 121433X Ammeter Rectangular 6 Amp

52 141940 Protection Wire Loop (Hour Meter)

55 17490508 Screw Thdrol 5/16_18 x 1/2

90 160449 Cover Terminal

91 190270 Strap Battery Mount Front

NOTE: All component dimensions given in U,S, inches

1inch = 25,4 mm

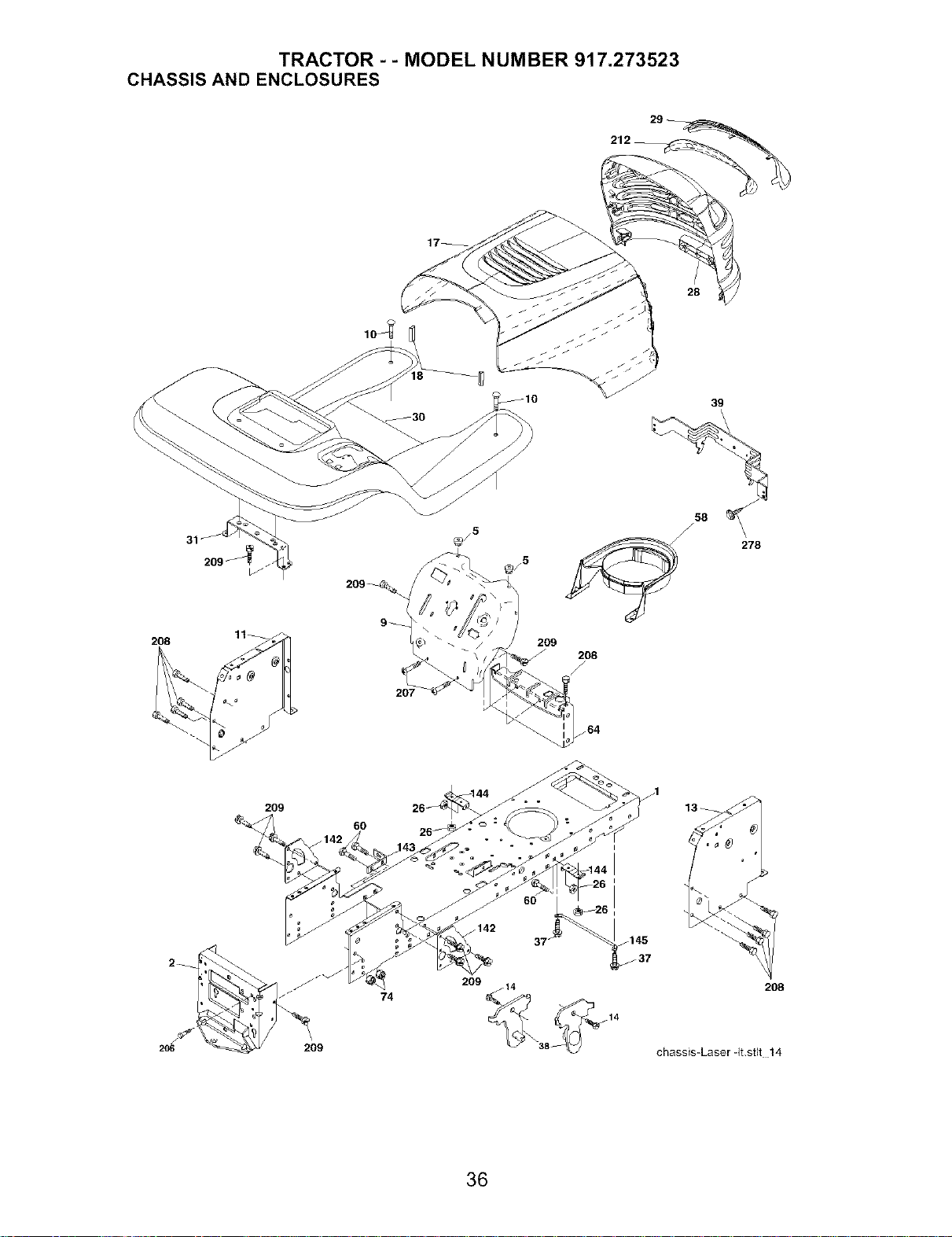

TRACTOR - - MODEL NUMBER 917.273523

CHASSIS AND ENCLOSURES

212

208

_5 _ \

31 209_ 278

209

J 208

j64

206

209

/-145

j37

208

_14

chassis-Laser-lt.stlt 14

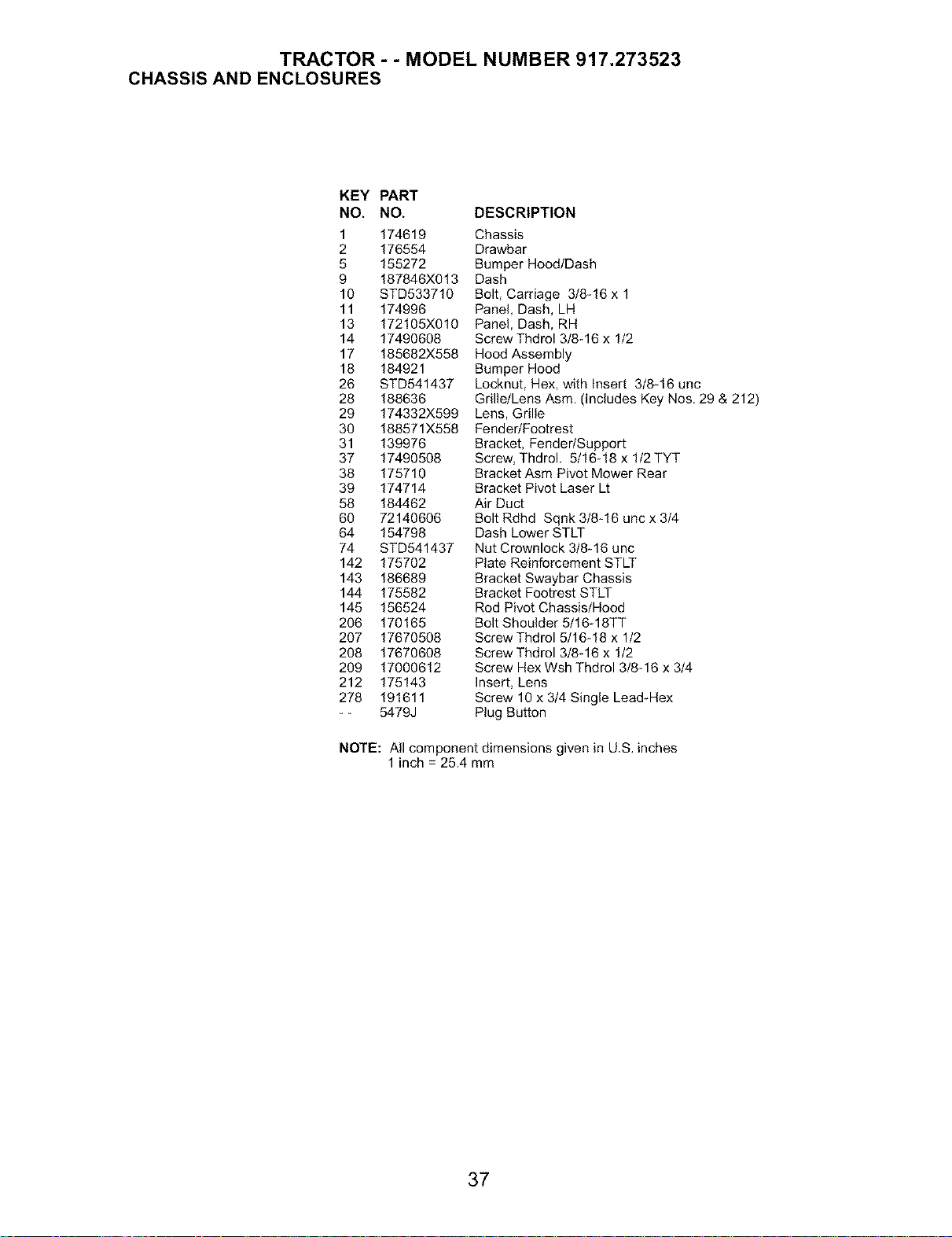

TRACTOR - - MODEL NUMBER 917.273523

CHASSIS AND ENCLOSURES

KEY PART

NO. NO.

1 174619

2 176554

5 155272

9 187846X013

10 STD533710

11 174996

13 172!05X010

14 17490606

17 165662X558

16 184921

26 STD541437

28 188636

29 174332X599

30 166571X558

31 139976

37 17490506

36 175710

39 174714

58 184462

60 72140606

64 154798

74 STD541437

142 175702

143 186689

144 175582

145 156524

206 170165

207 17670506

208 17670606

209 17000612

212 175143

278 191611

_ 5479J

DESCRIPTION

Chassis

Drawbar

Bumper Hood/Dash

Dash

Bolt, Carriage 3/8_16 x 1

Panel, Dash, LH

Panel, Dash, RH

Screw Thdrol 3/8-16 x 1/2

Hood Assembly

Bumper Hood

Locknut, Hex, with Insert 3/8_16 unc

Grille/Lens Asm. (Includes Key Nos. 29 & 212)

Lens, Grille

Fender/Footrest

Bracket, Fender/Support

Screw, Thdrol. 5/16-18 x 1/2 TYT

Bracket Asm Pivot Mower Rear

Bracket Pivot Laser Lt

Air Duct

Bolt Rdhd Sqnk 3/8-16 unc x 3/4

Dash Lower STLT

Nut Crownlock 3/8-16 unc

Plate Reinforcement STLT

Bracket Swaybar Chassis

Bracket Footrest STLT

Rod Pivot Chassis/Hood

Bolt Shoulder 5/16-18TT

Screw Thdrol 5/16_18 x 1/2

Screw Thdrol 3/8_16 x 1/2

Screw Hex Wsh Thdrol 3/8_16 x 3/4

Insert, Lens

Screw 10 x 3/4 Single Lead_Hex

Plug Button

NOTE: All component dimensions given in U.S. inches

1 inch = 25.4 mm

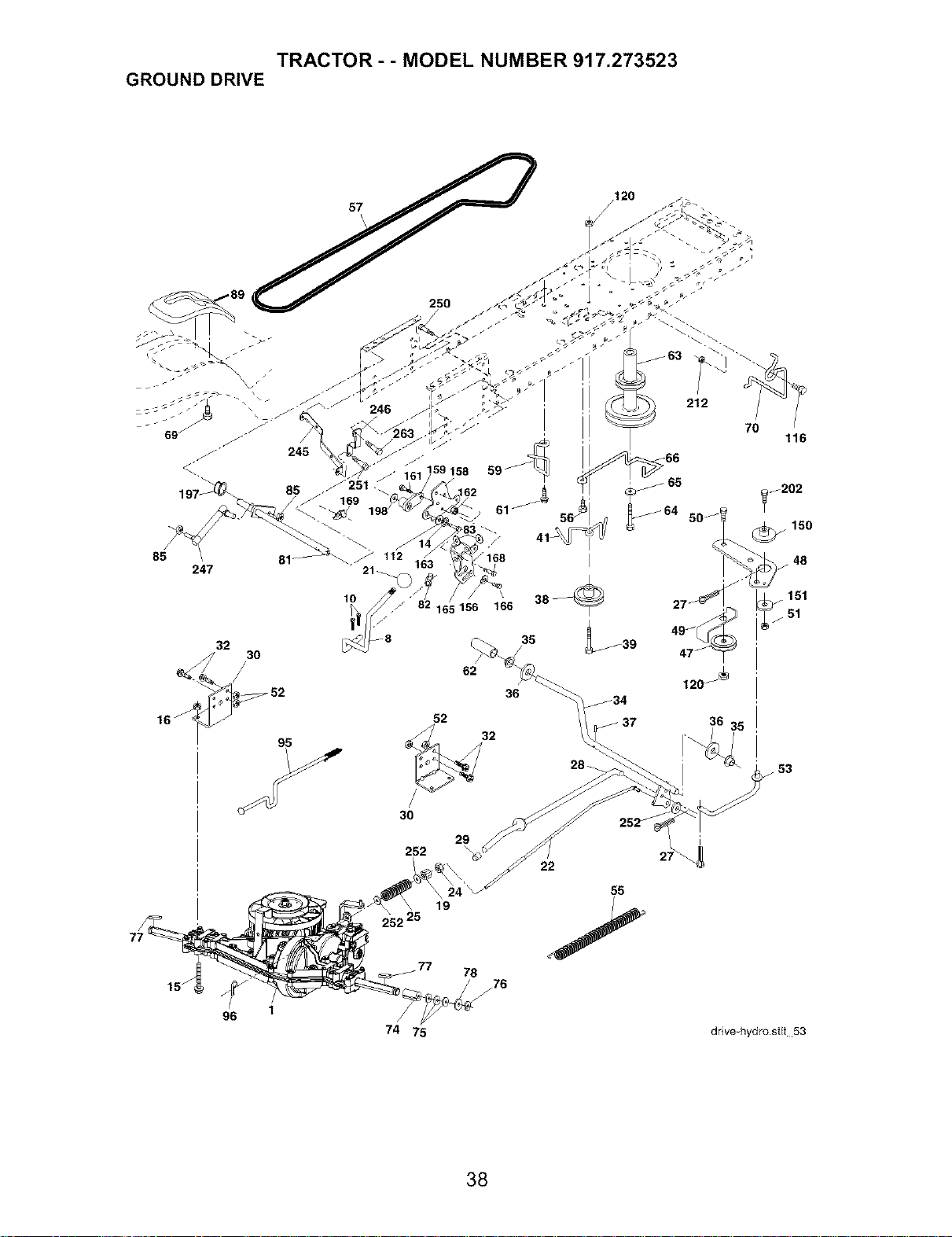

TRACTOR"" MODEL NUMBER 917.273523

GROUND DRIVE

85 81

247

15/

159158

252

166

35 _39

36 _.34

74 75

.76

drive-hydro.st t 53

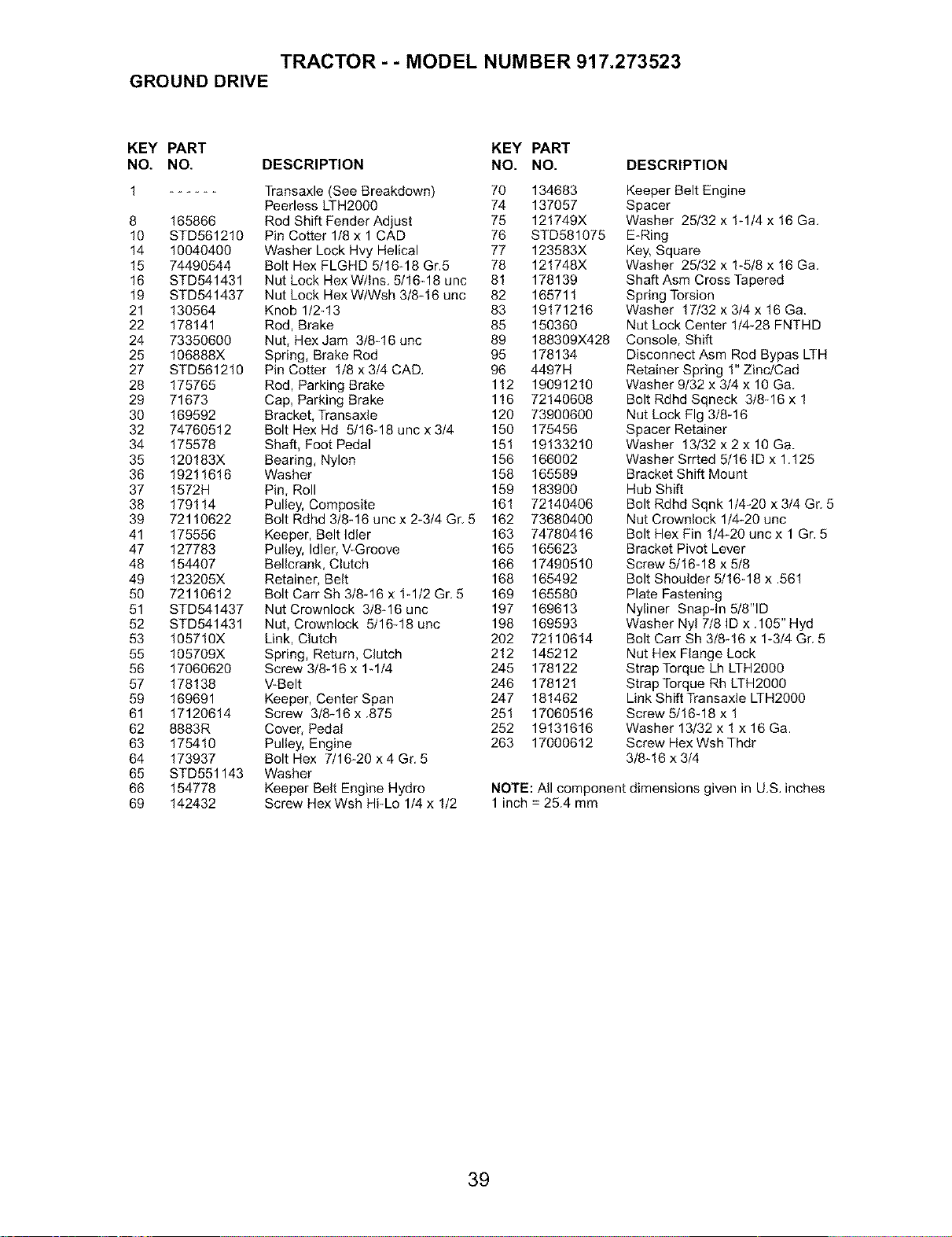

TRACTOR-- MODEL NUMBER 917.273523

GROUND DRIVE

KEY PART KEY PART

NO. NO. DESCRIPTION NO. NO. DESCRIPTION

1 Transaxle (See Breakdown) 70 134683

Peerless LTH2000 74 137057

8 165866 Rod Shift Fender Adjust 75 121749X

10 STD561210 Pin Cotter 1/8 x 1 CAD 76 STD581075

14 10040400 Washer Lock Hvy Helical 77 123583X

15 74490544 Bolt Hex FLGHD 5/16_18 Gr.5 78 121748X

16 STD541431 Nat Lock Hex W/Ins. 5/16-18 unc 81 178139

19 STD541437 Nut Lock Hex W/Wsh 3/8-16 unc 82 16571 !

21 130564 Knob 1/2-13 83 19171216

22 178141 Rod, Brake 85 150360

24 73350600 Nut, Hex Jam 3/8-16 unc 89 188309X428

25 106888X Spring, Brake Rod 95 178134

27 STD561210 Pin Cotter 1/8 x 3/4 CAD. 96 4497H

28 175765 Rod, Parking Brake 112 19091210

29 71673 Cap, Parking Brake 116 72140608

30 169592 Bracket, Transaxle 120 73900600

32 74760512 Bolt Hex Hd 5/16_18 unc x 3/4 150 175456

34 175578 Shaft, Foot Pedal 151 19133210

35 120183X Bearing, Nylon 156 166002

36 19211616 Washer 158 165589

37 1572H Pin, Roll 159 183900

38 179114 Pulley, Composite 161 72140406

39 72110622 Bolt Rdhd 3/8_16 unc x 2_3/4 Gr. 5 162 73680400

41 175556 Keeper, Belt Idler 163 74780416

47 127783 Pulley, Idler, V-Groove 165 165623

48 154407 Bellcrank, Clutch 166 17490510

49 123205X Retainer, Belt 168 165492

50 72110612 Bolt Carr Sh 3/8-16 x 1-1/2 Gr. 5 169 165580

51 STD541437 Nut Crownlock 3/8-16 unc 197 169613

52 STD541431 Nut, Crownlock 5/16_18 unc 198 169593

53 105710X Link, Clutch 202 72110614

55 105709X Spring, Return, Clutch 212 145212

56 17060620 Screw 3/8_16 x 1_1/4 245 178122

57 178138 V-Belt 246 178121

59 169691 Keeper, Center Span 247 181462

61 17120614 Screw 3/8-16 x .875 251 17060516

62 8883R Cover, Pedal 252 19131616

63 175410 Pulley, Engine 263 17000612

64 173937 Bolt Hex 7/16_20 x 4 Gr. 5

65 STD551143 Washer

66 154778 Keeper Belt Engine Hydro

69 142432 Screw HexWsh Hi_Lo 1/4 x 1/2

Keeper Belt Engine

Spacer

Washer 25/32 x 1-1/4 x 16 Ga.

E_Ring

Key, Square

Washer 25132 x 1-5/8 x 16 Ga.

Shaft Asm Cross Tapered

Spring Torsion

Washer 17132 x 3/4 x 16 Ga.

Nut Lock Center 1/4_28 FNTHD

Console, Shift

Disconnect Asm Rod Bypas LTH

Retainer Spring 1" Zinc/Cad

Washer 9/32 x 3/4 x 10 Ga.

Bolt Rdhd Sqneck 3/8_16 x 1

Nut Lock Fig 3/8-16

Spacer Retainer

Washer 13132 x 2 x 10 Ga.

Washer Srrted 5/16 ID x 1.125

Bracket Shift Mount

Hub Shift

Bolt Rdhd Sqnk 1/4_20 x 3/4 Gr. 5

Nut Crownlock 1/4-20 unc

Bolt Hex Fin 1/4-20 unc x 1 Gr. 5

Bracket Pivot Lever

Screw 5/16-18 x 5/8

Bolt Shoulder 5/16-18 x .561

Plate Fastening

Nyliner Snapqn 5/8"1D

Washer Nyl 7/8 ID x .105" Hyd

Bolt Cart Sh 3/8_16 x 1-3/4 Gr. 5

Nut Hex Flange Lock

Strap Torque Lh LTH2000

Strap Torque Rh LTH2000

Link Shift Transaxle LTH2000

Screw 5/16-18 x 1

Washer 13132 x 1 x 16 Ga.

Screw Hex Wsh Thdr

3/8-16 x 3/4

NOTE: All component dimensions given in U.S. inches

1 inch = 25.4 mm

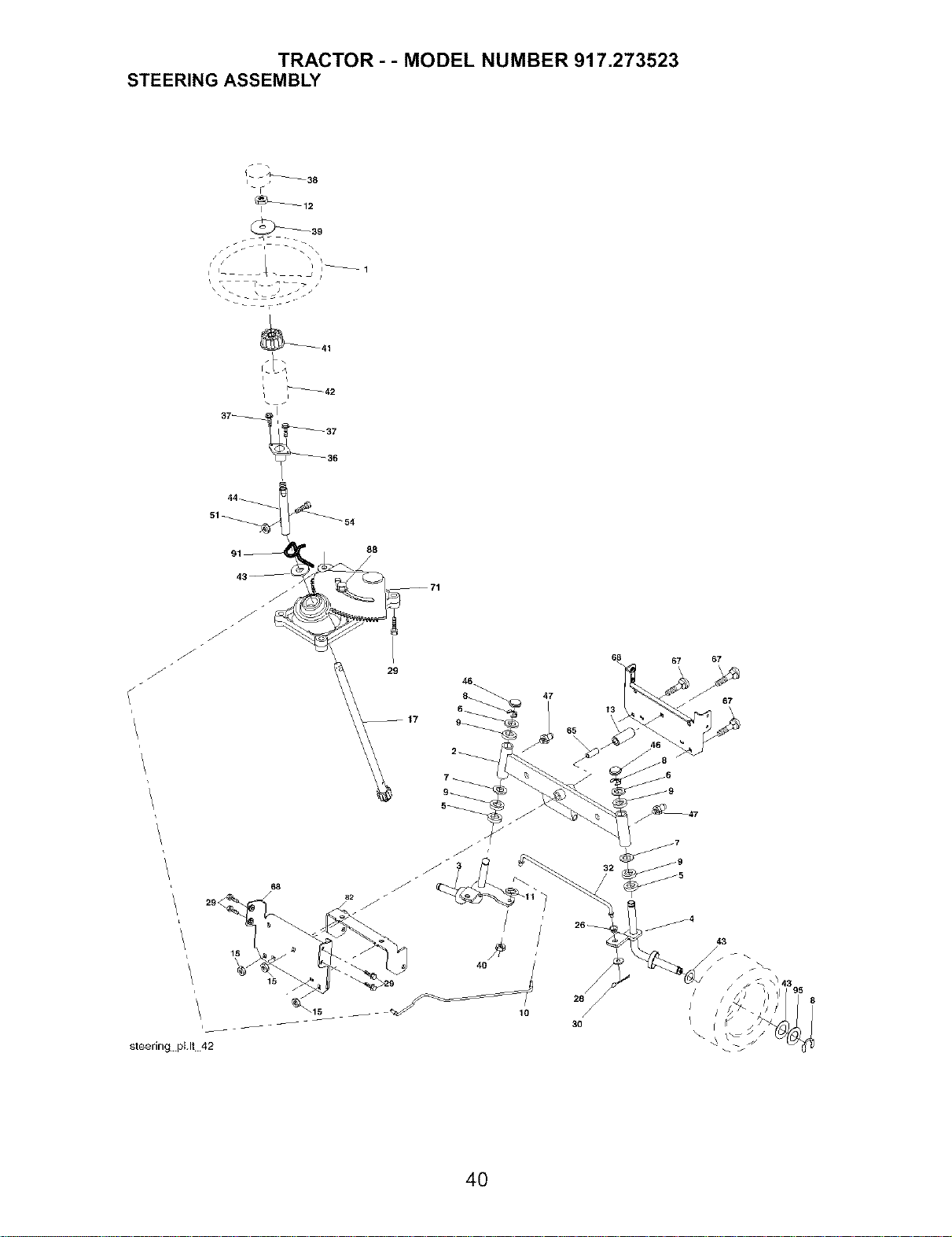

TRACTOR-- MODEL NUMBER 917.273523

STEERING ASSEMBLY

_39

_42

1 15 4_

- /

_15 _ - 10

steering pLIt 42

67 67

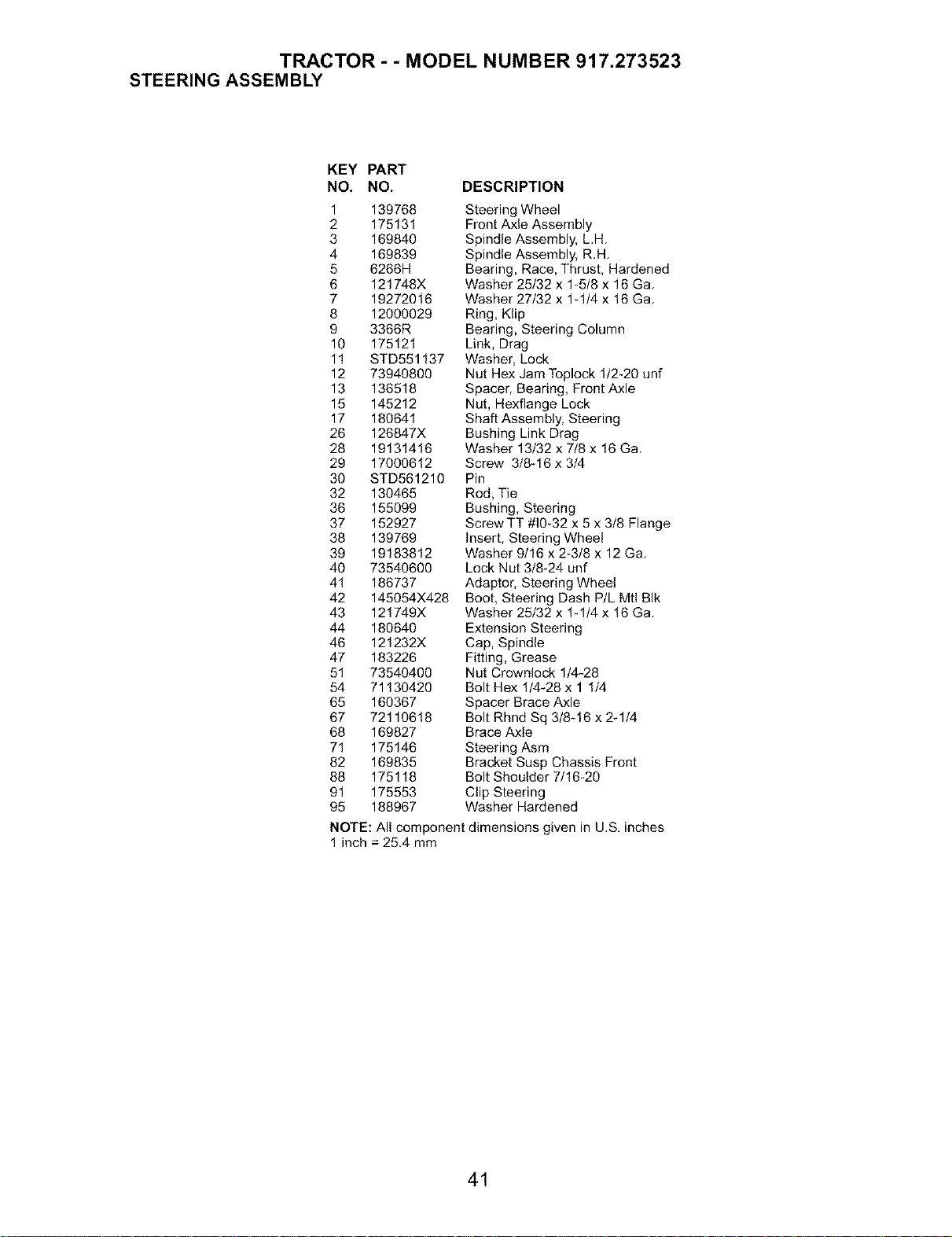

TRACTOR - - MODEL NUMBER 917.273523

STEERING ASSEMBLY

KEY PART

NO. NO. DESCRIPTION

1 139768 Steering Wheel

2 175131 Front Axle Assembly

3 169840 Spindle Assembly, L.FI.

4 169839 Spindle Assembly, R.FI.

5 6266Fl Bearing, Race, Thrust, Hardened

6 121748X Washer 25/32 x 1-5/8 x 16 Ga.

7 19272016 Washer 27/32 x 1-1/4 x 16 Ga.

8 12000029 Ring, Klip

9 3366R Bearing, Steering Column

10 175121 Link, Drag

11 STD551137 Washer, Lock

12 73940800 Nut Flex Jam Toplock 1/2-20 unf

13 136518 Spacer, Bearing, Front Axle

15 145212 Nut, Hexflange Lock

17 180641 Shaft Assembly, Steering

26 126847X Bushing Link Drag

28 19131416 Washer 13/32 x 7/8 x 16 Ga.

29 17000612 Screw 3/8-16 x 3/4

30 STD561210 Pin

32 130465 Rod, Tie

36 155099 Bushing, Steering

37 152927 Screw TT #10-32 x 5 x 3/8 Flange

38 139769 Insert, Steering Wheel

39 19183812 Washer 9/16 x 2-3/8 x 12 Ga.

40 73540600 Lock Nut 3/8_24 unf

41 186737 Adaptor, Steering Wheel

42 145054X428 Boot, Steering Dash P/L Mtl BIk

43 121749X Washer 25/32 x 1_1/4 x 16 Ga.

44 180640 Extension Steering

46 121232X Cap, Spindle

47 183226 Fitting, Grease

51 73540400 Nut Crownlock 1/4-28

54 71130420 Bolt Hex 1/4_28x 1 1/4

65 160367 Spacer Brace Axle

67 72110618 Bolt Rhnd Sq 3/8-16 x 2_1/4

68 169827 Brace Axle

71 175146 Steering Asm

82 169835 Bracket Susp Chassis Front

88 175118 Bolt Shoulder 7/16_20

91 175553 Clip Steering

95 188967 Washer Flardened

NOTE: All component dimensions given in U.S. inches

1 inch = 25.4 mm

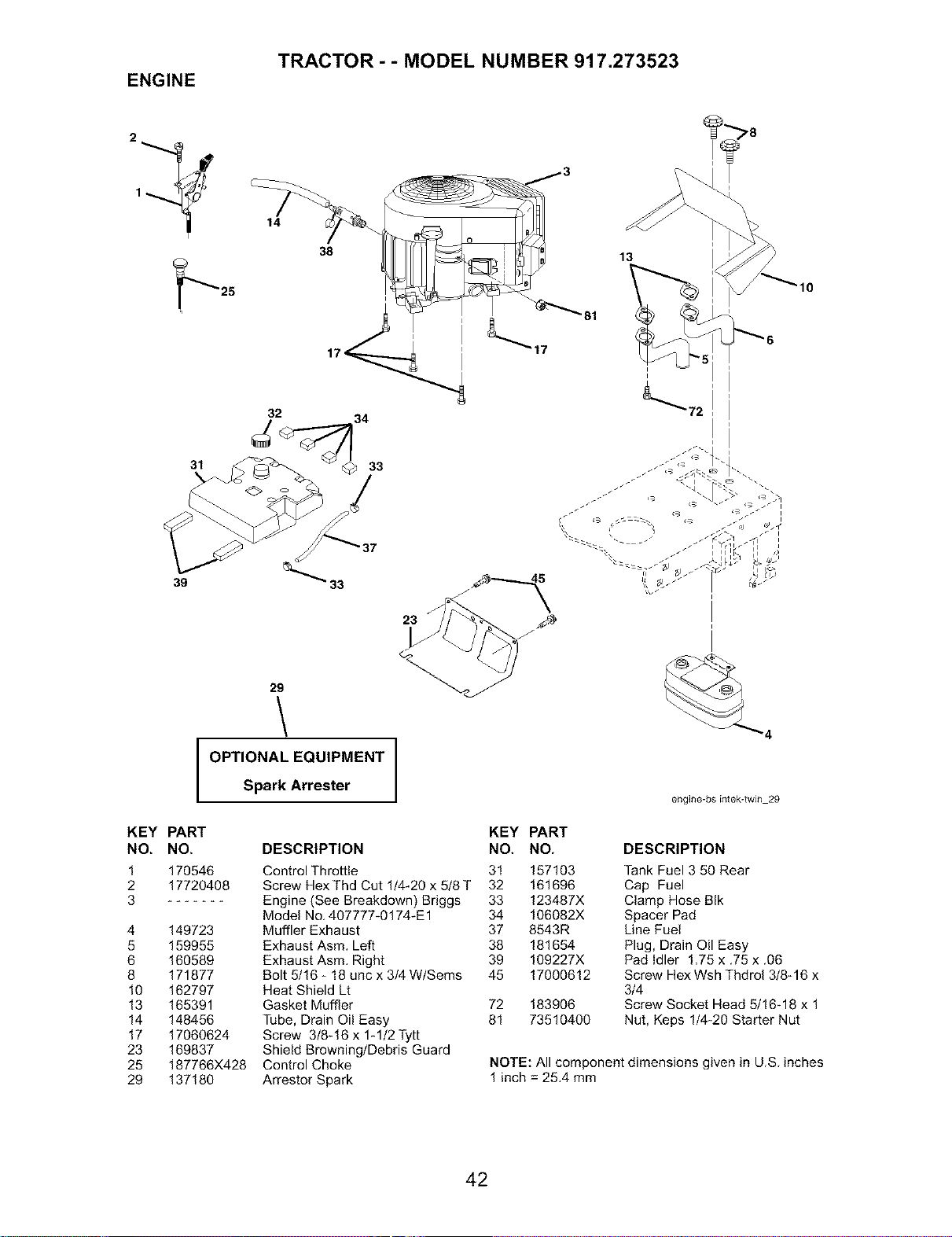

TRACTOR-- MODEL NUMBER 917.273523

ENGINE

32 34

OPTIONAL EQUIPMENT

Spark Arrester

engine-bs intek-twin 29

KEY PART

NO. NO.

1 170546

2 17720408

4 149723

5 159955

6 160589

8 171877

10 162797

13 165391

14 148456

17 17060624

23 169837

25 187766X428

29 137180

KEY PART

DESCRIPTION NO. NO.

Control Throttle 31 157103

Screw HexThd Cut 1/4-20 x 5/8T 32 161696

Engine (See Breakdown) Briggs 33 123487X

Model No. 407777_0174_E1 34 106082X

Muffler Exhaust 37 8543R

Exhaust Asm. Left 38 181654

Exhaust Asm. Right 39 109227X

Bolt 5/16 - 18 unc x 3/4 W/Sems 45 17000612

Heat Shield Lt

Gasket Muffler 72 183906

Tube, Drain Oil Easy 81 73510400

Screw 3/8-16 x 1-1/2 Tytt

Shield Browning/Debris Guard

Control Choke

Arrestor Spark

DESCRIPTION

Tank Fuel 3 50 Rear

Cap Fuel

Clamp Hose BIk

Spacer Pad

Line Fuel

Plug, Drain Oil Easy

Pad Idler 1.75 x .75 x .06

Screw Hex Wsh Thdrol 3/8-16 x

3/4

Screw Socket Head 5/!6_18 x 1

Nut, Keps 1/4_20 Starter Nut

NOTE: All component dimensions given in U.S. inches

1 inch = 25.4 mm

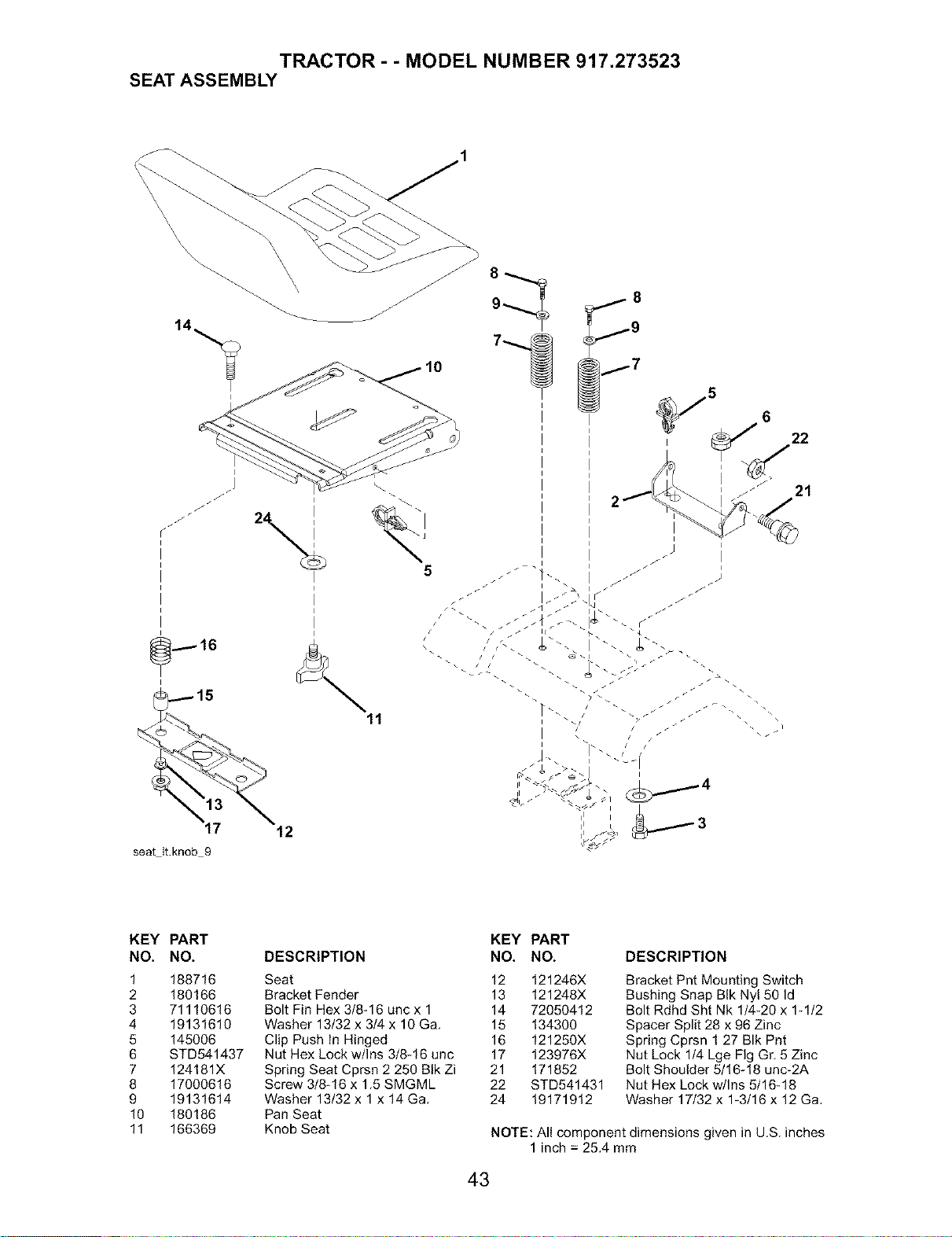

TRACTOR - - MODEL NUMBER 917.273523

SEAT ASSEMBLY

ill¢'/ 24

I I

I i

I I

I i

I I

....---"16

17 12

seat]t.knob 9

KEY PART

NO. NO.

1 188716

2 180166

3 71110616

4 19131610

5 145006

6 STD541437

7 124181X

8 17000616

9 19131814

10 180186

11 166369

DESCRIPTION

Seat

Bracket Fender

Bolt Fin Hex 3/8-16 unc x 1

Washer 13/32 x 3/4 x 10 Ga.

Clip Push In Hinged

Nut Hex Lock w/Ins 3/8-16 unc

Spring Seat Cprsn 2 250 BIk Zi

Screw 3/8-16 x 1.5 SMGML

Washer 13/32 x 1x 14 Ga.

Pan Seat

Knob Seat

KEY PART

NO. NO. DESCRIPTION

12 121246X

13 121248X

14 72050412

15 134300

16 121250X

17 123976X

21 171852

22 STD541431

24 19171912

Bracket Pnt Mounting Switch

Bushing Snap BIk Ny150 Id

Bolt Rdhd Sht Nk 1/4-20 x 1-1/2

Spacer Split 28 x 96 Zinc

Spring Cprsn 1 27 BIk Pnt

Nut Lock 1/4 Lge Fig Gr. 5Zinc

Bolt Shoulder 5/16-18 unc-2A

Nut Hex Lock w/Ins 5/16-18

Washer 17/32 x 1-3/16 x 12 Ga.

NOTE: All component dimensions given in U.S, inches

1 inch = 25.4 mm

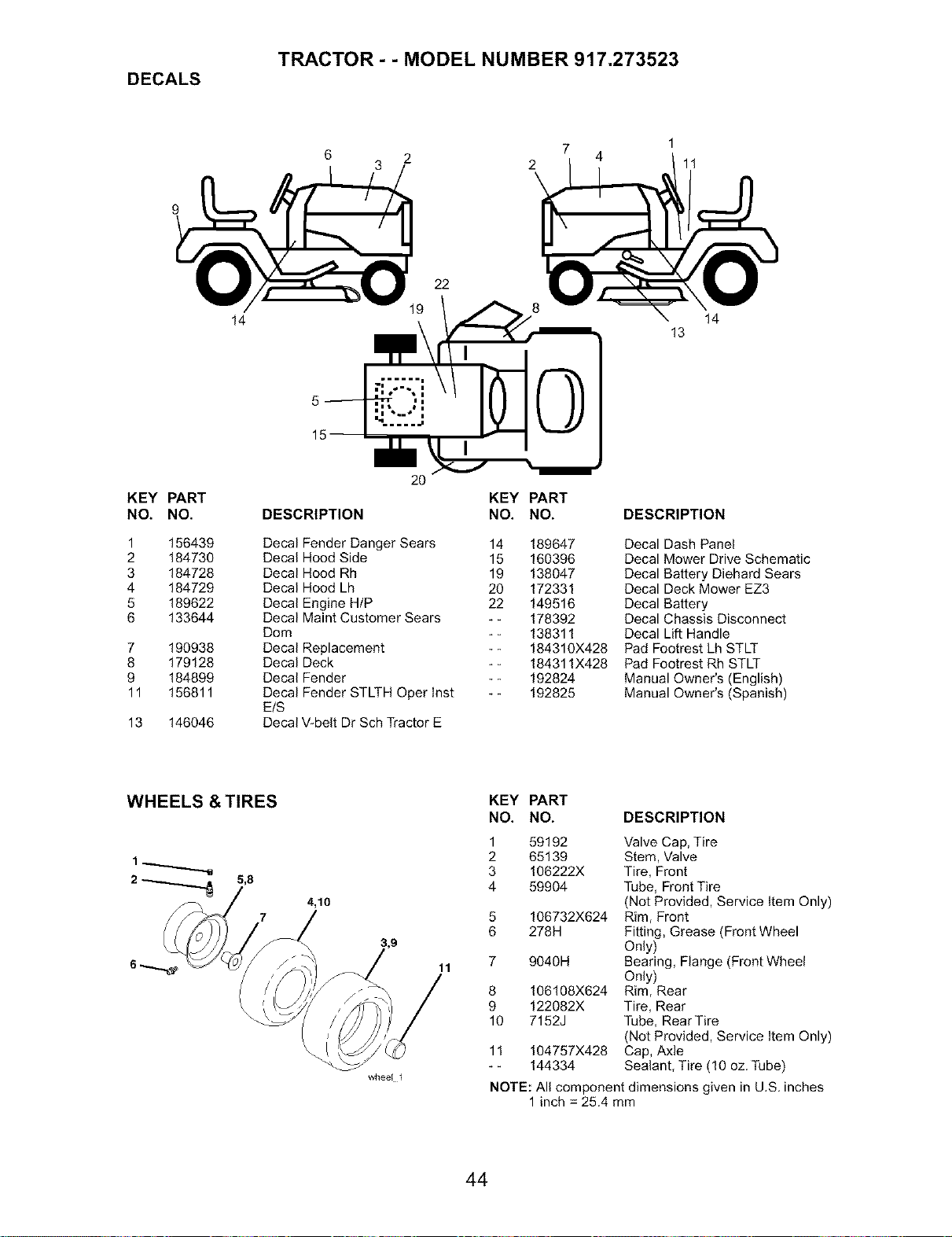

TRACTOR - - MODEL NUMBER 917.273523

DECALS

6 3 2 2 7 4

KEY PART

NO. NO.

1 156439

2 184730

3 184728

4 184729

5 189622

6 133644

7 190938

8 179128

9 184899

11 156811

13 146046

ig / J' 9

KEY PART

DESCRIPTION NO. NO.

Decal Fender Danger Sears 14 189647

Decal Hood Side 15 160396

Decal Hood Rh 19 138047

Decal Hood Lh 20 172331

Decal Engine HIP 22 149516

Decal Maint Customer Sears - - 178392

Dom - - 138311

Decal Replacement - - 184310X428

Decal Deck - - 184311X428

Decal Fender - - 192824

Decal Fender STLTH Oper Inst - - 192825

E/S

Decal Wbelt Dr Sch Tractor E

DESCRIPTION

Decal Dash Panel

Decal Mower Drive Schematic

Decal Battery Diehard Sears

Decal Deck Mower EZ3

Decal Battery

Decal Chassis Disconnect

Decal Lift Handle

Pad Footrest Lh STLT

Pad Footrest Rh STLT

Manual Owner's (English)

Manual Owner's (Spanish)

WHEELS &TIRES

2 _ 5,8

4,10

wheeE 1

KEY PART

NO. NO. DESCRIPTION

59192 Valve Cap, Tire

65139 Stem, Valve

106222X Tire, Front

59904 Tube, Front Tire

(Not Provided, Service Item Only)

106732X624 Rim, Front

278H Fitting, Grease (Front Wheel

Only)

9040H Bearing, Flange (Front Wheel

Only)

106108X624 Rim, Rear

122082X Tire, Rear

7152J Tube, Rear Tire

(Not Provided, Service Item Only)

104757X428 Cap, Axle

144334 Sealant, Tire (10 oz, Tube)

NOTE: All component dimensions given in U.S. inches

1 inch = 25.4 mm

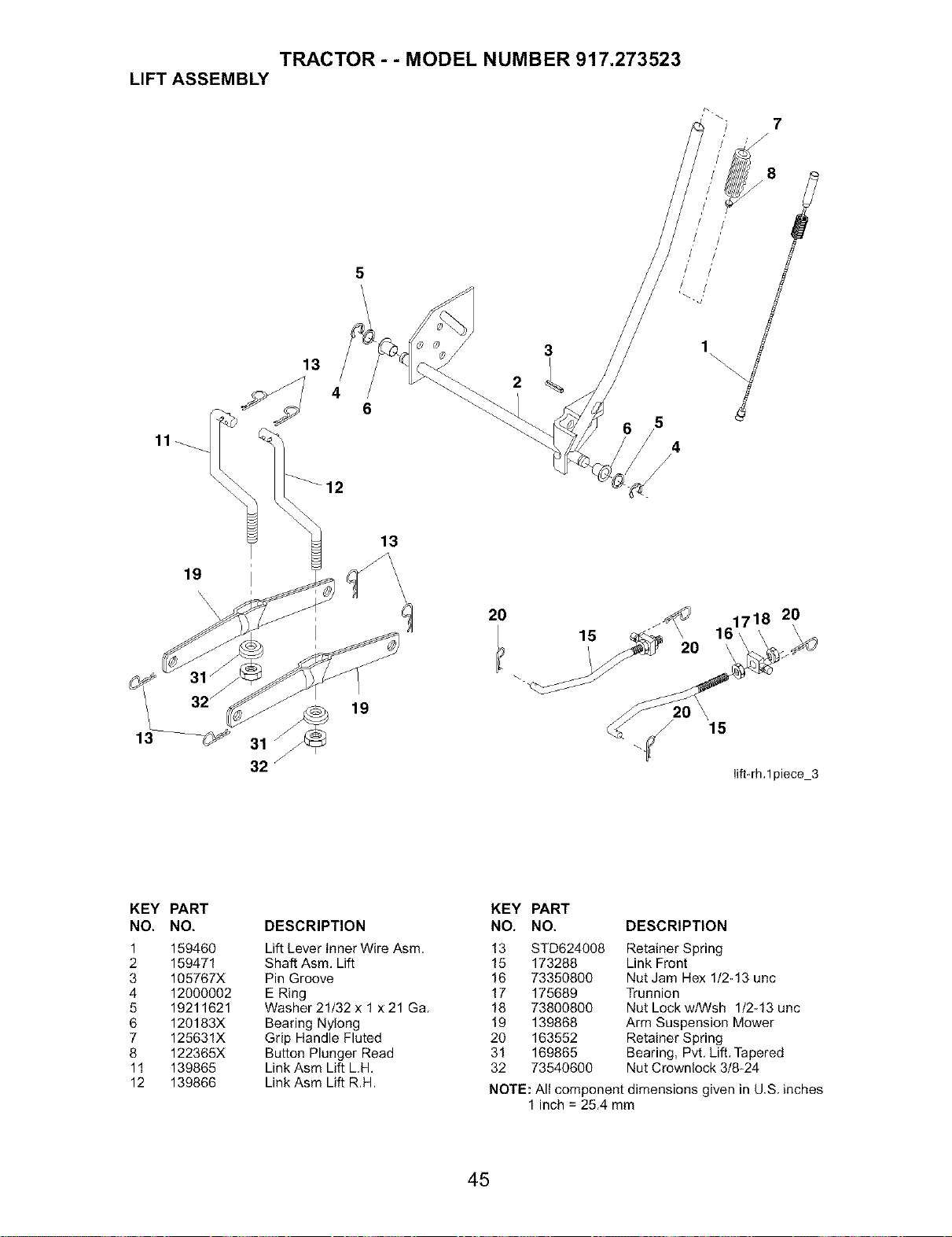

TRACTOR - - MODEL NUMBER 917.273523

LIFT ASSEMBLY

lift-rh.lpiece 3

KEY PART

NO. NO.

1 159460

2 159471

3 105767X

4 12000002

5 19211621

6 120163X

7 125631X

6 122365X

11 139865

12 139866

KEY PART

DESCRIPTION NO. NO. DESCRIPTION

Lift Lever inner Wire Asm, 13 STD624008 Retainer Spring

Shaft Asm. Lift 15 173288 Link Front

Pin Groove 16 73350800 Nut Jam Hex 1/2_13 unc

E Ring 17 175689 Trunnion

Washer 21/32 x 1 x 21 Ga, 18 73800800 Nut Lock w/Wsh 1/2-13 unc

Bearing Nylong 19 139868 Arm Suspension Mower

Grip Handle Fluted 20 163552 Retainer Spring

Button Plunger Read 31 169865 Bearing, Pvt. Lift. Tapered

Link Asm Lift L.H. 32 73540600 Nut Crownlock 3/8-24

Link Asm Lift R.H. NOTE: All component dimensions given in U,S, inches

1 inch = 25,4 mm

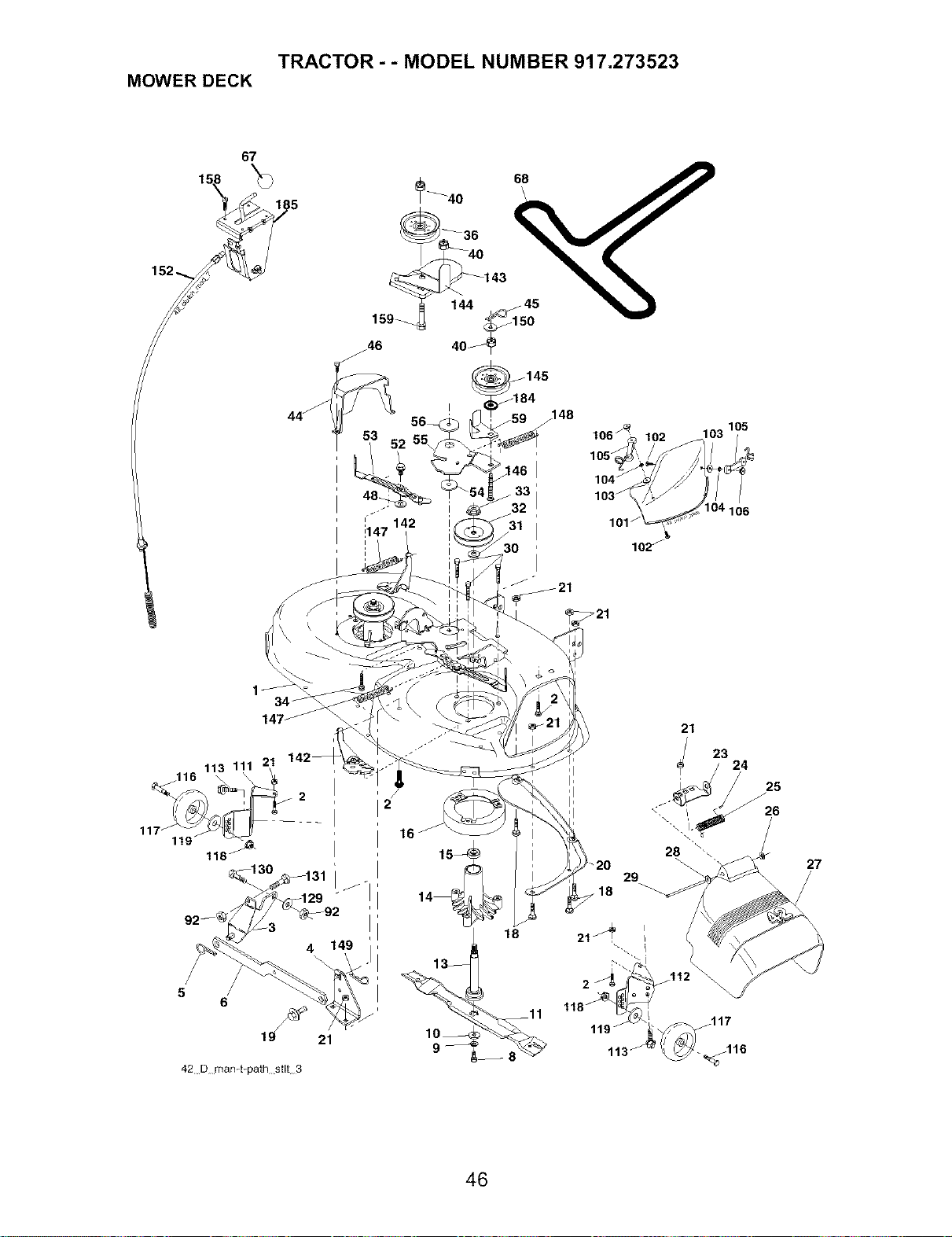

TRACTOR-- MODEL NUMBER 917.273523

MOWER DECK

_145

_148

106/_ 102 103 105

lO3_ \/F / _ /

104106

101J_ 1

102j

118 _

5 /

42 D mamtpath stlt 3

10_

119"

\, I

\ ,

28 "

_116

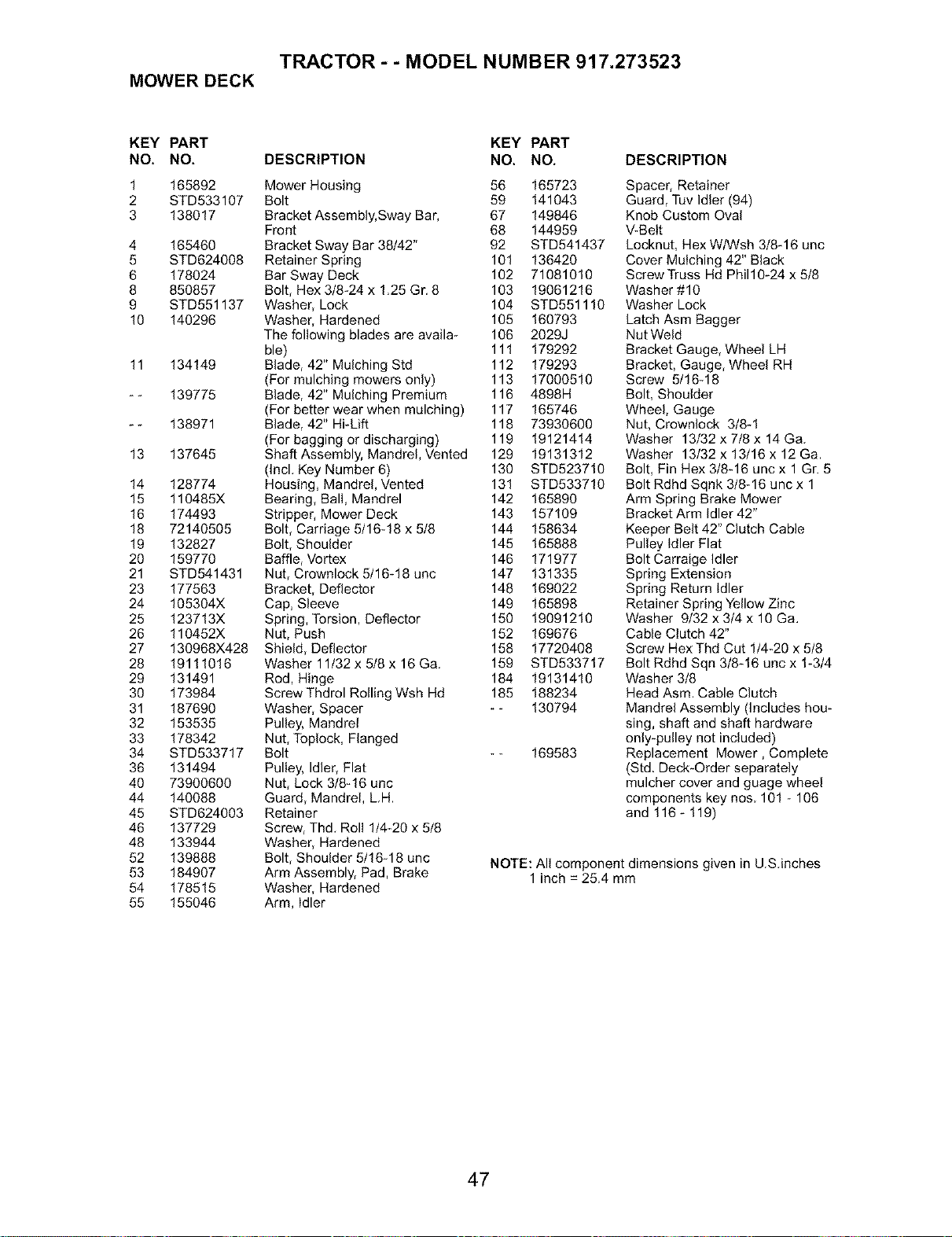

TRACTOR - - MODEL NUMBER 917.273523

MOWER DECK

KEY PART KEY PART

NO. NO. DESCRIPTION NO. NO. DESCRIPTION

1 165892 Mower Housing 56 165723

2 STD533107 Bolt 59 141043

3 138017 Bracket Assembly, Sway Bar, 67 149846

Front 68 144959

4 165460 Bracket Sway Bar 38/42" 92 STD541437

5 STD624008 Retainer Spring 101 136420

6 178024 Bar Sway Deck 102 71081010

8 850857 Bolt, Hex 3/8_24 x 1.25 Gr. 8 103 19061216

9 STD551137 Washer, Lock 104 STD551110

10 140296 Washer, Hardened 105 160793

The following blades are availa_ 106 2029J

ble) 111 179292

11 134149 Blade, 42" Mulching Std 112 179293

(For mulching mowers only) 113 17000510

_ 139775 Blade, 42" Mulching Premium 116 4898H

(For better wear when mulching) 117 165746

_ 138971 Blade, 42" Hi-Lift 118 73930600

(For bagging or discharging) 119 19121414

13 137645 Shaft Assembly, Mandrel, Vented 129 19131312

(Incl. Key Number 6) 130 STD523710

14 128774 Housing, Mandrel, Vented 131 STD533710

15 110485X Bearing, Ball, Mandrel 142 165890

16 174493 Stripper, Mower Deck 143 157109

18 72140505 Bolt, Carriage 5/16_18 x 5/8 144 158634

19 132827 Bolt, Shoulder 145 165888

20 159770 Baffle, Vortex 146 171977

21 STD541431 Nut, Crownlock 5/16_18 unc 147 131335

23 177563 Bracket, Deflector 148 169022

24 105304X Cap, Sleeve 149 165898

25 123713X Spring, Torsion, Deflector 150 19091210

26 110452X Nut, Push 152 169676

27 130968X428 Shield, Deflector 158 17720408

28 19111016 Washer 11/32 x 5/8 x 16 Ga. 159 STD533717

29 131491 Rod, Hinge 184 19131410

30 173984 ScrewThdrol RollingWsh Hd 185 188234

31 187690 Washer, Spacer __ 130794

32 153535 Pulley, Mandrel

33 178342 Nut, Toplock, Flanged

34 STD533717 Bolt __ 169583

36 131494 Pulley, Idler, Flat

40 73900600 Nut, Lock 3/8-16 unc

44 140088 Guard, Mandrel, L.H.

45 STD624003 Retainer

46 137729 Screw, Thd. Roll 1/4-20 x 5/8

48 133944 Washer, Hardened

52 139888 Bolt, Shoulder 5/16_18 unc

53 184907 Arm Assembly, Pad, Brake

54 178515 Washer, Hardened

55 155046 Arm, Idler

Spacer, Retainer

Guard, Tuv Idler (94)

Knob Custom Oval

WBett

Locknut, Hex W/Wsh 3/8-16 unc

Cover Mulching 42" Black

Screw Truss Hd Phi110_24x 5/8

Washer #10

Washer Lock

Latch Asm Bagger

Nut Weld

Bracket Gauge, Wheel LH

Bracket, Gauge, Wheel RH

Screw 5/16-18

Bolt, Shoulder

Wheel, Gauge

Nut, Crownlock 3/8-1

Washer 13/32 x 7/8 x 14 Ga.

Washer 13/32 x 13/16 x 12 Ga.

Bolt, Fin Hex 3/8-16 unc x 1 GE 5

Bolt Rdhd Sqnk 3/8-16 unc x 1

Arm Spring Brake Mower

Bracket Arm Idler 42"

Keeper Belt 42" Clutch Cable

Pulley Idler Flat

Bolt Carraige Idler

Spring Extension

Spring Return Idler

Retainer Spring Yellow Zinc

Washer 9/32 x 3/4 x 10 Ga.

Cable Clutch 42"

Screw Hex Thd Cut 1/4-20 x 5/8

Bolt Rdhd Sqn 3/8-16 unc x 1_3/4

Washer 3/8

Head Asm. Cable Clutch

Mandrel Assembly (Includes hou r

sing, shaft and shaft hardware

only_pulley not included)

Replacement Mower, Complete

(Std. Deck_Order separately

mulcher cover and guage wheel

components key nos. 101 _106

and 116 _ 119)

NOTE: All component dimensions given in U.S.inches

1 inch = 25.4 mm

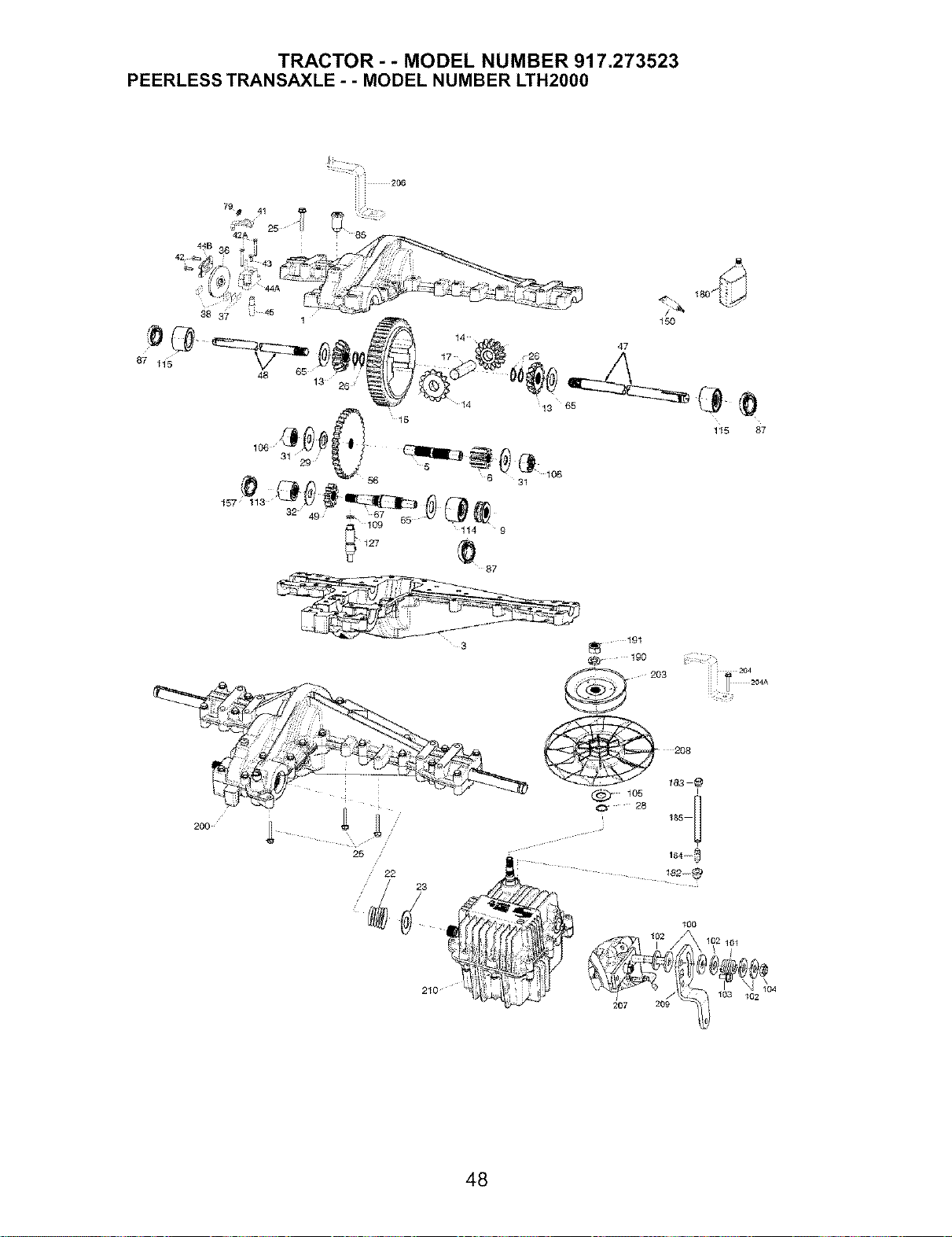

TRACTOR-- MODEL NUMBER 917.273523

PEERLESS TRANSAXLE - - MODEL NUMBER LTH2000

150

13 65

115 87

200

i %

i]¸!_

lo2 lo2 lel

207 209 _

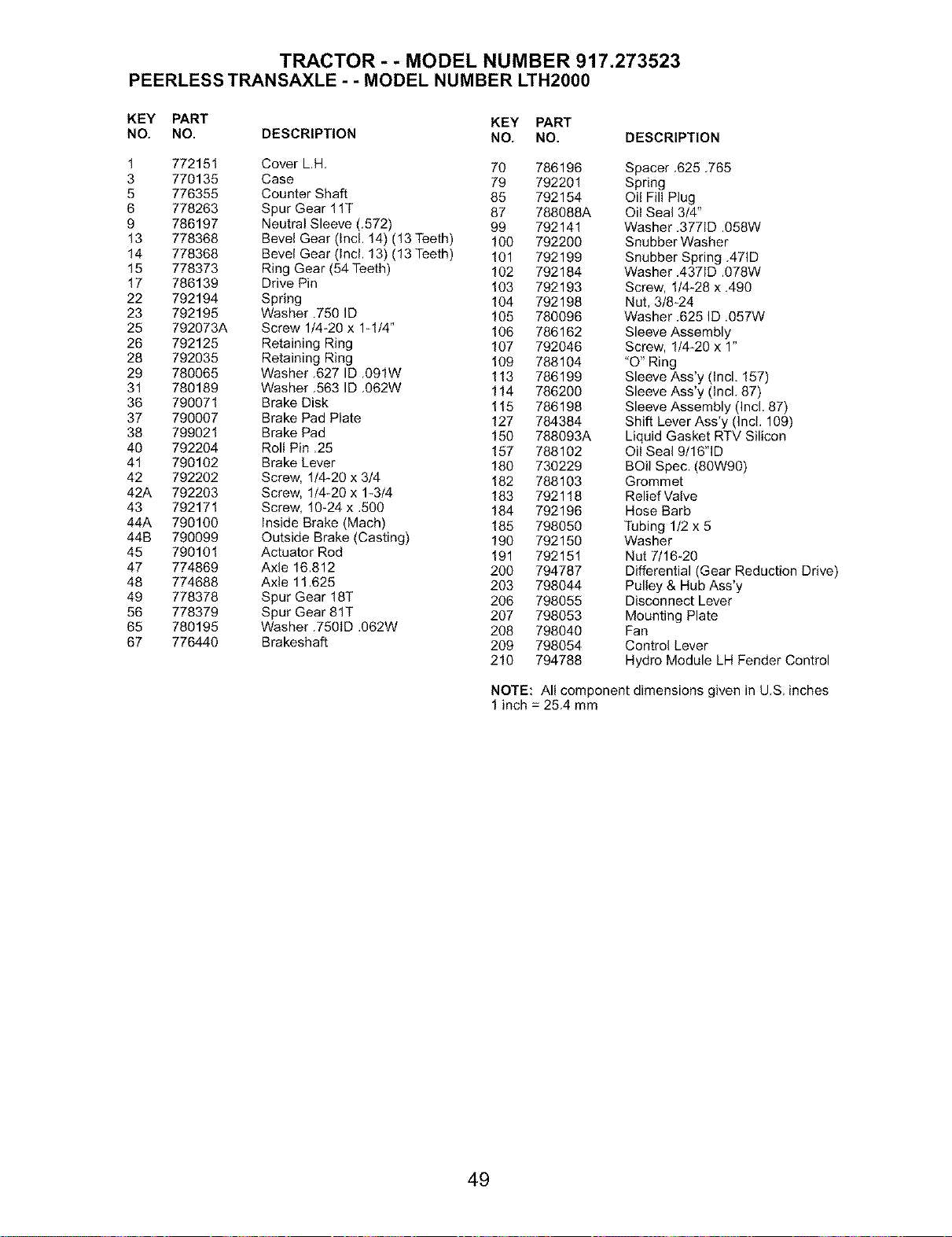

TRACTOR - - MODEL NUMBER 917.273523

PEERLESS TRANSAXLE - - MODEL NUMBER LTH2000

KEY PART KEY PART

NO. NO. DESCRIPTION NO. NO. DESCRIPTION

1 772151 Cover L.H. 70 786196

3 770135 Case 79 792201

5 776355 Counter Shaft 85 792154

6 778263 Spur Gear 11T 87 788088A

9 786197 Neutral Sleeve (.572) 99 792141

13 778368 Bevel Gear (Incl. 14) (13 Teeth) 100 792200

14 778368 Bevel Gear (Incl. 13) (13 Teeth) 101 792199

15 778373 Ring Gear (54 Teeth) 102 792184

17 786139 Drive Pin 103 792193

22 792194 Spring 104 792198

23 792195 Washer .750 ID 105 780096

25 792073A Screw 1/4_20 x 1_1/4" 106 786162

26 792125 Retaining Ring 107 792046

28 792035 Retaining Ring 109 788104

29 780065 Washer .627 ID .091W 113 786199

31 780189 Washer .563 ID .062W 114 786200

36 790071 Brake Disk 115 786198

37 790007 Brake Pad Plate 127 784384

38 799021 Brake Pad 150 788093A

40 792204 Roll Pin .25 157 788102

41 790102 Brake Lever 180 730229

42 792202 Screw, 1/4_20 x 3/4 182 788103

42A 792203 Screw, 1/4_20 x 1_3/4 183 792118

43 792171 Screw, 10_24 x .500 184 792196

44A 790100 Inside Brake (Mach) 185 798050

44B 790099 Outside Brake (Casting) 190 792150

45 790101 Actuator Rod 191 792151

47 774869 Axle 16.812 200 794787

48 774688 Axle 11.625 203 798044

49 778378 Spur Gear 18T 206 798055

56 778379 Spur Gear 81T 207 798053

65 780195 Washer .750ID .062W 208 798040

67 776440 Brakeshaft 209 798054

210 794788

Spacer .625.765

Spring

Oil Fill Plug

Oil Seal 314"

Washer .3771D .058W

Snubber Washer

Snubber Spring .471D

Washer .4371D .078W

Screw, 1/4_28 x .490

Nut, 3/8_24

Washer .625 ID .057W

Sleeve Assembly

Screw, 1/4_20 x 1"

"0" Ring

Sleeve Ass'y (incl. 157)

Sleeve Ass'y (Incl. 87)

Sleeve Assembly (Incl. 87)

Shift Lever Ass'y (incl. 109)

Liquid Gasket RTV Silicon

Oil Seal 9/16"1D

BOil Spec. (80W90)

Grommet

Relief Valve

Hose Barb

Tubing 1/2 x 5

Washer

Nut 7/16_20

Differential (Gear Reduction Drive)

Pulley & Hub Ass'y

Disconnect Lever

Mounting Plate

Fan

Control Lever

Hydro Module LH Fender Control

NOTE: All component dimensions given in U.S. inches

1 inch = 25.4 mm

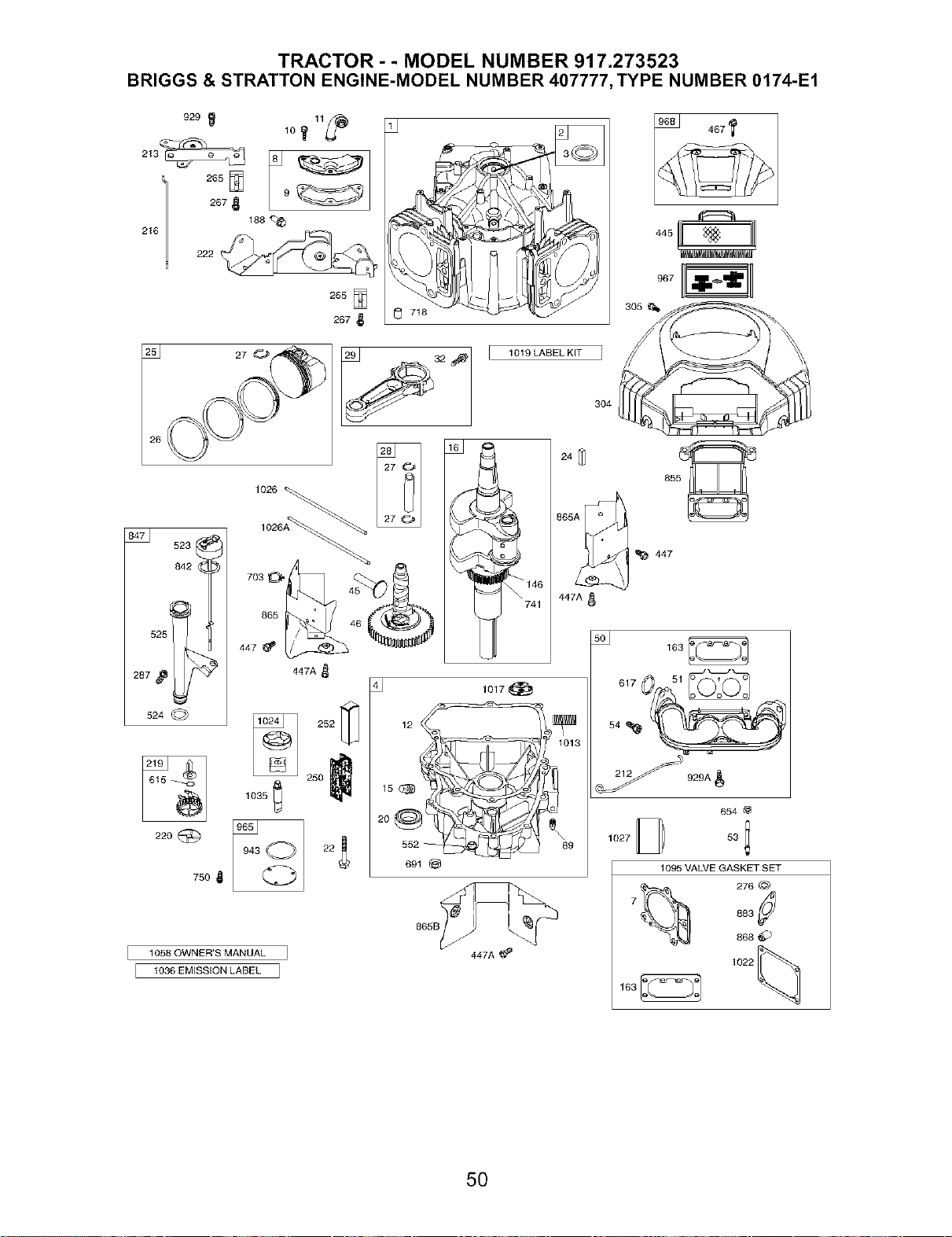

TRACTOR-- MODEL NUMBER 917.273523

BRIGGS & STRATTON ENGINE-MODEL NUMBER 407777, TYPE NUMBER 0174-E1

25J 27 O

84d

523I_

842 (

525

287 _

524 (_

220 @

750

1019 LABEL KIT

447A

1035 _ 250

1017_

552 --

691

1058 OWNER'S MANUAL

1036 EMISSION LABEL

24[

865B_

447A_

304

445

967

305 _

447

447A

654

1027 53 1

1095 VALVE GASKET SET

276

7 883 J

868 '_

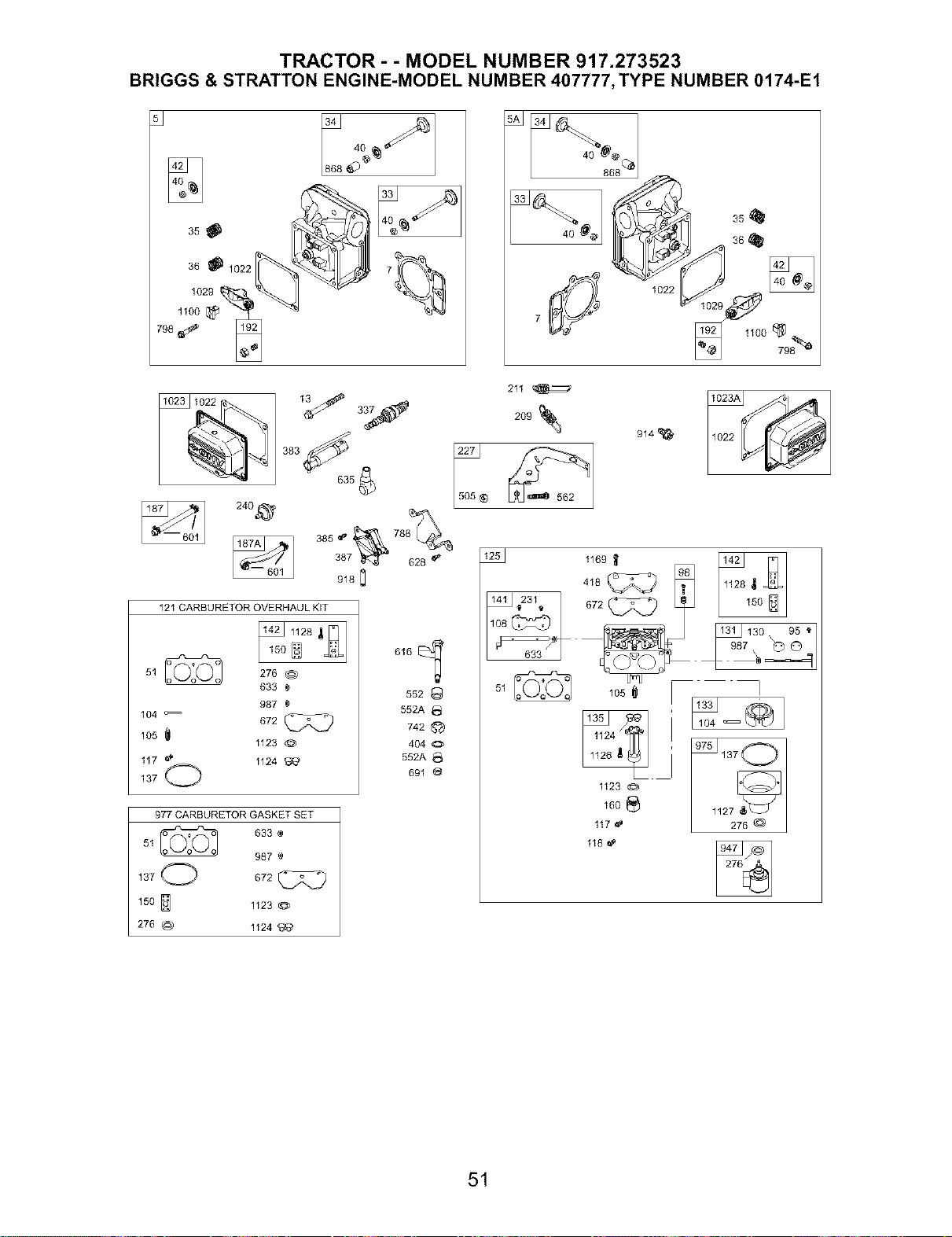

TRACTOR - - MODEL NUMBER 917.273523

BRIGGS & STRATTON ENGINE-MODEL NUMBER 407777,TYPE NUMBER 0174-E1

36 _1022

1029

1100

4o_,,-

1029 11/3j

121 CARBURETOR OVERHAUL KIT

51 _.)_.)_ 276 @

633 e

987 e

104

672 _

105 _

1123 @

117 _ 1124

137 0

61o

552

552A

742

4O4

552A

691 @

977 CARBURETOR GASKET SET

633

987 e

197C) 672_

150

1123

276 @ 1124 _

211

209 _

96_

_ 36_

914

1169

108_

633

61_ 105

975J1370

1123 @

16o

117 _ 276 @

118

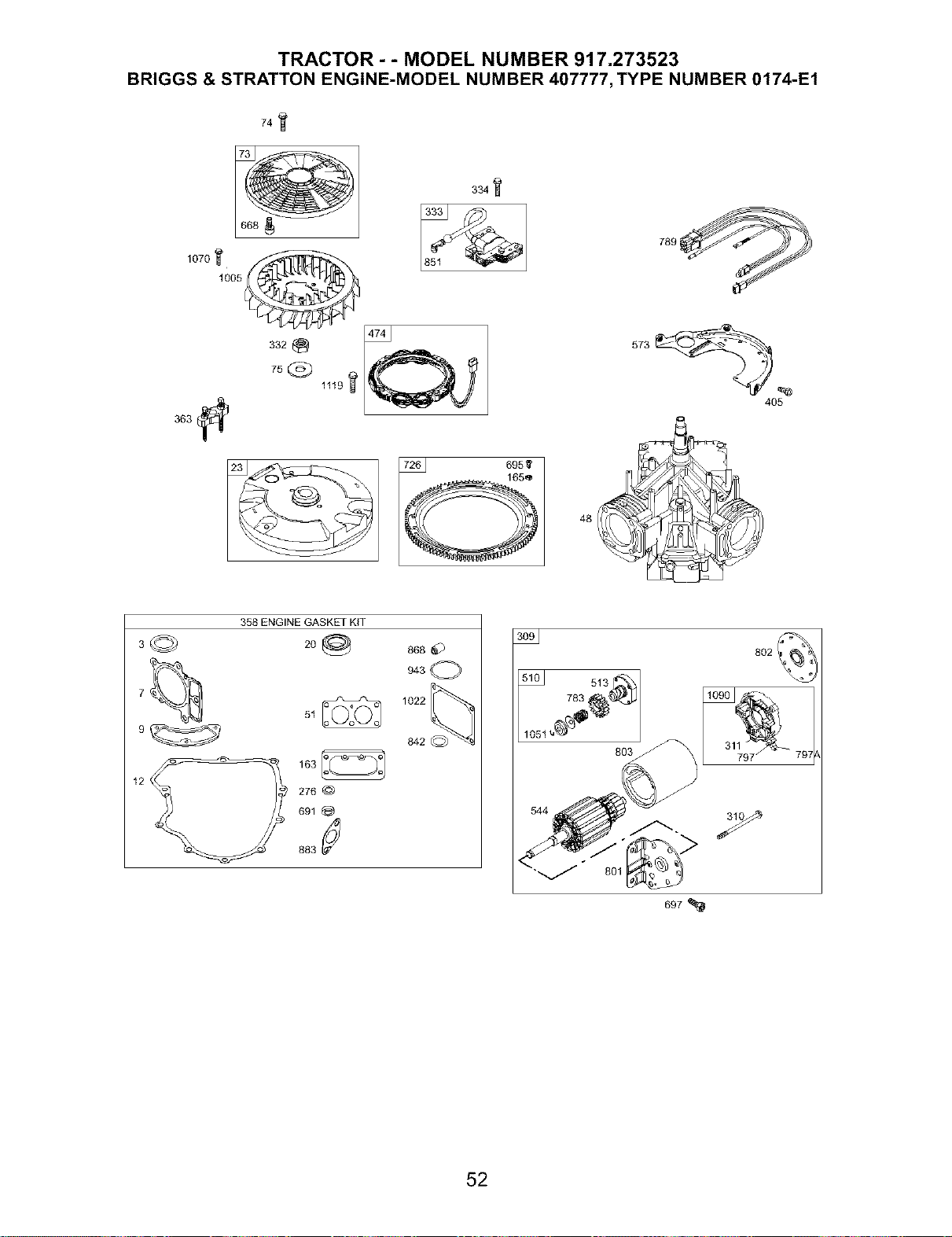

TRACTOR-- MODEL NUMBER 917.273523

BRIGGS & STRATTON ENGINE-MODEL NUMBER 407777, TYPE NUMBER 0174-E1

74I_

668

695_

573 _

405

358 ENGINE GASKET KiT

3© 20@_ 808

943 0

7 51 _ 1022

9 _ 842

163

276 @

691

883

801

lO8OJ_

311797_ 79_

31os9

697

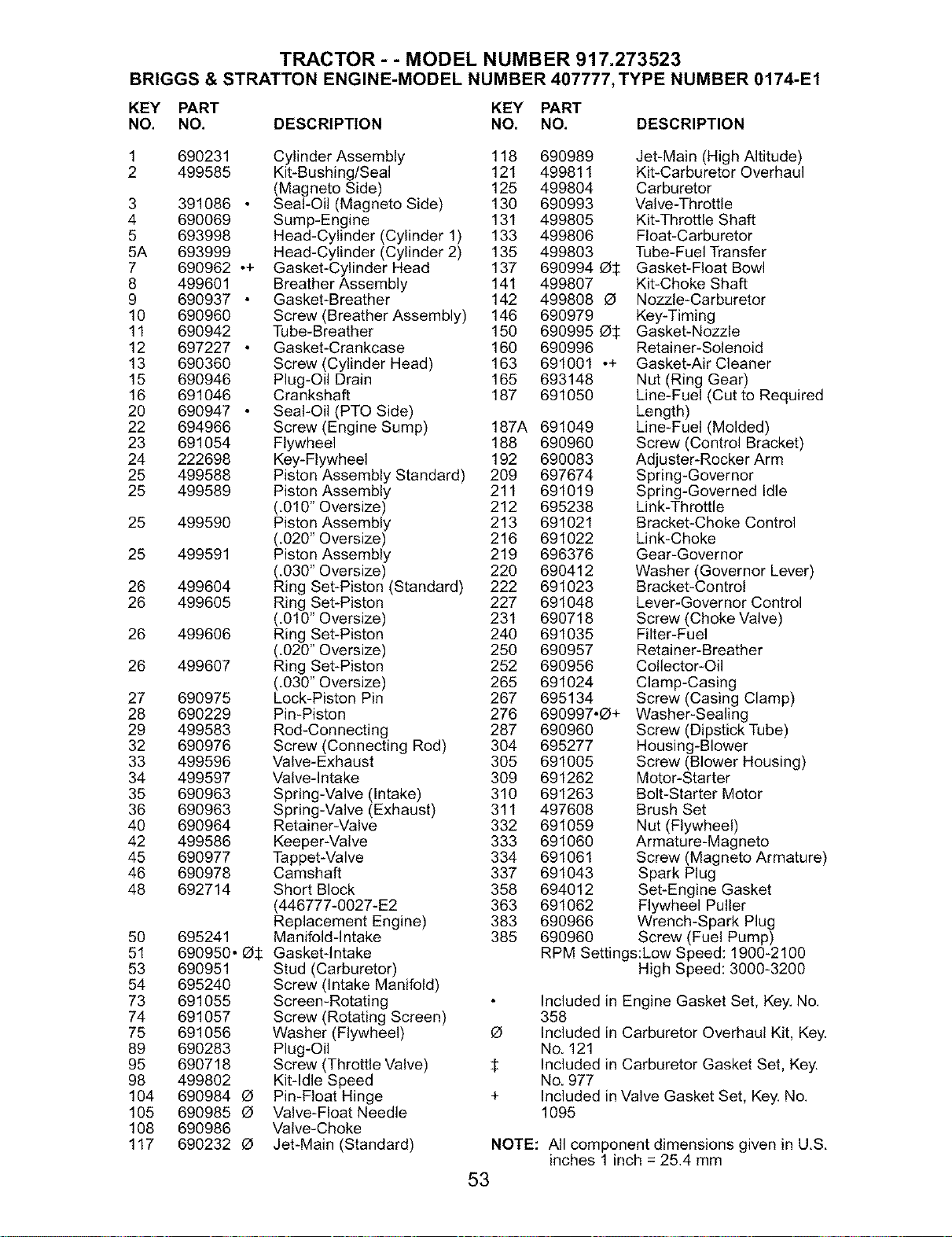

TRACTOR - - MODEL NUMBER 917.273523

BRIGGS & STRATTON ENGINE-MODEL NUMBER 407777,TYPE NUMBER 0174-E1

KEY PART KEY PART

NO. NO. DESCRIPTION NO. NO. DESCRIPTION

690231

499585

3 391086

4 690069

5 693998

5A 693999

7 690962

8 499601

9 690937

10 690960

11 690942

12 697227

13 690360

15 690946

16 691046

20 690947

22 694966

23 691054

24 222698

25 499588

25 499589

25 499590

25 499591

26 499604

26 499605

26 499606

26 499607

27 690975

28 690229

29 499583

32 690976

33 499596

34 499597

35 690963

36 690963

40 690964

42 499586

45 690977

46 690978

48 692714

50 695241

51 690950, O5

53 690951

54 695240

73 691055

74 691057

75 691056

89 690283

95 690718

98 499802

104 690984 O

105 690985 O

108 690986

117 690232 O

Cylinder Assembly 118 690989

Kit-Bushing/Seal 121 499811

(Magneto Side) 125 499804

Seal-Oil (Magneto Side) 130 690993

Sump-Engine 131 499805

Head-Cylinder (Cylinder 1) 133 499806

Head-Cylinder (Cylinder 2) 135 499803

Gasket-Cylinder Head 137 690994 O.1:

Breather Assembly 141 499807

Gasket-Breather 142 499808 O

Screw (Breather Assembly) 146 690979

Tube-Breather 150 690995 O.1:

Gasket-Crankcase 160 690996

Screw (Cylinder Head) 163 691001 .+

Plug-Oil Drain 165 693148

Crankshaft 187 691050

Seal-Oil (PTO Side)

Screw (Engine Sump) 187A 691049

Flywheel 188 690960

Key-Flywheel 192 690083

Piston Assembly Standard) 209 697674

Piston Assembly 211 691019

(.010" Oversize) 212 695238

Piston Assembly 213 691021

(.020" Oversize) 216 691022

Piston Assembly 219 696376

(.030" Oversize) 220 690412

Ring Set-Piston (Standard) 222 691023

Ring Set-Piston 227 691048

(.010" Oversize) 231 690718

Ring Set-Piston 240 691035

(.020" Oversize) 250 690957

Ring Set-Piston 252 690956

(.030" Oversize) 265 691024

Lock-Piston Pin 267 695134

Pin-Piston 276 690997.0+

Rod-Connecting 287 690960

Screw (Connecting Rod) 304 695277

Valve-Exhaust 305 691005

Valve-intake 309 691262

Spring-Valve (Intake) 310 691263

Spring-Valve (Exhaust) 311 497608

Retainer-Valve 332 691059

Keeper-Valve 333 691060

Tappet-Valve 334 691061

Camshaft 337 691043

Short Block 358 694012

(446777-0027-E2 363 691062

Replacement Engine) 383 690966

Manifold-intake 385 690960

Gasket-I ntake

Stud (Carburetor)

Screw (intake Manifold)

Screen-Rotating

Screw (Rotating Screen)

Washer (Flywheel) O

Plug-Oil

Screw (Throttle Valve) $

Kit-Idle Speed

Pin-Float Hinge +

Valve-Float Needle

Valve-Choke

Jet-Main (Standard)

Jet-Main (High Altitude)

Kit-Carburetor Overhaul

Carburetor

Valve-Throttle

Kit-Throttle Shaft

Float-Carburetor

Tube-Fuel Transfer

Gasket-Float Bowl

Kit-Choke Shaft

Nozzle-Carburetor

Key-Timing

Gasket-Nozzle

Retainer-Solenoid

Gasket-Air Cleaner

Nut (Ring Gear)

Line-Fuel (Cut to Required

Length)

Line-Fuel (Molded)

Screw (Control Bracket)

Adjuster-Rocker Arm

Spring-Governor

Spring-Governed Idle

Link-Throttle

Bracket-Choke Control

Link-Choke

Gear-Governor

Washer (Governor Lever)

Bracket-Control

Lever-Governor Control

Screw (Choke Valve)

Filter-Fuel

Retainer-Breather

Collector-Oil

Clamp-Casing

Screw (Casing Clamp)

Washer-Sealing

Screw (Dipstick Tube)

Housing-Blower

Screw (Blower Housing)

Motor-Starter

Bolt-Starter Motor

Brush Set

Nut (Flywheel)

Armature-Magneto

Screw (Magneto Armature)

Spark Plug

Set-Engine Gasket

Flywheel Puller

Wrench-Spark Plug

Screw (Fuel Pump)

RPM Settings:Low Speed: 1900-2100

High Speed: 3000-3200

Included in Engine Gasket Set, Key. No.

358

Included in Carburetor Overhaul Kit, Key.

No. 121

Included in Carburetor Gasket Set, Key.

No. 977

Included in Valve Gasket Set, Key. No.

1095

NOTE: All component dimensions given in U.S.

inches 1 inch = 25.4 mm

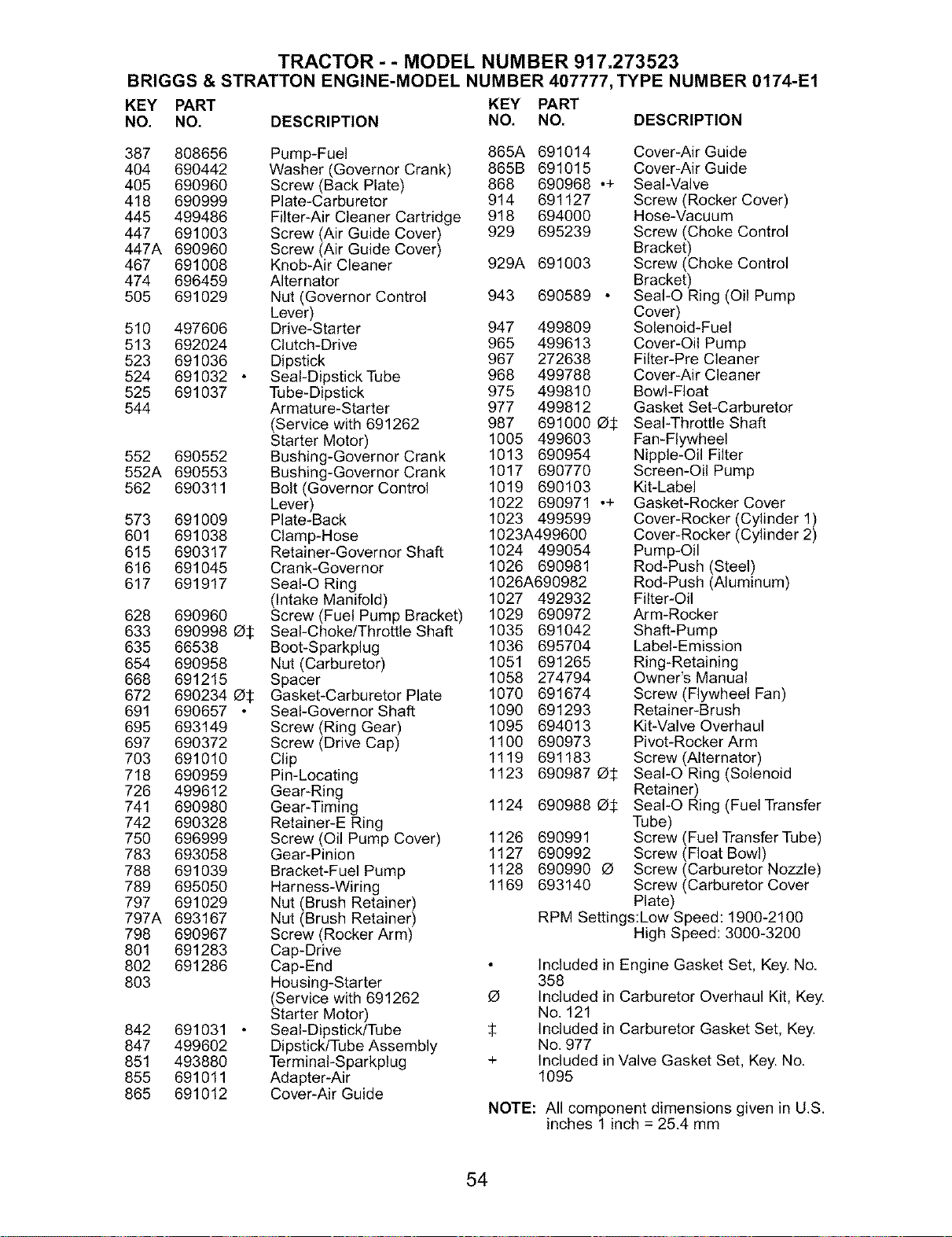

TRACTOR-- MODEL NUMBER 917.273523

BRIGGS & STRATTON ENGINE-MODEL NUMBER 407777, TYPE NUMBER 0174-E1

KEY PART KEY PART

NO. NO. DESCRIPTION NO. NO. DESCRIPTION

387 808656

404 690442

405 690960

418 690999

445 499486

447 691003

447A 690960

467 691008

474 696459

505 691029

510 497606

513 692024

523 691036

524 691032

525 691037

544

552 690552

552A 690553

562 690311

573 691009

601 691038

615 690317

616 691045

617 691917

628 690960

633 690998

635 66538

654 690958

668 691215

672 690234

691 690657

695 693149

697 690372

703 691010

718 690959

726 499612

741 690980

742 690328

750 696999

783 693058

788 691039

789 695050

797 691029

797A 693167

798 690967

801 691283

802 691286

803

842 691031

847 499602

851 493880

855 691011

865 691012

Pump-Fuel

Washer (Governor Crank)

Screw (Back Plate)

Plate-Carburetor

Filter-Air Cleaner Cartridge

Screw (Air Guide Cover)

Knob-Air Cleaner

Alternator

Nut (Governor Control

Lever)

Drive-Starter

Clutch-Drive

Dipstick

Seal-Dipstick Tube

Tube-Dipstick

Armature-Starter

(Service with 691262

Starter Motor)

Bushing-Governor Crank

Bolt (Governor Control

Lever)

Plate-Back

Clamp-Hose

Retainer-Governor Shaft

Crank-Governor

SeaI-O Ring

(Intake Manifold)

Screw (Fuel Pump Bracket)

Seal-Choke/Throttle Shaft

Boot-Sparkplug

Nut (Carburetor)

Spacer

Gasket-Carburetor Plate

Seal-Governor Shaft

Screw (Ring Gear)

Screw (Drive Cap)

Clip

Pin-Locating

Gear-Ring

Gear-Timing

Retainer-E Ring

Screw (Oil Pump Cover)

Gear-Pinion

Bracket-Fuel Pump

Harness-Wiring

Nut (Brush Retainer)

Screw (Rocker Arm)

Cap-Drive

Cap-End

Housing-Starter

(Service with 691262

Starter Motor)

Seal-Dipstick/Tube

Dipstick/Tube Assembly

TerminaI-Sparkplug

Adapter-Air

Cover-Air Guide

865A 691014

865B 691015

868 690968

914 691127

918 694000

929 695239

929A 691003

943 690589 •

947 499809

965 499613

967 272638

968 499788

975 499810

977 499812

987 691000 O5

1005 499603

1013 690954

1017 690770

1019 690103

1022 690971 o+

1023 499599

1023A499600

1024 499054

1026 690981

1026A690982

1027 492932

1029 690972

1035 691042

1036 695704

1051 691265

1058 274794

1070 691674

1090 691293

1095 694013

1100 690973

1119 691183

1123 690987 O5

1124 690988 O5

1126

1127

1128

1169

Cover-Air Guide

°+ Seal-Valve

Screw (Rocker Cover)

Hose-Macuum

Screw (Choke Control

Bracket)

Screw (Choke Control

Bracket)

SeaI-O Ring (Oil Pump

Cover)

Solenoid-Fuel

Cover-Oil Pump

Filter-Pre Cleaner

Cover-Air Cleaner

Bowl-Float

Gasket Set-Carburetor

Seal-Throttle Shaft

Fan-Flywheel

Nipple-Oil Filter

Screen-Oil Pump

Kit-Label

Gasket-Rocker Cover

Cover-Rocker (Cylinder 1)

Cover-Rocker (Cylinder 2)

Pump-Oil

Rod-Push (Steel)

Rod-Push (Aluminum)

Filter-Oil

Arm-Rocker

Shaft-Pump

Label-Emission

Ring-Retaining

Owner's Manual

Screw (Flywheel Fan)

Retainer-Brush

Kit-Valve Overhaul

Pivot-Rocker Arm

Screw (Alternator)

SeaI-O Ring (Solenoid

Retainer)

SeaI-O Ring (Fuel Transfer

Tube)

690991 Screw (Fuel Transfer Tube)

690992 Screw (Float Bowl)

690990 O Screw (Carburetor Nozzle)

693140 Screw (Carburetor Cover

Plate)

RPM Settings:Low Speed: 1900-2100

High Speed: 3000-3200

Included in Engine Gasket Set, Key. No.

358

Included in Carburetor Overhaul Kit, Key.

No. 121

Included in Carburetor Gasket Set, Key.

No. 977

Included in Valve Gasket Set, Key. No.

1095

NOTE: All component dimensions given in U.S.

inches 1 inch = 25.4 mm

SUGGESTED GUIDE FOR SIGHTING SLOPES FOR SAFE OPERATION

O'1

1. Fold this page along dotted line indicated above.

2. Hold page before you so that its left edge is vertically parallel to a tree

trunk or other upright structure.

3. Sight across the fold in the direction of hill slope you want to measure.

4. Compare the angle of the fold with the slope of the hill,

Your Home

For repair - in your home - of all major brand appliances,

lawn and garden equipment, or heating and cooling systems,

no matter who made it, no matter who sold it!

For the replacement parts, accessories and

owner's manuals that you need to do-it-yourself.

For Sears professional installation of home appliances

and items like garage door openers and water heaters.

1-800-4-MY-HOME ¢ Anytime, day or night

(1-800-469-4663) (U.S.A. and Canada)

www.sears.com www.sears.ca

Our Home

For repair of carry-in products like vacuums, lawn equipment,

and electronics, call or go on-line for the nearest

Sears Parts and Repair Center.

1-800-488-1222 Anytime, day or night (U.S.A. only)

www.sears.com

To purchase a protection agreement (U.S.A.)

or maintenance agreement (Canada) on a product serviced by Sears:

1-800-827-6655 (U.S.A.) 1-800-361-6665 (Canada)

Para pedir servicio de reparaci6n

a domicUio,y para ordenar piezas:

1-888-SU-HOGAR sM

(1-888-784-6427)

iiiiiiiiiiiiii

Au Canada pour service en frangais:

1-800-LE-FOYER Mc

(1-800-533-6937) ........

www.sears.ca

_E/,_R_ 02410

TM SM

® Registered Trademark / Trademark / Service Mark of Sears, Roebuck and Co.

TM SM

® Marca Registrada / Mama de FAbrica / Marca de Servicio de Sears, Roebuck and Co.

MCMarque de commerce / MDMarque d_pos_e de Sears, Roebuck and Co.

192824 5.14.04 MH Printed in U.S.A.

Craftsman 917273523 lawn tractor

Product's Documents

User Manual

Specifications

Craftsman 917273523 Questions and Answers

Related Products

Craftsman 917273900 lawn tractor

Craftsman 917287440 Lawn tractor 26.0HP. 54'' Mover Electric Start Automatic Transmission

Craftsman 917250551 Lawn Tractor

Craftsman 917276390 Lawn Tractor 18.0 HP, 42'' Mower Electric Start 6 Speed Transaxle

Craftsman 247203790 Lawn Tractor

Craftsman 917287320 Lawn Tractor 26.0 HR 54" Mower Electric Start Automatic Transmission
