1
QM00192 - 3
LCD Projector
MP-WU5603/MP-WU5503
MP-WX5603/MP-WX5503
User's Manual (detailed)
Operating Guide – Technical
Supported signals for COMPUTER IN
Resolution (H x V) Signal mode H. frequency
(kHz)
V. frequency
(Hz)
Rating
720 x 400 TEXT 37.9 85 VESA
640 x 480 VGA (60Hz) 31.5 59.9 VESA
VGA (72Hz) 37.9 72.8 VESA
VGA (75Hz) 37.5 75 VESA
VGA (85Hz) 43.3 85 VESA
800 x 600 SVGA (56Hz) 35.2 56.3 VESA
SVGA (60Hz) 37.9 60.3 VESA
SVGA (72Hz) 48.1 72.2 VESA
SVGA (75Hz) 46.9 75 VESA
SVGA (85Hz) 53.7 85.1 VESA
832 x 624 Mac 16” mode 49.7 74.5
1024 x 768 XGA (60Hz) 48.4 60 VESA
XGA (70Hz) 56.5 70.1 VESA
XGA (75Hz) 60 75 VESA
XGA (85Hz) 68.7 85 VESA
1152 x 864 1152 x 864 (75Hz) 67.5 75 VESA
1280 x 768 W-XGA (60Hz) 47.7 60 VESA
1280 x 800 1280 x 800 (60Hz) 49.7 60 VESA
1280 x 1024 SXGA (60Hz) 64 60 VESA
SXGA (75Hz) 80 75 VESA
SXGA (85Hz) 91.1 85 VESA
1440 x 900 WXGA+ (60Hz) 55.9 59.9 VESA
1600 x 900 WXGA++ (60Hz) 60 60 VESA
1680 x 1050 WSXGA+ (60Hz) 65.3 60 VESA
1600 x 1200 UXGA (60Hz) 75 60 VESA
1920 x 1080 Full HD (60Hz) 67.5 60 VESA
*1) 1920 x 1200 W-UXGA (60Hz)
Reduced Blanking
74 60 VESA
*1) Only for [WUXGA Model]
background
2
QM00192 - 3
Supported signals for HDMI1
Resolution (H x V) Signal mode H. frequency
(kHz)
V. frequency
(Hz)
Rating
720 x 400 TEXT 37.9 85 VESA
640 x 480 VGA (60Hz) 31.5 59.9 VESA
VGA (72Hz) 37.9 72.8 VESA
VGA (75Hz) 37.5 75 VESA
VGA (85Hz) 43.3 85 VESA
800 x 600 SVGA (56Hz) 35.2 56.3 VESA
SVGA (60Hz) 37.9 60.3 VESA
SVGA (72Hz) 48.1 72.2 VESA
SVGA (75Hz) 46.9 75 VESA
SVGA (85Hz) 53.7 85.1 VESA
832 x 624 Mac 16” mode 49.7 74.5
1024 x 768 XGA (60Hz) 48.4 60 VESA
XGA (70Hz) 56.5 70.1 VESA
XGA (75Hz) 60 75 VESA
XGA (85Hz) 68.7 85 VESA
1152 x 864 1152 x 864 (75Hz) 67.5 75 VESA
1280 x 768 W-XGA (60Hz) 47.7 60 VESA
1280 x 800 1280 x 800 (60Hz) 49.7 60 VESA
1280 x 1024 SXGA (60Hz) 64 60 VESA
SXGA (75Hz) 80 75 VESA
SXGA (85Hz) 91.1 85 VESA
1366 x 768 WXGA (60Hz) 47.7 59.8 VESA
1440 x 900 WXGA+ (60Hz) 55.9 59.9 VESA
1600 x 900 WXGA++ (60Hz) 60 60 VESA
1400 x 1050 SXGA+ (60Hz) 65.2 60 VESA
1680 x 1050 WSXGA+ (60Hz) 65.3 60 VESA
1600 x 1200 UXGA (60Hz) 75 60 VESA
*1) 1920 x 1200 W-UXGA (60Hz)
Reduced Blanking
74 60 VESA
720(1440) x 480i 480i 15.7 60 CEA
720(1440) x 576i 576i 15.6 50 CEA
720 x 480p 480p 31.5 60 CEA
720 x 576p 576p 31.3 50 CEA
1280 x 720p 720p (50Hz) 37.5 50 CEA
720p (60Hz) 45 60 CEA
1920 x 1080i 1080i (50Hz) 28.1 50 CEA
1080i (60Hz) 33.8 60 CEA
1920 x 1080p 1080p (50Hz) 56.3 50 CEA
1080p (60Hz) 67.5 60 CEA
*1) Only for [WUXGA Model]
Supported signals
background
3
QM00192 - 3
Supported signals for HDMI1
Resolution (H x V) Signal mode H. frequency
(kHz)
V. frequency
(Hz)
Rating
3840 x 2160p 4K (24Hz) 54 24 CEA
4K (25Hz) 56.3 25 CEA
4K (30Hz) 67.5 30 CEA
4096 x 2160p 4K (SMPTE) (24Hz) 54 24 CEA
4K (SMPTE) (25Hz) 56.3 25 CEA
4K (SMPTE) (30Hz) 67.5 30 CEA
Supported signals
background
4
QM00192 - 3
Supported signals for HDMI2
Resolution (H x V) Signal mode H. frequency
(kHz)
V. frequency
(Hz)
Rating
720 x 400 TEXT 37.9 85 VESA
640 x 480 VGA (60Hz) 31.5 59.9 VESA
VGA (72Hz) 37.9 72.8 VESA
VGA (75Hz) 37.5 75 VESA
VGA (85Hz) 43.3 85 VESA
800 x 600 SVGA (56Hz) 35.2 56.3 VESA
SVGA (60Hz) 37.9 60.3 VESA
SVGA (72Hz) 48.1 72.2 VESA
SVGA (75Hz) 46.9 75 VESA
SVGA (85Hz) 53.7 85.1 VESA
832 x 624 Mac 16” mode 49.7 74.5
1024 x 768 XGA (60Hz) 48.4 60 VESA
XGA (70Hz) 56.5 70.1 VESA
XGA (75Hz) 60 75 VESA
XGA (85Hz) 68.7 85 VESA
1152 x 864 1152 x 864 (75Hz) 67.5 75 VESA
1280 x 768 W-XGA (60Hz) 47.7 60 VESA
1280 x 800 1280 x 800 (60Hz) 49.7 60 VESA
1280 x 1024 SXGA (60Hz) 64 60 VESA
SXGA (75Hz) 80 75 VESA
SXGA (85Hz) 91.1 85 VESA
1366 x 768 WXGA (60Hz) 47.7 59.8 VESA
1440 x 900 WXGA+ (60Hz) 55.9 59.9 VESA
1600 x 900 WXGA++ (60Hz) 60 60 VESA
1680 x 1050 WSXGA+ (60Hz) 65.3 60 VESA
1600 x 1200 UXGA (60Hz) 75 60 VESA
*1) 1920 x 1200 W-UXGA (60Hz)
Reduced Blanking
74 60 VESA
720(1440) x 480i 480i 15.7 60 CEA
720(1440) x 576i 576i 15.6 50 CEA
720 x 480p 480p 31.5 60 CEA
720 x 576p 576p 31.3 50 CEA
1280 x 720p 720p (50Hz) 37.5 50 CEA
720p (60Hz) 45 60 CEA
1920 x 1080i 1080i (50Hz) 28.1 50 CEA
1080i (60Hz) 33.8 60 CEA
1920 x 1080p 1080p (50Hz) 56.3 50 CEA
1080p (60Hz) 67.5 60 CEA
*1) Only for [WUXGA Model]
Supported signals
background
5
QM00192 - 3
Supported signals for HDBaseT
Resolution (H x V) Signal mode H. frequency
(kHz)
V. frequency
(Hz)
Rating
720 x 400 TEXT 37.9 85 VESA
640 x 480 VGA (60Hz) 31.5 59.9 VESA
VGA (72Hz) 37.9 72.8 VESA
VGA (75Hz) 37.5 75 VESA
VGA (85Hz) 43.3 85 VESA
800 x 600 SVGA (56Hz) 35.2 56.3 VESA
SVGA (60Hz) 37.9 60.3 VESA
SVGA (72Hz) 48.1 72.2 VESA
SVGA (75Hz) 46.9 75 VESA
SVGA (85Hz) 53.7 85.1 VESA
832 x 624 Mac 16” mode 49.7 74.5
1024 x 768 XGA (60Hz) 48.4 60 VESA
XGA (70Hz) 56.5 70.1 VESA
XGA (75Hz) 60 75 VESA
XGA (85Hz) 68.7 85 VESA
1152 x 864 1152 x 864 (75Hz) 67.5 75 VESA
1280 x 768 W-XGA (60Hz) 47.7 60 VESA
1280 x 800 1280 x 800 (60Hz) 49.7 60 VESA
1280 x 1024 SXGA (60Hz) 64 60 VESA
SXGA (75Hz) 80 75 VESA
SXGA (85Hz) 91.1 85 VESA
1366 x 768 WXGA (60Hz) 47.7 59.8 VESA
1440 x 900 WXGA+ (60Hz) 55.9 59.9 VESA
1600 x 900 WXGA++ (60Hz) 60 60 VESA
1400 x 1050 SXGA+ (60Hz) 65.2 60 VESA
1680 x 1050 WSXGA+ (60Hz) 65.3 60 VESA
1600 x 1200 UXGA (60Hz) 75 60 VESA
*1) 1920 x 1200 W-UXGA (60Hz)
Reduced Blanking
74 60 VESA
720(1440) x 480i 480i 15.7 60 CEA
720(1440) x 576i 576i 15.6 50 CEA
720 x 480p 480p 31.5 60 CEA
720 x 576p 576p 31.3 50 CEA
1280 x 720p 720p (50Hz) 37.5 50 CEA
720p (60Hz) 45 60 CEA
1920 x 1080i 1080i (50Hz) 28.1 50 CEA
1080i (60Hz) 33.8 60 CEA
1920 x 1080p 1080p (50Hz) 56.3 50 CEA
1080p (60Hz) 67.5 60 CEA
*1) Only for [WUXGA Model]
Supported signals
background
6
QM00192 - 3
NOTE • Be sure to check jack type, signal level, timing and resolution
before connecting this projector to a PC.
• Some PCs may have multiple display screen modes. Use of some of these
modes will not be possible with this projector.
• Depending on the input signal, full-size display may not be possible in some
cases. Refer to the number of display pixels above.
• The signal will be converted to the projector’s panel resolution before being
displayed. The best display performance will be achieved if the resolutions of
the input signal and projector panel are identical.
• Automatic adjustment may not function correctly with some input signals.
• The image may not be displayed correctly when the input sync signal is a
composite sync or a sync on G.
7KHLOOXVWUDWLRQVLQWKLVPDQXDODUHIRULOOXVWUDWLYHSXUSRVHV7KH\PD\GLႇHU
slightly from your projector.
Supported signals for HDBaseT
Resolution (H x V) Signal mode H. frequency
(kHz)
V. frequency
(Hz)
Rating
3840 x 2160p 4K (24Hz) 54 24 CEA
4K (25Hz) 56.3 25 CEA
4K (30Hz) 67.5 30 CEA
4096 x 2160p 4K (SMPTE) (24Hz) 54 24 CEA
4K (SMPTE) (25Hz) 56.3 25 CEA
4K (SMPTE) (30Hz) 67.5 30 CEA
Supported signals
background
7
QM00192 - 3

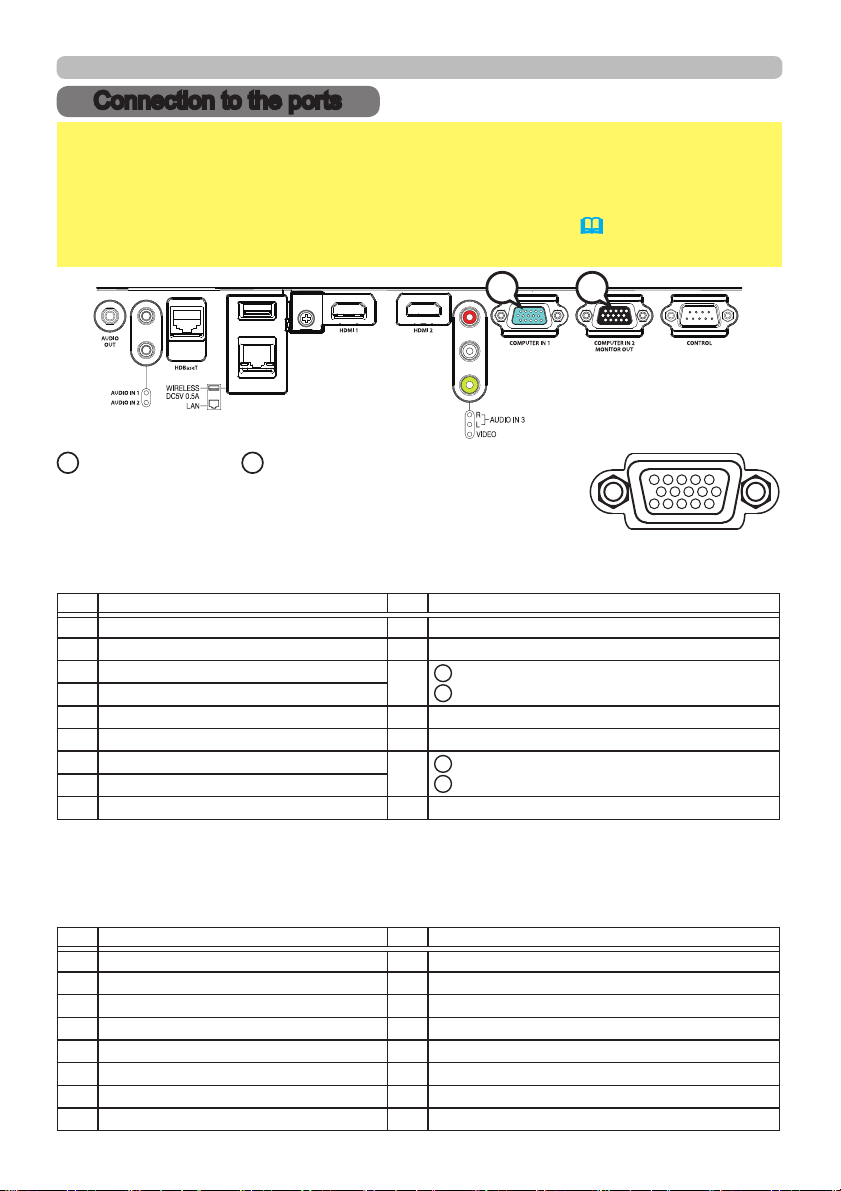

Connection to the ports
Connection to the ports
NOTICE
Ź8VHWKHFDEOHVZLWKVWUDLJKWSOXJVQRW/VKDSHGRQHVDVWKH
input ports of the projector are recessed.
Ź2QO\WKHVLJQDOWKDWLVLQSXWIURPWKHCOMPUTER IN1 can be output from
the COMPUTER IN2/MONITOR OUT port. The way is available only when
the MONITOR OUT is selected for the COMPUTER IN2. (
INPUT menu -
COMPUTER IN in the Operating Guide)
A
COMPUTER IN1,
B
COMPUTER IN2/MONITOR OUT
D-sub 15pin mini shrink jack
(1) for PC signal
9LGHRVLJQDO5*%VHSDUDWH$QDORJ9SSȍWHUPLQDWHGSRVLWLYH
+9V\QF6LJQDO77/OHYHOSRVLWLYHQHJDWLYH
&RPSRVLWHV\QF6LJQDO77/OHYHO
Pin Signal Pin Signal
1
Video Red 10 Ground
2 Video Green 11 (No connection)
3 Video Blue
12
A
: SDA (DDC data)
B
: (No connection)
4 (No connection)
5 Ground 13 H. sync / Composite sync.
6 Ground Red 14 V. sync.
7 Ground Green
15
A
6&/''&FORFN
B
: (No connection)
8 Ground Blue
9 (No connection) - -


   
(2) for Component signal
<&RPSRQHQWYLGHR<ZLWKFRPSRVLWHV\QF9SSWHUPLQDWRU
&U3U&RPSRQHQWYLGHR&U3U9SSWHUPLQDWRU
&E3E&RPSRQHQWYLGHR&E3E9SSWHUPLQDWRU
System:480i@60,480p@60,576i@50,576p@50,720p@50/60,1080i@50/60,1080p@50/60
Pin Signal Pin Signal
1
Cr/Pr 9 (No connection)
2 Y 10 Ground
3 Cb/Pb 11 (No connection)
4 (No connection) 12 (No connection)
5 Ground 13 (No connection)
6 Ground Cr/Pr 14 (No connection)
7 Ground Y 15 (No connection)
8 Ground Cb/Pb - -
A
B
background
8
QM00192 - 3

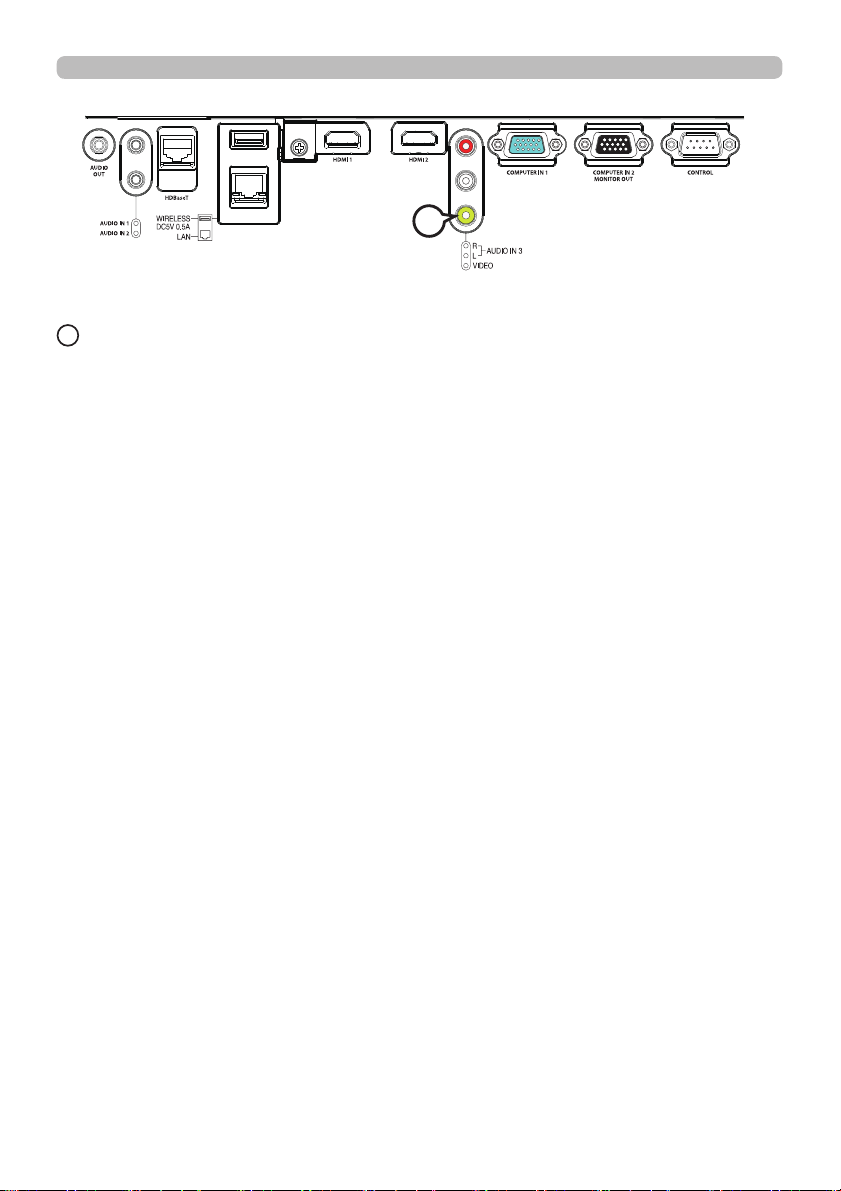

Connection to the ports (continued)
C
VIDEO
RCA jack
6\VWHP176&3$/6(&$03$/03$/1176&3$/+]
9SSȍWHUPLQDWRU
C
background
9
QM00192 - 3

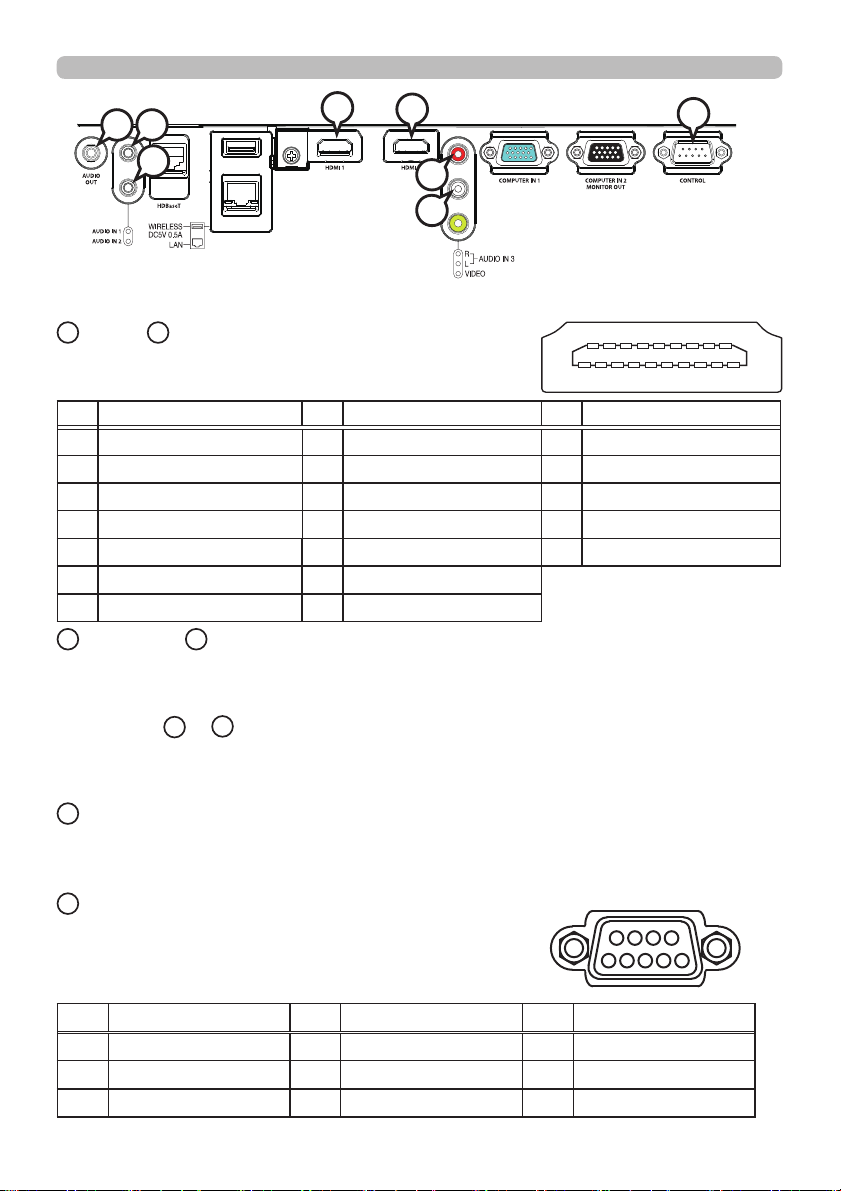

Connection to the ports (continued)
F
AUDIO IN1
G
AUDIO IN2
Ø3.5 stereo mini jack
NWHUPLQDWRU
AUDIO IN3
H
R,
I
L
RCA jack x2
NWHUPLQDWRU
J
AUDIO OUT
Ø3.5 stereo mini jack
NRXWSXWLPSHGDQFH
D
HDMI1
E
HDMI2
• Type :Digital audio/video connector
$XGLRVLJQDO/LQHDU3&06DPSOLQJUDWHN+]
Pin Signal Pin Signal Pin Signal
1 T.M.D.S. Data2 8 T.M.D.S. Data0 Shield 15 6&/
2 T.M.D.S. Data2 Shield 9 T.M.D.S. Data0 - 16 SDA
3 T.M.D.S. Data2 - 10 T.M.D.S. Clock + 17 DDC/CEC Ground
4
T.M.D.S. Data1 + 11 T.M.D.S. Clock Shield
18
+5V Power
5 T.M.D.S. Data1 Shield 12 T.M.D.S. Clock - 19 Hot Plug Detect
6 T.M.D.S. Data1 - 13 CEC
7 T.M.D.S. Data0 + 14 Reserved(N.C. on device)
10 12 14 16 182468
911131517191357
D
H
E
F
G
I
J
K
K
CONTROL
D-sub 9pin plug

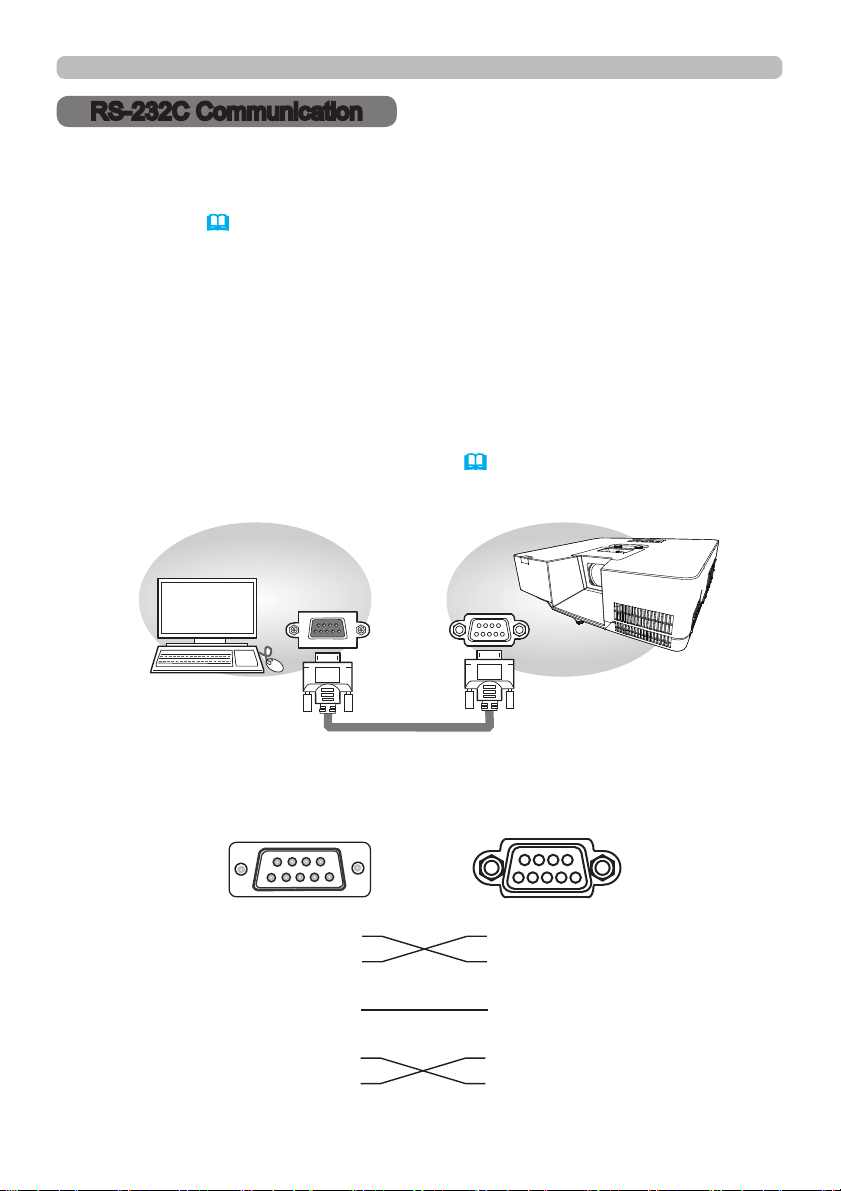

• About the details of RS-232C communication,
please refer to the section "RS-232C Communication".
Pin Signal Pin Signal Pin Signal
1 (No connection) 4 (No connection) 7 RTS
2 RD 5 Ground 8 CTS
3 TD 6 (No connection) 9 (No connection)
9
54321
6
7
8
background
10
QM00192 - 3

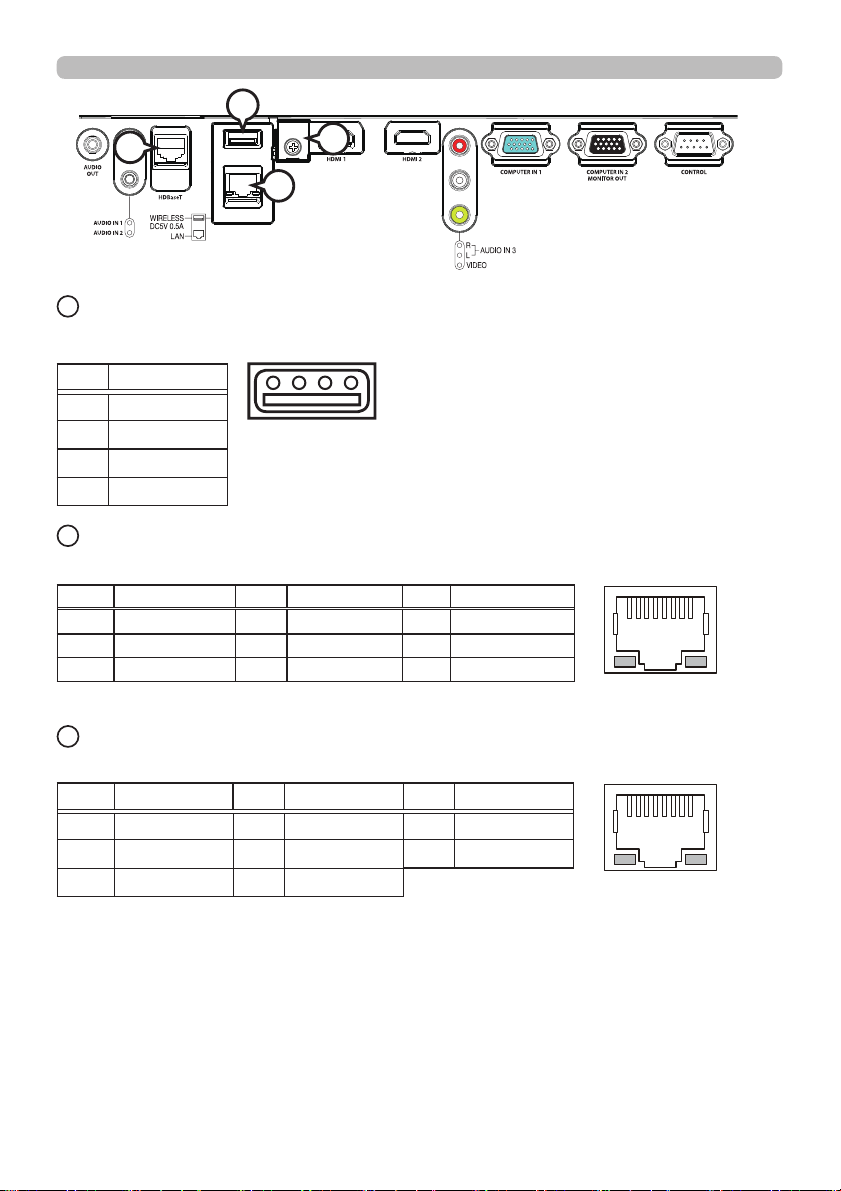

Connection to the ports (continued)
M
LAN
RJ-45 jack
Pin Signal Pin Signal Pin Signal
1TX+ 4- 7-
2TX- 5- 8-
3RX+ 6RX-
L
WIRELESS
Only for USB wireless adapter
4
3
2 1
Pin Signal
1+5V
2 - Data
3 + Data
4 Ground
L
N
M
N
HDBaseT
RJ-45 jack
Pin Signal Pin Signal Pin Signal
1 HDBaseT0+ 4 HDBaseT2+ 7 HDBaseT3+
2 HDBaseT0- 5 HDBaseT2-
8 HDBaseT3-
3 HDBaseT1+ 6 HDBaseT1-
①⑤
④
③
②⑥⑧
⑦
①⑤
④
③
②⑥⑧
⑦
background
11
QM00192 - 3
Connection to the ports (continued)

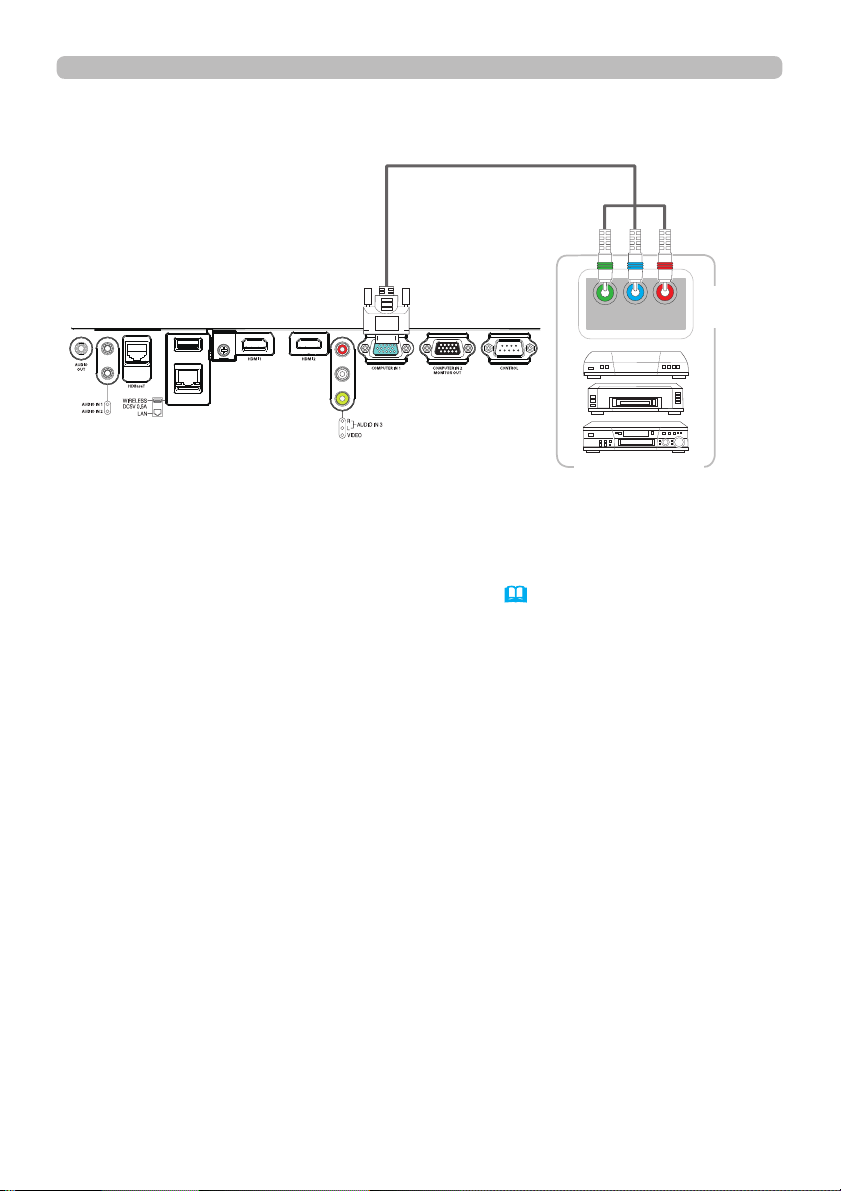

To input component video signal to COMPUTER IN ports
ex.
To input component video signal to the COMPUTER IN1 or IN2 port of the
projector, use a RCA to D-sub cable or adapter.
For about the pin description of the required cable or adapter, refer to the
descriptions about COMPUTER IN1 and IN2 port (
4).
Y CB/PB CR/PR
COMPONENT VIDEO OUT
RCA plugs
D-sub plug
VCR/DVD/Blu-ray
Disc player
RCA
connectors
background
12
QM00192 - 3
RS-232C Communication
RS-232C Communication
When the projector connects to the computer by RS-232C communication, the
projector can be controlled with RS-232C commands from the computer.
For details of RS-232C commands, refer to RS-232C Communication / Network
command table (
18).
Connection
1.
7XUQRႇWKHSURMHFWRUDQGWKHFRPSXWHU
2.
Connect the projector's CONTROL port and the computer's RS-232C port
ZLWKD56&FDEOHFURVV8VHWKHFDEOHWKDWIXO¿OOVWKHVSHFL¿FDWLRQ
VKRZQLQ¿JXUH
3.
Turn the computer on, and after the computer has started up turn the projector
on.
4.
Set the COMMUNICATION TYPE to OFF. (
OPTION menu - SERVICE -
COMMUNICATION in the Operating Guide)
(cross)
RS-232C Cable
RS-232C
CONTROL
CD (1) (1)
ٕ
RD(2) (2) RD
TD (3) (3) TD
DTR (4) (4)
ٕ
GND (5) (5) GND
DSR (6) (6)
ٕ
RTS (7) (7) RTS
CTS (8) (8) CTS
RI (9) (9)
ٕ
CONTROL port
of the projector
RS-232C port
of the computer
9
54321
6
7
8
1
2
4
3
8
9
5
76
background
13
QM00192 - 3
RS-232C Communication (continued)
Communication settings
1. Protocol
19200bps,8N1
2. Command format
("h" shows hexadecimal)
Byte Number
01 2 3456
789101112
Command
Action
Header Data
Header
code
Packet
Data
size
CRC
ÀDJ
Action Type
Setting
code
/ H / H / H / H / H / H
<SET>
Change setting to
GHVLUHGYDOXH>F/F+@
E\>E/E+@
BEh EFh 03h 06h 00h
D/ (aH) 01h 00h E/ (bH) F/ (cH)
<GET>
Read projector
LQWHUQDOVHWXSYDOXH>E/
(bH)] .
D/ (aH) 02h 00h E/ (bH) 00h 00h
<INCREMENT>
Increment setup value
>E/E+@E\
D/ (aH) 04h 00h E/ (bH) 00h 00h
<DECREMENT>
Decrement setup value
>E/E+@E\
D/ (aH) 05h 00h E/ (bH) 00h 00h
<EXECUTE> Run a
FRPPDQG>E/E+@.
D/ (aH) 06h 00h E/ (bH) 00h 00h
[Header code] [Packet] [Data size]
Set [BEh, EFh, 03h, 06h, 00h] to byte number 0
~
4.
>&5&ÀDJ@
For byte number
5, 6,
refer to
RS-232C Communication / Network command
table
(18).
[Action]
Set functional code to byte number 7, 8.
<SET> = [01h, 00h], <GET> = [02h, 00h], <INCREMENT> =[04h, 00h]
<DECREMENT> = [05h, 00h], <EXECUTE> = [06h, 00h]
Refer to the Communication command table
(
above).
[Type] [Setting code]
For byte number
9
〜
12
, refer to
RS-232C Communication / Network command
table
(18).
background
14
QM00192 - 3
RS-232C Communication (continued)
3. Response code / Error code
("h" shows hexadecimal)
(1) ACK reply : 06h
When the projector receives the Set, Increment, Decrement or Execute
FRPPDQGFRUUHFWO\WKHSURMHFWRUFKDQJHVWKHVHWWLQJGDWDIRUWKHVSHFL¿HG
item by [Type], and it returns the code.
(2) NAK reply : 15h
When the projector cannot understand the received command, the projector
returns the error code.
In such a case, check the sending code and send the same command again.
(3) Error reply : 1Ch + 0000h
When the projector cannot execute the received command for any reasons, the
projector returns the error code.
In such a case, check the sending code and the setting status of the projector.
(4) Data reply : 1Dh + xxxxh
When the projector receives the GET command correctly, the projector returns
the response code and 2 bytes of data.
NOTE •
For connecting the projector to your devices, please read the manual
for each devices, and connect them correctly with suitable cables.
2SHUDWLRQFDQQRWEHJXDUDQWHHGZKHQWKHSURMHFWRUUHFHLYHVDQXQGH¿QHG
command or data.
• Provide an interval of at least 40ms between the response code and any other
code.
• The projector outputs test data when the power supply is switched ON, and
when the light source is lit. Ignore this data.
• Commands are not accepted during warm-up.
•
When the data length is greater than indicated by the data length code, the
projector ignore the excess data code. Conversely when the data length is
shorter than indicated by the data length code, the projector returns the error
code to the computer.
background
15
QM00192 - 3

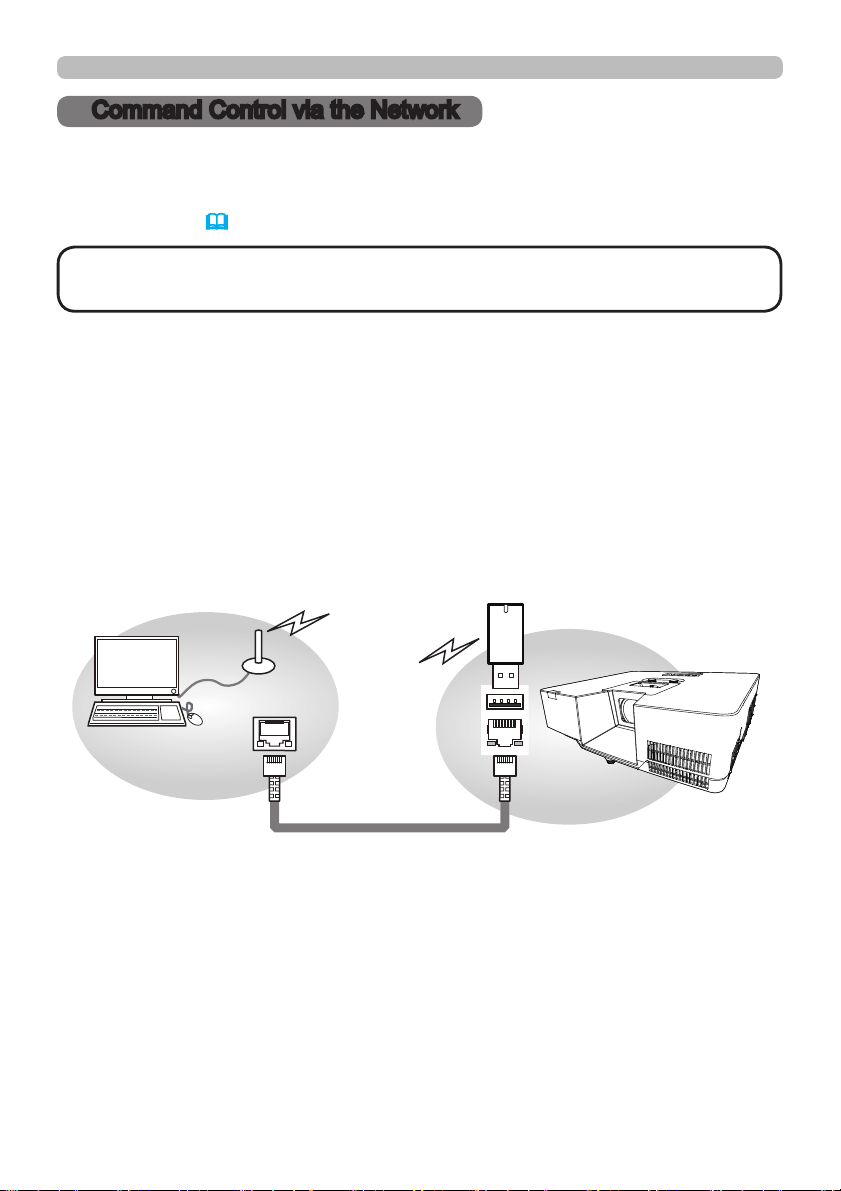

Command Control via the Network
When the projector connects network, the projector can be controlled with RS-
232C commands from the computer with web browser.
For details of RS-232C commands, refer to RS-232C Communication / Network
command table
(18).
Command Control via the Network
LAN
WIRELESSport
LANor
HDBaseTport
USBwirelessadapter
NOTE,IGDWDLVWUDQVIHUUHGYLDZLUHOHVVDQGZLUHG/$1DWWKHVDPHWLPH
the projector may not be able to process the data correctly.
Connection
1.
7XUQRႇWKHSURMHFWRUDQGWKHFRPSXWHU
2.
,I\RXXVHZLUHG/$1FRQQHFWWKHSURMHFWRUVLAN or HDBaseT port to the
FRPSXWHUV/$1RU+'%DVH7SRUWZLWKD/$1FDEOH8VHWKHFDEOHWKDWIXO¿OOV
WKHVSHFL¿FDWLRQVKRZQLQ¿JXUH,I\RXXVHZLUHOHVV/$1LQVHUWWKH86%
wireless adapter into the projector's WIRELESS port.
3.
Turn the computer on, and after the computer has started up turn the
projector on.
• /$1FDEOH&$7HRUJUHDWHU
or
• For HDBaseT connection
- CAT-5e or greater
- shielded type (connectors included)
- straight cable
- single cable
background
16
QM00192 - 3
Communication Port
The following two ports are assigned for the command control.
TCP #23
TCP #9715
&RQ¿JXUHWKHIROORZLQJLWHPVIRUPDZHEEURZVHUZKHQFRPPDQGFRQWUROLVXVHG
Port Settings
Network Control
Port1 (Port: 23)
Port open
Click the [Enable] check box to open [Network
Control Port1 (Port: 23)] to use TCP #23.
Default setting is “Enable”.
Authentication
Click the [Enable] check box for the
[Authentication] setting when authentication
is required.
Default setting is “Disable”.
Network Control
Port2 (Port: 9715)
Port open
Click the [Enable] check box to open [Network
Control Port2 (Port: 9715)] to use TCP
#9715.
Default setting is “Enable”.
Authentication
Click the [Enable] check box for the
[Authentication] setting when authentication
is required.
Default setting is “Enable”.
Command Control via the Network (continued)
When the authentication setting is enabled, the following settings are required.
Security Settings
Network Control
Authentication
Password
Enter the desired authentication password.
This setting will be the same for [Network
Control Port1 (Port: 23)] and [Network
Control Port2 (Port: 9715)].
Default setting is blank.
Re-enter
Authentication
Password
background
17
QM00192 - 3
Command Control via the Network (continued)
Command control settings
[TCP #23]
1. Command format
Same as RS-232C communication, refer to RS-232C Communication command format
.
2. Response code / Error code ("h" shows hexadecimal)
Four of the response / error code used for TCP#23 are the same as RS-232C
Communication (1)~(4). One authentication error reply (5) is added.
(1) ACK reply : 06h
Refer to RS-232C communication
(
11).
(2) NAK reply : 15h
Refer to RS-232C communication
(
11).
(3) Error reply : 1Ch + 0000h
Refer to RS-232C communication
(
11).
(4) Data reply : 1Dh + xxxxh
Refer to RS-232C communication
(
11).
(5) Authentication error reply : 1Fh + 0400h
When authentication error occurred, the projector returns the error code.
[TCP #9715]
1. Command format
The commands some datum are added to the head and the end of the ones of
TCP#9715 are used.
Header Data length RS-232C command Check sum Connection ID
0×02 0×0D 13 bytes 1 byte 1 byte
[Header]
02, Fixed
[Data Length]
RS-232C commands byte length (0×0D, Fixed)
[RS-232C commands]
Refer to RS-232C Communication command format
(
10).
[Check Sum]
This is the value to make zero on the addition of the lower 8 bits from the header
to the checksum.
[Connection ID]
Random value from 0 to 255 (This value is attached to the reply data).
NOTE • Operation cannot be guaranteed when the projector receives an
XQGH¿QHGFRPPDQGRUGDWD
• Provide an interval of at least 40ms between the response code and any other
code.
• Commands are not accepted during warm-up.
background
18
QM00192 - 3
2. Response code / Error code
("h" shows hexadecimal)
The connection ID is attached for the TCP#23's response / error codes are
used. The connection ID is same as the sending command format.
(1) ACK reply : 06h + ××h (××h : connection ID)
(2) NAK reply : 15h + ××h
(3) Error reply : 1Ch + 0000h + ××h
(4) Data reply : 1Dh + xxxxh + ××h
(5) Authentication error reply : 1Fh + 0400h + ××h
(6) Projector busy reply: 1Fh + ××××h + ××h
When the projector is too busy to receives the command, the projector returns
the error code.
In such a case, check the sending code and send the same command again.
Automatic Connection Break
The TCP connection will be automatically disconnected after there is no
communication for 30 seconds after being established.
Authentication
The projector does not accept commands without authentication success
when authentication is enabled. The projector uses a challenge response type
authentication with an MD5 (Message Digest 5) algorithm. When the projector is
XVLQJD/$1DUDQGRPE\WHVZLOOEHUHWXUQHGLIDXWKHQWLFDWLRQLVHQDEOHG%LQG
this received 8 bytes and the authentication password and digest this data with
the MD5 algorithm and add this in front of the commands to send.
Following is a sample if the authentication password is set to “password” and the
random 8 bytes are “a572f60c”.
1) Select the projector.
2) Receive the random 8 bytes “a572f60c” from the projector.
3) Bind the random 8 bytes “a572f60c” and the authentication password
“password” and it becomes “a572f60cpassword”.
4) Digest this bind “a572f60cpassword” with MD5 algorithm.
,WZLOOEH³HGDGႇDEFHIGEGH´
 $GGWKLV³HGDGႇDEFHIGEGH´LQIURQWRIWKHFRPPDQGVDQG
send the data.
6HQG³HGDGႇDEFHIGEGH´FRPPDQG
6) When the sending data is correct, the command will be performed and the
reply data will be returned. Otherwise, an authentication error will be returned.
NOTE • As for the transmission of the second or subsequent commands, the
authentication data can be omitted when the same connection.
Command Control via the Network (continued)
background
19
QM00192 - 3

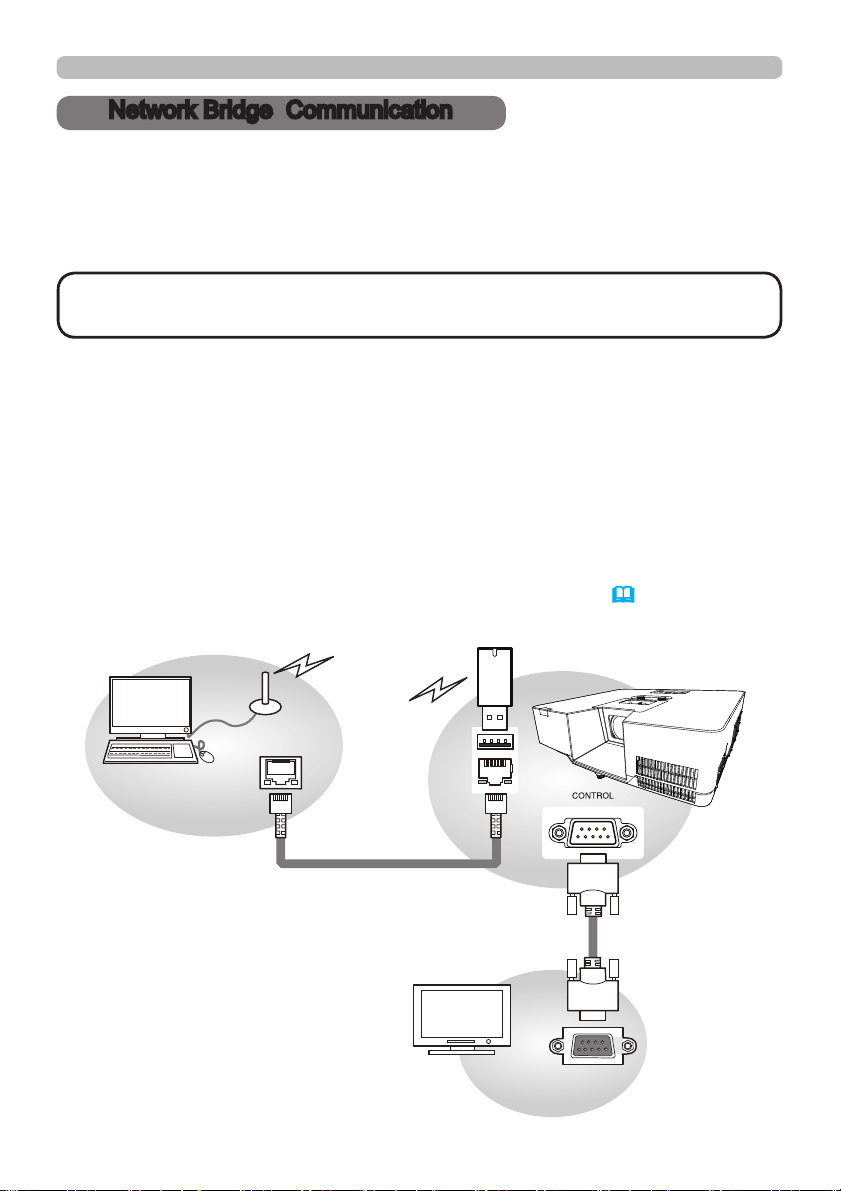

This projector is equipped with NETWORK BRIDGE function.
:KHQWKHSURMHFWRUFRQQHFWVWRWKHFRPSXWHUE\/$1FRPPXQLFDWLRQDQH[WHUQDO
device that is connected with this projector by RS-232C communication can be
controlled from the computer as a network terminal.
For details, see the 1.5 Network Bridge Function - Network Guide.
Network Bridge Communication
Network Bridge Communication
LAN
LAN cable
(CAT-5 or greater)
RS-232C
RS-232C cable
(cross)
WIRELESSport
LANor
HDBaseTport
USBwirelessadapter
Connection
1.
,I\RXXVHZLUHG/$1FRQQHFWWKHFRPSXWHUV/$1SRUWDQGWKHSURMHFWRUV
LAN or HDBaseT
SRUWZLWKD/$1FDEOH8VHWKHFDEOHWKDWIXO¿OOVWKH
VSHFL¿FDWLRQVKRZQLQ¿JXUH,I\RXXVHZLUHOHVV/$1LQVHUWWKH86%ZLUHOHVV
adapter into the projector's WIRELESS port.
2.
Connect the projector's CONTROL port and the RS-232C port of the
devices that you want to control with a RS-232C cable.
3.
Turn the computer on, and after the computer has started up turn the projector
on.
4.
Set the COMMUNICATION TYPE to NETWORK BRIDGE. (OPTION menu -
SERVICE - COMMUNICATION in the Operating Guide)
NOTE,IGDWDLVWUDQVIHUUHGYLDZLUHOHVVDQGZLUHG/$1DWWKHVDPHWLPH
the projector may not be able to process the data correctly.
background
20
QM00192 - 3
Communication settings
For communication setting, use the OPTION - SERVICE - COMMUNICATION menu.
(
OPTION menu - SERVICE - COMMUNICATION in the Operating Guide)
Item Condition
BAUD RATE 4800bps / 9600bps / 19200bps / 38400bps
Data length ELW¿[HG
PARITY NONE/ODD/EVEN
Start bit ELW¿[HG
Stop bit ELW¿[HG
Transmission method +$/)'83/(;/)8//'83/(;
NOTE •
For connecting the projector to your devices, please read the
manual for each devices, and connect them correctly with suitable cables.
•
7XUQRႇWKHSRZHURIERWKWKHSURMHFWRUDQGRWKHUGHYLFHVDQGXQSOXJ
beore connecting them.
•
For details of Transmission method, refer to 7.4 Transmission method
- Network Guide.
Network Bridge Communication (continued)
background
21
QM00192 - 3
RS-232C Communication / Network command table
Names Operation Type Header
Command Data
CRC Action Type Setting code
Power
Set
7XUQRႇ BE EF 03 06 00 2A D3 01 00 00 60 00 00
Turn on BE EF 03 06 00 BA D2 01 00 00 60 01 00
Get
BE EF 03 06 00 19 D3 02 00 00 60 00 00
[Example return]
00 00 01 00 02 00
>2ႇ@ >2Q@ >&RROGRZQ@
Input Source
Set
COMPUTER IN1 BE EF 03 06 00 FE D2 01 00 00 20 00 00
COMPUTER IN2 BE EF 03 06 00 3E D0 01 00 00 20 04 00
HDMI 1 BE EF 03 06 00 0E D2 01 00 00 20 03 00
HDMI 2 BE EF 03 06 00 6E D6 01 00 00 20 0D 00
VIDEO BE EF 03 06 00 6E D3 01 00 00 20 01 00
/$1 BE EF 03 06 00 CE D5 01 00 00 20 0B 00
HDBaseT BE EF 03 06 00 AE DE 01 00 00 20 11 00
Get BE EF 03 06 00 CD D2 02 00 00 20 00 00
Error Status
Get
BE EF 03 06 00 D9 D8 02 00 20 60 00 00
[Example return]
00 00 02 00 03 00
[Normal] [Fan error] [
/LJKWVRXUFHHUURU@
04 00, 5A 00, 63 00 05 00 07 00, 0A 00 08 00
>7HPSHUURU@>$LUÀRZHUURU@>&ROGHUURU@>)LOWHUHUURU@
13 00 23 00 65 00
>/LJKW6RXUFHZDUQLQJ@>/LJKW6RXUFHZDUQLQJ] [Other error]
MAGNIFY
Get BE EF 03 06 00 7C D2 02 00 07 30 00 00
Increment BE EF 03 06 00 1A D2 04 00 07 30 00 00
Decrement BE EF 03 06 00 CB D3 05 00 07 30 00 00
Magnify Position
H
Get BE EF 03 06 00 C8 D7 02 00 10 30 00 00
Increment BE EF 03 06 00 AE D7 04 00 10 30 00 00
Decrement BE EF 03 06 00 7F D6 05 00 10 30 00 00
Magnify Position
V
Get BE EF 03 06 00 34 D6 02 00 11 30 00 00
Increment BE EF 03 06 00 52 D6 04 00 11 30 00 00
Decrement BE EF 03 06 00 83 D7 05 00 11 30 00 00
FREEZE
Set
1250$/ BE EF 03 06 00 83 D2 01 00 02 30 00 00
FREEZE BE EF 03 06 00 13 D3 01 00 02 30 01 00
Get BE EF 03 06 00 B0 D2 02 00 02 30 00 00
RS-232C Communication / Network command table
(continued on next page)
background
RS-232C Communication / Network command table (continued)
Names Operation Type Header
Command Data
CRC Action Type Setting code
22
QM00192 - 3
MODE
Set
STANDARD BE EF 03 06 00 83 F5 01 00 BA 30 06 00
1$785$/ BE EF 03 06 00 23 F6 01 00 BA 30 00 00
CINEMA BE EF 03 06 00 B3 F7 01 00 BA 30 01 00
DYNAMIC BE EF 03 06 00 E3 F4 01 00 BA 30 04 00
WHITEBOARD BE EF 03 06 00 83 EE 01 00 BA 30 22 00
DICOM SIM. BE EF 03 06 00 73 C6 01 00 BA 30 41 00
USER-1 BE EF 03 06 00 E3 FB 01 00 BA 30 10 00
USER-2 BE EF 03 06 00 73 FA 01 00 BA 30 11 00
USER-3 BE EF 03 06 00 83 FA 01 00 BA 30 12 00
Get BE EF 03 06 00 10 F6 02 00 BA 30 00 00
BRIGHTNESS
Get BE EF 03 06 00 89 D2 02 00 03 20 00 00
Increment BE EF 03 06 00 EF D2 04 00 03 20 00 00
Decrement BE EF 03 06 00 3E D3 05 00 03 20 00 00
BRIGHTNESS
Reset
Execute BE EF 03 06 00 58 D3 06 00 00 70 00 00
CONTRAST
Get BE EF 03 06 00 FD D3 02 00 04 20 00 00
Increment BE EF 03 06 00 9B D3 04 00 04 20 00 00
Decrement BE EF 03 06 00 4A D2 05 00 04 20 00 00
CONTRAST
Reset
Execute BE EF 03 06 00 A4 D2 06 00 01 70 00 00
GAMMA
Set
'()$8/7 BE EF 03 06 00 07 E9 01 00 A1 30 20 00
1 CUSTOM BE EF 03 06 00 07 FD 01 00 A1 30 10 00
'()$8/7 BE EF 03 06 00 97 E8 01 00 A1 30 21 00
2 CUSTOM BE EF 03 06 00 97 FC 01 00 A1 30 11 00
'()$8/7 BE EF 03 06 00 67 E8 01 00 A1 30 22 00
3 CUSTOM BE EF 03 06 00 67 FC 01 00 A1 30 12 00
'()$8/7 BE EF 03 06 00 F7 E9 01 00 A1 30 23 00
4 CUSTOM BE EF 03 06 00 F7 FD 01 00 A1 30 13 00
'()$8/7 BE EF 03 06 00 C7 EB 01 00 A1 30 24 00
5 CUSTOM BE EF 03 06 00 C7 FF 01 00 A1 30 14 00
'()$8/7 BE EF 03 06 00 57 EA 01 00 A1 30 25 00
6 CUSTOM BE EF 03 06 00 57 FE 01 00 A1 30 15 00
'()$8/7 BE EF 03 06 00 A7 EA 01 00 A1 30 26 00
7 CUSTOM BE EF 03 06 00 A7 FE 01 00 A1 30 16 00
'()$8/7 BE EF 03 06 00 37 EB 01 00 A1 30 27 00
8 CUSTOM BE EF 03 06 00 37 FF 01 00 A1 30 17 00
Get BE EF 03 06 00 F4 F0 02 00 A1 30 00 00
$&&(178$/,=(5
Get BE EF 03 06 00 5D 70 02 00 0C 22 00 00
Increment BE EF 03 06 00 3B 70 04 00 0C 22 00 00
Decrement BE EF 03 06 00 EA 71 05 00 0C 22 00 00
$&&(178$/,=(5
RESET
Execute BE EF 03 06 00 C8 DB 06 00 2C 70 00 00
HDCR
Get BE EF 03 06 00 A1 71 02 00 0D 22 00 00
Increment BE EF 03 06 00 C7 71 04 00 0D 22 00 00
Decrement BE EF 03 06 00 16 70 05 00 0D 22 00 00
HDCR RESET
Execute BE EF 03 06 00 34 DA 06 00 2D 70 00 00
(continued on next page)
background
RS-232C Communication / Network command table (continued)
Names Operation Type Header
Command Data
CRC Action Type Setting code
23
QM00192 - 3
User Gamma
Point 1
Get BE EF 03 06 00 08 FE 02 00 90 30 00 00
Increment BE EF 03 06 00 6E FE 04 00 90 30 00 00
Decrement BE EF 03 06 00 BF FF 05 00 90 30 00 00
User Gamma
Point 1 Reset
Execute BE EF 03 06 00 58 C2 06 00 50 70 00 00
User Gamma
Point 2
Get BE EF 03 06 00 F4 FF 02 00 91 30 00 00
Increment BE EF 03 06 00 92 FF 04 00 91 30 00 00
Decrement BE EF 03 06 00 43 FE 05 00 91 30 00 00
User Gamma
Point 2 Reset
Execute BE EF 03 06 00 A4 C3 06 00 51 70 00 00
User Gamma
Point 3
Get BE EF 03 06 00 B0 FF 02 00 92 30 00 00
Increment BE EF 03 06 00 D6 FF 04 00 92 30 00 00
Decrement BE EF 03 06 00 07 FE 05 00 92 30 00 00
User Gamma
Point 3 Reset
Execute BE EF 03 06 00 E0 C3 06 00 52 70 00 00
User Gamma
Point 4
Get BE EF 03 06 00 4C FE 02 00 93 30 00 00
Increment BE EF 03 06 00 2A FE 04 00 93 30 00 00
Decrement BE EF 03 06 00 FB FF 05 00 93 30 00 00
User Gamma
Point 4 Reset
Execute BE EF 03 06 00 1C C2 06 00 53 70 00 00
User Gamma
Point 5
Get BE EF 03 06 00 38 FF 02 00 94 30 00 00
Increment BE EF 03 06 00 5E FF 04 00 94 30 00 00
Decrement BE EF 03 06 00 8F FE 05 00 94 30 00 00
User Gamma
Point 5 Reset
Execute BE EF 03 06 00 68 C3 06 00 54 70 00 00
User Gamma
Point 6
Get BE EF 03 06 00 C4 FE 02 00 95 30 00 00
Increment BE EF 03 06 00 A2 FE 04 00 95 30 00 00
Decrement BE EF 03 06 00 73 FF 05 00 95 30 00 00
User Gamma
Point 6 Reset
Execute BE EF 03 06 00 94 C2 06 00 55 70 00 00
User Gamma
Point 7
Get BE EF 03 06 00 80 FE 02 00 96 30 00 00
Increment BE EF 03 06 00 E6 FE 04 00 96 30 00 00
Decrement BE EF 03 06 00 37 FF 05 00 96 30 00 00
User Gamma
Point 7 Reset
Execute BE EF 03 06 00 D0 C2 06 00 56 70 00 00
User Gamma
Point 8
Get BE EF 03 06 00 7C FF 02 00 97 30 00 00
Increment BE EF 03 06 00 1A FF 04 00 97 30 00 00
Decrement BE EF 03 06 00 CB FE 05 00 97 30 00 00
User Gamma
Point 8 Reset
Execute BE EF 03 06 00 2C C3 06 00 57 70 00 00
(continued on next page)
background
RS-232C Communication / Network command table (continued)
Names Operation Type Header
Command Data
CRC Action Type Setting code
24
QM00192 - 3
&2/257(03
Set
1 HIGH BE EF 03 06 00 0B F5 01 00 B0 30 03 00
1 CUSTOM BE EF 03 06 00 CB F8 01 00 B0 30 13 00
2 MID-1 BE EF 03 06 00 9B F4 01 00 B0 30 02 00
2 CUSTOM BE EF 03 06 00 5B F9 01 00 B0 30 12 00
3 MID-2 BE EF 03 06 00 3B F7 01 00 B0 30 04 00
3 CUSTOM BE EF 03 06 00 FB FA 01 00 B0 30 14 00
/2: BE EF 03 06 00 6B F4 01 00 B0 30 01 00
4 CUSTOM BE EF 03 06 00 AB F9 01 00 B0 30 11 00
5 Hi-BRIGHT-1 BE EF 03 06 00 3B F2 01 00 B0 30 08 00
5 CUSTOM BE EF 03 06 00 FB FF 01 00 B0 30 18 00
6 Hi-BRIGHT-2 BE EF 03 06 00 AB F3 01 00 B0 30 09 00
6 CUSTOM BE EF 03 06 00 6B FE 01 00 B0 30 19 00
7 Hi-BRIGHT-3 BE EF 03 06 00 5B F3 01 00 B0 30 0A 00
7 CUSTOM BE EF 03 06 00 9B FE 01 00 B0 30 1A 00
Get BE EF 03 06 00 C8 F5 02 00 B0 30 00 00
&2/257(03
GAIN R
Get BE EF 03 06 00 34 F4 02 00 B1 30 00 00
Increment BE EF 03 06 00 52 F4 04 00 B1 30 00 00
Decrement BE EF 03 06 00 83 F5 05 00 B1 30 00 00
&2/257(03
GAIN R Reset
Execute BE EF 03 06 00 10 C6 06 00 46 70 00 00
&2/257(03
GAIN G
Get BE EF 03 06 00 70 F4 02 00 B2 30 00 00
Increment BE EF 03 06 00 16 F4 04 00 B2 30 00 00
Decrement BE EF 03 06 00 C7 F5 05 00 B2 30 00 00
&2/257(03
GAIN G Reset
Execute BE EF 03 06 00 EC C7 06 00 47 70 00 00
&2/257(03
GAIN B
Get BE EF 03 06 00 8C F5 02 00 B3 30 00 00
Increment BE EF 03 06 00 EA F5 04 00 B3 30 00 00
Decrement BE EF 03 06 00 3B F4 05 00 B3 30 00 00
&2/257(03
GAIN B Reset
Execute BE EF 03 06 00 F8 C4 06 00 48 70 00 00
&2/257(03
OFFSET R
Get BE EF 03 06 00 04 F5 02 00 B5 30 00 00
Increment BE EF 03 06 00 62 F5 04 00 B5 30 00 00
Decrement BE EF 03 06 00 B3 F4 05 00 B5 30 00 00
&2/257(03
OFFSET R Reset
Execute BE EF 03 06 00 40 C5 06 00 4A 70 00 00
&2/257(03
OFFSET G
Get BE EF 03 06 00 40 F5 02 00 B6 30 00 00
Increment BE EF 03 06 00 26 F5 04 00 B6 30 00 00
Decrement BE EF 03 06 00 F7 F4 05 00 B6 30 00 00
&2/257(03
OFFSET G Reset
Execute BE EF 03 06 00 BC C4 06 00 4B 70 00 00
&2/257(03
OFFSET B
Get BE EF 03 06 00 BC F4 02 00 B7 30 00 00
Increment BE EF 03 06 00 DA F4 04 00 B7 30 00 00
Decrement BE EF 03 06 00 0B F5 05 00 B7 30 00 00
&2/257(03
OFFSET B Reset
Execute BE EF 03 06 00 C8 C5 06 00 4C 70 00 00
&2/25
Get BE EF 03 06 00 B5 72 02 00 02 22 00 00
Increment BE EF 03 06 00 D3 72 04 00 02 22 00 00
Decrement BE EF 03 06 00 02 73 05 00 02 22 00 00
&2/255HVHW
Execute BE EF 03 06 00 80 D0 06 00 0A 70 00 00
(continued on next page)
background
RS-232C Communication / Network command table (continued)
Names Operation Type Header
Command Data
CRC Action Type Setting code
25
QM00192 - 3
TINT
Get BE EF 03 06 00 49 73 02 00 03 22 00 00
Increment BE EF 03 06 00 2F 73 04 00 03 22 00 00
Decrement BE EF 03 06 00 FE 72 05 00 03 22 00 00
TINT Reset
Execute BE EF 03 06 00 7C D1 06 00 0B 70 00 00
SHARPNESS
Get BE EF 03 06 00 F1 72 02 00 01 22 00 00
Increment BE EF 03 06 00 97 72 04 00 01 22 00 00
Decrement BE EF 03 06 00 46 73 05 00 01 22 00 00
SHARPNESS
Reset
Execute BE EF 03 06 00 C4 D0 06 00 09 70 00 00
DYNAMIC
%/$&.
Set
OFF BE EF 03 06 00 FE 5A 01 00 80 22 00 00
ON BE EF 03 06 00 6E 5B 01 00 80 22 01 00
Get BE EF 03 06 00 CD 5A 02 00 80 22 00 00
MY MEMORY
/RDG
Set
1 BE EF 03 06 00 0E D7 01 00 14 20 00 00
2 BE EF 03 06 00 9E D6 01 00 14 20 01 00
3 BE EF 03 06 00 6E D6 01 00 14 20 02 00
4 BE EF 03 06 00 FE D7 01 00 14 20 03 00
MY MEMORY
Save
Set
1 BE EF 03 06 00 F2 D6 01 00 15 20 00 00
2 BE EF 03 06 00 62 D7 01 00 15 20 01 00
3 BE EF 03 06 00 92 D7 01 00 15 20 02 00
4 BE EF 03 06 00 02 D6 01 00 15 20 03 00
ASPECT
Set
4:3 BE EF 03 06 00 9E D0 01 00 08 20 00 00
16:9 BE EF 03 06 00 0E D1 01 00 08 20 01 00
NATIVE BE EF 03 06 00 5E D7 01 00 08 20 08 00
14:9 BE EF 03 06 00 CE D6 01 00 08 20 09 00
16:10 BE EF 03 06 00 3E D6 01 00 08 20 0A 00
1250$/ BE EF 03 06 00 5E DD 01 00 08 20 10 00
ZOOM BE EF 03 06 00 9E C4 01 00 08 20 30 00
Get BE EF 03 06 00 AD D0 02 00 08 20 00 00
OVER SCAN
Get BE EF 03 06 00 91 70 02 00 09 22 00 00
Increment BE EF 03 06 00 F7 70 04 00 09 22 00 00
Decrement BE EF 03 06 00 26 71 05 00 09 22 00 00
OVER SCAN
Reset
Execute BE EF 03 06 00 EC D9 06 00 27 70 00 00
V POSITION
Get BE EF 03 06 00 0D 83 02 00 00 21 00 00
Increment BE EF 03 06 00 6B 83 04 00 00 21 00 00
Decrement BE EF 03 06 00 BA 82 05 00 00 21 00 00
V POSITION
Reset
Execute BE EF 03 06 00 E0 D2 06 00 02 70 00 00
H POSITION
Get BE EF 03 06 00 F1 82 02 00 01 21 00 00
Increment BE EF 03 06 00 97 82 04 00 01 21 00 00
Decrement BE EF 03 06 00 46 83 05 00 01 21 00 00
H POSITION
Reset
Execute BE EF 03 06 00 1C D3 06 00 03 70 00 00
H PHASE
Get BE EF 03 06 00 49 83 02 00 03 21 00 00
Increment BE EF 03 06 00 2F 83 04 00 03 21 00 00
Decrement BE EF 03 06 00 FE 82 05 00 03 21 00 00
(continued on next page)
background
RS-232C Communication / Network command table (continued)
Names Operation Type Header
Command Data
CRC Action Type Setting code
26
QM00192 - 3
H SIZE
Get BE EF 03 06 00 B5 82 02 00 02 21 00 00
Increment BE EF 03 06 00 D3 82 04 00 02 21 00 00
Decrement BE EF 03 06 00 02 83 05 00 02 21 00 00
H SIZE Reset
Execute BE EF 03 06 00 68 D2 06 00 04 70 00 00
AUTO ADJUST
EXECUTE
Execute BE EF 03 06 00 91 D0 06 00 0A 20 00 00
PROGRESSIVE
Set
OFF BE EF 03 06 00 4A 72 01 00 07 22 00 00
TV BE EF 03 06 00 DA 73 01 00 07 22 01 00
),/0 BE EF 03 06 00 2A 73 01 00 07 22 02 00
Get BE EF 03 06 00 79 72 02 00 07 22 00 00
VIDEO NR
Set
/2: BE EF 03 06 00 26 72 01 00 06 22 01 00
MID BE EF 03 06 00 D6 72 01 00 06 22 02 00
HIGH BE EF 03 06 00 46 73 01 00 06 22 03 00
Get BE EF 03 06 00 85 73 02 00 06 22 00 00
&2/2563$&(
Set
AUTO BE EF 03 06 00 0E 72 01 00 04 22 00 00
RGB BE EF 03 06 00 9E 73 01 00 04 22 01 00
SMPTE240 BE EF 03 06 00 6E 73 01 00 04 22 02 00
REC709 BE EF 03 06 00 FE 72 01 00 04 22 03 00
REC601 BE EF 03 06 00 CE 70 01 00 04 22 04 00
Get BE EF 03 06 00 3D 72 02 00 04 22 00 00
C-VIDEO
FORMAT
Set
AUTO BE EF 03 06 00 A2 70 01 00 11 22 0A 00
NTSC BE EF 03 06 00 C2 74 01 00 11 22 04 00
3$/ BE EF 03 06 00 52 75 01 00 11 22 05 00
SECAM BE EF 03 06 00 52 70 01 00 11 22 09 00
NTSC4.43 BE EF 03 06 00 62 77 01 00 11 22 02 00
03$/ BE EF 03 06 00 C2 71 01 00 11 22 08 00
13$/ BE EF 03 06 00 32 74 01 00 11 22 07 00
Get BE EF 03 06 00 31 76 02 00 11 22 00 00
HDMI1 RANGE
Set
AUTO BE EF 03 06 00 86 D8 01 00 22 20 00 00
1250$/ BE EF 03 06 00 16 D9 01 00 22 20 01 00
ENHANCED BE EF 03 06 00 E6 D9 01 00 22 20 02 00
Get BE EF 03 06 00 B5 D8 02 00 22 20 00 00
HDMI2 RANGE
Set
AUTO BE EF 03 06 00 7A D9 01 00 23 20 00 00
1250$/ BE EF 03 06 00 EA D8 01 00 23 20 01 00
ENHANCED BE EF 03 06 00 1A D8 01 00 23 20 02 00
Get BE EF 03 06 00 49 D9 02 00 23 20 00 00
HDBaseT
RANGE
Set
AUTO BE EF 03 06 00 86 EB 01 00 D2 20 00 00
1250$/ BE EF 03 06 00 16 EA 01 00 D2 20 01 00
ENHANCED BE EF 03 06 00 E6 EA 01 00 D2 20 02 00
Get BE EF 03 06 00 B5 EB 02 00 D2 20 00 00
COMPUTER IN1
Set
AUTO BE EF 03 06 00 CE D6 01 00 10 20 03 00
SYNC ON G OFF BE EF 03 06 00 5E D7 01 00 10 20 02 00
Get BE EF 03 06 00 0D D6 02 00 10 20 00 00
COMPUTER IN2
Set
AUTO BE EF 03 06 00 32 D7 01 00 11 20 03 00
SYNC ON G OFF BE EF 03 06 00 A2 D6 01 00 11 20 02 00
MONITOR OUT BE EF 03 06 00 02 D0 01 00 11 20 08 00
Get BE EF 03 06 00 F1 D7 02 00 11 20 00 00
(continued on next page)
background
RS-232C Communication / Network command table (continued)
Names Operation Type Header
Command Data
CRC Action Type Setting code
27
QM00192 - 3
)5$0(/2&.±
COMPUTER IN1
Set
OFF BE EF 03 06 00 3B C2 01 00 50 30 00 00
ON BE EF 03 06 00 AB C3 01 00 50 30 01 00
Get BE EF 03 06 00 08 C2 02 00 50 30 00 00
)5$0(/2&.±
COMPUTER IN2
Set
OFF BE EF 03 06 00 0B C3 01 00 54 30 00 00
ON BE EF 03 06 00 9B C2 01 00 54 30 01 00
Get BE EF 03 06 00 38 C3 02 00 54 30 00 00
)5$0(/2&.
HDMI1
Set
OFF BE EF 03 06 00 7F C2 01 00 53 30 00 00
ON BE EF 03 06 00 EF C3 01 00 53 30 01 00
Get BE EF 03 06 00 4C C2 02 00 53 30 00 00
)5$0(/2&.
HDMI2
Set
OFF BE EF 03 06 00 97 C0 01 00 5D 30 00 00
ON BE EF 03 06 00 07 C1 01 00 5D 30 01 00
Get BE EF 03 06 00 A4 C0 02 00 5D 30 00 00
)5$0(/2&.
HDBaseT
Set
OFF BE EF 03 06 00 C2 EB 01 00 D1 20 00 00
ON BE EF 03 06 00 52 EA 01 00 D1 20 01 00
Get BE EF 03 06 00 F1 EB 02 00 D1 20 00 00
POSITION V
Set
TOP BE EF 03 06 00 02 D0 01 00 09 20 02 00
0,''/( BE EF 03 06 00 62 D1 01 00 09 20 00 00
BOTTOM BE EF 03 06 00 F2 D0 01 00 09 20 01 00
Get BE EF 03 06 00 51 D1 02 00 09 20 00 00
POSITION H
Set
RIGHT BE EF 03 06 00 46 D5 01 00 1E 20 01 00
0,''/( BE EF 03 06 00 D6 D4 01 00 1E 20 00 00
/()7 BE EF 03 06 00 B6 D5 01 00 1E 20 02 00
Get BE EF 03 06 00 E5 D4 02 00 1E 20 00 00
GEOMETRIC
MODE
Set
KEYSTONE BE EF 03 06 00 6B 8C 01 00 30 31 01 00
PERFECT FIT BE EF 03 06 00 9B 8C 01 00 30 31 02 00
Get BE EF 03 06 00 C8 8D 02 00 30 31 00 00
KEYSTONE V
Get BE EF 03 06 00 B9 D3 02 00 07 20 00 00
Increment BE EF 03 06 00 DF D3 04 00 07 20 00 00
Decrement BE EF 03 06 00 0E D2 05 00 07 20 00 00
KEYSTONE V
Reset
Execute BE EF 03 06 00 08 D0 06 00 0C 70 00 00
KEYSTONE H
Get BE EF 03 06 00 E9 D0 02 00 0B 20 00 00
Increment BE EF 03 06 00 8F D0 04 00 0B 20 00 00
Decrement BE EF 03 06 00 5E D1 05 00 0B 20 00 00
KEYSTONE H
Reset
Execute BE EF 03 06 00 98 D8 06 00 20 70 00 00
(continued on next page)
background
RS-232C Communication / Network command table (continued)
Names Operation Type Header
Command Data
CRC Action Type Setting code
28
QM00192 - 3
PbyP/PinP
Set
OFF BE EF 03 06 00 3E 26 01 00 10 23 00 00
PbyP BE EF 03 06 00 AE 27 01 00 10 23 01 00
PinP BE EF 03 06 00 5E 27 01 00 10 23 02 00
Get BE EF 03 06 00 0D 26 02 00 10 23 00 00
PbyP
MAIN SIZE
Set
60$// BE EF 03 06 00 F2 07 01 00 11 23 7F 00
0,''/( BE EF 03 06 00 02 46 01 00 11 23 80 00
/$5*( BE EF 03 06 00 92 47 01 00 11 23 81 00
Get BE EF 03 06 00 F1 27 02 00 11 23 00 00
PbyP
RIGHT SOURCE
Set
COMPUTER IN1 BE EF 03 06 00 86 27 01 00 12 23 00 00
COMPUTER IN2 BE EF 03 06 00 46 25 01 00 12 23 04 00
HDMI 1 BE EF 03 06 00 76 27 01 00 12 23 03 00
HDMI 2 BE EF 03 06 00 16 23 01 00 12 23 0D 00
HDBaseT BE EF 03 06 00 D6 2B 01 00 12 23 11 00
VIDEO BE EF 03 06 00 16 26 01 00 12 23 01 00
Get BE EF 03 06 00 B5 27 02 00 12 23 00 00
PbyP
MAIN AREA
Set
/()7 BE EF 03 06 00 7A 26 01 00 13 23 00 00
RIGHT BE EF 03 06 00 EA 27 01 00 13 23 01 00
Get BE EF 03 06 00 49 26 02 00 13 23 00 00
PbyP
/()76285&(
Set
COMPUTER IN1 BE EF 03 06 00 F2 26 01 00 15 23 00 00
COMPUTER IN2 BE EF 03 06 00 32 24 01 00 15 23 04 00
HDMI 1 BE EF 03 06 00 02 26 01 00 15 23 03 00
HDMI 2 BE EF 03 06 00 62 22 01 00 15 23 0D 00
HDBaseT BE EF 03 06 00 A2 2A 01 00 15 23 11 00
VIDEO BE EF 03 06 00 62 27 01 00 15 23 01 00
Get BE EF 03 06 00 C1 26 02 00 15 23 00 00
(continued on next page)
background
RS-232C Communication / Network command table (continued)
Names Operation Type Header
Command Data
CRC Action Type Setting code
29
QM00192 - 3
PinP POSITION
Set
723/()7 BE EF 03 06 00 02 23 01 00 01 23 00 00
TOP RIGHT BE EF 03 06 00 92 22 01 00 01 23 01 00
%27720/()7 BE EF 03 06 00 62 22 01 00 01 23 02 00
BOTTOM RIGHT BE EF 03 06 00 F2 23 01 00 01 23 03 00
PbyP BE EF 03 06 00 C2 2E 01 00 01 23 10 00
Get BE EF 03 06 00 31 23 02 00 01 23 00 00
PinP
MAIN AREA
Set
PRIMARY BE EF 03 06 00 32 22 01 00 05 23 00 00
SECONDARY BE EF 03 06 00 A2 23 01 00 05 23 01 00
Get BE EF 03 06 00 01 22 02 00 05 23 00 00
PinP PRIMARY
SOURCE
Set
COMPUTER IN1 BE EF 03 06 00 CE 23 01 00 04 23 00 00
COMPUTER IN2 BE EF 03 06 00 0E 21 01 00 04 23 04 00
HDMI 1 BE EF 03 06 00 3E 23 01 00 04 23 03 00
HDMI 2 BE EF 03 06 00 5E 27 01 00 04 23 0D 00
HDBaseT BE EF 03 06 00 9E 2F 01 00 04 23 11 00
VIDEO BE EF 03 06 00 5E 22 01 00 04 23 01 00
Get BE EF 03 06 00 FD 23 02 00 04 23 00 00
PinP
SECONDARY
SOURCE
Set
COMPUTER IN1 BE EF 03 06 00 46 23 01 00 02 23 00 00
COMPUTER IN2 BE EF 03 06 00 86 21 01 00 02 23 04 00
HDMI 1 BE EF 03 06 00 B6 23 01 00 02 23 03 00
HDMI 2 BE EF 03 06 00 D6 27 01 00 02 23 0D 00
HDBaseT BE EF 03 06 00 16 2F 01 00 02 23 11 00
VIDEO BE EF 03 06 00 D6 22 01 00 02 23 01 00
Get BE EF 03 06 00 75 23 02 00 02 23 00 00
PbyP/PinP SWAP
Execute BE EF 03 06 00 01 27 06 00 16 23 00 00
PbyP / PinP
)5$0(/2&.
Set
/()735,0$5< BE EF 03 06 00 4A 27 01 00 17 23 00 00
RIGHT / SECONDARY
BE EF 03 06 00 DA 26 01 00 17 23 01 00
Get BE EF 03 06 00 79 27 02 00 17 23 00 00
(continued on next page)
background
RS-232C Communication / Network command table (continued)
Names Operation Type Header
Command Data
CRC Action Type Setting code
30
QM00192 - 3
PERFECT FIT
/HIW7RS+
Get BE EF 03 06 00 31 89 02 00 21 21 00 00
Increment BE EF 03 06 00 57 89 04 00 21 21 00 00
Decrement BE EF 03 06 00 86 88 05 00 21 21 00 00
PERFECT FIT
/HIW7RS9
Get BE EF 03 06 00 75 89 02 00 22 21 00 00
Increment BE EF 03 06 00 13 89 04 00 22 21 00 00
Decrement BE EF 03 06 00 C2 88 05 00 22 21 00 00
PERFECT FIT
Right Top -H
Get BE EF 03 06 00 89 88 02 00 23 21 00 00
Increment BE EF 03 06 00 EF 88 04 00 23 21 00 00
Decrement BE EF 03 06 00 3E 89 05 00 23 21 00 00
PERFECT FIT
Right Top -V
Get BE EF 03 06 00 FD 89 02 00 24 21 00 00
Increment BE EF 03 06 00 9B 89 04 00 24 21 00 00
Decrement BE EF 03 06 00 4A 88 05 00 24 21 00 00
PERFECT FIT
/HIW%RWWRP+
Get BE EF 03 06 00 01 88 02 00 25 21 00 00
Increment BE EF 03 06 00 67 88 04 00 25 21 00 00
Decrement BE EF 03 06 00 B6 89 05 00 25 21 00 00
PERFECT FIT
/HIW%RWWRP9
Get BE EF 03 06 00 45 88 02 00 26 21 00 00
Increment BE EF 03 06 00 23 88 04 00 26 21 00 00
Decrement BE EF 03 06 00 F2 89 05 00 26 21 00 00
PERFECT FIT
Right Bottom -H
Get BE EF 03 06 00 B9 89 02 00 27 21 00 00
Increment BE EF 03 06 00 DF 89 04 00 27 21 00 00
Decrement BE EF 03 06 00 0E 88 05 00 27 21 00 00
PERFECT FIT
Right Bottom -V
Get BE EF 03 06 00 AD 8A 02 00 28 21 00 00
Increment BE EF 03 06 00 CB 8A 04 00 28 21 00 00
Decrement BE EF 03 06 00 1A 8B 05 00 28 21 00 00
PERFECT FIT
All Corners Reset
Execute BE EF 03 06 00 D5 8A 06 00 29 21 00 00
PERFECT
),7/HIW6LGH
Distortion
Get BE EF 03 06 00 31 97 02 00 41 21 00 00
Increment BE EF 03 06 00 57 97 04 00 41 21 00 00
Decrement BE EF 03 06 00 86 96 05 00 41 21 00 00
PERFECT
FIT Right Side
Distortion
Get BE EF 03 06 00 75 97 02 00 42 21 00 00
Increment BE EF 03 06 00 13 97 04 00 42 21 00 00
Decrement BE EF 03 06 00 C2 96 05 00 42 21 00 00
PERFECT
FIT Top Side
Distortion
Get BE EF 03 06 00 FD 97 02 00 44 21 00 00
Increment BE EF 03 06 00 9B 97 04 00 44 21 00 00
Decrement BE EF 03 06 00 4A 96 05 00 44 21 00 00
PERFECT FIT
Bottom Side
Distortion
Get BE EF 03 06 00 01 96 02 00 45 21 00 00
Increment BE EF 03 06 00 67 96 04 00 45 21 00 00
Decrement BE EF 03 06 00 B6 97 05 00 45 21 00 00
PERFECT FIT
All Sides Reset
Execute BE EF 03 06 00 3D 96 06 00 47 21 00 00
PERFECT FIT
Memory Save-1
Execute BE EF 03 06 00 29 95 06 00 48 21 00 00
PERFECT FIT
Memory Save-2
Execute BE EF 03 06 00 D5 94 06 00 49 21 00 00
PERFECT FIT
Memory Save-3
Execute BE EF 03 06 00 91 94 06 00 4A 21 00 00
(continued on next page)
background
RS-232C Communication / Network command table (continued)
Names Operation Type Header
Command Data
CRC Action Type Setting code
31
QM00192 - 3
PERFECT FIT
0HPRU\/RDG
Execute BE EF 03 06 00 6D 95 06 00 4B 21 00 00
PERFECT FIT
0HPRU\/RDG
Execute BE EF 03 06 00 19 94 06 00 4C 21 00 00
PERFECT FIT
0HPRU\/RDG
Execute BE EF 03 06 00 E5 95 06 00 4D 21 00 00
/,*+7287387
Set
WHISPER BE EF 03 06 00 AB 22 01 00 00 33 01 00
1250$/ BE EF 03 06 00 3B 37 01 00 00 33 30 00
/21*/,)( BE EF 03 06 00 6B 20 01 00 00 33 05 00
/21*/,)( BE EF 03 06 00 9B 20 01 00 00 33 06 00
Get BE EF 03 06 00 08 23 02 00 00 33 00 00
/,*+7287387
1250$/32:(5
Get BE EF 03 06 00 C4 23 02 00 05 33 00 00
Increment BE EF 03 06 00 A2 23 04 00 05 33 00 00
Decrement BE EF 03 06 00 73 22 05 00 05 33 00 00
,167$//$7,21
Set
FRONT / DESKTOP
BE EF 03 06 00 C7 D2 01 00 01 30 00 00
REAR / DESKTOP BE EF 03 06 00 57 D3 01 00 01 30 01 00
5($5&(,/,1* BE EF 03 06 00 A7 D3 01 00 01 30 02 00
)5217&(,/,1* BE EF 03 06 00 37 D2 01 00 01 30 03 00
Get BE EF 03 06 00 F4 D2 02 00 01 30 00 00
STANDBY
MODE
Set
QUICK START BE EF 03 06 00 16 DF 01 00 01 60 10 00
1250$/ BE EF 03 06 00 D6 D2 01 00 01 60 00 00
1(7:25.:2/ BE EF 03 06 00 B6 D3 01 00 01 60 02 00
SAVING BE EF 03 06 00 46 D3 01 00 01 60 01 00
Get BE EF 03 06 00 E5 D2 02 00 01 60 00 00
92/80(
COMPUTER IN1
Get BE EF 03 06 00 CD CC 02 00 60 20 00 00
Increment BE EF 03 06 00 AB CC 04 00 60 20 00 00
Decrement BE EF 03 06 00 7A CD 05 00 60 20 00 00
92/80(
COMPUTER IN2
Get BE EF 03 06 00 FD CD 02 00 64 20 00 00
Increment BE EF 03 06 00 9B CD 04 00 64 20 00 00
Decrement BE EF 03 06 00 4A CC 05 00 64 20 00 00
92/80(
VIDEO
Get BE EF 03 06 00 31 CD 02 00 61 20 00 00
Increment BE EF 03 06 00 57 CD 04 00 61 20 00 00
Decrement BE EF 03 06 00 86 CC 05 00 61 20 00 00
92/80(
HDMI1
Get BE EF 03 06 00 89 CC 02 00 63 20 00 00
Increment BE EF 03 06 00 EF CC 04 00 63 20 00 00
Decrement BE EF 03 06 00 3E CD 05 00 63 20 00 00
92/80(
HDMI2
Get BE EF 03 06 00 61 CE 02 00 6D 20 00 00
Increment BE EF 03 06 00 07 CE 04 00 6D 20 00 00
Decrement BE EF 03 06 00 D6 CF 05 00 6D 20 00 00
92/80(
HDBaseT
Get BE EF 03 06 00 C1 EA 02 00 D5 20 00 00
Increment BE EF 03 06 00 A7 EA 04 00 D5 20 00 00
Decrement BE EF 03 06 00 76 EB 05 00 D5 20 00 00
92/80(/$1
Get BE EF 03 06 00 E9 CE 02 00 6B 20 00 00
Increment BE EF 03 06 00 8F CE 04 00 6B 20 00 00
Decrement BE EF 03 06 00 5E CF 05 00 6B 20 00 00
(continued on next page)
background
RS-232C Communication / Network command table (continued)
Names Operation Type Header
Command Data
CRC Action Type Setting code
32
QM00192 - 3
92/80(
STANDBY
Get BE EF 03 06 00 D9 CF 02 00 6F 20 00 00
Increment BE EF 03 06 00 BF CF 04 00 6F 20 00 00
Decrement BE EF 03 06 00 6E CE 05 00 6F 20 00 00
AV MUTE
Set
OFF BE EF 03 06 00 FE F0 01 00 A0 20 00 00
ON BE EF 03 06 00 6E F1 01 00 A0 20 01 00
Get BE EF 03 06 00 CD F0 02 00 A0 20 00 00
MUTE
Set
OFF BE EF 03 06 00 46 D3 01 00 02 20 00 00
ON BE EF 03 06 00 D6 D2 01 00 02 20 01 00
Get BE EF 03 06 00 75 D3 02 00 02 20 00 00
SPEAKER
Set
OFF BE EF 03 06 00 6E D5 01 00 1C 20 00 00
ON BE EF 03 06 00 FE D4 01 00 1C 20 01 00
Get BE EF 03 06 00 5D D5 02 00 1C 20 00 00
AUDIO
SOURCE -
COMPUTER IN1
Set
OFF BE EF 03 06 00 FE DD 01 00 30 20 00 00
AUDIO IN1 BE EF 03 06 00 6E DC 01 00 30 20 01 00
AUDIO IN2 BE EF 03 06 00 9E DC 01 00 30 20 02 00
AUDIO IN3 BE EF 03 06 00 0E DD 01 00 30 20 03 00
Get BE EF 03 06 00 CD DD 02 00 30 20 00 00
AUDIO
SOURCE -
COMPUTER IN2
Set
OFF BE EF 03 06 00 CE DC 01 00 34 20 00 00
AUDIO IN1 BE EF 03 06 00 5E DD 01 00 34 20 01 00
AUDIO IN2 BE EF 03 06 00 AE DD 01 00 34 20 02 00
AUDIO IN3 BE EF 03 06 00 3E DC 01 00 34 20 03 00
Get BE EF 03 06 00 FD DC 02 00 34 20 00 00
AUDIO
SOURCE
/$1
Set
OFF BE EF 03 06 00 DA DF 01 00 3B 20 00 00
AUDIO IN1 BE EF 03 06 00 4A DE 01 00 3B 20 01 00
AUDIO IN2 BE EF 03 06 00 BA DE 01 00 3B 20 02 00
AUDIO IN3 BE EF 03 06 00 2A DF 01 00 3B 20 03 00
$8',2/$1 BE EF 03 06 00 8A D3 01 00 3B 20 11 00
Get BE EF 03 06 00 E9 DF 02 00 3B 20 00 00
(continued on next page)
background
RS-232C Communication / Network command table (continued)
Names Operation Type Header
Command Data
CRC Action Type Setting code
33
QM00192 - 3
AUDIO
SOURCE -
HDMI1
Set
OFF BE EF 03 06 00 BA DD 01 00 33 20 00 00
AUDIO IN1 BE EF 03 06 00 2A DC 01 00 33 20 01 00
AUDIO IN2 BE EF 03 06 00 DA DC 01 00 33 20 02 00
AUDIO IN3 BE EF 03 06 00 4A DD 01 00 33 20 03 00
HDMI1 BE EF 03 06 00 7A C4 01 00 33 20 20 00
Get BE EF 03 06 00 89 DD 02 00 33 20 00 00
AUDIO
SOURCE -
HDMI2
Set
OFF BE EF 03 06 00 52 DF 01 00 3D 20 00 00
AUDIO IN1 BE EF 03 06 00 C2 DE 01 00 3D 20 01 00
AUDIO IN2 BE EF 03 06 00 32 DE 01 00 3D 20 02 00
AUDIO IN3 BE EF 03 06 00 A2 DF 01 00 3D 20 03 00
HDMI2 BE EF 03 06 00 02 C7 01 00 3D 20 21 00
Get BE EF 03 06 00 61 DF 02 00 3D 20 00 00
AUDIO
SOURCE -
HDBaseT
Set
OFF BE EF 03 06 00 0E EB 01 00 D4 20 00 00
AUDIO IN1 BE EF 03 06 00 9E EA 01 00 D4 20 01 00
AUDIO IN2 BE EF 03 06 00 6E EA 01 00 D4 20 02 00
AUDIO IN3 BE EF 03 06 00 FE EB 01 00 D4 20 03 00
HDBaseT BE EF 03 06 00 0E F0 01 00 D4 20 24 00
Get BE EF 03 06 00 3D EB 02 00 D4 20 00 00
AUDIO
SOURCE -
VIDEO
Set
OFF BE EF 03 06 00 02 DC 01 00 31 20 00 00
AUDIO IN1 BE EF 03 06 00 92 DD 01 00 31 20 01 00
AUDIO IN2 BE EF 03 06 00 62 DD 01 00 31 20 02 00
AUDIO IN3 BE EF 03 06 00 F2 DC 01 00 31 20 03 00
Get BE EF 03 06 00 31 DC 02 00 31 20 00 00
(continued on next page)
background
RS-232C Communication / Network command table (continued)
Names Operation Type Header
Command Data
CRC Action Type Setting code
34
QM00192 - 3
LANGUAGE
ENGLISH BE EF 03 06 00 F7 D3 01 00 05 30 00 00
FRANÇAIS BE EF 03 06 00 67 D2 01 00 05 30 01 00
DEUTSCH BE EF 03 06 00 97 D2 01 00 05 30 02 00
(63$f2/ BE EF 03 06 00 07 D3 01 00 05 30 03 00
,7$/,$12 BE EF 03 06 00 37 D1 01 00 05 30 04 00
NORSK BE EF 03 06 00 A7 D0 01 00 05 30 05 00
1('(5/$1'6 BE EF 03 06 00 57 D0 01 00 05 30 06 00
PORTUGUÊS BE EF 03 06 00 C7 D1 01 00 05 30 07 00
BE EF 03 06 00 37 D4 01 00 05 30 08 00
BE EF 03 06 00 A7 D5 01 00 05 30 09 00
BE EF 03 06 00 37 DE 01 00 05 30 10 00
BE EF 03 06 00 57 D5 01 00 05 30 0A 00
SVENSKA BE EF 03 06 00 C7 D4 01 00 05 30 0B 00
3ɍ&&.ɂɃ BE EF 03 06 00 F7 D6 01 00 05 30 0C 00
SUOMI BE EF 03 06 00 67 D7 01 00 05 30 0D 00
32/6., BE EF 03 06 00 97 D7 01 00 05 30 0E 00
TÜRKÇE BE EF 03 06 00 07 D6 01 00 05 30 0F 00
DANSK BE EF 03 06 00 A7 DF 01 00 05 30 11 00
ý(6.< BE EF 03 06 00 57 DF 01 00 05 30 12 00
MAGYAR BE EF 03 06 00 C7 DE 01 00 05 30 13 00
520Æ1Ă BE EF 03 06 00 F7 DC 01 00 05 30 14 00
6/29(16., BE EF 03 06 00 67 DD 01 00 05 30 15 00
HRVATSKI BE EF 03 06 00 97 DD 01 00 05 30 16 00
ǼȁȁǾȃǿȀǹ BE EF 03 06 00 07 DC 01 00 05 30 17 00
/,(789,Ǐ BE EF 03 06 00 F7 D9 01 00 05 30 18 00
EESTI BE EF 03 06 00 67 D8 01 00 05 30 19 00
/$79,(â8 BE EF 03 06 00 97 D8 01 00 05 30 1A 00
ѳъѕ
BE EF 03 06 00 07 D9 01 00 05 30 1B 00
΍ϝϝύΓ΍ϝωέΏϱΓ
BE EF 03 06 00 37 DB 01 00 05 30 1C 00
ϑ΍έαϯ˪
BE EF 03 06 00 A7 DA 01 00 05 30 1D 00
PORTUGUÊS BRA BE EF 03 06 00 57 DA 01 00 05 30 1E 00
BAHASA IND BE EF 03 06 00 C7 DB 01 00 05 30 1F 00
TIENG VIET BE EF 03 06 00 37 CA 01 00 05 30 20 00
ʺʩʸʡʲ BE EF 03 06 00 A7 CB 01 00 05 30 21 00
Get BE EF 03 06 00 C4 D3 02 00 05 30 00 00
NOTE) Not all of the languages in this table are supported.
MENU
POSITION H
Get BE EF 03 06 00 04 D7 02 00 15 30 00 00
Increment BE EF 03 06 00 62 D7 04 00 15 30 00 00
Decrement BE EF 03 06 00 B3 D6 05 00 15 30 00 00
MENU
POSITION H
Reset
Execute BE EF 03 06 00 DC C6 06 00 43 70 00 00
MENU
POSITION V
Get BE EF 03 06 00 40 D7 02 00 16 30 00 00
Increment BE EF 03 06 00 26 D7 04 00 16 30 00 00
Decrement BE EF 03 06 00 F7 D6 05 00 16 30 00 00
MENU
POSITION V
Reset
Execute BE EF 03 06 00 A8 C7 06 00 44 70 00 00
(continued on next page)
background
RS-232C Communication / Network command table (continued)
Names Operation Type Header
Command Data
CRC Action Type Setting code
35
QM00192 - 3
Names Operation Type Header
Command Data
CRC Action Type Setting code
%/$1.
Set
MyScreen BE EF 03 06 00 FB CA 01 00 00 30 20 00
25,*,1$/ BE EF 03 06 00 FB E2 01 00 00 30 40 00
%/8( BE EF 03 06 00 CB D3 01 00 00 30 03 00
WHITE BE EF 03 06 00 6B D0 01 00 00 30 05 00
%/$&. BE EF 03 06 00 9B D0 01 00 00 30 06 00
Get BE EF 03 06 00 08 D3 02 00 00 30 00 00
%/$1.2Q2ႇ
Set
OFF BE EF 03 06 00 FB D8 01 00 20 30 00 00
ON BE EF 03 06 00 6B D9 01 00 20 30 01 00
Get BE EF 03 06 00 C8 D8 02 00 20 30 00 00
$872%/$1.
Set
%/8( BE EF 03 06 00 67 D1 01 00 0D 30 03 00
WHITE BE EF 03 06 00 C7 D2 01 00 0D 30 05 00
%/$&. BE EF 03 06 00 37 D2 01 00 0D 30 06 00
Get BE EF 03 06 00 A4 D1 02 00 0D 30 00 00
START UP
Set
MyScreen BE EF 03 06 00 CB CB 01 00 04 30 20 00
25,*,1$/ BE EF 03 06 00 0B D2 01 00 04 30 00 00
OFF BE EF 03 06 00 9B D3 01 00 04 30 01 00
Get BE EF 03 06 00 38 D2 02 00 04 30 00 00
0\6FUHHQ/RFN
Set
OFF BE EF 03 06 00 3B EF 01 00 C0 30 00 00
ON BE EF 03 06 00 AB EE 01 00 C0 30 01 00
Get BE EF 03 06 00 08 EF 02 00 C0 30 00 00
OSD MESSAGE
Set
6,/(17 BE EF 03 06 00 8F D6 01 00 17 30 00 00
1250$/ BE EF 03 06 00 1F D7 01 00 17 30 01 00
INHIBIT BE EF 03 06 00 EF D7 01 00 17 30 02 00
Get BE EF 03 06 00 BC D6 02 00 17 30 00 00
7(03/$7(
Set
TEST PATTERN BE EF 03 06 00 43 D9 01 00 22 30 00 00
'27/,1( BE EF 03 06 00 D3 D8 01 00 22 30 01 00
'27/,1( BE EF 03 06 00 23 D8 01 00 22 30 02 00
'27/,1( BE EF 03 06 00 B3 D9 01 00 22 30 03 00
'27/,1( BE EF 03 06 00 83 DB 01 00 22 30 04 00
Get BE EF 03 06 00 70 D9 02 00 22 30 00 00
7(03/$7(
2Q2ႇ
Set
OFF BE EF 03 06 00 BF D8 01 00 23 30 00 00
ON BE EF 03 06 00 2F D9 01 00 23 30 01 00
Get BE EF 03 06 00 8C D8 02 00 23 30 00 00
&&',63/$<
Set
OFF BE EF 03 06 00 FA 62 01 00 00 37 00 00
ON BE EF 03 06 00 6A 63 01 00 00 37 01 00
AUTO BE EF 03 06 00 9A 63 01 00 00 37 02 00
Get BE EF 03 06 00 C9 62 02 00 00 37 00 00
C. C. - MODE
Set
CAPTIONS BE EF 03 06 00 06 63 01 00 01 37 00 00
TEXT BE EF 03 06 00 96 62 01 00 01 37 01 00
Get BE EF 03 06 00 35 63 02 00 01 37 00 00
C. C. -
&+$11(/
Set
1 BE EF 03 06 00 D2 62 01 00 02 37 01 00
2 BE EF 03 06 00 22 62 01 00 02 37 02 00
3 BE EF 03 06 00 B2 63 01 00 02 37 03 00
4 BE EF 03 06 00 82 61 01 00 02 37 04 00
Get BE EF 03 06 00 71 63 02 00 02 37 00 00
(continued on next page)
background
RS-232C Communication / Network command table (continued)
Names Operation Type Header
Command Data
CRC Action Type Setting code
36
QM00192 - 3
SEARCH SKIP
COMPUTER IN1
Set
1250$/ BE EF 03 06 00 FE 78 01 00 20 22 00 00
SKIP BE EF 03 06 00 6E 79 01 00 20 22 01 00
Get BE EF 03 06 00 CD 78 02 00 20 22 00 00
SEARCH SKIP
COMPUTER IN2
Set
1250$/ BE EF 03 06 00 CE 79 01 00 24 22 00 00
SKIP BE EF 03 06 00 5E 78 01 00 24 22 01 00
Get BE EF 03 06 00 FD 79 02 00 24 22 00 00
SEARCH SKIP
VIDEO
Set
1250$/ BE EF 03 06 00 02 79 01 00 21 22 00 00
SKIP BE EF 03 06 00 92 78 01 00 21 22 01 00
Get BE EF 03 06 00 31 79 02 00 21 22 00 00
SEARCH SKIP
HDMI1
Set
1250$/ BE EF 03 06 00 BA 78 01 00 23 22 00 00
SKIP BE EF 03 06 00 2A 79 01 00 23 22 01 00
Get BE EF 03 06 00 89 78 02 00 23 22 00 00
SEARCH SKIP
HDMI2
Set
1250$/ BE EF 03 06 00 52 7A 01 00 2D 22 00 00
SKIP BE EF 03 06 00 C2 7B 01 00 2D 22 01 00
Get BE EF 03 06 00 61 7A 02 00 2D 22 00 00
SEARCH SKIP
/$1
Set
1250$/ BE EF 03 06 00 DA 7A 01 00 2B 22 00 00
SKIP BE EF 03 06 00 4A 7B 01 00 2B 22 01 00
Get BE EF 03 06 00 E9 7A 02 00 2B 22 00 00
SEARCH SKIP
HDBaseT
Set
1250$/ BE EF 03 06 00 B6 EA 01 00 D6 20 00 00
SKIP BE EF 03 06 00 26 EB 01 00 D6 20 01 00
Get BE EF 03 06 00 85 EA 02 00 D6 20 00 00
AUTO SEARCH
Set
OFF BE EF 03 06 00 B6 D6 01 00 16 20 00 00
ON BE EF 03 06 00 26 D7 01 00 16 20 01 00
Get BE EF 03 06 00 85 D6 02 00 16 20 00 00
DIRECT
POWER ON
Set
OFF BE EF 03 06 00 3B 89 01 00 20 31 00 00
ON BE EF 03 06 00 AB 88 01 00 20 31 01 00
Get BE EF 03 06 00 08 89 02 00 20 31 00 00
AUTO
POWER ON -
COMPUTER IN1
Get BE EF 03 06 00 08 A4 02 00 B0 31 00 00
AUTO POWER
ON - VIDEO
Get BE EF 03 06 00 F4 A5 02 00 B1 31 00 00
AUTO POWER
ON - HDMI2
Get BE EF 03 06 00 A4 A6 02 00 BD 31 00 00
AUTO POWER
OFF
Get BE EF 03 06 00 08 86 02 00 10 31 00 00
Increment BE EF 03 06 00 6E 86 04 00 10 31 00 00
Decrement BE EF 03 06 00 BF 87 05 00 10 31 00 00
/,*+76285&(
7,0(/RZ
Get BE EF 03 06 00 C2 FF 02 00 90 10 00 00
/,*+76285&(
TIME High
Get BE EF 03 06 00 2A FD 02 00 9E 10 00 00
),/7(5
TIME
/RZ
Get BE EF 03 06 00 C2 F0 02 00 A0 10 00 00
),/7(57,0(+LJK
Get BE EF 03 06 00 D6 FC 02 00 9F 10 00 00
),/7(57,0(5HVHW
Execute BE EF 03 06 00 98 C6 06 00 40 70 00 00
(continued on next page)
background
RS-232C Communication / Network command table (continued)
Names Operation Type Header
Command Data
CRC Action Type Setting code
37
QM00192 - 3
MY BUTTON-1
Set
COMPUTER IN1 BE EF 03 06 00 3A 33 01 00 00 36 00 00
COMPUTER IN2 BE EF 03 06 00 FA 31 01 00 00 36 04 00
/$1 BE EF 03 06 00 0A 34 01 00 00 36 0B 00
HDMI 1 BE EF 03 06 00 CA 33 01 00 00 36 03 00
HDMI 2 BE EF 03 06 00 AA 37 01 00 00 36 0D 00
HDBaseT BE EF 03 06 00 AA 1A 01 00 00 36 61 00
VIDEO BE EF 03 06 00 AA 32 01 00 00 36 01 00
MY IMAGE BE EF 03 06 00 5A 3D 01 00 00 36 16 00
MESSENGER BE EF 03 06 00 AA 29 01 00 00 36 25 00
INFORMATION BE EF 03 06 00 FA 3E 01 00 00 36 10 00
MY MEMORY BE EF 03 06 00 9A 3F 01 00 00 36 12 00
AV MUTE BE EF 03 06 00 AA 38 01 00 00 36 19 00
PICTURE MODE BE EF 03 06 00 0A 3E 01 00 00 36 13 00
),/7(55(6(7 BE EF 03 06 00 3A 3C 01 00 00 36 14 00
5(62/87,21 BE EF 03 06 00 9A 3A 01 00 00 36 1E 00
7(03/$7( BE EF 03 06 00 CA 39 01 00 00 36 1B 00
/,*+7287387 BE EF 03 06 00 0A 25 01 00 00 36 37 00
$&&(178$/,=(5 BE EF 03 06 00 9A 21 01 00 00 36 3A 00
HDCR BE EF 03 06 00 5A 23 01 00 00 36 3E 00
PbyP SWAP BE EF 03 06 00 5A 38 01 00 00 36 1A 00
PinP POSITION BE EF 03 06 00 3A 22 01 00 00 36 3C 00
MY BUTTON BE EF 03 06 00 CA 72 01 00 00 36 FF 00
Get BE EF 03 06 00 09 33 02 00 00 36 00 00
MY BUTTON-2
Set
COMPUTER IN1 BE EF 03 06 00 C6 32 01 00 01 36 00 00
COMPUTER IN2 BE EF 03 06 00 06 30 01 00 01 36 04 00
/$1 BE EF 03 06 00 F6 35 01 00 01 36 0B 00
HDMI 1 BE EF 03 06 00 36 32 01 00 01 36 03 00
HDMI 2 BE EF 03 06 00 56 36 01 00 01 36 0D 00
HDBaseT BE EF 03 06 00 56 1B 01 00 01 36 61 00
VIDEO BE EF 03 06 00 56 33 01 00 01 36 01 00
MY IMAGE BE EF 03 06 00 A6 3C 01 00 01 36 16 00
MESSENGER BE EF 03 06 00 56 28 01 00 01 36 25 00
INFORMATION BE EF 03 06 00 06 3F 01 00 01 36 10 00
MY MEMORY BE EF 03 06 00 66 3E 01 00 01 36 12 00
AV MUTE BE EF 03 06 00 56 39 01 00 01 36 19 00
PICTURE MODE BE EF 03 06 00 F6 3F 01 00 01 36 13 00
),/7(55(6(7 BE EF 03 06 00 C6 3D 01 00 01 36 14 00
5(62/87,21 BE EF 03 06 00 66 3B 01 00 01 36 1E 00
7(03/$7( BE EF 03 06 00 36 38 01 00 01 36 1B 00
/,*+7287387 BE EF 03 06 00 F6 24 01 00 01 36 37 00
$&&(178$/,=(5 BE EF 03 06 00 66 20 01 00 01 36 3A 00
HDCR BE EF 03 06 00 A6 22 01 00 01 36 3E 00
PbyP SWAP BE EF 03 06 00 A6 39 01 00 01 36 1A 00
PinP POSITION BE EF 03 06 00 C6 23 01 00 01 36 3C 00
MY BUTTON BE EF 03 06 00 36 73 01 00 01 36 FF 00
Get BE EF 03 06 00 F5 32 02 00 01 36 00 00
(continued on next page)
background
RS-232C Communication / Network command table (continued)
Names Operation Type Header
Command Data
CRC Action Type Setting code
38
QM00192 - 3
)/,&.(5
REDUCTION
Set
OFF BE EF 03 06 00 B9 D6 01 00 16 10 00 00
ON BE EF 03 06 00 29 D7 01 00 16 10 01 00
Get BE EF 03 06 00 8A D6 02 00 16 10 00 00
REMOTE FREQ.
1250$/
Set
OFF BE EF 03 06 00 FF 3D 01 00 30 26 00 00
ON BE EF 03 06 00 6F 3C 01 00 30 26 01 00
Get BE EF 03 06 00 CC 3D 02 00 30 26 00 00
REMOTE FREQ.
HIGH
Set
OFF BE EF 03 06 00 03 3C 01 00 31 26 00 00
ON BE EF 03 06 00 93 3D 01 00 31 26 01 00
Get BE EF 03 06 00 30 3C 02 00 31 26 00 00
REMOTE
HDBaseT
Set
OFF BE EF 03 06 00 BB 32 01 00 03 26 00 00
ON BE EF 03 06 00 2B 33 01 00 03 26 01 00
Get BE EF 03 06 00 88 32 02 00 03 26 00 00
MY IMAGE
Set
OFF BE EF 03 06 00 3A C3 01 00 00 35 00 00
IMAGE-1 BE EF 03 06 00 AA C2 01 00 00 35 01 00
IMAGE-2 BE EF 03 06 00 5A C2 01 00 00 35 02 00
IMAGE-3 BE EF 03 06 00 CA C3 01 00 00 35 03 00
IMAGE-4 BE EF 03 06 00 FA C1 01 00 00 35 04 00
Get BE EF 03 06 00 09 C3 02 00 00 35 00 00
MY IMAGE
IMAGE-1 Delete
Execute BE EF 03 06 00 71 C3 06 00 01 35 00 00
MY IMAGE
IMAGE-2 Delete
Execute BE EF 03 06 00 35 C3 06 00 02 35 00 00
MY IMAGE
IMAGE-3 Delete
Execute BE EF 03 06 00 C9 C2 06 00 03 35 00 00
MY IMAGE
IMAGE-4 Delete
Execute BE EF 03 06 00 BD C3 06 00 04 35 00 00
/$16281'
(1$%/(
Set
Disable BE EF 03 06 00 BA F0 01 00 A3 20 00 00
Enable BE EF 03 06 00 2A F1 01 00 A3 20 01 00
Get BE EF 03 06 00 89 F0 02 00 A3 20 00 00
$0;IRU/$1
Set
OFF BE EF 03 06 00 33 AC 01 00 30 1B 00 00
ON BE EF 03 06 00 A3 AD 01 00 30 1B 01 00
Get BE EF 03 06 00 00 AC 02 00 30 1B 00 00
CRESTRON
Set
OFF BE EF 03 06 00 33 B2 01 00 50 1B 00 00
ON BE EF 03 06 00 A3 B3 01 00 50 1B 01 00
Get BE EF 03 06 00 00 B2 02 00 50 1B 00 00
EXTRON for
HDBaseT
Set
OFF BE EF 03 06 00 33 BD 01 00 60 1B 00 00
ON BE EF 03 06 00 A3 BC 01 00 60 1B 01 00
Get BE EF 03 06 00 00 BD 02 00 60 1B 00 00
STANDBY
OUTPUT -
AUDIO OUT
Set
OFF BE EF 03 06 00 EA DE 01 00 3F 20 00 00
AUDIO IN1 BE EF 03 06 00 7A DF 01 00 3F 20 01 00
AUDIO IN2 BE EF 03 06 00 8A DF 01 00 3F 20 02 00
AUDIO IN3 BE EF 03 06 00 1A DE 01 00 3F 20 03 00
HDMI 1 BE EF 03 06 00 2A C7 01 00 3F 20 20 00
HDMI 2 BE EF 03 06 00 BA C6 01 00 3F 20 21 00
HDBaseT BE EF 03 06 00 EA C5 01 00 3F 20 24 00
Get BE EF 03 06 00 D9 DE 02 00 3F 20 00 00
background
39
QM00192 - 3
PJLink command
3-/LQNFRPPDQG
POWR Power Control
0 = Standby
1 = Power On
POWR ? Power Status inquiry
0 = Standby
1 = Power On
2 = Cool Down
INPT Input Source selection
11 = COMPUTER IN 1
12 = COMPUTER IN 2
23 = VIDEO
31 = HDMI1
33 = HDMI2
36 = HDBaseT
 /$1
INPT ? Input Source inquiry
11 = COMPUTER IN 1
12 = COMPUTER IN 2
23 = VIDEO
31 = HDMI1
33 = HDMI2
36 = HDBaseT
 /$1
AVMT AV Mute
 %/$1.Rႇ
 %/$1.RQ
 0XWHRႇ
21 = Mute on
 $90XWHRႇ
31 = AV Mute on
AVMT ? AV Mute inquiry
 %/$1.Rႇ
 %/$1.RQ
 0XWHRႇ
21 = Mute on
 $90XWHRႇ
31 = AV Mute on
Commands Control Description Parameter or Response
(continued on next page)
background
40
QM00192 - 3
PJLink command (continued)
Commands Control Description Parameter or Response
ERST ? Error Status inquiry
VWE\WH5HIHUVWR)DQHUURURQHRIWR
2nd byte
:
5HIHUVWR/LJKW6RXUFHHUURURQHRI
0 to 2
UGE\WH5HIHUVWR7HPSHUDWXUHHUURURQHRIWR
WKE\WH5HIHUVWR&RYHUHUURURQHRIWR
WKE\WH5HIHUVWR)LOWHUHUURURQHRIWR
WKE\WH5HIHUVWR2WKHUHUURURQHRIWR
The meaning of 0 to 2 is as given below
 (UURULVQRWGHWHFWHG :DUQLQJ 
Error
/$03"
/LJKW6RXUFH
Status inquiry
VWQXPEHUGLJLWVWR/LJKW6RXUFH7LPH
QGQXPEHU /LJKW6RXUFHRႇ
 /LJKW6RXUFHRQ
INST ? ,QSXW6RXUFH/LVWLQTXLU\ 11 12 23 31 33 36 51
NAME ? Projector Name inquiry
Responds with the name set in "PROJECTOR
NAME" of "NETWORK"
INF1 ?
Manufacturer's Name
inquiry
0$;(//
INF2 ? Model Name inquiry
MP-WU5603
MP-WU5503
MP-WX5603
MP-WX5503
INFO ? Other Information inquiry
Returns an empty string.
&/66" Class Information inquiry 2
(continued on next page)
background
41
QM00192 - 3
NOTE
7KHSDVVZRUGXVHGLQ3-/LQN
TM
is the same as the password set in
WKH:HE%URZVHU&RQWURO7RXVH3-/LQN
TM
without authentication, do not set
any password in Web Browser Control.
)RUVSHFL¿FDWLRQVRI3-/LQN
TM
, see the web site of the Japan Business
Machine and Information System Industries Association.
85/KWWSSMOLQNMEPLDRUMS
PJLink command (continued)
Trademark acknowledgment
•
7UDGHPDUN3-/LQNLVDWUDGHPDUNDSSOLHGIRUWUDGHPDUNULJKWVLQ
Japan, the United States of America and other countries and areas.
•
HDMI
TM
WKH+'0,ORJRDQG+LJK'H¿QLWLRQ0XOWLPHGLD,QWHUIDFHDUHWUDGHPDUNVRU
UHJLVWHUHGWUDGHPDUNVRI+'0,/LFHQVLQJ//&LQWKH8QLWHG6WDWHVDQGRWKHUFRXQWULHV
•
HDBaseT
TM
and the HDBaseT Alliance logo are trademarks of the HDBaseT Alliance.
All other trademarks are the properties of their respective owners.
SNUM ? Serial number query Responds with the serial number information
SVER ? Software version query
Returns an empty string.
INNM ? Input terminal name query Responds with the Input terminal name
IRES ? Input resolution query
Responds with the resolution information of
input signal
RRES ?
Recommended resolution
query
Responds with the recommended resolution
information of input signal
),/7" Filter usage time query Responds with the Filter Time (digits 1 to 5)
5/03"
/DPSUHSODFHPHQWPRGHO
number query
Returns an empty string.
5),/"
Filter replacement model
number query
Returns an empty string.
692/
Speaker volume
adjustment instruction
0 = decrease volume
1 = increase volume
092/
Microphone volume
adjustment instruction
Not available
FREZ Freeze instruction
 )UHH]HRႇ
1 = Freeze on
FREZ ? Freeze status query
 )UHH]HRႇ
1 = Freeze on
Commands Control Description Parameter or Response

Specifications

Indexed Terms: Laser

Hitachi MPWX5503 Questions and Answers

Find answers or ask new question.
See other models: MPEU5002 MPEW5002 MPEX5002 MCWU5506 MCWU5505
Questions and Answers
