GB
User Guide
THANK YOU FOR PURCHASING A HOTPOINT PRODUCT.
To receive more comprehensive assistance, register the
appliance on www.hotpoint.eu/register
Before using the appliance carefully read the Health and Safety guide.
Before using the machine, it is imperative that the transport bolts are removed. For more
detailed instructions on how to remove them, see the Installation Guide.
CONTROL PANEL
WASH CYCLE TABLE
PRODUCT DESCRIPTION
1.
3.
2.
5.
4.
7.
6.
8.
1. Top
2. Detergent dispenser drawer
3. Control panel
4. Handle
5. Porthole door
6. Drain pump (behind the plinth)
7. Plinth (removable)
8. Adjustable feet (2)
1. ON/OFF button
2. DRY ONLY button and indicator light
3. KEY LOCK button and indicator light
4. EXTRA TOUCH button
5. EXTRA TOUCH indicator lights
6. START/PAUSE button and indicator light
7. DELAY button and indicator light
8. DRYING LEVEL button
9. SPIN button
10. TEMPERATURE button
11. WASH CYCLE SELECTOR KNOB
DETERGENT DISPENSER DRAWER
Compartment *:
Do not insert detergent in this compartment.
Compartment 1: Washing detergent (powder
or liquid)
If liquid detergent is used, the removable plastic
partition A (supplied) should be used for proper
dosage.
If powder detergent is used, place the partition
into slot B.
Compartment 2: Additives (fabric softeners, etc.)
The fabric softener must not exceed the “MAX” level.
! Use powder detergent for white cotton garments, for pre-washing, and
for washing at temperatures over 60°C.
! Follow the instructions given on the detergent packaging.
1
2
A
B
*
1
11
2

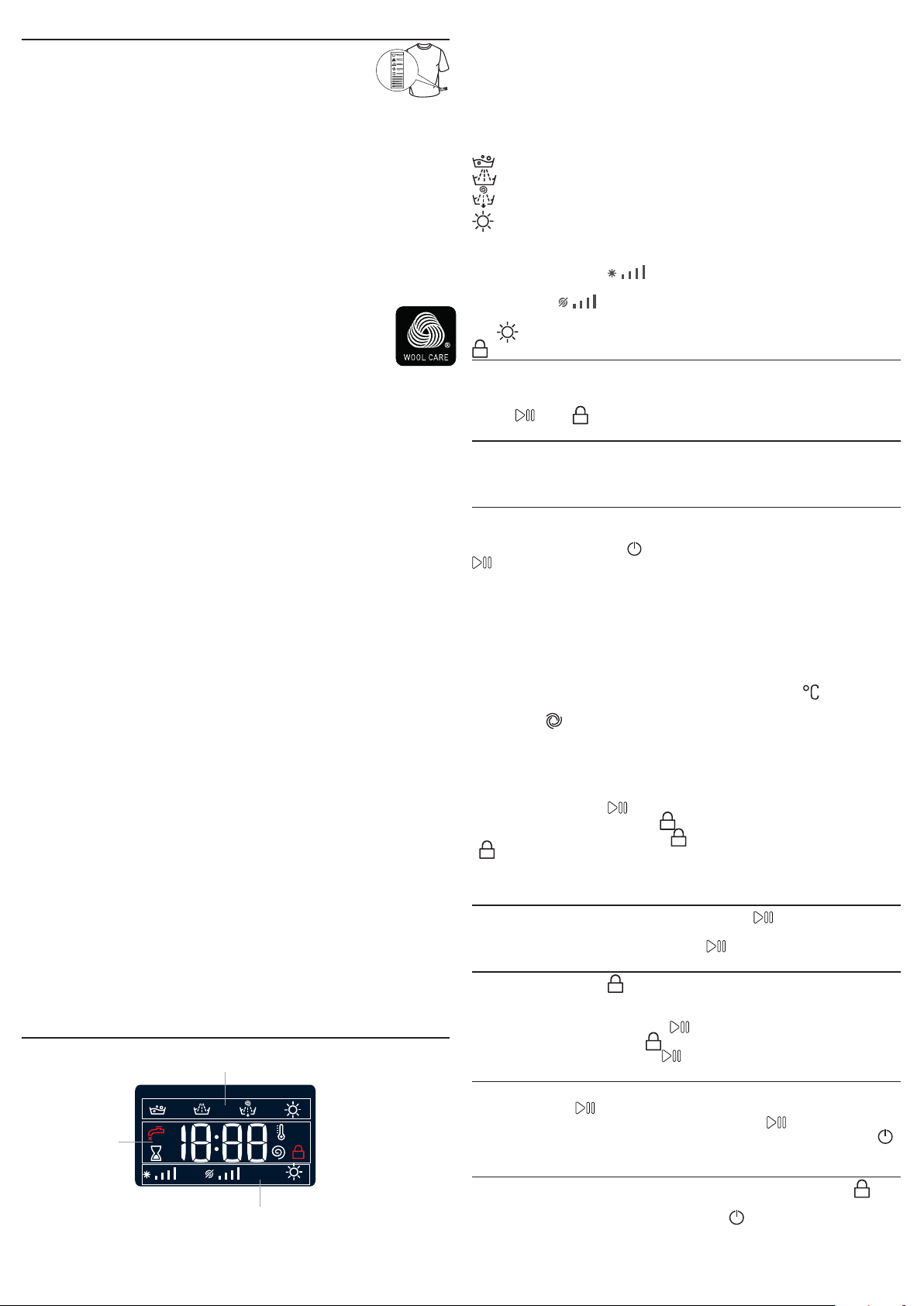

DISPLAY
5
6
7
8
9
10
4
3
For all testing institutes:
2) Long cotton cycle: set programme COTTON at temperature 40°C.
3) Long synthetics cycle: set cycle SYNTHETICS at a temperature of 40°C.
* By selecting the cycle and excluding the spin cycle, the washer-dryer will drain only.
** The duration of the wash cycles can be checked on the display.
*** After programme end and spinning with maximum selectable spin speed, in default
programme setting.
**** The display will show the suggested spin speed as default value.
The cycle duration indicated on the display or instruction manual is an estimate based on
standard conditions. The actual duration may vary in relation to several factors, such as the
temperature and pressure of the incoming water, ambient temperature, amount of detergent,
load quantity and type, load balancing and any additional options selected. The values given
for programmes other than the Eco 40-60 programme are indicative only.
1) Eco 40-60 (Wash) - Test wash cycle in compliance with EU Ecodesign regulation
2019/2014. The most ecient programme in terms of energy and water consumption for
washing normally soiled cotton laundry.
Note: spin speed values shown on the display can slightly diers from the values stated in the table.
4) Eco 40-60 (Wash & Dry)-
Test
wash and
drying cycle in compliance with EU Ecodesign
regulation
2019/2014
. To access “wash and dry” cycle select “Eco 40-60” wash programme
and set “Drying Level” to
“
A3
”.
The most ecient programme in terms of energy and water
consumption for washing and drying normally soiled cotton laundry. At the end of cycle the
garments can be immediately stored to the cupboard.
Maximum washing load 9 kg. Maximum drying load 6 kg.
Power input in o mode 0.5 W / in left-on mode 8 W
Detergents and
Additives
Recommended
detergent
Residual
dampness %
(***)
Energy
consumption
kWh
Total water lt
Laundry
temperature °C
Wash cycle
Temperature
Max.
spin
speed
(rpm)
Max.
load for
washing
(kg)
Duration
(h : m)
Drying
Max.
load for
drying
(kg)
Wash
Fabric
softener
Powder
Liquid
Setting Range 1 2
Wash & Dry Mixed 30 °C
- 30 °C
1200 3.0 **
3.0
–
– – – –
Wash & Dry XL Bed & Bath 60 °C
- 60 °C
1400 5.0 **
5.0
–
– – – –
Cotton (2) 40 °C
- 60 °C
1400 9.0 3:55
6.0
49 1.40 105 45
Synthetics (3) 40 °C
- 60 °C
1200 4.0 2:55
4.0
35 0.80 55 43
Wool 40 °C
- 40 °C
800 2.0 **
2.0
–
– – – –
Delicates 30 °C
- 30 °C
600 (****) 1.0 **
1.0
–
– – – –
Anti Allergy 60°C 40 °C - 60 °C 1400 5.0 **
5.0
– – – –
Anti Stain 40 °C
- 40 °C
1400 9.0 **
6.0
–
– – – –
Steam Refresh – – – 2.0 ** – – – – – – – – – –
Spin & Drain *
– – 1400 9.0 **
6.0 – – – – – – – –
Rinse & Spin
– – 1400 9.0 **
6.0 –
– – – – – –
Wash 20°C 20 °C
- 20 °C
1400 9.0 1:50 – –
–
49 0.16 90 22
Eco 40-60 (1)
(Wash)
40 °C 40°C
1351 9.0 3:48
6.0
53 0.80 59 35
1351 4.5 2:54
53 0.59 57 34
1351 2.5 2:25
53 0.35 38 26
Intense 60-90°C 60 °C
- 90 °C
1400 9.0 2:45
6.0
49 0.90 90 55
Rapid Wash 30 °C
- 30 °C
1200 (****) 4.5 0:30 – –
–
71 0.20 45 27
Wash & Dry XS Rapid 30 °C 30 °C 1400 1.0 **
1.0
–
– – – –
Required dosage Optional dosage
Eco 40-60 (4)
(Wash & Dry)
40 °C 40 °C
1351 6.0 9:20
6.0
0 3.80 75 33
1351 3.0 5:10
3.0
0 1.98 47 32
