Ashley AP130 130 Lb Hopper Pellet Stove User Manual

853146B-2604H

Report #: 215-S-05c-2

CALIFORNIA PROPOSITION 65 WARNING:

This product can expose you to chemicals including carbon monoxide, which

is known to the State of California to cause cancer, birth defects and/or other

reproductive harm. For more information, go to www.P65warnings.ca.gov

MODEL: AP130

Owner’s Operation and Instruction Manual

SAVE THESE INSTRUCTIONS

THIS MANUAL WILL HELP YOU TO OBTAIN EFFICIENT, DEPENDABLE SERVICE FROM THE HEATER, AND ENABLE YOU

TO ORDER REPAIR PARTS CORRECTLY. KEEP IN A SAFE PLACE FOR FUTURE REFERENCE.

United States Stove Company

227 Industrial Park Road

South Pittsburg, TN 37380

• Please read this entire manual before installation and use of this

appliance. Failure to follow these instructions could result in property

damage, bodily injury, or even death.

• Contact your local building or re ofcials about obtaining permits,

restrictions and installation inspection requirements in your area.

• Save these instructions.

• If your heater is not properly installed, a house re may result. For

everyone’s safety, follow all Installation and Operating Directions.

Never use makeshift compromises during the installation of this

appliance. Contact your local building or re ofcials about

restrictions and installation inspection requirements in your area.

This unit is not intended to be used as a

primary source of heat.

Certied to ASTM E 1509, 2012, and Certied to

ULC S627, 2000, and(UM) 84-HUD

U.S. Environmental Protection Agency

Certied to comply with 2015 particulate

emissions standards.

-2-

This manual describes the installation and operation of the Ashley, AP130 pellet stove.

• IMPORTANT: Read this entire manual before

installing and operating this product. Failure to do

so may result in property damage, bodily injury,

or even death. Proper installation of this stove is

crucial for safe and efcient operation.

• Install vent at clearances specied by the vent

manufacturer.

• If a chimney or creosote re occurs, press the “OFF”

button immediately. Do not unplug the unit.

• Do not connect the pellet vent to a vent serving

any other appliance or stove.

• Do not install a ue damper in the exhaust venting

system of this unit.

• Use of outside air is not required for this unit.

• Contact your local building ofcials to obtain

a permit and information on any additional

installation restrictions or inspection requirements in

your area.

• Do not throw this manual away. This manual has

important operating and maintenance instructions

that you will need at a later time. Always follow the

instructions in this manual.

• This appliance is designed for the use of pelletized

fuel that meet or exceed the standard set by the

Pellet Fuel Institute(PFI).

• Never use gasoline, gasoline-type lantern fuel,

kerosene, charcoal lighter uid, or similar liquids to

start or ’freshen up’ a re in this stove. Keep all such

liquids well away from the stove while it is in use.

• A working smoke detector must be installed in the

same room as this product.

• Do not unplug the stove if you suspect a

malfunction. Turn the ON/OFF SWITCH to ”OFF’ and

contact your dealer.

• Your stove requires periodic maintenance and

cleaning (see ”MAINTENANCE ”). Failure to

maintain your stove may lead to improper and/or

unsafe operation.

• Disconnect the power cord before performing any

maintenance! NOTE: Turning the ON/OFF Switch

to ”OFF” does not disconnect all power to the

electrical components of the stove.

• Never try to repair or replace any part of the stove

unless instructions for doing so are given in this

manual. All other work should be done by a trained

technician.

• Do not operate your stove with the viewing door

open. The auger will not feed pellets under these

circumstances and a safety concern may arise

from sparks or fumes entering the room.

• Allow the stove to cool before performing any

maintenance or cleaning. Ashes must be disposed

in a metal container with a tight tting lid. The

closed container of ashes should be placed on a

non-combustible surface or on the ground, well

away from all combustible materials, pending nal

disposal.

• The exhaust system should be checked monthly

during the burning season for any build-up of soot

or creosote.

• Do not touch the hot surfaces of the stove. Educate

all children on the dangers of a high-temperature

stove. Young children should be supervised when

they are in the same room as the stove.

• The hopper and stove top will be hot during

operation; therefore, you should always use some

type of hand protection when refueling your stove.

• A power surge protector is required. This unit must

be plugged into a 110 - 120V, 60 Hz grounded

electrical outlet. Do not use an adapter plug

or sever the grounding plug. Do not route the

electrical cord underneath, in front of, or over the

heater. Do not route the cord in foot trafc areas or

pinch the cord under furniture.

• The heater will not operate during a power outage.

If a power outage does occur, check the heater

for smoke spillage and open a window if any

smoke spills into the room.

• The feed door must be closed and sealed during

operation.

• Never block free airow through the open vents of

the unit.

• Soot and Flyash: Formation and Need for Removal

– The products of combustion will contain small

particles of yash. The yash will collect in the

exhaust venting system and restrict the ow of the

ue gases. Incomplete combustion, such as occurs

during startup, shutdown, or incorrect operation of

the room heater will lead to some soot formation

which will collect in the exhaust venting system.

The exhaust venting system should be inspected

at least once every year to determine if cleaning is

necessary.

• Keep foreign objects out of the hopper.

• The moving parts of this stove are propelled by high

torque electric motors. Keep all body parts away

from the auger while the stove is plugged into an

electrical outlet. These moving parts may begin to

move at any time while the stove is plugged in.

• Do not place clothing or other ammable items on

or near this stove.

• When installed in a mobile home, the stove must

be grounded directly to the steel chassis and

bolted to the oor. WARNING—THIS UNIT MUST

NOT BE INSTALLED IN THE BEDROOM (per HUD

requirements). CAUTION—The structural integrity of

the mobile home oor, wall, and ceiling/roof must

be maintained.

• This appliance is not intended for commercial use.

* This appliance is a freestanding heater. It is not intended to be attached to any type of ducting. It is not a

furnace.

Safety Precautions

-3-

HEATING SPECIFICATIONS

Fuel Burn Rate* 1.5 - 5.0 lbs./hr. (0.7 - 2.3 kg/hr)

Burn Time (lowest setting) 80 hrs.

Hopper Capacity 130lbs. (59kg)

DIMENSIONS

Height 34 in. (864mm)

Width 26 in. (660mm)

Depth 26 in. (686mm)

Weight 210 lbs. (95.5kg)

* Pellet size may effect the actual rate of fuel feed and burn times. Fuel feed rates may vary by as much as 20%.

Use PFI listed fuel for best results.

ELECTRICAL SPECIFICATIONS

Electrical Rating 110-120 volts, 60 HZ, 3.0 Amps

Watts (operational) 175 (approx.)

Watts (igniter running) 425 (approx.)

FUEL CONSIDERATIONS

Your pellet stove is designed to burn premium hardwood pellets that comply with Association of Pellet Fuel

Industries standards. (Minimum of 40 lbs per cubic ft, 1/4” to 5/16” diameter, length no greater than 1.5”, not less

than 8,200 BTU/lb, moisture under 8%by weight, ash under 1% by weight, and salt under 300 parts per million).

Pellets that are soft, contain excessive amounts of loose sawdust, have been, or are wet, will result in reduced

performance.

Store your pellets in a dry place. DO NOT store the fuel within the installation clearances of the unit or within the

space required for refueling and ash removal. Doing so could result in a house re.

SAFETY AND EPA COMPLIANCE

Your pellet stove has been safety tested and listed to ASTM E 1509-2012, ULC-S627-00 and (UM) 84-HUD by OMNI-

Test Laboratories, Inc. Portland, Oregon, USA.

Specications

WARNING: It is against federal regulations to operate this wood heater in a manner inconsistent with the

operating instructions in the owner’s manual.

-4-

Installation Options

Read this entire manual before you install and use your pellet stove. Failure to follow instructions may result in

property damage, bodily injury, or even death!

(See specic installation details for clearances and other installation requirements)

A Freestanding Unit—supported by pedestal/legs and placed on a non-combustible oor surface in compliance

with clearance requirements for a freestanding stove installation.

An Alcove Unit—supported by pedestal/legs and placed on a non-combustible oor surface in compliance

with clearance requirements for an alcove installation.

Your pellet stove may be installed to code in either a conventional or mobile home (see SPECIAL MOBILE HOME

REQUIREMENTS). US Only Installation.

It is recommended that only a authorized technician install your pellet stove, preferably an NFI certied specialist.

IMPROPER INSTALLATION: The manufacturer will not be held responsible for damage caused by the malfunction

of a stove due to improper venting or installation. Call (800) 750-2723 and/or consult a professional installer if you

have any questions.

FLOOR PROTECTION

This unit must be installed on a non-combustible oor surface. If a oor pad is used, it should be UL listed or equal.

The oor pad or non-combustible surface should be large enough to extend a minimum of 6 in. (152.4mm) in

front, 6 in. (152.4mm) on each side, and 1 in. (25.4mm) behind the stove (see FIGURE 2).

Floor protection must extend under and 2 in. (50.8mm) to each side of the chimney tee for an interior vertical

installation (see FIGURE 2).

Your pellet stove will need a minimum 31” (787mm) x 38” (965mm) oor protector.

A Floor Protector of 1 inch (25.4mm) thick is recommended for this installation.

Canadian installations require 18” (450mm) in front of the unit.

CAUTION: Do not connect to or use in conjunction with any air distribution ductwork.

Installation

-5-

Installation

Figure 3

Side Wall Clearances

Parallel Installation

Figure 4

Side Wall Clearances

Corner Installation

Figure 5

Alcove Clearances

PARALLEL A - Backwall to unit 2.00 / 50mm

B - Sidewall to ue 13.00 / 330mm

C - Sidewall to top edge of unit 8.00 / 203mm

CORNER D - Adjacent wall to unit 8.00 / 203mm

ALCOVE E - Alcove depth 36.00 - 914mm

(5500(M)

only)

F - Alcove height 60.00 - 520mm

CLEARANCES

Your pellet stove has been tested and listed for installation in residential, mobile home, and alcove applications

in accordance with the clearances given in TABLE 1.

NOTE: Distance “B” on the side of your pellet stove may need to be greater than the minimum required clearance

for suitable access to the control panel.

-6-

VENTING REQUIREMENTS

• INSTALL VENT AT CLEARANCES SPECIFIED BY THE VENT MANUFACTURER.

• DO NOT CONNECT THE PELLET VENT TO A VENT SERVING ANY OTHER APPLIANCE OR STOVE.

• DO NOT INSTALL A FLUE DAMPER IN THE EXHAUST VENTING SYSTEM OF THIS UNIT.

The following installation guidelines must be followed to ensure conformity with both the safety listing of this stove

and to local building codes. Do not use makeshift methods or compromise in the installation.

MAXIMUM VENTING DISTANCE

Installation MUST include at least 3-feet of vertical pipe outside the home. This will create some natural draft to

reduce the possibility of smoke or odor during appliance shutdown and keep exhaust from causing a nuisance

or hazard by exposing people or shrubs to high temperatures. The maximum recommend vertical venting height

is 12-feet for 3-inch type “PL” vent. Total length of horizontal vent must not exceed 4-feet. This could cause back

pressure. Use no more than 180 degrees of elbows (two 90-degree elbows, or two 45-degree and one 90-degree

elbow, etc.) to maintain adequate draft.

IMPORTANCE OF PROPER DRAFT

Draft is the force which moves air from the appliance up through the chimney. The amount of draft in your

chimney depends on the length of the chimney, local geography, nearby obstructions and other factors. Too

much draft may cause excessive temperatures in the appliance. Inadequate draft may cause backpufng into

the room and ‘plugging’ of the chimney.

Inadequate draft will cause the appliance to leak smoke into the room through appliance and chimney

connector joints.

An uncontrollable burn or excessive temperature indicates excessive draft.

Take into account the chimney’s location to insure it is not too close to neighbors or in a valley which may cause

unhealthy or nuisance conditions.

PELLET VENT TYPE

A UL listed 3-inch or 4-inch type “PL” pellet vent exhaust system must be used for installation and attached to the

pipe connector provided on the back of the stove (use a 3-inch to 4-inch adapter for 4-inch pipe). Connection

at back of stove must be sealed using Hi-Temp RTV. Use 4-inch vent if the vent height is over 12-feet or if the

installation is over 2,500 feet above sea level.

We recommend the use of Simpson Dura-Vent® or Metal-Fab® pipe (if you use other pipe, consult your local

building codes and/or building inspectors). Do not use Type-B Gas Vent pipe or galvanized pipe with this unit. The

pellet vent pipe is designed to disassemble for cleaning and should be checked several times during the burning

season. Pellet vent pipe is not furnished with the unit and must be purchased separately.

PELLET VENT INSTALLATION

The installation must include a clean-out tee to enable collection of y ash and to permit periodic cleaning of the

exhaust system. 90-degree elbows accumulate y ash and soot thereby reducing exhaust ow and performance

of the stove. Each elbow or tee reduces draft potential by 30% to 50%.

All joints in the vent system must be fastened by at least 3 screws, and all joints must be sealed with Hi-Temp

RTV silicone sealant to be airtight. The area where the vent pipe penetrates to the exterior of the home must be

sealed with silicone or other means to maintain the vapor barrier between the exterior and the interior of the

home.

Vent surfaces can get hot enough to cause burns if touched by children. Noncombustible shielding or guards

may be required.

PELLET VENT TERMINATION

Do not terminate the vent in an enclosed or semi-enclosed area, such as; carport, garage, attic, crawl space,

under a sun deck or porch, narrow walkway, or any other location that can build up a concentration of fumes.

The termination must exhaust above the outside air inlet elevation. The termination must not be located where it

will become plugged by snow or other materials. Do not terminate the venting into an existing steel or masonry

chimney.

IMPORTANT! This unit is equipped with a negative draft system that pulls air through the burn pot and pushes

the exhaust out of the dwelling. If this unit is connected to a ue system other than the way explained in this

manual, it will not function properly.

Installation

-7-

Figure 6

Vent Termination Clearances

VENT TERMINATION CLEARANCES

A. Minimum 4-foot (1.22m) clearance below or beside any door or window that opens.

B. Minimum 1-foot (0.3m) clearance above any door or window that opens.

C. Minimum 3-foot (0.91m) clearance from any adjacent building.

D. Minimum 7-foot (2.13m) clearance from any grade when adjacent to public walkways.

E. Minimum 2-foot (0.61m) clearance above any grass, plants, or other combustible materials.

F. Minimum 3-foot (0.91m) clearance from an forced air intake of any appliance.

G. Minimum 2-foot (0.61m) clearance below eves or overhang.

H. Minimum 1-foot (0.3m) clearance horizontally from combustible wall.

I. Must be a minimum of 3 foot (0.91m) above the roof and 2 foot (0.61m) above the highest point or the roof

within 10 feet (3.05m).

Installation

-8-

THROUGH THE WALL INSTALLATION (RECOMMENDED INSTALLATION)

Canadian installations must conform to CAN/CSA-B365.

To vent the unit through the wall, connect the pipe adapter

to the exhaust motor adapter. If the exhaust adapter is at

least 18 in.(457mm) above ground level, a straight section

of pellet vent pipe can be used through the wall.

Your heater dealer should be able to provide you with

a kit that will handle most of this installation, which will

include a wall thimble that will allow the proper clearance

through a combustible wall. Once outside the structure,

a 3 in.(76mm) clearance should be maintained from the

outside wall and a clean out tee should be placed on the

pipe with a 90-degree turn away from the house. At this

point, a 3ft (0.91m) (minimum) section of pipe should be

added with a horizontal cap, which would complete the

installation (see FIGURE 7).

A support bracket should be placed just below the

termination cap or one every 4ft (1.22m) to make the

system more stable. If you live in an area that has heavy

snowfall, it is recommended that the installation be taller

than 3ft (0.91m) to get above the snowdrift line. This same

installation can be used if your heater is below ground level

by simply adding the clean-out section and vertical pipe

inside until ground level is reached. With this installation you

have to be aware of the snowdrift line, dead grass, and

leaves. We recommend a 3ft (0.91m) minimum vertical rise

on the inside or outside of the house.

The “through the wall” installation is the least expensive

and simplest installation. Never terminate the end vent

under a deck, in an alcove, under a window, or between two windows. We recommend Simpson Dura-Vent®

or Metal-Fab® kits.

THROUGH THE ROOF/CEILING INSTALLATION

When venting the heater through the ceiling, the pipe is connected the same as through the wall, except the

clean-out tee is always on the inside of the house, and a 3 in.(76mm) adapter is added before the clean-out tee.

You must use the proper ceiling support anges and roof ashing (supplied by the pipe manufacturer; follow the

pipe manufacturer’s directions). It is important to note that if your vertical run of pipe is more than 15ft (4.57m),

the pellet vent pipe size should be increased to 4 in. (102mm) in diameter.

Do not exceed more than 4ft (1.22m) of pipe on a horizontal run and use as few elbows as possible. If an offset

is required, it is better to install 45-degree elbows rather than 90-degree elbows.

Installation

COUDE À 90º

COUVERCLE DE

TERMINAISON

SUPPORT

ADAPTATEUR

DU MOTEUR

D'ÉVACUATION

ADAPTATEUR DE TUYAU

MANCHON MURAL

RACCORD EN T

COUVERCLE DE

REGARD

TAPIS PROTECTEUR

NON COMBUSTIBLE

3'-0" (MIN)

TUYAU VERTICAL

3" (MIN)

6" (MIN)

Figure 7

Typical Through The Wall Installation

-9-

NOTE: Dimensions from the oor to your stoves inlet/

exhaust pipes are approximate and may vary

depending on your installation.

Figure 9

Typical Fresh Air Termination

Figure 8

Exhaust/Inlet Locations

OUTSIDE AIR SUPPLY (OPTIONAL, UNLESS INSTALLING IN A MOBILE HOME)

Depending on your location and home construction, outside air may be necessary for optimal performance.

Metal pipe (solid or exible) must be used for the outside air installation. PVC pipe is NOT approved and should

NEVER be used.

A wind shield over the termination of the outside air pipe or a 90-degree elbow or bend away from the prevailing

winds MUST be used when an outside air pipe is installed through the side of a building. The outside air termination

MUST be at least 1ft (0.305m) away from the exhaust system termination.

The outside air pipe on your heater is 2” (50.8mm) OD. The outside air connecting pipe must be at least 2”

(50.8mm) ID. The outside air connection used MUST NOT restrict the amount of air available to your heater. The

outside air connecting pipe must be as short and free of bends as possible, and it must t over, not inside, the

outside air connection to the heater.

Installation

SPECIAL MOBILE HOME REQUIREMENTS

• WARNING! - Do not install in a sleeping room

• CAUTION! - The structural integrity of the mobile home oor, wall, and ceiling/roof must be maintained.

• A working smoke detector must be installed in the same room as this product.

• It must be installed at least 15 feet (4,57 m) from the appliance in order to prevent undue triggering of the

detector when reloading.

In addition to the previously detailed installation requirements, mobile home installations must meet the following

requirements:

• The heater must be permanently bolted to the oor through provided holes in the base.

• The heater must be electrically grounded to the steel chassis of the mobile home with 8 GA copper wire

using a serrated or star washer to penetrate paint or protective coating to ensure grounding.

• Vent must be 3 or 4-inch “PL” Vent and must extend a minimum or 36 in.(914mm) above the roof line of the

mobile home and must be installed using a UL listed ceiling re stop and rain cap.

• When moving your mobile home, all exterior venting must be removed while the mobile home is being

relocated. After relocation, all venting must be reinstalled and securely fastened.

• Outside Air is mandatory for mobile home installation. See your dealer for purchasing.

• Check with your local building ofcials as other codes may apply.

-10-

Understanding Your Stove

HOW YOUR STOVE WORKS

Your pellet stove utilizes a inclined

auger fuel feed system that is

operated by a microprocessor

controlled digital circuit board.

The digital circuit board allows the

inclined auger fuel feed system to

run in a timer-based, non-continuous

cycle; this cycling allows the auger

to run for a predetermined period

of seconds. The auger pushes pellets

up a chute located at the front/

bottom of the hopper which in turn

falls through another chute into the

burnpot. Your stove is equipped

with an automatic ignition system

that should ignite the fuel within 5-10

minutes from pressing the ON button.

As pellets enter the burn pot and ignite, outside air is drawn across the fuel and heated during the combustion

process which is then pulled through the heat exchanger by the exhaust motor or draft fan. As the stove heats

up, room air is circulated around the heat exchanger by means of a room air blower, distributing warm air into

the room.

The amount of heat produced by the stove is proportional to the rate of the fuel that is burned, and this rate

is controlled by the “HEAT RANGE” setting. In order to maintain combustion of the fuel at a desired rate, the air

provided to the burn chamber by the exhaust or draft fan must be maintained precisely. Too little air will result

in a ame that is non-energetic or lazy. If the fuel continues to ow with too little air for long enough, the burn

pot will ll with too much fuel and the re will smother out. To much air will result in a ame that is overactive

or aggressive. The ame in this situation is typically very blue at the bottom and resembles a blow torch. If this

situation continues, the fuel in the burn pot will be consumed and the re will go out.

Matching the amount of air required for proper combustion to the fuel rate is the primary objective in effectively

burning pellets of various brands and qualities in your stove. The air to fuel ratio can be adjusted to allow almost

any fuel quality to burn effectively by following the procedures detailed in the remainder of this manual.

Because a forced draft pressure is required for the combustion process inside your stove, it is extremely important

that the exhaust system be properly installed and maintained. And, that when operating your stove, you make

sure that the viewing door is properly sealed.

4 Digit Display

Up / Down

Buttons :

Heat Range

Room Fan

Draft Fan

Auto Mode

Indicator

Auger Delay

Indicator & Button

Off Indicator

& Button

On Indicator

& Button



 

Figure 10

Digital Control Panel

PANEL/REMOTE CONTROLS

The operation of this appliance can be controlled from the panel located on the side of the

stove and/or by the remote control. The control functions are as follows:

A. ON/OFF SWITCH (“POWER” BUTTON)

• When pushed, the stove will automatically ignite. No other re starter is necessary. The

igniter will stay on for at least 10 and up to 12 minutes, depending on when Proof of Fire is

reached. The re should start in approximately 5 minutes.

• After pushing “POWER”, the auger motor is on for 3.5 minutes, off for 1 minute. During the

remainder of the start-up period, the auger motor operates on the heat range “1” setting.

• During start up the heat level advance (Up and Down keys) will change the heat range

indicator level accordingly, but there is no change in the stoves operating conditions until

start-up is completed.

• During start-up ignition must occur within 12 minutes or the stove will error out and show E3.

• During the start-up phase, the Mode key does not function.

B. HEAT RANGE ARROW BUTTONS

• These buttons when pushed will set the pellet feed rate, hence the heat output or heat

range of your stove. When using the hand-held remote this function can be performed with

the “Up/Down” buttons.

• The levels of heat output will incrementally change on the bar graph starting from heat

range “1” to heat range “5”.

-11-

Turning the heater ON/OFF, as well as adjustments for the fuel feed rate and room fan speed are performed

by pressing the appropriate button(s) on the control panel which is located on the lower left-hand side of your

heater.

• ON/OFF

Pressing the “ON” button on the control panel will begin the start-up sequence for the heater. Fuel will begin to

feed through the auger feed system then ignite after approximately 5 minutes.

Pressing the “OFF” button on the control panel will cause the heater to enter its shut-down sequence. The fuel

feed system will stop pulling fuel from the hopper and, once the re goes out and the heater cools down, the

fans will stop running.

• HEAT RANGE

Pressing the “Heat Range” arrows, up or down, will adjust the amount of fuel being delivered to the burnpot.

• DRAFT FAN

The draft fan (exhaust) will come on as soon as the “ON” button is pressed. The fan will automatically adjust its

speed in accordance to the heat range setting. However, this speed can be manually operated by pressing the

“Draft Fan” arrows up or down. “Draft Fan” when pressed, the display will show “Df-A”, which is automatic. Press

the arrows again to adjust fan speed. When the heater is in the manual mode, the optional thermostat will not

properly control the unit. When adjusting the Draft Fan setting, try only 1 setting above or below the heat setting.

It is better to leave the stove in the automatic mode.

• ROOM FAN

The room fan will come on once the unit has reached operating temperature. By pressing the “Room Fan”

buttons, the display will show “Rf-A” which is automatic or “Rf-1” through “Rf-9” for manual settings. In auto mode,

the room fan’s speed will automatically be adjusted in accordance with the heat range setting. By pressing the

“Room Fan” up arrow, you can adjust the fan speed setting up to “Rf-9”. The room fan must operate at a level

greater than or equal to the heat range setting.

• AUX - USED TO RETURN THE STOVE TO THE FACTORY SETTINGS

To return the stove to it’s original factory settings, press and hold the AUX UP and AUX DOWN buttons simultaneously

for 3 seconds.

• AUGER DELAY

The “Auger Delay” button can be used to pause rotation of the Auger for approximately 1 minute. This can be

cancelled by pressing the “ON” button. The “Auger Delay” is normally used only during the start up cycle to slow

the fuel delivery down during the initial ignition.

• MODE

The “Mode” button is not used on this model.

During normal operation, the unit is constantly monitored for problems. In the event of an error condition, the unit

will stop and an error will be displayed. See the list of error codes found at the end of this manual.

Control Panel Overview

-12-

UNIT PREPARATION

After carefully unpacking and reading the instructions for installing your stove, you will need to perform the

following steps:

• Attach the included spring handle to the door handle by screwing it on in a respective location.

• Attach the electrical cord to the back of the stove rst; then plug it into a 110-volt outlet (an outlet surge

protector is highly recommended).

PERFORMING AN INITIAL TEST

This test is used at the factory where the stoves are assembled to test the functionality of the control and the stove

before the unit is shipped. To perform this test, press and hold the OFF and AUGER DELAY buttons simultaneously

for 3 seconds. To advance through the test, press any key unless otherwise noted in the test step.

1. Exhaust Fan Output Test – The display will show “drft”. The exhaust fan is turned on full then reduced to a level

just above the typical minimum pressure switch setting. The ON LED indicates whether the pressure sensor

is detected. If the pressure switch is not detected, the fan ramps to full on for two seconds then returns to

the previously established level if the pressure switch closes. If the Draft Fan Fuse is not blown and the fuse

detection circuit is functioning, the Draft Fan LED will be lit and the other three top row LEDs will be off.

2. Room Fan Output Test - The display will show “rfan”. The room fan is turned on full. If the Room Fan Fuse is not

blown and the fuse detection circuit is functioning, the Room Fan LED will be lit and the other three top row

LEDs will be off.

3. Ignitor Output Test - The display will show “ignt”. The ignitor motor is turned on full. If the Ignitor (AUX) Fuse is

not blown and the fuse detection circuit is functioning, the Aux LED will be lit and the other three top row

LEDs will be off.

4. Auger Output Test - The display will show “augr”. The auger motor is turned on full. If the Auger Fuse is not

blown and the fuse detection circuit is functioning, the Heat Range LED will be lit and the other three top

row LEDs will be off.

5. Hopper Switch Test – The display will show “hppr”. The “ON” LED is lit. If the hopper switch is open (lid is open),

the “HEAT RANGE” LED will turn on. If the lid is closed, the “HEAT RANGE” LED will be off.

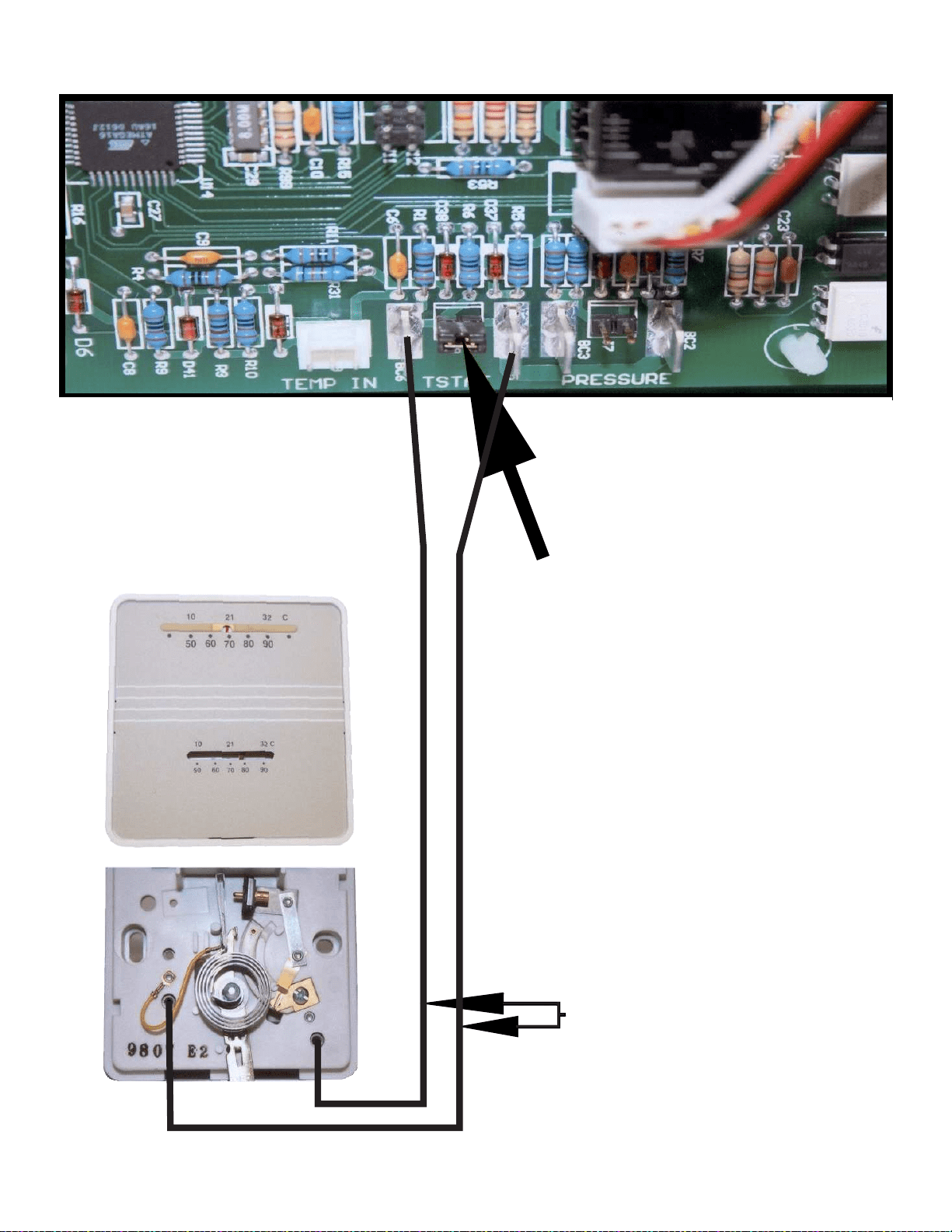

6. Thermostat Input Test – The display will show “stat”. If the thermostat input is closed, the ON LED will turn on,

otherwise it will be off.

7. Flue gas Thermistor Test – The display will show the ue gas temperature in degrees F.

8. AC Frequency Test - Displays the measured AC Frequency in hertz (59-60) followed by the letter ‘H’.

9. Watchdog Reset – The watchdog timer is tested to ensure that the board can be reset. The message “BYE”

is displayed until the watchdog resets the board.

PERFORMING A “DRY RUN”

Perform a “dry run” on your stove prior to making the exhaust/inlet connections and starting your stove for the

rst time.

1. Check that there is no fuel or ANY foreign material in the hopper or burn-pot.

2. Check that the viewing door and hopper lid is securely closed.

3. Press the “ON” button on the control panel. Verify that the ON LED is lit (blinking) and the display shows HR-1.

Also the LED above the HEAT RANGE and the AUTO MODE indicator should be lit. If any other LED’s are lit or

ashing, consult the “Display Indicators” in this manual.

4. You should hear the exhaust (draft) fan running immediately and the auger should begin turning continuously

for 1 minute.

5. The auto fuel ignitor (located inside the backwall of the burnpot) should begin to glow red/orange after 3

minutes.

6. The Room Fan will not operate at this time since the unit must reach a factory preset temperature.

Do not open the viewing door, the auto-start igniter will get very hot during this test. The stove will automatically

shut down after approximately 23 minutes.

Operation

-13-

• DO NOT USE CHEMICALS OR FLUIDS TO START THE FIRE - Never use gasoline, gasoline-type lantern fuel,

kerosene, charcoal lighter uid, or similar liquids to start or “freshen up” a re in this stove. Keep all such

liquids well away from the stove while it is in use.

• HOT WHILE IN OPERATION. KEEP CHILDREN, CLOTHING AND FURNITURE AWAY. CONTACT MAY CAUSE SKINS

BURNS.

• DO NOT USE GRATES OR ELEVATE THE FIRE. BURN POT HAS TO BE IN ITS INTENDED LOCATION.

This heater is designed to burn only PFI Premium grade pellets.

DO NOT BURN:

1. Garbage;

2. Lawn clippings or yard waste;

3. Materials containing rubber, including tires;

4. Materials containing plastic;

5. Waste petroleum products, paints or paint thinners,

or asphalt products;

6. Materials containing asbestos;

7. Construction or demolition debris;

8. Railroad ties or pressure-treated wood;

9. Manure or animal remains;

10. Salt water driftwood or other previously salt water

saturated materials;

11. Unseasoned wood; or

12. Paper products, cardboard, plywood, or

particleboard. The prohibition against burning

these materials does not prohibit the use of re

starters made from paper, cardboard, saw dust,

wax and similar substances for the purpose of

starting a re in an affected wood heater.

WARNING: Burning these materials may result in release of toxic fumes or render the heater ineffective and

cause smoke.

START-UP PROCEDURE

1. Verify that the hopper is clean and free of foreign matter.

2. Verify that all of the required exhaust/inlet connections have been made in accordance with this manual

and that the stove is plugged into an outlet (an outlet surge protector is highly recommended).

3. Fill the hopper with wood pellets; do not allow any part of the bag or any other foreign material into the

hopper, as this may jam the auger.

4. Ensure that all pellet matter is cleared from the hopper seating surface.

5. Close the hopper lid. The unit WILL NOT feed fuel with the hopper lid open.

6. Make sure that the viewing door is securely closed (the safety pressure switch will not allow the stove to feed

fuel if there is no draft pressure inside the stove) .

7. Press the “ON” button on the control pad and set the “heat Setting” to your desired setting.

8. The stove will begin to feed fuel and the auto-start igniter will ignite the fuel in approximately 5 minutes.

Once a consistent ame has been established, you can adjust the “Heat Range” and “Blower Speed” on the

control pad to your desired settings. (Note: The distribution blower will not function until the heat exchanger in the

stove reaches the factory preset temperature).

Attempts to achieve heat output rates that exceed heater design specications can result in permanent

damage to the heater.

Operation

-14-

First Fire: Adjust the “Heat Range” and “Blower Speed” to a “3” setting and allow the stove to operate in this

manner for approximately three (3) hours (or more if necessary), allowing the stove to “cure out” as the paint and

oils from the manufacturing process burn off. We recommend that you open doors and windows in your home

during this process. Adjust setting to desired setting.

SHUT DOWN PROCEDURE

Press the “OFF” button on the control pad to put the stove in shut down mode. At this time, the red light above

the pad will illuminate. Once this is done, the auger will stop feeding pellets, but the distribution blower and

exhaust blower will continue to operate. When the internal temperature of the unit drops below the factory

preset temperature, the distribution blower and exhaust blower will cease to operate. The red light will then shut

off and the unit will be completely shut down.

The hotter the unit is during its operation, the longer it will take for the stove to complete the shut down cycle. If

the stove stays on for more than 2 hours after pressing the “OFF” button and you are sure that the re is out, the

stove can be unplugged from the outlet. After approximately 10 seconds, the unit can be re-connected to the

power source and the control board will be reset.

If a chimney or creosote re occurs, press the “OFF” button immediately. Do not unplug the unit.

DAILY OPERATION

• The hopper and stove top will be hot during operation; therefore, you should always use some type of hand

protection when refueling your stove.

• Never place your hand near the auger while the stove is in operation.

This unit should be lled when the hopper level drops below 3-inches.

In the event of a power outage, the stove will not function. It is very important that unit be vented properly (with

outside air), as the natural draft is needed to clear the smoke from the stove during a power outage. If the unit

was “ON” when the power outage occurred, one of the following will take place:

1. If the stove is still warm, it will resume feeding fuel and continue to operate normally. If the re has gone out,

you will have to press the “OFF” button and then the “ON” button again to begin a new start-up sequence.

2. If the stove has cooled-off, it will reset to its “OFF” condition. At this point, you may press the “ON” button and

the unit will begin a new start-up sequence.

NOTE: The unit will also shut down in the event of an exhaust blower failure; if this is the case, the unit will not re-

start and you must contact Customer Service at (800) 750-2723.

SAFETY AND CONVENIENCE FEATURES

Your pellet stove incorporates a safety pressure switch that helps ensure that everything is in proper working

order before feeding fuel to the burn pot. Because the stove works using an induced draft pressure, the stove

will not continue to operate if the viewing door is left open; or if the exhaust blower fails or the exhaust system is

blocked.

The temperature limit control (Thermistor) will prevent your stove from operating at abnormally high temperatures.

Should the stove temperature begin to approach the factory pre-set limit, the temperature limit control will

automatically slow down the auger feed rate until the temperature returns to a normal condition. Even though

the heater will operate on the highest setting, we recommend to operate your heater on this setting for only a

short period of time. (1 hour etc.)

Your pellet stove also includes an auto-start igniter as a standard feature. The use of other re starter materials

(wood chips, starter gel, etc.) is not necessary. By simply pressing the “ON” button on the digital control panel,

your stove will begin to feed fuel and automatically start within 5 minutes.

TAMPER WARNING

This wood heater has a manufacturer-set minimum low burn rate that must not be altered. It is against federal

regulations to alter this setting or otherwise operate this wood heater in a manner inconsistent with operating

instructions in this manual.

WARNING: Never shut down this unit by unplugging it from the power source.

Operation

-15-

• Failure to clean and maintain this unit as indicated can result in poor performance and safety hazards.

• Unplug your stove’s electrical cord prior to removing the back panel or opening the exhaust system for any

inspection, cleaning, or maintenance work.

• Never perform any inspections, cleaning, or maintenance on a hot stove.

• Do not operate stove with broken glass , leakage of ue gas may result.

• WARNING: The chimney and chimney connector must be kept in good condition and clean.

EXHAUST SYSTEM

Creosote Formation – When any wood is burned slowly, it produces tar and other organic vapors, which combine

with expelled moisture to form creosote. The creosote vapors condense in the relatively cool chimney ue or a

newly started re or from a slow-burning re. As a result, creosote residue accumulates on the ue lining. When

ignited, this creosote makes an extremely hot re, which may damage the chimney or even destroy the house.

Despite their high efciency, pellet stoves can accumulate creosote under certain conditions.

Fly Ash – This accumulates in the horizontal portion of an exhaust run. Though non-combustible, it may impede

the normal exhaust ow. It should therefore be periodically removed.

Inspection and Removal – The chimney connector and chimney should be inspected annually or per ton to

determine if a creosote or y ash build-up has occurred. If creosote has accumulated, it should be removed to

reduce the risk of a chimney re. Inspect the system at the stove connection and at the chimney top. Cooler

surfaces tend to build creosote deposits quicker, so it is important to check the chimney from the top as well as

from the bottom. The creosote should be removed with a brush specically designed for the type of chimney

in use. A qualied chimney sweep can perform this service. It is also recommended that before each heating

season the entire system be professionally inspected, cleaned and, if necessary, repaired. To clean the chimney,

disconnect the vent from the stove.

INTERIOR CHAMBERS

Periodically remove and clean the burnpot and the area inside the burnpot housing. In particular it is advisable

to clean out the holes in the burnpot to remove any build up that may prevent air from moving through the burn

pot freely. Remove the two(2) plates on each side of the burnpot housing and clean out that rear chamber.

If a vacuum is used to clean your stove, we suggest using a vacuum designed for ash removal. Some regular

vacuum cleaner (i.e. shop vacs) may leak ash into the room.

ASH DISPOSAL

Disposal of ashes – Ashes should be placed in a steel container with a tight tting lid and moved outdoors

immediately. The closed container of ashes should be placed on a noncombustible oor or on the ground, well

away from combustible materials, pending nal disposal. If the ashes are disposed of by burial in soil or otherwise

locally dispersed, they should be retained in the closed container until all cinders have thoroughly cooled. Other

waste shall not be placed in this container.

SMOKE AND CO MONITORS

Burning wood naturally produces smoke and carbon monoxide(CO) emissions. CO is a poisonous gas when

exposed to elevated concentrations for extended periods of time. While the modern combustion systems in

heaters drastically reduce the amount of CO emitted out the chimney, exposure to the gases in closed or conned

areas can be dangerous. Make sure you stove gaskets and chimney joints are in good working order and sealing

properly to ensure unintended exposure. It is recommended that you use both smoke and CO monitors in areas

having the potential to generate CO.

Maintenance

CAUTION: This wood heater needs periodic inspection and repair for proper operation. It is against federal

regulations to operate this wood heater in a manner inconsistent with operating instructions in this manual.

-16-

CHECK AND CLEAN THE HOPPER

Check the hopper periodically to determine if there is any sawdust or pellets that are sticking to the hopper

surface. Clean as needed.

DOOR AND GLASS GASKETS

Inspect the main door and glass window gaskets periodically. The main door may need to be removed to have

frayed, broken, or compacted gaskets replaced by your authorized dealer. The glass gasket has a gap at the

bottom for the airwash. This unit’s door uses a 5/8” diameter rope gasket.

BLOWER MOTORS

Clean the air holes on the motors of both the exhaust and distribution blowers annually. Remove the exhaust

blower from the exhaust duct and clean out the internal fan blades as part of your fall start-up.

PAINTED SURFACES

Painted surfaces may be wiped down with a damp cloth. If scratches appear, or you wish to renew your paint,

contact your authorized dealer to obtain a can of suitable high-temperature paint.

GLASS - CLEANING, REMOVAL AND REPLACEMENT OF BROKEN DOOR GLASS

Cleaning - We recommend using a high quality glass cleaner. Should a build up of creosote or carbon

accumulate, you may wish to use 000 steel wool and water to clean the glass. DO NOT use abrasive cleaners.

DO NOT perform the cleaning while the glass is HOT. ,

In the event you need to replace the glass, remove the four(4) screws and glass retainers. While wearing leather

gloves (or any other gloves suitable for handling broken glass), carefully remove any loose pieces of glass from

the door frame. Dispose of all broken glass properly. ONLY high temperature ceramic glass of the correct size and

thickness may be used. DO NOT substitute alternative materials for the glass. Contact your authorized dealer to

obtain this glass. Re-install the new glass by re-attaching the retainers and screws, careful not to overtighten the

screws for this could damage the glass.

DO NOT abuse the door glass by striking, slamming or similar trauma. Do not operate the stove with the glass

removed, cracked or broken.

FALL START UP

Prior to starting the rst re of the heating season, check the outside area around the exhaust and air intake

systems for obstructions. Clean and remove any y ash from the exhaust venting system. Clean any screens on

the exhaust system and on the outside air intake pipe. Turn all of the controls on and make sure that they are

working properly. This is also a good time to give the entire stove a good cleaning throughout.

SPRING SHUTDOWN

After the last burn in the spring, remove any remaining pellets from the hopper and the auger feed system.

Scoop out the pellets and then run the auger until the hopper is empty and pellets stop owing (this can be

done by pressing the “ON” button with the viewing door open). Vacuum out the hopper. Thoroughly clean the

burnpot, and rebox. It may be desirable to spray the inside of the cleaned hopper with an aerosol silicone spray

if your stove is in a high humidity area. The exhaust system should be thoroughly cleaned.

CHIMNEY CONNECTOR

The required chimney connector must be kept clean and in good condition.

Maintenance

-17-

• Disconnect the power cord before performing any maintenance! NOTE: Turning the ON/OFF Switch to ”OFF”

does not disconnect all power to the electrical components of the stove.

• Never try to repair or replace any part of the stove unless instructions for doing so are given in this manual. All

other work should be done by a trained technician.

PROBLEM CAUSE: To rich air/fuel mixture

Orange, lazy ame_

excessive fuel build-

up in the burnpot

• Clean out the burnpot and burnpot housing

• Make sure that the viewing door is closed and sealed properly. If not, adjust door catch and/or

replace door gaskets.

• Check that all outside connections are clear of any obstructions.

• Check the exhaust system; clean as needed.

PROBLEM CAUSE: Burnpot burns out of fuel

Fire goes out or stove

shuts down.

• Hopper is empty, rell the hopper.

• Loss of draft pressure. Make sure that the viewing door is closed and sealed properly. If not,

adjust door catch and/or replace door gaskets. Check that all outside connections are clear

of any obstructions. Check the exhaust system; clean as needed.

• Check that the pressure switch connection to the rebox is free of ash or clear of obstructions.

• Auger system is jammed or there is a “bridging” of the fuel in the hopper, preventing fuel from

owing into the auger feed system.

PROBLEM CAUSE: Auto-Start Igniter fails to ignite the fuel in the burn pot.

Stove does not start

a re when the “ON”

button is pushed

• Turn the stove off. Clear the unburned fuel from the burnpot and try again.

• Check the pellet quality. Replace if moist, wet, or dirty.

• Loss of draft pressure. Make sure that the viewing door is closed and sealed properly. If not,

adjust door catch and/or replace door gaskets. Check that all outside connections are clear

of any obstructions. Check the exhaust system; clean as needed.

• Check that the auto-start igniter is not blocked with ash or soot. (The igniter is located behind

the burnpot on the back wall of the rebox.)

• Check that the pressure switch connection to the rebox is free of ash or clear of obstructions.

• The auto-start igniter gets “red hot” during start-up. If you can not visibly see the igniter glowing

during start-up, then the igniter may need to be replaced or there is a problem with the

electrical control system.

PROBLEM CAUSE: Power outage

Experiencing low

exhaust pressure

• Turn off the circuit board and turn it back on.

Error Code Error Description Possible Causes

Err1 The high limit temperature sensor has tripped. • Inadequate ventilation.

• Room fan failure.

• Exhaust Blockage.

• Electrical Open in wiring.

Err2 Stove ran out of fuel during normal operation. • Hopper Empty.

• Auger output failure or jam.

• Flame of fuel quality caused re to burn too slowly or

go out.

• Electrical Open in wiring.

Err3 The stove was unable to reach the Room Fan On

temperature within the start-up time.

• Flame or Fuel quality caused the re to burn too

slowly or go out.

• Auger output failure or jam Hopper empty on start-

up.

Err4 The power failed while the stove was hot, and

when power was restored, the re was out.

• Electrical Open in wiring.

• Power loss

Err5 The Auger output fuse has blown. • Auger motor jammed or bad.

Err6 The Ignitor output fuse has blown. • Ignitor shorted out or bad.

Err7 The Draft Fan (Exhaust Fan) output fuse has blown. • Draft Fan motor jammed or bad.

Err8 The Room Fan output fuse has blown. • Room fan motor jammed or bad.

Trouble Shooting

-18-

DISPLAY INDICATORS

Several situations or events are indicated in normal operation by blinking display indicators or segments in the

display:

Flashing On Indicator: This means that the stove is in the “Start Up” state waiting for the ignition procedure to

complete.

Flashing Off Indicator: This indicates that the stove is in the “Shut Down” state waiting for the off button, or for a

15 minute period after the stove was turned off, or for the stove to cool down, or for the door to be closed.

Flashing dash in Heat Range Display: This indicates that the stove is in the normal run mode and is ramping from

the current heat range setting to the target heat range setting. Once the ramp is complete, the dash will stop

ashing. For ramping from heat range 1 to 5, the default time is 12 minutes (with a 90 second ramp time).

Flashing Automatic Mode Indicator: This indicates that the stove is in normal operation and is running in the

automatic mode. However, either the draft fan or room fan setting is manually congured.

Flashing Draft Fan Setting Indicator: This indicates that the stove is in normal operation and that the vacuum

sensor detects a loss of pressure either because the door is open or because there is a negative pressure in the

room with respect to the exhaust.

Flashing Aux Indicator: This indicates that the ignitor is on during the lighting stage.

Quickly (changes twice per second) Flashing Heat Range Setting Indicator: This indicates that the stove is in

normal operation and that an over-temperature condition exists causing the fuel to stop.

Slowly (changes once per second) Flashing Heat Range Setting Indicator: This indicates that the stove is in a cut

back condition in an attempt to prevent an over-temperature shut down.

FACTORY DEFAULTS

To return the control to its original factory default settings, press and hold the AUX UP and AUX DOWN buttons

together for three seconds.

-19-

GRAY

BLACK

Wiring Diagram

CORRECT WRONG

Insure the wires are connected to the

bottom two prongs of the hopper

switch as shown.

-20-

Parts List

In order to maintain warranty, components must be replaced using original manufacturers parts purchased

through your dealer or directly from the appliance manufacturer. Use of third party components will void the

warranty.

Key Part No. Description Qty.

1 25507 Feed Door 1

2 25492 Handle, Door 1

3 83506 3/8 x 1 1/4 Roll Pin 1

4 891053 Door Glass 1

5 88066 5/8” Rope Gasket 4.5 ft

6 88087 Glass Gasket (1 x 1 3/16) 3.5 ft

7 25520 Bottom Glass Retainer 1

8 25521 Top Glass Retainer 1

9 83278 Washer 4

10 83202 Machine Screw 4

11 891135 Spring Handle 1

12 25393 Retainer, Glass 1

N/S 25080MB Door Latch 1

N/S - Not Shown

Key Part No. Description Qty.

1 69524 Feed Door Assembly 1

2 891372 Door Hinge Pad 2

3 25080B Feed Door Latch 1

4 69693 Burnpot Housing Weldment 1

5 86624 Burnpot Assembly 1

6 25513 Ash Cleanout 2

7 69713MB Top/Lid Weldment 1

8 891148 Plastic Handle 1

9 69515MB Cabinet Side - Left 1

10 80778

Assy, Circuit Board (4-Digit) IR

Compatible

11 25488MB Cabinet Side - Right 1

12 69787 Hopper Assembly 1

13 80491 MIcroswitch 1

14 83541 #4-40 Bolt 2

15 83542 #4-40 Lock Nut 2

16 25480MB Access Panel 1

17 80461 Power Supply Cord 1

18 80462 Receptacle, 3 Prong 1

19 891164 Auger Housing Weldment 1

20 891141 Auger 1

21 891189 Top Bushing Plate 1

22 891132 Bushing 1

23 83534 Retaining Ring 1

24 69719 Auger Cover 1

25 891161 Bottom Plate Retainer 1

26 25495 Drive Motor Bracket 1

27 891169 Heater Hose 2

28 80488 Auger Motor 1

29 83529 Hair Pin 1

30 69763 Exhaust Duct Weldment 1

31 88117 Exhaust Duct Gasket 1

32 80473 Exhaust Blower 1

33 88100 Exhaust Blower Gasket 1

34 80480 Thermistor 1

35 86633 Ignitor Tube Weldment 1

36 80619 Ignitor Cartridge 1

37 88118 Ignitor Flange Gasket 1

38 80472 Distribution Blower 1

39 88106 Distribution Blower Gasket 1

40 25774 Pressure Switch Bracket 1

41 80549 Pressure Switch 1

42 89586 Nipple 1

43 891121 Silicone Hose 3”

44 83537 Hose Clamp (#4) 1

45 88119 Insulation Blanket 1

46 88168 Burnpot Housing Gasket 1

47 26096MB Hearth 1

48 26097MB Grill Mount - Left 1

49 26098MB Grill Mount - Right 1

50 69791MB Louver/Grill Assembly 1

N/S 80780 IR Remote 1

N/S 80779 Digital Wall Thermostat 1

N/S 80798 IR Sensor, Onboard 1

N/S 80548 Main Wiring Harness 1

N/S 80493 Wiring Harness (Microswitch) 1

N/S 891673 Bushing Rtnr. Plate Assy. 1

N/S 25863 Manual Fuel Regulator 1

N/S 83249 Wing Nut 1

N/S - Not Shown

-21-

Parts Diagram

-22-

It is recommended that your heating system is serviced regularly and that the appropriate Service Interval

Record is completed.

SERVICE PROVIDER

Before completing the appropriate Service Record below, please ensure you have carried out the service

as described in the manufacturer’s instructions. Always use the manufacturer's specied spare part when

replacement is necessary.

Service Record

Service 01 Date: _____________________

Engineer Name: ________________________________

License No.: ____________________________________

Company: _____________________________________

Telephone No.: _________________________________

Stove Inspected: Chimney Swept:

Items Replaced: ________________________________

Service 03 Date: _____________________

Engineer Name: ________________________________

License No.: ____________________________________

Company: _____________________________________

Telephone No.: _________________________________

Stove Inspected: Chimney Swept:

Items Replaced: ________________________________

Service 05 Date: _____________________

Engineer Name: ________________________________

License No.: ____________________________________

Company: _____________________________________

Telephone No.: _________________________________

Stove Inspected: Chimney Swept:

Items Replaced: ________________________________

Service 07 Date: _____________________

Engineer Name: ________________________________

License No.: ____________________________________

Company: _____________________________________

Telephone No.: _________________________________

Stove Inspected: Chimney Swept:

Items Replaced: ________________________________

Service 02 Date: _____________________

Engineer Name: ________________________________

License No.: ____________________________________

Company: _____________________________________

Telephone No.: _________________________________

Stove Inspected: Chimney Swept:

Items Replaced: ________________________________

Service 04 Date: _____________________

Engineer Name: ________________________________

License No.: ____________________________________

Company: _____________________________________

Telephone No.: _________________________________

Stove Inspected: Chimney Swept:

Items Replaced: ________________________________

Service 06 Date: _____________________

Engineer Name: ________________________________

License No.: ____________________________________

Company: _____________________________________

Telephone No.: _________________________________

Stove Inspected: Chimney Swept:

Items Replaced: ________________________________

Service 08 Date: _____________________

Engineer Name: ________________________________

License No.: ____________________________________

Company: _____________________________________

Telephone No.: _________________________________

Stove Inspected: Chimney Swept:

Items Replaced: ________________________________

-23-

The operation of this unit in a manner inconsistent with the owner’s manual

will void the warranty and is also against federal regulations. United States

Stove Company warrants this product to be free from defects in material and

workmanship, to the original retail purchaser only, for the time period identiﬁed

below, measured from the date of the initial purchase as evidenced on an

invoice, cancelled check, sales receipt, etc., to receipt of a claim by United

States Stove Company (“USSC”) or an authorized dealer, as follows:

WARRANTY CONDITIONS

• This warranty only covers USSC appliances that are purchased through an

USSC authorized retailer, dealer or distributor.

• This warranty is only valid while the USSC appliance remains at the site of

original installation. This warranty does not apply to products purchased for

rental use.

CLAIM PROCEDURE

Contact United States Stove Company for warranty service. You will be asked

to provide detailed descriptions and pertinent data, including proof or purchase

which will be returned upon request. Providing the heater has been installed

and used in accordance with the Owner’s Manual supplied with the heater

and the issue does not fall under a situation of exclusion, United States Stove

Company will either:

• Replace the defective part free of charge. Parts and/or service replacements

made under the terms of this warranty are warranted only for the remaining

period of the original heater warranty.

• Replace the heater free of charge. Should the heater be replaced by United

States Stove Company “free of charge”, all further warranty obligations are

thereby met.

• Where the defect is of a cosmetic (non-functional) nature, United States

Stove Company will bear reasonable expense to repair the heater, including

such items as welding, painting, and incidental labor. A “reasonable expense”

is deﬁned by terms of this warranty as $30.00/hour with full refund for any

purchase of parts.

WARRANTY EXCLUSIONS

This warranty does not cover the following:

• Damage to or changes in surface ﬁnishes as a result of normal use. As a heating

appliance, some changes in color or interior and exterior surface ﬁnishes may

occur. This is not a ﬂaw and is not covered under warranty.

• Damage to printed, plated, or enameled surfaces caused by ﬁngerprints,

accidents, misuse, scratches, melted items, or other external sources and

residues left on the plated surfaces from the use of abrasive cleaners or polishes.

• Repair or replacement of parts that are subject to normal wear and tear during

the warranty period. These parts include: paint, pellet, and the discoloration

of glass.

• Minor expansion, contraction, or movement of certain parts causing noise.

These conditions are normal and complaints related to this noise are not

covered by this warranty.

• Damages resulting from: (1) failure to install, operate, or maintain the appliance

in accordance with the installation instructions, operating instructions, and

listing agent identiﬁcation label furnished with the appliance; (2) failure to

install the appliance in accordance with local building codes and/or authorities

having jurisdiction; (3) shipping or improper handling; (4) improper operation,

abuse, misuse, continued operation with damaged, corroded or failed

components, accident, alteration, or improperly/incorrectly performed repairs;

(5) environmental conditions, weather, inadequate ventilation, negative

pressure, or drafting caused by tightly sealed constructions, insufﬁcient make-

up air supply, or handling devices such as exhaust fans or forced air furnaces

or other such causes; (6) use of fuels other than those speciﬁed in the operating

instructions; (7) installation or use of components not supplied with appliance

or any other components not expressly authorized and approved by USSC; (8)

modiﬁcation of the appliance not expressly authorized and approved by USSC

in writing; and/or (9) interruptions or ﬂuctuations of electrical power supply

to the appliance.

• Non-USSC venting components, hearth components or other accessories used

in conjunction with the appliance.

• USSC’s obligation under this warranty does not extend to the appliance’s

capability to heat the desired space. Information is provided to assist the

consumer and the dealer in selecting the proper appliance for the application.

Consideration must be given to appliance location and conﬁguration,

environmental conditions, insulation and air tightness of the structure.

• Problems relating to smoking or creosote. Smoking is attributable to inadequate

draft due to the design or installation of the ﬂue system or installation of the

heater itself. Creosote formation is largely attributable to improper operation of

the unit and/or draft as mentioned above.

• Any cost associated with product removal and re-installation, travel,

transportation, or shipping.

• Service calls to diagnose trouble (unless authorized in writing by the

manufacturer, distributor, or dealer).

THIS WARRANTY IS VOID IF

• The appliance has been over-ﬁred or operated in atmospheres contaminated by

chlorine, ﬂuorine, or other damaging chemicals. Over-ﬁring can be identiﬁed

by, but not limited to, warped plates or tubes, rust colored cast iron, bubbling,

cracking and discoloration of steel or enamel ﬁnishes.

• The appliance is subjected to prolonged periods of dampness or condensation.

• There is any damage to the appliance or other components due to water or

weather damage which is the result of, but not limited to, improper chimney or

venting installation.

LIMITATIONS OF LIABILITY

The owner’s exclusive remedy and USSC’s sole obligation under this warranty,

under any other warranty, express or implied, or in contract, tort or otherwise,

shall be limited to replacement, repair, or refund, in USSC’s sole and absolute

discretion. In no event will USSC be liable for any incidental or consequential

damages. THE LIMITED WARRANTY SET FORTH HEREIN IS THE

SOLE WARRANTY PROVIDED TO PURCHASER AND IS IN LIEU OF

ALL OTHER WARRANTIES AND REPRESENTATIONS, EXPRESS OR

IMPLIED. USSC MAKES NO REPRESENTATIONS OR WARRANTIES

WHATSOEVER, EXPRESS OR IMPLIED, WITH RESPECT TO THE

PRODUCT, OTHER THAN (i) THE LIMITED WARRANTY ABOVE, AND

(ii) ANY IMPLIED WARRANTIES IMPOSED BY APPLICABLE LAW

WHICH CANNOT BE WAIVED OR DISCLAIMED UNDER APPLICABLE

LAW. ALL OTHER WARRANTIES OF ANY KIND, INCLUDING WITHOUT

LIMITATION IMPLIED WARRANTIES OF MERCHANTABILITY AND

FITNESS FOR A PARTICULAR PURPOSE, ARE HEREBY DISCLAIMED

AND EXCLUDED TO THE FULLEST EXTENT NOT PROHIBITED BY

APPLICABLE LAW. This Limited Warranty gives the purchaser speciﬁc

legal rights; a purchaser may have other rights depending upon where he or

she resides. Some states do not allow the exclusion or limitation of special,

incidental or consequential damages, or state law may affect the duration of

limitations, so the above exclusion and limitations may not be applicable.

WARRANTOR

The warrantor of record is United States Stove Company, PO Box 151, 227

Industrial Park Road, South Pittsburg, Tennessee 37380. Phone number: (800)-

750-2723. Register your product on line at www.usstove.com. Save your proof

of purchase, as documented in a receipt or invoice, with your records for any

claims.

IMPORTANT

We congratulate you on your selection of United States Stove Company and

its products. As the oldest solid fuel manufacturer in the United States (since

1869), the United States Stove Company is very proud of its products, service,

employees, and satisﬁed customers. We would like to hear from you if you are

not satisﬁed with the manner in which you have been handled by our distributor,

dealer, representative, customer service department, parts department, or sales

department. Please reach out to us by using any of the contact information

listed above.

Limited Warranty

852942B

TIME PERIOD

Firebox / Heat Exchanger Limited Lifetime

Door One Year

Cabinets and Trim One Year

Gaskets One Year

All Electrical Components (Blower, Auger

/ Agitator Motor, PC Board, Switches)

One Year

Ceramic Glass One Year

This manual will help you obtain efcient, dependable service from your heater, and enable you to order repair parts

correctly.

Keep this manual in a safe place for future reference.

When writing, always give the full model number which is on the nameplate attached to the heater.

When ordering repair parts, always give the following information as shown in this list /

Ce manuel vous aidera à obtenir un fonctionnement efcace et able de votre POÊLE À GRANULÉS et vous permettra

de commander correctement des pièces détachées.

Gardez ce manuel dans un lieu sûr pour toute consultation ultérieure.

Lorsque vous nous écrivez, donnez toujours le numéro de modèle complet qui se trouve sur la plaque signalétique xée

sur l’appareil de chauffage.

Lors de commandes de pièces détachées, donnez toujours les informations suivantes telles qu’illustrées dans cette liste:

1. The part number / Le numéro de pièce

2. The part description / La description de la pièce

3. The model number / Le numéro de modèle

4. The serial number / Le numéro de série

United States Stove Company

227 Industrial Park Road

P.O. Box 151

South Pittsburg, TN 37380

(800) 750-2723

WWW.USSTOVE.COM

How to Order Repair Parts /

Comment commander des pièces détachées

-24-

L’utilisation de cette unité en contradiction avec le manuel de l’utilisateur annulera

la garantie, tout en enfreignant les règlementations fédérales. United States Stove

Company garantit, uniquement à l’acheteur au détail original, que ce produit est

exempt de défectuosités des matériaux et de qualité de l’exécution, pendant la période

indiquée ci-dessous, de la date initiale d’achat prouvé par une facture, un chèque

oblitéré, un reçu de vente, etc., de United States Stove Company (« USSC ») ou d’un

détaillant autorisé, comme suit:

CONDITIONS DE LA GARANTIE

• La garantie ne couvre que les appareils USSC achetés chez un détaillant ou

distributeur USSC autorisé.

• Cette garantie n’est valide que si l’appareil USSC demeure sur le site d’installation

d’origine. Cette garantie ne s’applique pas aux produits achetés pour la location.

PROCÉDURE DE RÉCLAMATION

Contactez United States Stove Company pour un service sur garantie. Il vous sera

demandé de fournir les descriptions et données pertinentes, incluant la preuve

d’achat qui sera retournée sur demande. Sous réserve que l’appareil de chauffage ait

été installé et utilisé conformément avec le Manuel du propriétaire fourni avec cet

appareil de chauffage et que le problème ne porte pas sur une situation d’exclusion,

United States Stove Company:

• Remplacera sans frais la pièce défectueuse. Les pièces et/ou les remplacements

d’entretien effectués selon les termes de cette garantie le sont uniquement pour le

reste de la période originale de la garantie de ce produit.

• Remplacer l’appareil de chauffage sans frais. Si l’appareil de chauffage doit être

remplacé par United States Stove Company « sans frais », tous les engagements

au titre de cette garantie seront respectés.

• Si le défaut est de nature esthétique (non fonctionnel), United States Stove

Company assumera les frais pour réparation de l’appareil de chauffage, incluant

les éléments comme la soudure, la peinture et la main-d’œuvre accessoire. Les

« frais raisonnables » déﬁnis aux termes de cette garantie sont de 30,00 $/heure

avec un remboursement complet pour tout achat de pièces.

EXCLUSIONS DE LA GARANTIE

Cette garantie ne couvre pas ce qui suit:

• Dommage ou modiﬁcation du ﬁni de la surface causé par une utilisation normale.

Comme il s’agit d’un appareil de chauffage, il pourrait se produire une certaine

modiﬁcation de la couleur et des ﬁnis de la surface intérieure et extérieure. Il ne

s’agit pas d’un défaut et ce n’est pas couvert par la garantie.

• Détérioration des surfaces imprimées, plaquées ou émaillées par les marques

de doigts, accidents, abus, égratignures et pièces qui ont fondu ou autres causes

externes, ainsi que les résidus laissés sur les surfaces plaquées par l’utilisation de

nettoyants ou produits à polir abrasifs.

• Réparation ou remplacement des pièces soumises à une usure normale pendant la

période de garantie. Ces pièces comprennent : peinture, granulés et décoloration

de la vitre.

• Bruit causé par la dilatation, contraction ou déplacements mineurs de certaines

pièces. Ces conditions sont normales et les réclamations liées à ce bruit ne sont

pas couvertes par cette garantie.

• Dommages causés par : (1) l’installation, l’utilisation ou la maintenance de

l’appareil sans tenir compte des instructions d’installation et d’utilisation, et

sans consulter l’étiquette d’identiﬁcation de l’agent de listé; (2) le non-respect

des codes du bâtiment locaux et/ou des autorités ayant juridiction pendant

l’installation de l’appareil; (3) l’expédition ou la mauvaise manutention; (4)

la mauvaise utilisation, l’abus, l’utilisation continue alors que des composants

sont endommagés, corrodés ou défectueux, l’utilisation après un accident, des

modiﬁcations ou des réparations négligentes/incorrectes; (5) les conditions

liées à l’environnement et à la météo, une mauvaise ventilation, une pression

négative ou un mauvais tirage en raison de l’étanchéité de la construction,

l’approvisionnement insufﬁsant en air d’appoint ou d’autres dispositifs tels que

des ventilateurs de tirage, des chaudières à air pulsé ou toute autre cause; (6)

l’utilisation de combustibles autres que ceux mentionnés dans les instructions

d’utilisation; (7) l’installation ou l’utilisation de composants qui n’ont pas été

fournis avec l’appareil ou de tout autre composant n’ayant pas été expressément

autorisé et approuvé par USSC; (8) les modiﬁcations de l’appareil qui n’ont

pas été expressément autorisées et approuvées par écrit par USSC; et/ou (9) les

interruptions ou ﬂuctuations de l’alimentation électrique de l’appareil.

• Composants d’évacuation des gaz, composants de l’âtre ou accessoires utilisés

avec l’appareil et qui n’ont pas été fournis par USSC.

• Obligations de USSC, en vertu de cette garantie, ne couvrent pas la capacité

de l’appareil à chauffer l’espace souhaité. Des informations sont fournies pour

aider le consommateur et le détaillant lors de la sélection de l’appareil adéquat

pour l’application envisagée. On doit tenir compte de l’emplacement et de la

conﬁguration de l’appareil, des conditions liées à l’environnement, de l’isolation

et de l’étanchéité de la structure.

• Problèmes liés à la fumée ou au créosote. La fumée provient généralement d’un

tirage inadéquat en raison de la conception ou de l’installation du système de

conduit ou de l’installation de l’appareil de chauffage lui-même. La formation de

créosote est largement attribuable au mauvais fonctionnement de l’unité et/ou du

tirage, comme il est mentionné ci-dessus.

• Tous les coûts associés à l’enlèvement et à la réinstallation du produit, son

déplacement, transport ou expédition.

• Appels de service aﬁn de diagnostiquer les problèmes (à moins d’être reconnu par

écrit par le fabricant, le distributeur ou le détaillant).

CETTE GARANTIE EST ANNULÉE SI

• L’appareil a subi une surchauffe ou a été utilisé avec de l’air contaminé par le

chlore, le ﬂuor ou d’autres produits chimiques nuisibles. La surchauffe peut être

établie, sans s’y limiter, par la déformation des plaques ou tubes, la couleur rouille

de la fonte, l’apparition de bulles et de craquelures, et la décoloration des surfaces

en acier ou émaillées.

• L’appareil est soumis à l’humidité ou à la condensation pendant de

longues périodes.

• Les dommages causés à l’appareil ou aux autres composants par l’eau ou les

intempéries en raison, entre autres, d’une mauvaise installation de la cheminée

ou du conduit d’évacuation.

RESTRICTIONS DE LA GARANTIE

Le seul recours du propriétaire et la seule obligation de USSC en vertu de cette

garantie ou de toute autre garantie, explicite ou tacite, contractuelle, à tort ou à raison,

sont limités au remplacement, à la réparation ou au remboursement. En aucun cas,

USSC ne saurait être tenue responsable des dommages fortuits ou consécutifs. LA

GARANTIE LIMITÉE INCLUSE AUX PRÉSENTE EST LA SEULE DISPONIBLE

POUR L’ACHETEUR, TENANT LIEU DE TOUTES AUTRES GARANTIES

OU DÉCLARATIONS, FORMELLE OU TACITE. USSC NE FAIT AUCUNE

DÉCLARATION OU GARANTIE DE TOUTE SORTE, QU’ELLE SOIT TACITE

OU FORMELLE, RELATIVEMENT AU PRODUIT, AUTRE QUE (i) LA

GARANTIE LIMITÉE MENTIONNÉE CI-DESSUS, ET (ii) TOUTE GARANTIE

TACITE IMPOSÉE PAR LE DROIT APPLICABLE PAR LAQUELLE ELLE NE

PEUT ÊTRE ANNULÉE OU DÉCLINÉE SELON LE DROIT APPLICABLE.

TOUTES AUTRES GARANTIES DE TOUT GENRE, INCLUANT, MAIS SANS

S’Y LIMITER, AUX GARANTIES TACITES DE QUALITÉ MARCHANDE OU

D’APTITUDE À L’EMPLOI, SONT DONC AUX PRÉSENTES, DÉCLINÉES

ET EXCLUES JUSQU’À LA LIMITE DU DROIT APPLICABLE. Cette garantie

limitée confère à l’acheteur des droits juridiques spéciﬁques; les droits de l’acheteur

pourraient différer selon son lieu de résidence. Certains États ne permettent pas

l’exclusion ou la limitation de dommages particuliers, accessoires ou indirects, ou des

lois d’État peuvent avoir un impact sur la durée des limitations; ainsi, l’exclusion et

les limitations précédentes pourraient ne pas s’appliquer.

GARANT

Le garant de ce dossier est United States Stove Company, PO Box 151, 227 Industrial

Park Road, South Pittsburg, Tennessee 37380. Numéro de téléphone : (800)-750-

2723. Enregistrez votre produit en ligne au www.usstove.com. Conservez votre

preuve d’achat, documentée sous forme de facture ou de reçu, en cas de réclamation.

IMPORTANT

Félicitation d’avoir choisi United States Stove Company et ses produits. Étant le plus

ancien fabricant de combustible solide aux États-Unis (depuis 1869), United States

Stove Company est ﬁère de ses produits, son service, ses employés, et ses clients

satisfaits. Nous aimerions le savoir si vous êtes insatisfait de la façon dont vous aurait

répondu l’un de nos distributeurs, détaillants, représentants, service à la clientèle,

service des pièces ou service des ventes. Veuillez nous joindre en utilisant l’un des

moyens pour nous contacter indiqués ci-dessous.

Garantie limitée

852942B

DÉLAI PRESCRIT

Boîte à feu/échangeur de chaleur À vie limitée

Porte Un an

Cabinets et garniture Un an

Joints d’étanchéité Un an

Tous les composants électriques (Soufﬂeur,

moteur de la vis/agitateur, carte de circuit

imprimé, commutateurs)

Un an

Vitre céramique Un an

-23-

Il est recommandé que votre système de chauffage est desservi régulièrement et que le Service Interval

enregistrement approprié est terminée.

FOURNISSEUR DE SERVICES

Avant de terminer l’enregistrement de service approprié ci-dessous, s’il vous plaît vous assurer que vous avez

effectué le service tel que décrit dans le les instructions du fabricant. Toujours utiliser pièce de rechange indiquée

par le fabricant lors de remplacement est nécessaire.

Enregistrement De Service

Service de 01 Date: _____________________

Nom de l’ingénieur: ____________________________

N° de licence.: _________________________________

Compagnie: ___________________________________

N° de téléphone: _______________________________

Poêle Inspecté: Cheminée balayée:

Articles Remplacé: _____________________________

Service de 03 Date: _____________________

Nom de l’ingénieur: ____________________________

N° de licence.: _________________________________

Compagnie: ___________________________________

N° de téléphone: _______________________________

Poêle Inspecté: Cheminée balayée:

Articles Remplacé: _____________________________

Service de 05 Date: _____________________

Nom de l’ingénieur: ____________________________

N° de licence.: _________________________________

Compagnie: ___________________________________

N° de téléphone: _______________________________

Poêle Inspecté: Cheminée balayée:

Articles Remplacé: _____________________________

Service de 07 Date: _____________________

Nom de l’ingénieur: ____________________________

N° de licence.: _________________________________

Compagnie: ___________________________________

N° de téléphone: _______________________________

Poêle Inspecté: Cheminée balayée:

Articles Remplacé: _____________________________

Service de 02 Date: _____________________

Nom de l’ingénieur: ____________________________

N° de licence.: _________________________________

Compagnie: ___________________________________

N° de téléphone: _______________________________

Poêle Inspecté: Cheminée balayée:

Articles Remplacé: _____________________________

Service de 04 Date: _____________________

Nom de l’ingénieur: ____________________________

N° de licence.: _________________________________

Compagnie: ___________________________________

N° de téléphone: _______________________________

Poêle Inspecté: Cheminée balayée:

Articles Remplacé: _____________________________

Service de 06 Date: _____________________

Nom de l’ingénieur: ____________________________

N° de licence.: _________________________________

Compagnie: ___________________________________

N° de téléphone: _______________________________

Poêle Inspecté: Cheminée balayée:

Articles Remplacé: _____________________________

Service de 08 Date: _____________________

Nom de l’ingénieur: ____________________________

N° de licence.: _________________________________

Compagnie: ___________________________________

N° de téléphone: _______________________________

Poêle Inspecté: Cheminée balayée:

Articles Remplacé: _____________________________

_____________________

____________________________

_________________________________

___________________________________

_______________________________

_____________________________

_____________________

____________________________

_________________________________

___________________________________

_______________________________

_____________________________

_____________________

____________________________

_________________________________

___________________________________

_______________________________

_____________________________

_____________________

____________________________

_________________________________

___________________________________

_______________________________

_____________________________

_____________________

____________________________

_________________________________

___________________________________

_______________________________

_____________________________

_____________________

____________________________

_________________________________

___________________________________

_______________________________

_____________________________

_____________________

____________________________

_________________________________

___________________________________

_______________________________

_____________________________

_____________________

____________________________

_________________________________

___________________________________

_______________________________

_____________________________

-22-

Nomenclature

An de maintenir la garantie, les composants doivent être remplacés par des pièces de fabricants d’origine

achetés chez votre revendeur ou directement auprès du fabricant de l’appareil. L’utilisation de composants

tiers annule la garantie.

Clé Réf La description Qté.

1 25507 Nourrissez Door 1

2 25492 Poignée, Porte 1

3 83506 3/8 x 1 1/4 Rouleau Pin 1

4 891053 Porte en verre 1

5 88066 5/8 "Joint Rope 4.5 ft

6 88087 Verre Joint (1 x 1 3/16) 3.5 ft

7 25520 Retenue à fond de verre 1

8 25521 Top Glass Retenue 1

9 83278 Machine à laver 4

10 83202 Screw machine 4

11 891135 Poignée de printemps 1

12 25393 Retenue, Verre 1

N/S 25080MB Verrou de porte 1

N/S - Pas montré

Clé Réf La description Qté.

1 69524 Montage D'alimentation De Porte 1

2 891372 Charnière De Porte Pad 2

3 25080B Nourrissez Loquet De Porte 1

4 69693

Logement Weldment Pot De

Combustion

5 86624 Assemblée Pot De Combustion 1

6 25513 Ash Cleanout 2

7 69713MB Top / Couvercle Weldment 1

8 891148 Poignée En Plastique 1

9 69515MB Cabinet Side - Gauche 1

10 80778

Assy, Carte De Circuit Imprimé (4

Chiffres) Ir Compatible

11 25488MB Cabinet Side - Droit 1

12 69787 Assemblée Hopper 1

13 80491 Micro-Interrupteur 1

14 83541 # 4-40 Bolt 2

15 83542 # 4-40 Écrou 2

16 25480MB Panneau D'accès 1

17 80461 Cordon D'alimentation 1

18 80462 Réceptacle, 3 Prong 1

19 891164 Auger Logement Weldment 1

20 891141 Vrille 1

21 891189 Top Bushing Plate 1

22 891132 Bague 1

23 83534 Retaining Ring 1

24 69719 Auger Cover 1

25 891161 Bottom Plate Retenue 1

26 25495 Moteur D'entraînement Bracket 1

27 891169 Tuyau De Chauffage 2

28 80488 Auger Motor 1

29 83529 Épingle À Cheveux 1

30 69763 Echappement Duct Weldment 1

31 88117 Conduit D'échappement Joint 1

32 80473 Échappement Blower 1

33 88100 Joint D'échappement Blower 1

34 80480 Thermistance 1

35 86633 Ignitor Tube Weldment 1

36 80619 Cartouche Ignitor 1

37 88118 Ignitor Bride Joint 1

38 80472 Soufeur De Distribution 1

39 88106 Répartition Du Ventilateur Joint 1

40 25774 Pressostat Support 1

41 80549 Commutateur De Pression 1

42 89586 Mamelon 1

43 891121 Tuyau De Silicone 3po

44 83537 Collier De Serrage (N ° 4) 1

45 88119 Couverture Isolante 1

46 88168

Logement Joint Pot De

Combustion

47 26096MB Foyer 1

48 26097MB Grill Mont - Gauche 1

49 26098MB Grill Mont - Droit 1

50 69791MB Louver / Assemblée Grill 1

N/S 80780 Télécommande IR 1

N/S 80779 Thermostat mural numérique 1

N/S 80798 Capteur IR, à bord 1

N/S 80548 Faisceau de câblage principal 1

N/S 80493 Câblage (Microswitch) 1

N/S 891673 Bague Rtnr. Pla Assy. 1

N/S 25863 Régulateur de carburant manuel 1

N/S 83249 Écrou papillon 1

N/S - Pas montré

-21-

Schéma des pièces

-20-

GRIS

MOTEUR

D'ENTRAÎNEMENT

DE LA VIS SANS FIN

BLANC

MICRORUPTEUR

ALLUMEUR

SOURCE

ÉLECTRIQUE

BLANC

NOIR

PCB

ALLUMEUR

PRESSOSTAT

MARRON

NOIR

BLANC

ROUGE

BLEU

ORANGE

PRISE MOLEX AU CIRCUIT IMPRIMÉ

PCB

PRINCIPAL

NOIR

NOIR BLANC

BLANC

SOUFFLANTE DE

DISTRIBUTION

VENTILATEUR

D'ÉVACUATION

THERMISTOR

Schéma de câblage

CORRECT FAUX

Assurez-vous que les ls sont

connectés aux deux broches

inférieures de l’interrupteur de la

trémie, comme illustré.

-19-

Codes d’erreur et indicateurs d’afchage

INDICATEURS D'AFFICHAGES

Plusieurs situations ou événements sont indiqués lors du fonctionnement normal par le biais d'indicateurs

d'afchage ou segments clignotant sur l'écran:

Indicateur "On" clignotant: Cela signie que le poêle est dans l’état «Démarrage» en attendant la n de la

procédure d’allumage.

Indicateur "Off" clignotant: Cela indique que le poêle est en cours d' "extinction", en attente que le bouton

OFF soit pressé, ou pendant un délai de 15 minutes après que le poêle ait été éteint ou encore que le poêle

refroidisse.

Tiret clignotant sur l'afchage du niveau de chaleur (Heat Range): Cela indique que le poêle est en mode de

fonctionnement normal et qu'il se met en marche à partir du réglage du niveau de chaleur actuel jusqu'au

réglage du niveau de chaleur indiqué. Une fois que le temps de mise en œuvre est terminé, le tiret s'arrête de

clignoter. Pour la mise en marche du niveau de chaleur de 1 à 5, le délai par défaut est de 12 minutes (avec un

délai de mise en œuvre de 90 secondes).

Indicateur du mode Automatique ("Automatic Mode") clignotant: Ceci indique que le poêle fonctionne

normalement et fonctionne en mode automatique. Toutefois, le réglage du ventilateur de tirage ou du ventilateur

de pièce est conguré manuellement.

Indicateur du réglage du ventilateur de tirage ("Draft Fan") clignotant: Cela indique que le poêle fonctionne

normalement et que le capteur de vide détecte une perte de pression due au fait que la porte soit ouverte ou

en raison d'une pression négative dans la pièce par rapport à l'évacuation.

Indicateur "Aux" clignotant: Cela indique que l'igniteur est en marche pendant la phase d'allumage.

Indicateur de réglage du niveau de chaleur (Heat Range) clignotant rapidement (deux fois par seconde): Cela

indique que le poêle fonctionne normalement et qu'une condition de température excessive existe, provoquant

l'arrêt du combustible.

Indicateur de réglage du niveau de chaleur (Heat Range) clignotant lentement (une fois par seconde): Cela

indique que le poêle est en condition de réduction, essayant d'éviter un arrêt dû à une température excessive.

DÉFAUTS D'USINE

Pour renvoyer les commandes à leurs réglages originaux d'usine, appuyez et maintenez enfoncés simultanément

les bouton AUX UP et AUX DOWN pendant trois secondes.

Code d’erreur Description de l’erreur Causes possibles

Err1

Le capteur de limite élevée de température s’est

déclenché.

• Ventilation inadéquate.

• Panne du ventilateur de la pièce.

• Blocage de l’évacuation.

• Circuit électrique ouvert.

Err2

Le poêle est tombé à court de combustible

pendant le fonctionnement normal.

• Trémie vide.

• Panne ou blocage de la sortie de la vis

sans n.

• La amme ou la qualité du combustible

a entraîné un feu qui brûle trop

lentement ou s’éteint.

• Circuit électrique ouvert.

Err3

Le poêle a été incapable d’atteindre la

température de mise en marche du ventilateur de

la pièce dans le délai de mise en route.

• La amme ou la qualité du combustible

a entraîné un feu qui brûle trop

lentement ou s’éteint.

• Panne de la sortie de la vis sans n

Trémie vide lors de la mise en marche.

Err4

Une panne d’alimentation électrique a eu

lieu tandis que le poêle était chaud et lorsque

l’alimentation a été restaurée, le feu était éteint.

• Circuit électrique ouvert.

• Perte de puissance

Err5 Le fusible de sortie de la vis sans n a sauté.

• Moteur de la vis sans n bloqué ou

défectueux.

Err6 Le fusible de sortie de l’igniteur a sauté. • Igniteur court-circuité ou défectueux.

Err7

Le fusible de sortie du ventilateur de tirage

(ventilateur d’évacuation) a sauté.

• Moteur du ventilateur de tirage bloqué

ou défectueux.

Err8

Le fusible de sortie du ventilateur de la pièce a

sauté.

• Moteur du ventilateur de la pièce

bloqué ou défectueux.

Codes d’erreur et indicateurs d’afchage

d'afchage ou segments clignotant sur l'écran:

Cela signie que le poêle est dans l’état «Démarrage» en attendant la n de la

Cela indique que le poêle est en cours d' "extinction", en attente que le bouton

OFF soit pressé, ou pendant un délai de 15 minutes après que le poêle ait été éteint ou encore que le poêle

Tiret clignotant sur l'afchage du niveau de chaleur (Heat Range):

clignoter. Pour la mise en marche du niveau de chaleur de 1 à 5, le délai par défaut est de 12 minutes (avec un

délai de mise en œuvre de 90 secondes).

de pièce est conguré manuellement.

indique que le poêle fonctionne normalement et qu'une condition de température excessive existe, provoquant

indique que le poêle est en condition de réduction, essayant d'éviter un arrêt dû à une température excessive.

Pour renvoyer les commandes à leurs réglages originaux d'usine, appuyez et maintenez enfoncés simultanément

sans n.

La amme ou la qualité du combustible

Panne de la sortie de la vis sans n

Err5 Le fusible de sortie de la vis sans n a sauté.

Moteur de la vis sans n bloqué ou

défectueux.

Igniteur court-circuité ou défectueux.

ou défectueux.

bloqué ou défectueux.

-18-

Dépannage

• Déconnectez le cordon d'alimentation avant d'effectuer tout travail d'entretien ! REMARQUE: Mettre

l'interrupteur ON/OFF (marche/arrêt) sur "OFF" ne coupe pas l'alimentation des composants électriques du

poêle.

• Ne tentez jamais de réparer ou de remplacer une pièce du poêle à moins que des instructions pour le faire

ne soient fournies dans ce manuel. Tous les autres travaux devront être effectués par un technicien qualié.

PROBLÈME CAUSE: Pour enrichir le mélange air/combustible

Flamme faible,

orange dépôt

excessif de

combustible dans le

pot de combustion

• Nettoyez le pot de combustion et le logement du pot de combustion

• Assurez-vous que la porte d’inspection soit fermée et scellée correctement. Si ce n’est pas le

cas, réglez la fermeture de la porte et/ou remplacez les joints de la porte.

• Vériez que tous les raccordements externes ne présentent aucune obstruction.

• Vériez le système d’aspiration ; nettoyez-le si nécessaire.

PROBLÈME CAUSE: Le pot de combustion brûle sans combustible

Le feu ou le poêle

s’éteignent.

• La trémie est vide, remplissez la trémie.

• Perte de pression de tirage. Assurez-vous que la porte d’inspection soit fermée et scellée

correctement. Si ce n’est pas le cas, réglez la fermeture de la porte et/ou remplacez les joints

de la porte. Vériez que tous les raccordements externes ne présentent aucune obstruction.

Vériez le système d’aspiration ; nettoyez-le si nécessaire.

• Vériez que le raccordement du pressostat au foyer ne contienne aucune cendre ni

obstruction.

• Le système à vis sans n est bloqué ou il y a une « voûte » de combustible dans la trémie, qui

empêche le combustible de s’écouler dans le système d’approvisionnement à vis sans n.

PROBLÈME CAUSE: L’allumeur automatique n’allume pas le combustible dans le pot de combustion.

Le poêle ne démarre

pas un feu quand

le bouton «ON»

(marche) est pressé

• Mettez le poêle en position “OFF” (arrêt). Retirez le combustible non brûlé du pot de

combustion et essayez de nouveau.

• Vériez la qualité des granulés. Remplacez-les s’ils sont mouillés, humides ou sales.

• Perte de pression de tirage. Assurez-vous que la porte d’inspection soit fermée et scellée

correctement. Si ce n’est pas le cas, réglez la fermeture de la porte et/ou remplacez les joints

de la porte. Vériez que tous les raccordements externes ne présentent aucune obstruction.

Vériez le système d’aspiration ; nettoyez-le si nécessaire.

• Vériez que l’allumeur automatique ne soit pas bloqué par des cendres ou de la suie.

(L’allumeur est situé derrière le pot de combustion sur la paroi arrière du foyer.)

• Vériez que le raccordement du pressostat au foyer ne contienne aucune cendre ni

obstruction.

• L’allumeur automatique devient « rouge vif » lors du démarrage. Si vous ne pouvez pas

observer le rougeoiement de l’allumeur pendant le démarrage, alors il se peut que l’allumeur

doive être remplacé ou qu’il y ait un problème avec le système de contrôle électrique.

PROBLÈME CAUSE: Panne de courant

Vivre une

faible pression

d’échappement

• Éteignez la carte de circuit imprimé et rallumez-la.

-17-

Entretien

JOINTS DE LA PORTE ET DE LA VITRE

Inspectez périodiquement les joints de la porte principale et de la fenêtre vitrée. Il se peut qu’il soit nécessaire

de retirer la porte principale pour que votre revendeur autorisé remplace les joints éraillés, cassés ou compactés.

Le joint de la vitre possède un vide dans sa partie inférieure destiné au lavage à l’air. La porte ce cette unité

utilise un joint de corde de 5/8” de diamètre.

MOTEURS DE LA SOUFFLANTE

Nettoyez tous les ans les évents sur les moteurs des ventilateurs d’évacuation et de distribution. Retirez le

ventilateur d’évacuation du conduit d’évacuation et nettoyez les pales internes du ventilateur lors de votre mise

en marche en automne.

SURFACES PEINTES

Les surfaces peintes peuvent être essuyées avec un tissu doux. Si des rayures apparaissent, ou si vous souhaitez

rénover la peinture, contactez votre revendeur autorisé an d’obtenir un pot de peinture adaptée aux

températures élevées.

VITRE - Nettoyage, retrait et remplacement de la vitre cassée de la porte

Nettoyage - Nous recommandons l’utilisation d’un nettoyant pour vitres de bonne qualité. Si une accumulation

de créosote ou de carbone apparaît, vous pouvez utilisez une laine d’acier 000 et de l’eau pour nettoyer la vitre.

N’utilisez PAS de nettoyant abrasif. N’effectuez PAS le nettoyage tant que la vitre est CHAUDE. ,

S’il s’avère nécessaire de remplacer la vitre, retirez les quatre (4) vis et les retenues de la vitre. Avec des gants

en cuir (ou tout autre paire de gants qui convienne à la manipulation du verre brisé), retirez avec précaution les

morceaux de verre du cadre de la porte. Jetez le verre brisé de façon appropriée. SEULS des verres céramiques

haute température de taille et d’épaisseur correctes doivent être utilisées. NE substituez PAS le verre avec des

matériaux alternatifs. Contactez votre revendeur autorisé pour obtenir ce verre. Réinstallez le nouveau verre

en le xant de nouveau avec les retenues et les vis, faites attention à ne pas trop serrer les vis car cela pourrait

endommager le verre.

NE maltraitez PAS la vitre de la porte en la cognant, claquant ou en la traitant de façon similaire. Ne faites pas

fonctionner le poêle avec la vitre retirée, ssurée ou brisée.

MISE EN MARCHE D’AUTOMNE

Avant de démarrer le premier feu de la saison de chauffage, vériez la présence d’obstructions dans la zone

extérieure autour des systèmes d’évacuation et d’admission d’air. Nettoyez et retirez toute cendre volante

du système de ventilation d’évacuation. Nettoyez les vis du système d’évacuation et à l’extérieur du tuyau

d’admission d’air. Mettez en marche toutes les commandes et assurez-vous qu’elles fonctionnent correctement.

C’est également le moment opportun pour effectuer un nettoyage complet et minutieux du poêle.

EXTINCTION AU PRINTEMPS

Après le dernier chauffage de printemps, retirez tous les granulés restants dans la trémie et dans le système

d’approvisionnement à vis sans n. Videz les granulés et faites ensuite fonctionner la vis sans n jusqu’à ce que la

trémie soit vide et que les granulés ne sortent plus (cela peut être réalisé en appuyant sur le bouton «ON» avec la

porte d’inspection ouverte). Aspirez la trémie. Nettoyez complètement le pot de combustion et le foyer. Il peut

être souhaitable de pulvériser l’intérieur de la trémie nettoyée avec de la silicone en aérosol si votre poêle se

trouve dans une région à humidité élevée. Le système d’évacuation devra être minutieusement nettoyé.

SURCHAUFFE

Tentez d’atteindre un taux de puissance calorique dépassant les spécications de conception du chauffage

peut lui causer des dommages permanents.
