1
Sharp MWO Drawer Pedestal
Model SKMD24U0ES
For use with Microwave Drawer models SMD2470AS,
SMD2470AH
*, SMD2480CS, and SMD2489ES.
*
Black Stainless Steel model - custom panels recommended
due to dierent nish.
IMPORTANT NOTES TO THE INSTALLER
• PLEASE READ THESE INSTRUCTIONS THOROUGHLY
BEFORE BEGINNING INSTALLATION.
• Observe all governing codes, ordinances, and safety
instructions.
• Refer to these specic models' installation instructions for
more information on placement.
• Be sure to leave these instructions with the consumer.
NOTE: This installation process requires two people. Please
ensure you have another person to help lift and install the
unit.
WARNING: Follow all of the steps provided in this installation.
Improperly securing or installing the unit can lead to possible
injury or damage to the unit.

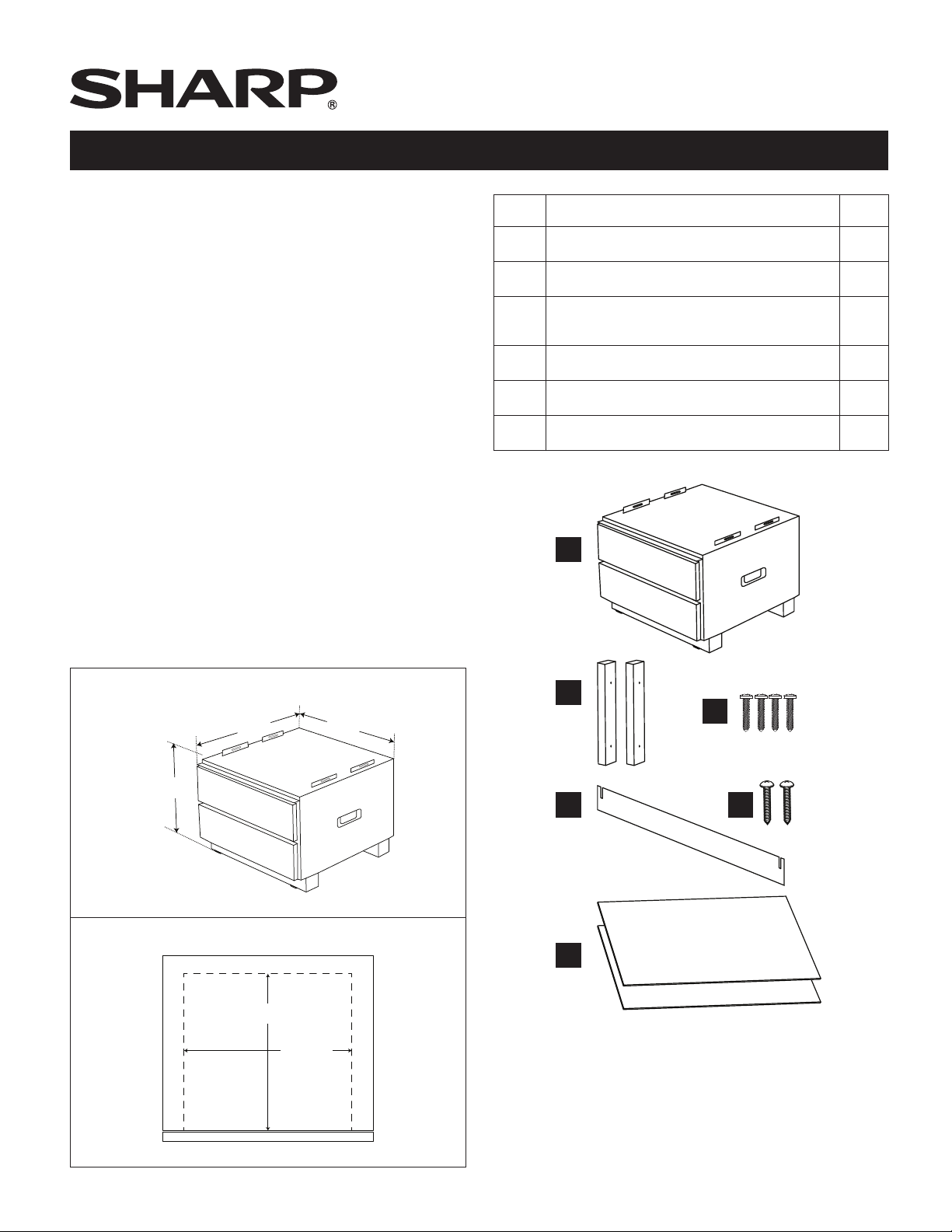

Overall Dimensions
23-13/16”
23-1/2”
17-3/4” MIN
18-11/16” MAX
Inside Drawer Dimensions
21-13/16”
18-11/16”
INSTALLATION INSTRUCTIONS
ITEM PART NAME QTY
A UTC PEDESTAL: DPED-B001MRK0 1
B MOUNTING CLEATS: SPAK-B117MRE0 2
C
MOUNTING CLEAT SCREWS:
XMSS742P38000
4
D TOE KICK: GCOVHB087MRT0 1
E TOE KICK SCREWS: XUPS840P12X00 2
F DRAWER MATS: PCOV-B009MRE0 2
A
B
D
F
C
E
