Owner's Manual
Manual del Propietario
ROOM AIR CONDITIONER
ACONDICIONADOR DE AIRE DE VENTANA
Model, Modelo 580.71184
Sears, Roebuck and Co., Hoffman Estates, IL 60EP_I_'S.
www.sears.com

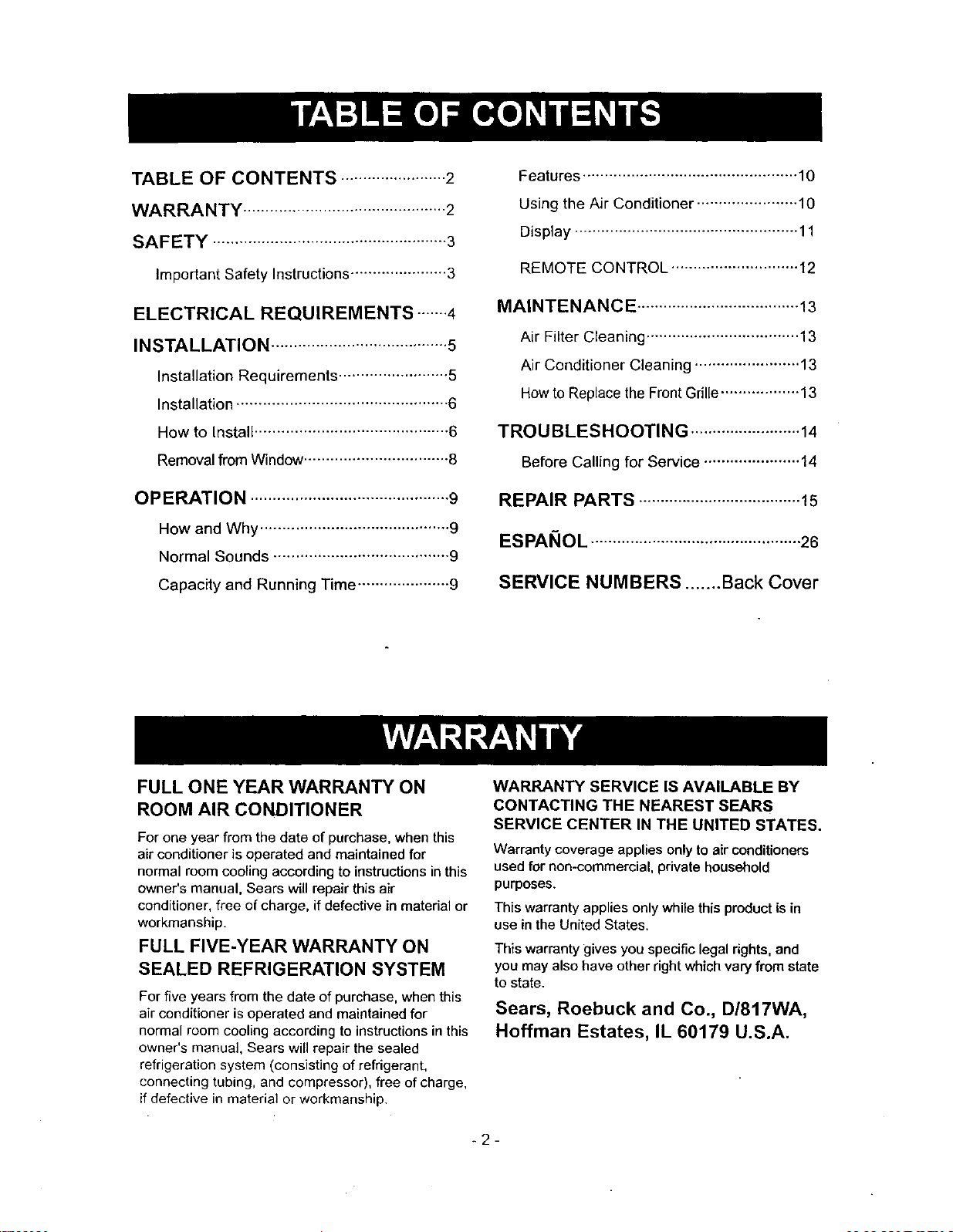

TABLE OF CONTENTS ........................2
WARRANTY .............................................. 2
SAFETY ..................................................... 3
Important Safety Instructions ...................... 3
ELECTRICAL REQUIREMENTS ....... 4
INSTALLATION ........................................ 5
Installation Requirements ......................... 5
Installation ................................................ 6
How to Install ............................................ 6
Removal from Window ................................. 8
OPERATION ............................................. 9
How and Why ........................................... 9
Normal Sounds ........................................ 9
Capacity and Running Time ..................... 9
Features ................................................. 10
Using the Air Conditioner ....................... 10
Display ................................................... 11
REMOTE CONTROL ............................. 12
MAINTENANCE ..................................... 13
Air Filter Cleaning ................................... 13
Air Conditioner Cleaning ........................ 13
How to Replace the Front Grille .................. 13
TROUBLESHOOTING ......................... 14
Before Calling for Service ...................... 14
REPAIR PARTS ..................................... 15
ESPANOL ................................................ 26
SERVICE NUMBERS ....... Back Cover
FULL ONE YEAR WARRANTY ON
ROOM AIR CONDITIONER
For one year from the date of purchase, when this
air conditioner is operated and maintained for
normal room cooling according to instructions in this
owner's manual, Sears wiU repair this air
conditioner, free of charge, if defective in materiel or
workmanship.
FULL FIVE-YEAR WARRANTY ON
SEALED REFRIGERATION SYSTEM
For five years from the date of purchase, when this
air conditioner is operated and maintained for
normal room cooling according to instructions in this
owner's manual, Sears will repair the sealed
refrigeration system (consisting of refrigerant,
connecting tubing, and compressor), free of charge,
if defective in material or workmanship.
WARRANTY SERVICE IS AVAILABLE BY
CONTACTING THE NEAREST SEARS
SERVICE CENTER IN THE UNITED STATES.
Warranty coverage applies only to air conditioners
used for non-commercial, private household
purposes.
This warranty applies only while this product is in
use in the United States.
This warranty gives you specific legal rights, and
you may also have other right which vary from state
to state.
Sears, Roebuck and Co., DI817WA,
Hoffman Estates, IL 60179 U.S.A.
_2-

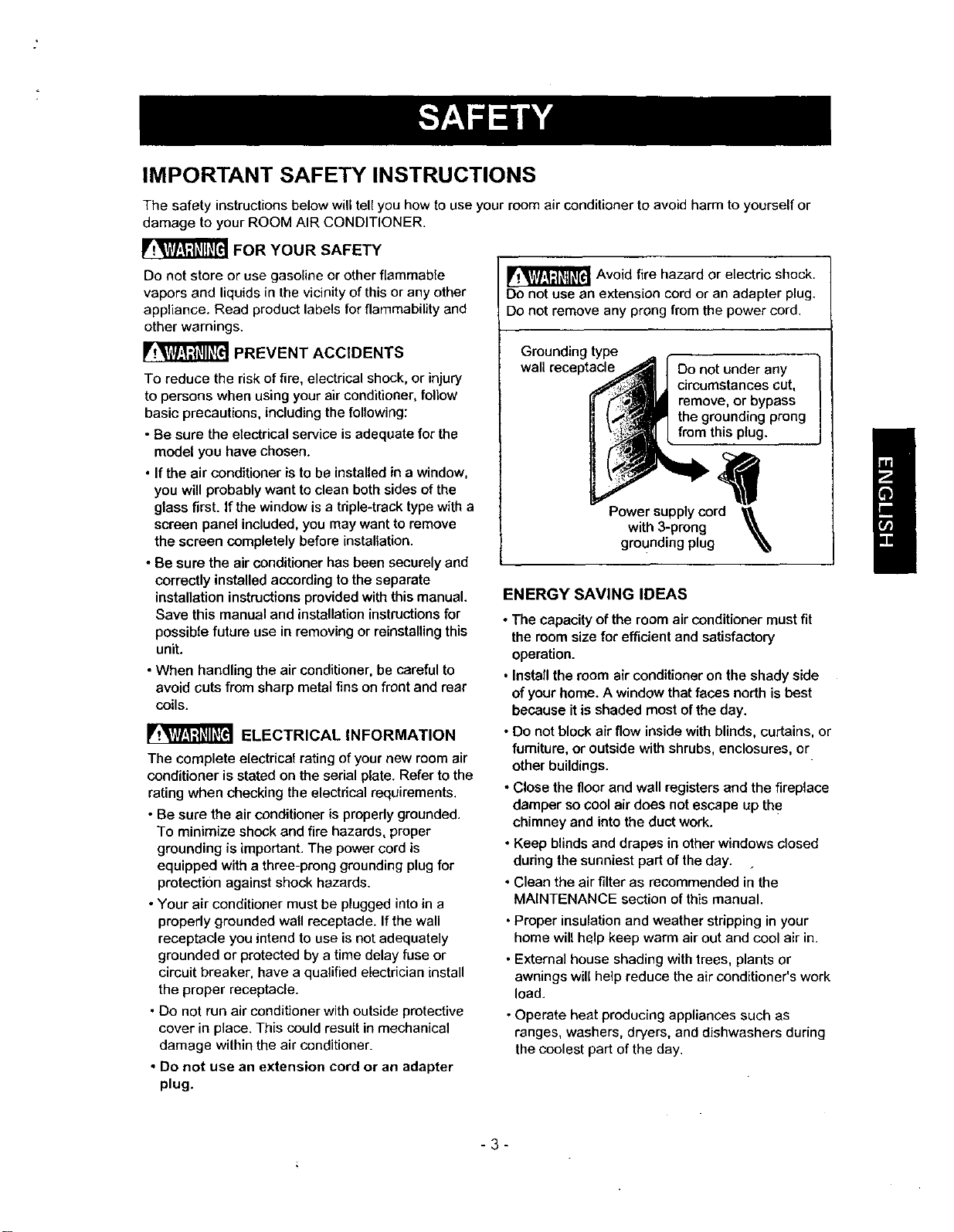

IMPORTANT SAFETY INSTRUCTIONS
The safety instructions below will tell you how to use your room air conditioner to avoid harm to yourself or
damage to your ROOM AIR CONDITIONER.
FOR YOUR SAFETY
Do not store or use gasoline or other flammable
vapors and liquids in the vicinity of this or any other
appliance. Read product labels for flammability and
other warnings.
_ PREVENT ACCIDENTS
To reduce the risk of fire, electrical shock, or injury
to persons when using your air conditioner, follow
basic precautions, including the following:
• Be sure the electrical service is adequate for the
model you have chosen.
• If the air conditioner is to be instafied in a window,
you will probably want to clean both sides of the
glass first. If the window is a triple-track type with a
screen panel included, you may want to remove
the screen completely before installation.
• Be sure the air conditioner has been securely and
correctly installed according to the separate
installation instructions provided with this manual.
Save this manual and installation instructions for
possible future use in removing or reinstalling this
unit.
• When handling the air conditioner, be careful to
avoid cuts from sharp metal fins on front and rear
coils.
ELECTRICAL INFORMATION
The complete electrical rating of your new room air
conditioner is stated on the serial plate. Refer to the
rating when checking the electrical requirements.
• Be sure the air conditioner is properly grounded.
To minimize shock and fire hazards, proper
grounding is important. The power cord is
equipped with a three-prong grounding plug for
protection against shock hazards.
• Your air conditioner must be plugged into in a
properly grounded wall receptacle. If the wall
receptacle you intend to use is not adequately
grounded or protected by a time delay fuse or
circuit breaker, have a qualified electrician install
the proper receptacle.
• Do not run air conditioner with outside protective
cover in place. This could result in mechanical
damage within the air conditioner.
• Do not use an extension cord or an adapter
plug.
_ Avoid fire hazard or electric shock.
Do not use an extension cord or an adapter plug.
Do not remove any prong from the power cord,
Grounding type
wall receptacle Do not under any
circumstances cut,
remove, or bypass
the grounding prong
from this plug.
Power supply card
with 3-preng
\
grounding plug
ENERGY SAVING IDEAS
• The capacity of the room air conditioner must fit
the room size for efficient and satisfactory
operation.
• Install the room air conditioner on the shady side
of your home. A window that faces north is best
because it is shaded most of the day.
• Do not block air flow inside with blinds, curtains, or
furniture, or outside with shrubs, enclosures, or
other buildings.
• Close the floor and wall registers and the fireplace
damper so cool air does not escape up the
chimney and into the duct work.
• Keep blinds and drapes in other windows closed
dudng the sunniest part of the day.
• Clean the air filter as recommended in the
MAINTENANCE section of this manual.
• Proper insulation and weather stripping in your
home will help keep warm air out and cool air in.
• External house shading with trees, plants or
awnings will help reduce the air conditioner's work
load.
• Operate heat producing appliances such as
ranges, washers, dryers, and dishwashers during
the coolest part of the day.
I
-3-

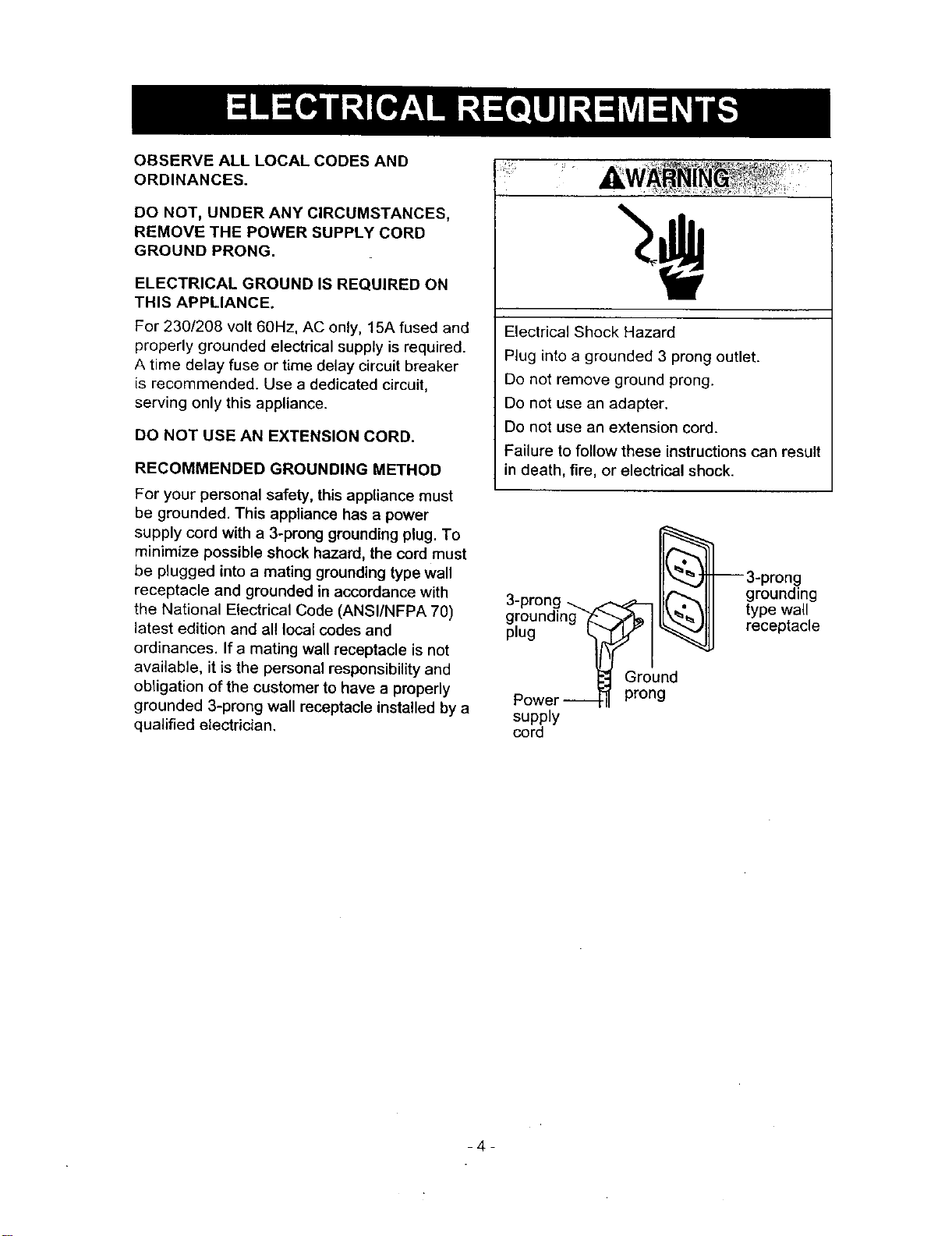

OBSERVE ALL LOCAL CODES AND
ORDINANCES.
DO NOT, UNDER ANY CIRCUMSTANCES,
REMOVE THE POWER SUPPLY CORD
GROUND PRONG.
ELECTRICAL GROUND IS REQUIRED ON
THIS APPLIANCE.
For 230/208 volt 60Hz, AC only, 15A fused and
properly grounded electrical supply is required.
A time delay fuse or time delay circuit breaker
is recommended. Use a dedicated circuit,
serving only this appliance.
DO NOT USE AN EXTENSION CORD.
RECOMMENDED GROUNDING METHOD
For your personal safety, this appliance must
be grounded. This appliance has a power
supply cord with a 3-prong grounding plug. To
minimize possible shock hazard, the cord must
be plugged into a mating grounding type wall
receptacle and grounded in accordance with
the National Electrical Code (ANSI/NFPA 70)
latest edition and all local codes and
ordinances. If a mating wall receptacle is not
available, it is the personal responsibility and
obligation of the customer to have a properly
grounded 3-prong wall receptacle installed by a
qualified electdcian.
VV
Electrical Shock Hazard
Plug into a grounded 3 prong outlet.
Do not remove ground prong.
Do not use an adapter.
Do not use an extension cord.
Failure to follow these instructions can result
in death, fire, or electdcal shock.
['_ 3-prong
^ ief-,,_ aim grounding
_-prong _. _ IlL.,_111 type wall
g[°unding _ Ip g _ receptacle
_] Ground
Power _ prong
supply
cord
-4-

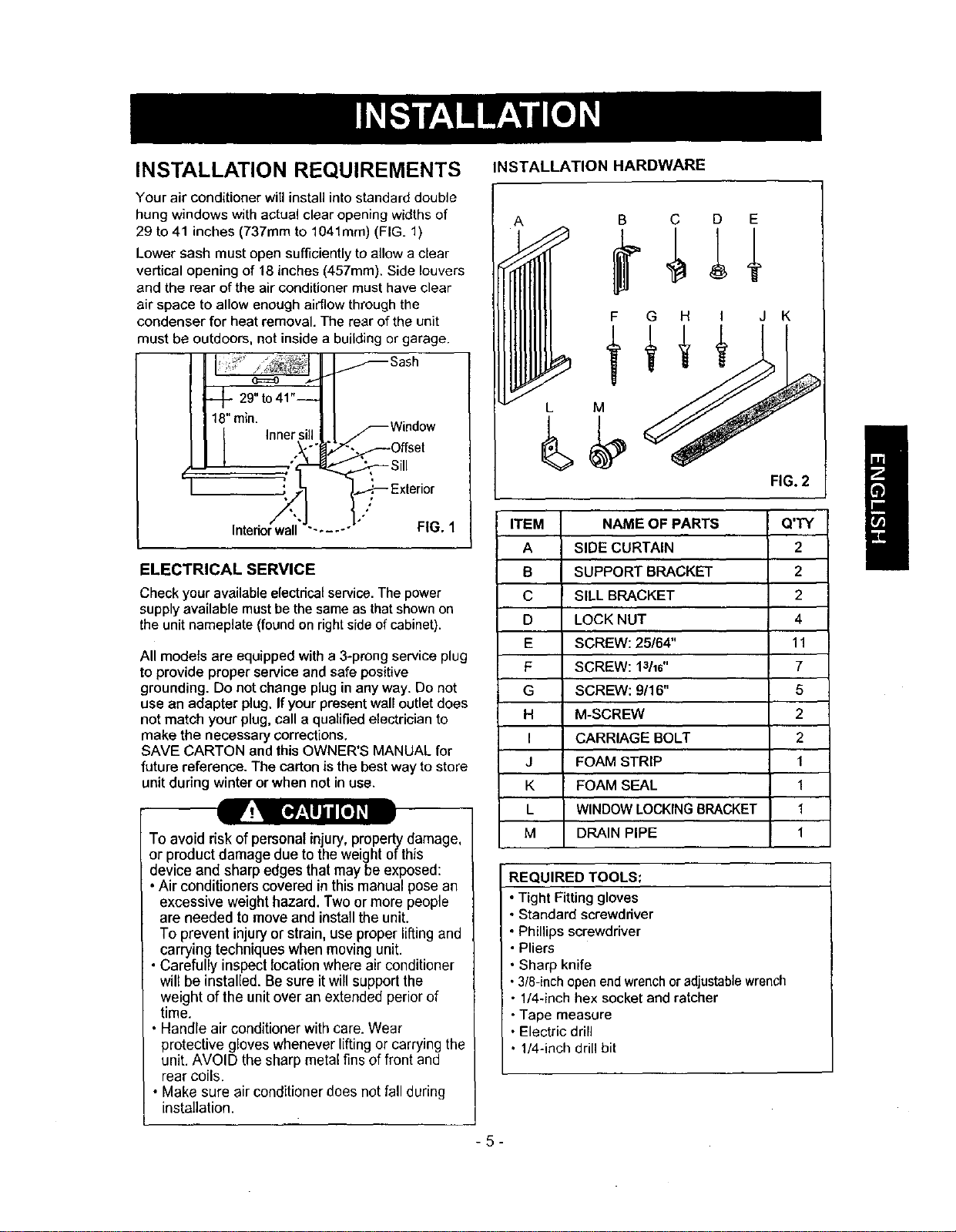

INSTALLATION REQUIREMENTS
INSTALLATION HARDWARE
Your air conditioner will install into standard double
hung windows with actual clear opening widths of
29 to 41 inches (737mm to 1041mm) (FIG. 1)
Lower sash must open sufficiently to allow a clear
vertical opening of 18 inches (457mm). Side louvers
and the rear of the air conditioner must have clear
air space to allow enough airflow through the
condenser for heat removal. The rear of the unit
must be outdoors, not inside a building or garage.
ELECTRICAL SERVICE
Check your available electrical service. The power
supply available must be the same as that shown on
the unit nameplate (found on right side of cabinet).
All modets are equipped with a 3-prong service plug
to provide proper service and safe positive
grounding. Do not change plug in any way. Do not
use an adapter plug. If your present wall outlet does
not match your plug, call a qualified electrician to
make the necessary corrections.
SAVE CARTON and this OWNER'S MANUAL for
future reference. The carton is the best way to store
unit during winter or when not in use.
To avoid risk of personal injury, property damage,
or product damage due to the weightof this
device and sharp edges that may be exposed:
•Air conditioners covered in this manual pose an
excessive weight hazard. Two or more people
are needed to move and install the unit.
To prevent injury or strain, use proper lifting and
carrying techniques when moving unit.
• Carefully inspect location where air conditioner
wilebe installed. Be sure it will support the
weight of the unit over an extended perior of
time.
• Handle air conditioner with care. Wear
protective gloves whenever lifting or carrying the
unit. AVOID the sharp metal fins of front and
rear coils.
• Make sure air conditioner does not fall during
installation.
A
B C D E
F G H I K
FIG. 2
ITEM NAME OF PARTS Q'TY
A SIDE CURTAIN 2
B SUPPORT BRACKET 2
C SILL BRACKET 2
D LOCK NUT 4
E SCREW: 25164" 11
F SCREW: 13116" 7
G SCREW: 9/16" 5
H M-SCREW 2
I CARRIAGE BOLT 2
J FOAM STRIP 1
K FOAM SEAL 1
L WINDOW LOCKING BRACKET 1
M DRAIN PIPE 1
REQUIRED TOOLS:
• Tight Fitting gloves
• Standard screwdriver
• Phillips screwdriver
• Pliers
• Sharp knife
• 3/8-inch open end wrench or adjustable wrench
• 1/4-inch hex socket and ratcher
• Tape measure
• Electric drill
• 1/4-inch drill bit
-5-
INSTALLATION
Pick a location which will allow you to blow the cold
air into the area you want. Windows used for
installation must be strong enough to support the
weight of the air conditioner. Good installation with
special attention to the proper position of the unit
will lessen the chance that service will be needed.
When cooling more than one room, installation
location is very important since cold air will not turn
corners• To coo] your rooms, cold air must be blown
from the air conditioner in a straight path.

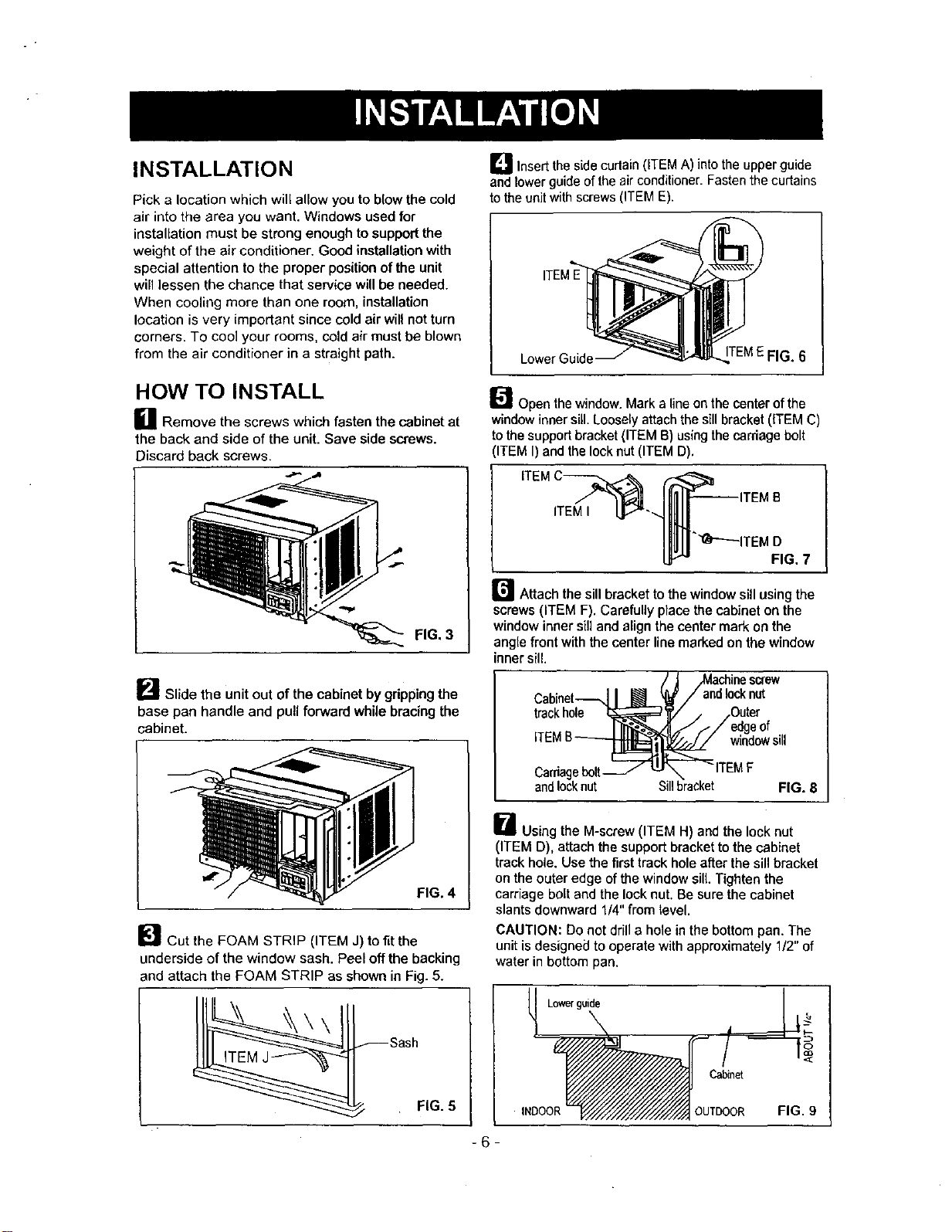

HOW TO INSTALL
U Remove the screws which fasten the cabinet at
the back and side of the unit. Save side screws.
Discard back screws•
L_ Insert the side curtain (ITEM A) into the upper guide
and lower guide of the airconditioner. Fasten the curtains
to the unit with screws (ITEM E).
LowerGuide ITEM E FIG. 6
_Open the window. Mark a line on the center of the
window inner sill. Loosely attach the sill bracket (ITEM C)
to the support bracket (ITEM B) using the cerdage bolt
(ITEM I) and the lock nut (ITEM D),
FIG. 3
_'_ Slide the unit out of the cabinet by gripping the
base pan handle and pull forward while bracing the
cabinet.
FIG. 4
_J_ Cut the FOAM STRIP (ITEM J) to fit the
underside of the window sash. Peel off the backing
nd attach the FOAM STRIP as shown in Fig. 5.
FIG. 5
ITEM I
r"_ Attach the sill bracket tothe window sill using the
screws (ITEM F). Carefully place the cabinet on the
window inner sill and align the center mark on the
angle front with the center line marked on the window
inner sill
Cabinet
trackhole Outer
windowsill
Carriagebolt
andlocknut Sillbracket FIG. 8
_'_ Using the M-screw (ITEM H) and the lock nut
(ITEM D), attach the support bracket to the cabinet
track hole. Use the first track hole after the sill bracket
on the outer edge of the window sill. Tighten the
carriage bolt and the lock nut. Be sure the cabinet
slants downward 1/4" from level.
CAUTION: Do not drill a hole in the bottom pan. The
unit is designed to operate with approximately 1/2" of
water in bottom pan.
Lowerguide
Cabinet
INDOOR
OUTDOOR FIG. 9
-6-

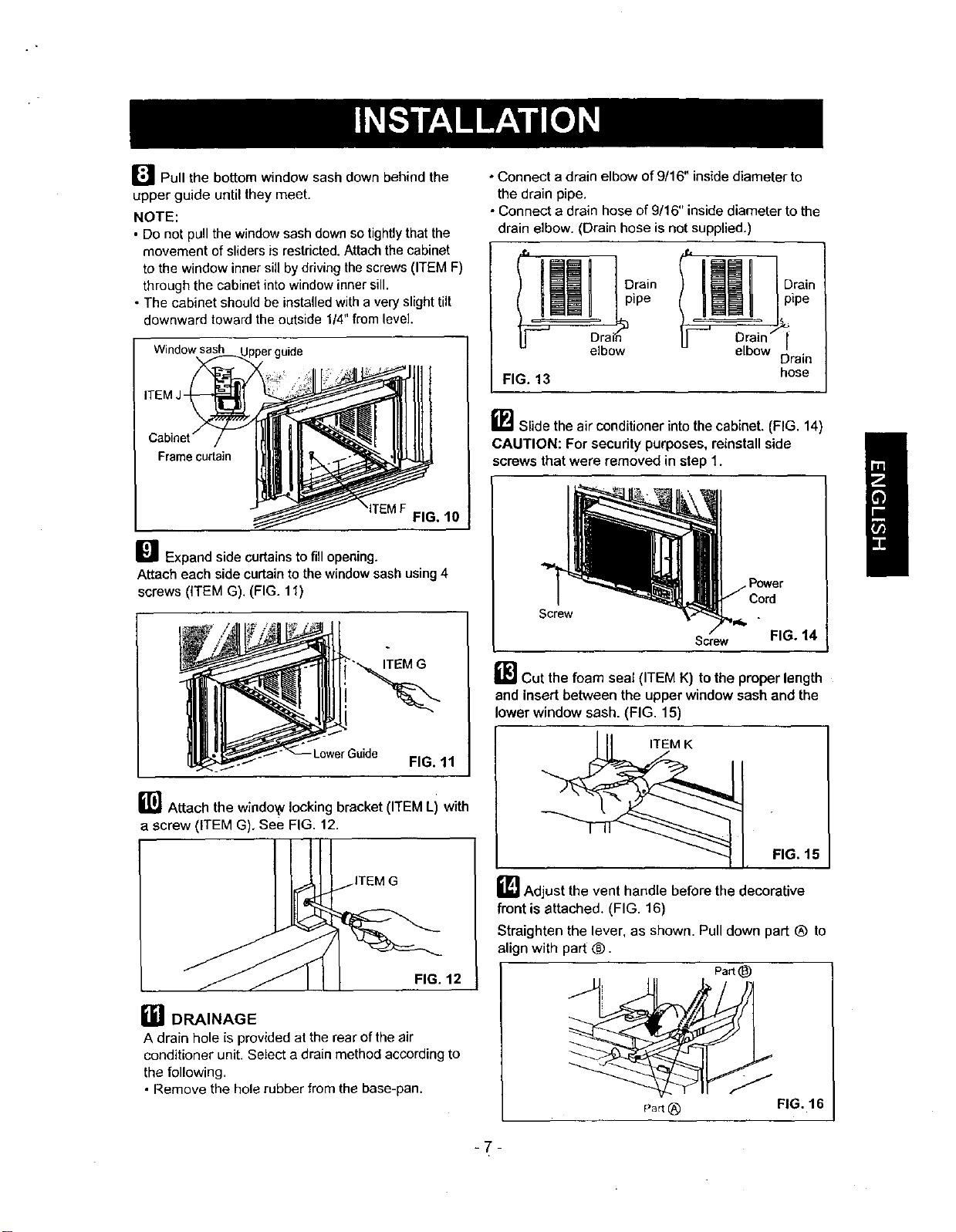

I_J Pull the bottom window sash down behind the
upper guide until they meet.
NOTE:
• Do not pull the window sash down so tightly that the
movement of sliders is restricted• Attach the cabinet
to the window inner sill by driving the screws (ITEM F)
through the cabinet into window inner sill.
• The cabinet should be installed with a very slight tilt
downward toward the outside 1/4" from level•
Window sash
Frame curtain
FIG, 10
I_-] Expand side curtains to fill opening.
Attach each side curtain to the window sash using 4
screws (ITEM G). (FIG. 11)
ITEM G
FIG. 11
_11_Attach the window' locking bracket (ITEM L) with
a screw (iTEM G). See FIG, 12.
,ITEM G
FIG. 12
_IDRAINAGE
A drain hole is provided at the rear of the air
conditioner unit. Select a drain method according to
the following.
• Remove the hole rubber from the base-pan.
• Connect a drain elbow of 9/16" inside diameter to
the drain pipe.
• Connect a drain hose of 9/16" inside diameter to the
drain elbow. (Drain hose is not supplied.)
_._.t, Drain
L pIpe
Dran_
elbow
FIG. 13
Drain
L mU
hose
_-'_ Slide the air conditioner into the cabinet. (FIG. 14)
CAUTION: For security purposes, reinstall side
screws that were removed in step 1.
Power
Screw
Screw FIG. 14
_]Cut the foam seal (ITEM K) to the proper length
and insert between the upper window sash and the
lower window sash• (FIG. 15)
FIG. 15
r
_lJ Adjust the vent handle before the decorative
front is attached. (FIG. 16)
Straighten the lever, as shown. Pull down part ® to
align with part _.
part®
FIG. 16
-7-

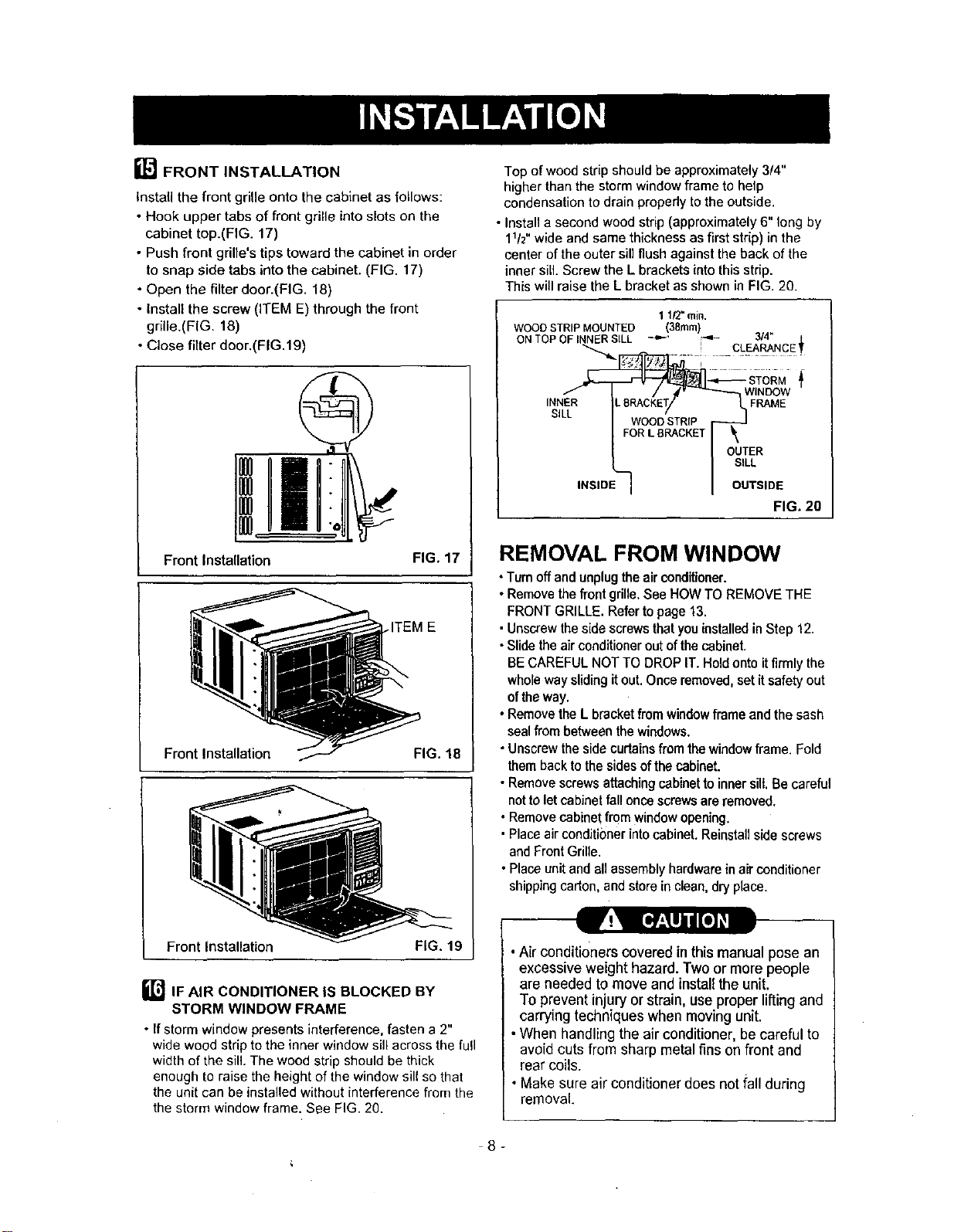

FRONT INSTALLATION
install the front grille onto the cabinet as follows:
• Hook upper tabs of front grille into slots on the
cabinet top.(FIG. 17)
• Push front grille's tips toward the cabinet in order
to snap side tabs into the cabinet. (FIG. 17)
• Open the filter door.(FIG. 18)
• install the screw (ITEM E) through the front
grille.(FIG. 18)
• Close filter door.(FIG.19)
Front Installation FIG. 17
.ITEM E
Front Installation FIG. 18
Front Installation FIG. 19
ir_lF AIR CONDITIONER IS BLOCKED BY
STORM WINDOW FRAME
• If storm window presents interference, fasten a 2"
wide wood strip to the inner window sill across the full
width of the sill. The wood strip should be thick
enough to raise the height of the window sill so that
the unit can be installed without interference from the
the storm window frame. See FIG. 20.
Top of wood strip should be approximately 3/4"
higher than the storm window frame to help
condensation to drain properly to the outside.
• Install a second wood strip (approximately 6" long by
1112"wide and same thickness as first strip) in the
center of the outer sill flush against the back of the
inner sill. Screw the L brackets into this strip.
This will raise the L bracket as shown in FIG. 20.
1 1/2" rain.
WOOD STRIP MOUNTED (38ram)
ON TOP OF INNER SILL -'_'-- _- 3/4"
i CLEARANCE
[
INNER FRAME
sl
OUTER
SILL
FIG. 20
REMOVAL FROM WINDOW
• Turnoff and unplugthe airconditioner.
• Remove the front grille.See HOW TO REMOVE THE
FRONT GRILLE. Refer to page 13.
• Unscrew the side screws that you installed in Step 12.
•Slide the air conditioner out of the cabinet.
BE CAREFUL NOT TO DROP IT. Holdonto it firmly the
whole way sliding it out. Once removed, set it safety out
of the way.
• Remove the L bracket from window frame and the sash
seal from between the windows.
• Unscrew the side curtains from the windowframe. Fold
them back to the sides of the cabinet.
• Remove screws attaching cabinet to inner silt. Be careful
not to let cabinet fall once screws are removed.
• Remove cabinet from window opening.
• Place air conditioner into cabinet. Reinstall side screws
and Front Grille.
• Place unit and all assembly hardware inair conditioner
shipping carton, and store in clean, dry place.
•Air conditioners covered in this manualpose an
excessiveweighthazard.Two or more people
are neededto moveand install the unit.
To preventinjuryorstrain,useproperliftingand
carryingtechniqueswhenmovingunit.
• Whenhandling the airconditioner,he carefulto
avoid cuts from sharp metal finsonfront and
rear coils.
•Make sure air conditioner does not fall during
removal.
8 -

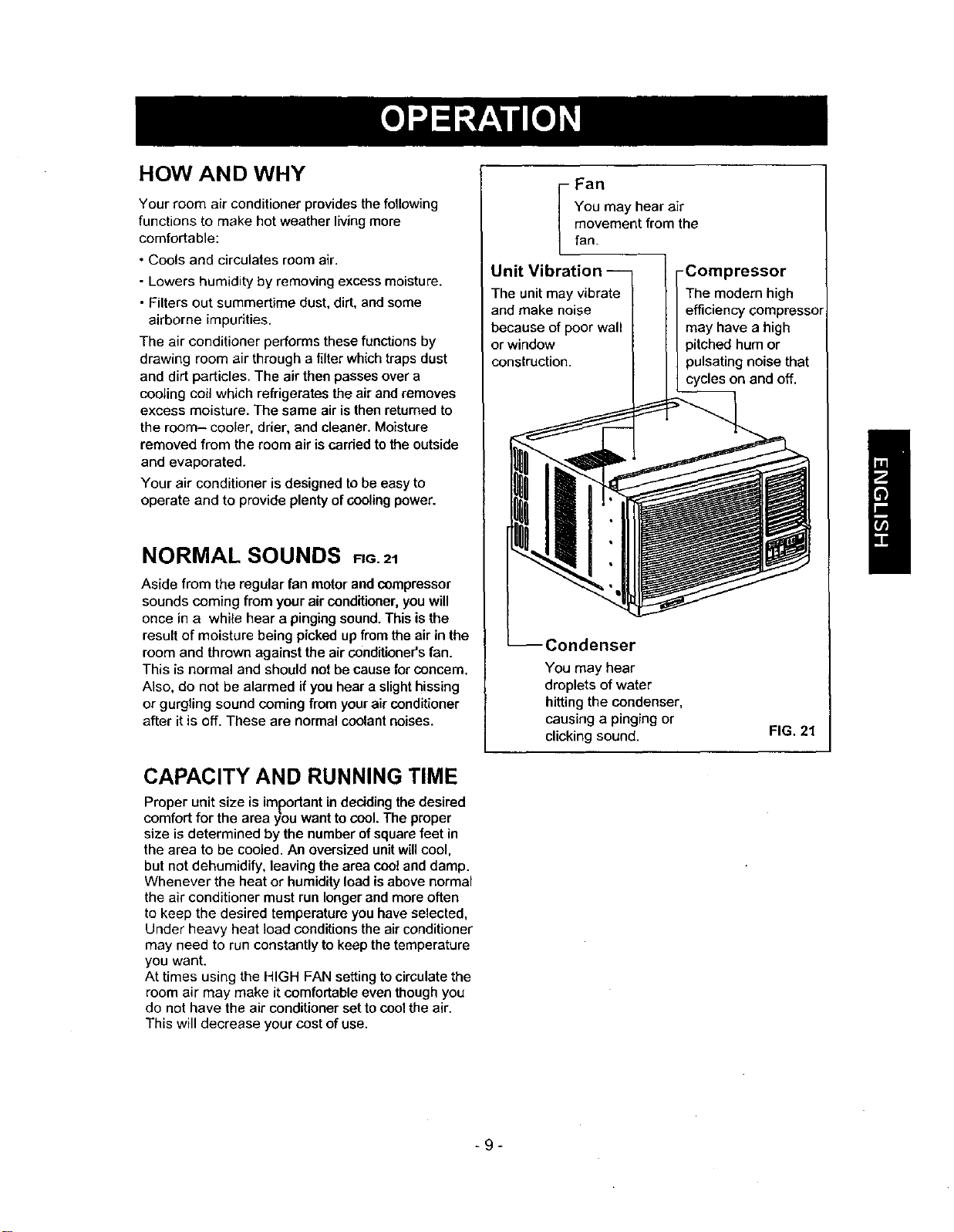

HOW AND WHY
Your room air conditioner provides the following
functions to make hot weather living more
comfortable:
• Cools and circulates room air.
• Lowers humidity by removing excess moisture.
• Filters out summertime dust, dirt, and some
airborne impurities.
The air conditioner performs these functions by
drawing room air through a filter which traps dust
and dirt particles. The air then passes over a
cooling coil which refrigerates the air and removes
excess moisture. The same air is then returned to
the room- cooler, drier, and cleaner. Moisture
removed from the room air is carded to the outside
and evaporated.
Your air conditioner is designed to be easy to
operate and to provide plenty of cooling power.
NORMAL SOUNDS
Aside from the regular fan motor and compressor
sounds coming from your air conditioner, you will
once in a while hear a pinging sound. This is the
result of moisture being picked up from the air in the
room and thrown against the air conditioner's fan.
This is normal and should not be cause for concern,
Also, do not be alarmed if you hear a slight hissing
or gurgling sound coming from your air conditioner
after it is off. These are normal coolant noises.
CAPACITY AND RUNNING TIME
Proper unit size is important in deciding the desired
comfort for the area you want to cool. The proper
size is determined by the number of square feet in
the area to be cooled. An oversized unit will cool,
but not dehumidify, leaving the area coot and damp.
Whenever the heat or humidity load isabove normal
the air conditioner must run longer and more often
to keep the desired temperature you have selected,
Under heavy heat load conditions the air conditioner
may need to run constantly to keep the temperature
you want.
At times using the HIGH FAN setting to circulate the
room air may make it comfortable even though you
do not have the air conditioner set to cool the air.
This will decrease your cost of use.
Fan
You may hear air
movement from the
fan.
Unit Vibration --
The unit may vibrate
and make noise
because of poor wall
or window
construction.
-Compressor
The modern high
efficiency compressor
may have a high
pitched hum or
pulsating noise that
cycles on and off,
--Condenser
You may hear
droplets of water
hitting the condenser,
causing a pinging or
clicking sound.
FIG. 21
H
-9-

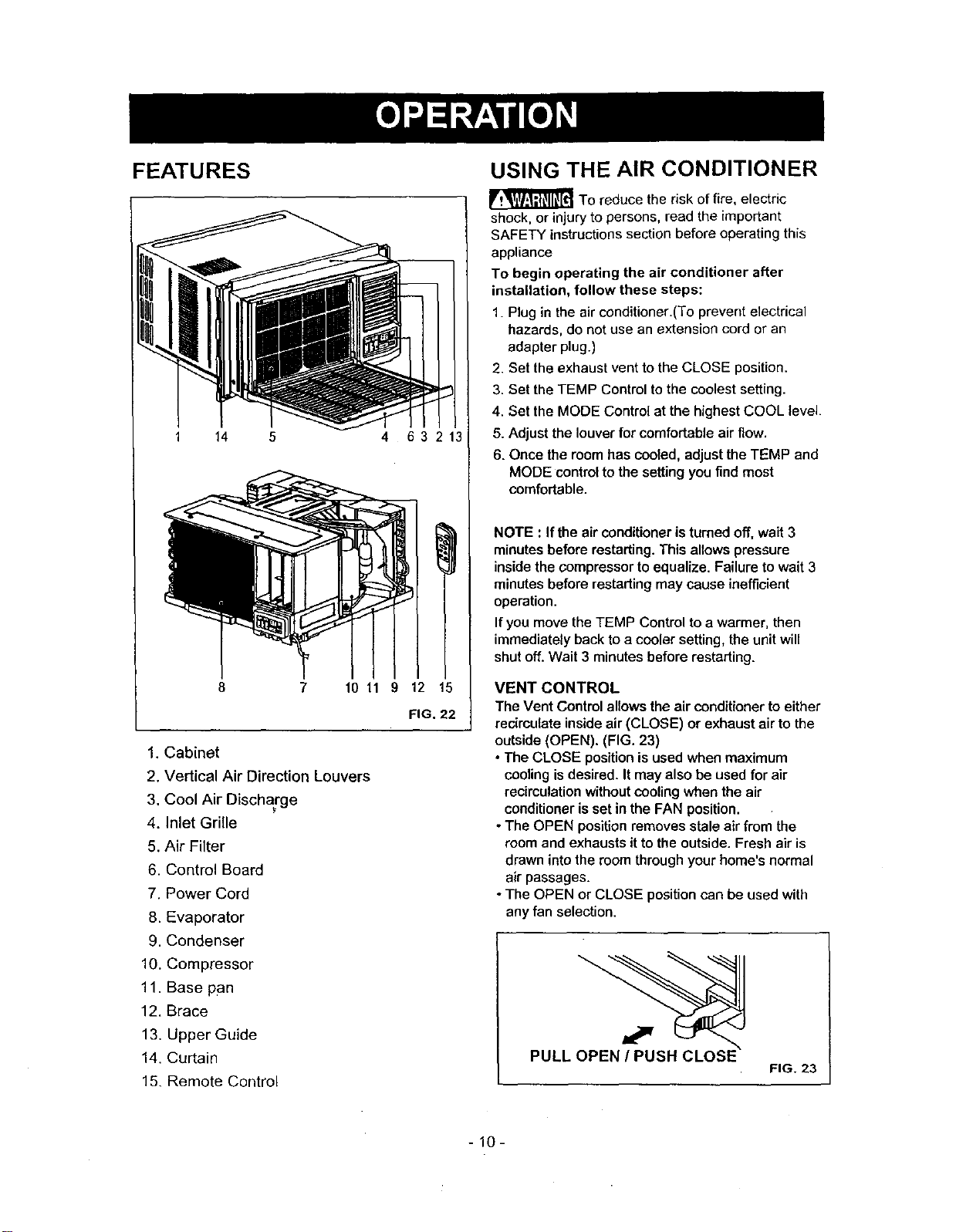

FEATURES
1 14 5 4 63213
1011 9 12 15
FIG. 22
1. Cabinet
2. Vertical Air Direction Louvers
3. Cool Air Discharge
4. Inlet Grille
5. Air Filter
6. Control Board
7. Power Cord
8. Evaporator
9. Condenser
10. Compressor
11. Base pan
12. Brace
13. Upper Guide
14. Curtain
15. Remote Control
USING THE AIR CONDITIONER
_To reduce the risk of fire, electric
shock, or injury to persons, read the important
SAFETY instructions section before operating this
appliance
To begin operating the air conditioner after
installation, follow these steps:
1. Plug in the air conditioner.(To prevent electrical
hazards, do not use an extension cord or an
adapter plug.)
2. Set the exhaust vent to the CLOSE position.
3. Set the TEMP Control to the coolest setting.
4. Set the MODE Control at the highest COOL level.
5. Adjust the louver for comfortable air flow.
6. Once the room has cooled, adjust the TEMP and
MODE control to the setting you find most
comfortable.
NOTE : If theair conditioneris turnedoff, wait3
minutes before restarting.This allows pressure
insidethecompressor to equalize.Failureto wait3
minutesbeforerestartingmay causeinefficient
operation.
Ifyou movetheTEMP Control toa warmer,then
immediatelybackto a coolersetting,theunitwill
shutoff. Wait 3 minutesbeforerestarting.
VENT CONTROL
The Vent Control allows the air conditioner to either
recirculate inside air (CLOSE) or exhaust air to the
outside (OPEN). (FIG. 23)
• The CLOSE position is used when maximum
cooling is desired. It may also be used for air
recirculation without cooling when the air
conditioner is set in the FAN position.
• The OPEN position removes stale air from the
room and exhausts it to the outside. Fresh air is
drawn into the room through your home's normal
air passages.
• The OPEN or CLOSE position can be used with
any fan selection.
PULL
FIG. 23
-10-

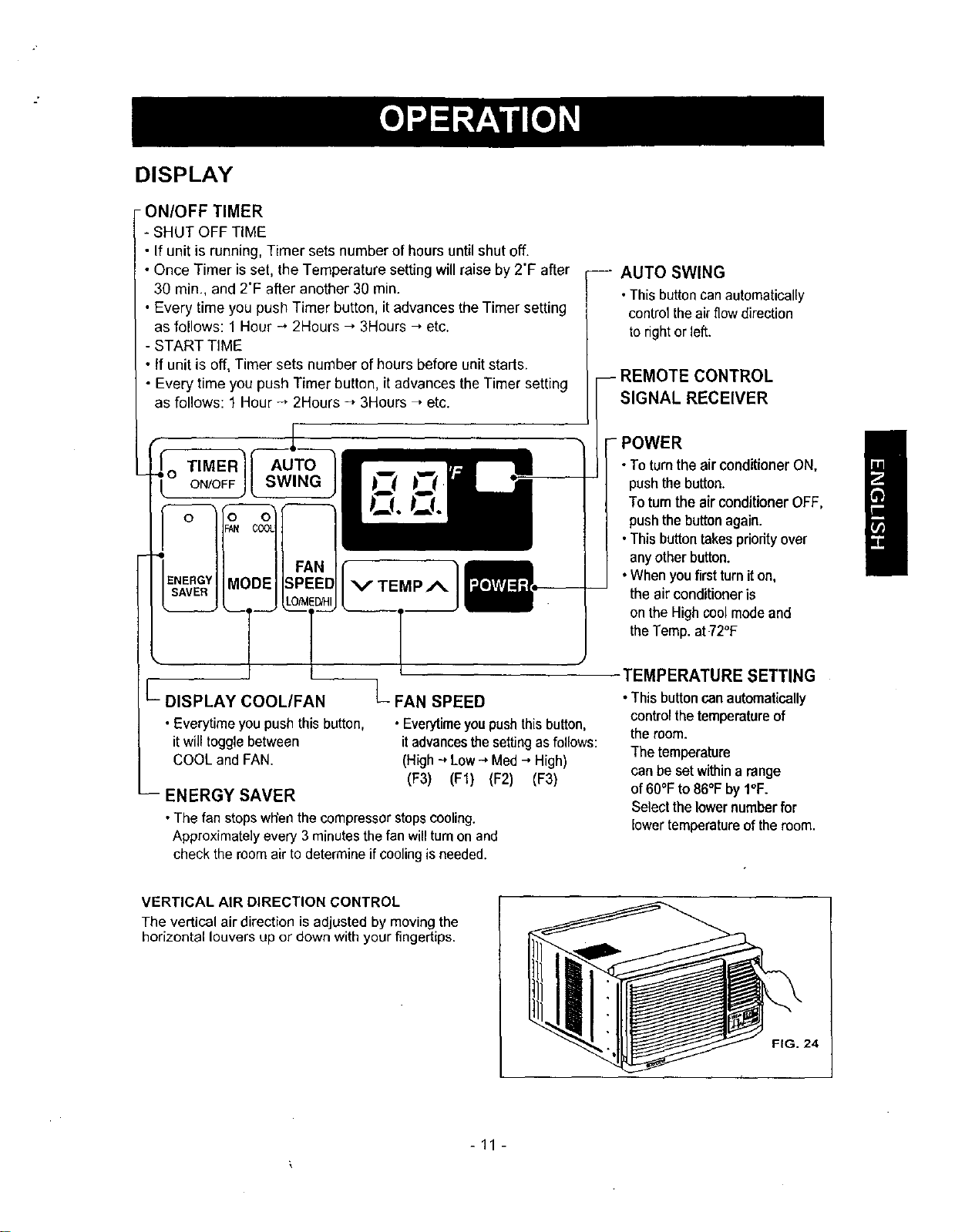

DISPLAY
- ON/OFF TIMER
- SHUT OFF TIME
• If unit is running, Timer sets number of hours until shut off.
• Once Timer is set, the Temperature setting will raise by 2'F after
30 min., and 2"F after another 30 min.
• Every time you push Timer button, it advances the Timer setting
as follows: 1 Hour -_ 2Hours _ 3Hours _ etc.
- START TIME
• If unit is off, Timer sets number of hours before unit starts.
• Every time you push Timer button, it advances the Timer setting
as follows: 1 Hour -_ 2Hours -_ 3Hours _ etc.
AUTO
ON/OFF SWING _4
V TEMP A
-- AUTO SWING
•Thisbuttoncanautomatically
control theair flow direction
to rightor left.
-- REMOTE CONTROL
SIGNAL RECEIVER
POWER
•To tumtheairconditionerON,
pushthebutton.
Toturntheair conditionerOFF,
pushthebuttonagain.
• This buttontakes priodtyover
any other button.
• Whenyou firstturn iton,
the air conditioner is
on the Highcoolmodeand
the Temp. at72°F
/
I__DISPLAY COOL/FAN L- FAN SPEED
Everytimeyou push this button,
itwilltogglebetween
COOL and FAN.
ENERGY SAVER
• Everytimeyoupushthisbutton,
itadvancesthe settingasfollows:
(High-*Low--,Med--,High)
(F3) (F1) (F2) (F3)
•The fan stopswh'enthe compressorstopscooling.
Approximately every 3 minutesthe fanwill turnon and
check the room air to determineif coolingis needed.
TEMPERATURE SETTING
•Thisbuttoncanautomatically
controlthetemperatureof
theroom.
Thetemperature
canbesetwithina range
of60°F to86°F byf°F.
Selectthelowernumberfor
lowertemperatureoftheroom.
VERTICAL AIR DIRECTION CONTROL
The vertical air direction is adjusted by moving the
horizontal louvers up or down with your fingertips.
FIG. 24
-11 -

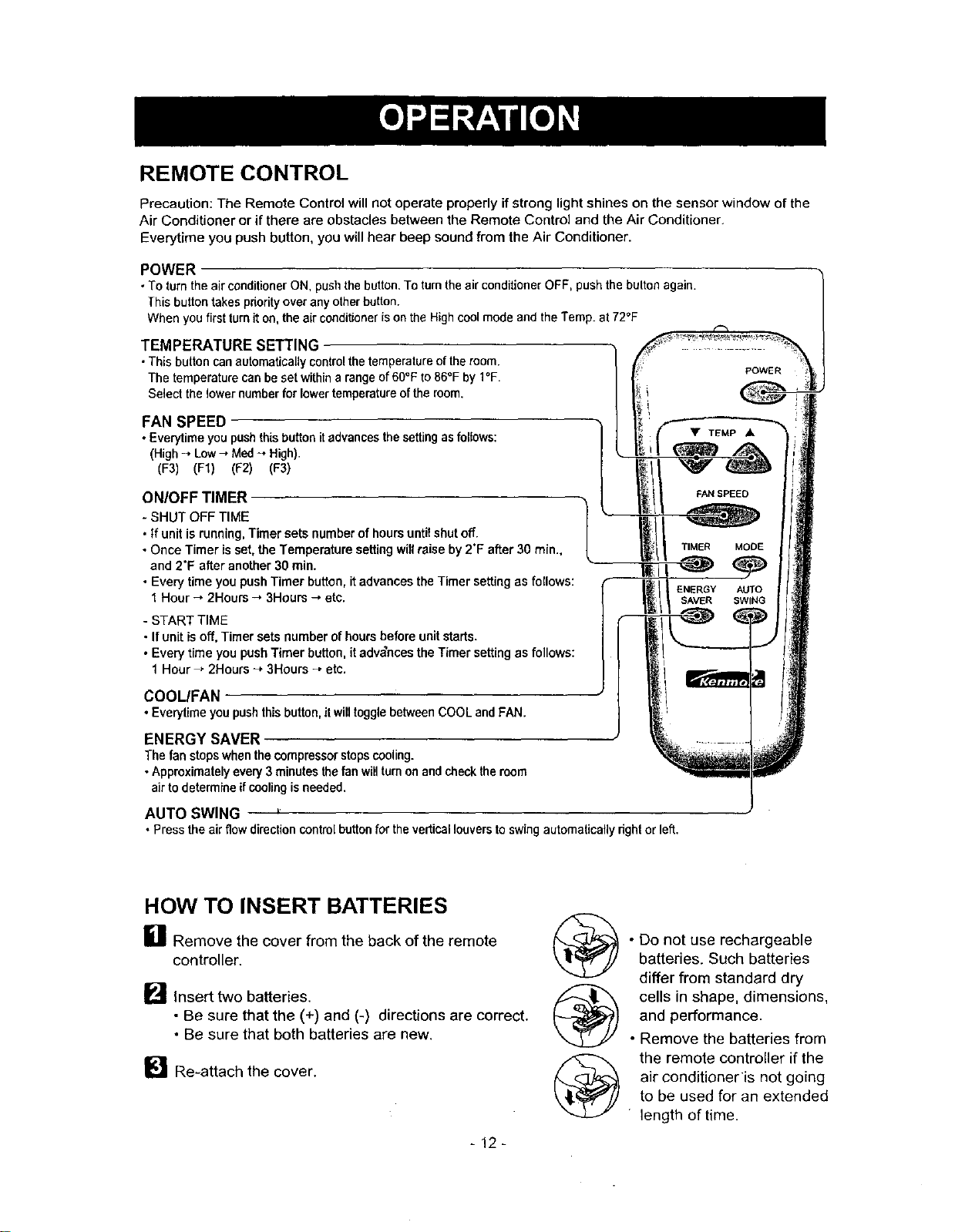

REMOTE CONTROL
Precaution: The Remote Control will not operate properly if strong light shines on the sensor window of the
Air Conditioner or if there are obstacles between the Remote Control and the Air Conditioner.
Everytime you push button, you will hear beep sound from the Air Conditioner.
POWER
• ToturntheairconditionerON, pushthebutton.Toturntheair conditionerOFF, pushthebuttonagain.
Thisbuttontakespriorityoveranyotherbutton.
Whenyoufirst turniton,theairconditioneris ontheHighcoolmodeand theTemp.at 72°F
TEMPERATURE SETTING
• Thisbuttoncanautomaticallycontrolthetemperatureof theroom.
The temperaturecanbe set withina rangeof60°F to86°F by I°F.
Selectthelower numberfor lowertemperatureoftheroom.
FAN SPEED
• Everytimeyoupushthisbutton itadvancesthesettingasfollows:
(High-, Low--,Med-, High).
(F3) (F1) (1::2) (F3)
ONIOFF TIMER
- SHUT OFF TIME
, If unitis running,Timer sets numberofhoursuntilshutoff.
• Once Timer isset,the Temperaturesettingwillraiseby 2'F after 30 rain.,
and 2"F afteranother 30 min.
• Every timeyou pushTimer button,itadvancesthe Timersettingas follows:
1Hour -' 2Hours-' 3Hours-, etc.
- START TIME
• If unit is off,Timer sets number ofhours before unitstarts.
• Every time you pushTimer button, it advances the Timer setting as follows:
1Hour_ 2Hours -_,3Hours _ etc.
COOL/FAN
•Everytimeyoupushthisbutton,itwilltogglebetweenCOOLandFAN.
ENERGY SAVER
The fan stopswhenthecompressorstopscooling.
• Approximately every3 minutesthefan willturnonand checktheroom
airtodetermineifcoolingisneeded.
AUTO SWING
•Presstheairflowdirectioncontrolbuttonfortheverticallouverstoswingautomaticallyrightorleft.
TIMER MODE
ENERGY AUTO
SAVER SWING
HOW TO INSERT BATTERIES
LI Remove the cover from the back of the remote
controller.
[] Insert two batteries.
• Be sure that the (+) and (-) directions are correct.
• Be sure that both batteries are new.
[]Re-attach the cover.
-12-
• Do not use rechargeable
batteries. Such batteries
differ from standard dry
cells in shape, dimensions,
and performance.
• Remove the batteries from
the remote controller if the
air conditioner is not going
to be used for an extended
length of time.

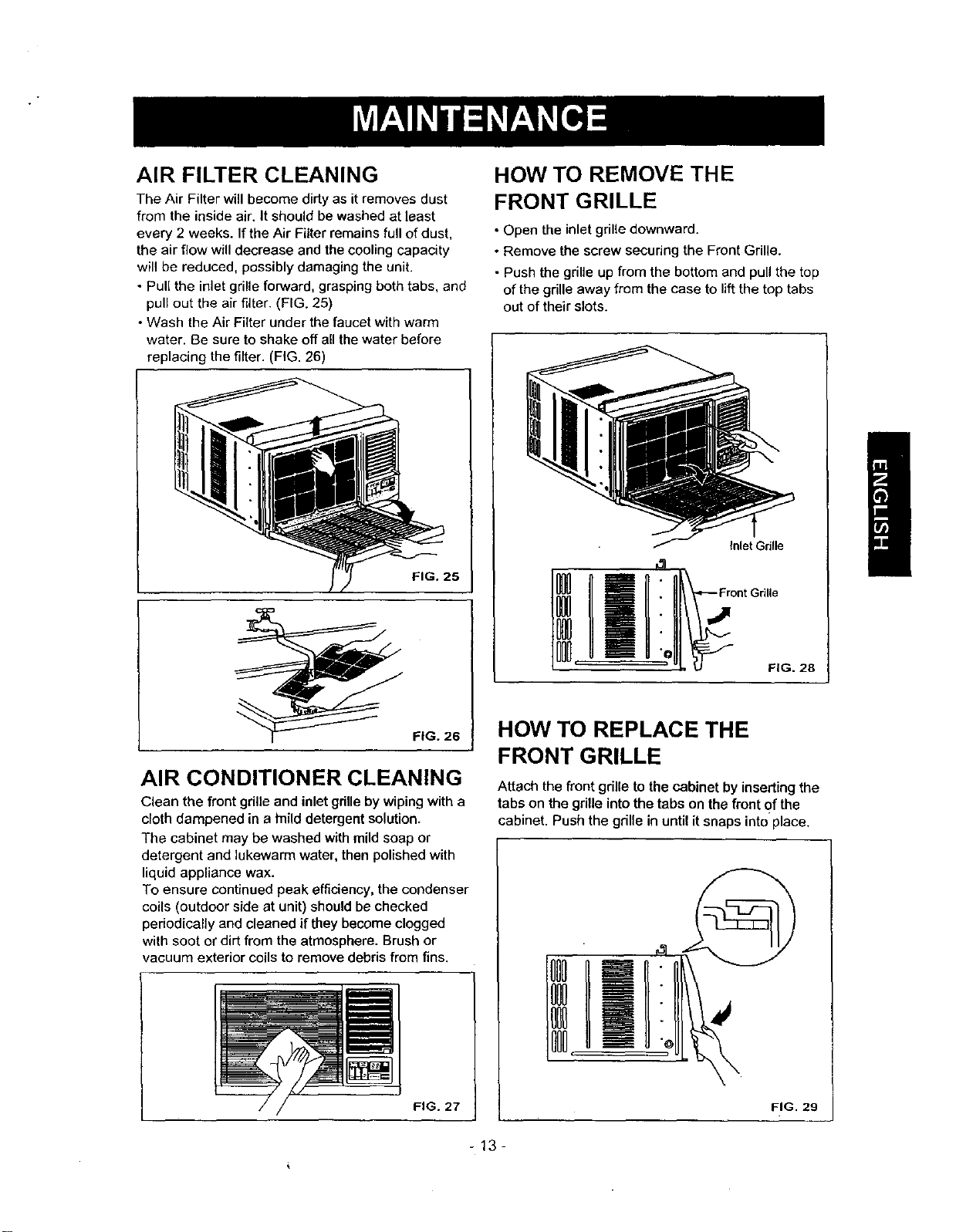

AIR FILTER CLEANING
The Air Filter will become dirty as it removes dust
from the inside air. It should be washed at least
every 2 weeks. If the Air Filter remains full of dust,
the air flow will decrease and the cooling capacity
will be reduced, possibly damaging the unit.
• Pull the inlet grille forward, grasping both tabs, and
pull out the air filter. (FIG. 25)
- Wash the Air Filter under the faucet with warm
water. Be sure to shake off all the water before
replacing the filter. (FIG. 26)
FIG. 25
FIG. 26
AIR CONDITIONER CLEANING
Clean the front grille and inlet gdlle by wiping with a
cloth dampened in a h_ild detergent solution•
The cabinet may be washed with mild soap or
detergent and lukewarm water, then polished with
liquid appliance wax.
To ensure continued peak efficiency, the condenser
coils (outdoor side at unit) should be checked
periodically and cleaned if they become clogged
with soot or dirt from the atmosphere• Brush or
vacuum exterior coils to remove debris from fins.
FIG. 27
HOW TO REMOVE THE
FRONT GRILLE
• Open the inlet grille downward.
• Remove the screw securing the Front Grille•
• Push the grille up from the bottom and pull the top
of the grille away from the case to lift the top tabs
out of their slots.
Inlet Grille
FIG. 28
HOW TO REPLACE THE
FRONT GRILLE
Attach the front grille to the cabinet by inserting the
tabs on the grille into the tabs on the front Of the
cabinet. Push the grille in until it snaps into place.
FIG. 29
-13-

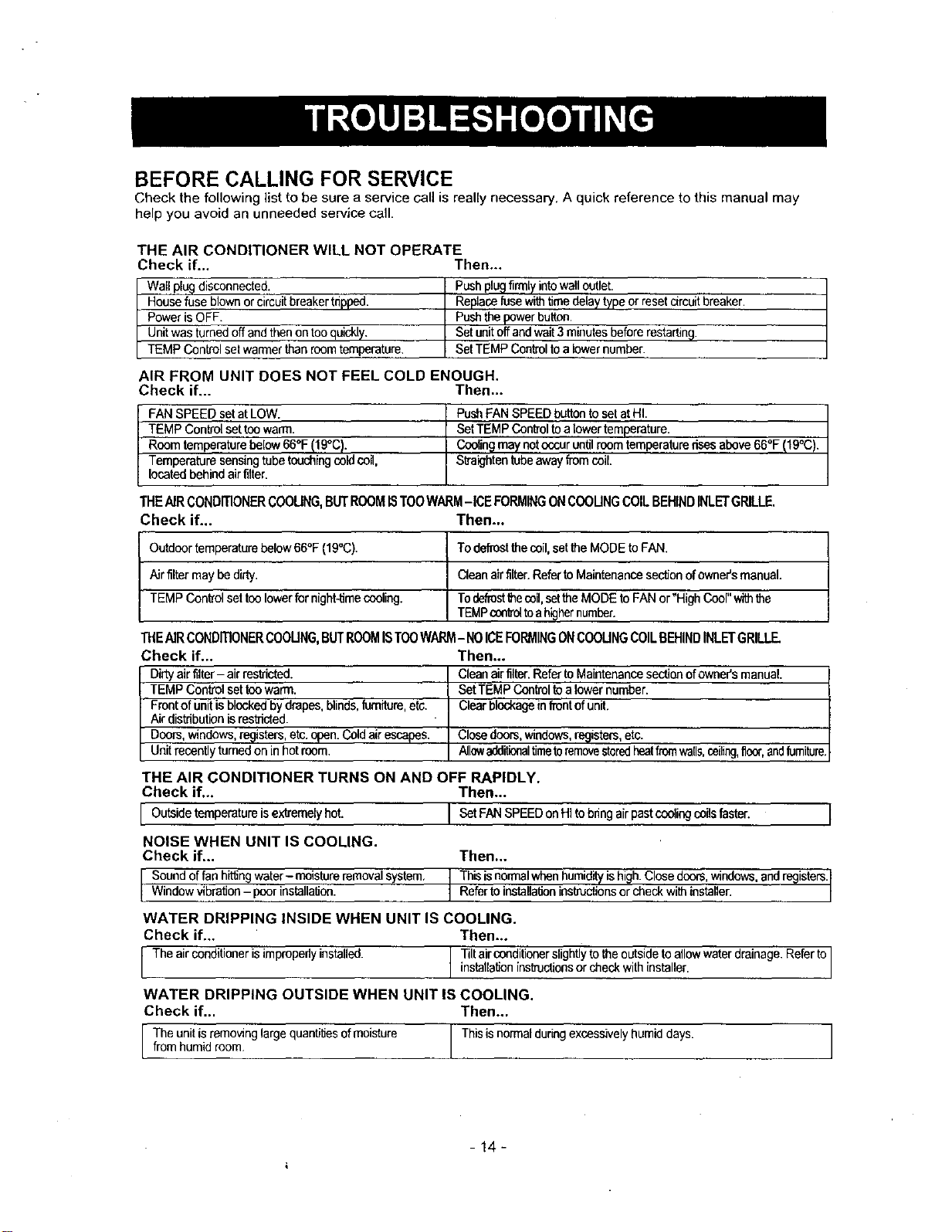

BEFORE CALLING FOR SERVICE
Check the following list to be sure a service call is really necessary, A quick reference to this manual may
help you avoid an unneeded service call.
THE AIR CONDITIONER WILL NOT OPERATE
Check if... Then...
WallPfu9disconnected.
Housefuse blownorcircuitbreakertdpped.
PowerisOFF.
Unitwasturnedoffandthenontooquickly.
TEMP Controlsetwarmerthanroomtemperature.
Pushplugfirmlyintowalloutlet.
Replacefusewithtimedelaytypeor resetcircuitbreaker.
Pushthepowerbutton.
Setunitoffandwait 3minutesbeforeresta_n9.
SetTEMP Controltoa lowernumber.
AIR FROM UNIT DOES NOT FEEL COLD ENOUGH.
Check if... Then...
FANSPEED setatLOW.
TEMPControlsettoowarm.
Roomtemperaturebelow66°F(19°C).
Temperaturesensingtubetouchingcoldcoil,
locatedbehindairtilter.
PushFANSPEEDbuttontosetat HI.
SetTEMPControltoalowertemperature.
Cooling]maynotoccuruntilroomtemperaturedsesabove66°F(19°C).
Straightentubeawayfromcoil.
THEAIRCONDmONERCOOUNG,BUTROOMISTOOWARM-ICE FORMINGONCOOUNGCOILBEHINDINLETGRILLE.
Check if... Then...
Outdoortemperaturebelow66°F(19°C). Todefrostthecoil,setthe MODEtoFAN.
Air tiltermaybe dirty. Cleanairfilter.RefertoMaintenancesectionof owner'smanual.
TEMPControlsettoo lowerfor night-timecooling. Todefrostthecoil,setthe MODEto FANor"High Cool"withthe
TEMPocolroltoahighernumber.
THEAIRCONDITIONERCOOUNG,BUTROOMISTOOWARM- NOICEFORMINGONCOOUNGCOILBEHINDINLETGRILLE
Check if...
Dirtyairfilter- air restricted.
TEMPControlsettoowarm.
Frontofunitis blockedbydrapes,blinds,fum_re, etc.
Airdistributionisrestricted.
Doom,windows,recjisters,etc.open.Coldair escapes.
Unit recentlytumedon inhot room.
Then...
Cleanairtilter.RefertoMaintenancesectionofowner'smanual.
SetTEMPControltoa lowernumber.
Clearblockageinfrontof unit.
Closedoors,windows,registers,etc.
Allowadditionaltimetoremovestoredhealfromwalls,ceiling,floor,andfurniture.
THE AIR CONDITIONER TURNS ON AND OFF RAPIDLY.
Check if... Then...
I Outsidetemperatureisextremelyhot. I SetFANSPEEDonHItubnngairpastcoolingcoilsfaster.
NOISE WHEN UNIT IS COOLING.
Check if...
Soundoffanhi_n9water- nmistureremovalsystem,
Windowvibration- poorinstallation.
Then...
I Thisisnormalwhenhumidityishigh.Closedoors,windows,andregisters.
Refertoinstaationnstructonsorcheckwth nsta er.
WATER DRIPPING INSIDE WHEN UNIT IS COOLING.
Check if... Then...
I Theairconditionerisimpropedyinstalled. ITni_s_aa_at_c_°_n°nditi°n_nerctis_Jght_yt_c_:°_tt_idestt°_J_r°_aterdrainage_Refert°_
WATER DRIPPING OUTSIDE WHEN UNIT IS COOLING.
Check if... Then...
The unit is removing large quantibes ofmoisture
from humid room,
I Thisisnormalduringexcessivelyhumiddays.
-14-
i
-15-
Room Air Conditioner To order Parts call Toll Free
Model No. 580.71184100 1-800-4-MY-HOME®(1-800-469-4663)
CAUTION: Use the Kenmore part number on all orders, not the illustration number.

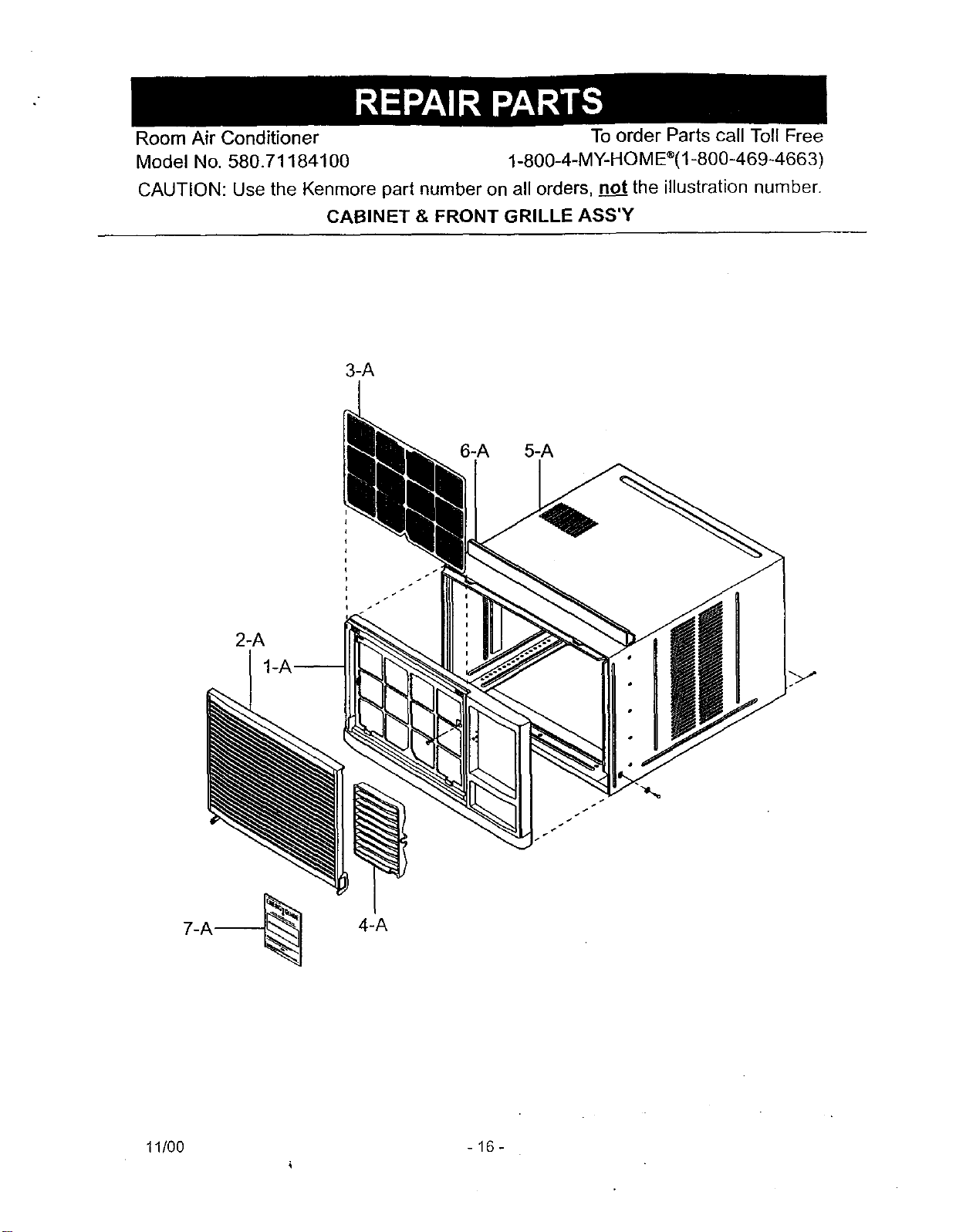

CABINET & FRONT GRILLE ASS'Y
3-A
7-A_ 4-A
11/00 - 16 -
580.71184100
CAUTION: Use the Kenmore part number on atl orders, no__ttthe illustration number.

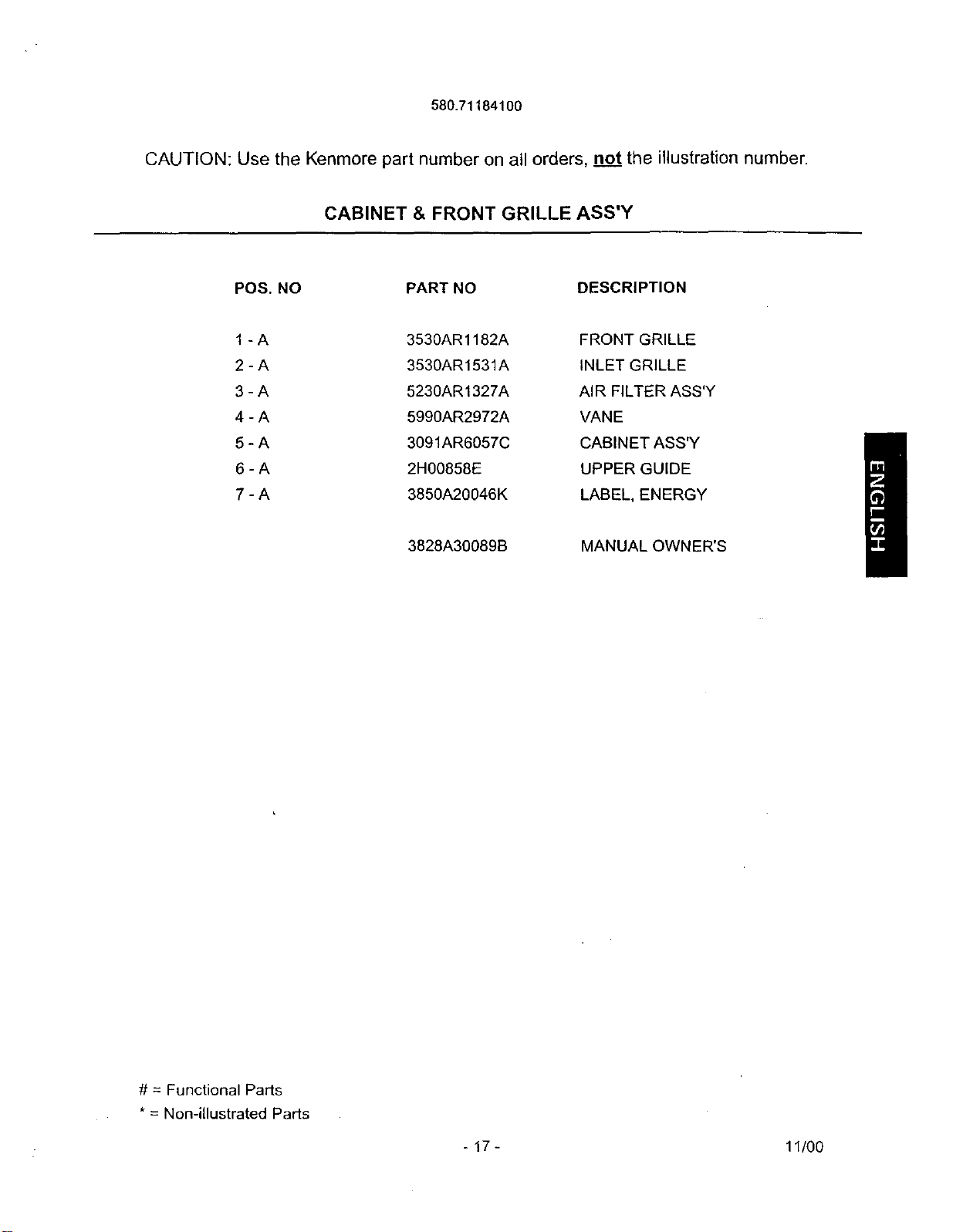

CABINET & FRONT GRILLE ASS'Y
POS. NO PART NO
DESCRIPTION
1 - A 3530AR1182A FRONT GRILLE
2 - A 3530AR1531A INLET GRILLE
3 - A 5230AR1327A AIR FILTER ASS'Y
4 - A 5990AR2972A VANE
5 - A 3091AR6057C CABINET ASS'Y
6 - A 2H00858E UPPER GUIDE
7 - A 3850A20046K LABEL, ENERGY
3828A30089B MANUAL OWNER'S
# -- Functional Paris
* = Non-illustrated Paris
-17- 11/00
580.71184100
CAUTION: Use the Kenmore part number on all orders, not the illustration number.

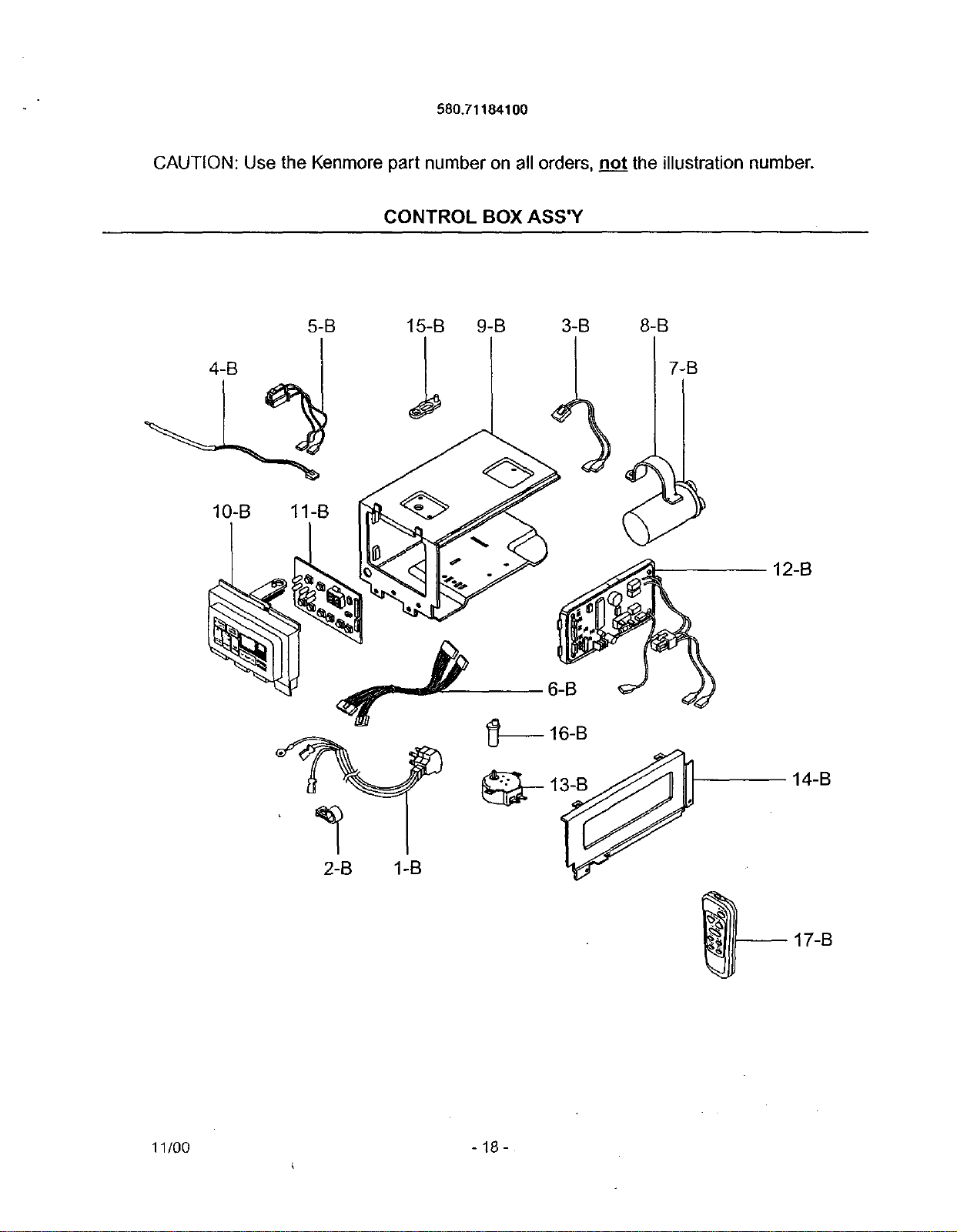

CONTROL BOX ASS'Y
5-B 15-B
IO-B 11-B
12-B
14-B
17-B
11/00 - 18 -
580.71184100
CAUTION: Use the Kenmore part number on all orders, no.._ttthe illustration number.

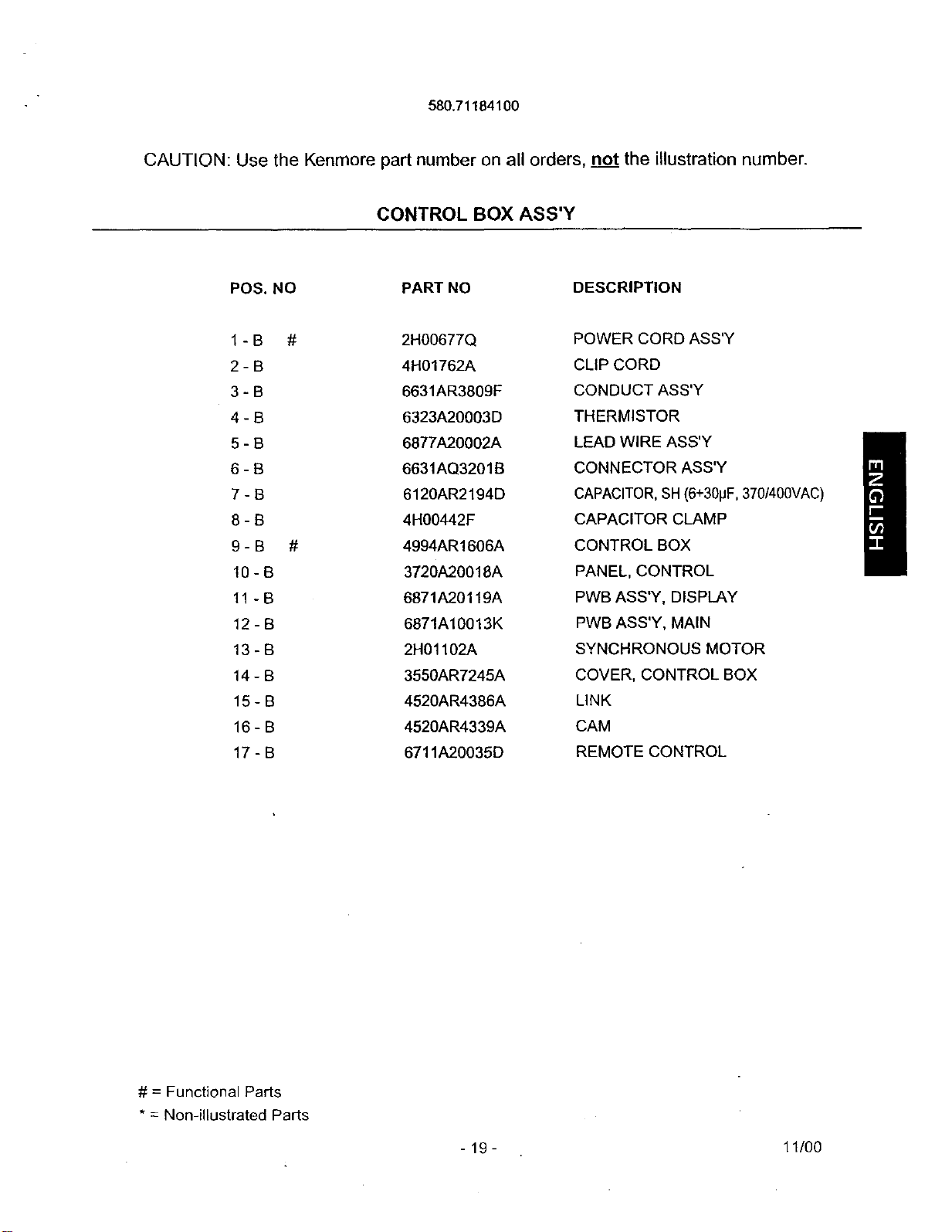

CONTROL BOX ASS'Y
POS. NO PART NO
DESCRIPTION
1-B # 2H00677Q
2-B 4H01762A
3-B 6631AR3809F
4- B 6323A20003D
5- B 6877A20002A
6-B 6631AQ3201B
7-B 6120AR2194D
8- B 4H00442F
9-B # 4994AR1606A
10- B 3720A20018A
11 - B 6871A20119A
12-B 6871A10013K
13-B 2H01102A
14-B 3550AR7245A
15-B 4520AR4386A
16- B 4520AR4339A
17- B 6711A20035D
POWER CORD ASS'Y
CLIP CORD
CONDUCT ASS'Y
THERMISTOR
LEAD WIRE ASS'Y
CONNECTOR ASS'Y
CAPACITOR,SH (6+30pF,370/400VAC)
CAPACITOR CLAMP
CONTROL BOX
PANEL, CONTROL
PWB ASS'Y, DISPLAY
PWB ASS'Y, MAIN
SYNCHRONOUS MOTOR
COVER, CONTROL BOX
LINK
CAM
REMOTE CONTROL
# = Functional Parts
* = Non-illustrated Parts
-19- 11/00
580.71184100
CAUTION: Use the Kenmore part number on all orders, no._.ttthe illustration number.

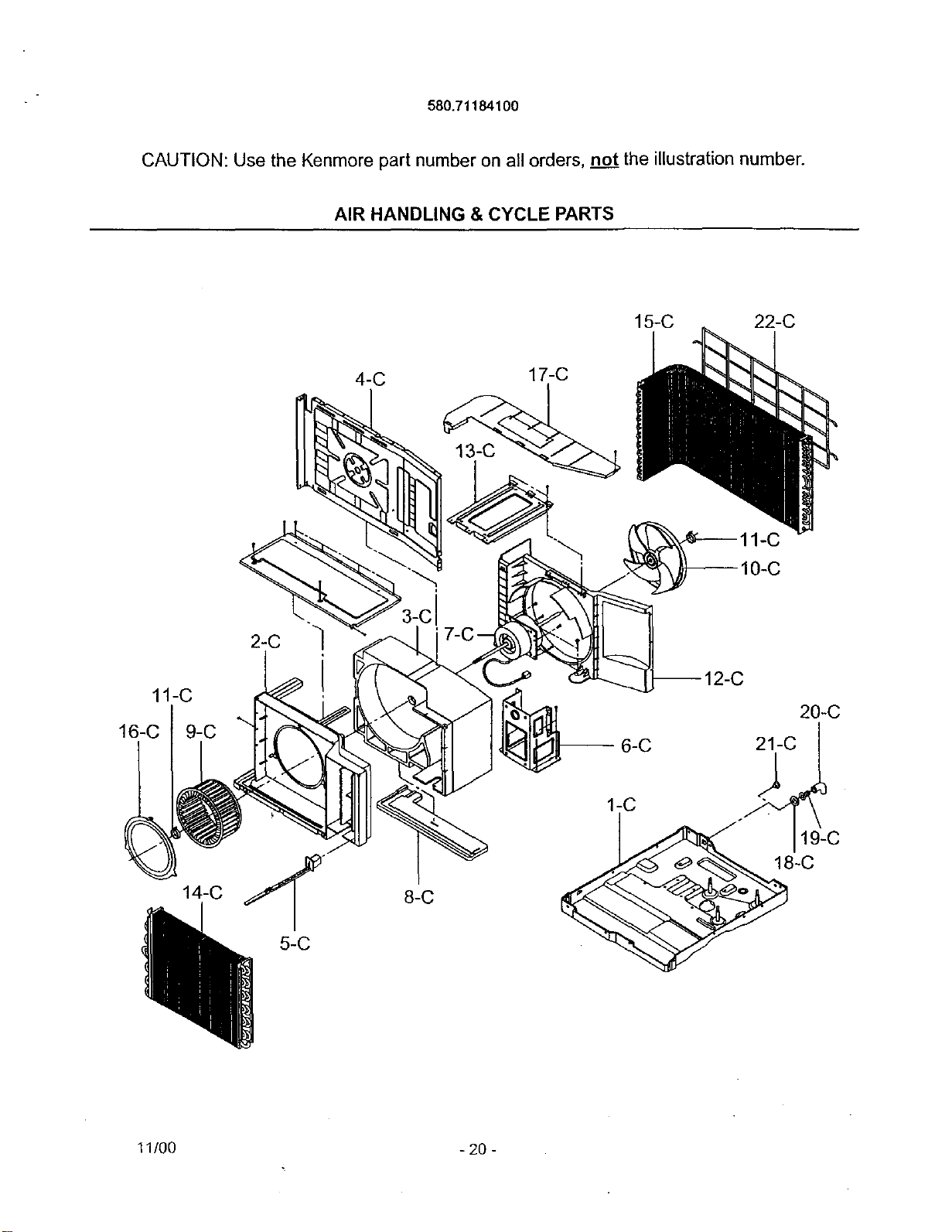

AIR HANDLING & CYCLE PARTS
15-C 22-C
4-C 17-C
11-C
3-C
11-C
16-C 9-C
14-C
5-C
8-C
!-C
20-C
6-C 21-C/
11/00 - 20 -
580.71184100
CAUTION: Use the Kenmore part number on all orders, no____tthe illustration number.

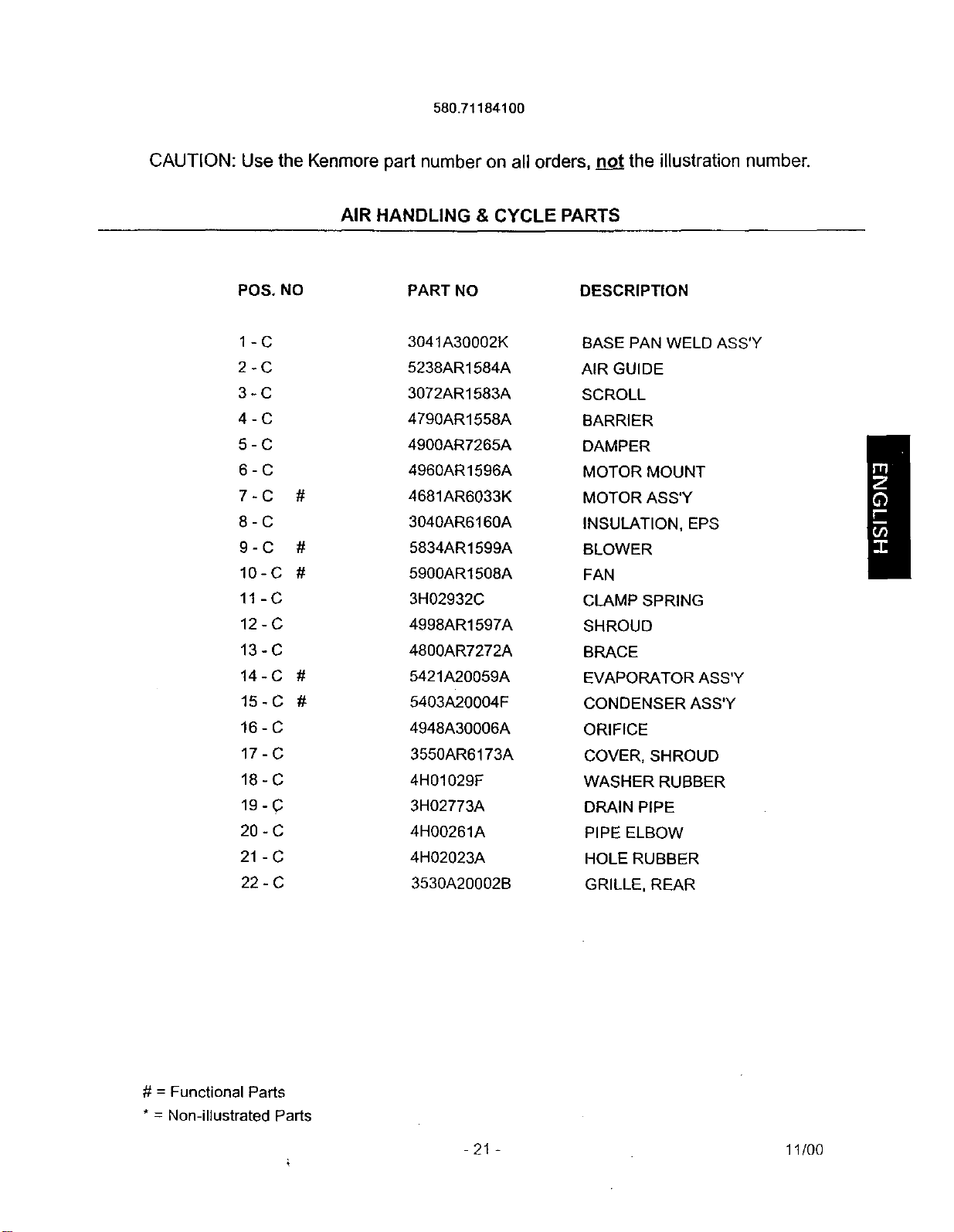

AIR HANDLING & CYCLE PARTS
POS. NO PART NO DESCRIPTION
1 - C 3041A30002K BASE PAN WELD ASS'Y
2 - C 5238AR1584A AIR GUIDE
3 - C 3072AR1583A SCROLL
4 - C 4790AR1558A BARRIER
5 - C 4900AR7265A DAMPER
6 - C 4960AR1596A MOTOR MOUNT
7 - C # 4681AR6033K MOTOR ASS'Y
8 - C 3040AR6160A INSULATION, EPS
9 - C # 5834AR1599A BLOWER
10- C # 5900AR1508A FAN
11 - C 3H02932C CLAMP SPRING
12 - C 4998AR1597A SHROUD
13 - C 4800AR7272A BRACE
14- C # 5421A20059A EVAPORATOR ASS'Y
15-C # 5403A20004F CONDENSER ASS'Y
16 - C 4948A30006A ORIFICE
17 - C 3550AR6173A COVER, SHROUD
18 - C 4H01029F WASHER RUBBER
19 - C 3H02773A DRAIN PIPE
20 - C 4H00261A PIPE ELBOW
21 - C 4H02023A HOLE RUBBER
22 - C 3530A20002B GRILLE, REAR
# = Functional Parts
* = Non-illustrated Parts
- 21 - 11/00
580.71184100
CAUTION: Use the Kenmore part number on all orders, not the illustration number.

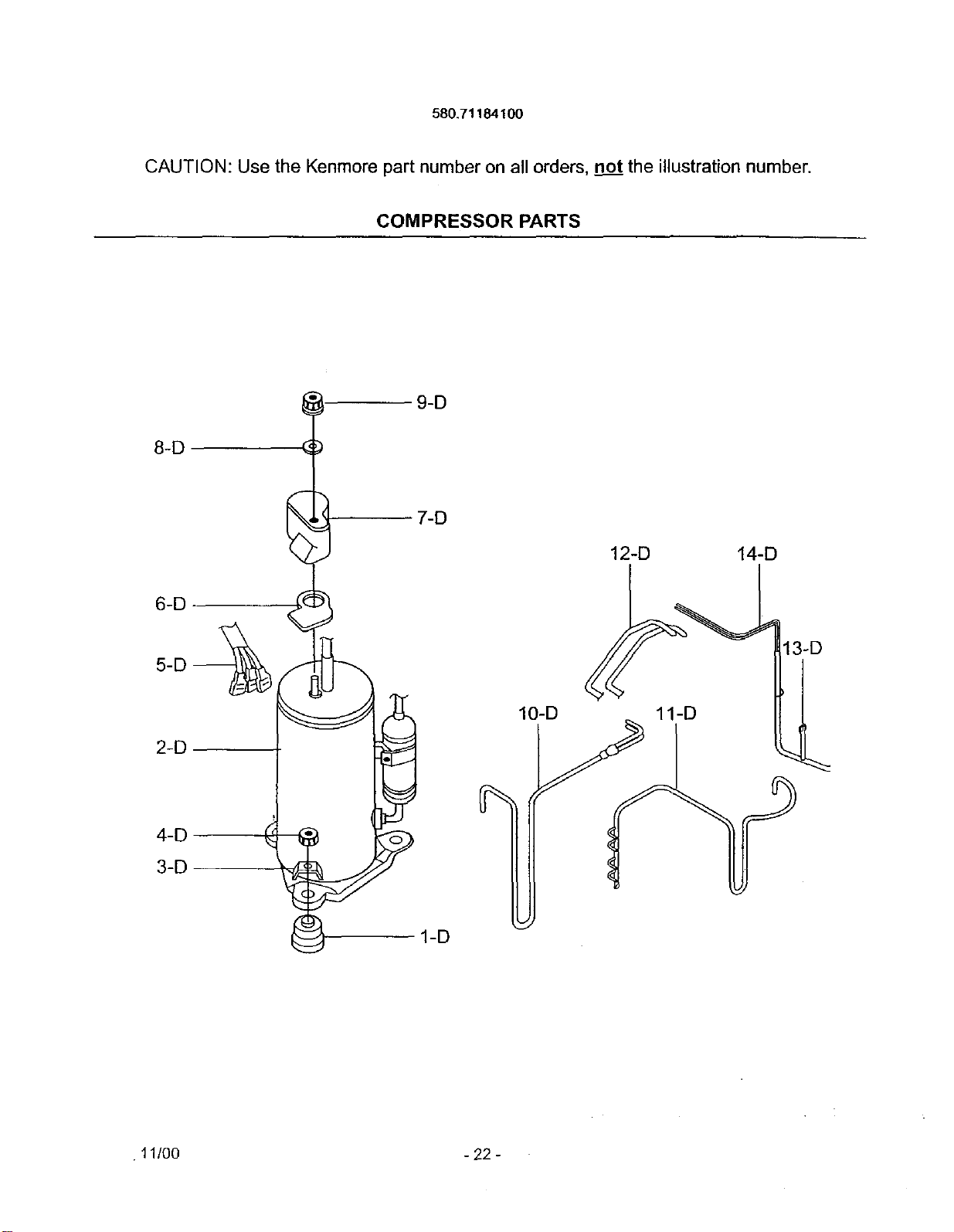

COMPRESSOR PARTS
8-D
2-D
4-D
3-D
9-D
I 7-D
_ lo
11/00 - 22 -
580.71184100
CAUTION: Use the Kenmore part number on all orders, no_._tthe illustration number.

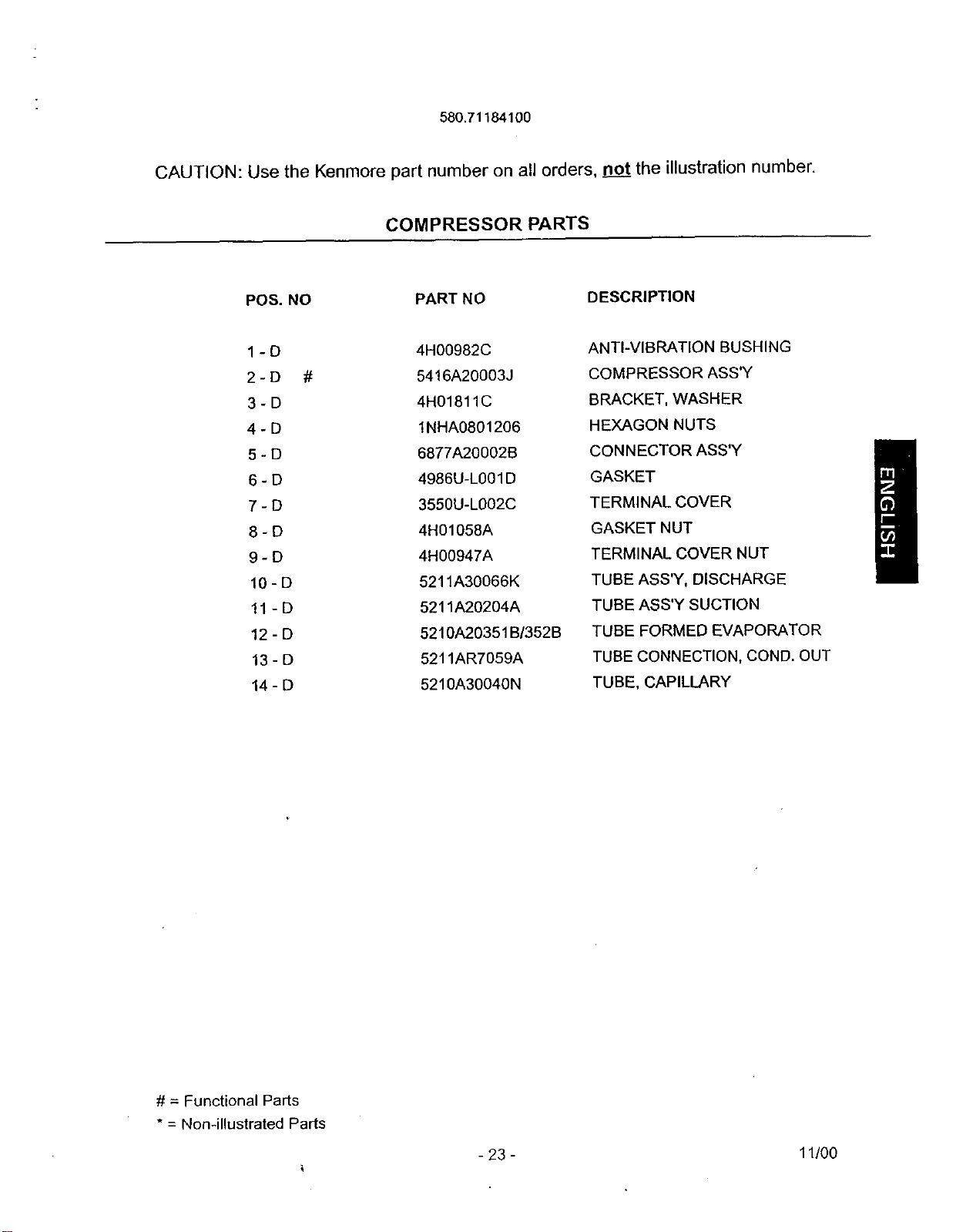

COMPRESSOR PARTS
POS. NO PART NO DESCRIPTION
1-D 4H00982C
2-D # 5416A20003J
3-D 4H01811C
4-D 1NHA0801206
5-D 6877A20002B
6-D 4986U-L001D
7-D 3550U-L002C
8-D 4H01058A
9-D 4H00947A
10-D 5211A30066K
11- D 5211A20204A
12-D 5210A20351B_52B
13-D 5211AR7059A
14-D 5210A30040N
ANTI-VIBRATION BUSHING
COMPRESSOR ASS'Y
BRACKET, WASHER
HEXAGON NUTS
CONNECTORASS'Y
GASKET
TERMINAL COVER
GASKET NUT
TERMINALCOVER NUT
TUBE ASS'Y, DISCHARGE
TUBE ASS'Y SUCTION
TUBE FORMED EVAPORATOR
TUBE CONNECTION, COND. OUT
TUBE, CAPILLARY
# = Functional Parts
* = Non-illustrated Parts
- 23 - 11/00
580.71184100
CAUTION: Use the Kenmore part number on all orders, not the illustration number.

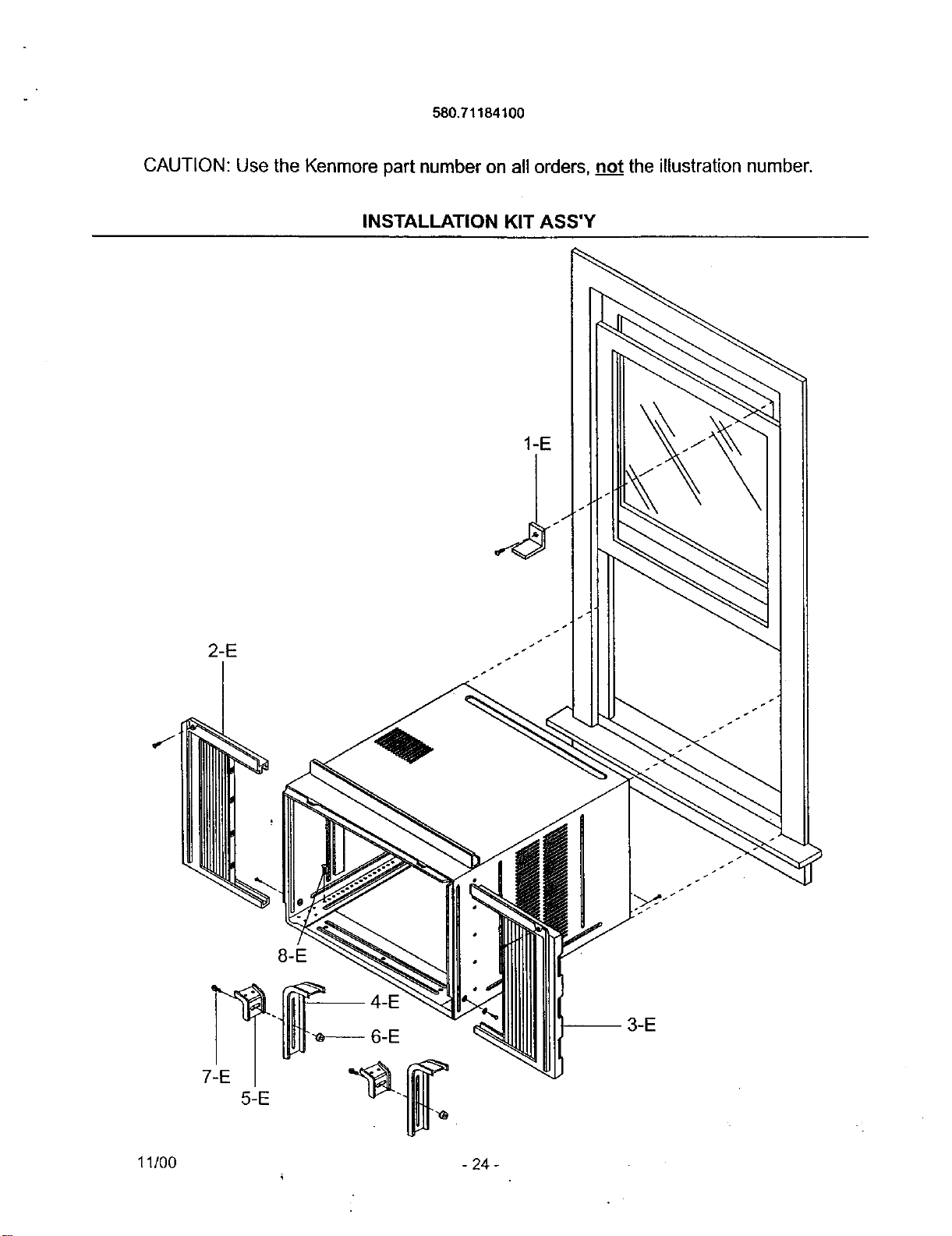

INSTALLATION KIT ASS'Y
11/00 - 24 -
580.71184100
CAUTION: Use the Kenmore part number on all orders, no._ttthe illustration number.

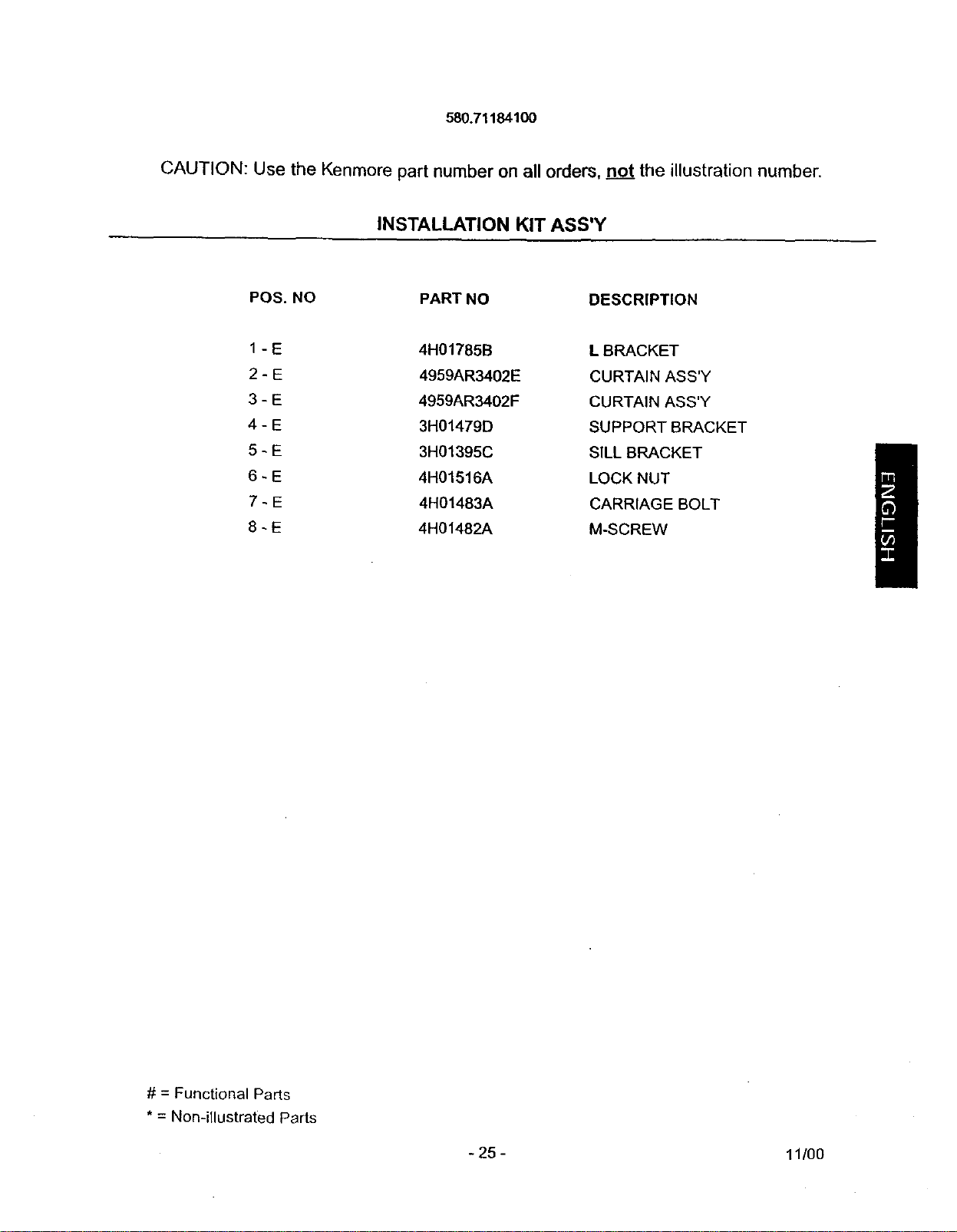

INSTALLATION KIT ASS'Y
POS. NO PARTNO
DESCRIPTION
1 - E 4H01785B L BRACKET
2 - E 4959AR3402E CURTAIN ASS'Y
3 - E 4959AR3402F CURTAIN ASS'Y
4 - E 3H01479D SUPPORT BRACKET
5 - E 3H01395C SILL BRACKET
6 - E 4H01516A LOCK NUT
7 - E 4H01483A CARRIAGE BOLT
8 - E 4H01482A M-SCREW
# = Functional Parts
* = Non-illustrated Parts
- 25 - 11/00
