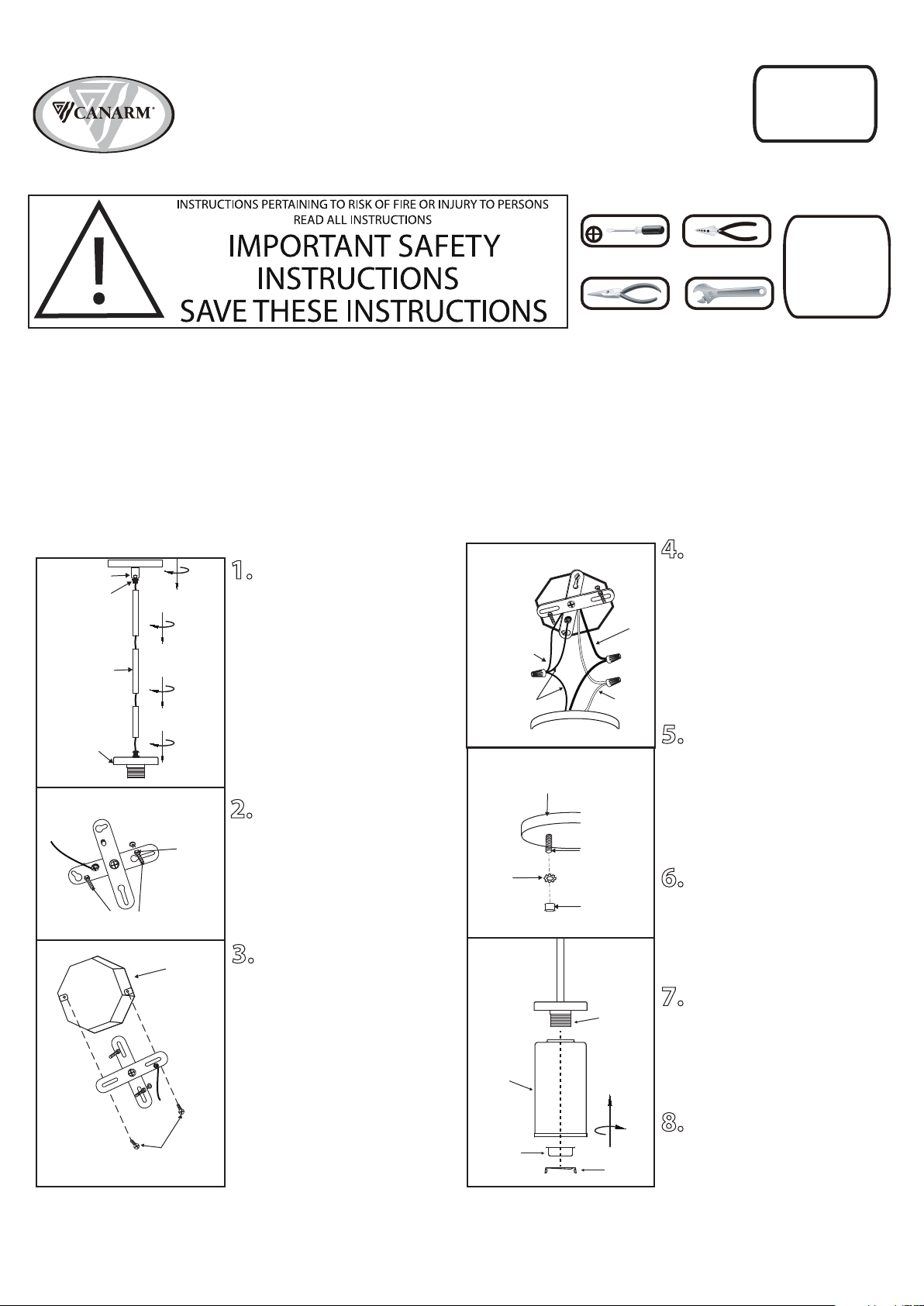

INSTALLATION:
5. Once connections of wires
are completed, carefully tuck
wires and wire nuts into the
outlet box making sure no bare
wire (on the black and white) is
visible at the wire nuts.
6. Position fixture over studs on
mounting bracket assembly.
Secure fixture in place with star
washer(s) and cap nut(s).
Star
Washer
Cap
Nut
Fixture
1. Install the length of rod that
is required by threading wire
through the rod and screwing it to
the fixture. Install swivel to the
rod, ensuring that the sleeve is at
the swivel.
2.
Loosen “B”. Adjust stud to
desired length and lock in place
with “B”.
3. Mount the mounting bracket
to outlet box using outlet box
screws (not included). Make sure
the studs on the mounting bracket
are facing out from the outlet box.
Imported By: CANARM LTD., 2157 Parkedale Ave., Brockville, Ontario, K6V 5V6, Tel: (613) 342-5424, Fax: (800) 263-4598
Stud
4. Connect the ground wires
(bare copper or green) from your
fixture to the ground wires (bare
copper or green) or ground screw
in the electrical outlet box.
Connect black wire from fixture to
black wire in outlet box and
connect the white wire from
fixture to white wire in outlet box.
7. Remove spinner nut and
support bracket from socket.
Position glass on lamp and secure
with spinner nut and support
bracket.
8. Install the specified bulb type
and wattage (not included).
Studs
“B”
Outlet
Box
Outlet Box Screws
(not included)
Mounting
Bracket
White
Black
House supply
Ground wire
Fixture
Ground wire
PENDANT LIGHT
QUESTIONS OR CONCERNS CONTACT CANARM AT:
1-800-265-1833 (English) 1-800-567-2513 (French)
Monday through Friday 8:00 AM to 5:00 PM E.S.T.
SAFETY PRECAUTIONS:
TOOLS AND MATERIALS REQUIRED:
Phillips
Screwdriver
Wire Cutters
Pliers Wrench
Wiring supplies
as required by
the Canadian
Electrical Code
and/or the
Quebec
Electrical code
1. TURN OFF ELECTRICAL POWER BEFORE STARTING INSTALLATION OF LIGHT FIXTURE.
2. THIS PRODUCT MUST BE INSTALLED IN ACCORDANCE WITH THE APPLICABLE INSTALLATION CODE
BY A PERSON FAMILIAR WITH THE CONSTRUCTION AND OPERATION OF THE PRODUCT AND THE
HAZARDS INVOLVED.
3. CONNECT THE GROUND WIRES (BARE COPPER OR GREEN) FROM YOUR FIXTURE TO THE GROUND
WIRE (BARE COPPER OR GREEN) OR GROUND SCREW IN THE ELECTRICAL OUTLET BOX.
L
I
G
H
T
I
N
G
&
F
A
N
S
E
C
L
A
I
R
A
G
E
S
&
V
E
N
T
I
L
A
T
E
U
R
S
NOTE: Product May Not Look Exactly As Shown In Figures.
Fixture
Sleeve
Rod
Swivel
Fixture
Socket
Spinner
Nut
Glass
Support
Bracket
IPL511A01
IPL578A01
10/14
