Please review this important assembly. safety and warranty information about your new Merrithew Health & Fitness Reformer and keep it handy for future reference.

OWNER’S MANUAL Reformer

Reformer Owner’s Manual

Reformer Owner’s Manual

50 Vertical Frame [fig. I] 51 Spring Clip 52 Vertical Sliding Track plus-style 53 Traveling Pulley plus-style 54 Traveling Pulley Eyehook plus-style 55 Pulley Spring plus-style 56 Pulley plus-style 57 Threaded Bolt plus-style 58 Swivel Harness plus-style 59 Spring-Loaded Stopper plus-style 60 Stopper Position plus-style 61 Leg Spring. white 62 Safety Chain 63 Roll-Down Spring. black 64 Roll-Down Bar 65 Padded Long Spine Strap 66 Push-Thru Bar 67 Traveling Spring Hook 68 Fixed Eyehook [fig. I] plus-style 69 Light Arm Spring. yellow [fig. J] 70 Foam-Grip Handle [fig. J] 71 Hex Bolt 72 Vertical Frame Receptacle 73 Push-Thru Spring. blue [fig. K] 74 Extension Strap [fig. L] 75 Locking Spring Clip [fig. K]

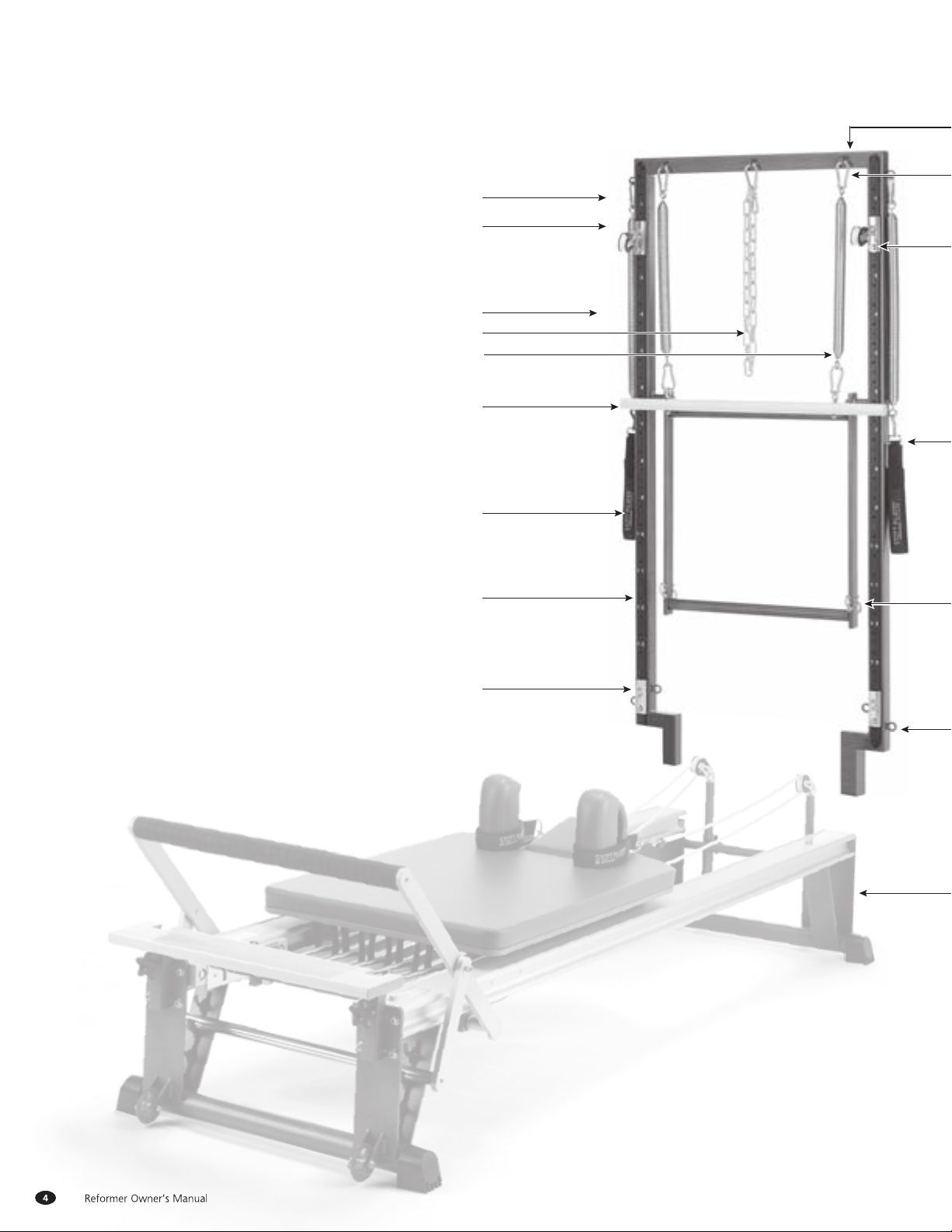

Part Identification for the Vertical Frame

Note: Parts may not be exactly as shown. Photo shown is a Professional Reformer. Part IDs are the same for other Reformer models (SPX Max. Rehab and V2 Max Plus).

PluS-Style VeRtIcal FRaMe

PuSH-tHRu SPRIng wItH lockIng SPRIng clIP

Fig i – tRaDItIonal VeRtIcal FRaMe

VeRtIcal FRaMe RecePtacle

SPRIng clIP on PuSH-tHRu baR

REQUIRED TOOLS:

Reformer Owner’s Manual

STOTT PILATES Reformers are favored among Pilates professionals for their superior adaptability. versatility. craftsmanship and smooth carriage ride. All of our units feature easy adjustments to accommodate different sizes and abilities. The unique spring resistance of this machine helps generate smooth muscular contractions that develop strength without bulk.

The STOTT PILATES Family of Reformers

V2 Max Plus Reformer*

V2 Max Reformer

V2 Max Plus Rehab Reformer*

SPX Max Plus Reformer*

V2 Max Rehab Reformer

SPX Max Reformer*

User Guidelines

The STOTT PILATES Reformer is a sophisticated piece of equipment that. when used properly. can facilitate many Pilates exercises safely and effectively. However. care and caution must be taken as there are some inherent dangers when using any exercise equipment – especially when spring resistance is involved.

For inexperienced or first-time users. Reformers should only be used under the supervision of a trained professional.

This manual includes general guidelines for setup and usage.

To get the most out of your Reformer. Merrithew Health & Fitness offers instructional DVDs and manuals. Personalized training is offered through our Licensed and Corporate Training Centers.

Visit merrithew.com for more information.

For questions or technical assistance. email [email protected]

Care & Cleaning

Wipe vinyl surfaces with a mixture of water and tea tree oil. a natural disinfectant. Add 1tsp of tea tree oil to a 1L or 1qt spray bottle of water. A mixture of mild soap and water may be used to remove more persistent dirt. Ensure cleaner does not leave an oily residue. or make surfaces slippery.

Clean channels. rails and rollers weekly with a damp cloth.

Avoid spraying liquid directly onto surfaces.

CAUTION: Never use oil lubricants as they may damage rollers.

IMPORTANT!

This manual contains important assembly. safety and warranty information. Read the manual carefully before using your new Reformer and keep the manual on hand for future reference.

UNSAFE OR IMPROPER USE OF THIS EQUIPMENT BY FAILING TO READ AND COMPLY WITH ALL REQUIREMENTS AND WARNINGS COULD RESULT IN SERIOUS INJURY.

It is impossible to predict every situation and condition that can occur while using your Reformer. Merrithew Health & Fitness makes no representation about the safe use of the Reformer any exercise equipment that cannot be predicted or avoided. and you assume the responsibility for that risk.

Please ensure that you and your clients/patients have received proper instruction regarding the correct and safe use of Merrithew Health & Fitness equipment. We recommend cautious assembly and usage and wish you many hours of safe and effective exercise.

Safety Instructions

WARNING: As with any athletic activity. the use of exercise equipment involves risk of injury. damage and/or death.

By choosing to use Merrithew Health & Fitness equipment. you and/or your clients/patients assume responsibility for that risk. not the people who sold you the equipment. distribute and/or manufacture it.

Reformer Owner’s Manual

Proper maintenance and timely replacement of your equipment or component parts is your responsibility as it helps reduce the risk of injury. Conduct a regular inspection of the following:

Daily

Weekly

Monthly

Yearly

Every 2 Years

REPLACE ALL SPRINGS EVERY 24 MONTHS AND SPRING CLIPS EVERY 12 MONTHS OR AS NEEDED WITHIN THAT PERIOD.

FAILURE TO PERFORM RECOMMENDED SAFETY CHECKS. OR USING

THE MACHINE WITH IMPROPERLY ADJUSTED. BROKEN OR WORN PARTS.

COULD RESULT IN SERIOUS BODILY INJURY.

IMPORTANT! PLEASE DO NOT ATTEMPT TO ASSEMBLE ON YOUR OWN. THIS IS. AT MINIMUM. A JOB FOR TWO PEOPLE.

PLEASE READ THESE INSTRUCTIONS COMPLETELY BEFORE BEGINNING ASSEMBLY.

Place all parts from the box in a cleared area and position them on the floor in front of you. Remove all packing material from your area and place them back into the box. Do not dispose of the packing materials until assembly is completed. To prevent unsafe or improper use. please read each step carefully before beginning.

For assistance or any missing parts: Call: toll-free in North America 1-800-910-0001 toll-free in United Kindom 0800-328-5676 or

Please refer to the assembly instructions included in this Owner’s Manual for initial Assembly Instructions and Part Identification.

Mechanical Safety Check

Assembly Instructions

Place swing arm support [7] in one of the footbar adjustment cradles [6] and fasten to small swing arm bars [31] with socket head cap screws [27].

On Reformer carriage. insert floating rollers [18] into bronze bushings [20].

Align fixed rollers with c-channels. then adjust floating rollers as necessary before guiding carriage into rails.

CAUTION: We strongly advise that two people perform this operation to prevent damaging rollers.

Place metal plate of wooden standing platform [1] on threaded bolts on front of Reformer and fasten with 5⁄16" lock nuts and washers.

CAUTION: If you are using a ratchet system to tighten nuts. be careful not to over-tighten.

NOTE: Steps 1 to 7 are complete upon delivery for all SPX Max models.

Fasten footbar [10] to top of large swing arm bars [32] with socket head cap screws [27].

NOTE: To help ensure proper alignment. do not tighten completely until all components of footbar are assembled.

Apply pressure to footbar before tightening all socket head cap screws.

Wipe rails [33] and inner c-channels [28]. with a damp cloth to remove dust and dirt. Insert carriage stopper [30] in one of six positions.

CAUTION: The carriage stopper must be inserted into one of the six positions AT ALL TIMES. Never use oil lubricants as they may damage rollers.

Reformer Owner’s Manual

CONT’D Assembly Instructions

Insert shoulder rests [37] into receptacles with handles facing pulleybars and closest to outside edges of carriage.

10 To extend ropes. depress below rope retaining hooks [26] and lift out of self-locking cleats [25]. Reel out length of rope required.

12 Reattach double-ended swivel spring clips and soft reformer loops [34].

Insert gearbar [9] into the middle gearbar slots [8] with the concave indentations [inset above] facing the wooden standing platform [1].

Insert pulleybars [47] into receptacles [40] at back of reformer and tighten star knobs [3]. Ensure eyehooks [46] on top of pulleybars are parallel to rails [33].

PROFESSIONAL & REHAB MODELS: Align top of pulleys with top of shoulder rests.

11 Remove double-ended swivel spring clips [38]. pinch end loop of ropes [41] and insert through the front of pulleys [44].

CONT’D Assembly Instructions

14 Place soft reformer loops on carriage to line up fixed D-rings on straps with end of metal plate of shoulder rests [37].

16 To shorten length slightly. pinch ropes [41] between carriage [35] and self-locking cleats [25] and pull toward carriage. Grasp ropes at retaining hooks [26] and tug to engage cleats.

13 To determine correct length of ropes. set carriage stopper [30] in the second position. Attach springs to gearbar [9] to ensure carriage [35] does not move.

15 Once rope length has been established. reset ropes in self-locking cleats [25] then set fully into rope retaining hooks [26].

17 Carefully lift Reformer and slide on plastic foot [2].

Ensure they sit flat on floor.

NOTE: Not necessary on SPX Max models.

Reformer Owner’s Manual

Assembly Instructions – Vertical Frame

19 PLUS-STYLE: To use traveling pulleys [53] extend ropes and detach double-ended swivel spring clips [38] and soft reformer loops [34]. Pinch end loop of ropes and insert through the bottom of traveling pulleys. Re-attach double-ended spring clips and soft reformer loops.

18 Remove receptacle caps [48] with a flat-head screwdriver.

Slide vertical frame into receptacles [72]. For plus-style models. position pulley system facing carriage. For traditional models. position highest eyehooks facing carriage. Tighten all four hex bolts [71]. Attach springs. roll-down bar and safety chain as illustrated on page 5 [Fig I].

20 To alter the height of traveling pulleys. pull out spring-loaded stoppers [59]. Shift the traveling pulleys up or down vertical sliding tracks [52] and release spring-loaded stoppers.

Shake pulleys to confirm they are fully locked into stopper positions [60].

21 For exercises using arm [69] or leg springs [61]. attach springs to traveling spring hooks [67]. and adjust height in the same way as traveling pulleys. After changing position. shake spring hooks to confirm they are fully locked into stopper positions.

Safety & Usage

GETTING ON THE REFORMER SUPiNE POSitiON (LyiNg ON bAck)

StANdiNg OR kNEELiNg POSitiONS

The carriage is a moving platform. Special attention must always be paid to maintaining balance and stability. especially when performing kneeling or standing exercises.

FOR SPX MAX REFORMERS:

FOR ALL OthER StOtt PiLAtES REFORMERS:

ALL MOdELS OF REFORMERS:

KEEP HANDS & FEET SECURE

Whenever placing hands or feet on the footbar. shoulder rests or headrest. ensure they will not slip during exercise. Gripper mats may be used.

SITTING OR LYING ON A BOx

Always place reformer box in a stable position on the Reformer and sit directly in the middle to avoid tipping. When using footstrap. ensure it is underneath the wooden standing platform and securely clipped together.

CARRIAGE STOPPER

The carriage stopper position determines how close the carriage slides in toward the wooden standing platform and dictates the body’s range of motion.

The hole closest to the wooden standing platform is referred to as position #1; the next is position #2. etc.

Adjusting the Carriage Stopper

The carriage stopper position should be chosen to give the optimal range of motion based on the exercise and the individual performing it. It will also affect the initial tension on the springs in relation to the gearbar.

NOTE: The carriage stopper must be inserted in one of the six positions AT ALL TIMES. USING THE REFORMER WITHOUT THE CARRIAGE STOPPER MAY CAUSE DAMAGE TO THE GEARBAR BLOCK AND ROLLERS.

#6 #5 #4 #3 #2 #1

RETRACTABLE ROPE SySTEM Prior to use. confirm that the retractable rope system is in good order and rope is secured through self-locking cleats and rope retaining hook. (See Assembly Instructions on page 10 and 11.)

GEARBAR The gearbar position determines the amount of initial tension on the springs. The slot closest to the wooden standing platform is referred to as position #1. the next is position #2. the last is position #3.

Adjusting the Gearbar

Position gearbar relative to the carriage stopper to create initial tension on the springs. i.e. the gearbar should not be in position #3 if the carriage stopper is in position #1 or #2 as there will not be any initial spring tension.

Reformer Owner’s Manual

FOOTBAR The footbar can be set at four different heights to facilitate various reformer exercises and to accommodate physical differences and abilities. The cradle closest to the gearbar is position #1. the cradle farthest away is position #4.

Adjusting the footbar

SPX Max & SPX Max Rehab

#4 #3 #2 #1 #4 #3 #2

SPX Max

Safety & Usage CONT’D

SPRINGS The number of springs attached to the gearbar determines the total amount of resistance. Reformers are equipped with either one 50% and four 100%-tension springs OR one 25%. one 50%. and three 100%-tension springs. (See page 20 for more details.)

Adjusting springs

HEADREST The headrest adjusts to three positions: flat. half-raised or fully raised. It should be adjusted on an individual basis to ensure neck and shoulders are comfortable and tension-free when lying supine.

In exercises where the hips are lifted higher than the shoulders. the headrest should be flat – even when beginning from a supine position. In some exercises it is raised to provide a brace for the feet.

Adjusting the headrest

SHOULDER RESTS Shoulder rests are removable to allow storage of the reformer and to facilitate the use of a mat converter.

Attaching the shoulder rests

PULLEyBARS SPx MAx REFORMER ONLY: Pulleybars detach for storage without disengaging ropes. To remove. loosen star knobs and remove pulleybars from receptacles.

When replacing pulleybars. ensure they are firmly within the receptacles. Ensure eyehooks on top of pulleybars are parallel to aluminum rails. Tighten star knobs securely.

Adjustment Block

STORING SHOULDER REST

SPx MAx REFORMERS ONLY: When stacking. shoulder rests slide conveniently into brackets affixed to the underside of the rail.

STORING PULLEyBARS

SPx MAx REFORMERS ONLY: When stacking. pulleybars can be removed without disengaging ropes and stored in receptacles under reformer.

MOVING REFORMERS The front end of all reformers feature easy-roll wheels which make repositioning simple.

NOTE SPX Max Reformers also include easy-roll wheels on the back.

Preparing to reposition

STACKING REFORMERS STOTT PILATES offers a stackable reformer model. Up to five SPX Max Reformers can be stacked on the optional rolling base or a maximum of six on a level floor without the rolling base.

CAUTION: Do not stack Reformers higher than your height comfortably allows lifting them.

Stacking SPx Max Reformers

Safety & Usage CONT’D

Reformer Owner’s Manual

Safety & Usage CONT’D

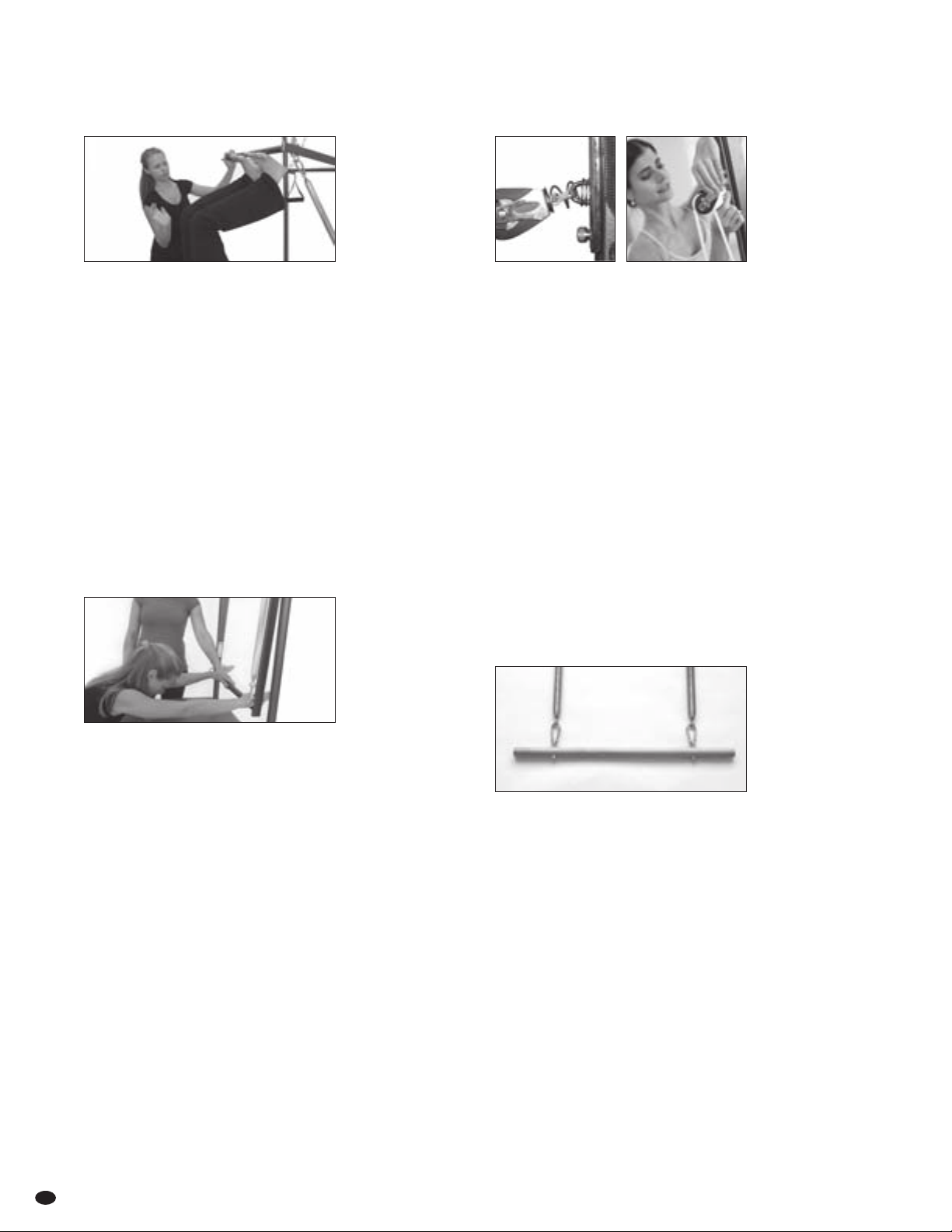

PUSH-THRU BAR

SAFETY CHAIN

The safety chain must be attached when using the push-thru bar with springs from below. Attach safety chain first. from middle eyehook of vertical frame to either upper eyehook of push-thru bar. Ensure spring clips are completely closed and secure.

SPRINGS FROM BELOW

When using the push-thru bar with springs from below. attach springs to eyehooks on lowest eyehooks on vertical frame using locking spring clips. Then attach one or two springs to eyehooks on lower side of bar. ensuring spring clips are completely closed and secure.

A trained professional must keep a hand on the bar at all times and safety chain must be used.

ADJUSTABLE PULLEy SySTEM

PLUS-STYLE ONLY: The spring-loaded track system provides adjustability for pulleys and spring hooks throughout the range of the vertical frame.

ALTERING HEIGHT OF TRAVELING PULLEYS AND TRAVELING SPRING HOOKS

CAUTION: Prior to use. confirm that the traveling pulley system is in good order and that the traveling pulley’s threaded bolts are securely fastened.

ROLL-DOWN BAR Attach roll-down springs to roll-down bar. then to the fixed eyehooks at the top of the vertical frame (see page 5). Both springs must be attached. To decrease or increase. spring tension. sub stitute light arm springs or leg springs respectively.

CAUTION: Roll-down bar can release at high velocity due to spring tension. Ensure a secure grip at ALL times. Gripper mats may be used.

SPRINGS FROM ABOVE

A trained professional must keep a hand on the push-thru bar for any exercises with the springs attached from above.

CAUTION: To prevent accidental injury. never put your face (or another body part) above the push-thru or roll-down bar while spotting an exercise.

Locking spring clips must be used to attach push-thru springs from below to the vertical frame.

Safety & Usage CONT’D

LEG SPRINGS Attach leg springs to traveling spring hooks or fixed eyehooks at desired height. Ensure spring clips are completely closed and secure. Shown with padded long spine straps attached.

LIGHT ARM SPRINGS Attach light arm springs to traveling spring hooks or fixed eyehooks at desired height. Ensure spring clips are completely closed and secure. Shown with foam-grip handles attached.

SPRING CLIPS Whenever springs are used. ensure the spring clips at both ends are closed completely. If a spring clip is only half closed and catches on the eyehook. it may come undone and detach with high force.

CAUTION: Locking spring clips must be used to attach push-thru springs from below to the vertical frame. DO NOT use non-locking spring clips.

EXTENSION STRAPS The extension straps are valuable in supporting the knees or legs in various exercises.

Attaching extension straps

Padded Long Spine Straps

Leg Springs

Extension Straps

Reformer Owner’s Manual

Removing Carriage

Required for replacement of Reformer springs. carriage rollers and ropes.

VERTICAL FRAME: Remove all springs from vertical frame. including roll-down bar and safety chain. Loosen all four hex bolts at the base of receptacles. Secure push-thru bar in place by hand while removing vertical frame.

NOTE: Requires two people.

Remove shoulder rests (if applicable). Detach all springs from gearbar. Carefully slide carriage out of aluminum rails keeping carriage level until completely free of rails. Turn carriage over. ensuring rollers are secure and do not come in contact with the floor.

NOTE: Requires two people.

To remove carriage. remove pulleybars and place them on floor. on either side of aluminum rails.

Place carriage face down on floor.

REQUIRED TOOLS:

(spx max only)

1/2"(13mm) x 9/16"(14mm)

Replacing Springs

Using second 7⁄16" wrench on opposite side. loosen nylon locknut. This may require a bit of force.

NOTE: Discard used nylon locknuts. New ones are provided with new springs.

Repeat steps 2 to 4 on remaining springs.

Remove spring bolt from spring anchoring bar. then pull ball end of the spring out of spring holding loop.

With 7⁄16" wrench or pliers. hold fixed cube nut in place. Remove carriage. see page 18 for full instructions.

REQUIRED TOOLS:

1/2"(13mm) x 7/16"(14mm)

Spring ball Spring Sleeves Spring coils Fixed cube Nut

Bolt End of Spring

Spring bolt

Nylon Locknut

Ball End of Spring

IMPORTANT: We recommend that you replace the springs on your reformer every two years to ensure maximum performance and safety of your reformer at all times.

Reformer Owner’s Manual

Replacing Springs CONT’D

Remove nylon locknut from spring bolt.

Insert spring bolt through the corresponding hole on spring anchoring bar.

Thread the spring bolt through the spring holding loop.

Place 50% spring in the center. and 25% spring to one side.

Place 100% springs in remaining positions.

HIGH-PRECISION SPRING PACKAGE 3 x 100%. 1 x 50%. 1 x 25% arrange as follows:

Place 50% spring in the center and two 100% springs on either side.

TRADITIONAL SPRING PACKAGE 4 x 100%. 1 x 50% arrange as follows:

Thread nylon locknut onto spring bolt.

INSTALLING NEW SPRINGS Determine Replacement Spring Package.

Springs are color-coded at the ball end. Red = 100%. Blue = 50%. White = 25%

Replacing Springs CONT’D

INSTALLING NEW SPRINGS CONT’D

Repeat steps 1 to 6 for remaining springs. Replace carriage. see page 24 for full instructions.

Both nylon locknut and fixed cube nut should be snug up against spring anchoring bar. Hold fixed cube nut in place with 7⁄16" wrench.

Using second 7⁄16" wrench. tighten nylon locknut.

NOTE: Do not reuse old nylon locknuts.

Reformer Owner’s Manual

Replacing Retractable Ropes

NOTE: Please read full instructions before beginning rope replacement.

Expose underside of carriage to locate rope housing reels and cotter pin.

NOTE: This step can be done by either removing carriage or turning Reformer onto its side with springs engaged.

Pull out cotter pin and remove plastic washer from rope housing reel.

Undo screw and separate from rope. Retain screw and cup washer. Remove old rope and discard.

Remove carriage if necessary. see page 18 for full instructions.

Remove rope housing reel from square shaft and uncoil rope.

Feed straight end of new rope through eyehook projecting from reel bracket (refer to image in step 1). This is the end of the rope to use in step 7.

REQUIRED TOOLS:

Square Shaft

Cotter Pin

Eyehook

Rope Housing Reel

Replacing Retractable Ropes CONT’D

Place screw and rimmed washer directly in the center of replacement rope. 1⁄2” from the end and thread completely through rope.

NOTE: Screw must be placed exactly in the center of rope to create a secure and safe interlock with rope housing reel.

11 Wind rope around rope housing reel so rope lays flat against hub. There should be some resistance on reel and you should hear clicking as spring mechanism engages. Recoil full length of rope.

To determine the direction rope must coil. place empty reel on square shaft. Rotate reel in each direction.

An audible clicking sound will indicate the correct direction to wind reel.

10 Place reel back on square shaft and replace plastic washer. Secure cotter pin so middle curve fits over square shaft.

12 Replace carriage (see page 24 for full instructions) or return reformer to upright position.

Feed ropes through pulleys. attach Reformer loops and set ropes to desired length (see pages 10 - 12).

Reset ropes between self-locking cleats then set fully into rope retaining hooks.

REQUIRED TOOLS:

Reel Direction

Reformer Owner’s Manual

Replacing Carriage

Remove carriage stopper.

Write date of installation on the sticker provided with spring replacement package. Affix sticker on the underside of Reformer carriage.

Springs should be replaced every 24 months. or as needed within that period.

Align fixed rollers with c-channels. then adjust floating rollers as necessary before guiding carriage into rails.

CAUTION: We strongly advise that two people perform this operation to prevent damaging rollers.

Wipe inside of aluminum rails (c-channels) with a damp cloth to remove dust or dirt. Spray onto cloth first.

Avoid spraying liquid directly onto surfaces. rollers or rails.

Insert carriage stopper in one of six positions.

Ensure pulleybars are still on either side of aluminum rails.

Carefully turn carriage over. Ensure rollers are secure and do not come in contact with the floor

NOTE: Requires two people.

REQUIRED TOOLS:

ALL MODELS: Insert pulleybars into receptacles at back of Reformer and tighten star knobs. Ensure eyehooks on top of pulleybars are parallel to rails.

PROFESSIONAL & REHAB MODELS: Align top of pulleys with top of shoulder rests.

Replacing Carriage CONT’D

Replace shoulder rests and attach springs to gearbar.

NOTE: Ensure carriage stopper is in place before attaching springs.

VERTICAL FRAME MODELS: Slide vertical frame into receptacles. For plus-style models. position pulley system facing carriage. For traditional models. position highest eyehooks facing carriage. Tighten all four hex bolts.

Attach springs. roll-down bar and safety chain as illustrated on page 5 [fig I].

REQUIRED TOOLS:

1/2"(13mm) x 9/16"(14mm) or pliers

Reformer Owner’s Manual

Replacement Parts

FootbaR With 1⁄4” hex key. fasten footbar to the large swing arm bars with socket head cap screws. With footbar in place. apply pressure to footbar before tightening socket head cap screws. Tighten completely only when both sides of footbar are attached to ensure proper alignment.

NOTE: Socket head cap screws are attached to the ends of the replacement footbar when it is shipped.

PULLEy BLOCK FIXED & TRAVELING

FIXED ROLLERS Attach fixed rollers with the aid of a ratchet and 1⁄2” socket attachment.

CAUTION: Never use oil lubricants as they may damage rollers.

FLOATING ROLLERS With carriage removed from aluminum rails. (see page 18) slide floating rollers into bronze bushings. Replace carriage (see page 24).

CAUTION: Never use oil lubricants as they may damage rollers.

SPRING CLIPS Replace spring clips every 12 months or earlier as needed.

CAUTION: Locking spring clips must be used to attach push-thru springs to the vertical frame from below. Do not use non-locking spring clips.

PADDED SHOULDER RESTS

NOTE: Only shoulder rest pads are shipped for replacement. Loosen bolts on handle frames. remove worn pads. replace with new and tighten bolts.

CARRIAGE STOPPER

NOTE: Only one is needed per Reformer.

Must be in one of the six positions AT ALL TIMES.

SAFETy CHAIN For use with push-thru bar.

57 58

Floating Roller

Bronze Bushing

REFORMER ROPES

RETRACTABLE ROPE SYSTEM: See page 22 for installation.

Replacement Parts CONT’D

FOAM GRIP HANDLES Provide cushioned hand grips for reformer arm work. or attach to light arm springs for use with vertical frame.

EXTENSION STRAPS Used between leg springs and soft reformer loops or padded long spine straps to provide extra length.

PADDED LONG SPINE STRAPS Attach to soft reformer loops to extend the length. Also attach to leg springs for leg work with any vertical frame.

STAR KNOB Found in several locations on all Reformer models.

SOFT REFORMER LOOPS Attach to reformer ropes for arm and leg work.

PLASTIC FOOT For use on Professional and Rehab Reformers.

Reformer Owner’s Manual

Optional Items

FOAM CUSHIONS Available in three sizes. Used for comfort and additional support when performing a wide variety of exercises.

GRIPPER MATS Non-slip rubber mats are handy to increase traction and prevent slipping.

A gripper mat can be wrapped around push-thru bar. roll-down bar. uprights or placed on upholstered bed.

TPE PILATES PADS Non-slip eco-friendly pads can help establish correct alignment and positioning or to provide cushioned support.

MAT CONVERTER The addition of a mat converter creates a safe. stable surface for matwork or vertical frame work.

Installing the Mat Converter

ACCESSORy BOARDS Accessory boards can be added to further increase exercise options. Currently available:

Installing accessory boards

HIGH TRACTION REFORMER FEET High traction reformer feet provide superior grip on all types of floor surfaces during high energy exercises when using the Cardio-Tramp Rebounder or the Jumpboard.

Available with or without wheels. Sold in sets of two. To upgrade an existing reformer. four feet are required.

MAPLE & METAL ROLL-UP POLE Provides added scapular awareness. (sold separately)

DOUBLE LOOP STRAPS Conveniently switch from arm work to leg work without having to detach straps.

ANKLE STRAPS

FOOTSTRAP

INCLUDED WITH REFORMER BOx PURCHASE The footstrap is used to secure the feet during most “short box” exercises.

Attaching the footstrap

Optional Items CONT’D

REFORMER BOX Reformer boxes are used to facilitate or vary exercises. There are a range of exercises in the Reformer repertoire that require the use of a box.

Positioning the Reformer Box

PADDED PLATFORM EXTENDER This accessory extends the wooden standing platform and can accommodate a variety of exercises. providing added comfort and safety. It can also be used on the carriage for seated exercises.

Installing the padded platform extender

Reformer Owner’s Manual

CAUTION

STOP! Before getting on. ensure that the carriage stopper is inserted and at least one spring is securely attached to the gearbar!

IMPROPER USE OF ExERCISE EQUIPMENT MAY CAUSE SERIOUS BODILY INJURY. TO REDUCE RISK. PLEASE READ THE FOLLOWING:

Warranty

MERRITHEW HEALTH & FITNESS REFORMERS Merrithew Health & Fitness warrants that all new equipment is are free of manufacturing defects in workmanship and materials. subject to the terms below. This warranty becomes effective at the invoice date of the original purchase. Parts repaired or replaced under the terms of this warranty will be warranted for the remainder of the original warranty period.

This warranty applies to equipment only:

This warranty does not cover damage to the finish of any Merrithew Health & Fitness equipment. or shipping charges. customs clearance fees (if applicable) or any costs incurred in installing repaired or replacement parts shipped under the provisions of this warranty.

LIMITED LIFETIME WARRANTy Merrithew Health & Fitness will. at its option. repair or replace any of the parts listed below. provided that the part(s) fail due to a defect in workmanship or materials:

ONE (1) yEAR LIMITED WARRANTy On ropes. straps. spring clips. plastic pulley bar receptacle sleeves. non-skid tape on footbar. comfort footbar. carriage stopper and plastic reformer feet. We recommend that spring clips (including those attached to traditional-style ropes) be changed annually.

TWO (2) yEAR LIMITED WARRANTy Merrithew Health & Fitness will. at its option. repair or replace all other components. including molded spring holder. that fail for any reason. provided such failure is reported to Merrithew Health & Fitness within a period of two years from the invoice date of the original purchase.

90-DAy FABRIC WARRANTy The vinyl fabric upholstery and spring sleeves will be replaced if it fails to give normal wear for 90 days after delivery. Proof of damage may be required. This warranty does not cover cuts. burns. stains. soiling. pet damage or damage caused by other unreasonable use. This warranty does not apply to fabrics cleaned with abrasive. corrosive or chemical cleansers. If the identical fabric is not available. Merrithew Health & Fitness will provide an equivalent fabric.

DISCLAIMER OF IMPLIED WARRANTIES AND LIMITATION OF REMEDIES Repair or replacement of defective parts is your exclusive remedy under the terms of this limited warranty. In the event of parts availability issues.

Merrithew Health & Fitness will not be responsible for any consequential or incidental damages arising from the breach of either this limited warranty or any applicable implied warranty. or for failure or damage resulting from acts of nature. improper care and maintenance. accident. alteration. replacement of parts by anyone other than Merrithew Health & Fitness. misuse. transportation. abuse. hostile environments (inclement weather. acts of nature). improper installation or installation not in accordance with local codes or printed instructions.

Neither dealers. web resellers. nor the retailers selling this product have any authority to make any additional warranties or to promise remedies in addition to or inconsistent with those stated above. Merrithew Health & Fitness maximum liability. in any event. shall not exceed the purchase price of the product paid by the original purchaser.

Choose from a variety of cutting-edge DVD titles

Increase your expertise with Reformer instruction.

Expand your Repertoire

Contact Us Today: visit merrithew.com or call toll-free North America 1-800-910-0001

United Kingdom 0800-328-5676 or International +1-416-482-4050

A step-by-step exercise guide for the reformer repertoire can be downloaded by visiting merrithew.com/guide

Reformer Guides & Charts

2200 yonge Street. Suite 500. toronto. ON. M4S 2c6 416-482-4050 416-482-2742 [email protected] merrithew.com

Please keep this manual in a safe place.

IMPORTANT

P00179-01 2082B-2 JULy 12 /® Trademark or registered trademark of Merrithew Corporation. used under license. Printed in Canada. All rights reserved. *US Patent No. 7857736. 5792033. 2179793 and other US and foreign patents pending.



Newest Added: ST01090

Merrithew ST01085 | Pages: 32 | Created on: 2015-03-30 | File type: PDF | Filename: 11867788_st01085.pdf | Size: 2.37 MB | Language: English | Other documents: 1 files.

Download User Manual

Product Infomation and Reviews - ST01085 photo

ST01085 Photo

T: @manualsFile

https://manualsFile.com

Merrithew ST01085 Questions and Answers


Merrithew

Merrithew

Owner manual PDF of ST01085 Merrithew.

Use manuals file type: PDF. Merrithew

Related Products
