Sku Number: 346-2526
Indoor/ Outdoor Light Fixture
Questions, problems, missing parts?
Before returning to your retailer, call our customer service
at 1-800-267-4427 Monday – Friday 8:00 a.m. – 5:00 p.m. EST
PACKAGE CONTENTS
HARDWARE CONTENTS Note: Hardware not shown actual size.
AA
BB
CC
DD
EE
FF
GG
12-17
4
CARE AND MAINTENANCE
• To clean, turn off and wipe with a damp, non-abrasive cloth.
• When cleaning, use only a soft brush or lint free cloth to avoid scratching the finish.
• Abrasive cleaning agents are not required and should be avoided to prevent damage
to finish.
TROUBLESHOOTING
1) The light does not come on at all:
a) Make sure the wall switch and circuit breaker are on.
b) Make sure the wiring is correct.
2) Fuse blows or circuit trips when light is turned on.
a) Check for crossed wires, ensure wiring is correct.
If unable to fix any of the above issues, please consult a certified electrician.
Questions, problems, missing parts?
Before returning to your retailer, call our customer service
at 1-800-267-4427 Monday – Friday 8:00 a.m. – 5:00 p.m. EST
5-YEAR LIMITED WARRANTY: If, during normal use, this PATRIOT LIGHTING
®
light fixture fails due to a defect in material and workmanship within five (5) years
from the date of purchase, simply bring this light fixture with your original sales
receipt back to your nearest MENARDS
®
retail store. At its discretion, PATRIOT
LIGHTING
®
agrees to have the lighting fixture replaced with the same or similar
PATRIOT LIGHTING
®
product free of charge, within the stated warranty period,
when returned by the original purchaser with original sales receipt. This warranty:
(1) excludes expendable parts including but not limited to light bulbs; (2) does not
cover damage that has resulted from abuse or misuse; and (3) does not cover any
losses, labor, injuries to persons/property or costs. This warranty does give you
specific legal rights and you may have other rights, which vary from state to state.
ASSEMBLY INSTRUCTIONS (continued)
See table below for some options.
Pattern Table
Brightness+
Brightness- OFF ON
Static red Static green Static blue Static white
Static rose Static light green Static sapphire blue 3 colors jump
Static orange Static green blue Static violet and grey 3 colors gradual
Static light
yellow
Static sky blue
Static brown and
purple
7 colors gradual
Static yellow
Static cyan
Static purple
7 colors jump
Connector
x 1
Connector with cord
x 1
Transformer
(60” cord with on/off switch)
x 1
Dimmer
x 1
Remote control
x 1
Mounting clip
x 12
Screw
x 26
2
3
DD
EE
ASSEMBLY INSTRUCTIONS
1. MEASURE – and lay-out the installation
prior to removing the backing exposing the
adhesive. Ensure mounting surface is clean
and free of any debris or residue.
IMPORTANT SAFETY INSTRUCTIONS
PREPARATION
Please read and understand this entire manual before attempting to assemble,
operate or install the product. Please save this instruction manual.
WARNING
• Risk of electric shock: turn power off before servicing - see instructions.
• This luminaire must be installed in dry location only and in open fixtures only.
• CAUTION - To reduce the risk of fire, do not install more than 2 luminaires in
compartment smaller than 12 inches by 12 inches by 12 inches.
• Use only insulated staples or plastics ties to secure cord;
• Route and secure cords so that they will not be pinched or damaged when the
cabinet is pushed to the wall;
• Position the portable cabinet light with respect to the cabinet so the lamp
replacement markings are able to be read during relamping.
• Not intended for recessed installation in ceilings, or recessed installation in soffits.
• The National Electrical Code (NEC) does not permit cords to be concealed
where damage to insulation may go unnoticed. To prevent fire danger, do not run
cord behind walls, ceilings, soffits, or cabinets where it may be inaccessible for
examination. Cords should be visually examined periodically and immediately
replaced when any damage is noted.
• This product is not a toy. Do not store or leave this luminaire in a location
accessible to young children.
• Do not install this luminaire in a heat-producing appliances.
•
Risk of fire hazard, only connect a maximum of a TOTAL length to the following Adapter.
CAUTION
Before beginning assembly, installation or operation of product, make sure all parts
are present. Compare parts with package contents list and diagram on previous page.
If any part is missing or damaged, do not attempt to assemble, install or operate the
product. Contact customer service for replacement parts.
Tools Required for Assembly (not included): Screwdriver, Phillips Screwdriver, Pliers,
Electrical Tape, Wire Cutters, Safety Glasses, Ladder, Wire Stripper
Menards sku #
Adapter Model
Maximum TOTAL length
346-2526
TP06-120200W
13.1 feet (4 meter)
• Ensure NOT to exceed the above maximum (loading) total length before
adding any accesories.
• If this unit is installed in an outdoor location, the transformer (driver) must
be installed using an outdoor electrical box and fully covered by an outdoor
in use cover certified for wet location.
•
Remove batteries to prevent product damage when the product is not used for long period of time.
• Batteries must be insert in correct position
• Do not throw batteries into fire or expose them to excess heat.
• This luminaire includes an adapter that is only designed for use with this luminaire.

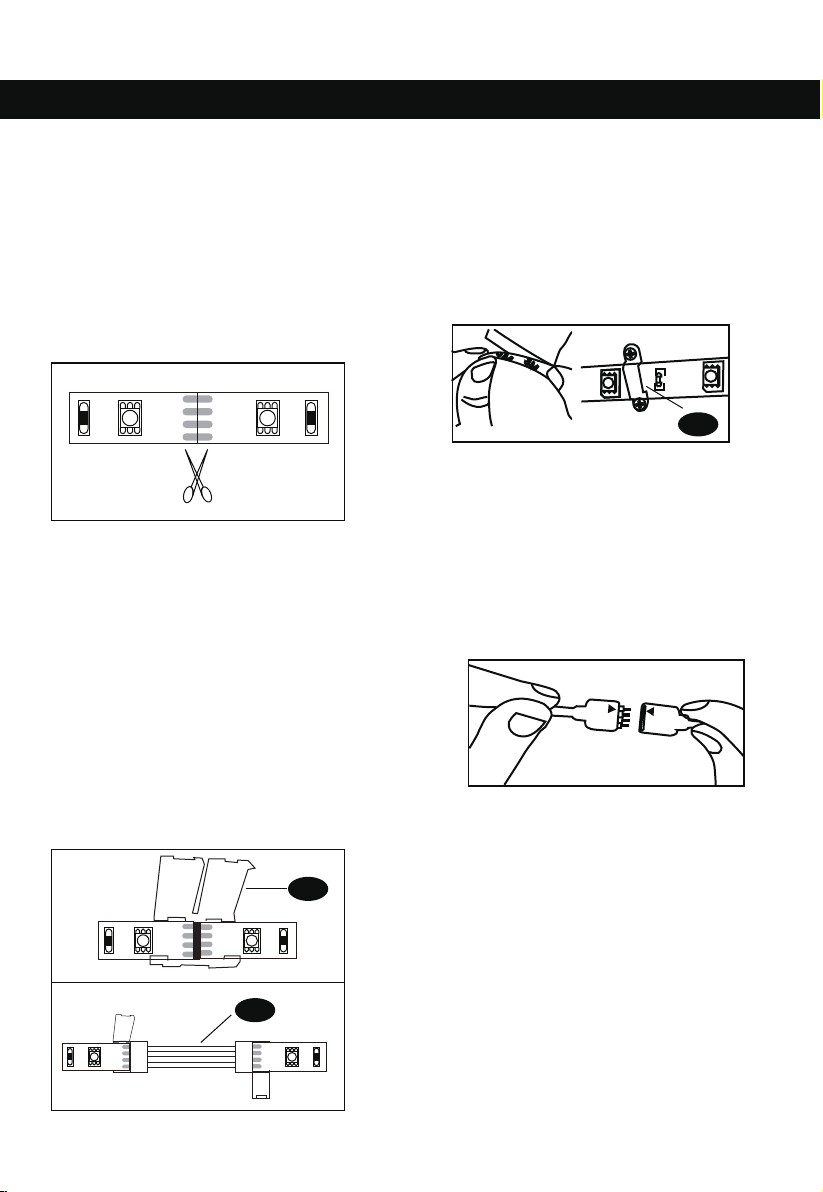

2. IF CUTTING – Use a pair of sharp scissors
to cut the tape at the flat welding plate along
the line, as indicated (avoid the bulge tin
welding plate). Every 3 LED’s in group is
cuttable.
+12V
G
R
B
+12V
G
R
B
3. CONNECT–use the connector to connect
the strip. Insert the end of the strip and make
sure the flat welding plate is well inserted
into the connector.
Accessories sold separately
Flexible Tape Connector / Cord connectors -
to connect the strip
Option 1 : Direct connect
Option 2 : Connect the strip with cord connectors.
Flexible Tape Extension -
For areas where no-light is required
Import Note: When connecting the tapes,
ensure "+" (anode) sign are matching with
each other.
+12V
G
R
B
+12V
G
R
B
+12V
G
R
B
+12V
G
R
B
Option 1
Option 2
4. MOUNT – Remove the backing to expose
adhesive tape. Place in the desired location.
To obtain optimum adhesion,ensure the
surface is clean. Mounting clips (FF) are also
provided for extra support.
5. CONNECT – Ensure the plug is polarized.
Connect the power feed cable assembled on
the tape to the RGB Dimmer Control. Then
connect the Dimmer Control to the power
supply cord and plug in. RGB Dimmer Control
must be placed in a dry location. Use the two
screws to hold the Dimmer Conrol in place.
POLARIZED
Turn on switch in cord, now your remote is
ready to use.
To use the RGB Remote Control make sure
you are no more than 8 metres away from
dimmer. The RGB Remote Control is capable
of many colour changing effects.
(flashing, strobe flash, fade, smooth etc.)
FF
2
3
DD
EE
ASSEMBLY INSTRUCTIONS
1. MEASURE – and lay-out the installation
prior to removing the backing exposing the
adhesive. Ensure mounting surface is clean
and free of any debris or residue.
IMPORTANT SAFETY INSTRUCTIONS
PREPARATION
Please read and understand this entire manual before attempting to assemble,
operate or install the product. Please save this instruction manual.
WARNING
• Risk of electric shock: turn power off before servicing - see instructions.
• This luminaire must be installed in dry location only and in open fixtures only.
• CAUTION - To reduce the risk of fire, do not install more than 2 luminaires in
compartment smaller than 12 inches by 12 inches by 12 inches.
• Use only insulated staples or plastics ties to secure cord;
• Route and secure cords so that they will not be pinched or damaged when the
cabinet is pushed to the wall;
• Position the portable cabinet light with respect to the cabinet so the lamp
replacement markings are able to be read during relamping.
• Not intended for recessed installation in ceilings, or recessed installation in soffits.
• The National Electrical Code (NEC) does not permit cords to be concealed
where damage to insulation may go unnoticed. To prevent fire danger, do not run
cord behind walls, ceilings, soffits, or cabinets where it may be inaccessible for
examination. Cords should be visually examined periodically and immediately
replaced when any damage is noted.
• This product is not a toy. Do not store or leave this luminaire in a location
accessible to young children.
• Do not install this luminaire in a heat-producing appliances.
•
Risk of fire hazard, only connect a maximum of a TOTAL length to the following Adapter.
CAUTION
Before beginning assembly, installation or operation of product, make sure all parts
are present. Compare parts with package contents list and diagram on previous page.
If any part is missing or damaged, do not attempt to assemble, install or operate the
product. Contact customer service for replacement parts.
Tools Required for Assembly (not included): Screwdriver, Phillips Screwdriver, Pliers,
Electrical Tape, Wire Cutters, Safety Glasses, Ladder, Wire Stripper
Menards sku #
Adapter Model
Maximum TOTAL length
346-2526
TP06-120200W
13.1 feet (4 meter)
• Ensure NOT to exceed the above maximum (loading) total length before
adding any accesories.
• If this unit is installed in an outdoor location, the transformer (driver) must
be installed using an outdoor electrical box and fully covered by an outdoor
in use cover certified for wet location.
•
Remove batteries to prevent product damage when the product is not used for long period of time.
• Batteries must be insert in correct position
• Do not throw batteries into fire or expose them to excess heat.
• This luminaire includes an adapter that is only designed for use with this luminaire.
2. IF CUTTING – Use a pair of sharp scissors
to cut the tape at the flat welding plate along
the line, as indicated (avoid the bulge tin
welding plate). Every 3 LED’s in group is
cuttable.
+12V
G
R
B
+12V
G
R
B
3. CONNECT–use the connector to connect
the strip. Insert the end of the strip and make
sure the flat welding plate is well inserted
into the connector.
Accessories sold separately
Flexible Tape Connector / Cord connectors -
to connect the strip
Option 1 : Direct connect
Option 2 : Connect the strip with cord connectors.
Flexible Tape Extension -
For areas where no-light is required
Import Note: When connecting the tapes,
ensure "+" (anode) sign are matching with
each other.
+12V
G
R
B
+12V
G
R
B
+12V
G
R
B
+12V
G
R
B
Option 1
Option 2
4. MOUNT – Remove the backing to expose
adhesive tape. Place in the desired location.
To obtain optimum adhesion,ensure the
surface is clean. Mounting clips (FF) are also
provided for extra support.
5. CONNECT – Ensure the plug is polarized.
Connect the power feed cable assembled on
the tape to the RGB Dimmer Control. Then
connect the Dimmer Control to the power
supply cord and plug in. RGB Dimmer Control
must be placed in a dry location. Use the two
screws to hold the Dimmer Conrol in place.
POLARIZED
Turn on switch in cord, now your remote is
ready to use.
To use the RGB Remote Control make sure
you are no more than 8 metres away from
dimmer. The RGB Remote Control is capable
of many colour changing effects.
(flashing, strobe flash, fade, smooth etc.)
FF
1
Sku Number: 346-2526
Indoor/ Outdoor Light Fixture
Questions, problems, missing parts?
Before returning to your retailer, call our customer service
at 1-800-267-4427 Monday – Friday 8:00 a.m. – 5:00 p.m. EST
PACKAGE CONTENTS
HARDWARE CONTENTS Note: Hardware not shown actual size.
AA
BB
CC
DD
EE
FF
GG
12-17
4
CARE AND MAINTENANCE
• To clean, turn off and wipe with a damp, non-abrasive cloth.
• When cleaning, use only a soft brush or lint free cloth to avoid scratching the finish.
• Abrasive cleaning agents are not required and should be avoided to prevent damage
to finish.
TROUBLESHOOTING
1) The light does not come on at all:
a) Make sure the wall switch and circuit breaker are on.
b) Make sure the wiring is correct.
2) Fuse blows or circuit trips when light is turned on.
a) Check for crossed wires, ensure wiring is correct.
If unable to fix any of the above issues, please consult a certified electrician.
Questions, problems, missing parts?
Before returning to your retailer, call our customer service
at 1-800-267-4427 Monday – Friday 8:00 a.m. – 5:00 p.m. EST
5-YEAR LIMITED WARRANTY: If, during normal use, this PATRIOT LIGHTING
®
light fixture fails due to a defect in material and workmanship within five (5) years
from the date of purchase, simply bring this light fixture with your original sales
receipt back to your nearest MENARDS
®
retail store. At its discretion, PATRIOT
LIGHTING
®
agrees to have the lighting fixture replaced with the same or similar
PATRIOT LIGHTING
®
product free of charge, within the stated warranty period,
when returned by the original purchaser with original sales receipt. This warranty:
(1) excludes expendable parts including but not limited to light bulbs; (2) does not
cover damage that has resulted from abuse or misuse; and (3) does not cover any
losses, labor, injuries to persons/property or costs. This warranty does give you
specific legal rights and you may have other rights, which vary from state to state.
ASSEMBLY INSTRUCTIONS (continued)
See table below for some options.
Pattern Table
Brightness+
Brightness- OFF ON
Static red Static green Static blue Static white
Static rose Static light green Static sapphire blue 3 colors jump
Static orange Static green blue Static violet and grey 3 colors gradual
Static light
yellow
Static sky blue
Static brown and
purple
7 colors gradual
Static yellow
Static cyan
Static purple
7 colors jump
Connector
x 1
Connector with cord
x 1
Transformer
(60” cord with on/off switch)
x 1
Dimmer
x 1
Remote control
x 1
Mounting clip
x 12
Screw
x 26
