OUTDOOR KITCHEN
INSTALLATION MANUAL
1
2
Surface Inspection & Marking

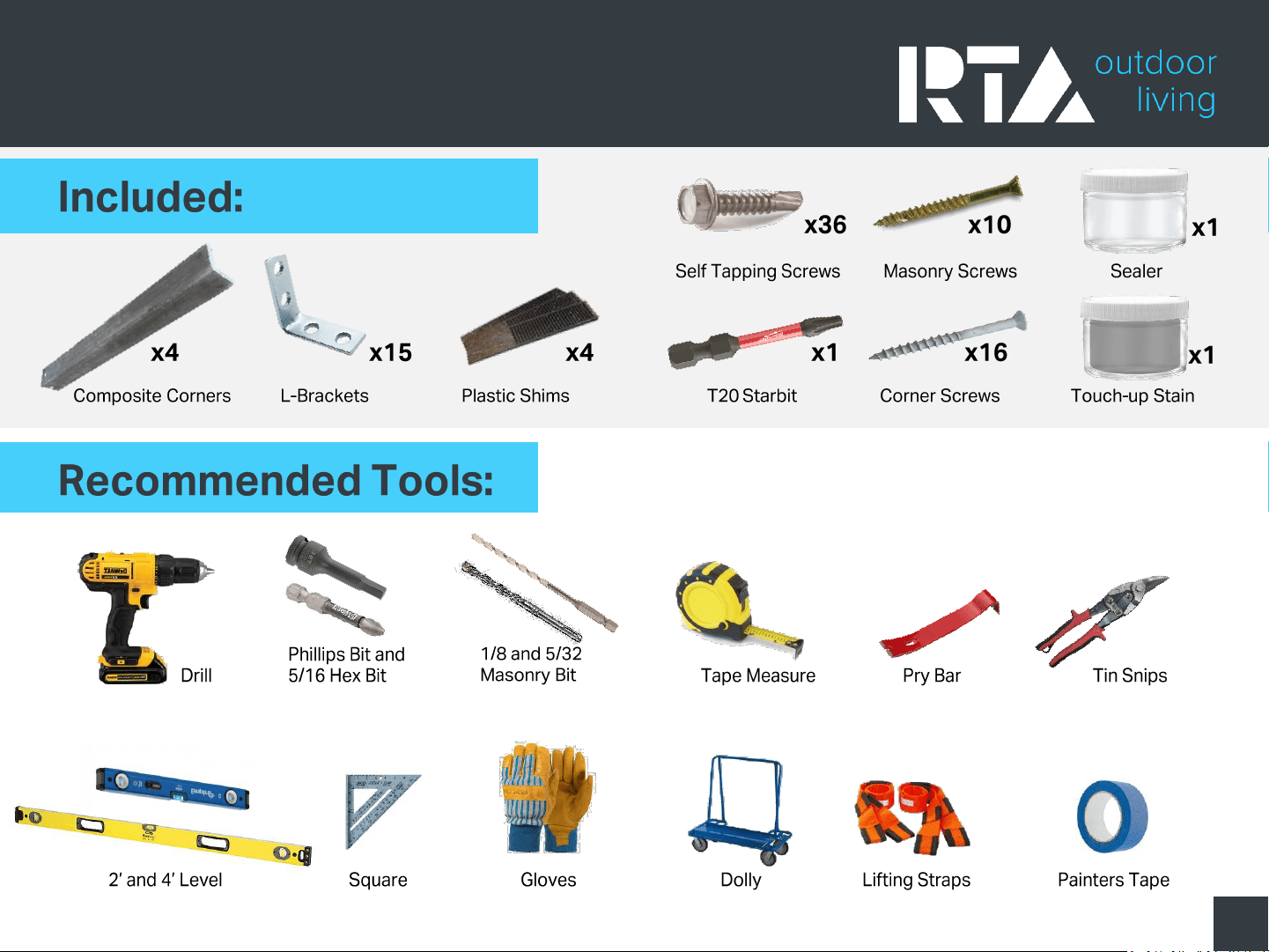

Tools Recommended
for this Step:
c
2

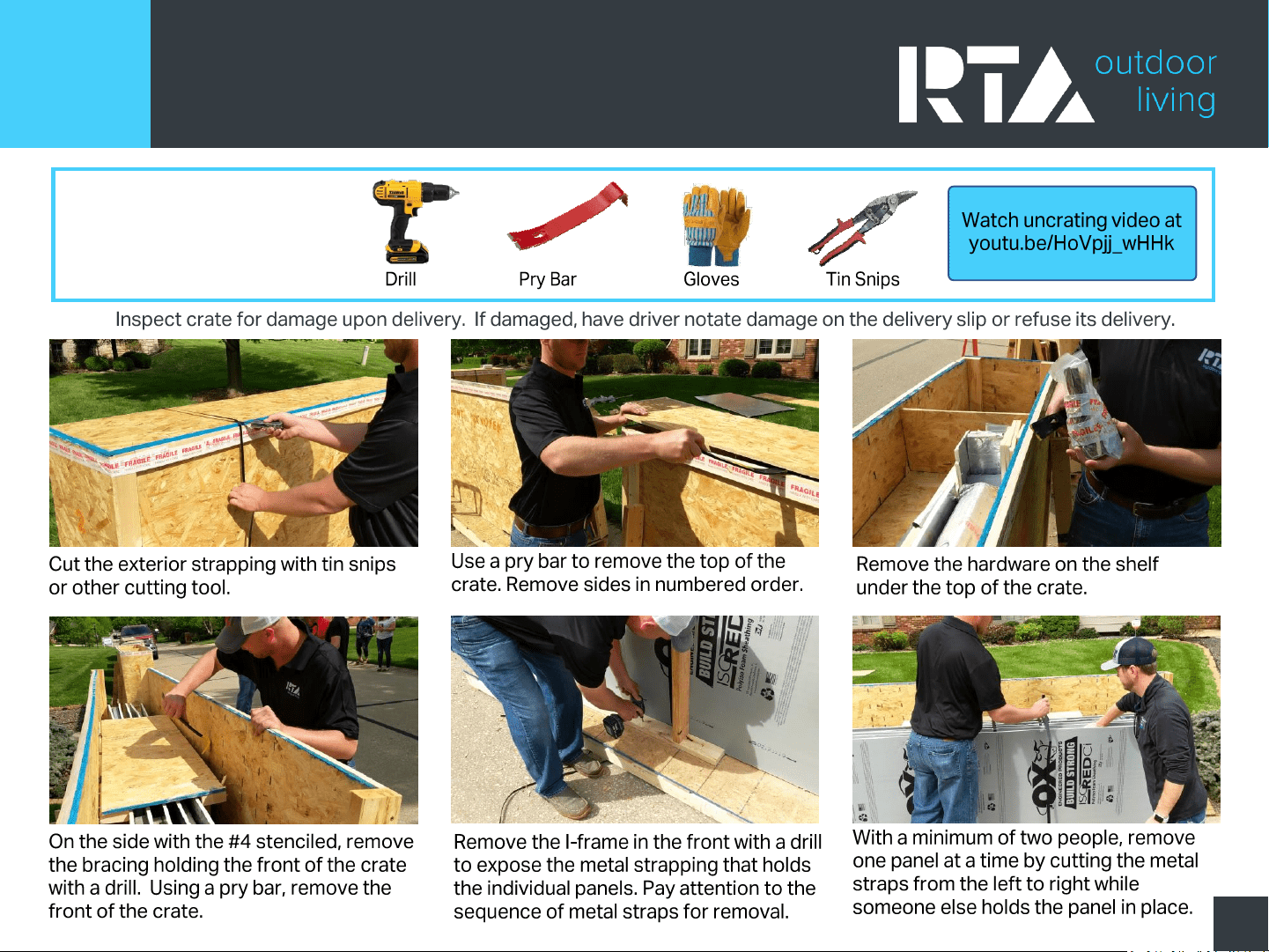

Receiving & Uncrating
Tools Recommended
for this Step:
3
1
2
3
4
5
6
c
3

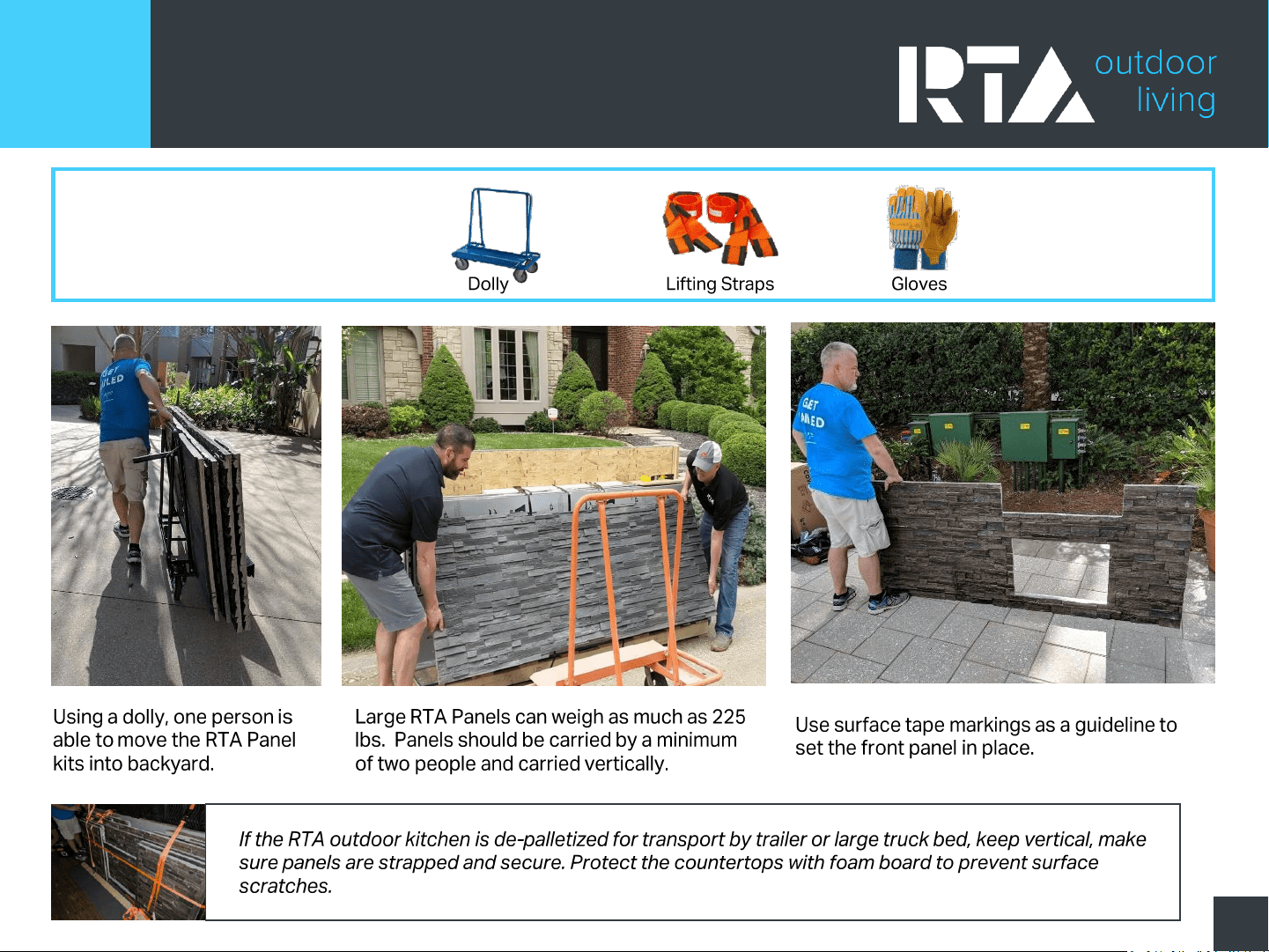

Handling Panels
4
Tools Recommended
for this Step:
c
Alignment channels will not always
line up perfectly. Having the panels flat &
flush with patio is more important than the
alignment tubes being perfectly aligned .
4

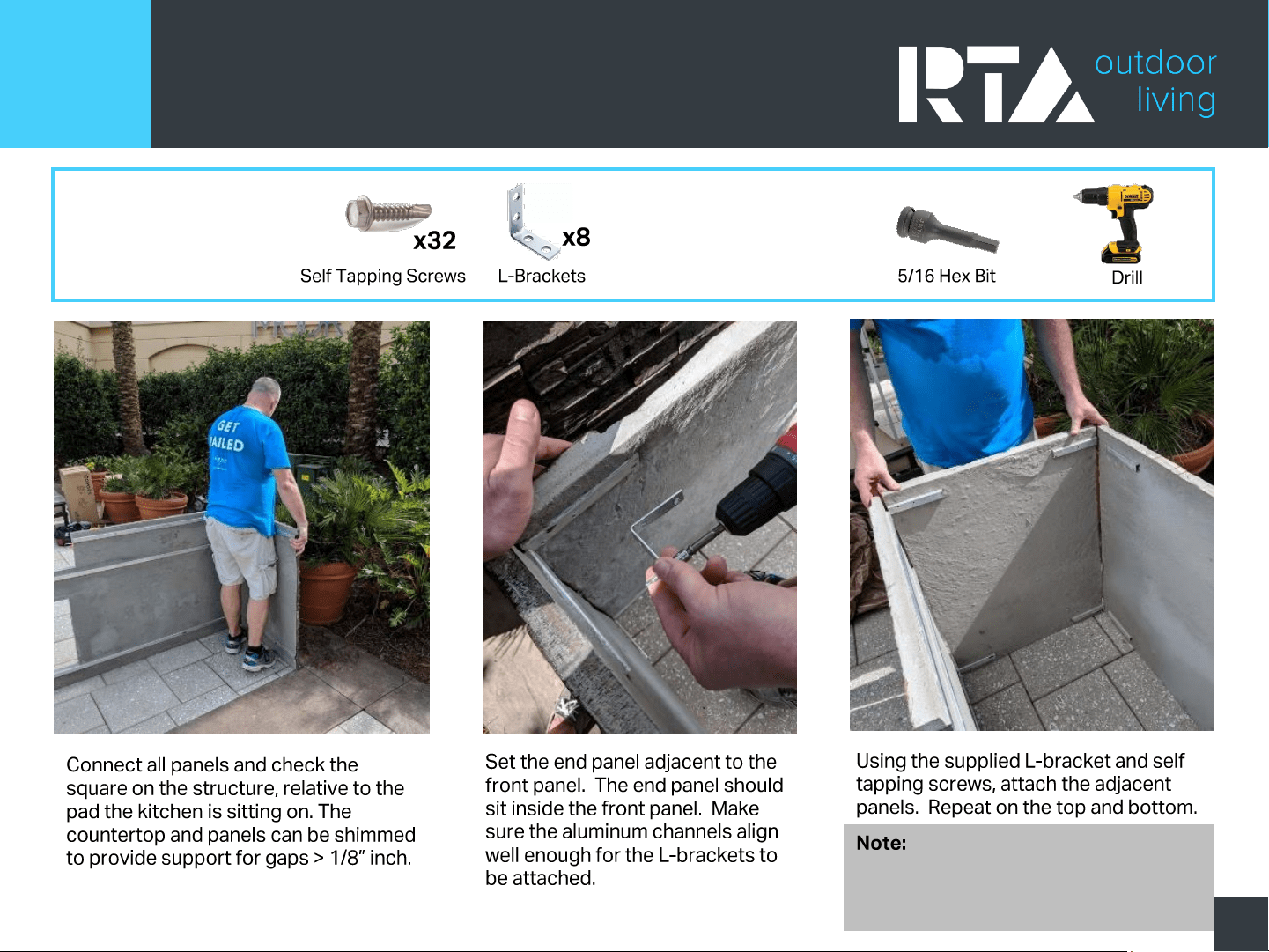

Setting & Connecting Panels
5
Tools Needed
for this Step:
Hardware Needed
for this Step:
c

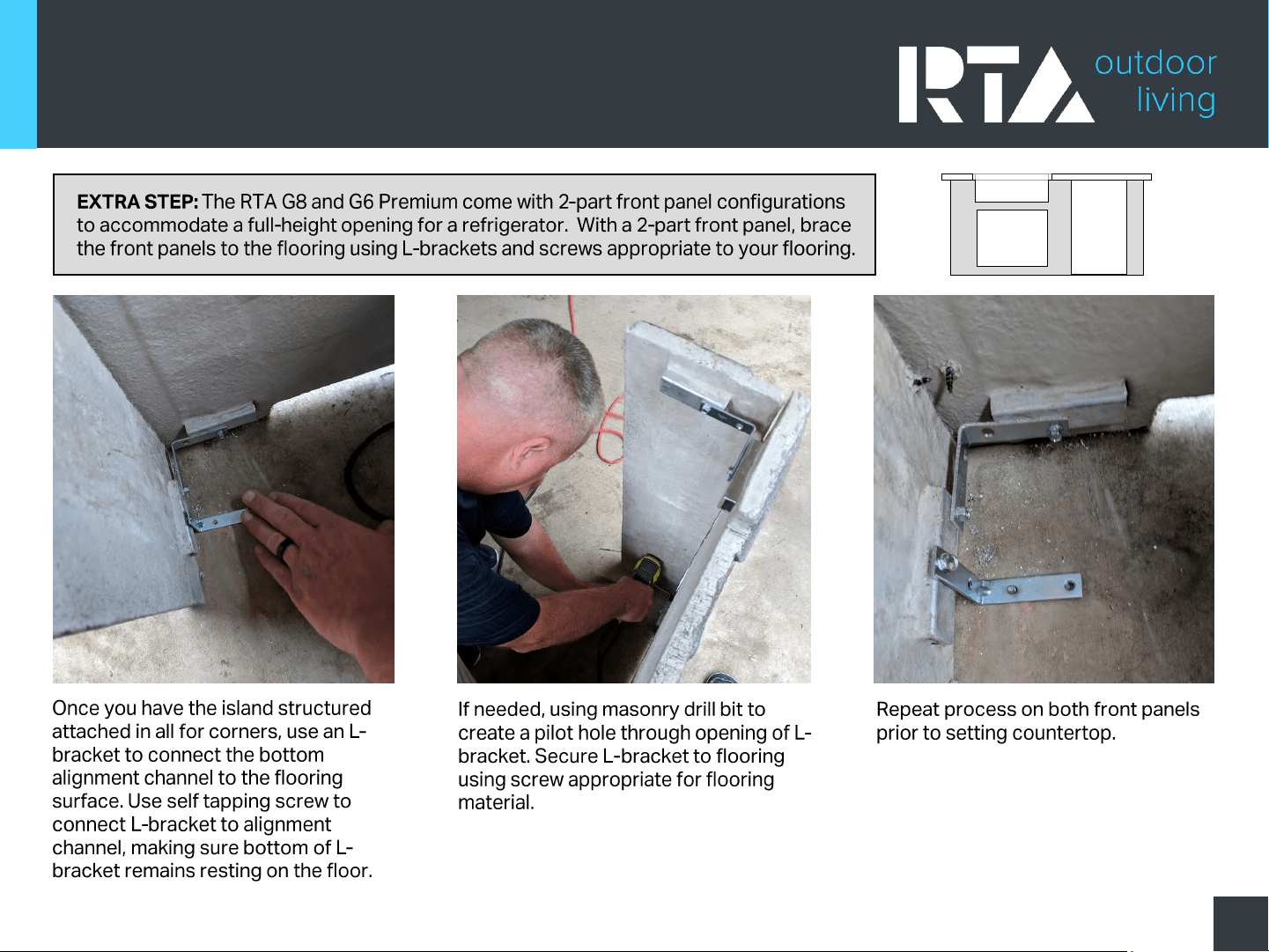

G8 & G6P Bracing Front Panel
6
1
2
Corner pieces are not
structural and do not need to be
flush with the top of the panel, as
they are only cosmetic.
7

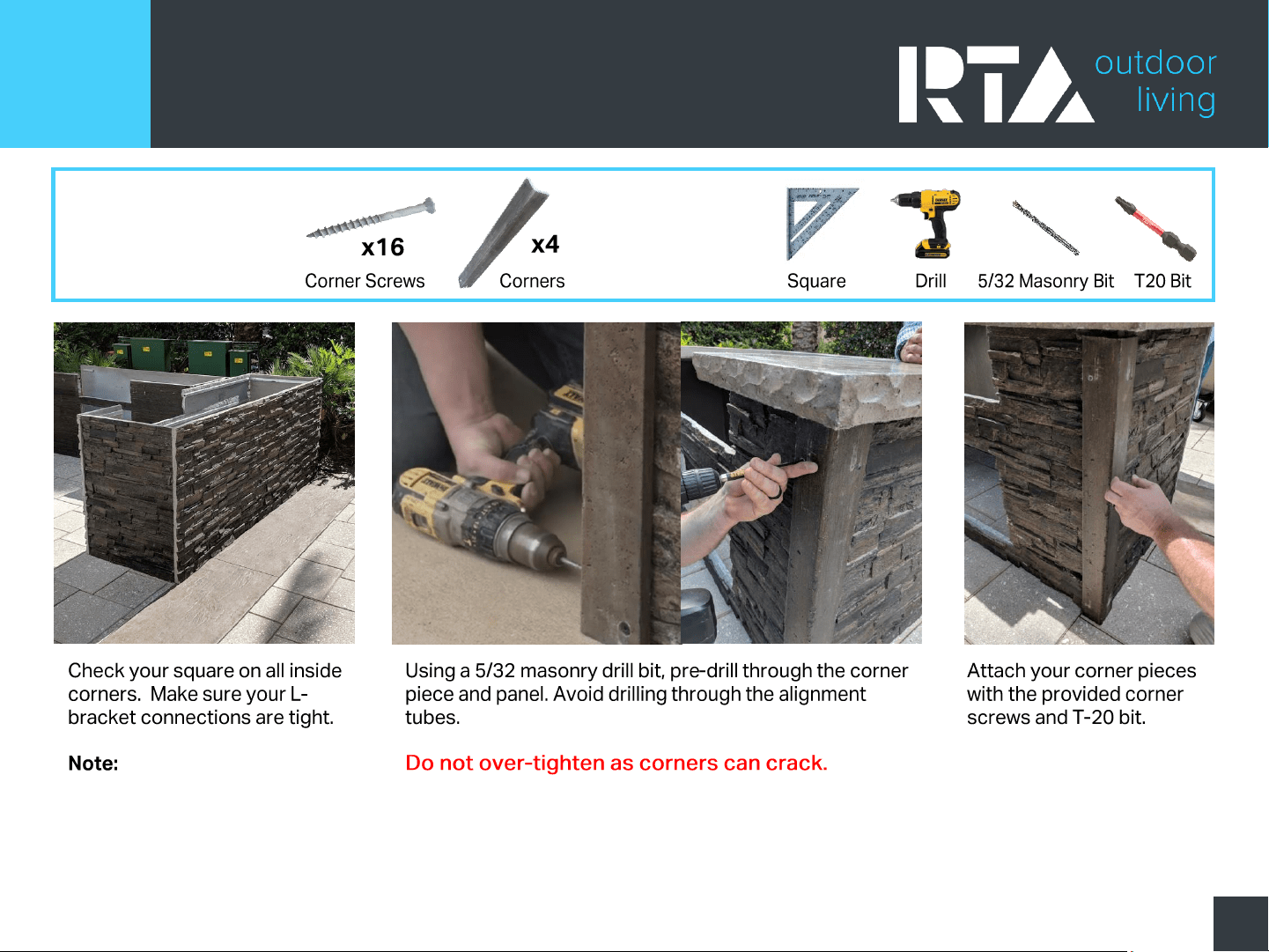

Square & Add Corners
5
Tools Needed
for this Step:
Hardware Needed
for this Step:
c

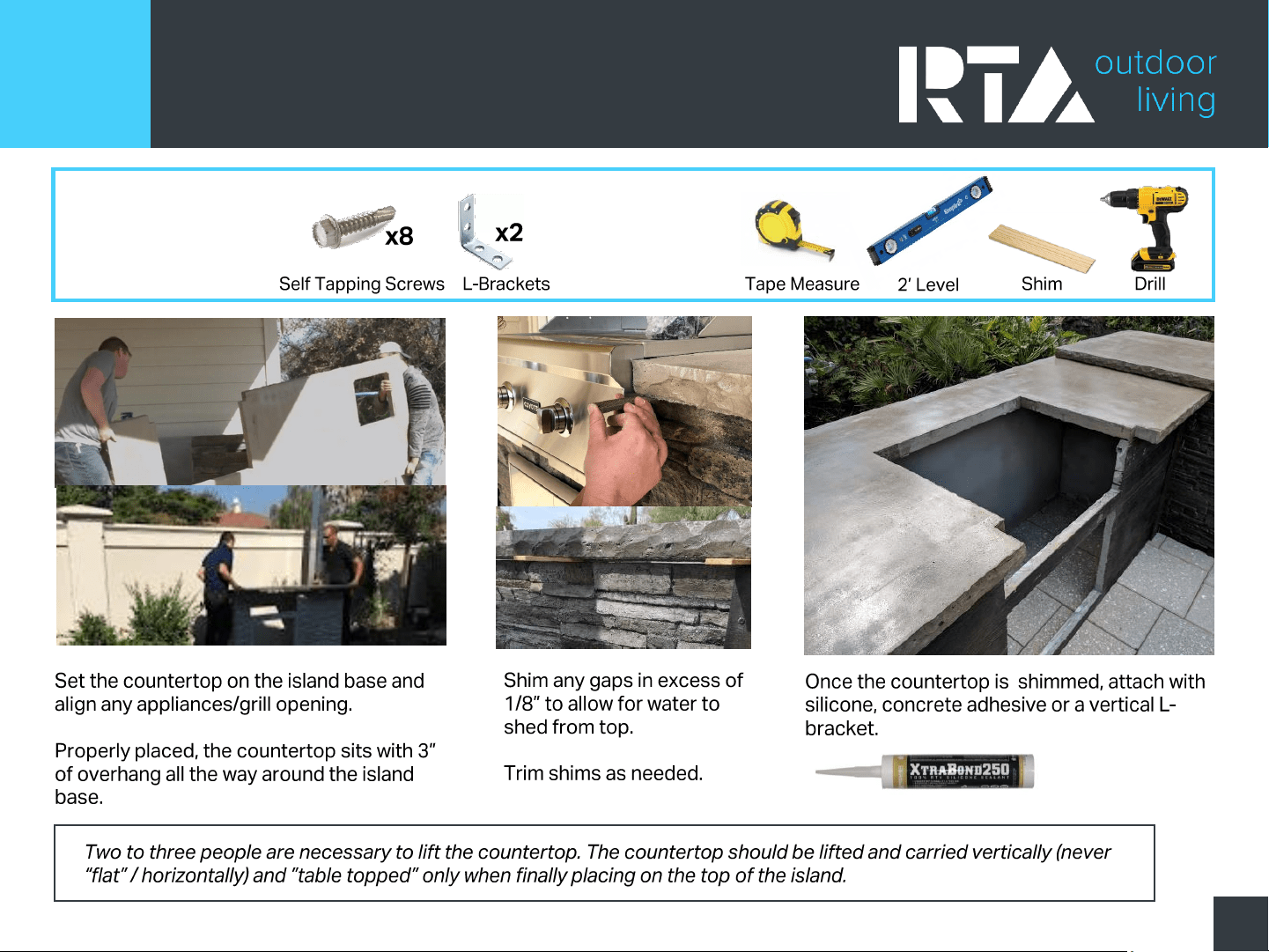

Set & Level Countertop
6
8
Tools Needed
for this Step:
Hardware Needed
for this Step:
c

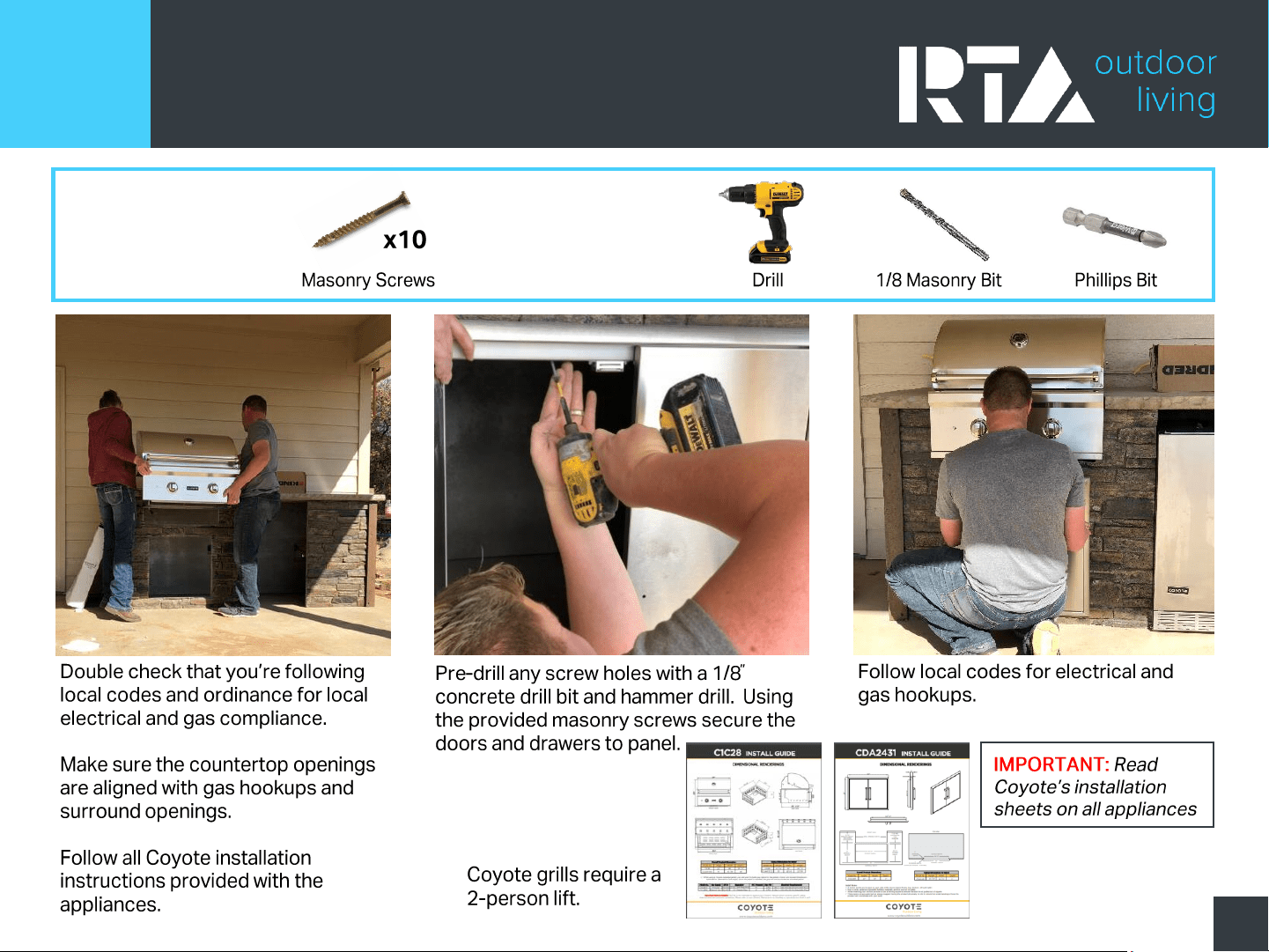

Installing Grill & Appliances
7
Tools Needed
for this Step:
9
Hardware Needed
for this Step:
c
10

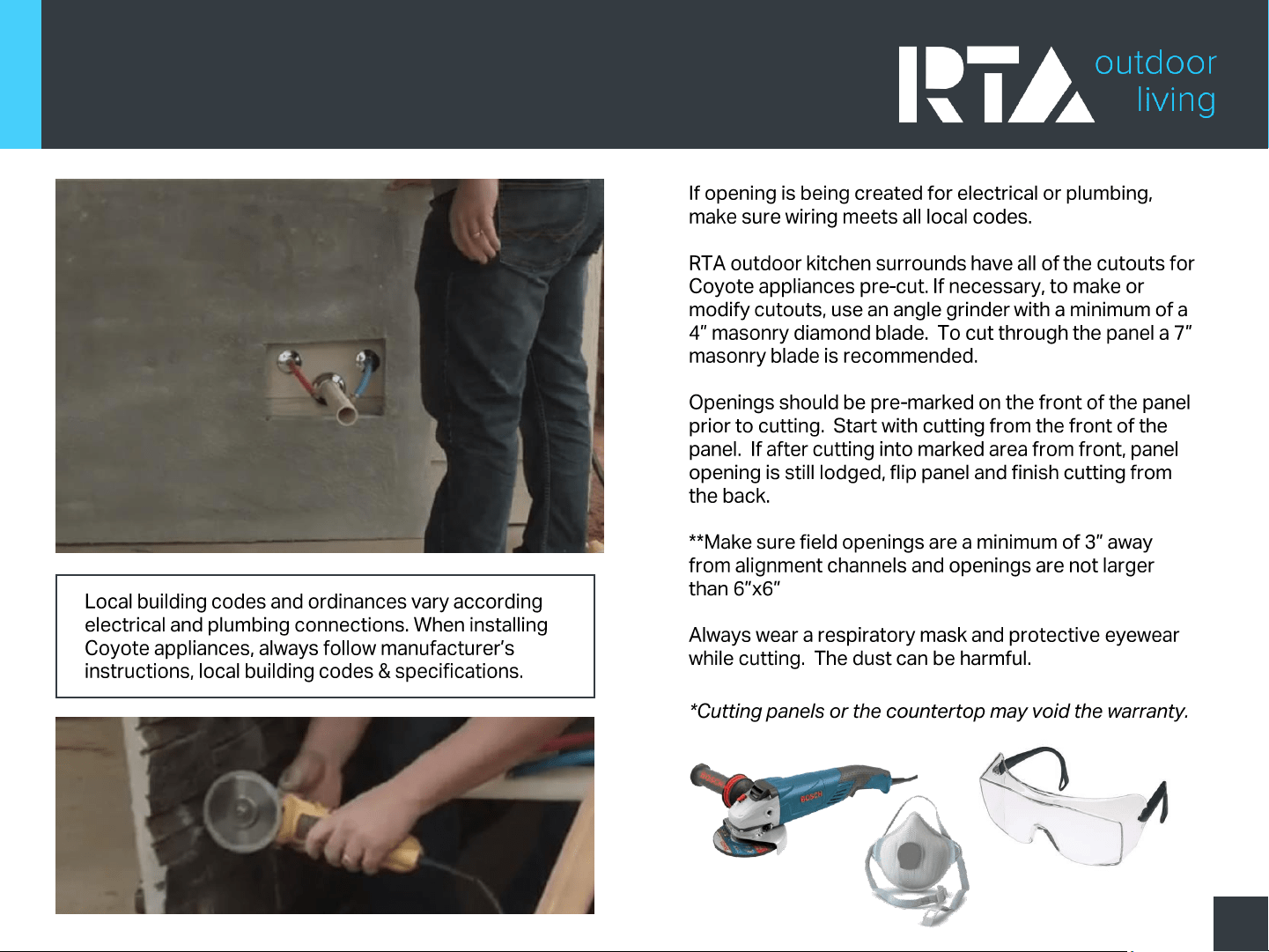

Gas, Plumbing & Electrical / Cutting Panels

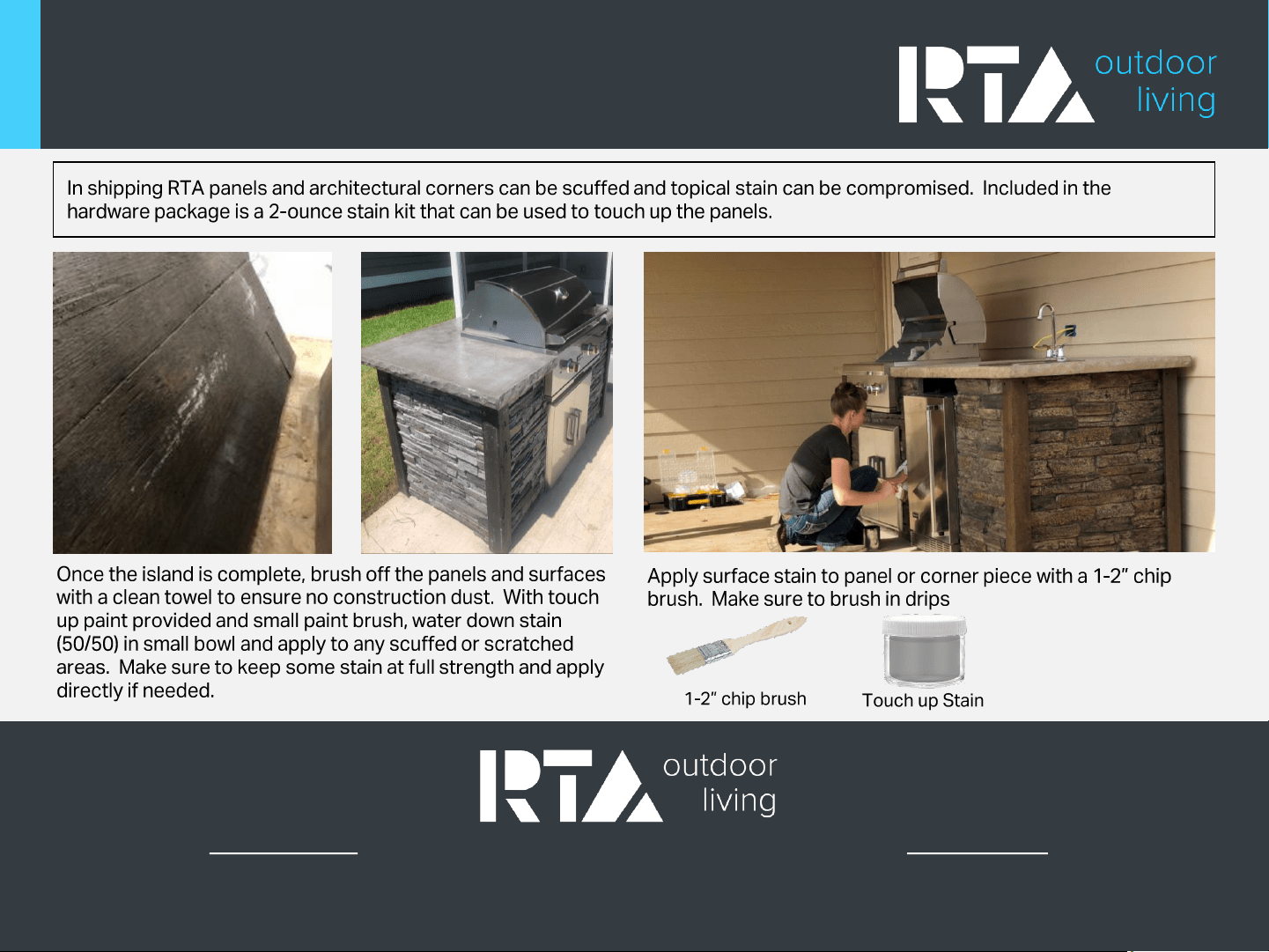

Touch up and Maintenance
