Viking G5056SCVI Miele G5000 Series 24 Inch Panel Ready User Manual

Operating Instructions

Dishwasher

To prevent accidents and machine damage, read these instructions

before installation or use.

en-US M.-Nr. 11 694 080HG07

Contents

IMPORTANT SAFETY INSTRUCTIONS ............................................................ 5

Notes on the operating instructions................................................................ 14

Notes on the layout ............................................................................................. 14

Scope of delivery ............................................................................................... 15

Guide to the appliance...................................................................................... 16

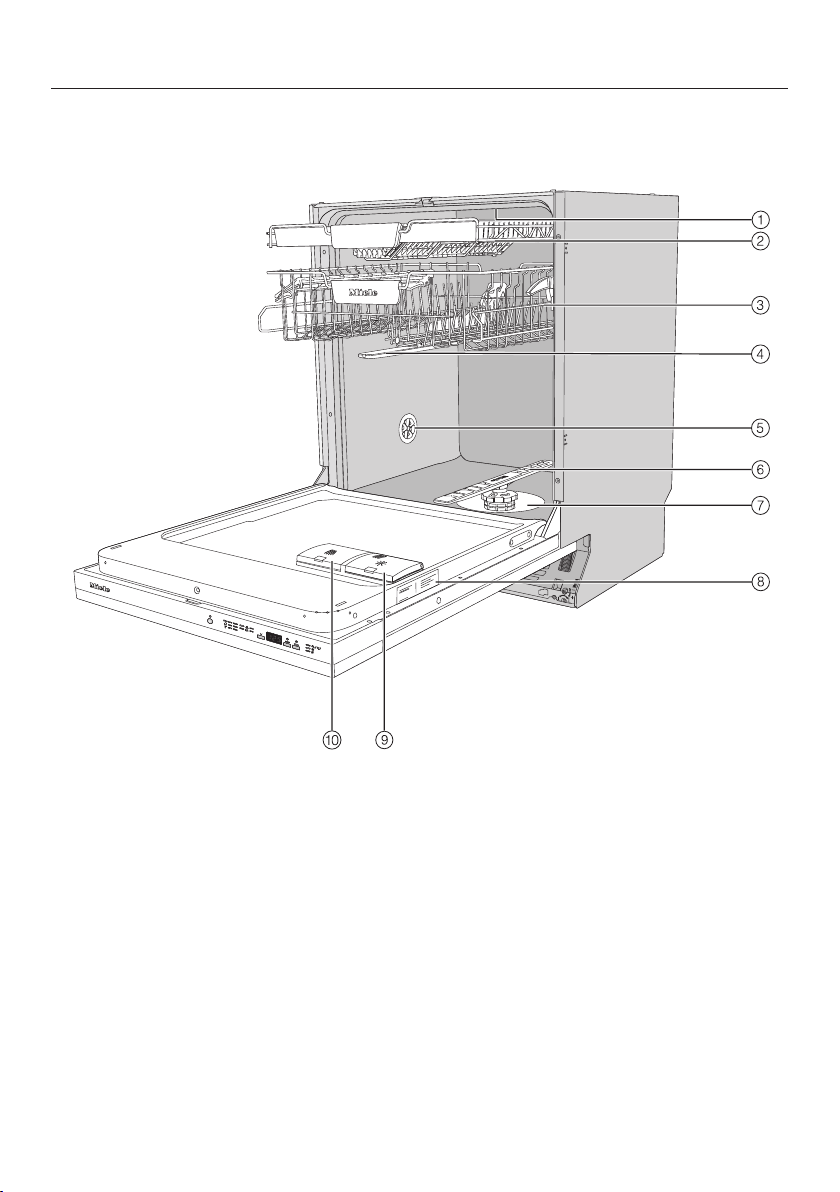

Appliance overview ............................................................................................. 16

Control field......................................................................................................... 17

Caring for the environment .............................................................................. 18

Before using for the first time .......................................................................... 19

Opening the door ................................................................................................ 19

Closing the door.................................................................................................. 19

Rinse aid.............................................................................................................. 20

Adding rinse aid ............................................................................................. 21

Filling the rinse-aid reservoir .......................................................................... 22

Caring for the environment .............................................................................. 23

Energy-saving dishwashing................................................................................. 23

Loading the dishwasher.................................................................................... 24

General information............................................................................................. 24

Loading examples ............................................................................................... 26

Upper basket....................................................................................................... 30

Adjusting the upper basket ................................................................................. 32

Lower basket....................................................................................................... 33

Cutlery tray/cutlery basket (depending on model) .............................................. 34

Loading the cutlery tray.................................................................................. 34

Loading the cutlery basket............................................................................. 35

Detergents ......................................................................................................... 36

Active ingredients ............................................................................................... 36

Detergent dispensing .......................................................................................... 37

Adding detergent................................................................................................. 38

Operation............................................................................................................ 39

Turning on the dishwasher .................................................................................. 39

Selecting a program ............................................................................................ 39

Display of program duration................................................................................ 40

Starting a program .............................................................................................. 40

End of program.................................................................................................... 41

Energy management ........................................................................................... 41

Contents

Turning off the dishwasher .................................................................................. 42

Unloading the dishwasher................................................................................... 42

Interrupting a program......................................................................................... 43

Canceling or changing a program ....................................................................... 43

Options ............................................................................................................... 44

Timer .............................................................................................................. 44

Program overview ............................................................................................. 46

Program options................................................................................................ 48

Express........................................................................................................... 48

Audible signals .................................................................................................... 49

Turning off the refill reminders ............................................................................. 50

Extra clean........................................................................................................... 51

Extra Dry.............................................................................................................. 52

Factory defaults................................................................................................... 53

Cleaning and care ............................................................................................. 54

Cleaning the wash cabinet .................................................................................. 54

Cleaning the door and the door seal................................................................... 55

Cleaning the control panel .................................................................................. 55

Cleaning the front of the machine ....................................................................... 55

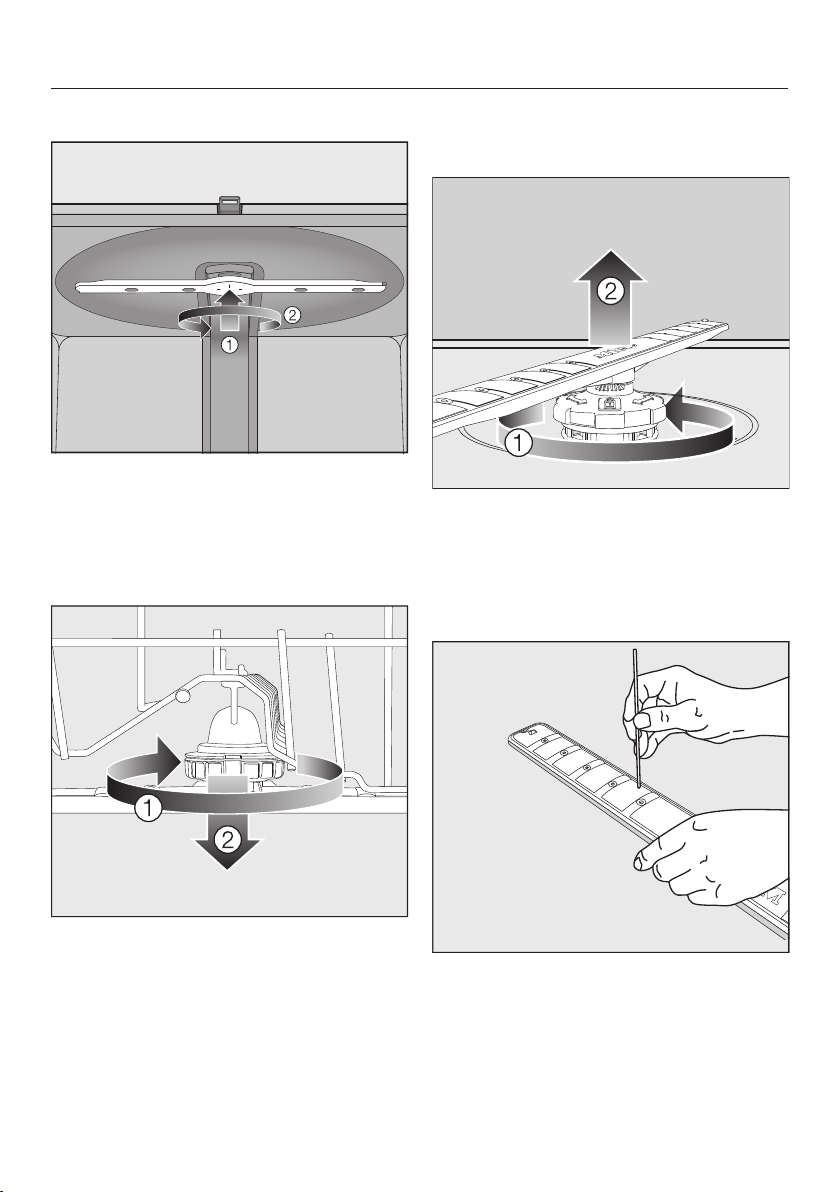

Cleaning the spray arms...................................................................................... 56

Checking the filters in the wash cabinet ............................................................. 59

Cleaning the filters............................................................................................... 59

Cleaning the drain pump..................................................................................... 61

Frequently Asked Questions ............................................................................ 63

Technical faults.................................................................................................... 63

Fault messages ................................................................................................... 64

Water intake fault................................................................................................. 65

Water drainage fault ............................................................................................ 66

General dishwasher problems............................................................................. 67

Noises.................................................................................................................. 68

Poor cleaning results........................................................................................... 69

Customer Service.............................................................................................. 72

Contact in the event of a fault ............................................................................. 72

EPREL database ................................................................................................. 72

Appliance warranty and product registration ...................................................... 72

Optional accessories ........................................................................................ 73

Contents

Installation.......................................................................................................... 75

Water intake ........................................................................................................ 75

Water drainage .................................................................................................... 77

Electrical connection ........................................................................................... 79

Sound emission testing .................................................................................... 81

IMPORTANT SAFETY INSTRUCTIONS

This dishwasher complies with all current local and national safety

requirements. Inappropriate use can, however, lead to personal in-

jury and material damage.

Please observe the installation sheet and read the operating in-

structions carefully before setting up the dishwasher and using it

for the first time. They both contain important information on the

installation, safety, use, and maintenance of the machine. This pre-

vents both personal injury and damage to the dishwasher.

Miele expressly and strongly advises that you read and follow the

instructions in the section on installing the dishwasher as well as

the IMPORTANT SAFETY INSTRUCTIONS.

Miele cannot be held liable for injury or damage caused by non-

compliance with these instructions.

Keep the installation sheet and the operating instructions in a safe

place and pass them on to any future owner.

IMPORTANT SAFETY INSTRUCTIONS

Appropriate use

 This dishwasher is intended for use in domestic households and

similar residential environments.

 This dishwasher is not suitable for outdoor use.

 This dishwasher is intended for use at altitudes of up to 13,000ft

(4,000m) above sea level.

 This dishwasher must only be used for cleaning domestic dishes

and cutlery. All other types of use are not permitted.

 This appliance is not intended for use by persons (including chil-

dren) with reduced physical, sensory or mental capabilities, or lack

of experience and knowledge.

IMPORTANT SAFETY INSTRUCTIONS

Safety with children

 Children must be kept away from the dishwasher unless they are

constantly supervised.

 Children may only use the dishwasher without supervision if they

have been shown how to use it in a safe manner. Children must be

able to understand and recognize the possible dangers caused by

incorrect operation.

 Children must not be allowed to clean or maintain the appliance.

 Children should be supervised in the vicinity of the dishwasher.

Never allow children to play with the dishwasher. There is a danger

that children might shut themselves in the dishwasher.

 If the automatic door opening mechanism is active (depending on

the model), keep young children away from the area in which the

door opens.

 Danger of suffocation. While playing, children may become entan-

gled in packaging material (such as plastic wrapping) or pull it over

their head with the risk of suffocation. Keep packaging material away

from children.

 Keep children away from detergents. Detergents cause severe

skin burns and severe eye damage. They can cause burning in the

mouth and throat, or inhibit breathing. It is therefore important to

keep children away from the dishwasher when the door is open. De-

tergent residues could still be present in the machine. Seek medical

advice immediately if a child has swallowed or inhaled any deter-

gents.

IMPORTANT SAFETY INSTRUCTIONS

Technical safety

 Unauthorized installation, maintenance, and repairs can cause

considerable danger for the user. Installation, maintenance, and re-

pairs should only be carried out by a Miele authorized technician.

 Damage to the dishwasher can compromise your safety. Before

using the dishwasher and in particular following transport, check it

for any visible damage. Never use a damaged dishwasher.

 The electrical safety of the dishwasher can only be guaranteed

when correctly grounded. It is most important that this basic safety

requirement is fulfilled. If in doubt, the electrical installation should

be checked by a qualified service technician.

Miele cannot be held liable for the consequences of an inadequate

or lack of grounding system (e.g., electric shock).

 Reliable and safe operation of this dishwasher can only be as-

sured if it has been connected to the power supply.

 Where the dishwasher is plugged into the electricity supply using

a 3-pin plug with a grounding contact, the electrical socket must be

easily accessible after the dishwasher is installed so that it can be

disconnected from the electricity supply at any time.

 There must be no electrical sockets behind the dishwasher be-

cause the building-in niche may be too small. Danger of overheating

and fire risk if the dishwasher were to be pushed up against a plug.

 The dishwasher must not be installed underneath a cooktop. The

high temperatures radiated by cooktops could damage the dish-

washer below. For the same reason, the dishwasher must not be in-

stalled next to open fires or other appliances that give off heat, such

as heaters etc., not normally found in a kitchen.

IMPORTANT SAFETY INSTRUCTIONS

 Ensure that the connection data on the dishwasher’s data plate

(fuse rating, frequency, and voltage) match the electricity supply.

This data must correspond in order to avoid the risk of damage to

the dishwasher. Compare these before connecting the appliance to

the electricity supply. If in any doubt, consult a qualified service

technician.

 Do not connect the dishwasher to the electricity supply until it has

been fully installed and any adjustment has been made to the door

springs.

 The dishwasher may only be operated if the door opening mecha-

nism is working correctly. Otherwise there could be a risk of danger

while the automatic door opening mechanism (depending on the

model) is active.

To check that the door opening mechanism is working correctly:

- The door springs must be evenly adjusted on both sides. They are

correctly adjusted when the door remains stationary when left half

open (approx. 45° opening angle). It is also important that the

door cannot fall open.

- The door locking pins automatically retract when the door opens

at the end of the drying phase.

 Power bars and extension cords do not guarantee the required

safety of the appliance (risk of fire). Do not connect the dishwasher

to the electricity supply using a power bar or an extension cord.

 The dishwasher must not be used in a non-stationary location

(e.g., on a ship).

 Do not install the dishwasher in a room where there is a risk of

frost. Frozen hoses are at risk of tearing or bursting. The reliability of

the electronic control unit may be impaired at temperatures below

freezing point.

 To avoid any damage to the appliance, the dishwasher must only

be operated when it is connected to a fully vented plumbing system.

IMPORTANT SAFETY INSTRUCTIONS

 The water-connection pressure needs to be between 7.25 and

145 psi (50 and 1,000kPa).

 A damaged dishwasher could be dangerous. If the dishwasher

gets damaged, turn it off at the electricity supply immediately and

contact your Miele dealer or Miele Customer Service.

 The manufacturer’s warranty may be invalidated if the appliance is

not repaired to Miele authorized service standards.

 We recommend replacing defective components with original

parts. If original Miele parts are installed correctly, Miele ensures full

compliance with safety requirements and the warranty remains valid.

 During installation, maintenance, and repair work, the dishwasher

must be disconnected from the electricity supply (turn it off and with-

draw the plug from the socket).

 If the power cord is damaged, it must only be replaced with a spe-

cific cord of the same type (available from Miele Customer Service).

For safety reasons, this must only be done by Miele Customer Ser-

vice or a service technician authorized by Miele.

 Do not sit the dishwasher on the hose. The hose needs to be free

of kinks and able to move freely after installation. Do not place hose

or power cord next to a heat source e.g. hot water pipes. Do not ex-

pose hose or power cord to corrosive substances or their vapors

(e.g. chloride). Damage of hose or power cord could cause electrical

shock or water damage.

Correct installation

 The dishwasher must be installed and connected in compliance

with the supplied installation sheet.

 Be careful before and while installing the dishwasher.

Some metal parts pose a risk of injury/being cut. Wear pro-

tective gloves.

IMPORTANT SAFETY INSTRUCTIONS

 The dishwasher must be correctly aligned horizontally to ensure

problem-free operation.

 In order to ensure stability, built-under and integrated dishwashers

must only be installed under a continuous countertop which is se-

cured to adjacent cabinetry.

 The dishwasher must only be built into a tall cabinet if additional

safety precautions are taken. In order to safely install the appliance

in a tall cabinet, please use the tall cabinet installation kit and ob-

serve the installation sheet provided. Otherwise there is the danger

of the cabinet tipping over.

 The door springs must be evenly adjusted on both sides. They are

correctly adjusted when the door remains stationary when left half

open (approx. 45° opening angle). It is also important that the door

cannot fall open.

The appliance must only be operated with properly adjusted door

springs.

If the door cannot be adjusted properly, contact the Miele Customer

Service.

The maximum weight of the front panel that can be aligned with the

factory-installed door springs is 22-26.5 lb (10–12kg) depending on

model.

Correct use

 Do not use solvents in the dishwasher. There is a danger of explo-

sion.

 Dishwasher detergents can cause burning on the skin and in the

eyes, nose, mouth, and throat. Avoid contact with detergents. Do not

inhale powder detergents. Do not swallow dishwasher detergents.

Seek medical attention immediately if detergent has been swallowed

or inhaled.

 Avoid leaving the dishwasher door open unnecessarily. You could

injure yourself on the opened door or trip over it.

IMPORTANT SAFETY INSTRUCTIONS

 Do not sit, stand, or lean on the opened door. The dishwasher

could tip over. This could injure you or damage the dishwasher.

 Dishes may be very hot at the end of the program. Allow the

dishes to cool until they are comfortable enough to handle before

unloading them.

 Only use detergent and rinse aid formulated for domestic dish-

washers. Do not use liquid dish soap.

 Do not use any commercial or industrial detergents. These may

cause material damage, and there is a risk of a severe explosive

chemical reaction (such as an explosive oxyhydrogen gas reaction).

 Do not fill the rinse aid reservoir with powder or liquid detergent.

This will cause damage to the rinse aid reservoir.

 Do not fill the AutoDos (depending on model) with powder or liq-

uid detergent. Loose detergent will damage the AutoDos.

 In dishwashers with a cutlery basket (depending on model), knives

and forks should be placed with the handles upwards in the basket

for safety reasons. Knives and forks placed with the handles down-

wards pose a danger of injury. However, cutlery placed handle down

in the cutlery basket will come out cleaner and drier.

 Plastic items which cannot withstand being washed in hot water,

such as disposable plastic containers or plastic cutlery, should not

be cleaned in the dishwasher. The high temperatures in the dish-

washer may cause them to melt or lose shape.

 If you use the timer option (depending on model), the detergent

compartment must be dry. Wipe dry with a cloth first if necessary.

The detergent will clump together if the detergent compartment is

not dry, and this may mean that it is not fully rinsed out.

IMPORTANT SAFETY INSTRUCTIONS

Accessories and parts

 Only use original Miele accessories. If other parts are used, war-

ranty, performance, and, if applicable, product liability claims will be

invalidated.

 Miele will guarantee to supply functional spare parts for a mini-

mum of 10years and up to 15years following the discontinuation of

your dishwasher.

Transport

 Damage to the dishwasher can compromise your safety. Before

using the dishwasher, check it for any visible transport damage.

Never use a damaged dishwasher.

 Only transport the dishwasher in an upright position so that no

water flows into the electrical controls, as this would cause faults.

 If you wish to transport the dishwasher, empty it and securely fas-

ten all loose parts such as baskets, hoses, and power cords.

Disposal of your old dishwasher

 Remove the door of the dishwasher so that children cannot be-

come trapped inside.

Notes on the operating instructions

These operating instructions apply to

several different dishwasher models of

different heights.

The specific dishwasher models are re-

ferred to as follows:

Standard = 31 11/16" (80.5cm) high

dishwashers (integrated)

and 33 1/4" (84.5cm) high dishwashers

(freestanding)

XXL = 33 1/4" (84.5cm) high dishwash-

ers (integrated).

Notes on the layout

Warnings

 Warnings important for safety

are highlighted like this. This alerts

you to the potential danger of injury

to people or damage to property.

Read the warnings carefully and fol-

low the instructions and directions.

Notes

Notes contain information that is par-

ticularly important to follow.

They are highlighted in a thick

framed box.

Additional information and com-

ments

Additional information and comments

are contained in a narrow frame.

Instructions for the user

Instructions on how to operate the dish-

washer are identified by marked operat-

ing steps. They explain the procedure

step by step.

Operating steps are indicated by a

black square bullet point.

Example:

Select the setting you want and press

OK to confirm.

Scope of delivery

The following items are supplied:

- dishwasher

- operating instructions for operating

the dishwasher

- installation sheet for installing the

dishwasher

- other installation accessories for in-

stalling the dishwasher (see installa-

tion sheet)

- funnel for filling the reactivation salt (if

available)

- additional printed matter and add-

ons if required

Guide to the appliance

Appliance overview

Top spray arm

Cutlery tray (depending on model)

Upper basket (depending on model)

Middle spray arm

Aeration valve

Bottom spray arm

Filter combination

Data plate

Rinse aid reservoir

Detergent compartment

Guide to the appliance

Control field

On/Off button

For turning the dishwasher on and

off.

Program selection

Normal = Normal

Pots = Pots & Pans

Quick = QuickIntenseWash

Sani = SaniWash

Rinse = Rinse & Hold

Program program selection button

For program selection.

Time display

Timer button

For selecting a later program start.

Express button

For reducing the program cycle time.

Indicator lights/refill reminders

/ = Intake/Drainage

 = Rinse aid

Caring for the environment

Disposal of the packing mate-

rial

The cardboard box and packing materi-

als protect the appliance during ship-

ping. They have been designed to be

biodegradable and recyclable.

Ensure that any plastic wrappings,

bags, etc. are disposed of safely and

kept out of the reach of children. Dan-

ger of suffocation!

Disposal of your old appliance

Electrical and electronic appliances

contain valuable materials. They also

contain certain substances, compounds

and components which were essential

for the proper functioning and safe use

of the equipment. Handling these mate-

rials improperly by disposing of them in

your household waste can be harmful to

your health and the environment. There-

fore, please do not dispose of your old

appliance with regular household waste

and follow local regulations on proper

disposal.

Consult with local authorities, dealers or

Miele in order to dispose of and recycle

electrical and electronic appliances.

Miele assumes no responsibility for

deleting any personal data left on the

appliance being disposed. Please en-

sure that your old appliance is kept

away from children until removal. Ob-

serve safety requirements for appli-

ances that may tip over or pose an en-

trapment hazard.

Before using for the first time

Every dishwasher is tested at the fac-

tory. There will be residual water in the

machine from this test. It is not an in-

dication that the dishwasher has been

used previously.

Opening the door

 Pull the handle to open the door.

If the door is opened during operation,

all functions are automatically inter-

rupted.

 Risk of scalding due to hot wa-

ter.

During operation, water in the dish-

washer may be very hot.

During operation, only open the door

with extreme caution.

Closing the door

 Insert the baskets.

 Then lift the door upward and push

until it clicks into position.

 Risk of crushing due to the door

closing.

When closing the door, you are at

risk of shutting your fingers in it.

Do not put your hand inside the door

as it is closing.

Before using for the first time

Rinse aid

Rinse aid is necessary to ensure that

water does not cling and leave marks

on dishes during the drying phase, and

helps dishes dry faster after they have

been washed.

Rinse aid is poured into the reservoir

and the amount set is dispensed auto-

matically.

 Liquid dish soap or detergent

can cause damage.

Liquid dish soap and detergent can

damage the rinse-aid reservoir.

Only fill it with rinse aid formulated

for domestic dishwashers.

Alternatively, you could use liquid citric

acid at a concentration of up to 10%.

The resulting rinsing and drying quality

will not, however, be as good as when

rinse aid is used.

 Risk of acid damage.

The dishwasher can be damaged by

high concentrations of acid.

Under no circumstances should you

use citric acid with a higher acid

content.

If you only ever wish to use combina-

tion detergent products in your dish-

washer, you do not need to add rinse

aid.

However, for optimum rinsing and

drying results, use dishwasher deter-

gent and add rinse aid separately.

Please make sure that if you stop us-

ing combination detergents, you refill

the rinse aid. Turn the refill reminder

back on if required.

Before using for the first time

Adding rinse aid

 Press the yellow button on the lid

of the rinse-aid reservoir.

The lid will spring open.

 Fill with rinse aid until the filling level

indicator (arrow) changes to a dark

color while the door is horizontally

open.

The rinse-aid reservoir holds approxi-

mately 110ml.

 Close the lid firmly until you hear it

click into place. Otherwise, water can

enter the rinse-aid reservoir during a

program.

 Wipe up any spilled rinse aid. This

prevents excess foam developing

during the next program.

Before using for the first time

Filling the rinse-aid reservoir

When the refill reminder Rinse aid

appears in the display, the reservoir

contains sufficient rinse aid for 2 to 3

programs only.

 Add rinse aid in plenty of time.

The rinse-aid refill reminder will go out.

If you only ever use combination de-

tergent products containing rinse aid

in your dishwasher, you can turn off

the refill reminder if you wish (see

“Turning off the refill reminders” under

“Options”).

Setting the rinse-aid dosage

You can adjust the rinse-aid dosage for

best results.

The rinse-aid dosage can be set from 0

to 6ml.

3ml is the factory default setting.

The rinse-aid dosage can turn out to be

higher than the set value due to the au-

tomatic adjustment of the program.

If spots appear on dishes and glass-

ware:

- Increase the rinse-aid dosage.

If clouding or smearing appears on

dishes and glassware:

- Decrease the rinse-aid dosage.

 Open the door.

 Turn the dishwasher off with the

button, if it is turned on.

 Press the button in and, while

holding it in, turn the dishwasher on

using the button.

Keep the button pressed in for at

least 4seconds until the indicator

light comes on.

If this does not happen, start the proce-

dure from the beginning again.

 Press the Program button 3 times.

The top left program indicator light will

flash rapidly 3 times at intervals.

The set value will appear in the display

after.

 will start flashing in the time display.

Setting3 is set.

 Use the button to select the re-

quired setting.

The dosage amount increases each

time you press the button. When the

highest value is reached, the setting

starts again from the beginning.

The setting is now saved.

 Turn the dishwasher off with the

button.

Caring for the environment

Energy-saving dishwashing

This dishwasher is exceptionally eco-

nomical in its use of water and electric-

ity.

You can make the most of your ma-

chine by following these tips:

- Washing in a dishwasher generally

uses less water and energy than

washing by hand.

- There is no need to pre-rinse items

under running water, and this unnec-

essarily increases water and energy

consumption.

- Make full use of the basket capacity

without overloading the dishwasher.

This results in the most economical

dishwashing in terms of energy and

water consumption.

- Choose a program that best suits the

degree of soiling and the type of

dishes being washed (see “Program

overview”).

- Select the Normal program for en-

ergy-saving dishwashing. This pro-

gram is the most efficient in terms of

its combined energy and water con-

sumption for cleaning dishware with a

normal level of soiling.

- Follow the detergent manufacturer’s

recommendations on detergent

dosage.

- When using powder or liquid deter-

gent, you can use

less detergent if

baskets are only half full.

- You can connect the dishwasher to a

hot-water supply. A hot water con-

nection is particularly suitable with

energy-saving water heating sources,

such as solar energy with a circula-

tion system.

If the water is heated by electricity,

we would recommend connection to

cold water.

Loading the dishwasher

General information

Remove coarse food residues from

dishes.

There is no need to pre-rinse items un-

der running water.

 Damage can be caused by ash,

sand, wax, lubricating grease, or

paint.

These substances will contaminate

the dishwasher and can then no

longer be removed.

Do not wash items soiled with these

substances in the dishwasher.

Dishes can be loaded anywhere in the

baskets, but the following notes should

be observed:

- Do not place dishes and utensils in-

side other items where they will cover

one another.

- Load the dishes so that water can

access all surfaces. This ensures that

they get properly cleaned.

- Make sure that all items are securely

positioned.

- Hollow items such as cups, glasses,

pans, etc., must be inverted in the

baskets.

- Tall, narrow, hollow items such as

champagne glasses should be

placed in the center of the basket

rather than in the corners. This en-

sures the hollow items are more eas-

ily accessed by the water jets.

- Concave items such as mugs or

bowls should be placed at an angle

so that the water can run off.

- The spray arms must not be blocked

by items which are too tall or hang

through the baskets. Test for free

movement by manually rotating the

spray arms.

- Make sure that small items cannot

fall through the holders in the bas-

kets.

Small items such as lids should

therefore be placed in the cutlery tray

or cutlery basket (depending on

model).

Some foods such as carrots, toma-

toes, or ketchup may contain natural

dyes. These dyes can discolor plastic

items in the dishwasher if large quanti-

ties of these foods are in contact with

the dishes inside the appliance. The

stability of plastic items is not affected

by this discoloration.

Washing silverware can also cause

plastic items to discolor.

Loading the dishwasher

Wash items not suitable for dish-

washers:

- Wooden cutlery and dishes or items

with wooden parts. These may dis-

color and fade. The glue used in

these items is not dishwasher-proof

and wooden handles may come

loose after being washed in a dish-

washer.

- Craft items, antiques, valuable vases,

and decorative glassware. Such

items are not suitable for dishwash-

ers.

- Plastic items that are not heat resis-

tant. The high temperatures in the

dishwasher may cause them to melt

or lose shape.

- Copper, brass, tin and aluminum

items. These may discolor or become

dull.

- Colors painted over a glaze. These

may fade after a number of washes.

- Delicate glassware and glassware

containing lead crystal. Clouding may

occur over time.

Silver

Silver that has been in contact with

foods containing sulphur can discolor.

These include egg yolk, onions, mayon-

naise, mustard, fish, and marinades.

Silverware previously cleaned with a

silver polish may still be damp or spot-

ted at the end of a program, where wa-

ter has not run off smoothly.

Tip: Rub the silver dry with a cloth.

 Damage due to caustic alkaline

detergents.

Aluminum parts (e.g., the grease fil-

ters of ventilation hoods) can be

damaged by caustic alkaline deter-

gents. In extreme cases, there is a

risk of an explosive chemical reac-

tion (such as an explosive oxyhydro-

gen gas reaction).

Aluminum components must not be

cleaned in the dishwasher with caus-

tic alkaline commercial or industrial

detergents.

Tip: When purchasing new dishes and

cutlery, make sure they are dishwasher-

proof if you want to wash them in the

dishwasher.

Glass care

- Clouding may occur on glasses after

frequent washing in the dishwasher.

When washing delicate glassware in

the dishwasher, ensure that only a

special glass-care program with very

low temperatures is selected (see

“Program overview”). This will reduce

the risk of clouding.

- Purchase glassware that is dish-

washer-safe (e.g., Riedel glassware).

- Use detergents with glass protective

additives.

Loading the dishwasher

Loading examples

Loading for 10 standard place settings with cutlery tray

Upper basket

Lower basket

Cutlery tray

Loading the dishwasher

Loading for 16 standard place settings with cutlery tray

Upper basket

Lower basket

Cutlery tray

Loading the dishwasher

Loading for 10 standard place settings with cutlery basket

Upper basket

Lower basket

Cutlery basket

Loading the dishwasher

Loading for 13 standard place settings with cutlery basket

Upper basket

Lower basket

Cutlery basket

Loading the dishwasher

Upper basket

See “Loading examples” under “Load-

ing the dishwasher” for examples of

how to load dishware and utensils.

Loading the upper basket

 Risk of damage due to water

leakage.

If you run the dishwasher without the

upper basket, water can leak out of

the dishwasher.

Only run the dishwasher with the up-

per basket in place (except during

the Tall items program, if available).

 Use the upper basket for small, light-

weight, and delicate items such as

cups, saucers, glasses, dessert

bowls, etc.

Shallow pans or casserole dishes can

also be placed in the upper basket.

 Long items such as soup ladles and

mixing spoons should be placed lying

down across the front of the upper

basket.

Loading the FlexCare cup rack

You can put cups, small bowls, and flat

dishes on the FlexCare cup rack.

Glasses can be arranged along the cup

rack so they sit securely during the pro-

gram.

 Lower the cup rack to do so.

 Raise the cup rack upward to make

room for tall items.

Loading the dishwasher

Adjusting the FlexCare cup rack

You can set the height and depth of the

cup rack at 2 different levels so that it

can accommodate larger cups and so

that taller items can be placed under-

neath it.

 Pull the cup rack upward and click it

into the desired position (see arrows).

Loading the dishwasher

Adjusting the upper basket

In order to gain more space for taller

items in the lower basket or upper bas-

ket, the upper basket can be adjusted

on 3 levels with 3/4" (2cm) between

each level.

The upper basket can also be set at an

angle so that water can run off freely

from recesses. Make sure, however,

that the basket can slide smoothly in

and out of the wash cabinet.

 Pull out the upper basket.

To raise the upper basket:

 Lift the basket until it clicks into

place.

To lower the upper basket:

 Pull upwards on the levers at either

side of the upper basket.

 Adjust the basket to the desired

height and then push the levers se-

curely back down into position.

When adjusting the upper basket,

make sure that tall plates in the lower

basket do not block the middle spray

arm.

Loading the dishwasher

Lower basket

See “Loading examples” under “Load-

ing the dishwasher” for examples of

how to load dishware and utensils.

Loading the lower basket

 Place larger and heavier items such

as plates, serving platters,

saucepans, bowls, etc., in the lower

basket.

Glasses, cups, and small plates and

saucers can also be placed in the

lower basket.

Loading the MultiComfort area

The rear section of the lower basket is

used for washing cups, glasses, plates,

and pots.

 Place very large plates in the center

of the lower basket.

Tip: When tilted, plates up to 13

3/4" (35cm) in diameter can be accom-

modated.

Lowering the spikes

The spikes at the front are used for

washing plates, soup bowls, platters,

dessert bowls, and saucers.

Both right-hand rows of spikes can be

lowered to make more room for large

items such as pots, pans, and serving

dishes.

 Press the yellow lever downward,

and then lower the spikes.

Loading the dishwasher

Cutlery tray/cutlery basket (de-

pending on model)

See “Loading examples” under “Load-

ing the dishwasher” for examples of

how to load dishware and utensils.

 Load the utensils into the cutlery tray

or into the cutlery basket (depending

on model).

Loading the cutlery tray

To make unloading easier, utensils

should be grouped in zones, one for

knives, one for forks, one for spoons,

etc.

Spoon heads should be placed in con-

tact with at least one of the serrated re-

tainers on the base of the cutlery tray to

ensure that water runs off them freely.

 If spoon handles do not fit between

the holders, then lay them the other

way round.

Arrange tall items (such as cake

server) so that they do not block the

upper spray arm.

Loading the dishwasher

Loading the cutlery basket

The cutlery basket can be placed any-

where on the front rows of spikes in the

left or right corner of the lower basket.

 To avoid the risk of injury, knives and

forks should be placed with the han-

dles upward in the cutlery basket.

However, utensils placed handle

down in the cutlery basket will come

out cleaner and drier.

 Place small utensils in the individual

slots on 3sides of the cutlery basket.

Loading the cutlery insert for the cut-

lery basket

Use the insert supplied for heavily

soiled utensils. As this insert separates

the utensils, they do not overlap and

can be more easily accessed by the

water jets.

 Install the insert onto the cutlery bas-

ket if required.

 Place the utensils into the insert with

the handles facing downward.

 Distribute them evenly along the in-

sert.

Detergents

Active ingredients

 Damage caused by using unsuit-

able detergents.

Detergents that are not suitable for

domestic dishwashers can cause

damage to the dishwasher or to the

wash items.

Only use detergents formulated for

domestic dishwashers.

Modern detergents contain various ac-

tive ingredients, the most important of

which are:

- Water softening complexing agents

to prevent calcification.

- Alkalis to aid removal of dried-on

soiling.

- Enzymes to break down starch and

loosen protein.

- Oxygen-based bleaching agents to

remove colored stains (e.g., tea, cof-

fee, tomato sauce).

Most dishwasher detergents are mildly

alkaline and contain enzymes and oxy-

gen-based bleaching agents.

There are different types of detergent:

- Powder and liquid gel detergents.

These detergents allow you to adjust

the amount dispensed according to

the amount of wash items and the

level of soiling.

- Tab detergents. These are suitable for

most levels of soiling.

As well as the usual detergents, combi-

nation products are also available.

These contain rinse aid and water soft-

ener (reactivation salt).

Only use these combination detergents

for the water hardness levels recom-

mended by the manufacturer on the

packaging.

The cleaning and drying performance of

these combination detergents can vary

greatly.

For optimum cleaning and drying re-

sults, use dishwasher detergent and

add salt and rinse aid separately (de-

pending on model).

Detergents

 Risk of chemical burns from de-

tergent.

Dishwasher detergents can cause

burning on the skin and in the eyes,

nose, mouth, and throat.

Avoid contact with detergents.

Do not inhale or ingest powder de-

tergents. Do not swallow dishwasher

detergents. Seek medical attention

immediately if detergent has been

swallowed or inhaled.

Keep children away from detergents.

Detergent residues could still be

present in the machine. Keep chil-

dren away from the dishwasher when

the door is open. Do not fill the de-

tergent dispenser until just before

starting the program and activate the

door safety lock (depending on

model).

Detergent dispensing

The detergent compartment holds a

maximum of 31/2" tablespoons.

There are marks in the detergent com-

partment to aid with dispensing: 11/4,

2 tablespoons (20, 30ml). When the

door is opened to a horizontal position,

they show the approximate fill level in

ml and the maximum fill height.

 Follow the detergent dosage recom-

mended by the manufacturer on the

packaging.

 Unless directed otherwise, use one

detergent tab or add 11/4 to 2 table-

spoons (20 to 30ml) of detergent to

the detergent compartment, depend-

ing on the level of soiling of the dish-

ware.

If you use less than the recommended

amount of detergent, the dishware may

not get properly clean.

Some tabs may not dissolve completely

when the program QuickIntenseWash is

used.

Detergents

Adding detergent

 Press the yellow button on the lid

of the detergent compartment.

The lid will spring open.

The lid will also open at the end of a

program.

 Add the detergent to the detergent

compartment.

 Push the lid shut until you hear it click

into place.

The detergent must not cause the

detergent-compartment lid to get

stuck. This can prevent the lid from

opening during the program.

Do not overfill the detergent com-

partment.

 Ensure that the detergent packaging

is properly closed after use. This pre-

vents the detergent from getting

damp and clumping together.

 You can also apply a small amount of

detergent to the inner panel of the

door in programs that have a pre-

wash stage (see “Program overview”).

Operation

Turning on the dishwasher

 Turn on the water supply if it is turned

off.

 Open the door.

 Make sure the spray arms can rotate

freely.

 Press the button.

The indicator light next to the program

selected will come on.

Selecting a program

Choose your program according to the

type of load and the degree of soiling.

The different programs and their uses

are described under Program over-

view.

 Use the Program button to select the

program you want.

The indicator light next to the program

selected will come on.

The program duration will appear in

hours and minutes in the display.

You can now select program options

(see “Options”).

If any program options are selected, the

appropriate indicator lights will also

light up.

Operation

Display of program duration

The duration of the program selected

appears in hours and minutes in the

display before the program begins. If

the door is opened during the program,

the time left until the end of the program

is displayed.

The displayed duration may vary for the

same program. It is influenced by, for

example, the temperature of the incom-

ing water, the reactivation cycle of the

water softener, the detergent type, the

amount of dishware, and how soiled it

is.

When a program is selected for the first

time, the display will show the average

program duration for a cold water con-

nection.

The program durations shown under

“Program overview” refer to standard

test loads and temperatures.

Each time a program is run, the control

module calculates the program duration

required depending on the temperature

of the water taken into the dishwasher

and the amount of dishware.

Starting a program

 Start the program by closing the door

within 4seconds of the last press of a

button.

 Risk of scalding due to hot wa-

ter.

During operation, water in the dish-

washer may be very hot.

During operation, only open the door

with extreme caution.

Operation

End of program

The audible signal might sound at the

end of the program.

The program has ended when :

shows in the display.

The drying fan may continue to run for

a few minutes at the end of the pro-

gram.

 Risk of damage due to steam.

Steam from the dishwasher could

damage the edges of delicate coun-

tertops when you open the door at

the end of the program if the fan is

no longer running.

At the end of a program, you can ei-

ther open the door fully (do not leave

it partially open) or leave it closed

until you are ready to unload the

dishes.

Energy management

To save energy, the dishwasher will

switch off automatically 10minutes af-

ter the last time a button is pressed or

after the end of a program.

You can turn the dishwasher back on

again with the button.

The dishwasher will not turn itself off

while a program is running or if there is

a fault.

Operation

Turning off the dishwasher

 Open the door.

 The dishwasher can be turned off at

any time using the button.

Turning the dishwasher off during a pro-

gram stops the program.

You can also do this to stop an ongoing

timer.

 Risk of damage from leaking wa-

ter.

Leaking water can cause damage.

If the dishwasher is not going to be

used for a longer period of time, e.g.,

during vacations, the water supply

should be turned off.

Unloading the dishwasher

Dishes tend to break and chip more

easily when they are hot. Allow the

dishes to cool until they are comfortable

enough to handle before unloading

them.

The dishes will cool much faster if you

open the door when the program has

ended.

 First unload the lower basket, then

the upper basket and finally the cut-

lery tray.

This will prevent water drops from the

upper basket and cutlery tray from

falling onto the dishes in the lower

basket.

Operation

Interrupting a program

A program will be interrupted as soon

as the door is opened.

After 4seconds, the indicator light of

the selected program and the time dis-

play will flash.

 Press the Program button and close

the door within 4seconds.

The program will continue from the

point at which it was interrupted.

 Risk of scalding due to hot wa-

ter.

During operation, water in the dish-

washer may be very hot.

During operation, only open the door

with extreme caution.

Canceling or changing a pro-

gram

If a program is canceled, important

program stages may be missed.

A program should only be canceled

in the first few minutes.

If a program has already started and

you wish to cancel it, proceed as fol-

lows:

 Open the door.

 Turn the dishwasher off with the

button.

If you would like to select another pro-

gram:

 Turn the dishwasher on again with the

button.

 If you have dispensed detergent

manually, check whether the deter-

gent compartment is still closed.

If the lid is already open, fill it with de-

tergent again and close the lid.

 Select the program you want, and

then start it by shutting the door.

Options

Timer

You can set the start time of a program.

The program start time can be delayed

for between 30minutes and 24hours.

With start-time delays between 30min-

utes and 3hours, the delay can be set

in 30minute stages. It is set in hours for

periods longer than this.

During manual detergent dispensing,

the detergent will clump together if

the detergent compartment is not

dry, and this may mean it is not fully

rinsed out.

When using the timer function, make

sure that the detergent compartment

is dry before adding detergent. Wipe

dry with a cloth first, if necessary.

Do not use any liquid detergents.

These can leak out.

 Danger to health due to deter-

gent.

To prevent children coming into con-

tact with dishwasher detergent:

Do not fill the detergent dispenser

until just before starting the pro-

gram, i.e., before you activate the

timer.

Activating the timer

 Open the door.

 Turn the dishwasher on with the

button.

 Select the program you want to use.

 Press the Timer button.

The most recently set time will be

shown on the time display. The

Timer indicator light will light up.

 Set the required time after which the

program should start automatically

using the button.

If the button is pressed and held, the

time will increase automatically up to

hours. To start again with

:hours, press the button twice.

 Close the door.

Options

After you have activated the timer, all

the displays will turn off after a few

minutes to save energy.

Press the button to switch the time

display back on again for a few min-

utes.

 Open the door if you need to check

how long the timer has left to run.

The time up until the program starts will

count down in the display in hours for

durations above 10hours, and in min-

utes for durations below 10hours.

At the end of the delay period, the pro-

gram selected begins automatically.

The time left will appear in the time dis-

play and theTimer indicator light will

go out.

Starting a program before the time

for the timer has elapsed:

A program can be started before the

time for the timer has elapsed.

Proceed as follows:

 Open the door.

 Turn the dishwasher off with the

button.

 Turn the dishwasher on again with the

button.

 Select the program you want.

 Start the program by closing the

door.

Program overview

Program When to use Program sequence

Pre-

wash

Main

wash

Interim

rinse

Final

rinse

Drying

°F/°C °F/°C

Normal

Program for regular use to completely

wash a full load of normally soiled

dishes with the ability to adjust energy

and water consumption based on the

soil load of the dishes.



140–

167/60

–75



140–

149/60

–65



Pots &

Pans

For heavily soiled dishes and normally

soiled pots,pans and utensils with dried

on residue; use 20% more detergent

than recommended.



167/75



158/70



Quick-

Intense-

Wash

“Quick program” for standard dishes

soiling that has not dried on.

- 149/65



140/60



SaniWash To sanitize dishware, e.g. baby bottles,

cutting boards and preparation dishes.

- 167/75



167/75



Rinse&

Hold

To rinse dishes when a complete pro-

gram is not needed.



- - - -

This program is used for energy labeling purposes.

Program overview

Consumption

Duration

Energy Water

Cold water Hot water Gallons/Liters Cold water Hot water

50°F/10°C 120°F/49°C 50°F/10°C 120°F/49°C

kWh kWh h:min h:min

1.06 1.20 3.2/12.1 3:11 2:49

1.55 1.70 3.4/13.0 3:26 3:03

1.15 1.20 2.9/11.0 1:18 0:58

1.50 1.55 2.4/9.0 2:50 2:30

0.01 0.15 0.9/3.5 0:18 0:18

Values were calculated under standardized testing conditions. In practice there may be

variations to these figures due to variable conditions and data recorded by the sensors.

Durations shown will reflect your household conditions.

Selecting program options will also affect consumption levels and program durations (see

“Options”).

The energy consumption with a hot water supply includes the energy used to heat the

water (exception: EnergySaver, if available).

Program options

Express

The Express program option reduces

the program cycle time.

In order to achieve optimum cleaning

results, the temperature, and therefore

the energy consumption, will increase

with this option.

The time by which the program cycle

time is shortened varies according to

the selected program.

Selecting the Express program op-

tion may take precedence over other

selected options.

 Open the door.

 Turn the dishwasher on with the

button.

The indicator light for the program se-

lected will flash.

 Select a different program as re-

quired.

 Press the Express button.

The Express indicator light will come

on if the program option is available for

the program selected.

 Start the program by closing the

door.

The selected program option will remain

active for that particular program until

the setting is changed.

Program options

Audible signals

A sequence of audible tones will sound

at the end of the program or if there is a

fault.

The audible signals at the end of a pro-

gram and the alarm tone in the event of

a fault will sound four times at intervals

with a short pause between each set.

The audible signals are switched off as

standard.

You can switch on the signals that

sound at the end of a program if you

wish. The alarm tone that sounds in the

event of a fault is always switched on.

 Open the door.

 Turn the dishwasher off with the

button, if it is turned on.

 Press the button in and, while

holding it in, turn the dishwasher on

using the button.

Keep the button pressed in for at

least 4seconds until the indicator

light comes on.

If this does not happen, start the proce-

dure from the beginning again.

 Press the Program button 4 times.

The top left program indicator light will

flash rapidly 4 times at intervals.

The flashing sequence in the time dis-

play indicates whether the audible sig-

nals at the end of the program are acti-

vated or deactivated:

-  : audible signals are activated

-  : audible signals are deactivated

 Press the button to change the

setting.

The setting is now saved.

 Turn the dishwasher off with the

button.

Program options

Turning off the refill reminders

If you only ever use combination deter-

gent products containing salt and rinse

aid in your dishwasher, you can turn off

both refill reminders if you wish.

 Open the door.

 Turn the dishwasher off with the

button, if it is turned on.

 Press the button in and, while

holding it in, turn the dishwasher on

using the button.

Keep the button pressed in for at

least 4seconds until the indicator

light comes on.

If this does not happen, start the proce-

dure from the beginning again.

 Press the Program button 9 times.

The top left program indicator light will

flash rapidly 9 times at intervals.

The flashing sequence in the time dis-

play will show whether the refill re-

minders are switched on or off.

-  : refill reminders are activated

-  : refill reminders are deactivated

 Press the button to change the

setting.

The setting is now saved.

 Turn the dishwasher off with the

button.

Please make sure that if you stop us-

ing combination detergents, you refill

the reactivation salt and rinse aid

(depending on model). Turn the refill

reminders back on.

Program options

Extra clean

You can choose this program option to

increase the cleaning performance of

the programs.

If you activate this program option, the

program cycle times and the main wash

temperatures will increase. The water

and energy consumption may increase.

 Open the door.

 Turn the dishwasher off with the

button, if it is turned on.

 Press the button in and, while

holding it in, turn the dishwasher on

using the button.

Keep the button pressed in for at

least 4seconds until the indicator

light comes on.

If this does not happen, start the proce-

dure from the beginning again.

 Press the Program button 10 times.

The top left program indicator light will

emit 1 long flash at intervals.

The flashing sequence in the time dis-

play indicates whether the Extraclean

program option is activated or not:

-  : Extraclean is activated

-  : Extraclean is deactivated

 Press the button to change the

setting.

The setting is now saved.

 Turn the dishwasher off with the

button.

Program options

Extra Dry

You can select this program option in

order to increase the program drying

performance.

If you activate this program option, the

program cycle times and final rinse

temperatures will increase. The energy

consumption may increase.

 Open the door.

 Turn the dishwasher off with the

button, if it is turned on.

 Press the button in and, while

holding it in, turn the dishwasher on

using the button.

Keep the button pressed in for at

least 4seconds until the indicator

light comes on.

If this does not happen, start the proce-

dure from the beginning again.

 Press the Program button 11 times.

The top left program indicator light will

emit 1 long flash and 1 short flash at in-

tervals.

The flashing sequence in the time dis-

play indicates whether the ExtraDry

program option is activated or not:

-  : ExtraDry is activated

-  : ExtraDry is deactivated

 Press the button to change the

setting.

The setting is now saved.

 Turn the dishwasher off with the

button.

Program options

Factory defaults

If you have altered any settings, you

can reset them back to the factory de-

fault settings.

 Open the door.

 Turn the dishwasher off with the

button, if it is turned on.

 Press the button in and, while

holding it in, turn the dishwasher on

using the button.

Keep the button pressed in for at

least 4seconds until the indicator

light comes on.

If this does not happen, start the proce-

dure from the beginning again.

 Press the Program button 19 times.

The top left program indicator light will

emit 1 long flash and 9 short flash at in-

tervals.

The flashing sequence in the time dis-

play indicates whether the setting devi-

ates from the factory default:

-  : all values are factory default set-

tings.

-  : at least one setting has been

changed.

 To reset the dishwasher to the factory

default settings, press the button.

The setting is now saved.

 Turn the dishwasher off with the

button.

Cleaning and care

Check the condition of your dish-

washer regularly (approx. every 4–

6months). This helps to avoid faults

and problems.

 Damage due to unsuitable clean-

ing agents.

All surfaces are susceptible to

scratching. Contact with unsuitable

cleaning agents can alter or discolor

all surfaces.

Only use cleaning agents formulated

for use on the relevant surfaces.

Cleaning the wash cabinet

The wash cabinet is largely self-clean-

ing, provided that the correct amount of

detergent is always used.

If, despite this, limescale or grease de-

posits build up in the cabinet, these can

be removed with a proprietary dish-

washer cleaner (available from the Miele

Customer Service or Miele's online

store). Follow the dosage recom-

mended by the manufacturer on the

packaging.

The frequent use of low-temperature

wash programs increases the risk of

contamination and odors inside the

wash cabinet. Run the Pots & Pans pro-

gram once per month to clean the wash

cabinet and prevent odors from devel-

oping.

 Clean the filters in the wash cabinet

regularly.

Cleaning and care

Cleaning the door and the door

seal

The door seal and the sides of the dish-

washer door are not accessed and

cleaned by the spray arm jets. As a re-

sult, mold can develop here.

 Wipe the door seals regularly with a

damp cloth to remove food deposits.

 Wipe off any food or drink residues

which may have dripped onto the

sides of the dishwasher door before

closing it.

Cleaning the control panel

 The control panel should only be

wiped with a damp cloth.

Cleaning the front of the ma-

chine

 Damage due to soiling.

Soiling that is left too long might be-

come impossible to remove and

could cause the external surfaces to

alter or discolor.

It is therefore best to remove any

soiling immediately.

 Clean the appliance front with a clean

soft sponge and a solution of warm

water and liquid dish soap. After

cleaning, wipe the surfaces dry using

a soft cloth.

A clean, damp microfiber cloth with-

out detergent can also be used.

To avoid damaging the external sur-

faces, do not use the following:

- cleaning agents containing soda, am-

monia, acids, or chloride

- cleaning agents containing lime scale

remover

- abrasive cleaning agents, such as

scouring powder, scouring liquid, or

pumice stones

- cleaning agents containing solvents

- stainless-steel cleaning agents

- dishwasher cleaner

- oven cleaner

- glass cleaner

- hard, abrasive brushes or sponges,

e.g., pot scourers, brushes, or

sponges which have been previously

used with abrasive cleaning agents

- eraser sponges

- sharp metal scrapers

- steel wool

- steam cleaners

Cleaning and care

Cleaning the spray arms

Particles of food can get stuck in the

spray-arm jets and bearings. The spray

arms should therefore be inspected reg-

ularly (approx. every 2–4months).

Never run a wash program without

using the spray arms.

 Damage due to soiling entering

the circulation system.

Without filters, soiling can enter the

circulation system and cause a

blockage.

Do not run a wash program without

the lower spray arm or without the fil-

ters.

When cleaning the filters and spray

arms, make sure that coarse soiling

cannot get into the circulation sys-

tem.

 Turn off the dishwasher.

Removing the cutlery tray (if present)

In order to be able to remove the upper

spray arm, you first have to remove the

cutlery tray (if present).

 Pull out the cutlery tray.

 Press the rail safety clips on both

sides of the cutlery tray together

and remove the safety clips.

 Take out the cutlery tray completely.

Cleaning and care

Removing the upper spray arm

 Push the upper spray arm upward

to engage the inner ratchet. Then un-

screw the spray arm by rotating the

screw thread counterclockwise.

Removing the middle spray arm

 Rotate the screw thread of the middle

spray arm clockwise and remove

the spray arm.

Removing the lower spray arm

 Remove the lower basket.

 Rotate the screw thread of the lower

spray arm counterclockwise and

pull the spray arm upward to re-

move.

Cleaning the spray arms

 Use a pointed object to push food

particles that are stuck in the spray-

arm jets into the spray arm.

 Rinse the spray arm thoroughly under

running water.

Cleaning and care

Reinstalling the spray arms

 Reinstall the upper spray arm and

tighten it by hand.

 Reinstall the middle spray arm.

 Reinstall the lower spray arm and en-

sure that the filter combination lies

flat in the base of the wash cabinet.

 Rotate the screw thread of the lower

spray arm clockwise until the arrow in

the viewing window points to the lock

symbol.

 Make sure the spray arms can rotate

freely.

 Damage due to soiling entering

the circulation system.

The lower spray arm is used to se-

cure the filter combination. Without

filters, coarse soiling can enter the

circulation system and cause a

blockage.

Do not run a wash program without

the lower spray arm or without the fil-

ters.

Inserting the cutlery tray (if present)

 Slide the cutlery tray back onto the

rails from the front.

 Replace the safety clips in the rails on

both sides of the cutlery tray.

Cleaning and care

Checking the filters in the

wash cabinet

The filter combination in the base of the

wash cabinet retains coarse soil from

the suds solution. This prevents soiling

getting into the circulation system and

re-entering the wash cabinet through

the spray arms.

 Damage due to soiling entering

the circulation system.

Without filters, soiling can enter the

circulation system and cause a

blockage.

Do not run a wash program without

the lower spray arm or without the fil-

ters.

When cleaning the filters and spray

arms, make sure that coarse soiling

cannot get into the circulation sys-

tem.

The filters can become blocked by soil-

ing that collects over time. The level of

soiling and time it takes before the fil-

ters need cleaning will vary depending

on use.

 Monitor the condition of the filter

combination regularly and clean it if

necessary.

Cleaning the filters

 Turn off the dishwasher.

 Remove the lower spray arm (see

“Cleaning the spray arms” under

“Cleaning and care”).

 Before removing the filter combina-

tion, remove any coarse soiling to

prevent it from entering the circulation

system.

 Remove the filter combination.

Cleaning and care

 In order to clean the inside of the fil-

ter, pull the microfilter on the plastic

ring downwards and away from the

filter combination.

 Rinse all of the filters under running

water.

If necessary, use a soft cleaning

brush to remove soiling.

 Insert the microfilter back into the fil-

ter combination.

 Reinstall the filter combination so that

it lies flat in the base of the wash cab-

inet.

 Refit the lower spray arm to the filter

combination using the screw thread.

 Rotate the screw thread clockwise

until the arrow in the viewing window

points to the lock symbol.

 Damage due to soiling entering

the circulation system.

The lower spray arm is used to se-

cure the filter combination. Without

filters, coarse soiling can enter the

circulation system and cause a

blockage.

Do not run a wash program without

the lower spray arm or without the fil-

ters.

Cleaning and care

Cleaning the drain pump

If water remains in the wash cabinet af-

ter the end of a program, the water has

not been pumped away. The drain

pump may be blocked by foreign ob-

jects. These foreign objects are easy to

remove.

 Disconnect the dishwasher from the

power supply.

To do this, turn off at the electrical

socket and withdraw the plug.

 Take the filter combination out of the

wash cabinet (see “Cleaning the fil-

ters” under “Cleaning and care”).

 Scoop the water out of the wash cab-

inet using a suitable small container

or utensil.

 Press the catch of the drain pump

cover inwards.

 Tip the cover inwards until it is re-

leased.

 Rinse the cover thoroughly under run-

ning water and remove all foreign ob-

jects.

Cleaning and care

The drain pump (see arrow) is under-

neath the cover.

 Risk of injury from glass splin-

ters.

It is especially difficult to see glass

splinters in the drain pump.

Take care when cleaning the drain

pump.

 Carefully remove all foreign objects

from the drain pump. Check the drain

pump impeller by manually turning it.

You will feel a little resistance when

you turn the impeller.

 Refit the cover by placing it down

vertically from above.

Ensure that the catch engages cor-

rectly.

 Damage due to incorrect clean-

ing.

The components are delicate and

can be damaged during cleaning.

Take care when cleaning the drain

pump.

Frequently Asked Questions

With the help of the following guide minor faults in the performance of the ma-

chine, some of which may result from incorrect operation, can be remedied with-

out contacting the Service Department.

This guide may help you to find the reason for the fault, and how to correct it.

This section only lists faults that you can remedy yourself. All other faults are

shown in Fault FXX.

Technical faults

Problem Possible cause and solution

The dishwasher does

not start.

The door is not properly closed.

 Raise the door upward until the catch engages.

The dishwasher is not plugged in.

 Insert the plug.

The circuit breaker has tripped.

 Reset the breaker (see data tag for the correct fuse

rating).

 If the breaker trips again, contact Miele Customer

Service.

The dishwasher is not turned on.

 Turn the dishwasher on with the button.

The dishwasher stops

during a program.

The circuit breaker has tripped.

 Reset the circuit breaker (see data plate for the

correct fuse rating).

 If the circuit breaker trips again, contact Miele

Customer Service.

Frequently Asked Questions

Fault messages

Problem Possible cause and solution

The alarm tone is

sounding.

Fault number ap-

pears in the time dis-

play.

There may be a technical fault.

 Turn the dishwasher off with the button.

 Turn the dishwasher back on after a few seconds.

 Select the program you want to use.

 Close the door.

If the indicator lights flash again, there is a technical

fault.

 Turn off the dishwasher.

 Turn off the water-supply faucet.

 Contact Miele Customer Service.

Fault :

The drain pump may

still be running, even

with the door open.

The Waterproof system has reacted.

 Turn off the dishwasher.

 Turn off the water-supply faucet.

 Contact Miele Customer Service.

The alarm tone is

sounding.

When the door is open,

all of the program se-

lection indicator lights

are flashing.

Fault number78 ap-

pears in the time dis-

play.

Circulation-pump fault.

 Turn off the dishwasher.

 Turn the dishwasher back on.

 Select the program you want to use.

 Close the door.

If the fault message appears again, there is a techni-

cal fault.

 Turn off the dishwasher.

 Turn off the water-supply faucet.

 Contact Miele Customer Service.

Frequently Asked Questions

Water intake fault

Problem Possible cause and solution

The dishwasher stops

working shortly after

the program starts.

The alarm tone is

sounding.

The / indicator

light flashes on and off.

 and 173 appear alter-

nately on the time dis-

play.

The water supply is turned off.

 Open the water-supply faucet all the way.

The dishwasher stops

during a program.

The alarm tone is

sounding.

The / indicator

light is flashing.

The fault number  or

 appears in the dis-

play.

Before remedying the fault:

 Turn the dishwasher off with the button.

Water-intake fault.

 Open the water-supply faucet all the way and start

the program again.

 Clean the water-intake filter (see “Cleaning the wa-

ter-intake filter” under “Cleaning and care”).

 The water-connection pressure is lower than 7.25

psi (50kPa).

Seek professional advice.

 The on-site connection for the water drainage may

be too low and you will need to vent the water

drainage (see “Water drainage” under “Installa-

tion”).

The dishwasher stops

during a program.

Fault number8 ap-

pears in the time dis-

play.

A technical fault has occurred.

 Turn off the dishwasher.

 Turn off the water-supply faucet.

 Contact Miele Customer Service.

Frequently Asked Questions

Water drainage fault

Problem Possible cause and solution

The dishwasher stops

during a program.

The alarm tone is

sounding.

The / indicator

light is flashing.

Fault number ap-

pears in the time dis-

play.

Before remedying the fault:

 Turn off the dishwasher.

Water-drainage fault.

There might be water in the wash cabinet.

 Clean the filter combination (see “Cleaning the fil-

ters” under “Cleaning and care”).

 Clean the drain pump (see “Cleaning the drain

pump” under “Cleaning and care”).

 Remove any kink or loop in the drain hose.

Frequently Asked Questions

General dishwasher problems

Problem Possible cause and solution

The alarm tone is

sounding.

The indicator light for

the selected program

and the time display will

flash.

The dishwasher does

not start or the delay-

start time stops run-

ning.

The safe mode of the dishwasher was activated.

This takes place in the following instances:

– if you do not close the door within 4seconds of

the last press of a button at program start

– if the door is open for longer than 4seconds

during a program or within the delay-start time

 Press the program selection button and close the

door within 4seconds.

The indicator lights and

time display are dark.

The dishwasher has turned off automatically to save

energy.

 Turn the dishwasher on again with the button.

Detergent residue is left

in the detergent com-

partment at the end of a

program.

The detergent compartment was still damp when de-

tergent was added.

 Only add the detergent when the detergent com-

partment is dry.

The detergent compart-

ment lid cannot be

closed.

Residual detergent is blocking the catch.

 Remove the residual detergent.

At the end of a program

there is a film of mois-

ture on the inside of the

door and possibly on

the interior cabinet

walls.

This is part of the normal function of the drying sys-

tem. The moisture will dissipate after a short time.

Water remains in the

wash cabinet at the end

of a program.

Before remedying the fault:

 Turn off the dishwasher.

The filter combination in the wash cabinet is clogged.

 Clean the filter combination (see “Cleaning the fil-

ters” under “Cleaning and care”).

The drain pump is blocked.

 Clean the drain pump (see “Cleaning the drain

pump” under “Cleaning and care”).

The drain hose is kinked.

 Remove any kinks from the drain hose.

Frequently Asked Questions

Noises

Problem Possible cause and solution

There is a knocking

noise in the wash cabi-

net.

A spray arm is knocking against a wash item.

 Carefully open the door and rearrange the wash

items that are obstructing the spray arm.

There is a rattling noise

in the wash cabinet.

Wash items are not secure in the wash cabinet.

 Carefully open the door and rearrange the wash

items so that they sit securely.

There is a foreign object (e.g., glass shard) in the

drain pump.

 Remove the foreign object from the drain pump

(see “Cleaning the drain pump” under “Cleaning

and care”).

Knocking noise in the

water pipes

This may be caused by the on-site installation or the

cross-section of the piping.

 However, this will not affect the functioning of the

dishwasher in any way. If in doubt, contact a suit-

ably qualified plumber.

Frequently Asked Questions

Poor cleaning results

Problem Possible cause and solution

The dishes are not

clean.

The dishes were not loaded correctly.

 See notes under “Loading the dishwasher”.

The program was not powerful enough.

 Select a more powerful program (see “Program

overview”).

 Activate the Extra clean function (see “Extra clean”

under “Options”).

Not enough detergent was dispensed during manual

detergent dispensing.

 Use more detergent or change the brand you are

using.

Items are blocking the path of the spray arms.

 Carry out a rotation check and if needed rearrange

the items so that the spray arms can rotate freely.

The filter combination in the wash cabinet is not

clean or was incorrectly installed.

This may have caused the spray-arm jets to become

blocked.

 Clean and/or install the filter combination correctly.

 Clean the spray-arm jets if necessary (see “Clean-

ing the spray arms” under “Cleaning and care”).

There are streaks on

glassware and utensils.

There is a bluish sheen

on the surface of glass-

ware. The film can be

wiped off.

The rinse-aid dosage is set too high.

 Reduce the dosage (see “Rinse aid” under “Before

using for the first time”).

Frequently Asked Questions

Problem Possible cause and solution

The dishware is not dry

or utensils and glasses

are flecked.

The rinse-aid dosage is set too low or the rinse-aid

reservoir is empty.

 Replenish the reservoir, increase the dosage, or

change the brand of rinse aid (see “Rinse aid” un-

der “Before using for the first time”).

The dishware was taken out of the wash cabinet too

soon.

 Leave the dishware in longer (see “Unloading the

dishwasher” under “Operation”).

The duration of the drying phase for the selected pro-

gram is not sufficient for the dishware (particularly for

plastic dishware).

 Select the ExtraDry program option (see “Ex-

traDry” under “Options”).

You have used combination products that have insuf-

ficient drying performance.

 Switch to another detergent or replenish the rinse

aid (see “Rinse aid” under “Before using for the

first time”).

Glassware has a brown

or blue tinge. The film

cannot be wiped off.

Ingredients from the detergent have formed a de-

posit.

 Switch to another detergent straight away.

Glassware is dull and

discolored. The film

cannot be wiped off.

The glassware is not dishwasher-safe. The surface

has altered.

 No remedy.

Purchase glassware which is dishwasher-safe.

Tea or lipstick stains

have not been com-

pletely removed.

The wash temperature of the selected program was

too low.

 Select a program with a higher wash temperature.

The bleaching effect of the detergent is too low.

 Switch to another detergent.

Frequently Asked Questions

Problem Possible cause and solution

Plastic parts are discol-

ored.

Natural dyes, e.g., from carrots, tomatoes, or

ketchup may be the cause. The amount of detergent

used or its bleaching effect was not sufficient to deal

with natural dyes.

 Use more detergent (see “Detergent”).

Parts that are already discolored will not revert to

their original color.

White residue is visible

on the dishes. Clouding

has occurred on glass-

ware and utensils. The

film can be wiped off.

The rinse-aid dosage is set too low.

 Increase the dosage (see “Rinse aid” under “Be-

fore using for the first time”).

Unsuitable combination detergents were used.

 Switch to another detergent. If using tabs or pow-

der detergent, do not choose combination prod-

ucts and ensure you refill the rinse aid.

There are rust stains on

the utensils.

The affected items are not corrosion resistant.

 No remedy.

Purchase utensils which are dishwasher-safe.

Customer Service

Contact in the event of a fault

In the event of a fault which you cannot

remedy yourself, please contact your

Miele dealer or Miele Customer Service.

You can book a Miele Service Call on-

line at www.miele.com/service.

Contact information for Miele Cus-

tomer Service can be found at the end

of this document.

Please quote the model identifier and

serial number of your appliance (SN)

when contacting Miele Customer Ser-

vice. Both pieces of information can be

found on the data plate.

The data plate is located on the right

side of the door.

EPREL database

From March 1, 2021, information on en-

ergy labeling and ecodesign require-

ments will be available in the European

Product Database (EPREL). You can

find the product database at the follow-

ing link https://eprel.ec.europa.eu/. You

will be asked to enter the model identi-

fier.

The model identifier can be found on

the data tag.

AC xxxV xxHz

x,x kW

xx A

Made in xxx

X xxxx

Mat.: xxxxxxxx

Appliance warranty and prod-

uct registration

You can register your product and/or

view the manufacturer´s warranty terms

and conditions for Miele appliances and

vacuum cleaners at

www.mieleusa.com.

Optional accessories

Dishwasher detergent, rinse aid, and

cleaning and care products are avail-

able for this dishwasher, as are optional

accessories.

All the products have been designed for

Miele appliances.

These and many other useful products

can be ordered directly from Miele’s on-

line store, Miele Customer Service, or

from your Miele dealer.

Dishwasher detergent and

rinse aid

You have chosen excellent quality and

performance with your Miele dish-

washer. To achieve optimum results all

the time, it is important to use the right

dishwasher detergents. Not all off-the-

shelf products deliver the same results

in all dishwashers.

For this reason Miele offers dishwasher

products specifically designed for Miele

appliances.

Detergent tabs

- Sparkling results even with stubborn

food deposits

- Combination product with other func-

tions such as rinse aid, salt, and

glass protection additives

- Phosphate-free – kind to the environ-

ment

- Water-soluble wrapping – no need to

unwrap

Rinse aid

- For sparkling glasses

- Helps dishes to dry

- With glass-protection formula against

corrosion

- Specially designed cap for accurate

and easy dispensing

Optional accessories

Appliance care

Miele cleaning and care products pro-

vide optimum care for your dishwasher.

Dishwasher cleaner

- For use with the Clean Machine pro-

gram without detergent dispensing

- Cleans the dishwasher effectively

and thoroughly

- Removes grease, bacteria, and asso-

ciated unpleasant odors

- Ensures excellent dishwashing re-

sults

Descaling agent

- Removes heavy limescale deposits

- Mild and gentle with natural citric

acid

Dishwasher conditioner

- Removes odors, limescale, and light

deposits

- Maintains the elasticity and leak

tightness of the seals

Dishwasher freshener

- Neutralizes unpleasant odors

- Fresh, pleasant lime and green tea

scent

- Easy and convenient to attach to the

dishwasher basket

- Very economical; lasts for 60rinses

Installation

*INSTALLATION*

Water intake

 Danger to health due to wash

water.

Water in the dishwasher must not be

used as drinking water.

Do not drink any water from the dish-

washer.

 Health risk and risk of damage

due to contaminated incoming water.

The quality of the incoming water

must correspond to the drinking wa-

ter specification of the country in

which the dishwasher is being oper-

ated.

Connect the dishwasher to a drinking

water supply.

The dishwasher may be connected to

cold or hot water (up to max.

140°F/60°C) supplies.

We recommend connecting to a cold

water supply to reduce energy con-

sumption.

If energy-saving water heating sources,

such as solar energy circulation sys-

tems, are used, we recommend con-

necting to the hot water. This saves

both time and electrical energy costs.

Hot water is used in all programs.

The intake hose is approx.5ft (1.5m)

long. A 5ft (1.5m) long, flexible metal

extension hose (tested to 2030

psi/14,000kPa) is available as an op-

tional accessory from Miele specialist

retailers or Miele Customer Service.

Installation

*INSTALLATION*

A water supply with 3/8" Compression

Connection (thread connection of

9/16" – 24 UNEF) must be provided on

site. If this type of faucet is not avail-

able, only a qualified installer may con-

nect the dishwasher to the domestic

water supply.

A backflow preventer is not required.

The appliance meets the requirements

of the applicable DIN standards.

The water-connection pressure needs

to be between 7.25 and 145 psi (50 and

1,000kPa). If the water-connection

pressure is too high, a pressure reduc-

ing valve must be installed.

 Risk of damage from leaking wa-

ter.

The connection point is subject to

water pressure. Water leaking from it

can cause damage.

You should therefore open the faucet

slowly and check for leaks. Correct

the position of the seal and screw

thread if appropriate.

 Risk of damage due to excessive

pressure.

A brief increase in the water pressure

can damage components of the

dishwasher.

This dishwasher must only be oper-

ated when it is connected to a fully

primed plumbing system.

 Risk of damage from leaking wa-

ter.

The intake hose is under water pres-

sure.

The intake hose must not be short-

ened or damaged in any way.

 Do not sit the dishwasher on the

hose. The hose needs to be free of

kinks and able to move freely after

installation. Do not place the hose or

power cord next to a heat source

e.g., hot water pipes. Do not expose

the hose or power cord to corrosive

substances (e.g., chloride). Damage

to the hose or power cord could

cause electrical shock or water dam-

age.

Installation

*INSTALLATION*

Water drainage

The appliance drainage system has a

non-return valve, which prevents dirty

water from flowing back into the dish-

washer via the drain hose.

The dishwasher is supplied with approx.

5ft (1.5m) of flexible drain hose with an

internal diameter of 7/8" (22mm).

The hose can be extended using a con-

nection piece to attach a further length

of hose. The drainage length must not

be longer than 13ft (4m) and the deliv-

ery head no higher than 3ft (1m).

If the hose is to be directly connected

to the drainage outlet on site, use the

supplied hose clip (see the installation

diagram).

The hose can be directed to the left or

the right of the appliance.

The on-site connector for the drain hose

can be used for various hose diameters.

If the connector extends too far into the

drain hose, it must be shortened. Other-

wise, the drain hose can become

clogged.

Only use a Miele approved connection

piece when extending the drain line.

Only use a Miele extension drain hose.

The drain hose must not be shortened.

Lay the drain hose so that it does not

kink and is not being subjected to

pressure or tugged.

 Risk of damage from leaking wa-

ter.

Leaking water can cause damage.

After servicing the appliance, ensure

that the drain does not leak.

Installation

*INSTALLATION*

Venting the water drainage

If the on-site drainage connection is sit-

uated lower than the guide path for the

lower basket rollers in the open door,

the drainage system must be vented.

Otherwise, a siphoning effect during a

program can cause the appliance to

empty itself of water.

 Open the dishwasher door fully.

 Remove the lower basket.

 Insert a screwdriver into the middle

opening of the vent valve in the left

wash cabinet wall.

 Press the screwdriver further into the

opening and push it through the

membrane behind.

The vent opening for the water drain is

now open.

Installation

*INSTALLATION*

Electrical connection

 Installation, repairs and other

work by unqualified persons could

be dangerous.

Check that the voltage, frequency

and fuse rating shown on the data

plate match the household power

supply.

The power outlet must be accessible

after installation. Do not use an ex-

tension cord to connect the dish-

washer to the electrical supply. Dan-

ger of overheating! See data plate on

the right side of the door.

A damaged power cord must only be

replaced with a genuine Miele cord

by a Miele service technician.

Grounding instructions

THIS APPLIANCE MUST BE

GROUNDED.

In the event of a malfunction or break-

down, grounding will reduce the risk of

electric shock by providing a path of

least resistance for the electrical cur-

rent. This appliance is equipped with a

cord having an equipment grounding

conductor and a grounding plug. The

plug must be plugged into an appropri-

ate outlet that is installed and grounded

in accordance with all local codes and

ordinances.

 Improper connection of the

equipment grounding conductor can

result in electric shock.

Do not modify the plug provided with

the appliance; if it will not fit the out-

let, have a proper outlet installed by

a qualified electrician.

If there is any question concerning

the proper electrical connection or

grounding of this appliance to the

power supply, please consult a li-

censed electrician or call Miele’s

Customer Service Department:

USA: 1-888-99-MIELE(64353)

CDN: 1-800-565-6435

Specifications

The dishwasher comes equipped with a

4ft (1.2m) power cord (measured from

the rear of the dishwasher) with a

molded plug for connection to 120V,

60Hz, 15A grounded receptacle.

Installation

*INSTALLATION*

Hardwired electrical connection

It is possible to hardwire this appliance

to an existing power cable.

 CAUTION: Before servicing, dis-

connect the power supply by either

removing the fuse, shutting off the

power main or manually “tripping”

the circuit breaker.

Installation work and repairs should

only be performed by a qualified

technician in accordance with all ap-

plicable codes and standards. Re-

pairs and service by unqualified per-

sons could be dangerous and the

manufacturer cannot be held respon-

sible.

Before connecting the appliance to

the power supply, make sure that the

voltage and frequency listed on the

data plate correspond with the

household electrical supply. This

data must correspond to prevent

machine damage. Consult an electri-

cian if in doubt.

GROUNDING INSTRUCTIONS

THIS APPLIANCE MUST BE

GROUNDED.

This appliance must be connected to a

grounded metal, permanent wiring sys-

tem, or an equipment-grounding con-

ductor must be run with the circuit con-

ductors and connected to the equip-

ment-grounding terminal or lead on the

appliance.

 Prior to making a hardwire con-

nection to the terminal, remove the

powercord. Otherwise there will be a

risk of electric shock from the at-

tached plug.

An existing flexible supply cord or cable

shall have a minimum thickness of

AWG14.

120V, 60Hz, 15A fuse rating

Black wire (live): connect to L

White wire (neutral): connect to N

Green wire (ground): connect to 

 After attaching the permanent

power supply cord, check that all

wires are correctly and securely

placed in the connector and the

strain relief is tightened.

Sound emission testing

Prerequisites for sound emission tests

Load the dishwasher with 16 standard place settings and use the Normal pro-

gram.

Setup for sound emission tests

The dishwasher must be set up according to the following specifications.

 Install the dishwasher into an analyzing unit.

 Secure the front panel.

 Push the provided fleece strips (depending on model) under the toe kick until it

is flush with the appliance feet.

 Push the toe-kick into place in such a way that it is flush with the door panel .

Sound emission testing

 Remove the protective film from the provided insulating strip (depending on

model) .

 Stick the insulating strip onto the front top edge of the toe-kick board .

9 Independence Way

Princeton, NJ 08540

U.S.A.

Miele, Inc.

National Headquarters

Please have the model and serial number

of your appliance available when

contacting Customer Service.

Canada

Importer

Miele Limited

Headquarters and Miele Centre

Customer Service & Support

Phone: 888-99-MIELE(64353)

[email protected]

www.mieleusa.com

161 Four Valley Drive

Vaughan, ON L4K 4V8

www.miele.ca

Customer Care Centre

Phone:

[email protected]

800-565-6435

905-532-2272

International Headquarters

Miele & Cie. KG

Carl-Miele-Straße 29

33332 Gütersloh

Germany

M.-Nr. 11 694 080 / 02en-US

G5051, G5056, G5058

Viking G5056SCVI Miele G5000 Series 24 Inch Panel Ready Built-In Fully Integrated Dishwasher

Product's Documents

User Manual

Specifications

Viking G5056SCVI Questions and Answers
