Ashley AP5780E 2,200 Sq. Ft. Pellet Stove with Black Curved User Manual

852922E-2303J

U.S. Stove Company

227 Industrial Park Road, South Pittsburg, TN 37380

Phone 800-750-2723 www.usstove.com

U.S. Environmental Protection Agency

Certied to comply with 2020 particulate

emissions standards.

CALIFORNIA PROPOSITION 65 WARNING:

This product can expose you to chemicals including carbon monoxide, which

is known to the State of California to cause cancer, birth defects and/or other

reproductive harm. For more information, go to www.P65warnings.ca.gov

Ce produit peut vous exposer à des agents chimiques, y compris au monoxyde de

carbone, lesquels sont reconnus dans l’État de la Californie comme causant le cancer et

des malformations congénitales ou autres dommages au fœtus. Pour obtenir plus de

renseignements, veuillez consulter le site www.P65warnings.ca.gov

MODEL: 5780

Report #: F19-550

Certied to ASTM E1509-12 (2017) and

Certied to ULC S627, 2000

This unit is not intended to be used as a

primary source of heat.

• PLEASE READ THIS ENTIRE MANUAL BEFORE INSTALLATION

AND USE OF THIS APPLIANCE. FAILURE TO FOLLOW THESE

INSTRUCTIONS COULD RESULT IN PROPERTY DAMAGE,

BODILY INJURY, OR EVEN DEATH.

• CONTACT YOUR LOCAL BUILDING OR FIRE OFFICIALS ABOUT

OBTAINING PERMITS, RESTRICTIONS AND INSTALLATION

INSPECTION REQUIREMENTS IN YOUR AREA.

• SAVE THESE INSTRUCTIONS. THIS MANUAL WILL HELP YOU TO

OBTAIN EFFICIENT, DEPENDABLE SERVICE FROM THE HEATER,

AND ENABLE YOU TO ORDER REPAIR PARTS CORRECTLY.

KEEP IN A SAFE PLACE FOR FUTURE REFERENCE.

This manual is subject to change without notice.

ALL PICTURES SHOWN ARE FOR ILLUSTRATIVE PURPOSES

ONLY. ACTUAL PRODUCT MAY VARY DUE TO PRODUCT

ENHANCEMENT.

-2-

• IMPORTANT: Read this entire manual before installing

and operating this product. Failure to do so may

result in property damage, bodily injury, or even

death. Proper installation of this stove is crucial for

safe and efcient operation.

• Install vent at clearances specied by the vent

manufacturer.

• Do not connect the pellet vent to a vent serving any

other appliance or stove.

• Do not install a ue damper in the exhaust venting

system of this unit.

• Use of outside air is not required for this unit.

• Contact your local building ofcials to obtain a

permit and information on any additional installation

restrictions or inspection requirements in your area.

• Do not throw this manual away. This manual has

important operating and maintenance instructions

that you will need at a later time. Always follow the

instructions in this manual.

• This appliance is designed for the use of pelletized

fuel that meet or exceed the standard set by the

Pellet Fuel Institute(PFI).

• Never use gasoline, gasoline-type lantern fuel,

kerosene, charcoal lighter uid, or similar liquids to

start or ’freshen up’ a re in this stove. Keep all such

liquids well away from the stove while it is in use.

• A working smoke detector must be installed in the

same room as this product.

• Install a smoke detector on each oor of your home;

incase of accidental re from any cause it can

provide time for escape.

• The smoke detector must be installed at least 15

feet (4,57 M) from the appliance in order to prevent

undue triggering of the detector when reloading.

• Do not unplug the stove if you suspect a malfunction.

Turn the ON/OFF switch to ”OFF’ and contact your

dealer.

• Your stove requires periodic maintenance and

cleaning (see ”Maintenance”). Failure to maintain

your stove may lead to improper and/or unsafe

operation.

• Disconnect the power cord before performing any

maintenance! NOTE: Turning the ON/OFF Switch to

”OFF” does not disconnect all power to the electrical

components of the stove.

• Never try to repair or replace any part of the stove

unless instructions for doing so are given in this

manual. All other work should be done by a trained

technician.

• Do not operate your stove with the viewing door

open. The auger will not feed pellets under these

circumstances and a safety concern may arise from

sparks or fumes entering the room.

• Allow the stove to cool before performing any

maintenance or cleaning. Ashes must be disposed

in a metal container with a tight tting lid. The

closed container of ashes should be placed on a

non-combustible surface or on the ground, well

away from all combustible materials, pending nal

disposal.

• The exhaust system should be checked monthly

during the burning season for any build-up of soot

or creosote.

• Do not touch the hot surfaces of the stove. Educate

all children on the dangers of a high-temperature

stove. Young children should be supervised when

they are in the same room as the stove.

• The hopper and stove top will be hot during

operation; therefore, you should always use some

type of hand protection when refuelling your stove.

• A power surge protector is required. This unit must be

plugged into a 110 - 120V, 60 Hz grounded electrical

outlet. Do not use an adapter plug or sever the

grounding plug. Do not route the electrical cord

underneath, in front of, or over the heater. Do not

route the cord in foot trafc areas or pinch the cord

under furniture.

• The heater will not operate during a power outage.

If a power outage does occur, check the heater for

smoke spillage and open a window if any smoke

spills into the room.

• The feed door must be closed and sealed during

operation.

• Never block free airow through the open vents of

the unit.

• Keep foreign objects out of the hopper.

• The moving parts of this stove are propelled by high

torque electric motors. Keep all body parts away

from the auger while the stove is plugged into an

electrical outlet. These moving parts may begin to

move at any time while the stove is plugged in.

• Do not place clothing or other ammable items on

or near this stove.

• When installed in a mobile home, the stove must be

grounded directly to the steel chassis and bolted to

the oor. WARNING - THIS UNIT MUST NOT BE INSTALLED

IN THE BEDROOM. CAUTION - The structural integrity

of the mobile home oor, wall, and ceiling/roof must

be maintained.

• This appliance is not intended for commercial use.

• CAUTION: Burning fuel creates carbon monoxide

and can be hazardous to your health if not properly

vented.

• This appliance is a freestanding heater. It is not

intended to be attached to any type of ducting. It

is not a furnace.

Safety Precautions

-3-

* Pellet size may effect the actual rate of fuel feed and burn times. Fuel feed rates may vary by as much as 20%.

Use PFI listed fuel for best results.

Electrical Specications

Electrical Rating 120 Volts AC, 60 HZ, 3 Amps

Watts (operational) 125W

Watts (igniter running) 310W

Dimensions

Height 37.16” (944 mm)

Width 20.81” (529 mm)

Depth 22.25” (566 mm)

Weight 162lbs

Specications

WARNING: It is against federal regulations to operate this wood heater in a manner inconsistent with the

operating instructions in the owner’s manual.

Note: Register your product on line at www.usstove.com. Save your receipt with your records for any claims.

Heating Specications

Fuel Burn Rate* (lowest setting) 1.4lbs per hr

Burn Time (lowest setting) 32 hrs

Hopper Capacity 46lbs

Flue Size 3“ or 4” (77 mm to 102 mm)

FUEL CONSIDERATIONS

Your pellet stove is designed to burn premium hardwood pellets that comply with the Pellet Fuel Institute (PFI)

(minimum of 40 lbs density per cubic ft, 1/4” to 5/16” diameter, length no greater than 1.5”, not less than 8,200

BTU/lb, moisture under 8% by weight, ash under 1% by weight, and salt under 300 parts per million). Pellets that

are soft, contain excessive amounts of loose sawdust, have been, or are wet, will result in reduced performance.

Store your pellets in a dry place. DO NOT store the fuel within the installation clearances of the unit or within the

space required for refuelling and ash removal. Doing so could result in a house re. Do not over re or use volatile

fuels or combustibles, doing so may cause a personal and property damage hazards.

SAFETY AND EPA COMPLIANCE

Your pellet stove has been approved for installation in the USA and Canada. It may also be installed in a

manufactured or mobile home. Your stove conforms to ASTM E1509-12 (2017) and Certied to ULC S627-00. This

manual describes the installation and operation of the U.S. Stove, 5780 wood heater. This heater meets the 2020

U.S. Environmental Protection Agency’s crib wood emission limits for wood heaters sold after May 15, 2020. Under

specic test conditions this heater has been shown to deliver heat at rates ranging from 12,293 to 26,386 Btu/hr.

This heater achieved a particulate emissions rate of 1.3 g/hr when tested to method ASTM E2779-10 (*and an

efciency of 72%).

-4-

INSTALLATION OPTIONS

Read this entire manual before you install and use your pellet stove. Failure to follow instructions may result

in property damage, bodily injury, or even death! See specic installation details for clearances and other

installation requirements.

Freestanding Unit - supported by pedestal/legs and placed on a non-combustible oor surface in compliance

with clearance requirements for a freestanding stove installation.

Your pellet stove may be installed to code in either a conventional or mobile home (see Special Mobile Home

Requirements). It is recommended that only a authorized technician install your pellet stove, preferably an NFI

certied specialist. DO NOT CONNECT THIS UNIT TO ANY AIR DISTRIBUTION DUCT OR SYSTEM. The use of other

components other than stated herein could cause bodily harm, heater damage, and void your warranty.

IMPROPER INSTALLATION

The manufacturer will not be held responsible for damage caused by the malfunction of a stove due to improper

venting or installation. Call (800) 750-2723 and/or consult a professional installer if you have any questions.

CLEARANCES

Your pellet stove has been tested and listed for installation in residential, mobile home in accordance with the

clearances given below. For safety reasons, please adhere to the installation clearances and restrictions. Any

reduction in clearance to combustibles may only be done by means approved by a regulatory authority.

in mm

A Side Wall to Stove 8 204

B Side Wall to Vent Pipe 12 305

C Back Wall to Stove 12 305

D Back Wall to Vent Pipe 3 77

E Ceiling to Floor 84 2134

F Ceiling to Stove 46.875 1191

G Side Wall to Stove 10 254

H Side Wall to Vent Pipe 3 77

J Back Wall to Stove 10 254

K Back Wall to Vent Pipe 3 77

Installation

ADJACENT WALL

C B

in mm

L Back to Stove

USA 1 26

CAN 8 204

M Side to Stove

USA 6 153

CAN 8 204

N Front to Stove

USA 6 153

CAN 8 458

P Back and Sides to Flue 6 153

FLOOR PROTECTION

This heater must have a non-combustible oor protector (UL1618 ember protection) installed beneath it if the

oor is of combustible material. US: Floor protector should be UL listed or equal too, needs to extend 16” to the

front, 8” to each side, 1” to the rear of the unit. Under and 2” beyond each side of the cleanout tee if an interior

vertical instillation. Canada: Floor protector should comply with CAN/ULC standards. Needs to extend 18” to the

front, 8” beyond each side of the unit.

M M

THROUGH THE WALL

INSTALLATION

INTERIOR VERTICAL INSTALLATION

-5-

VENTING REQUIREMENTS

• Install vent at clearances specied by the vent manufacturer.

• Do not connect the pellet vent to a vent serving any other appliance or stove.

• Do not install a ue damper in the exhaust venting system of this unit.

• The following installation guidelines must be followed to ensure conformity with both the safety listing of this

stove and to local building codes. Do not use makeshift methods or compromise in the installation.

IMPORTANT: This unit is equipped with a negative draft system that pulls air through the burn pot and pushes

the exhaust out of the dwelling. If this unit is connected to a ue system other than the way explained in this

manual, it will not function properly.

MAXIMUM VENTING DISTANCE

Installation MUST include at least 3-feet of vertical pipe outside the home. This will create some natural draft to

reduce the possibility of smoke or odor during appliance shutdown and keep exhaust from causing a nuisance

or hazard by exposing people or shrubs to high temperatures. The maximum recommend vertical venting height

is 12-feet for 3-inch type “PL” vent. Total length of horizontal vent must not exceed 4-feet. This could cause back

pressure. Use no more than 180 degrees of elbows (two 90-degree elbows, or two 45-degree and one 90-degree

elbow, etc.) to maintain adequate draft.

IMPORTANCE OF PROPER DRAFT

Draft is the force which moves air from the appliance up through the chimney. The amount of draft in your

chimney depends on the length of the chimney, local geography, nearby obstructions and other factors. Too

much draft may cause excessive temperatures in the appliance. Inadequate draft may cause backpufng into

the room and ‘plugging’ of the chimney. Inadequate draft will cause the appliance to leak smoke into the room

through appliance and chimney connector joints. An uncontrollable burn or excessive temperature indicates

excessive draft. Take into account the chimney’s location to ensure it is not too close to neighbors or in a valley

which may cause unhealthy or nuisance conditions.

PELLET VENT TYPE

A certied 3-inch or 4-inch type “PL” pellet vent exhaust system must be used for installation and attached to the

pipe connector provided on the back of the stove (use a 3-inch to 4-inch adapter for 4-inch pipe). Connection

at back of stove must be sealed using Hi-Temp RTV. Use 4-inch vent if the vent height is over 12-feet or if the

installation is over 2,500 feet above sea level. We recommend the use of Simpson Dura-Vent® or Metal-Fab®

pipe (if you use other pipe, consult your local building codes and/or building inspectors). Do not use Type-B Gas

Vent pipe or galvanized pipe with this unit. The pellet vent pipe is designed to disassemble for cleaning and

should be checked several times during the burning season. Pellet vent pipe is not furnished with the unit and

must be purchased separately.

PELLET VENT INSTALLATION

The installation must include a clean-out tee to enable collection of y ash and to permit periodic cleaning of the

exhaust system. 90-degree elbows accumulate y ash and soot thereby reducing exhaust ow and performance

of the stove. Each elbow or tee reduces draft potential by 30% to 50%. All joints in the vent system must be

fastened by at least 3 screws, and all joints must be sealed with Hi-Temp RTV silicone sealant to be airtight. The

area where the vent pipe penetrates to the exterior of the home must be sealed with silicone or other means to

maintain the vapor barrier between the exterior and the interior of the home. Vent surfaces can get hot enough

to cause burns if touched by children. Noncombustible shielding or guards may be required.

PELLET VENT TERMINATION

Do not terminate the vent in an enclosed or semi-enclosed area, such as; carport, garage, attic, crawl space,

under a sun deck or porch, narrow walkway, or any other location that can build up a concentration of fumes.

Termination in one of these areas can also lead to unpredictable pressure situations with the appliance, and

could result in improper performance and/or malfunction. The termination must exhaust above the outside air

inlet elevation. The termination must not be located where it will become plugged by snow or other materials. Do

not terminate the venting into an existing steel or masonry chimney.

-6-

THROUGH THE WALL INSTALLATION (RECOMMENDED INSTALLATION)

Canadian installations must conform to CAN/CSA-B365. To

vent the unit through the wall, connect the pipe adapter to the

exhaust motor adapter. If the exhaust adapter is at least 18”

(457 mm) above ground level, a straight section of pellet vent

pipe can be used through the wall. Your heater dealer should

be able to provide you with a kit that will handle most of this

installation, which will include a wall thimble that will allow the

proper clearance through a combustible wall. Once outside

the structure, a 3 in.(76mm) clearance should be maintained

from the outside wall and a clean out tee should be placed

on the pipe with a 90-degree turn away from the house. At this

point, a 3ft (0.91m) (minimum) section of pipe should be added

with a horizontal cap, which would complete the installation.

A support bracket should be placed just below the termination

cap or one every 4ft (1.22m) to make the system more stable. If

you live in an area that has heavy snowfall, it is recommended

that the installation be taller than 3ft (0.91m) to get above the

snowdrift line. This same installation can be used if your heater

is below ground level by simply adding the clean-out section

and vertical pipe inside until ground level is reached. With this

installation you have to be aware of the snowdrift line, dead

grass, and leaves. We recommend a 3ft (0.91m) minimum

vertical rise on the inside or outside of the house. The “through

the wall” installation is the least expensive and simplest installation. Never terminate the end vent under a deck, in

an alcove, under a window, or between two windows. We recommend Simpson Dura-Vent® or Metal-Fab® kits.

THROUGH THE ROOF/CEILING INSTALLATION

When venting the heater through the ceiling, the pipe is connected the same as through the wall, except the

clean-out tee is always on the inside of the house, and a 3” (76 mm) adapter is added before the clean-out tee.

You must use the proper ceiling support anges and roof ashing (supplied by the pipe manufacturer; follow the

pipe manufacturer’s directions). It is important to note that if your vertical run of pipe is more than 12ft (3.7m), the

pellet vent pipe size should be increased to 4” (102 mm) in diameter. Do not exceed more than 4ft (1.22m) of

pipe on a horizontal run and use as few elbows as possible. If an offset is required, it is better to install 45-degree

elbows rather than 90-degree elbows.

6” (MIN)

TYPICAL THROUGH THE

WALL INSTALLATION

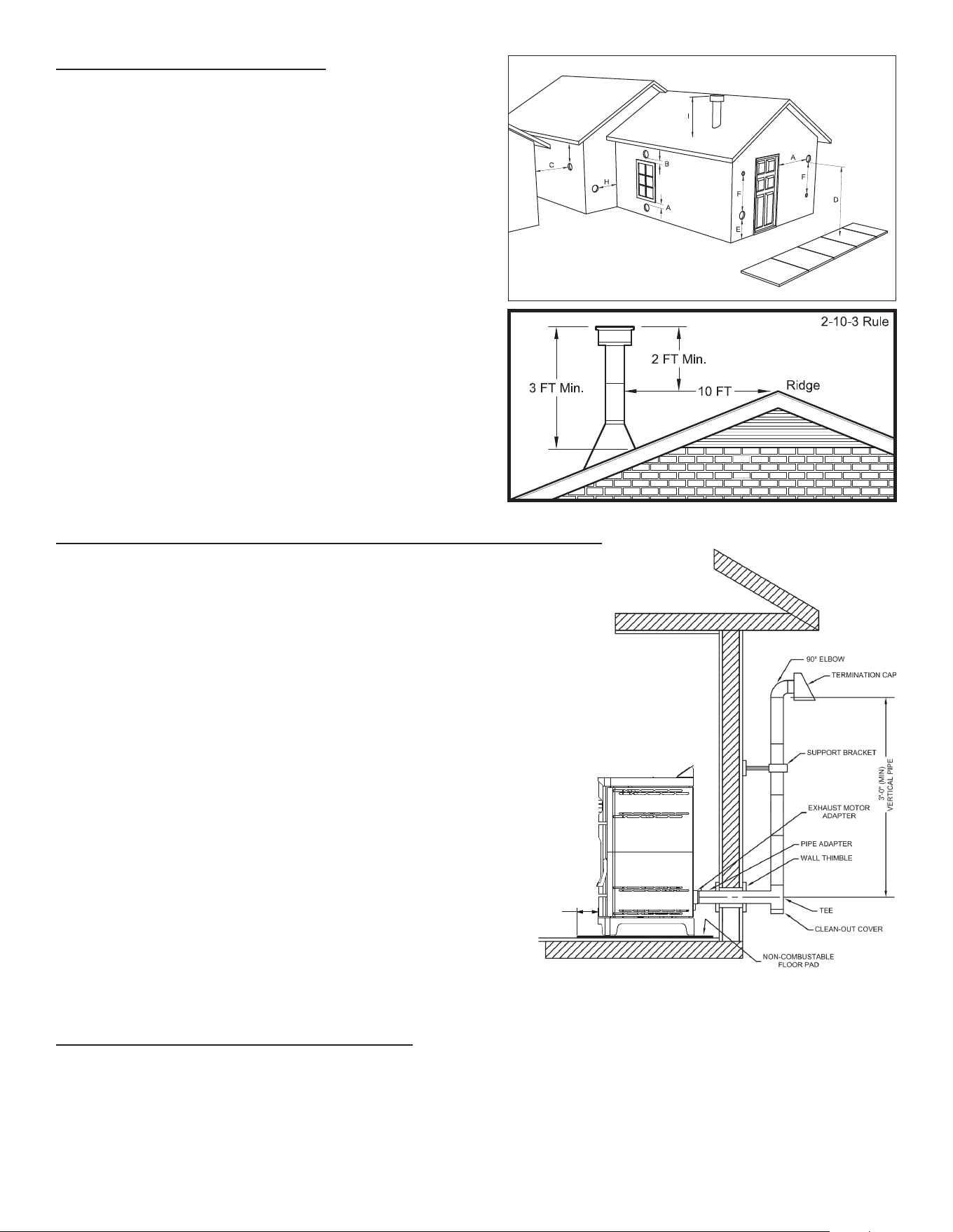

VENT TERMINATION CLEARANCES

A. Minimum 4-foot (1.22m) clearance below or beside any

door or window that opens.

B. Minimum 1-foot (0.3m) clearance above any door or

window that opens.

C. Minimum 3-foot (0.91m) clearance from any adjacent

building.

D. Minimum 7-foot (2.13m) clearance from any grade

when adjacent to public walkways.

E. Minimum 2-foot (0.61m) clearance above any grass,

plants, or other combustible materials.

F. Minimum 3-foot (0.91m) clearance from an forced air

intake of any appliance.

G. Minimum 2-foot (0.61m) clearance below eves or

overhang.

H. Minimum 1-foot (0.3m) clearance horizontally from

combustible wall.

I. Must be a minimum of 3 foot (0.91m) above the roof

and 2 foot (0.61m) above the highest point or the roof

within 10 feet (3.05m).

-7-

69FAK OUTSIDE AIR SUPPLY (OPTIONAL, UNLESS INSTALLING IN A MOBILE HOME)

Depending on your location and home construction, outside air may be necessary for optimal performance.

1. With the stove in the operating position, mark and drill a hole to accommodate the 2” exible hose.

2. Insert the hose through the wall and attach the Outside Cover with one of the 2” hose clamps provided.

3. Then attach the Outside Cover to the outside wall.

4. Next, attach the Rodent Cover to the Outside Cover using four (4) of the #10 x 3/4 screws supplied.

5. On the inside of the home, slide the Inside Plate over the tube then attach to the wall with the four drywall

anchors and screws provided.

6. On the Air Inlet Tube coming out of the rebox, there is a cap that must have four (4), 5/32” (0.156) diameter

holes drilled in it for the fresh air installation. The cap is on the front side of the tube just under the burnpot.

Remove burnpot. Using a long screwdriver or equivalent, knock the cap off by inserting it from the back of

the stove and pecking with a hammer. Drill holes, then replace cap and burnpot.

7. Attach one of the 2” ex hoses to the backside of the rebox, then to air inlet pipe at the back of the stove

as shown.

8. Stretch the 2” ex hose to the air inlet on the back of the stove. Attach using the other 2” hose clamp. The

hose will extend up to 4 feet in length.

ATTENTION: DO NOT vent under any porch, deck, awning, or in any semi enclosed or roofed area. Doing so

may result in unpredictable airow at the vent cap under certain conditions and can affect the performance

of your stove, as well as, other unforeseeable issues.

Figure 1

Figure 2

Fresh Air

Intake

Exhaust Outlet

SPECIAL MOBILE HOME REQUIREMENTS

• WARNING! - Do not install in a sleeping room

• CAUTION! - The structural integrity of the mobile home oor,

wall, and ceiling/roof must be maintained.

In addition to the previously detailed installation requirements,

mobile home installations must meet the following requirements:

• This stove must be securely fastened to the oor of the mobile

home through the two holes in the rear of the stove using two

1/4” lag bolts that are long enough to go through both a hearth

pad, if used, and the oor of the home.

• The heater must be electrically grounded to the steel chassis

of the mobile home with 8 GA copper wire using a serrated or

star washer to penetrate paint or protective coating to ensure

grounding.

• Vent must be 3 or 4-inch “PL” Vent and must extend a minimum

or 36 in.(914mm) above the roof line of the mobile home and must be installed using a certied ceiling re stop

and rain cap.

• When moving your mobile home, all exterior venting must be removed while the mobile home is being

relocated. After relocation, all venting must be reinstalled and securely fastened.

• Outside Air is mandatory for mobile home installation. See Outside Air Supply section and your dealer for

purchasing.

• Check with your local building ofcials as other codes may apply.

MOBILE HOME

MOUNTING BOLT HOLES

-8-

Assembly Instructions

Step 1

Pull the factory installed wires out of the top of the

stove. There will be two wire harnesses, as shown.

Step 2

Unpack the top mount controls and ensure that

the wiring harness shown is attached securely.

Step 3

Connect the factory installed wiring harnesses to

the control panel as shown.

Step 4

Attach the control panel to the top of the stove,

as shown.

Step 5

Secure with two sheet metal screws.

PANEL CONTROLS

The blowers and automatic fuel supply are controlled from a panel on the top of the unit. The control panel

functions are a follows.

A. ON/OFF SWITCH (“POWER” BUTTON)

• When pushed, the stove will automatically ignite. No other re starter is necessary. The igniter will stay on

for at least 10 and up to 12 minutes, depending on when Proof of Fire is reached. The re should start in

approximately 5 minutes.

• The red light located above the “POWER” button will turn green when pressed and remain green until the

stove is turned off.

• After pushing “POWER”, the auger motor is on for 3.5 minutes, off for 1 minute. During the remainder of the

start-up period, the auger motor operates on the heat range “1” setting.

• During start up the heat level advance (Up and Down keys) will change the heat range indicator level

accordingly, but there is no change in the stoves operating conditions until start-up is completed.

• During start-up ignition must occur within 12 minutes or the stove will error out and show E4.

• During the start-up phase, the Mode key does not function.

B. LEVEL / TEMP ARROW BUTTONS

• These buttons when pushed will set the pellet feed rate, hence the heat output or heat range of your stove.

• The levels of heat output will incrementally change on the bar graph starting from heat range “1” to heat

range “5”.

C. °C / °F Button

• The °C / °F button changes the two digit display from degrees Celsius to degrees Fahrenheit.

D. MODE (M/T) BUTTON

• The Mode of the stove can be switched between manual and controlled with a Thermostat. Separate LEDs to

the left of the two digit display indicate the mode of operation – Manual or T-Stat. The stove has to be in normal

operation to be switched from Manual to T-Stat mode.

Control Panel

-9-

• Manual mode operates according to the 5 set levels of feed

on the bar graph from heat range “1” to heat range “5”.

• T-Stat mode works as follows:

• The stove has a built in Thermostat into the controls of the

appliance. The temperature sensor for the T-Stat is located on

the back of the stove behind the display board.

• Once the stove has gone into run mode the stove can be

switch into T-Stat mode.

• The Up and Down Level / Temp Arrow buttons are used to

change the desired set-point temperature. Once the desired

temperature is reached the two digit display will ash for four

seconds and reset to the actual room temperature.

• Once the stove reaches within 3°F of the desired temperature

set point, it returns to the heat range that the stove was set on before it was switched to T-Stat mode (if the

stove was running on heat range “5” when switched to T-stat mode when it gets within 3°F of the set point it

will return to heat range “5”).

• Once the stove reaches the desired set-point, the stove will drop to heat range “1”.

• When room temperature drops below desired set-point the stove will ramp back up until it reaches the desired

temperature.

Level / Temp

Manual

T-Stat

Operation

• Do not use chemicals or uids to start the re - never use gasoline, gasoline-type lantern fuel, kerosene, charcoal

lighter uid, or similar liquids to start or “freshen up” a re in this stove. Keep all such liquids well away from the

stove while it is in use.

• Hot while in operation. Keep children, clothing and furniture away. Contact may cause skin burns.

This heater is designed to burn only PFI Premium grade pellets. DO NOT BURN:

1. Garbage;

2. Lawn clippings or yard waste;

3. Materials containing rubber, including tires;

4. Materials containing plastic;

5. Waste petroleum products, paints or paint thinners,

or asphalt products;

6. Materials containing asbestos;

7. Construction or demolition debris;

8. Railroad ties or pressure-treated wood;

9. Manure or animal remains;

10. Salt water driftwood or other previously salt water

saturated materials;

11. Unseasoned wood; or

12. Paper products, cardboard, plywood, or

particleboard. The prohibition against burning these

materials does not prohibit the use of re starters

made from paper, cardboard, saw dust, wax and

similar substances for the purpose of starting a re in

an affected wood heater.

Burning these materials may result in release of toxic fumes or render the heater ineffective and cause smoke.

PROPER FUEL

This stove is approved for burning pelletized wood fuel only ! Factory-approved pellets are those 1/4” or 5/16”

in diameter and not over 1” long. Longer or thicker pellets sometimes bridge the auger ights, which prevents

proper pellet feed. Burning wood in forms other than pellets is not permitted. It will violate the building codes for

which the stove has been approved and will void all warranties. The design incorporates automatic feed of the

pellet fuel into the re at a carefully prescribed rate. Any additional fuel introduced by hand will not increase

heat output but may seriously impair the stoves performance by generating considerable smoke. Do not burn

wet pellets. The stove’s performance depends heavily on the quality of your pellet fuel. Avoid pellet brands that

display these characteristics:

1. Excess Fines – “Fines” is a term describing crushed pellets or loose material that looks like sawdust or sand.

Pellets can be screened before being placed in hopper to remove most nes.

2. Binders – Some pellets are produced with materials to hold the together, or “bind” them.

3. High ash content – Poor quality pellets will often create smoke and dirty glass. They will create a need for

more frequent maintenance. You will have to empty the burn pot plus vacuum the entire system more often.

Poor quality pellets could damage the auger. We cannot accept responsibility for damage due to poor

quality pellet.

-10-

PRE-START-UP CHECK

Remove burn pot, making sure it is clean and none of the air holes are plugged. Clean the rebox, and then

reinstall burn pot. Clean door glass if necessary (a dry cloth or paper towel is usually sufcient). Never use abrasive

cleaners on the glass or door. Check fuel in the hopper, and rell if necessary.

BUILDING A FIRE

Never use a grate or other means of supporting the fuel. Use only the burn pot supplied with this heater.

Hopper lid must be closed in order for the unit to feed pellets. During the start-up period:

1. Make sure burn pot is free of pellets.

2. DO NOT open the viewing door.

3. Damper may need to be closed during start up.

4. DO NOT add pellets to the burn pot by hand.

NOTE: During the rst few res, your stove will emit an odor as the high temperature paint cures or becomes

seasoned to the metal. Maintaining smaller res will minimize this. Avoid placing items on stove top during this

period because paint could be affected. Attempts to achieve heat output rates that exceed heater design

specications can result in permanent damage to the heater.

AUTOMATIC IGNITER

Fill hopper and clean burn pot.

1. Press “On/Off” button. Make sure green light comes on.

2. The damper should be completely closed or open no more than 1/4 of the way during start-up. This will vary

depending on your installation and elevation. Once re is established adjust for desired ame increasing the

amount the damper is open as the heat setting is increased (See “Damper Control”).

3. Adjust feed rate to desired setting by pressing “Heat Level Advance” button.

If re doesn’t start in 12 minutes, press “On/Off”, wait a few minutes, clear the burn pot, and start procedure

again.

DAMPER CONTROL

The damper control lever is located on the back of the stove on the lower left side. The damper adjusts the

combustion air. This control is necessary due to the varied burn characteristics of individual installations, different

pellet brands and pellet feed rates. It allows you to improve the efciency of your stove. Providing correct

combustion air will reduce the frequency of cleaning your glass door and prevent the rapid buildup of creosote

inside your stove and chimney. You should adjust the damper based on the re’s appearance. A low, reddish,

dirty re can be improved by turning the damper slightly to the right. A “blow torch” re can be improved by

turning the dampener to the left a little bit. As a general rule, on lower feed rate settings, the damper should

be farther to the left closing it off. On higher feed rates, the damper should be open more by having it set more

towards the right. Through trial and error, you will nd the best setting. Consult your dealer if you need help.

NOTE: On heat range “1”, damper should be either completely closed or open no more than a 1/4 of the way. If

damper is open to far, it can cause the re to go out.

OPENING DOOR

If the door is opened while the stove is in operation it must be closed within 30 seconds or the stove will shut down.

If the stove shuts down push the “On/Off” button to re-start your stove. The stove will have to fully shut down and

turn off before you will be able to restart the stove.

ROOM AIR FAN

When starting your stove the Room Air Fan will not come on until the stove’s heat exchanger warms up. This

usually takes about 10 minutes from start-up.

IF STOVE RUNS OUT OF PELLETS

The re goes out and the auger motor and blowers will run until the stove cools. This will take 30 minutes or longer

depending on the heat remaining in the appliance. After the stove components stop running all lights on the

display will go out and the two digit display will begin ashing “E3”

-11-

REFUELLING

• The hopper and stove top will be hot during operation; therefore, you should always use some type of hand

protection when refuelling your stove.

• Never place your hand near the auger while the stove is in operation. We recommend that you not let the

hopper drop below 1/4 full.

TAMPER WARNING

This wood heater has a manufacturer-set minimum low burn rate that must not be altered. It is against federal

regulations to alter this setting or otherwise operate this wood heater in a manner inconsistent with operating

instructions in this manual.

KEEP HOPPER LID CLOSED AT ALL TIMES EXCEPT WHEN REFILLING. DO NOT OVERFILL HOPPER.

SHUTDOWN PROCEDURE

Turning your stove off is a matter of pressing the “POWER” button on the display board. The green light will turn

back to red when the “POWER” button is pushed. The auger motor will stop, and the blowers will continue to

operate until the internal rebox temperatures have fallen to a preset level.

1. Your stove is equipped with a high temperature thermodisc. This unit has a manual reset thermodisc. This

safety switch has two functions.

A. To recognize an overheat situation in the stove and shut down the fuel feed or auger system.

B. In case of a malfunctioning convection blower, the high-temperature thermodisc will automatically shut

down the auger, preventing the stove from overheating.

NOTE: On some units, once tripped, like a circuit breaker, the reset button will have to be pushed before restarting

your stove. On other units the thermodisc has no reset button and will reset itself once the stove has cooled. The

manufacturer recommends that you call your dealer if this occurs as this may indicate a more serious problem.

A service call may be required.

2. If the combustion blower fails, an air pressure switch will automatically shut down the auger.

NOTE: Opening the stove door for more than 30 seconds during operation will cause enough pressure change to

activate the air switch, shutting the fuel feed off. The stove will shut down and show “E2” on the two digit display.

The stove has to fully shut down before restarting.

WARNING: Never shut down this unit by unplugging it from the power source.

-12-

INTERIOR CHAMBERS

• Burn Pot: Periodically remove and clean the burn pot and the area inside the burn pot housing. In particular,

it is advisable to clean out the holes in the burn pot to remove any build up that may prevent air from moving

through the burn pot freely.

• Heat Exchanger: There is a clean out plate on both sides of the heat exchanger that need to be removed to

clean y ash out of the heat exchanger. The cleanouts are located inside the cabinet doors, on the lower front

corners of the heat exchanger. To access these clean outs, you must remove both side panels. The clean outs

are secured to the rebox with (2) 5/16” screws. Remove the clean outs and vacuum out any accumulated

ash. This should be done at least once per month or more frequently if large amounts of ash are noticed while

cleaning or if the stove does not seem to be burning properly.

If a vacuum is used to clean your stove, we suggest using the AV15E AshVac vacuum. The AV15E AshVac is

designed for ash removal. Some regular vacuum cleaner (i.e. shop vacs) may leak ash into the room.

DO NOT VACUUM HOT ASH.

WARNING: FAILURE TO PROPERLY MAINTENANCE THE CLEAN

OUTS WILL RESULT IN POOR PERFORMANCE OF THIS STOVE.

-13-

Maintenance

• Failure to clean and maintain this unit as indicated can result in poor performance, safety hazards, re, and

even death.

• Unplug your stove’s electrical cord prior to removing the back panel or opening the exhaust system for any

inspection, cleaning, or maintenance work.

• Never perform any inspections, cleaning, or maintenance on a hot stove.

• Do not operate stove with broken glass, leakage of ue gas may result.

EXHAUST SYSTEM

Creosote Formation - When any wood is burned slowly, it produces tar and other organic vapors, which combine

with expelled moisture to form creosote. The creosote vapors condense in the relatively cool chimney ue or a

newly started re or from a slow-burning re. As a result, creosote residue accumulates on the ue lining. When

ignited, this creosote makes an extremely hot re, which may damage the chimney or even destroy the house.

Despite their high efciency, pellet stoves can accumulate creosote under certain conditions.

Fly Ash - This accumulates in the horizontal portion of an exhaust run. Though non-combustible, it may impede the

normal exhaust ow. It should therefore be periodically removed.

Inspection and Removal - The chimney connector and chimney should be inspected by a qualied person annually

or per ton of pellets to determine if a creosote or y ash build-up has occurred. If creosote has accumulated, it

should be removed to reduce the risk of a chimney re. Inspect the system at the stove connection and at the

chimney top. Cooler surfaces tend to build creosote deposits quicker, so it is important to check the chimney

from the top as well as from the bottom. The creosote should be removed with a brush specically designed for

the type of chimney in use. A qualied chimney sweep can perform this service. It is also recommended that

before each heating season the entire system be professionally inspected, cleaned and, if necessary, repaired.

To clean the chimney, disconnect the vent from the stove.

ASH DISPOSAL

Remove ashes when unit has cooled. Ashes should be placed in a metal container with a tight tting lid. The

closed container of ashes should be placed on a noncombustible oor or on the ground, well away from all

combustible materials, pending nal disposal. If the ashes are disposed of by burial in soil or otherwise locally

dispersed, they should be retained in the closed container until all embers have been thoroughly cooled. The

container shall not be used for other trash or waste disposal. If combined with combustible substances, ashes and

embers may ignite.

ASH REMOVAL

Remove the ashes periodically to avoid unnecessary ash build up. Ash removal is as follows:

1. Let the re burn out and allow the unit cool to room temperature.

2. Clean the heat exchanger tubes (see “Heat Exchanger Cleaning” section) - Make sure the stove is at room

temperature before touching.

3. Open the ash pan door, remove the burn pot and empty it into a metal container.

4. Vacuum to remove ashes from the rebox.

5. BE SURE THAT ASHES ARE COOL TO THE TOUCH BEFORE VACUUMING. Some vacuum cleaners may leak ash

into the room. Your vacuum cleaner should have a special lter or bag to eliminate leakage.

6. Remove ash pan and dispose of ashes into a metal container.

7. Reinstall ash pan.

8. Reinstall burn pot.

SMOKE AND CO MONITORS

Burning wood naturally produces smoke and carbon monoxide(CO) emissions. CO is a poisonous gas when

exposed to elevated concentrations for extended periods of time. While the modern combustion systems in

heaters drastically reduce the amount of CO emitted out the chimney, exposure to the gases in closed or conned

areas can be dangerous. Make sure you stove gaskets and chimney joints are in good working order and sealing

properly to ensure unintended exposure. It is recommended that you use both smoke and CO monitors in areas

having the potential to generate CO.

-14-

CHECK AND CLEAN THE HOPPER

Check the hopper periodically to determine if there is any sawdust (nes) that is building up in the feed system or

pellets that are sticking to the hopper surface. Clean as needed.

DOOR AND GLASS GASKETS

Inspect the main door and glass window gaskets periodically. The main door may need to be removed to have

frayed, broken, or compacted gaskets replaced by your authorized dealer. This unit’s door uses a 5/8” diameter

rope gasket.

BLOWER MOTORS

Clean the air holes on the motors of both the exhaust and distribution blowers annually. Remove the exhaust

blower from the exhaust duct and clean out the internal fan blades as part of your fall start-up. If you have indoor

pets your power motors should be inspected monthly to make sure they are free of animal hair build up. Animal

hair build up in blowers can result in poor performance or unforeseen safety hazards.

PAINTED SURFACES

Painted surfaces may be wiped down with a damp cloth. If scratches appear, or you wish to renew your paint,

contact your authorized dealer to obtain a can of suitable high-temperature paint.

GLASS - CLEANING, REMOVAL AND REPLACEMENT OF BROKEN DOOR GLASS

Cleaning - We recommend using a high quality glass cleaner. Should a buildup of creosote or carbon accumulate,

you may wish to use 000 steel wool and water to clean the glass. DO NOT use abrasive cleaners. DO NOT perform

the cleaning while the glass is HOT. Do not attempt to operate the unit with broken glass. Replacement glass may

be purchased from your U.S. Stove dealer. If glass is broken, follow these removal procedures:

1. Once the heater has cooled, remove the door from the heater.

2. Remove the rope gasket from the door along with the four (4) screws holding the glass retainer in place and

the glass retainer.

3. While wearing leather gloves (or any other gloves suitable for handling broken glass), carefully remove any

loose pieces of glass from the door frame. Dispose of all broken glass properly.

4. Replace the glass and gasket, making sure the gasket runs the full perimeter of the glass edge.

5. Re-install the new glass by re-attaching the retainers and screws, be careful not to over tighten the screws for

this could damage the glass.

FALL START UP

Prior to starting the rst re of the heating season, check the outside area around the exhaust and air intake

systems for obstructions. Clean and remove any y ash from the exhaust venting system. Clean any screens on

the exhaust system and on the outside air intake pipe. Turn all of the controls on and make sure that they are

working properly. This is also a good time to give the entire stove a good cleaning throughout.

SPRING SHUTDOWN

After the last burn in the spring, remove any

remaining pellets from the hopper and the auger

feed system. Scoop out the pellets and then run

the auger until the hopper is empty and pellets

stop owing (this can be done by pressing the “ON”

button with the viewing door open). Vacuum out

the hopper. Thoroughly clean the burn pot, and

rebox. It may be desirable to spray the inside of

the cleaned hopper with an aerosol silicone spray

if your stove is in a high humidity area. The exhaust

system should be thoroughly cleaned.

MAINTENANCE SCHEDULE

Use the following as a guide under average use

conditions. Gaskets around door and door glass

should be inspected and repaired or replaced

when necessary.

Daily Weekly

Monthly or as

needed

Burn Pot Stirred Empty

Combustion Chamber Brushed

Ashes Check Empty

Interior Chambers Vacuumed

Combustion Blower

Blades

Vacuumed /

Brushed

Convection Blower

Impeller

Vacuumed /

Brushed

Vent System Cleaned

Gaskets Inspected

Glass Wiped Cleaned

Hopper (end of

season)

Empty and

vacuumed

-15-

When your stove acts out of the ordinary, the rst reaction is to call for help. This guide may save time and money

by enabling you to solve simple problems yourself. Problems encountered are often the result of only ve factors:

1) poor fuel; 2) poor operation or maintenance; 3) poor installation; 4) component failure; 5) factory defect. You

can usually solve those problems related to 1 and 2. Your dealer can solve problems relating to 3, 4 and 5. Refer

to diagrams on page 25 to help locate indicated parts.

For the sake of troubleshooting and using this guide to assist you, you should look at your heat level setting to see

which light is ashing.

• Disconnect the power cord before performing any maintenance! NOTE: Turning the ON/OFF Switch to ”OFF”

does not disconnect all power to the electrical components of the stove.

• Never try to repair or replace any part of the stove unless instructions for doing so are given in this manual.

All other work should be done by a trained technician.

Display is Flashing “E1”

Possible Causes Possible Remedies: (Unplug stove rst when possible)

The convection blower is overheating and

tripping the internal temperature shutoff.

Clean any dust off of the windings and fan blade. If oiling the

blower does not help, the blower may be bad.

The stove is being left on the highest setting

for extended periods of time.

If operating the heater on the highest heat setting, the room

temperature could increase enough and lead to potential

overheating situations. If this happens try operating at a lower

heat setting.

Fuel other than wood pellets is being

burned in the stove.

This pellet stove is designed and tested to use wood pellets. Check

for signs of fuel other than wood pellets. No other types of fuel

have been approved for this pellet stove. If there are signs of other

types of fuel being used, stop using them immediately.

Power surge or brown out situation.

A power surge, spike, or voltage drop could cause the high limit

switch to trip. Check to see if a surge protector is being used on

the stove. If not, recommend one to the customer.

High Limit Switch is malfunctioning. If the other items check out OK, replace the high limit switch.

ATTENTION: This wood heater needs periodic inspection and repair for proper operation. It is against federal

regulations to operate this wood heater in a manner inconsistent with operating instructions in this manual.

Trouble Shooting Guide

Display is Flashing “E2”

Possible Causes Possible Remedies: (Unplug stove rst when possible)

Airow switch hose or stove attachment

pipes for hose are blocked.

Unhook air hose from the air switch and blow through it. If air ows

freely, the hose and tube are ne. If air will not ow throw the hose,

use a wire coat hanger to clear the blockage.

The air inlet, burnpot, interior combustion

air chambers, combustion blower, or

exhaust pipe are blocked with ash or

foreign material.

Follow all cleaning procedures in the maintenance section of the

owner’s manual.

The rebox is not properly sealed. Make sure the door is closed and that the gasket is in good shape.

Vent pipe is incorrectly installed.

Check to make sure vent pipe installation meets criteria in owner’s

manual.

The airow switch wire connections are

bad.

Check the connectors that attach the gray wires to the air switch.

Combustion blower failure.

With the stove on, check to see if the combustion blower is running.

If it is not, you will need to check for power going to the combustion

blower. It should be a full current. If there is power, the blower is

bad. If there is not, see #8.

-16-

Control board not sending power to

combustion blower.

If there is no current going to the combustion blower, check all

wire connections. If all wires are properly connected, you have a

bad control board.

Control board not sending power to air

switch.

There should be a 5-volt current (approximately) going to the air

switch after the stove has been on for 30 seconds.

Air switch has failed.

To test the air switch, you will need to disconnect the air hose from

the body of the stove. With the other end still attached to the air

switch, very gently suck on the loose end of the hose (you may

want to remove the hose entirely off the stove and the air switch

rst and make sure it is clear). If you hear a click, the air switch is

working. BE CAREFUL TOO MUCH VACUUM CAN DAMAGE THE AIR

SWITCH.

Trouble Shooting Guide

Display is Flashing “E3”

Possible Causes Possible Remedies: (Unplug stove rst when possible)

The hopper is out of pellets Rell the hopper.

The air dampener is too far open for a low

feed setting

If on the low setting, you may need to close the dampener all the

way.

The burnpot holes are blocked. Remove the burnpot and thoroughly clean it.

The air inlet, the interior chambers, or

exhaust system has a partial blockage.

Follow all cleaning procedures in the maintenance section of the

owner's manual

The hopper safety switch has failed or

hopper is open.

When operating the unit, be sure the hopper lid is closed so that

the hopper safety switch will activate. Check the wires leading

from the hopper safety switch to the control panel and auger

motor for secure connections. Use a continuity tester to test the

hopper safety switch; replace if necessary.

The auger shaft is jammed.

"Start by emptying the hopper. Then remove the auger motor by

removing the auger pin, then remove the two bolts that hold the

auger bracket to the auger tube. The auger bracket will now be

able to be removed form the auger tube. Remove the two bolts

on the side of the auger tube to remove the lower bearing of the

auger. Pull the auger out of the tube to free the jam.

The auger motor has failed.

Remove the auger motor from the auger shaft and try to run the

unit. If the motor will turn the shaft is jammed on something. If the

motor will not turn, the motor is bad.

The Proof of Fire (POF) thermodisc has

malfunctioned.

Temporarily bypass the POF thermodisc by disconnecting the two

wires and connecting them with a short piece of wire. Then plug

the stove back up. If the stove comes on and works, you need to

replace the POF thermodisc. This is for testing only. DO NOT LEAVE

THE THERMODISC BYPASSED. Your blowers will never shut off and

if the re went out the auger will continue to feed pellets until the

hopper is empty if you leave the POF thermodisc bypassed.

The control board is not sending power to

the POF thermodisc or other auger system

components.

There should be a 5-volt (approximately) current going to the POF

thermodisc after the stove has been on for 10 minutes.

Display is Flashing “E4”

Possible Causes Possible Remedies: (Unplug stove rst when possible)

The air inlet, burnpot, interior combustion

air chambers, combustion blower, or

exhaust pipe are blocked with ash or

foreign material.

Follow all cleaning procedures in the maintenance section of the

owner’s manual.

-17-

Trouble Shooting Guide

Display is Flashing “E5”

Possible Causes Possible Remedies: (Unplug stove rst when possible)

The stove automatically ashes "E5" when

turned on

The T-stat sensor has come unplugged form the control board.

Check to see if the sensor is unplugged. If the sensor is not

unplugged then the sensor is damaged or has a short. If the sensor

is damaged or has a short it will need to be replaced.

The Proof of Fire (POF) thermodisc has

came unplugged

Check the (POF) thermodisc to see if the wires are connected

properly.

The Proof of Fire (POF) thermodisc has

malfunctioned.

Temporarily bypass the POF thermodisc by disconnecting the two

wires and connecting them with a short piece of wire. Then plug

the stove back up. If the stove comes on and works, you need to

replace the POF thermodisc. This is for testing only. DO NOT LEAVE

THE THERMODISC BYPASSED. Your blowers will never shut off and

if the re went out the auger will continue to feed pellets until the

hopper is empty if you leave the POF thermodisc bypassed.

The hopper is out of Pellets. Rell the hopper.

The hopper safety switch has failed or

hopper is open.

When operating the unit, be sure the hopper lid is closed so that

the hopper safety switch will activate. Check the wires leading

from the hopper safety switch to the control panel and auger

motor for secure connections. Use a continuity tester to test the

hopper safety switch; replace if necessary.

The auger shaft is jammed.

Start by emptying the hopper. Then remove the auger motor by

removing the auger pin. Remove the auger shaft inspection plate

in the hopper so that you can see the auger shaft. Gently lift the

auger shaft straight up so that the end of the auger shaft comes

up out of the bottom auger bushing. Next, remove the two nuts

that hold the top auger biscuit in. Then rotate the bottom end of

the auger shaft up towards you until you can lift the shaft out of

the stove. After you have removed the shaft, inspect it for bent

ights, burrs, or broken welds. Remove any foreign material that

might have caused the jam. Also, check the auger tube for signs

of damage such as burrs, rough spots, or grooves cut into the

metal that could have caused a jam.

The auger motor has failed.

Remove the auger motor from the auger shaft and try to run the

unit. If the motor will turn the shaft is jammed on something. If the

motor will not turn, the motor is bad.

Stove Feeds Pellets, But Will Not Ignite

Possible Causes Possible Remedies: (Unplug stove rst when possible)

Air damper open too far for ignition.

Push the air damper in closer to the side of the stove for startup.

In some situations it may be necessary to have the damper

completely closed for ignition to take place. After there is a ame,

the damper can then be adjusted for the desired feed setting.

Blockage in igniter tube or inlet for igniter

tube.

Find the igniter housing on the backside of the rewall. The air

intake hole is a small hole located on bottom side of the housing.

Make sure it is clear. Also, look from the front of the stove to make

sure there is not any debris around the igniter element inside of the

igniter housing.

The burnpot is not pushed completely to

the rear of the rebox.

Make sure that the air intake collar on the burnpot is touching the

rear wall of the rebox.

-18-

Bad igniter element.

Put power directly to the igniter element. Watch the tip of the

igniter from the front of the stove. After about 2 minutes the tip

should glow. If it does not, the element is bad.

The control board is not sending power to

the igniter.

Check the voltage going to the igniter during startup. It should be

a full current. If the voltage is lower than full current, check the

wiring. If the wiring checks out good, the board is bad.

Trouble Shooting Guide

Smoke Smell Coming Back Into The Home

Possible Causes Possible Remedies: (Unplug stove rst when possible)

There is a leak in the vent pipe system.

Inspect all vent pipe connections. Make sure they are sealed with

RTV silicone that has a temperature rating on 500°F or higher. Also,

seal joints with UL-181-AP foil tape. Also, make sure the square to

round adapter piece on the combustion blower has been properly

sealed with the same RTV.

The gasket on the combustion blower has

gone bad.

Inspect both gaskets on the combustion blower to make sure they

are in good shape.

Because it is a wood-burning device, your pellet heater may emit a faint wood-burning odor. If this increases

beyond normal, or if you notice an unusual soot build-up on walls or furniture, check your exhaust system carefully

for leaks. All joints should be properly sealed. Also clean your stove, following instructions in “Maintenance”. If

problem persists, contact your dealer.

Convection Blower Shuts Off And Comes Back On

Possible Causes Possible Remedies: (Unplug stove rst when possible)

The convection blower is overheating and

tripping the internal temperature shutoff.

Clean any dust off of the windings and fan blades. If cleaning the

blower does not help, the blower may be bad.

Circuit board malfunction.

Test the current going to the convection blower. If there is power

being sent to the blower when it is shut off, then the control board

is ne. If there is NOT power being sent to the blower when it shuts

off during operation, then you have a bad control board.

Stove Will Not Feed Pellets, But Fuel Feed Light Comes On As Designed

Possible Causes Possible Remedies: (Unplug stove rst when possible)

High limit switch has tripped or is defective.

Wait for the stove to cool for about 30 - 45 minutes. Locate the

High Limit thermodisc and press the reset button on the back of it.

If the heater will not restart, check the thermodisc to see if it’s bad.

To test if the thermodisc is bad, you can bypass it as described

previously for the POF thermodisc.

Bad Auger Motor.

Remove the auger motor from the auger shaft and try to run the

unit. If the motor will turn the shaft is jammed on something. If the

motor will not turn, the motor is bad.

Auger Jam.
