Operating Instructions / Owner’s Manual
<Complete Guide>
Digital Camera
Model No. DC-BS1H
Please read these instructions carefully before using this product.
Register online at
http://shop.panasonic.com/support
(U.S. customers only)
DVQP2566ZA
M1121KZ0
- 2 -- 2 -
About Operating Instructions
About Operating Instructions
■
Symbols Used in This Document
Operating symbols
B
A
A
Cursor button up/down/left/right
B
Control dial
●
Other symbols, such as icons shown on the screen of the output destination, are also used in explanations.
●
This document describes the procedure for selecting menu items as follows:

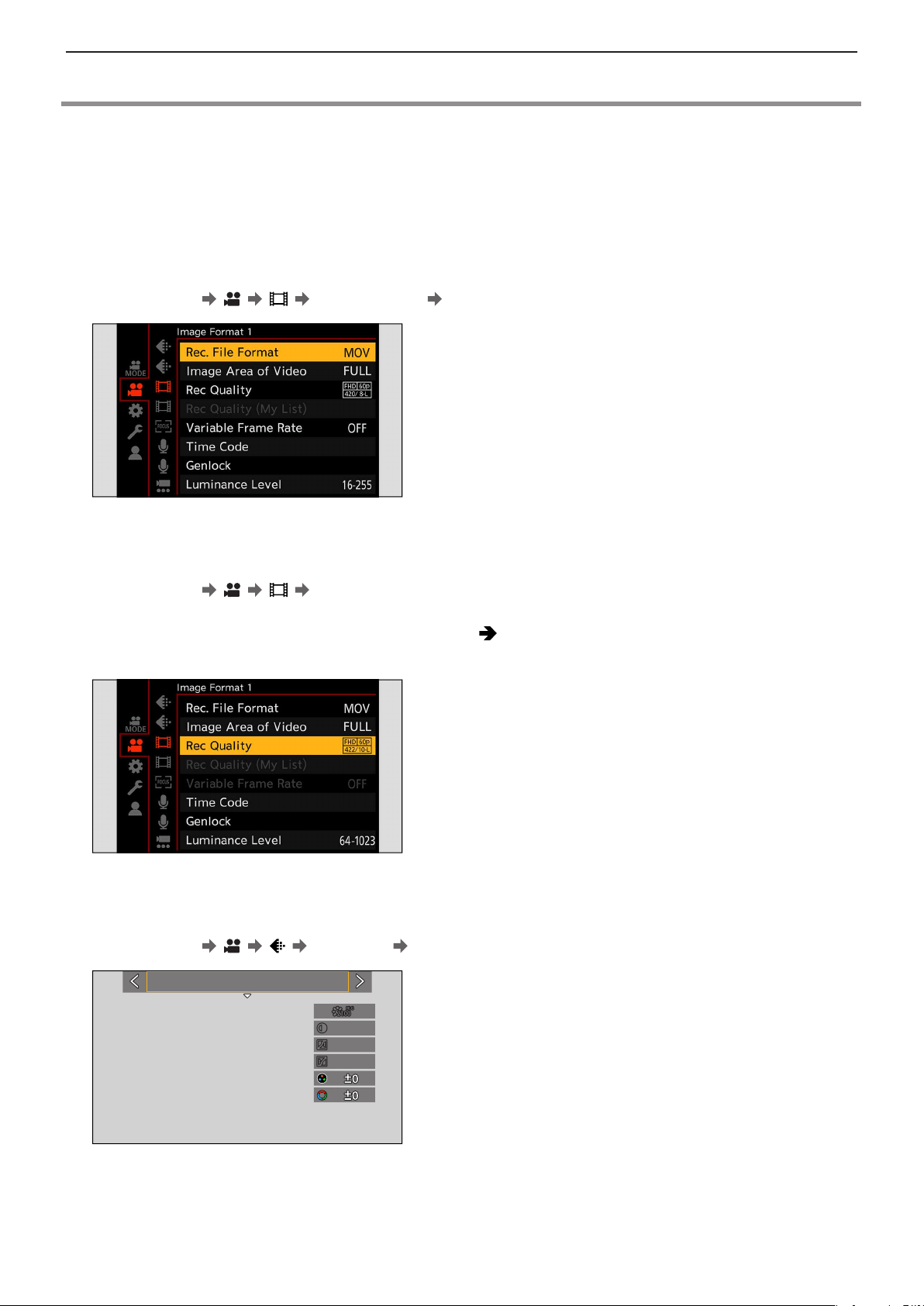

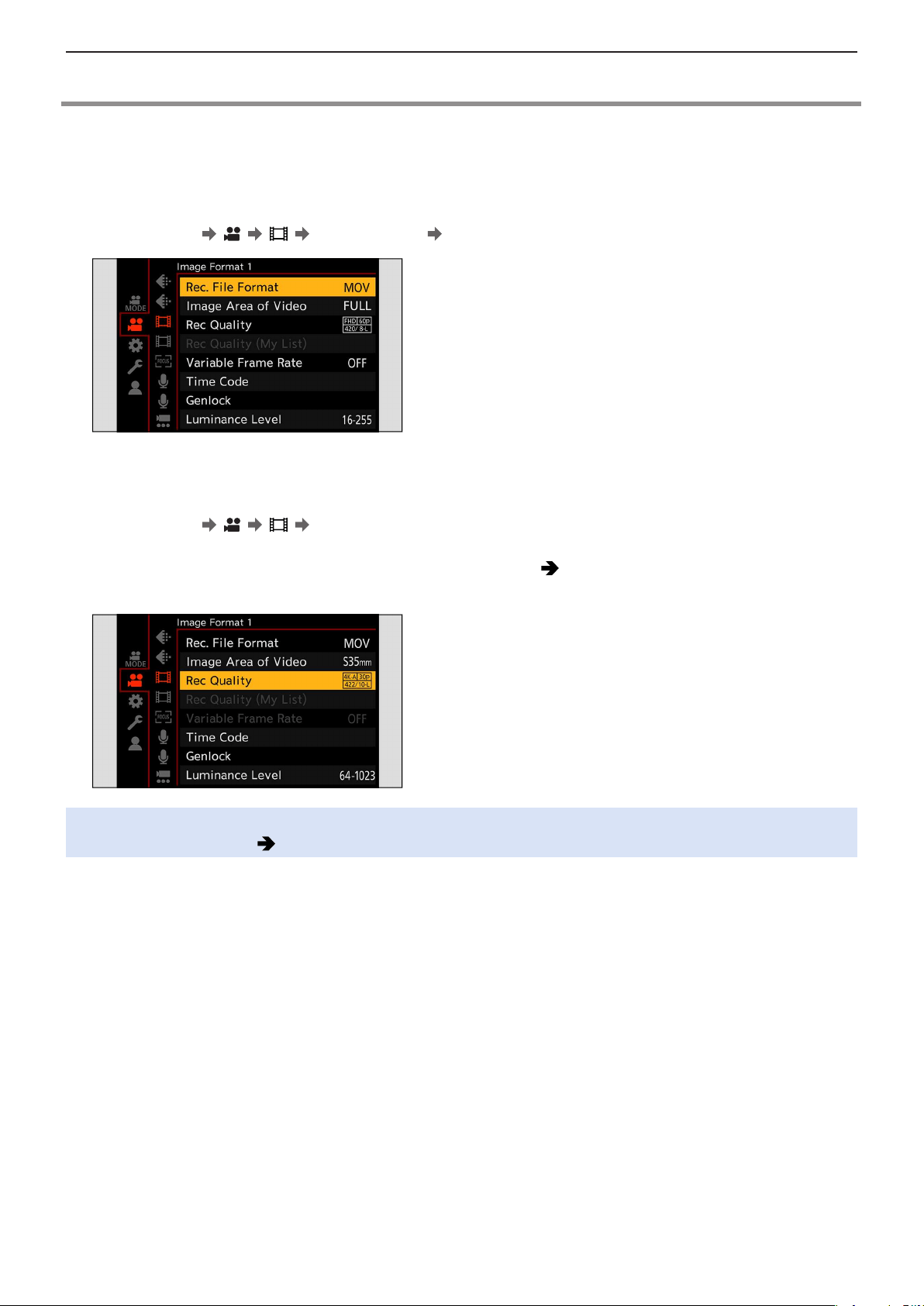

Example: Set the [Rec Quality] of the [Video] ([Image Format]) menu
[MENU/SET] [ ] [ ] Select [Rec Quality]
●
The images and drawings of this document are an illustration to explain the functions.
●
This document uses illustrations with an optional battery (AG-VBR59) attached.
●
Description in these operating instructions is based on the interchangeable lens (S-R24105).
- 3 -- 3 -
Contents
Contents
About Operating Instructions 2
1. Introduction 6
Before Use...........................................................................6
Standard Accessories ........................................................ 8
Lenses That Can Be Used .................................................9
Memory Cards That Can Be Used ...................................10

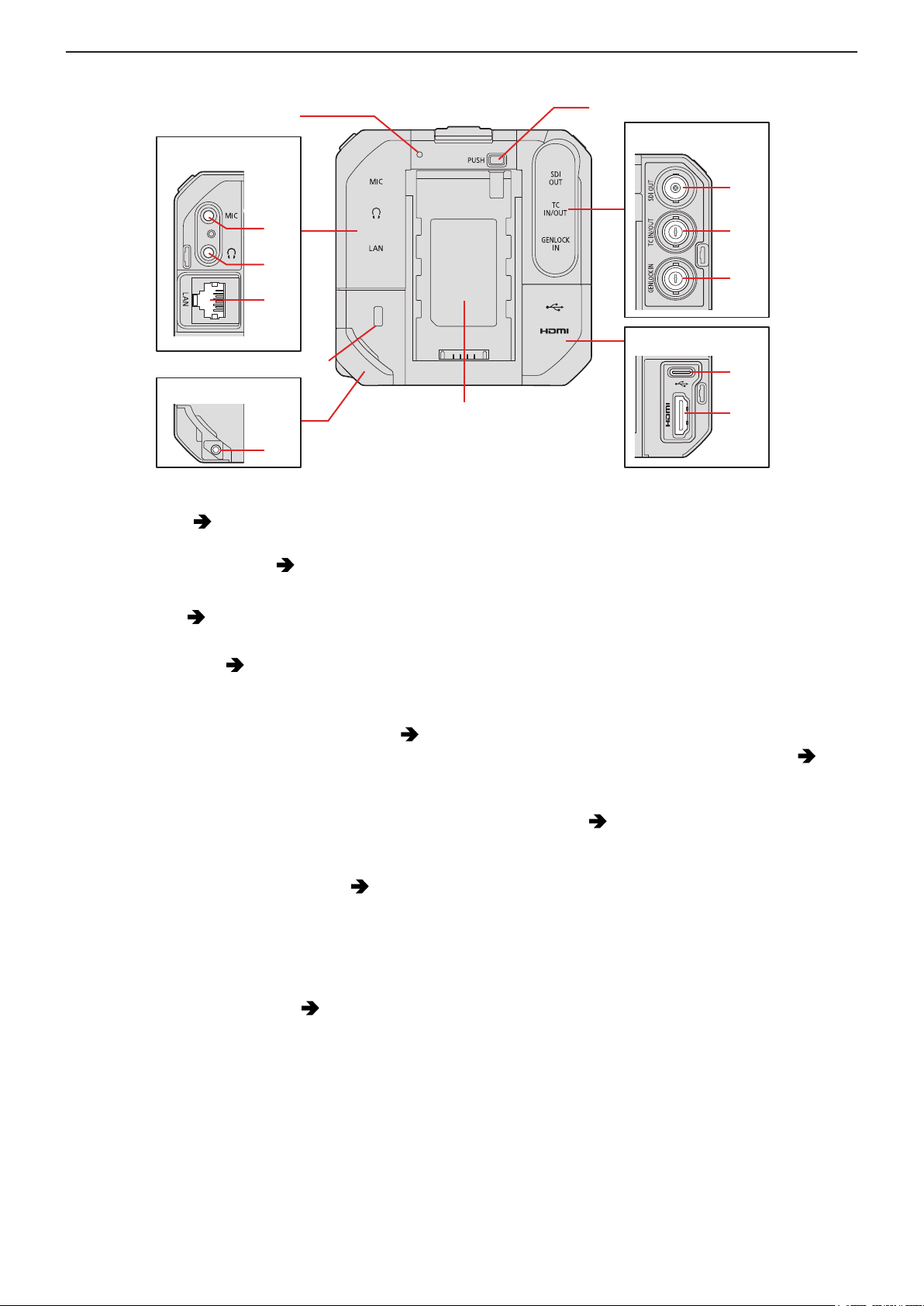

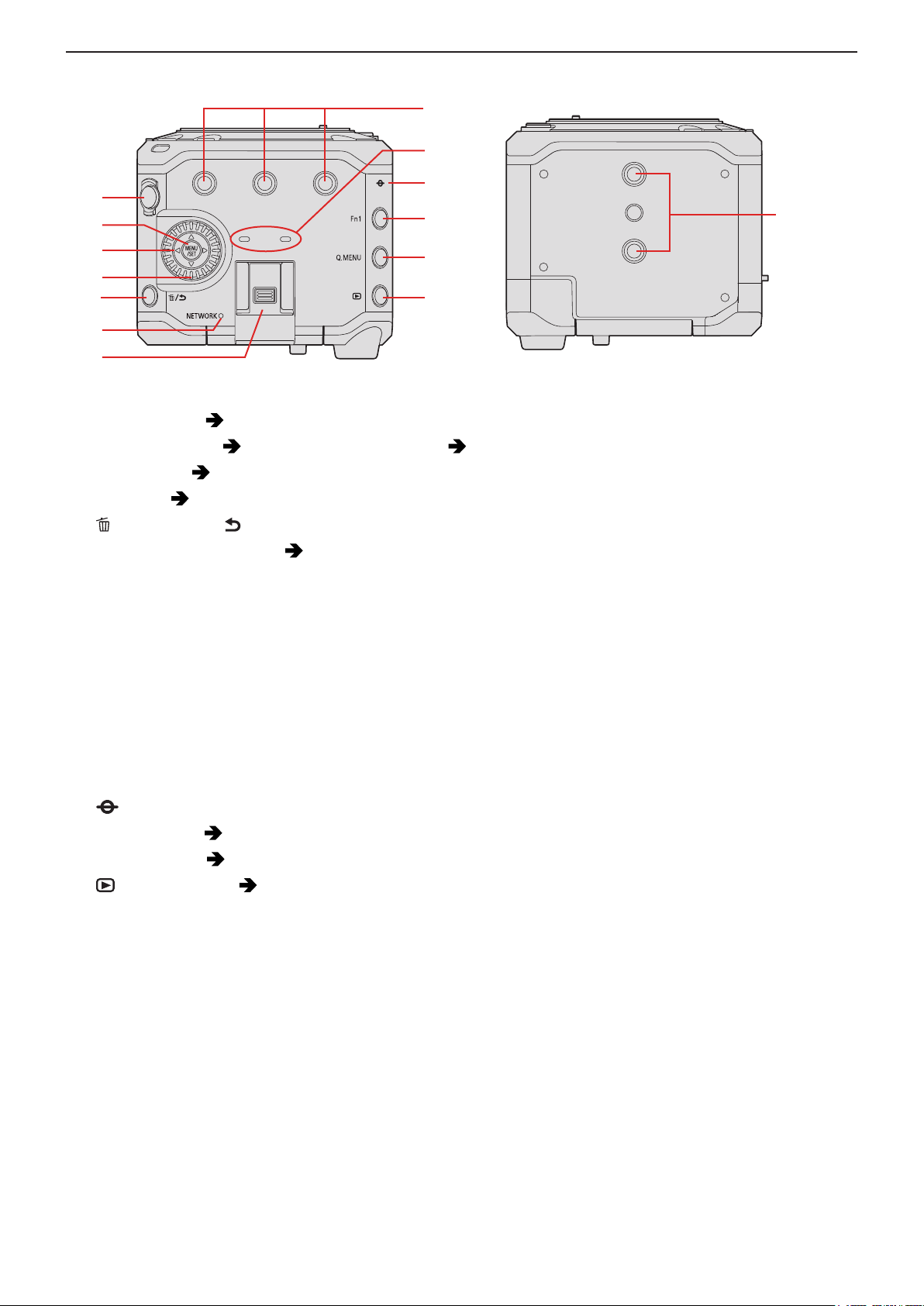

Names of Parts ................................................................. 11
2. Getting Started 16
Power supply ....................................................................16
Supplying power with an AC adaptor ..............................16
Supplying power from a PoE+ power supply ..................17
Turning the camera on ....................................................18
Turning the camera off ....................................................18
Power Indications ............................................................19
Attaching a Lens ...............................................................20
Connecting the external monitor ....................................22
Connecting to the external monitor .................................22
Attaching the Cable Lock Band .......................................23
Inserting Cards (Optional) ...............................................25
Inserting / removing the card...........................................25
Formatting Cards (Initialization) ......................................27
[Folder / File Settings] .....................................................28
[Double Card Slot Function] ............................................ 29
Setting the Clock
(When Turning On for the First Time) ............................. 30
Clock Set .........................................................................30

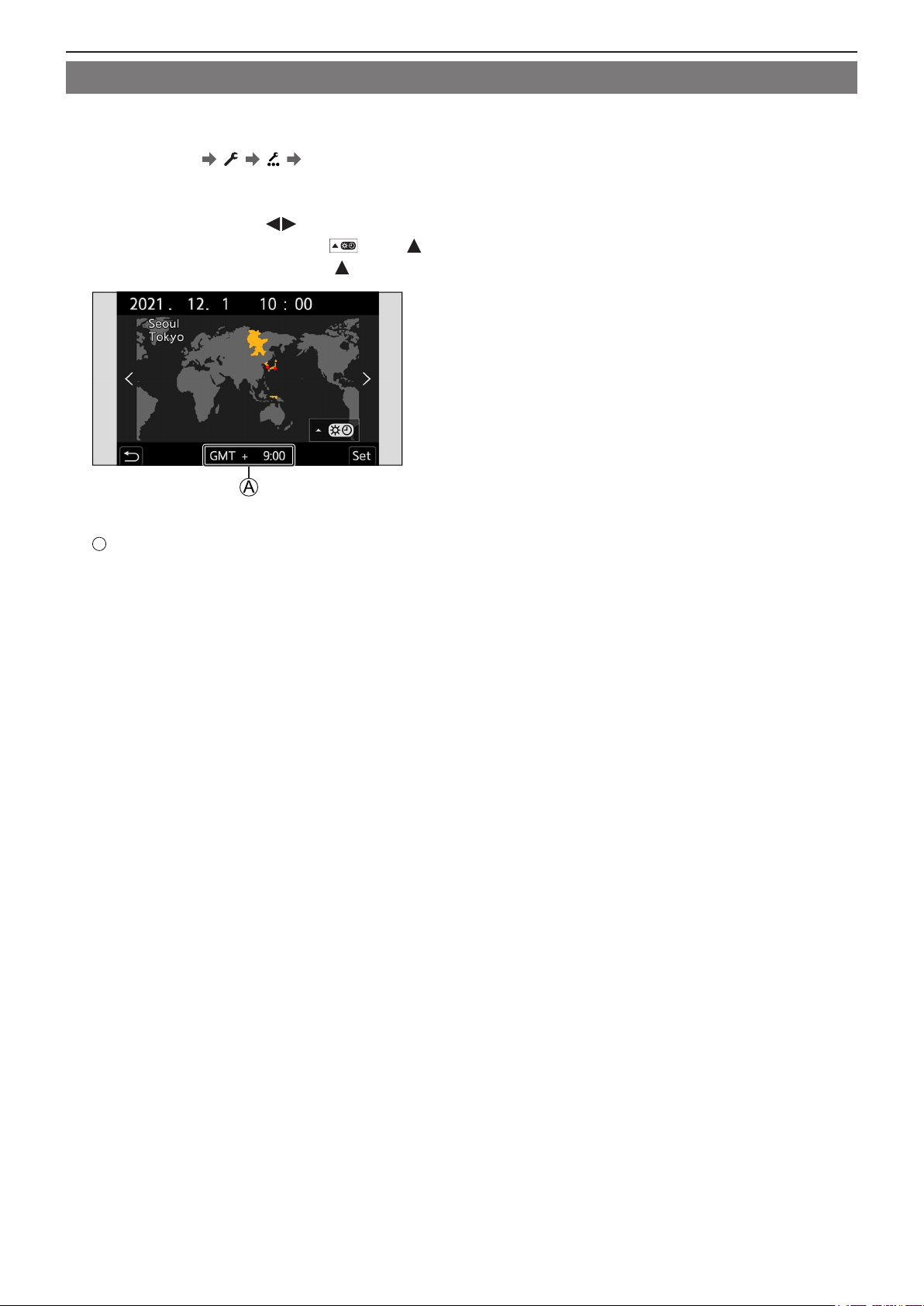

Time zone .......................................................................32
3. Basic Operations 33
Camera Setting Operations .............................................33
Display Settings................................................................34
Information Display (HDMI/SDI) ......................................34
Output destination screen display ................................... 35
Switching the Display Information ................................... 36

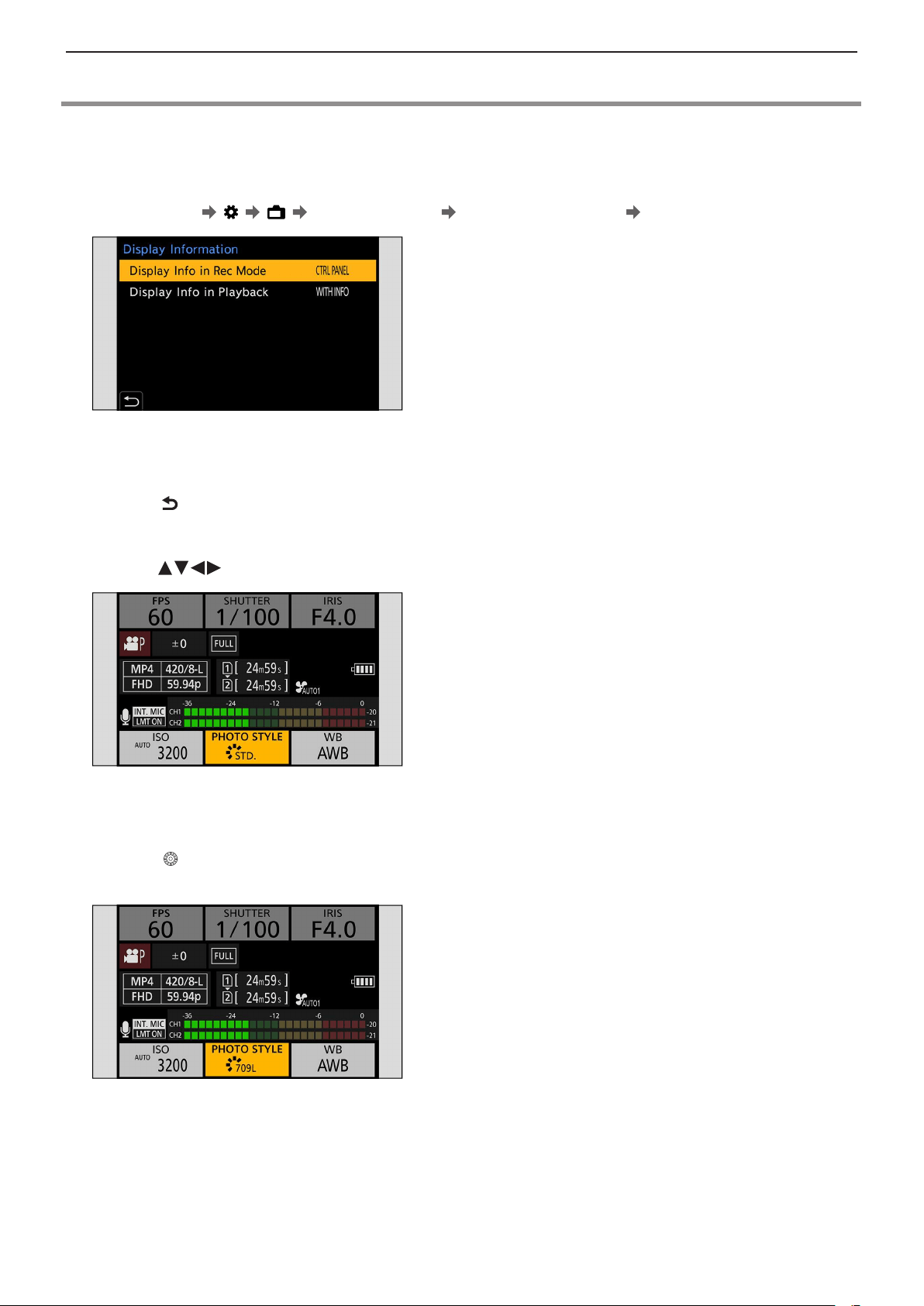

Control Panel ....................................................................38
Quick Menu .......................................................................39
Menu Operation Methods ................................................41
Menu operation ...............................................................41
[Reset] .............................................................................45
4. Recording Videos 46
Recording Videos .............................................................46
Recording Videos ............................................................ 46
[Exposure Mode] ............................................................. 48
Recording Settings For Video .........................................50
[System Frequency] ........................................................50
[Rec. File Format]............................................................50
[Rec Quality]....................................................................51
[Image Area of Video] ......................................................60
Time Code .........................................................................61
Setting the Time Code.....................................................61
Preparations for Time Code Synchronization..................63
Synchronize the Time Code of the External Device
with That of the Camera (TC OUT) .................................64

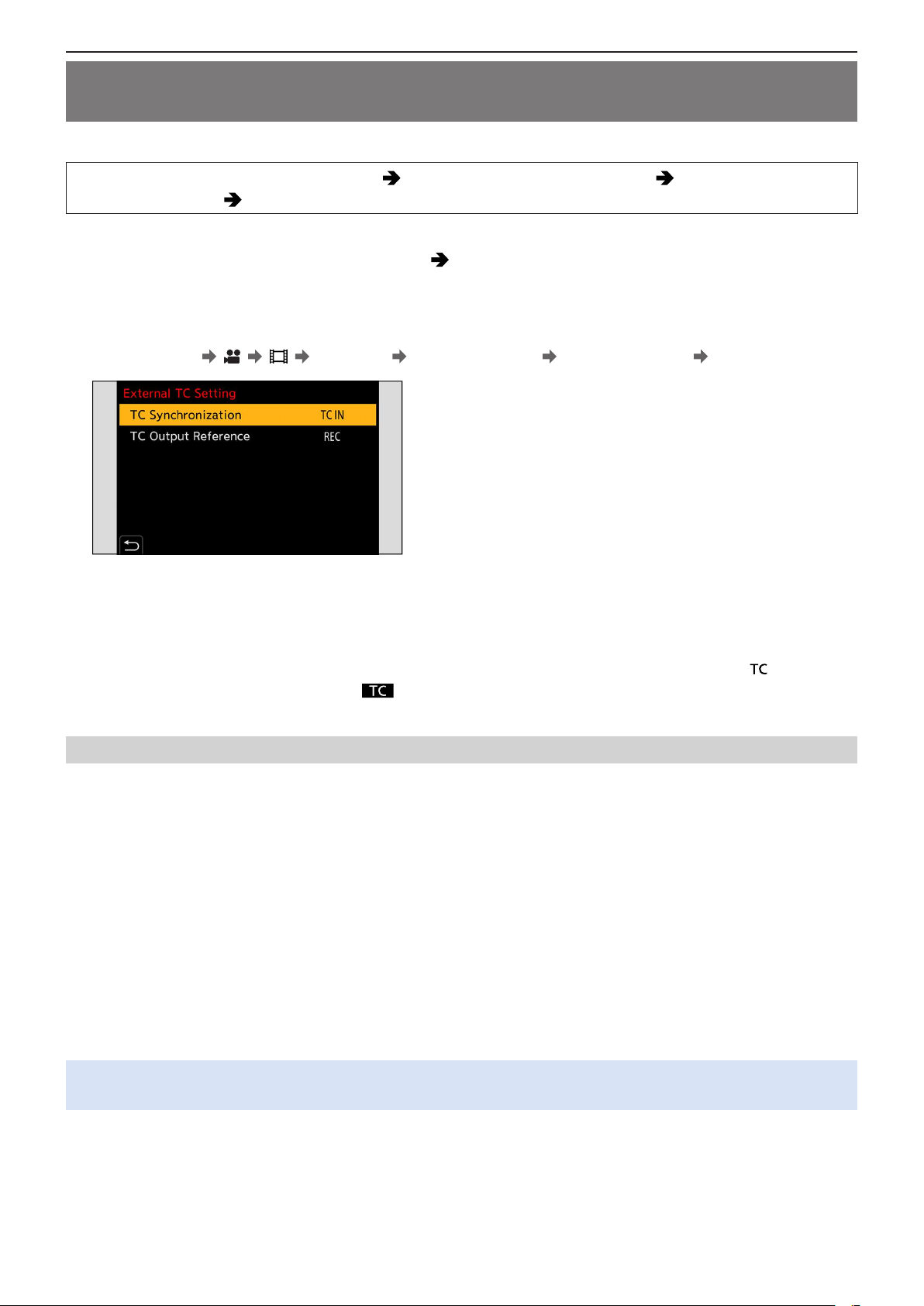

Synchronize the Time Code of the Camera
with That of the External Device (TC IN) .........................65

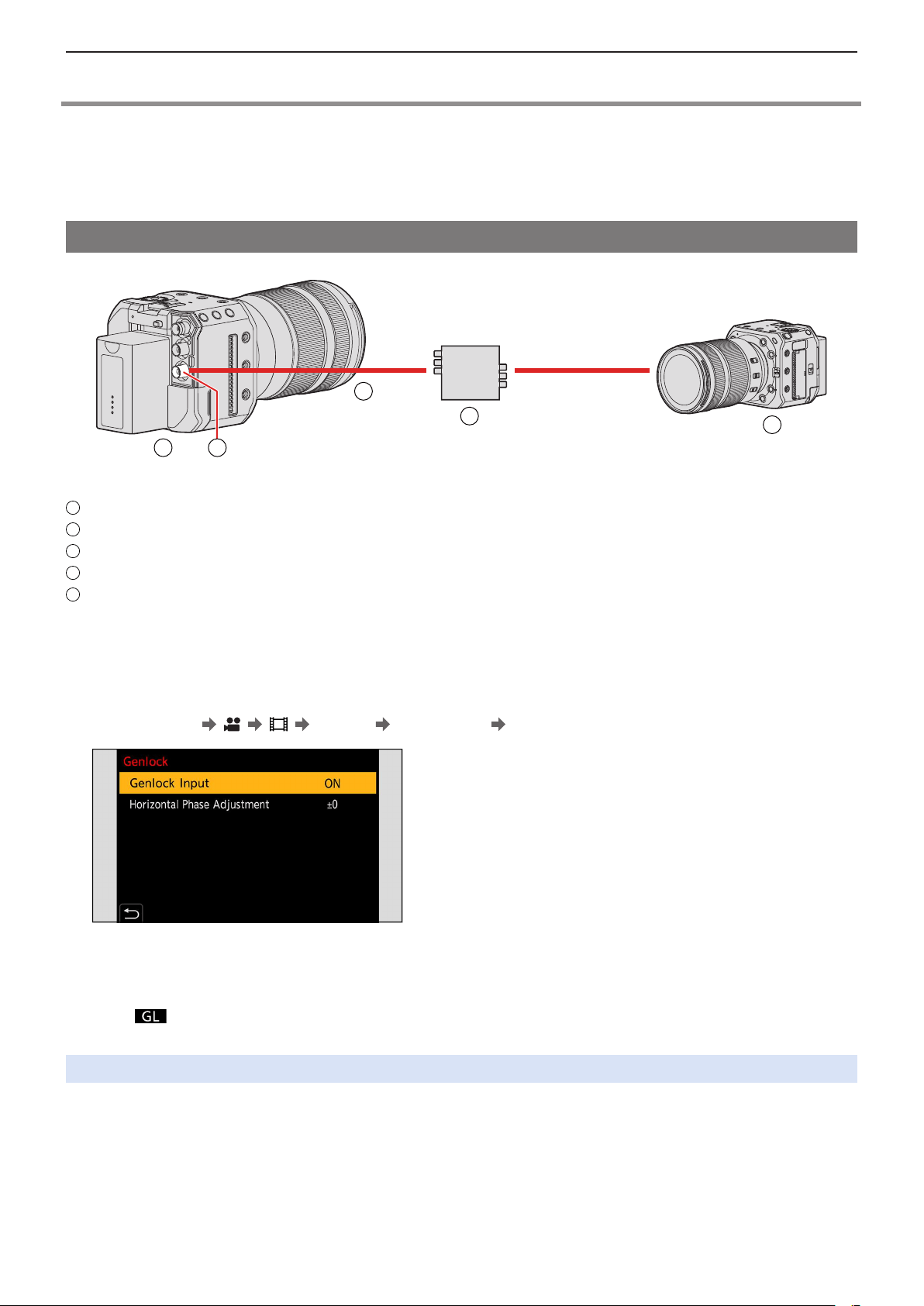

Genlock settings...............................................................66
Input a sync signal ..........................................................66
Horizontal phase adjustment...........................................68
- 4 -- 4 -
Contents
5. Recording settings 69
Focus / Zoom ....................................................................69
Selecting the Focus Mode...............................................69
Using AF..........................................................................70
Selecting the AF Mode .................................................... 72
[Continuous AF]...............................................................77
[AF Custom Setting(Video)] ............................................78
Record Using MF ............................................................79
Recording with Zoom ......................................................82
Metering / Exposure / ISO Sensitivity ............................. 83

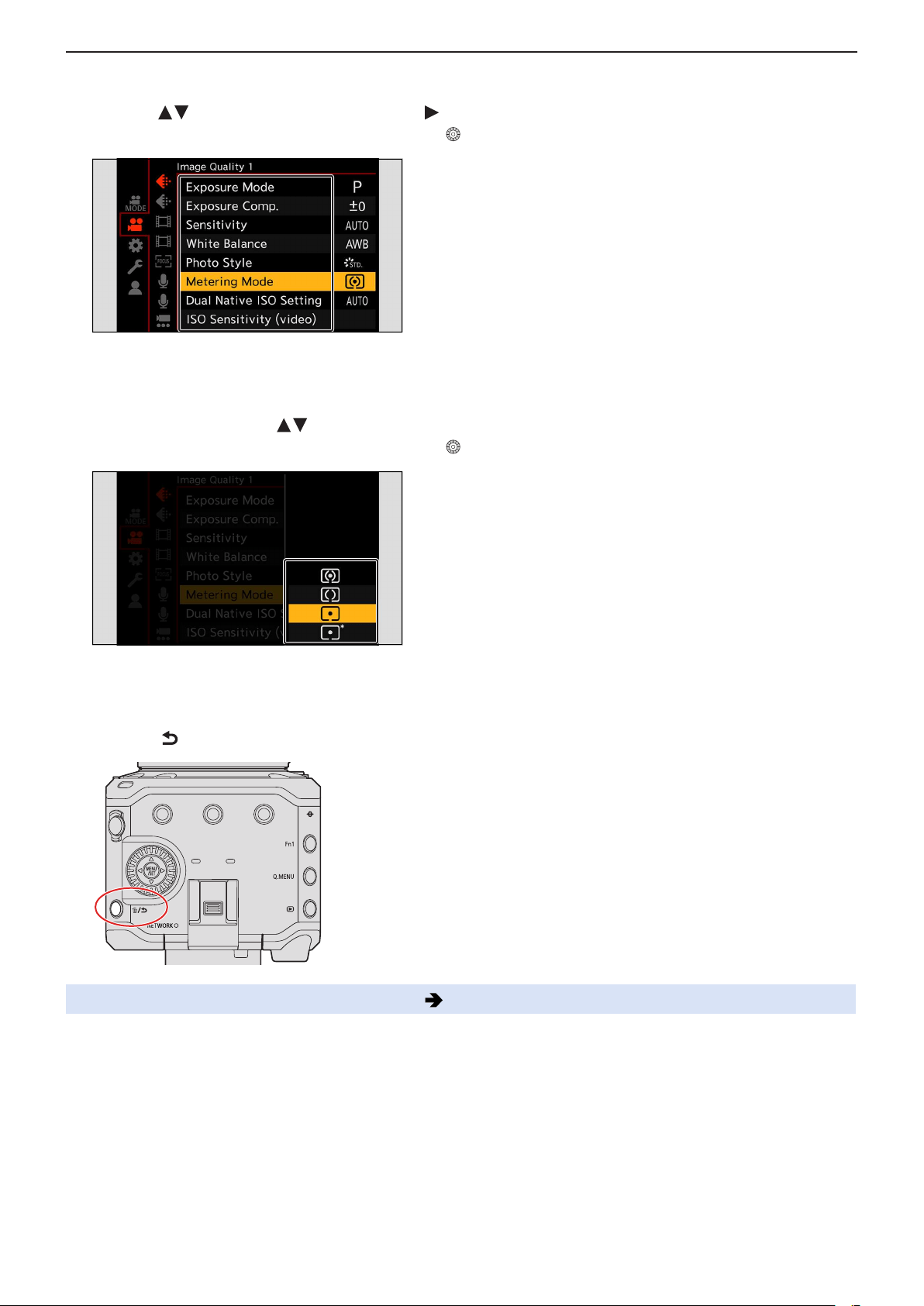

[Metering Mode] ..............................................................83
Exposure Compensation .................................................84
Locking Focus and Exposure (AF/AE Lock) ...................85
ISO Sensitivity .................................................................86
[Luminance Level] ........................................................... 88
White Balance / Image Quality ........................................89

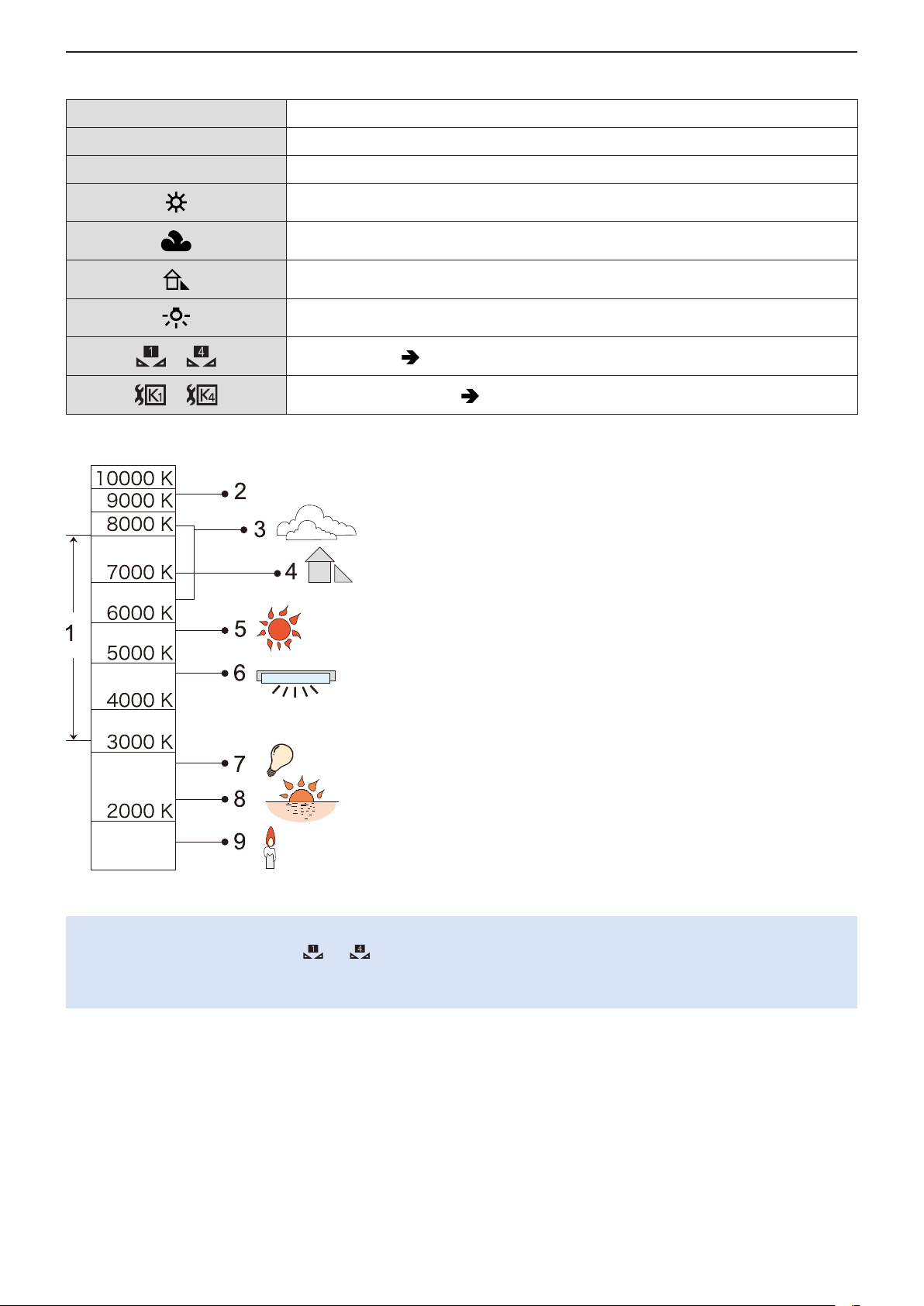

White Balance (WB) ........................................................89
[Master Pedestal Level]...................................................93
[Photo Style] ....................................................................94

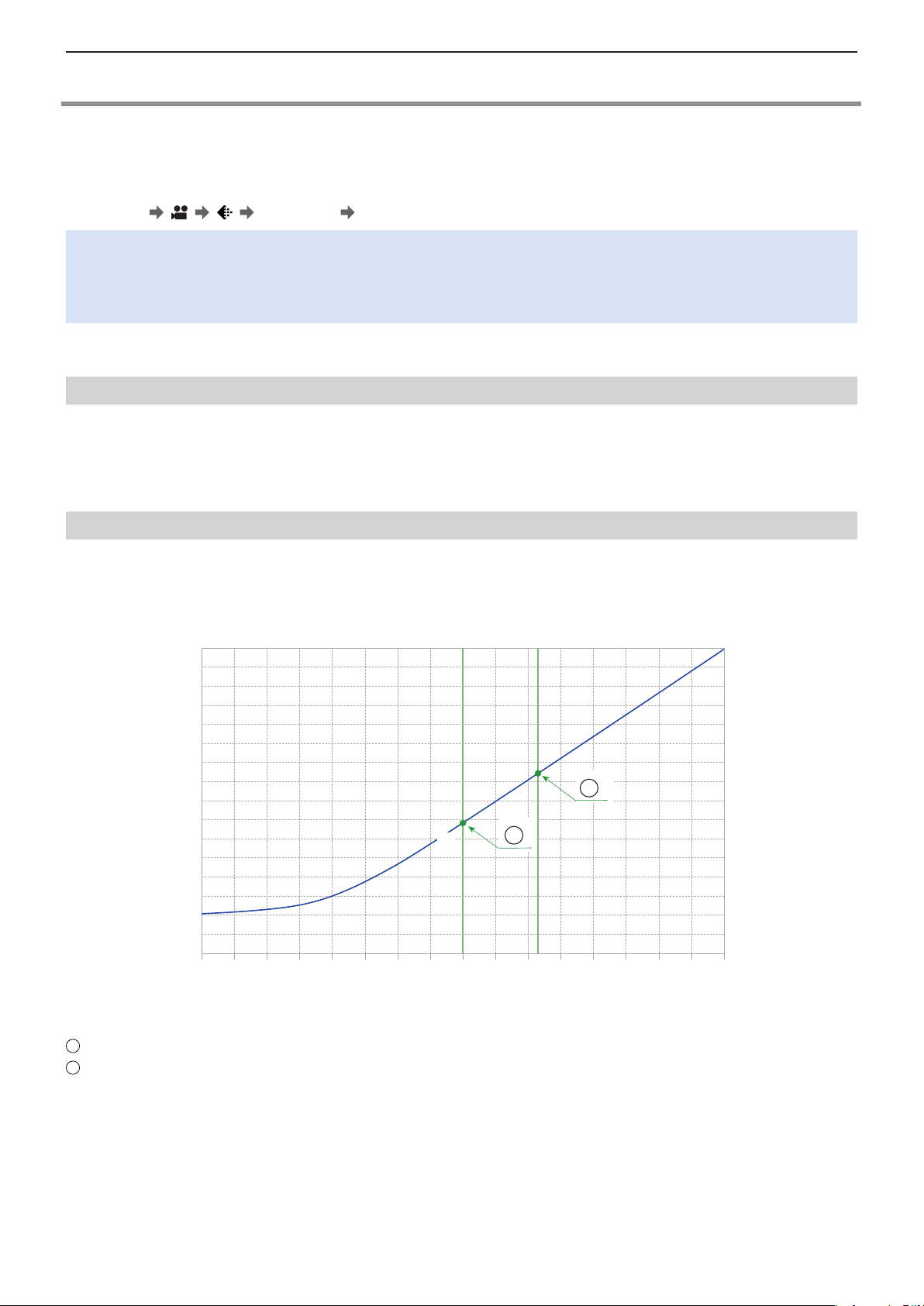

Recording While Controlling Overexposure (Knee) ........98
[Filter Settings] ................................................................99
Audio Settings ................................................................103
Main Assist Functions ...................................................105
[Image Stabilizer] ..........................................................105
[SS/Gain Operation] ...................................................... 106
[Luminance Spot Meter] ................................................ 107
[Zebra Pattern] ..............................................................108
[Frame Marker] ..............................................................109
Color bars / Test Tone ...................................................109
6. Special Video Recording 110
[Variable Frame Rate] ..................................................... 110
High Frame Rate Video .................................................. 113

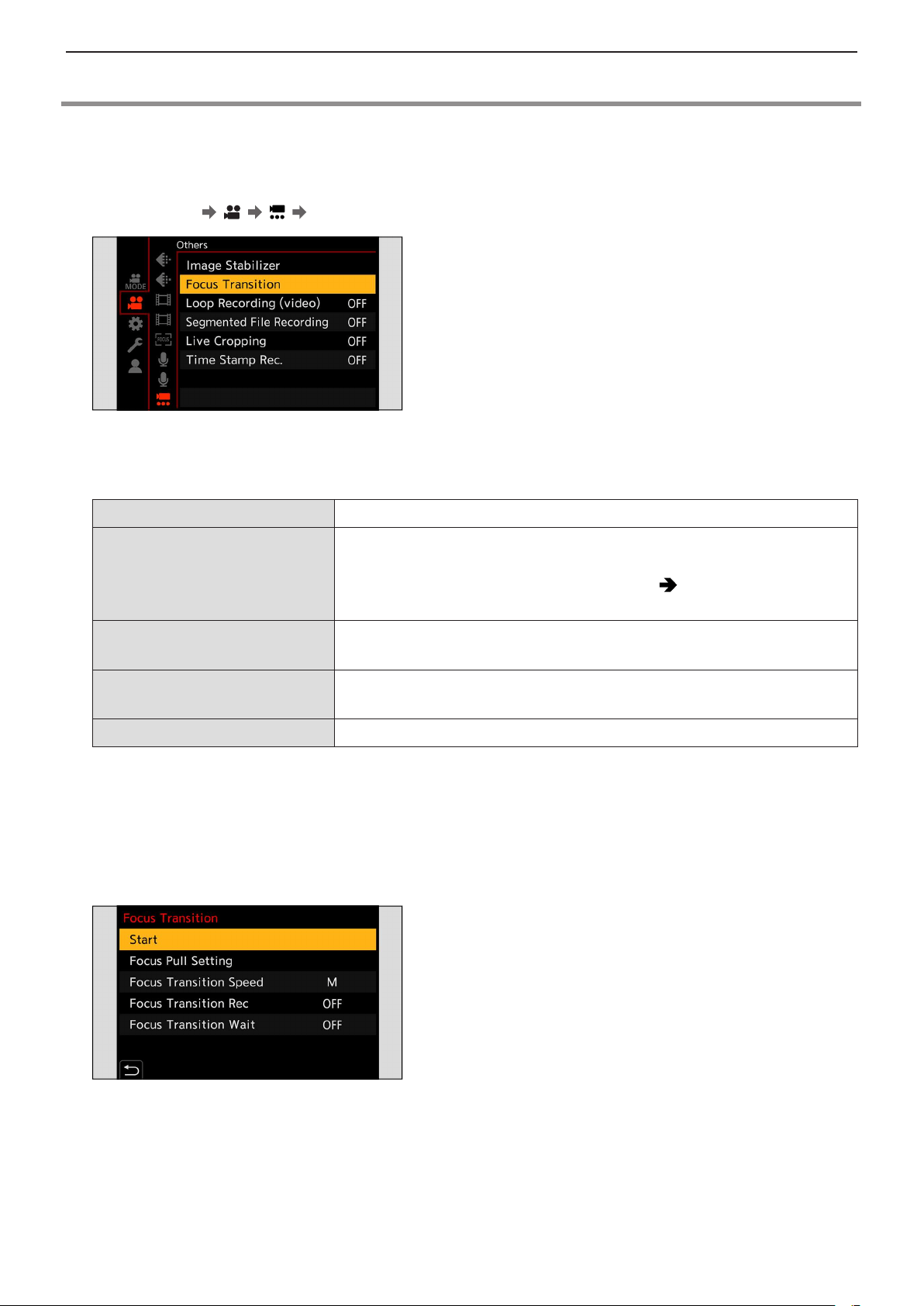

[Focus Transition] .......................................................... 114

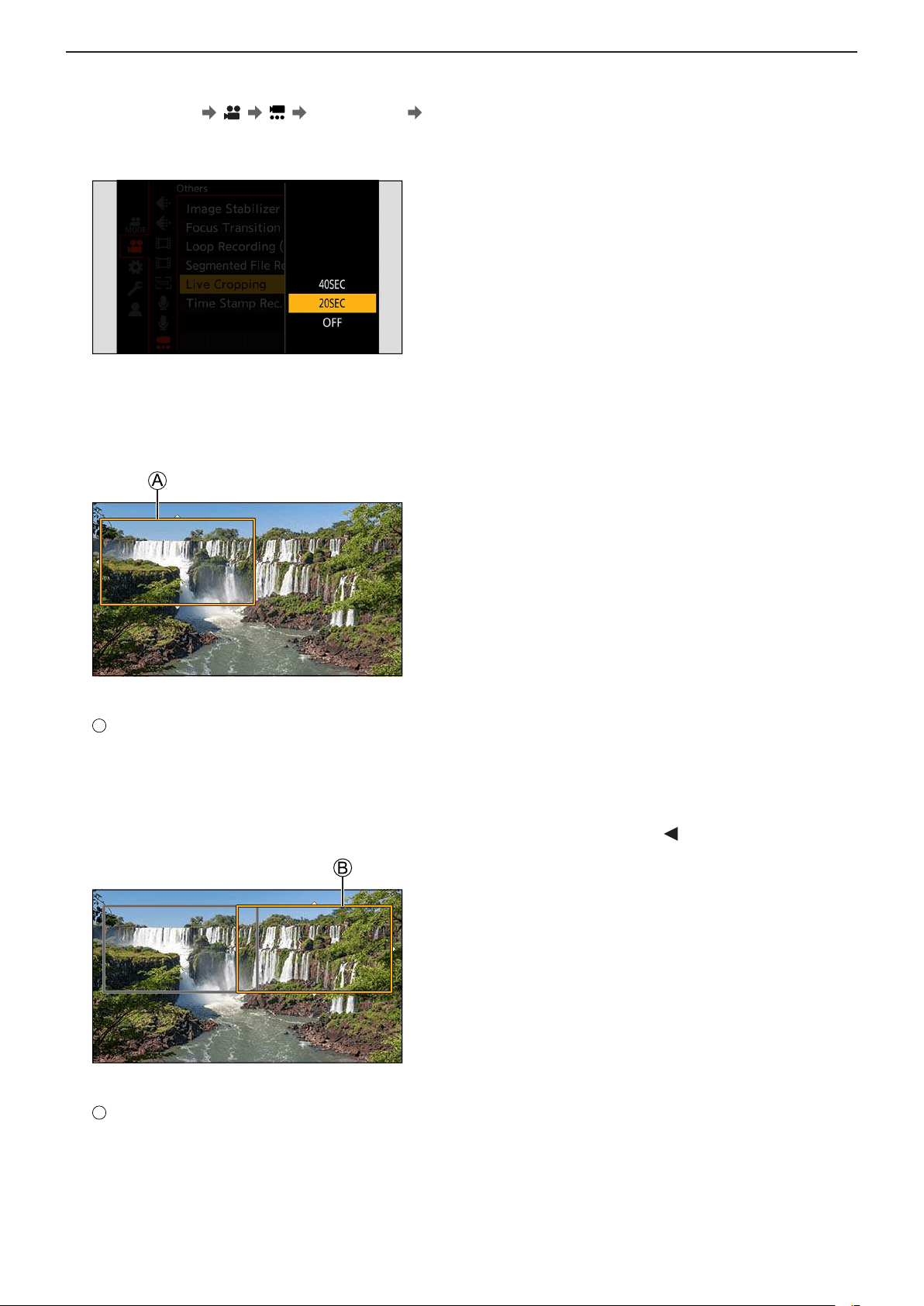

[Live Cropping] ............................................................... 11 7
Log Recording ................................................................120
HDMI Output of RAW Video Data ..................................122
HLG Videos .....................................................................126
Anamorphic Recording ..................................................128
[Synchro Scan] ...............................................................130
[Loop Recording (video)] ...............................................131
[Segmented File Recording] ..........................................132
List of Recording Qualities That Enable
Special Videos to be Recorded .....................................133
7. Output image 137
HDMI Output Settings ....................................................137
Settings for Down-Converting .......................................138
Outputting Control Information to an
External Recorder .........................................................141
Outputting Down-converted Audio to an
HDMI Device ................................................................. 141
Outputting Audio via HDMI ............................................141
Output the enlarged display of MF assist via HDMI ...... 141
SDI output settings .........................................................142
Set the resolution during recording when output
via SDI...........................................................................142
Output control information to the external recorder.......143
Output audio via SDI ..................................................... 143
Set the gain of the audio signal that is output via SDI...143
Output the enlarged display of MF assist via SDI .........144
8. Connections with External Devices 145
External Microphones (Optional) .................................. 145
XLR Microphone Adaptor (Optional) ............................147

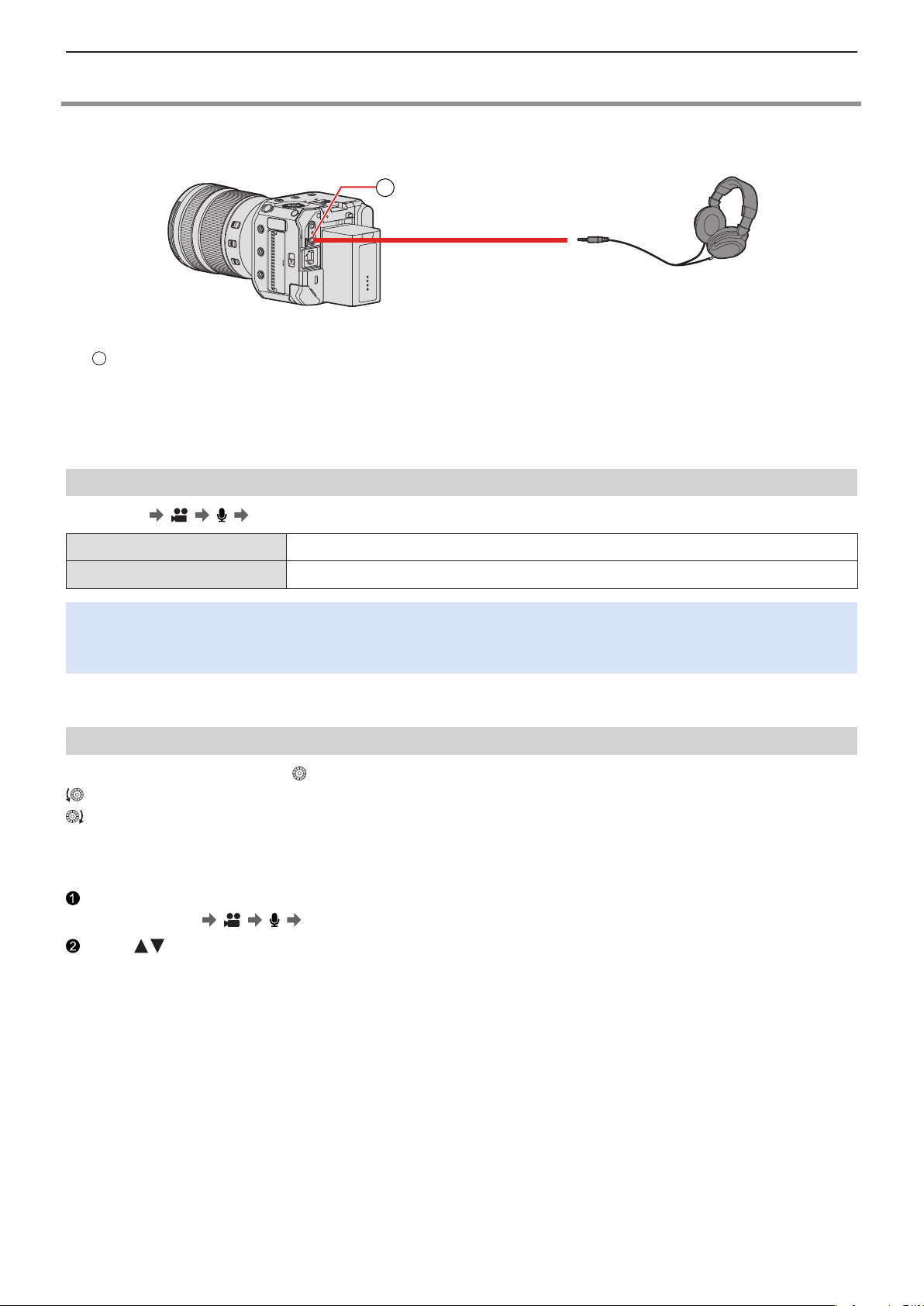

Headphones .................................................................... 149
Using a remote control unit ...........................................150
Importing Images to a PC ..............................................151
9. Playback 153
Playing Back Videos ......................................................153
Switching the Display Mode .......................................... 156
Thumbnail Display.........................................................156
Group Images ...............................................................157
Deleting Images .............................................................. 158
10. Camera Customization 159
Fn Buttons .......................................................................159
Fn Button Default Settings ............................................159
Register Functions to the Fn Buttons ............................160
Use the Fn Buttons .......................................................166
Quick Menu Customization ...........................................167
Custom Mode ..................................................................171
Register in Custom Mode..............................................171
Using Custom Mode......................................................173
Calling Up Settings........................................................174
My Menu ..........................................................................175
Registration in My Menu ...............................................175
Edit My Menu ................................................................176
[Save/Restore Camera Setting] ..................................... 177
- 5 -- 5 -
Contents
11. Menu Guide 178
List of Menu ....................................................................178
[Rec Mode] menu ............................................................182
[Video] menu ................................................................... 182
[Video] menu ([Image Quality]) .....................................182
[Video] menu ([Image Format]) .....................................185

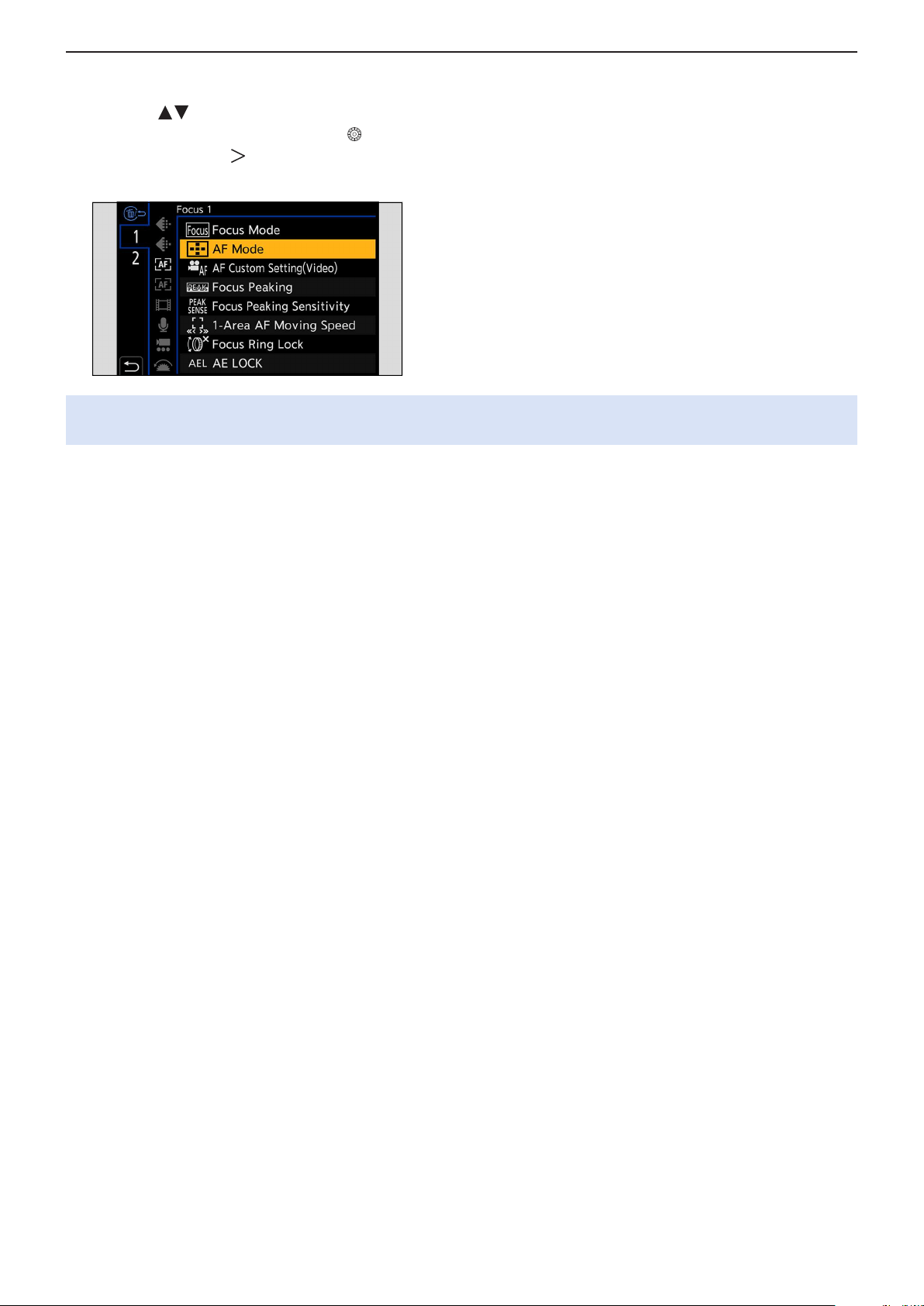

[Video] menu ([Focus]) .................................................. 186
[Video] menu ([Audio]) ..................................................188
[Video] menu ([Others]) ................................................. 190
[Custom] menu ...............................................................192
[Custom] menu ([Image Quality]) ..................................192
[Custom] menu ([Focus/Shutter]) .................................. 193
[Custom] menu ([Operation]).........................................195
[Custom] menu ([Monitor / Display])..............................196
[Custom] menu ([IN/OUT]) ............................................199
[Custom] menu ([Lens / Others]) ...................................201
[Setup] menu ...................................................................202
[Setup] menu ([Card/File]) .............................................202
[Setup] menu ([Monitor / Display]).................................203
[Setup] menu ([IN/OUT]) ...............................................203
[Setup] menu ([Setting]) ................................................205
[Setup] menu ([Others]).................................................206
[Playback] menu ............................................................. 208
How to Select an Image(s) in the [Playback] menu ......208
[Playback] menu ([Playback Mode])..............................209
[Playback] menu ([Add/Delete Info.]) ............................209
[Playback] menu ([Edit Image]) ..................................... 210
[Playback] menu ([Others]) ........................................... 211
Entering Characters .......................................................212
12. Remote Operations 213
About Remote Operation ............................................... 213
Tethered Recording ........................................................216
Installing “LUMIX Tether” ...............................................216
Operating the Camera from a PC .................................217
Connecting to a Smartphone ........................................222
Flow of connecting a smartphone .................................222
Installing “LUMIX Sync”.................................................223
Connecting to a Smartphone (Bluetooth Connection)...224
Connecting to a Smartphone (Wi-Fi connection) ..........228
Connecting to a Smartphone
(Wired LAN connection) ................................................ 233
Operating the Camera with a Smartphone ...................235
Getting started...............................................................235
[Remote shooting] ......................................................... 236
[Shutter Remote Control] ..............................................236
[Import images] .............................................................237
[Location Logging] .........................................................238
[Remote Wakeup] .........................................................239
[Auto Clock Set] ............................................................240
[Camera settings copy] .................................................240
Wi-Fi Connections ..........................................................241
[Via Network] ................................................................. 241
[Direct] ...........................................................................244
Connect to Wi-Fi Using Previously Saved Settings ......245
[LAN / Wi-Fi Setup] menu ..............................................247
13. Streaming Function 249
14. Materials 253
Optional Accessories ..................................................... 253
External Monitor Displays .............................................254
Recording Screen .........................................................254
Playback Screen ...........................................................260
Lamp / Indicator Display ................................................ 264
Message Displays...........................................................265
Troubleshooting .............................................................267
Power ............................................................................ 267
External device..............................................................267
Recording ......................................................................269
Playback........................................................................271
Wi-Fi Function ............................................................... 271
Others ...........................................................................272
Cautions for Use .............................................................273
Available Recording Time with the Battery ..................277
Video Recording Time with Cards ................................280
List of Default Settings / Custom Saving /
Settings Available for Copying ......................................284
Specifications .................................................................295
Trademarks and Licenses..............................................301
- 6 -- 6 -
1. Introduction - Before Use
1. Introduction
Before Use
■
Firmware of Your Camera/Lens
Firmware updates may be provided in order to improve camera capabilities or to add functionality.
Make sure that the firmware of the camera/lens you purchased is the latest version.
We recommend using the latest firmware version.
●
To check the firmware version of the camera/lens, attach the lens to the camera and select [Firmware Version] in the [Setup]
([Others]) menu. You can also update the firmware in [Firmware Version].
●
For the latest information on the firmware or to download/update the firmware, visit the following support site:
https://panasonic.jp/support/global/cs/dsc/download/index4.html
(English only)
■
This camera does not have a monitor.
Display the recording screen or menu with one of the following methods below.
●
Connecting the external monitor (
22 / Connecting the external monitor)
●
Using a PC software “LUMIX Tether” ( 216 / Tethered Recording)
– You can take pictures (Still images) when you use “LUMIX Tether”.
■
Handling of the Camera
●
When using the camera, take care not to drop it, bump it, or apply undue force.
These may cause malfunction or damage to the camera and lens.
●
The camera is not dust resistant, splash resistant, or waterproof. Avoid using the camera in places with excessive
dust or sand, or where water can come into contact with the camera.
If sand, dust, or liquid gets on wipe it off with a dry soft cloth.
●
When using in low temperatures (-10 °C to 0 °C (14 °F to 32 °F))
Before use, attach a Panasonic lens with a minimum recommended operating temperature of -10 °C (14 °F).
●
Do not place a hand inside the camera mount.
This may cause a failure or damage because the sensor is a precision device.
- 7 -- 7 -
1. Introduction - Before Use
■
Condensation (When the lens is fogged up)
●
Condensation occurs when there are temperature or humidity differences. Take care as this may lead to soiling, mold, and
malfunctions in the lens.
●
If condensation occurs, turn off the camera and leave it for approx. 2 hours. The fog will disappear naturally when the
temperature of the camera becomes close to the ambient temperature.
■
Be Sure to Perform Trial Recording in Advance
Perform trial recording in advance of an important event (wedding, etc.) to check that recording can be performed normally.
■
No Compensation Regarding Recording
Please note that compensation cannot be provided in the event that recording could not be performed due to a problem with the
camera or a card.
■
Be Careful with Regard to Copyrights
Under copyright law, you may not use the images and audio you have recorded without the permission of the copyright holder.
■
Also Read “Cautions for Use” (
273 / Cautions for Use)
- 8 -- 8 -
1. Introduction - Standard Accessories
Standard Accessories
Check that all the accessories are supplied before using the camera.
●
The accessories and their shape will differ depending on the country or area where the camera was purchased.
For details on the accessories, refer to “Operating Instructions / Owner’s Manual <Quick Start Guide>” (supplied).
●
Digital camera body
(Digital camera body is referred to as camera in this document.)
●
AC adaptor
– This is used for power supply.
●
AC cable/AC mains lead
●
Cable lock band
●
Body cap*
1
●
Hot shoe cover*
1
●
BNC terminal cover*
1
●
HDMI terminal cover*
1
●
AUDIO terminal cover*
1
●
DC IN terminal cover*
1
●
REMOTE terminal cover*
1
*
1
This is attached to the camera at the time of purchase but it’s removable.
●
The battery pack is optional.
(Battery pack is indicated as battery pack or battery in the text.)
●
The memory card is optional.
(Memory card is indicated as card in the text.)
●
The Interchangeable lens is optional.
(Interchangeable lens is indicated as lens in this text.)
●
Always use the supplied cords and cables. Do not extend the supplied cord or cable.
●
Consult the dealer or Panasonic if you lose the supplied accessories. (You can purchase the accessories separately.)
●
Please dispose of all packaging appropriately.
●
Keep small parts in a safe place out of the reach of children.
- 9 -- 9 -
1. Introduction - Lenses That Can Be Used
Lenses That Can Be Used
The lens mount of this camera is compliant with the L-Mount standard of Leica Camera AG. It can be used with 35 mm full-
frame compatible interchangeable lenses and APS-C size interchangeable lenses of this standard. This camera is capable
of sensor read out suited to the image circles of 35 mm full-frame interchangeable lenses and Super 35 mm interchangeable
lenses.
●
When using an APS-C size interchangeable lens, sensor read out is possible across the same range as a Super 35 mm
interchangeable lens.
●
The interchangeable lenses used in the explanations are designated as follows in this document.
Types of interchangeable lens Designation in this document
35 mm full-frame interchangeable lens full-frame lens
Super 35 mm interchangeable lens Super 35 mm lens
APS-C-size interchangeable lens APS-C lens
●
When there is no distinguishing the type of lens, the explanation will use lens.
■
Notes on the Use of Super 35 mm/APS-C Lenses
As the image area is narrowed when using Super 35 mm/APS-C lenses, the behavior of the following functions may be different.
– [Rec Quality] (
51 / [Rec Quality])
– [Image Area of Video] (
60 / [Image Area of Video])

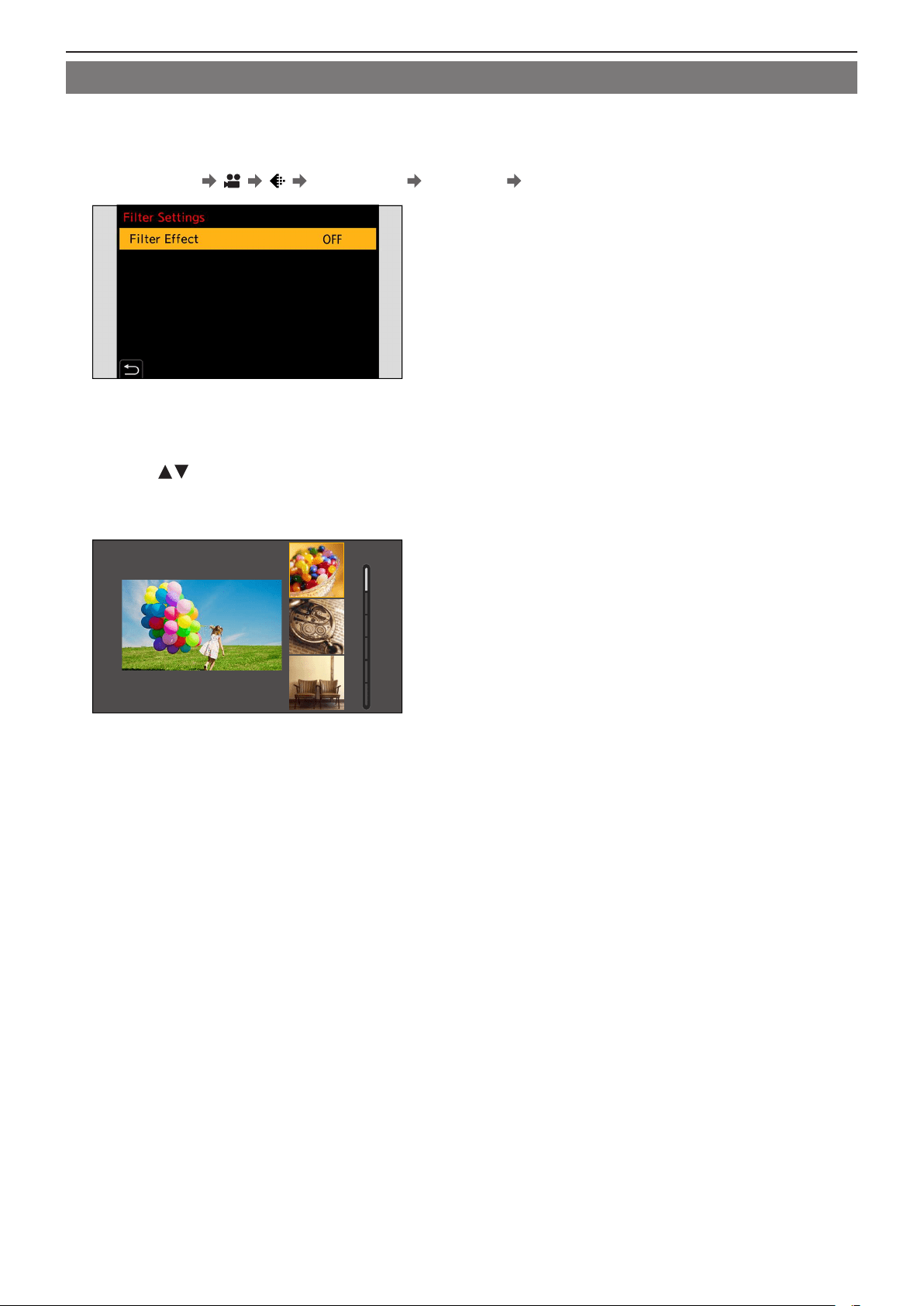

– [Filter Settings] (
99 / [Filter Settings])
●
Refer to catalogues/websites for the information regarding supported lenses/accessories.
https://panasonic.jp/support/global/cs/dsc/connect/index.html
(English only)
●
Attaching commercially available accessories that do not comply with the L-Mount standard may lead to operation failure
or malfunction of the camera
– If a failure or malfunction occurs due to this cause, the warranty will be void.
- 10 -- 10 -
1. Introduction - Memory Cards That Can Be Used
Memory Cards That Can Be Used
You can use the following memory cards with this camera. (As of October 2021)
SD memory card/SDHC memory card/SDXC memory card (Maximum 256 GB)
●
SD memory card, SDHC memory card, and SDXC memory card are referred to by the generic name of card in this
document.
●
This camera supports cards compliant with UHS Speed Class 3 of the UHS-I/UHS-II standard and Video Speed Class 90
of the UHS-II standard.
●
For the information on memory cards with confirmed operation, check the following support site:
https://panasonic.jp/support/global/cs/dsc/connect/index.html
(English only)
Use cards that have the compatible SD Speed Class, UHS Speed Class, and Video Speed Class according to the bit rate of the
recording quality.
●
Speed classes are standards to guarantee the minimum speed necessary for continuous writing.
Bit rate of the recording quality Speed Class Example of indication
72 Mbps or less
Class 10
UHS Speed Class 1 or higher
Video Speed Class 10 or higher
100 Mbps to 200 Mbps
UHS Speed Class 3
Video Speed Class 30 or higher
400 Mbps Video Speed Class 60 or higher
●
You can prevent the writing and deleting of data by setting the write-protect switch
A
on the card to “LOCK”.
●
The data stored on a card may be damaged due to electromagnetic waves, static electricity or a failure of the camera or
card. We recommend backing up important data.
●
Keep the memory card out of reach of children to prevent swallowing.
A
- 11 -- 11 -
1. Introduction - Names of Parts
Names of Parts
■
Front
8
9
7
11
10
12
13
1
2
3
4
5
6
14
1 Status indicator ( 264 / Lamp / Indicator Display)
●
This displays the power status.
2 [
] Camera ON/OFF button ( 18 / Turning the camera on)
3 Contact points
4 Sensor
5 Lens release button
6 Lens lock pin
7 Front tally lamp (
264 / Lamp / Indicator Display)
●
This will light when recording begins. It will also blink when the available recording time of the recording medium
becomes short. When you do not want the lamp to light or when you want to change the brightness, you can set it on
the menu screen. (
200 / [Tally Lamp])
8 Fn button ([Fn2]) (
159 / Fn Buttons)
9 Fn button ([Fn3]) (
159 / Fn Buttons)
10 Mount
11 Operation lock switch (
33 / Camera Setting Operations)
12 Screw hole for function expansion
13 Fn button ([Fn4]) (
159 / Fn Buttons)
14 Fn button ([Fn5]) (
159 / Fn Buttons)
- 12 -- 12 -
1. Introduction - Names of Parts
■
Top
■
Bottom
15
22
23
25
24
26
27
16
17
18
19
20
21
22
15 Video rec. button ( 46 / Recording Videos)
16 [MENU/SET] button (
33 / Camera Setting Operations, 41 / Menu Operation Methods)
17 Cursor buttons (
33 / Camera Setting Operations)
18 Control dial (
33 / Camera Setting Operations)
19 [
] (Delete) button / [ ] (Cancel) button
20 [NETWORK] connection lamp (
264 / Lamp / Indicator Display)
●
Displays the network status.
21 Hot shoe (hot shoe cover)
●
Keep the hot shoe cover out of reach of children to prevent swallowing.
22 Tripod mount
●
You can attach a tripod, platform or camera cage etc.
●
The size of the mounting screw is 1/4-20 UNC (Screw length is 5.5 mm (0.22 inch) or less)
●
If you attempt to attach a screw longer than 5.5 mm (0.22 inch), you may not be able to securely fix it in place or it may
damage the camera.
23 Stereo microphone
●
Do not block the microphone with a finger. Audio will be difficult to record.
24 [
] (Recording distance reference mark)
25 Fn button ([Fn1]) (
159 / Fn Buttons)

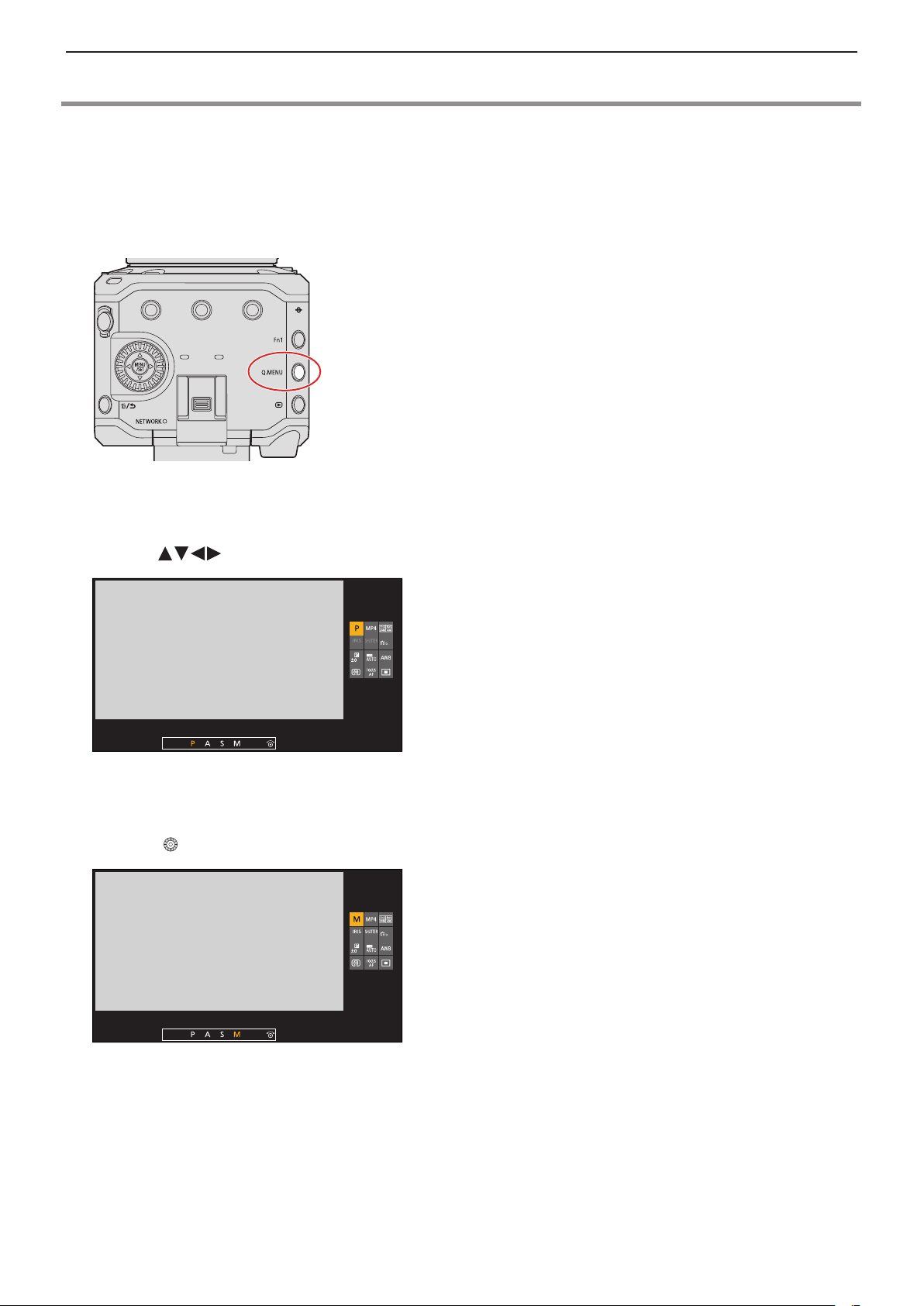

26 [Q.MENU] button (
39 / Quick Menu)
27 [
] (Playback) button ( 153 / Playing Back Videos)
- 13 -- 13 -
1. Introduction - Names of Parts
■
Back
37
28
29
34
38
42
30
31
32
35
33
39
40
41
43
44
36
28 Rear tally lamp ( 264 / Lamp / Indicator Display)
●
This works the same as the front tally lamp. You can set whether to make the lamp light at the menu screen separately
from the front tally lamp. (
200 / [Tally Lamp])
29 AUDIO terminal cover
30 [MIC] terminal (
145 / External Microphones (Optional))
●
This connects the external microphone.
31 Headphone terminal (
149 / Headphones)
●
This connects the headphones for the audio monitor.
32 [LAN] terminal
●
Supplying power from a PoE+ power supply. (
17 / Supplying power from a PoE+ power supply)
●
You can control the camera remotely by connecting with a PC that has the “LUMIX Tether” software installed. ( 216 /
Tethered Recording)
●
You can remotely operate the camera by connecting it with a LAN cable to the wireless access point to which the
smartphone that has the “LUMIX Tether” software installed is connected to. (
233 / Connecting to a Smartphone
(Wired LAN connection)
)
●
You can live stream the camera’s images and audio over the internet by connecting a PC installed with the streaming
software and the camera to a router. (
249 / 13. Streaming Function)
33 Security Slot
●
Attaching anti-theft equipment can prevent theft. We are not liable for damages that may occur resulting from theft.
34 DC IN terminal cover
●
Keep the DC IN terminal cover out of reach of children to prevent swallowing.
35 Cable lock band attachment part (
23 / Attaching the Cable Lock Band)
36 Battery attachment part
37 Battery release button
38 BNC terminal cover
- 14 -- 14 -
1. Introduction - Names of Parts
39 [SDI OUT] terminal (
22 / Connecting the external monitor)
●
This connects external monitors etc. and outputs an SDI signal.
40 [TC IN/OUT] terminal (
63 / Preparations for Time Code Synchronization)
●
This connects with an external device and inputs/outputs a time code.
41 [GENLOCK IN] terminal (
66 / Genlock settings)
●
This connects with an external device and inputs a sync signal.
42 HDMI terminal cover
43 [USB] terminal
●
You can control the camera remotely by connecting with a PC that has the “LUMIX Tether” software installed. (
216 /
Tethered Recording)
●
Import shooting data by connecting with a PC. (
151 / Importing Images to a PC)
44 [HDMI] terminal (Type A) (
22 / Connecting the external monitor)
●
This connects with an external monitor etc. and outputs a video signal.
- 15 -- 15 -
1. Introduction - Names of Parts
■
Right side
■
Left side
46
34
49
48
47
54
50
51
52
53
4522
55
22
45 Fan outlet
●
The fan outlet for the cooling fan. Do not block it when using this camera.
46 REMOTE terminal cover
●
Keep the REMOTE terminal cover out of reach of children to prevent swallowing.
47 [REMOTE] terminal (
150 / Using a remote control unit)
●
You can control a part of the function remotely by connecting the remote control unit (commercially available) to the
camera. (A Panasonic shutter remote control (DMW-RS2) cannot be used.)
48 Card door release lever
49 Card door
50 Card slot 1 (
25 / Inserting Cards (Optional))
51 Card access light 1
52 Card slot 2 (
25 / Inserting Cards (Optional))
53 Card access light 2
54 [DC IN 12 V] terminal (
16 / Supplying power with an AC adaptor)
55 Fan Inlet
●
The fan inlet for the cooling fan. Do not block it when using this camera.
●
The terminal cover is attached to the camera upon purchase. You can remove the terminal cover from the camera.
●
It is recommended to use a double shielded BNC cable equivalent to 5C-FB.
- 16 -- 16 -
2. Getting Started - Power supply
2. Getting Started
Power supply
You can supply power to the camera using an AC adaptor (supplied), a PoE+*
1
compatible switching hub or PoE+ compatible
injector (commercially available), and a battery pack (optional)*
2
.
*
1
PoE+ is an abbreviation of Power Over Ethernet Plus.
*
2
This will be referred to as “battery pack” or “battery” onwards.
●
When several power supplies are connected at the same time, it will be prioritized in the order of AC adaptor, PoE+
power supply and then battery.
●
The battery that can be used with the camera is AG-VBR59/AG-VBR89/AG-VBR118. (As of October 2021)
– Always use genuine Panasonic batteries (AG-VBR59, AG-VBR89, AG-VBR118).
– If you use other batteries, we cannot guarantee the quality of this product.
Supplying power with an AC adaptor
Connect the supplied AC adaptor and AC cable/AC mains lead to the camera to supply power (power supply).
A
B
A
AC adaptor (supplied)
B
AC cable/AC mains lead (supplied)
1 Connect the AC adaptor to the [DC IN 12 V] terminal of the camera.
2 Connect the AC cable/AC mains lead to the AC adaptor, then plug it into the power
outlet.
●
The AC cable/AC mains lead is for this camera only, so do not use it with other devices. Additionally, do not use the AC
cable/AC mains lead of other devices with this camera.
- 17 -- 17 -
2. Getting Started - Power supply
●
Do not use any other AC adaptors except the supplied one. This may cause malfunction.
●
Do not use any other AC cables/AC mains leads except the supplied one. This may cause malfunction.
●
Turn off the camera before connecting or disconnecting the power plug.
●
Do not leave any metal items (such as clips) near the contact areas of the power plug. Otherwise, a fire and/or electric
shocks may be caused by short-circuiting or the resulting heat generated.
●
Do not use the AC adaptor and AC cable/AC mains lead with other devices. This may cause malfunction.
●
If there is a power outage or other problems with the electrical outlet, please reconnect the power plug.
●
Power is being consumed even if the camera is turned off. When the camera will not be used for a long time, remove the
power plug from the electrical outlet in order to save power.
Supplying power from a PoE+ power supply
This camera is PoE+ (IEEE 802.3at compliant) compatible. Connect the camera to a PoE+ compatible switching hub or PoE+
compatible injector to supply power (power supply).
C
A
B
A
PoE+ compatible LAN cable (commercially available)
B
PoE+ compatible switching hub (commercially available)
C
Power plug
1 Connect the [LAN] terminal of the camera and the PoE+ compatible switching hub
with a PoE+ compatible LAN cable.
●
For the cable that connects to the LAN terminal, use the one below.
– LAN cable (STP (Shielded Twisted Pair), category 5e or above, maximum 100 m (328 feet))
●
Use a PoE+ (IEEE 802.3at compliant) compatible switching hub or power supplying device. *
1
(Not all PoE+ (IEEE 802.3at compliant) compatible device operations are guaranteed.)
*
1
Make sure it complies with the safety standards IEC 60950-1 or IEC 62368-1. If you are uncertain on whether or not it
complies with the safety standards, please contact the manufacturer of the switching hub or power supplying device.
●
You cannot use a PoE (IEEE 802.3af compliant) switching hub or power supplying device.
●
After turning the camera on, when the device or cable used is determined PoE+ incompatible by the camera, the camera
automatically turns off. (Determining may take approximately 3 minutes.)
●
The camera’s Wi-Fi connection, Bluetooth connection, and USB connection cannot be used while supplying power with
PoE+.
●
If you connect a PC to a switching hub that supplies power to the camera with PoE+ via a LAN cable, you can remotely
control the camera with the software “LUMIX Tether” while supplying power to the camera with PoE+.
- 18 -- 18 -
2. Getting Started - Power supply

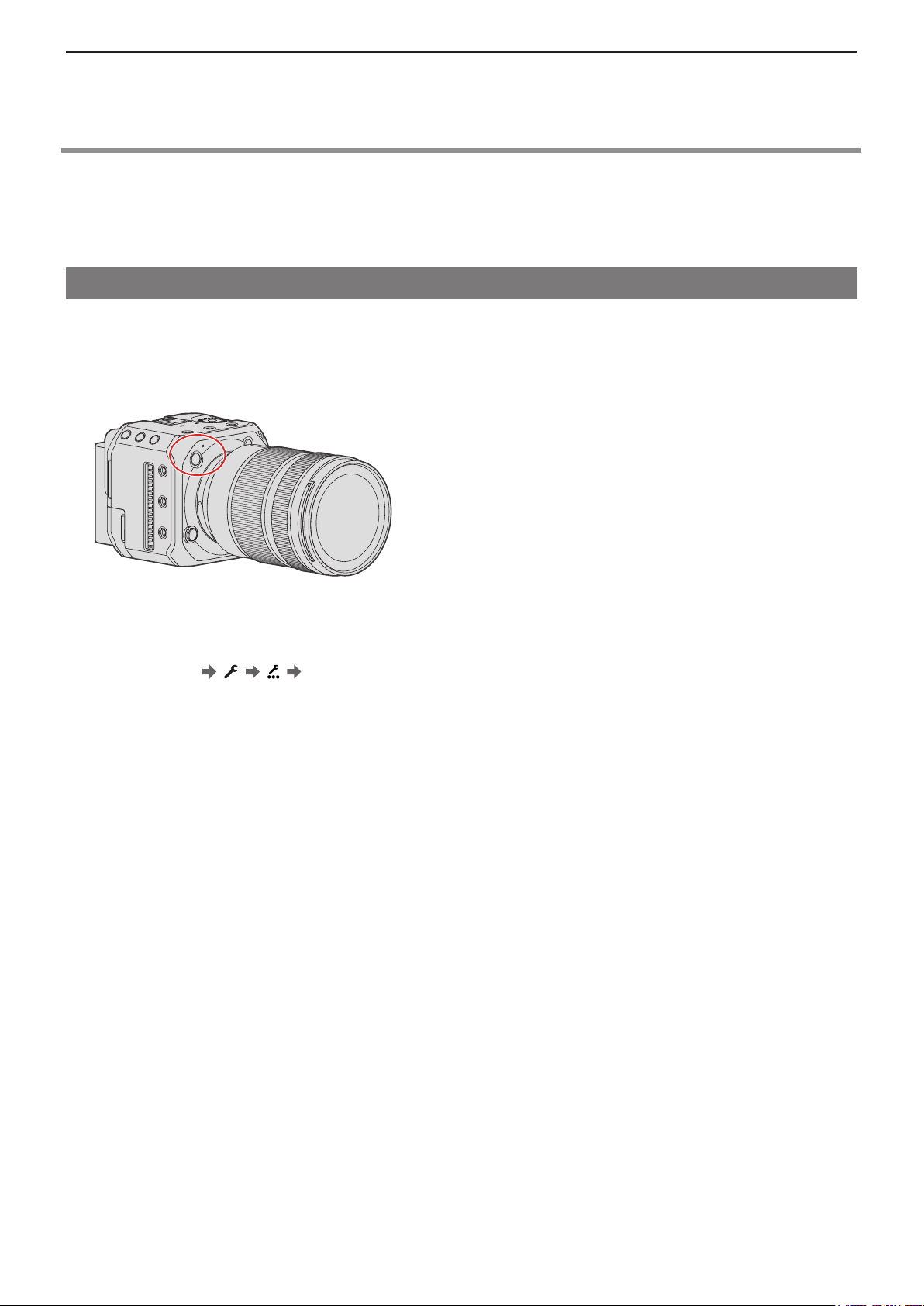

Turning the camera on
1 Turning the camera on.
●
Press and hold the camera ON/OFF button for more than one second.
● The status indicator will light up.
●
You can change the language displayed on the screen from [Language] ([ ]) in the [Setup] ([Others]) menu.
Turning the camera off
1 Turning the camera off.
●
Press and hold the camera ON/OFF button for more than two seconds.
● The status indicator will go off.
- 19 -- 19 -
2. Getting Started - Power supply
Power Indications
■
External Monitor Displays
A
When supplying power with an AC adapter
B
When supplying power by connecting to a PoE+ compatible switching hub
C
Battery indication
Battery indication
75% or higher
74% to 50%
49% to 25%
24% or below
Blinking in red
Low battery
●
Charge or replace the battery.
●
The battery level indicated on the screen is an approximate. The exact level varies depending on the environment and the
operating conditions. The actual battery level may differ from the battery level displayed in the indication.
●
To ensure that safe products are used, we recommend that a genuine Panasonic battery pack is used. There is a
possibility that other battery packs may lead to fire or explosion. Please be advised that we are not liable for any accident
or failure occurring as a result of use of a counterfeit battery pack.
■
Status indicator
This informs you about the camera status with the lamp. (
264 / Lamp / Indicator Display)
- 20 -- 20 -
2. Getting Started - Attaching a Lens
Attaching a Lens
●
Change the lens in a location where there is not a lot of dirt and dust. If dirt or dust gets on the lens ( 274 / Dirt on the
image sensor
)
●
Change the lens while the lens cap is attached.
1 Turn the camera off.
●
Press and hold the camera ON/OFF button for more than two seconds.
2 Turn the lens rear cap and the body cap in the direction of the arrow to remove them.
●
When removing the body cap, rotate it while pressing the lens release button.
A
A
Lens release button
3 Align the lens lock pin on the camera and the lens fitting mark on the lens and then
rotate the lens in the direction of the arrow.
●
Attach the lens by rotating it until it clicks.
B
C
B
Lens lock pin
C
Lens fitting mark
●
Insert the lens straight in. Inserting this at an angle to attach it may damage the camera lens mount.
- 21 -- 21 -
2. Getting Started - Attaching a Lens
Removing a Lens
Turn the camera off.
● Press and hold the camera ON/OFF button for more than two seconds.
While pressing the lens release button, rotate the lens in the direction of the arrow until it stops and then remove it.
A
A
Lens release button
●
After removing the lens, be sure to attach the body cap and the lens rear cap.
- 22 -- 22 -
2. Getting Started - Connecting the external monitor
Connecting the external monitor
Connect the camera to an external monitor or external recorder etc. to output video and audio.
Connecting to the external monitor
Preparation:
●
Turn off the camera, external monitor, or external recorder etc.
1 Connect the camera and external monitor or external recorder with an HDMI cable or
BNC cable.
A
C
D
B
E
A
[SDI OUT] terminal
B
[HDMI] terminal
C
BNC cable (commercially available)
D
HDMI cable (commercially available)
E
External monitor or external recorder (commercially available)
●
Check the direction of the terminals and plug in/out straight holding onto the plug. (Inserting at an angle can deform the
terminal and cause malfunction.)
●
Do not connect the cable to the wrong terminals. This may cause a malfunction.
■
When the images are not output (
267 / External device)
■
Settings of the display (
34 / Display Settings)
●
The recording information or menu screen will only be output to either the HDMI output destination or SDI output
destination. You can set where to display it in [Display Information].
■
Output image settings (
137 / 7. Output image)
●
Sets the resolution etc. of the footage to be output to the external device during recording.
- 23 -- 23 -
2. Getting Started - Connecting the external monitor
●
It is recommended to use a double shielded BNC cable equivalent to 5C-FB.
●
Use a Premium High Speed HDMI cable (Type A - Type A plug).
●
You can output via HDMI and SDI at the same time. You can also connect to either “LUMIX Tether” or “LUMIX Sync” at
the same time. (
216 / Tethered Recording, 222 / Connecting to a Smartphone)
●
If you do not have an external monitor or external recorder, you can watch the live view while remotely controlling the
camera by connecting a PC that has the “LUMIX Tether” software installed to the camera. (
216 / Tethered Recording)
Attaching the Cable Lock Band
Use of the supplied cable lock band prevents detachment of the cable and damage to the terminals.
●
Put the camera on a stable surface to perform this task.
1 Loosely mount the cable lock band to the cable lock band mount on the camera, and
then rotate the screws in the direction of the arrows to secure the cable lock band.
2 Connect the AC adaptor, the HDMI cable and the USB connection cable to the camera.
3 Fit the AC cable/AC mains lead to the clamp.
4 Fit the HDMI cable and USB connection cable to the clamp.
- 24 -- 24 -
2. Getting Started - Connecting the external monitor
■
Removing the cable lock band
●
To remove the cable lock band, follow the steps for attaching it in the reverse order.
●
It may not be possible to attach HDMI cables or USB connection cables depending on the shape.
- 25 -- 25 -
2. Getting Started - Inserting Cards (Optional)
Inserting Cards (Optional)
This camera supports the double card slot function. When two cards are used, relay recording and backup recording are
available.
Inserting / removing the card
1 Open the card door.
●
Slide the card door release lever to the direction of the arrow.
2 Insert the cards.
●
Match the orientation of the cards as shown in the figure and then insert them firmly until they click.
A
B
A
Card slot 1
B
Card slot 2
●
Do not touch the card connection contacts
C
.
C
- 26 -- 26 -
2. Getting Started - Inserting Cards (Optional)
3 Close the card door.
●
The card will be displayed onto the screen of the output destination.
●
You can set the way to record to card slots 1 and 2:
[
] [ ] [Double Card Slot Function] ( 29 / [Double Card Slot Function])
■
Indications during card access
The card access light
A
turns on while the card is being accessed.
A
●
Do not perform the following operations during access. The camera may operate incorrectly or the card and
recorded images may be damaged.
– Turn off the camera. (Pressing the camera ON/OFF button, stopping power supply, or removing the battery.)
– Remove the card
– Subject the camera to vibration, impacts, or static electricity.
●
You can set so that the card access light does not turn on:
[
] [ ] [Card Access Light] ( 205 / [Card Access Light])
- 27 -- 27 -
2. Getting Started - Inserting Cards (Optional)
Removing a Card
Open the card door.
Push the card until it clicks and then pull the card out straight.
●
The card may be warm just after the camera has been used.
Formatting Cards (Initialization)
Format the cards with the camera before use in order to ensure optimal card performance.
●
When a card is formatted, all of the data stored in the card is erased and cannot be restored. Save a backup of
necessary data before formatting the card.
[MENU/SET]
[ ] [ ] Select [Card Format]
Settings: [Card Slot 1] / [Card Slot 2]
●
Do not turn off the camera or perform another operation during formatting.
●
Take care not to turn off the camera while formatting is in progress.
●
If the card has been formatted with a PC or other device, format it again with the camera.
●
You can format the card while keeping the camera settings information stored on the card:
[
] [ ] [Save/Restore Camera Setting] [Keep Settings While Format] ( 177 / [Save/Restore Camera Setting])
- 28 -- 28 -
2. Getting Started - Inserting Cards (Optional)
[Folder / File Settings]
Set the folder and file name where to save the images.
Folder name File name
Folder number (3 digits, 100 to 999)
5-character user-defined segment
3-character user-defined segment
File number (4 digits, 0001 to 9999)
Extension
[MENU/SET]
[ ] [ ] Select [Folder / File Settings]
[Select Folder]*
1
Selects a folder for storing images.
[Create a New Folder]
Creates a new folder with an incremented folder number.
●
If there are no recordable folders in the card, a screen for resetting the folder number is
displayed.
[OK]: Increments the folder number without changing the 5-character user-defined segment
(
above).
[Change]: Changes the 5-character user-defined segment (
above). This will also increment
the folder number.
[File Name Setting]
[Folder Number Link]: Uses the 3-character user-defined segment (
above) to set the folder
number (
above).
[User Setting]: Changes the 3-character user-defined segment (
above).
*
1
When [Double Card Slot Function] is set to [Allocation Rec], [Select Folder (Slot 1)] and [Select Folder (Slot 2)] will be
displayed.
●
Follow the steps on “Entering Characters” when the character entry screen is displayed. (
212 / Entering Characters)
Available characters: alphabetic characters (upper-case), numerals, [ _ ]
●
Each folder can store up to 1000 files.
●
File numbers are assigned sequentially from 0001 to 9999 in the order of recording. If you change the storage folder, a
number continuing on from the last file number will be assigned.
●
In the following cases, a new folder with an incremented folder number will be created automatically when the next file is
saved:
– The number of files in the current folder reaches 1000.
– The file number reaches 9999.
●
New folders cannot be created when there are folders numbered from 100 all the way up to 999. We recommend backing
up your data and formatting the card.
●
[Select Folder] is not available when [Backup Rec] in [Double Card Slot Function] is being used.
- 29 -- 29 -
2. Getting Started - Inserting Cards (Optional)
[File Number Reset]
Refresh the folder number to reset the file number to 0001.
[MENU/SET]
[ ] [ ] Select [File Number Reset]
Settings: [Card Slot 1] / [Card Slot 2]
●
When the folder number reaches 999, the file number cannot be reset. We recommend backing up your data and
formatting the card.
●
To reset the folder number to 100:
Perform [Card Format] to format the card. ( 27 / Formatting Cards (Initialization))
Perform [File Number Reset] to reset the file number.
Select [Yes] on the folder number reset screen.
[Double Card Slot Function]
This sets the way recording to the card slots 1 and 2 is performed.
[MENU/SET]
[ ] [ ] Select [Double Card Slot Function]
[Recording
Method]
([Relay Rec])
Selects the priority of card slots for recording.
[Destination Card Slot]: [
] / [ ]
Relays recording to the card in the other card slot after the first card
runs out of free space.
([Backup Rec])
Records the same images to both cards simultaneously.
([Allocation Rec])
Allows you to specify the card slot to be used for recording for different
image formats.
[JPEG Destination]*
1
/ [Video Destination]
*
1
You can use it when recording still images using the “LUMIX Tether” software.
Notes about relay recording
●
The following video cannot be continued to be recorded on another card:
– [Loop Recording (video)]
Notes about Backup Recording
●
We recommend using cards with the same Speed Class rating and capacity.
If the card Speed Class or capacity is insufficient when video recording, recording to both cards stops.
●
Backup recording is not available with the following video. They can only be recorded on a single card:
– [Loop Recording (video)]
●
Video cannot be recorded when the following card combination is used.
– SD memory card or SDHC memory card, and SDXC memory card
- 30 -- 30 -
2. Getting Started - Setting the Clock (When Turning On for the First Time)
Setting the Clock (When Turning On for the First
Time)
When turning the camera on for the first time, to record the information of the correct time and date, make sure to set the clock
and time zone before using. The clock will automatically advance from 0:00:00 1/1/2021 at the point the camera is turned on for
the first time.
Clock Set
1 Turn the camera on.
●
Press and hold the camera ON/OFF button for more than one second.
● The status indicator will light up.
2 Select [Clock Set].
●
[MENU/SET] [ ] [ ] [Clock Set]
- 31 -- 31 -
2. Getting Started - Setting the Clock (When Turning On for the First Time)
3 Set the clock.
: Select an item (year, month, day, hour, minute, or second).
: Select a value.
To set the display order and time display format
●
The setting screen of the display order and time display format will be displayed if you select [Style] with and
press [MENU/SET].
A
Display order
B
Time display format
4 Confirm your selection.
●
Press [MENU/SET].
●
The clock settings are maintained for approx. 3 months even without supplying power by using the built-in clock battery.
(To charge the built-in battery, connect the AC adaptor (supplied) to the camera for more than approx. 24 hours while
keeping the camera turned off.)
- 32 -- 32 -
2. Getting Started - Setting the Clock (When Turning On for the First Time)
Time zone
1 Display the setting screen of the [Time Zone].
●
[MENU/SET] [ ] [ ] [Time Zone]
2 Set the time zone.
●
Select a time zone with , and press [MENU/SET].
●
If you are using Daylight Savings [ ], press . (The time will move forward by 1 hour.)
To return to the normal time, press
again.
A
Time difference from GMT (Greenwich Mean Time)
- 33 -- 33 -
3. Basic Operations - Camera Setting Operations
3. Basic Operations
Camera Setting Operations
When changing the camera settings, operate the camera using the following operation parts.
To prevent accidental operation, you can disable operation with the operation lock switch.
B
A
C
A
Control dial ( )
Rotate: Selects an item or numeric value.
B
Cursor buttons ( )
Press: Selects an item or numeric value.
C
[MENU/SET] button
Press: Confirms a setting.
●
Displays the menu during recording and playback.
D
D
Operation lock switch
Aligning the operation lock switch with the [
] position disables the operation parts. The operation parts to disable can be set in
[Lock Switch Setting] of the [Custom] ([Operation]) menu. (
195 / [Lock Switch Setting])
- 34 -- 34 -
3. Basic Operations - Display Settings
Display Settings
The recording information or menu screen will only be output to either the HDMI output destination or SDI output destination.
Information Display (HDMI/SDI)
You can set the output destination of recording information or menu screen. The default setting is set to [AUTO].
[MENU/SET]
[ ] [ ] Select [Info Display (HDMI/SDI)]
[AUTO]
Only displays to the external device connected via HDMI. When it is not connected via
HDMI, it will be displayed on the external device connected via SDI. (when [SDI Output] is
[ON]).
[HDMI] Only displays to the external device connected via HDMI.
[SDI] Only displays to the external device connected via SDI. (when [SDI Output] is [ON]).
[OFF] Neither will be displayed.
●
[Info Display (HDMI/SDI)] is assigned to the [Fn1] at default setting. By pressing [Fn1], you can switch the settings of [Info
Display (HDMI/SDI)] in the order of [AUTO], [HDMI], [SDI], and [OFF].
– About Fn buttons (
159 / Fn Buttons)
●
For external devices not set in the output destination of the information, the whole screen or part of the screen will be
displayed in black depending on the setting screen.
●
When the menu screen is not output to the external monitor, you can reset the [Info Display (HDMI/SDI)] settings to
[AUTO] by pressing [MENU/SET], [Q.MENU], and [Fn3] at the same time. ([HDMI RAW Data Output] is switched to
[OFF].)
- 35 -- 35 -
3. Basic Operations - Display Settings
Output destination screen display
The following icons will be displayed on the output destination screen upon purchase.
●
For information about the icons other than those described here ( 254 / External Monitor Displays)
59.94
p
59.94
p
100100 4.04.0 24
m
59
s
24
m
59
s
FF
32003200
1 [Photo Style]
2 Level gauge
3 [Rec. File Format]
4 [Rec Quality]
5 [Image Area of Video]
6 AF area
7 [Focus Mode]
8 [AF Mode]
9 [Image Stabilizer]
10 [Exposure Mode]
11 [Metering Mode]
12 Shutter speed
13 Aperture value
14 Exposure compensation value
15 [Sensitivity]
16 Card slot / [Double Card Slot Function]
17 Video recording time
18 Power supply
- 36 -- 36 -
3. Basic Operations - Display Settings
Switching the Display Information
The recording information (icons) on the recording screen and playback screen can be hidden. You can also display the control
panel.
1 Set [Display Information].
●
[MENU/SET] [ ] [ ] [Display Information]
Settings:
[Display Info in Rec Mode]: [WITH INFO] / [WITHOUT INFO] / [CTRL PANEL]
[Display Info in Playback]: [WITH INFO] / [DETAILED INFO DISP] / [WITHOUT INFO]
[WITH INFO] Display information (icons) to the recording screen/playback screen.
[WITHOUT INFO] Do not display information (icons) to the recording screen/playback screen.
[CTRL PANEL]
Display control panel when recording. (
38 / Control Panel)
[DETAILED INFO DISP] Display detailed information to the playback screen.
- 37 -- 37 -
3. Basic Operations - Display Settings
Switch the information display with a Fn button
If you register the [Display Information] to a Fn button, the display switches every time you press that Fn button.
●
About Fn buttons (
160 / Register Functions to the Fn Buttons)
■
Recording Screen
59.94
p
59.94
p
100100
4.0
4.0 24
m
59
s
24
m
59
s
FF
32003200
A
[WITH INFO]
B
[WITHOUT INFO]
C
[CTRL PANEL]
■
Playback Screen
59.94
p
59.94
p
4.04.0 32003200
FF
2021.12. 1 10
:
002021.12. 1 10
:
00
100-0001
100-0001 1/9991/999
24
m
59
s
24
m
59
s
100-0001100-0001
2021.12. 1 10
:
002021.12. 1 10
:
00
32003200
100100 F4.0F4.0
1/5
100100
D
[WITH INFO]
E
[DETAILED INFO DISP]*
1
F
[WITHOUT INFO]
*
1
Pressing
switches the display information. ( 262 / Detailed information display screen)
●
You can switch between displaying or not displaying the level gauge at [Level Gauge]. ( 197 / [Level Gauge])
- 38 -- 38 -
3. Basic Operations - Control Panel
Control Panel
This screen allows you to view the current recording settings on the monitor.
1 Display the control panel.
●
[MENU/SET] [ ] [ ] [Display Information] [Display Info in Rec Mode] [CTRL PANEL]
2 Close the menu.
●
Press [ ] several times.
3 Select a menu item.
●
Press .
4 Change the setting.
●
Rotate to select a setting.
●
Refer to the pages explaining each item for information on how to change the settings.
- 39 -- 39 -
3. Basic Operations - Quick Menu

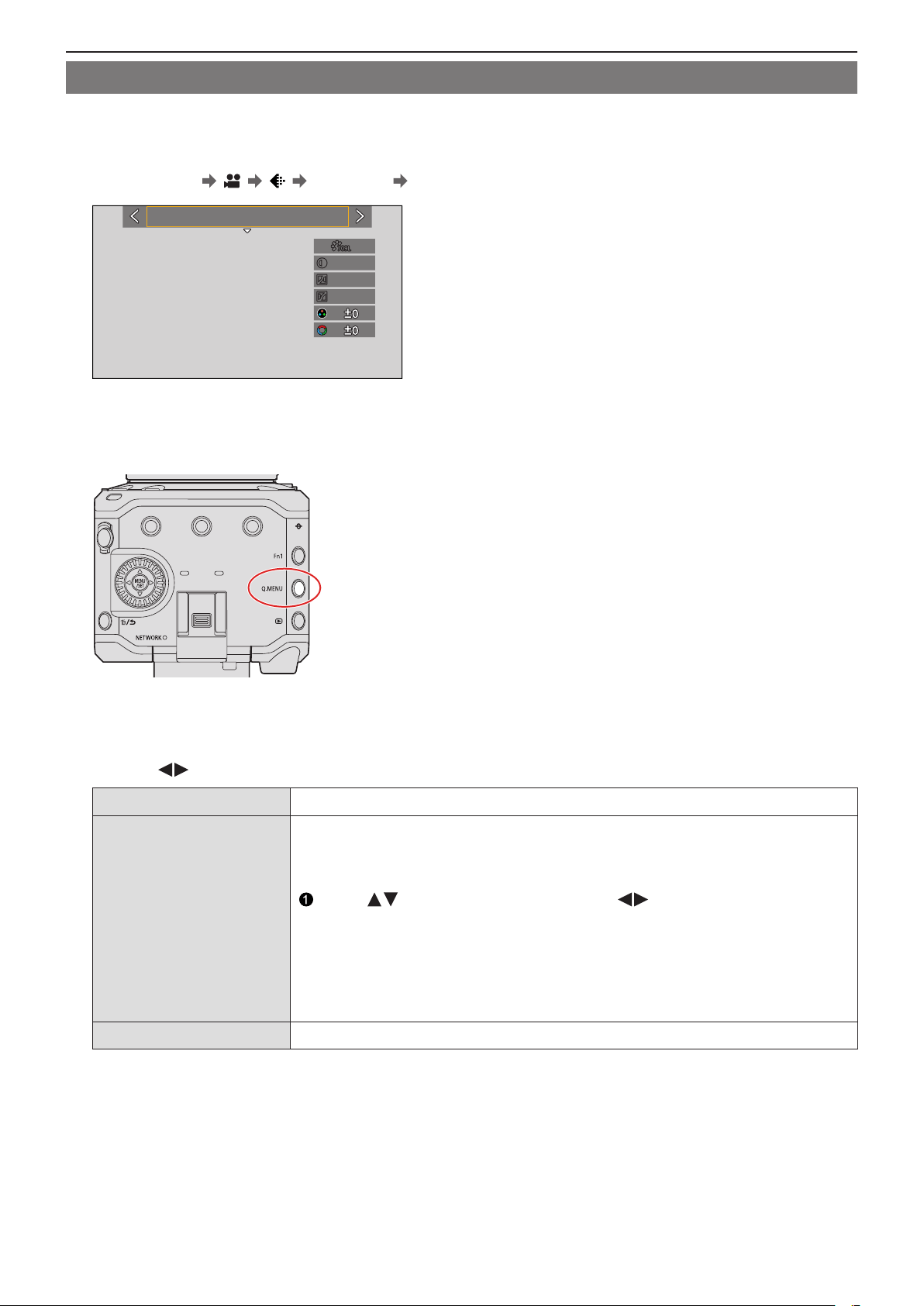

Quick Menu
This menu enables you to quickly set functions that are frequently used during recording without calling up the menu screen.
You can also change the Quick menu display method and the items to display.

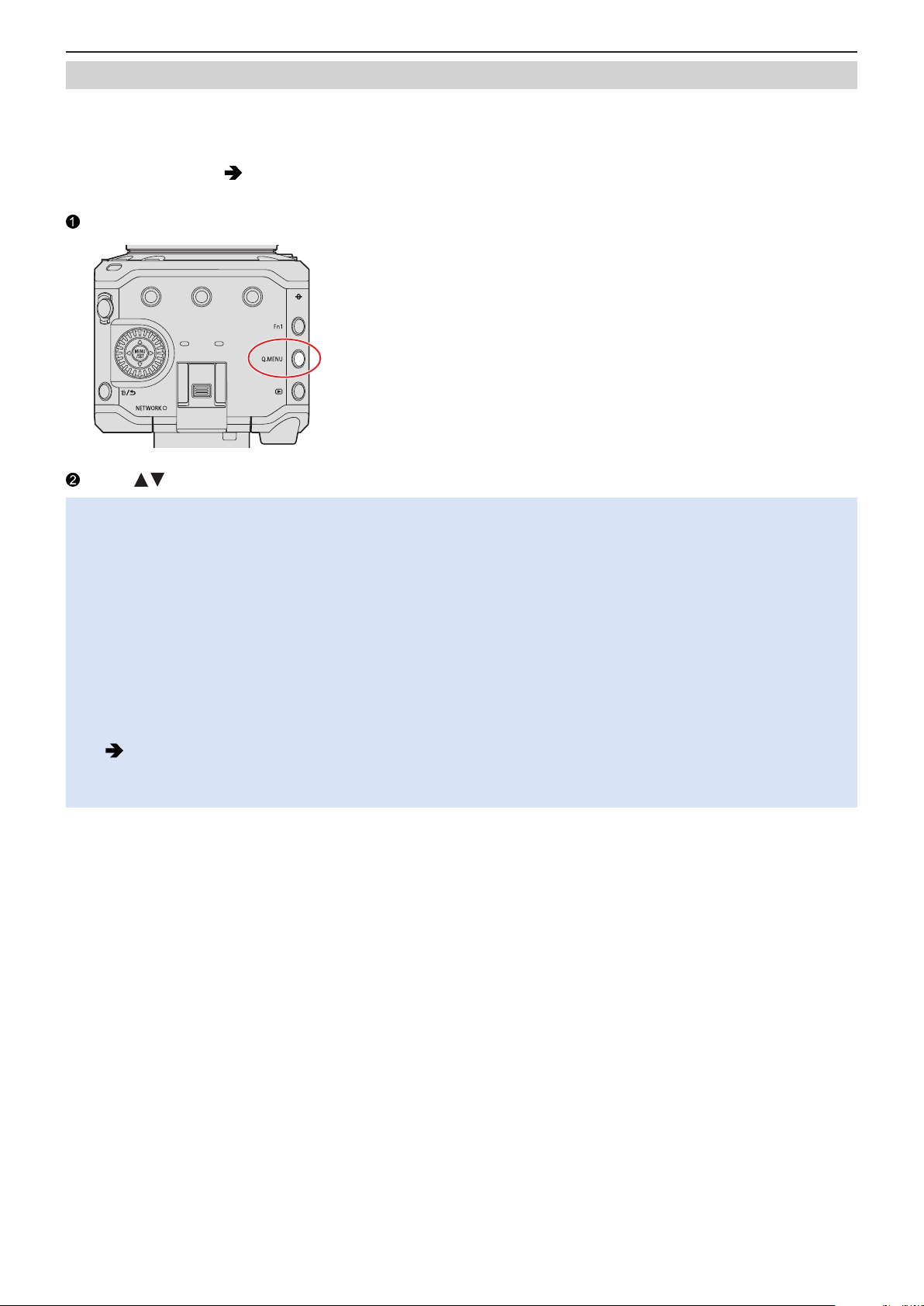

1 Display the Quick menu.
●
Press [Q.MENU].
2 Select a menu item.
●
Press .
3 Select a setting item.
●
Rotate .
F4.0F4.0 1/1001/100
- 41 -- 41 -
3. Basic Operations - Menu Operation Methods
Menu Operation Methods
In this camera, the menu is used for setting a wide variety of functions and performing camera customizations.
Menu operation
Configuration of the menu
A
Main tab
B
Sub tab
C
Page tab
D
Menu item
E
Setting item
- 42 -- 42 -
3. Basic Operations - Menu Operation Methods
1 Display the menu.
●
Press [MENU/SET].
2 Select a main tab.
●
Press to select a main tab and then press .
● You can also perform the same operation by pressing [Q.MENU] or by rotating to select a main tab, then pressing
[MENU/SET].
3 Select a sub tab.
●
Press to select a sub tab and then press .
● You can also perform the same operation by rotating to select a sub tab, then pressing [MENU/SET].
●
If there are page tabs, after the page tabs
C
have finished switching, it is switched to the next sub tab.
- 43 -- 43 -
3. Basic Operations - Menu Operation Methods
4 Select a menu item.
●
Press to select a menu item and then press .
● You can also perform the same operation by rotating to select the menu item, then pressing [MENU/SET].
5 Select a setting item and then confirm your selection.
●
Select a setting item with , then press [MENU/SET].
● You can also perform the same operation by rotating to select a setting item, then pressing [MENU/SET].
6 Close the menu.
●
Press [ ] several times.
●
For details about menu items, refer to Menu Guide. ( 178 / 11. Menu Guide)
- 44 -- 44 -
3. Basic Operations - Menu Operation Methods
Displaying Descriptions About Menu Items and Settings
When you press a Fn button that has the [Display Information] function registered while a menu item or setting item is selected,
the details of that menu will be displayed on the screen.
●
About Fn buttons (
160 / Register Functions to the Fn Buttons)
Grayed Out Menu Items
Menu items that cannot be set are displayed grayed out.
When you press [MENU/SET] while a grayed out menu item is selected, the reason why it cannot be set will be displayed.
The reason why a menu item cannot be set may not be displayed depending on the menu item.
- 45 -- 45 -
3. Basic Operations - Menu Operation Methods
[Reset]
Return each of the following settings to the default setting:
– Recording settings
– Network settings (Settings of [LAN / Wi-Fi] and [Bluetooth], password when connected to the camera with the “LUMIX Tether”
software.)
– Setup and custom settings (Anything other than [LAN / Wi-Fi] and [Bluetooth].)
[MENU/SET]
[ ] [ ] Select [Reset]
■
When the menu screen does not display to the external device
Press [Q.MENU], [Fn2], and [Fn4] at the same time.
●
After all the lamps blink for approx. 5 seconds, the camera automatically shuts off and then turns on again.
●
The recording setting, network setting, and set up/custom setting returns to the default setting.
●
If the setup and custom settings are reset, the [Playback] menu is also reset.
●
The folder numbers and clock settings are not reset.
●
List of default settings and settings that can be reset ( 284 / List of Default Settings / Custom Saving / Settings
Available for Copying
)
- 46 -- 46 -
4. Recording Videos - Recording Videos
4. Recording Videos
Recording Videos
It is possible to record video with a maximum resolution of 6K (5952×3968) on this camera. It also supports switching of the
system frequency and 2 types of recording file format; MP4 and MOV.
Recording Videos
1 Start recording.
●
Press the video rec. button
A
.
●
Release the video rec. button right after you press it.
●
During video recording, the front tally lamp
B
and rear tally lamp
C
light.
A
B C
2 Stop recording.
●
Press the video rec. button
A
again.
- 47 -- 47 -
4. Recording Videos - Recording Videos
Screen Displays While Video Recording
The video recording time
D
and elapsed recording time
E
will be displayed.
●
The recording state indication
F
and card access indication
G
turn red while videos are being recorded.
24
m
59
s
24
m
59
s
10
S
10
S
●
When the remaining capacity of the battery or card gets low during video recording, the tally lamps blink at long intervals.
When there is no remaining capacity in the battery or card, video recording is stopped and the tally lamps blink at short
intervals.
●
If an operation such as a zoom or button operation is performed during video recording, that operation sound may be
recorded.
●
The lens operation sound (AF and image stabilizer) may be recorded to video.
●
If the operation sound of pressing the video rec. button to end recording bothers you, try the following:

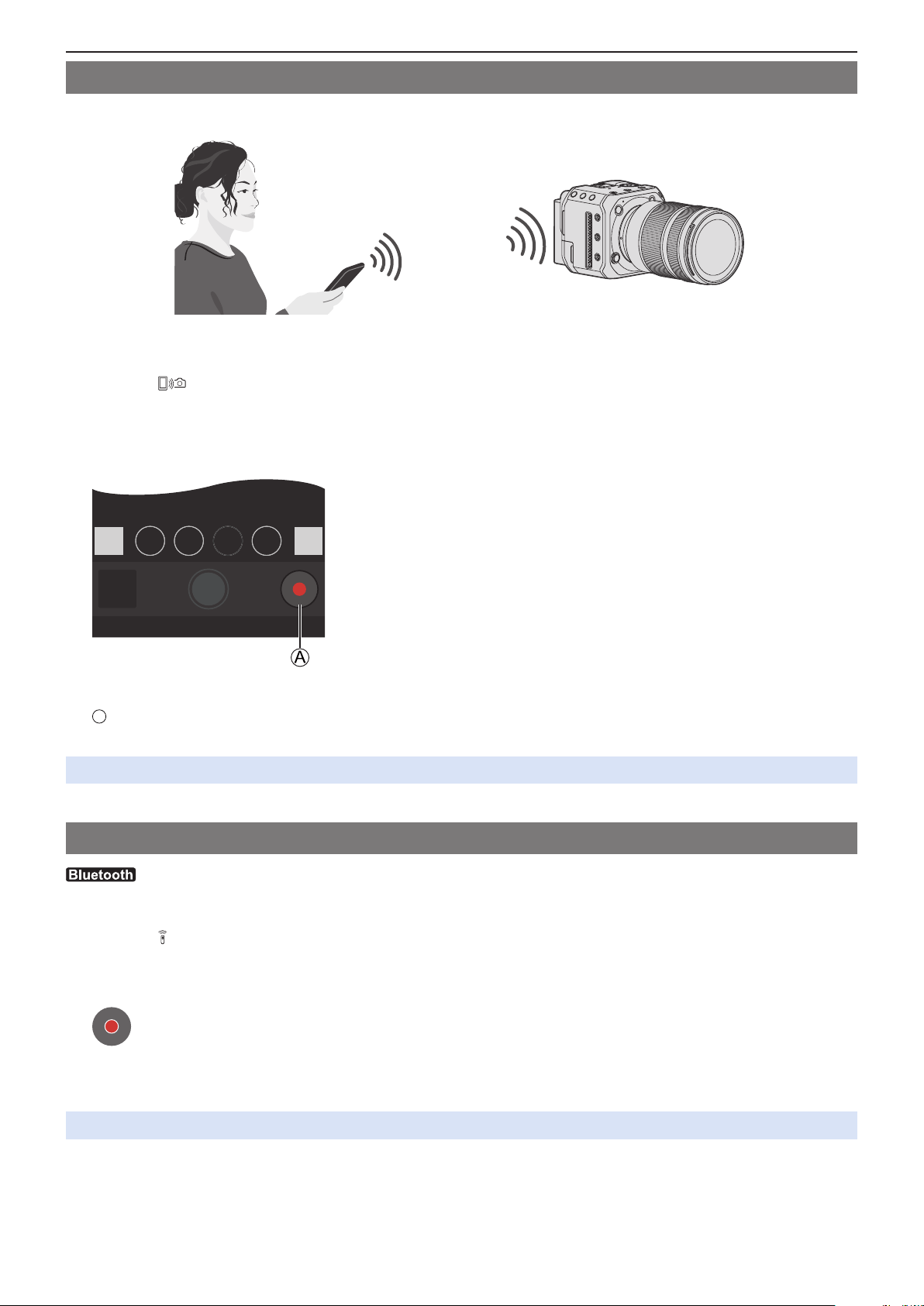

– Record by remotely operating the camera (
213 / 12. Remote Operations)
– Connect a remote control unit (commercially available) that is compatible with the camera to the [REMOTE] terminal
to record.
●
Depending on the type of card, the card access indication may appear for a while after video recording. This is not a
malfunction.
●
Even when playback is performed on a supported device, situations may occur where image or sound quality is poor,
recording information is not displayed correctly, or playback is not possible, for example. If you experience any of these,
play them back on the camera.
●
If the camera temperature rises, [
] may be displayed and recording may stop. Wait until the camera cools down.
●
You can change the tally lamp that turns on. You can also change the settings so the tally lamps do not turn on:
[
] [ ] [Tally Lamp] ( 200 / [Tally Lamp])
●
You can display a red frame on the recording screen that indicates that video is being recorded:
[
] [ ] [Red REC Frame Indicator] ( 199 / [Red REC Frame Indicator])
- 48 -- 48 -
4. Recording Videos - Recording Videos

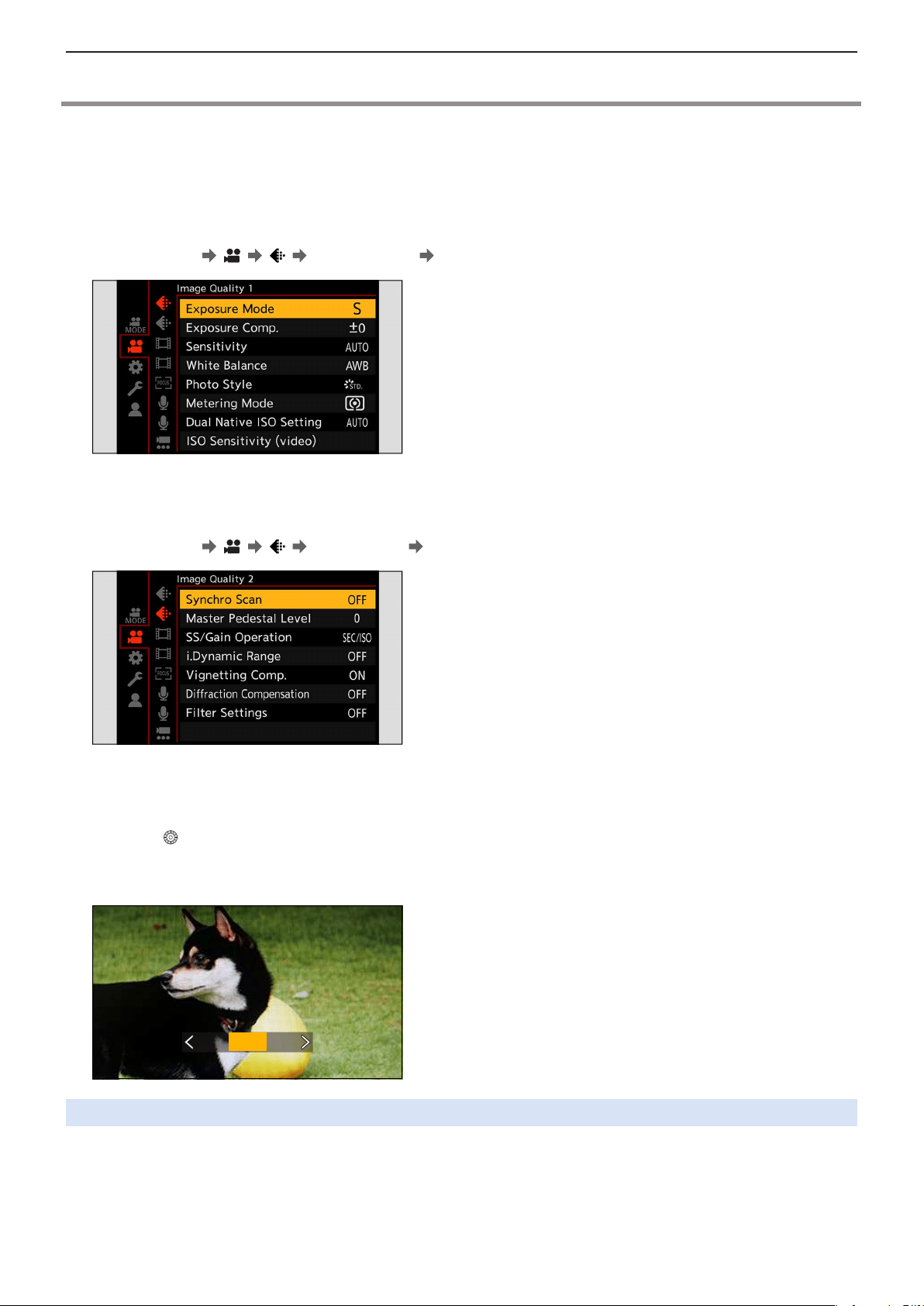

[Exposure Mode]
1 Set the exposure mode.
●
[MENU/SET] [ ] [ ] [Exposure Mode]
P
The camera automatically sets the shutter speed and aperture value according to the subject’s brightness.
● When wearing headphones, you can adjust the volume by rotating .
A
You can set the aperture value and record.
Set the aperture value.*
1
● Rotate .
● When wearing headphones, you can adjust the volume by rotating . You can switch to aperture
value setting operations by pressing
.
(The operation switches back to volume adjustment if you press
again.)
S
You can adjust the shutter speed and record.
Set the shutter speed.*
2
● Rotate .
● When wearing headphones, you can adjust the volume by rotating . You can switch to shutter speed
setting operations by pressing
.
(The operation switches back to volume adjustment if you press
again.)
M
You can adjust the aperture value and shutter speed manually and record.
Set the aperture value and shutter speed.*
1,
*
2
● Rotate . (Every time is pressed, the aperture value setting operation and shutter speed setting
operation is switched.)
● When wearing headphones, you can adjust the volume by rotating . You can switch to aperture
value setting operation, shutter speed setting operation, and volume adjustment operations each time
you press
.
●
The ISO sensitivity is set to [AUTO] in the default setting. For that reason, the ISO sensitivity will
be set according to the aperture value and shutter speed. When ISO sensitivity is set to [AUTO],
exposure compensation can also be used.
Manual Exposure Assist
When ISO sensitivity is set to other than [AUTO], Manual Exposure Assist (example:
) will be displayed on
the recording screen.
You can check the difference between the current exposure value and the correct exposure (±0) measured by
the camera.
●
Use Manual Exposure Assist as a guide. We recommend checking the images on the playback screen
when recording.
*
1
At default setting, [Aperture Value] is assigned to [Fn3]. You can press [Fn3] to display the setting screen of the aperture
value and rotate
to set the aperture value.
*
2
[Shutter Speed] is assigned to the [ ] at default setting. You can display the setting screen of the shutter speed by
pressing the [
] and set the shutter speed by rotating .
●
About Fn buttons ( 159 / Fn Buttons)
- 49 -- 49 -
4. Recording Videos - Recording Videos
●
The brightness of the recording screen and of actual recorded images may differ. Check the images on the playback
screen.
●
When using a lens with an aperture ring, set the position of the aperture ring to other than [A] to use the aperture value of
the lens.
- 50 -- 50 -
4. Recording Videos - Recording Settings For Video
Recording Settings For Video
This section describes the settings used when video recording.
[System Frequency]
This changes the system frequency of videos that are recorded and played back.
The default setting is for the system frequency to be set to the TV broadcast system for the region where the camera was
bought.
[MENU/SET]
[ ] [ ] Select [System Frequency]
[59.94Hz (NTSC)] System frequency for regions using the NTSC broadcasting system
[50.00Hz (PAL)] System frequency for regions using the PAL broadcasting system
[24.00Hz (CINEMA)] System frequency for producing cinema film
●
After changing the setting, turn the camera off and on.
●
If you record using a system frequency that differs from the broadcasting system of your region, it may not be possible
for you to properly playback videos on your TV.
●
Set the [System Frequency] settings to the same settings during recording and playback.

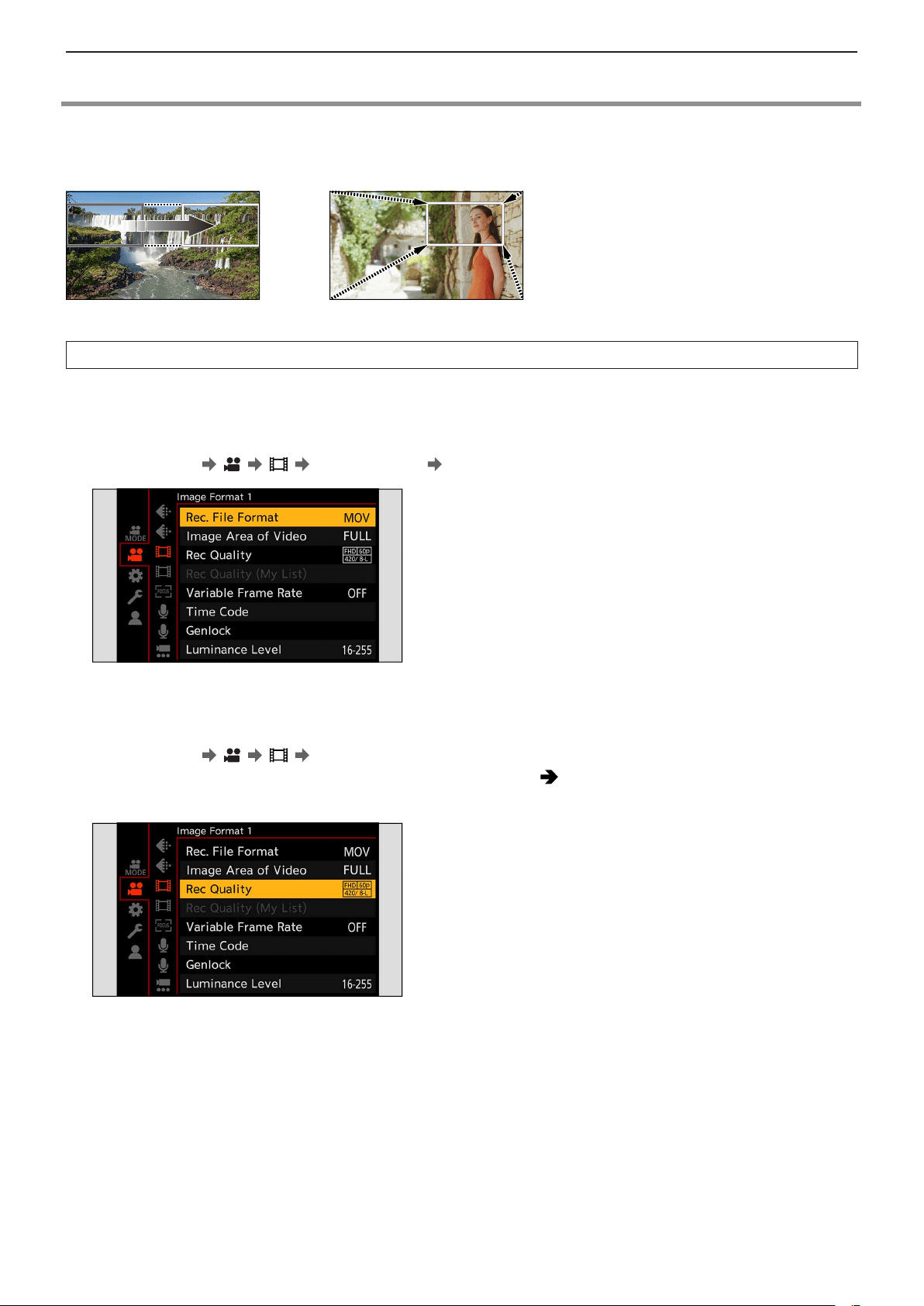

[Rec. File Format]
Sets the recording file format of videos to be recorded.
[MENU/SET]
[ ] [ ] Select [Rec. File Format]
[MP4] This file format is suitable for playback on PCs.
[MOV] This file format is suitable for image editing.
●
When [System Frequency] is set to [24.00Hz (CINEMA)], it is fixed to [MOV].
●
[Rec. File Format] is not available when using the following functions:
– [HDMI RAW Data Output]
– Streaming function
- 51 -- 51 -
4. Recording Videos - Recording Settings For Video
[Rec Quality]
Sets the image quality of videos to be recorded. The image qualities you can select depend on the [System Frequency] and
[Rec. File Format] settings.
The [Image Area of Video] you can select differs depending on the [Rec Quality] settings.
[Rec Quality] settings can also be made using [Filtering] (
59 / [Filtering]) to display only items that meet your conditions and
[add to list] (
59 / [add to list]) to register recording qualities you use often.
When outputting RAW Video Data via HDMI, the [Rec Quality] setting items are different. (
124 / [Rec Quality] (When [HDMI
RAW Data Output] is selected)
)
[MENU/SET]
[ ] [ ] Select [Rec Quality]
●
To record video with a bit rate of 72 Mbps or more, it requires a card with the corresponding Speed Class. ( 10 / Memory
Cards That Can Be Used
)
[Rec. File Format]: [MP4]
■
[System Frequency]: [59.94Hz (NTSC)]
●
YUV, Bit value, Image compression:
– [10bit] recording quality: 4:2:0, 10-bit, Long GOP
– [8bit] recording quality: 4:2:0, 8-bit, Long GOP
●
Audio format: AAC (2ch)
A
Recording frame rate
B
Bit rate
C
Video compression format (HEVC: H.265/HEVC, AVC: H.264/MPEG-4 AVC)
[Rec Quality]
[Image Area of Video]
Resolution
(Aspect ratio)
A
/
B
/
C
FULL S35 P/P
[4K/10bit/100M/60p]
3840x2160
(16:9)
59.94p / 100 Mbps / HEVC
[4K/8bit/100M/30p]
29.97p / 100 Mbps / AVC
[4K/10bit/72M/30p]
29.97p / 72 Mbps / HEVC
[4K/8bit/100M/24p]
23.98p / 100 Mbps / AVC
[4K/10bit/72M/24p]
23.98p / 72 Mbps / HEVC
[FHD/8bit/28M/60p]
1920x1080
(16:9)
59.94p / 28 Mbps / AVC
[FHD/8bit/20M/30p]
29.97p / 20 Mbps / AVC
[FHD/8bit/24M/24p]
23.98p / 24 Mbps / AVC
- 52 -- 52 -
4. Recording Videos - Recording Settings For Video
■
[System Frequency]: [50.00Hz (PAL)]
●
YUV, Bit value, Image compression:
– [10bit] recording quality: 4:2:0, 10-bit, Long GOP
– [8bit] recording quality: 4:2:0, 8-bit, Long GOP
●
Audio format: AAC (2ch)
A
Recording frame rate
B
Bit rate
C
Video compression format (HEVC: H.265/HEVC, AVC: H.264/MPEG-4 AVC)
[Rec Quality]
[Image Area of Video]
Resolution
(Aspect ratio)
A
/
B
/
C
FULL S35 P/P
[4K/10bit/100M/50p]
3840x2160
(16:9)
50.00p / 100 Mbps / HEVC
[4K/8bit/100M/25p]
25.00p / 100 Mbps / AVC
[4K/10bit/72M/25p]
25.00p / 72 Mbps / HEVC
[FHD/8bit/28M/50p]
1920x1080
(16:9)
50.00p / 28 Mbps / AVC
[FHD/8bit/20M/25p]
25.00p / 20 Mbps / AVC
- 53 -- 53 -
4. Recording Videos - Recording Settings For Video
[Rec. File Format]: [MOV]
■
[System Frequency]: [59.94Hz (NTSC)]
●
YUV, Bit value, Image compression:
– [422/10-I] recording quality: 4:2:2, 10-bit, ALL-Intra
– [422/10-L] recording quality: 4:2:2, 10-bit, Long GOP
– [420/10-L] recording quality: 4:2:0, 10-bit, Long GOP
– [420/8-L] recording quality: 4:2:0, 8-bit, Long GOP
●
Audio format: LPCM (2ch)
A
Recording frame rate
B
Bit rate
C
Video compression format (HEVC: H.265/HEVC, AVC: H.264/MPEG-4 AVC)
[Rec Quality]
[Image Area of Video]
Resolution
(Aspect ratio)
A
/
B
/
C
FULL S35 P/P
[6K/24p/420/10-L]
5952x3968
(3:2)
23.98p / 200 Mbps / HEVC
[5.9K/30p/420/10-L]
5888x3312
(16:9)
29.97p / 200 Mbps / HEVC
[5.9K/24p/420/10-L]
23.98p / 200 Mbps / HEVC
[5.4K/30p/420/10-L]
5376x3584
(3:2)
29.97p / 200 Mbps / HEVC
[4K-A/48p/420/10-L]
3328x2496
(4:3)
47.95p / 200 Mbps / HEVC
[4K-A/30p/422/10-I]
29.97p / 400 Mbps / AVC
[4K-A/30p/422/10-L]
29.97p / 150 Mbps / AVC
[4K-A/30p/420/8-L]
29.97p / 100 Mbps / AVC
[4K-A/24p/422/10-I]
23.98p / 400 Mbps / AVC
[4K-A/24p/422/10-L]
23.98p / 150 Mbps / AVC
[4K-A/24p/420/8-L]
23.98p / 100 Mbps / AVC
[C4K/60p/420/10-L]
4096x2160
(17:9)
59.94p / 200 Mbps / HEVC
[C4K/60p/420/8-L]
59.94p / 150 Mbps / AVC
[C4K/48p/420/10-L]
47.95p / 200 Mbps / HEVC
[C4K/30p/422/10-I]
29.97p / 400 Mbps / AVC
[C4K/30p/422/10-L]
29.97p / 150 Mbps / AVC
[C4K/30p/420/8-L]
29.97p / 100 Mbps / AVC
[C4K/24p/422/10-I]
23.98p / 400 Mbps / AVC
[C4K/24p/422/10-L]
23.98p / 150 Mbps / AVC
[C4K/24p/420/8-L]
23.98p / 100 Mbps / AVC
- 54 -- 54 -
4. Recording Videos - Recording Settings For Video
[4K/60p/420/10-L]
3840x2160
(16:9)
59.94p / 200 Mbps / HEVC
[4K/60p/420/8-L]
59.94p / 150 Mbps / AVC
[4K/48p/420/10-L]
47.95p / 200 Mbps / HEVC
[4K/30p/422/10-I]
29.97p / 400 Mbps / AVC
[4K/30p/422/10-L]
29.97p / 150 Mbps / AVC
[4K/30p/420/8-L]
29.97p / 100 Mbps / AVC
[4K/24p/422/10-I]
23.98p / 400 Mbps / AVC
[4K/24p/422/10-L]
23.98p / 150 Mbps / AVC
[4K/24p/420/8-L]
23.98p / 100 Mbps / AVC
[FHD/120p/420/10-L]
1920x1080
(16:9)
119.88p / 150 Mbps / HEVC
[FHD/60p/422/10-I]
59.94p / 200 Mbps / AVC
[FHD/60p/422/10-L]
59.94p / 100 Mbps / AVC
[FHD/60p/420/8-L]
59.94p / 100 Mbps / AVC
[FHD/60i/422/10-I]
59.94i / 100 Mbps / AVC
[FHD/60i/422/10-L]
59.94i / 50 Mbps / AVC
[FHD/48p/420/10-L]
47.95p / 100 Mbps / HEVC
[FHD/30p/422/10-I]
29.97p / 200 Mbps / AVC
[FHD/30p/422/10-L]
29.97p / 100 Mbps / AVC
[FHD/30p/420/8-L]
29.97p / 100 Mbps / AVC
[FHD/24p/422/10-I]
23.98p / 200 Mbps / AVC
[FHD/24p/422/10-L]
23.98p / 100 Mbps / AVC
[FHD/24p/420/8-L]
23.98p / 100 Mbps / AVC
- 55 -- 55 -
4. Recording Videos - Recording Settings For Video
■
[System Frequency]: [50.00Hz (PAL)]
●
YUV, Bit value, Image compression:
– [422/10-I] recording quality: 4:2:2, 10-bit, ALL-Intra
– [422/10-L] recording quality: 4:2:2, 10-bit, Long GOP
– [420/10-L] recording quality: 4:2:0, 10-bit, Long GOP
– [420/8-L] recording quality: 4:2:0, 8-bit, Long GOP
●
Audio format: LPCM (2ch)
A
Recording frame rate
B
Bit rate
C
Video compression format (HEVC: H.265/HEVC, AVC: H.264/MPEG-4 AVC)
[Rec Quality]
[Image Area of Video]
Resolution
(Aspect ratio)
A
/
B
/
C
FULL S35 P/P
[5.9K/25p/420/10-L]
5888x3312
(16:9)
25.00p / 200 Mbps / HEVC
[5.4K/25p/420/10-L]
5376x3584
(3:2)
25.00p / 200 Mbps / HEVC
[4K-A/50p/420/10-L]
3328x2496
(4:3)
50.00p / 200 Mbps / HEVC
[4K-A/50p/420/8-L]
50.00p / 150 Mbps / AVC
[4K-A/25p/422/10-I]
25.00p / 400 Mbps / AVC
[4K-A/25p/422/10-L]
25.00p / 150 Mbps / AVC
[4K-A/25p/420/8-L]
25.00p / 100 Mbps / AVC
[C4K/50p/420/10-L]
4096x2160
(17:9)
50.00p / 200 Mbps / HEVC
[C4K/50p/420/8-L]
50.00p / 150 Mbps / AVC
[C4K/25p/422/10-I]
25.00p / 400 Mbps / AVC
[C4K/25p/422/10-L]
25.00p / 150 Mbps / AVC
[C4K/25p/420/8-L]
25.00p / 100 Mbps / AVC
[4K/50p/420/10-L]
3840x2160
(16:9)
50.00p / 200 Mbps / HEVC
[4K/50p/420/8-L]
50.00p / 150 Mbps / AVC
[4K/25p/422/10-I]
25.00p / 400 Mbps / AVC
[4K/25p/422/10-L]
25.00p / 150 Mbps / AVC
[4K/25p/420/8-L]
25.00p / 100 Mbps / AVC
- 56 -- 56 -
4. Recording Videos - Recording Settings For Video
[FHD/100p/420/10-L]
1920x1080
(16:9)
100.00p / 150 Mbps / HEVC
[FHD/50p/422/10-I]
50.00p / 200 Mbps / AVC
[FHD/50p/422/10-L]
50.00p / 100 Mbps / AVC
[FHD/50p/420/8-L]
50.00p / 100 Mbps / AVC
[FHD/50i/422/10-I]
50.00i / 100 Mbps / AVC
[FHD/50i/422/10-L]
50.00i / 50 Mbps / AVC
[FHD/25p/422/10-I]
25.00p / 200 Mbps / AVC
[FHD/25p/422/10-L]
25.00p / 100 Mbps / AVC
[FHD/25p/420/8-L]
25.00p / 100 Mbps / AVC
- 57 -- 57 -
4. Recording Videos - Recording Settings For Video
■
[System Frequency]: [24.00Hz (CINEMA)]
●
YUV, Bit value, Image compression:
– [422/10-I] recording quality: 4:2:2, 10-bit, ALL-Intra
– [422/10-L] recording quality: 4:2:2, 10-bit, Long GOP
– [420/10-L] recording quality: 4:2:0, 10-bit, Long GOP
– [420/8-L] recording quality: 4:2:0, 8-bit, Long GOP
●
Audio format: LPCM (2ch)
A
Recording frame rate
B
Bit rate
C
Video compression format (HEVC: H.265/HEVC, AVC: H.264/MPEG-4 AVC)
[Rec Quality]
[Image Area of Video]
Resolution
(Aspect ratio)
A
/
B
/
C
FULL S35 P/P
[6K/24p/420/10-L]
5952x3968
(3:2)
24.00p / 200 Mbps / HEVC
[5.9K/24p/420/10-L]
5888x3312
(16:9)
24.00p / 200 Mbps / HEVC
[4K-A/48p/420/10-L]
3328x2496
(4:3)
48.00p / 200 Mbps / HEVC
[4K-A/24p/422/10-I]
24.00p / 400 Mbps / AVC
[4K-A/24p/422/10-L]
24.00p / 150 Mbps / AVC
[4K-A/24p/420/8-L]
24.00p / 100 Mbps / AVC
[C4K/48p/420/10-L]
4096x2160
(17:9)
48.00p / 200 Mbps / HEVC
[C4K/24p/422/10-I]
24.00p / 400 Mbps / AVC
[C4K/24p/422/10-L]
24.00p / 150 Mbps / AVC
[C4K/24p/420/8-L]
24.00p / 100 Mbps / AVC
[4K/48p/420/10-L]
3840x2160
(16:9)
48.00p / 200 Mbps / HEVC
[4K/24p/422/10-I]
24.00p / 400 Mbps / AVC
[4K/24p/422/10-L]
24.00p / 150 Mbps / AVC
[4K/24p/420/8-L]
24.00p / 100 Mbps / AVC
[FHD/48p/420/10-L]
1920x1080
(16:9)
48.00p / 100 Mbps / HEVC
[FHD/24p/422/10-I]
24.00p / 200 Mbps / AVC
[FHD/24p/422/10-L]
24.00p / 100 Mbps / AVC
[FHD/24p/420/8-L]
24.00p / 100 Mbps / AVC
- 58 -- 58 -
4. Recording Videos - Recording Settings For Video
●
In this document, videos are indicated as follows according to their resolution:
– 6K (5952x3968) video: 6K video
– 5.9K (5888x3312) video: 5.9K video
– 5.4K (5376x3584) video: 5.4K video
– 4K-A (3328x2496) video: Anamorphic (4:3) video
– C4K (4096x2160) video: C4K video
– 4K (3840x2160) video: 4K video
– Full High Definition (1920x1080) video: FHD video
●
Since the camera employs the VBR recording format, the bit rate is changed automatically depending on the subject to
record. As a result, video recording time is shortened when a fast-moving subject is recorded.
●
Videos in ALL-Intra and 4:2:2/10-bit formats are intended for editing on a PC used for video production.
●
When using Super 35 mm/APS-C lenses, 6K, 5.9K, and 5.4K [Rec Quality] cannot be set.
●
When using the following function, you can only select 8-bit FHD video:
– [Filter Settings]: [Miniature Effect]
●
[Rec Quality] and [Rec Quality (My List)] are not available when using the following function:
– Streaming function
●
You can register a combination of [System Frequency], [Rec. File Format], [Image Area of Video], and [Rec Quality] to
My List. (
59 / [add to list])
●
Size Interval for Dividing Files
– FHD (MP4)
A new file will be created to continue recording if the continuous recording time exceeds 30 minutes or the file size
exceeds 4 GB.
– 4K (MP4) / MOV
When using an SDHC memory card:
A new file will be created to continue recording if the continuous recording time exceeds 30 minutes or the file size
exceeds 4 GB.
When using an SDXC memory card:
A new file will be created to continue recording if the continuous recording time exceeds 3 hours and 4 minutes or the
file size exceeds 96 GB.
- 59 -- 59 -
4. Recording Videos - Recording Settings For Video
[Filtering]
When the [Rec. File Format] is set to [MOV], you can specify items such as frame rate, number of pixels (resolution), and codec
(YUV, Bit value, Image compression), and only display recording quality that meets those conditions.
In the [Rec Quality] setting screen, press [Fn1].
Select an item with and press [MENU/SET].
●
Settings: [Frame Rate] / [Resolution] / [Codec] / [Variable Frame Rate] / [Hybrid Log Gamma]
Select the filtering condition with then press [MENU/SET].
Press [Fn1] to confirm the setting.
●
You are returned to the [Rec Quality] setting screen.
■
Clearing the filtering conditions
Select [ANY] in Step
.
●
The filtering conditions are also cleared when you do the following:
– Change the [System Frequency]
– Select a recording quality from [Rec Quality (My List)]
●
When you change recording quality using a filter, the current filtering conditions are stored.
[add to list]
Select a recording quality and register it in My List. The recording quality you register can be set in [Rec Quality (My List)].
In the [Rec Quality] setting screen, press [Q.MENU].
●
The following settings are also registered at the same time:
– [System Frequency]
– [Rec. File Format]
– [Image Area of Video]
■
Setting or deleting in My List
Select [Rec Quality (My List)].
●
[ ] [ ] [Rec Quality (My List)]
Select an item with and press [MENU/SET].
●
You cannot select setting items that have different system frequencies.
●
To delete from My List, select the item and press [Q.MENU].
●
Up to 12 types of recording quality can be registered.
- 60 -- 60 -
4. Recording Videos - Recording Settings For Video
[Image Area of Video]
Set the image area during video recording. The angle of view differs depending on the image area. Narrowing the image area
allows you to achieve a telescopic effect without image deterioration.
[MENU/SET]
[ ] [ ] Select [Image Area of Video]
[FULL] Recording is within the area suited to the image circle of a full-frame lens.
[S35mm] Recording is within the area suited to the image circle of a Super 35 mm lens.
[PIXEL/PIXEL]
Records with one pixel on the sensor, which is equal to one pixel of the video. Records a
range corresponding to the resolution range in [Rec Quality]. (
51 / [Rec Quality])
■
Image area (Ex.: FHD video)
FULL
PIXEL/PIXEL
S35mm
●
The [Image Area of Video] settings you can select differ depending on the [Rec Quality] setting. ( 51 / [Rec Quality])
●
It is not possible to set to [FULL] in the following case.
– When using Super 35 mm/APS-C lenses
●
When set to [Live Cropping], the setting is fixed to [FULL]. However, the setting is fixed to [S35mm] in the following
cases:
– When a 59.94p or 50.00p [Rec Quality] is set
- 61 -- 61 -
4. Recording Videos - Time Code
Time Code
When [Rec. File Format] is set to [MOV], the time code is automatically recorded during video recording. If [MP4], the time code
is not recorded.
Setting the Time Code
Sets the recording, display, and output of the time code.
1 Set [Rec. File Format] to [MOV].
●
[MENU/SET] [ ] [ ] [Rec. File Format] [MOV]
2 Select [Time Code].
●
[MENU/SET] [ ] [ ] [Time Code]
- 62 -- 62 -
4. Recording Videos - Time Code
[Time Code Display] Displays the time code on the recording screen.
[Count Up]
[REC RUN]: Counts the time code only when recording videos.
[FREE RUN]: Counts the time code also when video recording is stopped and when the
camera is turned off.
●
When the following function is being used, [Count Up] is fixed to [REC RUN]:
– [Variable Frame Rate]
[Time Code Value]
[Reset]: Sets to 00:00:00:00 (hour: minute: second: frame)
[Manual Input]: Manually input hour, minute, second and frame.
[Current Time]: Sets hour, minute and second to current time and sets frame to 00.
[Time Code Mode]
[DF]: Drop Frame. The camera modifies the difference between recorded time and time
code.
●
Seconds and frames are separated by “.”.
Example: 00:00:00.00
[NDF]: Non-Drop Frame. Records the time code without drop frame.
●
Seconds and frames are separated by “:”.
Example: 00:00:00:00
●
When the following functions are being used, [Time Code Mode] is fixed to [NDF]:
– [50.00Hz (PAL)] / [24.00Hz (CINEMA)] ([System Frequency])
– 47.95p or 23.98p [Rec Quality]
[HDMI Time Code Output] /
[SDI Time Code Output]
Images to be output via HDMI/SDI will be added with time code information then output.
●
The device screen may go dark depending on the connected device.
[External TC Setting]
Synchronize the time code default value with an external device that supports time code
input and output.
[TC Synchronization]: Selects the input (
65 / Synchronize the Time Code of the
Camera with That of the External Device (TC IN)
) and output (
64 / Synchronize the
Time Code of the External Device with That of the Camera (TC OUT)
) for time code
signals. (LTC signal)
[TC Output Reference]: Sets the timing for time code signal output. (
64 /
Synchronize the Time Code of the External Device with That of the Camera (TC OUT))
- 63 -- 63 -
4. Recording Videos - Time Code

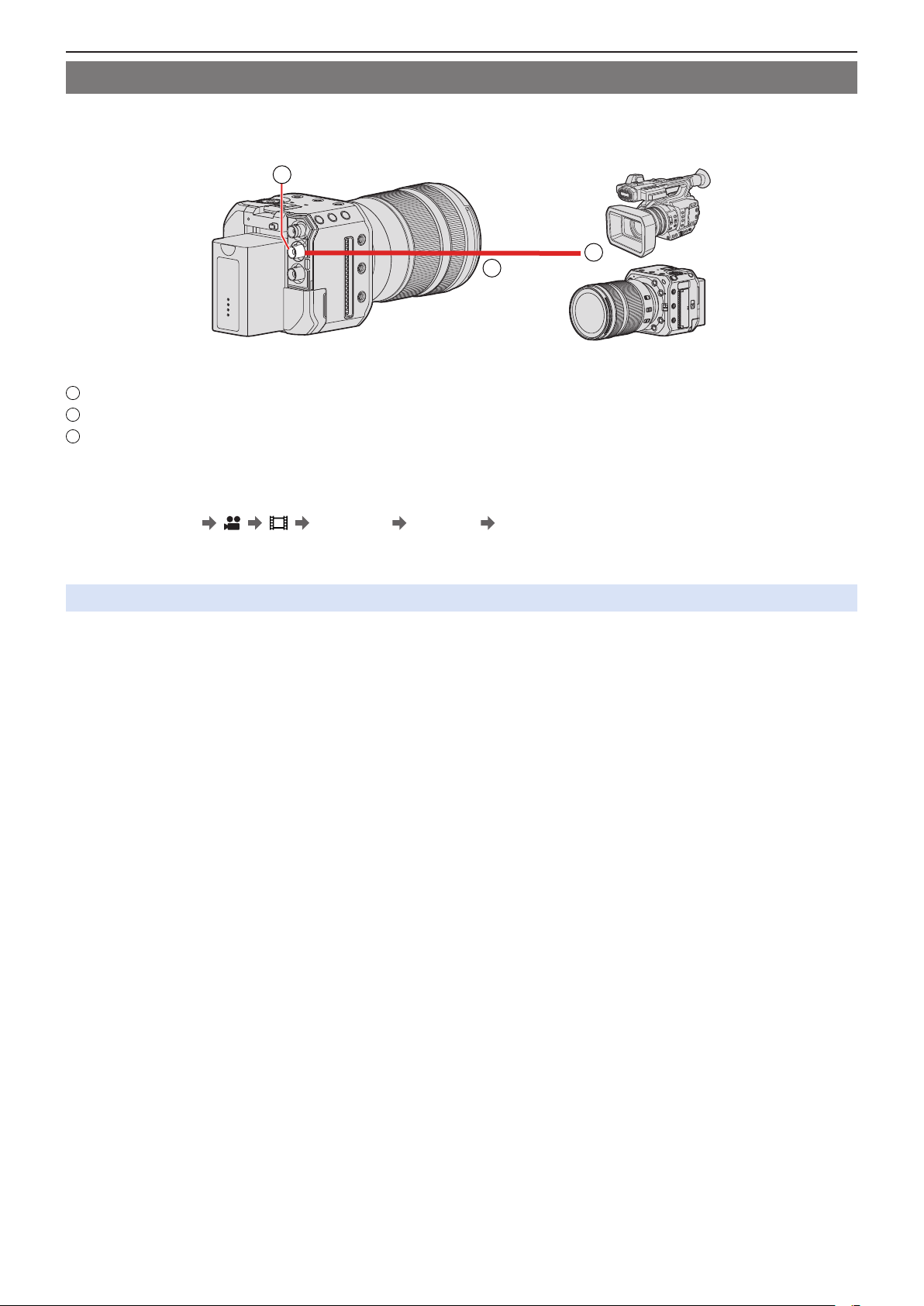

Preparations for Time Code Synchronization
Synchronize the time code default value with an external device that supports time code signal input and output.
When [Count Up] is set to [FREE RUN], you can synchronize the initial value of the time code with an external device.
A
B
C
A
[TC IN/OUT] terminal
B
BNC cable (commercially available)
C
External devices
1 Set [Count Up] to [FREE RUN].
●
[MENU/SET] [ ] [ ] [Time Code] [Count Up] [FREE RUN]
2 Connect the camera and external device with a BNC cable.
●
It is recommended to use a double shielded BNC cable equivalent to 5C-FB.
- 64 -- 64 -
4. Recording Videos - Time Code
Synchronize the Time Code of the External Device with That of the
Camera (TC OUT)
The initial time code value of the external device is synchronized according to the time code signal of the camera.
1 Prepare for time code synchronizing. ( 63 / Preparations for Time Code
Synchronization
)
2 Set [TC Synchronization] to [TC OUT].
●
[MENU/SET] [ ] [ ] [Time Code] [External TC Setting] [TC Synchronization] [TC OUT]
● The time code signal is output according to the recording frame rate of the [Rec Quality] and the [Time Code Mode]
([DF]/[NDF]) setting.
3 Select [TC Output Reference].
●
[MENU/SET] [ ] [ ] [Time Code] [External TC Setting] [TC Output Reference]
[REC] Outputs the time code signal for the images that you record.
[HDMI] / [SDI]
When connected with an external device (external recorder, etc.) via HDMI/SDI, the
time code signal output is delayed slightly to match the HDMI/SDI images.
4 Operate the external device to synchronize the time code.
Outputting the Time Code Signal Again
By setting as follows, the time code signal can be output just by connecting with the external device with the BNC cable:
– [Count Up] ([Time Code]): [FREE RUN]
– [TC Synchronization] ([External TC Setting] in [Time Code]): [TC OUT]
- 65 -- 65 -
4. Recording Videos - Time Code
Synchronize the Time Code of the Camera with That of the External
Device (TC IN)
The initial time code value of the camera is synchronized according to the time code signal of the external device.
●
In advance, change the [System Frequency] ( 50 / [System Frequency]), [Rec Quality] ( 51 / [Rec Quality]), and
[Time Code Mode] (
62 / [Time Code Mode]) to match the external device.
1 Prepare for time code synchronizing. ( 63 / Preparations for Time Code
Synchronization
)
2 Set [TC Synchronization] to [TC IN].
●
[MENU/SET] [ ] [ ] [Time Code] [External TC Setting] [TC Synchronization] [TC IN]
3 Operate the external device to output the time code signal.
●
Set the time code count method of the external device to free run, and output the signal.
● When synchronized with the time code of an external device, this camera is in a slave state, and the [ ] of the time
code shown on the screen switches to [
].
Maintaining, Releasing, and Restoring the Slave State
Even if you disconnect the BNC cable, the camera will remain in slave state.
●
Perform one of the following operations to release the camera from the slave state.
– Operate the camera ON/OFF button
– Switch the recording mode
– Change the [System Frequency]
– Set the [Variable Frame Rate]
– Switch the [Rec Quality] between 47.95p/23.98p and a different recording frame rate
– Change the following [Time Code] setting items
[Count Up], [Time Code Value], [Time Code Mode], [TC Synchronization]
●
To restore the slave state, reconnect the BNC cable to the external device while set as follows.
The time code signal can be input just by connecting.
– [Count Up] ([Time Code]): [FREE RUN]
– [TC Synchronization] ([External TC Setting] in [Time Code]): [TC IN]
●
Even when the system frequency differs between the camera and the external device, their initial time code values may
be synchronized. Bear in mind, however, that the time codes lose sync as they count up.
- 66 -- 66 -
4. Recording Videos - Genlock settings
Genlock settings
When using several units of this camera or recording in combination with other recording devices, input the external sync signal
from the [GENLOCK IN] terminal to synchronize the cameras.
The camera is compatible with BBS (Black Burst Sync) and tri-level sync.
Input a sync signal
B
C
D
E
A
A
Camera (Slave)
B
[GENLOCK IN] terminal
C
BNC cable (commercially available)
D
Sync signal generator (Master)
E
External device (Slave)
1 Connect the sync signal generator and camera with a BNC cable.
2 Set [Genlock Input] to [ON].
●
[MENU/SET] [ ] [ ] [Genlock] [Genlock Input] [ON]
3 Output a sync signal with the sync signal generator.
●
A [ ] is displayed on the left side of the screen when the camera and external synchronization signal input from the
[GENLOCK IN] terminal is synchronized.
●
It is recommended to use a double shielded BNC cable equivalent to 5C-FB.
- 67 -- 67 -
4. Recording Videos - Genlock settings
Compatible reference signal
The compatible reference signal differs depending on the following camera settings.
●
[MENU/SET]
[ ] [ ] [HDMI / SDI Connections] [SDI Output]
●
[MENU/SET] [ ] [ ] [SDI Rec Output] [SDI Output Resolution]
(The items that can be set differs depending on the recording frame rate of the [Rec Quality]. (
142 / Set the resolution
during recording when output via SDI
))
■
[System Frequency]: [59.94Hz (NTSC)]
Camera setting
Compatible sync signal
BBS Tri-level sync
[SDI Output] OFF
480/59.94i
1080/59.94i
[SDI Output Resolution]
([SDI Output]: [ON])
1080p*
1
1080i
1080PsF
720p 720/59.94p
■
[System Frequency]: [50.00Hz (PAL)]
Camera setting
Compatible sync signal
BBS Tri-level sync
[SDI Output] OFF
576/50.00i
1080/50.00i
[SDI Output Resolution]
([SDI Output]: [ON])
1080p*
2
1080i
1080PsF
720p 720/50.00p
*
1
When the recording frame rate is set to 29.97p of [Rec Quality], there is no compatible tri-level sync signal.
*
2
When the recording frame rate is set to 25.00p of [Rec Quality], there is no compatible tri-level sync signal.
●
Input a sync signal before starting to record. (The syncing cannot be started when the sync signal is input while
recording.)
●
The [Genlock] does not work when the recording frame rate is set to a [Rec Quality] of 23.98p, 24.00p, 47.95p or 48.00p.
- 68 -- 68 -
4. Recording Videos - Genlock settings

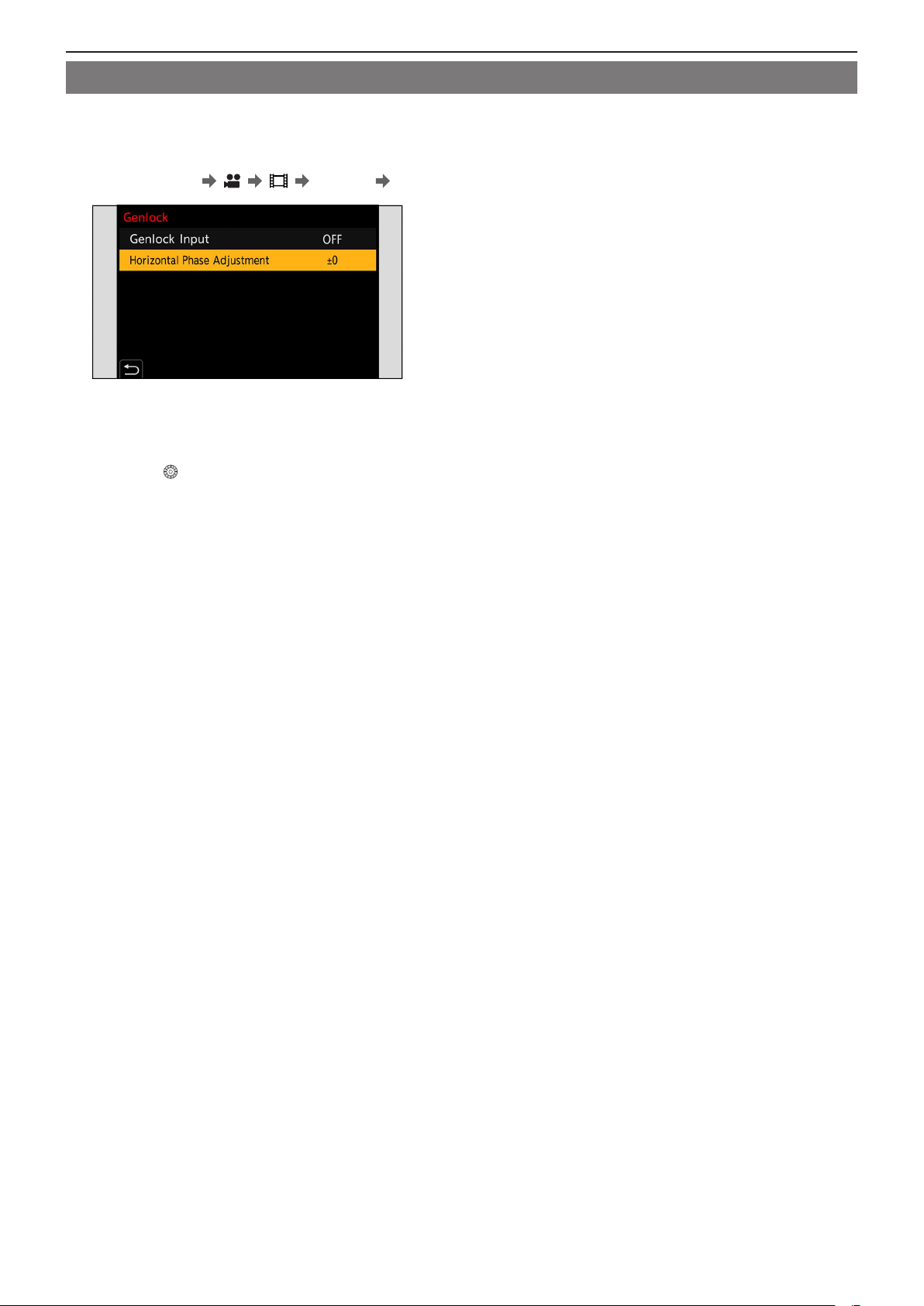

Horizontal phase adjustment
Adjusts the horizontal phase.
1 Select [Horizontal Phase Adjustment].
●
[MENU/SET] [ ] [ ] [Genlock] [Horizontal Phase Adjustment]
2 Set the horizontal phase.
●
Rotate to adjust the value, then press [MENU/SET].
●
It can be set with the range of -206 to +49.
- 69 -- 69 -
5. Recording settings - Focus / Zoom
5. Recording settings
Focus / Zoom

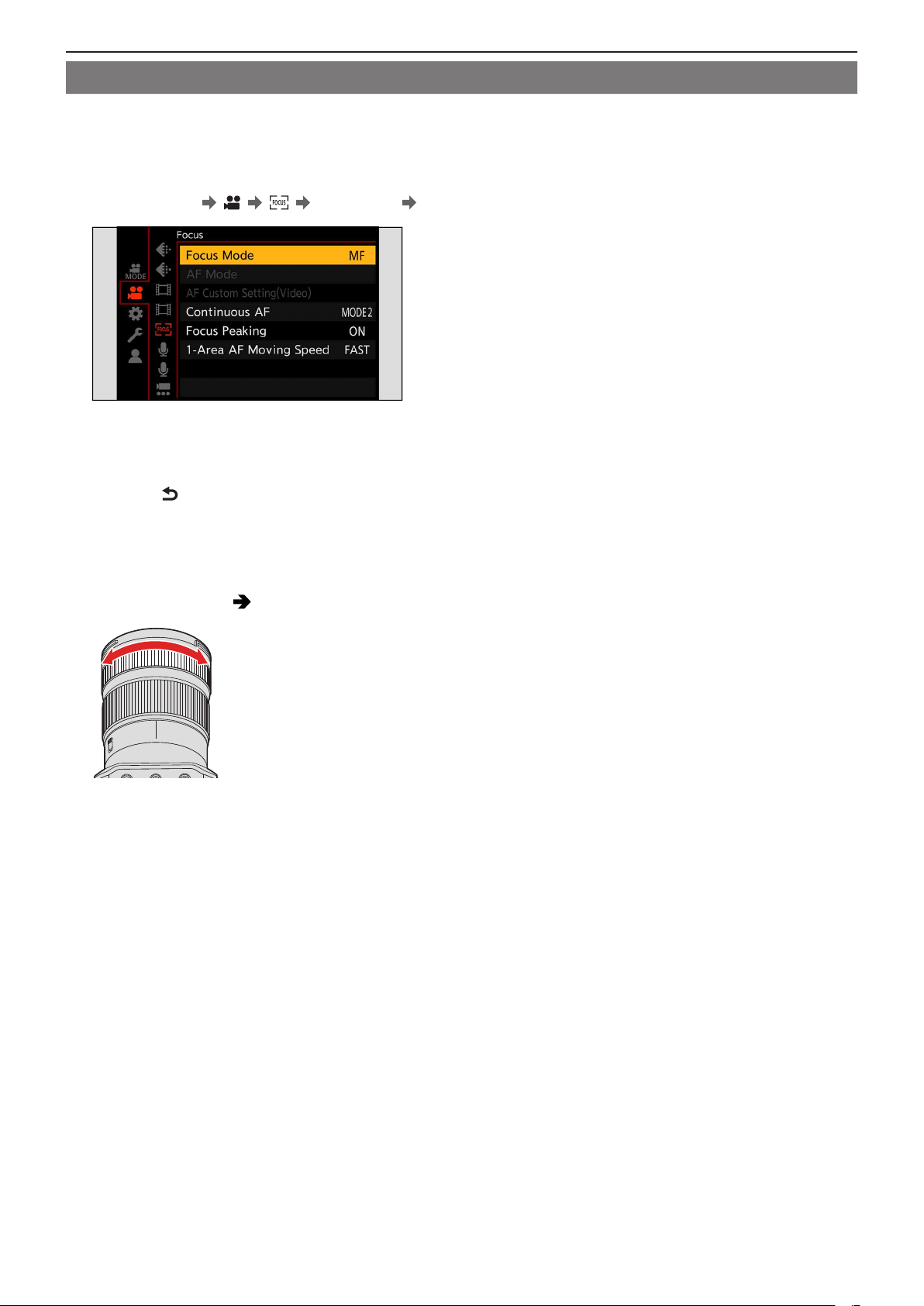

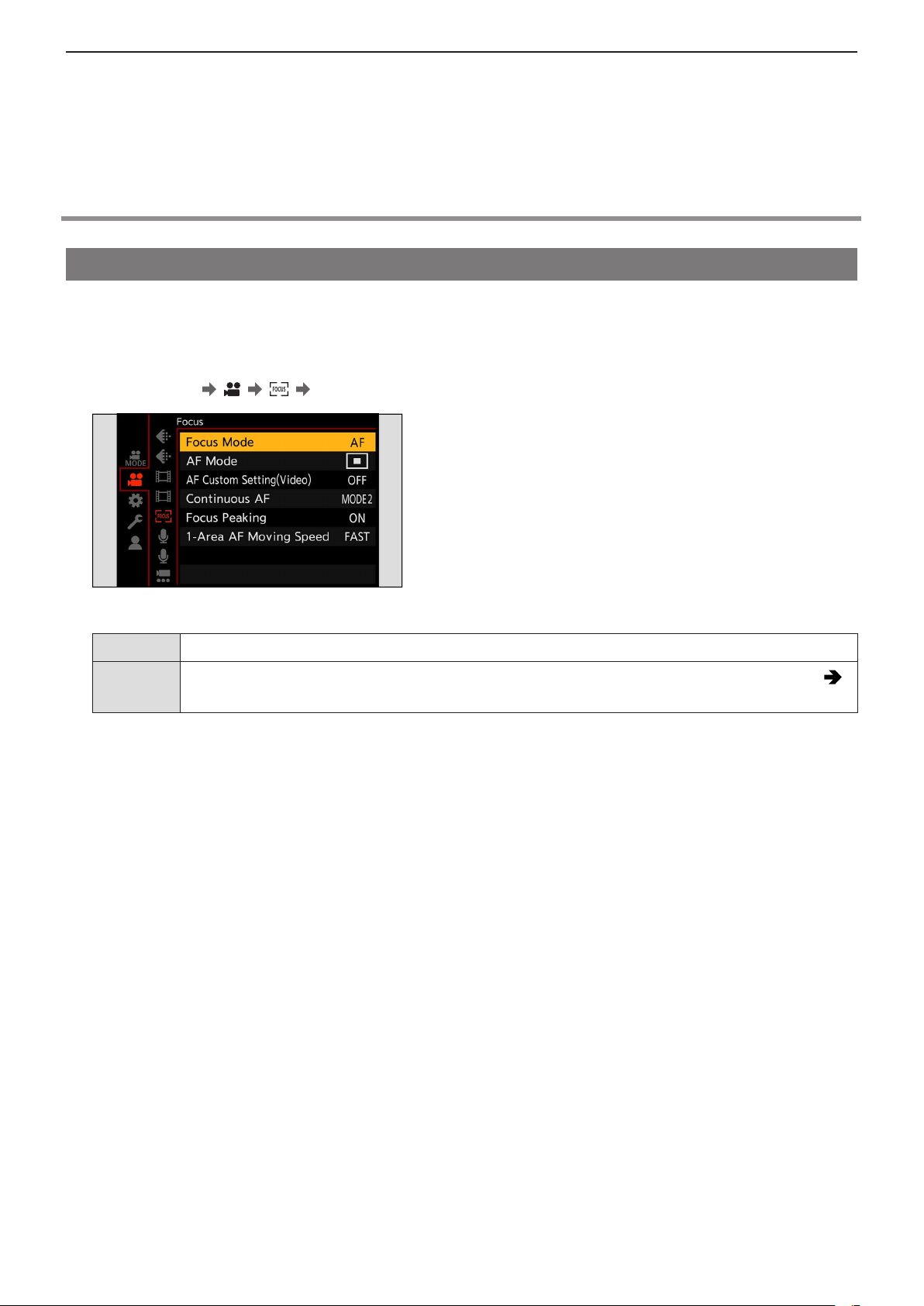

Selecting the Focus Mode
Select the focusing method ([Focus Mode]) to match subject movement.
1 Set the Focus Mode.
●
[MENU/SET] [ ] [ ] [Focus Mode]
[AF]*
1
Automatically adjusts the focus.
[MF]
Manually adjusts the focus. This is used when you want to fix the focus or do not want the AF to work. (
79 / Record Using MF)
*
1
When recording video: Operates according to the settings of [Continuous AF].
When recording still images: When you turn the AF/AE button (half-press shutter button) of the “LUMIX Tether” software
to ON, it performs focusing and fixes the focus.
- 70 -- 70 -
5. Recording settings - Focus / Zoom

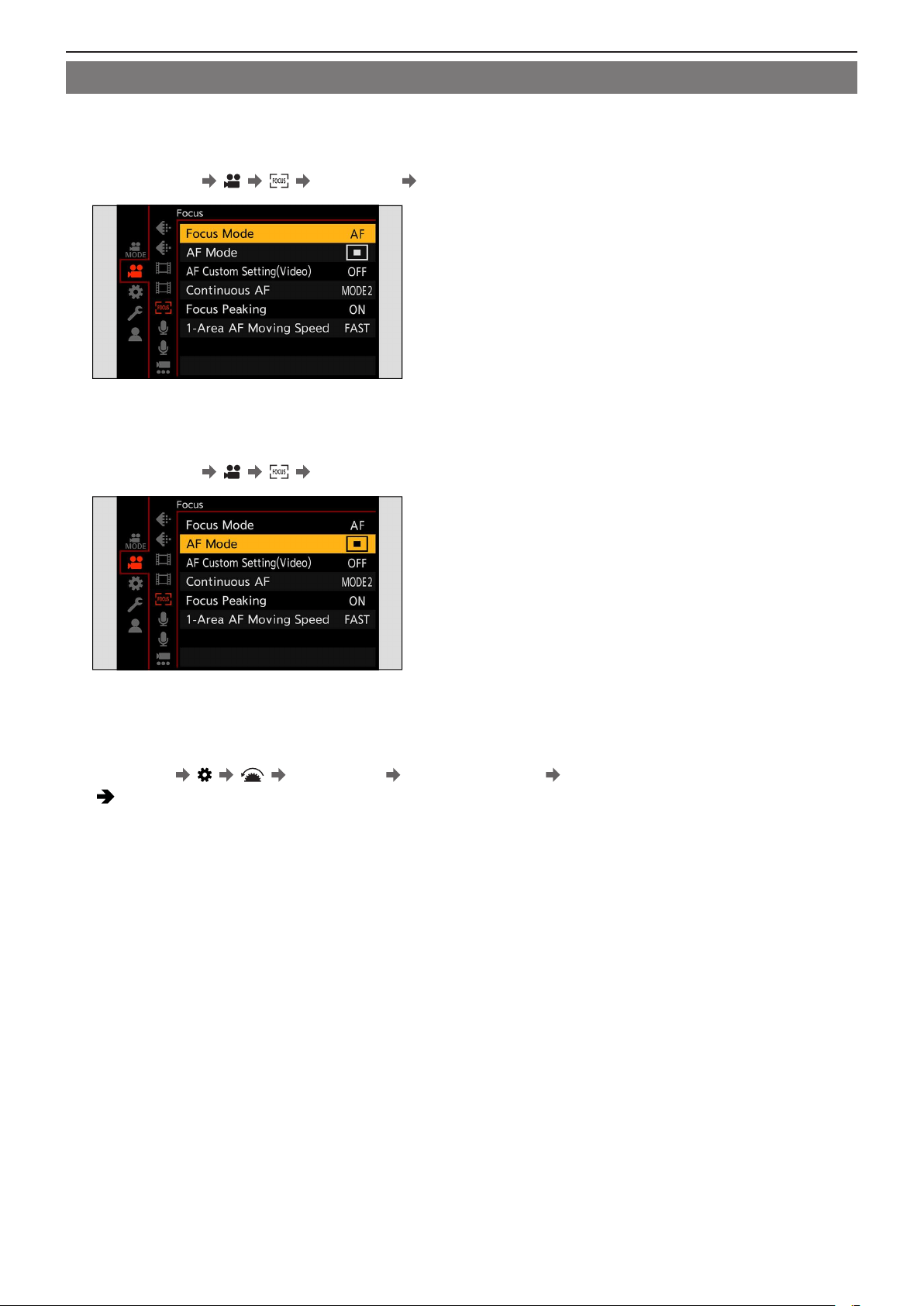

Using AF
Select the focus mode and the AF mode appropriate for the subject and scene.
1 Set the focus mode to [AF].
●
[MENU/SET] [ ] [ ] [Focus Mode] [AF]
2 Select [AF Mode].
●
[MENU/SET] [ ] [ ] [AF Mode]
■
[AF-ON]
The AF also works when you press a Fn button that has [AF-ON] registered.
●
[MENU/SET]
[ ] [ ] [Fn Button Set] [Setting in REC mode] [AF-ON]
(
160 / Register Functions to the Fn Buttons)
- 71 -- 71 -
5. Recording settings - Focus / Zoom
Subjects and recording conditions that make focusing difficult with AF mode
– Fast-moving subjects
– Extremely bright subjects
– Subjects without contrast
– Subjects recorded through windows
– Subjects near shiny objects
– Subjects in very dark locations
– When recording subjects both distant and near
●
You can change the operation of AF-ON so that AF prioritizes subjects close by.
This function is useful when the camera mistakenly focuses on the background:
[
] [ ] [Fn Button Set] [Setting in REC mode] [AF-ON : Near Shift] ( 160 / Register Functions to the Fn
Buttons
)
●
You can change the operation of AF-ON so that AF prioritizes subjects far away.
This function is useful when taking pictures through fences or nets:
[
] [ ] [Fn Button Set] [Setting in REC mode] [AF-ON : Far Shift] ( 160 / Register Functions to the Fn
Buttons
)
●
When the following operations are performed while recording, it may take some time for the camera to focus.
– When zooming from the wide-angle end to the telephoto end
– When the subject is suddenly changed from one far away to one close by
●
If using the zoom after achieving focus, the focus may be erroneous. In that case, re-adjust the focus.
- 72 -- 72 -
5. Recording settings - Focus / Zoom
Selecting the AF Mode
Select the focusing method to match the position and number of subjects.
1 Select [AF Mode].
●
[MENU/SET] [ ] [ ] [AF Mode]
2 Select the AF mode.
●
Rotate .
[Human Detect AF] / [Human/Animal Detect AF] ( 73 / [Human Detect AF]/[Human/Animal Detect AF])
[Tracking] ( 74 / [Tracking])
[225-Area] ( 75 / [225-Area])
[Zone (Oval)] ( 75 / [Zone (Oval)])
[1-Area] / [1-Area(Human Detection)] / [1-Area(Human/Animal Detect)] ( 76 / [1-Area])
3 Confirm your selection.
●
Press [MENU/SET].
●
When the following function is being used, the AF mode is fixed to [ ] ([Human Detect AF]):
– [Live Cropping]
●
When the following functions are being used, the AF mode is fixed to [ ] ([1-Area]) (It is not possible to move the AF
area or change its size.):
– [Miniature Effect] ([Filter Settings])
- 73 -- 73 -
5. Recording settings - Focus / Zoom

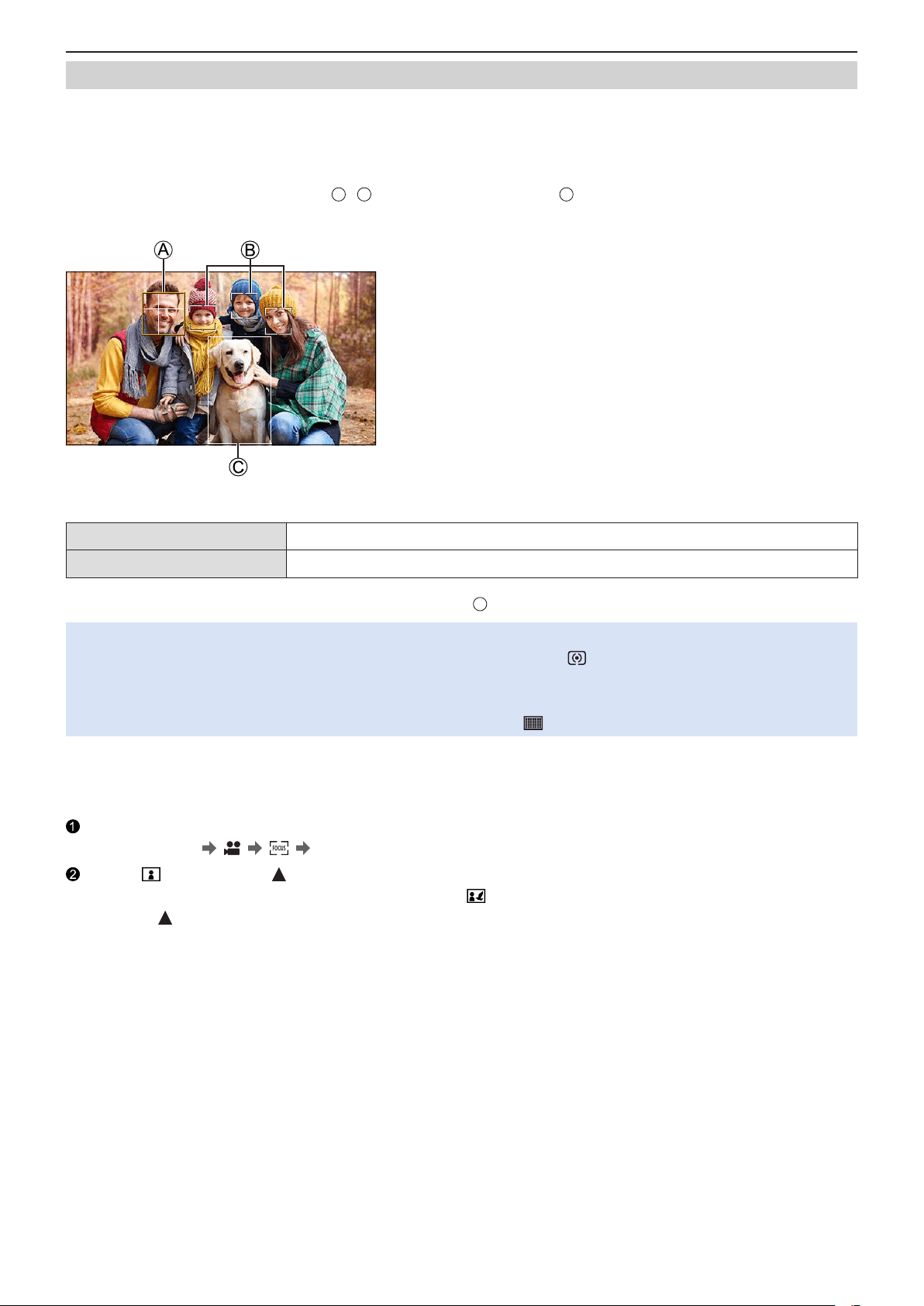

[Human Detect AF]/[Human/Animal Detect AF]
The camera detects a person’s face, eyes, and body (entire body, upper half of the body, or head) and adjusts the focus. With
animal detection enabled, the camera will also detect animals, such as birds, canines (including wolves), and felines (including
lions).
When the camera detects a person’s face (
A
/
B
) or body or an animal’s body (
C
)*
1
, an AF area is displayed.
*
1
When the animal detection is enabled.
Yellow AF area to be brought into focus. The camera selects this automatically.
White Displayed when multiple subjects are detected.
●
Eye detection works only for the eyes inside the yellow frame
A
.
●
When a person’s eyes are detected, the eye closer to the camera will be brought into focus.
The exposure will be adjusted to the face. (When [Metering Mode] is set to [
])
●
The camera can detect the faces of up to 15 people.
●
The camera can detect a combined total of up to 3 human and animal bodies.
●
If any humans or animals are not detected, the camera operates as [ ].
■
Enable / Disable Animal Detection
Display the AF mode selection screen.
●
[MENU/SET] [ ] [ ] [AF Mode]
Select [ ] and then press .
●
This enables animal detection, and the icon changes to [ ].
●
Press again to disable animal detection.
- 74 -- 74 -
5. Recording settings - Focus / Zoom
■
Move and Change the Size of the Yellow AF Area
You can move the yellow AF area to the position of the white AF area and replace the white AF area with the yellow AF area. If
moving to a position outside an AF area, then the [
] AF area will be set.
Display the AF mode selection screen.
●
[MENU/SET] [ ] [ ] [AF Mode]
Select [ ] / [ ] and then press .
Press to move the position of the AF area.
Rotate to change the size of the AF area.
●
The first press of [Fn1] returns the AF area position to the center. The second press returns the size of the AF area to
the default.
Press [MENU/SET].
●
On the recording screen, press [MENU/SET] to cancel the AF area setting.
[Tracking]
The AF area follows the movement of the subject, maintaining focusing.
Start tracking.
●
Aim the AF area over the subject, and press [Fn1].
●
To release AF Tracking → Press [Fn1] again.
●
Set [Metering Mode] to [ ] to continue to adjust the exposure as well.
●
In the following, [ ] operates as [ ]:
– [Monochrome] / [L.Monochrome] / [L.Monochrome D] ([Photo Style])
– [Sepia] / [Monochrome] / [Dynamic Monochrome] ([Filter Settings])
– When the subject is small
- 75 -- 75 -
5. Recording settings - Focus / Zoom
■
Move the Position of the AF Area
Display the AF mode selection screen.
●
[MENU/SET] [ ] [ ] [AF Mode]
Select [ ] and then press .
Press to move the position of the AF area.
●
To return the position back to the center, press [Fn1].
Press [MENU/SET].
[225-Area]
The camera selects the most optimal AF area to focus from 225 areas.
[Zone (Oval)]
Within the 225 AF areas, a central oval zone can be focused.
■
Move and Change the Size of the AF Area
Display the AF mode selection screen.
●
[MENU/SET] [ ] [ ] [AF Mode]
Select [ ] and then press .
Press to move the position of the AF area.
Rotate to change the size of the AF area.
●
The first press of [Fn1] returns the AF area position to the center. The second press returns the size of the AF area to
the default.
Press [MENU/SET].
- 76 -- 76 -
5. Recording settings - Focus / Zoom

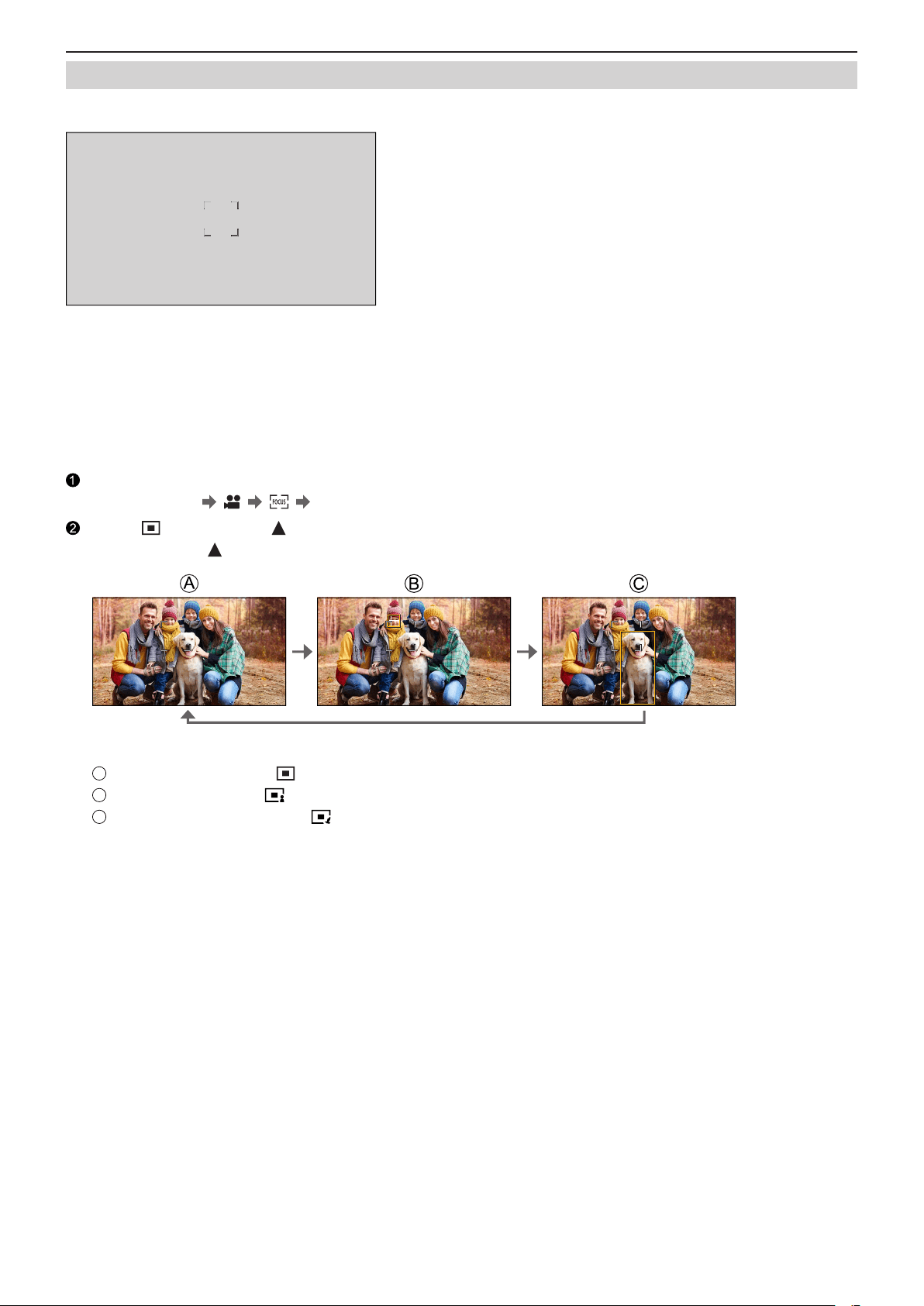

[1-Area]
Specify the point to be brought into focus.
■
Switching of Automatic Detection
Automatic detection is now available in the [1-Area] AF modes.
When a part of a human or animal enters the [1-Area] AF area, the automatic detection AF area is indicated in yellow. Eye
detection works when a person’s face is inside the AF area.
Display the AF mode selection screen.
●
[MENU/SET] [ ] [ ] [AF Mode]
Select [ ] and then press .
●
Each press of switches automatic detection.
A
Automatic detection: OFF ( )
B
[Human Detect AF]: ON ( )
C
[Human/Animal Detect AF]: ON ( )
●
Only 1 human or animal can be automatically detected in the AF area.
- 77 -- 77 -
5. Recording settings - Focus / Zoom
■
Move and Change the Size of the AF Area
Display the AF mode selection screen.
●
[MENU/SET] [ ] [ ] [AF Mode]
Select [ ] / [ ] / [ ] and then press .
Press to move the position of the AF area.
Rotate to change the size of the AF area.
●
The first press of [Fn1] returns the AF area position to the center. The second press returns the size of the AF area to
the default.
Press [MENU/SET].
[Continuous AF]
You can select how to set the focus in AF when recording videos.
[MENU/SET]
[ ] [ ] Select [Continuous AF]
[MODE1] The camera continues to automatically focus only during recording.
[MODE2]
The camera automatically keeps focusing on subjects during recording standby and
during recording.
[OFF] The camera maintains the focus point at the start of recording.
●
Depending on the recording conditions or lens used, the AF operation sound may be recorded during video recording. If
the operation sound bothers you, we recommend recording with [Continuous AF] set to [OFF].
●
If the zoom is operated while recording videos, the subject may take a while to come into focus.
●
[MODE2] does not work during recording standby in the following cases:
– In low light situations
- 78 -- 78 -
5. Recording settings - Focus / Zoom
[AF Custom Setting(Video)]
You can fine-adjust the focusing method for video recording using [Continuous AF].
[MENU/SET]
[ ] [ ] Select [AF Custom Setting(Video)]
[ON] Enables the following settings.
[OFF] Disables the following settings.
[SET]
[AF Speed]
[+] side: Focus moves at a faster speed.
[–] side: Focus moves at a slower speed.
[AF Sensitivity]
[+] side: When the distance to the subject changes significantly, the camera immediately
readjusts the focus.
[–] side: When the distance to the subject changes significantly, the camera waits for a
little before readjusting the focus.
- 79 -- 79 -
5. Recording settings - Focus / Zoom
Record Using MF
Use this function when you want to fix the focus or when the distance between the lens and the subject is determined and you
do not want to activate AF.
1 Set the focus mode to [MF].
●
[MENU/SET] [ ] [ ] [Focus Mode] [MF]
2 Close the menu.
●
Press [ ].
3 Rotate the focus ring.
●
The MF Assist screen is displayed.
● You can also perform the same operation by pressing the Fn button assigned with [AF Mode].
●
About Fn buttons ( 160 / Register Functions to the Fn Buttons)
- 80 -- 80 -
5. Recording settings - Focus / Zoom
4 Select the focus point.
●
Press to select the focus point.
● To return the point to be brought into focus to the center, press [Fn1].
5 Adjust the focus.
●
Rotate the focus ring.
●
This will display the in-focus portion highlighted with color. (Focus Peaking)
●
A recording distance guideline is displayed. (MF Guide)
(m)(m)
1010 55 33 22 1.51.5
1
1 0.50.5 0.10.1
A
MF Assist (enlarged screen)
B
Focus Peaking
C
Indicator for (infinity)
D
MF Guide
6 Close the MF Assist screen.
●
Press [MENU/SET].
- 81 -- 81 -
5. Recording settings - Focus / Zoom
7 Start recording.
●
Press the video rec. button fully.
8 Stop recording.
●
Press the video rec. button again.
■

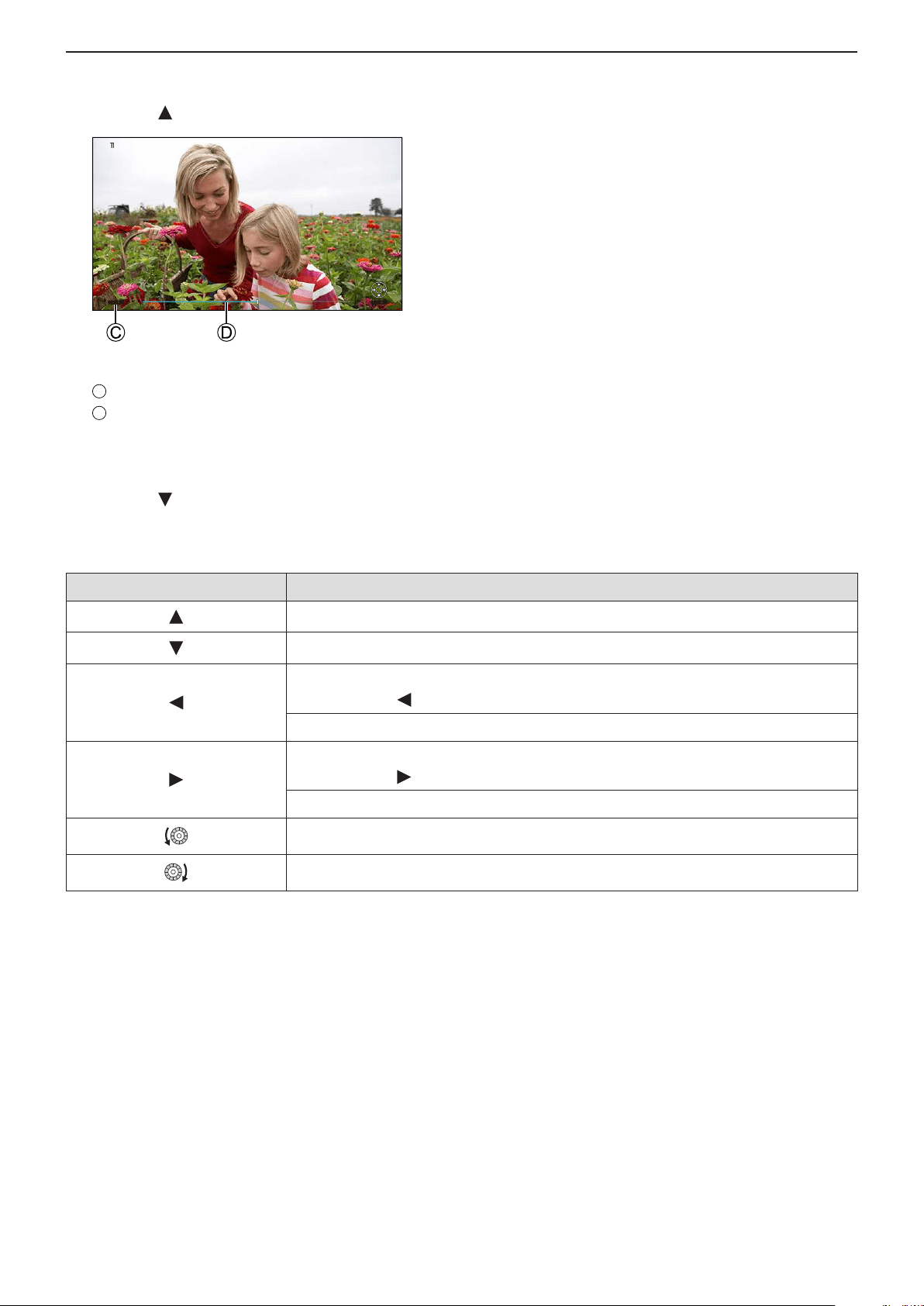

Operations on the MF Assist Screen
Button operation Description of operation
Moves the enlarged display position.
Enlarges*
1
/ reduces the screen.
[Fn1]
First time: Returns the MF Assist position to the center.
Second time: Returns the MF Assist magnification to the default setting.
*
1
When the [MF Assist Display] is set to [PIP] from the [MF Assist] of the [Custom] ([Focus/Shutter]) menu, you can enlarge it to
approx. 3x to 6x, and when it is set to [FULL] it can be enlarged to approx. 3x to 20x.
●
The recording distance reference mark is a mark used to measure the recording distance. Use this when taking pictures
with MF or taking close-up pictures.
●
During MF, pressing [AF-ON] will activate AF:
[
] [ ] [Fn Button Set] [Setting in REC mode] [AF-ON] ( 160 / Register Functions to the Fn Buttons)
●
You can change the Focus Peaking sensitivity and the display method:
[
] [ ] [Focus Peaking] ( 187 / [Focus Peaking])
●
You can change the display method of the magnified screen:
[
] [ ] [MF Assist] ( 194 / [MF Assist])
●
You can change the MF Guide display units:
[
] [ ] [MF Guide] ( 194 / [MF Guide])
●
You can disable focus ring operation:
[
] [ ] [Focus Ring Lock] ( 194 / [Focus Ring Lock])
●
The camera memorizes the focus point when you turn it off:
[
] [ ] [Lens Focus Resume] ( 201 / [Lens Focus Resume])
●
The amount of focus movement can be set:
[
] [ ] [Focus Ring Control] ( 201 / [Focus Ring Control])
- 82 -- 82 -
5. Recording settings - Focus / Zoom
Recording with Zoom
Use the optical zoom of the lens to zoom to telephoto or wide-angle.
By using [Image Area of Video], you can increase the telephoto effect without deteriorating the image quality.
●
For details about [Image Area of Video] ( 60 / [Image Area of Video])
1 Rotate the zoom ring.
T
: Telephoto
W
: Wide-angle
T
W
●
Rotating the zoom ring displays the focal length on the recording screen.
40mm
●
The focal length display can be hidden:
[
] [ ] [Focal Length] ( 196 / [Focal Length])
- 83 -- 83 -
5. Recording settings - Metering / Exposure / ISO Sensitivity
Metering / Exposure / ISO Sensitivity
[Metering Mode]
The type of optical measurement to measure brightness can be changed.
[MENU/SET]
[ ] [ ] Select [Metering Mode]
(Multi-metering)
Method in which the most suitable exposure is measured by judging the allocation of
brightness on the whole screen.
(Center-weighted)
Method used to perform measuring which focuses on the center of the screen.
(Spot)
Method used to measure the extremely small part around the spot-metering target.
●
When you move the AF area, the spot metering target also moves to match.
Spot-metering target
(Highlight-weighted)
Method used to perform measuring which focuses on the highlighted parts of the screen
to prevent overexposure. This is suitable for theater photography, etc.
●
The standard value for correct exposure can be adjusted:
[
] [ ] [Exposure Offset Adjust.] ( 193 / [Exposure Offset Adjust.])
- 84 -- 84 -
5. Recording settings - Metering / Exposure / ISO Sensitivity
Exposure Compensation
You can compensate the exposure when the correct exposure determined by the camera is too bright or too dark.
You can adjust the exposure in 1/3 EV steps in a range of ±3 EV.
1 Press [Fn2].
●
At default setting, [Exposure Comp.] is assigned to [Fn2].
●
About Fn buttons ( 159 / Fn Buttons)
● You can also set it from the menu screen.
[MENU/SET]
[ ] [ ] Select [Exposure Comp.]
2 Compensate the exposure.
●
Rotate .
3 Confirm your selection.
●
Press [MENU/SET].
●
If you set the ISO sensitivity to [AUTO] when [Exposure Mode] is set to [M], you can compensate the exposure.
●
The set exposure compensation value is stored even if you turn off the camera.
●
The standard value for correct exposure can be adjusted:
[
] [ ] [Exposure Offset Adjust.] ( 193 / [Exposure Offset Adjust.])
- 85 -- 85 -
5. Recording settings - Metering / Exposure / ISO Sensitivity
Locking Focus and Exposure (AF/AE Lock)
Lock the focus and exposure in advance to take pictures with the same focus and exposure settings while changing the
composition.
This is useful when you want to bring an edge of the screen into focus or there is a backlight, for example.
1 Register [AE LOCK], [AF LOCK], or [AF/AE LOCK] to the Fn button. (
160 / Register
Functions to the Fn Buttons
)
[AE LOCK] The exposure is locked.
[AF LOCK] The focus is locked.
[AF/AE LOCK] Both focus and exposure are locked.
2 Lock focus and exposure.
●
Press and hold the Fn button.
● If focus is locked, then the AF lock icon will be displayed.
● If exposure is locked, then the AE lock icon will be displayed.
A
AF lock icon (AFL)
B
AE lock icon (AEL)
3 Hold the Fn button to decide on the composition and then perform recording.
●
The lock can be maintained even without pressing and holding the Fn button:
[
] [ ] [AF/AE Lock Hold] ( 193 / [AF/AE Lock Hold])
- 86 -- 86 -
5. Recording settings - Metering / Exposure / ISO Sensitivity
ISO Sensitivity
You can set light sensitivity (ISO sensitivity). With the default settings, you can set 100 to 51200 in 1/3 EV increments. This
camera supports Dual Native ISO which enables recording at high sensitivity with reduced noise by switching the base
sensitivity. The base sensitivity can also be fixed as necessary.
1 Press [Fn4].
●
At default setting, [Sensitivity] is assigned to [Fn4].
●
About Fn buttons ( 159 / Fn Buttons)
● You can also set it from the menu screen.
[MENU/SET]
[ ] [ ] Select [Sensitivity]
2 Select ISO sensitivity.
●
Rotate .
2
00
1
00
4
0
3 Confirm your selection.
●
Press [MENU/SET].
- 87 -- 87 -
5. Recording settings - Metering / Exposure / ISO Sensitivity
■
Setting Items (ISO Sensitivity)
[AUTO]
The ISO sensitivity is automatically adjusted according to the brightness.
Maximum [6400]*
1
[100] to [51200]
The ISO sensitivity is fixed at the selected value.
●
The available ISO sensitivity range changes according to the setting of [Dual Native
ISO Setting] in the [Video] ([Image Quality]) menu. (
88 / [Dual Native ISO Setting])
●
You can extend the ISO sensitivity range in between a lower limit of [50] and an
upper limit of [204800] by setting [Extended ISO] (
192 / [Extended ISO]) to [ON] in
the [Custom] ([Image Quality]) menu.
*
1
Default setting. The upper limit can be changed with [ISO Sensitivity (video)]. (
87 / [ISO Sensitivity (video)])
●
When the following functions are being used, the ISO sensitivity that can be set is restricted.
– [High Dynamic] ([Filter Settings]): Down to a lower limit of [400], up to an upper limit of [6400]
– Other than [High Dynamic] ([Filter Settings]): Up to an upper limit of [6400]
– [Cinelike D2] / [Cinelike V2] ([Photo Style]): Down to a lower limit of [200] (The lower limit changes to [100] when
[Extended ISO] is set.)
– [Like709] ([Photo Style]): Down to a lower limit of [100]
– [V-Log] ([Photo Style]): Down to a lower limit of [640], up to an upper limit of [51200] (The lower limit changes to [320]
when [Extended ISO] is set.)
– [Like2100(HLG)] ([Photo Style]): Down to a lower limit of [400].
●
You can change the intervals between ISO sensitivity settings values:
[
] [ ] [ISO Increments] ( 192 / [ISO Increments])
●
You can change the units for sensitivity to dB when recording video:
[
] [ ] [SS/Gain Operation] ( 106 / [SS/Gain Operation])
[ISO Sensitivity (video)]
Sets the lower and upper limits for ISO sensitivity when ISO sensitivity is set to [AUTO].
[MENU/SET]
[ ] [ ] Select [ISO Sensitivity (video)]
[ISO Auto Lower Limit Setting]
Sets the lower limit for ISO sensitivity when ISO sensitivity is [AUTO].
●
Set in the range between [100] and [25600].
[ISO Auto Upper Limit Setting]
Sets the upper limit for ISO sensitivity when ISO sensitivity is [AUTO].
●
Set to [AUTO] or in the range between [200] and [51200].
- 88 -- 88 -
5. Recording settings - Metering / Exposure / ISO Sensitivity
[Dual Native ISO Setting]
You can set whether to switch the base sensitivity automatically or to fix it.
[MENU/SET]
[ ] [ ] Select [Dual Native ISO Setting]
[AUTO]
The base sensitivity is automatically switched according to the brightness.
ISO sensitivity that can be set:
[AUTO] / [100] to [51200].
(When [Extended ISO] is set: [AUTO] / [50] to [204800].)
[LOW]
Sets the base sensitivity for low sensitivity.
ISO sensitivity that can be set:
[AUTO] / [100] to [800].
(When [Extended ISO] is set: [AUTO] / [50] to [800].)
[HIGH]
Sets the base sensitivity for high sensitivity.
ISO sensitivity that can be set:
[AUTO] / [640] to [51200].
(When [Extended ISO] is set: [AUTO] / [320] to [204800].)
[Luminance Level]
You can set the luminance range to suit the purpose of video recording.
You can set to [16-235] or [16-255], the standard for video, or to [0-255], which covers the entire range of luminance, the same
as pictures.
[MENU/SET]
[ ] [ ] Select [Luminance Level]
Settings: [0-255] / [16-235] / [16-255]
●
When set to a 10-bit [Rec Quality], the setting items change to [0-1023], [64-940], and [64-1023].
●
When [Photo Style] is set to [V-Log], this is fixed to [0-255] ([0-1023]).
●
When [Photo Style] is set to [Like2100(HLG)], this is fixed to [64-940].
●
When the following function is being used, [Luminance Level] is not available:
– [HDMI RAW Data Output]
- 89 -- 89 -
5. Recording settings - White Balance / Image Quality
White Balance / Image Quality
White Balance (WB)
White balance (WB) is a function that corrects the color cast produced by the light illuminating the subject. It corrects the colors
so that white objects appear in white to make the overall color closer to what is seen by the eye.
Normally, you can use auto ([AWB], [AWBc] or [AWBw]) to obtain the optimal white balance. Set this function when the coloring
of the image is different from what you expected, or you want to change the coloring to capture the ambience.
1 Press [Fn5].
●
At default setting, [White Balance] is assigned to [Fn5].
●
About Fn buttons ( 159 / Fn Buttons)
● You can also set it from the menu screen.
[MENU/SET]
[ ] [ ] Select [White Balance]
2 Select the white balance.
●
Rotate .
3 Confirm your selection.
●
Press [MENU/SET].
- 90 -- 90 -
5. Recording settings - White Balance / Image Quality
■
Setting Items (White Balance)
[AWB] Auto
[AWBc] Auto (Reduces the reddish hue under an incandescent light source)
[AWBw] Auto (Leaves the reddish hue under an incandescent light source)
Clear sky
Cloudy sky
Shade under a clear sky
Incandescent light
to
Set mode 1 to 4 ( 91 / Registering the White Set)
to
Color temperatures 1 to 4 ( 91 / Color Temperature Setting)
1 [AWB] will work within this range.
2 Blue sky
3 Cloudy sky (Rain)
4 Shade
5 Sunlight
6 White fluorescent light
7 Incandescent light bulb
8 Sunrise and sunset
9 Candlelight
K=Kelvin Color Temperature
●
Under lighting such as fluorescent or LED lighting, the appropriate white balance will vary depending on the lighting type.
Use [AWB], [AWBc], [AWBw] or [
] to [ ].
●
The white balance is fixed to [AWB] while [Filter Settings] is being used.
●
[AWB], [AWBc] or [AWBw] is not available when using [HDMI RAW Data Output].
- 91 -- 91 -
5. Recording settings - White Balance / Image Quality
■
Registering the White Set
Take pictures of a white object under the light source of the recording location to adjust the white balance until it appears white.
Press [Fn5] and then select any value from [ ] to [ ].
●
At default setting, [White Balance] is assigned to [Fn5].
– About Fn buttons (
159 / Fn Buttons)
●
You can also set it from the [White Balance] of the [Video] ([Image Quality]) menu.
Press .
Aim the camera at a white object so that it appears inside the frame at the center of the screen and then press
[MENU/SET].
●
This will set the white balance and return you to the recording screen.
■
Color Temperature Setting
Set the numeric value for the white balance color temperature.
Press [Fn5] and then select any value from [ ] to [ ].
●
At default setting, [White Balance] is assigned to [Fn5].
– About Fn buttons (
159 / Fn Buttons)
●
You can also set it from the [White Balance] of the [Video] ([Image Quality]) menu.
Press .
●
The color temperature setting screen is displayed.
Press to select the color temperature and then press [MENU/SET].
●
You can set a color temperature from [2500K] to [10000K].
- 92 -- 92 -
5. Recording settings - White Balance / Image Quality

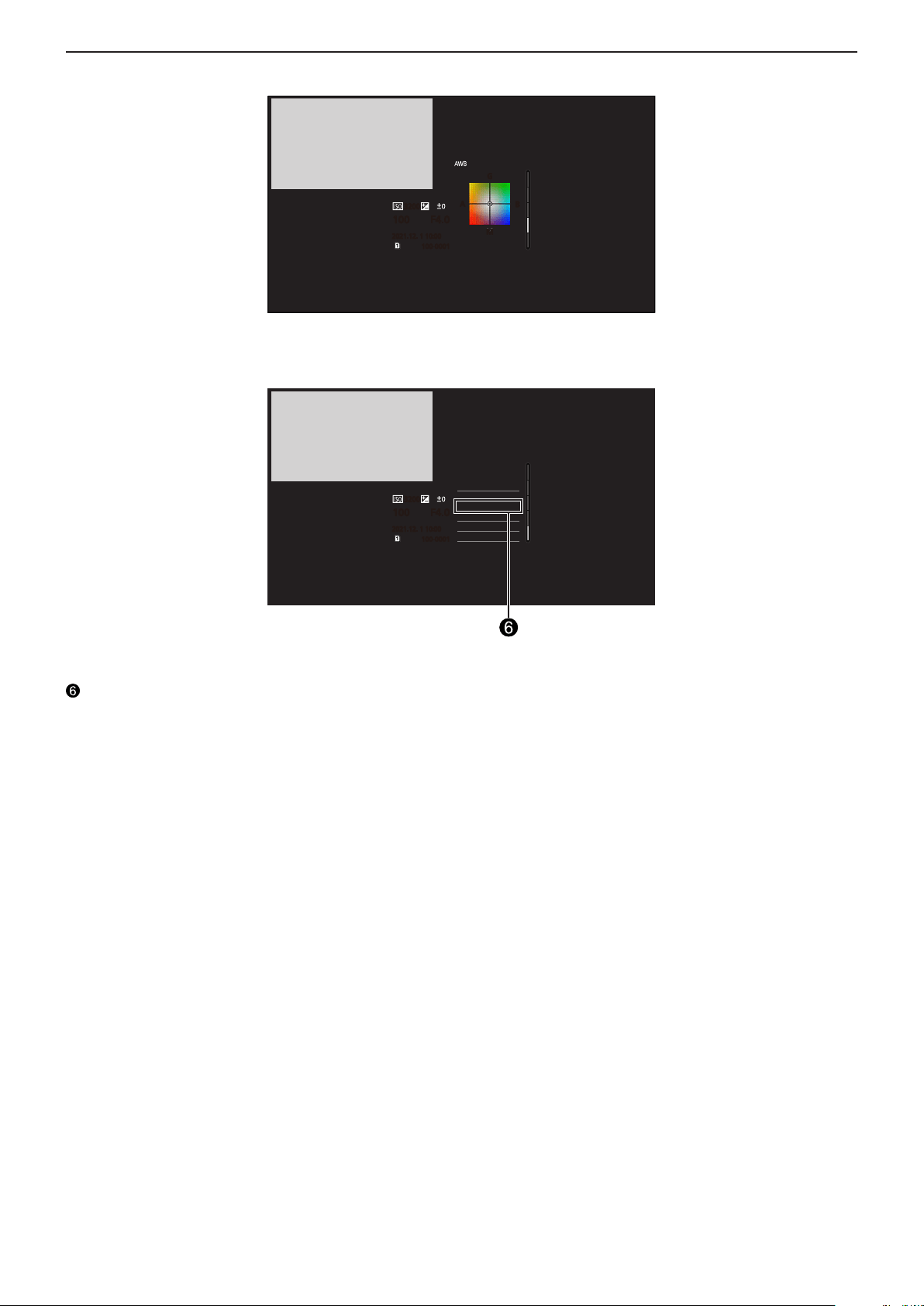

Adjusting the White Balance
You can adjust the coloring when the coloring you want is not produced by the set white balance.
Press [Fn5].
●
At default setting, [White Balance] is assigned to [Fn5].
– About Fn buttons (
159 / Fn Buttons)
●
You can also set it from the [White Balance] of the [Video] ([Image Quality]) menu.
Select the white balance and then press .
●
The adjustment screen is displayed.
Adjust the coloring.
: [A] (AMBER: ORANGE)
: [G] (GREEN: GREENISH)
: [B] (BLUE: BLUISH)
: [M] (MAGENTA: REDDISH)
●
Press [Fn1] to return to the unadjusted state.
Confirm your selection.
●
Press [MENU/SET].
●
When the white balance is adjusted, the color of its recording screen icon changes to the adjusted color. Adjusting toward
the [G] side will display [+], while adjusting toward the [M] side will display [–].
- 93 -- 93 -
5. Recording settings - White Balance / Image Quality
[Master Pedestal Level]
You can adjust the black level, which serves as the reference for images.
1 Select [Master Pedestal Level].
●
[MENU/SET] [ ] [ ] [Master Pedestal Level]
2 Adjust master pedestal.
●
Rotate .
●
Set in the range between –15 and +15.
3
+
-5 5 10 150-10-15
●
[Master Pedestal Level] is not available when using the following function:
– [V-Log] ([Photo Style])
– [HDMI RAW Data Output]
- 94 -- 94 -
5. Recording settings - White Balance / Image Quality
[Photo Style]
You can select the finishing settings of images to suit your subjects and expression styles. The image quality can be adjusted for
each Photo Style.
[MENU/SET]
[ ] [ ] Select [Photo Style]
[Standard] The standard setting.
[Vivid]
A setting that produces a more vivid quality with higher saturation and
contrast.
[Natural] A setting that produces a softer quality with lower contrast.
[Flat]
A setting that produces a flatter image quality with lower saturation and
contrast.
[Landscape] A setting suited for sceneries with vivid blue skies and greens.
[Portrait] A setting suited for portraits with a healthy and beautiful skin tone.
[Monochrome] A monochrome setting with no color shades.
[L.Monochrome] A black-and-white setting with rich gradation and crisp black accents.
[L.Monochrome D]
A monochrome setting that creates a dynamic impression with enhanced
highlights and shadows.
[Cinelike D2]
A setting that creates a film-like finishing touch using a gamma curve and
gives priority to the dynamic range.
●
This function is suitable for video editing processes.
[Cinelike V2]
A setting that creates a film-like finishing touch using a gamma curve that
gives priority to the contrast.
[Like709]
A setting that minimizes overexposure by applying a gamma curve
correction equivalent to Rec.709 to perform compression (knee adjustment)
of high-luminance areas.
●
Rec.709 is an abbreviation of “ITU-R Recommendation BT.709”, a
standard for high definition broadcasting.
[V-Log]
Gamma curve setting intended for post production processing.
●
It allows you to add rich gradation to images during post production
editing.
[Like2100(HLG)]*
1
A setting for recording motion pictures with a wide dynamic range in HLG
format. (
126 / HLG Videos)
[MY PHOTO STYLE 1]*
2
to
[MY PHOTO STYLE 10]*
2
Adjusts the image quality of Photo Style items to your preferred settings
and registers these as My Photo Style items. (
97 / Registering Settings
in My Photo Style
)
*
1
Can only be selected when set to a 10-bit [Rec Quality]. (
51 / [Rec Quality])
*
2
Effects up to [MY PHOTO STYLE 4] are displayed with the default settings. You can set the items to display in the menu with
[Show/Hide Photo Style] in [Photo Style Settings]. (
192 / [Show/Hide Photo Style])
- 95 -- 95 -
5. Recording settings - White Balance / Image Quality
●
The range of available ISO sensitivities is different when [Photo Style] is set to the following: ( 87 / Setting Items (ISO
Sensitivity)
)
– [Cinelike D2], [Cinelike V2], [Like709], [V-Log], [Like2100(HLG)]
The range of available ISO sensitivities is also different for [LOW] and [HIGH] in [Dual Native ISO Setting]. Reset the
exposure if necessary when ISO sensitivity changes.
●
You can set the knee mode with [Like709]. (
98 / Recording While Controlling Overexposure (Knee))
●
When [Filter Settings] is being used, [Photo Style] is not available.
●
When using [HDMI RAW Data Output], it is fixed to [V-Log] and Image quality cannot be adjusted.
●
[Like2100(HLG)] is not available when using the streaming function.
●
You can make detailed Photo Style settings:
[
] [ ] [Photo Style Settings] ( 192 / [Photo Style Settings])
Adjusting Image Quality
Press to select the type of Photo Style.
Press to select an item and then press to adjust.
●
Adjusted items are indicated with [ ].
Standard
-5 +50
Press [MENU/SET].
●
When the image quality is adjusted, the Photo Style icon on the recording screen is indicated with [ ].
- 96 -- 96 -
5. Recording settings - White Balance / Image Quality
■
Settings Items (Image Quality Adjustment)
[Contrast]*
1
Adjusts the contrast in the image.
[Highlight]*
1
Adjusts the brightness of bright areas.
[Shadow]*
1
Adjusts the brightness of dark areas.
[Saturation]*
2
Adjusts the vividness of colors.
[Color Tone]*
3
Adjusts blue and yellow tints.
[Hue]*
2
Assuming that the reference point is red, this rotates the hue toward violet/
magenta or yellow/green to adjust the coloring of the entire image.
[Filter Effect]*
3
[Yellow]: Enhances the contrast. (Effect: weak)
Records the sky with a clear blue.
[Orange]: Enhances the contrast. (Effect: medium)
Records the sky with a darker blue.
[Red]: Enhances the contrast. (Effect: strong)
Records the sky with a much darker blue.
[Green]: Skin and lips of people appear in natural tones.
Green leaves appear brighter and more enhanced.
[OFF]: ―
[Sharpness] Adjusts the outlines in the image.
[Noise Reduction]
Adjusts the noise reduction effect.
●
Increasing the effect may cause a slight drop in picture resolution.
[Dual Native ISO Setting]*
4
Sets the Dual Native ISO. (
88 / [Dual Native ISO Setting])
[Sensitivity]*
4
Sets the ISO sensitivity. (
86 / ISO Sensitivity)
[White Balance]*
4
Sets the white balance. (
89 / White Balance (WB))
●
While [WB] is selected, press [Fn2] to display the white balance setting
screen. Press [Fn2] again to return to the original screen.
*
1
Cannot be adjusted when [Like709], [V-Log] or [Like2100(HLG)] is selected.
*
2
Available when anything other than [Monochrome], [L.Monochrome], [L.Monochrome D] or [V-Log] is selected.
*
3
Available when [Monochrome], [L.Monochrome] or [L.Monochrome D] is selected.
*
4
Available when the following is set while [MY PHOTO STYLE 1] to [MY PHOTO STYLE 10] are selected:
[
] [ ] [Photo Style Settings] [My Photo Style Settings] [Add Effects] [Sensitivity] / [White Balance] [ON]
- 97 -- 97 -
5. Recording settings - White Balance / Image Quality
Registering Settings in My Photo Style
Press to select the type of Photo Style.
Adjust the image quality.
●
My Photo Style displays the types of Photo Style at the top of image quality adjustment. Select the base Photo Style.
Press [Fn1].
(When [MY PHOTO STYLE 1] to [MY PHOTO STYLE 10] is selected)
Press
to select [Save Current Setting] and then press [MENU/SET].
Press to select the registration destination number and then press [MENU/SET].
●
A confirmation screen will be displayed.
On the confirmation screen, press [Fn1] to change the My Photo Style name.
Up to 22 characters may be entered. Double-byte characters are treated as 2 characters.
For information on how to enter characters (
212 / Entering Characters)
Changing the Registered Contents of My Photo Style
Select any value from [MY PHOTO STYLE 1] to [MY PHOTO STYLE 10].
Press [Fn1] and then set the item.
●
[Load Preset Setting]
●
[Save Current Setting]
●
[Edit Title]
●
[Restore to Default]
- 98 -- 98 -
5. Recording settings - White Balance / Image Quality
Recording While Controlling Overexposure (Knee)
When [Photo Style] is set to [Like709], you can adjust the knee so that recording can be performed with minimal overexposure.
1 Set [Photo Style] to [Like709].
●
[MENU/SET] [ ] [ ] [Photo Style] [Like709]
Like709
2 Press [Q.MENU].
3 Select a knee setting.
●
Press to select a setting item.
[AUTO] Adjusts the compression levels of high-luminance areas automatically.
[MANUAL]
You can set the luminance where compression starts (knee master point) and
the intensity of compression (knee master slope).
Press to select an item and then press to adjust.
[POINT]: Master knee point
[SLOPE]: Master knee slope
●
Values within the following ranges can be set:
– Master knee point: 80.0 to 107.0
– Master knee slope: 0 to 99
[Off] ―
4 Confirm your selection.
●
Press [MENU/SET].
- 99 -- 99 -
5. Recording settings - White Balance / Image Quality
[Filter Settings]
This mode records with additional image effects (filters).
1 Set the [Filter Effect].
●
[MENU/SET] [ ] [ ] [Filter Settings] [Filter Effect] [SET]
2 Select the filter.
●
Press to select, and then press [MENU/SET].
●
Press [Fn1] to switch the screen between normal display and guide display.
The guide display shows the description of each filter.
1/6
- 100 -- 100 -
5. Recording settings - White Balance / Image Quality

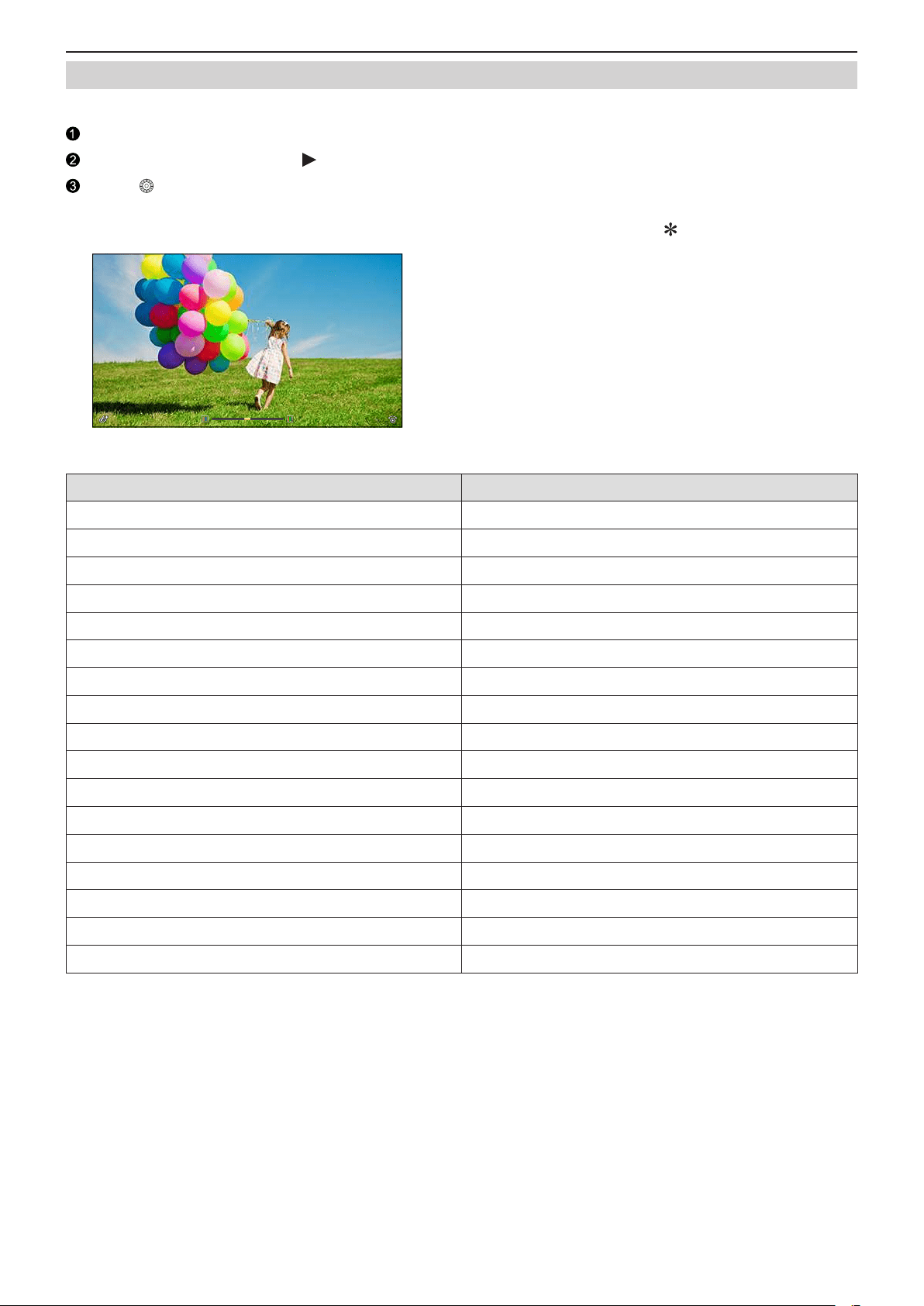

Adjusting the Filter Effect
You can adjust the filter effect.
Select the filter.
On the recording screen, press .
Rotate to set.
●
To return to the recording screen, press [MENU/SET] again.
●
When the filter effect is adjusted, the filter icon on the recording screen is indicated with [ ].
Filter Items that can be adjusted
[Expressive] Vividness
[Retro] Coloring
[Old Days] Contrast
[High Key] Coloring
[Low Key] Coloring
[Sepia] Contrast
[Monochrome] Coloring
[Dynamic Monochrome] Contrast
[Impressive Art] Vividness
[High Dynamic] Vividness
[Cross Process] Coloring
[Toy Effect] Coloring
[Toy Pop] Area with reduced peripheral brightness
[Bleach Bypass] Contrast
[Miniature Effect] Vividness
[Fantasy] Vividness
[One Point Color] Amount of color left
- 101 -- 101 -
5. Recording settings - White Balance / Image Quality
●
White balance will be fixed to [AWB].
●
The upper limit to ISO sensitivity is [6400].
●
When [High Dynamic] is set, the lower limit of the ISO sensitivity is fixed to [400] and the higher limit to [6400].
The range of available ISO sensitivities is also different for [LOW] and [HIGH] in [Dual Native ISO Setting].
– [LOW]: [AUTO] / [400] to [3200] (Base sensitivity: [400])
– [HIGH]: [AUTO] / [2500] to [6400] (Base sensitivity: [2500])
Reset the exposure if necessary when ISO sensitivity changes.
●
Depending on the filter, the recording screen may seem as if frames are missed.
●
When in enlarged display with MF assist, [Impressive Art] / [High Dynamic] / [Toy Effect] / [Toy Pop] are not available.
●
When using Super 35 mm/APS-C lenses, [Toy Effect] / [Toy Pop] are not available.
●
When [Image Area of Video] is [S35mm] or [PIXEL/PIXEL], recording video with [Toy Effect] / [Toy Pop] is not possible.
●
You cannot use [Miniature Effect] while using the streaming function.
●
[Filter Effect] is not available when using the following function:
– [HDMI RAW Data Output]
●
Filter on/off operations can be registered to a Fn button:
[
] [ ] [Fn Button Set] [Setting in REC mode] [Filter Effect] ( 160 / Register Functions to the Fn Buttons)
●
When displaying the [Filter Effect] setting screen using the Fn button, pressing [Fn1] displays the filter selection screen.
Setting the Type of Defocus ([Miniature Effect])
Set [Filter Effect] to [Miniature Effect].
Press to display the setting screen.
Press or to move the in-focus portion.
Rotate to change the size of in-focus portion.
●
To reset the in-focus portion setting to the default, press [Fn1].
Press [MENU/SET] to set.
●
No audio is recorded in videos.
●
When the system frequency is set to [59.94Hz (NTSC)], the length of the video recorded will be approx. 1/10 of the actual
recording time. The displayed video recording time will be approx. 10 times longer than the recording time displayed
during normal video recording.
When the system frequency is set to [50.00Hz (PAL)] or [24.00Hz (CINEMA)], the length of the video recorded will be
approx. 1/8 of the actual recording time. The displayed video recording time will be approx. 8 times longer than the
recording time displayed during normal video recording.
●
If you end video recording after a short time, the camera may go on recording for a certain period.
- 102 -- 102 -
5. Recording settings - White Balance / Image Quality
Setting the Color to Be Left ([One Point Color])
Set [Filter Effect] to [One Point Color].
Press to display the setting screen.
Press to move the frame and select the color you want to leave.
●
To return the frame back to the center, press [Fn1].
Press [MENU/SET].
- 103 -- 103 -
5. Recording settings - Audio Settings
Audio Settings

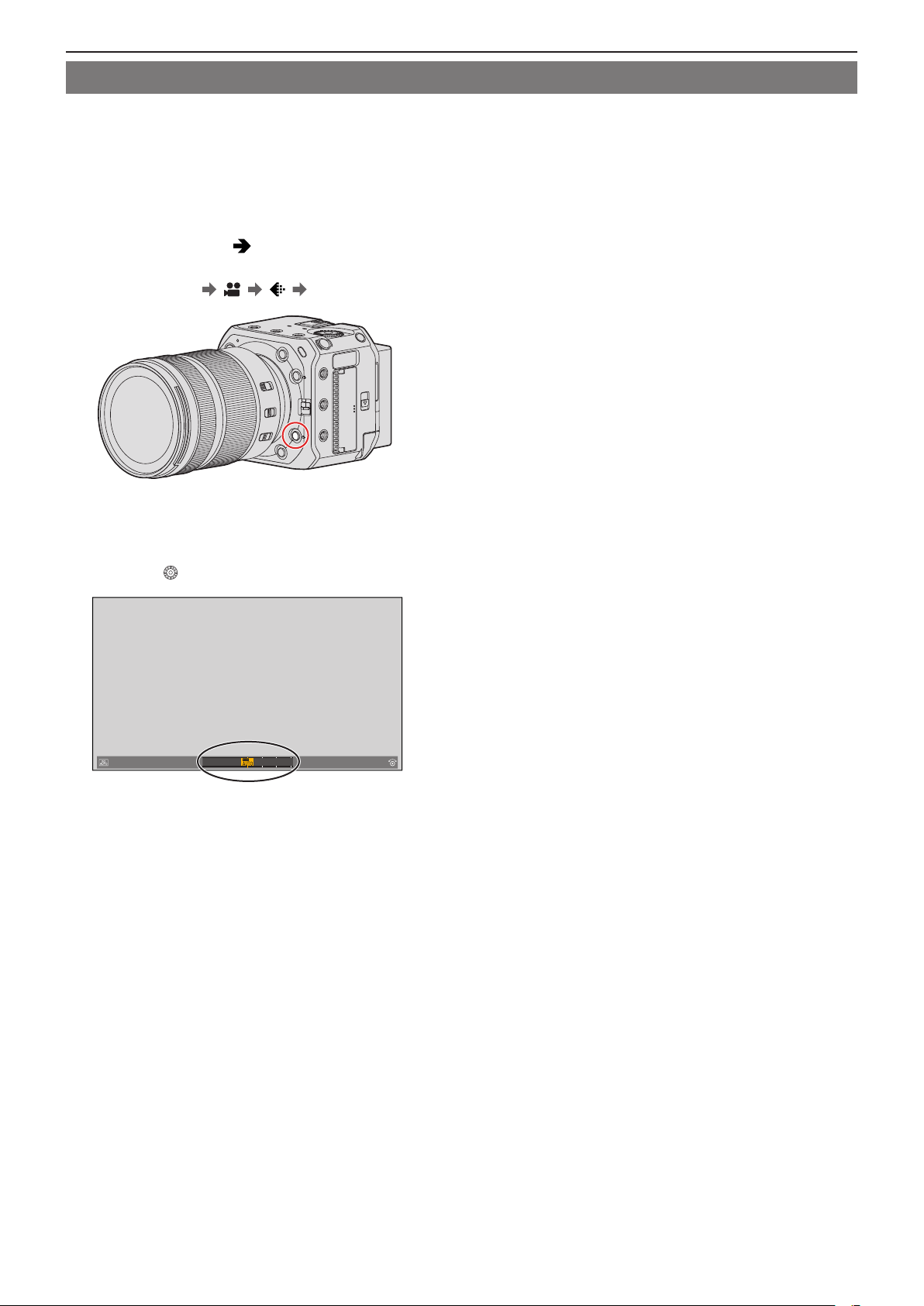

[Sound Rec Level Disp.]
The sound recording level is displayed on the recording screen.
[MENU/SET]
[ ] [ ] Select [Sound Rec Level Disp.]
Settings: [ON] / [OFF]
●
When [Sound Rec Level Limiter] is set to [OFF], [Sound Rec Level Disp.] is fixed to [ON].
[Mute Sound Input]
This mutes audio input.
[MENU/SET]
[ ] [ ] Select [Mute Sound Input]
Settings: [ON] / [OFF]
●
[ ] is displayed on the recording screen.
●
The audio input from the external microphone will also be muted.
[Sound Rec Gain Level]
This switches the gain of audio input.
[MENU/SET]
[ ] [ ] Select [Sound Rec Gain Level]
[STANDARD] This is the standard input gain setting. (0 dB)
[LOW] Audio input is reduced for recording in environments with loud noises. (–12 dB)
●
[Sound Rec Gain Level] is not available when [Mic Socket] is set to [ ] and an external audio device is connected.
- 104 -- 104 -
5. Recording settings - Audio Settings
[Sound Rec Level Adj.]
Manually adjust the sound recording level.
Select [Sound Rec Level Adj.].
●
[MENU/SET] [ ] [ ] [Sound Rec Level Adj.]
Press to adjust the sound recording level and then press [MENU/SET].
●
You can adjust the sound recording level within the range from [MUTE], [–18dB] to [+12dB] in steps of 1 dB.
●
Displayed dB values are approximate.
●
When set to [MUTE], [ ] is displayed in the recording screen.
[Sound Rec Level Limiter]
The sound recording level is adjusted automatically to minimize sound distortion (crackling noise).
[MENU/SET]
[ ] [ ] Select [Sound Rec Level Limiter]
Settings: [ON] / [OFF]
[Wind Noise Canceller]
This reduces the wind noise coming into the built-in microphone while maintaining sound quality.
[MENU/SET]
[ ] [ ] Select [Wind Noise Canceller]
[HIGH]
This effectively reduces the wind noise by reducing the low-pitched sound when a strong
wind is detected.
[STANDARD] This reduces wind noise without loss of sound quality by filtering out only wind noise.
[OFF] ―
●
You may not see the full effect depending on the recording conditions.
●
This function works only with the built-in microphone. When an external microphone is connected, [Wind Cut] is
displayed. (
146 / Reduction of Wind Noise)
- 105 -- 105 -
5. Recording settings - Main Assist Functions
Main Assist Functions
This section describes the main assist functions that are convenient when recording.
●
The [Custom] ([Monitor / Display]) menu has display assist functions such as the center marker. ( 196 / [Custom]
menu ([Monitor / Display])
)
[Image Stabilizer]
Set the image stabilizer operation to match the recording situation.
●
When using a lens with an O.I.S. switch, set the switch on the lens to ON.
●
When you use a lens with no connection function with the camera, [Image Stabilizer] cannot be selected.
●
When you use a lens without the stabilizer function, [Image Stabilizer] cannot be selected.
[MENU/SET]
[ ] [ ] Select [Image Stabilizer]
[Operation Mode]
[Normal]:
Corrects vertical, horizontal, and rotational camera shake.
This function is suitable for normal recording.
[OFF]:
Turns the in-lens image stabilization function OFF.
[E-Stabilization (Video)]
During video recording the 4 types of camera shakes, the vertical, horizontal, pitch, and
yaw axes is corrected through the combined use of the in-lens and electronic image
stabilizers.
●
When [E-Stabilization (Video)] is working, the [
] of the recording screen will be
switched to [
].
●
When set to [ON], the angle of view may become narrower.
[Boost I.S. (Video)]
Increases the effectiveness of the image stabilizer during video recording. This effect
can help provide a stable composition when you want to perform recording from a fixed
perspective.
●
When [Boost I.S. (Video)] is operating, [
] is displayed on the recording screen.
●
To change composition while recording, first set this to [OFF] before moving the
camera. To set this to [OFF] during recording, use the Fn button. (
160 / Register
Functions to the Fn Buttons
)
●
Longer focal lengths will result in weaker stabilization.
●
The image stabilizers to be activated differ depending on your lens.
- 106 -- 106 -
5. Recording settings - Main Assist Functions
●
When the following functions are being used, [E-Stabilization (Video)] is not available:
– 6K video/5.9K video/5.4K video
– [Variable Frame Rate]
– [HDMI RAW Data Output]
– [Live Cropping]
[SS/Gain Operation]
You can switch the units of shutter speed values and gain (sensitivity) values.
[MENU/SET]
[ ] [ ] Select [SS/Gain Operation]
[SEC/ISO] Displays the shutter speed in seconds and the gain in ISO.
[ANGLE/ISO]
Displays the shutter speed in degrees and the gain in ISO.
●
The angle can be set in a range between 11° and 358°. (When [Synchro Scan] is set to
[OFF])
[SEC/dB]
Displays the shutter speed in seconds and the gain in dB.
●
0 dB corresponds to either of the following ISO sensitivity values.
– When [Dual Native Gain Setting] is set to [AUTO] or [LOW]: [100]
– When [Dual Native Gain Setting] is set to [HIGH]: [640]
●
When [SS/Gain Operation] is set to [SEC/dB], menu names change as shown below:
– [Dual Native ISO Setting]
[Dual Native Gain Setting]
– [ISO Sensitivity (video)]
[Gain Setting]
– [ISO Auto Lower Limit Setting]
[Auto Gain Lower Limit Setting]
– [ISO Auto Upper Limit Setting]
[Auto Gain Upper Limit Setting]
– [Extended ISO]
[Extended Gain Setting]
Setting Range for Gain (Sensitivity)
When [SS/Gain Operation] is set to [SEC/dB], gain (sensitivity) can be set in the following ranges.
[Dual Native Gain Setting] [Extended Gain Setting] Setting Range for Gain (Sensitivity)
[AUTO]
[OFF] [AUTO], [0 dB] to [54 dB]
[ON] [AUTO], [–6 dB] to [66 dB]
[LOW]
[OFF] [AUTO], [0 dB] to [18 dB]
[ON] [AUTO], [–6 dB] to [18 dB]
[HIGH]
[OFF] [AUTO], [0 dB] to [38 dB]
[ON] [AUTO], [–6 dB] to [50 dB]
- 107 -- 107 -
5. Recording settings - Main Assist Functions

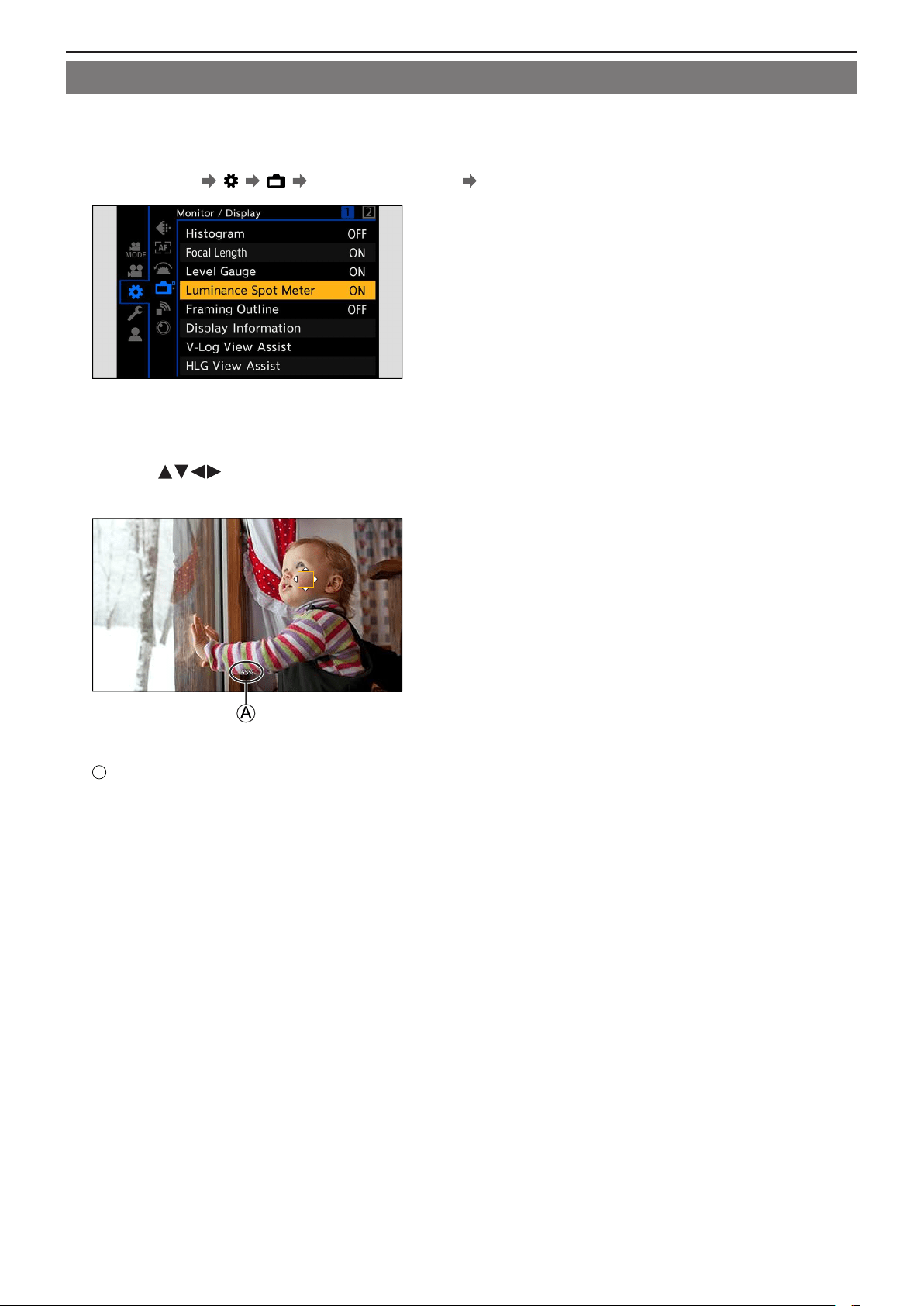

[Luminance Spot Meter]
Specify any spot on the subject to measure the luminance over a small area.
1 Set [Luminance Spot Meter].
●
[MENU/SET] [ ] [ ] [Luminance Spot Meter] [ON]
2 Select the position where you want to measure the luminance.
●
Press to select and then press [MENU/SET].
● To return the position back to the center, press [Fn1].
A
Luminance value
■
Measurement Range
Measuring is possible in the range –7% to 109% (IRE).
●
When [Photo Style] is set to [V-Log], this can be measured with Stop units. (Calculated as 0 Stop=42% (IRE))
- 108 -- 108 -
5. Recording settings - Main Assist Functions
[Zebra Pattern]
Parts that are brighter than the benchmark value are displayed with stripes.
You can also set the benchmark value and the breadth of the range so that the stripes are displayed on parts that are within the
range of brightness you specify.
[ZEBRA1] [ZEBRA2] [ZEBRA1+2]
[MENU/SET]
[ ] [ ] Select [Zebra Pattern]
[ZEBRA1] Parts that are brighter than the benchmark value are displayed with [ZEBRA1] stripes.
[ZEBRA2] Parts that are brighter than the benchmark value are displayed with [ZEBRA2] stripes.
[ZEBRA1+2] Both [ZEBRA1] and [ZEBRA2] are displayed.
[OFF] ―
[SET]
Sets the benchmark brightness.
[Zebra 1] / [Zebra 2]
50% to 105% / [BASE/RANGE]
When [BASE/RANGE] Was Selected with [SET]
Centered on the brightness set with [Base Level], parts with the brightness in the range set in [Range] are displayed with the
stripes.
●
[Base Level] can be set in the range between 0% and 109% (IRE).
●
[Range] can be set in the range between ±1% and ±10% (IRE).
●
When [Photo Style] is set to [V-Log], these are set at Stop units. (Calculated as 0 Stop=42% (IRE))
●
[ZEBRA1+2] cannot be selected while you are setting [BASE/RANGE].
- 109 -- 109 -
5. Recording settings - Main Assist Functions
[Frame Marker]
A frame with the set aspect ratio is displayed on the recording screen.
This allows you to see during recording the angle of view that will be achieved with trimming (cropping) in post-processing.
[MENU/SET]
[ ] [ ] Select [Frame Marker]
[ON] Displays video grid lines on the recording screen.
[OFF] ―
[SET]
Sets the aspect ratio of video grid lines.
[Frame Aspect]:
[2.39:1] / [2.35:1] / [2.00:1] / [1.85:1] / [16:9] / [4:3] / [5:4] / [1:1] / [4:5] / [9:16]
[Frame Color]:
Sets the color of video grid lines.
Sets the outer side opacity of video grid lines.
[Frame Mask]:
[100%] / [75%] / [50%] / [25%] / [OFF]
Color bars / Test Tone
The color bars are displayed on the recording screen. A test tone is output while the color bars are being displayed.
[SMPTE] [EBU] [ARIB]
[MENU/SET]
[ ] [ ] Select [Color Bars]
Settings: [SMPTE] / [EBU] / [ARIB]
●
To end the display, press [MENU/SET].
■
Adjusting the Test Tone
There are 4 levels ([–12dB], [–18dB], [–20dB], and [MUTE]) of test tone to select.
Rotate to select the test tone level.
●
The color bars and test tone will be recorded on the video if video recording is started while the color bars are being
displayed.
●
[Color Bars] is not available when using the following function:
– [HDMI RAW Data Output]
- 110 -- 110 -
6. Special Video Recording - [Variable Frame Rate]
6. Special Video Recording
[Variable Frame Rate]
By recording using a frame rate that is different to the playback frame rate, you can record smooth slow motion video and fast
motion video.
Slow Motion Video
(Overcrank Recording)
Set a number of frames that is higher than the recording frame rate of the [Rec Quality].
For example: When recording at 48 fps and set to a 24.00p [Rec Quality], the speed is
halved.
Fast Motion Video
(Undercrank Recording)
Set a number of frames that is lower than the recording frame rate of the [Rec Quality].
For example: When recording at 12 fps and set to a 24.00p [Rec Quality], the speed is
doubled.
1 Set [Rec. File Format] to [MOV].
●
[MENU/SET] [ ] [ ] [Rec. File Format] [MOV]
2 Select a recording quality with which you can use [Variable Frame Rate] recording.
●
[MENU/SET] [ ] [ ] [Rec Quality]
●
Items with which you can use [Variable Frame Rate] are indicated as [VFR available].
●
Recording qualities with which you can use [Variable Frame Rate] recording: 133 / List of Recording Qualities That
Enable Special Videos to be Recorded
- 111 -- 111 -
6. Special Video Recording - [Variable Frame Rate]
3 Select an [Image Area of Video] with which you can use [Variable Frame Rate].
●
[MENU/SET] [ ] [ ] [Image Area of Video]
●
[Variable Frame Rate] is not available with the following combinations of [Rec Quality] and [Image Area of Video].
Change the [Image Area of Video] as necessary.
[Rec Quality] [Image Area of Video]
4K video, C4K video [FULL]
[FHD/60p/420/8-L]
[FHD/50p/420/8-L]
[PIXEL/PIXEL]
4 Set [Variable Frame Rate].
●
[MENU/SET] [ ] [ ] [Variable Frame Rate] [ON]
● Press to switch between [ON] and [OFF].
5 Set the frame rate.
●
Rotate to select a numeric value, then press [MENU/SET].
● The angle of view is reduced when you set to a frame rate exceeding 150 fps.
- 112 -- 112 -
6. Special Video Recording - [Variable Frame Rate]
Available Frame Rate Setting Ranges
The frame rate you can set differs depending on the [Rec Quality] settings.
[Rec Quality] Frame rate
Anamorphic (4:3) video 2 fps to 50 fps*
1
C4K video / 4K video 2 fps to 60 fps
FHD video 2 fps to 180 fps*
2
*
1
When set to a 23.98p or 24.00p [Rec Quality], a frame rate exceeding 48 fps cannot be set.
*
2
When [Image Area of Video] is set to [PIXEL/PIXEL], it is not possible to set to a frame rate exceeding 60 fps.
●
You can filter to show just the recording qualities where [Variable Frame Rate] can be used. ( 59 / [Filtering])
●
When using [Variable Frame Rate], it is recommended to fix the camera so it does not move.
●
Focus mode switches to MF.
●
If you press the Fn button assigned with [AF ON] only before recording starts, the focus will be adjusted automatically.
(
160 / Register Functions to the Fn Buttons)
●
Audio will not be recorded during variable frame rate recording.
●
When set to a frame rate exceeding 60 fps, there may be some deterioration in recording quality.
●
When the following functions are being used, [Variable Frame Rate] is not available:
– [Filter Settings]
– [HDMI RAW Data Output]
– [Live Cropping]
– Streaming Function
- 113 -- 113 -
6. Special Video Recording - High Frame Rate Video
High Frame Rate Video
[MOV] video with high frame rates can be recorded to cards. By converting it with the compatible software, it is possible to
produce slow motion video. AF recording and audio recording, not possible with [Variable Frame Rate], also become possible.
■
Recording Qualities for High Frame Rate Video
[Rec. File Format] [System Frequency] [Rec Quality] Recording frame rate
[MOV]
[59.94Hz (NTSC)]
[4K-A/48p/420/10-L]
[C4K/48p/420/10-L]
[4K/48p/420/10-L]
[FHD/48p/420/10-L]
47.95p
[FHD/120p/420/10-L] 119.88p
[50.00Hz (PAL)] [FHD/100p/420/10-L] 100.00p
[24.00Hz (CINEMA)]
[4K-A/48p/420/10-L]
[C4K/48p/420/10-L]
[4K/48p/420/10-L]
[FHD/48p/420/10-L]
48.00p
●
By filtering the [Rec Quality] by the frame rate, you can display just those recording qualities that match the frame rate
conditions. (
59 / [Filtering])
●
When outputting via HDMI/SDI, the frame rate is down-converted to 59.94p, 23.98p, 50.00p, or 24.00p for output. (
138 / Settings for Down-Converting,
142 / Set the resolution during recording when output via SDI)
- 114 -- 114 -
6. Special Video Recording - [Focus Transition]
[Focus Transition]
Smoothly transitions the focus position from the current position to a position registered in advance.
1 Select [Focus Transition].
●
[MENU/SET] [ ] [ ] [Focus Transition]
2 Set the recording settings.
[Start] Start recording.
[Focus Pull Setting]
Registers the focus position.
●
The setting screen for the focus position is displayed when you select either
[1], [2], or [3]. Use the same procedure as MF (
79 / Record Using MF) to
check the focus, then press [MENU/SET] to register the focus position.
[Focus Transition Speed]
Sets the moving speed of focus.
●
Moving speed: [SH] (fast) to [SL] (slow)
[Focus Transition Rec]
Starts Focus Transition when recording starts.
●
Select the position registered with [Focus Pull Setting].
[Focus Transition Wait] Sets the wait time before the start of Focus Transition.
3 Close the menu.
●
Selects [Start], and press [MENU/SET].
● The recording screen is displayed.
●
To return to the setting screen, press [Fn1].
- 115 -- 115 -
6. Special Video Recording - [Focus Transition]
4 Start recording.
●
Press the video rec. button.
●
If you have enabled [Focus Transition Rec], Focus Transition will start when you start recording a video.
5 Start Focus Transition.
●
Press to select [1], [2], or [3], and then press [MENU/SET].
●
When [Focus Transition Wait] is set, Focus Transition starts after the set time has elapsed.
(m)(m)
1010 55 33 22 1.51.5
1
1 0.50.5 0.10.1
A
Current focus position
B
Registered focus position
6 End Focus Transition.
●
Press [Q.MENU].
7 Stop recording.
●
Press the video rec. button once again.
- 116 -- 116 -
6. Special Video Recording - [Focus Transition]
●
Maintain the same distance to the subject after setting the focus position.
●
The moving speed of focus varies depending on the lens being used.
●
While using [Focus Transition], it is not possible to focus on anything other than the registered focus position.
●
Any of the operations below will clear the focus position settings.
– Operating the camera ON/OFF button
– Zoom operation
– Switching the focus mode
– Switching the recording mode
– Replacing the lens
●
When the following functions are being used, [Focus Transition] is not available:
– [Variable Frame Rate]
– [Live Cropping]
●
[Focus Transition] cannot be used when using an interchangeable lens that does not support the AF continuous function.
- 117 -- 117 -
6. Special Video Recording - [Live Cropping]
[Live Cropping]
By cropping a part of the image from the image displayed in the live view, it is possible to record FHD video that incorporates
panning and zooming with the camera staying in a fixed position.
Pan Zoom in
●
When using [Live Cropping], it is recommended to fix the camera so it does not move.
1 Set [Rec. File Format].
●
[MENU/SET] [ ] [ ] [Rec. File Format] [MP4] / [MOV]
2 Select a recording quality with which you can record [Live Cropping] video.
●
[MENU/SET] [ ] [ ] [Rec Quality]
●
A recording quality with which you can record [Live Cropping] video: 133 / List of Recording Qualities That Enable
Special Videos to be Recorded
- 118 -- 118 -
6. Special Video Recording - [Live Cropping]
3 Set the time for panning or zooming.
●
[MENU/SET] [ ] [ ] [Live Cropping] [40SEC] / [20SEC]
●
If you have selected a recording format or recording quality where Live Cropping recording is not available, the camera
switches to a recording format or FHD video recording quality where recording is possible.
4 Set the cropping start frame.
●
Select the range to be cropped and press [MENU/SET].
A
Cropping start frame
5 Set the cropping end frame.
●
Select the range to be cropped and press [MENU/SET].
●
To redo the settings for the position and size of the start frame and the end frame, press .
B
Cropping end frame
- 119 -- 119 -
6. Special Video Recording - [Live Cropping]
6 Start Live Cropping recording.
●
Press the video rec. button.
●
When the set operating time has elapsed, recording automatically ends. To end recording midway, press the video rec.
button again.
7
S
7
S
20
S
20
S
C
Elapsed recording time
D
Set operating time
■
Operations for Setting the Cropping Frame
Button operation Description of operation
Moves the frame.
Enlarges / reduces the frame.
[Fn1]
Start frame: Returns the frame position and size to the default settings.
End frame: Cancels the settings for the position and size of the frame.
[MENU/SET] Confirms the frame position and size.
●
AF mode switches to [ ] ([Human Detect AF]). (Human bodies cannot be detected. It is not possible to specify the
person to bring into focus.)
●
Brightness measurements and focusing are performed within the cropping frame. To lock the focus point, set [Continuous
AF] to [OFF], or set the focus mode to [MF].
●
[Metering Mode] will be [ ] (multi-metering).
●
When the following functions are being used, [Live Cropping] is not available:
– [HDMI RAW Data Output]
– Streaming Function
- 120 -- 120 -
6. Special Video Recording - Log Recording
Log Recording
Setting [Photo Style] to [V-Log] enables Log recording. Images finished with rich gradation can be created through post
production processing.
[MENU/SET]
[ ] [ ] [Photo Style] Select [V-Log]
●
Post-production processing is enabled by utilizing LUT (Look-Up Table).
You can download LUT data from the following support site:
https://panasonic.jp/support/global/cs/dsc/download/index3.html
(English only)
ISO Sensitivity When [V-Log] Is Set
The lower limit of available ISO sensitivity is [640] (when [Extended ISO] is set: [320]), and the upper limit is [51200].
●
The range of available ISO sensitivities is also different for [LOW] and [HIGH] in [Dual Native ISO Setting].
●
Reset the exposure if necessary when ISO sensitivity changes.
Exposure When [V-Log] Is Set
The [V-Log] curve characteristics comply with “V-Log/V-Gamut REFERENCE MANUAL Rev.1.0”. When set to [V-Log], the
standard exposure when gray with a reflectance ratio of 18% is imaged is IRE 42%.
-
8
-
8
-
7
-
7
-
6
-
6
-
5
-
5
-
4
-
4
-
3
-
3
-
2
-
2
-
1
-
1 00 11 22 33 44 55 66 77
88
（Stop）（Stop）
（10 bit code value）（10 bit code value）
00
6464
128128
192192
256256
320320
384384
448448
512512
576576
640640
704704
768768
832832
896896
960960
10241024
B
A
A
Reflectance ratio: 18%
B
Reflectance ratio: 90%
- 121 -- 121 -
6. Special Video Recording - Log Recording
When [Photo Style] is set to [V-Log]
Reflectance ratio (%) 0 18 90
IRE(%) 7.3 42 61
Stop ― 0.0 2.3
10 bit code value 128 433 602
12 bit code value 512 1732 2408
●
When luminance is to be displayed by Stop units, this camera calculates IRE 42% to 0 Stop.
●
Luminance can be checked by Stop units:
[
] [ ] [Luminance Spot Meter] ( 107 / [Luminance Spot Meter])
[
] [ ] [Zebra Pattern] ( 108 / [Zebra Pattern])
[V-Log View Assist]
When [Photo Style] is set to [V-Log], images output via HDMI/SDI will darken. Using [V-Log View Assist] means you can output
images with LUT data applied via HDMI/SDI.
[MENU/SET]
[ ] [ ] Select [V-Log View Assist]
[Read LUT File] Reads LUT data from the card.
[LUT Select]
Selects the LUT data to be applied from among the preset ([Vlog_709]) and registered
LUT data.
[LUT View Assist (HDMI)] Applies LUT data to images output over HDMI.
[LUT View Assist (SDI)] Applies LUT data to images output over SDI.
●
When applying the LUT data, [LUT] is displayed on the recording screen.
●
Up to 4 LUT data files can be registered.
■
Reading LUT Files
●
The following LUT data can be used:
– The “.vlt” format, which meets the requirements specified in the “VARICAM 3DLUT REFERENCE MANUAL Rev.1.0”
– File names consisting of up to 8 alphanumeric characters (excluding extension)
●
Save the LUT data with a file extension of “.vlt” in the root directory of the card (the folder opened when the card is
opened on a PC).
Insert a card on which LUT data is saved into the camera.
Select [Read LUT File].
●
[MENU/SET] [ ] [ ] [V-Log View Assist] [Read LUT File] [Card Slot 1] / [Card Slot 2]
Press to select the LUT data to read and then press [MENU/SET].
Press to select the location to register the data, and then press [MENU/SET].
●
When registered items are selected, they will be overwritten.
- 122 -- 122 -
6. Special Video Recording - HDMI Output of RAW Video Data
HDMI Output of RAW Video Data
12-bit RAW Video Data with a maximum resolution of 5.9K can be output via HDMI to a compatible external recorder.
When [HDMI RAW Data Output] is turned [ON], the menu screen will stop being output via HDMI.
Before turning [HDMI RAW Data Output] to [ON], prepare an environment where the menu screen can be displayed on a PC
installed with “LUMIX Tether”, or an SDI monitor in advance.
5.9K(16:9)/FULL
29.97p/25.00p/23.98p
3.5K(4:3)/S35mm
50.00p/29.97p/25.00p/23.98p
4K(17:9)/S35mm
59.94p/50.00p/29.97p/25.00p/23.98p
C
A
B
D
A
HDMI cable (commercially available)
●
Output RAW Video Data
B
External recorder
C
BNC cable (commercially available)
(When using “LUMIX Tether”, either a USB connection cable (commercially available) / LAN cable (commercially available) or
Wi-Fi can be used.)
●
Output recording information or menu screen.
D
SDI monitor or PC installed with “LUMIX Tether”
●
Recording of the RAW Video Data of this camera has been confirmed on the following external recorder. (As of October
2021)
– ATOMOS Ninja V 4K HDR Monitor-Recorder (AtomOS 10.71 or higher)
For details, please contact ATOMOS.
– Blackmagic Design “Blackmagic Video Assist 5″ 12G HDR”, “Blackmagic Video Assist 7″ 12G HDR” (Ver. 3.5 or higher)
For details, please contact Blackmagic Design.
●
This does not guarantee all of the capabilities that the compatible external recorder may have.
●
You will need compatible software to edit the RAW Video Data recorded with the external recorder.
●
Visit the following site to download LUT data or view the latest support information:
https://panasonic.jp/support/global/cs/dsc/
(English only)
- 123 -- 123 -
6. Special Video Recording - HDMI Output of RAW Video Data
●
Video cannot be recorded to cards while RAW Video Data is being output via HDMI.
●
When [System Frequency] is set to [24.00Hz (CINEMA)], RAW Video Data cannot be output via HDMI.
●
[Photo Style] is fixed to [V-Log], and Image quality cannot be adjusted.
Outputting RAW Video Data via HDMI
Preparation:
Connect the camera and external recorder with a commercially available HDMI cable (HDMI output).
Connect the camera and SDI monitor with a commercially available BNC cable (SDI output).
Or connect the camera to a PC with “LUMIX Tether” installed. (
216 / Tethered Recording)
●
For information on the connection methods of the external monitor or external recorder, refer to ”Connecting the external
monitor”. (
22 / Connecting to the external monitor)
1 Set [HDMI RAW Data Output].
●
[MENU/SET] [ ] [ ] [HDMI RAW Data Output] [ON]
After setting [HDMI RAW Data Output] to [ON], display the menu screen with an SDI monitor or PC installed with “LUMIX Tether”
and operate the camera.
2 Select [Rec Quality].
●
[MENU/SET] [ ] [ ] [Rec Quality] ( 124 / [Rec Quality] (When [HDMI RAW Data Output] is selected))
- 124 -- 124 -
6. Special Video Recording - HDMI Output of RAW Video Data
3 Set the HDMI input on the external recorder.
●
When the connection is complete, images will be displayed on the screen of the external recorder.
●
When the menu screen cannot be displayed, you can set [HDMI RAW Data Output] to [OFF] with one of the following
methods:
– Pressing a Fn button registered with [HDMI RAW Data Output]. (
160 / Register Functions to the Fn Buttons)
– Pressing [MENU/SET], [Q.MENU], and [Fn3] at the same time. ([Info Display (HDMI/SDI)] is switched to [AUTO].)
●
There are differences from normal HDMI output operation.
– [HDMI Rec Output] in the [Custom] ([IN/OUT]) menu.
[Down Convert] is not available. Outputs at the resolution and recording frame rate of the [Rec Quality].
– [Info Display (HDMI/SDI)] of the [Setup] ([IN/OUT]) menu
When [HDMI] is selected, it is switched to [AUTO].
When set to [AUTO], information is displayed to the external device that is output via SDI.
●
Also refer to the operating instructions for the external device.
■
[Rec Quality] (When [HDMI RAW Data Output] is selected)
[System Frequency]: [59.94Hz (NTSC)]
[Rec Quality] [Image Area of Video] Resolution Recording frame rate
5.9K/30p/16:9
[FULL] 5888x3312
29.97p
5.9K/24p/16:9 23.98p
4K/60p/17:9
[S35mm]
4128x2176
59.94p
4K/30p/17:9 29.97p
4K/24p/17:9 23.98p
3.5K/30p/4:3*
1
3536x2656
29.97p
3.5K/24p/4:3*
1
23.98p
[System Frequency]: [50.00Hz (PAL)]
[Rec Quality] [Image Area of Video] Resolution Recording frame rate
5.9K/25p/16:9 [FULL] 5888x3312 25.00p
4K/50p/17:9
[S35mm]
4128x2176
50.00p
4K/25p/17:9 25.00p
3.5K/50p/4:3*
1
3536x2656
50.00p
3.5K/25p/4:3*
1
25.00p
*
1
Anamorphic (4:3) video
- 125 -- 125 -
6. Special Video Recording - HDMI Output of RAW Video Data
●
Bit value: 12-bit
●
Audio format: LPCM (2ch)
●
[Image Area of Video] is fixed to the image area according to the [Rec Quality] setting.
●
The following functions are not available:
– [Filtering] and [add to list] in [Rec Quality]
– [Rec Quality (My List)]
●
When the XLR Microphone Adaptor (DMW-XLR1: optional) is attached, [XLR Mic Adaptor Setting] can be set to
[96kHz/24bit] or [48kHz/24bit].
■
SDI output display when outputting RAW video data
The images output via SDI will display images that are equivalent to when recording in V-Log for checking purposes. [V-Log
View Assist] can use [LUT View Assist (SDI)] applied with the preset [Vlog_709].
●
The LUT for the SDI output display cannot be changed.
●
When you use [LUT View Assist (SDI)], [709] is displayed on the screen and [RAW] is displayed on the screen as a [LUT
View Assist (HDMI)] item.
●
[Luminance Spot Meter], and [BASE/RANGE] of [Zebra Pattern] are set at “Stop” units. (Calculated as “0 Stop”=42% (IRE))
■
[HDMI Time Code Output] / [HDMI Recording Control]
The time code of the camera can be added and output via HDMI to the external recorder.
Recording can also be started and stopped on the external recorder by using the video rec. button of the camera.
Set [HDMI Time Code Output] to [ON].
●
[MENU/SET] [ ] [ ] [Time Code] [HDMI Time Code Output] [ON]
Set [HDMI Recording Control] to [ON].
●
[MENU/SET] [ ] [ ] [HDMI Rec Output] [HDMI Recording Control] [ON]
●
[HDMI Recording Control] can be set when [HDMI Time Code Output] is set to [ON].
You can simultaneously output via SDI to a different external recorder, add a time code, and start/stop of recording.
Set the menu.
– [MENU/SET]
[ ] [ ] [Time Code] [SDI Time Code Output] [ON]
– [MENU/SET]
[ ] [ ] [SDI Rec Output] [SDI Recording Control] [ON]
- 126 -- 126 -
6. Special Video Recording - HLG Videos
HLG Videos
Record videos with the wide dynamic range of the HLG format. You can record in very bright light where overexposure can
occur or in dark areas where underexposure can occur, maintaining the rich yet subtle colors you can see with your naked eye.
You can view the video that you record by outputting via HDMI/SDI to devices (TVs, etc.) that support the HLG format, or playing
back directly on supporting devices.
●
“HLG (Hybrid Log Gamma)” is an international standard (ITU-R BT.2100) HDR format.
1 Set [Rec. File Format].
●
[MENU/SET] [ ] [ ] [Rec. File Format] [MP4] / [MOV]
2 Select a recording quality with which you can record HLG video.
●
[MENU/SET] [ ] [ ] [Rec Quality]
●
Items available for recording with HLG video are indicated as [HLG available].
●
Recording qualities with which you can record HLG video: 133 / List of Recording Qualities That Enable Special
Videos to be Recorded
3 Set [Photo Style] to [Like2100(HLG)].
●
[MENU/SET] [ ] [ ] [Photo Style] [Like2100(HLG)]
Like2100(HLG)
- 127 -- 127 -
6. Special Video Recording - HLG Videos
●
When the [Rec. File Format] has been set to [MOV], you can filter to show just the recording qualities where HLG video
recording can be used. (
59 / [Filtering])
●
HLG images are shown dark on devices that do not support the HLG format. With [HDMI] / [SDI] in [HLG View Assist] of
the [Custom] ([Monitor / Display]) menu, you can set the conversion method for images displayed for monitoring. (
127
/
[HLG View Assist])
ISO Sensitivity When [Like2100(HLG)] Is Set
The lower limit of available ISO sensitivities will become [400].
●
The range of available ISO sensitivities is also different for [LOW] and [HIGH] in [Dual Native ISO Setting].
●
Reset the exposure if necessary when ISO sensitivity changes.
[HLG View Assist]
At recording or playback of an HLG video, this outputs images with converted color gamut and brightness over HDMI/SDI.
[MENU/SET]
[ ] [ ] [HLG View Assist] Select [HDMI] or [SDI]
[AUTO]*
1
The image to be output via HDMI will only be converted with the setting of [MODE2] when connected to
a device that does not support HDR (HLG format).
[MODE1]
Converts with an emphasis on bright areas such as the sky.
●
[MODE1] is displayed on the recording screen.
[MODE2]
Converts with an emphasis on the brightness of a main subject.
●
[MODE2] is displayed on the recording screen.
[OFF]
Displays without converting color gamut and brightness.
●
HLG images appear darker on devices that do not support the HLG format.
*
1
Can only be set while [HDMI] is selected.
- 128 -- 128 -
6. Special Video Recording - Anamorphic Recording
Anamorphic Recording
This camera can record video with a resolution of 4K-A (anamorphic (4:3) video) that is compatible with anamorphic recording
with an aspect ratio of 4:3.
1 Set [Rec. File Format] to [MOV].
●
[MENU/SET] [ ] [ ] [Rec. File Format] [MOV]
2 Select a recording quality wherein you can record Anamorphic (4:3) video.
●
[MENU/SET] [ ] [ ] [Rec Quality]
●
Items available for recording Anamorphic (4:3) video are indicated as [ANAMOR].
●
Recording qualities wherein you can record Anamorphic (4:3) video: 133 / List of Recording Qualities That Enable
Special Videos to be Recorded
●
By filtering [Rec Quality] by the number of pixels, you can display just those recording qualities that can record
Anamorphic (4:3) video. (
59 / [Filtering])
- 129 -- 129 -
6. Special Video Recording - Anamorphic Recording
[Anamorphic Desqueeze Display]
Display the desqueezed images suited to the magnification of the anamorphic lens. Using the [Frame Marker], it is also possible
to impose on display the frame of the angle of view when cropping after de-squeeze editing.
1 Set [Anamorphic Desqueeze Display].
●
[MENU/SET] [ ] [ ] [Anamorphic Desqueeze Display]
Settings: [
] (2.0x) / [ ] (1.8x) / [ ] (1.5x) / [ ] (1.33x) / [ ] (1.30x) / [OFF]
●
Make settings to suit the magnification of the anamorphic lens you are using.
2 Set [Frame Marker].
●
[MENU/SET] [ ] [ ] [Frame Marker] ( 109 / [Frame Marker])
●
During recording, images output via HDMI are not displayed de-squeezed.
- 130 -- 130 -
6. Special Video Recording - [Synchro Scan]
[Synchro Scan]
Fine-adjust the shutter speed to reduce flickering and horizontal stripes.
The shutter speed set in Synchro Scan is saved separately from the shutter speed used for normal recording. In the Synchro
Scan setting screen you can call up the current shutter speed for normal recording and adjust it.
1 Set the exposure mode to [S] or [M].
●
[MENU/SET] [ ] [ ] [Exposure Mode] [S] / [M]
2 Set [Synchro Scan].
●
[MENU/SET] [ ] [ ] [Synchro Scan] [ON]
3 Set the shutter speed.
●
Rotate to select a numeric value, then press [MENU/SET].
●
You can call up the current shutter speed for normal recording by pressing [Fn1].
●
Adjust the shutter speed while looking at the screen so that flickering and horizontal stripes will be minimized.
64
●
When you set [Synchro Scan] to [ON], the available shutter speed range becomes narrower.
- 131 -- 131 -
6. Special Video Recording - [Loop Recording (video)]
[Loop Recording (video)]
Even when recording uses up the card’s free space, the camera continues the recording by deleting the oldest segment of the
recorded data.
1 Set [Rec. File Format] to [MOV].
●
[MENU/SET] [ ] [ ] [Rec. File Format] [MOV]
2 Set [Loop Recording (video)].
●
[MENU/SET] [ ] [ ] [Loop Recording (video)] [ON]
●
[ ] is displayed on the recording screen.
●
When the recording fills the card to capacity, loop recording starts and video recording time is no longer displayed.
●
Make sure the camera does not turn off during recording.
●
Loop recording cannot start if there is insufficient available capacity on the card.
●
When the recording time exceeds 12 hours, recording continues with data being deleted in order from the point where
recording started.
●
When the following functions are being used, [Loop Recording (video)] is not available:
– [Rec Quality] with a bit rate of 400 Mbps
– [Variable Frame Rate]
– [HDMI RAW Data Output]
– [Live Cropping]
– Streaming Function
- 132 -- 132 -
6. Special Video Recording - [Segmented File Recording]
[Segmented File Recording]
To avoid video loss due to unforeseen interruptions to the power supply, recorded video is divided every few minutes while MOV
video is being recorded.
●
The divided videos are saved as one group image.
1 Set [Rec. File Format] to [MOV].
●
[MENU/SET] [ ] [ ] [Rec. File Format] [MOV]
2 Set [Segmented File Recording].
●
[MENU/SET] [ ] [ ] [Segmented File Recording] [10MIN.] / [5MIN.] / [3MIN.] / [1 MIN.]
●
When the following function is being used, [Segmented File Recording] is not available:
– [HDMI RAW Data Output]
– [Loop Recording (video)]
– Streaming Function
- 133 -- 133 -
6. Special Video Recording - List of Recording Qualities That Enable Special Videos to be Recorded
List of Recording Qualities That Enable Special
Videos to be Recorded
VFR: Recording qualities that enable use of [Variable Frame Rate]
HFR: Recording qualities for High Frame Rate video
Live Crop: Recording qualities that enable use of [Live Cropping]
HLG: Recording qualities with which you can record HLG video
ANAMOR 4:3: Recording qualities for anamorphic recording with an aspect ratio of 4:3
[Rec. File Format]: [MP4]
■
[System Frequency]: [59.94Hz (NTSC)]
[Rec Quality] Live Crop HLG
[4K/10bit/100M/60p]
[4K/8bit/100M/30p]
[4K/10bit/72M/30p]
[4K/8bit/100M/24p]
[4K/10bit/72M/24p]
[FHD/8bit/28M/60p]
[FHD/8bit/20M/30p]
[FHD/8bit/24M/24p]
■
[System Frequency]: [50.00Hz (PAL)]
[Rec Quality] Live Crop HLG
[4K/10bit/100M/50p]
[4K/8bit/100M/25p]
[4K/10bit/72M/25p]
[FHD/8bit/28M/50p]
[FHD/8bit/20M/25p]
- 134 -- 134 -
6. Special Video Recording - List of Recording Qualities That Enable Special Videos to be Recorded
[Rec. File Format]: [MOV]
■
[System Frequency]: [59.94Hz (NTSC)]
[Rec Quality] VFR HFR Live Crop HLG
ANAMOR
4:3
[6K/24p/420/10-L]
[5.9K/30p/420/10-L]
[5.9K/24p/420/10-L]
[5.4K/30p/420/10-L]
[4K-A/48p/420/10-L]
[4K-A/30p/422/10-I]
[4K-A/30p/422/10-L]
[4K-A/30p/420/8-L]
[4K-A/24p/422/10-I]
[4K-A/24p/422/10-L]
[4K-A/24p/420/8-L]
[C4K/60p/420/10-L]
[C4K/60p/420/8-L]
[C4K/48p/420/10-L]
[C4K/30p/422/10-I]
[C4K/30p/422/10-L]
[C4K/30p/420/8-L]
[C4K/24p/422/10-I]
[C4K/24p/422/10-L]
[C4K/24p/420/8-L]
[4K/60p/420/10-L]
[4K/60p/420/8-L]
[4K/48p/420/10-L]
[4K/30p/422/10-I]
[4K/30p/422/10-L]
[4K/30p/420/8-L]
[4K/24p/422/10-I]
[4K/24p/422/10-L]
[4K/24p/420/8-L]
[FHD/120p/420/10-L]
[FHD/60p/422/10-I]
[FHD/60p/422/10-L]
- 135 -- 135 -
6. Special Video Recording - List of Recording Qualities That Enable Special Videos to be Recorded
[FHD/60p/420/8-L]
[FHD/60i/422/10-I]
[FHD/60i/422/10-L]
[FHD/48p/420/10-L]
[FHD/30p/422/10-I]
[FHD/30p/422/10-L]
[FHD/30p/420/8-L]
[FHD/24p/422/10-I]
[FHD/24p/422/10-L]
[FHD/24p/420/8-L]
■
[System Frequency]: [50.00Hz (PAL)]
[Rec Quality] VFR HFR Live Crop HLG
ANAMOR
4:3
[5.9K/25p/420/10-L]
[5.4K/25p/420/10-L]
[4K-A/50p/420/10-L]
[4K-A/50p/420/8-L]
[4K-A/25p/422/10-I]
[4K-A/25p/422/10-L]
[4K-A/25p/420/8-L]
[C4K/50p/420/10-L]
[C4K/50p/420/8-L]
[C4K/25p/422/10-I]
[C4K/25p/422/10-L]
[C4K/25p/420/8-L]
[4K/50p/420/10-L]
[4K/50p/420/8-L]
[4K/25p/422/10-I]
[4K/25p/422/10-L]
[4K/25p/420/8-L]
[FHD/100p/420/10-L]
[FHD/50p/422/10-I]
[FHD/50p/422/10-L]
[FHD/50p/420/8-L]
[FHD/50i/422/10-I]
- 136 -- 136 -
6. Special Video Recording - List of Recording Qualities That Enable Special Videos to be Recorded
[FHD/50i/422/10-L]
[FHD/25p/422/10-I]
[FHD/25p/422/10-L]
[FHD/25p/420/8-L]
■
[System Frequency]: [24.00Hz (CINEMA)]
[Rec Quality] VFR HFR Live Crop HLG
ANAMOR
4:3
[6K/24p/420/10-L]
[5.9K/24p/420/10-L]
[4K-A/48p/420/10-L]
[4K-A/24p/422/10-I]
[4K-A/24p/422/10-L]
[4K-A/24p/420/8-L]
[C4K/48p/420/10-L]
[C4K/24p/422/10-I]
[C4K/24p/422/10-L]
[C4K/24p/420/8-L]
[4K/48p/420/10-L]
[4K/24p/422/10-I]
[4K/24p/422/10-L]
[4K/24p/420/8-L]
[FHD/48p/420/10-L]
[FHD/24p/422/10-I]
[FHD/24p/422/10-L]
[FHD/24p/420/8-L]
- 137 -- 137 -
7. Output image - HDMI Output Settings
7. Output image
In this chapter, image settings output to the external device during recording is explained.
●
The resolution of the image to be output via HDMI/SDI differs depending on the settings of [Rec Quality].
– When the image is not output (
267 / External device)
●
HDMI output control differs between during recording and during playback. Output settings during playback ( 204 /
[Output Resolution(Playback)])
HDMI Output Settings
Aspect ratio, resolution, and frame rate output is according to the [Rec Quality] settings in the [Video] ([Image Format]) menu.
Resolution and frame rate can be down-converted for output according to the application. YUV 4:2:2 is used for YUV and bit
value output, as shown below.
Recording to card HDMI output
4:2:2 10 bit 4:2:2 10 bit
4:2:0 10 bit 4:2:2 10 bit
4:2:0 8 bit 4:2:2 8 bit
●
When set to a 4:3 or 3:2 [Rec Quality], bands are added to the images and they are output with a 16:9 aspect ratio.
●
Output may be in 8-bit if you output to devices that do not support 10-bit.
●
It may take some time for the output method to change.
●
When you use the HDMI output during recording, the image may be displayed with a time lag.
●
When you check the image and audio from the external device connected to the camera, the microphone of the camera
may pick up the sound from the speakers of the external device, producing an abnormal sound (audio feedback). If this
occurs, move the camera away from the external device or lower the volume on the external device.
- 138 -- 138 -
7. Output image - HDMI Output Settings
Settings for Down-Converting
Make settings for the down-conversion of resolution and frame rate for HDMI output.
[MENU/SET]
[ ] [ ] [HDMI Rec Output] Select [Down Convert]
[AUTO] Outputs by down-converting to match the connected device.
[4K/30p] ([4K/25p]) Outputs by down-converting resolution to 4K and frame rate to either 29.97p or 25.00p.
[1080p] Down-converts resolution to FHD (1080), and outputs as progressive.
[1080i] Down-converts resolution to FHD (1080), and outputs as interlaced.
[OFF] Outputs at the resolution and recording frame rate of the [Rec Quality].
●
The items you can select depend on the [System Frequency] setting.
●
6K, 5.9K, 5.4K, and Anamorphic (4:3) videos are output with a 4K or FHD resolution.
●
When set to a recording quality for high frame rate video, the frame rate is down-converted for output.
●
If down-converting, AF may take longer than usual for focusing, and the performance of continuous focus tracking may
deteriorate.
- 139 -- 139 -
7. Output image - HDMI Output Settings
Image Quality When Outputting via HDMI
Output is with the resolution and frame rate according to the combinations of the [Rec Quality] and [Down Convert] settings.
●
When [Down Convert] is set to [AUTO], the output matches the connected device.
●
Combinations marked with [―] in the table below cannot be selected. If [Rec Quality] is switched to a setting item that is a
combination corresponding to [―] in the table below after setting [Down Convert], the [Down Convert] setting is temporarily
switched to [AUTO] for output.
■
[System Frequency]: [59.94Hz (NTSC)]
[Down Convert]
Resolution and recording frame rate of the [Rec Quality]
6K/23.98p
5.9K/23.98p
4K-A/47.95p
4K-A/23.98p
4K/47.95p
4K/23.98p
5.9K/29.97p
5.4K/29.97p
4K-A/29.97p
4K/29.97p
C4K/59.94p
C4K/47.95p
C4K/23.98p
[4K/30p] ― 4K/29.97p 4K/29.97p ―
[1080p] 1080/23.98p 1080/29.97p*
1
1080/59.94p 1080/23.98p
[1080i] ― 1080/59.94i 1080/59.94i ―
[OFF] 4K/23.98p 4K/29.97p C4K/59.94p C4K/23.98p
[Down Convert]
Resolution and recording frame rate of the [Rec Quality]
C4K/29.97p 4K/59.94p
1080/119.88p
1080/59.94p
[4K/30p] 4K/29.97p 4K/29.97p ―
[1080p] 1080/29.97p*
1
1080/59.94p 1080/59.94p
[1080i] 1080/59.94i 1080/59.94i 1080/59.94i
[OFF] C4K/29.97p 4K/59.94p 1080/59.94p
[Down Convert]
Resolution and recording frame rate of the [Rec Quality]
1080/59.94i
1080/47.95p
1080/23.98p
1080/29.97p
[4K/30p] ― ― ―
[1080p] ― 1080/23.98p 1080/29.97p*
1
[1080i] 1080/59.94i ― 1080/59.94i
[OFF] 1080/59.94i 1080/23.98p 1080/29.97p
*
1
Output is 1080/59.94p if the connected device is not compatible.
- 140 -- 140 -
7. Output image - HDMI Output Settings
■
[System Frequency]: [50.00Hz (PAL)]
[Down Convert]
Resolution and recording frame rate of the [Rec Quality]
5.9K/25.00p
5.4K/25.00p
4K-A/25.00p
4K/25.00p
4K-A/50.00p
4K/50.00p
C4K/50.00p C4K/25.00p
[4K/25p] 4K/25.00p 4K/25.00p 4K/25.00p 4K/25.00p
[1080p] 1080/25.00p*
2
1080/50.00p 1080/50.00p 1080/25.00p*
2
[1080i] 1080/50.00i 1080/50.00i 1080/50.00i 1080/50.00i
[OFF] 4K/25.00p 4K/50.00p C4K/50.00p C4K/25.00p
[Down Convert]
Resolution and recording frame rate of the [Rec Quality]
1080/100.00p
1080/50.00p
1080/50.00i 1080/25.00p
[4K/25p] ― ― ―
[1080p] 1080/50.00p ― 1080/25.00p*
2
[1080i] 1080/50.00i 1080/50.00i 1080/50.00i
[OFF] 1080/50.00p 1080/50.00i 1080/25.00p
*
2
Output is 1080/50.00p if the connected device is not compatible.
■
[System Frequency]: [24.00Hz (CINEMA)]
[Down Convert]
Resolution and recording frame rate of the [Rec Quality]
6K/24.00p
5.9K/24.00p
4K-A/48.00p
4K-A/24.00p
4K/48.00p
4K/24.00p
C4K/48.00p
C4K/24.00p
1080/48.00p
1080/24.00p
[1080p] 1080/24.00p 1080/24.00p 1080/24.00p
[OFF] 4K/24.00p C4K/24.00p 1080/24.00p
- 141 -- 141 -
7. Output image - HDMI Output Settings
Outputting Control Information to an External Recorder
Recording start and stop control information is output to an external recorder connected by HDMI.
[MENU/SET]
[ ] [ ] [HDMI Rec Output] Select [HDMI Recording Control]
Settings: [ON] / [OFF]
●
It can be set when [HDMI Time Code Output] is [ON].
●
Control information is output when pressing the video rec. button, even if the video cannot be recorded (such as when there
is no card inserted into the camera).
●
Only compatible external devices can be controlled.
Outputting Down-converted Audio to an HDMI Device
When an XLR Microphone Adaptor (DMW-XLR1: optional) is attached, audio is down-converted to a format suitable for the
connected HDMI external device before being output.
[MENU/SET]
[ ] [ ] [HDMI Rec Output] Select [Sound Down Convert]
[AUTO] Output is down-converted to match the connected device.
[OFF] Output is according to the settings in [XLR Mic Adaptor Setting].
Outputting Audio via HDMI
Output audio to an external device connected by HDMI.
[MENU/SET]
[ ] [ ] [HDMI Rec Output] Select [Sound Output (HDMI)]
Settings: [ON] / [OFF]
Output the enlarged display of MF assist via HDMI
This outputs the enlarged display of MF assist to the external device connected via HDMI.
[MENU/SET]
[ ] [ ] [HDMI Rec Output] Select [HDMI MF Assist Output]
Settings: [ON] / [OFF]
●
When you enlarge the display with MF assist on the camera while [HDMI MF Assist Output] is set to [OFF], the camera
information display will not be output via HDMI.
- 142 -- 142 -
7. Output image - SDI output settings
SDI output settings
Set the resolution during recording when output via SDI
Set the resolution of the image to be output via SDI.
[MENU/SET]
[ ] [ ] [SDI Rec Output] Select [SDI Output Resolution]
Settings: [1080p] / [1080i] / [1080PsF] / [720p]
■
Settings Items ([SDI Output Resolution])
Output is with the resolution and frame rate according to the combinations of the [Rec Quality] and [SDI Output Resolution]
settings.
The items that can be set at [SDI Output Resolution] differs depending on the recording frame rate of the [Rec Quality].
●
Combinations marked with [—] in the table below cannot be selected.
[System Frequency]: [59.94Hz (NTSC)]
[SDI Output Resolution]
Recording frame rate of the [Rec Quality]
119.88p
59.94p
59.94i
29.97p
47.95p
23.98p
1080p 1080/59.94p 1080/29.97p 1080/23.98p
1080i 1080/59.94i — —
1080PsF — 1080/29.97PsF 1080/23.98PsF
720p 720/59.94p — —
[System Frequency]: [50.00Hz (PAL)]
[SDI Output Resolution]
Recording frame rate of the [Rec Quality]
100.00p
50.00p
50.00i
25.00p
1080p 1080/50.00p 1080/25.00p
1080i 1080/50.00i —
1080PsF — 1080/25.00PsF
720p 720/50.00p —
- 143 -- 143 -
7. Output image - SDI output settings
[System Frequency]: [24.00Hz (CINEMA)]
[SDI Output Resolution]
Recording frame rate of the [Rec Quality]
48.00p
24.00p
1080p —
1080i —
1080PsF 1080/24.00PsF
720p —
●
This memorizes the setting value for each recording frame rate of [Rec Quality].
●
When [System Frequency] is set to [24.00Hz (CINEMA)], it is fixed to [1080PsF].
●
When set to a recording quality for high frame rate video, the frame rate is down-converted for output.
Output control information to the external recorder
Outputs record starting and stopping control information to the external recorder connected with SDI.
[MENU/SET]
[ ] [ ] [SDI Rec Output] Select [SDI Recording Control]
Settings: [ON] / [OFF]
●
It can be set when [SDI Time Code Output] is [ON].
●
Control information is output when pressing the video rec. button, even if the video cannot be recorded (such as when
there is no card inserted into the camera).
●
Only compatible external devices can be controlled.
Output audio via SDI
Outputs audio to external devices connected via SDI.
[MENU/SET]
[ ] [ ] [SDI Rec Output] Select [Sound Output (SDI)]
Settings: [ON] / [OFF]
●
High resolution audio cannot be output when output via SDI. When [Sound Output (SDI)] is set to [ON], [96kHz/24bit] of
[XLR Mic Adaptor Setting] cannot be used.
Set the gain of the audio signal that is output via SDI
Sets the audio signal’s gain that is output to the SDI connected external device.
[MENU/SET]
[ ] [ ] [SDI Rec Output] Select [SDI Sound Output Gain Adj.]
Settings: [0dB] / [-6dB] / [-8dB]
- 144 -- 144 -
7. Output image - SDI output settings
Output the enlarged display of MF assist via SDI
Outputs the enlarged display of MF assist to an external device connected via SDI.
[MENU/SET]
[ ] [ ] [SDI Rec Output] Select [SDI MF Assist Output]
Settings: [ON] / [OFF]
●
When you enlarge the display with MF assist on the camera while [SDI MF Assist Output] is set to [OFF], the camera
information display will not be output via HDMI.
- 145 -- 145 -
8. Connections with External Devices - External Microphones (Optional)
8. Connections with External
Devices
In this chapter, external devices connected to this unit are explained.
●
Some optional accessories may not be available in some countries.
●
For information about connection methods of external monitor (
22 / Connecting the external monitor)
External Microphones (Optional)
With a Stereo Shotgun Microphone (DMW-MS2: optional) or Stereo Microphone (VW-VMS10: optional), you can record higher-
quality audio compared to the built-in microphone.
1 Set the [Mic Socket] that suits the device to be connected.
●
[MENU/SET] [ ] [ ] [Mic Socket]
[Mic Input (Plug-
in Power)]
When connecting an external microphone that requires a power supply from
the camera [MIC] terminal.
[Mic Input]
When connecting an external microphone that does not require a power
supply from the camera [MIC] terminal.
[Line Input] When connecting an external audio device for line output.
●
The setting will be fixed to [
] when a Stereo Shotgun Microphone (DMW-MS2: optional) is connected.
●
When using [ ], if you connect an external microphone that does not require power supply, the connected
external microphone may malfunction. Check the device before connecting.
2 Turn the camera off.
●
Press and hold the camera ON/OFF button for more than two seconds.
3 Connect the camera and external microphone.
●
If mounting the external microphone on the camera hot shoe, remove the hot shoe cover.
A
B
A
[MIC] terminal
B
Hot shoe
●
Do not use the Stereo microphone cables with the length of 3 m (9.8 feet) or more.
- 146 -- 146 -
8. Connections with External Devices - External Microphones (Optional)
■
Removing the Hot Shoe Cover
Remove the hot shoe cover by pulling it in the direction of arrow
while pressing it in the direction of arrow .
Setting the Sound Pickup Range (DMW-MS2: Optional)
When using the Stereo Shotgun Microphone (DMW-MS2: optional), you can set the microphone sound pickup range.
Select [Special Mic.].
●
[MENU/SET] [ ] [ ] [Special Mic.]
[STEREO] Picks up sound over a wide area.
[LENS AUTO] Picks up sound from a range automatically set by the lens angle of view.
[SHOTGUN] Helps prevent picking up background noise, and records sound from a specific direction.
[S.SHOTGUN] Narrows the sound pickup range more than with [SHOTGUN].
[MANUAL] Sets the range manually for sound pickup.
(When [MANUAL] is selected)
Press
to adjust the sound pickup range and then press [MENU/SET].
●
You can register the [MANUAL] sound pickup range setting in a Fn button:
[
] [ ] [Fn Button Set] [Setting in REC mode] [Special Mic. Directivity Adjust] ( 160 / Register Functions
to the Fn Buttons
)
Reduction of Wind Noise
This reduces wind noise when an external microphone is connected.
[MENU/SET]
[ ] [ ] Select [Wind Cut]
Settings: [HIGH] / [STANDARD] / [LOW] / [OFF]
●
While the external microphone is connected, [ ] is displayed on the screen.
●
When an external microphone is connected, [Sound Rec Level Disp.] automatically turns [ON], and the recording level is
displayed on the screen.
●
When the external microphone is attached, do not carry the camera by holding the external microphone. It may become
detached.
●
If noises are recorded when using the AC adaptor, use the battery.
●
Setting [Wind Cut] may alter the usual sound quality.
●
For details, refer to the operating instructions for the external microphone.
- 147 -- 147 -
8. Connections with External Devices - XLR Microphone Adaptor (Optional)
XLR Microphone Adaptor (Optional)
By attaching an XLR Microphone Adaptor (DMW-XLR1: optional) to the camera, you can use a commercially available XLR
microphone to enable the recording of superior-quality high-res/stereo audio.
A
B
A
Hot shoe
B
Commercially available XLR microphone
Preparation:
●
Turn off the camera, and remove the hot shoe cover. ( 146 / Removing the Hot Shoe Cover)
1 Attach the XLR Microphone Adaptor to the hot shoe.
2 Turn the camera on.
●
Press and hold the camera ON/OFF button for more than one second.
3 Select [XLR Mic Adaptor Setting].
●
[MENU/SET] [ ] [ ] [XLR Mic Adaptor Setting]
[96kHz/24bit]
Records high resolution audio at 96 kHz/24-bit.
●
Only available when [Rec. File Format] is set to [MOV].
●
[Sound Output (SDI)] is set to [OFF].
[48kHz/24bit]
Records high-quality audio at 48 kHz/24-bit.
●
Only available when [Rec. File Format] is set to [MOV].
[48kHz/16bit] Records standard-quality audio at 48 kHz/16-bit.
[OFF] Records audio using the built-in microphone of the camera.
- 148 -- 148 -
8. Connections with External Devices - XLR Microphone Adaptor (Optional)
●
While an XLR Microphone Adaptor is attached, [ ] is displayed on the screen.
●
When [XLR Mic Adaptor Setting] is set to other than [OFF], the following settings are fixed:
– [Sound Rec Level Limiter]: [OFF]
– [Wind Noise Canceller]: [OFF]
– [Sound Output]: [Recorded Sound]
●
[Sound Rec Gain Level] and [Sound Rec Level Adj.] cannot be used when [XLR Mic Adaptor Setting] is set to other than
[OFF].
●
When the XLR Microphone Adaptor is attached, [Sound Rec Level Disp.] automatically turns [ON], and the recording
level is displayed on the screen.
●
[96kHz/24bit] and [48kHz/24bit] are not available when using the streaming function.
●
When the XLR Microphone Adaptor is attached, do not carry the camera by holding the XLR Microphone Adaptor. It may
become detached.
●
If noises are recorded when using the AC adaptor, use the battery.
●
For details, refer to the operating instructions for the XLR Microphone Adaptor.
- 149 -- 149 -
8. Connections with External Devices - Headphones
Headphones
You can record videos while monitoring their sound by connecting commercially available headphones to the camera.
A
A
Headphone terminal
●
Do not use the Headphone cables with the length of 3 m (9.8 feet) or more.
●
Excessive sound pressure from earphones and headphones can cause hearing loss.
Switching the Sound Output Method
[MENU/SET]
[ ] [ ] Select [Sound Output]
[REALTIME] Audio without time lag. It may differ from the sound recorded in videos.
[REC SOUND] Audio to be recorded in videos. Output sound may be delayed from actual sound.
●
The setting is fixed to [REC SOUND] in the following cases:
– When [Special Mic.] is set to [LENS AUTO], [SHOTGUN], [S.SHOTGUN], or [MANUAL]
– When using an XLR Microphone Adaptor (DMW-XLR1: optional)
Adjusting the Headphone Volume
Connect the headphones and rotate
.
: Reduces the volume.
: Increases the volume.
■
To adjust the volume using the menu
Select [Headphone Volume].
●
[MENU/SET] [ ] [ ] [Headphone Volume]
Press to adjust the headphone volume and then press [MENU/SET].
●
It can be adjusted in a range of [0] to [LEVEL15].
- 150 -- 150 -
8. Connections with External Devices - Using a remote control unit
Using a remote control unit
You can control a part of the function remotely by connecting the remote control unit (commercially available) to the camera.
It can be used in the following ways. (The operations that can be performed vary depending on the remote control unit used.)
– Starting / stopping the recording
– Aperture adjustment
– Manual focus operation
A
A
[REMOTE] terminal
●
A Panasonic shutter remote control (DMW-RS2) cannot be used.
●
It may not operate properly depending on the combination of the remote control unit and lens.
- 151 -- 151 -
8. Connections with External Devices - Importing Images to a PC
Importing Images to a PC
After connecting to the PC, you can copy the recorded images by dragging files and folders on this camera to the PC.
The camera can be connected to a PC running any of the following OSs which can detect mass storage devices.
Supported OS
Windows: Windows 10
Mac: macOS 10.13, 10.14, 10.15.3 to 10.15.7, 11.0 to 11.4
A
B
A
[USB] terminal
B
USB connection cable (commercially available)
●
Plug in/out straight holding onto the plug. (Inserting these at an angle may cause deformation or malfunction)
●
Do not connect the cable to the wrong terminals. This may cause a malfunction.
Preparation:
●
Turn on the camera and PC.
1 Set [USB Mode] to [PC(Storage)].
●
[MENU/SET] [ ] [ ] [USB Mode] [PC(Storage)]
2 Connect the camera and PC with the USB connection cable.
●
Windows: A drive (“LUMIX”) is displayed in [This PC].
● Mac: A drive (“LUMIX”) is displayed on the desktop.
3 Drag the files and folders from the camera to the PC.
- 152 -- 152 -
8. Connections with External Devices - Importing Images to a PC
■
Folder Structure Inside Card
LUMIX
CAMSET
AD_LUMIX
DCIM
100XXXXX
PXXX0001.MP4
A
The camera’s setup information
B
Images
C
Folder number
D
MP4: MP4 videos
MOV: MOV videos
JPG: JPEG format pictures
E
File number
●
For the USB connection cable, use one that is a shielded product with a ferrite core compliant to USB Type C (USB3.1)
that is less than 1.5 m (4.9 feet).
●
Turn off the camera and disconnect the USB connection cable before removing the card from the camera. Otherwise, the
recorded data may be damaged.
●
The camera image cannot be output to an external device via HDMI/SDI when [USB Mode] is set to [PC(Storage)] and
the camera is connected to the PC with a USB connection cable.
- 153 -- 153 -
9. Playback - Playing Back Videos
9. Playback
This chapter explains how to playback and delete videos.
●
Connect the camera to the external device and output the image. ( 22 / Connecting the external monitor)
●
You can set the output resolution during playback. ( 204 / [Output Resolution(Playback)])
●
Images recorded on devices other than this one may not be played back correctly on this camera.
Playing Back Videos
1 Display the playback screen.
●
Press [ ].
2 Select a video.
●
Select the image by pressing .
● You can move continuously through images by pressing and holding .
8
m
30
s
8
m
30
s
A
Card slot
B
Video recording time
- 154 -- 154 -
9. Playback - Playing Back Videos
3 Playback the video.
●
Press .
00:05:5000:05:50 00:08:3000:08:30
C
Elapsed playback time
D
Playback bar
4 Stop playback.
●
Press .
■
Operations During Video Playback
Button operation Description of operation
Plays / pauses.
Stops.
Performs fast-rewind playback.
●
If you press again, the fast-rewind speed increases.
Performs frame-by-frame rewinding (while paused).
Performs fast-forward playback.
●
If you press again, the fast-forward speed increases.
Performs frame-by-frame forwarding (while paused).
Reduces the volume.
Increases the volume.
- 155 -- 155 -
9. Playback - Playing Back Videos
Switching the Card to Display
Images are displayed separately by card slot. When you press [Q.MENU] during playback you can switch the card that will be
displayed.
●
Use the Fn button registered with [Card Slot Change] to operate. In default settings, this is registered in [Q.MENU].
– About Fn buttons (
159 / Fn Buttons)
Press [Q.MENU].
Press to select [Card Slot 1] or [Card Slot 2] and then press [MENU/SET].
●
The camera can playback videos in MP4 and MOV formats.
●
Video recorded with a [System Frequency] setting that is different to the current one cannot be played back.
●
When it is output via HDMI and SDI at the same time, it can be output with the same resolution. When [SDI Output] is set
to [ON] at [HDMI / SDI Connections] of the [Setup] ([IN/OUT]) menu, output with a resolution above 4K is not possible.
When playing back an image at a resolution above 4K, set the [SDI Output] to [OFF].
●
High resolution audio cannot be output during SDI output.
– When output only via SDI: It is down converted to [48kHz/24bit].
– When output via SDI and HDMI at the same time: It is down converted to [48kHz/24bit] or [48kHz/16bit] depending on
the capabilities of the HDMI connection device.
●
Depending on the aspect ratio, gray bands may be displayed on the top and bottom or the left and right of images. You
can change the band color in [Background Color(Playback)] in [HDMI / SDI Connections] of the [Setup] ([IN/OUT]) menu.
(
204 / [Background Color(Playback)])
●
Change the settings of your external device if images are displayed with the top or bottom cut off.
●
Also refer to the operating instructions for the external device.
- 156 -- 156 -
9. Playback - Switching the Display Mode
Switching the Display Mode
This switches to thumbnail display (Multi playback), which displays several images at the same time.
Thumbnail Display
1 Switch to thumbnail display.
●
Rotate to the left.
● The display is switched in the order of 12-image screen 30-image screen.
●
Rotating to the right returns to the previous display.
1/9991/999
A
Card slot
2 Select an image.
●
Press to select an image and then press [MENU/SET].
●
Images indicated with cannot be played back.
- 157 -- 157 -
9. Playback - Switching the Display Mode
Group Images
Images recorded using [Segmented File Recording] are handled as group images in the camera, and can be deleted and edited
on a group basis.
You can also delete and edit each image in a group individually.
Playing the Images in a Group One by One
Operations such as displaying thumbnails and deleting images are available with images in groups just as with normal playback.
Select the group image in the playback state. ( 153 / Playing Back Videos)
1/9991/999
9 files9 files
Press to display the images in the group.
Press to select an image.
●
To return to the normal playback screen, press again.
- 158 -- 158 -
9. Playback - Deleting Images

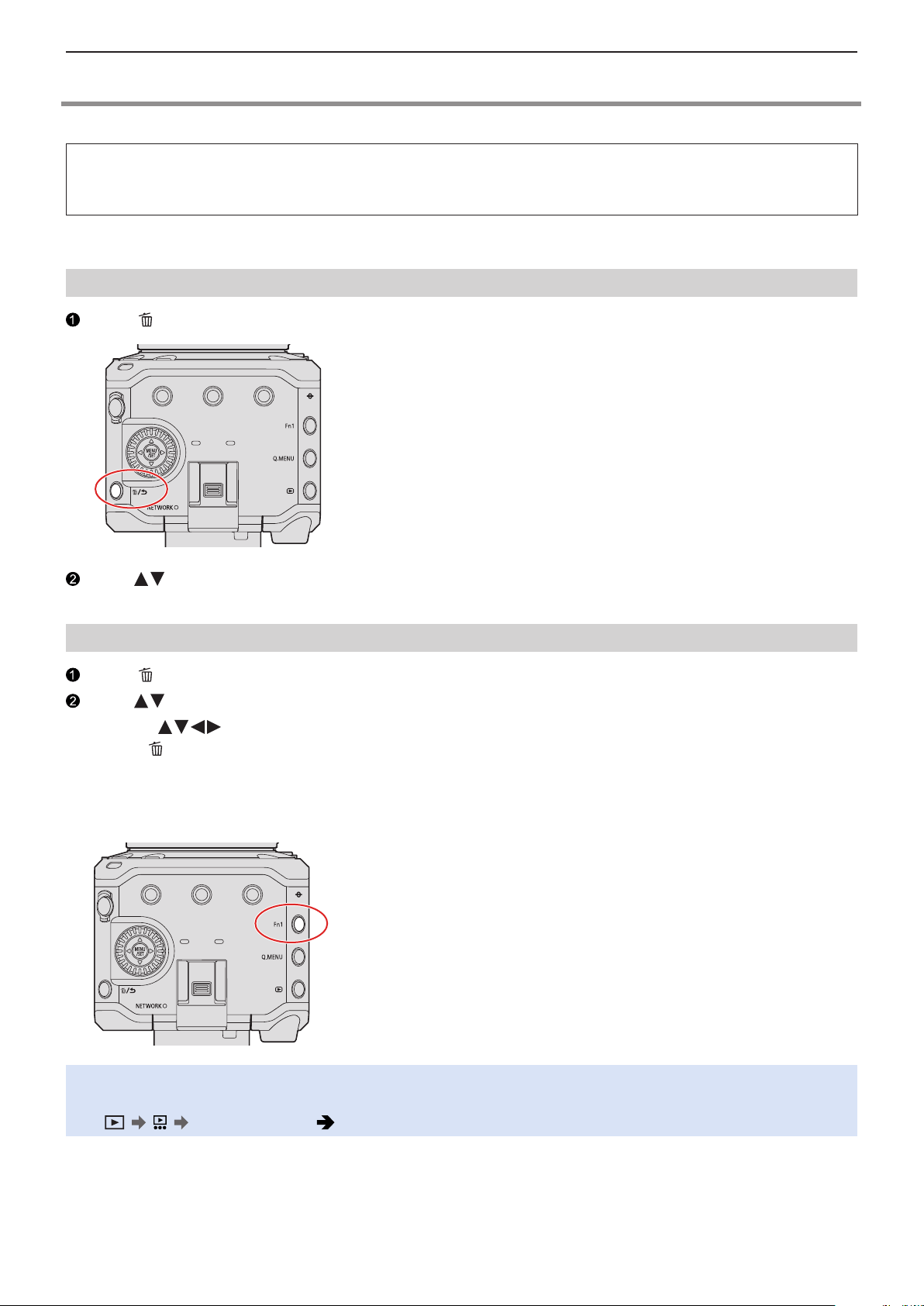

Deleting Images
●
Images cannot be restored once they have been deleted. Carefully confirm the images before deletion.
●
You can only delete the images in the card of the selected card slot.
●
If you delete a group image, all images in the group are deleted.
[Delete Single]
Press [ ] in playback state.
Press to select [Delete Single] and then press [MENU/SET].
[Delete Multi]
Press [ ] in playback state.
Press to select [Delete Multi] and then press [MENU/SET].
1 Press
to select the image to delete and then press [MENU/SET].
●
[ ] is displayed for the selected image.
●
If you press [MENU/SET] again, the selection is canceled.
●
Up to 100 images can be selected.
2 Press [Fn1] to delete the selected image.
●
To switch the card selected for deleting images, press [Q.MENU] and then select the card slot.
●
You can delete all images in the card or all images not set with a rating:
[
] [ ] [Delete All Images] ( 211 / [Delete All Images])
- 159 -- 159 -
10. Camera Customization - Fn Buttons
10. Camera Customization
This chapter describes the customization function with which you can configure the camera to your preferred settings.
●
Detailed settings for camera operations and screen display are available in the [Custom] menu. (
192 / [Custom] menu)
Fn Buttons
You can register functions to the Fn (Function) buttons. Additionally, you can register other functions to [
] and [Q.MENU] in
the same way as with the Fn buttons.
Different functions can be set for both during recording and playback.
Fn Button Default Settings
Fn2 Fn3
Fn1
Fn5 Fn4
Fn buttons [Setting in REC mode] [Setting in PLAY mode]
[Fn1] [Info Display (HDMI/SDI)] [Info Display (HDMI/SDI)]
[Fn2] [Exposure Comp.]
[Rating
3]
[Fn3] [Aperture Value] [No Setting]
[Fn4] [Sensitivity] [No Setting]
[Fn5] [White Balance] [No Setting]
[Q.MENU] [Q.MENU] [Card Slot Change]
[
]
[Shutter Speed] ―
- 160 -- 160 -
10. Camera Customization - Fn Buttons

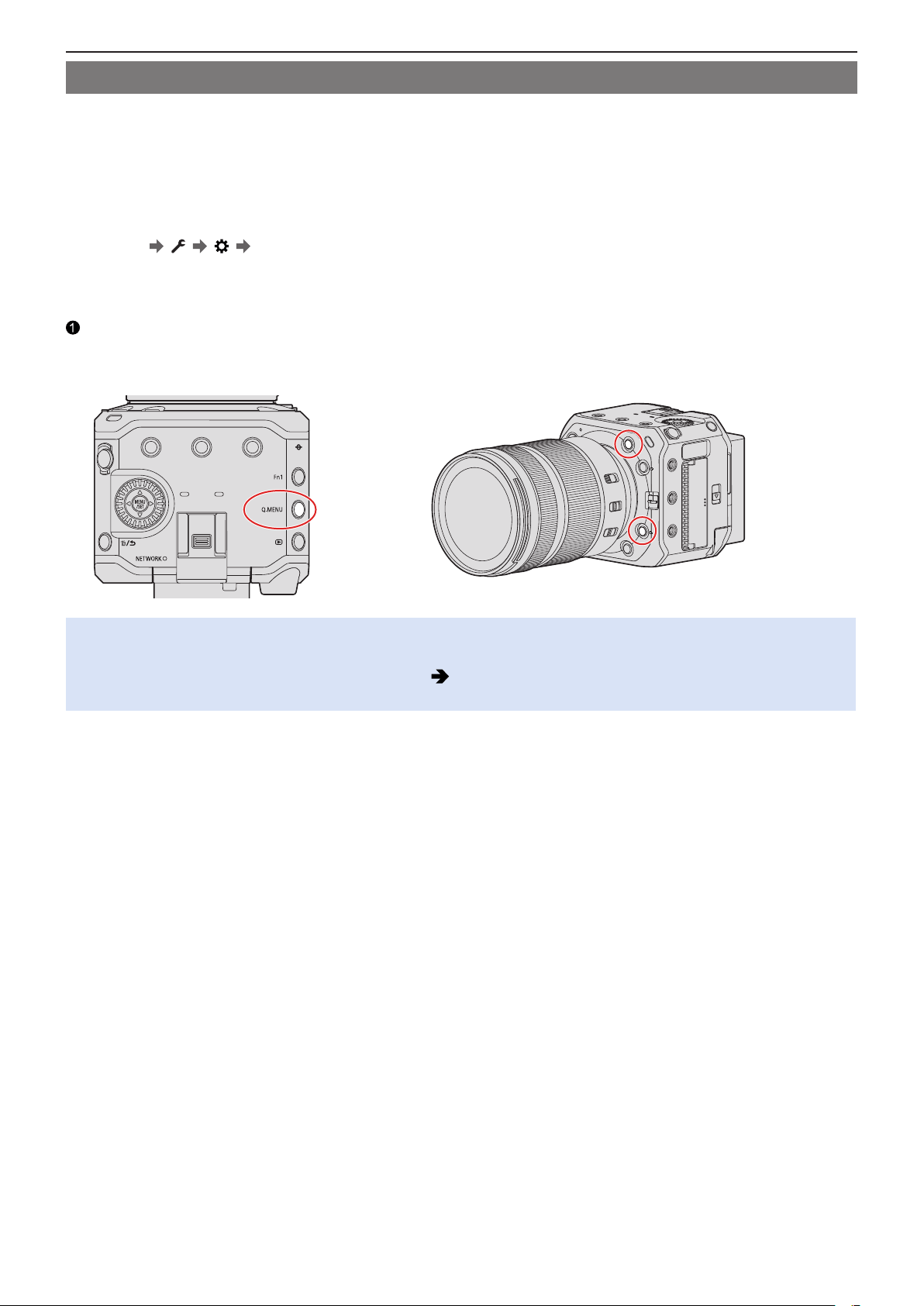

Register Functions to the Fn Buttons
1 Select [Fn Button Set].
●
[MENU/SET] [ ] [ ] [Fn Button Set] [Setting in REC mode] / [Setting in PLAY mode]
2 Select the button.
●
Press to select the button and then press [MENU/SET].
● Selection is also possible by rotating .
3 Find the function to register.
●
You can select by pressing to select the sub tab, pressing or rotating , and then pressing .
● Each press [Q.MENU] switches between tabs [1] and [2].
- 161 -- 161 -
10. Camera Customization - Fn Buttons
4 Register the function.
●
Press to select a function and then press [MENU/SET].
● Selection is also possible by rotating .
●
Select items with [ ] by selecting the item again.
●
Depending on the button, some functions cannot be registered.
●
You can also press and hold the Fn button (2 sec.) to display the screen in Step 4. (This may not be displayed depending
on the registered function and on the button type.)
- 162 -- 162 -
10. Camera Customization - Fn Buttons
Setting Items ([Fn Button Set] / [Setting in REC mode])
■
[1] tab
[Image Quality]
●
[Exposure Mode] ( 48 / [Exposure Mode])
●
[Aperture Value] ( 48 / [Exposure Mode])
●
[Shutter Speed] ( 48 / [Exposure Mode])
●
[Exposure Comp.] ( 84 / Exposure Compensation)
●
[Dual Native ISO Setting] ( 88 / [Dual Native ISO Setting])
●
[Sensitivity] ( 86 / ISO Sensitivity)
●
[White Balance] ( 89 / White Balance (WB))
●
[Photo Style] ( 94 / [Photo Style])
●
[Metering Mode] ( 83 / [Metering Mode])
●
[i.Dynamic Range] ( 184 / [i.Dynamic Range])
●
[Filter Effect] ( 99 / [Filter Settings])
●
[One Push AE]
– Adjusts the aperture value and shutter speed to the settings suited for the correct exposure determined by the camera.
●
[Synchro Scan] ( 130 / [Synchro Scan])
[Focus]
●
[Focus Mode] ( 69 / Selecting the Focus Mode)
●
[AF Mode] ( 72 / Selecting the AF Mode)
●
[AF Custom Setting(Video)] ( 78 / [AF Custom Setting(Video)])
●
[Focus Peaking] ( 187 / [Focus Peaking])
●
[Focus Peaking Sensitivity] ( 187 / [Focus Peaking Sensitivity])
●
[1-Area AF Moving Speed] ( 187 / [1-Area AF Moving Speed])
●
[Focus Ring Lock] ( 194 / [Focus Ring Lock])
●
[AE LOCK] ( 85 / Locking Focus and Exposure (AF/AE Lock))
●
[AF LOCK] ( 85 / Locking Focus and Exposure (AF/AE Lock))
●
[AF/AE LOCK] ( 85 / Locking Focus and Exposure (AF/AE Lock))
●
[AF-ON]
– AF works.
●
[AF-ON : Near Shift]
– AF operates giving priority to close-up subjects.
●
[AF-ON : Far Shift]
– AF operates giving priority to distant subjects.
●
[Focus Area Set]
– Displays the AF area/MF Assist transition screen.
- 163 -- 163 -
10. Camera Customization - Fn Buttons
[Image Format]
●
[Rec. File Format] ( 50 / [Rec. File Format])
●
[Rec Quality] ( 51 / [Rec Quality])
●
[Rec Quality (My List)] ( 59 / [add to list])
●
[Variable Frame Rate] ( 110 / [Variable Frame Rate])
●
[Time Code Display] ( 62 / [Time Code Display])
●
[HDMI RAW Data Output] ( 122 / HDMI Output of RAW Video Data)
– The menu screen stops being output via HDMI when the [HDMI RAW Data Output] is set to [ON]. Due to this, it is
recommended to assign [HDMI RAW Data Output] to a Fn button when you record RAW video by connecting to an
external device using HDMI only.
[Audio]
●
[Sound Rec Level Disp.] ( 103 / [Sound Rec Level Disp.])
●
[Mute Sound Input] ( 103 / [Mute Sound Input])
●
[Sound Rec Level Adj.] ( 104 / [Sound Rec Level Adj.])
●
[Sound Rec Level Limiter] ( 104 / [Sound Rec Level Limiter])
●
[XLR Mic Adaptor Setting] ( 147 / XLR Microphone Adaptor (Optional))
●
[Special Mic. Directivity Adjust] ( 146 / Setting the Sound Pickup Range (DMW-MS2: Optional))
[Others (Video)]
●
[Image Stabilizer] ( 105 / [Image Stabilizer])
●
[E-Stabilization (Video)] ( 105 / [E-Stabilization (Video)])
●
[Boost I.S. (Video)] ( 105 / [Boost I.S. (Video)])
●
[Image Area of Video] ( 60 / [Image Area of Video])
●
[Focus Transition] ( 114 / [Focus Transition])
●
[Live Cropping] ( 117 / [Live Cropping])
[Operation]
●
[Q.MENU] ( 39 / Quick Menu)
●
[Rec / Playback Switch]
– Switches to the playback screen.
●
[Video Record] ( 46 / Recording Videos)
●
[Display Information] ( 37 / Switch the information display with a Fn button, 44 / Displaying Descriptions About Menu
Items and Settings
)
- 164 -- 164 -
10. Camera Customization - Fn Buttons
■
[2] tab
[Monitor / Display]
●
[Level Gauge] ( 197 / [Level Gauge])
●
[Histogram] ( 196 / [Histogram])
●
[Luminance Spot Meter] ( 197 / [Luminance Spot Meter])
●
[Frame Marker] ( 109 / [Frame Marker])
●
[Zebra Pattern] ( 108 / [Zebra Pattern])
●
[LUT View Assist (HDMI)] ( 121 / [LUT View Assist (HDMI)])
●
[LUT View Assist (SDI)] ( 121 / [LUT View Assist (SDI)])
●
[LUT Select] ( 121 / [LUT Select])
●
[HLG View Assist (HDMI)] ( 127 / [HLG View Assist])
●
[HLG View Assist (SDI)] ( 127 / [HLG View Assist])
●
[Anamorphic Desqueeze Display] ( 129 / [Anamorphic Desqueeze Display])
●
[Color Bars] ( 109 / Color bars / Test Tone)
[Lens / Others]
●
[Focus Ring Control] ( 201 / [Focus Ring Control])
[Card/File]
●
[Destination Card Slot]
– Changes the priority of cards for recording. This can be used if [Double Card Slot Function] (
29 / [Double Card Slot
Function]
) is set to [Relay Rec].
[IN/OUT]
●
[LAN / Wi-Fi] ( 203 / [LAN / Wi-Fi])
●
[Info Display (HDMI/SDI)] ( 34 / Information Display (HDMI/SDI))
●
[Fan Mode] ( 200 / [Fan Mode])
[Others]
●
[No Setting]
– Set when not using as a Fn button.
●
[Off (Disable Press and Hold)]
– This sets the registration screen of the function to not be displayed even when you long press the Fn button.
●
[Restore to Default]
– Restore the default settings for the Fn button. (
159 / Fn Button Default Settings)
- 165 -- 165 -
10. Camera Customization - Fn Buttons
Setting Items ([Fn Button Set] / [Setting in PLAY mode])
■
[1] tab
[Playback Mode]
●
[Anamorphic Desqueeze Display] ( 129 / [Anamorphic Desqueeze Display])
[Add/Delete Info.]
●
[Delete Single] ( 158 / [Delete Single])
●
[Protect] ( 209 / [Protect])
●
[Rating 1] ( 209 / [Rating])
●
[Rating 2] ( 209 / [Rating])
●
[Rating 3] ( 209 / [Rating])
●
[Rating 4] ( 209 / [Rating])
●
[Rating 5] ( 209 / [Rating])
[Edit Image]
●
[Copy] ( 210 / [Copy])
[Operation]
●
[Rec / Playback Switch]
– Switches to the recording screen.
●
[Video Record] ( 46 / Recording Videos)
●
[Display Information] ( 37 / Switch the information display with a Fn button, 44 / Displaying Descriptions About Menu
Items and Settings
)
[Card/File]
●
[Card Slot Change] ( 155 / Switching the Card to Display)
[IN/OUT]
●
[LAN / Wi-Fi] ( 203 / [LAN / Wi-Fi])
●
[Info Display (HDMI/SDI)] ( 34 / Information Display (HDMI/SDI))
●
[Fan Mode] ( 200 / [Fan Mode])
●
[LUT View Assist (HDMI)] ( 121 / [LUT View Assist (HDMI)])
●
[LUT View Assist (SDI)] ( 121 / [LUT View Assist (SDI)])
●
[HLG View Assist (HDMI)] ( 127 / [HLG View Assist])
●
[HLG View Assist (SDI)] ( 127 / [HLG View Assist])
[Others]
●
[No Setting]
– Set when not using as a Fn button.
●
[Off (Disable Press and Hold)]
– This sets the registration screen of the function to not be displayed even when you long press the Fn button.
●
[Restore to Default]
– Restore the default settings for the Fn button. (
159 / Fn Button Default Settings)
- 166 -- 166 -
10. Camera Customization - Fn Buttons
Use the Fn Buttons
During recording, pressing the Fn buttons enables usage of the functions registered in [Setting in REC mode], and during
playback, it enables usage of the functions registered in [Setting in PLAY mode].
1 Press the Fn button.
2 Select a setting item.
●
Press to select a setting item and then press [MENU/SET].
● Selection is also possible by rotating .
●
Display and selection methods of a setting item differ depending on the menu item.
- 167 -- 167 -
10. Camera Customization - Quick Menu Customization
Quick Menu Customization
You can change the items to display on the Quick menu and their order to suit your preferences.
●
For information about Quick menu operation methods (
39 / Quick Menu)
1 Select [Q.MENU Settings].
●
[MENU/SET] [ ] [ ] [Q.MENU Settings] [Item Customize (Video)]
2 Select the item position ( to ).
●
Press to select the position and then press [MENU/SET].
3 Find the function to register.
●
You can select by pressing to select the sub tab, pressing or rotating , and then pressing .
● Each press of [Q.MENU] switches between tabs [1] and [2].
- 168 -- 168 -
10. Camera Customization - Quick Menu Customization
4 Register menu items.
●
Press to select an item and then press [MENU/SET].
● Selection is also possible by rotating .
●
Select items with [ ] by selecting the item again.
- 169 -- 169 -
10. Camera Customization - Quick Menu Customization
Menu Items That Can Be Registered
■
[1] tab
[Image Quality]
●
[Exposure Mode] ( 48 / [Exposure Mode])
●
[Aperture Value] ( 48 / [Exposure Mode])
●
[Shutter Speed] ( 48 / [Exposure Mode])
●
[Exposure Comp.] ( 84 / Exposure Compensation)
●
[Dual Native ISO Setting] ( 88 / [Dual Native ISO Setting])
●
[Sensitivity] ( 86 / ISO Sensitivity)
●
[White Balance] ( 89 / White Balance (WB))
●
[Photo Style] ( 94 / [Photo Style])
●
[Metering Mode] ( 83 / [Metering Mode])
●
[i.Dynamic Range] ( 184 / [i.Dynamic Range])
●
[Filter Effect] ( 99 / [Filter Settings])
●
[Synchro Scan] ( 130 / [Synchro Scan])
[Focus]
●
[Focus Mode] ( 69 / Selecting the Focus Mode)
●
[AF Mode] ( 72 / Selecting the AF Mode)
●
[AF Custom Setting(Video)] ( 78 / [AF Custom Setting(Video)])
●
[Focus Peaking] ( 187 / [Focus Peaking])
●
[Focus Peaking Sensitivity] ( 187 / [Focus Peaking Sensitivity])
●
[1-Area AF Moving Speed] ( 187 / [1-Area AF Moving Speed])
[Image Format]
●
[Rec. File Format] ( 50 / [Rec. File Format])
●
[Rec Quality] ( 51 / [Rec Quality])
●
[Rec Quality (My List)] ( 59 / [add to list])
●
[Variable Frame Rate] ( 110 / [Variable Frame Rate])
●
[Time Code Display] ( 62 / [Time Code Display])
[Audio]
●
[Sound Rec Level Disp.] ( 103 / [Sound Rec Level Disp.])
●
[Sound Rec Level Adj.] ( 104 / [Sound Rec Level Adj.])
●
[Sound Rec Level Limiter] ( 104 / [Sound Rec Level Limiter])
●
[XLR Mic Adaptor Setting] ( 147 / XLR Microphone Adaptor (Optional))
●
[Special Mic. Directivity Adjust] ( 146 / Setting the Sound Pickup Range (DMW-MS2: Optional))
[Others (Video)]
●
[Image Stabilizer] ( 105 / [Image Stabilizer])
●
[E-Stabilization (Video)] ( 105 / [E-Stabilization (Video)])
●
[Boost I.S. (Video)] ( 105 / [Boost I.S. (Video)])
●
[Image Area of Video] ( 60 / [Image Area of Video])
●
[Focus Transition] ( 114 / [Focus Transition])
●
[Live Cropping] ( 117 / [Live Cropping])
- 170 -- 170 -
10. Camera Customization - Quick Menu Customization
[Monitor / Display]
●
[Level Gauge] ( 197 / [Level Gauge])
●
[Histogram] ( 196 / [Histogram])
●
[Luminance Spot Meter] ( 197 / [Luminance Spot Meter])
●
[Frame Marker] ( 109 / [Frame Marker])
●
[Zebra Pattern] ( 108 / [Zebra Pattern])
●
[LUT View Assist (HDMI)] ( 121 / [LUT View Assist (HDMI)])
●
[LUT View Assist (SDI)] ( 121 / [LUT View Assist (SDI)])
●
[HLG View Assist (HDMI)] ( 127 / [HLG View Assist])
●
[HLG View Assist (SDI)] ( 127 / [HLG View Assist])
●
[Anamorphic Desqueeze Display] ( 129 / [Anamorphic Desqueeze Display])
●
[Color Bars] ( 109 / Color bars / Test Tone)
■
[2] tab
[Lens / Others]
●
[Focus Ring Control] ( 201 / [Focus Ring Control])
[Card/File]
●
[Destination Card Slot]
– Changes the priority of cards for recording. This can be used if [Double Card Slot Function] (
29 / [Double Card Slot
Function]
) is set to [Relay Rec].
[IN/OUT]
●
[LAN / Wi-Fi] ( 203 / [LAN / Wi-Fi])
●
[Fan Mode] ( 200 / [Fan Mode])
[Others]
●
[No Setting]
– Set when not registering any function.
Quick Menu Detailed Settings
[MENU/SET]
[ ] [ ] Select [Q.MENU Settings]
[Layout Style]
Changes the appearance of the Quick menu.
[MODE1]: Displays the live view and the menu simultaneously.
[MODE2]: Displays the menu in full screen.
[Item Customize (Video)] Customizes the Quick menu to display.
- 171 -- 171 -
10. Camera Customization - Custom Mode

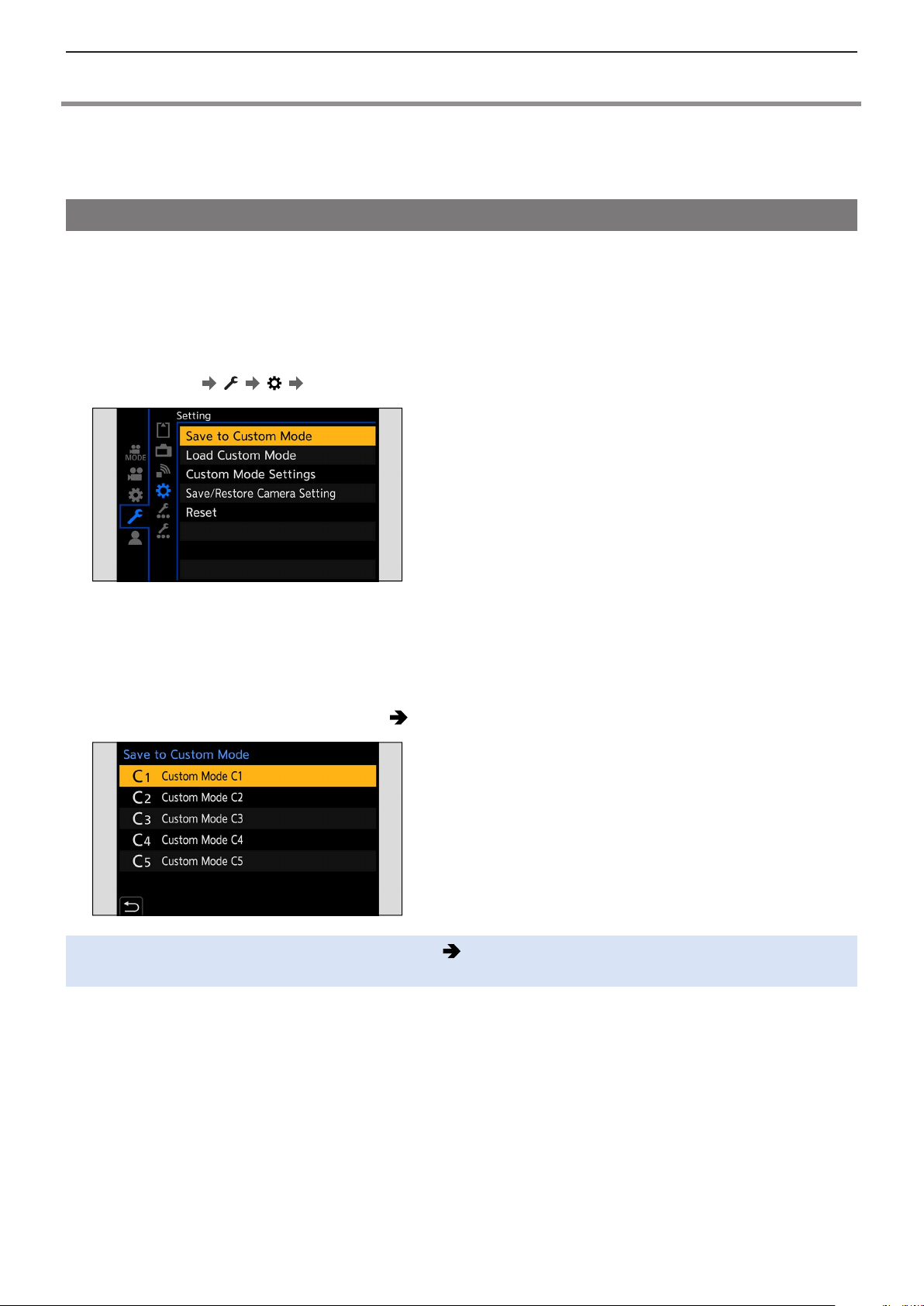

Custom Mode
Menu settings that match your preferences can be registered in Custom mode.
You can use registered settings by switching to [Custom Mode C1] until [Custom Mode C12] at the recording mode menu.
Register in Custom Mode
You can register the currently set information of the camera.
At the time of purchase, the default settings of the [Creative Video Mode] menus are registered with all Custom modes.
1 Set menu settings of the state you wish to save.
2 Select [Save to Custom Mode].
●
[MENU/SET] [ ] [ ] [Save to Custom Mode]
3 Register.
●
Select the save-to number and then press [MENU/SET].
●
A confirmation screen will be displayed. Press [Fn1] to change the Custom mode name.
For information on how to enter characters (
212 / Entering Characters)
●
List of settings that can be registered in Custom mode ( 284 / List of Default Settings / Custom Saving / Settings
Available for Copying
)
- 172 -- 172 -
10. Camera Customization - Custom Mode
Custom Mode Detailed Settings
You can create additional Custom mode sets, and how long to retain temporarily changed settings details.
[MENU/SET]
[ ] [ ] Select [Custom Mode Settings]
[Limit No. of Custom Mode]
Sets the number of custom modes that will be displayed in the recording mode menu.
A maximum of 12 sets can be registered; 5 sets are available as default settings.
[Edit Title]
Changes the Custom mode name.
A maximum of 22 characters can be entered. A two-byte character is treated as two
characters.
●
For information on how to enter characters (
212 / Entering Characters)
[How to Reload Custom Mode]
Sets the timing at which to return the settings that were changed temporarily while the
Custom mode was being used to their registered settings.
[Change Recording Mode] / [Turn the Power ON]
[Select Loading Details]
Sets the types of settings to call up with [Load Custom Mode].
[F / SS / ISO Sensitivity]: Enables calling up of aperture value, shutter speed, and ISO
sensitivity settings.
[White Balance]: Enables calling up of white balance settings.
- 173 -- 173 -
10. Camera Customization - Custom Mode
Using Custom Mode
1 Select Custom mode.
●
[MENU/SET] [ ] [ ] [Custom Mode C1] to [Custom Mode C12]
●
The selected Custom mode icon will be displayed on the recording screen.
Changing Registered Details
Registered settings do not change even if you change the camera settings temporarily with [Custom Mode C1] to [Custom Mode
C12]. To change the registered details, overwrite them by using [Save to Custom Mode] in the [Setup] ([Setting]) menu.
- 174 -- 174 -
10. Camera Customization - Custom Mode
Calling Up Settings
Call up registered Custom mode settings to the selected recording mode and overwrite the current settings with the called up
settings.
1 Set to the recording mode to use.
2 Select [Load Custom Mode].
●
[MENU/SET] [ ] [ ] [Load Custom Mode]
3 Select the Custom mode to call up.
●
Select the Custom mode and then press [MENU/SET].
- 175 -- 175 -
10. Camera Customization - My Menu

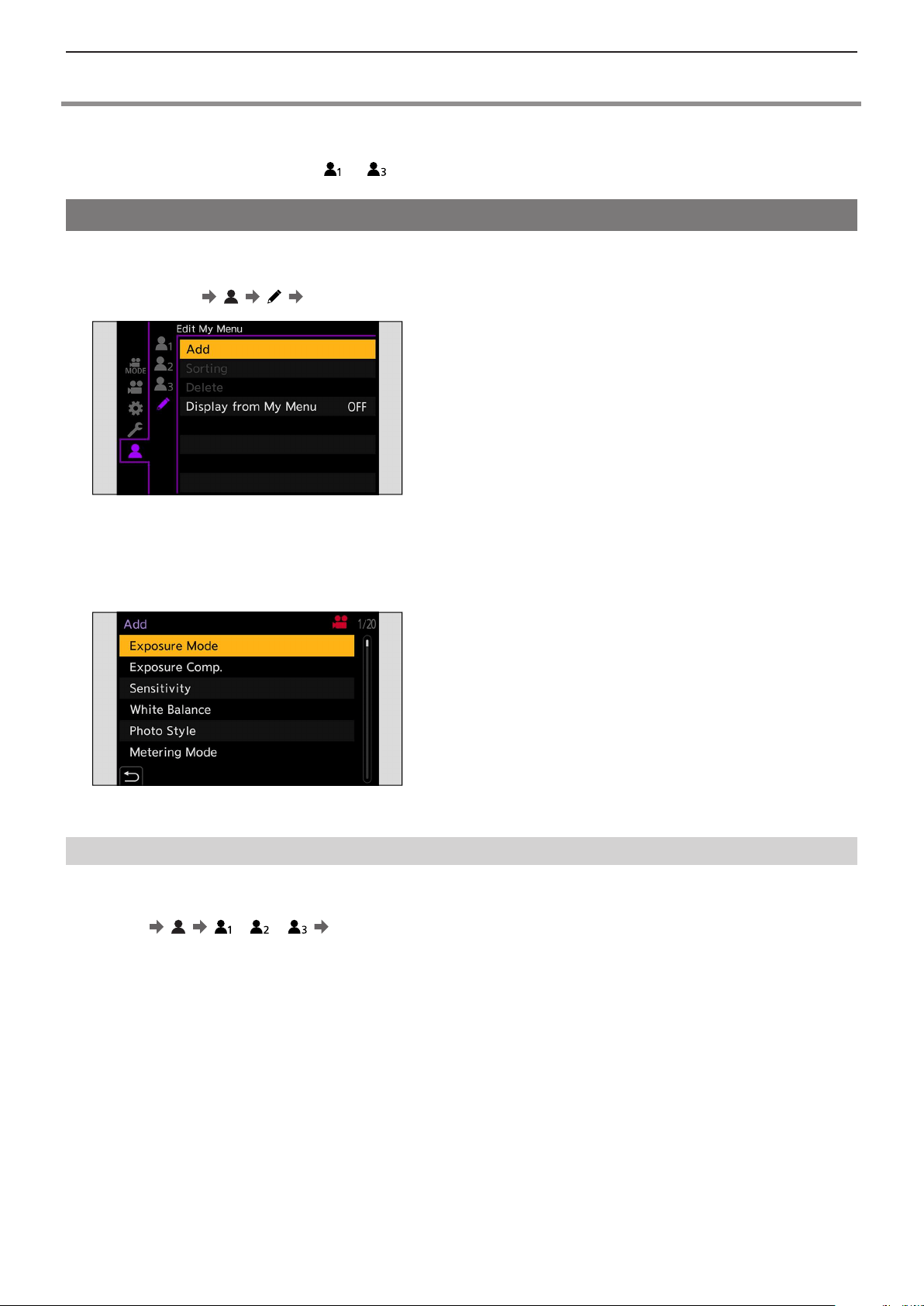

My Menu
Register frequently-used menus in My Menu. A maximum of 23 items can be registered.
Registered menus can be called up from [
] to [ ].
Registration in My Menu
1 Select [Add].
●
[MENU/SET] [ ] [ ] [Add]
2 Register.
●
Select the menu to register and then press [MENU/SET].
Calling up My Menu
Call up the menus registered in My Menu.
[MENU/SET]
[ ] [ ] / [ ] / [ ] Registered menus
- 176 -- 176 -
10. Camera Customization - My Menu
Edit My Menu
You can reorder the display order of My Menu, and delete unnecessary menus.
[MENU/SET]
[ ] Select [ ]
[Add] Selects and registers the menus to be displayed in My Menu.
[Sorting] Changes the order of My Menu. Select the menu to change, then set the destination.
[Delete]
Deletes menus that are registered to My Menu.
[Delete Item]: Selects the menu, then deletes.
[Delete All]: Deletes all menus registered in My Menu.
[Display from My Menu]
Displays My Menu first when displaying a menu.
[ON]: Displays My Menu.
[OFF]: Displays the last-used menu.
- 177 -- 177 -
10. Camera Customization - [Save/Restore Camera Setting]
[Save/Restore Camera Setting]
Saves the camera’s settings information to the card. Saved settings information can be loaded to the camera, letting you set the
same settings on multiple cameras.
[MENU/SET]
[ ] [ ] Select [Save/Restore Camera Setting]
[Save]
Saves the camera’s settings information to the card.
●
If saving new data, then select [New File], and if overwriting an existing file, select
that existing file.
●
When [New File] is selected, a screen to select the file name to save as is displayed.
[OK]: Saves using the file name on the screen.
[Change the file name]: Changes the file name and saves the file.
●
Available characters: alphabetic characters (upper-case), numerals, up to
8 characters
●
For information on how to enter characters ( 212 / Entering Characters)
[Load] Loads the settings information on the card and copies it to the camera.
[Delete] Deletes settings information on the card.
[Keep Settings While Format]
When formatting the card, formats the card while keeping camera settings information
stored on the card.
●
Only settings information from the same model can be loaded.
●
Up to 10 instances of settings information can be saved on one card.
●
List of functions for which saving of settings information is possible ( 284 / List of Default Settings / Custom Saving /
Settings Available for Copying
)
- 178 -- 178 -
11. Menu Guide - List of Menu
11. Menu Guide
This chapter provides a list of menus and describes them in detail.
●
For information about menu operation methods. (
41 / Menu Operation Methods)
●
Refer to the “14. Materials” chapter for the following list:
– List of Default Settings / Custom Saving / Settings Available for Copying:
284 / List of Default Settings / Custom
Saving / Settings Available for Copying
List of Menu
[Rec Mode] menu
Recording mode ( 182 / [Rec Mode] menu)
[Video] menu
[Image Quality] ( 182 / [Video] menu ([Image Quality]))
●
[Exposure Mode]
●
[Exposure Comp.]
●
[Sensitivity]
●
[White Balance]
●
[Photo Style]
●
[Metering Mode]
●
[Dual Native ISO Setting]
●
[ISO Sensitivity (video)]
●
[Synchro Scan]
●
[Master Pedestal Level]
●
[SS/Gain Operation]
●
[i.Dynamic Range]
●
[Vignetting Comp.]
●
[Diffraction Compensation]
●
[Filter Settings]
[Image Format] ( 185 / [Video] menu ([Image Format]))
●
[Rec. File Format]
●
[Image Area of Video]
●
[Rec Quality]
●
[Rec Quality (My List)]
●
[Variable Frame Rate]
●
[Time Code]
●
[Genlock]
●
[Luminance Level]
●
[HDMI RAW Data Output]
- 179 -- 179 -
11. Menu Guide - List of Menu
[Focus] ( 186 / [Video] menu ([Focus]))
●
[Focus Mode]
●
[AF Mode]
●
[AF Custom Setting(Video)]
●
[Continuous AF]
●
[Focus Peaking]
●
[1-Area AF Moving Speed]
[Audio] ( 188 / [Video] menu ([Audio]))
●
[Sound Rec Level Disp.]
●
[Mute Sound Input]
●
[Sound Rec Gain Level]
●
[Sound Rec Level Adj.]
●
[Sound Rec Level Limiter]
●
[Wind Noise Canceller] / [Wind Cut]
●
[Mic Socket]
●
[Special Mic.]
●
[XLR Mic Adaptor Setting]
●
[Sound Output]
●
[Headphone Volume]
[Others] ( 190 / [Video] menu ([Others]))
●
[Image Stabilizer]
●
[Focus Transition]
●
[Loop Recording (video)]
●
[Segmented File Recording]
●
[Live Cropping]
●
[Time Stamp Rec.]
[Custom] menu
[Image Quality] ( 192 / [Custom] menu ([Image Quality]))
●
[Photo Style Settings]
●
[ISO Increments]
●
[Extended ISO]
●
[Exposure Offset Adjust.]
[Focus/Shutter] ( 193 / [Custom] menu ([Focus/Shutter]))
●
[AF/AE Lock Hold]
●
[AF+MF]
●
[MF Assist]
●
[MF Guide]
●
[Focus Ring Lock]
[Operation] ( 195 / [Custom] menu ([Operation]))
●
[Q.MENU Settings]
●
[Lock Switch Setting]
●
[Fn Button Set]
●
[Video Rec. Button]
- 180 -- 180 -
11. Menu Guide - List of Menu
[Monitor / Display] ( 196 / [Custom] menu ([Monitor / Display]))
●
[Histogram]
●
[Focal Length]
●
[Level Gauge]
●
[Luminance Spot Meter]
●
[Framing Outline]
●
[Display Information]
●
[V-Log View Assist]
●
[HLG View Assist]
●
[Anamorphic Desqueeze Display]
●
[Center Marker]
●
[Frame Marker]
●
[Zebra Pattern]
●
[Color Bars]
●
[Red REC Frame Indicator]
●
[Streaming Blue Frame Indicator]
[IN/OUT] ( 199 / [Custom] menu ([IN/OUT]))
●
[HDMI Rec Output]
●
[SDI Rec Output]
●
[Fan Mode]
●
[Tally Lamp]
[Lens / Others] ( 201 / [Custom] menu ([Lens / Others]))
●
[Lens Focus Resume]
●
[Lens Fn Button Setting]
●
[Focus Ring Control]
●
[Vertical Position Info (Video)]
[Setup] menu
[Card/File] ( 202 / [Setup] menu ([Card/File]))
●
[Card Format]
●
[Double Card Slot Function]
●
[Folder / File Settings]
●
[File Number Reset]
●
[Copyright Information]
[Monitor / Display] ( 203 / [Setup] menu ([Monitor / Display]))
●
[Level Gauge Adjust.]
[IN/OUT] ( 203 / [Setup] menu ([IN/OUT]))
●
[Headphone Volume]
●
[LAN / Wi-Fi]
●
[Bluetooth]
●
[USB Mode]
●
[HDMI / SDI Connections]
●
[Info Display (HDMI/SDI)]
●
[Power/Network Indicator]
●
[Card Access Light]
- 181 -- 181 -
11. Menu Guide - List of Menu
[Setting] ( 205 / [Setup] menu ([Setting]))
●
[Save to Custom Mode]
●
[Load Custom Mode]
●
[Custom Mode Settings]
●
[Save/Restore Camera Setting]
●
[Reset]
[Others] ( 206 / [Setup] menu ([Others]))
●
[Clock Set]
●
[Time Zone]
●
[System Frequency]
●
[Device Name]
●
[Pixel Refresh]
●
[Language]
●
[Firmware Version]
[My Menu]
[Page 1] ( 175 / My Menu)
[Page 2] ( 175 / My Menu)
[Page 3] ( 175 / My Menu)
[Edit My Menu] ( 176 / Edit My Menu)
●
[Add]
●
[Sorting]
●
[Delete]
●
[Display from My Menu]
[Playback] menu
[Playback Mode] ( 209 / [Playback] menu ([Playback Mode]))
●
[Anamorphic Desqueeze Display]
[Add/Delete Info.] ( 209 / [Playback] menu ([Add/Delete Info.]))
●
[Protect]
●
[Rating]
[Edit Image] ( 210 / [Playback] menu ([Edit Image]))
●
[Copy]
[Others] ( 211 / [Playback] menu ([Others]))
●
[Delete All Images]
- 182 -- 182 -
11. Menu Guide - [Rec Mode] menu
[Rec Mode] menu
: Default settings
[Rec Mode]
[Creative Video Mode] / [Custom Mode C1] to [Custom Mode C12]
This selects a recording mode. (
173 / Using Custom Mode)
[Video] menu
[Video] menu ([Image Quality])
: Default settings
[Exposure Mode]
[P] / [A] / [S] / [M]
Sets the exposure mode. (
48 / [Exposure Mode])
[Exposure Comp.]
[-3] to [+3] ( ± 0)
This compensates the exposure. (
84 / Exposure Compensation)
[Sensitivity]
[AUTO] / [100] to [51200]
This sets the sensitivity to light. (
86 / ISO Sensitivity)
[White Balance]
[AWB] / [AWBc] / [AWBw] / [ ] / [ ] / [ ] / [ ] / [ ] to [ ] / [ ] to [ ]
This compensates the effect of the light of the color that illuminates the subject. (
89 / White Balance (WB))
- 183 -- 183 -
11. Menu Guide - [Video] menu
[Photo Style]
[Standard] / [Vivid] / [Natural] / [Flat] / [Landscape] / [Portrait] / [Monochrome] / [L.Monochrome] / [L.Monochrome D] /
[Cinelike D2] / [Cinelike V2] / [Like709] / [V-Log] / [Like2100(HLG)] / [MY PHOTO STYLE 1] to [MY PHOTO STYLE 10]
You can select the finishing settings of images to suit your subjects and expression styles. (
94 / [Photo Style])
[Metering Mode]
[ ] / [ ] / [ ] / [ ]
You can switch the method of measurement for the brightness. (
83 / [Metering Mode])
[Dual Native ISO Setting]
[AUTO] / [LOW] / [HIGH]
Sets whether to switch the base sensitivity automatically or to fix it. (
88 / [Dual Native ISO Setting])
[ISO Sensitivity (video)]
[ISO Auto Lower Limit Setting]
[100] to [25600]
[ISO Auto Upper Limit Setting]
[AUTO] / [200] to [51200]
Sets the lower and upper limits for ISO sensitivity when ISO sensitivity is set to [AUTO]. (
87 / [ISO Sensitivity (video)])
[Synchro Scan]
[ON] / [OFF]
Fine-adjust the shutter speed to reduce flickering and horizontal stripes. (
130 / [Synchro Scan])
[Master Pedestal Level]
[-15] to [15] ( 0)
You can adjust the black level, which serves as the reference for images. (
93 / [Master Pedestal Level])
[SS/Gain Operation]
[SEC/ISO] / [ANGLE/ISO] / [SEC/dB]
You can switch the units of shutter speed values and gain (sensitivity) values. (
106 / [SS/Gain Operation])
- 184 -- 184 -
11. Menu Guide - [Video] menu
[i.Dynamic Range]
[AUTO] / [HIGH] / [STANDARD] / [LOW] / [OFF]
Contrast and exposure are compensated when the brightness difference between the background and subject is great.
●
Compensation effect may not be achieved depending on the recording conditions.
●
When the following functions are being used, [i.Dynamic Range] is not available:
– [Like709] / [V-Log] / [Like2100(HLG)] ([Photo Style])
– [Filter Settings]
– [HDMI RAW Data Output]
– When in enlarged display with MF assist
[Vignetting Comp.]
[ON] / [OFF]
When the screen periphery darkens as a result of the lens characteristics, you can record pictures with the brightness of the
screen periphery corrected.
●
Compensation effect may not be achieved depending on the recording conditions.
●
Noise in the periphery of the picture may stand out with higher ISO sensitivity.
●
When the following functions are being used, [Vignetting Comp.] is not available:
– [S35mm]*
1
/ [PIXEL/PIXEL] ([Image Area of Video])
– [Variable Frame Rate]
– [HDMI RAW Data Output]
*
1
Only when using a full-frame lens
[Diffraction Compensation]
[AUTO] / [OFF]
The camera raises the image resolution by correcting the blurriness caused by diffraction when the aperture is closed.
●
Compensation effect may not be achieved depending on the recording conditions.
●
Noise may stand out with higher ISO sensitivity.
●
When the following function is being used, [Diffraction Compensation] is not available:
– [HDMI RAW Data Output]
[Filter Settings]
[Filter Effect]
[ON] /
[OFF] / [SET]
This mode records with additional image effects (filters). (
99 / [Filter Settings])
- 185 -- 185 -
11. Menu Guide - [Video] menu
[Video] menu ([Image Format])
: Default settings
[Rec. File Format]
[MP4] / [MOV]
Sets the video recording file format. (
50 / [Rec. File Format])
[Image Area of Video]
[FULL] / [S35mm] / [PIXEL/PIXEL]
Sets the image area during video recording. (
60 / [Image Area of Video])
[Rec Quality]
Sets the video recording image quality. ( 51 / [Rec Quality])
[Rec Quality (My List)]
Calls up a recording quality registered in My List. ( 59 / [add to list])
[Variable Frame Rate]
[ON] / [OFF]
Varies the recording frame rate to record slow motion video and fast motion video. (
110 / [Variable Frame Rate])
[Time Code]
[Time Code Display]
[ON] /
[OFF]
[Count Up]
[REC RUN] / [FREE RUN]
[Time Code Value]
[Reset]
[Manual Input]
[Current Time]
[Time Code Mode]
[DF] / [NDF]
[HDMI Time Code Output]
[ON] /
[OFF]
[SDI Time Code Output]
[ON] /
[OFF]
[External TC Setting]
[TC Synchronization]
[TC Output Reference]
Sets the recording, display, and output of the time code. (
61 / Time Code)
- 186 -- 186 -
11. Menu Guide - [Video] menu
[Genlock]
[Genlock Input]
[ON] /
[OFF]
[Horizontal Phase Adjustment]
[-206] to [+49] (
[±0])
This synchronizes the image signal of the camera and external device. (
66 / Genlock settings)
[Luminance Level]
[0-255] / [16-235] / [16-255]
You can set the luminance range to suit the purpose of video recording. (
88 / [Luminance Level])
[HDMI RAW Data Output]
[ON] / [OFF]
You can output the RAW Video Data to an external recorder via HDMI (
122 / HDMI Output of RAW Video Data)
[Video] menu ([Focus])
: Default settings
[Focus Mode]
[AF] / [MF]
This switches between AF and MF. (
69 / Selecting the Focus Mode)
[AF Mode]
[ ] / [ ] / [ ] / [ ] / [ ] / [ ]
You can select the focus method according to the position or number of subjects. (
72 / Selecting the AF Mode)
[AF Custom Setting(Video)]
[ON] / [OFF]
[SET] [AF Speed] / [AF Sensitivity]
You can fine-adjust the focusing method for video recording using [Continuous AF]. (
78 / [AF Custom Setting(Video)])
- 187 -- 187 -
11. Menu Guide - [Video] menu
[Continuous AF]
[MODE1] / [MODE2] / [OFF]
You can select how to set the focus in AF when recording videos. (
77 / [Continuous AF])
[Focus Peaking]
[ON] / [OFF]
[SET]
[Focus Peaking Sensitivity]
[Display Color]
During MF operation, in-focus portions (portions on the screen with clear outlines) are highlighted with color.
●
If the [Focus Peaking Sensitivity] is adjusted to the negative direction, portions to be highlighted are reduced, allowing
you to achieve a more precise focus.
●
With [Display Color], you can set the display color of the in-focus portion.
[1-Area AF Moving Speed]
[FAST] / [NORMAL]
Sets the speed when moving a single AF area.
This operates when AF mode is set to [
] / [ ] or [ ] / [ ] / [ ].
- 188 -- 188 -
11. Menu Guide - [Video] menu
[Video] menu ([Audio])
: Default settings
[Sound Rec Level Disp.]
[ON] / [OFF]
The sound recording level is displayed on the recording screen. (
103 / [Sound Rec Level Disp.])
[Mute Sound Input]
[ON] / [OFF]
This mutes audio input. (
103 / [Mute Sound Input])
[Sound Rec Gain Level]
[STANDARD] / [LOW]
This switches the gain of audio input. (
103 / [Sound Rec Gain Level])
[Sound Rec Level Adj.]
[MUTE], [-18dB] to [+12dB] ( [0dB])
Manually adjust the sound recording level. (
104 / [Sound Rec Level Adj.])
[Sound Rec Level Limiter]
[ON] / [OFF]
The sound recording level is adjusted automatically to minimize sound distortion (crackling noise). (
104 / [Sound Rec
Level Limiter]
)
[Wind Noise Canceller]
[HIGH] / [STANDARD] / [OFF]
This reduces the wind noise coming into the built-in microphone while maintaining sound quality. (
104 / [Wind Noise
Canceller]
)
- 189 -- 189 -
11. Menu Guide - [Video] menu
[Wind Cut]
[HIGH] / [STANDARD] / [LOW] / [OFF]
This reduces wind noise when an external microphone is connected. (
146 / Reduction of Wind Noise)
[Mic Socket]
[ ] / [ ] / [ ]
Sets the [MIC] terminal input method that suits the device to be connected. (
145 / External Microphones (Optional))
[Special Mic.]
[STEREO] / [LENS AUTO] / [SHOTGUN] / [S.SHOTGUN] / [MANUAL]
Sets the sound pickup range when using the Stereo Shotgun Microphone (DMW-MS2: optional). (
146 / Setting the Sound
Pickup Range (DMW-MS2: Optional)
)
[XLR Mic Adaptor Setting]
[96kHz/24bit] / [48kHz/24bit] / [48kHz/16bit] / [OFF]
Sets the audio input for when an XLR Microphone Adaptor (DMW-XLR1: optional) is attached. (
147 / XLR Microphone
Adaptor (Optional)
)
[Sound Output]
[REALTIME] / [REC SOUND]
Sets the audio output method when headphones are connected. (
149 / Switching the Sound Output Method)
[Headphone Volume]
[0] to [LEVEL15] ( [LEVEL3])
Adjusts the volume when headphones are connected. (
149 / Adjusting the Headphone Volume)
- 190 -- 190 -
11. Menu Guide - [Video] menu
[Video] menu ([Others])
: Default settings
[Image Stabilizer]
[Operation Mode]
[ ] / [OFF]
[E-Stabilization (Video)]
[ON] /
[OFF]
[Boost I.S. (Video)]
[ON] /
[OFF]
Configures image stabilizer settings. (
105 / [Image Stabilizer])
[Focus Transition]
[Start]
[Focus Pull Setting] [1] / [2] / [3]
[Focus Transition Speed]
[SH] / [H] /
[M] / [L] / [SL]
[Focus Transition Rec]
[1] / [2] / [3] /
[OFF]
[Focus Transition Wait]
[10SEC] / [5SEC] /
[OFF]
Smoothly transitions the focus position from the current position to a position registered in advance. (
114 / [Focus
Transition]
)
[Loop Recording (video)]
[ON]/ [OFF]
When the recording fills the card to capacity, recording continues while deleting older data. (
131 / [Loop Recording
(video)]
)
[Segmented File Recording]
[10MIN.] / [5MIN.] / [3MIN.] / [1 MIN.] / [OFF]
Video is divided every few minutes while being recorded. (
132 / [Segmented File Recording])
[Live Cropping]
[40SEC] / [20SEC] / [OFF]
By cropping a part of the range displayed in the live view, it is possible to record FHD video that incorporates panning and
zooming with the camera staying in a fixed position. (
117 / [Live Cropping])
- 191 -- 191 -
11. Menu Guide - [Video] menu
[Time Stamp Rec.]
[ON] / [OFF]
Records the recorded date and time superimposed on the images.
●
You cannot delete recording dates after superimposing them.
●
When the following functions are being used, [Time Stamp Rec.] is not available:
– 6K video / 5.9K video / 5.4K video / Anamorphic (4:3) video
– [Variable Frame Rate]
– [HDMI RAW Data Output]
- 192 -- 192 -
11. Menu Guide - [Custom] menu
[Custom] menu
[Custom] menu ([Image Quality])
: Default settings
[Photo Style Settings]
[Show/Hide Photo Style]
[Vivid] / [Natural] / [Flat] / [Landscape] / [Portrait] / [L.Monochrome] /
[L.Monochrome D] / [Cinelike D2] / [Cinelike V2] / [Like709] / [V-Log]
/ [Like2100(HLG)] / [MY PHOTO STYLE 1] to [MY PHOTO STYLE
10]
Sets Photo Style items to be displayed on the menu.
[My Photo Style Settings]
[Add Effects]
[Load Preset Setting]
Enables detailed image quality adjustment settings for My Photo Style.
[Add Effects]: Enables [Dual Native ISO Setting], [Sensitivity], and [White Balance] settings in image quality adjustment.
[Load Preset Setting]: Sets the timing at which image quality adjustment values changed in My Photo Style are returned to
their registered state.
[Reset Photo Style]
Returns details changed in [Photo Style] and [Photo Style Settings] to their default settings.
[ISO Increments]
[1/3 EV] / [1 EV]
Changes the intervals between ISO sensitivity adjustment values.
[Extended ISO]
[ON] / [OFF]
Extends the setting range of ISO sensitivity.
●
The extendible range depends on the [Dual Native ISO Setting] ( 88 / [Dual Native ISO Setting]).
– When set to [AUTO]: Lower limit can be extended to [50] and the upper limit can be extended to [204800]
– When set to [LOW]: Lower limit can be extended to [50]
– When set to [HIGH]: Lower limit can be extended to [320] and the upper limit can be extended to [204800]
- 193 -- 193 -
11. Menu Guide - [Custom] menu
[Exposure Offset Adjust.]
[Multi Metering]
[-1 EV] to [+1 EV] (
[±0 EV])
[Center Weighted]
[-1 EV] to [+1 EV] (
[±0 EV])
[Spot]
[-1 EV] to [+1 EV] (
[±0 EV])
[Highlight Weighted]
[-1 EV] to [+1 EV] (
[±0 EV])
Adjusts the exposure level that is the standard correct exposure for each item of [Metering Mode]. Adds the adjustment value
from this function to the exposure compensation value (
84 / Exposure Compensation) when recording.
●
It is not possible to add an adjustment value of a range that exceeds ±3 EV.
[Custom] menu ([Focus/Shutter])
: Default settings
[AF/AE Lock Hold]
[ON] / [OFF]
This sets button operations for AF/AE Lock. Turning this [ON] maintains the lock after releasing the button until it is pressed
again.
[AF+MF]
[ON] / [OFF]
You can fine-adjust the focus manually during AF Lock by rotating the focus ring.
– When a Fn button that has [AF-ON] registered is pressed (
160 / Register Functions to the Fn Buttons)
– When locked using the Fn button [AF LOCK] or [AF/AE LOCK]
During video recording, the MF mode is engaged when you rotate the focus ring, and the AF mode is engaged when you stop
rotating the focus ring.
●
When [Continuous AF] is set to [MODE2], the focus can be adjusted manually even during recording standby.
- 194 -- 194 -
11. Menu Guide - [Custom] menu
[MF Assist]
[Focus Ring]
[ON] / [OFF]
[AF Mode]
[ON] / [OFF]
[MF Assist Display]
[FULL] /
[PIP]
This sets the display method of MF Assist (enlarged screen).
[Focus Ring]: The screen is enlarged by focusing with the lens.
[AF Mode]: The screen is enlarged by pressing a Fn button that has [AF Mode] registered. (
160 / Register Functions to
the Fn Buttons
)
[MF Assist Display]: Sets the display method (full screen mode/windowed mode) of MF Assist (enlarged screen).
●
While you are using the following functions, MF Assist will not be displayed:
– [HDMI RAW Data Output]
– Video recording
[MF Guide]
[ ] / [ ] / [OFF]
* Default setting specifications vary depending on the country or area where the camera was purchased.
During MF, MF Guide, which acts as a guide to recording distance, is displayed on the screen. You can select from meters or
feet for the display unit.
[Focus Ring Lock]
[ON] / [OFF]
This disables the focus ring operation during MF to lock the focus.
●
[MFL] is displayed on the recording screen while the focus ring is locked.
- 195 -- 195 -
11. Menu Guide - [Custom] menu
[Custom] menu ([Operation])
: Default settings
[Q.MENU Settings]
[Layout Style]
[MODE1] / [MODE2]
[Item Customize (Video)]
Customizes the Quick menu. (
170 / Quick Menu Detailed Settings)
[Lock Switch Setting]
[ ] (Playback) button /
[Q.MENU] button
/
[ ] (Delete) button / [ ] (Cancel) button /
Cursor buttons / [MENU/SET] button
/
Control dial
/
Video rec. button
/
Fn button (Fn1)
/
Fn button (Fn2)
/
Fn button (Fn3)
/
Fn button (Fn4)
/
Fn button (Fn5)
/
Lens
/
Sets the operations to be disabled with the operation lock switch. (Only for recording screen)
●
Each press of [MENU/SET] switches between “Lock” and “Unlock”.
●
Press [Fn1] to change the page.
●
Press [Q.MENU] to return to the default settings.
●
When you operate locked operation parts, [ ] is displayed on the screen.
●
The operation parts to be locked by “Lens” differ depending on the lens. The lens switch will not be locked.
●
Depending on the lens you use, [ ] may not be displayed on the screen even if you operate the lens when it is locked in
“Lens”. After setting the lock by “Lens”, check whether it is locked by actually operating it.
- 196 -- 196 -
11. Menu Guide - [Custom] menu
[Fn Button Set]
[Setting in REC mode]
[Setting in PLAY mode]
Registers a function to the Fn button. (
160 / Register Functions to the Fn Buttons)
[Video Rec. Button]
[ON] / [OFF]
Enables/disables the video rec. button.
[Custom] menu ([Monitor / Display])
: Default settings
[Histogram]
[ON] / [OFF]
This displays the histogram.
Turning this [ON] displays the histogram transition screen.
Press
to set the position.
●
A histogram is a graph that displays brightness along the horizontal axis, and the number of pixels at each brightness
level on the vertical axis. By looking at the distribution of the graph, you can determine the current exposure.
A
B
A
Dark
B
Bright
●
When the recorded image and the histogram do not match each other under the following conditions, the histogram is
displayed in orange:
– During exposure compensation
– When the correct exposure is not achieved, such as in low light situations.
●
The histogram is an approximation in the recording mode.
[Focal Length]
[ON] / [OFF]
Displays the focal length on the recording screen during zoom control.
- 197 -- 197 -
11. Menu Guide - [Custom] menu
[Level Gauge]
[ON] / [OFF]
Displays the level gauge which is useful in correcting camera tilt.
A
Horizontal
B
Vertical
C
Green (no tilt)
●
Even after correcting the tilt, there may still be an error of approx. ±1°.
●
When the camera is tilted significantly upwards or downwards, the level gauge may not be displayed correctly.
●
You can adjust the level gauge and reset the adjusted values in [Level Gauge Adjust.] in the [Setup] ([Monitor / Display])
menu. (
203 / [Level Gauge Adjust.])
[Luminance Spot Meter]
[ON] / [OFF]
Specify any spot on the subject to measure the luminance over a small area. (
107 / [Luminance Spot Meter])
[Framing Outline]
[ON] / [OFF]
Displays the outline for the live view.
[Display Information]
[Display Info in Rec Mode]
[WITH INFO] / [WITHOUT INFO] / [CTRL PANEL]
[Display Info in Playback]
[WITH INFO] / [DETAILED INFO DISP] / [WITHOUT INFO]
Switches the information display of the recording screen and playback screen. (
36 / Switching the Display Information)
- 198 -- 198 -
11. Menu Guide - [Custom] menu
[V-Log View Assist]
[Read LUT File]
[LUT Select]
[LUT View Assist (HDMI)]
[ON] /
[OFF]
[LUT View Assist (SDI)]
[ON] /
[OFF]
You can output images with LUT data applied via HDMI/SDI. (
121 / [V-Log View Assist])
[HLG View Assist]
[HDMI]
[AUTO] / [MODE1] / [MODE2] / [OFF]
[SDI]
[MODE1] /
[MODE2] / [OFF]
At recording or playback of HLG video, this outputs images with converted color gamut and brightness over HDMI/SDI. (
127 / [HLG View Assist])
[Anamorphic Desqueeze Display]
[ ] / [ ] / [ ] / [ ] / [ ] / [OFF]
This displays the de-squeezed images suited to the magnification of the anamorphic lens. (
129 / [Anamorphic Desqueeze
Display]
)
[Center Marker]
[ON] / [OFF]
The center of the recording screen will be displayed as [+].
[Frame Marker]
[ON] / [OFF]
[SET]
[Frame Aspect]
[Frame Color]
[Frame Mask]
A frame with the set aspect ratio is displayed on the recording screen. (
109 / [Frame Marker])
- 199 -- 199 -
11. Menu Guide - [Custom] menu
[Zebra Pattern]
[ZEBRA1] / [ZEBRA2] / [ZEBRA1+2] / [OFF]
[SET]
[Zebra 1]
[Zebra 2]
Parts that are brighter than the benchmark value are displayed with stripes. (
108 / [Zebra Pattern])
[Color Bars]
[SMPTE] / [EBU] / [ARIB]
The color bars are displayed on the recording screen. (
109 / Color bars / Test Tone)
[Red REC Frame Indicator]
[ON] / [OFF]
A red frame is displayed on the recording screen that indicates that video is being recorded.
[Streaming Blue Frame Indicator]
[ON] / [OFF]
Displays a blue frame on the screen during streaming.
[Custom] menu ([IN/OUT])
: Default settings
[HDMI Rec Output]
[Down Convert]
[AUTO] / [4K/30p] ([4K/25p]) / [1080p] / [1080i] / [OFF]
[HDMI Recording Control]
[ON] /
[OFF]
[Sound Down Convert]
[AUTO] /
[OFF]
[Sound Output (HDMI)]
[ON] / [OFF]
[HDMI MF Assist Output]
[ON] / [OFF]
Sets HDMI output during recording. (
137 / HDMI Output Settings)
- 200 -- 200 -
11. Menu Guide - [Custom] menu
[SDI Rec Output]
[SDI Output Resolution]
[1080p] / [1080i] / [1080PsF] / [720p]
[SDI Recording Control]
[ON] /
[OFF]
[Sound Output (SDI)]
[ON] / [OFF]
[SDI Sound Output Gain Adj.]
[0dB] / [-6dB] / [-8dB]
* Default setting specifications vary depending on the country or
area where the camera was purchased.
[SDI MF Assist Output]
[ON] / [OFF]
Sets the SDI output during recording. (
142 / SDI output settings)
●
When [System Frequency] is set to [24.00Hz (CINEMA)], [SDI Output Resolution] is fixed to [1080PsF].
[Fan Mode]
[AUTO1] / [AUTO2] / [NORMAL] / [SLOW]
Sets fan operation.
[AUTO1]: The fan operation switches automatically according to the temperature of the camera. This setting prioritizes
controlling rises in temperature in the camera.
[AUTO2]: The fan operation switches automatically according to the temperature of the camera. This setting prioritizes
reducing fan noise.
[NORMAL]: The fan operates constantly at a standard speed.
[SLOW]: The fan operates constantly at low speed.
[Tally Lamp]
[Front Tally Lamp]
[H] / [L] / [OFF]
[Rear Tally Lamp]
[ON] / [OFF]
This sets the operation of the tally lamp.
- 201 -- 201 -
11. Menu Guide - [Custom] menu
[Custom] menu ([Lens / Others])
: Default settings
[Lens Focus Resume]
[ON] / [OFF]
The camera saves the focus position when you turn it off.
[Lens Fn Button Setting]
[Focus Stop] / [AF Mode] / [Focus Ring Lock] / [AE LOCK] / [AF LOCK] / [AF/AE LOCK] / [AF-ON] / [AF-ON : Near Shift] /
[AF-ON : Far Shift] / [Focus Area Set] / [Image Stabilizer] / [No Setting] / [Off (Disable Press and Hold)] / [Restore to Default]
Sets the function to be assigned to the focus button of an interchangeable lens.
●
You can call up the assigned function by setting the focus selector switch of a compatible interchangeable lens to [Fn]
and then pressing the focus button of the lens.
●
When [Focus Stop] is used, the focus is locked while the focus button is pressed and held.
●
When using an interchangeable lens that has a switch for the image stabilizer (normal/panning), [Image Stabilizer] in
[Lens Fn Button Setting] is not available.
[Focus Ring Control]
[NON-LINEAR] / [LINEAR]
[SET]
[90°] to [1080°] (
[300°]) / [Maximum]
Sets the amount of movement for focusing using the focus ring. (When using supported lenses)
[NON-LINEAR]: Focus responds by accelerating according to rotation speed of the focus ring.
[LINEAR]: Focus responds at a constant amount according to the rotational angle of the focus ring. When using lenses
equipped with focus clutch mechanisms, set the lens to AF and the camera to MF.
[SET]: Sets the rotational angle of the focus ring for when [LINEAR] is selected. (Angles that cannot be set with the attached
lens are not displayed.)
[Vertical Position Info (Video)]
[ON] / [OFF]
You can set on the menu, whether or not to record the camera’s vertical orientation information during video recording.
[ON]: Records vertical orientation information. Videos recorded with the camera held vertically (Fan outlet or inlet pointed
downwards) will be automatically played vertically on the PC or smartphone etc. during playback.
[OFF]: Does not record vertical orientation information.
- 202 -- 202 -
11. Menu Guide - [Setup] menu
[Setup] menu
[Setup] menu ([Card/File])
: Default settings
[Card Format]
[Card Slot 1] / [Card Slot 2]
Formats the card (initialization). (
27 / Formatting Cards (Initialization))
[Double Card Slot Function]
[Recording Method]
[ ] / [ ] / [ ]
This sets the way recording to the card slots 1 and 2 is performed. (
29 / [Double Card Slot Function])
[Folder / File Settings]
[Select Folder] / [Create a New Folder] / [File Name Setting]
Set the folder and file name where to save the images. (
28 / [Folder / File Settings])
[File Number Reset]
[Card Slot 1] / [Card Slot 2]
Resets the file number of the next recording to 0001. (
29 / [File Number Reset])
[Copyright Information]
[Artist]
[ON] /
[OFF] / [SET]
[Copyright Holder]
[ON] /
[OFF] / [SET]
[Display Copyright Info.]
During the recording of still images, the registered names of the artist and the copyright holder are recorded in the Exif data
of the image.
●
You can register each name from [SET] in [Artist] and [Copyright Holder]. For information on how to enter characters (
212 / Entering Characters)
●
Up to 63 characters may be entered.
●
You can confirm registered copyright information in [Display Copyright Info.].
- 203 -- 203 -
11. Menu Guide - [Setup] menu
[Setup] menu ([Monitor / Display])
[Level Gauge Adjust.]
[Adjust.]
Hold the camera in a horizontal position, and press [MENU/SET]. The level gauge will be adjusted.
[Level Gauge Value Reset]
Restores the default level gauge setting.
[Setup] menu ([IN/OUT])
: Default settings
[Headphone Volume]
[0] to [LEVEL15] ( [LEVEL3])
Adjusts the volume when headphones are connected. (
149 / Adjusting the Headphone Volume)
●
This functions in tandem with [Headphone Volume] in the [Video] ([Audio]) menu.
[LAN / Wi-Fi]
[LAN / Wi-Fi Function] ( 217 / Operating the Camera from a PC, 228 / Connecting to a Smartphone (Wi-Fi connection),
233 / Connecting to a Smartphone (Wired LAN connection))
[LAN / Wi-Fi Setup] (
247 / [LAN / Wi-Fi Setup] menu)
[Streaming Setup] (
249 / 13. Streaming Function)
[Bluetooth]
[Bluetooth] ( 224 / Connecting to a Smartphone (Bluetooth Connection))
[Remote Wakeup] (
239 / [Remote Wakeup])
[Returning from Sleep Mode] (
239 / Shortening the Return Time when performing [Remote Wakeup])
[Location Logging] (
238 / [Location Logging])
[Auto Clock Set] (
240 / [Auto Clock Set])
[Wi-Fi network settings]
[Wi-Fi network settings]: Registers the Wi-Fi access point. Wireless access points used to connect the camera to Wi-Fi
networks will be registered automatically.
- 204 -- 204 -
11. Menu Guide - [Setup] menu
[USB Mode]
[ ] [PC(Storage)] / [ ] [PC(Tether)]
This sets the communication method to be used when the USB connection cable is connected.
[
] [PC(Storage)]: Select this setting to export images to a connected PC. ( 151 / Importing Images to a PC)
[
] [PC(Tether)]: Select this setting to control the camera from a PC installed with “LUMIX Tether”. ( 216 / Tethered
Recording
)
[HDMI / SDI Connections]
[SDI Output]
[ON] / [OFF]
This outputs via SDI.
[Output Resolution(Playback)]
When [SDI Output] is set to [ON]:
[1080p] / [1080i] / [1080PsF]*
1,
*
2
/ [720p]
When [SDI Output] is set to [OFF]:
[AUTO] / [C4K/60p] / [C4K/50p] / [C4K/30p] / [C4K/25p] /
[C4K/24p] / [4K/60p] / [4K/50p] / [4K/30p] / [4K/25p] / [4K/24p] /
[1080p] / [1080i] / [720p] / [576p] / [480p]
*
1
HDMI is output with [1080p].
*
2
When [System Frequency] is set to [24.00Hz (CINEMA)], it is fixed to [1080PsF].
Sets the HDMI/SDI output resolution for playback. When it is output via HDMI and SDI at the same time, it is output with the
same settings. (When [SDI Output] is set to [ON], output with a resolution above 4K is not possible. When playing back an
image at a resolution above 4K, set the [SDI Output] to [OFF].)
●
The items you can select depend on the [System Frequency] setting.
●
If no image appears on the external device with [AUTO], switch to a constant setting other than [AUTO] to set a format
supported by your external device. (Refer to the operating instructions for the external device.)
[LUT View Assist (HDMI)] / [LUT View Assist (SDI)]
[ON] /
[OFF]
Images with LUT data applied are output via HDMI/SDI when you record/playback videos with [Photo Style] set to [V-Log].
(
121 / [V-Log View Assist])
●
This is linked with [LUT View Assist (HDMI)] / [LUT View Assist (SDI)] in [V-Log View Assist] of the [Custom] ([Monitor /
Display]) menu.
[HLG View Assist (HDMI)] / [HLG View Assist (SDI)] [AUTO]*
1
/ [MODE1] / [MODE2] / [OFF]
*
1
It can only be set when [HLG View Assist (HDMI)] is selected.
At recording or playback of HLG video, this converts their color gamut and brightness for display. (
127 / [HLG View
Assist]
)
●
The default setting differs depending on the output method.
[HLG View Assist (HDMI)]: [AUTO]
[HLG View Assist (SDI)]: [MODE2]
●
This is linked with [HDMI] / [SDI] in [HLG View Assist] of the [Custom] ([Monitor / Display]) menu.
[Background Color(Playback)]
[
] / [ ]
Sets the color of the bands displayed on the top and bottom or the left and right of images output on an external device or
similar display.
●
We recommend setting to [
] to prevent burn-in on the screen of the output destination.
- 205 -- 205 -
11. Menu Guide - [Setup] menu
[Info Display (HDMI/SDI)]
[AUTO] / [HDMI] / [SDI] / [OFF]
This sets the output destination of the recording information and menu screen. (
34 / Information Display (HDMI/SDI))
[Power/Network Indicator]
[ON] / [OFF]
This will light up the status indicator and [NETWORK] connection lamp.
[Card Access Light]
[ON] / [OFF]
The card access lamp will light up when the card is being accessed.
[Setup] menu ([Setting])
[Save to Custom Mode]
[C1] to [C12]
You can register the currently set information of the camera. (
171 / Register in Custom Mode)
[Load Custom Mode]
[C1] to [C12]
Calls up registered Custom mode settings to the selected recording mode and overwrites the current settings with called up
settings. (
174 / Calling Up Settings)
[Custom Mode Settings]
[Limit No. of Custom Mode]
[Edit Title]
[How to Reload Custom Mode]
[Select Loading Details]
Sets the ease of use of Custom mode. (
172 / Custom Mode Detailed Settings)
- 206 -- 206 -
11. Menu Guide - [Setup] menu
[Save/Restore Camera Setting]
[Save] / [Load] / [Delete] / [Keep Settings While Format]
Saves the camera’s settings information to the card. Saved settings information can be loaded to the camera, letting you set
the same settings on multiple cameras. (
177 / [Save/Restore Camera Setting])
[Reset]
Returns the camera to its default settings. ( 45 / [Reset])
[Setup] menu ([Others])
[Clock Set]
Sets the date and time. ( 30 / Clock Set)
[Time Zone]
Sets the time zone. ( 32 / Time zone)
[System Frequency]
[59.94Hz (NTSC)] / [50.00Hz (PAL)] / [24.00Hz (CINEMA)]
* Default setting specifications vary depending on the country or area where the camera was purchased.
This changes the system frequency of videos that are recorded and played back. (
50 / [System Frequency])
[Device Name]
This will set the camera name (32 characters or less). For information on how to enter characters ( 212 / Entering
Characters
)
●
The set name will be displayed as the individual ID for SSID during Wi-Fi connection or Tethered recording.
●
When Tethered recording using several cameras, it is recommended to set an individual device name for each camera.
[Pixel Refresh]
This optimizes the image sensor and image processing.
●
The image sensor and image processing are optimized when the camera is purchased. Use this function when bright
spots that do not exist in the subject get recorded.
●
When performing pixel refresh, block the lens from light with a body cap etc.
●
Turn the camera off and on after the pixels are corrected.
- 207 -- 207 -
11. Menu Guide - [Setup] menu
[Language]
This set the language displayed on the screen.
●
If you set a different language by mistake, select [ ] from the menu icons to set the desired language.
[Firmware Version]
[Firmware Update] / [Software info]
You can check the firmware versions of the camera and lens. In addition, you can update the firmware, and display
information about the camera software.
[Firmware Update]: Updates firmware.
1 Download the firmware. (
6 / Firmware of Your Camera/Lens)
2 Save the firmware to the root directory of the card (the first folder that appears when you access the card on your PC),
and then insert the card into the camera.
3 Select [Firmware Update], press [MENU/SET], and then select [Yes] to update the firmware.
[Software info]: Displays information about the camera software.
●
When a supported optional item (XLR Microphone Adaptor, etc.) is attached to the camera, you can also check its
firmware version.
- 208 -- 208 -
11. Menu Guide - [Playback] menu
[Playback] menu
How to Select an Image(s) in the [Playback] menu
Follow the steps below when the image selection screen is displayed.
●
Images are displayed separately by card slot. To switch the card to display, press [Q.MENU] and select the card slot.
●
You can only select/edit images on one card at a time.
■
When [Single] has been selected
Press to select the image.
SetSet
Press [MENU/SET].
●
If [Set/Cancel] is displayed at the right bottom of the screen, the setting is canceled when [MENU/SET] is pressed
again.
■
When [Multi] has been selected
Press to select the image, and then press [MENU/SET] to set (repeat).
●
The setting is canceled when [MENU/SET] is pressed again.
Set/CancelSet/Cancel
- 209 -- 209 -
11. Menu Guide - [Playback] menu
[Playback] menu ([Playback Mode])
: Default settings
[Anamorphic Desqueeze Display]
[ ] / [ ] / [ ] / [ ] / [ ] / [OFF]
This displays the de-squeezed images suited to the magnification of the anamorphic lens. (
129 / [Anamorphic Desqueeze
Display]
)
●
This is linked with [Anamorphic Desqueeze Display] of the [Custom] ([Monitor / Display]) menu.
[Playback] menu ([Add/Delete Info.])
[Protect]
[Single] / [Multi] / [Cancel]
You can set protection for images so that they will not be deleted by mistake. However, if you format the card, the protected
images will also be deleted.
●
For information about how to select images. ( 208 / How to Select an Image(s) in the [Playback] menu)
●
[Cancel] only allows to cancel settings at once for the images in a single card.
●
Be careful because the [Protect] setting may be disabled on a device other than this camera.
[Rating]
[Single] / [Multi] / [Cancel]
If you set any of the five different rating levels for images, you can delete all images except for those with ratings.
1 Select an image. (
208 / How to Select an Image(s) in the [Playback] menu)
2 Press
to select a rating level (1 to 5) and then press [MENU/SET].
●
When [Multi] is selected, repeat Steps 1 and 2.
●
To cancel the setting, set the rating level to [OFF].
- 210 -- 210 -
11. Menu Guide - [Playback] menu
[Playback] menu ([Edit Image])
: Default settings
[Copy]
[Copy Direction]
[ ] / [ ]
[Select Copy] / [Copy All in Folder] / [Copy All in Card]
You can copy the images in one of the cards to the other card.
●
Copied images will be saved in a new folder.
[Select Copy]: Copies selected images.
1 Select the folder containing the images to copy.
2 Select the images. (
208 / How to Select an Image(s) in the [Playback] menu)
3 Press [Fn1] to execute.
[Copy All in Folder]: Copies all images in a folder.
1 Select the folder to copy.
2 Check the images to be copied and then press [MENU/SET] to execute copying.
[Copy All in Card]: Copies all images in the card.
■
Using the Fn button to copy images
If you press the Fn button with [Copy] assigned while playing back one image at a time, the image currently being played
back will be copied to the other card. (
160 / Register Functions to the Fn Buttons)
Select the copy destination folder from the following options. In the case of group images, [Create a New Folder] is selected
automatically.
[Same Folder Number as Source]: Copies to a folder with the same name as the folder of the image to be copied.
[Create a New Folder]: Creates a new folder with an incremented folder number and then copies the image to it.
[Select Folder]: Selects a folder to store the image and then copies the image to it.
●
You can set up to 100 images at once with [Select Copy].
●
The [Protect] setting is not copied.
●
Copying may take a while.
●
When using the following combinations of cards, videos cannot be copied:
– Copying from an SDXC memory card to an SD memory card or SDHC memory card
- 211 -- 211 -
11. Menu Guide - [Playback] menu
[Playback] menu ([Others])
[Delete All Images]
[Delete All] / [Delete All Non-rating]
Deletes all images in a card.
[Delete All]: Deletes all images in a card.
[Delete All Non-rating]: Deletes all images except those with a rating set.
●
Images cannot be restored once they have been deleted. Carefully confirm the images before deletion.
●
Depending on the number of images to be deleted, it may take some time to delete them.
- 212 -- 212 -
11. Menu Guide - Entering Characters
Entering Characters
Follow the steps below when the character entry screen is displayed.
1 Enter characters.
●
Press to select characters and then press [MENU/SET] until the character to enter is displayed. (Repeat this)
●
To repeatedly enter the same character, rotate to the right to move the entry position cursor.
●
If you select an item and press [MENU/SET], you can perform the following operations:
– [
]: Change the character type to [A] (upper case characters), [a] (lower case characters), [1] (numbers), and [&]
(special characters)
– [
]: Enter a blank
– [Delete]: Delete a character
– [
]: Move the entry position cursor to the left
– [
]: Move the entry position cursor to the right
●
When entering a password,
A
shows the number of characters you have entered and the number of characters you
can enter.
2 Complete entering.
●
Select [Set] and then press [MENU/SET].
- 213 -- 213 -
12. Remote Operations - About Remote Operation
12. Remote Operations
This chapter explains the remote operation of the camera.
About Remote Operation
Connect the camera to a PC or smartphone with a USB connection cable*
1
, LAN cable, or Wi-Fi / Bluetooth*
2
.
*
1
Only when connecting to a PC.
*
2
Bluetooth connection can be used only when connecting to a smartphone.
Remote Operations from a PC
You can record remotely using the software “LUMIX Tether”. (
216 / Tethered Recording)
Example: When connecting the camera and PC with a USB connection cable or LAN cable.
Remote Operations from a Smartphone
You can record remotely using the smartphone app “LUMIX Sync”. (
222 / Connecting to a Smartphone)
Example: When the camera is connected to a smartphone by Wi-Fi.
This document refers to both smartphones and tablets as smartphones.
- 214 -- 214 -
12. Remote Operations - About Remote Operation
■
Checking operation when connected to a network
External monitor display
: The Wi-Fi function is set to on, or there is a connection.
: The Bluetooth function is set to on, or there is a connection.
: Connected with a LAN cable.
[NETWORK] connection lamp (blue)
Lit:
Connected with a LAN cable.
When Wi-Fi/Bluetooth function is ON or connected.
Blinking:
When sending Tether recorded images to a PC from a camera.
- 215 -- 215 -
12. Remote Operations - About Remote Operation
■
Fn Button Assigned with [LAN / Wi-Fi]
You can perform the following operations by pressing the Fn button assigned with [LAN / Wi-Fi] during network connection.
●
About Fn buttons (
160 / Register Functions to the Fn Buttons)
[Terminate the Connection] Terminates connection.
[Change the Destination] Terminates connection, and allows you to select a different connection.
[Register the Current Destination
to Favorite]
Registers the current connection destination or method so that you can easily connect
with the same connection settings next time.
[Network Address Display (LAN)]
Displays the MAC address and IP address of the camera when connected with a LAN
cable. (
248 / [Network Address Display (LAN)])
[Network Address Display (Wi-Fi)]
Displays the MAC address and IP address during Wi-Fi connection. (
248 /
[Network Address Display (Wi-Fi)])
●
Depending on the function being used or the connection destination, you may not be able to perform some of these
operations.
●
If you turn the camera off without terminating the network connection, when the camera is turned on next, it is
automatically reconnected with the previously connected network connection method.
●
The camera’s Wi-Fi connection, Bluetooth connection, and USB connection cannot be used while supplying power with
PoE+.
●
Do not insert/remove the card or move to an area without any reception while a connection is being made.
●
The camera cannot be used to connect to a public wireless LAN connection.
●
We strongly recommend that you set an encryption to maintain information security.
●
Images may not be completely sent depending on radio wave conditions. If the connection is terminated while importing
images, images with missing parts may be sent.
- 216 -- 216 -
12. Remote Operations - Tethered Recording
Tethered Recording
If you install the “LUMIX Tether” camera control software on your PC, you can connect the camera to the PC and then control
the camera from the PC and record while checking the live view on the PC screen (tethered recording). In addition, you can
output via HDMI/SDI to an external monitor or TV etc. during tethered recording.
Installing “LUMIX Tether”
This software is for controlling the camera from a PC. It allows you to change various settings and to record remotely and then
save the images to the PC.
Check the following site and then download and install the software:
https://panasonic.jp/support/global/cs/dsc/
(English only)
Operating environment
Supported OS
Windows: Windows 10 (64 bit)
Mac: macOS 10.13, 10.14, 10.15.3 to 10.15.7, 11.0 to 11.4
Interface
USB terminal (SuperSpeed USB (USB3.1), Type-C)
LAN terminal
Wi-Fi (IEEE 802.11b/g/n)
●
Supported OSs are current as of October 2021 and are subject to change.
●
To download the software, your PC needs to be able to connect to the internet.
●
Downloading may take a while depending on the communication environment.
●
For how to operate the software, refer to the operation guide for “LUMIX Tether”.
- 217 -- 217 -
12. Remote Operations - Tethered Recording
Operating the Camera from a PC
Connect the camera and PC with a USB connection cable, LAN cable or Wi-Fi.
●
When connecting the camera directly to a PC with a USB connection cable or LAN cable, you can connect to “LUMIX
Tether” with the default setting. Proceed to step 2. (Operate from step 1 if you change the default setting of [LAN / Wi-Fi]
or [USB Mode] in the [Setup] ([IN/OUT]) menu.)
●
When connecting with Wi-Fi, output the camera menu screen via HDMI/SDI to an external monitor etc. ( 22 /
Connecting the external monitor)
C
D
A
B
E
A
[LAN] terminal
B
[USB] terminal
C
LAN cable (commercially available) or
D
USB connection cable (commercially available)
E
PC (commercially available)
●
Plug in/out straight holding onto the plug. (Inserting these at an angle may cause deformation or malfunction)
●
Do not connect the cable to the wrong terminals. This may cause a malfunction.
- 218 -- 218 -
12. Remote Operations - Tethered Recording
Preparation:
●
Turn on the camera and PC.
●
Install “LUMIX Tether” on PC.
1 (When connecting with a USB connection cable)
Set [USB Mode] to [PC(Tether)].
●
[MENU/SET] [ ] [ ] [USB Mode] [PC(Tether)]
(When connecting with a LAN cable)
Set the camera to DHCP server before setting it to a wired LAN connection setting.
●
[MENU/SET] [ ] [ ] [LAN / Wi-Fi] [LAN / Wi-Fi Setup] [IP Address Setting (LAN)] [DHCP Server]
●
If you changed the setting of [IP Address Setting (LAN)], turn the camera off and then on again.
● [MENU/SET] [ ] [ ] [LAN / Wi-Fi] [LAN / Wi-Fi Function] [New Connection] [Control With LUMIX
Tether]
[LAN]
(When connecting with Wi-Fi)
Set the camera to a Wi-Fi connection setting.
●
[MENU/SET] [ ] [ ] [LAN / Wi-Fi] [LAN / Wi-Fi Function] [New Connection] [Control With LUMIX
Tether]
[Wi-Fi] [Via Network] / [Direct]
●
For details about [Via Network] and [Direct]. ( 241 / Wi-Fi Connections)
● Proceed to Step 3.
2 Connect the camera and PC with the USB connection cable or LAN cable.
●
At default setting, the camera is set to DHCP server. By connecting the camera directly to your PC with a LAN cable,
you can connect the camera to your PC without manually setting network information such as the IP address.
● When using PoE+ power supply with the camera, connect a PoE+ compatible switching hub and PC with a LAN cable.
3 Use “LUMIX Tether” to operate the camera from the PC.
●
(When connecting for the first time with a LAN cable or Wi-Fi)
Set a password to connect to the camera from “LUMIX Tether”. (from 8 to 31 characters)
● A tether icon is displayed in the upper right of the screen during recording standby.
- 219 -- 219 -
12. Remote Operations - Tethered Recording
Terminating the Network Connection
To terminate the network connection between the camera and PC, follow the steps below.
On the PC, close the “LUMIX Tether”.
Terminate the network connection.
●
[MENU/SET] [ ] [ ] [LAN / Wi-Fi] [LAN / Wi-Fi Function] [Yes]
●
You can also perform the same operation by pressing the Fn button assigned with [LAN / Wi-Fi]. ( 215 / Fn Button
Assigned with [LAN / Wi-Fi]
)
●
For the USB connection cable, use one that is a shielded product with a ferrite core compliant to USB Type C (USB3.1)
that is less than 1.5 m (4.9 feet).
●
For the cable that connects to the LAN terminal, use the one below.
– LAN cable (STP (Shielded Twisted Pair), category 5e or above, maximum 100 m (328 feet))
●
If the camera is connected to PC using both of LAN cable and USB connection cable, the USB connection cable will be
prioritized.
●
Wi-Fi function cannot be used while the connection is being made using a USB connection cable or LAN cable.
●
While using the streaming function, you can connect to “LUMIX Tether” via a LAN cable by just starting up “LUMIX
Tether” without operating the camera.
(You cannot make settings from [Control With LUMIX Tether] which is on the menu screen of the camera.)
– You cannot use “LUMIX Tether” with a USB or Wi-Fi connection.
– The live view will not be displayed on the screen of “LUMIX Tether” during streaming.
●
When you use [Reset] in the [Setup] ([Setting]) menu to reset the network settings, the password to connect to the
camera from “LUMIX Tether” will also be reset.
●
The camera cannot be connected to “LUMIX Tether” and “LUMIX Sync” at the same time.
- 220 -- 220 -
12. Remote Operations - Tethered Recording
Operating multiple cameras
You can operate multiple cameras remotely using “LUMIX Tether”.
The connecting method differs depends on whether you set the camera to a setting for DHCP server or DHCP client to connect.
C
A
A
A
A
B
A
LAN cable (commercially available)
B
Router (commercially available)
C
PC (commercially available)
Example: When the DHCP server is within the LAN and the camera is set to DHCP client to connect.
1 Set the camera to a DHCP client.
●
[MENU/SET] [ ] [ ] [LAN / Wi-Fi] [LAN / Wi-Fi Setup] [IP Address Setting (LAN)] [DHCP Client]
●
If you changed the setting of [IP Address Setting (LAN)], turn the camera off and then on again.
2 Connect all cameras and the router with LAN cables.
3 Connect the router and PC with a LAN cable.
4 Operate “LUMIX Tether” to operate the camera remotely.
●
When Tethered recording using several cameras, it is recommended to set an individual device name for each camera:
[
] [ ] [Device Name]
- 221 -- 221 -
12. Remote Operations - Tethered Recording
Tether Connection Mode
You can set the camera to tether connection mode by operating the camera remotely from “LUMIX Tether”.
If you set the camera to tether connection mode when it is not recording, it enters a connection standby state for LUMIX Tether
while maintaining the connection between the camera and PC, and it can quickly return to a state where remote shooting is
possible.
●
The status indicator lights up (orange) during tether connection mode.
●
For how to operate the software, refer to the operation guide for “LUMIX Tether”.
Taking a still picture
You can take still pictures by operating the camera remotely from the operation panel of “LUMIX Tether”.
●
When you are recording still pictures you can use the functions which are not available during video recording.
●
The functions for still pictures are not displayed on the menu screen.
●
The setting items differ from those during video recording.
Example)
Recording mode [P] / [A] / [S] / [M]
Shutter speed (sec.) 1 to 1/8000
Exposure Compensation
[±5EV]
●
When the exposure compensation value falls below or exceeds ±3 EV, the brightness
of the recording screen will no longer change.
Picture quality JPEG (FINE / STD.)
Picture size [L] / [M] / [S]
Image Stabilizer [Panning]
1 shot AF Available
●
The following setting is fixed:
– [Aspect Ratio]: [3:2]
●
[P] / [A] / [S] / [M] mode can be used only during Tether recording.
After finishing Tether recording, select [Creative Video Mode] in [Rec Mode].
●
For how to operate the software, refer to the operation guide for “LUMIX Tether”.
- 222 -- 222 -
12. Remote Operations - Connecting to a Smartphone
Connecting to a Smartphone
Use the smartphone app “Panasonic LUMIX Sync” (hereafter “LUMIX Sync”) for remote recording and image transfers.
Flow of connecting a smartphone
●
When performing connection setting, output the camera menu screen via HDMI/SDI to an external monitor etc. ( 22 /
Connecting the external monitor)
1 Install “LUMIX Sync” on your smartphone. (
223 / Installing “LUMIX Sync”)
2 Connect to a smartphone.
When connecting a smartphone that supports Bluetooth Low Energy and the camera via Bluetooth.
●
Bluetooth connection (
224 / Connecting to a Smartphone (Bluetooth Connection))
When connecting a smartphone that does not support Bluetooth Low Energy and the camera via Wi-Fi.
●
Wi-Fi connection ( 228 / Connecting to a Smartphone (Wi-Fi connection))
When connecting the camera to the wireless access point which the smartphone is connected to with a wired LAN.
●
Wired LAN connection ( 233 / Connecting to a Smartphone (Wired LAN connection))
3 Operate the camera using the smartphone. ( 235 / Operating the Camera with a
Smartphone
)
●
[Remote shooting]
● [Shutter Remote Control]
● [Import images]
● [Location Logging]
● [Remote Wakeup]
● [Auto Clock Set]
● [Camera settings copy]
- 223 -- 223 -
12. Remote Operations - Connecting to a Smartphone
Installing “LUMIX Sync”
“LUMIX Sync” is an application for smartphones provided by Panasonic.
Supported OS
Android™: Android 7 or higher
iOS: iOS 12 or higher
1 Connect the smartphone to a network.
2 (Android) Select “Google Play™ Store”.
(iOS) Select “App Store”.
3 Enter “Panasonic LUMIX Sync” or “LUMIX” into the search box.
4 Select and install the “Panasonic LUMIX Sync” .
●
Use the latest version.
●
Supported OSs are current as of October 2021 and are subject to change.
●
Read the [Help] in the “LUMIX Sync” menu for further details on how to operate.
●
The camera cannot be connected to “LUMIX Tether” and “LUMIX Sync” at the same time.
●
While using the streaming function, you cannot connect to “LUMIX Sync” via Wi-Fi or a LAN cable.
●
When the recording mode is [P] / [A] / [S] / [M], you cannot connect to “LUMIX Sync”.
Select [Creative Video Mode] in [Rec Mode] of the recording mode menu.
●
The app may not operate correctly depending on your smartphone.
For information on the “LUMIX Sync”, refer to the following support site:
https://panasonic.jp/support/global/cs/dsc/
(English only)
- 224 -- 224 -
12. Remote Operations - Connecting to a Smartphone
Connecting to a Smartphone (Bluetooth Connection)
Follow a simple connection setup procedure (pairing) to connect to a smartphone that supports Bluetooth Low Energy. When
pairing is set up, the Wi-Fi connection will be established automatically by just operating “LUMIX Sync”.
●
For the first-time connection, pairing settings are required. For information about connecting for the second time onwards
(
227 / Connecting to a Paired Smartphone)
●
Supported smartphones
Android™: Android 7 or higher with Bluetooth 4.0 or higher
(excluding those that do not support Bluetooth Low Energy)
iOS: iOS 12 or higher
●
Turn on the smartphone’s Bluetooth function in advance.
1 On the smartphone, start up “LUMIX Sync”.
●
A message regarding device (camera) registration is displayed. Select [Next].
●
If you have closed the message, select [ ], then register the camera using [Camera registration (pairing)].
2 Check the content in the displayed guide and select [Next] until the screen to register
the camera is displayed.
- 225 -- 225 -
12. Remote Operations - Connecting to a Smartphone
Operating the camera in accordance with the smartphone guide.
3 Set the camera to Bluetooth pairing standby state.
●
[MENU/SET] [ ] [ ] [Bluetooth] [Bluetooth] [SET] [Pairing]
● The camera enters pairing standby state and the device name
A
is displayed.
4 On the smartphone, select the camera’s device name.
●
(iOS devices) When a message to confirm the change of destination is displayed, select [Join].
5 When a message indicating that device registration is complete, select [OK].
●
A Bluetooth connection between the camera and the smartphone will be made.
- 226 -- 226 -
12. Remote Operations - Connecting to a Smartphone
●
The paired smartphone is registered as a paired device.
●
During Bluetooth connection, [ ] is displayed in the recording screen. When the Bluetooth function is enabled, but a
connection is not established with the smartphone, [
] appears translucent.
●
Up to 16 smartphones can be registered. If you try to register more than 16 smartphones, the registration information will
be deleted from the oldest first.
●
[Pairing] is not available while using the streaming function.
Wi-Fi connection with a Bluetooth connected smartphone
You can establish Wi-Fi connection by operating “LUMIX Sync”.
Select [ ] ([Remote shooting]) or [ ] ([Import images]) in the “LUMIX Sync” home screen.
●
During Wi-Fi connection, [ ] is displayed on the recording screen.
End Bluetooth Connection
To terminate the Bluetooth connection, turn off the Bluetooth function of the camera.
[MENU/SET]
[ ] [ ] [Bluetooth] [Bluetooth] Select [OFF]
●
Even if you terminate the connection, the pairing information for it will not be deleted.
- 227 -- 227 -
12. Remote Operations - Connecting to a Smartphone
Connecting to a Paired Smartphone
Connect paired smartphones using the following procedure.
Enable the Bluetooth function of the camera.
●
[MENU/SET] [ ] [ ] [Bluetooth] [Bluetooth] [ON]
On the smartphone, start up “LUMIX Sync”.
●
If a message is displayed indicating that the smartphone is searching for cameras, close the message.
Select [ ].
Select [Bluetooth Setup].
Turn Bluetooth ON.
From [Camera registered] items, select the camera’s device name.
●
Even if you set up pairing with more than one smartphone, you can only connect to one smartphone at a time.
●
When pairing takes some time, canceling the pairing settings on both the smartphone and camera and re-establishing
the connection may result in the camera being detected correctly.
- 228 -- 228 -
12. Remote Operations - Connecting to a Smartphone
Canceling Pairing
Cancel the pairing setting of the camera.
●
[MENU/SET] [ ] [ ] [Bluetooth] [Bluetooth] [SET] [Delete]
Select the smartphone for which to cancel the pairing.
●
Also cancel the pairing setting on the smartphone.
●
When [Reset] in the [Setup] ([Setting]) menu is used to reset the network settings, the information for registered devices
is deleted.
Connecting to a Smartphone (Wi-Fi connection)
Use Wi-Fi to connect the camera and a smartphone. With default settings, simple connection with smartphones is possible
without entering a password. You can also use password authentication for enhanced connection security.
1 Set the camera to Wi-Fi connection standby status.
●
[MENU/SET] [ ] [ ] [LAN / Wi-Fi] [LAN / Wi-Fi Function] [New Connection] [Control With
Smartphone]
[Wi-Fi]
●
The SSID
A
of the camera is displayed on the screen.
2 In the setting menu of the smartphone, turn the Wi-Fi function ON.
3 Select the SSID displayed on the screen of the output destination.
- 229 -- 229 -
12. Remote Operations - Connecting to a Smartphone
4 On the smartphone, start up “LUMIX Sync”.
5 (At the first connection)
Confirm the device name displayed on the screen of the output destination and then
select [Yes].
●
When a device different than the one you want to connect to is displayed, the camera will automatically connect to that
device if you select [Yes]. If there are other Wi-Fi connection devices nearby, we recommend using either QR code or
manual password input to connect with password authentication. (
230 / Using Password Authentication to Connect)
- 230 -- 230 -
12. Remote Operations - Connecting to a Smartphone
Using Password Authentication to Connect
You can enhance Wi-Fi connection security by using password authentication through either QR code or manual input.
■
Scanning QR code to connect
Set [Wi-Fi Password] on the camera to [ON].
●
[MENU/SET] [ ] [ ] [LAN / Wi-Fi] [LAN / Wi-Fi Setup] [Wi-Fi Password] [ON]
Display the QR code (
A
).
●
[MENU/SET] [ ] [ ] [LAN / Wi-Fi] [LAN / Wi-Fi Function] [New Connection] [Control With
Smartphone]
[Wi-Fi]
●
Press [MENU/SET] to enlarge the QR code.
On the smartphone, start up “LUMIX Sync”.
●
If a message is displayed indicating that the smartphone is searching for cameras, close the message.
Select [ ].
Select [Wi-Fi connection].
Select [QR code].
Scan the QR code displayed on the screen of the output destination using “LUMIX Sync”.
●
(iOS devices) When a message to confirm the change of destination is displayed, select [Join].
(At the first connection) Confirm the device name displayed on the screen of the output destination and then select
[Yes].
- 231 -- 231 -
12. Remote Operations - Connecting to a Smartphone
■
Manually entering a password to connect
Display the screen in Step of “Scanning QR code to connect”. ( 230 / Scanning QR code to connect)
In the setting menu of the smartphone, turn the Wi-Fi function ON.
On the Wi-Fi setup screen, select the SSID
B
displayed on the screen of the output destination.
(At the first connection) Enter the password
B
displayed on the screen of the output destination.
On the smartphone, start up “LUMIX Sync”.
(At the first connection) Confirm the device name displayed on the screen of the output destination and then select
[Yes].
- 232 -- 232 -
12. Remote Operations - Connecting to a Smartphone
Connection Methods Other Than the Default Settings
When connecting with [Via Network], or [WPS Connection] in [Direct], follow the steps below:
Display the connection method setting screen for the camera.
●
[MENU/SET] [ ] [ ] [LAN / Wi-Fi] [LAN / Wi-Fi Function] [New Connection] [Control With
Smartphone]
[Wi-Fi]
Press [Fn1].
■
Connecting via network
1 Select [Via Network] and then press [MENU/SET].
●
Connect the camera to a wireless access point. (
241 / [Via Network])
2 In the setting menu of the smartphone, turn the Wi-Fi function ON.
3 Connect the smartphone to the wireless access point that the camera is connected to.
4 On the smartphone, start up “LUMIX Sync”.
■
Connecting directly
1 Select [Direct] and then press [MENU/SET].
●
Select [WPS Connection] to connect the camera to a smartphone. (
244 / [Direct])
2 On the smartphone, start up “LUMIX Sync”.
Terminating the Wi-Fi Connection
To end the Wi-Fi connection between the camera and smartphone, follow the steps below.
1 Set the camera to recording mode.
2 Terminate the Wi-Fi connection.
●
[MENU/SET] [ ] [ ] [LAN / Wi-Fi] [LAN / Wi-Fi Function] [Yes]
●
You can also perform the same operation by pressing the Fn button assigned with [LAN / Wi-Fi]. ( 215 / Fn Button
Assigned with [LAN / Wi-Fi]
)
3 On the smartphone, close the “LUMIX Sync”.
- 233 -- 233 -
12. Remote Operations - Connecting to a Smartphone
Connecting to a Smartphone (Wired LAN connection)
Connect the camera to the smartphone by connecting it to a wireless access point to which the smartphone is connected with a
LAN cable.
Preparation:
●
Connect a smartphone to a wireless access point.
1 Set the camera to a DHCP client.
●
[MENU/SET] [ ] [ ] [LAN / Wi-Fi] [LAN / Wi-Fi Setup] [IP Address Setting (LAN)] [DHCP Client]
●
If you changed the setting of [IP Address Setting (LAN)], turn the camera off and then on again.
2 Set the camera to a wired LAN connection setting.
●
[MENU/SET] [ ] [ ] [LAN / Wi-Fi] [LAN / Wi-Fi Function] [New Connection] [Control With
Smartphone]
[LAN]
3 Insert a LAN cable to the camera’s [LAN] terminal and connect it to the wireless
access point.
4 On the smartphone, start up “LUMIX Sync”.
5 (At the first connection)
Confirm the device name displayed on the screen of the output destination and then
select [Yes].
- 234 -- 234 -
12. Remote Operations - Connecting to a Smartphone
Terminating the Wired LAN Connection
To end the connection between the camera and smartphone, follow the steps below.
Set the camera to recording mode.
Terminate the wired LAN connection.
●
[MENU/SET] [ ] [ ] [LAN / Wi-Fi] [LAN / Wi-Fi Function] [Yes]
●
You can also perform the same operation by pressing the Fn button assigned with [LAN / Wi-Fi]. ( 215 / Fn Button
Assigned with [LAN / Wi-Fi]
)
On the smartphone, close the “LUMIX Sync”.
●
For the cable that connects to the LAN terminal, use the one below.
– LAN cable (STP (Shielded Twisted Pair), category 5e or above, maximum 100 m (328 feet))
●
Also refer to the operating instructions for the wireless access point.
- 235 -- 235 -
12. Remote Operations - Operating the Camera with a Smartphone
Operating the Camera with a Smartphone
This explains the functions for operating the camera from a smartphone. Functions described in this document with the
(
) symbol require a Bluetooth connection by a smartphone that supports Bluetooth Low Energy.
Getting started
●
Connect the camera to a smartphone. ( 222 / Connecting to a Smartphone)
●
On the smartphone, start up “LUMIX Sync”.
■
Home Screen
When you start up “LUMIX Sync”, the home screen is displayed.
A
C
E
B
D
A
App settings
This allows connection settings, camera ON/OFF operations, and displays Help.
B
[Import images] ( 237 / [Import images])
C
[Remote shooting] ( 236 / [Remote shooting])
D
[Shutter Remote Control] ( 236 / [Shutter Remote Control])
E
[Others] (Camera settings copy) ( 240 / [Camera settings copy])
- 236 -- 236 -
12. Remote Operations - Operating the Camera with a Smartphone
[Remote shooting]
You can use the smartphone to record from a remote location while viewing the live view images from the camera.
1 Select [ ] ([Remote shooting]) in the home screen.
●
(iOS devices) When a message to confirm the change of destination is displayed, select [Join].
2 Start recording.
A
Starts / ends the video recording
●
The recorded image is saved on the camera.
●
Certain features, including some settings, may not be available.
[Shutter Remote Control]
You can use the smartphone as a remote control for the shutter.
1 Select [ ] ([Shutter Remote Control]) in the home screen.
2 Start recording.
Starts / ends the video recording
●
The recorded image is saved on the camera.
●
[Shutter Remote Control] is not available when connected with a LAN cable.
- 237 -- 237 -
12. Remote Operations - Operating the Camera with a Smartphone
[Import images]
Transfer an image stored on the card to the smartphone.
1 Select [ ] ([Import images]) in the home screen.
●
(iOS devices) When a message to confirm the change of destination is displayed, select [Join].
2 Select the image to transfer.
●
You can switch the card displayed by touching
A
.
3 Transfer the image.
●
Select [ ].
●
If the image is a video, you can play it back by touching [ ] at the center of the screen.
●
When a video is played back, this has a small data size and is transmitted using “LUMIX Sync”, therefore its image
quality will differ from that of the actual video recording. Depending on the smartphone and on the usage conditions, the
image quality may deteriorate or the sound may skip during video playback.
●
It is not possible to transfer images with file sizes exceeding 4 GB.
●
Images recorded using the following functions cannot be transferred:
– [MOV] videos
- 238 -- 238 -
12. Remote Operations - Operating the Camera with a Smartphone
[Location Logging]
The smartphone sends its location information to the camera via Bluetooth, and the camera performs recording while writing the
acquired location information.
Preparation:
●
Enable the GPS function on the smartphone.
1 Enable [Location Logging] on the camera.
●
[MENU/SET] [ ] [ ] [Bluetooth] [Location Logging] [ON]
●
The camera will enter a mode where location information can be recorded and [ ] is displayed in the recording
screen.
2 Record images with the camera.
●
Location information will be written to the recorded images.
●
When [ ] on the recording screen appears translucent, location information cannot be acquired, therefore data
cannot be written. Smartphone GPS positioning may not be possible if the smartphone is within a building, a bag,
or something similar. Move the smartphone to a position affording a wide view of the sky to improve positioning
performance. Also refer to the operating instructions of your smartphone.
●
Images with location information are indicated with [
].
●
Be sure to pay special attention to the privacy, and portrait rights, etc. of the subject when you use this function. Use at
your own risk.
●
The smartphone drains its battery faster while acquiring location information.
●
[Location Logging] is not available when connected with a LAN cable.
- 239 -- 239 -
12. Remote Operations - Operating the Camera with a Smartphone
[Remote Wakeup]
Even when the camera is turned off, the smartphone can be used to start the camera and record images, or check the recorded
images.
Preparation:
Enable [Remote Wakeup] on the camera.
●
[MENU/SET] [ ] [ ] [Bluetooth] [Remote Wakeup] [ON]
●
[Remote Wakeup] is not available when connected with a LAN cable.
Turning Off the Camera
Select [ ] ([Remote shooting]) or [ ] ([Import images]) in the “LUMIX Sync” home screen.
Select [ ] in the “LUMIX Sync” home screen.
Select [Turn off the camera].
●
[Turn off the camera] is not displayed when it is not connected via Wi-Fi.
Select [Power OFF].
●
When [Remote Wakeup] has been set, since the Bluetooth function continues to work even when the camera is turned
off, power is being consumed.
●
If you turn off the camera by pressing the camera ON/OFF button on the camera, [Remote Wakeup] will not work.
Turning On the Camera
Select [ ] ([Remote shooting]) in the “LUMIX Sync” home screen.
●
(iOS devices) When a message to confirm the change of destination is displayed, select [Join].
●
The camera turns on, and automatically connects using Wi-Fi.
Shortening the Return Time when performing [Remote Wakeup]
You can shorten the time it takes to enable the priority function when waking up the camera remotely.
Preparation:
●
Set [Remote Wakeup] in [Bluetooth] to [ON].
[MENU/SET]
[ ] [ ] [Bluetooth] Select [Returning from Sleep Mode]
[Import / Remote Priority]
Shortens the time to return when using [Import images] or [Remote
shooting].
[Remote Shutter Priority]
Shortens the time to return when using [Shutter Remote Control].
- 240 -- 240 -
12. Remote Operations - Operating the Camera with a Smartphone
[Auto Clock Set]
Synchronize the clock and the time zone setting of the camera with those of a smartphone.
1 Enable [Auto Clock Set] on the camera.
●
[MENU/SET] [ ] [ ] [Bluetooth] [Auto Clock Set] [ON]
●
[Auto Clock Set] is not available when connected with a LAN cable.
[Camera settings copy]
This saves the camera’s settings information to the smartphone. Saved settings information can be loaded to the camera, letting
you set the same settings on multiple cameras.
1 Select [ ] ([Others]) [ ] ([Camera settings copy]) in the “LUMIX Sync” home
screen.
2 Save or load settings information.
●
Read the [Help] in the “LUMIX Sync” menu for further details on how to operate the “LUMIX Sync”.
●
Only settings information from the same model can be loaded.
●
When transferring settings information, a Wi-Fi connection is automatically created.
(iOS devices) When a message to confirm the change of destination is displayed, select [Join].
●
You can save or load the settings information of items that are the same as those in [Save/Restore Camera Setting] in
the [Setup] ([Setting]) menu. (
284 / List of Default Settings / Custom Saving / Settings Available for Copying)
●
[Camera settings copy] is not available when connected with a LAN cable.
- 241 -- 241 -
12. Remote Operations - Wi-Fi Connections
Wi-Fi Connections
●
When [Wi-Fi] has been selected in [New Connection] under [LAN / Wi-Fi Function] from [LAN / Wi-Fi] of the [Setup] ([IN/
OUT]) menu, select the connection method from either [Via Network] or [Direct] to connect.
On the other hand, when you use [Select destination from History(Wi-Fi)] or [Select destination from Favorite(Wi-Fi)], the
camera connects to the selected device with the previously-used settings.
[Via Network]
Connect the camera and an external device through the wireless access point.
1 Select the method for connecting to a wireless access point.
Settings: [WPS (Push-Button)] / [WPS (PIN code)] / [From List]
●
After selecting [Via Network] once, the camera will connect to the previously-used wireless access point. To change the
wireless access point used for connection, press [Fn1] and change the connection destination.
●
Check the operating instructions and settings of the wireless access point.
- 242 -- 242 -
12. Remote Operations - Wi-Fi Connections
■
[WPS (Push-Button)]
Press the WPS button on the wireless access point to set up a connection.
Press the wireless access point WPS button until it switches to WPS mode.
Example)
■
[WPS (PIN code)]
Enter a PIN code into the wireless access point to set up a connection.
Select the wireless access point you are connecting to.
Enter the PIN code displayed on the screen of the output destination into the wireless access point.
Press [MENU/SET] on the camera.
■
[From List]
Searches for a wireless access point to use, and connects to it.
●
Confirm the encryption key of the wireless access point.
Select the wireless access point you are connecting to.
●
Press [Fn1] to run a wireless access point search again.
●
If no wireless access point is found, refer to “Connecting by Manual Input” below.
(If network authentication is encrypted)
Enter the encryption key.
- 243 -- 243 -
12. Remote Operations - Wi-Fi Connections
Connecting by Manual Input
●
Check the SSID, network authentication, encryption, and encryption key of the wireless access point you are using.
In the screen in Step of “[From List]”, select [Manual Input].
Enter the SSID of the wireless access point you are connecting to, and then select [Set].
●
For information on how to enter characters ( 212 / Entering Characters)
Select the network authentication.
[WPA2-PSK]
Supported encryption: [TKIP], [AES]
[WPA2/WPA-PSK]
[No Encryption] ―
(When other than [No Encryption] is selected)
Enter the encryption key and then select [Set].
- 244 -- 244 -
12. Remote Operations - Wi-Fi Connections
[Direct]
Directly connect the camera and the external device.
1 Select the method for connecting with the external device.
[WPS Connection]
[WPS (Push-Button)]
Press the WPS button on the external device to connect.
●
On the camera, press [Fn1] to extend the connection wait time.
[WPS (PIN code)]
Enter the PIN code into the camera, and connect.
[Manual Connection]
Search for the camera on the external device to connect.
Enter the SSID and password displayed on the screen of the output destination into the device.
●
If the destination is set to smartphone, the password is not displayed. Select the SSID to
establish a connection. (
228 / Connecting to a Smartphone (Wi-Fi connection))
●
Also refer to the operating instructions for the device to be connected.
●
The name of the camera (SSID) can be changed:
[
] [ ] [Device Name] ( 206 / [Device Name])
- 245 -- 245 -
12. Remote Operations - Wi-Fi Connections
Connect to Wi-Fi Using Previously Saved Settings
Use the Wi-Fi connection history to connect using the same settings as previously.
1 Display the Wi-Fi connection history.
●
[MENU/SET] [ ] [ ] [LAN / Wi-Fi] [LAN / Wi-Fi Function] [Select destination from History(Wi-Fi)] /
[Select destination from Favorite(Wi-Fi)]
2 Select the History item to connect to.
●
Press [Fn1] to confirm details of the connection history.
Register to Favorite
You can register the Wi-Fi connection history to Favorite.
Display the Wi-Fi connection history.
●
[MENU/SET] [ ] [ ] [LAN / Wi-Fi] [LAN / Wi-Fi Function] [Select destination from History(Wi-Fi)]
Select the History item to register and then press .
Enter a registration name and then select [Set].
●
For information on how to enter characters ( 212 / Entering Characters)
●
A maximum of 30 characters can be entered. A two-byte character is treated as two characters.
- 246 -- 246 -
12. Remote Operations - Wi-Fi Connections
Editing Items Registered in Favorite
Display items registered to Favorite.
●
[MENU/SET] [ ] [ ] [LAN / Wi-Fi] [LAN / Wi-Fi Function] [Select destination from Favorite(Wi-Fi)]
Select the History item to edit in Favorite and then press .
[Remove from Favorite] ―
[Change the Order in Favorite] Specify the destination location of the desired item to change the display order.
[Change the Registered
Name]
Enter characters to change the registered name.
●
For information on how to enter characters (
212 / Entering Characters)
●
The number of items that can be saved in History is limited. Register frequently-used connection settings to Favorite.
●
When [Reset] in the [Setup] ([Setting]) menu is used to reset the network settings, the content registered in History and
Favorite is deleted.
●
If the device you want to connect to (smartphone, etc.) is connected to a wireless access point other than the camera,
you cannot connect the device to the camera using [Direct]. Change the Wi-Fi settings of the device you want to connect
to so that the access point to be used is set to the camera. You can also select [New Connection] and reconnect the
devices. (
228 / Connecting to a Smartphone (Wi-Fi connection))
●
It may be difficult to connect to networks to which many devices are connected. In these cases, connect using [New
Connection].
- 247 -- 247 -
12. Remote Operations - [LAN / Wi-Fi Setup] menu
[LAN / Wi-Fi Setup] menu
This configures the settings required for the wired LAN / Wi-Fi function. The settings cannot be changed when connected to
wired LAN / Wi-Fi.
1 Displaying the [LAN / Wi-Fi Setup] menu.
●
[MENU/SET] [ ] [ ] [LAN / Wi-Fi] [LAN / Wi-Fi Setup]
●
Cannot be set during connection via USB.
[IP Address Setting (LAN)]
Set the IP address for wired LAN connection. You can select whether to
automatically assign an IP address using a DHCP or to set any fixed IP
address.
[DHCP Server]:
Select this to connect the camera as a DHCP server (default setting).
[DHCP Client]:
Select this to connect the camera as a DHCP client.
[Static IP Address]:
Select this to connect using the IP address set in [Static IP Address Setting].
[Static IP Address Setting]:
You can set IP address used for [Static IP Address].
[IP Address]: The default setting is <192.168.0.2>.
[Subnet Mask]: The default setting is <255.255.255.0>.
[Default Gateway]: The default setting is <192.168.0.1>.
Set the IP address, subnet mask, and default gateway with the correct
combination.
●
For details about DHCP settings or settings of a fixed IP address, contact
the administrator of the network you are using.
●
If you changed the setting of [IP Address Setting (LAN)], turn the camera
off and then on again.
[Wi-Fi Password]
You can use a password to connect for enhanced security. (
230 / Using
Password Authentication to Connect
)
- 248 -- 248 -
12. Remote Operations - [LAN / Wi-Fi Setup] menu
[LAN / Wi-Fi Function Lock]
To prevent incorrect operation and use of the wired LAN / Wi-Fi function by a
third party and to protect personal information in the camera and included with
images, protect the wired LAN / Wi-Fi function with a password.
[Setup]: Enter any 4-digit numbers as the password.
●
For information on how to enter characters (
212 / Entering Characters)
[Cancel]: Cancel the password.
●
Once a password is set, you are required to enter it each time you use the
wired LAN / Wi-Fi function.
●
If you forget your password, you can use [Reset] in the [Setup] ([Setting])
menu to reset the network settings and thereby reset the password.
[Network Address Display (LAN)]
Displays the MAC address and IP address of the camera during wired LAN
connection.
[Network Address Display (Wi-Fi)]
Displays the MAC address and IP address of the camera during Wi-Fi
connection.
- 249 -- 249 -
13. Streaming Function
13. Streaming Function
Live stream the camera’s images and audio (AAC) over the internet.
●
This camera supports RTP/RTSP*
1
.
*
1
Communication protocol for streaming
C
B B
A
E
D
A
[LAN] terminal
B
LAN cable (commercially available)
C
Router (commercially available)
D
PC
E
Video sharing website
Preparation:
●
Install an RTP/RTSP compatible streaming software to the PC.
1 Set the [IP Address Setting (LAN)] to the same network as the PC.
●
[MENU/SET] [ ] [ ] [LAN / Wi-Fi] [LAN / Wi-Fi Setup] [IP Address Setting (LAN)]
●
If you changed the setting of [IP Address Setting (LAN)], turn the camera off and then on again.
2 Connect the camera and PC to a router with a LAN cable.
3 Set the [Streaming Quality] and [RTSP Port] then turn the [Streaming Function] to
[ON]. (
250 / Streaming Settings)
●
[ ] is displayed on the recording screen.
4 Operate the streaming software and start/stop streaming.
●
Set the URL with the streaming software as follows.
rtsp://(IP address of the camera)/stream
●
If the [RTSP Port] (
250 / [RTSP Port]) is changed from the default setting (554), set as follows.
rtsp://(IP address of the camera):(RTSP Port)/stream
●
When streaming starts, the front and rear tally lamp light up, and [ ] will be displayed on the screen.
●
Refer to the operating instructions of the streaming software for operations.
- 250 -- 250 -
13. Streaming Function
●
While using the streaming function, you can connect to “LUMIX Tether” via a LAN cable by just starting up “LUMIX
Tether” without operating the camera. (
216 / Tethered Recording)
●
When you press the video rec. button, the images being streamed will be recorded on the external recorder output via
HDMI/SDI:
[
] [ ] [HDMI Rec Output] [HDMI Recording Control]
[
] [ ] [SDI Rec Output] [SDI Recording Control]
●
Video cannot be recorded to the cards while using streaming function.
●
The menu screen cannot be displayed while streaming.
●
The camera’s recording information will not be displayed on the streamed images.
●
[LAN / Wi-Fi Function] is not available while using the streaming function.
●
The streaming function is not available when using the following functions:
– When [System Frequency] is set to [24.00Hz (CINEMA)]
– [HDMI RAW Data Output]
– When the recording mode is set to [P] / [A] / [S] / [M] mode on “LUMIX Tether”.
– During USB connection
●
You can display a blue frame on the screen during streaming:
[
] [ ] [Streaming Blue Frame Indicator] ( 199 / [Streaming Blue Frame Indicator])
Streaming Settings
Configures streaming settings.
[MENU/SET]
[ ] [ ] [LAN / Wi-Fi] Select [Streaming Setup]
[Streaming Function]
Enables/disables the streaming function.
[ON] / [OFF]
[Streaming Quality]
Sets the image quality that will be streamed. (
251 / [Streaming Quality])
[RTSP Port]
Sets the RTSP port number.
[CHANGE]: Change to a desired number. (Up to 65535)
[DEFAULT]: Sets to the default setting (554).
●
The following numbers cannot be set.
0-553, 555-1023, 1900, 10669, 10670, 15740, 50001, 60606
- 251 -- 251 -
13. Streaming Function
■
[Streaming Quality]
A
Frame rate
B
Bit rate
[System Frequency]: [59.94Hz (NTSC)]
[Streaming Quality] Video compression format Resolution
A
/
B
H.265/4K/50M/60p*
1
H.265/HEVC
3840x2160
59.94p / 50 Mbps
H.265/4K/25M/60p*
1
59.94p / 25 Mbps
H.265/4K/25M/30p 29.97p / 25 Mbps
H.265/4K/12.5M/30p 29.97p / 12.5 Mbps
H.265/FHD/20M/60p
1920x1080
59.94p / 20 Mbps
H.265/FHD/16M/60p 59.94p / 16 Mbps
H.265/FHD/12M/30p 29.97p / 12 Mbps
H.265/FHD/6M/30p 29.97p / 6 Mbps
H.264/4K/50M/60p*
1
H.264/MPEG-4 AVC
3840x2160
59.94p / 50 Mbps
H.264/4K/25M/60p*
1
59.94p / 25 Mbps
H.264/4K/25M/30p 29.97p / 25 Mbps
H.264/4K/12.5M/30p 29.97p / 12.5 Mbps
H.264/FHD/16M/60p
1920x1080
59.94p / 16 Mbps
H.264/FHD/8M/60p 59.94p / 8 Mbps
H.264/FHD/6M/30p 29.97p / 6 Mbps
H.264/FHD/3M/30p 29.97p / 3 Mbps
H.264/HD/6M/60p
1280x720
59.94p / 6 Mbps
H.264/HD/4M/30p 29.97p / 4 Mbps
*
1
[FULL] of [Image Area of Video] is not available.
- 252 -- 252 -
13. Streaming Function
A
Frame rate
B
Bit rate
[System Frequency]: [50.00Hz (PAL)]
[Streaming Quality] Video compression format Resolution
A
/
B
H.265/4K/50M/50p*
1
H.265/HEVC
3840x2160
50.00p / 50 Mbps
H.265/4K/25M/50p*
1
50.00p / 25 Mbps
H.265/4K/25M/25p 25.00p / 25 Mbps
H.265/4K/12.5M/25p 25.00p / 12.5 Mbps
H.265/FHD/20M/50p
1920x1080
50.00p / 20 Mbps
H.265/FHD/16M/50p 50.00p / 16 Mbps
H.265/FHD/12M/25p 25.00p / 12 Mbps
H.265/FHD/6M/25p 25.00p / 6 Mbps
H.264/4K/50M/50p*
1
H.264/MPEG-4 AVC
3840x2160
50.00p / 50 Mbps
H.264/4K/25M/50p*
1
50.00p / 25 Mbps
H.264/4K/25M/25p 25.00p / 25 Mbps
H.264/4K/12.5M/25p 25.00p / 12.5 Mbps
H.264/FHD/16M/50p
1920x1080
50.00p / 16 Mbps
H.264/FHD/8M/50p 50.00p / 8 Mbps
H.264/FHD/6M/25p 25.00p / 6 Mbps
H.264/FHD/3M/25p 25.00p / 3 Mbps
H.264/HD/6M/50p
1280x720
50.00p / 6 Mbps
H.264/HD/4M/25p 25.00p / 4 Mbps
*
1
[FULL] of [Image Area of Video] is not available.
●
Image quality of the HDMI/SDI output destination is output with the resolution and frame rate corresponding to the
combination of the [Streaming Quality] and [Down Convert] or [SDI Output Resolution] setting. (When [Streaming Quality]
is set to HD, it is output with the image quality of FHD.)
- 253 -- 253 -
14. Materials - Optional Accessories
14. Materials
Optional Accessories
(Product numbers correct as of October 2021.)
Battery Pack AG-VBR59, AG-VBR89, AG-VBR118
Battery Charger AG-BRD50
LED Video Light VW-LED1
Stereo Shotgun Microphone DMW-MS2
Stereo Microphone VW-VMS10
XLR Microphone Adaptor DMW-XLR1
Tripod adaptor*
1
DMW-TA1
*
1
Use if the attached lens is in contact with the tripod pedestal.
●
Some optional accessories may not be available in some countries.
●
For the latest information on optional accessories, refer to our catalogues/web pages, etc.
- 254 -- 254 -
14. Materials - External Monitor Displays
External Monitor Displays
Recording Screen
59.94
p
59.94
p
100100 4.04.0 24
m
59
s
24
m
59
s
FF
00:00:00.0000:00:00.00
32003200
AWBc AWBw
[White Balance] ( 89 / White Balance (WB))
White balance adjustment ( 92 / Adjusting the White Balance)
[Photo Style] ( 94 / [Photo Style])
[Filter Settings] ( 99 / [Filter Settings]) / Filter effect adjustment ( 100 / Adjusting the
Filter Effect
)
LUT View Assist ( 121 / [V-Log View Assist])
[HLG View Assist] ( 127 / [HLG View Assist])
MP4 MOV
[Rec. File Format] ( 50 / [Rec. File Format]) / [HDMI RAW Data Output] ( 122 / HDMI
Output of RAW Video Data
)
FHD 420/8-L
[Rec Quality] (
51 / [Rec Quality])
59.94p
60/59.94p
Recording frame rate (
51 / [Rec Quality]) /
[Variable Frame Rate] (
110 / [Variable Frame Rate])
[Image Area of Video] ( 60 / [Image Area of Video])
AF MF
[Focus Mode] (
69 / Selecting the Focus Mode, 79 / Record Using MF)
AFL
AF Lock (
85 / Locking Focus and Exposure (AF/AE Lock))
[Focus Peaking] ( 187 / [Focus Peaking])
[AF Mode] ( 72 / Selecting the AF Mode)
Wi-Fi connection status ( 214 / Checking operation when connected to a network)
Wired LAN connection status ( 214 / Checking operation when connected to a
network
)
USB connection status (“LUMIX Tether”) ( 216 / Tethered Recording)
- 255 -- 255 -
14. Materials - External Monitor Displays
Bluetooth connection status ( 214 / Checking operation when connected to a network)
[Location Logging] ( 238 / [Location Logging])
[Image Stabilizer] ( 105 / [Image Stabilizer])
Jitter warning
[Anamorphic Desqueeze Display] ( 129 / [Anamorphic Desqueeze Display])
[Loop Recording (video)] ( 131 / [Loop Recording (video)])
Streaming function is ON ( 249 / 13. Streaming Function)
Currently streaming ( 249 / 13. Streaming Function)
[Histogram] ( 196 / [Histogram])
AF area
Spot-metering target ( 83 / [Metering Mode])
[Center Marker] ( 198 / [Center Marker])
[Level Gauge] (
197 / [Level Gauge])
XXmXXs
Elapsed recording time (
47 / Screen Displays While Video Recording)
TC 00:00:00.00
Time code (
61 / Time Code)
Built-in microphone, External microphone ( 103 / [Sound Rec Level Disp.], 145 /
External Microphones (Optional))
48kHz/16bit
[XLR Mic Adaptor Setting] ( 147 / XLR Microphone Adaptor (Optional))
[Sound Rec Level Limiter] ( 104 / [Sound Rec Level Limiter])
Mute ( 103 / [Mute Sound Input])
Sound recording level (
103 / [Sound Rec Level Disp.])
Operation lock ( 33 / Camera Setting Operations)
Temperature rise warning icon ( 269 / Recording)
Fan error warning icon ( 272 / Others)
- 256 -- 256 -
14. Materials - External Monitor Displays
2021.12. 1 10:00:00
[Time Stamp Rec.] (
191 / [Time Stamp Rec.])
Recording state (lit in red) ( 47 / Screen Displays While Video Recording)
[Exposure Mode] ( 48 / [Exposure Mode]), Recording mode ( 182 / [Rec Mode]
menu
)
[Metering Mode] ( 83 / [Metering Mode])
AEL
[AE LOCK] (
85 / Locking Focus and Exposure (AF/AE Lock))
100 Shutter speed
F4.0 Aperture value
[Exposure Comp.] ( 84 / Exposure Compensation)
Manual exposure assist ( 48 / Manual Exposure Assist)
[Sensitivity] ( 86 / ISO Sensitivity) / [Dual Native ISO Setting] ( 88 / [Dual Native ISO
Setting]
)
Card access indication (lit in red) ( 47 / Screen Displays While Video Recording)
Card slot ( 25 / Inserting Cards (Optional)) / [Double Card Slot Function] ( 29 /
[Double Card Slot Function])
No card
Card full
XXmXXs
Video recording time (
47 / Screen Displays While Video Recording)
Battery indication ( 19 / Battery indication)
Power supply (
16 / Power supply)
- 257 -- 257 -
14. Materials - External Monitor Displays
■
Control Panel
Frame rate ( 51 / [Rec Quality]) / [Variable Frame Rate] ( 110 / [Variable Frame
Rate]
)
Shutter speed
Aperture value
[Exposure Mode] ( 48 / [Exposure Mode]), Recording mode ( 182 / [Rec Mode]
menu
)
Exposure compensation value ( 84 / Exposure Compensation) /
Manual exposure assist (
48 / Manual Exposure Assist)
[Image Area of Video] ( 60 / [Image Area of Video])
Time code ( 61 / Time Code)
Recording state ( 47 / Screen Displays While Video Recording)
- 258 -- 258 -
14. Materials - External Monitor Displays
[Rec. File Format] ( 50 / [Rec. File Format]) / [HDMI RAW Data Output] ( 122 / HDMI
Output of RAW Video Data
) / [Rec Quality] (
51 / [Rec Quality])
Card slot ( 25 / Inserting Cards (Optional)) / [Double Card Slot Function] ( 29 /
[Double Card Slot Function])
24m59s
Video recording time (
47 / Screen Displays While Video Recording)
Wi-Fi connection status ( 214 / Checking operation when connected to a network)
Wired LAN connection status ( 214 / Checking operation when connected to a
network
)
USB connection status (“LUMIX Tether”) ( 216 / Tethered Recording)
Bluetooth connection status ( 214 / Checking operation when connected to a network)
Streaming function is ON ( 249 / 13. Streaming Function)
Currently streaming ( 249 / 13. Streaming Function)
[Fan Mode] ( 200 / [Fan Mode])
Battery indication ( 19 / Battery indication)
Power supply (
16 / Power supply)
Built-in microphone, External microphone ( 103 / [Sound Rec Level Disp.], 145 /
External Microphones (Optional))
48kHz/16bit
[XLR Mic Adaptor Setting] ( 147 / XLR Microphone Adaptor (Optional))
[Sound Rec Level Limiter] ( 104 / [Sound Rec Level Limiter])
Mute ( 103 / [Mute Sound Input])
Sound recording level (
103 / [Sound Rec Level Disp.])
- 259 -- 259 -
14. Materials - External Monitor Displays
[Sensitivity] ( 86 / ISO Sensitivity) / [Dual Native ISO Setting] ( 88 / [Dual Native ISO
Setting]
)
[Photo Style] ( 94 / [Photo Style])
LUT View Assist ( 121 / [V-Log View Assist]) /
[HLG View Assist] (
127 / [HLG View Assist])
[White Balance] ( 89 / White Balance (WB))
- 260 -- 260 -
14. Materials - External Monitor Displays
Playback Screen
59.94
p
59.94
p
4.04.0 32003200100100
FF
2021.12. 1 10
:
002021.12. 1 10
:
00
100-0001
100-0001 1/9991/999
8
m
30
s
8
m
30
s
00:00:00.0000:00:00.00
2021.12. 1 10:00
Recording date and time (
30 / Clock Set)
[Rating] ( 209 / [Rating])
Video playback ( 153 / Playing Back Videos)
[Segmented File Recording] ( 132 / [Segmented File Recording])
[Protect] ( 209 / [Protect])
[Location Logging] ( 238 / [Location Logging])
Obtaining information
Card slot ( 25 / Inserting Cards (Optional))
100-0001
Folder/file number (
152 / Folder Structure Inside Card)
1/999 Image number/Total number of images
9 files
Number of group images/Number of files (
157 / Group Images)
XXmXXs
Video recording time (
153 / Playing Back Videos)
[Variable Frame Rate] ( 110 / [Variable Frame Rate])
[Loop Recording (video)] ( 131 / [Loop Recording (video)])
LUT View Assist ( 121 / [V-Log View Assist])
[HLG View Assist] ( 127 / [HLG View Assist])
- 261 -- 261 -
14. Materials - External Monitor Displays
Group images ( 157 / Group Images)
TC 00:00:00.00
Time code (
61 / Time Code)
48kHz/16bit
[XLR Mic Adaptor Setting] (
147 / XLR Microphone Adaptor (Optional))
MP4 MOV
[Rec. File Format] (
50 / [Rec. File Format])
FHD 420/8-L
[Rec Quality] (
51 / [Rec Quality])
59.94p
60/59.94p
Frame rate (
51 / [Rec Quality]) / [Variable Frame Rate] ( 110 / [Variable Frame
Rate]
)
[Image Area of Video] ( 60 / [Image Area of Video])
Wi-Fi/Bluetooth connection status ( 214 / Checking operation when connected to a
network
)
Recording information
Battery indication ( 19 / Battery indication)
Power supply (
16 / Power supply)
- 262 -- 262 -
14. Materials - External Monitor Displays
■
Detailed information display screen
Card slot ( 25 / Inserting Cards (Optional))
Recording date and time ( 30 / Clock Set)
Folder/file number ( 152 / Folder Structure Inside Card)
Recording information (basic)
Recording information (advanced)
Detailed information display
100-0001100-0001
2021.12. 1 10
:
002021.12. 1 10
:
00
32003200
100100 F4.0F4.0
1/5
Histogram display
100-0001100-0001
2021.12. 1 10
:
002021.12. 1 10
:
00
32003200
100100 F4.0F4.0
RR
G
G
B
B
Y
Y
2/5
Photo Style display
100-0001100-0001
2021.12. 1 10
:
002021.12. 1 10
:
00
32003200
100100 F4.0F4.0
3/5
Standard
Contrast
Highlight
Shadow
Saturation
Hue
Sharpness
Noise Reduction
- 263 -- 263 -
14. Materials - External Monitor Displays
White balance display
100-0001100-0001
2021.12. 1 10
:
002021.12. 1 10
:
00
32003200
100100 F4.0F4.0
AA
G
G
B
B
M
M
Auto White Balance
4/5
Lens information display
100-0001100-0001
2021.12. 1 10
:
002021.12. 1 10
:
00
32003200
100100 F4.0F4.0
5/5
Focal Length
24mm
24mm
ON
OFF
35mm Focal Length
Vignetting Comp.
Long Exposure NR
The focal length corresponding to the angle of view when using a full-frame lens with an image aspect ratio of 3:2.
- 264 -- 264 -
14. Materials - Lamp / Indicator Display
Lamp / Indicator Display
Shows the status of the camera with the lamp/indicator.
■
Status indicator (Green / Orange)
Lights up (Green) The camera is turned on.
Lights up (Orange)
Tether connect mode (
221 / Tether Connection Mode)
Blinks (Green, once/sec.)
●
When using PoE+ power supply.
Determining PoE+. (
17 / Supplying power from a PoE+ power supply)
●
When using battery.
Low battery (It blinks in orange when in Tether connect mode.)
Blinks (Green, 4 times/sec.)
●
When using PoE+ power supply.
Insufficient power supply capacity
●
When using battery.
The camera is turned off forcibly due to low battery. (It blinks in orange when in
Tether connect mode.)
Blinks (alternately green and
orange)
Turn the camera off and then on again since this indicates a system error.
Off The camera is turned off.
■
Front tally lamp / Rear tally lamp (Red)
Lights up During video recording. (or sending data to external devices)
Blinks (Red, once/sec.) Low battery and card capacity.
Blinks (Red, 4 times/sec.) Stops recording forcibly due to low battery and card capacity.
■
[NETWORK] connection lamp (Blue)
Lights up
Connected with a LAN cable.
When Wi-Fi/Bluetooth function is ON or connected.
Blinks When sending Tether recorded images to a PC from a camera.
●
When the power is turned off and [Remote Wakeup] is set to [ON], the [NETWORK] connection lamp turns off even if the
Bluetooth function is working.
- 265 -- 265 -
14. Materials - Message Displays
Message Displays
Meanings of main messages and response methods.
Card
[Memory Card Error] / [Format this card?]
●
It is a format that cannot be used with the camera. Either insert another card, or back up any necessary data before
formatting. (
27 / Formatting Cards (Initialization))
[Memory Card Error] / [This memory card cannot be used]
●
Use a card compatible with the camera. (
10 / Memory Cards That Can Be Used)
[Insert memory card again.] / [Try another card]
●
Unable to access the card. Reinsert the card.
●
Insert a different card.
[Read Error] / [Write Error] / [Please check the card]
●
Failure to read or write data. Turn off the camera, reinsert the card, and then turn it on again.
●
The card may be broken.
●
Insert a different card.
[Recording was cancelled due to the limitation of the writing speed of the card]
●
Insufficient card write speed. Use a card of a supported Speed Class. (
10 / Memory Cards That Can Be Used)
●
If the recording stops even when you are using a card that meets the specified Speed Class rating, the data writing speed of
the card is getting slow. We recommend backing up data, and formatting. (
27 / Formatting Cards (Initialization))
Lens
[The lens is not attached properly. Do not push lens release button while lens is attached.]
●
Remove the lens once, and then attach it again without pressing the lens release button. (
20 / Attaching a Lens)
Turn on the camera again, and if it is still displaying, contact the dealer.
[Lens attachment failed. Please make sure the lens is attached correctly.]
●
Remove the lens from the camera body and gently wipe the contacts on the lens and the camera body using a dry cotton
swab. Attach the lens, turn on the camera again, and if it is still displaying, contact the dealer.
- 266 -- 266 -
14. Materials - Message Displays
Others
[Some pictures cannot be deleted] / [This picture cannot be deleted]
●
Images that do not comply with the DCF standard cannot be deleted. Back up any necessary data before formatting the
card. (
27 / Formatting Cards (Initialization))
[A folder cannot be created]
●
The maximum number of folder numbers has been reached, so new folders cannot be created. After formatting, execute
[File Number Reset] in the [Setup] ([Card/File]) menu. (
29 / [File Number Reset])
[Please turn camera off and then on again] / [System Error]
●
Turn off and on the camera. If the message is displayed even when doing this several times, contact the dealer.
[The fan is not functioning correctly.]
●
The fan has stopped. Turn off and on the camera. If the fan does not work after turning the camera off and then on again,
consult the dealer.
●
The temperature of the camera will rise if you continue to use the camera with the fan stopped. Do not use over long
periods of time.
- 267 -- 267 -
14. Materials - Troubleshooting
Troubleshooting
First, try out the following procedures.
If the problem is not resolved, it may be improved by selecting [Reset] ( 45 / [Reset]) in the [Setup] ([Setting])
menu.
Power
The camera does not turn on.
●
You cannot use a PoE (IEEE 802.3af compliant) compatible switching hub or power supplying device.
●
Power may not be supplied if the total power limit is exceeded on power supply devices that allow connections to multiple
PoE+ terminals. Refer to the operating instructions of the PoE+ power supply device.
External device
The images are not output to the external monitor or external recorder during recording.
●
When the images do not show up on the HDMI output destination, connect an external device that can output via SDI or
operate “LUMIX Tether” on a PC and try the following.
When the menu screen is not displayed at the SDI output destination, check the settings of [Info Display (HDMI/SDI)]. (
34 / Information Display (HDMI/SDI))
– When [HDMI RAW Data Output] of [Video] ([Image Format]) menu is set to [ON], the images are displayed only on
external devices that support RAW video data output. (
122 / HDMI Output of RAW Video Data)
If the external device used does not support RAW video data output, set [HDMI RAW Data Output] to [OFF].
When the menu screen cannot be displayed, you can set [HDMI RAW Data Output] to [OFF] with one of the following
methods:
Pressing a Fn button registered with [HDMI RAW Data Output]. (
160 / Register Functions to the Fn Buttons)
Pressing [MENU/SET], [Q.MENU], and [Fn3] at the same time. ([Info Display (HDMI/SDI)] is switched to [AUTO].)
– Set the [Down Convert] to [AUTO] in [HDMI Rec Output] of the [Custom] ([IN/OUT]) menu. When setting to anything
other than [AUTO], set it according to resolution the connected external device can display. (
138 / Settings for Down-
Converting
)
●
When the images do not show up on the SDI output destination, connect an external device that can output via HDMI or
operate “LUMIX Tether” on a PC and try the following.
When the menu screen is not displayed at the HDMI output destination, check the settings of [Info Display (HDMI/SDI)]. (
34 / Information Display (HDMI/SDI))
– Set the [SDI Output] to [ON] from the [HDMI / SDI Connections] of the [Setup] ([IN/OUT]) menu.
– Check the settings in [SDI Output Resolution] under [SDI Rec Output] of the [Custom] ([IN/OUT]) menu. (
142 / Set the
resolution during recording when output via SDI
)
●
The images do not show up on both the HDMI and SDI output destination.
– When you press [Q.MENU], [Fn2], and [Fn4] at the same time, [Reset] is performed and the camera returns to the
default settings. Afterwards, set the menu according to the external device’s capabilities.
- 268 -- 268 -
14. Materials - Troubleshooting
The images are not output to the external monitor or external recorder during playback.
●
Check the settings in [Output Resolution(Playback)] under [HDMI / SDI Connections] of the [Setup] ([IN/OUT]) menu. (
204 / [Output Resolution(Playback)])
●
Set the [SDI Output] to [ON] from the [HDMI / SDI Connections] of the [Setup] ([IN/OUT]) menu when the images do not
show up on the SDI output destination.
●
When you press [Q.MENU], [Fn2], and [Fn4] at the same time, [Reset] is performed and the camera returns to the default
settings. Afterwards, set the menu according to the external device’s capabilities.
The recording information or menu screen is not displayed on the external monitor or external recorder.
●
The recording information or menu screen will only be output to either the HDMI output destination or SDI output
destination. You can set the output destination of recording information or menu screen in [Info Display (HDMI/SDI)] of the
[Setup] ([IN/OUT]) menu. (
34 / Information Display (HDMI/SDI))
●
When [HDMI RAW Data Output] of [Video] ([Image Format]) menu is turned [ON], the menu screen will stop being output
via HDMI. (
122 / HDMI Output of RAW Video Data)
– Before turning [HDMI RAW Data Output] to [ON], prepare an environment where the menu screen can be displayed on a
PC installed with “LUMIX Tether”, or an SDI monitor in advance.
– When the menu screen cannot be displayed, you can set [HDMI RAW Data Output] to [OFF] with one of the following
methods:
Pressing a Fn button registered with [HDMI RAW Data Output]. (
160 / Register Functions to the Fn Buttons)
Pressing [MENU/SET], [Q.MENU], and [Fn3] at the same time. ([Info Display (HDMI/SDI)] is switched to [AUTO].)
The image is blurry or not colored.
●
Confirm the connection. (
22 / Connecting the external monitor)
The output destination images are displayed with gray bands.
●
Gray bands may be displayed on the top and bottom or the left and right of the images. You can change the band color
in [Background Color(Playback)] in [HDMI / SDI Connections] of the [Setup] ([IN/OUT]) menu. (
204 / [Background
Color(Playback)]
)
Cannot communicate with the PC.
●
When connected with a USB connection cable.
Please confirm settings of [USB Mode] in the [Setup] ([IN/OUT]) menu. (
204 / [USB Mode])
●
When connected with a LAN cable.
Check the setting in [IP Address Setting (LAN)] under [LAN / Wi-Fi Setup] from [LAN / Wi-Fi] of the [Setup] ([IN/OUT]) menu.
(
247 / [LAN / Wi-Fi Setup] menu)
●
When connected with Wi-Fi.
Refer to “Wi-Fi Function”. (
271 / Wi-Fi Function)
●
Turn the camera off and on.
- 269 -- 269 -
14. Materials - Troubleshooting
Recording
Cannot record videos.
●
When using a large capacity card, you may not be able to record for a while after turning on the camera.
Recording stops before finishing. Cannot use some functions.
●
Recording video requires a card of a supported Speed Class. Use a compatible card. (
10 / Memory Cards That Can Be
Used
)
●
In high ambient temperatures or if the camera is used for continuous recording, the temperature of the camera will rise. To
protect the camera against a rise in temperature, after [
] is displayed, recording will be stopped. Wait until the camera
cools down.
The recorded image is whitish.
●
Images may look whitish when the lens or image sensor gets dirty with fingerprints or similar. If the lens is dirty, turn the
camera off, then wipe the lens surface with a soft, dry cloth. For information about how to clean the image sensor. (
274 /
Dirt on the image sensor)
The recorded image is too bright or dark.
●
Ensure AE Lock is not set where it is not appropriate. (
85 / Locking Focus and Exposure (AF/AE Lock))
The subject is not focused properly.
●
Confirm the following details:
– Is the subject outside of the focus range?
– Is AF Lock (
85 / Locking Focus and Exposure (AF/AE Lock)) set where it is not appropriate?
Focusing cannot be done with the lens.
●
Confirm the following details:
– Is the “Lens” of [Lock Switch Setting] set to [
]? ( 195 / [Lock Switch Setting])
– Is the [Focus Ring Lock] set to [ON]? (
194 / [Focus Ring Lock])
The recorded image looks rough. Noise appears on the picture.
●
Try the following:
– Reduce the ISO sensitivity. (
86 / ISO Sensitivity)
– Increase [Noise Reduction] of [Photo Style] to the positive direction, or adjust each item other than [Noise Reduction] to
the negative direction. (
95 / Adjusting Image Quality)
The subject appears distorted on the image.
●
When a moving subject is recorded, the subject may appear distorted in the picture.
This is a characteristic of the CMOS sensor that is the image sensor of the camera, and is not a malfunction.
- 270 -- 270 -
14. Materials - Troubleshooting
Striping or flicker may appear under lighting such as fluorescent or LED lighting.
●
This is characteristic of CMOS sensors which serve as the camera’s pickup sensors. This is not a malfunction.
●
If flicker or horizontal stripes are noticeable when recording video, this can be mitigated by fixing the shutter speed.
●
You can fine-adjust the shutter speed with [Synchro Scan]. ( 130 / [Synchro Scan])
Stripes appear in high ISO sensitivity.
●
Stripes may appear in high ISO sensitivity or depending on the lens you use.
Decrease the ISO sensitivity. (
86 / ISO Sensitivity)
The brightness or coloring of the recorded image is different from the actual scene.
●
When recording under lighting such as fluorescent or LED lighting, increasing the shutter speed may introduce slight
changes to brightness or coloring. These are a result of the characteristics of the light source and do not indicate a
malfunction.
●
When recording subjects in extremely bright locations or recording under lighting such as fluorescent, LED, mercury, or
sodium lighting, the coloring or screen brightness may change or horizontal striping may appear on the screen.
Bright spot not in subject is recorded.
●
Pixels may be missing from the image sensor. Perform [Pixel Refresh]. (
206 / [Pixel Refresh])
It may flicker for an instant or the brightness of the screen may change significantly for an instant.
●
This occurs when the subject brightness changes, making the lens aperture change. This is not a malfunction.
In videos, abnormal clicking and buzzing sounds are recorded. The recorded audio is very quiet.
●
Depending on the recording conditions or the lens used, the sound of aperture and focus actions may be recorded in
videos. You can set the focus operation during video recording to [OFF] in [Continuous AF] (
77 / [Continuous AF]).
●
Do not block the microphone hole during video recording.
An operation sound is recorded in a video.
●
If the operation sound during recording bothers you, try the following:
– Record by operating the camera remotely (
213 / 12. Remote Operations)
– Connect a remote control unit (commercially available) compatible with this unit to the [REMOTE] terminal to record.
- 271 -- 271 -
14. Materials - Troubleshooting
Playback
Cannot playback. There are no recorded pictures.
●
Folders and images processed on a PC cannot be played.
●
Videos recorded with a different [System Frequency] setting cannot be played back. Return the [System Frequency] setting
to the one you used during the recording. (
50 / [System Frequency])
Wi-Fi Function
A Wi-Fi connection cannot be established. Radio waves get disconnected. Wireless access point is not displayed.
General tips for using a Wi-Fi connection
●
Use within the communication range of the device to be connected.
●
Usage near devices that utilize the 2.4 GHz frequency such as microwave ovens and cordless telephones may result in the
radio wave being lost. Use the camera at a sufficient distance from these devices.
●
If you place the camera on a metal table or shelf, the radio waves may be adversely affected. In such cases, you may not
be able to establish a connection. Move the camera away from the metal surface.
Wireless access point
●
Confirm that the connected wireless access point can be used.
●
Confirm the radio wave conditions of the wireless access point.
– Move the camera closer to the wireless access point.
– Change the location and angle of the wireless access point.
●
Depending on the wireless access point, the radio wave may not be displayed even though it is present.
– Turn off and then on the wireless access point.
– If the wireless channel of the wireless access point cannot be set automatically, manually set the channel supported by
the camera.
– If the wireless access point SSID is set not to broadcast, it may not be detected. Enter the SSID, and then connect. (
243 / Connecting by Manual Input)
●
Depending on the wireless access point, connection may be automatically disconnected after specific time has passed.
Reconnect the connection again.
Connection to a wireless access point cannot be established.
●
The wireless access point information set on the camera is wrong. Check the authentication type and encryption key. (
243 / Connecting by Manual Input)
●
Radio waves from other devices may block the connection to a wireless access point.
Check the status of other devices that are connected to the wireless access point as well as the status of other wireless
devices.
(iOS devices) Wi-Fi connection attempt fails.
●
Follow the message displayed to allow connection to the camera. If you still cannot connect, select the SSID of the camera
on the Wi-Fi setup screen of the smartphone to connect. If the SSID is not displayed, turn off and on the camera, then
perform the connection settings again.
- 272 -- 272 -
14. Materials - Troubleshooting
Connection to a smartphone via Wi-Fi cannot be established.
●
Change the access point to connect to in the smartphone Wi-Fi settings to the camera.
The PC is not recognized when I use a Wi-Fi connection. The camera cannot be connected to the PC using the Wi-Fi
function.
●
When the clock settings of the PC connected to the camera differs considerably from those of the camera, the camera
cannot be connected to the PC depending on the OS.
I have forgotten the password for the Wi-Fi.
●
In the [Setup] ([Setting]) menu, [Reset], reset network settings. ( 45 / [Reset]) However, all information set in [LAN / Wi-Fi]
and [Bluetooth] will also be reset.
Others
[ ] is displayed on the screen.
●
The fan has stopped. Turn off and on the camera. If the fan does not work after turning the camera off and then on again,
consult the dealer.
●
The temperature of the camera will rise if you continue to use the camera with the fan stopped. Do not use over long
periods of time.
There is rattling noise from the lens when the camera is turned on or off, or when the camera is swung.
There is a sound from the lens when recording.
●
This is the sound of the lens moving and aperture operation. It is not a malfunction.
The camera becomes warm.
●
The camera surface may become warm during use, but this does not indicate a problem with performance or quality.
- 273 -- 273 -
14. Materials - Cautions for Use
Cautions for Use
■
The camera
Keep this unit as far away as possible from electromagnetic equipment (such as microwave ovens,
TVs, video games etc.).
●
If you use this unit on top of or near a TV, the pictures and/or sound on this unit may be disrupted by electromagnetic
wave radiation.
●
Do not use this unit near cell phones because doing so may result in noise adversely affecting the pictures and/or
sound.
●
Recorded data may be damaged, or pictures may be distorted, by strong magnetic fields created by speakers or large
motors.
●
Electromagnetic wave radiation may adversely affect this unit, disturbing the pictures and/or sound.
●
If this unit is adversely affected by electromagnetic equipment and stops functioning properly, turn this unit off and
disconnect AC adaptor. Then reconnect AC adaptor and turn this unit on.
Do not use this unit near radio transmitters or high-voltage lines.
●
If you record near radio transmitters or high-voltage lines, the recorded pictures and/or sound may be adversely
affected.
Always use the supplied cords and cables. If you use optional accessories, use the cords and the
cables supplied with them.
Do not extend the cords or the cables.
Do not keep objects that may be influenced magnetically close to this unit.
Do not spray the camera with insecticides or volatile chemicals.
●
If the camera is sprayed with such chemicals, the body of the camera may be damaged and the surface finish may peel
off.
Do not keep products made of rubber, PVC or similar materials in contact with the camera for a long
period of time.
■
When using in cold places or at low temperatures
●
Skin burns may result if you leave the metal parts of the camera in direct contact with the skin for long periods
of time at cold places (environments with temperatures at or below 0 °C (32 °F), such as ski resorts or places at
high altitude).
Use gloves or similar when using it for long periods.
●
If using in cold locations, do not allow water droplets and snow to remain on the camera. If these are left on the camera,
water may freeze in gaps in the camera ON/OFF button and microphone, making these parts difficult to move, and/or
leading to reduced volume. This is not a malfunction.
- 274 -- 274 -
14. Materials - Cautions for Use
■
Cleaning
Before cleaning the camera, disconnect the power plug from the electrical outlet. Then wipe the camera
with a dry, soft cloth.
●
When the camera is soiled badly, it can be cleaned by wiping the dirt off with a wrung wet cloth, and then with a dry
cloth.
●
Do not use solvents such as benzine, thinner, alcohol, kitchen detergents, etc., to clean the camera, since it may
deteriorate the external case or the coating may peel off.
●
When using a chemical cloth, be sure to follow the accompanying instructions.
■
Dirt on the image sensor
If dirt gets inside the mount when changing lenses, depending on the recording conditions, it may adhere to the image
sensor and appear on the recorded picture.
To prevent debris or dust adhering to internal parts of the body, avoid changing the lens in a dusty environment and always
fit the body cap or a lens when storing the camera. Remove any dirt on the body cap before attaching it.
Removing dirt on the image sensor
The image sensor is very precise and delicate, so be sure to observe the following when you do have to clean it yourself.
●
Blow dust off the surface of the image sensor using a commercially available blower. Do not blow the dust off with
excessive power.
●
Do not put the blower brush further inside than the lens mount as the image sensor may get scratched.
●
Do not use any objects except a blower brush to clean the image sensor.
●
If you cannot remove the dirt or dust with the blower, consult the dealer or Panasonic.
■
AC Adaptor
●
If you use the battery charger near a radio, the radio reception may be disturbed. Keep the charger 1 m (3.3 feet) or
more away from radio.
●
During usage, the AC adaptor may emit an electrical hum; this is not a malfunction.
●
After use, be sure to disconnect the power plug from the electrical outlet. (A very small amount of current is consumed if
it is left connected.)
■
Card
Do not leave the card in areas with high temperatures, direct sunlight, or areas prone to
electromagnetic waves and static.
Do not bend or drop the card.
Do not subject the card to strong vibration.
●
Otherwise, the card and recorded data may be damaged.
●
Put the card in the card case or the storage bag after use and when storing or carrying the card.
●
Do not allow dirt, water or other foreign objects to get into the contacts on the card. Additionally, do not touch the
contacts with your hands.
- 275 -- 275 -
14. Materials - Cautions for Use
■
Personal Information
Personal information is stored within the camera and in recorded images. We recommend that you enhance security by
setting Wi-Fi password and a wired LAN/Wi-Fi function lock to protect personal information. (
247 / [LAN / Wi-Fi Setup]
menu
)
●
Images may contain information that can be used to identify the user, such as recording dates and times, and location
information. Confirm details carefully before uploading images to a web service.
Disclaimer
●
Information including personal information may be altered or vanish due to erroneous operation, effect of static
electricity, accident, malfunction, repair, or other handlings. Please note in advance that Panasonic is not liable in any
way for any direct or indirect damage from the alteration or vanishing of information or personal information.
When requesting a repair or transferring / disposing of the camera
●
After making a copy of personal information, be sure to delete information, including personal information, such as
wired / wireless LAN connection settings that you have registered or saved within the camera with [Reset] (
45 /
[Reset]).
●
Reset the settings to protect the personal information. (
45 / [Reset])
●
Remove the card from the camera.
●
Settings may return to factory default when camera is repaired.
●
Please contact the dealer where you purchased the camera or Panasonic if above operations are not possible due to
malfunction.
Points to remember when disposing of/transferring the memory card
Format or delete using the camera or a PC will only modify the file management information, so it will not delete the data in
the card completely.
We recommend physically destroying the card or using commercially available PC data deletion software to delete the card
data completely when disposing of/transferring the card.
You are responsible for handling of data on cards.
■
When Not Using the Camera for a Long Period of Time
●
Ensure you remove the card from the camera.
●
We recommend storing the camera with a desiccant (silica gel) when you keep it in a closet or a cabinet.
●
Check all the parts before recording when you have not used the camera for a long period of time.
■
Image Data
●
Recorded data may be damaged or lost if the camera breaks down due to inappropriate handling. Panasonic will not be
liable for any damage caused due to loss of recorded data.
- 276 -- 276 -
14. Materials - Cautions for Use
■
Tripod / Unipod
●
Make sure the tripod/unipod is stable when the camera is attached to it.
●
Care is required because tightening the screw excessively may damage the camera, or cause the rating label to come
off.
●
When using this unit with a large-diameter lens, the lens may come into contact with the pedestal depending on the
tripod/unipod. Tightening the screw with the lens and pedestal in contact with each other may damage this unit or the
lens. Therefore it is recommended to attach the tripod adaptor (DMW-TA1: optional) before mounting on the tripod/
unipod.
●
Also refer to the operating instructions for the tripod/unipod.
■
Network connection
This unit cannot be directly connected to the communication lines (including public wireless LAN) of telecommunications
carriers (mobile communication company, fixed communication company, Internet provider, etc.). When connecting this unit
to the Internet, be sure to connect via a router etc.
There is the risk that data sent and received via radio waves may be intercepted
Please note that there is the risk that data sent and received via radio waves may be intercepted by a third party.
■
Wi-Fi Function
Use the camera as a wireless LAN device
When using devices or PC systems that require more reliable security than wireless LAN devices, ensure that the
appropriate measures are taken for safety designs and defects for the systems used.
Panasonic will not take any responsibility for any damage that arises when using the camera for any purpose other than as
a wireless LAN device.
Use of the Wi-Fi function of the camera is presumed to be in countries where it is sold
There is the risk that the camera violates the radio wave regulations if used in countries other than those where it is sold,
and Panasonic takes no responsibility for any violations.
Do not use the camera in areas with magnetic fields, static electricity or interference
●
Do not use the camera in areas with magnetic fields, static electricity or interference, such as near microwave ovens.
These may cause the interruption of the radio waves.
●
Using the camera near devices such as microwave ovens or cordless telephones that use the 2.4 GHz radio wave band
may cause a decrease in performance in both devices.
Do not connect to the wireless network you are not authorized to use
When the camera utilizes its wireless LAN function, wireless networks (SSID) that you are not authorized to use may be
displayed, however do not attempt to connect to the network as it may be considered as an unauthorized access.
- 277 -- 277 -
14. Materials - Available Recording Time with the Battery
Available Recording Time with the Battery
Listed below are the time lengths available for recording when the battery is being used.
●
Using a Panasonic SDHC memory card.
●
Using the interchangeable lens (S-R24105).
●
When outputting via HDMI to an external monitor.
●
The values listed are approximate.
●
Actual available recording time is the time available for recording when repeating actions such as turning the camera on and
off, starting/stopping recording, etc.
■
AG-VBR59
[Rec. File Format]: [MP4]
[Rec Quality]
Continuous available recording time
(Actual available recording time) (minutes)
[Image Area of Video]
[FULL] [S35mm]
4K/10bit/100M/60p — 230 (115)
4K/8bit/100M/30p 270 (135) 270 (135)
FHD/8bit/28M/60p 300 (150) 260 (130)
[Rec. File Format]: [MOV]
[Rec Quality]
Continuous available recording time
(Actual available recording time) (minutes)
[Image Area of Video]
[FULL] [S35mm]
5.9K/30p/420/10-L 240 (120) —
4K/60p/420/10-L — 220 (110)
4K/30p/422/10-L 260 (130) 240 (120)
FHD/120p/420/10-L 290 (145) 270 (135)
FHD/60p/422/10-L 290 (145) 260 (130)
FHD/60p/420/8-L 300 (150) 270 (135)
- 278 -- 278 -
14. Materials - Available Recording Time with the Battery
■
AG-VBR89
[Rec. File Format]: [MP4]
[Rec Quality]
Continuous available recording time
(Actual available recording time) (minutes)
[Image Area of Video]
[FULL] [S35mm]
4K/10bit/100M/60p — 360 (180)
4K/8bit/100M/30p 430 (215) 420 (210)
FHD/8bit/28M/60p 470 (235) 410 (205)
[Rec. File Format]: [MOV]
[Rec Quality]
Continuous available recording time
(Actual available recording time) (minutes)
[Image Area of Video]
[FULL] [S35mm]
5.9K/30p/420/10-L 380 (190) —
4K/60p/420/10-L — 360 (180)
4K/30p/422/10-L 410 (205) 390 (195)
FHD/120p/420/10-L 460 (230) 430 (215)
FHD/60p/422/10-L 460 (230) 410 (205)
FHD/60p/420/8-L 480 (240) 420 (210)
- 279 -- 279 -
14. Materials - Available Recording Time with the Battery
■
AG-VBR118
[Rec. File Format]: [MP4]
[Rec Quality]
Continuous available recording time
(Actual available recording time) (minutes)
[Image Area of Video]
[FULL] [S35mm]
4K/10bit/100M/60p — 480 (240)
4K/8bit/100M/30p 570 (285) 560 (280)
FHD/8bit/28M/60p 630 (315) 550 (275)
[Rec. File Format]: [MOV]
[Rec Quality]
Continuous available recording time
(Actual available recording time) (minutes)
[Image Area of Video]
[FULL] [S35mm]
5.9K/30p/420/10-L 510 (255) —
4K/60p/420/10-L — 480 (240)
4K/30p/422/10-L 540 (270) 520 (260)
FHD/120p/420/10-L 610 (305) 580 (290)
FHD/60p/422/10-L 620 (310) 550 (275)
FHD/60p/420/8-L 640 (320) 560 (280)
●
The available recording time vary depending on the surrounding environment and the usage conditions. For example,
these will reduce in the following case:
– In low-temperature environments, such as on ski slopes.
●
If the usage duration drops significantly even when the battery is fully charged, then the battery is at the end of its service
life. Check the battery status, and replace with a new battery.
- 280 -- 280 -
14. Materials - Video Recording Time with Cards
Video Recording Time with Cards
Listed below are the time lengths of videos that can be recorded on a card.
●
The values listed are approximate.
●
Video recording time is the total time of all the videos which have been recorded.
[Rec. File Format]: [MP4]
■
[System Frequency]: [59.94Hz (NTSC)]
[Rec Quality]
Card capacity
32 GB 64 GB 128 GB
[4K/10bit/100M/60p]
[4K/8bit/100M/30p]
[4K/8bit/100M/24p]
41m00s 1h25m 2h45m
[4K/10bit/72M/30p]
[4K/10bit/72M/24p]
58m00s 1h55m 3h55m
[FHD/8bit/28M/60p] 2h25m 4h55m 9h45m
[FHD/8bit/20M/30p] 3h15m 6h30m 13h00m
[FHD/8bit/24M/24p] 2h50m 5h40m 11h25m
■
[System Frequency]: [50.00Hz (PAL)]
[Rec Quality]
Card capacity
32 GB 64 GB 128 GB
[4K/10bit/100M/50p]
[4K/8bit/100M/25p]
41m00s 1h25m 2h45m
[4K/10bit/72M/25p] 58m00s 1h55m 3h55m
[FHD/8bit/28M/50p] 2h25m 4h55m 9h45m
[FHD/8bit/20M/25p] 3h15m 6h30m 13h00m
- 281 -- 281 -
14. Materials - Video Recording Time with Cards
[Rec. File Format]: [MOV]
■
[System Frequency]: [59.94Hz (NTSC)]
[Rec Quality]
Card capacity
32 GB 64 GB 128 GB
[4K-A/30p/422/10-I]
[4K-A/24p/422/10-I]
[C4K/30p/422/10-I]
[C4K/24p/422/10-I]
[4K/30p/422/10-I]
[4K/24p/422/10-I]
10m00s 21m00s 42m00s
[6K/24p/420/10-L]
[5.9K/30p/420/10-L]
[5.9K/24p/420/10-L]
[5.4K/30p/420/10-L]
[4K-A/48p/420/10-L]
[C4K/60p/420/10-L]
[C4K/48p/420/10-L]
[4K/60p/420/10-L]
[4K/48p/420/10-L]
[FHD/60p/422/10-I]
[FHD/30p/422/10-I]
[FHD/24p/422/10-I]
20m00s 42m00s 1h20m
[4K-A/30p/422/10-L]
[4K-A/24p/422/10-L]
[C4K/60p/420/8-L]
[C4K/30p/422/10-L]
[C4K/24p/422/10-L]
[4K/60p/420/8-L]
[4K/30p/422/10-L]
[4K/24p/422/10-L]
[FHD/120p/420/10-L]
27m00s 56m00s 1h50m
[4K-A/30p/420/8-L]
[4K-A/24p/420/8-L]
[C4K/30p/420/8-L]
[C4K/24p/420/8-L]
[4K/30p/420/8-L]
[4K/24p/420/8-L]
[FHD/60p/422/10-L]
[FHD/60p/420/8-L]
[FHD/60i/422/10-I]
[FHD/48p/420/10-L]
[FHD/30p/422/10-L]
[FHD/30p/420/8-L]
[FHD/24p/422/10-L]
[FHD/24p/420/8-L]
41m00s 1h25m 2h45m
[FHD/60i/422/10-L] 1h20m 2h50m 5h35m
- 282 -- 282 -
14. Materials - Video Recording Time with Cards
■
[System Frequency]: [50.00Hz (PAL)]
[Rec Quality]
Card capacity
32 GB 64 GB 128 GB
[4K-A/25p/422/10-I]
[C4K/25p/422/10-I]
[4K/25p/422/10-I]
10m00s 21m00s 42m00s
[5.9K/25p/420/10-L]
[5.4K/25p/420/10-L]
[4K-A/50p/420/10-L]
[C4K/50p/420/10-L]
[4K/50p/420/10-L]
[FHD/50p/422/10-I]
[FHD/25p/422/10-I]
20m00s 42m00s 1h20m
[4K-A/50p/420/8-L]
[4K-A/25p/422/10-L]
[C4K/50p/420/8-L]
[C4K/25p/422/10-L]
[4K/50p/420/8-L]
[4K/25p/422/10-L]
[FHD/100p/420/10-L]
27m00s 56m00s 1h50m
[4K-A/25p/420/8-L]
[C4K/25p/420/8-L]
[4K/25p/420/8-L]
[FHD/50p/422/10-L]
[FHD/50p/420/8-L]
[FHD/50i/422/10-I]
[FHD/25p/422/10-L]
[FHD/25p/420/8-L]
41m00s 1h25m 2h45m
[FHD/50i/422/10-L] 1h20m 2h50m 5h35m
- 283 -- 283 -
14. Materials - Video Recording Time with Cards
■
[System Frequency]: [24.00Hz (CINEMA)]
[Rec Quality]
Card capacity
32 GB 64 GB 128 GB
[4K-A/24p/422/10-I]
[C4K/24p/422/10-I]
[4K/24p/422/10-I]
10m00s 21m00s 42m00s
[6K/24p/420/10-L]
[5.9K/24p/420/10-L]
[4K-A/48p/420/10-L]
[C4K/48p/420/10-L]
[4K/48p/420/10-L]
[FHD/24p/422/10-I]
20m00s 42m00s 1h20m
[4K-A/24p/422/10-L]
[C4K/24p/422/10-L]
[4K/24p/422/10-L]
27m00s 56m00s 1h50m
[4K-A/24p/420/8-L]
[C4K/24p/420/8-L]
[4K/24p/420/8-L]
[FHD/48p/420/10-L]
[FHD/24p/422/10-L]
[FHD/24p/420/8-L]
41m00s 1h25m 2h45m
●
The available recording time will be shorter depending on the card used when recording with [Loop Recording (video)] or
[Segmented File Recording].
●
Depending on the recording conditions and the type of card, video recording time vary.
●
The continuous recordable time for videos is displayed on the screen.
- 284 -- 284 -
14. Materials - List of Default Settings / Custom Saving / Settings Available for Copying
List of Default Settings / Custom Saving /
Settings Available for Copying
: The function to return to default settings using [Reset].
: The function to save settings details in the Custom mode using [Save to Custom Mode].
: The function to copy settings details using [Save/Restore Camera Setting].
Menu Default setting
Compatible
functions
[Rec Mode]
[Rec Mode] [Creative Video Mode]
[Video]: [Image Quality]
[Exposure Mode] [P]
[Exposure Comp.] [±0]
[Sensitivity] [AUTO]
[White Balance] [AWB]
[Photo Style]
[
]
[Metering Mode]
[
]
[Dual Native ISO Setting] [AUTO]
[ISO Sensitivity (video)]
[ISO Auto Lower Limit Setting] [100]
[ISO Auto Upper Limit Setting] [AUTO]
[Synchro Scan] [OFF]
[Master Pedestal Level] [0]
[SS/Gain Operation] [SEC/ISO]
[i.Dynamic Range] [OFF]
[Vignetting Comp.] [ON]
[Diffraction Compensation] [OFF]
[Filter Settings] [Filter Effect] [OFF]
- 285 -- 285 -
14. Materials - List of Default Settings / Custom Saving / Settings Available for Copying
[Video]: [Image Format]
[Rec. File Format]
When [System Frequency] is set
to [59.94Hz (NTSC)] or [50.00Hz
(PAL)]: [MP4]
When [System Frequency] is set
to [24.00Hz (CINEMA)]: [MOV]
[Image Area of Video] [FULL]
[Rec Quality]
When [System Frequency]
is set to [59.94Hz (NTSC)]:
[FHD/8bit/28M/60p]
When [System Frequency]
is set to [50.00Hz (PAL)]:
[FHD/8bit/28M/50p]
When [System Frequency] is
set to [24.00Hz (CINEMA)]:
[FHD/24p/420/8-L]
[Rec Quality (My List)] —
[Variable Frame Rate] [OFF]
[Time Code]
[Time Code Display] [OFF]
[Count Up] [REC RUN]
[Time Code Value] — —
[Time Code Mode] [DF]
[HDMI Time Code Output] [OFF]
[SDI Time Code Output] [OFF]
[External TC Setting] —
[Genlock]
[Genlock Input] [OFF]
[Horizontal Phase Adjustment] [±0]
[Luminance Level] [16-255]
[HDMI RAW Data Output] [OFF]
- 286 -- 286 -
14. Materials - List of Default Settings / Custom Saving / Settings Available for Copying
[Video]: [Focus]
[Focus Mode] [AF]
[AF Mode]
[
]
[AF Custom Setting(Video)]
[ON] / [OFF] [OFF]
[SET] —
[Continuous AF] [MODE2]
[Focus Peaking]
[ON] / [OFF] [ON]
[SET] —
[1-Area AF Moving Speed] [FAST]
[Video]: [Audio]
[Sound Rec Level Disp.] [OFF]
[Mute Sound Input] [OFF]
[Sound Rec Gain Level] [STANDARD]
[Sound Rec Level Adj.] [0dB]
[Sound Rec Level Limiter] [ON]
[Wind Noise Canceller] [STANDARD]
[Wind Cut] [OFF]
[Mic Socket]
[
]
[Special Mic.] [Stereo]
[XLR Mic Adaptor Setting] [48kHz/16bit]
[Sound Output] [REALTIME]
[Headphone Volume] [LEVEL3]
- 287 -- 287 -
14. Materials - List of Default Settings / Custom Saving / Settings Available for Copying
[Video]: [Others]
[Image Stabilizer]
[Operation Mode]
[
]
[E-Stabilization (Video)] [OFF]
[Boost I.S. (Video)] [OFF]
[Focus Transition]
[Start] — —
[Focus Pull Setting] — —
[Focus Transition Speed] [M]
[Focus Transition Rec] [OFF]
[Focus Transition Wait] [OFF]
[Loop Recording (video)] [OFF]
[Segmented File Recording] [OFF]
[Live Cropping] [OFF]
[Time Stamp Rec.] [OFF]
[Custom]: [Image Quality]
[Photo Style Settings]
[Show/Hide Photo Style] —
[My Photo Style Settings] —
[Reset Photo Style] — —
[ISO Increments] [1/3 EV]
[Extended ISO] [OFF]
[Exposure Offset Adjust.]
[Multi Metering] [±0 EV]
[Center Weighted] [±0 EV]
[Spot] [±0 EV]
[Highlight Weighted] [±0 EV]
- 288 -- 288 -
14. Materials - List of Default Settings / Custom Saving / Settings Available for Copying
[Custom]: [Focus/Shutter]
[AF/AE Lock Hold] [OFF]
[AF+MF] [OFF]
[MF Assist]
[Focus Ring] [ON]
[AF Mode] [ON]
[MF Assist Display] [PIP]
[MF Guide]
[
] / [ ]*
1
[Focus Ring Lock] [OFF]
[Custom]: [Operation]
[Q.MENU Settings]
[Layout Style] [MODE1]
[Item Customize (Video)] —
[Lock Switch Setting]
Cursor buttons /
[MENU/SET] button
Control dial
Other than those above
[Fn Button Set]
[Setting in REC mode] —
[Setting in PLAY mode] —
[Video Rec. Button] [ON]
- 289 -- 289 -
14. Materials - List of Default Settings / Custom Saving / Settings Available for Copying
[Custom]: [Monitor / Display]
[Histogram] [OFF]
[Focal Length] [ON]
[Level Gauge] [ON]
[Luminance Spot Meter] [OFF]
[Framing Outline] [OFF]
[Display Information]
[Display Info in Rec Mode] [WITH INFO]
[Display Info in Playback] [WITH INFO]
[V-Log View Assist]
[Read LUT File] — —
[LUT Select] [Vlog_709]
[LUT View Assist (HDMI)] [OFF]
[LUT View Assist (SDI)] [OFF]
[HLG View Assist]
[HDMI] [AUTO]
[SDI] [MODE2]
[Anamorphic Desqueeze Display] [OFF]
[Center Marker] [OFF]
[Frame Marker]
[ON] / [OFF] [OFF]
[SET] —
[Zebra Pattern]
[ZEBRA1] / [ZEBRA2] /
[ZEBRA1+2] / [OFF]
[OFF]
[SET] —
[Color Bars] —
[Red REC Frame Indicator] [OFF]
[Streaming Blue Frame Indicator] [OFF]
- 290 -- 290 -
14. Materials - List of Default Settings / Custom Saving / Settings Available for Copying
[Custom]: [IN/OUT]
[HDMI Rec Output]
[Down Convert] [AUTO]
[HDMI Recording Control] [OFF]
[Sound Down Convert] [OFF]
[Sound Output (HDMI)] [ON]
[HDMI MF Assist Output] [ON]
[SDI Rec Output]
[SDI Output Resolution]
When [System Frequency] is
set to [59.94Hz (NTSC)] or
[50.00Hz(PAL)]: [1080p]
When [System Frequency] is
set to [24.00Hz (CINEMA)]:
[1080PsF]
[SDI Recording Control] [OFF]
[Sound Output (SDI)] [ON]
[SDI Sound Output Gain Adj.] [-6dB] / [-8dB]*
1
[SDI MF Assist Output] [ON]
[Fan Mode] [AUTO1]
[Tally Lamp]
[Front Tally Lamp] [H]
[Rear Tally Lamp] [ON]
[Custom]: [Lens / Others]
[Lens Focus Resume] [OFF]
[Lens Fn Button Setting] [Focus Stop]
[Focus Ring Control]
[NON-LINEAR]/[LINEAR] [NON-LINEAR]
[SET] [300°]
[Vertical Position Info (Video)] [ON]
- 291 -- 291 -
14. Materials - List of Default Settings / Custom Saving / Settings Available for Copying
[Setup]: [Card/File]
[Card Format] — —
[Double Card Slot Function]
[Recording Method]
[
]
[Destination Card Slot]
[
]
[Folder / File Settings]
[Select Folder] — —
[Create a New Folder] — —
[File Name Setting] [Folder Number Link]
[File Number Reset] — —
[Copyright Information]
[Artist] [OFF]
[Copyright Holder] [OFF]
[Display Copyright Info.] — —
[Setup]: [Monitor / Display]
[Level Gauge Adjust.]
[Adjust.] —
[Level Gauge Value Reset] — —
- 292 -- 292 -
14. Materials - List of Default Settings / Custom Saving / Settings Available for Copying
[Setup]: [IN/OUT]
[Headphone Volume] [LEVEL3]
[LAN / Wi-Fi] —
*
2
[Bluetooth] —
[USB Mode]
[
] [PC(Tether)]
[HDMI / SDI Connections]
[SDI Output] [ON]
[Output Resolution(Playback)]
When [SDI Output] is set to
[ON]: [1080p]
(It is [1080PsF] when [System
Frequency] is set to [24.00Hz
(CINEMA)])
When [SDI Output] is set to
[OFF]: [AUTO]
[LUT View Assist (HDMI)] [OFF]
[HLG View Assist (HDMI)] [AUTO]
[LUT View Assist (SDI)] [OFF]
[HLG View Assist (SDI)] [MODE2]
[Background Color(Playback)]
[
]
[Info Display (HDMI/SDI)] [AUTO]
[Power/Network Indicator] [ON]
[Card Access Light] [ON]
- 293 -- 293 -
14. Materials - List of Default Settings / Custom Saving / Settings Available for Copying
[Setup]: [Setting]
[Save to Custom Mode] —
[Load Custom Mode] —
[Custom Mode Settings]
[Limit No. of Custom Mode] [5]
[Edit Title] —
[How to Reload Custom Mode] —
[Select Loading Details] —
[Save/Restore Camera Setting]
[Save] — —
[Load] — —
[Delete] — —
[Keep Settings While Format] [OFF]
[Reset] — —
[Setup]: [Others]
[Clock Set] 0:00:00 1/1/2021 —
[Time Zone] *
1
[System Frequency]
[59.94Hz (NTSC)] /
[50.00Hz (PAL)]*
1
[Device Name] —
[Pixel Refresh] — —
[Language] *
1
[Firmware Version] — —
[My Menu]: [Edit My Menu]
[Add] —
[Sorting] — —
[Delete] — —
[Display from My Menu] [OFF]
- 294 -- 294 -
14. Materials - List of Default Settings / Custom Saving / Settings Available for Copying
[Playback] menu: [Playback Mode]
[Anamorphic Desqueeze Display] [OFF]
[Playback] menu: [Add/Delete Info.]
[Protect] — —
[Rating] — —
[Playback] menu: [Edit Image]
[Copy] — —
[Playback] menu: [Others]
[Delete All Images] — —
*
1
Default setting specifications vary depending on the country or area where the camera was purchased.
*
2
Saves the settings of [Streaming Setup], and [IP Address Setting (LAN)] in [LAN / Wi-Fi Setup]. However, the IP address set
in [Static IP Address Setting] of [IP Address Setting (LAN)] is not saved.
- 295 -- 295 -
14. Materials - Specifications
Specifications
The specifications are subject to change for performance enhancement.
It is possible to record photos (still images) using software “LUMIX Tether”.
Digital camera body (DC-BS1H):
Information for your safety
Power source:
12 V
Power consumption:
8.1 W (when recording), 6.9 W (when playing back) [When the interchangeable lens S-R24105 is attached.]
Type
Type Digital Single Lens Mirrorless camera
Recording media
SD memory card / SDHC memory card*
1
/ SDXC memory card*
1
*
1
Compliant with UHS-I/UHS-II UHS Speed Class 3, UHS-II Video Speed Class 90
Double slot recording function is available.
Lens mount Leica Camera AG L-Mount
Image sensor
Image sensor
35 mm full-frame (35.6 mm x 23.8 mm) CMOS sensor, a total of 25,280,000 pixels,
primary color filter
Effective number of pixels of
the camera
24,200,000 pixels
Latitude
14+ stops ([V-Log])
- 296 -- 296 -
14. Materials - Specifications
Recording format for video
Video format
MP4 (H.264/MPEG-4 AVC, H.265/HEVC)
MOV (H.264/MPEG-4 AVC, H.265/HEVC)
Audio format
MP4: AAC (2ch)
MOV: LPCM (2ch, 48 kHz/16 bit)*
2
*
2
When an XLR Microphone Adaptor (DMW-XLR1: optional) is attached, LPCM (2ch,
48 kHz/24-bit, 96 kHz/24-bit) can be selected
Image quality for video
Refer to [Rec Quality] in this document. (
51 / [Rec Quality])
Recording format for still images
File format for still images JPEG (DCF compliant, Exif 2.31 compliant)
Image size (pixels)
L: 6000×4000 (3888×2592)*
3
M: 4272×2848 (2784×1856)*
3
S: 3024×2016 (1968×1312)*
3
*
3
Figures in parentheses are for Super 35 mm/APS-C lenses
(The aspect ratio is fixed to [3:2].)
Image quality for photos Fine / Standard
Focus
AF type TTL type based on image detection (Contrast AF)
Focus mode AF / MF
AF mode
Automatic detection (Face/Eye/Body/Animal) / Tracking (only for video) / 225-Area / Zone
(Oval) (only for video) / 1-Area
- 297 -- 297 -
14. Materials - Specifications
Exposure control
Light metering system, Light
metering mode
1728-zone metering, multi-metering / center-weighted metering / spot metering / highlight-
weighted metering (only for video)
Metering range
EV 0 to EV 18
(F2.0 lens, ISO100 conversion)
Exposure mode Program AE (P) / Aperture-Priority AE (A) / Shutter-Priority AE (S) / Manual Exposure (M)
Exposure compensation 1/3 EV steps, ±3 EV (Videos), ±5 EV (Photos)
ISO sensitivity
(standard output sensitivity)
AUTO / 100 to 51200, When [Extended ISO] is set: AUTO / 50 to 204800, Switchable in
1/3 or 1 EV steps.
Dual Native ISO setting
Auto
Base sensitivity: 100/640 (dB display values are based on 100)
AUTO / 100 to 51200
When [Extended ISO] is set: AUTO / 50 to 204800
Low sensitivity
Base sensitivity: 100
AUTO / 100 to 800
When [Extended ISO] is set: AUTO / 50 to 800
High sensitivity
Base sensitivity: 640
AUTO / 640 to 51200
When [Extended ISO] is set: AUTO / 320 to 204800
Dual Native ISO setting
([V-Log])
Auto
Base sensitivity: 640/4000 (dB display values are based on 640)
AUTO / 640 to 51200
When [Extended ISO] is set: AUTO / 320 to 51200
Low sensitivity
Base sensitivity: 640
AUTO / 640 to 5000
When [Extended ISO] is set: AUTO / 320 to 5000
High sensitivity
Base sensitivity: 4000
AUTO / 4000 to 51200
When [Extended ISO] is set: AUTO / 2000 to 51200
- 298 -- 298 -
14. Materials - Specifications
Dual Native ISO setting
([Cinelike D2] / [Cinelike V2])
Auto
Base sensitivity: 200/1250 (dB display values are based on 200)
AUTO / 200 to 51200
When [Extended ISO] is set: AUTO / 100 to 204800
Low sensitivity
Base sensitivity: 200
AUTO / 200 to 1600
When [Extended ISO] is set: AUTO / 100 to 1600
High sensitivity
Base sensitivity: 1250
AUTO / 1250 to 51200
When [Extended ISO] is set: AUTO / 640 to 204800
Dual Native ISO setting
(HLG video)
Auto
Base sensitivity: 400/2500 (dB display values are based on 400)
AUTO / 400 to 51200
When [Extended ISO] is set: AUTO / 400 to 204800
Low sensitivity
Base sensitivity: 400
AUTO / 400 to 3200
High sensitivity
Base sensitivity: 2500
AUTO / 2500 to 51200
When [Extended ISO] is set: AUTO / 2500 to 204800
White balance
AWB / AWBc / AWBw / Daylight / Cloudy / Shade / Incandescent lights / Set mode 1, 2, 3, 4 / Color temperature 1, 2, 3, 4
Shutter
Shutter speed
Videos: 1/2 of a second to 1/16000 of a second
Photos: 1 second to 1/8000 of a second
Microphone
Stereo
- 299 -- 299 -
14. Materials - Specifications
Interface
[REMOTE]
Ø2.5 mm jack
Terminal for generic remote control unit
(A Panasonic shutter remote control (DMW-RS2) cannot be used.)
[DC IN 12 V] DC 12 V (11.4 V to 12.6 V), EIAJ Type 4
[MIC] Ø3.5 mm stereo mini jack
Headphones Ø3.5 mm stereo mini jack
LAN connector
LAN terminal (RJ-45) for remote control×1, compatible with power supply by PoE+ (IEEE
802.3at compliant)
[SDI OUT] BNC terminal×1, 0.8 V [p-p], 75 Ω, 3G-SDI Level-A / HD-SDI compatible
[TC IN/OUT]
BNC terminal×1,
Input: 1.0 V to 4.0 V [p-p], 10 kΩ,
Output: 2.0 V ±0.5 V [p-p], low impedance
[GENLOCK IN] BNC terminal×1, BBS (Black Burst sync) signal and tri-level sync signal compatible
HDMI HDMI Type A
USB USB Type-C™, SuperSpeed USB3.1 GEN1
External dimensions / Mass
External dimensions
Approx. 93.0 mm (W)×93.0 mm (H)×78.8 mm (D)
(3.66″ (W)×3.66″ (H)×3.1″ (D))
(excluding the projecting parts)
Mass (Weight) Approx. 585
/ 1.29 lb (only camera body)
Operating environment
Recommended operating
temperature
-10 °C to 40 °C (14 °F to 104 °F)
●
Battery performance temporarily worsens at low temperatures (-10 °C to 0 °C (14 °F
to 32 °F)), reducing the available recording time.
Permissible relative humidity 10%RH to 80%RH
- 300 -- 300 -
14. Materials - Specifications
Wi-Fi
Compliance standard IEEE 802.11b/g/n (standard wireless LAN protocol)
Frequency range used
(central frequency)
Specifications vary depending on the country or area where the camera was purchased.
Refer to the “Operating Instructions / Owner’s Manual <Quick Start Guide>” (supplied) for
details.
Encryption method Wi-Fi compliant WPA™/WPA2™
Access method Infrastructure mode
Bluetooth
Compliance standard Bluetooth Ver. 4.2 (Bluetooth Low Energy (BLE))
Frequency range used
(central frequency)
2402 MHz to 2480 MHz
The symbols on this product (including the accessories) represent the following:
AC
DC
Class II equipment (The construction of the product is double-insulated.)
ON
Stand-by
This camera complies with the “Design rule for Camera File system” (DCF) and “Exchangeable Image File Format” (Exif)
standards established by “Japan Electronics and Information Technology Industries Association” (JEITA). The camera cannot
playback files that do not comply with the DCF standard. Exif is a file format for still images which allows recording information,
etc. to be added.
- 301 -- 301 -
14. Materials - Trademarks and Licenses
Trademarks and Licenses
●
L-Mount is a trademark or registered trademark of Leica Camera AG.
●
SDXC Logo is a trademark of SD-3C, LLC.
●
The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered
trademarks of HDMI Licensing Administrator, Inc. in the United States and other countries.
●
USB Type-C™ and USB-C™ are trademarks of USB Implementers Forum.
●
QuickTime and the QuickTime logo are trademarks or registered trademarks of Apple Inc., used under license therefrom.
●
Windows is either registered trademark or trademark of Microsoft Corporation in the United States and/or other countries.
●
Mac and macOS are trademarks of Apple Inc., registered in the U.S. and other countries.
●
App Store is a service mark of Apple Inc.
●
Google, Android and Google Play are trademarks of Google LLC.
- 302 -- 302 -
14. Materials - Trademarks and Licenses
●
The Bluetooth
®
word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by
Panasonic Corporation is under license. Other trademarks and trade names are those of their respective owners.
●
The Wi-Fi CERTIFIED™ Logo is a registered trademark of Wi-Fi Alliance
®
.
●
The Wi-Fi Protected Setup™ Logo is a trademark of Wi-Fi Alliance
®
.
●
“Wi-Fi
®
” is a registered trademark of Wi-Fi Alliance
®
.
●
“Wi-Fi Protected Setup™”, “WPA™”, and “WPA2™” are trademarks of Wi-Fi Alliance
®
.
●
Ninja V / ATOMOS are registered trademarks of ATOMOS Limited.
●
‘Blackmagic Design’ is a registered trademark of Blackmagic Design Pty. Ltd. All other company and product names are
trademarks of their respective corporations.
●
This product uses “DynaFont” from DynaComware Corporation. DynaFont is a registered trademark of DynaComware
Taiwan Inc.
●
QR Code is a registered trademark of DENSO WAVE INCORPORATED.
●
Other names, company names, and product names mentioned in these instructions are trademarks or registered
trademarks of the companies concerned.
- 303 -- 303 -
14. Materials - Trademarks and Licenses
This product incorporates the following software:
(1) the software developed independently by or for Panasonic Corporation,
(2) the software owned by third party and licensed to Panasonic Corporation,
(3) the software licensed under the GNU General Public License, Version 2.0 (GPL V2.0),
(4) the software licensed under the GNU LESSER General Public License, Version 2.1 (LGPL V2.1), and/or
(5) open source software other than the software licensed under the GPL V2.0 and/or LGPL V2.1.
The software categorized as (3) - (5) are distributed in the hope that it will be useful, but WITHOUT ANY WARRANTY, without
even the implied warranty of MERCHANTABILITY or FITNESS FOR A PARTICULAR PURPOSE. Please refer to the detailed
terms and conditions thereof displayed by selecting [MENU/SET]
[Setup] [Others] [Firmware Version] [Software info].
At least three (3) years from delivery of this product, Panasonic will give to any third party who contacts us at the contact
information provided below, for a charge no more than our cost of physically performing source code distribution, a complete
machine-readable copy of the corresponding source code covered under GPL V2.0 or LGPL V2.1, as well as the respective
copyright notice thereof.
Contact Information: [email protected]
The source code and the copyright notice are also available for free in our website below.
https://panasonic.net/cns/oss/index.html
This product is licensed under the AVC Patent Portfolio License for the personal use of a consumer or other uses in which it
does not receive remuneration to (i) encode video in compliance with the AVC Standard (“AVC Video”) and/or (ii) decode AVC
Video that was encoded by a consumer engaged in a personal activity and/or was obtained from a video provider licensed to
provide AVC Video. No license is granted or shall be implied for any other use. Additional information may be obtained from
MPEG LA, L.L.C.
See http://www.mpegla.com
Ecodesign information
