INSTRUCTION MANUAL
Cordless String Trimmer
DUR141
DUR181
ENGLISH: Original instructions
Read before use.
2 ENGLISH
SPECIFICATIONS
Model DUR141 DUR181
No load speed 6,000 min
-1
7,800 min
-1
Overall length 1,229 mm - 1,433 mm
Cutting diameter with nylon cutting head 260 mm
Net weight 2.6 - 2.9 kg 2.6 - 3.0 kg
Rated voltage D.C. 14.4 V D.C. 18 V
• Duetoourcontinuingprogramofresearchanddevelopment,thespecicationshereinaresubjecttochange
without notice.
• Specicationsmaydierfromcountrytocountry.
• Theweightmaydierdependingontheattachment(s),includingthebatterycartridge.Thelightestandheavi-
est combination, according to EPTA-Procedure 01/2014, are shown in the table.
Applicable battery cartridge and charger
Battery cartridge D.C.14.4 V Model BL1415N / BL1430B / BL1440 / BL1460B
D.C.18 V Model BL1815N / BL1820B / BL1830B / BL1840B / BL1850B / BL1860B
Charger DC18RC / DC18RD / DC18RE / DC18SD / DC18SE / DC18SF /
DC18SH
• Some of the battery cartridges and chargers listed above may not be available depending on your region of
residence.
WARNING: Only use the battery cartridges and chargers listed above. Use of any other battery cartridges
andchargersmaycauseinjuryand/orre.
Symbols
The following show the symbols used for the equip-
ment. Be sure that you understand their meaning before
use.
Take particular care and attention.
Read instruction manual.
Danger;beawareofthrownobjects.

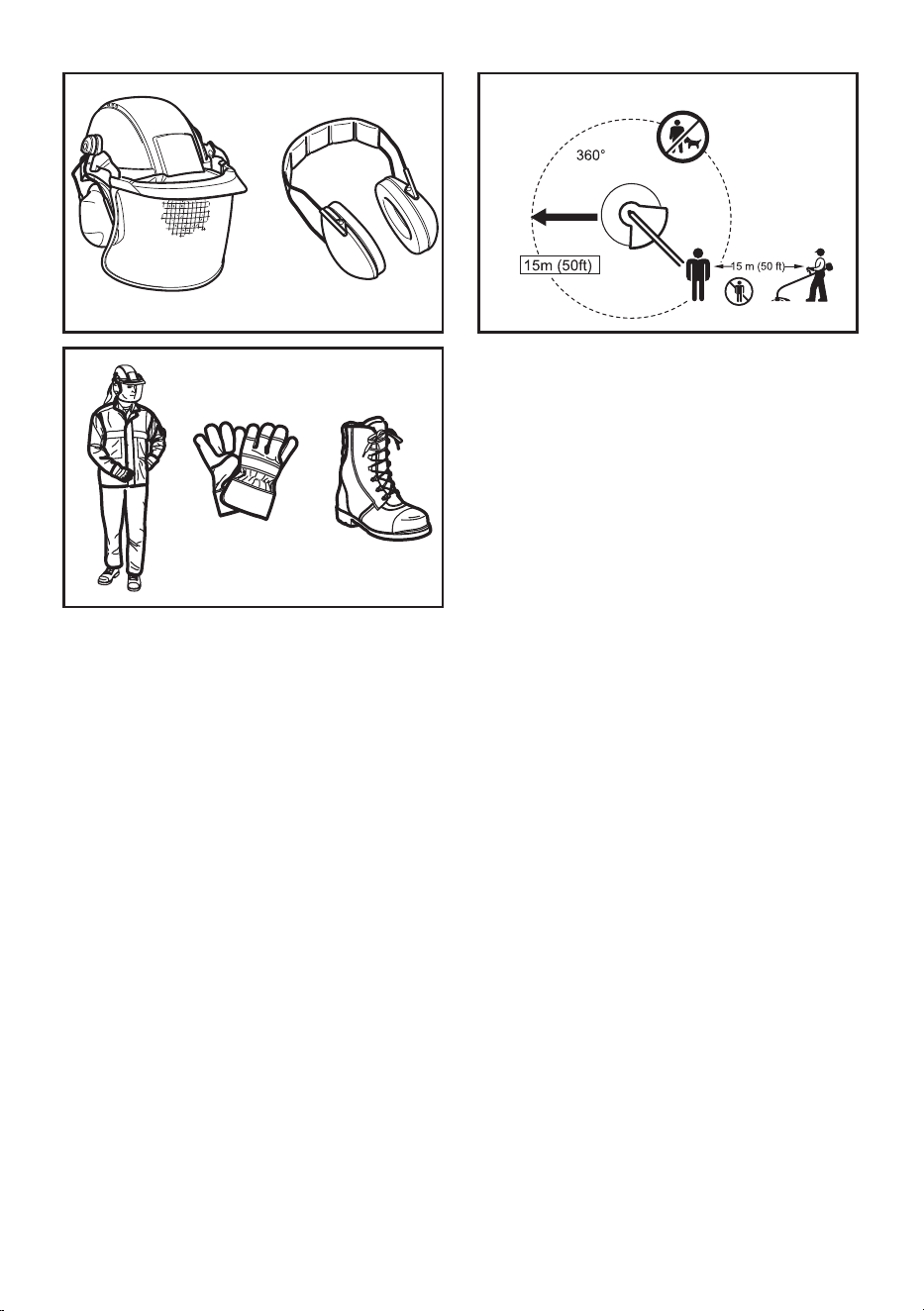

The distance between the tool and
bystanders must be at least 15 m.
Keep bystanders away.
15m(50FT)
Keep distance at least 15 m.
Avoid kickback.
Wear safety glasses.
Wear ear protection.
Wear a helmet, goggles and ear protection.
Wear protective gloves.
Wear sturdy boots with nonslip soles.
Steeltoed safety boots are recommended.
Do not expose to moisture.
Top permissible tool speed.
Ni-MH
Li-ion
Only for EU countries
Due to the presence of hazardous com-
ponents in the equipment, waste electrical
and electronic equipment, accumulators
and batteries may have a negative impact
on the environment and human health.
Do not dispose of electrical and electronic
appliances or batteries with household
waste!
In accordance with the European Directive
on waste electrical and electronic equip-
ment and on accumulators and batteries
and waste accumulators and batteries,
as well as their adaptation to national law,
waste electrical equipment, batteries and
accumulators should be stored separately
and delivered to a separate collection point
for municipal waste, operating in accor-
dance with the regulations on environmen-
tal protection.
This is indicated by the symbol of the
crossed-out wheeled bin placed on the
equipment.
Guaranteed sound power level according
to EU Outdoor Noise Directive.
Sound power level according to Australia
NSW Noise Control Regulation
3 ENGLISH
Noise
The typical A-weighted noise level determined accord-
ing to EN786:
Model DUR141
Soundpressurelevel(L
pA
):75dB(A)
Soundpowerlevel(L
WA
):83.7dB(A)
Uncertainty(K):2.5dB(A)
Thenoiselevelunderworkingmayexceed80dB(A).
Model DUR181
Soundpressurelevel(L
pA
):82dB(A)
Soundpowerlevel(L
WA
):88.5dB(A)
Uncertainty(K):2.5dB(A)
NOTE:Thedeclarednoiseemissionvalue(s)has
been measured in accordance with a standard test
method and may be used for comparing one tool with
another.
NOTE:Thedeclarednoiseemissionvalue(s)
may also be used in a preliminary assessment of
exposure.
WARNING: Wear ear protection.
WARNING: The noise emission during actual
use of the power tool can dier from the declared
value(s) depending on the ways in which the
tool is used especially what kind of workpiece is
processed.
WARNING: Be sure to identify safety mea-
sures to protect the operator that are based on an
estimation of exposure in the actual conditions of
use (taking account of all parts of the operating
cycle such as the times when the tool is switched
o and when it is running idle in addition to the
trigger time).
Vibration
The vibration total value determined according to
EN786:
Vibrationemission(a
h
):2.5m/s
2
or less
Uncertainty(K):1.5m/s
2
NOTE:Thedeclaredvibrationtotalvalue(s)hasbeen
measured in accordance with a standard test method
and may be used for comparing one tool with another.
NOTE:Thedeclaredvibrationtotalvalue(s)mayalso
be used in a preliminary assessment of exposure.
WARNING: The vibration emission during
actual use of the power tool can dier from the
declared value(s) depending on the ways in which
the tool is used especially what kind of workpiece
is processed.
WARNING: Be sure to identify safety mea-
sures to protect the operator that are based on an
estimation of exposure in the actual conditions of
use (taking account of all parts of the operating
cycle such as the times when the tool is switched
o and when it is running idle in addition to the
trigger time).
EC Declaration of Conformity
For European countries only
The EC declaration of conformity is included as Annex A
to this instruction manual.
IMPORTANT SAFETY
INSTRUCTIONS
WARNING! Read all safety warnings and all
instructions. Failure to follow the warnings and instruc-
tionsmayresultinelectricshock,reand/orserious
injury.
Save all warnings and instruc-
tions for future reference.
1. Be familiar with the controls and proper use of
the equipment.
2. Cutting elements continue to rotate after the
motor is switched o.
3. Never allow children or people unfamiliar with
the instructions to use the machine.
4. Stop using the machine while people, espe-
cially children, or pets are nearby.
5. Only use the machine in daylight or good arti-
cial light.
6. Before using the machine and after any
impact, check for signs of wear or damage and
repair as necessary.
7. Take care against injury from any device
tted for trimming the lament line length.
After extending new cutter line always return
the machine to its normal operating position
before switching on.
8. Never t metal cutting elements.
9. This appliance is not intended for use by
persons (including children) with reduced
physical, sensory or mental capabilities, or
lack of experience and knowledge, unless they
have been given supervision or instruction
concerning use of the appliance by a person
responsible for their safety. Children should be
supervised to ensure that they do not play with
the appliance.
10. Use the tool with the utmost care and
attention.
11. Operate the tool only if you are in good phys-
ical condition. Perform all work calmly and
carefully. Use common sense and keep in mind
that the operator or user is responsible for
accidents or hazards occurring to other people
or their property.
12. Never operate the tool when tired, feeling ill or
under the inuence of alcohol or drugs.
13. The tool should be switched o immediately if
it shows any signs of unusual operation.
Intended use of the tool
1. Use right tool. The cordless string trimmer is
only intended for cutting grass, light weeds. It
should not be used for any other purpose such
as hedge cutting as this may cause injury.
4 ENGLISH
Personal protective equipment
1. Dress Properly. The clothing worn should be
functional and appropriate, i.e. it should be
tight-tting but not cause hindrance. Do not
wear either jewelry or clothing which could
become entangled with high grass. Wear pro-
tective hair covering to contain long hair.
2. When using the tool, always wear sturdy shoes
with a non-slip sole. This protects against
injuries and ensures a good footing.
3. Wear protective glasses or goggles.
Electrical and battery safety
1. Avoid dangerous environment. Don't use the
tool in damp or wet locations or expose it to
rain. Water entering the tool will increase the
risk of electric shock.
2. Recharge only with the charger specied by
the manufacturer. A charger that is suitable for
one type of battery pack may create a risk of
re when used with another battery pack.
3. Use power tools only with specically desig-
nated battery packs. Use of any other battery
packs may create a risk of injury and re.
4. Do not dispose of the battery(ies) in a re. The
cell may explode. Check with local codes for
possible special disposal instructions.
5. Do not open or mutilate the battery(ies).
Released electrolyte is corrosive and may
cause damage to the eyes or skin. It may be
toxic if swallowed.
Starting up the tool
1. Make sure that there are no children or other
people within a working range of 15 meters
(50 ft), also pay attention to any animals in the
working vicinity. Otherwise stop using the tool.
2.
Before use always check that the tool is safe for
operation. Check the security of the cutting tool
and the guard and the switch trigger/lever for easy
and proper action. Check for clean and dry han-
dles and test the on/o function of the switch.
3.
Check damaged parts before further use of the tool.
A guard or other part that is damaged should be
carefully checked to determine that it will operate
properly and perform its intended function. Check
for alignment of moving parts, binding of moving
parts, breakage of parts, mounting, and any other
condition that may aect its operation. A guard
or other part that is damaged should be properly
repaired or replaced by our authorized service
center unless indicated elsewhere in this manual.
4. Switch on the motor only when hands and feet
are away from the cutting tool.
5.
Before starting make sure that the cutting tool has no
contact with hard objects such as branches, stones
etc. as the cutting tool will revolve when starting.
Method of operation
1. Never operate the machine with damaged
guards or without the guards in place.
2.
Only use the tool in good light and visibility. During the
winter season beware of slippery or wet areas, ice and
snow (risk of slipping). Always ensure a safe footing.
3. Take care against injury to feet and hands from
the cutting tool.
4. Keep hands and feet away from the cutting
means at all times and especially when switch-
ing on the motor.
5. Never cut above waist height.
6. Never stand on a ladder and run the tool.
7. Never work on unstable surfaces.
8. Don't overreach. Keep proper footing and
balance at all times.
9. Always be sure of your footing on slopes.
10. Walk, never run.
11. Remove sand, stones, nails etc. found within
the working range. Foreign particles may
damage the cutting tool and can cause to be
thrown away, resulting in a serious injury.
5 ENGLISH
12.
Never touch moving hazardous parts before the
machine is disconnected from the mains and the mov-
ing hazardous parts have come to a complete stop.
13. Should the cutting tool hit stones or other hard
objects, immediately switch o the motor and
inspect the cutting tool.
14. Before commencing cutting, the cutting tool
must have reached full working speed.
15. During operation always hold the tool with
both hands. Never hold the tool with one hand
during use. Always ensure a safe footing.
16.
All protective equipment such as guards supplied
with the tool must be used during operation.
17. Except in case of emergency, never drop
or cast the tool to the ground or this may
severely damage the tool.
18. Never drag the tool on the ground when mov-
ing from place to place, the tool may become
damaged if moved in this manner.
19.
Always remove the battery cartridge from the tool:
— whenever leaving the tool unattended;
— before clearing a blockage;
— before checking, cleaning or working on
the tool;
— before making any adjustments, chang-
ing accessories or storing;
—
whenever the tool starts vibrating unusually;
— whenever transporting the tool.
20. Don't force the tool. It will do the job better and
with less likelihood of a risk of injury at the
rate for which it was designed.
Maintenance instructions
1.
The condition of the cutting tool, protective devices
must be checked before commencing work.
2.
Turn o the motor and remove the battery car-
tridge before carrying out maintenance, replac-
ing the cutting tool and cleaning the tool.
3. After use, disconnect the battery cartridge
from the tool and check for damage.
4.
Check for loose fasteners and damaged parts such
as nearly halfway cut-o state in the cutting tool.
5.
When not in use store the equipment in a dry loca-
tion that is locked up or out of children's reach.
6. Use only the manufacturer's recommended
replacement parts and accessories.
7. Always ensure that ventilation openings are
kept clear of debris.
8. Inspect and maintain the tool regularly, espe-
cially before/after use. Have the tool repaired
only by our authorized service center.
9.
Keep handles dry, clean and free from oil and grease.
SAVE THESE INSTRUCTIONS.
WARNING: DO NOT let comfort or famil-
iarity with product (gained from repeated
use) replace strict adherence to safety
rules for the subject product. MISUSE or
failure to follow the safety rules stated in
this instruction manual may cause serious
personal injury.
Important safety instructions for
battery cartridge
1.
Before using battery cartridge, read all instruc-
tions and cautionary markings on (1) battery
charger, (2) battery, and (3) product using battery.
2. Do not disassemble or tamper with the battery
cartridge.Itmayresultinare,excessiveheat,
or explosion.
3. If operating time has become excessively
shorter, stop operating immediately. It may
result in a risk of overheating, possible burns
and even an explosion.
4.
If electrolyte gets into your eyes, rinse them out
with clear water and seek medical attention right
away. It may result in loss of your eyesight.
5. Do not short the battery cartridge:
(1) Do not touch the terminals with any con-
ductive material.
(2) Avoid storing battery cartridge in a con-
tainer with other metal objects such as
nails, coins, etc.
(3) Do not expose battery cartridge to water
or rain.
A battery short can cause a large current
ow, overheating, possible burns and even a
breakdown.
6. Do not store and use the tool and battery car-
tridge in locations where the temperature may
reach or exceed 50 °C (122 °F).
7. Do not incinerate the battery cartridge even if
it is severely damaged or is completely worn
out. The battery cartridge can explode in a re.
8. Do not nail, cut, crush, throw, drop the battery
cartridge, or hit against a hard object to the
battery cartridge. Such conduct may result in a
re,excessiveheat,orexplosion.
9. Do not use a damaged battery.
10.
The contained lithium-ion batteries are subject to
the Dangerous Goods Legislation requirements.
For commercial transports e.g. by third parties,
forwarding agents, special requirement on pack-
aging and labeling must be observed.
For preparation of the item being shipped, consult-
ing an expert for hazardous material is required.
Please also observe possibly more detailed
national regulations.
Tapeormaskoopencontactsandpackupthe
battery in such a manner that it cannot move
around in the packaging.
11. When disposing the battery cartridge, remove
it from the tool and dispose of it in a safe
place. Follow your local regulations relating to
disposal of battery.
12. Use the batteries only with the products
specied by Makita. Installing the batteries to
non-compliantproductsmayresultinare,exces-
sive heat, explosion, or leak of electrolyte.
13. If the tool is not used for a long period of time,
the battery must be removed from the tool.
14. During and after use, the battery cartridge may
take on heat which can cause burns or low
temperature burns. Pay attention to the han-
dling of hot battery cartridges.
6 ENGLISH
15. Do not touch the terminal of the tool imme-
diately after use as it may get hot enough to
cause burns.
16. Do not allow chips, dust, or soil stuck into the
terminals, holes, and grooves of the battery
cartridge. It may result in poor performance or
breakdown of the tool or battery cartridge.
17. Unless the tool supports the use near
high-voltage electrical power lines, do not use
the battery cartridge near high-voltage electri-
cal power lines. It may result in a malfunction or
breakdown of the tool or battery cartridge.
18. Keep the battery away from children.
SAVE THESE INSTRUCTIONS.
CAUTION: Only use genuine Makita batteries.
Use of non-genuine Makita batteries, or batteries that
have been altered, may result in the battery bursting
causingres,personalinjuryanddamage.Itwill
also void the Makita warranty for the Makita tool and
charger.
Tips for maintaining maximum
battery life
1. Charge the battery cartridge before completely
discharged. Always stop tool operation and
charge the battery cartridge when you notice
less tool power.
2. Never recharge a fully charged battery car-
tridge. Overcharging shortens the battery
service life.
3. Charge the battery cartridge with room tem-
perature at 10 °C - 40 °C (50 °F - 104 °F). Let
a hot battery cartridge cool down before
charging it.
4. When not using the battery cartridge, remove
it from the tool or the charger.
5. Charge the battery cartridge if you do not use
it for a long period (more than six months).
Parts description
1
2
3
4
5
6
Battery cartridge
Indication lamp
Switch trigger
Front grip
Guard7
8
Clamping nut
Lock grip
Nylon cutting head
1
2
3
4
5
6
7
8
7 ENGLISH
FUNCTIONAL
DESCRIPTION
WARNING:
• Always be sure that the tool is switched
o and battery cartridge is removed before
adjusting or checking function on the tool.
Failuretoswitchoandremovethebattery
cartridgemayresultinseriouspersonalinjury
from accidental start-up.
Installing or removing battery
cartridge
1
2
3
►1. Red indicator 2. Button 3. Battery cartridge
CAUTION:
• Alwaysswitchothetoolbeforeinstallingor
removing of the battery cartridge.
• Hold the tool and the battery cartridge rmly
when installing or removing battery car-
tridge. Failure to hold the tool and the battery
cartridgermlymaycausethemtoslipoyour
hands and result in damage to the tool and
batterycartridgeandapersonalinjury.
To remove the battery cartridge, slide it from the tool
while sliding the button on the front of the cartridge.
To install the battery cartridge, align the tongue on the
battery cartridge with the groove in the housing and slip
it into place. Insert it all the way until it locks in place
with a little click. If you can see the red indicator on the
upper side of the button, it is not locked completely.
CAUTION:
• Always install the battery cartridge fully until
the red indicator cannot be seen. If not, it may
accidentallyfalloutofthetool,causinginjuryto
you or someone around you.
• Do not install the battery cartridge forcibly. If the
cartridge does not slide in easily, it is not being
inserted correctly.
Battery protection system (Lithium-
ion battery with star marking)
1
►1. Star marking
Lithium-ion batteries with a star marking are equipped
with a protection system. This system automatically
cutsopowertothetooltoextendbatterylife.
The tool will automatically stop during operation if the
tool and/or battery are placed under one of the following
conditions:
• Overloaded:
The tool is operated in a manner that causes
it to draw an abnormally high current.
In this situation, release the switch trigger on
the tool and stop the application that caused
the tool to become overloaded. Then pull the
switch trigger again to restart.
If the tool does not start, the battery is over-
heated. In this situation, let the battery cool
before pulling the switch trigger again.
• Low battery voltage:
The remaining battery capacity is too low
and the tool will not operate. In this situation,
remove and recharge the battery.
Indicating the remaining battery
capacity
Only for battery cartridges with the indicator
1
2
►1. Indicator lamps 2. Check button
Press the check button on the battery cartridge to indi-
cate the remaining battery capacity. The indicator lamps
light up for a few seconds.
8 ENGLISH
Indicator lamps Remaining
capacity
Lighted O Blinking
75% to 100%
50% to 75%
25% to 50%
0% to 25%
Charge the
battery.
The battery
may have
malfunctioned.
NOTE: Depending on the conditions of use and the
ambienttemperature,theindicationmaydierslightly
from the actual capacity.
NOTE:Therst(farleft)indicatorlampwillblinkwhen
the battery protection system works.
Power switch action
WARNING:
• Before inserting the battery cartridge in the
tool, always check to see that the switch
trigger actuates properly and returns to the
"OFF" position when released. Do not pull
the switch trigger hard without pressing in
the lock-o button. This can cause switch
breakage. Operating a tool with a switch that
does not actuate properly can lead to loss of
controlandseriouspersonalinjury.
1
2
►1.Lock-obutton2. Switch trigger
To prevent the switch trigger from being accidentally
pulled,alock-obuttonisprovided.
Tostartthetool,movethelock-obuttonforwardand
pull the switch trigger. Release the switch trigger to
stop.
9 ENGLISH
Indication lamp
1
►1. Indication lamp
Running the tool allows the indication lamp to show the battery cartridge capacity status.
When the tool is also overloaded and has stopped during operation, the lamp lights up in red.
Refer to the following table for the status and action to be taken for the indication lamp.
Note 1:
The time at which the indication lamp lights up varies by the temperature
around the work area and the battery cartridge conditions.
Indication lamp
The lamp blinks in red.
The lamp lights up in red.
(Note 1)
The lamp lights up in red.
(Note 1)
Status
This indicates the appropriate
time to replace the battery
cartridge when the battery
power becomes low.
This function works when the
battery power is almost used
up. At this time, tool stops
immediately.
Autostop due to overload.
Action to be taken
Recharge the battery cartridge
as soon as possible.
Recharge the battery cartridge.
Turn off the tool.
10 ENGLISH
Adjusting the shaft length
WARNING:
• Beforeadjustingtheshaftlength,releasethe
switch trigger and remove the battery cartridge
from the string trimmer. Failure to release the
trigger and removing the battery cartridge may
causeapersonalinjury.
1
2
►1. Shaft 2. Grip
Toadjustthelengthoftheshaft,turnthegripcounterclockwiseuntil
the shaft is unlocked and pull out or push in to the desired length.
Nylon cutting head
NOTICE:
• The bump feed will not operate properly if the
Nylon cutting head is not rotating.
1
►1. Nylon cutting head
The nylon cutting head is a single string trimmer head
provided with a bump & feed mechanism.
To cause the nylon cord to feed out, the cutting head
should be bumped against the ground while the tool is run-
ning. As the nylon cord is feeding out it will automatically
be cut to the proper length by the cutter on the guard.
NOTE:
• If the nylon cord does not feed out while bump-
ing the head, rewind/replace the nylon cord
by following the procedures described under
“Installing or removing the Nylon cutting head”
and "Winding a new Nylon cord on the spool."
• Do not bump the tool to the concrete or asphalt
surface.Bumpingtothiskindofobjectsmay
cause the tool damage.
ASSEMBLY
WARNING:
• Always be sure that the tool is switched
o and battery cartridge is removed before
carrying out any work on the tool. Failure to
switchoandremovethebatterycartridgemay
resultinseriouspersonalinjuryfromaccidental
start-up.
• Never start the tool unless it is completely
assembled. Operation of the tool in a partially
assembled state may result in serious personal
injuryfromaccidentalstart-up.
Installing the front grip
1
2
3
►1. Front grip 2. Clamping nut 3. Hex bolt
Put the front grip on the front grip holder and secure it
with a hex bolt and the clamping nut provided with the
stringtrimmerasshowninthegure.Atthistime,the
hex bolt needs to be installed from the side in which the
hex bolt lock port is located and the clamping nut needs
to be installed from the opposite side.
NOTE:
• The front grip has a edge-to-edge cut slit in its
mounting area. Using this slit allows you to eas-
ily install the front grip on the front grip holder.
Thefrontgripangleisadjustable.Toadjustthefront
grip angle, loosen the claming nut, set the front grip at
an proper angle according to your work and then tighten
thenutclockwisermly.
11 ENGLISH
Installing the guard
CAUTION:
• While installing the guard, be careful not to
contact the nylon cord cutter provided on
the guard. Contact with the cutter could result
inpersonalinjury.
1
2
3
►1. Guard 2. Screws 3. Cutter cover
Mounttheguardbyttingitontothemotorhousing
so that the Nylon cord is not pinched between the
guard and the motor housing, and then secure it with
two screws. Before starting the trimmer, take away the
cutter cover from the cord cutter.
Installing or removing the Nylon
cutting head
WARNING:
• Before installing or removing the Nylon cut-
ting head (both spool cover and spool, and
hereafter called this way), make sure that the
tool is switched o and the battery cartridge
is removed from the tool.Failuretoswitcho
the tool and remove the battery cartridge may
causeapersonalinjury.
CAUTION:
• While installing or removing the Nylon cut-
ting head, be careful not to contact the nylon
cord cutter provided on the guard. Contact
withthecuttercouldresultinpersonalinjury.
ToremovetheNyloncuttinghead(spoolandspool
cover)fromthestringtrimmer,pressinthelatches
forcefully on both sides of the spool cover and raise it.
1
2
3
4
►1. Nylon cord eyehole 2. Notch of the nylon cutting
head installation port 3. Spring 4. Spool holder
NOTICE:
• Make sure that the spring is installed inside the
spool holder.
Toinstallacord-newly-woundNyloncuttinghead(spool
andspoolcover)onthestringtrimmer,aligntheNylon
cord eyehole with the notch of the Nylon cutting head
installation port on the trimmer and then press in it until
a click is heard.
Winding a new Nylon cord on the
spool
Removethespoolfromthespoolcoverandtakeothe
remaining used Nylon cord from the spool.
12 ENGLISH
1
2
►1. Nylon cord 2. Retainer for nylon cord end
InsertaNyloncordtotheretainershowninthegure.
Windittightlyataroundthespoolinthedirectionof
arrow on the spool so that the wound Nylon cord sur-
face appears uniform over the winding area.
TemporarilyxaNyloncordatthenotchshowninthe
gure.
Bring the Nylon cord through the Nylon cord eyehole in
the spool cover.
1
2
►1. Spool 2. Nylon cord
After installing the Nylon cutting head, make sure that
the Nylon cord comes out by pressing the spool and
pulling the Nylon cord.
OPERATION
Attachment of shoulder strap
CAUTION: When you use the tool in combi-
nation of the backpack-type power supply such
as portable power pack, do not use the shoulder
strap included in the tool package, but use the
hanging band recommended by Makita.
If you put on the shoulder strap included in the tool
package and the shoulder strap of the backpack-type
power supply at the same time, removing the tool or
backpack-typepowersupplyisdicultincaseofan
emergency,anditmaycauseanaccidentorinjury.
For the recommended hanging band, ask Makita
Authorized Service Centers.
13 ENGLISH
1
2
►1. Shoulder strap 2. Hook
Hook the shoulder strap in a hole in the front grip.
OPERATION
CAUTION:
•
Do not cut high grass at a time. Cutting high grass at
a time near the root may cause the trimmer motor spin-
dle to be entangled by grass which leads to the motor
under overload, resulting in damage to the trimmer.
CAUTION:
• Use the trimmer without getting the spool
into a contact with the ground surface. Using
the spool contacting the ground surface may
cause the motor under overload resulting in
damage to the trimmer.
CAUTION:
• Do not force the trimmer in densely growing
grass.
CAUTION:
• Do not use the trimmer as if you dig out the
ground with it.
Cutting the grass near a tree,
concrete block, brick or garden
stone
Hold the trimmer tilting at a level so that it does not
contact the ground surface and cut the grass using the
Nylon cord tip like knocking the ground. In this work,
smooth feeding out is needed because the Nylon cord
wears more quickly than usual.
14 ENGLISH
NOTE:
• Getting the trimmer too close to a tree, concrete
block, brick or garden stone or the like during
performing the edging work or such similar cut-
tingworkmaycausetheNyloncordtobecuto
halfway inside the spool cover. At this time, take
the spool out of the spool cover and then set
the Nylon cord again properly by referring to the
section titled "Installing or removing the Nylon
cutting head" and "Winding a new Nylon cord on
the spool". Using the tip of the Nylon cord during
operation brings the best result of operation and
therefore it is recommended to keep the tool
more than 5 cm away from the tree, concrete
block, brick or garden stone or the like.
Start the trimmer before getting close to the grass to
be cut.
Cut the grass using the Nylon cord tip by moving the
trimmer from right to left and proceed slowly, keeping
the trimmer tilted at the angle of about 30° in relation to
the ground surface.
When cutting high grass, cut in layers always beginning
from the top with each cut length short.
Using the tool as an edger
Using the tool as an edger allows the operator to cut
along the edge of the concrete block, brick and the like.
1
2
►1. Motor housing 2. Grip
For using the tool as an edger, hold the shaft of the
trimmer with one hand and turn the grip counter clock-
wise to loosen the shaft. Rotate the shaft with the motor
housing 180° and tighten the grip clockwise until it
locks.
NOTE:
• Before rotating the shaft, it needs to be fully
shortened or extended.
• After changing to the edger position, make sure
that the motor housing and shaft are locked.
Toobtainagoodresultofnishcutting,moveparallelto
the edge you are going to perform an edging work.
Cutting the grass in a tight place or
on a slope
WARNING:
• When cutting the grass on a slope, be careful of
stones,grassandotherforeignobjectsthrown
from the cutting head area.
• When cutting the grass on a slope, make sure
that you always keep a good and stable footing.
1
►1. Lock button
To ease the work in a tight place which restricts the
height, such as cutting the grass under an outdoor
wood deck and similars, push the lock button and then
bend down the cutting head so that the shaft is parallel
tothegroundsurface.Adjustingthecuttingheadangle
properly in this way helps you cut the grass on a slope.
15 ENGLISH
MAINTENANCE
WARNING:
• Always be sure that the tool is switched
o and battery cartridge is removed before
attempting to perform inspection or main-
tenance on the tool.Failuretoswitchoand
remove the battery cartridge may result in seri-
ouspersonalinjuryfromaccidentalstart-up.
NOTICE:
Never use gasoline, benzine, thinner, alcohol or
the like. Discoloration, deformation or cracks may
result.
To maintain product SAFETY and RELIABILITY, repairs,
anyothermaintenanceoradjustmentshouldbeper-
formed by Makita Authorized Service Centers, always
using Makita replacement parts.
OPTIONAL
ACCESSORIES
CAUTION:
• These accessories or attachments are recom-
mendedforusewithyourMakitatoolspecied
in this manual. The use of any other accessories
orattachmentsmightpresentariskofinjuryto
persons. Only use accessory or attachment for
its stated purpose.
If you need any assistance for more details regard-
ing these accessories, ask your local Makita Service
Center.
• Nylon cutting head
• Nylon cords
• Shoulder strap
• Goggles
• Makita genuine battery and charger
NOTE:
• Some items in the list may be included in the
tool package as standard accessories. They
maydierfromcountrytocountry.
www.makita.com
Makita Europe N.V.
Makita Corporation
3-11-8, Sumiyoshi-cho,
Anjo, Aichi 446-8502 Japa
n
Jan-Baptist Vinkstraat 2,
3070 Kortenberg, Belgium
885314F222
EN
20210319
