Pa.aso.iC
Model No.
N0mero de modelo
TC-P58S2
TC-P65S2
H ITI|
[
[
English
Espa_ol
Thank you for purchasing this Panasonic product,
Please read these instructions before operating your set and retain them for future
reference. The images shown in this manual are for illustrative purposes only.
Gracias por su decision de comprar este producto marca Panasonic,
Lea estas instrucciones antes de utilizar su televisor y guardelas para consultarlas en
el futuro. Las imageries mostradas en este manual tienen solamente fines ilustrativos. TQB2AA0587
r.
tc p58_6a_s2_eng_O587.in(Ib I 2010/03/23 14:26:2_
I
Experience
multimedia
an amazing level
excitement
of
2
Hi_rl_|
HDMI, the HDMI logo and High-
Definition Multimedia Interface are
trademarks or registered trademarks
of HDMI Licensing LLC in the United
States and other countries.
VIERA Link TM is a trademark of
Panasonic Corporation.
HDAVI Control TM is a trademark of
Panasonic Corporation.
SDHC Logo is a trademark
of SD-3C, LLC.
Manufactured under license from Dolby
Laboratories.
Dolby and the double-D symbol are
trademarks of Dolby Laboratories.
r.
tc p58_6a_s2_eng_O587.in(ll) 2 2010/03/23 14:26:2!
I

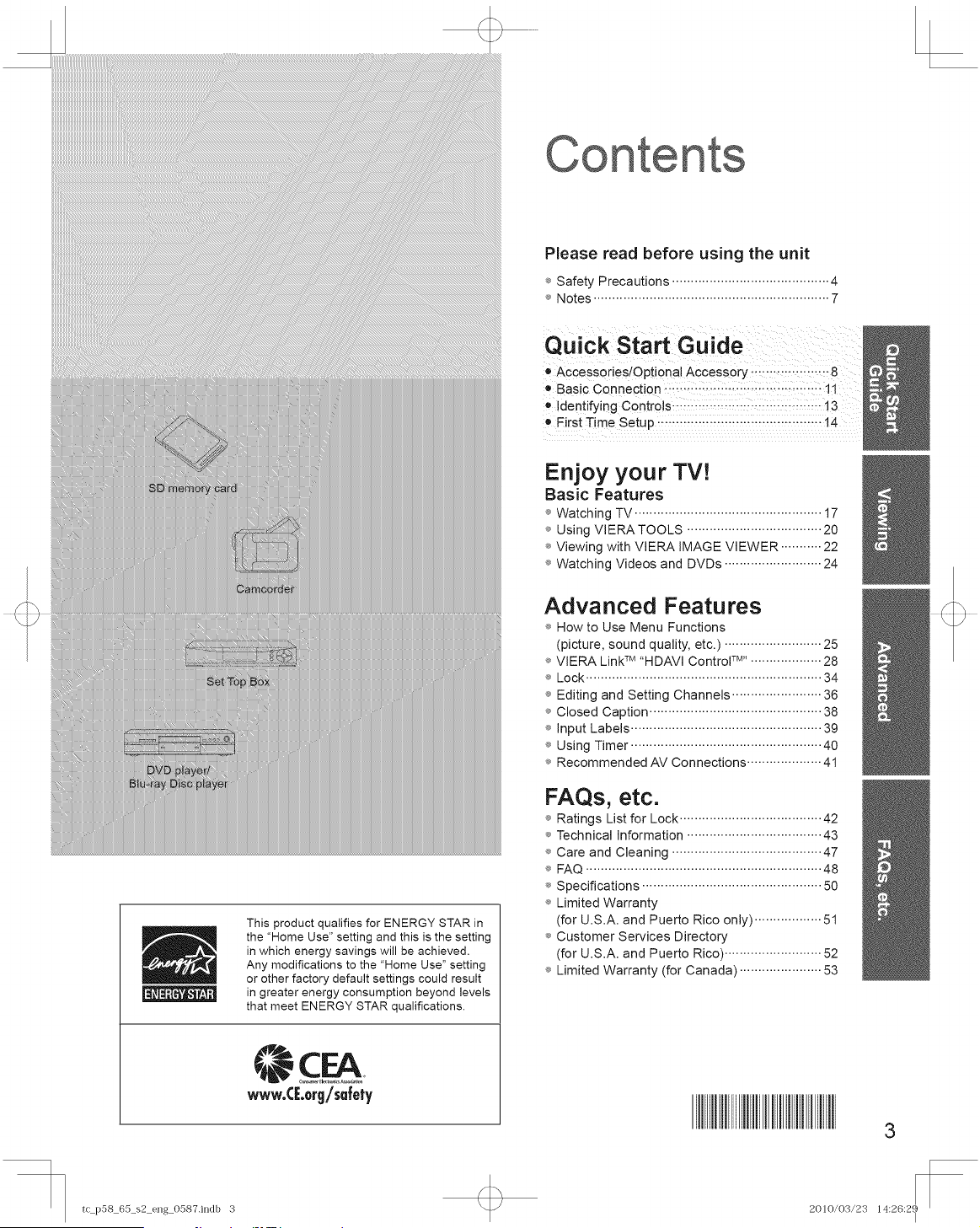

Please read before using the unit
_ Safety Precautions .......................................... 4
_ Notes ............................................................... 7
This product qualifies for ENERGY STAR in
the "Home Use" setting and this is the setting
in which energy savings will be achieved.
Any modifications to the "Home Use" setting
or other factory default settings could result
in greater energy consumption beyond levels
that meet ENERGY STAR qualifications.
Enjoy your TV!
Basic Features
_ Watching TV .................................................. 17
_ Using VIERATOOLS .................................... 20

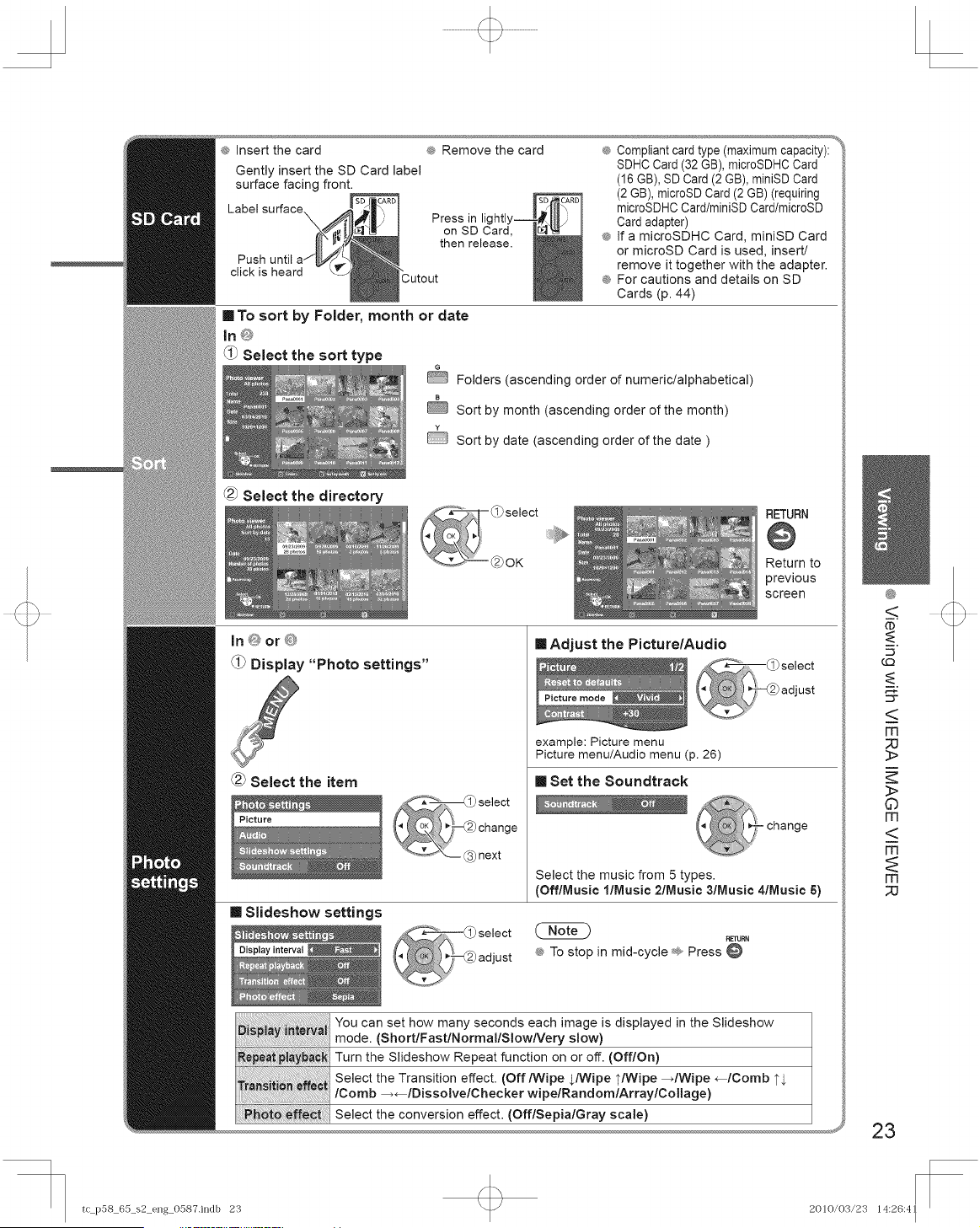

_ Viewing with VIERA IMAGE VIEWER ........... 22

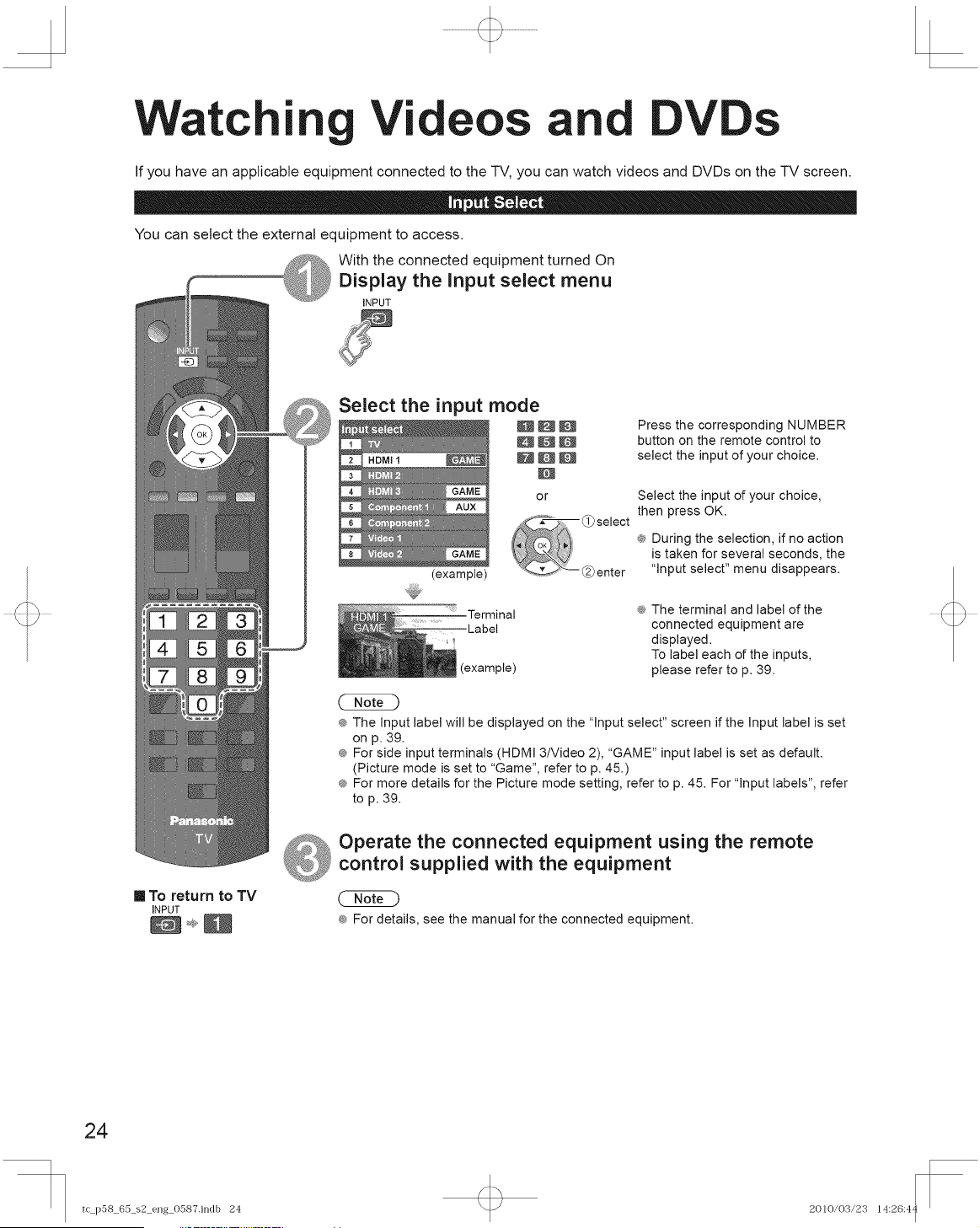

_ Watching Videos and DVDs .......................... 24
Advanced Featu res

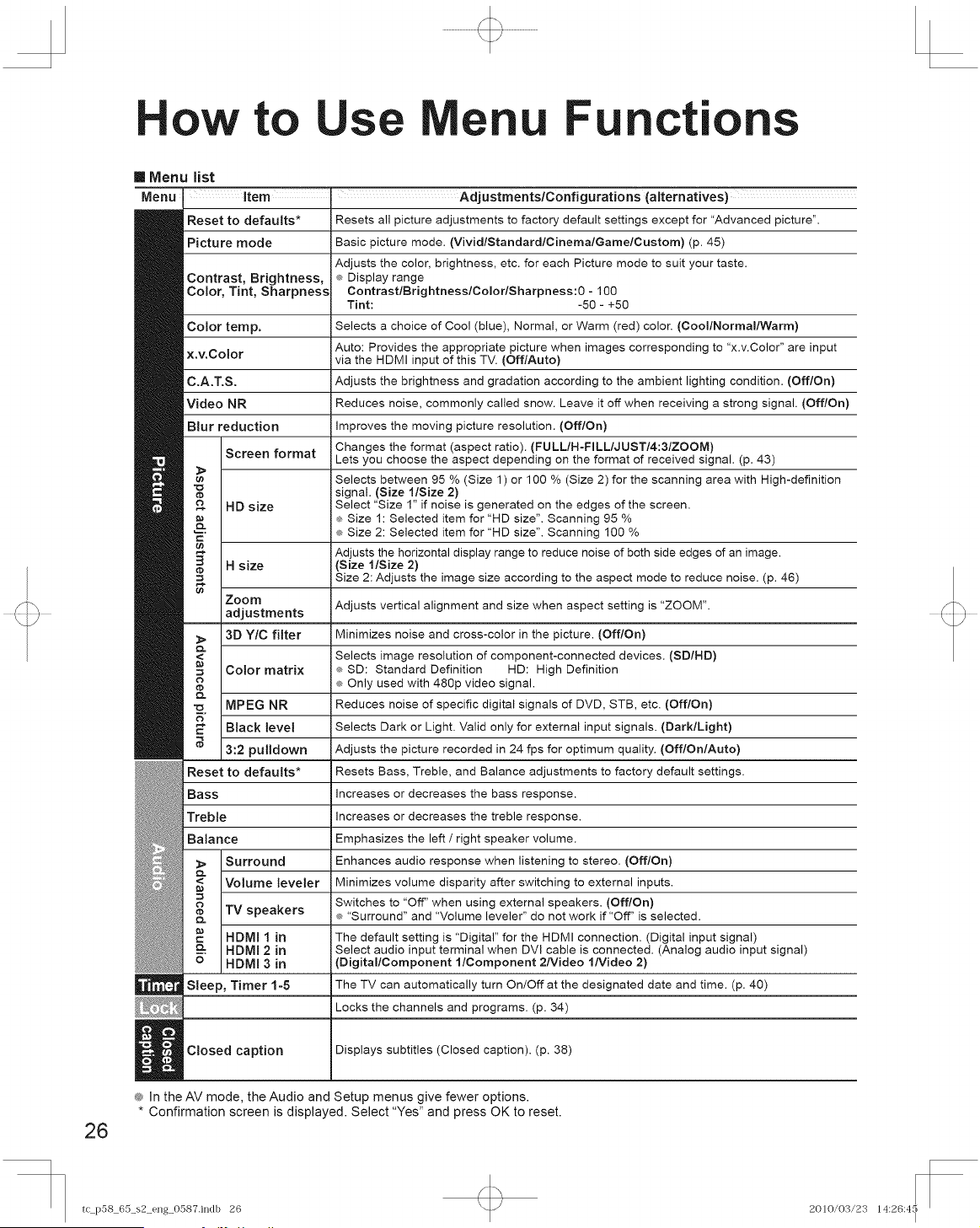

_ How to Use Menu Functions
(picture, sound quality, etc.) .......................... 25

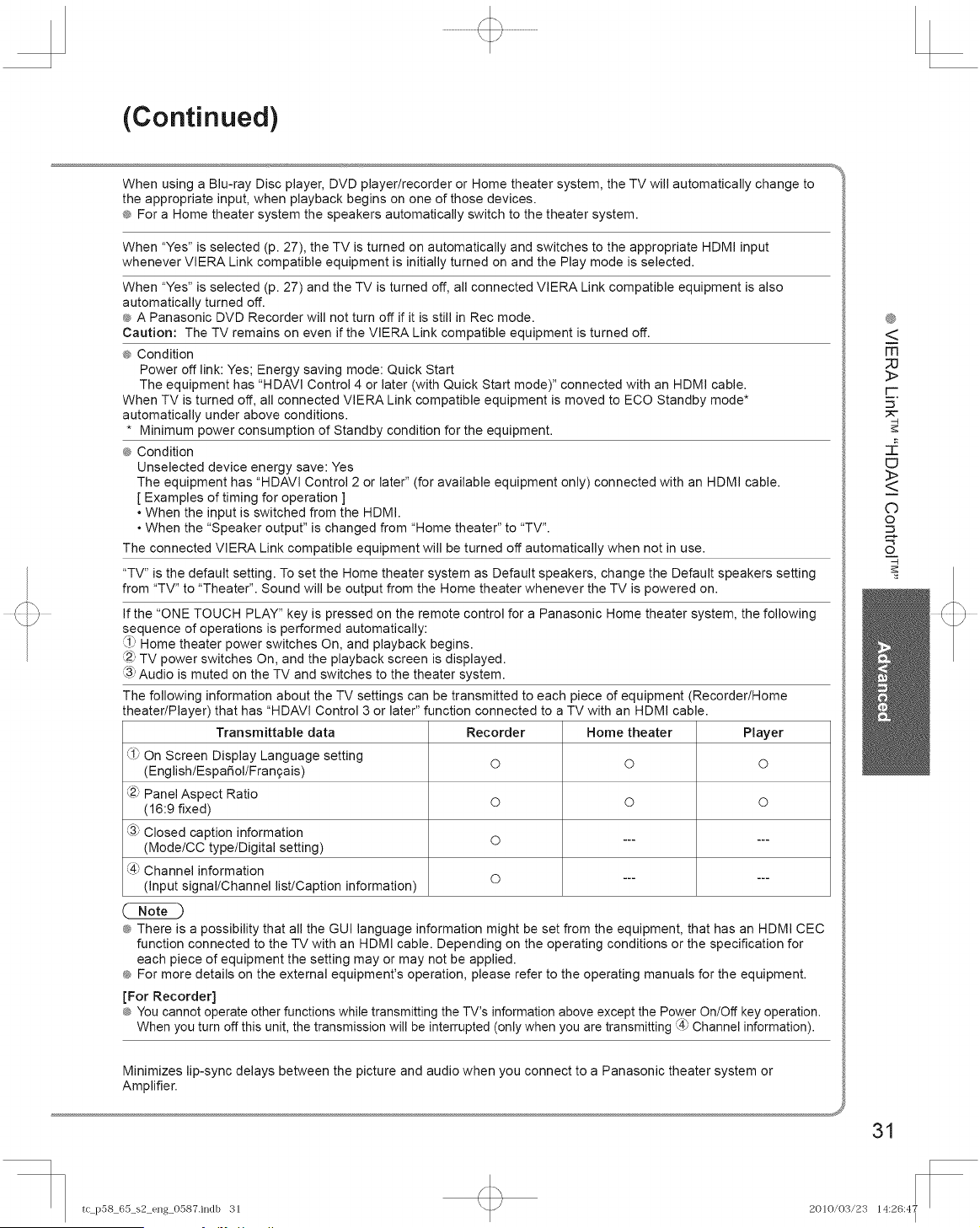

_ VERA Link TM "HDAVI Control Ta''. .................. 28
_ Lock ............................................................... 34

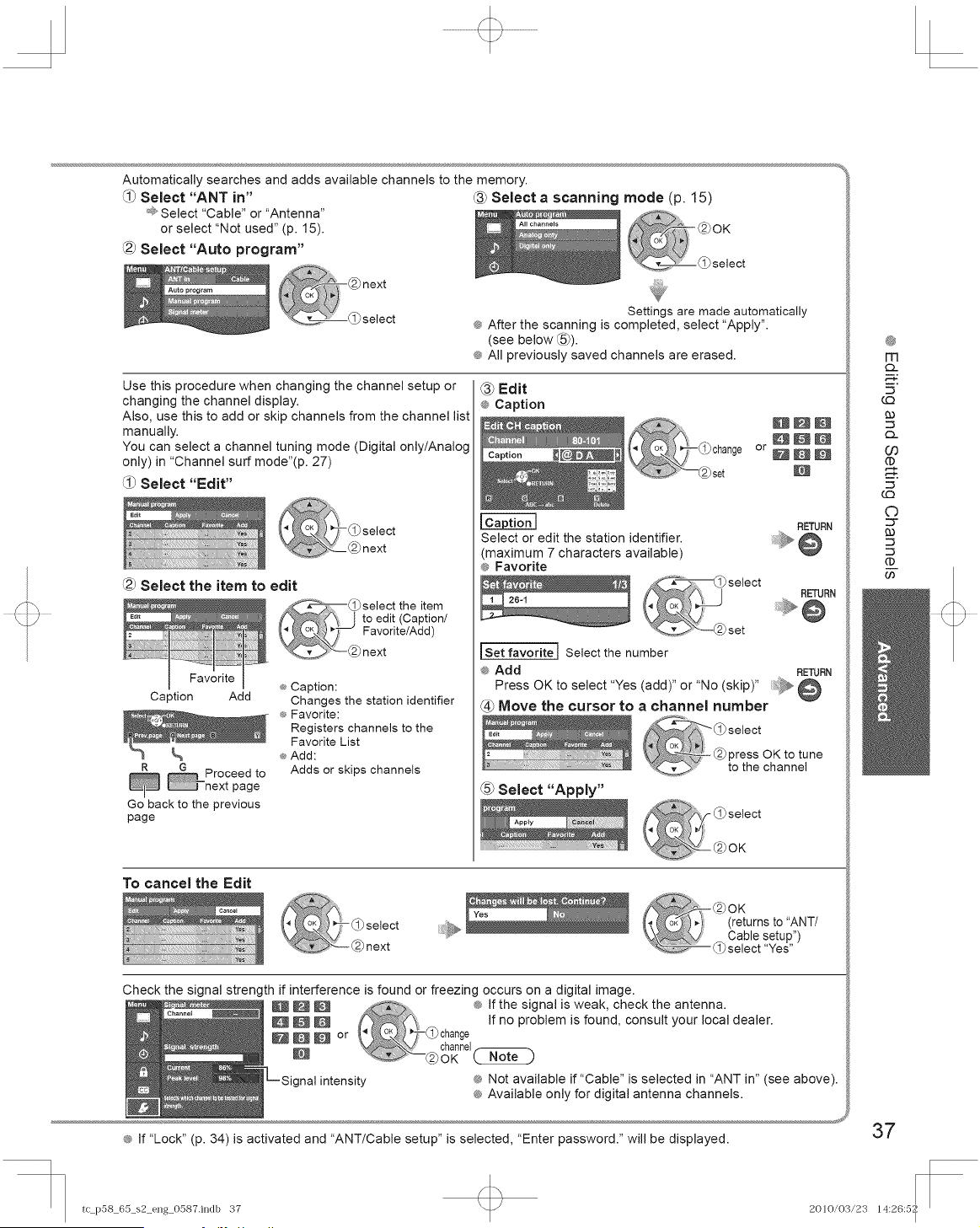

_ Editing and Setting Channels ........................ 36
_ Closed Caption .............................................. 38
_ input Labels ................................................... 39
_ Using Timer ................................................... 40
_ Recommended AV Connections .................... 41
FAQs, etc.
_ Ratings List for Lock ...................................... 42

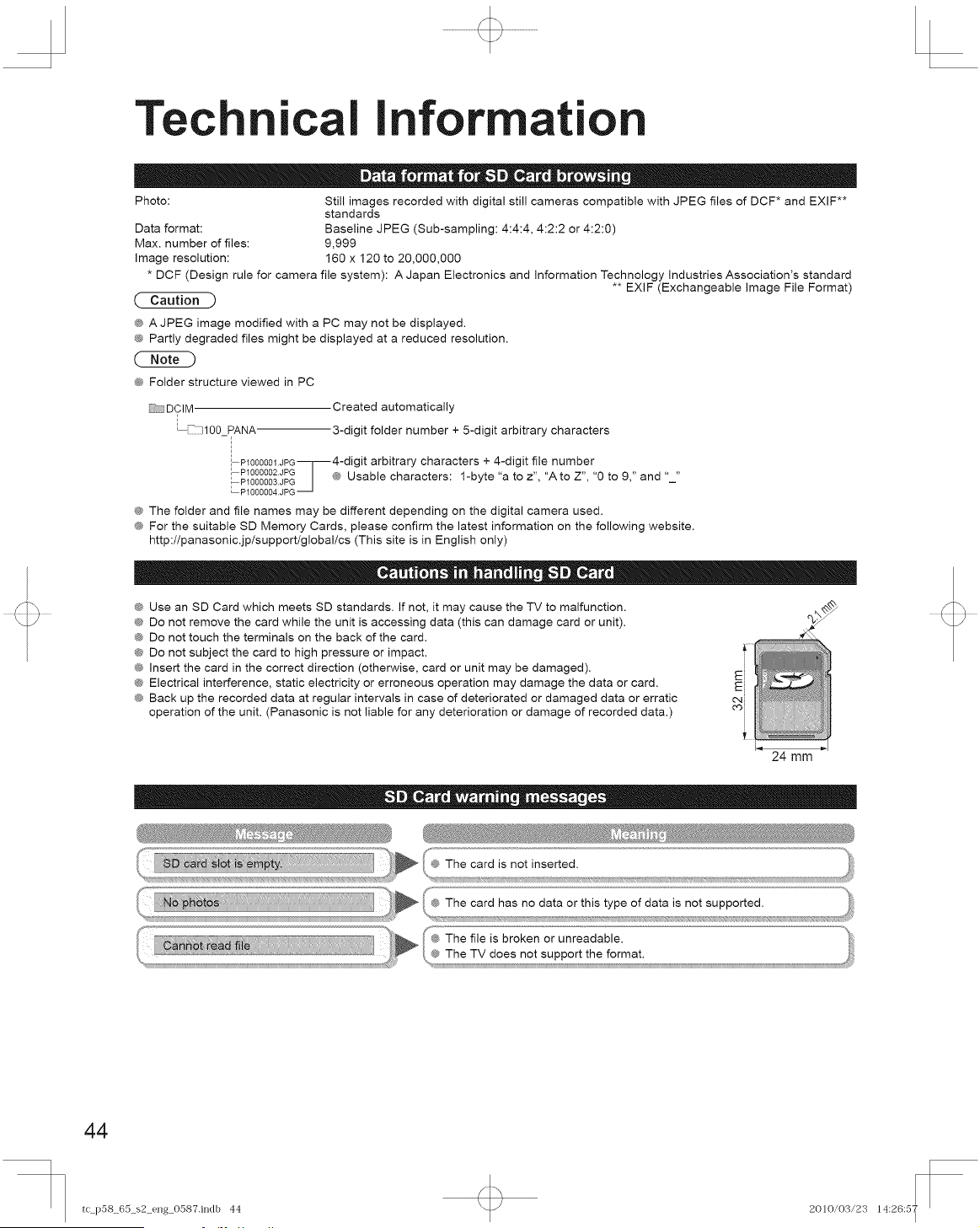

_ Technical information .................................... 43
_ Care and Cleaning ........................................ 47

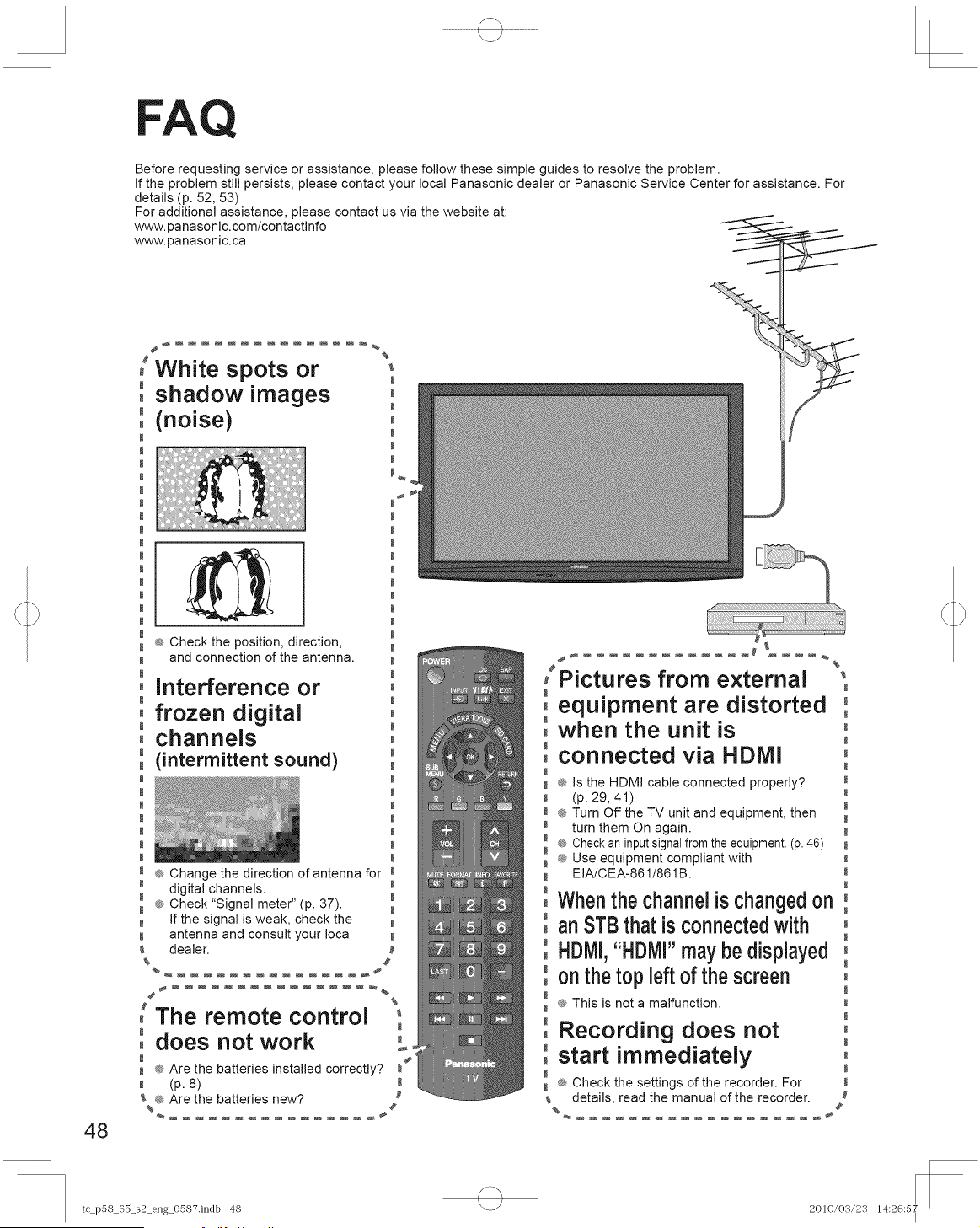

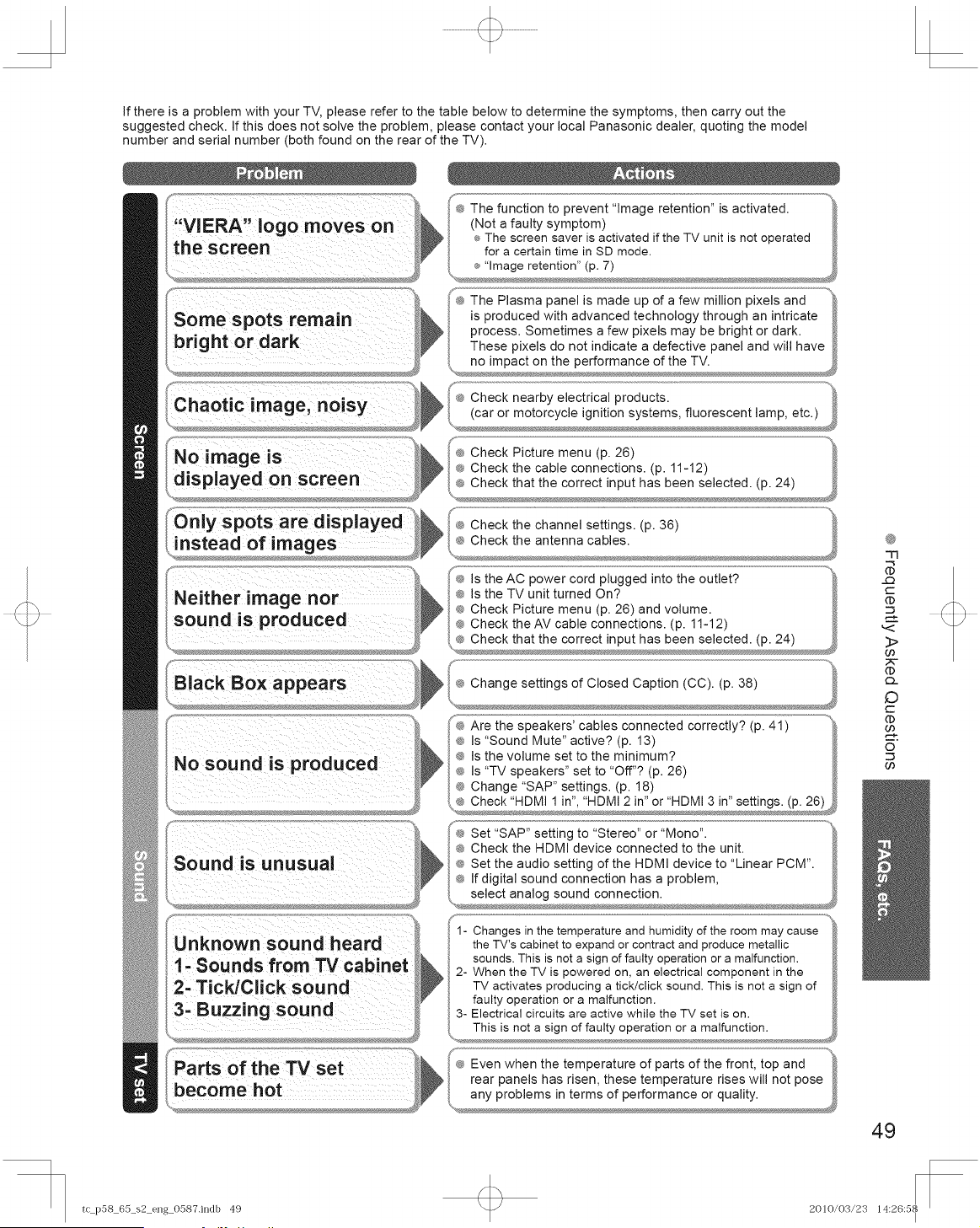

_ FAQ ............................................................... 48
_ Specifications ................................................ 50
_ Limited Warranty
(for U.S.A. and Puerto Rico only) .................. 51
_ Customer Services Directory
(for U.S.A. and Puerto Rico) .......................... 52
_ Limited Warranty (for Canada) ...................... 53
3
r.
tc p58_6a_s2_eng_O587.indb 3 2010/03/23 14:26:2!
I

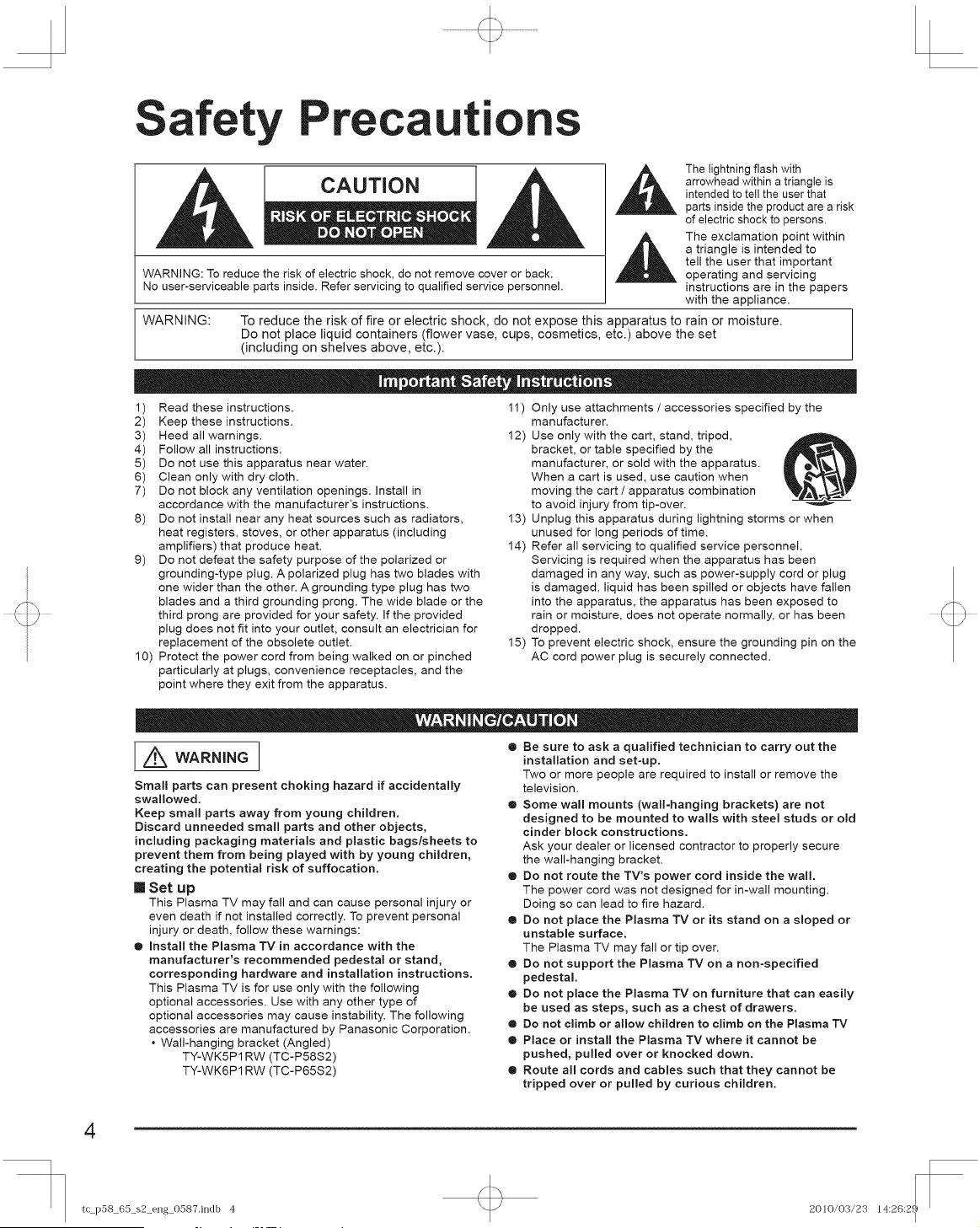

Safety Precautions
,_ The lightning flash with
CAUTION arrowhead within a triangle is
intended to tell the user that
parts inside the product are a risk
of electric shock to persons.
,_ The exclamation point within
a triangle is intended to
tell the user that important
WARNING: To reduce the risk of electric shock, do not remove cover or back. operating and servicing
No user-serviceable parts inside. Refer servicing to qualified service personnel, instructions are in the papers
with the appliance.
WARNING: To reduce the risk of fire or electric shock, do not expose this apparatus to rain or moisture.
Do not place liquid containers (flower vase, cups, cosmetics, etc.) above the set
(including on shelves above, etc.).
1
2
3
4
5
6
7
9)
10)
Read these instructions.
Keep these instructions.
Heed all warnings.
Follow all instructions.
Do not use this apparatus near water.
Clean only with dry cloth.
Do not block any ventilation openings. Install in
accordance with the manufacturer's instructions.
Do not install near any heat sources such as radiators,
heat registers, stoves, or other apparatus (including
amplifiers) that produce heat.
Do not defeat the safety purpose of the polarized or
grounding-type plug. A polarized plug has two blades with
one wider than the other. A grounding type plug has two
blades and a third grounding prong. The wide blade or the
third prong are provided for your safety. If the provided
plug does not fit into your outlet, consult an electrician for
replacement of the obsolete outlet.
Protect the power cord from being walked on or pinched
particularly at plugs, convenience receptacles, and the
point where they exit from the apparatus.
11 ) Only use attachments / accessories specified by the
manufacturer.
12) Use only with the cart, stand, tripod,
bracket, or table specified by the
manufacturer, or sold with the apparatus.
When a cart is used, use caution when
moving the cart / apparatus combination
to avoid injury from tip-over.
13) Unplug this apparatus during lightning storms or when
unused for long periods of time.
14) Refer all servicing to qualified service personnel.
Servicing is required when the apparatus has been
damaged in any way, such as power-supply cord or plug
is damaged, liquid has been spilled or objects have fallen
into the apparatus, the apparatus has been exposed to
rain or moisture, does not operate normally, or has been
dropped.
15) To prevent electric shock, ensure the grounding pin on the
AC cord power plug is securely connected.
Z_ WARNNNG
Sma!l parts can present choking hazard if accidentally
swallowed.
Keep smal! parts away from young children.
Discard unneeded small parts and other objects,
including packaging materials and plastic bags/sheets to
prevent them from being played with by young children,
creating the potential risk of suffocation.
[] Set up
This Plasma TV may fall and can cause personal injury or
even death if not installed correctly. To prevent personal
injury or death, follow these warnings:
® Install the Plasma TV in accordance with the
manufacturer's recommended pedestal or stand,
corresponding hardware and installation instructions.
This Plasma TV is for use only with the following
optional accessories. Use with any other type of
optional accessories may cause instability. The following
accessories are manufactured by Panasonic Corporation.
• Wall-hanging bracket (Angled)
TY-WK5P 1RW (TC-P58S2)
TY-WK6P 1RW (TC-P65S2)
• Be sure to ask a qualified technician to carry out the
installation and set-up.
Two or more people are required to install or remove the
television.
• Some wall mounts (wall=hanging brackets) are not
designed to be mounted to wails with steel studs or old
cinder block constructions.
Ask your dealer or licensed contractor to properly secure
the wall-hanging bracket.
® Do not route the TV's power cord inside the wall.
The power cord was not designed for in-wall mounting.
Doing so can lead to fire hazard.
• Do not place the Plasma TV or its stand on a sloped or
unstable surface.
The Plasma TV may fall or tip over.
® Do not support the Plasma TV on a non-specified
pedestal.
• Do not place the Plasma TV on furniture that can easily
be used as steps, such as a chest of drawers.
• Do not climb or allow children to climb on the Plasma TV
® Place or install the Plasma TV where it cannot be
pushed, pulled over or knocked down.
® Route all cords and cables such that they cannot be
tripped over or pulled by curious children.
4
t( p58_65_s2_eng_O587.indb 4 2010/03/23 14:26:2!
I
® Do not place any objects on top of the Plasma TV.
If water spills onto the Plasma TV or foreign objects get
inside it, a short-circuit may occur which could result in
fire or electric shock. If any foreign objects get inside the
Plasma TV, please consult an Authorized Service Center.
In the unlikely event that you receive a shock from this
product it is possible that your household outlet may be
wired improperly. Have an electrician verify that the TV's
outlet is properly wired. If the symptom persists, have the
TV serviced by a qualified authorized technician.
[] AC Power Supply Cord
To prevent fire or electric shock:
• The Plasma TV is designed to operate on a 120 V AC,
60 Hz service, insert the power cord plug as far as it
will go into the wall socket.
If the plug is not fully inserted, heat may generate, which
could cause a fire.
• The included power cord is for use with this unit only.
• Do not use any power cord other than that provided
with this TV.
• Do not handle the power cord plug with wet hands.
e Do not do anything that might damage the power
supply cord.
® When disconnecting the power supply cord, hold the
plug, not the cord.
® Do not use the power supply cord if the plug or cord is
damaged.
Replace the cord or contact your Authorized Service Center
• Do not use a 3-prong to 2-prong AC plug adaptors to
connect your TV's plug to the wall outlet.
Doing so will defeat the TV plug's safety feature, which
can lead to a shock hazard. If the wall outlet does not
accommodate a 3-prong plug, have a qualified electrician
replace your outlet and check the associated wiring.
[] Handling the power supply cord
• insert the power plug fully into the socket outlet. (If the
power plug is loose, it could generate heat and cause fire.)
• Ensure that the power plug is easily accessible.
• Ensure the earth pin on the power plug is securely
connected to prevent electrical shock.
• An apparatus with CLASS I construction shall be
connected to a power socket outlet with a protective
earthing connection.
® Do not touch the power plug with a wet hand. (This
may cause electrical shock.)
e Do not use any power cord other than that provided
with this TV. (This may cause fire or electrical shock.)
® Do not damage the power cord. (A damaged cord may
cause fire or electrical shock.)
• Do not move the TV with the cord plugged in the socket
outlet.
• Do not place a heavy object on the cord or place the cord
near a high-temperature object.
• Do not twist the cord, bend it excessively, or stretch it.
• Do not pull on the cord. Hold onto the power plug body
when disconnecting cord.
• Do not use a damaged power plug or socket outlet.
• if a problem occurs (such as no picture or no sound),
or if smoke or an abnormal odor is detected from the
Plasma TV, unplug the power supply cord immediately.
Continued use of the TV under these conditions might
cause a fire or permanent damage to the TV. Have the TV
evaluated by an Authorized Service Center. Servicing of the
TV by unauthorized personnel is strongly discouraged due
to its high voltage.
O
If water or an object gets inside the Plasma TV, if the
Plasma TV is dropped, or if the enclosure becomes
damaged, unplug the power supply cord immediately.
A short-circuit may occur, which could cause a fire. Contact
an Authorized Service Center for an evaluation.
]
O Do not cover the ventilation holes.
Doing so may cause the Plasma TV to overheat, which can
cause a fire or damage to the Plasma TV.
® Leave a space of 3 15116" (10 crn) or more at the top,
left and right, and 2 3/4" (7 cm) or more at the rear.
® When using the pedestal, keep the space between the
bottom of the TV and the pedestal or stand surface
clear from objects that may obstruct ventilation.
[] When Moving the Plasma TV
• Be sure to disconnect all cables before moving the
Plasma TV.
Moving the TV with its cables attached might damage the
cables which, in turn, can cause fire or electric shock
• To prevent an electric shock, disconnect the power
plug from the wall outlet as a safety precaution before
carrying out any cleaning.
® Transport only in upright position
Transporting the unit with its display panel facing upward or
downward may cause damage to the internal circuitry.
• Using a dry cloth, clean any dust from the power
supply cord and plug regularly.
Build-up of dust on the power cord plug can increase
humidity, which might damage the insulation and cause a
fire.
This Plasma TV radiates infrared rays;
therefore, it may affect other infrared communication
equipment. Install your infrared sensor in a place away from
direct or reflected light from your Plasma TV.
The TV will still consume some power as long as the
power supply cord is connected to the wall outlet.
® Display panel is made of glass. Do not apply strong
force or impact to the display panel
This may cause damage resulting in injury.
® The TV is heavy. TV should be handled by 2 or more
people. Support as shown to avoid injury by the TV
tipping or falling.
5
tc p58_65_s2_eng_O587.Jndb 5 2010/03/23 14:26:31
I

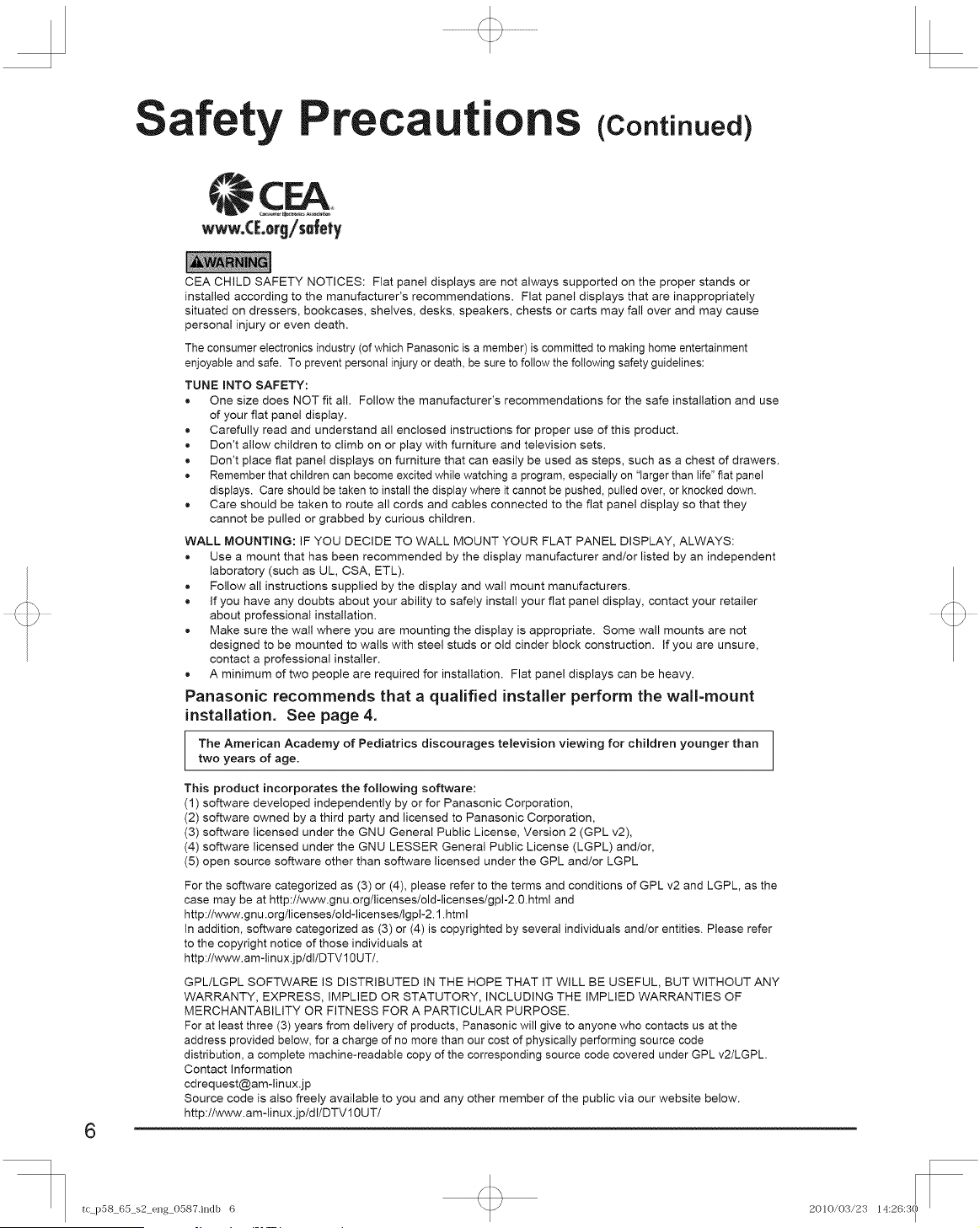

Safety Precautions (co.t .oodl
6
CEA CHILD SAFETY NOTICES: Flat panel displays are not always supported on the proper stands or
installed according to the manufacturer's recommendations. Flat panel displays that are inappropriately
situated on dressers, bookcases, shelves, desks, speakers, chests or carts may fall over and may cause
personal injury or even death.
The consumer electronics industry (of which Panasonic is a member)is committed to making home entertainment
enjoyable and safe. To prevent personal injury or death, be sure to follow the following safety guidelines:
TUNE INTO SAFETY:
• One size does NOT fit all. Follow the manufacturer's recommendations for the safe installation and use
of your flat panel display.
• Carefully read and understand all enclosed instructions for proper use of this product.
• Don't allow children to climb on or play with furniture and television sets.
• Don't place flat panel displays on furniture that can easily be used as steps, such as a chest of drawers.
• Remember that chiidren can become excited while watching a program, especially on "larger than life" flat panel
displays. Care should be taken to install the display where it cannot be pushed, puited over, or knocked down.
• Care should be taken to route all cords and cables connected to the flat panel display so that they
cannot be pulled or grabbed by curious children.
WALL MOUNTING: IF YOU DECIDE TO WALL MOUNT YOUR FLAT PANEL DISPLAY, ALWAYS:
• Use a mount that has been recommended by the display manufacturer and/or listed by an independent
laboratory (such as UL, CSA, ETL).
• Follow all instructions supplied by the display and wall mount manufacturers.
• If you have any doubts about your ability to safely install your flat panel display, contact your retailer
about professional installation.
• Make sure the wall where you are mounting the display is appropriate. Some wall mounts are not
designed to be mounted to walls with steel studs or old cinder block construction. If you are unsure,
contact a professional installer.
• A minimum of two people are required for installation. Flat panel displays can be heavy.
Panasonic recommends that a qualified installer perform the wall=mount
installation. See page 4.
The American Academy of Pediatrics discourages television viewing for children younger than
two years of age.
This product incorporates the following software:
(1) software developed independently by or for Panasonic Corporation,
(2) software owned by a third party and licensed to Panasonic Corporation,
(3) software licensed under the GNU General Public License, Version 2 (GPL v2),
(4) software licensed under the GNU LESSER General Public License (LGPL) and/or,
(5) open source software other than software licensed under the GPL and/or LGPL
For the software categorized as (3) or (4), please refer to the terms and conditions of GPL v2 and LGPL, as the
case may be at http://www.gnu.org/licenses/old-licenses/gpl-2.0.html and
http://www.gnu.org/licenses/old-licenses/Igpl-2.1 .html
In addition, software categorized as (3) or (4) is copyrighted by several individuals and/or entities. Please refer
to the copyright notice of those individuals at
http://www.am-linux.jp/dl/DTVl 0UT/.
GPL/LGPL SOFTWARE IS DISTRIBUTED IN THE HOPE THAT IT WILL BE USEFUL, BUT WITHOUT ANY
WARRANTY, EXPRESS, IMPLIED OR STATUTORY, INCLUDING THE IMPLIED WARRANTIES OF
MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE.
For at least three (3) years from delivery of products, Panasonic will give to anyone who contacts us at the
address provided below, for a charge of no more than our cost of physically performing source code
distribution, a complete machine-readable copy of the corresponding source code covered under GPL v2/LGPL.
Contact Information
Source code is also freely available to you and any other member of the public via our website below.
http://www.am-linux.jp/dl/DTV 10UT/
tc p58_65_s2_eng_O587.Jndb 6 2010/03/23 14:26:3I
I
ThisequipmenthasbeentestedandfoundtocomplywiththelimitsforanOtherClassBdigitaldevice,pursuanttoPart15ofthe
FCCRules.Theselimitsaredesignedtoprovidereasonableprotectionagainstharmfulinterferenceinaresidentialinstallation.
Thisequipmentgenerates,usesandcanradiateradiofrequencyenergyand,ifnotinstalledandusedinaccordancewiththe
instructions,maycauseharmfulinterferencetoradiocommunications.However,thereisnoguaranteethatinterferencewillnot
occurinaparticularinstallation.Ifthisequipmentdoescauseharmfulinterferencetoradioortelevisionreception,whichcanbe
determinedbyturningtheequipmentoffandon,theuserisencouragedtotrytocorrecttheinterferencebyoneormoreofthe
followingmeasures:
•Reorientorrelocatethereceivingantenna.
•Increasetheseparationbetweentheequipmentandreceiver.
•Connecttheequipmentintoanoutletonacircuitdifferentfromthattowhichthereceiverisconnected.
•ConsultthePanasonicServiceCenteroranexperiencedradio/TVtechnicianforhelp.
FCCCaution:
To assure continued compliance, fol!ow the attached installation instructions and use only shielded interface cables
when connecting to peripheral devices. Any changes or modifications not expressly approved by Panasonic Corp, of
North America could void the user's authority to operate this device.
Responsible Party:
Contact Source:
email:
Panasonic Corporation of North America
One Panasonic Way, Secaucus, NJ 07094
Panasonic Consumer Electronics Company
1-877-95-VIERA (958-4372)
CANADIAN NOTICE:
For Model TC-P58S2, TC-P65S2
This Class B digital apparatus complies with Canadian ICES-003.
otes
[] Do not display a stiNN picture for a long time
This causes the image to remain on the plasma screen
("image retention"). This is not considered a malfunction and is not covered by the warranty.
To prevent the "Image retention", the screen saver is
automatically activated after a few minutes if no signals are
sent or no operations are performed. (p. 49)
Typical still images
® Channel number and other Iogos
® Image displayed in 4:3 mode
® SD Card photo ® Video game ® Computer image
[] Set up
_* Do not place the unit where it's exposed to sunlight or other bright light (including reflections).
¢ Use of some types of fluorescent lighting may reduce the remote control's transmission range.
7
tc p58_65_s2_eng_O587.Jndb 7 2010/03/23 14:26:31
I
Accessories/Optional Accessory
Check you have all the items shown.
8
[] Remote Control
Transmitter
e N2QAYB000485
[] Batteries for the
Remote Control
Transmitter (2)
® AA Battery
[] Pedestal
® TBLX0157 (TC-P58S2)
[] AC cord
e TBLX0195 (TC-P65S2)
[] Operating Instructions _w to assemble (_
[] VIERA Concierge and Quick start guide
[] Product Registration Card (U.S.A.)
_Optional Accessory
Wall-hanging bracket
(angle)
® TY-WK5P1RW(for58") ® TY-WK6P1RW(for65")
a: 19.7" (500 ram) a: 26.9" (684 mm)
b: 11.8" (300 ram) b: 11.8" (300 ram)
Please contact your nearest Panasonic dealer to purchase the
recommended wall-hanging bracket. For additional details, please
refer to the wall-hanging bracket installation manual.
Rear of the TV
bracket installation
Screwfor fixingtheTVontothewalt-hangingbracket
(View from the side)
® In order to maintain the TV's performance and safety, be absolutely sure to ask your dealer or a licensed
contractor to secure the wall-hanging brackets.
e Carefully read the instructions accompanying optional accessories, and be absolutely sure to take steps to prevent
the TV from tipping over.
e Handle the TV carefully during installation since subjecting it to impact or other forces may cause product damage.
e Take care when fixing wall brackets to the wall. Always ensure that there are no electrical cables or pipes in the
wall before hanging bracket.
(_ When using the angled-type wall hanging bracket, please ensure that there is sufficient space for the connecting
cables not to press against the wall when the TV is tilted forward.
e For safety reasons, remove units no longer being used from their wall-mounted locations.
Hook
Close
Note the correct polarity
(+ or -).
Open
Caution
® Incorrect installation may cause
battery leakage and corrosion,
resulting in damage to the remote
control.
,_,De not mix old and new batteries.
** De net mix different battery types (such
as alkaline and manganese batteries).
** De net use rechargeable (Ni-Cd)
batteries.
e Do not burn or break batteries.
tc p58_6o_s2_eng_O587.Jndb 8 2010/03/23 14:26:3
I
reAssembling the pedestal
[TC-P58S2 (TBLX0157)]
® Fix securely with assembly screws _.
(Total 4 screws)
® Tighten screws firmly.
F_
Pole
_R)..__ Pole
'i
ont
-- _Base
reSet-up
® Carry out work on a horizontal and level surface.
® Tighten screws firmly•
[TC-P65S2 (TBLX0195)]
® Fix securely with assembly screws _.
(Total 6 screws)
® Tightenscrewsfirmly usingAlien wrench(C_
Base
Bottom view
Rear side
for pedestal
installation
•
Pole
se
(image: TC-P65S2)
Do not disassemble or modify the pedestal.
® Otherwise the TV may fall over and become damaged, and personal injury may result.
( Caution )
Do not use any other TV and displays.
® Otherwise the TV may fall over and become damaged, and personal injury may result.
Do not use the pedestal if it becomes warped or physically damaged.
® If you use the pedestal when it is physically damaged, personal injury may result.
Contact your nearest Panasonic Dealer immediately.
During set-up, make sure that all screws are securely tightened.
Accessories
Assembly screws
_Y
(for 58")
XYN5+F25FN
M5 x 25 (Silver) (4)
®
(for 65")
THEL074
M5 x 30 (Silver) (6)
(for 58")
THEL073N
M5 x 30 (Black) (4)
(for 65")
XYN6+F25FJK
M6 x 25 (Black) (4)
Poles (2)
(for 58")
® @ or _R_ is printed at the
bottom of the poles.
(for 65")
Base (1)
(for 58")
(for 65")
Allen wrench
(included tool only for 65")
® If sufficient care is not taken to ensure screws are properly tightened during assembly, _-
the pedestal will not be strong enough to support the TV, and it might fall over and
become damaged, and personal injury may result.
O ¸
:i>
o
o
o0
o0
o
(I)
©
o
>
o
o
o
9
tc p58_6a_s2_eng_O587.indb 9 2010/03/23 14:26:3
I
Accessories/0ptionalAccessory(cootioo_d)
i
'4 ?;;)
Reference of connection
Antenna terminal Pin terminals HDMI terminal
_© red blue green _:__
_--i green _'_(_-
Firmly tighten by hand. Match colors of plugs and terminals. Insert firmly.
Insert firmly.
10
r.
tc p58_6o_s2_eng_O587.Jndb 10 2010/03/23 14:26:3:
I
asic Connection
TV VHF/UHF Antenna
_ NTSC (National Television System Committee):
Conventional broadcasting
_ ATSC (Advanced Television Systems Committee):
Digital TV Standards include digital high-definition television (HDTV),
standard-definition television (SDTV), data broadcasting, multi-
channel surround-sound audio and interactive television.
VHF/UHF Antenna
or
Back of the TV
AC 120 V
60 Hz
AC Cord
(Connect after all the
* See page 10 other connections have
(AC cord been made.)
connection)
Cable
_ You need to subscribe to a cable TV service to enjoy viewing their programming.
® You can enjoy high-definition programming by subscribing to a high-definition cable service.
The connection for high-definition can be done with the use of an HDMI or Component Video cable. (p. 12)
,_'_To view high-definition programming select the correct video input. (p. 24)
QE C)
® Not all cables and external equipment shown in this book are supplied with the TV.
_; For more details on the external equipment's connections, please refer to the operating manuals for the equipment.
® When disconnecting the power cord, be absolutely sure to disconnect the power cord plug from the wall outlet first.
¢_ For additional assistance, visit us at: www.panasonic.com
www.panasonic.ca
®®
c) oo
-_ 0
©_
_ m
11
tc p58_6a_s2_eng_O587.indb I I 2010/03/23 14:26:3:
I
asic Connection
_To use HDMI terminals
HDMI
AV OUT
® Connecting to HDMI terminals will enable you to enjoy high-definition digital images and high-quality sound.
® The HDMI connection is required for a 1080p signal.
_ For "VIERA Link TM connections", please refer to p. 29.
To use COMPONENT terminals
green
red
red
red
To use COMPOSITE terminals
m==mmmmmmmmmm
= yellow
|
red
AV Equipment
e.g. DVD Recorder
or
e,g. VCR
_ For more details on the external equipment's connections, please refer to the operating manuals for the equipment.
12
r.
tc p58_6:)_s2_eng_O587.indb 12 2010/03/23 14:26:3:
I
I entifying Controls
Front of the TV Back of the TV SD card slot
Selects channels
in sequence
Volume up/down
POWER button
Displays the Main
menu
Remote control sensor Within
about 23 feet (7 meters) in
front of the TV set
Changes the input
mode
Chooses Menu and
Submenu entries
HDMI Input 3 connector
Video Input 2 connector
Power indicator
(on: red, off: no light)
C.A.T.S. sensor
Plasma C.A.T.S. (Contrast Automatic
Tracking System) (p. 26)
_ The TV consumes a small amount of electric energy even when turned off.
l® Do not place any objects between the TV remote control sensor and remote control.
Closed caption On/Off (p. 18)
Switches TV On or Off (Standby)
Changes the input mode (p. 24)
Displays Main Menu (p. 25)
Selects Audio Mode for TV viewing (p. 18)
Exits from Menu screen
VIERA Link menu (p. 32-33)
L-Displays VIERA TOOLS (p. 20)
g from SD Card (p. 22-23)
Displays Sub Menu (p. 18, 27) Selects/OK/Change
Colored buttons
(used for various functions)
(for example, p. 16, 23, 33)
Returns to previous menu
Channel up/down
Volume up/down
Sound Mute On/Off
Changes aspect ratio (p. 18, 43)
f
Switches to previously viewed channel --
or input modes
External equipment operations
(p. 33)
Displays or removes the channel
banner (p. 18)
Operates the Favorite channel list
function (p. 18-19)
-- Numeric keypad to select any channel
(p. 17) or press to enter alphanumeric
input in menus
(p. 16, 24, 32, 34, 36, 39, 40)
Use for digital channels (p. 17)
@®
cn__
C_
o
_r.Eff
80
o ©
o
©
o
©
00
13
tc p58_6o_s2_eng_O587.indb 13 2010/03/23 14:26:3,
I
First Time Setup
First time setup screen is displayed only when the TV is turned on for the first time after the power cord is
inserted into a wall outlet and when "Auto power on" (p. 27) is set to "No".
Turn the TV On with the POWER button
(TV) (Remote)
POWER
or
Configure your viewing mode
(_ Select your language
Select your viewing mode (Be sure to select "Home use")
_ Please confirm your selection (Home Use) before pressing OK button.
[] If you select "Store Demonstration" by mistake in @_,
confirmation screen will be displayed.
14
® Select "No" and return to previous screen @).
® if you select "Yes", Screen enters the store demonstration mode.
To display the "Set viewing mode" screen again as shown above and select
"Home Use", do one of the following:
° Press and hold down the front POWER button for at least five seconds.
° Unplug power cord for 30 seconds and plug it again.
RETURN
_ _ is not available on _ - _1_.
,_ _ is not available on _.
® When you have used _ to turn the TV off, the next time you turn the TV on the
"Language" settings will be displayed.
® if you use any other step other than _;_ to turn the TV off, or if you used the EXiT
button to quit before completing the settings, the next time you turn the TV on "First
time setup" will not be automatically displayed.
• The settings up to that point are saved.
• You can reset the settings using "First time setup". (p. 27)
_ To change the setting (Language, ANT/Cable setup, input labels, Clock) later, go to
the Menu screen (p. 27)
r.
tc p58_6a_s2_eng_O587.indb 14 2010/03/23 14:26:3,
I
Auto channel setup (ANT/Cable setup)
Select the connected Antenna in terminal
Not used: Go to _
(Labelinputs)
Select "Not used" when no wire is connected to the "Antenna/Cable" terminal.
_ Typical when a Cable/Satellite box is connected to a TV input.
_# Prevents accidental tuning to an unavailable signal.
_-_Select '=Start"
Skip: Go to @
(Labelinputs)
Start scanning the channels
(Available channels are automatically set.)
®
77
_-9.
3
(D
O3
C
[] Press to return to
the previous screen
RETURN
@
Complete the Auto program setup
Completion message is displayed when the Auto program scan is successfully
completed.
if there is no available
channel, return to @ - _1_
(ANT/Cable setup).
"Not used" will be selected.
[] Operation of the EXiT button during "First time setup"
Press the button once to display confirmation screen. Press again to close
confirmation screen.
[EXIT confirmation screen]
Yes _4_Exit "First time setup"
No _i_,_Return to the original screen
15
r.
tc p58_6o_s2_eng_O587.indb 15 2010/03/23 14:26:31
I

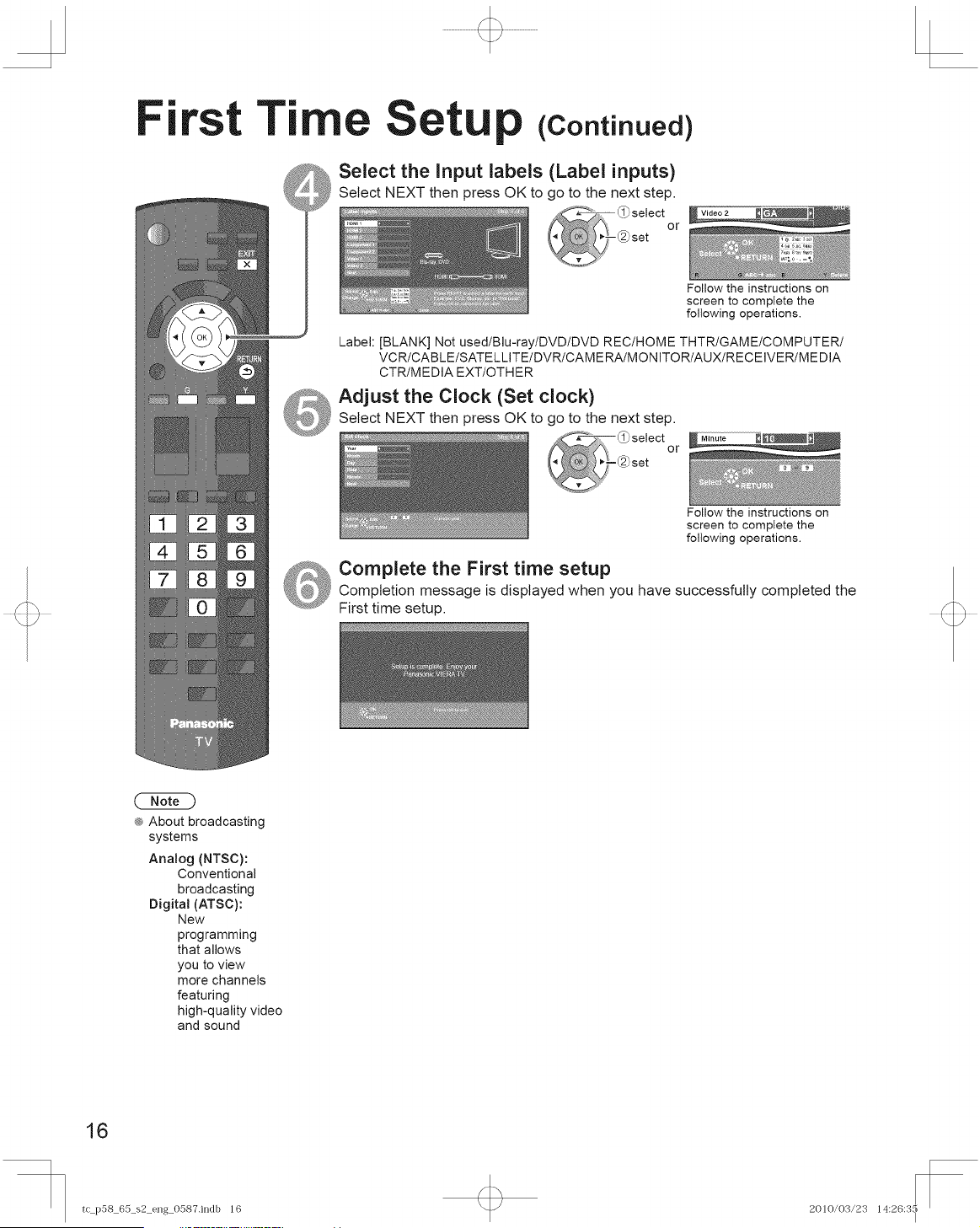

First
Time Setup (coot oo ¢
Select the Input labels {Label inputs)
Select NEXT then press OK to go to the next step.
or
Follow the instructions on
screen to complete the
following operations.
Label: [BLANK] Not used/Blu-ray/DVD/DVD REC/HOME THTR/GAME/COMPUTER/
VCRICABLEISATELLITEIDVRICAMERAIMONITORIAUXlRECEIVERIMEDIA
CTR/MEDIA EXT/OTHER
Adjust the Clock (Set clock)
Select NEXT then press OK to go to the next step.
or
Follow the instructions on
screen to complete the
following operations.
Complete the First time setup
Completion message is displayed when you have successfully completed the
First time setup.
_ About broadcasting
systems
Analog (NTSC):
Conventional
broadcasting
Digital (ATSC):
New
programming
that allows
you to view
more channels
featuring
high-quality video
and sound
16
r.
tc p58_6o_s2_eng_O587Jndb 16 2010/03/23 14:26:31
I
Watching TV
Basic connection (p. 11-12)
Turn power on
(Remote) (TV)
POWER
or
INPUT
#_ If the mode is not TV, press _ and select TV. (p. 24)
Select a channel number
(Remote)
D_B
_BD
or _DD
(TV)
[] To directly enter the digital channel number
When tuning to a digital channel,
press the button to enter the
minor number in a compound
channel number.
example: CH15-1:__
@@
'-'_O
_-9._=.
3_
_)
0o--{
_<
r-
¢_ Reselect "Cable" or "Antenna" in "ANT in" of "ANT/Cable setup" to switch the signal
reception between cable TV and the antenna. (p. 15, 37)
¢_ The channel number and volume level remain the same even after the TV is turned
off.
17
r.
tc p58_6o_s2_eng_O587.indb 17 2010/03/23 14:26:31
I
Watching TV
[] Other Useful Functions (Operate after _)
[] Select the Audio Mode for watching TV
SAP _ Digital mode
Press SAP to select next Audio track (if available) when receiving a digital
channel.
_ Analog mode
Press SAP to select the desired Audio mode.
• Each press of SAP will change the Audio mode. (Stereo/SAP/Mono)
[] Switches the Closed caption mode On or Off
CC
[] Press SUB MENU to show the Sub Menu screen (p. 27)
This menu consists of shortcuts to convenient functions.
SUB
MENU
[] Displays or removes the channel banner
(NF0 Channel Clock
Station Signal Picture Sleep timer
identifier resolution mode remaining time
Closed caption Rating level Aspect ratio
[] Press FORMAT to cycle through the aspect modes (p. 43)
FORMAT
• 480i, 480p: FULL/JUST/4:3/ZOOM
• 1080p, 1080i, 720p: FULL/H-FILL/JUST/4:3/ZOOM
FAVORITE
[] FAVORITE
Channel numbers registered in Favorite are displayed on the favorite
tune screen. Select the desired broadcast station with the cursor or use
number buttons. (p. 19)
18
tc p58_6o_s2_eng_O587.indb 18 2010/03/23 14:26:3'
[] Set the Favorite Feature
1 Display the SUB MENU.
sub
MENU
2 Select "Set favorite"
3 Set the displayed channel
or
_ _ _ select the list number
D B H (to save the channel
H D _ without pressing OK)
m
Delete a Favorite channel
,_select
(-2bdelete
__ (while holding down)
[] Use the Favorite Feature
Display "Favorite channels"
FAVORITE
Select the channel
UmH
UBD
_DD
m
3 Set a Favorite channel
[] To change the page
FAVORITE Press repeatedly to change
between pages(I/3, 2/3, 3/3 or exit)
Changes the page forward/
backward
®
o
z3-
<
19
tc p58_6o_s2_eng_0587Jndb 19 2010/03/23 14:26:3'
Using Vl TOOLS
VIERA TOOLS is the easy way to access frequently-used menu items. They are displayed as shortcut icons
on the TV screen.
Unlike a conventional menu, you can enjoy using, playing or setting a function quickly.
@ Display VlERA TOOLS
d
Select the item
Set each item
_ VIERA Link
VIERA Link (p. 32-33)
_* Slideshow
Slideshow (p. 22-23)
® Photo viewer
Photo viewer (p. 22-23)
[] Press to exit from
a menu screen
EXiT
[] Press to return to
the previous screen
RETURN
0
® Game Mode
Game Mode setting
(Game/Standard)
2O
tc p58_6o_s2_eng_O587.indb 20 2010/03/23 14:26:3_
I
Ifyouconnectequipmentthathasthe"HDAVIControl"functiontotheTVusinganHDMIcable,
youwillfinditeasiertouse.Pleaserefertop.28-33.Beforeusingthesefunctions,youneedto
set"VIERALink"settingto"On"asshownbelow.
Display the menu
Select "Setup"
Select "VIERA Link settings"
Select "VlERA Link"
[] Press to exit from
a menu screen
EXIT
[] Press to return to
the previous screen
RETURN
@
Select "On"
(default is On)
Now you can set each "VIERA Link" function according to your preference
(p. 30-33).
® if no HDMi equipment is connected or standard HDMi equipment (non- "VIERA
Link") is used, set it to "Off".
® For more details on the external equipment's connections, please refer to the
operating manuals for the equipment.
®
C
00
(Q
<
m
.-1
O
O
I--
o0
21
tc p58_6a_s2_eng_O587.indb 21 2010/03/23 14:26:3!
I
ViewingwithVI
I
The VIERA Image Viewer is a function that lets you easily view still images on a ViERA television by simply inserting an
SD card into the VIERA SD card slot.
(Media other than SD Cards will not work.)
Insert the SD card
* This setting will be skipped next time unless you select "Set later".
Set "image viewer settings" and select "Play image viewer now"
_ "Image viewer settings" will be displayed automaticaaly each time an SD card is
inserted for the first time.
...... select Slideshow: AautomaticallySlideshowwillnextStarttime.
change Thumbnail: The Photo viewer menuwill be
displayed automaticallynexttime.
_x__ @set Set later: "Image viewer settings" menu
will be displayed repeatedly.
Off: The data can be played manually.
[] Manual operation ("Image viewer auto play" is "Off")
Display "Photo viewer" Start the Slideshow
Select the data to be viewed
22
[] Press to exit from
a menu screen
EXiT
[] Press to return to
the previous screen
RETURN
@
To launch Slideshow
picture information is displayed
Totalnumber of images
QE_D
® Depending on the JPEG format, the "information" contents may not be displayed
correctly. Refer to p. 44 (Data format for SD Card browsing) for details.
View
Navigation area - Present status
(While reading the data)
Displays one at a time
¢_ To display/hide the Navigation area
RE_RN
® Return to the Thumbnail view
Single photo view Slideshow
To previous photo
r.
tc p58_6:)_s2_eng_O587.indb 22 2010/03/23 14:26:3!
I
e Insertthecard
GentlyinserttheSDCardlabel
surfacefacingfront.
Labelsurface_
Push
click is heard
_ Remove the card
Press in
on SD Card,
then release.
[] To sort by Folder, month or date
InC_
(1_Select the sort type
Select the directory
_ Compliant card type (maximumcapacity):
SDHC Card (32 GB), microSDHC Card
(16 GB), SD Card (2 GB), miniSD Card
(2GB), microSD Card (2 GB) (requiring
microSDHCCard/miniSD Card/microSD
Card adapter)
® if a microSDHC Card, miniSD Card
or microSD Card is used, insert/
remove it together with the adapter.
® For cautions and details on SD
Cards (p. 44)
Folders (ascending order of numeric/alphabetical)
Sort by month (ascending order of the month)
@ Sort by date (ascending order of the date )
RETURN
0
Return to
previous
screen
In_ or@
Display "Photo settings"
Select the item
[] Slideshow settings
[] Adjust the Picture/Audio
example: Picture menu
Picture menu/Audio menu (p. 26)
[] Set the Soundtrack
Select the music from 5 types.
(Off/Music l/Music 2/Music 3/Music 4/Music 6)
(] ED
F_qURN
® To stop in mid-cycle _4 Press
You can set how many seconds each image is displayed in the Siideshow
mode. (Short/FastlNormallSlowlVery slow)
Turn the Slid®show Repeat function on or off. (Off/On)
Select the Transition effect. (Off/Wipe S/Wipe 1"/Wipe _/Wipe _/Comb "[$
/Comb _--/Dissolve/Checker wipelRandomlArraylCollage)
®
<
<
Fn
)>
)>
©
IT1
<
Fn
IT1
23
tc p58_6a_s2_eng_O587.indb 23 2010/03/23 14:26:4
I
Watching Videos an
S
If you have an applicable equipment connected to the TV, you can watch videos and DVDs on the TV screen.
You can select the external equipment to access.
With the connected equipment turned On
Display the Input select menu
iNPUT
[] To return to TV
INPUT
(example)
or
Press the corresponding NUMBER
button on the remote control to
select the input of your choice.
Select the input of your choice,
then press OK.
_ During the selection, if no action
is taken for several seconds, the
"input select" menu disappears.
Terminal ® The terminal and label of the
Label connected equipment are
displayed.
To label each of the inputs,
(example) please refer to p. 39.
® The Input label will be displayed on the "input select" screen if the Input label is set
on p. 39.
¢_ For side input terminals (HDMI 3/Video 2), "GAME" input label is set as default.
(Picture mode is set to "Game", refer to p. 45.)
¢_ For more details for the Picture mode setting, refer to p. 45. For "input labels", refer
to p. 39.
Operate the connected equipment using the remote
control supplied with the equipment
® For details, see the manual for the connected equipment.
24
tc p58_6a_s2_eng_O587.indb 24 2010/03/23 14:26:4,
I
ow to Use
enu
unctions
Various menus allow you to make settings for the picture, sound, and other functions so that you can enjoy
watching TV best suited for you.
Display _, Shows the functions that can be adjusted.
the menu
_ Some functions will be disabled depending on
the type of inputsignal.
Menu structure
Menu bar
Press OK to move to the Menu items.
Press OK to proceed to next screen if
available.
®®
o
:TO
o-2
o
CD C
<5"
(example: Input labels)
Select the menu
information
guide
Select the item
[] Press to exit from
a menu screen
EXiT
[] Press to return _ Adjust
to the previous
screen
RETURN
@
(example: Picture menu)
or select
(example: Picture menu)
25
r.
tc p58_6a_s2_eng_O587.in(Ib 25 2010/03/23 14:26:4,
I
26
ow to Use Menu Functions
[] Menu list
Menu item AdjustmentslConfigurations(alternatives)
Reset to defaults* Resets all picture adjustments to factory default settings except for "Advanced picture".
Picture mode Basic picture mode. (VividlStandardlCinemalGamelCustom) (p. 45)
Adjusts the color, brightness, etc. for each Picture mode to suit your taste.
Contrast, Brightness, *_ Display range
Color, Tint, Sharpness ContrastlBrightnesslCoiorlSharpness:O - 100
Tint: -50 - +50
Color temp. Selects a choice of Cool (blue), Normal, or Warm (red) color. (Cool/Normal/Warm)
Auto: Provides the appropriate picture when images corresponding to "x.v.Color" are input
x,v, Color via the HDMI input of this TV. (Off/Auto)
C,A,T,S, Adjusts the brightness and gradation according to the ambient lighting condition. (Off/On)
Video NR Reduces noise, commonly called snow. Leave it off when receiving a strong signal. (Off/On)
Blur reduction Improves the moving picture resolution. (Off/On)
Changes the format (aspect ratio). (FULLIH-FILLIJUSTI4:31ZOOM)
Screen format Lets you choose the aspect depending on the format of received signal. (p. 43)
Selects between 95 % (Size 1) or 100 % (Size 2) for the scanning area with High-definition
signal. (Size l/Size 2)
HD size Select "Size 1" if noise is generated on the edges of the screen.
_ Size 1: Selected item for "HD size". Scanning 95 %
** Size 2: Selected item for "HD size". Scanning 100 %
Adjusts the horizontal display range to reduce noise of both side edges of an image.
H size (Size l/Size 2)
Size 2: Adjusts the image size according to the aspect mode to reduce noise. (p. 46)
Zoom Adjusts vertical alignment and size when aspect setting is "ZOOM".
adjustments
3D Y/C filter Minimizes noise and cross-color in the picture. (Off/On)
Selects image resolution of component-connected devices. (SD/HD)
Color matrix *_'SD: Standard Definition HD: High Definition
** Only used with 480p video signal.
MPEG NR Reduces noise of specific digital signals of DVD, STB, etc. (Off/On)
Black level Selects Dark or Light. Valid only for external input signals. (Dark/Light)
3:2 pulldown Adjusts the picture recorded in 24 fps for optimum quality. (Off/On/Auto)
Reset to defaults* Resets Bass, Treble, and Balance adjustments to factory default settings.
Bass Increases or decreases the bass response.
Treble Increases or decreases the treble response.
Balance Emphasizes the left / right speaker volume.
Surround Enhances audio response when listening to stereo. (Off/On)
Volume leveler Minimizes volume disparity after switching to external inputs.
Switches to "Off" when using external speakers. (Off/On)
TV speakers ** "Surround" and "Volume leveler" do not work if "Off" is selected.
HDMI 1 in The default setting is "Digital" for the HDMI connection. (Digital input signal)
HDMI 2 in Select audio input terminal when DVI cable is connected. (Analog audio input signal)
HDMI 3 in (Digital/Component l/Component 2/Video l/Video 2)
Sleep, Timer 1-5 The TV can automatically turn On/Off at the designated date and time. (p. 40)
Locks the channels and programs. (p. 34)
Closed caption Displays subtitles (Closed caption). (p. 38)
® In the AV mode, the Audio and Setup menus give fewer options.
* Confirmation screen is displayed. Select "Yes" and press OK to reset.
tc p58_6a_s2_eng_O587.indb 26 2010/03/23 14:26:41
I
(Continued)
[] Menu list
Menu item AdjustmentslConfigurations(alternatives)
Sets the mode to select the channel with the Channel up/down button.
Channel surf mode (AIIIFavoritelDigital only/Analog only)
*_Favorite: Only channels registered as FAVORITE. (p. 18)
Language Selects the screen menu language.
Clock Adjusts the clock. (p. 16)
ANT/Cable setup Sets channels. (p. 36)
input labels Selects the terminal and label of the external equipment. (p. 39)
Prevents "image retention" with Wobbling. (Automatic/Periodic)
Automatic: Shifts the display image automatically.
Pixel orbiter
** Periodic: Shifts the display image every (1/2/3/4) minutes according to what was set in
the "Time (minutes)" menu.
Time (minutes) Sets the time for the "Pixel orbiter-Periodic" setting. (1121314)
4:3 side bars Changes the brightness of the side bar. (OfflDarklMidlBright) (4:3 mode only)
** The recommended setting is "Bright" to prevent the panel "Image retention". (p. 46)
Scrolling bar Press "OK" to start the horizontal "Scrolling" on the screen. (p. 46)
Controls the equipment connected to HDMI terminals. (Off/On) (p. 30)
<: IVIERA Link *_"Power off link", "Power on link", "Energy saving mode", "Unselected device energy save"
I and "Default speakers" cannot be selected if "Off" is set.
I
I Power on link Sets "Power on link" of the HDMi connected equipment. (No/Yes) (p. 30)
Power off link Sets "Power off link" of the HDMI connected equipment. (No/Yes) (p. 30)
I Energy saving
,_ Imode Sets "Energy saving mode" of the HDMI connected equipment. (Quick start/Save) (p. 30)
5" Unselected device Sets "Unselected device energy save" of the HDMI connected equipment. (p. 30)
energy save (No (stay on)/Yes (with prompt)/Yes (no prompt))
Default speakers Selects the default speakers. (TV/Theater) (p. 30)
To conserve energy, the TV automatically turns off when NO SIGNAL and NO OPERATION
continue for more than 10 minutes. (Stay on/Power TV off)
Note
** Not in use when "Auto power on", "On/Off Timer" or "Lock" is set, or while "SD mode" or "Digital
Channel" is selected.
** "No signal for 10 minutes was activated" will be displayed for about 10 seconds when the TV
is turned on for the first time after the power was turned off by "No signal for 10 minutes".
** The on-screen display will flash 3, 2 and 1 to indicate the last three (3) remaining minutes
prior to the shut-off.
To conserve energy, the TV automatically turns off when no operation of remote and side
panel key continues for more than 3 hours. (Stay on/Power TV off)
Note
_ Not in use when "Auto power on" or "On/Off Timer" is set.
** "No activity for 3 hours was activated" will be displayed for about 10 seconds when the TV
is turned on for the first time after the power was turned off by "No activity for 3 hours".
** The on-screen display will flash 3, 2 and 1 to indicate the last three (3) remaining minutes
prior to the shut-off.
Turns TV On automatically when the cable box or connected device is turned On. (No/Yes)
TV AC cord must be plugged into this device. TV turns on every time the power is restored.
** The "Sleep" timer, "On I Off timer", and "First time setup" will not function if "Auto power on" is set. (p. 40)
Sets the "Thumbnail" or "Slideshow" to play back SD cards automatically.
(Slideshow/Thumbnail/Set latedOff)
Restarts the first time setup from "Language" setting. (p. 14)
Displays TV version and software license.
Performing Reset will clear all settings made with Setup, such as channel settings. (p. 36)
Auto power on
image viewer
&l auto play
First time setup
About
Reset to defaults
[] Sub menu list
Menu item. Adjustments/Configurations (alternatives)
Sets the mode to select the channel with the Channel up/down button.
Channel surf mode (AIIIFavoritelDigital only/Analog only)
Set favorite Sets favorite channels. (p. 19)
Edit CH caption Changes the station identifier. (p. 37)
Signal meter Checks the signal strength if interference or freezing occurs on a digital image. (p. 37)
27
tc p58_6a_s2_eng_O587.indb 27 2010/03/23 14:26:41
I
Vl LinkTM,, Control TM,,
Simultaneously control all Panasonic "HDAVI Control" equipped components using one button on the TV remote.
Enjoy additional HDMI Inter-Operability with Panasonic products which have the "HDAVI Control" function.
This TV supports "HDAVI Control 5" function.
Connections to the equipment (DVD recorder DIGA, HD Camcorder, Home theater system, Amplifier, etc.) with HDMI
cables allow you to interface with them automatically.
Equipment with the "HDAVI Control" function enables the following operations:
Version
HDAVI Control or later ®
®
®
®
®
®
HDAVI Control 2 or later _,
HDAVI Control 3 or later _
HDAVI Control 4 or later _
HDAVI Control 5 _
Operations
Automatic Input Switching (p. 31)
Power on link (p. 81)
Power off link (p. 31)
Default speakers (p. 81)
One-touch theater playback (p. 31)
Speaker control (p. 33)
VIERA Link control only with the TV's remote control (p. 33)
Unselected device energy save (for available equipment only) (p. 31 )
Provides setting information (p. 31 )
Automatic lip-sync function (p. 31)
Energy saving mode (with Quick Start mode) (p. 31)
Audio Return Channel
Audio Return Channel (ARC) is a function that enables digital sound signals to
be sent via an HDMI cable.
[] For the first time/When adding new equipment, reconnecting equipment or changing the setup
after the connection, turn the equipment on and then switch the TV on. Set the input mode to
HDMII, HDMI2 or HDMI3 (p. 24), and make sure that the image is displayed correctly.
VIERA Link "HDAVI Control", based on the control functions provided by HDMI which is an industry standard known
as HDMI CEC (Consumer Electronics Control), is a unique function that we have developed and added. As such, its
operation with other manufacturers' equipment that supports HDMI CEC cannot be guaranteed.
Please refer to the individual manuals for other manufacturers' equipment supporting the VIERA Link function.
[] HDMI cable
This function needs an HDMI compliant (fully wired) cable. Non-HDMI-compliant cables cannot be utilized.
It is recommended that you use Panasonic's HDMI cable. Recommended part number:
RP-CDHS15 (4.9 ft/1.5 m), RP-CDHS30 (9.8 ft/3.0 m), RP-CDHS50 (16.4 ft/5.0 m)
* For more details on the external equipment's connections, please refer to the operating manuals for the equipment.
28
tc p58_6a_s2_eng_O587.indb 28 2010/03/23 14:26:41
I
Follow the connection diagrams below for HDAVI control
of a single piece of AV equipment such as a DVD recorder
(DIGA), Home theater system.
Refer to page 30-33 for Setup Menu settings and additional
control information.
® Optional HDMI and/or optical cables are not included.
(3g D
® HDMI 1 is recommended.
If connection (or setting) of equipment compatible with
HDAVl control is changed, switch the power of this unit
Off and On again while the power of all equipment is On
(so that the unit can correctly recognize the connected
equipment) and check that the DVD recorder (DIGA), Home
theater system playback operate.
When connecting to HDMI 2/HDMI 3, set the input mode to HDMI 2/HDMI 3 (p. 24) initially before connecting to HDMI
2/HDMI 3. After connection, confirm the HDMI control functions (p. 30-33).
[] Connecting this unit to the DVD recorder (DIGA), Home
theater system
® For DVD recorder (DIGA): Connect with HDMI cable
_}_For Home theater system
Connect with the HDMI and audio cables.
if audio cable is not connected, you cannot listen to the TV program
through the theater system.
* No optical cable is necessary for the equipment that has "HDAVI control 5"
and is connected with an HDMI cable. (HDMI 1 only)
[] Connecting this unit to a DVD
recorder (DIGA) and AV amp
When using a "VIERA Link" audio-
video amplifier and a compatible DVD
recorder (DIGA) use a daisy chain
connection as shown below.
Back of the TV
HDMI cable
i
_HDMI l;
(AV OUT)
Digital Audio out
®
<
m
:;o
3>
i--
.5
DVD recorder (DIGA) LUMIX
with VlERA Link function
AV amp with Home theater systems HD Camcorder DVD recorder (DIGA)
VIERA Link function with VIERA Link function with VlERA Link with VIERA with VlERA Link function
function Link function
® One AV amp and one DVD recorder (DIGA) can be operated with this unit.
_ Be sure to connect the AV amp between this unit and the DVD recorder (DIGA).
[] Setting of this unit after connection
After making connections as shown above, set "VIERA Link" (under "VIERA Link settings") to "On" using the Setup
menu. (p. 21,30-31 ).
d3 C)
® Individual HDMI equipment may require additional menu settings specific to each model. Please refer to their
respective operating instruction manuals.
® When audio from other equipment connected to this unit via HDMI is output using "DIGITALAUDIO OUT" of this unit,
the system switches to 2CH audio.
(When connecting to an AV amp via HDMI, you can enjoy higher sound quality.)
_, For details about HDMI cables for connecting a Panasonic HD camcorder, read the manual for the equipment.
29
tc p58_6o_s2_eng_O587.indb 29 2010/03/23 14:26:41
I
Vl RA LinkTM,,
Display the menu
Coi3tl.oj TM,,_
Select "Setup"
Select "VIERA Link settings"
Select "VIERA Link"
[] Press to exit from
a menu screen
EXiT
[] Press to return
to the previous
screen
RETURN
Q
Select "On"
(default is On)
Select settings
Set
3O
tc p58_6a_s2_eng_O587.indb 30 2010/03/23 14:26:41
I
(Continued)
When using a Blu-ray Disc player, DVD player/recorder or Home theater system, the TV will automatically change to
the appropriate input, when playback begins on one of those devices•
_®For a Home theater system the speakers automatically switch to the theater system•
When "Yes" is selected (p. 27), the TV is turned on automatically and switches to the appropriate HDMI input
whenever VIERA Link compatible equipment is initially turned on and the Play mode is selected.
When "Yes" is selected (p. 27) and the TV is turned off, all connected VlERA Link compatible equipment is also
automatically turned off.
_ A Panasonic DVD Recorder will not turn off if it is still in Rec mode.
Caution: The TV remains on even if the VIERA Link compatible equipment is turned off.
_; Condition
Power off link: Yes; Energy saving mode: Quick Start
The equipment has "HDAVI Control 4 or later (with Quick Start mode)" connected with an HDMI cable.
When TV is turned off, all connected VIERA Link compatible equipment is moved to ECO Standby mode*
automatically under above conditions.
* Minimum power consumption of Standby condition for the equipment.
® Condition
Unselected device energy save: Yes
The equipment has "HDAVI Control 2 or later" (for available equipment only) connected with an HDMI cable.
[ Examples of timing for operation ]
o When the input is switched from the HDMI.
o When the "Speaker output" is changed from "Home theater" to "TV'.
The connected VIERA Link compatible equipment will be turned off automatically when not in use.
"TV" is the default setting. To set the Home theater system as Default speakers, change the Default speakers setting
from "TV" to "Theater"• Sound will be output from the Home theater whenever the TV is powered on.
If the "ONE TOUCH PLAY" key is pressed on the remote control for a Panasonic Home theater system, the following
sequence of operations is performed automatically:
_1) Home theater power switches On, and playback begins.
,_2)TV power switches On, and the playback screen is displayed.
3) Audio is muted on the TV and switches to the theater system.
The following information about the TV settings can be transmitted to each piece of equipment (Recorder/Home
theater/Player) that has "HDAVI Control 3 or later" function connected to a TV with an HDMI cable.
Transmittable data Recorder Home theater Player
(1_On Screen Display Language setting O O O
(English/EspaSol/Frangais)
_27Panel Aspect Ratio
(16:9 fixed) O O O
_3)Closed caption information
(Mode/CC type/Digital setting) O ......
(4) Channel information
(Input signal/Channel list/Caption information) O ......
_> There is a possibility that all the GUI language information might be set from the equipment, that has an HDMI CEC
function connected to the TV with an HDMI cable. Depending on the operating conditions or the specification for
each piece of equipment the setting may or may not be applied.
® For more details on the external equipment's operation, please refer to the operating manuals for the equipment.
[For Recorder]
® You cannot operate other functions while transmitting the TV's information above except the Power On/Off key operation.
• , <h
When you turn off this unit, the transmission will be interrupted (only when you are transm tt ng (4pChannel information).
Minimizes lip-sync delays between the picture and audio when you connect to a Panasonic theater system or
Amplifier•
31
tc p58_6a_s2_eng_O587.indb 31 2010/03/23 14:26:4'
ViE LinkTM " Control TM''
You can enjoy more convenient operation with the "HDAVI Control" function in the "VIERA Link"
menu.
For more details on the "HDAVl Control" function, refer to p, 28
Display the VIERA Link menu
VlEf_
or
Select the item
select
Select
[] Press to exit from
a menu screen
EXIT
[] Press to return
to the previous
screen
RETURN
@
Set
32
tc p58_6a_s2_eng_O587.h]db 32 2010/03/23 14:26:4'
(Continued)
You can select the Home theater or TV speakers for audio [] Home theater: Adjustment for the equipment
output.
Control the theater speakers with the TV remote control.
This function is available only when a Panasonic Amplifier
or Player theater is connected.
_1)Select "Speaker output"
_2)Select "Home theater" or "TV"
Volume up / down ,4,,
MUTE
Mute _®
_ The sound of the TV is muted.
® When the equipment is turned off, the TV speakers
take over.
® Selecting "Home theater" turns the equipment on
automatically if it is in Standby mode.
[] TV: The TV speakers are on.
In the VIERA Link menu, you can select HDMI connected equipment and access it quickly. Continue using your TV
remote control to operate the equipment, pointing it at the TV.
Select "VIERA Link control" _ If there is more than one equipment item, a
number after the name indicates the number of
Select the equipment you want to access
items. (e.g. Recorder I/Recorder 2/Recorder 3...)
(Recorder/Home theater/Player/Camcorder/LUMIX/ _ The number of equipment items that can be
Digital camera) connected is three for recorders, and a total of
three for Home theater/Player/Camcorder/LUMIX/
Digital camera.
_ There is a limit to the number of HDMI connectors.
You can select available items only. @_Operate the equipment with the TV
remote control, pointing it at the TV
® To operate the equipment, read the manual of the
equipment.
[] Available TV remote control buttons
Whether an operation is available differs depending on the connected equipment.
sub
_XIT
Q2D
Move the cursor/Select
Set/Access
Return to previous menu
Display the functions
menu on the equipment
Available when the purpose of the keys
is displayed on screen
Exit
Channel Up/Down
0-9
Play
Stop
Reverse/Forward
Skip Reverse/Forward
Pause
Closed caption
SAP (Select Audio Mode)
Select digital subchannel
Returns the input selection of the device selected with the VIERA Link Control to the TV input.
Select "Back to TV"
_select
_OK
®
<
m
;;o
3>
i--
.5
33
r.
tc p58_6a_s2_eng_O587.indb 33 2010/03/23 14:26:4!
I
Lock
You can lock specified channels or shows to prevent children from watching objectionable content.
Display the menu
Select "Lock"
Youwill be askedto enteryourpassword
eachtimeyoudisplaythe Lockmenu.
Input your 4-digit password
A4-digit code must be entered to view a blocked program or
change rating settings.
U_Q
D_B
H_D
m
® if it is your first time entering the password, enter the
password twice in order to register it.
Select the Lock mode
34
[] Press to exit from
a menu screen
EXIT
( Caution )
®, Make a note of your
password in case
you forget it. (If you
have forgotten your
password, consult
your local dealer.)
_ When you select a
locked channel,
a message will be
displayed that allows
you to view the
channel if you input
your password.
Off: Unlocksall the locksettingsof "Channel","Game"and "Program".
All: Locks all the inputs regardless of the lock settings of
"Channel", "Game" and "Program".
Custom: Locks specified inputs of "Channel", "Game" and "Program".
Select the item
-select
® "Channel", "Game" and "Program" are not accessible unless
"Custom" is selected in "Mode".
Set
tc p58_6a_s2_eng_O587.indb 34 2010/03/23 14:26:4!
I
[] To select the channel or the rating of the program to lock
Select up to 7 (1-7) channels to block. These channels will be blocked regardless of the program rating.
Select "Mode" and set to "Custom"
@7Select a channel to lock
® To lock/unlock all channels:
Select "Mode" and set to "All" or "Off",
All: Locks all channels
Off: Unlocks all channels
Locks Channel 3, Channel 4, and external inputs.
Select "Game" in _ and set to "On"
On: Locks
Off: Unlocks
[] To set a rating level
"V-chip" technology enables restricted shows to lock
according to TV ratings.
_ Select "Mode" and set to "On"
Select the rating category you wish to follow
MPAA: U.S. movie ratings
U.S.TV: U.S. TV program ratings
C.E.LR.: Canadian English ratings
C.F.LR.: Canadian French ratings
Select the rating to lock
Example of "MPAA" (U.S. movie ratings)
NR INo rating
i
G IGeneral Audience: All ages admitted
PG IParental Guidance Suggested
i
PG-IParents Strongly Cautioned:
! 3 IInappropriate for children under 13
R iRestricted: Under 17 requires
,accompanying parent or adult guardian
NC-!N o one 17 and under admitted
x IAdults only
® To get more information (p. 42)
[] To change the password
_1_In d_, select "Change password" and press OK
_) Input the new 4-digit password twice
® This television is designed to support the "Downloadable U.S. Region Rating System" when available.
(Available only in U.S.A.)
® The Off rating is independent of other ratings.
® When placing a lock on a specific-age-based-rating level, the Off rating and any other more restrictive ratings will also
be blocked.
35
r.
tc p58_6o_s2_eng_0587.indb 35 2010/03/23 14:26:51
I
ng an etting Channels
The current channel settings can be changed according to your needs and reception
conditions.
Display the menu
Select "Setup"
Select "ANT/Cable setup"
Select the function
[] Press to exit from
a menu screen
EXiT
Set
36
_•To reset the settings of the setup menu
H _ Select "Reset to defaults" in the Setup menu (@) and
press OK |
{2} Input your 4-digit password with number buttons
tc p58_6o_s2_eng_O587.indb 36 2010/03/23 14:26:5
I
Automatically searches and adds available channels to the memory.
Select "ANT in" _ Select a scanning mode (p. 15)
_#_Select "Cable" or "Antenna"
or select "Not used" (p. 15).
_2_Select "Auto program"
Settings are made automatically
® After the scanning is completed, select "Apply".
(see below _).
® All previously saved channels are erased.
Use this procedure when changing the channel setup or
changing the channel display.
Also, use this to add or skip channels from the channel list
manually.
You can select a channel tuning mode (Digital only/Analog
only) in "Channel surf mode"(p. 27)
_i_ Select "Edit"
_2_Select the item to edit
Favorite
Caption Add
¼
R G
_ Proceed to
next page
Go backtothe previous
page
** Caption:
Changes the station identifier
** Favorite:
Registers channels to the
Favorite List
** Add:
Adds or skips channels
set
D_B
UBB
or
HDD
m
RETURN
Select or edit the station identifier.
(maximum 7 characters available)
_ Favorite
select
:i set
Set favorite I Select the number
® Add
Press OK to select "Yes (add)" or "No (skip)" RETURN
@ Move the cursor to a channel number
To cancel the Edit
@ Select "Apply"
Check the signal strength if interference is found or freezing occurs on a digital image.
U m Q ® if the signal is weak, check the antenna.
U B B if no problem is found, consult your local dealer.
(_change
HDB or
channel
intensity ¢_ Not available if "Cable" is selected in "ANT in" (see above).
® Available only for digital antenna channels.
® If "Lock" (p. 34) is activated and "ANT/Cable setup" is selected, "Enter password." will be displayed. O/
r.
tc p58_6o_s2_eng_O587.indb 37 2010/03/23 14:26:5',
I
Closed Caption
_ Display the menu
@
[] Press to exit from
a menu screen
EXIT
Select "Closed caption"
38
The television includes a built-in decoder that is capable of providing a text display of the audio.
The program being viewed must be transmitting the Closed caption (CC) information. (p. 43)
[] Select the item and set
¢_The settings in "Analog" or "DigitaF
depend on the broadcaster.
_On: To display Closed captions.
CC on mute:To display Closed captions
when the audio is muted.
(when not using, select "Off").
_g_ (Choose the Closed caption service
of Analog broadcasting.)
CC1-4: information related to pictures
(Appears at the bottom of the screen)
T1-4: Textual information
(Appears over the entire screen)
(The Digital Closed caption menu lets
you configure the way you choose to
view the digital captioning.)
Select the setting.
_ "Primary", "Second.", "Service 3", "Service 4",
"Service 5", "Service 6"
[] To make more in=depth display settings in digital programs
Select "Digital setting" and press OK
@hSelect the item and set
Size
Font
Sty(e
Foreground
[ Fore,opacity
Background
Back.opacity
Outline
[] To reset the settings
_ Select "Reset to defaults". Confirmation screen
Text size
Text font
] Text style (Raised, Depressed, etc.)
Color of text
Opacity of text
Color of text box
Opacity of text box
Outline color of text (identify the
setting options on the screen.)
is displayed.
r.
tc p58_Go_s2_eng_O587.indl) 38 2010/03/23 14:26:5:
I
input
Labels
Display
the menu
Select "Setup"
[] Press to exit from
a menu screen
EXIT
Select "Input labels"
Devices connected to external input terminals can be labeled for easier identification during the
input selection. (In selecting the input mode from p. 24 _i?_)
[] Select the terminal and label of the external equipment
or
Follow the instructions on screen to
complete the following operations.
- Label Terminal
[example]
® Terminals: HDMI 1-3/Component 1-2/Video 1-2
® Label: [BLANK] Not used/Blu-ray/DVD/DVD REC/HOME
THTRIGAMEICOMPUTERIVCRICABLEISATELLITEI
DVR/CAM ERA/MONITOR/AUX/RECEIVE RIM EDIA
CTR/MEDIA EXT/OTHER
* If "Not used" is selected, the INPUT button press will skip its
input.
® Each selected label will be displayed on the "Input select"
screen. (p. 24)
39
r.
tc p58_6__s2_eng_O587.indl) 39 2010/03/23 14:26:5,
I
Using Timer
The TV can automatically turn On/Off at the designated date and time.
®_The Clock must be set before On time/Off time settings. (p. 16)
® The "Sleep" timer and "On / Off timer" will not work if the "Auto power on" (p. 27) is set.
Display the menu
Select "Timer"
Select the Timer to set
40
[] Press to exit from
a menu screen
EXIT
[] Press to return to
the previous screen
RETURN
@
® The TV automatically
turns Off after 90
minutes when turned
On by the Timer.
This operation will be
cancelled if the Off
time is selected or if a
key is pressed.
Set the Timer
I Sleep 1Turns Off automatically
[ Timer 1 ]Turns On/Off automatically
(5 timers can be set.)
[ Timer5 ]
[] To set "Sleep" (Off Timer)
Set to shut the unit off after a pre-selected amount of time.
® 0/15/30/60/90 (minutes)
[] To set "Timer 1-5" (On/Off Timer)
Select the item and set
or
DmQ
DBQ
HDB
m
[ Timer set ] Timer setting (Off/On)
I Inputs l Select the inputs
[ Channel ] Select the channel
I Day 1Select the day
U N/M ON/TU E/VVED/T H U/F RI/SAT -]
isplays the nearest future date)
J
ON-FRI/SAT-SUN/DAILY/Every SUN/Every MON/
very TUE/Every WED/Every THU/Every FRI/Every SAT
[ On time ] The time to turn On
[ Off time ] The time to turn Off
r.
tc p58_6:__s2_eng_O587.indl) 40 2010/03/23 14:26:5,
I
commended AV Connections
These diagrams show our recommendations d how to connect the TV unit to your various equipment.
For other connections, consult the instructions for each piece of equipment and its specifications.
For additional assistance, please visit our website at: www.panasonic.com
www.panasonic.ca
Front of the TV Back of the TV
AC 120 V
60 Hz S'
or
AC Cord
(Connect after
all the other
connections are
complete.)
To watch camcorder
images
Camcorder
VCR
DVD Player
(For HDMI connection,
HDMI compatible
equipment only. For
connection using an
HDMI-DVI Conversion
cable, see HDMI 1 or
HDMI 2 connection on
this page.)
_t
HDMI-DVI_
Conversion _ _
cable +
or
Audio cable* _
- Connect
with
=_A)or ,_B2
HDMI
cable
OPTICAL
i. []
Amplifier
[] DVD Recorder/
VCR
• Optical digital
audio cable
[] To watch DVDs [] To watch digital
DVD Player/ video image
Blu-ray Disc player/ DVD Player or
Set Top Box Set Top Box
(HDMI compatible
machines only)
[] To listen to the TV
through speakers
* Please see p. 26 for the setup when using an external analog audio cable with an HDMI to DVI cable.
41
r.
tc p58_6o_s2_eng_O587.indb 41 2010/03/23 14:26:51
I
,atings List for Lock
"V-chip" technology enables you to Sock channels or shows according to standard ratings set by the
entertainment industry. (p. 35)
[] U.S. MOVIE RATINGS (MPAA)
NR
G
PG
PG-13
R
NC-17
X
NO RATING (NOT RATED)AND NA (NOTAPPLICABLE) PROGRAMS. Movie which has not been rated or
where rating does not apply.
GENERAL AUDIENCES. All ages admitted.
PARENTAL GUIDANCE SUGGESTED. Some material may not be suitable for children.
PARENTS STRONGLY CAUTIONED. Some material may be inappropriate for children under 13.
RESTRICTED. Under 17 requires accompanying parent or adult guardian.
NO ONE 17AND UNDER ADMITTED.
ADULTS ONLY.
[] U.S. TV PROGRAMS RATINGS (U. S. TV)
42
NR TV-NR
(Not Rated)
TV-Y
Youth
TV-Y7
TV-G
TV-PG
Guidance
TV-14
TV-MA
*_,Viewable
** Blocked
*_,Viewable
** Blocked
*_,FV Blocked
*_,Viewable
** Blocked
*_,Viewable
** Blocked
*_,D,L,S,V (all selected)
** Any combination of
D, L,S,V
*_,D,L,S,V (all selected)
** Any combination of
D, L,S,V
*_,L,S,V (all selected)
** Any combination of
L,S,V
FV: Fantasy/Cartoon Violence. V: Violence S: Sex L:
Not Rated.
All children. The themes and elements in this program are specifically
designed for y young audience, including children from ages 2-6.
Directed to older children. Themes and elements in this program may
include mild physical or comedic violence, or may frighten children
under the age of 7.
General audience. It contains little or no violence, no strong language,
and little or no sexual dialogue or situations.
Parental guidance suggested. The program may contain infrequent
coarse language, limited violence, some suggestive sexual dialogue
and situations.
Parents strongly cautioned. This program may contain sophisticated
themes, sexual content, strong language and more intense violence.
Mature audiences only. This program may contain mature themes,
profane language, graphic violence, and explicit sexual content.
Offensive Language D: Dialogue with sexual content.
[] CANADIAN ENGLISH RATINGS (C. E. L. R.)
Exempt - Exempt programming includes: news, sports, documentaries and other information programming,
E talk shows, music videos, and variety programming.
C Programming intended for children under aqe 8. No offensive language, nudity or sexual content.
C8+ Programming generally considered acceptable for children 8 years and over. No profanity, nudity or sexual content.
G General programming, suitable for all audiences.
PG Parental Guidance suggested. Some material may not be suitable for children.
14+ Programming contains themes or content which may not be suitable for viewers under the age of 14. Parents
are strongly cautioned to exercise discretion in permitting viewing by pre-teens and early teens.
18+ 18+ years old. Programming restricted to adults. Contains constant violence or scenes of extreme violence.
[] CANADIAN FRENCH RATINGS (C. F. L. R.)
E Exempt - Exempt programming.
General - Programming intended for audience of all ages. Contains no violence, or the violence content is
G minimal or is depicted appropriately.
8+ General - Not recommended for young children. Programming intended for a broad audience but contains
8 arts+ light or occasional violence. Adult supervision recommended.
13 arts+ Programming may not be suitable for children under the age of 13 - Contains either a few violent scenes or
one or more sufficiently violent scenes to affect them. Adult supervision stronqly suggested.
Programming may not be suitable for children under the age of 16- Contains frequent scenes of violence or
intense violence.
Programming restricted to adults. Contains constant violence or scenes of extreme violence.
18 arts+
( Caution
_ The V-Chip system that is used in this set is capable of blocking "NR" programs (non rated, not applicable and none) as
per FCC Rules Section 15.120(e)(2). If the option of blocking "NR" programs is chosen "unexpected and possibly confusing
results may occur, and you may not receive emergency bulletins or any of the following types of programming:"
• Emergency Bulletins (Such as EAS messages, weather warnings and others)
• Locally originated programming • News • Political • Public Service Announcements • Religious • Sports • Weather
r.
tc p58_6o_s2_eng_O587.indb 42 2010/03/23 14:26:51
I
Technical information
® For viewing the CC of digital broadcasting, set the aspect to FULL (If viewing with H-FILL, JUST, ZOOM or 4:3;
characters might be cut off).
® The CC can be displayed on the TV if the receiver (such as a set-top box or satellite receiver) has the CC set On using
the Component or HDMI connection to the TV.
® If the CC is set to On on both the receiver and TV when the signal is 480i (except for the HDMI connection), the CC
may overlap on the TV.
_ If a digital program is being output in analog format, the CC data will also be output in analog format.
® If the recorder or output monitor is connected to the TV, the CC needs to be set up on the recorder or output monitor.
Press the FORMAT button to cycle through the aspect modes. This lets you choose the aspect depending on the format
of the received signal and your preference. (p. 18)
(e.g.: in case of 4:3 image)
® FULL _ JUST
I_ 4 _1 t_ 4 _1
oTZ)o°l
/L
o\-._Jojl
Enlarges the 4:3 image horizontally to the screen's side edges. Stretches to justify the 4:3 image to the four corners of the
(Recommended for anamorphic picture) screen.
H-FILL
I 4 _1 I_16--1
Enlarges the 4:3 image horizontally to the screen's side
edges. The side edges of the image are cut off.
® ZOOM
I_ 4 _1 I_16_1
Enlarges the 4:3 image to the entire screen.
(Recommended for letter Box)
(Recommended for normal TV broadcast)
® 4:3
1_4 I
[
3
bar
Standard
(Note that "Image retention" of the side bar may occur from
displaying it for a long time.)
® 480i (4:3), 480i (16:9), 480p (4:3), 480p (16:9):
FULL, JUST, 4:3 or ZOOM
® 1080p / 1080i / 720p:
FULL, H-FILL, JUST, 4:3 or ZOOM
® Zoom adjustments
Vertical image position and size can be adjusted in "ZOOM".
(_ Select "Zoom adjustments" on the "Picture" menu. (p. 26)
V-position: Vertical position adjustment @ V-size: Vertical size adjustment
®®
r.o_"
00
I'-'_
._O
r'-m
o o
® To reset the aspect ratio _¢__ (OK)
43
tc p58_6a_s2_eng_O587.indb 43 2010/03/23 14:26:51
I
Technical Informa ion
Photo: Still images recorded with digital still cameras compatible with JPEG files of DCF* and EXIF**
standards
Data format: Baseline JPEG (Sub-sampling: 4:4:4, 4:2:2 or 4:2:0)
Max. number of files: 9,999
Image resolution: 160 x 120 to 20,000,000
* DCF (Design rule for camera file system): A Japan Electronics and Information Technology Industries Association's standard
** EXIF (Exchangeable Image File Format)
( Caution )
® AJPEG image modified with a PC may not be displayed.
@ Partly degraded files might be displayed at a reduced resolution.
(2NND
®9 Folder structure viewed in PC
DCIM
i_;;_" I100_PANA
Created automatically
3-digit folder number + 5-digit arbitrary characters
P_000001.JPG_4-digit arbitrary characters + 4-digit file number
; P1000002 JPG _ ,,
I P1000003"JPG| ® Usable characters: 1-byte atoz, AtoZ, 0to9,"and "
I P10000041JPG
® The folder and file names may be different depending on the digital camera used.
® For the suitable SD Memory Cards, please confirm the latest information on the following website.
http://panasonic.jp/support/global/cs (This site is in English only)
® Use an SD Card which meets SD standards. If not, it may cause the TV to malfunction.
® Do not remove the card while the unit is accessing data (this can damage card or unit).
® Do not touch the terminals on the back of the card.
® Do not subject the card to high pressure or impact.
® Insert the card in the correct direction (otherwise, card or unit may be damaged).
® Electrical interference, static electricity or erroneous operation may damage the data or card.
® Back up the recorded data at regular intervals in case of deteriorated or damaged data or erratic
operation of the unit. (Panasonic is not liable for any deterioration or damage of recorded data.)
24 mm
44
r.
tc p58_6o_s2_eng_O587.indb 44 2010/03/23 14:26:5'
(Continued)
HDMI connections to some Panasonic equipment allow you to interface automatically. (p. 28)
® This function may not work normally depending on the equipment condition.
® The equipment can be operated by other remote controls with this function on even if the TV is in Standby mode.
® Image or sound may not be available for the first few seconds when the playback starts.
® Image or sound may not be available for the first few seconds when Input mode is switched.
® Volume function will be displayed when adjusting the volume of the equipment.
® If you connect equipment that has "HDAVI Control 2 or later" function to the TV with an HDMI cable, the sound from DIGITAL
AUDIO OUT terminal can be output as multi channel surround.
® "HDAVI Control 5" is the newest standard (current as of December, 2009) for the HDAVI Control compatible equipment.
This standard is compatible with the conventional HDAVI equipment.
HDMI (high-definition multimedia interface) allows you to enjoy high-definition digital images and high-quality sound by
connecting the TV unit and the devices.
HDMI-compatible equipment ('1) with an HDMI or DVI output terminal, such as a set-top box or a DVD player, can be connected
to the HDMI connector using an HDMI compliant (fully wired) cable.
® HDMI is the world's first complete digital consumer AV interface complying with a non-compression standard.
® If the external equipment has only a DVI output, connect to the HDMI terminal via a DVI to HDMI adapter cable (*2).
® When the DVI to HDMI adapter cable is used, connect the audio cable to the audio input terminal.
@ Audio settings can be made on the "HDMI 1 in", "HDMI 2 in" or "HDMI 3 in" menu screen. (p. 26)
Applicable audio signal sampling frequencies (L.PCM): 48 kHz, 44.1 kHz, 32 kHz
('1): The HDMI logo is displayed on an HDMI-compliant device.
(*2): Enquire at your local digital equipment retailer shop.
Caution )
_ Use with a PC is not assumed.
® All signals are reformatted before being displayed on the screen.
_ If the connected device has an aspect adjustment function, set the aspect ratio to "16:9".
¢_ These HDMI connectors are "type A".
_ These HDMI connectors are compatible with HDCP (High-Bandwidth Digital Content Protection) copyright protection.
#®A device having no digital output terminal may be connected to the input terminal of either "COMPONENT" or "VIDEO" to
receive analog signals.
® The HDMI input terminal can be used with only the following image signals: 480i, 480p, 720p, 1080i and 1080p.
Match the output setting of the digital device.
® For details of the applicable HDMI signals, see p. 46.
You can enjoy your Home theater by connecting a Dolby Digital (5.1 channel) decoder and "Multi Channel" amplifier to the
DIGITAL AUDIO OUT terminals.
Caution )
® Depending on your DVD player and DVD-Audio software the copyright protection function may operate and disable optical
output.
_ When an ATSC channel is selected, the output from the DIGITAL AUDIO OUT jack will be Dolby Digital. When an NTSC
channel is selected, the output will be PCM.
_ Vivid: Provides enhanced picture contrast and sharpness for viewing in a well-lit room.
Standard: Recommended for normal viewing conditions with subdued room lighting.
® Cinema: For watching movies in a darkened room. It provides a soft, film-like picture.
_$_Game: For playing video games. This mode will be set automatically if "GAME" is selected from Input label setting (p. 39)
@ Custom (Photo): Customizes each item according to your taste.
Photo is displayed in JPEG menu.
CN D
® Picture mode will be automatically set to "Standard" if you change the Input label from "GAME" to other labels.
_ Picture mode will be automatically set to "Game" if you change from an Input label other than "GAME" to "GAME" label.
®
o
::3=
o
5-
o
45
tc p58_6a_s2_eng_O587.indb 45 2010/03/23 14:26:5'
Technical Inforrna ion (coot ooo¢
@ Aspect Ratio: 4:3
Size 1 ! @
Size 2
@ The width will be decreased on both sides to
reduce noise.
@ Aspect Ratio: FULL/JUST(H-FILL/ZOOM)
@ The width will be increased on both sides to
reduce noise.
See page 26 for more information
Do not display a picture in 4:3 mode for an extended period, as this can cause
"image retention" to remain on either or both sides of the display field.
To reduce the risk of such "image retention", change the brightness of the side
bars.
See page 27 for more information
@ The side bar may flash (alternate black/white) depending on the picture.
Using Cinema mode will reduce such flashing (p. 45).
.... Side Bar
_ 4:3
Screen
Display
Scrolling bar: To prevent "Image retention", scrolls white vertical bar from left to right on a black screen.
@ Press any key except the POWER key to return to previous screen.
@ You will return to the previous screen if no key operation has been performed for 15 minutes.
See page 27 for more information
[Scrolling bar]
* Mark: Applicable input signal for Component (Y, PB, PR) and HDMI
525 (480)/60i 15.73 59.94 * *
750 (720)/60p 45.00 59.94 * *
"li'128 i'11686it66i 33.75 * *
1,125 (1,080)/60p 67.43 59.94 *
1128i11686i266p 6t186
1,125 (1,080)/24p 26.97 23.98 *
27100 ' 24.00
@ Signals other than those shown above may not be displayed properly.
@ The above signals are reformatted for optimal viewing on your display.
46
r.
tc p58_6a_s2_eng_O587.indb 46 2010/03/23 14:26:5'
Care and Cleaning
First, unplug the Power cord plug from the wall outlet.
The front of the display panel has been specially treated. Wipe the panel surface gently using only a cleaning cloth or a soft, lint-
free cloth.
® If the surface is particularly dirty, soak a soft, lint-free cloth in diluted mild liquid dish soap (1 part mild liquid dish soap diluted
by 100 times the amount of water) and then wring the cloth to remove excess liquid. Use this cloth to wipe the surface of the
display panel, then wipe it evenly with a dry cloth of the same type until the surface is dry.
® Do not scratch or hit the surface of the panel with fingernails or other hard objects. Furthermore, avoid contact with volatile
substances such as insect sprays, solvents, and thinner; otherwise, the quality of the surface may be adversely affected.
If the cabinet becomes dirty, wipe it with a soft, dry cloth.
® If the cabinet is particularly dirty, soak the cloth in a weak mild liquid dish soap and then wring the cloth dry.
Use this cloth to wipe the cabinet and then wipe it dry with a dry cloth.
@ Do not allow any mild liquid dish soap to come into direct contact with the surface of the Plasma TV.
If water droplets get inside the unit, operating problems may result.
® Avoid contact with volatile substances such as insect sprays, solvents, and thinner; otherwise, the quality of the cabinet
surface may be adversely affected or the coating may peel off. Furthermore, do not leave it for long periods in contact with
articles made from rubber or PVC.
® Cleaning
Wipe the surfaces with a soft, dry cloth. If the unit is particularly dirty, clean it using a cloth soaked with water to which a small
amount of mild liquid dish soap has been added and then wipe with a dry cloth.
Do not use products such as solvents, thinner, or household wax for cleaning, as they can damage the surface coating. (If
using a chemically=treated cloth, follow the instructions supplied with the cloth.)
® Do not attach sticky tape or labels, as they can make the surface of the pedestal dirty. Do not allow long-term contact with
rubber, vinyl products, or the like. (Doing so will cause deterioration.)
®
_®
__:::3
O..
3c_
47
tc p58_6a_s2_eng_O587.indb 47 2010/03/23 14:26:5'
FAQ
Before requesting service or assistance, please follow these simple guides to resolve the problem.
if the problem still persists, please contact your local Panasonic dealer or Panasonic Service Center for assistance. For
details (p. 52, 53)
For additional assistance, please contact us via the website at:
www. pa nasonic.com/contactinfo
www.panasonic.ca
' White spots or
shadow images
(noise)
%
48
_ Check the position, direction,
and connection of the antenna.
Interference or
frozen digital
channels
(intermittent sound)
_;_Change the direction of antenna for
digital channels.
_ Check "Signal meter" (p. 37).
If the signal is weak, check the
antenna and consult your local
dealer.
%
The remote control
i
l
° does not work °
I ® Are the batteries instaaled correctly?
(p. 8) i
® Are the batteries new?
% #
# .
P|ctures from external
equipment are distorted
when the unit is
connected via HDMI
_ Is the HDMI cable connected properly?
(p. 29, 41)
® Turn Off the TV unit and equipment, then
turn them On again.
® Check an inputsignal from the equipment.(p. 46)
_ Use equipment compliant with
E IA/C EA-861/861 B.
Whenthe channelis changedon
an STBthat is connectedwith
HDMI,"HDMr' may be displayed
on the top left of thescreen
® This is not a malfunction.
Recording does not
start immediately
_ Check the settings of the recorder. For
_ details, read the manual of the recorder.
%
%
J
l
#
#
r.
tc p58_6:)_s2_eng_0587.indb 48 2010/03/23 14:26:5'
If there is a problem with your TV, please refer to the table below to determine the symptoms, then carry out the
suggested check. If this does not solve the problem, please contact your local Panasonic dealer, quoting the model
number and serial number (both found on the rear of the TV).
® The Plasma panel is made up of a few million pixels and _
is produced with advanced technology through an intricate
process. Sometimes a few pixels may be bright or dark.
/ These pixels do not indicate a defective panel and will have
/, no impact on the performance of the TV.
%
INO image is J_:i:Check Picture menu (p. 26) "_
displayed on screen 1_ ® Check the cable connections. (p. 11-12)
® Check that the correct input has been selected. (p. 24) _
onlyspotsared sl
instead of images
Neither image nor
sound is produced
l Black Box appears
1_1_f ....
® Is the AC power cord plugged into the outlet?
_ Is the TV unit turned On?
_ Check Picture menu (p. 26) and volume.
® Check the AV cable connections. (p. 11-12)If® Check that the correct input has been selected. (p. 24)
e s s ion (CC). (p. 38)
® Cha_g :ttings of el: :dCapl
No sound is produced
®
-rl
t-
(D
,.<
3>
Oo
>k-
co
O..
D
C
(D
&
o
oo
Sound is unusual
Unknown sound heard
1- Sounds from TV cabinet
2- Tick/Click sound
3- Buzzing sound
Parts of the TV set
become hot
_{_Set "SAP" setting to "Stereo" or "Mono".
/_i_ ® Check the HDMI device c°nnected t° the unit
_ Set the audio setting of the HDMI device to "Linear PCM". Ii
® If digital sound connection has a problem,
select analog sound connection.
1- Changes m the temperature and humidity of the room may cause
the TV's cabinet to expand or contract and produce metalhc
sounds Th s s not a s gn of fau ty operat on or a ma funct on
2- When the TV s powered on, an e ectr ca component n the
. ......
TV activates producing a tlck/chck sound. This ts not a sign of
faulty operation or a malfunction.
3- Electrical circuits are active whle the TV set is on.
This is not a sign of faulty operation or a malfunction.
\
49
tc p58_6:__s2_eng_O587.hldb 49 2010/03/23 14:26:5_
I
Spec
cations
i !iiiiiiiiil;ii!il; i ii ii i! i!i!i ii!ii¸
iiii_iiiiiiiiiiiiii!ii
N
Maximum
Standby condition 0.3 W
Drive method AC type
ASp otRati 16:9
Visible screen size 58 " class (58.0 inches measured diagonally)
(Wx Hx Diagonal) 50.5"x 28.4 "x 58.0 "
(Nol 0f pixe!s)(1,284 mm x 722 mmx 1,473 mm)
2,073,600 (1,920 (w) x 1,080 (H))
5,760 x 1,080 dots]
Audio OutpUt 20 W [10 W + 10 W](10 % THD)
Temperature:
Humidity:
VIDEO:
AUDIO L-R:
Y:
PB, PR:
AUDIO L-R:
56.1 " x 36.8 " x 15.3 "
Including pedestal 1,424 mm x 933 mmx 387 mm)
56.1 " x 34.8 " x 4.1 "
TV Set only 1,424 mm x 882 mm x 104 mm)
including pedestal 107.0 Ib (48.5 kg)
TV set only 101.5 Ib (46.0 kg)
VIDEO iN 1=2
AC120V, 60Hz
593 W 638 W
0.3 W
65 " class (64.7 inches measured diagonally)
56.4 " x 31.7 " x 64.7 "
(1,434 mm x 806 mm x 1,645 ram)
VHF/UHF: 2-69, CATV: 1-135
32 °F- 104 °F (0 °C - 40 °C)
20 % - 80 % RH (non-condensing)
RCA PIN Type x 1 1.0 V [p-p] (75 D)
RCAPINTypex2 0.5V[rms]
1.0 V [p-p] (including synchronization)
+0.35 V [p-p]
RCAPINTypex2 0.5V[rms]
TYPE A Connector x 3
** This TV supports "HDAVl Control 5" function.
SD CARD slot x 1
PCM / Dolby Digital, Fiber Optic
3D Y/C FILTER
CLOSED CAPTION V-Chip
VIERA IMAGE VIEWER HDAVl Control 5
62.0 " x 40.0 " x 16.4 "
(1,574 mm x 1,016 mm x 415 mm)
i62 0" x 38 0" x 4.2"
i(1,574 mm x 965 mm x 105 ram)
136.7 Ib (62.0 kg)
123.5 Ib (56.0 kg)
50
[TC-P58S2] [TC-P65S2]
56.1 "(1,424 mm) . _--4 1"
E I I (404 mm)
2_
22.3" I_1
(567rnm) 15.3" (387 mm)
I'ill62.0 " (1,574ram)ii"l ram>
o o i ii
o5 !i ii
31.2" I_1
(790rnm) 16.4 " (415 mm)
<_ Design and Specifications are subject to change without notice. Mass and Dimensions shown are approximate.
r.
tc p58_6a_s2_eng_O587.indb 50 2010/03/23 14:26:5_
I
Limite
arranty
PANASONIC CONSUMER ELECTRONICS COMPANY,
DIVISION OF
PANASONIC CORPORATION OF NORTH AMERICA
One Panasonic Way
Secaucus, New Jersey 07094
(for U.S.A.and Puerto Rico only)
Panasonic Plasma Television
Lira ited Warranty
Limited Warranty Coverage
if your product does not work properly because of a defect in materials or workmanship, Panasonic Consumer
Electronics Company (referred to as "the warrantor") will, for the length of the period indicated on the chart below, which
starts with the date of original purchase ("Limited Warranty period"), at its option either (a) repair your product with new
or refurbished parts, (b) replace it with a new or a refurbished equivalent value product, or (c) refund your purchase price.
The decision to repair, replace or refund will be made by the warrantor.
PLASMA TV CATEGORIES
Up to 42" (diagonal)
46" (diagonal) and larger
PARTS
1 (ONE) YEAR
LABOR
1 (ONE) YEAR
SERVICE
Carry-In
On-Site
During the "Labor" Limited Warranty period there will be no charge for labor. During the "Parts" Limited Warranty period,
there will be no charge for parts.
You must carry-in your product or arrange for on-site service during the Limited Warranty period. If non-rechargeable
batteries are included, they are not warranted. This Limited Warranty only applies to products purchased and serviced
in the United States or Puerto Rico. This Limited Warranty is extended only to the original purchaser of a new product
which was not sold "as is". A purchase receipt or other proof of the original purchase date is required for Limited Warranty
service.
On-Site or Carry-in Service
For On-Site or Carry-In Service in the United States and Puerto Rico call 1-877-95-VIERA (1-877-958-4372).
On-site service where applicable requires clear, complete and easy access to the product by the authorized servicer
and does not include removal or re-installation of an installed product. It is possible that certain on-site repairs will not
be completed on-site, but will require that the product or parts of the product, at the servicer's discretion be removed for
shop diagnosis and/or repair and then returned.
Limited Warranty Limits And Exclusions
This Limited Warranty ONLY COVERS failures due to defects in materials or workmanship, and DOES NOT COVER
normal wear and tear or cosmetic damage, nor does it cover markings or retained images on the glass panel resulting
from viewing fixed images (including, among other things, non-expanded standard 4:3 pictures on wide screen TV's,
or onscreen data in a stationary and fixed location). The Limited Warranty ALSO DOES NOT COVER damages which
occurred in shipment, or failures which are caused by products not supplied by the warrantor, or failures which result
from accidents, misuse, abuse, neglect, bug infestation, mishandling, misapplication, alteration, faulty installation,
set-up adjustments, misadjustment of consumer controls, improper maintenance, power line surge, lightning damage,
modification, or commercial use (such as in a hotel, office, restaurant, or other business), rental use of the product,
service by anyone other than a Factory Service Center or other Authorized Servicer, or damage that is attributable to acts
of God.
THERE ARE NO EXPRESS WARRANTIES EXCEPT AS LISTED UNDER "LiMiTED WARRANTY COVERAGE".
THE WARRANTOR iS NOT LIABLE FOR iNCiDENTAL OR CONSEQUENTIAL DAMAGES RESULTING FROM THE
USE OF THiS PRODUCT, OR ARiSiNG OUT OF ANY BREACH OF THiS LiMiTED WARRANTY. (As examples, this
excludes damages for lost time, cost of having someone remove or re-install an installed unit if applicable, or travel to
and from the servicer. The items listed are not exclusive, but are for illustration only.) ALL EXPRESS AND iMPLiED
WARRANTIES, iNCLUDiNG THE LIMITED WARRANTY OF MERCHANTABILITY, ARE LIMITED TO THE PERIOD OF
THE LiMiTED WARRANTY.
Some states do not allow the exclusion or limitation of incidental or consequential damages, or limitations on how long an
implied Limited Warranty lasts, so the exclusions may not apply to you.
This Limited Warranty gives you specific legal rights and you may also have others rights which vary from state to state. If
a problem with this product develops during or after the Limited Warranty period, you may contact your dealer or Service
Center. if the problem is not handled to your satisfaction, then write to the warrantor's Consumer Affairs Department at
the addresses listed for the warrantor.
PARTS AND SERVICE (iNCLUDiNG COST OF AN ON-SITE SERVICE CALL, WHERE APPLICABLE) WHICH ARE
NOT COVERED BY THIS LIMITED WARRANTY ARE YOUR RESPONSIBILITY.
®
F-
3
u.
(D
O..
q
o
C
Lo
CL
-13
®C
(D
00_
--OO
CD
O_._
--h--"
go
_,-_.o
o
51
tc p58_6a_s2_eng_O587.indb 51 2010/03/23 14:26:5_
I
CustomerServicesDirectory(fo u.s.A.P°e oR co)
Obtain Product Information and Operating Assistance; locate your nearest Dealer or Service Center;
purchase Parts and Accessories; or make Customer Service and Literature requests by visiting our Web
Site at:
http:llwww.panasonic.comlhelp
or, contact us via the web at:
http:llwww.panasonic.comlcontactinfo
You may also contact us directly at:
1-877-95-VI ERA (958-4372)
Monday-Friday 9 am-9 pm; Saturday-Sunday 10 am-7 pm, EST.
[] For hearing or speech impaired TTY users, TTY: 1-877-833-8855
Purchase Parts, Accessories and Instruction Books on line for all Panasonic Products by visiting our Web
Site at:
http://www.pstc.panasonic.com
or, send your request by E-mail to:
You may also contact us directly at:
1-800-332-5368 (Phone) 1-800-237-9080 (Fax Only) (Monday - Friday 9 am to 9 pm, EST.)
Panasonic Service and Technology Company
20421 84th Avenue South,
Kent, WA 98032
(We Accept Visa, MasterCard, Discover Card, American Express, and Personal Checks)
[] For hearing or speech impaired TTY users, TTY: 1-866-605-1277
52
tc p58_6o_s2_eng_O587Jndb 52 2010/03/23 14:26:5_
I
Limited
arranty (fo,
Panasonic Canada inc
5770 Ambler Drive Mississauga Ontario L4W 2T3
PANASONIC PRODUCT = LiMiTED WARRANTY
Panasonic Canada Inc. warrants this product to be free from defects in material and workmanship under normal use and
for a period as stated below from the date of original purchase agrees to, at its option either (a) repair your product with
new or refurbished parts, (b) replace it with a new or a refurbished equivalent value product, or (c) refund your purchase
price. The decision to repair, replace or refund will be made by Panasonic Canada Inc.
_ (42' & over) Inhmnmnmnmn_ service t One (1) year, parts (inc,uding pane,) and ,abour
(under 42") i Carry in service One (1) year, parts (including panel) and labour
In-home Service will be carried out only to locations accessible by roads and within 50 km of an authorized Panasonic
service facility.
In-home service requires clear, complete and easy access to the product by the Authorized Servicer and does not
include removal or re-installation of an installed product. If removal is required to service the product, it will be at the
discretion of the Servicer and in no event will Panasonic Canada Inc. or the Servicer be liable for any special, indirect or
consequential damages.
This warranty is given only to the original purchaser, or the person for whom it was purchased as a gift, of a Panasonic
brand product mentioned above sold by an authorized Panasonic dealer in Canada and purchased and used in Canada,
which product was not sold "as is", and which product was delivered to you in new condition in the original packaging.
IN ORDER TO BE ELIGIBLE TO RECEIVE WARRANTY SERVICE HEREUNDER, A PURCHASE RECEIPT OR
OTHER PROOF OF DATE OF ORIGINAL PURCHASE, SHOWING AMOUNT PAID AND PLACE OF PURCHASE IS
REQUIRED
LIMITATIONS AND EXCLUSIONS
This warranty ONLY COVERS failures due to defects in materials or workmanship, and DOES NOT COVER normal
wear and tear or cosmetic damage. The warranty ALSO DOES NOT COVER damages which occurred in shipment, or
failures which are caused by products not supplied by Panasonic Canada Inc., or failures which result from accidents,
misuse, abuse, neglect, mishandling, misapplication, alteration, faulty installation, set-up adjustments, misadjustment
of consumer controls, improper maintenance, power line surge, lightning damage, modification, introduction of sand,
humidity or liquids, commercial use such as hotel, office, restaurant, or other business or rental use of the product, or
service by anyone other than a Authorized Servicer, or damage that is attributable to acts of God. Dry cell batteries are
also excluded from coverage under this warranty.
THIS EXPRESS, LIMITED WARRANTY IS IN LIEU OFALL OTHER WARRANTIES, EXPRESS OR IMPLIED,
INCLUDING ANY IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE.
IN NO EVENT WILL PANASONIC CANADA INC. BE LIABLE FORANY SPECIAL, INDIRECT OR CONSEQUENTIAL
DAMAGES RESULTING FROM THE USE OF THIS PRODUCT ORARISING OUT OFANY BREACH OFANY
EXPRESS OR IMPLIED WARRANTY. (As examples, this warranty excludes damages for lost time, travel to and from the
Authorized Servicer, loss of or damage to media or images, data or other memory or recorded content. This list of items
is not exhaustive, but for illustration only.)
In certain instances, some jurisdictions do not allow the exclusion or limitation of incidental or consequential damages, or
the exclusion of implied warranties, so the above limitations and exclusions may not be applicable. This warranty gives
you specific legal rights and you may have other rights which vary depending on your province or territory.
WARRANTY SERVICE
For product operation and information assistance, please contact:
Our Customer Care Centre: 1-800 #: 1-866-330-0014
Email link: Contact us _ email" on wwwvieraconcier_qeca
For product repairs, please contact Viera Customer Care Agent using the above contact info
iF YOU SHIP THE PRODUCT TO A SERViCENTRE
Carefully pack and send prepaid, adequately insured and preferably in the original carton.
Include details of the defect claimed, and proof of date of original purchase.
®
O
c-
0o
©
S
6O
2
o
0o
E3
o
E®
,2 _r2.
Co.-
¢- ©
_C3
©m
©m
53
tc p58_6o_s2_eng_O587.indl) 53 2010/03/23 14:26:5!
I
Customer'sRecord
Themodelnumberandserialnumberofthisproductcanbefoundonitsbackcover.Youshouldnotethisserialnumberin
thespaceprovidedbelowandretainthisbook,plusyourpurchasereceipt,asapermanentrecordofyourpurchasetoaid
inidentificationintheeventoftheftorloss,andforWarrantyServicepurposes.
Model Number Serial Number
Anotaci6n del cliente
El modelo y el nQmero de serie de este producto se encuentran en su panel posterior. Debera anotarlos en el espacio
provisto a continuaci6n y guardar este manual, mas el recibo de su compra, como prueba permanente de su adquisici6n,
para que le sirva de ayuda al identificarlo en el caso de que le sea sustraido o Io pierda, y tambien para disponer de los
servicios que le ofrece la garantia.
Modelo NQmero de sede
Panasonic Consumer Electronics Company,
Division of Panasonic Corporation of North America
One Panasonic Way, Secaucus
New Jersey 07094 U.S.A.
© 2010 Panasonic Corporation of North America. All Rights Reserved.
_:) 2010 Panasonic Corporation of North America. Todos los Derechos Reservados.
Panasonic Canada Inc.
5770 Ambler Drive
Mississauga, Ontario
L4W 2T3 CANADA
Printed in U.S.A.
Impreso en EE,UU.
M0310-0
tc p58_65_s2_eng_O587.indb H4 2010/03/23 14:26:2_
I
