Craftsman 917272461 lawn tractor User Manual

Owner's Manual

JCRAFTSMAWJ

LAWN TRACTOR

21.5 HP, 42" Mower

Electric Start

Automatic Transmission

Model No.

917.272461

I_ This product has a low emission engine which operates I

differently from previously built engines. Before you start the

Iengine, read and understand this Owner's Manual.

CAUTION:

Read and follow all Safety

Rules and Instructions before

operating this equipment.

For answers to your questions

about this product, Call:

1-800-659-5917

Sears Craftsman Help Line

5 am - 5 pro, Mon - Sat

Sears, Roebuck and Co., Hoffman Estates, II60179 U.S.A

Visit our Craftsman website:www.sears.com/craftsman

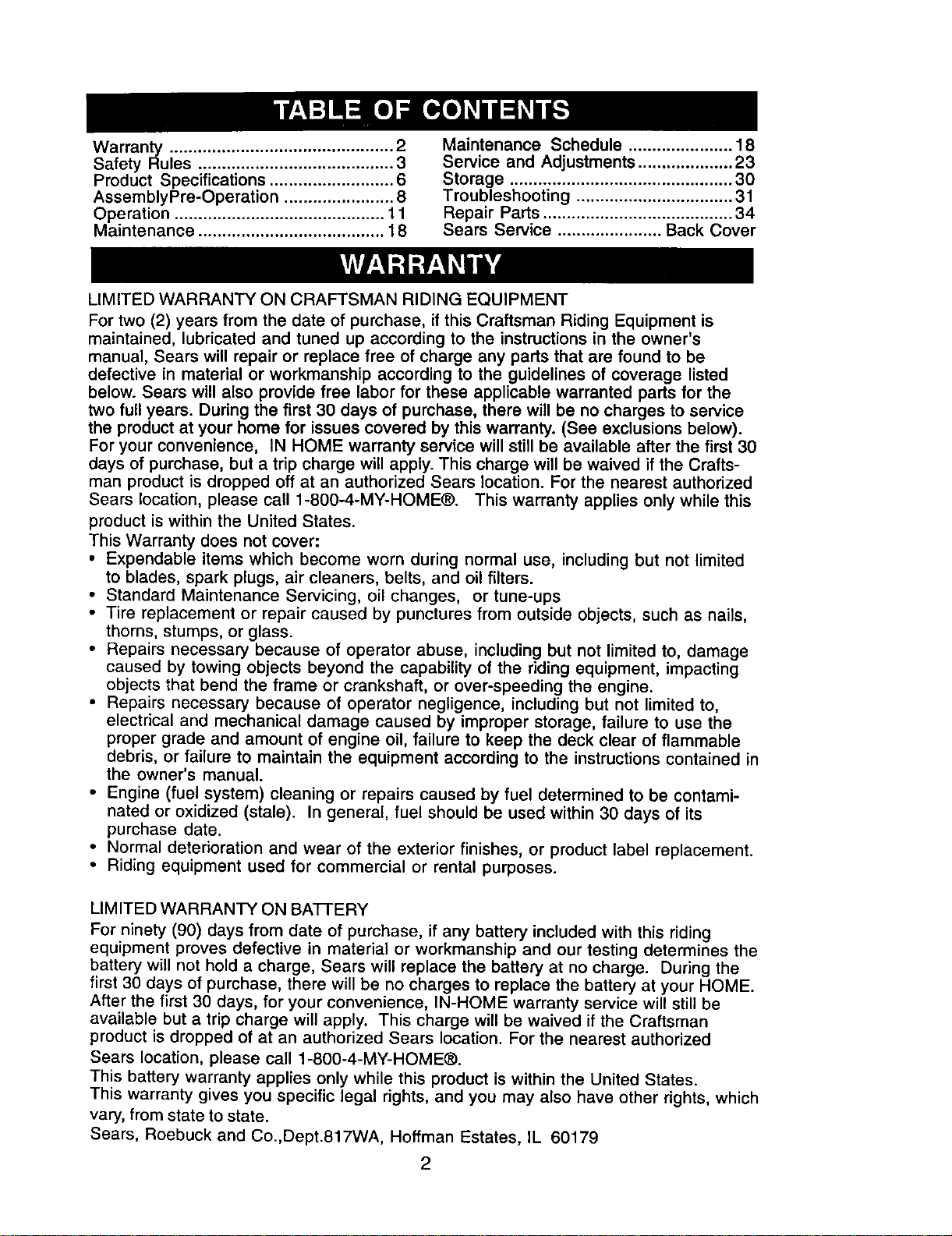

Warranty ............................................... 2

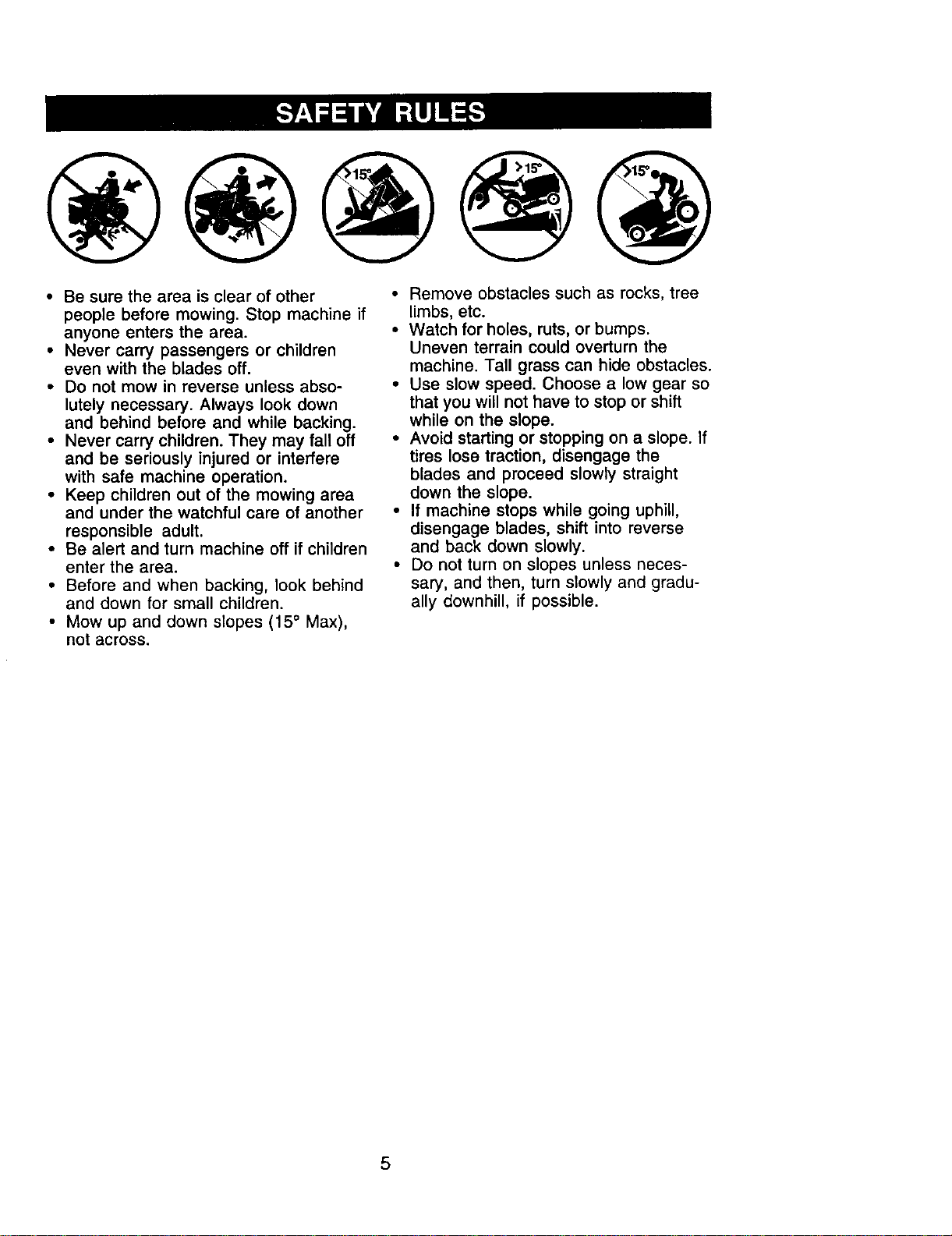

Safety Rules ......................................... 3

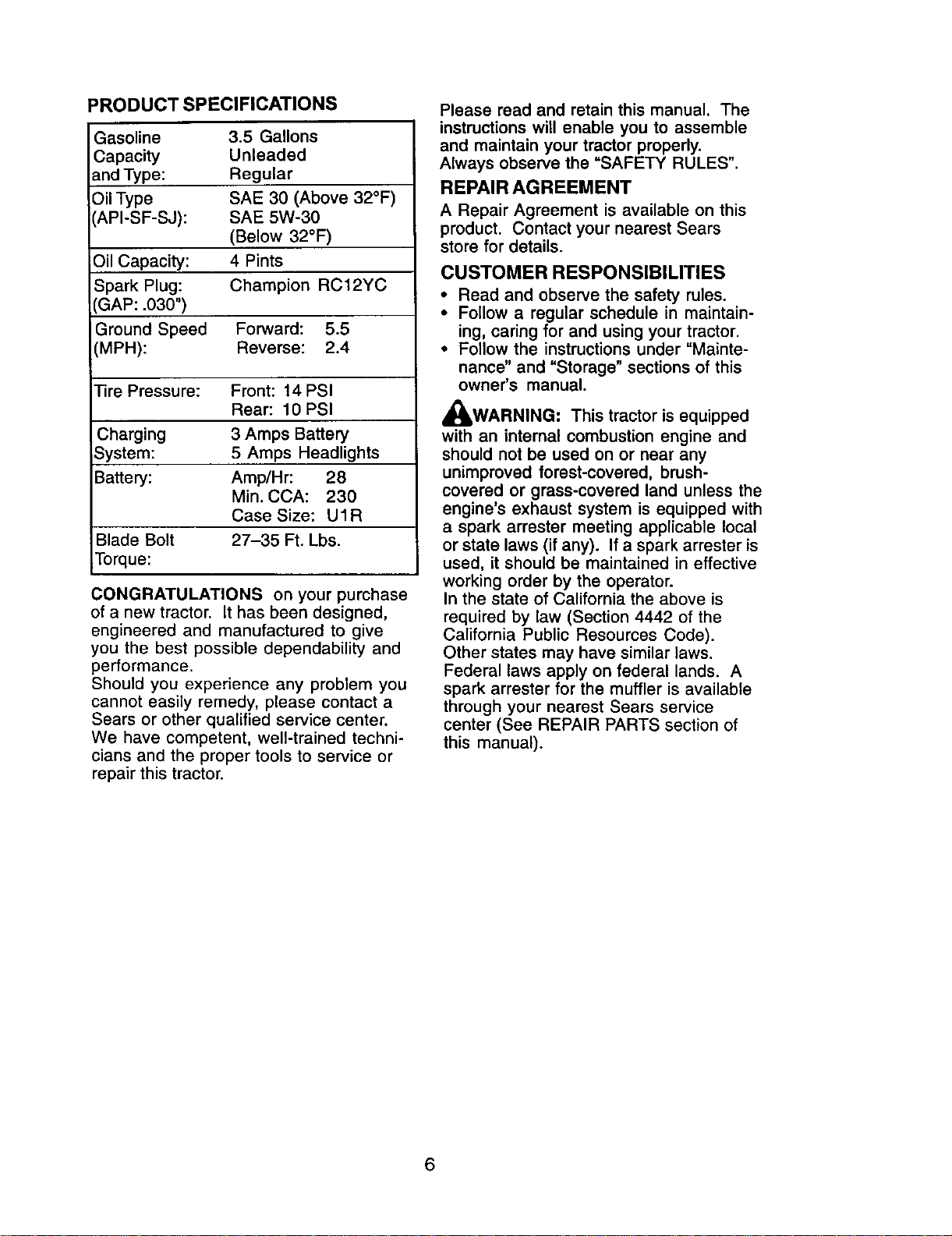

Product Specifications .......................... 6

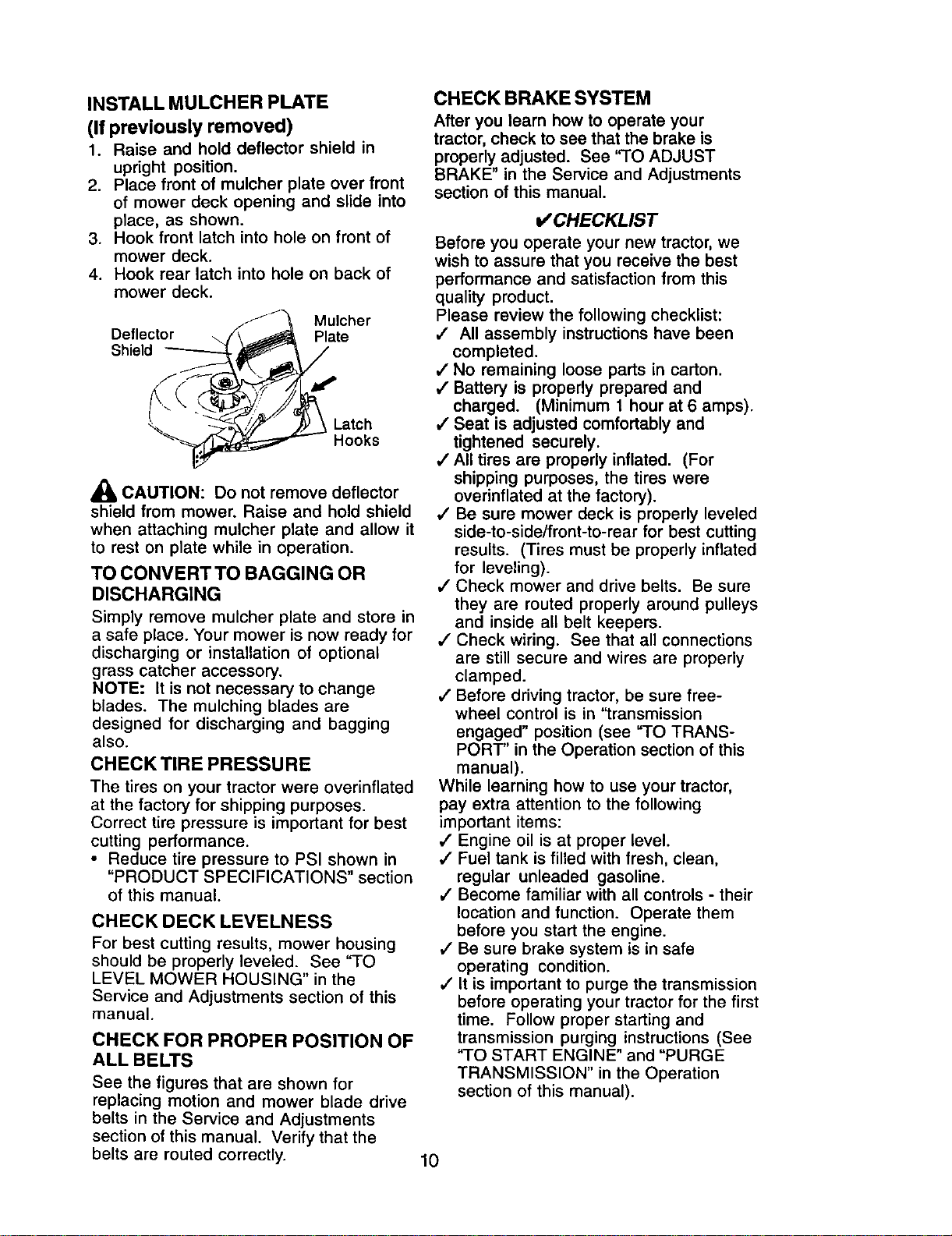

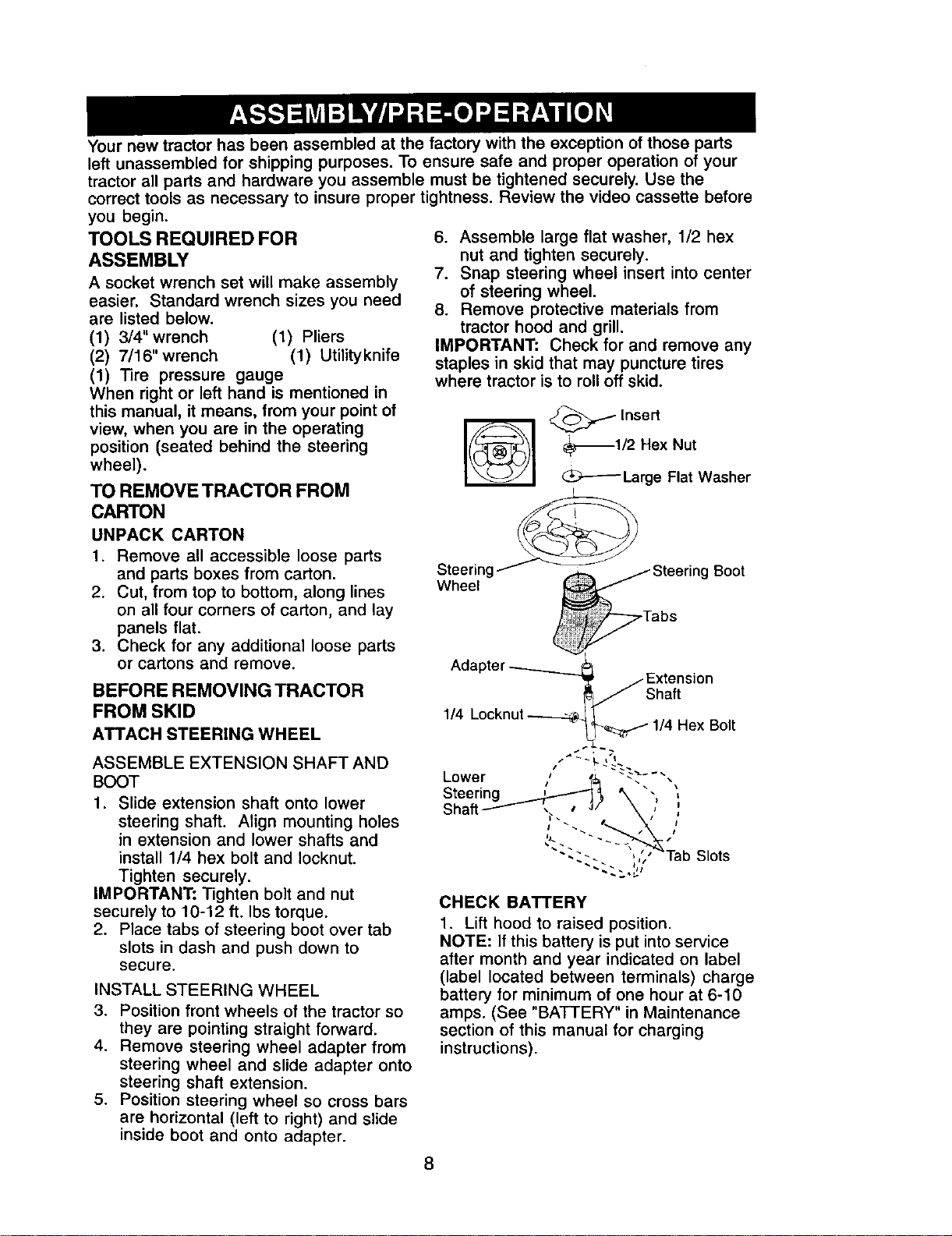

AssemblyPre-Operation ....................... 8

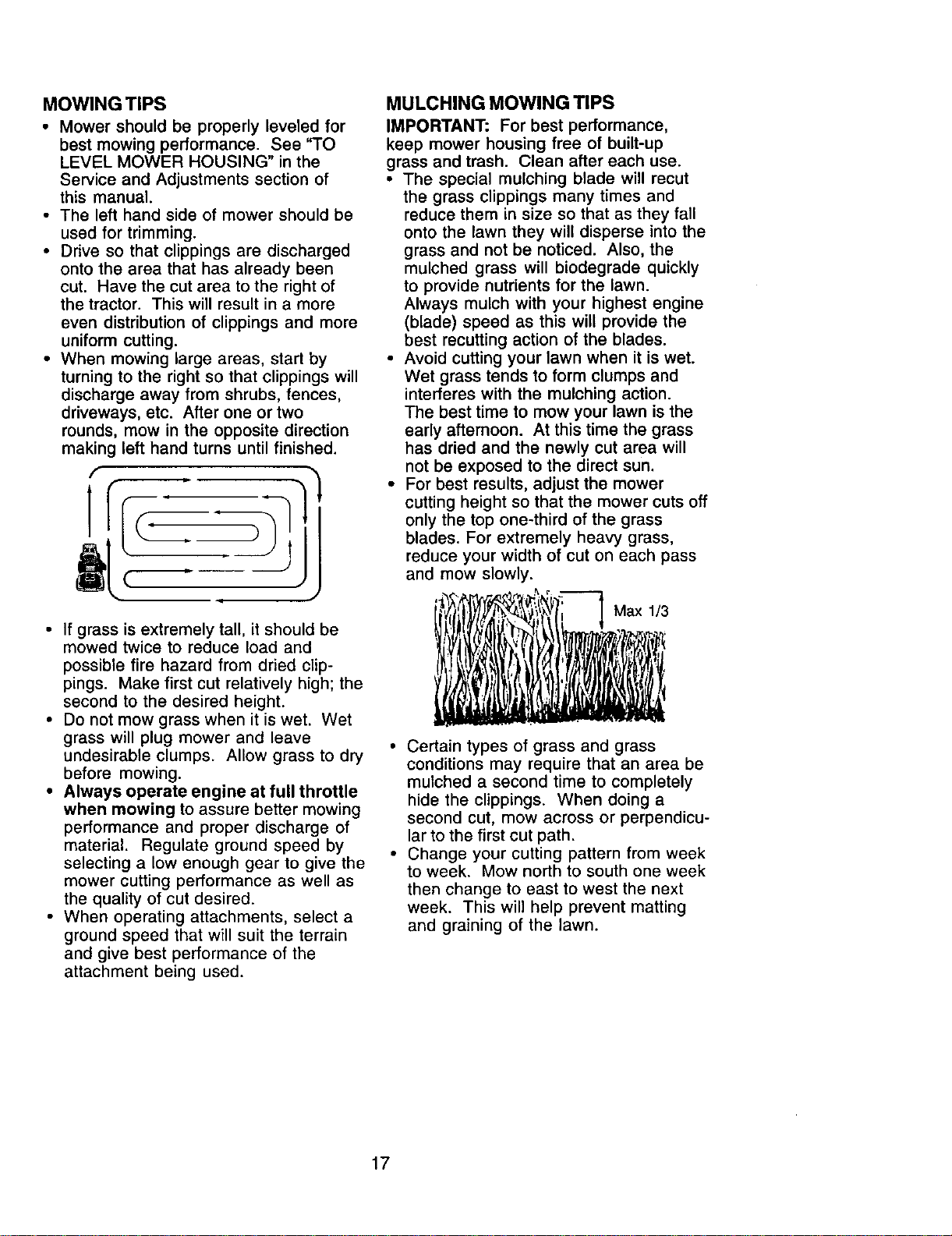

Operation ............................................ 11

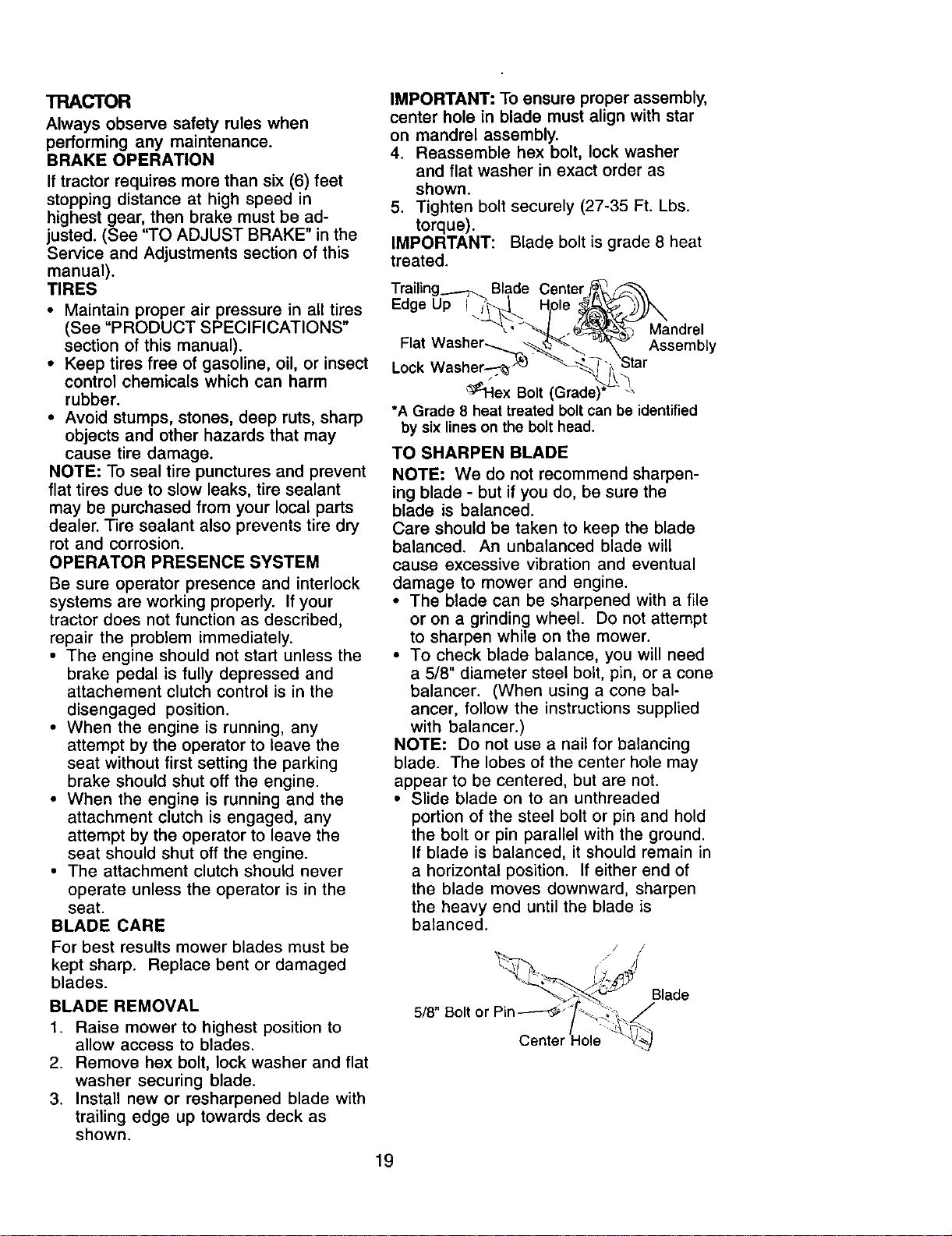

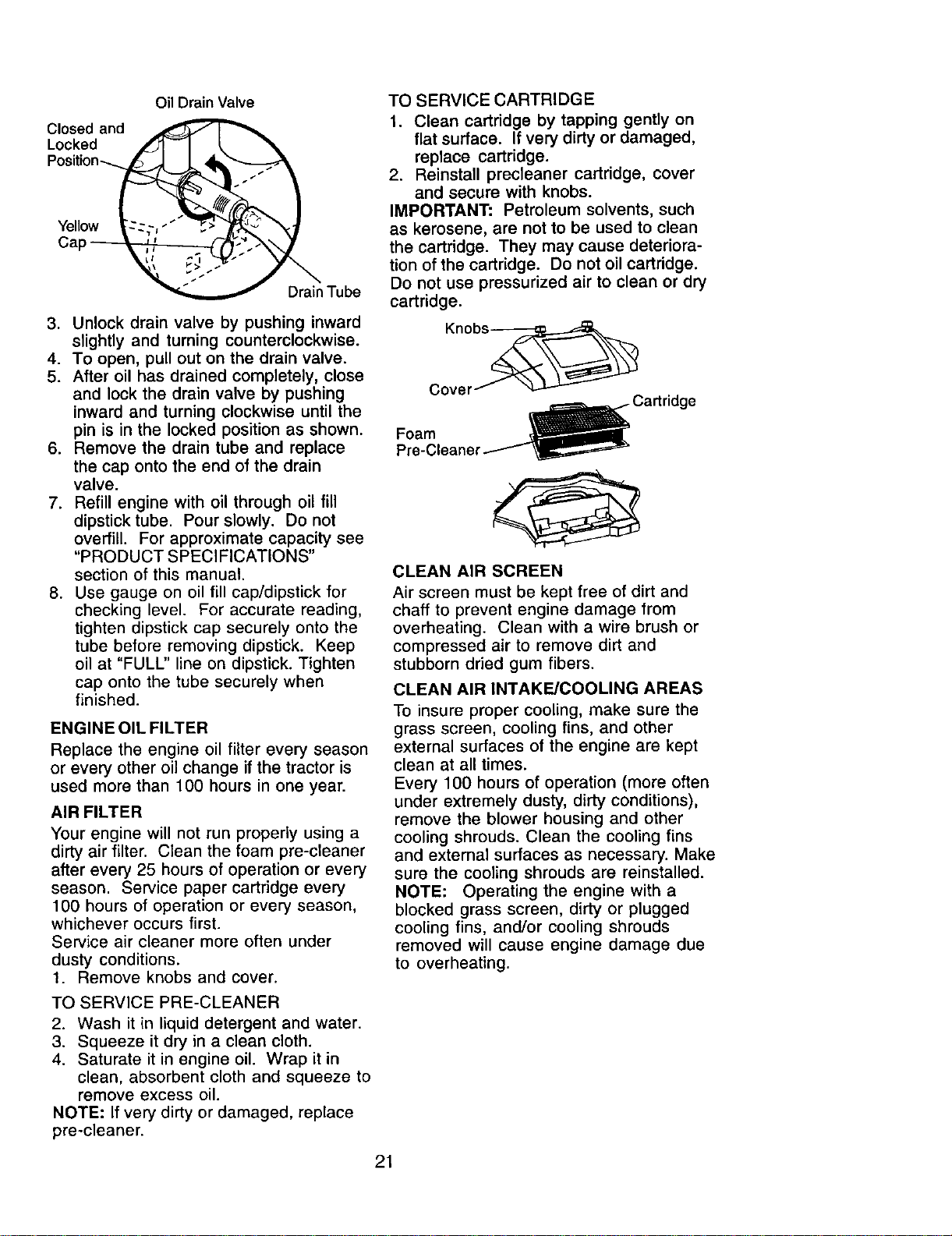

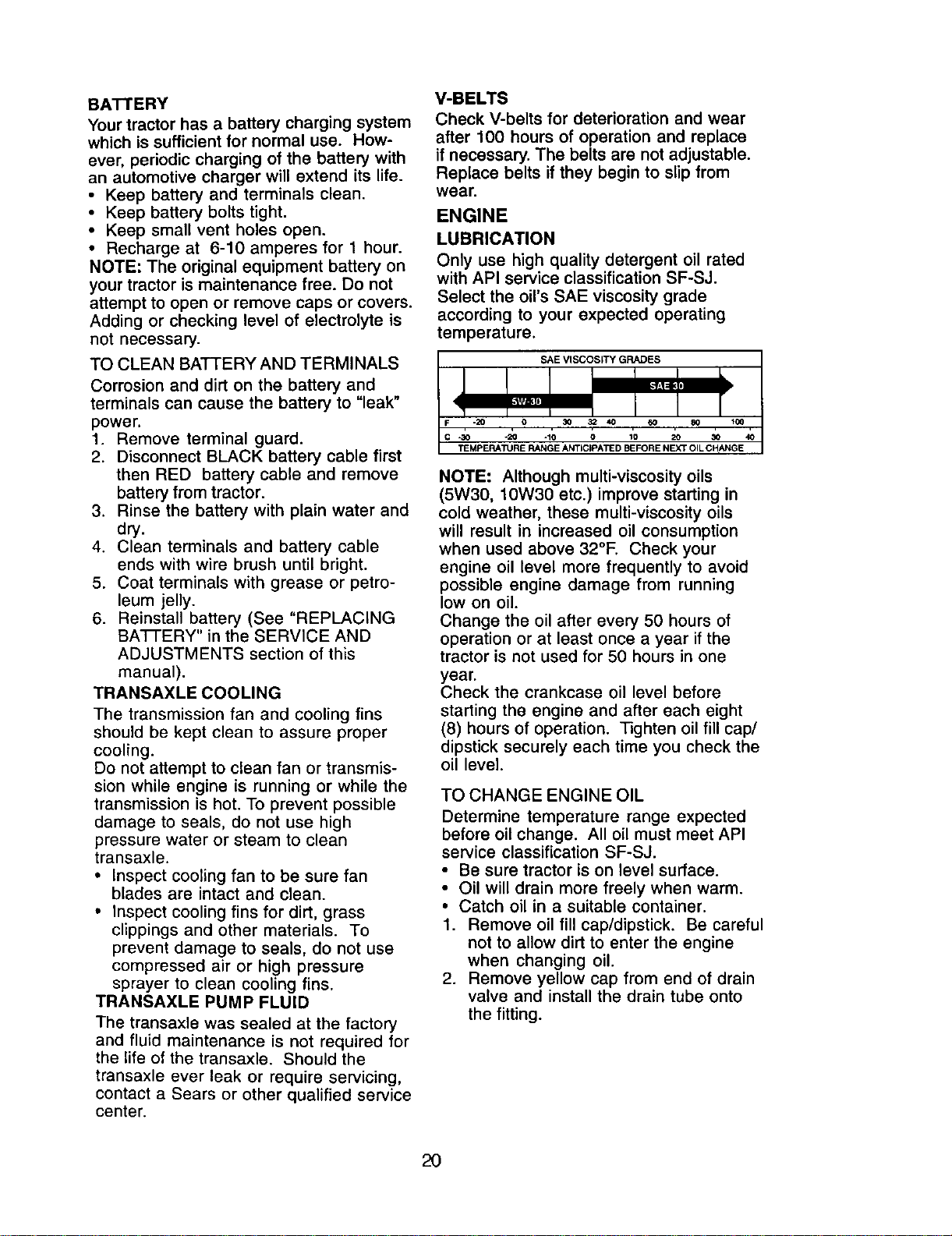

Maintenance ....................................... 18

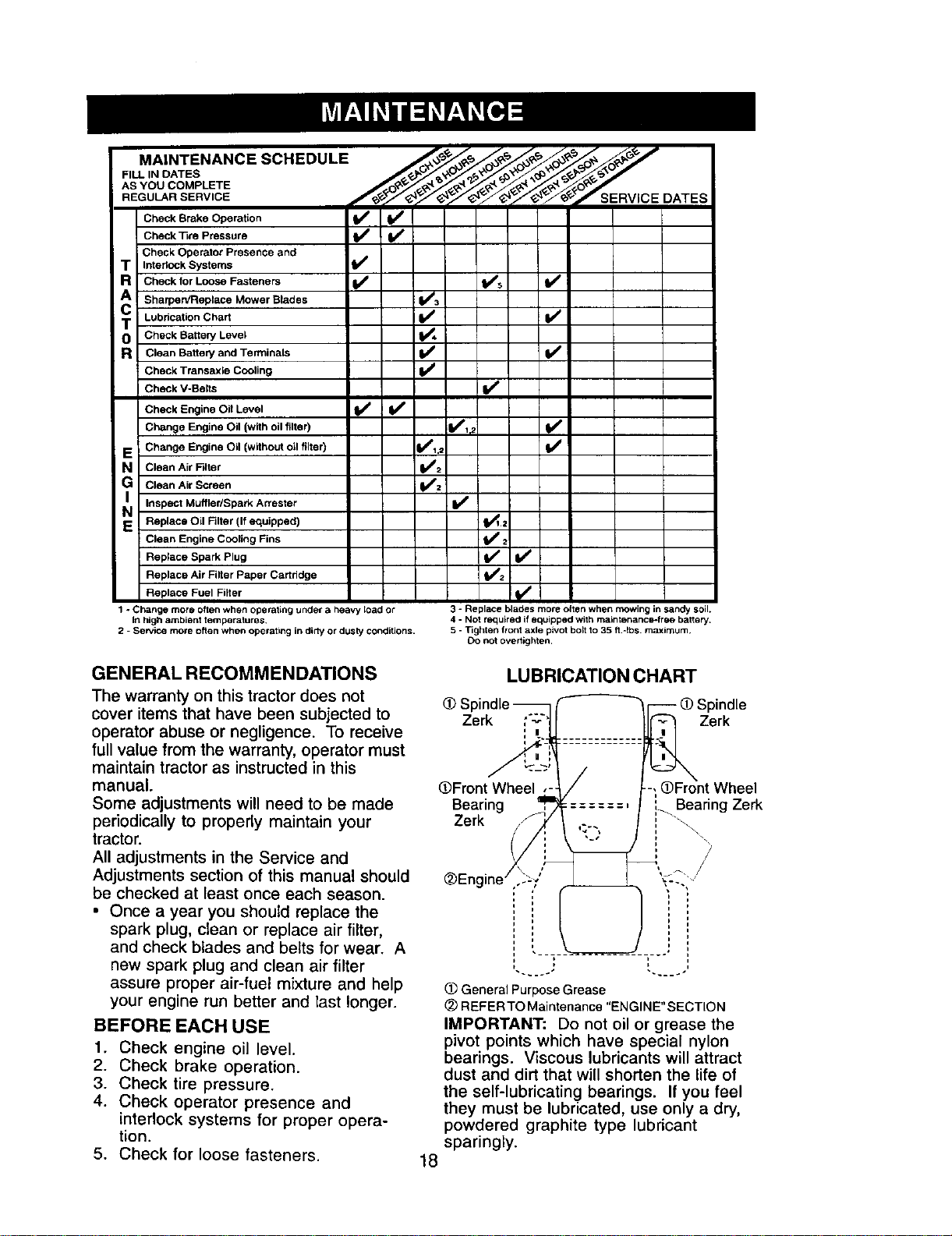

Maintenance Schedule ...................... 18

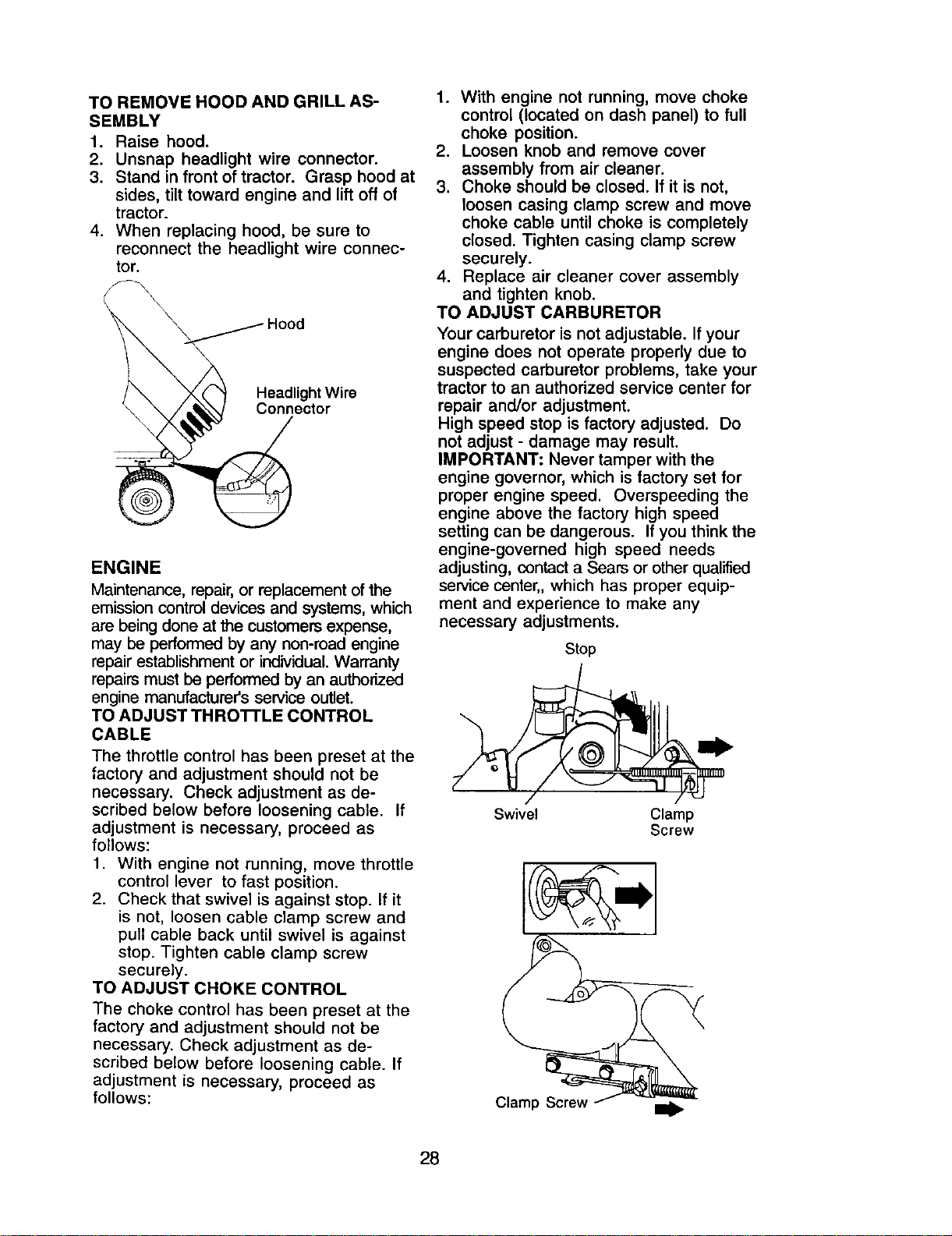

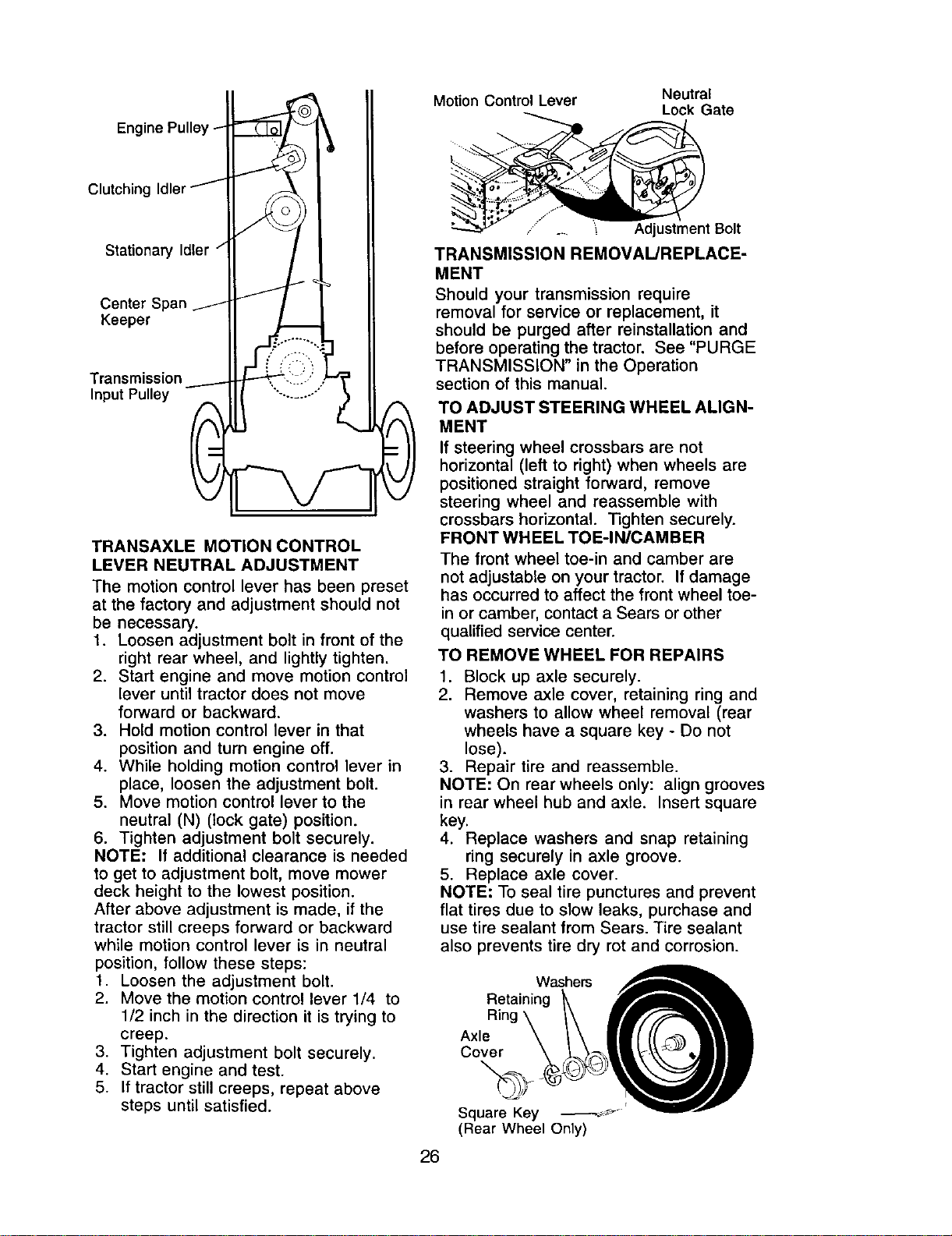

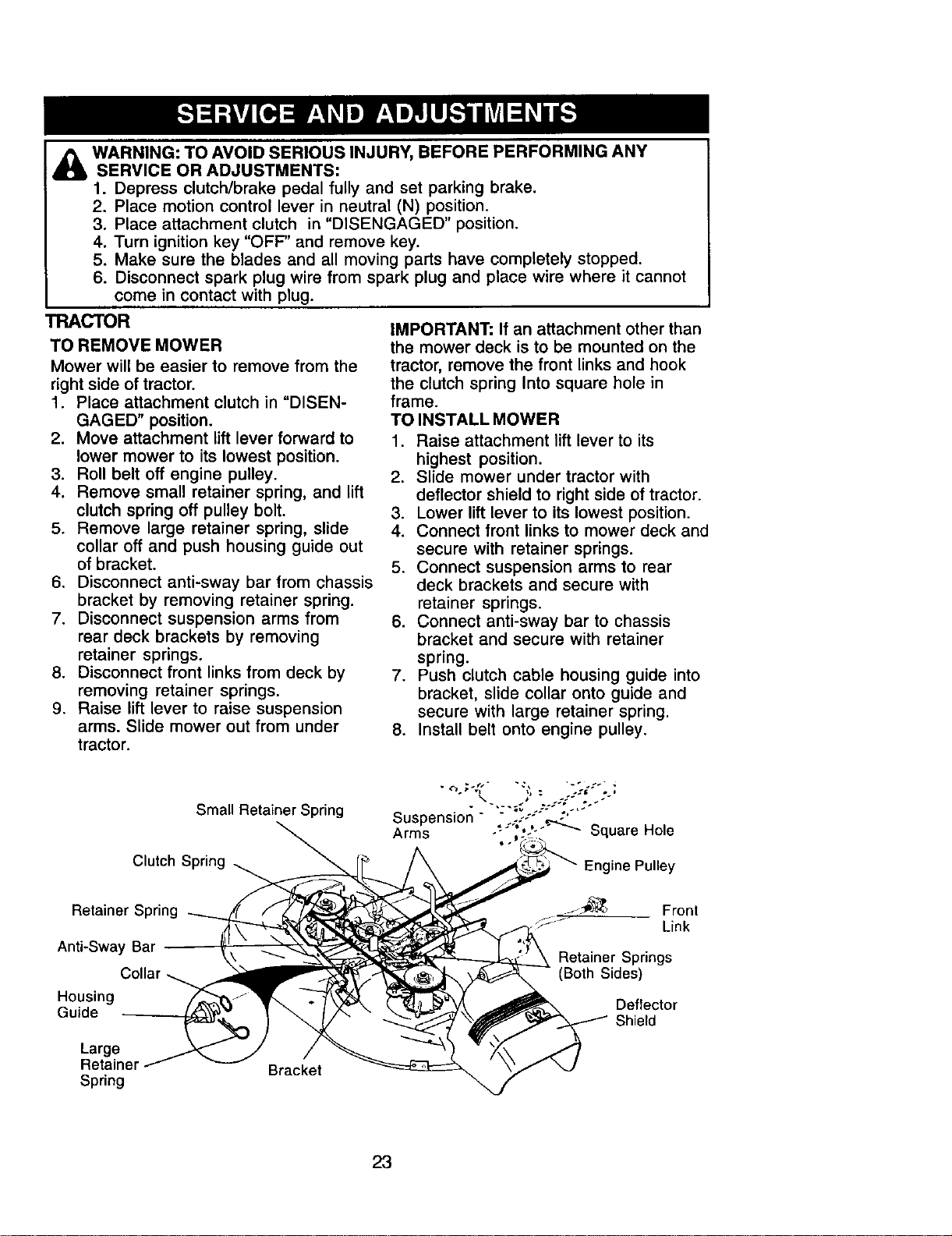

Service and Adjustments .................... 23

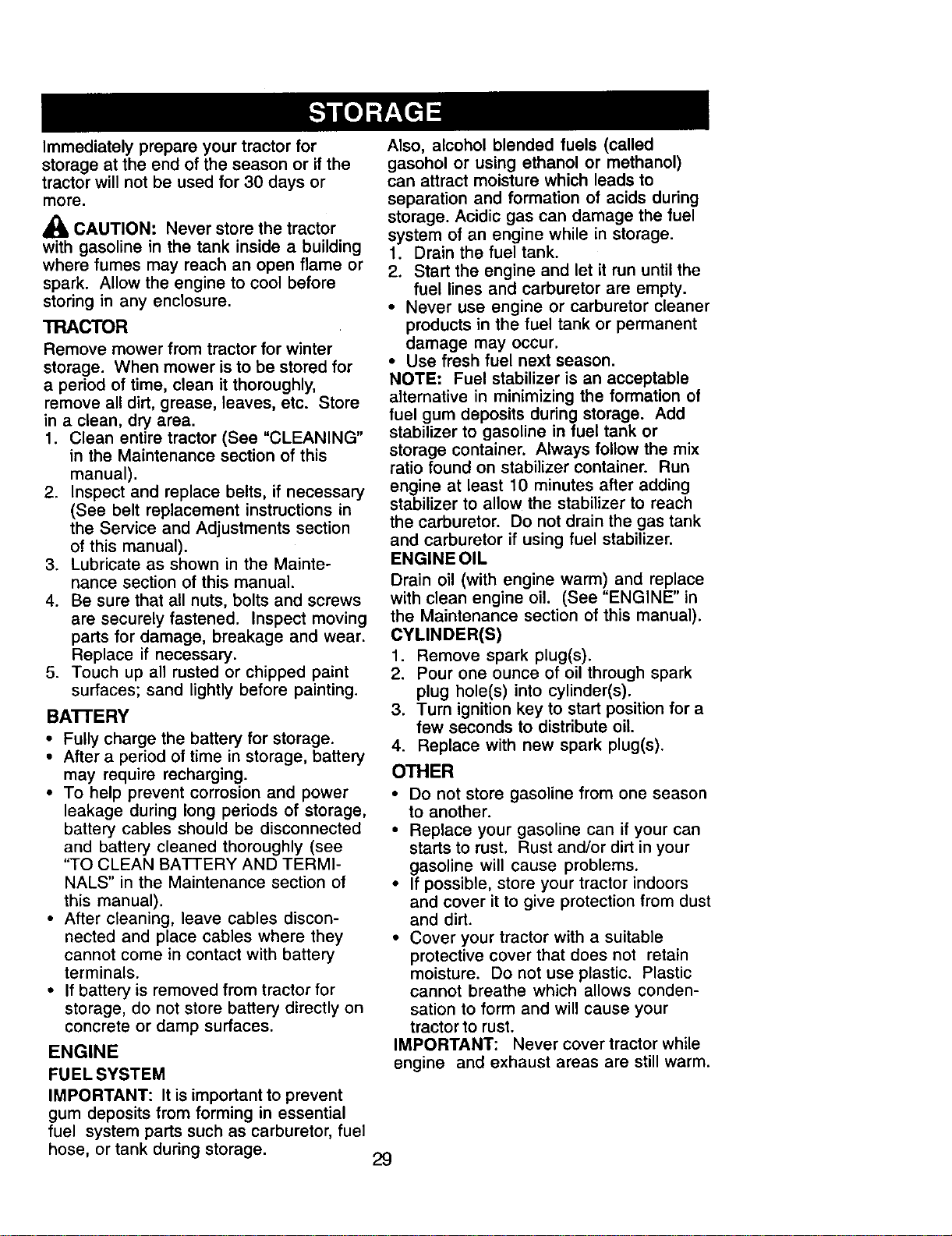

Storage ............................................... 30

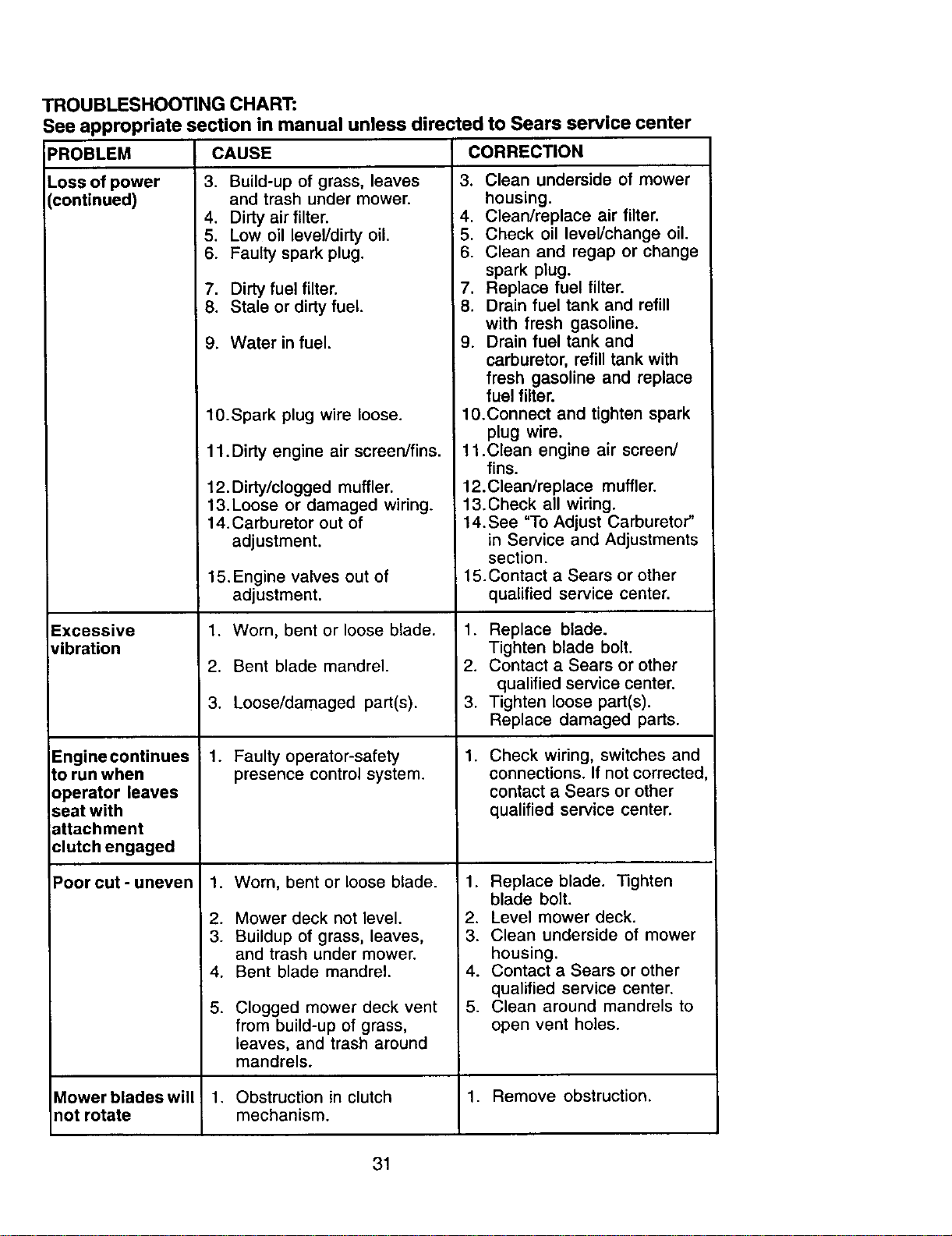

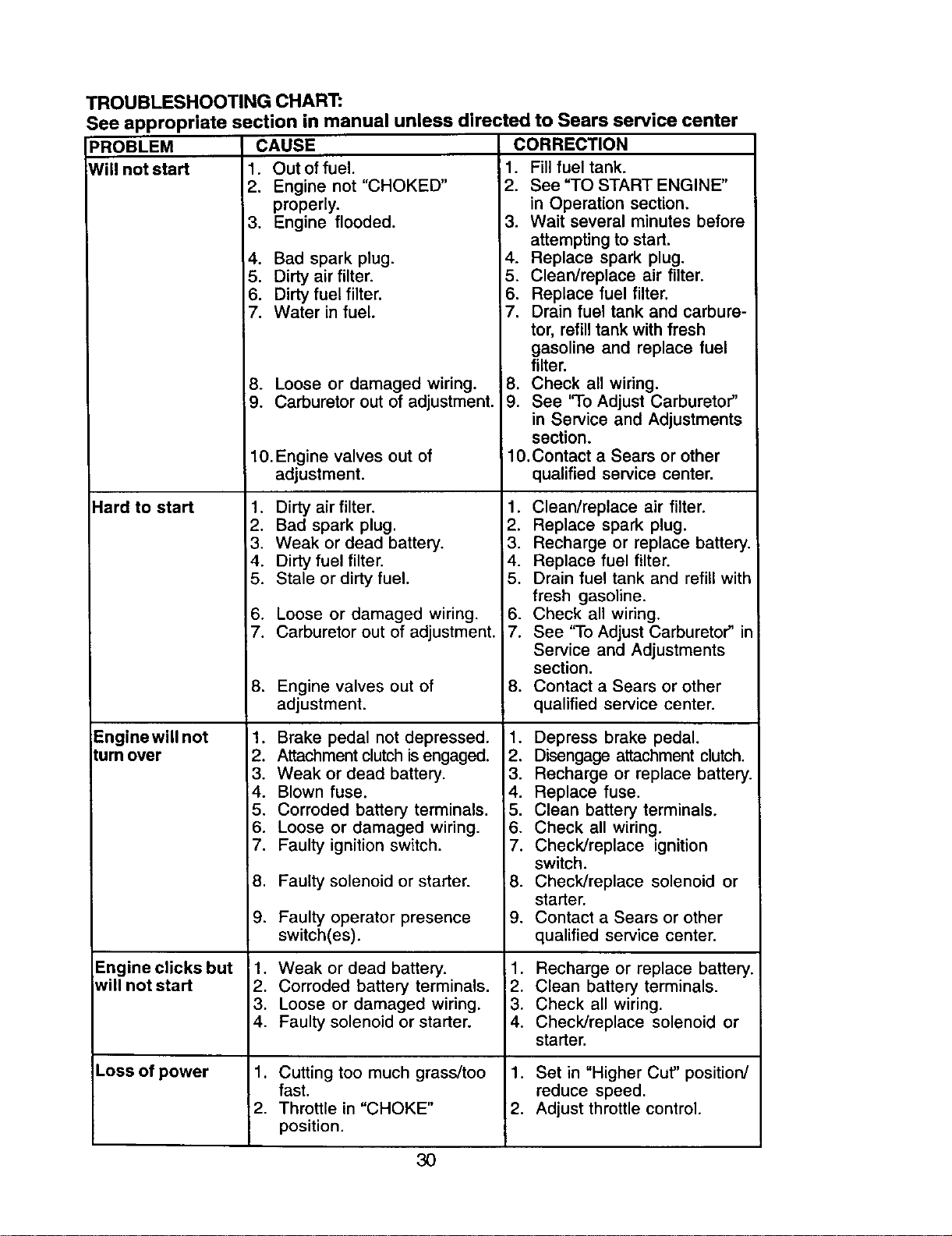

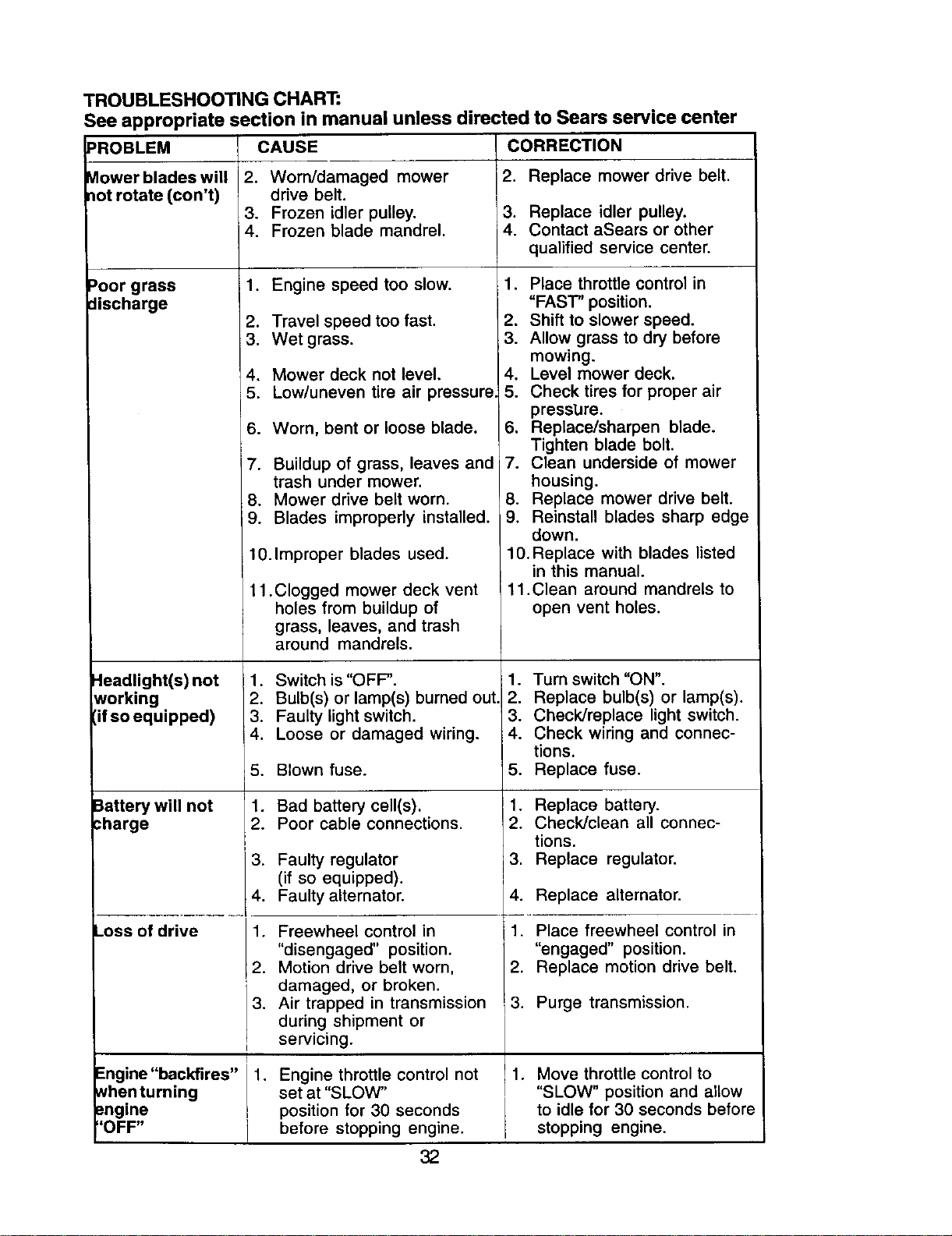

Troubleshooting ................................. 31

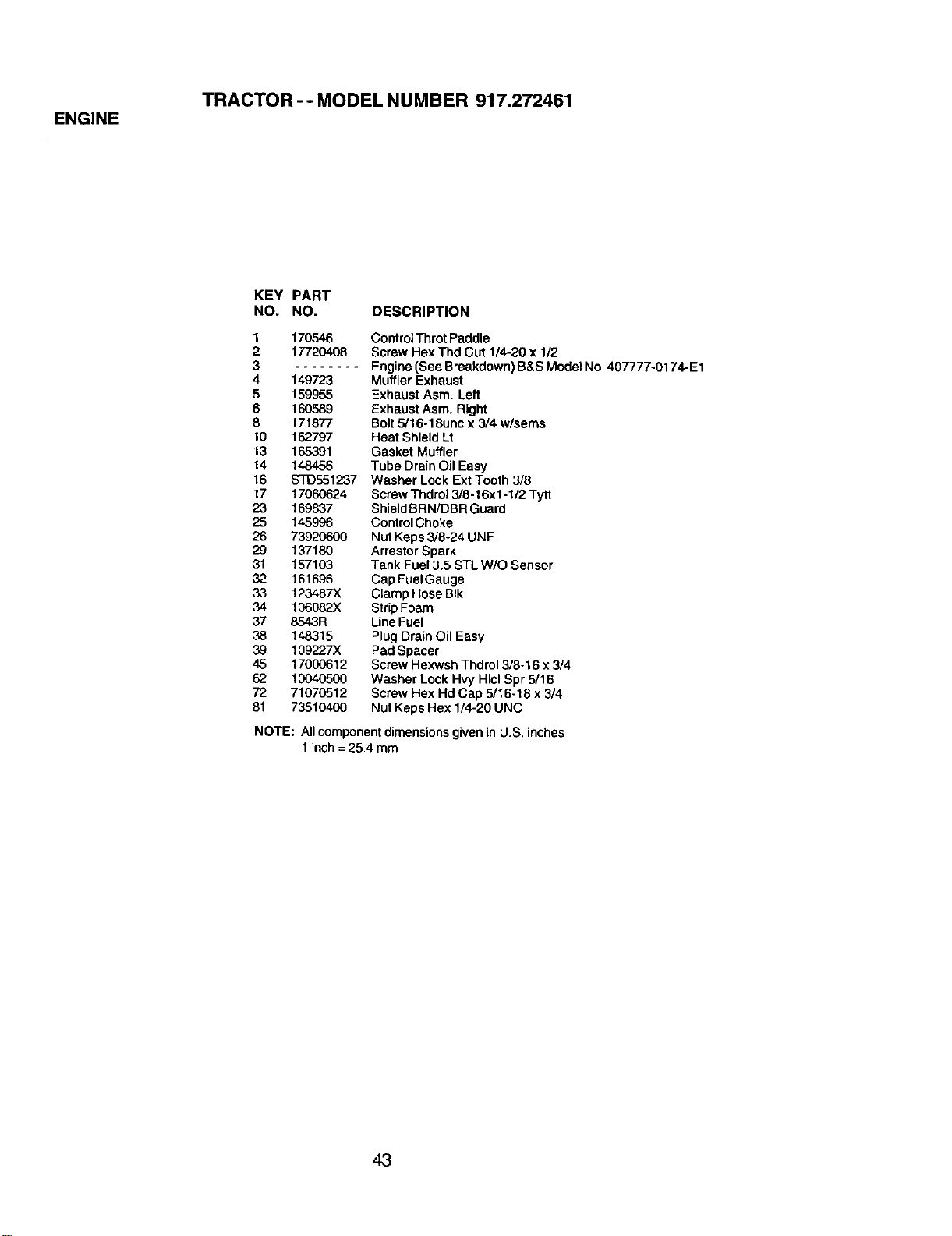

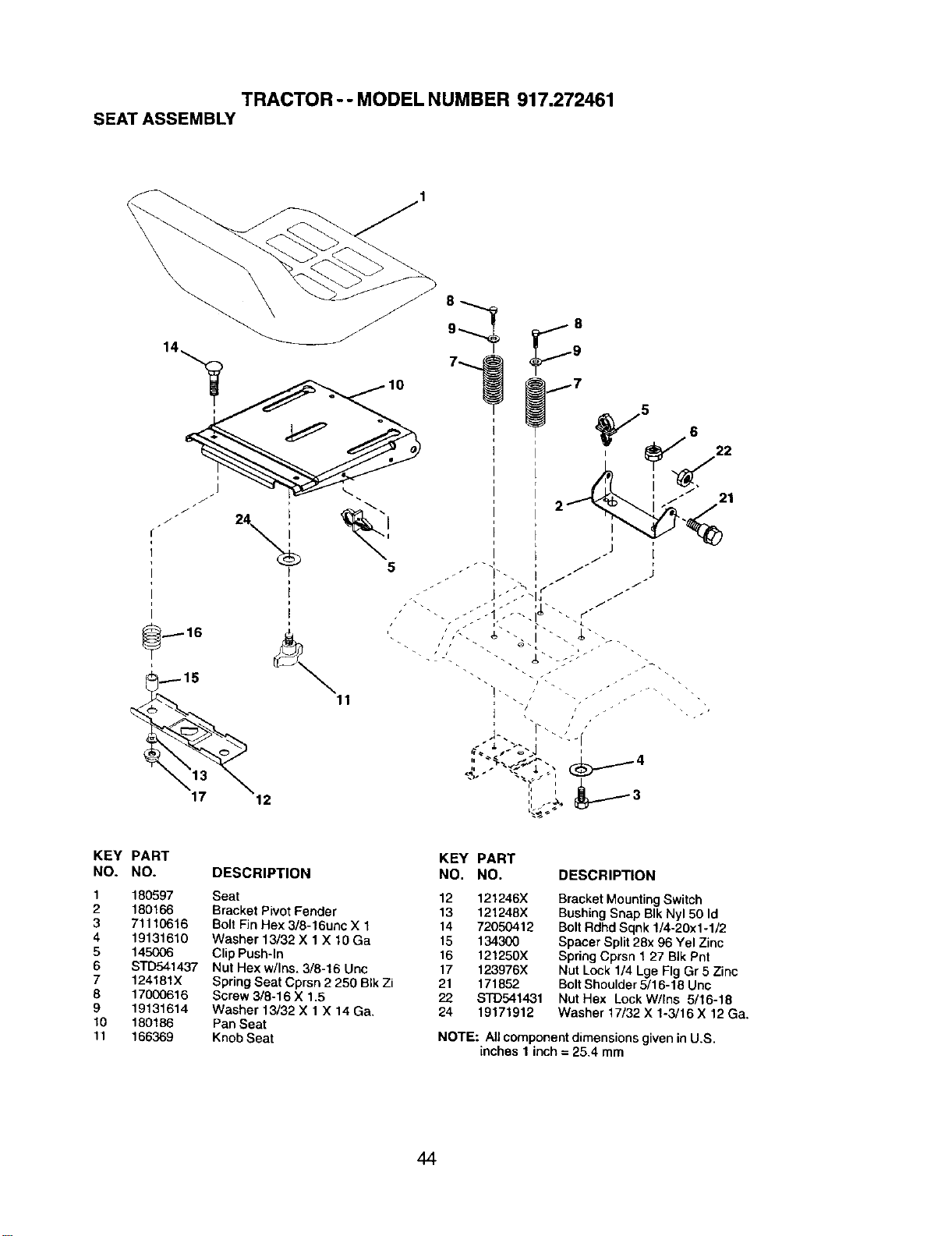

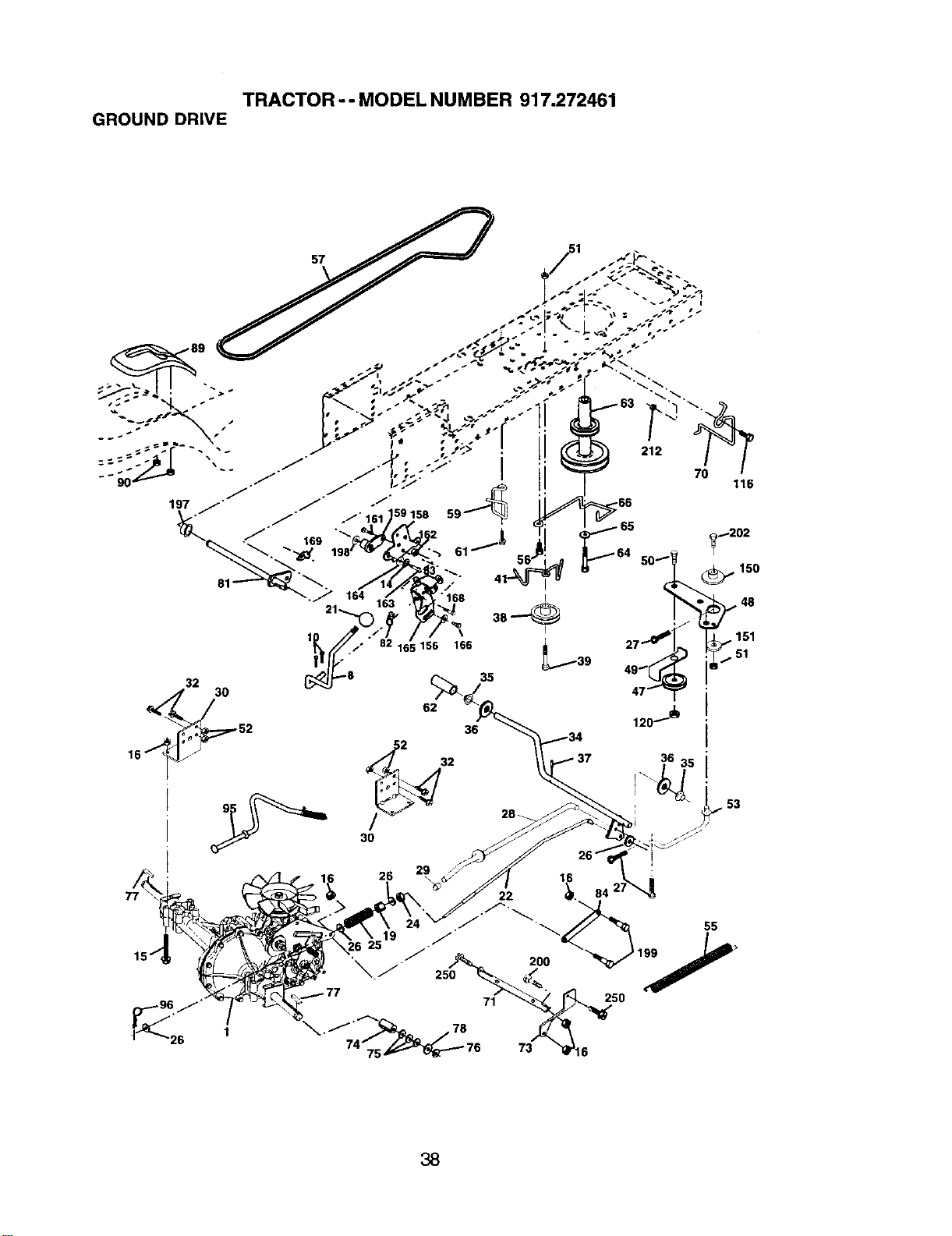

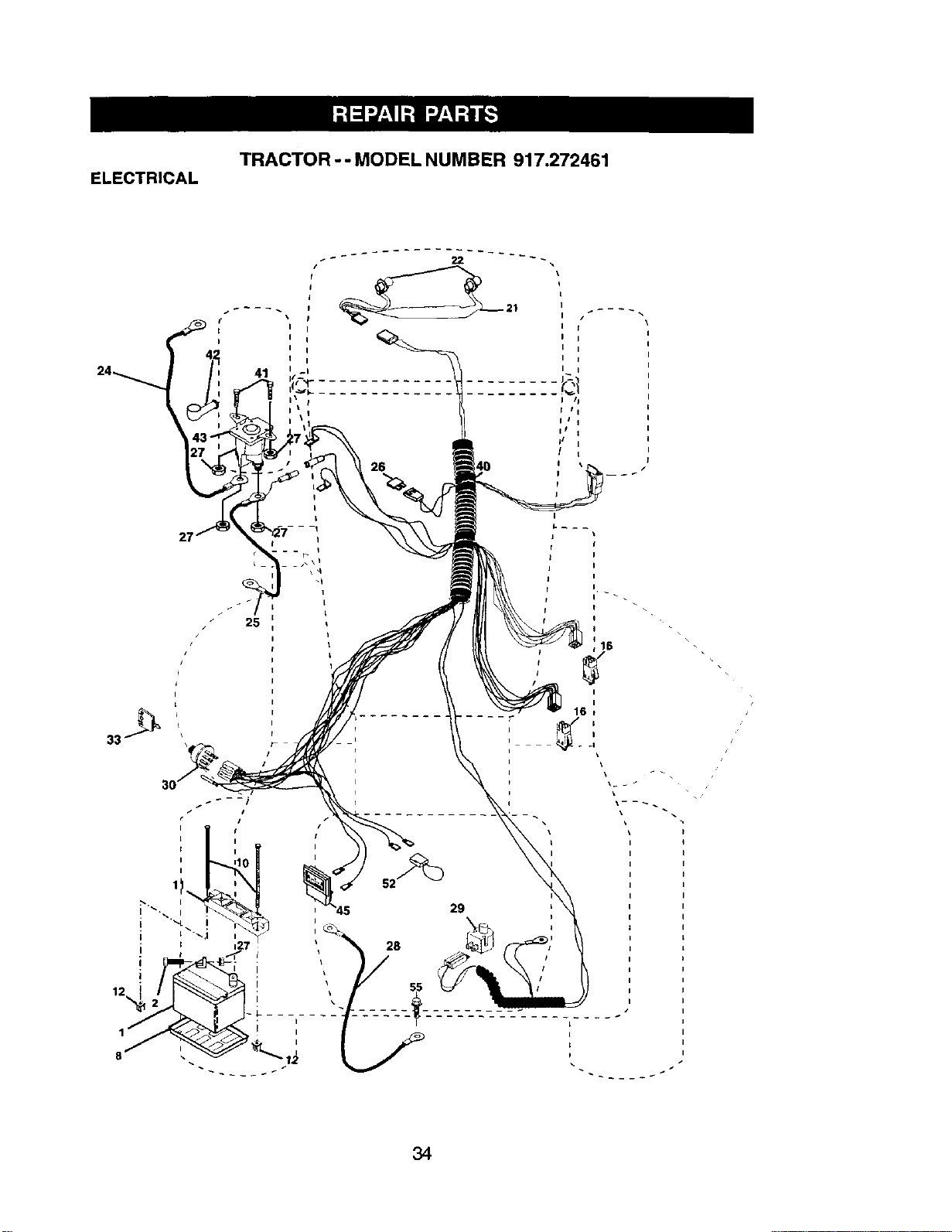

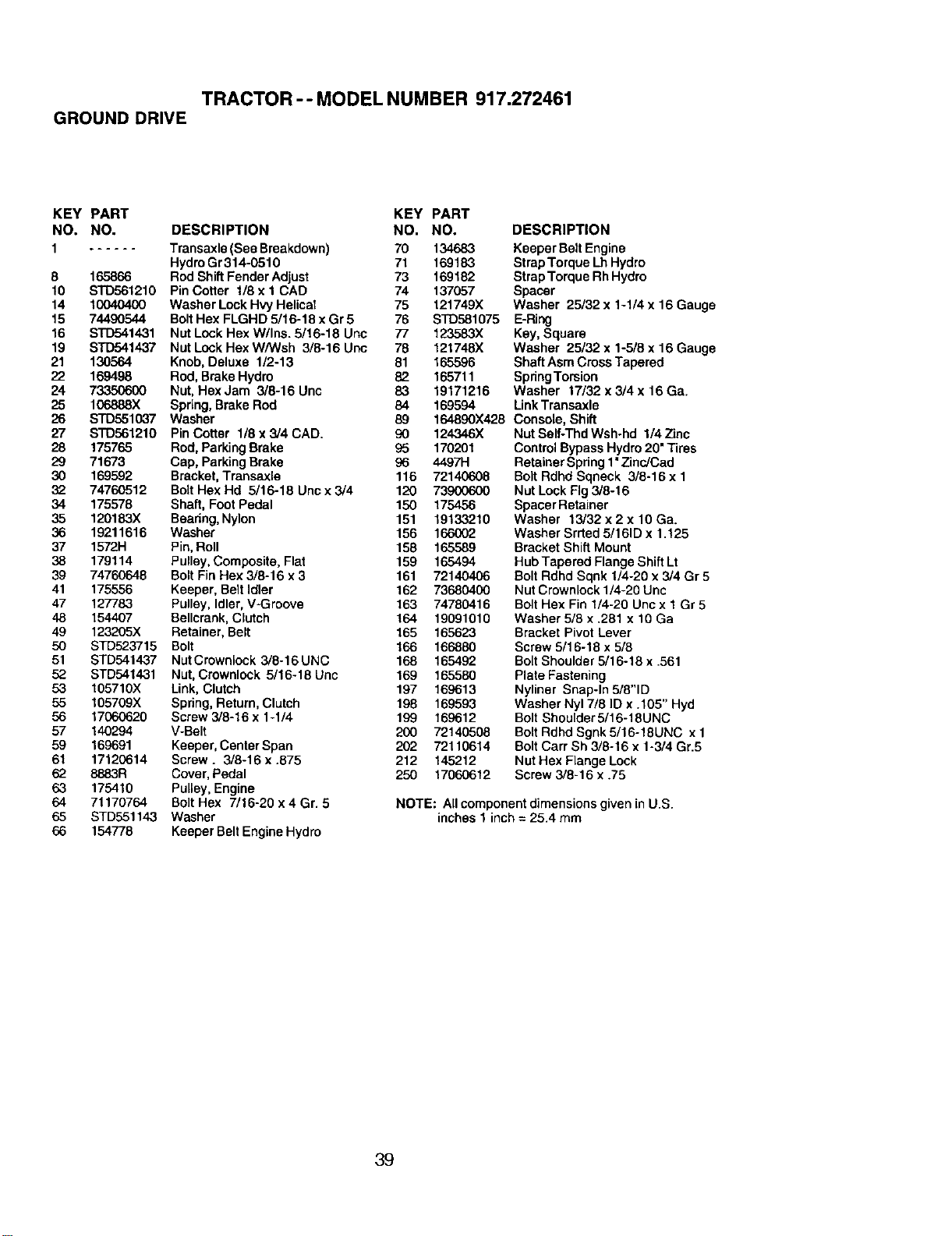

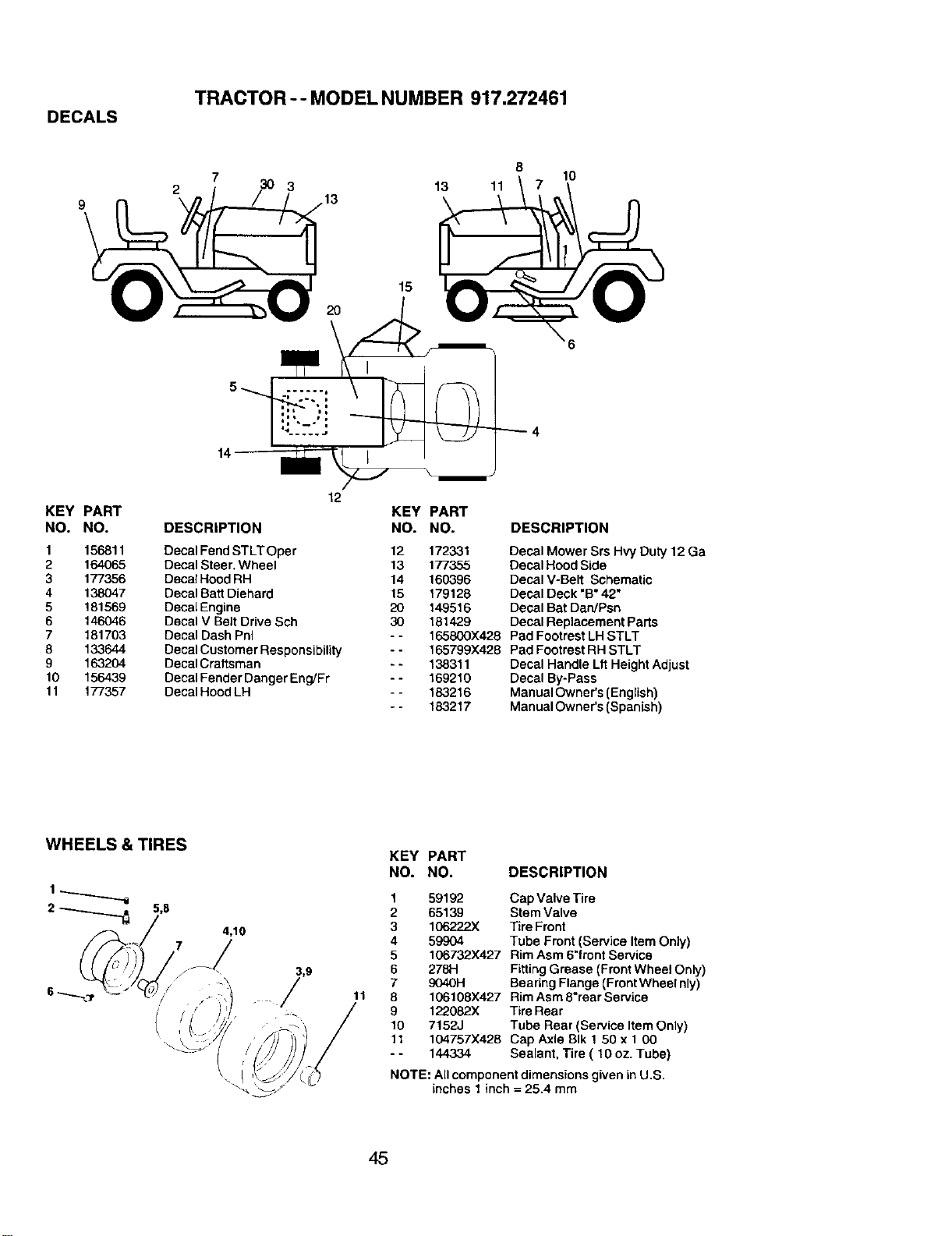

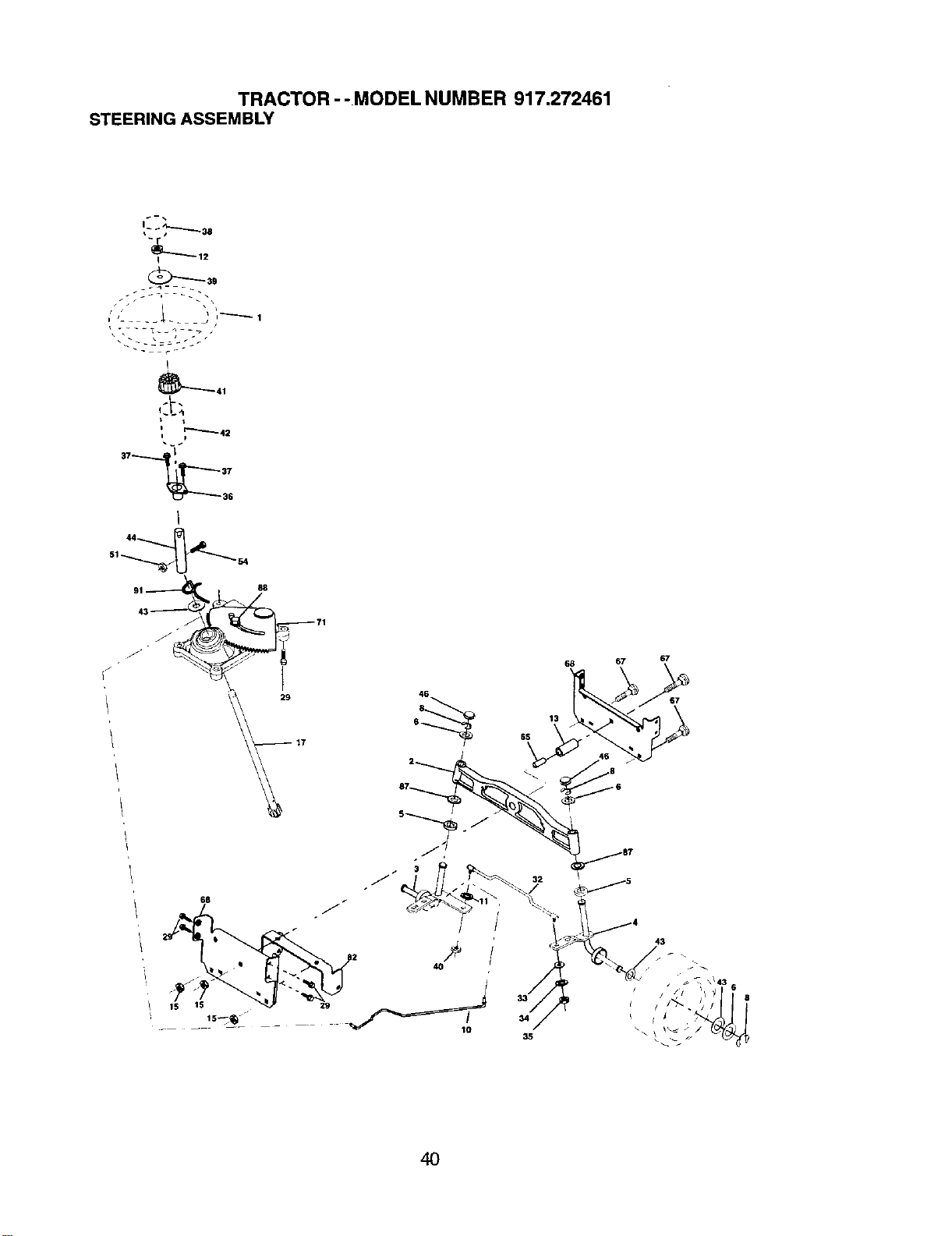

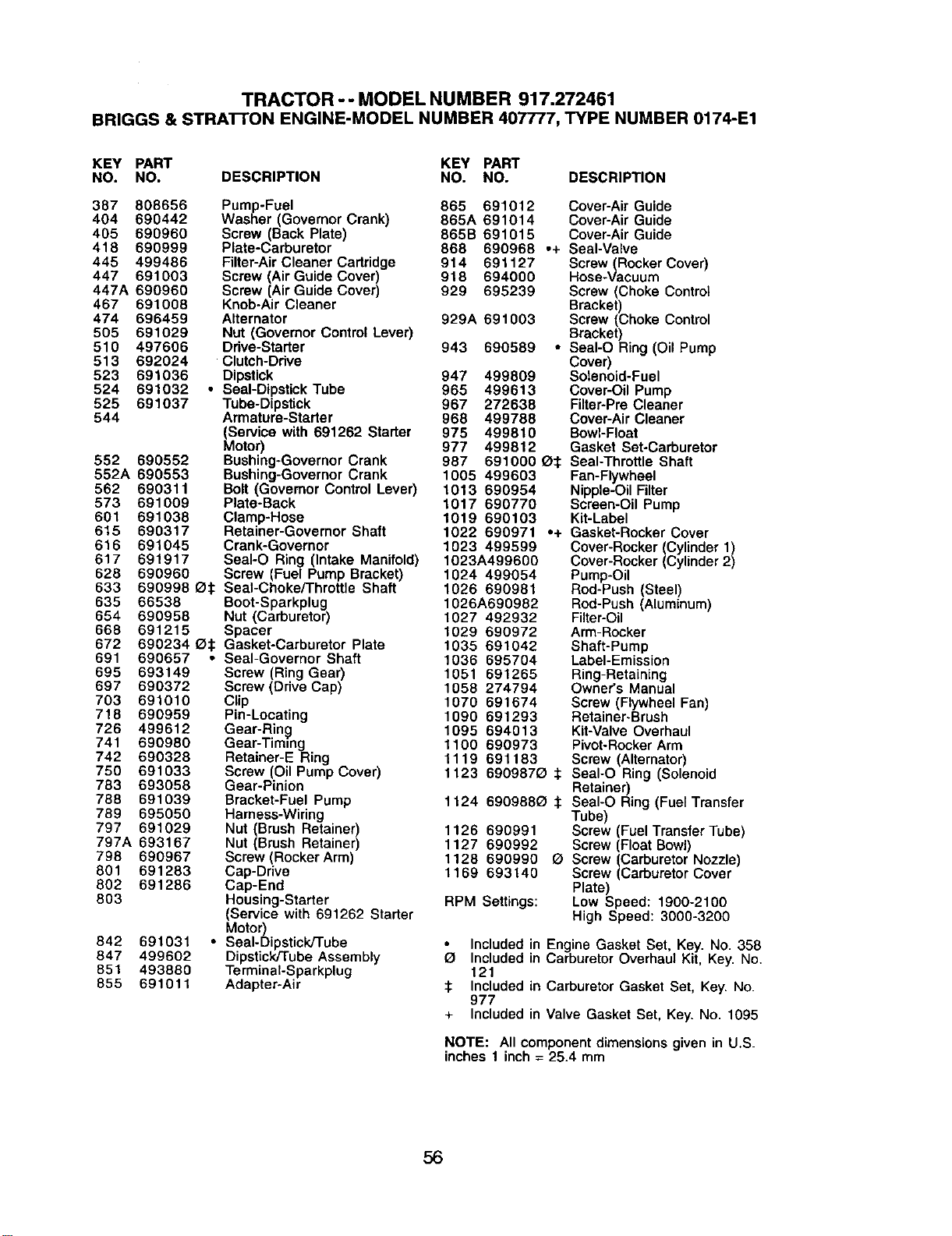

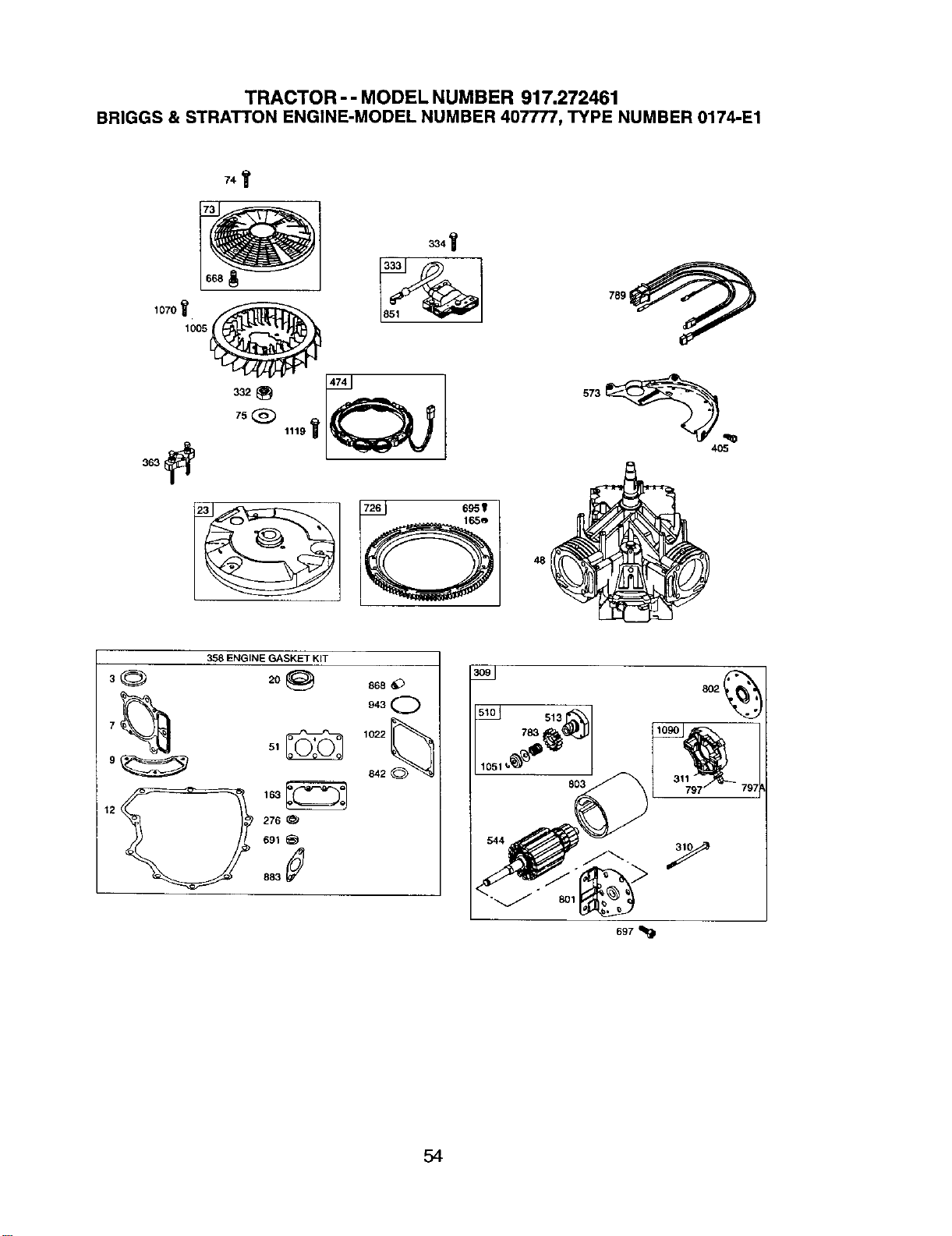

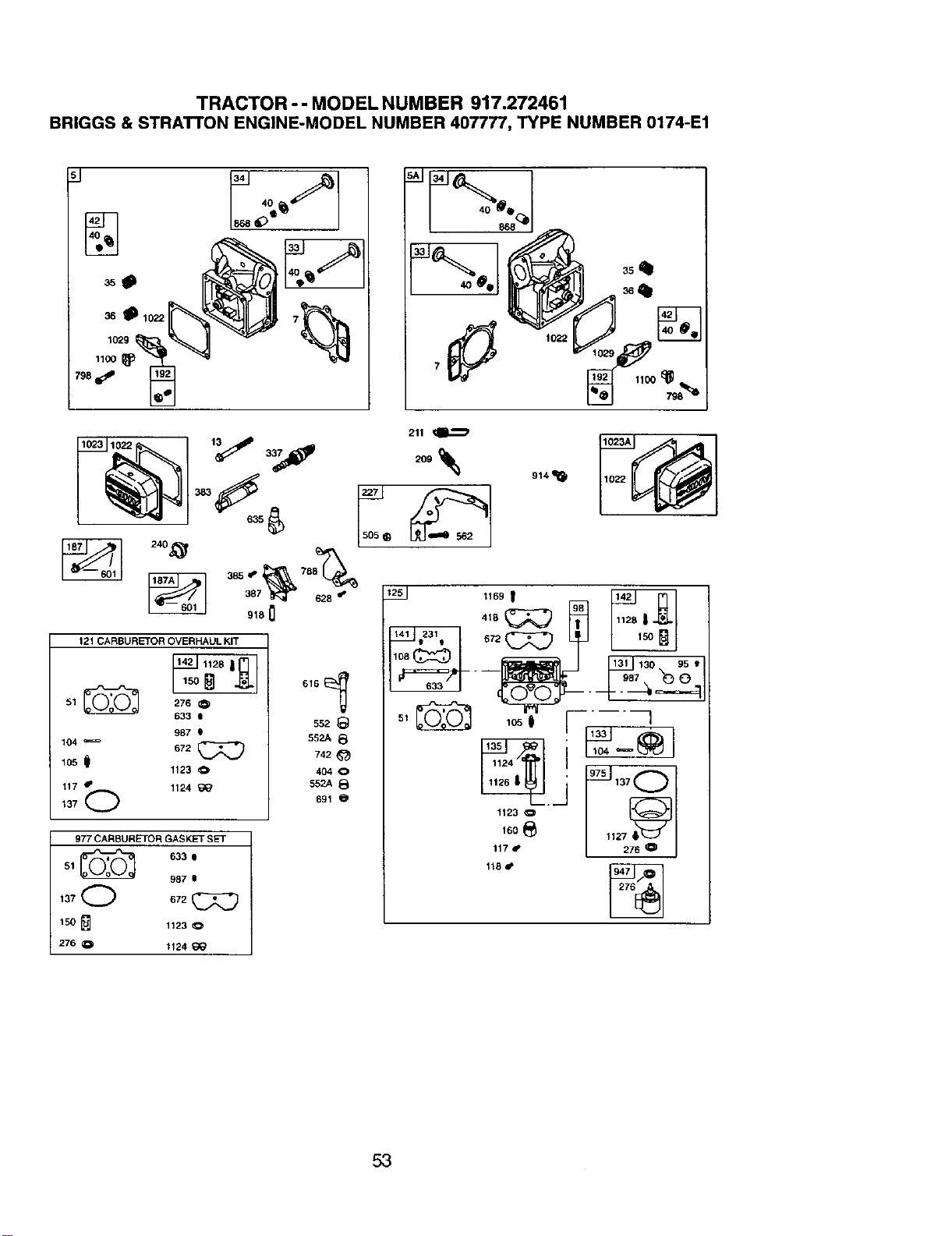

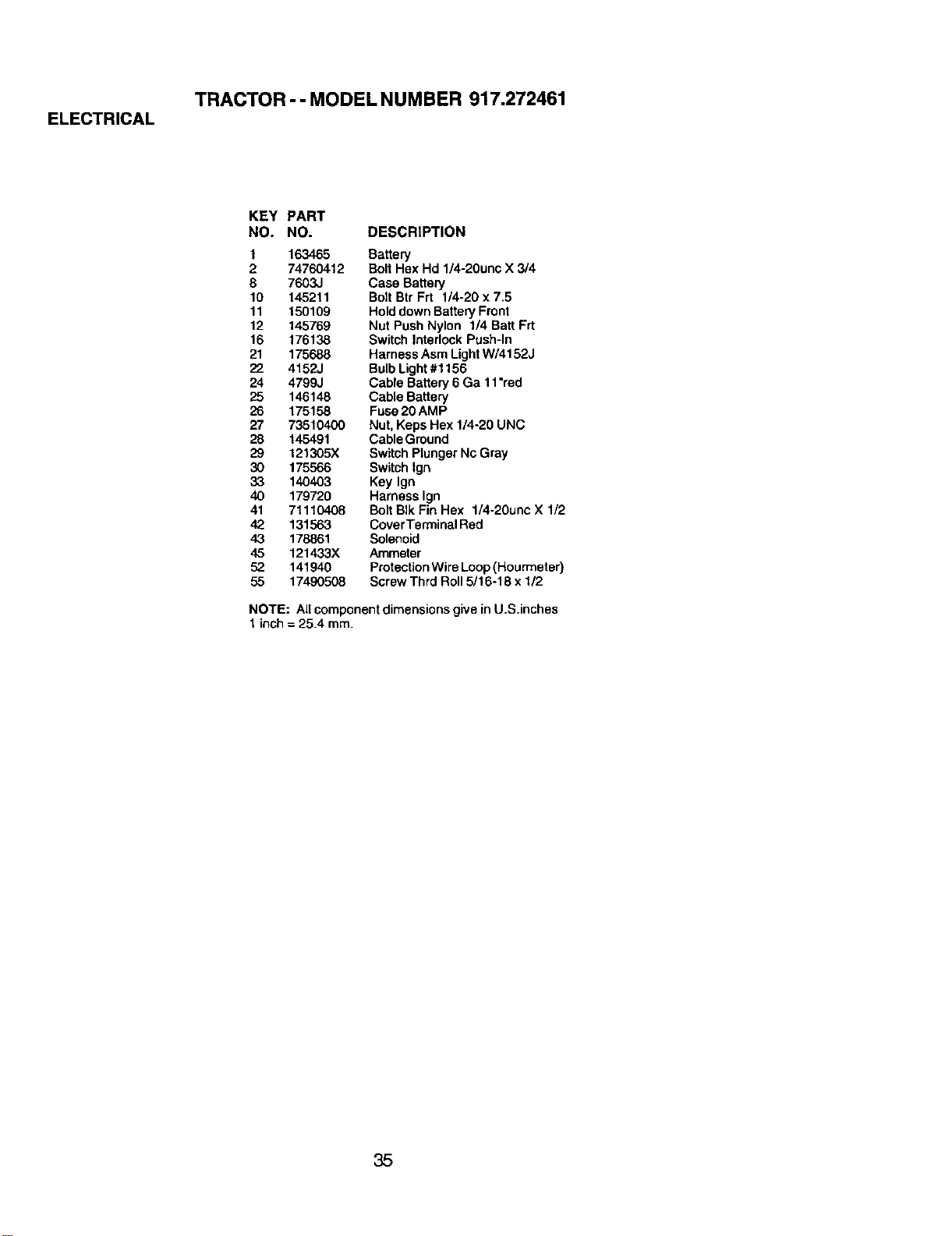

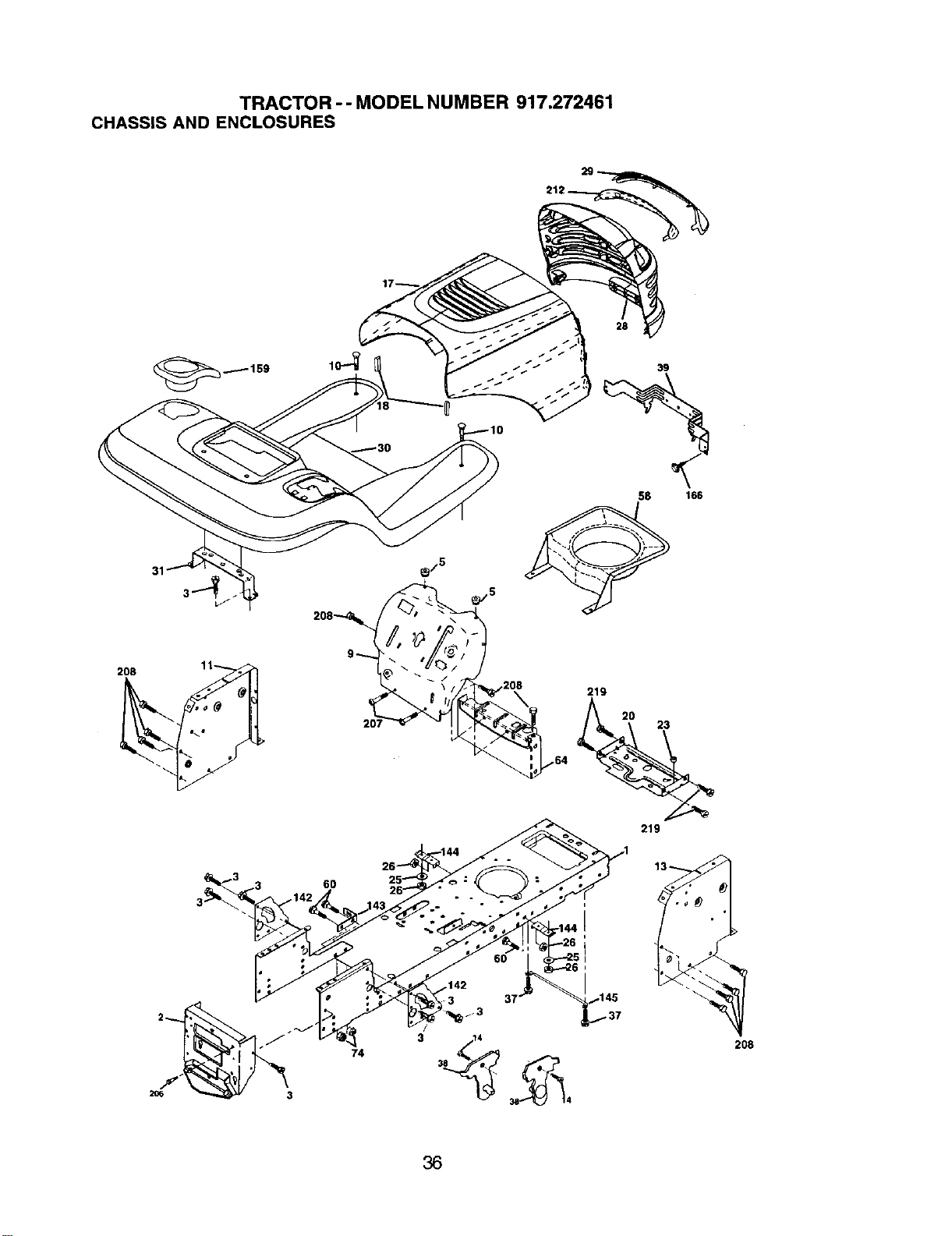

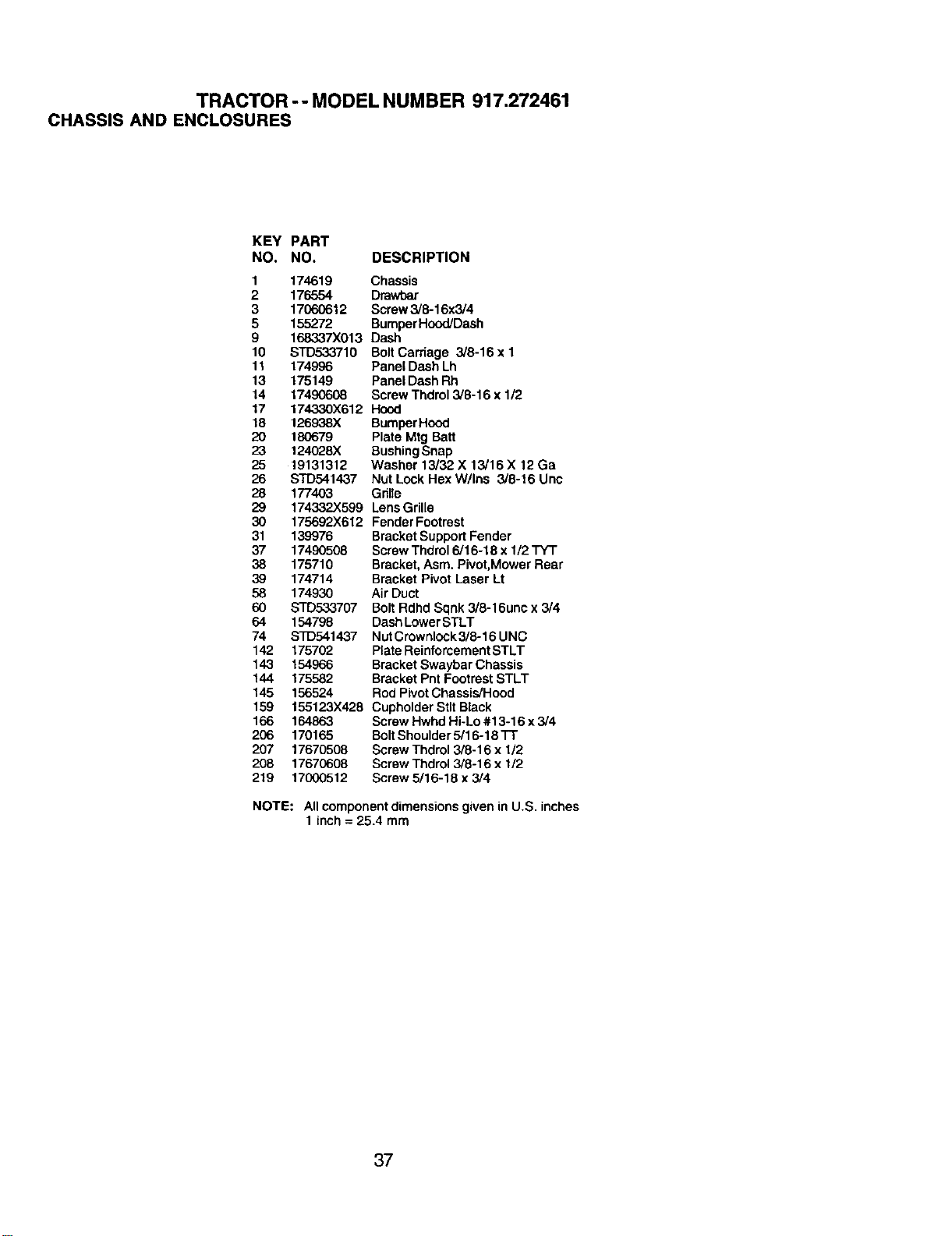

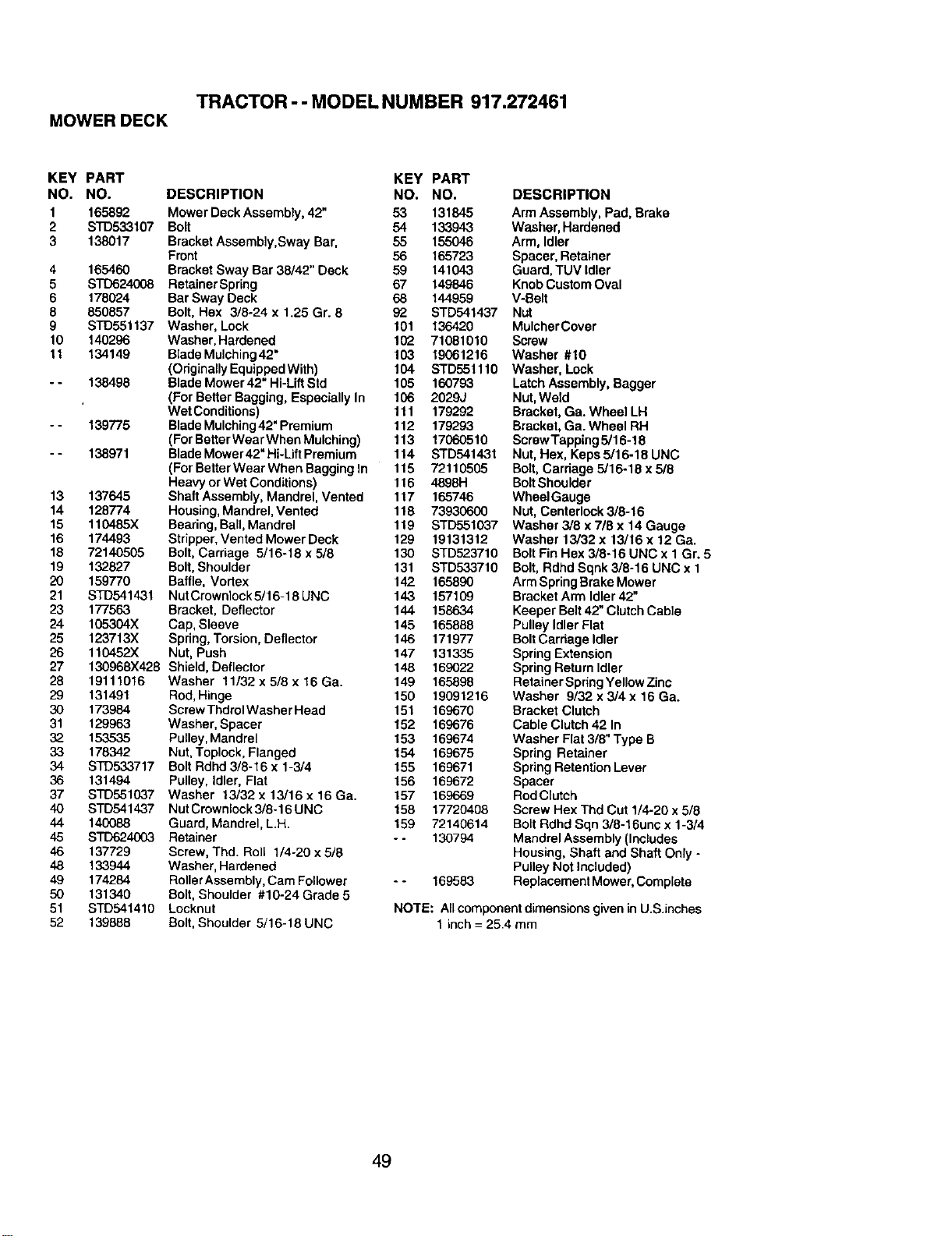

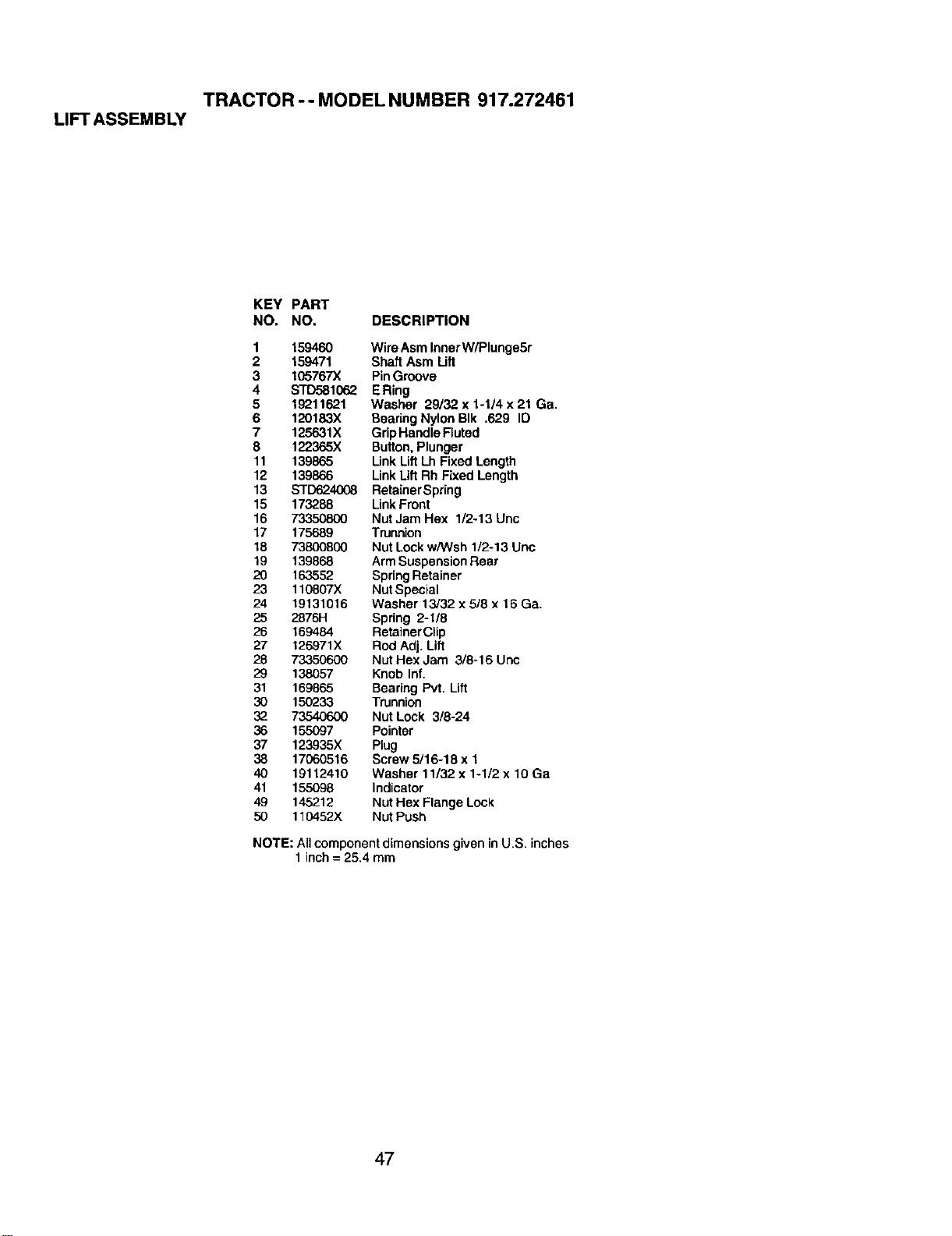

Repair Parts ........................................ 34

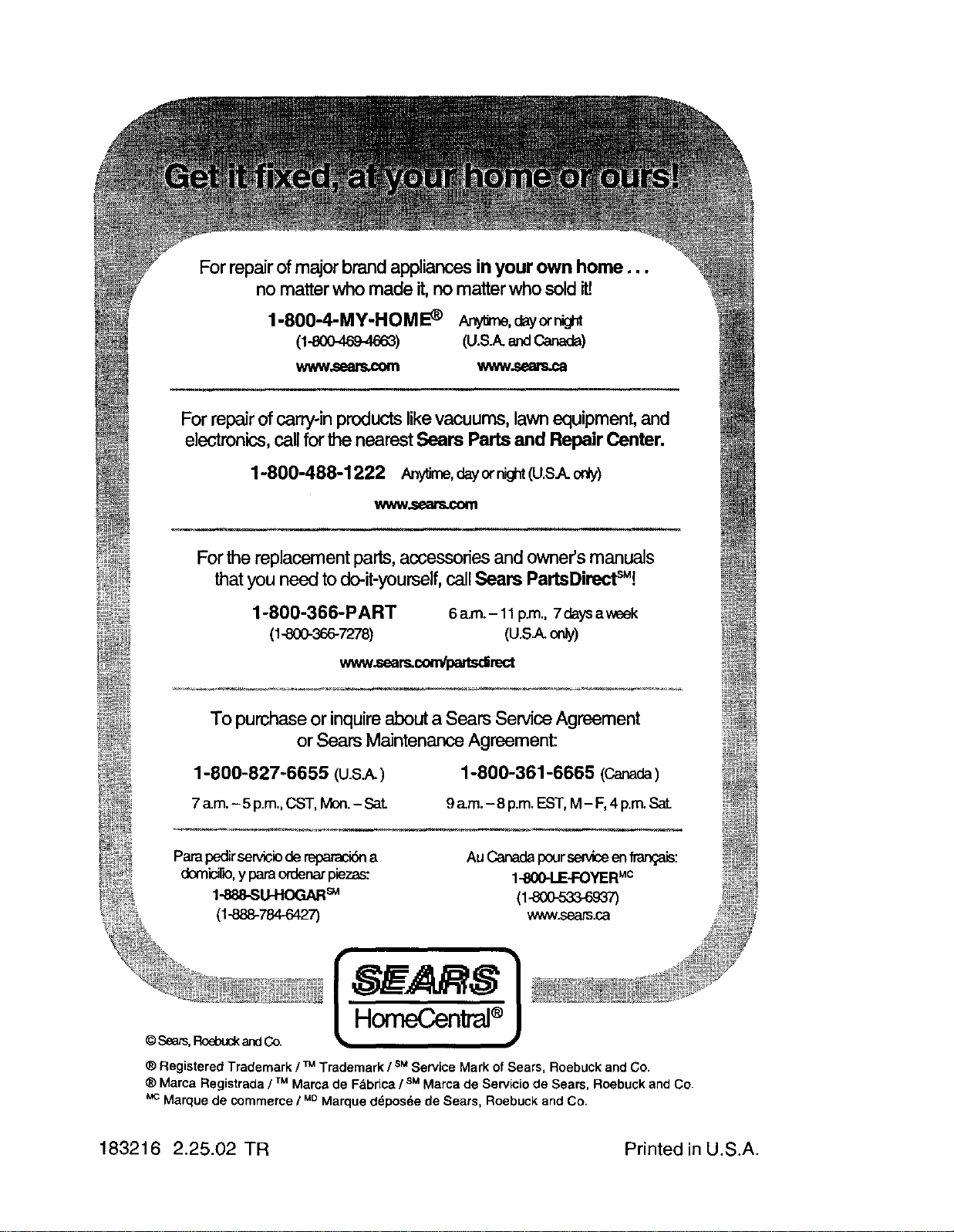

Sears Service ...................... Back Cover

LIMITED WARRANTY ON CRAFTSMAN RIDING EQUIPMENT

For two (2) years from the date of purchase, if this Craftsman Riding Equipment is

maintained, lubricated and tuned up according to the instructions in the owner's

manual, Sears will repair or replace free of charge any parts that are found to be

defective in material or workmanship according to the guidelines of coverage listed

below. Sears will also provide free labor for these applicable warranted parts for the

two full years. During the first 30 days of purchase, there will be no charges to service

the product at your home for issues covered by this warranty. (See exclusions below).

For your convenience, IN HOME warranty service will still be available after the first 30

days of purchase, but a trip charge will apply. This charge will be waived if the Crafts-

man product is dropped off at an authorized Sears location. For the nearest authorized

Sears location, please call 1-800-4-MY-HOME®. This warranty applies only while this

product is within the United States.

This Warranty does not cover:

• Expendable items which become worn during normal use, including but not limited

to blades, spark plugs, air cleaners, belts, and oil filters.

• Standard Maintenance Servicing, oil changes, or tune-ups

• Tire replacement or repair caused by punctures from outside objects, such as nails,

thorns, stumps, or glass.

• Repairs necessary because of operator abuse, including but not limited to, damage

caused by towing objects beyond the capability of the riding equipment, impacting

objects that bend the frame or crankshaft, or over-speeding the engine.

• Repairs necessary because of operator negligence, including but not limited to,

electrical and mechanical damage caused by improper storage, failure to use the

proper grade and amount of engine oil, failure to keep the deck clear of flammable

debris, or failure to maintain the equipment according to the instructions contained in

the owner's manual.

• Engine (fuel system) cleaning or repairs caused by fuel determined to be contami-

nated or oxidized (stale). In general, fuel should be used within 30 days of its

purchase date.

• Normal deterioration and wear of the exterior finishes, or product label replacement.

• Riding equipment used for commercial or rental purposes.

LIMITED WARRANTY ON BATTERY

For ninety (90) days from date of purchase, if any battery included with this riding

equipment proves defective in material or workmanship and our testing determines the

battery will not hold a charge, Sears will replace the battery at no charge. During the

first 30 days of purchase, there will be no charges to replace the battery at your HOME.

After the first 30 days, for your convenience, IN-HOME warranty service will still be

available but a trip charge will apply. This charge will be waived if the Craftsman

product is dropped of at an authorized Sears location. For the nearest authorized

Sears location, please call 1-800-4-MY-HOME®.

This battery warranty applies only while this product is within the United States.

This warranty gives you specific legal rights, and you may also have other rights, which

vary, from state to state.

Sears, Roebuck and Co.,Dept.817WA, Hoffman Estates, IL 60179

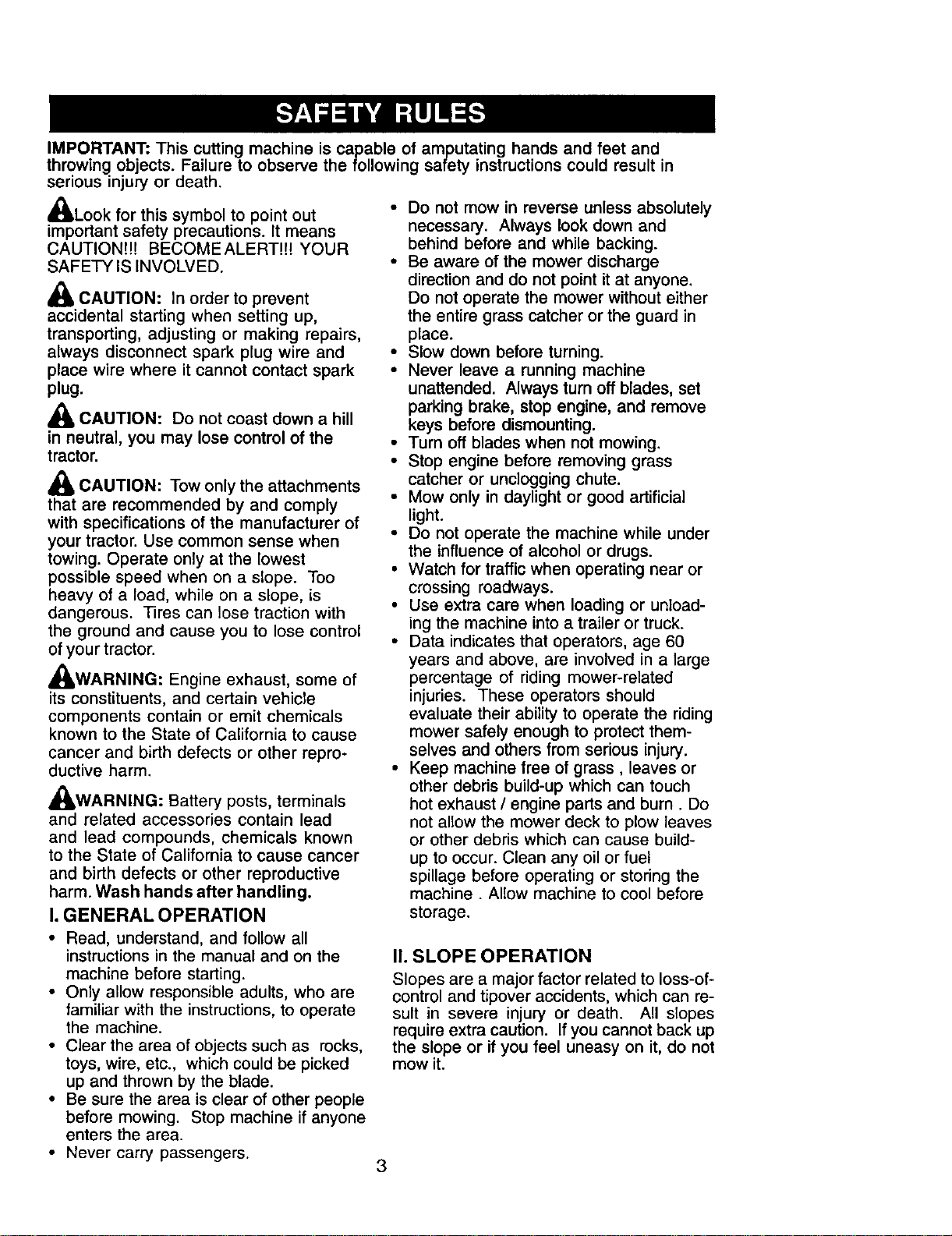

IMPORTANT: This cutting machine is capable of amputating hands and feet and

throwing objects. Failure to observe the following safety instructions could result in

serious injury or death.

Look for this symbol to point out

important safety precautions. It means

CAUTIONHt BECOMEALERT!H YOUR

SAFETY IS INVOLVED.

CAUTION: In order to prevent

accidental starting when setting up,

transporting, adjusting or making repairs,

always disconnect spark plug wire and

place wire where it cannot contact spark

plug.

CAUTION: Do not coast down a hill

in neutral, you may lose control of the

tractor.

CAUTION: Tow only the attachments

that are recommended by and comply

with specifications of the manufacturer of

your tractor. Use common sense when

towing. Operate only at the lowest

possible speed when on a slope. Too

heavy of a load, while on a slope, is

dangerous. Tires can lose traction with

the ground and cause you to lose control

of your tractor.

WARNING: Engine exhaust, some of

its constituents, and certain vehicle

components contain or emit chemicals

known to the State of California to cause

cancer and birth defects or other repro-

ductive harm.

_kWARNING: Battery posts, terminals

and related accessories contain lead

and lead compounds, chemicals known

to the State of California to cause cancer

and birth defects or other reproductive

harm. Wash hands after handling.

I. GENERAL OPERATION

• Do not mow in reverse unless absolutely

necessary. Always look down and

behind before and while backing.

• Be aware of the mower discharge

direction and do not point it at anyone.

Do not operate the mower without either

the entire grass catcher or the guard in

place.

• Slow down before turning.

• Never leave a running machine

unattended. Always turn off blades, set

parking brake, stop engine, and remove

keys before dismounting.

• Turn off blades when not mowing.

• Stop engine before removing grass

catcher or unclogging chute.

• Mow only in daylight or good artificial

light.

• Do not operate the machine while under

the influence of alcohol or drugs.

• Watch for traffic when operating near or

crossing roadways.

• Use extra care when loading or unload-

ing the machine into a trailer or truck.

• Data indicates that operators, age 60

years and above, are involved in a large

percentage of riding mower-related

injuries. These operators should

evaluate their ability to operate the riding

mower safely enough to protect them-

selves and others from serious injury.

• Keep machine free of grass, leaves or

other debris build-up which can touch

hot exhaust / engine parts and burn. Do

not allow the mower deck to plow leaves

or other debris which can cause build-

up to occur. Clean any oil or fuel

spillage before operating or storing the

machine. Allow machine to cool before

storage.

• Read, understand, and follow all

instructions in the manual and on the

machine before starting.

• Only allow responsible adults, who are

familiar with the instructions, to operate

the machine.

• Clear the area of objects such as rocks,

toys, wire, etc., which could be picked

up and thrown by the blade.

• Be sure the area is clear of other people

before mowing. Stop machine if anyone

enters the area.

• Never carry passengers.

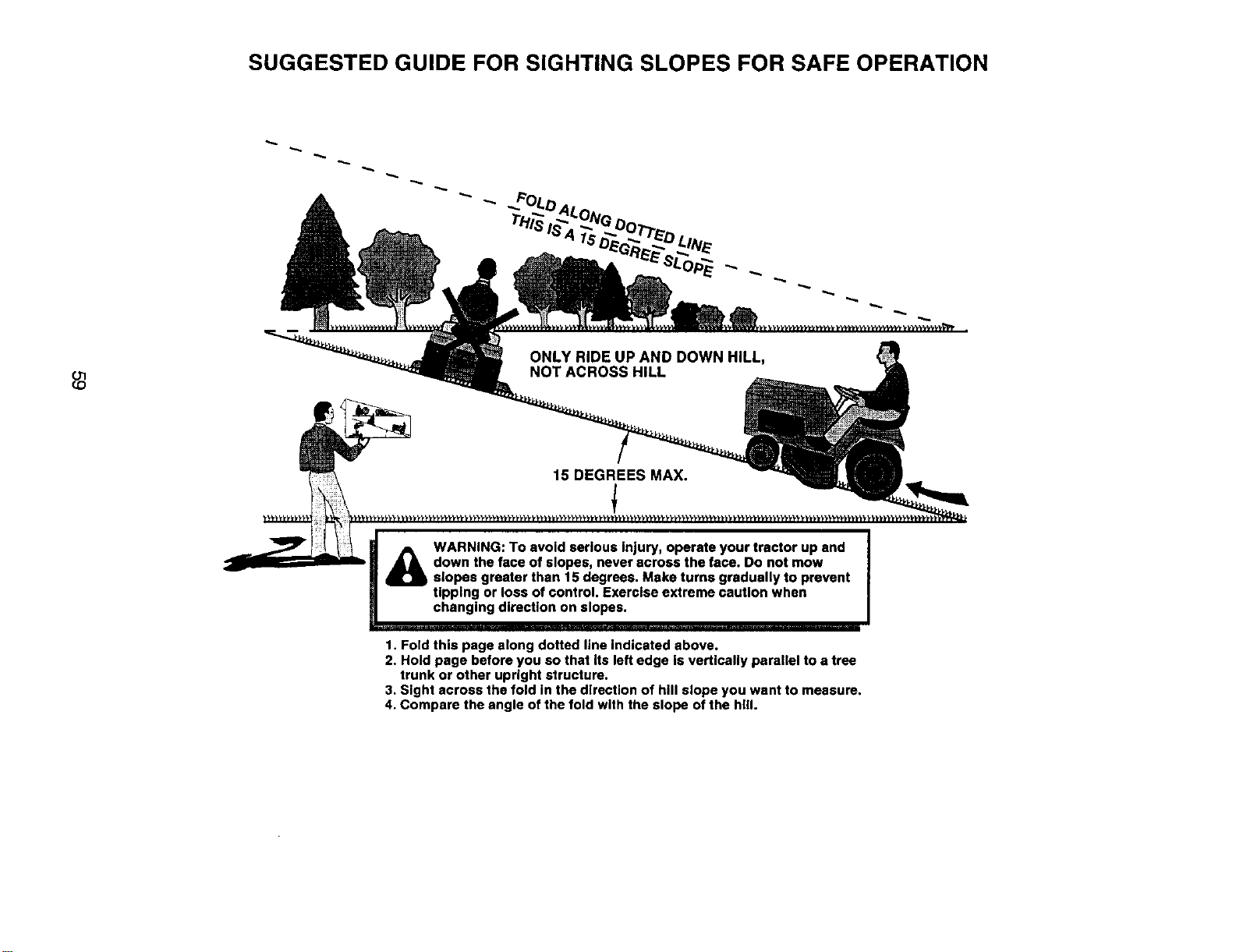

II. SLOPE OPERATION

Slopes are a major factor related to loss-of-

control and tipover accidents, which can re-

sult in severe injury or death. All slopes

require extra caution. If you cannot back up

the slope or if you feel uneasy on it, do not

mow it.

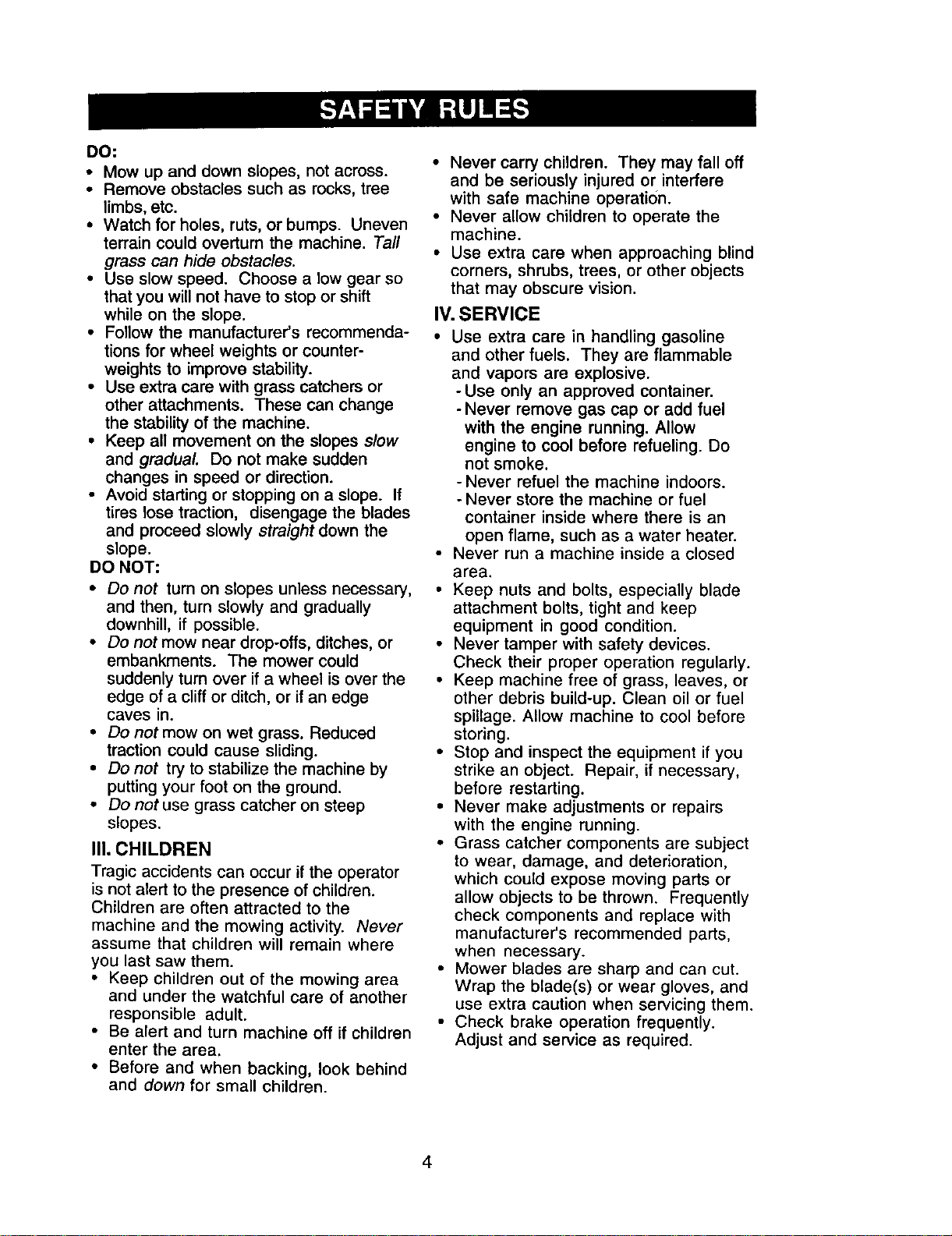

DO:

• Mow up and down slopes,not across.

• Remove obstacles such as rocks, tree

limbs, etc.

• Watch for holes, ruts, or bumps. Uneven

terrain could overturn the machine. Tall

grass can hide obstacles.

• Use slow speed. Choose a low gear so

that you will not have to stop or shift

while on the slope.

• Follow the manufacturer's recommenda-

tions for wheel weights or counter-

weights to improve stability.

• Use extra care with grass catchers or

other attachments. These can change

the stability of the machine.

• Keep all movement on the slopes slow

and gradual. Do not make sudden

changes in speed or direction.

• Avoid starting or stopping on a slope. If

tires lose traction, disengage the blades

and proceed slowly straight down the

slope.

DO NOT"

• Do not turn on slopes unless necessary,

and then, turn slowly and gradually

downhill, if possible.

• Do not mow near drop-offs, ditches, or

embankments. The mower could

suddenly turn over if a wheel is over the

edge of a cliff or ditch, or if an edge

caves in.

• Do not mow on wet grass. Reduced

traction could cause sliding.

• Do not try to stabilize the machine by

putting your foot on the ground.

• Do not use grass catcher on steep

slopes.

II1.CHILDREN

Tragic accidents can occur if the operator

is not alert to the presence of children.

Children are often attracted to the

machine and the mowing activity. Never

assume that children will remain where

you last saw them.

• Keep children out of the mowing area

and under the watchful care of another

responsible adult.

• Be alert and turn machine off if children

enter the area.

• Before and when backing, look behind

and down for small children.

• Never carry children. They may fall off

and be seriously injured or interfere

with safe machine operation.

• Never allow children to operate the

machine.

• Use extra care when approaching blind

corners, shrubs, trees, or other objects

that may obscure vision.

IV.SERVICE

• Use extra care in handling gasoline

and other fuels. They are flammable

and vapors are explosive.

-Use only an approved container.

- Never remove gas cap or add fuel

with the engine running. Allow

engine to cool before refueling. Do

not smoke.

-Never refuel the machine indoors.

- Never store the machine or fuel

container inside where there is an

open flame, such as a water heater.

• Never run a machine inside a closed

area.

• Keep nuts and bolts, especially blade

attachment bolts, tight and keep

equipment in good condition.

• Never tamper with safety devices.

Check their proper operation regularly.

• Keep machine free of grass, leaves, or

other debris build-up. Clean oil or fuel

spillage. Allow machine to cool before

storing.

• Stop and inspect the equipment if you

strike an object. Repair, if necessary,

before restarting.

• Never make adjustments or repairs

with the engine running.

• Grass catcher components are subject

to wear, damage, and deterioration,

which could expose moving parts or

allow objects to be thrown. Frequently

check components and replace with

manufacturer's recommended parts,

when necessary.

• Mower blades are sharp and can cut.

Wrap the blade(s) or wear gloves, and

use extra caution when servicing them.

• Check brake operation frequently.

Adjust and service as required.

• Be sure the area is clear of other

people before mowing. Stop machine if

anyone enters the area.

• Never carry passengers or children

even with the blades off.

• Do not mow in reverse unless abso-

lutely necessary. Always look down

and behind before and while backing.

• Never carry children. They may fall off

and be seriously injured or interfere

with safe machine operation.

• Keep children out of the mowing area

and under the watchful care of another

responsible adult.

• Be alert and turn machine off if children

enter the area.

• Before and when backing, look behind

and down for small children.

• Mow up and down slopes (15 ° Max),

not across.

• Remove obstacles such as rocks, tree

limbs, etc.

• Watch for holes, ruts, or bumps.

Uneven terrain could overturn the

machine. Tall grass can hide obstacles.

• Use slow speed. Choose a low gear so

that you will not have to stop or shift

while on the slope.

• Avoid starting or stopping on a slope. If

tires lose traction, disengage the

blades and proceed slowly straight

down the slope.

• If machine stops while going uphill,

disengage blades, shift into reverse

and back down slowly.

• Do not turn on slopes unless neces-

sary, and then, turn slowly and gradu-

ally downhill, if possible.

PRODUCT SPECIFICATIONS

Gasoline 3.5 Gallons

Capacity Unleaded

and Type: Regular

Oil Type SAE 30 (Above 32°F)

t_PI-SF-SJ): SAE 5W-30

(Below 32°F)

Oil Capacity: 4 Pints

Spark Plug: Champion RC12YC

[GAP: .030")

Ground Speed Forward: 5.5

(MPH): Reverse: 2.4

Tire Pressure: Front: 14 PSI

Rear: 10 PSI

Charging 3 Amps Battery

System: 5 Amps Headlights

Battery: Amp/Hr: 28

Min. CCA: 230

Case Size: U1R

Blade Bolt 27-35 Ft. Lbs.

Torque:

CONGRATULATIONS on your purchase

of a new tractor. It has been designed,

engineered and manufactured to give

you the best possible dependability and

performance.

Should you experience any problem you

cannot easily remedy, please contact a

Sears or other qualified service center.

We have competent, well-trained techni-

cians and the proper tools to service or

repair this tractor.

Please read and retain this manual. The

instructions will enable you to assemble

and maintain your tractor properly.

Always observe the "SAFETY RULES".

REPAIR AGREEMENT

A Repair Agreement is available on this

product. Contact your nearest Sears

store for details.

CUSTOMER RESPONSIBILITIES

• Read and observe the safety rules.

• Follow a regular schedule in maintain-

ing, caring for and using your tractor.

• Follow the instructions under "Mainte-

nance" and "Storage" sections of this

owner's manual.

,_WARNING: This tractor is equipped

with an internal combustion engine and

should not be used on or near any

unimproved forest-covered, brush-

covered or grass-covered land unless the

engine's exhaust system is equipped with

a spark arrester meeting applicable local

or state laws (if any). If a spark arrester is

used, it should be maintained in effective

working order by the operator.

In the state of California the above is

required by law (Section 4442 of the

California Public Resources Code).

Other states may have similar laws.

Federal laws apply on federal lands. A

spark arrester for the muffler is available

through your nearest Sears service

center (See REPAIR PARTS section of

this manual).

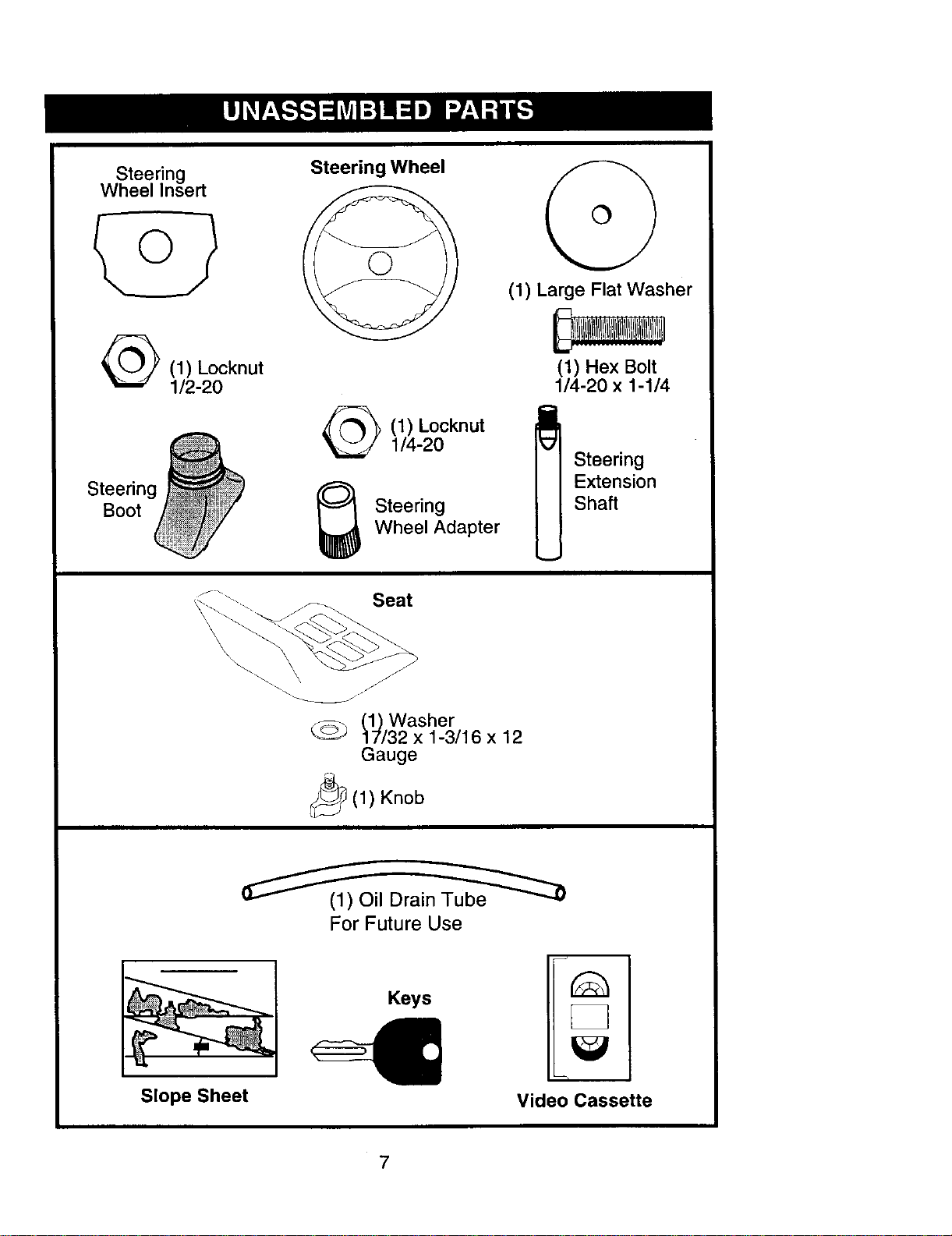

Steering

Wheel Insert

(1) Locknut

112-20

Steerin_

Boot

Steering Wheel

(1) Locknut

1/4-20

Steering

Wheel Adapter

(1) Large Flat Washer

(1) Hex Bolt

1/4-20 x 1-1/4

Steering

Extension

Shaft

(_Washer

_-J 17/32 x 1-3/16 x 12

Gauge

_(1) Knob

(__(1) Oil Drain_

For Future Use

Slope Sheet

Keys

Video Cassette

Your new tractor has been assembled at the factory with the exception of those parts

left unassembled for shipping purposes. To ensure safe and proper operation of your

tractor all parts and hardware you assemble must be tightened securely. Use the

correct tools as necessary to insure proper tightness. Review the video cassette before

you begin.

TOOLS REQUIRED FOR

ASSEMBLY

A socket wrench set will make assembly

easier. Standard wrench sizes you need

are listed below.

(1) 3/4"wrench (1) Pliers

(2) 7/16"wrench (1) Utilityknife

(1) Tire pressure gauge

When right or left hand is mentioned in

this manual, it means, from your point of

view, when you are in the operating

position (seated behind the steering

wheel).

TO REMOVE TRACTOR FROM

CARTON

UNPACK CARTON

1. Remove all accessible loose parts

and parts boxes from carton.

2. Cut, from top to bottom, along lines

on all four corners of carton, and lay

panels flat.

3. Check for any additional loose parts

or cartons and remove.

6. Assemble large flat washer, 1/2 hex

nut and tighten securely.

7. Snap steering wheel insert into center

of steering wheel.

8. Remove protective materials from

tractor hood and grill.

IMPORTANT: Check for and remove any

staples in skid that may puncture tires

where tractor is to roll off skid.

_ Insert

e_-_1/2 Hex Nut

(Z_---_Large Flat Washer

Steering--l__ g Boot

Wheel

BEFORE REMOVING TRACTOR

FROM SKID

ATTACH STEERING WHEEL

ASSEMBLE EXTENSION SHAFT AND

BOOT

1. Slide extension shaft onto lower

steering shaft. Align mounting holes

in extension and lower shafts and

install 1/4 hex bolt and Iocknut.

Tighten securely.

IMPORTANT: Tighten bolt and nut

securely to 10-12 ft. Ibs torque.

2. Place tabs of steering boot over tab

slots in dash and push down to

secure.

INSTALL STEERING WHEEL

3. Position front wheels of the tractor so

they are pointing straight forward.

4. Remove steering wheel adapter from

steering wheel and slide adapter onto

steering shaft extension.

5. Position steering wheel so cross bars

are horizontal (left to right) and slide

inside boot and onto adapter.

Shaft

Hex Bolt

Slots

CHECK BATTERY

1. Lift hood to raised position.

NOTE: If this battery is put into service

after month and year indicated on label

(label located between terminals) charge

battery for minimum of one hour at 6-10

amps. (See "BATTERY" in Maintenance

section of this manual for charging

instructions).

""_-"°.... L/abel

.""---_:;

",,,,,

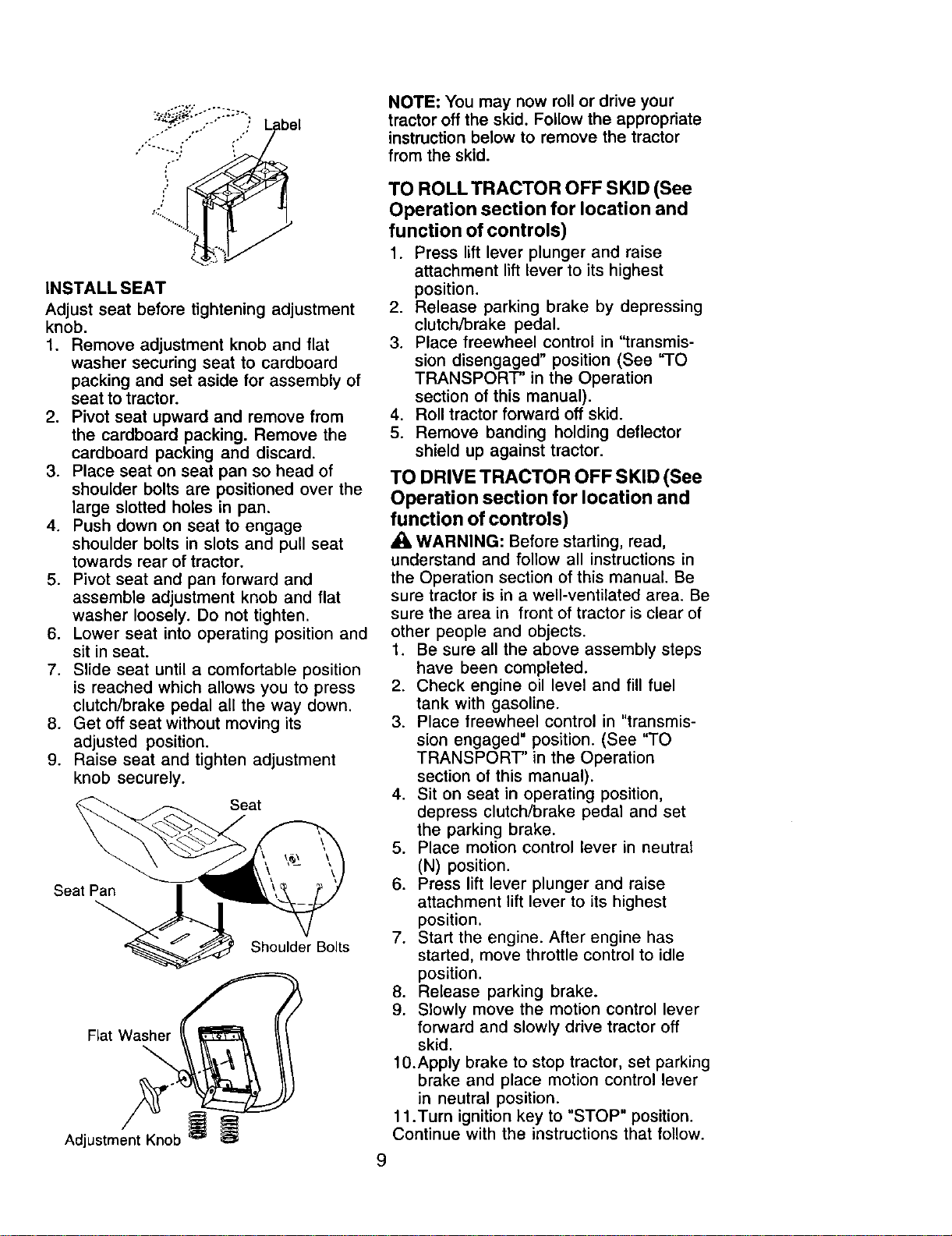

INSTALL SEAT

Adjust seat before tightening adjustment

knob.

1. Remove adjustment knob and flat

washer securing seat to cardboard

packing and set aside for assembly of

seat to tractor.

2. Pivot seat upward and remove from

the cardboard packing. Remove the

cardboard packing and discard.

3. Place seat on seat pan so head of

shoulder bolts are positioned over the

large slotted holes in pan.

4. Push down on seat to engage

shoulder bolts in slots and pull seat

towards rear of tractor.

5. Pivot seat and pan forward and

assemble adjustment knob and flat

washer loosely. Do not tighten.

6. Lower seat into operating position and

sit in seat.

7. Slide seat until a comfortable position

is reached which allows you to press

clutch/brake pedal all the way down.

8. Get off seat without moving its

adjusted position.

9. Raise seat and tighten adjustment

knob securely.

Seat

Seat Pan

Shoulder Bolts

Flat Washer _

Adjustment Knob _

NOTE: You may now roll or drive your

tractor off the skid. Follow the appropriate

instruction below to remove the tractor

from the skid.

TO ROLL TRACTOR OFF SKID (See

Operation section for location and

function of controls)

1. Press lift lever plunger and raise

attachment lift lever to its highest

position.

2. Release parking brake by depressing

clutch/brake pedal.

3. Place freewheel control in "transmis-

sion disengaged" position (See "TO

TRANSPORT" in the Operation

section of this manual).

4. Roll tractor forward off skid.

5. Remove banding holding deflector

shield up against tractor.

TO DRIVE TRACTOR OFF SKID (See

Operation section for location and

function of controls)

WARNING: Before starting, read,

understand and follow all instructions in

the Operation section of this manual. Be

sure tractor is in a well-ventilated area. Be

sure the area in front of tractor is clear of

other people and objects.

1. Be sure all the above assembly steps

have been completed.

2. Check engine oil level and fill fuel

tank with gasoline.

3. Place freewheel control in "transmis-

sion engaged" position. (See "TO

TRANSPORT' in the Operation

section of this manual).

4. Sit on seat in operating position,

depress clutch/brake pedal and set

the parking brake.

5. Place motion control lever in neutral

(N) position.

6. Press lift lever plunger and raise

attachment lift lever to its highest

position.

7. Start the engine. After engine has

started, move throttle control to idle

position.

8. Release parking brake.

9. Slowly move the motion control lever

forward and slowly drive tractor off

skid.

10.Apply brake to stop tractor, set parking

brake and place motion control lever

in neutral position.

11 .Turn ignition key to "STOP" position.

Continue with the instructions that follow.

INSTALL MULCHER PLATE

(If previously removed)

1. Raise and hold deflector shield in

upright position.

2. Place front of mulcher plate over front

of mower deck opening and slide into

place, as shown.

3. Hook front latch into hole on front of

mower deck.

4. Hook rear latch into hole on back of

mower deck.

JJ"_ Mulcher

Deflecto __Plate

Shield

__ Latch

Hooks

CAUTION: Do not remove deflector

shield from mower. Raise and hold shield

when attaching mulcher plate and allow it

to rest on plate while in operation.

TO CONVERT TO BAGGING OR

DISCHARGING

Simply remove mulcher plate and store in

a safe place. Your mower is now ready for

discharging or installation of optional

grass catcher accessory.

NOTE: It is not necessary to change

blades. The mulching blades are

designed for discharging and bagging

also.

CHECK TIRE PRESSURE

The tires on your tractor were overinflated

at the factory for shipping purposes.

Correct tire pressure is important for best

cutting performance.

• Reduce tire pressure to PSI shown in

"PRODUCT SPECIFICATIONS" section

of this manual.

CHECK DECK LEVELNESS

For best cutting results, mower housing

should be properly leveled. See 'qO

LEVEL MOWER HOUSING" in the

Service and Adjustments section of this

manual.

CHECK FOR PROPER POSITION OF

ALL BELTS

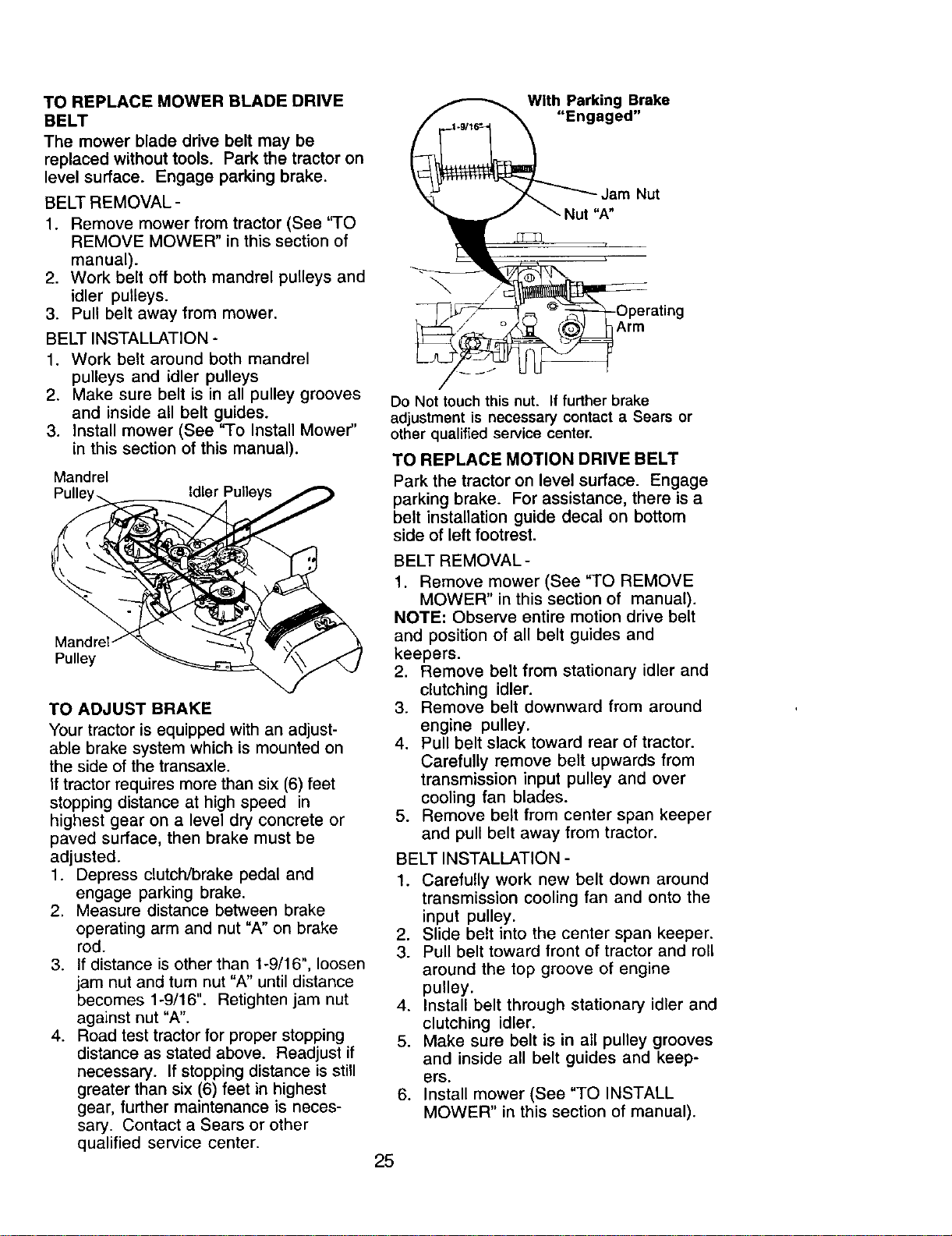

See the figures that are shown for

replacing motion and mower blade drive

belts in the Service and Adjustments

section of this manual. Verify that the

belts are routed correctly.

CHECK BRAKE SYSTEM

After you learn how to operate your

tractor, check to see that the brake is

properly adjusted. See 'q'O ADJUST

BRAKE" in the Service and Adjustments

section of this manual.

CHECKLIST

Before you operate your new tractor, we

wish to assure that you receive the best

performance and satisfaction from this

quality product.

Please review the following checklist:

,/ All assembly instructions have been

completed.

,/No remaining loose parts in carton.

,/Battery is properly prepared and

charged. (Minimum 1 hour at 6 amps).

/ Seat is adjusted comfortably and

tightened securely.

,/All tires are properly inflated. (For

shipping purposes, the tires were

overinflated at the factory).

,/Be sure mower deck is properly leveled

side-to-side/front-to-rear for best cutting

results. (Tires must be properly inflated

for leveling).

•/ Check mower and drive belts. Be sure

they are routed properly around pulleys

and inside all belt keepers.

,/" Check wiring. See that all connections

are still secure and wires are properly

clamped.

,/Before driving tractor, be sure free-

wheel control is in "transmission

engaged" position (see "TO TRANS-

PORT" in the Operation section of this

manual).

While learning how to use your tractor,

pay extra attention to the following

important items:

,/Engine oil is at proper level.

/ Fuel tank is filled with fresh, clean,

regular unleaded gasoline.

,/Become familiar with all controls - their

location and function. Operate them

before you start the engine.

•/ Be sure brake system is in safe

operating condition.

/ It is important to purge the transmission

before operating your tractor for the first

time. Follow proper starting and

transmission purging instructions (See

"TO START ENGINE" and "PURGE

TRANSMISSION" in the Operation

section of this manual).

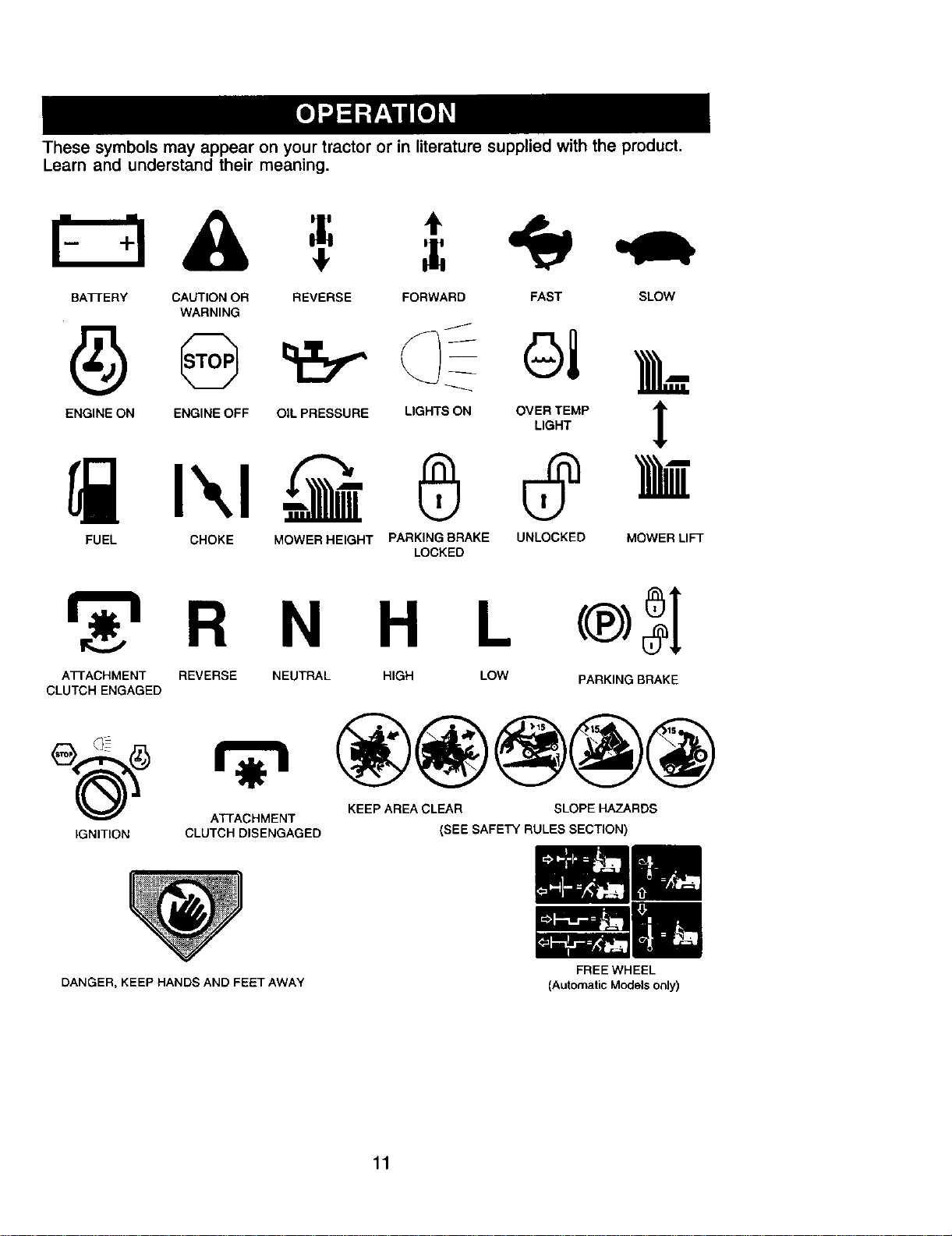

These symbols may appear on your tractor or in literature supplied with the product.

Learn and understand their meaning.

BA37"ERY CAUTION OR REVERSE FORWARD

WARNING

ENGINE ON ENGINE OFF OIL PRESSURE LIGHTS ON

FUEL CHOKE MOWER HEIGHT

PARKING BRAKE

LOCKED

FAST SLOW

Ol k

UNLOCKED MOWER LIFT

R N H L

A37-ACHMENT REVERSE NEUTRAL HIGH LOW PARKING BRAKE

CLUTCH ENGAGED

A37"ACHMENT KEEP AREA CLEAR SLOPE HAZARDS

IGNITION CLUTCH DISENGAGED (SEE SAFETY RULES SECTION)

DANGER, KEEP HANDS AND FEET AWAY

FREE WHEEL

(Automatic Models only)

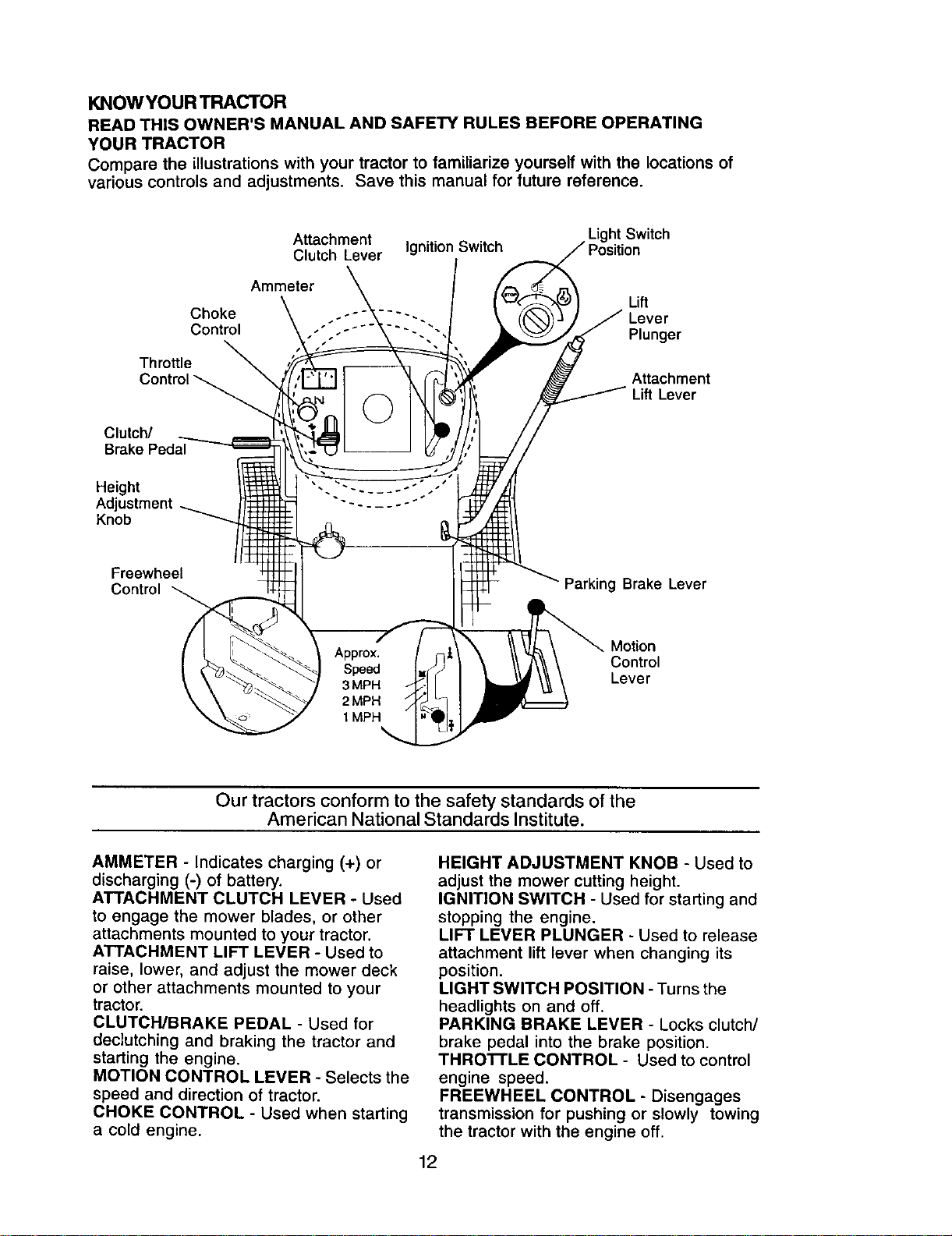

KNOWYOUR TRACTOR

READ THIS OWNER'S MANUAL AND SAFETY RULES BEFORE OPERATING

YOUR TRACTOR

Compare the illustrations with your tractor to familiarize yourself with the locations of

various controls and adjustments. Save this manual for future reference.

Choke

Control

Throttle

Control

Attachment Light Switch

Clutch Lever IgnitionSwitch Position

Ammeter

Lift

.-_" --"-- Lever

,_" Plunger

Attachment

Clutch/

Brake Pedal

Height

Adjustment

Knob

Freewheel

Control

g Brake Lever

Approx. Motion

Control

Speed

3MPH Lever

2MPH

1MPH

Our tractors conform to the safety standards of the

American National Standards Institute.

AMMETER - Indicates charging (+) or

discharging (-) of battery.

ATTACHMENT CLUTCH LEVER - Used

to engage the mower blades, or other

attachments mounted to your tractor.

ATTACHMENT LIFT LEVER - Used to

raise, lower, and adjust the mower deck

or other attachments mounted to your

tractor.

CLUTCH/BRAKE PEDAL - Used for

declutching and braking the tractor and

starting the engine.

MOTION CONTROL LEVER - Selects the

speed and direction of tractor.

CHOKE CONTROL - Used when starting

a cold engine.

HEIGHT ADJUSTMENT KNOB - Used to

adjust the mower cutting height.

IGNITION SWITCH - Used for starting and

stopping the engine.

LIFT LEVER PLUNGER - Used to release

attachment lift lever when changing its

position.

LIGHT SWITCH POSITION - Turns the

headlights on and off.

PARKING BRAKE LEVER - Locks clutch/

brake pedal into the brake position.

THROTTLE CONTROL - Used to control

engine speed.

FREEWHEEL CONTROL - Disengages

transmission for pushing or slowly towing

the tractor with the engine off.

The operation of any tractor can result in foreign objects thrown into the

eyes which can result in severe eye damage. Always wear safety

glasses or eye shields while operating your tractor or performing any

adjustments or repairs. We recommend standard safety glasses or a

wide vision safety mask worn over spectacles.

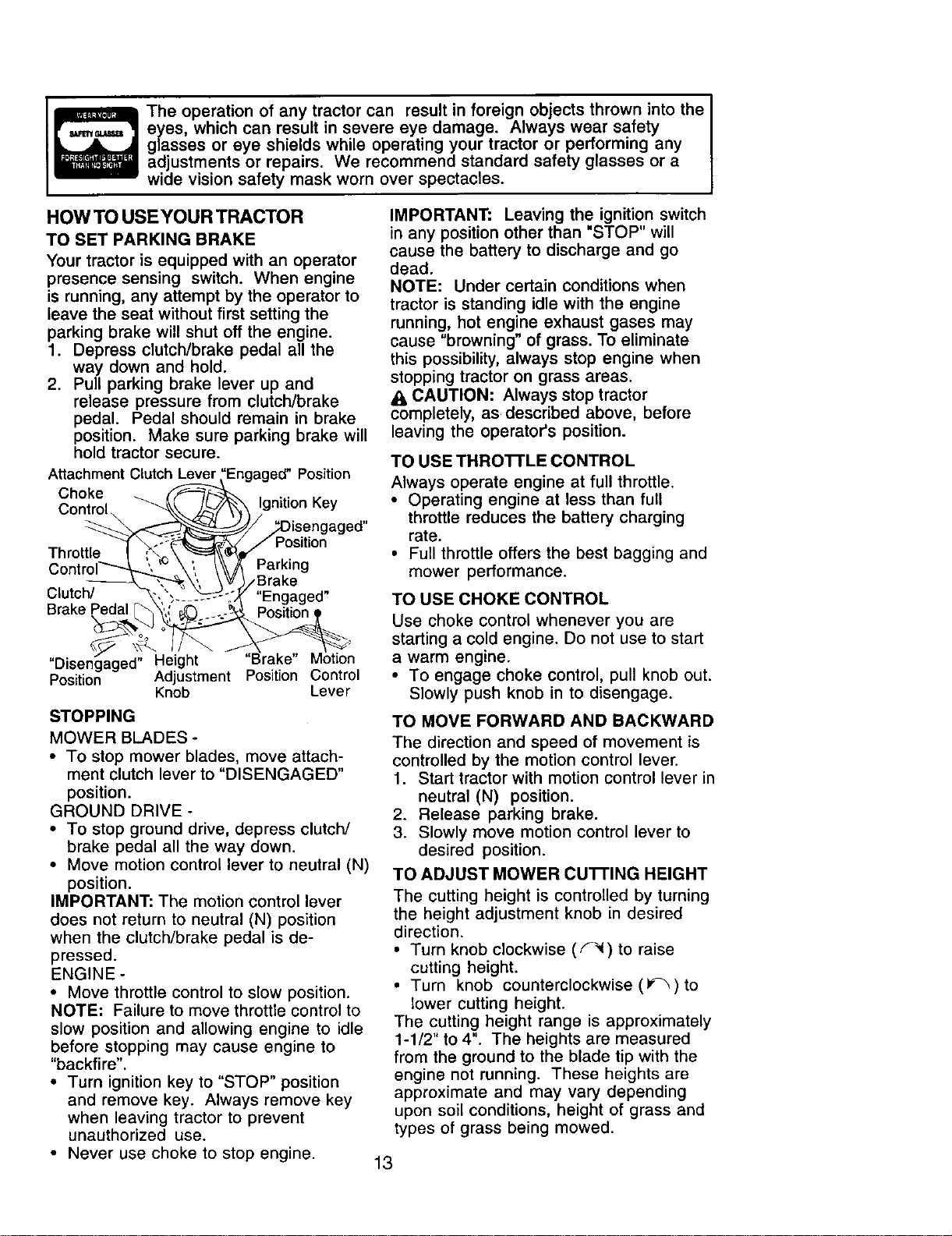

HOWTO USEYOUR TRACTOR

TO SET PARKING BRAKE

Your tractor is equipped with an operator

presence sensing switch. When engine

is running, any attempt by the operator to

leave the seat without first setting the

parking brake will shut off the engine.

1. Depress clutch/brake pedal all the

wa down and hold.

2. Pu_l lever

parking brake up and

release pressure from clutch/brake

pedal. Pedal should remain in brake

position. Make sure parking brake will

hold tractor secure.

Attachment Clutch Lever Position

Choke

Control_ Ignition Key

Throttle

Parking

,Brake

Clutch/ "Engaged"

Brake Pedal

"Disengaged" Height

Position Adjustment Position Control

Knob Lever

STOPPING

MOWER BLADES -

• TO stop mower blades, move attach-

ment clutch lever to "DISENGAGED"

position.

GROUND DRIVE -

• To stop ground drive, depress clutch/

brake pedal all the way down.

• Move motion control lever to neutral (N)

position.

IMPORTANT: The motion control lever

does not return to neutral (N) position

when the clutch/brake pedal is de-

pressed.

ENGINE -

• Move throttle control to slow position.

NOTE: Failure to move throttle control to

slow position and allowing engine to idle

before stopping may cause engine to

"backfire".

• Turn ignition key to "STOP" position

and remove key. Always remove key

when leaving tractor to prevent

unauthorized use.

• Never use choke to stop engine.

IMPORTANT: Leaving the ignition switch

in any position other than "STOP" will

cause the battery to discharge and go

dead.

NOTE: Under certain conditions when

tractor is standing idle with the engine

running, hot engine exhaust gases may

cause "browning" of grass. To eliminate

this possibility, always stop engine when

stopping tractor on grass areas.

CAUTION: Always stop tractor

completely, as described above, before

leaving the operator's position.

TO USE THROTTLE CONTROL

Always operate engine at full throttle.

• Operating engine at less than full

throttle reduces the battery charging

rate.

• Full throttle offers the best bagging and

mower performance.

TO USE CHOKE CONTROL

Use choke control whenever you are

starting a cold engine. Do not use to start

a warm engine.

• To engage choke control, pull knob out.

Slowly push knob in to disengage.

TO MOVE FORWARD AND BACKWARD

The direction and speed of movement is

controlled by the motion control lever.

1. Start tractor with motion control lever in

neutral (N) position.

2. Release parking brake.

3. Slowly move motion control lever to

desired position.

TO ADJUST MOWER cu'n'ING HEIGHT

The cutting height is controlled by turning

the height adjustment knob in desired

direction.

• Turn knob clockwise (_) to raise

cutting height.

• Turn knob counterclockwise (_) to

lower cutting height.

The cutting height range is approximately

1-1/2" to 4". The heights are measured

from the ground to the blade tip with the

engine not running. These heights are

approximate and may vary depending

upon soil conditions, height of grass and

types of grass being mowed.

• The average lawn should be cut to

approximately 2-1/2 inches during the

cool season and to over 3 inches

during hot months. For healthier and

better looking lawns, mow often and

after moderate growth.

• For best cutting performance, grass

over 6 inches in height should be

mowed twice. Make the first cut

relatively high; the second to desired

height.

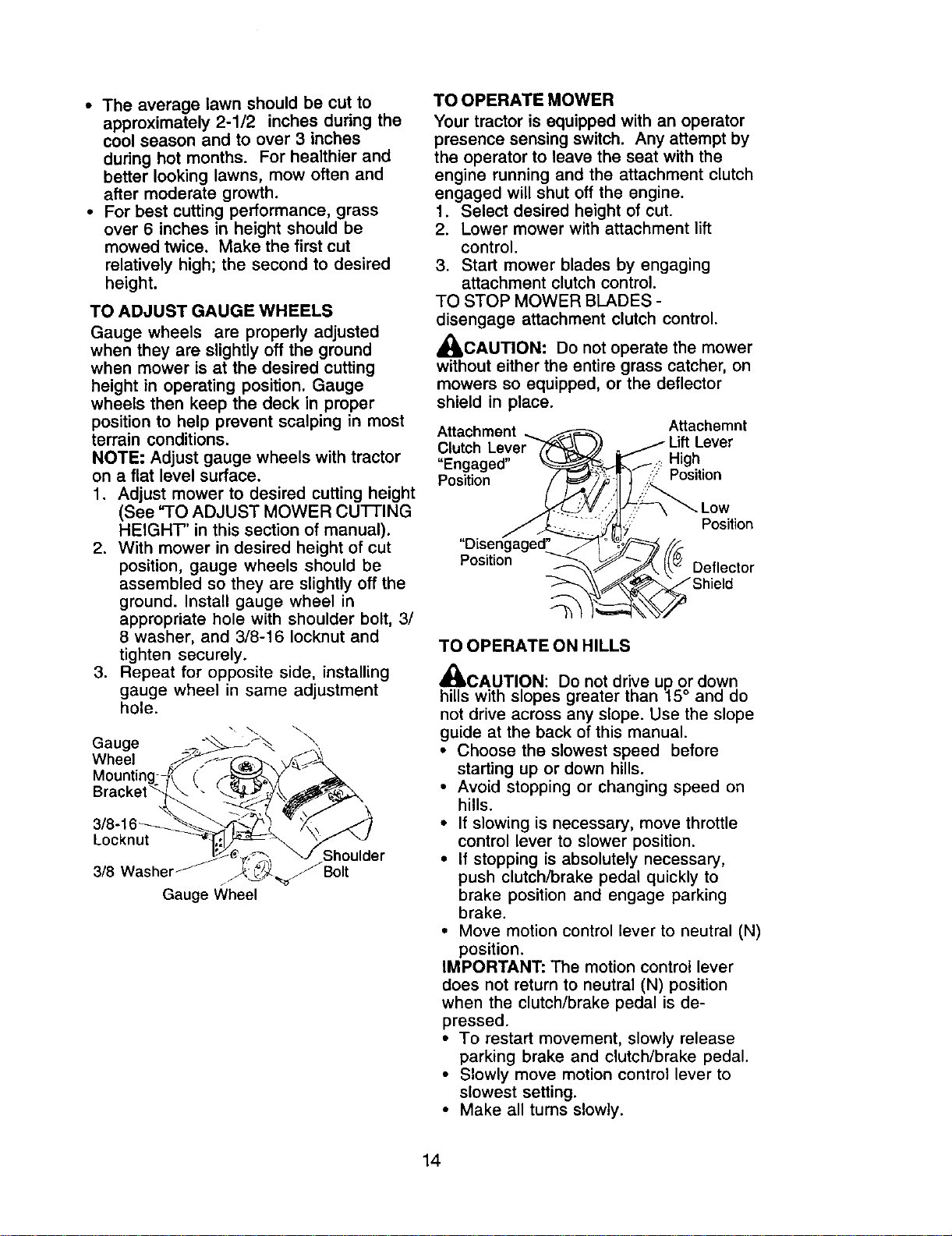

TO ADJUST GAUGE WHEELS

Gauge wheels are properly adjusted

when they are slightly off the ground

when mower is at the desired cutting

height in operating position. Gauge

wheels then keep the deck in proper

position to help prevent scalping in most

terrain conditions.

NOTE: Adjust gauge wheels with tractor

on a flat level surface.

1. Adjust mower to desired cutting height

(See =TO ADJUST MOWER CUI-IING

HEIGHT" in this section of manual).

2. With mower in desired height of cut

position, gauge wheels should be

assembled so they are slightly off the

ground. Install gauge wheel in

appropriate hole with shoulder bolt, 3/

8 washer, and 3/8-16 Iocknut and

tighten securely.

3. Repeat for opposite side, installing

gauge wheel in same adjustment

hole.

Gauge

Wheel

Locknut

3/8 Washer _

Gauge Wheel

Shoulder

_Bolt

TO OPERATE MOWER

Your tractor is equipped with an operator

presence sensing switch. Any attempt by

the operator to leave the seat with the

engine running and the attachment clutch

engaged will shut off the engine.

1. Select desired height of cut.

2. Lower mower with attachment lift

control.

3. Start mower blades by engaging

attachment clutch control.

TO STOP MOWER BLADES -

disengage attachment clutch control.

,_CAUTION: Do not operate the mower

without either the entire grass catcher, on

mowers so equipped, or the deflector

shield in place.

Attachment Attachemnt

Clutch Uft Lever

"Engaged" High

Position Position

Position

"Disengaged_.

Position Deflector

TO OPERATE ON HILLS

4_ICAUTION: Do not drive up or down

hills with slopes greater than 15 ° and do

not drive across any slope. Use the slope

guide at the back of this manual.

• Choose the slowest speed before

starting up or down hills.

• Avoid stopping or changing speed on

hills.

• If slowing is necessary, move throttle

control lever to slower position.

• If stopping is absolutely necessary,

push clutch/brake pedal quickly to

brake position and engage parking

brake.

• Move motion control lever to neutral (N)

position.

IMPORTANT: The motion control lever

does not return to neutral (N) position

when the clutch/brake pedal is de-

pressed.

• To restart movement, slowly release

parking brake and clutch/brake pedal.

• Slowly move motion control lever to

slowest setting.

• Make all turns slowly.

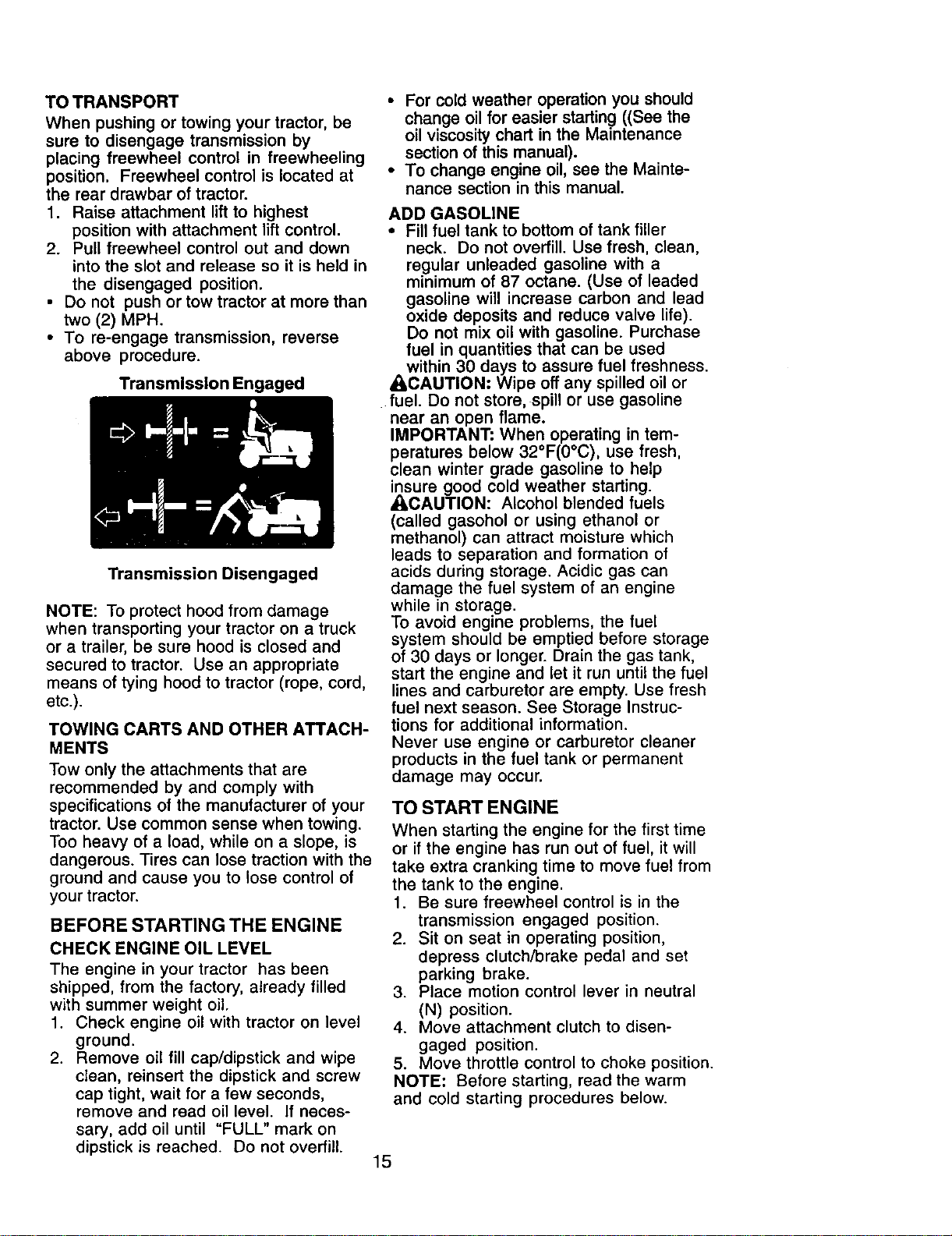

TO TRANSPORT

When pushing or towing your tractor, be

sure to disengage transmission by

placing freewheel control in freewheeling

position. Freewheel control is located at

the rear drawbar of tractor.

1. Raise attachment lift to highest

position with attachment lift control.

2. Pull freewheel control out and down

into the slot and release so it is held in

the disengaged position.

• Do not push or tow tractor at more than

two (2) MPH.

• To re-engage transmission, reverse

above procedure.

Transmission Engaged

Transmission Disengaged

NOTE: To protect hood from damage

when transporting your tractor on a truck

or a trailer, be sure hood is closed and

secured to tractor. Use an appropriate

means of tying hood to tractor (rope, cord,

etc.).

TOWING CARTS AND OTHER ATTACH-

MENTS

Tow only the attachments that are

recommended by and comply with

specifications of the manufacturer of your

tractor. Use common sense when towing.

Too heavy of a load, while on a slope, is

dangerous. Tires can lose traction with the

ground and cause you to lose control of

your tractor.

BEFORE STARTING THE ENGINE

CHECK ENGINE OIL LEVEL

The engine in your tractor has been

shipped, from the factory, already filled

with summer weight oil.

1. Check engine oil with tractor on level

ground.

2. Remove oil fill cap/dipstick and wipe

clean, reinsert the dipstick and screw

cap tight, wait for a few seconds,

remove and read oil level. If neces-

sary, add oil until "FULL" mark on

dipstick is reached. Do not overfill.

• For cold weather operation you should

change oil for easier starting ((See the

oil viscosity chart in the Maintenance

section of this manual).

• To change engine oil, see the Mainte-

nance section in this manual.

ADD GASOLINE

• Fill fuel tank to bottom of tank filler

neck. Do not overfill. Use fresh, clean,

regular unleaded gasoline with a

minimum of 87 octane. (Use of leaded

gasoline will increase carbon and lead

oxide deposits and reduce valve life).

Do not mix oil with gasoline. Purchase

fuel in quantities that can be used

within 30 days to assure fuel freshness.

_CAUTION: Wipe off any spilled oil or

fuel. Do not store, spill or use gasoline

near an open flame.

IMPORTANT: When operating in tem-

peratures below 32°F(0°C), use fresh,

clean winter grade gasoline to help

insure good cold weather starting.

_II,CAUTION: Alcohol blended fuels

(called gasohol or using ethanol or

methanol) can attract moisture which

leads to separation and formation of

acids during storage. Acidic gas can

damage the fuel system of an engine

while in storage.

To avoid engine problems, the fuel

system should be emptied before storage

of 30 days or longer. Drain the gas tank,

start the engine and let it run until the fuel

lines and carburetor are empty. Use fresh

fuel next season. See Storage Instruc-

tions for additional information.

Never use engine or carburetor cleaner

products in the fuel tank or permanent

damage may occur.

TO START ENGINE

When starting the engine for the first time

or if the engine has run out of fuel, it will

take extra cranking time to move fuel from

the tank to the engine.

1. Be sure freewheel control is in the

transmission engaged position.

2. Sit on seat in operating position,

depress clutch/brake pedal and set

parking brake.

3. Place motion control lever in neutral

(N) position.

4. Move attachment clutch to disen-

gaged position.

5. Move throttle control to choke position.

NOTE: Before starting, read the warm

and cold starting procedures below.

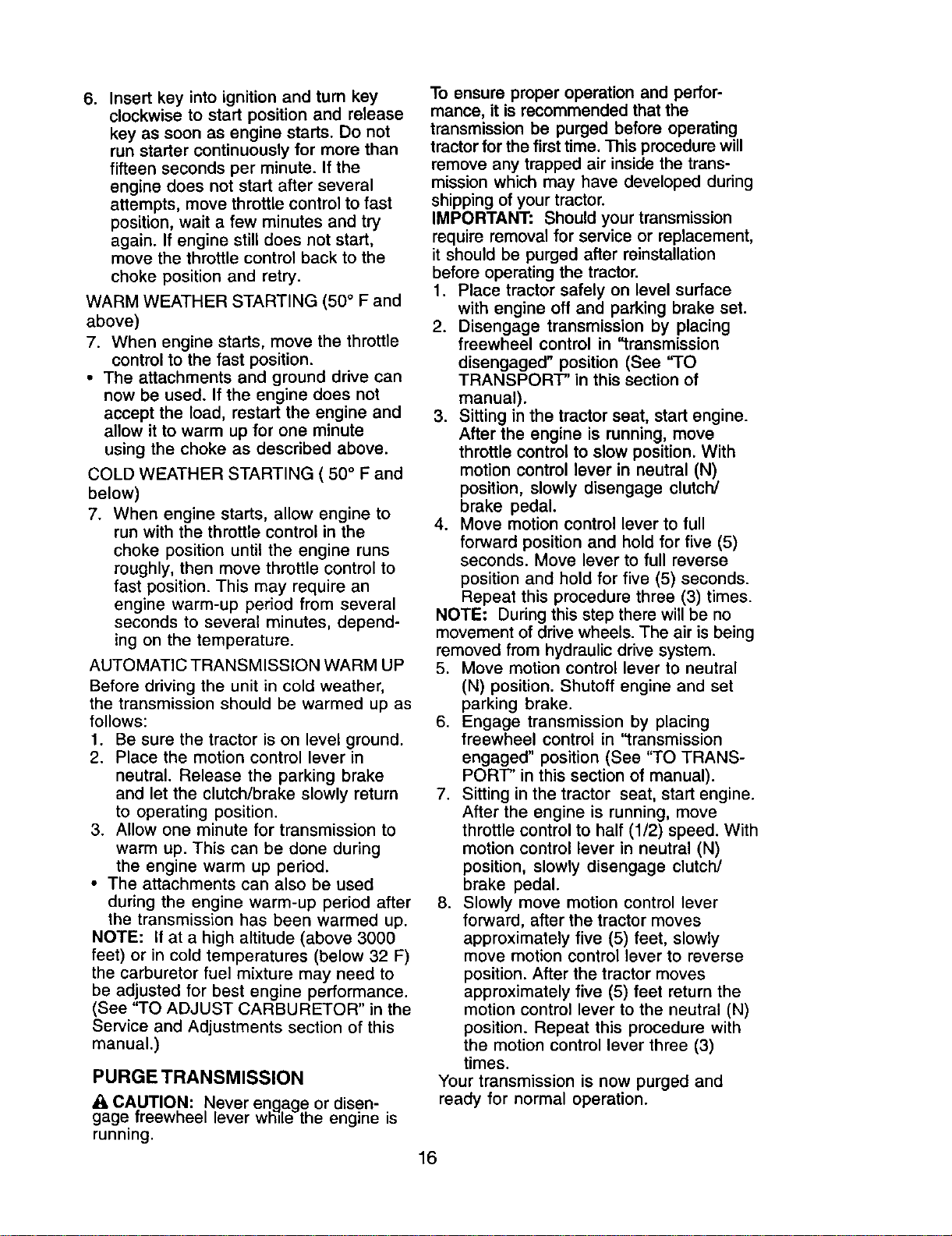

6. Insert key into ignition and turn key

clockwise to start position and release

key as soon as engine starts. Do not

run starter continuously for more than

fifteen seconds per minute. If the

engine does not start after several

attempts, move throttle control to fast

position, wait a few minutes and try

again. If engine still does not start,

move the throttle control back to the

choke position and retry.

WARM WEATHER STARTING (50 ° F and

above)

7. When engine starts, move the throttle

control to the fast position.

• The attachments and ground drive can

now be used. If the engine does not

accept the load, restart the engine and

allow it to warm up for one minute

using the choke as described above.

COLD WEATHER STARTING ( 50 ° F and

below)

7. When engine starts, allow engine to

run with the throttle control in the

choke position until the engine runs

roughly, then move throttle control to

fast position. This may require an

engine warm-up period from several

seconds to several minutes, depend-

ing on the temperature.

AUTOMATIC TRANSMISSION WARM UP

Before driving the unit in cold weather,

the transmission should be warmed up as

follows:

1. Be sure the tractor is on level ground.

2. Place the motion control lever in

neutral. Release the parking brake

and let the clutch/brake slowly return

to operating position.

3. Allow one minute for transmission to

warm up. This can be done during

the engine warm up period.

• The attachments can also be used

during the engine warm-up period after

the transmission has been warmed up.

NOTE: If at a high altitude (above 3000

feet) or in cold temperatures (below 32 F)

the carburetor fuel mixture may need to

be adjusted for best engine performance.

(See "TO ADJUST CARBURETOR" in the

Service and Adjustments section of this

manual.)

PURGE TRANSMISSION

CAUTION: N.ever engage or disen-

gage rreewneel lever While the engine is

running.

To ensure proper operation and perfor-

mance, it is recommended that the

transmission be purged before operating

tractor for the first time. This procedure will

remove any trapped air inside the trans-

mission which may have developed during

shipping of your tractor.

IMPORTANT: Should your transmission

require removal for service or replacement,

it should be purged after reinstallation

before operating the tractor.

1. Place tractor safely on level surface

with engine off and parking brake set.

2. Disengage transmission by placing

freewheel control in "transmission

disengaged" position (See "TO

TRANSPORT" in this section of

manual).

3. Sitting in the tractor seat, start engine.

After the engine is running, move

throttle control to slow position. With

motion control lever in neutral (N)

position, slowly disengage clutch/

brake pedal.

4. Move motion control lever to full

forward position and hold for five (5)

seconds. Move lever to full reverse

position and hold for five (5) seconds.

Repeat this procedure three (3) times.

NOTE: During this step there will be no

movement of drive wheels. The air is being

removed from hydraulic drive system.

5. Move motion control lever to neutral

(N) position. Shutoff engine and set

parking brake.

6. Engage transmission by placing

freewheel control in "transmission

engaged" position (See "TO TRANS-

PORT in this section of manual).

7. Sitting in the tractor seat, start engine.

After the engine is running, move

throttle control to half (1/2) speed. With

motion control lever in neutral (N)

position, slowly disengage clutch/

brake pedal.

8. Slowly move motion control lever

forward, after the tractor moves

approximately five (5) feet, slowly

move motion control lever to reverse

position. After the tractor moves

approximately five (5) feet return the

motion control lever to the neutral (N)

position. Repeat this procedure with

the motion control lever three (3)

times.

Your transmission is now purged and

ready for normal operation.

MOWING TIPS

• Mower should be properly leveled for

best mowing performance. See "TO

LEVEL MOWER HOUSING" in the

Service and Adjustments section of

this manual.

• The left hand side of mower should be

used for trimming.

• Drive so that clippings are discharged

onto the area that has already been

cut. Have the cut area to the right of

the tractor. This will result in a more

even distribution of clippings and more

uniform cutting.

• When mowing large areas, start by

turning to the right so that clippings will

discharge away from shrubs, fences,

driveways, etc. After one or two

rounds, mow in the opposite direction

making left hand turns until finished.

• If grass is extremely tall, it should be

mowed twice to reduce load and

possible fire hazard from dried clip-

pings. Make first cut relatively high; the

second to the desired height.

• Do not mow grass when it is wet. Wet

grass will plug mower and leave

undesirable clumps. Allow grass to dry

before mowing.

• Always operate engine at full throttle

when mowing to assure better mowing

performance and proper discharge of

material. Regulate ground speed by

selecting a low enough gear to give the

mower cutting performance as well as

the quality of cut desired.

• When operating attachments, select a

ground speed that will suit the terrain

and give best performance of the

attachment being used.

MULCHING MOWING TIPS

IMPORTANT: For best performance,

keep mower housing free of built-up

grass and trash. Clean after each use.

• The special mulching blade will recut

the grass clippings many times and

reduce them in size so that as they fall

onto the lawn they will disperse into the

grass and not be noticed. Also, the

mulched grass will biodegrade quickly

to provide nutrients for the lawn.

Always mulch with your highest engine

(blade) speed as this will provide the

best recutting action of the blades.

• Avoid cutting your lawn when it is wet.

Wet grass tends to form clumps and

interferes with the mulching action.

The best time to mow your lawn is the

early afternoon. At this time the grass

has dried and the newly cut area will

not be exposed to the direct sun.

• For best results, adjust the mower

cutting height so that the mower cuts off

only the top one-third of the grass

blades. For extremely heavy grass,

reduce your width of cut on each pass

and mow slowly.

Max 1/3

Certain types of grass and grass

conditions may require that an area be

mulched a second time to completely

hide the clippings. When doing a

second cut, mow across or perpendicu-

lar to the first cut path.

Change your cutting pattern from week

to week. Mow north to south one week

then change to east to west the next

week. This will help prevent matting

and graining of the lawn.

AS YOU COMPLETE I_"_"_SER-_ _ _"_--ViCE

REGULAR SERVICE DATES

Check Operator Presence and

T Interlock Systems V #

R Check for Loose Fasteners ik/ t_'s If

cA Sharpen/Replace Mower Blades _3

T Lubdcation Chart ll_

0 Check Battery Level

R Clean Battery and Terminals

Check Transaxls Cooling ill l

Check V-Belts I_

Check Engine Oit Level I_ V'

Change Engine Oil (with oil filter) V'1,2 Ik1#

E Change Engine Oil (without oil filter) J_.2 JJ_

N Clean Air F_lter _V':

G Clean Air Screen

Inspect Muffler/Spark An'ester I1_

E Replace Oil Filter (If equipped) _z

Clean Engine Cooling Fins _ 2

Replsce Spark Plug If V*

Replace Air Filter Paper Cartridge ll_2

Replace Fuel Filter

1 - Change more often when operating under a heavy load or

in high ambient temperatures.

2 - Service more often when operating in dirty or dusly conditions.

3 - Replace blades more often when mowing in sandy soil.

4 - Not required if equipped with maintenanc_froe battery.

5 - Tighten front axle p_vot bolt to 35 ft.4bs, maximum,

0o not overtighten

GENERAL RECOMMENDATIONS

The warranty on this tractor does not

cover items that have been subjected to

operator abuse or negligence. To receive

full value from the warranty, operator must

maintain tractor as instructed in this

manual.

Some adjustments will need to be made

periodically to properly maintain your

tractor.

All adjustments in the Service and

Adjustments section of this manual should

be checked at least once each season.

• Once a year you should replace the

spark plug, clean or replace air filter,

and check blades and belts for wear. A

new spark plug and clean air filter

assure proper air-fuel mixture and help

your engine run better and tast longer.

BEFORE EACH USE

1. Check engine oil level.

2. Check brake operation.

3. Check tire pressure.

4. Check operator presence and

interlock systems for proper opera-

tion.

5. Check for loose fasteners.

LUBRICATION CHART

Zerk ,"'-'_ Zerk

_Front Wheel )Front Wheel

Bearing ; Bearing Zerk

Zerk i _

(_ REFER TO Maintenance "ENGINE" SECTION

IMPORTANT: Do not oil or grease the

pivot points which have special nylon

bearings. Viscous lubricants will attract

dust and dirt that will shorten the life of

the self-lubricating bearings. If you feel

they must be lubricated, use only a dry,

powdered graphite type lubricant

sparingly.

TRACTOR

Always observe safety rules when

performing any maintenance.

BRAKE OPERATION

If tractor requires more than six (6) feet

stopping distance at high speed in

highest gear, then brake must be ad-

justed. (See "TO ADJUST BRAKE" in the

Service and Adjustments section of this

manual).

TIRES

• Maintain proper air pressure in all tires

(See "PRODUCT SPECIFICATIONS"

section of this manual).

• Keep tires free of gasoline, oil, or insect

control chemicals which can harm

rubber.

• Avoid stumps, stones, deep ruts, sharp

objects and other hazards that may

cause tire damage.

NOTE: To seal tire punctures and prevent

flat tires due to slow leaks, tire sealant

may be purchased from your local parts

dealer. Tire sealant also prevents tire dry

rot and corrosion.

OPERATOR PRESENCE SYSTEM

Be sure operator presence and interlock

systems are working properly. If your

tractor does not function as described,

repair the problem immediately.

• The engine should not start unless the

brake pedal is fully depressed and

attachement clutch control is in the

disengaged position.

• When the engine is running, any

attempt by the operator to leave the

seat without first setting the parking

brake should shut off the engine.

• When the engine is running and the

attachment clutch is engaged, any

attempt by the operator to leave the

seat should shut off the engine.

• The attachment clutch should never

operate unless the operator is in the

seat.

BLADE CARE

For best results mower blades must be

kept sharp. Replace bent or damaged

blades.

BLADE REMOVAL

1. Raise mower to highest position to

allow access to blades.

2. Remove hex bolt, lock washer and flat

washer securing blade.

3. Install new or resharpened blade with

trailing edge up towards deck as

shown.

IMPORTANT: To ensure proper assembly,

center hole in blade must align with star

on mandrel assembly.

4. Reassemble hex bolt, lock washer

and flat washer in exact order as

shown.

5. Tighten bolt securely (27-35 Ft. Lbs.

torque).

IMPORTANT: Blade bolt is grade 8 heat

treated.

Blade Center

Edge Up F

Mandrel

Flat Assembly

Loci

_-f---1-1exBolt (Grade)* _

*A Grade 8 heat treated boltcan be identified

by six lines on the bolthead.

TO SHARPEN BLADE

NOTE: We do not recommend sharpen-

ing blade - but if you do, be sure the

blade is balanced.

Care should be taken to keep the blade

balanced. An unbalanced blade will

cause excessive vibration and eventual

damage to mower and engine.

• The blade can be sharpened with a file

or on a grinding wheel. Do not attempt

to sharpen while on the mower.

• To check blade balance, you will need

a 5/8" diameter steel bolt, pin, or a cone

balancer. (When using a cone bal-

ancer, follow the instructions supplied

with balancer.)

NOTE: Do not use a nail for balancing

blade. The lobes of the center hole may

appear to be centered, but are not.

• Slide blade on to an unthreaded

portion of the steel bolt or pin and hold

the bolt or pin parallel with the ground.

If blade is balanced, it should remain in

a horizontal position. If either end of

the blade moves downward, sharpen

the heavy end until the blade is

balanced.

Center Hole

BATTERY

Your tractor has a battery charging system

which is sufficient for normal use. How-

ever, periodic charging of the battery with

an automotive charger will extend its life.

• Keep battery and terminals clean.

• Keep battery bolts tight.

• Keep small vent holes open.

• Recharge at 6-10 amperes for 1 hour.

NOTE: The original equipment battery on

your tractor is maintenance free. Do not

attempt to open or remove caps or covers.

Adding or checking level of electrolyte is

not necessary.

TO CLEAN BATTERY AND TERMINALS

Corrosion and dirt on the battery and

terminals can cause the battery to "leak"

power.

1. Remove terminal guard.

2. Disconnect BLACK battery cable first

then RED battery cable and remove

battery from tractor.

3. Rinse the battery with plain water and

dry.

4. Clean terminals and battery cable

ends with wire brush until bright.

5. Coat terminals with grease or petro-

leum jelly.

6. Reinstall battery (See "REPLACING

BA]-IERY" in the SERVICE AND

ADJUSTMENTS section of this

manual).

TRANSAXLE COOLING

The transmission fan and cooling fins

should be kept clean to assure proper

cooling.

Do not attempt to clean fan or transmis-

sion while engine is running or while the

transmission is hot. To prevent possible

damage to seals, do not use high

pressure water or steam to clean

transaxle.

• Inspect cooling fan to be sure fan

blades are intact and clean.

• Inspect cooling fins for dirt, grass

clippings and other materials. To

prevent damage to seals, do not use

compressed air or high pressure

sprayer to clean cooling fins.

TRANSAXLE PUMP FLUID

The transaxle was sealed at the factory

and fluid maintenance is not required for

the life of the transaxle. Should the

transaxle ever leak or require servicing,

contact a Sears or other qualified service

center.

V-BELTS

Check V-belts for deterioration and wear

after 100 hours of operation and replace

if necessary. The belts are not adjustable.

Replace belts if they begin to slip from

wear.

ENGINE

LUBRICATION

Only use high quality detergent oil rated

with API service classification SF-SJ.

Select the oil's SAE viscosity grade

according to your expected operating

temperature.

SAE VISCOSITY GRADES

c *30 *20 .10 0 10 20 30 40

TEMPERATURE RANGE ANTICIPATED BEFORE NEXT OIL CHANGE

NOTE: Although multi-viscosity oils

(5W30, 10W30 etc.) improve starting in

cold weather, these multi-viscosity oils

will result in increased oil consumption

when used above 32°F. Check your

engine oil level more frequently to avoid

possible engine damage from running

low on oil.

Change the oil after every 50 hours of

operation or at least once a year if the

tractor is not used for 50 hours in one

year.

Check the crankcase oil level before

starting the engine and after each eight

(8) hours of operation. Tighten oil fill cap/

dipstick securely each time you check the

oil level.

TO CHANGE ENGINE OIL

Determine temperature range expected

before oil change. All oil must meet API

service classification SF-SJ.

• Be sure tractor is on level surface.

• Oil will drain more freely when warm.

• Catch oil in a suitable container.

1. Remove oil fill cap/dipstick. Be careful

not to allow dirt to enter the engine

when changing oil.

2. Remove yellow cap from end of drain

valve and install the drain tube onto

the fitting.

Oil Drain Valve

Closed and

Locked l 1--1 \

Yellow _:=_.--*_ _;_

Cap--- "_,' _-;.-_

Drain Tube

3. Unlock drain valve by pushing inward

slightly and turning counterclockwise.

4. To open, pull out on the drain valve.

5. After oil has drained completely, close

and lock the drain valve by pushing

inward and turning clockwise until the

pin is in the locked position as shown.

6. Remove the drain tube and replace

the cap onto the end of the drain

valve.

7. Refill engine with oil through oil fill

dipstick tube. Pour slowly. Do not

overfill. For approximate capacity see

"PRODUCT SPECIFICATIONS"

section of this manual.

8. Use gauge on oil fill cap/dipstick for

checking level. For accurate reading,

tighten dipstick cap securely onto the

tube before removing dipstick. Keep

oil at "FULL" line on dipstick. Tighten

cap onto the tube securely when

finished.

ENGINE OIL FILTER

Replace the engine oil filter every season

or every other oil change if the tractor is

used more than 100 hours in one year.

AIR FILTER

Your engine will not run properly using a

dirty air filter. Clean the foam pre-cleaner

after every 25 hours of operation or every

season. Service paper cartridge every

100 hours of operation or every season,

whichever occurs first.

Service air cleaner more often under

dusty conditions.

1. Remove knobs and cover.

TO SERVICE PRE-CLEANER

2. Wash it in liquid detergent and water.

3. Squeeze it dry in a clean cloth.

4. Saturate it in engine oil. Wrap it in

clean, absorbent cloth and squeeze to

remove excess oil.

NOTE: If very dirty or damaged, replace

pre-cleaner.

TO SERVICE CARTRIDGE

1. Clean cartridge by tapping gently on

flat surface. If very dirty or damaged,

replace cartridge.

2. Reinstall precleaner cartridge, cover

and secure with knobs.

IMPORTANT: Petroleum solvents, such

as kerosene, are not to be used to clean

the cartridge. They may cause deteriora-

tion of the cartridge. Do not oil cartridge.

Do not use pressurized air to clean or dry

cartridge.

_Cadridge

Foam

Pre-Cleaner _

CLEAN AIR SCREEN

Air screen must be kept free of dirt and

chaff to prevent engine damage from

overheating. Clean with a wire brush or

compressed air to remove dirt and

stubborn dried gum fibers.

CLEAN AIR INTAKE/COOLING AREAS

To insure proper cooling, make sure the

grass screen, cooling fins, and other

external surfaces of the engine are kept

clean at all times.

Every 100 hours of operation (more often

under extremely dusty, dirty conditions),

remove the blower housing and other

cooling shrouds. Clean the cooling fins

and external surfaces as necessary. Make

sure the cooling shrouds are reinstalled.

NOTE: Operating the engine with a

blocked grass screen, dirty or plugged

cooling fins, and/or cooling shrouds

removed will cause engine damage due

to overheating.

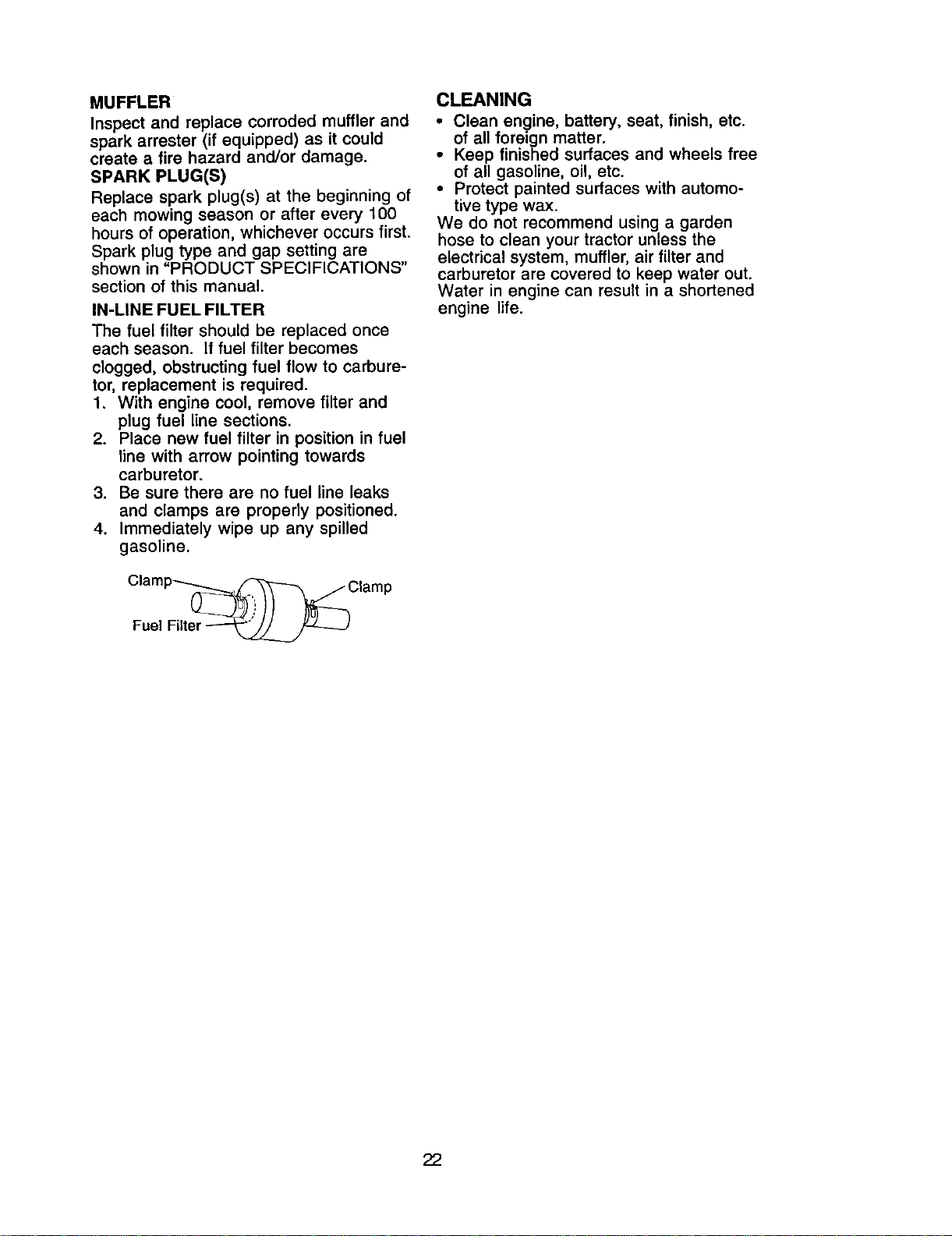

MUFFLER

Inspectand replace corroded muffler and

spark arrester (if equipped) as it could

create a fire hazard and/or damage.

SPARK PLUG(S)

Replace spark plug(s) at the beginning of

each mowing season or after every 100

hours of operation, whichever occurs first.

Spark plug type and gap setting are

shown in "PRODUCT SPECIFICATIONS"

section of this manual.

IN-LINE FUEL FILTER

The fuel filter should be replaced once

each season. If fuel filter becomes

clogged, obstructing fuel flow to carbure-

tor, replacement is required.

1. With engine cool, remove filter and

plug fuel line sections.

2. Place new fuel filter in position in fuel

line with arrow pointing towards

carburetor.

3. Be sure there are no fuel line leaks

and clamps are properly positioned.

4. Immediately wipe up any spilled

gasoline.

ClamP_clamp

Fuel Filter

CLEANING

• Clean engine, battery, seat, finish, etc.

of all foreign matter.

• Keep finished surfaces and wheels free

of all gasoline, oil, etc.

• Protect painted surfaces with automo-

tive type wax.

We do not recommend using a garden

hose to clean your tractor unless the

electrical system, muffler, air filter and

carburetor are covered to keep water out.

Water in engine can result in a shortened

engine life.

WARNING: TO AVOID SERIOUS INJURY, BEFORE PERFORMING ANY

SERVICE OR ADJUSTMENTS:

1. Depress clutch/brake pedal fully and set parking brake.

2. Place motion control lever in neutral (N) position.

3. Place attachment clutch in "DISENGAGED" position.

4. Turn ignition key "OFF" and remove key.

5. Make sure the blades and all moving parts have completely stopped.

6. Disconnect spark plug wire from spark plug and place wire where it cannot

come in contact with plug.

TRACTOR

TO REMOVE MOWER

Mower will be easier to remove from the

right side of tractor.

1. Place attachment clutch in "DISEN-

GAGED" position.

2. Move attachment lift lever forward to

lower mower to its lowest position.

3. Roll belt off engine pulley.

4. Remove small retainer spring, and lift

clutch spring off pulley bolt.

5. Remove large retainer spring, slide

collar off and push housing guide out

of bracket.

6. Disconnect anti-sway bar from chassis

bracket by removing retainer spring.

7. Disconnect suspension arms from

rear deck brackets by removing

retainer springs.

8. Disconnect front links from deck by

removing retainer springs.

9. Raise lift lever to raise suspension

arms. Slide mower out from under

tractor.

IMPORTANT: If an attachment other than

the mower deck is to be mounted on the

tractor, remove the front links and hook

the clutch spring Into square hole in

frame.

TO INSTALL MOWER

1. Raise attachment lift lever to its

highest position.

2. Slide mower under tractor with

deflector shield to right side of tractor.

3. Lower lift lever to its lowest position.

4. Connect front links to mower deck and

secure with retainer springs.

5. Connect suspension arms to rear

deck brackets and secure with

retainer springs.

6. Connect anti-sway bar to chassis

bracket and secure with retainer

spring.

7. Push clutch cable housing guide into

bracket, slide collar onto guide and

secure with large retainer spring.

8. Install belt onto engine pulley.

Small Retainer Spring

Clutch Spring _

Retainer Spring

Anti-Sway Bar

Collar

Housing

Guide

Large

Retainer

Spring

Bracket

Engine Pulley

Retainer Springs

(Both Sides)

Deflector

Shield

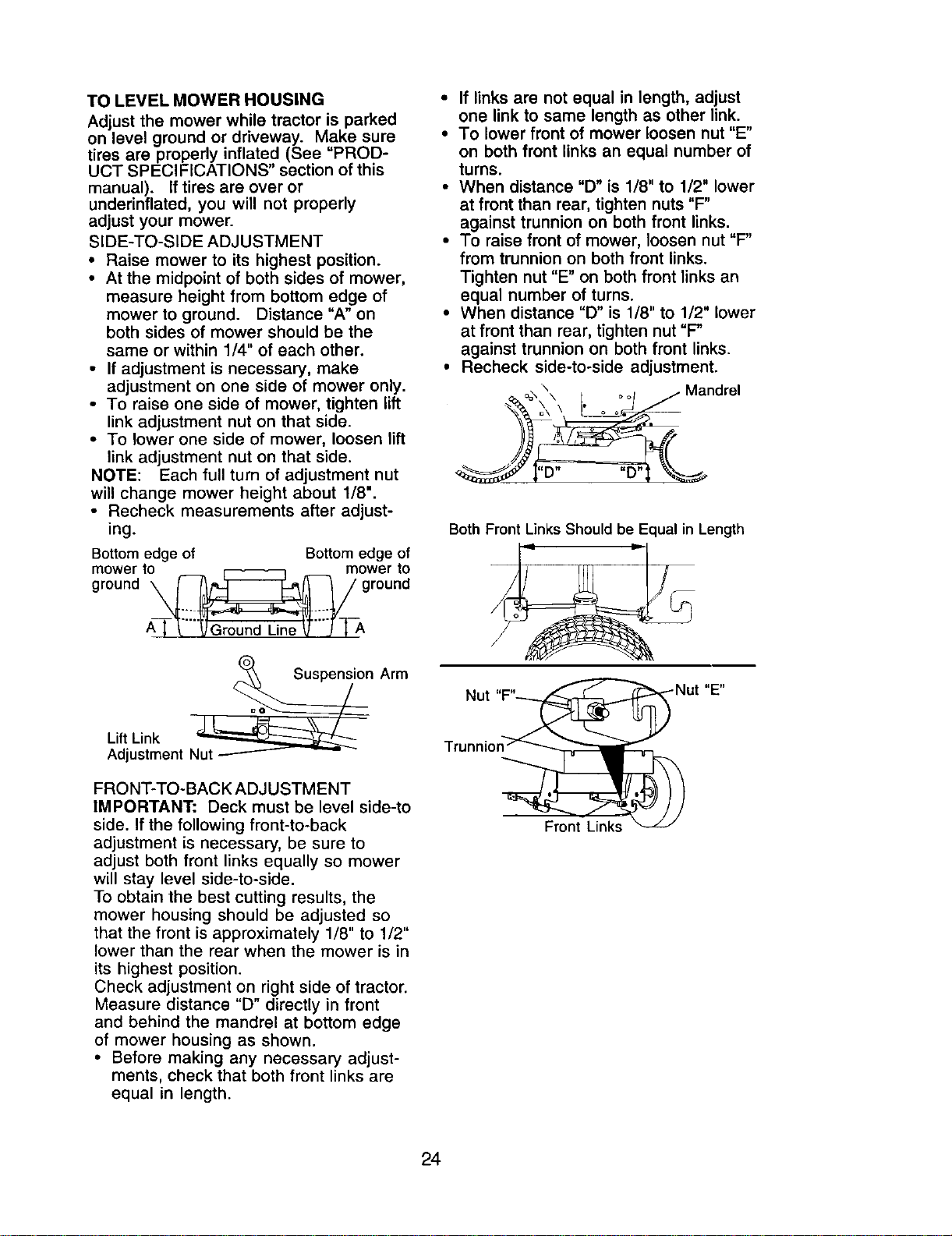

TO LEVEL MOWER HOUSING

Adjust the mower while tractor is parked

on level ground or driveway. Make sure

tires are properly inflated (See "PROD-

UCT SPECIFICATIONS" section of this

manual). If tires are over or

underinflated, you will not properly

adjust your mower.

SIDE-TO-SIDE ADJUSTMENT

• Raise mower to its highest position.

• At the midpoint of both sides of mower,

measure height from bottom edge of

mower to ground. Distance "A" on

both sides of mower should be the

same or within 1/4" of each other.

• If adjustment is necessary, make

adjustment on one side of mower only.

• To raise one side of mower, tighten lift

link adjustment nut on that side.

• To lower one side of mower, loosen lift

link adjustment nut on that side.

NOTE: Each full turn of adjustment nut

will change mower height about 1/8".

• Recheck measurements after adjust-

ing.

Bottom edge of Bottom edge of

mower to mower to

ground _ ground

on Arm

Lift Link Nut _ _

Adjustment

FRONT-TO-BACK ADJUSTMENT

IMPORTANT: Deck must be level side-to

side. If the following front-to-back

adjustment is necessary, be sure to

adjust both front links equally so mower

will stay level side-to-side.

To obtain the best cutting results, the

mower housing should be adjusted so

that the front is approximately 1/8" to 1/2"

lower than the rear when the mower is in

its highest position.

Check adjustment on right side of tractor.

Measure distance "D" directly in front

and behind the mandrel at bottom edge

of mower housing as shown.

• Before making any necessary adjust-

ments, check that both front links are

equal in length.

• If links are not equal in length, adjust

one link to same length as other link.

• To lower front of mower loosen nut "E"

on both front links an equal number of

turns.

• When distance "D" is 1/8" to 1/2" lower

at front than rear, tighten nuts "F"

against trunnion on both front links.

• To raise front of mower, loosen nut "F"

from trunnion on both front links.

Tighten nut "E" on both front links an

equal number of turns.

• When distance "D" is 1/8" to 1/2" lower

at front than rear, tighten nut "F"

against trunnion on both front links.

• Recheck side-to-side adjustment.

Both Front Links Should be Equal in Length

Nut "_

Trunnion_.__

Front Links

Nut

TO REPLACE MOWER BLADE DRIVE

BELT

The mower blade drive belt may be

replaced without tools. Park the tractor on

level surface. Engage parking brake.

BELT REMOVAL -

1. Remove mower from tractor (See "TO

REMOVE MOWER" in this section of

manual).

2. Work belt off both mandrel pulleys and

idler pulleys.

3. Pull belt away from mower.

BELT INSTALLATION -

1. Work belt around both mandrel

pulleys and idler pulleys

2. Make sure belt is in all pulley grooves

and inside all belt guides.

3. Install mower (See "To Install Mower"

in this section of this manual).

Mandrel

Pulley

TO ADJUST BRAKE

Your tractor is equipped with an adjust-

able brake system which is mounted on

the side of the transaxle.

If tractor requires more than six (6) feet

stopping distance at high speed in

highest gear on a level dry concrete or

paved surface, then brake must be

adjusted.

1. Depress clutch/brake pedal and

engage parking brake.

2. Measure distance between brake

operating arm and nut =A" on brake

rod.

3. If distance is other than 1-9/16", loosen

jam nut and turn nut "A" until distance

becomes 1-9/16". Retighten jam nut

against nut "A".

4. Road test tractor for proper stopping

distance as stated above. Readjust if

necessary. If stopping distance is still

greater than six (6) feet in highest

gear, further maintenance is neces-

sary. Contact a Sears or other

qualified service center.

With Parking Brake

"Engaged"

Jam Nut

Nut "A"

Arm

Do Not touch this nut. If further brake

adjustment is necessary contact a Sears or

other qualified service center.

TO REPLACE MOTION DRIVE BELT

Park the tractor on level surface. Engage

parking brake. For assistance, there is a

belt installation guide decal on bottom

side of left footrest.

BELT REMOVAL-

1. Remove mower (See "TO REMOVE

MOWER" in this section of manual).

NOTE: Observe entire motion drive belt

and position of all belt guides and

keepers.

2. Remove belt from stationary idler and

clutching idler.

3. Remove belt downward from around

engine pulley.

4. Pull belt slack toward rear of tractor.

Carefully remove belt upwards from

transmission input pulley and over

cooling fan blades.

5. Remove belt from center span keeper

and pull belt away from tractor.

BELT INSTALLATION -

1. Carefully work new belt down around

transmission cooling fan and onto the

input pulley.

2. Slide belt into the center span keeper.

3. Pull belt toward front of tractor and roll

around the top groove of engine

pulley.

4. Install belt through stationary idler and

clutching idler.

5. Make sure belt is in all pulley grooves

and inside all belt guides and keep-

ers.

6. Install mower (See "TO INSTALL

MOWER" in this section of manual).

Eng

Motion Control Lever

Neutral

Lock Gate

Clutching

Stationary Idler

Center S

Keeper

Transmission

Input Pulley

TRANSAXLE MOTION CONTROL

LEVER NEUTRAL ADJUSTMENT

The motion control lever has been preset

at the factory and adjustment should not

be necessary.

1. Loosen adjustment bolt in front of the

right rear wheel, and lightly tighten.

2. Start engine and move motion control

lever until tractor does not move

forward or backward.

3. Hold motion control lever in that

position and turn engine off.

4. While holding motion control lever in

place, loosen the adjustment bolt.

5. Move motion control lever to the

neutral (N) (lock gate) position.

6. Tighten adjustment bolt securely.

NOTE: If additional clearance is needed

to get to adjustment bolt, move mower

deck height to the lowest position.

After above adjustment is made, if the

tractor still creeps forward or backward

while motion control lever is in neutral

position, follow these steps:

1. Loosen the adjustment bolt.

2. Move the motion control lever 1/4 to

1/2 inch in the direction it is trying to

creep.

3. Tighten adjustment bolt securely.

4. Start engine and test.

5. If tractor still creeps, repeat above

steps until satisfied.

•" _ Adjustment Bolt

TRANSMISSION REMOVAL/REPLACE-

MENT

Should your transmission require

removal for service or replacement, it

should be purged after reinstallation and

before operating the tractor. See "PURGE

TRANSMISSION" in the Operation

section of this manual.

TO ADJUST STEERING WHEEL ALIGN-

MENT

If steering wheel crossbars are not

horizontal (left to right) when wheels are

positioned straight forward, remove

steering wheel and reassemble with

crossbars horizontal. "13ghtensecurely.

FRONT WHEEL TOE-IN/CAMBER

The front wheel toe-in and camber are

not adjustable on your tractor. If damage

has occurred to affect the front wheel toe-

in or camber, contact a Sears or other

qualified service center.

TO REMOVE WHEEL FOR REPAIRS

1. Block up axle securely.

2. Remove axle cover, retaining ring and

washers to allow wheel removal (rear

wheels have a square key - Do not

lose).

3. Repair tire and reassemble.

NOTE: On rear wheels only: align grooves

in rear wheel hub and axle. Insert square

key.

4. Replace washers and snap retaining

ring securely in axle groove.

5. Replace axle cover.

NOTE: To seal tire punctures and prevent

flat tires due to slow leaks, purchase and

use tire sealant from Sears. Tire sealant

also prevents tire dry rot and corrosion.

Washers

Retaining _ ,_k.'_

Axle

Square Key ------_-_°

(Rear Wheel Only)

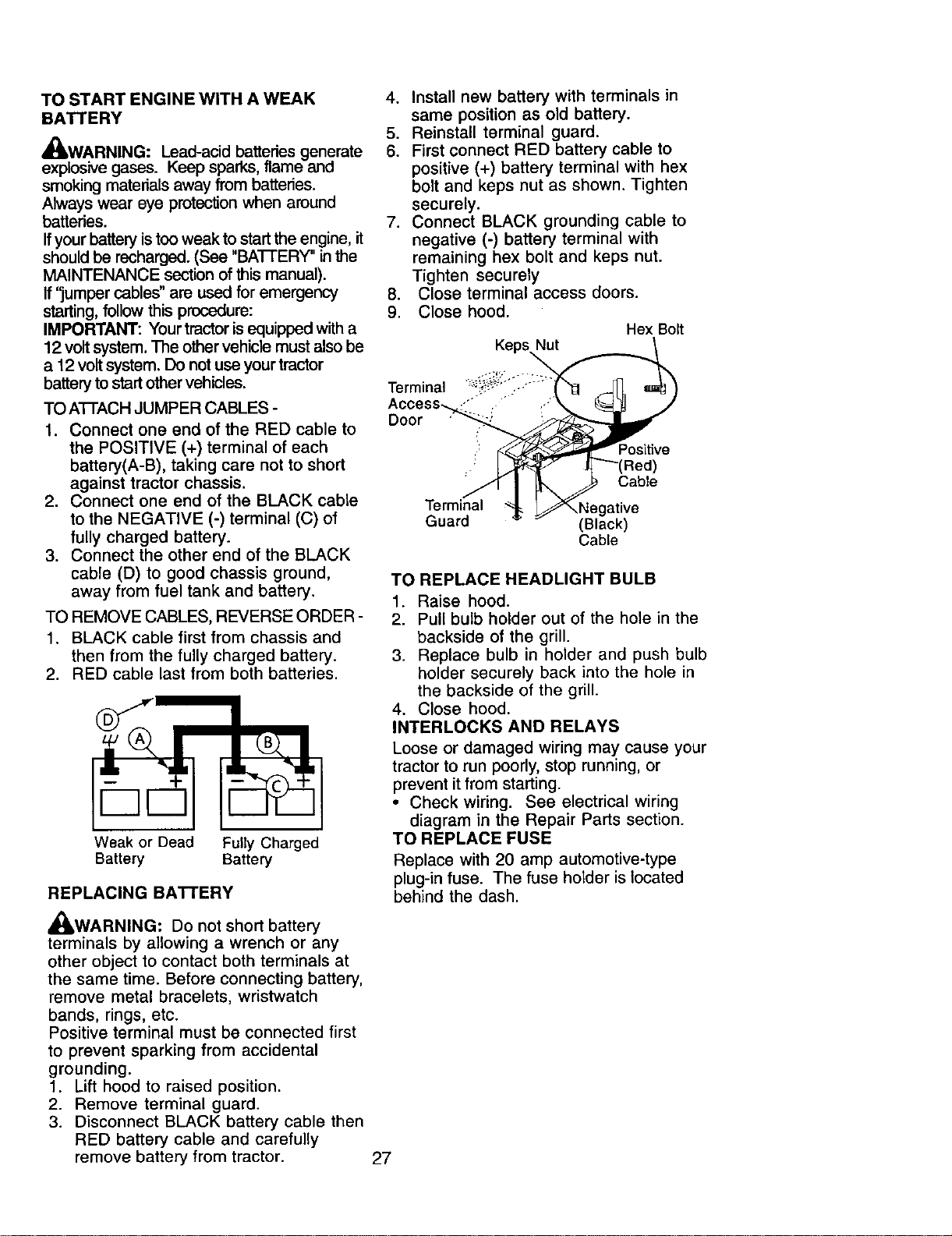

TO START ENGINE WITH A WEAK

BATTERY

_,WARNING: Lead-acid batteries generate

explosive gases. Keep sparks, flame and

smoking materials away from batteries.

Always wear eye protection when around

batteries.

Ifyour battery is too weak to start the engine, it

should be recharged. (See "BAI-I-ERY" in the

MAINTENANCE section of this manual).

If "jumper cables" are used for emergency

starting, follow this procedure:

IMPORTANT: Your tractor is equipped with a

12 volt system. The other vehicle must also be

a 12 volt system. Do not use your tractor

battery to start other vehicles.

TO A-I-FACH JUMPER CABLES -

1. Connect one end of the RED cable to

the POSITIVE (+) terminal of each

battery(A-B), taking care not to short

against tractor chassis.

2. Connect one end of the BLACK cable

to the NEGATIVE (-) terminal (C) of

fully charged battery.

3. Connect the other end of the BLACK

cable (D) to good chassis ground,

away from fuel tank and battery.

TO REMOVE CABLES, REVERSE ORDER -

1. BLACK cable first from chassis and

then from the fully charged battery.

2. RED cable last from both batteries.

Weak or Dead Fully Charged

Battery Battery

REPLACING BATTERY

_IbWARNING: Do not short battery

terminals by allowing a wrench or any

other object to contact both terminals at

the same time. Before connecting battery,

remove metal bracelets, wristwatch

bands, rings, etc.

Positive terminal must be connected first

to prevent sparking from accidental

grounding.

1. Lift hood to raised position.

2. Remove terminal guard.

3. Disconnect BLACK battery cable then

RED battery cable and carefully

remove battery from tractor.

4. Install new battery with terminals in

same position as old battery.

5. Reinstall terminal guard.

6. First connect RED battery cable to

positive (+) battery terminal with hex

bolt and keps nut as shown. Tighten

securely.

7. Connect BLACK grounding cable to

negative (-) battery terminal with

remaining hex bolt and keps nut.

Tighten securely

8. Close terminal access doors.

9. Close hood.

Hex Bolt

Keps Nut

Terminal

Door

Terminal

Guard

_ositive

Red)

Cable

(Black)

Cable

TO REPLACE HEADLIGHT BULB

1. Raise hood.

2. Pull bulb holder out of the hole in the

backside of the grill.

3. Replace bulb in holder and push bulb

holder securely back into the hole in

the backside of the grill.

4. Close hood.

INTERLOCKS AND RELAYS

Loose or damaged wiring may cause your

tractor to run poorly, stop running, or

prevent it from starting.

• Check wiring. See electrical wiring

diagram in the Repair Parts section.

TO REPLACE FUSE

Replace with 20 amp automotive-type

plug-in fuse. The fuse holder is located

behind the dash.

TO REMOVE HOOD AND GRILL AS-

SEMBLY

1. Raise hood.

2. Unsnap headlight wire connector.

3. Stand in front of tractor. Grasp hood at

sides, tilt toward engine and lift off of

tractor.

4. When replacing hood, be sure to

reconnect the headlight wire connec-

tor.

Headlight Wire

Connector

ENGINE

Maintenance, repair, or replacement of the

emission control devices and systems, which

are being done at the customers expense,

may be performed by any non-road engine

repair establishment or individual. Warranty

repairs must be performed by an authorized

engine manufacturer's service outlet.

TO ADJUST THRO'R'LE CONTROL

CABLE

The throttle control has been preset at the

factory and adjustment should not be

necessary. Check adjustment as de-

scribed below before loosening cable. If

adjustment is necessary, proceed as

follows:

1. With engine not running, move throttle

control lever to fast position.

2. Check that swivel is against stop. If it

is not, loosen cable clamp screw and

pull cable back until swivel is against

stop. Tighten cable clamp screw

securely.

TO ADJUST CHOKE CONTROL

The choke control has been preset at the

factory and adjustment should not be

necessary. Check adjustment as de-

scribed below before loosening cable. If

adjustment is necessary, proceed as

follows:

1. With engine not running, move choke

control (located on dash panel) to full

choke position.

2. Loosen knob and remove cover

assembly from air cleaner.

3. Choke should be closed. If it is not,

loosen casing clamp screw and move

choke cable until choke is completely

closed. Tighten casing clamp screw

securely.

4. Replace air cleaner cover assembly

and tighten knob.

TO ADJUST CARBURETOR

Your carburetor is not adjustable. If your

engine does not operate properly due to

suspected carburetor problems, take your

tractor to an authorized service center for

repair and/or adjustment.

High speed stop is factory adjusted. Do

not adjust - damage may result.

IMPORTANT: Never tamper with the

engine governor, which is factory set for

proper engine speed. Overspeeding the

engine above the factory high speed

setting can be dangerous. If you think the

engine-governed high speed needs

adjusting, contact a Sears or other qualified

service center,, which has proper equip-

ment and experience to make any

necessary adjustments.

Stop

Swivel Clamp

Screw

Immediately prepare your tractor for

storage at the end of the season or if the

tractor will not be used for 30 days or

more.

CAUTION: Never store the tractor

with gasoline in the tank inside a building

where fumes may reach an open flame or

spark. Allow the engine to cool before

storing in any enclosure.

TRACTOR

Remove mower from tractor for winter

storage. When mower is to be stored for

a period of time, clean it thoroughly,

remove all dirt, grease, leaves, etc. Store

in a clean, dry area.

1. Clean entire tractor (See "CLEANING"

in the Maintenance section of this

manual).

2. Inspect and replace belts, if necessary

(See belt replacement instructions in

the Service and Adjustments section

of this manual).

3. Lubricate as shown in the Mainte-

nance section of this manual.

4. Be sure that all nuts, bolts and screws

are securely fastened. Inspect moving

parts for damage, breakage and wear.

Replace if necessary.

5. Touch up all rusted or chipped paint

surfaces; sand lightly before painting.

BATTERY

• Fully charge the battery for storage.

• After a period of time in storage, battery

may require recharging.

• To help prevent corrosion and power

leakage during long periods of storage,

battery cables should be disconnected

and battery cleaned thoroughly (see

"TO CLEAN BATTERY AND TERMI-

NALS" in the Maintenance section of

this manual).

• After cleaning, leave cables discon-

nected and place cables where they

cannot come in contact with battery

terminals.

• If battery is removed from tractor for

storage, do not store battery directly on

concrete or damp surfaces.

ENGINE

FUEL SYSTEM

IMPORTANT: It is important to prevent

gum deposits from forming in essential

fuel system parts such as carburetor, fuel

hose, or tank during storage.

Also, alcohol blended fuels (called

gasohol or using ethanol or methanol)

can attract moisture which leads to

separation and formation of acids during

storage. Acidic gas can damage the fuel

system of an engine while in storage.

1. Drain the fuel tank.

2. Start the engine and let it run until the

fuel lines and carburetor are empty.

• Never use engine or carburetor cleaner

products in the fuel tank or permanent

damage may occur.

• Use fresh fuel next season.

NOTE: Fuel stabilizer is an acceptable

alternative in minimizing the formation of

fuel gum deposits during storage. Add

stabilizer to gasoline in fuel tank or

storage container. Always follow the mix

ratio found on stabilizer container. Run

engine at least 10 minutes after adding

stabilizer to allow the stabilizer to reach

the carburetor. Do not drain the gas tank

and carburetor if using fuel stabilizer.

ENGINEOIL

Drain oil (with engine warm) and replace

with clean engine oil. (See "ENGINE" in

the Maintenance section of this manual).

CYLINDER(S)

1, Remove spark plug(s).

2. Pour one ounce of oil through spark

plug hole(s) into cylinder(s).

3. Turn ignition key to start position for a

few seconds to distribute oil.

4. Replace with new spark plug(s).

OTHER

• Do not store gasoline from one season

to another.

• Replace your gasoline can if your can

starts to rust. Rust and/or dirt in your

gasoline will cause problems.

• If possible, store your tractor indoors

and cover it to give protection from dust

and dirt.

• Cover your tractor with a suitable

protective cover that does not retain

moisture. Do not use plastic. Plastic

cannot breathe which allows conden-

sation to form and will cause your

tractor to rust.

IMPORTANT: Never cover tractor while

engine and exhaust areas are still warm.

TROUBLESHOOTING CHART:

See appropriate section in manual unless directed to Sears service center

PROBLEM

Will not start

Hard to start

Enginewill not

turn over

Engine clicks but

will not start

CAUSE

1. Out of fuel.

2. Engine not "CHOKED"

properly.

3. Engine flooded.

Loss of power

Bad spark plug. 4.

Dirty air filter. 5.

Dirty fuel filter. 6.

Water in fuel. 7.

8. Loose or damaged wiring.

9. Carburetor out of adjustment.

10.Engine valves out of

adjustment.

• Dirty air filter.

2. Bad spark plug.

3. Weak or dead battery.

4. Dirty fuel filter.

5. Stale or dirty fuel.

6. Loose or damaged wiring. 6.

7. Carburetor out of adjustment. 7.

Engine valves out of

adjustment.

1. Brake pedal not depressed.

2. Attachment clutch is engaged.

3. Weak or dead battery•

4. Blown fuse.

5. Corroded battery terminals.

6. Loose or damaged wiring.

7. Faulty ignition switch.

8. Faulty solenoid or starter.

Faulty operator presence

switch(es).

1. Weak or dead battery.

2. Corroded battery terminals.

3. Loose or damaged wiring.

4. Faulty solenoid or starter.

1. Cutting too much grass/too

fast.

2. Throttle in "CHOKE"

position.

CORRECTION

1. Fill fuel tank.

2. See "TO START ENGINE"

in Operation section.

Wait several minutes before

attempting to start.

Replace spark plug.

Clean/replace air filter.

Replace fuel filter.

Drain fuel tank and carbure-

tor, refill tank with fresh

gasoline and replace fuel

filter.

8. Check all wiring.

9. See "To Adjust Carburetor"

in Service and Adjustments

section.

10.Contact a Sears or other

qualified service center.

1. Clean/replace air filter.

2. Replace spark plug.

3. Recharge or replace battery.

4. Replace fuel filter.

5. Drain fuel tank and refill with

fresh gasoline.

Check all wiring.

See "To Adjust Carburetor" in

Service and Adjustments

section.

8. Contact a Sears or other

qualified service center.

1. Depress brake pedal.

2. Disengage attachment clutch.

3. Recharge or replace battery.

4. Replace fuse.

5. Clean battery terminals.

6. Check all wiring.

7. Check/replace ignition

switch.

8. Check/replace solenoid or

starter.

9. Contact a Sears or other

qualified service center.

1. Recharge or replace battery.

2. Clean battery terminals.

3. Check all wiring.

4. Check/replace solenoid or

starter.

1. Set in "Higher Cut" position/

reduce speed.

2. Adjust throttle control.

TROUBLESHOOTING CHART:

See appropriate section in manual unless directed to Sears service center

PROBLEM

Loss of power

(continued)

Excessive

vibration

Engine continues

to run when

operator leaves

seat with

attachment

clutch engaged

Poor cut - uneven

Mower blades will

not rotate

CAUSE CORRECTION

3. Build-up of grass, leaves

and trash under mower.

4. Dirty air filter.

5. Low oil level/dirty oil.

6. Faulty spark plug.

7. Dirty fuel filter.

8. Stale or dirty fuel.

9. Water in fuel.

10.Spark plug wire loose.

11 .Dirty engine air screen/fins.

12. Dirty/clogged muffler.

13.Loose or damaged wiring.

14. Carburetor out of

adjustment.

15. Engine valves out of

adjustment.

1. Worn, bent or loose blade.

2. Bent blade mandrel.

3. Loose/damaged part(s).

1. Faulty operator-safety

presence control system.

1. Worn, bent or loose blade.

2. Mower deck not level.

3. Buildup of grass, leaves,

and trash under mower.

4. Bent blade mandrel.

Clogged mower deck vent

from build-up of grass,

leaves, and trash around

mandrels.

1. Obstruction in clutch

mechanism.

3. Clean underside of mower

housing.

4. Clean/replace air filter.

5. Check oil level/change oil.

6. Clean and regap or change

spark plug.

7. Replace fuel filter.

8. Drain fuel tank and refill

with fresh gasoline.

9. Drain fuel tank and

carburetor, refill tank with

fresh gasoline and replace

fuel filter.

10.Connect and tighten spark

plug wire.

11 .Clean engine air screen/

fins.

12.Clean/replace muffler.

13.Check all wiring.

14. See "To Adjust Carburetor"

in Service and Adjustments

section.

15.Contact a Sears or other

qualified service center.

1. Replace blade.

Tighten blade bolt.

2. Contact a Sears or other

qualified service center.

3. Tighten loose part(s).

Replace damaged parts.

Check wiring, switches and

connections. If not corrected

contact a Sears or other

qualified service center.

1. Replace blade. Tighten

blade bolt.

2. Level mower deck.

3. Clean underside of mower

housing.

4. Contact a Sears or other

qualified service center.

5. Clean around mandrels to

open vent holes.

1. Remove obstruction.

TROUBLESHOOTING CHART:

;ection in manual unless directed to Sears service center

See appropriate

_ROBLEM

_lower blades will

lot rotate (con't)

Poor grass

_ischarge

CAUSE

2. Worn/damaged mower

drive belt.

3. Frozen idler pulley.

4. Frozen blade mandrel•

10.Improper blades used.

-leadlight(s) not 1.

working 2.

',ifso equipped) 3.

Battery will not 1.

¢harge 2.

Loss of drive 1.

--ngine"backfires" 1.

_hen turning

.=ngine l

'OFF"

CORRECTION

2. Replace mower drive belt.

3. Replace idler pulley.

4. Contact aSears or other

qualified service center.

Engine speed too slow• 1.

Travel speed too fast. 2.

Wet grass• 3.

Mower deck not level. 4.

Low/uneven tire air pressure 5.

Worn, bent or loose blade. 6.

Buildup of grass, leaves and 7.

trash under mower.

Mower drive belt worn• 8.

Blades improperly installed• 9.

•Clogged mower deck vent

holes from buildup of

grass, leaves, and trash

around mandrels.

Switch is "OFF'. 1.

Bulb(s) or lamp(s) burned out. 2.

Faulty light switch. 3.

Loose or damaged wiring. 4.

Blown fuse. 5.

Bad battery cell(s). 1.

Poor cable connections. 2.

Faulty regulator 13.

(if so equipped).

Faulty alternator. 4.

Freewheel control in 1.

"disengaged" position.

Motion drive belt worn, 2.

damaged, or broken.

Air trapped in transmission 3.

during shipment or

servicing.

Engine throttle control not

set at "SLOW"

position for 30 seconds

before stopping engine.

Place throttle control in

"FAST" position.

Shift to slower speed.

Allow grass to dry before

mowing.

Level mower deck.

Check tires for proper air

pressure.

Replace/sharpen blade.

Tighten blade bolt.

Clean underside of mower

housing.

Replace mower drive belt.

Reinstall blades sharp edge

down.

10. Replace with blades listed

in this manual.

11.Clean around mandrels to

open vent holes.

Turn switch "ON".

Replace bulb(s) or lamp(s).

Check]replace light switch.

Check wiring and connec-

tions.

Replace fuse.

Replace battery.

Check]clean all connec-

tions.

Replace regulator.

Replace alternator.

Place freewheel control in

"engaged" position.

Replace motion drive belt.

Purge transmission.

Move throttle control to

"SLOW" position and allow

to idle for 30 seconds before

stopping engine.

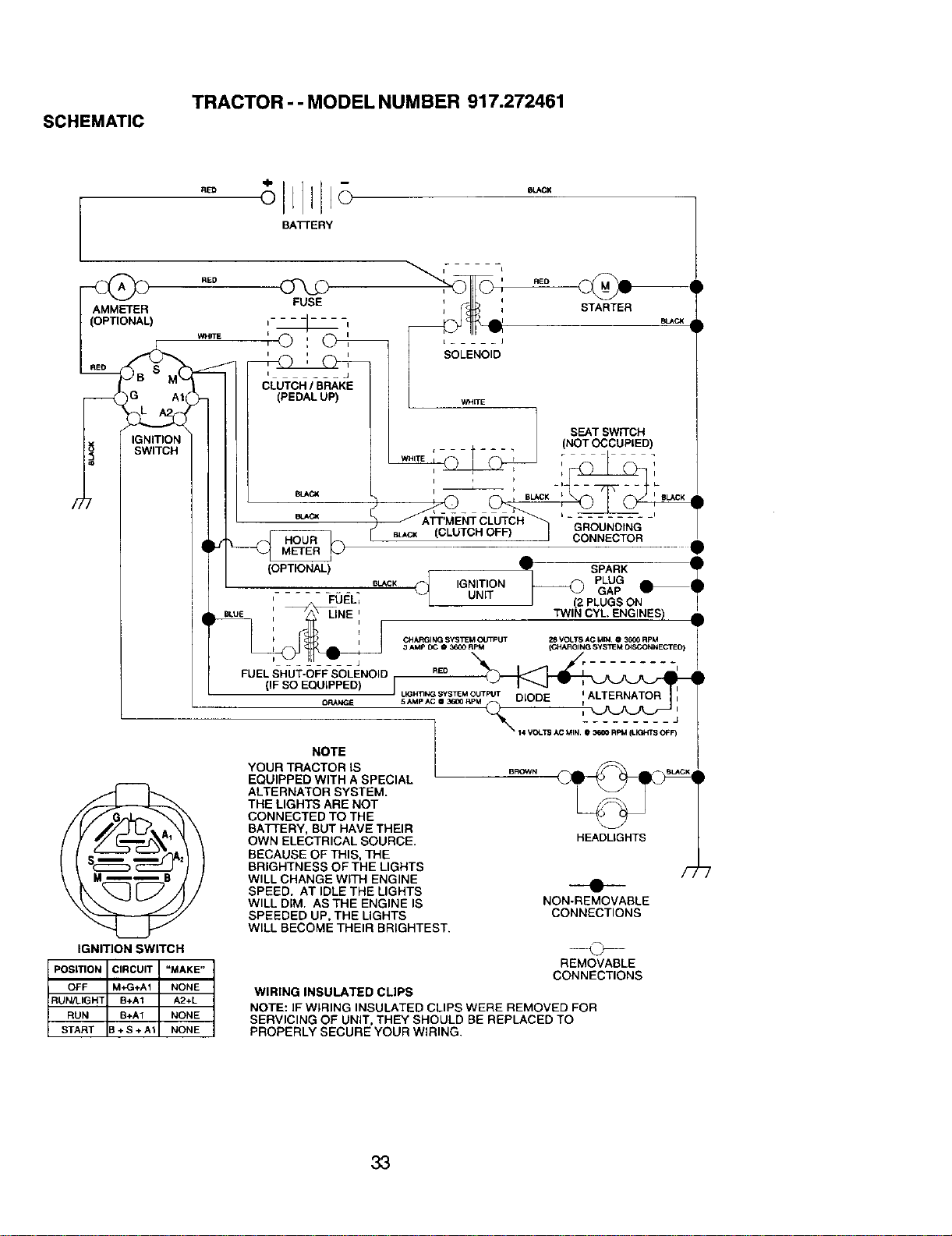

TRACTOR - - MODEL NUMBER 917.272461

SCHEMATIC

RED

AMMETER

(OPTIONAL)

WHITE

IGNITION

SWITCH

FUSE

,_,

'© _

I i

CLUTCH/BRAKE

(PEDALUP)

BLACK

8LACK

L J

SOLENOID

RED

STARTER

BLACK

WHITE

, _ _ _ _ , (NoTSEAToccuPIED)SWITCH

W.,TE r ;

i q _ _b L

(OPTIONAL) 0" SPARK tl_

_[ I_ PLUG '

e_CK IGNITION GAP

FUEL_ UNIT j (2 PLUGS ON |

TWIN CYL. ENGINES) A

CHA_ING SYSTEM OIA_PUT 28 VOLTS AC M_I Q 3600 RPM

3 AMp _ @ 3600 RPM (CNARQING SYS_M _SCONNEC_'ED}

FUEL SHUT-OFF SOLENOID RED _--_ ' I

{IF SO EQUIPPED) I LB_nNGSYSTCMOUTPUT IALTERNATOR I

o_E sAMP^c = _o RPU DIODE r i

NOTE

YOUR TRACTOR IS

EQUIPPED WITH A SPECIAL

ALTERNATOR SYSTEM.

THE LIGHTS ARE NOT

CONNECTED TO THE

BATTERY, BUT HAVE THEIR

OWN ELECTRICAL SOURCE.

BECAUSE OF THIS, THE

BRIGHTNESS OF THE LIGHTS

WILL CHANGE WiTH ENGINE

SPEED. AT IDLE THE LIGHTS

WILL DiM. ASTHE ENGINE IS

SPEEDED UP, THE LIGHTS

WILL BECOME THEIR BREGHTEST.

NON-REMOVABLE

CONNECTIONS

IGNITION SWITCH

POSITION CIRCUIT "MAKE"

OFF M+G+AI NONE

RUN/LIGHT B+A1 A2+L

RUN E+A1 NONE

START B + S + AI NONE

REMOVABLE

CONNECTIONS

WIRING INSULATED CLIPS

NOTE: IF WIRING INSULATED CLIPS WERE REMOVED FOR

SERVICING OF UNIT, THEY SHOULD BE REPLACED TO

PROPERLY SECURE YOUR WIRING.

ELECTRICAL

TRACTOR - - MODEL NUMBER 917.272461

i ij

i i I

i I I

]

16t

I i

i \

TRACTOR - - MODELNUMBER 917.272461

ELECTRICAL

KEY PART

NO. NO. DESCRIPTION

1 163465 Battery

2 74760412 Bolt Hex Hd 1/4-20unc X 3/4

8 7603J Case Battery

10 145211 Bolt Btr Frt 1/4-20 x 7.5

11 150109 Hold down Battery Front

12 145769 Nut Push Nylon 1/4 Bait Frt

16 176138 Switch Interlock Push-In

21 175688 Harness Asm Light W/4152J

22 4152J Bulb Light #1156

24 4799J Cable Battery 6 Ga 11"red

25 146148 Cable Battery

26 175158 Fuse 20AMP

27 73510400 Nut, Keps Hex 1/4-20 UNC

28 145491 Cable Ground

29 121305X Switch Plunger Nc Gray

30 175566 SwitchIgn

33 140403 Key Ign

40 179720 Harness Ign

41 71110408 BoltBIk Fin Hex 1/4-2OuncX 1/2

42 131563 CoverTerminal Red

43 178861 Solenoid

45 121433X Ammeter

52 141940 Protection WireLoop(Hourmeter)

55 17490508 ScrewThrd Roll 5/16-18 x 1/2

NOTE: Allcomponentdimensions give in U.S.inches

1inch = 25.4 mm.

TRACTOR-- MODELNUMBER 917.272461

CHASSIS AND ENCLOSURES

58 166

3 _4

38 l

208

TRACTOR -- MODEL NUMBER 917.272461

CHASSIS AND ENCLOSURES

KEY PART

NO. NO. DESCRIPTION

1 174619 Chassis

2 176554 Drawbar

3 17060612 Screw 3/8-16x3/4

5 155272 BumperHood/Dash

9 168337X013 Dash

10 STD533710 BoltCarriage 3/8-16 x 1

11 174996 Panel Dash Lh

13 175149 Panel Dash Rh

14 17490608 Screw Thdrol 3/8-16 x 1/2

17 174330X612 Hood

18 126938X BumperHood

20 180679 Plate Mtg Batt

23 124028X Bushing Snap

25 19131312 Washer 13/32 X 13/16 X 12 Ga

26 STD541437 Nut LockHex W/Ins 3/8-16 Unc

28 177403 Gdlle

29 174332X599 Lens Grille

30 175692X612 FenderFootrest

31 139976 Bracket SupportFender

37 17490508 ScrewThdrol 6/16-18 x1/2 TYT

38 175710 Bracket,Asm. Pivot,Mower Rear

39 174714 Bracket Pivot Laser Lt

58 174930 Air Duct

60 S'1"D533707 Bolt Rdhd Sqnk 3/8-16unc x 3/4

64 154798 Dash LowerSTLT

74 STD541437 Nut Crownlock 3/8-16 UNC

142 175702 Plate Reinforcement STLT

143 154966 Bracket Swaybar Chassis

144 175582 Bracket Pnt Footrest STLT

145 156524 Rod Pivot Chassis/Hood

159 155123X428 Cupholder Stlt Black

166 164863 Screw Hwhd Hi+Lo#13+16 x 3/4

206 170165 Bolt Shoulder 5/16-18 TT

207 17670508 Screw Thdrol 3/8-16 x 1/2

208 17670608 Screw Thdrol 3/8-16 x 1/2

219 17000512 Screw 5/16-18 x 3/4

NOTE: All componentdimensions given in U.S. inches

1 inch = 25.4 mm

TRACTOR - - MODEL NUMBER 917.272461

GROUND DRIVE

120_

36 35

22 . 84 2

._"._

71 250

:38

TRACTOR-- MODEL NUMBER 917,272461

GROUND DRIVE

KEY PART KEY PART

NO. NO. DESCRIPTION NO. NO.

1 ...... Transaxle(See Breakdown) 70 134683

HydroGr314-0510 71 169183

8 165866 Rod Shift FenderAdjust 73 169182

tO STO561210 Pin Cotter 1/8 x 1 CAD 74 137057

14 10040400 Washer LockHvy Helical 75 t21749X

15 74490544 Bolt Hex FLGHD 5/16-16 x Gr 5 76 STD581075

16 STD5414-31 Nut Lock Hex W/Ins. 5/16-18 Unc 77 123583X

19 STiTo41437 Nut Lock Hex W/Wsh 3/8-16 Unc 79 121748X

21 130564 Knob,Deluxe 1/2-13 81 165596

22 169498 Rod, Brake Hydro 82_ 165711

24 73350600 Nut, Hex Jam 3/8-16 Unc 83 19171216

25 106888X Spring,Brake Rod 84 169594

26 STD551037 Washer 89

27 STD561210 PinCotter 1/8 x 3/4 CAD. 90 124346X

28 175765 Rod, ParkingBrake 95 17020t

29 71673 Cap, ParkingBrake £6 4497H

30 169592 Bracket,Transaxle 116 72140608

32 74760512 BoltHex Hd 5/16-18 Unc x 3/4 120 73900600

34 175578 Shaft, Foot Pedal 150 175456

35 120183X Beadng,Nylon 151 19133210

36 19211616 Washer 156 166002

37 1572H Pin,Roll 158 165589

38 179114 Pulley,Composite,Flat 159 165494

39 74760648 BoltFin Hex 3/8-16 x 3 161 72140406

41 175556 Keeper, Belt Idler 162 73680400

47 127783 Pulley, Idler,V-Groove 163 74780416

48 154407 Bellcrank, Clutch _64 19091010

49 123205X Retainer, Belt 165 165623

50 STD523715 Bolt 166 166880

51 STD541437 NutCrownlock 3/8-16UNC 168 165492

52 STD541431 Nut,Crownlock 5/16-16 Unc 169 165580

53 t05710X Link,Clutch 197 169613

55 105709X Spring,Return, Clutch 198 169593

56 17060620 Screw 328-16x 1-1/4 199 169612

57 140294 V-Bell 2(30 72140508

59 169691 Keeper, Center Span 202 72110614

61 17120614 Screw. 3/8-16 x.875 212 145212

62 8883R Cover, Pedal 250 17060612

63 175410 Pulley, Engine

64 71170764 Bolt Hex 7/16-20 x 4 Gr. 5

65 STD551143 Washer

66 154778 Keeper Belt Engine Hydro

DESCRIPTION

Keeper Belt Engine

StrapTorque Lh Hydro

Strap Torque Rh Hydro

Spacer

Washer 25/32 x 1-1/4 x 16 Gauge

&Ring

Key, Square

Washer 25/32 x 1-5/8 x 16 Gauge

Shaft AsmCrossTapered

SpringTorsion

Washer 17132x3/4 x 16 Ga.

LinkTransaxle

164890X428 Console, Shift

Nut Self:rhd Wsh÷hd 1/4 Zinc

Control Bypass Hydro20"Tires

RetainerSpring 1•Zinc/Cad

BoltRdhd Sqneck 3/8-16 x 1

Nut LockFig3/8-16

SpacerRetair_r

Washer 13/32x2x10Ga.

Washer Srrted5/161Dx 1.125

Bracket Shift Mount

HubTapered Flange ShiftLt

Bolt Rdhd Sqnk 1/4-20 x 3/4 Gr 5

Nut Crownlock 1/4-29 Unc

BoltHex Fin 1/4-20 Uricx 1 Gr 5

Washer 5/8 x.281 x 19 Ga

Bracket PivotLever

Screw 5/16-18 x 5/8

Bolt Shoulder 5/16-1B x .561

Plate Fastening

Nyliner Snap-In 5/8"1D

Washer Nyl 7/8 ID x .105" Hyd

BoltShoulder 5/16-18UNC

BoltRdhdSgnk5/16-18UNC x 1

BoltCarr Sh 3/8-16 x 1-3/4 Gr.5

Nut Hex Flange Lock

Screw 31B-16x .75

NOTE: All component dimensions given in U.S.

inches 1 inch = 25.4 mm

TRACTOR-- MODEL NUMBER 917.272461

STEERING ASSEMBLY

15 29

68 67

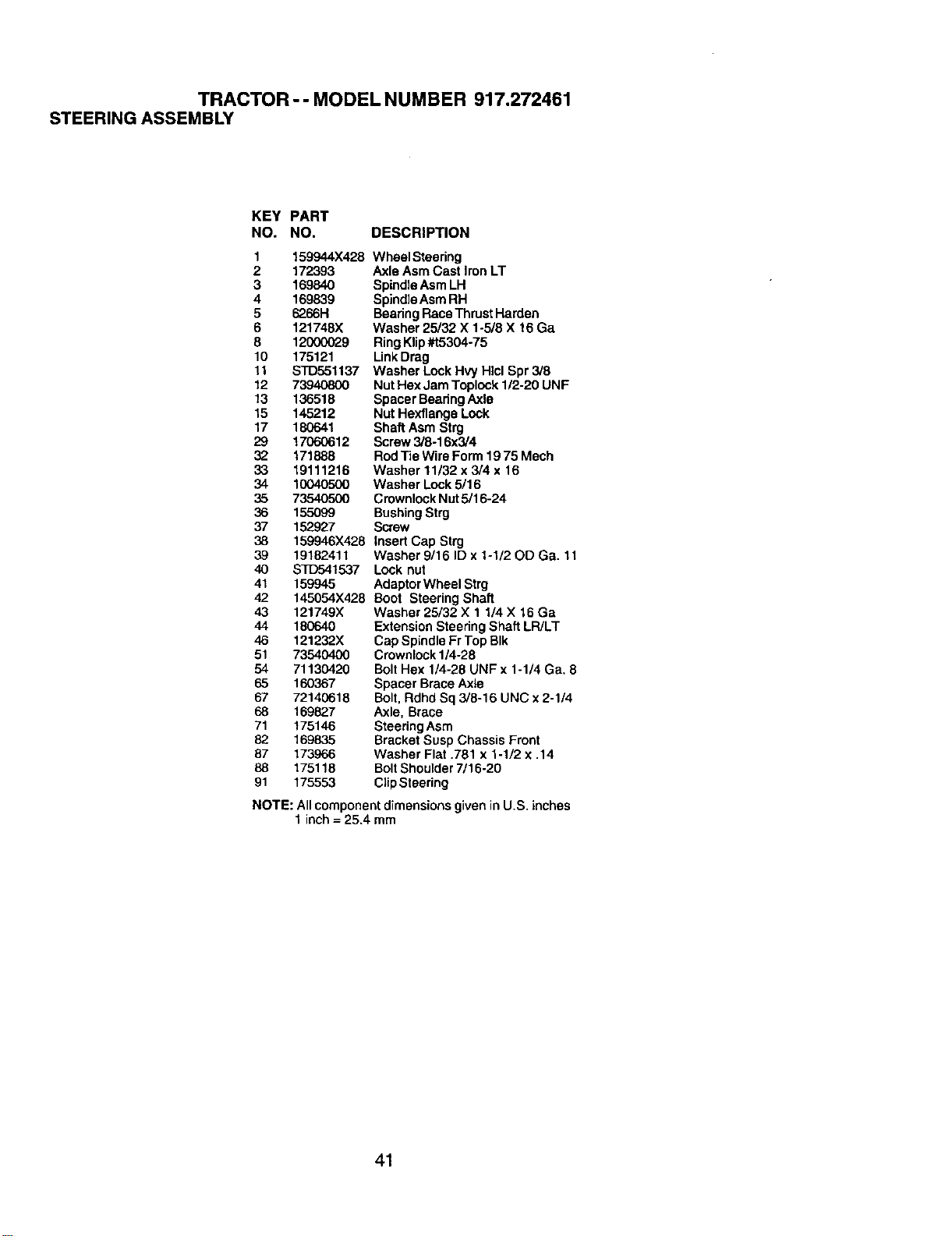

TRACTOR - - MODEL NUMBER 917.272461

STEERING ASSEMBLY

KEY PART

NO. NO, DESCRIPTION

1 159944X428 Wheel Steering

2 172393 Axle Asm Cast Iron LT

3 169840 SpindleAsm LH

4 169839 SpindleAsm RH

5 6266H BearingRace ThrustHarden

6 121748;< Washer 25/32 X 1-5/8 X !6 Ga

8 12000029 RingKlip#t5304-75

10 175121 LinkDrag

11 STD551137 Washer LockHvy Hlcl Spr 3/8

12 739408(X) Nut Hex Jam Toplock1/2-20 UNF

13 136518 Spacer BearingAxle

15 145212 Nut Hexflange Lock

17 180641 Shaft Asm Strg

29 17060612 Screw 3/8-16x3/4

32 171888 RodTie Wire Form 1975 Mech

33 19111216 Washer 11/32 x 3/4 x 16

34 10040500 Washer Lock5116

35 73540500 Crownlock Nut5/16-24

36 155099 BushingStrg

37 152927 Screw

38 159946)(428 Insed Cap Strg

39 19182411 Washer 9/16 ID x 1-1/20D Ga, 11

40 STD541537 Lock nut

41 159945 Adaptor Wheel Strg

42 145054X428 Boot Steering Shaft

43 121749X Washer 25/32 X 1 1/4 X 16 Ga

44 180640 Extension Steering Shaft LR/LT

46 121232X Cap Spindle FrTop BIk

51 73540400 Crownlock1/4-28

54 71130420 BoltHex 1/4-28 UNF x 1-1/4 Ga. 8

65 160367 Spacer BraceAxle

67 72140618 Bolt, RdhdSq 3/8-16 UNC x2-1/4

68 169827 Axle, Brace

71 175146 SteeringAsm

82 169835 Bracket Susp Chassis Front

87 173966 Washer Flat .781 x 1-1/2 x .14

88 175118 BoltShoulder 7116-20

91 175553 ClipSteering

NOTE: Allcomponent dimensions given in U.S. inches

1 inch= 25.4 mm

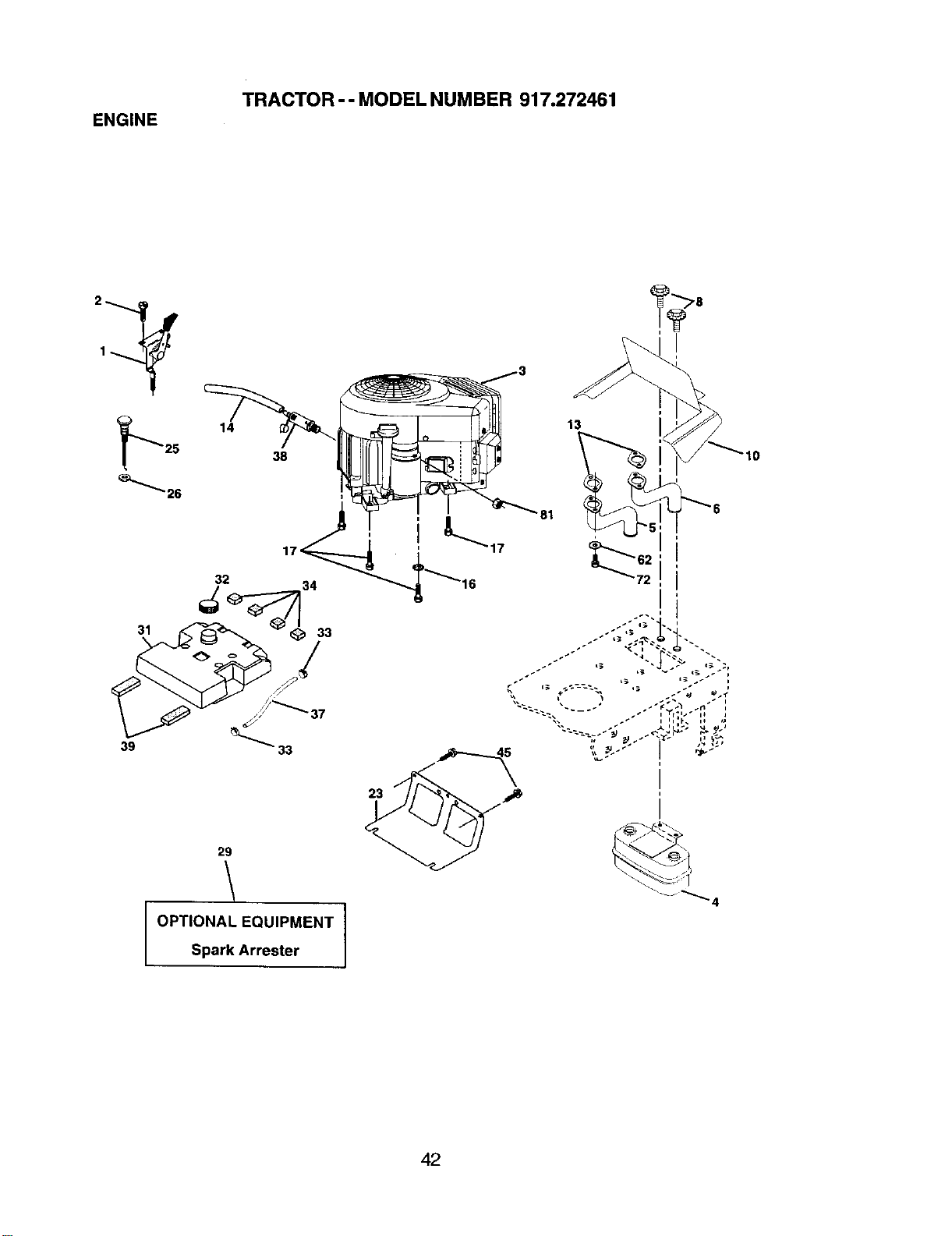

TRACTOR-- MODEL NUMBER 917.272461

ENGINE

25 38

32 34

31 33

OPTIONAL EQUIPMENT

Spark Arrester

TRACTOR - - MODEL NUMBER 917.272461

ENGINE

KEY PART

NO. NO. DESCRIPTION

1 17O546

2 17720408

4 149723

5 159955

6 160589

8 171877

10 162797

13 165391

14 148456

16 STD551237

17 17060624

23 169837

25 145996

26 73920600

29 137180

31 157103

32 161696

33 123487X

34 t 06082X

37 8543R

38 148315

39 109227X

45 17000612

62 10040500

72 71070512

81 73510400

ControIThrot Paddle

ScrewHex Thd Cut 1/4-20 x 1/2

Engine(See Breakdown)B&S Model No.407777-0174-E1

MufflerExhaust

Exhaust Asm. Left

ExhaustAsm. Right

Bolt5/16-18unc x 3/4 w/seres

Heat ShieldLt

Gasket Muffler

Tube DrainOil Easy

Washer LockExtTooth 3/8

ScrewThdrot3/8-16x1-1/2 Tytl

ShieldBRN/DBR Guard

ControlChoke

Nut Keps3/8-24 UNF

ArrestorSpark

Tank Fuel 3.5 STL W/O Sensor

Cap FuelGauge

C_ampHoseBIk

StripFoam

Line Fuel

Plug Drain Oil Easy

Pad Spacer

Screw HexwshThdrol3/8-16 x 3/4

Washer Lock Hvy Hlcl Spr 5/16

Screw Hex Hd Cap 5/16-18 x 3/4

Nut Keps Hex 1/4-20 UNC

NOTE: All component dimensions given [nU.S. inches

1inch = 25.4 mm

TRACTOR - - MODEL NUMBER 917.272461

SEAT ASSEMBLY

I I

i i

KEY PART

NO, NO. DESCRIPTION

1 180597 Seat

2 180166 Bracket PivotFender

3 71110616 Bolt Fin Hex 3/6-16unc X 1

4 19131610 Washer 13/32 X 1X 10 Ga

5 145006 Clip Push-In

6 STD541437 Nut Hex w/Ins, 3/8-16 Unc

7 124181X Spring Seat Cprsn 2 250 Btk Zi

8 17000616 Screw 3/8-16 X 1.5

9 19131614 Washer 13/32 X 1 X 14 Ga,

10 180186 Pan Seat

11 166369 Knob Seat

KEY PART

NO. NO. DESCRIPTION

12 121246X

13 121248X

14 72050412

15 134300

16 121250X

17 123976X

21 171662

22 STD541431

24 19171912

Bracket Mounting Switch

Bushing Snap BIk Ny150 Id

Bolt Rdhd Sqnk l/4-20xt-t/2

Spacer Split 28x 96 Yel Zinc

Spring Cprsn 1 27 BIk Pnt

Nut Lock 1/4 Lge Fig Gr 5 Zinc

Belt Shoulder 5/16-16 Unc

Nut Hex Lock W/Ins 5/16-18

Washer 17/32 X 1-3/16 X 12 Ga,

NOTE: All componentdimensions given in U.S.

inches 1 inch = 25,4 mm

TRACTOR-- MODEL NUMBER 917.272461

DECALS

7 30 3 13 11 10

KEY PART

NO. NO.

1 156811

2 164065

3 177356

4 138047

5 181569

6 146046

7 181703

8 133644

9 163204

10 156439

11 177357

DESCRIPTION

KEY

NO.

Decal Fend STLTOper

Decal Steer. Wheel

Decal Hood RH

Decal Batt Diehard

Decal Engine

Decal V Belt Drive Sch

Decal Dash Phi

Decal Customer Responsibility

Decal Craftsman

Decal Fender Danger Eng/Fr

Decal Hood LH

PART

NO.

172331

177355

160396

179128

149516

181429

165800X428

165799X428

138311

169210

183216

183217

DESCRIPTION

Decal Mower Srs Hvy Duty 12 Ga

Decal Hood Side

Decal V-Belt Schematic

Decal Deck "B"42"

Decal BatDan/Psn

Decal Replacement Parts

Pad Footrest LH STLT

Pad Footrest RH STLT

Decal Handle Lft Height Adjust

Decal By-Pass

Manual Owner's (English)

Manual Owner's (Spanish)

WHEELS & TIRES

KEY PART

NO. NO. DESCRIPTION

1 591_

2 65139

3 1_222X

4 59904

5 1_7_X427

6 2781-1

7 9040H

8 1_108X427

9 I_O_X

10 715_

11 1_757X428

-- 144334

Cap Valve Tire

StemValve

Tire Front

Tube Front (Service Item Only)

Rim Asm 6"front Service

Fitting Grease (Front Wheel Only)

Bearing Flange (Front Wheel nly)

Rim Asm 8"rear Service

Tire Rear

Tube Rear (Service Item Only)

Cap Axle BIk 1 50 x 100

Sealant, Tire ( 10 oz. Tube)

NOTE: All component dimensions given in U.S.

inches 1 inch = 25.4 mm

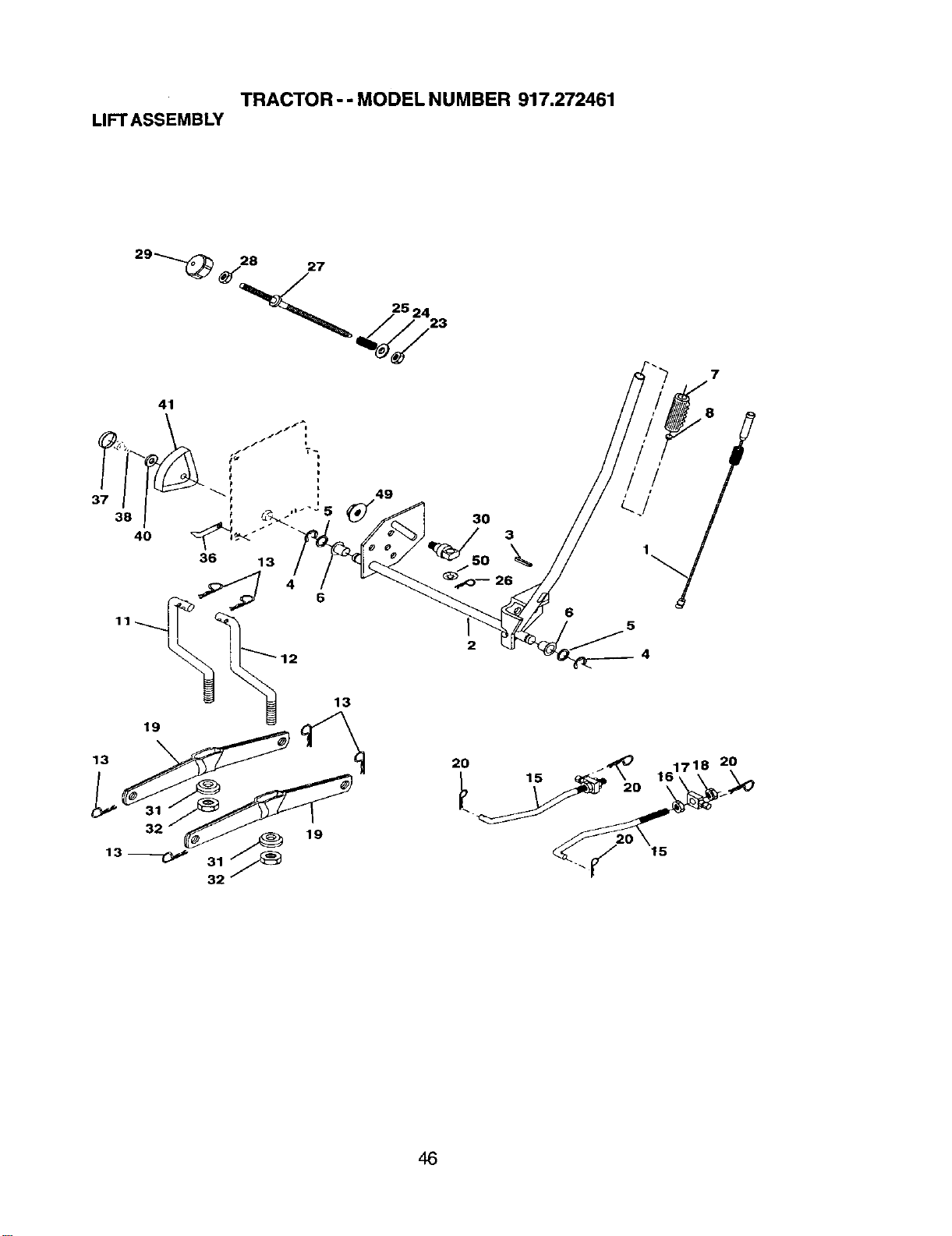

TRACTOR - - MODEL NUMBER 917.272461

LIFTASSEMBLY

31_

TRACTOR-- MODELNUMBER 917.272461

LIFT ASSEMBLY

KEY PART

NO. NO, DESCRIPTION

1 159460 Wire Asm InnerW/Plunge5r

2 159471 Shaft Asm Lift

3 105767X Pin Groove

4 STD581062 ERing

5 19211621 Washer 29/32 x 1-1/4 x 21 Ga.

6 120183X Bearing Nylon BIk ,629 IO

7 125631X GripHandle Fluted

8 122365X Button,Plunger

11 139865 Link Lift Lh Fixed Length

12 139866 LinkLiftRh Fixed Length

13 STD624008 RetainerSpring

15 173288 LinkFront

16 73350800 Nut Jam Hex 1/2-13 Unc

17 175689 Trunnion

18 73800800 Nut Lockw/Wsh 1/2-13 Uric

19 139868 Arm SuspensionRear

20 163552 SpringRetainer

23 110807)( Nut Special

24 19131016 Washer 13/32 x 5/8 x 16 Ga.

25 2876H Spring 2-1/8

26 169484 RetainerClip

27 126971X RodAdj. Lift

28 73350600 Nut Hex Jam 3/8-16 Unc

29 138057 Knob Inf.

31 169865 Bearing Pvt. Lift

30 150233 Trunnion

32 73540600 Nut Lock 3/8-24

36 155097 Pointer

37 123935X Plug

38 17060516 Screw5/16-18 x 1

40 19112410 Washer 11/32 x 1-1/2 x 10 Ga

41 155098 Indicator

49 145212 Nut Hex Flange Lock

50 110452X Nut Push

NOTE: All component dimensions given inU.S. inches

1 inch = 25,4 mm

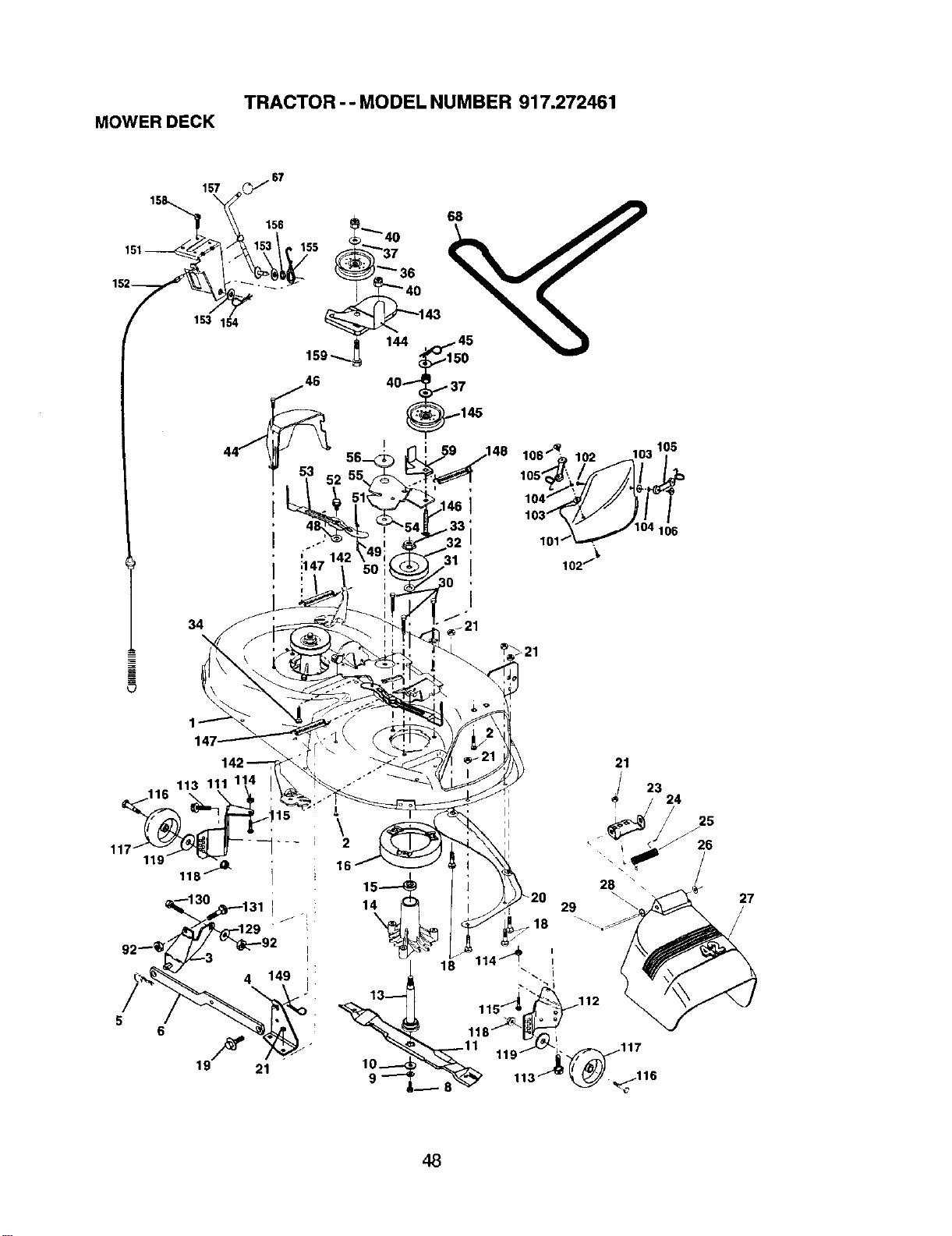

TRACTOR - - MODEL NUMBER 917.272461

MOWER DECK

_47 142

_.18

TRACTOR- - MODEL NUMBER 917.272461

MOWER DECK

KEY PART KEY PART

NO. NO. DESCRIPTION NO. NO.

1 165892 Mower DeckAssembly, 42" 53 131845

2 S'TD533107 Bolt 54 133943

3 138017 BracketAssembly,Sway Bar, 55 155046

Front 56 165723

4 165460 BracketSway Bar 33/42" Deck 59 141043

5 STD624008 RetainerSpring 67 149846

6 178024 Bar Sway Deck 68 144959

8 850857 Bolt,Hex 3/8-24 x 1.25 Gr. 8 92 STD541437

9 STD55t137 Washer, Lock 101 136420

10 140296 Washer, Hardened 102 71081010

11 134149 BladeMulching42" 103 19061216

(OriginallyEquippedWith) 104 STD551110

-- 138498 BladeMower42" Hi-LiftStd 105 160793

(For BetterBagging, Especially In 106 2029J

Wet Conditions) 111 179292

- - 139775 BladeMulching42"Premium 112 179293

(For BetterWear When Mulching) 113 17060510

- - 138971 BladeMower42"Hi-LiffPremium 114 STD541431

(ForBetterWear When BaggingIn 115 72110505

Heavyor Wet Conditions) 116 4898H

13 137645 ShaftAssembly, Mandrel, Vented 117 165746

14 128774 Housing,Mandrel, Vented 118 73930600

15 110485X Bearing,Ball,Mandrel 119 STD551037

16 174493 Stripper,Vented Mower Deck 129 19131312

18 72140505 Bolt,Carriage 5/16-18 x 5/8 130 STD523710

19 132827 Bolt,Shoulder 131 STD533710

20 159770 Baffle, Vodex 142 165890

21 STD541431 NutCrownlock5/16-18UNC 143 157109

23 177563 Bracket, Deflector 144 158634

24 105304X Cap, Sleeve 145 165888

25 123713X Spring, Torsion, Deflector 146 171977

26 110452X Nut, Push 147 131335

27 130968X428 Shield, Deflector 148 169022

28 19111016 Washer 11/32 x 5/8 x 16 Ga. 149 165898

29 131491 Rod, Hinge 150 19091216

30 173984 Screw Thdrol Washer Head 151 169670

31 129963 Washer, Spacer 152 169676

32 153535 Pulley, Mandrel 153 169674

33 178342 Nut, Toplock, Flanged 154 169675

34 STD5.33717 Bolt Rdhd 3/8-16 x 1-3/4 155 169671

36 131494 Pulley, idler, Flat 156 169672

37 STD551037 Washer 13/32 x 13/16 x 16 Ga. 157 169669

40 STD541437 NutCrownlock3/8-16UNC 158 17720408

44 140088 Guard, MandreI, L.H. 159 72140614

45 STD624003 Retainer - - 130794

46 137729 Screw, Thd. Roll 1/4-20 x 5/8

48 133944 Washer, Hardened

49 174284 Roller Assembly, Cam Follower - - 169583

50 131340 Bolt,Shoulder #10-24 Grade 5

51 STD541410 Locknut

52 139888 Bolt, Shoulder 5/16-18 UNC

DESCRIPTION

ArmAssembly, Pad, Brake

Washer, Hardened

Arm, Idler

Spacer, Retainer

Guard, TUV Idler

KnobCustomOval

V-Belt

Nut

MulcherCover

Screw

Washer #10

Washer, Lock

LatchAssembly, Bagger

Nut,Weld

Bracket,Ga. Wheel LH

Bracket, Ga. Wheel RH

ScrswTapping 5/16-18

Nut, Hex, Keps5/16-18 UNC

Bolt, Carriage 5/16-18 x5/8

BoltShoulder

WheelGauge

Nut,Centerlock3/8-16

Washer 3/8 x 7/8 x 14 Gauge

Washer 13/32 x 13/16 x 12 Ga.

BoltFin Hex 3/8-16 UNC x 1 Gr. 5

Bolt,Rdhd Sqnk 3/8-16 UNC x 1

Arm SpringBrake Mower

Bracket Arm Idler42"

Keeper Belt42" ClutchCable

PulleyIdler Flat

BoltCarnage Idler

SpringExtension

SpringReturn Idler

Retainer SpringYellowZinc

Washer 9/32 x 3/4 x 16 Ga.

Bracket Clutch

Cable Clutch 42 In

Washer Flat 3/8" Type B

Spring Retainer

Spring Retention Lever

Spacer

RodClutch

Screw Hex Thd Cut 1/4-20 x 5/8

Bolt Rdhd Sqn 3/8-16unc x 1-3/4

Mandrel Assembly (Includes

Housing, Shaft and Shaft Only -

Pulley Not Included)

Replacement Mower, Complete

NOTE: All component dimensions given in U.S.inches

1 inch = 25.4 mm

120-

124

107 "43

14.

_127

.[128

I !

;-;';I

-rim

_CD

5.-.1

°_

0'1

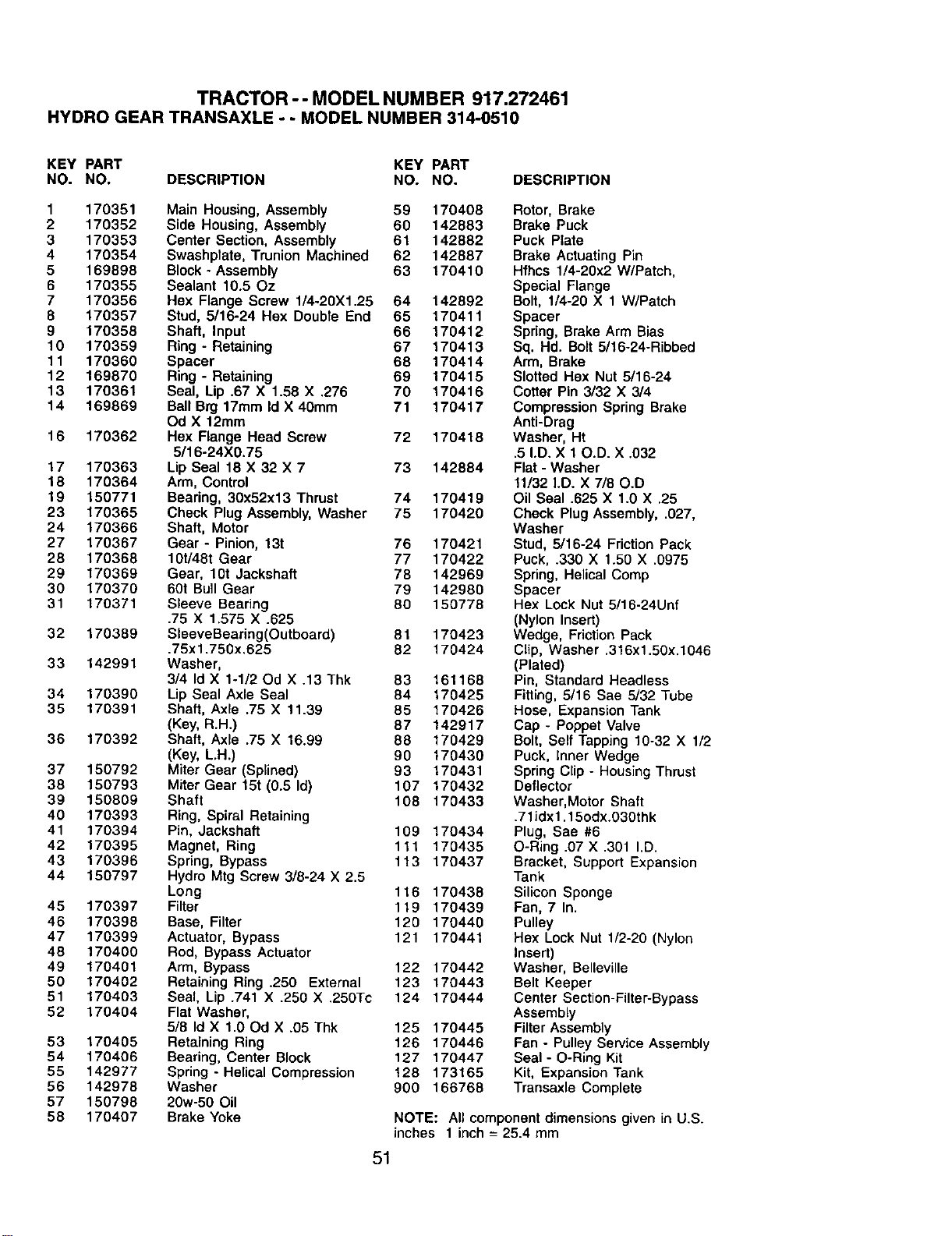

TRACTOR -- MODEL NUMBER 917.272461

HYDRO GEAR TRANSAXLE - - MODEL NUMBER 314-0510

KEY PART KEY PART

NO. NO. DESCRIPTION NO. NO. DESCRIPTION

1 170351 Main Housing, Assembly 59 170408

2 170352 Side Housing, Assembly 60 142883

3 170353 Center Section, Assembly 61 142882

4 170354 Swashplate, Trunion Machined 62 142887

5 169898 Block-Assembly 63 170410

6 170355 Sealant 10.50z

7 170356 Hex Flange Screw 1/4-20X1.25 64 142892

8 170357 Stud, 5/16-24 Hex Double End 65 170411

9 170358 Shaft, Input 66 170412

10 170359 Ring - Retaining 67 170413

11 170360 Spacer 68 170414

12 169870 Ring - Retaining 69 170415

13 170361 Seal, Lip .67 X 1.58 X .276 70 170416

14 169869 Ball Brg 17mm Id X 40mm 71 170417

Od X 12ram

16 170362 Hex Flange Head Screw 72 170418

5/16-24X0.75

17 170363 Lip Seal 18 X 32 X 7 73 142884

18 170364 Arm, Control

19 150771 Bearing, 30x52x13 Thrust 74 170419

23 170365 Check Plug Assembly, Washer 75 170420

24 170366 Shaft, Motor

27 170367 Gear - Pinion, 13t 76 170421

28 170368 10t/48t Gear 77 170422

29 170369 Gear, 10t Jackshaff 78 142969

30 170370 60t Bull Gear 79 142980

31 170371 Sleeve Bearing 80 150778

.75 X 1.575 X .625

32 170389 SleeveBearing(Outboard) 81 170423

.75xl .750x.625 82 170424

33 142991 Washer,

3/4 Id X 1-1/20d X .13 Thk 83 161168

34 170390 Lip Seal Axle Seal 84 170425

35 170391 Shaft, Axle .75 X 11.39 85 170426

(Key, R.H.) 87 142917

36 170392 Shaft, Axle .75 X 16.99 88 170429

(Key, LH.) 90 170430

37 150792 Miter Gear (Splined) 93 170431

38 150793 Miter Gear t5t (0.5 Id) 107 170432

39 150809 Shaft 108 170433

40 170393 Ring, Spiral Retaining

41 170394 Pin, Jackshaft 109 170434

42 170395 Magnet, Ring 111 170435

43 170396 Spring, Bypass 113 170437

44 150797 Hydro Mtg Screw 3/8-24 X 2.5

Long 116 170438

45 170397 Filter 119 170439

46 170398 Base, Filter 120 170440

47 170399 Actuator, Bypass 121 170441

48 170400 Rod, Bypass Actuator

49 170401 Arm, Bypass 122 170442

50 170402 Retaining Ring .250 External 123 170443

51 170403 Seal, Lip .741 X .250 X .250Tc 124 170444

52 170404 Flat Washer,

5/8 Id X 1.00d X .05 Thk 125 170445

53 170405 Retaining Ring 126 170446

54 170406 Bearing, Center Block 127 170447

55 142977 Spring - Helical Compression 128 173165

56 142978 Washer 900 166768

57 150798 20w-50 Oil

58 170407 Brake Yoke

Rotor, Brake

Brake Puck

Puck Plate

Brake Actuating Pin

Hfhcs 1/4-20x2 W/Patch,

Special Flange

Bolt, 1/4-20 X 1 W/Patch

Spacer

Spring, Brake Arm Bias

Sq. Hd. Bolt 5/16-24-Ribbed

Arm, Brake

Slotted Hex Nut 5/16-24

Cotter Pin 3/32 X 3/4

Compression Spring Brake

Anti-Drag

Washer, Ht

.5 I.D. X 10.D. X .032

Flat - Washer

11/32 I.D. X 7/80.D

Oil Seal .625 X 1.0 X .25

Check Plug Assembly, .027,

Washer

Stud, 5/16-24 Friction Pack

Puck, .330 X 1.50 X .0975

Spring, Helical Comp

Spacer

Hex Lock Nut 5/16-24Unf

(Nylon Insert)

Wedge, Friction Pack

Clip, Washer .316x1.50x.1046

(Plated)

Pin, Standard Headless

Fitting, 5/16 Sae 5/32 Tube

Hose, Expansion Tank

Cap - Poppet Valve

Bolt, Self Tapping 10-32 X 1/2

Puck, Inner Wedge

Spring Clip - Housing Thrust

Deflector

Washer, Motor Shaft

.71idx1.15odx.030thk

Plug, Sae #6

O-Ring .07 X .301 I.D.

Bracket, Support Expansion

Tank

Silicon Sponge

Fan, 7 In.

Pulley

Hex Lock Nut 1/2-20 (Nylon

Insert)

Washer, Belleville

Belt Keeper

Center Section-Filter-Bypass

Assembly

Filter Assembly

Fan - Pulley Service Assembly

Seal - O-Ring Kit

Kit, Expansion Tank

Transaxle Complete

NOTE: All component dimensions given in U.S.

inches 1 inch = 25.4 mm

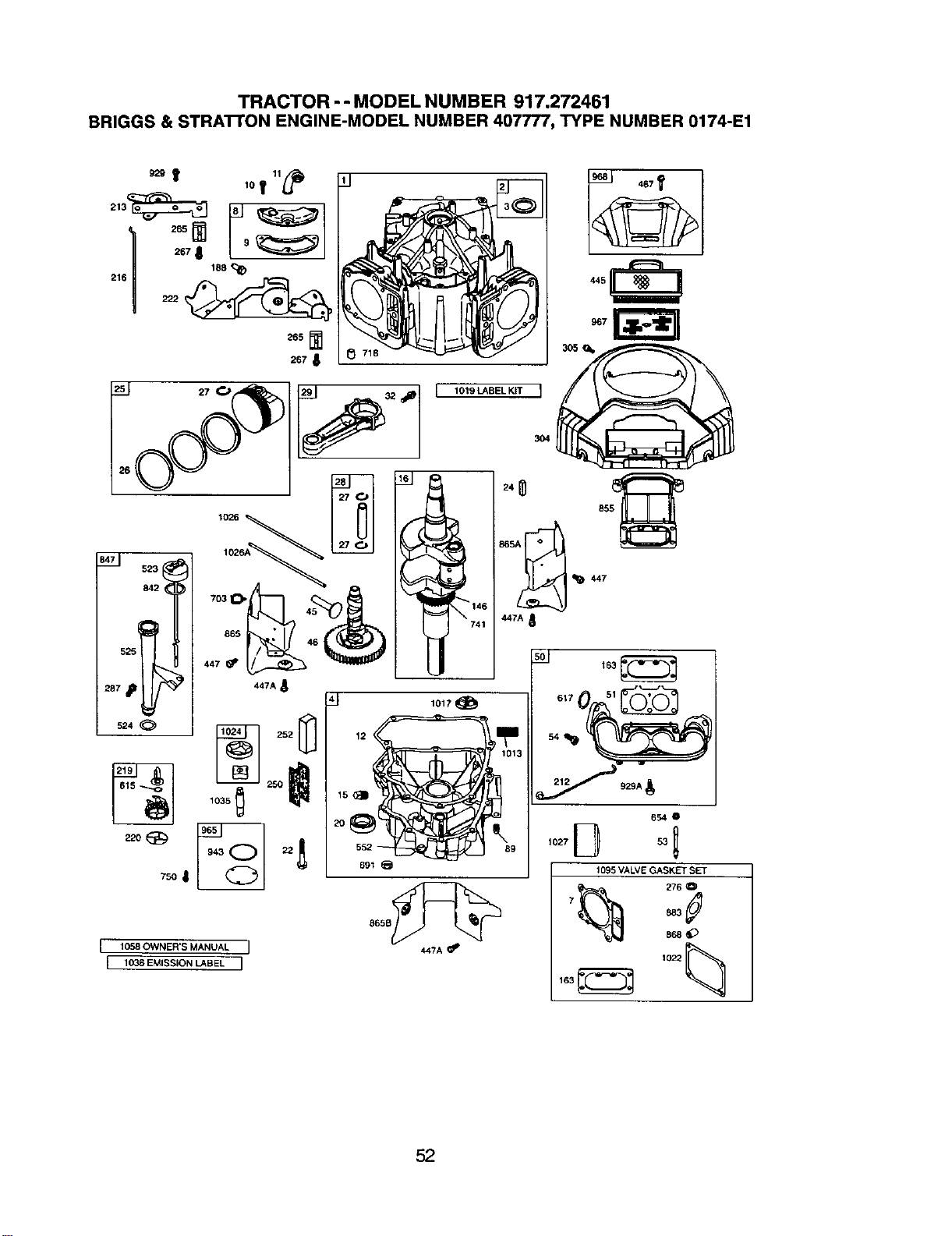

TRACTOR - - MODEL NUMBER 917.272461

BRIGGS & STRATrON ENGINE-MODEL NUMBER 407777, TYPE NUMBER 0174-E1

t 1of 11_

2,o_ t__

210 188

222 @_

718

__J

(_ _32_ I iOigLABELKfr I

3O4

207p _,/_

5,?.4

75o41

447A

252 [_ _ 12 1017 I_

1058 OWNER'S MANUAL ]

I 1036 EMISSION LABEL I

1026A_ 865A _ 447

j020A

654 O

°27D

1095 VALVE GASKET SET

_ 276 0

868

TRACTOR-- MODELNUMBER 917.272461

BRIGGS&STRA'n'ONENGINE-MODELNUMBER407777,TYPENUMBER0174-E1

3sO

36 _1022

1029

1100

798

1022

211

121 CARBURETOR OVERHAUL KIT

51 L(_n_l 276 (_

633 II

987 •

104

672 _

lOS@

1123 O

117 •

__ 1124

137

552

352._ 8

742 _'_

4O4 O

ss24 8

691 e

977 CARBURETOR GASKET SET

633 •

387 I

150_ 1123_

276 0 _124_

914_

12sl 1169!

418_ _ 111281J._L[

-- _-.-._

1o8,r

117 O 276 O

118 •

TRACTOR - - MODEL NUMBER 917.272461

BRIGGS & STRATTON ENGINE-MODEL NUMBER 407777, TYPE NUMBER 0174-E1

573 _

405

358 ENGINE GASKET KIT

7 _ 1822

9 _ 842

883 0

803

801•_

697

797

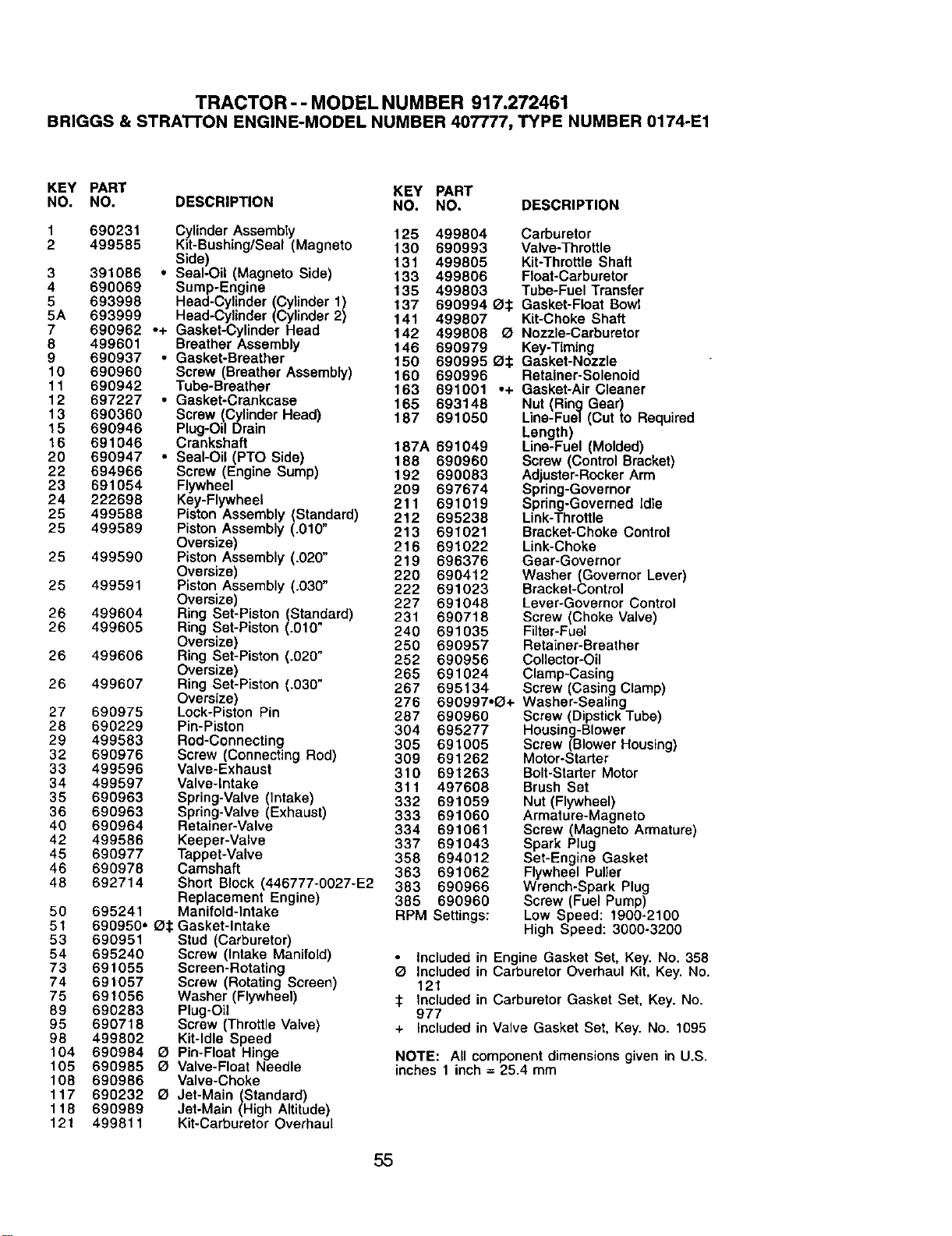

TRACTOR - - MODEL NUMBER 917.272461

BRIGGS & STRATrON ENGINE-MODEL NUMBER 407777, TYPE NUMBER 0174-E1

KEY PART KEY PART

NO. NO. DESCRIPTION NO. NO, DESCRIPTION

1 690231 Cylinder Assembly 125

2 499585 Kit-Bushing/Seal (Magneto 130

Side) 131

3 391086 • Seal-Oil (Magneto Side) 133

4 690069 Sump-Engine 135

5 693998 Head-Cylinder (Cylinder 1) 137

5A 693999 Head-Cylinder (Cylinder 2) 141

7 690962 -+ Gasket-Cylinder Head 142

8 499601 Breather Assembly 146

9 690937 • Gasket-Breather 150

10 690960 Screw (Breather Assembly) 160

11 690942 Tube-Breather 163

12 697227 • Gasket-Crankcase 165

13 690360 Screw (Cylinder Head) 187

15 690946 Plug-Oil Drain

16 691046 Crankshaft 187A

20 690947 • Seal-Oil (PTO Side) 188

22 694966 Screw (Engine Sump) 192

23 691054 Flywheel 209

24 222698 Key-Flywheel 211

25 499588 Piston Assembly (Standard) 212

25 499589 Piston Assembly (.010" 213

Oversize) 216

25 499590 Piston Assembly (.020" 219

Oversize) 220

25 499591 Piston Assembly (.030" 222

Oversize) 227

26 499604 Ring Set-Piston (Standard) 231

26 499605 Ring Set-Piston (.010" 240

Oversize) 250

26 499606 Ring Set-Piston (.020" 252

Oversize) 265

26 499607 Ring Set-Piston (.030" 267

Oversize) 276

27 690975 Lock-Piston Pin 287

28 690229 Pin-Piston 304

29 499583 Rod-Connecting 305

32 690976 Screw (Connecting Rod) 309

33 499596 Valve-Exhaust 319

34 499597 Valve-Intake 311

35 690963 Spring-Valve (Intake) 332

36 690963 Spring-Valve (Exhaust) 333

40 690964 Retainer-Valve 334

42 499586 Keeper-Valve 337

45 690977 Tappet-Valve 358

46 690978 Camshaft 363

48 692714 Short Block (446777-0027-E2 383

Replacement Engine) 385

50 695241 Manifold-Intake RPM

51 690950° _:1: Gasket-Intake

53 690951 Stud (Carburetor)

54 695240 Screw (Intake Manifold)

73 691055 Screen-Rotating

74 691057 Screw (Rotating Screen)

75 691056 Washer (Flywheel)

89 690283 Plug-Oil

95 690718 Screw (Throttle Valve)

98 499802 Kit-Idle Speed

104 690984 _ Pin-Float Hinge

105 690985 _ Valve-Float Needle

108 690986 Valve-Choke

117 690232 _ Jet-Main (Standard)

118 690989 Jet-Main (High Altitude)

12t 499811 Kit-Carburetor Overhaul

499804 Carburetor

690993 Valve-Throttle

499805 Kit-Throttle Shaft

499806 Float-Carburetor

499803 Tube-Fuel Transfer

690994 _$ Gasket-Float Bowl

499807 Kit-Choke Shaft

499808 O Nozzle-Carburetor

690979 Key-Timing

690995 _:1: Gasket-Nozzle

690996 Retainer-Solenoid

691001 .+ Gasket-Air Cleaner

693148 Nut (Ring Gear)

691050 Line-Fuel (Cut to Required

Length)

691049 Line-Fuel (Molded)

690960 Screw (Control Bracket)

690083 Adjuster-Rocker Arm

697674 Spring-Governor

691019 Spring-Governed Idle

695238 Link-Throttle

691021 Bracket-Choke Control

691022 Link-Choke

696376 Gear-Governor

690412 Washer (Governor Lever)

691023 Bracket-Control

691048 Lever-Governor Control

690718 Screw (Choke Valve)

691035 Filter-Fuel

690957 Retainer-Breather

690956 Conector-Oil

691024 Clamp-Casing

695134 Screw (Casing Clamp)

690997°0+ Washer-Sealing

690960

695277

691005

691262

691263

497608

691059

691060

691061

691043

694012

691062

690966

690960

Settings:

Screw (Dipstick Tube)

Housing-Blower

Screw (Blower Housing)

Motor-Starter

Bolt-Starter Motor

Brush Set

Nut (Flywheel)

Armature-Magneto

Screw (Magneto Armature)

Spark Plug

Set-Engine Gasket

Flywheel Puller

Wrench-Spark Plug

Screw (Fuel Pump)

Low Speed: 1900-2100

High Speed: 3000-3200

Included in Engine Gasket Set, Key. No, 358

Included in Carburetor Overhaul Kit, Key. No.

121

:1: Included in Carburetor Gasket Set, Key. No.

977

+ Included in Valve Gasket Set, Key, No. 1095

NOTE: All component dimensions given in U.S.

inches 1 inch = 25.4 mm

TRACTOR -- MODEL NUMBER 917.272461

BRIGGS & STRATrON ENGINE-MODEL NUMBER 407777, TYPE NUMBER 0174-E1

KEY PART KEY PART

NO. NO. DESCRIPTION NO. NO. DESCRIPTION

387 808656 Pump-Fuel 865 691012 Cover-Air Guide

404 690442 Washer (Governor Crank) 865A 691014 Cover-Air Guide

405 690960 Screw (Back Plate) 865B 691015 Cover-Air Guide

418 690999 Plate-Carburetor 868 690968 o+ Seal-Valve

445 499486 Filter-Air Cleaner Cartridge 914 691127 Screw (Rocker Cover)

447 691003 Screw (Air Guide Cover) 918 694000 Hose-Vacuum

447A 690960 Screw (Air Guide Cover) 929 695239 Screw (Choke Control

467 691008 Knob-Air Cleaner Bracket)

474 696459 Alternator 929A 691003 Screw (Choke Control

505 691029 Nut (Governor Control Lever) Bracket)

510 497606 Drive-Starter 943 690589 ° SeaI-O Ring (Oil Pump

513 692024 Clutch-Drive Cover)

523 691036 Dipstick 947 499809 Solenoid-Fuel

524 691032 • Seal-Dipstick Tube 965 499613 Cover-Oil Pump

525 691037 Tube-Dipstick 967 272638 Filtsr-Pre Cleaner

544 Armature-Starter 968 499788 Cover-Air Cleaner

(Service with 691262 Starter 975 499810 Bowl-Float

Motor) 977 499812 Gasket Set-Carburetor

552 690552 Bushing-Governor Crank 987 691000 _:1: Seal-Throttle Shaft

552A 690553 Bushing-Governor Crank 1005 499603 Fan-Flywheel

562 690311 Bolt (Governor Control Lever) 1013 690954 Nipple-Oil Filter

573 691009 Plate-Back 1017 690770 Screen-Oil Pump

601 691038 Clamp-Hose 1019 690103 Kit-Label

615 690317 Retainer-Governor Shaft 1022 690971 ,+ Gasket-Rocker Cover

616 691045 Crank-Governor 1023 499599 Cover-Rocker(Cylinder1)

617 691917 SeaI-O Ring (Intake Manifold) 1023A499600 Cover-Rocker(Cylinder2)

628 690960 Screw (Fuel Pump Bracket) 1024 499054 Pump-Oil

633 690998 O:1: Seal-Choke/Throttle Shaft 1026 690981 Rod-Push (Steel)

635 66538 Boot-Sparkplug 1026A690982 Rod-Push (Aluminum)

654 690958 Nut (Carburetor) 1027 492932 Filter-Oil

668 691215 Spacer 1029 690972 Arm-Rocker

672 690234 O_ Gasket-Carburetor Plate 1035 691042 Shaft-Pump

691 690657 • Seal-Governor Shaft 1036 695704 Label-Emission

695 693149 Screw (Ring Gear) 1051 691265 Ring-Retaining

697 690372 Screw (Drive Cap) 1056 274794 Owner's Manual

703 691010 Clip 1070 691674 Screw (Flywheel Fan)

718 690959 Pin-Locating 1090 691293 Retainer-Brush

726 499612 Gear-Ring 1095 694013 Kit-Valve Overhaul

741 690980 Gear-Timing 1100 690973 Pivot-RockerArm

742 690328 Retainer-E Ring 1119 691183 Screw (Alternator)

750 691033 Screw {Oil Pump Cover) 1123 6909870 _ SeaFO Ring (Solenoid

783 693058 Gear-Pinion Retainer)

788 691039 Bracket-Fuel Pump 1124 6909880 _: SeaI-O Ring (Fuel Transfer

789 695050 Harness-Wiring Tube)

797 691029 Nut (Brush Retainer) 1126 690991 Screw (Fuel Transfer Tube)

797A 693167 Nut (Brush Retainer) 1127 690992 Screw (Float Bowl)

798 690967 Screw (Rocker Arm) 1128 690990 0 Screw (Carburetor Nozzle)

801 691283 Cap-Drive 1169 693140 Screw (Carburetor Cover

802 691286 Cap-End Plate)

603 Housing-Starter RPM Settings: Low Speed: 1900-2100

(Service with 691262 Starter High Speed: 3000-3200

Motor)

842 691031 • Seal-Dipstick/Tube

847 499602 Dipstick/Tube Assembly _ Included in Engine Gasket Set, Key. No. 358

Included in Carburetor Overhaul Kit, Key. No.

851 493880 TerminaI-Sparkplug 121

855 691011 Adapter-Air _ Included in Carburetor Gasket Set, Key. No.

977

+ Included in Valve Gasket Set, Key. No. 1095

NOTE: All component dimensions given in U.S.

inches 1 inch = 25.4 mm

SUGGESTED GUIDE FOR SIGHTING SLOPES FOR SAFE OPERATION

(,D

1. Fold this page along dotted line Indicated above.

2. Hold page before you so that its left edge Is vertically parallel to a tree

trunk or other upright structure.

3. Sight across the fold in the direction of hill slope you want to measure.

4. Compare the angle of the fold with the slope of the hill.

1-800-4-MY-HOME ® Anytime,dayornioJ_t

(1-_0_W63) (U.S-_andCanada)

For repairof carry-inproducts likevacuums,lawn equipment, and

electronics, call for the nearest Sears Parts and Repair Center.

1-800-488-1222 An,/dme,dayornkjht(U.S_.orgy)

www.sea, l_cont

Forthe replacement parts, accessories and owner's manuals

that you need to do-it-yourself,call Sears PartsDirectSM!

1-800-366-PART 6a.m.-11 p.m., 7days aweek

(1-80o-366-7278) (u.s_.orgy)

www.sears.co_rect

To purchase or inquireabout a Sears Service Agreement

or Sears Maintenance Agreement:

1-800-827-6655 (u.s_.) 1-800-361-6665 (Canada)

7 a.m.- 5 p.m.,CST, Mort.- Sat. 9 a.m.- 8 p.m.EST,M- F,4 p.m.Sat.

Parapedirservicioda reparack_na

domicirlo, y para o_denar piezas:

1-888-S_ s_

(1-888-784-6427)

Au Canadapourselviceen fra,-x_:ais:

1-800-LE-F-OYERuc

(1-800-533-693_

WWW.sears.ca

HomeCentraPJ

® Registered Trademark / TMTrademark / sM Service Mark of Sears, Roebuck and Co.

® Marca Registrada / TMMarca de Fabrica / SMMarca de Servicio de Sears, Roebuck and Co.

McMarque de commerce / uo Marque ddpos6e de Sears, Roebuck and Co,

183216 2.25.02 TR Printed in U.S.A.

Craftsman 917272461 lawn tractor

Product's Documents

User Manual

Specifications

Craftsman 917272461 Questions and Answers
