en Instruction Manual and Installation Instructions
Washing machine
Your new washing machine
Display rules
: Warning!
Caution!
Note/tip
1. 2. 3. / a) b) c)
Contentsen Instruction Manual and Installation Instructions
8 Intended use 4
( Safety instructions 5
7 Environmental protection 11
5 Positioning and connecting 12
* Getting to know the appliance 21
Z Laundry 24
C Detergent 25
P Overview of programmes 27
0 Programme default settings 30
\ Additional programme settings 31
1 Operating the appliance 32
Q Appliance settings 36
H Sensors 36
2 Cleaning and maintenance 37
3 Faults and what to do about them 41
4 After-sales service 46
[ Consumption values table 47
J Technical information 48
r Aqua-Stop warranty 50
8 Intended use
Intended use
( Safety instructions
Safety instructions
Children/people/pets
: Warning
Risk of death!
: Warning
Risk of death!
: Warning
Risk of suffocation!
: Warning
Risk of poisoning!
: Warning
Risk of burns!
: Warning
Eye/skin irritation!
Installation
: Warning
Risk of electric shock/fire/ material damage/damage to the appliance!
: Warning
Risk of electric shock/fire/ material damage/damage to the appliance!
: Warning
Risk of fire/material damage/ damage to the appliance!
: Warning
Risk of injury/material damage/damage to the appliance!
: Warning
Risk of injury!
Caution!
Material damage/damage to the appliance
Operation
: Warning
Risk of explosions/fire!
: Warning
Risk of poisoning!
: Warning
Risk of injury!
: Warning
Risk of scalding!
: Warning
Eye/skin irritation!
Caution!
Material damage/damage to the appliance
Cleaning/Maintenance
: Warning
Risk of death!
: Warning
Risk of poisoning!
: Warning
Risk of electric shock/material damage/damage to the appliance!
: Warning
Risk of injury/material damage/damage to the appliance!
Caution!
Material damage/damage to the appliance
7 Environmental protection
Environmental protection
Packaging/used appliance
Tips on economical use
5 Positioning and connecting
Positioning and connecting
Standard accessories
Note:
– WAF13 for loosening the transport braces and
– WAF17 for aligning the appliance feet
Safety instructions
: Warning
Risk of injury!
Caution!
Damage to the appliance
Caution!
Water damage
Notes
Installation surface
Note:
Installation on a base or a wooden joist floor
Caution!
Damage to the appliance
Note:
Installing the appliance in a kitchenette
: Warning
Risk of death!
Notes
Removing the transport locks
Caution!
Damage to the appliance
Note:

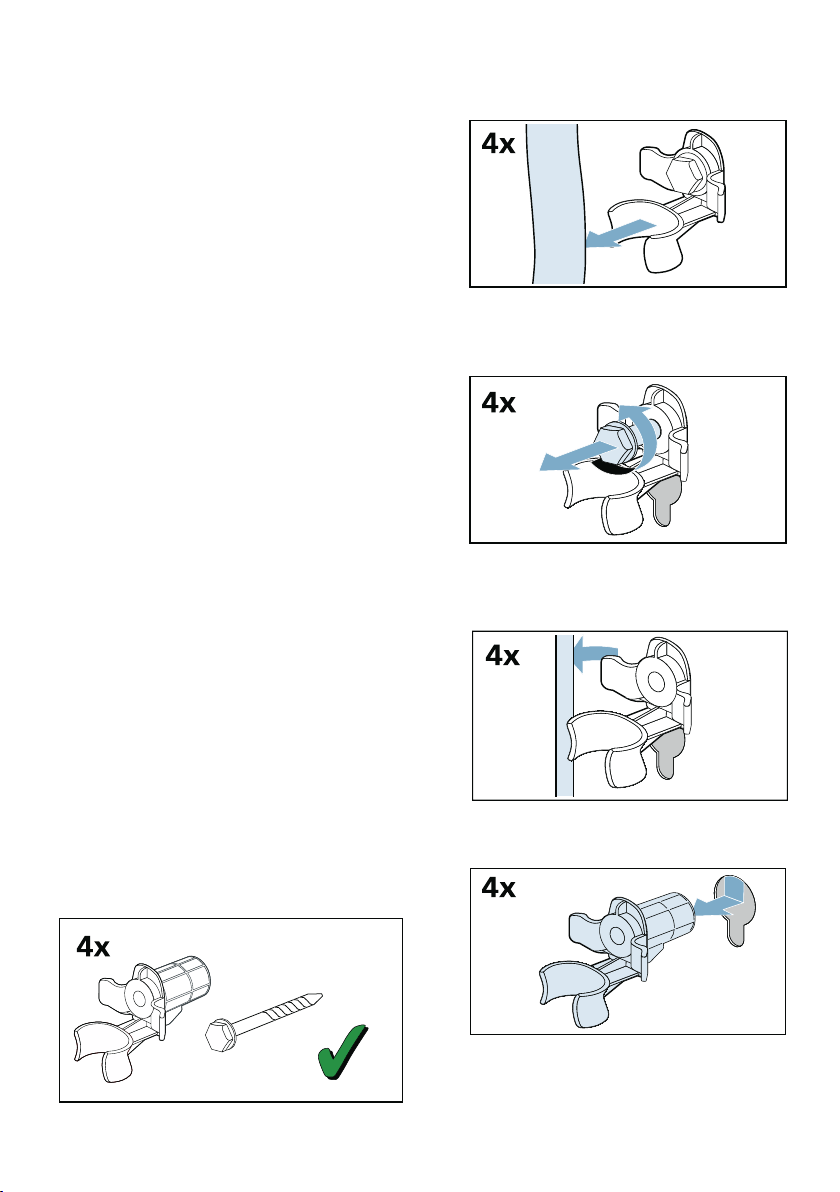

1. Take the hoses out of the holders.
2. Unscrew and remove all four transport brace screws.
a) Remove the mains cable from the holders.
b) Remove the sleeves.
3. Fit the covers.
4. Lock the covers firmly in place by applying pressure to the snap-in hooks.
Removing the support struts

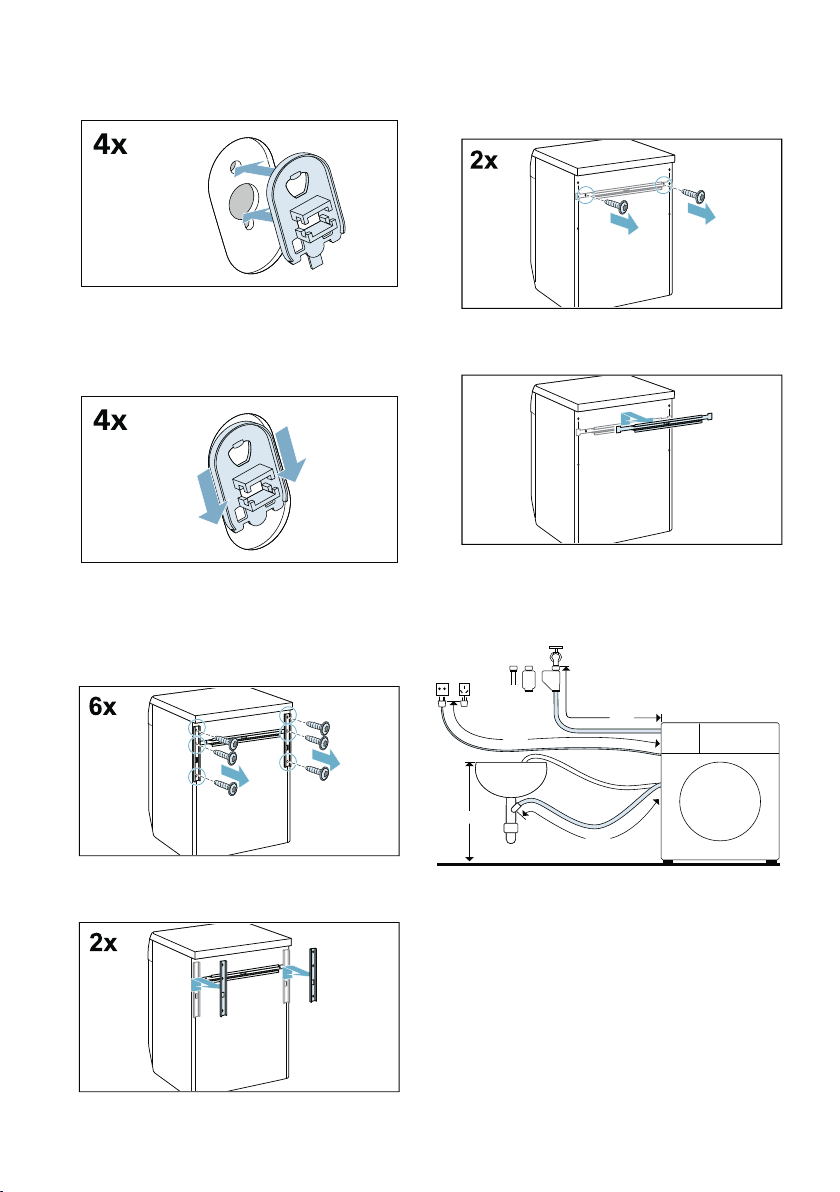

1. Unscrew and remove all screws in the vertical transport struts.
2. Remove the transport struts.
3. Undo and remove the screws on the horizontal transport strut.
4. Remove the transport strut.

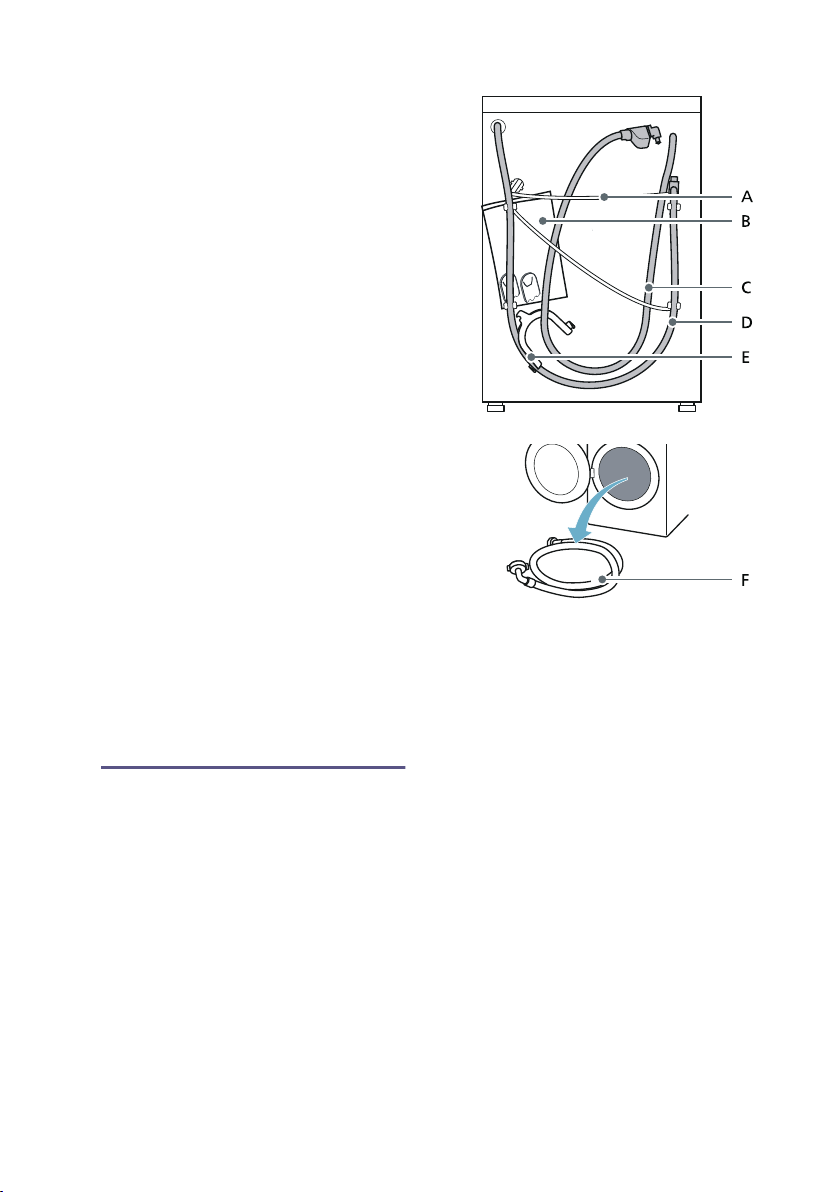

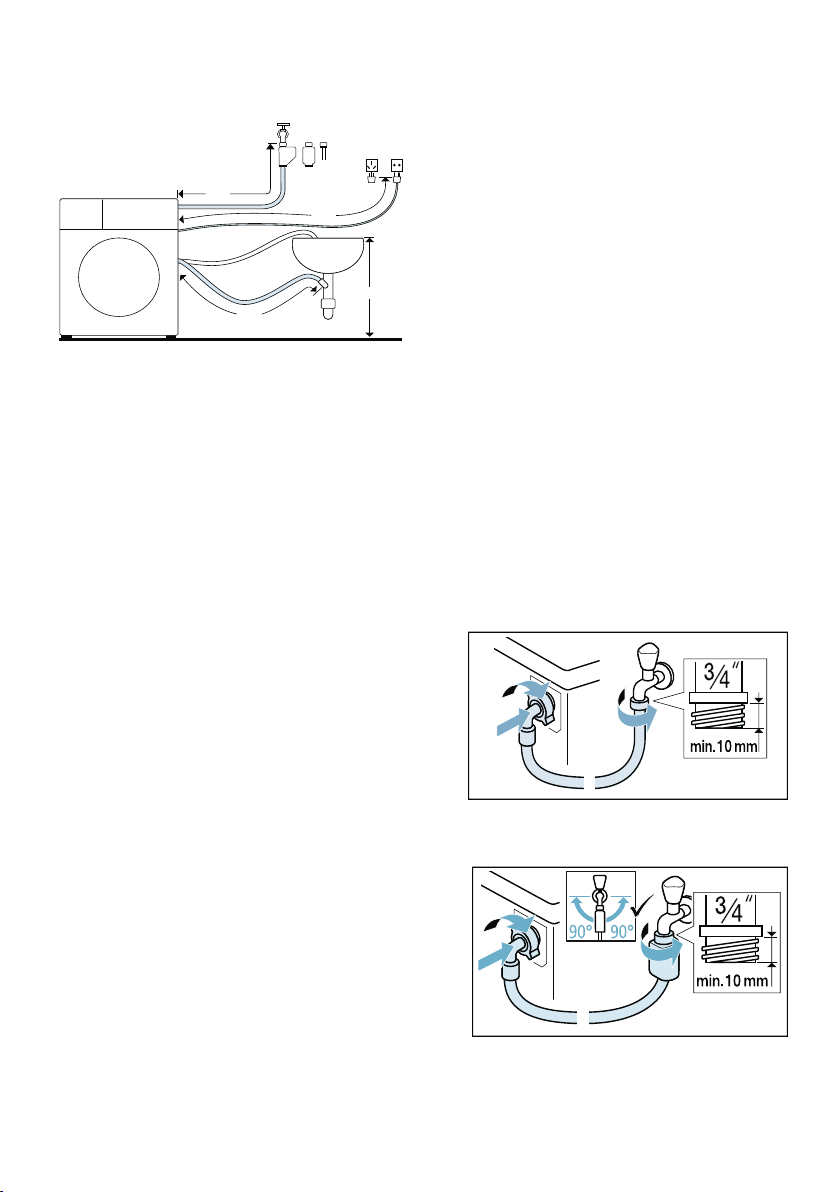

Hose and cable lengths
Note:
Water inlet
: Warning
Risk of death!
Notes

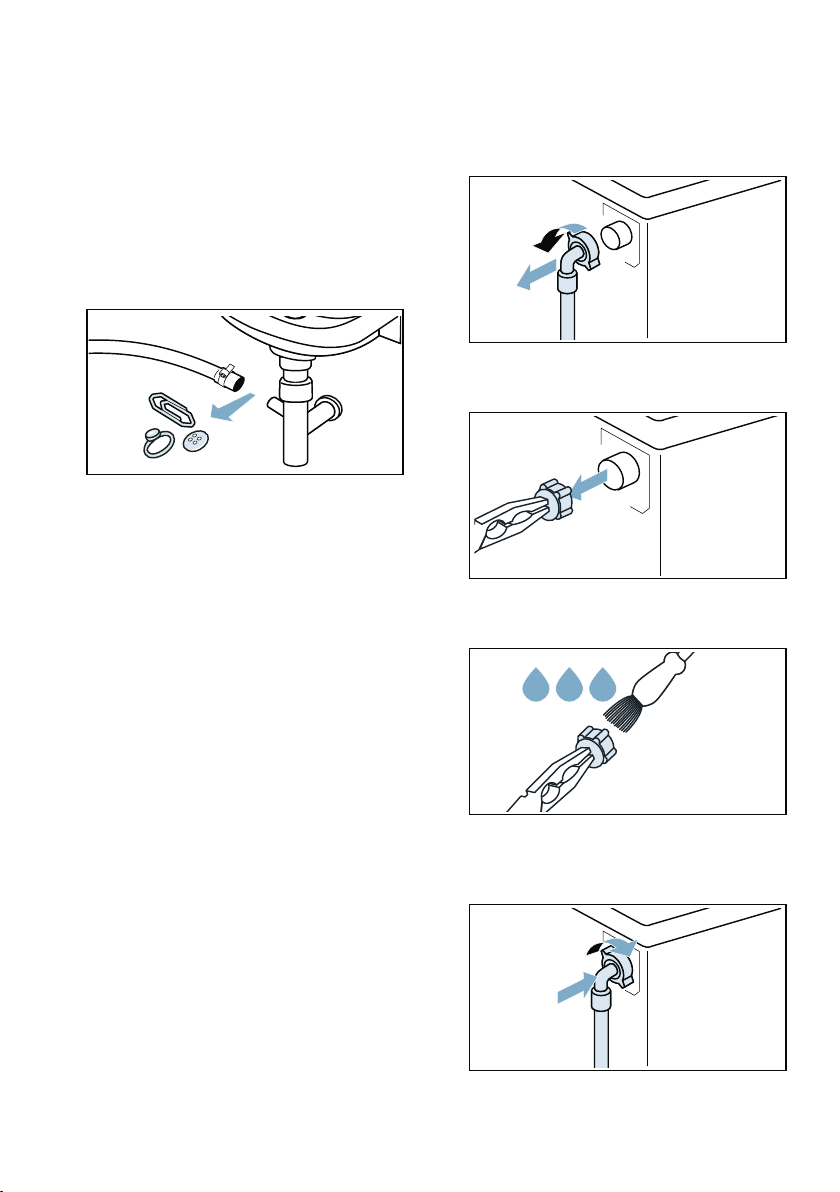

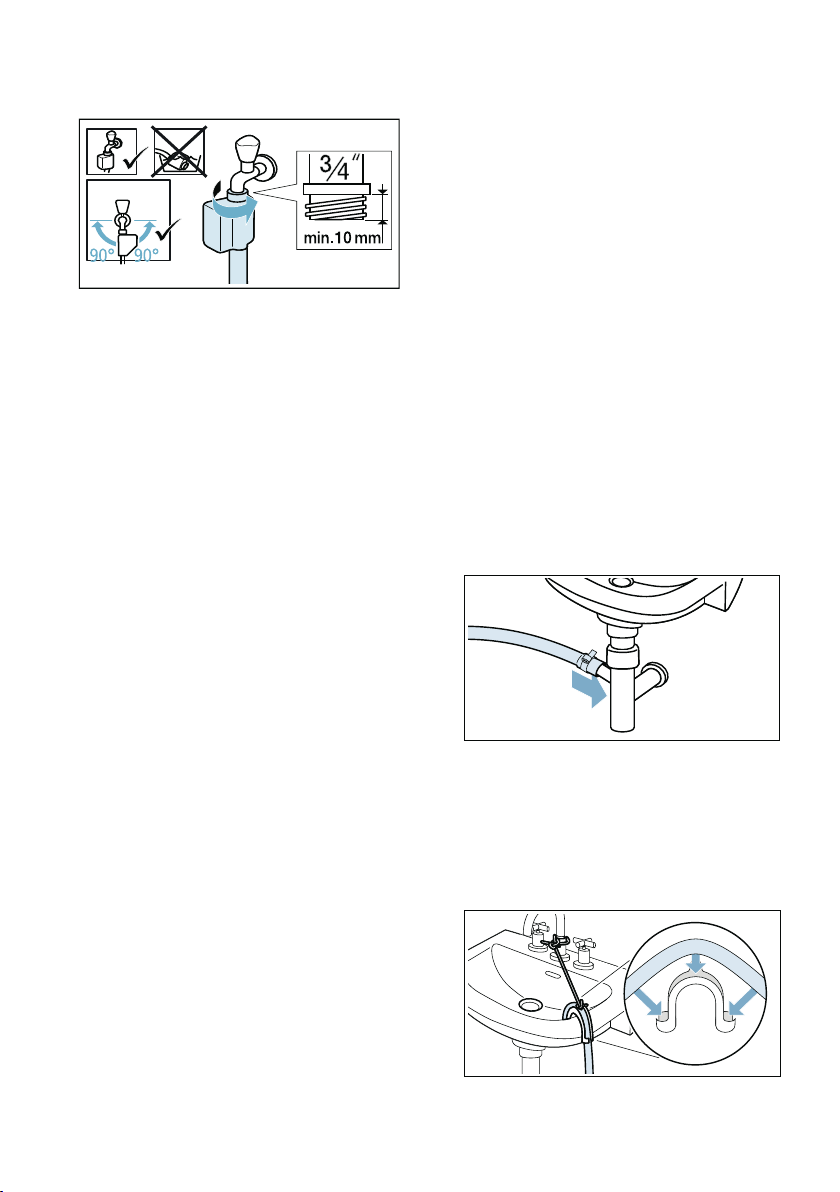

1. Connect the water supply hose to the water tap (¾" = 26.4 mm) and to the appliance:
– Model: Standard
– Model: AquaSecure
– Model: Aqua-Stop
Tip:
2. Open the water tap carefully, checking the leak tightness of the connection points. The screw connection is under mains water pressure.
Water outlet
: Warning
Risk of scalding!
Caution!
Water damage
Caution!
Damage to the appliance/fabrics
Note:
Note:
The plastic pipe is not standard accessory, available from specialist dealers.
Alignment

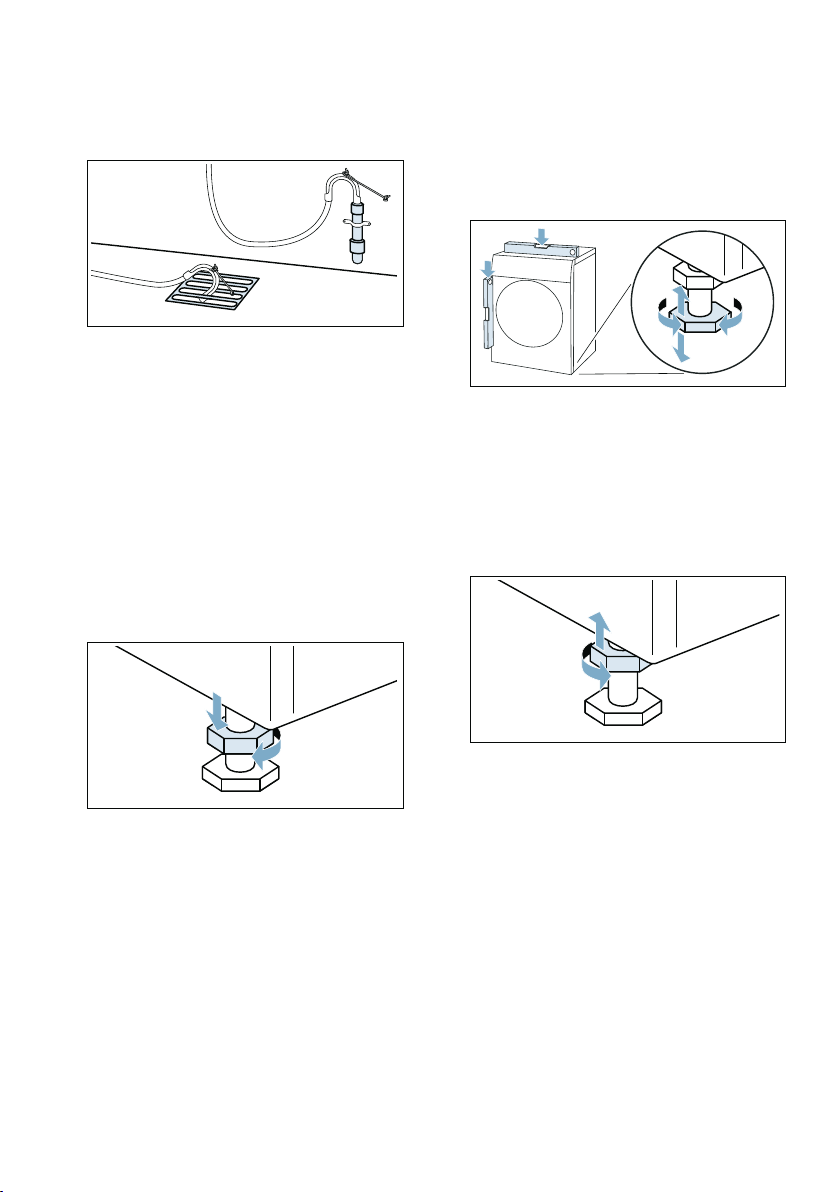

1. Loosen the lock nuts using a wrench, by turning it in a clockwise direction.
2. Check the alignment of the appliance with a spirit level, and adjust it if necessary. Change the height by turning the appliance feet.
3. Tighten the lock nut against the housing.
Electrical connection
: Warning
Risk of death!
Notes
The connected load and fuse required are specified on the rating plate.
Only this symbol guarantees compliance with the currently applicable regulations.
Before washing for the first time
Note:
1. Insert mains plug.
2. Turn the water tap on.
3. Close the door. Do not load any laundry.
4. Run two cycles of Cottons i 90 °C programme.
5. Open the detergent drawer.
6. Pour approx. 1 litre of water into dispenser II.
7. Add standard detergent to dispenser II according to manufacturer’s instructions for light soiling.
Note:
To prevent frothing, use only half the recommended amount of detergent. Do not use any woollens or mild detergents.
8. Close the detergent drawer.
9. Select Start/Reload A.
10. When the programme ends, turn the programme selector to Off.
Transportation
Preparatory work:
1. Turn off the water tap.
2. Reduce the water pressure in the supply hose. ~ Page 40
3. Drain any residual water. ~ Page 39
4. Disconnect the appliance from the mains.
5. Remove the hoses.
6. Empty the dispensers.
Caution!
Risk of damage to the appliance caused by detergent/fabric softener leaking from the dispensers
Installing the transport locks:
1. Remove the covers and keep them in a safe place.
Note:
Use a screwdriver if necessary.
2. Insert all four sleeves.
a) Clip the mains cable securely in the holders.
b) Insert and tighten the screws.
c) Clip the hoses securely in the holders.
Notes
This will prevent detergent from flowing straight into the drain during the next wash.
* Getting to know the appliance
Getting to know the appliance

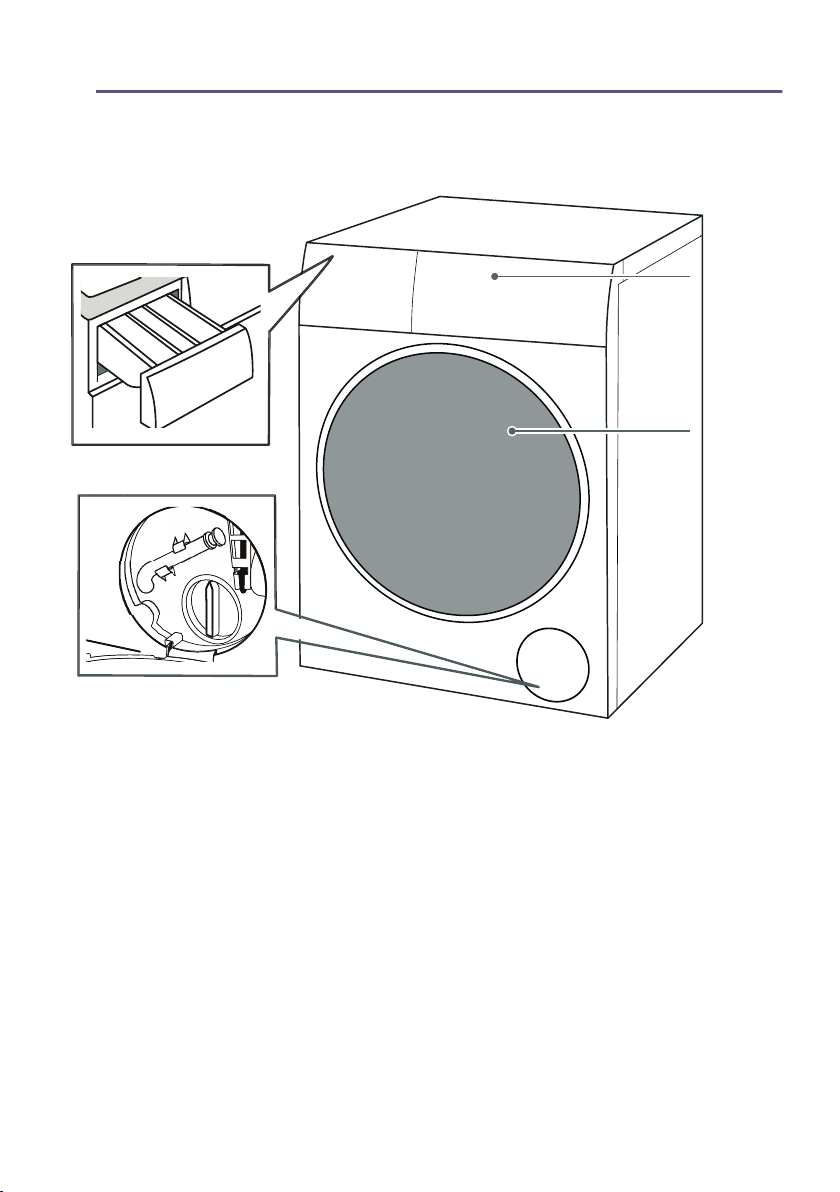

Appliance
Control panel
Display panel
Programme default settings
Display
Setting
Description
Additional programme settings
Display
Setting
Status indicators for the programme progress (programme sequence)
Display
Setting
Z Laundry
Laundry
Protecting your laundry and appliance
Caution!
Damage to the appliance/textiles
Sorting laundry
Note:
Laundry may discolour. Wash white and coloured items separately. Wash new coloured items separately the first time you wash them.
– Light: No need to pretreat, adjust the G SpeedPerfect setting if necessary.
– Normal
– Heavy: Load less laundry, need to pretreat or soak laundry firstly.
– Stains: Remove/pretreat stains while they are fresh. First dab with soapy water; do not rub. Then wash the items of laundry with the appropriate programme. Stubborn or dried-in stains can sometimes only be removed by washing several times.
Starching
Note:
1. Switch on the appliance.
2. Select the à Rinse programme.
3. Measure starch into dispenser I in accordance with the manufacturer's instructions (clean first if necessary).
4. Touch the Start/Reload A button.
Dyeing/bleaching
C Detergent
Detergent
Correct selection of detergent
Saving energy and detergent
Saving
Soiling/note
Note:
P Overview of programmes
Overview of programmes
Selectable programme
Programme/Type of washing
Options/Information
Note:
Notes
Note:
Note:
Note:
0 Programme default settings
Programme default settings
6 Temp. °C
0 Spin Speed
ñ Finished in
To do this:
1. Select a programme (except myTime programme).
2. Select the ñ Finished in button repeatedly until the required number of hours is displayed.
3. Select the Start/Reload A button.
Note:
After starting the programme (if a “Finish in” time has been selected and the programme has not yet started), you can change the preselected number of hours as follows:
1. Select the Start/Reload A button.
2. Select the ñ Finished in button repeatedly to change the number of hours.
3. Select the Start/Reload A button.
\ Additional programme settings
Additional programme settings
Note:
x Anti Stain
Types of stain that can be selected:
Select a programme with a stain type:
1. Arrange items of washing as usual.
2. Select a programme.
3. Select a stain type (depending on the selected programme).
4. Start the programme.
T (Prewash)
Note:
Ï Rinse Plus
p Easy Iron
Note:
G SpeedPerfect
Note:
1 Operating the appliance
Operating the appliance
Preparing the appliance
Notes

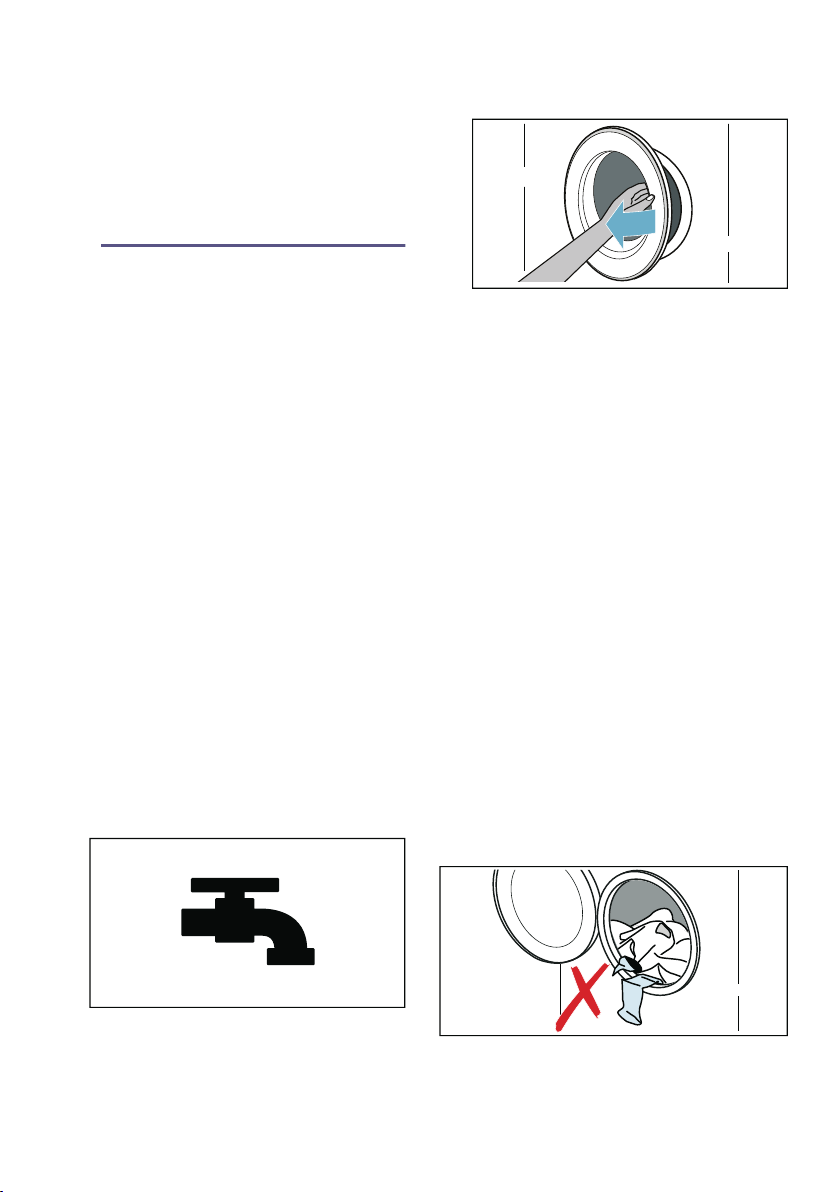

1. Insert mains plug.
: Warning
Risk of death from electric shock!
2. Turn the water tap on.

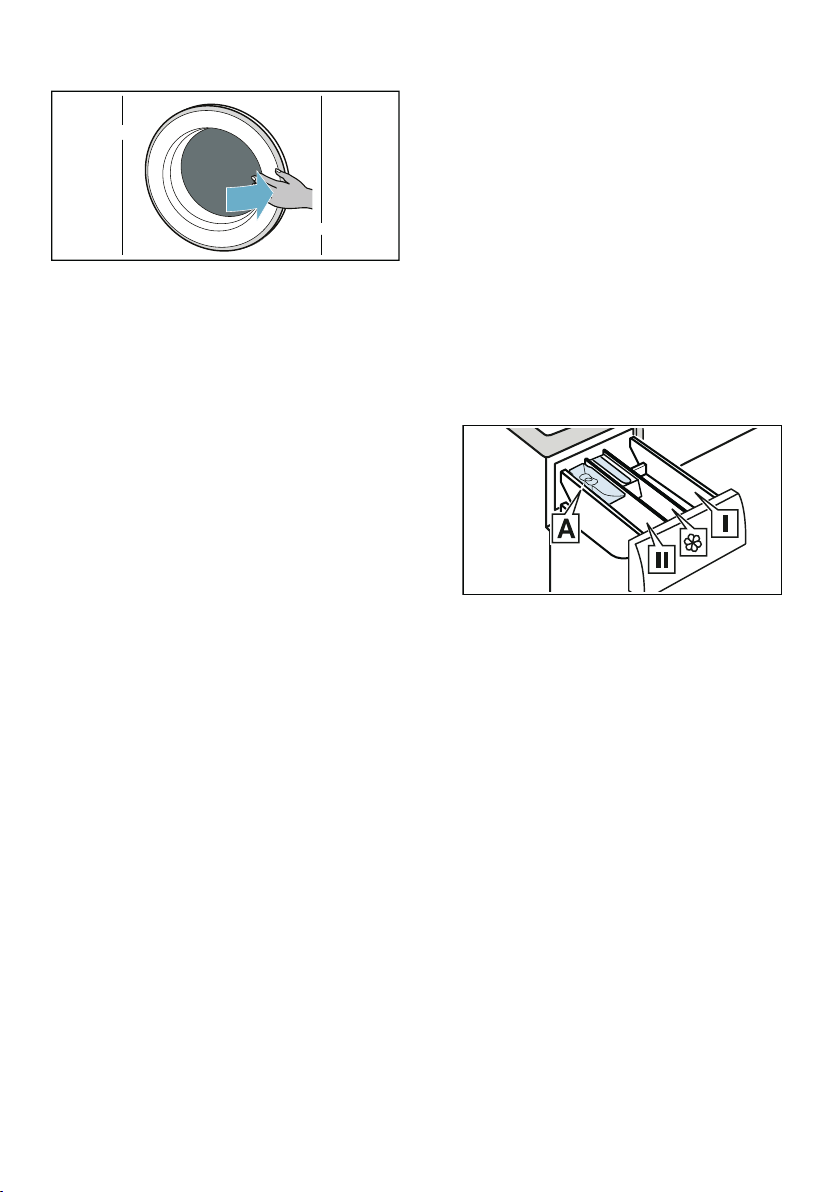

3. Open the appliance door.
Select programme/switch on the appliance
Note:
Placing laundry into the drum
Notes
Measure and add detergent and care products
Caution!
Damage to the appliance
1. Pull out the detergent drawer.
: Warning
Eye / skin irritation!
2. Pour in detergent and/or cleaning product.
*depending on the model
Notes
Position the measuring aid A for measuring the correct amount of liquid detergent:
1. Pull out the detergent drawer. Insert the liquid detergent container into dispenser II for main wash.
2. Pour liquid detergent into liquid detergent container and do not exceed the Maximum mark.
3. Close the detergent drawer.
Note:
Starting the programme
Childproof lock
Note:
Adding/removing laundry
Notes
Changing the programme
If you have started the wrong programme by mistake, you can change the programme as follows:
1. Touch the Start/Reload A button.
2. Select another programme.
3. And touch the Start/Reload A button again. The new programme starts from the beginning.
Cancel the programme
For programmes at high temperatures:
1. Touch the Start/Reload A button.
2. To cool down laundry: Select à Rinse.
3. And touch the Start/Reload A button again.
For programmes at low temperatures:
1. Touch the Start/Reload A button.
2. Select 0 [ Spin/Drain.
3. And touch the Start/Reload A button again.
Programme end
Removing laundry/switching off the appliance
1. Set programme selector to Off.
2. Open the door and remove the laundry.
3. Turn off the water tap.
Note:
Not required for Aqua-Stop models.
Notes
Q Appliance settings
Appliance settings
Activate setting mode:
1. Set the programme selector to position 1. The appliance is switched on.
2. Touch and hold the 0 Spin Speed button and, at the same time, turn the programme selector clockwise to position 2. Release the 0 Spin Speed button.
Changing the volume and drum care information
H Sensors
Sensors
Unbalanced load detection system
Note:
2 Cleaning and maintenance
Cleaning and maintenance
: Warning
Risk of death!
Caution!
Fire and explosion hazard!
Caution!
The appliance may be damaged!
Appliance housing/control panel
Drum
: Warning
Risk of injury/material damage/ damage to the appliance!
Descaling
Emptying the detergent draw, cleaning the detergent drawer and its housing
If the appliance contains detergent or fabric softener residues:

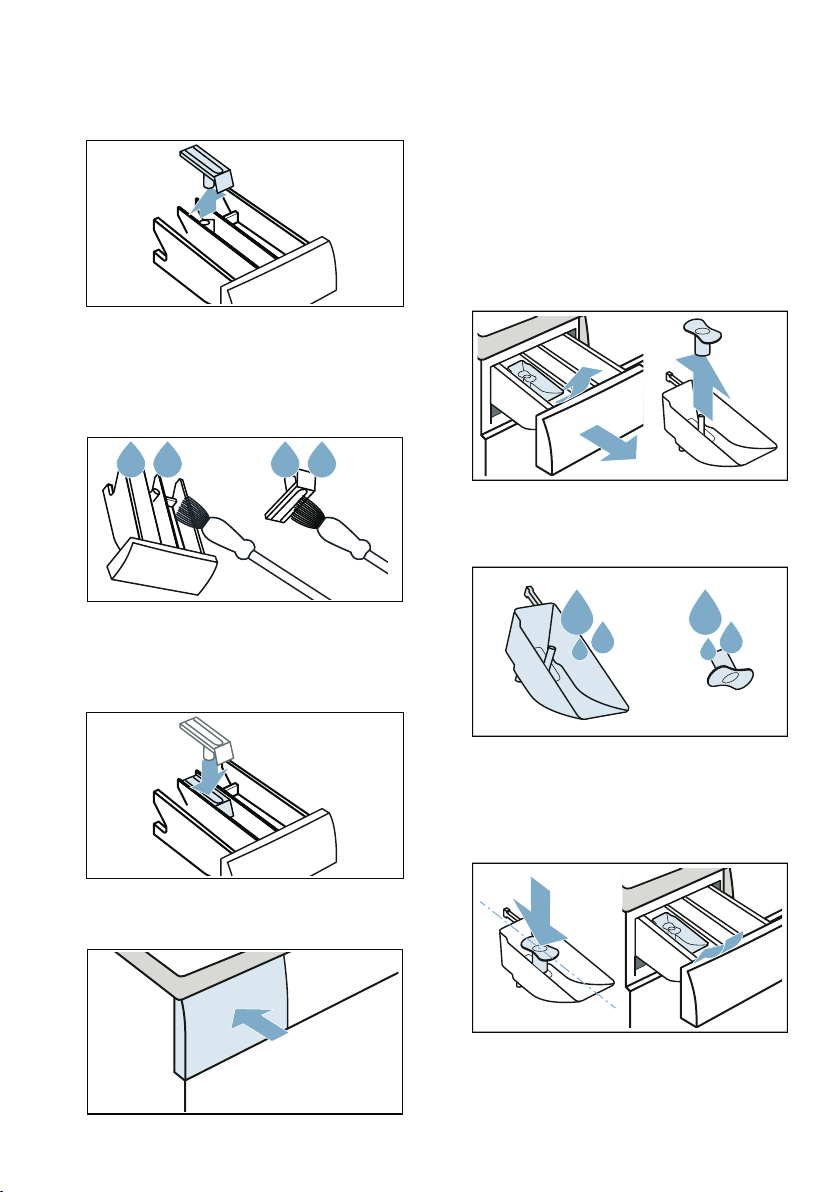

1. Pull out the detergent drawer. Press down the insert and fully remove the drawer.
2. To remove the insert: Push the insert upwards from below with your finger.
3. Clean the detergent dispenser tray and insert with water and a brush, and dry it. Clean the inside of the housing as well.
4. Fit the insert and lock it in place (push the cylinder onto the guide pin).
5. Push in the detergent drawer.
Note:
Cleaning the measuring aid A for liquid detergent
If it contains liquid detergent residue:
1. Hold the measuring aid, pull the cover upward and disconnect them.
2. Clean the measuring aid and cover with water and brush.
3. Install the cover back to the measuring aid. Pay attention to the assemble mark, and press the cover until click sounds.
Note:
Clean the measuring aid regularly to avoid residue and blockages.
Drain pump is blocked
Note:
: Warning
Risk of scalding!

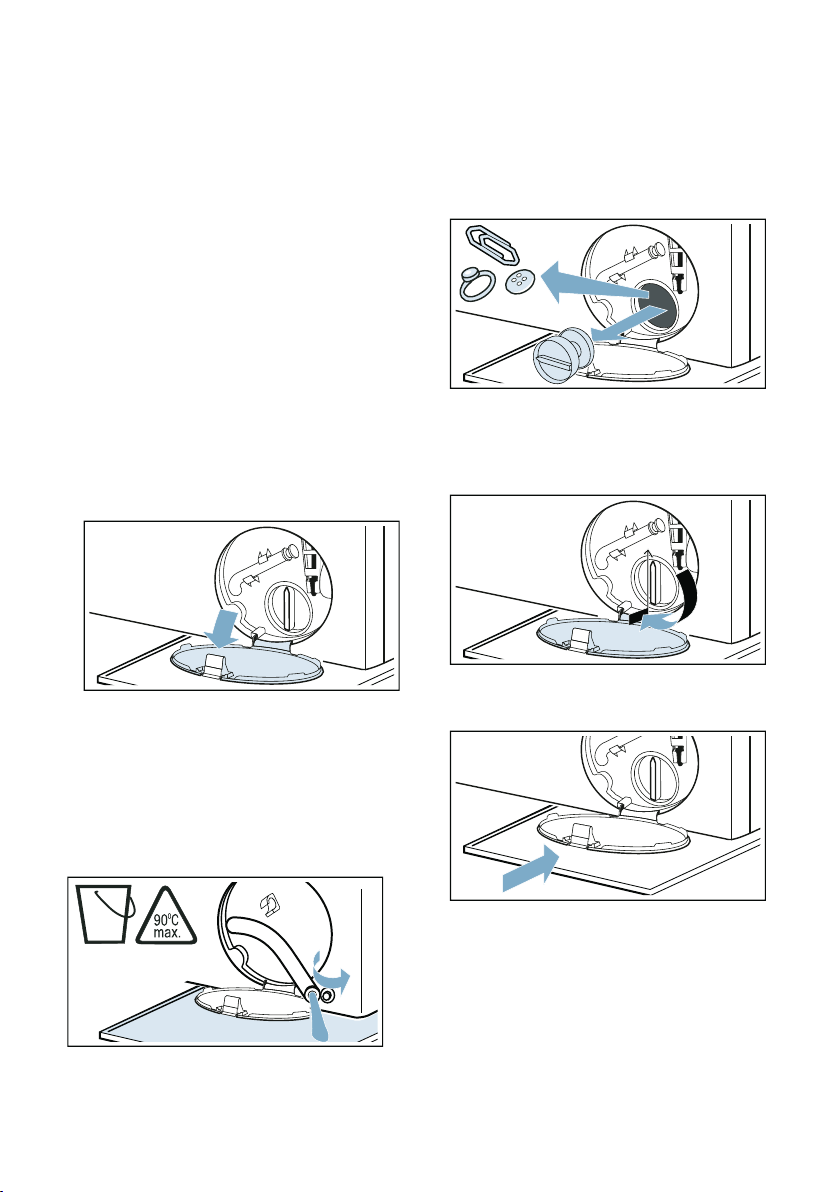

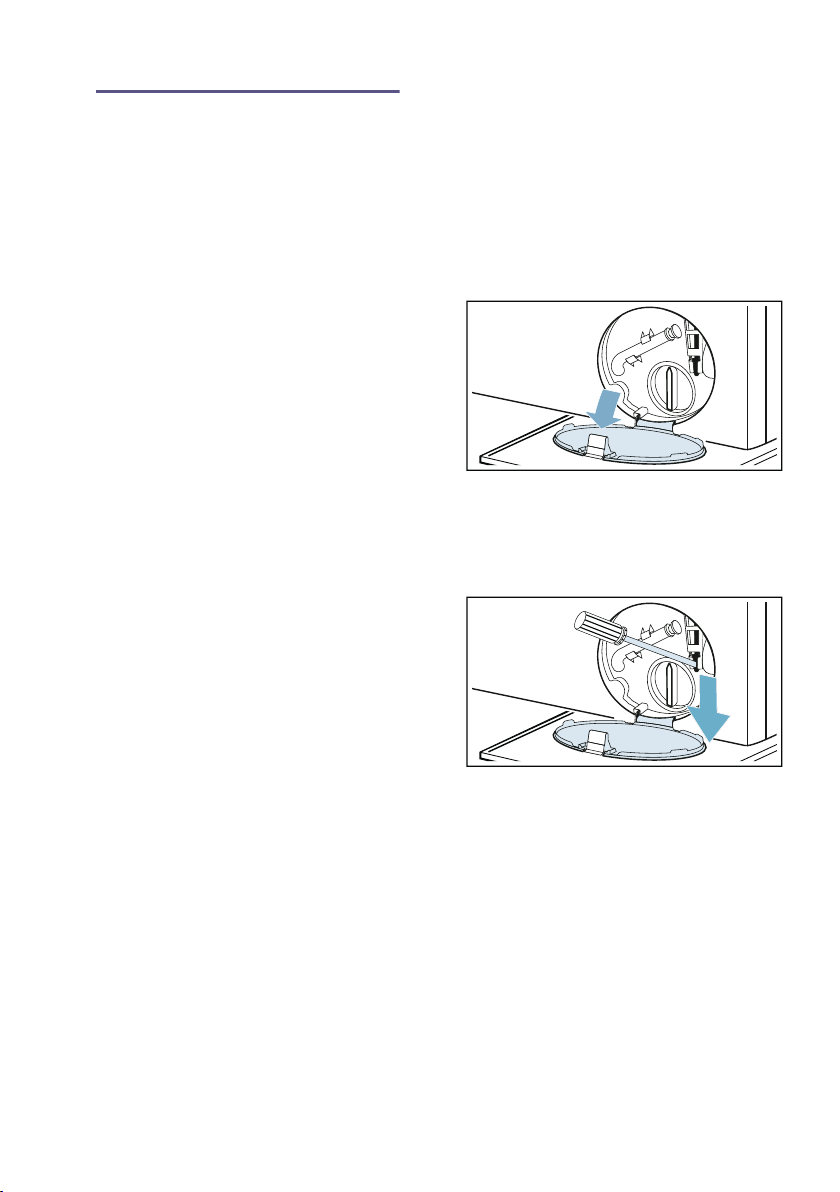

1. Turn the programme selector to Off. Pull out the mains plug.
2. Open the service flap.
3. Take the drain hose out of the retainer.
4. Carefully unscrew the pump cover; residual water may leak out.
5. Refit and screw on the pump cover. The handle must be in a vertical position.
6. Close the service flap.
Note:
The drain hose at the siphon is blocked
1. Turn the programme selector to Off. Pull out the mains plug.
2. Loosen the hose clamp. Carefully remove the drain hose; residual water may leak out.
3. Clean the drain hose and siphon connecting piece.
4. Re-attach the drain hose and secure the connection point using the hose clamp.
Filter in the water supply is blocked
1. Turn off the water tap.
2. Select the Cottons i (activate G SpeedPerfect setting) programme.
Note:
If your appliance with intelligent dosing system, you also need to deactivate the intelligent dosing system.
3. Select the Start/Reload A button. Allow the programme to run for approx. 40 seconds.
4. Turn the programme selector to Off.
5. Pull out the mains plug.
1. Disconnect the hose from the rear of the appliance.
2. Use pliers to remove the filter.
3. Clean the filter with a small brush.
4. Connect the hose and check for leaks.
3 Faults and what to do about them
Faults and what to do about them
Emergency release
However, if the laundry has to be removed, the appliance door can be opened as follows:
: Warning
Risk of scalding!
: Warning
Risk of injury!
Caution!
Water damage!
1. Turn the programme selector to Off. Pull out the mains plug.
2. Open the service flap.
3. Drain the water. ~ Page 39
4. Pull the emergency release downwards with a tool and release.
Information on the display panel
Display
Cause/Remedy
Notes
Faults and what to do about them
Faults
Cause/Remedy
Note:
Note:
4 After-sales service
After-sales service
[ Consumption values table
Supplementary sheet for the installation and operating instructions
Energy and water consumption, programme duration and residual moisture for the main washing programme (approximate values)
Programme
Load
Energy consumption*
Water consumption*
Programme duration*
J Technical information
Technical information
Technical data
Information for test institute
r Aqua-Stop warranty
Aqua-Stop warranty
In addition to warranty claims against the vendor based on the purchase agreement and to our appliance warranty, we will provide compensation under the following conditions:
1. If water damage is caused due to a fault in our Aqua-Stop system, we will compensate domestic customers for the damage caused.
2. The liability guarantee is valid for the service life of the appliance.
3. It is a prerequisite of all warranty claims that the appliance with Aqua- Stop must have been installed and connected correctly in accordance with our instructions; this also includes a correctly fitted Aqua-Stop extension (genuine accessories).
4. Appliances with Aqua-Stop do not need to be supervised during operation, nor secured afterwards by turning off the tap.
*9001551851*
Thank you for buying a Bosch Home Appliance!
Looking for help? You´ll find it here.
Page 1/52
Page 1
Page 2
Page 3
Page 4
Page 5
Page 6
Page 7
Page 8
Page 9
Page 10
Page 11
Page 12
Page 13
Page 14
Page 15
Page 16
Page 17
Page 18
Page 19
Page 20
Page 21
Page 22
Page 23
Page 24
Page 25
Page 26
Page 27
Page 28
Page 29
Page 30
Page 31
Page 32
Page 33
Page 34
Page 35
Page 36
Page 37
Page 38
Page 39
Page 40
Page 41
Page 42
Page 43
Page 44
Page 45
Page 46
Page 47
Page 48
Page 49
Page 50
Page 51
Page 52
Contents
Table of Contents
Search
Previous
Next
Bookmarks
3FHJTUFS
ZPVS
OFXEF
WJDFPO
.Z#PTDIOP
XBOE
HFUGS
FFCFOFGJUT
CPTDIIPNFDPN
XFMDPNF
en
Instruction Manual and Installation Instructions
Washing machine
WGA244U0AU
Loading ...
Loading ...
Loading ...
File type: PDF
File name: 27059283_wga244u0au.pdf
File size: 2.53 MB
File Language: English
Pages: 52
Author: Bosch
File created: 2020-09-19
Published:
2022-05-20
Updated: 2023-05-06
Download File
Other documents for Bosch WGA244U0AU
The following documents are available:
User Manual
User Manual - (English)
Read Online
|
Download pdf
Specification
WGA244U0AU - Bosch - Specifications Sheet - (English)
Download
Photos
Photos:
View Photos
Specifications
Brand:
Bosch
Model: WGA244U0AU
Category:
Washers & Dryers
View in the file:
Full Specifications
See other models:
DWW06W450A
SMI6HCS01A
7716500248
HBA574EB0A
HCE854451A
Related Products
Bosch WGA254U0AU
Bosch WGA244A0TH
Bosch WGG24401AU
Bosch WGG2440XGB
Bosch WGG24409GB
Bosch WGG04409GB
Bosch WGG244M7NL
Bosch WGG244M5NL
Bosch WGG24400NL
Bosch WGG24405NL
Bosch WGG24407NL
Bosch WGG24409NL
Bosch WGG244A7NL
Bosch WGG244A5NL
Bosch WGG244A0NL
Table of Contents
×
en Instruction Manual and Installation Instructions
1
Washing machine
1
Your new washing machine
2
Display rules
2
: Warning!
2
Caution!
2
Note/tip
2
1. 2. 3. / a) b) c)
2
Contentsen Instruction Manual and Installation Instructions
3
8 Intended use 4
3
( Safety instructions 5
3
7 Environmental protection 11
3
5 Positioning and connecting 12
3
* Getting to know the appliance 21
3
Z Laundry 24
3
C Detergent 25
3
P Overview of programmes 27
3
0 Programme default settings 30
3
\ Additional programme settings 31
3
1 Operating the appliance 32
3
Q Appliance settings 36
3
H Sensors 36
3
2 Cleaning and maintenance 37
4
3 Faults and what to do about them 41
4
4 After-sales service 46
4
[ Consumption values table 47
4
J Technical information 48
4
r Aqua-Stop warranty 50
4
8 Intended use
4
Intended use
4
( Safety instructions
5
Safety instructions
5
Children/people/pets
5
: Warning
5
Risk of death!
5
: Warning
5
Risk of death!
5
: Warning
5
Risk of suffocation!
5
: Warning
6
Risk of poisoning!
6
: Warning
6
Risk of burns!
6
: Warning
6
Eye/skin irritation!
6
Installation
6
: Warning
6
Risk of electric shock/fire/ material damage/damage to the appliance!
6
: Warning
7
Risk of electric shock/fire/ material damage/damage to the appliance!
7
: Warning
7
Risk of fire/material damage/ damage to the appliance!
7
: Warning
7
Risk of injury/material damage/damage to the appliance!
7
: Warning
7
Risk of injury!
7
Caution!
8
Material damage/damage to the appliance
8
Operation
8
: Warning
8
Risk of explosions/fire!
8
: Warning
8
Risk of poisoning!
8
: Warning
9
Risk of injury!
9
: Warning
9
Risk of scalding!
9
: Warning
9
Eye/skin irritation!
9
Caution!
9
Material damage/damage to the appliance
9
Cleaning/Maintenance
10
: Warning
10
Risk of death!
10
: Warning
10
Risk of poisoning!
10
: Warning
10
Risk of electric shock/material damage/damage to the appliance!
10
: Warning
10
Risk of injury/material damage/damage to the appliance!
10
Caution!
11
Material damage/damage to the appliance
11
7 Environmental protection
11
Environmental protection
11
Packaging/used appliance
11
Tips on economical use
12
5 Positioning and connecting
12
Positioning and connecting
12
Standard accessories
12
Note:
12
– WAF13 for loosening the transport braces and
13
– WAF17 for aligning the appliance feet
13
Safety instructions
13
: Warning
13
Risk of injury!
13
Caution!
13
Damage to the appliance
13
Caution!
13
Water damage
13
Notes
13
Installation surface
13
Note:
13
Installation on a base or a wooden joist floor
13
Caution!
13
Damage to the appliance
13
Note:
13
Installing the appliance in a kitchenette
14
: Warning
14
Risk of death!
14
Notes
14
Removing the transport locks
14
Caution!
14
Damage to the appliance
14
Note:
14
1. Take the hoses out of the holders.
14
2. Unscrew and remove all four transport brace screws.
14
a) Remove the mains cable from the holders.
14
b) Remove the sleeves.
14
3. Fit the covers.
15
4. Lock the covers firmly in place by applying pressure to the snap-in hooks.
15
Removing the support struts
15
1. Unscrew and remove all screws in the vertical transport struts.
15
2. Remove the transport struts.
15
3. Undo and remove the screws on the horizontal transport strut.
15
4. Remove the transport strut.
15
Hose and cable lengths
15
Note:
16
Water inlet
16
: Warning
16
Risk of death!
16
Notes
16
1. Connect the water supply hose to the water tap (¾" = 26.4 mm) and to the appliance:
16
– Model: Standard
16
– Model: AquaSecure
16
– Model: Aqua-Stop
17
Tip:
17
2. Open the water tap carefully, checking the leak tightness of the connection points. The screw connection is under mains water pressure.
17
Water outlet
17
: Warning
17
Risk of scalding!
17
Caution!
17
Water damage
17
Caution!
17
Damage to the appliance/fabrics
17
Note:
17
Note:
18
The plastic pipe is not standard accessory, available from specialist dealers.
18
Alignment
18
1. Loosen the lock nuts using a wrench, by turning it in a clockwise direction.
18
2. Check the alignment of the appliance with a spirit level, and adjust it if necessary. Change the height by turning the appliance feet.
18
3. Tighten the lock nut against the housing.
18
Electrical connection
18
: Warning
18
Risk of death!
18
Notes
19
The connected load and fuse required are specified on the rating plate.
19
Only this symbol guarantees compliance with the currently applicable regulations.
19
Before washing for the first time
19
Note:
19
1. Insert mains plug.
19
2. Turn the water tap on.
19
3. Close the door. Do not load any laundry.
19
4. Run two cycles of Cottons i 90 °C programme.
19
5. Open the detergent drawer.
19
6. Pour approx. 1 litre of water into dispenser II.
19
7. Add standard detergent to dispenser II according to manufacturer’s instructions for light soiling.
19
Note:
19
To prevent frothing, use only half the recommended amount of detergent. Do not use any woollens or mild detergents.
19
8. Close the detergent drawer.
19
9. Select Start/Reload A.
19
10. When the programme ends, turn the programme selector to Off.
19
Transportation
19
Preparatory work:
19
1. Turn off the water tap.
19
2. Reduce the water pressure in the supply hose. ~ Page 40
19
3. Drain any residual water. ~ Page 39
19
4. Disconnect the appliance from the mains.
19
5. Remove the hoses.
19
6. Empty the dispensers.
19
Caution!
19
Risk of damage to the appliance caused by detergent/fabric softener leaking from the dispensers
19
Installing the transport locks:
20
1. Remove the covers and keep them in a safe place.
20
Note:
20
Use a screwdriver if necessary.
20
2. Insert all four sleeves.
20
a) Clip the mains cable securely in the holders.
20
b) Insert and tighten the screws.
20
c) Clip the hoses securely in the holders.
20
Notes
20
This will prevent detergent from flowing straight into the drain during the next wash.
20
* Getting to know the appliance
21
Getting to know the appliance
21
Appliance
21
Control panel
22
Display panel
23
Programme default settings
23
Display
23
Setting
23
Description
23
Additional programme settings
23
Display
23
Setting
23
Status indicators for the programme progress (programme sequence)
23
Display
23
Setting
23
Z Laundry
24
Laundry
24
Protecting your laundry and appliance
24
Caution!
24
Damage to the appliance/textiles
24
Sorting laundry
24
Note:
24
Laundry may discolour. Wash white and coloured items separately. Wash new coloured items separately the first time you wash them.
24
– Light: No need to pretreat, adjust the G SpeedPerfect setting if necessary.
24
– Normal
24
– Heavy: Load less laundry, need to pretreat or soak laundry firstly.
24
– Stains: Remove/pretreat stains while they are fresh. First dab with soapy water; do not rub. Then wash the items of laundry with the appropriate programme. Stubborn or dried-in stains can sometimes only be removed by washing several times.
24
Starching
25
Note:
25
1. Switch on the appliance.
25
2. Select the à Rinse programme.
25
3. Measure starch into dispenser I in accordance with the manufacturer's instructions (clean first if necessary).
25
4. Touch the Start/Reload A button.
25
Dyeing/bleaching
25
C Detergent
25
Detergent
25
Correct selection of detergent
25
Saving energy and detergent
26
Saving
26
Soiling/note
26
Note:
26
P Overview of programmes
27
Overview of programmes
27
Selectable programme
27
Programme/Type of washing
27
Options/Information
27
Note:
27
Notes
28
Note:
29
Note:
29
Note:
29
0 Programme default settings
30
Programme default settings
30
6 Temp. °C
30
0 Spin Speed
30
ñ Finished in
30
To do this:
30
1. Select a programme (except myTime programme).
30
2. Select the ñ Finished in button repeatedly until the required number of hours is displayed.
30
3. Select the Start/Reload A button.
30
Note:
30
After starting the programme (if a “Finish in” time has been selected and the programme has not yet started), you can change the preselected number of hours as follows:
30
1. Select the Start/Reload A button.
30
2. Select the ñ Finished in button repeatedly to change the number of hours.
30
3. Select the Start/Reload A button.
30
\ Additional programme settings
31
Additional programme settings
31
Note:
31
x Anti Stain
31
Types of stain that can be selected:
31
Select a programme with a stain type:
31
1. Arrange items of washing as usual.
31
2. Select a programme.
31
3. Select a stain type (depending on the selected programme).
31
4. Start the programme.
31
T (Prewash)
31
Note:
31
Ï Rinse Plus
31
p Easy Iron
31
Note:
31
G SpeedPerfect
31
Note:
32
1 Operating the appliance
32
Operating the appliance
32
Preparing the appliance
32
Notes
32
1. Insert mains plug.
32
: Warning
32
Risk of death from electric shock!
32
2. Turn the water tap on.
32
3. Open the appliance door.
32
Select programme/switch on the appliance
32
Note:
32
Placing laundry into the drum
32
Notes
33
Measure and add detergent and care products
33
Caution!
33
Damage to the appliance
33
1. Pull out the detergent drawer.
33
: Warning
33
Eye / skin irritation!
33
2. Pour in detergent and/or cleaning product.
33
*depending on the model
33
Notes
33
Position the measuring aid A for measuring the correct amount of liquid detergent:
34
1. Pull out the detergent drawer. Insert the liquid detergent container into dispenser II for main wash.
34
2. Pour liquid detergent into liquid detergent container and do not exceed the Maximum mark.
34
3. Close the detergent drawer.
34
Note:
34
Starting the programme
34
Childproof lock
34
Note:
34
Adding/removing laundry
34
Notes
35
Changing the programme
35
If you have started the wrong programme by mistake, you can change the programme as follows:
35
1. Touch the Start/Reload A button.
35
2. Select another programme.
35
3. And touch the Start/Reload A button again. The new programme starts from the beginning.
35
Cancel the programme
35
For programmes at high temperatures:
35
1. Touch the Start/Reload A button.
35
2. To cool down laundry: Select à Rinse.
35
3. And touch the Start/Reload A button again.
35
For programmes at low temperatures:
35
1. Touch the Start/Reload A button.
35
2. Select 0 [ Spin/Drain.
35
3. And touch the Start/Reload A button again.
35
Programme end
35
Removing laundry/switching off the appliance
35
1. Set programme selector to Off.
35
2. Open the door and remove the laundry.
35
3. Turn off the water tap.
35
Note:
35
Not required for Aqua-Stop models.
35
Notes
35
Q Appliance settings
36
Appliance settings
36
Activate setting mode:
36
1. Set the programme selector to position 1. The appliance is switched on.
36
2. Touch and hold the 0 Spin Speed button and, at the same time, turn the programme selector clockwise to position 2. Release the 0 Spin Speed button.
36
Changing the volume and drum care information
36
H Sensors
36
Sensors
36
Unbalanced load detection system
36
Note:
36
2 Cleaning and maintenance
37
Cleaning and maintenance
37
: Warning
37
Risk of death!
37
Caution!
37
Fire and explosion hazard!
37
Caution!
37
The appliance may be damaged!
37
Appliance housing/control panel
37
Drum
37
: Warning
37
Risk of injury/material damage/ damage to the appliance!
37
Descaling
37
Emptying the detergent draw, cleaning the detergent drawer and its housing
37
If the appliance contains detergent or fabric softener residues:
37
1. Pull out the detergent drawer. Press down the insert and fully remove the drawer.
37
2. To remove the insert: Push the insert upwards from below with your finger.
38
3. Clean the detergent dispenser tray and insert with water and a brush, and dry it. Clean the inside of the housing as well.
38
4. Fit the insert and lock it in place (push the cylinder onto the guide pin).
38
5. Push in the detergent drawer.
38
Note:
38
Cleaning the measuring aid A for liquid detergent
38
If it contains liquid detergent residue:
38
1. Hold the measuring aid, pull the cover upward and disconnect them.
38
2. Clean the measuring aid and cover with water and brush.
38
3. Install the cover back to the measuring aid. Pay attention to the assemble mark, and press the cover until click sounds.
38
Note:
39
Clean the measuring aid regularly to avoid residue and blockages.
39
Drain pump is blocked
39
Note:
39
: Warning
39
Risk of scalding!
39
1. Turn the programme selector to Off. Pull out the mains plug.
39
2. Open the service flap.
39
3. Take the drain hose out of the retainer.
39
4. Carefully unscrew the pump cover; residual water may leak out.
39
5. Refit and screw on the pump cover. The handle must be in a vertical position.
39
6. Close the service flap.
39
Note:
39
The drain hose at the siphon is blocked
40
1. Turn the programme selector to Off. Pull out the mains plug.
40
2. Loosen the hose clamp. Carefully remove the drain hose; residual water may leak out.
40
3. Clean the drain hose and siphon connecting piece.
40
4. Re-attach the drain hose and secure the connection point using the hose clamp.
40
Filter in the water supply is blocked
40
1. Turn off the water tap.
40
2. Select the Cottons i (activate G SpeedPerfect setting) programme.
40
Note:
40
If your appliance with intelligent dosing system, you also need to deactivate the intelligent dosing system.
40
3. Select the Start/Reload A button. Allow the programme to run for approx. 40 seconds.
40
4. Turn the programme selector to Off.
40
5. Pull out the mains plug.
40
1. Disconnect the hose from the rear of the appliance.
40
2. Use pliers to remove the filter.
40
3. Clean the filter with a small brush.
40
4. Connect the hose and check for leaks.
40
3 Faults and what to do about them
41
Faults and what to do about them
41
Emergency release
41
However, if the laundry has to be removed, the appliance door can be opened as follows:
41
: Warning
41
Risk of scalding!
41
: Warning
41
Risk of injury!
41
Caution!
41
Water damage!
41
1. Turn the programme selector to Off. Pull out the mains plug.
41
2. Open the service flap.
41
3. Drain the water. ~ Page 39
41
4. Pull the emergency release downwards with a tool and release.
41
Information on the display panel
42
Display
42
Cause/Remedy
42
Notes
42
Faults and what to do about them
43
Faults
43
Cause/Remedy
43
Note:
43
Note:
45
4 After-sales service
46
After-sales service
46
[ Consumption values table
47
Supplementary sheet for the installation and operating instructions
47
Energy and water consumption, programme duration and residual moisture for the main washing programme (approximate values)
47
Programme
47
Load
47
Energy consumption*
47
Water consumption*
47
Programme duration*
47
J Technical information
48
Technical information
48
Technical data
48
Information for test institute
49
r Aqua-Stop warranty
50
Aqua-Stop warranty
50
In addition to warranty claims against the vendor based on the purchase agreement and to our appliance warranty, we will provide compensation under the following conditions:
50
1. If water damage is caused due to a fault in our Aqua-Stop system, we will compensate domestic customers for the damage caused.
50
2. The liability guarantee is valid for the service life of the appliance.
50
3. It is a prerequisite of all warranty claims that the appliance with Aqua- Stop must have been installed and connected correctly in accordance with our instructions; this also includes a correctly fitted Aqua-Stop extension (genuine accessories).
50
4. Appliances with Aqua-Stop do not need to be supervised during operation, nor secured afterwards by turning off the tap.
50
*9001551851*
52
Thank you for buying a Bosch Home Appliance!
52
Looking for help? You´ll find it here.
52
Search:
×
Search
