www.beko.com.tr
DDS25841X
DIS25841
USA
Document Number :
Dishwasher
User manual
15 9302 0100_AA_BEKO45_USA/ 25-06-18.(9:56)
www.beko.com.tr
DDS25841X
DIS25841
USA
Document Number :
Dishwasher
User manual
15 9302 0100_AA_BEKO45_USA/ 25-06-18.(9:56)
INTRODUCTION 1
1. IMPORTANT SAFETY INSTRUCTIONS 1
1.1 INSPECT THE DISHWASHER 2
2. TOOLS WHICH MAY BE NEEDED 3
3. MATERIALS WHICH MAY BE NEEDED 3
4. MATERIALS SUPPLIED 4
4.1 PARTS SUPPLIED 4
4.2 MANUAL BAG 4
4.3 DISHWASHER PARTS BAG 1 4
4.4 DISHWASHER PARTS BAG 2 4
4.5 PARTS ATTACHED TO THE REAR OF THE DISHWASHER 4
5. DISHWASHER SPECIFICATIONS 5
5.1 TECHNICAL FEATURES 5
6. ENCLOSURE PREPARATION 6
6.1 ELECTRICAL PREPARATION 6
6.2 PREPARATION FOR INSTALLING MOUNTING BRACKETS 6
6.3 ADJUSTING HEIGHT 8
6.4 INSTALLING THE SIDE TRIM STRIPS 9
6.5 PREPARING THE WATER CONNECTION (A) 9
6.6 DRAIN PREPARATION 10
6.7 STEAM PROTECTION FOIL 11

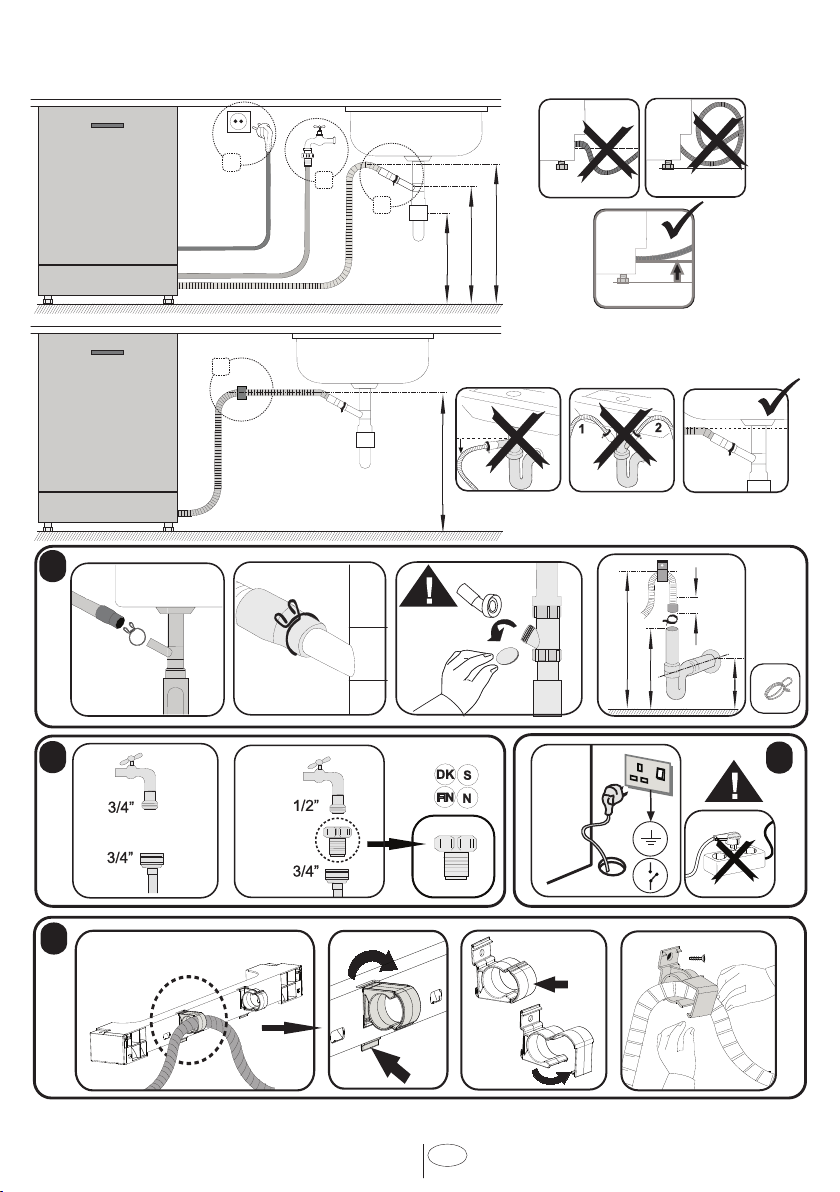

7. PLACEMENT OF DISHWASHER INTO THE OPENING 12
7.1 DRAIN HOSE CONNECTION, WATER SUPPLY & ELECTRICAL CONNECTIONS 12
7.2 READJUSTING FOOT LEVELS 14
7.3 ADJUSTING THE MOVABLE TOE KICK 14

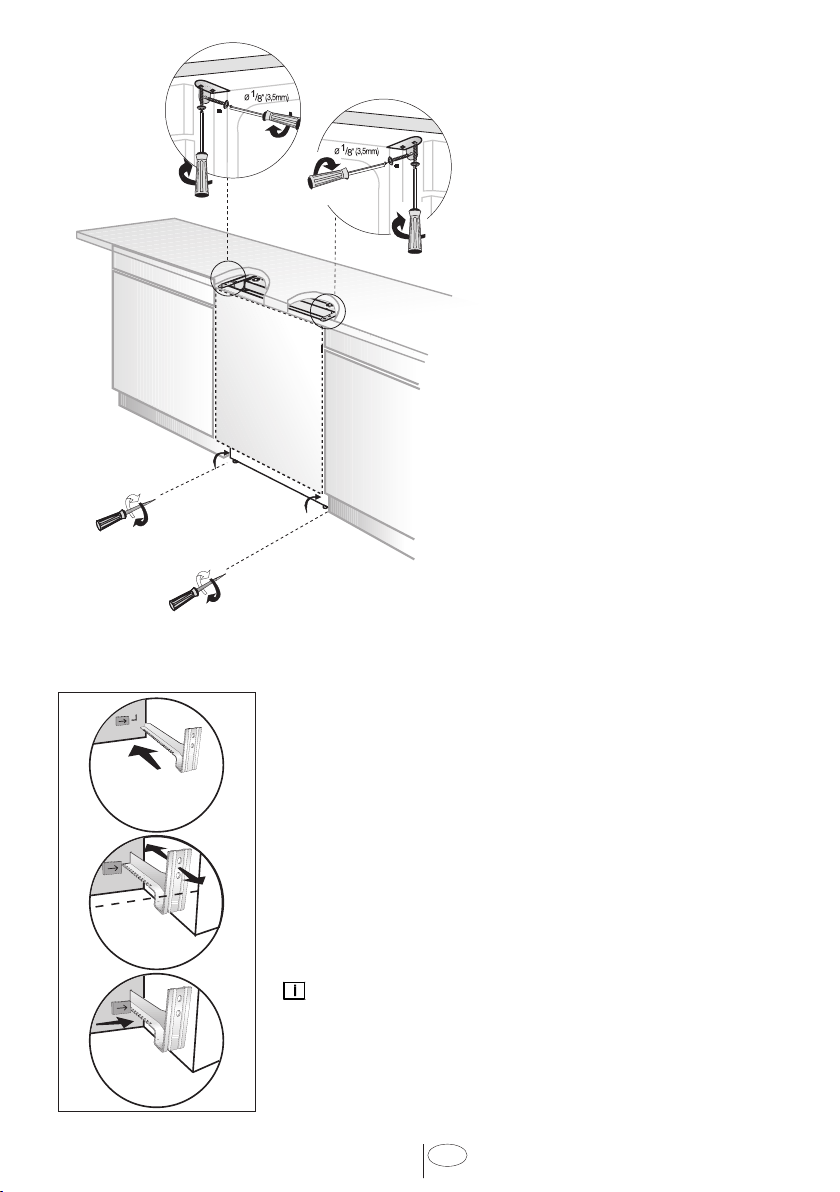

7.4 FIXING THE CABINET TO THE COUNTER 16

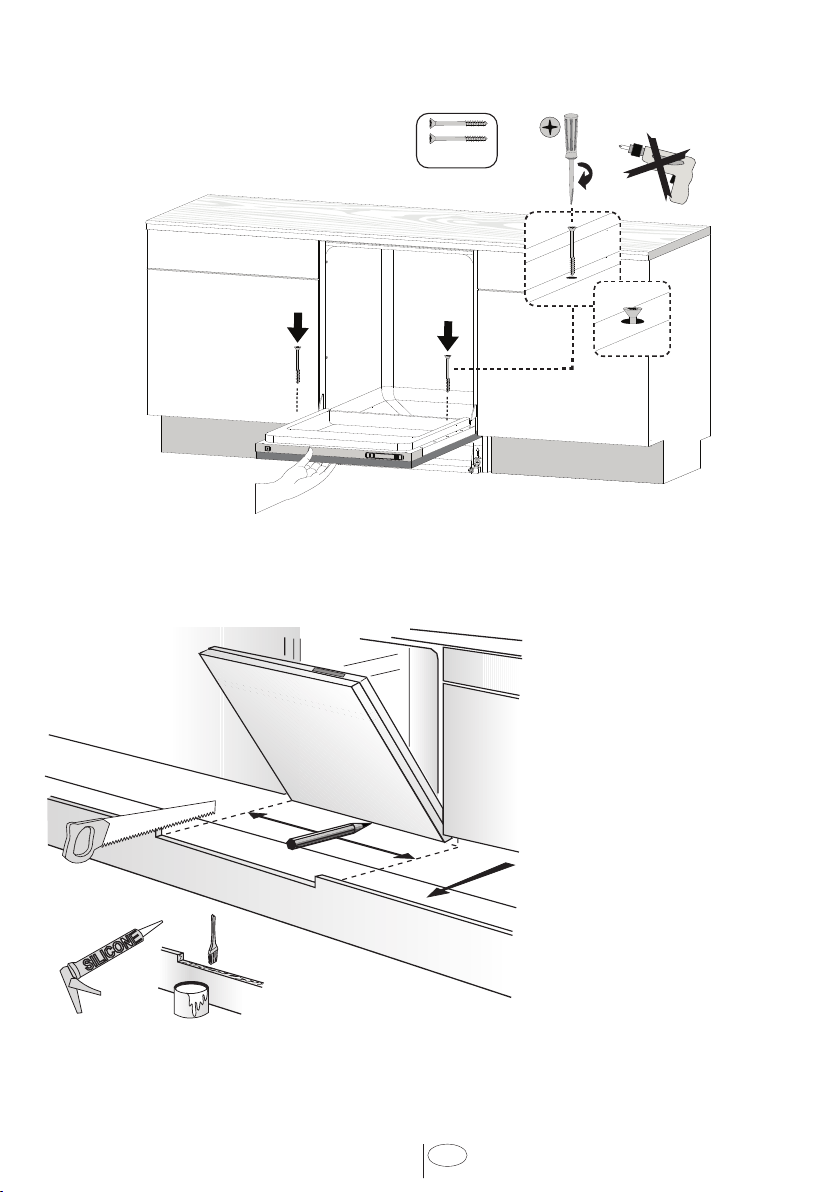

7.5 PREPARING THE TIMBER DOOR 17
7.6 PREPARING THE PRODUCT DOOR 18
7.7 INSTALLING THE TIMBER DOOR 19
7.8 FIXING THE TIMBER DOOR 19
7.9 FIXING THE TIMBER DOOR 20
7.10 ADJUSTING THE KICK PLATE 20
7.11 CONNECTION 22
8. INSTALLER CHECKLIST 23
9. SELF HELP HINTS: 23
To prevent accidents, which could cause serious injury or death, as well as
machine damage read these instructions before installation and / or use.
1
USA
INTRODUCTION
Please read ths nstallaton manual and
partcularly the safety nstructons completely
and carefully. They wll save you tme and
effort and help to ensure optmum dshwasher
performance.
Be sure to observe all lsted warnngs and
cautons. Look partcularly for the cons wth
exclamaton marks nsde. The nformaton con
also wll provde mportant references.
WARNING:
Indcates a potentally hazardous stuaton
whch, f not avoded, could result n death or
serous njury.
CAUTION:
Indcates a potentally hazardous stuaton
whch, f not avoded, may result n njury. It may
also be used to alert aganst unsafe practces.
NOTICE:
Indcates a potentally hazardous stuaton
whch, f not avoded, may result n damage to
the dshwasher, the table-ware, the equpment
or the envronment.
1. IMPORTANT SAFETY
INSTRUCTIONS
In addton to these nstructons, the dshwasher
shall be nstalled:
• In accordance with all local codes or, in
absence of a local code,
• In the United States, with the National
Electric Code,
• In Canada, with the Canadian Electric
Code C22.1-latest edition/Provincial and
Municipal codes and/or local codes.
NOTICE :
Read these nstallaton nstructons completely
before nstallng and follow them carefully. Save
these nstallaton nstructons and pass them on
to any future user.
WARNING
When installing the dishwasher, follow
basic precautions, including the
following:
• The dishwasher could only be converted
from cord-connected to permanently
connected by an authorized service
representative. (If needed contact your
dealer to schedule an authorized service
agent for conversion with an appropriate
conversion kit)
• Installation and repair should be performed
by a qualified installer. Work by unqualified
persons could be dangerous and may void
the warranty.
NOTICE :
The dshwasher should be nstalled by an
nsured lcensed plumber, contractor or traned
nstaller. Installaton performed by persons
other than ths could result n mproper
nstallaton and property damage.
• Do not operate the appliance if damaged,
malfunctioning, partially disassembled or if
it has missing or broken parts.
• Also follow the safety instructions of the
user manual.
• To reduce the risk of electric shock, fire, or
injury to persons, the installer must ensure
that the dishwasher is completely enclosed
at the time of installation.
• Only connect the dishwasher to the power
supply when all installation and plumbing
work is complete.
• If the dishwasher is installed in a location
that experiences freezing temperatures
(e.g. in a vacation home, cabin, etc.),
you must drain all the water from the
dishwasher’s interior. Water system
2
USA
ruptures that occur as a result of freezing
are not covered by warranty.
• Dishwasher must be secured to adjacent
cabinetry using the brackets provided.
Failure to do this may cause damage to
property or bodily injury.
• Connect to a properly rated, protected
and sized power supply circuit to avoid
electrical overload. The dishwasher is
designed for an electrical supply of 120 V
(volts), 60 Hz (hertz), AC, connected to a
dishwasher-dedicated, properly grounded
electrical circuit with a fuse or breakers
rated for 15 amperes. Electrical supply
conductors shall be a minimum of # 16
AWG copper wire rated at 75 °C (167 °F) or
higher. These requirements must be met
to prevent injury and machine damage.
Consult a qualified electrician if in doubt.
• Do not use any extension cord or portable
outlet device to connect the dishwasher to
a power supply.
• Ensure that any plastic wrappings, bags,
small pieces etc. are disposed of safely and
kept out of the reach of children. Danger of
suffocation!
• Remove the door to the washing
compartment when removing an old
dishwasher from service or discarding it.
Ensure that the appliance presents no
danger to children while being stored for
disposal.
• Old appliances may contain materials that
can be recycled. Please contact your local
recycling authority about the possibility of
recycling these materials.
NOTICE :
• The dishwasher drain hose must be
installed with a drain loop at least 28”
(710mm) off the cabinet floor; otherwise
the dishwasher may not drain properly.
• This dishwasher is intended for residential
use only, and should not be used in
commercial establishments.
• New installation - If the dishwasher is a
new installation, most of the work must be
done before the dishwasher is moved into
place.
• Replacement - If the dishwasher is
replacing another dishwasher, check
the existing dishwasher connections for
compatibility with the new dishwasher,
and replace parts as necessary.
1.1 INSPECT THE DISHWASHER
After unpackng the dshwasher and pror to
nstallaton, thoroughly nspect the dshwasher
for possble freght or cosmetc damage. Report
any damage mmedately.
NOTICE :
• Cosmetic defects must be reported within
10 days of installation.
• Do not discard any bags or items that come
with the original package until after the
entire installation has been completed.
3
USA
2. TOOLS WHICH MAY BE NEEDED
3. MATERIALS WHICH MAY BE NEEDED
(Addtonal materals may be requred to comply wth local codes)
Hot Water Supply Lne - Mnmum 3/8” O.D. copper tubng or metal braded
dshwasher supply lne.
Elbow wth 3/4” N.P.T. female thread for dshwasher sde, and szed to ft your
water supply lne (copper tubng/compresson fttng, or braded hose) on the other
sde. Dshwasher connecton s 3/4" male.
UL lsted condut connector or stran relef.
Teflon tape or other ppe thread compound to seal plumbng connectons.
Shut-off valve and fttngs approprate for hot water supply lne (copper tubng/
compresson fttng, or braded hose).
Slcone
Glue
Dshwasher Dscharge Hose Adaptor
4
USA
4. MATERIALS SUPPLIED
4.1 PARTS SUPPLIED
Parts for your dshwasher wll
come n several plastc bags.
Check your parts bags shown to
make sure you have all the parts
as lsted to the left.
4.2 MANUAL BAG
The dshwasher comes wth a
manual bag contanng:
• User manual,
• Installation manual
4.3 DISHWASHER
PARTS BAG 1
Ths dshwasher bag comes wth
the followng parts:
a.
Sde Trm Strps (Left)
b.
Sde Trm Strps (Rght)
d.
Screws Ø 1/8” x 5/8” (Ø 3.5
mm x 14 mm)
e.
Mountng Bracket Left
f.
Mountng Bracket Rght
h.
Screw Clamp
k.
Toe Kck Bracket - Left
l.
Toe Kck Bracket – Rght
n.
Tmber Centerng
o.
Tmber Centerng Screw
p.
Toe Kck
s.
Template
t.
Hook and loop fastener
v.
Screws Ø 1/8” x 5/8” (Ø 3.5mm
x 14mm)
z.
Steam Protecton Fol
x.
Screws Ø 3/16” x 1/4” (Ø 4mm
x 6mm)
4.4 DISHWASHER
PARTS BAG 2
(MODEL DEPENDING)
In addton to the manual bag
and the dshwasher parts bag
(dshwasher models whch can
accept a wooden ktchen door)
also come wth a door panel
nstallaton kt whch contans:
y.
Screws 4mm x 36 mm =
3/16th x 1-7/16th
4.5 PARTS
ATTACHED TO
THE REAR OF THE
DISHWASHER
a.
Sde Trm Strps (Left)
b.
Sde Trm Strps (Rght)
x6
v.
x.
5
USA
5. DISHWASHER SPECIFICATIONS
5.1 TECHNICAL FEATURES
Permissible water pressure
4.35 - 145 ps (0.3 - 10 bars)
Electrical connection
120 V (volts), 12 A (amps), 60Hz (hertz)
Total power
1400 W (watts)
Heater power
1100 W (watts)
NOTICE :
Because we contnually strve to mprove our products, we may change our specfcatons and desgn
wthout pror notce.
Ths devce corresponds to the followng drectves:
UL 749 Household Dshwasher drectve.
6
USA
6. ENCLOSURE PREPARATION
6.1 ELECTRICAL PREPARATION
WARNING
The dishwasher is designed for an electrical supply of 120 V, 60 Hz, AC, connected
to a dishwasher-dedicated, properly grounded electrical circuit with a fuse or
breaker rated for 15 amperes.

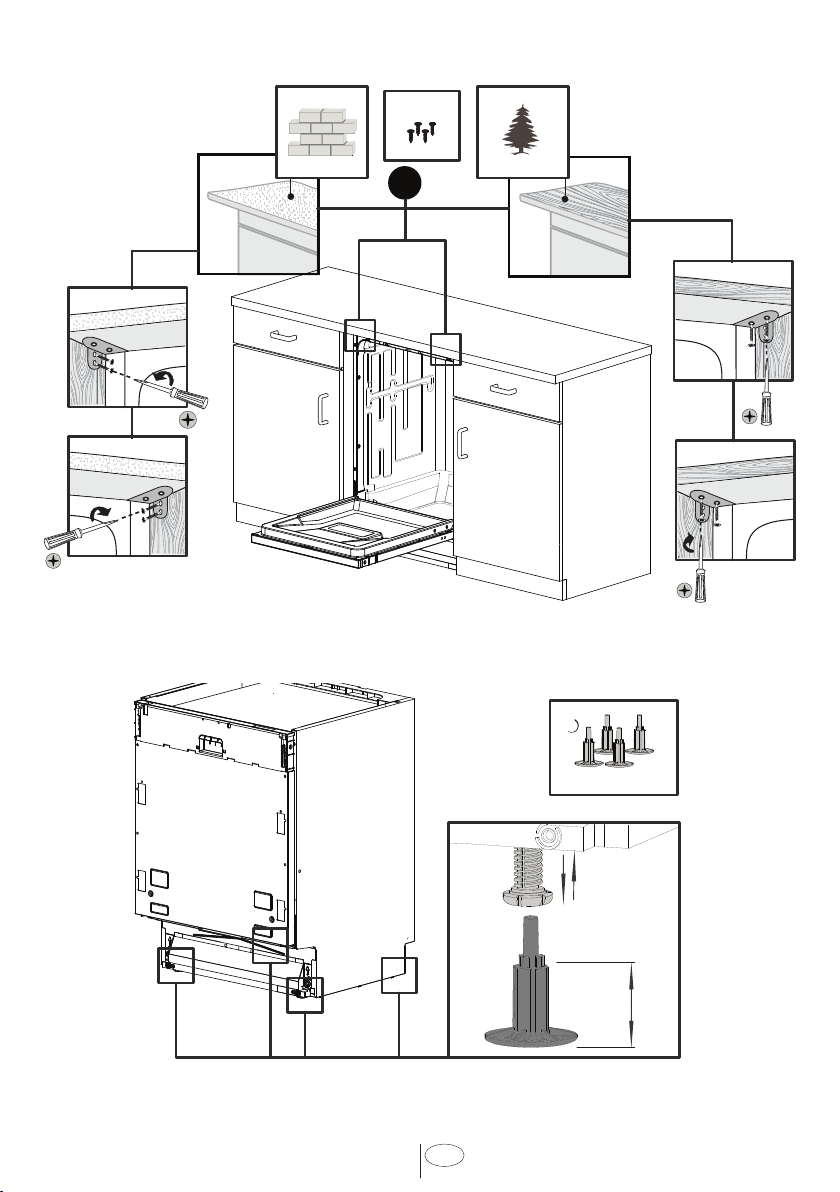

6.2 PREPARATION FOR INSTALLING MOUNTING BRACKETS
e-f)
7
USA
?
d)
(+50mm)
j
+ 50
max
50
8
USA
WARNING
Dishwasher must be secured to adjacent
cabinetry using the mounting brackets
provided. Failure to do this may cause damage
to property or bodily injury.
Place the two mountng brackets nto the top corners
of the dshwasher.
Fx the mountng brackets (
A
) to the top corners of the
dshwasher, wth the screws suppled.
Bend sdes of mountng brackets (
B
) n order to fx from
sdes (f necessary).
6.3 ADJUSTING HEIGHT
If the heght of the enclosure s 337/8” to 357/8” (861
mm - 911mm) adjust supports as shown n the fgure.
Suppled (
4
)
Adjust the front foot level wth the adjustng wrench
to balance and rase the dshwasher to the enclosure
heght.
Adjust the rear foot level wth a screwdrver to balance
and rase the dshwasher to the enclosure heght.
9
USA
NOTICE :
• Make sure the dishwasher is plumb and notice dishwasher can be placed with a small clearance
under the counter top.
• Turning the screwdriver in the direction of the black arrows will bring the dishwasher back feet
up.
• Turning the screwdriver in the direction of the white arrows will take the dishwasher rear feet
down.
6.4 INSTALLING THE SIDE TRIM STRIPS
Remove the adhesve tape (Fgure
A
).
Place the trm strps on the front edge of the sde walls (Fgure
B
).
NOTICE :
• Make sure you use the correct trim strip since there is a left and right side strip. The flexible
material should be facing forward (Figure
B
).
6.5 PREPARING THE WATER CONNECTION (A)
Install an easly accessble shut-off valve (not suppled) n the water supply lne. All solder
connectons must be made before the water lne s connected to the dshwasher’s water nlet valve.
Water can also be suppled to the dshwasher by usng a flexble braded hose lne.
Check wth your plumbng supply sources for the proper hose and elbow and necessary fttngs for
the water supply lne. Ths materal s not suppled, and must be purchased separately.
WARNING
Installation should be performed by a qualified installer. Work by unqualified
persons could be dangerous and may void the warranty.
If the dishwasher is installed in a location that experiences freezing temperatures
(e.g. in a vacation home, cabin etc.), you must drain all the water from the
dishwasher’s interior. Water system ruptures that occur as a result of freezing are
not covered by warranty.
Water Connection
10
USA
6.6 DRAIN PREPARATION
The dshwasher dran hose may be connected to the dran plumbng n one of three ways (Fgure
A
,
B
,
C
).
NOTICE :
• Either one of the above methods must be used or the dishwasher will not operate properly.
• A hose that attaches to a sink spray can burst if it is installed on the same water line as the
dishwasher. If your sink has one, it is recommended that the hose be disconnected and the hole
plugged.
• The total length of the drain hose is 763/4” (1950mm). If a hose extension is required, a
drainage hose of equal quality must be used.
• The maximum length must not exceed 157 ½” (4000mm). Otherwise, the cleaning process is
negatively influenced.
6.6.1 UNDER THE SINK DRAIN
Install a Y-branch tal ppe. (Fgure
A
)
NOTICE :
You must add a loop at least 28” (710mm)
above the floor of the cabnet and above
the dran connecton n the dran hose to
prevent waste water from not dranng
properly, and causng ether poor washng
results or a bad odor.
6.6.2 INSTALLING AN AIR GAP
If the local ordnance requres an ar gap
(Fgure
B
).
NOTICE :
Check wth local ordnance for type of ar
gap requred.
6.6.3 DISPOSAL
Remove the dran connecton plug
before attachng the dran hose from the
dshwasher.
Every dsposal has a hook up for a
dshwasher; consult your dsposer manual
for correct connecton. (Fgure
C
)
11
USA

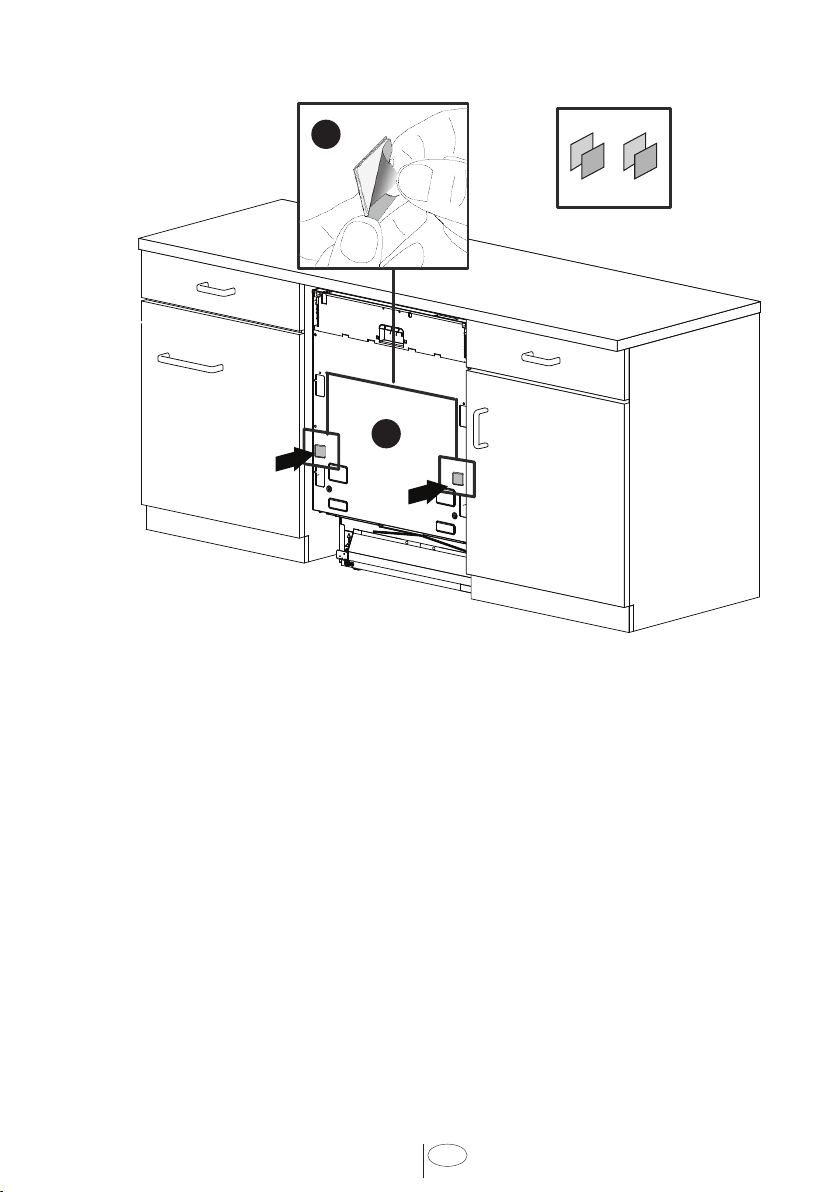

6.7 STEAM PROTECTION FOIL
Steam wll form nsde the dshwasher durng operaton. At the end of the cycle, when the
dshwasher door s opened, t s requred to use a steam protecton fol to prevent any steam from
collectng on the undersde of the counter top.
6.6.2 FITTING THE PROTECTION FOIL
Before applyng the steam protecton fol to the
undersde of the countertop, clean the area wth a
damp cloth (as shown n Fgure
A
). Once the area dres,
apply the steam protecton fol.
CAUTION
Steam protecton fol must be appled where
the steam escapes when door s frst opened.
Failure to install the steam protection foil
during installation can lead to damage to
the cabinets and countertop.
The steam protecton fol
wll be appled at the locaton
where the hot steam escapes
when you frst open the door
(as shown n Fgure
B
).
12
USA
7. PLACEMENT OF DISHWASHER INTO THE OPENING
Now place the dshwasher nto the openng and get ready to connect all hoses and electrcal
connectons.
CAUTION
Make sure all hoses
are pulled through the
side opening of the
cabinet, no hoses are
kinked and all slack is
taken out as shown in
the above figure.
7.1 DRAIN HOSE CONNECTION, WATER SUPPLY & ELECTRICAL
CONNECTIONS
7.1.1 DRAIN HOSE CONNECTION
Connect the dran hose to the dran plumbng.
1. Use the suppled rubber connecton hose and dran hose clamps to connect the dshwasher dran
hose to the plumbng dran connecton.
2. Use the sprng clamp to secure the rubber connecton hose to the dshwasher dran hose. Use the
screw clamp to secure
the rubber connecton
hose to the plumbng
dran connecton.
13
USA
Note that the marks on the rubber connecton
hose should be on the dran hose sde
7.1.2 WATER SUPPLY
CONNECTION
Water supply may be connected to the
dshwasher n one of two ways:
• With metal braided hose.
• With copper tubing.
CAUTION
• Hot water supply line: Use minimum
3/8” O.D. copper tubing or metal braided
dishwasher supply line.
• Temperatures required for soldering and
sweating will damage the dishwasher’s
water inlet valve so if any such operation
is needed, keep the heat source min. 77/8”
(200mm) away from the dishwasher’s
water inlet valve.
• There should not be any sharp bends in the
water line that may restrict the water flow.
• Teflon tape or pipe tread compound must
be used for sealing the connection. Before
connecting the copper water supply line to
the dishwasher, flush it with hot water to
clear any foreign material.
NOTICE :
After connectons are made turn on the water
supply to check for leaks.
7.1.3 ELECTRICAL CONNECTION
WARNING
• Make sure the voltage and frequency listed
on the data plate correspond with the
household electrical supply. This data must
correspond to prevent injury and machine
damage. Consult a qualified electrician if
in doubt.
• Only connect the dishwasher to the mains
when all installation and plumbing work is
complete.
• Do not use any extension cord or portable
outlet device to connect the dishwasher to
a power supply.
• The power-supply receptacle for the
appliance shall be installed in a cabinet
or on a wall adjacent to the undercounter
space in which the appliance is to be
installed.
• The access hole of the supply cord to the
installation compartment must be smooth
and rounded and it must be large enough
for the attachment plug to pass through.
The longest dimension of the opening
shall not be more than 1,5” (38 mm).If the
partition is metal, it needs to be covered
with an edge protector.
• Care must be taken when the appliance
is installed or removed, to reduce the
likelihood of damage to the power-supply
cord.
7.1.4 GROUNDING INSTRUCTIONS
Ths applance must be grounded. In the event
of a malfuncton or breakdown, groundng wll
reduce the rsk of electrc shock by provdng
a path of least resstance for electrc current.
Ths applance s equpped wth a cord havng
an equpment-groundng conductor and a
groundng plug. The plug must be plugged
nto an approprate outlet that s nstalled and
grounded n accordance wth all local codes and
ordnances. Ths applance must be connected
to a grounded metal, permanent wrng system,
or an equpment-groundng conductor must be
run wth the crcut conductors and connected
to the equpment-groundng termnal or lead on
the applance.
WARNING
Improper connecton of the equpment-
groundng conductor can result n a rsk of
electrc shock. Check wth a qualfed electrcan
or servce representatve f you are n doubt
whether the applance s properly grounded. Do
not modfy the plug provded wth the applance,
f t wll not ft the outlet, have a proper outlet
nstalled by a qualfed electrcan.
14
USA
7.2 READJUSTING FOOT
LEVELS
Now that the dshwasher s n the
cabnet you must readjust the feet to
brng the dshwasher up to the requred
heght and attach t underneath the
countertop.
1. Readjust the front foot levels wth
adjustng wrench to balance the
dshwasher and rase t up under the
countertop, make sure the unt s level.
2. Readjust the rear foot levels wth a
screwdrver to balance the dshwasher
and rase t to the requred heght usng
the brackets suppled.
3. Attach the dshwasher underneath
the countertop wth the four screws
suppled (Ø 1/8” x 1/8” - Ø 3.5mm x
14mm). Make sure you do not go through
the top of the countertop or damage
grante.
7.3 ADJUSTING THE MOVABLE TOE KICK
Now that you have successfully nstalled the dshwasher, you need to attach
the toe kck to the dshwasher. The two pece toe kck can be adjusted to the
heght and depth needed for your ktchen. Be sure to use the slotted toe kck
n the front and the other behnd t. They slde nto each other.
1. Insert the movable toe kck brackets nto the channel (
A
).
2. Make sure that the plastc tab to the left of the “L” openng on the
dshwasher has not closed the channel you wll push the bracket through.
NOTİCE :
Be sure to notce there s a left and a rght bracket.
Adjust the toe kck brackets forward or backwards so that they wll algn wth
the ktchen toe kck (
B
).
15
USA
Lock the toe kck brackets as shown wth the plastc tab n the
fgure C by pushng the plastc tab on the dshwasher nto the
teeth of the bracket (
C
).
3. Now attach the toe kck to the bracket wth the two (Ø
3
/
16
” x
1
/
4
” - Ø 4mm x 6mm) screws and the caps provded as follows.

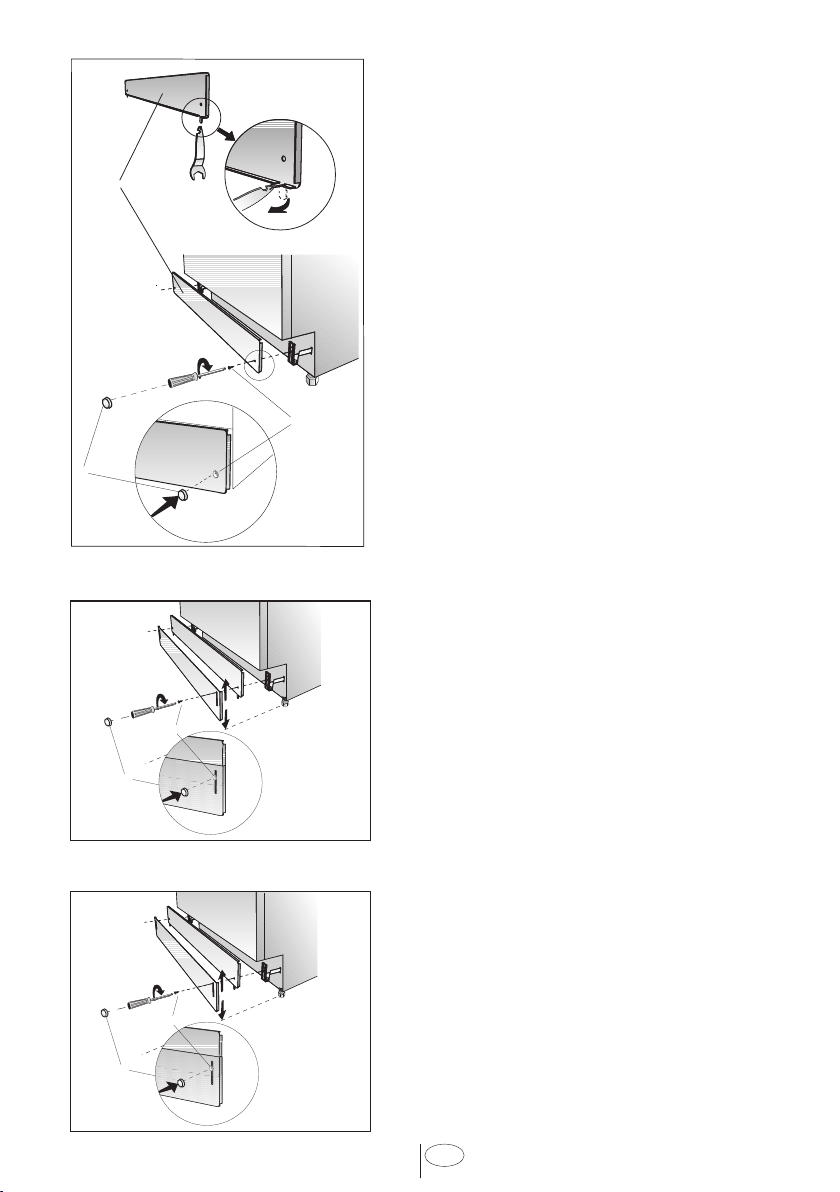

If the enclosure heght s below 33
1
/
16
” (840mm) use only “o”
labelled toe kck (toe kck wthout slots). Installaton should be
done followng the steps llustrated n the Fgures A, B and C
respectvely.
1. Bend tabs on toe kck (o) nwards (
A
).
2. Secure toe kck to brackets wth screws (t) as shown n the
supply bags (
B
).
3. Attach caps (s) as shown n the supply bags (
C
).
If the enclosure heght s above 33
1
/
16
” (840mm) use “o” and “p”
labelled toe kcks together. Make sure the slotted toe kck “p” s on
the outsde so you can adjust heght of the toe kck. Installaton
should be done followng the steps llustrated n the fgures A, B
and C respectvely.
1. Algn the toe kck (o) and (p) (
A
).
2. Secure toe kcks to brackets wth screws (t) after adjustng the
heght of the slotted toe kck (p) (
B
).
3. Attach caps (s) as shown n the supply bags (
C
).
If the enclosure heght s above 34
1
/
4
” (870mm) use “o” and “r”
labelled toe kcks together. Make sure the slotted toe kck “r” s on
the outsde so you can adjust heght of the toe kck. Installaton
should be done followng the steps llustrated n the fgures A, B
and C respectvely.
1. Algn the toe kck (o) and (r) (
A
).
2. Secure toe kcks to brackets wth screws (r) after adjustng the
heght of the slotted toe kck (t) (
B
).
3. Attach caps (s) as shown n the supply bags (
C
).
16
USA
7.4 FIXING THE CABINET TO THE COUNTER
(y)
17
USA
7.5 PREPARING THE TIMBER DOOR
X =
?
X
=
=
Mid. Point
=
=
Mid. Point
Heght (h) : Heght of the wooden door 28” (720mm)
Wdth : 17 ½” to 17 ¾” (442 mm - 448 mm)
Thckness : ¾ “ (19mm)
Weght (max) : 5,5 Kg / 12,1 lbs
Weght (max)
5.5 Kg 12,1 lb
o) s)
n)
t)
18
USA
1
2
7.6 PREPARING THE PRODUCT DOOR
(t)
19
USA
1
2
3
4
1
2
3
4
5
1
2
3
4
5
7.7 INSTALLING THE TIMBER DOOR
7.8 FIXING THE TIMBER DOOR
20
USA
7.9 FIXING THE TIMBER DOOR

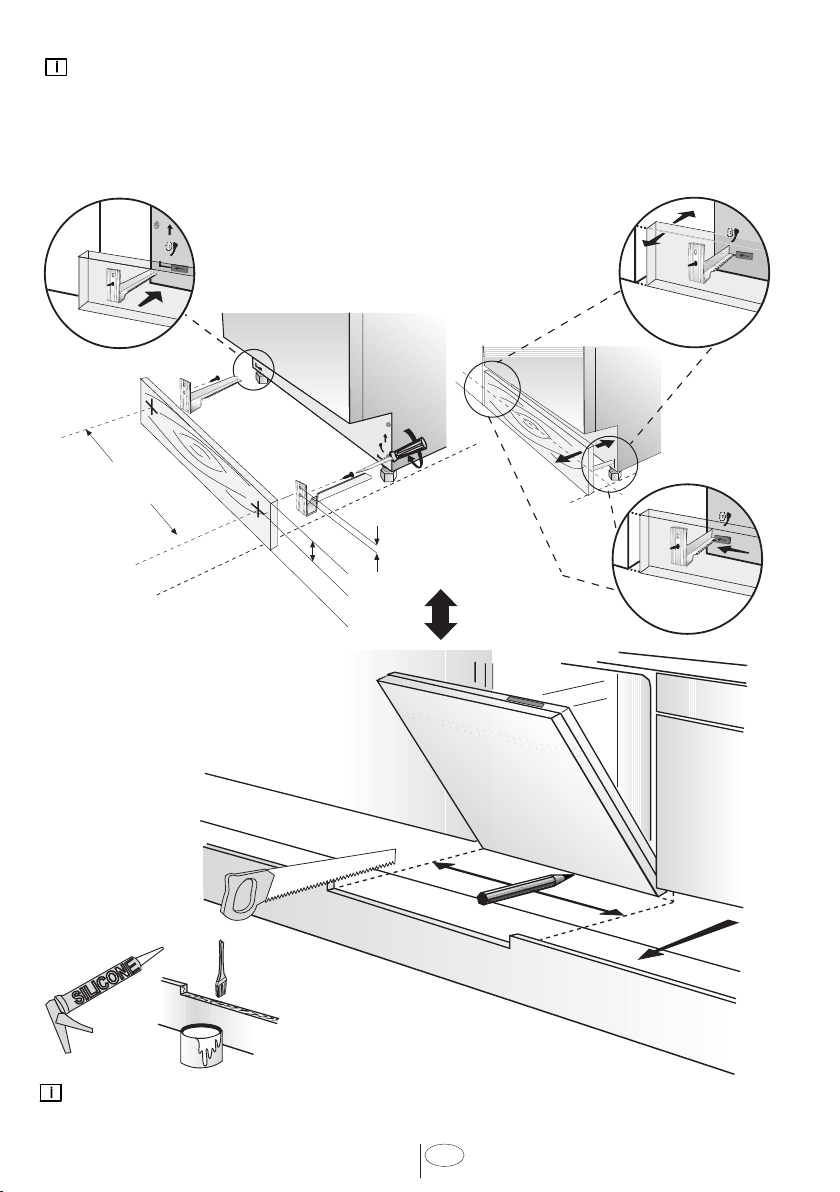

7.10 ADJUSTING THE KICK PLATE
• Check whether the bottom
of the door hts the toe kck
of the ktchen cabnet (
A
).
• If the door hts the toe kck
cut the necessary secton
out of the toe kck (
B
).
• Apply slcon or sealant to
the cut edge of the ktchen
cabnet toe kck or pant so t
does not absorb mosture.
1
2
3
4
5
1
2
3
4
5
Ø 4 x 36mm
(y)
21
USA
NOTİCE :
If you have a European ktchen or want to nstall a wooden toe kck to match your ktchen, please refer to one of the
two drawngs gven below. Follow the same nstructons on the brackets as for the removable toe kck.
Installaton should be done followng the steps llustrated n the fgures
A
,
B
,
C
,
D
respectvely.
NOTİCE :
The nstaller s responsble for the dshwasher nstallaton. Incorrect nstallaton s not covered by the warranty.
22
USA
min 300
~ 1500
~ 1800
~ 2000
min 500
max 1000
max 1000
1
2
3
4
c
1
2
1
2
1
2
4
3
min
300
min
120
max 1000
min 500
7.11 CONNECTION
23
USA
8. INSTALLER CHECKLIST
Your nstaller must have completed and checked
the followng:
• The dishwasher is square and level.
• The dishwasher is fastened securely to the
cabinetry.
• The dishwasher door opens and closes
freely. The dishwasher door must close
without hitting any cabinetry or counter
top.
• The inlet water supply is turned on and
checked for leaks.
• The drain hose has been connected and
checked for leaks. There must be no kinks
or obstructions in the drain hose.
• The drain hose must be installed with a 28"
(710mm) high drain loop for drain hook-ups
without any air removed.
• If the dishwasher drain is hooked up to a
garbage disposal, the drain hopper plug
must be removed.
• The spray arms are free and rotate freely.
• The rinse cycle has been run.
• The water level will be below the filter
screen after the end of the wash program.
It is normal to find some water in the drain
filter area.
9. SELF HELP HINTS:
The screen does not come on:
• Check to make sure the breaker to the
dishwasher is in the on position.
• Check to make sure that the Supply cord is
plugged.
No Water is coming into the dishwasher:
• Check to make sure the hot water shut-off
is in the ON position.
Water does not drain:
• Make sure drain hose is not kinked or
comes out of air gap next to the sink.
• Remove drain hose from disposal making
sure plug is removed.
NOTICE :
• If your dishwasher is not operating
properly after following these steps:
Contact your dealer to schedule an
authorized service agent to inspect your
new dishwasher for any function related
failure.
• The manufacturer warranty does not
cover installation, conversion or customer
education service visits.
You wll fnd the model and seral number
nformaton on the label located on the rght-
hand sde of the nner door of your dshwasher,
as shown above.
NOTICE :
Please make a copy of your nvoce and keep t
wth ths manual and regster your dshwasher
on-lne.
