Signal Dimmer
Controller
Installation Instructions
Instructions d’installation
Installationsanweisungen
Instrucciones de instalación
Istruzioni per l’installazione
Installatie-instructies
インストール 手 順
安装指示
RJ12
211 mm (8.31 in)
94 mm (3.70 in)
75 mm (2.95 in)
1
45 mm
(1.77 in)
45 mm
(1.77 in)
40° C (104° F)
0° C (32° F)
≤
90%
IEC Pollution Degree II
Devices must be installed in an
approved enclosure by a qualied
electrician in accordance with all
national and local electrical and
construction codes and regulations.
Les appareils doivent être installés dans un lieu jugé
apte, par un électricien qualié et conformément
aux règles et normes locales et nationales en
matière d’électricité et de construction.
Die Geräte müssen von einem geprüften Elektriker
entsprechend allen nationalen und lokalen Elektro
– und Bauvorschriften in einem zugelassenen
Gehäuse installiert werden.
Los dispositivos se deben instalar en un recinto
aprobado por un electricista cualicado de
acuerdo a todos los reglamentos eléctricos y de
construcción locales y nacionales pertinentes.
I dispositivi devono essere installati da un
elettricista qualicato in un luogo approvato, in
conformità a tutti gli standard e le norme nazionali
e locali vigenti in materia di impianti elettrici e
costruzioni edilizie.
Apparaten moeten door een erkende elektricien
worden geïnstalleerd in een goedgekeurde
behuizing in overeenstemming met alle nationale
en lokale elektriciteits – en bouwvoorschriften
en wetgeving.
デバイスを取り付ける際は、資格のある電気技師に依頼
し、電気と建設に関する国および地域のすべての法令に
従って、認可されている筐体内に取り付けてください。
根据国家/地区及当地的电气与建筑规范和法规，该设
备必须由有资质的电工安装在经批准的外罩内。
DDBC516FR
2
0.6 Nm
5.56 Lb-in
≤ 5 mm
2
10+ AWG
0.5 Nm
4.4 Lb-in
≤2.5 mm
2
12+ AWG
SHLD
GND
D+ D-
+12V
LN
L1N L2 L3
ON
OFF
UL 924 / Emergency
IN
OUT
CH1
CH2
DA- DA+
DALI 1 DALI 2
DA- DA-
DALI 3
DA- DA+
DALI 4
DA- DA+
DALI 5
DA- DA+
IN
OUT
CH3
IN
OUT
CH4
IN
OUT
CH5
IN
OUT
16 A
16 A
16 A
16 A
3
20A 20A 20A 20A 20A 20A
N
1 2 3 4 5 6 7 8 9 10 11 12
L
N L1 L2
277/480 V
L3
IN OUT
CH1
IN OUT
CH2
IN OUT
CH3
IN OUT
CH4
IN OUT
CH5
IN OUT
CH6
IN OUT
CH7
IN OUT
CH8
IN OUT
CH9
IN OUT
CH10
IN OUT
CH11
IN OUT
CH12
SUPPLY
ON
OFF
0.62 Nm
5.5 Lb-in
≤ 5 mm
2
10+ AWG

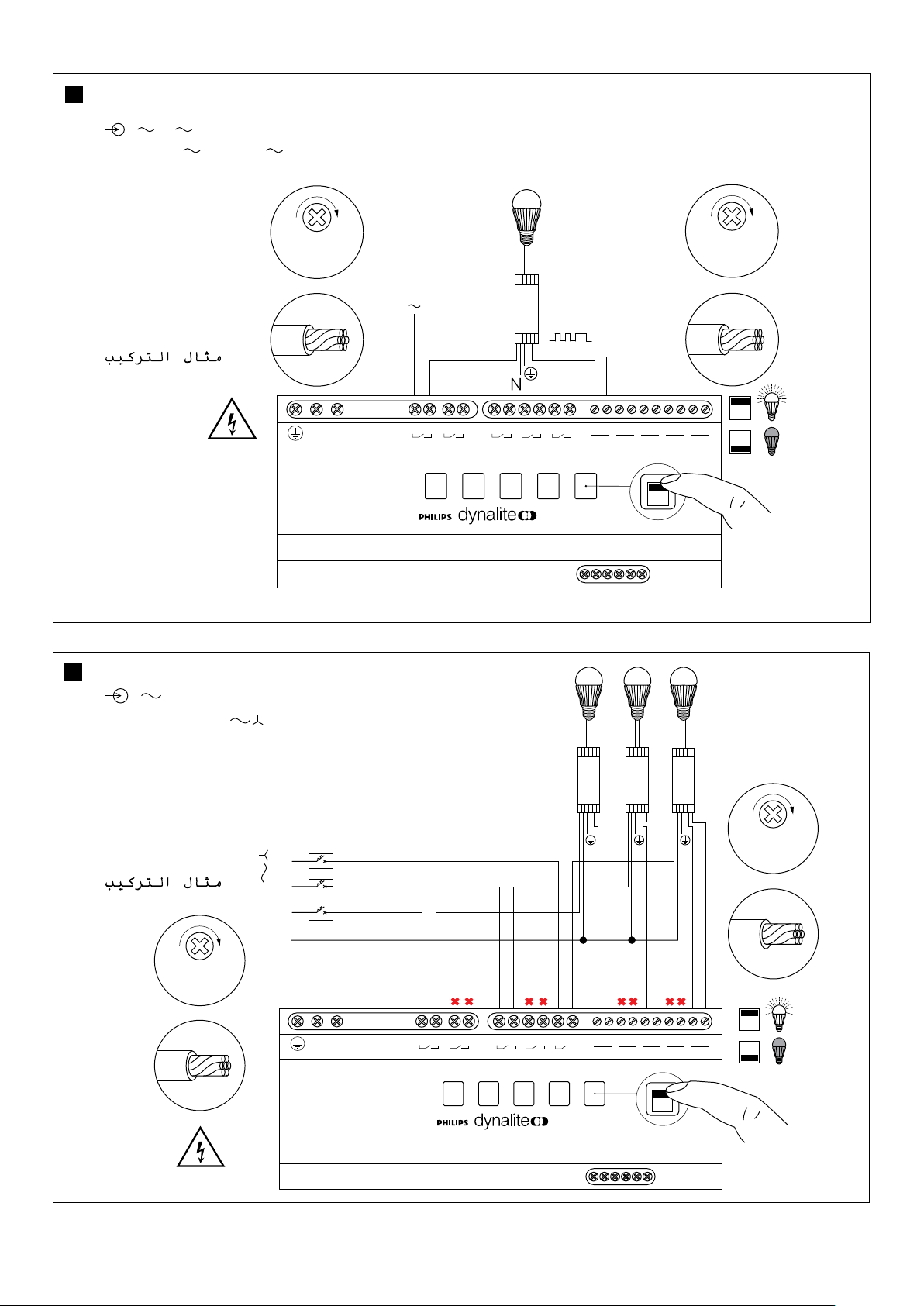

Installation example
Exemple d'installation
Installationsbeispiel
Ejemplo de instalación
Esempio di installazione
Installatievoorbeeld
設置例
安装示例
3
CH-CH= 277 / 480 V
20A 20A 20A 20A 20A 20A
N
1 2 3 4 5 6 7 8 9 10 11 12
L
N L1 L2
277/480 V
L3
IN OUT
CH1
IN OUT
CH2
IN OUT
CH3
IN OUT
CH4
IN OUT
CH5
IN OUT
CH6
IN OUT
CH7
IN OUT
CH8
IN OUT
CH9
IN OUT
CH10
IN OUT
CH11
IN OUT
CH12
SUPPLY
ON
OFF
0.62 Nm
5.5 Lb-in
≤ 5 mm
2
10+ AWG
Installation example
Exemple d'installation
Installationsbeispiel
Ejemplo de instalación
Esempio di installazione
Installatievoorbeeld
設置例
安装示例
3
CH-CH= 277 / 480 V
20A 20A 20A 20A 20A 20A
N
1 2 3 4 5 6 7 8 9 10 11 12
L
N L1 L2
277/480 V
L3
IN OUT
CH1
IN OUT
CH2
IN OUT
CH3
IN OUT
CH4
IN OUT
CH5
IN OUT
CH6
IN OUT
CH7
IN OUT
CH8
IN OUT
CH9
IN OUT
CH10
IN OUT
CH11
IN OUT
CH12
SUPPLY
ON
OFF
0.62 Nm
5.5 Lb-in
≤ 5 mm
2
10+ AWG
Installation example
Exemple d'installation
Installationsbeispiel
Ejemplo de instalación
Esempio di installazione
Installatievoorbeeld
設置例
安装示例
3
CH-CH= 277 / 480 V
2
DALI DSI 1-10 V
0.6 Nm
5.56 Lb-in
≤ 5 mm
2
10+ AWG
0.5 Nm
4.4 Lb-in
≤2.5 mm
2
12+ AWG
SHLD
GND
D+ D-
+12V UL 924 / Emergency
LN
ON
OFF
IN
OUT
CH1
CH2
DA- DA+
DALI 1 DALI 2
DA- DA-
DALI 3
DA- DA+
DALI 4
DA- DA+
DALI 5
DA- DA+
IN
OUT
CH3
IN
OUT
CH4
IN
OUT
CH5
IN
OUT
20A 20A 20A 20A 20A 20A 20A 20A 20A 20A 20A 20A
N
ON
OFF
1 2 3 4 5 6 7 8 9 10 11 12
L
IN OUT
CH1
IN OUT
CH2
IN OUT
CH3
IN OUT
CH4
IN OUT
CH5
IN OUT
CH6
IN OUT
CH7
IN OUT
CH8
IN OUT
CH9
IN OUT
CH10
IN OUT
CH11
IN OUT
CH12
0.62 Nm
5.5 Lb-in
≤ 5 mm
2
10+ AWG
SUPPLY
1 / 3
CH-CH
≤ 300 V (UL) / 400 V (CE)
Installation example
Exemple d'installation
Installationsbeispiel
Ejemplo de instalación
Esempio di installazione
Installatievoorbeeld
設置例
安装示例

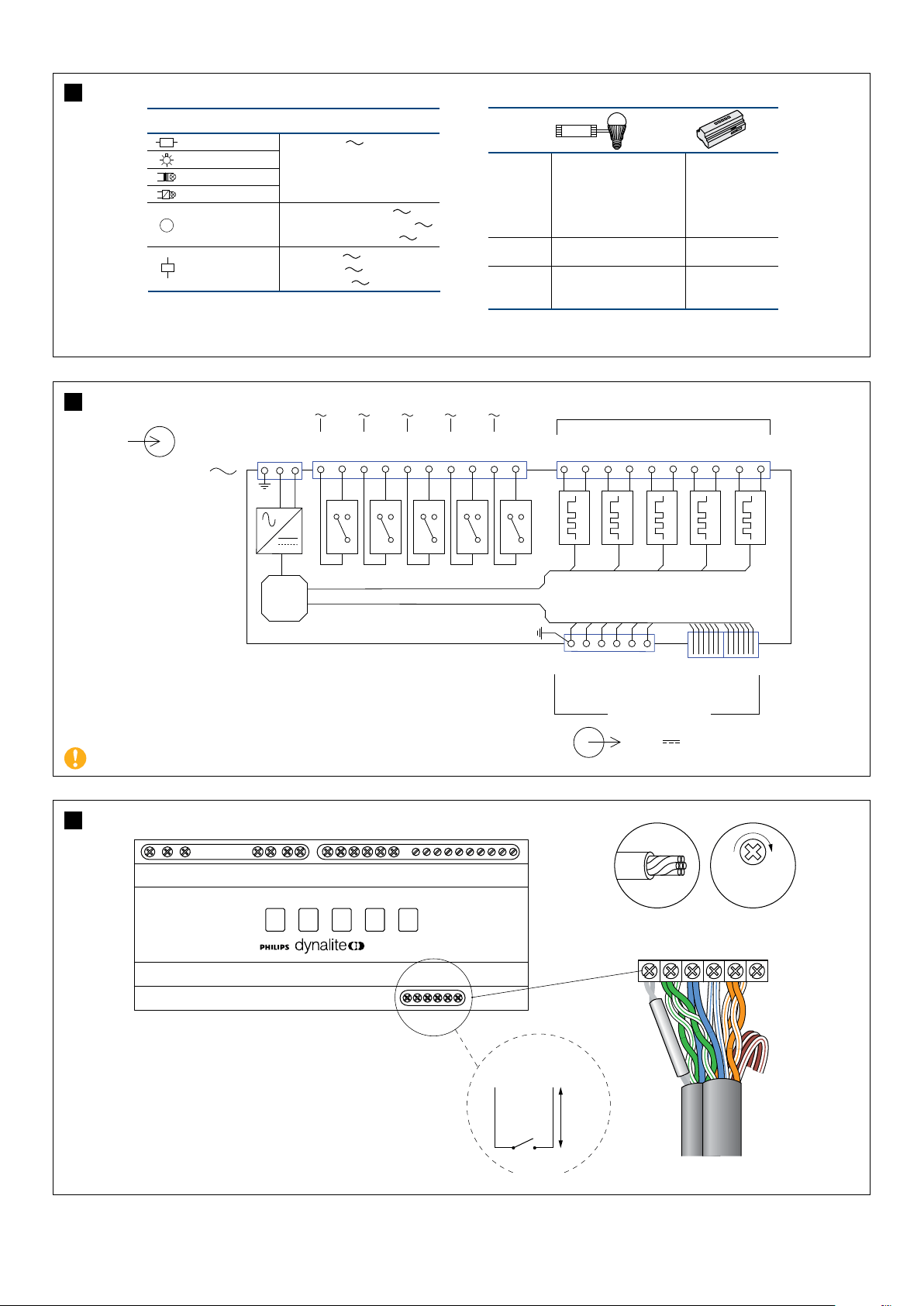

Control Channel Ratings
DSI
1-10 V
≤ 10/CH
Guaranteed 20 mA
Maximum 250 mA
Insulation: basic
Sink 10 mA
Source 10 mA
Driver
dependent
≤ 10/CH
≤ 50
≤ 50
DALI
Address-
able and
Broadcast
Output Ratings/Channel (CH)
Output Ratings/Group
CH-CH ≤ 300 V (UL)/400 V (CE)
DDBC516FR ≤ 80 A
General Use
Load Type CH1-CH5
16 FLA (1 HP), 120 V
14.5 FLA (2
1
/
2
HP), 240 V
14.1 FLA (3 HP), 277 V
6 A, 120 V
3 A, 240 V
2.6 A, 277 V
Incandescent
Standard Ballast
Electronic Ballast
Motor
M
16 A, 277 V
Pilot Duty
3
4
6
5
IEC Overvoltage Category III
+12 V
D +
D -
GND
SHLD
UL 924
NE L
RS-485 DyNet
SELV/Class 2 (UL)
2 x RJ12
µP
DA+
DA-
DALI5
DA+
DA-
DALI4
DA+
DA-
DALI3
DA+
DA-
DALI2
FELV / Suitable for Class 1 or Class 2 Wiring (UL)
DA+
DA-
DALI1
OUT
IN
CH5
OUT
IN
CH4
OUT
IN
CH3
OUT
IN
CH2
OUT
IN
CH1
100-240 V
0.15 A
12 V 120 mA
DALI DSI 1-10 V
DALI DSI 1-10 V
DALI DSI 1-10 V
DALI DSI 1-10 V
DALI DSI 1-10 V
SHLD
GND
D+
D-
+12 V
UL 924
GND
UL 924 /
Emergency
< 20 m
≤ 2 A
RS-485 DyNet
SHLD GND D+ D- +12V UL 924
0.4 Nm
3.5 Lb-in
0.3-2.5 mm
2
22-12 AWG
