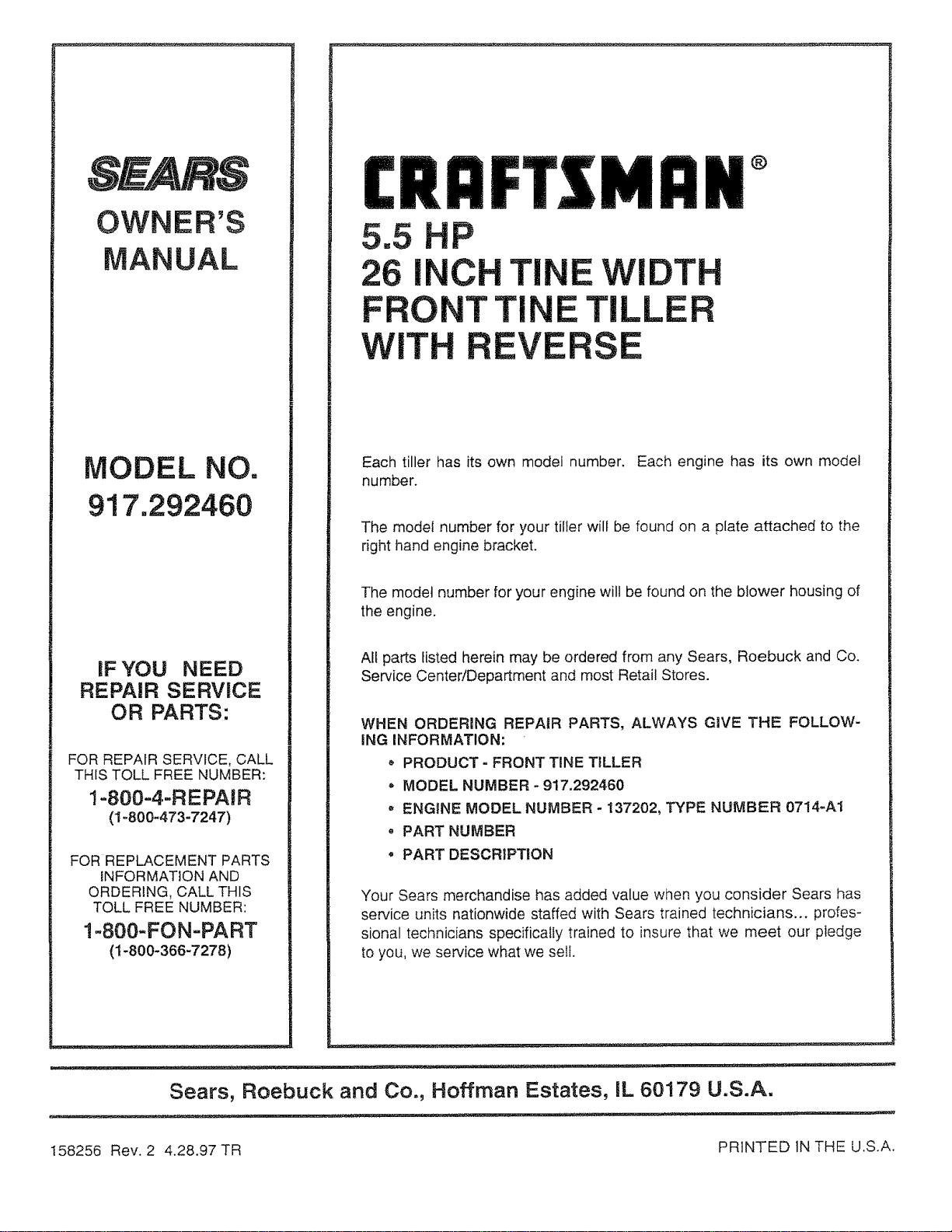

OWNER'S
MANUAL
MODEL NO.
917.292460
Caution:
Read and follow
all Safety Rules
and inst_uctions
Before Operating
This Equipment
MAN°
5.5 HP
26 ! CH TiNE WIDTH
FRONTTI ETILLER
WITH VE E
• Assembly
• Operation
• Customer Responsibilities
• Service and Adjustments
= Repair Parts
Sears_ Roebuck and Co., Hoffman Estates, iL 60179 U.S.A.
SAFETY RULES
Safe Operation Practices for Walk-Behind Powered Rotary THEers
TRAINING
Read the Owner's Manual carefully. Be thoroughly
familiar with the controls and the proper use of the
equipment, Know how to stop the unit and disengage
the controls quickly.
o Never allow children to operate the equipment. Never
allow adults to operate the equipment without proper
instruction.
Keep the area of operation clear of all persons, particu-
larly small children, and pets.
o Thoroughly inspect the area where the equipment isto
be used and remove alt foreign objects.
* Disengage all clutches and shift into neutral before
starting the engine (motor).
, Do not operate the equipment without wearing ad-
equate outer garments. Wear footwear that witi im-
prove footing on slippery surfaces.
, Handle fuel with care; it is highly flammable.
, Use an approved fue! container.
o Never add fuel to a running engine or hot engine.
, Fill fuel tank outdoors with extreme care. Never fill fuel
tank indoors.
° Replace gasoline cap securely and dean up spilled
fuel before restarting.
, Use extension cords and receptacles as specified by
the manufacturer for all units with electric drive motors
or electric starting motors.
, Never attempt to make any adjustments while the
engine (motor) is running (except where specifically
recommended by manufacturer).
OPERATION
, Do not put hands or feet near or under rotating parts.
o Exercise extreme caution when operating on or cross-
ing gravel drives, walks, or roads. Stay alert for hidden
hazards or traffic. Do not carry passengers.
• After striking a foreign object, stop the engine (motor),
remove the wire from the spark plug, thoroughly in-
spect the tiller for any damage, and repair the damage
before restarting and operating the tiller.
Exercise caution to avoid stipping or falling.
o If the unit should start to vibrate abnormally, stop the
engine (motor) and check immediately for the cause.
Vibration is generally a warning of troubie.
, Stop the engine (motor) when leaving the operating
position.
• Take all possible precautions when leaving the ma-
chine unattended. Disengage the tines, shift into
neutral, and stop the engine.
o Before cleaning, repairing, or inspecting, shut off the
engine and make certain all moving parts have stopped.
Disconnect the spark piug wire, and keep the wire
away from the plug to prevent accidental starting.
Disconnect the cord on electric motors.
, Do not run the engine indoors; exhaust fumes are
dangerous.
o Never operate the tiller without proper guards, plates,
or other safety protective devices in ptace.
o Keep children and pets away.
o Do not overload the machine capacity by attempting to
till too deep at too fast a rate.
o Never operate the machine at high speeds on stippery
surfaces. Look behind and use care when backing.
o q'4ever allow bystanders near the unit.
Use only attachments and accessories approved by
the manufacturer of the tiller (such as wheel weights,
counterweights, cabs, and the like).
° Never operate the tiller without good visibility or light.
Be careful when tilling in hard ground. The tines may
catch in the ground and propel the tiIler forward. If this
occurs, let go of the handlebars and do not restrain the
machine.
MAINTENANCE AND STORAGE
o Keep machine, attachments, and accessories in safe
working condition,
o Check shear pins, engine mounting bolts, and other
bolts at frequent intervals for proper tightness to be
sure the equipment is in safe working condition.
• Never store the machine with fuel in the fuel tank inside
a building where ignition sources are present, such as
hot water and space heaters, ctothes dryers, and the
like. Allow the engine to coo! before storing in any
enclosure.
Always refer to the operator's guide instructions for
important details if the tiller is to be stored for an
extended per!od.
IMPORTANT -
CAUTIONS, IMPORTANTS, AND NOTES ARE A MEANS
OF ATTRACTING ATTENTION TO IMPORTANT OR
CRITICAL INFORMATION IN THIS MANUAL.
ttVIPORTANT: USED TO ALERT YOU THAT THEREtSA
POSSIBILITY OF DAMAGING THIS EQUIPMENT.
NOTE: Gives essential information that wili aid you to
better understand, incorporate, or execute a particular set
of instructions.
Look for this symbol to point out im-
portant safety precautions. It means
CAUTION!!! BECOME ALERT!!! YOUR
SAFETY IS INVOLVED.
CAUTION: Always disconnect spark
plug wire and place wire where it can-
not contact spark plug in order to pre-
vent accidental starting when setting
up, transporting, adjusting or making
repairs.
& WARNING
The engine exhaust from this product con-
tains chemicals known to the State of Califor-
nia to cause cancer, birth defects, or other
reproductive harm.
2

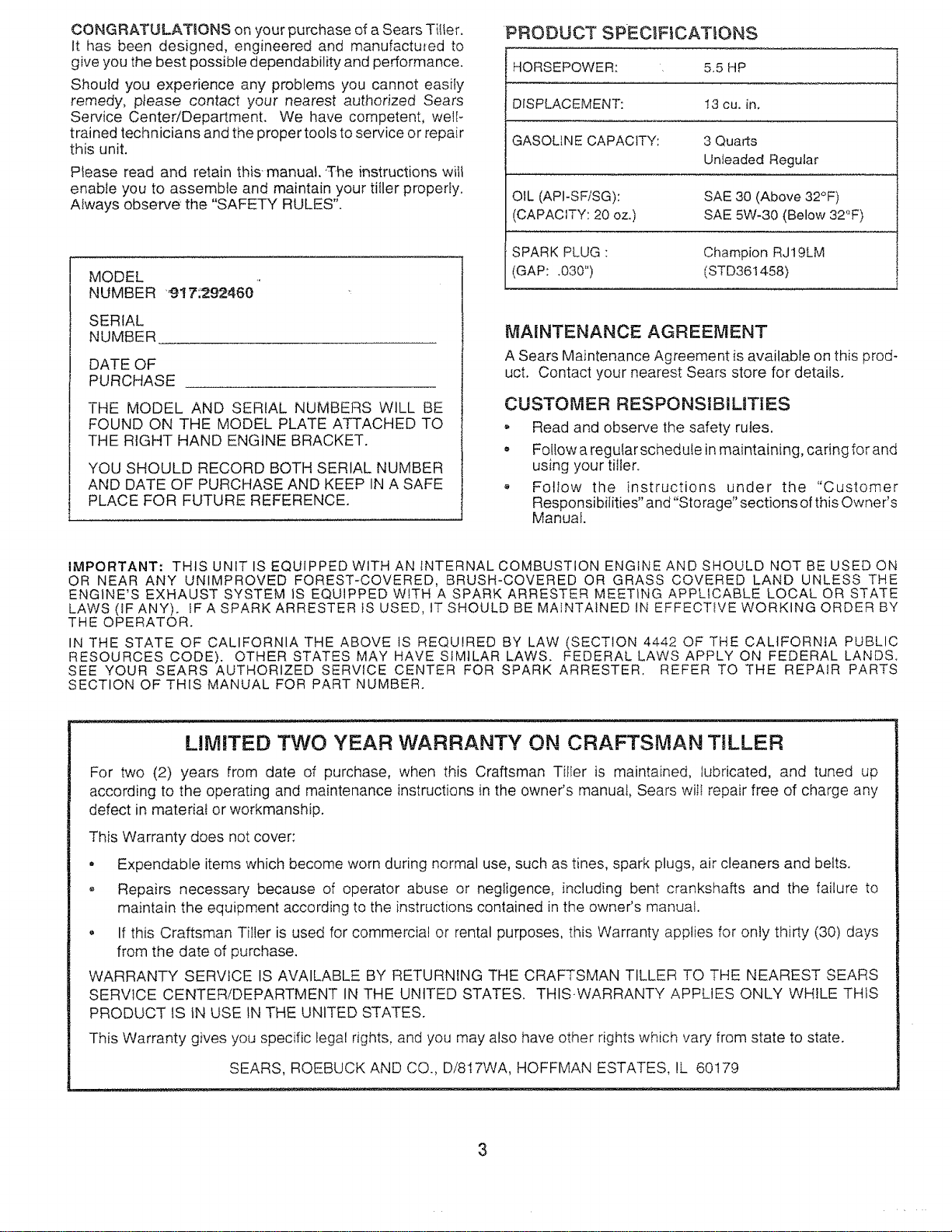

CONGRATULATIONS on your purchase of a Sears Tilter.
it has been designed, engineered and manufactured to
give you the best possible dependability and performance.
Should you experience any problems you cannot easity
remedy, please contact your nearest authorized Sears
Service Center/Department. We have competent, well-
trained technicians and the proper tools to service or repair
this unit.
Please read and retain this-manual. 'The instructions will
enable you to assemble and maintain your tiller properly.
Always observe the "SAFETY RULES".
MODEL
NUMBER 4317:292460
SERIAL
NUMBER
DATE OF
PURCHASE
THE MODEL AND SERIAL NUMBERS WILL BE
FOUND ON THE MODEL PLATE ATTACHED TO
THE RIGHT HAND ENGINE BRACKET.
YOU SHOULD RECORD BOTH SERIAL NUMBER
AND DATE OF PURCHASE AND KEEP IN A SAFE
PLACE FOR FUTURE REFERENCE.
PRODUCT SPECIFICATIONS
HORSEPOWER: 5.5 HP
DISPLACEMENT: t3 cu. in.
GASOLINE CAPACITY: 3 Quarts
Unleaded Regular
OiL (API-SFiSG): SAE 30 (Above 32°F)
(CAPACITY: 20 oz.) SAE 5W-30 (Below 32°F)
SPARK PLUG: Champion RJ19LM
(GAP: .030") (STD36t458)
MAINTENANCE AGREEMENT
A Sears Maintenance Agreement is available on this prod-
uct. Contact your nearest Sears store for details.
CUSTOMER RESPONSIBILITIES
- Read and observe the safety rules.
• Follow a regular schedule in maintaining, caring for and
using your tiller.
Follow the instructions under the "Customer
Responsibilities" and"Storage" sections ofthis Owner's
Manual.
IMPORTANT: THIS UNIT IS EQUIPPED WITH AN INTERNAL COMBUSTION ENGINE AND SHOULD NOT BE USED ON
OR NEAR ANY UNIMPROVED FOREST-COVERED, BRUSH-COVERED OR GRASS COVERED LAND UNLESS THE
ENGINE'S EXHAUST SYSTEM IS EQUIPPED WiTH A SPARK ARRESTER MEETING APPLICABLE LOCAL OR STATE
LAWS (iFANY). iFASPARKARRESTER tS USED, IT SHOULD BE MAINTAINED IN EFFECTIVE WORKING ORDER BY
THE OPERATOR.
IN THE STATE OF CALIFORNIA THE ABOVE IS REQUIRED BY LAW (SECTION 4442 OF THE CALIFORNIA PUBLIC
RESOURCES CODE). OTHER STATES MAY HAVE SIMILAR LAWS. FEDERAL LAWS APPLY ON FEDERAL LANDS.
SEE YOUR SEARS AUTHORIZED SERVICE CENTER FOR SPARK ARRESTER. REFER TO THE REPAIR PARTS
SECTION QF THIS MANUAL FOR PART NUMBER.
LIMITED TWO YEAR WARRANTY ON CRAFTSMAN TILLER
For two (2) years from date of purchase, when this Craftsman TiIter is maintained, lubricated, and tuned up
according to the operating and maintenance instructions in the owner's manual, Sears wiIt repair free of charge any
defect in material or workmanship.
This Warranty does not cover:
• Expendable items which become worn during normal use, such as tines, spark plugs, air cleaners and belts.
o Repairs necessary because of operator abuse or negligence, including bent crankshafts and the failure to
maintain the equipment according to the instructions contained in the owner's manual.
• If this Craftsman Tiller is used for commercial or rental purposes, this Warranty applies for only thirty (30) days
from the date of purchase.
WARRANTY SERVICE IS AVAILABLE BY RETURNING THE CRAFTSMAN TILLER TO THE NEAREST SEARS
SERVICE CENTER/DEPARTMENT IN THE UNITED STATES. THIS.WARRANTY APPLIES ONLY WHILE THIS
PRODUCT iS iN USE tN THE UNITED STATES.
This Warranty gives you specific }egal rights, and you may also have other rights which vary from state to state.
SEARS, ROEBUCK AND CO., Di817WA, HOFFMAN ESTATES, IL 60179

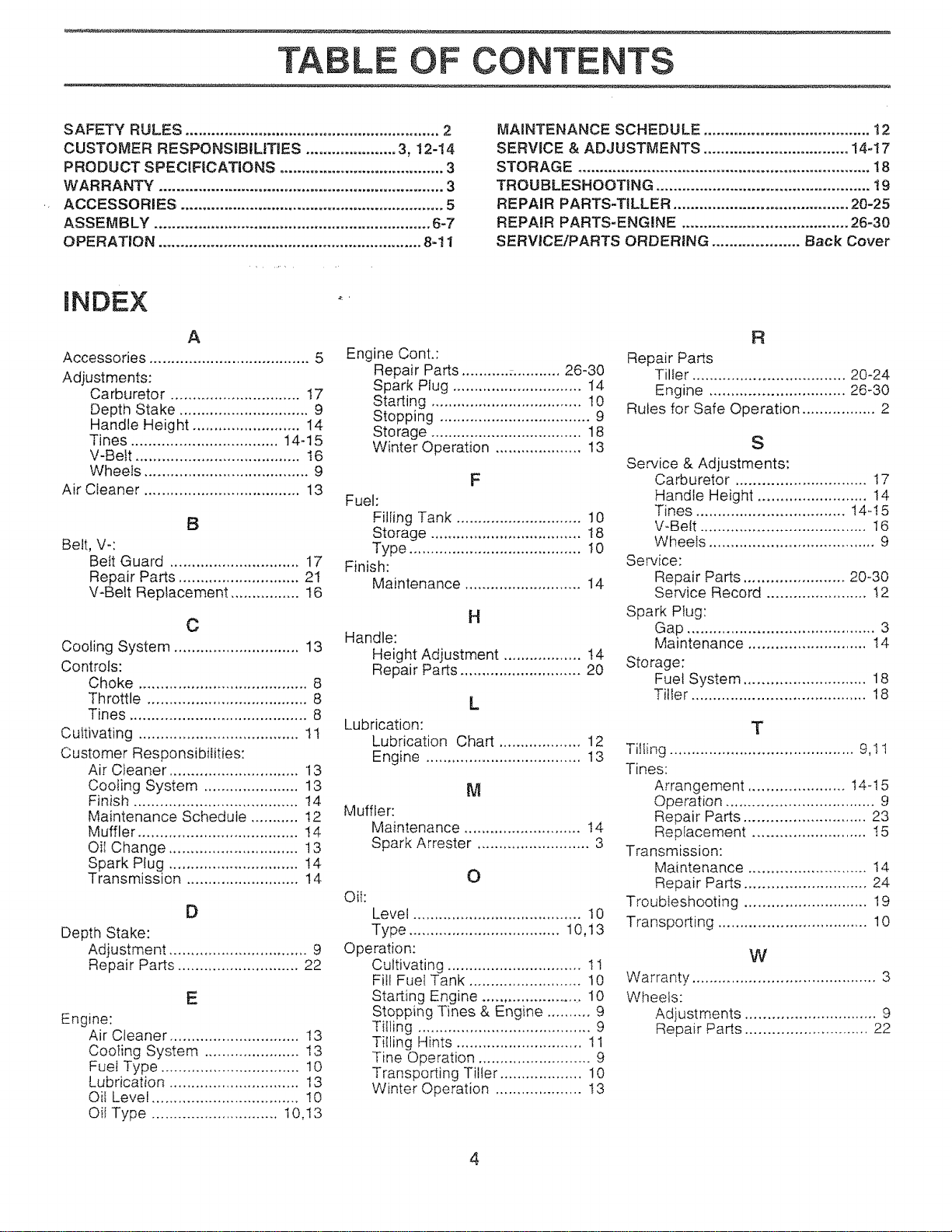

TABLE OF CONTENTS
SAFETY RULES ........................................................... 2

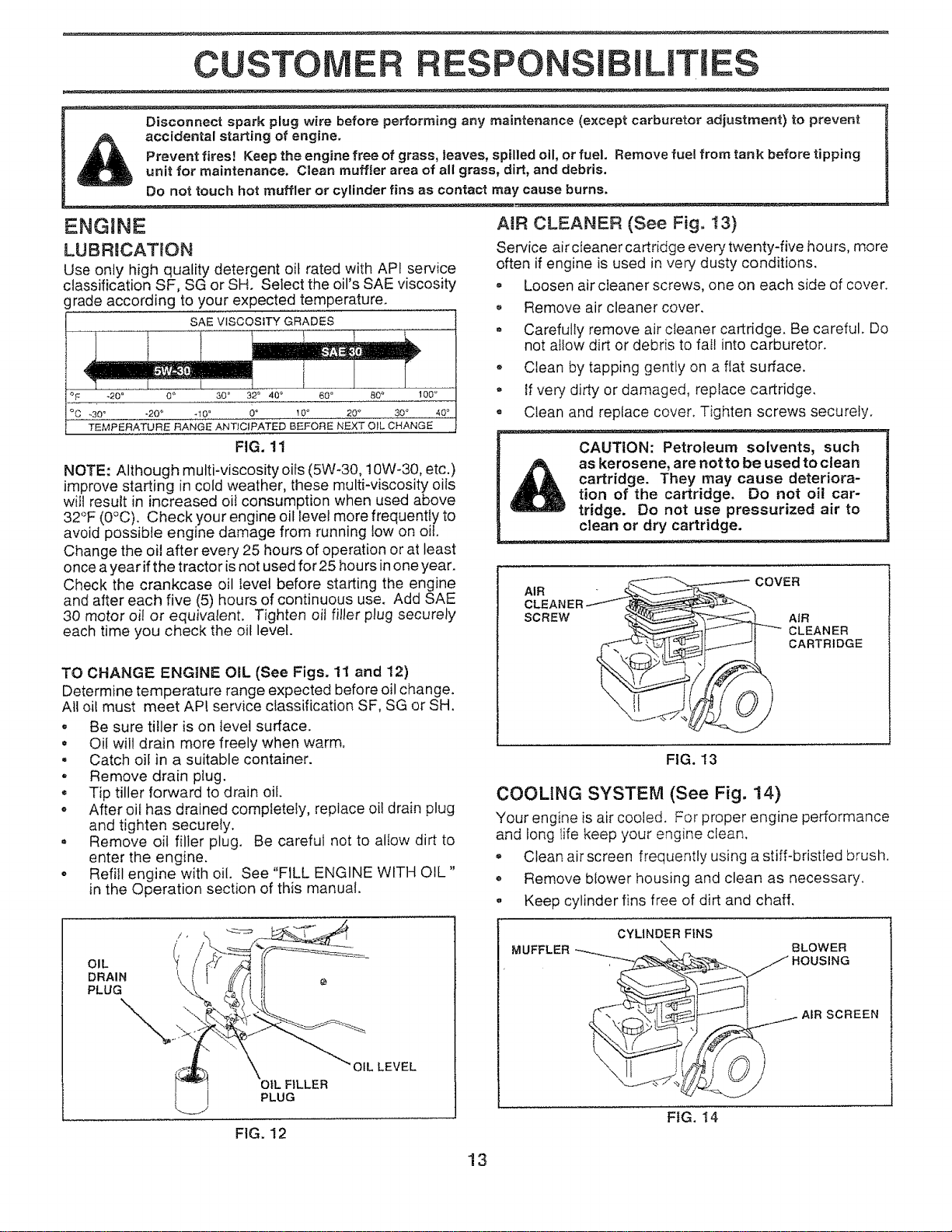

CUSTOMER RESPONSiBILITiES ..................... 3, 12-I 4
PRODUCT SPECIFICATIONS ...................................... 3
WARRANTY .................................................................. 3
ACCESSORIES ............................................................. 5

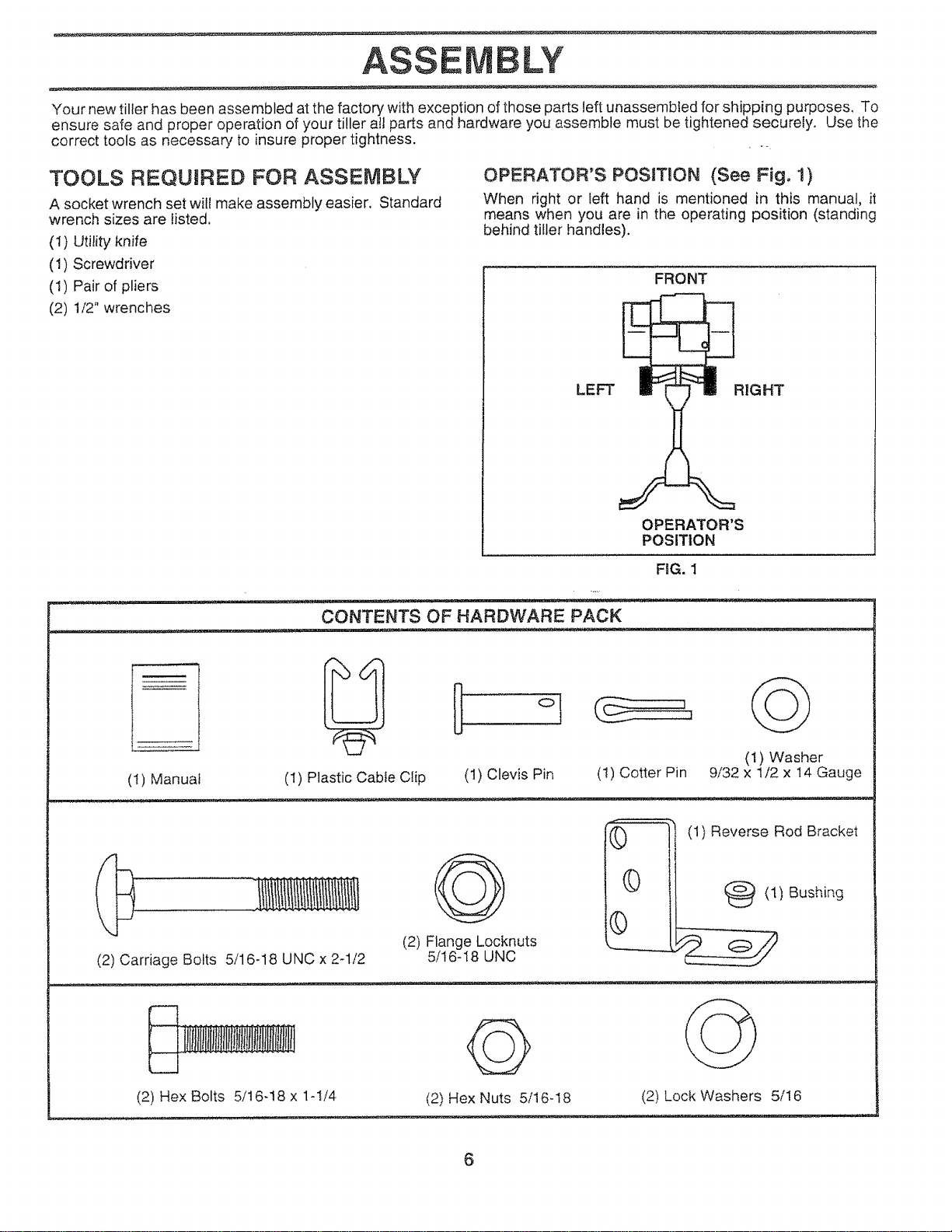

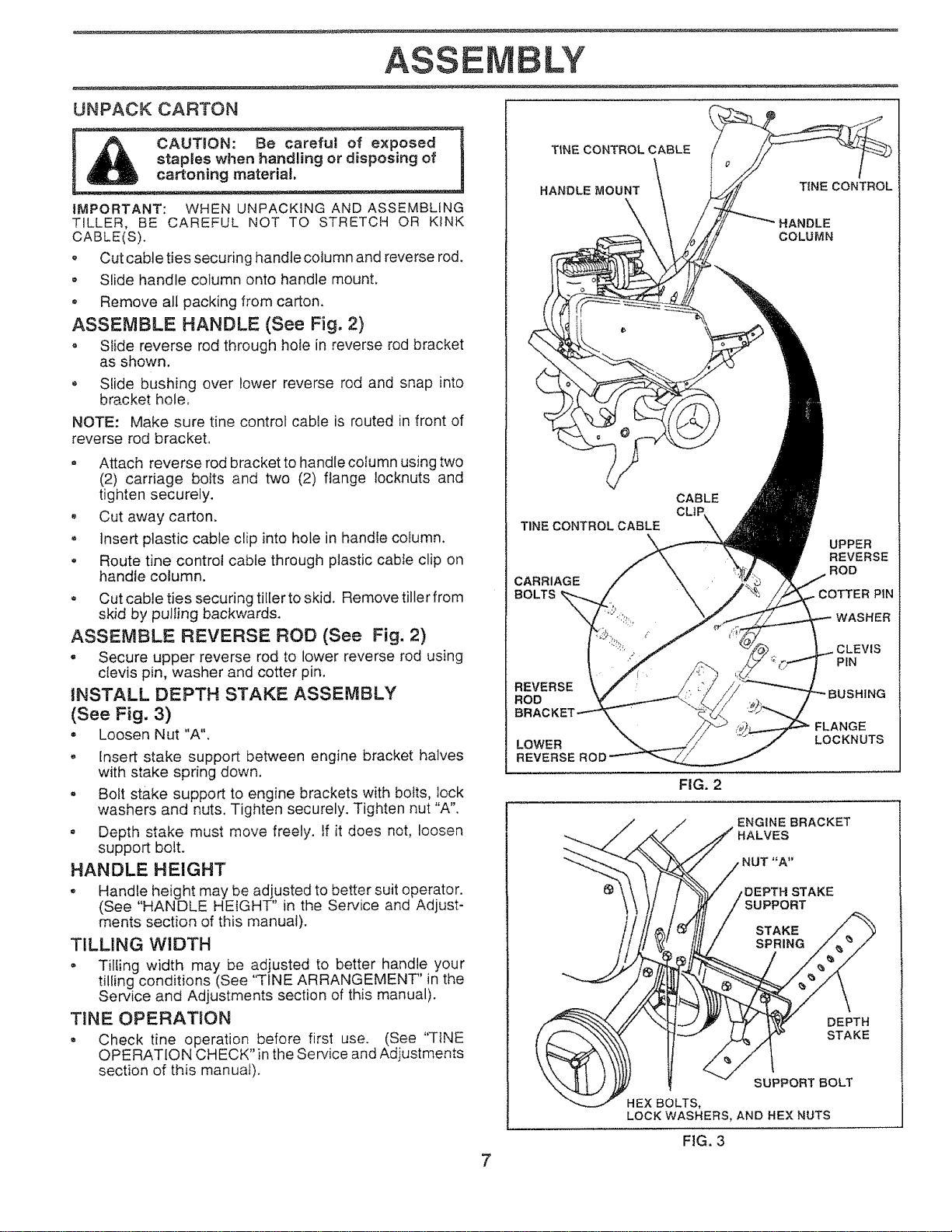

ASSEMBLY ................................................................ 6-7

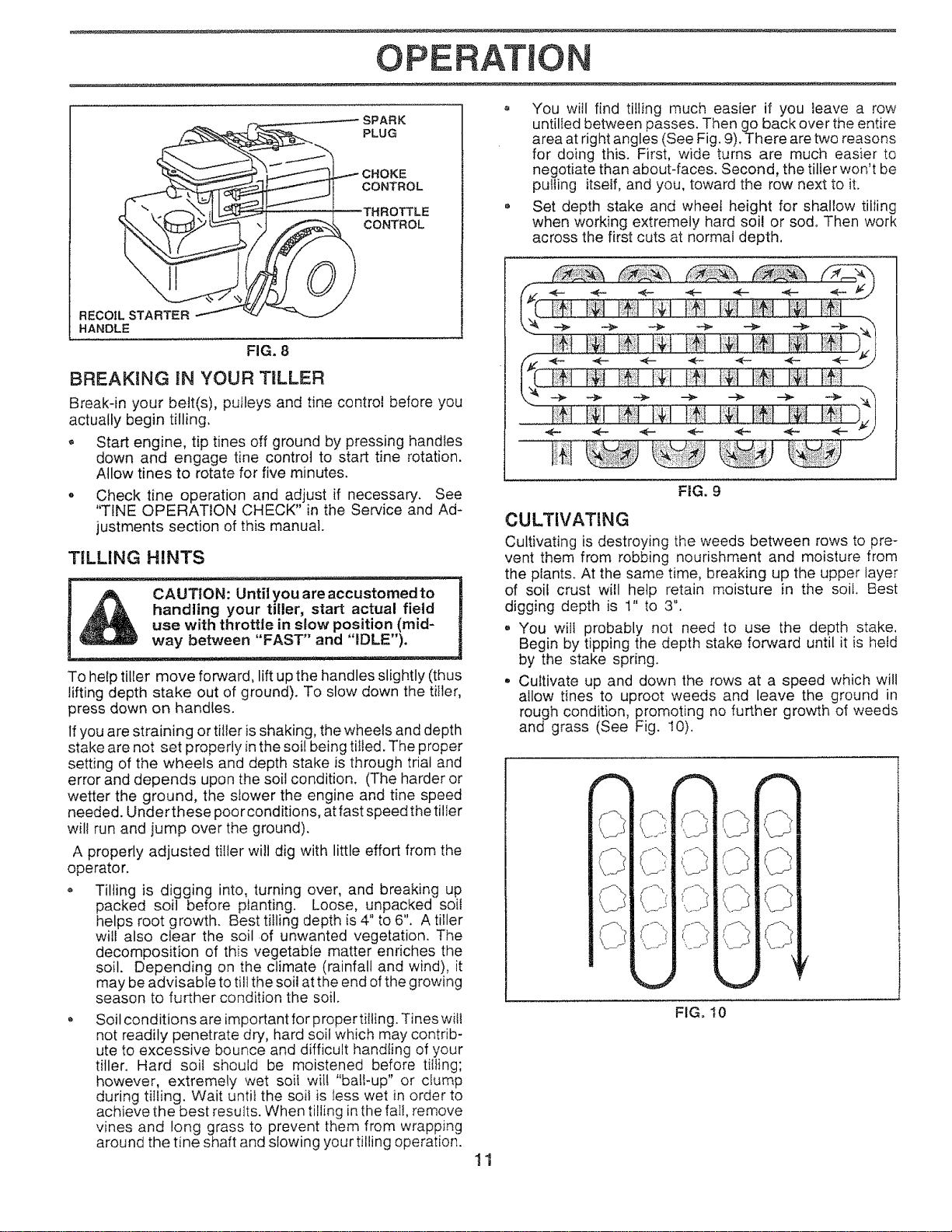

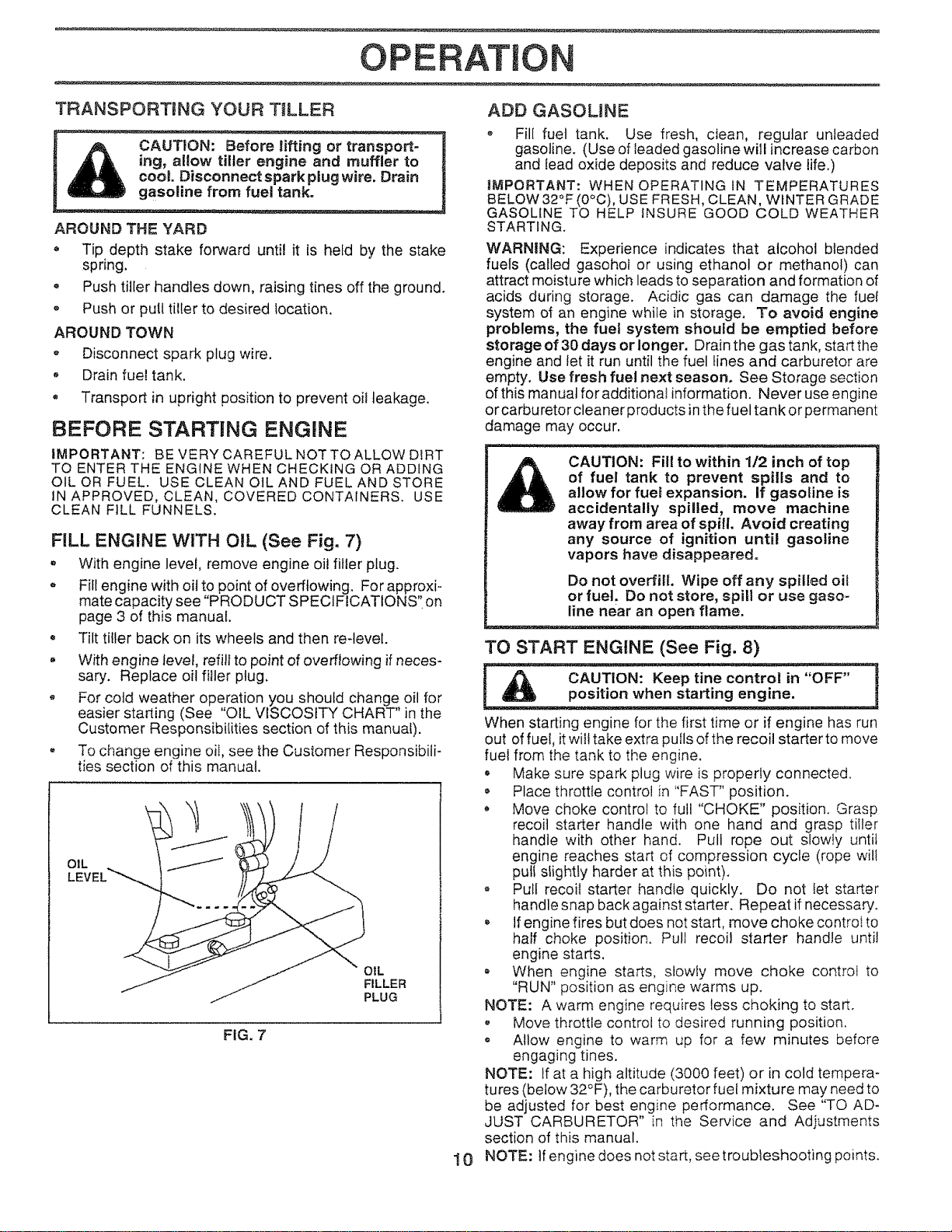

OPERATION ............................................................. 8-11
MAINTENANCE SCHEDULE ...................................... 12

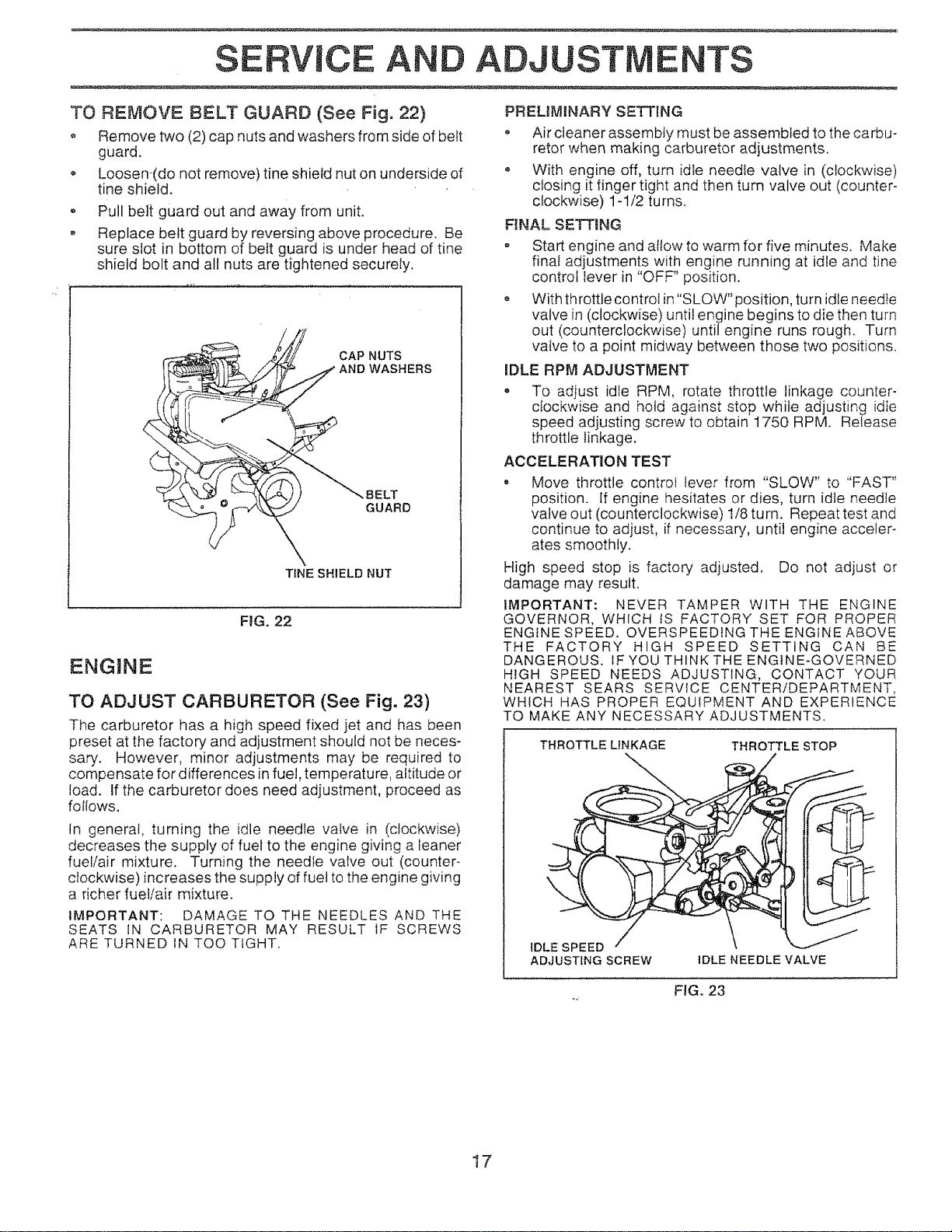

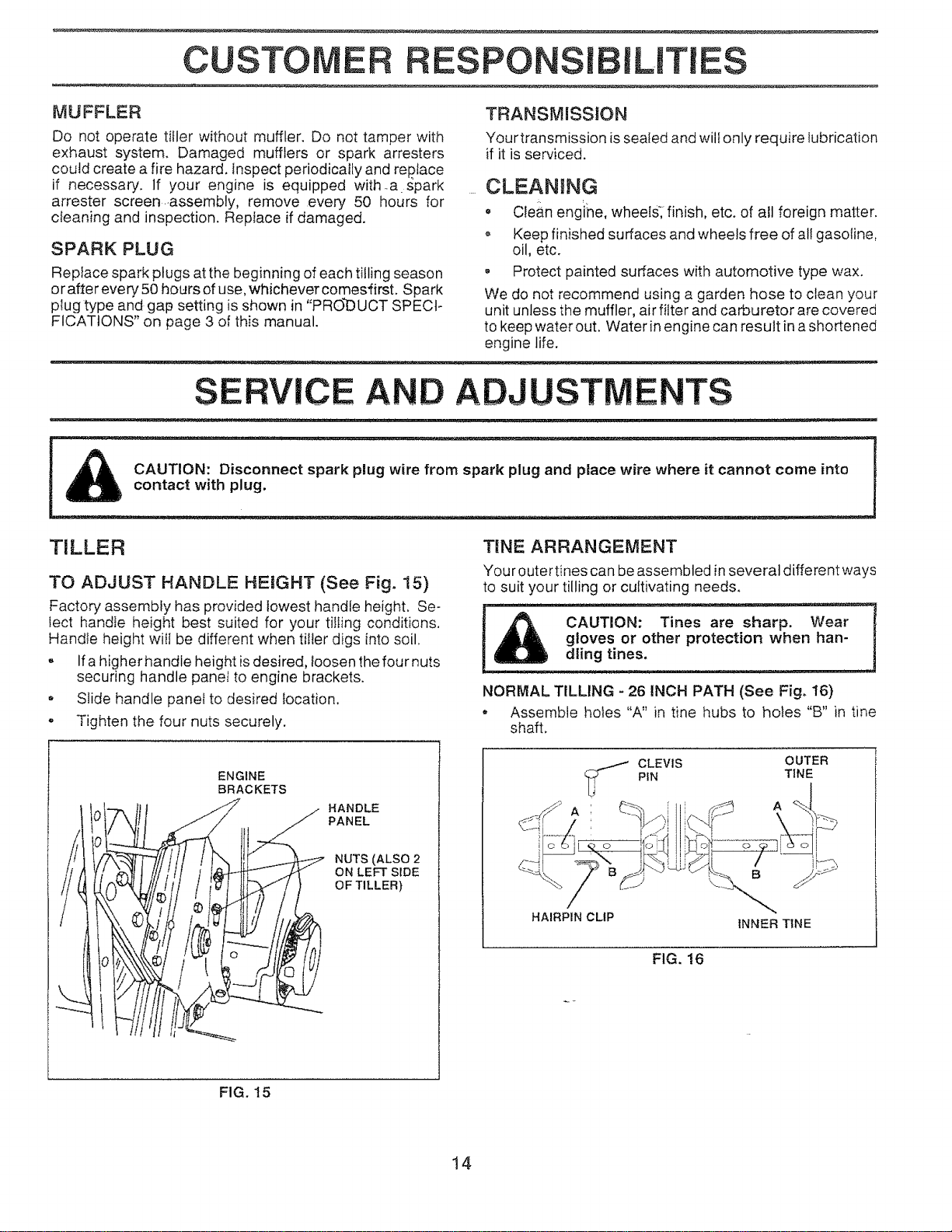

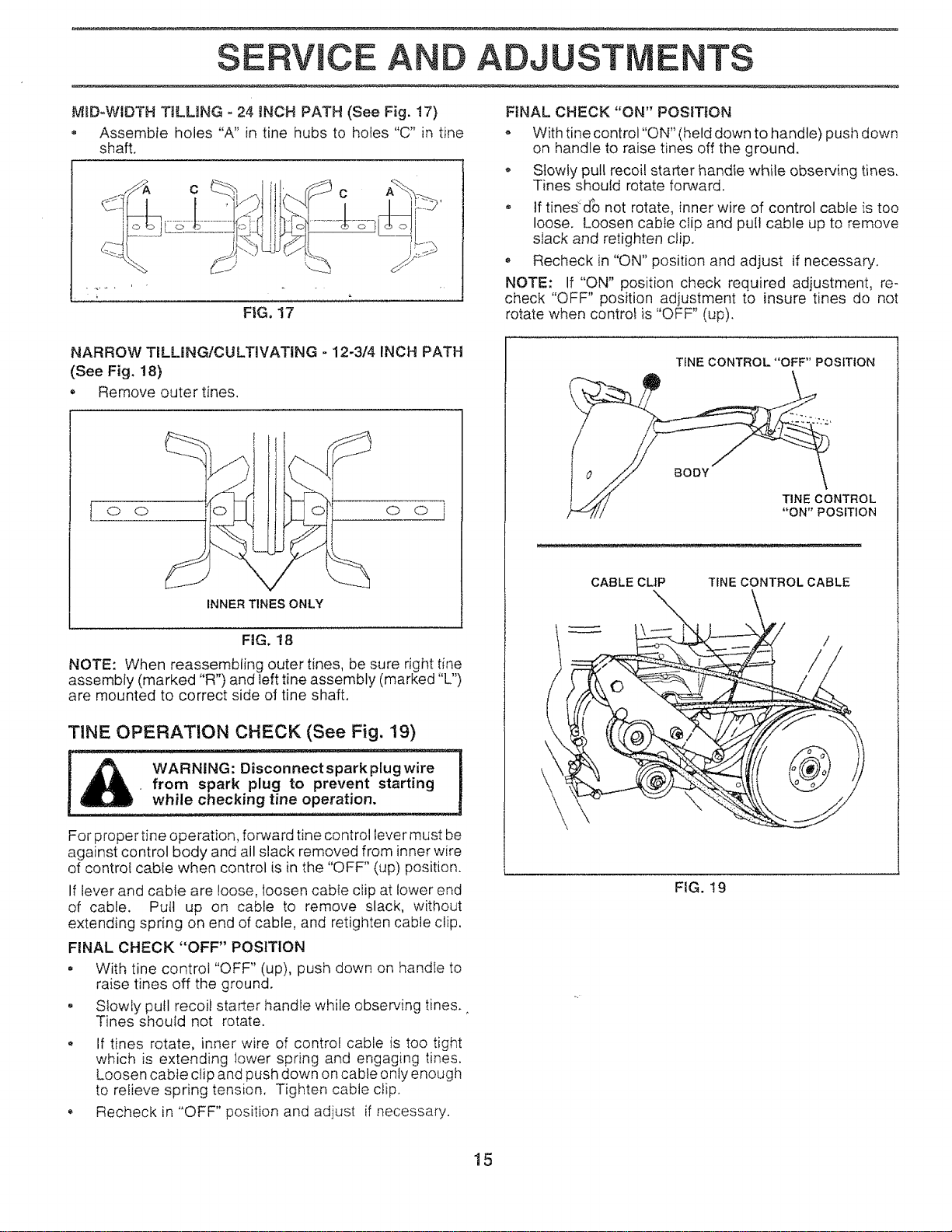

SERVICE & ADJUSTMENTS ................................. !4-17

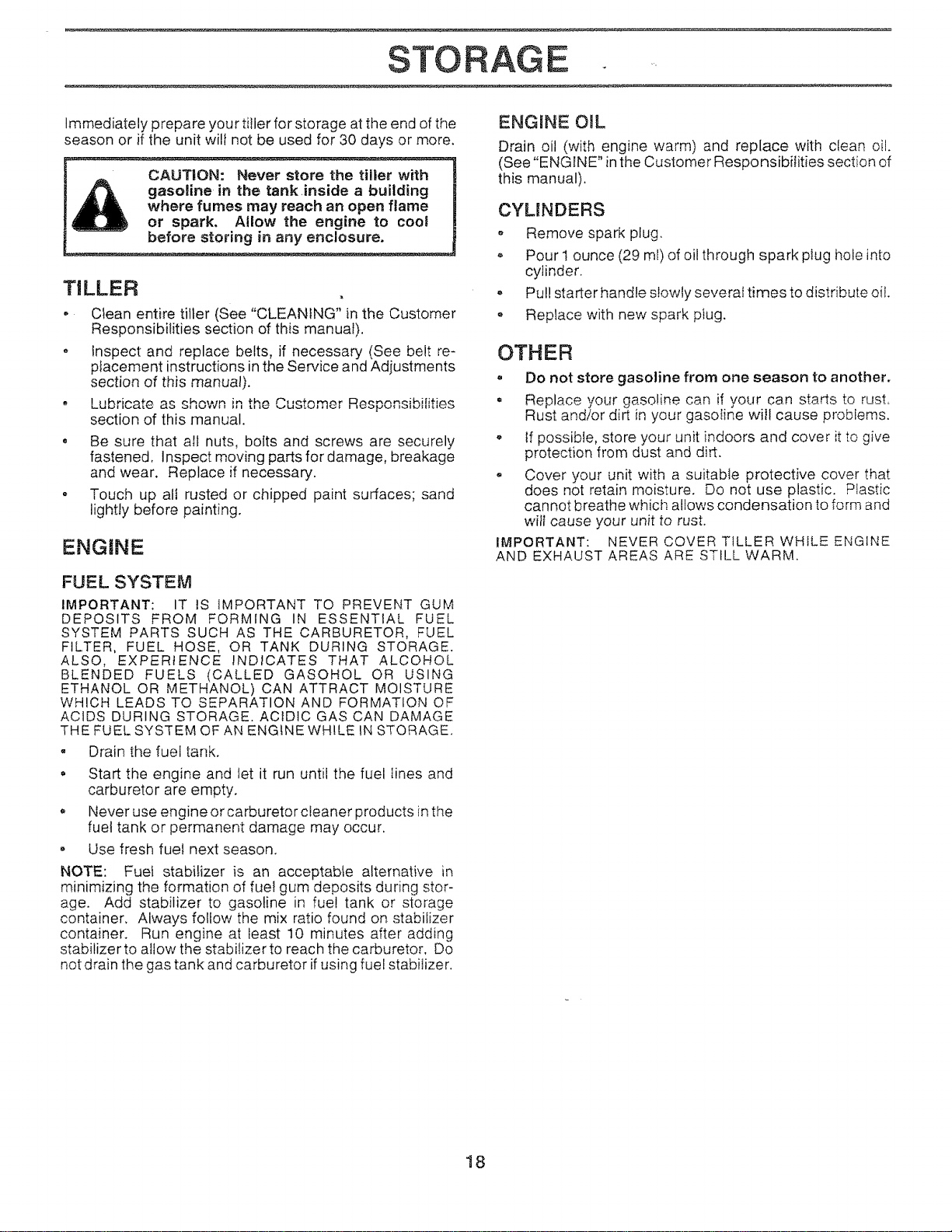

STORAGE ................................................................... 18

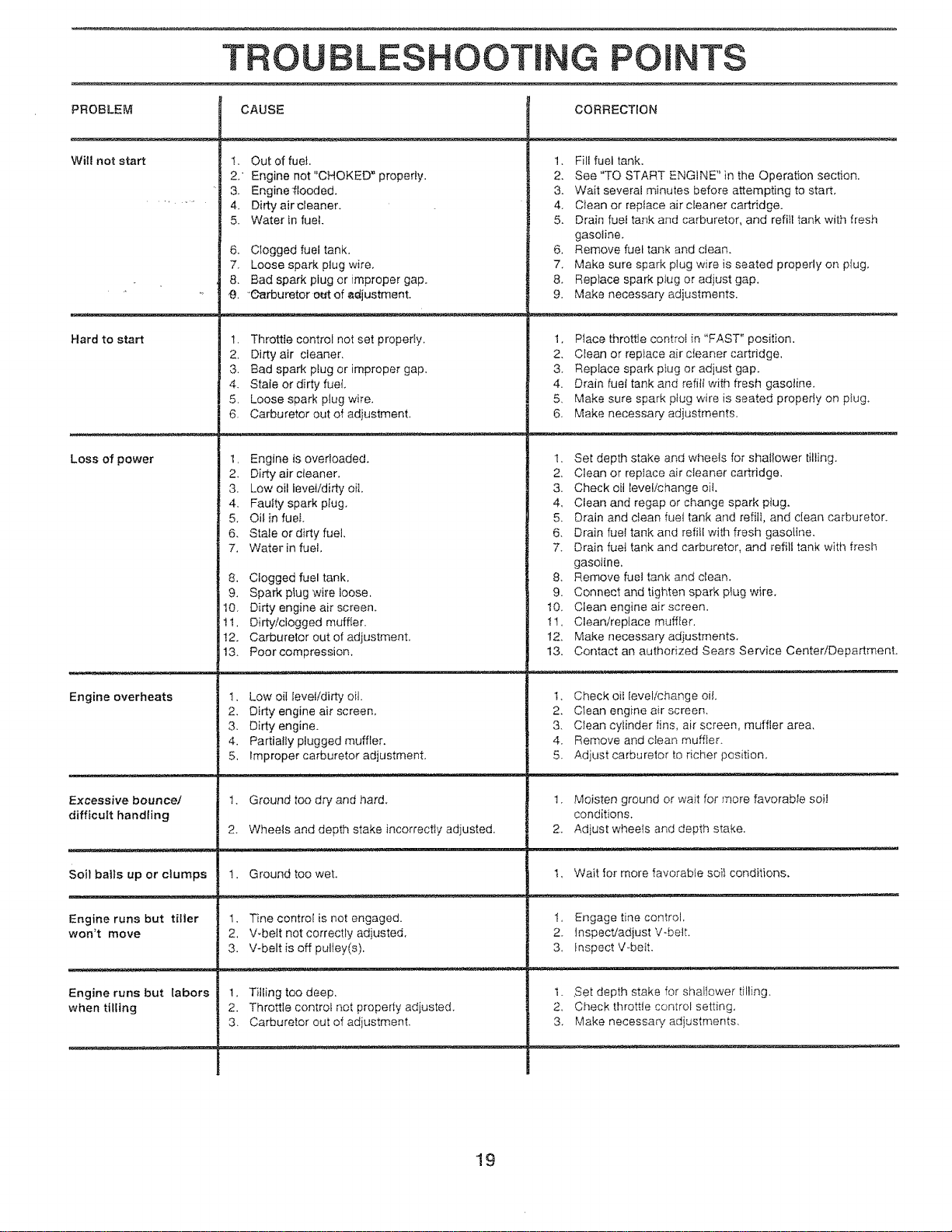

TROUBLESHOOTING ................................................. t9

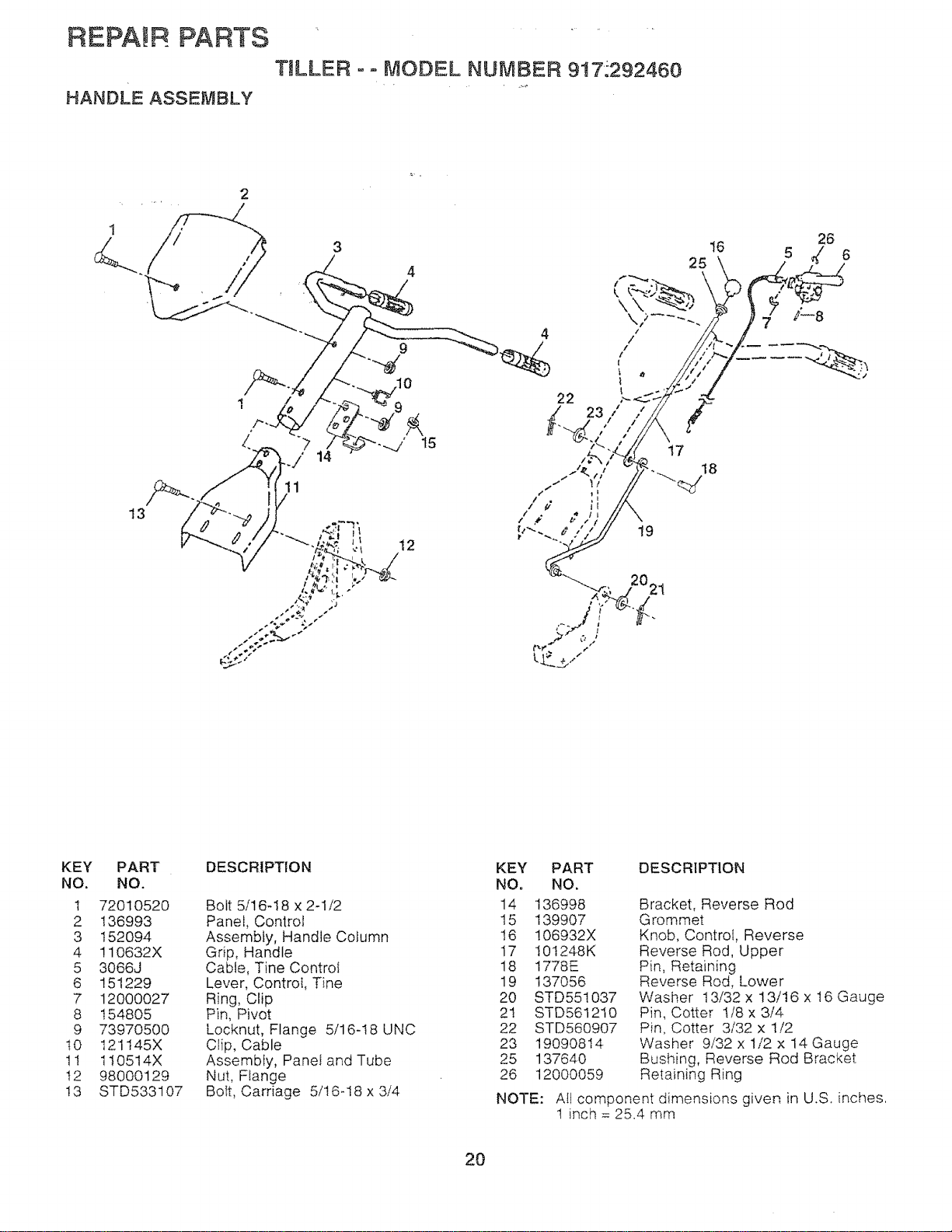

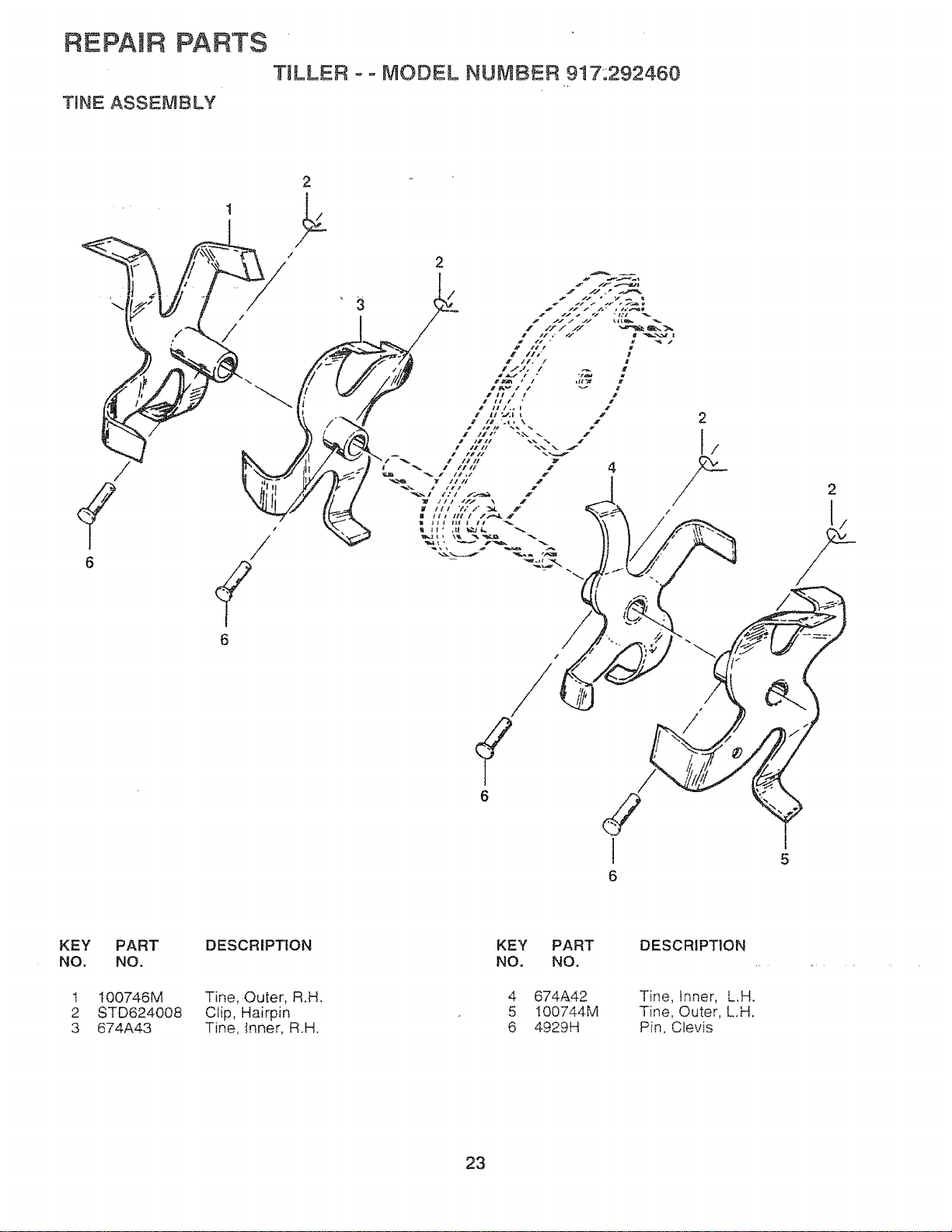

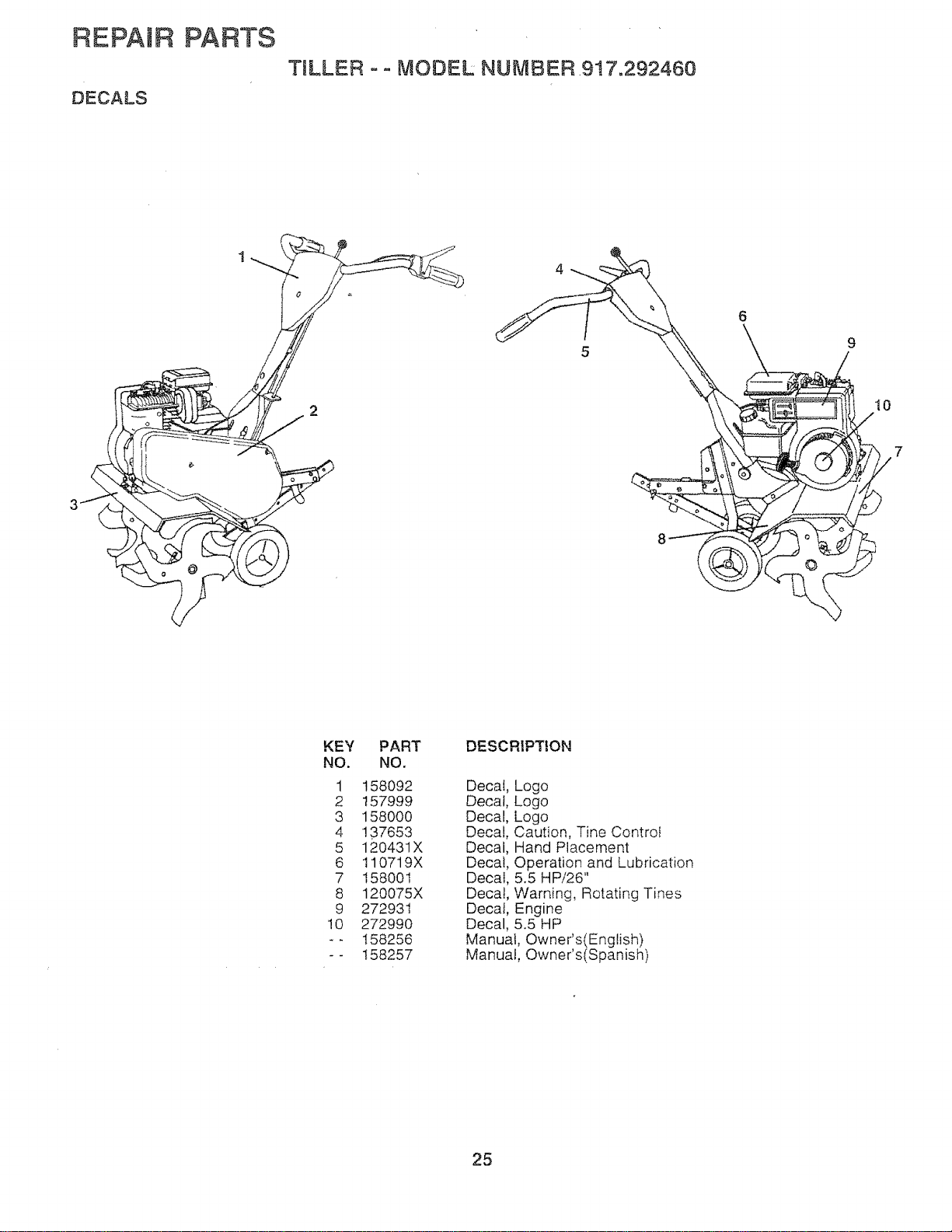

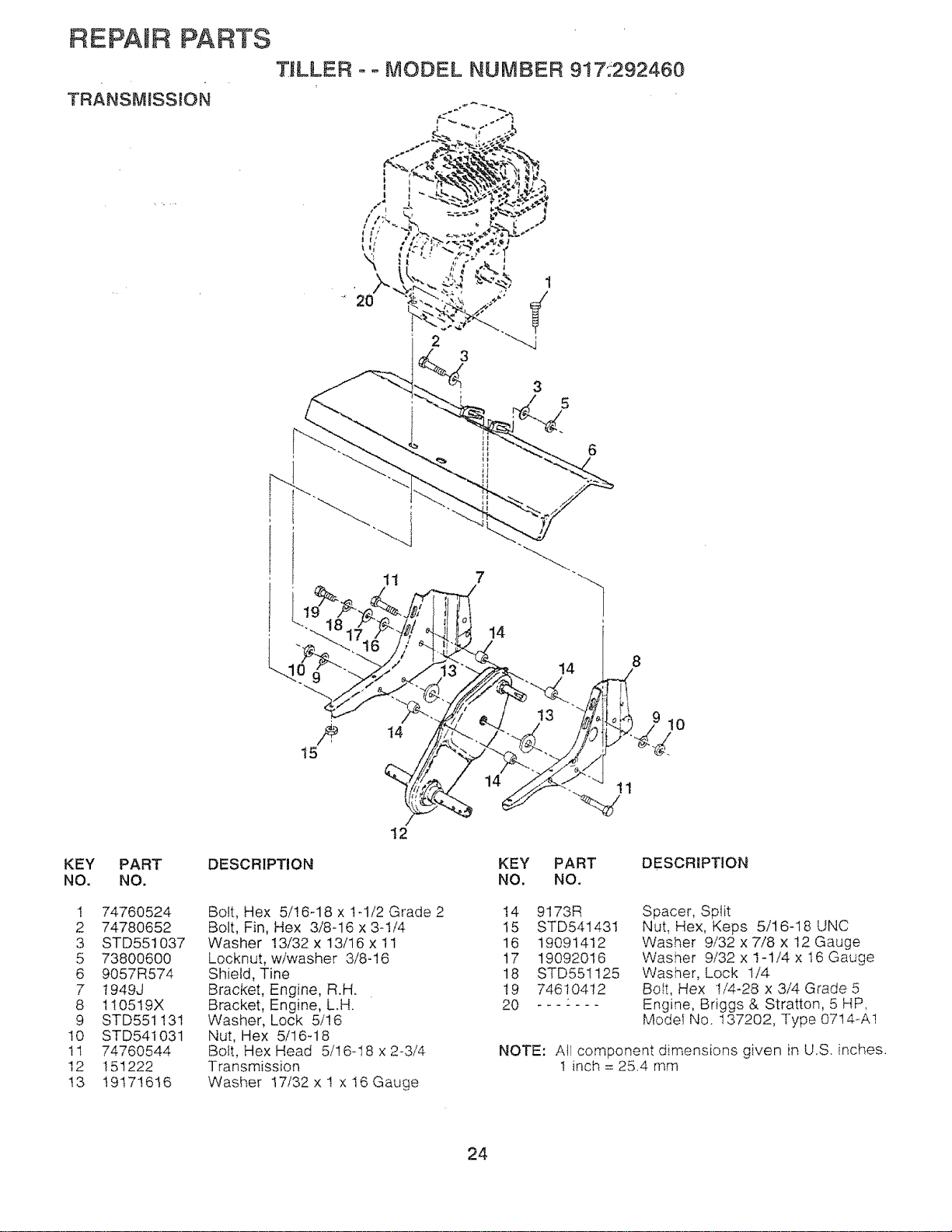

REPAIR PARTS-TILLER ........................................ 20-25

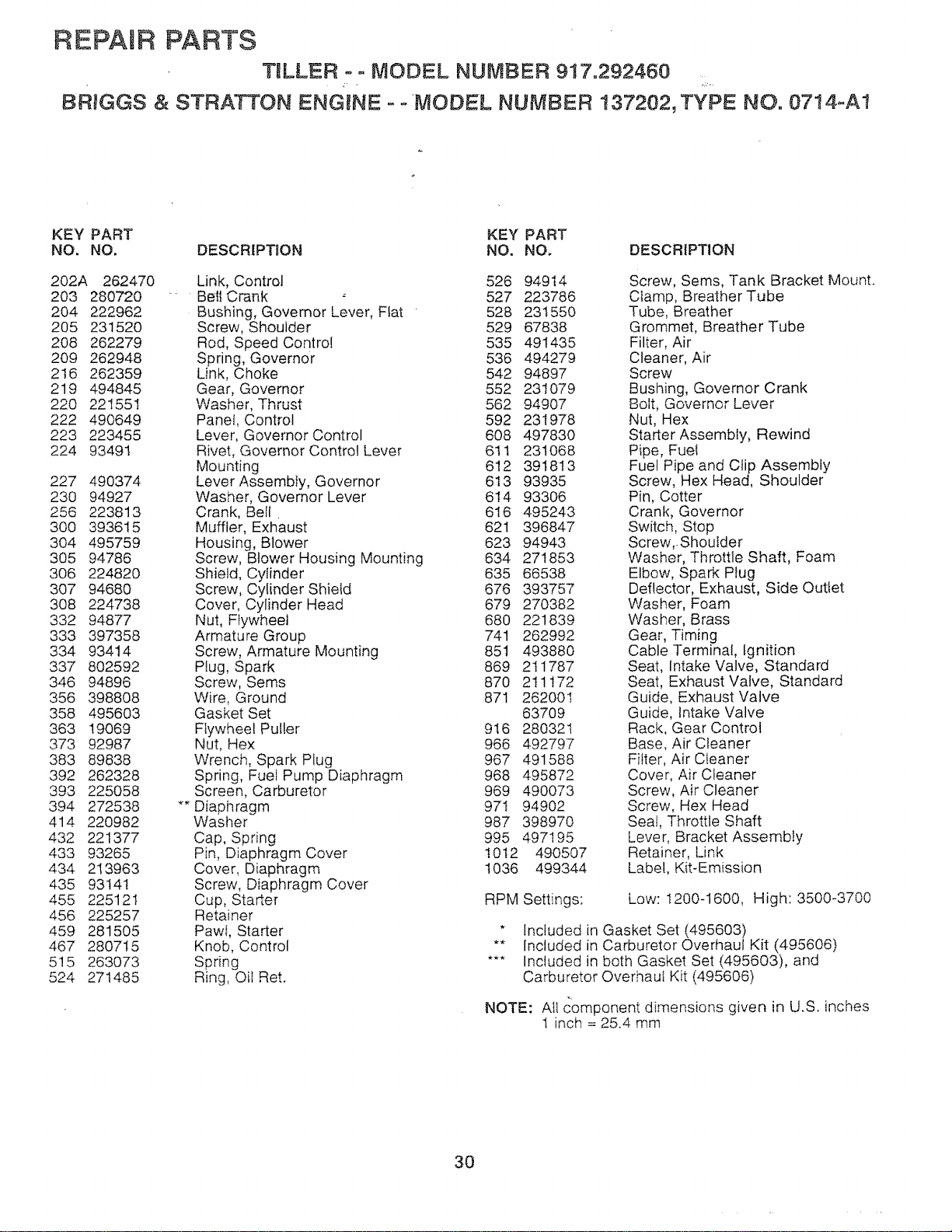

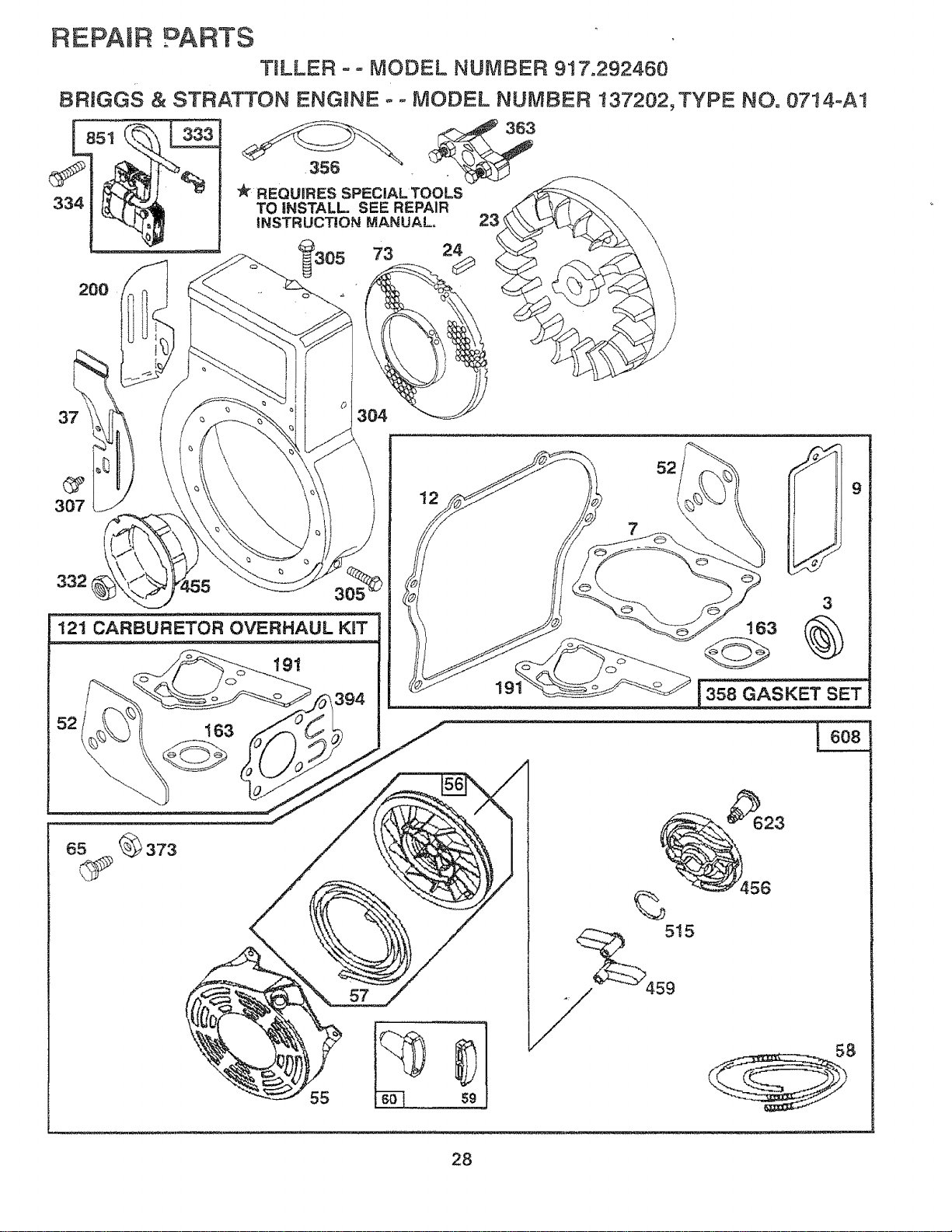

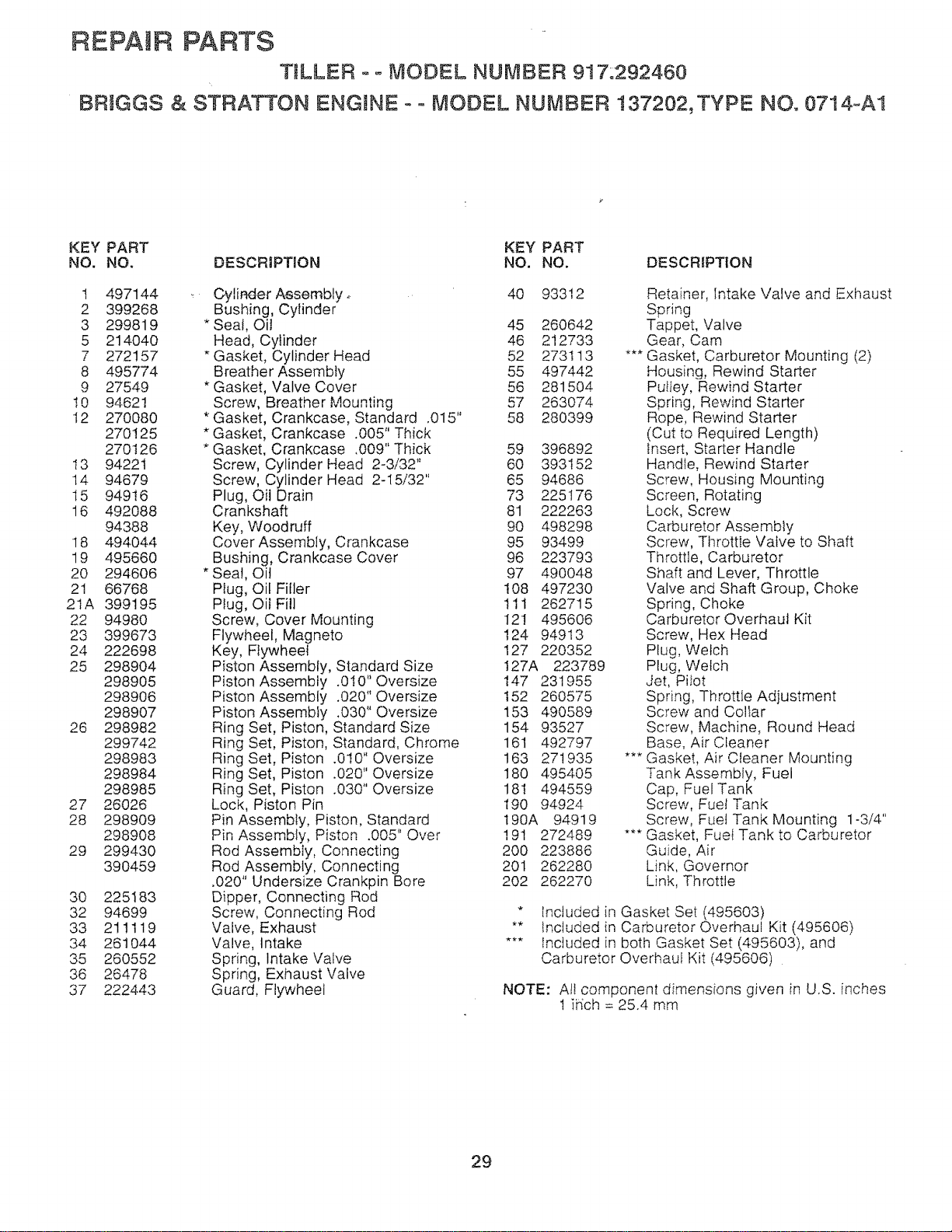

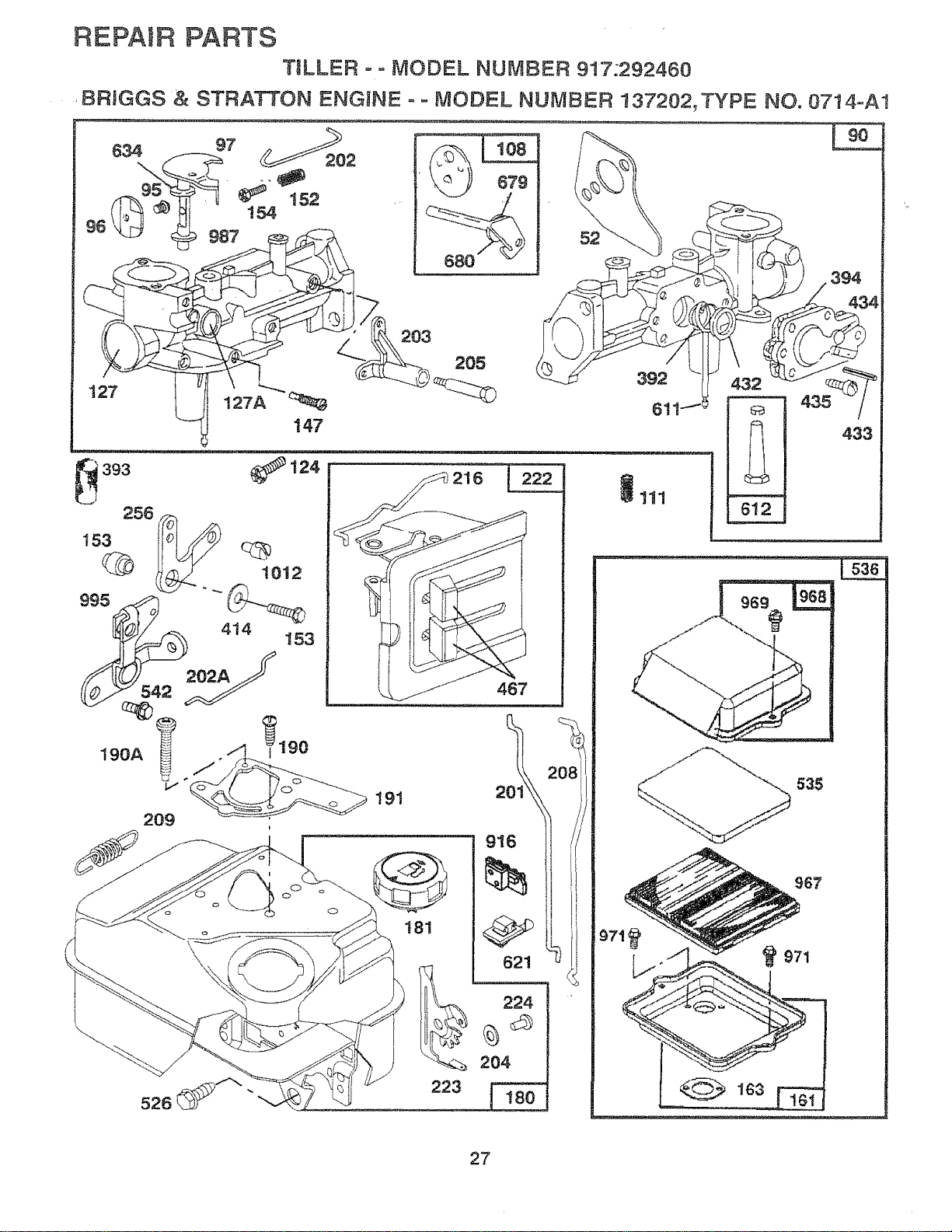

REPAIR PARTS-ENGINE ...................................... 26-30
SERVICE/PARTS ORDERING .................... Back Cover
iNDEX
A

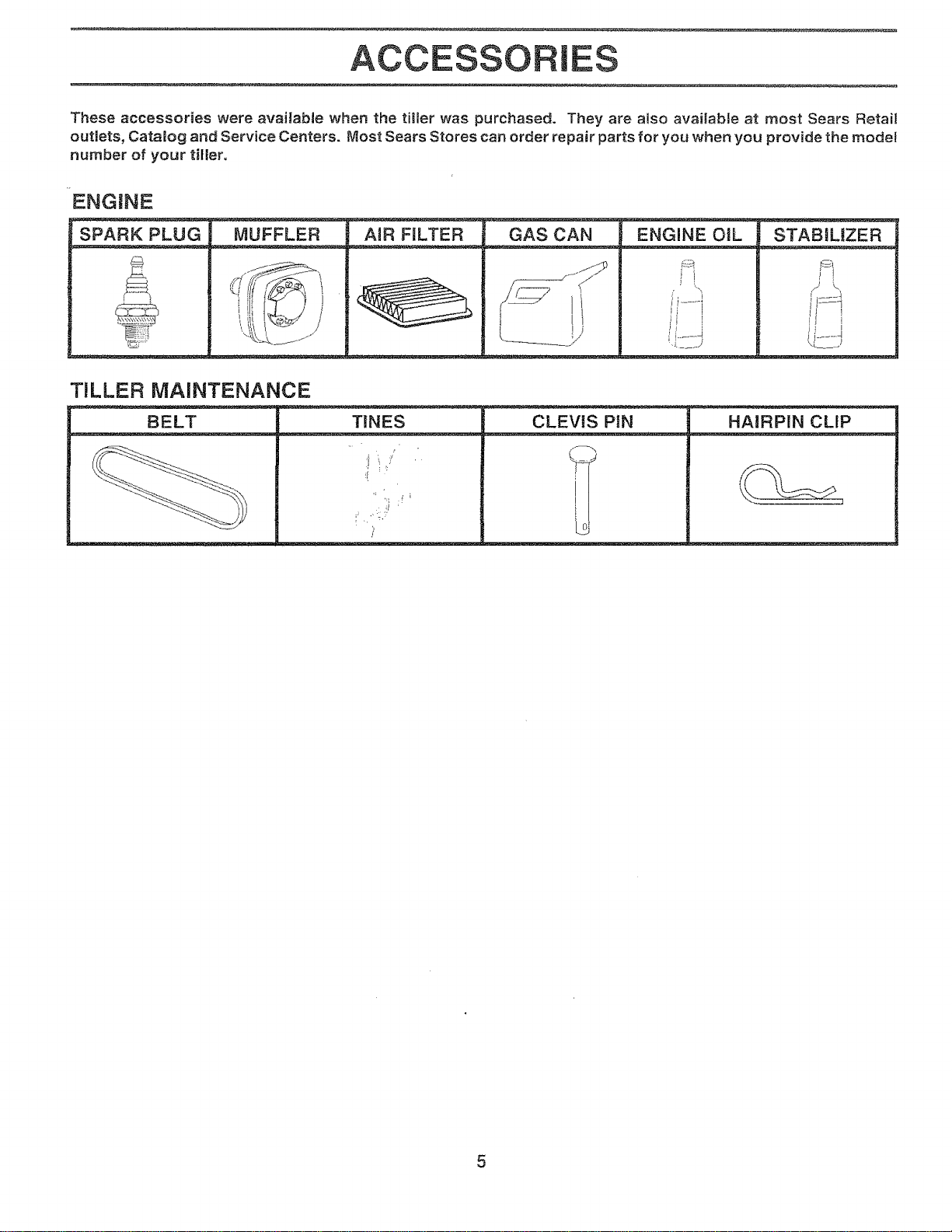

Accessories ..................................... 5
Adjustments:
Carburetor .............................. t7
Depth Stake .............................. 9
Handle Height ......................... 14
Tines .................................. 14-15

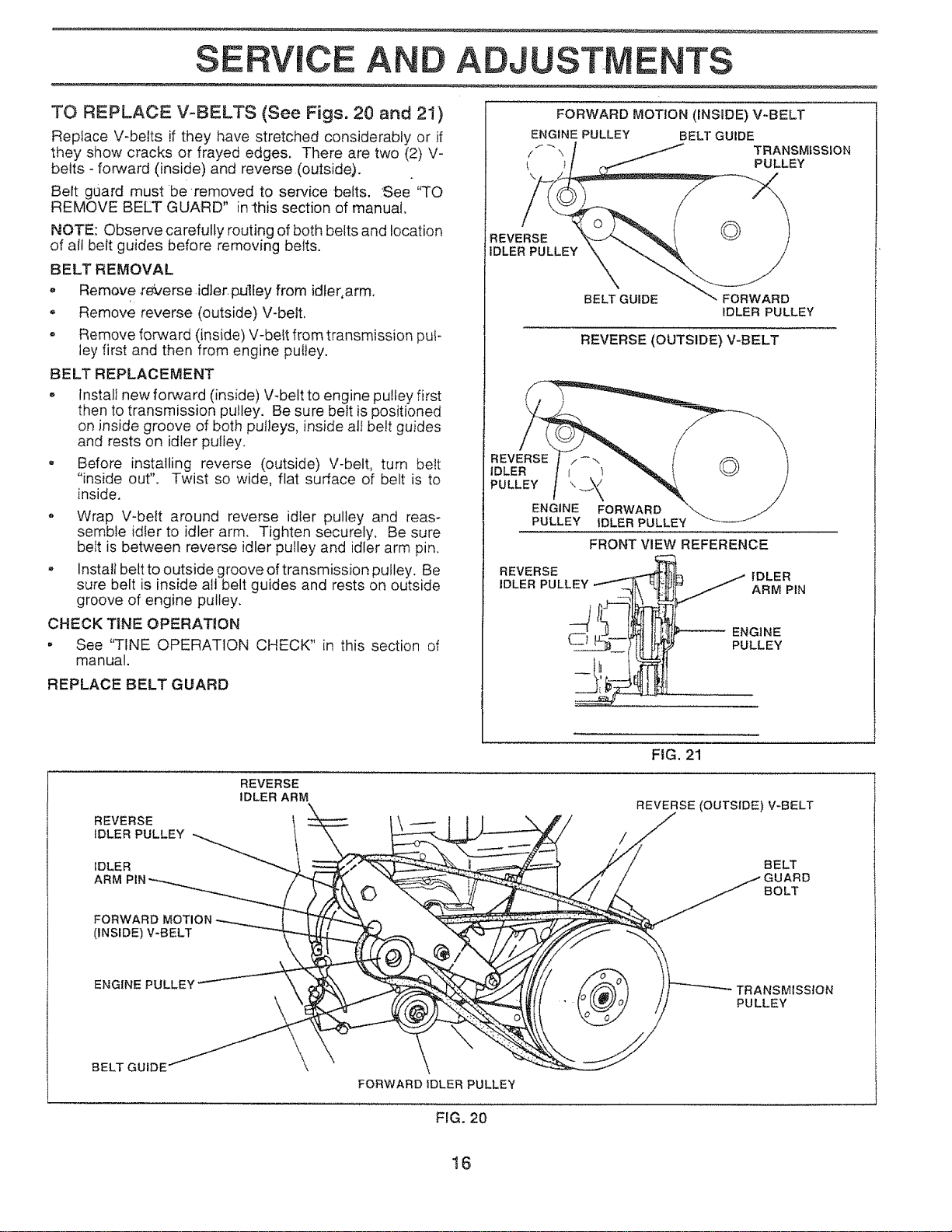

V-Beit ...................................... 16
Wheels ...................................... 9
Air Cleaner .................................... 13
B
Belt, V-:
Belt Guard .............................. 17

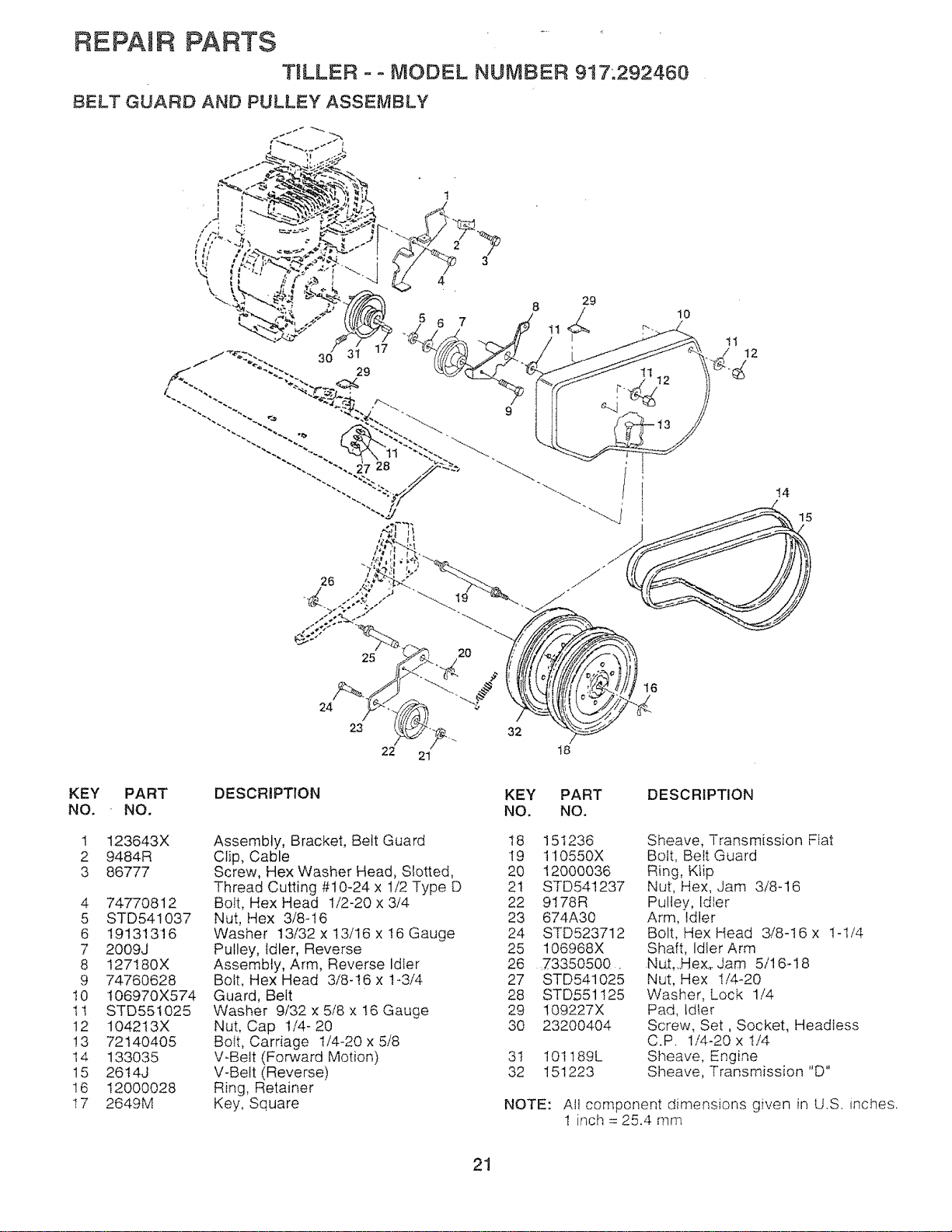

Repair Parts ............................ 2t
V-Belt Replacement ................ 16
C
Cooling System ............................. 13

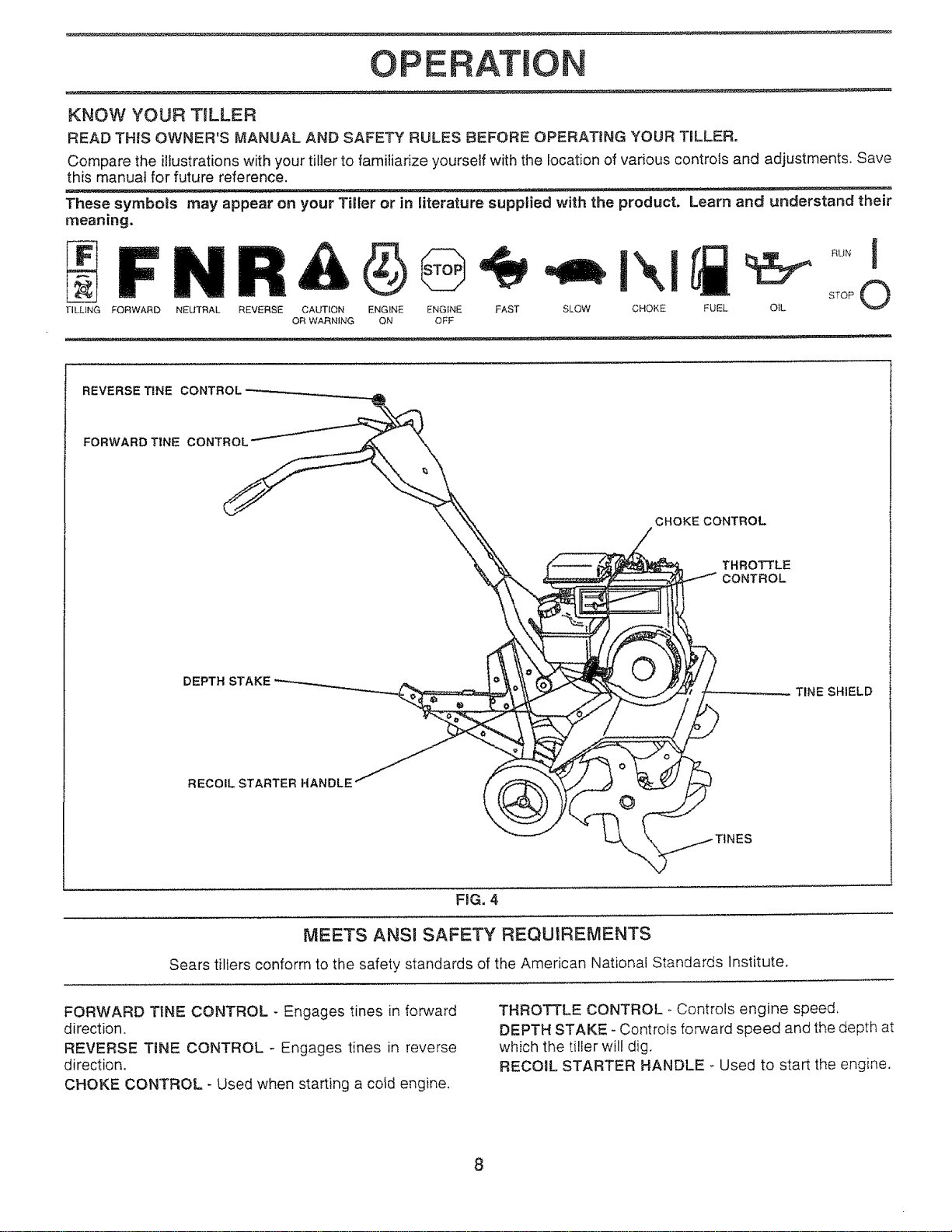

Controls:
Choke ....................................... 8
Throttle ..................................... 8
Tines ......................................... 8
Cultivating ..................................... 11
Customer Responsibilities:
Air Cleaner .............................. 13
Cooling System ...................... 13
Finish ...................................... !4

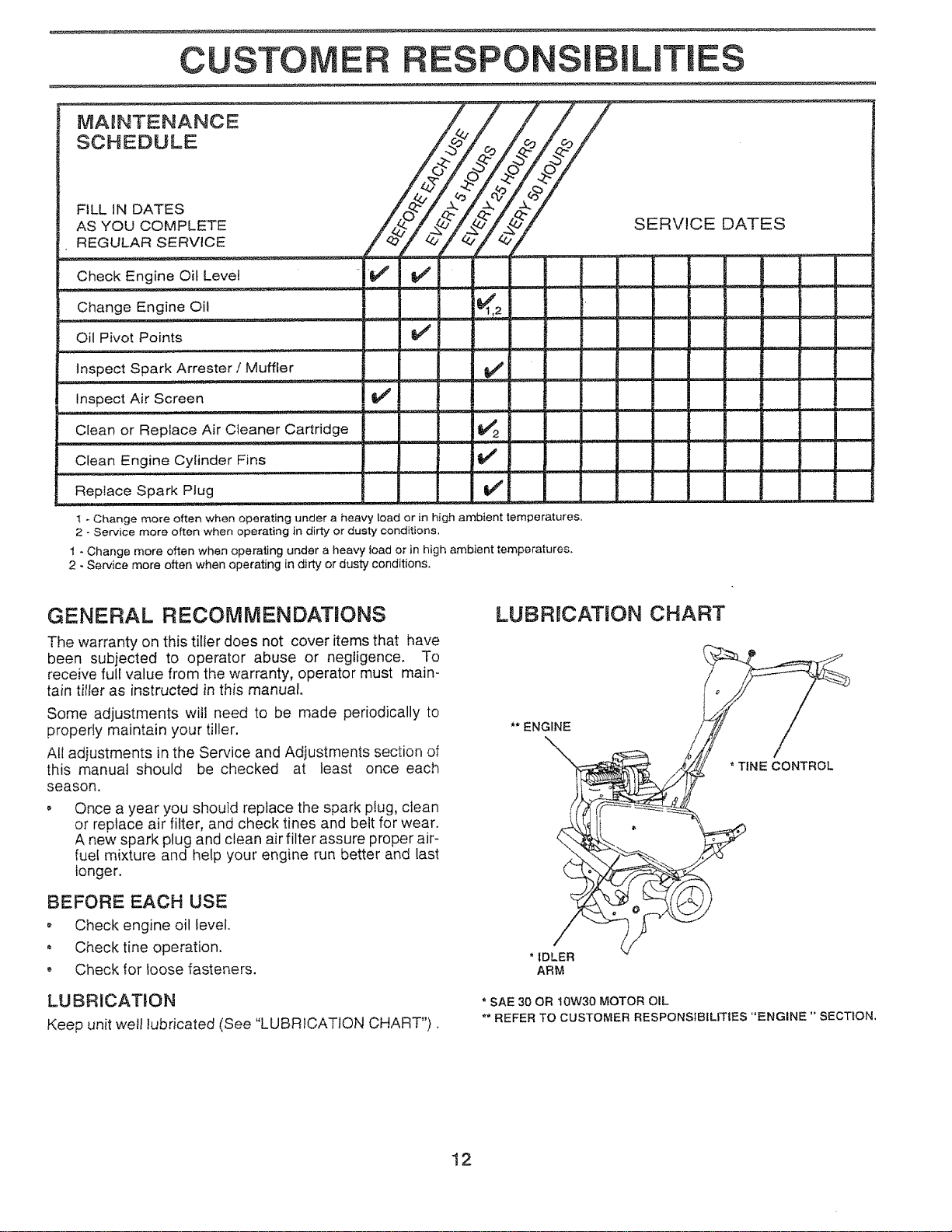

Maintenance Schedule ........... 12
Muffler ..................................... 14
Oil Change .............................. 13
Spark Plug .............................. t4
Transmission .......................... 14
D
Depth Stake:
Adjustment ................................ 9

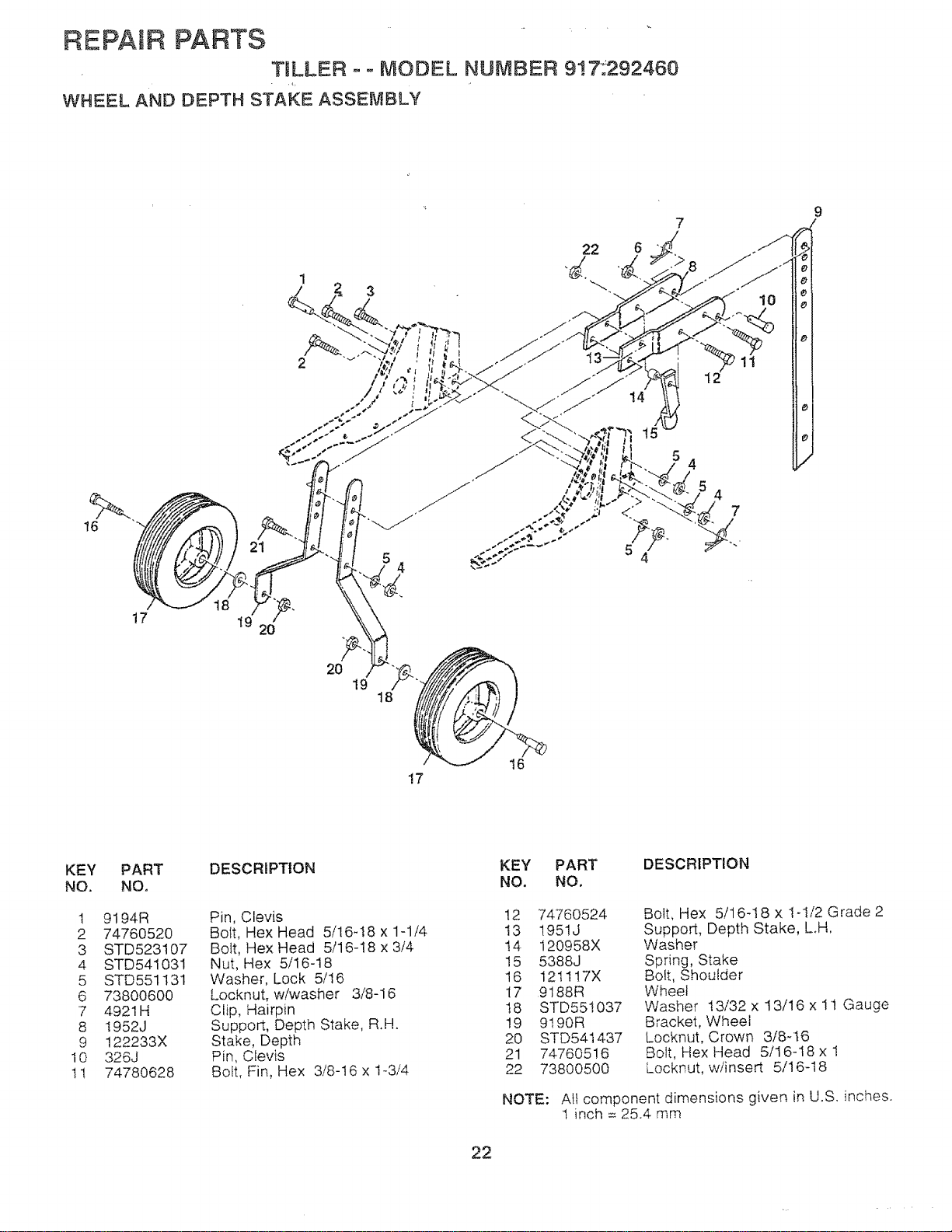

Repair Parts ............................ 22
E
Engine:
Air Cleaner .............................. 13
Cooling System ...................... 13
Fuel Type ................................ 10
Lubrication .............................. 13
Oil Level .................................. 10
Oil Type ............................. 10,13
Engine Cont.:
Repair Parts ....................... 26-30
Spark Plug .............................. 14
Starting ................................... 10
Stopping ................................... 9
Storage ................................... 18
Winter Operation .................... 13
F
Fuel:
Filling Tank ............................. 10
Storage ................................... 18
Type ........................................ I 0
Finish:
Maintenance ........................... 14
H
Handle:
Height Adjustment .................. t4
Repair Parts ............................ 20
L
Lubrication:
Lubrication Chart ................... 12
Engine .................................... 13
M
Muffler:
Maintenance ........................... t4
Spark Arrester .......................... 3
O
Oil:
Level ....................................... 10
Type ................................... 10,13
Operation:
Cultivating ............................... 11
Fill Fuel Tank .......................... I0
Starting Engine .......................... 10
Stopping Tines & Engine .......... 9
Tilling ........................................ 9
Tilling Hints ............................. 11
Tine Operation .......................... 9
Transporting Tiller ................... 10
Winter Operation .................... I3
R
Repair Parts
Tiller ................................... 20-24
Engine ............................... 26-30
Rules for Safe Operation ................. 2
S
Service & Adjustments:
Carburetor .............................. 17
Handle Height ......................... 14
Tines .................................. t4-I5
V-Belt ...................................... 16
Wheels ...................................... 9
SenJice:
Repair Parts ....................... 20-30
Service Record ....................... t 2
Spark Plug:
Gap ........................................... 3
Maintenance ........................... 14
Storage:
Fuel System ............................ 18
Tiller ........................................ 18
T
Tilling .......................................... 9,11
Tines:
Arrangement ...................... t4-15
Operation .................................. 9
Repair Parts ............................ 23
Replacement .......................... I5
Transmission:
Maintenance ........................... 14
Repair Parts ............................ 24
Troubleshooting ............................ 19
Transporting .................................. 10
W
Warranty .......................................... 3
Wheels:
Adjustments .............................. 9
Repair Parts ............................ 22
4
ACCESSORIES
These accessories were available when the tiller was purchased. They are also available at most Sears Retail
outlets, Catalog and Service Centers. Most Sears Stores can order repair parts for you when you provide the modef
number of your tiller,
ENGINE
SPARK PLUG MUFFLER AiR FILTER
GAS CAN ENGINE OiL
! i\
S ........J
Lj' __)
STABILIZER
; I
S L.
i! J
TILLER MAINTENANCE
BELT T_NES
!
!
i_ ,- _.
CLEVIS PiN
_J
HAiRPiN CLIP
5
ASSEM LY
Your new tiller has been assembled at the factory with exception of those parts left unassembbd for shipping purposes. To
ensure safe and proper operation of your tiller all parts and hardware you assemble must be tightened secure{y. Use the
correct tools as necessary to insure proper tightness. . ._
TOOLS REQUIRED FOR ASSEMBLY
A socket wrench set will make assembly easier. Standard
wrench sizes are listed.
(1) Utility knife
(1) Screwdriver
(1) Pair of pliers
(2) 1/2" wrenches
OPERATOR'S POSITION (See Fig. 1)
When right or left hand is mentioned in this manual, it
means when you are in the operating position (standing
behind tiller handles).
LEFT
FRONT
j
OPERATOR'S
POSITION
FroG. 1
CONTENTS OF HARDWARE PACK
(I) Manual
(1) Plastic Cable Clip (1) Clevis Pin
(2) Carriage Bolts 5/16-18 UNC x 2-1/2
(!) Cotter Pin
..... I (_
(1) Washer
9/32 x 1/2 x 14 Gauge
(2) Flange Locknuts
5/16-I8 UNC
©
®
(1) Reverse Rod Bracket
@(t) Bushing
(2) Hex Bolts
5/16-18 x 1-!/4
Q
(2) Hex Nuts 5/t6-18
(2) Lock Washers 5/16
6
ASSE LY
UNPACK CARTON
CAUTION: Be carefut of exposed
staples when handling or disposing of
cartoning material.
IMPORTANT: WHEN UNPACKING AND ASSEMBLING
TILLER, BE CAREFUL NOT TO STRETCH OR KINK
CABLE(S).
° Cut cable ties securing handle column and reverse rod,
, Slide handle column onto handle mount,
* Remove all packing from carton.
ASSEMBLE HANDLE (See Fig. 2)
, Stide reverse rod through hole in reverse rod bracket
as shown,
= Slide bushing over lower reverse rod and snap into
bracket hole,
NOTE: Make sure tine control cable is routed in front of
reverse rod bracket.
= Attach reverse rod bracket to handle column using two
(2) carriage bolts and two (2) flange locknuts and
tighten securely.
• Cut away carton.
Insert plastic cable clip into hole in handle column.
Route tine control cable through plastic cable clip on
handle column.
- Cut cable ties securing tiller to skid. Remove tiller from
skid by pulling backwards.
ASSEMBLE REVERSE ROD (See Fig. 2)
• Secure upper reverse rod to lower reverse rod using
clevis pin, washer and cotter pin.
INSTALL DEPTH STAKE ASSEMBLY
(See Fig. 3)
= Loosen Nut "A".
Insert stake support between engine bracket halves
with stake spring down.
Bolt stake support to engine brackets with bolts, lock
washers and nuts. Tighten securely. Tighten nut "A".
• Depth stake must move freely, tf it does not, loosen
support bolt.
HANDLE HEIGHT
• Handle height may be adjusted to better suit operator.
(See "HANDLE HEIGHT" in the Service and Adjust-
ments section of this manual),
TILLING WIDTH
- Tilling width may be adjusted to better handle your
tilling conditions (See "TINE ARRANGEMENT" in the
Service and Adjustments section of this manual).
TINE OPERATION
® Check fine operation before first use, (See "TtNE
OPERATION CHECK" in the Service and Adjustments
section of this manual).
T|NE CONTROL CABLE
HANDLE MOUNT
TINE CONTROL
DLE
COLUMN
CABLE
TINE CONTROL CABLE
CARRIAGE
BOLTS
REVERSE
ROD
LOWER
REVERSE ROD
UPPER
REVERSE
ROD
COTTER PIN
CLEVIS
PIN
FLANGE
LOCKNUTS
FIG. 2
ENGINE BRACKET
HALVES
STAKE
SUPPORT
DEPTH
STAKE
SUPPORT BOLT
HEX BOLTS,
LOCK WASHERS, AND HEX NUTS
FIG. 3
7
OPERAT!O
KNOW YOUR TILLER
READ THIS OWNER'S MANUAL AND SAFETY RULES BEFORE OPERATING YOUR TILLER.
Compare the illustrations with your tiller to familiarize yourself with the location of various controls and adjustments. Save
this manual for future reference.
These symbols may appear on your Tiller or in literature supplied with the product. Learn and understand their
I l;
TILLING FORWARD NEUTRAL REVERSE CAUTION ENGINE ENGINE FAST SLOW CHOKE FUEL OtL
OR WARNING ON OFF
REVERSE TINE CONTROL
FORWARD TINE CONTROL
CHOKECONTROL
THROTTLE
CONTROL
DEPTH
TINE SHIELD
RECOIL STARTER HANDLE
O
FIG, 4
MEETS ANSI SAFETY REQUIREMENTS
Sears tilters conform to the safety standards of the American National Standards Institute.
FORWARD TINE CONTROL - Engages tines in forward
direction.
REVERSE TINE CONTROL - Engages tines in reverse
direction.
CHOKE CONTROL - Used when starting a cold engine.
THROTTLE CONTROL - Controls engine speed,
DEPTH STAKE - Controls forward speed and the depth at
which the tiller will dig.
RECOIL STARTER HANDLE - Used to start the engine.
8
OPERATION
The operation of any tiller can resu|t in foreign objects thrown into the eyes, which can
resuJt in severe eye damage. Always wear safety gmasses or eye shields before starting
your tiller and while tilling. We recommend a wide vision safety mask over the spectacles
or standard safety glasses,
HOW TO USE YOUR TILLER
STOPPING (See Fig. 5)
TINES
= Retease forward tine control to stop forward move-
ment.
• Release reverse tine control to stop reverse move-
ment.
ENGINE
° Move throttle control to "STOP" position.
• Never use choke to stop engine.
REVERSE TINE CONTROL FORWARD TINE CONTROL
"OFF" (UP) POSITION
FORWARD TINE CONTROL
"ON" (DOWN) POSITION
CHOKE
CONTROL_ CONTROL
FIG. 5
TINE OPERATION (See Fig. 5)
FORWARD
, Squeeze forward tine contro_ to handle.
REVERSE
- With forward fine control in "OFF" (up) position, pult
back and hold reverse fine control
TILLING
The speed and depth of tilling is regulated by the position
of the depth stake and wheet height.
The depth stake should always be below the wheels for
digging. It serves as a brake to slow the tiller's forward
motion to enable the tines to penetrate the ground. Also,
the more the depth stake is lowered into the ground the
deeper the tines will dig.
DEPTH STAKE (See Fig. 6)
Adjust depth stake by removing the hairpin clip and clevis
pin. Change depth stake to desired position. Replace the
clevis pin and hairpin clip.
• For normal tilling, set depth stake at the second or third
hole from the top.
WHEELS (See Fig. 6)
Adjust wheels by"removing the hairpin clip and ctevis pin.
Change wheel position. Replace the hairpin clip and clevis
pin.
For normal tilling, set wheels at the second or third hole
from the top.
HAIRPIN CLIP
AND CLEVIS PIN
DEPTH
STAKE
"WHEEL
HAIRPIN CLIP
AND CLEVIS PIN
FIG. 6
9
OPERATION
TRANSPORTUNG YOUR TILLER
cAuT,o.- Bofo o
ing, altow tiller engine and muffler to t
cool. Disconnect spark plug wire. Drain
gasoline from fuel tank.
AROUND THE YARD
- Tip depth stake forward until it is held by the stake
spring.
o Push tiller handles down, raising tines off the ground.
® Push or pull tiller to desired location.
AROUND TOWN
- Disconnect spark plug wire.
° Drain fuel tank.
,, Transport in upright position to prevent oil leakage.
BEFORE STARTING ENGINE
IMPORTANT: BE VERY CAREFUL NOT TO ALLOW DIRT
TO ENTER THE ENGINE WHEN CHECKING OR ADDING
OIL OR FUEL. USE CLEAN OIL AND FUEL AND STORE
IN APPROVED, CLEAN, COVERED CONTAINERS. USE
CLEAN FILL FUNNELS.
FiLL ENGINE WITH OIL (See Fig. 7)
o With engine level, remove engine oil filler plug.
Fill engine with oil to point of overflowing. For approxi-
mate capacity see "PRODUCT SPECIFICATIONS" on
page 3 of this manual.
, Tilt tiller back on its wheels and then re-level.
• With engine level, refill to point of overflowing ifneces-
sary. Replace oil fitter plug.
, For cold weather operation you should change oil for
easier starting (See "OIL VISCOSITY CHART" in the
Customer Responsibilities section of this manual).
° To change engine oiI, see the Customer Responsibili-
ties section of this manual.
OIL
OIL
FILLER
PLUG
FiG. 7
ADD GASOLINE
Fill fuel tank. Use fresh, clean, regular unleaded
gasoline. (Use of leaded gasoline will increase carbon
and Iead oxide deposits and reduce valve life.)
IMPORTANT: WHEN OPERATING iN TEMPERATURES
BELOW 32°F (0°C), USE FRESH, CLEAN, WINTER GRADE
GASOLINE TO HELP INSURE GOOD COLD WEATHER
STARTING.
WARNING: Experience indicates that alcohot blended
fuels (called gasohoi or using ethanol or methanol) can
attract moisture which leads to separation and formation of
acids during storage. Acidic gas can damage the fuel
system of an engine while in storage. To avoid engine
problems, the fuel system should be emptied before
storage of 30 days or longer. Drain the gas tank, start the
engine and let it run until the fuel lines and carburetor are
empty. Use fresh fuel next season. See Storage section
of this manual for additional information. Never use engine
or carburetor cleaner products in the fuel tank or permanent
damage may occur.
CAUTION: Fill to within 1/2 inch of top
of fuel tank to prevent spills and to
allow for fuet expansion, if gasoline is
accidentally spilled, move machine
away from area of spill. Avoid creating
any source of ignition until gasoline
vapors have disappeared.
Do not overfill. Wipe off any spilled oil
or fuel. Do not store, spill or use gaso-
line near an open flame.
TO START ENGINE (See Fig. 8)
10
When starting engine for the first time or if engine has run
out offuel, itwilt take extra pulls of the recoil starter to move
fuel from the tank to the engine.
, Make sure spark plug wire is properly connected.
Place throttle control in "FAST" position.
Move choke control to full "CHOKE" position. Grasp
recoil starter handle with one hand and grasp tiIler
handle with other hand. Pull rope out slowty until
engine reaches start of compression cycle (rope wilt
putt slightly harder at this point).
Pull recoil starter handle quickly. Do not tet starter
handle snap back against starter. Repeat if necessary.
Ifengine fires but does not start, move choke control to
half choke position. Pull recoil starter handle until
engine starts,
- When engine starts, slowly move choke controi to
"RUN" position as engine warms up.
NOTE: A warm engine requires less choking to start.
Move throttle control to desired running position.
° Allow engine to warm up for a few minutes before
engaging tines.
NOTE: tf at a high altitude (3000 feet) or in cold tempera-
tures (below 32°F), the carburetor fuel mixture may need to
be adjusted for best engine performance. See "TO AD-
JUST CARBURETOR" in the Service and Adjustments
section of this manual.
NOTE: tfengine does not start, see troubleshooting points.
OPERA O
SPARK
PLUG
CHOKE
CONTROL
CONTROL
RECOIL STARTER
HANDLE
FIG. 8
BREAKING IN YOUR TILLER
Break-in your belt(s), pu!leys and tine contro! before you
actually begin tilling.
o Start engine, tip tines off ground by pressing handtes
down and engage fine control to start fine rotation.
Allow tines to rotate for five minutes.
o Check fine operation and adjust if necessary. See
"TINE OPERATION CHECK" in the Service and Ad-
justments section of this manuaL.
TILLING HINTS
CAUTION: Untilyou are accustomed to
handling your tiller, start actual field
use with throttle in slow position (mid-
way between "FAST" and "IDLE").
To help tiller move forward, lift up the handles slightly (thus
lifting depth stake out of ground). To slow down the tiller,
press down on handles.
If you are straining or tiller is shaking, the wheels and depth
stake are not set properly in the soil being tilled. The proper
setting of the wheels and depth stake is through trial and
error and depends upon the soil condition. (The harder or
wetter the ground, the slower the engine and tine speed
needed. Under these poor conditions, atfast speed the tiller
wilt run and jump over the ground).
A properly adjusted tilter will dig with little effort from the
operator.
o Tilling is digging into, turning over, and breaking up
packed soil before planting. Loose, unpacked soil
helps root growth. Best tilling depth is 4" to 6". A tiller
will also clear the soil of unwanted vegetation. The
decomposition of this vegetable matter enriches the
soil. Depending on the climate (rainfall and wind), it
may be advisable to til! the soil atthe end of the growing
season to further condition the soil.
Soil conditions are important for proper tilting. Tines witi
not readily penetrate dr/, hard soil which may contrib-
ute to excessive bounce and difficult handling of your
tiller. Hard soil should be moistened before tilling;
however, extremely wet soii will "balFup" or clump
during tilling. Wait untii the soil is less wet in order to
achieve the best results. When tilling in the fail, remove
vines and long grass to prevent them from wrapping
around the tine shaft and slowing your filling operation.
11
o You will find tilling much easier if you leave a row
untilled between passes. Then go back over the entire
area at right angles (See Fig. 9). There are two reasons
for doing this. First, wide turns are much easier to
negotiate than about-faces. Second, the tiller won't be
pulling itself, and you, toward the row next to it.
Set depth stake and wheel height for shallow tilling
when working extremely hard soil or sod, Then work
across the first cuts at normal depth.
r ....
÷ ÷ <- <- _ _ <-
FIG. 9
CULTIVATING
Cultivating is destroying the weeds between rows to pre-
vent them from robbing nourishment and moisture from
the plants. At the same time, breaking up the upper layer
of soil crust will help retain moisture in the soil. Best
digging depth is 1" to 3".
• You wili probably not need to use the depth stake,
Begin by tipping the depth stake forward until it is held
by the stake spring.
• Cultivate up and down the rows at a speed which will
allow tines to uproot weeds and leave the ground in
rough condition, promoting no further growth of weeds
and grass (See Fig. t0).
\ _i , _>
( li' !I( ._1_ >|( I
FIG. 10
CUSTOMER
ESPO SIBILITRES
FILL iN DATES
AS YOU COMPLETE
REGULAR SERVICE
Check Engine Oil Leve! if
Change Engine Oil
Oil Pivot Points
Inspect Spark Arrester / Muffler
Inspect Air Screen _.
Clean or Replace Air Cleaner Cartridge 6f2
Clean Engine Cylinder Fins
Rep{ace Spark Plug _/i
I - Change more often when operating under a heavy load or in high ambient temperatures,
2 - Service more often when operating in dirty Ordusty conditions.
1 - Change more often when operating under a heavy load or in high ambient temperatures,
2 - Service more often when operating in dirty or dusty conditions,
GENERAL RECOMMENDATIONS
The warranty on this til{er does not cover items that have
been subjected to operator abuse or negligence. To
receive full value from the warranty, operator must main-
tain titter as instructed in this manual.
Some adjustments will need to be made periodically to
properly maintain your tiller.
All adiustments in the Service and Adjustments section of
this manual should be checked at least once each
season.
Once a year you should replace the spark plug, clean
or replace air filter, and check tines and belt for wear.
A new spark plug and clean air filter assure proper air-
fuel mixture and help your engine run better and last
longer.
BEFORE EACH USE
o Check engine oil level.
• Check tine operation.
, Check for loose fasteners.
LUBRiCAT_ON
Keep unit we_llubricated (See "LUBRICATION CHART").
LUBRrCAT ON CHART
** ENGINE
\
*IDLER
ARM
* SAE 30 OR 10W30 MOTOR OIL
** REFER TO CUSTOMER RESPONSIBtLITtES "ENGINE " SECTION,
12
CUSTOME RESPONSIBILITIES
Disconnect spark plug wire before performing any maintenance (except carburetor adjustment) to prevent
accidental starting of engine.
Prevent fires! Keep the engine free of grass, leaves, spilled oil, or fuel. Remove fuel from tank before tipping
unit for maintenance. Clean muffler area of all grass, dirt, and debris.
Do not touch hot muffler or cylinder fins as contact may causeburns.
AtR CLEANER (See Fig, 13)
LUBR!CATION
Use only high quality detergent oil rated with AP! service
classification SF, SG or SH. Select the oil's SAE viscosity
grade according to your expected temperature.
SAE VISCOSITY GRADES
o F .20 ° 0 ° 30 ° 32 ° 40 ° 60_ 80 _ 100°
.30 ° -20 ° .10 ° 0_ t0 _ 20 _ 30 ° 40°
TEMPERATURE RANGE ANT]CIPATED BEFORE NEXT O_L CHANGE
FIG. 11
NOTE: Although multi-viscosity oils (5W-30, 10W-30, etc.)
improve staring in cold weather, these multi-viscosity oils
will result in increased oil consumption when used above
32°F (0°C). Check your engine oil level more frequently to
avoid possible engine damage from running tow on oil.
Change the oil after every 25 hours of operation or at least
once a year ifthe tractor is not used for 25 hours inone year.
Check the crankcase oil level before starting the engine
and after each five (5) hours of continuous use. Add SAE
30 motor oi! or equivalent. Tighten oil filler plug securely
each time you check the oil level.
TO CHANGE ENGINE OIL (See Figs. 11 and 12)
Determine temperature range expected before oil change.
Atl oil must meet APt service classification SF, SG or SH.
, Be sure tiller is on tevei surface.
• Oi! wil! drain more freely when warm,
• Catch oif in a suitable container.
Remove drain plug.
• Tip tiller forward to drain oil.
• After oil has drained compfeteIy, replace oii drain plug
and tighten securely.
Remove oil filler plug. Be careful not to altow dirt to
enter the engine.
• RefiII engine with oil. See "FILL ENGINE WITH OIL"
in the Operation section of this manual.
Service air cleaner cartridge every twenty-five hours, more
often if engine is used in very dusty conditions.
, Loosen air cleaner screws, one on each side of cover.
o Remove air cleaner cover.
• Carefully remove air cleaner cartridge. Be careful. Do
not allow dirt or debris to fat! into carburetor.
,, Clean by tapping gently on a flat surface.
,, If very dirty or damaged, replace cartridge.
o Clean and replace cover. Tighten screws securely.
CAUTION: Petroleum solvents, such
as kerosene, are not to be used to clean
cartridge. They may cause deteriora-
tion of the cartridge. Do not oil car-
tridge. Do not use pressurized air to
clean or dry cartridge.
AIR
CLE,_
SCREW
COVER
AIR
CLEANER
CARTRIDGE
FIG. t3
COOLING SYSTEM (See Fig. 14)
Your engine is air cooled. For proper engine performance
and long life keep your engine clean.
,, Clean air screen frequently using a stiff-bristIed brush.
,, Remove blower housing and clean as necessary.
o Keep cylinder fins free of dirt and chaff.
OIL '_
DRAIN I
PLUG "\
O1L FILLER
PLUG
FIG. 12
LEVEL
CYLINDER FINS
BLOWER
HOUSING
AIR SCREEN
FIG. I4
13
CUSTO
ER ESPO SiBtLmES
MUFFLER
Do not operate tiller without muffler, Do not tamper with
exhaust system. Damaged mufflers or spark arresters
could create a fire hazard, inspect periodically and replace
if necessary. If your engine is equipped with.,a.spark
arrester screen assembly, remove every 50 hours for
cleaning and inspection. Replace if damaged,
SPARK PLUG
Replace spark plugs at the beginning of each tilling season
or after every 50 hours of use, whicheveT comes_irst. Spark
plug type and gap setting is shown in "PROq::)UCTSPECI-
FICATIONS" on page 3 of this manual.
TRANSMISSION
Your transmission is sealed and wilt only require lubrication
if it is serviced.
CLEANING
• Clean eng'ihe, wheelsl finish, etc. of all foreign matter.
o Keep finished surfaces and wheels free of all gasoline,
oil, etc.
• Protect painted surfaces with automotive type wax.
We do not recommend using a garden hose to clean your
unit unless the muffler, air filter and carburetor are covered
to keep water out. Water in engine can result ina shortened
engine life.
SERV!CE AND ADJUSTMENTS
CAUTION: Disconnect spark plug wire from spark plug and place wire where it cannot come intocontact with plug.
TILLER
TO ADJUST HANDLE HEIGHT (See Fig. i5)
Factory assembly has provided lowest handle height. Se-
lect handle height best suited for your tilling conditions.
Handte height will be different when tiller digs into soil,
- Ifa higher handle height isdesired, loosen the four nuts
securing handle panet to engine brackets.
o Slide handle panel to desired location.
- Tighten the four nuts securely.
ENGINE
BRACKETS
HANDLE
PANEL
NUTS (ALSO 2
ON LEFT SIDE
OF TILLER)
TINE ARRANGEMENT
Your outer tines can be assembled in several different ways
to suit your tilling or cultivating needs,
CAUTION: Tines are sharp. Wear
gloves or other protection when han-
dling tines.
NORMAL TILLING - 26 INCH PATH (See Fig. 16)
, Assemble holes "A" in tine hubs to holes "B" in tine
shaft.
CLEVIS OUTER
PIN TINE
A
HAIRPIN CLIP
FIG. 16
INNER TINE
FIG. 15
14
SERVICE AND ADJUSTMENTS
IVIID-WIDTH TILLING - 24 iNCH PATH (See Fig. t7)
Assemble holes "A" in fine hubs to holes "C" in tine
shaft.
f%l jl ¢ c,
FIG. 17
FINAL CHECK "ON" POSITION
With tine control"ON" (held down to handle) push down
on handle to raise tines off the ground.
o Stowly pul! recoil starter handie while observing tines.
Tines should rotate forward.
• tf tines'd_ not rotate, inner wire of control cable is too
loose. Loosen cable clip and pull cable up to remove
slack and retighten clip.
Recheck in "ON" position and adjust if necessary.
NOTE: If "ON" position check required adjustment, re-
check "OFF" position adjustment to insure tines do not
rotate when control is "OFF" (up).
NARROW TiLLINGICULTlVATING - 12-314 iNCH PATH
(See Fig. 18)
• Remove outer tines.
I o o
oll l lo
.-% _fj
INNER TINES ONLY
o o j
FIG, 18
NOTE: When reassembling outer tines, be sure right tine
assembly (marked "R") and left tine assembly (marked "L")
are mounted to correct side of tine shaft.
TINE OPERATION CHECK (See Fig. 19)
WARNING: Disconnect spark plug wire
from spark plug to prevent starting
while checking tine operation.
For proper tine operation, forward tine control lever must be
against control body and all slack removed from inner wire
of control cable when control is in the "OFF" (up) position.
If lever and cable are loose, loosen cable clip at lower end
of cable. Pull up on cable to remove slack, without
extending spring on end of cable, and retighten cable clip.
FINAL CHECK "OFF" POSITION
• With tine control "OFF" (up), push down on handle to
raise tines off the ground.
o Slowly pull recoil starter handle while observing tines.
Tines should not rotate.
if tines rotate, inner wire of control cable is too tight
which is extending lower spring and engaging tines.
Loosen cable clip and push down on cable only enough
to reiieve spring tension, Tighten cable clip.
• Recheck in "OFF" position and adjust if necessary.
TINE CONTROL "OFF" POSITION
BODY
TINE CONTROL
"ON" POSITION
CABLE CLIP TINE CONTROL CABLE
FIG. !9
15
SERVmCE AND
TO REPLACE V-BELTS (See Figs, 20 and 2!)
Replace V-belts if they have stretched considerably or if
they show cracks or frayed edges. There are two (2) V-
belts- forward (inside) and reverse (outside),
Belt guard must be removed to service belts. ,'See "TO
REMOVE BELT GUARD" in this section of manual,
NOTE: Observe carefully routing of both belts and location
of all belt guides before removing belts.
BELT REMOVAL
o Remov e reCzerseid]er pulley from idler, arm,
Remove reverse (outside) V-belt.
Remove forward (inside) V-bett from transmission puF
ley first and then from engine pulley.
BELT REPLACEMENT
o lnstalI new forward (inside) V-belt to engine pulley first
then to transmission pulley. Be sure belt is positioned
on inside groove of both pufJeys, inside all belt guides
and rests on idler pulley.
, Before installing reverse (outside) V-belt, turn be_t
"inside out". Twist so wide, fiat surface of belt is to
inside.
Wrap V-belt around reverse idler pulley and reas-
semble idler to idler arm. Tighten securely. Be sure
belt is between reverse idler pulley and idler arm pin.
, Install belt to outside groove of transmission pulley. Be
sure belt is inside all belt guides and rests on outside
groove of engine pulley.
CHECK TINE OPERATRON
- See "TfNE OPERATION CHECK" in this section of
manual.
REPLACE BELT GUARD
ADJUSTMENTS
FORWARD MOTION (INSBDE)V_BELT
ENGINE PULLEY BELT GUIDE
f-', 1 TRANSMIBS O.
t/ / PULLEY
IDLER PULLEY
REVERSE (OUTSIDE) V-BELT
REVERSE
IDLER / ..j'k_
PULLEY
ENGINE FORWARD
PULLEY IDLER PULLEY
FRONT VIEW REFERENCE
REVERSE _ .....
,DLERPULLEY kt lP /
REVERSE
IDLER PULLEY
IDLER
ARM
FORWARD MOTION
(INSIDE) V-BELT
REVERSE
IDLER ARM
FIG, 21
REVERSE (OUTSIDE) V-BELT
BELT
BOLT
ENGINE PULLEY
TRANSMISSION
PULLEY
BELT GUIDE
FORWARD IDLER PULLEY
FEG.20
16
SERVICE AND ADJUSTMENTS
TO REMOVE BELT GUARD (See Fig, 22)
o Remove two (2) cap nuts and washers from side of belt
guard.
- Loosen-(do not remove) tine shield nut on underside of
tine shield.
o Pull belt guard out and away from unit.
o Replace belt guard by reversing above procedure. Be
sure slot in bottom of belt guard is under head of tine
shield bolt and all nuts are tightened securety.
CAP NUTS
BELT
GUARD
TINE SHIELD NUT
FIG, 22
ENGINE
TO ADJUST CARBURETOR (See Fig, 23)
The carburetor has a high speed fixed jet and has been
preset at the factory and adjustment should not be neces-
sary. However, minor adjustments may be required to
compensate for differences infuel, temperature, altitude or
load. Jfthe carburetor does need adjustment, proceed as
fottows,
In general, turning the idle needle valve in (clockwise)
decreases the supply of fuel to the engine giving a leaner
fuel/air mixture. Turning the needle valve out (counter-
clockwise) increases the supply of fuel to the engine giving
a richer fueilair mixture.
IMPORTANT: DAMAGE TO THE NEEDLES AND THE
SEATS IN CARBURETOR MAY RESULT IF SCREWS
ARE TURNED IN TOO TIGHT.
PREUMINARY SET-rING
• Air cleaner assembly must be assembled to the carbu-
retor when making carburetor adjustments.
• With engine off, turn idle needle valve in (clockwise)
closing it finger tight and then turn valve out (counter-
clockwise) 1-1/2 turns.
F_[NAL SETTING
• Start engine and allow to warm for five minutes. Make
final adjustments with engine running at idle and tine
control lever in "OFF" position.
o With throttle control in "SLOW" position, turn idle needIe
valve in (clockwise) until engine begins to die then turn
out (counterclockwise) until engine runs rough. Turn
valve to a point midway between those two positions.
IDLE RPM ADJUSTMENT
To adjust idle RPM, rotate throttle linkage counter_
clockwise and hold against stop while adjusting idte
speed adjusting screw to obtain 1750 RPM. Release
throttle linkage,
ACCELERATION TEST
• Move throttle control lever from "SLOW" to "FAST"
position, tf engine hesitates or dies, turn idle needle
valve out (counterclockwise) 1/8 turn. Repeat test and
continue to adjust, if necessary, until engine acceler-
ates smoothly.
High speed stop is factory adjusted. Do not adjust or
damage may result,
iMPORTANT: NEVER TAMPER WITH THE ENGINE
GOVERNOR, WHICH tS FACTORY SET FOR PROPER
ENGINE SPEED. OVERSPEEDING THE ENGINE ABOVE
THE FACTORY HIGH SPEED SETTING CAN BE
DANGEROUS. tF YOU THINK THE ENGINE-GOVERNED
HIGH SPEED NEEDS ADJUSTING, CONTACT YOUR
NEAREST SEARS SERVICE CENTER/DEPARTMENT,
WHICH HAS PROPER EQUIPMENT AND EXPERIENCE
TO MAKE ANY NECESSARY ADJUSTMENTS.
THROTTLELINKAGE THROTTLE STOP
\
IDLE SPEED
ADJUSTING SCREW IDLE NEEDLE VALVE
FIG. 23
17
STORAGE
Immediately prepare your titler for storage at the end ofthe
season or if the unit wilt not be used for 30 days or more.
CAUTION: Never store the tiller with
gasoline in the tank inside a building
where fumes may reach an open flame
or spark, Allow the engine to cool
before storing in any enclosure.
TILLER
Clean entire tiller (See "CLEANING" in the Customer
Responsibilities section of this manual).
- Inspect and replace belts, if necessary (See belt re-
placement instructions in the Service and Adjustments
section of this manua!}.
- Lubricate as shown ,,,_"the Customer D...... _,;,+_,,_.
section of this manual.
, Be sure that all nuts, bolts and screws are securely
fastened. Inspect moving parts for damage, breakage
and wear. Replace if necessary.
Touch up ait rusted or chipped paint surfaces; sand
lightly before painting.
ENGINE
FUEL SYSTEM
IMPORTANT: IT IS IMPORTANT TO PREVENT GUM
DEPOSITS FROM FORMING IN ESSENTIAL FUEL
SYSTEM PARTS SUCH AS THE CARBURETOR, FUEL
FILTER, FUEL HOSE, OR TANK DURING STORAGE.
ALSO, EXPERIENCE INDICATES THAT ALCOHOL
BLENDED FUELS (CALLED GASOHOL OR USING
ETHANOL OR METHANOL) CAN ATTRACT MOISTURE
WHICH LEADS TO SEPARATION AND FORMATION OF
ACIDS DURING STORAGE. ACIDIC GAS CAN DAMAGE
THE FUEL SYSTEM OF AN ENGINE WHILE IN STORAGE.
, Drain the fuel tank.
° Start the engine and let it run until the fuel Iines and
carburetor are empty.
Never use engine or carburetor cleaner products in the
fuel tank or permanent damage may occur.
, Use fresh fuel next season.
NOTE: Fuei stabilizer is an acceptable alternative in
minimizing the formation of fueI gum deposits during stor-
age. Add stabilizer to gasoline in fuel tank or storage
container. Always fotlow the mix ratio found on stabilizer
container. Run engine at least 10 minutes after adding
stabilizer to allow the stabilizer to reach the carburetor. Do
not drain the gas tank and carburetor if using fuel stabilizer.
ENGINE OML
Drain oil (with engine warm) and replace with clean oil.
(See "ENGINE" in the Customer Responsibilities section of
this manual).
CYLINDERS
o Remove spark plug.
Pour I ounce (29 ml) of oil through spark plug hole into
cylinder.
,, Pu!! starter handle slowly several times to distribute oil.
Replace with new spark ptug.
OTHER
" Do not store gasoline from one season to another.
• Replace your gasoline can if your can starts to rust.
Rust and/or dirt in your gasoline will cause problems.
• tf possible, store your unit indoors and cover it to give
protection from dust and dirt.
- Cover your unit with a suitabie protective cover that
does not retain moisture. Do not use plastic. Ptastic
cannot breathe which allows condensation to form and
will cause your unit to rust.
IMPORTANT: NEVER COVER TILLER WHILE ENGINE
AND EXHAUST AREAS ARE STILL WARM.
18
TROU LESHOO NG POINTS
PROBLEM
Will not start
Hard to start
Loss of power
Engine overheats
Excessive bounce/
difficult handling
Soil balls up or clumps
Engine runs but tiller
won't move
Engine runs but labors
when tilling
CAUSE
I. Out of fuel.
2; Engine not "CHOKED" properly.
3. Engine ftooded.
4. Dirty air cleaner.
5. Water in fuel.
6. CIogged fuel tank.
7. Loose spark plug wire.
8. Bad spark piug or improper gap.
9. "G'_rburetor out of _djustment.
CORRECTION
1. Fill fuel tank.
2. See "TO START ENGINE" in the Operation section.
3. Wait several minutes before attempting to start,
4. Ctean or repiace air cleaner cartridge.
5. Drain fuei tank and carburetor, and refiil tank with fresh
gasotine.
6. Remove fuel tank and clean.
7. Make sure spark plug wire is seated properly on plug.
8. Replace spark piug or adjust gap.
9. Make necessary adjustments.
1. Throttle control not set properIy.
2. Dirty air cleaner.
3. Bad spark plug or improper gap.
4. State or dirty fuel
5. Loose spark ptug wire.
6. Carburetor out of adjustment.
t, Engine is overloaded.
2. Dirty air cleaner.
3. Low oil level/dirty oil.
4. Faulty spark plug.
5. Oil in fuel.
6. Stale or dirty fuel,
7, Water in fuel.
8. Clogged fuel tank,
9, Spark plug wire loose,
10. Dirty engine air screen.
11. Dirty/clogged muffler.
12. Carburetor out of adjustment.
13. Poor compression.
1, Place throttJe control in "FAST" position.
2. CIean or replace air cleaner cartridge,
3. Replace spark plug or adjust gap.
4. Drain fuel tank and refitt with fresh gasoline.
5. Make sure spark plug wire is seated properly on plug.
6. Make necessary adjustments,
1. Set depth stake and wheels for shallower tilling.
2, Clean or replace air cleaner cartridge,
3. Check oil level/change oil.
4, Clean and regap or change spark plug.
5. Drain and clean fuel tank and refill, and dean carburetor.
6. Drain fuel tank and refiII with fresh gasoline.
7. Drain fueI tank and carburetor, and refill tank with fresh
gasoline.
8. Remove fue! tank and clean.
9. Connect and tighten spark plug wire.
t0. Clean engine air screen.
tt, Clean/replace muffler.
12, Make necessary adjustments.
13, Contact an authorized Sears Service Center/Department.
I. Low oillevelidirty oil.
2. Dirty engine air screen.
3. Dirty engine.
4. Partially plugged muffler.
5. Improper carburetor adjustment,
' i i i ,u _t:t:tttt tlr_'llrl"
1. Ground too dr/and hard.
t. Check oil _evetichange oil.
2. CIean engine air screen.
3. CIean cylinder tins, air screen, muffler area.
4. Remove and clean muffler.
5. Adjust carburetor to richer position.
t. Moisten ground or wait for more favorable soil
conditions.
2. Wheels and depth stake incorrectiy adjusted.
t. Ground too wet.
l. Tine controf is not engaged.
2, V-belt not correctly adjusted.
3. V-belt is off pulley(s).
I, Tilling too deep,
2. Throttle control not property adiusted.
3. Carburetor out of adjustment.
2. Adjust wheels and depth stake.
1, Wait for more favorab!e soii conditions.
1, Engage tine control.
2. Inspect/adjust V-belt.
3. Inspect V-beft.
1..Set depth stake for shallower tilling.
2, Check throttle control setting,
3. Make necessary adiustments.
19
REPA!R PARTS
HANDLE ASSEMBLY
TALLER -o MODEL NUMBER 917_292460
2
3
13
11
9
15
12
22
19
17
t6
25
!
18
5
26
6
KEY
NO.
1
2
3
4
5
6
7
8
9
t0
11
t2
13
PART
NO.
72010520
136993
152094
!10632X
3066J
151229
12000027
154805
73970500
121145X
110514X
98000129
STD533107
DESCR|PTION
Bolt 5/16-I8 x 2-1/2
Panel, Controt
Assembly, Handle Column
Grip, Handle
Cabie, Tine Control
Lever, Controt, Tine
Ring, Clip
Pin, Pivot
Locknut, Flange 5/16-t8 UNC
Ctip, Cable
Assembly, Panei and Tube
Nut, Flange
BoIt, Carriage 5/t6q8 x 3/4
KEY PART
NO. NO.
14 136998
15 139907
16 106932X
17 10t248K
18 1778E
19 137056
20 STD551037
21 STD561210
22 STD560907
23 19090814
25 137640
26 12000059
DESCRIPTION
Bracket, Reverse Rod
Grommet
Knob, Control, Reverse
Reverse Rod, Upper
Pin, Retaining
Reverse Rod, Lower
Washer 13i32x13i16x16Gauge
Pin, Cotter 1/8 x 3/4
Pin, Cotter 3/32 x 1/2
Washer 9/32 x 1/2 x 14 Gauge
Bushing, Reverse Rod Bracket
Retaining Ring
NOTE: AII component dimensions given in U.S. inches.
t inch = 25.4 mm
20
REPAIR PARTS -
TILLER ° - MODEL NUMBER 917:292460
BELT GUARD AND PULLEY ASSEMBLY
6 7
29
11
12
KEY PART
NO. NO.
1
2
3
123643X
9484R
86777
4 74770812
5 STD541037
6 19131316
7 2009J
8 I27180X
9 74760628
!0 t06970X574
I1 STD55t025
12 104213X
!3 72140405
14 133035
15 2614J
16 12000028
t7 2649M
DESCRIPTION KEY PART DESCRIPTION
NO. NO.
Assembly, Bracket, Belt Guard
Clip, Cable
Screw, Hex Washer Head, Stotted,
Thread Cutting #10-24 x 1/2 Type D
Bolt, Hex Head I/2-20 x 3/4
Nut, Hex 3/8-16
Washer 13/32 x 13/16 x t6 Gauge
Pulley, idler, Reverse
Assembly, Arm, Reverse Idler
Bolt, Hex Head 3/8-!6 x !-3/4
Guard, Belt
Washer 9/32 x 5/8 x !6 Gauge
Nut, Cap t/4- 20
Bolt, Carriage 114-20 x 518
V_Bett (Forward Motion)
V-Belt (Reverse)
Ring, Retainer
Key, Square
18 151236 Sheave, Transmission Fiat
19 110550X Bolt, Bett Guard
20 12000036 Ring, Klip
2t STD541237 Nut, Hex, Jam 3/8-16
22 9178R Pulley, Idler
23 674A30 Arm, Idler
24 STD523712 Bolt, Hex Head 3/8-16 x 1-1/4
25 106968X Shaft, Idler Arm
26 73350500 .... Nu,t,,.Hex.,.Jam 5t16-18
27 STD541025 Nut, Hex 1/4-20
28 STD551125 Washer, Lock 1/4
29 !09227X Pad, td_er
30 23200404 Screw, Set, Socket, Headless
C.P. 114-20 x t14
31 I01t89L Sheave, Engine
32 151223 Sheave, Transmission "D"
NOTE: All component dimensions given in U.S. inches.
1 inch = 25.4 mm
21
REPAIR PARTS
T_LLER oo MODEL NUMBER 9!7_292460
WHEEL AND DEPTH STAKE ASSEMBLY
17 19
20
2
2O
19
7
4
4
7
10
el
KEY
NO.
1
2
3
4
5
6
7
8
9
10
11
PART
NO.
9194R
74760520
STD523t07
STD54103I
STD551131
73800600
4921H
t 952J
122233X
326J
74780628
DESCRIPTION
Pin, Clevis
Boit, Hex Head 5/16-t8 x 1-1/4
Bolt, Hex Head 5/16-18 x 3/4
Nut, Hex 5/16-18
Washer, Lock 5/t6
Locknut, w/washer 3/8-16
Clip, Hairpin
Support, Depth Stake, R.H.
Stake, Depth
Pin, Clevis
Bolt, Fin, Hex 3/8-16 x 1-3/4
22
KEY PART DESCRIPTION
NO. NO.
12 74760524 Bolt, Hex 5/16-I8 x I_I/2 Grade 2
t3 1951J Support, Depth Stake, L.H.
14 120958X Washer
15 5388J Spring, Stake
16 1211!7X Bolt, Shoulder
t7 9188R Wheel
18 STD55t037 Washer 13/32 x 13/16 x 11 Gauge
!9 9190R Bracket, Wheel
20 STD541437 Locknut, Crown 3/8-t6
21 74760516 Bolt, Hex Head 5/16-18 x 1
22 73800500 Locknut, w/insert 5/16-t8
NOTE: All component dimensions given in U.S. inches,
l inch = 25.4 mm
REPAIR PARTS
TINE ASSEMBLY
TILLER -- MODEL NUMBER 917::292460
2
/
7
6
2
2
KEY
NO.
I
2
3
PART
NO.
100746M
STD624008
674A43
DESCRIPTION
Tine, Outer, R.H.
Clip, Hairpin
Tine, Inner, R,H.
KEY
NO.
4
5
6
PART
NO.
674A42
100744M
4929H
DESCRIPTION
Tine, Inner, L.H.
Tine, Outer, L.H.
Pin, Clevis
23
REPAIR PARTS
TRANSMISSION
TtLLER ooMODEL NUMBER 917:292460
1!
3
5
14
6
14
8
KEY PART
NO. NO.
1 74760524
2 74780652
3 STD551037
5 73800600
6 9057R574
7 1949J
8 1t0519X
9 STD551131
10 STD541031
tt 74760544
12 151222
13 19171616
DESCRIPTION
14
t2
Bolt, Hex 5/16-18 x I-1/2 Grade 2
Bolt, Fin, Hex 3/8-16 x 3-t/4
Washer 13/32 x 13/16 x t 1
Locknut, w/washer 3/8-16
Shield, Tine
Bracket, Engine, R.H.
Bracket, Engine, L.H.
Washer, Lock 5/16
Nut, Hex 5/16-18
Bolt, Hex Head 5/16-18 x 2-3/4
Transmission
Washer t7132 x 1 x 16 Gauge
10
11
KEY PART
NO. NO.
DESCRIPTION
14 9173R
I5 STD54143t
16 19091412
17 19092016
18 STD55t125
19 74610412
20 ---:---
Spacer, Split
Nut, Hex, Keps 5/1 6-18 UNC
Washer 9/32 x 7/8 x 12 Gauge
Washer 9/32 x t-1/4 x 16 Gauge
Washer, Lock 1/4
Bolt, Hex 1/4-28 x 3/4 Grade 5
Engine, Briggs & Stratton, 5 HP,
Model No. 137202, Type 0714-A1
NOTE: Atlcomponentdimensions given in U.S. inches.
! inch = 25.4 mm
24
REPAIR PARTS
DECALS
TILLER - - MODEL: NUMBER.937.292460
4
5
10
KEY PART DESCRIPTION
NO. NO,
1 158092
2 157999
3 158000
4 137653
5 120431X
6 110719X
7 158001
8 120075X
9 272931
!0 272990
-- 158256
-- 158257
Decal, Logo
Decal, Logo
Decal, Logo
Deca!, Caution, Tine Control
Decal, Hand Placement
Decal, Operation and Lubrication
Decal, 5.5 HPi26"
Decal, Warning, Rotating Tines
Decal, Engine
Decal, 5.5 HP
Manual, Owner's(English)
Manual, Owner's(Spanish)
25
REPAIR PARTS
TILLER ° o MODEL NUMBER 917.292460
BR_GGS & STRATTON ENGnNE o o MODEL NUMBER 137202,TYPE NO. 0714oAt
613
81
22
36
456
7
34
46
//
45
REQUIRES SPECIAL TOOLS
TO INSTALL. SEE REPAIR
iNSTRUCTiON MANUAL.
26
REPAIR PARTS
TALLER -- MODEL NUMBER 917.292460
BRIGGS & STRATTON ENGINE - - MODEL NUMBER 137202, TYPE NO. 0714-At
147
52
!81
216
223
467
621
224
204
392 432
611 --.''v
111
612
435
433
535
27
REPAIR £ARTS
T_LLER o- MODEL NUMBER 917o292460
8RJGGS & STRATTON ENGINE ° =MODEL NUMBER 137202, TYPE NO. 07t4-A1
_r REQUIRES SPECIALTOOLS
TO iNSTALL. SEE REPAIR
INSTRUCT!ON MANUAL 23
200
332 305
121 CARBURETOR OVERHAUL KiT
t9!
55
52
65 _ 373
24
304 _J
7
52
9
191
3
163
i358 GASKET SET
%
28
REPANR PARTS
TILLER o o MODEL NUMBER 917:292460
BRIGGS & STRATTON ENGINE oo MODEL NUMBER 137202,TYPE NO. 0714oAt
KEY PART KEY PART
NO. NO. DESCR|PTmON NO. NO. DESCRfPT|ON
t 497144
2 399268
3 299819
5 214040
7 272157
8 495774
9 27549
!0 94621
12 270080
270125
270126
I3 94221
14 94679
15 94916
16 492088
94388
18 494044
19 495660
20 294606
2! 66768
2tA 399195
22 94980
23 399673
24 222698
25 298904
298905
298906
298907
26 298982
299742
298983
298984
298985
27 26026
28 298909
298908
29 299430
390459
30 225183
32 94699
33 211119
34 261044
35 260552
36 26478
37 222443
. Oylinder Assembly° 40 93312
Bushing, Cylinder
* Seat, Oil 45 260642
Head, Cylinder 46 212733
* Gasket, Cylinder Head 52 273t13
Breather Assembly 55 497442
* Gasket, Valve Cover 56 281504
Screw, Breather _,-'_÷_'_'_ 57 263074
* Gasket, Crankcase, Standard .015" 58 280399
* Gasket, Crankcase .005" Thick
* Gasket, Crankcase .009" Thick 59 396892
Screw, Cylinder Head 2-3/32" 60 393152
Screw, Cylinder Head 2-I 5/32" 65 94686
Plug, Oil Drain 73 225176
Crankshaft 81 222263
Key, Woodruff 90 498298
Cover Assembly, Crankcase 95 93499
Bushing, Crankcase Cover 96 223793
Sea!, Oit 97 490048
Plug, Oil Filler 108 497230
Plug, Oil Fill t 11 262715
Screw, Cover Mounting I21 495606
Flywheel, Magneto 124 94913
Key, Flywheel t27 220352
Piston Assembly, Standard Size I27A 223789
Piston Assembly .0t0" Oversize t47 231955
Piston Assembly .020" Oversize 152 260575
Piston Assembly _030" Oversize 153 490589
Ring Set, Piston, Standard Size 154 93527
Ring Set, Piston, Standard, Chrome 161 492797
Ring Set, Piston .0t0" Oversize 163 27!935
Ring Set, Piston .020" Oversize 180 495405
Ring Set, Piston .030" Oversize 181 494559
Lock, Piston Pin 190 94924
Pin Assembly, Piston, Standard 190A 94919
Pin Assembly, Piston .005" Over !91 272489
Rod Assembly, Connecting 200 223886
Rod Assembly, Connecting 201 262280
.020" Undersize Crankpin Bore 202 262270
Dipper, Connecting Rod
Screw, Connecting Rod
Valve, Exhaust
Valve, Intake
Spring, Intake Valve
Spring, Exhaust Valve
Guard, Flywheel
Retainer, Intake Valve and Exhaust
Spring
Tappet, Valve
Gear, Cam
*** Gasket, Carburetor Mounting (2)
Housing, Rewind Starter
Puiiey, Rewind Starter
Spring, Rewind Starter
Rope, Rewind Starter
(Cut to Required Length)
Insert, Starter Handle
Handle, Rewind Starter
Screw, Housing Mounting
Screen, Rotating
Lock, Screw
Carburetor Assembly
Screw, Throttle Valve to Shaft
Throttle, Carburetor
Shaft and Lever, Throttle
Valve and Shaft Group, Choke
Spring, Choke
Carburetor Overhaul Kit
Screw, Hex Head
Plug, Welch
Plug, Welch
Jet, Pilot
Spring, Throttle Adjustment
Screw and Collar
Screw, Machine, Round Head
Base, Air Cleaner
*** Gasket, Air Cleaner Mounting
Tank Assembly, Fuel
Cap, Fuel Tank
Screw, Fuel Tank
Screw, Fuel Tank Mounting 1-3/4"
*** Gasket, Fuei Tank to Carburetor
GuJde, Air
Link, Governor
Link, Throttle
* Included in Gasket Set (495603)
** Included in Carburetor Overhaul Kit (495606)
*** Included in both Gasket Set (495603), and
Carburetor Overhaul Kit (495606)
NOTE: At! component dimensions given in U.S. inches
1 ]hch = 25.4 mm
29
REPAmR PARTS
TILLER o ° MODEL NUMBER 917,292450
BR GGS & STRATTON ENGINE -- MODEL NUMBER 137202, TYPE NO. 07t4-A1
KEY PART KEY PART
NO. NO. DESCRIPTION NO. NO. DESCRIPTION
202A 262470 Link, Control 526 94914
203 280720 ..... Bel{Crank 527 223786
204 222962 Bushing, Governor Lever, Fiat 528 23t 550
205 231520 Screw, Shoulder 529 67838
208 262279 Rod, Speed Control 535 491435
209 262948 Spring, Governor 536 494279
216 262359 Link, Choke 542 94897
219 494845 Gear, Governor 552 23t079
220 221551 _^l_.^_ Thrust 562 94907
222 490649 Panel, Control 592 231978
223 223455 Lever, Governor Control 608 497830
224 93491 Rivet, Governor Control Lever 6tl 231068
Mounting 612 391813
227 490374 Lever Assembly, Governor 6t3 93935
230 94927 Washer, Governor Lever 6!4 93306
256 223813 Crank, Befl 616 495243
300 393615 Muffler, Exhaust 621 396847
304 495759 Housing, Blower 623 94943
305 94786 Screw, Blower Housing Mounting 634 271853
306 224820 Shield, Cylinder 635 66538
307 94680 Screw, Cylinder Shield 676 393757
308 224738 Cover, Cylinder Head 679 270382
332 94877 Nut, Flywheel 680 221839
333 397358 Armature Group 741 262992
334 93414 Screw, Armature Mounting 851 493880
337 802592 Plug, Spark 869 2t 1787
346 94896 Screw, Sems 870 2tlt72
356 398808 Wire, Ground 871 262001
358 495603 Gasket Set 63709
363 19069 Fiywheel Puller 916 280321
373 92987 Nut, Hex 966 492797
383 89838 Wrench, Spark Plug 967 491588
392 262328 Spring, Fuel Pump Diaphragm 968 495872
393 225058 Screen, Carburetor 969 490073
394 272538 ** Diaphragm 971 94902
414 220982 Washer 987 398970
432 221377 Cap, Spring 995 497195
433 93265 Pin, Diaphragm Cover t012 490507
434 213963 Cover, Diaphragm 1036 499344
435 93141 Screw, Diaphragm Cover
455 225121 Cup, Starter
456 225257 Retainer
459 281505 Pawl, Starter
467 280715 Knob, Control
515 263073 Spring
524 271485 Ring, Oil Ret.
Screw, Sems, Tank Bracket Mount.
Clamp, Breather Tube
Tube, Breather
Grommet, Breather Tube
Filter, Air
Cleaner, Air
Screw
Bushing, Governor Crank
Bolt, Governor Lever
Nut, Hex
Starter Assembly, Rewind
Pipe, Fuei
Fuel Pipe and Clip Assembly
Screw, Hex Head, Shoulder
Pin, Cotter
Crank, Governor
Switch, Stop
Screw,.ShouIder
Washer, Throttle Shaft, Foam
Elbow, Spark Plug
Deflector, Exhaust, Side Outlet
Washer, Foam
Washer, Brass
Gear, Timing
Cable Terminal, Ignition
Seat, Intake Valve, Standard
Seat, Exhaust Valve, Standard
Guide, Exhaust Valve
Guide, Intake Valve
Rack, Gear Control
Base, Air Cleaner
Filter, Air Cleaner
Cover, Air Cleaner
Screw, Air Cleaner
Screw, Hex Head
Seat, Throttle Shaft
Lever, Bracket Assembly
Retainer, Link
Label, Kk-Emission
RPM Settings: Low: 1200-1600, High: 3500-3700
* Included in Gasket Set (495603)
** Included in Carburetor Overhaul Kit (495606)
*** Included in both Gasket Set (495603), and
Carburetor Overhaul Kit (495606)
NOTE: Att component dimensions given in U.S. inches
t inch = 25.4 mm
3O
SERVICE NOTES .,_.
31
MODEL NO.
917.292460
iF YOU NEED
REPAIR SERVICE
OR PARTS:
FOR REPAIR SERVICE, CALL
THIS TOLL FREE NUMBER:
1-800-4-REPAIR
(1-800-473-7247)
FOR REPLACEMENT PARTS
INFORMATION AND
ORDERING, CALL THIS
TOLL FREE NUMBER:
! -800-FON-PART
(1-800-366-7278)
5.5 P
261 C
MAM°
TI E WIDTH
FRONT TINE TILLER
WITH REVERSE
Each tiller has its own model number. Each engine has its own model
number.
The model number for your tiller wilt be found on a plate attached to the
right hand engine bracket.
The model number for your engine will be found on the blower housing of
the engine.
All parts listed herein may be ordered from any Sears, Roebuck and Co+
Service Center!Department and most Retail Stores.
WHEN ORDERING REPAIR PARTS, ALWAYS GIVE THE FOLLOW-
iNG INFORMATION:
PRODUCT - FRONT TINE TILLER
* MODEL NUMBER - 917.292460
. ENGINE MODEL NUMBER - 137202, TYPE NUMBER 0714-A1
+ PART NUMBER
+ PART DESCRIPTION
Your Sears merchandise has added value when you consider Sears has
service units nationwide staffed with Sears trained technicians.., profes-
sional technicians specifically trained to insure that we meet our pledge
to you, we service what we sett.
Sears, Roebuck and Co., Hoffman Estates, IL 60179 U.S.A.
158256 Rev. 2 4.28.97 TR PRINTED 1NTHE U.S.A.
