English
English2
Contents
Safety information
4
What you need to know about the safety instructions 4
Important safety symbols 4
Important safety precautions 5
Critical installation warnings 8
Critical usage warnings 9
Usage cautions 10
Critical cleaning warnings 12
Care for preventing freezing 12
Installation
13
What’s included 13
Installation requirements 15
Step-by-step installation 16
Environment 22
Before you start
23
Initial setup 23
Drying guidelines 24
Operations
26
Control panel 26
Operating a cycle 28
Cycle overview 29
Additional Functions 32
System Functions 35
Special features 37
Remote control (applicable models only) 41
Maintenance
44
Emptying the water tank 44
Installing the micro soft filter(Optional Filter) 45
Cleaning 46
Troubleshooting
52
Checkpoints 52
Information codes 54
DV8700TK_SimpleUX_DC68-04223J-00_EN.indd 2 2021/4/19 14:17:51
English
English 3
Appendix 55
Fabric care chart 55
Protecting the environment 56
Specification 57
Memo
58
Memo 59
DV8700TK_SimpleUX_DC68-04223J-00_EN.indd 3 2021/4/19 14:17:51
English
English4
Safety information
Congratulations on your new Samsung dryer. This manual contains important information on the
installation, use, and care of your appliance. Please take the time to read this manual to take full advantage
of your dryer’s many benefits and features.
What you need to know about the safety instructions
Warnings and Important Safety Instructions in this manual do not cover all possible conditions and
situations that may occur. It is your responsibility to caution and care when installing, maintaining, or
operating your dryer.
Always contact your manufacturer about problems or conditions you do not understand.
Important safety symbols
What the icons and signs in this user manual mean:
WARNING
Hazards or unsafe practices that may result in severe personal injury, death and/or property damage.
CAUTION
Hazards or unsafe practices that may result in personal injury and/or property damage.
NOTE
Indicates that a risk of personal injury or material damage exists.
Read the instructions
These warning signs are here to prevent injury to yourself and others.
Please follow them explicitly.
After reading this manual, store it in a safe place for future reference.
Read all instructions before using the appliance.
As with any equipment that uses electricity and moving parts, potential hazards exist. To safely operate
this appliance, familiarize yourself with its operation and exercise care when using it.
WARNING
Risk of Fire
• Clothes dryer installation must be performed by a qualified technician.
• Install the clothes dryer according to the manufacturer’s instructions and local codes.
• To reduce the risk of severe injury or death, follow all installation instructions.
DV8700TK_SimpleUX_DC68-04223J-00_EN.indd 4 2021/4/19 14:17:52
English
English 5
Important safety precautions
WARNING
To reduce the risk of fire, electric shock, or injury to persons when using
your appliance, follow basic precautions, including the following:
1. This appliance is not to be used by persons (including children) with
reduced physical, sensory or mental capabilities, or lack of experience
and knowledge, unless they have been given supervision or
instruction concerning use of the appliance by a person responsible
for their safety.
2. For use in Europe: This appliance can be used by children aged from
8 years and above and persons with reduced physical, sensory or
mental capabilities or lack of experience and knowledge if they have
been given supervision or instruction concerning use of the appliance
in a safe way and understand the hazards involved. Children shall not
play with the appliance. Cleaning and user maintenance shall not be
made by children without supervision.
3. Children should be supervised to ensure that they do not play with
the appliance.
4. If the supply cord is damaged, it must be replaced by the
manufacturer, its service agent or similarly qualified persons in order
to avoid a hazard.
5. The new hose-sets supplied with the appliance are to be used and
that old hose-sets should not be reused.
DV8700TK_SimpleUX_DC68-04223J-00_EN.indd 5 2021/4/19 14:17:52
English
Safety information
English6
6. For appliances with ventilation openings in the base, that a carpet
must not obstruct the openings.
7. For use in Europe: Children of less than 3 years should be kept away
unless continuously supervised.
8. CAUTION: In order to avoid a hazard due to inadvertent resetting of
the thermal cut-out, this appliance must not be supplied through an
external switching device, such as a timer, or connected to a circuit
that is regularly switched on and off by the utility.
9. The tumble dryer is not to be used if industrial chemicals have been
used for cleaning.
10. The lint trap has to be cleaned frequently, if applicable.
11. Lint must not to be allowed to accumulate around the tumble dryer.
(not applicable for appliances intended to be vented to the exterior of
the building)
12. Adequate ventilation has to be provided to avoid the back flow of
gases into the room from appliances burning other fuels, including
open fires.
13. Do not dry unwashed items in the tumble dryer.
14. Items that have been soiled with substances such as cooking oil,
acetone, alcohol, petrol, kerosene, spot removers, turpentine, waxes
and wax removers should be washed in hot water with an extra
amount of detergent before being dried in the tumble dryer.
DV8700TK_SimpleUX_DC68-04223J-00_EN.indd 6 2021/4/19 14:17:52
English
English 7
15. Items such as foam rubber (latex foam), shower caps, waterproof
textiles, rubber backed articles and clothes or pillows fitted with foam
rubber pads should not be dried in the tumble dryer.
16. Fabric softeners, or similar products, should be used as specified by
the fabric softener instructions.
17. The final part of a tumble dryer cycle occurs without heat (cool down
cycle) to ensure that the items are left at a temperature that ensures
that the items will not be damaged.
18. Remove all objects from pockets such as lighters and matches.
19. WARNING: Never stop a tumble dryer before the end of the drying
cycle unless all items are quickly removed and spread out so that the
heat is dissipated.
20. Exhaust air must not be discharged into a flue which is used for
exhausting fumes from appliances burning gas or other fuels.
21. The appliance must not be installed behind a lockable door, a sliding
door or a door with a hinge on the opposite side to that of the tumble
dryer, in such a way that a full opening of the tumble dryer door is
restricted.
22. WARNING: The appliance must not be supplied through an external
switching device, such as a timer, or connected to a circuit that is
regularly switched on and off by a utility.
Heat pump model only: The instructions shall also include the
substance of the following:
DV8700TK_SimpleUX_DC68-04223J-00_EN.indd 7 2021/4/19 14:17:52
English
Safety information
English8
WARNING: In the appliance enclosure or in the built-in structure,
keep ventilation openings clear of obstruction.
WARNING: Do not damage the refrigerant circuit.
Critical installation warnings
WARNING
The installation of this appliance must be performed by a qualified technician or service company.
• Failure to do so may result in electric shock, fire, an explosion, problems with the product, or injury.
Plug the power cord into a wall socket and use the socket for this appliance only. In addition, do not use an
extension cord.
• Sharing a wall socket with other appliances using a power strip or extending the power cord may result
in electric shock or fire.
• Ensure that the power voltage, frequency and current are the same as those of the product
specifications. Failure to do so may result in electric shock or fire. Failure Plug the power plug into the
wall socket firmly.
Remove all foreign substances such as dust or water from the power plug terminals and contact points
using a dry cloth on a regular basis.
• Unplug the power plug and clean it with a dry cloth.
• Failure to do so may result in electric shock or fire.
Keep all packaging materials well out of the reach of children, as packaging materials can be dangerous to
children.
• If a child places a bag over its head, it may result in suffocation.
This appliance must be properly grounded.
Do not ground the appliance to a gas pipe, plastic water pipe, or telephone line.
• This may result in electric shock, fire, an explosion, or problems with the product
• Never plug the power cord into a socket that is not grounded correctly and make sure that it is in
accordance with local and national codes.
Do not install or keep the product exposed to the outdoor elements.
Do not use a damaged power plug, damaged power cord or loose wall socket.
• This may result in electric shock or fire.
If the plug (power supply cord) is damaged, it must be replaced by the manufacturer or its service agent or
a similar qualified technician in order to avoid a hazard.
This appliance should be positioned to be accessible to the power plug after installation.
Do not pull or excessively bend the power cord.
Do not twist or tie the power cord.
DV8700TK_SimpleUX_DC68-04223J-00_EN.indd 8 2021/4/19 14:17:52
English
English 9
Do not hook the power cord over a metal object, place a heavy object on the power cord, insert the power
cord between objects, or push the power cord into the space behind the appliance.
• This may result in electric shock or fire.
Do not pull the power cord, when unplugging the power plug.
• Unplug the power plug by holding the plug.
• Failure to do so may result in electric shock or fire.
This appliance must be properly grounded. Never plug the power cord into a receptacle that is not
grounded adequately and in accordance with local and national codes. See installation instructions for
grounding this appliance.
Install this appliance in a location with solid, level floor.
• Failing to do so may result in abnormal vibrations, noise or problems with the product.
Since an ingredient in hair spray may degrade the hydrophile property of the heat exchanger so that dew
may appear on the outer surface of the appliance when the cooling operation is running, do not install the
appliance in a beauty salon.
This appliance should be positioned so that the power plug, the water supply taps, and the drain pipes are
accessible.
Critical usage warnings
WARNING
Do not let children or pets on or into the product. In addition, when disposing of this product, disassemble
the door lock (lever).
• This may result in children falling and injuring themselves.
• If children become locked in the product, there is a danger of suffocation.
Do not try to access the inside of the product when the drum is rotating.
Do not sit on the product or lean against the door.
• This may result in the product turning over and resulting in injury.
Dry the laundry only after it was spun by an appropriate washing machine.
Do not dry unwashed items in the tumble dryer.
Do not drink the condensed water.
Never stop a tumble dryer before the end of the drying cycle unless all items are quickly removed and
spread out so that the heat is dissipated.
Do not dry laundry contaminated by inflammable materials such as gasoline, kerosene, benzene, thinner,
alcohol, etc.
• This may result in electric shock, fire or explosion.
Do not let pets chew or play with the dryer.
• This may result in electric shock or injury.
DV8700TK_SimpleUX_DC68-04223J-00_EN.indd 9 2021/4/19 14:17:52
English
Safety information
English10
When disposing of the product, separate the door and the power cord before disposing of the product.
• Failing to do so may result in damage to the power code or an injury.
Do not touch the power plug with wet hands.
• This may result in electric shock.
When gas (city gas, propane gas, LP gas) leaks, do not touch this appliance or the power cord, ventilate
immediately.
• At this time, do not use the ventilating fan.
• A spark may cause an explosion or fire.
Do not repair, replace, or attempt to service any part of the appliance unless specifically recommended in
the user-repair instructions. You must also have the skills necessary to service this appliance.
Do not attempt to repair, disassemble, or modify the appliance yourself.
• Do not use any fuse(such as cooper, steel wire, etc.) other than the standard fuse.
• When repairing or reinstalling the appliance is required, contact your nearest service center.
• Failure to do so may result in electric shock, fire, problems with the product, or injury.
The product you have purchased is designed for domestic use only.
The use for business purposes qualifies as product misuse. In this case, the product will not be covered
by the standard warranty provided by Samsung and no responsibility can be attributed to Samsung for
malfunctions or damages resulting from such misuse.
If the product generates strange noise, smells of something burning, or generates smoke, immediately cut-
off the power and contact the service center.
• Otherwise, it may cause an electric shock or fire as a result.
Do not let children (or pets) play in or on your product. The product door does not open easily from the
inside and children may be seriously injured if trapped inside.
Usage cautions
CAUTION
Do not stand on top of the appliance or place objects (such as laundry, lighted candles, lighted cigarettes,
dishes, chemicals, metal objects, etc.) on the appliance.
• This may result in electric shock, fire, problems with the product, or injury.
Do not touch the glass door and inside of the drum during or just after drying as it is hot.
• This may result in burns.
The door glass becomes hot during drying. Therefore, do not touch the door glass.
Also, do not allow children to play around the dryer or touch the door glass.
• This may result in burns.
Do not press the buttons using sharp objects such as pins, knifes, fingernails, etc.
• This may result in electric shock or injury.
DV8700TK_SimpleUX_DC68-04223J-00_EN.indd 10 2021/4/19 14:17:52
English
English 11
Do not dry laundry containing forming rubber (latex) or similar rubber textures.
• If forming rubber is heated, it may start a fire.
Do not dry laundry contaminated by vegetable oil or cooking oil as a large amount of the oil will not be
removed when washing the laundry. In addition, use the unheated dry cycle so that the laundry is not
heated.
• The oxidization heat of the oil may start a fire.
Do not dry laundry contaminated by foreign substances such as oil, cream, lotion, or other chemicals that
are used in places such as skincare room, massage parlor, beauty salon, or hospital.
• This may result in electric shock, fire, malfunction, and injury.
Make sure that the pockets of all clothing to be dried are empty.
• Hard, sharp objects, such as coins, safety pins, nails, screws, or stones can cause extensive damage to
the appliance.
Do not dry clothing with large buckles, buttons, or other heavy metal (zippers, hooks and eyelets, button-
up covers).
If necessary, use the laundry net for small and lightweight laundry such as fabric tie belt, apron strings, and
underwire bras which can dissolve or break during a cycle.
Dryer sheets are compatible with this model, and are recommended for better drying performance.
Dryer sheets are also beneficial in reducing the static electricity generated during a drying cycle. Static
electricity could lead to damage of laundry items and potentially the appliance.
Do not use the dryer near dangerous powders such as coal dust, wheat flour, etc.
• This may result in electric shock, fire or an explosion.
Do not place inflammable materials near the product.
• This may result in toxic gases from the product, damage to parts, electric shock, fire or an explosion.
• The appliance should not be placed behind lockable doors etc.
Do not touch the rear side of the appliance during or immediately after drying is complete.
• The appliance remains hot and may cause burns.
DV8700TK_SimpleUX_DC68-04223J-00_EN.indd 11 2021/4/19 14:17:52
English
Safety information
English12
Critical cleaning warnings
WARNING
Do not clean the appliance by spraying water directly onto it.
Do not use benzene, thinner or alcohol to clean the appliance.
• This may result in discoloration, deformation, damage, electric shock or fire.
Before cleaning or performing maintenance, unplug the appliance from the wall socket.
• Failure to do so may result in electric shock or fire.
Clean the filter case before and after using the dryer.
Clean the inside of the product on a regular basis by asking an authorized service engineer.
Clean the Heat Exchanger with a soft brush or vacuum cleaner once a month, Do not touch the heat
exchanger with your hand. Otherwise, it may cause an injury.
The interior of the dryer should be cleaned periodically by qualified service personnel.
Care for preventing freezing
• Install the dryer in an area where the temperature does not drop below zero degree Celsius.
• If draining directly using a long drain hose, water remaining inside the hose can freeze in winter. Make
sure there is no water left inside the hose after use.
If the drain hose has frozen, wrap the hose with a towel soaked in warm water for approximately ten
minutes to thaw it.
DV8700TK_SimpleUX_DC68-04223J-00_EN.indd 12 2021/4/19 14:17:52
English
English 13
Installation
What’s included
Carefully unpack the dryer. Keep all packaging materials away from children. The parts and location of
parts shown below may differ from your dryer. Before installation, make sure the dryer has all the parts
listed here. If the dryer and/or parts are damaged or missing, contact the nearest Samsung customer
service center.

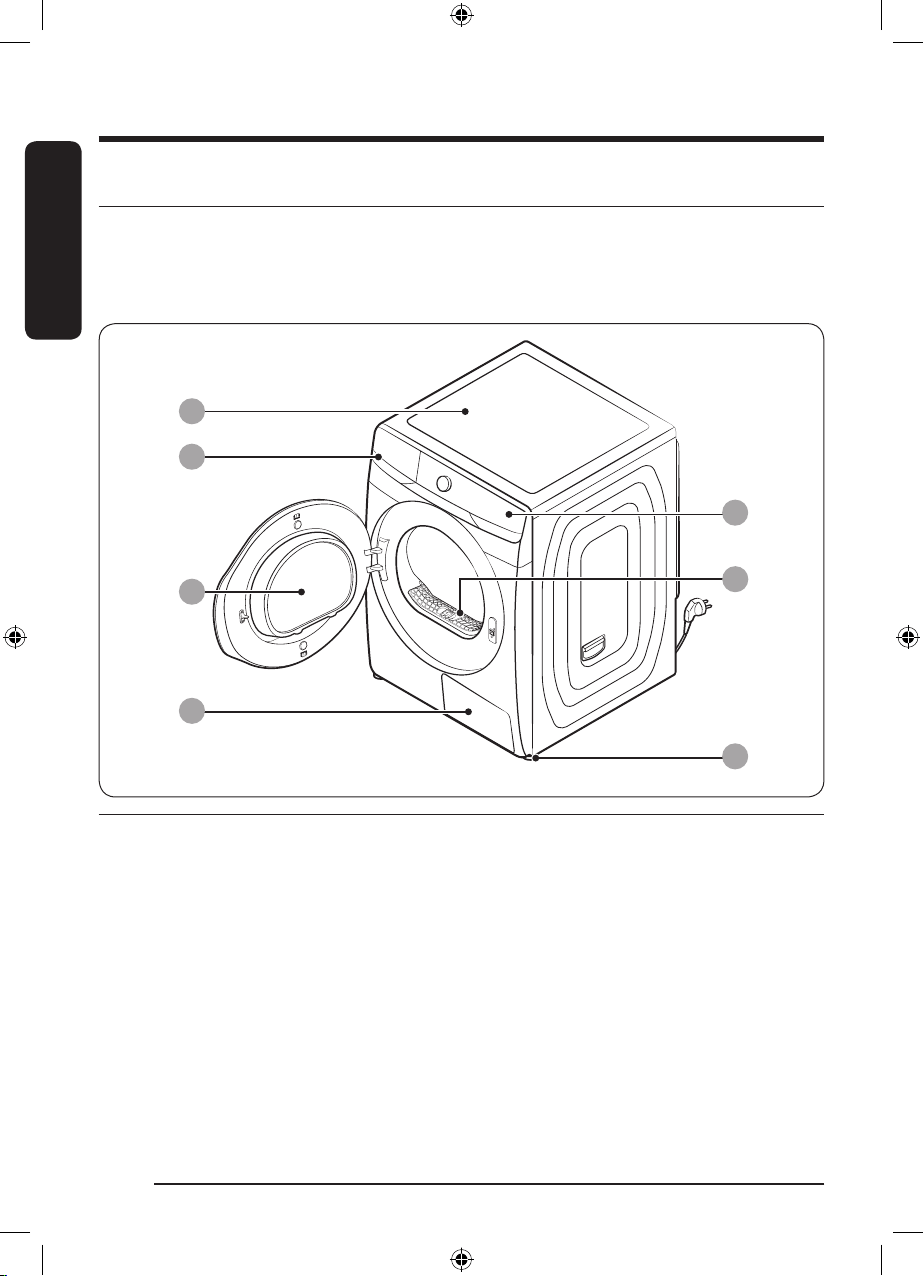

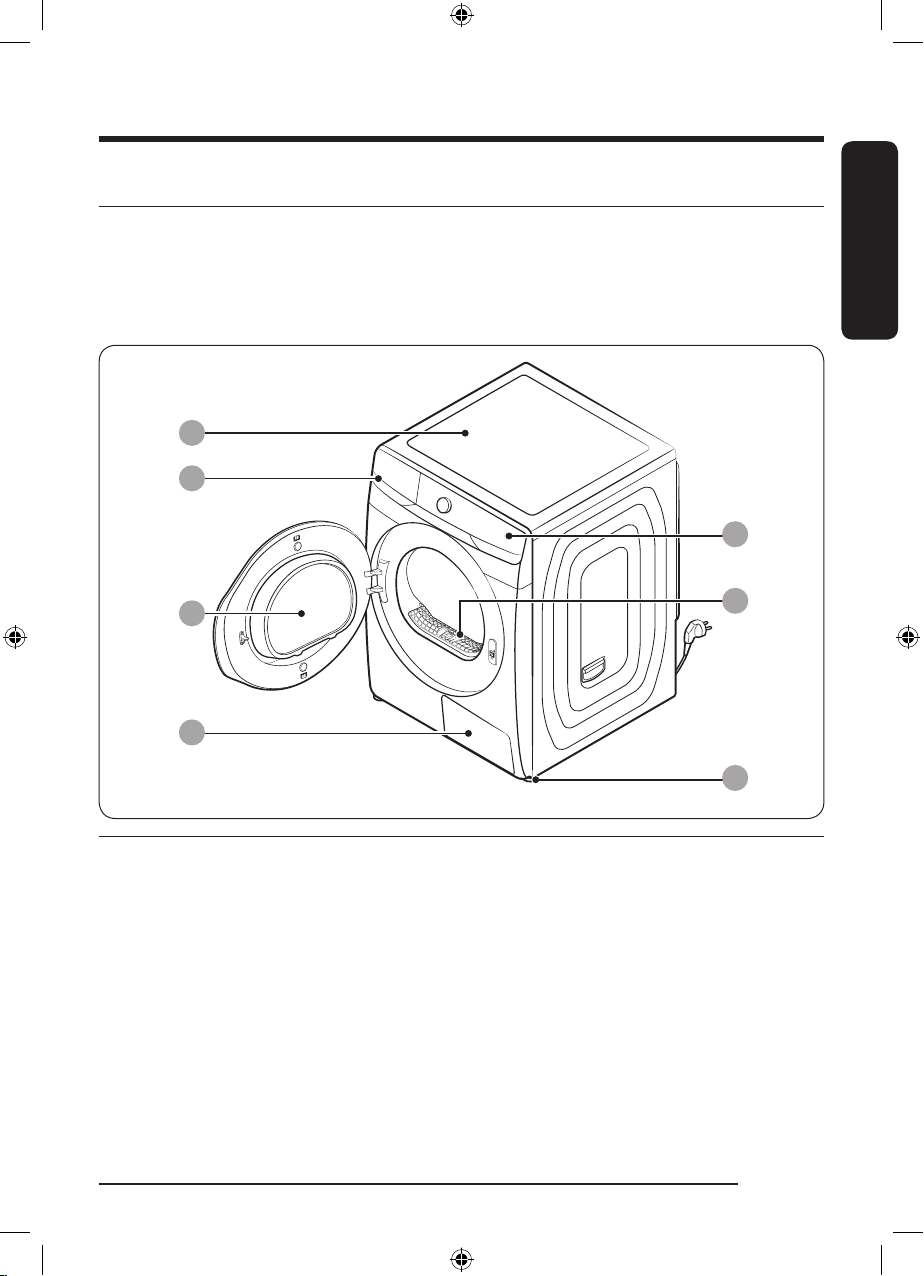

Dryer at a glance
ՋՍ
ՋՎ
ՋՌ
ՋՐ
ՋՒ
ՋՑ
ՋՏ
01 Top cover 02 Water tank
03 Door 04 Heat exchanger
05 Control panel 06 Lint filter
07 Levelling feet
DV8700TK_SimpleUX_DC68-04223J-00_EN.indd 13 2021/4/19 14:17:52
English
Installation
English14

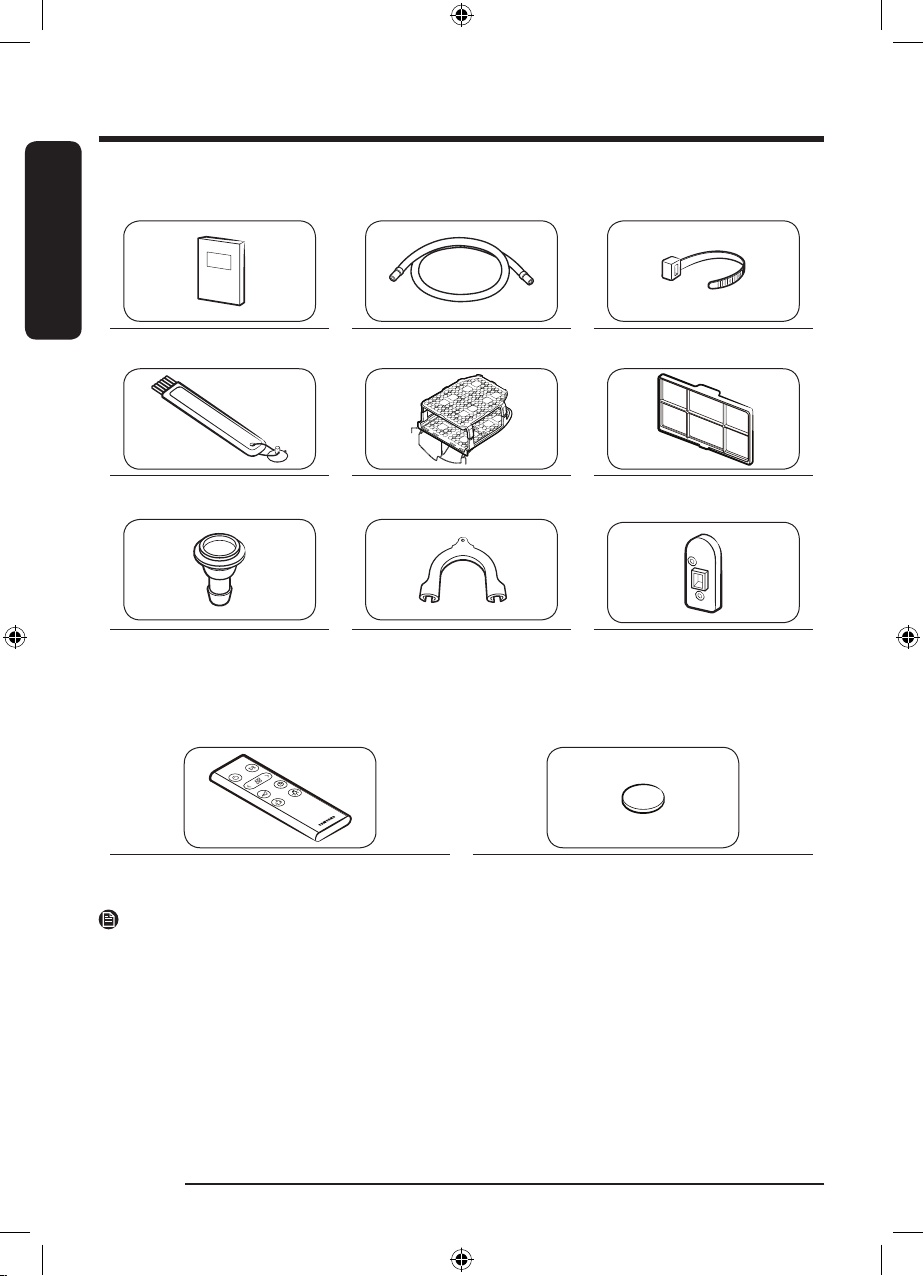

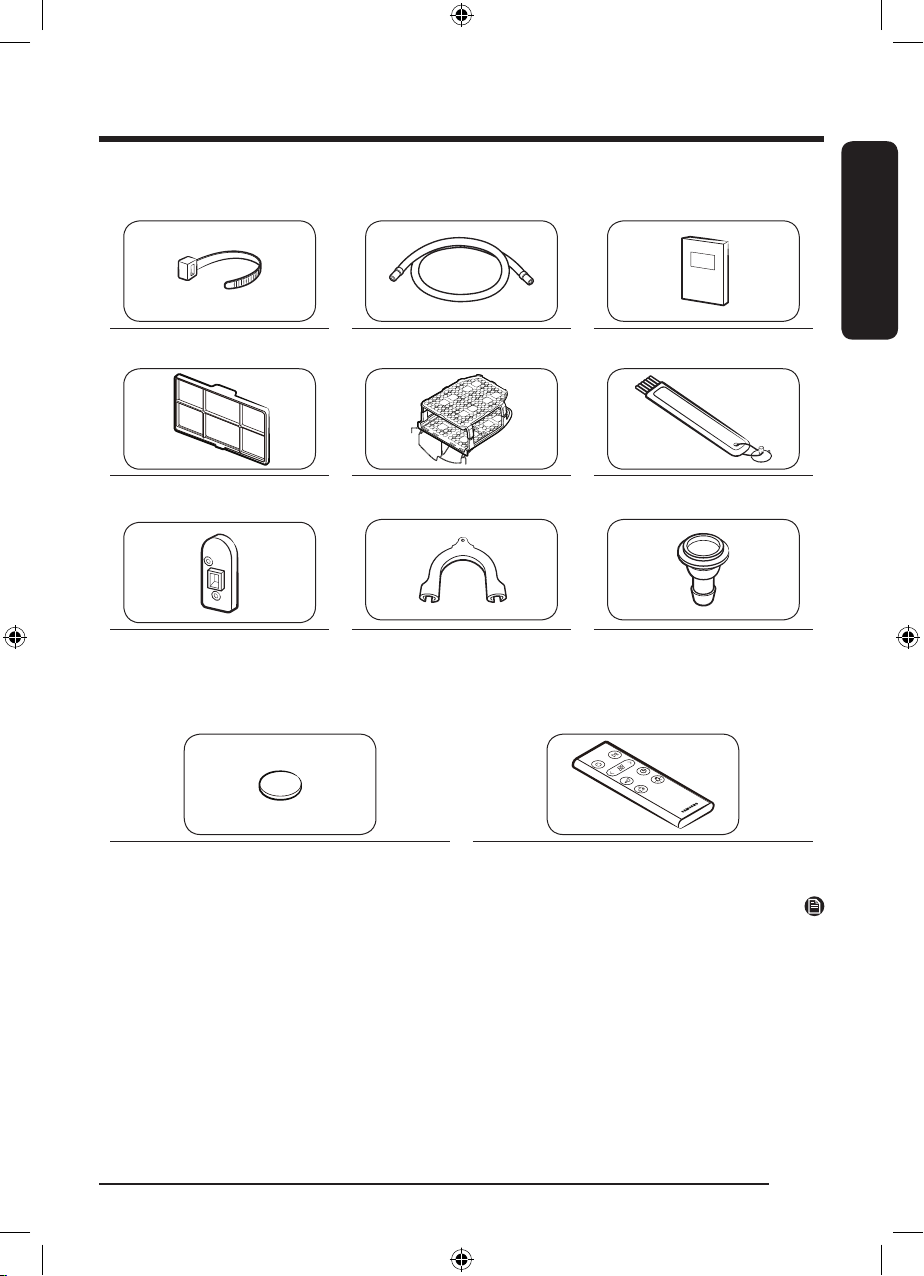

Accessories (supplied)
User manual Long drain hose (3 m) Cable tie
Cleaning brush Drying rack Micro soft filter(Optional Filter)
Hose connector Hose guide Holder lever (applicable models
only)
Remote control accessories
Remote control Battery
NOTE
• The stacking kit allows the dryer to be stacked on top of a washing machine. Please note that the
stacking kit can only be used with Samsung washing machine and dryers. To purchase a stacking kit
above, contact a Samsung service centre or local appliance retailer. The stacking kit differs with the
washing machine model.
• For stacking instructions with the dryer, see the installation manual included in the stacking kit.
• For information on which stacking kit model you can use to stack your dryer on the washing machine,
see the user manual included in your Samsung washing machine.
DV8700TK_SimpleUX_DC68-04223J-00_EN.indd 14 2021/4/19 14:17:55
English
English 15
Installation requirements
NOTE
This dryer must be installed by a qualified installer. If service is required due to poor or faulty installation,
it is considered the owner’s responsibility and may void the warranty. Keep these instructions for future
reference.
WARNING
• Do not plug the power cord into a wall outlet before the dryer is completely installed.
• Have two or more persons help move the dryer.
• Do not let children or pets play in, on, or around the dryer. Proper supervision is necessary at all times.
• Keep all packaging materials away from children.
• Do not replace a damaged power cord or power plug yourself. Have Samsung or a qualified service
technician replace a damaged power cord or power plug.
• Do not attempt to repair, disassemble, or modify the dryer. For any repairs, contact the nearest Samsung
service center.
• Remove the door/lids from all discarded appliances to avoid children from suffocating.
• If the dryer generates a strange noise, burning smells, or smoke, unplug the power plug immediately
and contact the nearest Samsung service center.
• Do not unplug the dryer while it is operating.
• Do not place flammable objects near the dryer.
Electrical and grounding requirements
• The dryer requires an AC 220-240 V / 50 Hz electrical supply.
• The dryer must be properly grounded. If the dryer malfunctions or breaks down, grounding reduces the
risk of electric shock by providing a path of least resistance for the electric current. The dryer comes
with a power cord that has a 3-prong grounding plug. The plug must be plugged into an appropriate
outlet that is properly installed and grounded in accordance with all local codes and ordinances.
• If you have any questions regarding the electrical or grounding requirements, please contact Samsung
or a qualified electrician.
WARNING
• Plug the power cord into a grounded, 3-prong outlet.
• Do not use a damaged power plug, cord, or loose or damaged wall outlet.
• Do not use an adapter or an extension cord.
• Improper connection of the equipment-grounding conductor may result in electric shock. If you are
unsure if the dryer is properly grounded, check with a qualified electrician.
• Do not modify the power plug, power cord, or power outlet in any way.
• Do not connect the ground wire to plastic plumbing lines, gas lines, or hot water pipes.
DV8700TK_SimpleUX_DC68-04223J-00_EN.indd 15 2021/4/19 14:17:56
English
Installation
English16
Alcove or closet installation
For alcove or closet installation, the dryer requires the following minimum clearances:
Sides Top Front Rear
20 mm 25 mm 490 mm 50 mm
If installing the dryer with a washing machine, the front of the alcove or closet must have an unobstructed
air opening of at least 550 mm.
Step-by-step installation
Before you install your dryer, make sure you have read Installation requirements on page 15.
STEP 1 Select a location
Location requirements
Select a level, well-constructed surface that will withstand vibrations. Select a location where a grounded,
3-prong outlet is easily accessible.
For convenience, consider installing the dryer next to your washing machine.
WARNING
• Install the dryer indoors only.
• Do not install the dryer in areas exposed to the weather.
• Do not install the dryer where the temperature may fall below 5 °C or rise above 35 °C.
• Do not install the dryer where gas may leak.
DV8700TK_SimpleUX_DC68-04223J-00_EN.indd 16 2021/4/19 14:17:56
English
English 17

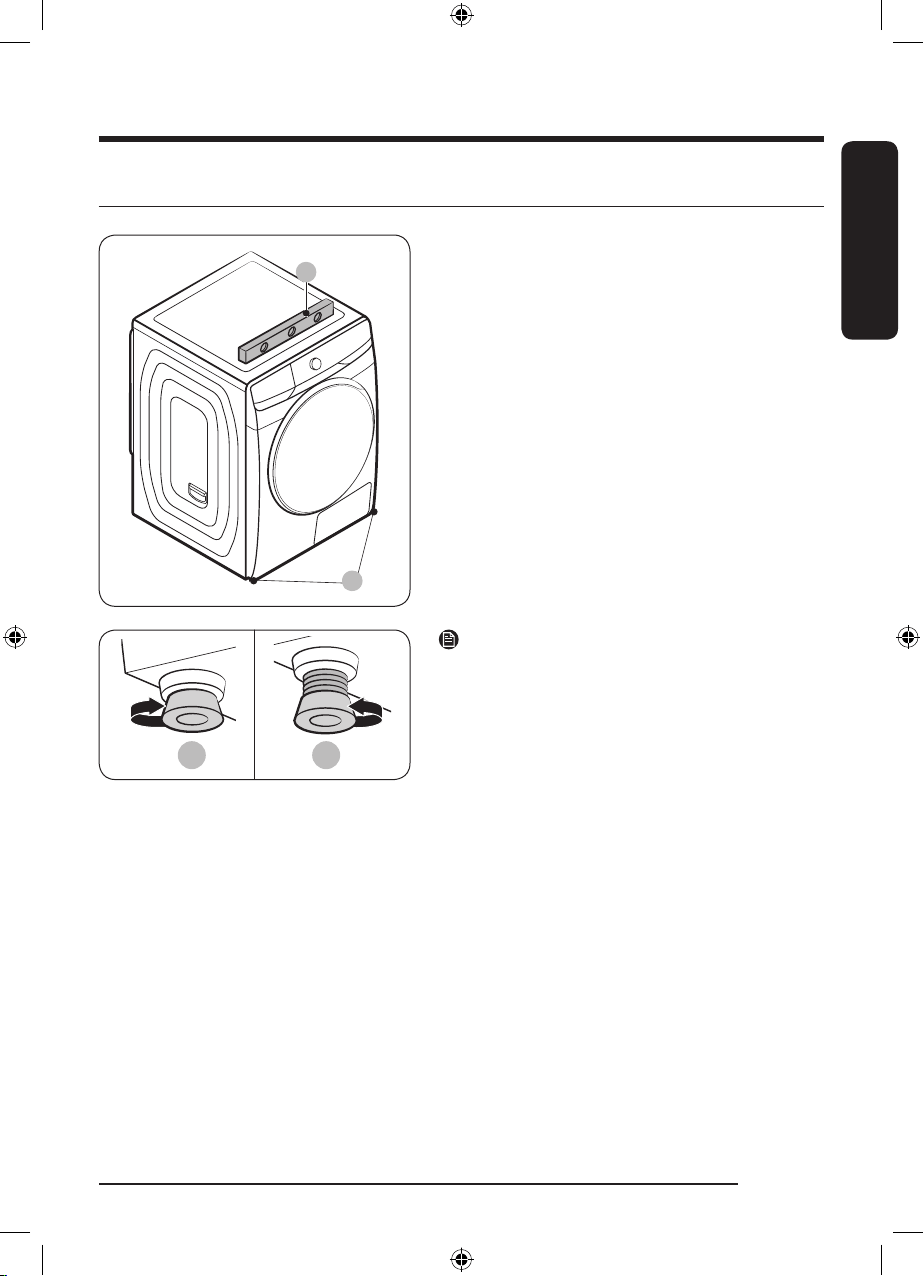

STEP 2 Adjust the levelling feet
A
B
1. Gently slide the dryer into the desired location.
2. Use a level (A) and check the levelness of the dryer
from side to side and front to back.
3. If the dryer is not level, turn the levelling feet (B) left
or right to adjust the height.
4. Once the dryer is level, make sure the dryer stands
firmly on the floor.
5. Plug in the dryer.
C D
NOTE
• To set the dryer to the same height as the washing
machine, turn the levelling feet to the right until it
fully retracts (C). Then, turn the levelling feet to the
left to extend (D) it until the dryer and the washing
machine are the same height.
• Extend the levelling leg only as much as necessary.
Extending the levelling leg more than necessary can
cause the dryer to vibrate.
DV8700TK_SimpleUX_DC68-04223J-00_EN.indd 17 2021/4/19 14:17:56
English
Installation
English18
STEP 3 Connect the drain hose
Draining directly to a drainage system
9
• We strongly recommend draining condensed water
directly to your drainage system instead of draining
to the built-in water tank.
• Use the provided accessory hose (long drain hose) to
drain condensed water directly to your drain system
instead of draining to the built-in water tank (which is
a default method).
• Use the built-in water tank only if you cannot drain
the condensed water directly to a drainage system.
NOTE
As a factory default, this dryer is set to use the built-in
water tank to drain condensed water.
9

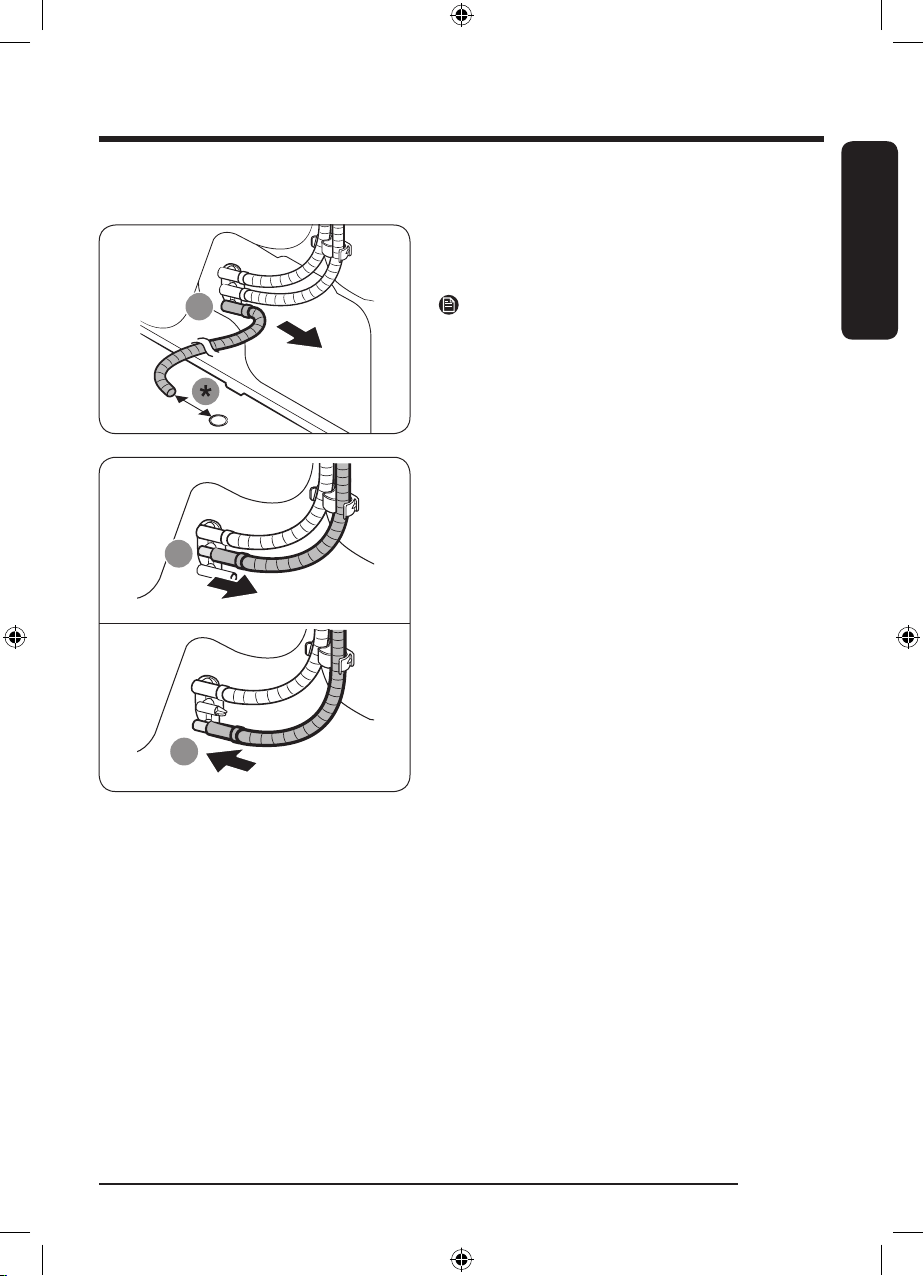

1. Remove the water tank drain hose from the drain
water outlet (A), and then insert it to the holder (B).
DV8700TK_SimpleUX_DC68-04223J-00_EN.indd 18 2021/4/19 14:17:57
English
English 19
ՋՌ
01 70 mm
2. Insert one end of the accessory hose (long drain
hose) into drain water outlet (A).
3. Place the other end (outlet) of the accessory hose at
least 70 mm away from a drain hole.

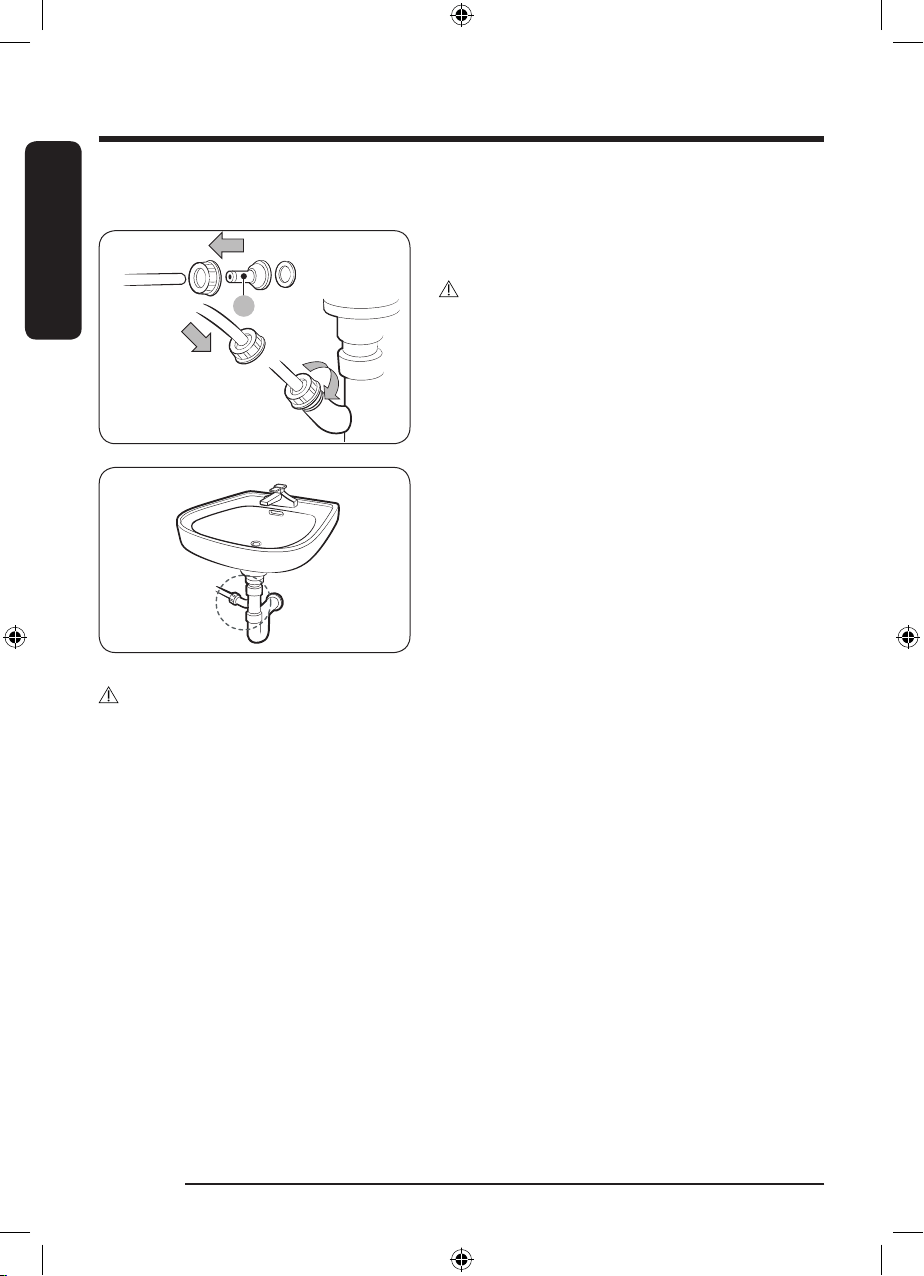

Placing the accessory hose over a wash basin
A
CB
1. Make sure to place the end of the accessory hose
lower than 90 cm (*) from the bottom of dryer.
2. To bend some point of the accessory hose, use the
supplied plastic hose guide (B) and secure the guide
to the wall with a hook or to the tap with a piece of
string. Assemble the drain hose (A) and the hose
guide (B) and fix them with the cable-tie (C).
3. You can drain the condensed water by connecting the
accessory hose (long drain hose) to the drain-outlet
directly.
CAUTION
Do not extend the drain hose. Water may leak from the
connected area. Use a long drain hose.
DV8700TK_SimpleUX_DC68-04223J-00_EN.indd 19 2021/4/19 14:17:58
English
Installation
English20

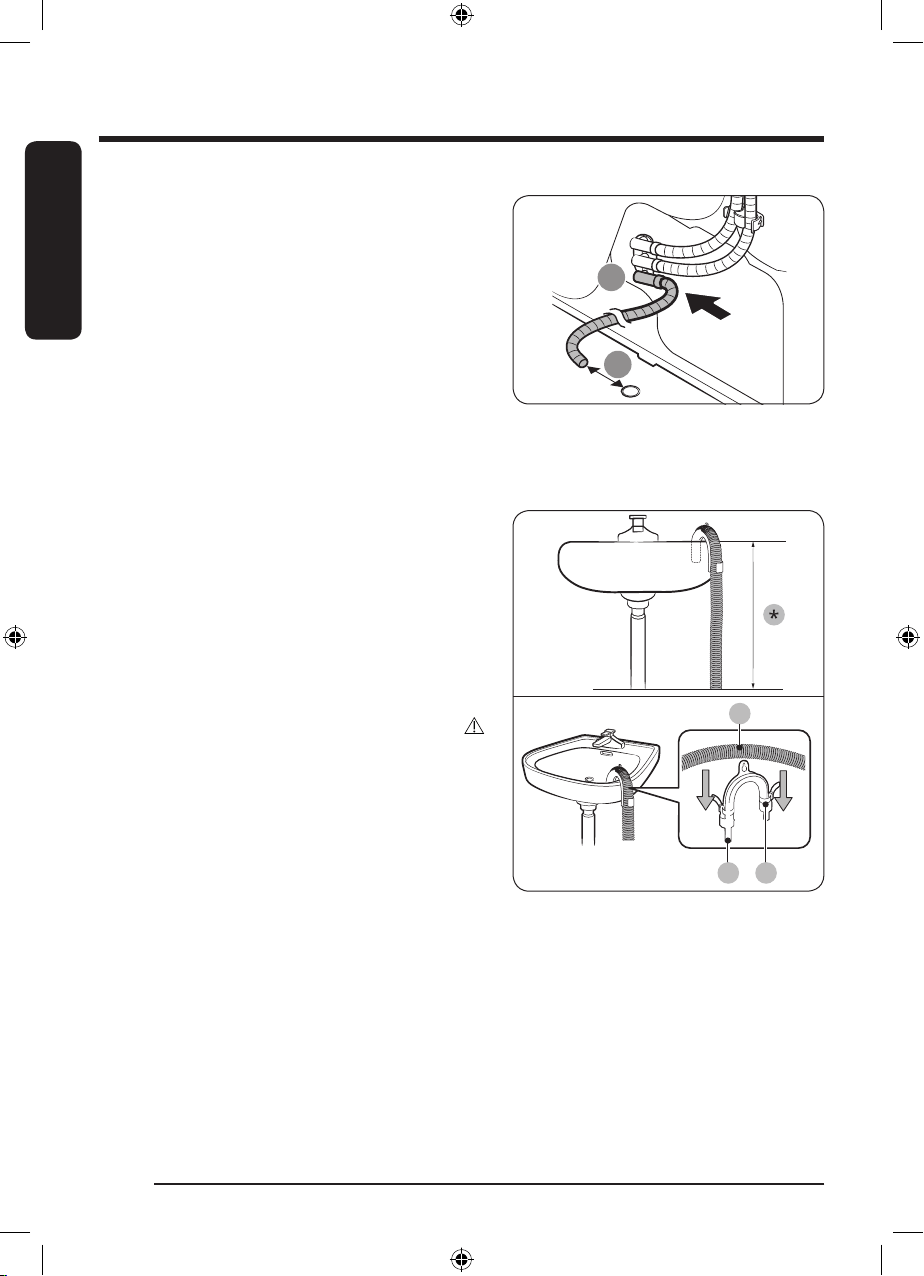

By using the drain pipe of the wash basin
A
1. Assemble the hose connector (A), and attach it to the
end of the accessory hose as shown.
CAUTION
To prevent water leak, make sure to connect the hose
and the connector firmly.

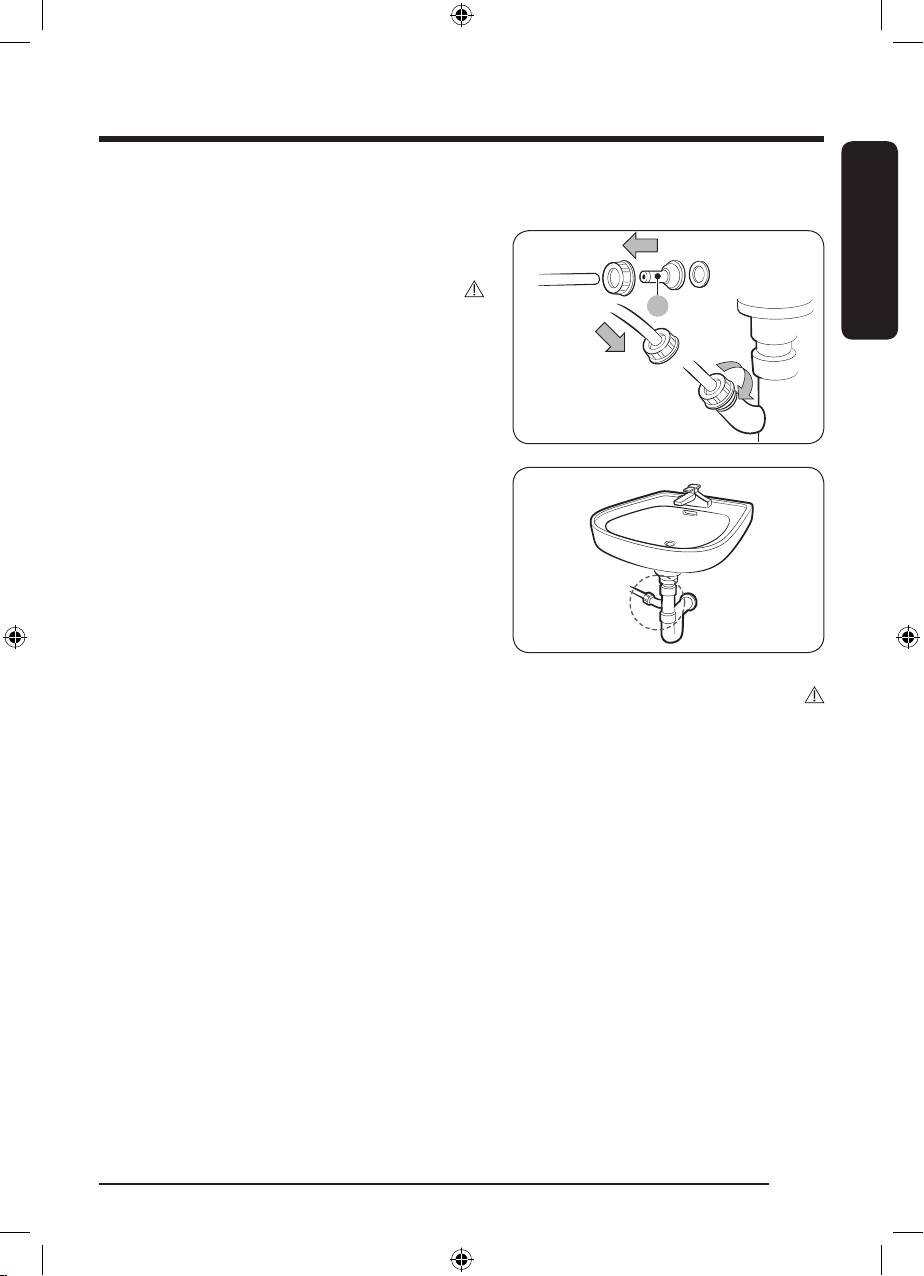

2. Connect the hose adapter directly to the drain pipe of
the wash basin.
CAUTION
• Place the other end (outlet) of the accessory hose about 70 mm away from a drain hole. Do not insert
the end (outlet) of the accessory hose into a sewer.
- A sewer smell may flow into the dryer.
• Wring out excess water from items before putting them in the dryer.
- Wet items may cause an unpleasant smell inside the dryer.
• Open the dryer door and the heat exchanger cover after completing a drying cycle to maintain the dryer
interior more hygienically.
• Run the Self Tub Dry cycle if there is an unpleasant smell inside the dryer, or the "
Self Tub Dry needed"
message appears in the display.
DV8700TK_SimpleUX_DC68-04223J-00_EN.indd 20 2021/4/19 14:17:58
English
English 21

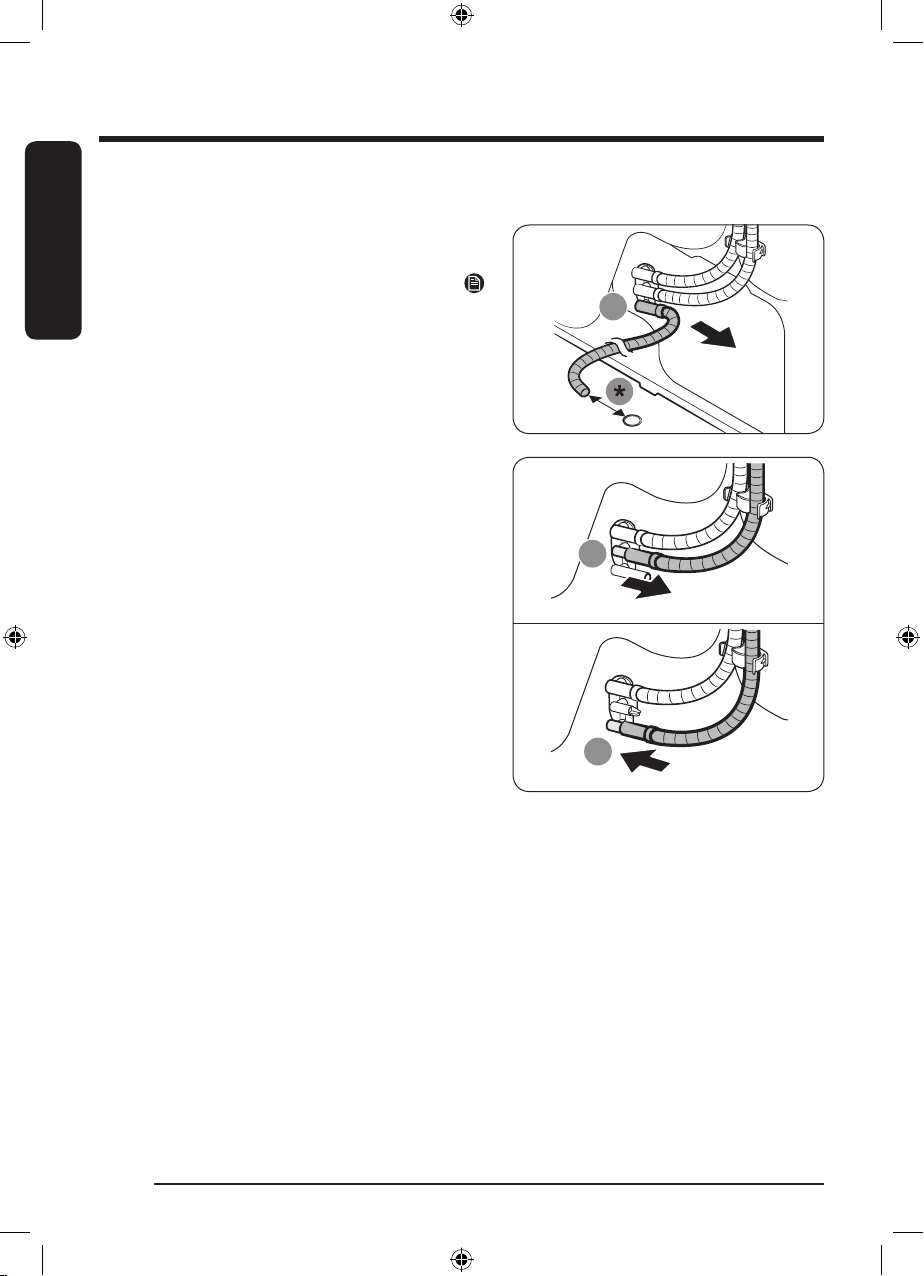

Draining to the water tank

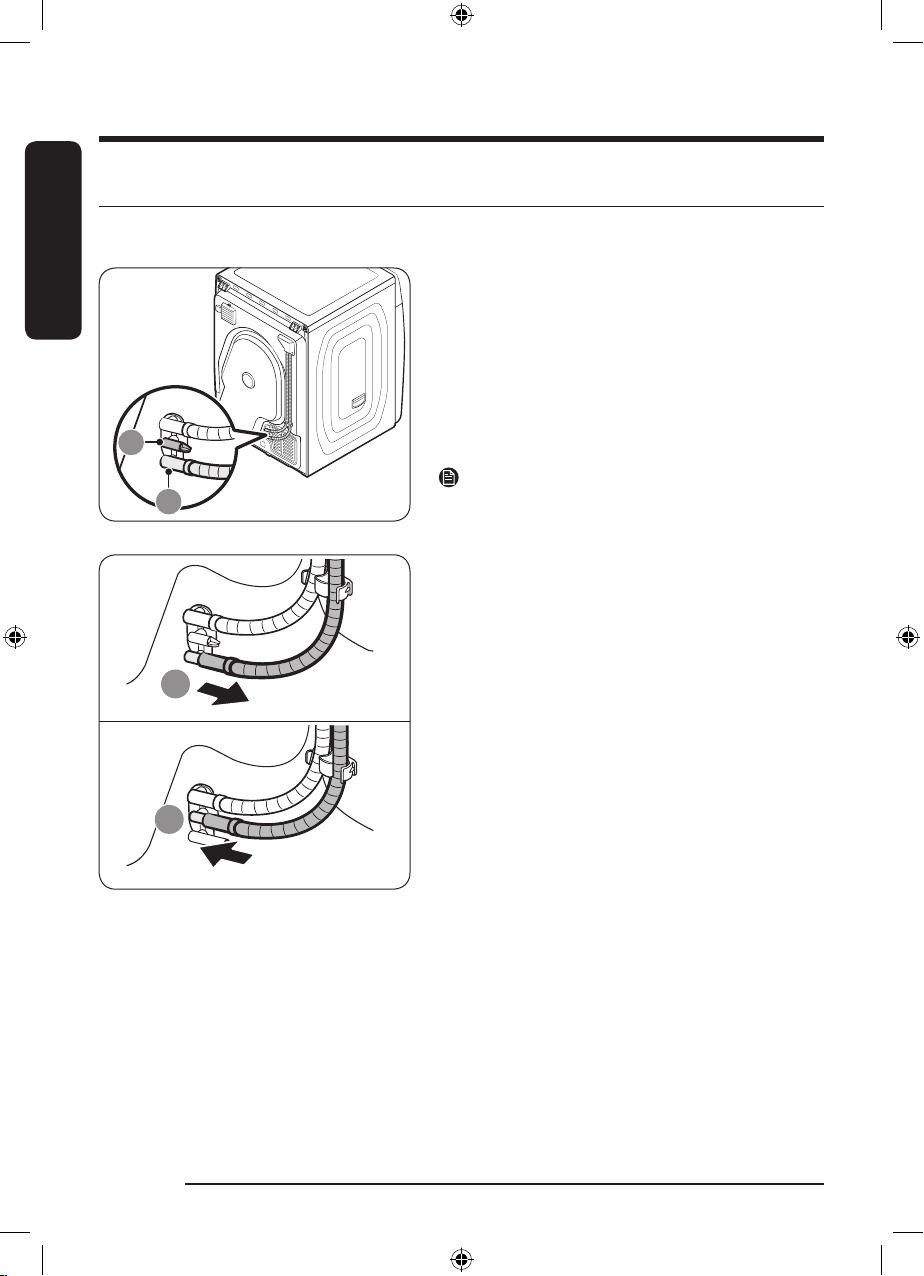

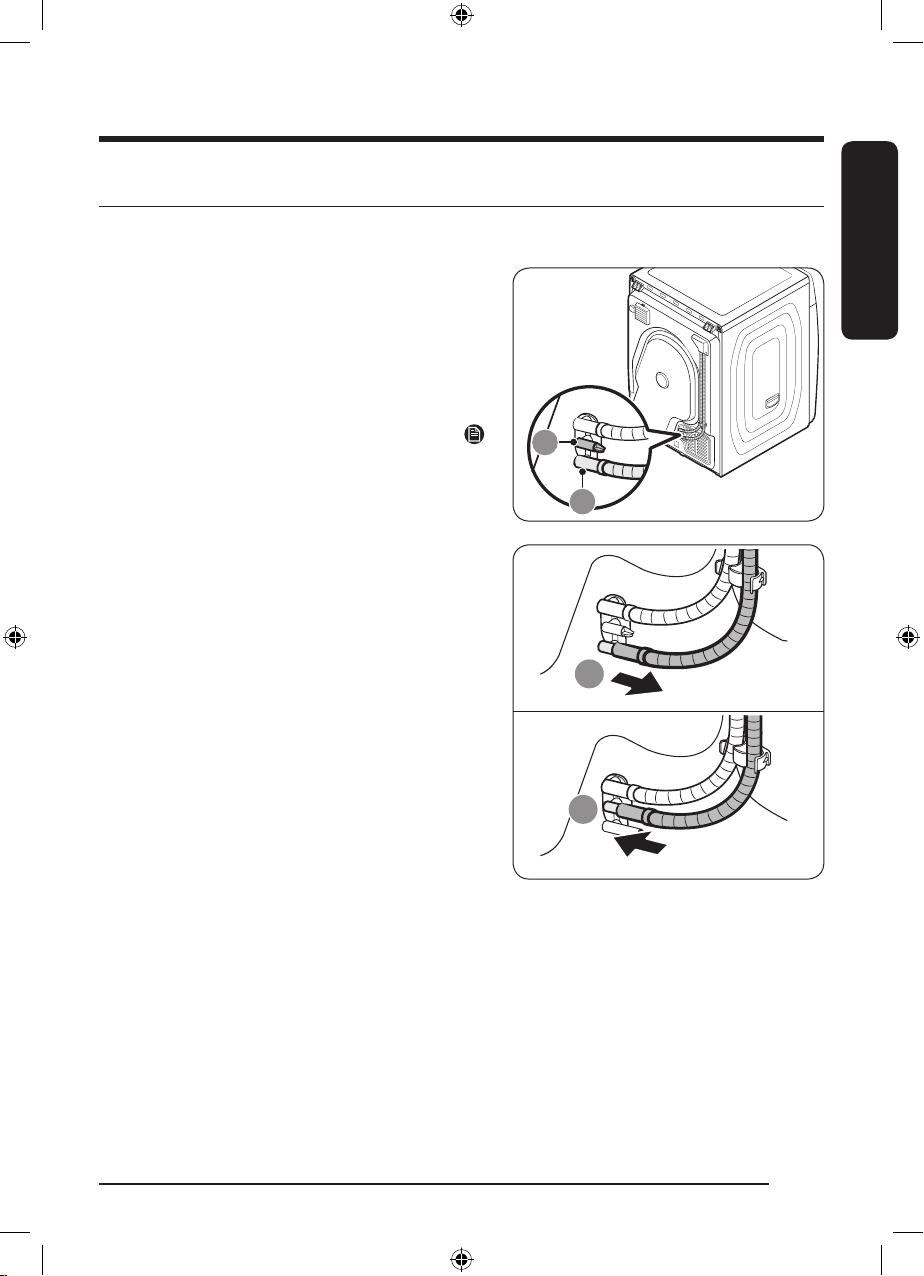

1. Remove the long drain hose from the drain water
outlet (A).
* 70 mm
NOTE
Completely dry the removed long drain hose and keep it
in a safe place for later use.
9
2. Remove the water tank drain hose from the holder
(B), and then connect it to the drain water outlet (A).
- Firmly connect the water tank drain hose so that it
does not move around.
DV8700TK_SimpleUX_DC68-04223J-00_EN.indd 21 2021/4/19 14:17:59
English
Installation
English22
STEP 4 Check the installation
• All packaging material is completely removed and properly disposed.
• The dryer is level and standing firmly on the floor.
• Make sure no accessory remains inside the drum.
• Do not block the air inlet hole of the cooling grill at the front of the dryer.
• Do not place inflammable objects near the dryer and keep the surroundings clean.
• Do not remove the adjustable levelling legs of the dryer. They are necessary to keep the dryer level with
the ground.
• After installation, we recommend that you wait at least 1 hour before using the dryer.
STEP 5 Power on
Plug the power cord into a wall socket protected by a fuse or circuit breaker. Then, tap
to turn on the
dryer.
NOTE
Run the Time Dry cycle for 20 minutes to make sure that it runs, heats, and shuts off. If the HC information
code is displayed, contact a local service center.
Environment
Please dispose of the packaging materials for this product in an “environmentally friendly” manner. For
further detail, please contact your local area authority.
DV8700TK_SimpleUX_DC68-04223J-00_EN.indd 22 2021/4/19 14:17:59
English
English 23
Before you start
Initial setup
• When you turn on your dryer for the first time, the screen shows the initial setup process. Follow the
on-screen instructions to complete it.
• If you complete the initial setup and operate a cycle for more than a minute, the initial setup will not
appear again.
• The initial setup includes language selection and a brief tutorial.
• When tapping a button, tap exactly over the icon.
• Operating the washing machine and dryer at the same time may result in a loss of power depending on
where they are installed and your electrical power status.
01 Language selection 02 Welcome screen
Turn dial & Tap O
English(US)
Welcome!
03 Tutorial
Let’s explore your new dryer!
[Tap O to skip]
Turn the dial to explore cycles
[Tap O to skip]
Now hold to start a cycle
[Tap O to skip]
Tap to see
additional functions
[Tap O to skip]
Try saving favorites
in My Cycles
A dryer that knows you!
All Done!
DV8700TK_SimpleUX_DC68-04223J-00_EN.indd 23 2021/4/19 14:18:00
English
Before you start
English24
Drying guidelines
STEP 1 Sort
• Do not mix heavy and lightweight items together.
• Wash and dry dark-colored items separately from light-colored items.
• Unless recommended on the care label, do not dry woolens or fiberglass items.
• Do not dry items soiled with oil, alcohol, gasoline, etc.
• Avoid drying unwashed items.
• Do not dry wet items that have not been fully spin-dried after washing. This could cause an odor inside
the dryer or cause the dryer to malfunction.
• Using a laundry net is recommended for baby socks and other small, light items.
STEP 2 Empty pockets and turn them inside out
• Turn dark-colored clothes inside out before drying them. This will prevent fabric damage due to friction
during the drying process and protect internal parts of the dryer from discoloration and damage.
• Turn the items with buttons or embroideries inside out before drying them.
CAUTION
• Empty the pockets. Metallic objects such as coins, pins, and buckles on clothing may damage other
laundry items as well as the drum.
• Remove any metallic objects attached to items, pull up zippers, and latch hooks before drying. Metallic
objects attached to items may damage other items as well as the drum.
STEP 3 Check the lint filter
Ensure that the lint filter is installed correctly before putting items in the dryer. The dryer does not work
without the lint filter.
• Always clean the lint filter before drying. For more information on filter cleaning, see the “Lint filter”
section on page 47.
DV8700TK_SimpleUX_DC68-04223J-00_EN.indd 24 2021/4/19 14:18:00
English
English 25
STEP 4 Determine the load capacity
Do not overload the dryer. Overloading reduces the tumbling action, resulting in uneven drying and
wrinkling.
• Put one wash load in the dryer at a time.
• To improve drying efficiency for one or two items, add a dry towel to the load.
• For best results, untangle items before inserting them into the dryer. Tangled items may degrade the
drying efficiency or cause the door to open.
CAUTION
Add or remove items into or from the dryer with the lint filter installed. If the filter is not in place, small
items can fall into the filter slot and cause the dryer to malfunction.
STEP 5 After finishing the drying
• Empty the water tank to prevent leaks. For more information on emptying the water tank, see the
“Emptying the water tank” section on page 44
• If the “
Clean heat exchanger” message appears on the display, refer to the “Heat exchanger” section on
page 49 and clean the heat exchanger.
• Keep the dryer door and the heat exchanger cover open after finishing the drying to keep the inside of
the dryer more hygienic.
DV8700TK_SimpleUX_DC68-04223J-00_EN.indd 25 2021/4/19 14:18:00
English
English26
Operations
Control panel
ՋՌՋՎ
ՋՏ
ՋՐՋՑՋՒՋՓՋՔ
ՌՋ
ՋՍ

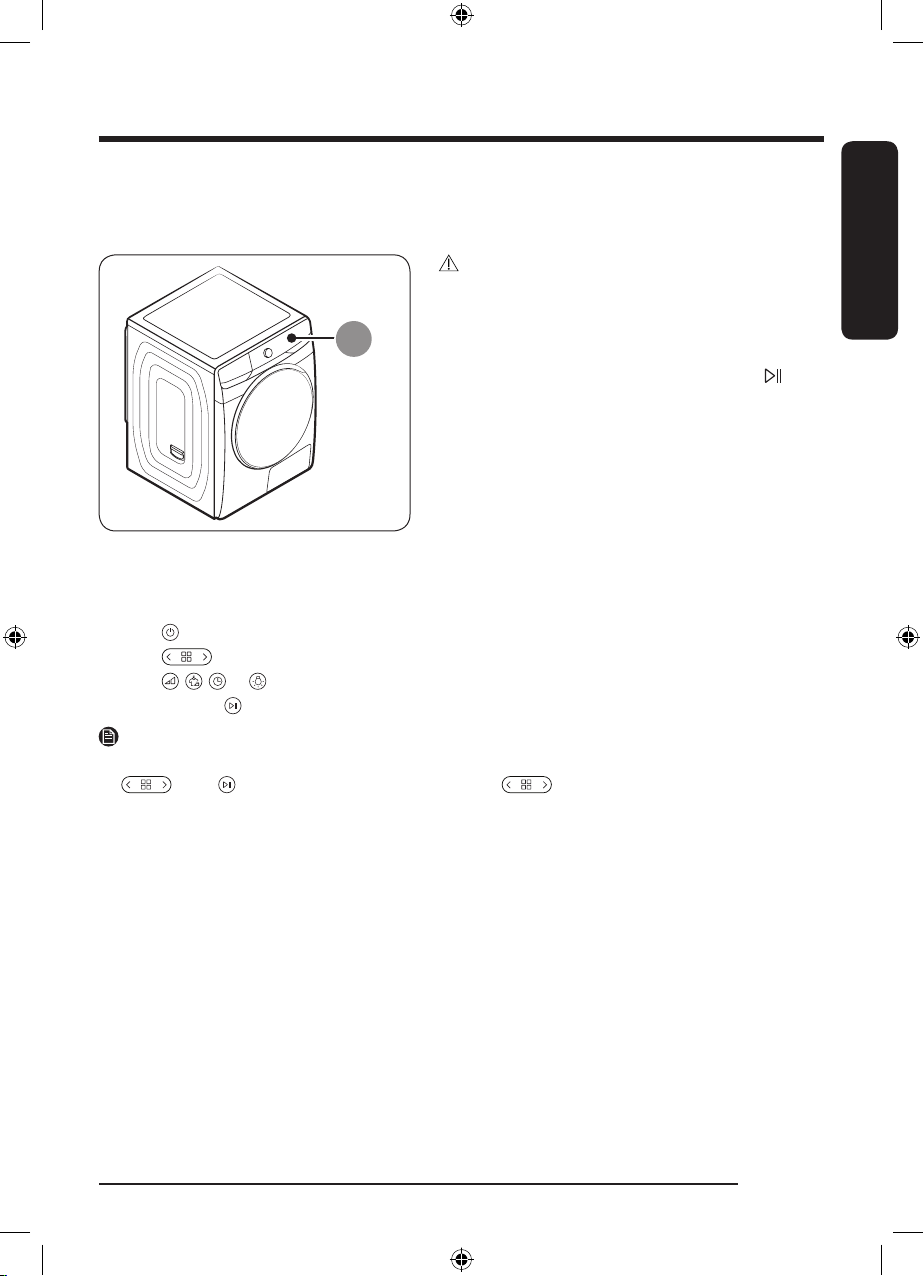

01 Power
Tap to turn the dryer on or off.
• If you do not manipulate the control panel for 10 minutes after the dryer is
turned on, the dryer automatically turns off.
• The dryer automatically turns off when the drying completes.
CAUTION
Do not tap
to turn the dryer off while the drying is in progress. Tap and hold
to pause the cycle first, and then tap to turn the dryer off.
02 Navigation dial
Turn the Navigation dial left or right to navigate through cycles and functions.
When you turn the Navigation dial, the display shows your selection (such as
cycle, additional functions, and system functions).
03 Start/Pause
Tap and hold to start or pause an operation.
04 Display
The display shows the current cycle, estimated time remaining, cycle options, and
other useful or alert messages.
05 OK
Tap to confirm your selection of function or setting.
06 Dry Level
Tap to change the dry level for the selected cycle. You can select from level 1 to 4,
but available level depends on the selected cycle.
• 4: Suitable for large and thick items.
• 3: Standard drying level.
• 2: The Damp dry level is designed to partially dry items. Use for items that lay
flat or hang to dry.
• 1: Gently dries items to protect fabric. Suitable for delicate items or items you
want to naturally dry (by hanging or laying flat on drying rack) while they are
damp.
07 Wrinkle Prevent
Tap to turn the Wrinkle Prevent function on or off. When the function is on, the
dryer rotates the drum intermittently after completing the dry cycle to prevent
wrinkles.
DV8700TK_SimpleUX_DC68-04223J-00_EN.indd 26 2021/4/19 14:18:01
English
English 27
08 Time
Tap to select the cycle time for Time Dry, Rack Dry, or Cool Air. You can set the
drying time between 20 minutes and 240 minutes. Available drying time depend
on the selected cycle.
09 Additional
Functions
• Tap to enter the additional functions menu.
• Tap and hold for 3 seconds to enter the system functions menu.
10 Smart Control
Tap to activate or deactivate the Smart Control function.
• When the Smart Control function is activated, you can control your dryer
remotely using the SmartThings app in your smartphone.
Icon description
Wi-Fi This icon indicates that the dryer is connected to Wi-Fi.
Smart Control
This icon indicates that Smart Control is on. For more information on
“Smart Control”, see page 37.
Child Lock
This icon indicates that Child Lock is on.
For more information on “Child Lock”, see page 34.
Door Lock
• This icon indicates the door is locked and cannot be opened.
• The door locks automatically during a cycle and this indicator turns
on.
• You can open the door when this icon disappears.
DV8700TK_SimpleUX_DC68-04223J-00_EN.indd 27 2021/4/19 14:18:03
English
Operations
English28
Operating a cycle
Time set based on load
05 03 04
01 06
02
1. Tap to turn on the dryer.
2. Turn the Navigation dial to select the cycle you want. For more information on “Cycle overview”, see
page 29.
3. Tap
, , or to change the default cycle settings.
4. Tap
, and then turn the Navigation dial to select additional function. For more information on
“Additional functions”, see page 32.
5. Tap
to change the settings for selected additional function. Not all cycles have additional functions
available.
6. Tap and hold
to start operation. Once you set the cycle you want, the screen displays a brief cycle
description, maximum laundry load, and cycle time. You can also check the cycle progress, remaining
cycle time, and information codes.
DV8700TK_SimpleUX_DC68-04223J-00_EN.indd 28 2021/4/19 14:18:04
English
English 29
Cycle overview
Sensor dry cycles
Cycle Description Max load (kg)
Cotton
For cottons, bed linens, table linens, underwear, towels,
or shirts.
16.0
AI Dry
Auto optimized drying by AI according to the load and
ambient temperature.
16.0
Quick Dry
For mixed loads consisting of cotton and synthetic
fabrics that need quick drying.
8.0
Shirts Use to quickly dry one item such as a shirt. 2.0
Bedding
For bulky items such as blankets, sheets, comforters,
and light duvets.
4.0
Towels Use to dry loads such as bath towels. 6.0
Delicates
For the delicate items to be handled with care such as
lingerie.
3.0
Synthetics
For blouses, and shirts that are made of polyester
(Diolen, Trevira), polyamide (Perlon, nylon), or other
similar blends.
7.0
Wool
For machine washable and tumble dryable wool only.
For best results, turn laundry inside out before drying.
1.0
DV8700TK_SimpleUX_DC68-04223J-00_EN.indd 29 2021/4/19 14:18:04
English
Operations
English30
Manual dry cycles
Cycle Description
Max load
(kg)
Time Dry
Use to set a desired dry time.
Turn the
Navigation dial to select Time Dry and tap
to set
the drying time between 20 minutes and 240 minutes. Tap
repeatedly to select the available time options in this order: 20 /
30 / 40 / 50 / 60 / 90 / 120 / 150 / 180 / 240.
NOTE
If you use this cycle for additional drying after finishing one of the
Sensor Dry cycles (listed on page 29), set the minimum drying time
(20 minutes). Excessive drying may cause damage or deform to an
item.
-
Rack Dry
Timed cycle for items that needs to be dried on a drying rack.
Turn Navigation dial to select Rack Dry and tap
to set the drying
time between 20 minutes and 240 minutes. Tap repeatedly to
select the available time options in this order:
20 / 30 / 40 / 50 /
60 / 90 / 120 / 150 / 180 / 240.
-
Cool Air
All types of fabric. For freshening up or airing items of laundry that
have not been worn for long.
Turn Navigation dial to select Cool Air and tap
to set the drying
time between 20 minutes and 240 minutes. Tap repeatedly to
select the available time options in this order: 20 / 30 / 40 / 50 /
60 / 90 / 120 / 150 / 180 / 240.
-
DV8700TK_SimpleUX_DC68-04223J-00_EN.indd 30 2021/4/19 14:18:04
English
English 31
Other cycles
Cycle Description Max load (kg)
Hygiene Care+
For sanitizing wet and dry clothes and linen fabric to
eliminate bacteria.
6.0 (for wet)
4.0 (for dry)
Air Bedding Care
For dusting off clothes, bed spreads, bed sheets and
bedding covers, etc.
3.0
Down Jacket Care For fluffing up a down jacket. 2.0
Outdoor Care
For restoring the water repellent properties of outdoor
wear treated with water repellent agents such as
skiwear and mountain clothing.
1.0
Self Tub Dry
Use this cycle to keep both the drum and the heat
exchanger fresh.
• Do not use this cycle while there is any laundry
stored in the drum.
-
DV8700TK_SimpleUX_DC68-04223J-00_EN.indd 31 2021/4/19 14:18:04
English
Operations
English32
Additional Functions
Using Additional Functions
Damp Alert
Tap O to set alert
Off
03 01
02
02
1. Tap .
2. Turn the Navigation dial to select the desired additional function.
3. Tap
to change the selected function’s settings or start the function.
NOTE
• To return to the main screen, tap
again or turn the Navigation dial to select Back and tap .
• If the selected function is not supported, the "
Currently not supported" message is displayed, and the
button is not activated.
• When you select an additional function, a brief help message appears for the first ten times of use.
• If you do not manipulate the control panel for 7 seconds after entering the Additional Functions menu,
the display returns to the main screen.
Damp Alert
This function alerts you when shirts and other items that require ironing are dry enough to be suitable for
ironing.
1. Select a cycle and change the cycle settings as necessary.
- This function is available for Cotton, AI Dry, Quick Dry, Synthetics, and Shirts with the Dry Level
set to 2 ~ 4.
2. Tap
.
3. Turn the Navigation dial to select Damp Alert, and then tap
.
4. Tap and hold
.
Alarm during drying:
1. Tap and hold
to pause the cycle.
2. Open the door and take out the items you want to iron.
3. Close the door, and then tap and hold
to dry the remaining items.
DV8700TK_SimpleUX_DC68-04223J-00_EN.indd 32 2021/4/19 14:18:05
English
English 33
Drum Light
You can turn the drum light on or off.
1. Tap
.
2. Turn the Navigation dial to select Drum Light, and then tap
.
3. Tap
to select On or Off.
- The drum light turns on even when the dryer is off. (If the dryer is plugged in d to a power outlet.)
- When the dryer door opens, the drum light automatically turns on and automatically turns off after
2 minutes.
My Cycles
Add or remove cycles to create a personal cycle list.
1. Tap
.
2. Turn the Navigation dial to select My Cycles, and then tap
.
- You can only edit a cycle to create a personal cycle when the dryer is not operating.
3. Turn the Navigation dial to select a desired cycle.
4. Tap
to add or remove the selected cycle.
- Addition and removal of a cycle is saved automatically.
5. Once you finish creating My Cycles, tap
to return to the cycles screen.
NOTE
The Cotton and Self Tub dry cycles can not be removed from the cycles list.
Optional filter
If you installed the Optional filter to prevent dust accumulation on the heat exchanger, use this setting to
set the filter cleaning alert on or off.
1. Tap
.
2. urn the Navigation dial to select Optional filter, and then tap
.
3. Tap
to select On or Off.
- Select On to receive a filter cleaning alert message.
NOTE
If the “Clean Optional Filter” or “Clean heat exchanger” message appears on the display, clean both the
heat exchanger and the Optional Filter. (Refer to the “Heat exchanger” section on page 49 and “Optional
Filter” section on page 51.)
DV8700TK_SimpleUX_DC68-04223J-00_EN.indd 33 2021/4/19 14:18:05
English
Operations
English34
Child Lock
To prevent children or infants from accidentally starting or setting the dryer,
Child Lock locks all buttons
except for and .
1. Close the door.
2. Tap
.
3. Turn the Navigation dial to select Child Lock, and then tap
.
4. Tap
to select On or Off.
- The
Child Lock
icon turns on when the function is on.
- You cannot turn on Child Lock with the door open. If you get the "Door is open" message on the
display while you try to turn on Child Lock, close the door and try again.
NOTE
• When Child Lock is on, all buttons are disabled except for
and .
• If you tap a button with Child Lock on, an alarm triggers with the “Child Lock on” message.
• To dismiss a notification message, turn off Child Lock or the power.
DV8700TK_SimpleUX_DC68-04223J-00_EN.indd 34 2021/4/19 14:18:05
English
English 35
System Functions
Using System Functions
02
03 01
*
* Tap and hold 3 seconds.
1. Tap and hold
for 3 seconds.
2. Turn the Navigation dial and select the desired system function, and then tap
.
3. Tap
to change the selected function’s settings or start the function.
NOTE
• To return to the main screen, tap
again or turn the Navigation dial to select Back and tap .
• If you do not manipulate the control panel for 7 seconds after entering the System Functions menu, the
display returns to the main screen.
AI Pattern
This function saves your frequently used cycles and settings.
1. Tap and hold
for 3 seconds.
2. Turn the Navigation dial to select AI Pattern, and then tap
.
3. Tap
to select On or Off.
- The default setting is On. Set it to Off if you do not want to use this function.
- When you turn the function on, the dryer remembers frequently used cycles and their settings (Dry
Level
, Time ) and save them in frequently used order.
- When you turn off the function, all the saved data resets.
Alarm
You can enable/disable alarm sounds.
1. Tap and hold
for 3 seconds.
2. Turn the Navigation dial to select Alarm, and then tap
.
3. Tap
to select On or Off.
- The default setting is On.
NOTE
The setting remains unchanged even if you restart the dryer.
DV8700TK_SimpleUX_DC68-04223J-00_EN.indd 35 2021/4/19 14:18:06
English
Operations
English36
Calibration
You can run calibration again for accurate weight detection.
1. Tap and hold
for 3 seconds.
2. Turn the Navigation dial to select Calibration, and then tap
.
- Calibration does not start if the door is not closed properly.
- The drum rotates clockwise and anticlockwise for about 3 minutes.
3. When calibration is complete, the “Calibration complete” message appears on the display and the dryer
turns off automatically.
Wi-Fi
You can turn the dryer's Wi-Fi on or off.
1. Tap and hold
for 3 seconds.
2. Turn the Navigation dial to select Wi-Fi, and then tap
.
3. Tap
to select On or Off.
- The dryer's Wi-Fi is off as a factory default setting. However, the dryer's Wi-Fi turns on automatically
when you turn on the dryer for the first time. Then, the final Wi-Fi setting maintains regardless of the
dryer power status.
- Once you turn on the dryer's Wi-Fi and connect to a network, the dryer remains connected to the
network even when you turn off the power.
- The Wi-Fi indicates that the dryer is connected to the router through the Wi-Fi connection.
Language
You can change the system language.
1. Tap and hold
for 3 seconds.
2. Turn the Navigation dial to select Language, and then tap
.
3. Turn the Navigation dial to select the desired language, and then tap
.
Factory Reset
You can reset your dryer.
1. Tap and hold
for 3 seconds.
2. Turn the Navigation dial to select Factory Reset, and then tap
.
- Your dryer resets to the factory setting.
DV8700TK_SimpleUX_DC68-04223J-00_EN.indd 36 2021/4/19 14:18:07
English
English 37
Special features
Smart Control
You can connect to the SmartThings app and control your dryer remotely.
Connecting your dryer
• Download and open the SmartThings app on your mobile device.
• Tap and hold
to turn on the dryer.
• Tap and hold for 3 seconds on the dryer.
a. The dryer enters AP mode and connects to your mobile device.
b. Tap
to authenticate your dryer on your mobile device.
c. Once the authentication process is complete, your dryer is successfully connected to the app. Use
various features available in the SmartThings app.
NOTE
• If your dryer fails to connect with the SmartThings app, try again.
• Check your router if you experience any Internet connection problem after connecting your dryer with
the SmartThings app.
• If the Wi-Fi is off, tap and hold
for 3 seconds to navigate to System Functions, select Wi-Fi and tap
to turn it on.
• Turning the dryer's Wi-Fi on allows you connect to the dryer via SmartThings app on your smartphone
regardless of the power status of the dryer. However, the dryer appears offline on the SmartThings app
if the dryer's Wi-Fi is off.
• Close the door before starting the Smart Control function.
• If you use the dryer 20 times without being connected to SmartThings, the next time you turn the dryer
on, a pop-up about Smart Control connection will appear for 3 seconds.
• If the dryer's Wi-Fi is not connected to an AP (access point), the Wi-Fi will turn off when you turn of the
power.
Stay Connect
Set up the Stay Connect function in your SmartThings app. Your dryer stays connected to the app so you can
use the dryer when you are away from home.
1. If you turn on the Stay Connect function on the SmartThings app, the dryer will stay in standby power
saving mode after completing a cycle.
- The Stay Connect function will remain active for up to 24 hour if the door remains closed.
2. When the Stay Connect function is active, the Smart Control
and Wi-Fi turn on your dryer display.
3. Conveniently control your dryer using the SmartThings app.
NOTE
The dryer switches to standby power saving mode when operation is paused even if the machine is not
connected to the SmartThings app.
DV8700TK_SimpleUX_DC68-04223J-00_EN.indd 37 2021/4/19 14:18:07
English
Operations
English38
SmartThings
Wi-Fi connection
On your smartphone, go to
Settings and turn on the wireless connection and select an AP (Access Point).
• This appliance supports the Wi-Fi 2.4 GHz protocols.
Download
On an app market (Google Play Store, Apple App Store, Samsung Galaxy Apps), find the SmartThings app
with a search term of “SmartThings”. Download and install the app on your device.
NOTE
The app is subject to change without notice for improved performance.
In addition, the further updates on app or the function in the app may stop due to usability and security
reasons, even if updates are currently supported on your OS.
Log in
You must first log into SmartThings with your Samsung account. To create a new Samsung account, follow
the instructions on the app. You don’t need a separate app to create your account.
NOTE
If you have a Samsung account, use the account to log in. A registered Samsung smartphone user
automatically logs in.
To register your appliance to SmartThings
1. Make sure your smartphone is connected to a wireless network. If not, go to Settings and turn on the
wireless connection and select an AP (Access Point).
2. Open SmartThings on your smartphone.
3. If a message of “A new device is found.”, select Add.
4. If no message appears, select + and select your appliance in a list of devices available. If your appliance
is not listed, select Device Type > Specific Device Model, and then add your appliance manually.
5. Register your appliance to the SmartThings app as follows.
a. Add your appliance to SmartThings. Make sure your appliance is connected to SmartThings.
b. When registration is complete, your appliance appears on your smartphone.
DV8700TK_SimpleUX_DC68-04223J-00_EN.indd 38 2021/4/19 14:18:07
English
English 39
Open Source Announcement
The software included in this product contains open source software. You may obtain the complete
corresponding source code for a period of three years after the last shipment of this product by contacting
our support team via http://opensource.samsung.com (Please use the “Inquiry” menu.)
It is also possible to obtain the complete corresponding source code in a physical medium such as a CD-
ROM; a minimal charge will be required.
The following URL http://opensource.samsung.com/opensource/SMART_AT_051/seq/0 leads to the
open source license information as related to this product. This offer is valid to anyone in receipt of this
information.
NOTE
Hereby, Samsung declares that this radio equipment is in compliance with Directive 2014/53/EU and
with the relevant statutory requirements in the UK. The full text of the EU declaration of conformity and
the UK declaration of conformity is available at the following internet address: The official Declaration of
conformity may be found at http://www.samsung.com, go to Support > Support home and enter the model
name.
Wi-Fi max transmitter power : 20 dBm at 2.412 GHz – 2.472 GHz
DV8700TK_SimpleUX_DC68-04223J-00_EN.indd 39 2021/4/19 14:18:07
English
Operations
English40

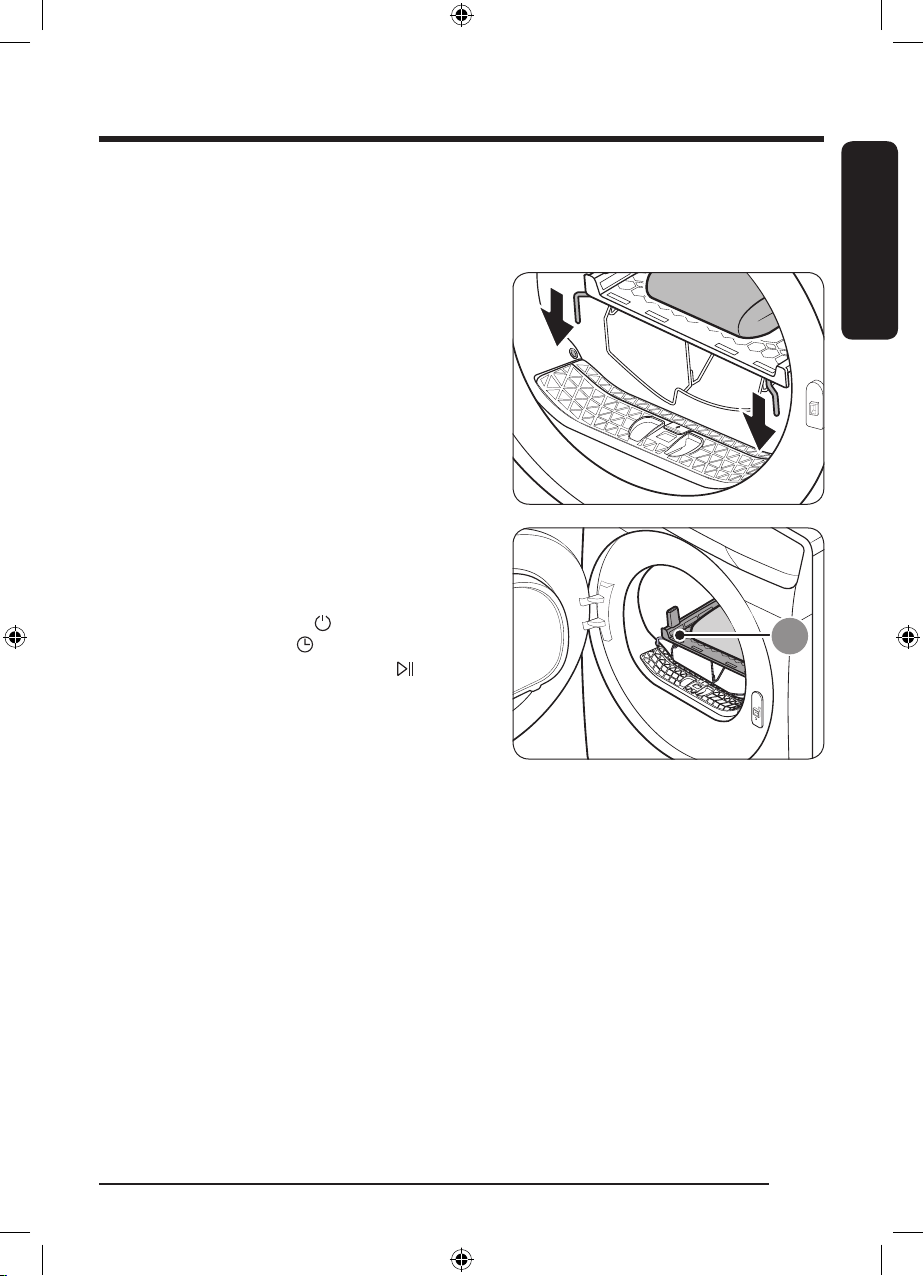

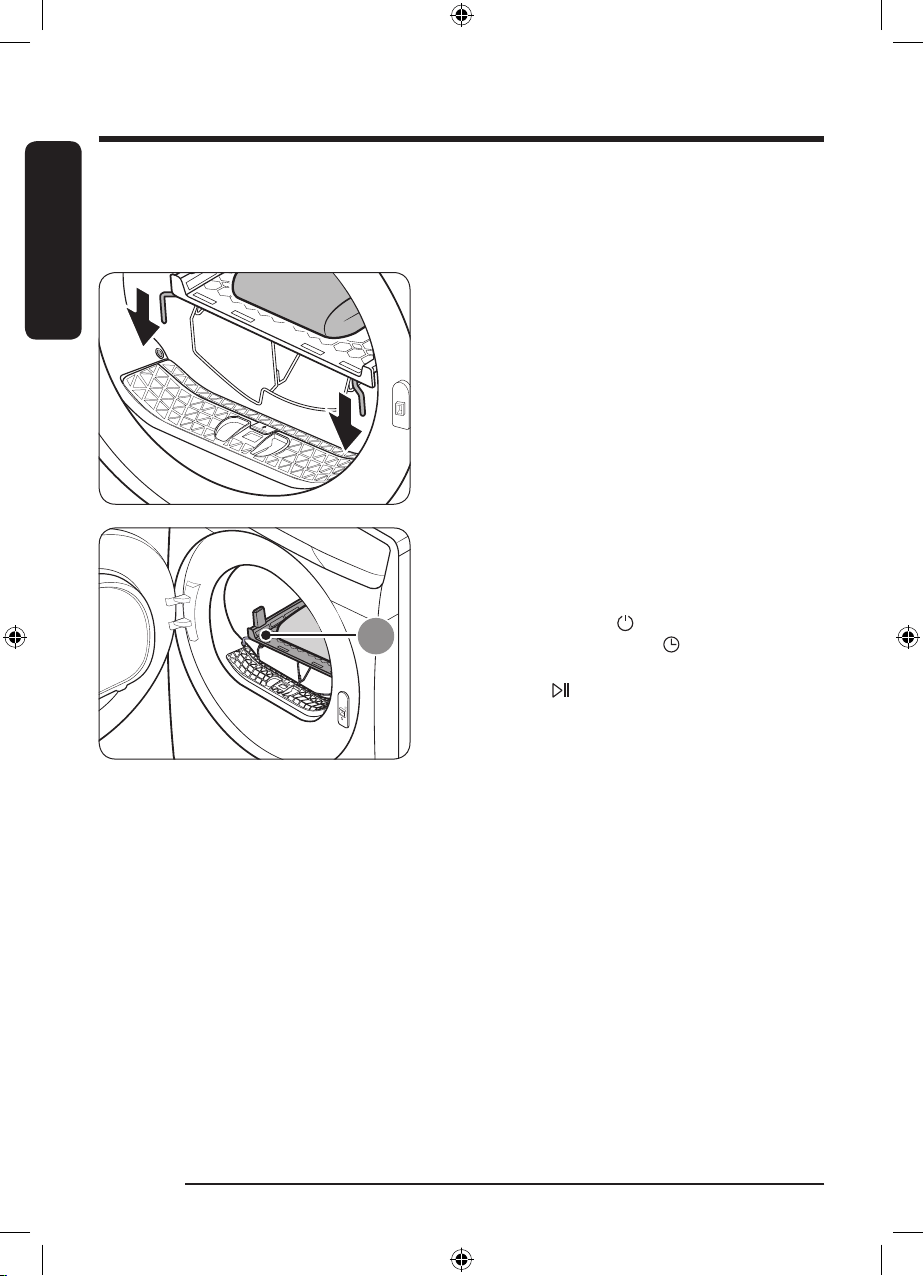

Using the drying rack
Set the drying time up to 240 minutes according to the moisture and weight of the items to dry. When
drying laundry using the drying rack, the Rack Dry cycle is recommended.
1. Position the drying rack in the drum, inserting the
front lips of the rack into the holes of the door
diaphram.
A. Drying rack
2. Place items on the rack, leaving enough space where
air can circulate. For clothing items, fold and place
flat on the rack. For shoes, place shoes with their
soles facing down.
3. Close the door and tap
. Turn the Navigation dial to
select Rack Dry, and then tap to select the drying
time.
4. Tap and hold
.
DV8700TK_SimpleUX_DC68-04223J-00_EN.indd 40 2021/4/19 14:18:08
English
English 41
Drying suggestions
Items (max 1.5 kg) Description
Washable sweaters (block to shape and lay flat on
rack)
When drying the laundry using the rack, fold
and place the clothes on the rack to prevent the
clothing from becoming wrinkled.
Stuffed toys (cotton or polyester fiber filled)
Stuffed toys (foam or rubber-filled)
Foam rubber pillows
Sneakers To dry sports shoes, place the shoes on the rack so
that the soles of the shoes are facing downwards.
CAUTION
• Drying foam rubber, plastic, or rubber on a heat setting may cause damage to the items and lead to a
fire hazard.
• To prevent damage to shoes, use the drying rack.
Remote control (applicable models only)
Remote control at a glance
ՋՌ
ՋՍ
ՋՎ
ՋՏ
ՋՐ
ՋՑ
ՋՒ
01 Power button
02 Cycle selection button
03 Dry Level button
04 Wrinkle Prevent button
05 Start/Pause button
06 Time button
07 Drum Light button
DV8700TK_SimpleUX_DC68-04223J-00_EN.indd 41 2021/4/19 14:18:08
English
Operations
English42

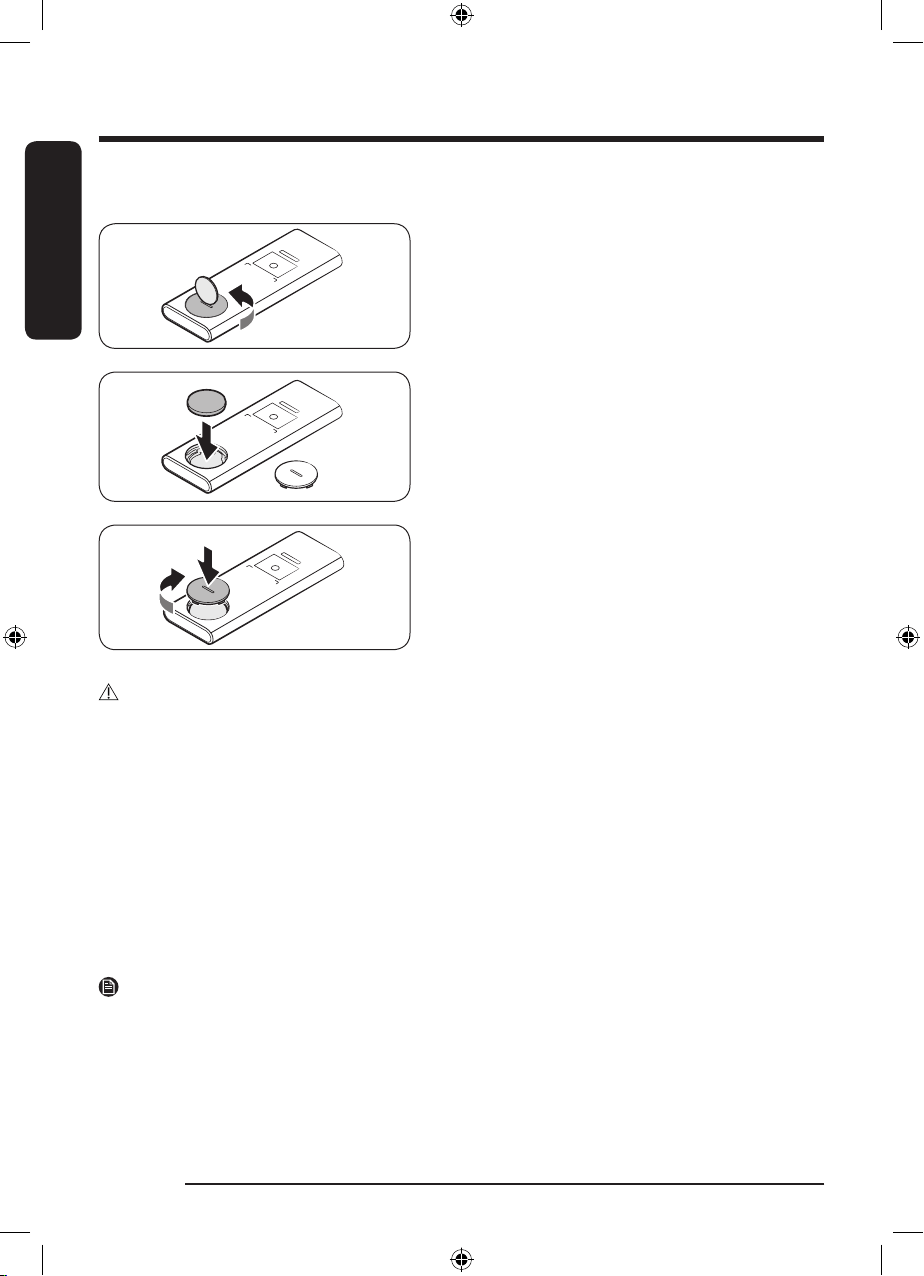

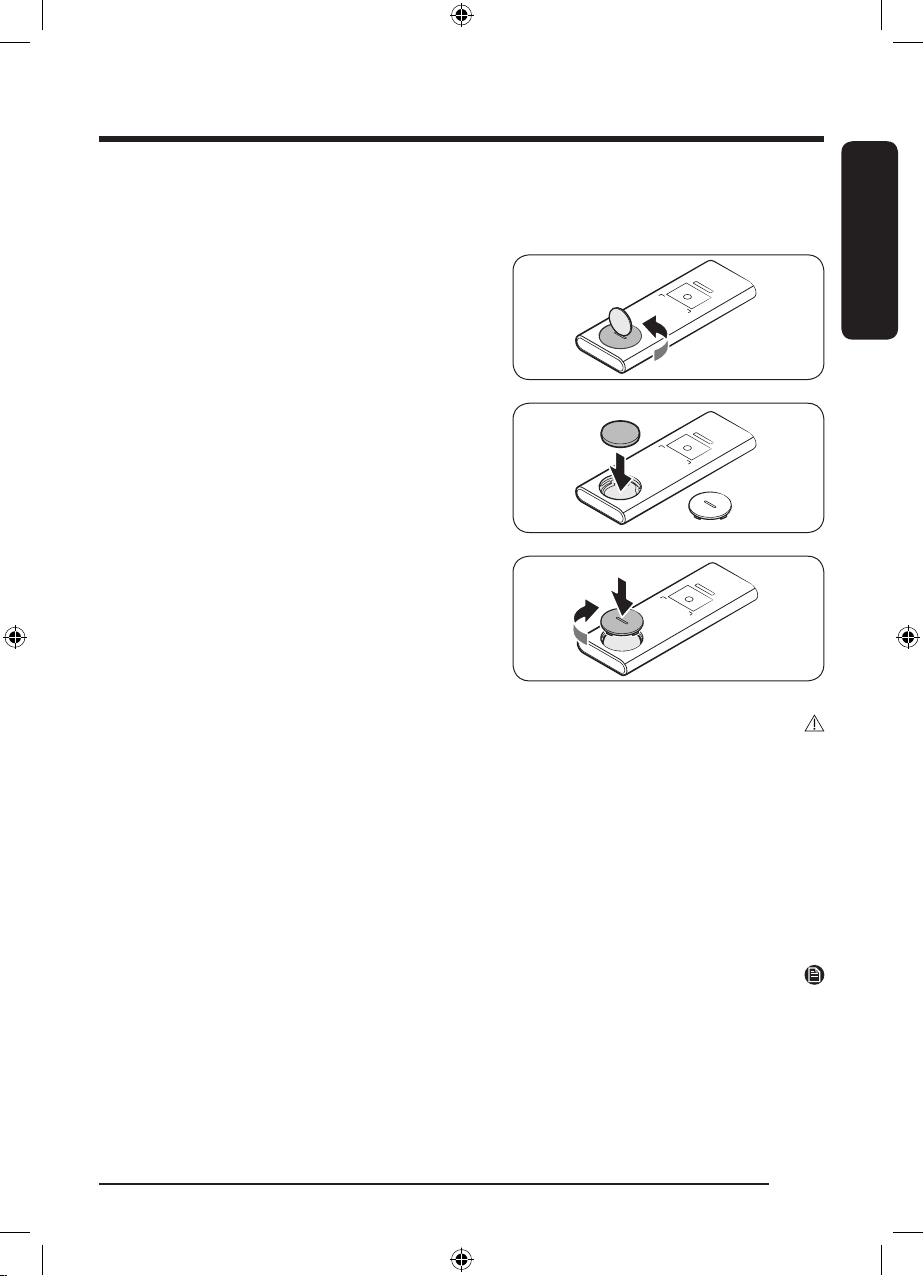

Inserting the remote control battery
1. With a coin or a flat-headed screwdriver, open the
battery cover by turning it counterclockwise.
2. Insert the battery.
- Check the "+" and "-" signs and insert the battery
in the correct position.
3. With a coin or a flat-headed screwdriver, close the
battery cover by turning it clockwise.
- Align the protrusions on the battery cover with
the grooves around the battery slot and press the
battery cover until you hear a clicking sound.
CAUTION
• Do not get any water on the remote control.
• Keep the battery out of reach of children.
• Keep small cells and batteries which are considered swallowable out of the reach of children.
• Swallowing may lead to burns, perforation of soft tissue, and death. Severe burns can occur within 2h of
ingestion.
• In case of ingestion of a cell or battery, seek medical assistance promptly.
• Caution risk of explosion if battery replaced by an incorrect type.
• Never crush or puncture the battery. Avoid exposing the battery to high external pressure, which can
lead to an internal short circuit and overheating.
• Do not disassemble the battery.
• When replacing the battery, make sure that the battery electrolyte does not get on the skin. It can be
harmful to the skin.
NOTE
Please consult a Samsung service center if other electronics are operated by the remote control.
DV8700TK_SimpleUX_DC68-04223J-00_EN.indd 42 2021/4/19 14:18:09
English
English 43

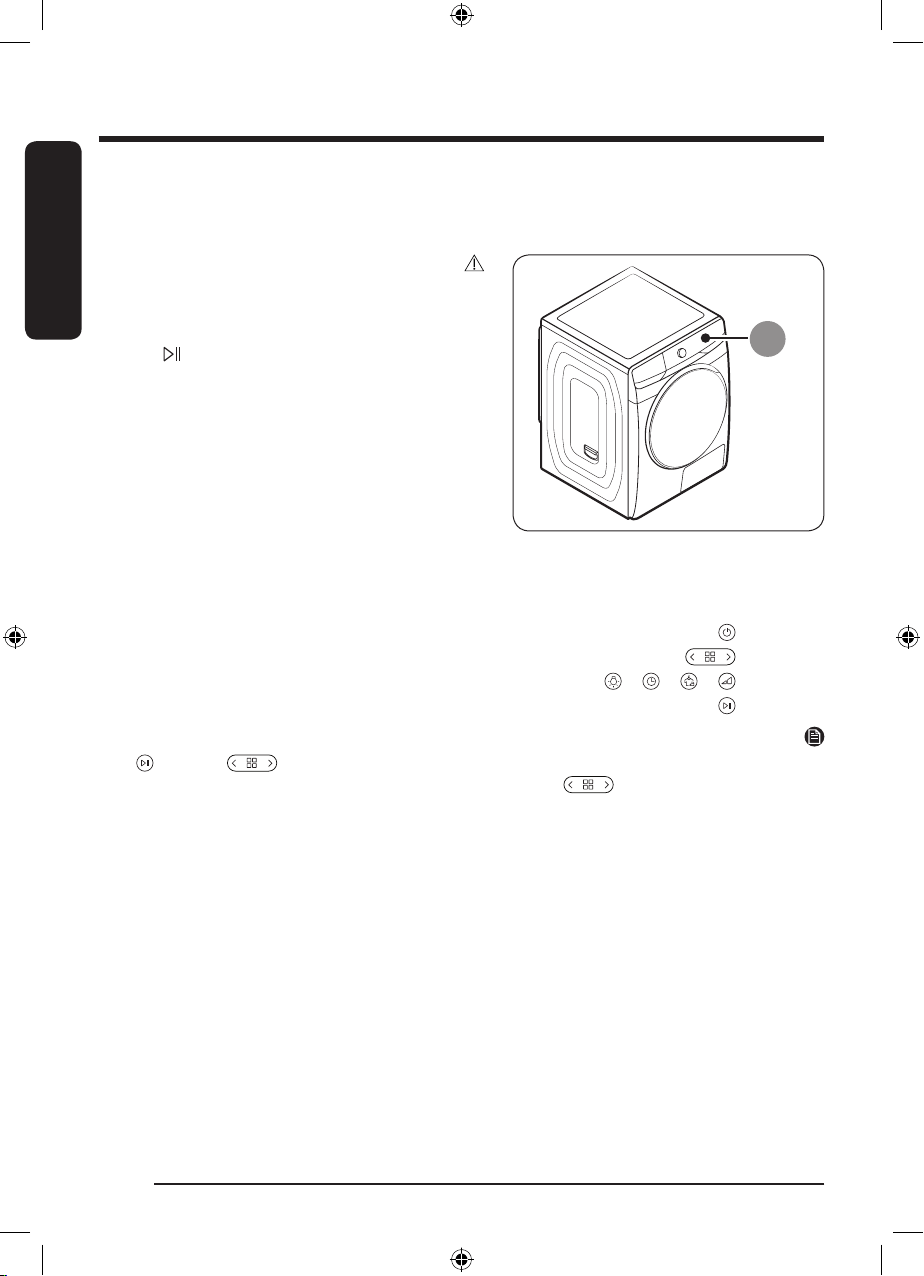

Location of the remote control receiver on the dryer
A. Remote control receiver
CAUTION
• When operating the dryer with the remote control,
point it accurately towards the remote control
receiver on the dryer.
• If you want to to start or pause the dryer with
the remote control, you must press and hold
for 2 seconds. (It is to prevent the children from
manipulating by accidentally pressing the button.)
Using the remote control
1. Press .
2. Press
to select a cycle.
3. Press
, , , or to set the dry level, wrinkle prevent, time, and drum light.
4. Press and hold
for 2 seconds to start the operation.
NOTE
• Once you select and start a cycle using the remote control, you cannot change the cycle by pressing
. Press to pause the cycle first, and then press to change the cycle.
• The remote control has a built-in magnet so you can store it without any holder by simply attaching it
on the dryer.
DV8700TK_SimpleUX_DC68-04223J-00_EN.indd 43 2021/4/19 14:18:11
English
English44
Maintenance

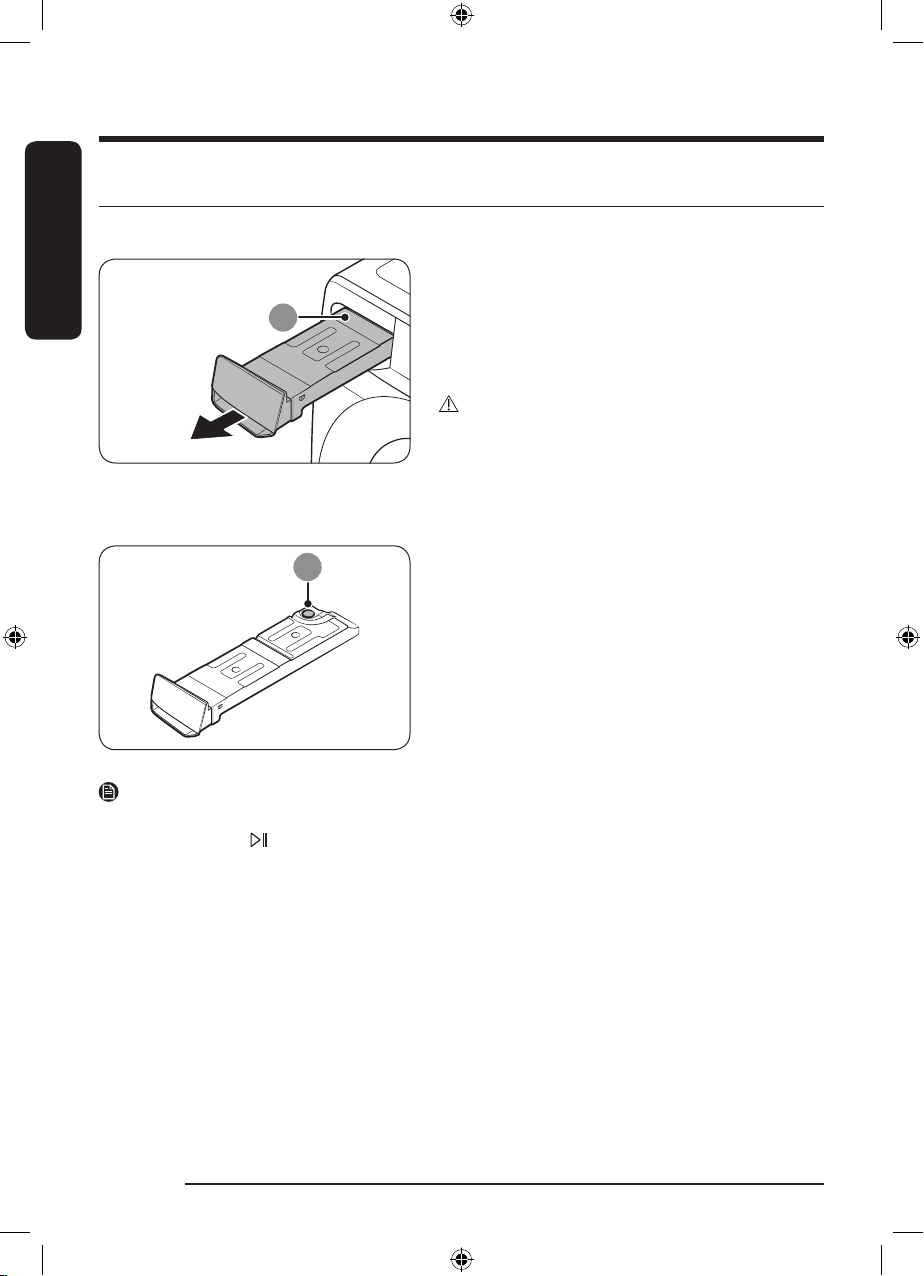

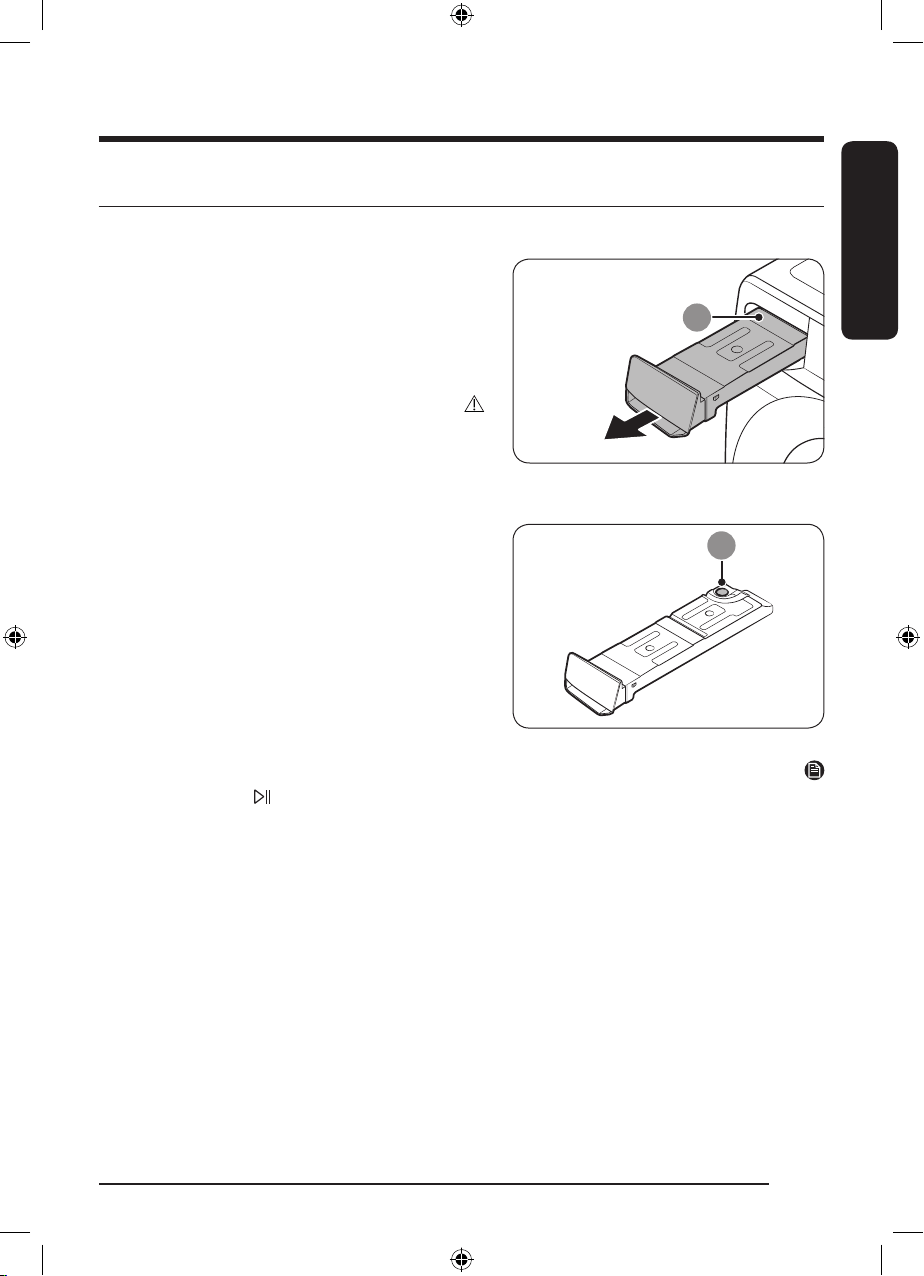

Emptying the water tank
Empty the water tank after each use to prevent leaks.
1. Remove the water tank (A) from the dryer.
- Pull the water tank handle with one hand until the
tank is halfway out.
- Once the water tank is halfway out, support the
bottom of the tank with the other hand and pull it
slowly with both hands.
CAUTION
• The water tank is heavy. Slowly remove the water
tank using both hands while keeping the tank at a
level.
• Be careful when removing the full water tank. It is
very heavy and can cause injury if you drop it.
9
2. Empty the water through the drain hole (B), and then
clean inside the water tank.
- Mix some neutral detergent in lukewarm water.
Fill the water tank with the mixture through the
drain hole (B) and leave it for 30 minutes. Then,
rinse the tank with clean water and completely
dry it.
3. Place the water tank back into place.
NOTE
If the dryer displays the “Empty the tank” message and stops while drying is in progress, empty the water
tank and tap and hold
. The “Empty the tank” message will disappear, and the dryer will resume drying.
DV8700TK_SimpleUX_DC68-04223J-00_EN.indd 44 2021/4/19 14:18:12
English
English 45

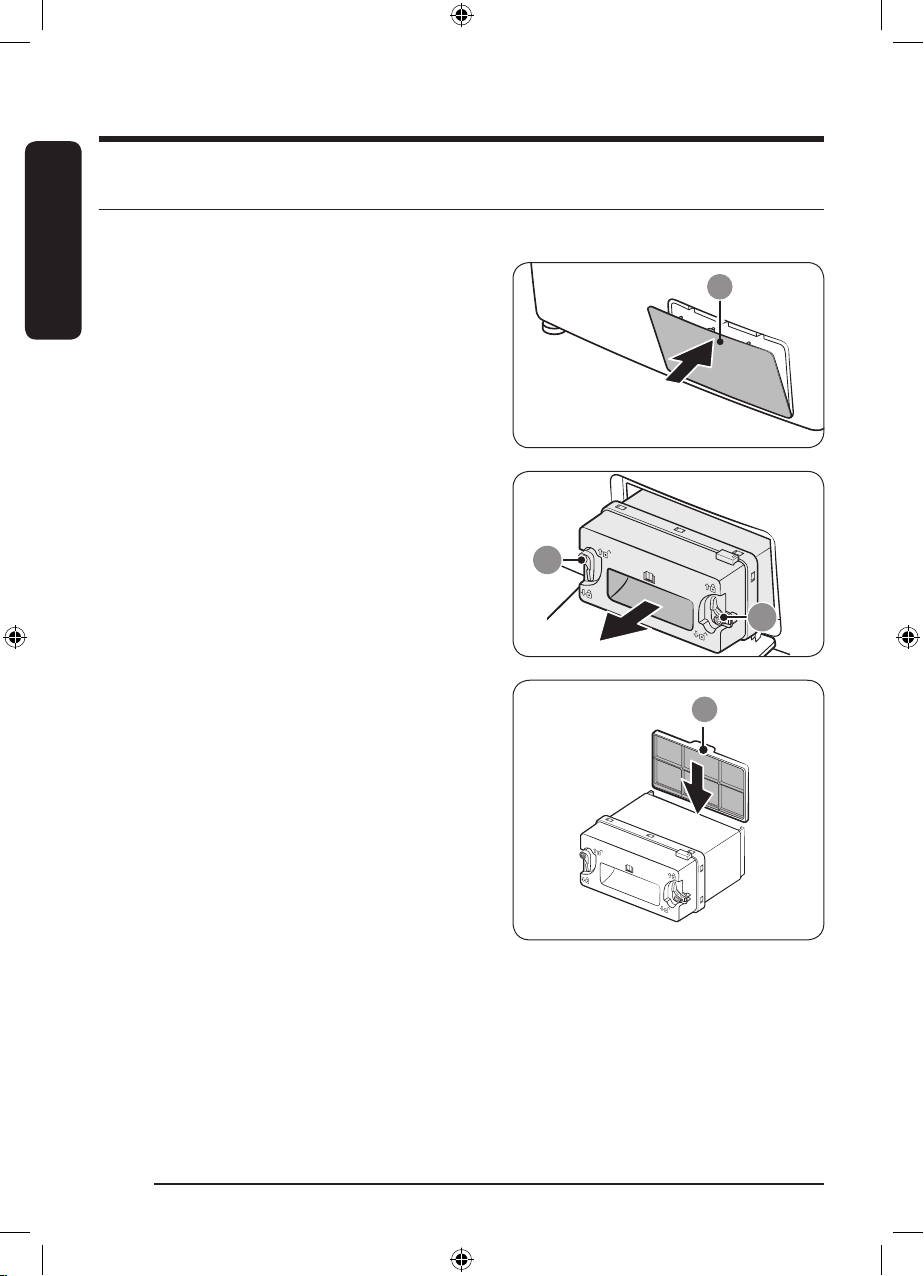

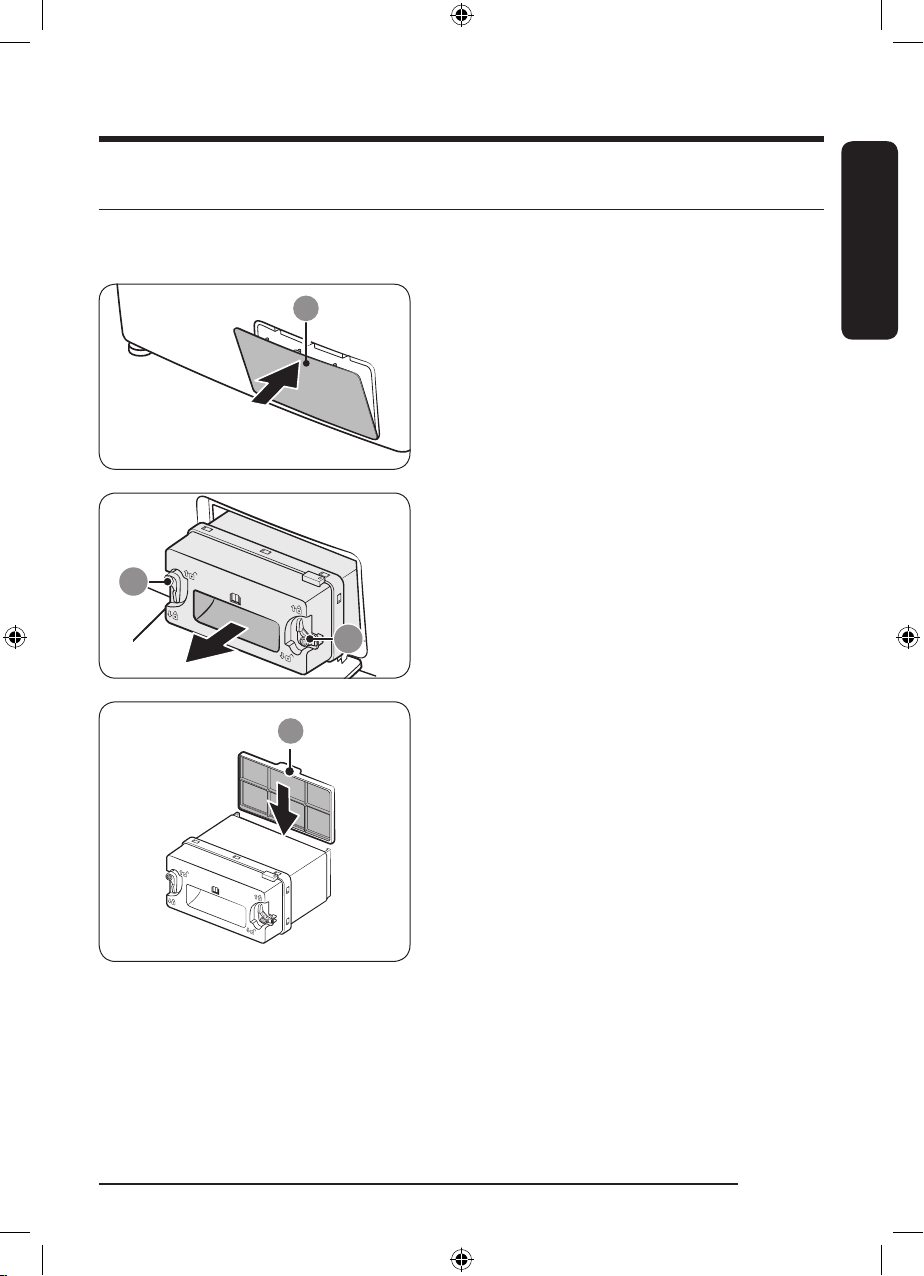

Installing the micro soft filter(Optional Filter)
You can install the provided micro soft filter(Optional Filter) to prevent dust accumulation on the heat
exchanger.
1. Gently press the top part of the outer cover (A) to
open.
9
9
2. Unlock the inner cover fixers (B), and then pull the
inner cover to remove.
A
3. Insert the provided micro soft filter(Optional Filter)
(C) on the back of the inner cover as shown in the
figure.
- Make sure to install the filter in the correct
position. (The tap on the top of the filter should
face outward.)
DV8700TK_SimpleUX_DC68-04223J-00_EN.indd 45 2021/4/19 14:18:13
English
Maintenance
English46
4. Reinsert the inner cover to its original position, and
then lock the fixers.
5. Close the heat exchanger’s outer cover.
Cleaning
WARNING
• Do not clean the dryer by directly spraying water onto the dryer.
• Do not clean the dryer with benzene, thinner, alcohol, or acetone. This may cause discoloration,
deformation, damage, electric shock, or fire.
• Before cleaning the dryer, be sure to unplug the power cord.
Exterior
Clean with a soft, damp cloth. Do not use abrasive cleaners. Avoid using or placing sharp or heavy objects
near/on the dryer. Keep detergent and laundry supplies on the pedestal (sold separately) or in a separate
storage container.
Control panel
Clean with a soft, damp cloth. Do not use abrasive cleaners. Do not spray cleaners directly on the panel.
Immediately wipe up any spills or liquids from the control panel.
Drum
Clean with a damp cloth with a mild, non-abrasive cleaner suitable for stainless steel.
Wipe remaining residue with a clean, dry cloth.
Door
Foreign substances can contaminate or build up on the inside of the door. Clean the inside of the door using
a soft piece of cloth or brush.
CAUTION
Do not detach the door’s rubber sealing.
DV8700TK_SimpleUX_DC68-04223J-00_EN.indd 46 2021/4/19 14:18:13
English
English 47

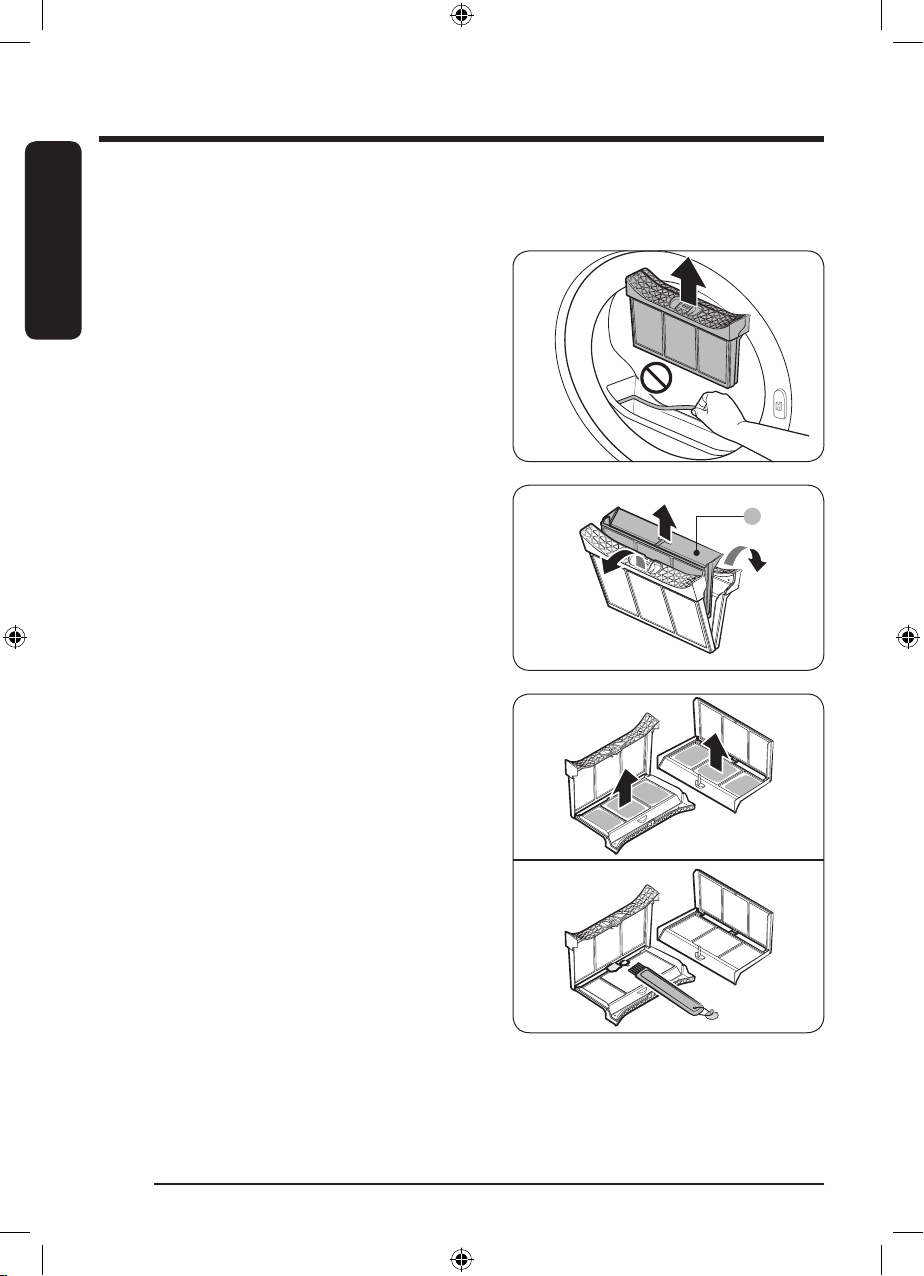

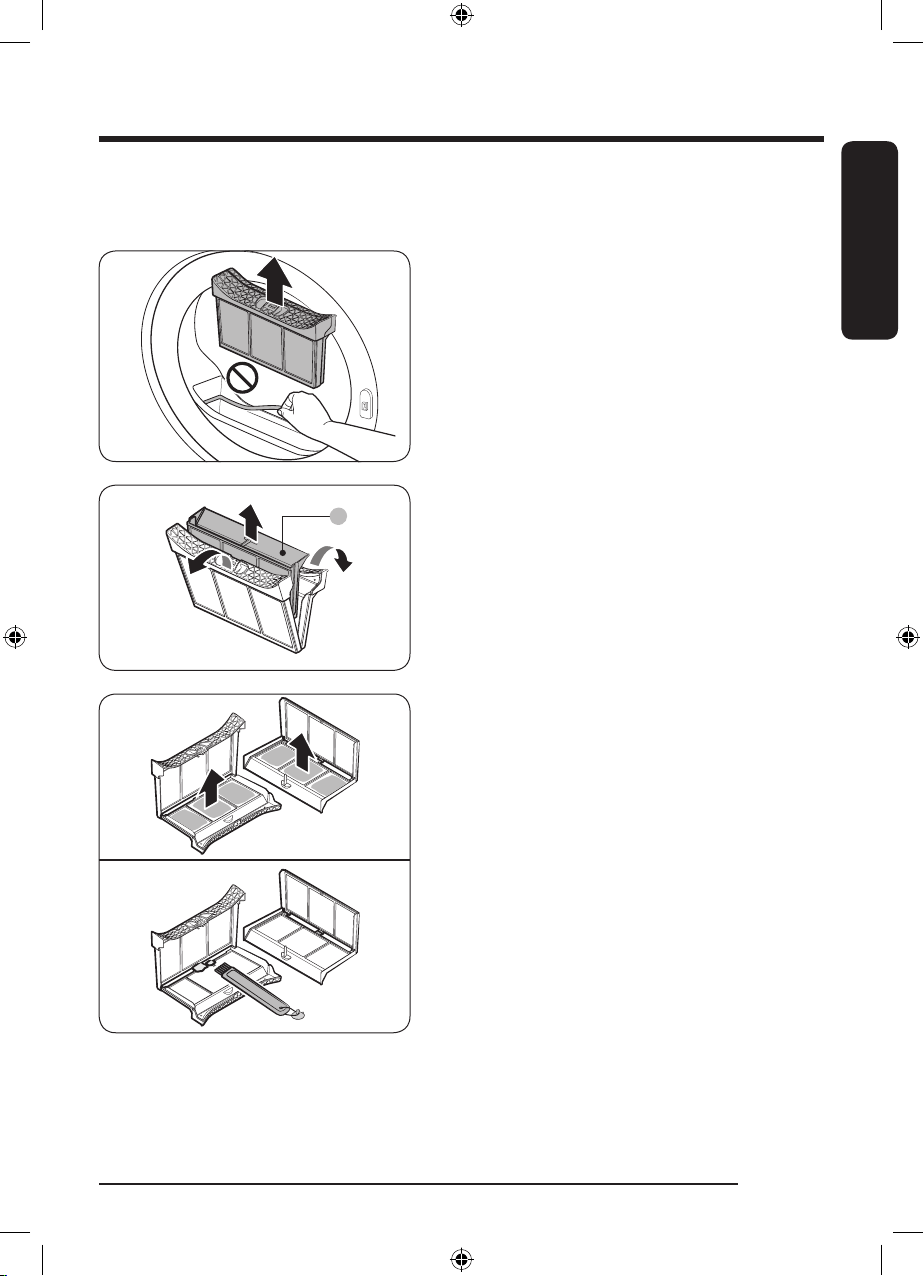

Lint filter
Clean the lint filter after each use.
1. Open the dryer door, grab the top of the lint filter,
and pull to remove the filter.
- Do not detach the rubber sealing after removing
the filter.
A
2. Open the outer filter and remove the inner filter (A).
3. Spread open the outer filter and the inner filter.
4. Remove the lint from both filters, and then clean the
filters with the cleaning brush.
DV8700TK_SimpleUX_DC68-04223J-00_EN.indd 47 2021/4/19 14:18:14
English
Maintenance
English48

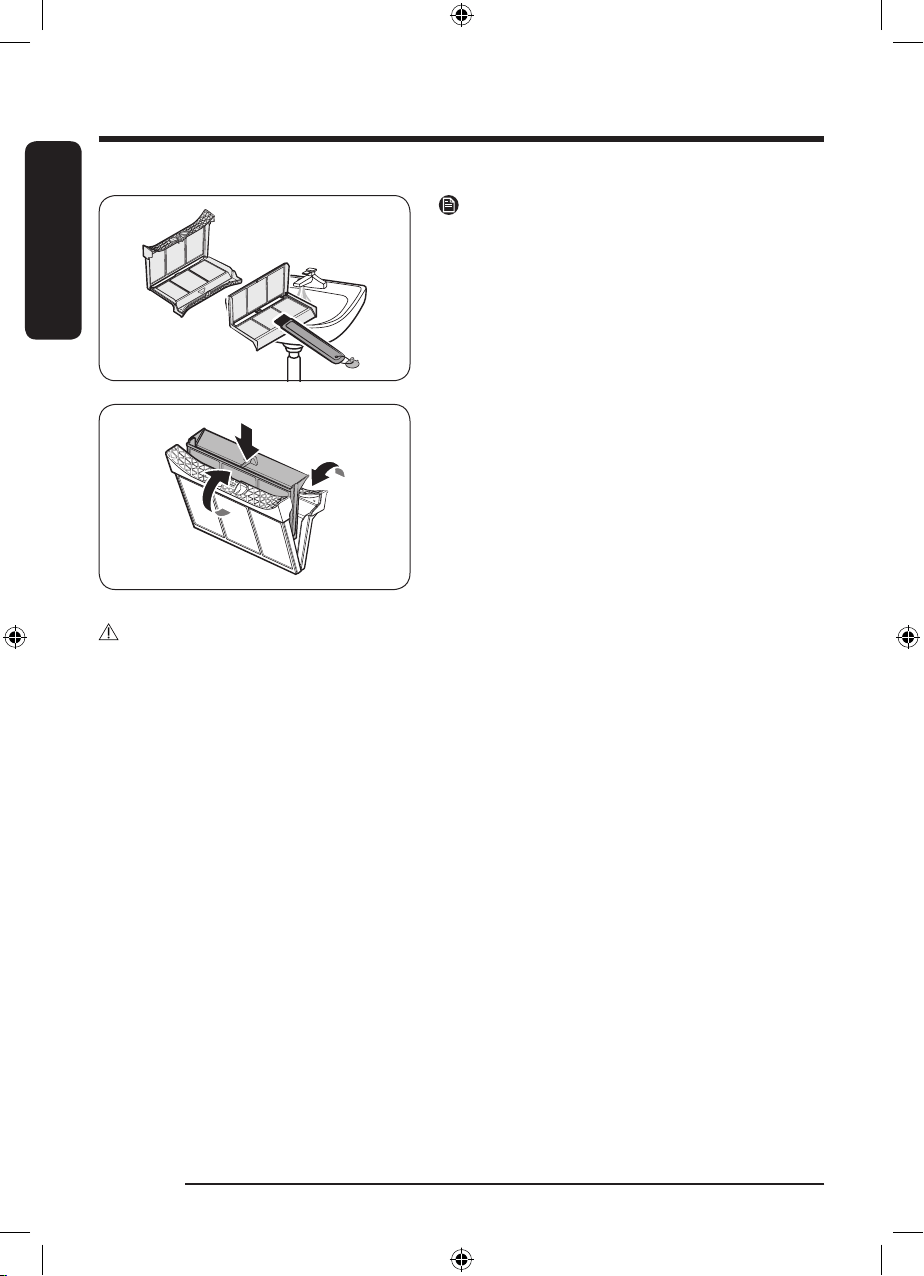

NOTE
To clean the filters thoroughly, clean the filters in
running water, and then dry them completely.
5. Put the inner filter into the outer filter, and then
reinsert the lint filter into the original position.
CAUTION
• Clean the lint filter after each load. Otherwise, the drying performance may decrease.
• If the filter surface is wet, allow it to completely dry before use.
- Inserting the filter while it is wet can cause mold and/or odor to form and/or result in less drying.
• When cleaning or removing the lint filter, do not shake or tap on the filter. Doing so can damage the
filter.
• Opening the outer and inner filters carelessly and with excessive force can damage the filters.
DV8700TK_SimpleUX_DC68-04223J-00_EN.indd 48 2021/4/19 14:18:14
English
English 49

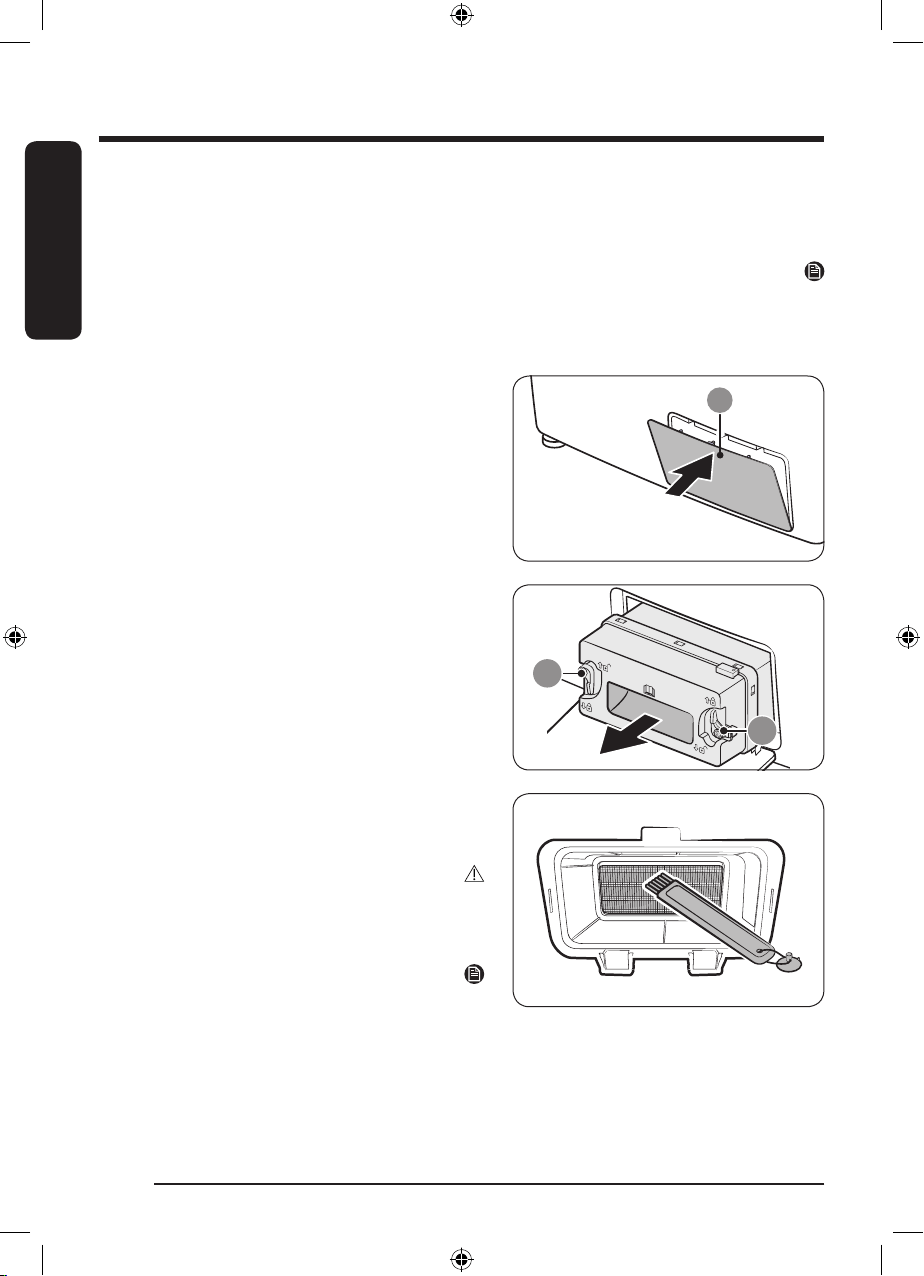

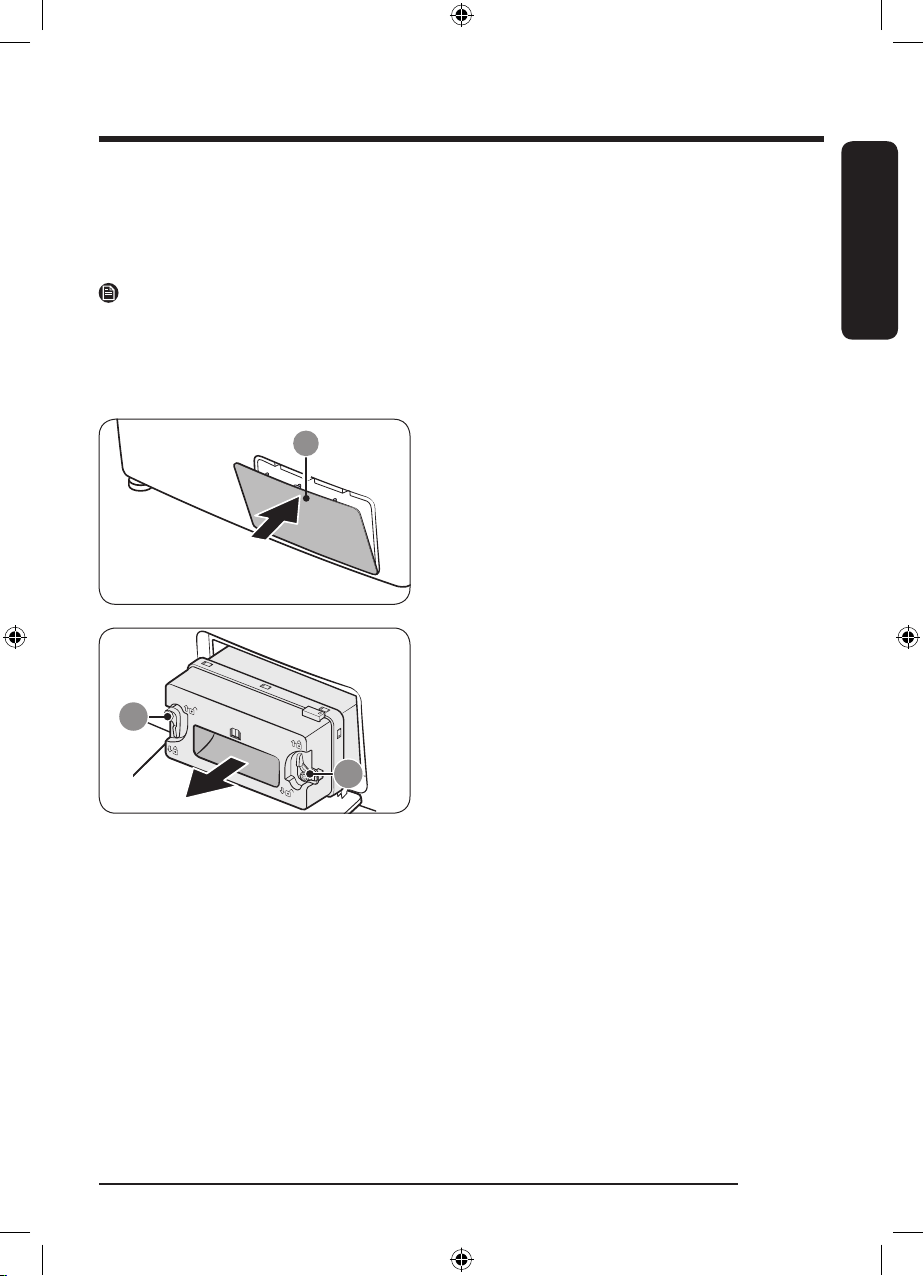

Heat exchanger
When it is time to clean the heat exchanger, the dryer will alert you by displaying the “
Clean heat
exchanger” message.
A dirty heat exchanger will hinder the product’s performance and should be cleaned regularly.
NOTE
• Water droplets can form around the heat exchanger due to condensation caused by a temperature
difference. This is normal and is not a sign of a leak.
• If you are not planning on using the dryer for a long period of time, open the heat exchanger cover and
ventilate.
1. Gently press the top part of the outer cover (A) to
open.
9
9
2. Unlock the inner cover fixers (B), and then pull the
inner cover to remove.
DV8700TK_SimpleUX_DC68-04223J-00_EN.indd 49 2021/4/19 14:18:14
English
Maintenance
English50

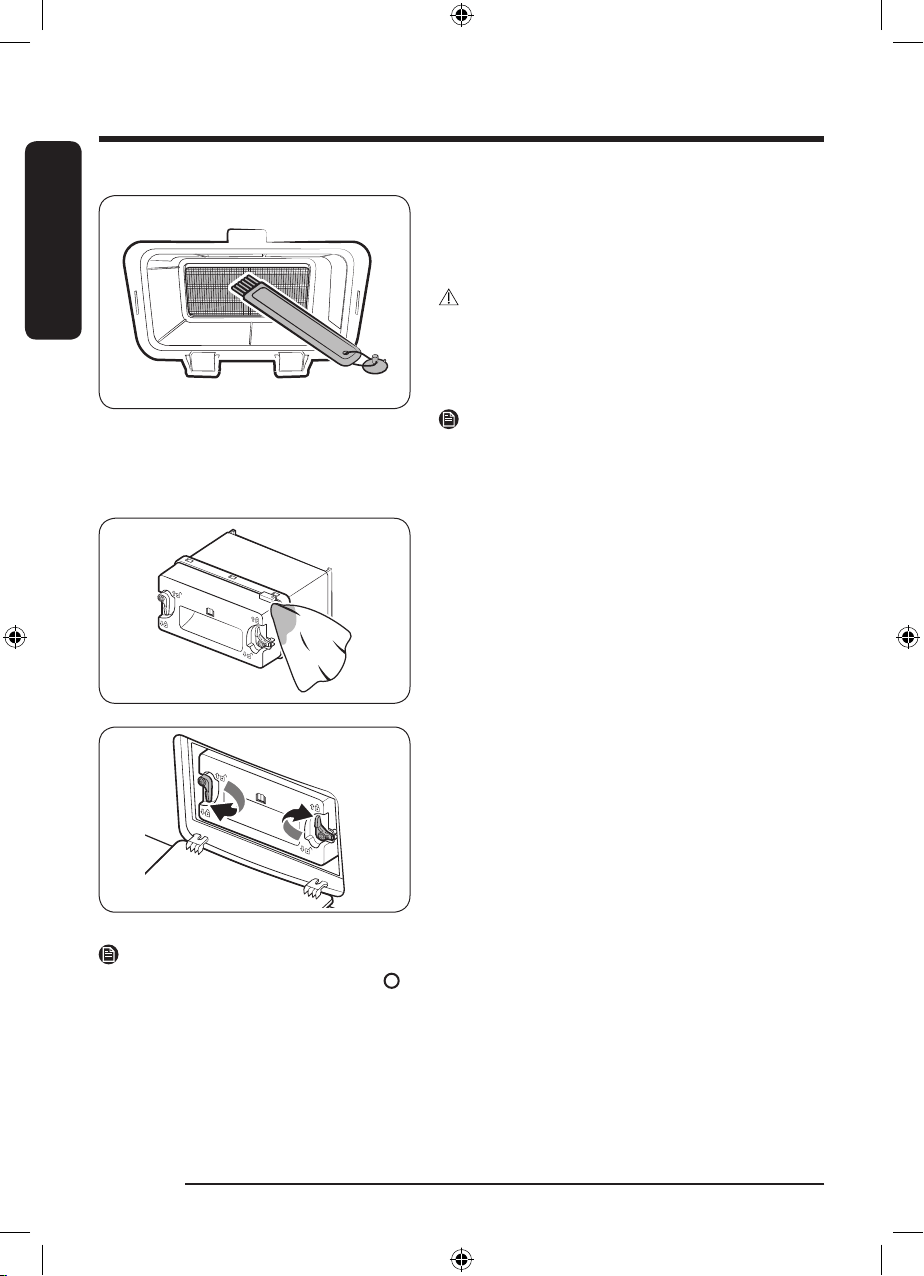

3. Clean the dust on the heat exchanger using the
provided brush.
- After cleaning with the brush, wipe off the
remaining dust using a smooth, damp cloth.
CAUTION
• To avoid physical injury and burns, do not touch or
clean the heat exchanger with bare hands.
• When cleaning the heat exchanger, be careful not to
damage the fins.
NOTE
If the heat exchanger is completely dry and therefore
hard to clean, spray some water on the heat exchanger
and clean using a brush.

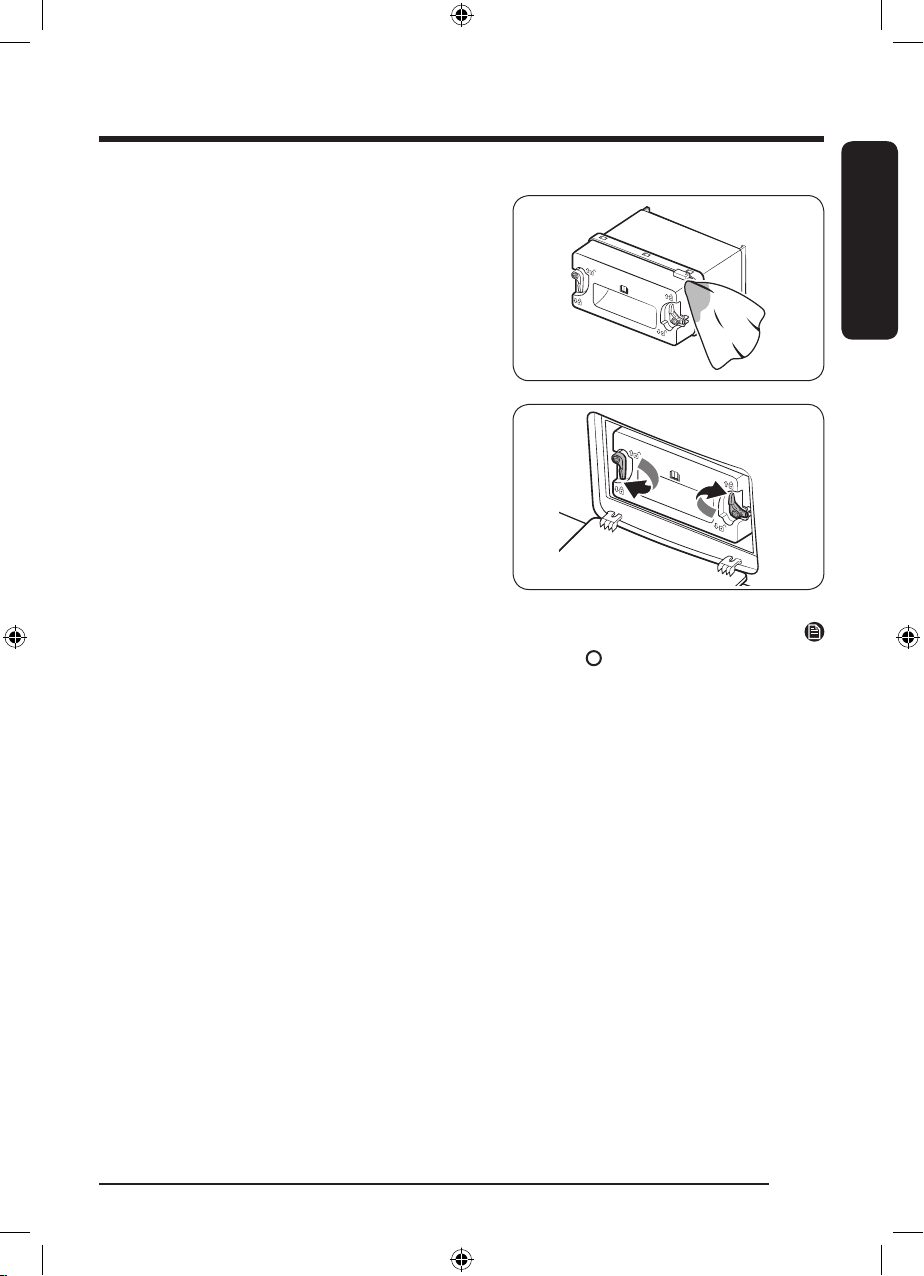

4. Clean the inner cover with a smooth, damp cloth.
- There may be moisture and/or foreign substances
around the inner cover.
5. Reinsert the inner cover to its original position, and
then lock the fixers.
6. Close the heat exchanger’s outer cover.
NOTE
• After cleaning the heat exchanger, tap
to dismiss the notification message. The message remains on
until you dismiss it.
• If the alarm continues after you have dismissed it, unplug and then plug in the power cord or remove
and reinsert the heat exchanger's inner cover.
DV8700TK_SimpleUX_DC68-04223J-00_EN.indd 50 2021/4/19 14:18:15
English
English 51

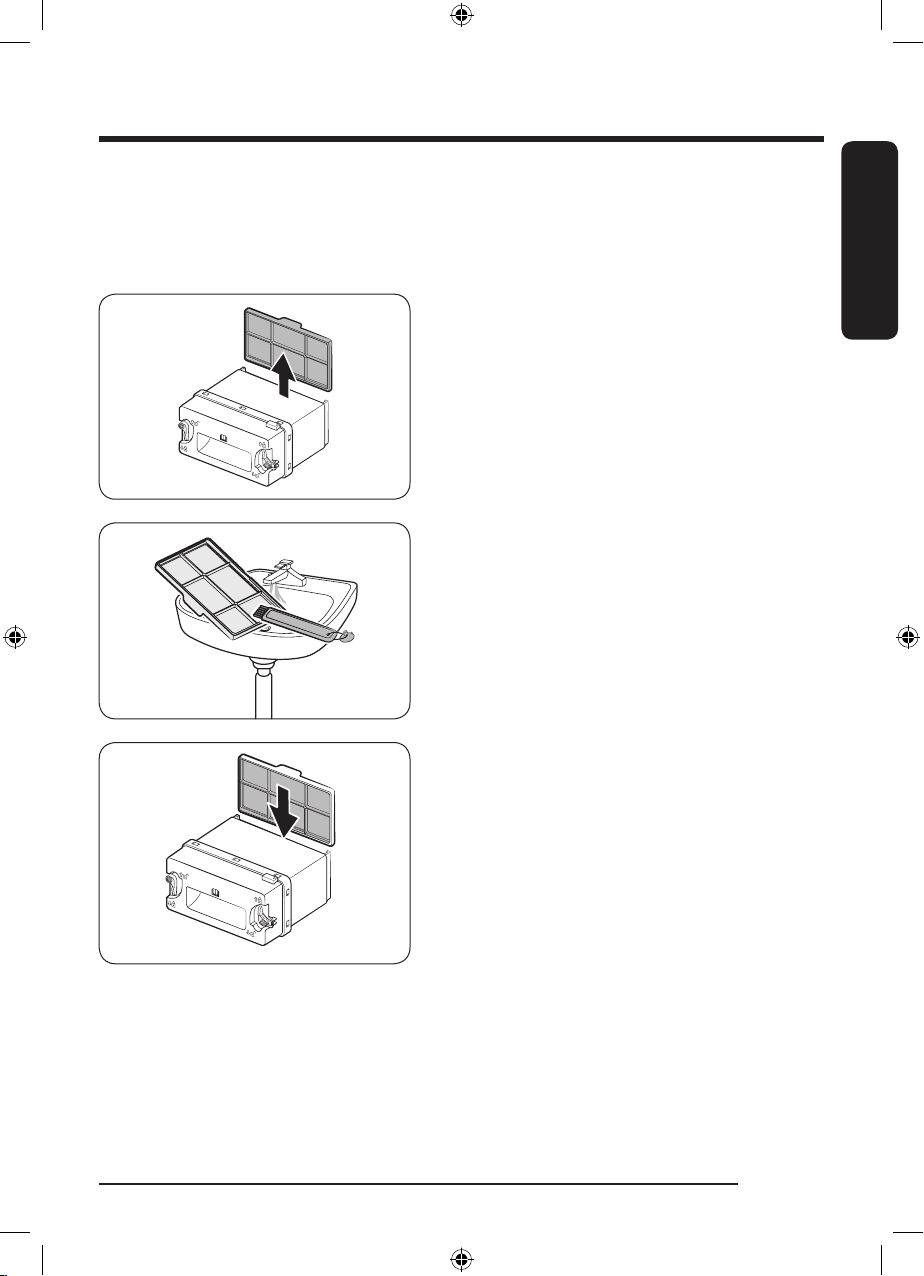

Micro soft filter(Optional Filter)
When it is time to clean the micro soft filter(Optional Filter), the dryer will alert you by displaying the
“
Clean micro soft filter(Optional Filter)” message. A dirty micro soft filter(Optional Filter) will hinder the
product’s performance and should be cleaned regularly.
1. Open the heat exchanger's outer cover, and
then remove the inner cover. (Refer to the “Heat
exchanger” section on page 49.)
2. Remove the micro soft filter(Optional Filter) from the
inner cover.
3. Clean the dust on the micro soft filter(Optional Filter)
with the provided brush, and then wash the filter in
running water.
- Completely dry the filter after a wash.
- Clean the filter regularly. A dirty filter can degrade
a drying performance.
4. Insert the filter to the inner cover, and then insert the
inner cover back to its place.
- Make sure to install the filter in the correct
position. (The tap on the top of the filter should
face outward.)
DV8700TK_SimpleUX_DC68-04223J-00_EN.indd 51 2021/4/19 14:18:16
English
English52
Troubleshooting
Checkpoints
If you encounter a problem with the dryer, first check the table below and try the suggestions.
Problem Action
Dryer does not start.
• Make sure the dryer is plugged in.
• Make sure the door is properly closed.
• Check the fuse or reset the circuit breaker.
• If you opened the door during a cycle, tap and hold
again.
• Clean the filter.
• Make sure Child Lock is not activated.
The dryer does not warm
up.
• Check the fuse or reset the circuit breaker.
• Check the lint filter and the heat exchanger. Clean them if necessary.
• The dryer may be in the cooling down process of the cycle.
Items are not dried.
Check all of the above. Additionally:
• Do not overload the dryer. If the dryer is overloaded, it could take longer
for items to dry.
• Dry heavy fabrics separately from light fabrics.
• The item(s) are too small and may not getting enough spinning inside
the drum.
• Clean the filter.
• Clean the heat exchanger.
• If the “
Clean heat exchanger” message appears on the display, refer to
the “Heat exchanger” section on page 49 and clean the heat exchanger.
• If a drain hose is connected, make sure water is draining properly.
The dryer is too loud.
• Look for coins, loose buttons, nails, and other objects and remove them
immediately.
• Check the lint filter. Remove any items stuck inside the lint filter.
• Make sure the dryer is level and standing firmly on the floor.
• The dryer may hum due to air moving through the drum and fan. This is
normal.
Items are not dried evenly.
• Seams, pockets, and other parts of clothing are harder to dry than
others. This is normal.
• Sort heavy and light items separately.
DV8700TK_SimpleUX_DC68-04223J-00_EN.indd 52 2021/4/19 14:18:16
English
English 53
Problem Action
There is a smell coming
from the dryer.
• The smell of paint, varnish, cleaning agents, and other household items
could have circulated in the air and entered the dryer. If you notice such
a smell, ventilate completely before using the dryer.
• If drying in an enclosed area, the dryer could cause the ambient
temperature to rise. Accordingly, make sure to open a window and
ventilate the area.
• Do not attempt to dry wet items after leaving them in the washing
machine or dryer for a long time.
The dryer turns off before
the items are dry.
• The load is too small. Throw in few additional items like towels and try
drying again.
The clothes have lint on
them.
• Always make sure the lint filter is clean before putting items into the
dryer. When drying items that generate a large amount of lint, you may
need to clean the lint filter in the middle of a cycle.
• Some fabrics (such as white towels) causes more lint and should be
dried separately from fabrics that lint attaches easily (such as black
linen pants).
• Check the inside of the pockets to make sure they are empty before
drying.
The ambient temperature
around the dryer rises or
there is a damp, soggy
smell.
• Heat pump dryers circulate ambient air inside and outside the dryer
during the drying process to cool the system. Using the dryer in a poorly
ventilated area may, depending on the operating environment, raise the
ambient humidity level and/or cause a damp, soggy smell to develop.
Ensure proper ventilation when using the dryer.
Water is not draining.
• Check the draining hose for twists and kinks.
Straighten out the hose if it is twisted or kinked and securely connect it
to the drain on the floor.
• Check to see if the draining hose is frozen.
If the hose is frozen, submerge it in warm water to allow the water inside
the hose to melt and drain out. Reconnect the hose and check for proper
draining.
If a problem persists, contact a local Samsung service center.
DV8700TK_SimpleUX_DC68-04223J-00_EN.indd 53 2021/4/19 14:18:16
English
Troubleshooting
English54
Information codes
If the dryer fails to operate, you may see an information code on the screen. Check the table below and try
the suggestions.
Information code Meaning Action
Door is open
Dryer operation with the door
open
• Close the door and start again.
• If this continues, call for service.
• Check if Child Lock is on. If Child Lock is
on, you may get this message when you
open the door even though the dryer is not
operating.
Check filter Lint filter problem
• Check the lint filter assembly.
• If this continues, call for service.
Check inner cover
of heat exchanger
Internal heat exchanger cover
problem
• Check the internal heat exchanger cover
assembly.
• If this continues, call for service.
Check drainage /
Empty the tank
Draining malfunction
Draining pump malfunction
Frozen draining hose
Water tank full
• Make sure the draining hose is not bent or
damaged.
• If the hose is frozen, wrap the hose
with a towel soaked in warm water for
approximately ten minutes to thaw the
hose.
• Empty the water tank, turn on the dryer,
and start again.
• If this continues, call for service.
tC Air temperature sensor problem
• Clean the lint filter or the heat exchanger.
• If this continues, call for service.
tC5
Compressor temperature sensor
problem
• Wait two to three minutes.
• Turn the power back on and start again.
3C Check the motor for operation.
• Try restarting the cycle.
• If this continues, call for service.
AC6
Check communications between
the main and the inverter PBAs.
• Try restarting the cycle.
• If this continues, call for service.
HC Compressor overheating • Call for service.
If any information code keeps appearing on the screen, contact a local Samsung service center.
DV8700TK_SimpleUX_DC68-04223J-00_EN.indd 54 2021/4/19 14:18:16
English
English 55
Appendix

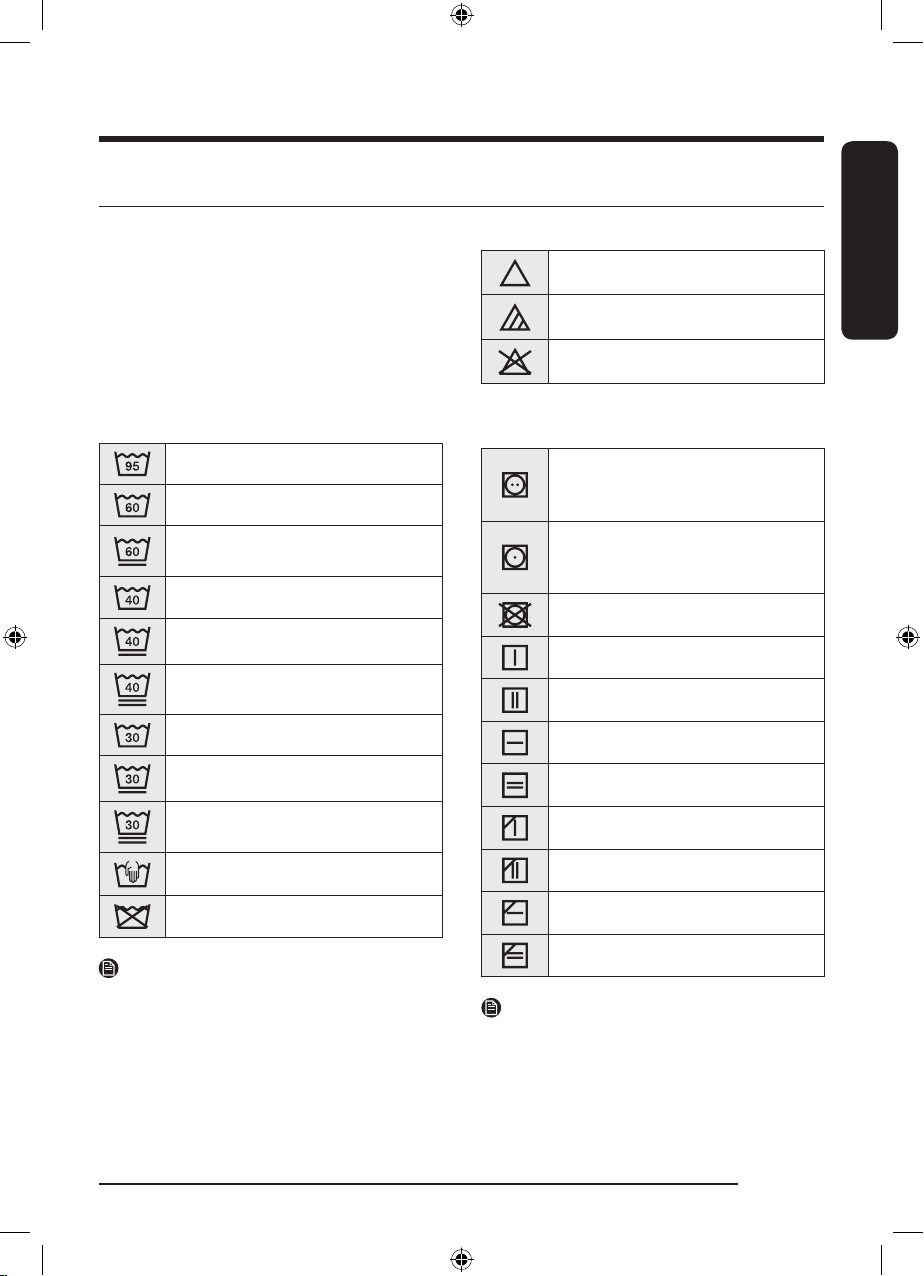

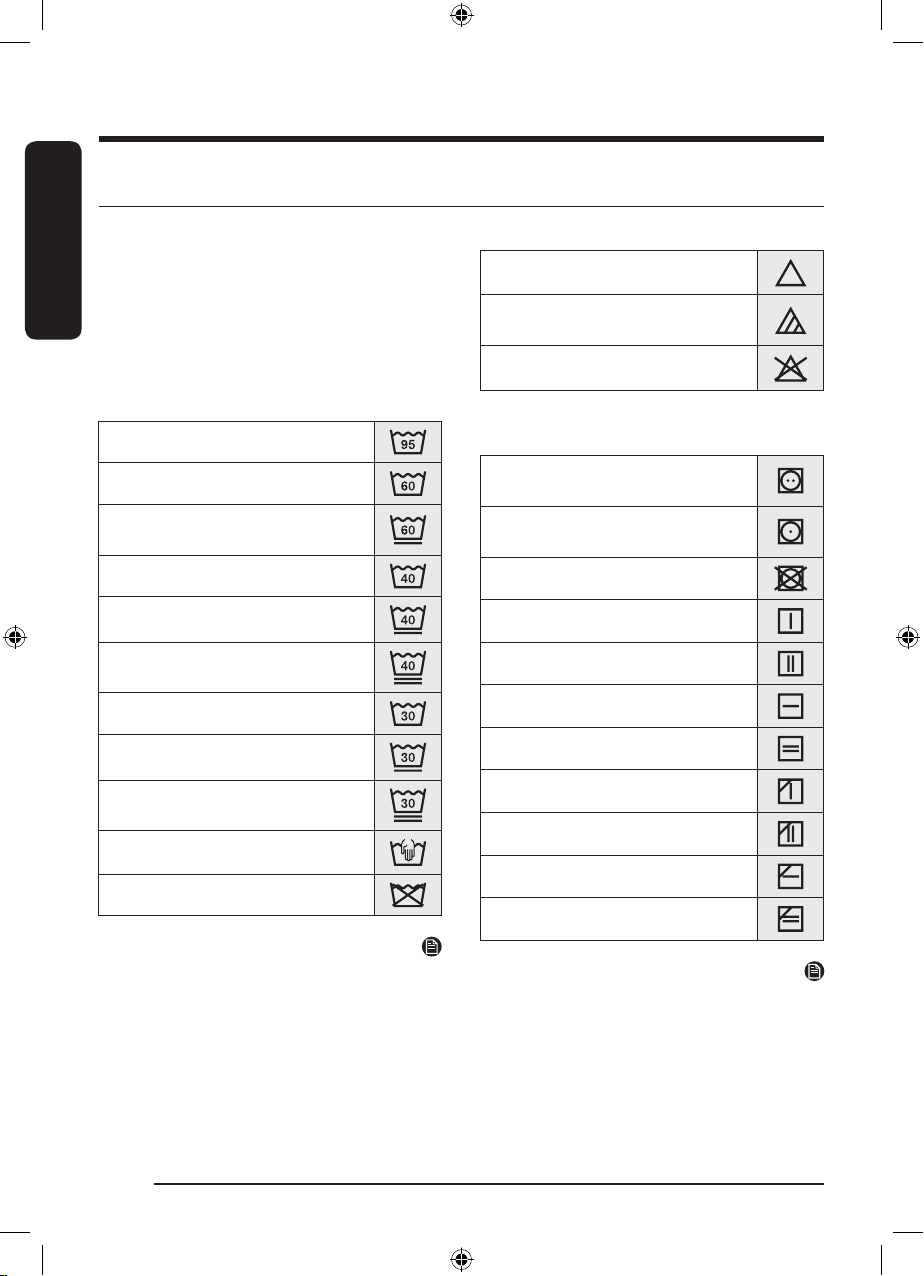

Fabric care chart
The following symbols provide garment care
direction. The Clothing care labels include
symbols for drying, bleaching, drying and ironing,
or dry cleaning when necessary. The use of
symbols ensures consistency among garment
manufacturers of domestic and imported items.
Follow care label directions to maximize garment
life and reduce laundering problems.
Washing
95 °C boil wash.
60 °C coloured wash.
60 °C coloured wash. (“Easy care”
coloured wash)
40 °C coloured wash.
40 °C mild wash.
40 °C very mild wash.
30 °C fine wash.
30 °C mild fine wash.
30 °C very mild fine wash.
Hand wash.
Do not wash.
NOTE
The numbers in the wash tub specify the
maximum washing temperatures in degrees
celsius Celsius which must not be exceeded.
Bleaching
Any bleach allowed.
Only oxygen bleach allowed.
Do not bleach.
Drying
Tumble drying / Drying at a
temperature of 80 °C with a normal
drying process.
Tumble drying / Drying at a
temperature of 60 °C with a mild
drying process.
Do not tumble dry
Line drying.
Drip line drying.
Flat drying.
Drip flat drying.
Line drying in the shade.
Drip line drying in the shade.
Flat drying in the shade.
Drip flat drying in the shade.
NOTE
• The dots indicate the drying level of the dryer.
• The lines indicate the type and place of the
drying.
DV8700TK_SimpleUX_DC68-04223J-00_EN.indd 55 2021/4/19 14:18:23
English
Appendix
English56
Ironing
Iron at maximum sole plate
temperature of 200 °C.
Iron at maximum sole plate
temperature of 150 °C.
Iron at maximum sole plate
temperature of 110 °C.
Caution when using steam irons (
work without steam).
Do not iron.
NOTE
The dots indicate the temperature ranges for
ironing (regulator, steam, travel irons and ironing
machines).
Professional care
Professional dry-cleaning in
perchloroethylene and/or
hydrocarbons (heavy benzines) with
normal process.
Professional dry-cleaning in
perchloroethylene and/or
hydrocarbons (heavy benzines) with
gentle process.
Professional dry-cleaning in
hydrocarbons (heavy benzines) with
normal process.
Professional dry-cleaning in
hydrocarbons (heavy benzines) with
gentle process.
Do not dry-clean.
Professional wet-cleaning.
Mild professional wet-cleaning.
Very mild professional wet-cleaning.
Do not wet-clean.
NOTE
• The letters in a circle indicate the solvents (P,
F) used in dry cleaning or wet cleaning (W).
• Generally, the line under the symbol indicates
a milder treatment (e.g. gentle cycle for easy-
care items). The double line indicates care
levels with particularly gentle treatment.
Protecting the environment
• This appliance is manufactured from recyclable materials. If you decide to dispose of this appliance,
please observe local waste disposal regulations. Cut off the power cord so that the appliance cannot be
connected to a power source. Remove the door so that animals and small children cannot get trapped
inside the appliance.
• Contains fluorinated greenhouse gases.
Hermetically sealed equipment.
Do not vent gases into the atmosphere.
Refrigerant (Type): R-134a (GWP = 1430)
Refrigerant (Charging) : 0.58 kg, 0.829 tCO2e
DV8700TK_SimpleUX_DC68-04223J-00_EN.indd 56 2021/4/19 14:18:26
English
English 57

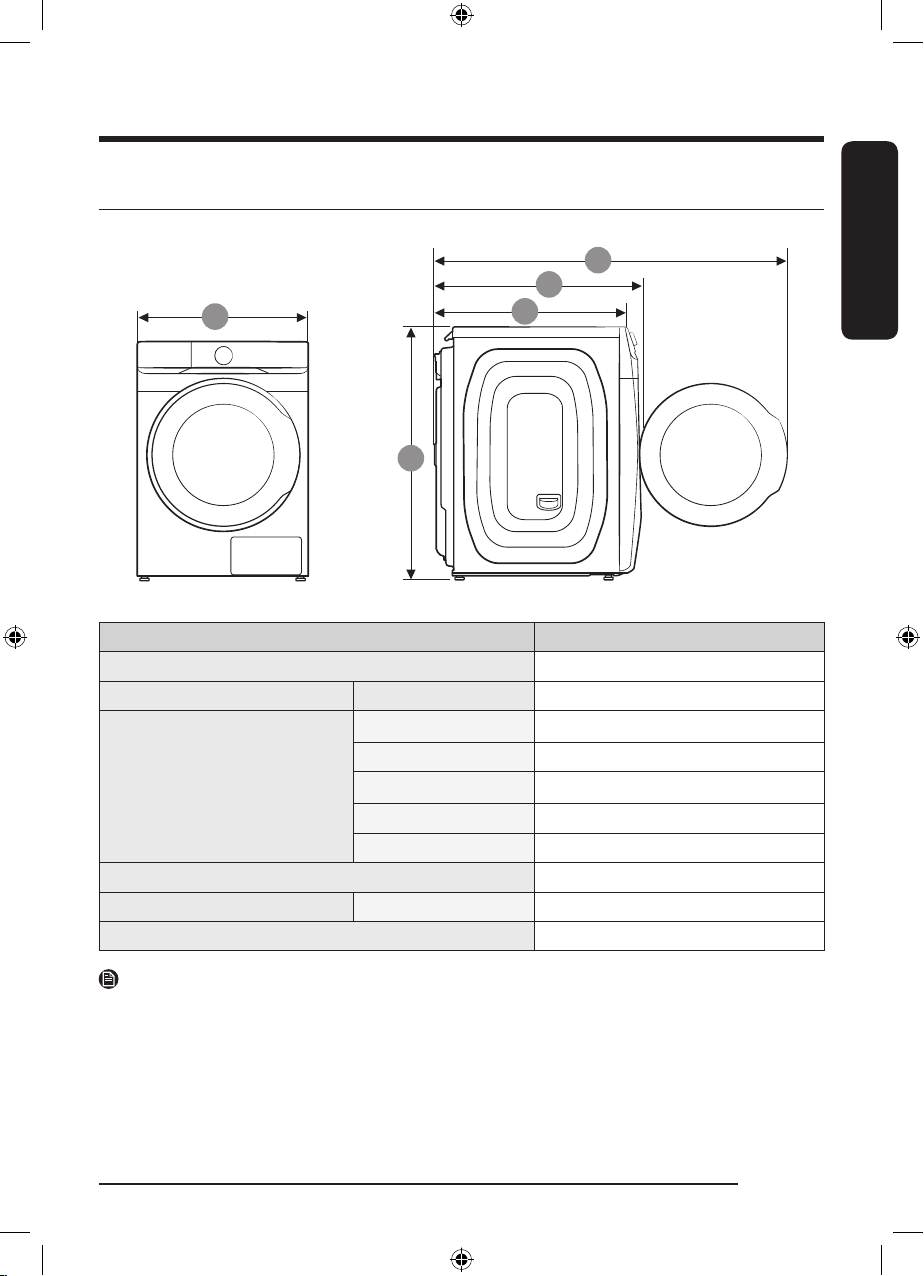

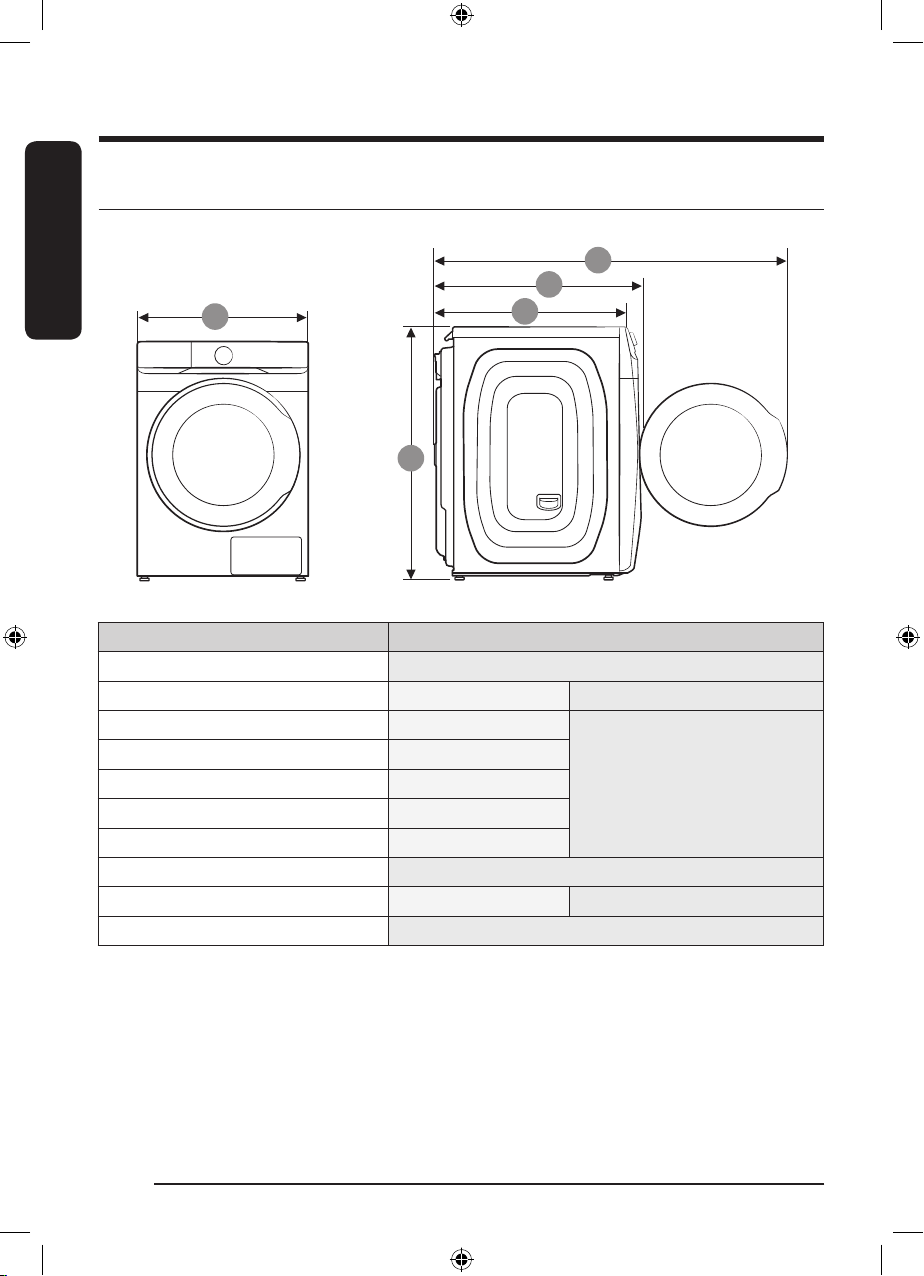

Specification
9
A
U
k
TYPE FRONT LOADING DRYER
MODEL NAME DV16T8740**
Maximum load capacity Drying 16.0 kg
DIMENSIONS
A 686 mm
B 984 mm
C 803 mm
D 844 mm
E 1378 mm
WEIGHT 74.0 kg
ELECTRICAL REQUIREMENTS AC 220-240 V / 50 Hz 1800-2100 W
ALLOWABLE TEMPERATURE 5-35 °C
NOTE
The design and specifications are subject to change without notice for quality improvement purposes.
The energy label specifications have been determined by using the following program according to UAE.S
5010-2. (Only for U.A.E models)
• The program is Cotton + Dry Level 3.
DV8700TK_SimpleUX_DC68-04223J-00_EN.indd 57 2021/4/19 14:18:26
Memo
DV8700TK_SimpleUX_DC68-04223J-00_EN.indd 58 2021/4/19 14:18:26
Memo
DV8700TK_SimpleUX_DC68-04223J-00_EN.indd 59 2021/4/19 14:18:26
QUESTIONS OR COMMENTS?
COUNTRY CALL OR VISIT US ONLINE AT
U.A.E 800-SAMSUNG (800 - 726 7864)
www.samsung.com/ae/support (English)
www.samsung.com/ae_ar/support (Arabic)
OMAN 800-SAM CS (800-72627)
KUWAIT 183-CALL (183-2255)
BAHRAIN 8000-GSAM (8000-4726)
QATAR 800-CALL (800-2255)
DV8700TK_SimpleUX_DC68-04223J-00_EN.indd 60 2021/4/19 14:18:26
DV16T8740**
DC68-04223J-00
DV8700TK_SimpleUX_DC68-04223J-00_AR_1.indd 1 2021/4/19 14:39:24
DV8700TK_SimpleUX_DC68-04223J-00_AR_1.indd 2 2021/4/19 14:39:24
DV8700TK_SimpleUX_DC68-04223J-00_AR_1.indd 3 2021/4/19 14:39:24
Samsung
DV8700TK_SimpleUX_DC68-04223J-00_AR_1.indd 4 2021/4/19 14:39:25
DV8700TK_SimpleUX_DC68-04223J-00_AR_1.indd 5 2021/4/19 14:39:25
DV8700TK_SimpleUX_DC68-04223J-00_AR_1.indd 6 2021/4/19 14:39:25
DV8700TK_SimpleUX_DC68-04223J-00_AR_1.indd 7 2021/4/19 14:39:25
DV8700TK_SimpleUX_DC68-04223J-00_AR_1.indd 8 2021/4/19 14:39:25
SamsungSamsung
DV8700TK_SimpleUX_DC68-04223J-00_AR_1.indd 9 2021/4/19 14:39:25
DV8700TK_SimpleUX_DC68-04223J-00_AR_1.indd 10 2021/4/19 14:39:25
Samsung
ՋՍ
ՋՎ
ՋՌ
ՋՐ
ՋՒ
ՋՑ
ՋՏ
DV8700TK_SimpleUX_DC68-04223J-00_AR_1.indd 11 2021/4/19 14:39:25
SamsungSamsung
Samsung
DV8700TK_SimpleUX_DC68-04223J-00_AR_1.indd 12 2021/4/19 14:39:27
Samsung
Samsung
Samsung
Samsung
DV8700TK_SimpleUX_DC68-04223J-00_AR_1.indd 13 2021/4/19 14:39:27
DV8700TK_SimpleUX_DC68-04223J-00_AR_1.indd 14 2021/4/19 14:39:27
A
B
)A
)B
C D
)C
)D
DV8700TK_SimpleUX_DC68-04223J-00_AR_1.indd 15 2021/4/19 14:39:27
9
9
)A
B
DV8700TK_SimpleUX_DC68-04223J-00_AR_1.indd 16 2021/4/19 14:39:28
ՋՌ
)A
A
CB
)B
)B)A
)C
DV8700TK_SimpleUX_DC68-04223J-00_AR_1.indd 17 2021/4/19 14:39:28
A
)A
-
-
DV8700TK_SimpleUX_DC68-04223J-00_AR_1.indd 18 2021/4/19 14:39:28
)A
9
)B
A
-
DV8700TK_SimpleUX_DC68-04223J-00_AR_1.indd 19 2021/4/19 14:39:29
HC
DV8700TK_SimpleUX_DC68-04223J-00_AR_1.indd 20 2021/4/19 14:39:29
English(US)
O
O
]O
]O
DV8700TK_SimpleUX_DC68-04223J-00_AR_1.indd 21 2021/4/19 14:39:29
DV8700TK_SimpleUX_DC68-04223J-00_AR_1.indd 22 2021/4/19 14:39:30
DV8700TK_SimpleUX_DC68-04223J-00_AR_1.indd 23 2021/4/19 14:39:30
ՋՌՋՎ
ՋՏ
ՋՐՋՑՋՒՋՓՋՔ
ՌՋ
ՋՍ
41
4
3
2
1
DV8700TK_SimpleUX_DC68-04223J-00_AR_1.indd 24 2021/4/19 14:39:31
SmartThings
Wi-Fi
DV8700TK_SimpleUX_DC68-04223J-00_AR_1.indd 25 2021/4/19 14:39:31
05 03 04
01 06
02
DV8700TK_SimpleUX_DC68-04223J-00_AR_1.indd 26 2021/4/19 14:39:32
DV8700TK_SimpleUX_DC68-04223J-00_AR_1.indd 27 2021/4/19 14:39:32
240180150120906050403020
240
180
150
12090
60
50
4030
20
DV8700TK_SimpleUX_DC68-04223J-00_AR_1.indd 28 2021/4/19 14:39:32
DV8700TK_SimpleUX_DC68-04223J-00_AR_1.indd 29 2021/4/19 14:39:32
03 01
02
02
-
DV8700TK_SimpleUX_DC68-04223J-00_AR_1.indd 30 2021/4/19 14:39:32
-
-
-
-
-
DV8700TK_SimpleUX_DC68-04223J-00_AR_1.indd 31 2021/4/19 14:39:32
-
-
DV8700TK_SimpleUX_DC68-04223J-00_AR_1.indd 32 2021/4/19 14:39:33
02
03 01
*
-
-
-
-
DV8700TK_SimpleUX_DC68-04223J-00_AR_1.indd 33 2021/4/19 14:39:33
-
-
Wi-Fi
Wi-Fi
-
-
-
-
DV8700TK_SimpleUX_DC68-04223J-00_AR_1.indd 34 2021/4/19 14:39:33
SmartThings
SmartThings
aAP
b
c
SmartThings
SmartThings
SmartThings
Wi-Fi
SmartThings
SmartThings
SmartThings
AP
SmartThings
Stay Connect
SmartThings
Stay Connect
-
Stay Connect
Stay Connect
SmartThings
SmartThings
DV8700TK_SimpleUX_DC68-04223J-00_AR_1.indd 35 2021/4/19 14:39:33
AP
SmartThingsSamsung Galaxy AppsApple App StoreGoogle Play
SmartThings
SmartThings
AP
AddA new device is found
+
>
SmartThings
aSmartThingsSmartThings
b
DV8700TK_SimpleUX_DC68-04223J-00_AR_1.indd 36 2021/4/19 14:39:34
Inquiry“
Samsung
Support homeSupport
:
DV8700TK_SimpleUX_DC68-04223J-00_AR_1.indd 37 2021/4/19 14:39:34
A
DV8700TK_SimpleUX_DC68-04223J-00_AR_1.indd 38 2021/4/19 14:39:34
ՋՌ
ՋՍ
ՋՎ
ՋՏ
ՋՐ
ՋՑ
ՋՒ
DV8700TK_SimpleUX_DC68-04223J-00_AR_1.indd 39 2021/4/19 14:39:34
-
-
DV8700TK_SimpleUX_DC68-04223J-00_AR_1.indd 40 2021/4/19 14:39:35
A
DV8700TK_SimpleUX_DC68-04223J-00_AR_1.indd 41 2021/4/19 14:39:36
)A
-
-
9
)B
-
)B
DV8700TK_SimpleUX_DC68-04223J-00_AR_1.indd 42 2021/4/19 14:39:36
)A
9
9
)B
A
)C
-
DV8700TK_SimpleUX_DC68-04223J-00_AR_1.indd 43 2021/4/19 14:39:37
DV8700TK_SimpleUX_DC68-04223J-00_AR_1.indd 44 2021/4/19 14:39:37
-
A
)A
DV8700TK_SimpleUX_DC68-04223J-00_AR_1.indd 45 2021/4/19 14:39:38
-
DV8700TK_SimpleUX_DC68-04223J-00_AR_1.indd 46 2021/4/19 14:39:38
)A
9
9
)B
-
DV8700TK_SimpleUX_DC68-04223J-00_AR_1.indd 47 2021/4/19 14:39:38
-
DV8700TK_SimpleUX_DC68-04223J-00_AR_1.indd 48 2021/4/19 14:39:39
-
-
-
DV8700TK_SimpleUX_DC68-04223J-00_AR_1.indd 49 2021/4/19 14:39:39
DV8700TK_SimpleUX_DC68-04223J-00_AR_1.indd 50 2021/4/19 14:39:39
Samsung
DV8700TK_SimpleUX_DC68-04223J-00_AR_1.indd 51 2021/4/19 14:39:39
tC
tC5
3C
AC6
PBA
HC
Samsung
DV8700TK_SimpleUX_DC68-04223J-00_AR_1.indd 52 2021/4/19 14:39:39
DV8700TK_SimpleUX_DC68-04223J-00_AR_1.indd 53 2021/4/19 14:39:43
)
W
) = GWP
DV8700TK_SimpleUX_DC68-04223J-00_AR_1.indd 54 2021/4/19 14:39:45
9
A
U
k
A
B
C
D
–
DV8700TK_SimpleUX_DC68-04223J-00_AR_1.indd 55 2021/4/19 14:39:45
DV8700TK_SimpleUX_DC68-04223J-00_AR_1.indd 56 2021/4/19 14:39:45
