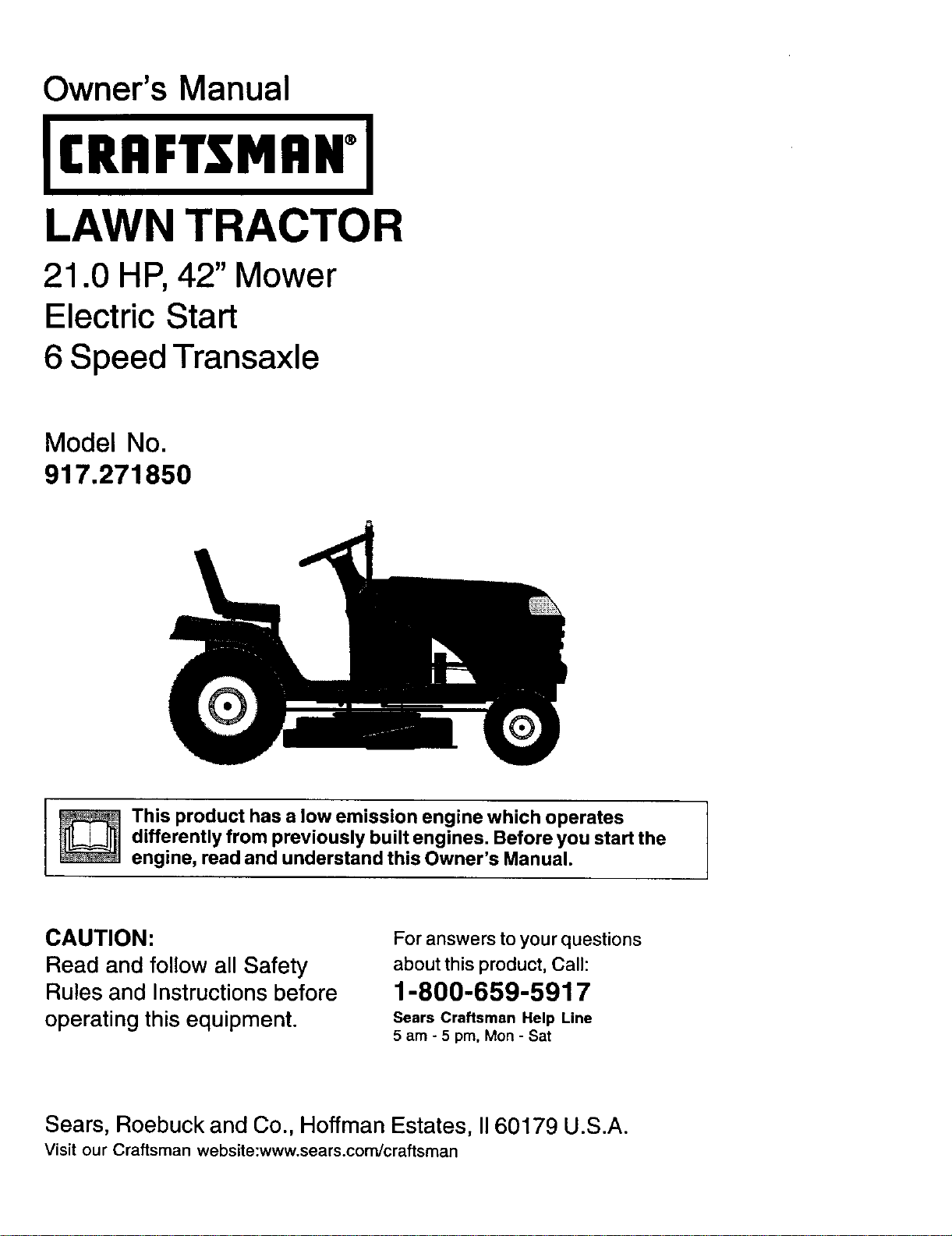

Craftsman 917271850 lawn tractor User Manual

Owner's Manual

JCRIIFTSMIIWJ

LAWN TRACTOR

21.0 HP, 42" Mower

Electric Start

6 Speed Transaxle

Model No.

917.271850

This product has a low emission engine which operates

differently from previously built engines, Before you start the

engine, read and understand this Owner's Manual.

CAUTION:

Read and follow all Safety

Rules and Instructions before

operating this equipment.

For answers to your questions

about this product, Call:

1-800-659-5917

Sears Craftsman Help Line

5 am - 5 pro, Mon- Sat

Sears, Roebuck and Co., Hoffman Estates, II 60179 U.S.A.

Visit our Craftsman website:www.sears.corn/craftsman

Warranty ................................................ 2

Safety Rules .......................................... 3

Product Specifications ........................... 6

Assembly/Pre-Operation ....................... 8

Operation ............................................. 11

Maintenance Schedule ....................... 17

Maintenance ........................................ 17

Service and Adjustments ..................... 21

Storage ................................................ 27

Troubleshooting .................................. 28

Repair Parts ......................................... 32

Sears Service ....................... Back Cover

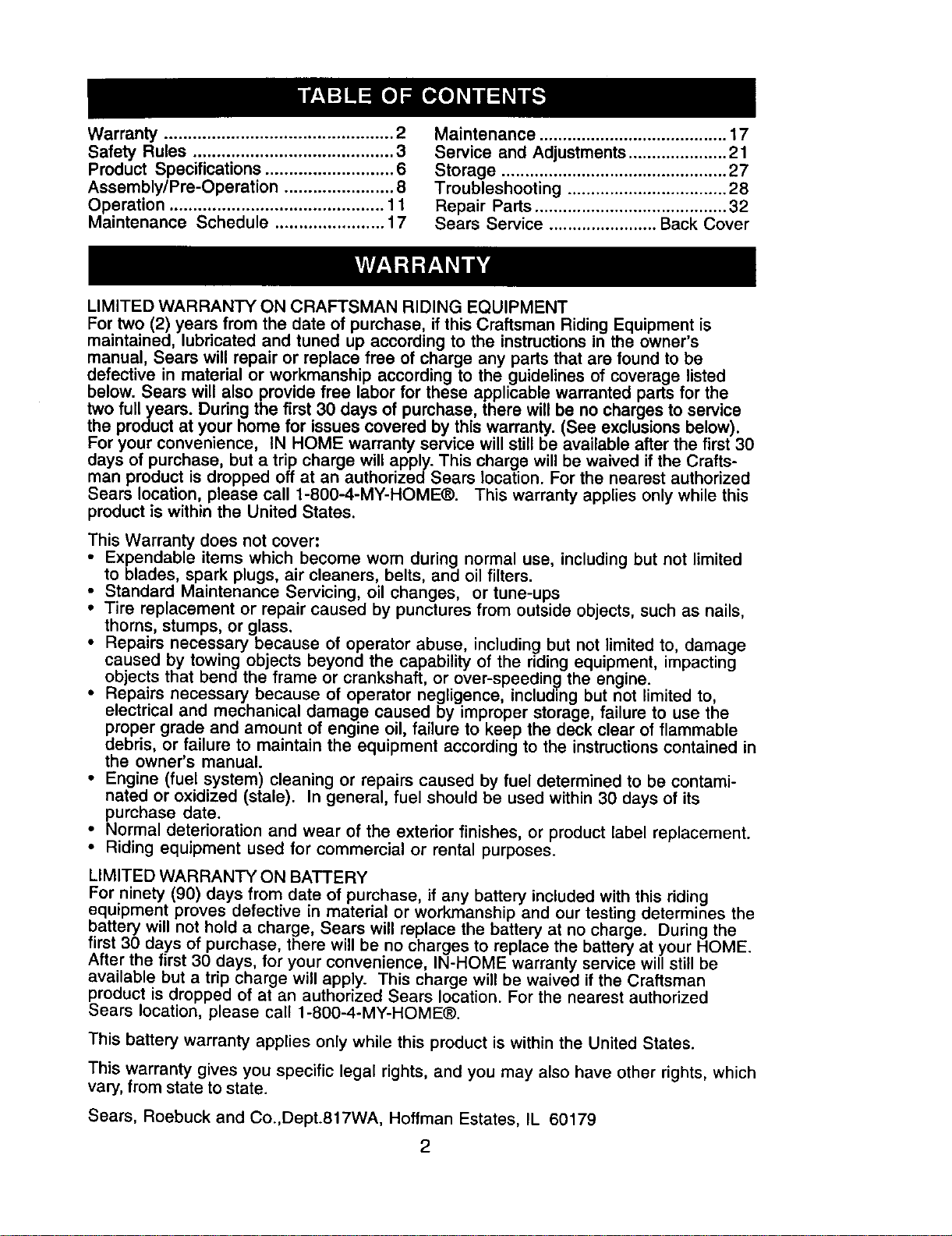

LIMITED WARRANTY ON CRAFTSMAN RIDING EQUIPMENT

For two (2) years from the date of purchase, if this Craftsman Riding Equipment is

maintained, lubricated and tuned up according to the instructions in the owner's

manual, Sears will repair or replace free of charge any parts that are found to be

defective in material or workmanship according to the guidelines of coverage listed

below. Sears will also provide free labor for these applicable warranted parts for the

two full years. During the first 30 days of purchase, there will be no charges to service

the product at your home for issues covered by this warranty. (See exclusions below).

For your convenience, IN HOME warranty service will still be available after the first 30

days of purchase, but a trip charge will apply. This charge will be waived if the Crafts-

man product is dropped off at an authorized Sears location. For the nearest authorized

Sears location, please call 1-800-4-MY-HOME®. This warranty applies only while this

product is within the United States.

This Warranty does not cover:

• Expendable items which become worn during normal use, including but not limited

to blades, spark plugs, air cleaners, belts, and oil filters.

• Standard Maintenance Servicing, oil changes, or tune-ups

• Tire replacement or repair caused by punctures from outside objects, such as nails,

thorns, stumps, or glass.

• Repairs necessary because of operator abuse, including but not limited to, damage

caused by towing objects beyond the capability of the riding equipment, impacting

objects that bend the frame or crankshaft or over-speedin._ the engine.

• Repa rs necessary because of operator negligence, including but not limited to,

electrical and mechanical damage caused by improper storage, failure to use the

proper grade and amount of engine oil, failure to keep the deck clear of flammable

debris, or failure to maintain the equipment according to the instructions contained in

the owner's manual.

• Engine (fuel system) cleaning or repairs caused by fuel determined to be contami-

nated or oxidized (stale). In general, fuel should be used within 30 days of its

purchase date.

• Normal deterioration and wear of the exterior finishes, or product label replacement.

• Riding equipment used for commercial or rental purposes.

LIMITED WARRANTY ON BATTERY

For ninety (90) days from date of purchase, if any battery included with this riding

equipment proves defective in material or workmanship and our testing determines the

battery will not hold a charge, Sears will replace the battery at no charge. During the

first 30 days of purchase, there will be no charges to replace the battery at your HOME.

After the first 30 days, for your convenience, IN-HOME warranty service will still be

available but a trip charge will apply. This charge will be waived if the Craftsman

product is dropped of at an authorized Sears location. For the nearest authorized

Sears location, please call 1-800-4-MY-HOME®.

This battery warranty applies only while this product is within the United States.

This warranty gives you specific legal rights, and you may also have other rights, which

vary, from state to state.

Sears, Roebuck and Co.,Dept.817WA, Hoffman Estates, IL 60179

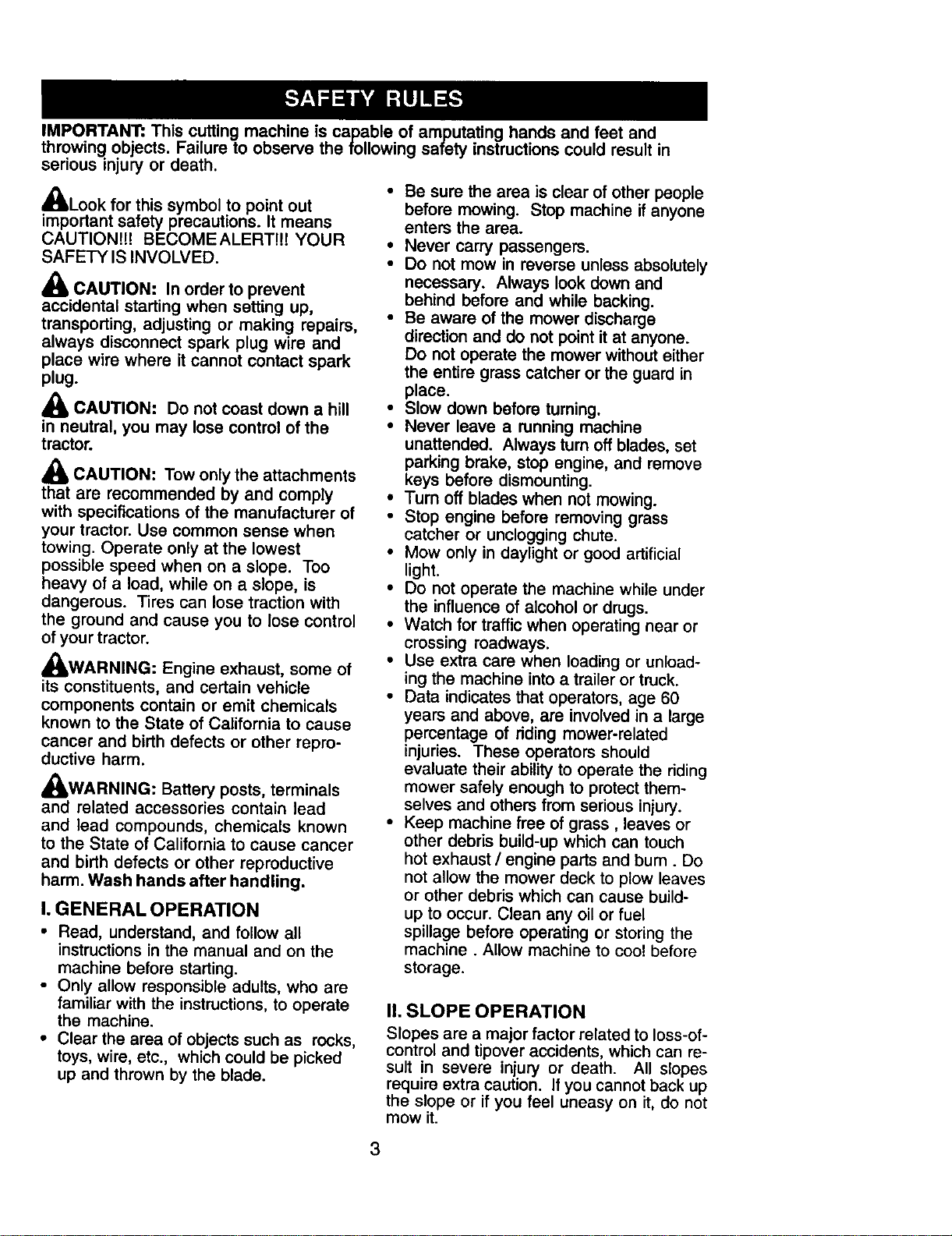

IMPORTANT:. This cutting machine is capable of amputating hands and feet and

throwing objects. Failure to observe the following safety instructions could result in

serious injury or death.

Look for this symbol to point out

important safety precautions. It means

CAUTION!!! BECOMEALERT!!! YOUR

SAFETY IS INVOLVED.

CAUTION: In order to prevent

accidental starting when setting up,

transporting, adjusting or making repairs,

always disconnect spark plug wire and

place wire where it cannot contact spark

plug.

_i_ CAUTION: Do not coast down a hill

in neutral, you may lose control of the

tractor.

CAUTION: Tow only the attachments

that are recommended by and comply

with specifications of the manufacturer of

your tractor. Use common sense when

towing. Operate only at the lowest

possible speed when on a slope. Too

heavy of a load, while on a slope, is

dangerous. Tires can lose traction with

the ground and cause you to lose control

of your tractor.

WARNING: Engine exhaust, some of

its constituents, and certain vehicle

components contain or emit chemicals

known to the State of California to cause

cancer and birth defects or other repro-

ductive harm.

WARNING: Battery posts, terminals

and related accessories contain lead

and lead compounds, chemicals known

to the State of California to cause cancer

and birth defects or other reproductive

harm. Wash hands after handling.

I. GENERAL OPERATION

• Read, understand, and follow all

instructions in the manual and on the

machine before starting.

• Only allow responsible adults, who are

familiar with the instructions, to operate

the machine.

• Clear the area of objects such as rocks,

toys, wire, etc., which could be picked

up and thrown by the blade.

• Be sure the area is clear of other people

before mowing. Stop machine if anyone

enters the area.

• Never carry passengers.

• Do not mow in reverse unless absolutely

necessary. Always look down and

behind before and while backing.

• Be aware of the mower discharge

direction and do not point it at anyone.

Do not operate the mower without either

the entire grass catcher or the guard in

place.

• Slow down before turning.

• Never leave a running machine

unattended. Always turn off blades, set

parking brake, stop engine, and remove

keys before dismounting.

• Turn off blades when not mowing.

• Stop engine before removing grass

catcher or unclogging chute.

• Mow only in daylight or good artificial

light.

• Do not operate the machine while under

the influence of alcohol or drugs.

• Watch for traffic when operating near or

crossing roadways.

• Use extra care when loading or unload-

ing the machine into a trailer or truck.

• Data indicates that operators, age 60

years and above, are involved in a large

percentage of riding mower-related

injuries. These operators should

evaluate their ability to operate the riding

mower safely enough to protect them-

selves and others from serious injury.

• Keep machine free of grass, leaves or

other debris build-up which can touch

hot exhaust / engine parts and bum. Do

not allow the mower deck to plow leaves

or other debris which can cause build-

up to occur. Clean any oil or fuel

spillage before operating or storing the

machine. Allow machine to cool before

storage.

II. SLOPE OPERATION

Slopes are a major factor related to loss-of-

control and tipover accidents, which can re-

suit in severe injury or death. All slopes

require extra caution. If you cannot back up

the slope or if you feel uneasy on it, do not

mow it.

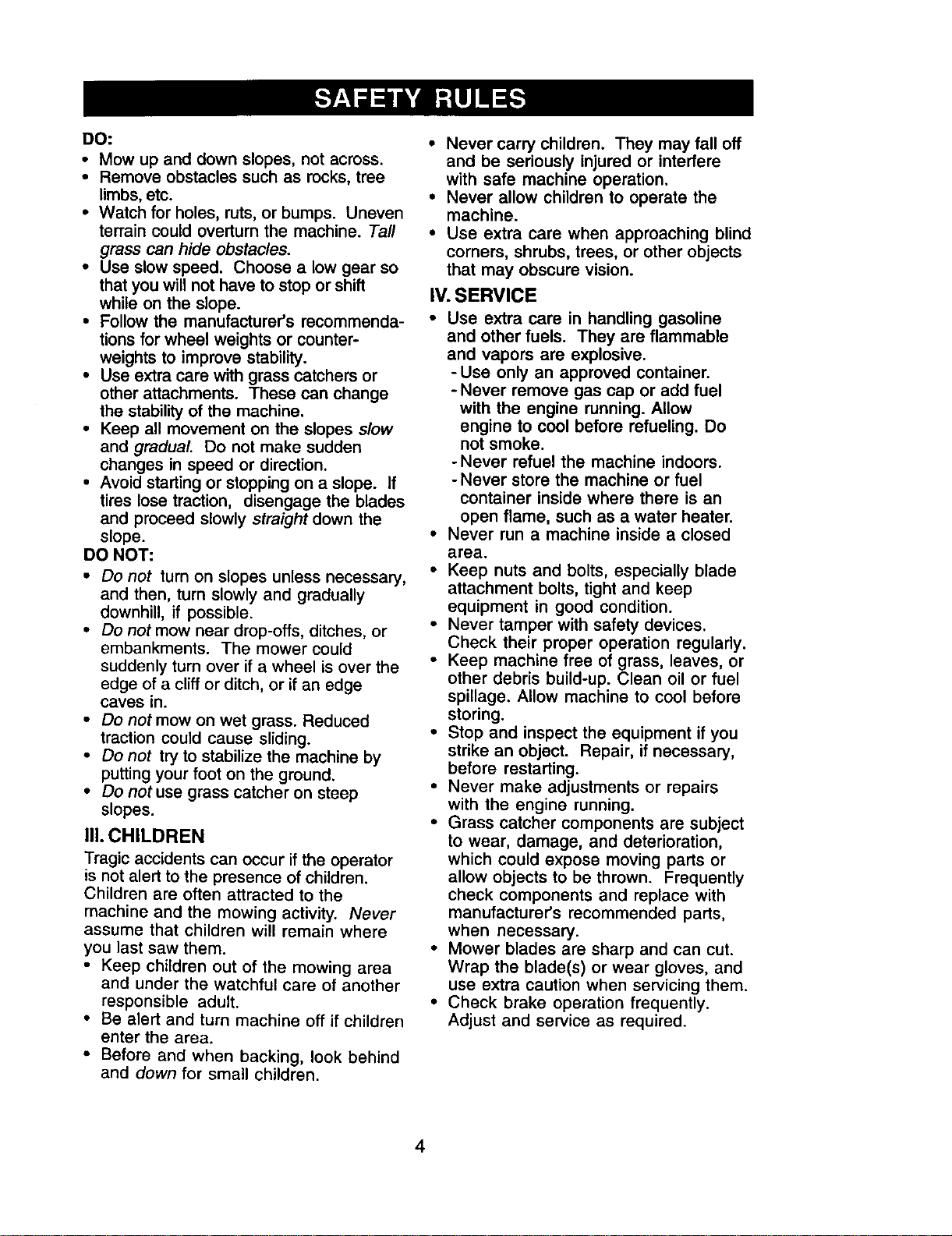

DO:

• Mow up and down slopes, not across.

• Remove obstacles such as rocks, tree

limbs, etc.

• Watch for holes, ruts, or bumps. Uneven

terrain could overturn the machine. Taft

grass can hide obstacles.

• Use slow speed. Choose a low gear so

that you will not have to stop or shift

while on the slope.

• Follow the manufacturer's recommenda-

tions for wheel weights or counter-

weights to improve stability.

• Use extra care with grass catchers or

other attachments. These can change

the stability of the machine.

• Keep all movement on the slopes slow

and gradual. Do not make sudden

changes in speed or direction.

• Avoid starting or stopping on a slope. If

tires lose traction, disengage the blades

and proceed slowly straight down the

slope.

DO NOT:

• Do not turn on slopes unless necessary,

and then, turn slowly and gradually

downhill, if possible.

• Do not mow near drop-offs, ditches, or

embankments. The mower could

suddenly turn over if a wheel is over the

edge of a cliff or ditch, or if an edge

caves in.

• Do not mow on wet grass. Reduced

traction could cause sliding.

• Do not try to stabilize the machine by

putting your foot on the ground.

• Do not use grass catcher on steep

slopes.

Ill. CHILDREN

Tragic accidents can occur if the operator

is not alert to the presence of children.

Children are often attracted to the

machine and the mowing activity. Never

assume that children will remain where

you last saw them.

• Keep children out of the mowing area

and under the watchful care of another

responsible adult.

• Be alert and turn machine off if children

enter the area.

• Before and when backing, look behind

and down for small children.

• Never carry children. They may fall off

and be seriously injured or interfere

with safe machine operation.

• Never allow children to operate the

machine.

• Use extra care when approaching blind

corners, shrubs, trees, or other objects

that may obscure vision.

IV. SERVICE

• Use extra care in handling gasoline

and other fuels. They are flammable

and vapors are explosive.

-Use only an approved container.

- Never remove gas cap or add fuel

with the engine running. Allow

engine to cool before refueling. Do

not smoke.

-Never refuel the machine indoors.

- Never store the machine or fuel

container inside where there is an

open flame, such as a water heater.

• Never run a machine inside a closed

area.

• Keep nuts and bolts, especially blade

attachment bolts, tight and keep

equipment in good condition.

• Never tamper with safety devices.

Check their proper operation regularly.

• Keep machine free of grass, leaves, or

other debris build-up. Clean oil or fuel

spillage. Allow machine to cool before

storing.

• Stop and inspect the equipment if you

strike an object. Repair, if necessary,

before restarting.

• Never make adjustments or repairs

with the engine running.

• Grass catcher components are subject

to wear, damage, and deterioration,

which could expose moving parts or

allow objects to be thrown. Frequently

check components and replace with

manufacturer's recommended parts,

when necessary.

• Mower blades are sharp and can cut.

Wrap the blade(s) or wear gloves, and

use extra caution when servicing them.

• Check brake operation frequently.

Adjust and service as required.

• Be sure the area is clear of other

people before mowing. Stop machine if

anyone enters the area.

• Never carry passengers or children

even with the blades off.

• Do not mow in reverse unless abso-

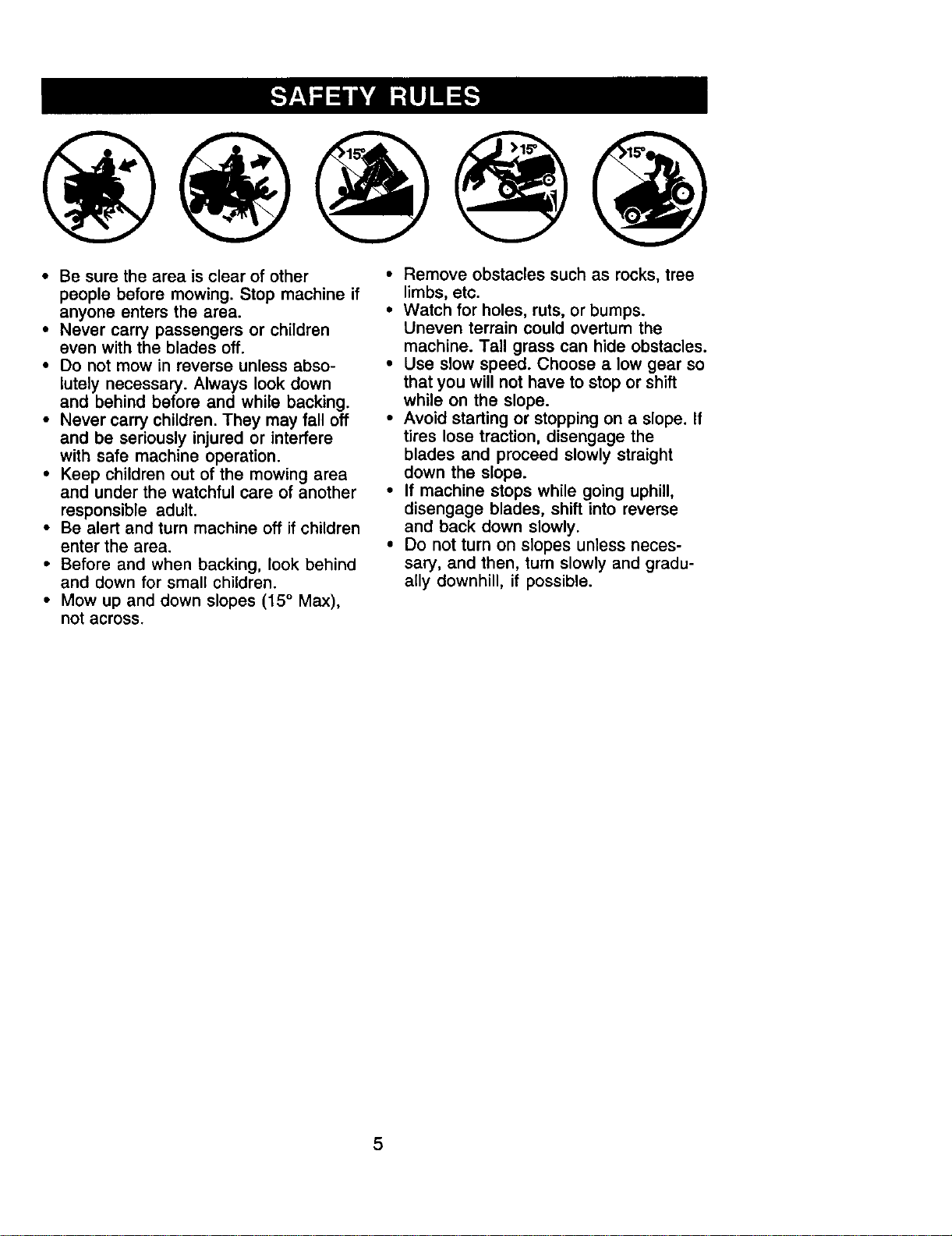

lutely necessary. Always look down

and behind before and while backing.

• Never carry children. They may fall off

and be seriously injured or interfere

with safe machine operation.

• Keep children out of the mowing area

and under the watchful care of another

responsible adult.

• Be alert and turn machine off if children

enter the area.

• Before and when backing, look behind

and down for small children.

• Mow up and down slopes (15 ° Max),

not across.

• Remove obstacles such as rocks, tree

limbs, etc.

• Watch for holes, ruts, or bumps.

Uneven terrain could overtum the

machine. Tall grass can hide obstacles.

• Use slow speed. Choose a low gear so

that you will not have to stop or shift

while on the slope.

• Avoid starting or stopping on a slope. If

tires lose traction, disengage the

blades and proceed slowly straight

down the slope.

• If machine stops while going uphill,

disengage blades, shift into reverse

and back down slowly.

• Do not turn on slopes unless neces-

sary, and then, turn slowly and gradu-

ally downhill, if possible.

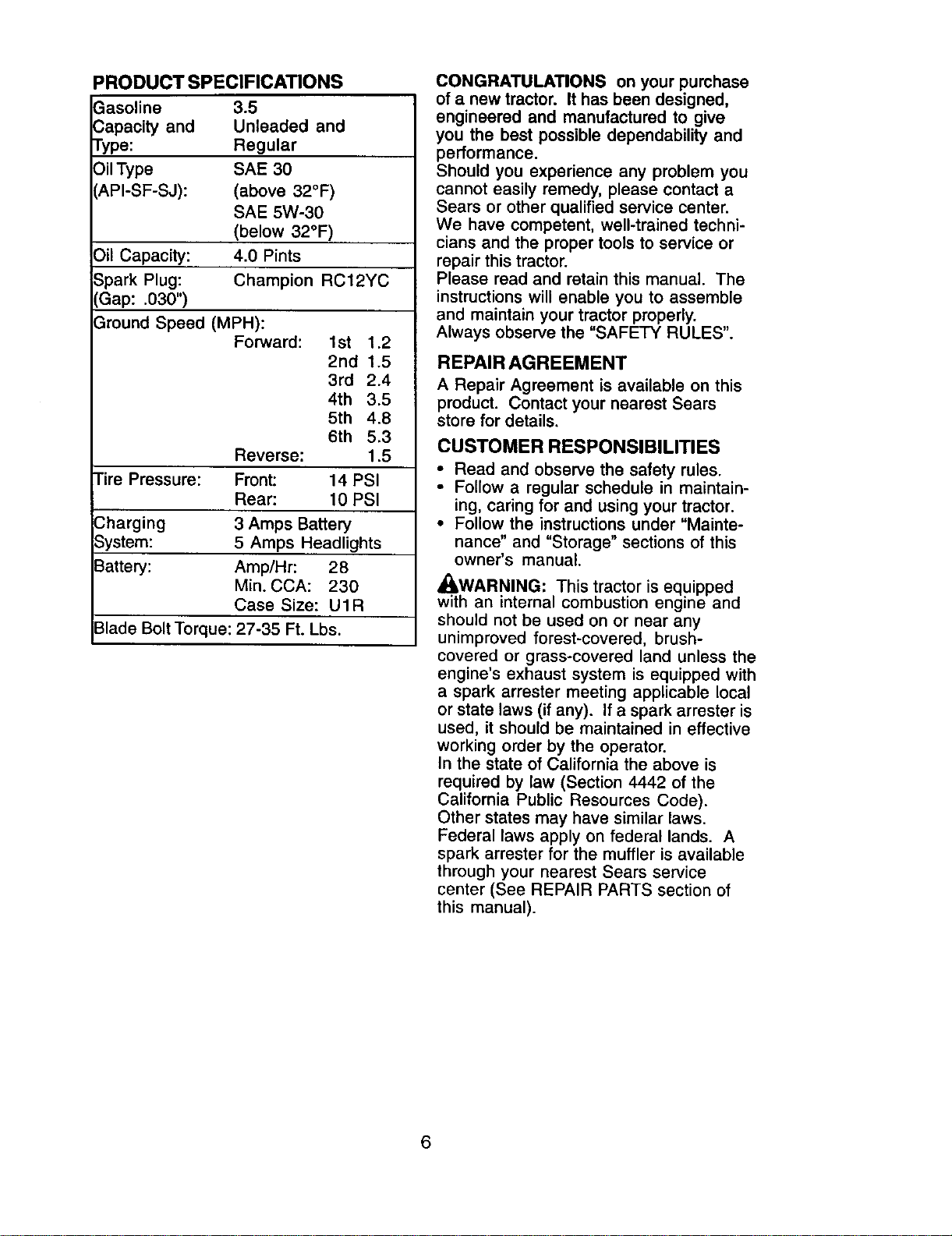

PRODUCT SPECIFICATIONS

Gasoline 3.5

Capacity and Unleaded and

Type: Regular

Oil Type SAE 30

API-SF-SJ): (above 32°F)

SAE 5W-30

(below 32°F)

Oil Capacity: 4.0 Pints

Spark Plug: Champion RC12YC

(Gap: .030")

Ground Speed (MPH):

Forward: 1st 1.2

2nd 1.5

3rd 2.4

4th 3.5

5th 4.8

6th 5.3

Reverse: 1.5

Tire Pressure: Front: 14 PSI

Rear: 10 PSI

Charging 3 Amps Battery

System: 5 Amps Headlights

Battery: Amp/Hr: 28

Min. CCA: 230

Case Size: U1R

Blade Bolt Torque: 27-35 Ft. Lbs.

CONGRATULATIONS on your purchase

of a new tractor. It has been designed,

engineered and manufactured to give

you the best possible dependability and

performance.

Should you experience any problem you

cannot easily remedy, please contact a

Sears or other qualified service center.

We have competent, well-trained techni-

cians and the proper tools to service or

repair this tractor.

Please read and retain this manual. The

instructions will enable you to assemble

and maintain your tractor properly.

Always observe the "SAFETY RULES".

REPAIR AGREEMENT

A Repair Agreement is available on this

product. Contact your nearest Sears

store for details.

CUSTOMER RESPONSIBILITIES

• Read and observe the safety rules.

• Follow a regular schedule in maintain-

ing, caring for and using your tractor.

• Follow the instructions under "Mainte-

nance" and "Storage" sections of this

owner's manual.

_WARNING: This tractor is equipped

with an internal combustion engine and

should not be used on or near any

unimproved forest-covered, brush-

covered or grass-covered land unless the

engine's exhaust system is equipped with

a spark arrester meeting applicable local

or state laws (if any). If a spark arrester is

used, it should be maintained in effective

working order by the operator.

In the state of California the above is

required by law (Section 4442 of the

California Public Resources Code).

Other states may have similar laws.

Federal laws apply on federal lands. A

spark arrester for the muffler is available

through your nearest Sears service

center (See REPAIR PARTS section of

this manual).

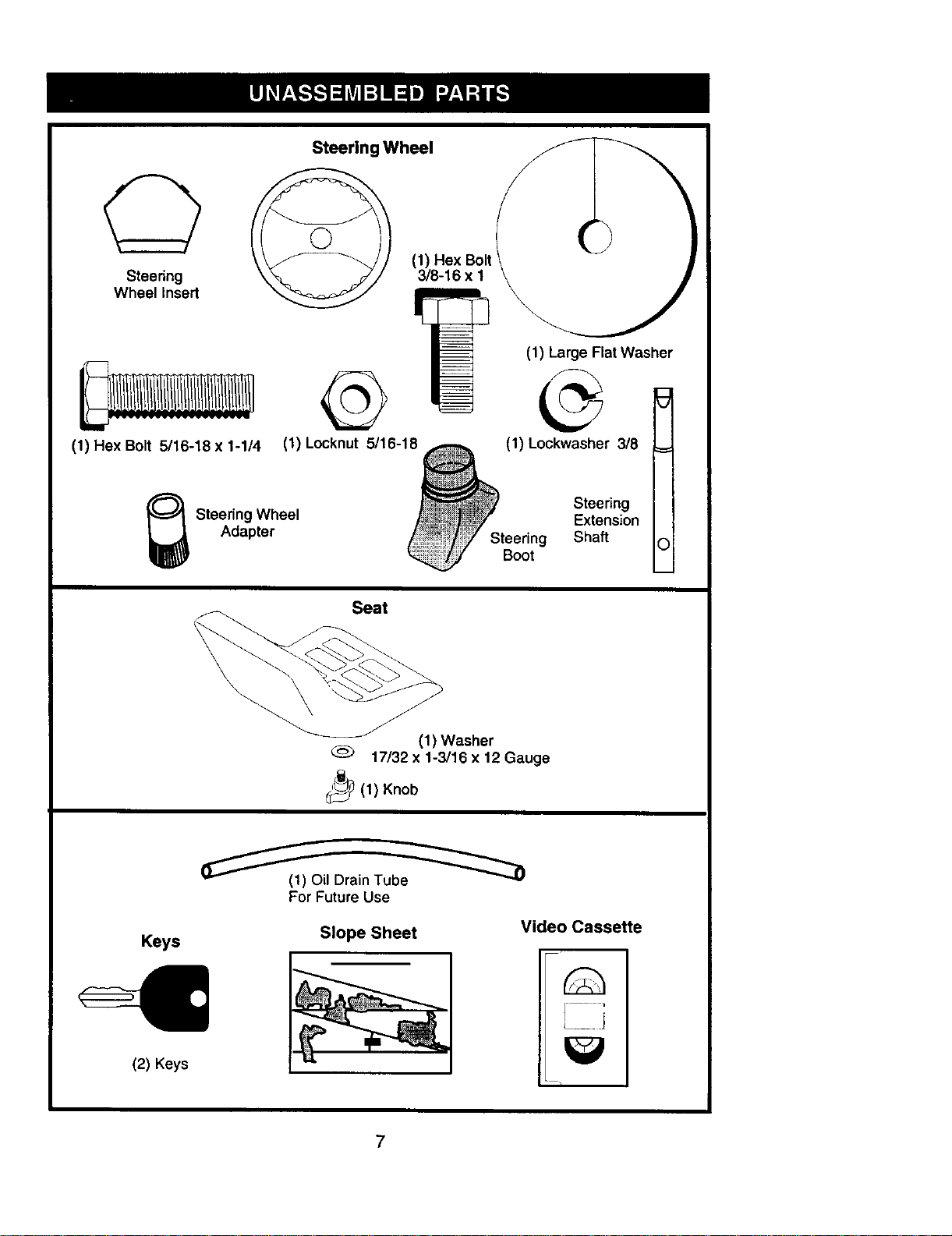

Steering

Wheel Insert

(1) Hex Bolt 5/16-18 x 1-1/4

Steering Wheel

(I)Hex Bolt\

3/8-16x ]

(1) Locknut 5/16-18

(1) Large Flat Washer

(1) Lockwasher 3/8 __.

_ Steering Wheel

Adapter

Steering

Boot

Steering

Extension

Shaft

Seat

(1) Washer

17/32 x 1-3/16 x 12 Gauge

_:_ (1) Knob

Keys

(2) Keys

For Future Use

Slope Sheet

Video Cassette

/ :

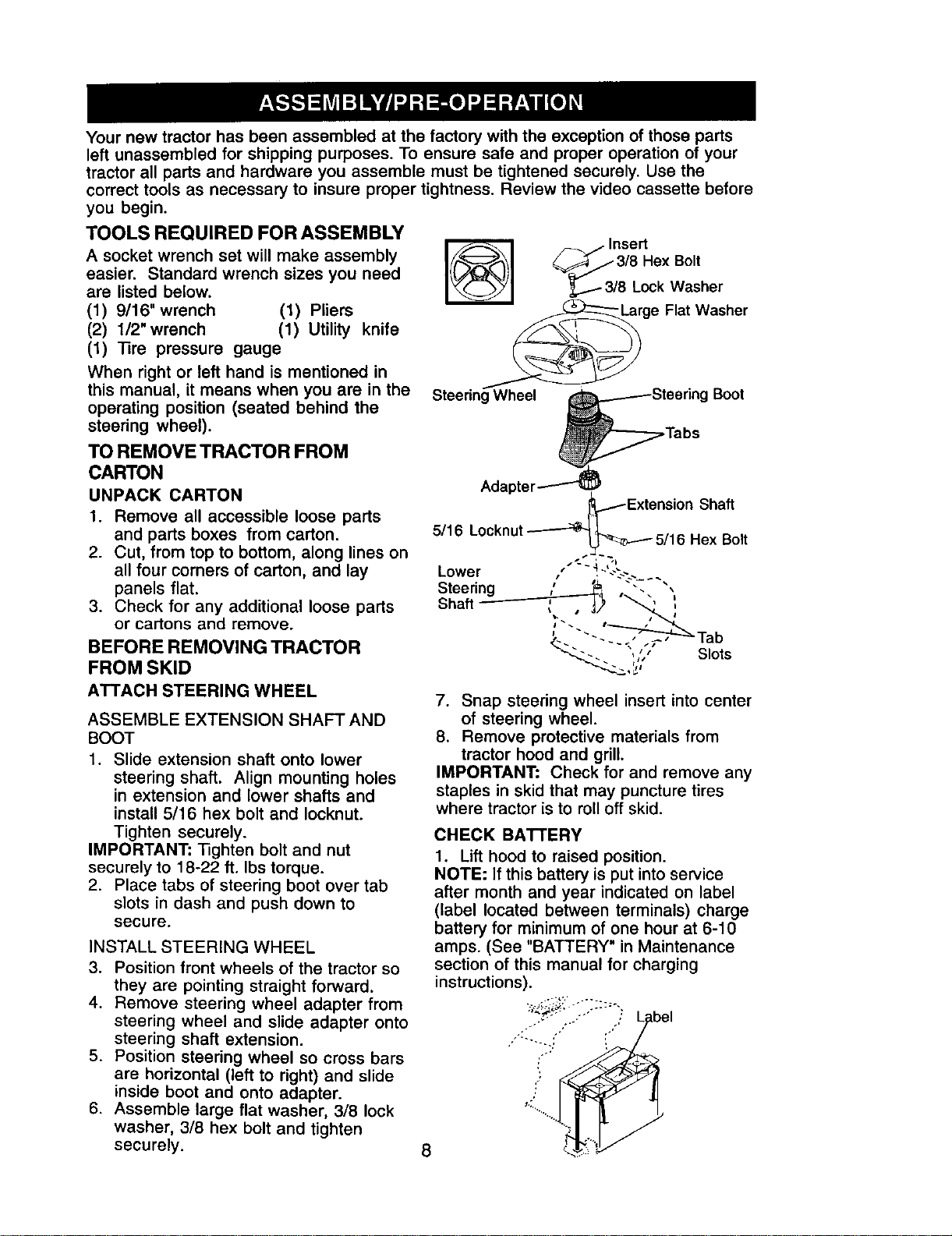

Your new tractor has been assembled at the factory with the exception of those parts

left unassembled for shipping purposes. To ensure safe and proper operation of your

tractor all parts and hardware you assemble must be tightened securely. Use the

correct tools as necessary to insure proper tightness. Review the video cassette before

you begin.

TOOLS REQUIRED FOR ASSEMBLY

A socket wrench set will make assembly

easier. Standard wrench sizes you need

are listed below.

(1) 9/16" wrench (1) Pliers

(2) 1/2"wrench (1) Utility knife

(1) Tire pressure gauge

When right or left hand is mentioned in

this manual, it means when you are in the

operating position (seated behind the

steering wheel).

[_ _ insert

_ 3/8 Rex Bolt

3/8 Lock Washer

ge Flat Washer

Steering Wheel Boot

TO REMOVE TRACTOR FROM

CARTON

UNPACK CARTON

1. Remove all accessible loose parts

and parts boxes from carton.

2. Cut, from top to bottom, along lines on

all four corners of carton, and lay

panels flat.

3. Check for any additional loose parts

or cartons and remove.

BEFORE REMOVING TRACTOR

FROM SKID

ATTACH STEERING WHEEL

ASSEMBLE EXTENSION SHAFT AND

BOOT

1. Slide extension shaft onto lower

steering shaft. Align mounting holes

in extension and lower shafts and

install 5/16 hex bolt and Iocknut.

Tighten securely.

IMPORTANT: Tighten bolt and nut

securely to 18-22 ft. Ibs torque.

2. Place tabs of steering boot over tab

slots in dash and push down to

secure.

INSTALL STEERING WHEEL

3. Position front wheels of the tractor so

they are pointing straight forward.

4. Remove steering wheel adapter from

steering wheel and slide adapter onto

steering shaft extension.

5. Position steering wheel so cross bars

are horizontal (left to right) and slide

inside boot and onto adapter.

6. Assemble large flat washer, 3/8 lock

washer, 3/8 hex bolt and tighten

securely.

7. Snap steering wheel insert into center

of steering wheel.

8. Remove protective materials from

tractor hood and grill.

IMPORTANT: Check for and remove any

staples in skid that may puncture tires

where tractor is to roll off skid.

CHECK BATTERY

1. Lift hood to raised position,

NOTE: If this battery is put into service

after month and year indicated on label

(label located between terminals) charge

battery for minimum of one hour at 6-10

amps. (See "BATTERY" in Maintenance

section of this manual for charging

instructions).

.....de

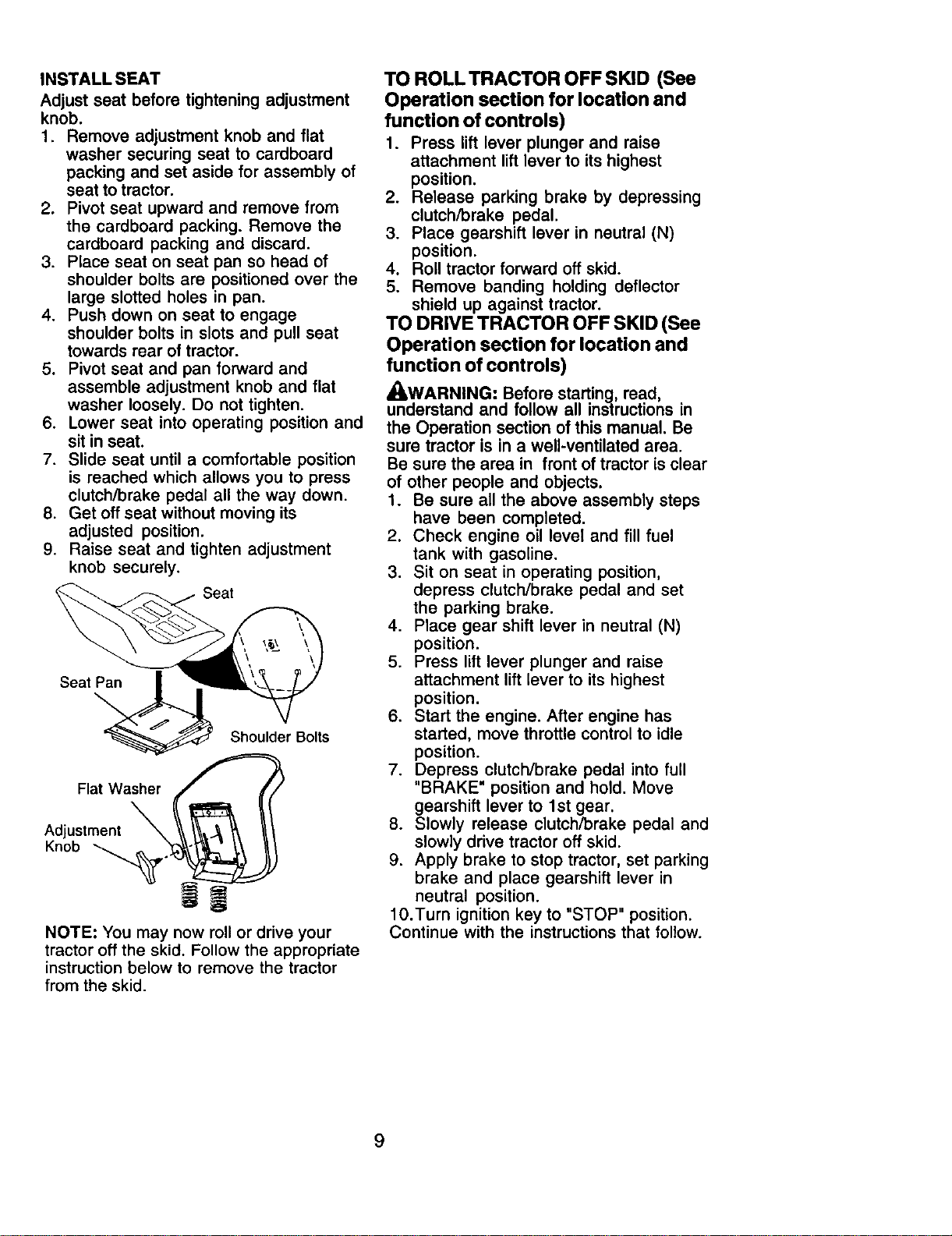

INSTALL SEAT

Adjust seat before tightening adjustment

knob.

1. Remove adjustment knob and flat

washer securing seat to cardboard

packing and set aside for assembly of

seat to tractor.

2. Pivot seat upward and remove from

the cardboard packing. Remove the

cardboard packing and discard.

3. Place seat on seat pan so head of

shoulder bolts are positioned over the

large slotted holes in pan.

4. Push down on seat to engage

shoulder bolts in slots and pull seat

towards rear of tractor.

5. Pivot seat and pan forward and

assemble adjustment knob and flat

washer loosely. Do not tighten.

6. Lower seat into operating position and

sit in seat.

7. Slide seat until a comfortable position

is reached which allows you to press

clutch/brake pedal all the way down.

8. Get off seat without moving its

adjusted position.

9. Raise seat and tighten adjustment

knob securely.

Seat

Seat Pan

Flat Washer

Adjustment

Knob "-_ _

Shoulder Bolts

NOTE: You may now roll or drive your

tractor off the skid. Follow the appropriate

instruction below to remove the tractor

from the skid.

TO ROLLTRACTOR OFF SKID (See

Operation section for location and

function of controls)

1. Press lift lever plunger and raise

attachment lift lever to its highest

position.

2. Release parking brake by depressing

clutch/brake pedal.

3. Place gearshift lever in neutral (N)

position.

4. Roll tractor forward off skid.

5. Remove banding holding deflector

shield up against tractor.

TO DRIVE TRACTOR OFF SKID (See

Operation section for location and

function of controls)

_WARNING: Before starting, read,

understand and follow all instructions in

the Operation section of this manual. Be

sure tractor is in a well-ventilated area.

Be sure the area in front of tractor is clear

of other people and objects.

1. Be sure all the above assembly steps

have been completed.

2. Check engine oil level and fill fuel

tank with gasoline.

3. Sit on seat in operating position,

depress clutch/brake pedal and set

the parking brake.

4. Place gear shift lever in neutral (N)

position.

5. Press lift lever plunger and raise

attachment lift lever to its highest

position.

6. Start the engine. After engine has

started, move throttle control to idle

position.

7. Depress clutch/brake pedal into full

"BRAKE" position and hold. Move

gearshift lever to 1st gear.

8. Slowly release clutch/brake pedal and

slowly drive tractor off skid.

9. Apply brake to stop tractor, set parking

brake and place gearshift lever in

neutral position.

10.Turn ignition key to "STOP" position.

Continue with the instructions that follow.

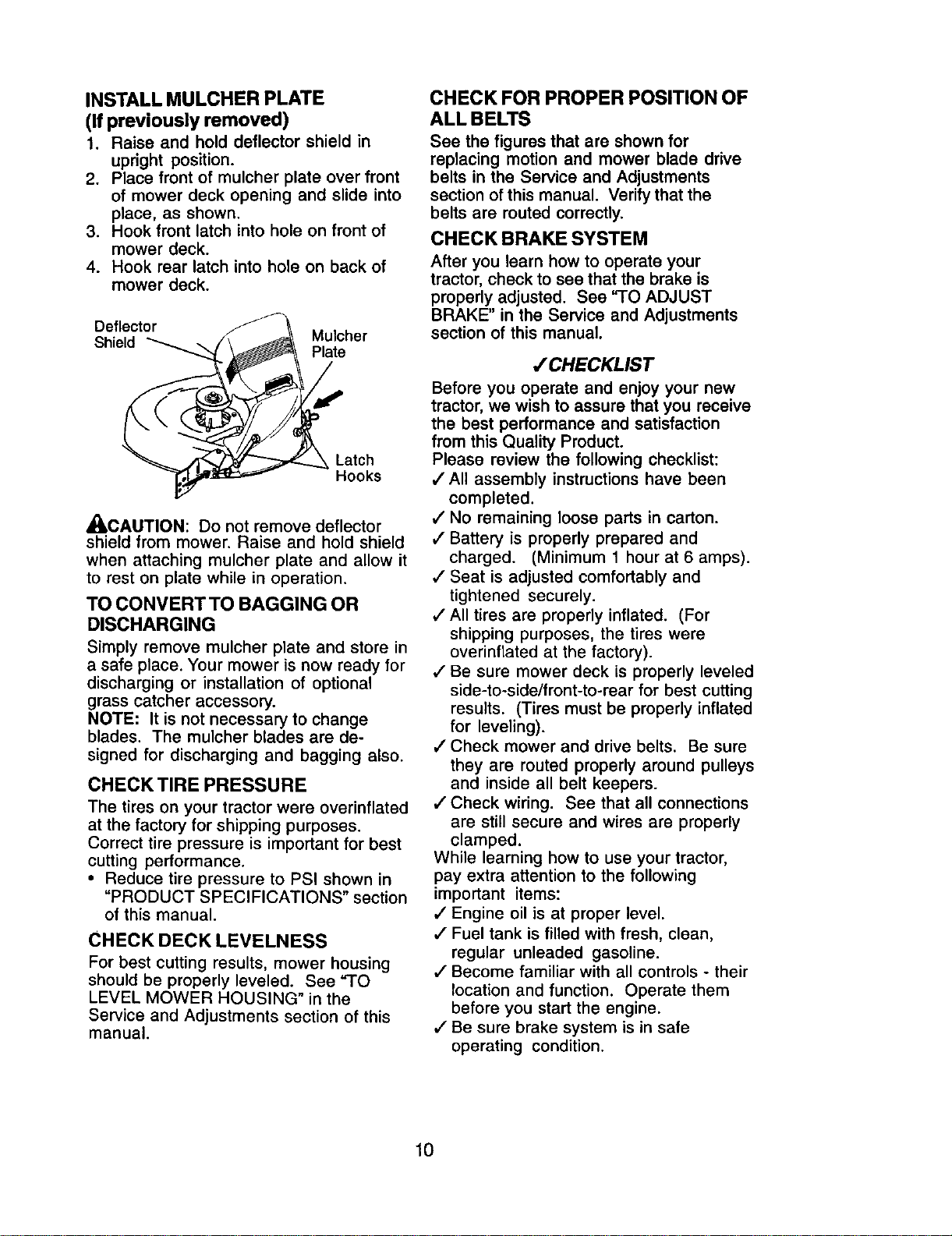

INSTALLMULCHER PLATE

(Ifpreviously removed)

1. Raise and hold deflector shield in

upright position.

2. Place front of mulcher plate over front

of mower deck opening and slide into

place, as shown.

3. Hook front latch into hole on front of

mower deck.

4. Hook rear latch into hole on back of

mower deck.

Deflector

Mulcher

Shield _ Plate

Latch

Hooks

A(_CAUTION: Do not remove deflector

shield from mower. Raise and hold shield

when attaching mulcher plate and allow it

to rest on plate while in operation.

TO CONVERT TO BAGGING OR

DISCHARGING

Simply remove mulcher plate and store in

a safe place. Your mower is now ready for

discharging or installation of optional

grass catcher accessory.

NOTE: It is not necessary to change

blades. The mulcher blades are de-

signed for discharging and bagging also.

CHECK TIRE PRESSURE

The tires on your tractor were overinflated

at the factory for shipping purposes.

Correct tire pressure is important for best

cutting performance.

• Reduce tire pressure to PSI shown in

"PRODUCT SPECIFICATIONS" section

of this manual.

CHECK DECK LEVELNESS

For best cutting results, mower housing

should be properly leveled. See "TO

LEVEL MOWER HOUSING" in the

Service and Adjustments section of this

manual.

CHECK FOR PROPER POSITION OF

ALL BELTS

See the figures that are shown for

replacing motion and mower blade drive

belts in the Service and Adjustments

section of this manual. Verify that the

belts are routed correctly.

CHECK BRAKE SYSTEM

After you learn how to operate your

tractor, check to see that the brake is

properly adjusted. See "TO ADJUST

BRAKE" in the Service and Adjustments

section of this manual.

/CHECKLIST

Before you operate and enjoy your new

tractor, we wish to assure that you receive

the best performance and satisfaction

from this Quality Product.

Please review the following checklist:

,/All assembly instructions have been

completed.

,/No remaining loose parts in carton.

,/Battery is properly prepared and

charged. (Minimum 1 hour at 6 amps).

,I Seat is adjusted comfortably and

tightened securely.

,/All tires are properly inflated. (For

shipping purposes, the tires were

overinflated at the factory).

,I Be sure mower deck is properly leveled

side-to-side/front-to-rear for best cutting

results. (Tires must be properly inflated

for leveling).

#" Check mower and drive belts. Be sure

they are routed properly around pulleys

and inside all belt keepers.

#" Check wiring. See that all connections

are still secure and wires are properly

clamped.

While learning how to use your tractor,

pay extra attention to the following

important items:

,/Engine oil is at proper level.

,/Fuel tank is filled with fresh, clean,

regular unleaded gasoline.

,/Become familiar with all controls - their

location and function. Operate them

before you start the engine.

,/Be sure brake system is in safe

operating condition.

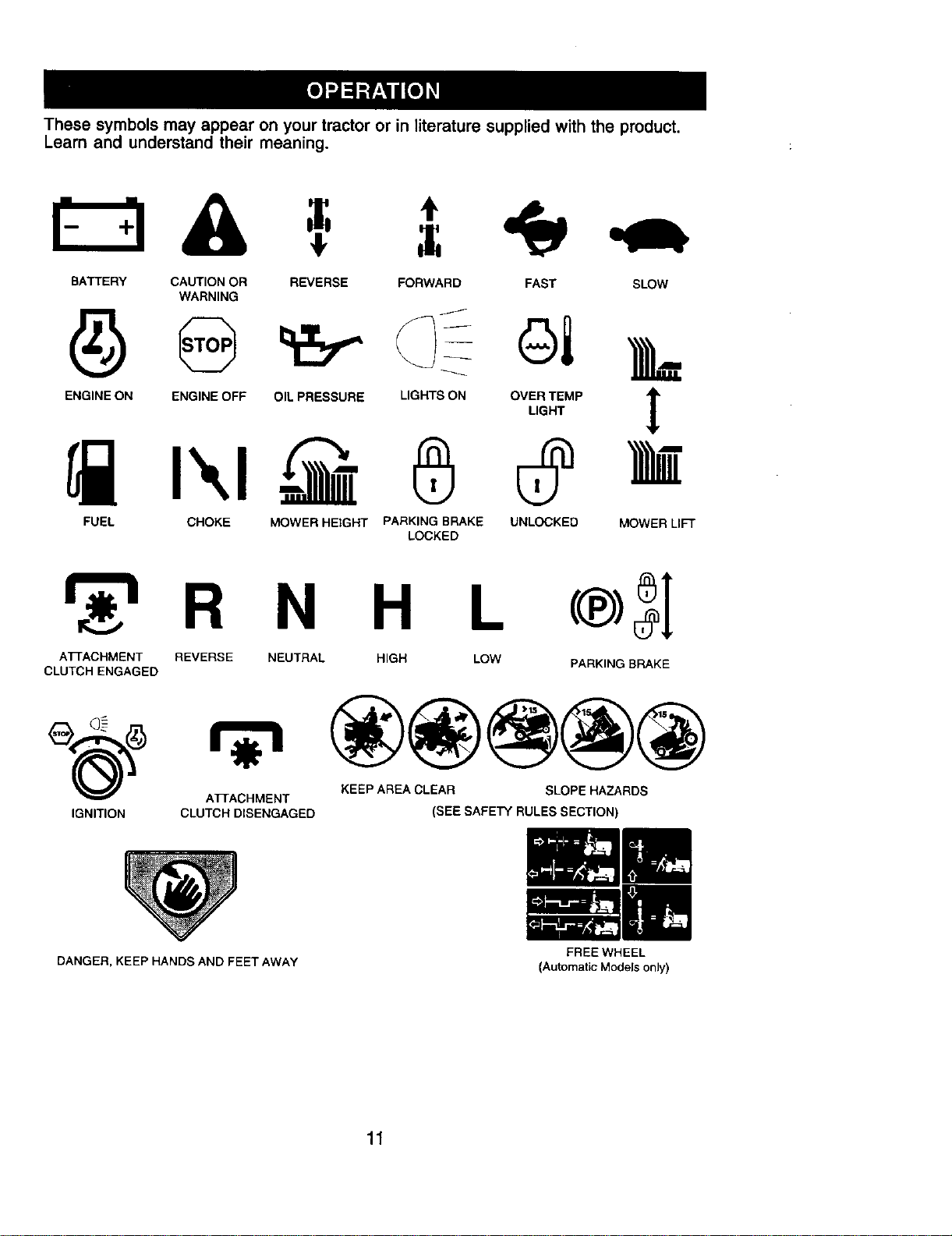

These symbols may appear on your tractor or in literature supplied with the product.

Learn and understand their meaning,

BATTERY CAUTION OR REVERSE FORWARD FAST SLOW

WARNING

ENGINE ON ENGINE OFF OIL PRESSURE LIGHTS ON OVER TEMP

LIGHT

FUEL CHOKE MOWER HEIGHT PARKING BRAKE UNLOCKED MOWER LIFT

LOCKED

R N H L

ATFACHMENT REVERSE NEUTRAL HIGH LOW PARKING BRAKE

CLUTCH ENGAGED

ATFACHMENT KEEP AREA CLEAR SLOPE HAZARDS

IGNITION CLUTCH DISENGAGED (SEE SAFETY RULES SECTION)

DANGER, KEEP HANDS AND FEET AWAY

FREEWHEEL

(Automatic Models only)

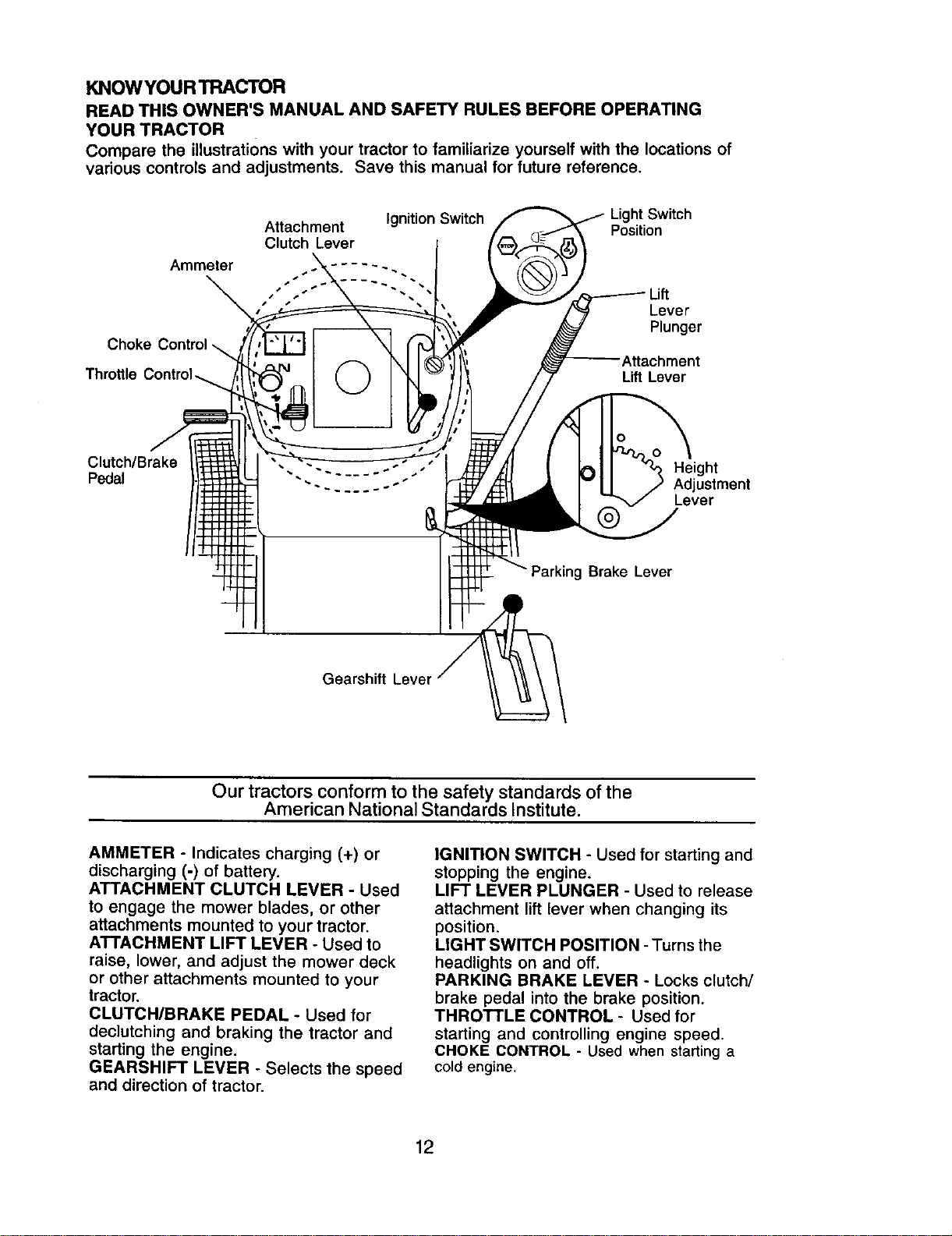

KNOWYOUR TRACTOR

READ THIS OWNER'S MANUAL AND SAFETY RULES BEFORE OPERATING

YOUR TRACTOR

Compare the illustrations with your tractor to familiarize yourself with the locations of

various controls and adjustments. Save this manual for future reference.

Ammeter

Choke Control

Throttle Control

Attachment

Clutch Lever

Ignition Switch Light Switch

Position

Lever

Plunger

Lift Lever

Clutch/Brake

Ped_

Height

Adjustment

Lever

Brake Lever

Gearshift

Our tractors conform to the safety standards of the

American National Standards Institute.

AMMETER - Indicates charging (+) or

discharging (-) of battery.

ATTACHMENT CLUTCH LEVER - Used

to engage the mower blades, or other

attachments mounted to your tractor.

ATTACHMENT LIFT LEVER - Used to

raise, lower, and adjust the mower deck

or other attachments mounted to your

tractor.

CLUTCH/BRAKE PEDAL - Used for

declutching and braking the tractor and

starting the engine.

GEARSHIFT LEVER - Selects the speed

and direction of tractor.

IGNITION SWITCH - Used for starting and

stopping the engine.

LIFT LEVER PLUNGER - Used to release

attachment lift lever when changing its

position.

LIGHT SWITCH POSITION - Turns the

headlights on and off.

PARKING BRAKE LEVER - Locks clutch/

brake pedal into the brake position.

THROTTLE CONTROL - Used for

starting and controlling engine speed.

CHOKE CONTROL - Used when starting a

cold engine.

The operation of any tractor can result in foreign objects thrown into

the eyes, which can result in severe eye damage. Always wear safety

glasses or eye shields while operating your tractor or performing any

adjustments or repairs. We recommend a wide vision safety mask over

spectacles or standard safety glasses.

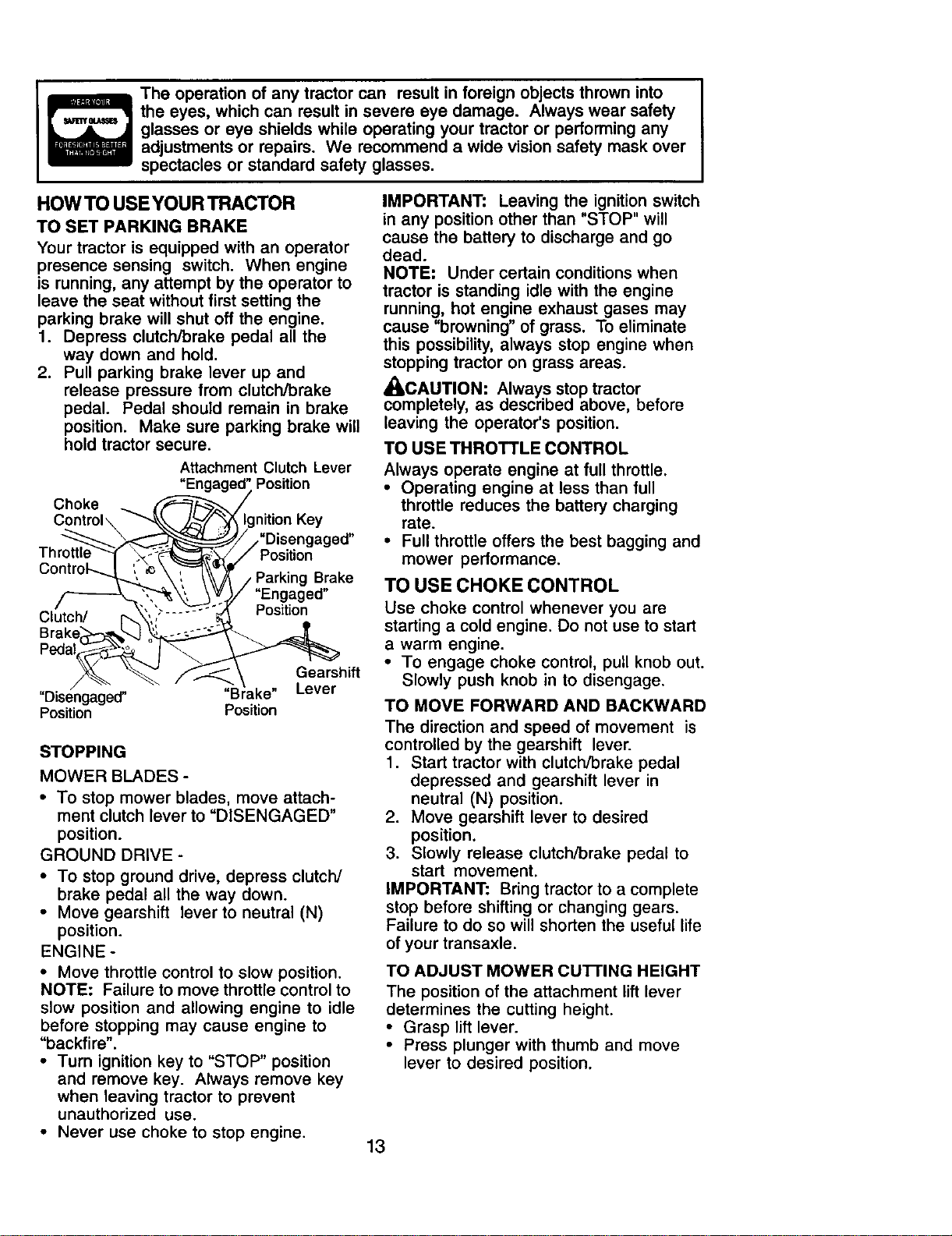

HOW TO USE YOUR TRACTOR

TO SET PARKING BRAKE

Your tractor is equipped with an operator

presence sensing switch. When engine

is running, any attempt by the operator to

leave the seat without first setting the

parking brake will shut off the engine.

1. Depress clutch/brake pedal all the

way down and hold.

2. Pull parking brake lever up and

release pressure from clutch/brake

pedal. Pedal should remain in brake

position. Make sure parking brake will

hold tractor secure.

Attachment Clutch Lever

Position

Choke

Ignition Key

,"Disengaged"

Th r, Position

Clutch/

Parking Brake

ed"

Position

Pedal

Gearshift

"Disengaged" ake" Lever

Position Position

STOPPING

MOWER BLADES -

• To stop mower blades, move attach-

ment clutch lever to "DISENGAGED"

position.

GROUND DRIVE -

• To stop ground drive, depress clutch/

brake pedal all the way down.

• Move gearshift lever to neutral (N)

position.

ENGINE -

• Move throttle control to slow position.

NOTE: Failure to move throttle control to

slow position and allowing engine to idle

before stopping may cause engine to

"backfire".

• Turn ignition key to "STOP" position

and remove key. Always remove key

when leaving tractor to prevent

unauthorized use.

• Never use choke to stop engine.

IMPORTANT: Leaving the ignition switch

in any position other than "STOP" will

cause the battery to discharge and go

dead.

NOTE: Under certain conditions when

tractor is standing idle with the engine

running, hot engine exhaust gases may

cause "browning" of grass. To eliminate

this possibility, always stop engine when

stopping tractor on grass areas.

_CAUTION: Always stop tractor

completely, as described above, before

leaving the operator's position.

TO USE THROTTLE CONTROL

Always operate engine at full throttle.

• Operating engine at less than full

throttle reduces the battery charging

rate.

• Full throttle offers the best bagging and

mower performance.

TO USE CHOKE CONTROL

Use choke control whenever you are

starting a cold engine. Do not use to start

a warm engine.

• To engage choke control, pull knob out.

Slowly push knob in to disengage.

TO MOVE FORWARD AND BACKWARD

The direction and speed of movement is

controlled by the gearshift lever.

1. Start tractor with clutch/brake pedal

depressed and gearshift lever in

neutral (N) position.

2. Move gearshift lever to desired

position.

3. Slowly release clutch/brake pedal to

start movement.

IMPORTANT: Bring tractor to a complete

stop before shifting or changing gears.

Failure to do so will shorten the useful life

of your transaxle.

TO ADJUST MOWER CU'I-rlNG HEIGHT

The position of the attachment lift lever

determines the cutting height.

• Grasp lift lever.

• Press plunger with thumb and move

lever to desired position.

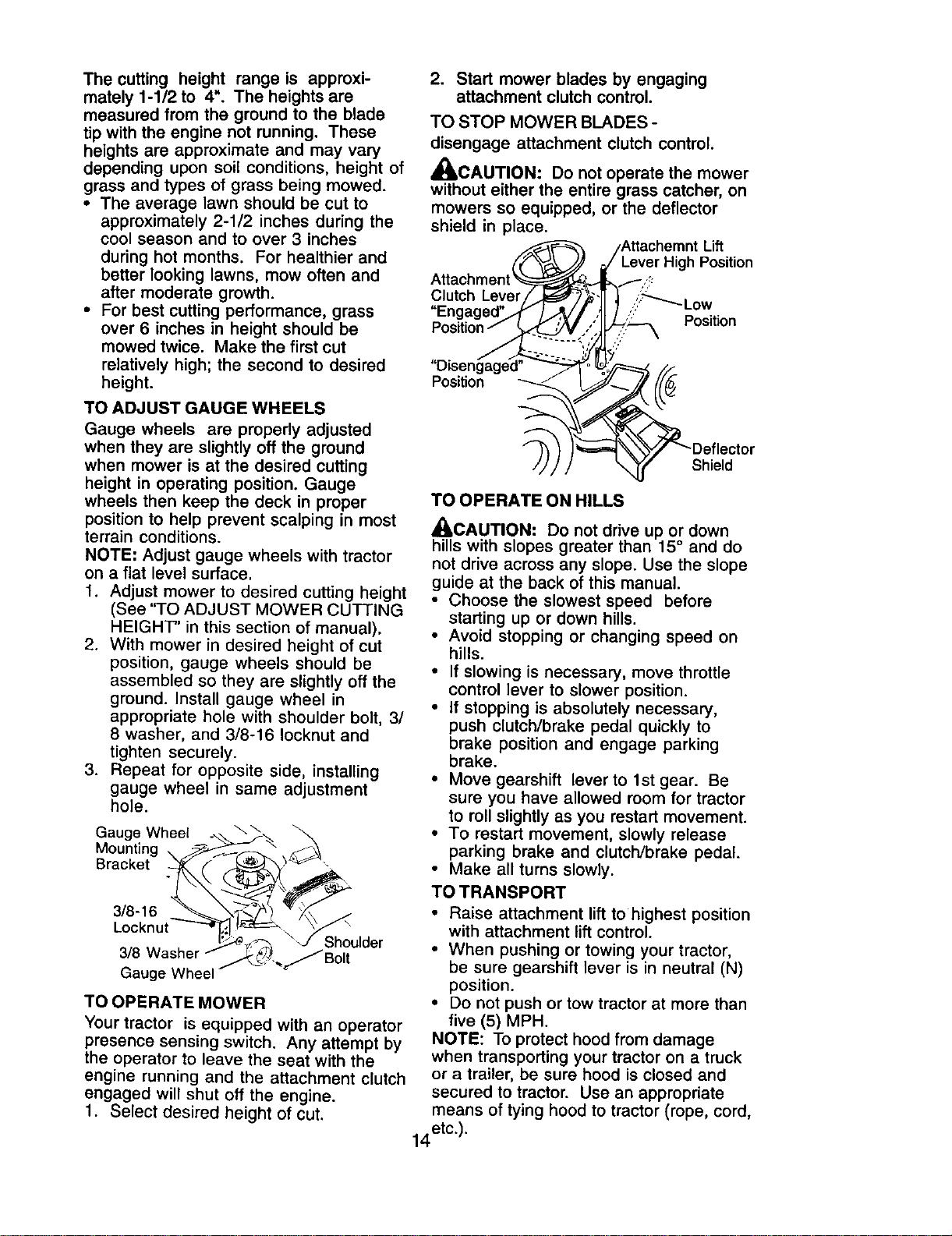

The cutting height range is approxi-

mately 1-1/2 to 4". The heights are

measured from the ground to the blade

tip with the engine not running. These

heights are approximate and may vary

depending upon soil conditions, height of

grass and types of grass being mowed.

• The average lawn should be cut to

approximately 2-1/2 inches during the

cool season and to over 3 inches

during hot months. For healthier and

better looking lawns, mow often and

after moderate growth.

• For best cutting performance, grass

over 6 inches in height should be

mowed twice. Make the first cut

relatively high; the second to desired

height.

TO ADJUST GAUGE WHEELS

Gauge wheels are properly adjusted

when they are slightly off the ground

when mower is at the desired cutting

height in operating position. Gauge

wheels then keep the deck in proper

position to help prevent scalping in most

terrain conditions.

NOTE: Adjust gauge wheels with tractor

on a flat level surface.

1. Adjust mower to desired cutting height

(See "TO ADJUST MOWER CUTTING

HEIGHT" in this section of manual).

2. With mower in desired height of cut

position, gauge wheels should be

assembled so they are slightly oft the

ground. Install gauge wheel in

appropriate hole with shoulder bolt, 3/

8 washer, and 3/8-16 Iocknut and

tighten securely.

3. Repeat for opposite side, installing

gauge wheel in same adjustment

hole.

Gauge Wheel

Mounting

Bracket

3/8-16

Lockn_

Shoulder

3/8 Wa_ _/Bolt

Gauge Wheel

TO OPERATE MOWER

Your tractor is equipped with an operator

presence sensing switch. Any attempt by

the operator to leave the seat with the

engine running and the attachment clutch

engaged will shut off the engine.

1. Select desired height of cut.

2. Start mower blades by engaging

attachment clutch control.

TO STOP MOWER BLADES -

disengage attachment clutch control.

,_CAUTION: Do not operate the mower

without either the entire grass catcher, on

mowers so equipped, or the deflector

shield in place.

gh Position

Clutch Lever .,..i_ Low

Position

Shield

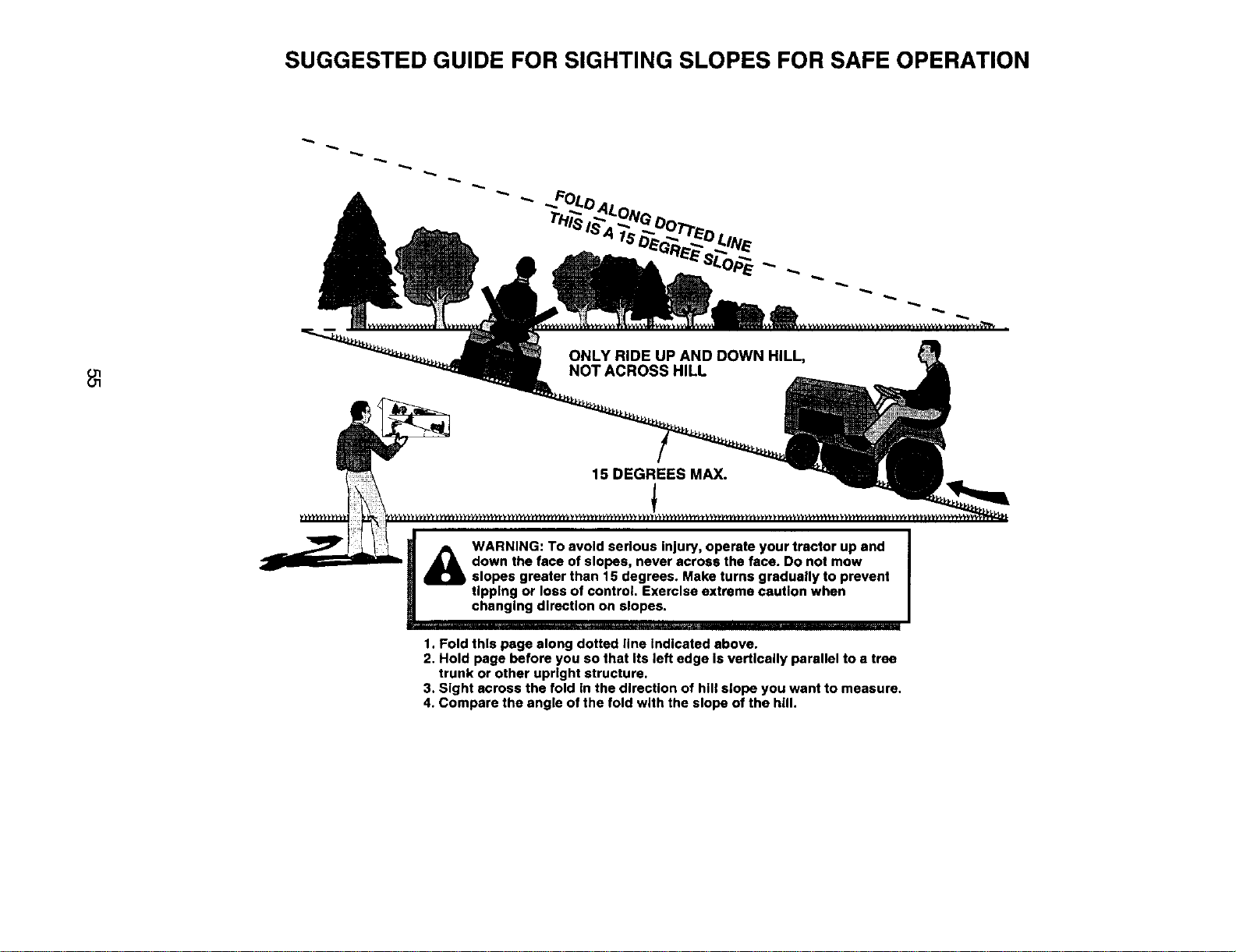

TO OPERATE ON HILLS

_ILCAUTION: Do not drive up or down

hills with slopes greater than 15 ° and do

not drive across any slope. Use the slope

guide at the back of this manual.

• Choose the slowest speed before

starting up or down hills.

• Avoid stopping or changing speed on

hills.

• If slowing is necessary, move throttle

control lever to slower position.

• 11stopping is absolutely necessary,

push clutch/brake pedal quickly to

brake position and engage parking

brake.

• Move gearshift lever to 1st gear. Be

sure you have allowed room for tractor

to roll slightly as you restart movement.

• To restart movement, slowly release

parking brake and clutch/brake pedal.

• Make all turns slowly.

TO TRANSPORT

• Raise attachment lift to highest position

with attachment lift control.

• When pushing or towing your tractor,

be sure gearshift lever is in neutral (N)

position.

• Do not push or tow tractor at more than

five (5) MPH.

NOTE: To protect hood from damage

when transporting your tractor on a truck

or a trailer, be sure hood is closed and

secured to tractor. Use an appropriate

means of tying hood to tractor (rope, cord,

14etc.) .

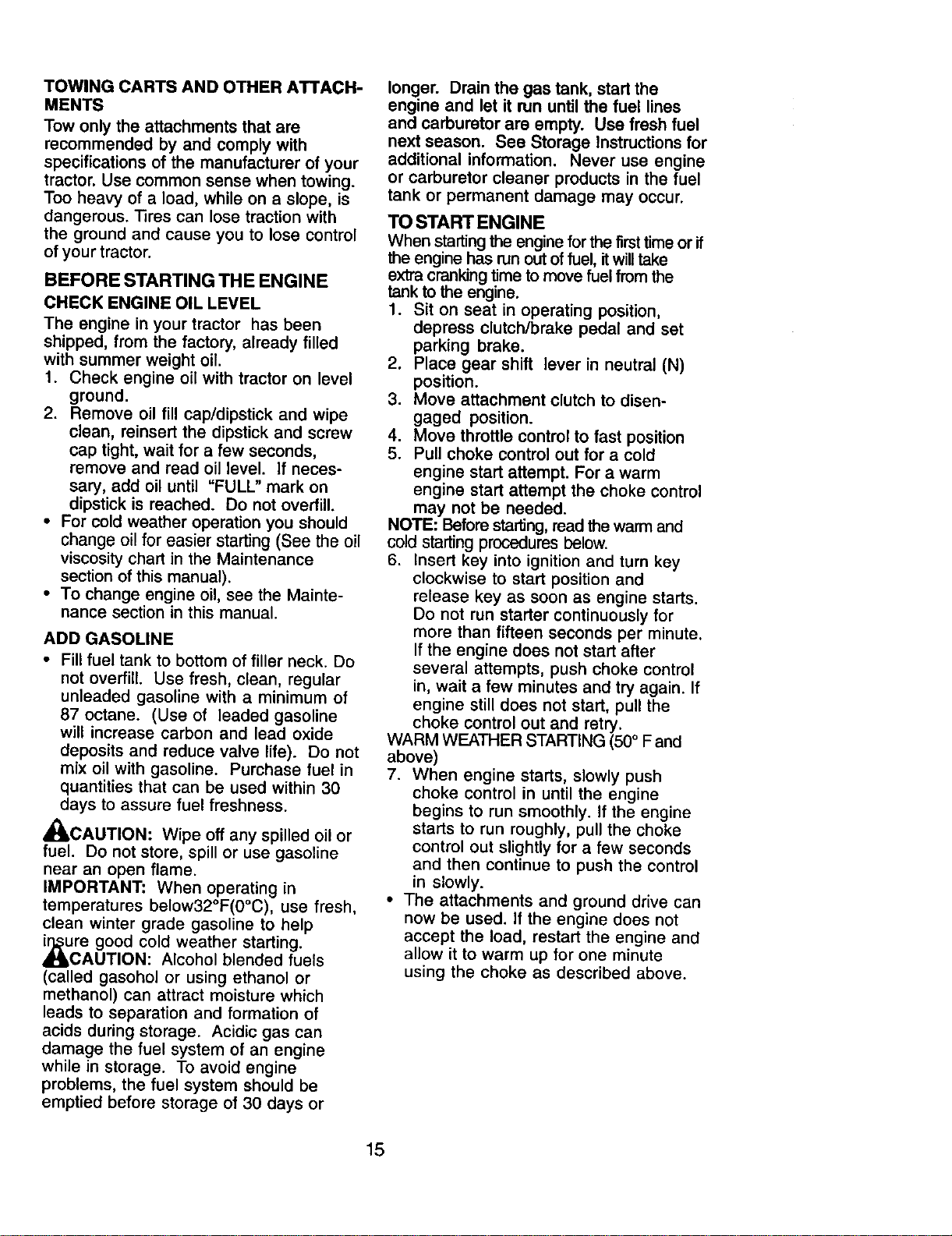

TOWING CARTS AND OTHER ATTACH-

MENTS

Tow only the attachments that are

recommended by and comply with

specifications of the manufacturer of your

tractor. Use common sense when towing.

Too heavy of a load, while on a slope, is

dangerous. Tires can lose traction with

the ground and cause you to lose control

of your tractor.

BEFORE STARTING THE ENGINE

CHECK ENGINE OIL LEVEL

The engine in your tractor has been

shipped, from the factory, already filled

with summer weight oil.

1. Check engine oil with tractor on level

ground.

2. Remove oil fill cap/dipstick and wipe

clean, reinsert the dipstick and screw

cap tight, wait for a few seconds,

remove and read oil level. If neces-

sary, add oil until =FULL" mark on

dipstick is reached. Do not overfill.

• For cold weather operation you should

change oil for easier starting (See the oil

viscosity chart in the Maintenance

section of this manual).

• To change engine oil, see the Mainte-

nance section in this manual.

ADD GASOLINE

• Fill fuel tank to bottom of filler neck. Do

not overfill. Use fresh, clean, regular

unleaded gasoline with a minimum of

87 octane. (Use of leaded gasoline

will increase carbon and lead oxide

deposits and reduce valve life). Do not

mix oil with gasoline. Purchase fuel in

quantities that can be used within 30

days to assure fuel freshness.

_IbCAUTION: Wipe off any spilled oil or

fuel. Do not store, spill or use gasoline

near an open flame.

IMPORTANT: When operating in

temperatures below32°F(0°C), use fresh,

clean winter grade gasoline to help

_Ucre good cold weather starting.

AUTION: Alcohol blended fuels

(called gasohol or using ethanol or

methanol) can attract moisture which

leads to separation and formation of

acids during storage. Acidic gas can

damage the fuel system of an engine

while in storage. To avoid engine

problems, the fuel system should be

emptied before storage of 30 days or

longer. Drain the gas tank, start the

engine and let it run untilthe fuel lines

and carburetor are empty. Use fresh fuel

next season. See Storage Instructionsfor

additional information. Never use engine

or carburetor cleaner products in the fuel

tank or permanent damage may occur.

TO START ENGINE

When starting the engine for the firsttime or if

the engine has run out of fuel, itwill take

extra cranking time to move fuel from the

tank to the engine.

1. Sit on seat in operating position,

depress clutch/breke pedal and set

parking brake.

2. Place gear shift lever in neutral (N)

position.

3. Move attachment clutch to disen-

gaged position.

4. Move throttle control to fast position

5. Pull choke control out for a cold

engine start attempt. For a warm

engine start attempt the choke control

may not be needed.

NOTE: Before staring, read the warm and

cold starting procedures below.

6. Insert key into ignition and turn key

clockwise to start position and

release key as soon as engine starts.

Do not run starter continuously for

more than fifteen seconds per minute.

If the engine does not start after

several attempts, push choke control

in, wait a few minutes and try again. If

engine still does not start, pull the

choke control out and retry.

WARM WEATHER STARTING (50 ° F and

above)

7. When engine starts, slowly push

choke control in until the engine

begins to run smoothly. If the engine

starts to run roughly, pull the choke

control out slightly for a few seconds

and then continue to push the control

in slowly.

• The attachments and ground drive can

now be used. If the engine does not

accept the load, restart the engine and

allow it to warm up for one minute

using the choke as described above.

COLD WEATHER STARTING (50° F and

below)

7. When engine starts, slowly push

choke control in until the engine

begins to run smoothly. Continue to

push the choke control in small steps

allowing the engine to accept small

changes in speed and load, until the

choke control is fully in. If the engine

starts to run roughly, pull the choke

control out slightly for a few seconds

and then continue to push the control

in slowly. This may require an engine

warm-up period from several seconds

to several minutes, depending on the

temperature.

• The attachments can be used during

the engine warm-up period and may

require the choke control be pulled out

slightly.

NOTE; If at a high altitude (above 3000 feet)

or in cold temperatures (below 32 F) the

carburetor fuel mixture may need to be

adjusted for best engine performance (see

"TO ADJUST CARBURETOR" in the Service

and Adjustments sectk_nof this manual).

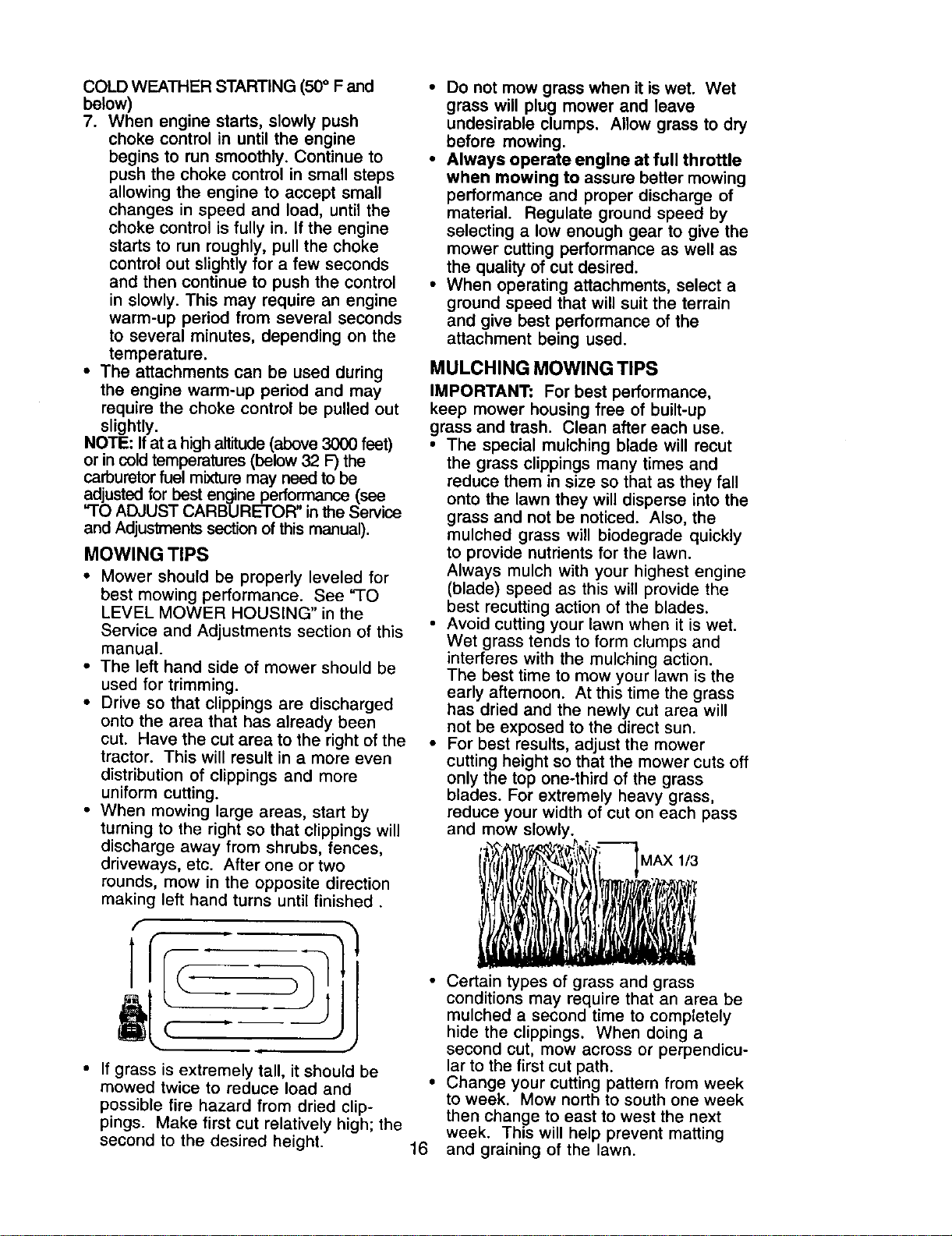

MOWING TIPS

• Mower should be properly leveled for

best mowing performance. See "TO

LEVEL MOWER HOUSING" in the

Service and Adjustments section of this

manual.

• The left hand side of mower should be

used for trimming.

• Drive so that clippings are discharged

onto the area that has already been

cut. Have the cut area to the right of the

tractor. This will result in a more even

distribution of clippings and more

uniform cutting.

• When mowing large areas, start by

turning to the right so that clippings will

discharge away from shrubs, fences,

driveways, etc. After one or two

rounds, mow in the opposite direction

making left hand turns until finished.

• If grass is extremely tall, it should be

mowed twice to reduce load and

possible tire hazard from dried clip-

pings. Make first cut relatively high; the

second to the desired height.

• Do not mow grass when it is wet. Wet

grass will plug mower and leave

undesirable clumps. Allow grass to dry

before mowing.

• Always operate engine at full throttle

when mowing to assure better mowing

performance and proper discharge of

material. Regulate ground speed by

selecting a low enough gear to give the

mower cutting performance as well as

the quality of cut desired.

• When operating attachments, select a

ground speed that will suit the terrain

and give best performance of the

attachment being used.

MULCHING MOWING TIPS

IMPORTANT: For best performance,

keep mower housing free of built-up

grass and trash. Clean after each use.

• The special mulching blade will recut

the grass clippings many times and

reduce them in size so that as they fall

onto the lawn they will disperse into the

grass and not be noticed. Also, the

mulched grass will biodegrade quickly

to provide nutrients for the lawn.

Always mulch with your highest engine

(blade) speed as this will provide the

best recutting action of the blades.

• Avoid cutting your lawn when it is wet.

Wet grass tends to form clumps and

interferes with the mulching action.

The best time to mow your lawn is the

early afternoon. At this time the grass

has dried and the newly cut area will

not be exposed to the direct sun.

• For best results, adjust the mower

cutting height so that the mower cuts off

only the top one-third of the grass

blades. For extremely heavy grass,

reduce your width of cut on each pass

and mow slowly.

MAXI_

• Certain types of grass and grass

conditions may require that an area be

mulched a second time to completely

hide the clippings. When doing a

second cut, mow across or perpendicu-

lar to the first cut path.

• Change your cutting pattern from week

to week. Mow north to south one week

then change to east to west the next

week. This will help prevent matting

and graining of the lawn.

FILL IN DATES

.E U ,RSERV.CE

Check Brake Operation

Check Tire Pressure _ I_ /

Check Operator Presence and

T Interlock Systems

R Check for Loose Fasteners

eharperi'Replace Mower Blades

T LubdcaUon Chart

O Check Battery Level

R Clean Battery and Terminals

Check Tr_msaxle COOling

Check V-Belts

Check Engine Oil Level

Change Engine Oil (with oil filler)

E ChangeEngine Oil (without oil filter)

N Clean Air Filter

G Clean Air Screen

NI Inspect MuffledSpark

Attester

E Replace Oil Filter (If equipped)

Clean Engine Cooling Flns

Replace Spark Plug

Replace Air Filter Paper Cartridge

Replace Fuel Filter

1 - Change more often when operating under a heavy load or

in highambient temperatures.

2 - SerVicemore often when operating In dirtyordusty cOnditions,

_-' v', i/

W ,,,

l/ v'

iV',,= J

i/,: I/

lll_l, I

DATES

3 - Replace blades more often when mowing in sandy soil,

4 * Not required if equipped with maJnlenance+freB battery+

5 - Tighten fronl axle pivot bolt to 35 ft+-Ibs, maximum.

Do not overtJghten.

GENERAL RECOMMENDATIONS

The warranty on this tractor does not cover

items that have been subjected to operator

abuse or negligence. To receive full value

from the warranty, operator must maintain

tractor as instructed in this manual.

Some adjustments will need to be made

periodically to properly maintain your

tractor.

All adjustments in the Service and

Adjustments section of this manual should

be checked at least once each season.

• Once a year you should replace the

spark plug, clean or replace air filter, and

check blades and belts for wear. A new

spark plug and clean air filter assure

proper air-fuel mixture and help your

engine run better and last longer.

BEFORE EACH USE

1. Check engine oil level.

2. Check brake operation.

3. Check tire pressure.

4. Check operator presence and

interlock systems for proper operation,

5. Check for loose fasteners.

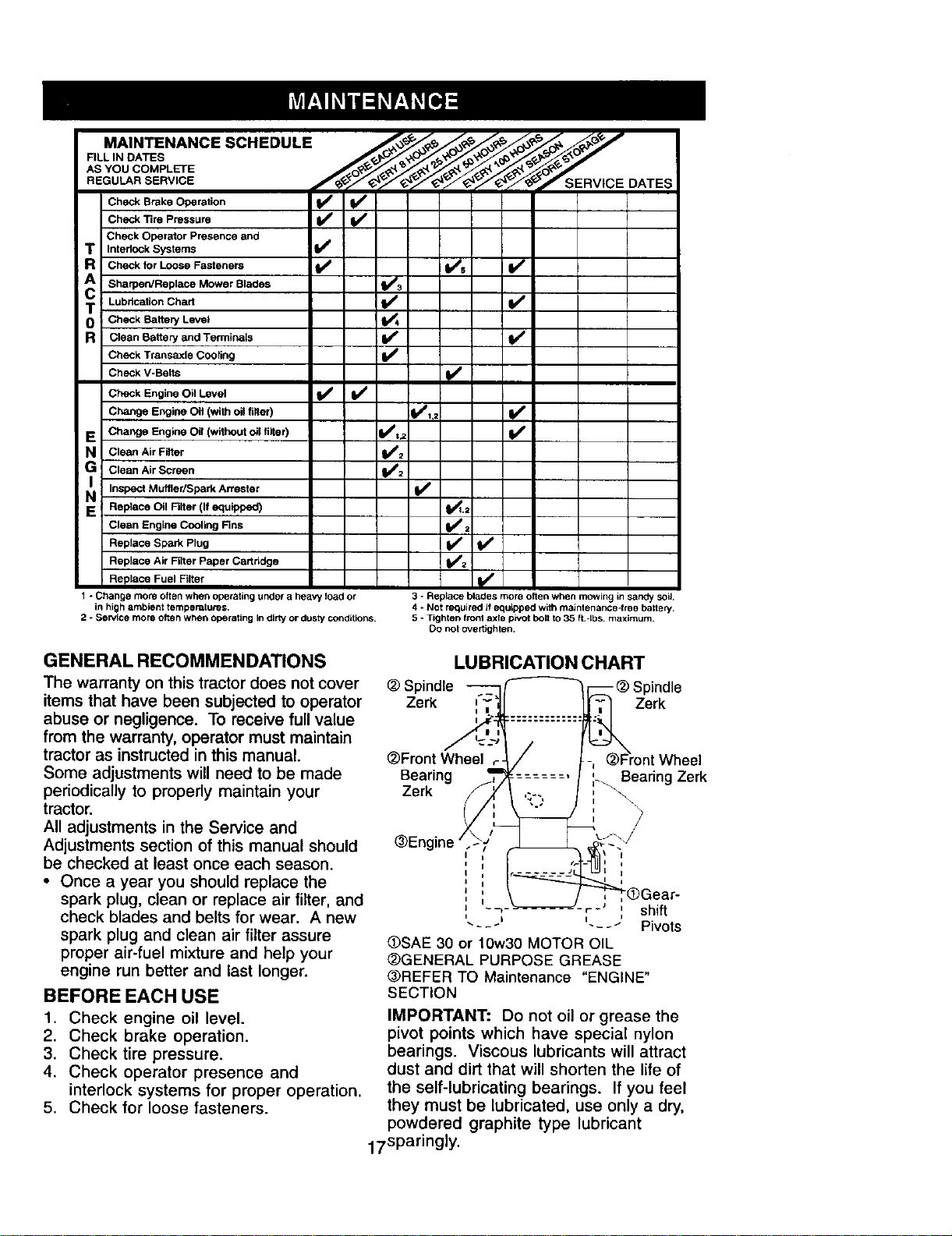

LUBRICATION CHART

Spindle -- -(_ Spindle

Zerk Zerk

(_Front Wheel eel

Bearing i__ Bearing Zerk

Zerk , \

®Engine .

' (_Gear-

i 1-- ,--_ ' shift

i I

Pivots

OSAE 30 or 10w30 MOTOR OIL

_GENERAL PURPOSE GREASE

_REFER TO Maintenance "ENGINE"

SECTION

IMPORTANT: Do not oil or grease the

pivot points which have special nylon

bearings. Viscous lubricants will attract

dust and dirt that will shorten the life of

the self-lubricating bearings. If you feel

they must be lubricated, use only a dry,

powdered graphite type lubricant

17sparingly.

TRACTOR

Always observe safety rules when

performing any maintenance.

BRAKE OPERATION

If tractor requires more than six (6) feet

stopping distance at high speed in

highest gear, then brake must be ad-

justed. (See "1"O ADJUST BRAKE" in the

Service and Adjustments section of this

manual).

TIRES

• Maintain proper air pressure in all tires

(See "PRODUCT SPECIFICATIONS"

section of this manual).

• Keep tires free of gasoline, oil, or insect

control chemicals which can harm

rubber.

• Avoid stumps, stones, deep ruts, sharp

objects and other hazards that may

cause tire damage.

NOTE: To seal tire punctures and prevent

flat tires due to slow leaks, tire sealant

may be purchased from your local parts

dealer. Tire sealant also prevents tire dry

rot and corrosion.

OPERATOR PRESENCE SYSTEM

Be sure operator presence and interlock

systems are working properly. If your

tractor does not function as described,

repair the problem immediately.

• The engine should not start unless the

clutch/brake pedal is fully depressed

and attachement clutch control is in the

disengaged position.

• When the engine is running, any

attempt by the operator to leave the

seat without first setting the parking

brake should shut off the engine.

• When the engine is running and the

attachment clutch is engaged, any

attempt by the operator to leave the

seat should shut off the engine.

• The attachment clutch should never

operate unless the operator is in the

seat.

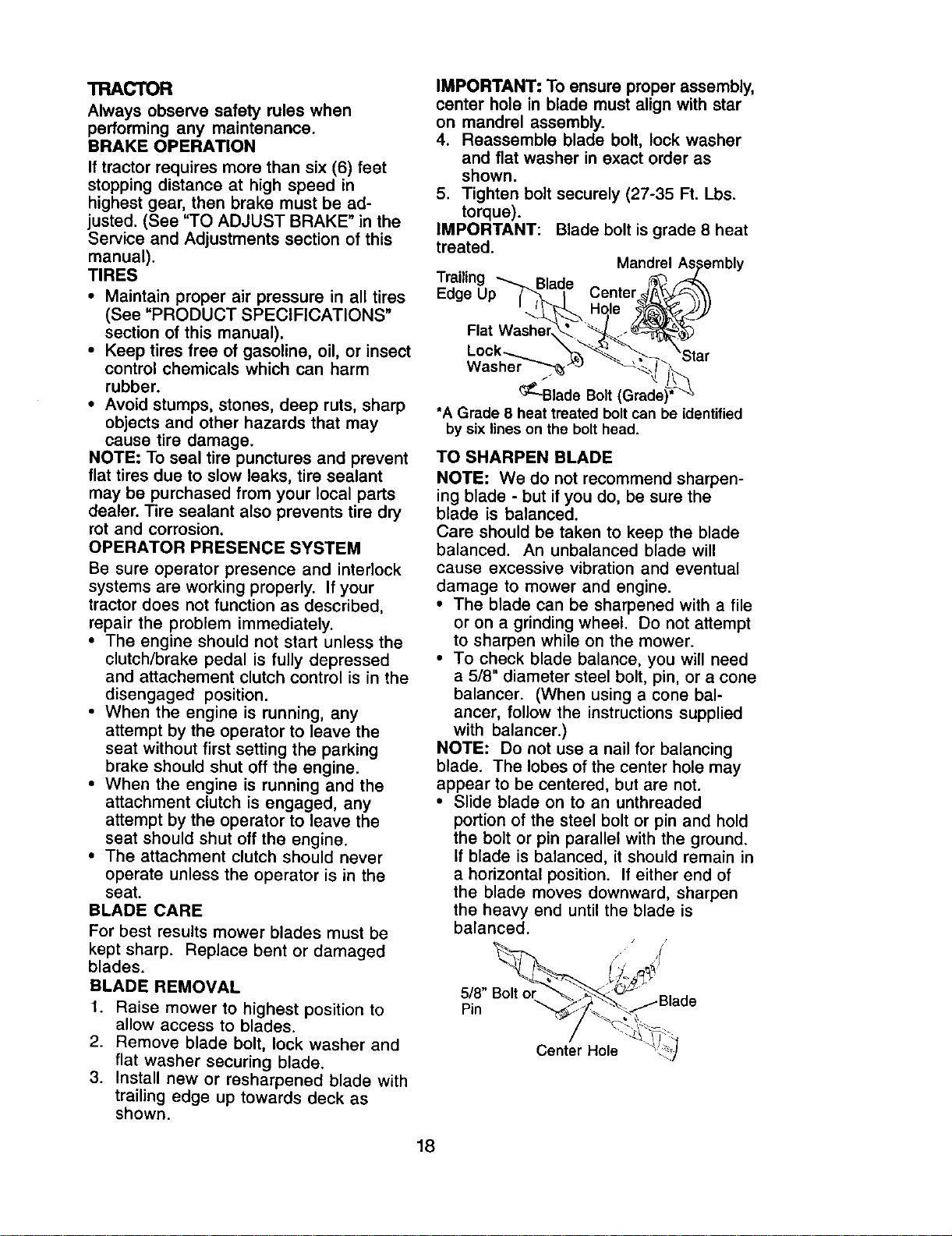

BLADE CARE

For best results mower blades must be

kept sharp. Replace bent or damaged

blades.

BLADE REMOVAL

1. Raise mower to highest position to

allow access to blades.

2. Remove blade bolt, lock washer and

flat washer securing blade.

3. Install new or resharpened blade with

trailing edge up towards deck as

shown.

IMPORTANT: To ensure proper assembly,

center hole in blade must align with star

on mandrel assembly.

4. Reassemble blade bolt, lock washer

and flat washer in exact order as

shown.

5. Tighten bolt securely (27-35 Ft. Lbs.

torque).

IMPORTANT: Blade bolt is grade 8 heat

treated.

Mandrel Assembly

Trailing _ Rl°a° _'_

Edge Up _'='_" Center_/_'_.__

'_q_L Hole _-_J)))

Flat '-Was__ _'-"q' "_

Lock_ _ "'_.'_"'_. "_._S tar

Washer _. "_'_-_.,__/\

_-Blade Bolt (Grade__

*A Grade 8 heat treated boltcan be identified

by six lineson the bolt head.

TO SHARPEN BLADE

NOTE: We do not recommend sharpen-

ing blade - but if you do, be sure the

blade is balanced.

Care should be taken to keep the blade

balanced. An unbalanced blade will

cause excessive vibration and eventual

damage to mower and engine.

• The blade can be sharpened with a file

or on a grinding wheel. Do not attempt

to sharpen while on the mower.

• To check blade balance, you will need

a 5/8" diameter steel bolt, pin, or a cone

balancer. (When using a cone bal-

ancer, follow the instructions supplied

with balancer.)

NOTE: Do not use a nail for balancing

blade. The lobes of the center hole may

appear to be centered, but are not.

• Slide blade on to an unthreaded

portion of the steel bolt or pin and hold

the bolt or pin parallel with the ground.

If blade is balanced, it should remain in

a horizontal position. If either end of

the blade moves downward, sharpen

the heavy end until the blade is

balanced.

/ /

Center Hole '_'!)

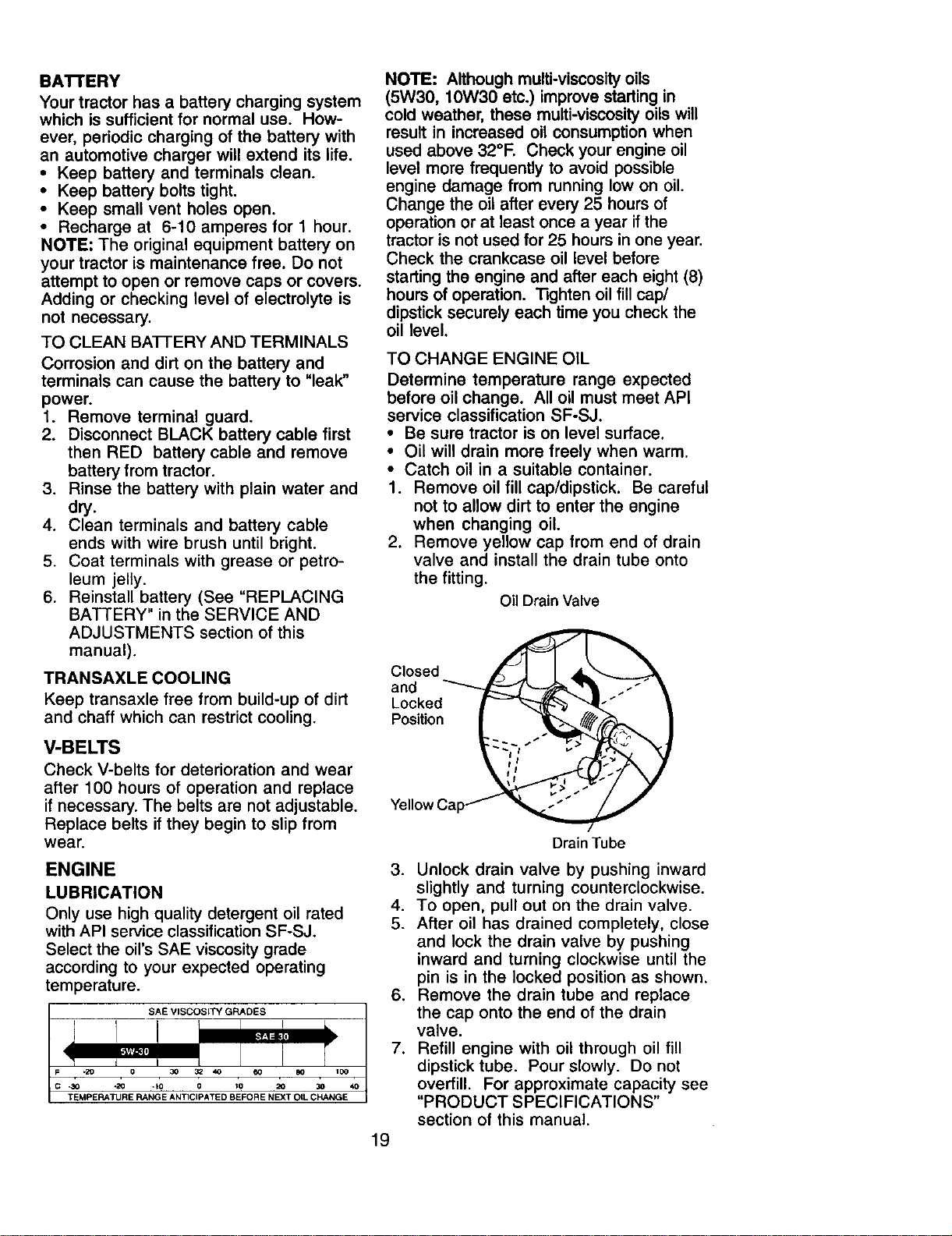

BA'R'ERY

Your tractor has a battery charging system

which is sufficient for normal use. How-

ever, periodic charging of the battery with

an automotive charger will extend its life.

• Keep battery and terminals clean.

• Keep battery bolts tight.

• Keep small vent holes open.

• Recharge at 6-10 amperes for 1 hour.

NOTE: The original equipment battery on

your tractor is maintenance free. Do not

attempt to open or remove caps or covers.

Adding or checking level of electrolyte is

not necessary.

TO CLEAN BAI-FERY AND TERMINALS

Corrosion and dirt on the battery and

terminals can cause the battery to "leak"

power.

1. Remove terminal guard.

2. Disconnect BLACK battery cable first

then RED battery cable and remove

battery from tractor.

3. Rinse the battery with plain water and

dry.

4. Clean terminals and battery cable

ends with wire brush until bright.

5. Coat terminals with grease or petro-

leum jelly.

6. Reinstall battery (See "REPLACING

BATTERY" in the SERVICE AND

ADJUSTMENTS section of this

manual).

TRANSAXLE COOLING

Keep transaxle free from build-up of did

and chaff which can restrict cooling.

V-BELTS

Check V-belts for deterioration and wear

after 100 hours of operation and replace

if necessary. The belts are not adjustable.

Replace belts if they begin to slip from

wear.

ENGINE

LUBRICATION

Only use high quality detergent oil rated

with API service classification SF-SJ.

Select the oil's SAE viscosity grade

according to your expected operating

temperature.

$AE VISCOSITY GRADES

TEMPERA3"URE RANGE ANTICIPATED BEFORE NEXT OIL CHANGE

NOTE: Although mulU-viscosity oils

(5W30, 10W30 etc.) improve starting in

cold weather, these multi-viscosity oils will

result in increased oil consumption when

used above 32°1=. Check your engine oil

level more frequently to avoid possible

engine damage from running low on oil.

Change the oil after every 25 hours of

operation or at least once a year if the

tractor is not used for 25 hours in one year.

Check the crankcase oil level before

starting the engine and after each eight (6)

hours of operation. "13ghtenoil fill cap/

dipstick securely each time you check the

oil level.

TO CHANGE ENGINE OIL

Determine temperature range expected

before oil change. All oil must meet API

service classification SF-SJ.

• Be sure tractor is on level surface.

• Oil will drain more freely when warm.

• Catch oil in a suitable container.

1. Remove oil fill cap/dipstick. Be careful

not to allow dirt to enter the engine

when changing oil.

2. Remove yellow cap from end of drain

valve and install the drain tube onto

the fitting.

Oil Drain Valve

Closed

and

Locked

Position

Drain Tube

3. Unlock drain valve by pushing inward

slightly and turning counterclockwise.

4. To open, pull out on the drain valve.

5. After oil has drained completely, close

and lock the drain valve by pushing

inward and turning clockwise until the

pin is in the locked position as shown.

6. Remove the drain tube and replace

the cap onto the end of the drain

valve.

7. Refill engine with oil through oil fill

dipstick tube. Pour slowly. Do not

overfill. For approximate capacity see

"PRODUCT SPECIFICATIONS"

section of this manual.

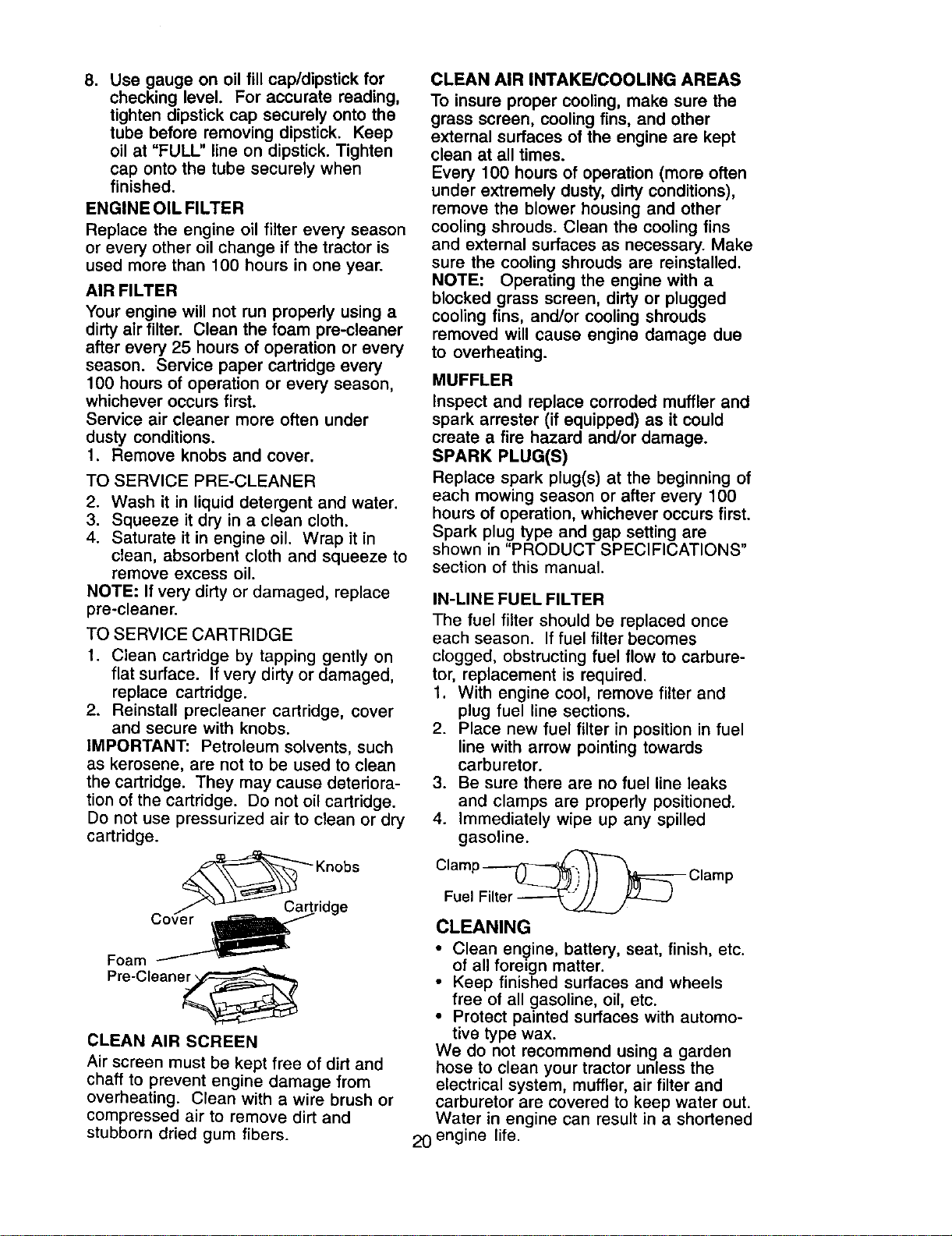

8. Use gauge on oil fill cap/dipstick for

checking level. For accurate reading,

tighten dipstick cap securely onto the

tube before removing dipstick. Keep

oil at "FULU' line on dipstick. Tighten

cap onto the tube securely when

finished.

ENGINE OiL FILTER

Replace the engine oil filter every season

or every other oil change if the tractor is

used more than 100 hours in one year.

AIR FILTER

Your engine will not run properly using a

dirty air filter. Clean the foam pre-cleaner

after every 25 hours of operation or every

season. Service paper cartridge every

100 hours of operation or every season,

whichever occurs first.

Service air cleaner more often under

dusty conditions.

1. Remove knobs and cover.

TO SERVICE PRE-CLEANER

2. Wash it in liquid detergent and water.

3. Squeeze it dry in a clean cloth.

4. Saturate it in engine oil. Wrap it in

clean, absorbent cloth and squeeze to

remove excess oil.

NOTE: If very dirty or damaged, replace

pre-cleaner.

TO SERVICE CARTRIDGE

1. Clean cartridge by tapping gently on

flat surface. If very dirty or damaged,

replace cartridge.

2. Reinstall precleaner cartridge, cover

and secure with knobs.

IMPORTANT: Petroleum solvents, such

as kerosene, are not to be used to clean

the cartridge. They may cause deteriora-

tion of the cartridge. Do not oil cartridge.

Do not use pressurized air to clean or dry

cartridge.

Knobs

Cove-_r ..,,_/_=_ ridge

Foam _

Pre-Cleane_

CLEAN AIR SCREEN

Air screen must be kept free of dirt and

chaff to prevent engine damage from

overheating. Clean with a wire brush or

compressed air to remove dirt and

stubborn dried gum fibers.

CLEAN AIR INTAKE/COOLING AREAS

To insure proper cooling, make sure the

grass screen, cooling fins, and other

external surfaces of the engine are kept

clean at all times.

Every 100 hours of operation (more often

under extremely dusty, dirty conditions),

remove the blower housing and other

cooling shrouds. Clean the cooling fins

and external surfaces as necessary. Make

sure the cooling shrouds are reinstalled.

NOTE: Operating the engine with a

blocked grass screen, dirty or plugged

cooling fins, and/or cooling shrouds

removed will cause engine damage due

to overheating.

MUFFLER

Inspect and replace corroded muffler and

spark arrester (if equipped) as it could

create a fire hazard and/or damage.

SPARK PLUG(S)

Replace spark plug(s) at the beginning of

each mowing season or after every 100

hours of operation, whichever occurs first.

Spark plug type and gap setting are

shown in "PRODUCT SPECIFICATIONS"

section of this manual.

IN-LINE FUEL FILTER

The fuel filter should be replaced once

each season. If fuel filter becomes

clogged, obstructing fuel flow to carbure-

tor, replacement is required.

1. With engine cool, remove filter and

plug fuel line sections.

2. Place new fuel filter in position in fuel

line with arrow pointing towards

carburetor.

3. Be sure there are no fuel line leaks

and clamps are properly positioned.

4. Immediately wipe up any spilled

gasoline.

Clamp _ Clamp

Fuel Filter

CLEANING

• Clean engine, battery, seat, finish, etc.

of all foreign matter.

• Keep finished surfaces and wheels

free of all gasoline, oil, etc.

• Protect painted surfaces with automo-

tive type wax.

We do not recommend using a garden

hose to clean your tractor unless the

electrical system, muffler, air filter and

carburetor are covered to keep water out.

Water in engine can result in a shortened

engine life.

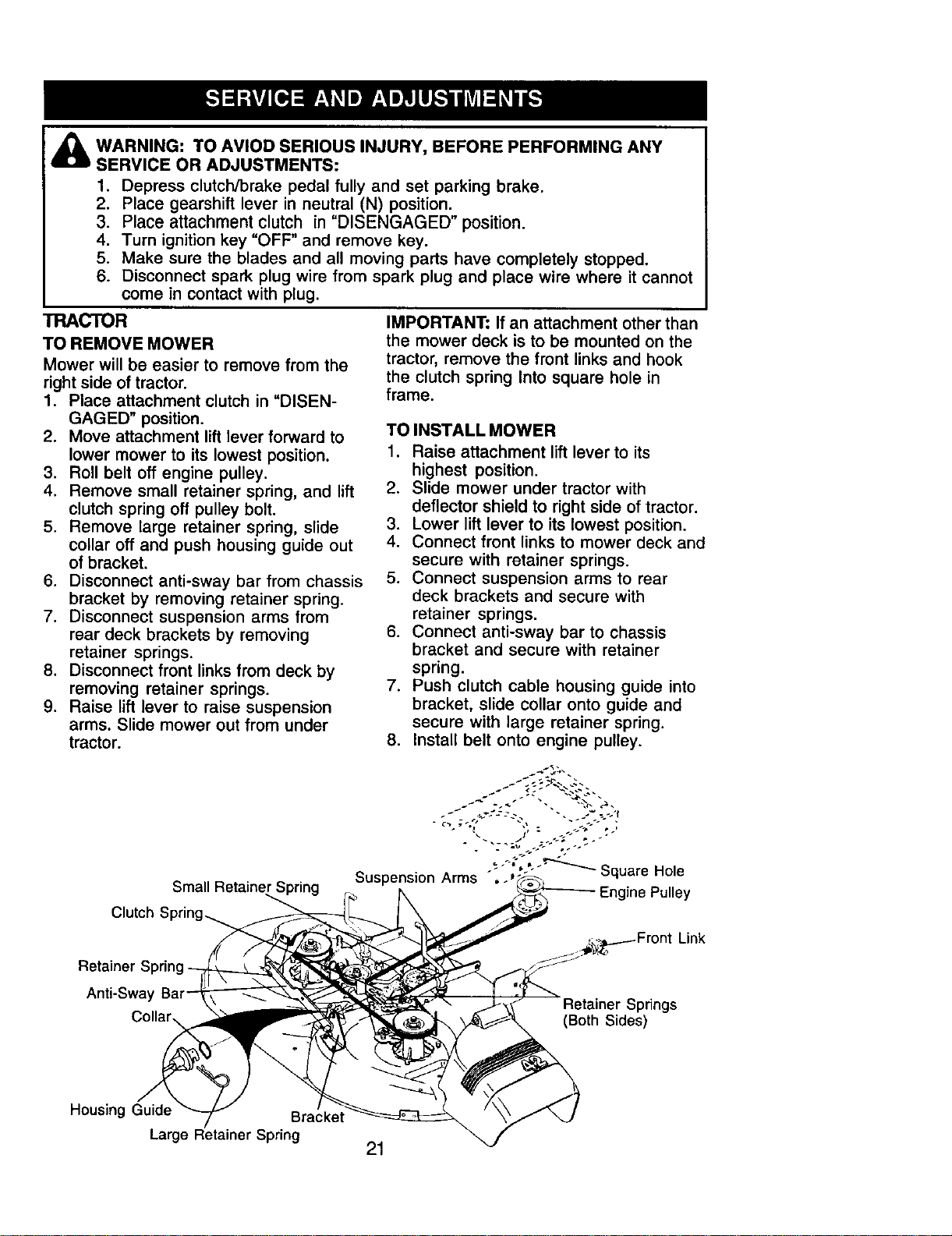

,_ WARNING: TO AVIOD SERIOUS INJURY, BEFORE PERFORMING ANY

SERVICE OR ADJUSTMENTS:

1. Depress clutch/brake pedal fully and set parking brake.

2, Place gearshift lever in neutral (N) position,

3. Place attachment clutch in "DISENGAGED" position.

4. Turn ignition key "OFF" and remove key.

5. Make sure the blades and all moving parts have completely stopped.

6. Disconnect spark plug wire from spark plug and place wire where it cannot

come in contact with plug.

TRACTOR

TO REMOVE MOWER

Mower will be easier to remove from the

right side of tractor.

1. Place attachment clutch in "DISEN-

GAGED" position.

2. Move attachment lift lever forward to

IMPORTANT: If an attachment other than

the mower deck is to be mounted on the

tractor, remove the front links and hook

the clutch spring Into square hole in

frame.

TO INSTALL MOWER

lower mower to its lowest position.

3. Roll belt off engine pulley.

4. Remove small retainer spring, and lift

clutch spring off pulley bolt.

5. Remove large retainer spring, slide

collar off and push housing guide out

of bracket.

6. Disconnect anti-sway bar from chassis

bracket by removing retainer spring.

7. Disconnect suspension arms from

rear deck brackets by removing

retainer springs.

8. Disconnect front links from deck by

removing retainer springs.

9. Raise lift lever to raise suspension

arms. Slide mower out from under

tractor.

1. Raise attachment lift lever to its

highest position.

2. Slide mower under tractor with

deflector shield to right side of tractor.

3. Lower lift lever to its lowest position.

4. Connect front links to mower deck and

secure with retainer springs.

5. Connect suspension arms to rear

deck brackets and secure with

retainer springs.

6. Connect anti-sway bar to chassis

bracket and secure with retainer

spring.

7. Push clutch cable housing guide into

bracket, slide collar onto guide and

secure with large retainer spring.

8. Install belt onto engine pulley.

Small Retainer Spring

Clutch

Link

Retainer

Anti-Swa'

(Both Sides)

Housing Guide Bracket

Large Retainer Spring

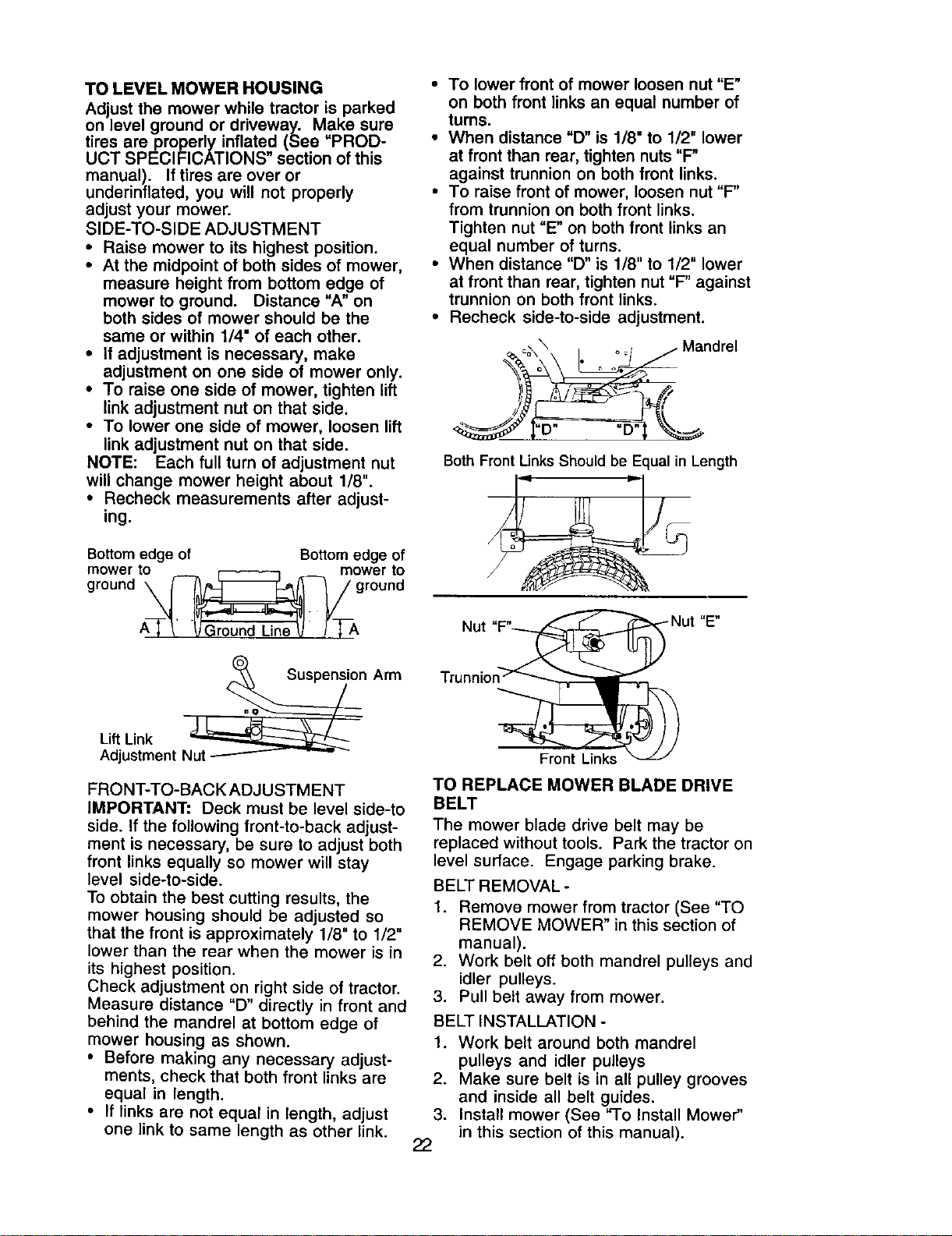

TO LEVEL MOWER HOUSING

Adjust the mower while tractor is parked

on level ground or driveway. Make sure

tires are properly inflated (See "PROD-

UCT SPECIFICATIONS" section of this

manual). If tires are over or

underinflated, you will not properly

adjust your mower.

SIDE-TO-SIDE ADJUSTMENT

• Raise mower to its highest position.

• At the midpoint of both sides of mower,

measure height from bottom edge of

mower to ground. Distance "A" on

both sides of mower should be the

same or within 1/4" of each other.

• If adjustment is necessary, make

adjustment on one side of mower only.

• To raise one side of mower, tighten lift

link adjustment nut on that side.

• To lower one side of mower, loosen lift

link adjustment nut on that side.

NOTE: Each full turn of adjustment nut

will change mower height about 1/8".

• Recheck measurements after adjust-

ing.

Bottom edge of Bottom edge of

mower to _ mower to

ground _ ground

A_-_' _Ground Line V [__A

Arm

Lift Link N_

Adjustment

FRONT-TO-BACK ADJUSTMENT

IMPORTANT: Deck must be level side-to

side. If the following front-to-back adjust-

ment is necessary, be sure to adjust both

front links equally so mower will stay

level side-to-side.

To obtain the best cutting results, the

mower housing should be adjusted so

that the front is approximately 1/8" to 1/2"

lower than the rear when the mower is in

its highest position.

Check adjustment on right side of tractor.

Measure distance "D" directly in front and

behind the mandrel at bottom edge of

mower housing as shown.

• Before making any necessary adjust-

ments, check that both front links are

equal in length.

• If links are not equal in length, adjust

one link to same length as other link.

• To lower front of mower loosen nut "E"

on both front links an equal number of

turns,

• When distance "D" is 1/8" to 1/2" lower

at front than rear, tighten nuts "F"

against trunnion on both front links.

• To raise front of mower, loosen nut "F"

from trunnion on both front links.

Tighten nut "E" on both front links an

equal number of turns.

• When distance "D" is 1/8" to 1/2" lower

at front than rear, tighten nut "F" against

trunnion on both front links.

• Recheck side-to-side adjustment.

_\ , o;_ j Mandrel

Both Front Links Should be Equal in Length

"E"

TrUl

Front Links

TO REPLACE MOWER BLADE DRIVE

BELT

The mower blade drive belt may be

replaced without tools. Park the tractor on

level surface. Engage parking brake.

BELT REMOVAL -

1. Remove mower from tractor (See 'qO

REMOVE MOWER" in this section of

manual).

2. Work belt off both mandrel pulleys and

idler pulleys.

3. Pull belt away from mower.

BELT INSTALLATION -

1. Work belt around both mandrel

pulleys and idler pulleys

2. Make sure belt is in all pulley grooves

and inside all belt guides.

3. Install mower (See "To Install Mower"

in this section of this manual).

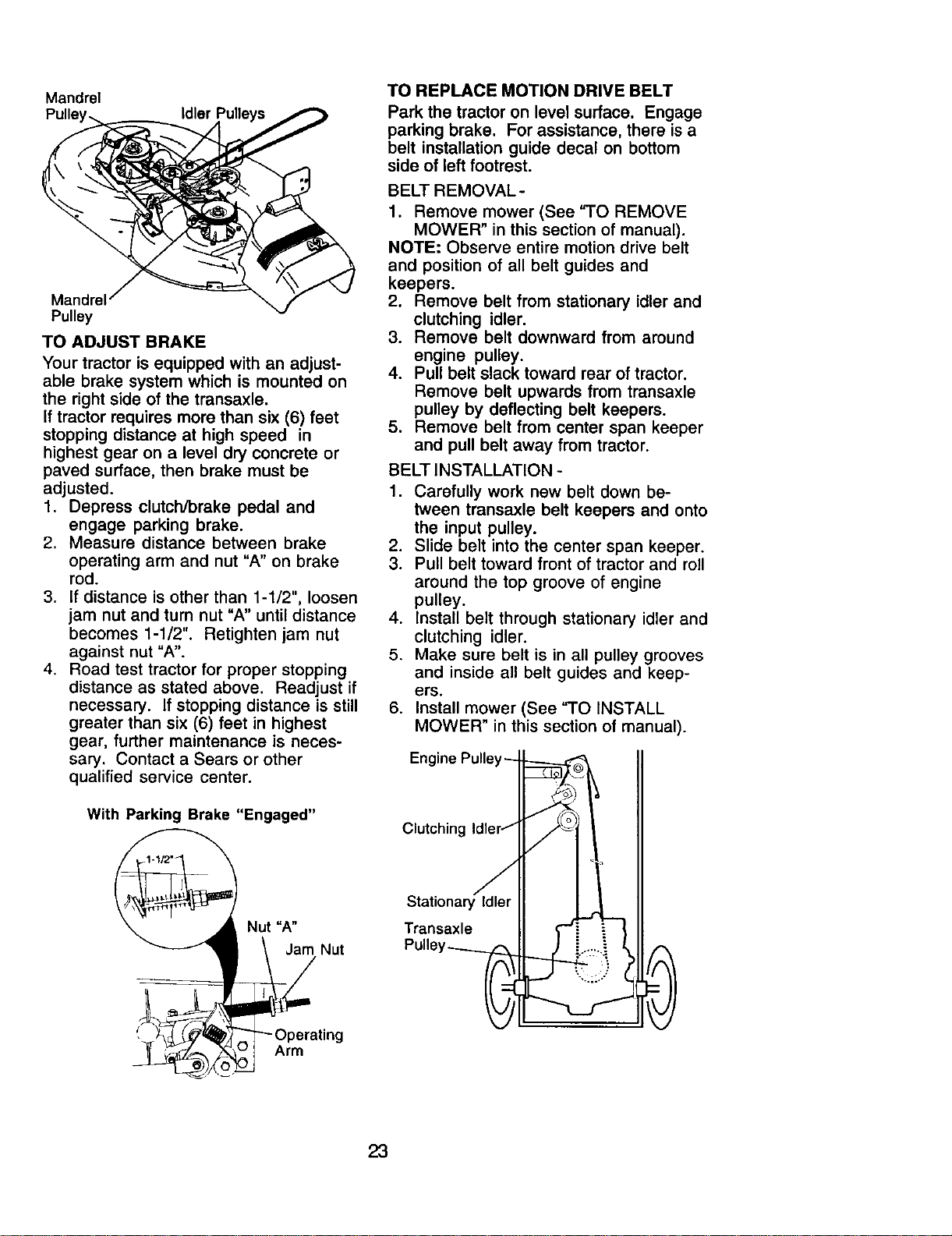

Mandrel

idler

Pulley

TO ADJUST BRAKE

Your tractor is equipped with an adjust-

able brake system which is mounted on

the right side of the transaxle.

If tractor requires more than six (6) feet

stopping distance at high speed in

highest gear on a level dry concrete or

paved surface, then brake must be

adjusted.

1. Depress clutch/brake pedal and

engage parking brake.

2. Measure distance between brake

operating arm and nut "A" on brake

rod.

3. If distance is other than 1-1/2", loosen

jam nut and turn nut "A" until distance

becomes 1-1/2". Retighten jam nut

against nut "A".

4. Road test tractor for proper stopping

distance as stated above. Readjust if

necessary. If stopping distance is still

greater than six (6) feet in highest

gear, further maintenance is neces-

sary. Contact a Sears or other

qualified service center.

With Parking Brake "Engaged"

Nut =A"

__AOr_Nut

perating

TO REPLACE MOTION DRIVE BELT

Park the tractor on level surface. Engage

parking brake. For assistance, there is a

belt installation guide decal on bottom

side of left footrest.

BELT REMOVAL-

1. Remove mower (See "TO REMOVE

MOWER" in this section of manual).

NOTE: Observe entire motion drive belt

and position of all belt guides and

keepers.

2. Remove belt from stationary idler and

clutching idler.

3. Remove belt downward from around

engine pulley.

4. Pull belt slack toward rear of tractor.

Remove belt upwards from transaxle

pulley by deflecting belt keepers.

5. Remove belt from center span keeper

and pull belt away from tractor.

BELT INSTALLATION -

1. Carefully work new belt down be-

tween transaxle belt keepers and onto

the input pulley.

2. Slide belt into the center span keeper.

3. Pull belt toward front of tractor and roll

around the top groove of engine

pulley.

4. Install belt through stationary idler and

clutching idler.

5. Make sure belt is in all pulley grooves

and inside all belt guides and keep-

ers.

6. Install mower (See "TO INSTALL

MOWER" in this section of manual).

Engine Pulle

Clutching

Stationary Idler

Transaxle

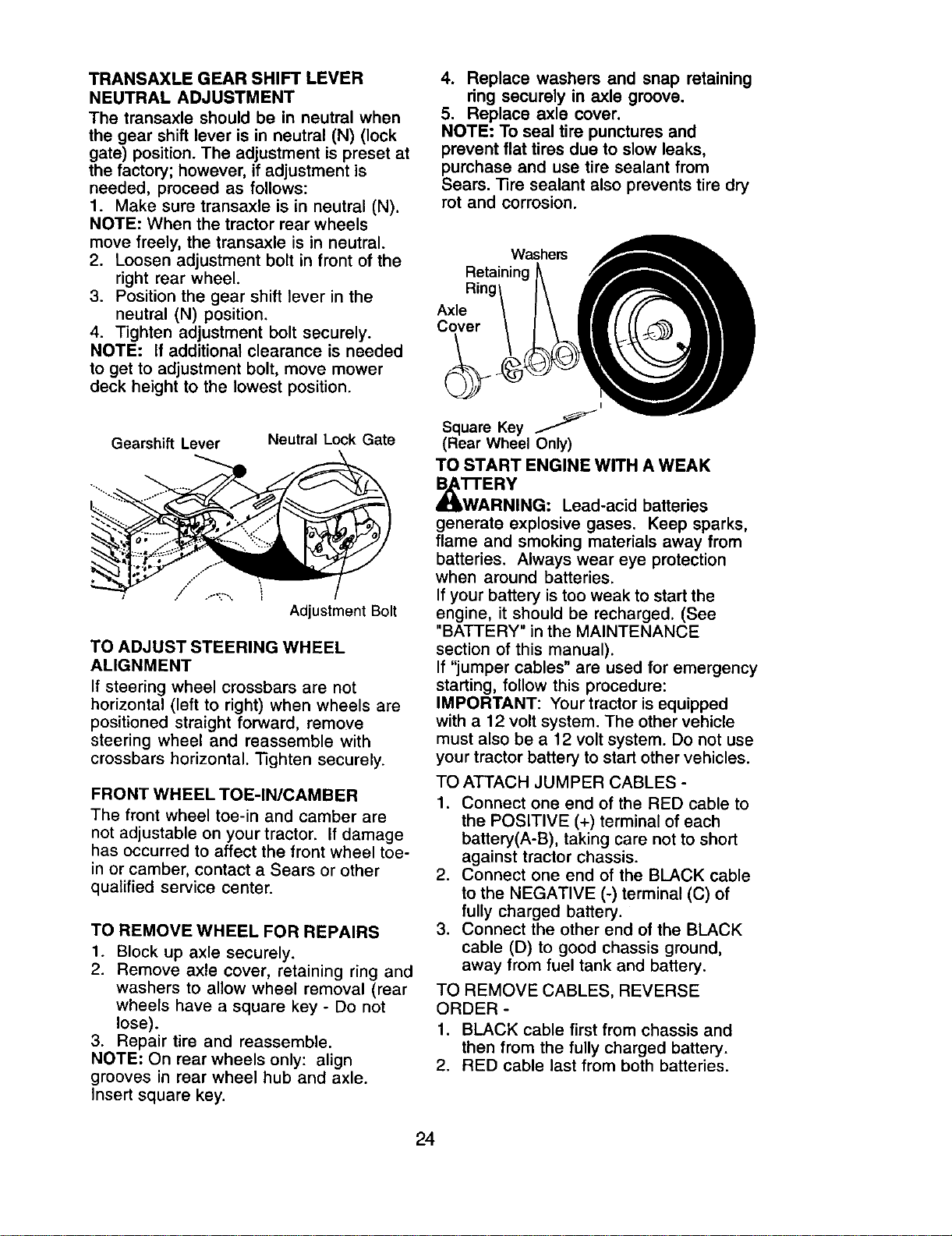

TRANSAXLE GEAR SHIFT LEVER

NEUTRAL ADJUSTMENT

The transaxle should be in neutral when

the gear shift lever is in neutral (N) (lock

gate) position. The adjustment is preset at

the factory; however, if adjustment is

needed, proceed as follows:

1. Make sure transaxle is in neutral (N).

NOTE: When the tractor rear wheels

move freely, the transaxle is in neutral.

2. Loosen adjustment bolt in front of the

right rear wheel.

3. Position the gear shift lever in the

neutral (N) position.

4. Tighten adjustment bolt securely.

NOTE: If additional clearance is needed

to get to adjustment bolt, move mower

deck height to the lowest position.

Gearshift Lever Neutral Lock Gate

Adjustment Bolt

TO ADJUST STEERING WHEEL

ALIGNMENT

If steering wheel crossbars are not

horizontal (left to right) when wheels are

positioned straight forward, remove

steering wheel and reassemble with

crossbars horizontal. "13ghtensecurely.

FRONT WHEEL TOE-IN/CAMBER

The front wheel toe-in and camber are

not adjustable on your tractor. If damage

has occurred to affect the front wheel toe-

in or camber, contact a Sears or other

qualified service center.

TO REMOVE WHEEL FOR REPAIRS

1. Block up axle securely.

2. Remove axle cover, retaining ring and

washers to allow wheel removal (rear

wheels have a square key - Do not

lose).

3. Repair tire and reassemble.

NOTE: On rear wheels only: align

grooves in rear wheel hub and axle.

Insert square key.

4. Replace washers and snap retaining

ring securely in axle groove.

5. Replace axle cover.

NOTE: To seal tire punctures and

prevent flat tires due to slow leaks,

purchase and use tire sealant from

Sears. 13re sealant also prevents tire dry

rot and corrosion.

Washers

Retaining

Ring

Axle

Cover

Square Key f

(Rear Wheel Only)

TO START ENGINE WITH A WEAK

RNING: Lead-acid batteries

generate explosive gases. Keep sparks,

flame and smoking materials away from

batteries. Always wear eye protection

when around batteries.

If your battery is too weak to start the

engine, it should be recharged. (See

"BATTERY" in the MAINTENANCE

section of this manual).

If "jumper cables" are used for emergency

starting, follow this procedure:

IMPORTANT: Your tractor is equipped

with a 12 volt system. The other vehicle

must also be a 12 volt system. Do not use

your tractor battery to start other vehicles.

TO ATTACH JUMPER CABLES -

1. Connect one end of the RED cable to

the POSITIVE (+) terminal of each

battery(A-B), taking care not to short

against tractor chassis.

2. Connect one end of the BLACK cable

to the NEGATIVE (-) terminal (C) of

fully charged battery.

3. Connect the other end of the BLACK

cable (D) to good chassis ground,

away from fuel tank and battery.

TO REMOVE CABLES, REVERSE

ORDER -

1. BLACK cable first from chassis and

then from the fully charged battery.

2. RED cable last from both batteries.

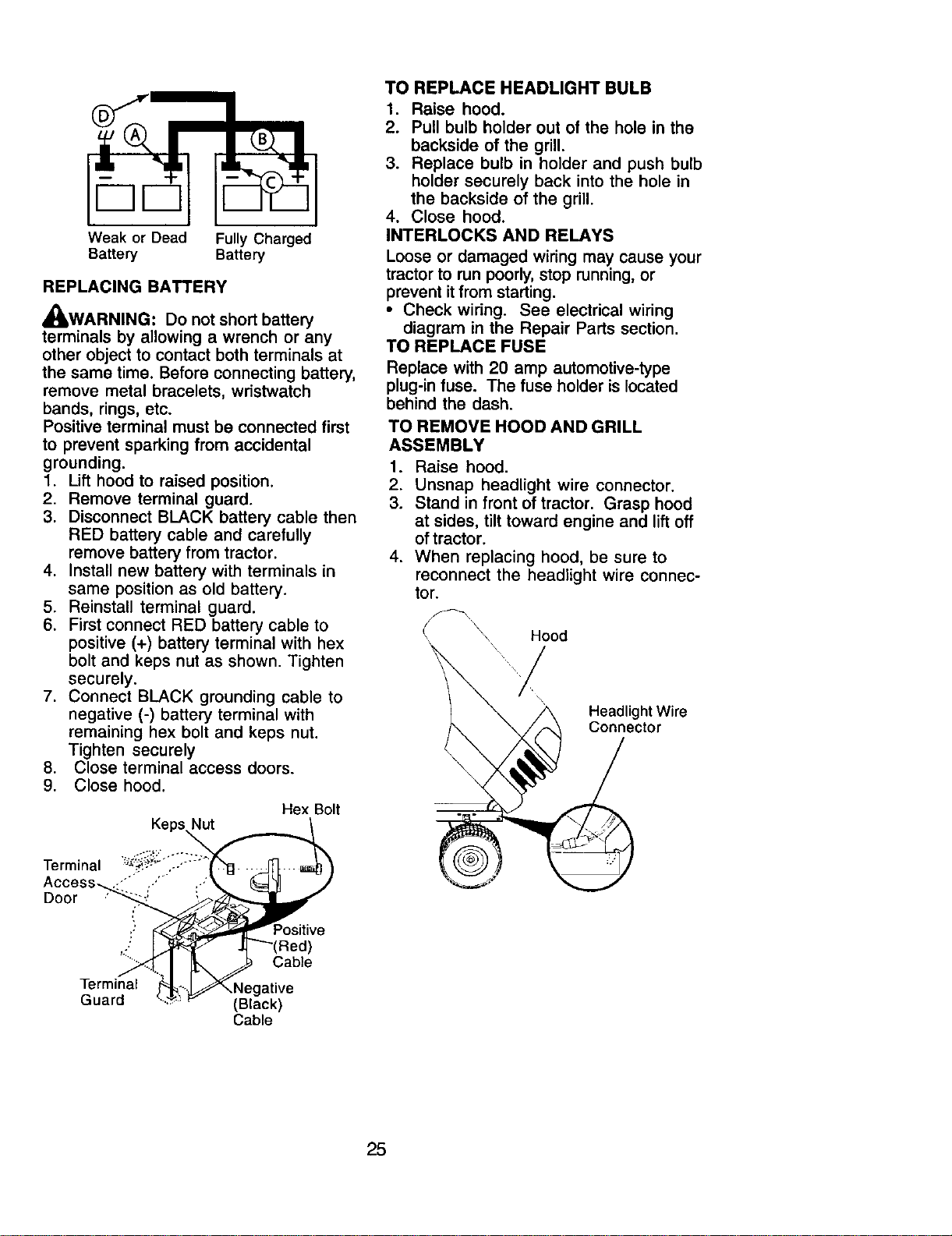

Weak or Dead Fully Charged

Battery Battery

REPLACING BATTERY

_WARNING: Do not short battery

terminals by allowing a wrench or any

other object to contact both terminals at

the same time. Before connecting battery,

remove metal bracelets, wristwatch

bands, rings, etc.

Positive terminal must be connected first

to prevent sparking from accidental

grounding.

1. Lift hood to raised position.

2. Remove terminal guard.

3. Disconnect BLACK battery cable then

RED battery cable and carefully

remove battery from tractor.

4. Install new battery with terminals in

same position as old battery.

5. Reinstall terminal guard.

6. First connect RED battery cable to

positive (+) battery terminal with hex

bolt and keps nut as shown. Tighten

securely.

7. Connect BLACK grounding cable to

negative (-) battery terminal with

remaining hex bolt and keps nut.

Tighten securely

8. Close terminal access doors.

9. Close hood.

Hex Bolt

Keps Nut

TO REPLACE HEADLIGHT BULB

1. Raise hood.

2. Pull bulb holder out of the hole in the

backside of the grill.

3. Replace bulb in holder and push bulb

holder securely back into the hole in

the backside of the grill.

4. Close hood.

INTERLOCKS AND RELAYS

Loose or damaged wiring may cause your

tractor to run poorly, stop running, or

prevent it from starting.

• Check widng. See electrical widng

diagram in the Repair Parts section.

TO REPLACE FUSE

Replace with 20 amp automotive-type

plug-in fuse. The fuse holder is located

behind the dash.

TO REMOVE HOOD AND GRILL

ASSEMBLY

1. Raise hood.

2. Unsnap headlight wire connector.

3. Stand in front of tractor. Grasp hood

at sides, tilt toward engine and lift off

of tractor.

4. When replacing hood, be sure to

reconnect the headlight wire connec-

tor.

Hood

HeadlightWire

Connector

Terminal --

Aece_ .-"" .-"'"

Door

Terminal

Guard

Cable

,Negative

(Black)

Cable

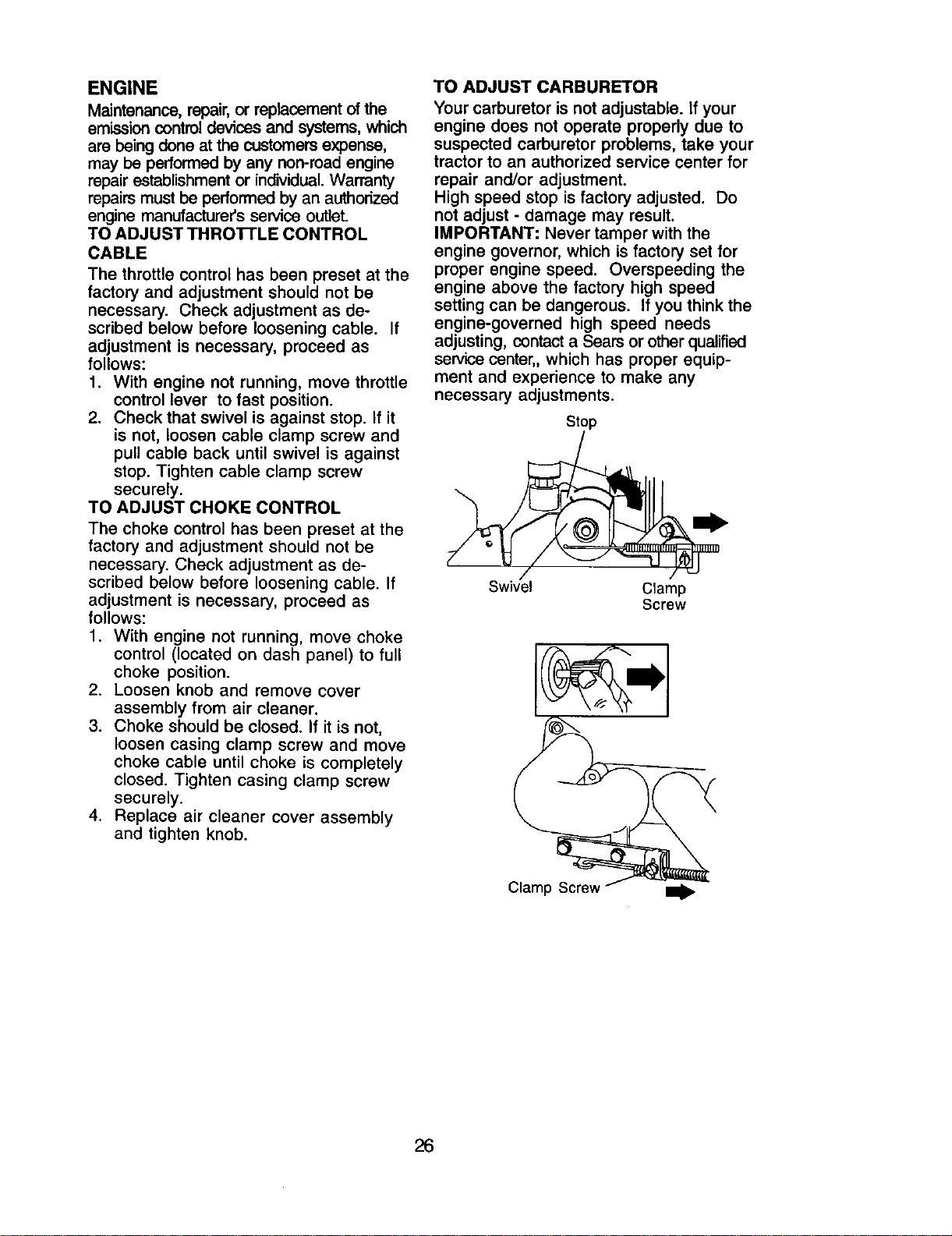

ENGINE

Maintenance, repair, or replacement of the

emission control devices and systems, which

are being done at the customers expense,

may be performed by any non-road engine

repair establishment or individual. Warranty

repairs must be performed by an authorized

engine manufacturer's service outlet.

TO ADJUST THRO'R'LE CONTROL

CABLE

The throttle control has been preset at the

factory and adjustment should not be

necessary. Check adjustment as de-

scribed below before loosening cable. If

adjustment is necessary, proceed as

follows:

1. With engine not running, move throttle

control lever to fast position.

2. Check that swivel is against stop. If it

is not, loosen cable clamp screw and

pull cable back until swivel is against

stop. Tighten cable clamp screw

securely.

TO ADJUST CHOKE CONTROL

The choke control has been preset at the

factory and adjustment should not be

necessary. Check adjustment as de-

scribed below before loosening cable. If

adjustment is necessary, proceed as

follows:

1. With engine not running, move choke

control (located on dash panel) to full

choke position.

2. Loosen knob and remove cover

assembly from air cleaner.

3. Choke should be closed. If it is not,

loosen casing clamp screw and move

choke cable until choke is completely

closed. Tighten casing clamp screw

securely.

4. Replace air cleaner cover assembly

and tighten knob.

TO ADJUST CARBURETOR

Your carburetor is not adjustable. If your

engine does not operate properly due to

suspected carburetor problems, take your

tractor to an authorized service center for

repair and/or adjustment.

High speed stop is factory adjusted. Do

not adjust - damage may result.

IMPORTANT: Never tamper with the

engine governor, which is factory set for

proper engine speed. Overspeeding the

engine above the factory high speed

setting can be dangerous. If you think the

engine-governed high speed needs

adjusting, contact a Sears or other qualified

service center,, which has proper equip-

ment and experience to make any

necessary adjustments.

Stop

Swive! Clamp

Screw

Clamp

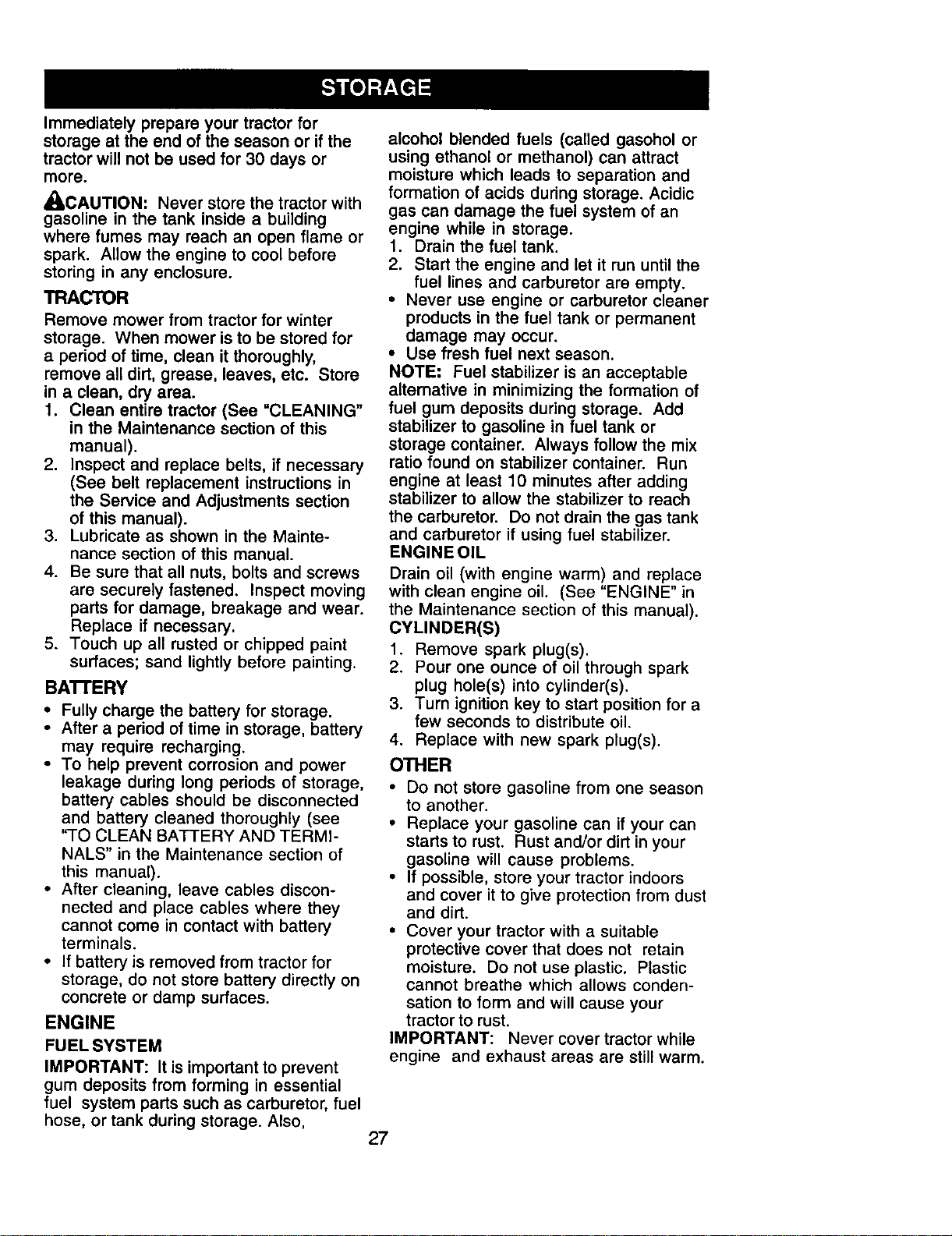

Immediately prepare your tractor for

storage at the end of the season or if the

tractor will not be used for 30 days or

more.

_ILCAUTION: Never store the tractor with

gasoline in the tank inside a building

where fumes may reach an open flame or

spark. Allow the engine to cool before

storing in any enclosure.

TRACTOR

Remove mower from tractor for winter

storage. When mower is to be stored for

a period of time, clean it thoroughly,

remove all dirt, grease, leaves, etc. Store

in a clean, dry area.

1. Clean entire tractor (See "CLEANING"

in the Maintenance section of this

manual).

2. Inspect and replace belts, if necessary

(See belt replacement instructions in

the Service and Adjustments section

of this manual).

3. Lubricate as shown in the Mainte-

nance section of this manual.

4. Be sure that all nuts, bolts and screws

are securely fastened. Inspect moving

parts for damage, breakage and wear.

Replace if necessary.

5. Touch up all rusted or chipped paint

surfaces; sand lightly before painting.

BATrERY

• Fully charge the battery for storage.

• After a period of time in storage, battery

may require recharging.

• To help prevent corrosion and power

leakage during long periods of storage,

battery cables should be disconnected

and battery cleaned thoroughly (see

'qO CLEAN BAT-I-ERY AND TERMI-

NALS" in the Maintenance section of

this manual).

• After cleaning, leave cables discon-

nected and place cables where they

cannot come in contact with battery

terminals.

• If battery is removed from tractor for

storage, do not store battery directly on

concrete or damp surfaces.

ENGINE

FUEL SYSTEM

IMPORTANT: It is important to prevent

gum deposits from forming in essential

fuel system parts such as carburetor, fuel

hose, or tank during storage. Also,

alcohol blended fuels (called gasohol or

using ethanol or methanol) can attract

moisture which leads to separation and

formation of acids dudng storage. Acidic

gas can damage the fuel system of an

engine while in storage.

1. Drain the fuel tank.

2. Start the engine and let it run until the

fuel lines and carburetor are empty.

• Never use engine or carburetor cleaner

products in the fuel tank or permanent

damage may occur.

• Use fresh fuel next season.

NOTE: Fuel stabilizer is an acceptable

alternative in minimizing the formation of

fuel gum deposits during storage. Add

stabilizer to gasoline in fuel tank or

storage container. Always follow the mix

ratio found on stabilizer container. Run

engine at least 10 minutes after adding

stabilizer to allow the stabilizer to reach

the carburetor. Do not drain the gas tank

and carburetor if using fuel stabilizer.

ENGINEOIL

Drain oil (with engine warm) and replace

with clean engine oil. (See "ENGINE" in

the Maintenance section of this manual).

CYLINDER(S)

1. Remove spark plug(s),

2. Pour one ounce of oil through spark

plug hole(s) into cylinder(s).

3. Turn ignition key to start position for a

few seconds to distribute oil.

4. Replace with new spark plug(s).

OTHER

• Do not store gasoline from one season

to another.

• Replace your gasoline can if your can

starts to rust. Rust and/or dirt in your

gasoline will cause problems.

• If possible, store your tractor indoors

and cover it to give protection from dust

and dirt.

• Cover your tractor with a suitable

protective cover that does not retain

moisture. Do not use plastic. Plastic

cannot breathe which allows conden-

sation to form and will cause your

tractor to rust.

IMPORTANT: Never cover tractor while

engine and exhaust areas are still warm.

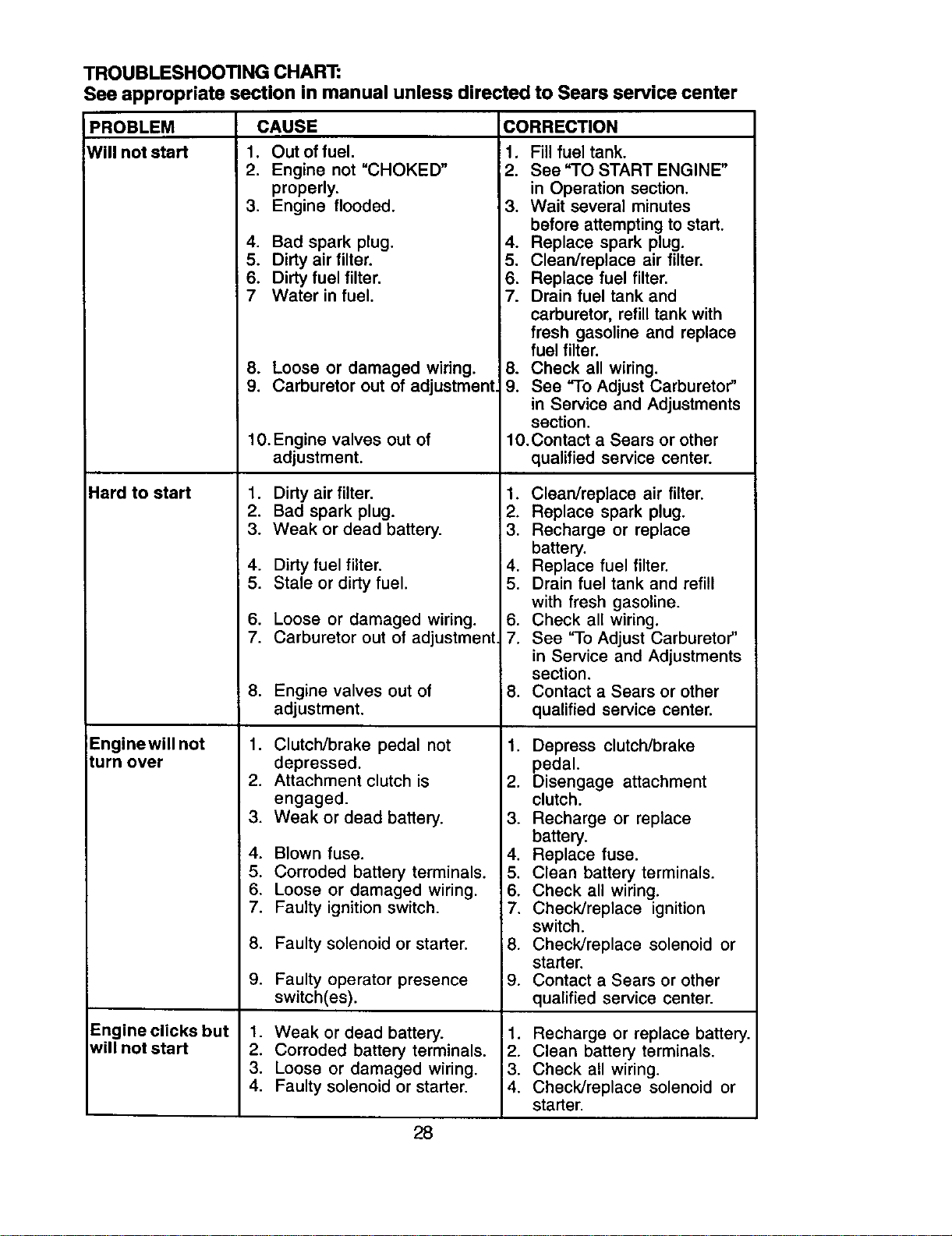

TROUBLESHOOTING CHART:

;ection in manual unless directed to Sears service center

See appropriate

PROBLEM

Will not start

Hard to start

Enginewill not

turn over

Engine clicks but

will not start

CAUSE CORRECTION

1. Out of fuel.

2. Engine not "CHOKED"

properly.

3. Engine flooded.

Bad spark plug. 4.

Dirty air filter. 5.

Dirty fuel filter. 6.

Water in fuel. 7.

8. Loose or damaged wiring.

9. Carburetor out of adjustment_

10.Engine valves out of

adjustment.

1. Dirty air filter.

2. Bad spark plug.

3. Weak or dead battery.

4. Dirty fuel filter.

5. Stale or dirty fuel.

1. Fill fuel tank.

2. See "TO START ENGINE"

in Operation section.

3. Wait several minutes

before attempting to start.

Replace spark plug.

Clean/replace air filter.

Replace fuel filter.

Drain fuel tank and

carburetor, refill tank with

fresh gasoline and replace

fuel filter.

8. Check all wiring.

9. See "To Adjust Carburetor"

in Service and Adjustments

section.

10.Contact a Sears or other

qualified service center.

Loose or damaged wiring. 6.

Carburetor out of adjustment. 7.

8. Engine valves out of

adjustment.

1. Clutch/brake pedal not

Clean/replace air filter.

Replace spark plug.

Recharge or replace

battery.

Replace fuel filter.

Drain fuel tank and refill

with fresh gasoline.

Check all wiring.

See "To Adjust Carburetor"

in Service and Adjustments

section.

Contact a Sears or other

qualified service center.

Depress clutch/brake

depressed.

2. Attachment clutch is

engaged.

3. Weak or dead battery.

pedal.

2. Disengage attachment

clutch.

3. Recharge or replace

battery.

Blown fuse. 4.

Corroded battery terminals. 5.

Loose or damaged wiring. 6.

Faulty ignition switch. 7.

Faulty solenoid or staffer. 8.

Faulty operator presence 9.

switch(es).

Weak or dead battery. 1.

Corroded battery terminals. 2.

Loose or damaged wiring. 3.

Faulty solenoid or staffer. 4.

Replace fuse.

Clean battery terminals.

Check all wiring.

Check/replace ignition

switch.

Check/replace solenoid or

staffer.

Contact a Sears or other

qualified service center.

Recharge or replace battery.

Clean battery terminals.

Check all wiring.

Check/replace solenoid or

staffer.

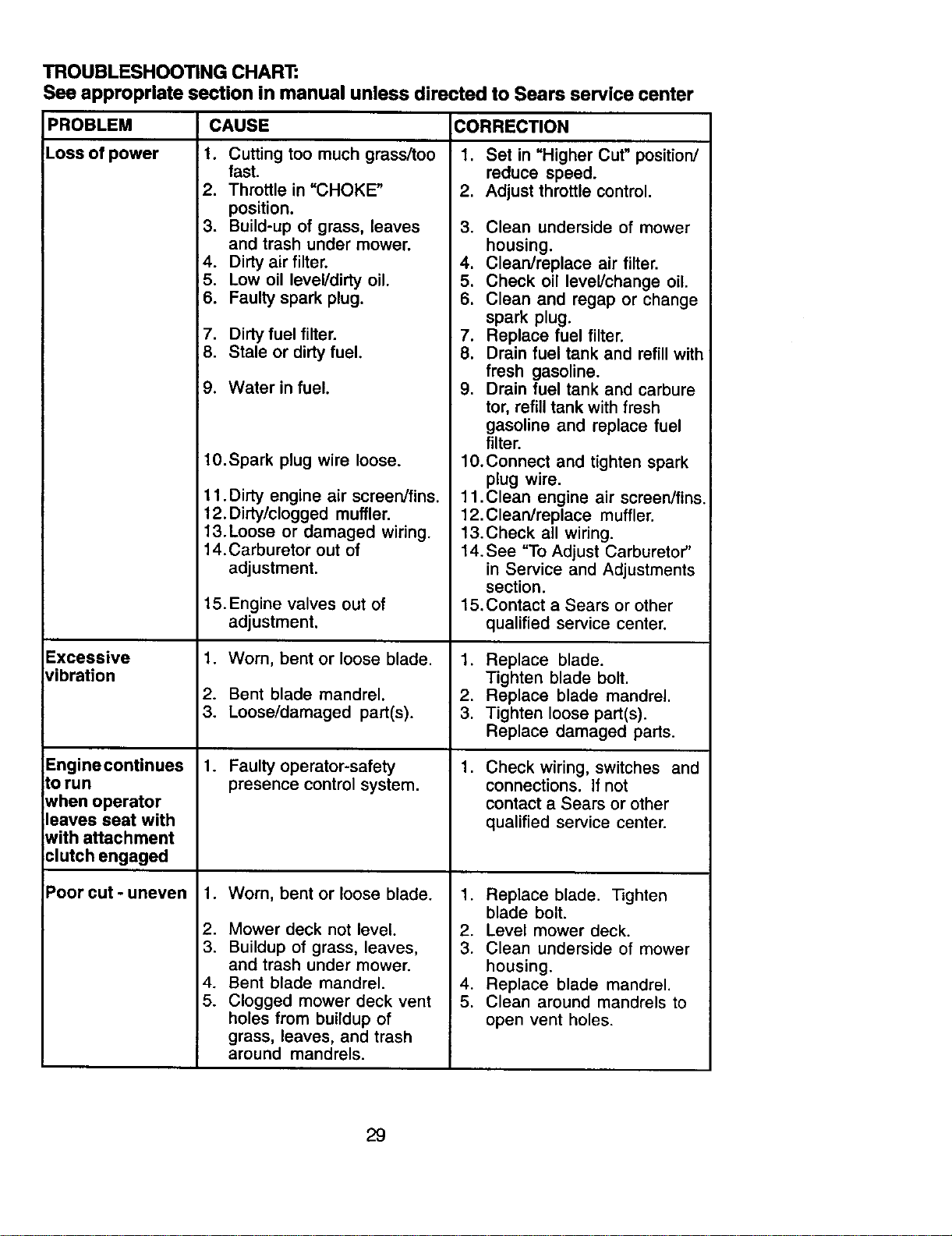

TROUBLESHOOTING CHART:

See appropriate section in manual unless directed to Sears service center

PROBLEM CORRECTION

Loss of power

CAUSE

1. Cutting too much grass/too

fast.

2. Throttle in "CHOKE"

1. Set in "Higher Cut" position/

reduce speed.

2. Adjust throttle control.

position.

Build-up of grass, leaves 3.

and trash under mower.

Dirty air filter. 4.

Low oil level/dirty oil. 5.

Faulty spark plug. 6.

Dirty fuel filter. 7.

Stale or dirty fuel. 8.

Water in fuel. 9.

10.Spark plug wire loose.

Excessive

vibration

Engine continues

to run

when operator

leaves seat with

with attachment

clutch engaged

Poor cut - uneven

11. Dirty engine air screen/fins.

12. Dirty/clogged muffler.

13.Loose or damaged wiring.

14. Carburetor out of

adjustment.

15.Engine valves out of

adjustment.

1. Worn, bent or loose blade.

2. Bent blade mandrel.

3. Loose/damaged part(s).

1. Faulty operator-safety

presence control system.

Worn, bent or loose blade.

Mower deck not level.

Buildup of grass, leaves,

and trash under mower.

Bent blade mandrel.

Clogged mower deck vent

holes from buildup of

grass, leaves, and trash

around mandrels.

Clean underside of mower

housing.

Clean/replace air filter.

Check oil level/change oil.

Clean and regap or change

spark plug.

Replace fuel filter.

Drain fuel tank and refill with

fresh gasoline.

Drain fuel tank and carbure

tor, refill tank with fresh

gasoline and replace fuel

filter.

10.Connect and tighten spark

plug wire.

11.Clean engine air screen/fins.

12. Clean/replace muffler.

13.Check all wiring.

14. See "To Adjust Carburetor"

in Service and Adjustments

section.

15.Contact a Sears or other

qualified service center.

1. Replace blade.

Tighten blade bolt.

2. Replace blade mandrel.

3. Tighten loose part(s).

Replace damaged parts.

Check wiring, switches and

connections, if not

contact a Sears or other

qualified service center.

1. Replace blade. Tighten

blade bolt.

2. Level mower deck.

3. Clean underside of mower

housing.

4. Replace blade mandrel.

5. Clean around mandrels to

open vent holes.

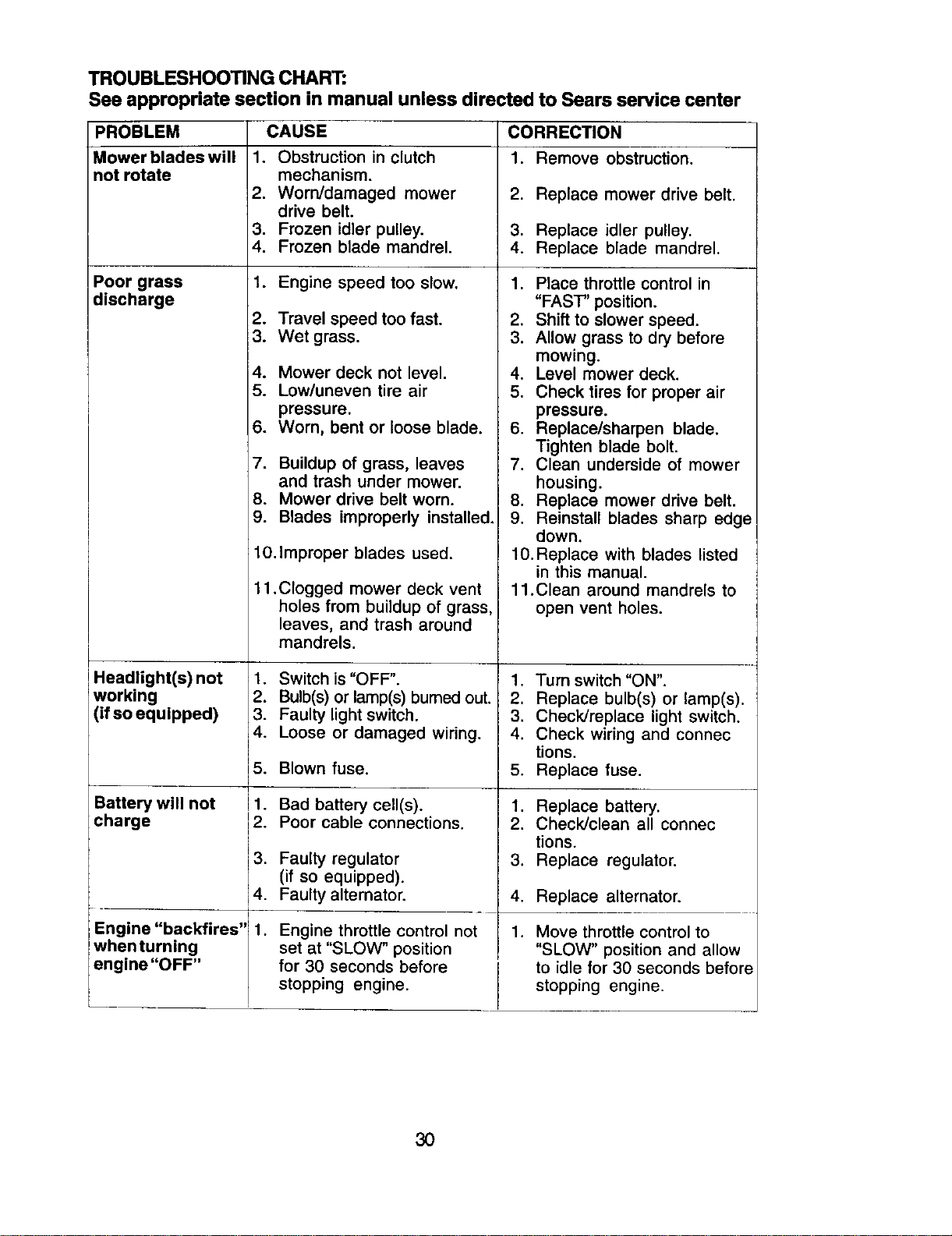

TROUBLESHOOTING CHART:

See appropriate section in manual unless directed to Sears service center

PROBLEM CAUSE CORRECTION

Mower blades will 1, Obstruction in clutch 1. Remove obstruction.

not rotate mechanism.

2, Worn/damaged mower 2. Replace mower drive belt.

drive belt.

3, Frozen idler pulley. 3, Replace idler pulley.

4, Frozen blade mandrel, 4. Replace blade mandrel.

Poor grass 1. Engine speed too slow,

discharge

Headlight(s) not

working

(if so equipped)

2. Travel speed too fast.

3. Wet grass.

4. Mower deck not level.

5. Low/uneven tire air

pressure.

6. Worn, bent or loose blade.

7. Buildup of grass, leaves

and trash under mower.

8. Mower drive belt worn.

9. Blades improperly installed.

lO.Improper blades used.

11 .Clogged mower deck vent

holes from buildup of grass,

leaves, and trash around

mandrels.

1. Switch is "OFF".

2. Bulb(s) or lamp(s) bumed out.

3. Faulty light switch.

4. Loose or damaged wiring.

Battery will not 1.

charge 2.

Engine "backfires" I 1.

whenturning

engine "OFF"

Blown fuse.

Bad battery cell(s).

Poor cable connections.

Faulty regulator

(if so equipped).

Faulty alternator.

Engine throttle control not

set at "SLOW" position

for 30 seconds before

stopping engine.

1. Place throttle control in

"FAST" position.

2. Shift to slower speed.

3. Allow grass to dry before

mowing.

4. Level mower deck.

5. Check tires for proper air

pressure.

6. Replace/sharpen blade.

Tighten blade bolt.

7. Clean underside of mower

housing.

8. Replace mower drive belt.

9. Reinstall blades sharp edge

down.

10. Replace with blades listed

in this manual.

11.Clean around mandrels to

open vent holes.

1. Turn switch "ON".

2, Replace bulb(s) or lamp(s).

3. Check/replace light switch.

4. Check wiring and connec

tions.

5. Replace fuse.

1. Replace battery.

2. Check/clean all connec

tions.

3. Replace regulator.

4. Replace alternator.

Move throttle control to

"SLOW" position and allow

to idle for 30 seconds before

stopping engine.

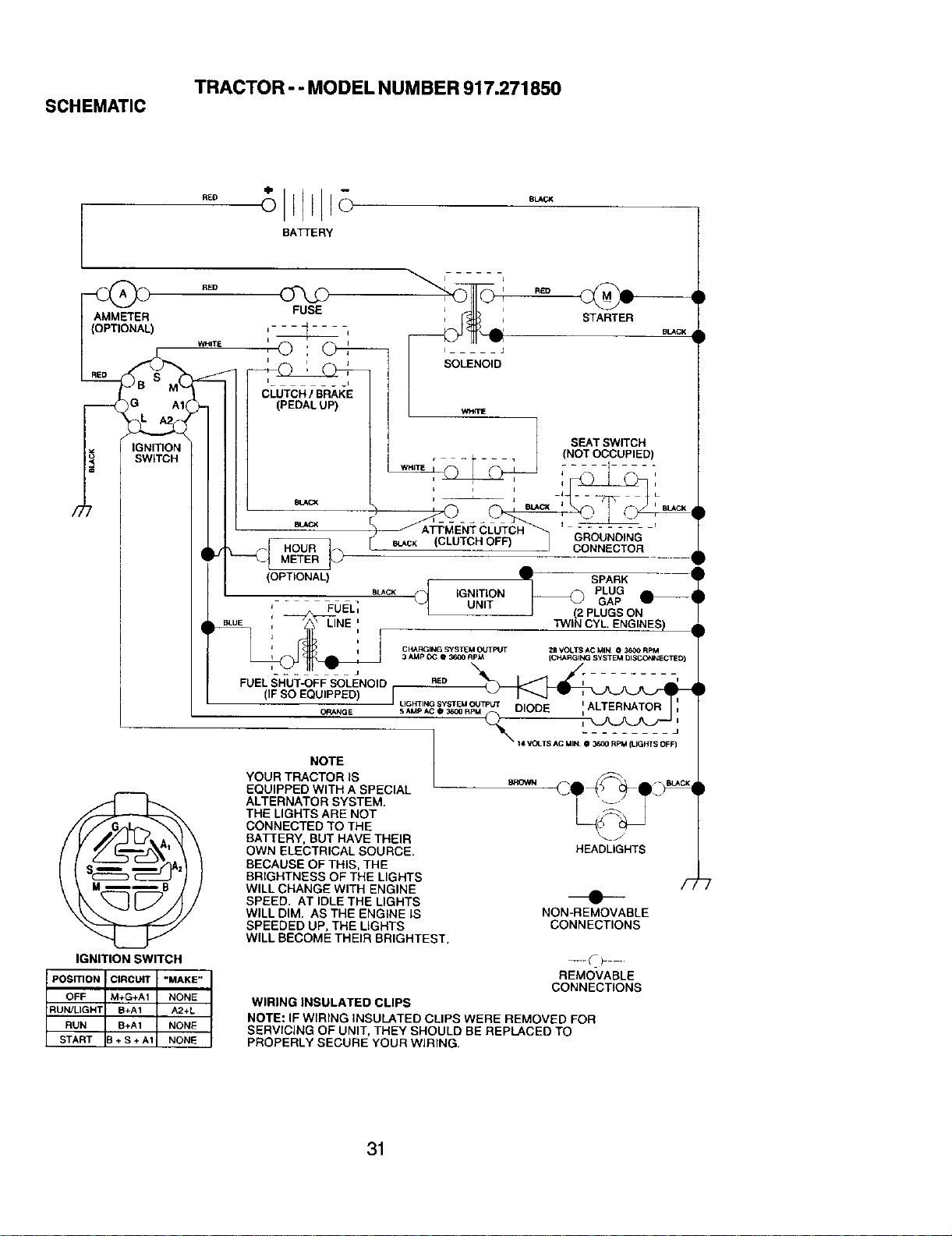

TRACTOR - - MODEL NUMBER 917.271850

SCHEMATIC

BATTERY

AMMETER FUSE

(OPTIONAL) ,

I i i

CLUTCH / BRAKE

_G A1 (PEDALUP)

IGNITION

SWITCH

IGNITION SWITCH

PosmoN CIRCUIT "MAKE"

OFF M+G+A1 NONE

RUN/LIGHT B+A1 A2+L

RUN B+AI NONE

START 3 + S + A 1 NONE

(OPTIONAL)

BLACK

_i I STARTER

_- _ BLACK

SEATSWITCH

W_ITE _ ....

, @ F-,_ _ ' _._ I FJ ' BLACK

GROUNDING

'- - FtJEL_

BLUE , LINE :

FUELSHUT-OFF SOLENOID

(IF SO EQUIPPED)

OP_NG E

SPARK

_ IGNITION _ PLUG

GAP _t

UNIT j (2 PLUGSON

TWiN CYL ENGINES)

CHARGING SYSTEM OUTPUT 2B VOLTS AC MIN @ 3600 RPM

3 AMP OC @ 3_aO RpM (CP_RGING SYSTEM DISCON_ECTEO)

r--

RED DIODE I_¢'_

lIGHTING SYSTEM C,_rtPk_ I I

5AMpACe3_ RPM ALTERNAT,_R ,

NOTE

YOUR TRACTOR IS

EQUIPPED WITH A SPECIAL

ALTERNATOR SYSTEM.

THE LIGHTS ARE NOT

CONNECTED TO THE

BAT[ERY, BUT HAVE THEIR

OWN ELECTRICAL SOURCE.

BECAUSE OF THIS, THE

BRIGHTNESS OF THE LIGHTS

WILL CHANGE WITH ENGINE

SPEED. AT IDLE THE LIGHTS

WiLL DIM. AS THE ENGINE IS

SPEEDED UP, THE LIGHTS

WILL BECOME THEIR BRIGHTEST.

BROWN

HEADLIGHTS

NON-REMOVABLE

CONNECTIONS

REMOVABLE

CONNECTIONS

WIRING INSULATED CLIPS

NOTE: IF WIRING INSULATED CLIPS WERE REMOVED FOR

SERVICING OF UNIT, THEY SHOULD BE REPLACED TO

PROPERLY SECURE YOUR WIRING.

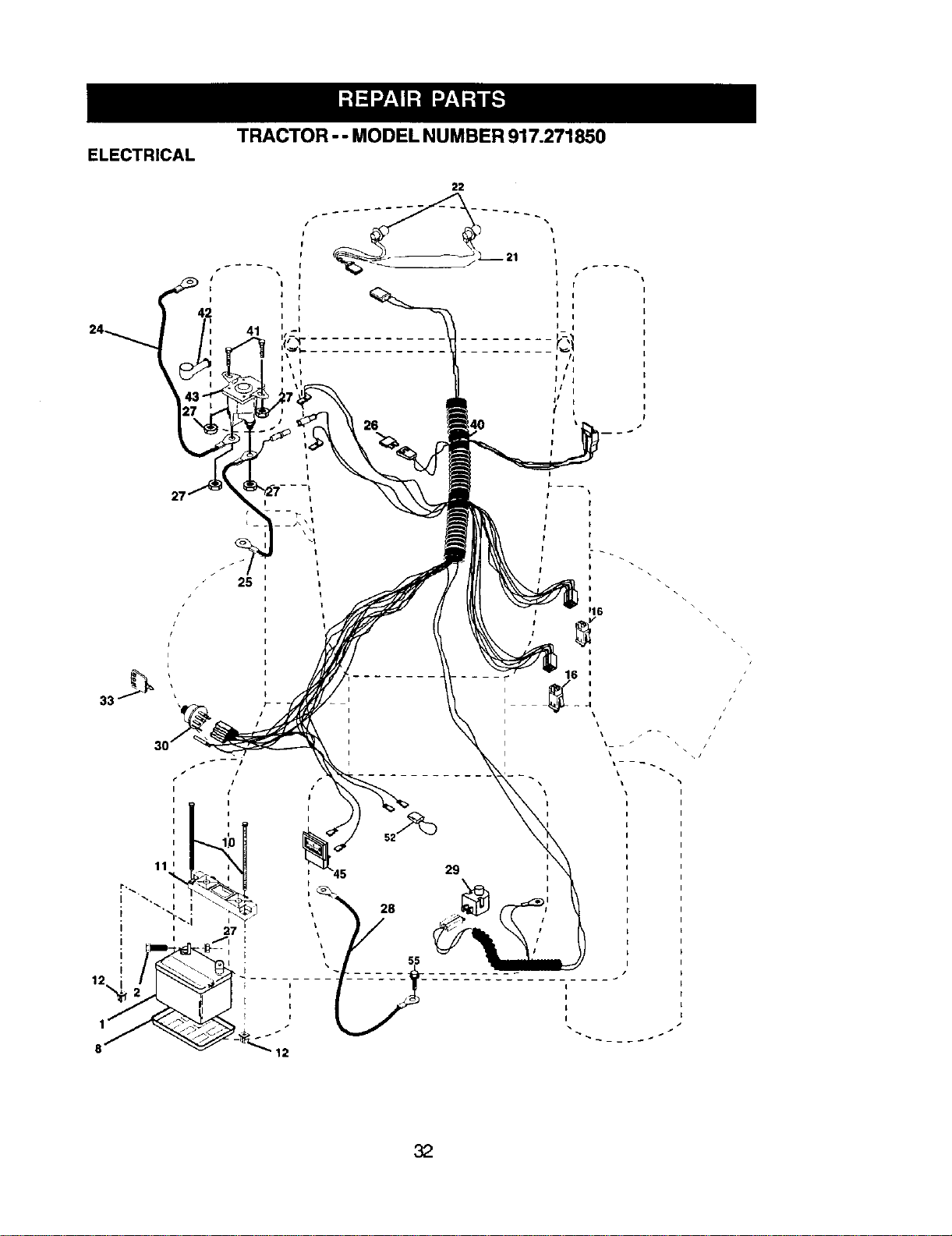

TRACTOR - - MODELNUMBER917.271850

ELECTRICAL

I \

I I I

JI I

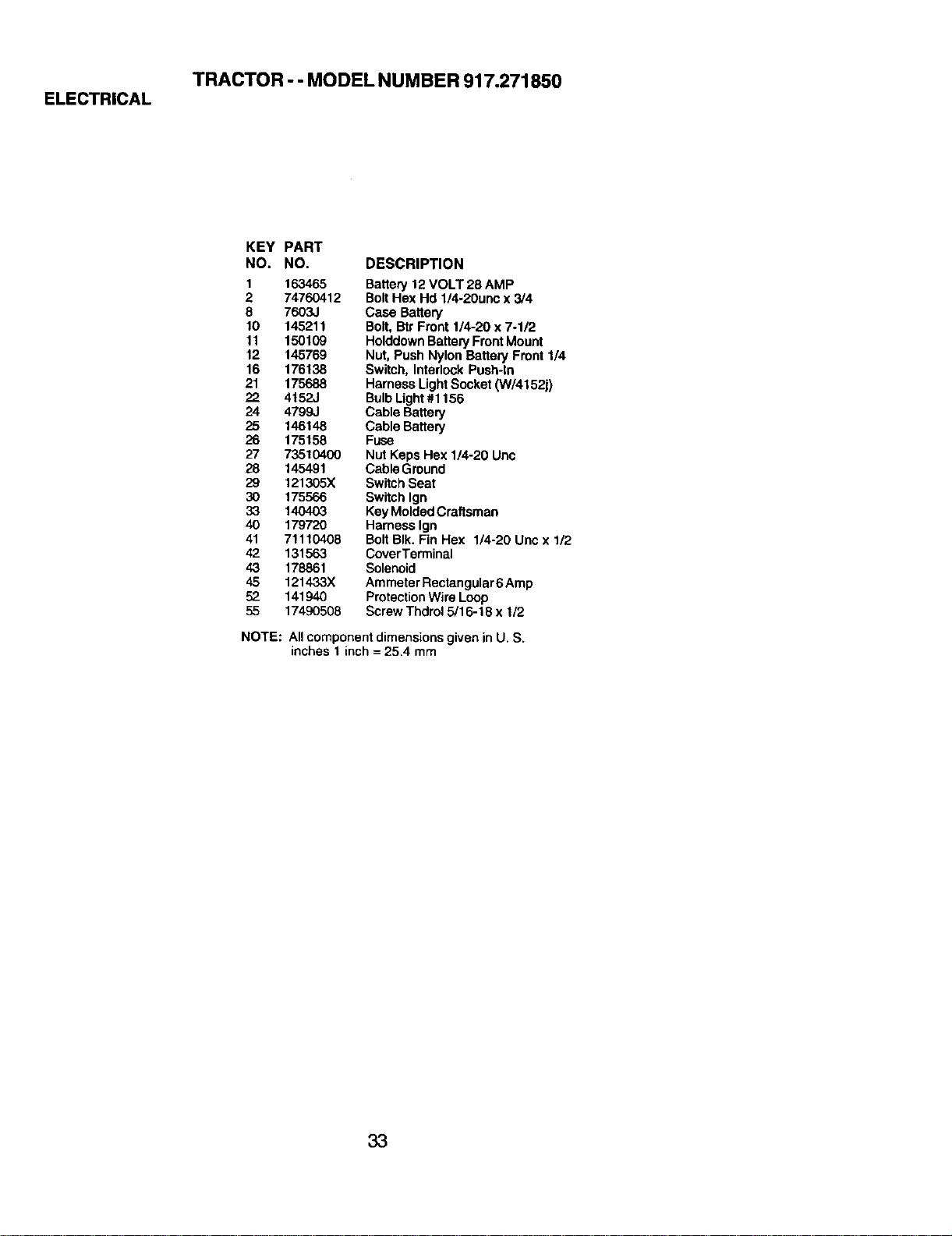

TRACTOR - - MODEL NUMBER 917.271850

ELECTRICAL

KEY PART

NO. NO. DESCRIPTION

1 163465 Battery 12 VOLT 28 AMP

2 74760412 BoltHex Hd 1/4-20unc x 3/4

8 7603J Case Battery

10 145211 Bolt, BtrFront 1/4-20 x 7-1/2

11 150109 HolddownBatteryFront Mount

12 145769 Nut, Push Nylon Battery Front 1/4

16 176138 Switch, InterlockPush-In

21 175688 Harness LightSocket (W/4152j)

22 4152J BulbLight#1156

24 4799J Cable Battery

25 146148 Cable Battery

26 175158 Fuse

27 73510400 Nut Keps Hex 1/4-20 Uric

28 145491 CableGround

29 121305X SwitchSeat

30 175566 Switch Ign

33 140403 KeyMolded Craftsman

40 179720 Harness Ign

41 71110408 Bolt BIk.Fin Hex 1/4-20 Unc x 1/2

42 131563 CoverTsnninal

43 178861 Solenoid

45 121433X AmmeterRectangular6 Amp

52 141940 ProtectionWire Loop

55 17490508 Screw Thdrol5/16-18 x t/2

NOTE: All component dimensionsgiven in U. S.

inches 1 inch = 25.4 mm

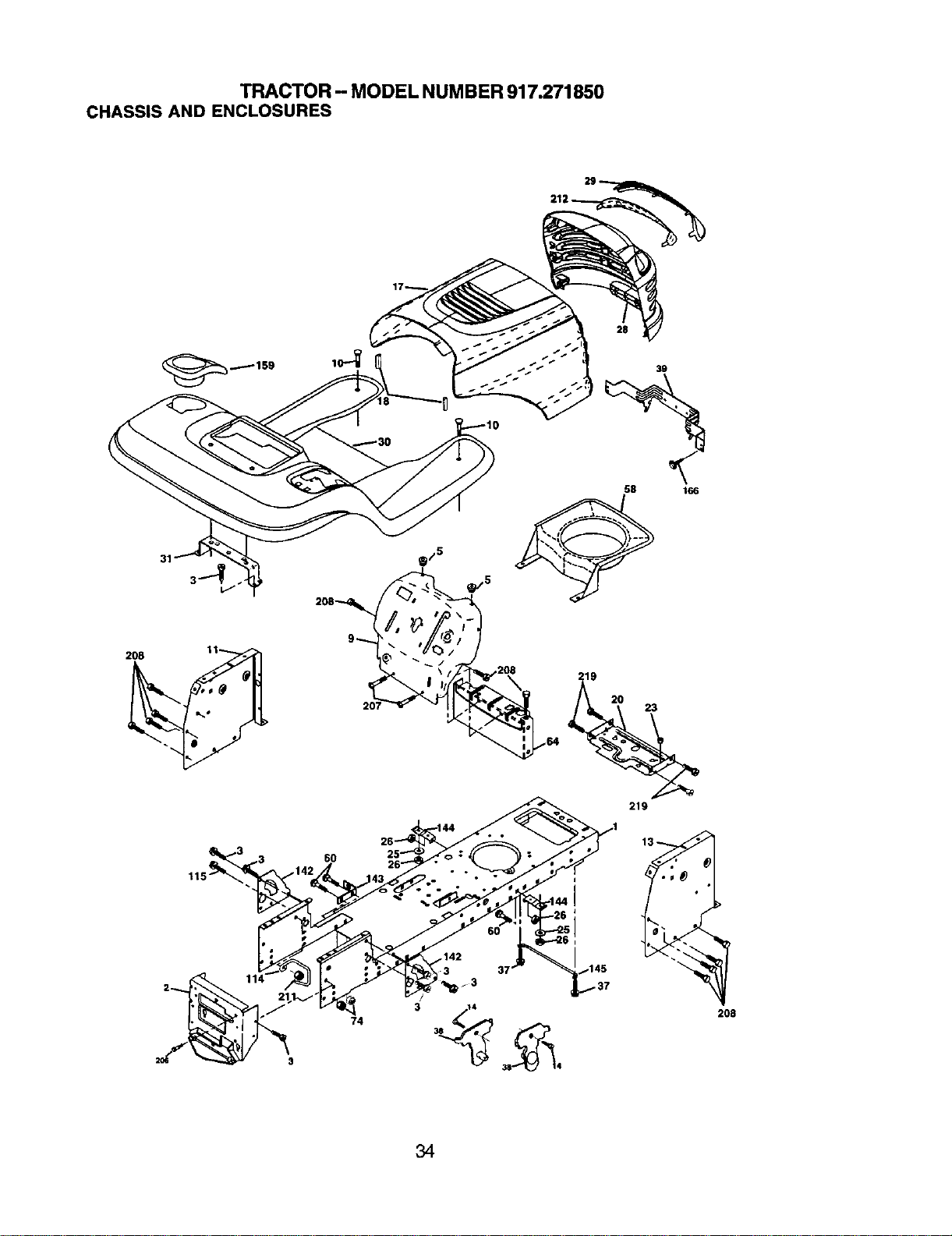

TRACTOR - MODEL NUMBER 917.271850

CHASSIS AND ENCLOSURES

58 166

219

208

:34

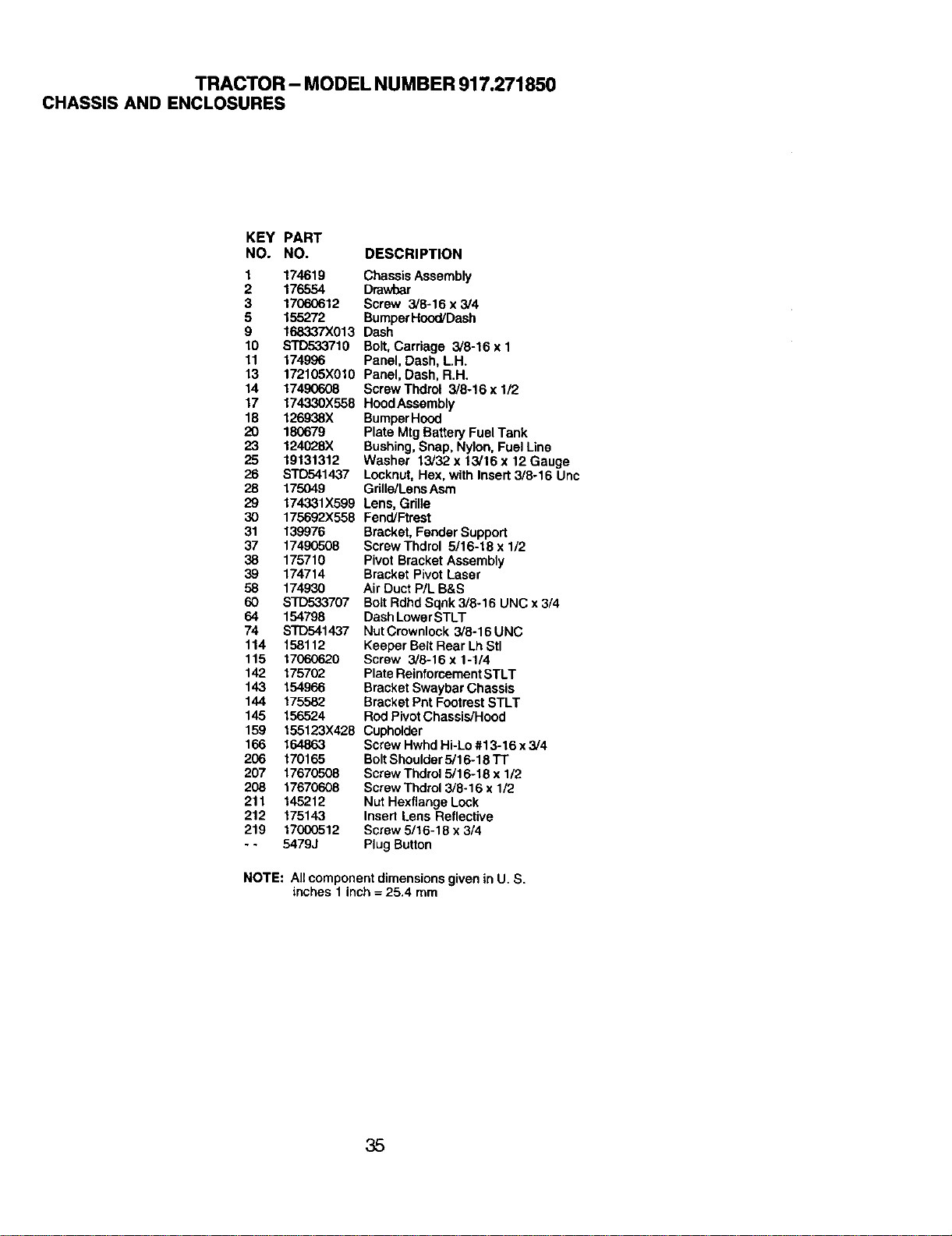

TRACTOR - MODEL NUMBER 917,271850

CHASSIS AND ENCLOSURES

KEY PART

NO. NO. DESCRIPTION

1 174619 ChassisAssembly

2 176554 Drawbar

3 17060612 Screw 3/8-16 x 3/4

5 155272 BumperHood/Dash

9 168337X013 Dash

10 STD533710 Bolt,Carriage 3/8-16 x 1

11 174996 Panel, Dash, LH.

13 172105X010 Panel, Dash, R.H.

14 17490608 ScrewThdrol 3/8o16 x 1/2

17 174330X558 HoodAssembly

18 126938X BumperHood

20 180679 Plate Mtg BatteryFuelTank

23 124028)( Bushing,Snap, Nylon, Fuel Line

25 19131312 Washer 13/32 x 13/16 x 12 Gauge

26 STD5414,37 Locknut, Hex, with Insert3/8-16 Unc

28 175049 Grille/LensAsm

29 174331X599 Lens, Grille

30 175692X558 Fend/Ftrest

31 139976 Bracket, Fender Support

37 17490508 ScrewThdrol 5/16-18 x 1/2

38 175710 Pivot Bracket Assembly

39 174714 Bracket Pivot Laser

58 174930 Air Duct P/L B&S

60 STD533707 Bolt RdhdSqnk 3/8-16 UNC x 3/4

64 154798 Dash LowerSTLT

74 STD541437 NutCrewnlock 3/8-16UNC

114 158112 Keeper Belt Rear LhStl

115 17060620 Screw 3/8-16 x 1-1/4

142 175702 Plate ReinforcementSTLT

143 154966 Bracket Swaybar Chassis

144 175582 Bracket Pnt FootrestSTLT

145 156524 RodPivotChassis/Hood

159 155123X428 Cupholder

166 164863 Screw HwhdHi-Lo #13-16 x 3/4

206 170165 BoltShoulder5/16-18 TT

207 17670508 ScrewThdrol 5/16-18 x 1/2

208 17670608 ScrewThdrol 3/8-16 x 1/2

211 145212 Nut Hexflange Lock

212 175143 Insert Lens Reflective

219 17000512 Screw 5/16-18 x 3/4

- - 5479J Plug Button

NOTE: All componentdimensions givenin U. S.

inches 1 inch = 25.4 mm

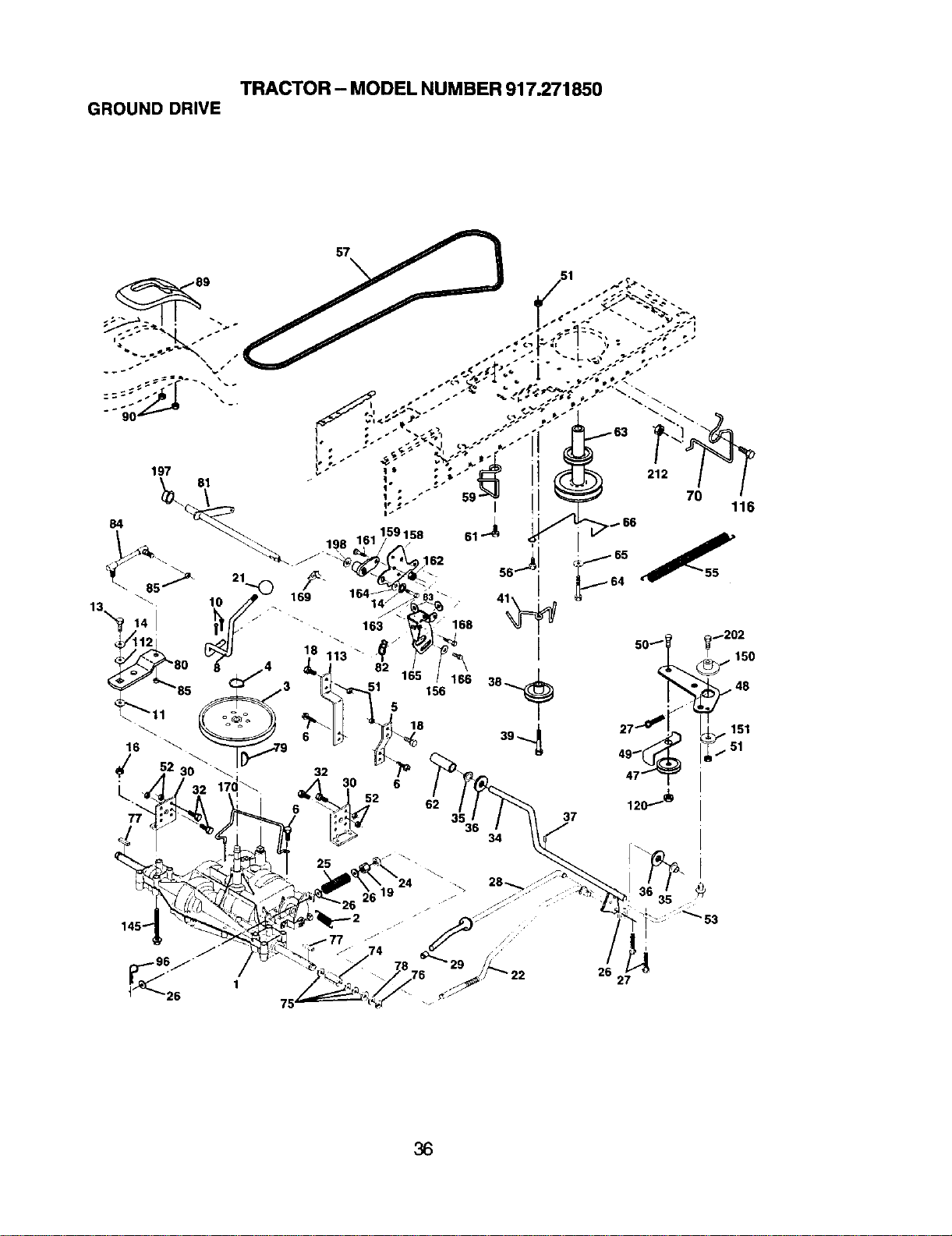

TRACTOR- MODELNUMBER917.271850

GROUNDDRIVE

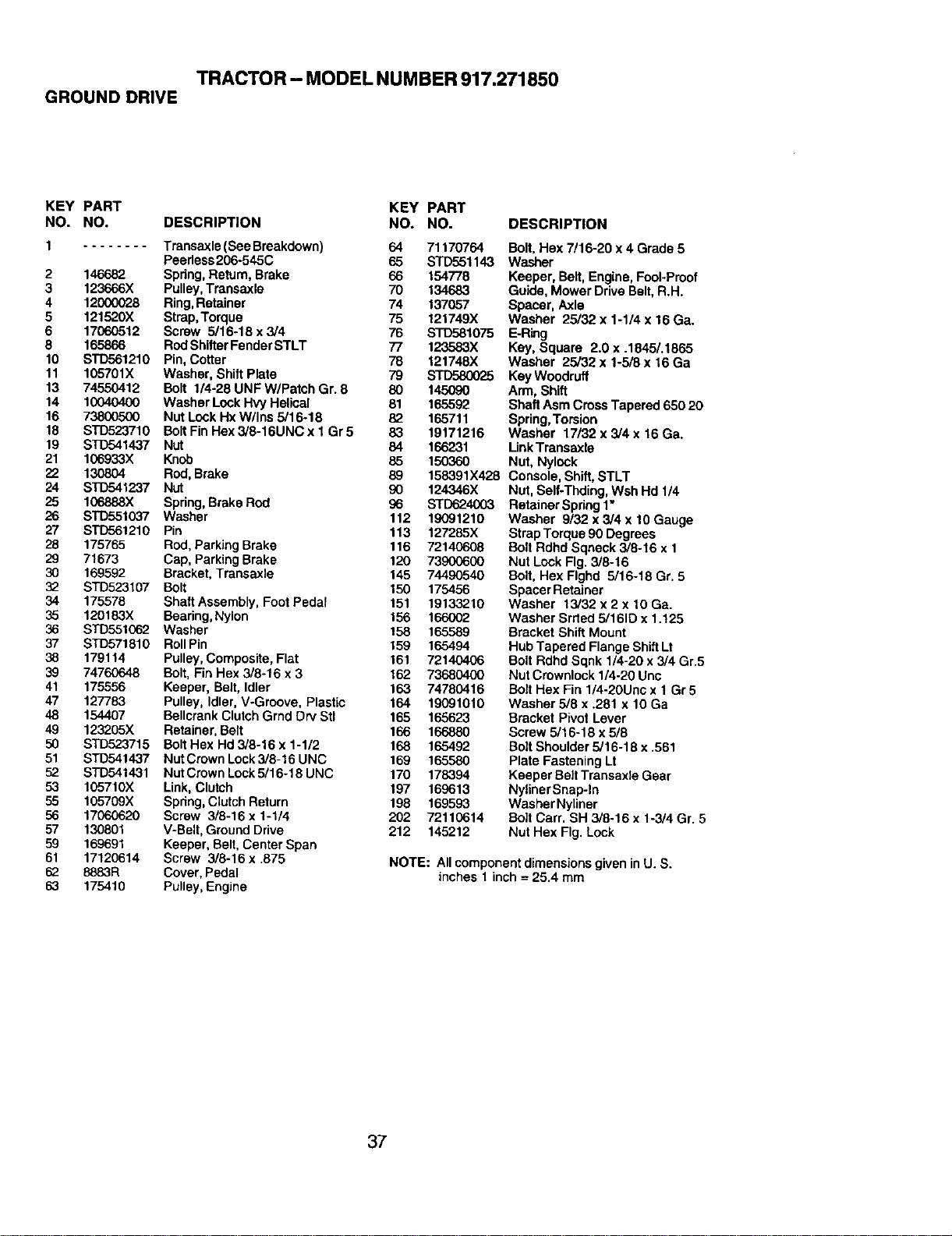

TRACTOR - MODEL NUMBER 917.271850

GROUND DRIVE

KEY PART KEY PART

NO. NO. DESCRIPTION NO. NO. DESCRIPTION

1 ........ Transaxle (See Breakdown) 64 71t70764

Peedess206+545C 65 STD551143

2 146682 Spring,Return, Brake 66 154778

3 123666X Pulley,Transaxle 70 134683

4 12000028 Ring,Retainer 74 137057

5 121520)( Strap,Torque 75 121749X

6 17060512 Screw 5/16-18 x 3/4 76 STD581075

8 165866 RodShifterFenderSTLT 77 123583X

10 STD561210 Pin,Cotter 78 121748X

11 105701X Washer, Shift Plate 79 STD580025

13 74550412 Bolt 1/4-28 UNF W/Patch Gr. 8 80 145090

14 10040400 Washer LockHvy Helical 81 165592

16 73800500 NutLock Hx W/Ins 5/16-18 82 165711

18 S'rD523710 BoltFinHex 3/8-16UNC x 1 Gr 5 83 19171216

19 STD641437 Nut 84 166231

21 106933X Knob 85 150360

22 130804 Rod,Brake 89

24 STD541237 Nut 90 124346X

25 106888X Spring,Brake Rod 96 STD624003

26 STD551037 Washer 112 19091210

27 STD561210 Pin 113 127285X

28 175765 Rod,Parking Brake 116 72140608

29 71673 Cap, Parking Brake 120 73900600

30 169592 Bracket, Transaxle 145 74490546

32. STD523107 Bolt 150 175456

34 175578 Shaft Assembly, FootPedal 151 19133210

35 120183X Bearing,Nylon t56 166002

36 STD551062 Washer 158 165589

37 STD571810 RollPin 159 165494

38 179114 Pulley.Composite, Flat 161 72140406

39 74760648 Bolt,Fin Hex 3/8-16 x 3 162 73680400

41 175556 Keeper, Belt,Idler 163 74780416

47 127783 Pulley, Idler, V-Groove, Plastic 164 19091010

48 154407 BellcrankClutchGrad Drv Stl 165 165623

49 123205X Retainer, Belt 166 166880

50 STD523715 Bolt Hex Hd 3/8-16 x 1-1/2 168 165492

51 STD541437 NutCrown Lock3/8-16 UNC 169 165580

52 STD541431 NutCrown Lock5/16-18 UNC 170 178394

53 105710)( Link,Clutch 197 169613

55 105709X Spring,Clutch Return 198 169593

56 17060620 Screw 3/8-16x 1-1/4 202 72110614

57 130801 V-Belt, Ground Drive 212 145212

59 169691 Keeper, Belt, Center Span

61 17120614 Screw 3/8-16 x .675

62 8883R Cover,Pedal

63 175410 Pulley,Engine

Bolt,Hex 7/16-20 x 4 Grade 5

Washer

Keeper, Belt, Engine, Fool-Proof

Guide, Mower Drive Belt,R.H.

Spacer, Axle

Washer 25/32 x 1-1/4 x 16 Ga.

E-Ring

Key, Square 2.0 x .1845/.1865

Washer 25/32 x 1-5/8 x 16 Ga

KeyWoodruff

Arm, Shift

Shaft AsmCrossTapered 650 20

Spring,Torsion

Washer 17/32 x 3/4 x 16 Ga.

Unk Transaxle

Nut, Nylock

158391X428 Console, Shift,STLT

Nut, Self-Thding, Wsh Hd 1/4

Retainer Spdng 1"

Washer 9/32 x 3/4 x 10 Gauge

Strap Torque 90 Degrees

BoltRdhd Sqnack 3/8-16 x 1

Nut Lock Fig. 3/8-16

Bolt, Hex Flghd 5/16-18 Gr. 5

Spacer Retainer

Washer 13/32 x 2 x 10 Ga.

Washer Srrled 5/161Dx 1.125

Bracket Shift Mount

Hub Tapered Flange Shift Lt

Bolt Rdhd Sqnk 1/4-20 x 3/4 Gr.5

Nut Crownlock 1/4-20 Unc

Bolt Hex Fin 1/4-20Unc x 1Gr 5

Washer 5/8 x .281 x 10 Ga

Bracket Pivot Lever

Screw 5/16-18 x 5/8

Bolt Shoulder 5/16-18 x ,561

Plate Fastening Lt

Keeper BeltTransaxle Gear

NylinerSnap-ln

Washer Nyliner

Bolt Carr. SH 3/6-16 x 1-3/4 Gr. 5

Nut Hex Fig. Lock

NOTE: All component dimensions given in U. S.

inches 1 inch = 25.4 mm

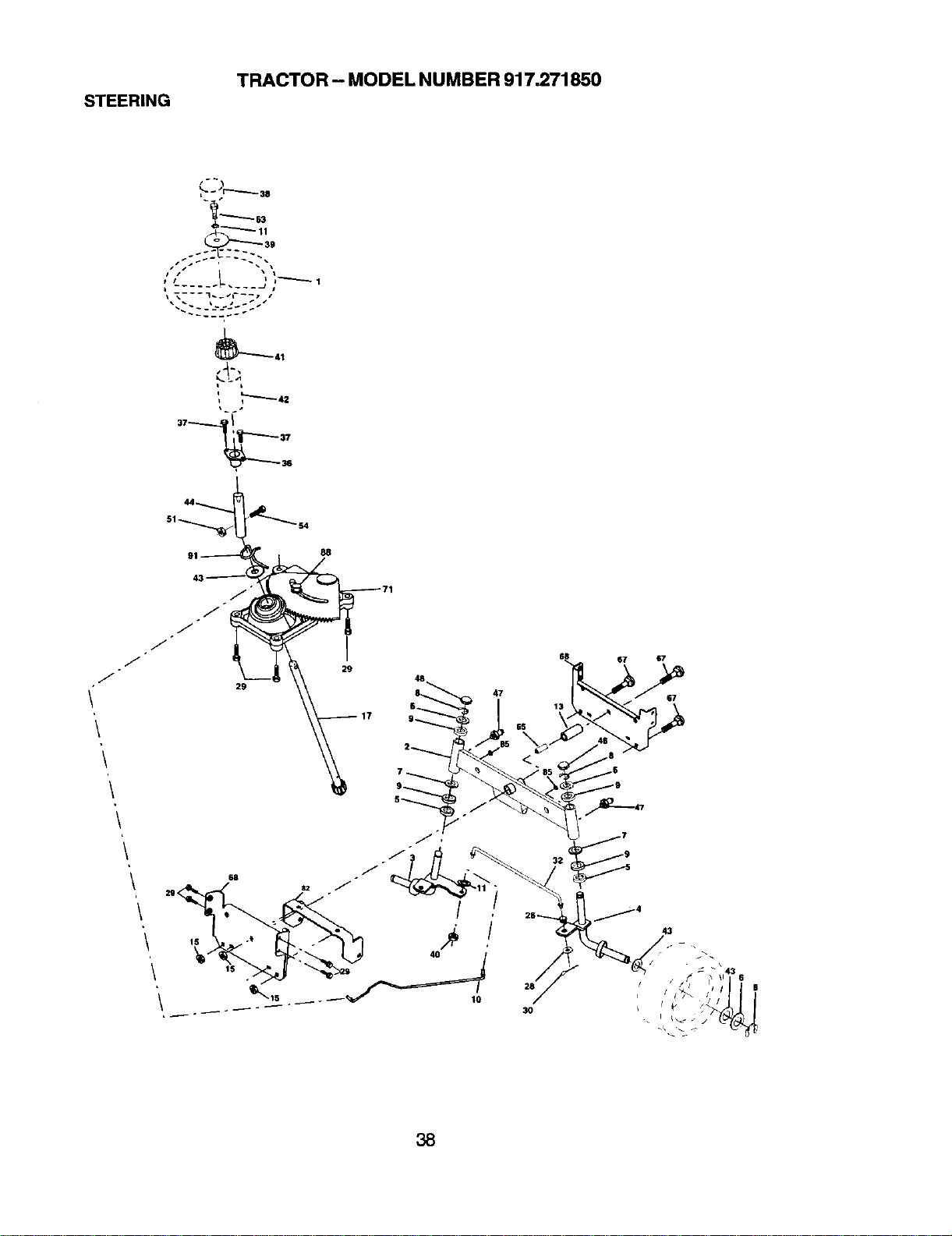

TRACTOR - MODEL NUMBER 917.271850

STEERING

iI / I __ \_ t-._.__.. 1

\ -_---1__4_'--t /

67 67

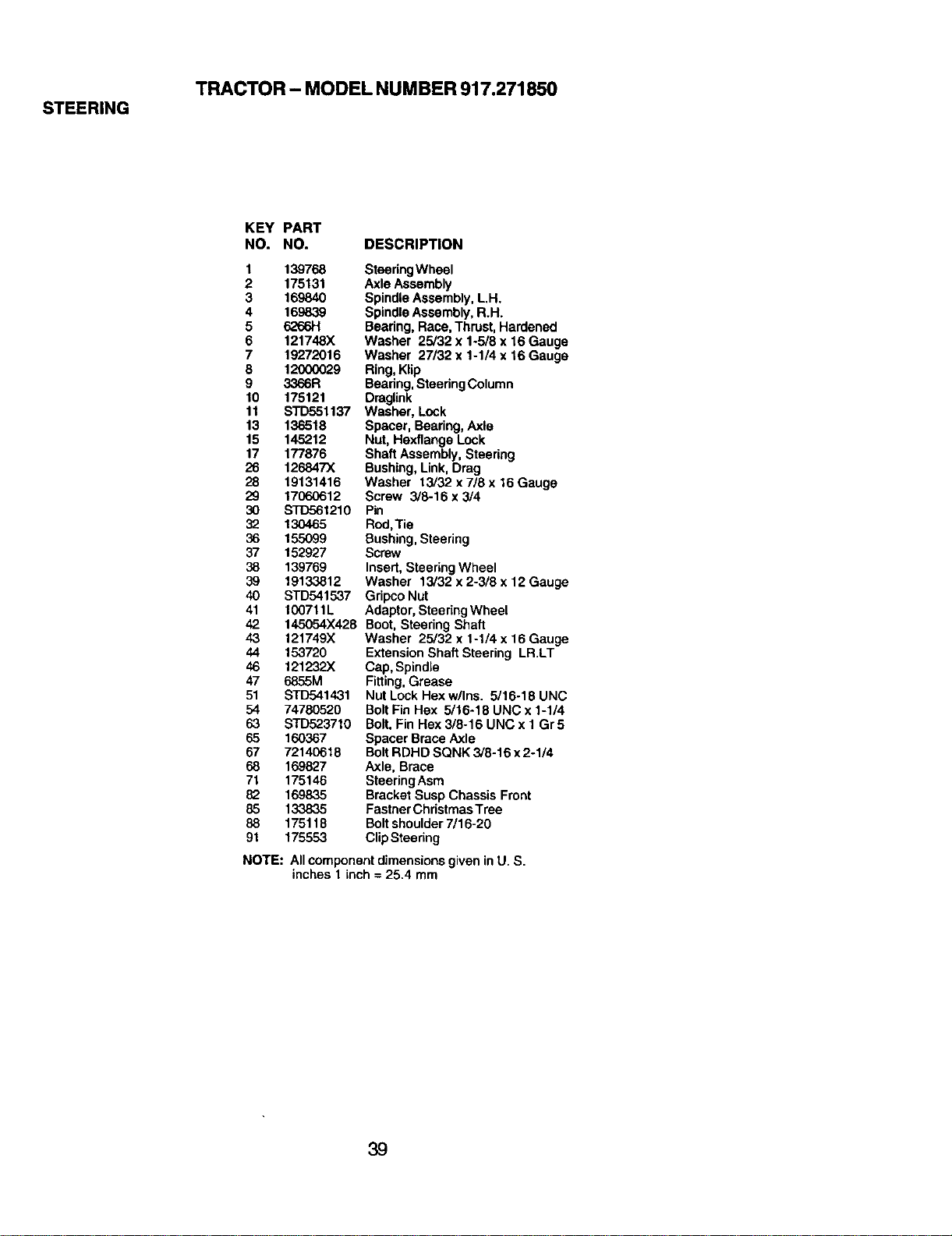

TRACTOR - MODEL NUMBER 917.271850

STEERING

KEY PART

NO. NO. DESCRIPTION

1 139768

2 175131

3 169840

4 169839

5 6266H

6 121748X

7 19272016

8 12000029

9 3366R

10 175121

11 STD551137

13 136518

15 145212

17 177876

26 126847X

28 19131416

29 17060612

30 STD561210

32 13O465

36 155099

37 152927

38 139769

39 19133812

40 STD541537

41 100711L

42 145054X428

43 121749X

44 153720

46 121232X

47 6855M

51 STD541431

54 74780520

63 STD523710

65 160367

67 72140618

68 169827

71 175146

82 169835

85 133835

88 175118

91 175553

NOTE:

SteeringWheel

AxleAssembly

SpindleAssembly, LH.

SpindleAssembly, R.H.

Bearing, Race,Thrust, Hardened

Washer 25/32 x 1o5/8x 16 Gauge

Washer 27/32 x 1-1/4 x 16 Gauge

Ring,Klip

Bearing,SteeringColumn

Draglink

Washer, Lock

Spacer, Bearing,Axle

Nut, Hexflange Lock

Shaft Assembly, Steering

Bushing, Link,Drag

Washer 13/32 x 7/8 x 16 Gauge

Screw 3/8-16 x 3/4

Rod,Tie

Bushing,Steering

Screw

Insert, Steering Wheel

Washer 13/32 x 2-3/8 x 12 Gauge

GripcoNut

Adaptor,Steedng Wheel

Boot, Steering Shaft

Washer 25/32 x 1-1/4 x 16 Gauge

Extension Shaft Steering LR.LT

Cap, Spindle

Fitting,Grease

Nut LockHex w/Ins. 5/16-18 UNC

BoltFin Hex 5/16-18 UNCx 1-1/4

Bolt, Fin Hex 3/8-16 UNC x 1 Gr 5

Spacer Brace Axle

BoltRDHD SQNK 3/8-16 x 2-1/4

Axle, Brace

SteeringAsm

Bracket Susp Chassis Front

FastnerChristmasTree

Boltshoulder7/16-20

ClipSteering

Allcomponent dimensionsgiven inU. S.

inches 1 inch= 25.4 mm

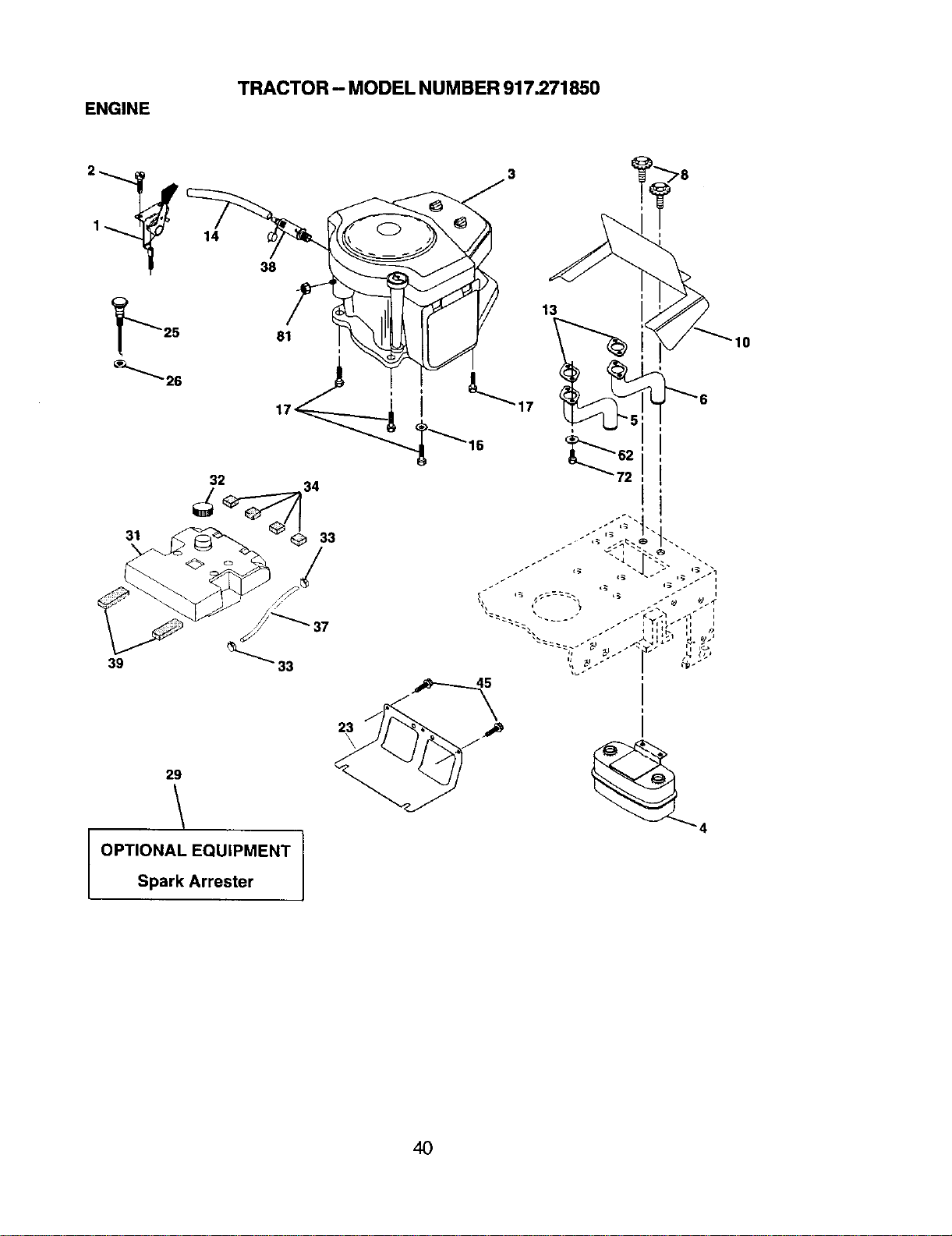

TRACTOR - MODEL NUMBER917.271850

ENGINE

1_ 14 38

_'_'_ 26

OPTIONAL EQUIPMENT

Spark Arrester

\ j

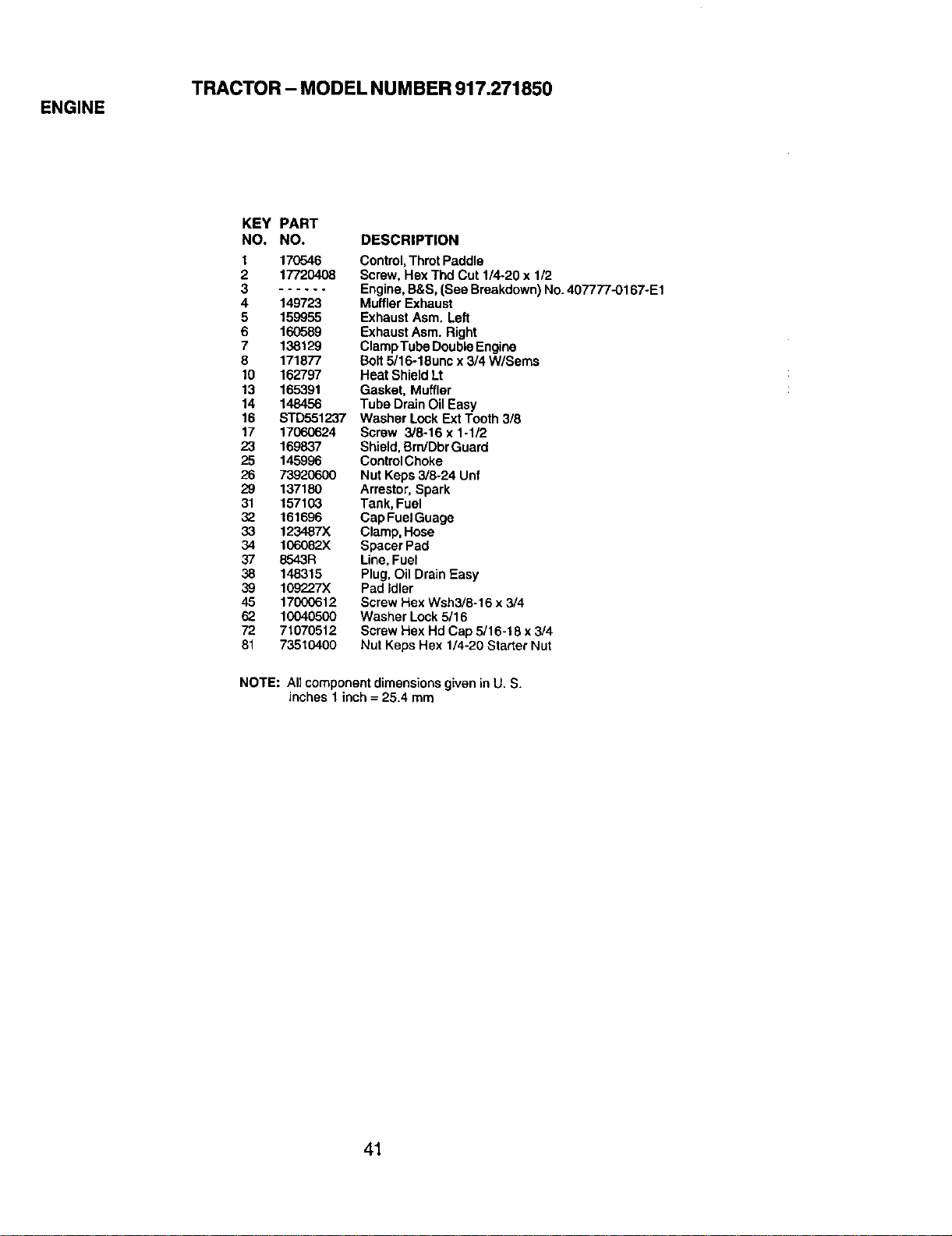

TRACTOR - MODEL NUM BER 917.271850

ENGINE

KEY PART

NO. NO. DESCRIPTION

1 170546 Control,ThrotPaddle

2 17720408 Screw, Hex Thd Cut 1/4-20 x 1/2

3 ...... Engine,B&S, (See Breakdown)No.407777-0107-E1

4 149723 MufflerExhaust

5 159955 Exhaust Asm. Left

6 160589 ExhaustAsm. Right

7 138129 ClampTube DoubleEngine

8 171877 Bolt5/16-18unc x 3/4 W/Seres

10 162797 Heat Shield Lt

13 165391 Gasket, Muffler

14 148456 Tube Drain Oil Easy

16 STD551237 Washer Lock Ext Tooth 3/8

17 17060624 Screw 3/8o16 x 1-1/2

23 169837 Shield, Brn/Dbr Guard

25 145996 Control Choke

26 73920600 Nut Keps 3/8-24 Unf

29 137180 Arrestor,Spark

31 157103 Tank, Fuel

32 161696 Cap FuelGuage

33 123487X Clamp, Hose

34 106082X Spacer Pad

37 8543R Line, Fuel

38 148315 Plug, Oil Drain Easy

39 109227X Pad Idler

45 17000612 Screw Hex Wsh3/8-16 x 3/4

62 10040500 Washer Lock 5/16

72 71070512 Screw Hex Hd Cap 5/16-18 x 3/4

81 73510400 Nut Keps Hex 1/4-20 Starter Nut

NOTE: All component dimensions given in U. S.

inches 1inch = 25.4 mm

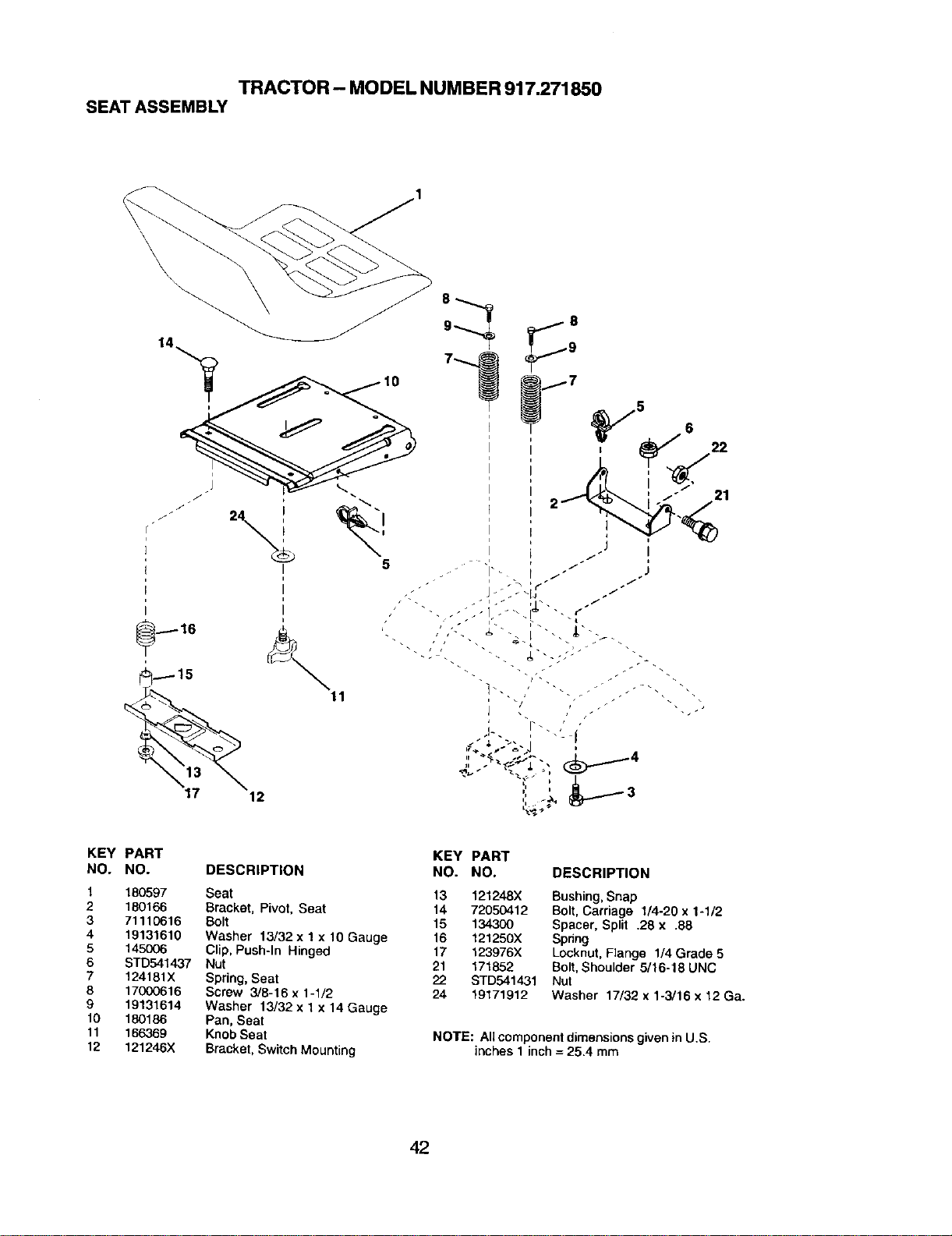

TRACTOR - MODEL NUMBER 917.271850

SEAT ASSEMBLY

_15

KEY PART

NO. NO.

1 160597

2 160166

3 71110616

4 19131610

5 145006

6 STD541437

7 124181X

6 17000616

9 19131614

10 180186

11 166369

12 121246X

DESCRIPTION

Seat

Bracket, Pivot, Seat

Bolt

Washer 13/32 x 1 x 10 Gauge

Clip, Push-In Hinged

Nut

Spring,Seat

Screw 3/6-16 x 1-1/2

Washer 13/32 x 1 x 14 Gauge

Pan, Seat

KnobSeat

Bracket, Switch Mounting

KEY PART

NO. NO. DESCRIPTION

13 121248X Bushing, Snap

14 72050412 Bolt, Carriage 1/4-20 x 1-1/2

15 134300 Spacer, Split .28 x .88

16 121250X Spdng

17 123976X Locknut, Flange 1/4 Grade 5

21 171852 Bolt, Shoulder 5/16-18 UNC

22 STD541431 Nut

24 19171912 Washer 17/32 x 1-3/16 x 12 Ga.

NOTE: All component dimensions givenin U.S.

inches 1 inch = 25.4 mm

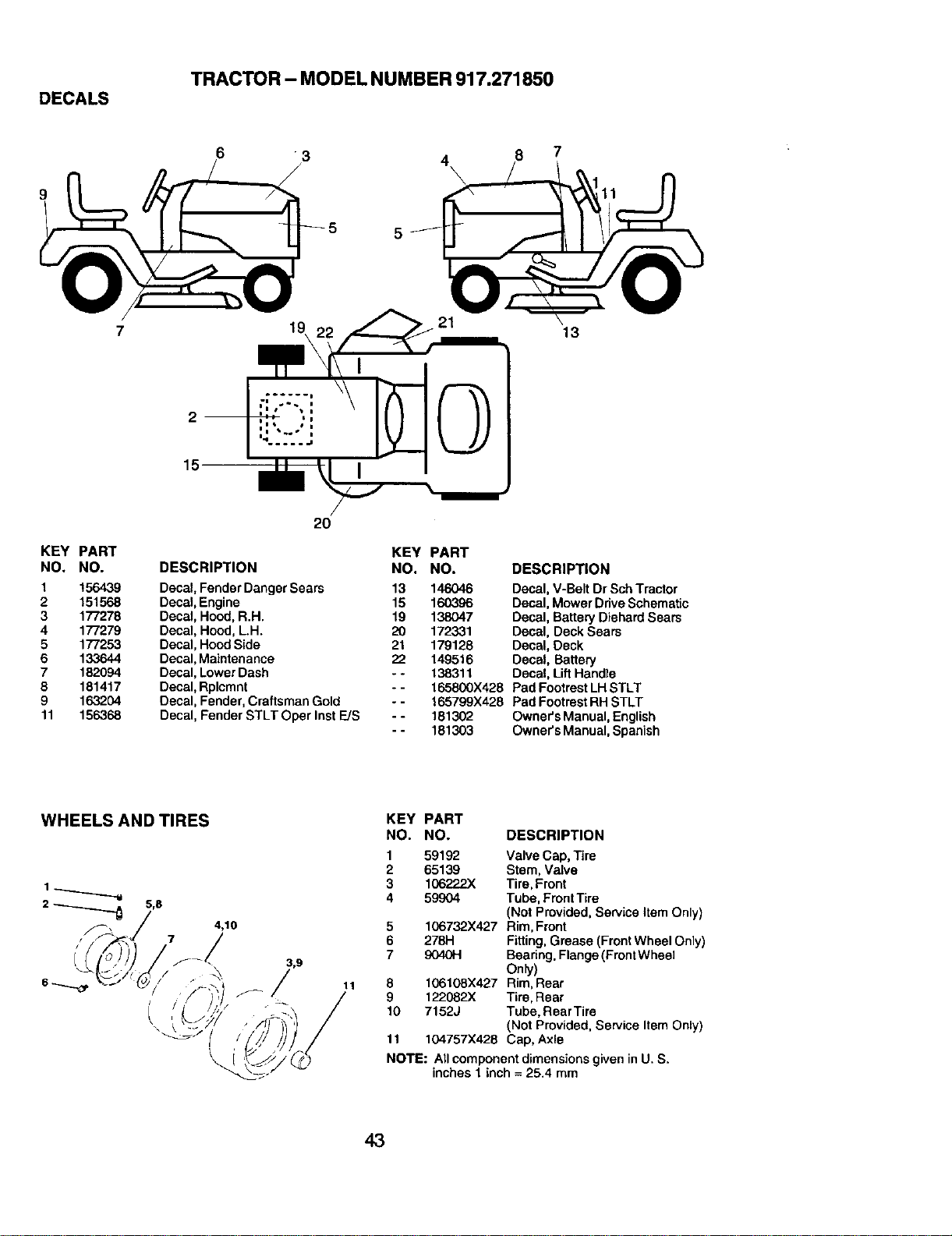

TRACTOR - MODEL NUMBER 917.271850

DECALS

KEY PART

NO. NO.

1 156439

2 151568

3 177278

4 177279

5 177253

6 133644

7 182094

8 181417

9 163204

11 156368

1922 ,_F 21

KEY PART

DESCRIPTION NO. NO.

Decal, FenderDangerSears 13 146046

Decal, Engine 15 160396

Decal, Hood, R.H. 19 138047

Decal, Hood, LH. 20 172331

Decal, Hood Side 21 179128

Decal, Maintenance 22 149516

Decal, LowerDash - - 138311

Decal, Rplcmnt - - 165800X428

Decal, Fender, Craftsman Gold - - 165799X428

Decal, Fender STLT Oper Inst FJS - - 181302

- - 181303

DESCRIPTION

Decal, V-Belt Dr SchTractor

Decal, Mower DriveSchematic

Decal, Battery DiehardSears

Decal, Deck Sears

Decal, Deck

Decal, Battery

Decal, Lift Handle

Pad FootrestLHSTLT

Pad FootrestRH STLT

Owner's Manual, English

Owner's Manual,Spanish

WHEELS AND TIRES

KEY PART

NO. NO. DESCRIPTION

1 59192 Valve Cap, Tire

2 65139 Stem, Valve

3 106222X Tire, Front

4 59904 Tube, Front Tire

(Not Provided, Service Item Only)

5 106732X427 Rim,Front

6 278H Fitting, Grease (Front Wheel Only)

7 9040H Beanng, Flange(FrontWheel

Only)

8 106108X427 Rim,Rear

9 122082X Tire, Rear

10 7152J Tube, Rear Tire

(Not Provided, Service Item Only)

11 104757X428 Cap, Axle

NOTE: All component dimensions given in U. S.

inches 1 inch = 25.4 mm

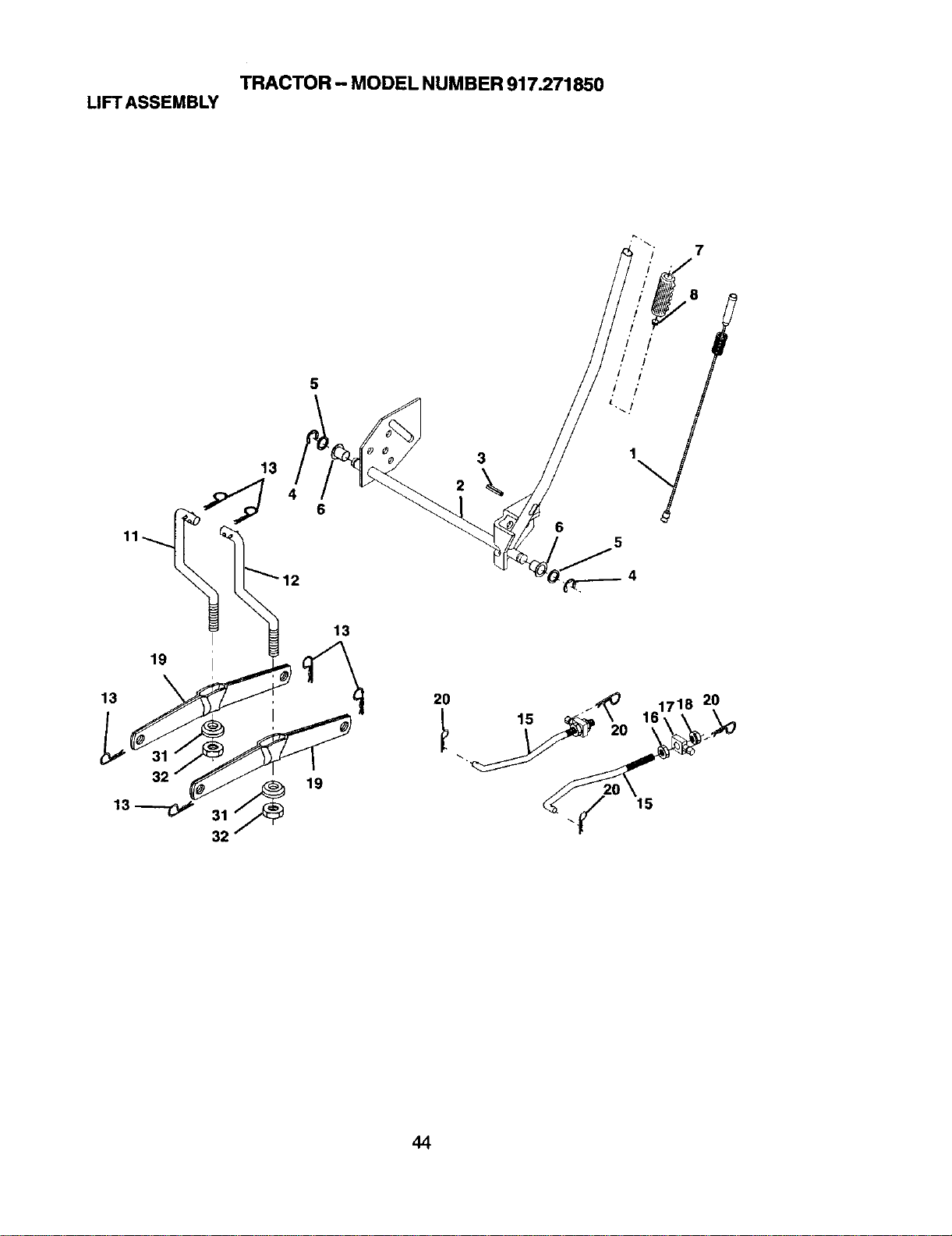

TRACTOR - MODEL NUMBER 917.271850

LIFT ASSEMBLY

31_

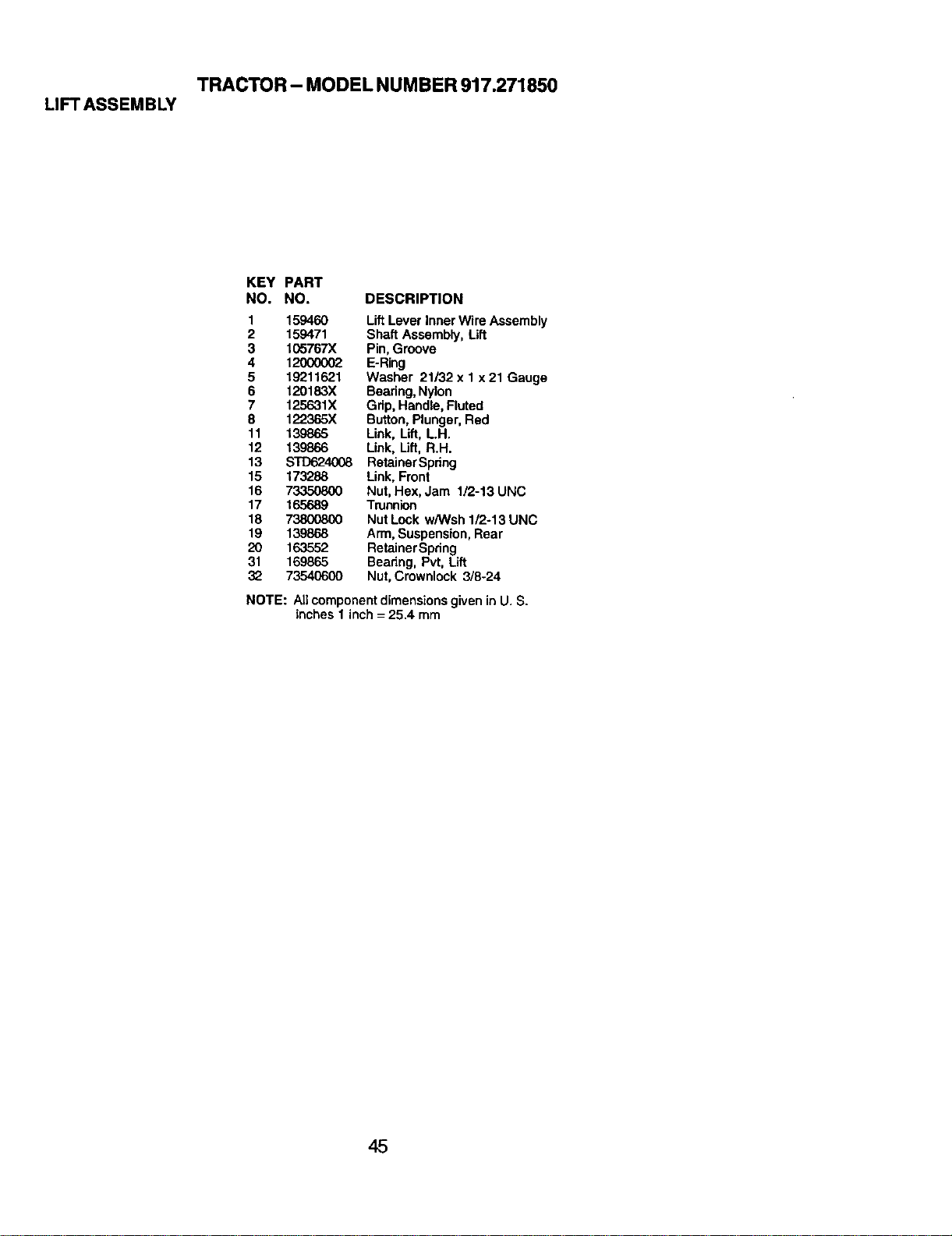

TRACTOR- MODEL NUMBER917.271850

LIFTASSEMBLY

KEY PART

NO. NO. DESCRIPTION

1 159460 Lift Lever Inner Wire Assembly

2 159471 Shaft Assembly, Lift

3 105767X Pin, Groove

4 12000002 E-Ring

5 19211621 Washer 21/32 x 1 x 21 Gauge

6 120183X Bearing,Nylon

7 125631X Grip,Handle, Fluted

8 122365X Button,Plunger, Red

11 139865 Link, Lift, LH.

12 139866 Link, Lift, R.H.

13 STD624008 RetainerSpring

15 173288 Link,Front

16 73350800 Nut, Hex, Jam 1/2-13 UNC

17 165689 Trunnion

18 73800800 NutLock wPHsh112-13UNC

19 139868 Arm, Suspension,Rear

20 163552 RetainerSpring

31 169865 Bearing, Pvt, Lift

32 73540600 Nut, Crownlock 3/8-24

NOTE: All component dimensions givenin U. S.

inches 1 inch = 25,4 mm

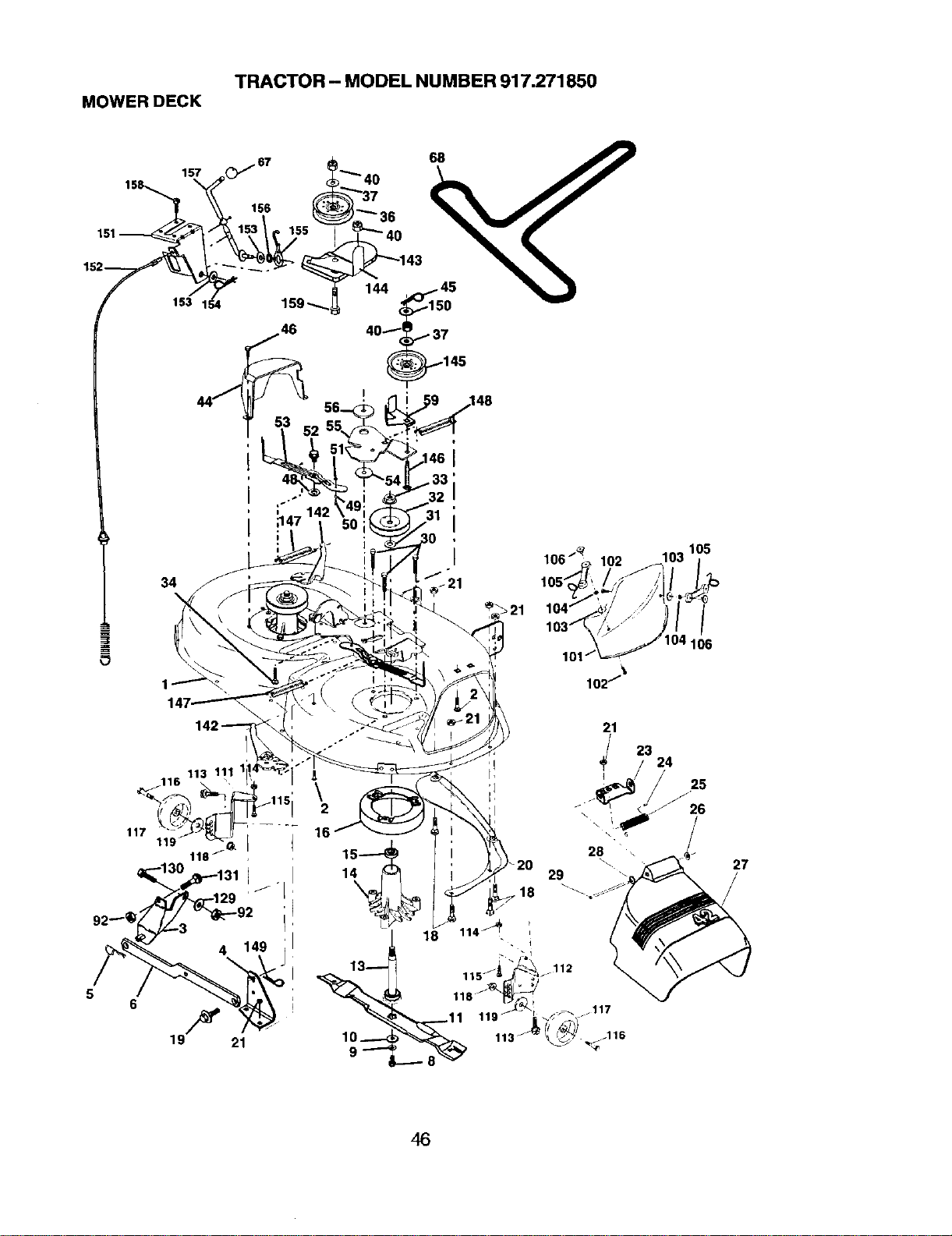

TRACTOR - MODEL NUMBER 917.271850

MOWER DECK

157

158 "_

151

152_

,148

;147

117

119

19F 21

1144 _,

• I

115z_

119

28_ •

112

.117

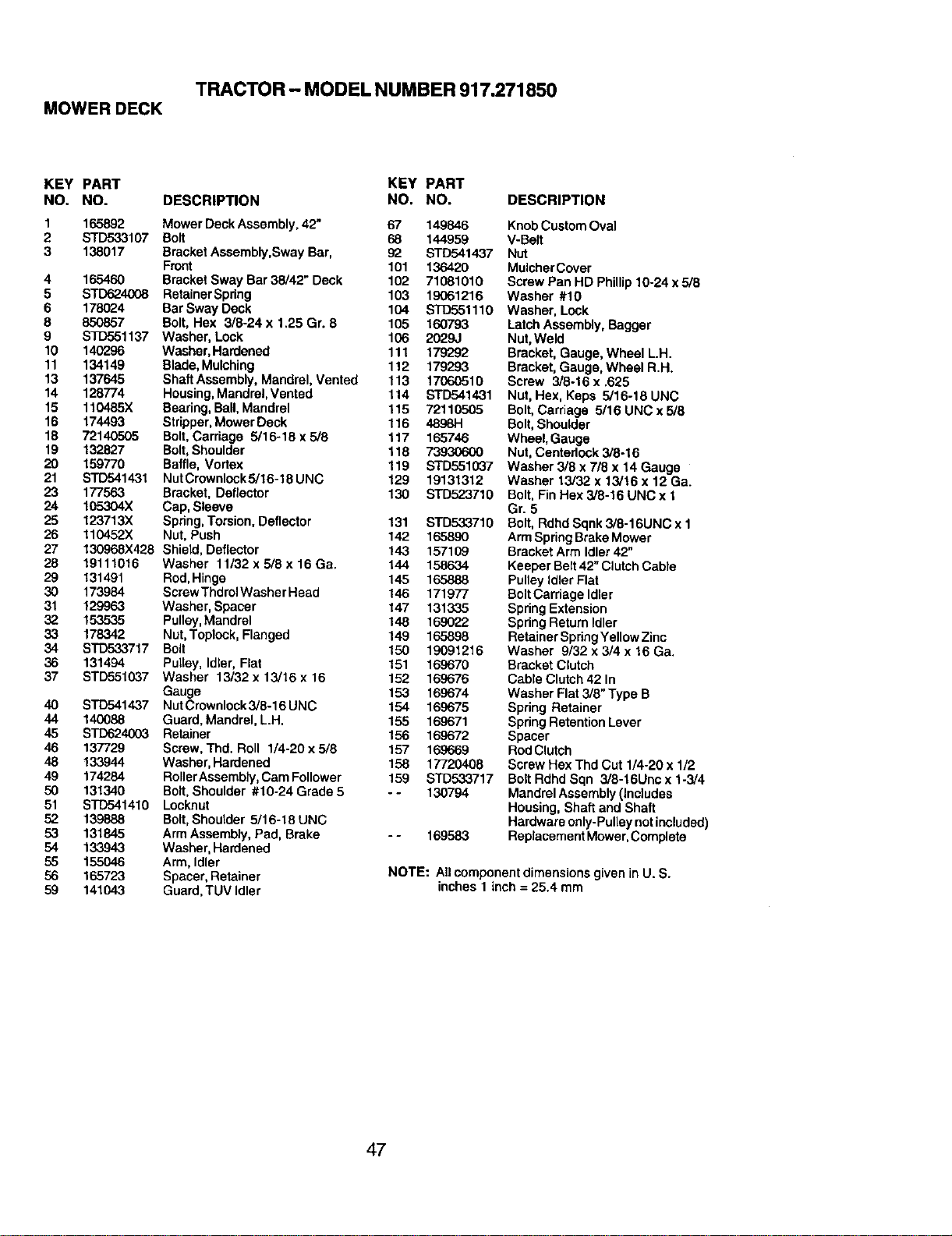

TRACTOR - MODEL NUMBER 917.271850

MOWER DECK

KEY PART

NO, NO.

1 165892

2 S_107

3 138O17

4 165460

5 STD624008

6 178024

8 850857

9 STD551137

10 140296

11 134149

13 137645

14 128774

15 110485X

16 174493

18 72140505

19 132827

20 159770

21 STD541431

23 177563

24 105304X

25 123713X

26 110452X

27 130968X428

28 19111016

29 131491

30 173984

31 129963

32 153535

33 178342

34 STD533717

36 131494

37 STD551037

40 STD541437

44 140088

45 STD624003

46 137729

48 133944

49 174284

50 13134O

51 STD541410

52 139888

53 131845

54 133943

55 155046

56 165723

59 141043

KEY PART

DESCRIPTION NO. NO. DESCRIPTION

Mower Deck Assembly,42" 67 149846

Bolt 68 144959

Bracket Assembly.SwayBar, 92 STD541437

Front 101 136420

Bracket Sway Bar 38/42" Deck 102 71081010

Retainer Spdng 103 19061216

Bar Sway Deck 104 STD551110

Bolt, Hex 3/8-24 x 1.25 Gr. 8 105 160793

Washer, Lock 106 2029.1

Washer, Hardened 111 179292

Blade,Mulching 112 179293

Shaft Assembly, Mandrel, Vented 113 17060519

Housing, Mandrel,Vented 114 STD541431

Bearing,Ball,Mandrel 115 72110505

Stripper, Mower Deck 116 4898H

Bolt,Carriage 5/16-18x5,'8 117 165746

Bolt,Shoulder 118 73930600

Baffle, Vortex 119 STD551037

NutCrownlock5/16-18 UNC 129 19131312

Bracket, Deflector 130 STD523710

Cap, Sleeve

Spring,Torsion,Deflector 131 STD533710

Nut, Push 142 165890

Shield, Deflector 143 157109

Washer 11/32xS/8x16Ga. 144 158634

Red, Hinge 145 165888

ScrewThdrelWasher Head 146 171977

Washer, Spacer 147 131335

Pulley,Mandrel 148 169022

Nut.Toplock, Flanged 149 165898

Bolt 150 19091216

Pulley, Idler, Flat 151 169670

Washer 13/32 x 13/16 x 16 152 169676

Gauge 153 169674

NutCrownlock 3/8-16 UNC 154 169675

Guard, MandreI, L.H. 155 169671

Retainer 156 169672

Screw, Thd. Roll 1/4-20 x 5/8 157 169669

Washer,Hardened 158 17720408

RollerAssembly,Cam Follower 159 STD533717

Bolt. Shoulder #10-24 Grade 5 - - 130794

Locknut

Bolt, Shoulder 5/16-18 UNC

Arm Assembly, Pad, Brake - - 169583

Washer. Hardened

Arm, Idler

Spacer, Retainer

Guard, TUV Idler

KnobCustom Oval

V-Belt

Nut

MulcherCover

Screw Pan HD Phillip10-24 x 5/6

Washer #10

Washer, Lock

Latch Assembly, Bagger

Nut,Weld

Bracket, Gauge, Wheel L.H.

Bracket,Gauge, Wheel R.H.

Screw 3/8-16 x .625

Nut, Hex, Keps 5/16-18 UNC

Bolt,Carriage 5/16 UNC x 5/8

Bolt,Shoulder

Wheel, Gauge

Nut, Ceoterlock 3/8-16

Washer 3/8 x 7/8 x 14 Gauge

Washer 13/32 x 13/16 x 12 Ga.

Bolt, FinHex 3/8-16 UNC x 1

Gr. 6

Bolt, RdhdSqnk3/8-16UNC x 1

ArmSpring BrakeMower

Bracket Arm Idler42"

Keeper Belt42"ClutchCable

PulleyIdler Flat

Bolt Carriage Idler

Spring Extension

Spring ReturnIdler

RetainerSpring Yellow Zinc

Washer 9/32 x 3/4 x 16 Ga.

Bracket Clutch

Cable Clutch 42 In

Washer Flat 3/8" Type B

Spring Retainer

Spring RetentionLever

Spacer

RodClutch

Screw Hex Thd Cut 1/4-20 x 1/2

BoltRdhd Sqn 3/8-16Unc x 1-3/4

MandrelAssembly(Includes

Housing,Shaft and Shaft

Hardwareonly-Pulleynotincluded)

ReplacementMower,Complete

NOTE: All componentdimensionsgiven in U. S.

inches 1 inch = 25.4 mm

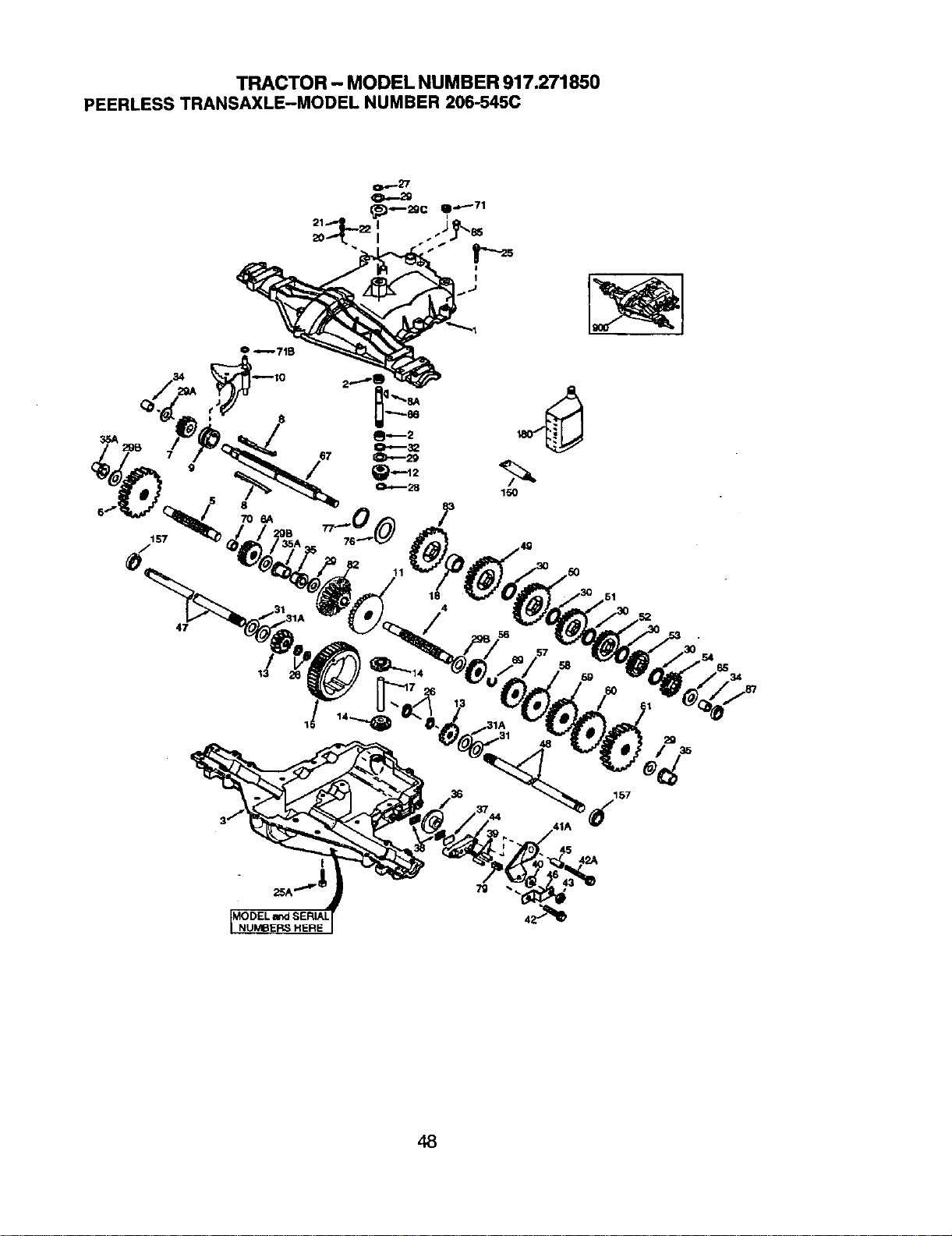

TRACTOR - MODEL NUMBER 917.271850

PEERLESS TRANSAXLE-MODEL NUMBER 206-545C

35A

150

41A 157

NUMBERS HERE

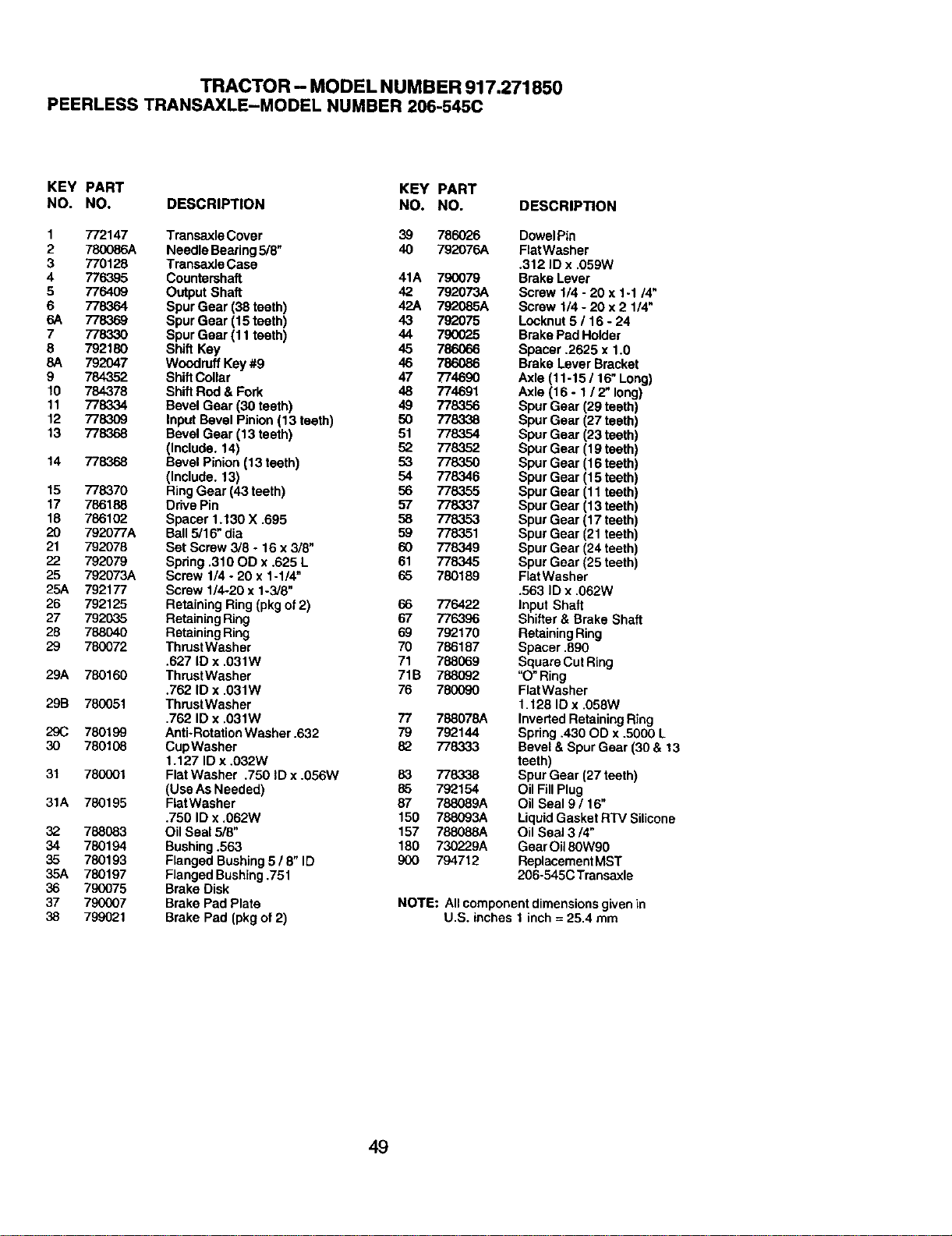

TRACTOR- MODELNUMBER917.271850

PEERLESSTRANSAXLE-MODELNUMBER206-545C

KEY PART KEY PART

NO. NO. DESCRIPTION NO. NO.

1 772147 Transaxle Cover 39 786026

2 780086A Needle Bearing5/8" 40 792076A

3 770128 TransaxleCase

4 776395 Countershaft 41A 790079

5 776409 Output Shaft 42 792073A

6 778364 Spur Gear (38 teeth) 42A 792085A

6A 778369 Spur Gear (15 teeth) 43 792075

7 778330 Spur Gear (11 teeth) 44 790025

8 792180 Shift Key 45 786066

8A 792047 Woodruff Key#9 46 786086

9 784352 ShiftCollar 47 774690

10 784378 Shift Rod& Fork 48 774691

11 778334 Bevel Gear (30 teeth) 49 778356

12 778309 Input Bevel Pinion (13 teeth) 50 778338

13 778368 Bevel Gear (13 teeth) 51 778354

(Include. 14) 52 778352

14 778368 Bevel Pinion (13 teeth) 53 778350

(Include. 13) 54 778346

15 778370 Ring Gear (43 teeth) 56 778355

17 786188 Drive Pin 57 778337

18 786102 Spacer 1.130 X .695 58 778353

20 792077A Ball5/16" dia 59 778351

21 792078 Set Screw 3/8 - 16 x 3/8" 60 778349

22 792079 Spring .310 OD x ,525 L 61 778345

25 792073A Screw 1/4 - 20 x 1-1/4" 65 780189

25A 792177 Screw 1/4-20 x 1-3/8"

26 792125 Retaining Ring (pkg o12) 66 776422

27 792035 RetainingRing 67 776396

28 788040 RetainingRing 69 792170

29 780072 ThrustWashsr 70 786187

.627 ID x .031W 71 788069

29A 780160 ThrustWasher 71B 788092

.762 ID x .031W 76 780090

29B 780051 ThrustWasher

.762 ID x .031W 77 788078A

29C 780199 Anti-RotationWasher .632 79 792144

30 780108 CupWasher 82 778333

1.127 ID x ,032W

3t 780001 FlatWasher .750 ID x.056W 83 778338

(Use As Needed) 85 792154

31A 780195 FlatWasher 87 788089A

.750 ID x ,062W 150 788093A

32 788083 Oil Seal 5/8" 157 788088A

34 780194 Bushing.563 180 730229A

35 780193 Flanged Bushing5/ 8" ID 900 794712

35A 780197 FlangedBushing.751

36 790075 Brake Disk

37 790007 Brake Pad Plate

38 799021 Brake Pad (pkg of2)

DESCRIPTION

DowelPin

FlatWasher

.312 ID x .059W

Brake Lever

Screw 114- 20 x 1-1/4"

Screw 114- 20 x 2 1/4"

Locknut5 / 16 - 24

BrakePad Holder

Spacer .2625 x 1.0

Brake Lever Bracket

Axle (11-15 / 16"Long)

Axle (16 - 1/2" long)

Spur Gear (29 teeth)

Spur Gear (27 teeth)

Spur Gear (23 teeth)

Spur Gear (19 teeth)

Spur Gear (16 teeth)

Spur Gear (15 teeth)

Spur Gear (11 teeth)

Spur Gear (13 teeth)

Spur Gear (17 teeth)

Spur Gear (21 teeth)

Spur Gear (24 teeth)

Spur Gear (25 teeth)

FtatWasher

.563 ID x .062W

Input Shaft

Shifter & Brake Shaft

RetainingRing

Spacer .890

Square Cut Ring

"O"Ring

FlatWasher

1.128 ID x .058W

Inverted RetainingRing

Spring .430 OD x .5000 L

Bevel &Spur Gear (30 & 13

teeth)

Spur Gear (27 teeth)

OilFillPlug

Oil Seal 9 / 16"

LiquidGasket RTV Silicone

Oil Seal 3/4"

Gear Oil80W90

ReplacementMST

206-545C Transaxle

NOTE: All componentdimensions givenin

U.S. inches 1 inch = 25.4 mm

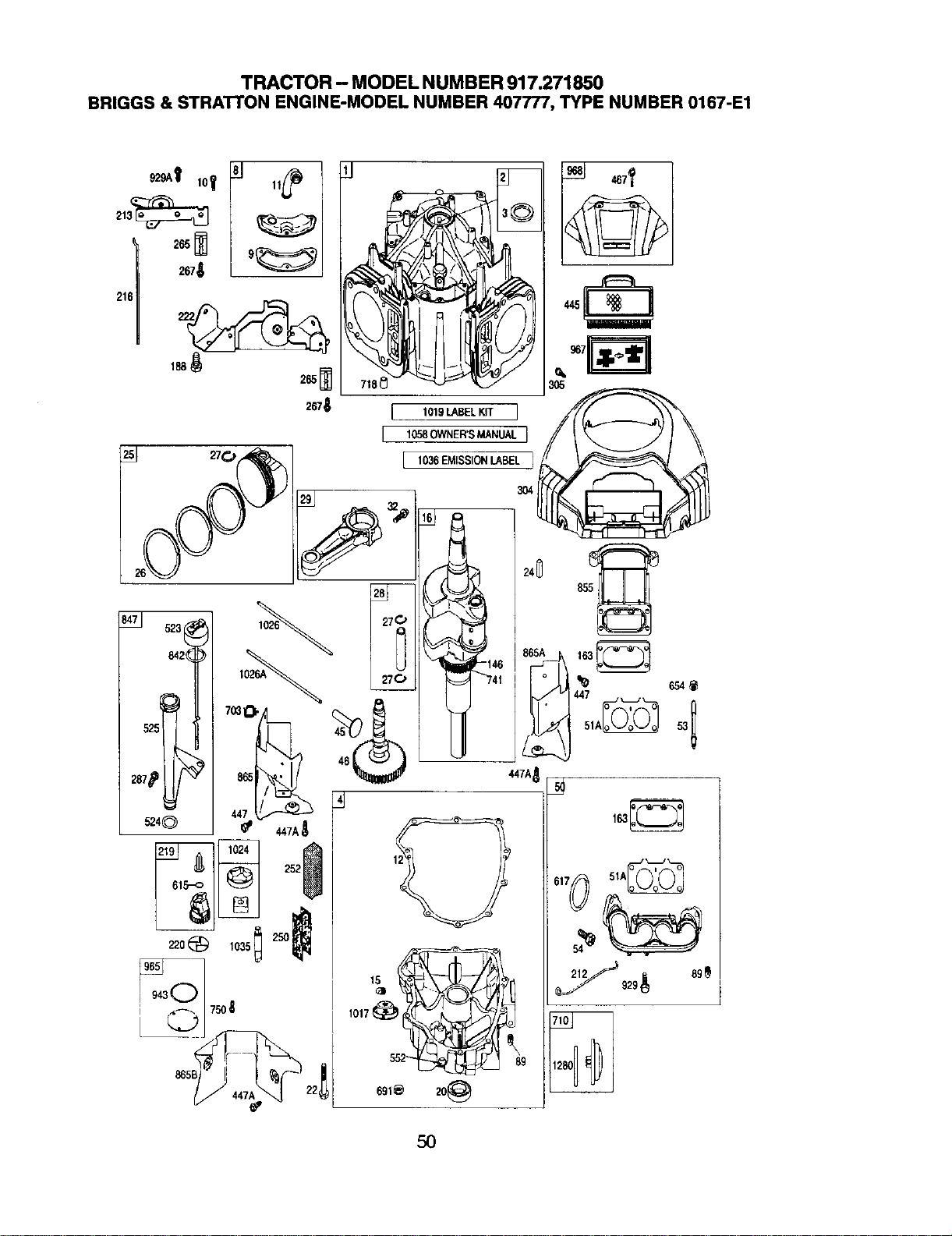

TRACTOR - MODEL NUMBER 917.271850

BRIGGS & STRA'I'fON ENGINE-MODEL NUMBER 407777, TYPE NUMBER 0167-E1

929A_' 10_

267_

216

2678

25J 270(._

842

525

287_

447

447A

3©

nlE_

[ 1019LABELKIT I /_

69t_ 20@

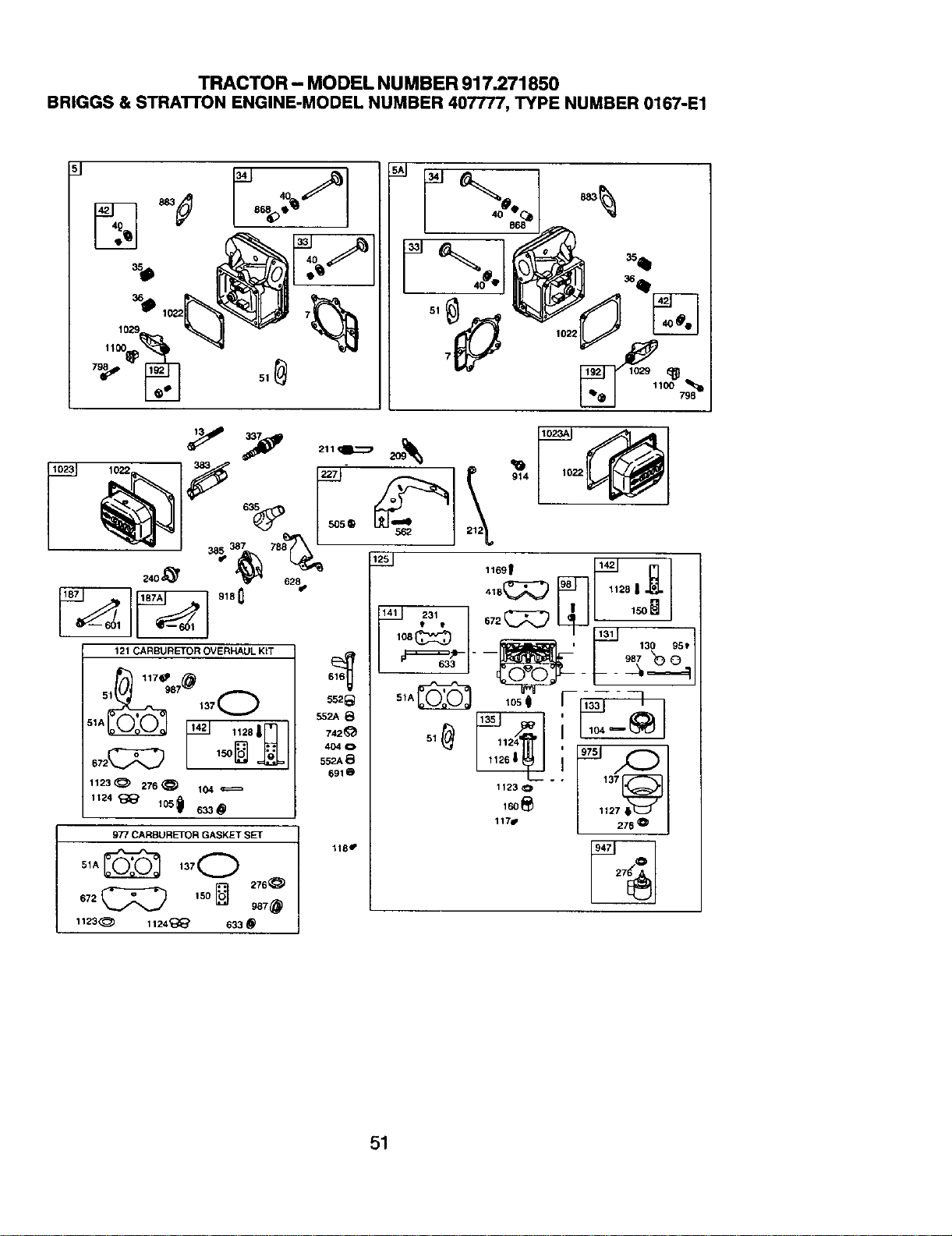

TRACTOR - MODEL NUMBER 917.271850

BRIGGS & STRATI'ON ENGINE-MODEL NUMBER 407777, TYPE NUMBER 0167-E1

°0 6__'_

5AI

40 8_ I

E'!I_ _

2,0_ _ 696

121 CARBURETOR OVERHAUL KkT

f_ ,1,,,@

51 987

,9,0

6'AUL%-M-JIz_ ,,,61R

_,_

6,L_.J L

1123_ 276_ 10,4 _

1124 _ 1050 633_

977 CARBURETOR GASKET SET

61A_ 19'O

276_}

672_ 160_ 987(_

1123_) 1124_ 633_

5S2A8

7421_

404O

552A8

691 0

1023A

2..= _ _,0_

11691

108 (_ I, 131 130 951

51A_

117B [ 276

118 _

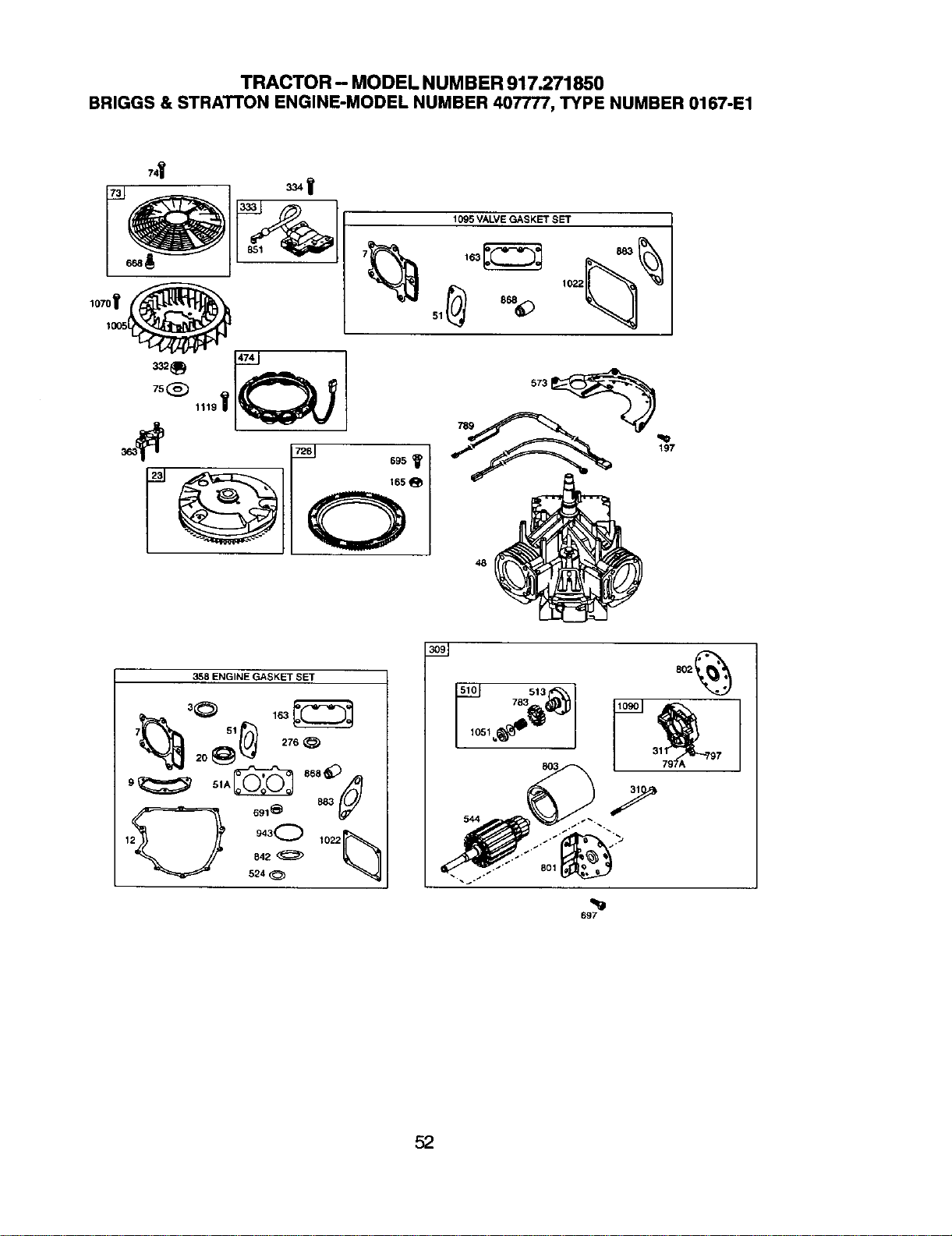

TRACTOR- MODEL NUMBER917.271850

BRIGGS& STRATTONENGINE-MODELNUMBER407777,TYPENUMBER0167-E1

7'I

1095 VALVE GASKET SET

789

358 ENGINE GASKET SET

7 51 276 (_

1 943@ 1022

e42 _'

524

801

697

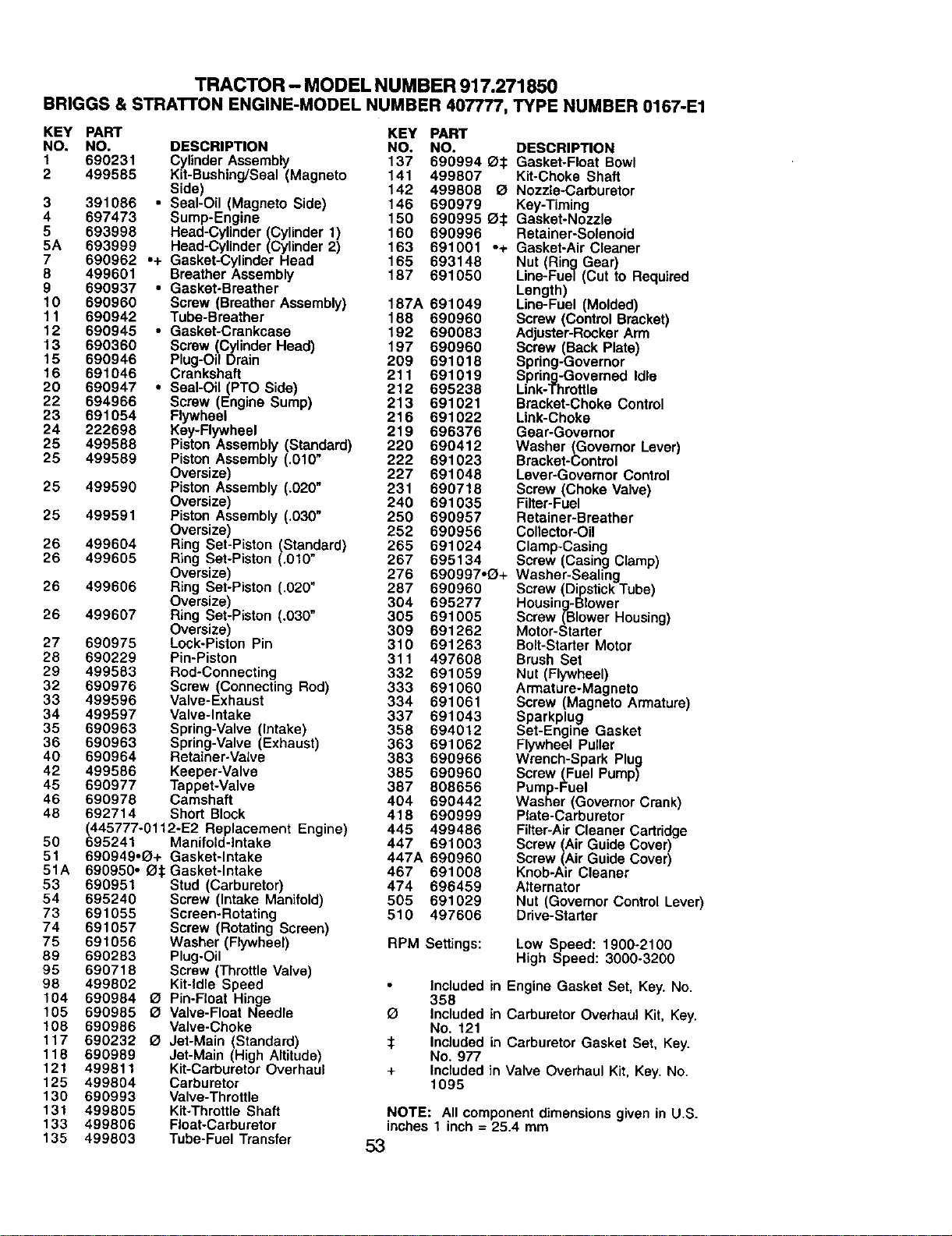

TRACTOR - MODEL NUMBER 917.271850

BRIGGS & STRATTONENGINE-MODEL NUMBER 407777, TYPE NUMBER 0167-E1

KEY PART

NO. NO.

1 690231

2 499585

3 391086

4 697473

5 693998

5A 693999

7 690962

8 499601

9 690937

10 690960

11 690942

12 690945

13 690360

15 690946

16 691046

20 690947

22 694966

23 691054

24 222698

25 499588

25 499589

25 499590

25 499591

51A

104

105

108

117

118

121

125

130

131

133

135

DESCRIPTION

Cylinder Assembly

Kit-Bushing/Seal (Magneto

Side)

• Seal-Oil (Magneto Side)

Sump-Engine

Head-Cylinder (Cylinder 1)

Head-Cylinder (Cylinder 2)

•+ Gasket-Cylinder Head

Breather Assembly

• Gasket-Breather

Screw (Breather Assembly)

Tube-Breather

• Gasket-Crankcase

Screw (Cylinder Head)

Plug-Oil Drain

Crankshaft

• Seal-Oil (PTO Side)

Screw (Engine Sump)

Flywheel

Key-Flywheel

Piston Assembly (Standard)

Piston Assembly (.010"

Oversize)

Piston Assembly (.020"

Oversize)

Piston Assembly (.030"

Oversize)

499604 Ring Set-Piston (Standard)

499605 Ring Set-Piston (.010"

Oversize)

499606 Ring Set-Piston (.020"

Oversize)

499607 Ring Set-Piston (.030"

Oversize)

690975 Lock-Piston Pin

690229 Pin-Piston

499583 Rod-Connecting

690976 Screw (Connecting Rod)

499596 Valve-Exhaust

499597 Valve-Intake

690963 Spring-Valve (Intake)

690963 Spring-Valve (Exhaust)

690964 Retainer-Valve

499586 Keeper-Valve

690977 Tappet-Valve

690978 Camshaft

692714 Short Block

(445777-0112-E2 Replacement Engine)

695241 Manifold-Intake

690949°0+ Gasket-Intake

690950. O:J:Gasket-Intake

690951 Stud (Carburetor)

695240 Screw (Intake Manifold)

691055 Screen-Rotating

691057 Screw (Rotating Screen)

691056 Washer (Flywheel)

690283 Plug-Oil

690718 Screw (Throttle Valve)

499802 Kit-Idle Speed

690984 _ Pin-Float Hinge

690985 O Valve-Float Needle

690986 Valve-Choke

690232 O Jet-Main (Standard)

690959 Jet-Main (High Altitude)

49981 t Kit-Carburetor Overhaul

499804 Carburetor

690993 Valve-Throttle

499805 Kit-Throttle Shaft

499806 Float-Carburetor

499803 Tube-Fuel Transfer

KEY PART

NO. NO. DESCRIPTION

137 690994 O-1: Gasket-Float Bowl

141 499807 Kit-Choke Shaft

142 499808 _ Nozzle-Carburetor

146 690979 Key-Timing

150 690995 _€ Gasket-Nozzle

160 690996 Retainer-Solenoid

163 691001 °+ Gasket-Air Cleaner

165 693148 Nut (Rin_ Gear)

187 691050 Line-FueJ (Cut to Required

Length)

187A 691049 Line-Fuel (Molded)

158 690960 Screw (Control Bracket)

192 690083 Adjuster-Rocker Arm

197 690960 Screw (Back Plate)

209 691018 Spring-Governor

211 691019 Spring-Governed Idle

212 695238 Link-Throttle

213 691021 Bracket-Choke Control

216 691022 Link-Choke

219 696376 Gear-Governor

220 690412 Washer (Governor Lever)

222 691023 Bracket-Control

227 691048 Lever-Governor Control

231 690718 Screw (Choke Valve)

240 691035 Filter-Fuel

250 690957 Retainer-Breather

252 690956 Collector-Oil

265 691024 Clamp-Casing

267 695134 Screw (Casing Clamp)

276 690997.1_+ Washer-Sealing

287 690960 Screw (Dipstick Tube)

304 695277 Housing-Blower

305 691005 Screw (Blower Housing)

309 691262 Motor-Starter

310 691263 Bolt-Starter Motor

311 497608 Brush Set

332 691059 Nut (Flywheel)

333 691060 Armature-Magneto

334 691061 Screw (Magneto Armature)

337 691043 Sparkplug

358 694012 Set-Engine Gasket

363 691062 Flywheel Puller

383 690966 Wrench-Spark Plug

385 690960 Screw (Fue_ Pump)

387 808656 Pump-Fuel

404 690442 Washer (Governor Crank)

418 690999 Plate-Carburetor

445 499486 Filter-Air Cleaner Cartridge

447 691003 Screw (Air Guide Cover)

447A 690960 Screw (Air Guide Cover)

467 691008 Knob-Air Cleaner

474 696459 Alternator

505 691029 Nut (Governor Control Lever)

510 497606 Drive-Starter

RPM Settings: Low Speed: 1900-2100

High Speed: 3000-3200

Included in Engine Gasket Set, Key. No.

358

Included in Carburetor Overhaul Kit, Key.

No. 121

Included in Carburetor Gasket Set, Key.

No. 977

Included in Valve Overhaul Kit, Key. No.

1095

NOTE; All component dimensions given in U.S.

inches 1 inch = 25.4 mm

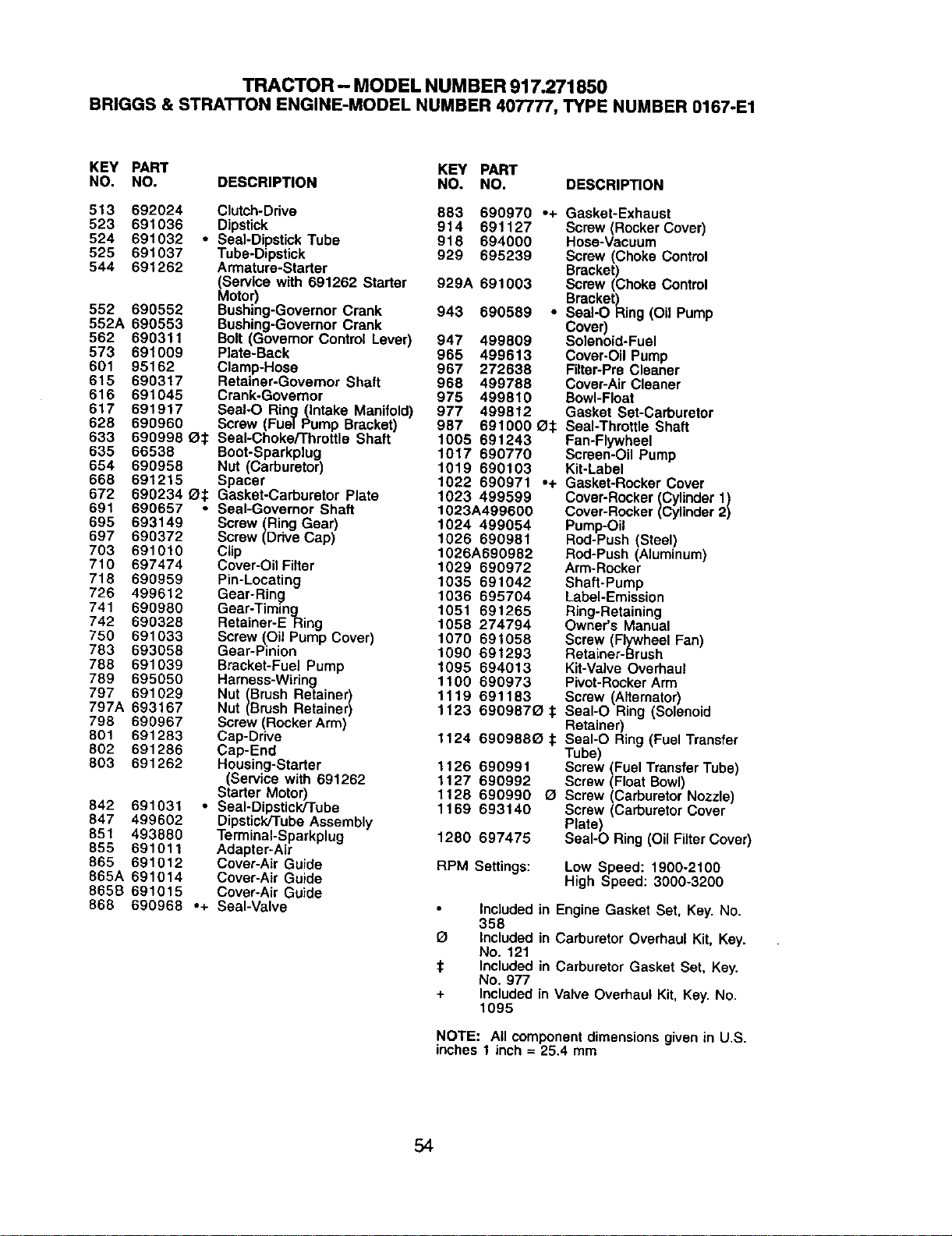

TRACTOR - MODEL NUMBER 917.271850

BRIGGS & STRATTON ENGINE-MODEL NUMBER 407777, TYPE NUMBER 0167-E1

KEY PART KEY PART

NO, NO. DESCRIPTION NO. NO. DESCRIPTION

513 692024 Clutch-Ddve

523 691036 Dipstick

524 691032 ° Seal-Dipstick Tube

525 691037 Tube-Dipstick

544 691262 Armature-Starter

(Service with 691262 Starter

Motor)

552 690552 Bushing-Governor Crank

552A 690553 Bushing-Governor Crank

562 690311 Bolt (Governor Control Lever)

573 691009 Plate-Back

601 95162 Clamp-Hose

615 690317 Retainer-Governor Shaft

816 691045 Crank-Governor

617 691917 SeaI-O Ring (intake Manifold)

628 690960 Screw (Fuel Pump Bracket)

633 690998 _:_ Seal-Choke/Throttle Shaft

635 66538 Boot-Sparkplug

654 690958 Nut (Carburetor)

668 691215 Spacer

672 690234 _:I: Gasket-Carburetor Plate

691 690657 * Seal-Governor Shaft

695 693149 Screw (Ring Gear)

697 690372 Screw (Drive Cap)

703 691010 Clip

710 697474 Cover-Oil Filter

718 690959 Pin-Locating

726 499612 Gear-Ring

741 690980 Gear-Timing

742 690328 Retainer-E Ring

750 691033 Screw (Oil Pump Cover)

783 693058 Gear-Pinion

788 691039 Bracket-Fuel Pump

789 695050 Harness-Wiring

797 691029 Nut (Brush Retainer)

797A 693167 Nut (Brush Retainer)

798 690967 Screw (Rocker Arm)

801 691283 Cap-Drive

802 691286 Cap-End

803 691262 Housing-Starter

(Service with 691262

Starter Motor)

842 691031 ° Seal-Dipstick/Tube

847 499602 Dipstick/Tube Assembly

851 493880 TerminaI-Sparkplug

855 691011 Adapter-Air

865 691012 Cover-Air Guide

865A 691014 Cover-Air Guide

865B 691015 Cover-Air Guide

868 690968 ,+ Seal-Valve

883 690970 °+ Gasket-Exhaust

914 691127 Screw (Rocker Cover)

918 694000 Hose-Vacuum

929 695239 Screw (Choke Control

Bracket)

929A 691003 Screw (Choke Control

Bracket)

943 890589 ° SeaI-O Ring (Oil Pump

Cover)

947 499809 Solenoid-Fuel

965 499613 Cover-Oil Pump

967 272638 Filter-Pre Cleaner

968 499788 Cover-Air Cleaner

975 499810 Bowl-Float

977 499812 Gasket Set-Carburetor

987 691000 O_ Seal-Throttle Shaft

1005 691243 Fan-Flywheel

1017 690770 Screen-Oil Pump

1019 690103 Kit-Label

1022 690971 °+ Gasket-Rocker Cover

1023 499599 Cover-Rocker (Cylinder 1)

1023A499600 Cover-Rocker (Cylinder 2)

1024 499054 Pump-Oil

1026 690981 Rod-Push (Steel)

1026A690982 Rod-Push (Aluminum)

1029 690972 Arm-Rocker

1035 691042 Shaft-Pump

1036 695704 Label-Emission

1051 691265 Ring-Retaining

1058 274794 Owner's Manual

1070 691058 Screw (Flywheel Fan)

1090 691293 Retainer-Brush

1095 694013 Kit-Valve Overhaul

1100 690973 Pivot-Rocker Arm

1119 691183 Screw (Alternator)

1123 690987Q 1: SeaI-O Ring (Solenoid

Retainer)

1124 690988Q _: SeaI-O Ring (Fuel Transfer

Tube)

1126 69099 t Screw (Fuel Transfer Tube)

1127 690992 Screw (Float Bowl)

1128 690990 1_ Screw (Carburetor Nozzle)

1169 693140 Screw (Carburetor Cover

Plate)

1280 697475 SeaI-O Ring (Oil Filter Cover)

RPM Settings: Low Speed: 1900-2100

High Speed: 3000-3200

Included in Engine Gasket Set, Key. No.

358

(_ Included in Carburetor Overhaul Kit, Key.

No. 121

_: Included in Carburetor Gasket Set, Key.

No. 977

+ Included in Valve Overhaul Kit, Key. No.

1095

NOTE: AU component dimensions given in U.S.

inches 1 inch = 25.4 mm

SUGGESTED GUIDE FOR SIGHTING SLOPES FOR SAFE OPERATION

1. Fold this page along dotted line indicated above.

2. Hold page before you so that its left edge Is vertically parallel to a tree

trunk or other upright structure.

3. Sight across the fold In the direction of hill slope you want to measure.

4. Compare the angle of the fold with the slope of the hill.

For repairof major brandappliancesin your own home...

no matterwho made it,no matterwho sold

An,/ame,dayornight

(U.S_.andCanada)

www.sears.ca

For repair ofcarry-in products likevacuums, lawn equipment, and

electronics,call for the nearest Sears Parts and Repair Center.

1-800-488-1222 Anyt_, dayorrt_ (U.S._.o_y)

_.Seal_,Oonl

i i i i i rll i r i i _

Forthe replacement parts,accessories and owner's manuals

thatyou need to do-it-yourself, call Sears PartsDirectSM!

1-800-366-PART 6a.m.- 11p.m., 7days aweek

(1-800-366-7278) (U.S.A.only)

www.sear_conYpartsdirect

TO purchase or inquire about a Sears Service Agreement

or Sears Maintenance Agreement:

1-800-827-6655 (u.s,_) 1-800-361-6665 (Canada)

7 a.m.-5 p.m.,CST,Mort.- Sat. 9a.m.-8 p.m.EST, M-F,4 p.m.Sat.

Parape_r sewiciodereparack_ a

domiclio, yparao_der_rpiezas:

1-888-SU-HOGARsM

(1-888-784-642.7)

Au Canadapourserviceenfran_s:

1-800-LE-FOYER ac

(I-800-_7)

w_v.seais.ca

H°meCentral®J

® Registered Trademark / TMTrademark / $M Service Mark of Sears. Roebuck and Co.

® Marca Registrada / TMMarca de Fdbrica / SM Marca de Servicio de Sears. Roebuck and Co.

MCMarque de commerce / _o Marque depos_e de Sears. Roebuck and Co.

181302 1.31.02 TR Printed in U.S.A.

Craftsman 917271850 lawn tractor

Product's Documents

Owner's Manual

Specifications

Craftsman 917271850 Questions and Answers

Related Products

Craftsman 917273900 lawn tractor

Craftsman 917287440 Lawn tractor 26.0HP. 54'' Mover Electric Start Automatic Transmission

Craftsman 917250551 Lawn Tractor

Craftsman 917276390 Lawn Tractor 18.0 HP, 42'' Mower Electric Start 6 Speed Transaxle

Craftsman 247203790 Lawn Tractor

Craftsman 917287320 Lawn Tractor 26.0 HR 54" Mower Electric Start Automatic Transmission
