Samsung NK30B3000US User Manual

LIB0175253

Range Hood

Hotte de la cuisine

Campana de cocina

Installation Instructions Guide

Guide d’instructions d’installation

Guía de Instrucciones para Instalación

NK30B3000US/AA

2 English

Table of Contents

Important Safety Instructions 3

Electrical Requirements 5

Venting Requirements (ducted models only) 5

Venting Methods 5

Cold Weather Installations 5

Makeup Air 5

Installation Requirements 5

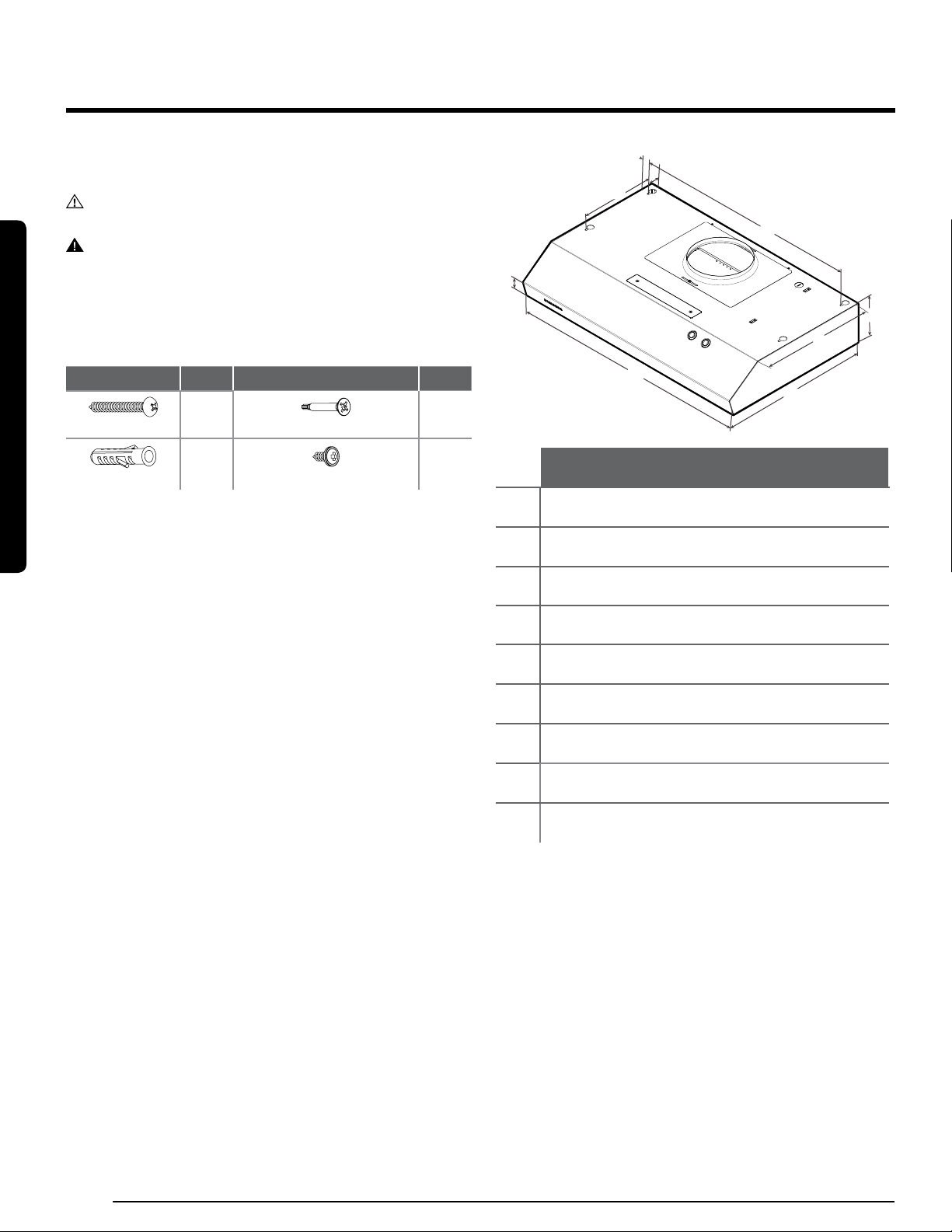

Tools and Parts 6

Dimensions and Clearances 6

Installation Instructions 7

Venting Methods 7

Prepare the location 7

Installation Instructions 7

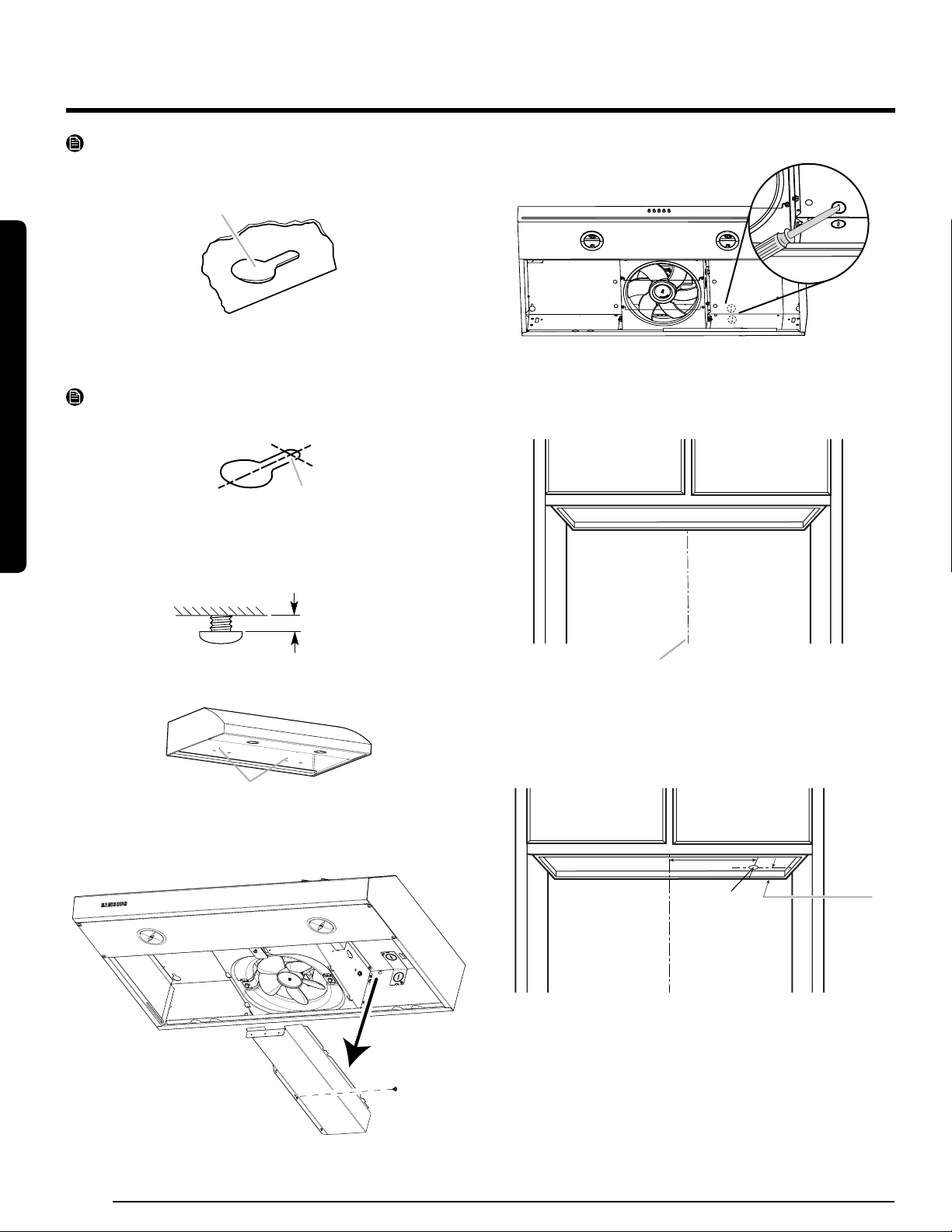

Prepare Range Hood 8

Mark Hole Locations 8

Mark and Cut Vent Opening 9

Drill Electrical Opening 9

Prepare Range Hood Vents 9

Attach Vent Damper or Transition 9

Mounting the Hood 10

Connect Vent System 10

Electrical Connection 10

Completing the Installation 10

Range Hood Description 11

Range Hood Controls 11

Cleaning 11

Metal Grease Filter 11

Charcoal Filter 11

Replacing the LED Lamp 11

Range Hood Use and Care 11

Warranty (USA) 13

Warranty (Canada) 14

English 3

APPROVED FOR RESIDENTIAL APPLIANCES

FOR RESIDENTIAL USE ONLY

READ AND SAVE THESE INSTRUCTIONS

PLEASE READ ENTIRE INSTALLATION GUIDE BEFORE PROCEEDING.

INSTALLATION MUST COMPLY WITH ALL LOCAL CODES.

IMPORTANT: Save these Instructions for the Local Electrical

Inspector’s use.

INSTALLER: Please leave these Instructions with this unit for the

owner.

OWNER: Please retain these instructions for future reference.

Symbols used in this manual

WARNING

Hazards or unsafe practices that may result in severe personal injury or

death.

CAUTION

Hazards or unsafe practices that may result in electric shock, personal

injury, or property damage.

NOTE

Useful tips and instructions.

These warning icons and symbols are here to prevent injury to you and

others.

Please follow them explicitly. After reading this section, keep it in a safe

place for future reference.

WARNING

Turn off power circuit at service panel and lock out panel before wiring

this appliance.

Requirement 120 VAC, 60 Hz. 15 or 20 A Branch Circuit

WARNING

Cancer and Reproductive Harm - www.P65Warnings.ca.gov

1. FCC Notice

CAUTION

FCC CAUTION: Any changes or modications not expressly approved

by the party responsible for compliance could void the user’s authority to

operate the equipment.

This device complies with Part 15 of FCC Rules. Operation is Subject to

following two conditions:

1) This device may not cause harmful interference, and

2) This device must accept any interference received including

interference that cause undesired operation.

For products sold in the US and Canadian markets, only channels 1~11

are available. You cannot select any other channels.

FCC STATEMENT:

This equipment has been tested and found to comply within the limits

for a Class B digital device, pursuant to part 15 of the FCC Rules. These

limits are designed to provide reasonable protection against harmful

interference in a residential installation.

This equipment generates, uses, and can radiate radio frequency energy

and, if not installed and used in accordance with the instructions, may

cause harmful interference to radio communications.

Important Safety Instructions

However, there is no guarantee that interference will not occur in a

particular installation. If this equipment does cause harmful interference

to radio or television reception, which can be determined by turning

the equipment off and on, the user is encouraged to try to correct the

interference by one or more of the following measures:

• Reorienting or relocating the receiving antenna

• Increasing the separation between the equipment and receiver

• Connecting the equipment to an outlet that is on a different circuit than

the radio or TV.

• Consulting the dealer or an experienced radio/TV technician for help.

FCC RADIATION EXPOSURE STATEMENT:

This equipment complies with FCC radiation exposure limits set forth

for an uncontrolled environment. This equipment should be installed

and operated so there is at least 8 inches (20 cm) between the radiator

and your body. This device and its antenna(s) must not be co-located or

operated in conjunction with any other antenna or transmitter.

2. IC Notice

The term “IC” before the radio certication number only signies

that Industry Canada technical specications were met. Operation is

subject to the following two conditions: (1) this device may not cause

interference, and (2) this device must accept any interference, including

interference that may cause undesired operation of the device.

This Class B digital apparatus complies with Canadian ICES-003. For

products sold in the US and Canadian markets, only channels 1~11 are

available. You cannot select any other channels.

IC RADIATION EXPOSURE STATEMENT:

This equipment complies with IC RSS-102 radiation exposure limits set

forth for an uncontrolled environment. This equipment should be installed

and operated so there is at least 8 inches (20 cm) between the radiator

and your body. This device and its antenna(s) must not be co-located or

operated in conjunction with any other antenna or transmitter.

4 English

Important Safety Instructions

WARNING

TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK, OR INJURY TO

PERSONS, OBSERVE THE FOLLOWING PRECAUTIONS:

■ Use this unit only in the manner intended by the manufacturer. If you

have questions, contact the manufacturer.

■ Before servicing or cleaning the unit, switch the power off at the

service panel and lock the service panel to prevent power from being

switched on accidentally. If the service panel cannot be locked,

securely fasten a prominent warning device, such as a tag to the

service panel.

■ Installation work and electrical wiring must be done by qualied

person(s) in accordance with all applicable codes and standards,

including re-rated construction.

■ Sufcient air is needed for proper combustion and exhausting of

gases through the ue (chimney) of fuel burning equipment to prevent

backdrafting. Follow the heating equipment manufacturer’s guideline

and safety standards such as those published by the National Fire

Protection Association (NFPA), the American Society for Heating,

Refrigeration and Air Conditioning Engineers (ASHRAE), and the local

code authorities.

■ When cutting or drilling into the wall or ceiling; do not damage

electrical wiring and other hidden utilities.

■ Ducted fans must always be vented outdoors.

CAUTION

For general ventilating use only. Do not use to exhaust hazardous or

explosive materials and vapors.

CAUTION

To reduce the risk of re and to properly exhaust air, be sure to duct air

outside - do not vent exhaust air into spaces within walls or ceilings, attics

or into crawl spaces, or garages.

WARNING

TO REDUCE THE RISK OF FIRE, USE ONLY METAL DUCTWORK.

WARNING

TO REDUCE THE RISK OF A RANGE TOP GREASE FIRE:

■ Never leave surface units unattended at high settings. Boilovers cause

smoking and greasy spillovers that may ignite. Heat oils slowly on low

or medium settings.

■ Always turn the hood ON when cooking at high heat or when ambeing

food (i.e. Crepes Suzette, Cherries Jubilee, Peppercorn Beef Flambé).

■ Clean ventilating fans frequently. Grease should not be allowed to

accumulate on the fan or lter.

■ Use proper pan sizes. Always use cookware appropriate for the size of

the surface element.

WARNING

TO REDUCE THE RISK OF INJURY TO PERSONS IN THE EVENT

OF A RANGE TOP GREASE FIRE, OBSERVE THE FOLLOWING

PRECAUTIONS:

■ SMOTHER FLAMES with a close tting lid, cookie sheet, or metal tray,

then turn off the burner. BE CAREFUL TO PREVENT BURNS. If the

ames do not go out immediately, EVACUATE AND CALL THE FIRE

DEPARTMENT.

■ NEVER PICK UP A FLAMING PAN - you may get burned.

■ DO NOT USE WATER, including wet dishcloths or towels - a violent

steam explosion can result.

■ Use an extinguisher ONLY if:

- You know you have a class ABC extinguisher, and you already know

how to operate it.

– The re is small and contained in the area where it started.

– The re department is being called.

– You can ght the re with your back to an exit.

Based on “Kitchen Fire Safety Tips” published by NFPA.

WARNING

To reduce the risk of re or electrical shock, do not use this fan with any

solid-state speed control device.

WARNING

Do not let children near this appliance. Do not let children play with this

appliance.

Keep all packaging materials out of children’s reach. Properly dispose the

packaging materials after this appliance is unpacked.

WARNING

Turn off the hood before opening the lter and be sure to use the lter

with the screw fastened.

WARNING

To reduce the risk of injury, do not force vertically on the lter plane and

handle while cleaning.

WARNING

Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Read and save these instructions

Important Safety Instructions

English 5

Electrical Requirements

IMPORTANT

Observe all governing codes and ordinances.

It is the customer’s responsibility:

To contact a qualied electrical installer.

If codes permit and a separate ground wire is used, it is recommended

that a qualied electrician determine that the ground path is adequate.

A copy of the above code standards can be obtained from:

National Fire Protection Association

1 Batterymarch Park

Quincy, MA 02169-7471

CSA International

8501 East Pleasant Valley Road

Cleveland, OH 44131-5575

■ A 120 volt, 60 Hz., AC only, 15-amp, fused electrical circuit is required.

■ If the house has aluminum wiring, follow the procedure below:

1. Connect a section of solid copper wire to the pigtail leads.

2. Connect the aluminum wiring to the added section of copper wire

using special connectors and/or tools designed and UL listed for

joining copper to aluminum.

■ Follow the electrical connector manufacturer’s recommended

procedure. Aluminum/copper connection must conform with local

codes and industry accepted wiring practices.

■ Wire sizes and connections must conform with the rating of the

appliance as specied on the model/serial rating plate. The model

serial plate is located behind the lter on the rear wall of the range hood.

■ Wire sizes must conform to the requirements of the National Electrical

Code, ANSI/NFPA 70 (latest edition), or CSA Standards C22. 1-94,

Canadian Electrical Code, Part 1 and C22.2 No. 0-M91 (latest edition)

and all local codes and ordinances.

Venting Requirements (ducted models only)

• Vent system must terminate outdoors.

• Do not terminate the vent system in an attic or other enclosed area.

• Do not use a 4” (10.2 cm) laundry-type wall cap.

• Use 7” (17.8 cm) round metal vent or 31/4” x 10” (8.3 x 25.4 cm)

rectangular metal vent only. Rigid metal vent is recommended.Plastic

or metal foil vent is not recommended.

• The length of the vent system and the number of elbows should be

kept to a minimum to provide efcient performance.

For the most efcient and quiet operation:

• Use no more than three 90° elbows.

• Make sure there is a minimum of 30” (76.2 cm) of straight vent

between the elbows if more than 1 elbow is used.

• Do not install 2 elbows together.

• Use clamps to seal all joints in the vent system.

• The vent system must have a damper. If the roof or wall cap has a

damper, do not use the damper supplied with the range hood.

• Use caulking to seal the exterior wall or roof opening around the cap.

• The size of the vent should be uniform.

Venting Methods

To use the hood’s top outlet to vent your hood a 7” (17.8 cm) or larger

round vent with a maximum length of 50 ft (15.2 m) vent system is

required.These vent systems are not included and must be purchased

separately.

NOTE

■ The vent system is optional for this model.

■ Flexible vent is not recommended. Flexible vent creates back pressure

and air turbulence that greatly reduces performance. The vent system

can terminate either through the roof or wall. To vent through a wall, a

90° elbow is needed.

Mounting Height

Mount the hood no less than 24” (61.0 cm) above an electric cooking

surface, no less than 30” (76.2 cm) above a gas cooking surface, and no

higher than 30” (76.2 cm) above either surface.

Horizontal discharge

A 90° elbow may be installed immediately above the hood.

Horizontal Discharge Vertical Discharge

A. 7” (17.8 cm) round vent.

B. Wall cap with damper (not included).

C. 90º elbow

A. 7” (17.8 cm) round vent.

B. Cabinet

C. Roof cap with damper (not included).

Cold Weather Installations

An additional backdraft damper should be installed to minimize backward

cold air ow and a thermal break should be installed to minimize

conduction of outside temperatures as part of the vent system. The

damper should be on the cold air side of the thermal break.

The break should be as close as possible to where the vent system

enters the heated portion of the house.

Makeup Air

• When using ventilation systems with greater than specied CFM of air

movement, review local building codes as they may require makeup

air systems. Consult a HVAC professional for specic requirements for

your area as CFM requirements can vary between locales.

• Consult an HVAC professional to select the correct CFM capacity

range hood for your application. The CFM capacity depends on the

range or cooktop BTU rating, size and location, size of the kitchen and

the range hood ductwork in the kitchen.

Installation Requirements

6 English

Tools and Parts

Removing the packaging

CAUTION

Remove the carton carefully. Wear gloves to protect against sharp edges.

WARNING

Remove the protective lm covering the product before putting into

operation.

Parts supplied

• Hood assembly with blower and LED lamps already installed.

• Hardware bag with:

Part Qty Part Qty

5 x 45 mm

Torx

®†

T10 adapter

8 x 45 mm

4.5x13 mm

Tools/Materials required

• Level

• Drill with

⁄8” (3 mm), ½” (13 mm) and 1¼” (30 mm) drill bits

• Pencil

• Wire stripper or utility knife

• Tape measure or ruler

• Pliers

• Caulking gun and weatherproof caulking compound

• Saber or keyhole saw

• Metal snips

• Screwdrivers:

• #2 Phillips

• Flat - blade

Parts needed

• Home power supply cable

• ½” (12.7 mm) UL listed or CSA approved strain relief

• 3 UL listed wire connectors

For 7" (17.8 cm) round vented installations

• 7" (17.8 cm) round mental vent system with wall or roof cap

• Vent clamps

Dimensions and Clearances

NK30B3000US/AA

A 30″ (76 cm)

B 17

⁄4″ (46 cm)

C 5″ (12.5 cm)

D 14½″ (36.7 cm)

E 2″ (5 cm)

F 27

″ (70.9 cm)

G 9″ (22.9 cm)

H 1½″ (3.8 cm)

I 1″ (2.5 cm)

Installation Requirements

English 7

Installation Instructions

We recommend that a qualied technician install the range hood. It is

the installer’s responsibility to ensure the range hood complies with the

installation clearances specied for the product.

• It is recommended that the vent system be installed before the hood is

installed.

• If possible, disconnect and move freestanding or slide-in ranges from

cabinet openings to provide easier access to the rear wall.

• Before making cutouts, make sure there is proper clearance within the

ceiling or wall for the exhaust vent.

• Conrm that all installation parts have been removed from the shipping

carton.

1. Turn off the power at the circuit breaker panel or fuse box.

2. Determine which venting method to use: roof, wall, or non-vented

(recirculating).

3. Select a at surface for assembling the range hood.

Place a covering over that surface.

Venting Methods

Outside Top exhaust

Use 7" (17.8 cm) or larger round vent with a maximum length of 50 ft

(15.2 m) for vent system.

Use the diagram or the hood as a template and mark the locations for the

ductwork, electrical wiring and keyhole screw slots.

7” (17.8 cm)

” (8.3 cm)

10” 25.4 cm

⁄

(3.95 cm)

⁄

”

A 30″ (76 cm)

B 18

⁄8″ (48 cm)

C 1″ (2.5 cm)

D 1½″ (3.8 cm)

E 9″ (22.8 cm)

WARNING

USE TWO OR MORE PEOPLE TO MOVE AND INSTALL THE RANGE

HOOD. FAILURE TO DO SO CAN RESULT IN INJURY.

NOTE

Mark the Range Hood knockouts on the wall and make the necessary

cutouts before installing the hood.

Prepare the location

Wood filler strips

(recessed cabinet

bottoms only)

Wall

Cabinet

bottom

1. If cabinet has recessed bottom, add wood ller strips on each side.

Install 4 at head wood screws with washers and nuts to attach ller

strips in locations shown.

NOTE

For installations to a surface other than drywall, it is recommended that a

qualied contractor determine the anchoring method.

NOTE

Consider use the A measure for 7”(17.8 cm) round transition and B

measure for recirculating system.

A. 14½” (36.7 cm)

B. 12 1/4” (31.1 cm)

2. Remove the grease lter by pulling the lter latch toward the back of

the range hood and using a Torx T10 adapter, remove the screw from

the lter retainer.

3. Remove the lateral panels by pulling them horizontally to the back of the

hood and then release the brackets on the front.

4. Using 2 or more people, lift the range hood up under cabinet and

determine nal location by centering beneath cabinet. Mark on the

underside of cabinet the location of the 4 keyhole mounting slots on

the range hood (A)

Installation Instructions

8 English

NOTE

Mark the thin area of the slot. On the back wall mark the holes for the

security screws (B). Set range hood aside on a covered surface.

A. Keyhole slot

5. Use

⁄8” (3 mm) drill bit and drill 4 pilot holes.

NOTE

Make the drill holes on the thin area of the slot.

A. Drill pilot hole

6. Install the 4 - .45 cm x 1.3 cm mounting screws in pilot holes. Leave

about ¼” (6.4 mm) space between screw heads and cabinet to slide

range hood into place.

1⁄4"

(6.4 mm)

7. Use

⁄25" (8mm) drill bit and drill 2 pilot holes in the marks for the

security screws, then place the drywall anchors.

Prepare Range Hood

1. Set the range hood on its back on a covered surface.

2. Unscrew and remove junction box cover

3. Using a at head screwdriver, remove the appropriate power supply

knockout.

Mark Hole Locations

1. Determine and clearly mark a vertical centerline (A) on the wall and

cabinet bottom.

A. Centerline

To wire through top:

1. Mark a line distance (A) from the right of the centerline on the

underside of the cabinet. Mark the point on this line that is 2” (5.08 cm)

from the rear wall. Drill a

⁄8″ (2.2 cm) diameter hole (B) through the

underside of the cabinet at this point.

2”

(5.08 cm)

A. 8 2/5" (21.3cm)

Installation Instructions

English 9

To wire through wall:

1. Mark a line distance (A) from the right of the centerline on the

underside of the cabinet. Mark the point on this line that is

⁄8″ (2.2 cm)

from the underside of the cabinet. Drill a

⁄8″ (2.2 cm) diameter hole (B)

through the rear wall at this point.

7⁄8”

(2.2 cm)

A. 8 2/5" (21.3cm)

Mark and Cut Vent Opening

For a non-vented (recirculating) installation: skip "Mark and Cut Vent

Opening" step.

For 7" (17.8 cm) Round Vent System (Roof Venting)

To make a circular vent opening on the underside of the cabinet top:

1. Mark a centerline on the underside of the top of cabinet.

2. Mark a line 5” (12.8 cm) from the back wall on the underside of the top

of cabinet.

3. Use a compass or a circle template to draw a circle with a diameter of

7½” (19 cm).

4. Use saber or keyhole saw to cut the circular vent opening. Repeat

steps 1-3 for the underside of the top of the cabinet.

Cabinet cutouts

*From wall, not cabinet frame

*5”

(12.8 cm)

enterline

Drill Electrical Opening

1. Using a 1¼" (3 cm) drill bit, drill the hole in the dot marked previously

at the electrical strain relief.

Prepare Range Hood Vents

Install Strain Relief

1. Install a UL listed/CSA approved ½" (13 mm) strain relief (A).

For non-vented (Recirculating) Installations

Remove the (2) T10 Torx® screws and remove the top, front rectangular

vent cover (E). Go to “Electrical Connection” step.

When used in recirculation mode, To Reduce the Risk of Fire and Shock

use only conversion kit model XXXXXXXX.

Attach Vent Damper or Transition

1. Uninstall the 7" (17.8 cm) round vent mounting plate (A) located over

the vent knockouts.

2. Remove both top knockouts (C and D).

3. Place the round transition over the removed vent knockouts and place

the screws again.

If installing the optional round damper, position it over the round vent

mounting plate. Round damper (Code Number: XXXXXXXX.) is not

included in the product,so please purchase it through the service center.

Consult "Use and Care" section on this manual for assistance.

Installation Instructions

10 English

Mounting the Hood

1. Using 2 or more people, lift the hood into nal position. Feed enough

electrical wire through the ½” UL listed or CSA approved strain relief to

make connections in the terminal box. Tighten the strain relief screws.

2. Position the range hood so that the large end of the keyhole slots are

over the mounting screws. Then push the hood toward the wall so

that the screws are in the neck of the slots. Install the .5 cm x 4.5 cm

mounting screws in drywall anchors.

A. Mounting screws (4)

B. Security screws

3. Tighten the mounting screws, making sure the screws are in the

narrow neck of slots.

4. Tighten the security screws to the wall.

5. For direct wire installations, run the home power supply cable

according to the National Electric Code or CSA standards and local

codes and ordinances. There must be enough wiring from the fused

disconnect (or circuit breaker) box to make the connection in the

range hood electrical terminal box.

NOTE

Do not reconnect power until the installation is complete.

OPTIONAL: If you prefer, bend the rear tabs against the rear of the range

hood and attach to the wall using #8-18 x

" (4.2 x 16 mm) truss-head

screws.

Connect Vent System

1. Connect the vent work to the range hood.

2. Seal joints with vent clamps or duct tape to make secure and airtight.

3. Check that the backdraft dampers work properly.

Electrical Connection

WARNING

ELECTRICAL SHOCK HAZARD.

DISCONNECT POWER BEFORE SERVICING. REPLACE ALL PARTS

AND PANELS BEFORE OPERATING. FAILURE TO DO SO CAN

RESULT IN DEATH OR ELECTRICAL SHOCK.

A. White wires

B. Black wires

C. UL listed wire connector

D. Green (or bare) ground wire

E. Homepower supply cable

F. UL listed or CSA approved

⁄2″

strain relief

G. Green ground screw

1. Run 3 wires - black, white, and green - according to the National

Electrical Code and local codes and ordinances, in

⁄

″ conduit from

the service panel to the junction box.

WARNING

ELECTRICALLY GROUND THE BLOWER. CONNECT THE GROUND

WIRE TO THE GREEN AND YELLOW GROUND WIRES IN THE

TERMINAL BOX. FAILURE TO DO SO CAN RESULT IN DEATH OR

ELECTRICAL SHOCK.

2. Connect the black wire from the service panel to the black or the red

in the junction box. Connect the white to white and green to green-

yellow.

3. Close and secure the junction box cover with the screw prevously

removed.

Completing the Installation

1. Place the lateral panels by sliding them horizontally from the back of

the hood and then secure the brackets on the front.

2. Place the lters and check the operation of the hood.

• For vented installations: Install only the metal grease lter.

• For non-vented (recirculating) installations: Install both a

charcoal and metal grease lter.

If the range hood does not operate:

• Conrm that the circuit breaker is not tripped or the house fuse blown.

• Disconnect the power supply, and then check if the wiring is correct.

• To get the most efcient use from your new range hood, read the

“Range Hood Use and Care” section.

• Keep these Installation Instructions Guide close to range hood for

easy reference.

Installation Instructions

English 11

Range Hood use and Care

Range Hood Description

1. LED lamps

2. Filter handle

3. Filter

4. Control

Range Hood Controls

A. Light Power

B. Blower Off button

Operating the light

1. The Light On/Off button (A) controls both lights. Press once for ON

and again for OFF.

Operating the blower

1. To turn the blower On press the blower button (B). Press the blower

button again to turn the blower off.

Cleaning

Exterior surfaces:

To avoid damage to the exterior surface, do not use steel wool or soap-

lled scouring pads. Do not use chlorine based cleaners. Rub in the

direction of the grain line to avoid scratching the surface.

• For a thorough cleaning, use Stainless Steel Cleaner and Polish.

• For everyday cleaning, use a mild liquid detergent and water. Dry

thoroughly.

• For a quick cleaning, wipe with a damp soft cloth or nonabrasive

sponge, then rinse with clean water and wipe dry.

NOTE

Always wipe dry to avoid water marks.

Metal Grease Filter

For vented installations:

• Wash the metal lter as needed in a dishwasher or hot detergent

solution.

• If needed replace the metal grease lter.

• When washed in a dishwasher, the grease lter may discolor slightly,

but this does not affect its ltering capacity.

To replace metal grease lter:

1. Remove the lter by pulling the latch toward the back of the range

hood and using a Torx T10 adapter, remove the screw from the lter

retainer, replace the lter and place the screw back.

Metal grease lter is not included in the product,so please purchase it

through the service center below if necessary. (Code Number: XXXXXX).

Charcoal Filter

For non-vented (recirculating) installations:

The charcoal lter is not washable. It should last up to 6 months with

normal use. Dispose of old charcoal lter.

To replace charcoal lter:

1. Remove the metal grease lter from the range hood. See “Metal

Grease Filter” in this section.

2. Bend the spring clips away from the metal grease lter.

3. Replace the charcoal lter into the top side of metal lter.

4. Insert the metal grease lter back into the range hood.

5. Place again the screw from the lter retainer.

Charcoal lter is not included in the product,so please purchase it through

the service center below if necessary. (Code Number: XXXXXX)

Please contact SAMSUNG at:

1-800-SAMSUNG (726-7864) or

www.samsung.com/ca/support (English)

www.samsung.com/ca_fr/support (French)

Replacing the LED Lamp

LED lights are replaceable by a service technician only.

Range Hood Use and Care

12 English

Range Hood Use and Care

Range Hood for ADA Compliance

Range hoods can be installed to comply with Sections 308 and 309 of

ADA Guidelines, when used with appropriately mounted controls installed

at 15” (38.1 cm) to 40” (101.6 cm) above the oor and control access

does not require reaching over a cooking appliance.

This range hood model NK30B3000US/AA can work in an ADA Compliant

situation when the range hood is wired to operate from a dedicated,

standard electrical wall switch. To facilitate this application, share the

information on the following pages with your electrician when preparing

for the installation.

NOTE

All the models can be controlled by only one remote switch (The switch

activates or deactivates the motor and the light of the hood).

WARNING

All electrical work must be done in accordance with local codes,

ordinances, or the national electrical code as applicable. For safety, this

product must be installed in a grounded switch box. The electrical wiring

installation must be done by a qualied technician.

WARNING

Electrical Shock Hazard

Turn off power at the circuit breaker panel or fuse box before servicing.

Replace all parts and panels before operating.

Failure to do so can result in death or electrical shock.

(L, ground)

(N, ground)

POWER SUPPLY HOME

A. Range Hood Cable

B. UL listed wire connector

C. White wires (N)

D. Black wires (L)

E. Green (or bare) and

yellow-green ground

F. UL listed switch

G. Home power supply cable

H. Deep single gang switch box

WARNING

To avoid re or electrical shock, turn off power at the circuit breaker

panel or fuse box. Conrm that the power is off before wiring.

1. MOUNT THE SWITCH BOX . Install a 3½” deepsingle gang switch

box

2. ATTACH THE POWER CABLE. Clamp wiring to the switch box and

unit using an appropriate clamp. Provide 6” leads inside the box and

fan for easier wiring.

3. CONNECT THE WIRING. General instructions:

• Make sure both the switch box and the appliance are properly

grounded.

• Make sure the ground wire is securely fastened to the control’s

ground screw. Tighten the ground screw.

• Use proper wire nut sizes for the number and size of the wires.

• For push-in and screw terminals: Use min. #14 AWG solid copper

wire only.

• Tighten the screw terminals.

• Make electrical connections following the appropriate diagram.

For ADA compliance add these

elements during the installation

Remote Switch

GROUND SCREW

Motor Characteristics

Power supply

120 VAC

Frequency

60 Hz

Amperage

0.65 ±10% A

Wattage Rating

38 ±10% Watts

Motor Resistance

Brown - White

16.98 ±10% Ohms

Brown - Red

9.36 ±10% Ohms

>85

-1.5

+1.5

-1

0÷85

25/10/21

Luis Salazar

10/03/21

PRINTING AREA

(101.6X101.6mm)

RELEASED

* DO NOT PRINT DASHED LINE

Schema elettrico / Wiring diagram

Carta metallizzata 101.6x101.6 / Metallic Sticky Paper x

SEL0176114

Nero / Black

3:2

PIRITE SAMSUNG C19

C19

SEL0176114

For supply connection

use wires suitable

for at least 75° (167°F)

INPUT: 120VAC

OUTPUT:700mA(2-15VDC)

LED DRIVER

LED

WH - BL

LIGHT SWITCH

ON - OFF

MOTOR SWITCH

LOW - OFF - HIGH

SPEED 2

COMMON

SPEED 1

4. MOUNT THE CONTROL IN THE SWITCH BOX. Tuck wires into

the switch box and fasten the control to the box using the attached

screws.

5. ATTACH THE SWITCH PLATE. Fasten the switch plate to the control

using the short screws from the parts bag.

Range Hood use and Care

English 13

SAMSUNG RANGE HOOD

Limited warranty to original purchaser

This SAMSUNG brand product, as supplied and distributed by

Samsung Electronics America, Inc. (SAMSUNG) and delivered

new, in the original carton to the original consumer purchaser,

is warranted by SAMSUNG against manufacturing defects in

materials and workmanship for a limited warranty period of:

ONE (1) YEAR PARTS AND LABOR

This limited warranty begins on the original date of purchase,

and is valid only on products purchased and used in the United

States. To receive warranty service, the purchaser must contact

SAMSUNG for problem determination and service procedures.

Warranty service can only be performed by a SAMSUNG

authorized service center. The original dated bill of sale must be

presented upon request as proof of purchase to SAMSUNG or

SAMSUNG’s authorized service center.

SAMSUNG will repair or replace this product, at our option and

at no charge as stipulated herein, with new or reconditioned

parts or products if found to be defective during the limited

warranty period specied above. All replaced parts and products

become the property of SAMSUNG and must be returned to

SAMSUNG. Replacement parts and products assume the

remaining original warranty, or ninety (90) days, whichever is

longer.

In-home service will be provided during the warranty labor

period subject to availability within the contiguous United States.

In-home service is not available in all areas. To receive in-home

service, the product must be unobstructed and accessible to

service personnel. If during in-home service repair can not be

completed, it may be necessary to remove, repair and return the

product.

This limited warranty covers manufacturing defects in materials

and workmanship encountered in normal, noncommercial use of

this product and shall not apply to the following, including, but

not limited to: damage which occurs in shipment; delivery and

installation; applications and uses for which this product was not

intended; altered product or serial numbers; cosmetic damage

or exterior nish; accidents, abuse, neglect, re, water, lightning

or other acts of nature; use of products, equipment, systems,

utilities, services, parts, supplies, accessories, applications,

installations, repairs, external wiring or connectors not supplied

or authorized by SAMSUNG which damage this product or result

in service problems; incorrect electrical line voltage, uctuations

and surges; customer adjustments and failure to follow

operating instructions, cleaning, maintenance and environmental

instructions that are covered and prescribed in the instruction

book; problems caused by pest infestations, and overheating by

user.

THERE ARE NO EXPRESS WARRANTIES OTHER THAN

THOSE LISTED AND DESCRIBED ABOVE, AND NO

WARRANTIES WHETHER EXPRESS OR IMPLIED, INCLUDING,

BUT NOT LIMITED TO, ANY IMPLIED WARRANTIES OF

MERCHANTABILITY OR FITNESS FOR A PARTICULAR

PURPOSE, SHALL APPLY AFTER THE EXPRESS WARRANTY

PERIODS STATED ABOVE, AND NO OTHER EXPRESS

WARRANTY OR GUARANTY GIVEN BY ANY PERSON, FIRM

OR CORPORATION WITH RESPECT TO THIS PRODUCT

SHALL BE BINDING ON SAMSUNG. SAMSUNG SHALL NOT

BE LIABLE FOR LOSS OF REVENUE OR PROFITS, FAILURE

TO REALIZE SAVINGS OR OTHER BENEFITS, OR ANY OTHER

SPECIAL, INCIDENTAL OR CONSEQUENTIAL DAMAGES

CAUSED BY THE USE, MISUSE OR INABILITY TO USE THIS

PRODUCT, REGARDLESS OF THE LEGAL THEORY ON WHICH

THE CLAIM IS BASED, AND EVEN IF SAMSUNG HAS BEEN

ADVISED OF THE POSSIBILITY OF SUCH DAMAGES. NOR

SHALL RECOVERY OF ANY KIND AGAINST SAMSUNG BE

GREATER IN AMOUNT THAN THE PURCHASE PRICE OF THE

PRODUCT SOLD BY SAMSUNG AND CAUSING THE ALLEGED

DAMAGE. WITHOUT LIMITING THE FOREGOING, PURCHASER

ASSUMES ALL RISK AND LIABILITY FOR LOSS, DAMAGE OR

INJURY TO PURCHASER AND PURCHASER’S PROPERTY AND

TO OTHERS AND THEIR PROPERTY ARISING OUT OF THE

USE, MISUSE OR INABILITY TO USE THIS PRODUCT SOLD BY

SAMSUNG NOT CAUSED DIRECTLY BY THE NEGLIGENCE OF

SAMSUNG. THIS LIMITED WARRANTY SHALL NOT EXTEND

TO ANYONE OTHER THAN THE ORIGINAL PURCHASER OF

THIS PRODUCT IS NONTRANSFERABLE AND STATES YOUR

EXCLUSIVE REMEDY.

Some provinces or territories may or may not allow limitations on

how long an implied warranty lasts, or the exclusion or limitation

of incidental or consequential damages, so the above limitations

or exclusions may not apply to you. This warranty gives you

specic legal rights, and you may also have other rights which

vary from state to state.

To obtain warranty service, please contact SAMSUNG at:

1-800-SAMSUNG (726-7864) or

www.samsung.com/us/support

warranty (USA)

Warranty USA

14 English

SAMSUNG RANGE HOOD

Limited warranty to original purchaser

This SAMSUNG brand product, as supplied and distributed by

Samsung Electronics Canada, Inc. (SAMSUNG) and delivered

new, in the original carton to the original consumer purchaser,

is warranted by SAMSUNG against manufacturing defects in

materials and workmanship for a limited warranty period of:

ONE (1) YEAR PARTS AND LABOR

This limited warranty begins on the original date of purchase,

and is valid only on products purchased and used in Canada.

To receive warranty service, the purchaser must contact

SAMSUNG for problem determination and service procedures.

Warranty service can only be performed by a SAMSUNG

authorized service center. The original dated bill of sale must be

presented upon request as proof of purchase to SAMSUNG or

SAMSUNG’s authorized service center.

SAMSUNG will repair or replace this product, at our option and

at no charge as stipulated herein, with new or reconditioned

parts or products if found to be defective during the limited

warranty period specied above. All replaced parts and products

become the property of SAMSUNG and must be returned to

SAMSUNG. Replacement parts and products assume the

remaining original warranty, or ninety (90) days, whichever is

longer.

In-home service will be provided during the warranty labor

period subject to availability within the contiguous Canada.
