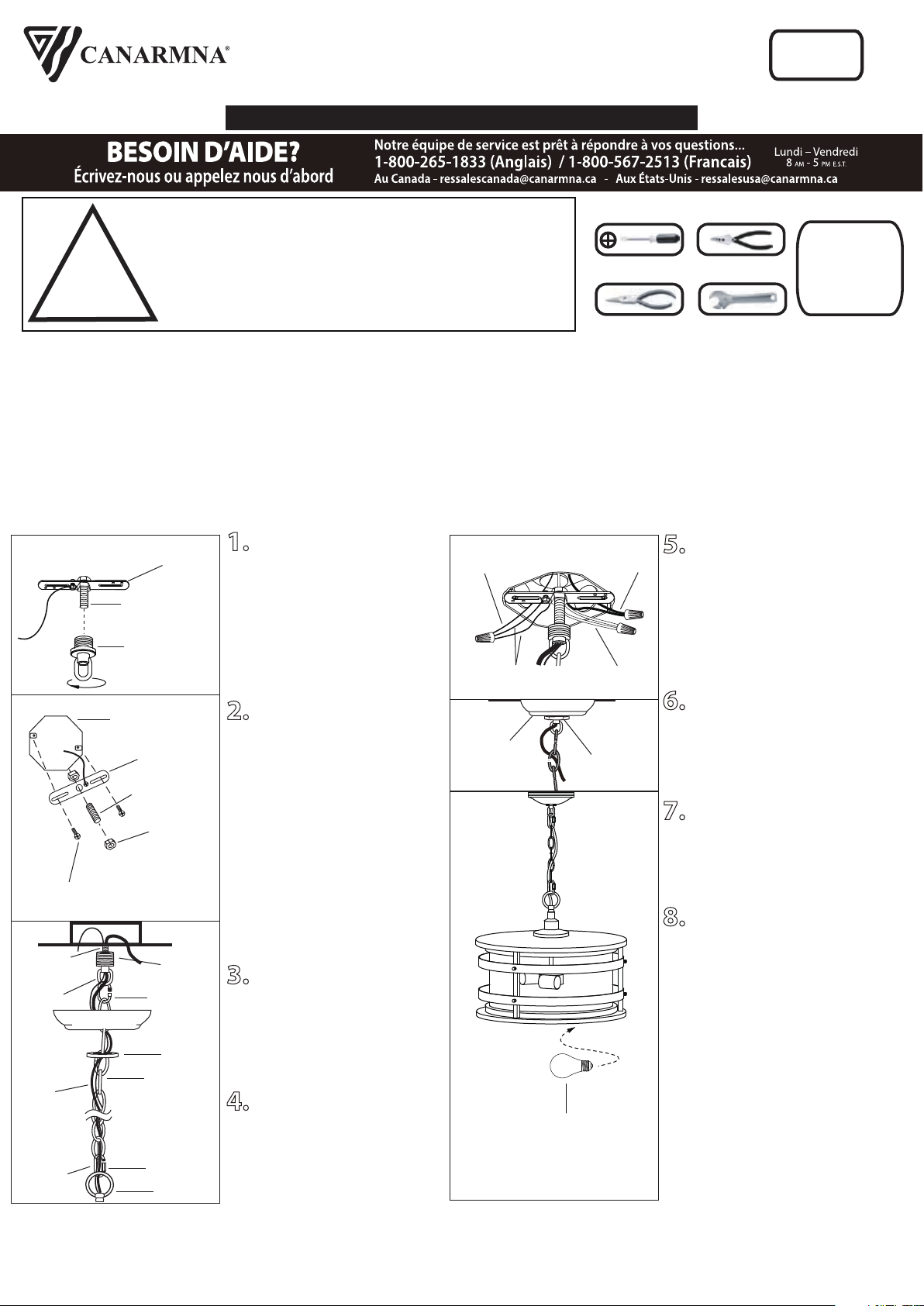

Nut
Canopy

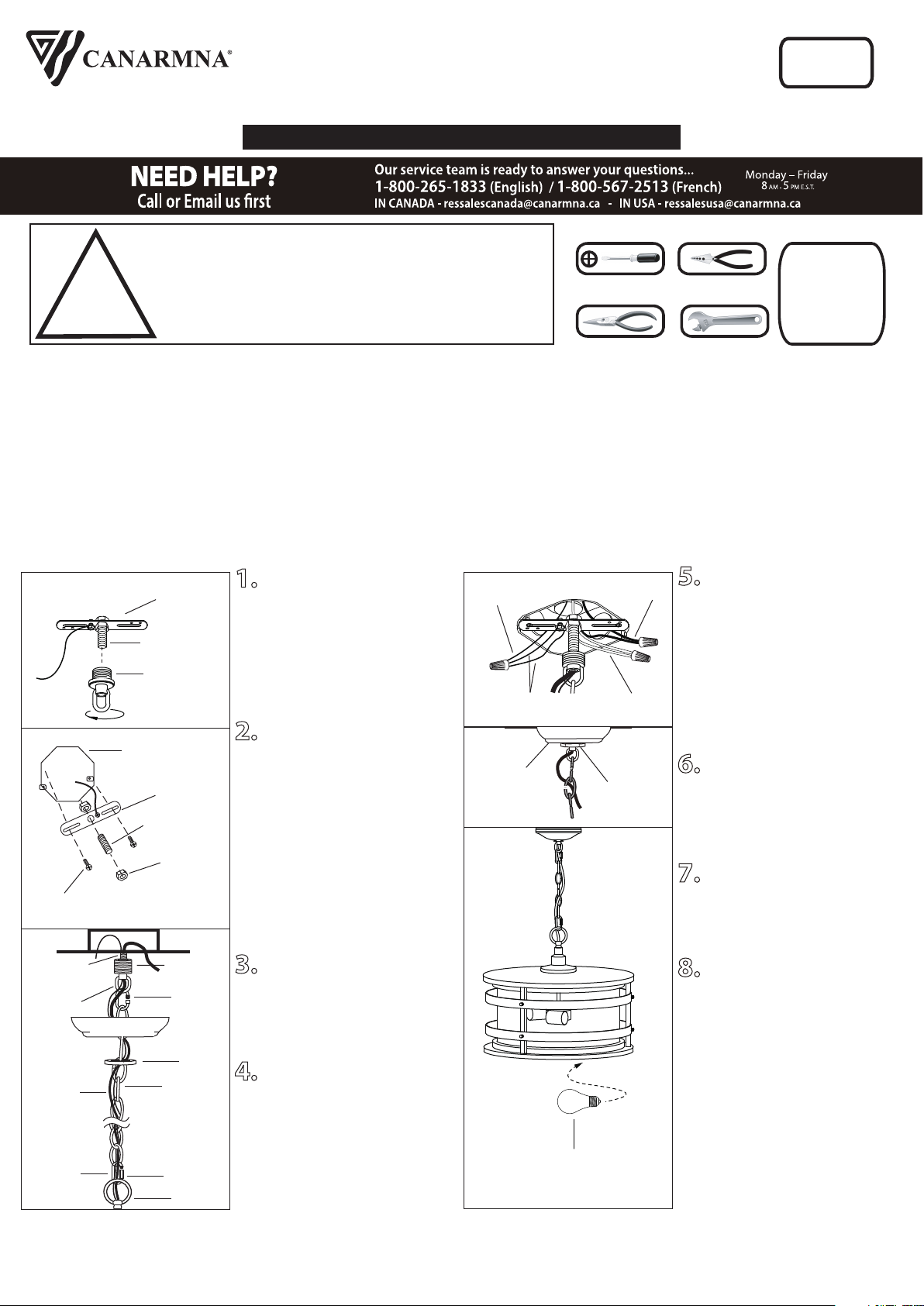

1. Determine the height that
you would like to hang your
fixture. Trim the cord and chain.
Allow 10” of extra wiring for the
electrical box connections.
2. Loosen the upper connector
from nipple. Attach the mounting
bracket to the electrical box using
electrical box screws. Attach the
nipple to the mounting bracket
and adjust until it will clear the
canopy when assembled (Place
the canopy over the nipple and
tighten the upper connector onto
the nipple until snug. The upper
connector should hold the
canopy snug to the ceiling). Lock
the nipple in the correct position
using the hex nut.
3. Connect the chain to the
loop and the top loop on the
upper connector using the two
screw hook.
Seal the opening on the screw
hook by screwing the nut.
4. Loosen the nut on the upper
connector and slide it down the
chain towards the lower loop.
Slide the canopy down the chain
towards the lower loop. Feed the
wire through nut, canopy, the
upper connector and onto the
nipple. Tighten the upper
connector onto the nipple.
IOL520
10/20
Tel: (613) 342-5424, Fax: (800) 263-4598
Phillips
Screwdriver
Wire Cutters
Pliers Wrench
!
INSTRUCTIONS PERTAINING TO RISK OF FIRE OR INJURY TO PERSONS
READ ALL INSTRUCTIONS
IMPORTANT SAFETY
INSTRUCTIONS
SAVE THESE INSTRUCTIONS
Wiring supplies
as required by
local electrical
code
1. TURN OFF ELECTRICAL POWER BEFORE STARTING INSTALLATION OF LIGHT FIXTURE.
2. THIS PRODUCT MUST BE INSTALLED IN ACCORDANCE WITH THE APPLICABLE INSTALLATION CODE
BY A PERSON FAMILIAR WITH THE CONSTRUCTION AND OPERATION OF THE PRODUCT AND THE
HAZARDS INVOLVED.
3. CONNECT THE GROUND WIRES (BARE COPPER OR GREEN) FROM YOUR FIXTURE TO THE GROUND
WIRE (BARE COPPER OR GREEN) OR GROUND SCREW IN THE ELECTRICAL BOX.
4. TO CLEAN THE FIXTURE, TURN OFF THE POWER, WAIT FOR IT TO COOL, AND WIPE THE FIXTURE WITH A
CLEAN, SOFT CLOTH.
NOTE: Product may not look exactly as shown in figures.
5. Connect the ground wires (bare
copper or green) from the fixture to
the ground wire (bare copper or
green) or ground screw in the
electrical box. Connect the black
wire (or wire marked “SPT-1”) from
fixture to the black wire in the
electrical box and connect the white
wire (or the wire with ribbed side)
from fixture to the white wire in the
electrical box.
6. Once connections of wires are
completed, carefully tuck wires and
wire nuts into the electrical box
making sure no bare wire (on the
black and white) is visible at the
wire nuts.
7. Slide the canopy up the chain
and over the upper connector. Slide
the nut up the chain and thread
onto the upper connector.
8. Install specified bulb type and
wattage (not included).
Electrical Box Screws
(not included)
Electrical
Box
Nipple
Hex nut
Mounting
Bracket
Black
House supply
Ground wire
Fixture Ground
wire
White
INSTALLATION:
SAFETY PRECAUTIONS:
TOOLS AND MATERIALS REQUIRED:
Nipple
Upper
connector
Mounting
bracket
Loop
Screw
Hook
Screw
Hook
Nut
Power
Cord
Chain
Nipple
Upper
connector
Nut
Canopy
Upper
Loop
Bulb
OUTDOOR
LIGHTING
SUITABLE FOR DRY OR DAMP LOCATIONS
