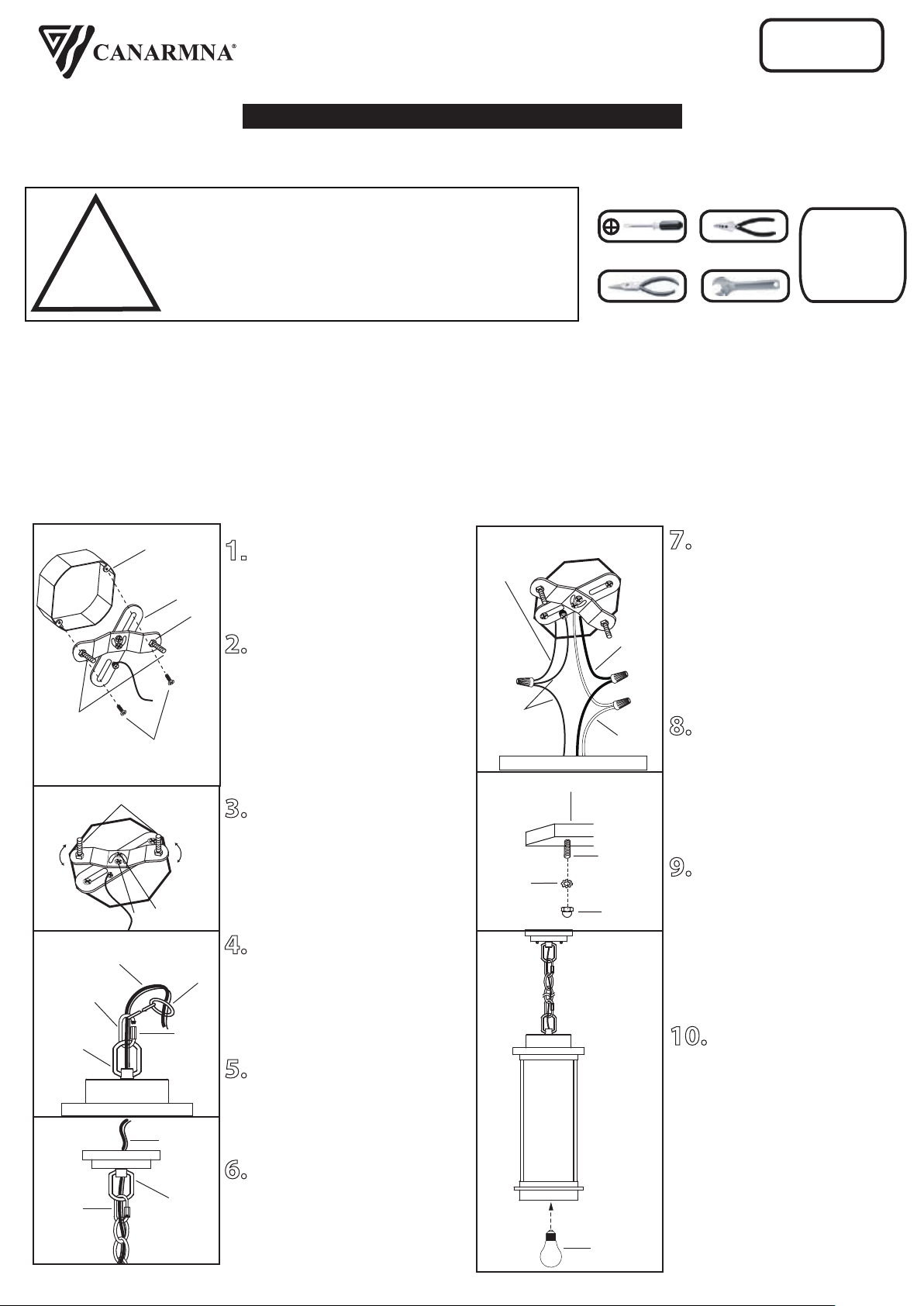

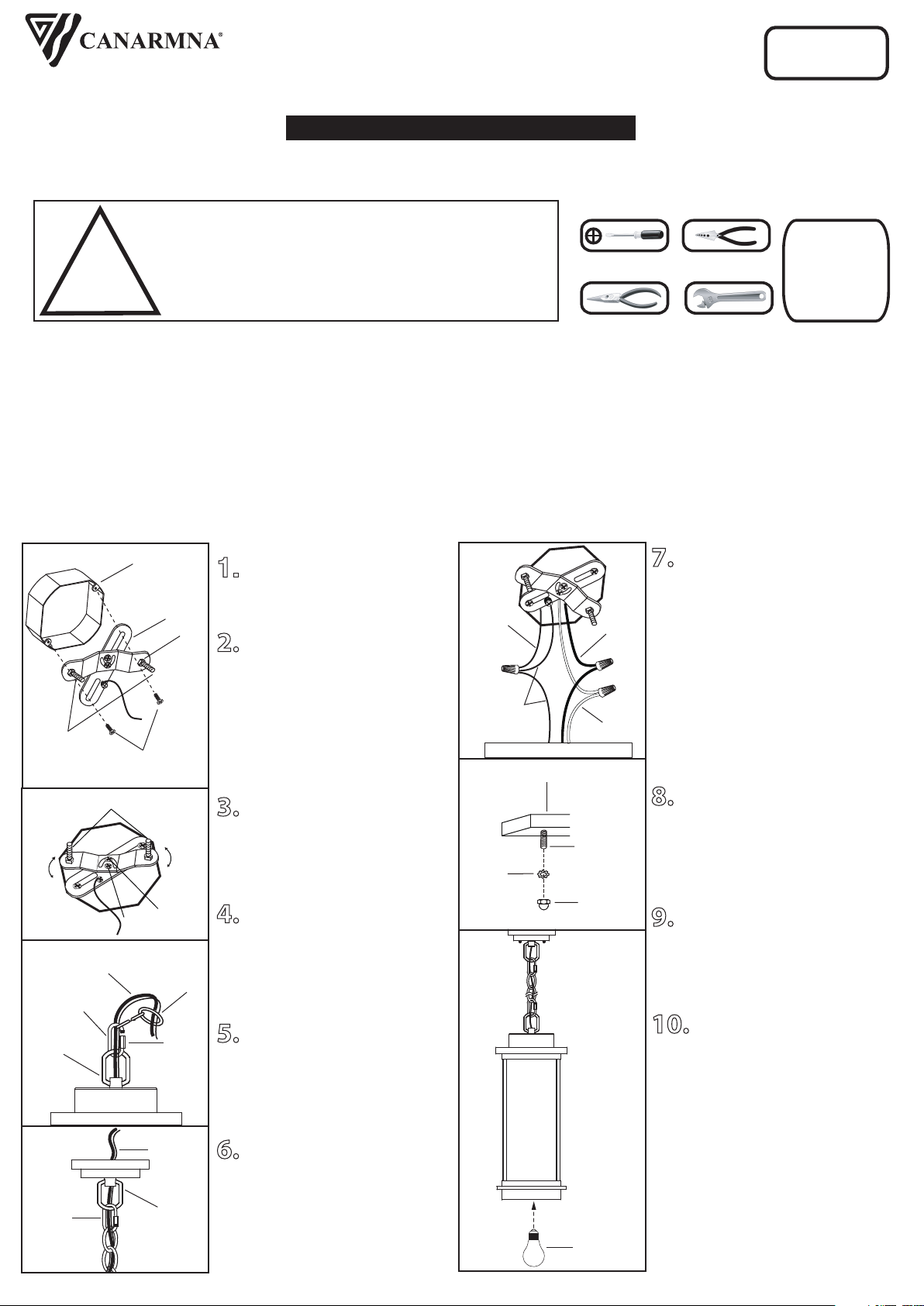

IOL477
12/19
1. Loosen “B”. Adjust stud to
desired length and lock in place
with “B”.
2. Mount the mounting
bracket to electrical box using
electrical box screws (not
included). Make sure the
studs on the mounting bracket
are facing out from the electrical
box.
3. Position mounting bracket so
that the fixture will be hung
properly once it is mounted to
the wall. Tighten the screws to
hold in place.
4. Determine the height that
you would like to hang your
fixture. Trim the cord and chain.
Allow 10” of extra wiring for the
electrical box connections.
5. Un-Screw the screw hook
and insert the lower connector
into the screw hook.
Seal the opening on the screw
hook by screwing the nut.
6. Repeat the same step for the
upper connector connection.
Feed the cord and ground wire
through the upper loop.
7. Connect the ground wires
(bare copper or green) from
your fixture to the ground wire
(bare copper or green) or
ground screw in the electrical
box. Connect the black wire
(or wire marked “SPT-1”) from
the fixture to the black wire in
the electrical box and connect
the white wire (or the wire with
ribbed side) from the fixture to
the white wire in the electrical
box.
8. Once connections of wires
are completed, carefully tuck
wires and wire nuts into the
electrical box making sure no
bare wire (on the black and
white) is visible at the wire nuts.
9. Position fixture over studs
on mounting bracket assembly.
Secure fixture in place with star
washers and cap nuts.
10. Install specified bulb type
and wattage (not included).
1. TURN OFF ELECTRICAL POWER BEFORE STARTING INSTALLATION OF LIGHT FIXTURE.
2. THIS PRODUCT MUST BE INSTALLED IN ACCORDANCE WITH THE APPLICABLE INSTALLATION CODE
BY A PERSON FAMILIAR WITH THE CONSTRUCTION AND OPERATION OF THE PRODUCT AND THE
HAZARDS INVOLVED.
3.
CONNECT THE GROUND WIRE (BARE COPPER OR GREEN) FROM YOUR FIXTURE TO THE GROUND
WIRE (BARE COPPER OR GREEN) OF SUPPLY WIRE.
4. TO CLEAN THE FIXTURE, TURN OFF THE POWER, WAIT FOR IT TO COOL, AND WIPE THE FIXTURE WITH A
CLEAN, SOFT CLOTH.
NOTE: Product may not look exactly as shown in figures.
Studs
“B”
Bulb
OUTDOOR
LIGHTING
Phillips
Screwdriver
Wire Cutters
Pliers Wrench
!
INSTRUCTIONS PERTAINING TO RISK OF FIRE OR INJURY TO PERSONS
READ ALL INSTRUCTIONS
IMPORTANT SAFETY
INSTRUCTIONS
SAVE THESE INSTRUCTIONS
Wiring supplies
as required by
local electrical
code
Electrical
Box
Electrical Box Screws
(not included)
Mounting
Bracket
Studs
Screws
INSTALLATION:
SAFETY PRECAUTIONS:
1-800-265-1833 (English) / 1-800-567-2513 (French)
Monday through Friday 8:00 AM to 5:00 PM E.S.T.
TOOLS AND MATERIALS REQUIRED:
Questions or Concerns Contact At The Following Phone Numbers Before Returning Product To The Store:
House
Supply
Ground
Wire
Fixture
Ground
Wire
Black
White
Star
Washer
Cap
Nut
Fixture
Stud
Screw
Hook
Screw
Hook
Nut
Lower
Connector
Upper
Connector
Power
Cord
Power
Cord
Chain
SUITABLE FOR DAMP LOCATIONS
Tel: (613) 342-5424, Fax: (800) 263-4598
Fixture
