Fireplace Owner’s Manual
LTR50001006, Rev. G
www.calamebbq.com
Safety Instructions
What To Do If You Smell Gas
• Shut off gas to the replace.
• Extinguish any open ame.
• Do not try to light the appliance.
• If odor continues, keep away from the appliance and
immediately call your gas supplier or your re depart-
ment.
WARNING: Improper installation, adjustment,
alteration, service or maintenance can cause in-
jury or property damage. Read the installation,
operating and maintenance instructions thoroughly be-
fore installing or servicing this equipment.
Cal Flame replaces are designed for
outdoor use only.
Do not store combustible materials, gasoline and
any other ammable vapors and liquids.
A propane gas cylinder not connected for use shall not be
stored in the vicinity of this or any other appliance.
Carbon Monoxide Hazard
This appliance can produce carbon monoxide
which has no odor.
Using it in an enclosed space can kill
you.
Never use this appliance in an en-
closed space such as a camper, tent,
car, or home.
2
Safety Instructions
Fireplace Owner’s Manual
LTR50001006, Rev. G
www.calamebbq.com
Operation
• Do not use charcoal or other solid fuel in a gas burning
replace.
• Do not operate the replace with the propane tank on, near, or un-
der the hearth! This could result in re, explosion, or severe injury.
• Do not use your replace for cooking.
• In the event that a burner goes out, turn burner knobs to the full
OFF position and let it air out. Do not attempt to use the replace
until the gas has had time to dissipate.
• Keep all electrical supply cords away from the heated areas of the
replace.
• Never use the replace in windy conditions. If used in a consis-
tently windy area a windbreak will be required. Always adhere to
the specied clearances listed in this manual.
• When handling propane gas line and connectors, do not allow
them to come in contact with any metal surfaces. Do not drop
propane connectors.
• Propane gas sources to the replace must be regulated. Do not
operate if regulator has been removed. Fire or explosion can occur.
• Never leave the replace unattended when in use.
• Never allow clothing or other ammable materials come in contact
with any hot surface until it has fully cooled. Never wear loose t-
ting or hanging garments while using your replace. Fabric may
ignite and result in personal injury.
• Clothing or other ammable materials should not be hung from the
appliance, or placed on or near the appliance.
• When using the replace, do not touch the rock, re screen, or im-
mediate surroundings, as these areas become extremely hot and
could cause burns.
• Do not heat any unopened glass or metal container of food in the
replace. Pressure may build up and cause the container to burst,
possibly resulting in serious personal injury or damage to the re-
place.
• Never line replace with aluminum foil.
Safety Instructions
3
Fireplace Owner’s Manual
LTR50001006, Rev. G
www.calamebbq.com
Maintenance and Repair
• Spiders and other insects can nest in the burners and block the gas
and airow to the burner ports. This creates a dangerous condi-
tion that can result in a re from behind the valve panel. Inspect
and clean the burners periodically and follow the guidelines in the
maintenance section of this manual.
• The appliance should be inspected before use and at least annually
by a qualied service person.
• More frequent cleaning may be required as necessary. It is impera-
tive the control compartment, burner and circulation air passage-
ways of the appliance be kept clean and free.
• Any guard or other protective device removed for servicing the ap-
pliance must be replaced prior to operating the appliance.
• If it is evident there is excessive abrasion or wear of any of the
components, if the fuel supply hose is cut or cracked, it must be
replaced prior to the appliance being put into operation.
• Inspect the fuel supply connection for signs of leakage (including
the hose for propane models) before each use of the appliance.
• Unless specically recommended in this manual, do not repair or
replace any part of your replace. Have a qualied technician per-
form all service. Any repairs made by a non-LMS approved dealer
technician will void your warranty.
4
Safety Instructions
Fireplace Owner’s Manual
LTR50001006, Rev. G
www.calamebbq.com
Storage
• When your replace is not in use, turn off the gas at the source.
• Do not store the propane cylinder in the vicinity of this or any other
appliance when it is not being used.
• This appliance can be store indoors only if it has been discon-
nected from its fuel supply.
• Store propane cylinders outdoors in a well-ventilated area out
of reach of children. Disconnected cylinders must have threaded
valve plugs tightly installed and must not be stored in a building,
garage, or any other enclosed area.
• To extend the life of your replace, protect and cover it from the
elements when not in use. Ensure the appliance has ample time
to cool off after use and prior to installing storage cover. Damage
caused to storage cover due to heat or burns are not covered by
warranty.
Precautions Regarding Children
• Never leave children unattended in the area where the replace is
being used. Close supervision of children is necessary when any
appliance is used near children.
• Do not store items of interest to children around or below the
replace.
• Never allow children to sit or stand on any part of the replace.
Installation / Assembly
5
Fireplace Owner’s Manual
LTR50001006, Rev. G
www.calamebbq.com
Set-Up
You are responsible for ensuring that a natural gas line (if required)
is installed and safe for use. We recommend that a licensed contrac-
tor install your replace. Installation must conform to local codes, or
in the absence of local codes, with either the National Fuel Gas
Code, ANSI Z223.1 / NFPA54, Natural Gas and Propane Installa-
tion Code, CSA B149.1, or Propane Storage and Handling Code,
B149.2), as applicable.
To prevent re and smoke damage, remove all packaging material be-
fore operating the replace.
Installation / Assembly
Installation and service must be performed by a quali-
ed installer, service agency or your natural gas or liquid
propane gas provider.
Most cities and counties require permits for exterior construction and
electrical circuits. In addition, some communities have codes requiring
residential barriers such as fencing and/or self-closing gates on prop-
erty to prevent unsupervised access to the property by children under
the age of 5. Your dealer can provide information on which permits
may be required and how to obtain them prior to the delivery of your
equipment.
6
Installation / Assembly
Fireplace Owner’s Manual
LTR50001006, Rev. G
www.calamebbq.com
Placement and Location
Cal Flame replaces are designed for
outdoor use only.
• Never locate this appliance in a building, garage, or any other en-
closed room or under a sealed overhead structure, or in any type
of enclosed area such as a garage, shed, or breezeway. Keep clear
of trees and shrubs.
• Do not place replace under or near windows or vents that can be
opened into your home.
• Maintain sufcient distance as to not overheat any overhead com-
bustible material such as a patio cover.
• The area surrounding your replace should be kept clean and free
from ammable liquids and other combustible materials such as
mops, rags or brooms, as well as solvents, cleaning uids, and
gasoline.

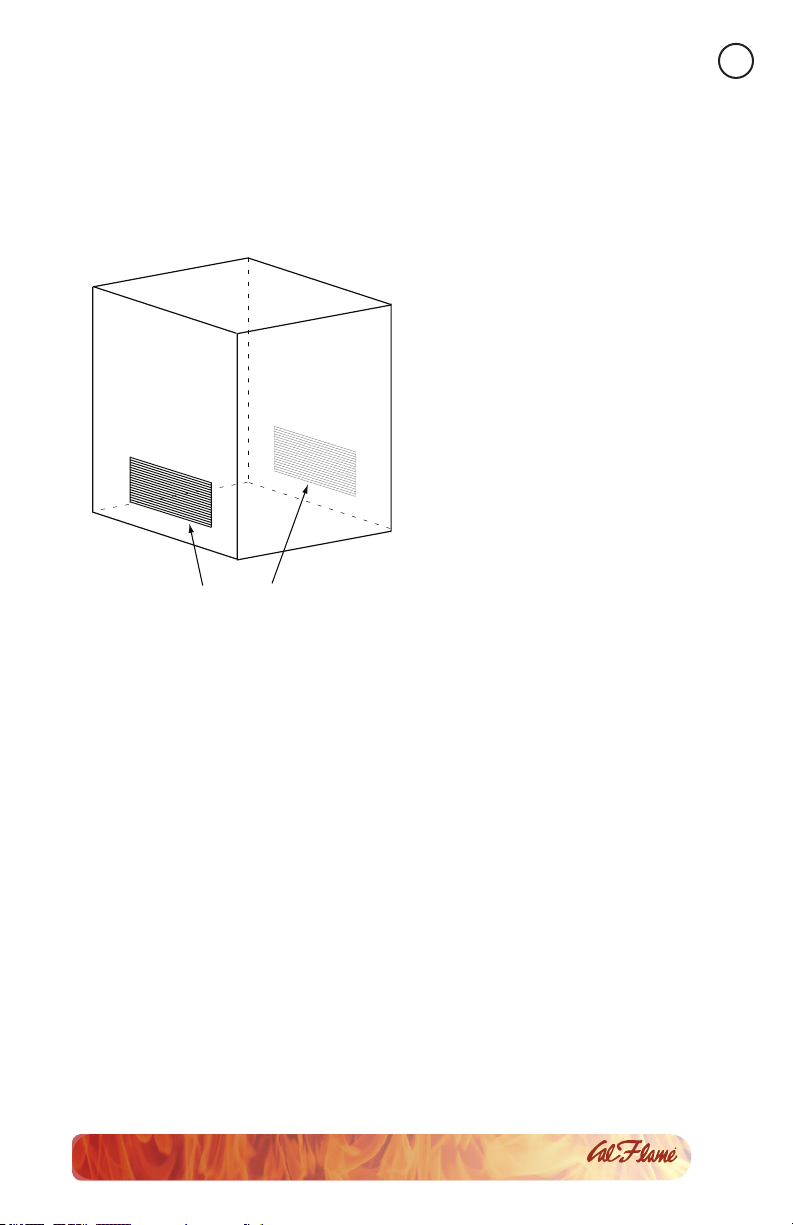

• Do not block the vents located near the base of your replace as
gas may build up in case of leak and cause serious damage.
• Do not install or operate your replace in such a manner that the
cross ventilation openings are blocked. Fresh air must be able to
pass though installed vents to safeguard against residual gas ac-
cumulation. Failure to allow proper ventilation may cause re or
explosion.
• Do not locate appliance where it can get excessively wet. Do not
use this appliance if any part has been underwater. Immediately
call a qualied service technician to inspect the unit and to replace
any part of the control system and any gas control which has been
underwater.
• Place your replace on a at and stable surface in an outdoor loca-
tion such as a patio deck.
• Locate your replace adjacent to the gas supply line (liquid pro-
pane or NG), preferably with the shortest gas line run possible.
• Maintain the following clearances to combustible materials on all
Cal Flame replaces.
Sides and back 48 inches (122 cm) (measured from side)
Top 120 inches (305 cm) (measured from hearth)
Installation / Assembly
7
Fireplace Owner’s Manual
LTR50001006, Rev. G
www.calamebbq.com
Leak Testing Procedure
Perform a leak test at least once a year whether the gas supply cylinder
has been disconnected or not. In addition, whenever the gas cylinder
is connected to the regulator or whenever any part of the gas system
is disconnected or replaced, perform a leak test.
As a safety precaution, remember to always leak test your replace
outdoors in a well-ventilated area. Never smoke or permit sources of
ignition in the area while doing a leak test. Do not use a ame, such as
a lighted match to test for leaks. Use a solution of soapy water.
1. Prepare a leak testing solution of soapy water by mixing in a spray
bottle one part liquid soap to one part water.
2. Make sure all the control knobs are in the OFF position.
3. Turn on the gas.
On natural gas systems, turn the main feed valve to the burner.
On propane systems, turn the cylinder valve knob counter clock-
wise one turn to open.
4. Apply the leak-testing solution by spraying it on joints of the gas
delivery system. Blowing bubbles in the soap solution indicates
that a leak is present.
5. Stop a leak by tightening the loose joint or by replacing the faulty
part with a replacement part recommended by the manufacturer.
Do not attempt to repair the cylinder valve if it is damaged. The
cylinder must be replaced.
6. Turn the control knob back to the full OFF position.
If you are unable to stop a leak:
1. Turn the control knob back to the full OFF position.
2. Shut off the gas supply to the replace and release pressure in the
hose and manifold by turning the control valve one quarter turn
counter-clockwise.
3. On propane systems, remove the cylinder from the replace.
4. Call an authorized gas appliance service technician or an liquid
propane gas dealer.
Do not use the appliance until the leak is corrected.
8
Installation / Assembly
Fireplace Owner’s Manual
LTR50001006, Rev. G
www.calamebbq.com

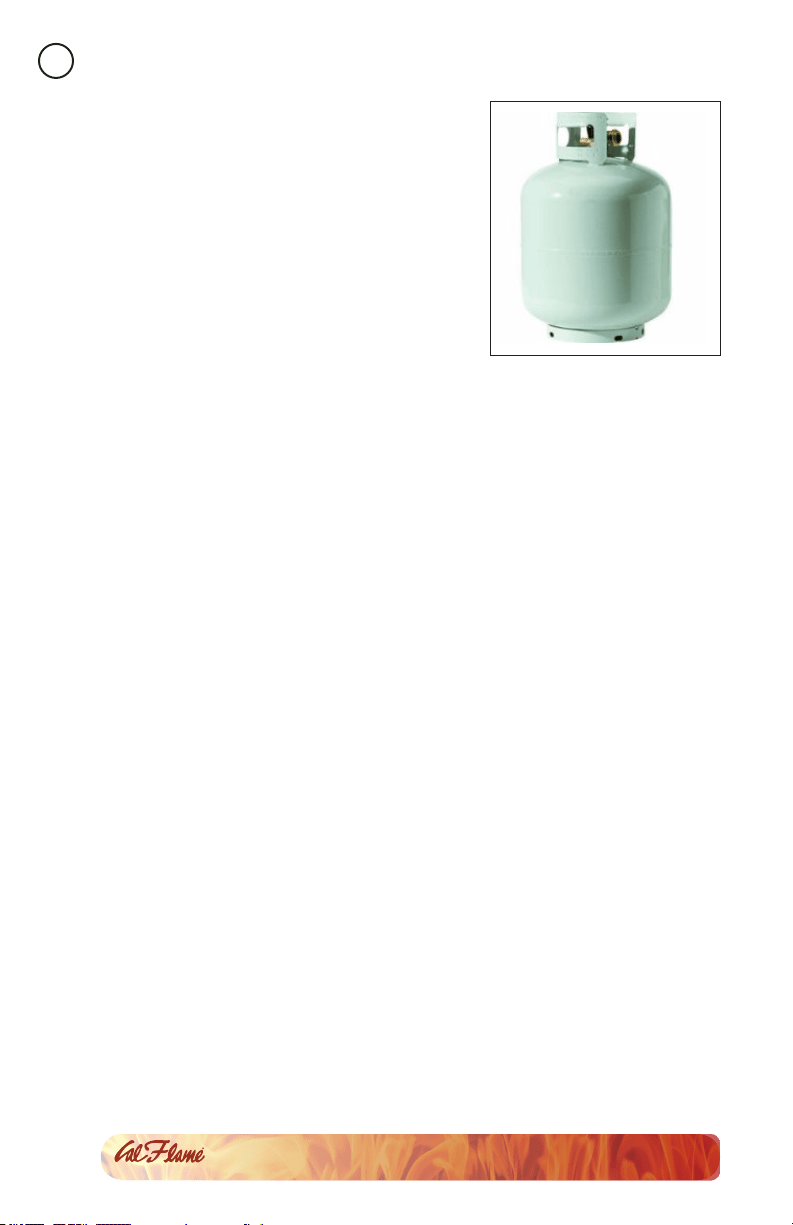

Liquid Propane
Your Cal Flame replace is not provided
with a propane cylinder. If you choose to
operate your replace with propane, you
must supply your own cylinder.
Requirements
The 20 lb propane gas supply cylinder
used with propane models must be con-
structed and marked in accordance with
the specications for propane gas cylinders as required by the U.S.
Department of Transportation (DOT) or the CAN/CSA B339, Cylinders,
Spheres and Tubes for the Transportation of Dangerous Goods.
Manifold Pressure: For plumbed-in liquid propane installation, use
a regulator.
Supply Pressure: Maximum line pressure for plumbed-in propane is
14” W.C psi (3.5 kPa). Minimum line pressure for propane is 11” W.C.
Pressure Regulator: The unit must be used with the supplied gas
pressure regulator and hose assembly. The regulator will control and
maintain a uniform gas pressure in the manifold. The burner orice has
been sized for the gas pressure delivered by the regulator. Replace-
ment pressure regulator and hose assemblies must be those specied
in this manual.
Cylinder Specication: Any propane gas supply cylinder used with
this replace must be approximately 12 inches in diameter and 18
inches high. The maximum fuel capacity is 20 lbs. of propane, or 5
gallons. Full cylinder weight should be approximately 38 lbs. (43.7
lbs. nominal water capacity.) Always use the cylinder dust cap on the
cylinder valve outlet during transport and when the cylinder is not
connected to the replace. The 20 lb propane gas cylinder used must
include a collar to protect the cylinder valve.
Filler Valve: If you do not have an updated ller valve on your exist-
ing propane tank, you will need to purchase one at your local hardware
store, as you will not be allowed to rell the tank at any lling station.
Transporting Gas Cylinder: Only one cylinder should be transported
at a time. Transport cylinder in an upright and secure manner with
control valve turned off and the dust cap in place.
Installation / Assembly
9
Fireplace Owner’s Manual
LTR50001006, Rev. G
www.calamebbq.com
Connection
Check the rating plate to make sure the gas supply you are hooking up
to is the gas type the replace is manufactured for.
Inspect the hose shipped with the unit for damage. Never attempt to
use damaged or plugged equipment. See your local liquid propane gas
dealer for repairs. After inspecting the propane hose shipped with the
unit, connect the end with the female tting on the hose to the male
tting on the on/off gas valve at the end of the hose. Tighten ttings
using two wrenches.

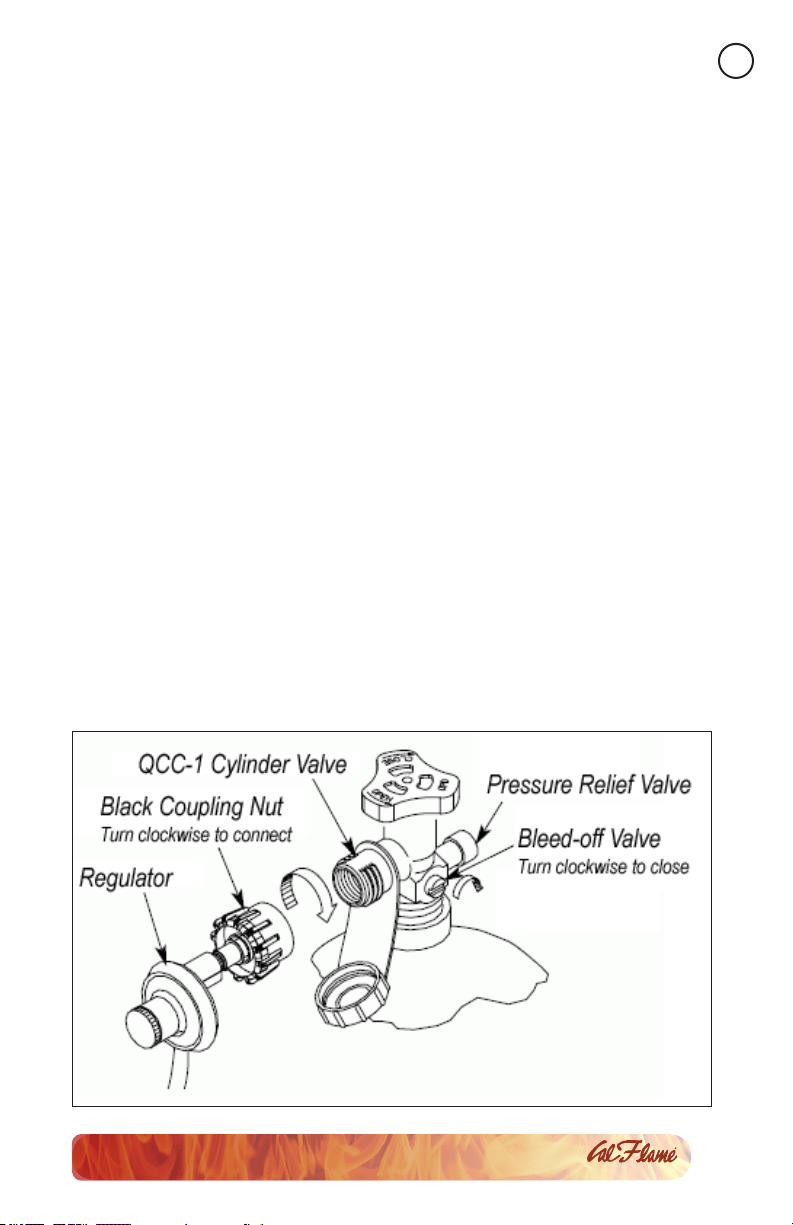

When connecting the regulator assembly to the tank valve, hand tight-
en the black QCC-1 nut clockwise. DO NOT use a wrench to tighten.
See the gure below.
Purge the gas supply line of any trapped air prior to the rst ring of
the unit.
During the initial purging and subsequent lightings, NEVER allow gas
to remain in the “Open” position without rst placing and igniting the
re starter.
Be certain to mount or set the 20 lb propane gas cylinder on a at
surface and restrain it to prevent it from tipping.
Locate the hose out of the pathways where people may trip over it or in
areas where the hose may be subjected to accidental damage.
10
Installation / Assembly
Fireplace Owner’s Manual
LTR50001006, Rev. G
www.calamebbq.com
Propane Cylinder Enclosure
Cal Flame replaces do not have an enclosure for the propane cylinder.
If you build an enclosure for a propane gas cylinder, follow these rec-
ommended specications and follow local codes.
Ensure cylinder valves are always readily accessible. A door on the en-
closure to gain access to the cylinder valve is acceptable, provided it is
non-locking and can be opened without the use of tools.
Enclosures for propane gas supply cylinders need to be ventilated by
openings at the level of the cylinder valve and at oor level. This is ac-
complished by one of the following ways:
W
ID
T
H
W
ID
T
H
DEPTH
HEIGHT
Screen vents
One side open
One side open

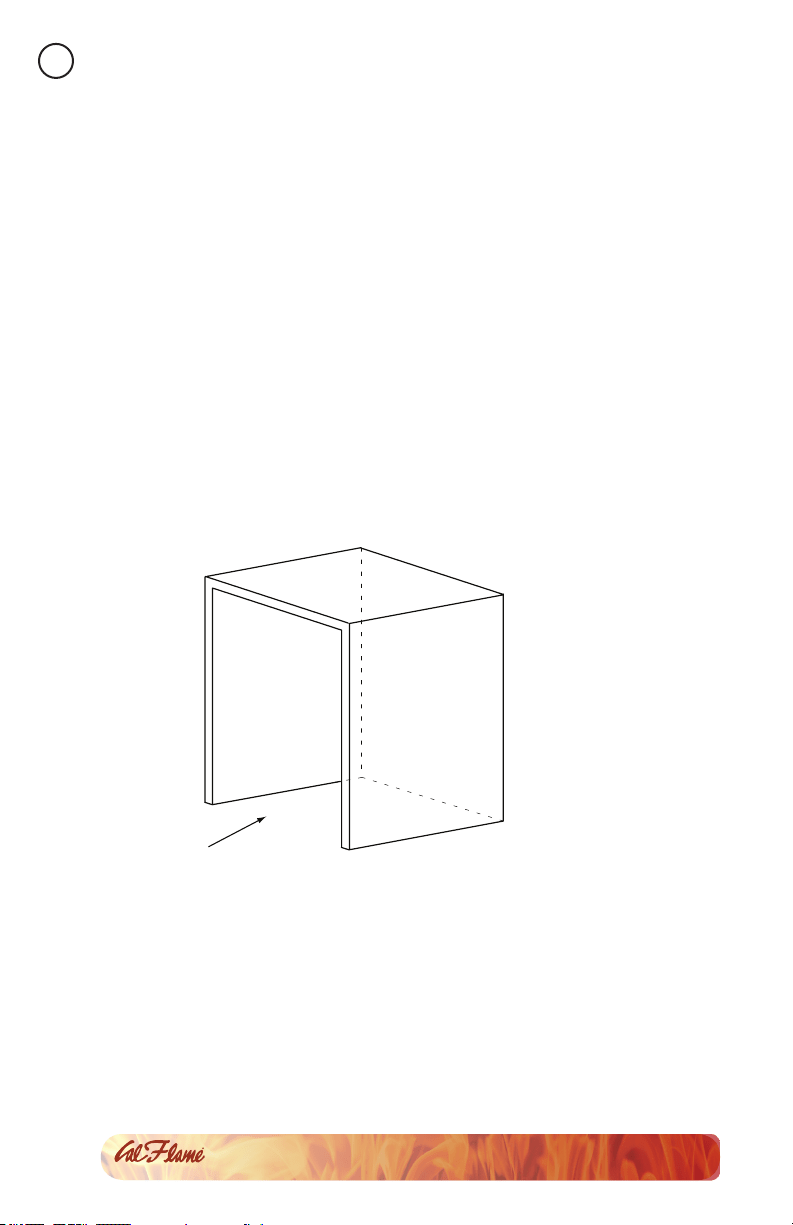

1) One side of the enclosure is completely open.
This method has no special ventilation requirements.
Installation / Assembly
11
Fireplace Owner’s Manual
LTR50001006, Rev. G
www.calamebbq.com
2) All sides are completely enclosed.
This method requires at least two ventilation openings at cylinder valve
level in the side wall, equally sized, spaced at 180 degrees (3.14 rad),
and unobstructed.
Make sure each opening has a
total free area of not less then
½ square inch per pound (3.2
sq. cm/kg) of stored fuel capac-
ity and not less then a total free
area of 10 square inches (64.5
sq. cm).
Ventilation openings need to
be provided at oor level with
a total free area of ½ inch per
pound (3.2 sq. cm/k) of stored
fuel capacity and not less than
a total free area of 10 square
inches if the ventilation open-
ings at oor level are in a side
wall, make sure there are at
least two openings. The bottom
of the openings shall be at oor level and the upper edge no more than
5 inches (127 mm) above the oor. The openings need to be equally
sized, spaced at 180 degrees (3014 rad) and unobstructed.
Make sure every opening has minimum dimensions to permit the en-
trance of a 1/8 inch (3.2mm) diameter rod.
There shall be a minimum clearance of 2 inches (40.8mm) between the
lower surface of the oor and the propane gas supply cylinder enclo-
sure and the ground.
W
ID
T
H
W
ID
T
H
DEPTH
HEIGHT
Screen vents
One side openOne side open
12
Installation / Assembly
Fireplace Owner’s Manual
LTR50001006, Rev. G
www.calamebbq.com
Natural Gas
Ensure that the service supplying the replace is tted with a conve-
niently positioned shut off valve with easy access. The shut off valve
MUST NOT be inside the appliance!
Requirements
Always check the rating plate to make sure the gas supply you are
hooking up to is the gas type the replace is manufactured for.
The installation of this appliance must conform with local codes or,
in the absence of local codes, to the national fuel gas code, ANSI
Z223.1a-1998. Natural gas connection must be performed by a li-
censed contractor or local gas company representative.
Ensure that the service supplying the replace is tted with a conve-
niently positioned shut off valve with easy access.
Installation
Connect the incoming gas supply line to the on/off gas valve of the
appliance. Make certain ALL gas connections are tight, turn the on/
off valve at the unit to the ‘on’ position and use soap and water to
test for leaks. Gas will be released at the burner for this duration. DO
NOT USE AN OPEN FLAME AND REMOVE BATTERY FROM IGNITER
BEFORE PERFORMING THIS TEST. An authorized gas appliance
installer must provide this installation service. Note that the

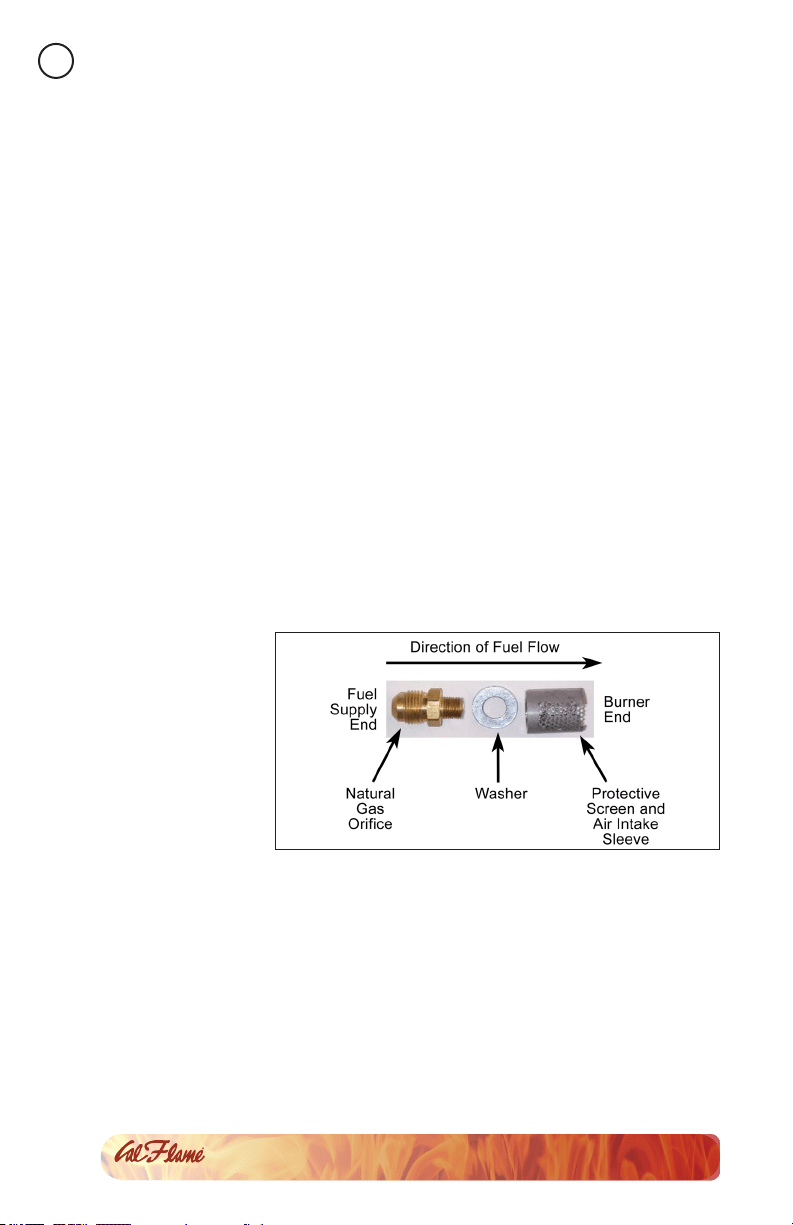

correct natural gas orice must also be installed prior to fuel line hook
up to maintain proper ame height and clean burn of fuel.
Installation / Assembly
13
Fireplace Owner’s Manual
LTR50001006, Rev. G
www.calamebbq.com

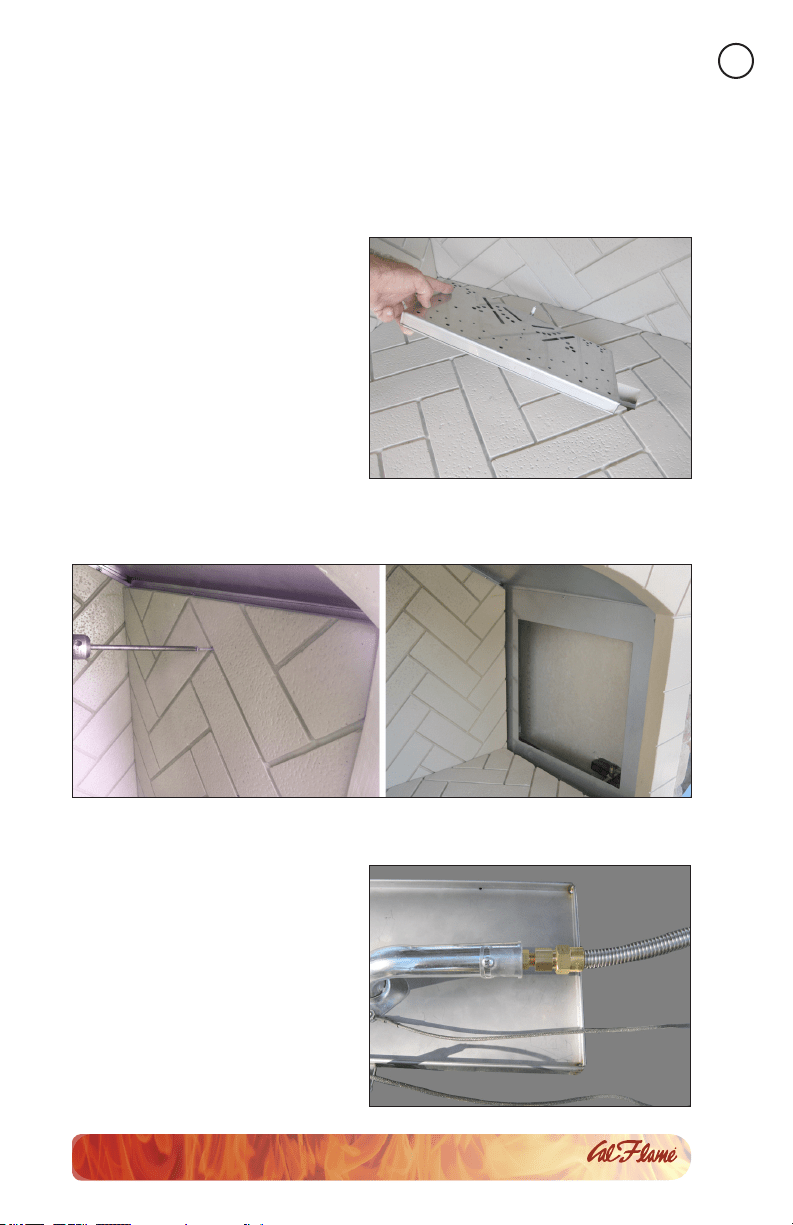

Fireplace Burner Installation
This procedure describes how to access the gas lines for installation.
Gas installation should be performed by a qualied contractor.
2. Remove the right side refractory wall from the replace by remov-
ing one screw.
1. Remove the burner from
the hearth. It is not con-
nected and will lift out
easily.
3. Connect the ex line to
the burner.
14
Installation / Assembly
Fireplace Owner’s Manual
LTR50001006, Rev. G
www.calamebbq.com

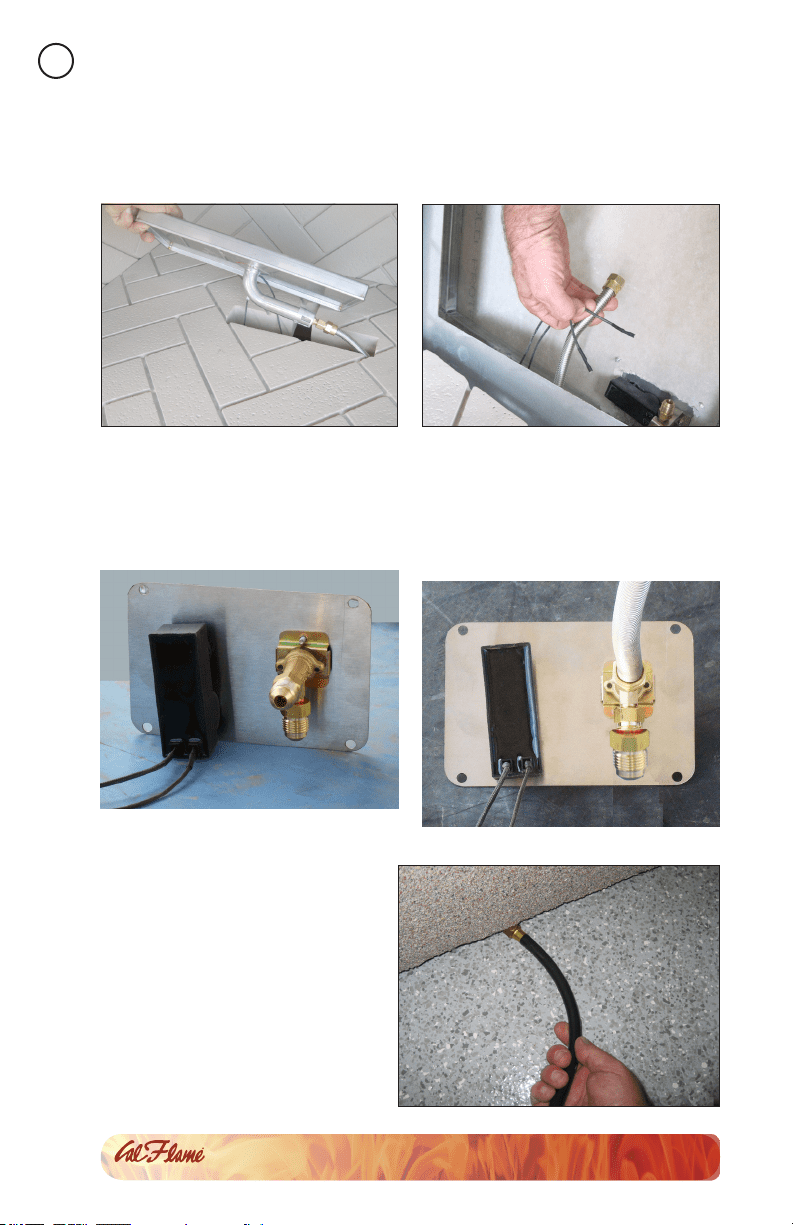

4. Slide the ex line and the
black sparker wires into the
gap in the hearth base.
6. Connect the black sparker
wires to the valve as shown
below.
5. Reach through the gap in the
open right side and pull the
ex line and black sparker
wires.
7. Connect the ex line from the
burner to the gas valve as
shown below.
8. Push the black gas line (for
propane unites) or ex line
(for NG units) under the
replace.
Make sure the burner has been
converted for use with NG be-
fore connecting to a NG source!
Installation / Assembly
15
Fireplace Owner’s Manual
LTR50001006, Rev. G
www.calamebbq.com
Caution! Never place or store the propane tank under
the hearth base!

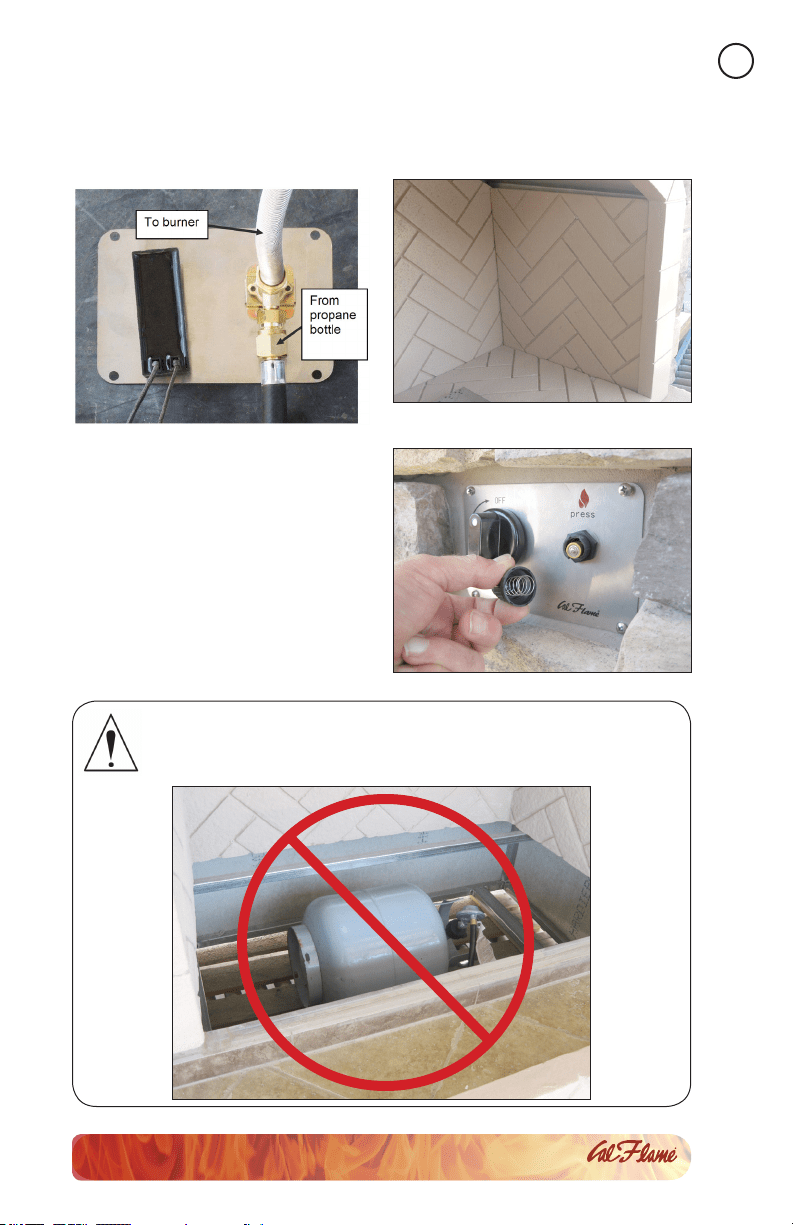

9. Connect the LP or NG gas
source gas line to the gas
valve as shown below.
10. Replace the right side refrac-
tory wall.
11. Unscrew the push button
switch and insert the battery
in the starter.
16
Installation / Assembly
Fireplace Owner’s Manual
LTR50001006, Rev. G
www.calamebbq.com
Fireplace Log Set Placement
The log set, log grate and crushed lava rock are shipped together on
applicable models. Remove the log set and unpack all components.
The logs are fragile -- use care when handling.
Once the replace is in position, level and safely hooked up to the
proper fuel supply, install the log grate over the plate burner.
Place the lava rock around the at burner plate. DO NOT place the lava
rock on the burner plate as it will affect the ow of the ame.
Place the ceramic re logs on the grate. Start by laying one log in the
center of the grate length wise.
Lay the other logs (quantity may vary by unit type) over the rst log
as shown below.
NOTE: Be sure unit is cool before touching any of the compo-
nents.

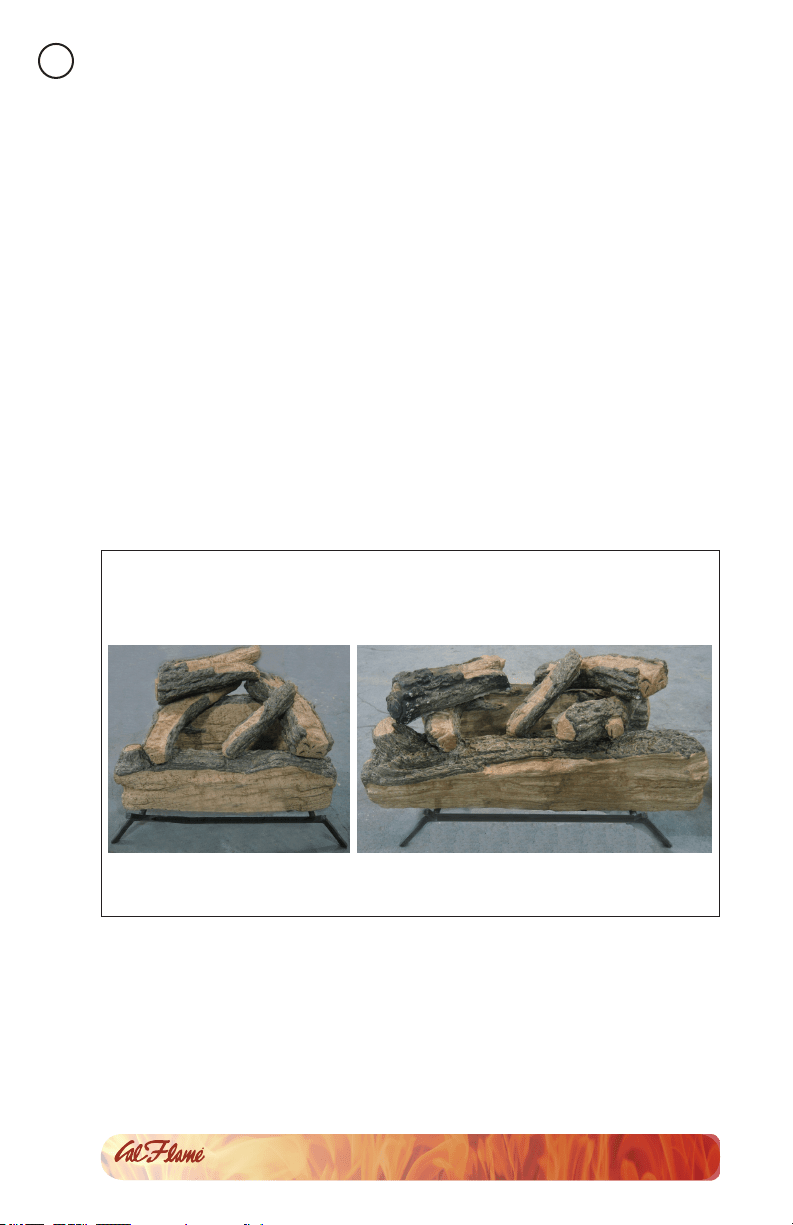

Place two logs lengthwise in the grate and position remaining logs
over them in an angled position as shown. Ensure the logs are placed
securely to avoid any movement.
18” Log Set 24” Log Set
Installation / Assembly
17
Fireplace Owner’s Manual
LTR50001006, Rev. G
www.calamebbq.com
High Elevation Installation
Your replace is approved for elevations up to 4,500 feet in the US and
Canada.
When installing this appliance at an elevation above 4,500 feet in the
US, it may be necessary to decrease the input rating by changing the
existing burner orice to a smaller size. Reduce the input by 4% for
each 1,000 feet above sea level, unless the heating value of the gas
has been reduced, in which case this general rule will not apply. To
identify the proper orice size, check with your local gas utility.
When installing this unit at an elevation above 4,500 feet in Canada
check with your local authorities. Consult the local gas utility for assis-
tance in determining the proper orice for your location.
Natural Gas Conversion
CAUTION: This service is to be completed only by an authorized gas
appliance installer. Do not attempt this conversion on your own as
there is risk of serious injury or death.
To The Authorized Gas Appliance Installer:
All Cal Flame replaces are shipped from the factory equipped to burn
on liquid propane fuel. Enclosed with this kit is a natural gas conversion
kit for converting this unit to natural gas. To perform this conversion,
follow the directions below and to the local regulation standards in
your area.
1. Make sure unit is not in operation and is cool enough to perform
this service. Shut off and disconnect propane fuel source at the
regulator end.
2. Carefully remove the storage cover, lava rocks and re logs. Turn
unit over to access hose connections underneath.
3. While holding the propane orice in place with a wrench, unscrew
brass tting on fuel inlet hose. Unscrew propane orice and re-
move.
4. Using the new brass natural gas orice re-install the parts in the
same sequence. Turn the protective screen / air intake sleeve to al-
low a controlled amount of air ow through the screen and into the
fuel supply tube. Flame should have good retention. For a proper
18
Installation / Assembly
Fireplace Owner’s Manual
LTR50001006, Rev. G
www.calamebbq.com
burn and as a general rule, the air shutter for propane installation
should be completely open, and the air shutter for NG installation
should be mostly closed. This can be adjusted later to create a
clean and desired ame.
5. Refer to photo below for proper placement of parts. The washer
should insert next to the protective screen cover, then the spring is
to be aligned with the hole and nally the natural gas orice is to
be threaded into the end of the fuel inlet leading into the burner.
Once tight the other brass tting connection can be made from the
fuel line tted between the valve and the orice.
6. Connect natural gas supply hose (not included with kit) from sup-
ply source. Test for leaks.
7. Once the conversion is completed and leak tested, reload the re-
place with the lava rocks and re logs. Test the unit while in place
and verify it works properly. If ame from burner is not properly
adjusted you can adjust air intake by turning the protective screen
cover and air intake sleeve on the fuel supply tube.
Orice
assembly
for replace
burners
Operation
19
Fireplace Owner’s Manual
LTR50001006, Rev. G
www.calamebbq.com
WARNING: DO NOT use solid fuel, such as wood or
charcoal, in a gas fueled replace.
Upon completing the gas line connection,
a small amount of air will be in the lines.
When the rst lighting the burner, it will
take a few seconds for the lines to purge
themselves of this air.
Once the purging is complete, the burner
will light and operate as indicated in the
instruction manual. Subsequent lighting
of the appliance will not require purging
unless the gas supply has been disconnected.
Inspect the burner before each use of the appliance. If there is any
evidence that the burner is damaged, it must replaced before operat-
ing. Upon completing the gas line connection, a small amount of air will
be in the lines. When rst lighting the burner, it will take a few minutes
for the lines to purge themselves of this air. Subsequent lighting of the
appliance will not require such purging.
Never allow the ON / OFF valve to remain in the open position without
placing a burning match on top of the burner FIRST!
You must have clear and easy access to the ON / OFF valve AFTER the
appliance is installed and connected to the gas supply in order to safely
turn of the burner.
Make sure the burner is in place prior to using the appliance. If the
burner is damaged, install a replacement burner as specied by the
manufacturer.
For your safety, read before lighting.
• Before operating smell all around the appliance area for gas odors
and next to the oor because some gases are heavier then air and
will settle on the oor.
• Use only your hand to turn the manual gas control valve. Never use
tools. If the valve will not turn by hand, do not try to repair it. Call
a qualied service technician. Force or attempted repair may result
in a re or explosion,
• Do not use this appliance if any part has been under water. Imme-
diately call a qualied service technician to inspect the appliance
If you do not
follow these
instructions exactly,
a re or explosion
may result, causing
property damage,
personal injury, or
loss of life.
Operation
20
Operation
Fireplace Owner’s Manual
LTR50001006, Rev. G
www.calamebbq.com
and replace any part of the control system and any gas control
which has been under water.
• Make sure the ignitor battery has been installed properly. Ignitor
will not operate properly without a battery installed.

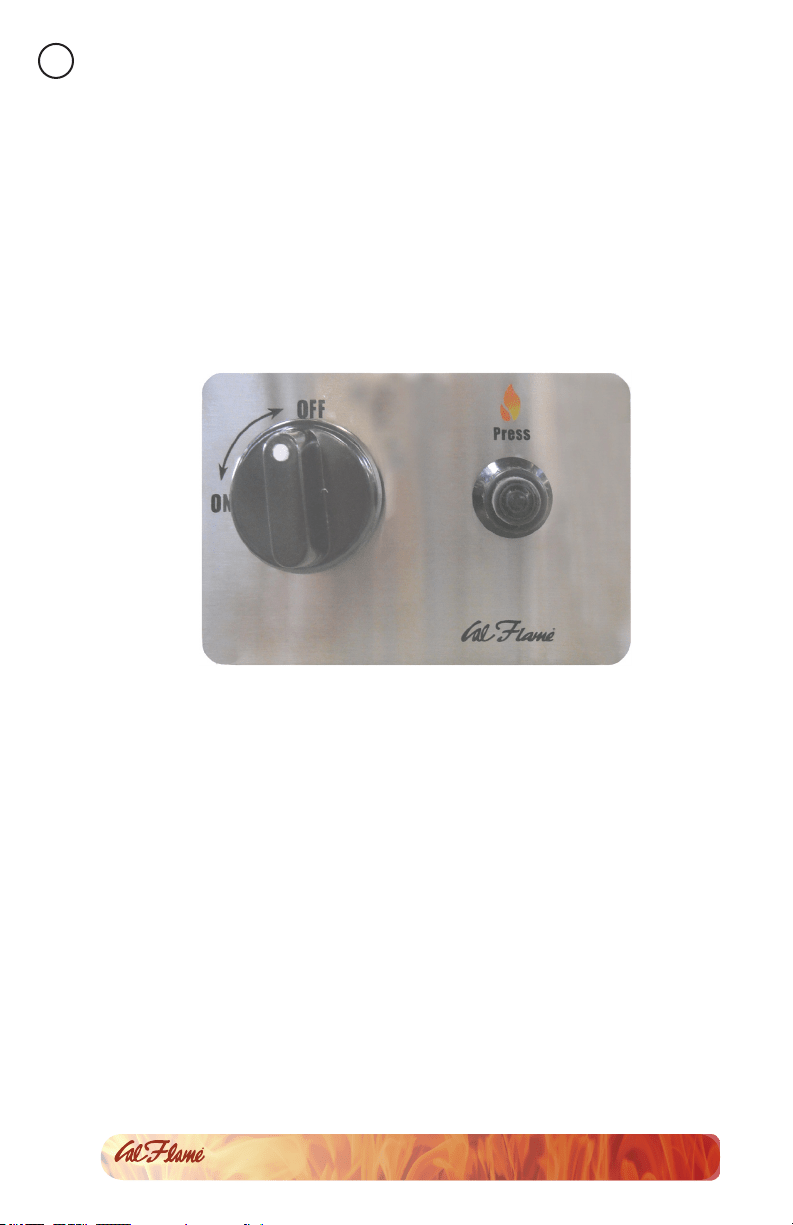

Lighting Instructions for Automatic Starter
1. Remove protective storage cover and locate the manual gas con-
trol valve and igniter button on the replace.
2. Make sure fuel supply is properly connected and turned on at the
source.
3. Depress igniter button until you hear it sparking. You will hear a
small popping noise. Keep igniter button pushed in while slowly
turning the fuel ow valve to the full ow position at the replace.
The replace should light within 5 seconds. If you do not hear the
igniter sparking you may need to replace the battery. The starter
uses one standard AAA battery, located directly behind the rubber
push button knob. (Unscrew knob to access battery.) Note some
models ship with the batteries removed or may not be included
with your model.
4. If a ame does not start within 10 seconds, shut off all gas supply
and wait ve minutes to allow all gas fumes to clear. Re-try or go
to trouble-shooting and start again from step 1.
To Turn Off Gas
Turn the ON/OFF valve to the off position at the unit for natural gas
unit. For propane unit, turn the ON/OFF valve to the OFF position at
Operation
21
Fireplace Owner’s Manual
LTR50001006, Rev. G
www.calamebbq.com
the unit and then turn the valve on the propane tank to the OFF posi-
tion clockwise.
NOTE
The propane regulator in this appliance is equipped with a low ow
protection device. Unless the propane cylinder valve is opened before
the valve, the gas ow will be reduced resulting in a very small ame.
To reset this device, shut off the valve, disconnect the hose from the
cylinder to relieve the pressure, then close the propane cylinder valve.
Follow the lighting procedure ensuring the propane cylinder valve is
opened before the unit is.
22
Cleaning and Maintenance
Fireplace Owner’s Manual
LTR50001006, Rev. G
www.calamebbq.com
Inspect the appliance before initial use. Clean the appliance at least
annually and have it inspected by a qualied eld service person.
Periodically remove the logs and examine the burner. If the burner is
dirty, clean it with a soft wire brush. Also examine the area around
the burner air shutter. Remove any dirt or debris in this area. This will
ensure long life and trouble-free operation.
Periodically check the hose connecting the propane gas cylinder to
ensure it is not damaged in any way.
Carbon (soot) may build up on the surfaces of the logs with heavy use.
This is more likely to occur with propane gas. Clean soot off the surface
of the logs periodically to prevent excessive buildup.
To clean the logs, be sure the re is out, the gas supply is turned off
and the logs are cool to the touch. The soot can then be brushed of
with a dry bristle brush or cloth. Take care while cleaning the logs as
they can become damaged if mishandled.
Periodically check the hose connecting the propane gas cylinder to en-
sure it is not cracked or damaged in any way. All natural gas hook-ups
should be serviced and inspected only by qualied installers only.
The easiest way to clean the replace is to let the replace cool com-
pletely off. Spray the enclosure off with water. Note: Do NOT spray
water directly onto the burner.
Cleaning and Maintenance
Replacement Parts
23
Fireplace Owner’s Manual
LTR50001006, Rev. G
www.calamebbq.com
Replacement Parts
Call 1-800-225-7727 for any replacement parts not listed below. Be
sure to have model name and number available.
Replacement parts shown below are listed rst as complete assemblies
with individual parts that can be ordered separately.
Fiberglass rebox assembly 36” set of 5 pieces BBQ08210622
Left panel for 36” rebox, 22 7/8” x 20 7/8” BBQ08216023
Right panel for 36 rebox, 22 7/8” x 20 7/8” BBQ08210624
Back panel for 36” rebox, 28.25” x 34.5” BBQ08210625
Base panel for 36” rebox, 21” x 35 3/4” BBQ08210626
Arch for 36” rebox, 45” x 37” BBQ08210627
Metal rebox assembly 36” set of 2 pieces BBQ08210583
Housing for 36” metal rebox BBQ08210580
Top for 36” metal rebox BBQ08210581
Fireplace log set 24” 7 pieces BBQ08000620
Fireplace log grate 18” BBQ08210650
Fireplace burner valve assembly, with lava rock, 3/8”
x 108” hose and propane regulator
BBQ07210012
Fireplace rectangle burner assembly set of 4 pieces BBQ04100076
Rectangle burner body 7.25” x 14.25” stainless
steel
BBQ04100089
Orice NG .125 1/4” are BBQ04100077
Orice LP #43 1/4” are BBQ04100078
Flare tting 3/8” male are, 1/4” female are BBQ04103047
24
Specications
Fireplace Owner’s Manual
LTR50001006, Rev. G
www.calamebbq.com
Propane Gas Natural Gas
Max. Input BTU/
Hr
55,000 49,000
Orice Size #43 (0.089) 1/8” (.125)
Manifold Pressure 10” Water Column 7” Water Column
Maximum Gas
Supply Pressure
11” Water Column 14” Water Column
Maximum Inlet
Supply Pressure
13” Water Column 14” Water Column
Regulator Pre-Set 11” Water Column
Specications
Limited Warranty
25
Fireplace Owner’s Manual
LTR50001006, Rev. G
www.calamebbq.com
All Cal Flame models are manufactured with the highest quality ap-
pliances and are warranted to be free from defects in material and
workmanship at time of delivery.
LMS warrants replaces and associated hardware from deterioration,
corrosion, and defects in material and workmanship for a period of one
year from the original date of delivery, with the exception of plastic
items, which are warranted for 90 days.
Extent of Warranty
This limited warranty is only valid on Cal Flame models delivered in the
United States or Canada and extends through the selling dealer to the
original purchaser at the original site of installation. This warranty be-
comes valid at time of delivery and ends either by specied time-frame
listed above or upon owner transfer or relocation.
Warranty Performance
In the event of a malfunction or defect covered under the terms of
this warranty, contact either the selling dealer or a local contractor or
service technician. Depending on your needs, this may be a contractor
qualied to repair stone and tile or a service agent licensed to repair
gas or electrical appliances.
In the event the consumer is unable to obtain satisfactory customer
service from the selling dealer or service agent, written notication
must be given to the LMS Customer Service Department within 30 days
of the reported failure.
There will be no charge for parts on a covered item. Cost of labor is the
responsibility of the owner. Shipping and handling charges will apply
to all warranted replacement parts. The service agent may assess a
reasonable travel or mileage charge per service call. If LMS determines
that repair of a covered item is not feasible, LMS reserves the right to
replace the defective merchandise with merchandise equal in value to
the original purchase price. Warranty repair and / or replacement are
the sole discretion of LMS and this warranty does not cover costs there-
in, including but not limited to: freight, removal, re-installation, etc.
This warranty is non-transferable and may not be extended beyond
the above mentioned time frames under any circumstances, by any of
LMS’s representatives.
Limited Warranty
26
Limited Warranty
Fireplace Owner’s Manual
LTR50001006, Rev. G
www.calamebbq.com
Warranty Limitations and Exclusions
Grate and log set are not covered by this warranty.
This warranty is void if the replace has been subject to negligence, al-
teration, misuse, repairs, dings, dents, scratches, or incorrect and / or
prohibited applications, as specied in the owner’s manual. Gas lines
must be installed by a licensed plumber only or local gas company
agent. Incorrect electrical installation by unlicensed electricians, ser-
vice by non-LMS authorized representatives, acts of God and other
cases beyond the control of LMS are not covered by this warranty.
Please refer to the owner’s manual for examples of exclusions and
common acts invalidating this warranty.
This limited warranty applies only to replaces and associated hard-
ware used for personal, family, and outdoor household purposes. This
warranty does not apply to labor charges, replacement parts and hard-
ware. This limitation is retroactive and applies to all replaces and
hardware manufactured from 2000 and hereafter.
Examples of common acts invalidating this warranty include but are
not limited to:
• Use of fuel other than what is specied for the appliance (such as
burning wood in a gas replace).
• Scratches caused by normal use.
• Damage caused by extreme weather conditions (hot, cold, etc.)
• Damage caused by dirt, sand, and/or water damage.
• Damage caused by continued operation of the replace with either
known or unknown problems.
• Damage caused by direct sunlight.
• Damage caused as a result of failure to follow the operating in-
structions as dened in this owner’s manual.
This limited warranty applies only to replaces normally used for per-
sonal, family, or household purposes and specically excludes rental or
commercial applications.
Disclaimers
LMS shall not be liable for loss of use of the replaces, related hard-
ware or other incidental or consequential costs, expense or damages,
which may include, but are not limited to, removal of permanent deck
or other custom xtures or the necessity for crane removal. Any im-
plied warranty shall have duration equal of the applicable warranty
stated above.
Natural stone: Rock, travertine, marble, etc. may be characterized by
dry seams, pits, chips, cracks, and fossils that are often lled with
grout during installation. These are normal imperfections and are not
considered defects.
Legal Remedies
This limited warranty gives you specic legal rights. You may have
other rights, which may vary from state to state.
Customer Service
For customer service, contact the authorized selling dealer immedi-
ately. If you need additional information or assistance, please contact
the LMS Customer Service Department at 1462 E. Ninth St., Pomona
CA 91766 or call (800) 225-7727.
See your Cal Flame dealer for a copy of the applicable warranty, details
and any questions you may have regarding the warranty coverage on
your product.
28
Limited Warranty
Fireplace Owner’s Manual
LTR50001006, Rev. G
www.calamebbq.com
Limited Warranty
29
Fireplace Owner’s Manual
LTR50001006, Rev. G
www.calamebbq.com
LTR50001006, Rev. G
2/1/17
CONTACT INFORMATION
For customer service, please contact your authorized dealer immediately.
If you need additional information and/or assistance, please contact:
Cal Flame
Customer Service Department
1462 East Ninth Street
Pomona, CA 91766
Toll Free: 1-800-225-7727
Fax: 1-909-629-3890
www.calamebbq.com
