Self-Cleaning Range Hoods
Insert Range Hoods
Please read all instructions before installing and operating.
All wiring and installation must be in accordance with CEC, NEC and local electrical codes.
READ AND SAVE THESE INSTRUCTIONS
Models:
BX212, BX215, BX155, BX600, BX360, CLX60, SS130
Installation and Operation Instructions
2 Cyclone Insert Installation - English
3Cyclone Insert Installation - English
IMPORTANT SAFETY INSTRUCTIONS
• is appliance must be installed by a qualied technician.
• e manufacturer declines all responsibilities in the event of
failure to observe the instructions given here for installation,
maintenance and suitable use of the product.
• e manufacturer further declines all responsibility for injury
due to negligence, and the warranty of the unit automatically
expires due to improper installation and maintenance.
WARNING
• Suitable for use in household cooking area.
• For residential cooking use only. Do not use to exhaust
hazardous or explosive materials or vapors.
• Two installers are recommended because of the size and
weight of this hood.
• Do not use more than 25 watts per halogen light bulb for
BX155/BX212/BX215.
• Light bulbs combined are not to exceed 50 watts.
• Use LED bulb, 1.5W Maximum per bulb, BX600, BX360,
CLX60.
• Use LED puck light for SS130.
• *Bulb & socket may change.
• Mesh lters may discolour over time. Although product
is dishwasher friendly, depending on the amount of grease
and the type of dish-washing solutions used it may cause
the mesh lters to discolour faster.
CAUTION
TO REDUCE THE RISK OF RANGE TOP GREASE FIRE:
1. Never leave the range unattended at high settings.
2. Always turn hood ON when cooking at high heat or when
aming food.
3. Use proper pan size. Always use cookware appropriate for
the size of the surface element.
4. Keep fan, lters and grease laden surfaces clean. Clean
ventilating fans frequently. Do not allow grease to
accumulate on fan or lter.
5. Use HIGH setting on hood only when necessary.
6. To reduce the risk of re, use only metal ductwork.
7. is unit must be grounded.
8. Not for outdoor use.
WARNING
TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK, OR
INJURY TO PERSONS, OBSERVE THE FOLLOWING:
1. Use this unit only in the manner intended by the manufacturer.
2. Before servicing or cleaning the unit, switch power o
at service panel and lock service panel to prevent power
from being switched on accidentally. When the service
disconnecting means cannot be locked, securely fasten a
prominent warning device to the service panel.
3. Installation work and electrical wiring must be done by
qualied persons in accordance with all applicable codes
and standards, including re-rated construction.
4. Sucient air is needed for proper combustion and exhausting
of gases through the ue of fuel burning equipment to
prevent back draing. Follow the heating equipment
manufacturer’s guideline and safety standards as published
by the local code authorities.
5. When cutting or drilling into walls or ceilings, be careful
not to damage existing electrical wiring and other hidden
utilities.
6. To reduce the risk of re, electric shock and to properly
exhaust air, ducted fans must always be vented outdoors.
Do not vent exhaust air into spaces within walls, ceilings,
attics, crawl spaces, or garages. Do not connect this fan
with any solid-state speed control device.
7. Always keep the duct clear to maintain proper airow for
venting.
8. e bottom of the hood MUST NOT BE LESS than 28”
and at a suggested maximum of 36” above cooktop for
best capture of cooking impurities. For a gas range, the
bottom of the hood MUST NOT BE LESS than 30” above
cooktop.
WARNING
• Do not repair or replace any part of this appliance unless
specically recommended in this book. All other service
should be performed by a qualied technician.
• e hood motor has a thermal overload that will
automatically shut o the motor if it becomes overheated.
e motor will restart. If the motor continually shuts o
and restarts, contact the Cyclone service department.
Ensure that the hood is mounted at the recommended
mounting height.
• is product may have sharp edges. Be careful to avoid
cuts and abrasions during installation and cleaning.
WARNING
Please read all instructions before installing and operating.
Model specications may vary, please check our website for the most up to date specications.
4 Cyclone Insert Installation - English
CONTENTS
Important Safety Instructions 3
Damage Inspection 5
Ducting 5
Mounting Heights and Clearance 6
Wiring Installation 6
Tools and Materials Required 7
SS130 - Parts supplied 8
SS130 Insert Hood Installation 9
SS130 - Installation Cutout Templates 10
BX155/BX212/BX215 - Parts supplied 11
BX212/BX215 Insert Hood Installation 12
BX155 Insert Hood Installation 13
BX155/BX212/BX215 - Installation Cutout Templates 14
BX600/BX360/CLX60 - Parts supplied 15
BX600/BX360/CLX60 Insert Hood Installation 16
BX600/BX360/CLX60 - Installation Cutout Templates 17
Insert Hoods Specications 18
Troubleshooting 19
Maintenance 20
Control Panel 21
Cyclone Range Hoods Limited Warranty 22
5Cyclone Insert Installation - English
DAMAGE INSPECTION
• Please fully inspect unit for damage before installation.
• If the unit is damaged in shipment, return the unit to the store in which it was bought for repair or replacement.
• If the unit is damaged by the customer, repair or replacement is the responsibility of the customer.
• If the unit is damaged by the installer (if other than the customer), repair of replacement must be made by arrangement between
customer and installer.
• Once installed, all damages will be assumed the responsibility of the installer.
DUCTING
• To reduce the risk of re, use only metal ductwork.
• To reduce risk of re and to properly exhaust air, be sure
to duct air outside – do not vent exhaust air into spaces
within walls, ceilings, attics, crawl spaces, or garages.
WARNING
• Best to use rigid type metal ducts. Flexible ducts can
restrict airow by more than 50%.
• Reduce the number of transitions and turns as much as
possible. If a reducer is used, install a long reducer instead
of a pancake reducer. If turns and transitions are required,
install them as far away from the opening as possible and
as far apart between two as possible.
CAUTION
• 6” round ductwork must be used to maintain maximum
air ow eciency with motors of 450 CFM or greater. If
the use of any size ducting is less than 6”, the warranty is
automatically voided.
• e venting duct must go horizontally or vertically up
to the outside wall or the roof. If it is turned downward
anywhere in the venting system, the warranty is automatically
voided.
WARNING
Fasten all connections with sheet metal screws and tape all joints
with certied silver tape or duct.
Do not cut a joist or stud unless absolutely necessary. If a joist or
stud must be cut then a supporting frame must be constructed.
Before making cutouts make sure there is proper clearance within
the ceiling or wall for the exhaust vent.
Examples of dierent types of ventilation for
inserts:
Roof Pitch with Cap
and Flashing
Side Wall Cap with
Gravity Damper
Side Wall Cap
with Gravity
Damper
Soffit or Crawl Space
Additional parts not provided.
6 Cyclone Insert Installation - English
MOUNTING HEIGHTS AND CLEARANCE
• e hood should be installed at 28” minimum above the
cooking surface. If pairing your range hood with a gas
stove minimum mounting height must be 30” above the
cooking surface.
WARNING
Minimum mount height between range top to hood bottom should
be no less than 28” for electric or ceramic stoves, and no less than 30”
for gas stoves. e maximum mount height should be no more than
36”. e hood must be installed at the correct mounting height. Hoods
mounted too low could result in heat damage. Hoods mounted too
high, on the other hand, will be less eective and performance may
suer.
Check your ceiling height and the hood height maximum before
you select your hood.
Hood installation height above cook top is the user’s preference.
e lower the hood is above the cook top the more ecient it will
be in drawing out cooking odors, grease and smoke.
WIRING INSTALLATION
Min:
Ceramic/Electric
28”
Gas 30”
Max:
36”
36”
Install the Electrical Power Supply
Install a junction box inside the upper corner of the cabinet. For
the model SS13024, it should be installed at a minimum of 8” away
from the center of the cabinet and 12” above the bottom of the
cabinet. For the models SS13030, BX21228/BX21528, BX600/
CLX60, it should be installed at a minimum of 11” away from the
center of the cabinet, and 12” above the bottom of the cabinet. For
the model BX21234/BX21534, it should be installed at a minimum
of 13” away from the center of the cabinet, and 12” above the
bottom of the cabinet.
is appliance requires 120V 60Hz electrical supply and connection to an individual properly grounded branch circuit protected
by a circuit breaker or time delay fuse.
Preparation for Vent and Exhaust Duct Connection
1. To connect a rectangular vent to a round exhaust duct (or vice
versa), use a connecting duct and adapter.
2. e round vent of a Cyclone Range Hood is 6” diameter. If
the round exhaust duct is not 6” diameter, a connecting duct
is necessary to accommodate the dierent size. If the exhaust
duct is less than 6” diameter, the eciency of your Cyclone
Range Hood will be reduced and the warranty may be voided.
3. An exhaust duct needs to be cut if there is not an existing duct
in your home. Please consult/hire a professional to complete
the work properly. For top venting, a rectangular or a 6”
round hole needs to be cut through the ceiling or the back
wall and the bottom of the cabinet to t the duct connection.
Ceramic/Electric
28”
Max:
36”
Gas
30”
Min:
7Cyclone Insert Installation - English

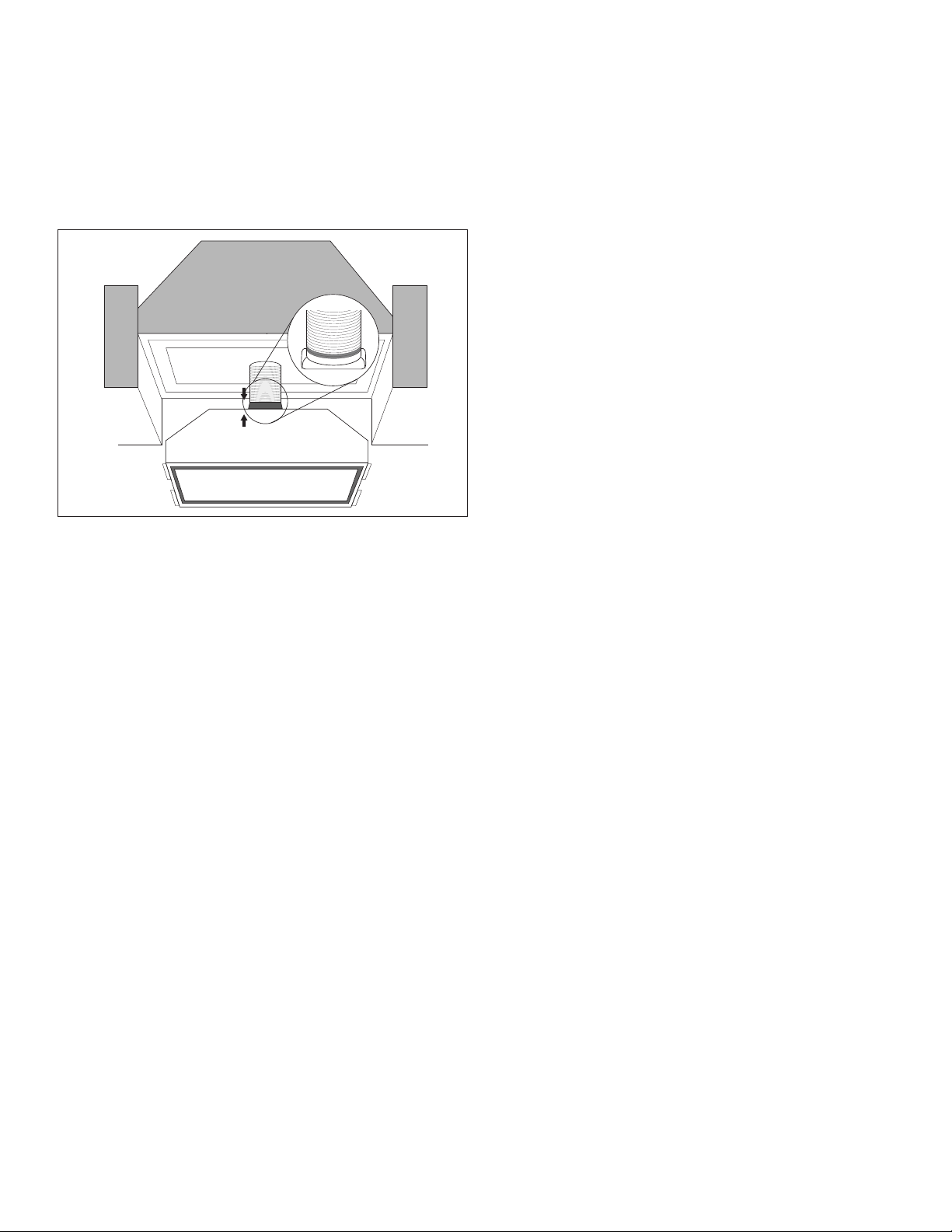

When there is no access to the top of the hood, carefully pull down
the metal duct through the custom hood base hole. Slide this duct
over the adapter/damper. Make sure the adapter/damper assembly
enters the ducting. Seal the connection with aluminum tape.
Ducting Connection
TOOLS AND MATERIALS REQUIRED
• Electrical drill or ratchet driver
• Phillips screwdriver #2 or driver bit
• Straight blade screwdriver
• Wire stripper or cutter
• Tape measure
• Electrical supplies for wiring (i.e. wire connectors,
electrical tape)
• Aluminum foil tape and/or duct tape
• Hammer
• Jigsaw or saber saw
• Step ladder
• Pencil
8 Cyclone Insert Installation - English

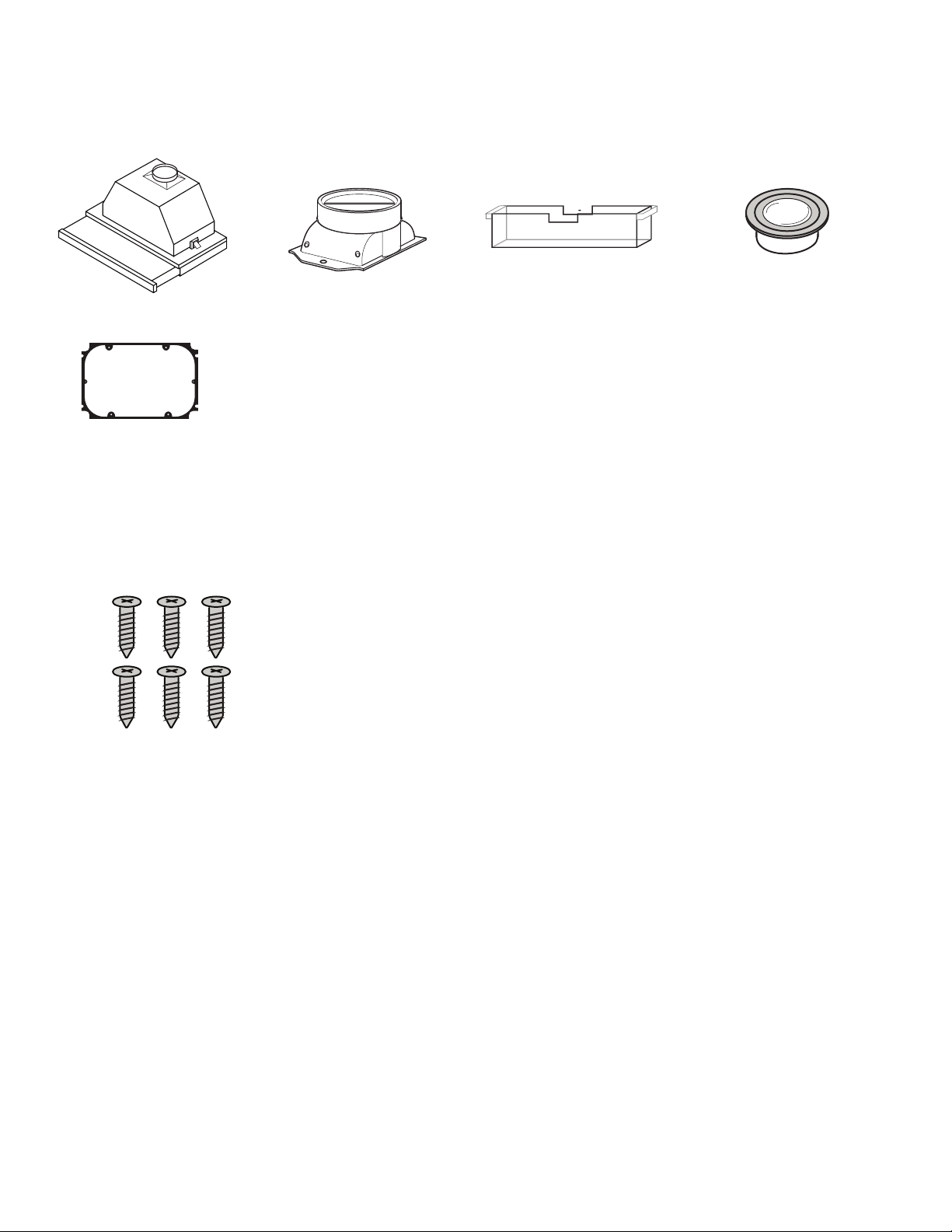

SS130 - PARTS SUPPLIED
1 × Hood
1 × Round Adapter
HARDWARE PACKAGE
1 × Rectangular Oil Collector
6 × Adapter Screws
1 × Plastic Adapter Seal
PRE-INSTALLED
2 × LED Lights
(1.5W per bulb)
*Bulb & socket may change.
9Cyclone Insert Installation - English
Preparation for Installation
1. Unpack range hood and check contents. Note: Be cautious of
sharp edges within the unit.
2. Cut the insert cutout at the bottom of the cabinet using the
given cutout measurements on page 13 (Figure 1).
3. Locate the cutout at the center of the bottom of the cabinet.
Ensure that the front panel of the range hood is ush with the
surface of the cabinet doors.
SS130 INSERT HOOD INSTALLATION
is appliance requires 120V 60Hz electrical supply and
connection to an individual properly grounded branch circuit
protected by a circuit breaker or time delay fuse.
• Turn o power circuit at the service panel before wiring
this unit.
• All electrical work must be done by a qualied electrician
in accordance with all applicable codes and standards.
is range hood must be properly grounded.
WARNING
• At least two installers are required due to the weight and
size of the hood.
CAUTION
Figure 1.
1. Remove outer mesh lters of range hood
2. Attach rubber seal and damper to rectangular cutout on top
of the range hood using the screws provided.
3. Hold range hood upright, mesh lters facing down and
insert range hood upward into cabinet cutout. e range
hood mounts to the cabinetry by two spring loaded brackets,
one on each side of the range hood (Figure 2).
4. Once the range hood is through the cabinetry the brackets
should release. e brackets loosely hold the range hood in
place (Figure 3).
5. Pull the slide outwards to expose the inside of the range
hood. Locate the adjustable screw hole underneath both
sides of the hood.
6. Once located, use a Phillips screwdriver to tighten the
adjustable screw until the unit is tightly fastened to the
base of the cabinetry (Figure 4). (NOTE: A piece of 1/4”
thickness strip may be needed to put underneath the brackets
to tighten the screws. Four 3/4” screws can be used to mount
the hood fan to the cabinet through the holes at the bottom
of the unit for SS130 30”)
7. Make sure that the adapter is connected to ductwork.
8. Place mesh lters back into place.
9. Connect the power plug to the junction box.
Install the SS130 Range Hood
Figure 3.
Figure 2.
Fasten Screws
Figure 4.
10 Cyclone Insert Installation - English
SS130 - INSTALLATION CUTOUT TEMPLATES
SS13024
SS13030
11Cyclone Insert Installation - English

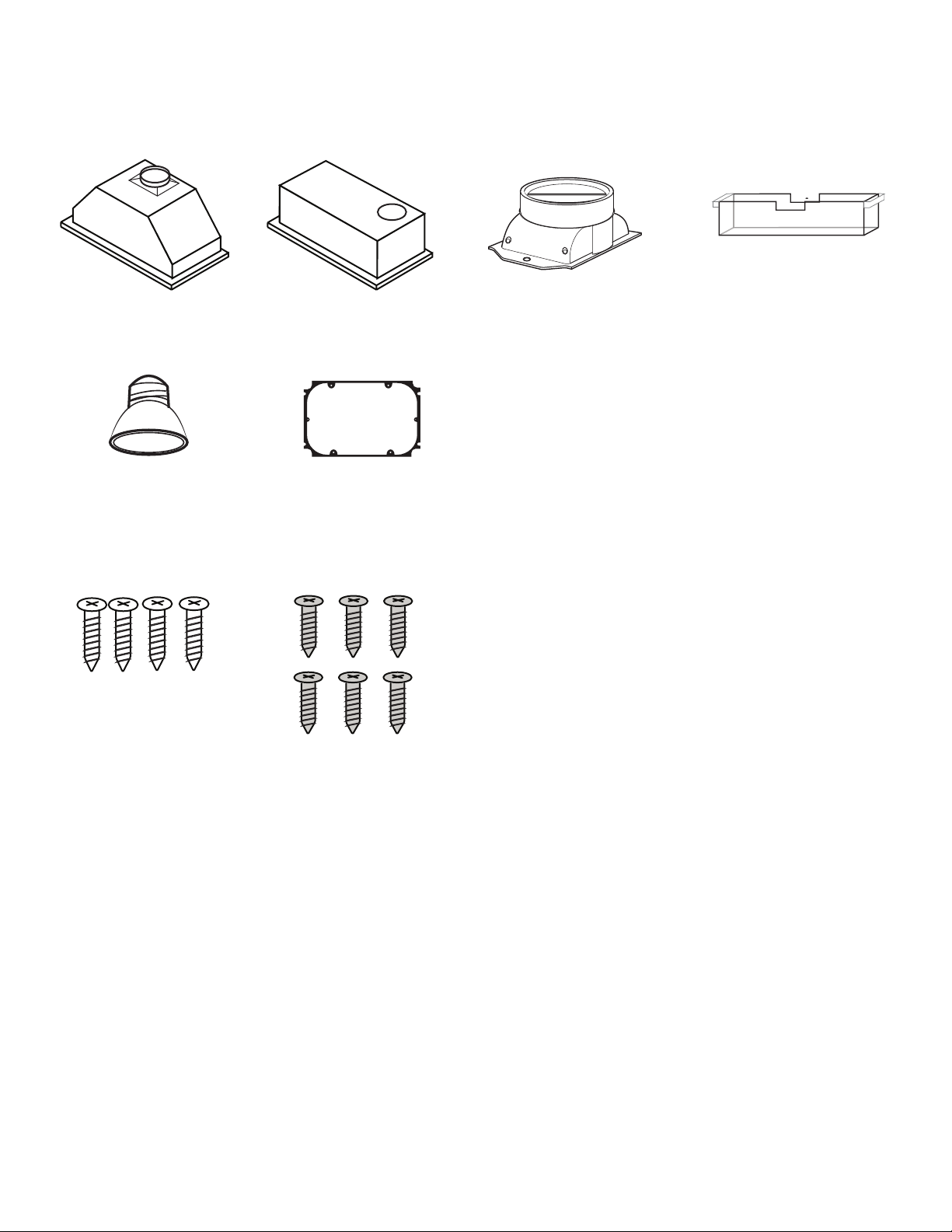

BX155/BX212/BX215 - PARTS SUPPLIED
1 × Hood BX212/BX212
1 × Round Adapter
(BX212/BX215 only)
HARDWARE PACKAGE
4 × Mounting Screws
1 × Rectangular Oil Collector
(BX212/BX215 only)
6 × Adapter Screws
(BX212/BX215 only)
INCLUDED IN UNIT
2 × Halogen Lights
(120V, 25W per bulb)
1 × Plastic Adapter Seal
(BX212/BX215 only)
1 × Hood BX155
12 Cyclone Insert Installation - English
1. Remove outer mesh lters of range hood.
2. Attach rubber seal and damper to rectangular cutout on top
of the range hood using the screws provided (Figure 2).
3. Remove the mesh lters, locate the four Phillips screws.
ere are 2 on the right side and 2 on the le side. Remove
the 4 screws using your screwdriver or power drill and place
them aside as you will need them later on to reattach the
face. Remove the face and set it aside (Figure3) .
4. Hold range hood upright, and insert range hood upward
into cabinet cutout. Secure the range hood to the cabinet
using the four screws provided. Two for each side (Figure 4).
5. Reattach and screw top panel onto range hood.
6. Make sure that the adapter is connected to ductwork.
7. Place mesh lters back into place.
8. Connect the power plug to the junction box.
BX212/BX215 INSERT HOOD INSTALLATION
is appliance requires 120V 60Hz electrical supply and
connection to an individual properly grounded branch circuit
protected by a circuit breaker or time delay fuse.
• Turn o power circuit at the service panel before wiring
this unit.
• All electrical work must be done by a qualied electrician
in accordance with all applicable codes and standards.
is range hood must be properly grounded.
WARNING
• At least two installers are required due to the weight and
size of the hood.
CAUTION
Prepare for Installation
1. Unpack range hood and check contents. Note: Be cautious of
sharp edges within the unit.
2. Cut the insert cutout at the bottom of the cabinet using the
given cutout measurements on page 15 (Figure 1).
3. Locate the cutout at the center of the bottom of the cabinet.
Installing the BX212/BX215 Range Hood
Figure 3.
Figure 2.
Figure 4.
13Cyclone Insert Installation - English
1. Place range hood on its side where the control panel and light
bulbs are on the bottom, closest to the table.
2. Remove the lter and locate the 3 quick release wire connectors
inside the cavity of the hood. ere are 2 for the lights and 1
for the switch/controls. Gently squeeze the plastic tabs and
pull apart the connectors (Figure2).
3. Once all 3 wires have been disconnected, locate the four
Phillips screws. ere are 2 on the right side and 2 on the le
side. Remove the 4 screws using your screwdriver or power
drill and place them aside as you will need them later on to
reattach the face. Remove the face and set it aside (Figure3).
4. With the face removed, you will expose 4 holes in the body of
the hood. 2 on the right side and 2 on the le side. Insert the
hood into the cavity of the cabinet and secure it by driving the
screws through the pilot holes and directly into the bottom of
the cabinet. (Figure 4)
5. With the hood secured to the cabinet, you can now reinstall
the face and reconnect all the wires.
BX155 INSERT HOOD INSTALLATION
is appliance requires 120V 60Hz electrical supply and
connection to an individual properly grounded branch circuit
protected by a circuit breaker or time delay fuse.
• Turn o power circuit at the service panel before wiring
this unit.
• All electrical work must be done by a qualied electrician
in accordance with all applicable codes and standards.
is range hood must be properly grounded.
WARNING
• At least two installers are required due to the weight and
size of the hood.
• Prior to installing the product, Cyclone recommends
inspecting the hood for damage and testing the hood to
ensure proper function.
CAUTION
Prepare for Installation
1. Unpack range hood and check contents. Note: Be cautious of
sharp edges within the unit.
2. Cut the insert cutout at the bottom of the cabinet using the
given cutout measurements on page 15 (Figure 1).
3. Locate the cutout at the center of the bottom of the cabinet.
Installing the BX155 Range Hood
Figure 3.
Figure 4.
Once the cutout has been made to the insert:
Figure 2.
14 Cyclone Insert Installation - English
13 ⅛”
32”
13 ½”
19
BX155 INSTALLATION - INSTALLATION CUTOUT TEMPLATES
BX15522
20 ⅞”
10 ⅞”
10 ⅝”
26 ½”
BX155/BX212/BX215 - INSTALLATION CUTOUT TEMPLATES
BX21228/BX21528
BX21234/BX21534
BX15522/BX21222
15Cyclone Insert Installation - English
BX600/BX360/CLX60 - PARTS SUPPLIED
1 × Hood 1 × Round Adapter
HARDWARE PACKAGE
PRE-INSTALLED
2 × LED Lights
(1.5W per bulb)
8 × Mounting Screws
1 × Rectangular Oil Collector
• Cutout specs may change without notice. Please refer to www.cyclonerangehoods.
com/range-hoods/inserts/bx600/ to conrm the cutout specications
WARNING
16 Cyclone Insert Installation - English
1. Remove both lters by pulling the lever to release the locking
mechanism (Figure 1).
2. Attach rubber seal and damper to rectangular cutout on top
of the range hood using the screws provided (Figure 2).
3. By removing the lters, locate the four Phillips screws. ere
are 2 on the right side and 2 on the le side. Remove the 4
screws using your screwdriver or power drill and place them
aside as you will need them later on to reattach the face.
Remove the face and set it aside.. (Figure3)..
4. Aer removing the four screws, reach into the cavity of the
hood and unplug the two wires that lead to the lights and the
one wire that leads to the switch/controls.
5. Once the three wires are unplugged, you can completely
remove the face and set it aside. With the face removed, you
will be able to identify the four mounting holes that you will
use to secure the hood to the cabinet.
6. Hold range hood upright, and insert range hood upward into
cabinet cutout. Secure the range hood to the cabinet using the
four screws provided. Two for each side (Figure 4).
7. Reattach and screw the face onto range hood. Connect the
connectors of switch and two lights.
8. Make sure that the adapter is connected to ductwork.
9. Place bae lters back into place.
10. Connect the power plug to the junction box.
Install the BX600/BX360/CLX60 Range Hood
BX600/BX360/CLX60 INSERT HOOD INSTALLATION
is appliance requires 120V 60Hz electrical supply and
connection to an individual properly grounded branch circuit
protected by a circuit breaker or time delay fuse.
• Turn o power circuit at the service panel before wiring
this unit.
• All electrical work must be done by a qualied electrician
in accordance with all applicable codes and standards.
is range hood must be properly grounded.
WARNING
• At least two installers are required due to the weight and
size of the hood.
CAUTION
Figure 1.
Prepare for Installation
1. Unpack range hood and check contents. Note: Be cautious of
sharp edges within the unit.
2. Cut the insert cutout at the bottom of the cabinet using the
given cutout measurements on page 17 (Figure 1).
3. Locate the cutout at the center of the bottom of the cabinet.
Figure 3.Figure 2.
• Prior to installation, inspect the product for any damage
or defects. Any damage and/or defects must be reported
to the vendor immediately.
CAUTION
Figure 4.
17Cyclone Insert Installation - English
10 ¼”
26”
BX600/BX360/CLX60 - INSTALLATION CUTOUT TEMPLATES
BX60028/BX360/28CLX6028
13 ⅛”
31 ⅜”
BX60034/BX36034/CLX6034
• Cutout specs may change without notice. Please refer to www.cyclonerangehoods.
com/range-hoods/inserts/bx600/ to conrm the cutout specications
WARNING
18 Cyclone Insert Installation - English
INSERT HOODS SPECIFICATIONS
q
BX155 BX212/BX215 BX600/CLX60 BX360 SS13024/SS13030
SIZE
22”
BX215 - 28”/34”
BX212 - 22"/28"/34”
28”/34” 28”/34” 24”/30”
MAX.
CUBIC FEET/METER
(CFM)
300
BX212 - 300
BX215 - 550
600 300 300
MAX. SONES
4
BX215 - 6
BX212 - 4
6 4 6
MOTOR
CENTRIFUGAL CENTRIFUGAL CENTRIFUGAL CENTRIFUGAL CENTRIFUGAL
FINISH
STAINLESS STEEL STAINLESS STEEL STAINLESS STEEL STAINLESS STEEL STAINLESS STEEL
CONTROLS
PUSH BUTTON
SLIDE CONTROL
(PUSH BUTTON for
BX21222)
PUSH BUTTON PUSH BUTTON SLIDE CONTROL
SPEED LEVELS
3 3 3 3 3
FILTERS
MESH MESH BAFFLE BAFFLE MESH
DUCT
6” ROUND TOP
WITH DAMPER
6” ROUND TOP
WITH DAMPER
6” ROUND TOP
WITH DAMPER
6” ROUND TOP
WITH DAMPER
6” ROUND TOP
LIGHTING
2 × 120V 25W
Halogen
2 × 120V 25W
Halogen
2 × 12V 1.4 W
LED Light Bulb
2 × 12V 1.4 W
LED Light Bulb
2 × 12V 1.4 W
LED Puck Light
AC INPUT
120V
60Hz
120V
60Hz
120V
60Hz
120V
60Hz
120V
60Hz
MOUNTING HEIGHT
28”-36” 28”-36” 28”-36” 28”-36” 28”-36”
*Bulb & socket may change.
19Cyclone Insert Installation - English
TROUBLESHOOTING
ISSUE CAUSE SOLUTION
Unit doesn’t work aer
installation.
1. e power source is not turned ON. 1. Ensure power is ON for the circuit breaker and
unit.
2. e power line and the cable locking connector
are not connected properly.
2. Check the power connection with the unit is
connected properly.
3. e unit does not turn on when it is at full
extension (SS130 only).
3. Check if the slide control is turned o or set to
0.
Light indicates power
ON but motor doesn’t
turn.
1. e motor is defective, possibly seized. 1. Change the motor. Servicing may be required.
2. e motherboard is defective. 2. Change defective part. Servicing may be
required.
e unit vibrates. 1. e motor is not secured. 1. Tighten the motor in place.
2. Damaged blower wheel. 2. Replace the blower wheel. Servicing may be
required.
3. e hood is not secured in place. 3. Check the installation of the hood.
4. Venting duct too small or blockage in the duct
opening or ductwork.
4. Check the venting duct and the wall cap or roof
cap.
Motor works but lights
do not turn on.
1. Defective light bulb. 1. Change the light bulb.
2. e light bulb is loose. 2. Tighten the light bulb.
e hood is not venting
out properly.
1. e hood might be hanging too high from the
cook top.
1. Adjust the distance between the cook top and
the bottom of the hood within 28” - 36” above
the range.
2. Blockage in the duct opening or ductwork. 2. Remove all the blocking from the duct work or
duct opening.
3. Using the wrong size of ducting. 3. Use at least 6” duct work.
20 Cyclone Insert Installation - English
MAINTENANCE
• Always switch o power and unplug before cleaning and
maintenance.
• Mesh lters may discolour over time. Although product
is dishwasher friendly, depending on the amount of grease
and the type of dish-washing solutions used it may cause
the mesh lters to discolour faster.
WARNING
Surface and Filter Cleaning:
Clean with warm soapy water and a clean cloth. Do not use corrosive
or abrasive detergent or steel wool pads that can scratch the surface
of the machine.
Use non-abrasive stainless steel polish to bu out the luster and
grain. Scrub lightly.
e stainless steel lters trap residue and grease from cooking.
e lters should never have to be replaced but should be cleaned
thoroughly every 30 to 60 days depending on cooking habits. Filters
may be placed on the top rack of the dishwasher or soaked in warm,
soapy water.
Spray degreasing detergent and leave to soak if heavily soiled.
Replacing Light Bulbs:
• Always switch o electrical supply before carrying out any
operation on the appliance.
• In order to prevent the risk of personal injury, the halogen
lamps must be cooled before removal.
• Use LED bulb, 1.5W maximum per bulb, for SS130.
• *Bulb & socket may change.
WARNING
To change bulbs for SS130:
is range hood requires LED bulbs. (1.5W maximum per bulb)
To change the light bulb, remove light case from the light socket.
e light case can be accessed from the inside of the body of the
machine.
i. Disconnect the connecting wires of the light socket from the
motherboard wires.
ii. Remove grease lters and push light case outward away from
the machine.
iii. Replace with a new case.
To change bulbs for BX212/BX215/BX600/BX360/CLX60
1. Firmly press ngers against the light bulb and twist counter-
clockwise until bulb is loosened.
For a complete description of our maintenance and operating instructions you may visit us online at
www.CycloneRangeHoods.com to download your model’s Use and Care Guide.
Due to the fact that we are always striving to improve our products and take advantage of advances in technology there may
be slight variations in your product.
21Cyclone Insert Installation - English
CONTROL PANEL
Model: BX212/BX215
e unit is controlled by slide controls.
e fan and light are each controlled by a slide control. e
fan switch has four positions: HIGH, MED, LOW and OFF. e
light switch has two positions, ON and OFF.
Model: SS130
e unit is controlled by slide controls.
e fan and light are each controlled by a slide control. e
fan switch has four positions: HIGH, MED, LOW and OFF. e
light switch has two positions, ON and OFF.
Fan Controls
HIGH speed
OFF
Light
ON
OFF
Simply pull the front slide out towards yourself and turn the light
switch to “on” and have the fan setting to the desired speed at which
you would like the fan to start (control is found underneath hood
on the right side). Push slide back into place. Now when you pull
the front slide out towards yourself the unit lights and fan should
automatically come on.
Automatic Operations
0
1
0
1
2
3
MED speed
LOW speed
3 2 1 0 1 0
Fan Controls
Light
ON/OFF
Model: BX600/BX360/CLX60/BX15522/BX21222
e unit is controlled by push buttons.
e fan and lights are each controlled by a push buttons. e fan
switch has four positions: HIGH, MED, LOW and OFF.
Fan Controls
HIGH
speed
MED
speed
LOW
speed
ON
Light
*Note: BX600/BX360/CLX60 t with 3 minutes time-delay OFF
feature.
22 Cyclone Insert Installation - English
Cyclone Range Hoods Inc. (Hereunder called “e Company”) provides a warranty that its products are free from defects in
workmanship and materials for a period of two (2) years from the date of purchase. is warranty includes in-home service (where
applicable) for the rst year and workshop service for the second year. During that time period, e Company will, at the Company’s
option, repair or replace without charge any parts or complete unit found to be defective. Further, the warranty for the motor extends for
an additional eight (8) years, with labor costs extra. is warranty is not transferable from the original purchaser. e company reserves
the right to use functionally equivalent reconditioned parts or products as warranty replacement or as part of warranty service.
THE COMPANY WILL NOT BE HELD RESPONSIBLE FOR ANY CLAIMS OVER THE ORIGINAL PURCHASE PRICE OF
THE PRODUCTS NOR BE LIABLE FOR INCIDENTAL, CONSEQUENTIAL OR SPECIAL DAMAGES ARISING OUT OF OR IN
CONNECTION WITH PRODUCT USE OR PERFORMANCE.
Some provinces do not allow the exclusion or limitation of incidental or consequential damages, so the above limitation or exclusion
may not apply to you.
In-home service will be made available only in areas where a contracted service provider oers services. If customer outside the
service area, additional charges may apply for shipping costs for warranty repair or replacement. e unit removal and re-installation
works are under the customer responsibility.
is warranty does not cover any costs related to the products including but not limited to:
a) Normal maintenance service required for the products; b) light bulbs, plastic grease collector cups, lters, ducts, roof caps, wall
caps and other accessories for ducting; c) natural wear of the nish of the products or wear caused by improper maintenance, use of
corrosive and abrasive cleaning products; d) products or parts which have been subject to freight damage, misuse, negligence, accident
or any other circumstances beyond the control of e company.
i. e warranty will be automatically void if any of the following apply:
ii. Commercial use of the products or use otherwise inconsistent with its intended purpose;
iii. e function of part or the complete assembly has been modied or repaired by unauthorized person;
iv. Faulty installation or installation contrary to recommended installation instructions:
• e hood installed at less than 28” minimum above the range surface;
• Ventilation system has not been vented to the outside or ventilation system stuck;
• Less than 6” round or equivalent ductwork has been used anywhere in the venting system for models with 550 CFM or
more CFM;
• e venting duct turned downward anywhere in the venting system;
• Wrong electrical wire connection for the fan.
To qualify for warranty service you must: (a) notify us at the address telephone number stated below within 2 days of the discovery of the
defect; (b) provide the model number and serial number; and (c) describe the nature of any defect in the product or part.
At the time of requesting for service, you must present evidence of your proof of purchase and proof of the original purchase date. If
we determine that the warranty exclusions listed above apply or if you fail to provide the necessary documentation to obtain service,
customer will be responsible for all shipping, travel, labor and other costs related to the service.
For warranty services or repair, please contact the dealer from whom you purchased the product or the address shown below.
North America Range Hoods Inc.
1361 Huntingwood Drive, Unit 16
Scarborough, ON M1S 3J1
Tel: 1-888-293-5662 or (416) 293-0933 Fax (416) 293-4793
Email: Info@CycloneRangeHoods.com
Website: www.CycloneRangeHoods.com
CYCLONE RANGE HOODS LIMITED WARRANTY
V11-17EN
