– 2 –

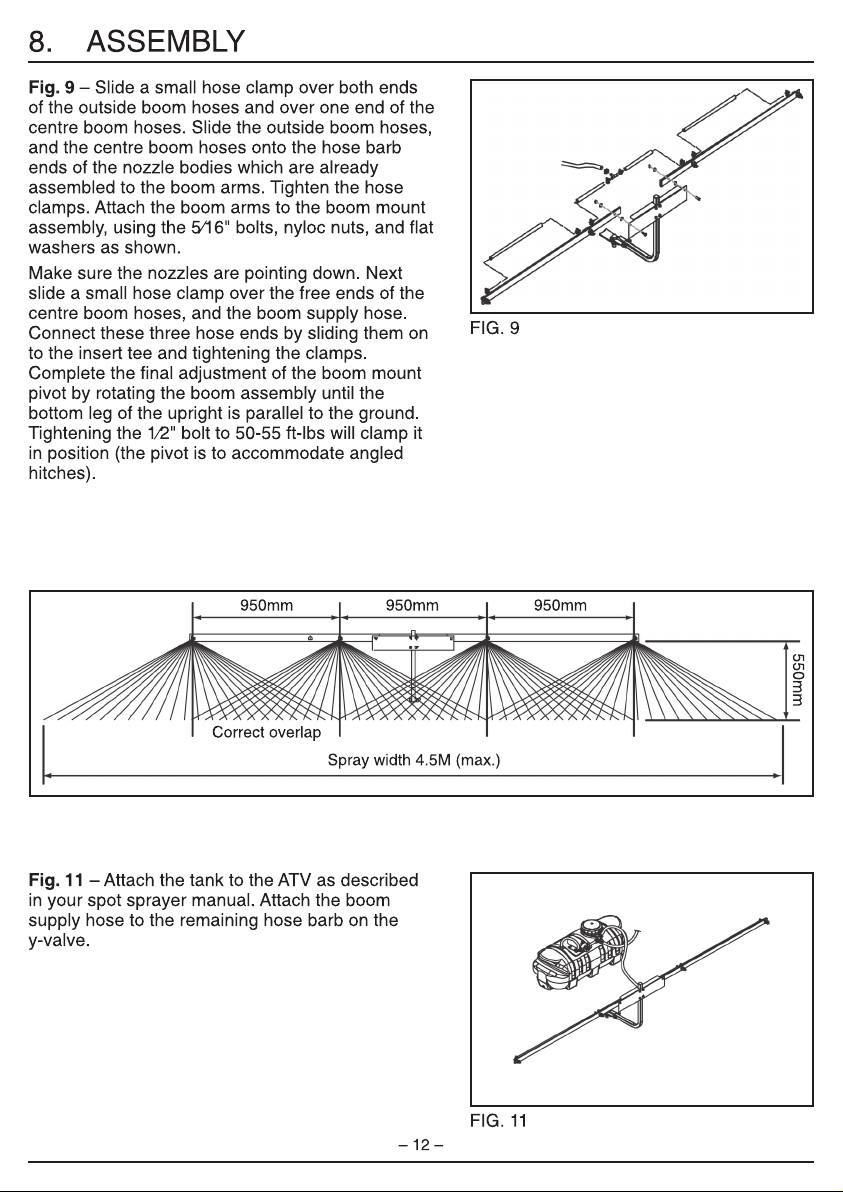

Fig. 10 – Loosen the u-bolts and slide the boom mount plate up or down on the upright until you
get the correct spray overlap. The nozzle height should be approximately 23" above ground.
FIG. 10

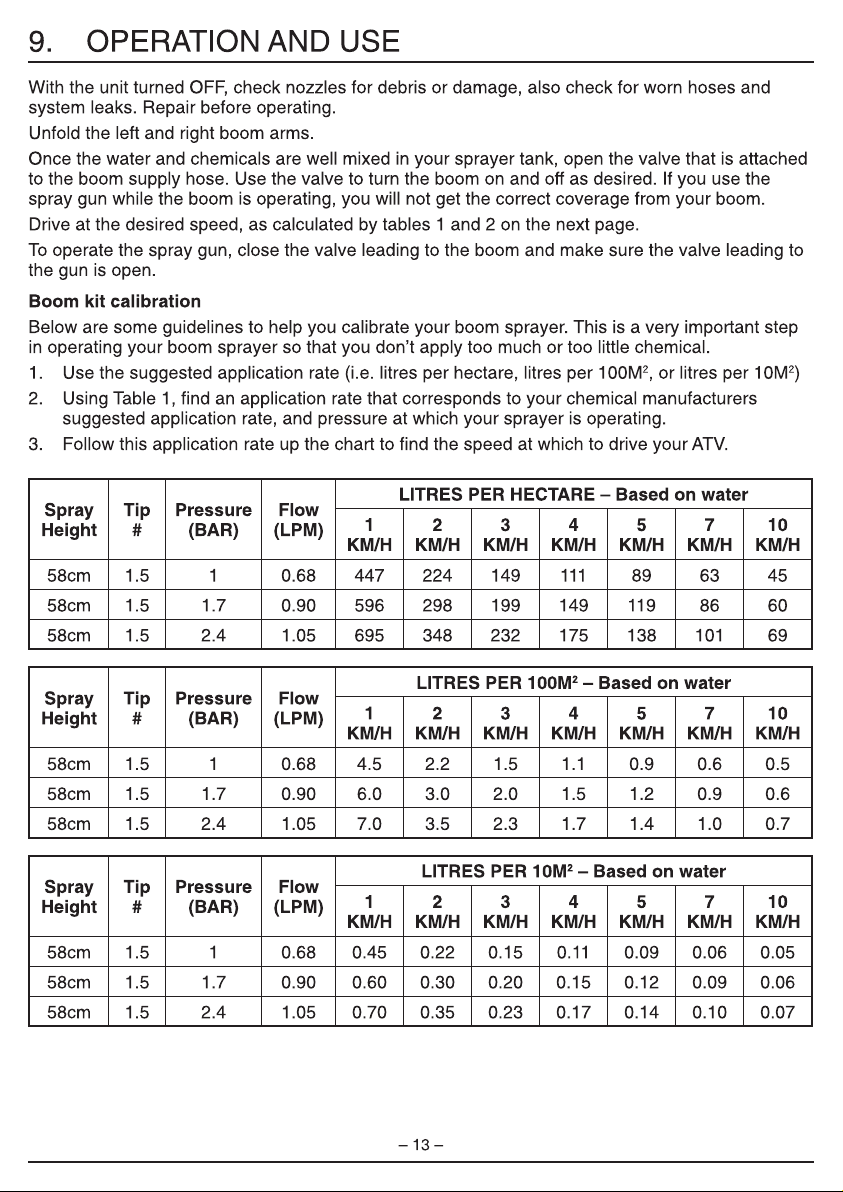

Spray
Height
Tip
#
Pressure
(BAR)
Flow
(LPM)
LITRES PER HECTARE – Based on water
1
KM/H
2
KM/H
3
KM/H
4
KM/H
5
KM/H
7
KM/H
10
KM/H
58cm 1.5 1 0.68 447 224 149 111 89 63 45
58cm 1.5 1.7 0.90 596 298 199 149 119 86 60
58cm 1.5 2.4 1.05 695 348 232 175 138 101 69
Spray
Height
Tip
#
Pressure
(BAR)
Flow
(LPM)
LITRES PER 100M
2
– Based on water
1
KM/H
2
KM/H
3
KM/H
4
KM/H
5
KM/H
7
KM/H
10
KM/H
58cm 1.5 1 0.68 4.5 2.2 1.5 1.1 0.9 0.6 0.5
58cm 1.5 1.7 0.90 6.0 3.0 2.0 1.5 1.2 0.9 0.6
58cm 1.5 2.4 1.05 7.0 3.5 2.3 1.7 1.4 1.0 0.7
Spray
Height
Tip
#
Pressure
(BAR)
Flow
(LPM)
LITRES PER 10M
2
– Based on water
1
KM/H
2
KM/H
3
KM/H
4
KM/H
5
KM/H
7
KM/H
10
KM/H
58cm 1.5 1 0.68 0.45 0.22 0.15 0.11 0.09 0.06 0.05
58cm 1.5 1.7 0.90 0.60 0.30 0.20 0.15 0.12 0.09 0.06
58cm 1.5 2.4 1.05 0.70 0.35 0.23 0.17 0.14 0.10 0.07

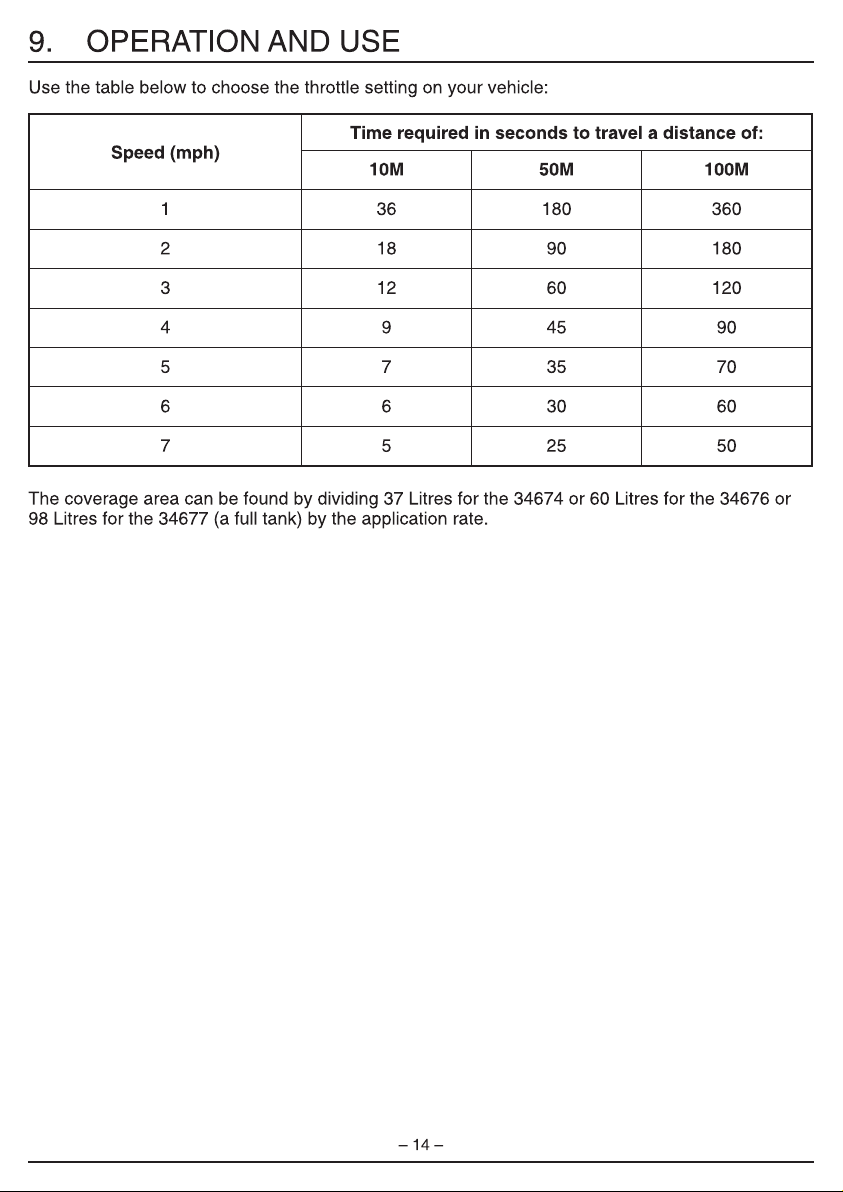

Use the table below to choose the throttle setting on your vehicle:
Speed (mph)
Time required in seconds to travel a distance of:
10M 50M 100M
1 36 180 360
2 18 90 180
3 12 60 120
4 9 45 90
5 7 35 70
6 6 30 60
7 5 25 50
The coverage area can be found by dividing 37 Litres for the 34674 or 60 Litres for the 34676 or
98 Litres for the 34677 (a full tank) by the application rate.
