Alarm.com Smart Chime
Installation Guide ADC-W115C-INT
Package Content
Device * 1
Double Tape * 2
Foot Rubber * 4
Screw Kit x 1
International Adaptor * 1
Multi AC Plug * 3 (EU*1,AU*1,UK*1)
Extendation cable * 1
Pre-installation checklist
ADC-W115C-INT
Alarm.com Smart Chime (included)
• Standard Device
• Broadband Internet connection (cable, DSL, or fiber optic),with a Wi-Fi router
• A computer, tablet, or smartphone with Internet access is required
• An Alarm.com Wi-Fi connected device
• An Alarm.com account with a service package that supports video

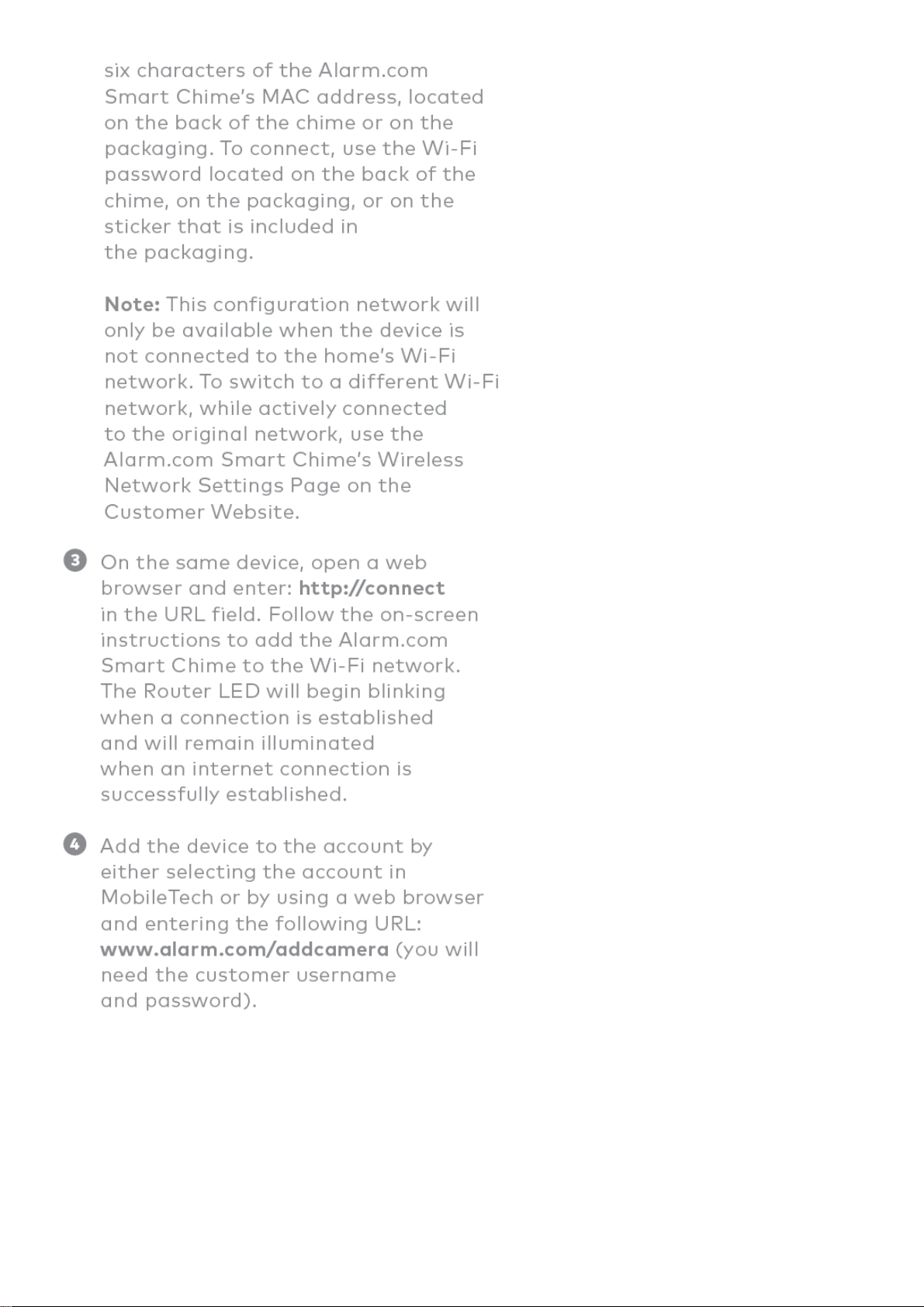

There are two options for connecting the ADC-W115C-INT to the Internet: Access Point

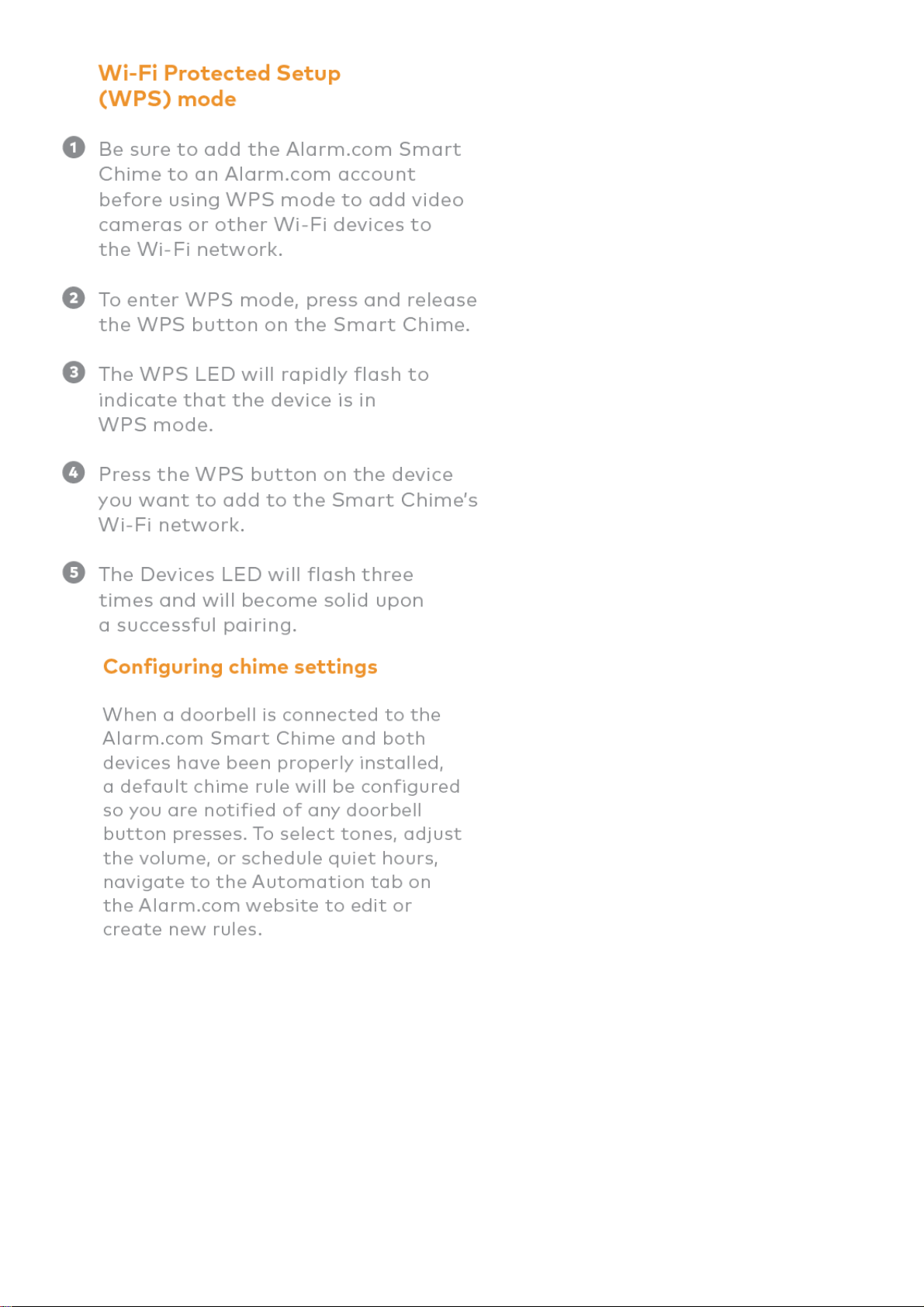

(AP) mode and Wi-Fi Protected Setup (WPS) mode. Use WPS mode if you have
Easy access to the customer’s router and the router has the WPS feature enabled.
Note that some Internet Service Providers disable the WPS feature on customer routers. AP mode is the
most reliable wireless method for installing this device.

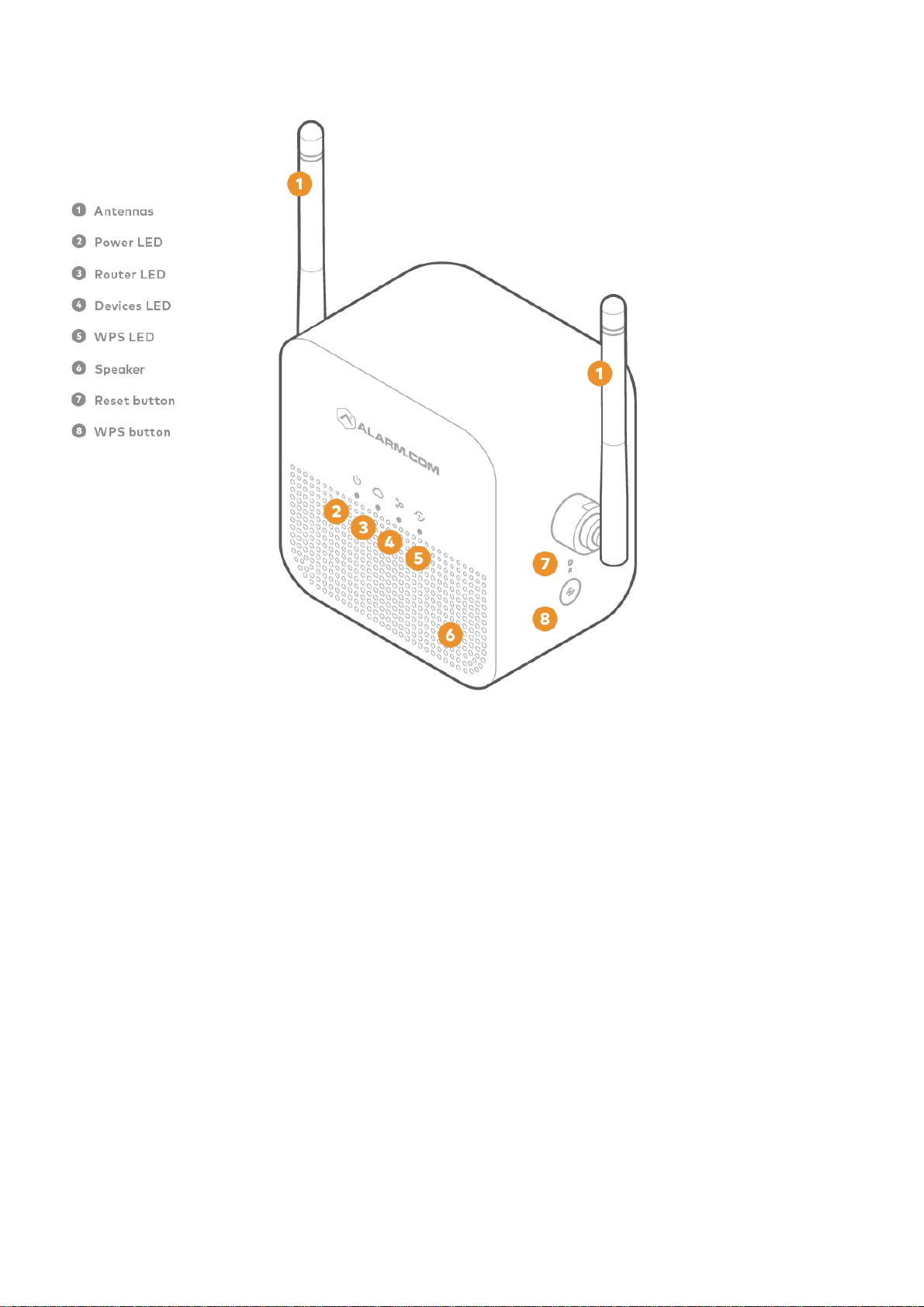

Overview
Designed to work seamlessly with the Alarm.com platform, the ADC-W115C-INT serves as a robust Wi-Fi
extender and customizable wireless doorbell chime.
Simply plug the ADC-W115C-INT into a wall outlet, pair with the existing router, add to an account, add a
doorbell camera, and enjoy boosted network signals that provide instantaneous chime notifications.
Installation Smart Chime

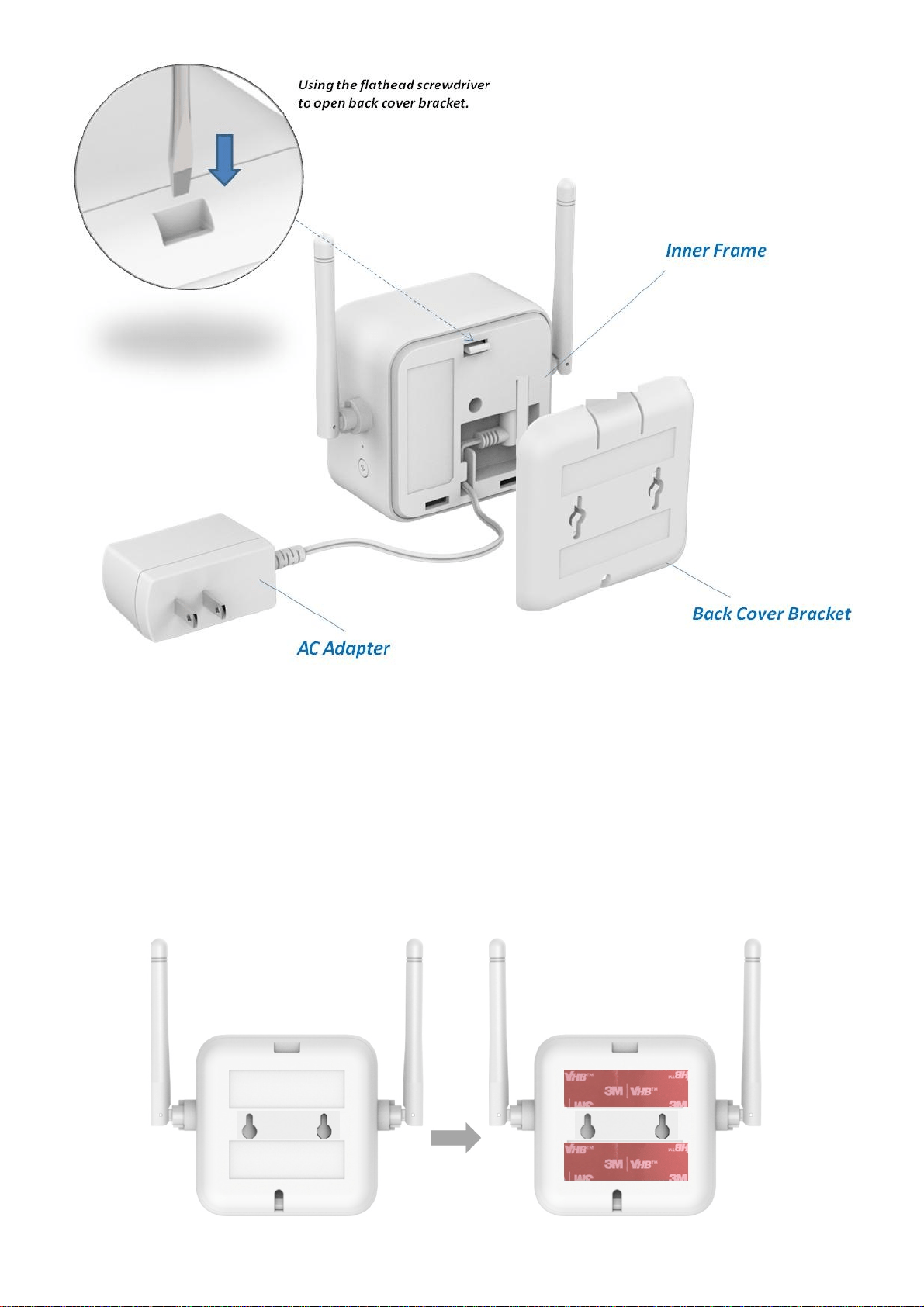

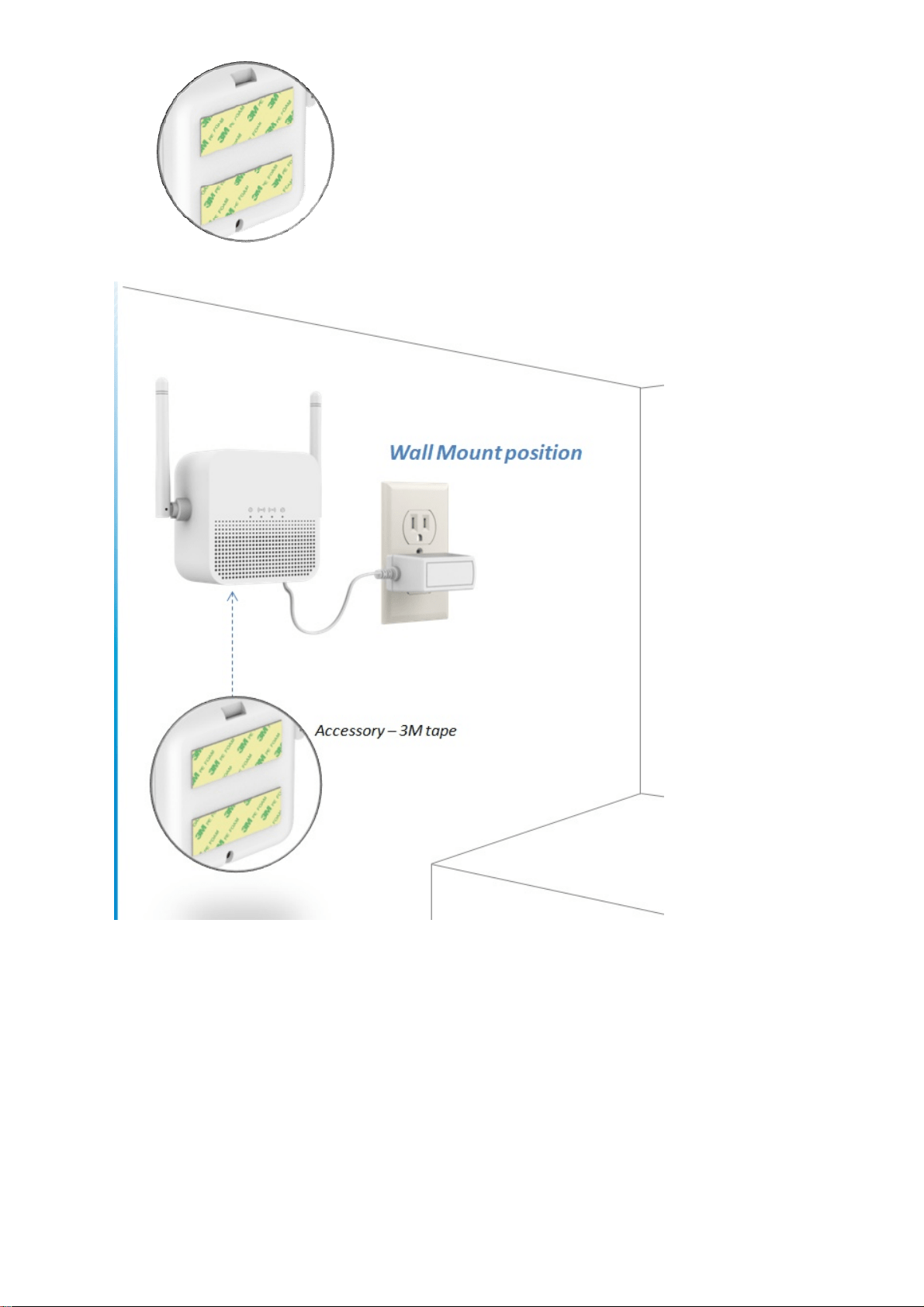

Double Tape installation
l Stick double tape to bottom cover
l Remove “Adhesive release paper”
l Paste the wall material : Tiles , cement, Glass, Acrylic sheet, Laminated board and smooth
surface.
l Installation environment: Door, Ceiling, under desk or desk partition.

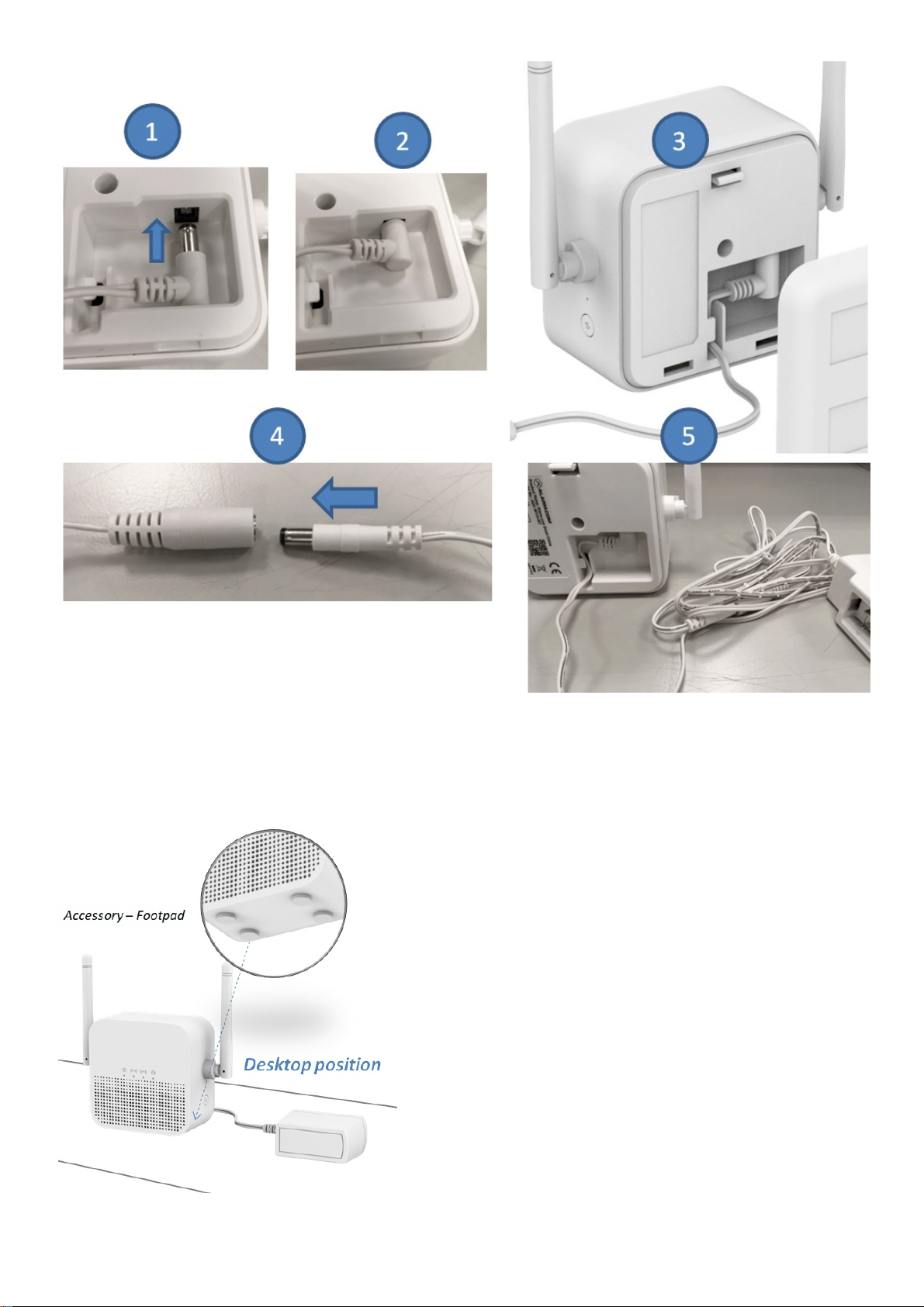

Extension cable connect to Power Adaptor
l Extension cable plug in Device DC connector (Picture 1, Picture 2, Picture 3)
l Extension cable connect to DC Adaptor (Picture 4)
l Done (Picture 5)
Foot Pad Installation
l Stick 4 foot pad
l Device place to desktop

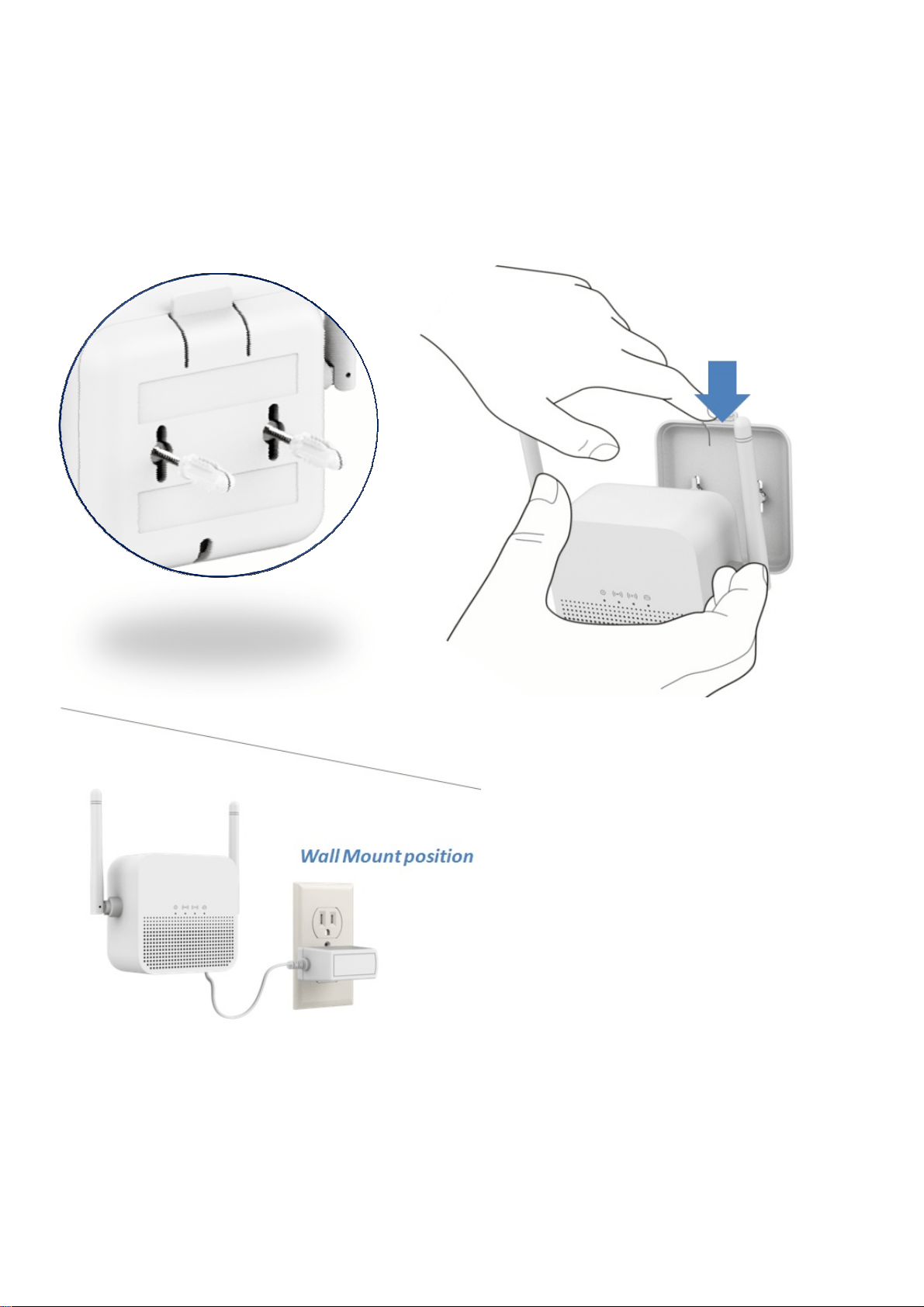

Screw Kit to wall Installation
l Install the screws that secure the wall mounting to the wall.
l If you are using wall anchors to support the wall, install two pairs of anchors on the wall with the
wall mounting brackets attached.
l Pressing the latch to take off the device.
l Done
Connect the Alarm.com Smart Chime to your Wi-Fi network

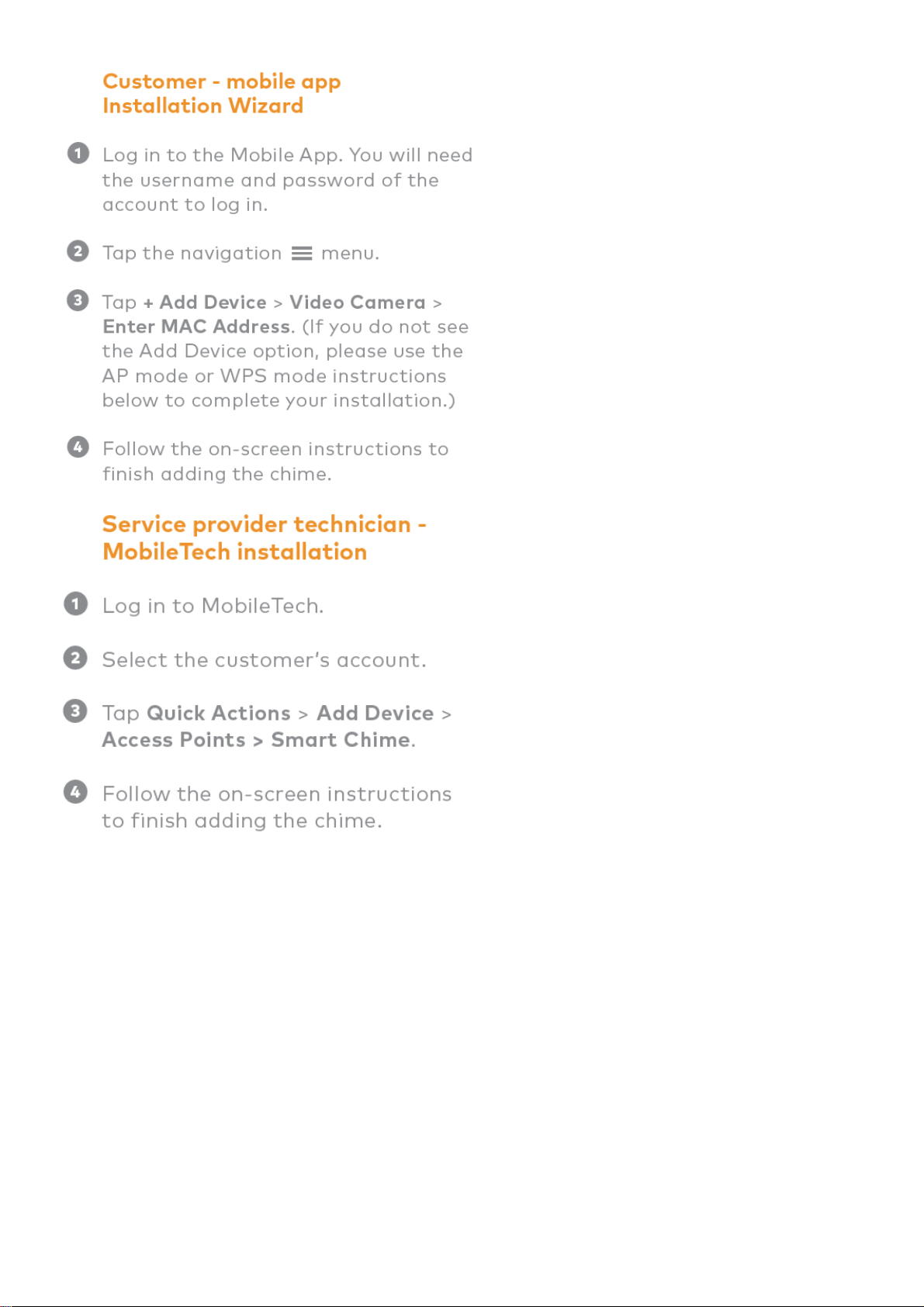

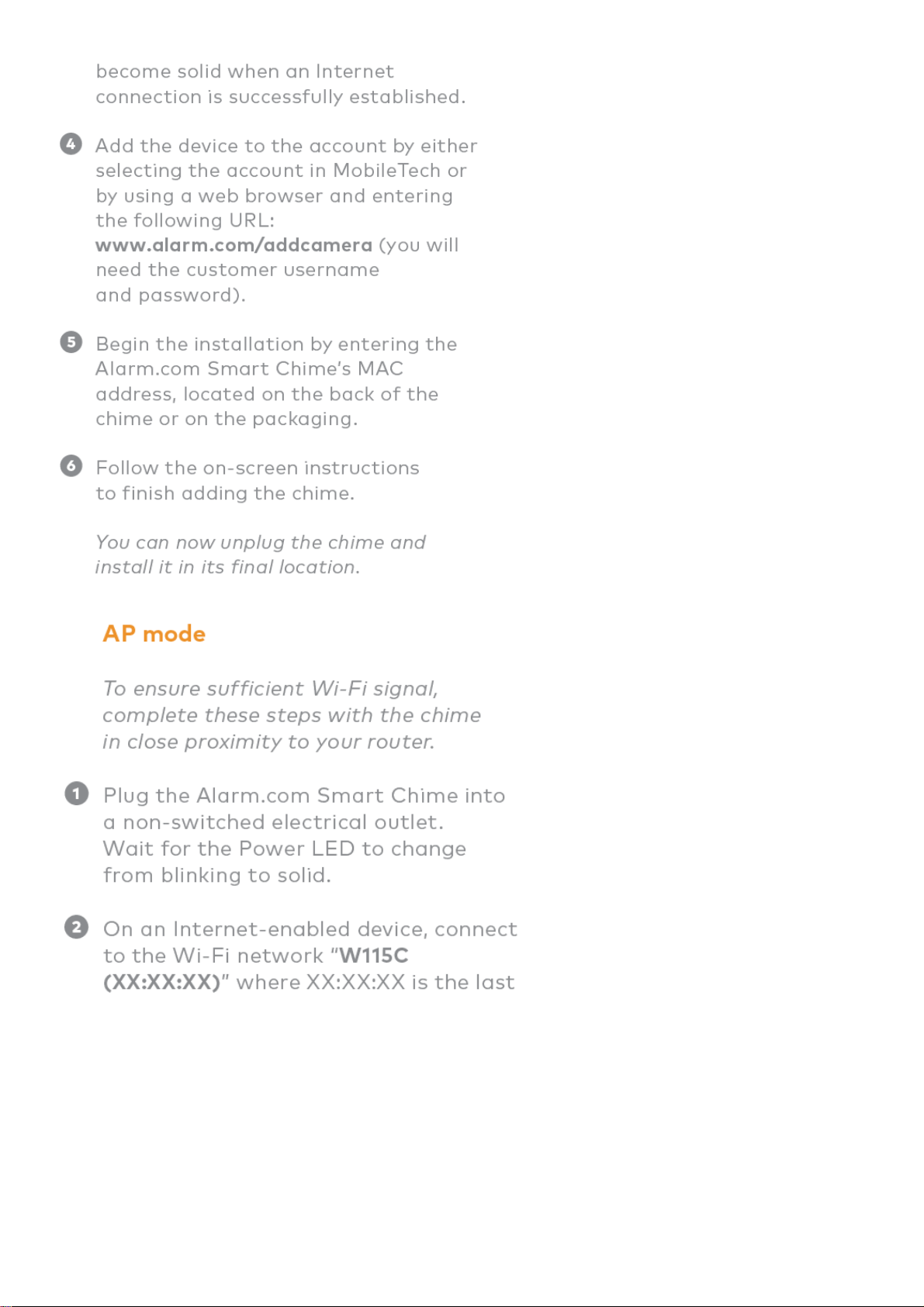

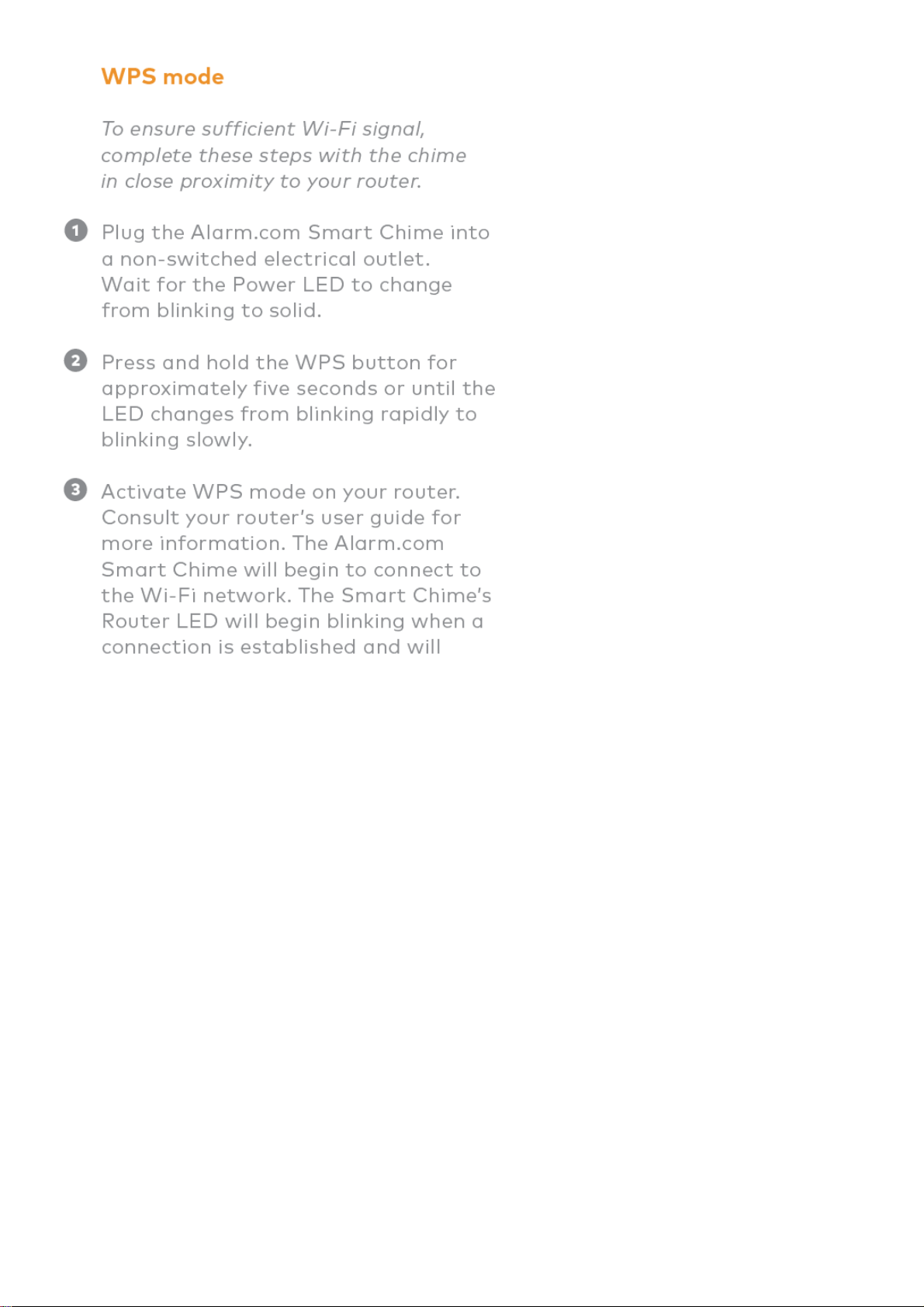

Choose the appropriate installation wizard (customer or technician) below or proceed to the AP mode or
WPS mode section to begin adding the chime.

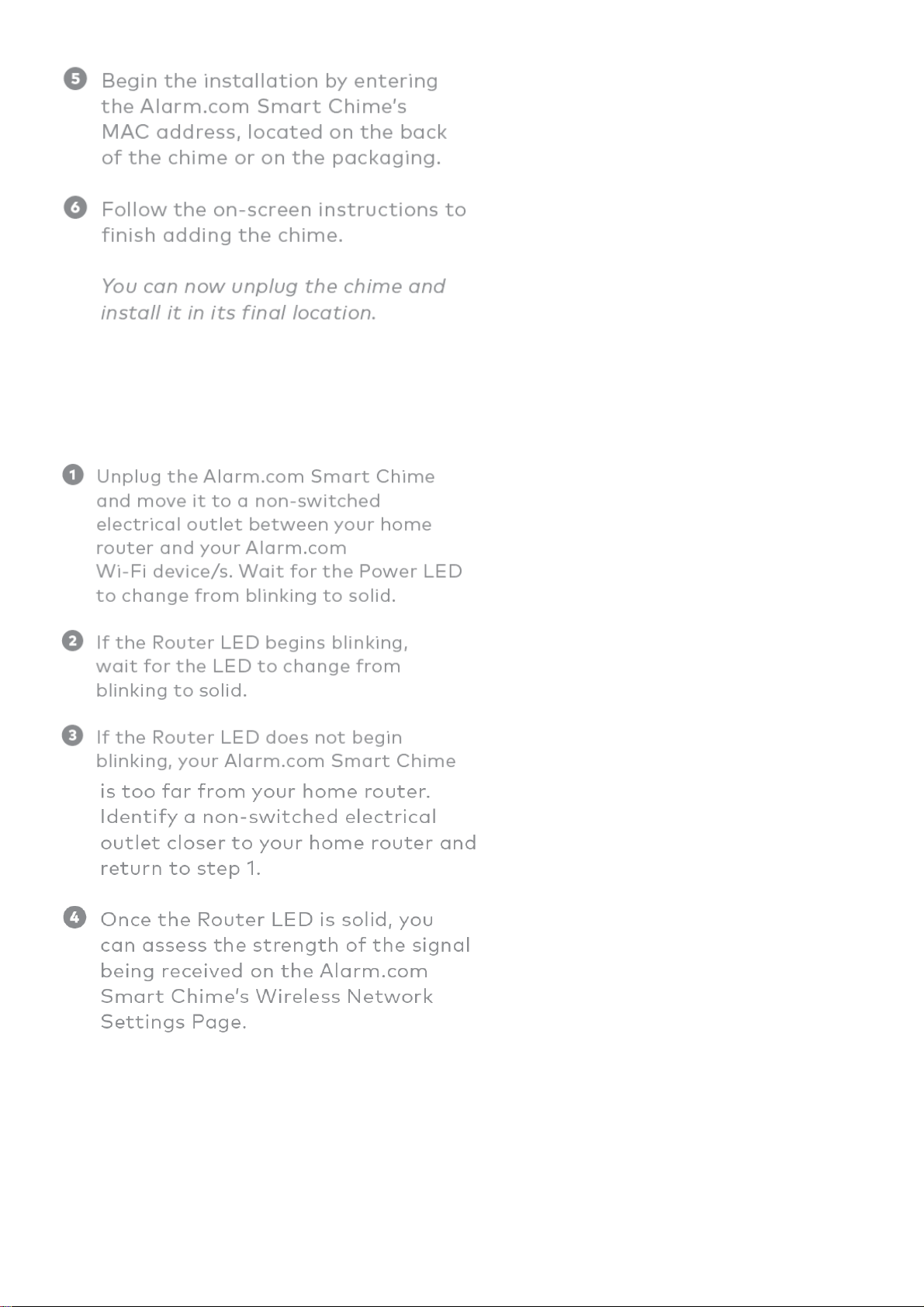

Connecting an Alarm.com Wi-Fi device to the Alarm.com Smart Chime

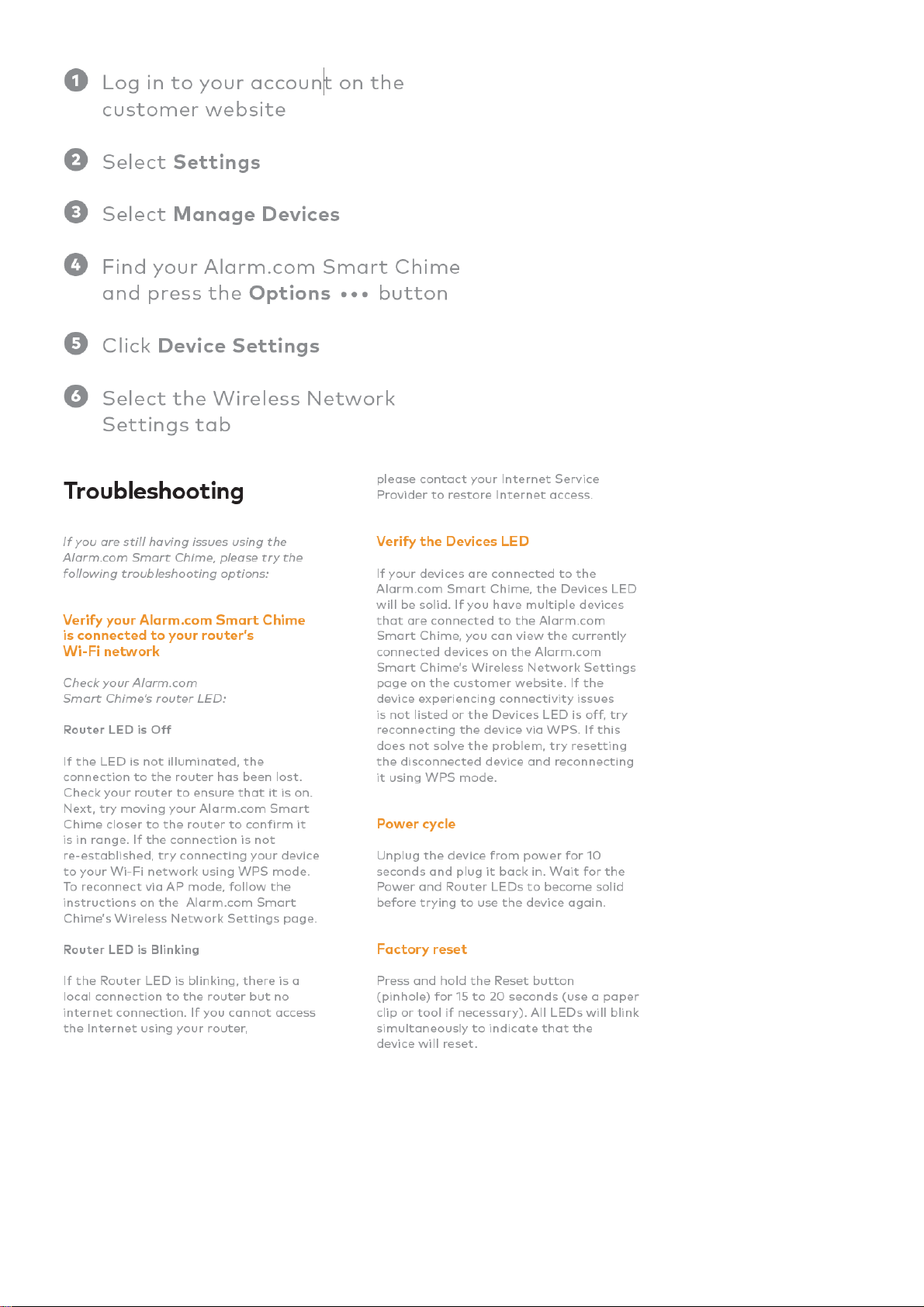

Accessing the Alarm.com Smart Chime’s wireless network settings page
Notices
FCC warning statement
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled
environment.This equipment should be installed and operated with minimum distance 20cm
between the radiator & your body. This equipment has been tested and found
to comply with the limits for a Class B digital device,pursuant to Part 15 of the FCC Rules. These
limits aredesigned to provide reasonable protection against harmful interference in a residential
installation.This equipment generates, uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to radio or television
reception,which can be determined by turning the equipment off and on, the user is encouraged to
try to correct the interference by one of the following measures:
• Reorientorrelocatethereceivingantenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
• Consult the dealer or an experienced radio/TV technician for help.
Any changes or modifications not expressly approved by the party responsible for compliance
could void the user’s authority to operate this equipment.
This device complies with part 15 of the FCC Rules.
Operation is subject to the following two conditions:
1 This device may not cause harmful interference, and
2 This device must accept any interference received, including interference that may cause
undesired operation.
Industry Canada statement
This device contains licence-exempt transmitter(s)/receiver(s) that comply with Innovation, Science
and Economic Development Canada’s licence-exempt RSS(s). Operation is subject to the following
two
conditions:
1 This device may not cause interference.
2 This device must accept any interference, including interference that may cause undesired
operation of the device.
This equipment complies with FCC and ISED radiation exposure limits set forth for an uncontrolled
environment. This equipment should be installed and operated with a minimum distance of 20cm
between the equipment and your body. This device and its antenna(s) must not be co-located or
operating in conjunction with any other antenna or transmitter
