Table of Contents
Product Record...................................................................................................................................................... 2
Important Safety lnstmctions ............................................................................................................................ 2-3
E)_/ingProcedures.................................................................................................................................................. 4
Features ..................................................................................................................................................................
Common E)_/ing Problems ....................................................................................................................................
Careand Cleaning ................................................................................................................................................. 6
Avoid Se_fice Checklist ........................................................................................................................................ 7
Warranty .................................................................................................................................................................. 8
Espaflo]............................................................................................................................................................. 9q
:!
Read and Save These Instructions This Use and Care Guide provides general operating
instructions for yourdryer. Italso contains information
Record Your Model and Serial Numbers aboutfeaturesforseveralothermodels.Your dryer may
Record below the model and serial numbers found on the dryer serial not have every feature included.
plate located on the left sideof the door opening. Keep these numbers Usethe dryer onlyas instructed in this Use&CareGuide
for future reference.
and the Operating Instructions included with your
dryer.
Model Number:
Note: The instructions appearing in this Use and Care
Serial Number: Guide are not meant to cover every possible condition
and situation that may occur. Common sense and
caution must be practiced when installing, operating
Purchase Date: and maintaining any appliance.
DRYER SAFETY
Your safety and the safety of others is very important.
We have provided many important safety messages in the Useand Care Guide, Operating Instructions, Installation Instructions
and on your appliance. Always read and obey all safety messages.
Pr_ This isthe safety alert symbol. This symbol alerts you to hazards that can kill or hurt you or others. All safety messageswill
be preceded by the safety alert symbol and the word "DANGER" or "WARNING". These words mean:
You will be killed or seriously injured if you don't follow instructions.
You can be killed or seriously injured if you don't follow instructions.
AII safety messages will identify the hazard, tell you how to reduce the chance of injury, and tell you what can happen
if the instructions are not followed.
For your safety the
information inthis manual must be foilowed
to minimize the risk of fire or explosion or to
prevent property damage, personal injury or
loss of life.
Do not store or use gasoline or other
flammable vapors and liquids in the
vicinity of this or any other appliance.
WHAT TO DO IF YOU SMELL GAS:
• Do not try to light any appliance.
Do not touch any electrical switch;
do not useanyphone inyourbuilding.
Clear the room, building or area of
all occupants.
Immediately call your gas supplier
from a neighbor's phone. Followthe
gassupplier's instructions.
Ifyou cannot reachyour gassupplier,
call the fire department.
Installation and servicemust be performed by
aqualified installer, serviceagencyorthe gas
supplier.
[-L_Avoid firehazard orelectrical shock. Donot useanadaptor plug
or extension cord or remove grounding prong from electrical power cord. Failure
to follow this warning can causeserious injury, fire or death.
ELECTR/C DR YERS:
GAS DRYERS:
14-30R
FUSED30 AMP
120/240 V OR
120/208 V
WALL
RECEPTACLE
DRYER
DRYER
SERVICE CORD
CORRECT
Use this way ONLY
Grounding type
watt receptacle
o not under
ny circumstances
ut_ remove,
r bypass
he grounding prong
this plug. j
grounding plug
CORRECT
Use this way ONLY
Important Safety Instructions
You can be killed or seriously injured if you don't follow these Important Safety Instructions:
,,To reduce the riskof fire, electrical shock, or injury to persons when using this dryer, comply with the basicwarnings listed below.
Failure to comply with these warnings could result in serious personal injuries.
PreventFire
Do not dry items that have been previously cleaned in, soaked in, or spotted with gasoline, cleaning solvents, kerosene, waxes,
etc. Do not store these items on or near the dryer. These substances give off vapors that could ignite or explode.
Do not place items exposed to cooking oils in your dryer. Items contaminated with cooking oils may contribute to a chemical
reaction that could cause a load to catch fire.
Do not dry articles containing rubber, plastic or similar materials such as bras, galoshes, bath mats, rugs, bibs, baby pants,
plastic bags and pillows that may melt or burn. Some rubber materials, when heated, can under certain circumstances produce
fire byspontaneous combustion.
Clean the lint screen before or after each load. The interior of the dryer, lint screen housing and exhaust duct should be cleaned
approximately every 18 months by qualified service personnel. An excessiveamount of lint build-up in these areascould result in
inefficient drying and possible fire. SeeCare and Cleaning.
• Do not operate the dryer if the lint screen is blocked, damaged or missing. Firehazard, overheating and damage to fabrics can
occur. If your dryer has a drying rack, always replace the lint screen when finished using the drying rack.
- Risk of Fire- A clothes dryer produces combustible lint. Thedryer must be connected to an exhaust outdoors. Regularly inspect
the outdoor exhaust opening and remove any accumulation of lint around the outdoor exhaust opening and in the surrounding
area.
Do not obstruct the flow of ventilating air. Do not stack or place laundry or throw rugs against the front or back of the dryer.
• Do not spray any type of aerosol into, on or near dryer at any time.
• Do not usefabric softeners or products to eliminate static unless recommended by the manufacturer of the fabric softener or
product, i
Failureto comply with these warnings could result in fire, explosion, serious bodily injury and/or damage to the rubber or plastic
parts of the dryer.
Protect Children
Do not allow children to play on or in the dryer. Close supervision of children is necessarywhen the dryer isused near children.
As children grow, teach them the proper, safe use of all appliances.
Destroy the carton, plastic bag and other packing materials after the dryer isunpacked. Children might usethem for play. Cartons
covered with rugs, bedspreads or plastic sheets can become airtight chambers.
Keep laundry products out of children's reach. To prevent personal injury, observe all warnings on product labels.
Before the dryer is removed from service or discarded, remove the dryer door to prevent accidental entrapment.
Failure to comply with these warnings could result in serious personal injuries.
Preyen t Injury
To prevent shock hazard and assure stability during operation, the dryer must be installed and electrically grounded bya qualified
service person in accordance with local codes. Installation instructions are packed in the dryer for the installer's reference. Refer
to INSTALLATIONINSTRUCTIONSfor detailed grounding procedures. Ifthe dryer ismoved to a new location, haveit checked and
reinstalled by a qualified service person.
Toprevent personal injuryor damage to the dryer, the electrical power cord of a gasdryer must beplugged into a properly grounded
and polarized 3-prong outlet. The third grounding prong must never be removed. Never ground the dryer to a gas pipe.
Do not use an extension cord or an adaptor plug.
ALWAYS disconnect the dryer from the electrical supply before attempting any serviceor cleaning. Failureto do socan result
in electrical shock or injury.
Do not use any type spray cleanser when cleaning dryer interior. Hazardous fumes or electrical shock could occur.
To prevent injury, do not reach into the dryer if the drum is moving. Wait until the dryer hasstopped completely before reaching
into the drum.
To prevent injury and damage to the dryer:
Allrepairsandservicing must be performed by an authorizedservicerunless specifically recommended inthis Owner's
Guide. Useonly authorized factory parts.
Do not tamper with controls.
Do not install or store the dryer where it will be exposed to the weather.
A thermal limiter switch automatically turns off the motor in the unlikely event of an overheated situation (electric dryers only).
A service technician must replace the thermal limiter switch after correcting the fault.
Failure to comply with these warnings could result in serious personal injuries.
Pedestal
A pedestal accessory specifically designed for this dryer may be used when elevating the dryer for ease of use.
Failureto useaccessoriescertified bythe manufacturer could result in personal injury, property damage or damage to the dryer.
SAVE THESE INSTRUCTIONS
3
Printed in U.S.A.
Drying Procedures
• Follow the guidelines below for preparing the load for drying.
Readthe Operating Instructions card for operating your specific model.
Always read and follow fabric care labels and laundry product labels.
To reduce the risk of fire, electrical shock, or injury to persons, read
Important Safety lnstructions before operating this dryer.
\
Follow fabric care label instructions.
Place small items in a mesh bag,
Fill dryer drum 1/3 to 1/2 full.
Prepare items for drying.
Dry items of similar fabric, weight and construction in the same load.
Separatedark itemsfrom light-colored items. Separate itemsthat shedlint
from those that attract lint. If an item sheds lint, turn it inside out.
Be sure buckles, buttons and trim are heatproof and won't damage the
drum finish. Close zippers, fasten hooks and Velcro®-Iike fasteners. Tie
strings and sashesto prevent snagging and tangling.
If possible, turn pockets inside out for even drying.
Check for stainswhich may not havebeen removed inwashing. Dryer heat
may permanently set some stains. Repeat stain removal process before
drying.
Placesmall items in a mesh bag to prevent tangling and for easyremoval.
2. Check that lint screen is clean and in place.
.
Load the dryer.
The average load will fill the drum I/3 to I/2 full. Items need room to
tumble freely for evendrying and lesswrinkling. Do not overload dryer.
When drying large items, dry only 2 or 3 at a time. Fillout the load with
small and medium sized items.
Fordelicate orverysmall loads, add 2 lint-free towels for better drying, less
wrinkling, and to prevent grease stains caused byfabric softener sheets.
Donot overdry items. Overdrying cancausewrinkling, shrinkage, harshness,
and a build-up of static electricity, which can produce more lint.
If desired, add a dryer fabric softener sheet.
4. Close the dryer door and set dryer controls (some models).
SeeOperating Instructions for your specific model controls.
5. Select cycle and settings according to type o f load, level of dryness and/
or options desired.
.
Start the dryer.
Turn the STARTknob clockwise to ON. Hold for 1-2 seconds and release.
To add or remove items when the dryer is running, open the door. The
dryer will always stop when the door isopened. Allow the drum to come
to a complete stop before reaching inside.
Torestart dryer, closethe door then turn the STARTknob clockwise to ON.
Hold for 1-2 seconds and release.
7. When the cycle ends, remove items immediately and hang or fold. If
load is removed before the cycle ends, turn cycle selector to OFF.
Feature5
Cycle Signal Control (some models)
When the Cycle Signal Control is ON, a signal will sound at the end of each
cycle and during the WRINKLE-RIDsetting (some models). The volume is
adjustable on some models.
Drum Light (some models)
A drum light will come on whenever the door is opened to illuminate the dryer
drum during loading and unloading. Closing the door turns off the light.
Reversible DryerDoor
Your dryer isequipped with a reversible door. The door can be hinged on the
right or left side. Refer to the INSTALLATIONINSTRUCTIONSfor directions on
changing the door.
Place the front bar under
the lip of the lint screen opening.
Drying Rack (some models)
Use the drying rack to dry items which should not be tumble dried.
I. Open the dryer door and remove the lint screen.
2. Insert drying rack into the dryer drum. Placethe front bar under the lip of the
lint screen opening.
3. Placeitems to be dried on top of the rack. Weight should not exceed101bs. :, ,_
Leave space between items, but do not let items hang over the sides or
through the grids. Do not tumble other items when using the drying rack.
4. Select a timed dry setting best suited for items being dried. Use only the Air
Fluff (no heat) temperature setting for items containing plastic, foam rubber,
rubber-like materials, feathers or down.
5. When items are dry, remove the rack and replace the lint screen. If lint
screen is not in place, tumbling items could enter the exhaust system and
cause damage to the dryer.
Common Drying Problems
Manydrying problemsinvolvepoor cleaningresults,poorsoiland stain removal,residuesof lint and scum, and fabric damage.For
satisfactorydrying results,follow thesesuggestionsprovided byThe Soapand DetergentAssociation.
PROBLEM POSSIBLECAUSES SOLUTIONS PREVENTIVEMEASURES
Greasy, oily o Fabricsoftener sheet, o Rub fabric softener stainswith bar soap. _ Add a few bath towels to smallloadsfor
stains Rinseand rewash, proper tumbling.
Some"silk-like" fabricsshouldbeairdried.
Useproper drying temperature.
Placefabric softenersheetontop of load
beforestarting the dryer.
Lint
o Overloading.
o Overdrying causes static
electricity.
Lint screen not clean when
cycle began.
o Lint is attached to "pills."
e Reduce load size and rewash using liquid
fabric softener in the final rinse.
e Or, add a fabric softener sheet and tumble
without heat.
e Use lint brush or roller to remove lint.
• Do not overload dryer.
• Use fabric softener in washer or dryer to
reduce static electricity.
Remove items when they are slightly damp
to avoid overdrying.
Check that lint screen isclean and in place.

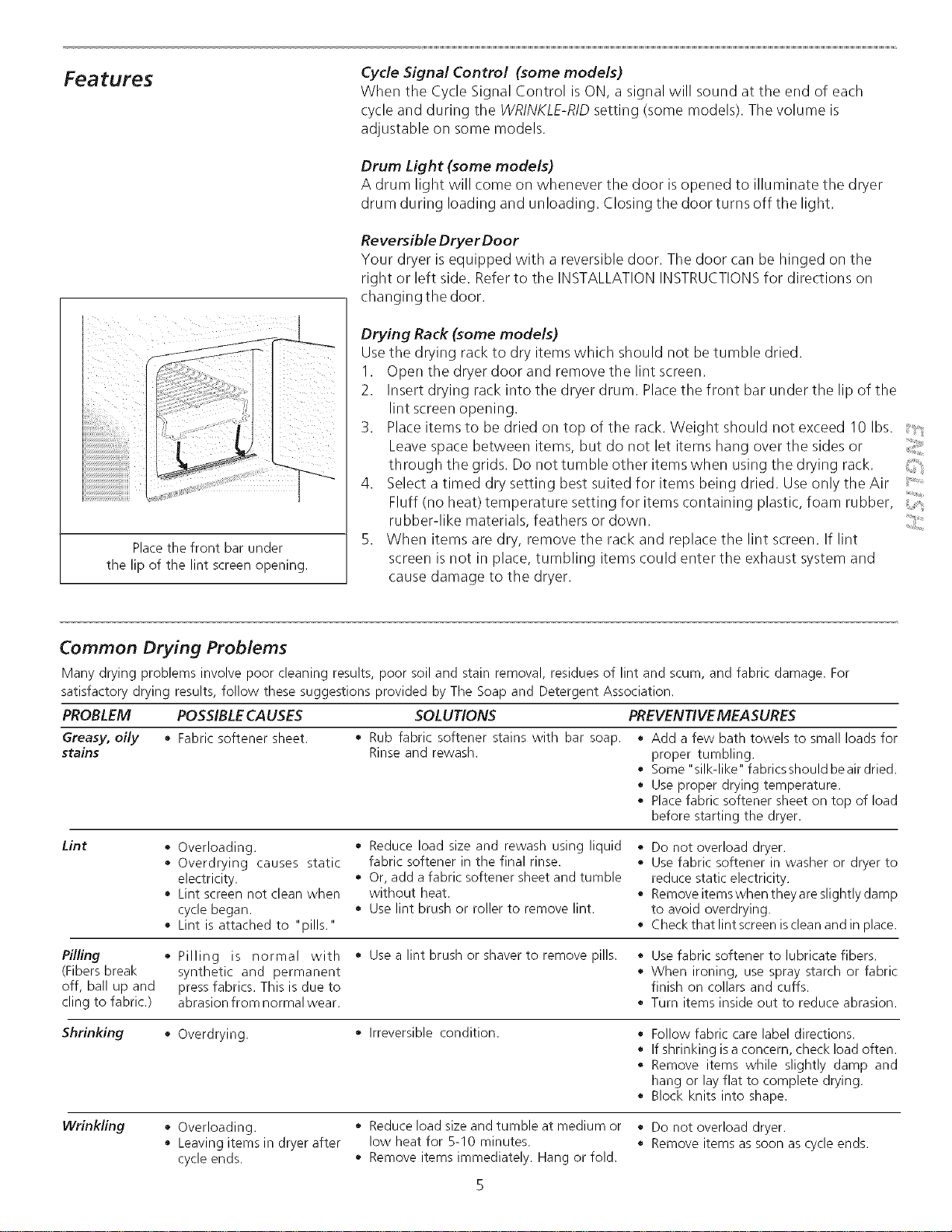

Pilling
(Fibers break
off, ball up and
cling to fabric.)
Pilling is normal with
synthetic and permanent
press fabrics. This is due to
abrasion from normal wear.
e Use a lint brush or shaver to remove pills.
• Use fabric softener to lubricate fibers.
e When ironing, use spray starch or fabric
finish on collars and cuffs.
e Turn items inside out to reduce abrasion.
Shrinking
Overdrying.
Irreversible condition.
Follow fabric care label directions.
If shrinking is a concern, check load often.
• Remove items while slightly damp and
hang or lay flat to complete drying.
e Block knits into shape.
Wrinkling
o Overloading. • Reduce load sizeand tumble at medium or e Do not overload dryer.
o Leaving items in dryer after low heat for 5-10 minutes. _ Remove items assoon as cycle ends.
cycle ends. * Remove items immediately. Hang or fold.

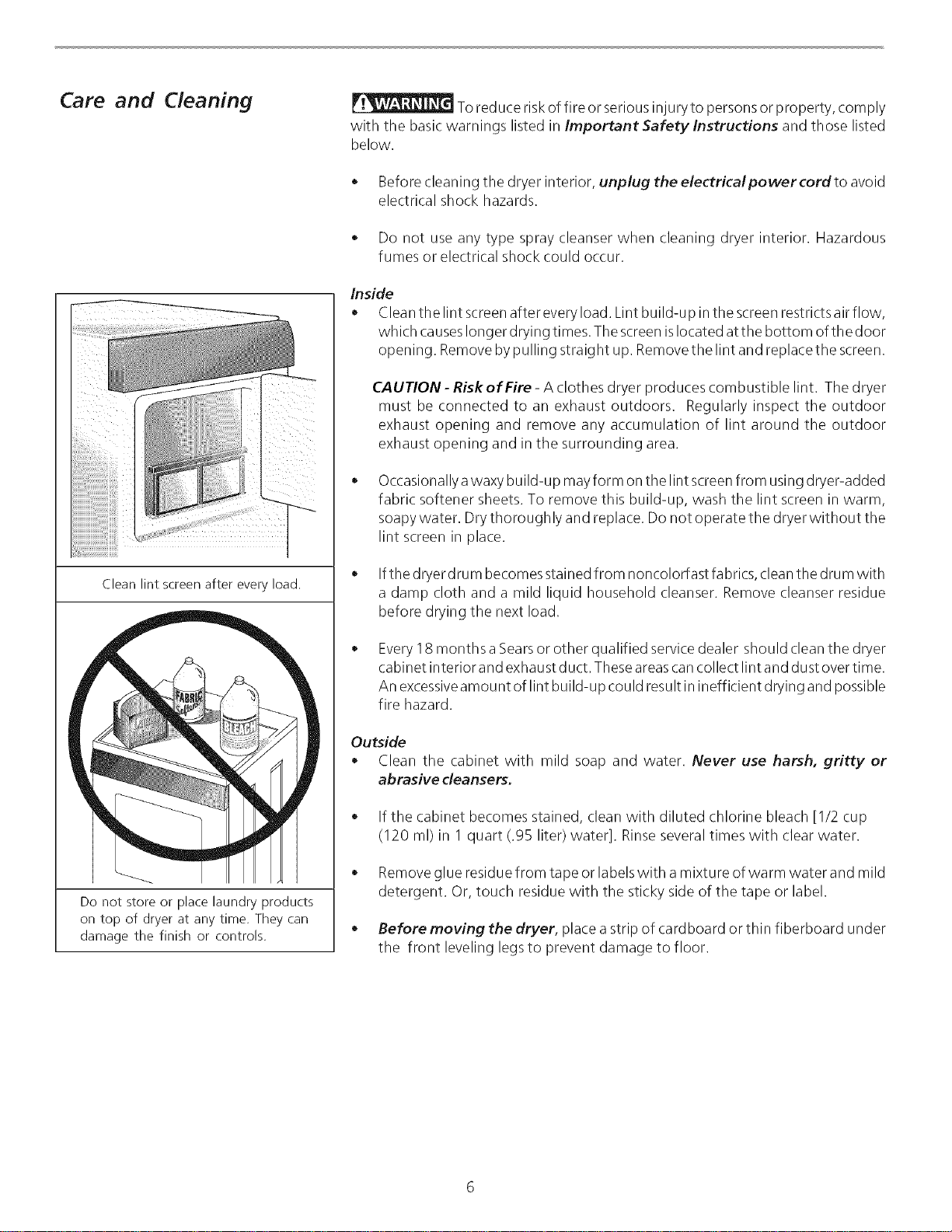

Care and Cleaning
Clean lint screen after every load.
Do not store or place laundry products
on top of dryer at any time. They can
damage the finish or controls.
l':_ Toreduce risk of fire or serious injuryto persons or property, comply
with the basic warnings listed in Important Safety instructions and those listed
below.
Before cleaning the dryer interior, unplug the electrical power cord to avoid
electrical shock hazards.
Do not use any type spray cleanser when cleaning dryer interior. Hazardous
fumes or electrical shock could occur.
Inside
Clean the lint screen after everyload. Lint build-up in the screen restricts air flow,
which causeslonger drying times. The screenislocated atthe bottom of the door
opening. Removeby pulling straight up. Removethe lint and replace the screen.
CAUTION- Risk of Fire- A clothes dryer produces combustible lint. The dryer
must be connected to an exhaust outdoors. Regularly inspect the outdoor
exhaust opening and remove any accumulation of lint around the outdoor
exhaust opening and in the surrounding area.
Occasionally awaxy build-up may form on the lint screenfrom usingdryer-added
fabric softener sheets. To remove this build-up, wash the lint screen in warm,
soapy water. Dry thoroughly and replace. Do not operate the dryer without the
lint screen in place.
If the dryer drum becomesstained from noncolorfast fabrics, cleanthe drum with
a damp cloth and a mild liquid household cleanser. Remove cleanser residue
before drying the next load.
Every 18 months a Searsorother qualified servicedealer should clean the dryer
cabinet interior and exhaust duct. Theseareascan collect lint and dust over time.
An excessiveamount of lint build-up could result ininefficient drying and possible
fire hazard.
Outside
• Clean the cabinet with mild soap and water. Never use harsh, gritty or
abrasive cleansers.
,, If the cabinet becomes stained, clean with diluted chlorine bleach [1/2 cup
(120 ml) in 1 quart (.95 liter) water]. Rinseseveral times with clear water.
Remove glue residue from tape or labelswith a mixture of warm water and mild
detergent. Or, touch residue with the sticky side of the tape or label.
• Before moving the dryer, place a strip of cardboard or thin fiberboard under
the front leveling legs to prevent damage to floor.

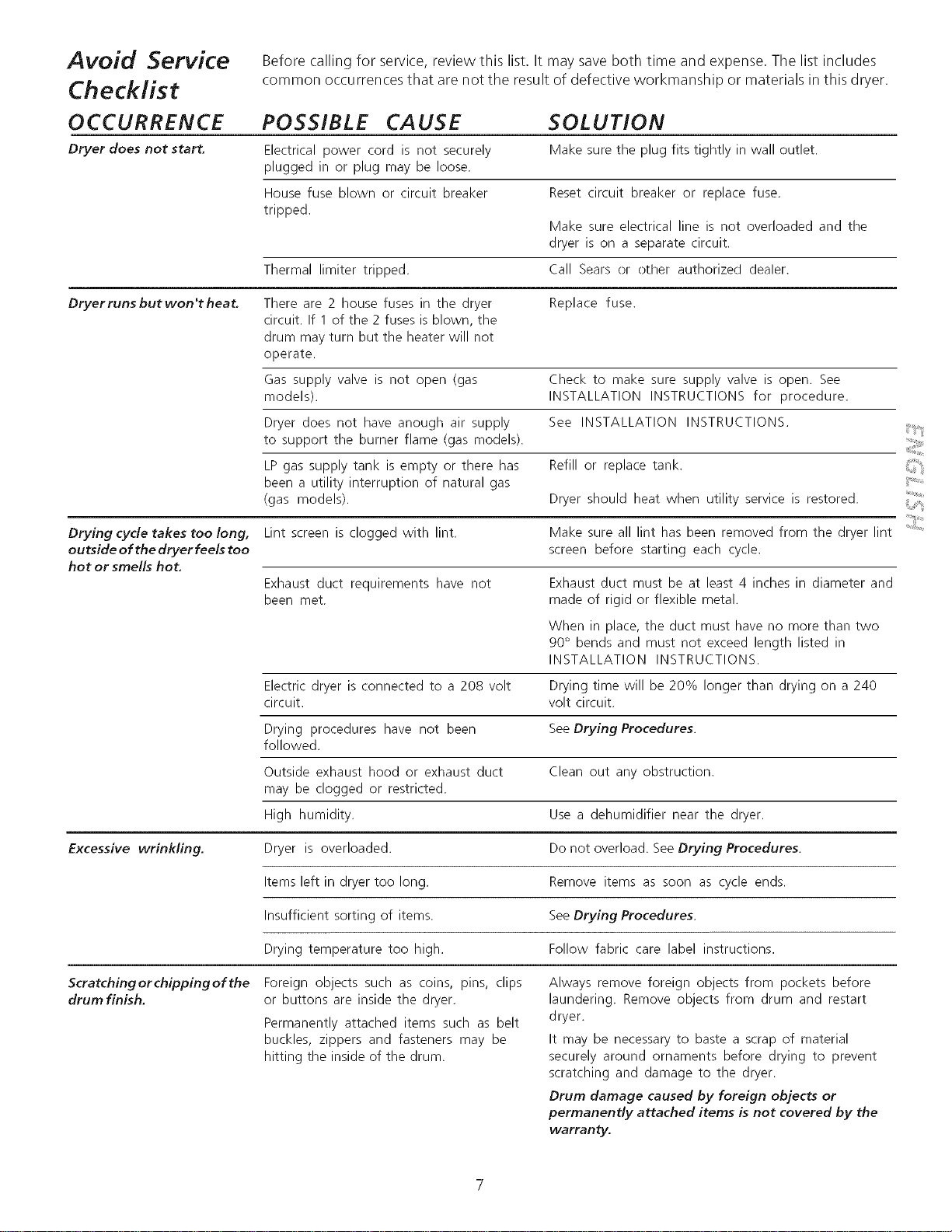

Avoid Service
Checklist
Before calling for service, review this list. It may save both time and expense. The list includes
common occurrences that are not the result of defective workmanship or materials in this dryer.
OCCURRENCE POSSIBLE CAUSE SOLUTION
Dryer does not start. Electrical power cord is not securely Make sure the plug fits tightly in wall outlet.
plugged in or plug may be loose.
House fuse blown or circuit breaker Reset circuit breaker or replace fuse.
tripped.
Make sure electrical line is not overloaded and the
dryer is on a separate circuit.
Thermal limiter tripped. Call Sears or other authorized dealer.
Dryerrunsbutwon'theat. There are 2 house fuses in the dryer Replace fuse.
circuit. If 1 of the 2 fuses is blown, the
drum may turn but the heater will not
operate.
Gas supply valve is not open (gas Check to make sure supply valve is open. See
models). INSTALLATION INSTRUCTIONS for procedure.
Dryer does not have anough air supply See INSTALLATION INSTRUCTIONS.
to support the burner flame (gas models).
LP gas supply tank is empty or there has Refill or replace tank.
been a utility interruption of natural gas
(gas models). Dryer should heat when utility service is restored.
Drying cycle takes too long, Lint screen is clogged with lint. Make sure all lint has been removed from the dryer lint
outsideofthedryerfeelstoo screen before starting each cycle.
hot or smells hot.
Exhaust duct requirements have not
been met.
Exhaust duct must be at least 4 inches in diameter and
made of rigid or flexible metal.
When in place, the duct must have no more than two
90° bends and must not exceed length listed in
INSTALLATION INSTRUCTIONS.
Electric dryer is connected to a 208 volt Drying time will be 20% longer than drying on a 240
circuit, volt circuit.
Drying procedures have not been SeeDrying Procedures.
followed.
Outside exhaust hood or exhaust duct Clean out any obstruction.
may be clogged or restricted.
High humidity. Use a dehumidifier near the dryer.
Excessive wrinkling. Dryer is overloaded. Do not overload. See Drying Procedures.
Items left in dryer too long. Remove items as soon as cycle ends.
Insufficient sorting of items. SeeDrying Procedures.
Drying temperature too high. Follow fabric care label instructions.
Scratching or chipping of the
drum finish.
Foreign objects such as coins, pins, clips
or buttons are inside the dryer.
Permanently attached items such as belt
buckles, zippers and fasteners may be
hitting the inside of the drum.
Always remove foreign objects from pockets before
laundering. Remove objects from drum and restart
dryer.
It may be necessary to baste a scrap of material
securely around ornaments before drying to prevent
scratching and damage to the dryer.
Drum damage caused by foreign objects or
permanently attached items is not covered by the
warranty.

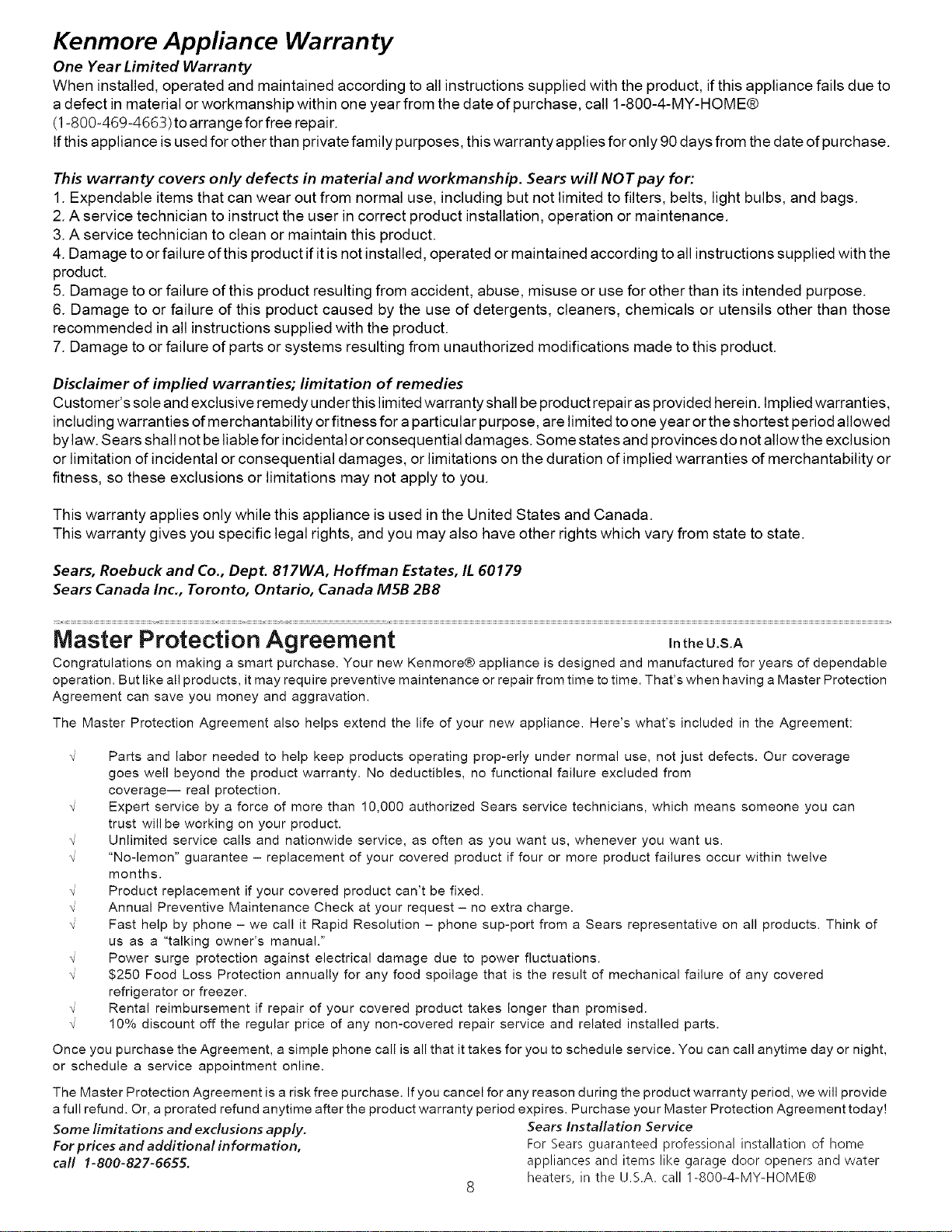

Kenmore Appliance Warranty
One Year Limited Warranty
When installed, operated and maintained according to all instructions supplied with the product, if this appliance fails due to
a defect in material or workmanship within one year from the date of purchase, call 1-800-4-MY-HOME®
(1-800-469-4663) to arrange for free repair.
If this appliance is used for other than private family purposes, this warranty applies for only 90 days from the date of purchase.
This warranty covers only defects in material and workmanship. Sears will NOT pay for:
1. Expendable items that can wear out from normal use, including but not limited to filters, belts, light bulbs, and bags.
2. A service technician to instruct the user in correct product installation, operation or maintenance.
3. A service technician to clean or maintain this product.
4. Damage to or failure of this product if it is not installed, operated or maintained according to all instructions supplied with the
product.
5. Damage to or failure of this product resulting from accident, abuse, misuse or use for other than its intended purpose.
6. Damage to or failure of this product caused by the use of detergents, cleaners, chemicals or utensils other than those
recommended in all instructions supplied with the product.
7. Damage to or failure of parts or systems resulting from unauthorized modifications made to this product.
Disclaimer of implied warranties; limitation of remedies
Customer's sole and exclusive remedy under this limited warranty shall be product repair as provided herein. Implied warranties,
including warranties of merchantability or fitness for a particular purpose, are limited to one year or the shortest period allowed
by law. Sears shall not be liable for incidental or consequential damages. Some states and provinces do not allow the exclusion
or limitation of incidental or consequential damages, or limitations on the duration of implied warranties of merchantability or
fitness, so these exclusions or limitations may not apply to you.
This warranty applies only while this appliance is used in the United States and Canada.
This warranty gives you specific legal rights, and you may also have other rights which vary from state to state.
Sears, Roebuck and Co., Dept. 817WA, Hoffman Estates, IL 60179
Sears Canada Inc., Toronto, Ontario, Canada MSB 2B8
Master Protection
Agreement otheU.s.A
Congratulations on making a smart purchase. Your new Kenmore® appliance is designed and manufactured for years of dependable
operation. But like all products, it may require preventive maintenance or repair from time to time. That's when having a Master Protection
Agreement can save you money and aggravation.
The Master Protection Agreement also helps extend the life of your new appliance. Here's what's included in the Agreement:
Parts and labor needed to help keep products operating prop-erly under normal use, not just defects. Our coverage
goes well beyond the product warranty. No deductibles, no functional failure excluded from
coverage-- real protection.
Expert service by a force of more than 10,000 authorized Sears service technicians, which means someone you can
trust will be working on your product.
Unlimited service calls and nationwide service, as often as you want us, whenever you want us.
"No-lemon" guarantee - replacement of your covered product if four or more product failures occur within twelve
months.
Product replacement if your covered product can't be fixed.
Annual Preventive Maintenance Check at your request - no extra charge.
Fast help by phone - we call it Rapid Resolution - phone sup-port from a Sears representative on all products. Think of
us as a "talking owner's manual."
Power surge protection against electrical damage due to power fluctuations.
$250 Food Loss Protection annually for any food spoilage that is the result of mechanical failure of any covered
refrigerator or freezer.
Rental reimbursement if repair of your covered product takes longer than promised.
10% discount off the regular price of any non-covered repair service and related installed parts.
Once you purchase the Agreement, a simple phone call is all that it takes for you to schedule service. You can call anytime day or night,
or schedule a service appointment online.
The Master Protection Agreement is a risk free purchase. Ifyou cancel for any reason during the product warranty period, we will provide
a full refund. Or, a prorated refund anytime after the product warranty period expires. Purchase your Master Protection Agreement today!
Some limitations and exclusions apply. Sears Installation Service
For prices and additional information, For Sears guaranteed professional installation of home
carl 1-800-827-5655. appliances and items like garage door openers and water
heaters, in the U.S.A. call 1-SOO-4-MY-HOME®
8
