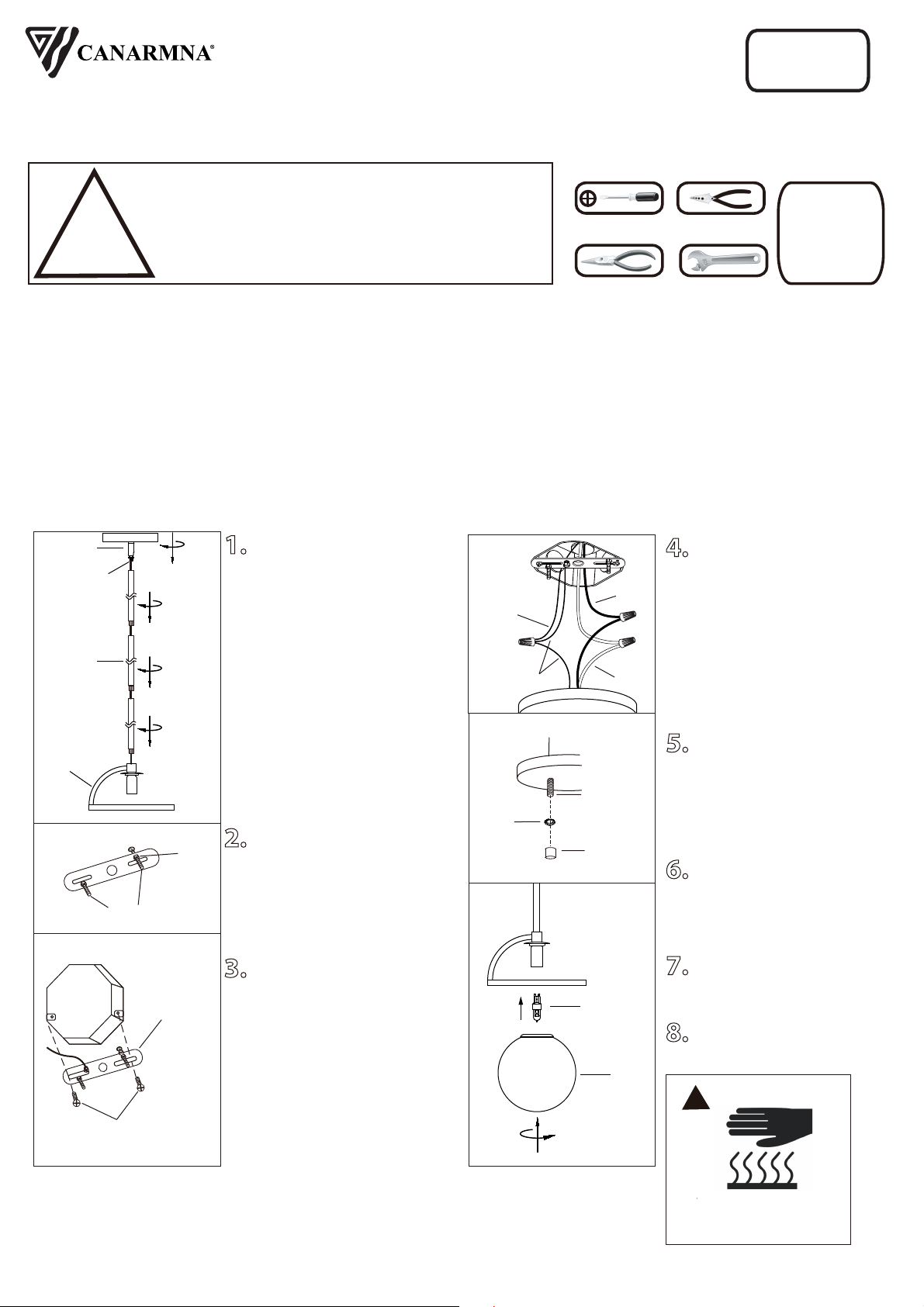

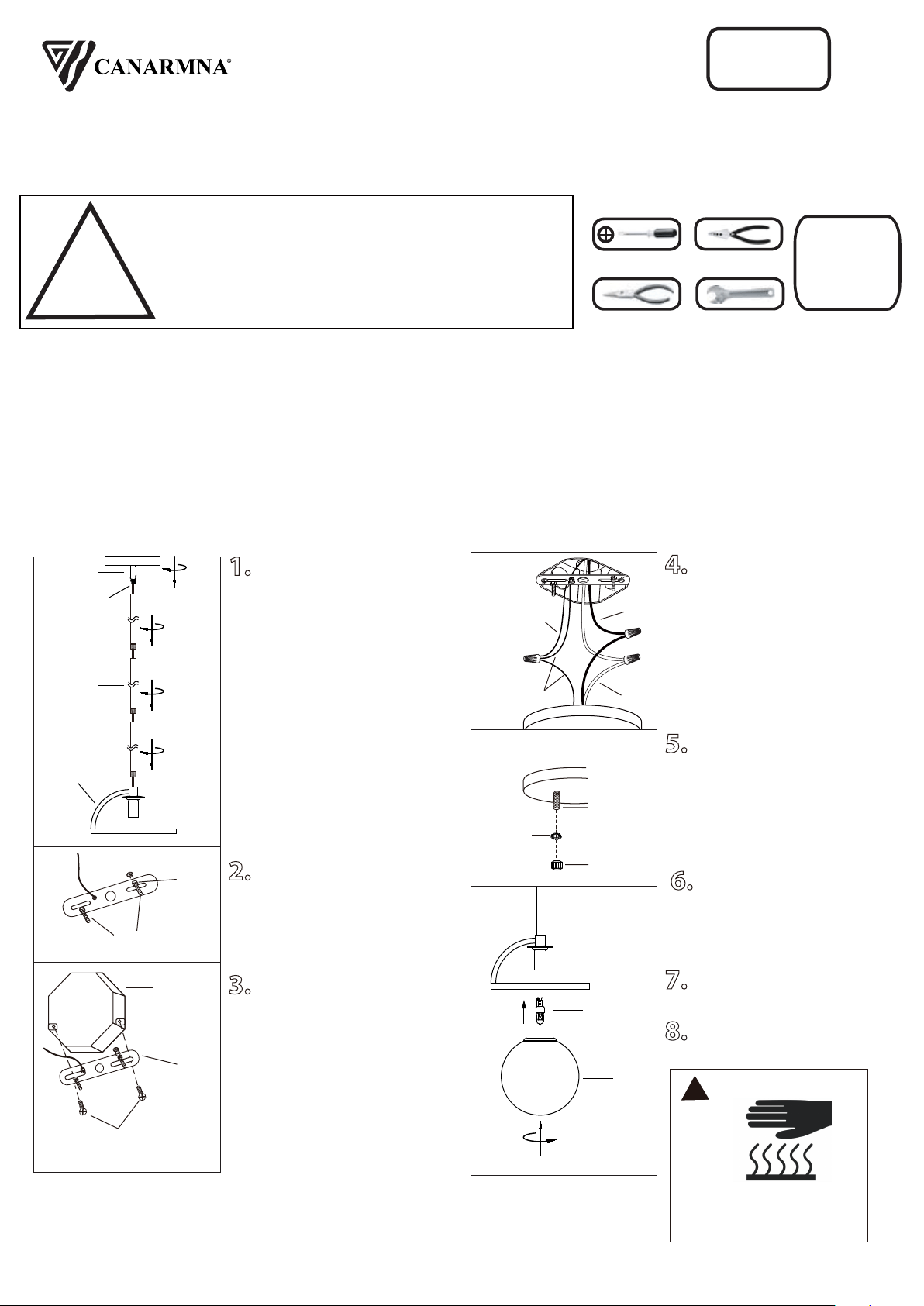

INSTALLATION:
PENDANT LIGHT
1. Install the length of rod that is
required by threading wire
through the rod and screwing it to
the fixture. Install swivel to the rod,
ensuring that the sleeve is at the
swivel.
2. Loosen “B”. Adjust stud to
desired length and lock in place
with “B”.
3. Mount the mounting bracket
to outlet box using electrical box
screws (not included). Make sure
the studs on the mounting bracket
are facing out from the electrical
box.
4. Connect the ground wires
(bare copper or green) from your
fixture to the ground wire (bare
copper or green) or ground screw
in the electrical box. Connect the
black wire (or wire with marking)
from the fixture to the black wire in
the electrical box and connect the
white wire from the fixture to the
white wire in the electrical box.
5. Once connections of wires
are completed, carefully tuck
wires and wire nuts into the
electrical box making sure no bare
wire (on the black and white) is
visible at the wire nuts.
6. Position fixture over studs on
mounting bracket assembly.
Secure fixture in place with star
washers and cap nuts.
7. Install specified bulb type and
wattage (not included).
8. Screw glass shdade on to the
fixture.
White
Black
House supply
Ground wire
Fixture
Ground wire
Tel: (613) 342-5424, Fax: (800) 263-4598
IPL1025A01
09/19
Star
Washer
Cap
Nut
Fixture
Stud
SAFETY PRECAUTIONS:
TOOLS AND MATERIALS REQUIRED:
Phillips
Screwdriver
Wire Cutters
Pliers Wrench
!
INSTRUCTIONS PERTAINING TO RISK OF FIRE OR INJURY TO PERSONS
READ ALL INSTRUCTIONS
IMPORTANT SAFETY
INSTRUCTIONS
SAVE THESE INSTRUCTIONS
QUESTIONS OR CONCERNS CONTACT AT:
1-800-265-1833 (English) / 1-800-567-2513 (French)
Monday through Friday 8:00 AM to 5:00 PM E.S.T.
Wiring supplies
as required by
local electrical
code
1. TURN OFF ELECTRICAL POWER BEFORE STARTING INSTALLATION OF LIGHT FIXTURE.
2. THIS PRODUCT MUST BE INSTALLED IN ACCORDANCE WITH THE APPLICABLE INSTALLATION CODE
BY A PERSON FAMILIAR WITH THE CONSTRUCTION AND OPERATION OF THE PRODUCT AND THE
HAZARDS INVOLVED.
3. CONNECT THE GROUND WIRES (BARE COPPER OR GREEN) FROM YOUR FIXTURE TO THE GROUND
WIRE (BARE COPPER OR GREEN) OR GROUND SCREW IN THE ELECTRICAL BOX.
4. TO CLEAN THE FIXTURE, TURN OFF THE POWER, WAIT FOR IT TO COOL, AND WIPE THE FIXTURE WITH A
CLEAN, SOFT CLOTH.
NOTE: Product may not look exactly as shown in figures.
“B”
Studs
Electrical Box Screws
(not included)
Electrical
Box
Mounting
Bracket
Sleeve
Rod
Swivel
Fixture
Bulb
Glass
WARNING
Warning - HOT :
Do not touch any metal surface.
!
