Owner's Manual
6.0 HORSEPOWER
21" REAR DISCHARGE
ROTARY LAWN MOWER
Model No.
917.388021
• Safety
• Assembly
• Operation
• Maintenance
• Espa_ol
• Repair Parts
CAUTION:
Read and followall
Safety Rulesand Instructions
before operatingthisequipment
Sears, Roebuck and Co., Hoffman Estates, IL 60179
visit our Craftsman website: www.sears.com/craffsman
Warranty ................................................. 2 Product Specifications.......................... 11
Safety Rules ........................................ 2-4 Service and Adjustments ...................... 14
Assembly ................................................ 5 Storage ............................................ 15-16
Operation ............................................. 6-9 Troubleshooting .............................. 16-17
Maintenance Schedule ........................ 10 Repair Parts .......................................... 34
Maintenance .................................... 10-13 Parts Ordering ........................ Back Cover
LIMITED TWO YEAR WARRANTY ON CRAFTSMAN POWER MOWER
For two years from date of purchase, when this Craftsman Lawn Mower is maintained,
lubricated, and tuned up according to the operating and maintenance instructions in
the owner's manual, Sears will repair free of charge any defect in material or workman-
ship.
If this Craftsman Lawn Mower is used for commercial or rental purposes, this warranty
appliesfor only 90 days from the date of purchase.
ThisWarranty does not cover:
• Expendable items which become worn during normal use, such as rotary mower
blades, blade adapters, belts, air cleaners and spark plug.
• Repairs necessary because of operator abuse or negligence, including bent
crankshafts and the failure to maintain the equipment according to the instructions
contained in the owner's manual.
Warranty service is available by returning the Craftsman power mower to the nearest
Sears Service Center/Department in the United States, This warranty applies only
whiJethis product is in use in the United States.
This Warranty gives you specific legal rights, and you may also have other dghts which
vary from state to state.
SEARS, ROEBUCK AND CO., D/817 WA, HOFFMAN ESTATES, ILLINOIS 60179
IMPORTANT: This cutting machine iscapable of amputating hands and feet and
throwingobjects. Failure to observe the followingsafety instructions could result in
serious injuryor death.
I. GENERAL OPERATION
• Read, understand, and follow all
instructionson the machine and in the
manual(s) before starting. Be thor-
oughly femiliar with the controls and the
proper use of the machine before
starting.
• Do not put hands or feet near or under
rotatingparts. Keep clear ofthe
discharge opening at all times.
• Only allow responsible individuals, who "
are familiar with the Instructions, to
operate the machine.
• Clear the area of objects such as rocks, •
toys, wire, bones, sticks, etc., which
could be picked up and thrown by the
blade. 2
• Be sure the area is clear of other
people before mowing. Stop machine if
anyone enters the area.
• Do not operate the mower when
barefoot or wearing open sandals.
Always wear substantial foot wear.
• Do not pull mower backwards unress
absolutely necessary. Always look
down and behind before and while
moving backwards.
Do not operate the mower with proper
guards, plates, grass catcher or other
safety protective devices in place.
See manufacturer's instructions for
proper operation and installation of
accessories. Only use accessories
approved by the manufacturer.

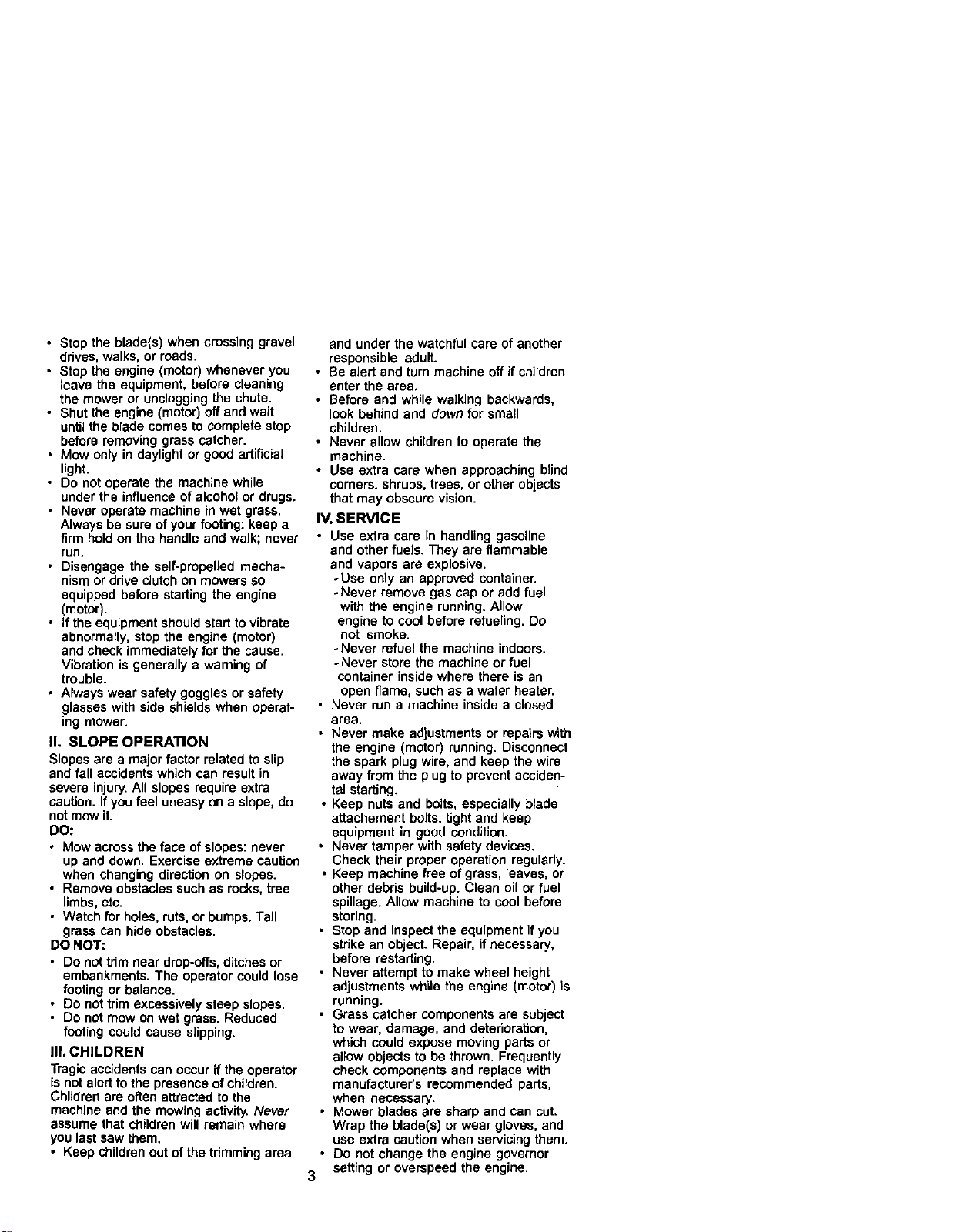

• Stop the blade(s) when crossing gravel
drives, walks, or roads.
• Stop the engine (motor) whenever you
leave the equipment, before cleaning
the mower or unclogging the chute.
• Shut the engine (motor) off and wait
until the brade comes to complete stop
before removing grass catcher.
• Mow onry in daylight or good artificial
light.
• Do not operate the machine while
under the influence of alcohol or drugs.
• Never operate machine Jnwet grass.
Always be sure of your footing: keep a
firm hold on the handle and walk; never
run.
• Disengage the self-propelled mecha-
nism or drive clutchon mowers so
equipped before starting the engine
(motor).
• If the equipment should start to vibrate
abnormally, stop the engine (motor)
and check immediately for the cause.
Vibration is generally a warning of
trouble.
• Always wear safety goggles or safety
glasses with side shields when operat-
ing mower.
I1. SLOPE OPERATION
Slopes are a major factor related to slip
and fall accidentswhich can result in
severe injury.All slopes require extra
caution. If you feel uneasy on a sJope,do
notmow it.
DO:
• Mow across the face of slopes: never
up and down. Exercise extreme caution
when changing direction on slopes.
• Remove obstacles such as rocks, tree
rimbs,etc.
• Watch for holes, rots, or bumps. Tall
grass can hide obstacles.
DO NOT:
• Do not trim near drop-offs, ditches or
embankments. The operator could lose
footing or balance.
• Do not trim excessively steep slopes.
• Do not mow on wet grass. Reduced
footing could cause slipping.
III. CHILDREN
Tragic accidents can occur if the operator
isnot alert tothe presence of children.
Children are often attracted tothe
machine and the mowing activity.Never
assume that children will remain where
you last saw them.
• Keep childrenout of the trimming area
and under the watchful care of another
responsible adult.
• Be alert and turn machine off if children
enter the area,
• Before and while walking backwards,
look behind and down for small
children.
• Never allow children to operate the
machine.
• Use extra care when approaching blind
corners, shrubs, trees, or other objects
that may obscure vision.
IV. SERVICE
• Use extra care in handling gasoline
and other fuels. They are flammable
and vapors are explosive.
*Use only an approved COntainer.
- Never remove gas cap or add fuel
with the engine running. Allow
engine to cool before refueling. Do
not smoke.
-Never refuel the machine indoors.
-Never store the machine or fuel
container inside where there is an
open flame, such as a water heater.
• Never run a machine inside a closed
area.
• Never make adjustments or repairs with
the engine (motor) running. Disconnect
the spark plug wire, and keep the wire
away from the plug to prevent acciden-
tal starting.
• Keep nuts and bolts, especially blade
attachement bolts, tight and keep
equipment in good condition.
• Never tamper with safety devices.
Check their proper operation regularly.
• Keep machine free of grass, leaves, or
other debris build-up. Clean oil or fuel
spillage. Allow machine to cool before
storing.
• Stop and inspect the equipment if you
strike an object. Repair, if necessary,
before restarting.
• Never attempt to make wheel height
adjustments while the engine (motor) is
running.
• Grass catcher components are subject
to wear, damage, and deterioration,
which could expose moving parts or
allow objects to be thrown. Frequently
check components end replace with
manufacturer's recommended parts,
when necessary.
• Mower blades are sharp and can cut.
Wrap the blade(s) or wear gloves, and
use extra caution when servicing them.
• Do not change the engine governor
3 setting or overspeed the engine.

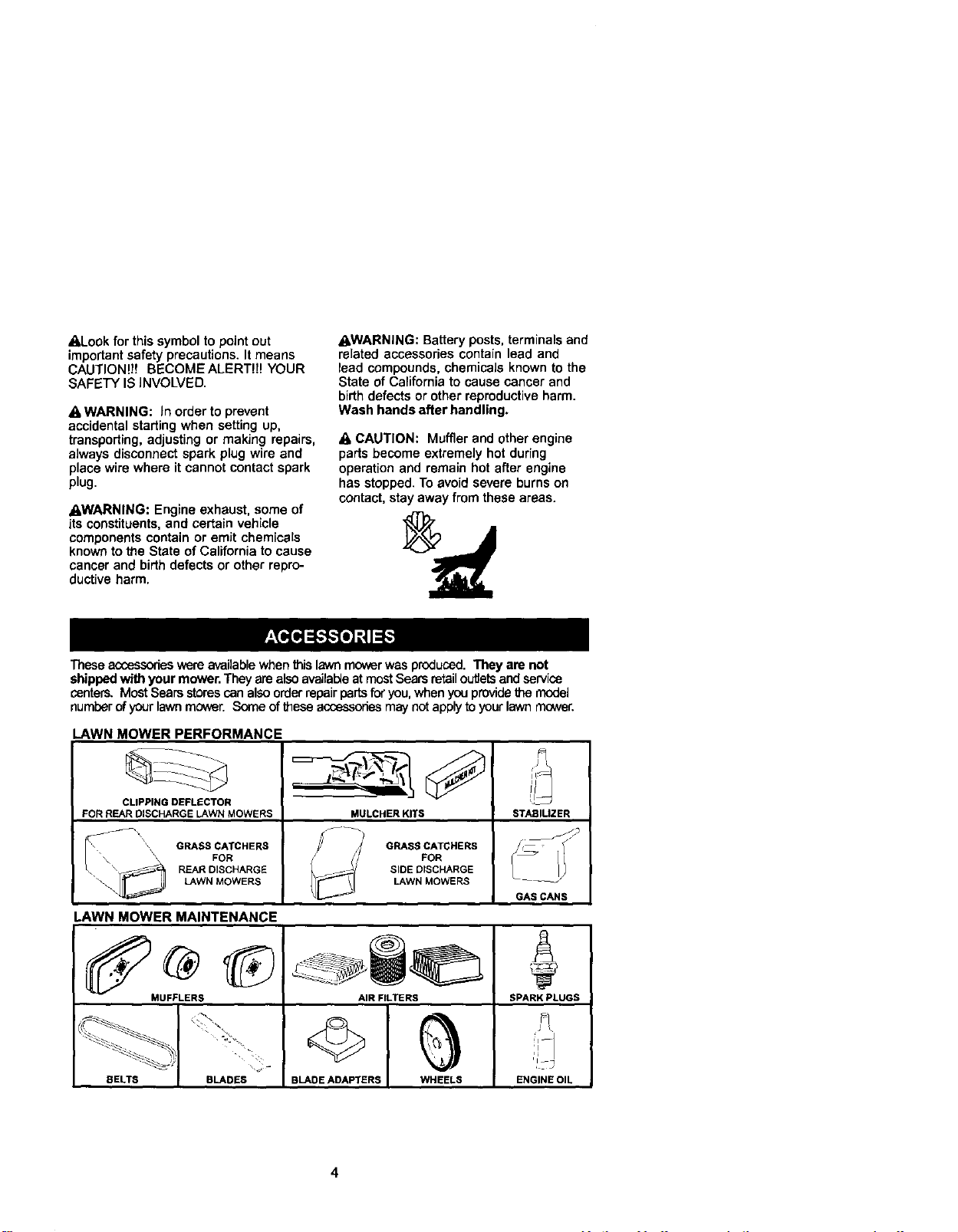

ALook for this symbol to point out
importantsafety precautions. It means
CAUTION!!! BECOMEALERT!!! YOUR
SAFETY IS iNVOLVED.
AWARNING: in order to prevent
accidental starting when setting up,
transporting, adjusting or making repairs,
always disconnect spark plug wire and
place wire where it cannot contact spark
plug.
A,WARNING: Engine exhaust, some of
its constituents, and certain vehicle
components contain or emit chemicals
known to the State of California to cause
cancer and birthdefects or other repro-
ductive harm.
_,WARNING: Battery posts,terminals and
related accessories contain lead and
lead compounds, chemicals known to the
State of California to cause cancer and
birthdefects or other reproductive harm.
Wash hands after handling.
CAUTION: Mufflerand other engine
parts become extremely hot during
operation and remain hot after engine
has stopped. To avoid severe burns on
contact,stay away from these areas.
These accessorieswere availablewhen thislawnmowerwas produced. They are not
shipped with your mower.They are alsoavailableat most Sears retailoutletsandservice
centers.MostSearsstorescan alsoorderrepairparts for"you,whenyou providethe model
numberofyourlawnmower. Some of these acceseoriesmaynotapplytoyourlawnmower.
LAWN MOWER PERFORMANCE
CLIPPING DEFLECTOR
FOR REAR DISCHARGE LAWN MOWERS MULCHER KITS STAalLIZER
J_
GRASS CATCHERS GRASS CATCHERS
FOR FOR
REAR DISCHARGE SIDE DISCHARGE
LAWN MOWERS LAWN MOWERS
GAS CANS
LAWN MOWER MAINTENANCE
MUFFLERS AIR FILTERS SPARK PLUGS
SELTS BLADES BLADE ADAPTERS WHEELS ENGINE OIL
4

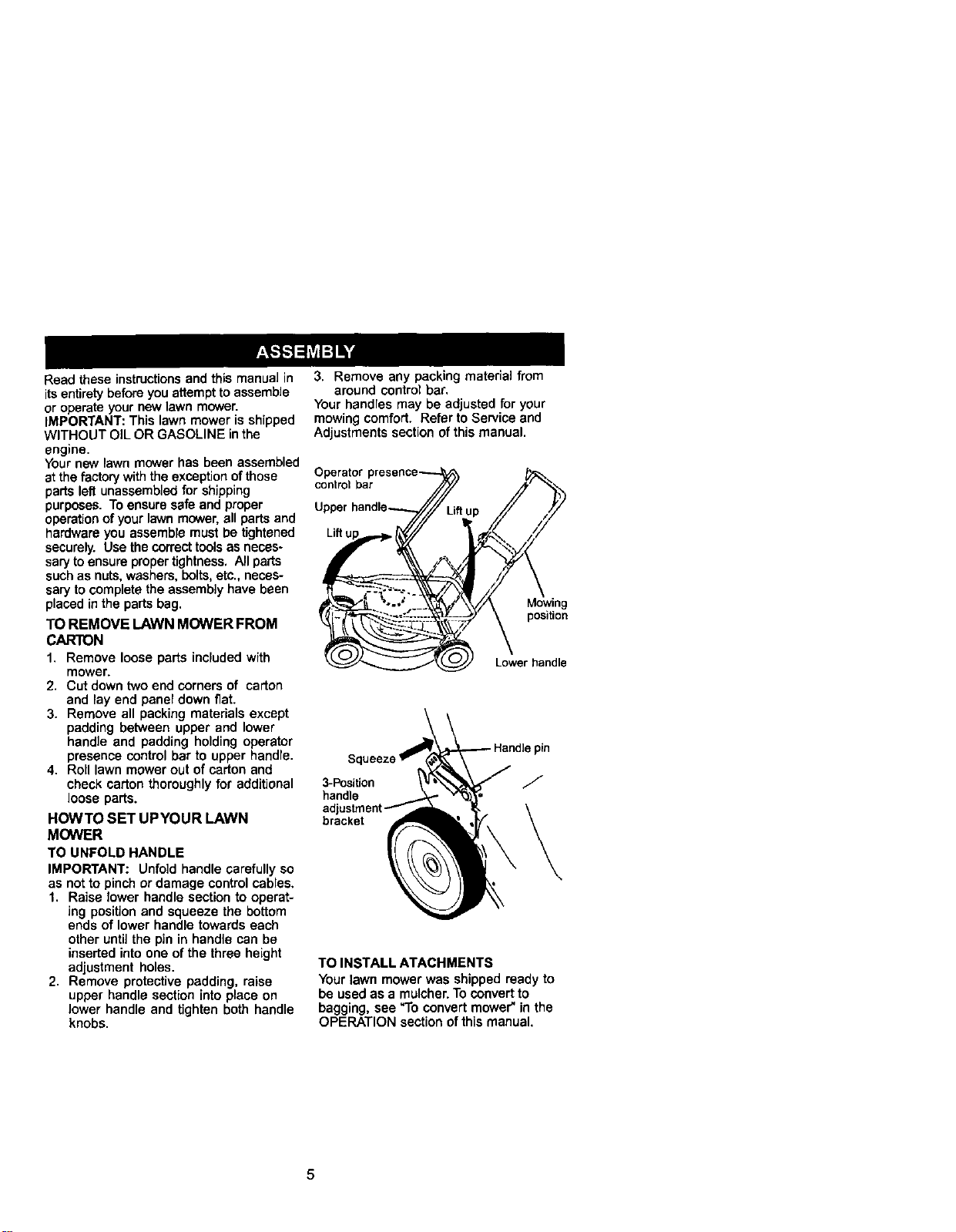

Read these instructionsand this manual in
its entirety before you attempt to assemble
or operate your new lawn mower.
IMPORTANT: This lawn mower is shipped
WITHOUT OIL OR GASOLINE in the
engine.
Your new lawn mower has been assembled
at the factory with the exception of those
parts left unassembled for shipping
purposes. To ensure safe and proper
operation of your lawn mower, all parts and
hardware you assemble must be tightened
securely. Use the correct tools as neces-
sary to ensure proper tightness, All parts
such as nuts, washers, bolts, etc., neces-
sary to complete the assembly have been
placed in the parts bag.
TO REMOVE LAWN M(3WER FROM
CARTON
1. Remove loose parts included with
mower.
2. Cut down two end corners of carton
and lay end panel down fiat.
3. Remove all packing materials except
padding between upper and lower
handle and padding holding operator
presence control bar to upper handle.
4. Roll lawn mower out of carton and
check carton thoroughly for additional
loose parts.
HOWTO SET UPYOUR LAWN
MOWER
TO UNFOLD HANDLE
IMPORTANT: Unfold handle carefully so
as not to pinch or damage controlcables,
1. Raise lower handle section to operat-
ing positionand squeeze the bottom
ends of lower handle towards each
other untilthe pin in handle can be
inserted intoone of the three height
adjustment holes.
2. Remove protective padding, raise
upper handle section into place on
Jowerhandle and tighten both handle
knobs.
3. Remove any packing material from
around control bar.
Your handles may be adjusted for your
mowing comfort. Refer to Service and
Adjustments section of this manual.
Operator
control bar
Lift u
Mowing
position
Lower handle
3-Position
handle
bracket
e pin
/
TO INSTALL ATACHMENTS
Your lawn mower was shipped ready to
be used as a mulcher. To convertto
bagging, see "To convert mower" in the
OPERATION section ofthis manual,

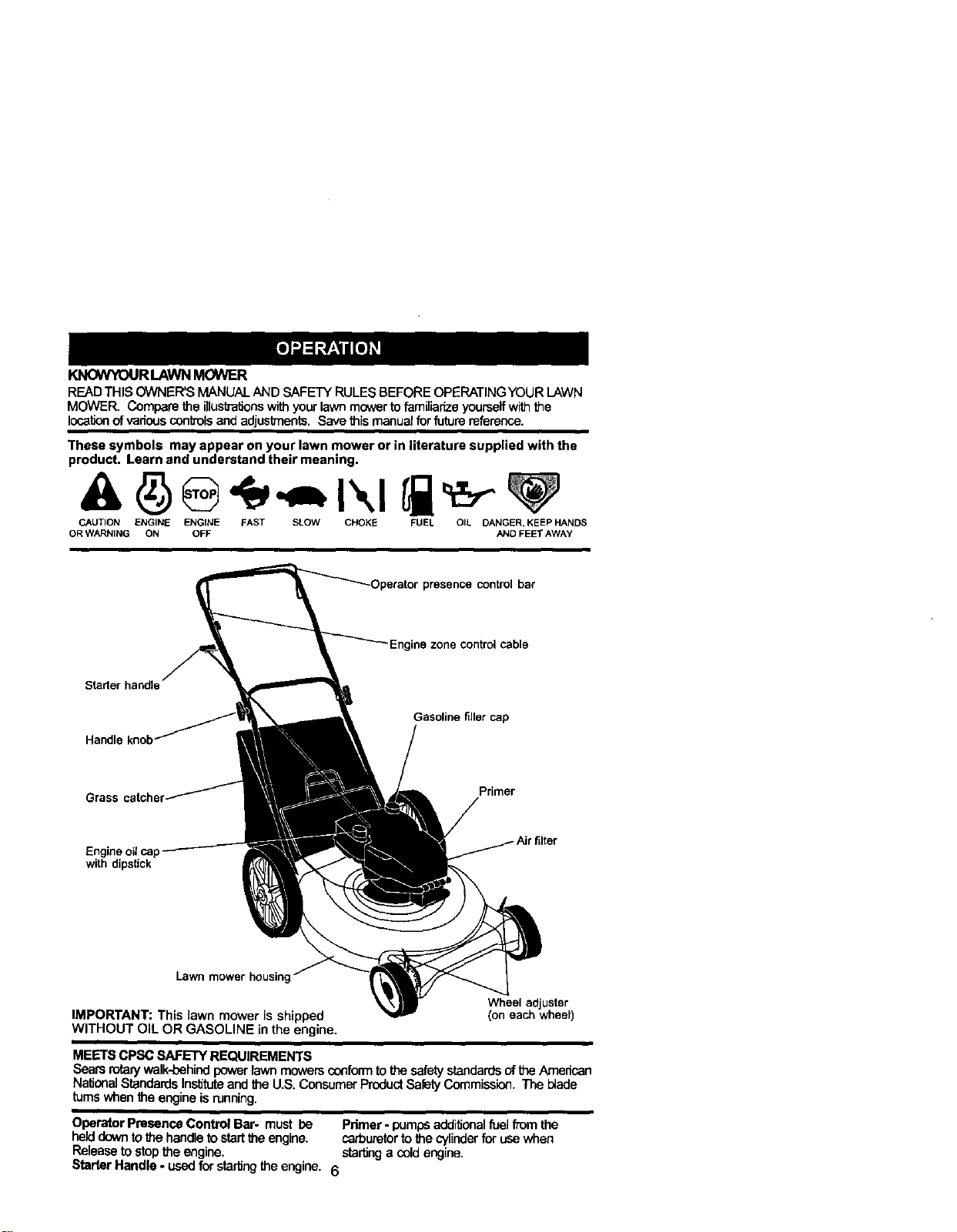

KNOWYOURLAWNMOWER
READTHIS OWNER'S MANUAL AND SAFETY RULES BEFORE OPERATINGYOUR LAWN
MOWER. Compare the illuskaUonswith your lawn mower to familiarizeyourself with the
IcoatJeaof vadeas controls and adjustments. Savethismanual for future reference.
These symbols may appear on your lawn mower or in literature supplied with the
product, Learn and understand their meaning,
CAUTION ENGINE ENGINE FAST SLOW CHOKE FUEL OIL DANGER, KEEP HANDS
OR WARNING ON OFF AND FEET AWAY
-Engine zone control cable
Starter handle
Gasoline filler cap
Primer
Engine oil caI
with dipstick
Lawn mower housinc
Wheeladjuster
IMPORTANT: This lawn mower is shipped (on each wheel)
WITHOUT OIL OR GASOLINE in the engine.
MEETS CPSC SAFETY REQUIREMENTS
Searsrotarywalk-behindpowerlawnmowersconformtothe safetystandardsofthe Amedsan
Naf_onalStandardsInstituteand the U.S.Consumer ProductSafetyCommission.The I_ade
turnswhenthe engineis running.
Operator Presence Control Bar- must be Primer - pumps additionalfuetfrom the
helddowntothe handleto startthe engine, carburetorto the cylinderfor usawhen
Releasetostopthe engine, startinga cold engine.
Starter Handle - usedfor starting the engine. 6

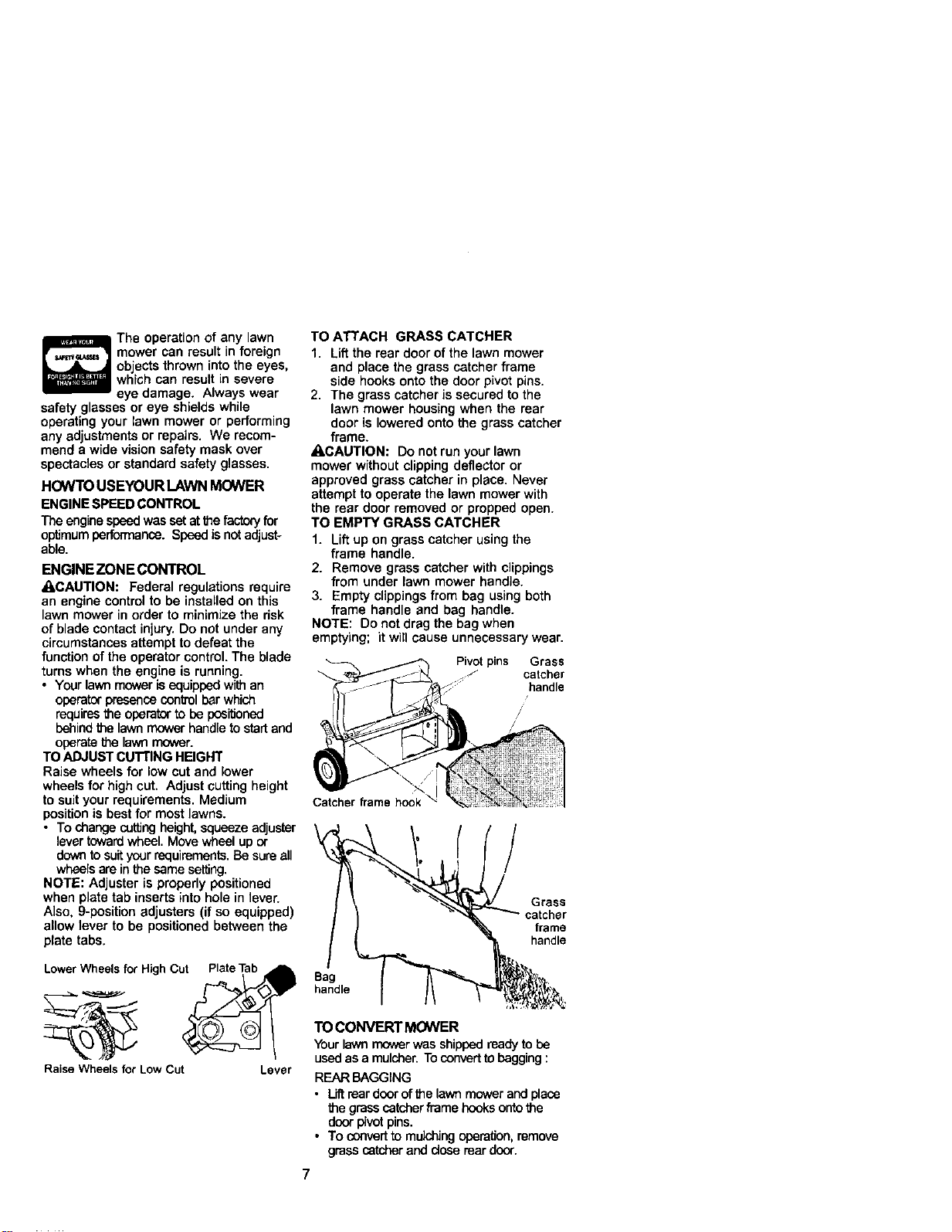

The operation of any lawn
mower can result in foreign
objects thrown into the eyes,
which can result in severe
eye damage. Always wear
safety glasses or eye shields while
operating your lawn mower or performing
any adjustments or repairs, We recom-
mend a wide vision safety mask over
spectacles or standard safety glasses.
HOWTO USEYOUR LAWN MOWER
ENGINESPEED CONTROL
The enginespeedwas set at the factory for
optimum perforrnance. Speed is not adjust-
able.
ENGINE ZONE CONTROL
ACAUTION: Federal regulations require
an engine controlto be installed on this
lawn mower in order to minimize the risk
of blade contact injury.Do not under any
circumstancesattempt to defeat the
functionof the operator control. The blade
turnswhen the engine is running,
• Your lawnmower isequipped with an
operator presence control bar which
requiresthe operator to be positioned
behind the lawn mower handle to startand
operate the lawnmower.
TO ADJUST CUTTING HEIGHT
Raise wheels for low cut end lower
wheels for high cut, Adjust cutting height
to suit your requirements. Medium
position is best for most lawns.
• To change cottJngheight, squeeze adjuster
levertoward wheel. Move wheel up or
down to suit your requirements. Be sure all
wheels arein the same setitng.
NOTE: Adjuster is properly positioned
when plate tab inserts into hole in lever.
Also, 9-position adjusters (if so equipped)
allow lever to be positioned between the
plate tabs.
LowerWheelsfor HighCut PlateTab
RaiseWheelsfor LowCut Lever
TO ATTACH GRASS CATCHER
1. Lift the rear door ofthe lawn mower
and place the grass catcher frame
side hooksonto the door pivot pins.
2. The grass catcher is secured to the
lawn mower housing when the rear
door is lowered onto the grass catcher
frame.
_I_CAUTION: Do notrun your lawn
mower without clippingdeflector or
approved grass catcher in place. Never
attempt to operate the lawn mower with
the rear door removed or propped open.
TO EMPTY GRASS CATCHER
1. Lift up on grass catcher using the
frame handle.
2. Remove grass catcher with clippings
from under lawn mower handle.
3. Empty clippings from bag using both
frame handle and bag handle.
NOTE: Do not drag the bag when
emptying; it willcause unnecessary wear.
Pivot pins Grass
catcher
handle
/
/
Catcher frame hook "_
/
Grass
catcher
frame
handle
Bag
handle
TO CONVERT MOWER
Yourlawnmowerwas shipped ready tobe
usedas a mulcher.Toconverttobagging:
REAR BAGGING
• Liftreardoorofthe lawnmower and place
the grasscatcherframe hooks ontothe
doorpivotpins.
• To oonvert to mulching operation,remove
grasscatcher and CIGeereardoor.
BEFORE STARTING ENGINE
ADD OIL
Your lawnmower is shipped without oil in
the engine. Engine holds 20 oz. of oil.
For type and grade of oil to use, see
"ENGINE" in Maintenance section of this
manual.
1. Be sure lawnmower is level and area
around oil fill is clean.
2. Remove engine oil cap and fill to the
full line on the dipstick. Pour oil slowly.
Do not over fill.
NOTE: Allow oil to settle down into engine
for accurate reading. To road proper level,
tightenengine oilcap, then remove itto
read the dipstick.
3, Reinstall engine oil cap and tighten.
• Check oil level before each use. Add
oil if needed. Fillto full line on dipstick.
• Change the oil after every 25 hours of
operationor each season. You may
need to change the oil more often
under dusty, dirty conditions.
ADD GASOLINE
• Fill fuel tank. Use fresh, clean, regular
unleaded gasoline with a minimum of
87 octane. Do not mix oil with gaso-
line. Purchase fuel in quantities that
can be used within 30 days to assure
fuel freshness.
A,WARNING: Experience indicates that
alcohol blended fuels (called gasohol or
using ethanol or methanol) can attract
moisture which leads to separation and
formation of acids during storage. Acidic
gas can damage the fuel system of an
engine while in storage. To avoid engine
problems, the fuel system should be
emptied before storage of 30 days or
longer. Drain the gas tank, start the
engine and let it run until the fuel lines
and carburetor are empty. Use fresh fuel
next season. See Storage Instructions for
additional information. Never use engine
or carburetor cleaner products in the fuel
tank or permanent damage may occur.
CAUTION: Fill to bottom of gas tank
filler neck. Donot overfill. Wipeoffany
spilled oil or fuel. Do not store, spill or
use gasoline near an open flame.
filler cap
Engine
oil cap
TO START ENGINE
NOTE: Due to protective coatingson the
engine, a small amount of smoke may be
present during the initialuse of the
product and should be considered
normal.
1. To start a cold engine, push primer
three (3) times before trying to start.
Use a firm push. This step is not
usually necessary when starting an
engine which has already run for a
few minutes.
2. Hold operator presence control bar
down to the handle and pull starter
handle quickly. Do not allow starter
rope to snap back.
TO STOP ENGINE
• To stop engine, release operator
presence control bar.
NOTE: In ccoler weather it may be
necessary to repeat priming steps. In
warmer weather over priming may cause
flooding and engine will not start. Ifyou
do flood engine, wait a few minutes
before attempting to start and do not
repeat priming steps.
8

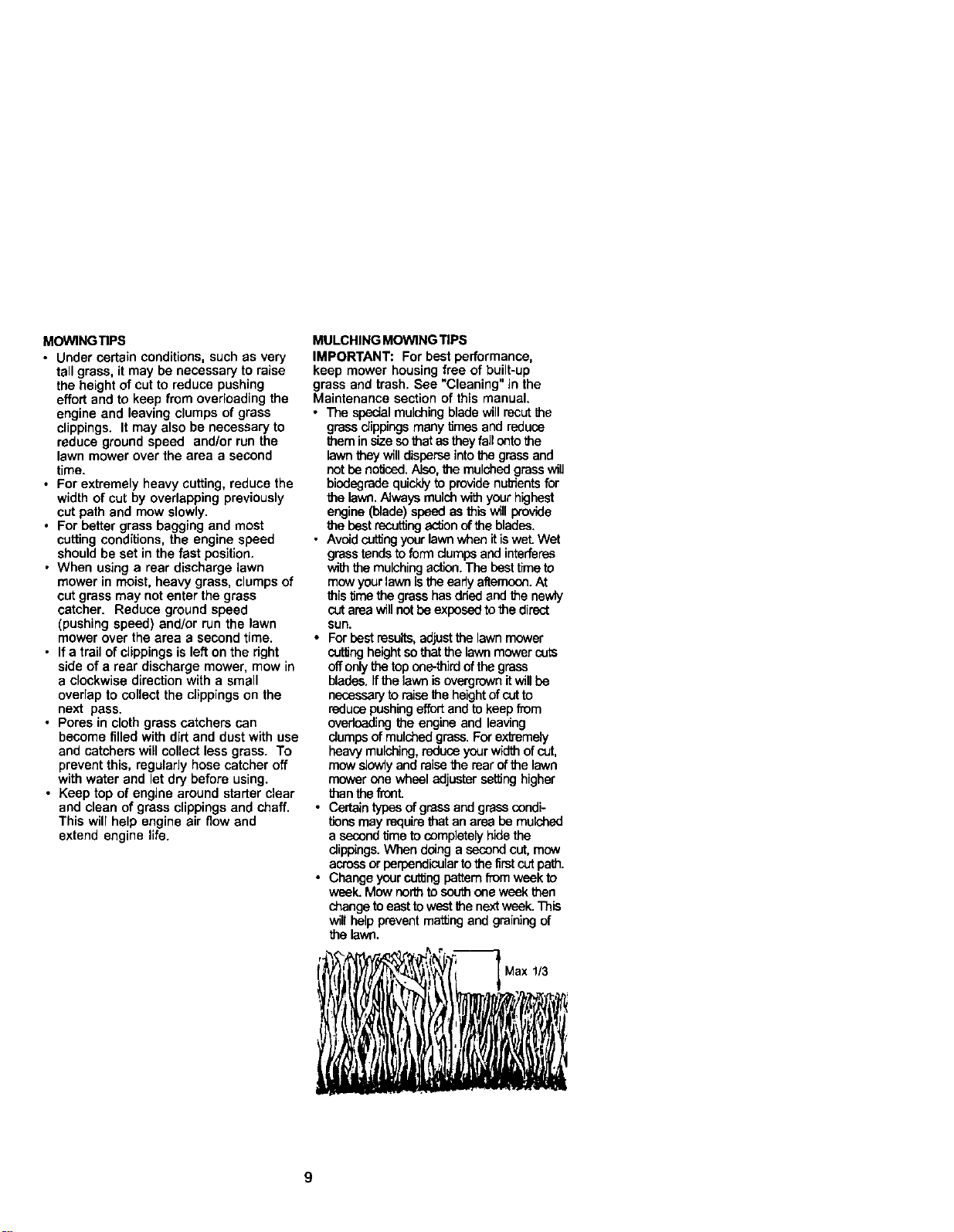

MOWINGTIPS
• Under certain conditions,such as very
tall grass, it may be necessary to raise
the height of cut to reduce pushing
effort and to keep from overloading the
engine and leaving clumps of grass
clippings. It may also be necessary to
reduce groundspeed and/or run the
lawn mower over the area a second
time.
• For extremely heavy cutting, reduce the
width of cut by overlapping previously
cut path and mow slowly.
• For better grass bagging and most
cuttingconditions,the engine speed
should be set in the fast position.
• When using a rear discharge lawn
mower in moist,heavy grass, clumps of
cut grassmay not enter the grass
catcher. Reduce ground speed
(pushing speed) and/or run the lawn
mower over the area a second time.
• If a trail of clippingsis left on the right
side of a rear discharge mower, mow in
a clockwise directionwith a small
overlap to collect the clippingson the
next pass.
• Pores in cloth grass catchers can
become filledwith dirtand dustwith use
and catchers willcollect less grass. To
prevent this, ragulady hose catcher off
with water and let dry before using.
• Keep fop of engine around starter clear
and clean of grass clippings and chaff.
This will help engine air flow and
extend engine life.
MULCHING MOWINGTIPS
IMPORTANT: For best performance,
keep mower housing free of built-up
grass and trash. See "Cleaning" in the
Maintenance section of this manual.
• The specialmulchingbladewillreoutthe
grass clippingsmany fimes and reduce
them in sizesothat astheyfall ontothe
lawnthey willdisperseinto the grassand
notbe nofJced.Also,the mulched grasswill
biedegradequicklyto providenutrientsfor
the lawn.Always mulch withyour highest
engine(blade)sp_ as this will provide
the bestrecutting actionofthe blades.
• Avoid cuttingyourlawnwhen itiswet Wet
grasstendstoform dumps andinterferes
withthe mulchingacfion.The besttime to
mow yourlawnisthe earlya_temoon.At
thistimethe grasshasdriedand the newly
cutarea willnot be exposedto the direct
sun.
• Forbest results,adjustthe lawnmower
cut_ngheightso thatthe lawnmower cuts
offonlythetopone-third ofthe grass
blades.Ifthe lawnisovergrownit will be
necessaryto raise the heightof cut to
reduce pushing effortand to keep from
overloading the engine and leaving
dumps of mulched grass. For exb'emely
heavymulching, reduce your w_lth of cut,
mow slowiy and raisethe rear of the lawn
mower one wheel adjuster settinghigher
than the fronL
• Certaintypesofgrass and grass condi-
tioes may requirathat an area be mulched
a secondtime to completelyhidethe
clippings.When doinga secondcut,mow
acrossor perpendicularto the firstcutpath.
• Changeyourcuttingpatternfrom weekto
week.Mow northto southoneweek then
changeto eastto westthe nextweek.This
willhelppreventmattingand grainingof
the lawn.
Max 1/3
9

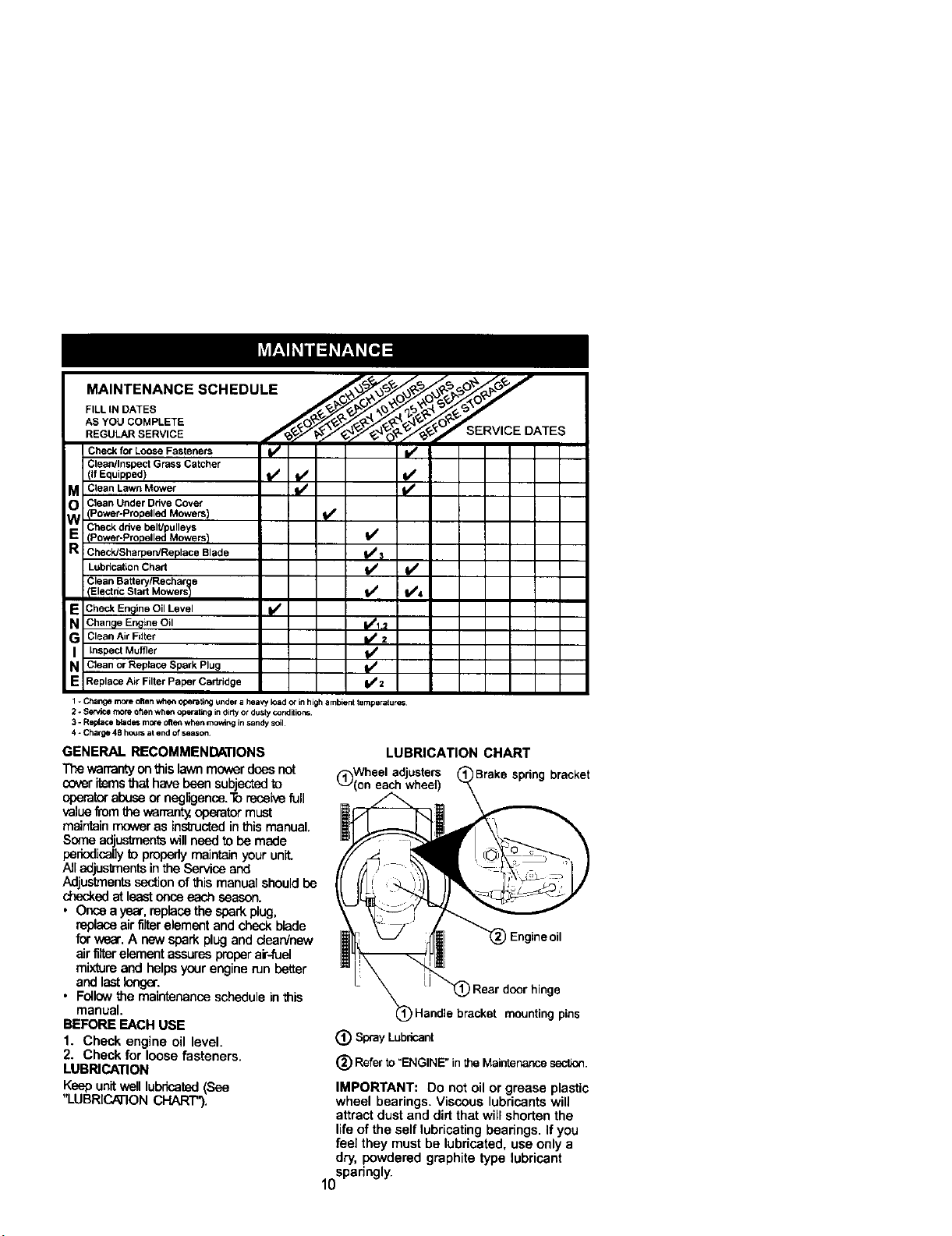

F,LL,.OATEO
Check for Loose Fasteners _
Clean/Inspect Grass Catcher
(If Equipped) _,/ _ I_
M Clean Lawn Mower I/ t/
OjV Clean Under Drive Cover
Power-Propelled Mowers) t/*
Check drive belt/pulleys
E (Power-Propelled Mowers) ll/
Check/Sharpen/Replace Blade _ :_
Lubrication Chart I## II_
Clean Battery/Rechal
Elected Start Mowers f_ 11_4
E Check Engine Oil Level pf'
N Change Ermine Oil _1,_
G Clean Air Fi_ter It/ 2
I Inspect Muffler
N CleanorReplaceSparkPlug t/
E ReplaceAirFilterPaperCartridge bt#2
1 - Change moreopen whe_ op,Brst_rtgunder a heavyload orinhigh ambientlomporatures
2 ° Service more oftenwhen operating indirty or dustyconditions¸
3 - RolYace bladss moreoften when mc_r_g in sandysoil
4 - Char_ 48 hours at end of season,
GENERAL RECOMMENDATIONS
The warrantyonthislawnmover doesnot
coveritemsthathave beensubjectedto
operatorabuseor negligence.Torecak,e full
valuefromthewarranty operatormust
maintain moweras instructed inthismanual.
Someadjustmentswillneedtobe made
periodical],!to propedymaintainyourun_L
All edjusbnents intheService and
Adjustments section ofthis manualshouldbe
dlecked at least onceeach season.
• Once ayear,replacethe sparkplug,
replaceairfilterelementand checkblade
forv,_ar.A new sparkplugand dean/new
airfilterelementassuresproperair-fuel
mixture and helpsyour enginerun better
and lastIongen
• Followthe maintenance scheduleinthis
manual.
BEFORE EACH USE
1. Check engine oil level.
2. Check for loose fasteners.
LUBRICATION
Keepunitwell lubricated(See
"LUBRI_ON CHART").
LUBRICATION CHART
(_)Wheel adjusters )Brake spring bracket
(on each wheel)
) Engine oil
Rear door hinge
Handle bracket mounting pins
(_) Spray Lubricant
(_ Refer to "ENGINE" inthe Maintenance sec0_.
IMPORTANT: Do not oil or grease plastic
wheel bearings. Viscous lubricants will
attractdust and dirt that will shortenthe
lifeof the self lubricating beahngs. If you
feel they must be lubricated, use onlya
dry, powdered graphite type lubricant
loSpadeglY •
PRODUCT SPECIFICATIONS
SERIAL NUMBER:
DATE OF PURCHASE:
GASOLINE CAPACITY/TYPE: 1.5 QUARTS
UNLEADED REGULAR
OILTYPE (API-SF-SJ): SAE 30 (ABOVE 32°F)
SAE 5W-30 (BELOW 32°F)
OIL CAPACITY: 20 OZS.
SPARK PLUG(GAP: .045") CHAMPION RJ19LM4
BLADE BOLTTORQU E: 35-40 FT. LBS.
The model and serial numbers will be found on a decal attached to the rear of the
lawn mower housing. Record both serial number and date of pumhase in the space
provided above.
LAWN MOWER
Always observesafetyruleswhenperforming
any maintenance.
TIRES
• Keeptiresfree ofgasoline,oil,or insect
control chemicals which can harm rubber.
• Avoid stumps, stones, deep ruts,sharp
objectsand other hazards that may cause
tire damage.
BLADE CARE
For best results, mower blade must be
keptsharp. Replace bent or damaged
blades.
TO REMOVE BLADE
1. Disconnect spark plug wire from spark
plug and place wire where it cannot
come in contact with spark plug.
2. Turn lawn mower on its side. Make
sure air filter and carburetor are up.
3. Use a wood block between blade and
mower housing to prevent blade from
turning when removing blade bolt.
NOTE: Protect your hands with gloves
and/or wrap blade with heavy cloth.
4. Remove blade bolt by turning counter-
clockwise.
5, Remove blade and attaching hard-
ware (bolt, lock washer and hardened
washer).
NOTE: Remove the blade adapter and
check the key inside hub of blade adapter.
The key must be in good condition to work
properly. Replace adapter if damaged.
TO REPLACE BLADE
1. Position the blade adapter on the
engine crankshaft. Be sure key in
adapter and crankshaft keyway are
aligned.
2. Position blade on the blade adapter
aligning the two (2) holes in the blade
with the raised lugs on the adapter.
3. Be sure the trailing edge of blade
(opposite sharp edge) is up toward
the engine.
4. Install the blade bolt with the lock
washer and hardened washer into
blade adapter and crankshaft.
5. Use block of wood between blade and
lawn mower housing and tighten the
blade bolt, turning clockwise.
• The recommended tighteningtorque is
35-40 ft. Ibs.
IMPORTANT: Blade boltis grade 8 heat
treated.
Crankshaft
/ keyway
Blade
Crank
Blade shaft
bolt Hardene
washer Trailing edge Blade adapter
11
TO SHARPEN BLADE
NOTE: We do not recommend
sharpening blade - but if you do, be sure
the blade is balanced.
Care should be taken to keep the blade
balanced. An unbalanced blade will
cause eventual damage to lawn mower or
engine.
• The blade can be sharpened with a file
or on a grindingwheel. Do not attempt
to sharpen while on the mower.
• To check blade balance, drive a nail
intoa beam or wall. Leave about one
inchof the straight nail exposed. Place
center hole of blade over the head of
the nail. If blade is balanced, it should
remain in a horizontal position. If either
end of the blade moves downward,
sharpen the heavy end untilthe blade
is balanced.
GRASS CATCHER
• The grass catchermay be hosed with
water,butmustbe drywhen used.
• Checkyourgrasscatcher oftenfor damage
or deterioration.Through normaluse itwill
wear. Ifcatcherneeds replacing,replace
onlywitha manufacturer approved
replacementcatcher. Givethe lawnmower
modelnumber when ordering.
ENGINE
LUBRICATION
Use only high quality detergent oil rated
with API service classificationSF-SJ.
Select the oil'sSAE viscosity grade
according to your expected operating
temperature.
Change the oil after every 25 hours of
operationor at least once a year if the
lawn mower isnot usedfor 25 hours in
one year.
Check the crankcase oil level before
startingthe engine and after each five (5)
hours of continuous use. Tighten oil plug
securelyeach time you check the oil
level.
TO CHANGE ENGINE OIL
NOTE: Before tippinglawn mower to
drainoil, drain fuel tank by running
engine until fuel tank is empty.
1. Disconnect spark plug wire from spark
plug and place wire where it cannot
come in contact with spark plug.
2. Remove engine oilcap; lay aside on a
clean surface.
3. Tip lawn mower on its side as shown
and drain oil into a suitable container.
Rock lawn mower back and forth to
remove any oil trapped inside of
engine.
4. Wipe off any spilled oil from lawn
mower or side of engine.
5. Fill engine with oil (see =ADD OIL_in
the Operation section of this manual).
6. Reconnect spark plug wire to spark
plug.
NOTE: Although multi--viscosity oils
(5W30, 10W30 etc.) improve starting in
cold weather, these multi--viscosity oils
will result in increased oil consumption
when used above 32°F. Check your
engine oil level more frequently to avoid
possible engine damage from running
low on oil.
Container
12

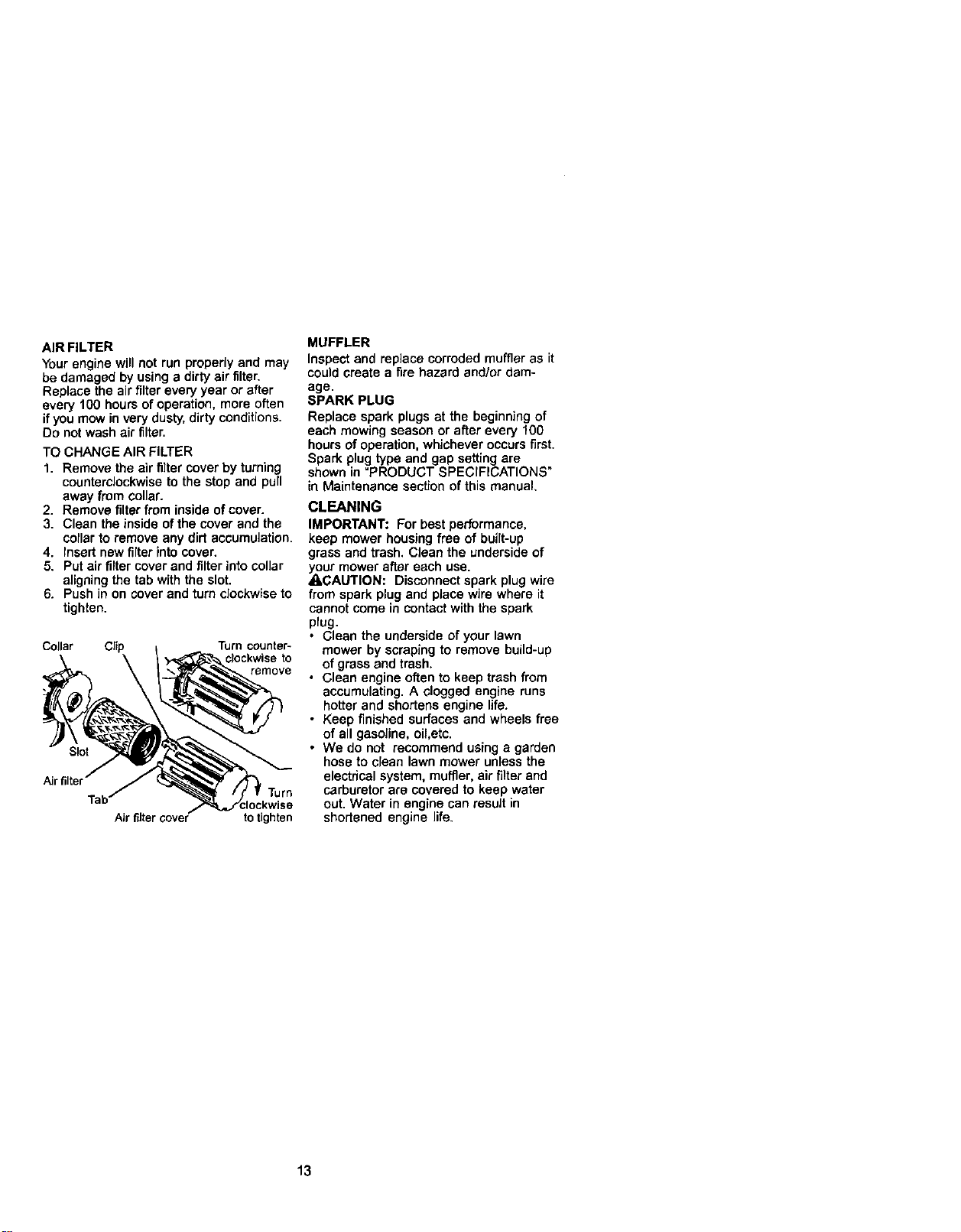

AIR FILTER
Your engine will not run property and may
be damaged by using a dirty air filter.
Replace the air filter every year or after
every 100 hours of operation, more often
if you mow in very dusty, dirty conditions.
Do not wash air filter.
TO CHANGE AIR FILTER
1. Remove the air filter cover by turning
counterclockwise to the stop and pull
away from collar.
2. Remove filter from inside of cover.
3. Clean the inside of the cover and the
corlar to remove any dirt accumulation.
4. Insert new filter into cover.
5. Put air filter cover and filter into collar
aligning the tab with the slot.
6. Push in on cover and turn clockwise to
tighten.
Collar Clip Turn counter-
clockwise to
remove
Air filter
Air filter cover to tighten
MUFFLER
Inspect and replace corroded muffler as it
could create a fire hazard and/or dam-
age.
SPARK PLUG
Replace spark plugs at the beginning of
each mowing season or after every 100
hours of operation, whichever occurs first.
Spark plug type and gap setting are
shown in =PRODUCT SPECFFICATIONS"
in Maintenance sect.ionofthis manual,
CLEANING
IMPORTANT: For best performance,
keep mower housing free of built-up
grass and trash. Clean the underside of
_(ourmower after each use.
CAUTION: Disconnect spark plug wire
from spark plug and place wire where it
cannot come in contact with the spark
prug.
• Clean the underside of your lawn
mower by scraping to remove build-up
of grass end trash.
• Clean engine often to keep trash from
accumulating. A clogged engine runs
hotter and shortens engine life,
• Keep finished surfaces and wheels free
of all gasoline, oil,etc.
• We do not recommend using a garden
hose to clean lawn mower unless the
electrical system, muffler, air filter and
carburetor are covered to keep water
out. Water in engine can result in
shortened engine life.
13
_,CAUTION: Before performing any
service or adjustments
1 Release control bar and stop engine
2. Make sure the blade and all movtng
parts have completely stopped
3. Disconnect spark plug wtre from spark
plug and place where _tcannot come
tncontact with plug
LAWN MOWER
TO ADJUST CUTTING HEIGHT
See "TO ADJUST CUTTING HEIGHT" in
the Operation section of thusmanual.
REAR DEFLECTOR
The rear deflector, attached between the
rear wheels of your lawn mower, is
provided to mmimnze the poss_bd_tythat
objects willbe thrownout the rear of the
lawn mower into the operator's mowing
position. If the rear deflector becomes
damaged, it should be replaced
TO ADJUST HANDLE
The handle on your lawn mower has
three (3) height positions - adjust to height
that su_tsyou.
• Squeeze the bottom ends of lower
handle towards each other until the pin
m handle can be inserted tnto one of
the three height adjustment holes
ndle pm
3-positron
handle
Jstment
bracket
TO ASSEMBLE GRASS CATCHER
1 Put grass catcher frame intograss bag
with ng_dpart of bag on the bottom
Make sure the frame handle is outs=de
ofthe bag top
2 Slip vinyl bindings over frame
NOTE If vinyl bindingsare toostiff, hold
them tnwarm water for a few minutes If
bag gets wet, let =tdry before using
_,CAUTION, Do not run your lawn
mower without clipping deflector or
approved grass catcher in place Never
attempt to operate the lawn mower w=th
the rear door removed or propped open
Catcher
frame
handle
Frame
ENGINE
ENGINE SPEED
Yourenginespeed hasbeenfactoryset. Do
not attemptto increaseengtnespeed or
may resultin personal_njury.Ifyoubel_,'e
thatthe engineisrunningtoofast or too slow,
takeyourlawnmower toan a Searsor other
qua)diedservice centerfor repairand
adjustmenL
CARBURETOR
Yourcarburetor hasa non-adjustable5xed
main!etformixture control Ifyourengnne
doesnot operatepmperfydue tosuspected
carburetor problems,take yourlawn mower
toa Searsor otherquailed se_ce center
for repairorad!usfznenL
IMPORTANT: Never tamper with the
engtne governor,whLchis factory set for
proper engine speed. Overspeedmg the
engine above the factory h_ghspeed
setting can be dangerous if you think the
engine-governed high speed needs
adjusting, contact your nearest Sears or
other qualified service center, which has
proper equ=pmantand experience to
make any necessary adjustments
14
Immediatelyprepareyourlawn mowerfor
storageatthe endof theseasonor ifthe unit
willnotbe usedfor 30 daysor more.
LAWN MOWER
When lawnmoweristo be storedfor a period
of f_me,cleanitthoroughly,removeall dirt,
grease, leaves, etc. Store in a dean, dry area.
1. Clean entire lawn mower (See
"CLEANING" in the Maintenance
section of this manual).
2. Lubricate as shown in the Mainte-
nance section of this manual.
3. Be sure that all nuts, bolts, screws, and
pins are securely fastened. Inspect
moving parts for damage, breakage
and wear. Replace if necessary.
4. Touch up all rusted or chipped paint
surfaces; sand lightly before painting.
HANDLE
You can fold your lawn mower handle for
storage.
1. Loosen the two (2) handle knobs on
sides of the upper handle and allow
handle to fold down to the rear.
2. Squeeze the bottom ends of lower
handle toward each other until pins in
handle clear the brackets and pivot
entire handle assembly forward and
allow it to rest on mower.
• When setting up your handle from the
storage position, the lower handle wiU
require manually locking into the
mo,Mng position.
IMPORTANT: When folding the handle
for storage or transportation, be sure to
fold the handle as shown or you may
damage the control cables.
Operator presence
control
Fold
backward
Mowing
position
J
3-Position
handle
adjustment
bracket
ENGINE
FUEL SYSTEM
IMPORTANT: It isimportantto prevent
gum deposits from forming in essential
fuel system parts suchas carburetor, fuel
filter,fuel hose, or tank during storage.
Also, experience indicates that alcohol
blended fuels (called gasohol or using
ethanol or methanol) can attract moisture
which leads to separation and formation
of acids during storage. Acidic gas can
damage the fuel system of an engine
while in storage.
1. Drain the fuel tank.
2, Start the engine and let it run untilthe
fuel lines and carburetor are empty.
• Never use engine or carburetor cleaner
products in the fuel tank or permanent
damage may occur.
• Use freshfuel next season.
NOTE: Fuel stabilizer is an acceptable
alternative in minimizing the formation of
fuel gum deposits during storage, Add
stabilizer to gasoline in fuel tank or
storage container. Always follow the mix
ratio found on stabilizer container. Run
engine at least 10 minutes attar adding
stabilizer to allow the stabilizer to reach
the carburetor. Do not drain the gas tank
and carburetor if using fuel stabilizer.
ENGINEOIL
Drain oil (with engine warm) and rep!,ace
with clean engine oil. (See ENGINE in
the Maintenance section of this manual),
15
CYLINDER
1. Remove spark plug.
2. Pour one ounce (29 ml) of oil through
spark plug hole into cylinder.
3. Pull starter handle slowly a few times
to distribute oil.
4. Replace with new spark plug.
OTHER
• Do not store gasoline from one season
to another.
• Replace your gasoline can if your can
starts to rust. Rust and/or dirt in your
gasoline will cause problems.
• If possible, store your unit indoors and
cover it to give protection from dust and
dirt.
• Cover your unit with a suitable protec-
tive cover that does not retain moisture.
Do not use plastic. Plastic cannot
breathe, which allows condensation to
form and will cause your unit to rust.
IMPORTANT: Never cover mower while
engine and exhaust areas are still warm.
_.CAUTION: Never store the lawn
mower with gasoline in the tank inside a
building where fumes may reach an open
flame or spark. Allow the engine to cool
before stodng in any enclosure.
TROUBLESHOOTING CHART
PROBLEM CAUSE
Does not start 1. Dirty air filter,
2. Out of fuel.
3, Stale fuel,
4, Water infuel.
5. Spark plug wire is
disconnected.
6. Sad spark plug.
7. Loose blade or broken
blade adapter.
8. Control bar in released
position.
9. Control bar defective.
CORRECTION
1. Clean/replace air filter.
2. Fillfuel tank.
3. Drain tank and refillwith
fresh clean fuel.
4. Drain fuel tank and
carburetor and refill tank
with fresh gasoline.
5. Connect wire to plug.
6. Replace spark plug.
7. Tighten blade bolt or
replace blade adapter.
8. Depress control bar to
handle.
9. Replace control bar.
16
TROUBLESHOOTING CHART
PROBLEM CAUSE
.oss of power
3oor cut - 1.
]neven
2.
3.
-xcess]ve
_ibration
1. Rear of lawn mower
housingor cutting blade
dragging in heavy grass.
2. Cutting too much grass.
Starter rope hard 1.
_opull
2.
3.
4.
Grass catcher 1.
notfilling (if so 2.
_quipped) 3.
Hard to push 1.
2.
3.
4.
3. Dirty air filter.
4. Buildup of grass, leaves, 4.
and trash under mower.
5. Too much oil in engine. 5.
6. Walking speed too fast. 6.
Worn, bent or loose blade. 1.
Wheel heights uneven. 2.
Buildup of grass, leaves 3.
and trash under mower.
1. Worn, bent or loose blade. 1.
2. Bent engine crankshaft. 2.
Engine flywhee_ brake is on 1.
when control bar is release¢
Bent engine crankshaft. 2.
Blade adapter broken. 3.
Blade dragging in grass. 4.
Cutting height too low. 1,
Lift on blade worn off. 2.
Catcher not venting air. 3.
Grass is too high or wheel 1,
height is too low.
Rear of lawn mower 2.
housing or blade dragging
in grass.
Grass catcher too full. 3.
Handle height position not 4.
right for you.
CORRECTION
1. Set to "Higher Cut"
position.
2. Set to "Higher Cut"
position.
3. Clean/replace air filter.
Clean underside of mower
housing.
Check oil level.
Cut at slower walking
speed.
Replace blade. Tighten
blade bolt.
Set all wheels at same
height
Clean underside of
mower housing.
Replace blade. Tighten
blade bolt.
Contact a Sears or other
qualified service center.
Depress control bar to
upper handle before
pulling starter rope,
Contact a Sears or other
qualified service center.
Replace blade adapter.
Move lawn mower to cut
grass or to hard surface.
Raise cutting height.
Replace blade,
Clean grass catcher.
Raise cutting height.
Raise rear of lawn mower
housing one (1) setting
higher.
Empty grass catcher,
Adjust handle height to
suit.
17

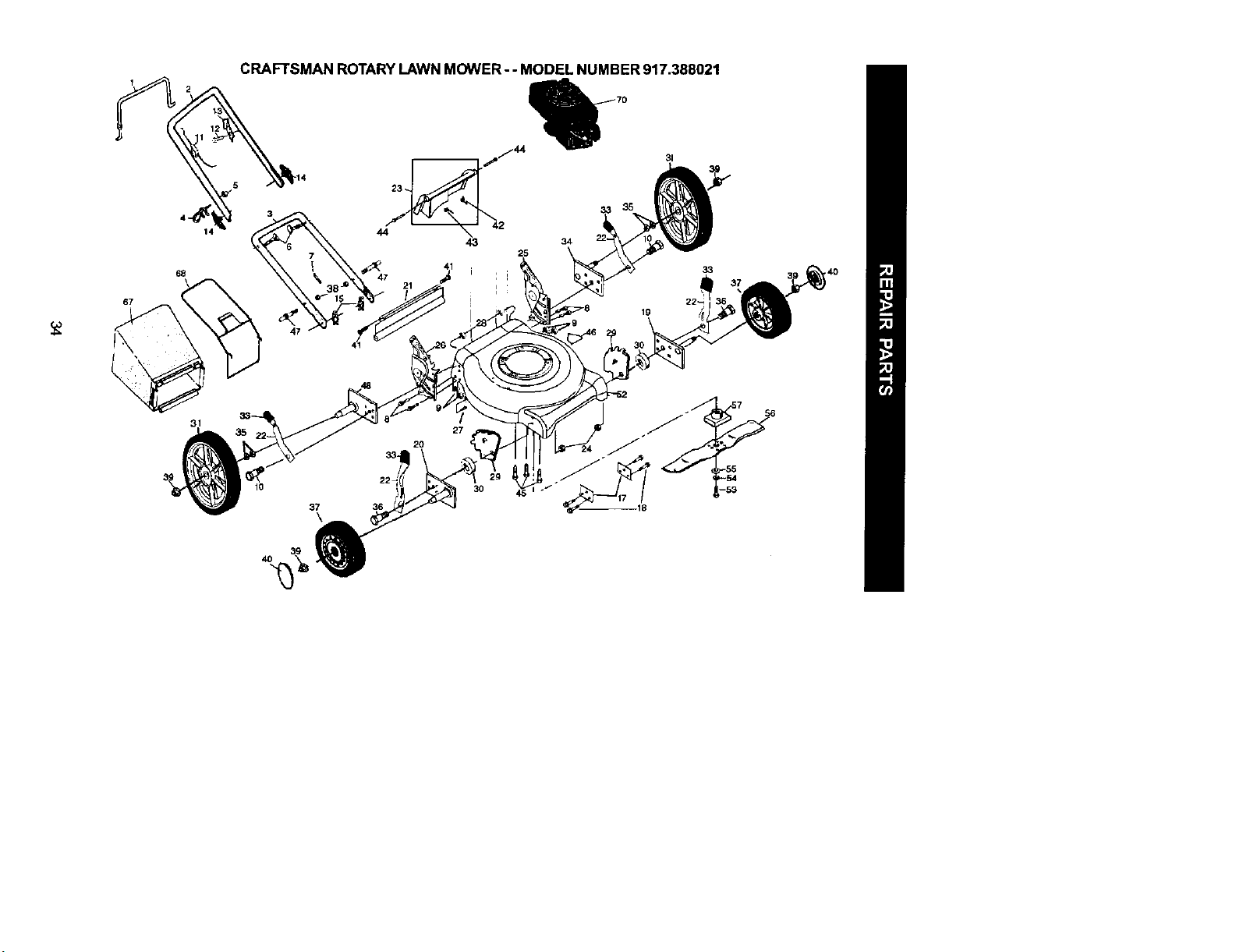

CRAFTSMAN ROTARYLAWN MOWER - - MODEL NUMBER 917.388021
31
10
37
\
27

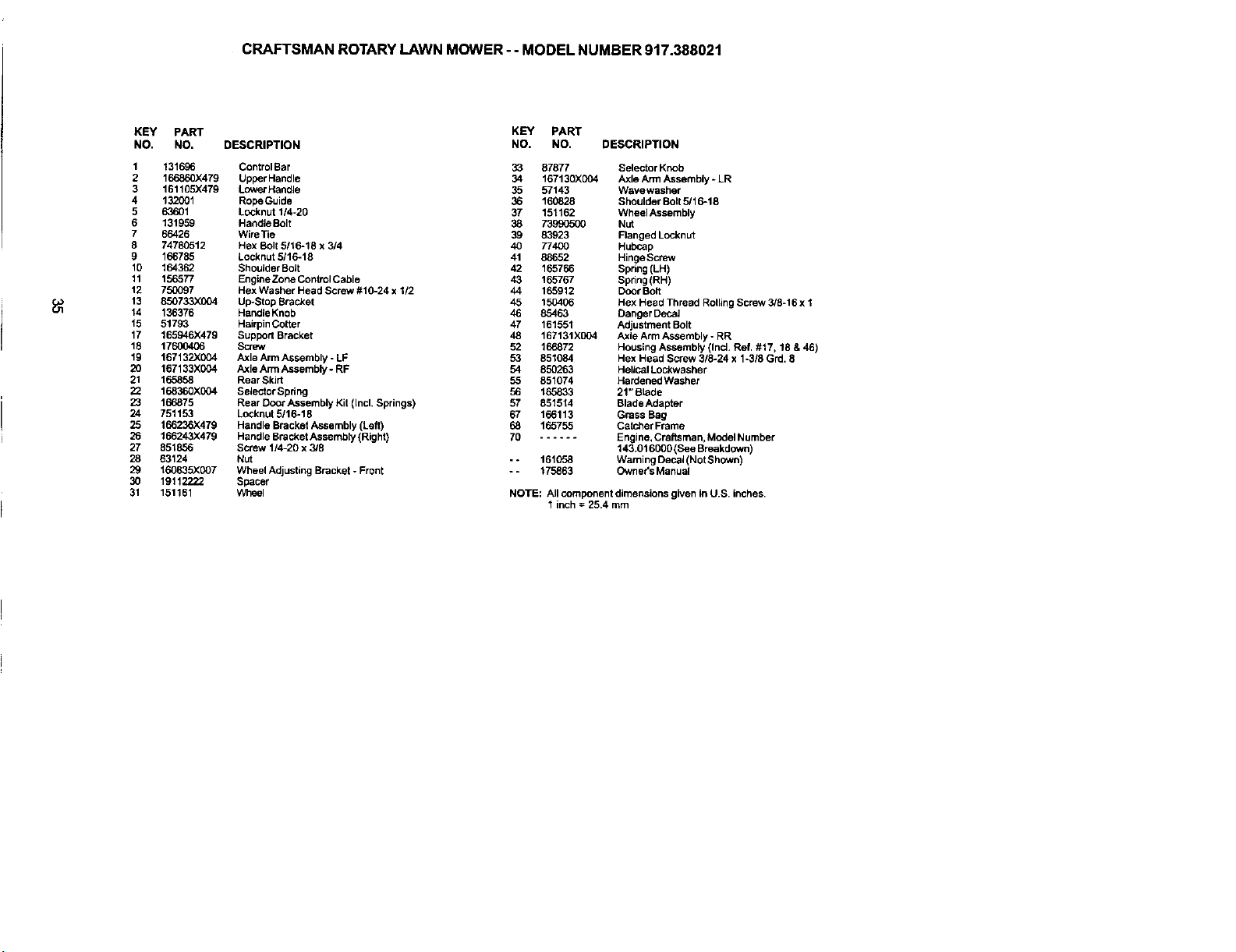

CRAFTSMAN ROTARY LAWN MOWER - - MODEL NUMBER 917.388021
KEY PART
NO. NO. DESCRIPTION
1 131696
2 166860X479
3 161105X479
4 132001
5 63601
6 131959
7 66426
8 74780512
9 166785
10 164362
11 156577
12 750097
13 850733X004
14 136376
t5 51793
17 165946X479
18 17600406
19 167132)(004
20 167133X004
21 165858
22 168360X004
23 166875
24 751153
25 166236)(479
26 166243X479
27 851856
28 63124
29 160835)(007
30 19112222
31 151161
ControlBar
Upper Handle
LowerHandla
RopoGuide
Locknut 114-20
HancllaBolt
Wire Tie
Hex Bolt 5116-18 x 314
Locknut 5116-18
Shoulder BoJt
Engine Zone Control Cable
Hex Washer Head Screw #16-24 x 1/2
Up-Stop Bracket
Handla Knob
Hairpin CoSer
Support Bracket
Screw
Axle Arm Assembly - LF
Axla Arm Assembly - RF
Rear SkJrt
Selactor Spdng
Rear DoorAssembly Kit (incl. Springs)
Locknut 5116-18
Handle Bracket Assembly (Left)
Handle Bracket Assembiy (Right)
Screw 1/4-20 x 3/8
Nut
Wheel Adjusting Bracket - Front
Spacer
Wheel
KEY PART
NO. NO. DESCRIPTION
33 87877 Selector Knob
34 167130)(004 Axle Arm Assembly _LR
35 57143 Wavewasher
36 160828 Shoulder Bolt 5/16-18
37 151162 WheelAssembly
38 739°.05OO Nut
39 83923 Flanged Locknut
40 77400 Hubcap
41 88652 HingeSc_ew
42 165766 Spdng(LH)
43 165767 Spring(RH)
44 165912 DoorBolt
45 150406 Hex Head Thread RotlingScrew 3/8-16 x I
46 85463 Danger Decal
47 161551 Adjustment Bolt
48 167131X004 Axle Arm Assembly - RR
52 166872 Housing Assembly (IncL Ref. #17, 18 & 46)
53 851084 Hex Head Screw 318-24 x 1-318 Grd. 8
54 950263 HelicalLockwasher
55 851074 HardenedWasher
56 165833 21" Blade
57 851514 Blade Adapter
67 166113 Grass Bag
68 165755 Catcher Frame
70 ...... Engine, Craftsman, Model Number
143.016000 (See Breakdown)
- - 161058 Warning Decal (Not Shown)
* - 175863 Owner's Manual
NOTE: All component dimensions given in U.S. inches.
1 inch = 25.4 mm

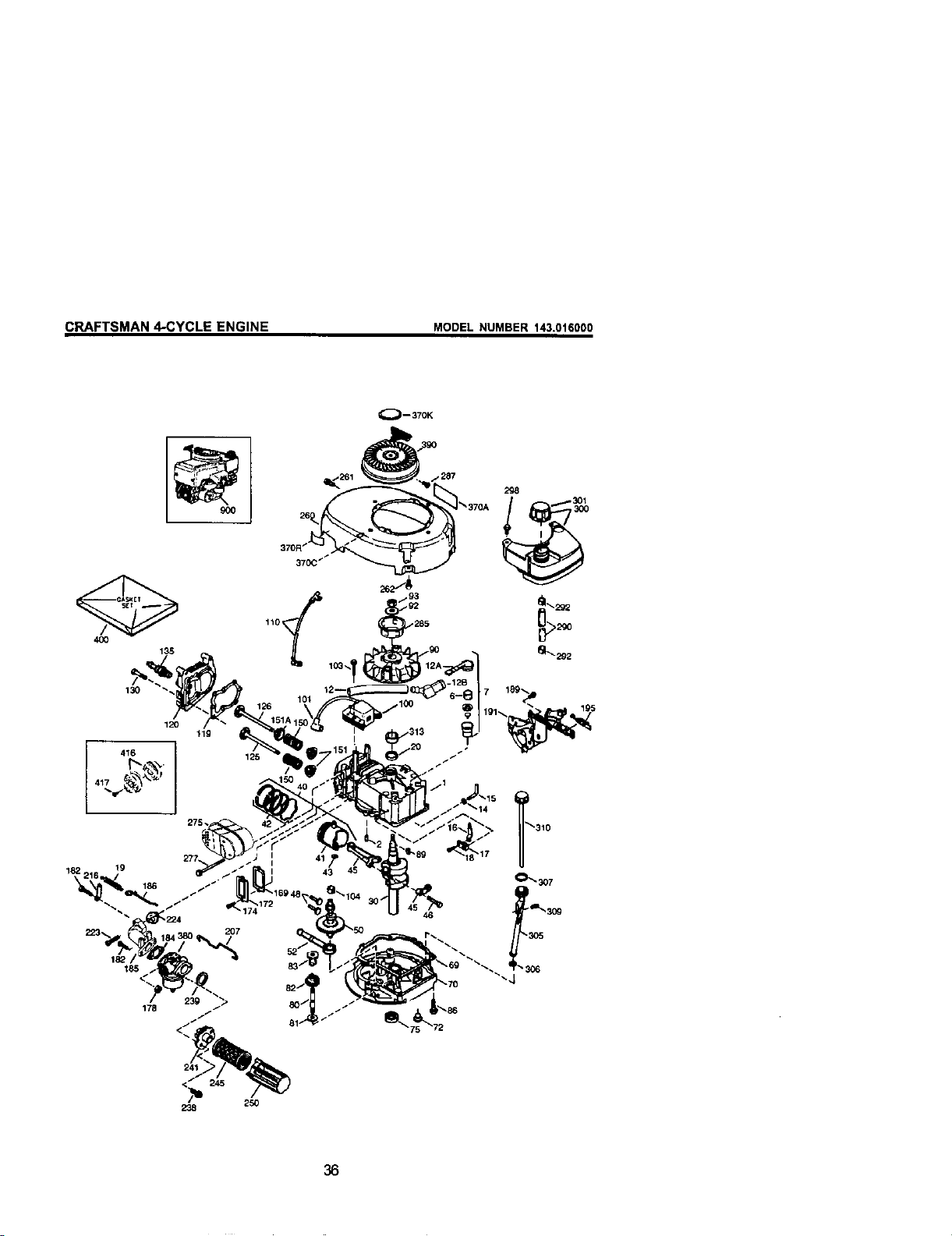

CRAFTSMAN 4-CYCLE ENGINE MODEL NUMBER 143.016000
400
135
130
18_
185
178
2O7
_--370K
/287
36
CRAFTSMAN 4-CYCLE ENGINE MODEL NUMBER 143.016000
KEY PART
NO. NO. DESCRIPTION
KEY PART
NO, NO. DESCRIPTION
1 37266 Cylinder (_ncl. 2,20 & 150) 174 30200
2 26727 Dowel Pin 178 29752
6 33734 Breather Element 182 6201
7 36557 Breather Ass*y. (Incl. 6 & 12A) 184 26756
12 36775 Breather Tube 185 36785
12A 36558 BreatherCover&Tube(Incl. 12B) 186 32653
12B 36694 BreatherTubeEIbow 189 650839
14 28277 Washer 191 36559A
15 30589 Governor Rod (Incl. 14) 195 610973
16 34839A Governor Lever 207 34336
17 31335 Governor Lever Clamp 216 33086
18 651018 Sorew, To_ T- 15, 8-32 x 19/64" 223 650451
19 36281 Extension Spring 224 36786
20 32600 Oil Seal 238 650932
30 36776 Crankshaft 239 34338
40 40004 Piston, Pin & Ring Set (Std.) 241 35797
40(_5 Piston, Pin & Ring Set (.010" OS) 245 35066
41 36070 Piston & Pin Ass'y. (Std.) (Incl. 43) 250
36071 Piston & Pin Ass'y. (.010" OS) 260 36980
(Inc_udesKeyNumher43) 261 30200
42 4_006 Ring Set (Std.) 262 650831
40007 Ring Set (.010" OS) 275 36790A
43 20381 Piston Pin Retaining Ring 277 6.50988
45 36777 Connecting Rod Ass'y, (Incl. 46) 285 _A
46 32610A Connecting ROd Bolt 287 650926
48 27241 VaNe Lifter 290 29774
50 37460 Camshaft (Exhaust MCR) 292 26460
(Includes Key Number 104) 298 28763
52 29914 Oil Pump Ass'y 300 36916
69 37130 * MountingFlangeGasket 301 36246
70 34311E Mounting Flange (Incl. 72-83, 306) 305 35647
72 36083 Oil Drain Plug 306 36996
75 27697 Oil Seal 307 35499
80 30574A Governor Shat_ 309 650562
81 30590A Washer 310 35648
82 30591 Governor Gear Ass'y. (Incl. 81) 313 34080
83 30588A GovernorSpeol 355 590701
86 650488 Screw, 1/4-20 x 1-1/4" 370 37269
89 611004 Flywheel Key 370A 36261
90 611112 Flywheel 370C 37318
92 650815 BeliovilleWasher 370K 36695
93 650816 Flywheel Nut 37(_ 37317
100 34443C Solid State Ignition 380 40262
101 610118 SparkPlugCover 390 590737
103 651007 Sorew, TorxT-15,10*24x15/16" 400 36792B
104 37480 CamBushing 416 36085
110 37047 Ground Wire
119 36767 * CyltnderHeadGasket 417 650821
120 36825 CylinderHead 900 - - -
125 37288 Exhaust Valve (Std.) (Incl. 151) 900 - - -
126 37289 Intake Valve (Std,) (Incl. 151)
130 6021A Screw. 5/16-18x 1-1/2" - ....
135 37598 Resistor Sperk Plug (RJ 19LM4)
150 31672 Valve Spring
151 31673 Valve Spdng Cap
151A 40017 Intake Valve Seal
169 36783 * Valve Cover Gasket
172 36784 Valve Cover
Screw, 10-24 x 9/16"
Nut & Lock Washer, 1/4-28
Screw, 1/4-28 x 7/8"
* Carburetor To Intake Pipe Gasket
Intake Pipe
Governor Liok
Screw, 1/4-20 x 5/8"
S.E. Brake Bracket (Incl. 196)
Terminal
Throt6e Link
R.PM. Adjusting Lever
Screw, 114-20 x 1"
• Intake Pipe Gasket
Screw, 10-32 x 49164*
• Air Cleaner Gasket
AirCleaner Collar
Air Cioaner Fitier
AirCleaner Cover
BlowerHousing
Screw. 10-24 x 9116"
Screw, 114-20 x 1/2"
Muffler
Screw, 1/4-20 x 2-5/16"
Startar Cup
Screw, 8-32 x 21164"
FuelLine
FuelLine Clamp
Screw, 10-32 x 35/64"
Fuel Tank (Incl. 292 & 301)
FuelCap
Oil FillTube
* "O'-Ring
"O'=qing
Screw, 10-32 x 1/2"
Dipstick
Spaoer
Starter Handle (Black)
6.5 H.P. Craftsman Decal
Identification Decal
Primer Decal (3 X)
Starter IDecal
Warning Decal
Carburetor (incl. 184)
Rewind Starter
Gasket Set (IncL Items Markod •)
Spark Arrestor Kit(tacl. 417)
(Optional)
Screw, 16-32 x 112" (Optional)
Reptacament EngineNONE
Replacement S/B 750860,
order from 7 1.899
RPM High 2900 to 3200
NOTE: This engine could have been buiti with Starter
#590694.
NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 rnm
37
CRAFTSMAN 4-CYCLE ENGINE
MODEL NUMBER 143.016000
KEY
NO.
PART
NO. DESCRIPTION
- - 640262 Carburetor (Includes KeyNumber
184 of Engine Parts List)
1 631615 Throttle Shaft & Lever Assembly
2 631767 ThrotUeReturn Spdng
4 631184 * DustSealWasher
5 631183 * Dust Seal (Throttle)
6 640070 * ThrottJe Shutter
7 650506 * ShutterScPew
16 631807 Fuel Fitting
17 651025 Throttle Crack Screw/
Idle Speed Screw
18 630766 Tension Spring
20 640018 idle Restrictor Screw
20A 640200 Idle Rest_ctor SceNe Cap (Black)
25 631867 FloatBowl
27 631024 * FloatShaft
28 632019 Float
29 631026 " FloatBowl=O'Ring
30 631021 * Inlet Needle, Seat. & Clip
(Includes Key Number 31)
31 631022 Spdng Clip
35 640259 Pdmer Bulb/Retainer Ring
36 640080 Main Nozzle Tube
36A 632766 CarburetorTube
37 632547 * "O" Ring, Main Nozzle Tube
40 640175 High Sbeed BowlNut
44 27110A * BowlNutWasher
47 630748 * Welch Plug, Idle Mixture Well
48 631027 * WelchPlug, AtmosphericVent
60 632760B Repair kit (Ind, Items Marked *)
38

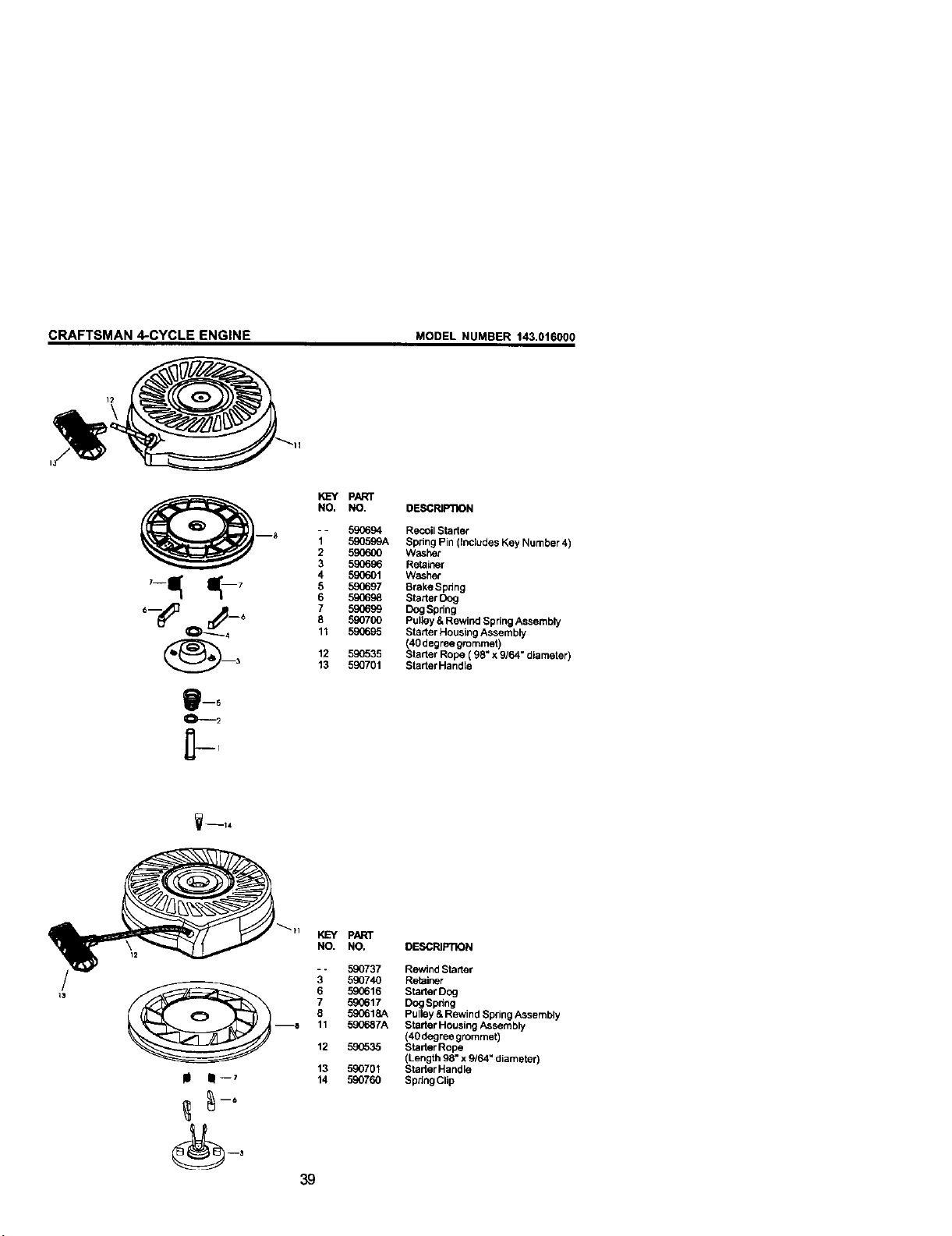

CRAFTSMAN 4-CYCLE ENGINE
MODEL NUMBER 143.016000
KEY PART
NO, NO. DESCRIPTION
- - 5_3694 Recoil Starter
1 5_0599A Spring Pin (Includes Key Number 4)
2 590600 Washer
3 590696 Retainer
4 59(3601 Washer
5 590697 BrakeSpdng
6 590698 Starter Dog
7 590699 DogSpdng
8 590700 Pulley &Rewind Spring Assembly
11 590695 Starter Housing Assembly
(40degreegmmmet)
12 590535 Starter Rope ( 98" x 9/64" diameter)
13 590701 Starter Handle
KEY PART
NO. NO, DESCRIPTION
5,90737 Rewind Starter
3" 590740 Retainer
6 590616 Starter Dog
7 590617 DogSpdng
8 590618A Pulley & Rewind Spring Assembly
11 590687A Starter Housing Assembly
(40degree grommet)
12 59_535 Startar Rope
(Length 98" x 9/64" diameter)
13 590701 Starter Handle
14 590760 Spdng Clip
39
For repair ofmajor brand appliances in your own home...
no matter who made it, no matterwho sold it!
1-800-4-MY-HOME sMAnytime,dayor.ight
(1-800-469-4663)
www.sears.com
To bring in products such as vacuums,
lawn equipment and electronics for repair, call for
the location of your nearest Sears Parts & Repair Center.
1-800-488-1222 A_ime,dayornight
1-888-SU-HOGAR _
(1-888-784-6427)
www.sears.com
For the replacement parts, accessoriesand owner's manuals
that you need to do-it-yourself,call Sears PartsDirectSM!
1-800-366-PART sa.,.-, p.r.CST,
(1-800-366-7278) 7 days a week
www.sears.com/pa rtsdirect
To purchase or inquireabout a Sears Service Agreement:
1-800-827-6655
7 a.m. - 5 p.m. CST, Mon. - Sat.
Para pedir servicio de reparacibn a domicilio, Au Canada pour service en franr.,ais:
y papa ordenar piezas con entrega a dornicilio: 1-877-LE-FOYER s.
(1-877-533-6937)
[ ssAeSo]
[ HomeCentral
Sears, Roebuck and Co.
Registered Trademark / r_ Trademark of Sears, Roebuck and Co
Marca Registrada / TM Matca de Fabrica de Sears. Roebuck and C(X
175863 02,06.01 BY Printed in U.S.A.
