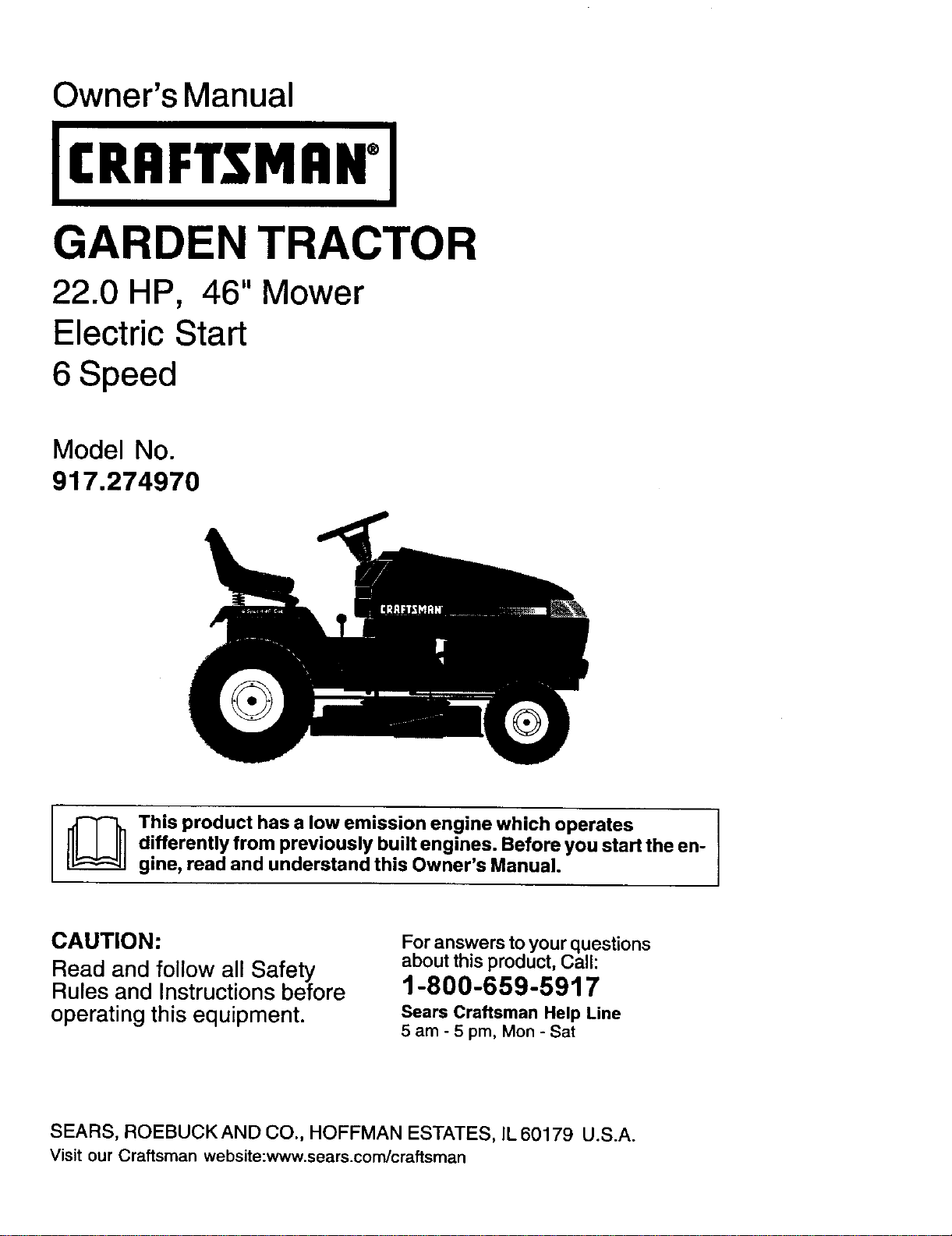

Craftsman 917274970 lawn tractor User Manual

Owner's Manual

ICRAFTSMAWI

GARDEN TRACTOR

22.0 HP, 46" Mower

Electric Start

6 Speed

Model No.

917.274970

[_ This product has a low emission engine which operates I

differently from previously built engines. Before you start the en-

gine, read and understand this Owner's Manual.

CAUTION:

Read and follow all Safety

Rules and Instructions before

operating this equipment.

For answers to your questions

about this product, Call:

1-800-659-5917

Sears Craftsman Help Line

5 am - 5 pm, Mon - Sat

SEARS, ROEBUCK AND CO., HOFFMAN ESTATES, IL 60179 U.S.A.

Visit our Craftsman website:www.sears.corn/craftsman

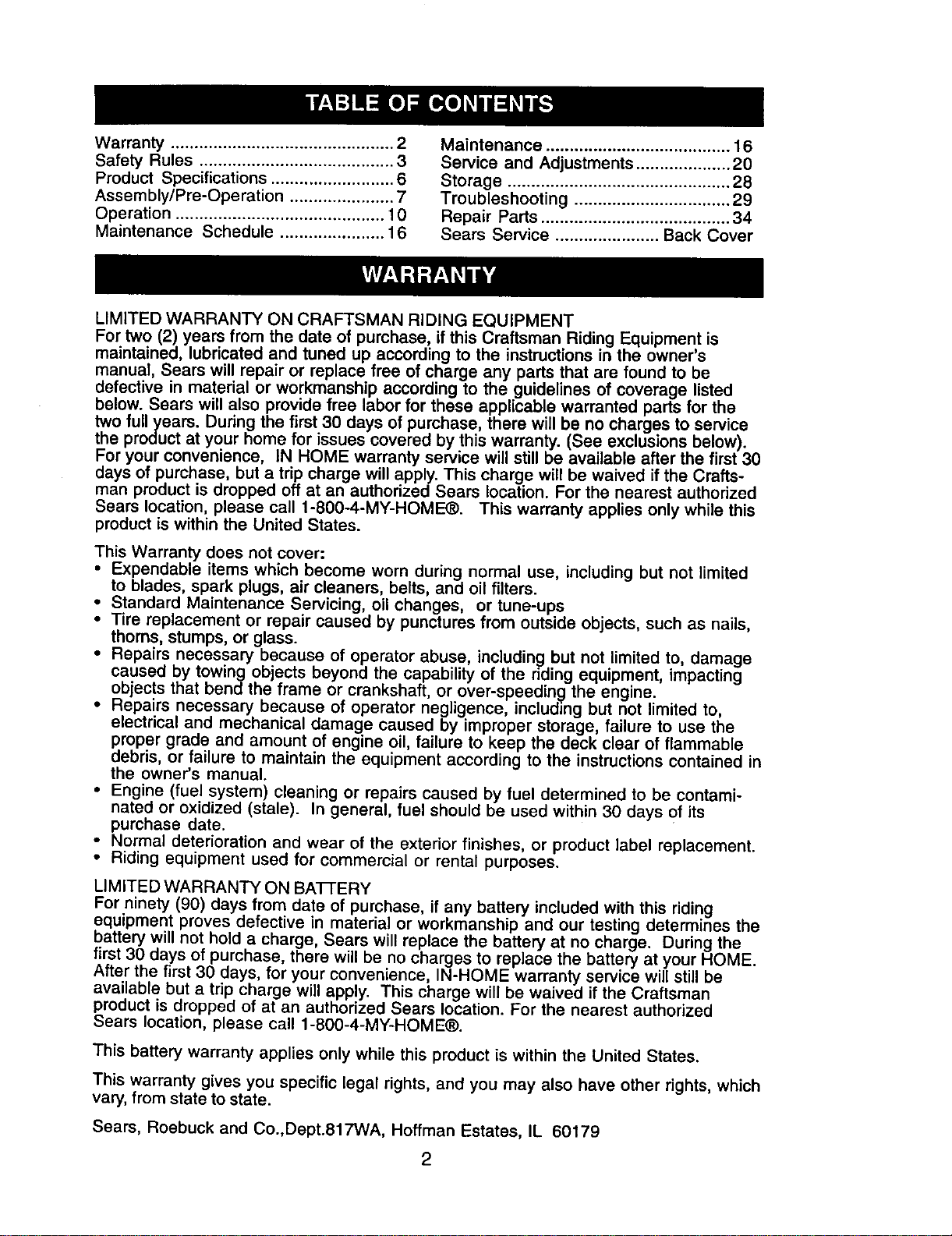

Warranty ............................................... 2

Safety Rules ......................................... 3

Product Specifications .......................... 6

Assembly/Pre-Operation ...................... 7

Operation ............................................ 10

Maintenance Schedule ...................... 16

Maintenance ....................................... 16

Service and Adjustments .................... 20

Storage ............................................... 28

Troubleshooting ................................. 29

Repair Parts ........................................ 34

Sears Service ...................... Back Cover

LIMITED WARRANTY ON CRAFTSMAN RIDING EQUIPMENT

For two (2) years from the date of purchase, if this Craftsman Riding Equipment is

maintained, lubricated and tuned up according to the instructions in the owner's

manual, Sears will repair or replace free of charge any parts that are found to be

defective in material or workmanship according to the guidelines of coverage listed

below. Sears will also provide free labor for these applicable warranted parts for the

two full years. During the first 30 days of purchase, there will be no charges to service

the proouct at your home for issues covered by this warranty. (See exclusions below).

For your convenience, IN HOME warranty service will still be available after the first 30

days of purchase, but a trip charge will apply. This charge will be waived if the Crafts-

man product is dropped off at an authorized Sears location. For the nearest authorized

Sears location, please call 1-800-4-MY-HOME®. This warranty applies only while this

product is within the United States.

This Warranty does not cover:

• Expendable items which become worn during normal use, including but not limited

to blades, spark plugs, air cleaners, belts, and oil filters.

• Standard Maintenance Servicing, oil changes, or tune-ups

• Tire replacement or repair caused by punctures from outside objects, such as nails,

thorns, stumps, or glass.

• Repairs necessary because of operator abuse, including but not limited to, damage

caused by towing objects beyond the capability of the riding equipment, impacting

objects that bend the frame or crankshaft, or over-speedin_ the engine.

• Repairs necessary because of operator negligence, including but not limited to,

electrical and mechanical damage caused by improper storage, failure to use the

proper grade and amount of engine oil, failure to keep the deck clear of flammable

debris, or failure to maintain the equipment according to the instructions contained in

the owner's manual.

• Engine (fuel system) cleaning or repairs caused by fuel determined to be contami-

nated or oxidized (stale). In general, fuel should be used within 30 days of its

purchase date.

• Normal deterioration and wear of the exterior finishes, or product label replacement.

• Riding equipment used for commercial or rental purposes.

LIMITED WARRANTY ON BAI-rERY

For ninety (90) days from date of purchase, if any battery included with this riding

equipment proves defective in material or workmanship and our testing determines the

battery will not hold a charge, Sears will replace the battery at no charge. During the

first 30 days of purchase, there will be no charges to replace the battery at your HOME.

After the first 30 days, for your convenience, IN-HOME warranty service will still be

available but a trip charge will apply. This charge will be waived if the Craftsman

product is dropped of at an authorized Sears location. For the nearest authorized

Sears location, please call 1-800-4-MY-HOME®.

This battery warranty applies only while this product is within the United States.

This warranty gives you specific legal rights, and you may also have other rights, which

vary, from state to state.

Sears, Roebuck and Co.,Dept.8173NA, Hoffman Estates, IL 60179

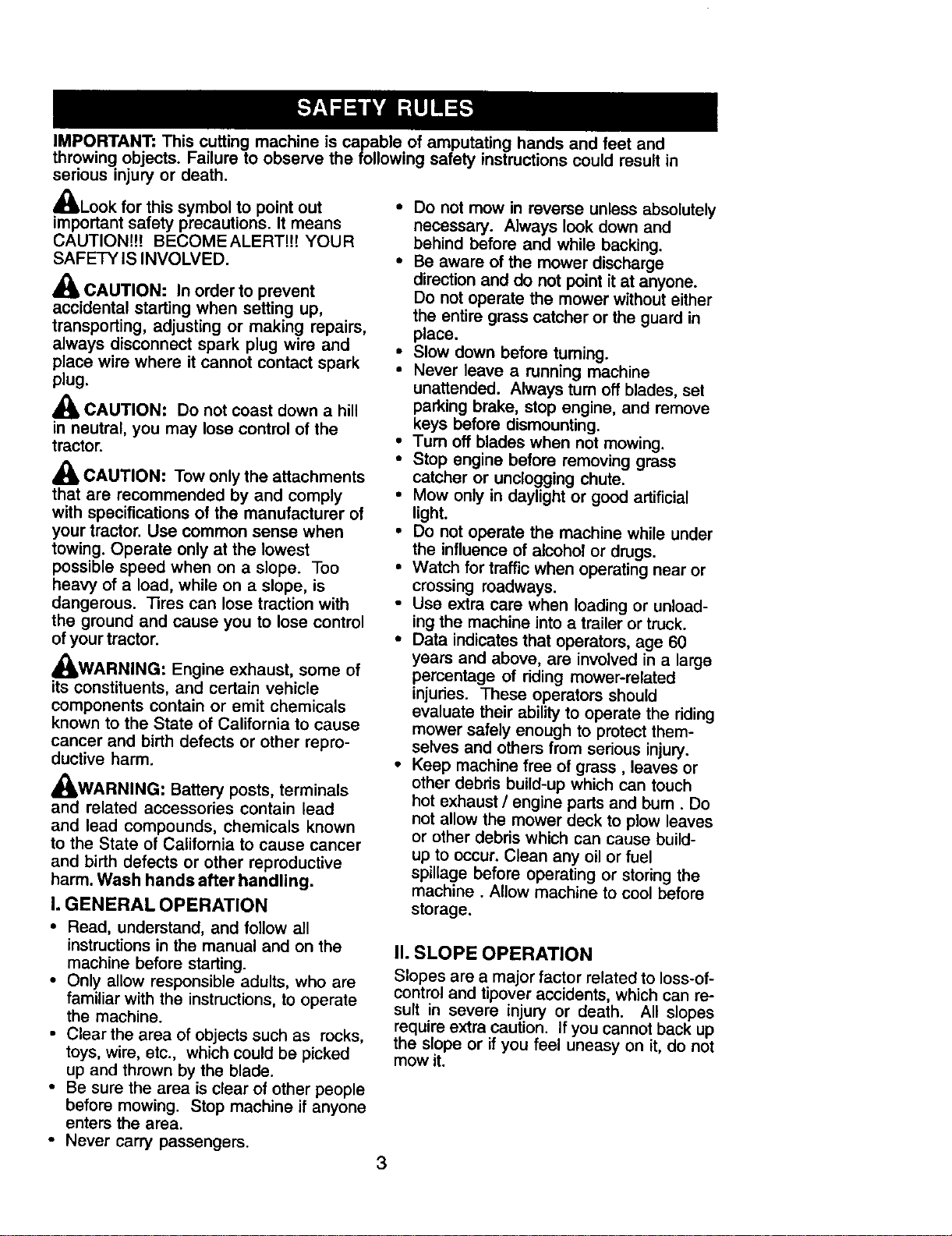

IMPORTANT: This cutting machine is capable of amputating hands and feet and

throwing objects. Failure to observe the following safety instructions could result in

serious injury or death.

Look for this symbol to point out

important safety precautions. It means

CAUTION!!! BECOMEALERTI![ YOUR

SAFETY IS INVOLVED.

,_, CAUTION: In order to prevent

accidental starting when setting up,

transporting, adjusting or making repairs,

always disconnect spark plug wire and

place wire where it cannot contact spark

plug.

_ CAUTION: Do not coast down a hill

in neutral, you may lose control of the

tractor.

CAUTION: Tow only the attachments

that are recommended by and comply

with specifications of the manufacturer of

your tractor. Use common sense when

towing. Operate only at the lowest

possible speed when on a slope. Too

heavy of a load, while on a slope, is

dangerous. ]3res can lose traction with

the ground and cause you to lose control

of your tractor.

WARNING: Engine exhaust, some of

its constituents, and certain vehicle

components contain or emit chemicals

known to the State of California to cause

cancer and birth defects or other repro-

ductive harm.

WARNING: Battery posts, terminals

and related accessories contain lead

and lead compounds, chemicals known

to the State of California to cause cancer

and birth defects or other reproductive

harm. Wash hands after handling.

I. GENERAL OPERATION

• Read, understand, and follow all

instructions in the manual and on the

machine before starting.

• Only allow responsible adults, who are

familiar with the instructions, to operate

the machine.

• Clear the area of objects such as rocks,

toys, wire, etc., which could be picked

up and thrown by the blade.

• Be sure the area is clear of other people

before mowing. Stop machine if anyone

enters the area.

• Never carry passengers.

• Do not mow in reverse unless absolutely

necessary. Always look down and

behind before and while backing.

• Be aware of the mower discharge

direction and do not point it at anyone.

Do not operate the mower without either

the entire grass catcher or the guard in

place.

• Slow down before tuming.

• Never leave a running machine

unattended. Always turn off blades, set

parking brake, stop engine, and remove

keys before dismounting.

• Turn off blades when not mowing.

• Stop engine before removing grass

catcher or unclogging chute.

• Mow only in daylight or good artificial

light.

• Do not operate the machine while under

the influence of alcohol or drugs.

• Watch for traffic when operating near or

crossing roadways.

• Use extra care when loading or unload-

ing the machine into a trailer or truck.

• Data indicates that operators, age 60

years and above, are involved in a large

percentage of riding mower-related

injuries. These operators should

evaluate their ability to operate the riding

mower safely enough to protect them-

selves and others from serious injury.

• Keep machine free of grass, leaves or

other debris build-up which can touch

hot exhaust / engine parts and burn. Do

not allow the mower deck to plow leaves

or other debris which can cause build-

up to occur. Clean any oil or fuel

spillage before operating or storing the

machine. Allow machine to cool before

storage.

II. SLOPE OPERATION

Slopes are a major factor related to loss-of-

control and tipover accidents, which can re-

sult in severe injury or death. All slopes

require extra caution. If you cannot back up

the slope or if you feel uneasy on it, do not

mow it.

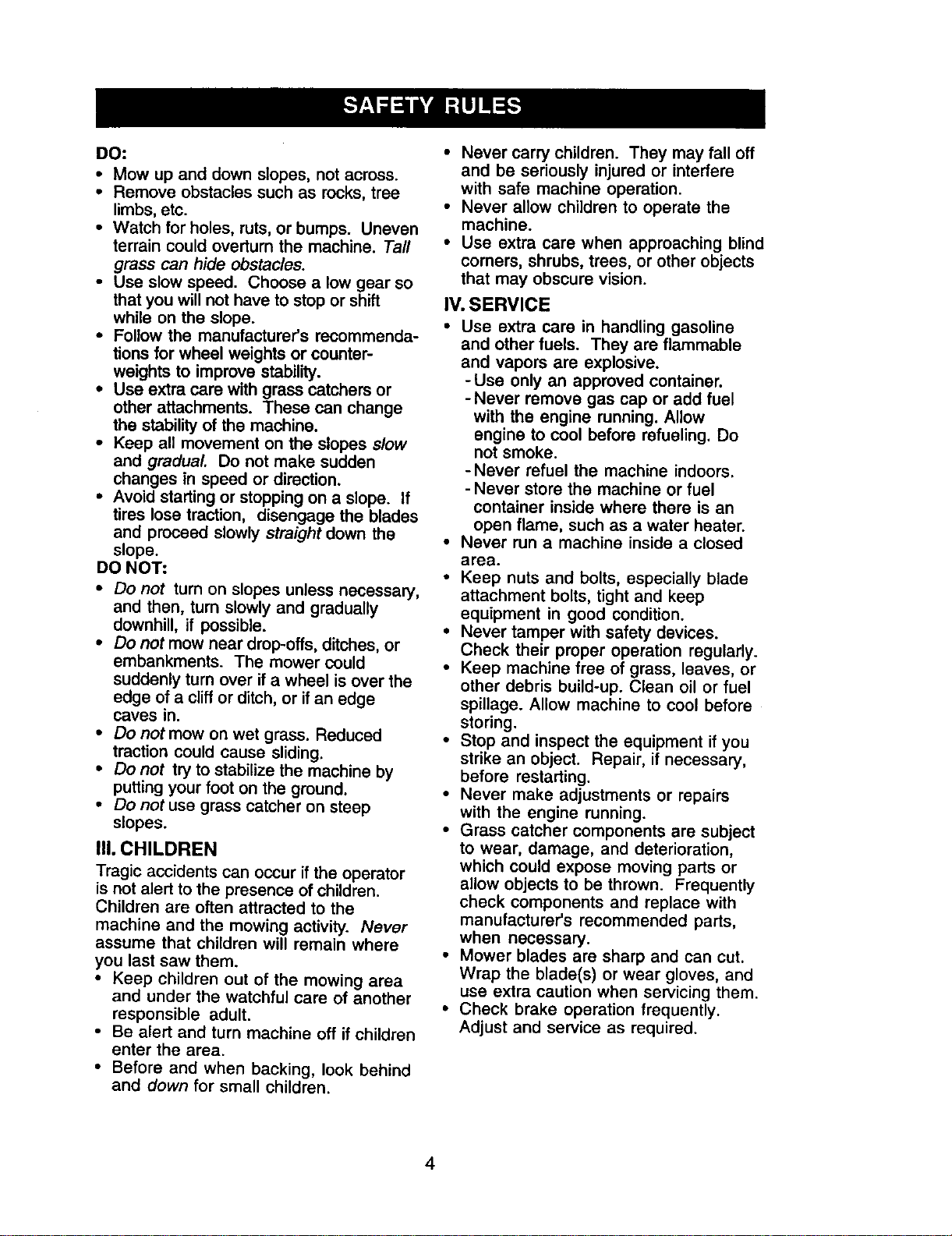

DO:

• Mow up and down slopes, not across.

• Remove obstacles such as rocks, tree

limbs, etc.

• Watch for holes, ruts, or bumps. Uneven

terrain could overturn the machine. Tall

grass can hide obstacles.

• Use slow speed. Choose a low gear so

that you will not have to stop or shift

while on the slope.

• Follow the manufacturer's recommenda-

tions for wheel weights or counter-

weights to improve stability.

• Use extra care with grass catchers or

other attachments. These can change

the stability of the machine.

• Keep all movement on the slopes slow

and gradual Do not make sudden

changes in speed or direction.

• Avoid starting or stopping on a slope. If

tires lose traction, disengage the blades

and proceed slowly straight down the

slope.

DO NOT:

• Do not tum on slopes unless necessary,

and then, turn slowly and gradually

downhill, if possible.

• Do not mow near drop-offs, ditches, or

embankments. The mower could

suddenly turn over if a wheel is over the

edge of a cliff or ditch, or if an edge

caves in.

• Do not mow on wet grass. Reduced

traction could cause sliding.

• Do not try to stabilize the machine by

putting your foot on the ground.

• Do not use grass catcher on steep

slopes.

III. CHILDREN

Tragic accidents can occur if the operator

is not alert to the presence of children.

Children are often attracted to the

machine and the mowing activity. Never

assume that children will remain where

you last saw them.

• Keep children out of the mowing area

and under the watchful care of another

responsible adult.

• Be alert and turn machine off if children

enter the area.

• Before and when backing, look behind

and down for small children.

• Never carry children. They may fall off

and be seriously injured or interfere

with safe machine operation.

• Never allow children to operate the

machine.

• Use extra care when approaching blind

corners, shrubs, trees, or other objects

that may obscure vision.

IV. SERVICE

• Use extra care in handling gasoline

and other fuels. They are flammable

and vapors are explosive.

-Use only an approved container.

- Never remove gas cap or add fuel

with the engine running. Allow

engine to cool before refueling. Do

not smoke.

-Never refuel the machine indoors.

-Never store the machine or fuel

container inside where there is an

open flame, such as a water heater.

• Never run a machine inside a closed

area.

• Keep nuts and bolts, especially blade

attachment bolts, tight and keep

equipment in good condition.

• Never tamper with safety devices.

Check their proper operation regularly.

• Keep machine free of grass, leaves, or

other debris build-up. Clean oil or fuel

spillage. Allow machine to cool before

storing.

• Stop and inspect the equipment if you

strike an object. Repair, if necessary,

before restarting.

• Never make adjustments or repairs

with the engine running.

• Grass catcher components are subject

to wear, damage, and deterioration,

which could expose moving parts or

allow objects to be thrown. Frequently

check components and replace with

manufacturer's recommended parts,

when necessary.

• Mower blades are sharp and can cut.

Wrap the blade(s) or wear gloves, and

use extra caution when servicing them.

• Check brake operation frequently.

Adjust and service as required.

• Be sure the area is clear of other

people before mowing. Stop machine if

anyone enters the area.

• Never carry passengers or children

even with the blades off.

• Do not mow in reverse unless abso-

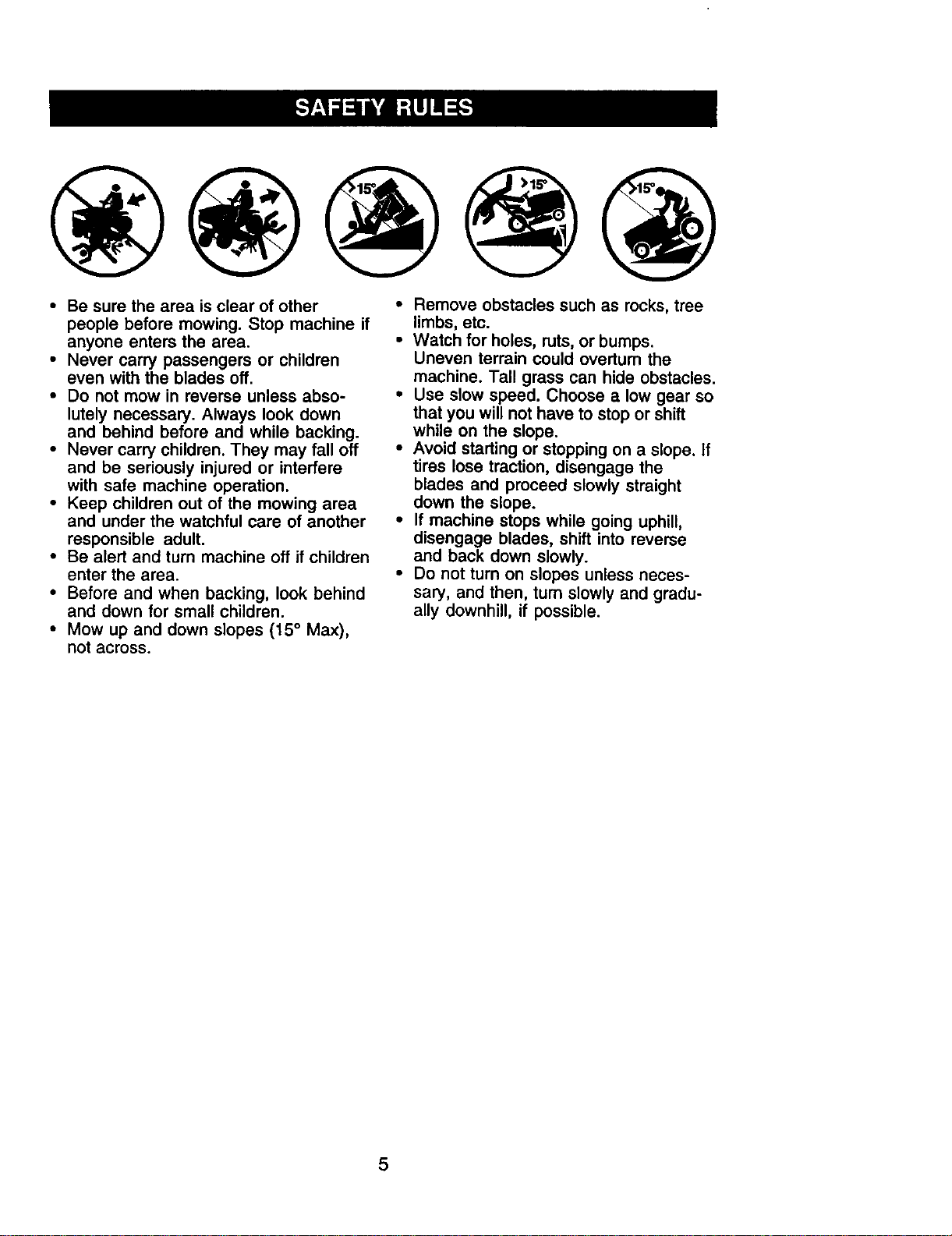

lutely necessary. Always look down

and behind before and while backing.

• Never carry children. They may fall off

and be seriously injured or interfere

with safe machine operation.

• Keep children out of the mowing area

and under the watchful care of another

responsible adult.

• Be alert and turn machine off if children

enter the area.

• Before and when backing, look behind

and down for small children.

• Mow up and down slopes (15 ° Max),

not across.

• Remove obstacles such as rocks, tree

limbs, etc.

• Watch for holes, ruts, or bumps.

Uneven terrain could overtum the

machine. Tall grass can hide obstacles.

• Use slow speed. Choose a low gear so

that you will not have to stop or shift

while on the slope.

• Avoid starting or stopping on a slope. If

tires lose traction, disengage the

blades and proceed slowly straight

down the slope.

• If machine stops while going uphill,

disengage blades, shift into reverse

and back down slowly.

• Do not turn on slopes unless neces-

sary, and then, turn slowly and gradu-

ally downhill, if possible.

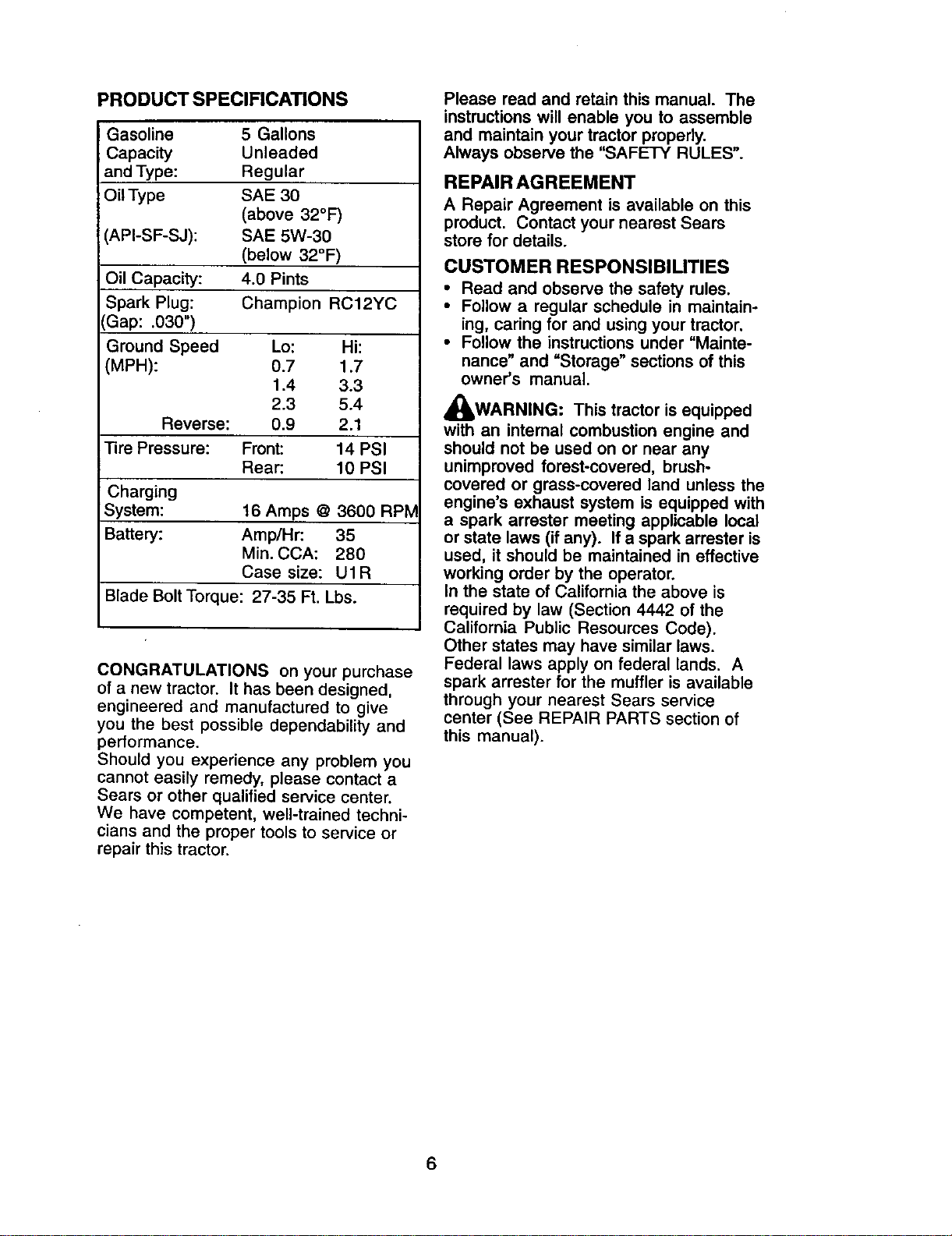

PRODUCT SPECIFICATIONS

JGaaSOlci_e 5 Ga,,ons

p "ty Unleaded

and Type: Regular

Oil Type SAE 30

(above 32°F)

(API-SF-SJ): SAE 5W-30

(below 32°F)

Oil Capacity: 4.0 Pints

Spark Plug: Champion RC12YC

',Gap: .030")

Ground Speed Lo: Hi:

(MPH): 0.7 1.7

1.4 3.3

2.3 5.4

Reverse: 0.9 2.1

Tire Pressure: Front: 14 PSI

Rear: 10 PSI

Charging

System: 16 Amps @ 3600 RPM

Battery: Amp/Hr: 35

Min. CCA: 280

Case size: U1R

Blade Bolt Torque: 27-35 Ft. Lbs.

CONGRATULATIONS on your purchase

of a new tractor. It has been designed,

engineered and manufactured to give

you the best possible dependability and

performance.

Should you experience any problem you

cannot easily remedy, please contact a

Sears or other qualified service center.

We have competent, well-trained techni-

cians and the proper tools to service or

repair this tractor.

Please read and retain this manual. The

instructions will enable you to assemble

and maintain your tractor properly.

Always observe the "SAFETY RULES".

REPAIR AGREEMENT

A Repair Agreement is available on this

product. Contact your nearest Sears

store for details.

CUSTOMER RESPONSIBILITIES

• Read and observe the safety rules.

• Follow a regular schedule in maintain-

ing, caring for and usingyour tractor.

• Follow the instructionsunder "Mainte-

nance" and "Storage" sections of this

owner's manual.

_,WARNING: This tractor is equipped

with an internal combustion engine and

should not be used on or near any

unimproved forest-covered, brush-

covered or grass-covered land unless the

engine's exhaust system is equipped with

a spark arrester meeting applicable local

or state laws (if any). If a spark arrester is

used, it should be maintained in effective

working order by the operator.

In the state of California the above is

required by law (Section 4442 of the

California Public Resources Code).

Other states may have similar laws.

Federal laws apply on federal lands. A

spark arrester for the muffler is available

through your nearest Sears service

center (See REPAIR PARTS section of

this manual).

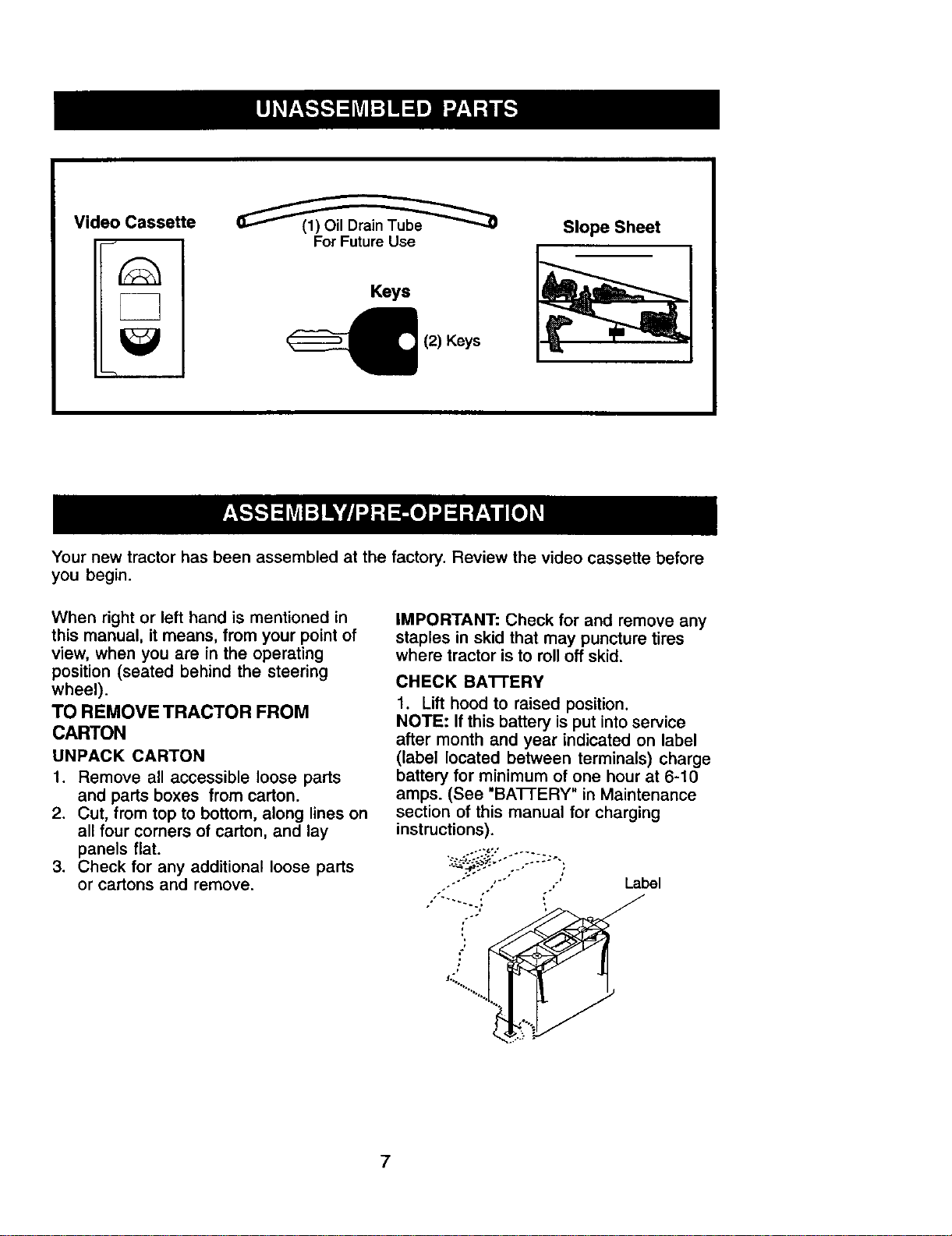

Video Cassette

For Future Use

Keys

(2) Keys

Slope Sheet

Your new tractor has been assembled at the factory. Review the video cassette before

you begin•

When right or left hand is mentioned in

this manual, it means, from your point of

view, when you are in the operating

position (seated behind the steering

wheel)•

TO REMOVE TRACTOR FROM

CARTON

UNPACK CARTON

1. Remove all accessible loose parts

and parts boxes from carton.

2. Cut, from top to bottom, along lines on

all four corners of carton, and lay

panels flat•

3. Check for any additional loose parts

or cartons and remove.

IMPORTANT: Check for and remove any

staples in skid that may puncture tires

where tractor is to roll off skid.

CHECK BA'I-rERY

1. Lift hood to raised position.

NOTE: If this battery is put into service

after month and year indicated on label

(label located between terminals) charge

battery for minimum of one hour at 6-10

amps. (See "BA-I-TERY" in Maintenance

section of this manual for charging

instructions)•

"-':S.o:'_;. -" . Z:: °-

_'_9_ o ._.- :

.... " Label

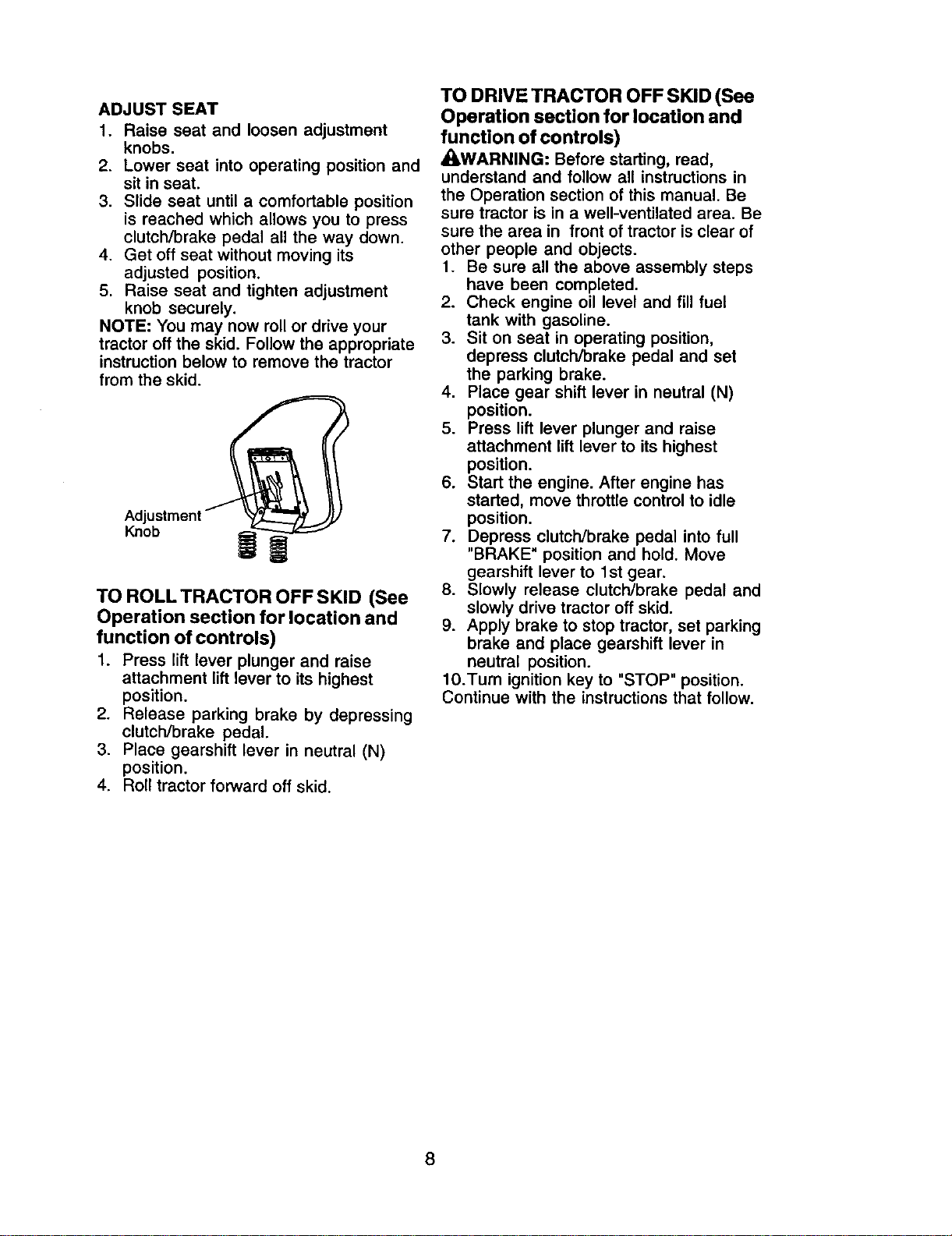

ADJUST SEAT

1. Raise seat and loosen adjustment

knobs.

2. Lower seat into operating position and

sit in seat.

3. Slide seat until a comfortable position

is reached which allows you to press

clutch/brake pedal all the way down.

4. Get off seat without moving its

adjusted position.

5. Raise seat and tighten adjustment

knob securely.

NOTE: You may now roll or drive your

tractor off the skid. Follow the appropriate

instruction below to remove the tractor

from the skid.

Adjustment

Knob

TO ROLL TRACTOR OFF SKID (See

Operation section for location and

function of controls)

1. Press lift lever plunger and raise

attachment lift lever to its highest

position.

2. Release parking brake by depressing

clutch/brake pedal.

3. Place gearshift lever in neutral (N)

position.

4. Roll tractor forward oft skid.

TO DRIVE TRACTOR OFF SKID (See

Operation section for location and

function of controls)

_WARNING: Before starting, read,

understand and follow all instructions in

the Operation section of this manual. Be

sure tractor is in a well-ventilated area. Be

sure the area in front of tractor is clear of

other people and objects.

1. Be sure all the above assembly steps

have been completed.

2. Check engine oil level and fill fuel

tank with gasoline.

3. Sit on seat in operating position,

depress clutch/brake pedal and set

the parking brake.

4. Place gear shift lever in neutral (N)

position.

5. Press lift lever plunger and raise

attachment lift lever to its highest

position.

6. Start the engine. After engine has

started, move throttle control to idle

position.

7. Depress clutch/brake pedal into full

"BRAKE" position and hold. Move

gearshift lever to 1st gear.

8. Slowly release clutch/brake pedal and

slowly drive tractor off skid.

9. Apply brake to stop tractor, set parking

brake and place gearshift lever in

neutral position.

10.Turn ignition key to "STOP" position.

Continue with the instructions that follow.

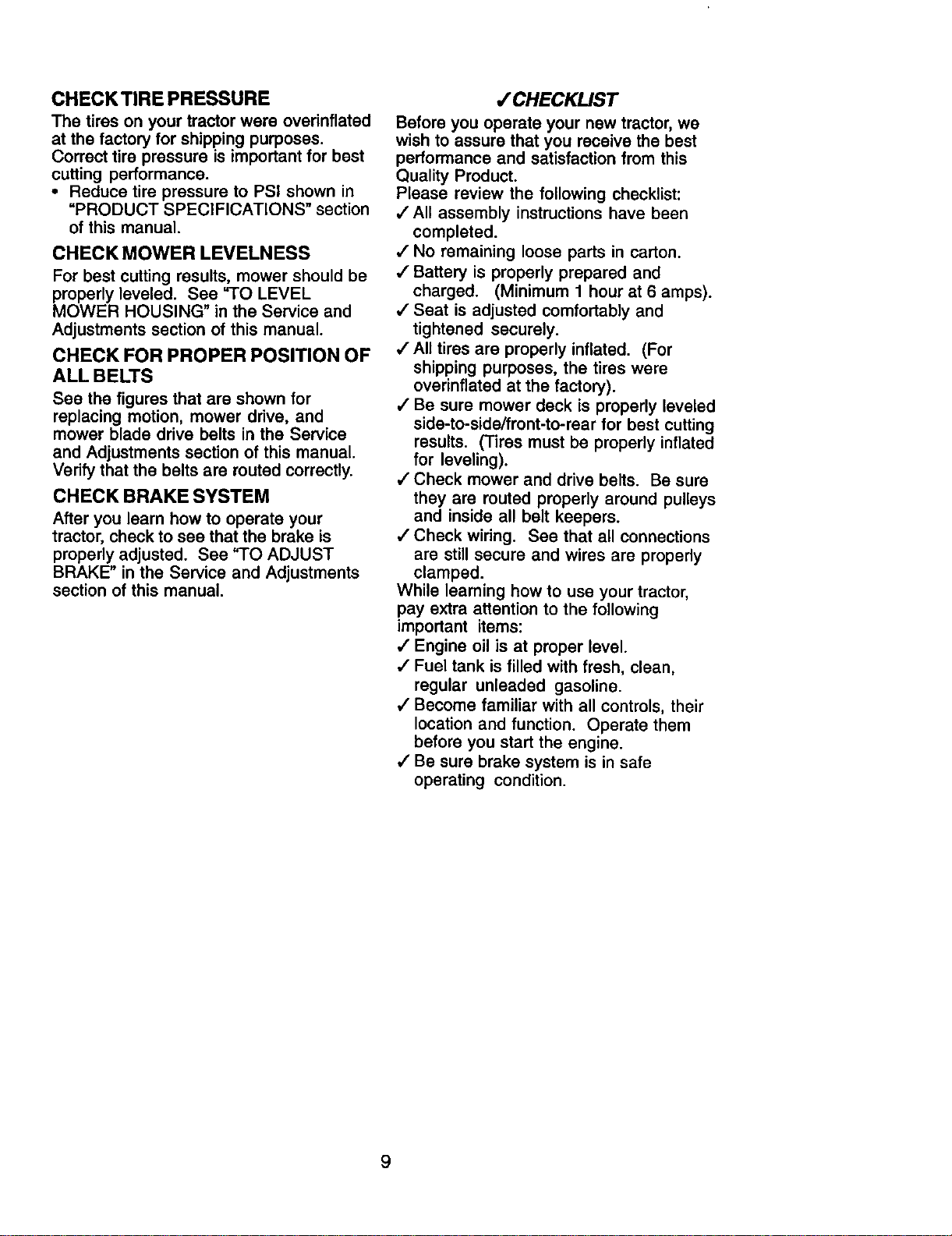

CHECK TIRE PRESSURE

The tires on your tractor were overinflated

at the factory for shipping purposes.

Correct tire pressure is important for best

cutting performance.

° Reduce tire pressure to PSI shown in

"PRODUCT SPECIFICATIONS" section

of this manual.

CHECK MOWER LEVELNESS

For best cutting results, mower should be

properly leveled. See =TO LEVEL

MOWER HOUSING" in the Service and

Adjustments section of this manual.

CHECK FOR PROPER POSITION OF

ALL BELTS

See the figures that are shown for

replacing motion, mower drive, and

mower blade drive belts in the Service

and Adjustments section of this manual.

Verify that the belts are routed correctly.

CHECK BRAKE SYSTEM

After you learn how to operate your

tractor, check to see that the brake is

properly adjusted. See =TO ADJUST

BRAKE" in the Service and Adjustments

section of this manual.

/CHECKLIST

Before you operate your new tractor, we

wish to assure that you receive the best

performance and satisfaction from this

Quality Product.

Please review the following checklist:

,/All assembly instructions have been

completed.

,I No remaining loose parts in carton.

/ Battery is properly prepared and

charged. (Minimum 1 hour at 6 amps).

,/Seat is adjusted comfortably and

tightened securely.

/ All tires are properly inflated. (For

shipping purposes, the tires were

overinflated at the factory).

,/Be sure mower deck is properly leveled

side-to-side/front-to-rear for best cutting

results. (Tires must be properly inflated

for leveling).

4" Check mower and drive belts. Be sure

they are routed properly around pulleys

and inside all belt keepers.

,/Check wiring. See that all connections

are still secure and wires are properly

clamped.

While learning how to use your tractor,

pay extra attention to the following

important items:

,I Engine oil is at proper level.

,/Fuel tank is filled with fresh, clean,

regular unleaded gasoline.

,/Become familiar with all controls, their

location and function. Operate them

before you start the engine.

,I Be sure brake system is in safe

operating condition.

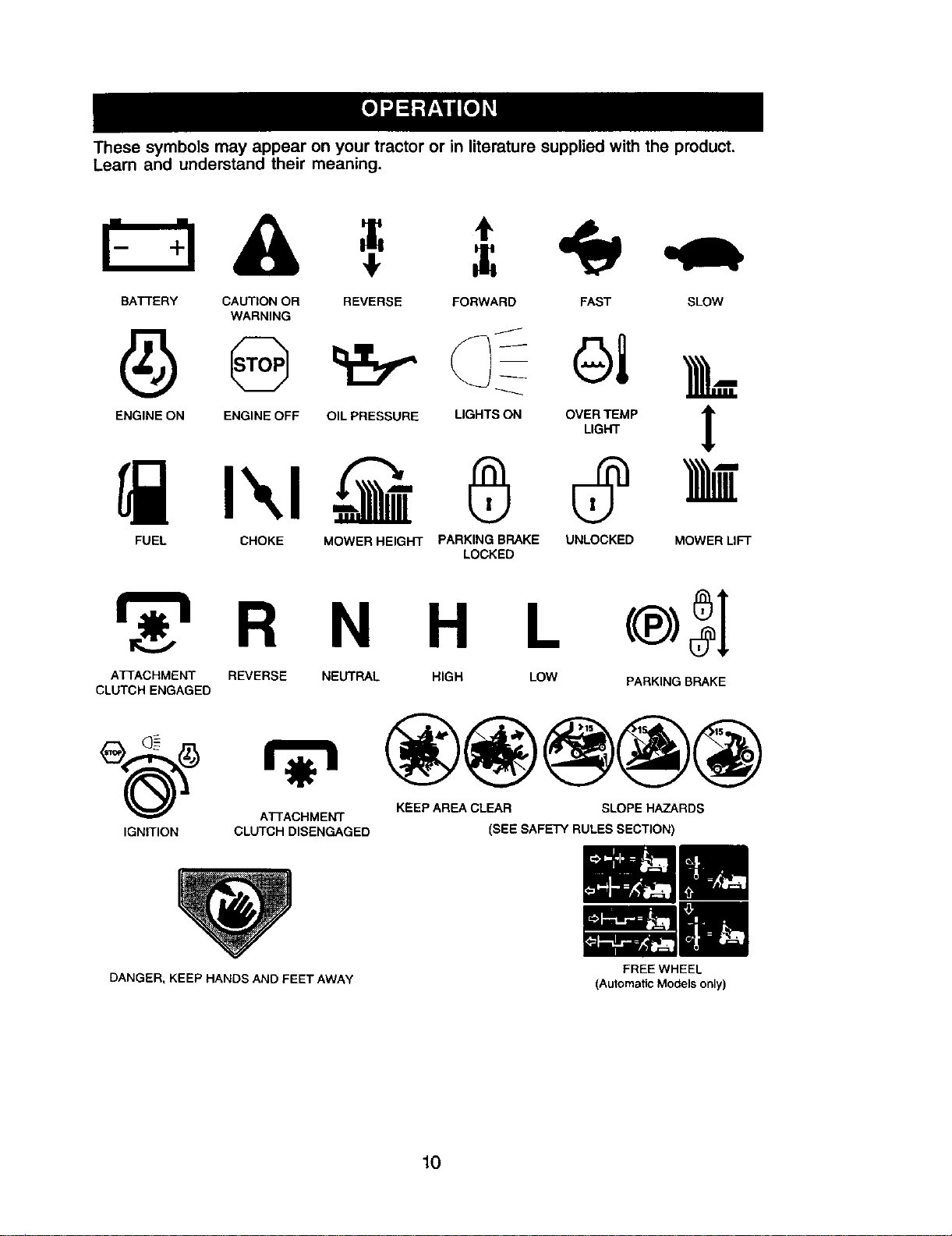

These symbols may appear on your tractor or in literature supplied with the product.

Leam and understand their meaning.

I- ;I

BATTERY CAUTION OR REVERSE FORWARD FAST SLOW

WARNING

ENGINE ON ENGINE OFF OIL PRESSURE LIGHTS ON OVER TEMP

LIGHT

FUEL CHOKE MOWER HEIGHT PARKING BRAKE UNLOCKED

LOCKED

MOWER LIFT

R N H L c®> I

A]-FACHMENT REVERSE NEUTRAL HIGH LOW PARKING BRAKE

CLUTCH ENGAGED

Alq-ACHMENT KEEP AREA CLEAR SLOPE HAZARDS

IGNITION CLUTCH DISENGAGED (SEE SAFETY RULES SECTION)

DANGER, KEEP HANDS AND FEET AWAY

FREE WHEEL

(Automatic Models only)

KNOWYOUR TRACTOR

READ THIS OWNER'S MANUAL AND SAFETY RULES BEFORE OPERATING

YOUR TRACTOR

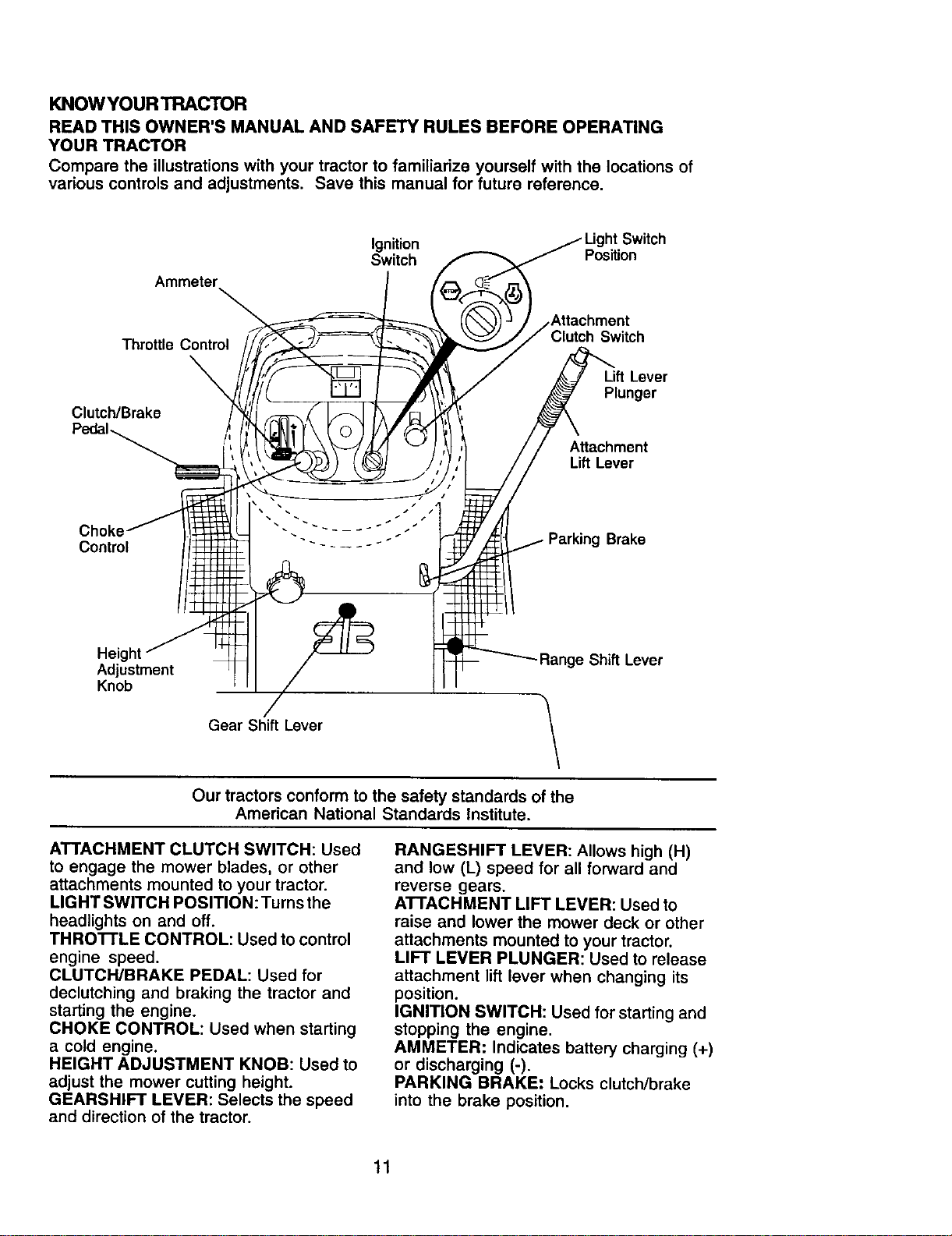

Compare the illustrations with your tractor to familiarize yourself with the locations of

various controls and adjustments. Save this manual for future reference,

Ammeter

Ignition

Switch Position

Throttle Control Switch

Lift Lever

Plunger

Clutch/Brake

Attachment

Lift Lever

Chok, Parking Brake

Control

Height ~Range Shift Lever

Adjustment

Knob

Gear Shift Lever \

Our tractors conform to the safety standards of the

American National Standards Institute.

ATTACHMENT CLUTCH SWITCH: Used

to engage the mower blades, or other

attachments mounted to your tractor.

LIGHT SWITCH POSITION: Turns the

headlights on and off.

THROTTLE CONTROL: Used to control

engine speed.

CLUTCH/BRAKE PEDAL: Used for

declutching and braking the tractor and

starting the engine.

CHOKE CONTROL: Used when starting

a cold engine.

HEIGHT ADJUSTMENT KNOB: Used to

adjust the mower cutting height.

GEARSHIFT LEVER: Selects the speed

and direction of the tractor.

RANGESHIFT LEVER: Allows high (H)

and low (L) speed for all forward and

reverse gears.

ATTACHMENT LIFT LEVER: Used to

raise and lower the mower deck or other

attachments mounted to your tractor.

LIFT LEVER PLUNGER: Used to release

attachment lift lever when changing its

position.

IGNITION SWITCH: Used for starting and

stopping the engine.

AMMETER: Indicates battery charging (+)

or discharging (-).

PARKING BRAKE: Locks clutch/brake

into the brake position.

The operation of any tractor can result in foreign objects thrown into the

eyes, which can result in severe eye damage. Always wear safety

glasses or eye shields while operating your tractor or performing any

adjustments or repairs. We recommend standard safety glasses or a

wide vision safety mask worn over spectacles.

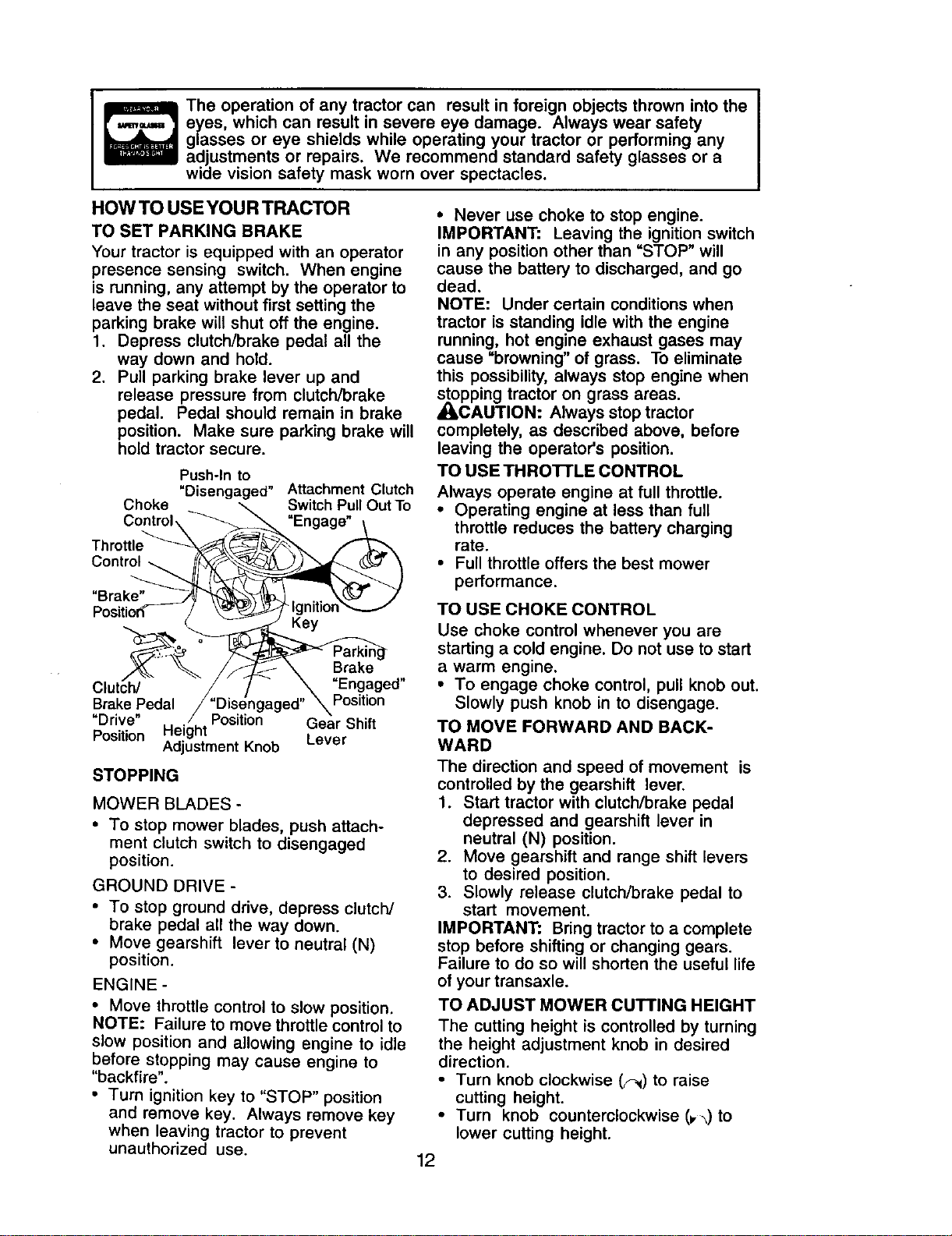

HOW TO USE YOUR TRACTOR

TO SET PARKING BRAKE

Your tractor is equipped with an operator

presence sensing switch. When engine

is running, any attempt by the operator to

leave the seat without first setting the

parking brake will shut off the engine.

1. Depress clutch/brake pedal all the

way down and hold.

2. Pull parking brake lever up and

release pressure from clutch/brake

pedal. Pedal should remain in brake

position. Make sure parking brake will

hold tractor secure.

Push-In to

"Disengaged" Attachment Clutch

Choke _ Switch Pull Out To

Control,_ __ "Engage"

Throttle __X _,_ _, - -_t_

coo,ro,

Positior<_/ \_'_ "lgnition_

L _ _ Key

: J Brake

c,u,c / / - ; Ta2ed

Brake Pedal _"Disi_ngaged" _Position

"Drive" / Position Gear Shift

Position Height

Adjustment Knob Lever

STOPPING

MOWER BLADES -

• To stop mower blades, push attach-

ment clutch switch to disengaged

position.

GROUND DRIVE -

• To stop ground drive, depress clutch/

brake pedal all the way down.

• Move gearshift lever to neutral (N)

position.

ENGINE -

• Move throttle control to slow position.

NOTE: Failure to move throttle control to

slow position and allowing engine to idle

before stopping may cause engine to

"backfire".

• Turn ignition key to "STOP" position

and remove key. Always remove key

when leaving tractor to prevent

unauthorized use.

• Never use choke to stop engine.

IMPORTANT: Leaving the ignition switch

in any position other than =STOP" will

cause the battery to discharged, and go

dead.

NOTE: Under certain conditions when

tractor is standing idle with the engine

running, hot engine exhaust gases may

cause =browning" of grass. To eliminate

this possibility, always stop engine when

_Ocpping tractor on grass areas.

AUTION: Always stop tractor

completely, as described above, before

leaving the operator's position.

TO USE THRO'I-I'LE CONTROL

Always operate engine at full throttle.

• Operating engine at less than full

throttle reduces the battery charging

rate.

• Full throttle offers the best mower

performance.

TO USE CHOKE CONTROL

Use choke control whenever you are

starting a cold engine. Do not use to start

a warm engine.

• To engage choke control, pull knob out.

Slowly push knob in to disengage.

TO MOVE FORWARD AND BACK-

WARD

The direction and speed of movement is

controlled by the gearshift lever.

1. Start tractor with clutch/brake pedal

depressed and gearshift lever in

neutral (N) position.

2. Move gearshift and range shift levers

to desired position.

3. Slowly release clutch/brake pedal to

start movement.

IMPORTANT: Bring tractor to a complete

stop before shifting or changing gears.

Failure to do so will shorten the useful life

of your transaxle.

TO ADJUST MOWER CUTTING HEIGHT

The cutting height is controlled by turning

the height adjustment knob in desired

direction.

• Turn knob clockwise (F_) to raise

cutting height.

• Turn knob counterclockwise (_)to

lower cutting height.

The cutting height range is approximately

1-1/2" to 4-1/2". The heights are mea-

sured from the ground to the blade tip

with the engine not running. These

heights are approximate and may vary

depending upon soil conditions, height of

grass and types of grass being mowed.

• The average lawn should be cut to

approximately 2-1/2 inches during the

cool season and to over 3 inches

during hot months. For healthier and

better looking lawns, mow often and

after moderate growth.

• For best cutting performance, grass

over 6 inches in height should be

mowed twice. Make the first cut

relatively high; the second to desired

height.

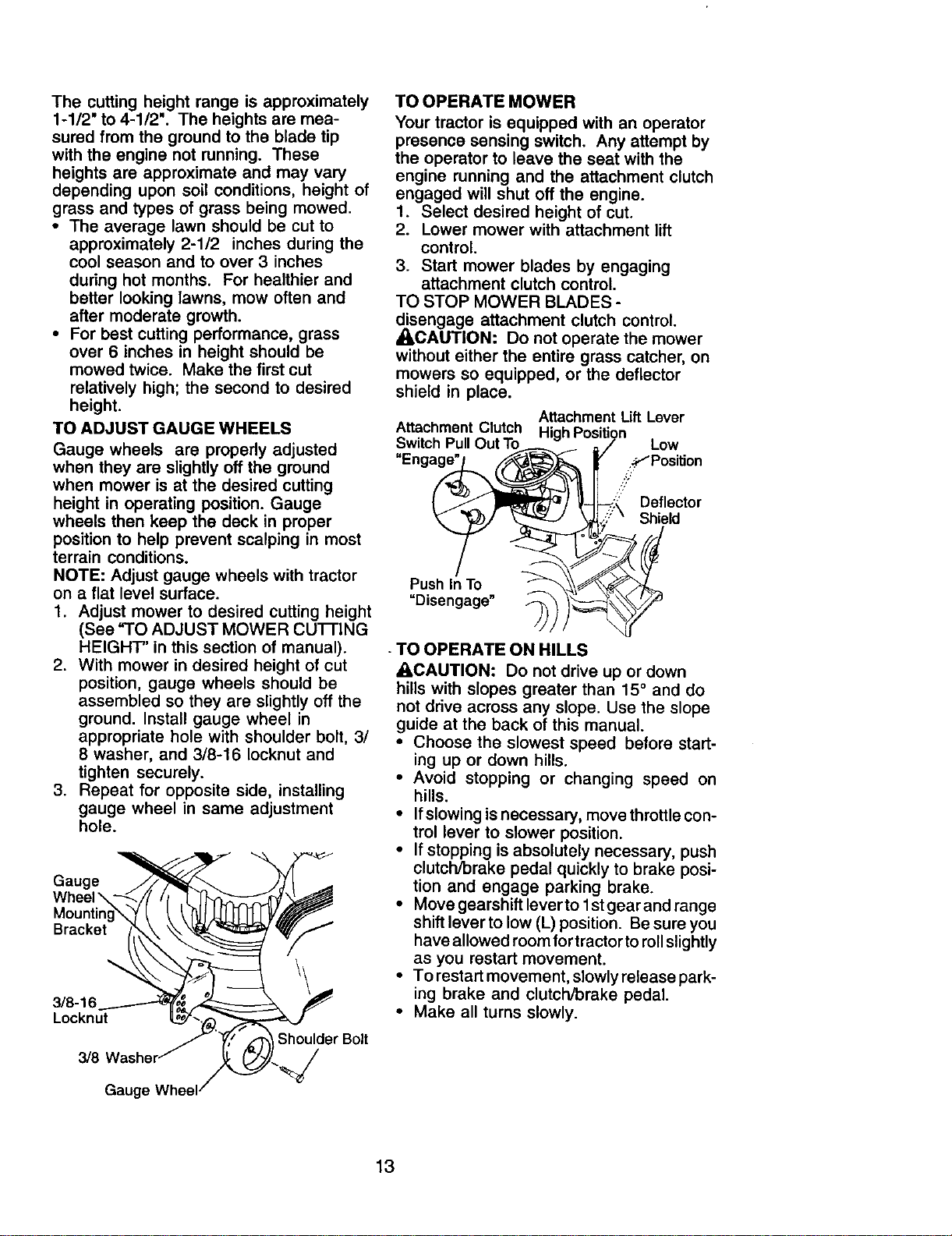

TO ADJUST GAUGE WHEELS

Gauge wheels are properly adjusted

when they are slightly off the ground

when mower is at the desired cutting

height in operating position. Gauge

wheels then keep the deck in proper

position to help prevent scalping in most

terrain conditions.

NOTE: Adjust gauge wheels with tractor

on a flat level surface.

1. Adjust mower to desired cutting height

(See "TO ADJUST MOWER CUFFING

HEIGHT" in this section of manual).

2. With mower in desired height of cut

position, gauge wheels should be

assembled so they are slightly off the

ground. Install gauge wheel in

appropriate hole with shoulder bolt, 3/

8 washer, and 3/8-16 Iocknut and

tighten securely.

3. Repeat for opposite side, installing

gauge wheel in same adjustment

hole.

Gauge

Bracket

3/8-16

Locknut

3/8

ShoulderBolt

Gaug_

TO OPERATE MOWER

Your tractor is equipped with an operator

presence sensing switch. Any attempt by

the operator to leave the seat with the

engine running and the attachment clutch

engaged will shut off the engine.

1. Select desired height of cut.

2. Lower mower with attachment lift

control.

3. Start mower blades by engaging

attachment clutch control.

TO STOP MOWER BLADES -

disengage attachment clutch control.

_CAUTION: Do not operate the mower

without either the entire grass catcher, on

mowers so equipped, or the deflector

shield in place.

Attachment Lift Lever

Attachment Clutch High Position

Switch Pull Out To__ • Low

"Enga_ ..:::".._Position

[ _ _lll_J __ _::_ Deflector

"< "_J2)/\'_ _. _;"" Shield

Push In To _\S _

=D,sengage" _--_)__

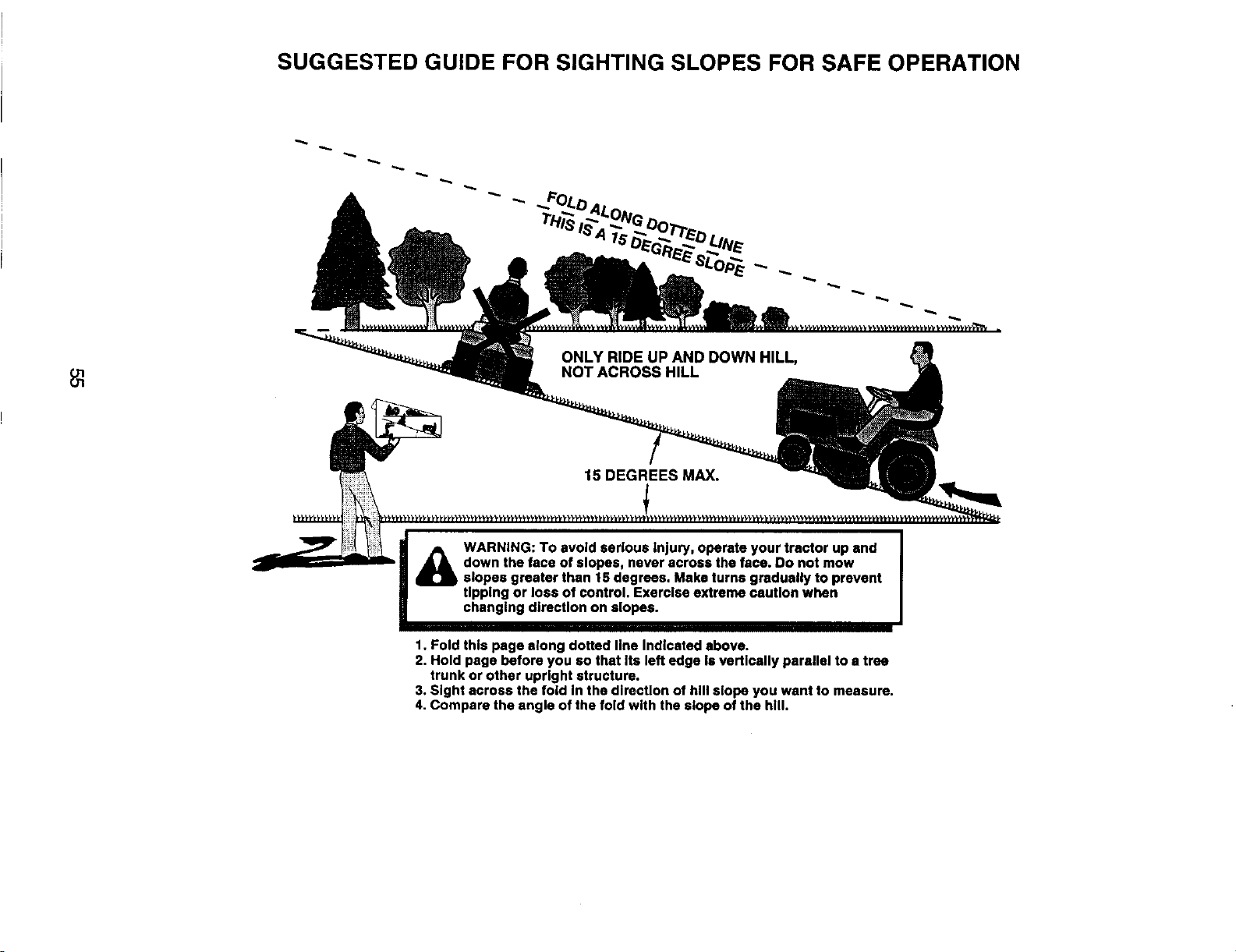

•TO OPERATE ON HILLS

_,CAUTION" Do not drive up or down

hills with slopes greater than 15 ° and do

not drive across any slope. Use the slope

guide at the back of this manual.

• Choose the slowest speed before start-

ing up or down hills.

• Avoid stopping or changing speed on

hills.

• Ifslowing is necessary, move throttle con-

trol lever to slower position.

• If stopping is absolutely necessary, push

clutch/brake pedal quickly to brake posi-

tion and engage parking brake.

• Move gearshift lever to 1st gear and range

shift lever to low (L) position. Be sure you

have allowed room for tractor to roll slightly

as you restart movement.

• To restart movement, slowly release park-

ing brake and clutch/brake pedal.

• Make all turns slowly.

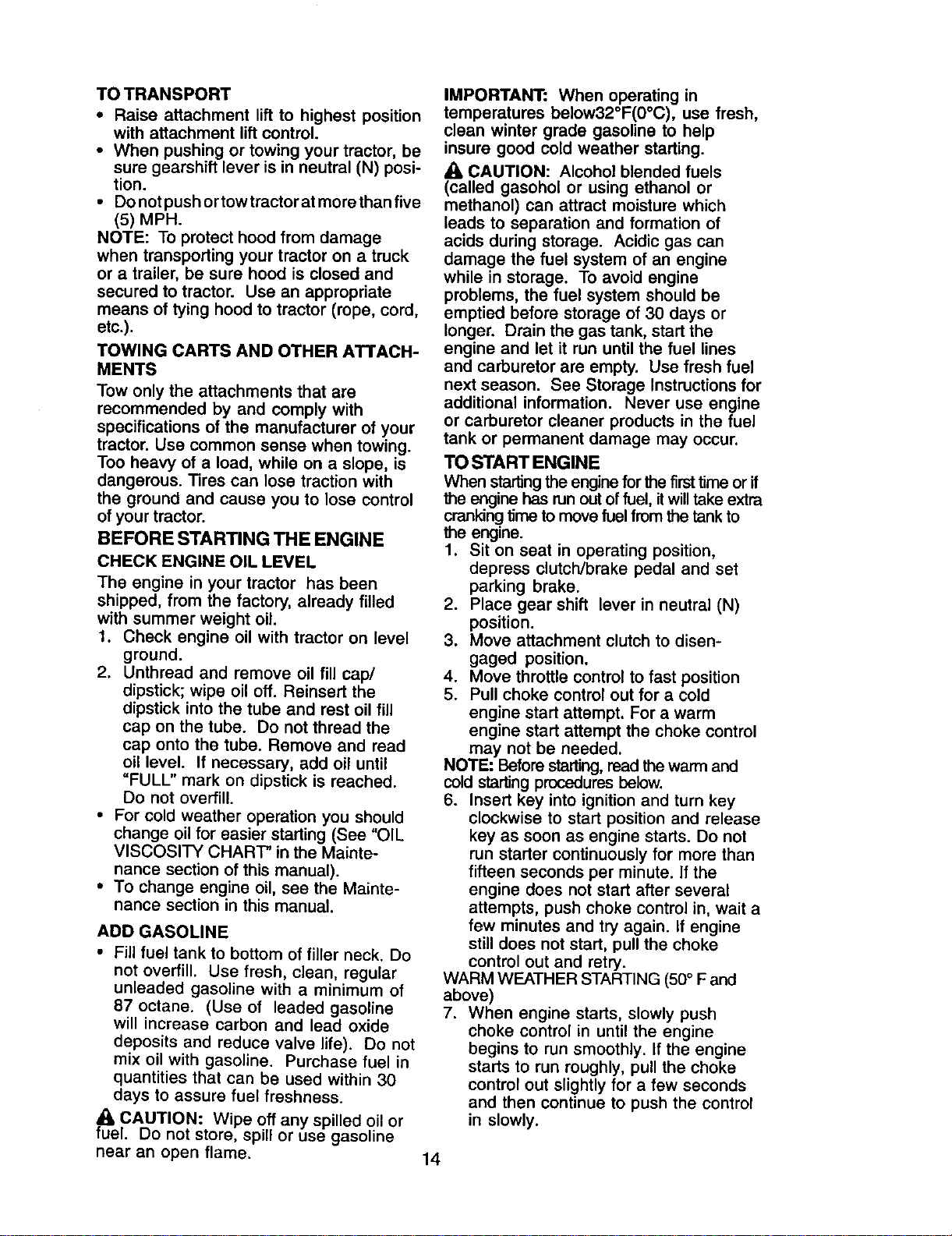

TO TRANSPORT

• Raise attachment lift to highest position

with attachment lift control.

• When pushing or towing your tractor, be

sure gearshift lever is in neutral (N) posi-

tion.

• Do not push or towtractor at more than five

(5) MPH.

NOTE: To protect hood from damage

when transporting your tractor on a truck

or a trailer, be sure hood is closed and

secured to tractor. Use an appropriate

means of tying hood to tractor (rope, cord,

etc.).

TOWING CARTS AND OTHER ATTACH-

MENTS

Tow only the attachments that are

recommended by and comply with

specifications of the manufacturer of your

tractor. Use common sense when towing.

Too heavy of a load, while on a slope, is

dangerous. Tires can lose traction with

the ground and cause you to lose control

of your tractor.

BEFORE STARTING THE ENGINE

CHECK ENGINE OIL LEVEL

The engine in your tractor has been

shipped, from the factory, already filled

with summer weight oil.

1. Check engine oil with tractor on level

ground.

2. Unthread and remove oil fill cap/

dipstick; wipe oil off. Reinsert the

dipstick into the tube and rest oil fill

cap on the tube. Do not thread the

cap onto the tube. Remove and read

oil level. If necessary, add oil until

"FULL" mark on dipstick is reached.

Do not overfill.

• For cold weather operation you should

change oil for easier starting (See "OIL

VISCOSITY CHART" in the Mainte-

nance section of this manual).

• To change engine oil, see the Mainte-

nance section in this manual.

ADD GASOLINE

• Fill fuel tank to bottom of filler neck. Do

not overfill. Use fresh, clean, regular

unleaded gasoline with a minimum of

87 octane. (Use of leaded gasoline

will increase carbon and lead oxide

deposits and reduce valve life). Do not

mix oil with gasoline. Purchase fuel in

quantities that can be used within 30

days to assure fuel freshness.

CAUTION: Wipe off any spilled o or

fuel. Do not store, spill or use gasoline

near an open flame.

IMPORTANT: When operating in

temperatures below32°F(0°C), use fresh,

clean winter grade gasoline to help

insure good cold weather starting.

_1, CAUTION: Alcohol blended fuels

(called gasohol or using ethanol or

methanol) can attract moisture which

leads to separation and formation of

acids during storage. Acidic gas can

damage the fuel system of an engine

while in storage. To avoid engine

problems, the fuel system should be

emptied before storage of 30 days or

longer. Drain the gas tank, start the

engine and let it run until the fuel lines

and carburetor are empty. Use fresh fuel

next season. See Storage Instructions for

additional information. Never use engine

or carburetor cleaner products in the fuel

tank or permanent damage may occur.

TO START ENGINE

When starting the engine for the firsttime or if

the engine has run out of fuel, itwilltake extra

cranking time to move fuel from the tank to

the engine.

1. Sit on seat in operating position,

depress clutch/brake pedal and set

parking brake.

2. Place gear shift lever in neutral (N)

position.

3. Move attachment clutch to disen-

gaged position.

4. Move throttle control to fast position

5. Pull choke control out for a cold

engine start attempt. For a warm

engine start attempt the choke control

may not be needed.

NOTE: Before starting, read the warm and

cold starting procedures below.

6. Insert key into ignition and turn key

clockwise to start position and release

key as soon as engine starts. Do not

run starter continuously for more than

fifteen seconds per minute. If the

engine does not start after several

attempts, push choke control in, wait a

few minutes and try again, if engine

still does not start, pull the choke

control out and retry.

WARM WEATHER STARTING (50° F and

above)

7. When engine starts, slowly push

choke control in until the engine

begins to run smoothly. If the engine

starts to run roughly, pull the choke

control out slightly for a few seconds

and then continue to push the control

in slowly.

• The attachments and ground drive can

now be used. If the engine does not

accept the load, restart the engine and

allow it to warm up for one minute

using the choke as described above.

COLD WEATHER STARTING (50 ° F and

below)

7. When engine starts, slowly push

choke control in until the engine

begins to run smoothly. Continue to

push the choke control in small steps

allowing the engine to accept small

changes in speed and load, until the

choke control is fully in. If the engine

starts to run roughly, pull the choke

control out slightly for a few seconds

and then continue to push the control

in slowly. This may require an engine

warm-up period from several seconds

to several minutes, depending on the

temperature.

• The attachments can be used during

the engine warm-up period and may

require the choke control be pulled out

slightly.

NOTE: If at a high altitude (above 3000

feet) or in cold temperatures (below 32 F)

the carburetor fuel mixture may need to

be adjusted for best engine performance.

See "TO ADJUST CARBURETOR" in the

Service and Adjustments section of this

manual.

MOWING TIPS

• Tire chains cannot be used when the

mower housing is attached to tractor.

• Mower should be properly leveled for

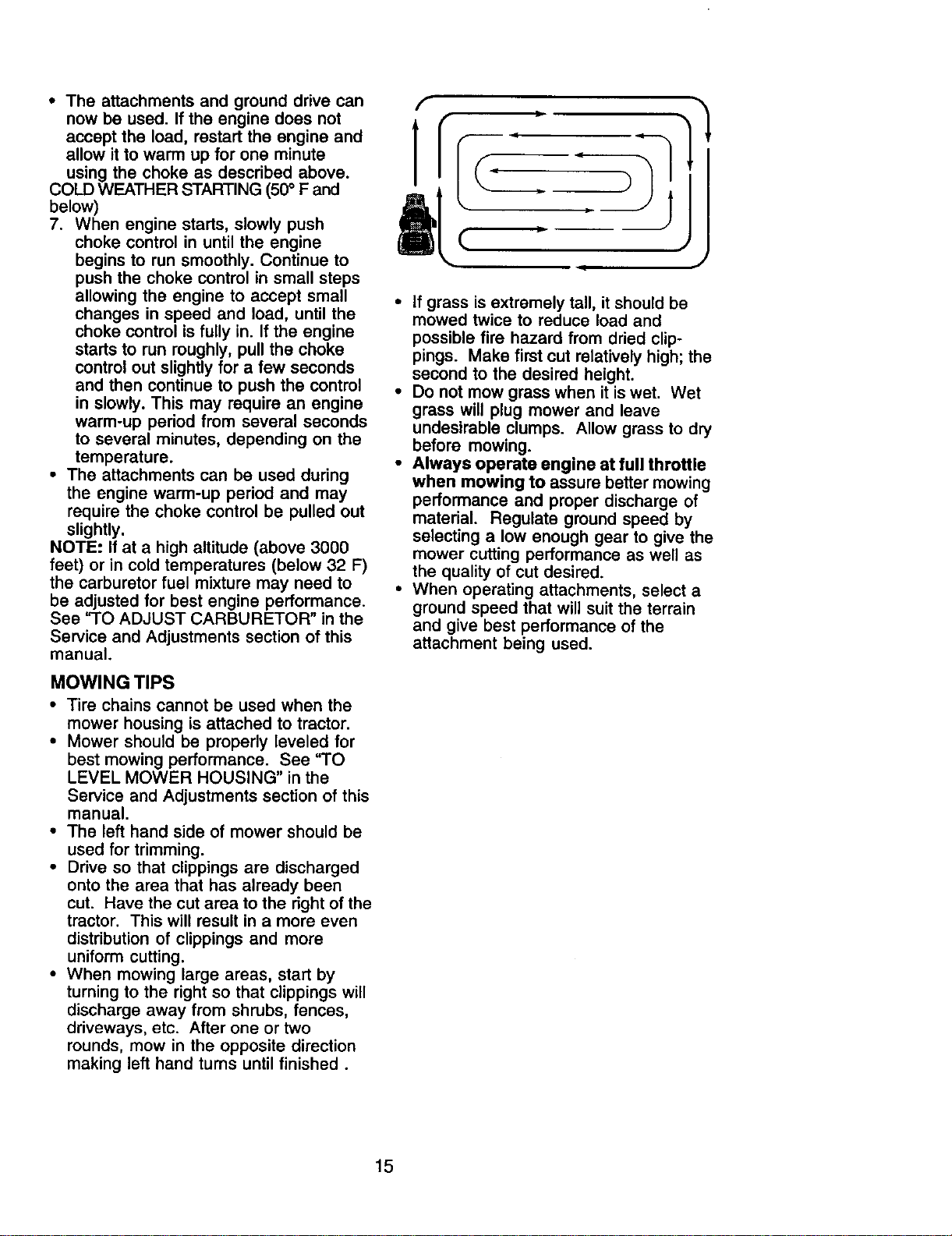

best mowing performance. See "TO

LEVEL MOWER HOUSING" in the

Service and Adjustments section of this

manual.

• The left hand side of mower should be

used for trimming.

• Drive so that clippings are discharged

onto the area that has already been

cut. Have the cut area to the right of the

tractor. This will result in a more even

distribution of clippings and more

uniform cutting.

• When mowing large areas, start by

turning to the right so that clippings will

discharge away from shrubs, fences,

driveways, etc. After one or two

rounds, mow in the opposite direction

making left hand tums until finished.

• If grass is extremely tall, it should be

mowed twice to reduce load and

possible fire hazard from dried clip-

pings. Make first cut relatively high; the

second to the desired height.

• Do not mow grass when it is wet. Wet

grass will plug mower and leave

undesirable clumps. Allow grass to dry

before mowing.

• Always operate engine at full throttle

when mowing to assure better mowing

performance and proper discharge of

material. Regulate ground speed by

selecting a low enough gear to give the

mower cutting performance as well as

the quality of cut desired.

• When operating attachments, select a

ground speed that will suit the terrain

and give best performance of the

attachment being used.

*sYouCOMPLETE

DATES

ii i[

Check Brake Operation _VeCheck Tire Pressure

Check Operator Presence and

T Interlock Systems I_

R Check for Loose Fastenem If V's V*

SharperdRep_ace Mower Blades 1_/3

T Lubrication Chart

0 Check Battery Level 1_4

R Clean Battery and Terminals If I_

Check Transaxle Cooling

Check V-Baits I_

Check Engine Oil Level (if I_

Change Engine Oil (with oil filter) V#I# ik/

E Change Engine Og (without oil flltei') V/12 V t

N c=eanAirR.er _1_'_G Clean Air Screen

al Inspect Muffler/Sped(

Arrester

E Replace Oil Filler (If equipped) 11_1,=

Clean Engine Cooling Fins I_ ;

Replace Spark Plug I_

Replace Air Fiber Paper Cartridge I1_=

Replace Fuel Filter i/

1 - Change mote often when opelating under a heavy load or

hig_ ambient temperatures,

2 - Service more often when operating in did-/el" dusly conditions.

3 - Replace b_dos morn often when mowblg in sandy scJJ.

4 - Not required if equipped with m_ntena_l:e-free battely.

5 - "r'_hten front axle pivot bolt to 35 tt.-Ibs, maximum,

DO no4 overlighten.

GENERAL RECOMMENDATIONS

The warranty on this tractor does not cover

items that have been subjected to operator

abuse or negligence. To receive full value

from the warranty, operator must maintain

tractor as instructed in this manual.

Some adjustments will need to be made

periodically to properly maintain your

tractor.

All adjustments in the Service and

Adjustments section of this manual should

be checked at least once each season.

• Once a year you should replace the

spark plug, clean or replace air filter, and

check blades and belts for wear. A new

spark plug and clean air filter assure

proper air-fuel mixture and help your

engine run better and last longer.

BEFORE EACH USE

1. Check engine oil level.

2. Check brake operation.

3. Check tire pressure.

4, Check operator presence and

interlock systems for proper operation.

5. Check for loose fasteners.

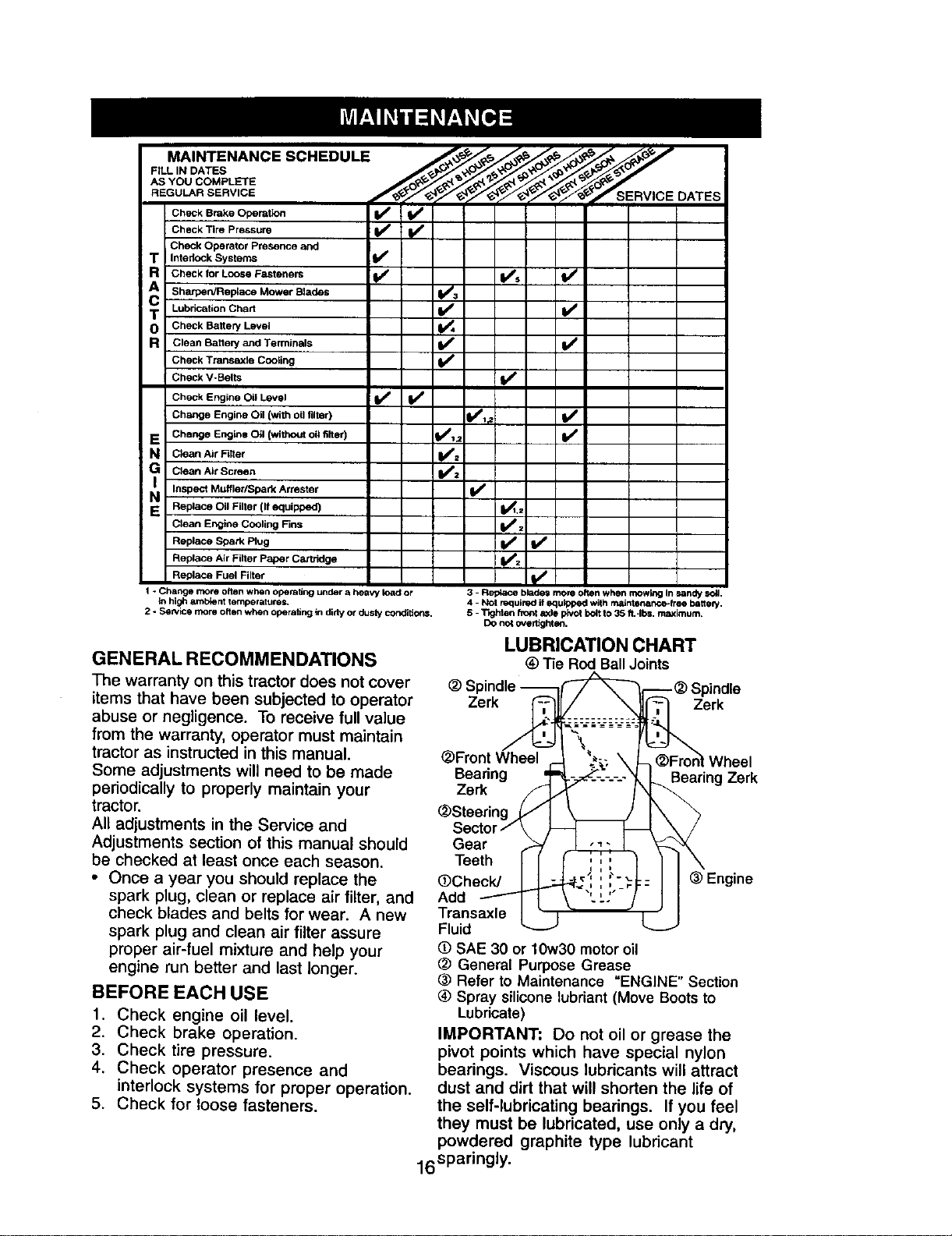

LUBRICATION CHART

® Tie Rod BallJoints

_) Sl: -_) Spindle

Zerk Zerk

_)Front Wheel

Bearing

Zerk

Bearing Zerk

Gear

Teeth

(DChecld

Add

Transaxle

Fluid

(D SAE 30 or 10w30 motoroil

General Purpose Grease

(_ Refer to Maintenance "ENGINE" Section

(_ Spray silicone lubriant (Move Boots to

Lubricate)

IMPORTANT: Do not oil or grease the

pivot points which have special nylon

bearings. Viscous lubricants will attract

dust and dirt that will shorten the life of

the self-lubricating bearings. If you feel

they must be lubricated, use only a dry,

powdered graphite type lubricant

16sparingly.

TRACTOR

Always observe safety rules when

performing any maintenance.

BRAKE OPERATION

If tractor requires more than six (6) feet

stopping distance at high speed in

highest gear, then brake must be ad-

justed. (See =TO ADJUST BRAKE" in the

Service and Adjustments section of this

manual).

TIRES

• Maintain proper air pressure in all tires

(See "PRODUCT SPECIFICATIONS"

section of this manual).

• Keep tires free of gasoline, oil, or insect

control chemicals which can harm

rubber.

• Avoid stumps, stones, deep ruts, sharp

objects and other hazards that may

cause tire damage.

NOTE: To seal tire punctures and prevent

flat tires clue to slow leaks, tire sealant

may be purchased from your local parts

dealer. ]]re sealant also prevents tire dry

rot and corrosion.

OPERATOR PRESENCE SYSTEM

Be sure operator presence and interlock

systems are working properly. If your

tractor does not function as described,

repair the problem immediately.

• The engine should not start unless the

brake pedal is fully depressed and

attachement clutch control is in the

disengaged position.

• When the engine is running, any

attempt by the operator to leave the

seat without first setting the parking

brake should shut off the engine.

• When the engine is running and the

attachment clutch is engaged, any

attempt by the operator to leave the

seat should shut off the engine.

• The attachment clutch should never

operate unless the operator is in the

seat.

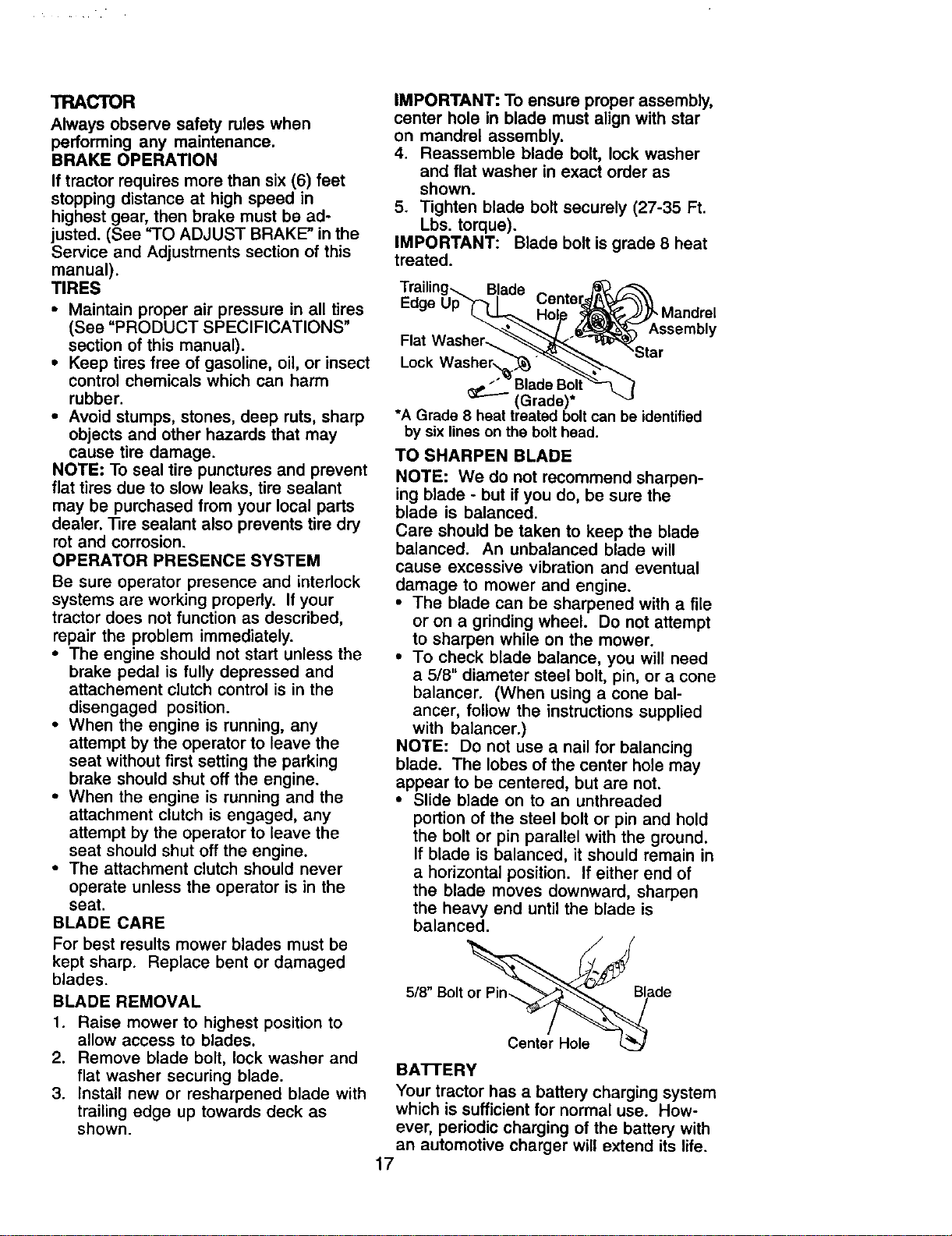

BLADE CARE

For best results mower blades must be

kept sharp. Replace bent or damaged

blades.

BLADE REMOVAL

1. Raise mower to highest position to

allow access to blades.

2. Remove blade bolt, lock washer and

flat washer securing blade.

3. Install new or resharpened blade with

trailing edge up towards deck as

shown.

IMPORTANT: To ensure proper assembly,

center hole in blade must align with star

on mandrel assembly.

4. Reassemble blade bolt, lock washer

and flat washer in exact order as

shown.

5. Tighten blade bolt securely (27-35 Ft.

Lbs. torque).

IMPORTANT: Blade bolt is grade 8 heat

treated.

Blade

Edge Centel [ Mandrel

Flat

___ Blade

(Grade)*

*A Grade 8 heat treated bolt can be identified

by six lines on the bolt head.

TO SHARPEN BLADE

NOTE: We do not recommend sharpen-

ing blade - but if you do, be sure the

blade is balanced.

Care should be taken to keep the blade

balanced. An unbalanced blade will

cause excessive vibration and eventual

damage to mower and engine.

• The blade can be sharpened with a file

or on a grinding wheel. Do not attempt

to sharpen while on the mower.

• To check blade balance, you will need

a 5/8" diameter steel bolt, pin, or a cone

balancer. (When using a cone bal-

ancer, follow the instructions supplied

with balancer.)

NOTE: Do not use a nail for balancing

blade. The lobes of the center hole may

appear to be centered, but are not.

• Slide blade on to an unthreaded

portion of the steel bolt or pin and hold

the bolt or pin parallel with the ground.

If blade is balanced, it should remain in

a horizontal position. If either end of

the blade moves downward, sharpen

the heavy end until the blade is

balanced.

5/8" Bolt Blade

Center Hole

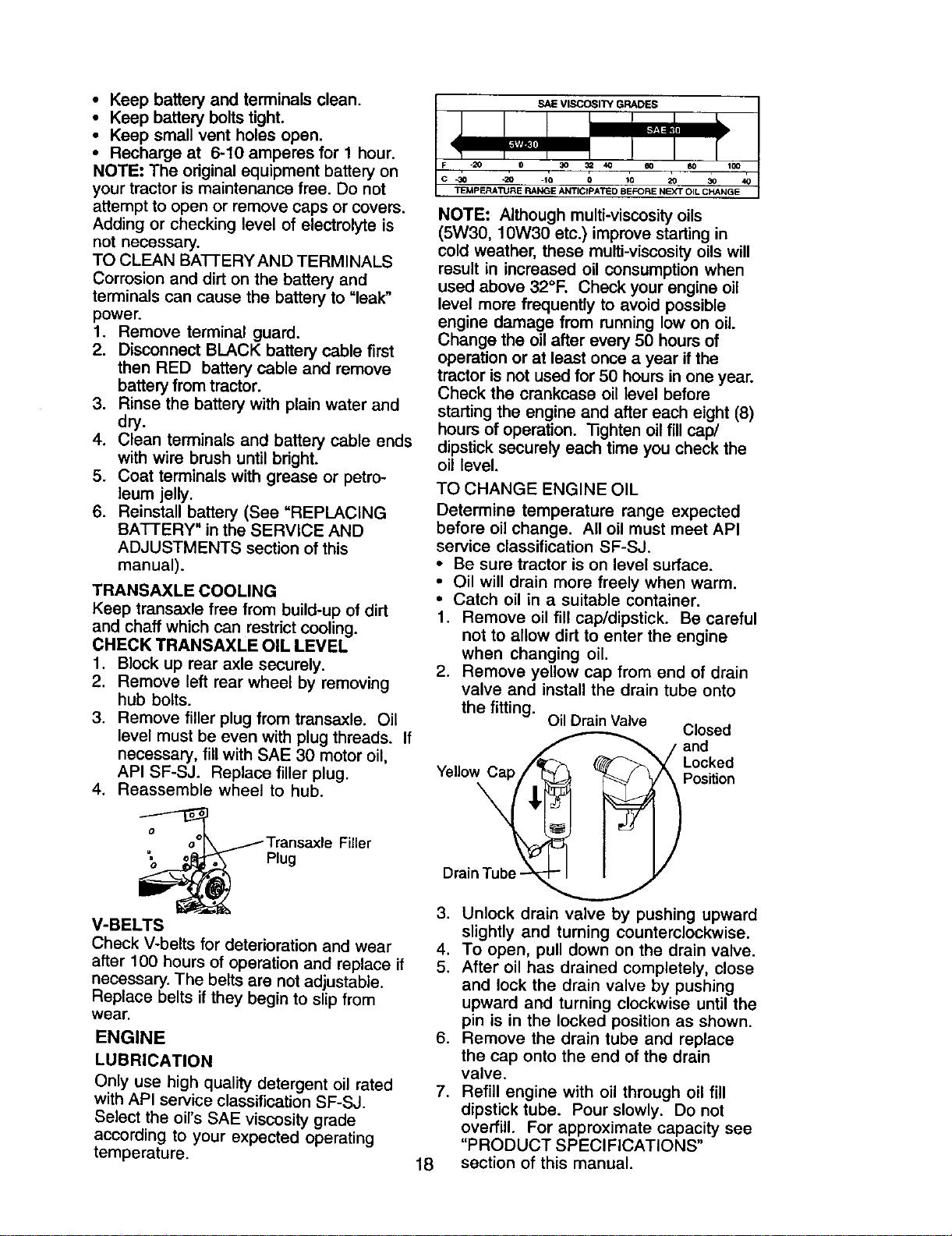

BATrERY

Your tractor has a battery charging system

which is sufficient for normal use. How-

ever, periodic charging of the battery with

an automotive charger will extend its life.

• Keep battery and terminals clean.

• Keep battery bolts tight.

• Keep small vent holes open.

• Recharge at 6-10 amperes for 1 hour.

NOTE: The original equipment battery on

your tractor is maintenance free. Do not

attempt to open or remove caps or covers.

Adding or checking level of electrolyte is

not necessary.

TO CLEAN BAI-I-ERY AND TERMINALS

Corrosion and dirt on the battery and

terminals can cause the battery to "leak"

power.

1. Remove terminal guard.

2. Disconnect BLACK battery cable first

then RED battery cable and remove

battery from tractor.

3. Rinse the battery with plain water and

dry.

4. Clean terminals and battery cable ends

with wire brush until bright.

5. Coat terminals with grease or petro-

leum jelly.

6. Reinstall battery (See "REPLACING

BATTERY" in the SERVICE AND

ADJUSTMENTS section of this

manual).

TRANSAXLE COOLING

Keep transaxle free from build-up of dirt

and chaff which can restrict cooling.

CHECK TRANSAXLE OIL LEVEL

1. Block up rear axle securely.

2. Remove left rear wheel by removing

hub bolts.

3. Remove filler plug from transaxle. Oil

level must be even with plug threads. If

necessary, fill with SAE 30 motor oil,

API SF-SJ. Replace filler plug.

4. Reassemble wheel to hub.

..___ Transaxle Filler

Plug

V-BELTS

Check V-belts for deterioration and wear

after 100 hours of operation and replace if

necessary. The belts are not adjustable.

Replace belts if they begin to slip from

wear.

ENGINE

LUBRICATION

Only use high quality detergent oil rated

with API service classification SF-SJ.

Select the oil's SAE viscosity grade

according to your expected operating

temperature.

NOTE: Although multi-viscosity oils

(5W30, 10W30 etc.) improve starting in

cold weather, these multi-viscosity oils will

result in increased oil consumption when

used above 32°1:. Check your engine oil

level more frequently to avoid possible

engine damage from running low on oil.

Change the oil after every 50 hours of

operation or at least once a year ifthe

tractor is not used for 50 hours in one year.

Check the crankcase oil level before

starting the engine and after each eight (8)

hours of operation. "lighten oil fill cap/

dipstick securely each time you check the

oil level.

TO CHANGE ENGINE OIL

Determine temperature range expected

before oil change. All oil must meet API

service classification SF-SJ.

• Be sure tractor is on level surface.

• Oil will drain more freely when warm.

• Catch oil in a suitable container.

1. Remove oil fill cap/dipstick. Be careful

not to allow dirt to enter the engine

when changing oil.

2. Remove yellow cap from end of drain

valve and install the drain tube onto

the fitting.

Yellow_

Drain Tube --_

Oil Drain Valve ;losed

and

,,_ _ Locked

Position

3. Unlock drain valve by pushing upward

slightly and turning counterclockwise.

4. To open, pull down on the drain valve.

5. After oil has drained completely, close

and lock the drain valve by pushing

upward and turning clockwise until the

pin is in the locked position as shown.

6. Remove the drain tube and replace

the cap onto the end of the drain

valve.

7. Refill engine with oil through oil fill

dipstick tube. Pour slowly. Do not

overfill. For approximate capacity see

"PRODUCT SPECIFICATIONS"

section of this manual.

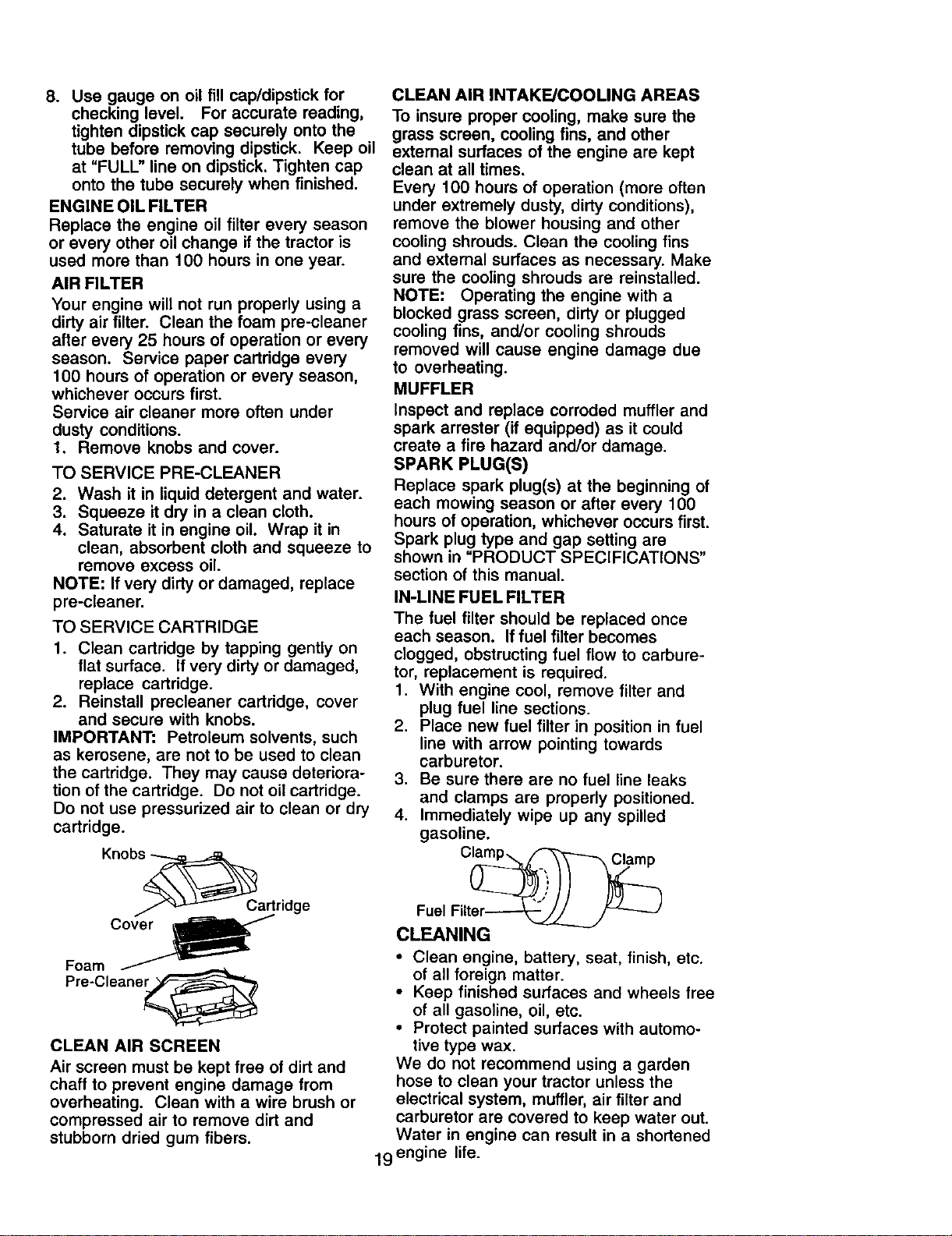

8. Use gauge on oil fill cap/dipstick for

checking level. For accurate reading,

tighten dipstick cap securely onto the

tube before removing dipstick. Keep oil

at "FULL" line on dipstick. Tighten cap

onto the tube securely when finished.

ENGINE OIL FILTER

Replace the engine oil filter every season

or every other oil change if the tractor is

used more than 100 hours in one year.

AIR FILTER

Your engine will not run properly using a

dirty air filter. Clean the foam pre-cleaner

after every 25 hours of operation or every

season. Service paper cartridge every

100 hours of operation or every season,

whichever occurs first.

Service air cleaner more often under

dusty conditions.

1. Remove knobs and cover.

TO SERVICE PRE-CLEANER

2. Wash it in liquid detergent and water.

3. Squeeze it dry in a clean cloth.

4. Saturate it in engine oil. Wrap it in

clean, absorbent cloth and squeeze to

remove excess oil.

NOTE: If very dirty or damaged, replace

pre-cleaner.

TO SERVICE CARTRIDGE

1. Clean cartridge by tapping gently on

flat surface, if very dirty or damaged,

replace cartridge.

2. Reinstall precleaner cartridge, cover

and secure with knobs.

IMPORTANT: Petroleum solvents, such

as kerosene, are not to be used to clean

the cartridge. They may cause deteriora-

tion of the cartridge. Do not oil cartridge.

Do not use pressurized air to clean or dry

cartridge.

Knobs_

Cadridge

Cover

Fr°ea_leane_

CLEAN AIR SCREEN

Air screen must be kept free of dirt and

chaff to prevent engine damage from

overheating. Clean with a wire brush or

compressed air to remove dirt and

stubborn dried gum fibers.

CLEAN AIR INTAKE/COOLING AREAS

To insure proper cooling, make sure the

grass screen, cooling fins, and other

external surfaces of the engine are kept

clean at all times.

Every 100 hours of operation (more often

under extremely dusty, dirty conditions),

remove the blower housing and other

cooling shrouds. Clean the cooling fins

and external surfaces as necessary. Make

sure the cooling shrouds are reinstalled.

NOTE: Operating the engine with a

blocked grass screen, dirty or plugged

cooling fins, and/or cooling shrouds

removed will cause engine damage due

to overheating.

MUFFLER

Inspect and replace corroded muffler and

spark arrester (if equipped) as it could

create a fire hazard and/or damage.

SPARK PLUG(S)

Replace spark plug(s) at the beginning of

each mowing season or after every 100

hours of operation, whichever occurs first.

Spark plug type and gap setting are

shown in "PRODUCT SPECIFICATIONS"

section of this manual.

IN-LINE FUEL FILTER

The fuel filter should be replaced once

each season. If fuel filter becomes

clogged, obstructing fuel flow to carbure-

tor, replacement is required.

1. With engine cool, remove filter and

plug fuel line sections.

2. Place new fuel filter in position in fuel

line with arrow pointing towards

carburetor.

3. Be sure there are no fuel line leaks

and clamps are properly positioned.

4. Immediately wipe up any spilled

gasoline.

Fuel Filter__ _J

CLEANING

• Clean engine, battery, seat, finish, etc.

of all foreign matter.

• Keep finished surfaces and wheels free

of all gasoline, oil, etc.

• Protect painted surfaces with automo-

tive type wax.

We do not recommend using a garden

hose to clean your tractor unless the

electrical system, muffler, air filter and

carburetor are covered to keep water out.

Water in engine can result in a shortened

19 engine life.

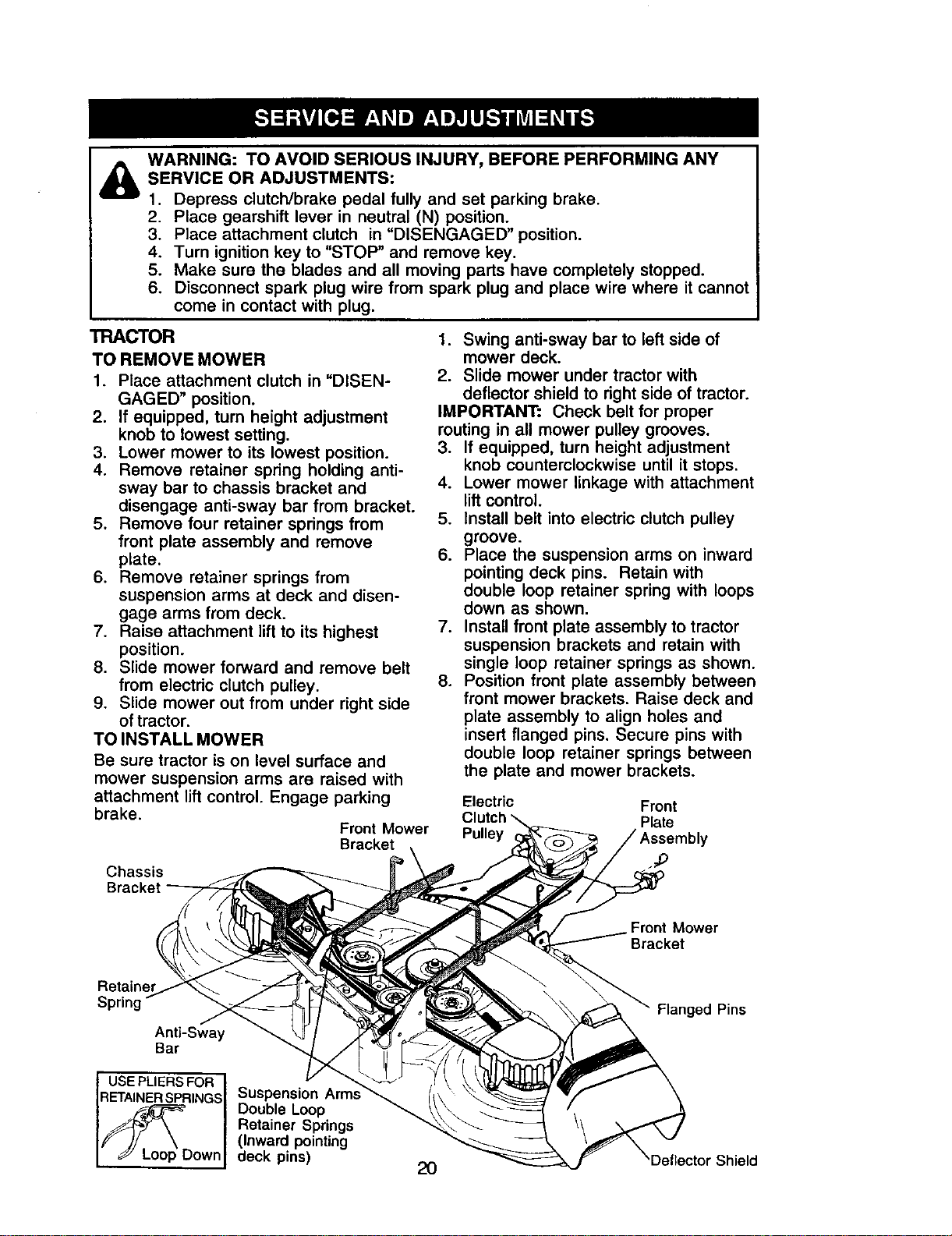

WARNING: TO AVOID SERIOUS INJURY, BEFORE PERFORMING ANY

i_ SERVICE OR ADJUSTMENTS:

1. Depress clutch/brake pedal fully and set parking brake.

2. Place gearshift lever in neutral (N) position.

3. Place attachment clutch in "DISENGAGED" position.

4. Turn ignition key to "STOP" and remove key.

5. Make sure the blades and all moving parts have completely stopped.

6. Disconnect spark plug wire from spark plug and place wire where it cannot

come in contact with plug.

TRACTOR

TO REMOVE MOWER

1. Place attachment clutch in "DISEN-

GAGED" position.

2. If equipped, tum height adjustment

knob to lowest setting.

3. Lower mower to its lowest position.

4. Remove retainer spring holding anti-

sway bar to chassis bracket and

disengage anti-sway bar from bracket.

5. Remove four retainer springs from

front plate assembly and remove

plate.

6. Remove retainer springs from

suspension arms at deck and disen-

gage arms from deck.

7. Raise attachment lift to its highest

position.

8. Slide mower forward and remove belt

from electric clutch pulley.

9. Slide mower out from under right side

of tractor.

TO INSTALL MOWER

Be sure tractor is on level surface and

mower suspension arms are raised with

attachment lift control. Engage parking

brake.

Front Mower

Bracket

Chassis

Bracket

1. Swing anti-sway bar to left side of

mower deck.

2. Slide mower under tractor with

deflector shield to right side of tractor.

IMPORTANT: Check belt for proper

routing in all mower pulley grooves.

3. If equipped, turn height adjustment

knob counterclockwise until it stops.

4. Lower mower linkage with attachment

lift control.

5. Install belt into electric clutch pulley

groove.

6. Place the suspension arms on inward

pointing deck pins. Retain with

double loop retainer spring with loops

down as shown.

7. Install front plate assembly to tractor

suspension brackets and retain with

single loop retainer springs as shown.

8. Position front plate assembly between

front mower brackets. Raise deck and

plate assembly to align holes and

insert flanged pins. Secure pins with

double loop retainer springs between

the plate and mower brackets.

Electric Front

Plate

Front Mower

Bracket

Retainer

Spring

Anti-Sway

Bar

USE PLIERS FOR I

RETAINERSPRINGS

F_oop Down

Suspension Arms_

Double Loop

Retainer Springs

(Inward pointing

deck pins)

Flanged Pins

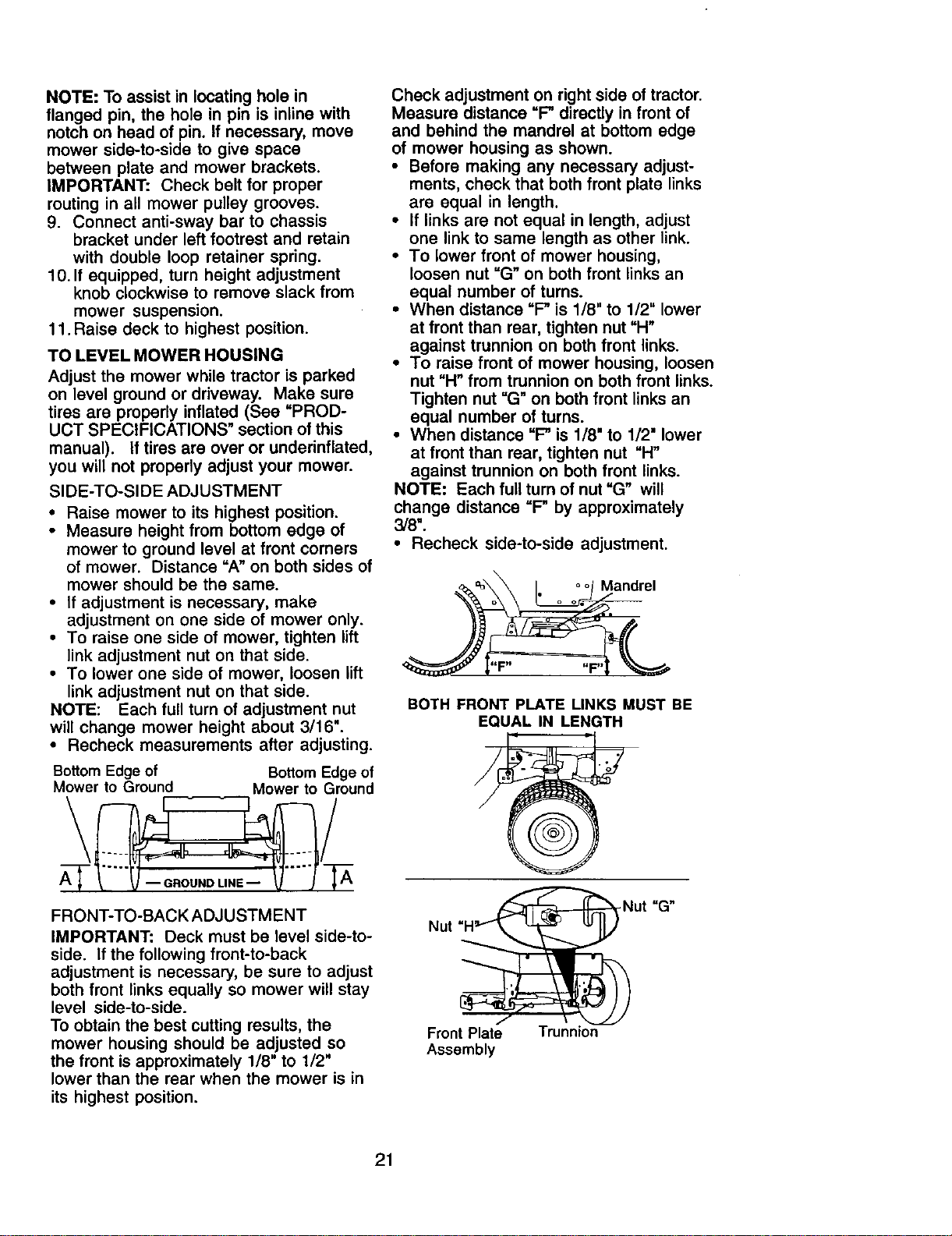

NOTE: To assist in locating hole in

flanged pin, the hole in pin is inline with

notch on head of pin. If necessary, move

mower side-to-side to give space

between plate and mower brackets.

IMPORTANT: Check belt for proper

routing in all mower pulley grooves.

9. Connect anti-sway bar to chassis

bracket under left footrest and retain

with double loop retainer spring.

10. If equipped, turn height adjustment

knob clockwise to remove slack from

mower suspension.

11. Raise deck to highest position.

TO LEVEL MOWER HOUSING

Adjust the mower while tractor is parked

on level ground or driveway. Make sure

tires are properly inflated (See =PROD-

UCT SPECIFICATIONS" section of this

manual). If tires are over or underinflated,

you will not properly adjust your mower.

SI DE-TO-SI DE ADJUSTMENT

• Raise mower to its highest position.

• Measure height from bottom edge of

mower to ground level at front corners

of mower. Distance =A" on both sides of

mower should be the same.

• If adjustment is necessary, make

adjustment on one side of mower only.

• To raise one side of mower, tighten lift

link adjustment nut on that side.

• To lower one side of mower, loosen lift

link adjustment nut on that side.

NOTE: Each full turn of adjustment nut

will change mower height about 3/16".

• Recheck measurements after adjusting.

Bottom Edge of Bottom Edge of

Mower to Ground Mower to Ground

FRONT-TO-BACK ADJUSTMENT

IMPORTANT: Deck must be level side-to-

side. If the following front-to-back

adjustment is necessary, be sure to adjust

both front links equally so mower will stay

level side-to-side.

To obtain the best cutting results, the

mower housing should be adjusted so

the front is approximately 1/8" to 1/2"

lower than the rear when the mower is in

its highest position.

Check adjustment on right side of tractor.

Measure distance "P directly in front of

and behind the mandrel at bottom edge

of mower housing as shown.

• Before making any necessary adjust-

ments, check that both front plate links

are equal in length.

• If links are not equal in length, adjust

one link to same length as other link.

• To lower front of mower housing,

loosen nut "G" on both front links an

equal number of turns.

• When distance "P is 1/8" to 1/2" lower

at front than rear, tighten nut "H"

against trunnion on both front links.

• To raise front of mower housing, loosen

nut "H" from trunnion on both front links.

Tighten nut =G" on both front links an

equal number of turns.

• When distance "P is 1/8" to 1/2" lower

at front than rear, tighten nut "H"

against trunnion on both front links.

NOTE: Each full turn of nut =G" will

change distance "P by approximately

3/8".

• Recheck side-to-side adjustment.

Mandrel

BOTH FRONT PLATE LINKS MUST BE

EQUAL IN LENGTH

Nut

Nut =G"

Front Plate Trunnion

Assembly

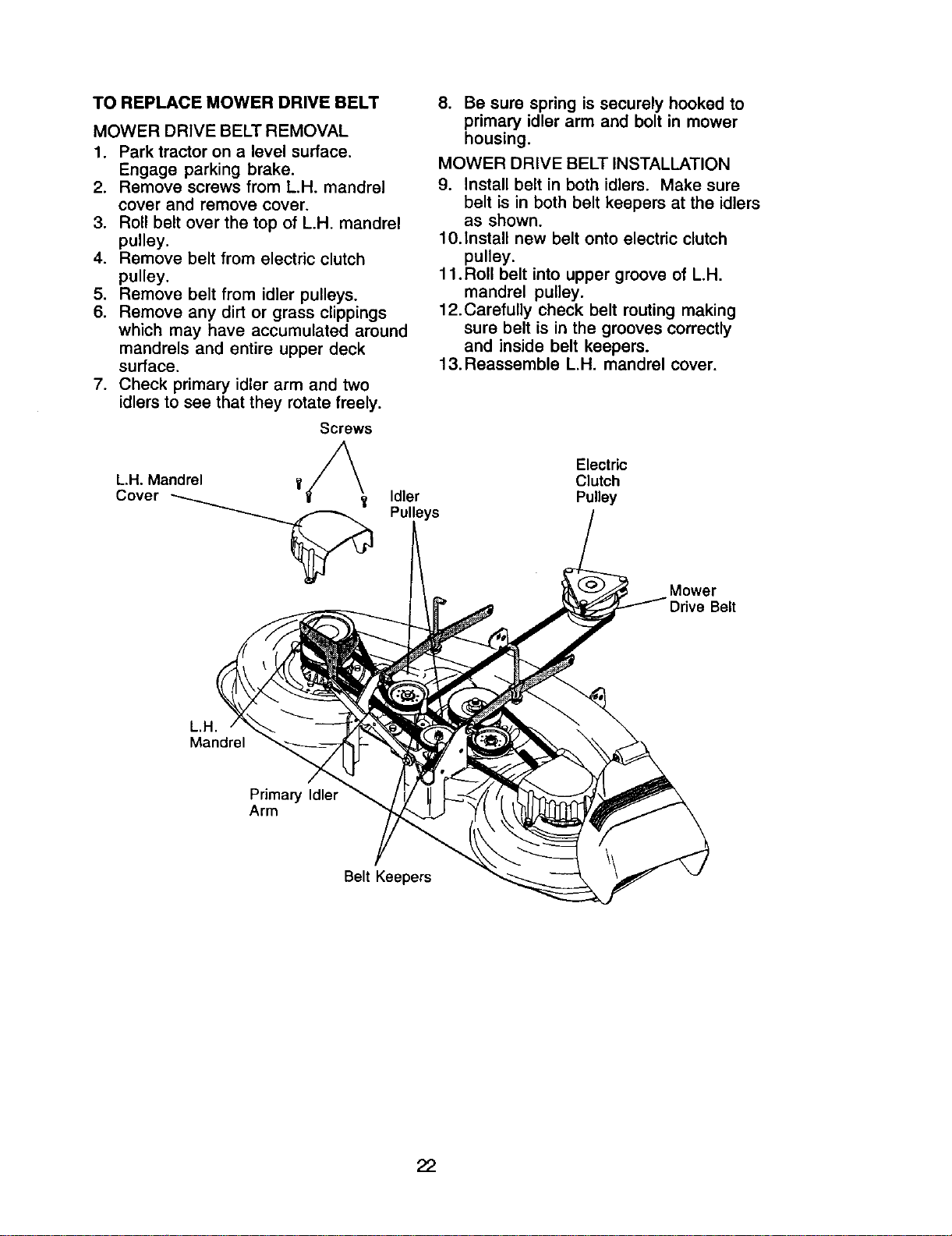

TO REPLACE MOWER DRIVE BELT

MOWER DRIVE BELT REMOVAL

1. Park tractor on a level surface.

Engage parking brake.

2. Remove screws from L.H. mandrel

cover and remove cover.

3. Roll belt over the top of L.H. mandrel

pulley.

4. Remove belt from electric clutch

pulley.

5. Remove belt from idler pulleys.

6. Remove any dirt or grass clippings

which may have accumulated around

mandrels and entire upper deck

surface.

7. Check primary idler arm and two

idlers to see that they rotate freely.

Screws

L.H. Mandrel V

Cover

8. Be sure spring is securely hooked to

primary idler arm and bolt in mower

housing.

MOWER DRIVE BELT INSTALLATION

9. Install belt in both idlers. Make sure

belt is in both belt keepers at the idlers

as shown.

10.Install new belt onto electric clutch

pulley.

1 1.Roll belt into upper groove of L.H.

mandrel pulley.

12.Carefully check belt routing making

sure belt is in the grooves correctly

and inside belt keepers.

13.Reassemble LH. mandrel cover.

Idler

Pulleys

Electric

Clutch

Pulley

Belt

L.H.

Mandrel

Primary

Arm

Belt Keepers

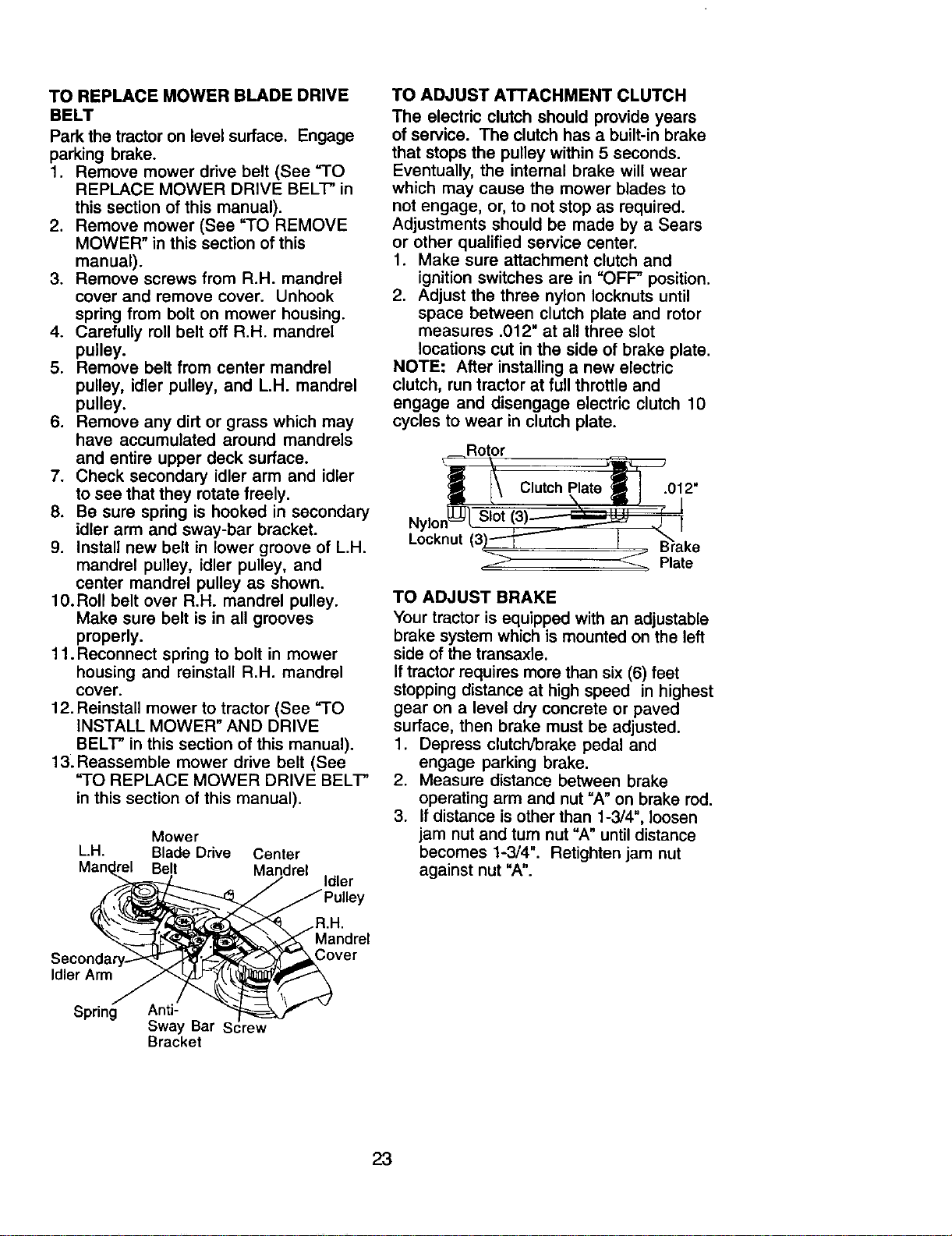

TO REPLACE MOWER BLADE DRIVE

BELT

Park the tractor on level surface. Engage

parking brake.

1. Remove mower drive belt (See "TO

REPLACE MOWER DRIVE BELl" in

this section of this manual).

2. Remove mower (See "TO REMOVE

MOWER" in this section of this

manual).

3. Remove screws from R.H. mandrel

cover and remove cover. Unhook

spring from bolt on mower housing.

4. Carefully roll belt off R.H. mandrel

pulley.

5. Remove belt from center mandrel

pulley, idler pulley, and L.H. mandrel

pulley.

6. Remove any dirt or grass which may

have accumulated around mandrels

and entire upper deck surface.

7. Check secondary idler arm and idler

to see that they rotate freely.

8. Be sure spring is hooked in secondary

idler arm and sway-bar bracket.

9. Install new belt in lower groove of L.H.

mandrel pulley, idler pulley, and

center mandrel pulley as shown.

10.Roll belt over R.H. mandrel pulley.

Make sure belt is in all grooves

properly.

11. Reconnect spring to bolt in mower

housing and reinstall R.H. mandrel

cover.

12. Reinstall mower to tractor (See "TO

INSTALL MOWER" AND DRIVE

BELT" in this section of this manual).

13.Reassemble mower drive belt (See

"TO REPLACE MOWER DRIVE BELT"

in this section of this manual).

Mower

L.H. Blade Drive Center

Man Belt Mandrel

Idler

TO ADJUST ATrACHMENT CLUTCH

The electric clutch should provide years

of service. The clutch has a built-in brake

that stops the pulley within 5 seconds.

Eventually, the internal brake will wear

which may cause the mower blades to

not engage, or, to not stop as required.

Adjustments should be made by a Sears

or other qualified service center.

1. Make sure attachment clutch and

ignition switches are in "OFF' position.

2. Adjust the three nylon Iocknuts until

space between clutch plate and rotor

measures .012" at all three slot

locations cut in the side of brake plate.

NOTE: After installing a new electric

clutch, run tractor at full throttle and

engage and disengage electric clutch 10

cycles to wear in clutch plate.

,_Rotor

Clutch Plate 012"

I L \ I )

Nvlon_[ Slot (3)_ "_ . ;

Lo'cknut (3)_ Ij/ B'_rake

_ Plate

TO ADJUST BRAKE

Your tractor is equipped with an adjustable

brake system which is mounted on the left

side of the transaxle.

If tractor requires more than six (6) feet

stopping distance at high speed in highest

gear on a level dry concrete or paved

surface, then brake must be adjusted.

1. Depress clutch/brake pedal and

engage parking brake.

2. Measure distance between brake

operating arm and nut =A" on brake rod.

3. If distance is other than 1-3/4", loosen

jam nut and turn nut "A" until distance

becomes 1-3/4". Retighten jam nut

against nut "A".

Idler Arm

Spring

Anti-

Sway Bar Screw

Bracket

R.H.

Cover

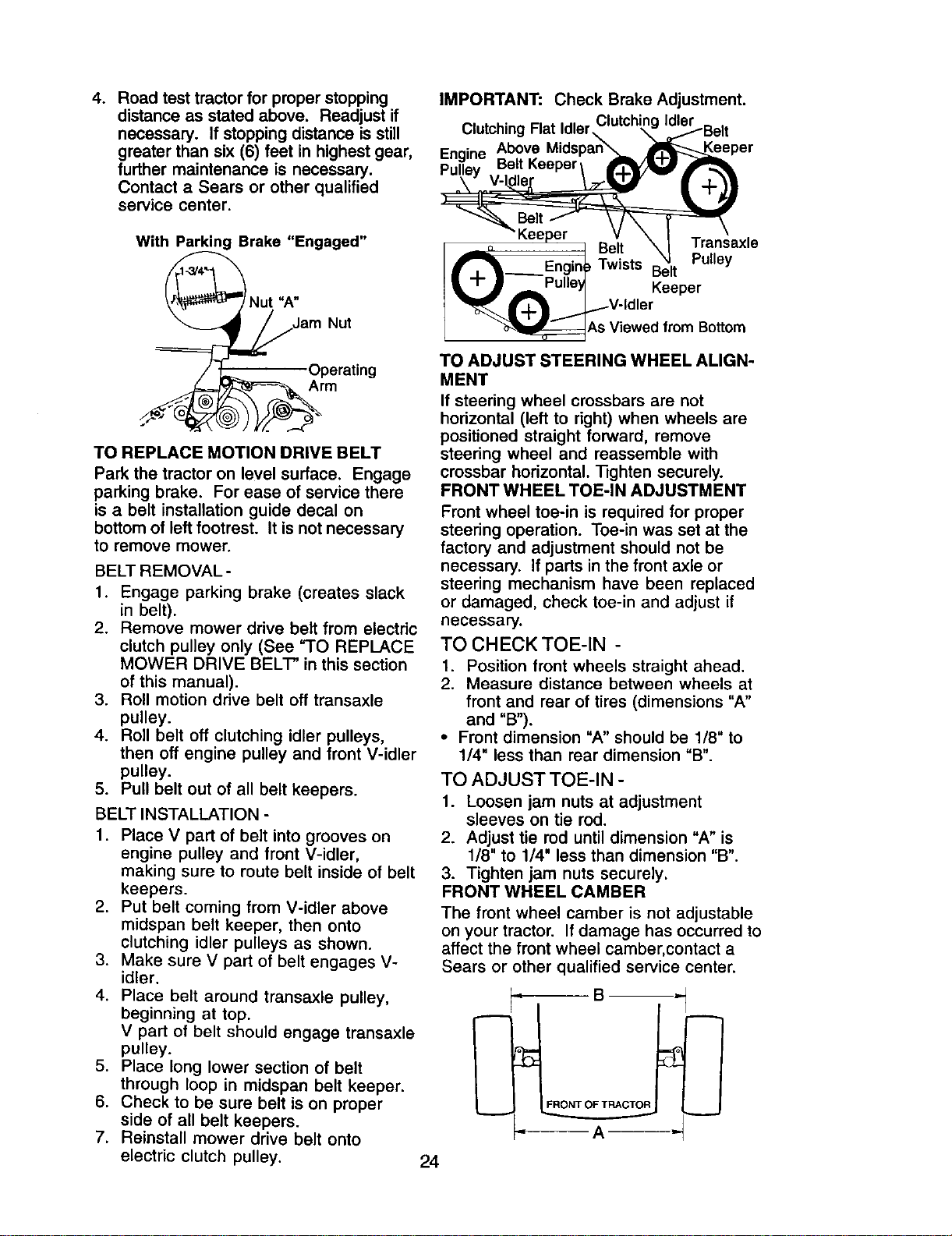

4. Road test tractor for proper stopping

distance as stated above. Readjust if

necessary. If stopping distance is still

greater than six (6) feet in highest gear,

further maintenance is necessary.

Contact a Sears or other qualified

service center.

IMPORTANT: Check Brake Adjustment.

Clutching Flat Idler,

Engine

With Parking Brake "Engaged"

UA"

Nut

Transaxle

Pulley

Twists Belt

Keeper

As Viewed from Bottom

.Operating

Arm

TO REPLACE MOTION DRIVE BELT

Park the tractor on level surface. Engage

parking brake. For ease of service there

is a belt installation guide decal on

bottom of left footrest. It is not necessary

to remove mower.

BELT REMOVAL-

1. Engage parking brake (creates slack

in belt).

2. Remove mower drive belt from electric

clutch pulley only (See "TO REPLACE

MOWER DRIVE BELl" in this section

of this manual).

3. Roll motion drive belt off transaxle

pulley.

4. Roll belt off clutching idler pulleys,

then off engine pulley and front V-idler

pulley.

5. Pull belt out of all belt keepers.

BELT INSTALLATION -

1. Place V part of belt into grooves on

engine pulley and front V-idler,

making sure to route belt inside of belt

keepers.

2. Put belt coming from V-idler above

midspan belt keeper, then onto

clutching idler pulleys as shown.

3. Make sure V part of belt engages V-

idler.

4. Place belt around transaxle pulley,

beginning at top.

V part of belt should engage transaxle

pulley.

5. Place long lower section of belt

through loop in midspan belt keeper.

6. Check to be sure belt is on proper

side of all belt keepers.

7. Reinstall mower drive belt onto

electric clutch pulley.

TO ADJUST STEERING WHEEL ALIGN-

MENT

If steering wheel crossbars are not

horizontal (left to right) when wheels are

positioned straight forward, remove

steering wheel and reassemble with

crossbar horizontal. -13ghten securely.

FRONT WHEEL TOE-IN ADJUSTMENT

Front wheel toe-in is required for proper

steering operation. Toe-in was set at the

factory and adjustment should not be

necessary. If parts in the front axle or

steering mechanism have been replaced

or damaged, check toe-in and adjust if

necessary.

TO CHECK TOE-IN -

1. Position front wheels straight ahead.

2. Measure distance between wheels at

front and rear of tires (dimensions "A"

and "B").

• Front dimension "A" should be 1/8" to

1/4" less than rear dimension "B".

TO ADJUST TOE-IN -

1. Loosen jam nuts at adjustment

sleeves on tie rod.

2. Adjust tie rod until dimension "A" is

1/8" to 1/4" less than dimension "B".

3. Tighten jam nuts securely.

FRONT WHEEL CAMBER

The front wheel camber is not adjustable

on your tractor. If damage has occurred to

affect the front wheel camber, contact a

Sears or other qualified service center.

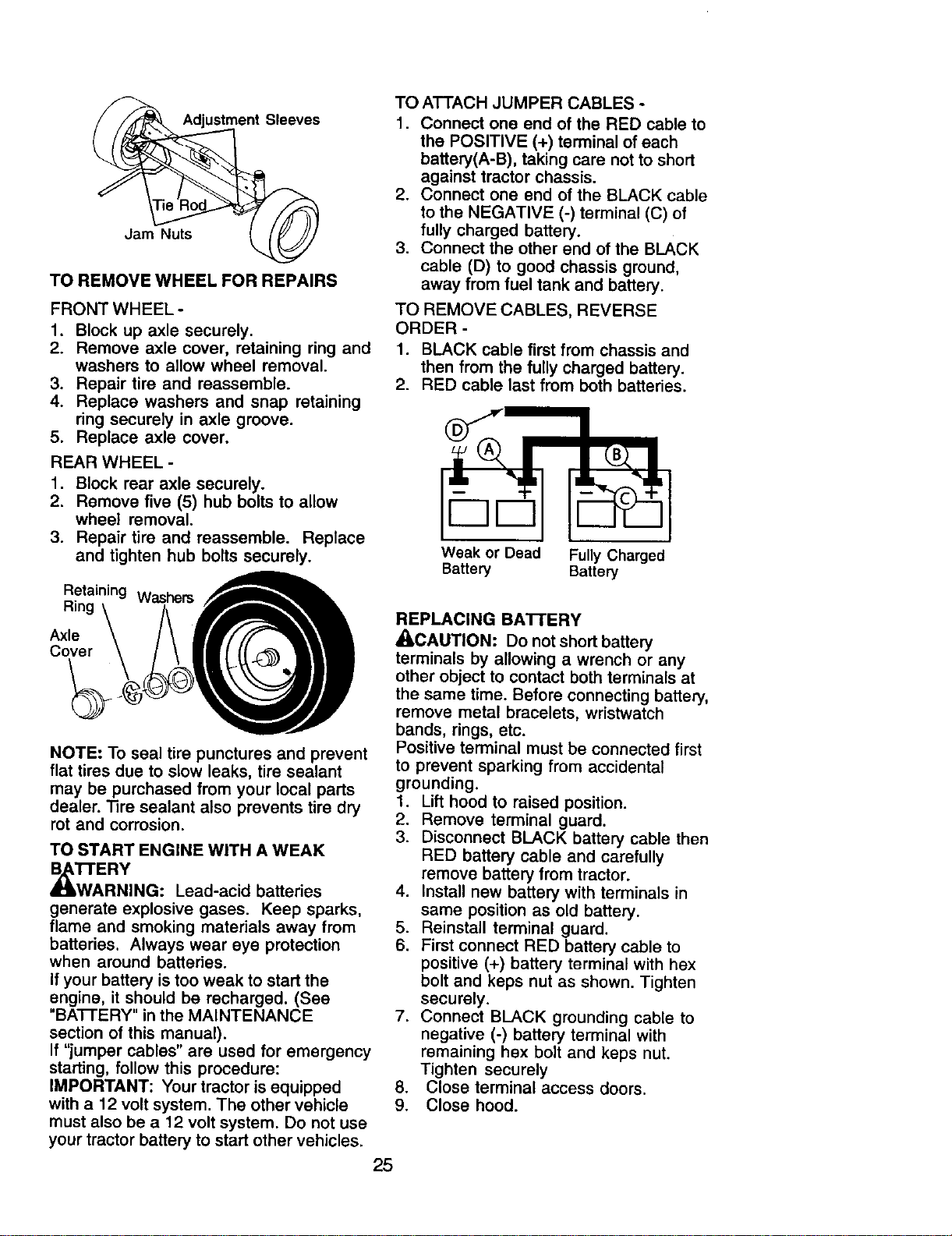

_stment Sleeves

Jam Nuts

TO REMOVE WHEEL FOR REPAIRS

FRONT WHEEL -

1. Block up axle securely.

2. Remove axle cover, retaining ring and

washers to allow wheel removal.

3. Repair tire and reassemble.

4. Replace washers and snap retaining

ring securely in axle groove.

5. Replace axle cover.

REAR WHEEL -

1. Block rear axle securely.

2. Remove five (5) hub bolts to allow

wheel removal.

3. Repair tire and reassemble. Replace

and tighten hub bolts securely.

Retaining Washers

Ring

Axle

Cover

NOTE: To seal tire punctures and prevent

flat tires due to slow leaks, tire sealant

may be purchased from your local parts

dealer. Tire sealant also prevents tire dry

rot and corrosion.

TO START ENGINE WITH A WEAK

RNING: Lead-acid batteries

generate explosive gases. Keep sparks,

flame and smoking materials away from

batteries. Always wear eye protection

when around batteries.

If your battery is too weak to start the

engine, it should be recharged. (See

"BA-I-IERY" in the MAINTENANCE

section of this manual).

If "jumper cables" are used for emergency

starting, follow this procedure:

IMPORTANT: Your tractor is equipped

with a 12 volt system. The other vehicle

must also be a 12 volt system. Do not use

your tractor battery to start other vehicles.

TO ATTACH JUMPER CABLES o

1. Connect one end of the RED cable to

the POSITIVE (+) terminal of each

battery(A-B), taking care not to short

against tractor chassis.

2. Connect one end of the BLACK cable

to the NEGATIVE (-) terminal (C) of

fully charged battery.

3. Connect the other end of the BLACK

cable (D) to good chassis ground,

away from fuel tank and battery.

TO REMOVE CABLES, REVERSE

ORDER -

1. BLACK cable first from chassis and

then from the fully charged battery.

2. RED cable last from both batteries.

Weak or Dead Fully Charged

Battery Battery

REPLACING BATTERY

ACAUTION: Do not short battery

terminals by allowing a wrench or any

other object to contact both terminals at

the same time. Before connecting battery,

remove metal bracelets, wristwatch

bands, rings, etc.

Positive terminal must be connected first

to prevent sparking from accidental

grounding.

1. Lift hood to raised position.

2. Remove terminal guard.

3. Disconnect BLACK battery cable then

RED battery cable and carefully

remove battery from tractor.

4. Install new battery with terminals in

same position as old battery.

5. Reinstall terminal guard.

6. First connect RED battery cable to

positive (+) battery terminal with hex

bolt and keps nut as shown. Tighten

securely.

7. Connect BLACK grounding cable to

negative (-) battery terminal with

remaining hex bolt and keps nut.

Tighten securely

8. Close terminal access doors.

9. Close hood.

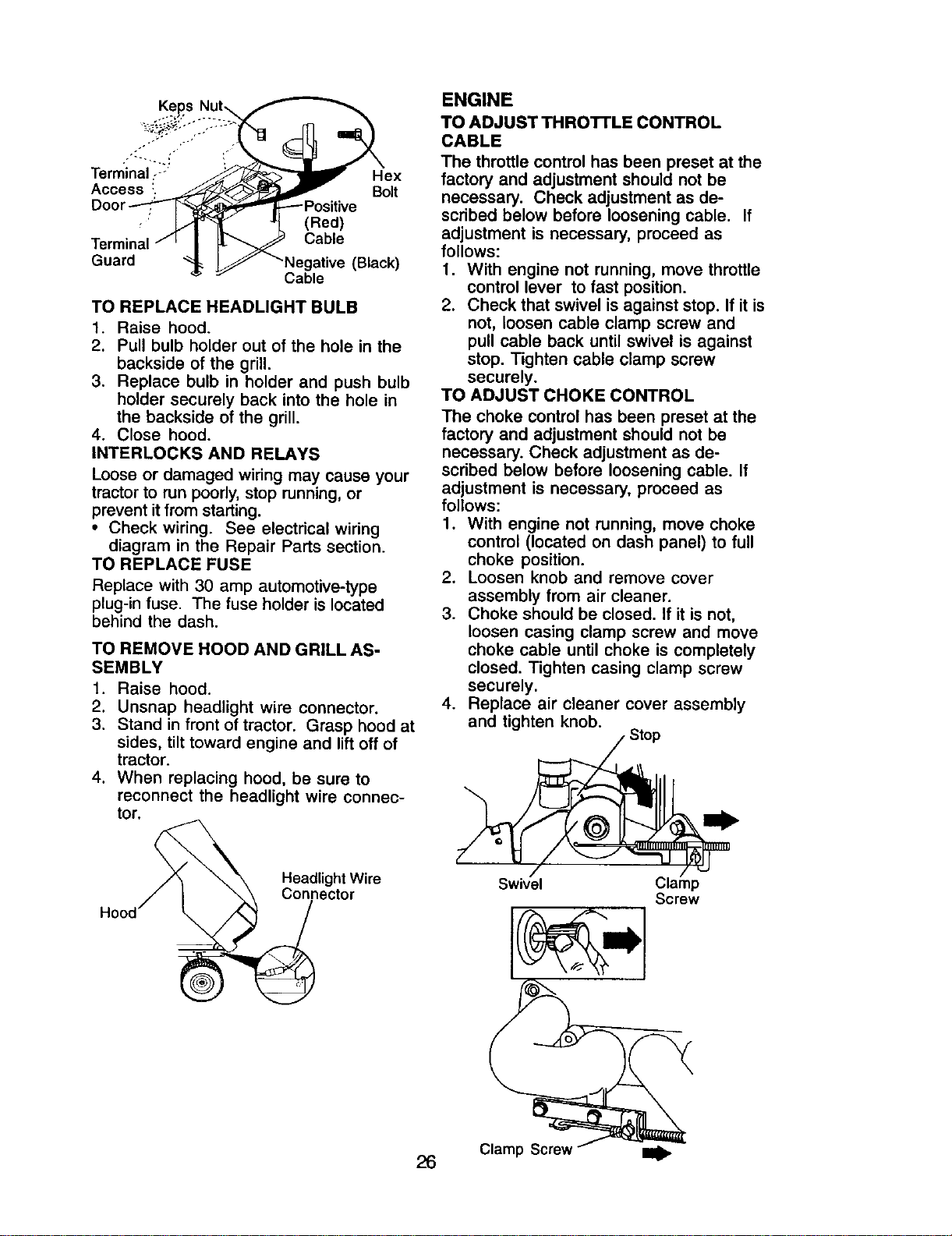

, ,:i,...,!- :"

Terminal .,-" Hex

Access :. Bolt

(Red)

Cable

Guard _gative (Black)

Cable

TO REPLACE HEADLIGHT BULB

1. Raise hood.

2. Pull bulb holder out of the hole in the

backside of the grill.

3. Replace bulb in holder and push bulb

holder securely back into the hole in

the backside of the grill.

4, Close hood.

INTERLOCKS AND RELAYS

Loose or damaged widng may cause your

tractor to run poody, stop running, or

prevent it from starting.

• Check wiring. See electrical wiring

diagram in the Repair Parts section.

TO REPLACE FUSE

Replace with 30 amp automotive-type

plug-in fuse. The fuse holder is located

behind the dash.

TO REMOVE HOOD AND GRILL AS-

SEMBLY

1. Raise hood.

2. Unsnap headlight wire connector.

3. Stand in front of tractor. Grasp hood at

sides, tilt toward engine and lift off of

tractor.

4. When replacing hood, be sure to

reconnect the headlight wire connec-

tor.

,_ Headlieg(httWire

H°°d/

ENGINE

TO ADJUST THROTTLE CONTROL

CABLE

The throttle control has been preset at the

factory and adjustment should not be

necessary. Check adjustment as de-

scribed below before loosening cable. If

adjustment is necessary, proceed as

follows:

1. With engine not running, move throttle

control lever to fast position.

2. Check that swivel is against stop. If it is

not, loosen cable clamp screw and

pull cable back until swivel is against

stop. Tighten cable clamp screw

securely.

TO ADJUST CHOKE CONTROL

The choke control has been preset at the

factory and adjustment should not be

necessary. Check adjustment as de-

scribed below before loosening cable. If

adjustment is necessary, proceed as

follows:

1. With engine not running, move choke

control (located on dash panel) to full

choke position.

2. Loosen knob and remove cover

assembly from air cleaner.

3. Choke should be closed. If it is not,

loosen casing clamp screw and move

choke cable until choke is completely

closed. Tighten casing clamp screw

securely.

4. Replace air cleaner cover assembly

and tighten knob.

Swivel

Screw

Clamp

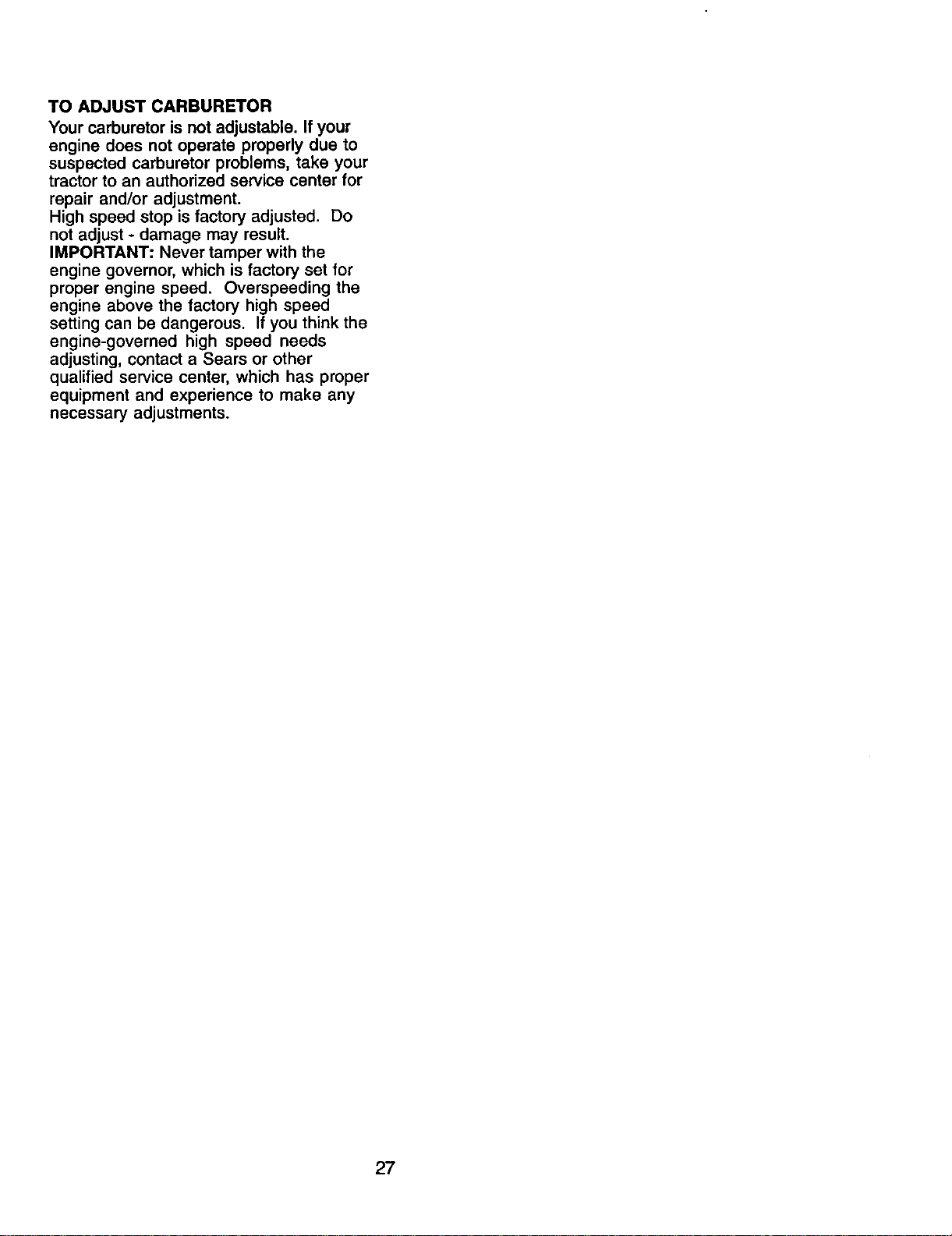

TO ADJUST CARBURETOR

Your carburetor is not adjustable. If your

engine does not operate properly due to

suspected carburetor problems, take your

tractor to an authorized service center for

repair and/or adjustment.

High speed stop is factory adjusted. Do

not adjust - damage may result.

IMPORTANT: Never tamper with the

engine governor, which is factory set for

proper engine speed. Ovempeeding the

engine above the factory high speed

setting can be dangerous. If you think the

engine-governed high speed needs

adjusting, contact a Sears or other

qualified service center, which has proper

equipment and experience to make any

necessary adjustments.

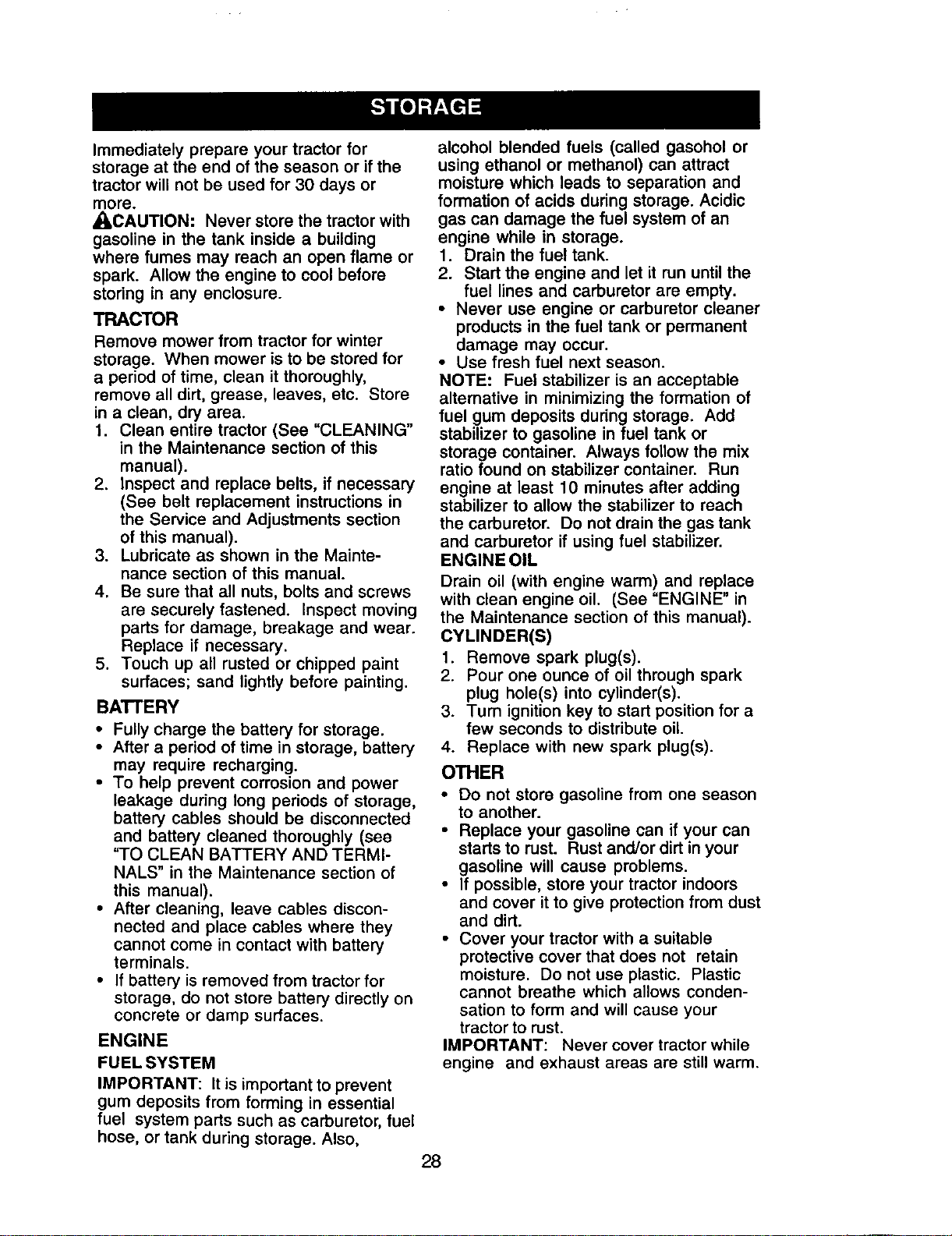

Immediately prepare your tractor for

storage at the end of the season or if the

tractor will not be used for 30 days or

more.

_CAUTION: Never store the tractor with

gasoline in the tank inside a building

where fumes may reach an open flame or

spark. Allow the engine to cool before

storing in any enclosure.

TRACTOR

Remove mower from tractor for winter

storage. When mower is to be stored for

a period of time, clean it thoroughly,

remove all dirt, grease, leaves, etc. Store

in a clean, dry area.

1. Clean entire tractor (See "CLEANING"

in the Maintenance section of this

manual).

2. Inspect and replace belts, if necessary

(See belt replacement instructions in

the Service and Adjustments section

of this manual).

3. Lubricate as shown in the Mainte-

nance section of this manual.

4. Be sure that all nuts, bolts and screws

are securely fastened. Inspect moving

parts for damage, breakage and wear.

Replace if necessary.

5. Touch up all rusted or chipped paint

surfaces; sand lightly before painting.

BATTERY

• Fully charge the battery for storage.

• After a period of time in storage, battery

may require recharging.

• To help prevent corrosion and power

leakage during long periods of storage,

battery cables should be disconnected

and battery cleaned thoroughly (see

"TO CLEAN BATTERY AND TERMI-

NALS" in the Maintenance section of

this manual).

• After cleaning, leave cables discon-

nected and place cables where they

cannot come in contact with battery

terminals.

• If battery is removed from tractor for

storage, do not store battery directly on

concrete or damp surfaces.

ENGINE

FUEL SYSTEM

IMPORTANT: It is Dmportant to prevent

gum deposits from forming in essential

fuel system parts such as carburetor, fuel

hose, or tank during storage. Also,

alcohol blended fuels (called gasohol or

using ethanol or methanol) can attract

moisture which leads to separation and

formation of acids during storage. Acidic

gas can damage the fuel system of an

engine while in storage.

1. Drain the fuel tank.

2. Start the engine and let it run until the

fuel lines and carburetor are empty.

• Never use engine or carburetor cleaner

products in the fuel tank or permanent

damage may occur.

• Use fresh fuel next season.

NOTE: Fuel stabilizer is an acceptable

alternative in minimizing the formation of

fuel gum deposits dudng storage. Add

stabilizer to gasoline in fuel tank or

storage container. Always follow the mix

ratio found on stabilizer container. Run

engine at least 10 minutes after adding

stabilizer to allow the stabilizer to reach

the carburetor. Do not drain the gas tank

and carburetor if using fuel stabilizer.

ENGINE OIL

Drain oil (with engine warm) and replace

with clean engine oil. (See =ENGINE" in

the Maintenance section of this manual).

CYLINDER(S)

1. Remove spark plug(s).

2. Pour one ounce of oil through spark

plug hole(s) into cylinder(s).

3. Turn ignition key to start position for a

few seconds to distribute oil.

4. Replace with new spark plug(s).

OTHER

• Do not store gasoline from one season

to another.

• Replace your gasoline can if your can

starts to rust. Rust and/or dirt in your

gasoline will cause problems.

• If possible, store your tractor indoors

and cover it to give protection from dust

and dirt.

• Cover your tractor with a suitable

protective cover that does not retain

moisture. Do not use plastic. Plastic

cannot breathe which allows conden-

sation to form and will cause your

tractor to rust.

IMPORTANT: Never cover tractor while

engine and exhaust areas are still warm.

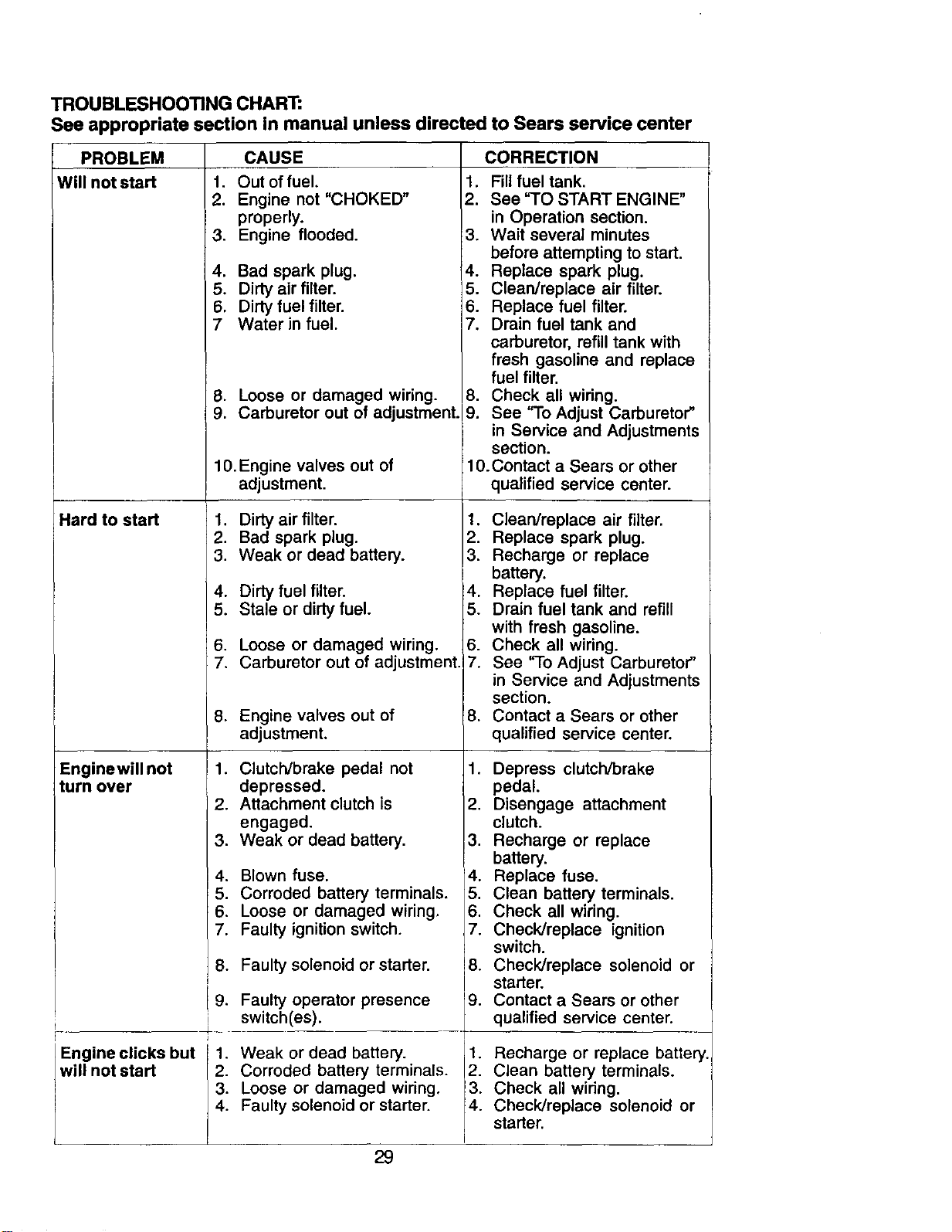

TROUBLESHOOTING CHART:

See appropriate section in manual unless directed to Sears service center

PROBLEM

ill not start

ird to start

zginewill not

rn over

lgine clicks but

ill not start

CAUSE

1. Out of fuel.

2. Engine not "CHOKED"

properly.

3. Engine flooded.

4. Bad spark plug.

5. Dirty air filter.

6. Dirty fuel filter.

7 Waterin fuel.

8. Loose or damaged wiring.

9. Carburetor out of adjustment.

10. Engine valves out of

adjustment.

1. Dirty air filter.

2. Bad spark plug.

3. Weak or dead battery.

4. Dirty fuel filter.

5. Stale or dirty fuel.

6. Loose or damaged wiring.

7. Carburetor out of adjustment.

8. Engine valves out of

adjustment.

1. Clutch/brake pedal not

CORRECTION

1. Fill fuel tank.

2. See "TO START ENGINE"

in Operation section.

3. Wait several minutes

before attempting to start.

4. Replace spark plug.

5. Clean/replace air filter.

6. Replace fuel filter.

7. Drain fuel tank and

carburetor, refill tank with

fresh gasoline and replace

fuel filter.

8. Check all wiring.

9. See "To Adjust Carburetor"

in Service and Adjustments

section.

10.Contact a Sears or other

qualified service center.

1. Cieahireplace air filter.

2. Replace spark plug.

3. Recharge or replace

battery.

4. Replace fuel filter.

5. Drain fuel tank and refill

with fresh gasoline.

6. Check all wiring.

7. See "To Adjust Carburetor"

in Service and Adjustments

section.

8. Contact a Sears or other

qualified service center.

1. Depress clutch/brake

depressed.

2. Attachmentclutchis

engaged.

3. Weak or dead battery.

pedal.

2. Disengage attachment

clutch.

3. Recharge or replace

battery.

Blown fuse. 4.

Corroded battery terminals. 5.

Loose or damaged wiring. 6.

Faulty ignition switch. 7.

Faulty solenoid or starter. 8.

Faulty operator presence

switch(es).

Weak or dead battery. 1.

Corroded battery terminals. 2.

Loose or damaged wiring. 3.

Faulty solenoid or starter. 4.

Replace fuse.

Clean battery terminals.

Check all wiring.

Check/replace ignition

switch.

Check/replace solenoid or

starter.

Contact a Sears or other

qualified service center.

Recharge or replace battery.

Clean battery terminals.

Check all wiring.

Check/replace solenoid or

starter.

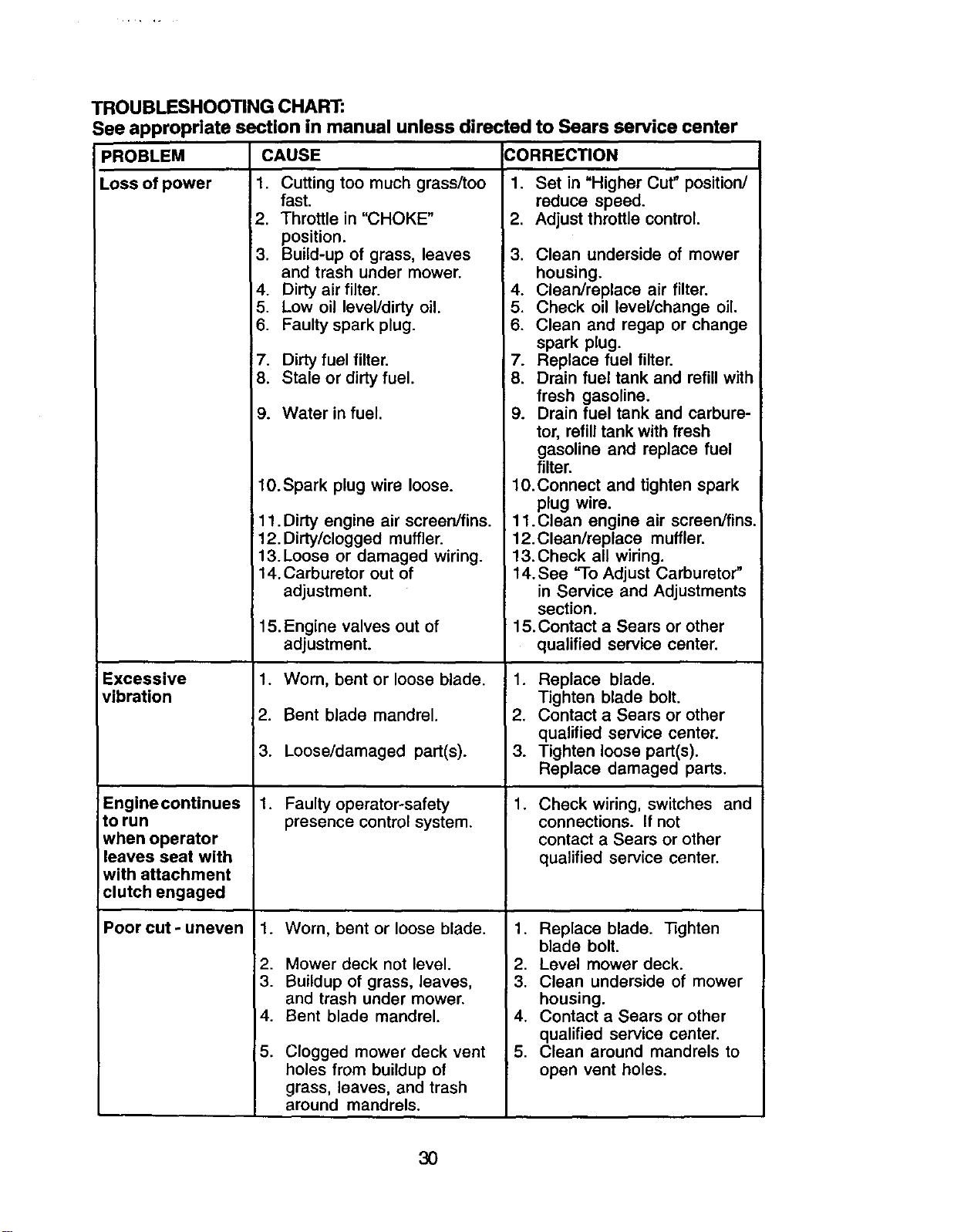

TROUBLESHOOTING CHART:

See appropriate section in manual unless directed to Sears service center

PROBLEM

Loss of power

Excessive

vibration

Engine continues

to run

when operator

leaves seat with

with attachment

clutch engaged

Poorcut-uneven

CAUSE 3ORRECTION

1. Cutting too much grass/too

fast.

2. Throttle in "CHOKE"

position.

3. Build-up of grass, leaves 3.

and trash under mower.

4. Dirty air filter. 4.

5. Low oil leveVdirty oil. 5.

6. Faulty spark plug. 6.

7. Dirty fuel filter. 7.

8. Stale or dirty fuel. 8.

9. Water in fuel.

10.Spark plug wire loose.

11. Dirty engine air screen/fins.

12. Dirty/clogged muffler.

13.Loose or damaged wiring.

14. Carburetor out of

adjustment.

15. Engine valves out of

adjustment.

1. Worn, bent or loose blade.

12. Bent blade mandrel.

3. Loose/damaged part(s).

1. Faulty operator-safety 1.

presence control system.

1. Worn, bent or loose blade. 1.

2. Mower deck not level. 2.

3. Buildup of grass, leaves,

and trash under mower.

4. Bent blade mandrel. 4.

5. Clogged mower deck vent 5.

holes from buildup of

grass, leaves, and trash

around mandrels.

1. Set in "Higher Cut" position/

reduce speed.

2. Adjust throttle control.

Clean underside of mower

housing.

Clean/replace air filter.

Check oil level/change oil.

Clean and regap or change

spark plug.

Replace fuel filter.

Drain fuel tank and refill with

fresh gasoline.

9. Drain fuel tank and carbure-

tor, refill tank with fresh

gasoline and replace fuel

filter.

10.Connect and tighten spark

plug wire.

11. Clean engine air screen/fins.

12. Clean/replace muffler.

13.Check all wiring.

14. See "To Adjust Carburetor"

in Service and Adjustments

section.

15. Contact a Sears or other

qualified service center.

1. Replace blade.

Tighten blade bolt.

2. Contact a Sears or other

qualified service center.

3. Tighten loose part(s).

Replace damaged parts.

Check wiring, switches and

connections. If not

contact a Sears or other

qualified service center.

Replace blade. Nghten

blade bolt.

Level mower deck.

Clean underside of mower

housing.

Contact a Sears or other

qualified service center.

Clean around mandrels to

open vent holes.

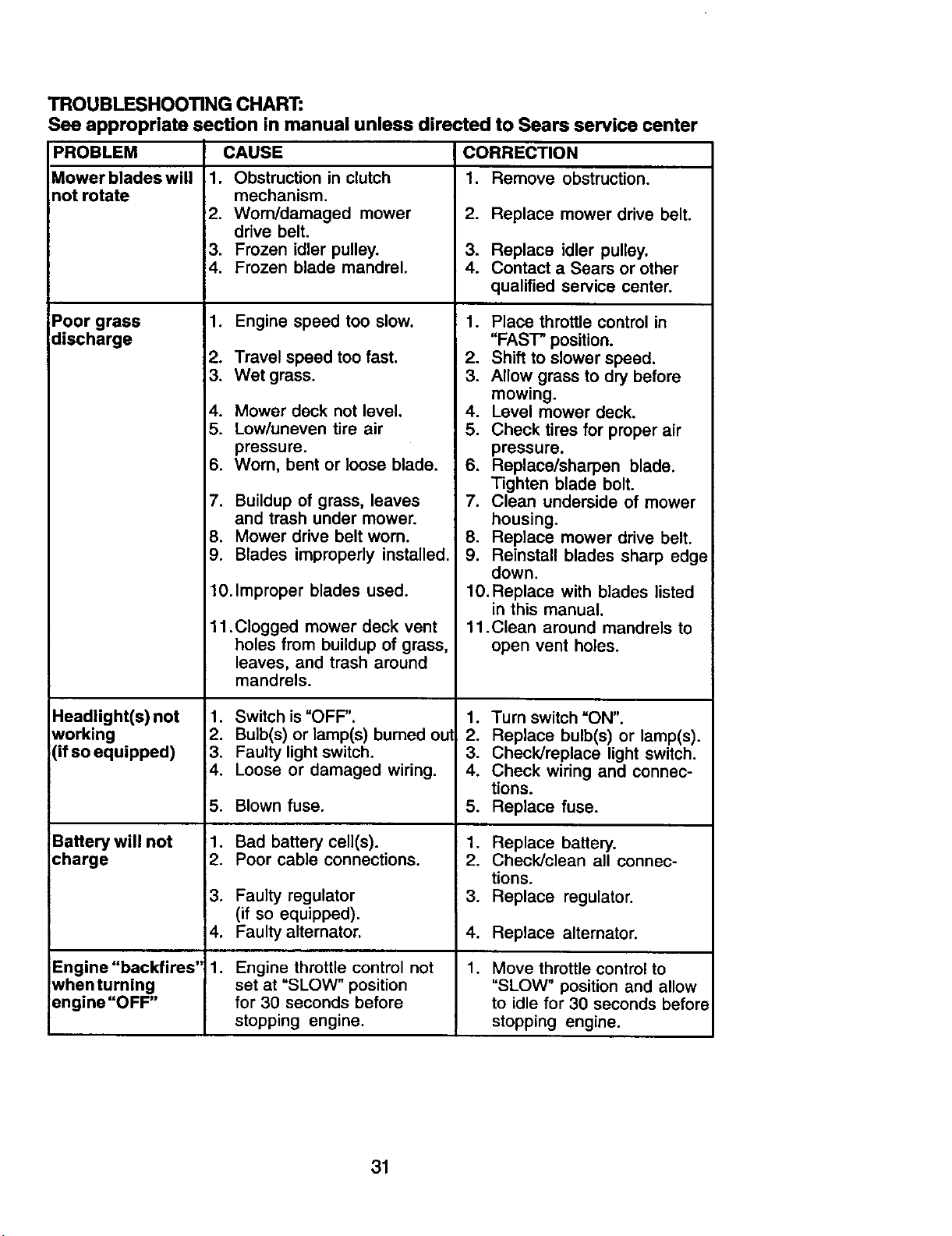

TROUBLESHOOTING CHART:

See appropriate section in manual unless directed to Sears service center

PROBLEM

Mower blades will

not rotate

Poor grass

discharge

Headlight(s) not

working

[if so equipped)

Battery will not

charge

Engine "backfires"

_vhen turning

engine "OFF"

CAUSE

1. Obstruction in clutch

mechanism.

2. Worn/damaged mower

drive belt.

3. Frozen idler pulley.

4. Frozen blade mandrel.

1. Engine speed too slow.

2. Travel speed too fast.

3. Wet grass.

4. Mower deck not level.

5. Low/uneven tire air

pressure.

6. Worn, bent or loose blade.

7. Buildup of grass, leaves

and trash under mower.

8. Mower drive belt worn.

9. Blades improperly installed.

10.Improper blades used.

11.Clogged mower deck vent

holes from buildup of grass,

leaves, and trash around

mandrels.

1. Switch is "OFF".

2. Bulb(s) or lamp(s) burned out

3. Faulty light switch.

4. Loose or damaged wiring.

5. Blown fuse.

1. Bad battery cell(s).

2. Poor cable connections.

3. Faulty regulator

(if so equipped).

4. Faulty alternator.

Engine throttle control not

set at "SLOW" position

for 30 seconds before

stopping engine.

CORRECTION

1. Remove obstruction.

2. Replace mower drive belt.

3. Replace idler pulley.

4. Contact a Sears or other

qualified service center.

1. Place throttle control in

"FAST" position.

2. Shift to slower speed.

3. Allow grass to dry before

mowing.

4. Level mower deck.

5. Check tires for proper air

pressure.

6. Replace/sharpen blade.

Tighten blade bolt.

7. Clean underside of mower

housing.

8. Replace mower drive belt.

9. Reinstall blades sharp edge

down.

10.Replace with blades listed

in this manual.

11.Clean around mandrels to

open vent holes.

1. Turn switch "ON".

2. Replace bulb(s) or lamp(s).

3. Check/replace light switch.

4. Check wiring and connec-

tions.

5. Replace fuse.

1. Replace battery.

2. Check/clean all connec-

tions.

3. Replace regulator.

4. Replace alternator.

, Move throttle control to

"SLOW" position and allow

to idle for 30 seconds before

stopping engine.

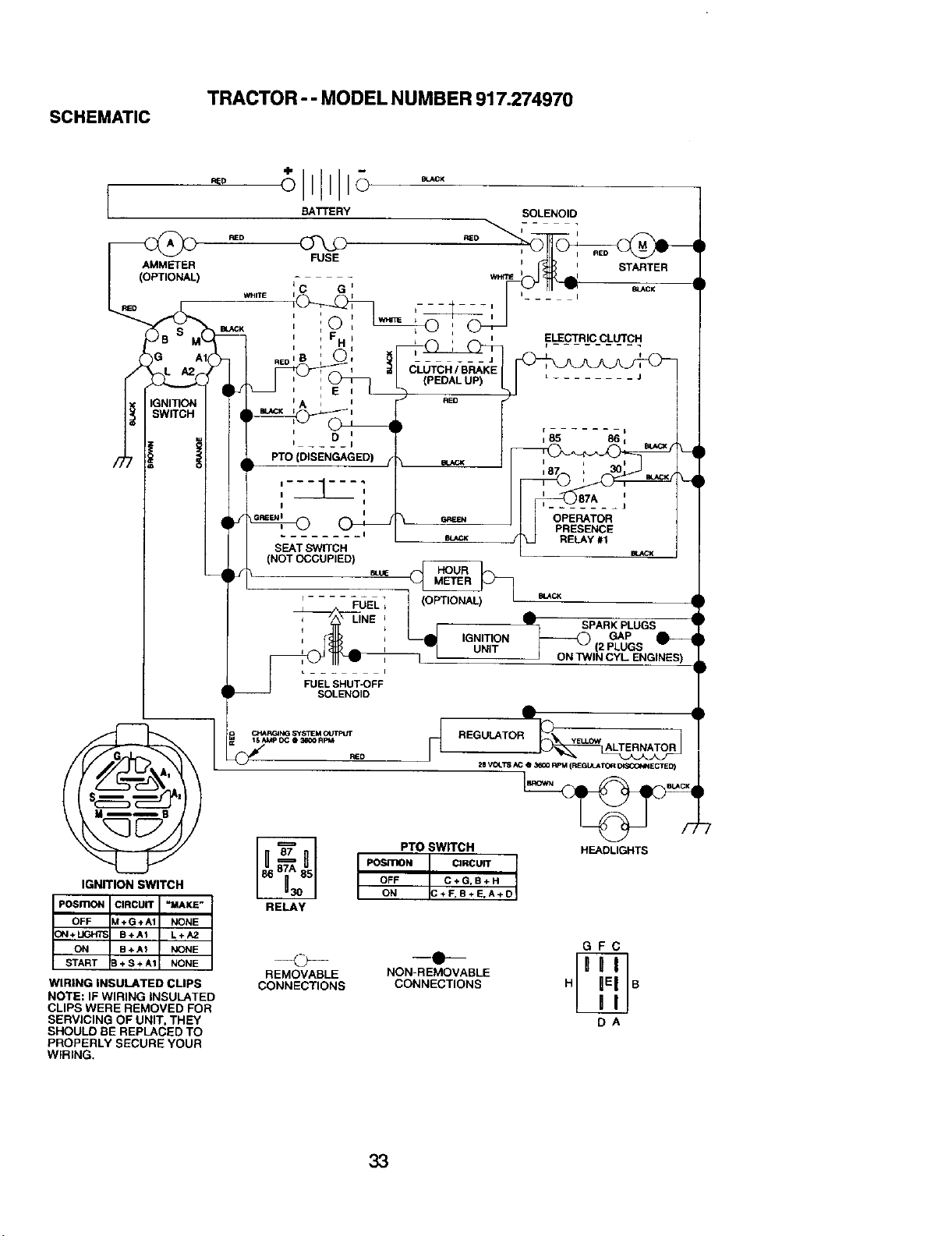

SCHEMATIC

TRACTOR - - MODEL NUMBER 917.274970

AMMETER

(OPTIONAL)

SOLENOID

IGNITION SWITCH

OFF M÷G÷A1 NONE

ON+ E+At L+A2

ON ]B+A_ hK_flE

S +S+A1 NONE

WIRING INSULATED CUPS

NOTE: IF WIRING INSULATED

CLIPS WERE REMOVED FOR

SERVICING OF UNIT, THEY

SHOULD 8E REPLACED TO

PROPERLY SECURE YOUR

WIRING.

EL£CTRtC CLL_CH

CLUTCH I BRAKE

(PEDAL UP)

, IE ,

I A RED

SEAT SWITCH

(NOT OCCUPIED)

_.uIE

FUEL

IGNITION

UNIT

FUEL SHUT-OFF

SOLENOID

RELAY

REGULATO: __

PTO SWITCH HEADLIGHTS

POSITION CIRCUIT

OFF C+G,B+H

ON C+F,B÷E,A+D

REMOVABLE

CONNECTIONS

GFC

NON-REMOVABLE

CONNECTIONS H B

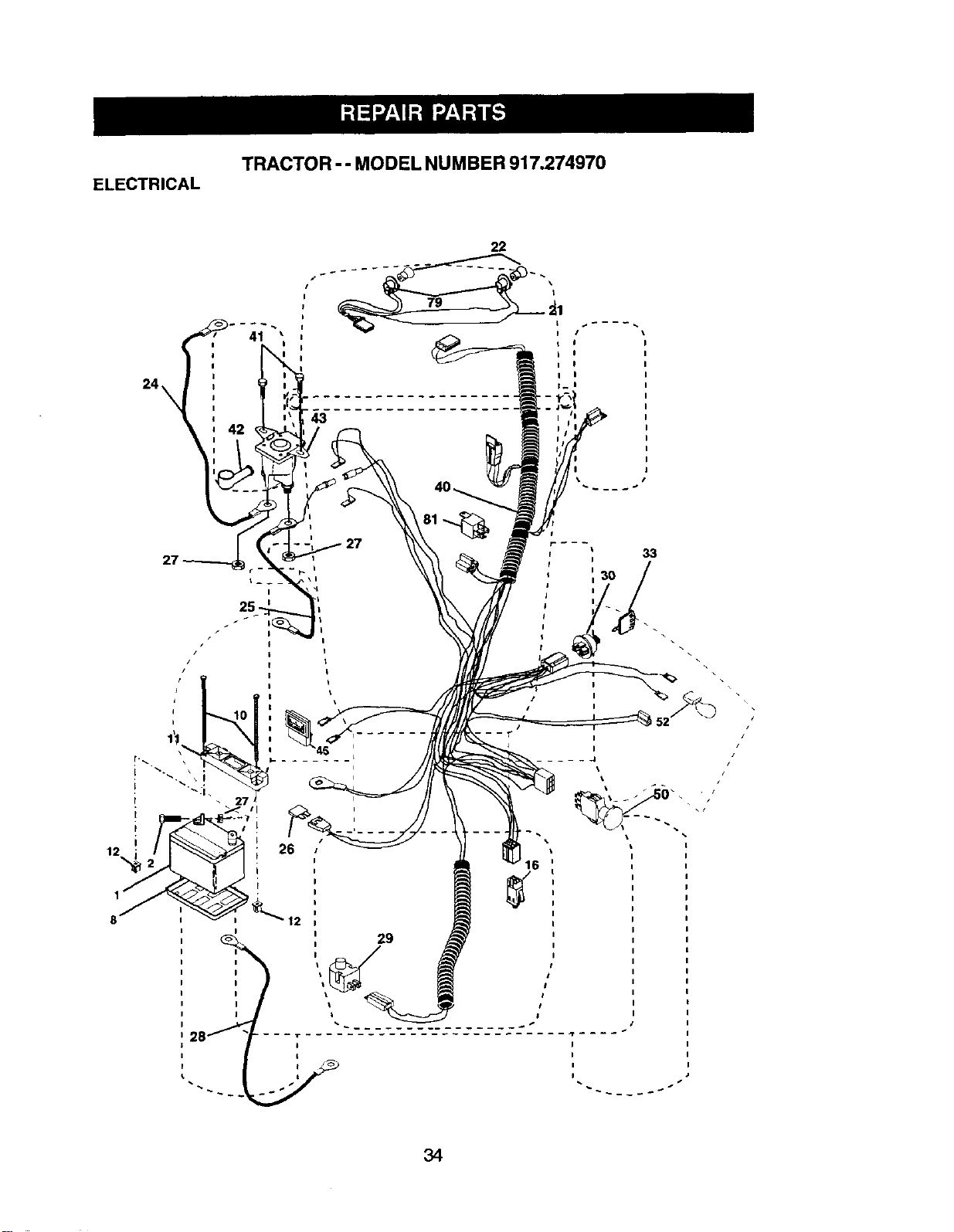

ELECTRICAL

TRACTOR -- MODEL NUMBER 917.274970

:?4

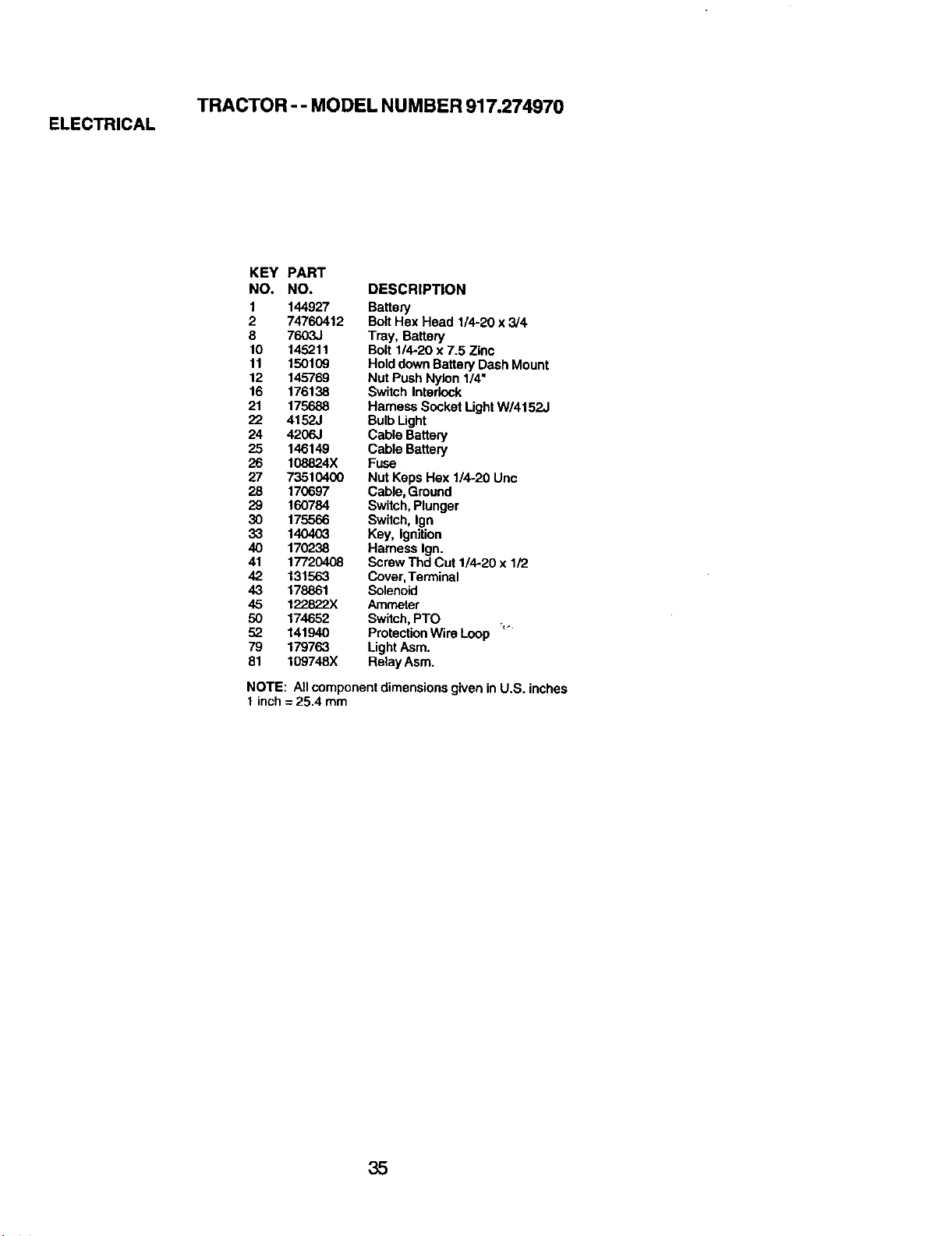

TRACTOR - - MODEL NUMBER 917.274970

ELECTRICAL

KEY PART

NO. NO.

1 144927

2 74760412

8 7603J

10 145211

11 150109

12 145769

16 176138

21 175688

22 4152J

24 4206J

146149

26 108824X

27 73510400

28 170697

29 160784

30 175566

33 14040_

40 170238

41 17720408

42 131563

43 178861

45 122822X

50 174652

52 141940

79 179763

81 109748X

DESCRIPTION

Battery

Boll Hex Head 1/4-20 x 3/4

Tray, Battery

Boll 1/4-20 x 7.5 Zinc

HolddownBatteryDash Mount

Nut Push Nylon 1/4"

Switch Interlock

Harness Socket LightW/4152J

Bulb Light

Cable Battery

Fuse

Nut Keps Hex 1/4-20 Unc

Cable,Ground

Switch,Plunger

Switch, Ign

Key, ignition

Hamass Ign.

ScrewThd Cut 1/4-20 x 1/2

Cover,Terminal

Solenoid

Ammeter

Switch,PTO ,,.

ProtectionWire Loop

LightAsm.

Relay Asm.

NOTE: Allcomponent dimensionsgiven inU.S. inches

1 inch= 25.4 mm

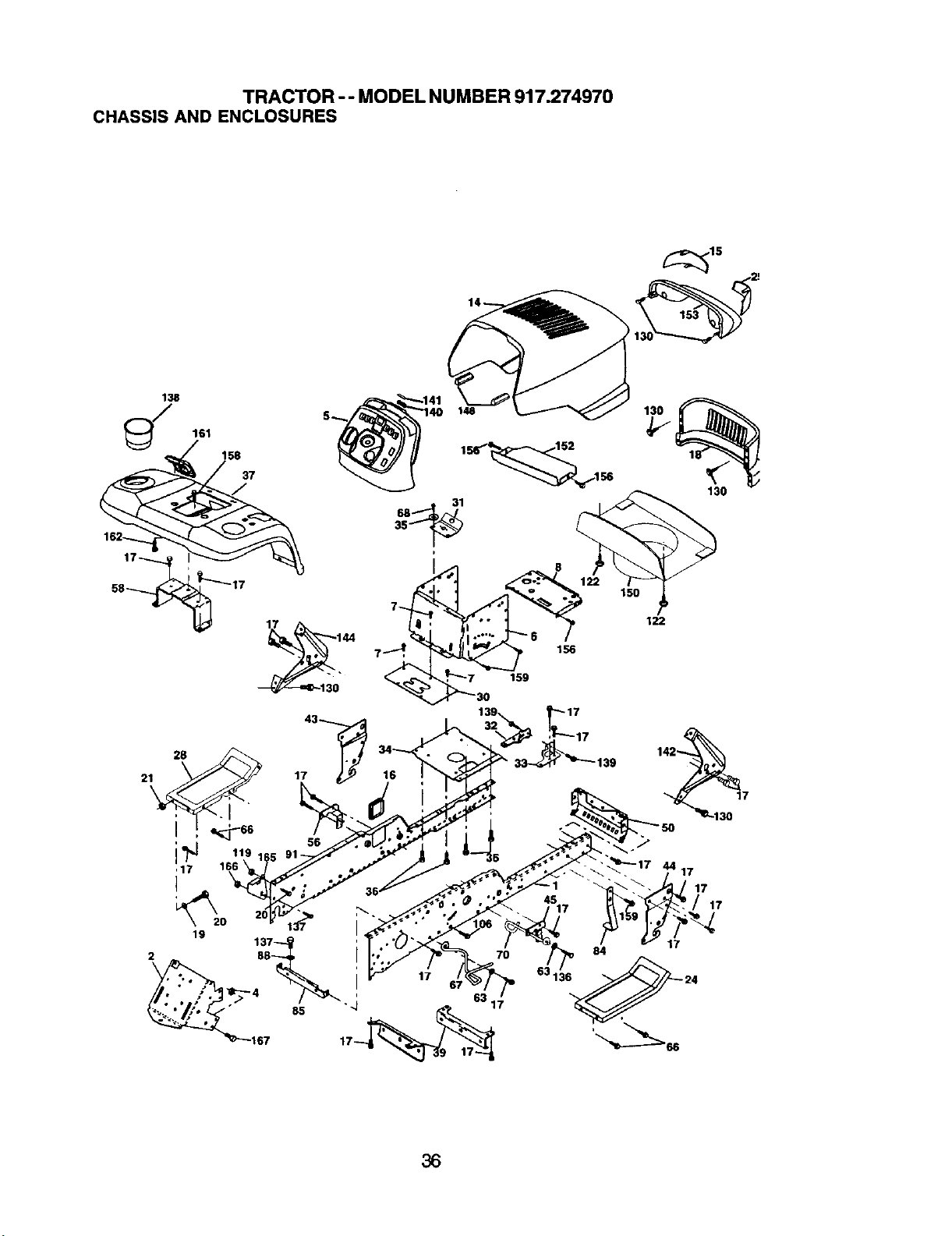

TRACTOR -- MODEL NUMBER 917.274970

CHASSIS AND ENCLOSURES

21 17

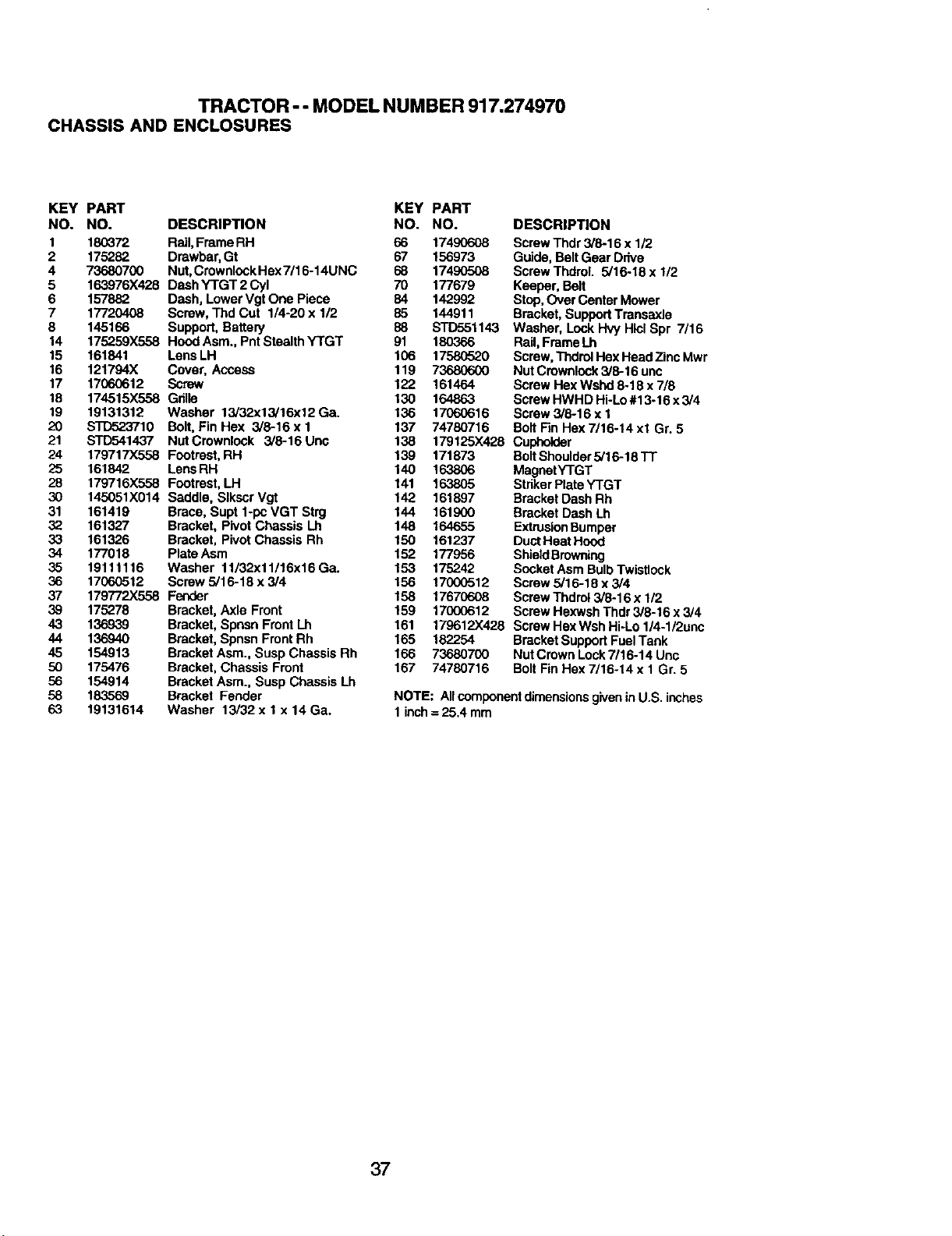

TRACTOR - - MODEL NUMBER 917.274970

CHASSIS AND ENCLOSURES

KEY PART KEY

NO. NO. DESCRIPTION NO.

1 180372 Rail,Frame RH 66

2 175282 Drawbar, Gt 67

4 73680700 Nut,Crawnlock Hex7/16-14UNC 68

5 163976X428 DashYTGT 2 Cyl 70

6 157882 Dash, LowerVgt One Piece 84

7 17720408 Screw, Thd Cut 1/4-20 x 112 85

8 145166 Support, Battery 88

14 175259X558 Hood Asm., PntStealthYrGT 91

15 161841 LensLH 106

16 121794X Cover, Access 119

17 17060612 Screw 122

18 174515X558 Grille 130

19 19131312 Washer 13/32x13/t6x12 Ga. 136

20 S'rD523710 Bolt, Fin Hex 3/8-16 x I 137

21 STDr-JH437 NutCrownlock 3/6-16Unc 138

24 179717X558 Footrest,RH 139

25 161842 LensRH

28 179716X558 Footrest,LH

30 145051X014 Saddle, Slkscr Vgt

31 161419 Brace, Supt 1-poVGT Strg

32 161327 Bracket, pivot Chassis Lh

33 161326 Bracket, Pivot Chassis Rh

34 177018 Plate Asm

35 19111116 Washer 11/32x11116x16Ga.

36 17060512 Screw 5/16-18 x 3/4

37 179772X558 Fender

39 175278 Bracket,Axle Front

43 136939 Bracket,Spnsn Front Lh

44 136940 Bracket,Spnsn Front Rh

45 154913 Bracket Asm., Susp Chassis Rh

50 175476 Bracket,Chassis Front

56 154914 Bracket Asm., Susp Chassis Lh

58 183569 Bracket Fender

63 19131614 Washer 13/32 x 1 x 14 Ga.

PART

NO.

1749O6O8

156973

17490508

177679

142992

144911

DESCRIPTION

ScrewThdr 3/8-15 x 1/2

Guide, BeltGear Drive

ScrewThdroL 3/16-18x 1/2

Keeper, Belt

Stop,Over Center Mower

Bracket,SupportTransaxle

STD551143 Washer, LookHvy Hlcl Spr 7/16

180366 Rail,FrameLh

17580520 Screw,ThdrolHex HeadZincMwr

73680600 Nut Crownlock3/8-16 unc

161464 Scraw Hex Wshd 8-18 x 7/8

164863 ScrewHWHD Hi-Lo#13-16 x 3/4

17060616 Screw3/8-16 x 1

74780716 BoltFin Hex 7/16-14 xl Gr. 5

179125X428 Cupholder

171873 Bolt Shoulder5/16-18 ]-r

140 163806 MagnetY'rGT

141 163805 StrikerPlate YTGT

142 161897 Bracket Dash Rh

144 161900 Bracket DashLh

148 164655 ExtrusionBumper

150 161237 DuctHeat Hood

152 177956 ShieldBrowning

153 175242 SocketAsm BulbTwistlock

156 17000512 Screw 3/16-18 x 3/4

158 17670608 Screw Thdrol3/8-16 x 1/2

159 17000612 Scraw Hexwsh Thdr 3/8-16 x 3/4

161 179612X428 ScrewHex Wsh Hi-Lo1/4-1/2unc

165 182254 Bracket SupportFueITank

166 73680700 Nut Crown Lock7/16-14 Unc

167 74780716 Bolt FinHex 7/16-14 x 1 Gr. 5

NOTE: Allcomponentdimensionsgivenin U.S. inches

1 inch= 25.4 mm

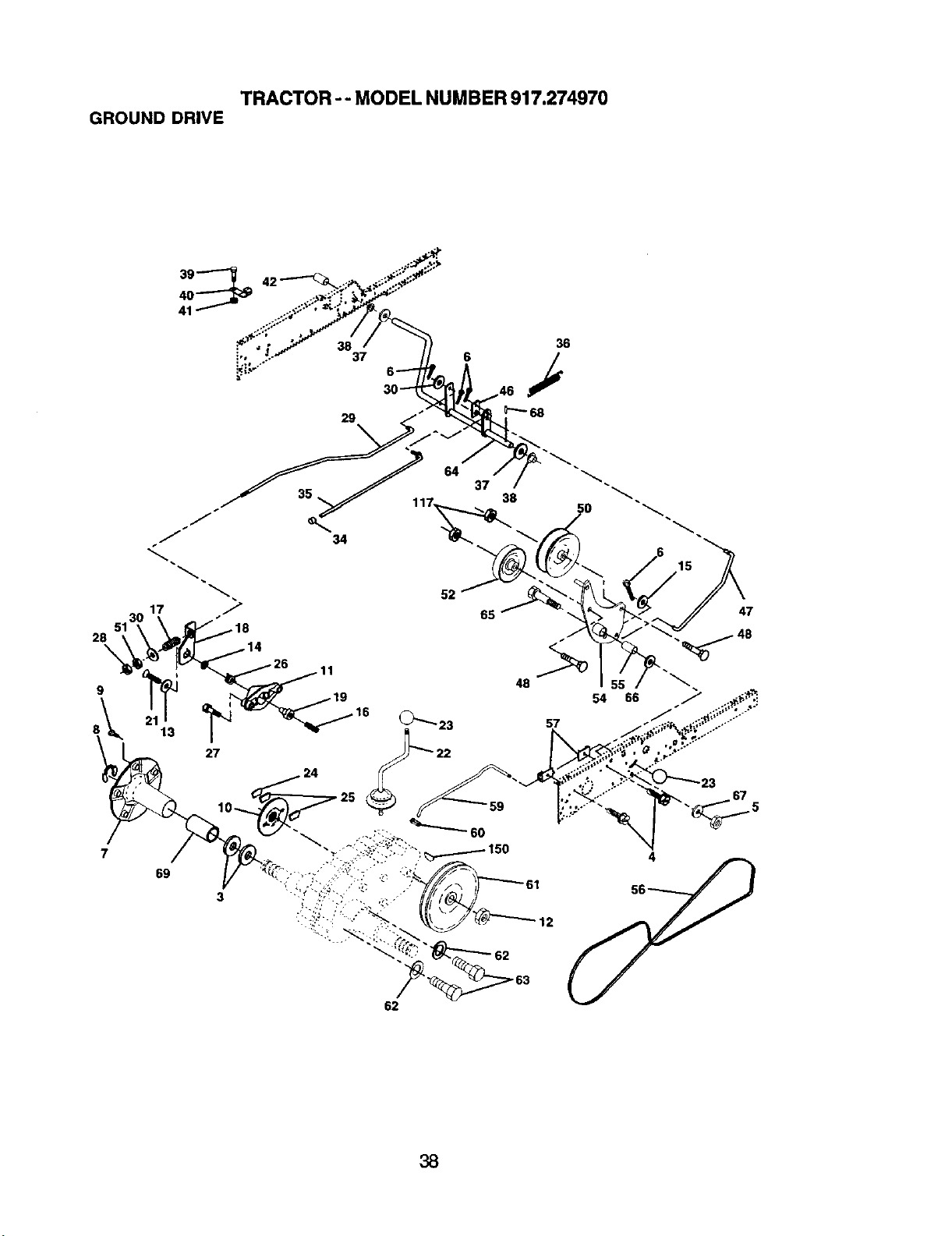

TRACTOR-- MODEL NUMBER 917.274970

GROUND DRIVE

. _.....- 48

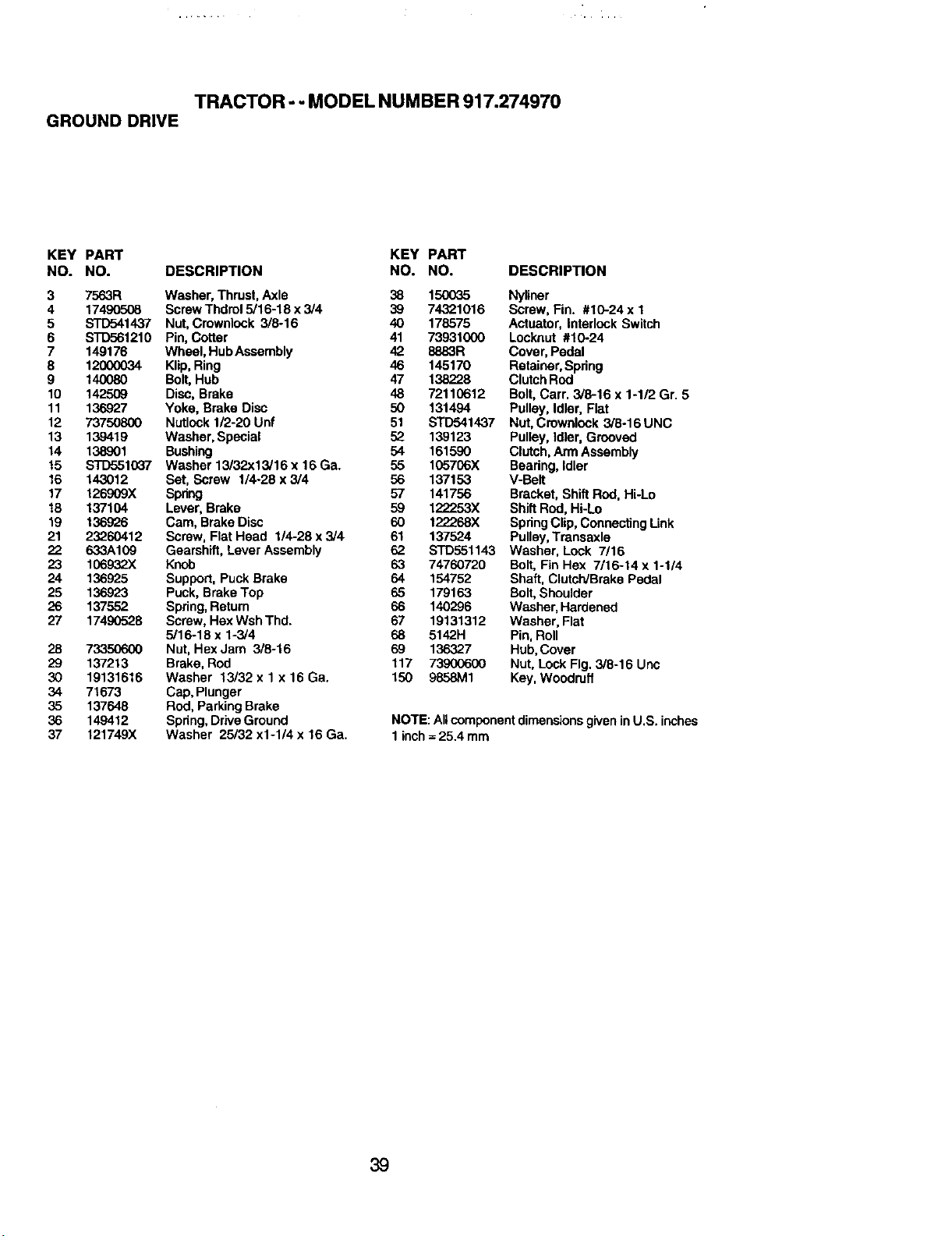

TRACTOR - - MODEL NUMBER 917.274970

GROUND DRIVE

KEY PART KEY PART

NO. NO. DESCRIPTION NO. NO. DESCRIPTION

3 7563R Washer, Thrust, Axle 38 1

4 17490508 ScrewThdrol5/16-18 x 3/4 39 74321016

5 STD541437 Nut,Crownlock 3/8-16 40 178575

6 STD561210 Pin,Cotter 41 73931000

7 149176 Wheel, HubAssembly 42 8883R

8 12000034 Klip,Ring 46 145170

9 140080 Bolt,Hub 47 138228

10 142509 Disc, Brake 48 72110612

11 136927 Yoke, Brake Disc 50 131494

12 73750800 Nutlock 1/2-20 Unf 51

13 139419 Washer, Special 52

14 138901 Bushing 54

15 STD551037 Washer 13/32x13/16 x 16 Ga. 55

16 143012 Set, Screw 1/4-28 x 3/4 56

17 !26909X Spdng 57

18 137104 Lever, Brake 59

19 136926 Cam, Brake Disc 60

21 23260412 Screw, Flat Head 1/4-28 x 3/4 61

22 633A109 Gearshift, Lever Assembly 62

23 106932X Knob 63 74760720

24 136925 Support, Puck Brake 64 154752

25 136923 Puck, Brake Top 65 179163

26 137552 Spring,Return 66 140296

27 17490528 Screw, Hex WshThd. 67 19131312

5/16-18 x 1-3/4 68 5142H

28 73350600 Nut, Hex Jam 3/8-16 69 136327

29 137213 Brake, Rod 117 73900600

30 19131616 Washer 13/32 x 1x 16 Ga. 150 9858M1

34 71673 Cap, Plunger

35 137648 Rod, Parking Brake

36 149412 Spdng, DriveGround

37 121749X Washer 25/32 x1-1/4 x 16 Ga.

Nyliner

Screw, Fin. #10-24 x 1

Actuator, Interlock Switch

Locknut #10-24

Cover, Pedal

Retainer, Spdng

ClutchRod

Bolt, Carr. 3/8-16 x 1-1/2 Gr. 5

Pulley, Idler, Flat

STD541437 Nut, Crownlock 3/8-16 UNC

139123 Pulley,Idler, Grooved

161690 Clutch,Ann Assembly

105706X Bearing,Idler

137153 V-Belt

141756 Bracket,Shift Rod, Hi-Lo

122253X Shift ROd,Hi-Lo

122268X SpringClip, ConnectingLink

137524 Pulley,Transaxle

STD551143 Washer, Lock 7/16

Bolt,Fin Hex 7/16-14 x 1-1/4

Shaft, ClutcWBrake Pedal

Bolt, Shoulder

Washer, Hardened

Washer, Flat

Pin,Roll

Hub,Cover

Nut, LockFig. 3/8-16 Unc

Key, Woodruff

NOTE:All componentdimensions given in U.S. inches

1inch= 25.4 mm

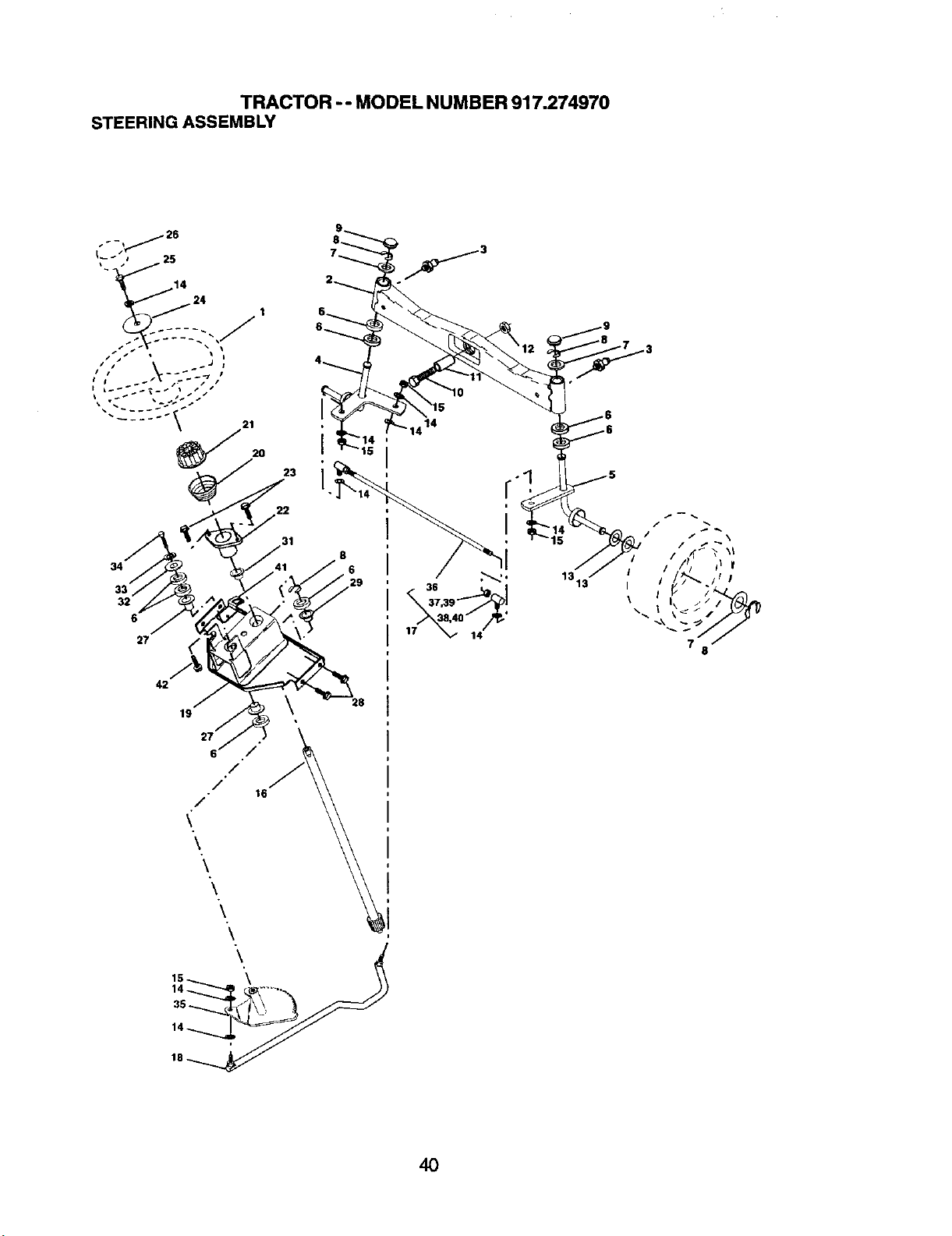

TRACTOR -- MODEL NUMBER 917.274970

STEERING ASSEMBLY

1313

I /! /_1

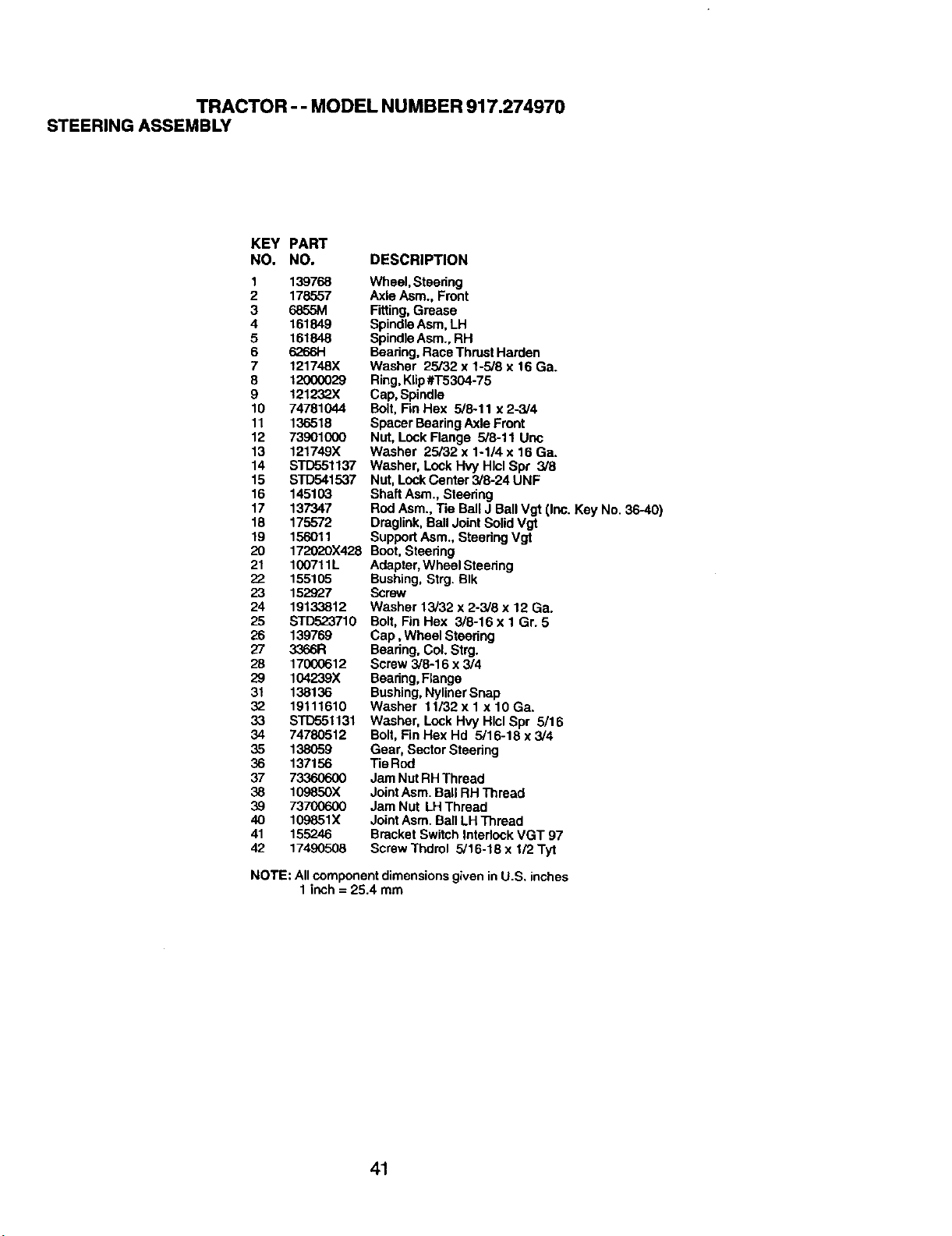

TRACTOR - - MODEL NUMBER 917.274970

STEERING ASSEMBLY

KEY PART

NO. NO.

1 139768

2 178557

3 6855M

4 161849

5 151848

6 62661-1

7 121748X

8 12OOOO29

9 121232X

10 74781044

11 136519

12 73901000

13 121749X

14 S_1137

15 STD541537

16 145103

17 137347

18 175572

19 156011

20 172020X428

21 100711L

22 155105

23 152927

24 19133812

25 STD523710

26 139769

27 3366R

28 17000612

29 104239X

31 138136

32 19_11610

33 $3"D551131

34 74780512

35 138059

36 137156

37 73360600

38 109850X

39 73700600

40 109851X

41 155246

42 17490508

DESCRIPTION

Wheel, Steedng

AxleAsm., Front

Fitting,Grease

SpindleAsm, LH

SpindleAsm., RH

Beadng,Race Thrust Harden

Washer 25/32 x 1-5/8 x 16 Ga_

Ring,Klip #T5304-75

Cap, Spindle

Bolt,Fin Hex 5/8-11 x 2-3/4

Spacer BearingAxle Front

Nut, LockFlange 5/8-11 Unc

Washer 25/32 x 1-1/4 x 16 Ga.

Washer, Lock I-Ivy HlclSpr 3/8

Nut,LockCenter 3/8-24 UNF

Shaft Asm., Steering

Rod Asm., Tie BallJ BallVgt (Inc. Kay No. 3640)

Oraglink,BallJoint SolidVgt

SupportAsm., Steering Vgt

Boot, Steering

Adapter,Wheel Steedng

Bushing, Strg. Btk

Screw

Washer 13132x 2-3/8 x 12 Ga.

Bolt, Fin Hex 3/8-16 x 1 Gr. 5

Cap, Wheel Steering

Beadng, CoL Strg.

Screw 3/8-16 x 3/4

Baadng,Flange

Bushing,NylinerSnap

Washer Al/32 x 1 x 10 Ga.

Washer, Lock Hvy Hlcl Spr 5/16

Bolt, Fin Hex Hd 5/16-18 x 3/4

Gear, Sector Steedng

TieRod

JamNut RH Thread

JointAsm.Ball RH Thread

Jam Nut LHThread

JointAsm. BallLH Thread

Bracket Switch InterlockVGT 97

Screw Thdrol 5/16-18x 1/2 Tyt

NOTE: All component dimensions given in U.S. inches

1 inch = 25.4 mm

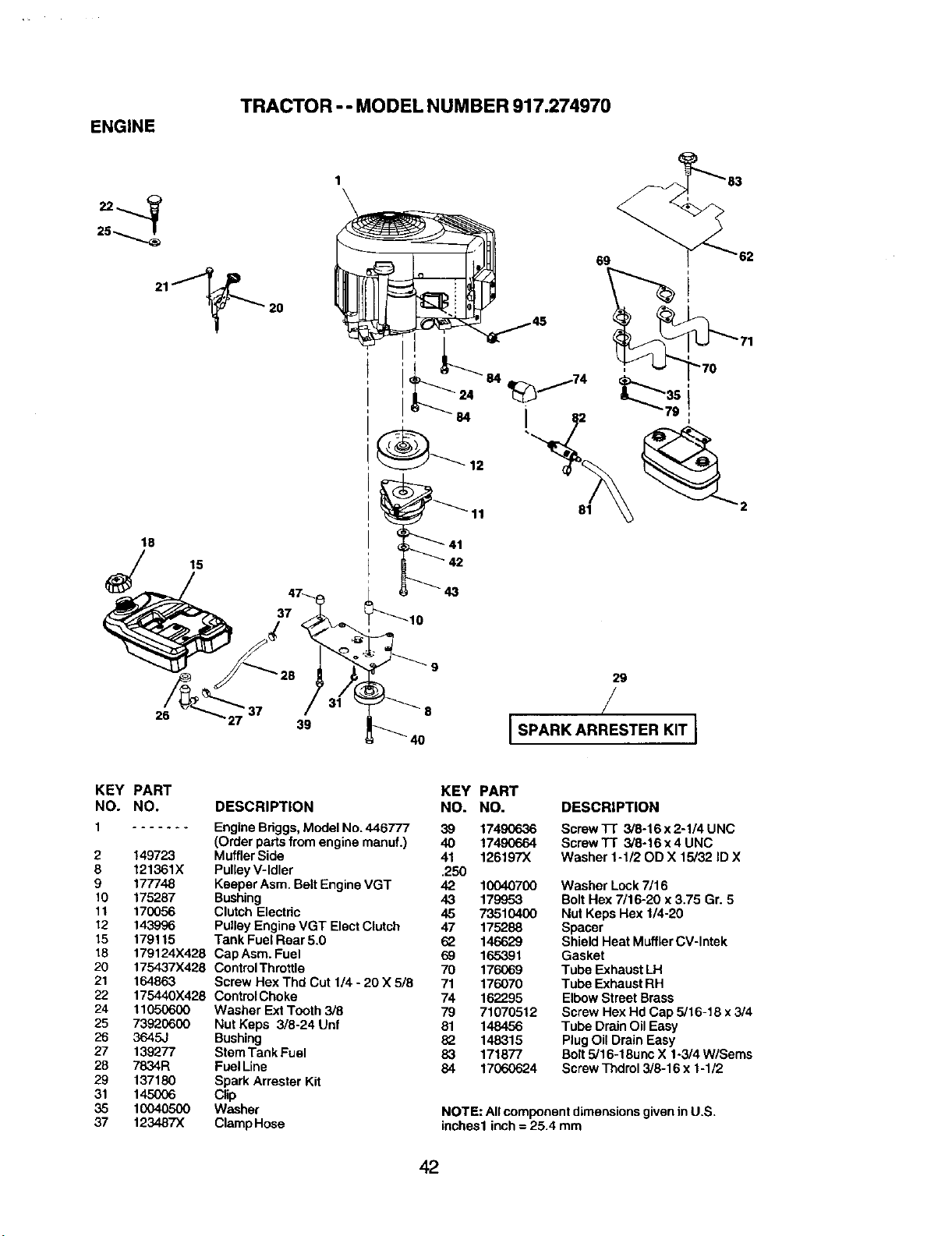

TRACTOR -- MODEL NUMBER 917.274970

ENGINE

26 "37

. /

KEY PART

NO. NO.

1 .......

2 149723

8 t21361X

9 177748

10 175267

11 170056

12 143996

15 179115

18 179124X426

20 175437X428

21 164863

22 175440X428

24 11050600

25 73920600

26 36454

27 139277

28 7834R

29 137180

31 145006

35 1OO40500

37 123487X

KEY PART

DESCRIPTION NO. NO.

EngineBdggs, Model No. 446777 39 17490636

(Order partsfromengine manuf.) 40 17490664

MufflerSide 41 126197X

PulleyV-Idler .250

Keeper Asm. Belt EngineVGT 42 10040700

Bushing 43 179953

Clutch Electdc 45 73510400

Pulley EngineVGT ElectClutch 47 175288

Tank Fuel Rear 5.0 62 146629

Cap Asm. Fuel 69 165391

ControlThrotUe 70 176069

Screw Hex Thd Cut 1/4 - 20 X 5/8 71 176070

ContmtChoke 74 162295

Washer Ext Tooth 3/8 79 71070512

Nut Keps 3/8-24 Unf 81 148456

Bushing 82 148315

StemTank Fuel 83 171877

FuelLine 84 17060624

Spark Arrester Kit

Clip

Washer

ClampHose

DESCRIPTION

ScrewTr 3/8-16 x 2-1/4 UNC

ScrewTT 3/8-16 x 4 UNC

Washer 1-1/20D X 15/32 ID X

Washer Lock7/16

BoltHex 7/16-20 x 3.75 Gr. 5

Nut Keps Hex 1/4-20

Spacer

Shield Heat MufflerCV-Intek

Gasket

Tube Exhaust LH

Tube Exhaust RH

ElbowStreet Brass

Screw Hex Hd Cap 5/16-18 x3/4

Tube Drain Oil Easy

Plug Oil Drain Easy

Bolt 5/16-18unc X 1-3/4 W/Seres

Screw Thdrol 3/8-16 x 1-1/2

NOTE: Allcomponent dimensionsgivenin U.S.

inches1 inch= 25.4 mm

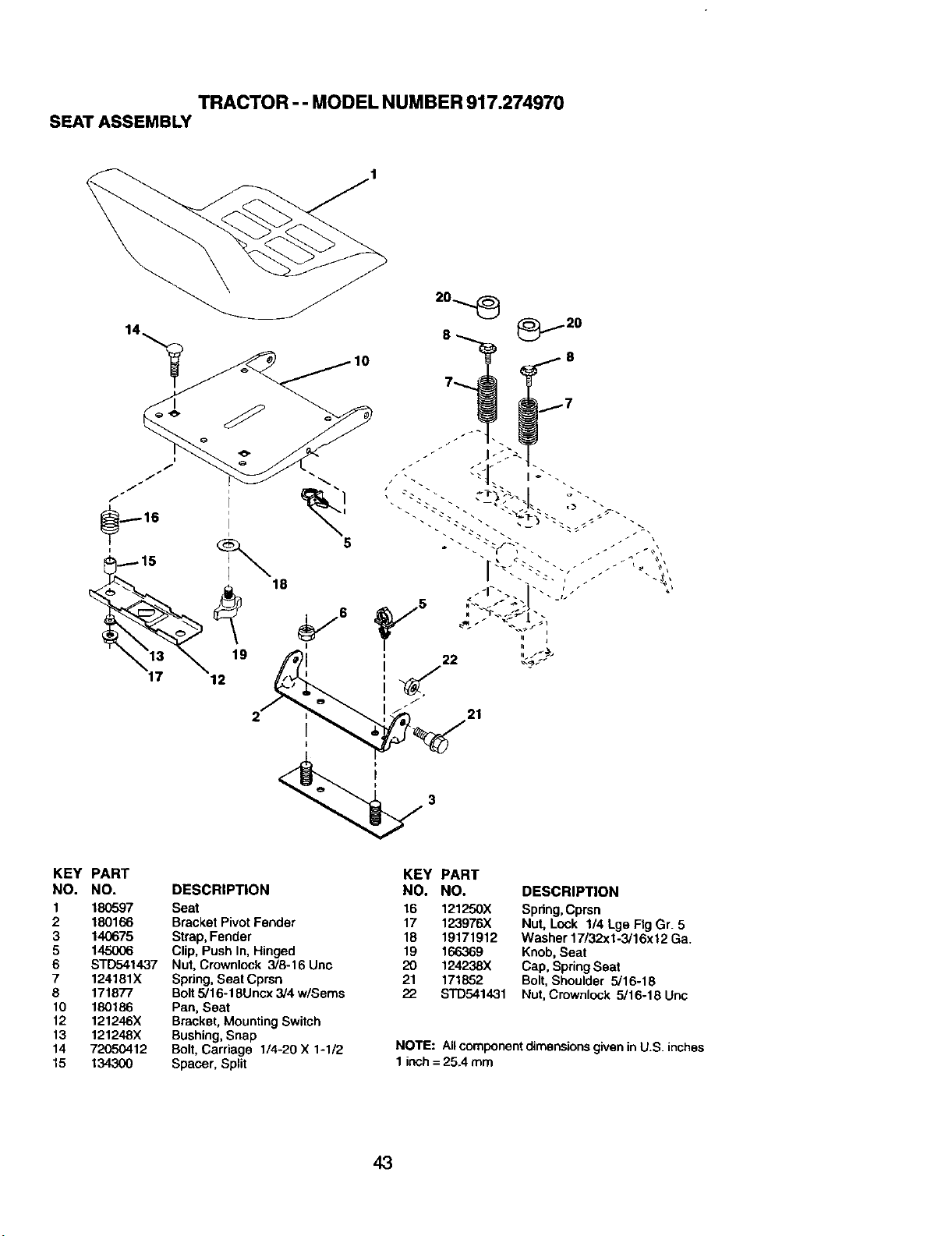

TRACTOR-- MODELNUMBER917.274970

SEATASSEMBLY

KEY

NO.

PART

NO.

180597

180166

140675

STD541437

124181X

171877

180186

121246X

121248X

72050412

1343OO

DESCRIPTION

Seat

Bracket PivotFender

Strap,Fender

Clip, Push In,Hinged

Nut, Crownlock 3/8-16 Uric

Spring,Seat Cprsn

Bolt5/16-18Uncx 3/4 w/Seres

Pan, Seat

Bracket,MountingSwitch

Bushing,Snap

Bolt,Carriage 1/4-20 X 1-1/2

Spacer, Split

KEY PART

NO. NO. DESCRIPTION

16 121250X Spdng,Cprsn

17 123976X Nut, Lock 1/4 Lge Fig Gr. 5

18 19171912 Washer 17/32xl-3/16xl 2 Ga.

19 166369 Knob,Seat

20 124238X Cap, Spring Seat

21 171852 Bolt, Shoulder 5/16-18

22 STD541431 Nut, Crownlock 5/16-18 Unc

NOTE: Allcomponent dimensions given in U.S. inches

1inch = 25.4 mm

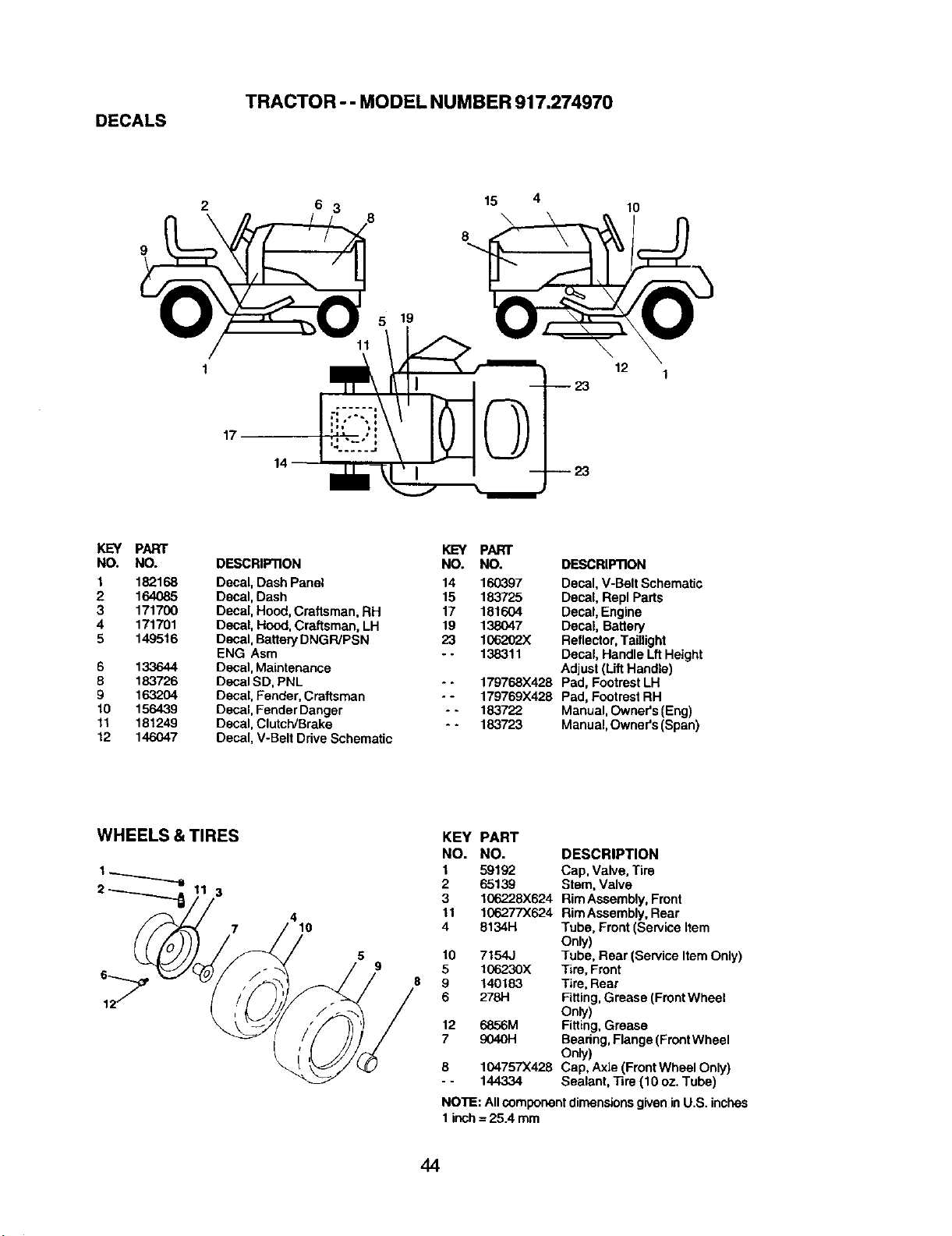

TRACTOR - - MODEL NUMBER 917.274970

DECALS

--23

KEY PART

NO. NO.

t 182168

2 164085

3 171700

4 171701

5 149516

6 133644

8 183726

9 163204

10 156439

11 181249

12 146047

KEY PART

DESCRIP'_ON NO. NO.

Decal, Dash Panel 14 160397

Decal, Dash 15 183725

Decal, Hood,Craftsman, RH 17 181604

Decal, Hood, Craftsman,LH 19 138047

Decal, BatteryDNGPJPSN 23 106202X

ENG Asm -- 138311

Decal, Maintenance

Decal SD, PNL - - 179768X428

Decal, Fender, Craftsman - - 179769X428

Decal, FenderDanger - - 183722

Decal, Clutch/Brake - - 183723

Decal, V-Belt Drive Schematic

DESCRIPTION

Decal,V-Belt Schematic

Decal, Repl Parts

Decal,Engine

Decal, Battery

Reflector,Taillight

Decal, Handle LftHeight

Adjust(Lift Handle)

Pad, FootrestLH

Pad, FootrestRH

Manual,Owner's (Eng)

Manual,Owner's(Span)

WHEELS & TIRES

KEY PART

NO. NO.

1 59192

2 65139

3 106228X624

t 1 106277)(624

4 9134H

10 7154J

5 106230X

9 140183

6 278H

12 6856M

7 9040H

8 104757X428

-- 144334

DESCRIPTION

Cap, Valve, Tire

Stem, Valve

RimAssembly,Front

RimAssembly,Rear

Tube, Front(Service Item

Only)

Tube, Rear (Service ItemOnly)

Tim,Front

Tire, Rear

Fitting, Grease (Front Wheel

Only)

Fitting, Grease

Bearing, Flange (Front Wheel

Only)

Cap, Axle (Front Wheel Only)

Sealant, "Dre(10 oz. Tube)

NOTE: All component dimensions given in U.S. inches

1 inch = 25.4 mm

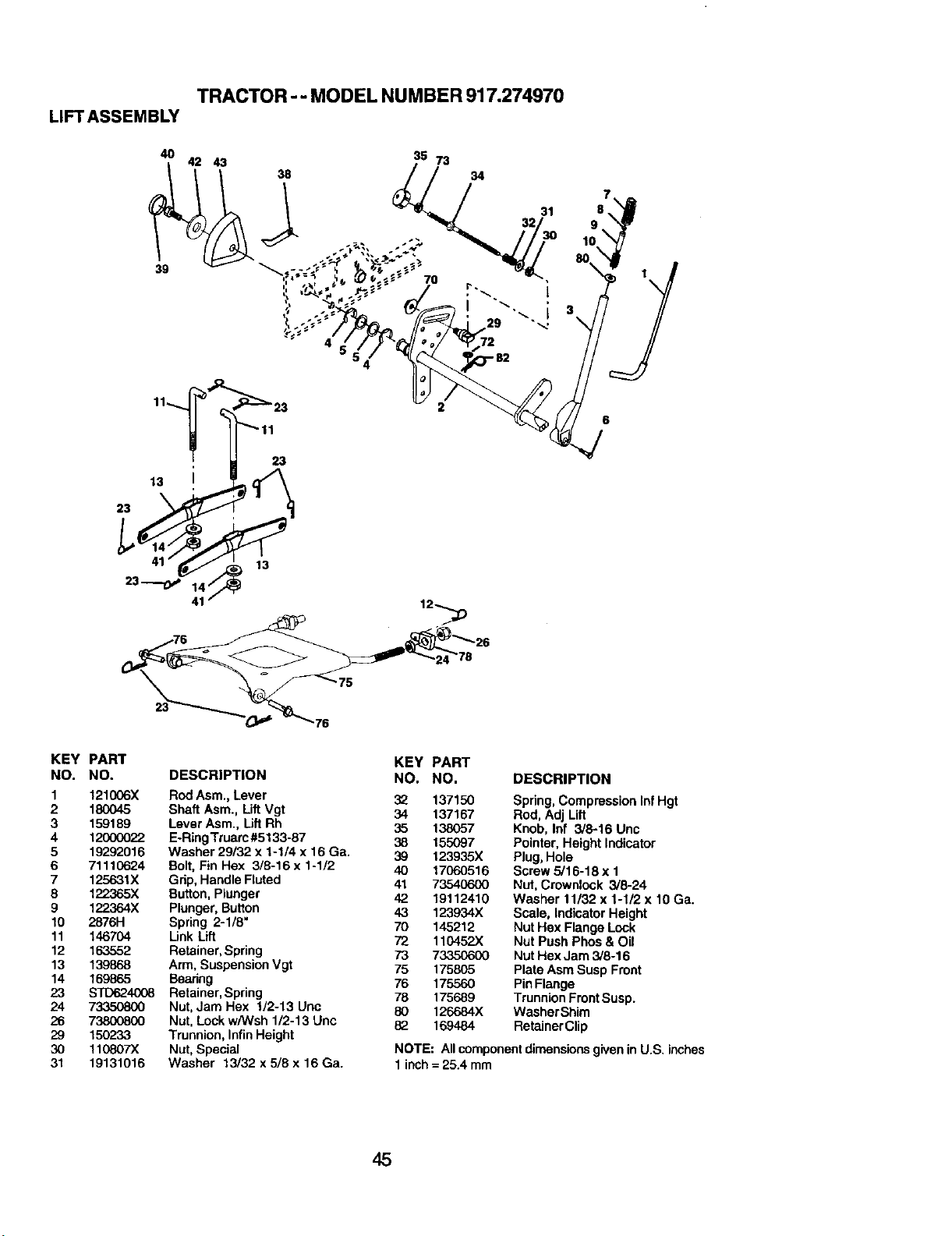

TRACTOR -- MODEL NUMBER 917.274970

LIFTASSEMBLY

40 42 43 35 73

38 34

KEY PART

NO. NO.

1 121006X

2 180045

3 159189

4 12000022

5 19292016

6 71110624

7 125631X

8 122365X

9 122364X

10 2876H

11 146704

12 163552

13 139868

14 169865

23 STD624008

24 73350800

26 73800800

29 150233

30 110807X

31 19131016

DESCRIPTION

KEY PART

NO. NO, DESCRIPTION

Rod Asm., Lever 32 137150

Shaft Asm., LiftVgt 34 137167

Lever Asm., Lift Rh 35 138057

E-RingTruarc#5133-87 38 155097

Washer 29/32 x 1-1/4 x 16 Ga. 39 123935X

Belt, Fin Hex 3/8-16 x 1-1/2 40 17060516

Grip,HandleFluted 41 73540600

Button,Plunger 42 19112410

Plunger, Button 43 123934X

Spring 2-1/8" 70 145212

Unk Lift 72 110452X

Retainer, Spring 73 73350600

Arm, SuspensionVgt 75 175805

Bearing 76 175560

Retainer, Spring 78 175689

Nut, Jam Hex 1/2-13 Unc 80 126684X

Nut, Lockw/Wsh 1/2-13 Unc 82 169484

Trunnion,InfinHeight

Nut, Special

Washer 13/32 x 5/8 x 16 Ga.

Spring,CompressionInf Hgt

Rod, Adj Lift

Knob, Inf 3/8-16 Unc

Pointer, Height Indicator

Plug,Hole

Screw5/16-18 x 1

Nut, Crownlock 3/8-24

Washer 11/32 x 1-1/2 x 10 Ga.

Scale, Indicator Height

Nut Hex FlangeLock

Nut PushPhos & Oil

Nut Hex Jam 3/8-16

Plate Asm Susp Front

PinFlange

TrunnionFrontSusp.

WasherShim

RetainerClip

NOTE: All componentdimensionsgiveninU.S. inches

1inch= 25.4 mm

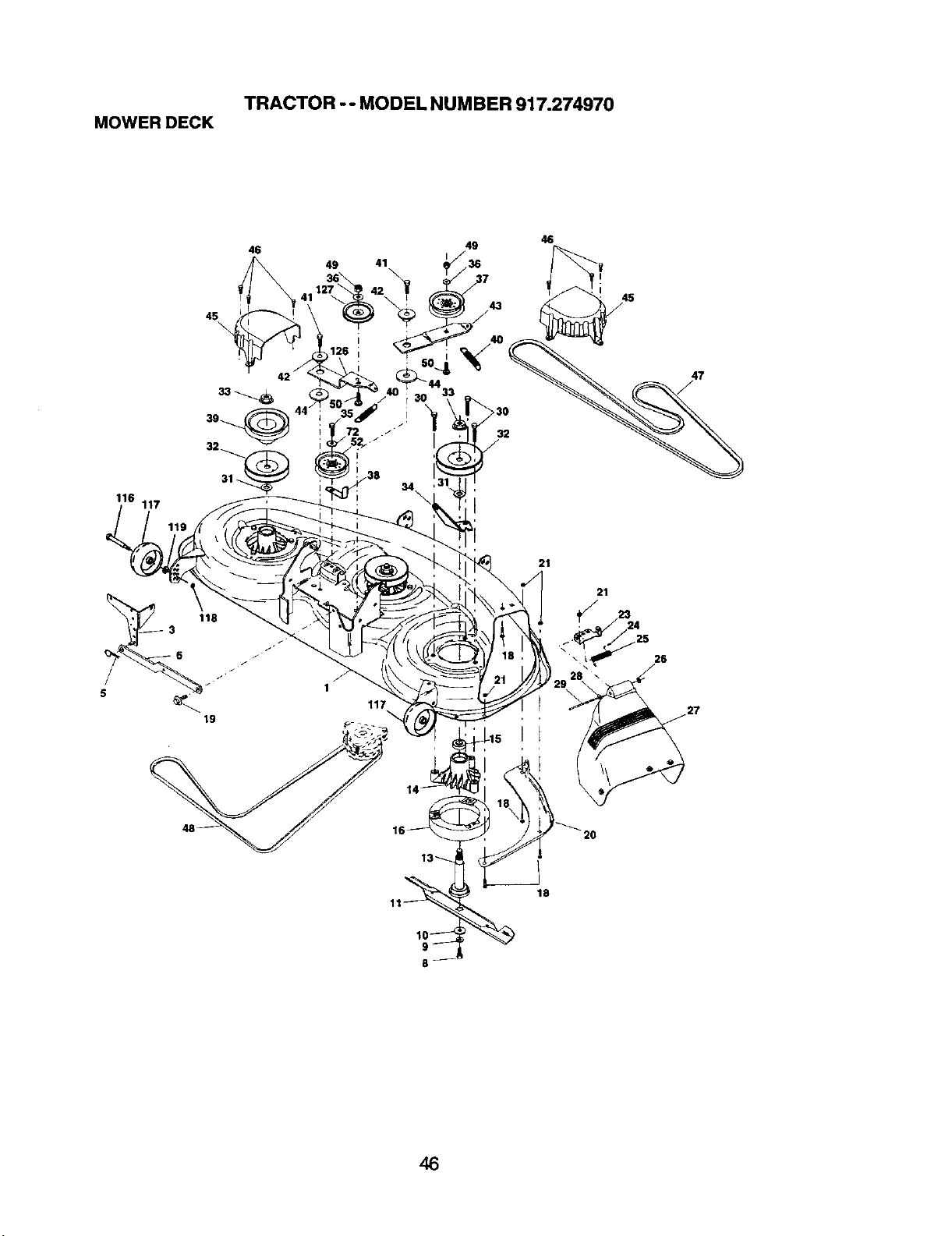

TRACTOR -- MODEL NUMBER 917.274970

MOWER DECK

49 41

116

117

118

117

>30

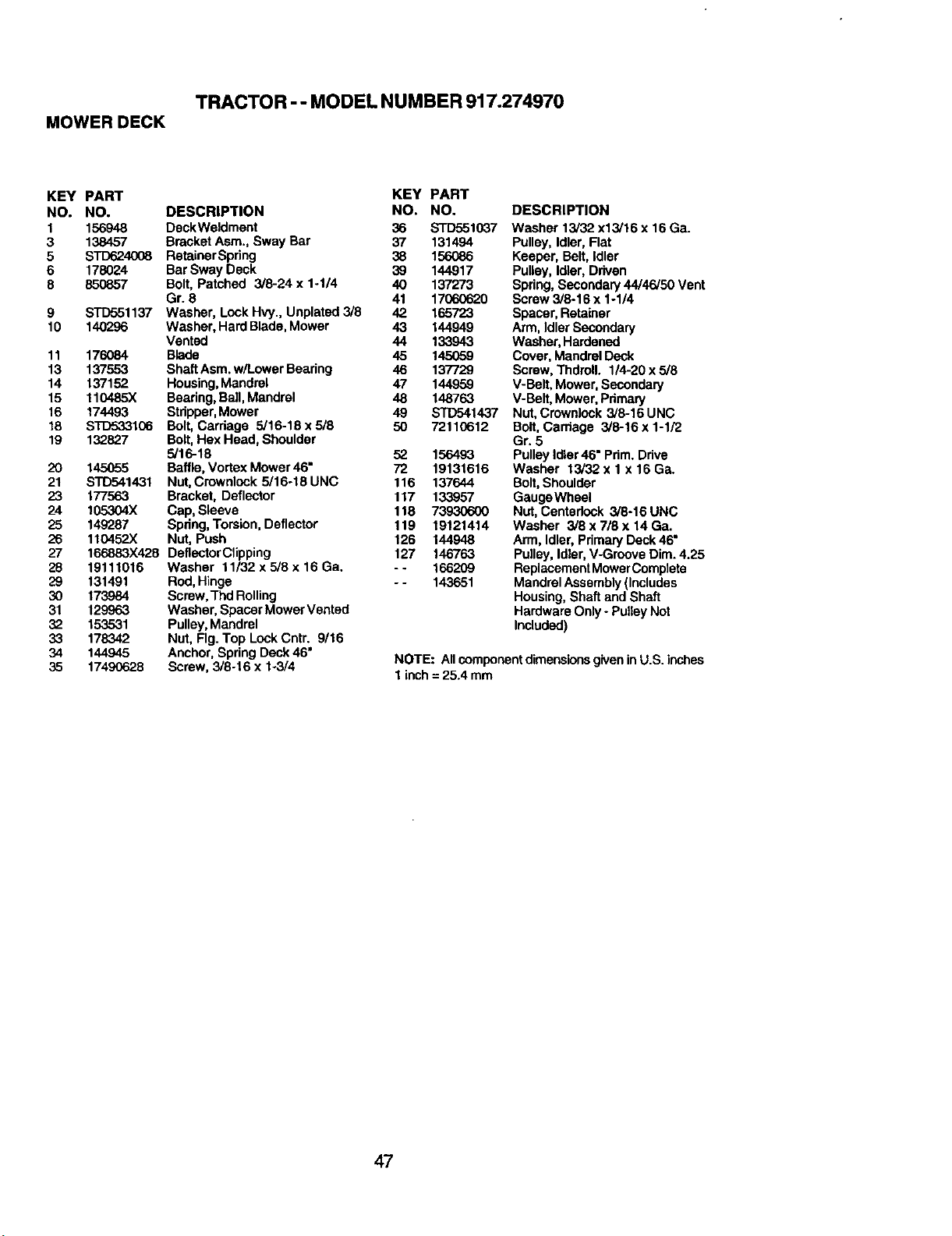

TRACTOR - - MODEL NUMBER 917.274970

MOWER DECK

KEY PART

NO. NO.

1 156948

3 138457

5 STD6240(_

6 178024

8 85O857

9 STD551137

10 140296

11 176084

13 137553

14 137152

15 110485X

16 174493

18 STD533106

19 132827

20 145055

21 STD541431

23 177563

24 105304X

25 149287

26 110452X

27 168883X428

28 19111016

29 131491

3O 173984

31 129963

32 153531

33 178342

34 144945

35 17490628

KEY PART

DESCRIPTION NO. NO,

DackWeldment 36 STD551037

Bracket Asm., Sway Bar 37 131494

RetainerSpring 38 156086

Bar Sway Deck 39 144917

Bolt, Patched 3/8-24 x 1-1/4 40 137273

Gr. 8 41 17060620

Washer, Lock Hvy., Unplated 3/8 42 165723

Washer, Hard Blade,Mower 43 144949

Vented 44 133943

Blade 45 14,.5059

Shaft Asm.w/Lower Bearing 46 137729

Housing,Mandrel 47 144959

Bearing,Ball,Mandrel 48 148763

Stdpper,Mower 49 STD541437

Bolt,Carriage 5/16-18 x 5/8 50 72110612

Bolt, Hex Head, Shoulder

5/16-18 52 156493

Baffle,Vodex Mower 46" 72 19131616

Nut,Crownlock 5/16-18UNC 116 137644

Bracket, Deflector 117 133957

Cap, Sleeve 118 73930600

Spring,Torsion,Deflector 119 19121414

Nut, Push 126 144948

DeflectorClipping 127 146763

Washer 11/32 x 5/8 x 16 Ga. -- 166209

Rod,Hinge - - 143651

Screw,Thd Rolling

Washer, SpacerMower Ventad

Pulley,Mandrel

Nut, Fig. Top LockCntr. 9/16

Anchor, Spring Deck 46"

Screw. 3/6-16 x 1-3/4

DESCRIPTION

Washer 13/32 x13/16 x 16 Ga.

Pulley, Idler, Flat

Keeper, Belt, Idler

Pulley, Idler, Driven

Spring,Secondary44/45/50 Vent

Screw 3/8-16 x 1-1/4

Spacer, Retainer

Arm, Idler Secondary

Washer, Hardened

Cover, MandrelDeck

Screw,Thdroll. 1/4-20 x 5/8

V-Belt, Mower,Secondary

V-Belt, Mower,Pdn_ry

Nut,Crownlock 3/8-16 UNC

Bolt,Carriage 3/8-16x 1-1/2

Gr. 5

PulleyIdler46" Prim. Drive

Washer 13/32 x 1 x 16 Ga.

Bolt,Shoulder

GaugaWhasl

Nut, Centsdock 3/8-16 UNC

Washer 3/8 x7/8 x 14 Ga.

Arm, Idler, PrimaryDeck 46"

Pulley, Idler, V-Groove Dim. 4.25

ReplacementMowerComplete

MandrelAssembly(Includes

Housing, Shaft and Shaft

Hardware Only- PulleyNot

Included)

NOTE: All componentdimensionsgiveninU.S. inches

1inch= 25.4 mm

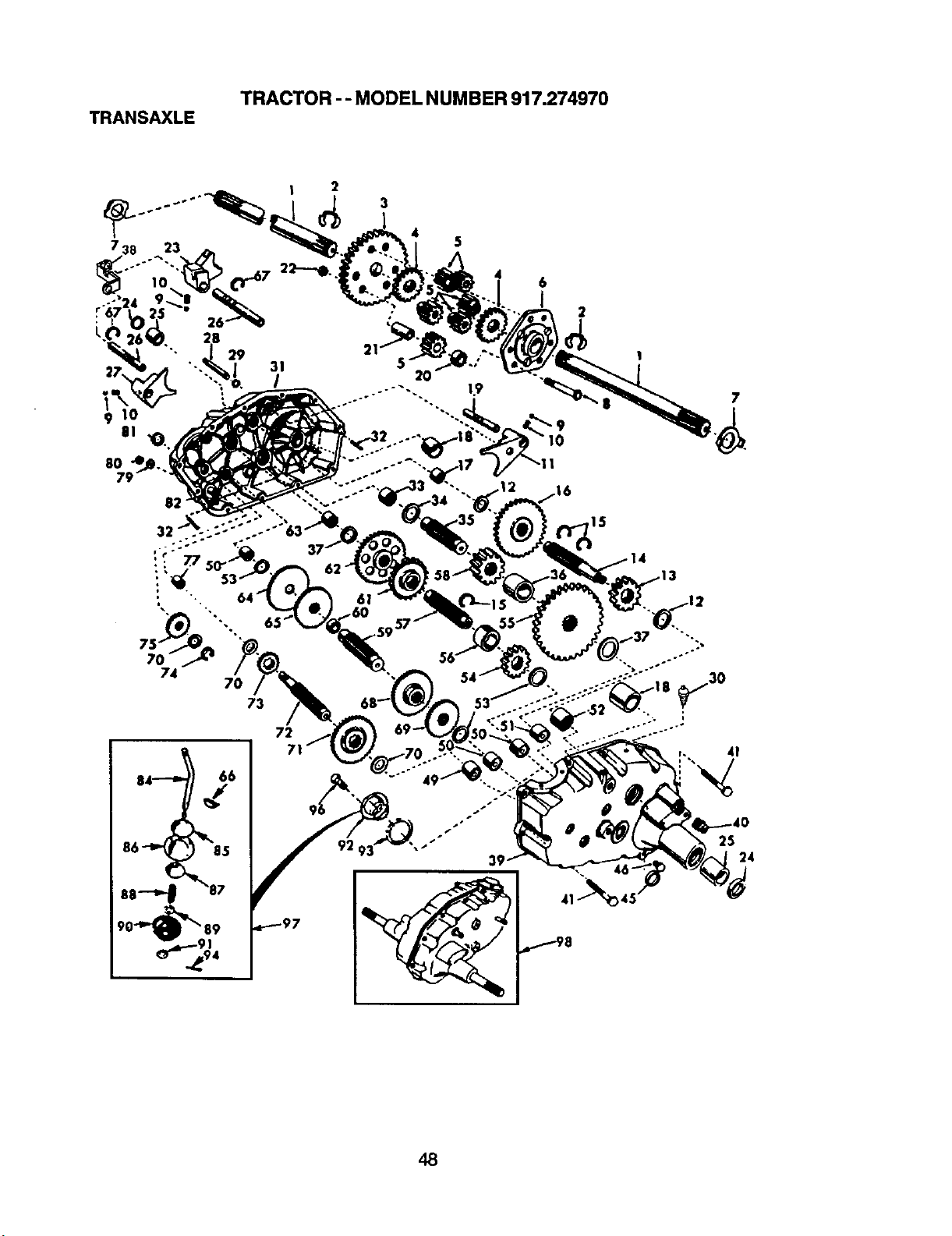

TRACTOR - - MODEL NUMBER 917.274970

TRANSAXLE

,.16

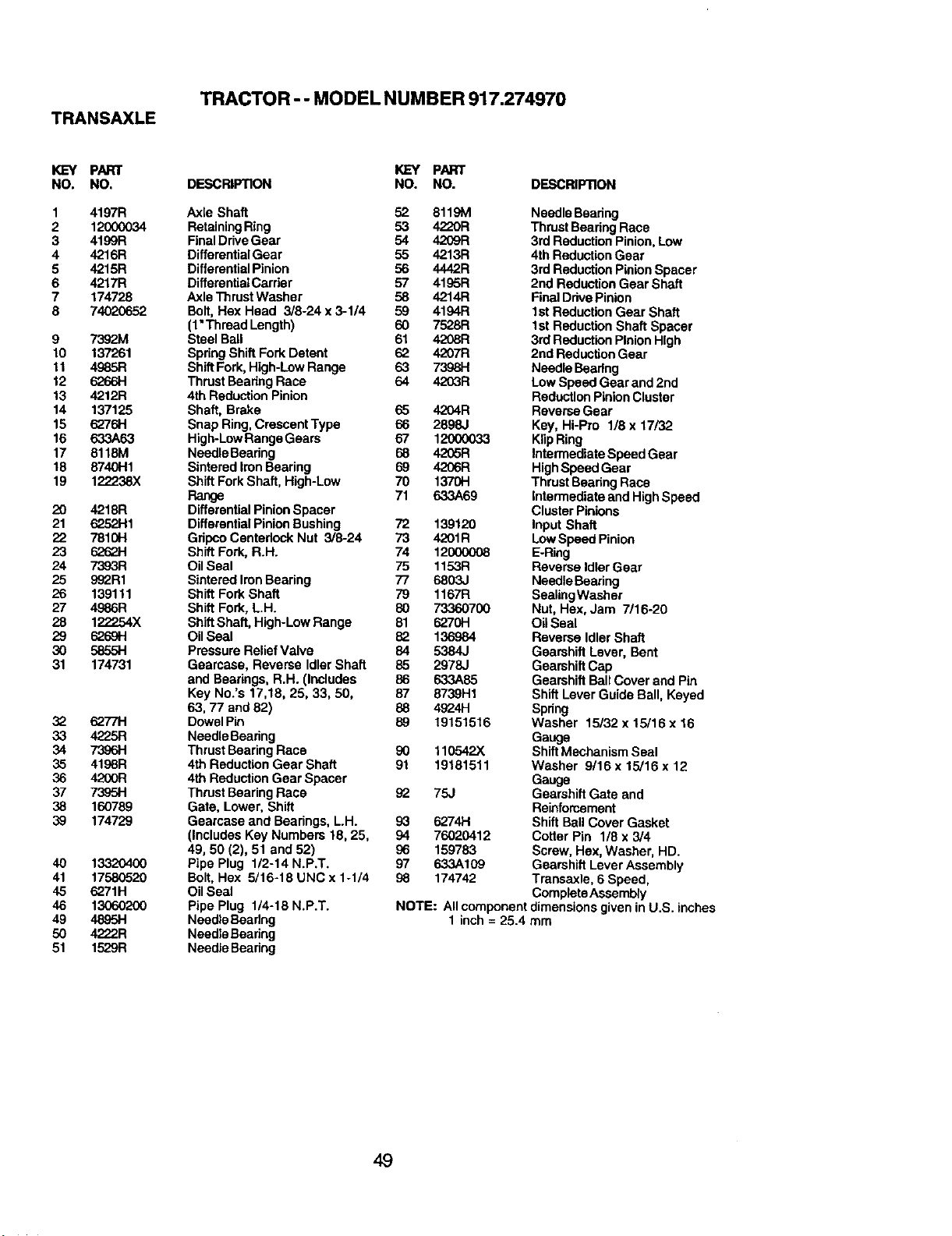

TRACTOR- - MODEL NUMBER 917.274970

TRANSAXLE

KEY PART

NO. NO.

1 4197R

2 12000034

3 4199R

4 4216R

5 4215R

6 4217R

7 174728

8 74020652

9 73_2M

10 137261

11 4985R

12 62661-1

13 4212R

14 137125

15 62761"1

16 633A63

17 8118M

18 8740H1

19 122238X

20 4218R

21 6252H1

22 7810H

23 6262H

24 7393R

25 992R1

26 139111

27 4986R

28 122254X

29 6269H

3O 5855H

31 174731

32 6277H

33 4225R

34 7396H

35 4198R

36 4200R

37 73951-1

38 160789

39 174729

40 13320400

41 17580520

45 6271H

46 13060200

49 48951-1

5O 4222R

51 1529R

KEY PART

DESCRIPTION NO. NO. DESCRIPTION

Axle Shaft 52 8119M

RetainingRing 53 4220R

Final DriveGear 54 4209R

DifferentialGear 55 4213R

DifferentialPinion 56 4442R

DifferentiatCarder 57 4185R

Axle ThrustWasher 58 4214R

Bolt,Hex Head 3/8-24 x3-1/4 59 4194R

(1"Thread Length) 60 7528R

Steel Ball 61 4208R

SpringShift Fork Detent 62 4207R

Shift Fork, High-Low Range 63 73.981-1

Thrust Beadng Race 64 4203R

4th Reduction Pinion

Shaft, Brake 65 4204R

Snap Ring, Crescent Type 66 2898J

High-Low Range Gears 67 12000033

NeedleBeadng 68 4205R

Sintered Iron Bearing 69 4285R

Shift Fork Shaft, High-Low 70 1370H

Range 71 63OA69

DifferentialPinionSpacer

DifferentialPinion Bushing 72 139120

Gdpco Centedock Nut 3/8-24 73 4201R

Shift Fork,R.H. 74 12000008

OilSeal 75 1153R

Sintered IronBearing 77 6803J

Shift Fork Shaft 79 1167R

Shift Fork, L.H. 80 73360700

Shift Shaft, High-Low Range 81 6270H

Oil Seal 82 136984

Pressure ReliefValve 84 5384J

Gearcase, Reverse IdlerShaft 85 2978J

and Bearings, R.H. (Includes 86 633A85

Key No.'s 17,18, 25, 33, 50, 87 8739H1

63, 77 and 82) 88 4924H

DowelPin 89 19151516

NeedleBeadng

Thrust Bearing Race 90 110542X

4th ReductionGear Shaft 91 19181511

4th ReductionGear Spacer

Thrust BearingRace 92 75J

Gate, Lower, Shift

Gearcase and Bearings, L.H. 93 co274H

(includes Key Numbers 18, 25, 94 76020412

49, 50 (2), 51 and 52) 96 159783

Pipe Plug 1/2-14 N.P.T. 97 633A109

Bolt, Hex 5/16-18 UNC x 1-1/4 85 174742

Oil Seal

Pipe Plug 1/4-19 N.P.T.

NeedleBearing

Needle Bearing

ThrustBeadng Race

3rdReductionPinion,Low

4th ReductionGear

3rdReductionPinionSpacer

2nd ReductionGear Shaft

FinalDrivePinion

1stReductionGear Shaft

1stReductionShaft Spacer

3rdReductionPinionHigh

2nd ReductionGear

Needle Bearing

Low Speed Gear and2nd

ReductionPinionCluster

ReverseGear

Key, Hi-Pro 1/8 x 17/32

KlipRing

IntermediateSpeed Gear

HighSpeed Gear

ThrustBeadng Race

Intermediate and HighSpeed

ClusterPinions

InputShaft

LowSpeed Pinion

E-Ring

Reverse IdlerGear

NeedleBeadng

SealingWasher

Nut, Hex, Jam 7/16-20

Oil Seal

Reverse IdlerShaft

Gearshift Lever, Bent

GearshiftCap

Gearshift BallCover and Pin

ShiftLever GuideBall, Keyed

Spring

Washer 15/32 x 15/16 x 16

Gauge

ShiftMechanismSeal

Washer 9/16x 15/16x 12

Gauge

Gearshift Gate and

Reinforcement

Shift BallCover Gasket

Cotter Pin 1/8 x 3/4

Screw, Hex, Washer, HD.

Gearshift Lever Assembly

Transaxle, 6 Speed,

Complete Assembly

NOTE: Allcomponent dimensionsgivenin U.S. inches

1 inch= 25.4 mm

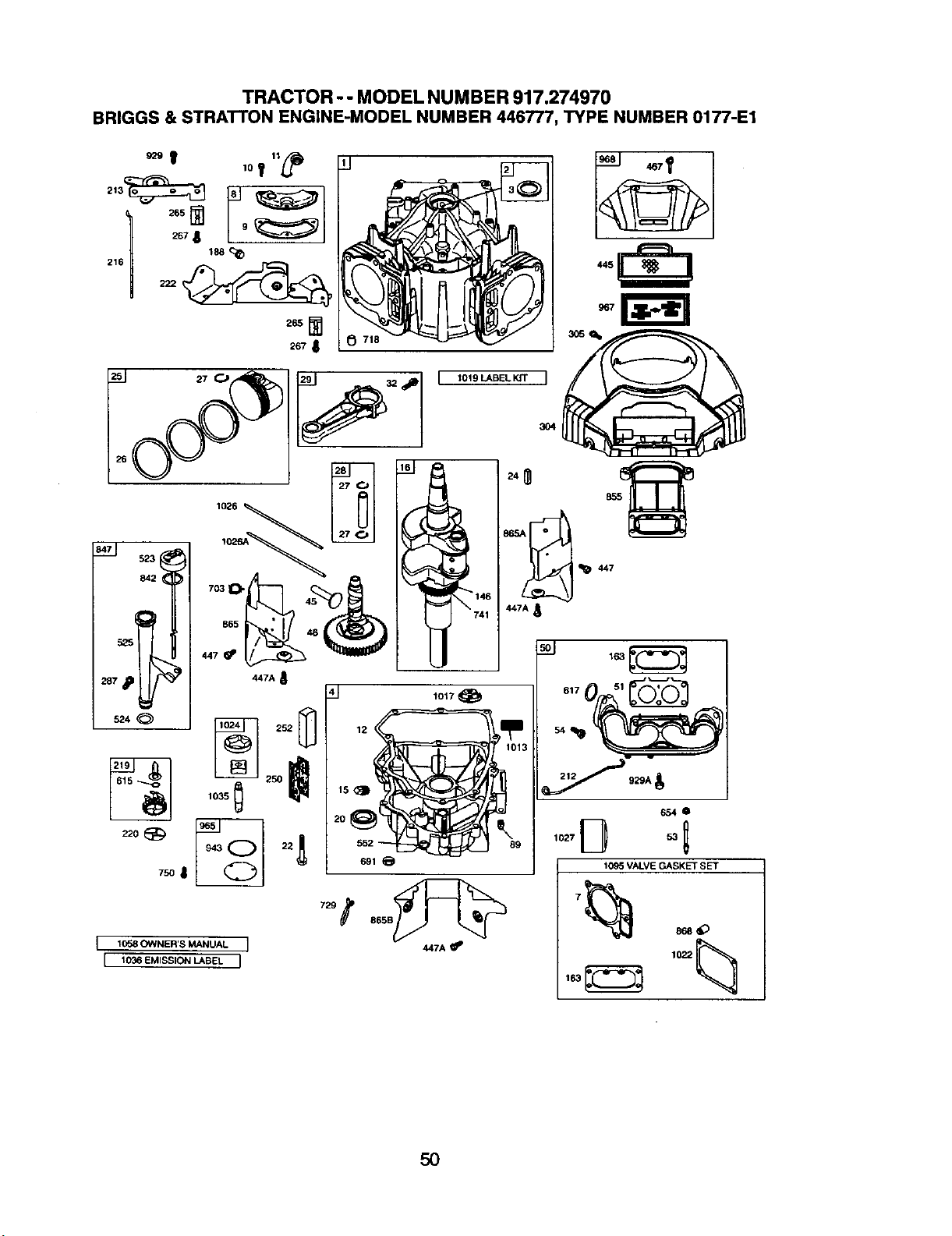

TRACTOR - - MODEL NUMBER 917.274970

BRIGGS & STRA'I'TON ENGINE-MODEL NUMBER 446777, TYPE NUMBER 0177-E1

213_

216 1

2=_1

267

(_ 718

287 dP

5o4O

447A

25o_

1035 25O

I019LABELKIT

691

I IC-_OWN_R'S_.UAL I

[ Io_ _,sstoN L,.BEt ]

447A

]

3O4

447A

305g

447

1095 VALVE GASKET SET

163_ 1022 _:_

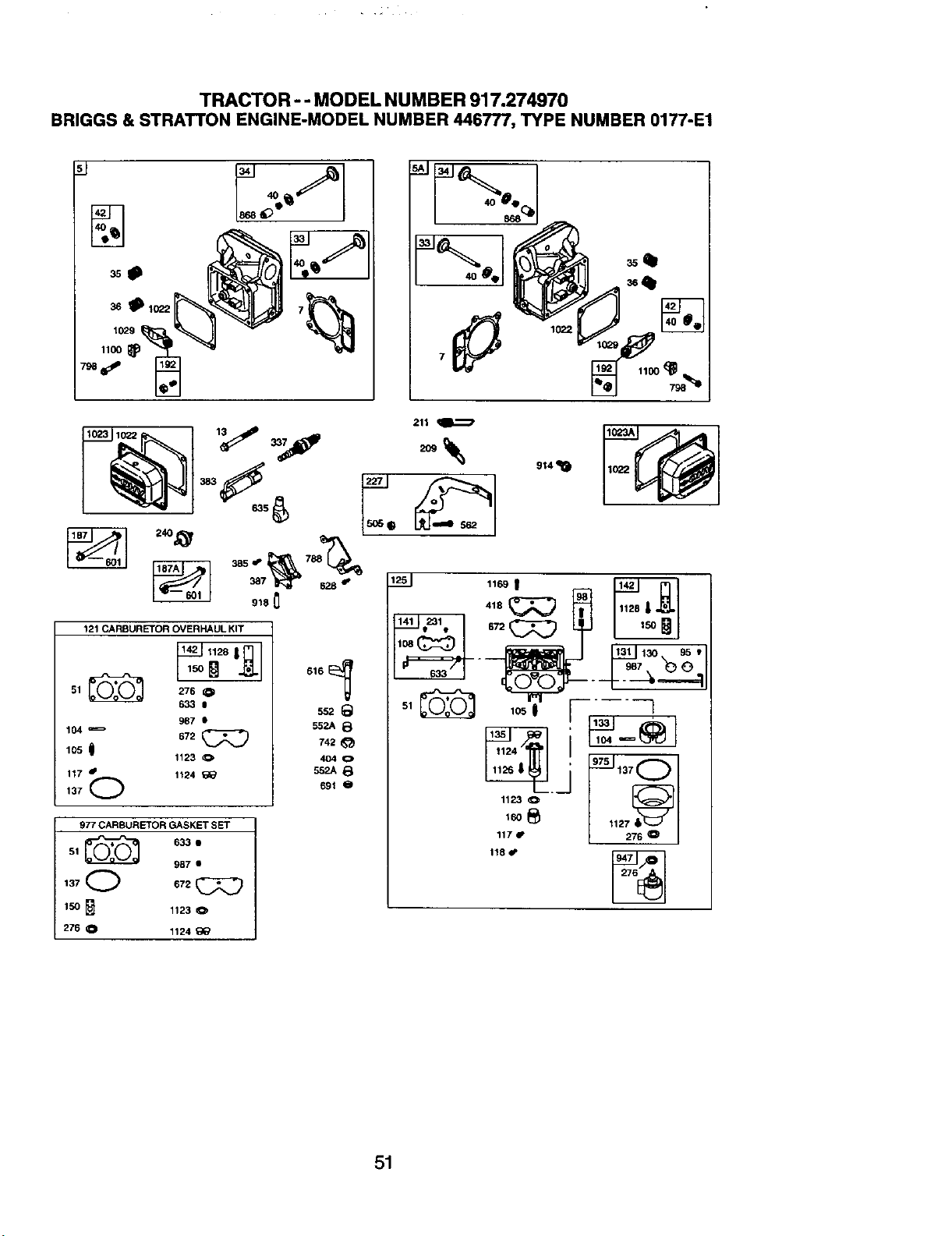

TRACTOR - - MODEL NUMBER 917.274970

BRIGGS & STRATTON ENGINE-MODEL NUMBER 446777, TYPE NUMBER 0177-E1

1029

1100

OlO

s._G

5o2A B

742

4040

5o2A8

691 0

121 CARBURETOR OVERHAUL KIT

633e

987 •

104 _ 672

lOSi

1123 O

117 0

A 1124

137

977 CARBURETOR GASKET SET

51 _ 62_e

137 (_) 672_

150

1123 O

276 _]l 1124

914'_

1__5J 11.! _ [:_

418 _ _'_ 111281_1

lO8(:::_::_ i _ I h31113o ss,l

5oe 1,27_1

117f 276Q I

118 _

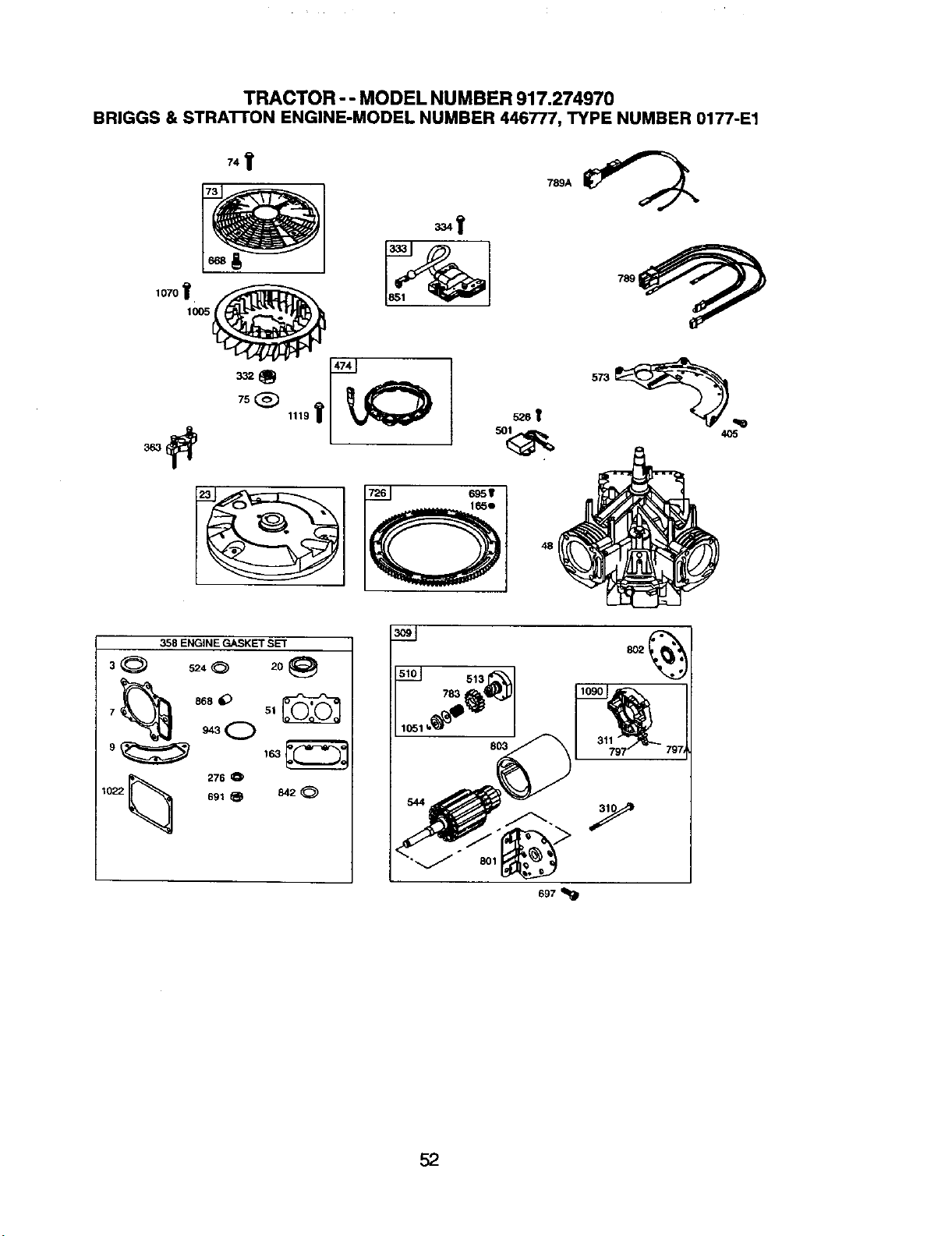

TRACTOR -- MODEL NUMBER 917.274970

BRIGGS& STRATrONENGINE-MODELNUMBER446777,TYPENUMBER0177-E1

,,It

474

789A

789_

4C5

6951

358 ENGINE GASKET SET

3_ $2,o 20

7_ 8°8'_Qs,{_

9 163_

276 ID

lozz 691® 8420

1051

803

697_

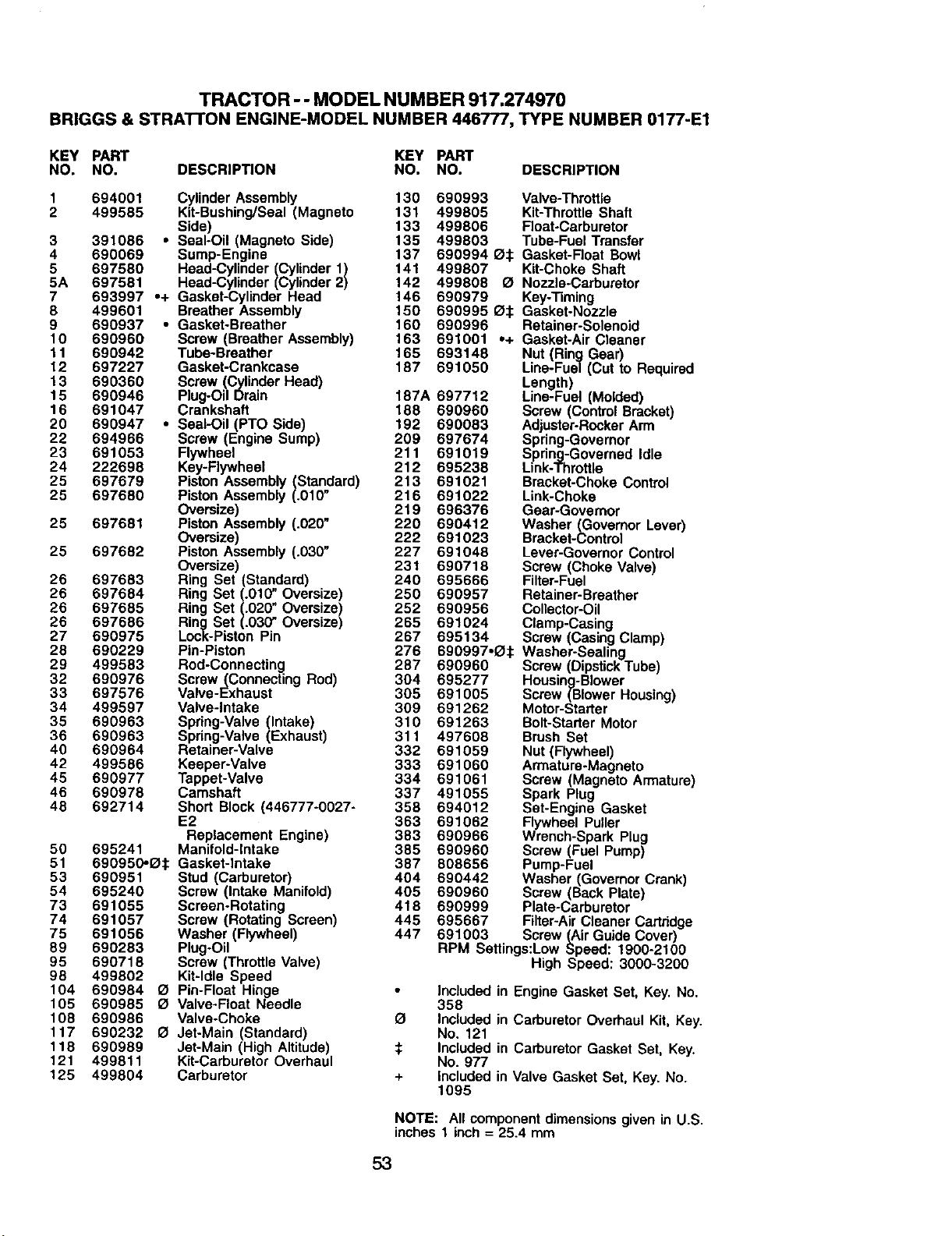

TRACTOR - - MODEL NUMBER 917.274970

BRIGGS & STRATTON ENGINE-MODEL NUMBER 446777, TYPE NUMBER 0177-E1

KEY PART KEY PART

NO. NO. DESCRIPTION NO. NO. DESCRIPTION

1 694001 Cylinder Assembly 130

2 499585 Kit-Bushing/Seal (Magneto 131

Side) 133

3 391086 • Seal-Oil (Magneto Side) 135

4 690069 Sump-Engine 137

5 697580 Head-Cylinder (Cylinder 1) 141

5A 697581 Head-Cylinder (Cylinder 2) 142

7 693997 ,+ Gasket-Cylinder Head 146

8 499601 Breather Assembly 150

9 690937 • Gasket-Breather 160

10 690960 Screw (Breather Assembly) 163

11 690942 Tube-Breather 165

12 697227 Gasket-Crankcase 187

13 690360 Screw (Cylinder Head)

15 690945 Plug-Oil Drain 187A

16 691047 Crankshaft 188

20 690947 ° Seal-Oil (PTO Side) 192

22 694966 Screw (Engine Sump) 209

23 691053 Flywheel 211

24 222698 Key-Flywheel 212

25 697679 Piston Assembly (Standard) 213

25 697680 Piston Assembly (.010" 216

Oversize) 219

25 697681 Piston Assembly (.020" 220

Oversize) 222

25 697682 Piston Assembly (.030" 227

Oversize) 231

26 697683 Ring Set (Standard) 240

26 697684 Ring Set (.010" Oversize) 250

26 697685 Ring Set (.020" Oversize) 252

26 697686 Ring Set (.030" Oversize) 265

27 690975 Lock-Piston Pin 267

28 690229 Pin-Piston 276

29 499583 Rod-Connecting 287

32 690976 Screw(Connecting Rod) 304

33 697576 Valve-Exhaust 305

34 499597 Valve-Intake 309

35 690963 Spring-Valve (Intake) 310

36 690963 Spring-Valve (Exhaust) 311

40 690964 Retainer-Valve 332

42 499586 Keeper-Valve 333

45 690977 Tappet-Valve 334

46 690978 Camshaft 337

48 692714 Short Block (446777-0027- 358

E2 363

Replacement Engine) 383

50 695241 Manifold-Intake 385

51 690950-O:1: Gasket-Intake 387

53 690951 Stud (Carburetor) 464

54 695240 Screw (Intake Manifold) 405

73 691055 Screen-Rotating 418

74 691057 Screw (Rotating Screen) 445

75 691056 Washer (Flywheel) 447

89 690283 Plug-Oil

95 690718 Screw (Throttle Valve)

98 499802 Kit-Idle Speed

104 690984 _ Pin-Float Hinge

105 690985 _ Valve-Float Needle

108 690986 Valve-Choke

117 690232 O Jet-Main (Standard)

118 690989 Jet-Main (High Altitude)

121 499811 Kit-Carburetor Overhaul

125 499804 Carburetor

690993 Valve-Throttle

499805 Kit-Throttle Shaft

499806 Float-Carburetor

499803 Tube-Fuel Transfer

690994 _ Gasket-Float Bowl

499807 Kit-Choke Shaft

499808 _ Nozzle-Carburator

690979 Key-Timing

690995 _:1: Gasket-Nozzle

690996 Retainer-Solenoid

691001 ,+ Gasket-Air Cleaner

693148 Nut (Ring Gear)

691050 Line-Fuel (Cut to Required

Length)

697712 Line-Fuel (Molded)

690960 Screw (Control Bracket)

690083 Adjuster-Rocker Arm

697674 Spring-Governor

691019 Spring-Governed Idle

695238 Link-Throttle

691021 Bracket-Choke Control

691022 Link-Choke

696376 Gear-Governor

690412 Washer (Governor Lever)

691023 Bracket-Control

691048 Lever-Governor Control

690718 Screw (Choke Valve)

695666 Filter-Fuel

690957 Retainer-Breather

690956 Collector-Oil

691024 Clamp-Casing

695134 Screw (Casing Clamp)

690997oO:1: Washer-Sealing

690960 Screw (Dipstick Tube)

695277 Housing-Blower

691005 Screw (Blower Housing)

691262 Motor-Starter

691263 Bolt-Starter Motor

497608 Brush Set

691059 Nut (Flywheel)

691060 Armature-Magneto

691061 Screw (Magneto Armature)

491055 Spark Plug

694012 Set-Engine Gasket

691062 Flywheel Puller

690966 Wrench-Spark Plug

690960 Screw (Fuel Pump)

808656 Pump-Fuel

690442 Washer (Governor Crank)

690960 Screw (Back Plate)

690999 Plate-Carburetor

695667 Filter-Air Cleaner Cartridge

691003 Screw (Air Guide Cover)

RPM Settings:Low Speed: 1900-2100

High Speed: 3000-3200

Included in Engine Gasket Set, Key. No.

358

Included in Carburetor Overhaul Kit, Key.

No. 121

:_ Included in Carburetor Gasket Set, Key.

No. 977

+ Included in Valve Gasket Set, Key. No.

1095

NOTE: All component dimensions given in U.S.

inches 1 inch = 25.4 mm

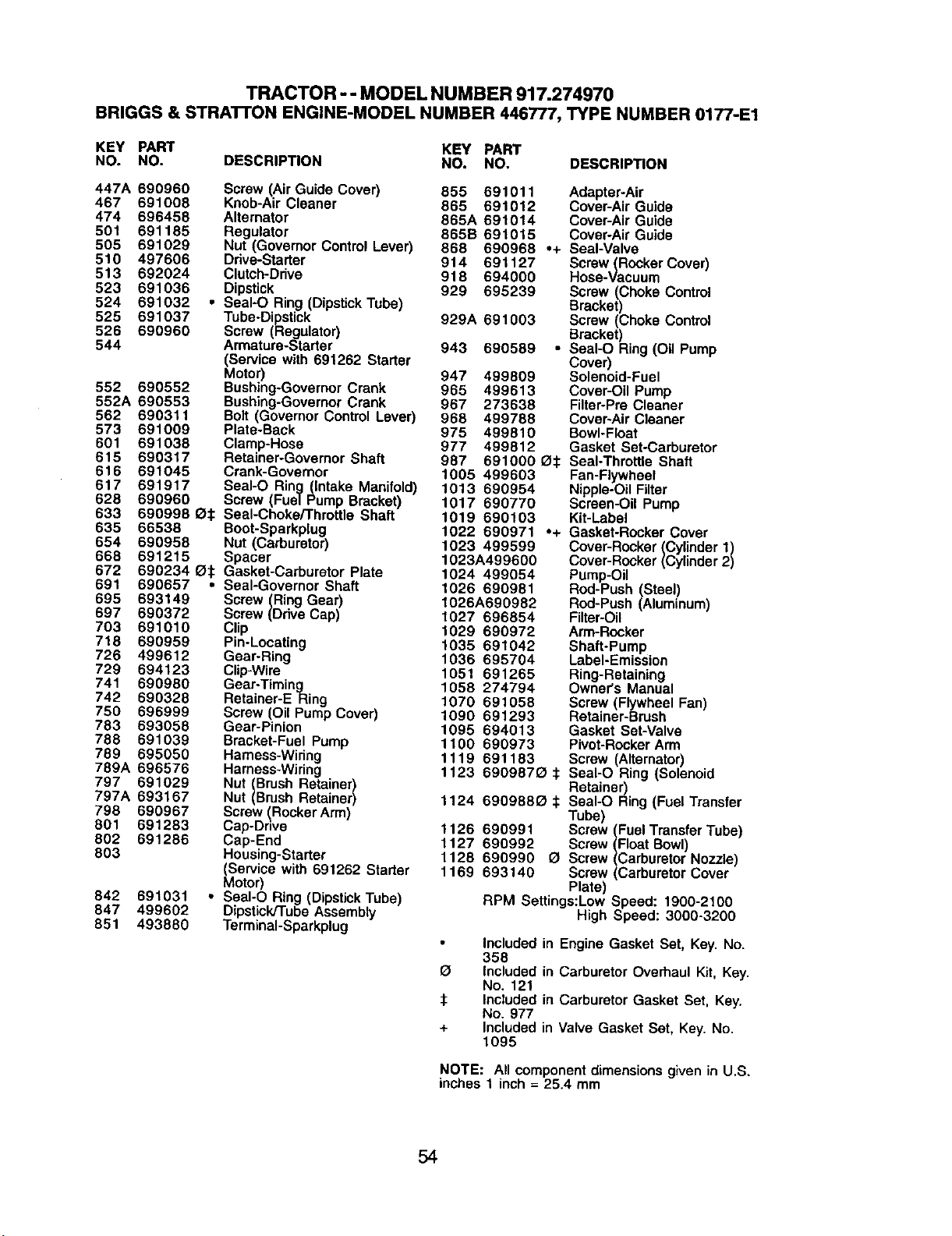

TRACTOR - - MODEL NUMBER 917.274970

BRIGGS & STRA'R'ON ENGINE-MODEL NUMBER 446777, TYPE NUMBER 0177-E1

KEY PART KEY PART

NO. NO. DESCRIPTION NO. NO. DESCRIPTION

447A 690960 Screw (Air Guide Cover) 855 691011 Adapter-Air

467 691008 Knob-Air Cleaner 865 691012 Cover-Air Guide

474 696458 Alternator 865A 691014 Cover-Air Guide

501 691185 Regulator 865B 691015 Cover-Air Guide

505 691029 Nut (Governor Control Lever) 868 690968 ,+ Seal-Valve

510 497606 Drive-Starter 914 691127 Screw(Rocker Cover)

513 692024 Clutch-Drive 918 694000 Hose-Vacuum

523 691036 Dipstick 929 695239 Screw (Choke Control

524 691032 • SeaI-O Ring (Dipstick Tube) Bracket)

525 691037 Tube-Dipstick 929A 691003 Screw (Choke Control

528 690960 Screw (Regulator) Bracket)

544 Armature-Starter 943 690589 • SeaI-O Ring (Oil Pump

(Service with 691262 Starter Cover)

Motor) 947 499809 Solenoid-Fuel

552 690552 Bushing-Governor Crank 965 499613 Cover-Oil Pump

552A 690553 Bushing-Governor Crank 967 273638 Filter-Pra Cleaner

562 690311 Bolt (Govemor Control Lever) 968 499788 Cover-Air Cleaner

573 691009 Plate-Back 975 499810 Bowl-Float

601 691038 Clamp-Hose 977 499812 Gasket Set-Carburetor

615 690317 Retainer-Govemor Shaft 987 691000 _: Seal-Throttle Shaft

616 691045 Crank-Governor 1005 499603 Fan-Flywheel

617 691917 Seal-O Ring (Intake Manifold) 1013 690954 Nipple-Oil Filter

628 690960 Screw (Fuel Pump Bracket) 1017 690770 Screen-Oil Pump

633 690998 9:1: SeaI-Choke/Threttle Shaft 1019 690103 Kit-Label

635 66538 Boot-Sparkplug 1022 690971 °+ Gasket-Rocker Cover

654 690958 Nut (Carburetor) 1023 499599 Cover-Rocker (Cylinder 1)

668 691215 Spacer 1023A499600 Cover-Rocker (Cylinder 2)

672 690234 _:1: Gasket-Carburetor Plate 1024 499054 Pump-Oil

691 690657 ° Seal-Governor Shaft 1026 690981 Rod-Push (Steel)

695 693149 Screw (Ring Gear) 1026A690982 Rod-Push (Aluminum)

697 690372 Screw (Drive Cap) 1027 696854 Filter-Oil

703 691010 Clip 1029 690972 Arm-Rocker

718 690959 Pin-Locating 1035 691042 Shaft-Pump

726 499612 Gear-Ring 1036 695704 Label-Emission

729 694123 Clip-Wire 1051 691265 Ring-Retaining

741 690980 Gear-Timing 1058 274794 Owner's Manual

742 690328 Retainer-E Ring 1070 691058 Screw (Flywheel Fan)

750 696999 Screw (Oil Pump Cover) 1090 691293 Retainer-Brush

783 693058 Gear-Pinion 1095 694013 Gasket Set-Valve

788 691039 Bracket-Fuel Pump 1100 690973 Pivot-Rocker Arm

789 695050 Harness-Wiring 1119 691183 Screw (Alternator)

789A 696576 Harness-Wiring 1123 690987_ :_ Retainer)

797 691029 Nut (Brush Retainer) SeaI-O Ring (Solenoid

797A 693167 Nut (Brush Retainer) 1124 6909881_ :_ SeaI-O Ring (Fuel Transfer

798 690967 Screw (Rocker Arm) Tube)

801 691283 Cap-Drive 1126 690991 Screw (Fuel Transfer Tube)

802 691286 Cap-End 1127 690992 Screw (Float Bowl)

803 Housing-Starter 1128 690990 O Screw (Carburetor Nozzle)

(Service with 691262 Starter 1169 693140 Screw (Carburetor Cover

Motor) Plate)

842 691031 ° SeaI-O Ring (Dipstick Tube) RPM Settings:Low Speed: 1900-2100

847 499602 Dipstick/Tube Assembty High Speed: 3000-3200

851 493880 TerminaI-Sparkplug

Included in Engine Gasket Set, Key. No.

358

O Included in Carburetor Overhaul Kit, Key.

No. 121

:_ Included in Carburetor Gasket Set, Key.

No. 977

+ Included in Valve Gasket Set, Key. No.

1095

NOTE: All component dimensions given in U.S.

inches 1 inch = 25.4 mm

SUGGESTED GUIDE FOR SIGHTING SLOPES FOR SAFE OPERATION

1. Fold this page along dotted line Indicated above.

2. Hold page before you so that its left edge is vertically parallel to a tree

trunk or other upright structure.

3. Sight across the fold in the direction of hill slope you want to measure.

4, Compare the angle of the fold with the slope of the hill.

Your Home

For repair - in your home - of all major brand appliances,

lawn and garden equipment, or heating and cooling systems,

no matter who made it, no matter who sold it!

For the replacement parts, accessories and

owner's manuals that you need to do-it-yourself.

For Sears professional installation of home appliances

and items like garage door openers and water heaters.

1-800-4-MY-HOME _ Anytime, day or night

(1-800-469-4663) (U.S.A. and Canada)

www.sears.com www.seara.ca

Our Home

For repair of carry-in products like vacuums, lawn equipment,

and electronics, call or go on-line for the nearest

Sears Parts and Repair Center.

1-800-488-1222 Anytime,dayornight(U.S.A.only)

www.sears.com

To purchase a protection agreement on a product serviced by Seam:

1-800-827-6655 (u.s._) 1-800-361-6665 (Canada)

Para pedir servicio de reparaciSn

a domicilio, y para ordenar piezas:

1-888-SU-HOGAR su

(1-888-784-6427)

Au Canada pour service en frar_ais:

1-800-LE-FOYER Mc

(1-800-533-6937)

www.sears.ca

SEAR

® Registered Trademark / TMTrademark / SMService Mark of Sears, Roebuck and Co.

® Marca Registrada / _ Marca de Fdbrica / SMMarca de Servicio de Seam, Roebuck and Co.

McMarque de commerce / MOMarque ddposde de Sears, Roebuck and Co.

183722 4.30.02 JH Printed in U.S.A.

Craftsman 917274970 lawn tractor

Product's Documents

User Manual

Specifications

Craftsman 917274970 Questions and Answers
