Owner's Manual Manuel del Propietario

DEHUMIDIFIER DESHUMIDIFICADOR

Model.

Modelo 580.54501 50 Pint 580.54701 70 Pint Low Temp

I=ll=l;{ct'dt. l r;_;

Distributed by Sears. Roebuck and Co. Hoffman Estates. IL 60179 www.sears.com

TABLE OF CONTENTS

WARRANTY

SAFETY INSTRUCTIONS

ELECTRICAL REQUIREMENTS

INSTALLING YOUR DEHUMIDIFIER .. 5

Defrost Control Function .. 5

CHOOSING THE PROPER LOCATION. 5

AUTOMATIC SHUT OFF

OPERATION

Features

Control Panel .

OPTIONS FOR DISPOSING

OF COLLECTED WATER ..

MAINTENANCE

Grille and case ..

Air filter ..

General cleaning ..

Water bucket cleaning

Cleaning inside the unit ..

TROUBLESHOOTING

ESPANOL

MASTER PROTECTION AGREEMENTS

SERVICE NUMBERS .. Back cover

FULL ONE YEAR WARRANTY ON DEHUMIDIFIER

For one year from the date of purchase. if the Dehumidifier is operated and maintained according to the owner's instructions furnished with the product. Sears will repair the Dehumidifier free of charge. if defective in materials or workmanship.

FULL FIVE YEAR WARRANTY ON SEALED REFRIGERATION SYSTEM

For five years from the date of purchase. when this Dehumidifier is operated and maintained according to owner's instructions furnished with the product.

Sears will repair the sealed refrigeration system

(consisting of refrigerant. connecting tubing. and compressor motor) free of charge. if defective in

WARRANTY SERVICE IS AVAILABLE BY RETURNING UNIT TO THE NEAREST SEARS SERVICE CENTER IN THE UNITED STATES.

CALL 1-800-4-MY-HOME ® FOR NEAREST SERVICE CENTER TO YOU.

This warranty applies only while this Dehumidifier is used in the United States.

This warranty gives you specific legal rights. and you may also have other rights which vary from state to state.

Distributed by Sears. Roebuck and Co. Hoffman Estates. IL 60179

A IMPORTANT SAFETY INSTRUCTIONS

To reduce the risk of fire. electric shock or injury when using your dehumidifier. the following safety precautions must be followed:

• Do not place the power cord near a heater.

It may cause fire and electric shock.

• Do not use the power cord near flammable gas or combustibles such as gasoline. benzene.

It may cause explosion or fire.

• Do not disassemble or modify products.

It may cause electric shock and failure.

• Plug in the power cord properly.

Otherwise. it may cause electric shock or fire.

• Do not operate or stop the unit by inserting or

It may cause electric shock or fire.

• Do not damage the power cord or use an

• Do not modify power cord length.

It may cause electric shock or fire.

• Do not share the outlet with other appliances.

It may cause electric shock or fire.

• Always plug into a grounded outlet.

Not grounding unit may cause electric shock.

• Unplug the unit if strange sounds. odors. or smoke come from it.

Unplugging the unit may avoid electric shock or fire hazard.

• Do not use the socket if it is loose or damaged.

It may cause fire and electric shock.

• Do not operate with wet hands or in damp environment.

It may cause electric shock.

• Ventilate before operating defumidifier when

• Do not clean the dehumidifier with water.

Water may enter the unit and degrade the insulation.

It

• Unplug unit before cleaning the unit.

Since the fan rotates at high speed during operation. it

• If water enters the product. turn off the dehumidifier's power switch. then unplug the

• Do not block the inlet or outlet.

It may cause failure of appliance or performance deterioration.

• Hold the plug by the head when taking it out.

Otherwise. it may cause electric shock and damage.

• Turn off the main power switch when not using the dehumidifier for a long time.

Turning off the unit will save on energy costs.

• Make sure the dehumidifier is the correct size

It is not designed to dehumidify the entire house.

• Install the dehumidifier properly only on a floor.

For proper operation. your dehumidifier should be

• Close all doors. windows and other outside openings to the room.

The dehumidifier must be operated in an enciosed area to be most effective.

• When removing the filter be aware that some metal parts may have sharp edges.

Sharp edges may cause injury.

• Use a soft cloth to clean.

Do not use wax.

• Be sure to replace the bucket properly after

Otherwise. it will cause property damage.

• The 50 pint model(54501) may not operate

Low temperatures could cause coils to frost.

• Do not put a pet or house plant where it will be exposed to direct air flow.

This could injure the pet or plant.

• Do not use the water collected in the bucket for

• Insert the filter securely.

Clean it every two weeks.

Operation without filters will cause unit failure.

• Do not allow children to play with this product.

OBSERVEALL LOCAL CODES AND ORDINANCES.

DO NOT. UNDER ANY CIRCUMSTANCES.

REMOVE THE POWER SUPPLY CORD GROUND PRONG.

ELECTRICAL GROUND IS REQUIRED ON THIS APPLIANCE.

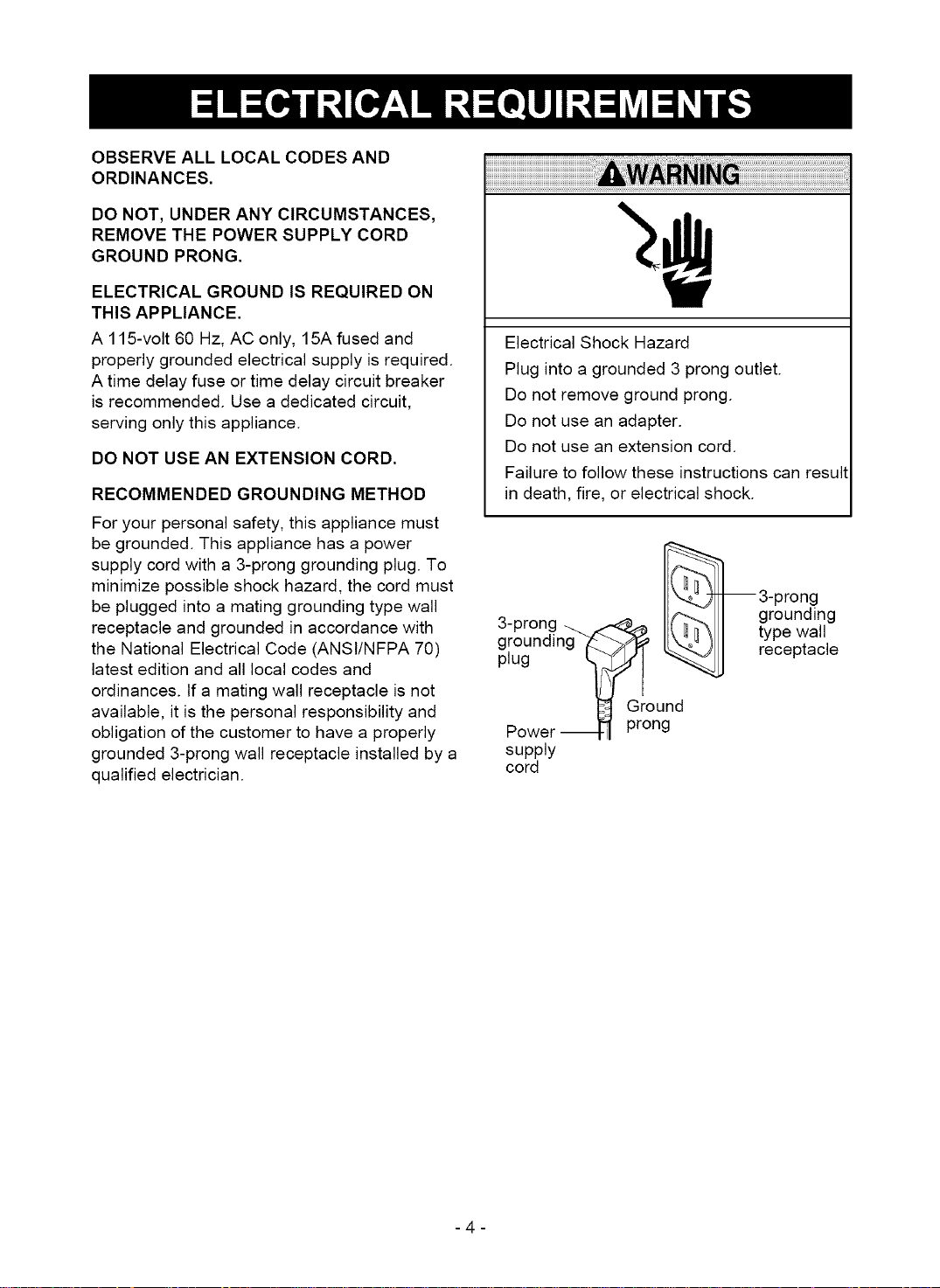

A 115-volt 60 Hz. AC only. 15A fused and properly grounded electrical supply is required.

A time delay fuse or time delay circuit breaker is recommended.

Use a dedicated circuit. serving only this appliance.

DO NOT USE AN EXTENSION CORD.

RECOMMENDED GROUNDING METHOD

For your personal safety. this appliance must be grounded.

This appliance has a power supply cord with a 3-prong grounding plug. To minimize possible shock hazard. the cord must be plugged into a mating grounding type wall receptacle and grounded in accordance with the National Electrical Code (ANSt/NFPA latest edition and all local codes and

Electrical Shock Hazard

Plug into a grounded 3 prong outlet.

Do not remove ground prong.

Do not use an adapter.

Do not use an extension cord.

Failure to follow these instructions can result in death. fire. or electrical shock.

3-prong

I1F" grounding L."_/'/I IL'. L/ 0.u0WI

Ground Power prong supply cord

3-prong grounding type wall receptacle

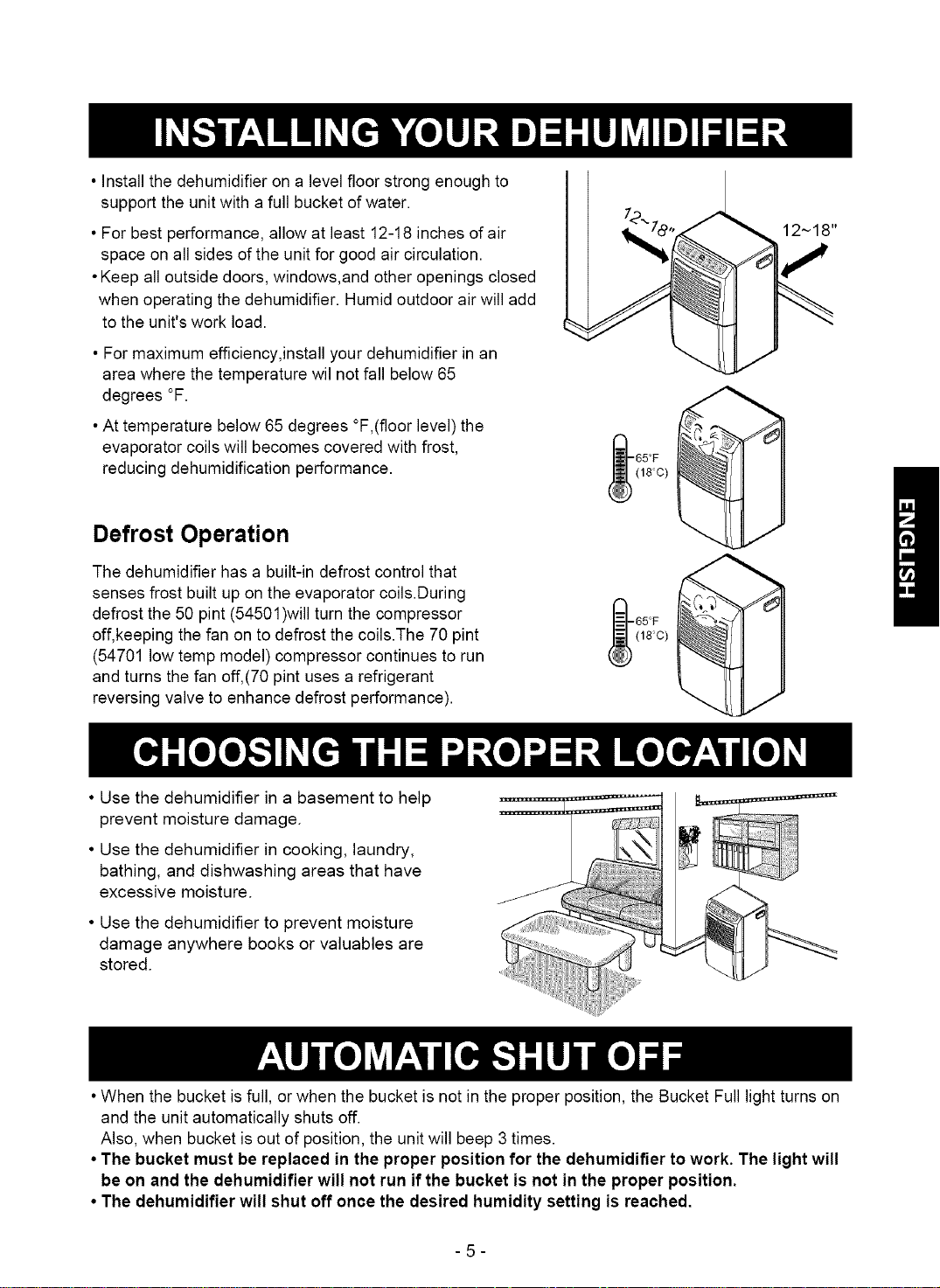

• Install the dehumidifier on a level floor strong enough to support the unit with a full bucket of water.

• For best performance. allow at least 12-18 inches of air space on all sides of the unit for good air circulation.

• Keep all outside doors. windows. nd other openings closed when operating the dehumidifier. Humid outdoor air will add to the unit's work load.

• For maximum efficiency. nstall your dehumidifier in an area where the temperature wil not fall below 65 degrees °F.

• At temperature below 65 degrees °F. floor level) the evaporator coils will becomes covered with frost. reducing dehumidification performance.

Defrost Operation

The dehumidifier has a built-in defrost control that

12~18"

• Use the dehumidifier in a basement to help prevent moisture damage.

• Use the dehumidifier in cooking. laundry. bathing. and dishwashing areas that have excessive moisture.

• Use the dehumidifier to prevent moisture damage anywhere books or valuables are stored.

• When the bucket is full. or when the bucket is not in the proper position. the Bucket Full light turns on and the unit automatically shuts off.

Also. when bucket is out of position. the unit will beep 3 times.

• The bucket must be replaced in the proper position for the dehumidifier to work. The light will be on and the dehumidifier will not run if the bucket is not in the proper position.

• The dehumidifier will shut off once the desired humidity setting is reached.

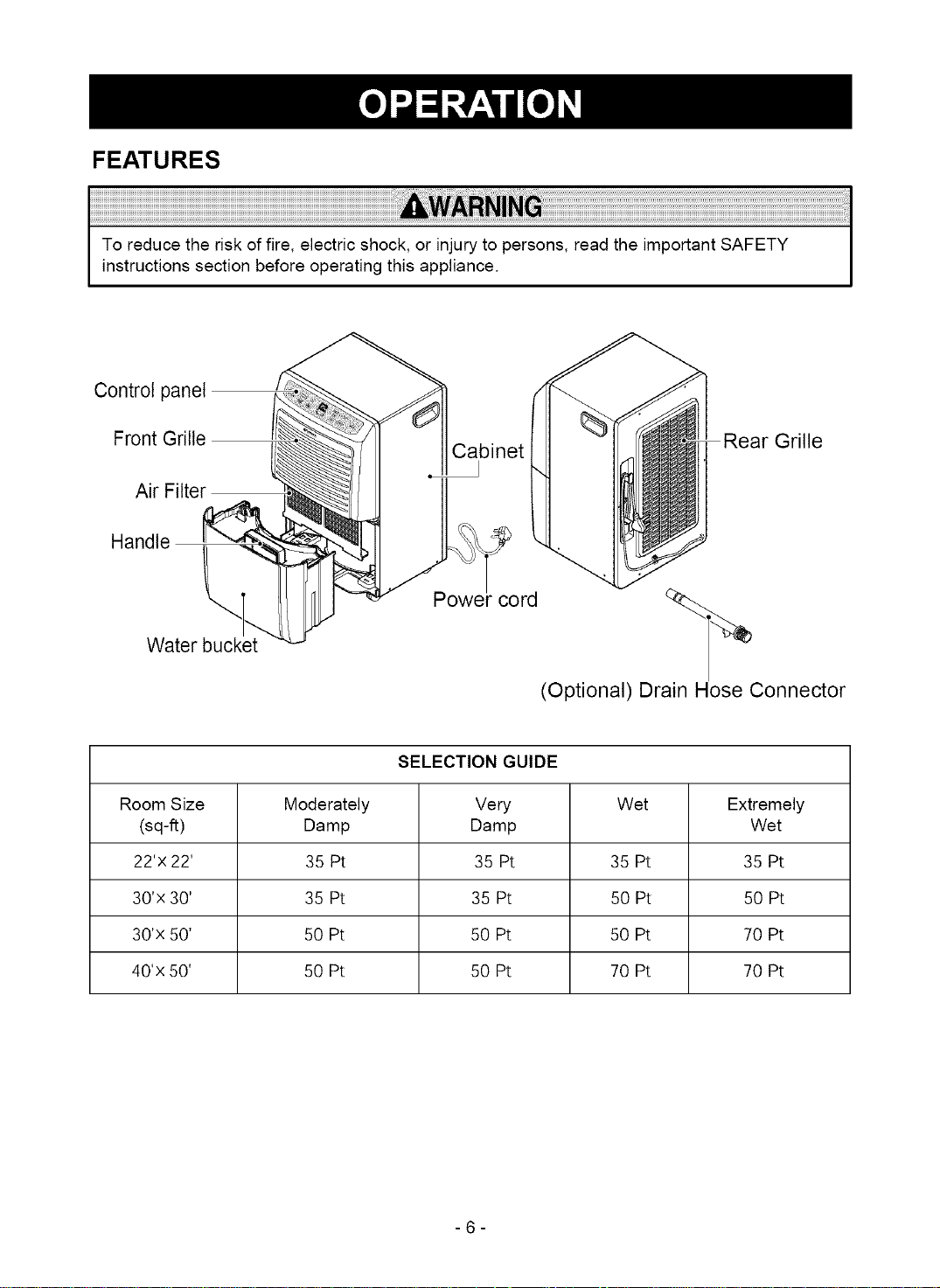

FEATURES

To reduce the risk of fire. electric shock. or injury to persons. read the important SAFETY instructions section before operating this appliance.

Control panel

Front Grille

Air Filter

Cabinet Grille

Handle

Water bucket Power cord

(Optional) Drain Hose Connector

SELECTION GUIDE

Room Size Moderately Very Wet Extremely (sq-ft) Damp Wet

22'x 22' 35 Pt

30'x 30' 35 Pt 50 Pt

30'x 50' 50 Pt 70 Pt

40'x 50' 50 Pt 70 Pt

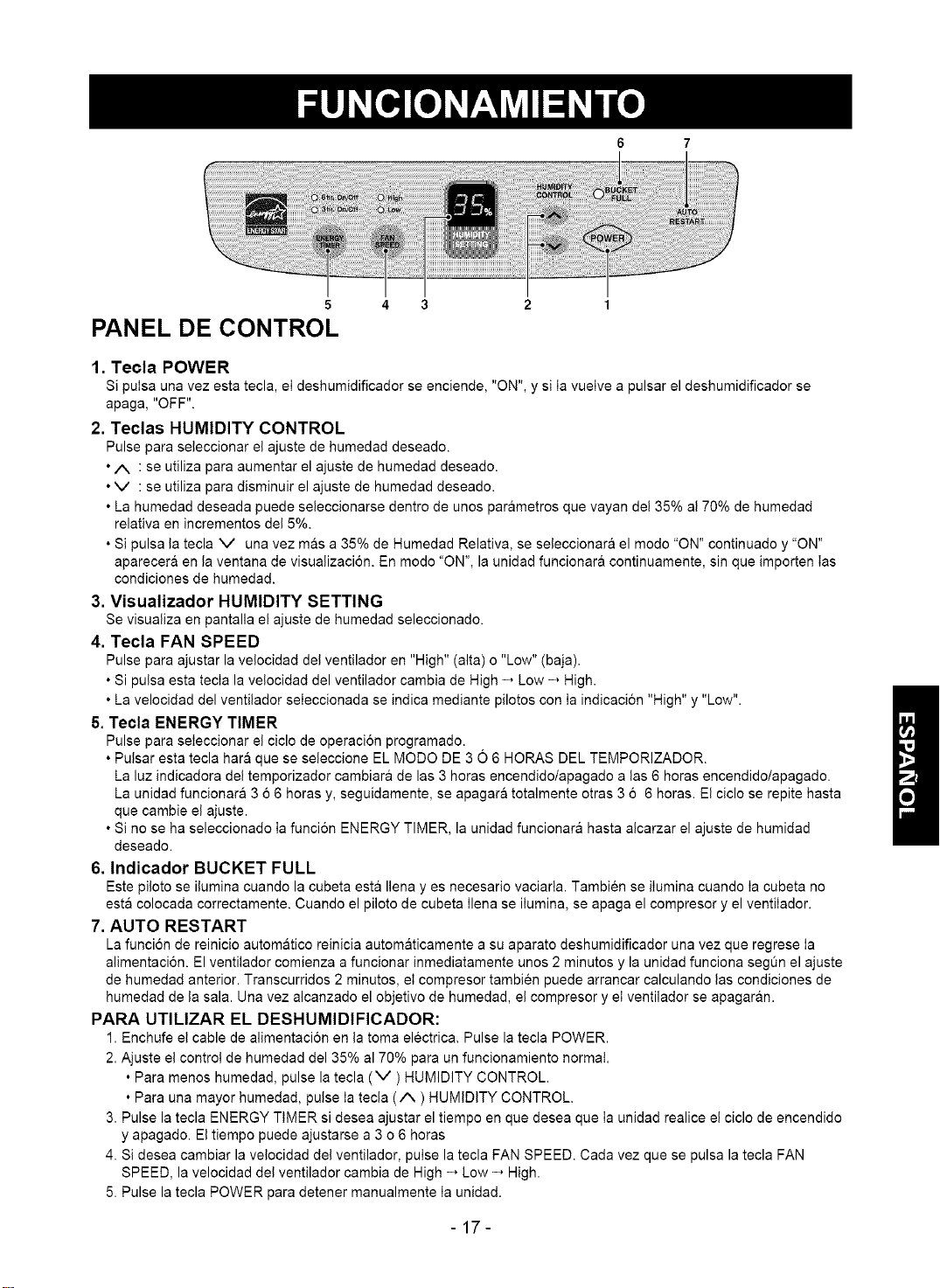

CONTROLPANEL

1. POWER key

Pressing this key once turns the dehumidifier "ON" and pressing again turns the dehumidifier "OFF".

2. HUMIDITY CONTROL keys

Press to select the desired humidity setting.

• /k : Used to raise the desired humidity setting.

• V : Used to lower the desired humidity setting.

• The desired humidity can be selected within a range of 35% to 70% Relative Humidity in increments of 5%.

• If you press the V key once again at 35% Relative Humidity. continuous "On" mode is selected and "On" appears in the display window.

In "On" mode the unit operates continuously. regardless of humidity conditions.

3. HUMIDITY SETTING display

Displays the selected humidity setting.

4. FAN SPEED key

Press to set the fan speed as "High" or "Low".

• Pressing this key changes the fan speed from High -. Low -* High.

• The selected fan speed is indicated by indicator lights marked "High" and "Low".

5. ENERGY TIMER key

Press to select timed operation cycle.

• Pressing this key selects EITHER THE 3 OR 6 HOUR TIMER MODE.

The Timer indicator light will shift from 3 hour On/Off to 6 hour On/Off.

The unit wilI run for either 3 or 6 hours. and then shut off completely for 3 or 6 hours. The

• If ENERGY TIMER function is not selected. unit operates until desired humidity setting is reached.

6. BUCKET FULL Indicator

This light glows when the bucket is fulI and needs to be emptied.

It also glows when the bucket is not properly positioned.

When bucket fulI indicator light glows. the compressor and fan will turn "OFF".

7. AUTO RESTART

• The Auto Restart function automatically restarts your dehumidifier once power is restored.

The fan will immediately

TO OPERATE THE DEHUMIDIFIER:

1. Plug the power cord into the electrical outlet.

Press the POWER key.

2. Set the Humidity control anywhere between 35% to 70% for normal operation.

• For less humidity. press the V HUMIDITY CONTROL key.

• For higher humidity. press theA HUMIDITY CONTROL key.

3. Press the ENERGY TIMER key if desired. to set the amount of time for which you want the unit to cycle On and Off.

The time can be set for 3 hours or 6 hours.

4. If you want to change the fan speed. press the FAN SPEED key. Each time the FAN SPEED key is pressed the fan speed changes from High -* Low -_ High.

5. Press the POWER key to stop the unit manually.

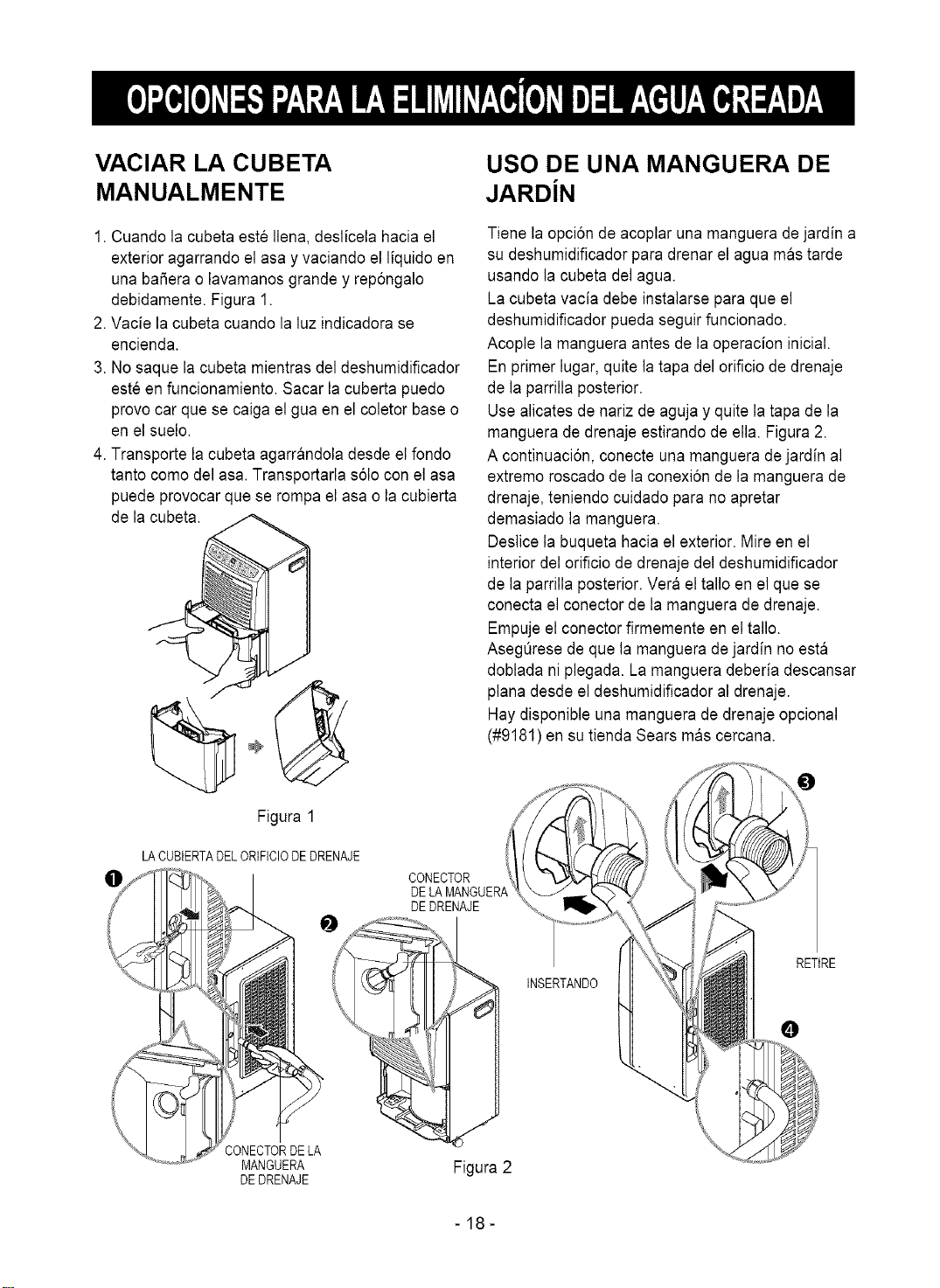

EMPTYING THE BUCKET MANUALLY USING A GARDEN HOSE

1. When the bucket is full. slide it out by grasping the handle and emptying it into a large sink or tub. and then replace it properly. See Figure 1.

2. Empty the bucket when the indicator light turns on.

3. Do not remove the bucket while the

4. Carry the bucket by supporting it from the bottom as well as by the handle.

Carrying by only the handle may cause the handle or bucket cover to break.

You have the option of attaching a garden hose to your dehumidifier to drain water later than using the water bucket.

The empty water bucket must still be installed for the dehumidifier to operate.

Attach hose prior to initial operation.

First. remove the drain hole cover on the rear grille. Use needlenose pliers to pull the drain hole cover out. Figure 2.

Next. connect a garden hose to the threaded end of the drain hose connection. being careful not to overtighten the hose.

Slide out the bucket. Look into the dehumidifier drain hole on the rear grill. You will see the stem that the drain hose connector fits into.

Push the connector firmly into the stem.

Make sure that the garden hose is not bent or kinked. The hose should lie flat from the dehumidifier to the drain.

When not in use. the drain hose connector can be stored in the water bucket.

Lift the cover off the water bucket and place the connector into the V shape grooves directly below the bucket handle.

An optional drain hose (#9181) is available for purchase through Sears Retail stores.

Figure

DRAINHOLE COVER (OPTIONAL) DRAIN HOSE CONNECTOR

INSERT

TAKE OUT

(OPTIONAL) DRAIN HOSE CONNECTOR

Figure 2

GRILLE AND CASE

To clean the case: Use water and a mild

To clean the grille: Use a vacuum with an attachment or brush.

AIR FILTER

Check and clean air filter at least every 30 days or more often if necessary.

TO REMOVE:

Remove water bucket from the cabinet.

Pull out the air filter as shown above.

Wash air filter with warm water and a mild detergent.

Rinse and dry it.

Once dry. replace in unit.

GENERAL CLEANING

• Dust the front grille and the side panels with a soft brush or use the dusting attachment of your vacuum.

• If cabinet paint chips. you can touch up the paint with a good grade enamel to prevent rust.

WATER BUCKET CLEANING

• Slide out the bucket.

• Remove bucket cover.

• Put the cover back on the bucket.

• Bucket should be cleaned every few weeks.

• Disconnect power supply cord from receptacle before performing any maintenance.

• Be careful when cleaning the coils.

Fins are sharp.

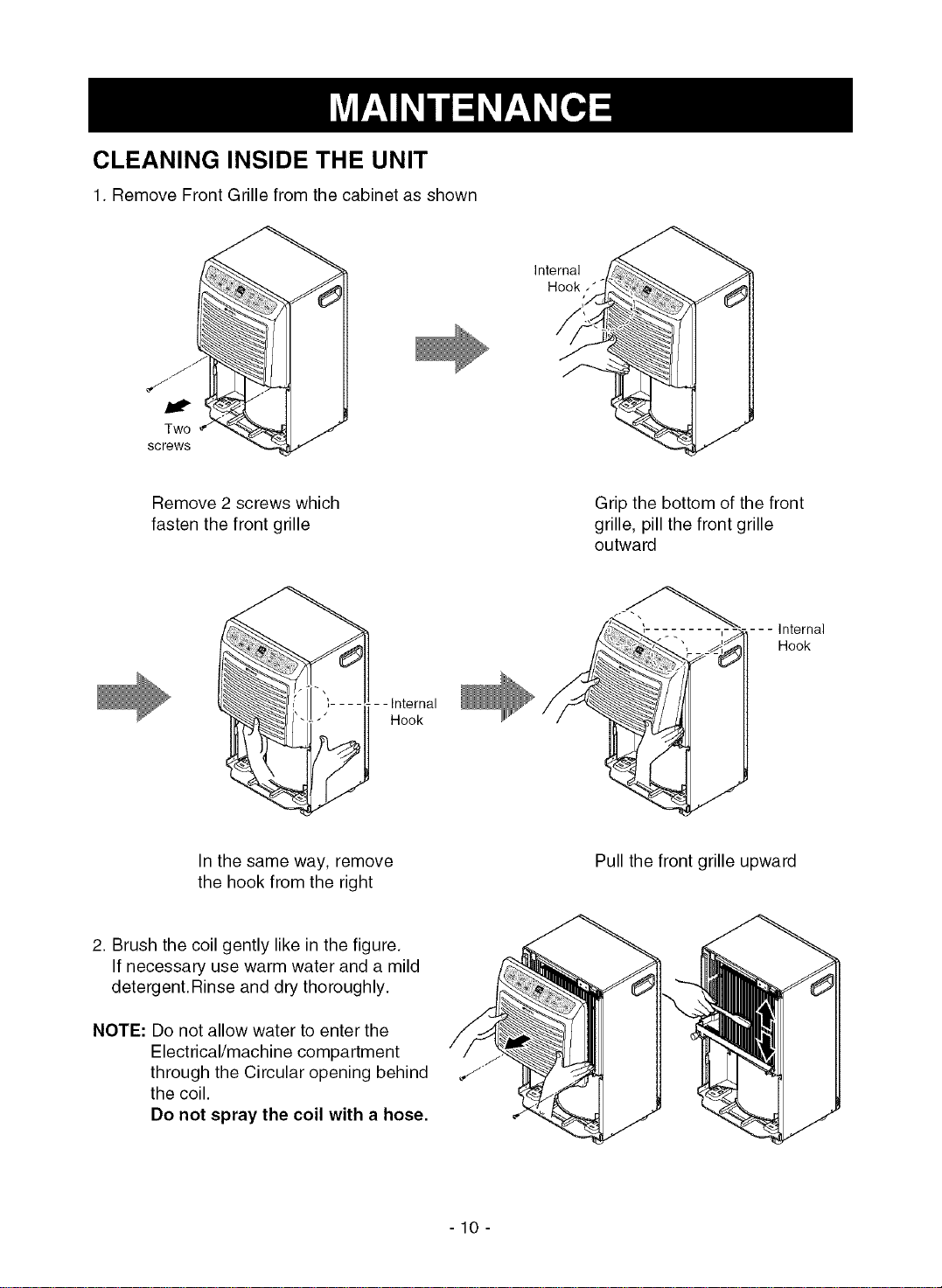

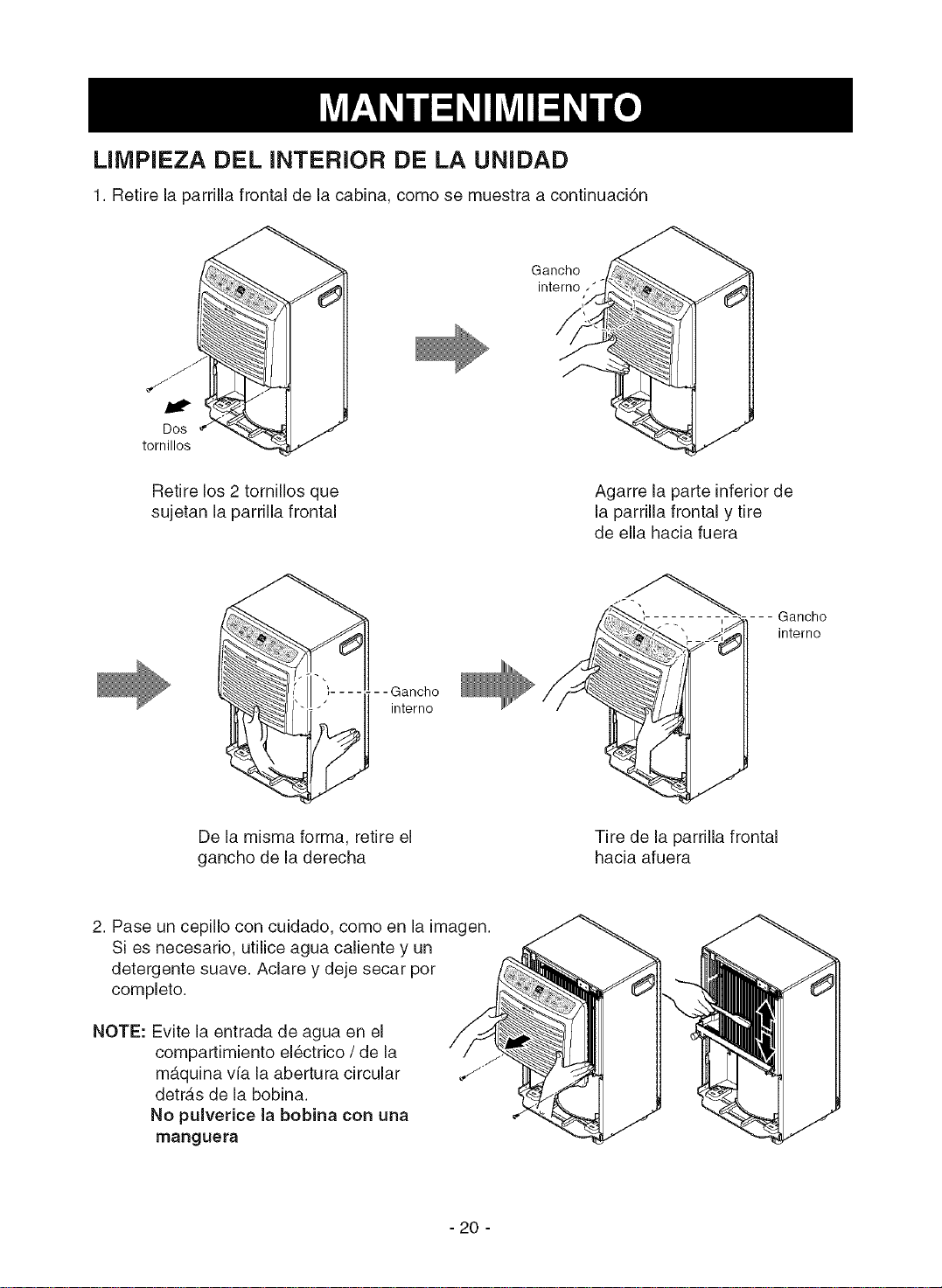

CLEANING INSIDE THE UNIT

1. Remove Front Grille from the cabinet as shown

Internal Hook.

Remove 2 screws which fasten the front grille Grip the bottom of the front grille. pill the front grille outward

Internal Hook

In the same way. remove the hook from the right Pull the front grille upward

2. Brush the coil gently like in the figure.

If necessary use warm water and a mild detergent.Rinse and dry thoroughly.

NOTE: Do not allow water to enter the Electrical/machine compartment through the Circular opening behind the coil.

Do not spray the coil with a hose.

Thedehumidifiermaybeoperatingabnormallywhen:

Dehumidifier doesnotstart

Dehumidifierdoes notdrytheairas it should

Dehumidifier seems toruntoomuch Frostappearson thecoils

Wateronfloor

Dehumidifier operates continuously

•Makesurethedehumidifier plugispushed completely intotheoutlet. •Checkthehousefuseorcircuitbreakerboxand replacethefuseorresetthebreaker. •Thedehumidifier automatically turnsoffwhen thisoccurs.Emptythebucket. •Makesurethebucketisintherightplace. •[email protected] humiditycontrolbuttonto lowerthehumiditysettingbelowroomlevel.

• Unit has 2 minute delay once power is restarted.

• When first installed. allow at least 3 or 4 days to achieve and maintain the desired dryness.

• Make sure there are no curtains. blinds or furniture blocking the front or back of the dehumidifier.

• Press the @ Humidity Control button to lower the humidity.

• Check that all doors. windows and other openings are securely closed.

• Install the dehumidifier away from the dryer.

The dryer should be vented to the outside.

• Refer to the Selection Guide on page 6.

• Close all doors and windows to the outside.

• This is normal. Frost will usually disappear within 60 minutes.

• Ensure that the room temperature is at the minimum of 65°F(18 C) or 42°F(6°C).

• Check the hose if one is attached.

• Ensurebucket is properlypositioned.

[email protected] to raisehumiditysettingto 35%or above.

See page 7.

[ Press the @ humidity control button to change

Your Home

For repair in your home of all major brand appliances. lawn and garden equipment. or heating and cooling systems. no matter who made it. no matter who sold it!

For the replacement parts. accessories and owner's manuals that you need to do-it-yourself.

For Sears professional installation of home appliances and items like garage door openers and water heaters.

1-800-4-MY-HOME (1-800-469-4663)

Call anytime. day or night (U.S.A. and Canada)

For expert home solutions advice: www.managemyhome.com

Our Home

For repair of carry-in items like vacuums. lawn equipment. and electronics. call or go on-line for the location of your nearest

Sears Parts & Repair Service Center

1-800-488-1222 (U.S.A.) 1-800-469-4663 (Canada)

Call anytime. day or night

To purchase a protection agreement on a product serviced by Sears:

1-800-827-6655 (U.S.A.)

Para pedir servicio de reparaci6n a domicilio. y para ordenar piezas: 1-888-SU-HOGAR

(1-888-784-6427)

1-800-361-6665 (Canada)

Au Canada pour service en frangais: 1-800-LE-FOYER M°

(1-800-533-6937) www.sears.ca Ses/rs

TM SM ® Registered Trademark / Trademark / Service Mark of Sears Brands. LLC

® Mama Registrada / TM Marca de Fbrica / s Marca de Servicio de Sears Brands.

LLC _. cMarque de commerce / MDMarque dpose de Sears Brands.

LLC ® Sears Brands. LLC Part No.: 3828A20803B



Newest Added: 59679313511 10661189900 79043494400 79551039011 11173302910

Tags: Kenmore 11627514700

Kenmore 58054501500 | Pages: 24 | File type: PDF | Filename: 29005987_58054501500.pdf | Size: 2.45 MB | Language: English

Download User Manual

Contact us

T: @manualsFile

https://manualsFile.com
