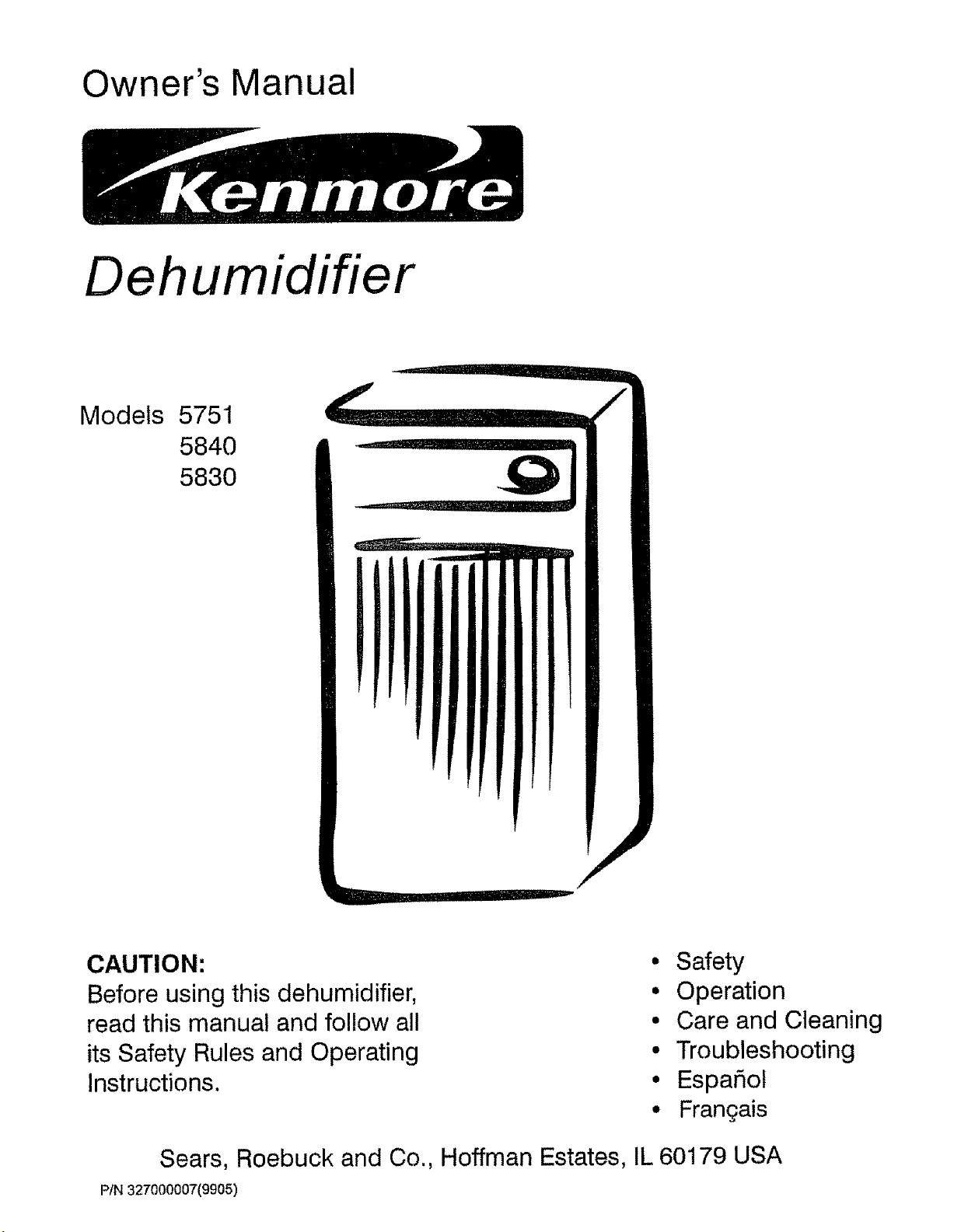

Owner's Manual
Dehumidifier
Models 5751
5840
5830
CAUTION:
Before using this dehumidifier,
read this manual and follow all
its Safety Rules and Operating
Instructions.
•Safety
°Operation
•Care and Cleaning
•Troubleshooting
• EspaSol
• Frangais
Sears, Roebuck and Co., Hoffman Estates, IL 60179 USA
P/N 327000007(9905)

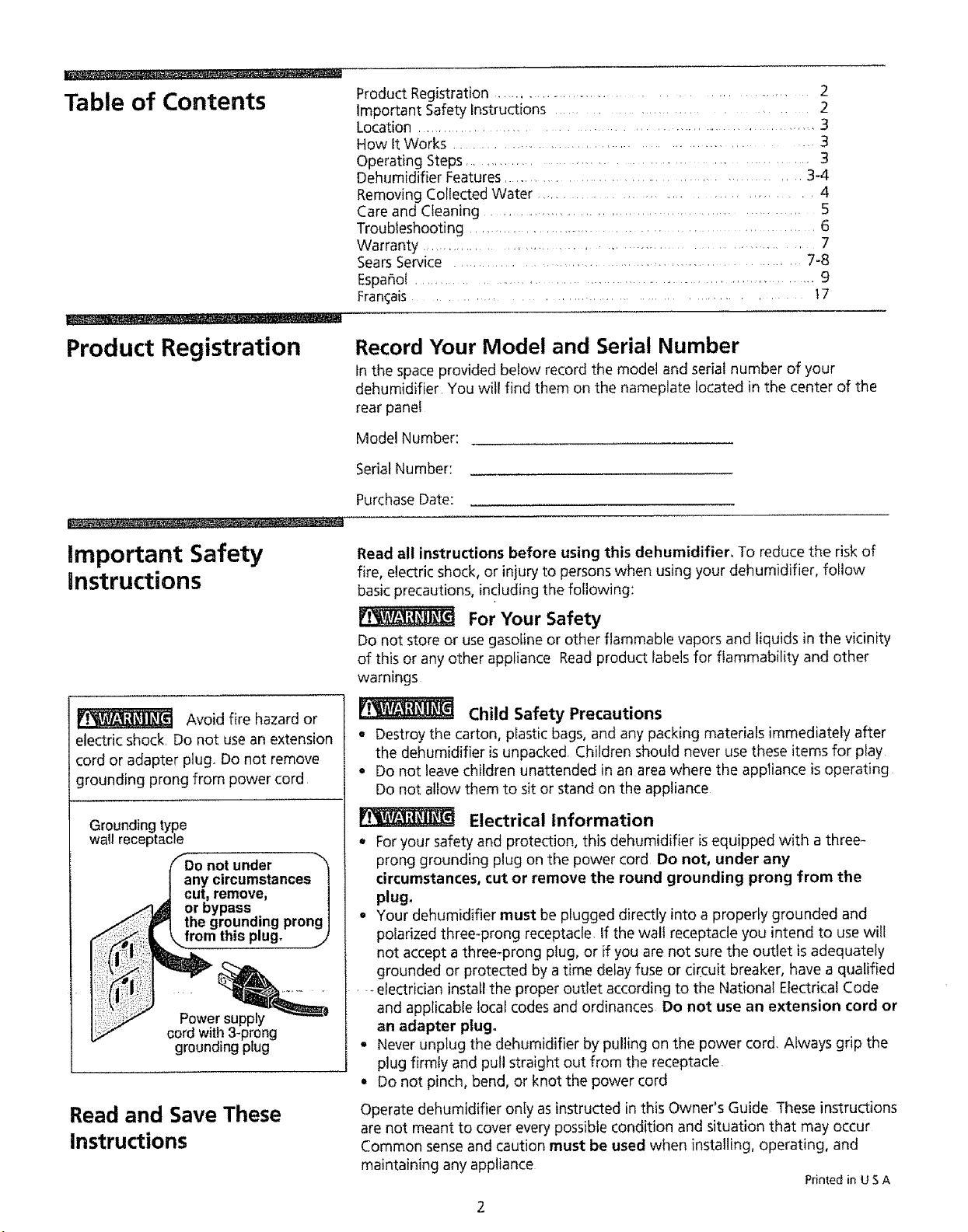

Table of Contents
B - ....... '
Product Registration ............................................... 2
Important Safety Instructions .......................................... 2
Location ........................................................... 3
How It Works ....................................................................... 3
Operating Steps ............................................ 3
Dehumidifier Features ......................................... 3-4
Removing Collected Water .................................. 4
Care and Cleaning ..................................................... 5
Troubleshooting .............................................. 6
Warranty ............................................................ 7
SearsService ...................................................... 7-8
Espa_o! ........................................................... 9
Fran_;ais................................................................. 17
Product Registration Record Your Model and Serial Number
In the space provided below record the model and serial number of your
dehumidifier You will find them on the nameplate located in the center of the
rear panel
Model Number:
Serial Number:
Purchase Date:
Important Safety
Instructions
Avoid fire hazard or
electric shock. Do not usean extension
cord or adapter plug. Do not remove
grounding prong from power cord
Grounding type
wall receptacle
Do not under
Power supply
cord with3-prong
grounding plug
Read and Save These
Instructions
Read all instructions before using this dehumidifier, To reduce the risk of
fire, electric shock, or injury to persons when using your dehumidifier, follow
basic precautions, including the following:
For Your Safety
Do not store or use gasoline or other flammable vapors and liquids in the vicinity
of this or any other appliance Readproduct labels for flammability and other
warnings
Child Safety Precautions
u Destroy the carton, plastic bags, and any packing materials immediately after
the dehumidifier is unpacked Children should never use these items for play
• Do not leave children unattended in an area where the appliance is operating
Do not allow them to sit or stand on the appliance
Electrical Information
• For your safety and protection, this dehumidifier isequipped with a three-
prong grounding plug on the power cord Do not, under any
circumstances, cut or remove the round grounding prong from the
plug.
• Your dehumidifier must be plugged directly into a properly grounded and
polarized three-prong receptacle, If the wall receptacle you intend to use will
not accept a three-prong plug, or if you are not sure the outlet is adequately
grounded or protected by a time delay fuse or circuit breaker, have a qualified
-_electrician install the proper outlet according to the National Electrical Code
and applicable local codes and ordinances Do not use an extension cord or
an adapter plug.
• Never unplug the dehumidifier by pulling on the power cord, Always grip the
plug firmly and pull straight out from the receptacle
• Do not pinch, bend, or knot the power cord
Operate dehumidifier only as instructed in this Owner's Guide These instructions
are not meant to cover every possible condition and situation that may occur
Common sense and caution must be used when installing, operating, and
maintaining any appliance Printed in U SA

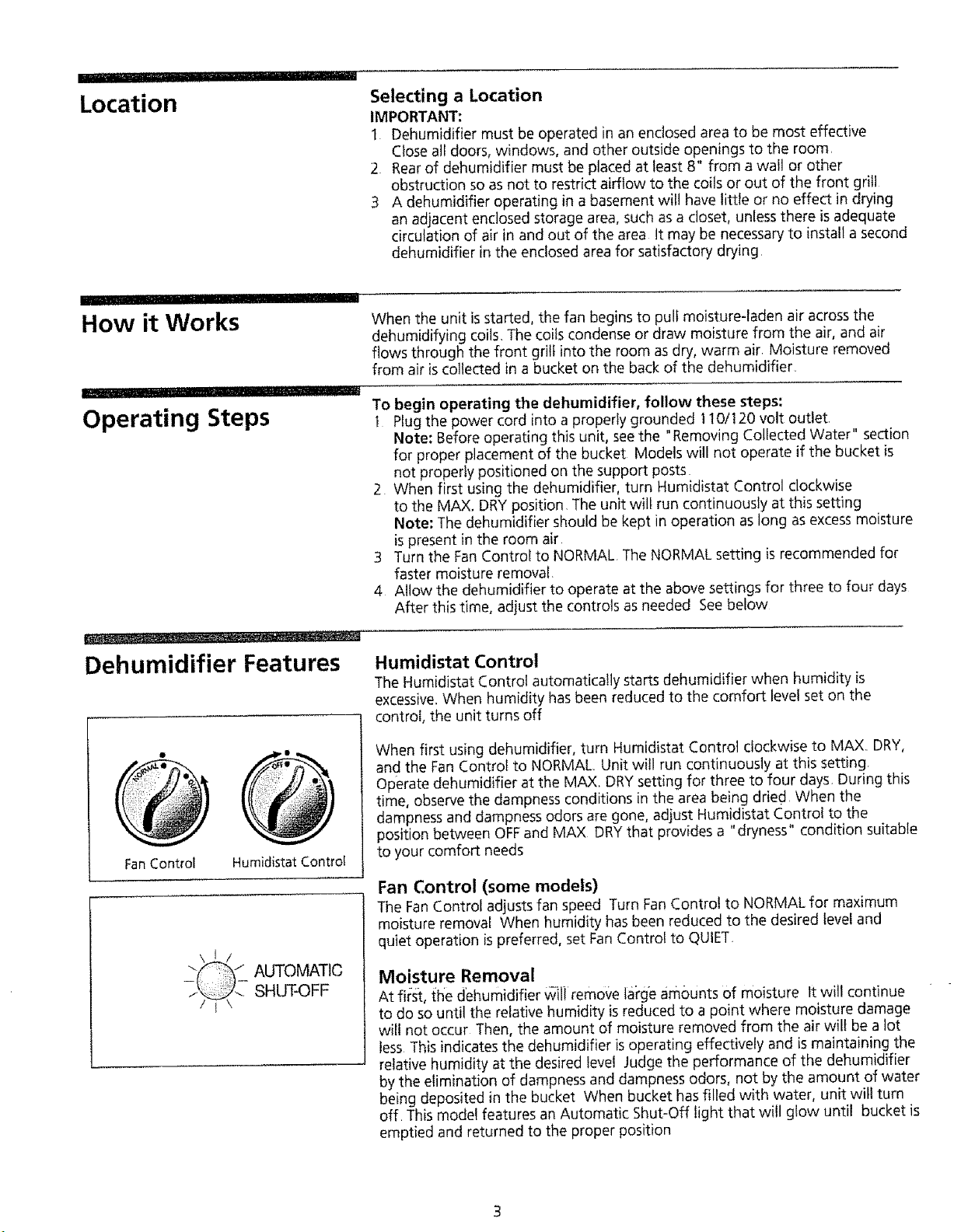

Location Selecting a Location
IMPORTANT:
t. Dehumidifier must be operated in an enclosed area to be most effective
Close all doors, windows, and other outside openings to the room,
2. Rearof dehumidifier must be placed at least 8" from a wall or other
obstruction soas not to restrict airflow to the coils or out of the front grill
3 A dehumidifier operating in a basement will have little or no effect in drying
an adjacent enclosed storage area, such asa closet, unless there is adequate
circulation of air in and out of the area. It may be necessary to install a second
dehumidifier in the enclosed area for satisfactory drying
'Ill I'rlll IIII1!
How it Works
' ,,, ,,,
Operating Steps
Dehumidifier Features
FanControl Humidistat Control
.\ I /t AUTOMATIC
_ SHI._-OFF
When the unit is started, the fan begins to pull moisture-laden air across the
dehumidifying coils, The coils condense or draw moisture from the air, and air
flows through the front grill into the room asdry, warm air Moisture removed
from air iscollected in a bucket on the back of the dehumidifier,
To begin operating the dehumidifier, follow these steps:
T. Plug the power cord into a properly grounded 110/!20 volt outlet.
Note: Before operating this unit, seethe "Removing Collected Water" section
for proper placement of the bucket Models will not operate if the bucket is
not properly positioned on the support posts
2. When first using the dehumidifier, turn Humidistat Control clockwise
to the MAX. DRY position. The unit will run continuously at this setting
Note: The dehumidifier should be kept in operation as long asexcess moisture
is present in the room air
3 Turn the FanControl to NORMAL The NORMAL setting is recommended for
faster moisture removal.
4 Allow the dehumidifier to operate at the above settings for three to four days
After this time, adjust the controls as needed See below
Humidistat Control
The Humidistat Control automatically starts dehumidifier when humidity is
excessive.When humidity has been reduced to the comfort level set on the
control, the unit turns off
When first using dehumidifier, turn Humidistat Control clockwise to MAX. DRY,
and the Fan Control to NORMAL, Unit will run continuously at this setting
Operate dehumidifier at the MAX. DRY setting for three to four days. During this
time, observe the dampness conditions in the area being dried When the
dampness and dampness odors are gone, adjust Humidistat Control to the
position between OFFand MAX DRYthat provides a "dryness" condition suitable
to your comfort needs
Fan Control (some models)
The Fan Control adjusts fan speed Turn FanControl to NORMAL for maximum
moisture removal When humidity has been reduced to the desired level and
quiet operation ispreferred, set FanControl to QUIET.
Moisture Removal
At first, the dehumidifier wilI remove large amounts of moisture It witl continue
to do so until the relative humidity is reduced to a point where moisture damage
witt not occur Then, the amount of moisture removed from the air wil! be a Jot
less This indicates the dehumidifier is operating effectively and is maintaining the
relative humidity at the desired _evei Judge the performance of the dehumidifier
by the elimination of dampness and dampness odors, not by the amount of water
being deposited in the bucket When bucket hasfilled with water, unit will turn
off This model features an Automatic Shut-Off light that will gtow until bucket is
emptied and returned to the proper position

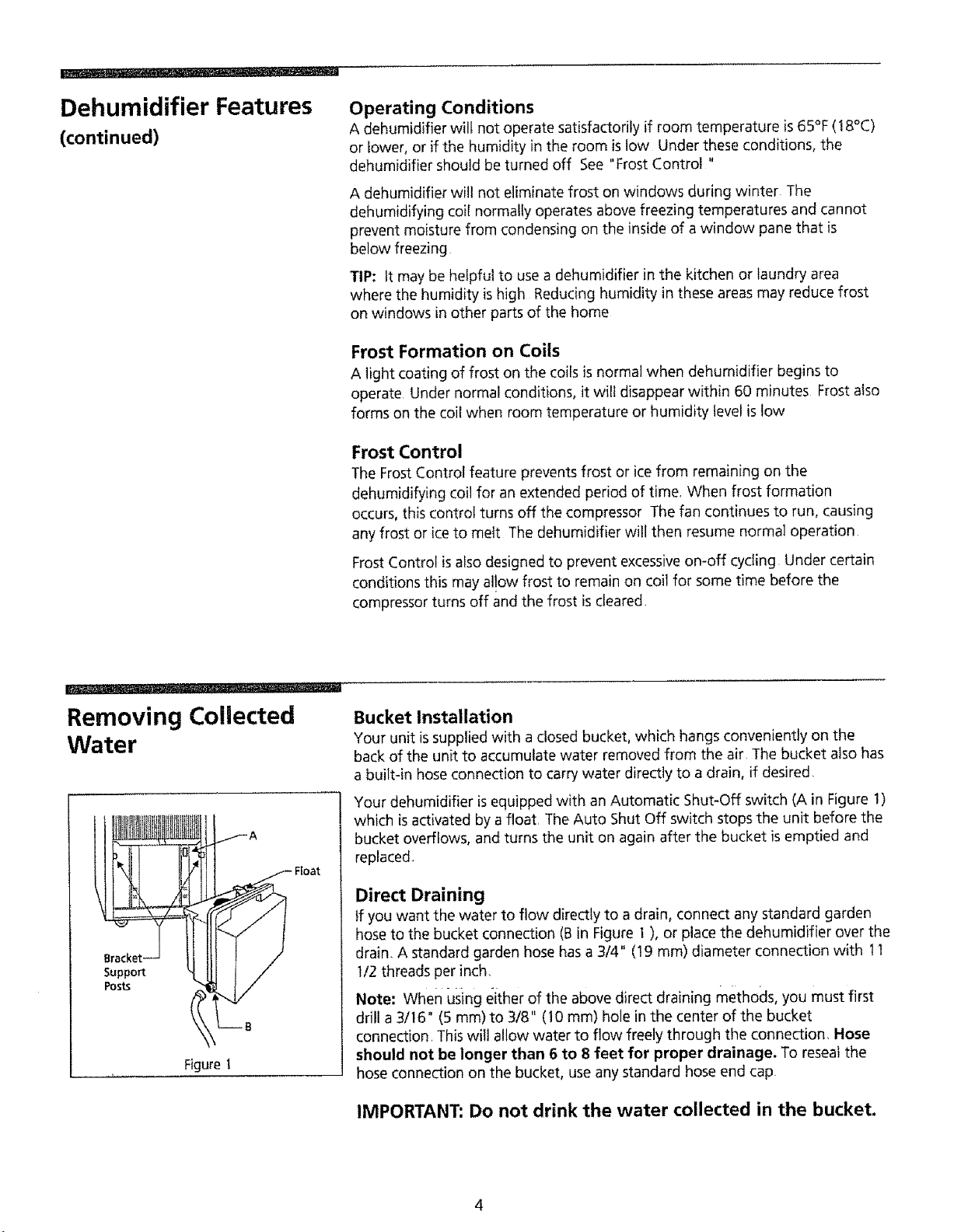

Dehumidifier Features
(continued)
Operating Conditions
A dehumidifier will not operate satisfactorily if room temperature is 65°F (18°C)
or lower, or if the humidity in the room is low Under these conditions, the
dehumidifier should be turned off See "Frost Control "
A dehumidifier will not eliminate frost on windows during winter The
dehumidifying coil normally operates above freezing temperatures and cannot
prevent moisture from condensing on the inside of a window pane that is
below freezing
TIP: It may be helpful to use a dehumidifier in the kitchen or laundry area
where the humidity is high Reducing humidity in these areas may reduce frost
on windows in other parts of the home
Frost Formation on Coils
A light coating of frost on the coils isnormal when dehumidifier begins to
operate Under normal conditions, it will disappear within 60 minutes Frost also
forms on the coil when room temperature or humidity level is low
Frost Control
The Frost Control feature prevents frost or ice from remaining on the
dehumidifying coil for an extended period of time, When frost formation
occurs, this control turns off the compressor The fan continues to run, causing
any frost or ice to melt The dehumidifier will then resume normal operation
Frost Control isalso designed to prevent excessiveon-off cycling Under certain
conditions this may al!ow frost to remain on coil for some time before the
compressor turns off and the frost is cleared
Removing Collected
Water
Bracket--
Support
Posts
Float
Figure I
Bucket Installation
Your unit is supplied with a closed bucket, which hangs conveniently on the
back of the unit to accumulate water removed from the air, The bucket also has
a built-in hose connection to carry water directly to a drain, if desired,
Your dehumidifier isequipped with an Automatic Shut-Off switch (A in Figure I)
which isactivated by a float. The Auto Shut Off switch stops the unit before the
bucket overflows, and turns the unit on again after the bucket is emptied and
replaced..
Direct Draining
If you want the water to flow directly to a drain, connect any standard garden
hose to the bucket connection (Bin Figure I ), or place the dehumidifier over the
drain. A standard garden hose has a 314" (19 ram) diameter connection with 11
112threads per inch.
Note: When using either of the above direct draining methods, you must first
drill a 3116" (5 mm) to 318" (10 mm) hole in the center of the bucket
connection. This will allow water to flow freely through the connection. Hose
should not be longer than 6 to 8 feet for proper drainage. To reseal the
hose connection on the bucket, use any standard hose end cap
IMPORTANT: Do not drink the water collected in the bucket.

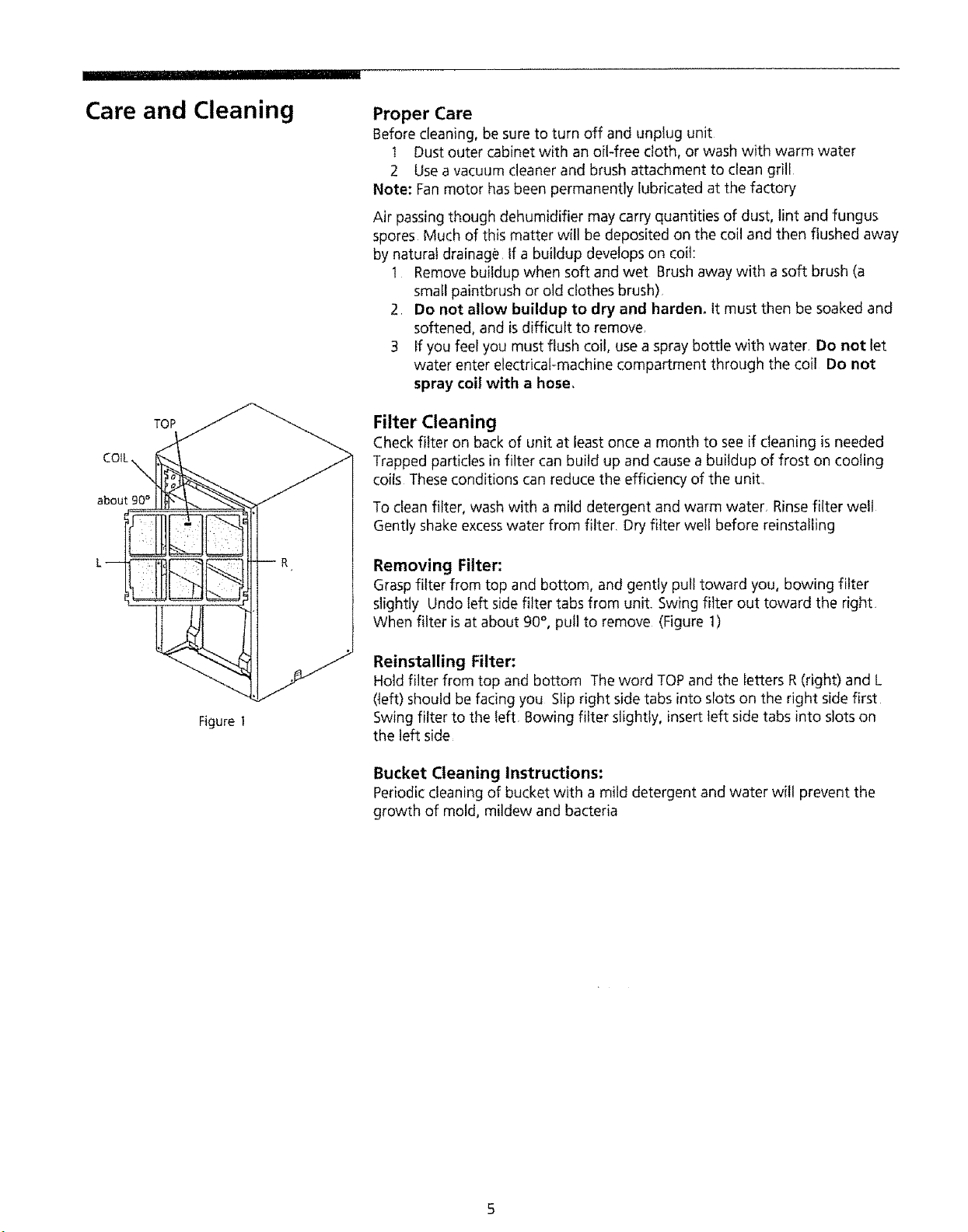

Care and Cleaning
TOP
about 90°
Figure 1
Proper Care
Before cleaning, be sure to turn off and unplug unit
1 Dust o_ter cabinet with an oil-free cloth, cr wash with v_arm water
2 Use a vacuum deaner and brush attachment to clean gdlt
Note: Fan motor has been permanently lubricated at the factory
Air passing though dehumidifier may carry quantities of dust, lint and fungus
spores Much of this matter will be deposited on the coil and then flushed away
by natural drainage ff a buildup develops on coil:
t Remove buildup when soft and wet Brush away with a soft brush (a
small paintbrush or old clothes brush)
2Do not allow buildup to dry and harden, It must then be soaked and
softened, and isdifficult to remove,
3 If you feel you must flush coil, Lse a spJay bcttle with water. Do nct I_t
water enter electrical-machine compartment through lhe coil Do not
spray coil with a hose,
Filter Cleaning
Check filter on back of unit at least once a month to see if cleaning is needed
Trapped particles in filter can build up and cause a buildup of frost on cooling
coils These conditions can reduce the effidency of the unit,
To dean filter, washwith a mild detergent and warm water, Rinsefilter well
Gently shake excesswater from filter, Dry filter well before reinstalling
Removing Filter:
Graspfilter from top and bottom, and gently pull toward you, bowing filter
slightly Undo left side filter tabs from unit. Swing filter out toward the right
When filter isat about 90°, pull to remove (Figure 1)
Reinstalling Filter:
Hold filter from top and bottom The word TOPand the letters R(right) and L
(left) should be fadng you Slip right side tabs into slots on the right side first
Swing filter to the left Bowing filter slightly, insert left side tabs into slols on
the left side
Bucket Cleaning Instructions:
Periodic cleaning of bucket with a mild detergent and water will prevent 1he
growth of mold, mildew and bacteda

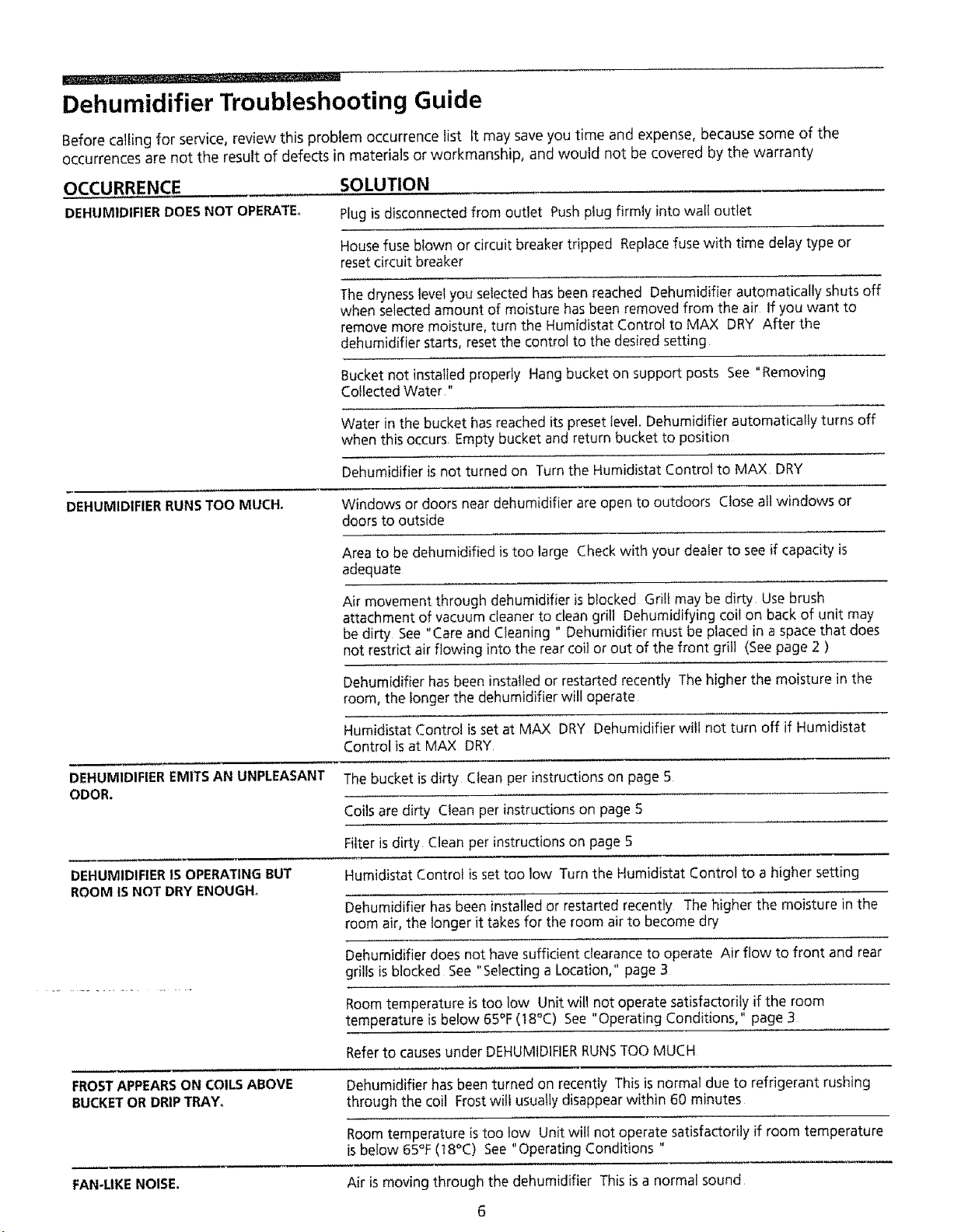

Dehumidifier Troubleshooting Guide
Before calling for service, review this problem occurrence list tt may save you time and expense, because some of the
occurrences are not the result of defects in materials or workmanship, and would not be covered by the warranty
OCCURRENCE SOLUTION
DEHUMIDIFIERDOESNOT OPERATE° Plug is disconnected from outlet Pushplug firmly into wall outlet
House fuse blown or circuit breaker tripped Reptace fuse with time delay type or
reset circuit breaker
The dryness level you selected has been reached Dehumidifier automatically shuts off
when selected amount of moisture has been removed from the air If you want to
remove more moisture, turn the Humidistat Control to MAX DRY After the
dehumidifier starts, reset the control to the desired setting.
Bucket not installed properly Hang bucket on support posts See "Removing
Collected Water"
Water in the bucket has reached its preset level. Dehumidifier automatically turns off
when this occurs Empty bucket and return bucket to position
Dehumidifier is not turned on Turn the Humidistat Control to MAX DRY
DEHUMIDIFIER RUNS TOO MUCH, Windows or doors near dehumidifier are open to outdoors Close all windows or
doors to outside
Area to be dehumidified istoo large Check with your dealer to seeif capacity is
adequate
Air movement through dehumidifier isblocked Grill may be dirty Use brush
attachment of vacuum cleaner to cleangrill Dehumidifying coi! on back of unit may
be dirty See "Care and Cleaning " Dehumidifier must be placed in a space that does
not restrict air flowing into the rearcoil or out of the front grill (Seepage 2 )
Dehumidifier hasbeen installed or restarted recently Thehigher the moisture in the
room, the longer the dehumidifier will operate
Humid!starControl isset at MAX DRY Dehumidifier will not turn off if Humidistat
Control isat MAX DRY,
DEHUMIDIFIER EMITS AN UNPLEASANT The bucket isdirty Clean per instructions on page 5
ODOR, Coils are dirty Clean per instructions on page 5
Filter is dirty Clean per instructions on page 5
DEHUMIDIFIER IS OPERATING BUT
ROOM IS NOT DRY ENOUGH. Humidistat Control isset too low Turn the Humidistat Control to a higher setting
Dehumidifier hasbeen installed or restarted recently The higher the moisture in the
room air, the longer it takesfor the room air to become dry
Dehumidifier does not havesufficient clearanceto operate Air flow to front and rear
grills isblocked See "Selecting a Location," page 3
Room temperature istoo low Unit will not operate satisfactorily if the room
temperature isbelow 65°F(t8_C) See"Operating Conditions," page 3
Referto causesunder DEHUMIDIFIERRUNSTOOMUCH
FROST APPEARS ON COILS ABOVE
BUCKET OR DRIP TRAY° Dehumidifier hasbeen turned on recently Thisis normal due to refrigerant rushing
through the coil Frostwill usuaIIydisappearwithin 60 minutes
Room temperature istoo low Unit wit! not operate satisfactorily if room temperature
isbelow 65°F(18°C) See "Operating Conditions "
FAN-LIKE NOISE. Air is moving through the dehumidifier This isa normal sound
I_ll!'!!ill ---

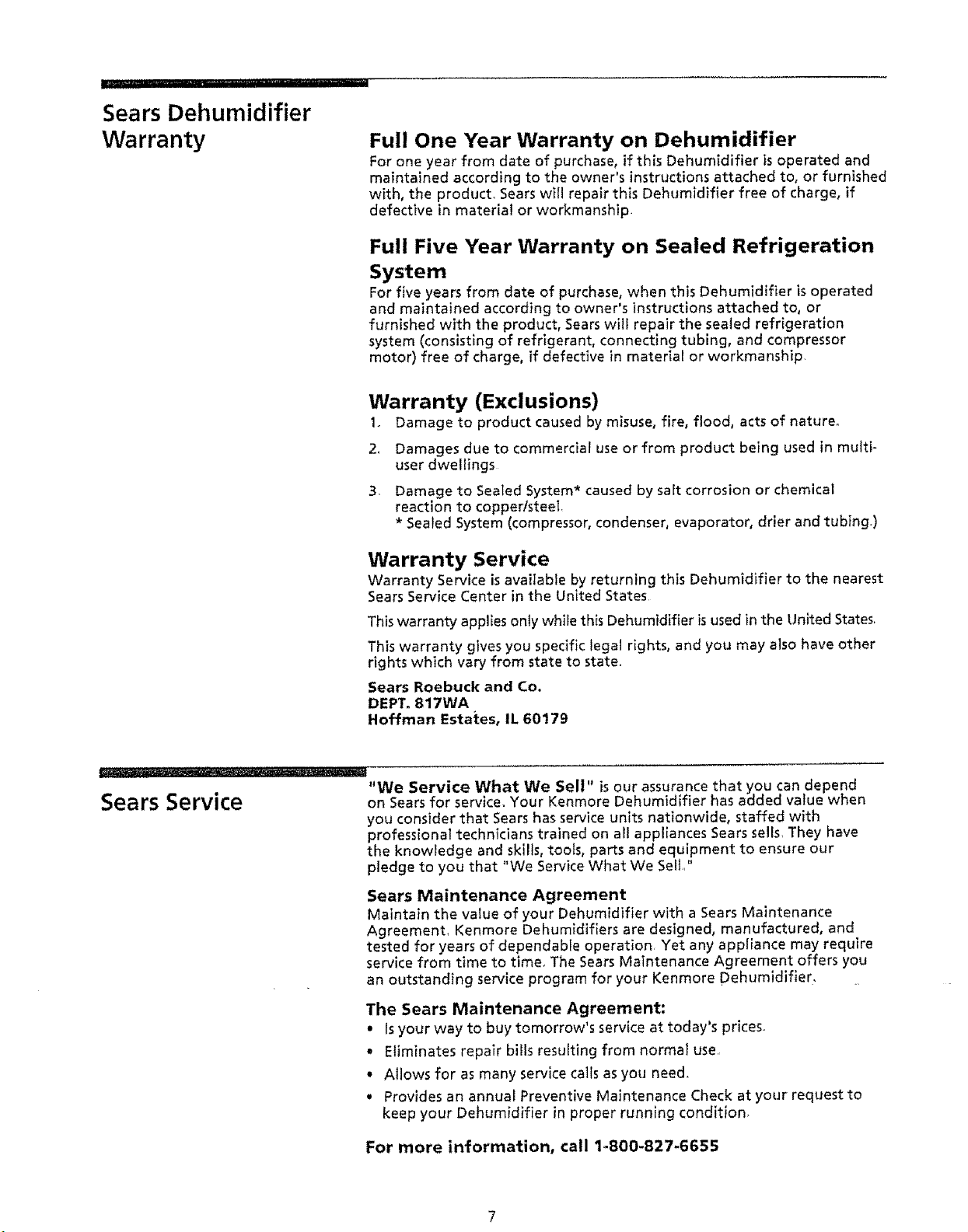

Sears Dehumidifier
Warranty Full One Year Warranty on Dehumidifier
For one year from date of purchase, if this Dehumidifier is operated and
maintained according to the owner's instructions attached to, or furnished
with, the product, Sears will repair this Dehumidifier free of charge, if
defective in material or workmanship.
Full Five Year Warranty on Sealed Refrigeration
System
For five years from date of purchase, when this Dehumidifier isoperated
and maintained according to owner's instructions attached to, or
furnished with the product, Sears wilt repair the sealed refrigeration
system (consisting of refrigerant, connecting tubing, and compressor
motor) free of charge, if defective in material or workmanship.
Warranty (Exclusions)
1_ Damage to product caused by misuse, fire, flood, acts of nature°
2, Damages due to commercial use or from product being used in multi-
user dwellings
3, Damage to Sealed System* caused by salt corrosion or chemical
reaction to copper/steet.
* Sealed System (compressor, condenser, evaporator, drier and tubing.)
Warranty Service
Warranty Service is available by returning this Dehumidifier to the nearest
Sears Service Center in the United States
This warranty applles only while this Dehumidifier isused in the United States.
This warranty gives you specific legal rights, and you may also have other
rights which vary from state to state_
Sears Roebuck and Co.
DEPTo 817WA
Hoffman Estates, IL 60179
"We Service What We Sell" is our assurance that you can depend
Sears Service on Sears for service, Your Kenmore Dehumidifier has added value when
you consider that Sears has service units nationwide, staffed with
professional technicians trained on all appliances Sears se!ls, They have
the knowledge and skills, too}s, parts and equipment to ensure our
pledge to you that "We Service What We Sell.,"
Sears Maintenance Agreement
Maintain the value of your Dehumidifier with a Sears Maintenance
Agreement, Kenmore Dehumidifiers are designed, manufactured, and
tested for years of dependable operation Yet any appliance may require
service from time to time, The Sears Maintenance Agreement offers you
an outstanding service program for your Kenmore Dehumidifier,
The Sears Maintenance Agreement:
•fsyour way to buy tomorrow's service at today's prices_
• Eliminates repair bills resulting from normal use
• Allows for as many service calls as you need.
• Provides an annual Preventive Maintenance Check at your request to
keep your Dehumidifier in proper running condition
For more information, call 1-800-827-6655
=l,==.=*_ _.=..Ir,-- --_-m__ _-

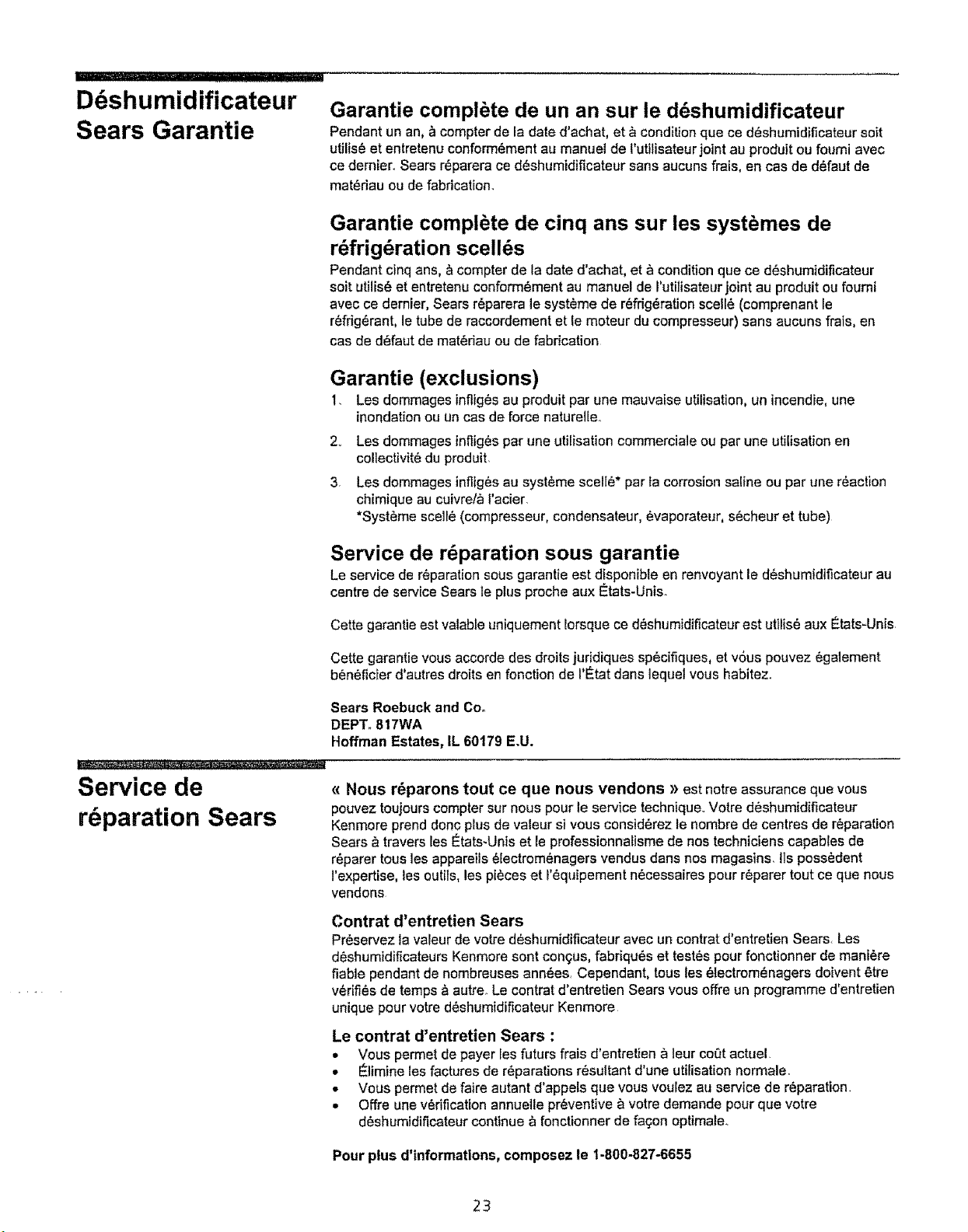

Ddshumidificateur
Sears Garantie Garantie complete de un an sur le ddshumidificateur
Pendant un an, _ compter de la date d'achat, et _ condition que ce d_shumidificateur soit
utilis6 et entretenu conform_ment au manuel de I'utilisateur joint au produit ou foumi avec
ce demier. Sears r_parera ce d_shumidificateur sans aucuns frais, en cas de d_faut de
mat_dau ou de fabrication.
Garantie complete de cinq ans sur les syst_mes de
rdfrig_ration scellds
Pendant cinq ans, _ compter de la date d'achat, et _ condition que ce d6shum]dificateur
soit utilis_a et entretenu conform_ment au manuel de rutilisataur joint au produit ou foumi
avec ce dernier, Sears r_parera le syst_me de r_fdg_ration scell6 (comprenant le
r_frig_rant, le tube de raccordement et le moteur du compresseur) sans aucuns frais, en
cas de dSfaut de mat_dau ou de fabrication
Garantie (exclusions)
1. Les dommages inflig_s au produit par une mauvaise utilisation, un incendie, une
inondation ou un cas de force naturelieo
2. Les dommages inflig6s par une utilisation commerciale ou par une utilisation en
collectivit6 du produit,
3. Les dommages inflig_s au syst_me scell_* par ta corrosion saline ou par une r_action
chimique au cuivre/_ I'acier,
*Syst_me scell_ (compresseur, condensateur, _vaporateur, s_cheur et tube)
Service de r_paration sous garantie
Le service de r_paration sous garantie est disponible en renvoyant le d_shumidificateur au
centre de service Sears le plus proche aux F:tats-Unis.
Cette garantie est vatable uniquement Iorsque ce d_shumidificateur est utilis6 aux _tats-Unis
Cette garantie vous accorde des droits juddiques sp6cifiques, et v6us pouvez _galement
b_n6ficier d'autres droits en fonction de r_tat dans lequel vous habitez.
Service de
r paration Sears
Sears Roebuck and Coo
DEPT. 817WA
Hoffman Estates, IL 60179 E.U.
(€ Nous r_parons tout ce que nous vendons )) est notre assurance que vous
pouvez toujours compter sur nous pour le service technique,. Votre d6shumidificateur
Kenmore prend donc plus de valeur si vous consid6rez le nombre de centres de r_paration
Sears _ travers les l_tats-Unis et le professionnalisme de nos techniciens capabtes de
r6parer tousles appareiis _lectrom6nagers vendus dans nos magasins, lls poss_dent
I'expertise, les outils, les pi_ces et r_quipement n6cessaires pour r_parer tout ce que nous
vendons
Contrat d'entretien Sears
Pr_servez la valeur de votre d_shumidificateur avec un contrat d'entretien Sears Les
d_shumidificateurs Kenmore sent con_us, fabriqu_s et test_s pour fonctionner de mani6re
fiable pendant de nombreuses ann_es, Cependant, tousfes _lectrom_nagers doivent _tre
v_,rifi_s de temps & autre_ Le contrat d'entretien Sears vous offre un programme d'entretien
unique pour votre d6shumidificateur Kenmore
Le contrat d'entretien Sears :
•Vous permet de payer les futurs frais d'entretien a leur co'3t actuel.
•_limine les factures de r_parations r_suttant d'une utilisation normale.
• Vous permet de faire autant d'appels que vous voulez au service de r_paration.
•Offre une v_dfication annuelle preventive & votre demande pour que votre
d_shumidificateur continue _ fonctionner de fad:on optimale.
Pour plus d'informations, composez le 1-800-827-6655
23

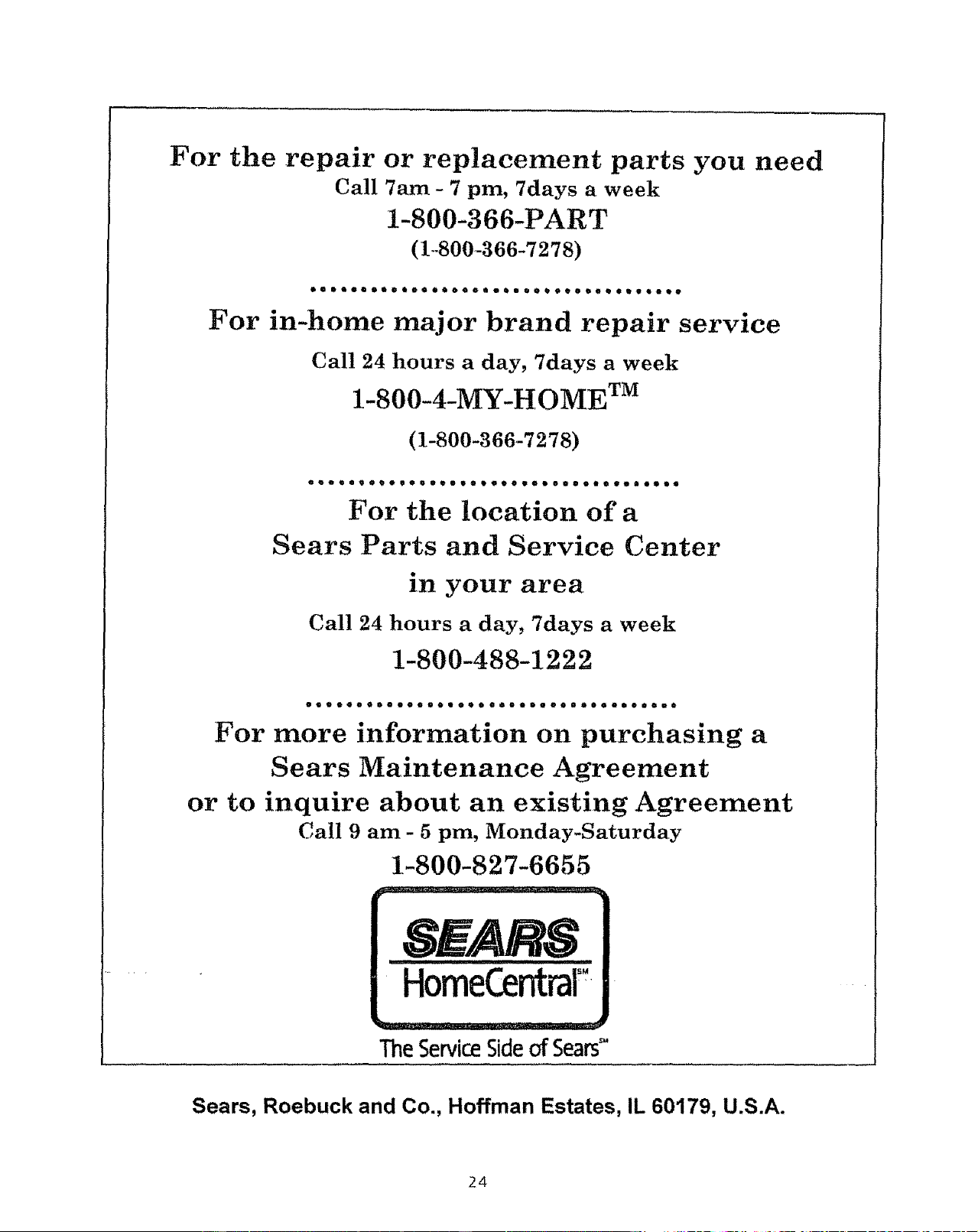

For the repair or replacement parts you need
Call 7am- 7 pro, 7days a week
1-800-366-PART
(1,-800-366-7278)
O_ItQQO_UQOQe_OOlaOQOOOQOQODOUQUOQOQO
For in-home major brand repair service
Call 24 hours a day, 7days a week
1-800-4-MY-HOME TM
(1-800-366-7278)
OQOOe_OUt UO0 DQOUOOOOOUOUIIDOIOeOaOOUO
For the location of a
Sears Parts and Service Center
in your area
Call 24 hours a day, 7days a week
1-800-488-1222
OQO000000000000000 @O00D@O000000000000
For more information on purchasing a
Sears Maintenance Agreement
or to inquire about an existing Agreement
Call 9 am- 5 pro, Monday-Saturday
1-800-827-6655
i i ,, ,,,,,,,,,,
HomeCentrar-
TheServiceSideof Sears_"
Sears, Roebuck and Co., Hoffman Estates, IL 60179, U.S.A.
24
