Whirlpool GVW9959KQ0 washer User Manual

AUTOMATICWASHER

WITHCALYPSOTM WASH

MOTION

Use&CareGuide

For questions about features, operation/performance,

parts, accessories or service call: 1-800-253-1301

In Canada, for assistance call: 1-800-461-5681,

for installation and service call: 1-800-807-6777

or visit our website at

www.whirlpool.com or www.whirlpool.com/canada

Table of Contents ...................................... 2

3953968

TABLEOFCONTF2 S

WASHER SAFETY ...................................................................... 3

INSTALLATION REQUIREMENTS ............................................. 4

Tools and Parts ............................................................................ 4

Alternate Parts You May Need .................................................... 4

Location Requirements ................................................................ 4

DrainSystem ................................................................................ 5

Electrical Requirements ............................................................... 5

INSTALLATION INSTRUCTIONS ............................................... 6

Install Leveling Feet...................................................................... 6

Connect the Drain Hose............................................................... 7

Connect the Inlet Hoses............................................................... 7

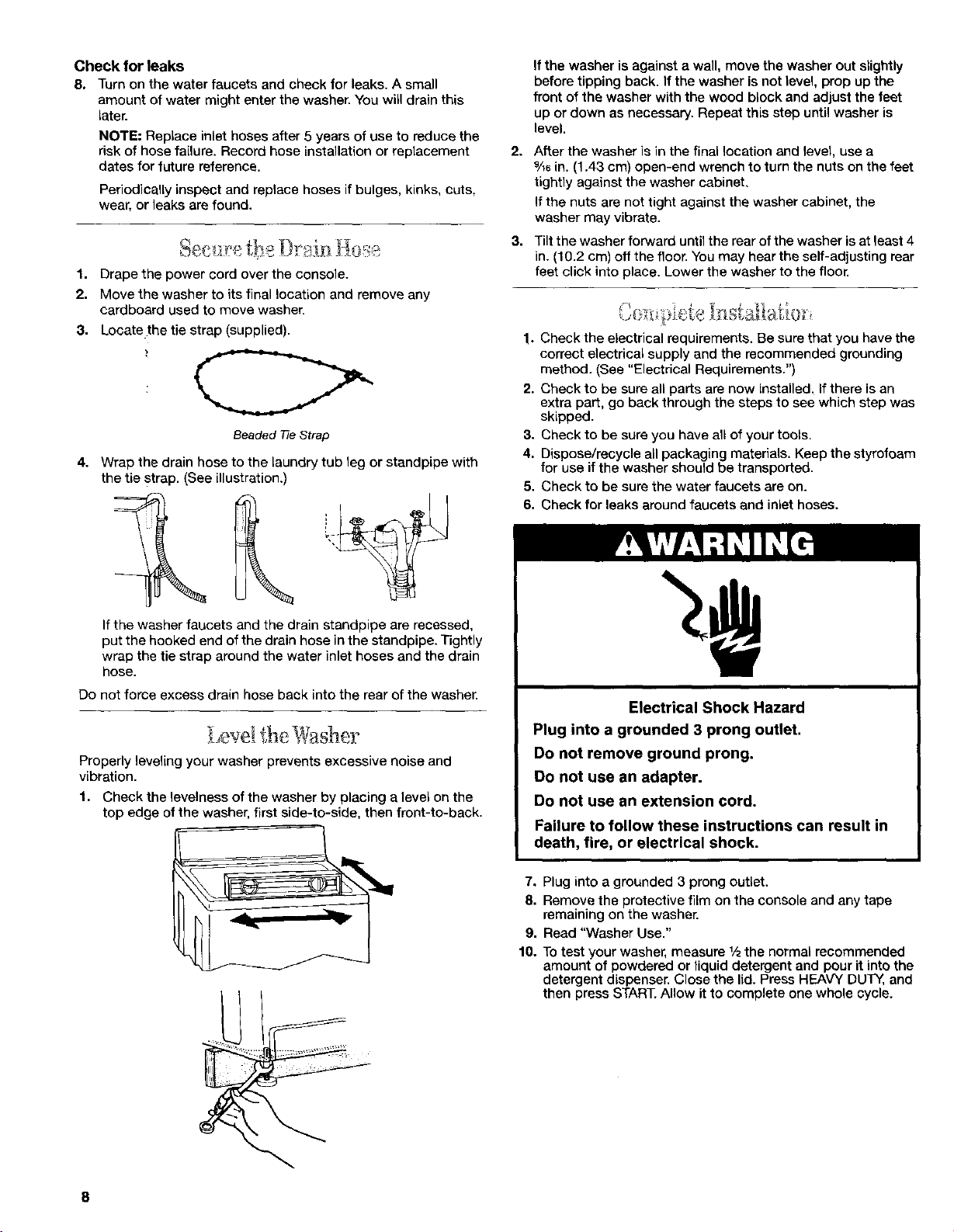

Secure the Drain Hose ................................................................. 8

Levelthe Washer .......................................................................... 8

Complete Installation ................................................................... 8

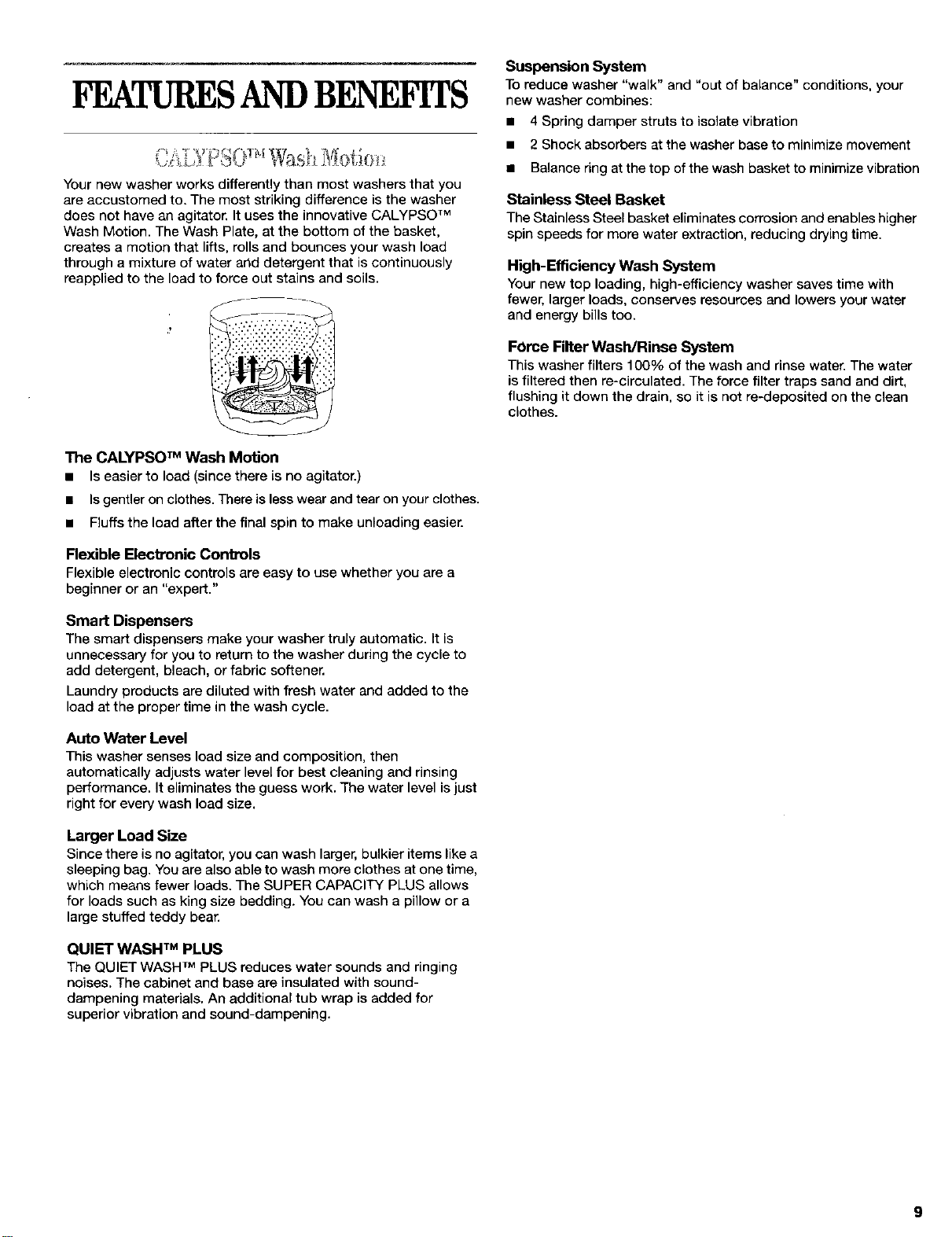

FEATURES AND BENEFITS ....................................................... 9

CALYPSO TM Wash Motion ........................................................... 9

WASHER USE ........................................................................... 10

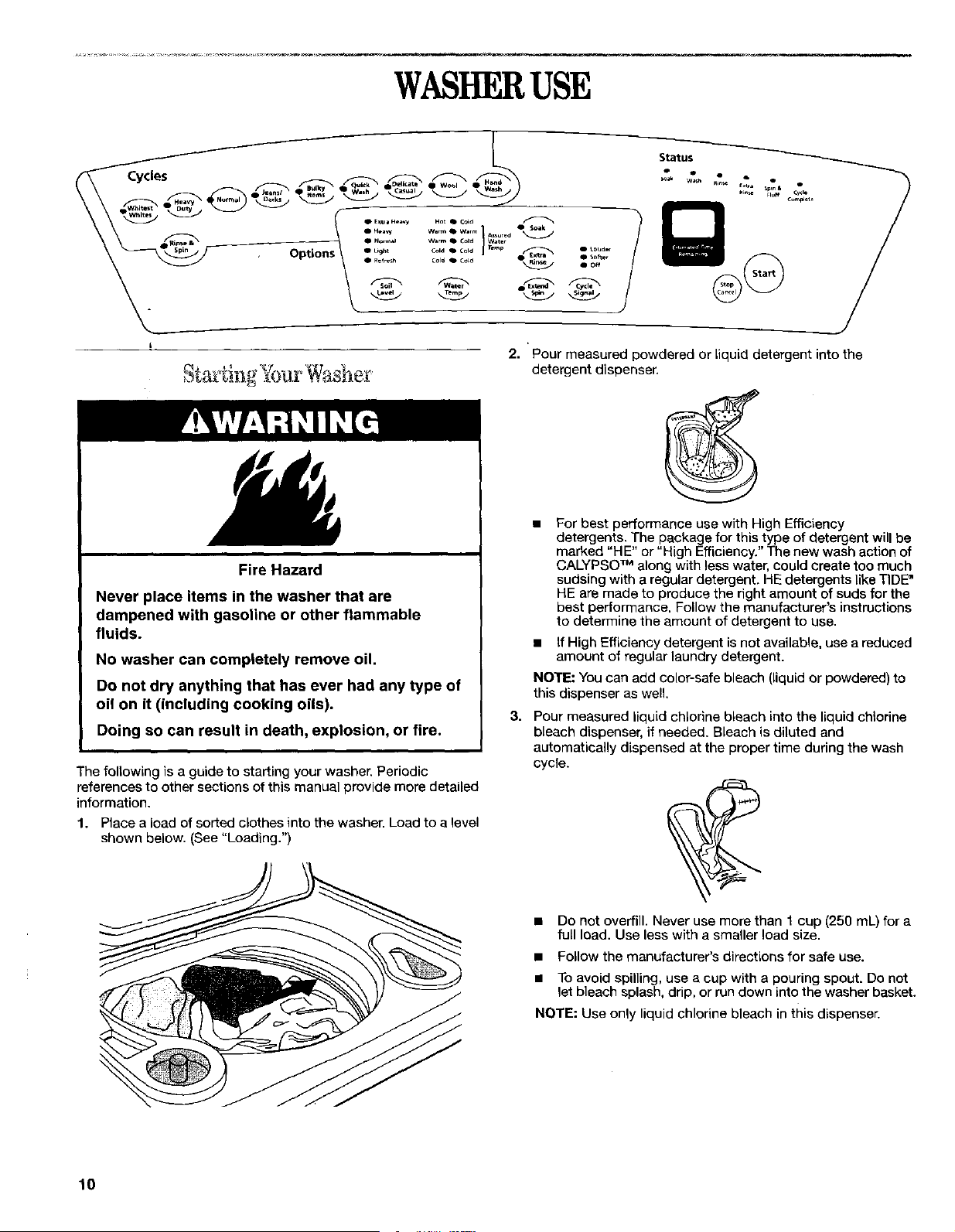

Starting Your Washer ................................................................. 10

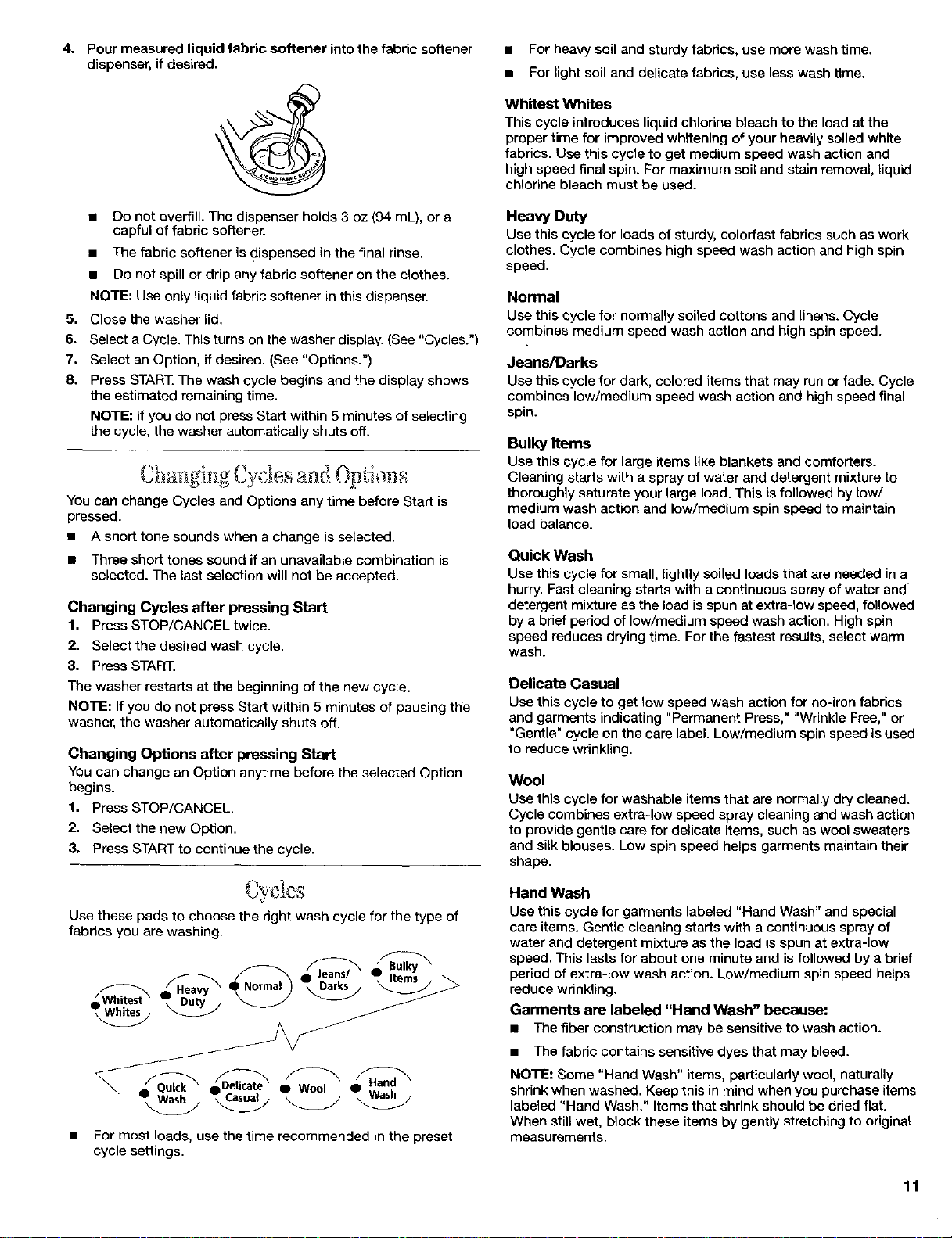

Changing Cycles and Options ................................................... 11

Cycles ......................................................................................... 11

What Happens in a Wash Cycle ................................................ 12

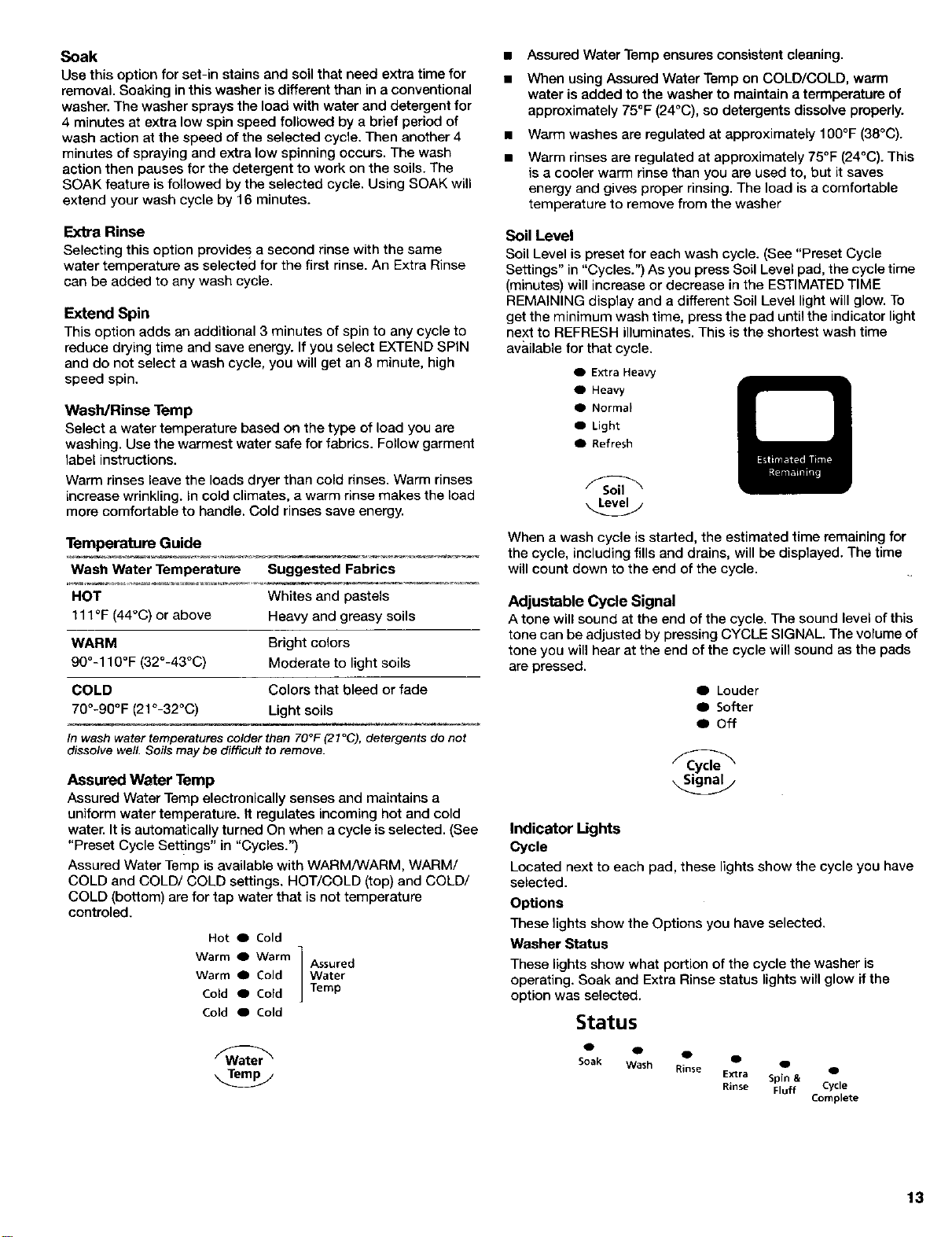

Options ....................................................................................... 12

LAUNDRY TIPS ......................................................................... 14

Loading....................................................................................... 14

WASHER CARE ........................................................................ 14

Cleaning Your Washer ............................................................... 14

Water Inlet Hoses ....................................................................... 14

Vacation, Storage, and Moving Care ......................................... 14

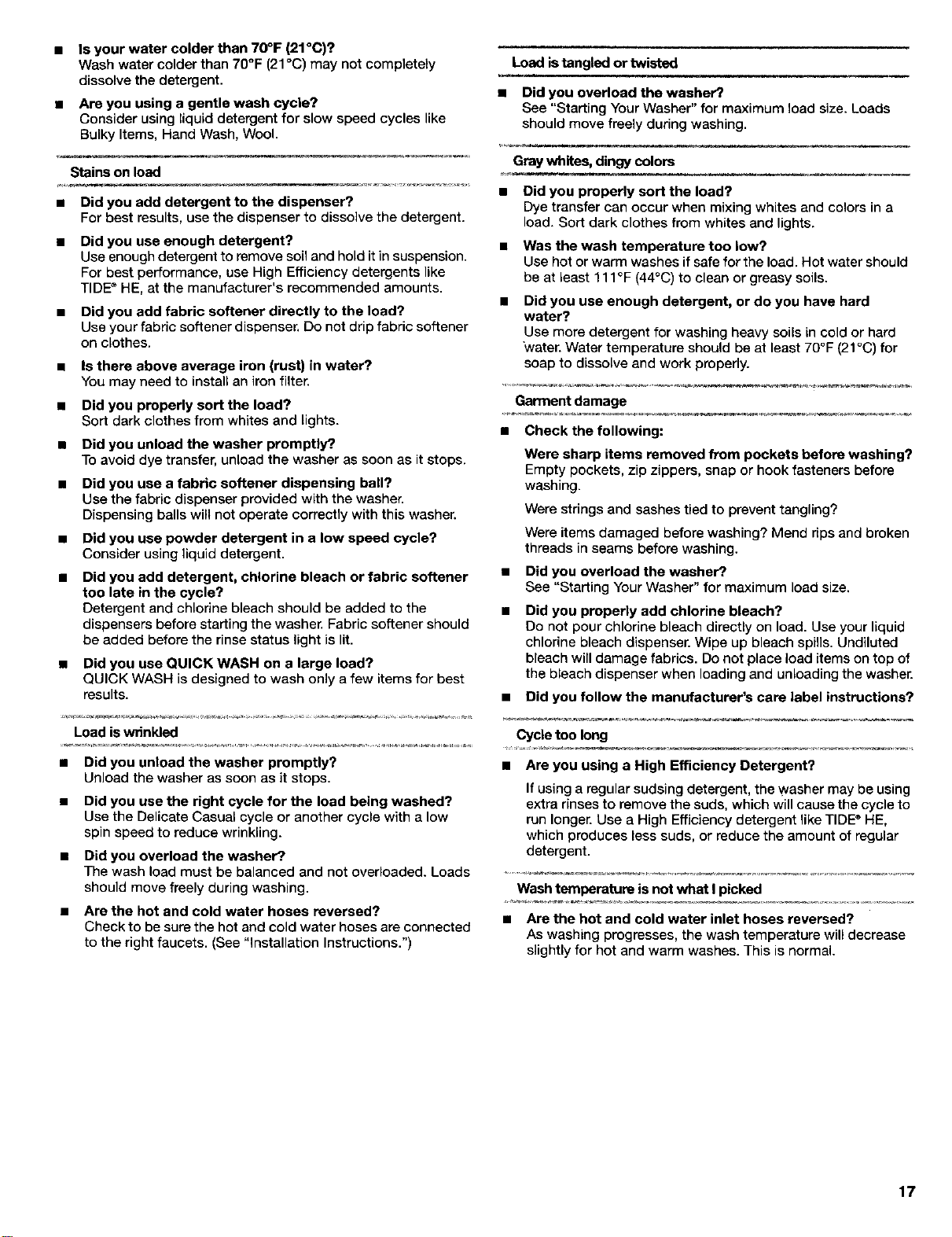

TROUBLESHOOTING ............................................................... 15

LID INSTRUCTIONS ................................................................. 18

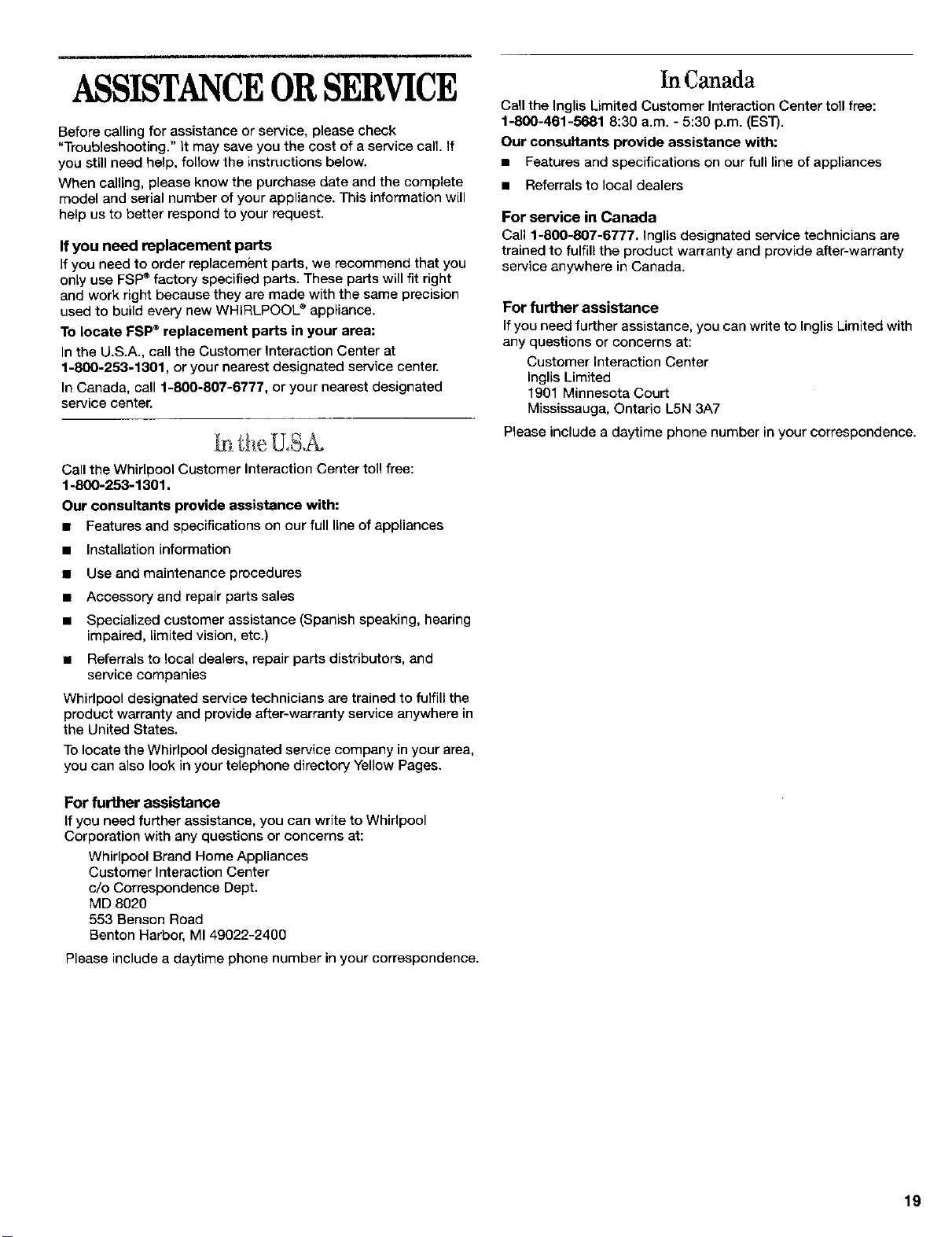

ASSISTANCE OR SERVICE ..................................................... 19

In the U.S.A................................................................................ 19

In Canada ................................................................................... 19

WARRANTY .............................................................................. 20

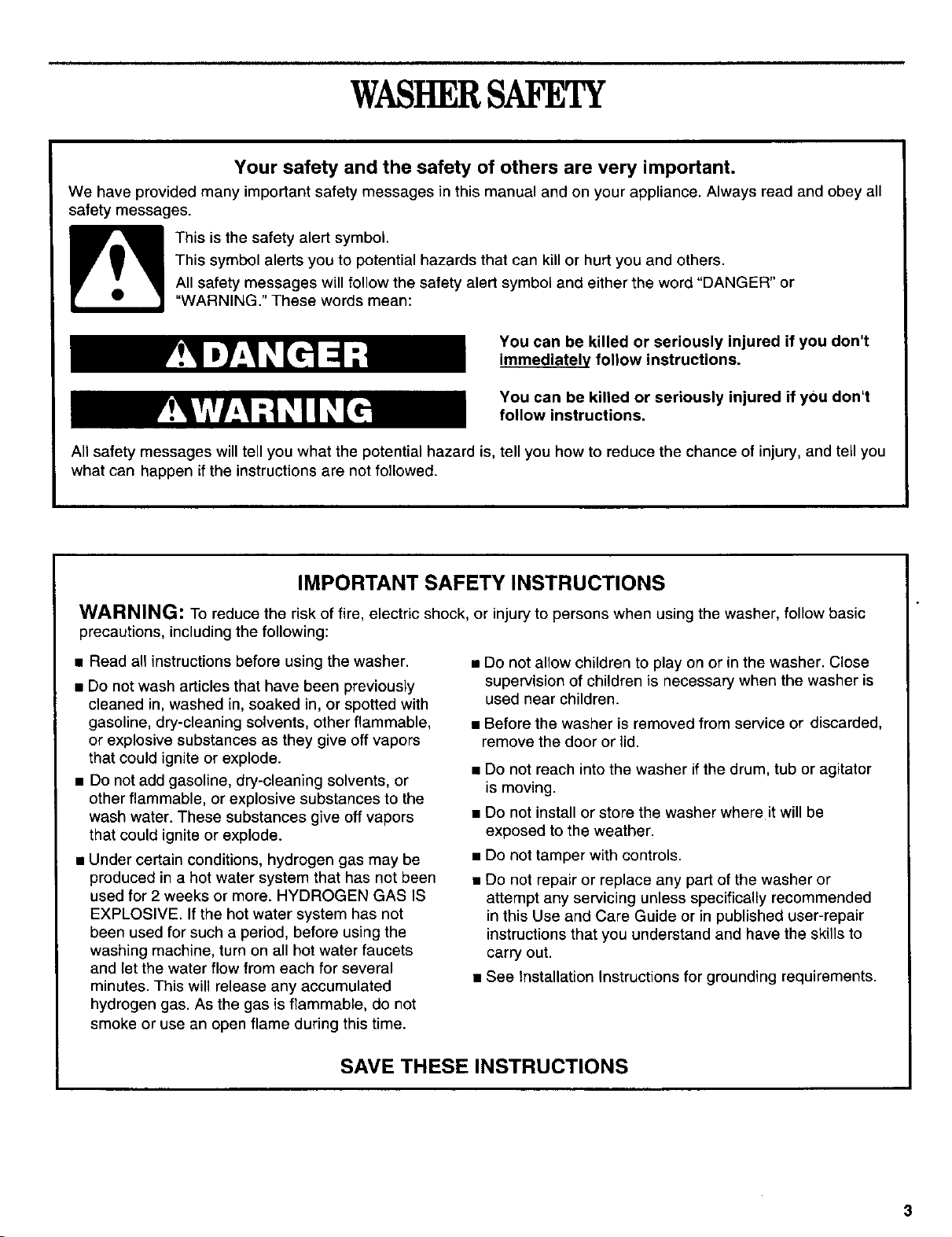

WASHERSAFETY

Your safety and the safety of others are very important.

We have provided many important safety messages in this manual and on your appliance. Always read and obey all

safety messages.

This is the safety alert symbol.

This symbol alerts you to potential hazards that can kill or hurt you and others.

All safety messages will follow the safety alert symbol and either the word "DANGER" or

"WARNING." These words mean:

You can be killed or seriously injured if you don't

immediately follow instructions.

You can be killed or seriously injured if you don't

follow instructions,

All safety messages will tell you what the potential hazard is, tell you how to reduce the chance of injury, and tell you

what can happen if the instructions are not followed.

IMPORTANT SAFETY INSTRUCTIONS

WARNING: To reduce the risk of fire, electric shock, or injuryto persons when using the washer, follow basic

precautions, including the following:

• Read all instructions before using the washer.

• Do not wash articles that have been previously

cleaned in, washed in, soaked in, or spotted with

gasoline, dry-cleaning solvents, other flammable,

or explosive substances as they give off vapors

that could ignite or explode.

• Do not add gasoline, dry-cleaning solvents, or

other flammable, or explosive substances to the

wash water. These substances give off vapors

that could ignite or explode.

• Under certain conditions, hydrogen gas may be

produced in a hot water system that has not been

used for 2 weeks or more. HYDROGEN GAS IS

EXPLOSIVE. If the hot water system has not

been used for such a period, before using the

washing machine, turn on all hot water faucets

and let the water flow from each for several

minutes. This will release any accumulated

hydrogen gas. As the gas is flammable, do not

smoke or use an open flame during this time.

• Do not allow children to play on or in the washer. Close

supervision of children is necessary when the washer is

used near children.

• Before the washer is removed from service or discarded,

remove the door or lid.

• Do not reach into the washer if the drum, tub or agitator

is moving.

• Do not install or store the washer where it will be

exposed to the weather.

• Do not tamper with controls.

Do not repair or replace any part of the washer or

attempt any servicing unless specifically recommended

in this Use and Care Guide or in published user-repair

instructions that you understand and have the skills to

carry out.

• See Installation Instructions for grounding requirements.

SAVETHESEINSTRUCTIONS

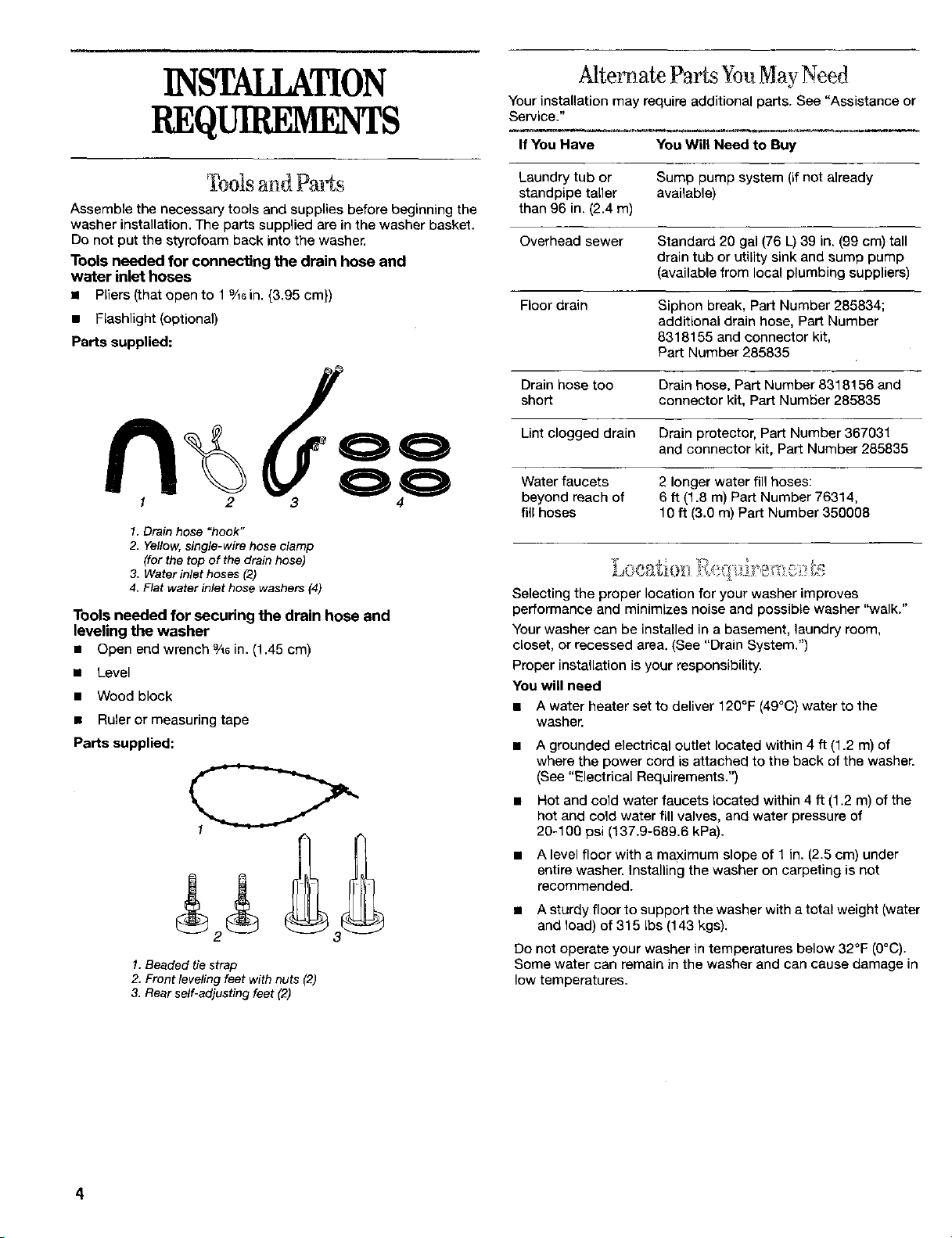

INSTAILATION

REQUIREMENTS

%olsand Parts

Assemble the necessary tools and supplies before beginning the

washer installation. The parts supplied are in the washer basket.

Do not put the styrofoam back into the washer.

Tools needed for connecting the drain hose and

water inlet hoses

• Pliers (that open to 1%6 in. {3.95 cm})

• Flashlight (optional)

Parts supplied:

1 2

1. Drain hose "hook"

2. Yellow, single-wire hose clamp

(for the top of the drain hose)

3. Water inlet hoses (2)

4. Flat water inlet hose washers (4)

Tools needed for securing the drain hose and

leveling the washer

• Open endwrench9/16in.(1.45cm)

• Level

= Wood block

• Ruler or measuring tape

Parts supplied:

1. Beaded tie strap

2. Front leveling feet with nuts (2)

3. Rear self-adjusting feet (2)

AlternateParts YouMayNeed

Your installation may require additional parts. See "Assistance or

Service."

If You Have You Will Need to Buy

Laundry tub or Sump pump system (if not already

standpipe taller available)

than 96 in, (2.4 m)

Overhead sewer Standard 20 gal (76 L) 39 in. (99 cm) tall

drain tub or utility sink and sump pump

(available from local plumbing suppliers)

Floor drain Siphon break, Part Number 285834;

additional drain hose, Part Number

8318155 and connector kit,

Part Number 285835

Drain hose too Drain hose, Part Number 8318156 and

short connector kit, Part Number 285835

Lint clogged drain Drain protector, Part Number 367031

and connector kit, Part Number 285835

Water faucets 2 longer water fill hoses:

beyond reach of 6 ft (1.8 m) Part Number 76314,

fill hoses 10 ft (3.0 m) Part Number 350008

Selecting the proper location for your washer improves

performance and minimizes noise and possible washer "walk."

Your washer can be installed in a basement, laundry room,

closet, or recessed area. (See "Drain System.")

Proper installation is your responsibility.

You will need

• A water heater set to deliver 120°F (49°C) water to the

washer.

= A grounded electrical outlet located within 4 ft (1.2 m) of

where the power cord is attached to the back of the washer.

(See "Electrical Requirements.")

Hot and cold water faucets located within 4 ft (1.2 m) of the

hot and cold water fill valves, and water pressure of

20-100 psi (137.9-689.6 kPa).

A level floor with a maximum slope of 1 in. (2.5 cm) under

entire washer, installing the washer on carpeting is not

recommended.

• A sturdy floor to support the washer with a total weight (water

and load) of 315 Ibs (143 kgs).

Do not operate your washer in temperatures below 32°F (0°C).

Some water can remain in the washer and can cause damage in

low temperatures.

Recessed area or closet installation

The dimensions shown are for the recommended spacing

allowed, except the closet door ventilation openings. The

dimensions shown for the closet door ventilation openings are

the minimum required.

{483o_]

24"z

(155 cmt)_

'0"-H.-: 2_"-_l,_ .o"_d "_ _,_" _-I4"

0c_ {686cm) (0_) (25cr_) (64B_m} (102r_)

(76_)

I. Front view

2. Side view

3. Closet door with vents

• Additional spacing should be considered for ease of

installation and servicing.

• Additional clearances might be required for wall, door and

floor moldings.

Additional spacing of 1 in. (2.5 cm) on all sides of the washer

is recommended to reduce noise transfer.

if a closet door is installed, the minimum air openings in the

top and bottom of the door are required. Louvered doors with

air openings in the top and bottom are acceptable.

• Companion appliance spacing should also be considered.

The washer can be installed using the standpipe drain system

(floor or wall), the laundry tub drain system, or the floor drain

system. Select the drain hose installation method you need. (See

"Alternate Parts You May Need.")

::_ 39"

I 2

Standpipe drain system - wall or floor (view I & 2)

The standpipe drain requires a minimum diameter standpipe of 2

in. (5 cm). The minimum carry-away capacity can be no less than

17 gal (64 L) per minute.

The top of the standpipe must be at least 39 in. (99 cm) high and

no higher than 96 in. (2.4 m) from the bottom of the washer.

1 2

Laundry tub drain system (view 1)

The laundry tub needs a minimum 20 gal (76 L) capacity. The top

of the laundry tub must be at least 39 in. (99 cm) above the floor

and no higher tha n 96 in. (2.4 m) from the bottom of the washer.

Floor drain system (view 2)

The floor drain system requires a siphon break that may be

purchased separately. (See Alternate Parts You May Need.")

The siphon break must be a minimun of 28 in. (71 cm) from the

bottom of the washer. Additional hoses might be needed.

ElectricalRequirements

Electrical Shock Hazard

Plug into a grounded 3 prong outlet.

Do not remove ground prong.

Do not use an adapter.

Do not use an extension cord.

Failure to follow these instructions can result in

death, fire, or electrical shock.

A 120-volt, 6O-Hz., AC-only, 15- or 20-ampere, fused

electrical supply is required. Time-delay fuse or circuit

breaker is recommended. It is recommended that a separate

circuit serving only this appliance be provided.

• This washer is equipped with a power supply cord having a 3

prong ground plug.

To minimize possible shock hazard, the cord must be

plugged into a mating, 3 prong, ground-type outlet, grounded

in accordance with local codes and ordinances. If a mating

outlet is not available, it is the personal responsibility and

obligation of the customer to have the properly grounded

outlet installed by a qualified electrician.

• If codes permit and a separate ground wire is used, it is

recommended that a qualified electrician determine that the

ground path is adequate.

• Do not ground to a gas pipe.

Check with a qualified electrician ifyou are not surethe

washer is properly grounded.

Do not have a fuse in the neutralor ground circuit.

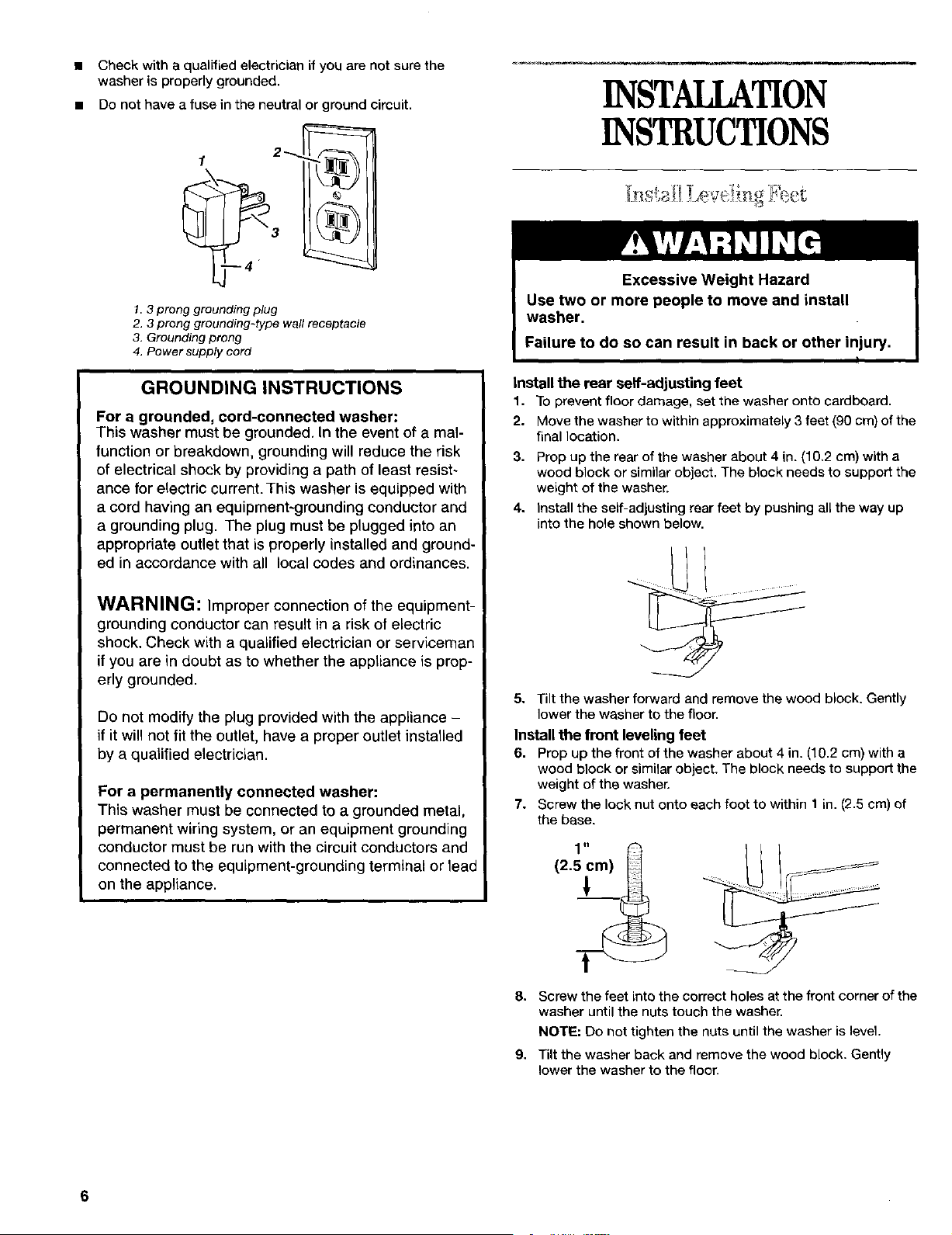

INSTAILATION

INSTRUCTIONS

1. 3 prong grounding plug

2. 3 prong grounding-type wall receptacle

3. Grounding prong

4. Power supply cord

GROUNDING INSTRUCTIONS

For a grounded, cord-connected washer:

This washer must be grounded. In the event of a mal-

function or breakdown, grounding will reduce the risk

of electrical shock by providing a path of least resist-

ance for electric current. This washer is equipped with

a cord having an equipment-grounding conductor and

a grounding plug. The plug must be plugged into an

appropriate outlet that is properly installed and ground-

ed in accordance with all local codes and ordinances.

WARNING: Improper connection of the equipment-

grounding conductor can result in a risk of electric

shock. Check with a qualified electrician or serviceman

ifyou are in doubt as to whether the appliance is prop-

erly grounded.

Do not modify the plug provided with the appliance -

if it will not fit the outlet, have a proper outlet installed

by a qualified electrician.

For a permanently connected washer:

This washer must be connected to a grounded metal,

permanent wiring system, or an equipment grounding

conductor must be run with the circuit conductors and

connected to the equipment-grounding terminal or lead

on the appliance.

Install the roar self-adjusting feet

1. To prevent floor damage, set the washer onto cardboard.

2. Move the washer to within approximately 3 feet (90 cm) ofthe

final location.

3. Prop up the rear of the washer about 4 in. (10,2 cm) with a

wood block or similar object. The block needs to support the

weight of the washer.

4. Install the self-adjusting rear feet by pushing all the way up

into the hole shown below.

5. Tilt the washer forward and remove the wood block. Gently

lower the washer to the floor.

Install the front leveling feet

6. Prop up the front of the washer about 4 in. (10.2 cm) with a

wood block or similar object. The block needs to support the

weight of the washer.

7. Screw the lock nut onto each foot to within 1 in. (2.5 cm) of

the base.

8. Screw the feet into the correct holes at the front corner of the

washer until the nuts touch the washer.

NOTE: Do not tighten the nuts until the washer is level.

9. Tilt the washer back and remove the wood block. Gently

lower the washer to the floor.

Connect the Drain Hose

Proper connection of the drain hose protects your floors from

damage due to water leakage. Carefully read and follow these

instructions.

The drain hose is connected to your washer and is stored inside

of the washer cabinet.

Remove drain hose from washer cabinet

Gently pull the corrugated drain hose out of the washer from the

top of the hose. Continue to pull the hose untilthe end emerges.

Do not force excess drain hose back into the rear of the washer.

Laundry tub drain or standpipe drain

Connecting the drain hose "hook" to the corrugated drain

hose

1. Open the yellow single-wire clamp and slide over the end of

the drain hose about 4 in. (10.2 cm) (Pliers optional.)

2. Wet the outside end of the drain hose with tap water. Do not

use any other lubricant.

3. Twist and push the "hook" back and forth while pushing

down onto the drain hose. Continue until the "hook" is down

to the enlarged diameter of the drain hose.

4. Open the yellow single-wire clamp (placed on the drain hose

earlier) and slide over the base of the drain hose "hook" to

secure the sections together. (Pliers optional.)

5. Put hooked end of drain hose into laundry tub or standpipe.

Rotate "hook" to eliminate kinks.

Connect the Inlet Hoses

1. Insert a new flat washer (supplied) into each end of the inlet

hoses. Firmly seat the washers in the couplings.

I. Coupling

2. Washer

Connect the inlet hoses to the water faucets

Make sure the washer basket is empty.

2. Attach the hose with the red coupling to the hot water faucet.

Screw on coupling by hand until seated on the washer.

3. Attach the hose with the blue coupling to the cold water

faucet. Screw on coupling by hand until seated on the

washer.

4. Using pliers, tighten the couplings with an additional two-

thirds turn.

NOTE: Do not overtighten. Damage to the valves can result.

Clear the water lines

5. Run water through both faucets and inlet hoses, into abucket

or laundry tub, to get rid of particles in the water lines that

might clog the inlet valve screens.

Connect the inlet hoses to the washer

6. Attach the hose with the blue coupling to the COLD (left) inlet

valve. Screw on coupling by hand until seated on the washer.

Using pliers, tighten the couplings with an additional two-

thirds turn.

NOTE: Do not overtighten. Damage to the valves can result.

To prevent drain water from going back into the washer:

• Do not straighten hooked end of the drain hose and force

excess drain hose into standpipe. Hose should be secure but

loose enough to provide a gap for air.

• Do not lay excess hose on the bottom of the laundry tub.

Floor drain

Do not install the drain hose "hook" on to the corrugated drain

hose. You may need additional parts. (See Floor Drain under

"Alternate Parts You May Need.")

I. Cold water inlet valve (blue)

2. Hot water inlet valve (red)

7. Attach the hose with the red coupling to the HOT water (right)

inlet valve. Screw on coupling by hand until seated on the

washer. Using pliers, tighten the couplings with an additional

two-thirds turn.

NOTE: Do not overtighten, Damage to the valves can result.

Check for leaks

8. Turn on the water faucets and check for leaks. A small

amount of water might enter the washer. You will drain this

later.

NOTE: Replace inlet hoses after 5 years of use to reduce the

risk of hose failure. Record hose installation or replacement

dates for future reference.

Periodically inspect and replace hoses if bulges, kinks, cuts,

wear, or leaks are found.

1. Drape the power cord over the console.

2. Move the washer to its final location and remove any

cardboard used to move washer.

3. Locate the tie strap (supplied).

:CZ>

Beaded Tie Strap

4. Wrap the drain hose to the laundry tub leg or standpipe with

the tie strap. (See illustration.)

If the washer faucets and the drain standpipe are recessed,

put the hooked end of the drain hose in the standpipe. Tightly

wrap the tie strap around the water inlet hoses and the drain

hose.

Do not force excess drain hose back into the rear of the washer.

Leve Washer

Properly leveling your washer prevents excessive noise and

vibration.

1. Check the levelness of the washer by placing a level on the

top edge of the washer, first side-to-side, then front-to-back.

If the washer is against a wall, move the washer out slightly

before tipping back. If the washer is not level, prop up the

front of the washer with the wood block and adjust the feet

up or down as necessary. Repeat this step until washer is

level.

After the washer is in the final location and level, use a

%6 in. (1.43 cm) open-end wrench to turn the nuts on the feet

tightly against the washer cabinet,

If the nuts are not tight against the washer cabinet, the

washer may vibrate.

Tilt the washer forward until the rear of the washer is at least 4

in. (10.2 cm) off the floor. You may hear the self-adjusting rear

feet click into place. Lower the washer to the floor.

!. Check the electrical requirements. Be sure that you have the

correct electrical supply and the recommended grounding

method. (See "Electrical Requirements.")

2. Check to be sure all parts are now installed. If there is an

extra part, go back through the steps to see which step was

skipped.

3. Check to be sure you have all of your tools.

4. Dispose/recycle all packaging materials. Keep the styrofoam

for use if the washer should be transported.

5. Check to be sure the water faucets are on.

6, Check for leaks around faucets and inlet hoses.

Electrical Shock Hazard

Plug into a grounded 3 prong outlet.

Do not remove ground prong.

Do not use an adapter.

Do not use an extension cord.

Failure to follow these instructions can result in

death, fire, or electrical shock.

7. Plug into a grounded 3 prong outlet.

8. Remove the protective film on the console and any tape

remaining on the washer.

9. Read "Washer Use."

10. To test your washer, measure 1/_the normal recommended

amount of powdered or liquid detergent and pour it into the

detergent dispenser. Close the lid. Press HEAVY DUTY, and

then press START. Allow it to complete one whole cycle.

FEATURESANDBENEFITS

Your new washer works differently than most washers that you

are accustomed to. The most striking difference is the washer

does not have an agitator. It uses the innovative CALYPSO TM

Wash Motion. The Wash Plate, at the bottom of the basket,

creates a motion that lifts, rolls and bounces your wash load

through a mixture of water ahd detergent that is continuously

reapplied to the load to force out stains and soils.

Suspension System

To reduce washer "walk" and "out of balance" conditions, your

new washer combines:

• 4 Spring damper struts to isolate vibration

• 2 Shock absorbers at the washer base to minimize movement

• Balance ring at the top of the wash basket to minimize vibration

Stainless Steel Basket

The Stainless Steel basket eliminates corrosion and enables higher

spin speeds for more water extraction, reducing drying time.

High-Efficiency Wash System

Your new top loading, high-efficiency washer saves time with

fewer, larger loads, conserves resources and lowers your water

and energy bills too.

FOrce Filter Wash/Rinse System

This washer filters 100% of the wash and rinse water. The water

is filtered then re-circulated. The force filter traps sand and dirt,

flushing it down the drain, so it is not re-deposited on the clean

clothes.

The CALYPSO TM Wash Motion

• Is easier to load (since there is no agitator.)

• Isgentler on clothes. There is less wear and tear on your clothes.

• Fluffs the load after the final spin to make unloading easier.

Rexible Elecb'onic Controls

Flexible electronic controls are easy to use whether you are a

beginner or an "expert."

Smart Dispensers

The smart dispensers make your washer truly automatic, it is

unnecessary for you to return to the washer during the cycle to

add detergent, bleach, or fabric softener.

Laundry products are diluted with fresh water and added to the

load at the proper time in the wash cycle.

Auto Water Level

This washer senses load size and composition, then

automatically adjusts water level for best cleaning and rinsing

performance. It eliminates the guess work. The water level isjust

right for every wash load size.

Larger Load Size

Since there is no agitator, you can wash larger, bulkier items like a

sleeping bag. You are also able to wash more clothes at one time,

which means fewer loads. The SUPER CAPACITY PLUS allows

for loads such as king size bedding. You can wash a pillow or a

large stuffed teddy bear.

QUIET WASH TM PLUS

The QUIET WASH TM PLUS reduces water sounds and ringing

noises. The cabinet and base are insulated with sound-

dampening materials. An additional tub wrap is added for

superior vibration and sound-dampening.

WASHERUSE

Sta mg our Washt r

e_HH_ Status

HeaW _ O_,ks _ _ _ C_l_t

lunni

e u_a_/ wa,m Q warm _sured O_

' 2. Pour measured powdered or Liquid detergent into the

detergent dispenser.

Fire Hazard

Never place items in the washer that are

dampened with gasoline or other flammable

fluids.

No washer can completely remove oil.

Do not dry anything that has ever had any type of

oil on it (including cooking oils).

Doing so can result in death, explosion, or fire.

The following is a guide to starting your washer, Periodic

references to other sections of this manual provide more detailed

information.

1. Place a load of sorted clothes into the washer. Load to a level

shown below. (See "Loading.")

For best performance use with High Efficiency

detergents. The package for this type of detergent will be

marked "HE" or "High Efficiency." The new wash action of

CALYPSO TM along with less water, could create too much

sudsing with a regular detergent. HE detergents like TIDE"

HE are made to produce the right amount of suds for the

best performance. Follow the manufacturer's instructions

to determine the amount of detergent to use.

• If High Efficiency detergent is not available, use a reduced

amount of regular laundry detergent.

NOTE: You can add color-safe bleach (liquid or powdered) to

this dispenser as well.

3. Pour measured liquid chlorine bleach into the liquid chlorine

bleach dispenser, if needed. Bleach is diluted and

automatically dispensed at the proper time during the wash

cycle.

• Do not overfill. Never use more than 1 cup (250 mL) for a

full load. Use less with a smaller load size.

• Follow the manufacturer s directions for safe use.

• To avoid spilling, use a cup with a pouring spout. Do not

let bleach splash, drip, or run down into the washer basket.

NOTE: Use only liquid chlorine bleach in this dispenser.

4. Pour measured liquid fabric softener into the fabric softener

dispenser, if desired.

• Do not overfill. The dispenser holds 3 oz (94 mL), or a

capful of fabric softener.

• The fabric softener is dispensed in the final rinse.

• Do not spill or drip any fabric softener on the clothes.

NOTE: Use only liquid fabric softener in this dispenser.

5. Close the washer lid.

6. Select a Cycle. This turns on the washer display. (See "Cycles.")

7. Select an Option, if desired. (See "Options.")

8. Press START.The wash cycle begins and the display shows

the estimated remaining time.

NOTE: If you do not press Start within 5 minutes of selecting

the cycle, the washer automatically shuts off.

You can change Cycles and Options any time before Start is

pressed.

• A short tone sounds when a change is selected.

• Three short tones sound if an unavailable combination is

selected. The last selection will not be accepted.

Changing Cycles after pressing Start

1. Press STOP/CANCELtwice.

2. Select the desired wash cycle.

3. Press START.

The washer restarts at the beginning of the new cycle.

NOTE: If you do not press Start within 5 minutes of pausing the

washer, the washer automatically shuts off.

Changing Options after pressing Start

You can change an Option anytime before the selected Option

begins.

1. Press STOP/CANCEL

2. Select the new Option.

3. Press START to continue the cycle.

Cycles

Use these pads to choose the right wash cycle for the type of

fabrics you are washing.

\ . woo,

• For most loads, use the time recommended in the preset

cycle settings.

• For heavy soil and sturdy fabrics, use more wash time.

• For light soil and delicate fabrics, use less wash time.

Whitest Whites

This cycle introduces liquid chlorine bleach to the load at the

proper time for improved whitening of your heavily soiled white

fabrics. Use this cycle to get medium speed wash action and

high speed final spin. For maximum soil and stain removal, liquid

chlorine bleach must be used.

Heavy Duty

Use this cycle for loads of sturdy, colorfast fabrics such as work

clothes. Cycle combines high speed wash action and high spin

speed.

Normal

Use this cycle for normany soiled cottons and linens. Cycle

combines medium speed wash action and high spin speed.

Jeans/Darks

Use this cycle for dark, colored items that may run or fade. Cycle

combines low/medium speed wash action and high speed final

spin.

Bulky Items

Use this cycle for large items Likeblankets and comforters.

Cleaning starts with a spray of water and detergent mixture to

thoroughly saturate your large load. This is followed by low/

medium wash action and low/medium spin speed to maintain

load balance.

Quick Wash

Use this cycle for small, lightly soiled loads that are needed in a

hurry. Fast cleaning starts with a continuous spray of water and'

detergent mixture as the load is spun at extra-low speed, followed

by a brief period of low/medium speed wash action. High spin

speed reduces drying time. For the fastest results, select warm

wash.

Delicate Casual

Use this cycle to get low speed wash action for no-iron fabrics

and garments indicating "Permanent Press," "Wrinkle Free," or

"Gentle" cycle on the care label. Low/medium spin speed is used

to reduce wrinkling.

Wool

Use this cycle for washable items that are normally dry cleaned.

Cycle combines extra-low speed spray cleaning and wash action

to provide gentle care for delicate items, such as wool sweaters

and silk blouses. Low spin speed helps garments maintain their

shape.

Hand Wash

Use this cycle for garments labeled "Hand Wash" and special

care items. Gentle cleaning starts with a continuous spray of

water and detergent mixture as the load is spun at extra-low

speed. This lasts for about one minute and is followed by a brief

period of extra-low wash action. Low/medium spin speed helps

reduce wrinkling.

Garments are labeled "Hand Wash" because:

• The fiber construction may be sensitive to wash action.

• The fabric contains sensitive dyes that may bleed.

NOTE: Some "Hand Wash" items, particularly wool, naturally

shrink when washed. Keep this in mind when you purchase items

labeled "Hand Wash." Items that shrink should be dried flat.

When still wet, block these items by gently stretching to original

measurements.

Preset Cycle Settings

For ease of use, preset cycle settings provide the recommended

fabric care settings for each cycle.

To use the preset cycle settings:

1. Select the cycle you want by preesLngone of the pads under

CYCLES. The preset cycle settings will be displayed (see

chart below).

2. Press START. The wash cycle will begin,

PRESET CYCLE SETTING

Cycle Preset Soil Level Wash/Rinse

Minutes Temperature

(Total Time)

WHITEST 49 Normal Hot/Cold

WHITES (Not

Temperature

Controled)

HEAVY DUTY 53 Extra Heavy Warm/Cold

NORMAL 44 Normal Warm/Cold

JEANS/DARKS 44 Normal Warm/Cold

BULKY ITEMS 44 Normal Warm/Cold

QUICK WASH 23 Refresh Warm/Cold

DELICATE 38 Normal Warm/Cold

CASUAL

WOOL 28 Refresh Cold/Cold

HAND WASH 30 Refresh Cold/Cold

Total Cycle Tme in minutes will appear in the display while making

selections. The total cycle time will remain, including an estimated time

for drain and fill times, once Start is pressed.

After you have loaded the washer, selected the cycle and options

and you have pressed START, your washer does the following:

Distributes the load

• Load is initially fluffed to distribute the load before water is

added.

Fills

• Water enters through the dispenser to mix with the detergent.

Water continues to be added until the load is soaked and just

enough water is present to maintain the spray. This way of

washing and rinsing uses less water and makes the detergent

more effective in cleaning your clothes. As a result, you will

only see a wet load and not a full tub of water, if you open the

lid.

Washes

• As the washer continues to fill, a low speed spin begins and

the detergent/water mixture is sprayed on to the load.

The spinning stops and the CALYPSO TM Wash Motion

begins, while the wash water continues to be sprayed on to

the moving load. The length of wash depends on the cycle

and wash time selected.

• The CALYPSO TM Wash Motion features five wash speeds in

combination with low-speed spin sprays for a variety of fabric

care needs.

• Liquid chlorine bleach is dispensed in the last 2-3 minutes of

the wash cycle to help ensure the best cleaning results.

• The wash water is then drained and spun out before rinsing

begins.

Rinses

Rinsing is accomplished in the same manner as washing.

Fresh water is added to a slow spinning load. Then the load

moves through the spray rinses. The water is then drained

away and the rinsing process is repeated. The number of

rinses varies depending on the cycle.

• During the last rinse, fabric softener is dispensed into the

bottom of the tub and applied to the load.

Final Spin

• The last of the rinse water is drained and the load isspun.

The amount of spinning depends on the cycle selected.

To make unloading easy the load is peeled off the sides of the

basket by the CALYPSO TM Wash Motion.

Normal Washer Sounds

As with any new product, you will hear sounds that you are not

accustomed to. You may hear various sounds occurring during

the washing, rinsing and spinning process. Between changes in

wash actions, there will be momentary pauses. You will hear

water spraying and splashing during the wash and rinse cycles.

These new sounds and pauses are part of normal washer

operation. (See "Troubleshooting.")

Use options to customize your wash cycles.

• Soak

Rinse & Spin

Use this option to get a combination of rinses and spins followed

by a high-speed spin. The time display will include an estimate of

how Longit will take to fill and drain the washer. Fabric softener

can be added to the Fabric Softener dispenser.

When to use Rinse & Spin

• For loads that need rinsing only.

• For completing a cycle after the power has been off.

• To add fabric softener to load.

To use or change Rinse & Spin settings:

1. Add fabric softener to the dispenser (ifdesired).

2. Press the RINSE & SPIN control until the RINSE & SPIN

indicator light glows.

3. Press START.

Soak

Use this option for set-in stains and soil that need extra time for

removal. Soaking in this washer is different than in a conventional

washer. The washer sprays the load with water and detergent for

4 minutes at extra low spin speed followed by a brief period of

wash action at the speed of the selected cycle. Then another 4

minutes of spraying and extra low spinning occurs. The wash

action then pauses for the detergent to work on the soils. The

SOAK feature is followed by the selected cycle. Using SOAK will

extend your wash cycle by 16 minutes.

Exb'a Rinse

Selecting this option provides a second rinse with the same

water temperature as selected for the first rinse. An Extra Rinse

can be added to any wash cycle.

Extend Spin

This option adds an additional 3 minutes of spin to any cycle to

reduce drying time and save energy. If you select EXTEND SPIN

and do not select a wash cycle, you will get an 8 minute, high

speed spin.

Wash/Rinse Temp

Select a water temperature based on the type of load you are

washing. Use the warmest water safe for fabrics. Follow garment

label instructions.

Warm rinses leave the loads dryer than cold rinses. Warm rinses

increase wrinkling, in cold climates, a warm rinse makes the load

more comfortable to handle. Cold rinses save energy.

Temperature Guide

Wash Water Temperature Suggested Fabrics

HOT Whites and pastels

111°F (44°C) or above Heavy and greasy soils

WARM Bright colors

90°-110°F (32°-43°C) Moderate to light soils

COLD Colors that bleed or fade

70°-90°F (21°-32°C) Light soils

In wash water temperatures colder than 70°F(21°C),detergents do not

dissolve well. Soilsmay be difficult to remove.

Assured Water Temp

Assured Water Temp electronically senses and maintains a

uniform water temperature. It regulates incoming hot and cold

water. It is automatically turned On when acycle is selected. (See

"Preset Cycle Settings" in "Cycles.")

Assured Water Temp is available with WARM/WARM, WARM/

COLD and COLD/COLD settings. HOT/COLD (top) and COLD/

COLD (bottom) are for tap water that is not temperature

controled.

Hot • Cold

Warm O Warm Assured

Warm • Cold Water

Cold • Cold Temp

Cold • Cold

• Assured Water Temp ensures consistent cleaning.

• When using Assured Water Temp on COLD/COLD, warm

water is added to the washer to maintain a termperature of

approximately 75°F (24°C), so detergents dissolve properly.

• Warm washes are regulated at approximately 100°F (38°C).

• Warm rinses are regulated at approximately 75°F (24°C). This

is a cooler warm rinse than you are used to, but it saves

energy and gives proper rinsing. The load is a comfortable

temperature to remove from the washer

Soil Level

Soil Level is preset for each wash cycle. (See "Preset Cycle

Settings" in "Cycles.") As you press Soil Level pad, the cycle time

(minutes) will increase or decrease in the ESTIMATED TIME

REMAINING display and a different Soil Level light will glow. To

get the minimum wash time, press the pad until the indicator light

next to REFRESH illuminates. This is the shortest wash time

available for that cycle.

O Extra Heavy

O Heavy

• Normal

• Light

• Refresh

When a wash cycle is started, the estimated time remaining for

the cycle, including fills and drains, will be displayed. The time

will count down to the end of the cycle.

Adjustable Cycle Signal

A tone will sound at the end of the cycle. The sound level of this

tone can be adjusted by pressing CYCLE SIGNAL. The volume of

tone you will hear at the end of the cycle will sound as the pads

are pressed.

• Louder

• Softer

• Off

Indicator Ughts

Cycle

Located next to each pad, these lights show the cycle you have

selected.

Options

These lights show the Options you have selected.

Washer Status

These lights show what portion of the cycle the washer is

operating. Soak and Extra Rinse status lights will glow if the

option was selected.

Status

Soak Wash Rinse

Extra Spin &

Rinse Fluff Cycle

Complete

Operating Controls

Start

Press START to start your washer after a cycle has been

selected. Be sure all desired Options have been selected. The lid

must be closed for the washer to start.

Stop/Cancel

Press STOP/CANCEL once to pause or stop the washer at any

time. Press START to complete the cycle from where it was

stopped. Press STOP/CANCEL twice to turn off the washer.

LAUNDRYTIPS

Preparing clothes for washing

Follow these recommendations to help you prolong the life of

your garments.

• Close zippers, snaps, and hooks to avoid snagging other

items. Remove pins, buckles, and other hard objects to avoid

scratching the washer interior. Remove non-washable trim

and ornaments.

• Empty pockets and turn them inside out.

• Turn down cuffs, brush away lint and dirt.

• Turn synthetic knits inside out to avoid pilling.

• Tie strings and sashes so they will not tangle.

• Mend tears, loose hems, and seams.

• Treat spots and stains.

• Stained or wet garments should be washed promptly for best

results.

Sorting

• Separate heavily soiled items from lightly soiled ones, even if

they would normally be washed together. Separate lint givers

(towels, chenille) from lint takers (corduroy, synthetics,

permanent press). When possible, turn lint givers inside out.

• Separate dark colors from light colors, colorfast items from

non-colorfast items.

• Sort by fabric and construction (sturdy cottons, knits, delicate

items).

Loading suggestions (maximum size loads).

Super Capacity Plus Washers

Heavy Work Clothes

4 jeans 2 sweatpants

4 workpants 2 sweatshirfs

4 workshirts

Towels

10 bath towels 14 wash cloths

10 hand towels

Mixed Load

3.sheets (1 king, 2 twin) 9 T-shirts

4 pillowcases 9 shorts

3 shirts 10 handkerchiefs

3 blouses

WASHERCARE

Cleaning Your Washer

Cleaning the exterior

Use a soft, damp cloth or sponge to wipe up any spills such as

detergent or bleach. Occasionally wipe the outside of your

washer to keep it looking new.

Cleaning the interior

To clean your washer interior, add 1 cup (250 mL) of chlorine

bleach and 2 scoops or caps full of detergent into your dispenser,

and run a complete cycle using hot water. Repeat this process if

necessary.

NOTE: Remove any hard water deposits using only cleaners

labeled as washer safe.

WaterI,tet i ioses

Replace inlet hoses after five years of use to reduce the risk of

hose failure. Periodically inspect and replace inlet hoses if

bulges, kinks, cuts, wear or leaks are found.

When replacing your inlet hoses, mark the date of replacement

on the label with a permanent marker.

Install and store your washer where itwill not freeze. Because

some water may stay in the hoses, freezing can damage your

washer. If storing or moving your washer during freezing weather,

winterize it.

Non-use or vacation care:

Operate your washer only when you are at home. If you will be on

vacation or not using your washer for an extended period of time,

you should:

• Unplug washer or disconnect power.

• Turn off the water supply to the washer. This helps avoid

accidental flooding (due to a water pressure surge) while you

are away.

To winterize washer.

1. Shut off both waterfaucets.

2. Disconnect and drain water inlet hoses.

3. Put 1 quart (1 L) of R._-type antifreeze in the basket.

4. Run washer on an Extend Spin cycle. •

5. Unplug washer or disconnect power.

To use washer again:

1. Flush water pipes and hoses. •

2. Reconnect water inlet hoses,

3. Turn on both water faucets. •

4. Plug in washer or reconnect power.

5. Run the washer through the Normal cycle with 1 scoop or

cap full of detergent to clean out antifreeze.

To transport the washer.

1. Shut off both water faucets.

2. Disconnect and drain water inlet hoses.

3. If washer will be moved during freezing weather, put in a

quart (1 L) of R.V.-type antifreeze in the basket. Run washer

on an Extend Spin cycle.

4. Disconnect the drain from the drain system.

5. Unplug the power cord.

6. Place the inlet hoses into the basket.

7. Drape the power cord and drain hose over edge and into the

basket.

8. Place the styrofoam plug retained from the washer's shipping

material into basket opening. Close the lid and put a piece of

tape over the lid and down to the front of the washer,

Re-installing the washer •

1. Follow the "Installation Instructions" to locate, level and

connect the washer.

2. Run the washer through the Normal cycle with 1 scoop or

cap full of detergent to clean the washer and remove the

antifreeze, if used.

....... ......... =

TROUBLESHOOTING

First try the solutions suggested here and possibly avoid

the cost of a service call,..

Washer displaying code messages.

If any of these codes continue to occur, cell for service.

"PF" (Power Failure) flashes

Was the washing cycle interrupted by a power failure? Press

START to continue the cycle from the moment that power

was lost, - OR - Press STOP/CANCEL to clear the display

and completely cancel the cycle.

"FL" (Over Fill) flashes

The washer will beep every 10 seconds with no time-out, The

pump will cycle one half minute on, one half minute off, until

the over fill switch is reset or power is discontinued to the

unit. Press STOP/CANCEL to clear the display. Shut off the

water faucets to the inlet hoses if water continues to flow.

• "Er" (Processor Reset Error)

Cycle information was not stored during a power failure.
